SNV-8081RN/P

VIDEO

Imaging Device 1/1.8" 6M CMOS

Total Pixels 3,096(H) x 2,094(V)

Effective Pixels 2,616(H) x 1,976(V)

Scanning System Progressive

Min. Illumination

5M mode - Color : 0.25Lux (1/30sec, F1.2, 50IRE), 0.004Lux (2sec, F1.2, 50IRE)

0.1Lux (1/30sec, F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE)

2M mode - Color : 0.25Lux(1/30sec, F1.2, 50IRE), 0.004Lux (2sec, F1.2, 50IRE)

0.1Lux(1/30sec, F1.2, 30IRE), 0.0017Lux (2sec, F1.2, 30IRE)

B/W : 0Lux (IR LED on)

S / N Ratio 50dB

Video Output CVBS : 1.0 Vpp / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation

DIP connector type

LENS

Focal Length (Zoom Ratio) 3.6 ~ 9.4mm (2.6x) motorized varifocal

Max. Aperture Ratio F1.2

Angular Field of View H : 104.0°(Wide) ~ 39.2°(Tele) / V : 75.2°(Wide) ~ 29.3°(Tele)

Min. Object Distance 0.5m (1.64ft)

Focus Control

Simple focus (Motorized V/F) / Manual, Remote control via network (Manual, Simple focus)

Lens Type / Mount Type DC auto iris, support P-Iris mode / Board-in type

LDC (Lens Distortion Correction) Off / On (Level adjustment : 1 ~ 5)

PAN / TILT / ROTATE

Pan / Tilt / Rotate Range 0° ~ 354° / 0° ~ 67° / 0° ~ 355°

OPERATIONAL

Viewable Length 30m (98.43ft)

Camera Title Off / On (Displayed up to 15 characters)

Day & Night Auto (ICR) / Color / B/W / External / Schedule

Backlight Compensation Off / BLC / WDR

Wide Dynamic Range 120dB

Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)

Digital Noise Reduction SSNR

III

(2D+3D noise filter) (Off / On)

Motion Detection Off / On (4ea, Rectangle)

Privacy Masking Off / On (6ea, Rectangle) - Color : Black / Blue / Red / Grey / White

Gain Control Off / Low / Medium / High

White Balance ATW / AWC / Manual / Indoor / Outdoor (Include mecury & Sodium)

Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)

Flip / Mirror Off / On, Hallway : 90° /270°

Intelligent Video Analytics Tampering, Audio detection - with metadata

Alarm I/O Input 1ea / Output 1ea

Alarm Triggers Alarm input, Motion detection, Intelligent video analytics, Network disconnect

Alarm Events File upload via FTP and E-mail, Notification via E-mail, TCP

Local storage (SD/SDHC) or NAS recording at event triggers, External output

Pixel Counter Support

Web Viewer Help Support (English only)

NETWORK

Ethernet RJ-45 (10/100BASE-T)

Video Compression Format H.265 : Main, H.264 (MPEG-4 part 10/AVC) : Main / Baseline / High, MJPEG

Resolution

5M mode : 2592 x 1944, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 960,

1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240

2M mode : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,

800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240

Max. Framerate

5M mode - H.265 / H.264 : 30fps in all resolutions

MJPEG : more than 800 x 600 : 1fps, equal or less than 800 x 600 : 15fps

2M mode - H.265 / H.264 : 60fps in all resolutions

MJPEG : more than 800 x 600 : 1fps, equal or less than 800 x 600 : 15fps

Smart Codec Manual mode (Area-based : 4ea)

Video Quality Adjustment

H.265 / H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control

Bitrate Control Method H.265 / H.264 : CBR or VBR, MJPEG : VBR

Streaming Capability Multiple streaming (Up to 3 profiles)

Audio In Selectable (Mic in / Line in)

Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm

Audio Out Line out (3.5mm stereo mini jack), Max output level : 1Vrms

Audio Compression Format G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz

G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps

Audio Communication Bi-directional audio (2-way)

IP IPv4, IPv6

Protocol

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE, FTP,

SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

Security HTTPS(SSL) login authentication, Digest login authentication

IP address filtering, User access log, 802.1x authentication (EAP-TLS, EAP-LEAP)

Streaming Method Unicast / Multicast

Max. User Access 10 users at unicast mode

Edge Storage SD/SDHC/SDXC (128GB) - Motion images recorded in the SD/SDHC/SDXC memory card

can be downloaded, NAS (Network Attached Storage), Local PC for instant recording

Application Programming Interface

ONVIF profile S, SUNAPI (HTTP API), SVNP, Samsung Techwin Open Platform

Webpage Language

English, French, German, Spanish, Italian, Chinese, Russian, Japanese, Swedish, Danish,

Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek

Web Viewer

Supported OS : Windows XP / VISTA / 7 / 8 /8.1 or higher, MAC OS X 10.7

Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11),

Mozilla Firefox (Ver. 9 ~ 19), Google Chrome (Ver. 15 ~ 25),

Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only

Central Management Software SmartViewer, SSM

ENVIRONMENTAL

Operating Temperature / Humidity

-40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH

*Start up should be done at above -35°C (-31°F)

Storage Temperature / Humidity -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection / Vandal Resistance

IP66 / IK10

ELECTRICAL

Input Voltage / Current 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af, Class3)

Power Consumption

Max. 12.0W/13.5W (24V AC, Heater off / on), Max. 10.0W/11.5W (12V DC, Heater off / on),

Max. 11.5W/12.95W (PoE

, Heater off / on

)

MECHANICAL

Color / Material Ivory / Aluminum

Dimensions (WxHxD) Ø160.0 x 118.5mm (Ø6.3" x 4.67")

Weight 995g (2.9 lb)

Dimensions Unit : mm (inch)

Accessories (Optional)

118.5 (4.67")

Ø160.0 (6.3")Ø100.0 (3.94")

Ø100.0 (3.94") Ø160.0 (6.3")

118.5 (4.67")

SBP-300LMSBP-300HM6 SBP-300CM SBP-300WM1 SBP-300WM

SBP-300B

SHD-3000F1

SBP-300PM

SBP-300KM

• Max 5M (2592 x 1944) resolution

• 0.1Lux@F1.2 (Color), 0Lux (B/W : IR LED on)

• 30fps@all resolutions

• 3.6 ~ 9.4mm (2.6x) motorized varifocal lens

• H.265, H.264, MJPEG support

• Day & Night (ICR), WDR (120dB), Simple focus, P-Iris

• Tampering, Audio detection

• SD/SDHC/SDXC memory slot, NAS, Local PC support

• Hallway view (Rotate 90˚ / 270˚)

• LDC (Lens Distortion Correction)

• IP66, IK10, Bi-directional audio support

Key Features

* The latest product information / specification can be found at www.samsungsecurity.com

PRELIMINARY

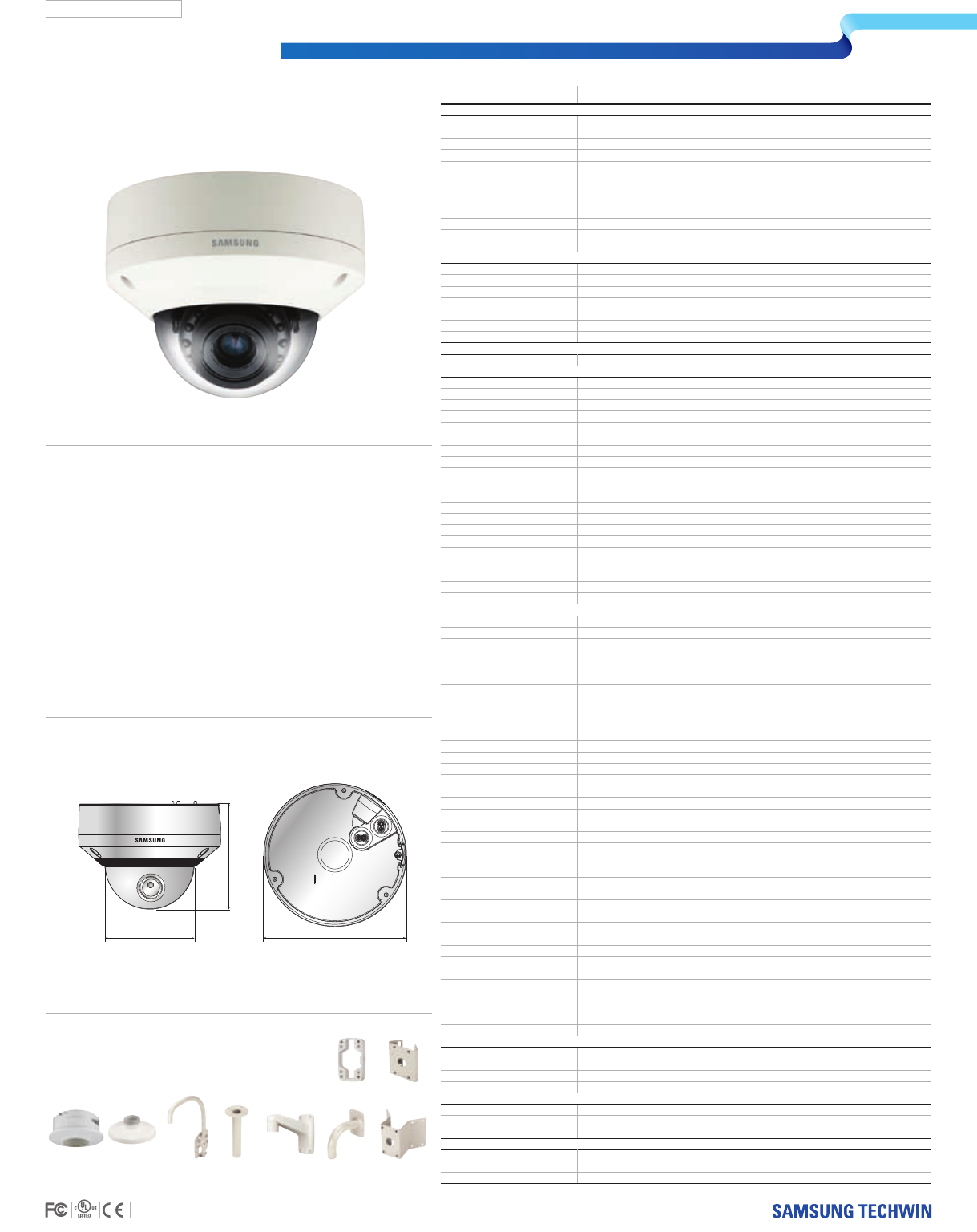

SNV-8081R

5Megapixel Vandal-Resistant

Network IR Dome Camera

Preliminary version
