Overlapping Two-Door Enclosures ................ 80 – 81

Enviroline® Series Single-Door Enclosures

for Flange-Mounted Disconnects

and SCE Door Hardware ................................. 82 – 83

Single-Door Enclosures for

Flange-Mounted Disconnects with

SCE Door Hardware ........................................ 84 – 85

Clamp Fastened Single-Door

Enclosures for Flange-Mounted

Disconnects ..................................................... 86 – 87

Vented Type 3R Disconnect Enclosures ....... 88 – 89

Vented Type 3R Enclosures ............................ 90 – 91

Hinged Cover Type 3R Enclosures ................ 92 – 93

Screw Cover Type 3R Enclosures .................. 94 – 95

General Purpose Type 1 Enclosures ............. 96 – 99

Pushbutton Enclosures

& Hinged Pushbutton Enclosures ..........40 – 53

Slope Front Pushbutton Enclosures ......54 – 57

Enviroline® Series Junction

Enclosures ................................................58 – 61

Enviroline® Series Trough Junction

Enclosures ................................................62 – 65

Continuous Hinge Junction

Enclosures ................................................66 – 67

Screw Cover Enclosures .........................68 – 69

Enviroline® Series Single-Door

Enclosures ................................................70 – 73

Clamp Fastened Single-Door

Enclosures ................................................74 – 76

Enviroline® Series Two-Door

Enclosures ................................................78 – 79

Wall-Mount Enclosures

2

Back to

Table of Contents

Back to

Table of Contents

Go To

38

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

39

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

ENCLOSURE PRODUCT CODE A1

30.5 mm Pushbutton

Enclosures

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into sealed

wells.

• 4-way pushbutton holes accept all brands

of oil-tight pushbuttons, switches and pilot

lights. Hole diameter is 1.20” (30.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

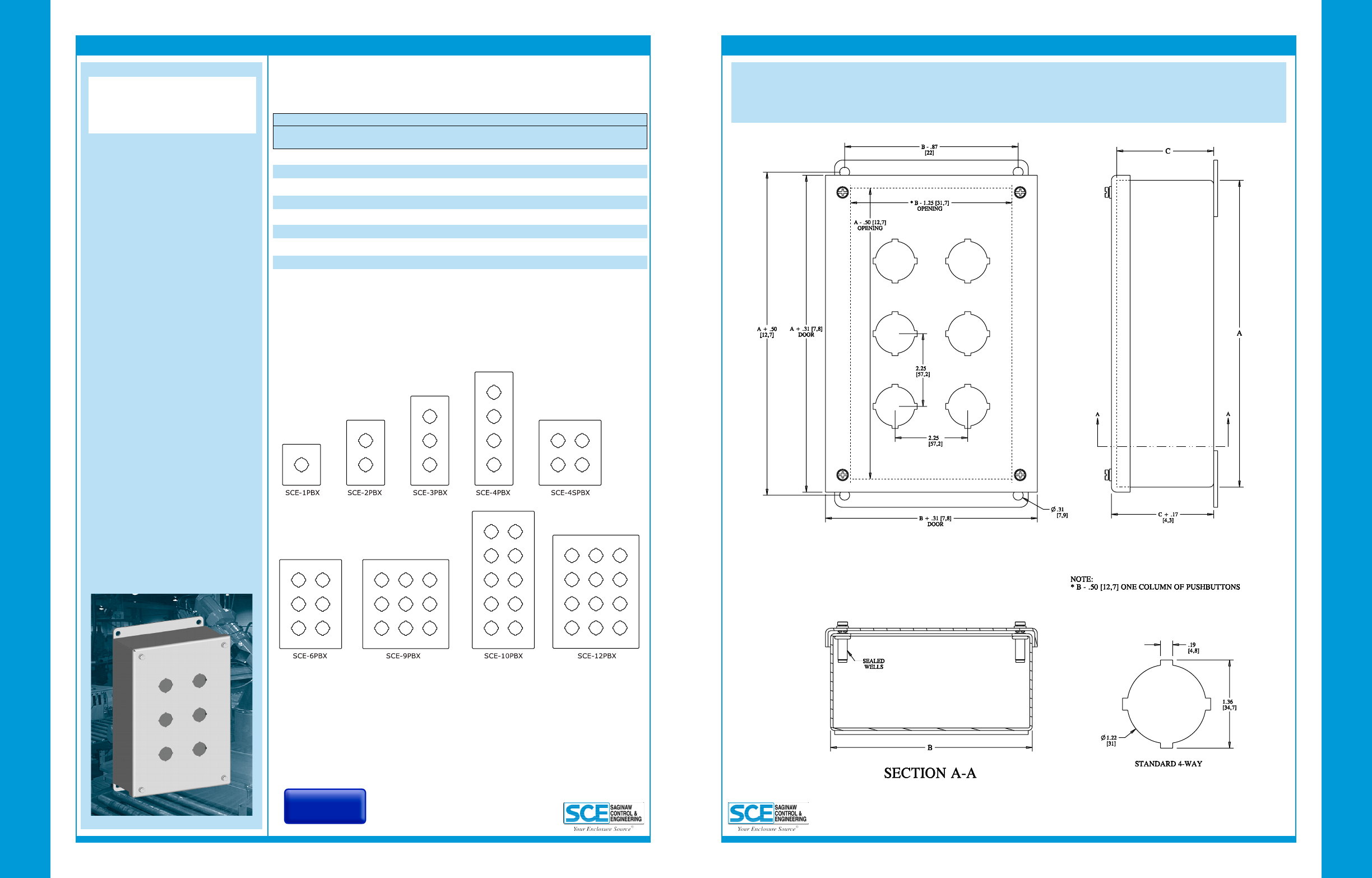

30.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PB 3.50 3.25 2.00 IS2 43.90

SCE-2PB 5.75 3.25 2.75 IS2 50.17

SCE-3PB 8.00 3.25 2.75 IS2 56.43

SCE-4PB 10.25 3.25 2.75 IS2 62.70

SCE-4SPB 7.25 6.25 3.00 IS2 70.23

SCE-5PB 12.50 3.25 2.75 IS2 68.98

SCE-6PB 9.50 6.25 3.00 IS2 80.26

SCE-6PBVL 14.75 3.25 2.75 IS2 75.24

SCE-8PB 20.25 3.25 2.75 IS2 90.29

SCE-9PB 9.50 8.50 3.00 IS2 92.80

SCE-12PB 11.75 8.50 3.00 IS2 104.08

Back to

Wall-Mount

Enclosures

30.5 mm PUSHBUTTON ENCLOSURES

40

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

41

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

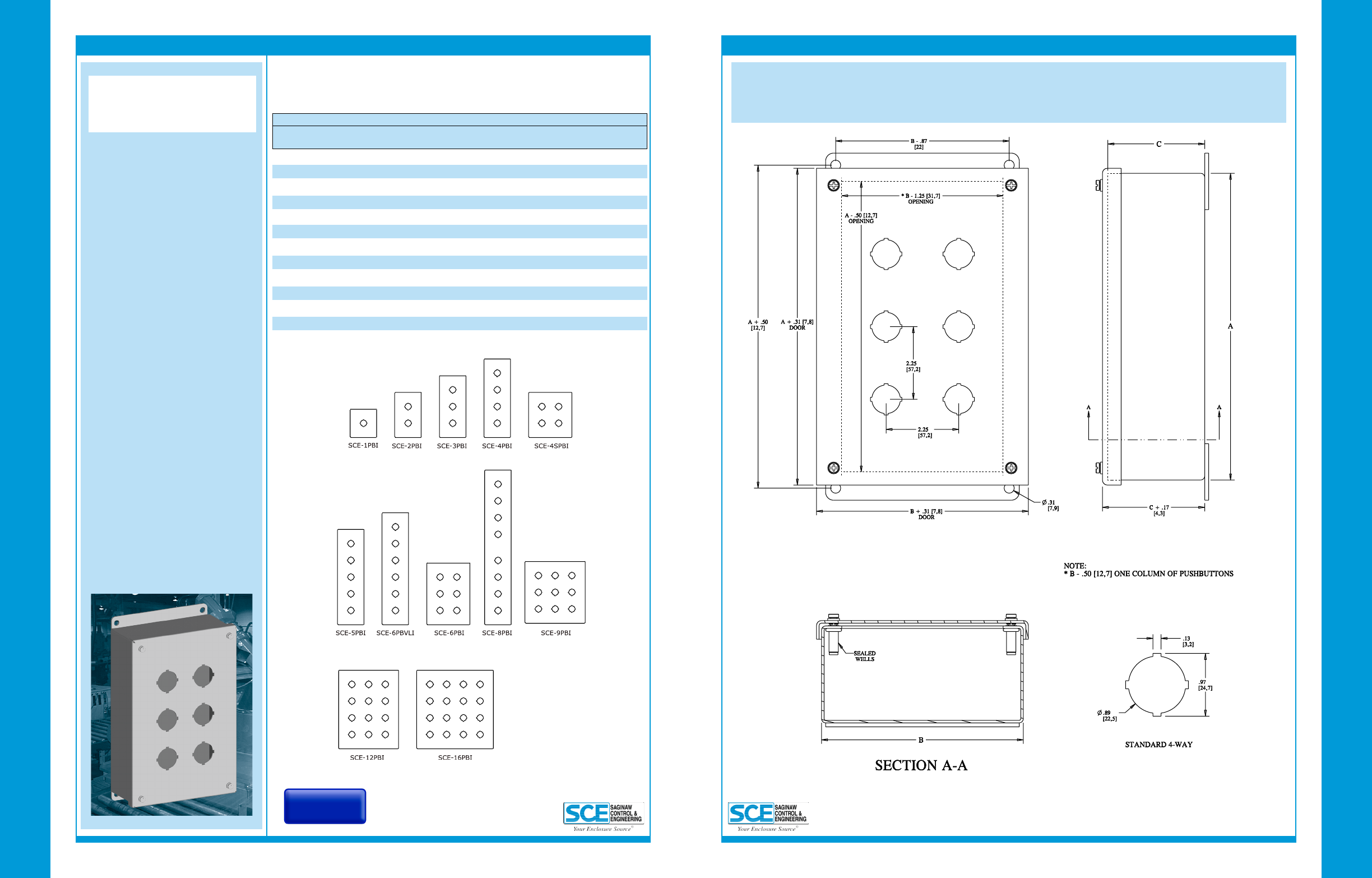

22.5 mm Pushbutton

Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

ENCLOSURE PRODUCT CODE A1

22.5 mm PUSHBUTTON ENCLOSURES

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 0.87” (22.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

22.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PBI 3.50 3.25 2.75 IS2 43.90

SCE-2PBI 5.75 3.25 2.75 IS2 50.17

SCE-3PBI 8.00 3.25 2.75 IS2 56.43

SCE-4PBI 10.25 3.25 2.75 IS2 62.70

SCE-4SPBI 7.25 6.25 3.00 IS2 70.23

SCE-5PBI 12.50 3.25 2.75 IS2 68.98

SCE-6PBI 9.50 6.25 3.00 IS2 80.26

SCE-6PBVLI 14.75 3.25 2.75 IS2 75.24

SCE-8PBI 20.25 3.25 2.75 IS2 90.29

SCE-9PBI 9.50 8.50 3.00 IS2 92.80

SCE-12PBI 11.75 8.50 3.00 IS2 104.08

SCE-16PBI 11.75 10.75 3.00 IS2 120.40

Back to

Wall-Mount

Enclosures

42

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

43

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

Extra Deep 30.5 mm

Pushbutton Enclosures

EXTRA DEEP 30.5 mm PUSHBUTTON ENCLOSURES

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

ENCLOSURES

PRODUCT CODE A1

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 1.20” (30.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

EXTRA DEEP 30.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PBX 4.00 4.00 4.75 IS2 56.43

SCE-2PBX 6.00 4.00 4.75 IS2 65.22

SCE-3PBX 8.00 4.00 4.75 IS2 73.99

SCE-4PBX 10.00 4.00 4.75 IS2 81.51

SCE-4SPBX 7.25 6.25 4.75 IS2 82.76

SCE-6PBX 9.50 6.25 4.75 IS2 95.31

SCE-9PBX 9.50 8.50 4.75 IS2 107.85

SCE-10PBX 14.00 6.25 4.75 IS2 117.88

SCE-12PBX 11.75 8.50 4.75 IS2 124.15

Back to

Wall-Mount

Enclosures

44

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

45

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Extra Deep 22.5 mm

Pushbutton Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

ENCLOSURE PRODUCT CODE A1

EXTRA DEEP 22.5 mm PUSHBUTTON ENCLOSURES

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 0.87” (22.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

EXTRA DEEP 22.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PBXI 4.00 4.00 4.75 IS2 56.43

SCE-2PBXI 6.00 4.00 4.75 IS2 65.22

SCE-3PBXI 8.00 4.00 4.75 IS2 73.99

SCE-4PBXI 10.00 4.00 4.75 IS2 81.51

SCE-4SPBXI 7.25 6.25 4.75 IS2 82.76

SCE-6PBXI 9.50 6.25 4.75 IS2 95.31

SCE-9PBXI 9.50 8.50 4.75 IS2 107.85

SCE-10PBXI 14.00 6.25 4.75 IS2 117.88

SCE-12PBXI 11.75 8.50 4.75 IS2 124.15

SCE-16PBXI 11.75 10.75 4.75 IS2 141.70

Back to

Wall-Mount

Enclosures

46

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

47

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

PUSHBUTTON ENCLOSURES FOR 22.5 mm

PUSHBUTTONS

Pushbutton Enclosures

for 22.5 mm

Pushbuttons

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

ENCLOSURE PRODUCT CODE A1

Application -

Designed to offer protection for miniature oil-

tight pushbuttons, switches, and pilot lights

from dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way miniature pushbutton holes

accept all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 0.87” (22.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

PUSHBUTTON ENCLOSURE FOR 22.5 mm PUSHBUTTONS

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PBGX 3.25 2.75 3.50 IS2 50.17

SCE-2PBGX 5.13 2.75 3.50 IS2 55.18

SCE-3PBGX 7.00 2.75 3.50 IS2 61.45

SCE-4PBGX 8.88 2.75 3.50 IS2 67.71

SCE-6PBGX 8.50 5.00 4.25 IS2 86.52

SCE-9PBGX 8.50 6.50 4.25 IS2 95.31

SCE-12PBGX 10.38 6.50 4.25 IS2 106.60

SCE-16PBGX 10.38 8.00 4.25 IS2 142.96

Back to

Wall-Mount

Enclosures

48

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

49

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

EXTRA LARGE 30.5 mm

HINGED PUSHBUTTON ENCLOSURES

Extra Large 30.5 mm

Hinged Pushbutton

Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

SCE-4SPBH SCE-6PBH SCE-9PBH

SCE-12PBH SCE-16PBH

SCE-20PBH

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 1.20” (30.5 mm).

• Oil-resistant gasket.

• Provisions for sub-panel.

• Ground stud on door.

• Cover attached with continuous hinge.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 and Type 13

UL Listed Type 4 and 12

CSA Type 4 and 12

IEC 60529 IP 66

EXTRA LARGE 30.5 mm

HINGED PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

Change

2.50

[64]

2.50

[64]

B - .75 [19]

OPENING

A - .75

[19]

OPENING

C

A

C + .44

[11]

C - .45

[11]

A - 1.25

[32]

B

B - 1.12

[28]

B + .31 [8]

DOOR

A + .38

[10]

DOOR

A + .75

[19]

1.22

[31]

1.37

[35]

.31 [8]

B - 2.00

[51]

SEALED

WELLS

STANDARD 4-WAY

Catalog Height Width Depth Industry List Catalog List

No. (A) (B) (C) Standard Price No. Price

ENCLOSURE PRODUCT CODE A1

SUB-PANEL (P3)

SCE-4SPBH 8.00 8.00 6.00 IS2 107.08

SCE-6PBH 10.00 8.00 6.00 IS2 122.63

SCE-9PBH 10.00 10.00 6.00 IS2 142.99

SCE-12PBH 12.00 10.00 6.00 IS2 162.14

SCE-16PBH 12.00 12.00 6.00 IS2 184.70

SCE-20PBH 16.00 12.00 6.00 IS2 287.54

SCE-8P8 4.89

SCE-10P8 5.70

SCE-10P10 6.73

SCE-12P10 7.72

SCE-12P12 9.08

SCE-16PB12 13.84

Back to

Wall-Mount

Enclosures

50

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

51

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

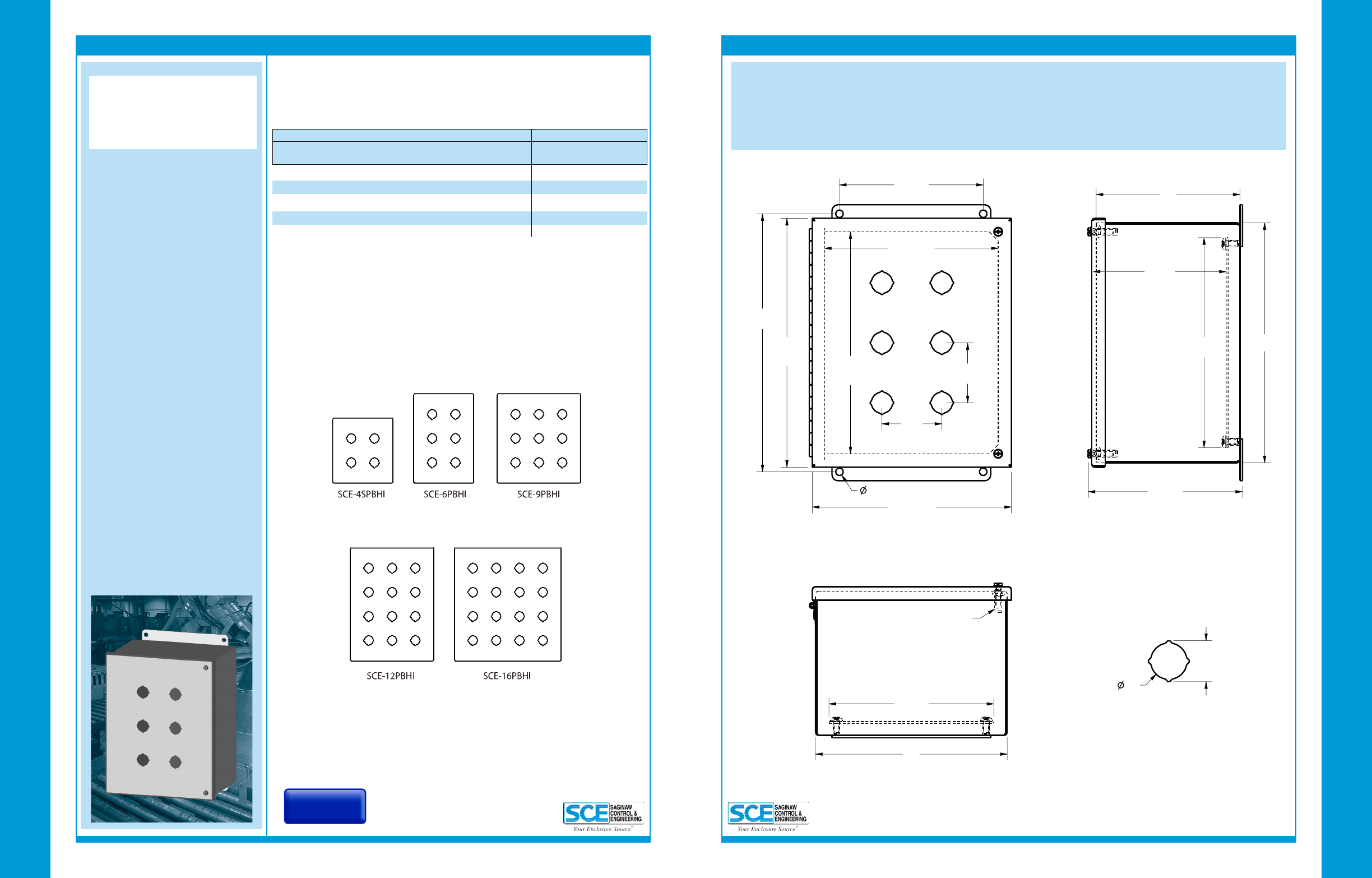

Extra Large 22.5 mm

Hinged Pushbutton

Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

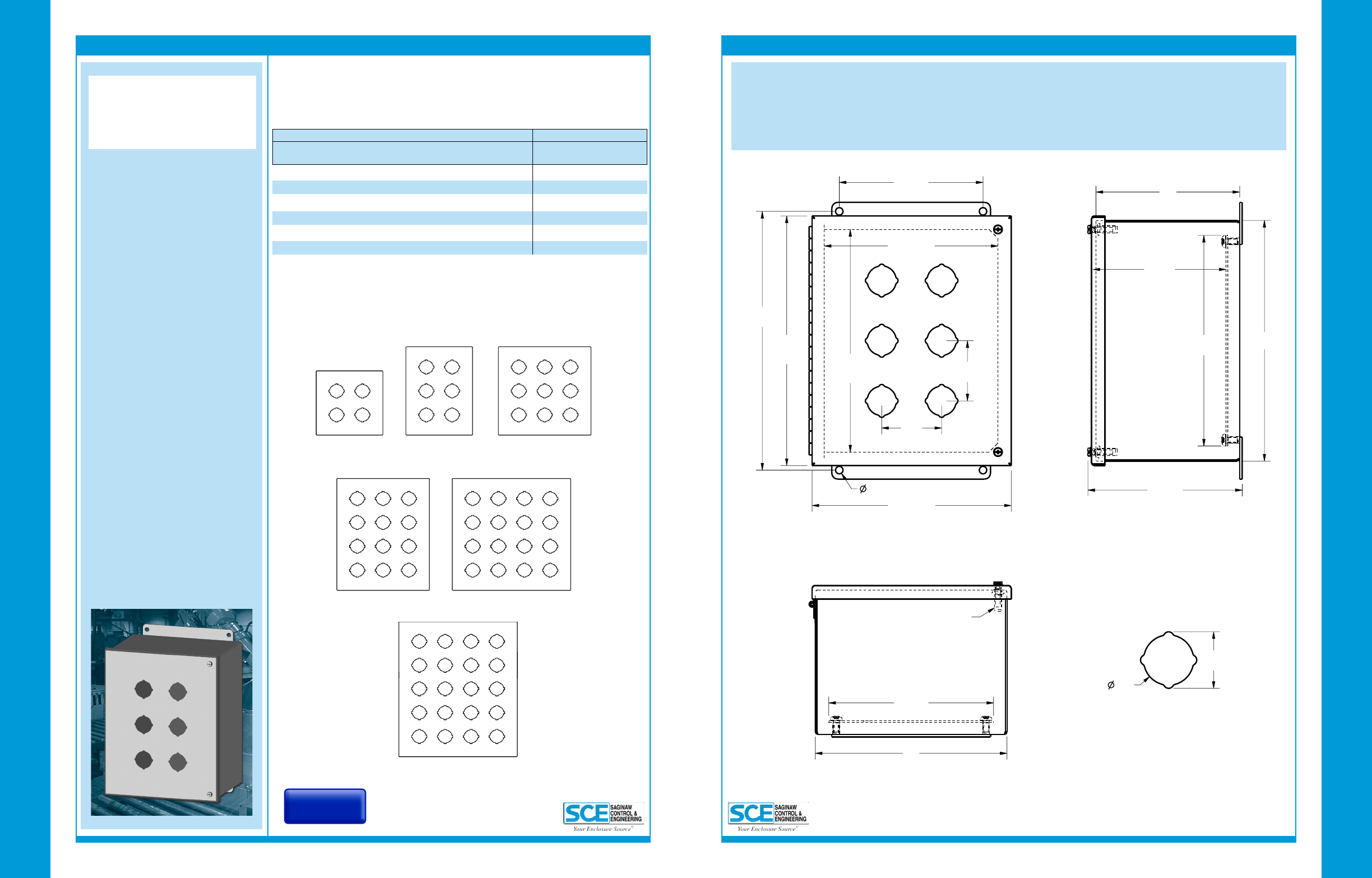

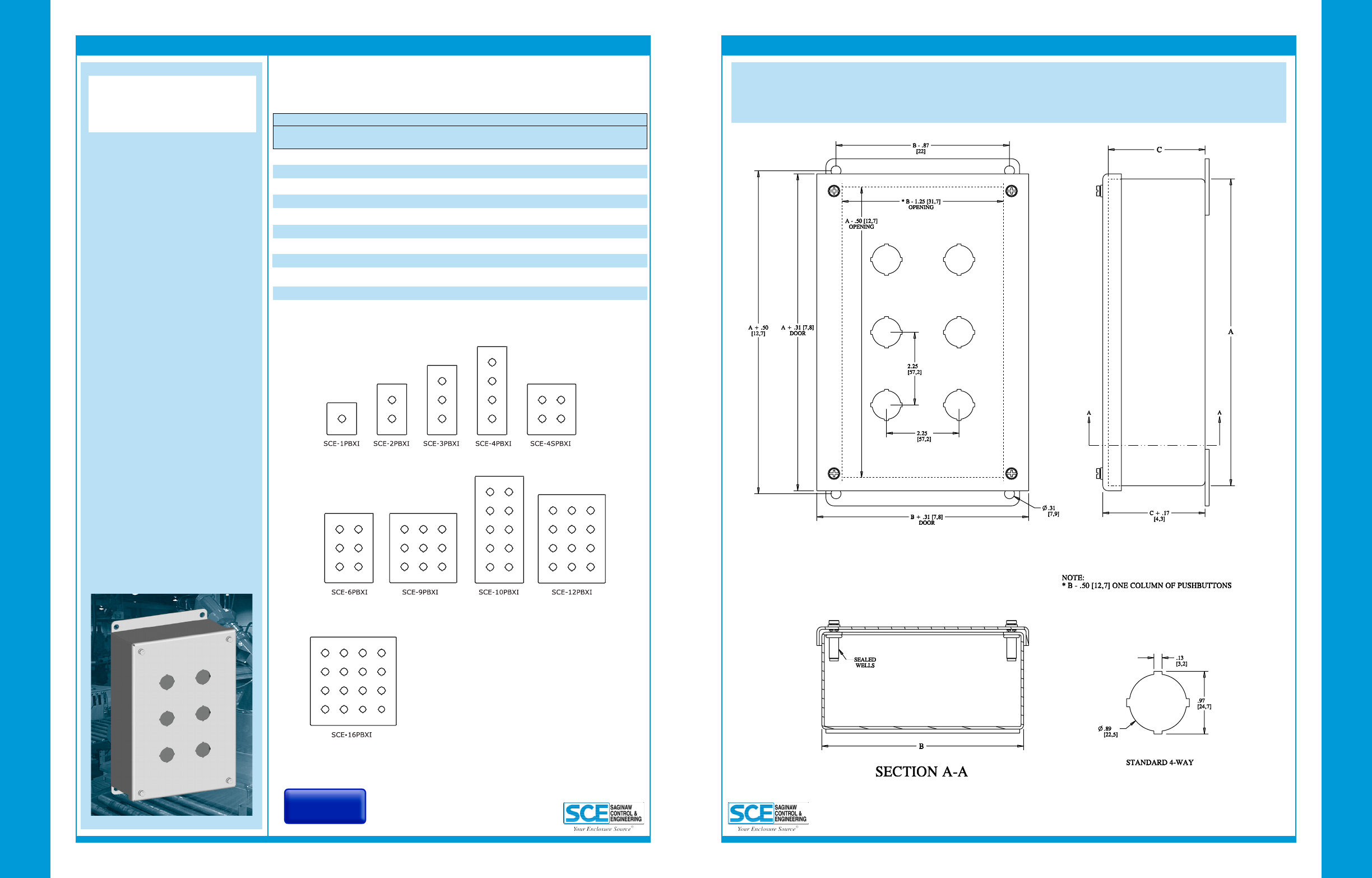

EXTRA LARGE 22.5 mm

HINGED PUSHBUTTON ENCLOSURES

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 0.87” (22.5 mm).

• Oil-resistant gasket.

• Provisions for sub-panel.

• Ground stud on door.

• Cover attached with continuous hinge.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

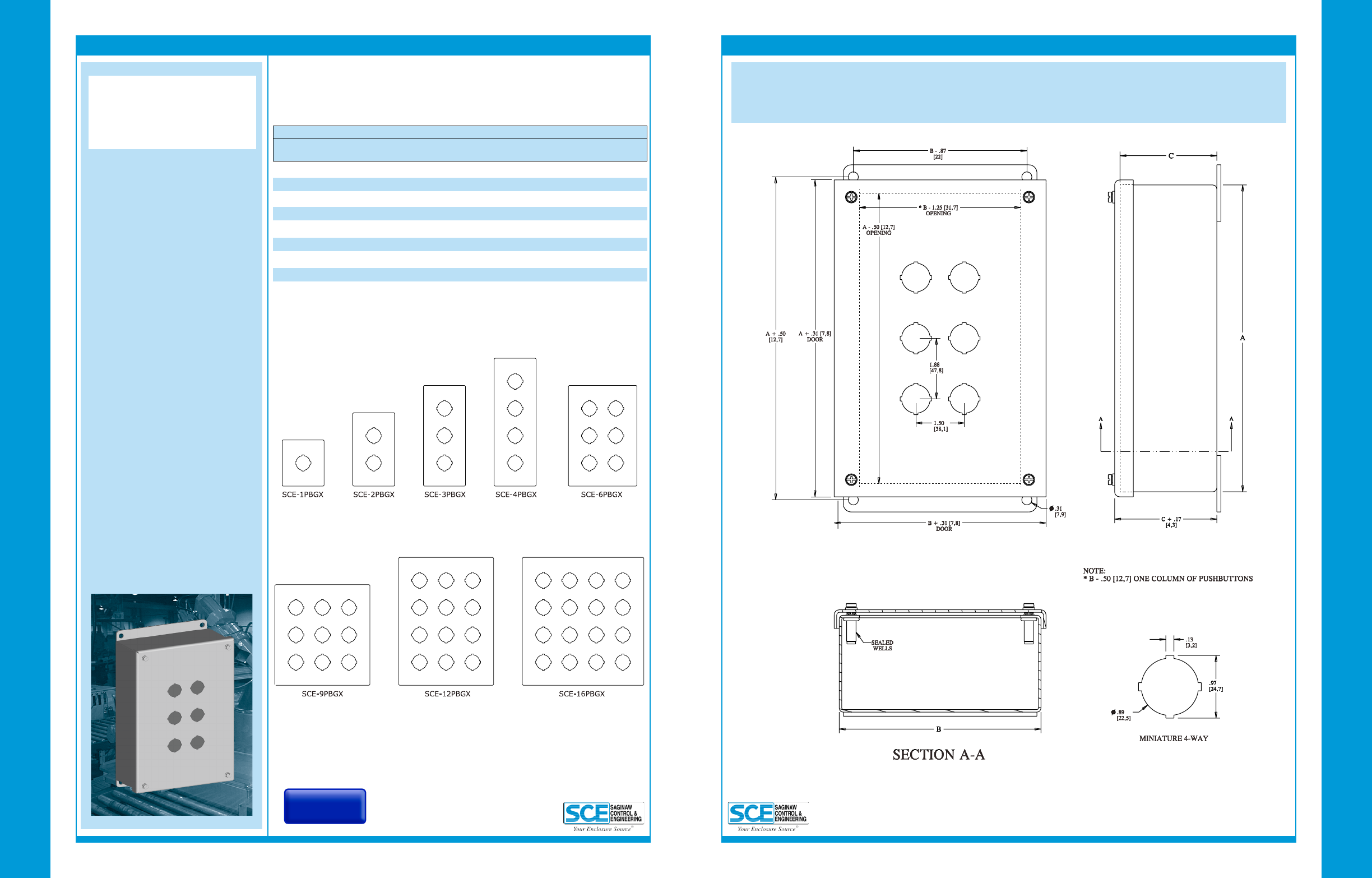

IEC 60529 IP66

EXTRA LARGE 22.5 mm

HINGED PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

2.50

[64]

2.50

[64]

B - .75 [19]

OPENING

A - .75

[19]

OPENING

C

A

C + .44

[11]

C - .45

[11]

A - 1.25

[32]

B

B - 1.12

[28]

B + .31 [8]

DOOR

A + .38

[10]

DOOR

A + .75

[19]

.89

[23]

1.00

[25]

.31 [8]

B - 2.00

[51]

SEALED

WELLS

STANDARD 4-WAY

Wall-Mount Enclosures

2

Catalog Height Width Depth Industry List Catalog List

No. (A) (B) (C) Standard Price No. Price

ENCLOSURE PRODUCT CODE A1

SUB-PANEL (P3)

SCE-4SPBHI 8.00 8.00 6.00 IS2 107.08

SCE-6PBHI 10.00 8.00 6.00 IS2 122.63

SCE-9PBHI 10.00 10.00 6.00 IS2 142.99

SCE-12PBHI 12.00 10.00 6.00 IS2 162.14

SCE-16PBHI 12.00 12.00 6.00 IS2 184.70

SCE-8P8 4.89

SCE-10P8 5.70

SCE-10P10 6.73

SCE-12P10 7.72

SCE-12P12 9.08

Back to

Wall-Mount

Enclosures

52

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

53

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

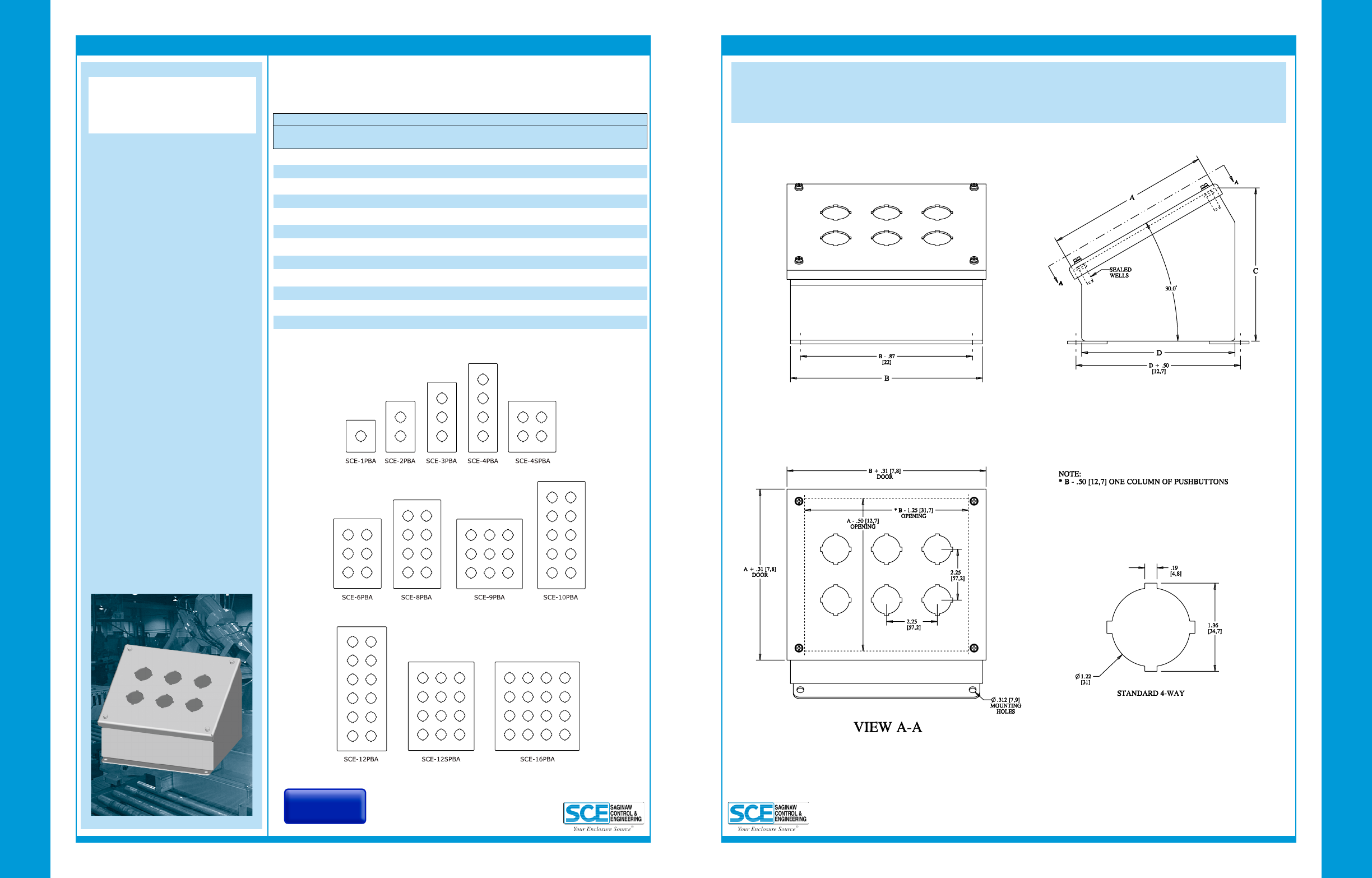

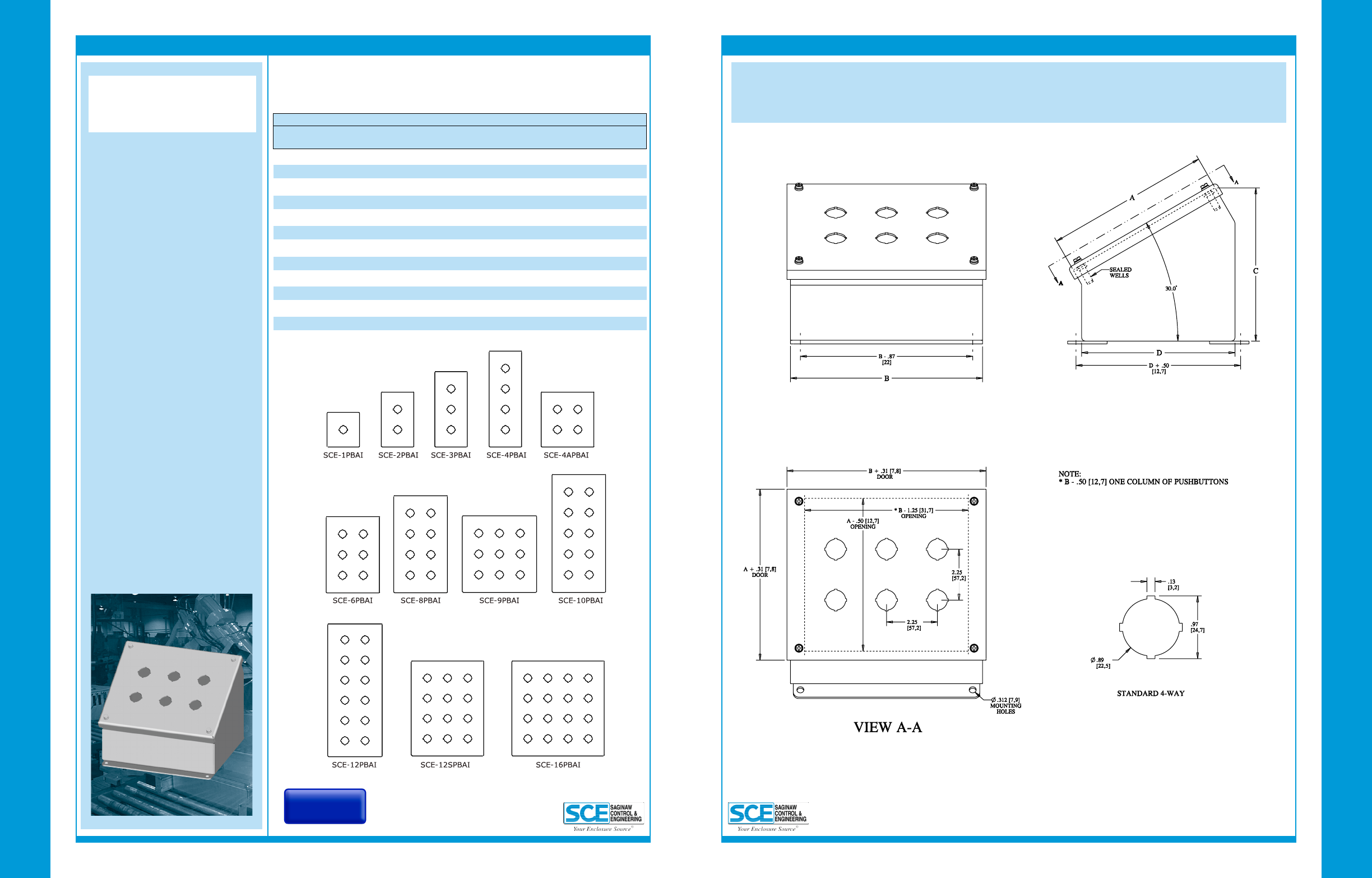

SLOPING FRONT 30.5 mm PUSHBUTTON ENCLOSURES

Sloping Front 30.5 mm

Pushbutton Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Depth Industry List

No. (A) (B) (C) (D) Standard Price

ENCLOSURE PRODUCT CODE A1

Application -

Designed to offer protection for all standard

brands of oil-tight pushbuttons, switches,

and pilot lights where slanted surfaces are

desired. It offers protection from dust, dirt,

oil and water. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 1.20” (30.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

SLOPING FRONT 30.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

3.53

6.78

8.73

6.78

10.69

SCE-1PBA 3.50 3.25 4.84 IS2 65.22

SCE-2PBA 3.50 5.50 4.84 IS2 75.24

SCE-3PBA 3.50 7.75 4.84 IS2 85.28

SCE-4PBA 3.50 10.00 4.84 IS2 96.56

SCE-4SPBA 7.25 6.25 6.75 IS2 107.85

SCE-6PBA 7.25 8.50 6.75 IS2 125.41

SCE-8PBA 7.25 10.75 6.75 IS2 141.70

SCE-9PBA 9.50 8.50 7.88 IS2 147.97

SCE-10PBA 7.25 13.00 6.75 IS2 158.02

SCE-12PBA 7.25 15.25 6.75 IS2 171.82

SCE-12SPBA 11.75 8.50 9.00 IS2 164.28

SCE-16PBA 11.75 10.75 9.00 IS2 183.10

Back to

Wall-Mount

Enclosures

54

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

55

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Sloping Front 22.5 mm

Pushbutton Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

ENCLOSURE PRODUCT CODE A1

SLOPING FRONT 22.5 mm PUSHBUTTON ENCLOSURES

Catalog Height Width Depth Depth Industry List

No. (A) (B) (C) (D) Standard Price

Application -

Designed to offer protection for oil-tight

pushbuttons, switches, and pilot lights from

dust, water, dirt and oil. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Continuously welded seams.

• Captivated cover screws thread into

sealed wells.

• 4-way pushbutton holes accept

all brands of oil-tight push-

buttons, switches and pilot lights. Hole

diameter is 0.87” (22.5 mm).

• Immediate removal of cover is permitted.

• Oil-resistant gasket.

Finish -

ANSI-61 gray powder coated inside and out.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

SLOPING FRONT 22.5 mm PUSHBUTTON ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

SCE-1PBAI 3.50 3.25 4.84 IS2 65.22

SCE-2PBAI 3.50 5.50 4.84 IS2 75.24

SCE-3PBAI 3.50 7.75 4.84 IS2 85.28

SCE-4PBAI 3.50 10.00 4.84 IS2 96.56

SCE-4SPBAI 7.25 6.25 6.75 IS2 107.85

SCE-6PBAI 7.25 8.50 6.75 IS2 125.41

SCE-8PBAI 7.25 10.75 6.75 IS2 141.70

SCE-9PBAI 9.50 8.50 7.88 IS2 147.97

SCE-10PBAI 7.25 13.00 6.75 IS2 158.02

SCE-12PBAI 7.25 15.25 6.75 IS2 171.82

SCE-12SPBAI 11.75 8.50 9.00 IS2 164.28

SCE-16PBAI 11.75 10.75 9.00 IS2 183.10

3.53

6.78

8.73

6.78

10.69

Back to

Wall-Mount

Enclosures

56

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

57

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

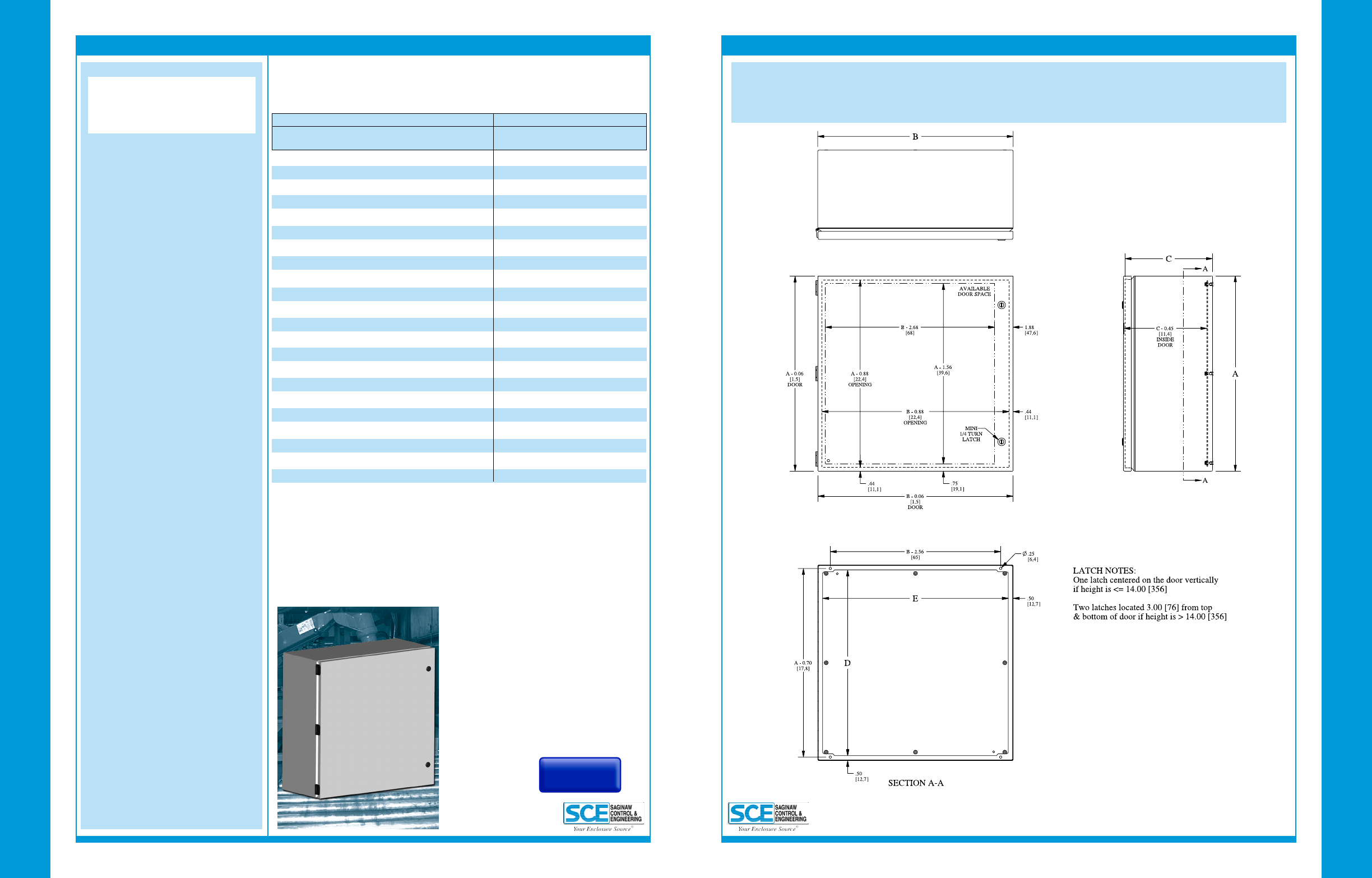

ENVIROLINE® SERIES JUNCTION ENCLOSURES

Enviroline® Series

Junction Enclosures

Application -

Designed to house electrical controls,

instruments and components in areas,

which may be regularly hosed down or

are in very wet or oily conditions. Provides

protection from dust, dirt, oil, and water.

For installation information, consult our

Installation Manual at www.saginawcontrol.

com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• Standoffs provided for mounting optional

sub-panels.

• Removable hinge.

• Doors open 180 degrees.

• Black mini quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Sealing washers and hole plugs included.

• Ground stud on door & body.

• Mounting feet included.

Finish -

ANSI -61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE E1 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES JUNCTION ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-6P4J 5.00 3.00 3.02

SCE-6P6J 5.00 5.00 3.62

SCE-8P6J 7.00 5.00 4.17

SCE-8P8J 7.00 7.00 4.89

SCE-10P8J 9.00 7.00 5.70

SCE-10P10J 9.00 9.00 6.73

SCE-12P10J 11.00 9.00 7.72

SCE-12P12J 11.00 11.00 9.08

SCE-14P12J 13.00 11.00 10.13

SCE-16P14J 15.00 13.00 19.96

SCE-20P16J 19.00 15.00 30.40

SCE-20P20J 19.00 19.00 35.44

SCE-604ELJ 6.00 4.00 4.00 IS2 41.16

SCE-606ELJ 6.00 6.00 4.00 IS2 47.98

SCE-806ELJ 8.00 6.00 4.00 IS2 51.88

SCE-8066ELJ 8.00 6.00 6.00 IS2 61.48

SCE-808ELJ 8.00 8.00 4.00 IS2 63.72

SCE-8086ELJ 8.00 8.00 6.00 IS2 68.18

SCE-1008ELJ 10.00 8.00 4.00 IS2 70.76

SCE-10086ELJ 10.00 8.00 6.00 IS2 79.12

SCE-10106ELJ 10.00 10.00 6.00 IS2 83.56

SCE-1210ELJ 12.00 10.00 6.00 IS2 86.48

SCE-12108ELJ 12.00 10.00 8.00 IS2 98.72

SCE-1212ELJ 12.00 12.00 6.00 IS2 100.96

SCE-1412ELJ 14.00 12.00 6.00 IS2 111.20

SCE-14128ELJ 14.00 12.00 8.00 IS2 118.44

SCE-1614ELJ 16.00 14.00 6.00 IS2 130.82

SCE-16148ELJ 16.00 14.00 8.00 IS2 143.42

SCE-20166ELJ 20.00 16.00 6.00 IS2 151.40

SCE-20168ELJ 20.00 16.00 8.00 IS2 157.76

SCE-201610ELJ 20.00 16.00 10.00 IS2 185.13

SCE-20206ELJ 20.00 20.00 6.00 IS2 168.36

SCE-20208ELJ 20.00 20.00 8.00 IS2 178.20

SCE-202010ELJ 20.00 20.00 10.00 IS2 187.50

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

58

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

59

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES JUNCTION ENCLOSURES

WITH VIEWING WINDOW

Enviroline® Series

Junction Enclosures with

Viewing Window ENCLOSURE PRODUCT CODE E1 SUB-PANEL (P3)

Catalog Height Width Depth Window Industry List Catalog List

No. (A) (B) (C) Viewing Size Standard Price No. Price

Application -

Designed to house electrical controls,

instruments and components that require

unrestricted viewing of the gauges or

controls, in areas which may be regularly

hosed down or are in very wet or oily

conditions. Provides protection from

dust, dirt, oil, and water. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• 0.25” polycarbonate viewing window.

• Standoffs provided for mounting optional

panels.

• Removable hinge.

• Doors open 180 degrees.

• Black mini quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Sealing washers and hole plugs included.

• Ground stud on door & body.

• Mounting feet included.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES JUNCTION ENCLOSURES

WITH VIEWING WINDOW

TECHNICAL DATA

Wall-Mount Enclosures

2

A

B

A

C

C - .45

[11]

INSIDE

DOOR

E

D

A - .70

[18]

B - 2.56

[65]

.50

[13]

.50

[13]

.25

[6]

A - .06

[2]

DOOR

B - .06 [2]

DOOR

2.60

[66]

.44

[11]

B - 4.62

[117]

VIEWING

AREA A - 4.00

[102]

VIEWING

AREA

A - .88

[22]

OPENING

B - .88

[22]

OPENING

1.97

[50]

.44

[11]

N4ELJW

LATCH NOTES:

One latch centered on the door vertically

if height is <= 14.00 [356]

Two latches located 3.00 [76] from top

& bottom of door if height is > 14.00 [356]

SECTION A-A

SCE-1008ELJW 10.00 8.00 4.00 IS2 119.76

SCE-10086ELJW 10.00 8.00 6.00 IS2 126.12

SCE-1210ELJW 12.00 10.00 6.00 IS2 138.48

SCE-12108ELJW 12.00 10.00 8.00 IS2 150.72

SCE-1614ELJW 16.00 14.00 6.00 IS2 193.82

SCE-16148ELJW 16.00 14.00 8.00 IS2 204.42

SCE-20208ELJW 20.00 20.00 8.00 IS2 242.20

SCE-10P8J 5.70

SCE-12P10J 7.72

SCE-16P14J 19.96

SCE-20P20J 35.44

6.00 x 3.375

8.00 x 5.375

12.00 x 9.375

16.00 x 15.375

Back to

Wall-Mount

Enclosures

60

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

61

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

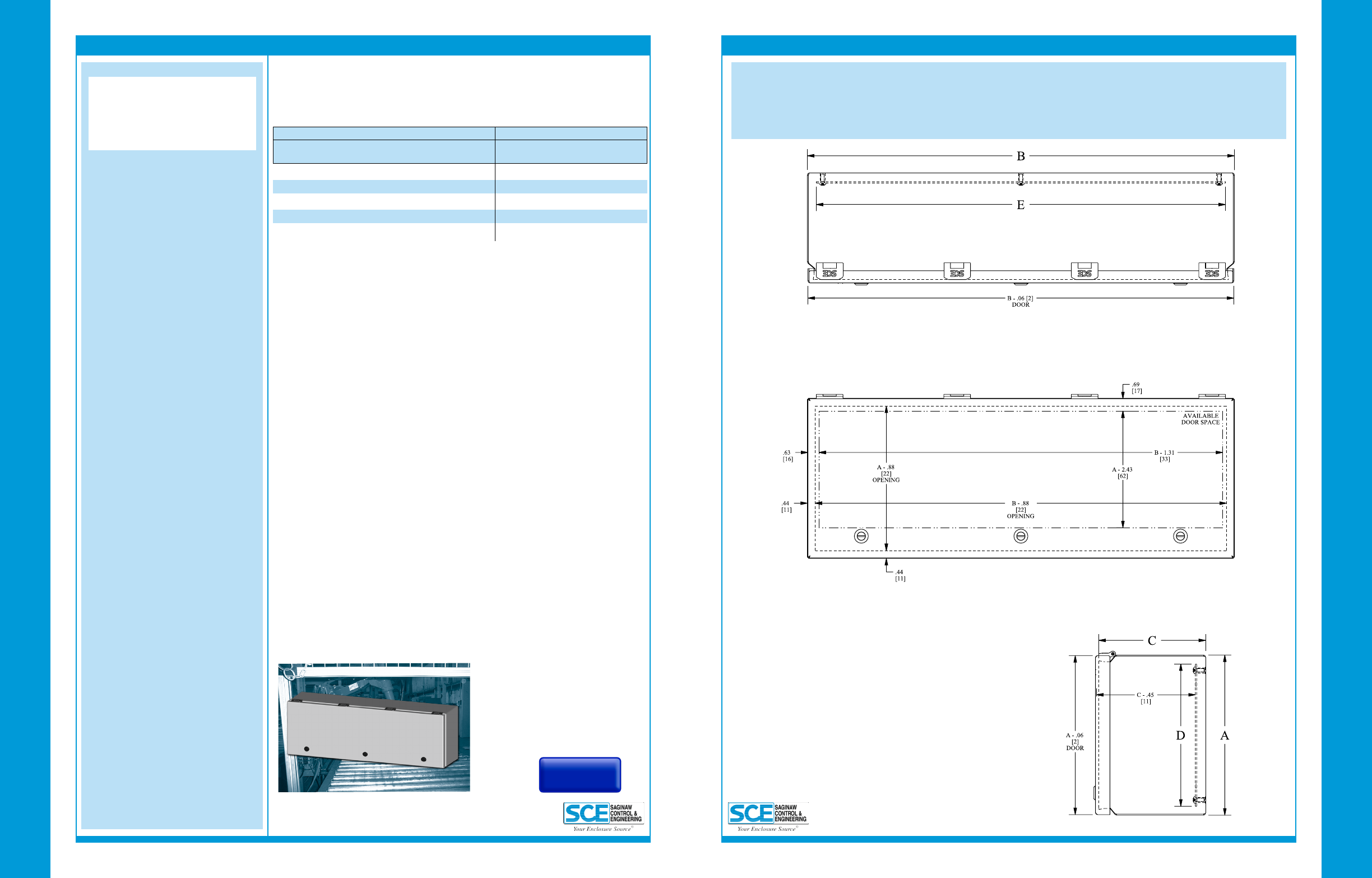

ENVIROLINE® SERIES TROUGH JUNCTION

ENCLOSURES

Phone (989) 799-6871

Fax (989) 799-4524

ENCLOSURE PRODUCT CODE E1 SUB-PANEL (P3)

Application -

Designed to house electrical controls,

instruments and components used in an

indoor or outdoor environment to provide a

degree of protection for the equipment inside

the enclosure against ingress of solid foreign

objects (falling dirt); and provide a degree

of protection with respect to the harmful

effects on the equipment due to the ingress

of water (rain, sleet, snow). For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• Standoffs provided for mounting optional

sub-panels.

• Removable hinges.

• Doors open 180 degrees.

• Black mini quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Sealing washers and hole plugs included.

• Ground stud on door and body.

• Mounting holes in back.

• Mounting feet included.

• Padlocking or keylocking latches, and

tamper-resistant hardware is available.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

ENVIROLINE® SERIES TROUGH JUNCTION ENCLOSURES

TECHNICAL DATA

LATCH NOTES:

1. One latch centered on the door horizontally

if width is <= 14.00 [356]

2. Two latches located 3.00 [76] from sides of

door if width is > 14.00 [356]

3. An additional latch is centered horizontally

if width is > 20.00 [508]

Wall-Mount Enclosures

2

Enviroline® Series

Trough Junction

Enclosures

Phone (989) 799-6871

Fax (989) 799-4524

SCE-L9126ELJ 9.00 12.00 6.00 IS2 178.78

SCE-L9186ELJ 9.00 18.00 6.00 IS2 180.51

SCE-L9246ELJ 9.00 24.00 6.00 IS2 185.82

SCE-L9306ELJ 9.00 30.00 6.00 IS2 187.24

SCE-L9366ELJ 9.00 36.00 6.00 IS2 191.12

SCE-9P12L 8.00 11.00 18.86

SCE-9P18L 8.00 17.00 26.63

SCE-9P24L 8.00 23.00 29.14

SCE-9P30L 8.00 29.00 31.92

SCE-9P36L 8.00 35.00 34.97

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

62

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

63

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

ENCLOSURE PRODUCT CODE E1 SUB-PANEL PRODUCT CODE (P3)

ENVIROLINE® SERIES TROUGH JUNCTION ENCLOSURES

WITH VIEWING WINDOW

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Application -

Designed to house electrical controls,

instruments and components used in an

indoor or outdoor environment to provide a

degree of protection for the equipment inside

the enclosure against ingress of solid foreign

objects (falling dirt); and provide a degree

of protection with respect to the harmful

effects on the equipment due to the ingress

of water (rain, sleet, snow). For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and

ground smooth.

• Flange trough collar around all sides of

door opening.

• Large viewing windows.

• Oil-resistant gasket.

• Standoffs provided for mounting optional

sub-panels.

• Removable hinges.

• Doors open 180 degrees.

• Black mini quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Sealing washers and hole plugs included.

• Ground stud on door and body.

• Mounting holes in back.

• Mounting feet included.

• Padlocking or keylocking latches, and

tamper-resistant hardware is available.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

Wall-Mount Enclosures

2

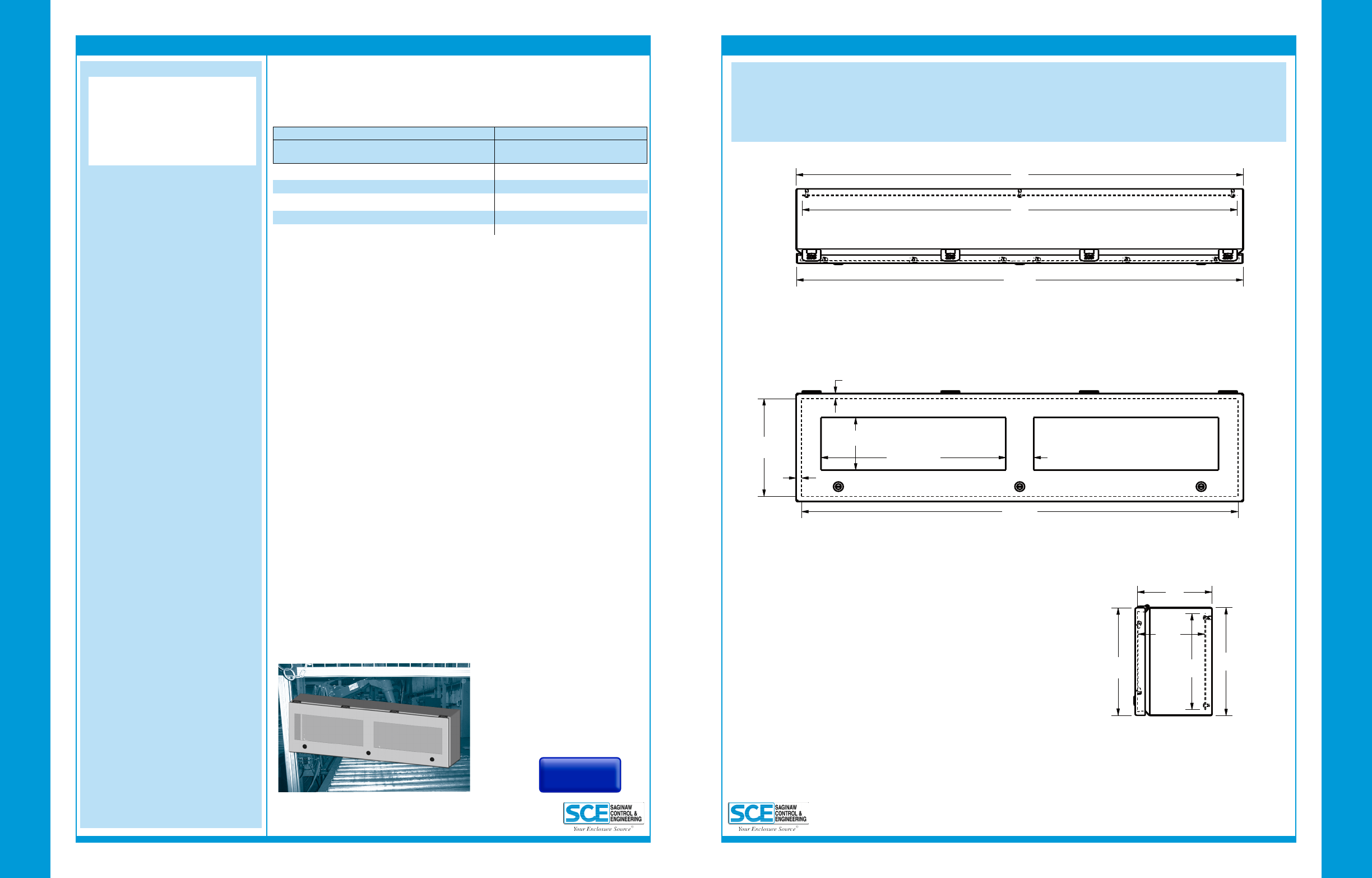

ENVIROLINE® SERIES TROUGH JUNCTION

ENCLOSURES WITH VIEWING WINDOW

Enviroline® Series

Trough Junction

Enclosures with

Viewing Window

C - .61

[16]

TO

WINDOW

A - .06

[2]

DOOR

A

C

D

E

B

B - .06 [2]

DOOR

B - .88 [22]

OPENING

A - .88

[22]

OPENING

A - 4.62 [117]

VIEWING AREA

(B / 2) - 3.12 [79]

VIEWING AREA

2.25

[57]

.44

[11]

.44

[11]

N4ELLJW

LATCH NOTES:

1. One latch centered on the door horizontally

if width is <= 14.00 [356]

2. Two latches located 3.00 [76] from sides of

door if width is > 14.00 [356]

3. An additional latch is centered horizontally

if width is > 20.00 [508]

WINDOW NOTES:

1. Door has a single window when viewing area

width is <= 16.00 [406]

2. door has two windows if viewing area width

would be > 16.00 [406] for a single window.

SEE WINDOW NOTES

SCE-L9126ELJW 9.00 12.00 6.00 IS2 275.71

SCE-L9186ELJW 9.00 18.00 6.00 IS2 278.67

SCE-L9246ELJW 9.00 24.00 6.00 IS2 303.78

SCE-L9306ELJW 9.00 30.00 6.00 IS2 306.94

SCE-L9366ELJW 9.00 36.00 6.00 IS2 309.80

SCE-9P12L 8.00 11.00 18.86

SCE-9P18L 8.00 17.00 26.63

SCE-9P24L 8.00 23.00 29.14

SCE-9P30L 8.00 29.00 31.92

SCE-9P36L 8.00 35.00 34.97

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

64

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

65

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

CONTINUOUS HINGE ENCLOSURES

Phone (989) 799-6871

Fax (989) 799-4524

Continuous Hinge

Enclosures

Application -

Designed for use as electrical junction

boxes, terminal wiring boxes, instrument

housings, and electrical control enclosures.

Provides protection from dust, dirt, oil

and water. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and ground

smooth, no holes or knockouts.

• Continuous hinge with stainless steel pin.

• Stainless steel external screw clamps are

quick and easy to operate.

• Oil resistant gasket.

• Standoffs provided for mounting optional

sub-panels.

• Ground stud on door and body.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

Catalog numbers containing an “S” are hinged on the short side.

ENCLOSURE PRODUCT CODE A1 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

CONTINUOUS HINGE ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

No Panel N/A

SCE-404CHNF 4.00 4.00 3.00 IS2 37.68

SCE-4044CHNF 4.00 4.00 4.00 IS2 38.97

SCE-604CHNF 6.00 4.00 3.00 IS2 42.36

SCE-6044CHNF 6.00 4.00 4.00 IS2 45.48

SCE-606CHNF 6.00 6.00 4.00 IS2 49.37

SCE-806CHNF 8.00 6.00 3.50 IS2 53.27

SCE-8066CHNF 8.00 6.00 6.00 IS2 62.66

SCE-808CHNF 8.00 8.00 4.00 IS2 59.78

SCE-8086CHNF 8.00 8.00 6.00 IS2 68.69

SCE-1008CHNF 10.00 8.00 4.00 IS2 69.39

SCE-1008CHSNF 10.00 8.00 4.00 IS2 73.30

SCE-10086CHNF 10.00 8.00 6.00 IS2 79.24

SCE-10106CHNF 10.00 10.00 6.00 IS2 80.55

SCE-12064CHNF 12.00 6.00 4.00 IS2 63.66

SCE-1210CHNF 12.00 10.00 5.00 IS2 87.29

SCE-1210CHSNF 12.00 10.00 5.00 IS2 89.33

SCE-12106CHNF 12.00 10.00 6.00 IS2 91.96

SCE-12108CHNF 12.00 10.00 8.00 IS2 98.74

SCE-1212CHNF 12.00 12.00 6.00 IS2 101.32

SCE-14086CHNF 14.00 8.00 6.00 IS2 87.06

SCE-1412CHNF 14.00 12.00 6.00 IS2 112.50

SCE-1412CHSNF 14.00 12.00 6.00 IS2 118.13

SCE-14128CHNF 14.00 12.00 8.00 IS2 119.01

SCE-16106CHNF 16.00 10.00 6.00 IS2 102.65

SCE-1614CHNF 16.00 14.00 6.00 IS2 131.71

SCE-1614CHSNF 16.00 14.00 6.00 IS2 138.30

SCE-16148CHNF 16.00 14.00 8.00 IS2 143.66

SCE-161410CHNF 16.00 14.00 10.00 IS2 150.70

SCE-6P4 4.88 2.88 3.01

SCE-6P6 4.88 4.88 3.61

SCE-8P6 6.75 4.88 4.17

SCE-8P8 6.75 6.88 4.89

SCE-10P8 8.75 6.88 5.70

SCE-10P10 8.75 8.88 6.73

SCE-12P6 10.75 4.88 5.35

SCE-12P10 10.75 8.88 7.72

SCE-12P12 10.75 10.88 9.08

SCE-14P8 12.75 6.88 7.39

SCE-14P12 12.75 10.88 10.13

SCE-16P10 14.75 8.88 9.90

SCE-16P14 14.75 12.88 19.95

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

66

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

67

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

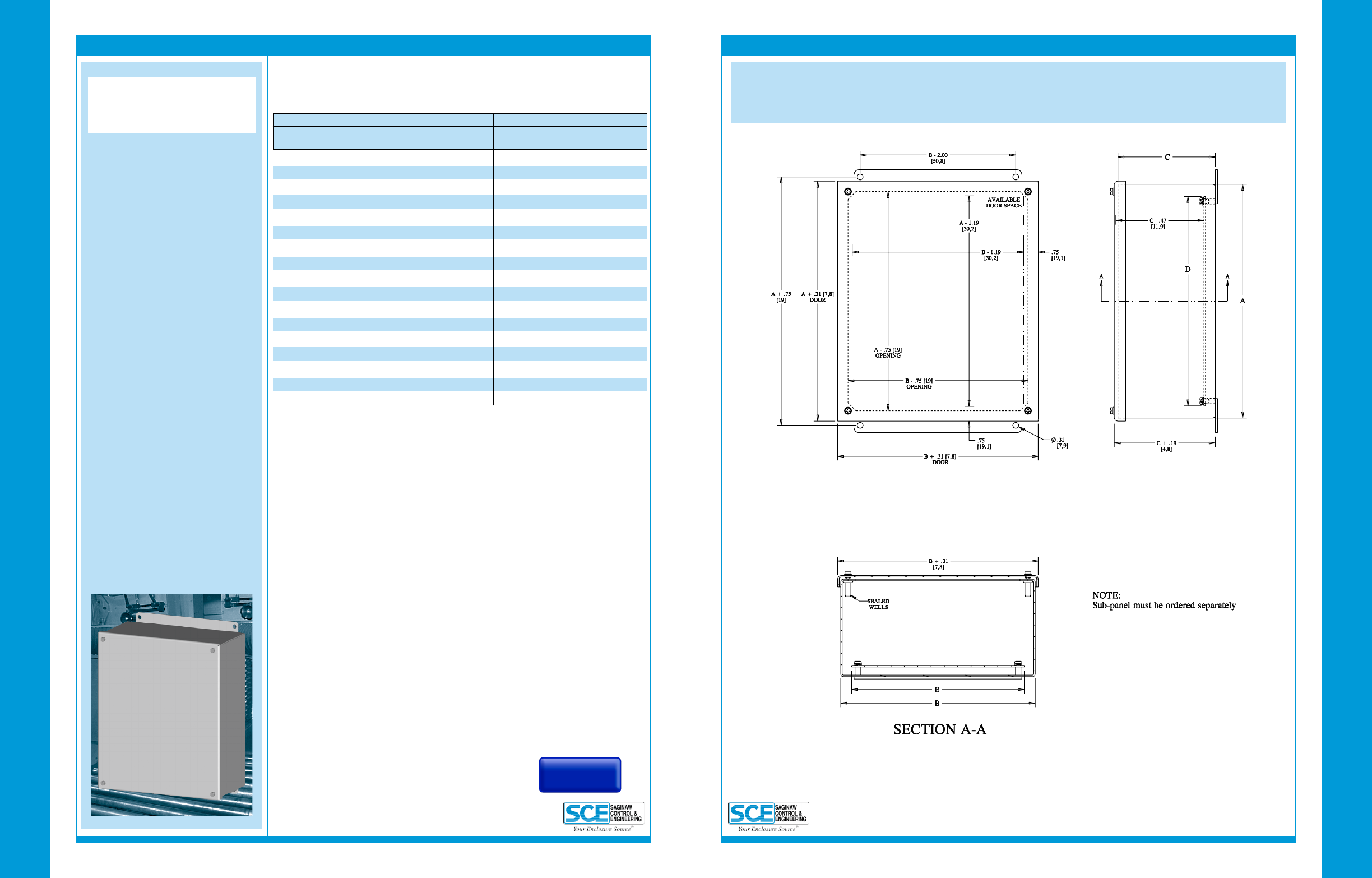

SCREW COVER ENCLOSURES

Phone (989) 799-6871

Fax (989) 799-4524

Screw Cover

Enclosures

Application -

Designed for use as electrical junction

boxes, terminal wiring boxes, instrument

housings, and electrical control enclosures.

Provides protection from dust, oil

and water. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.063” carbon steel.

• Seams continuously welded and ground

smooth, no holes or knockouts.

• Captivated cover screws thread into

sealed wells.

• Oil resistant gasket.

• Standoffs provided for mounting optional

sub-panels.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE A1 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

SCREW COVER ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-404SC 4.00 4.00 3.00 IS2 37.62

SCE-4044SC 4.00 4.00 4.00 IS2 37.62

SCE-604SC 6.00 4.00 3.00 IS2 42.64

SCE-6044SC 6.00 4.00 4.00 IS2 47.65

SCE-606SC 6.00 6.00 4.00 IS2 50.17

SCE-806SC 8.00 6.00 3.50 IS2 52.68

SCE-8066SC 8.00 6.00 6.00 IS2 60.19

SCE-808SC 8.00 8.00 4.00 IS2 60.19

SCE-1008SC 10.00 8.00 4.00 IS2 65.22

SCE-10086SC 10.00 8.00 6.00 IS2 73.99

SCE-1010SC 10.00 10.00 4.00 IS2 72.73

SCE-10106SC 10.00 10.00 6.00 IS2 81.51

SCE-1210SC 12.00 10.00 5.00 IS2 82.76

SCE-121010SC 12.00 10.00 10.00 IS2 125.41

SCE-1212SC 12.00 12.00 6.00 IS2 96.56

SCE-1412SC 14.00 12.00 6.00 IS2 105.34

SCE-1614SC 16.00 14.00 6.00 IS2 122.89

SCE-6P4 4.88 2.88 3.01

SCE-6P6 4.88 4.88 3.61

SCE-8P6 6.75 4.88 4.17

SCE-8P8 6.75 6.88 4.89

SCE-10P8 8.75 6.88 5.70

SCE-10P10 8.75 8.88 6.73

SCE-12P10 10.75 8.88 7.72

SCE-12P12 10.75 10.88 9.08

SCE-14P12 12.75 10.88 10.13

SCE-16P14 14.75 12.88 19.95

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

No Panel N/A

Back to

Wall-Mount

Enclosures

68

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

69

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

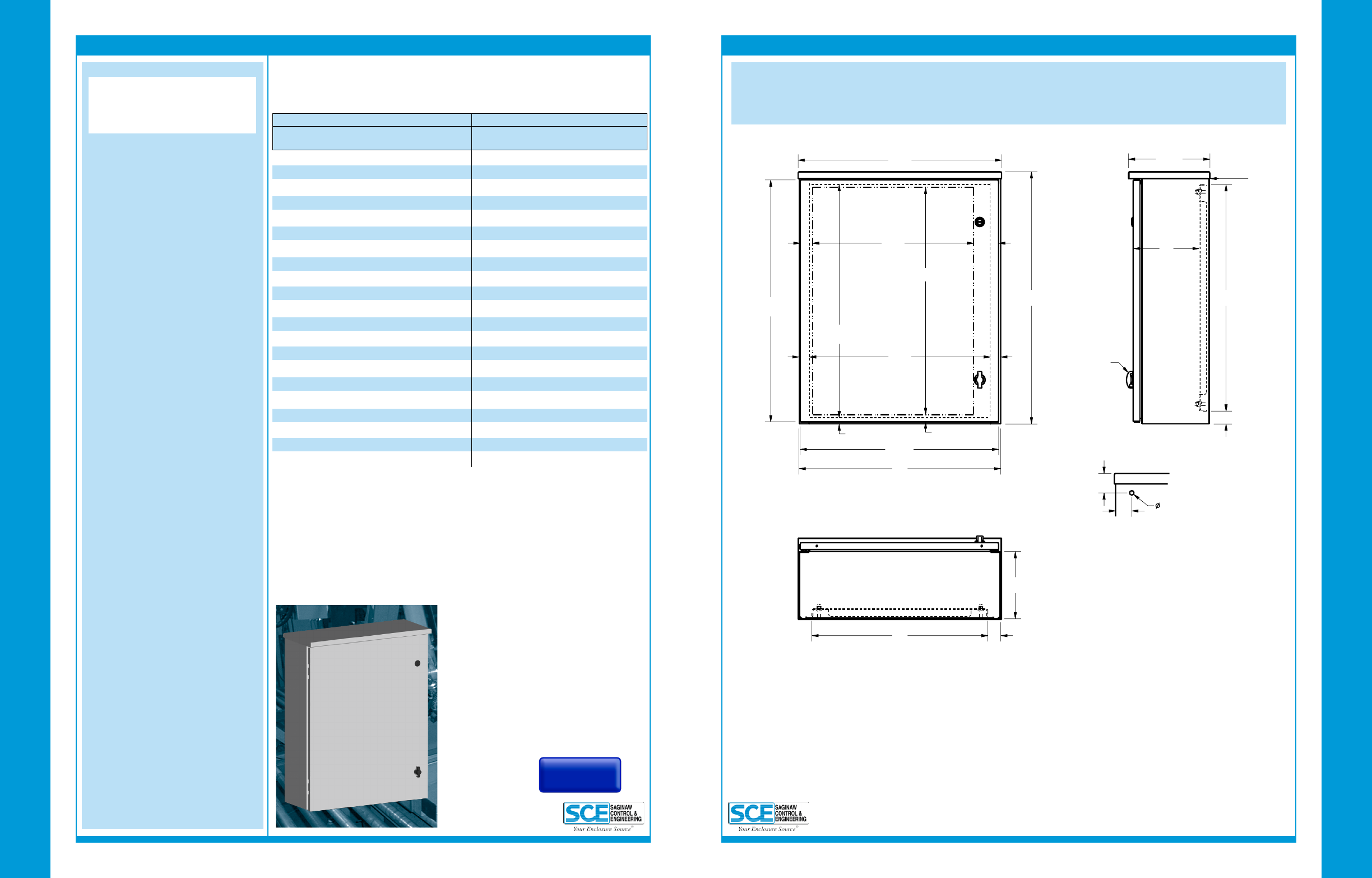

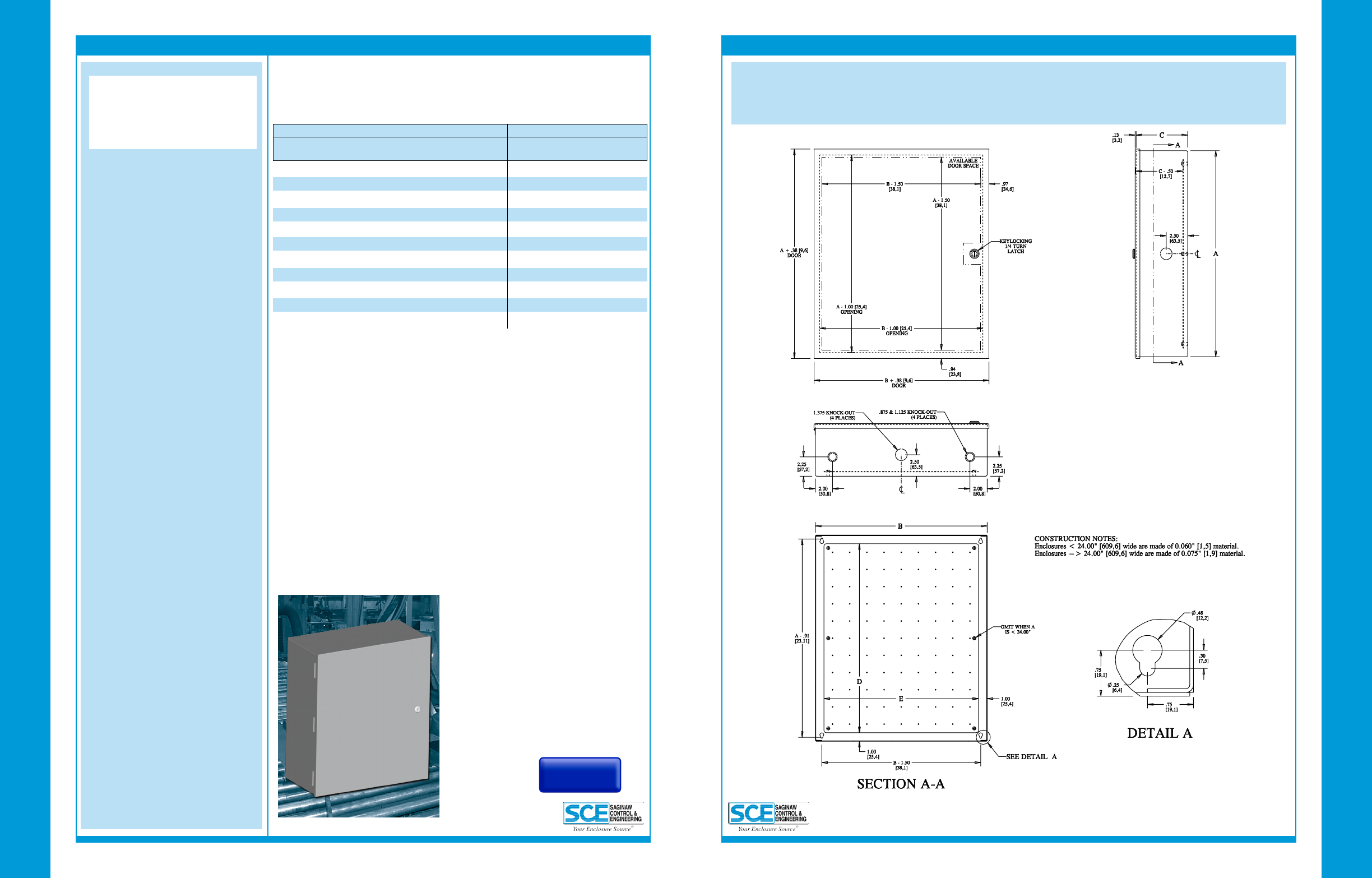

ENVIROLINE® SERIES SINGLE-DOOR ENCLOSURES

Enviroline

®

Series

Single-Door Enclosures

Application -

Designed to house electrical and electronic

controls, instruments and components.

Provides protection from dust, oil and water.

For outdoor application a drip shield is

recommended. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and

ground smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• Collar studs provided for mounting

optional panels.

• Concealed hinge.

• Removable and interchangeable doors.

• Black quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Mounting holes in back of enclosure.

• Mounting hardware, sealing washer

and hole plug included.

• Removable print pocket.

• Ground studs on door and body.

Options -

• Optional tamper-resistant inserts are

available.

• Optional mounting feet available.

• Door hardware available.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

Notes -

Interchangeable latches and handles

available in the accessory section.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

Phone (989) 799-6871

Fax (989) 799-4524

ENCLOSURE PRODUCT CODE E3 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES SINGLE-DOOR ENCLOSURES

ENCLOSURE PRODUCT CODE E3 SUB-PANEL (P3)

Enviroline

®

Series

Single-Door Enclosures

Wall-Mount Enclosures

2

Application -

Designed to house electrical and electronic

controls, instruments and components.

Provides protection from dust, oil and water.

For outdoor application a drip shield is

recommended. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and

ground smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• Collar studs provided for mounting

optional sub-panels.

• Concealed hinge.

• Removable and interchangeable doors.

• Black quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Mounting holes in back of enclosure.

• Mounting hardware, sealing washer

and hole plug included.

• Removable print pocket.

• Ground studs on door and body.

Options -

• Optional tamper-resistant inserts are

available.

• Optional mounting feet available.

• Door hardware available.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

Notes -

Interchangeable latches and handles

available in the accessory section.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

SCE-12EL1206LP 12.00 12.00 6.00 IS2 183.29

SCE-12EL2406LP 12.00 24.00 6.00 IS2 218.97

SCE-16EL1206LP 16.00 12.00 6.00 IS2 194.36

SCE-16EL1208LP 16.00 12.00 8.00 IS2 205.44

SCE-16EL1408LP 16.00 14.00 8.00 IS2 211.59

SCE-16EL1606LP 16.00 16.00 6.00 IS2 210.37

SCE-16EL1608LP 16.00 16.00 8.00 IS2 234.97

SCE-16EL2006LP 16.00 20.00 6.00 IS2 236.19

SCE-16EL2008LP 16.00 20.00 8.00 IS2 237.42

SCE-20EL1206LP 20.00 12.00 6.00 IS2 209.13

SCE-20EL1606LP 20.00 16.00 6.00 IS2 225.12

SCE-20EL1608LP 20.00 16.00 8.00 IS2 237.42

SCE-20EL1610LP 20.00 16.00 10.00 IS2 252.38

SCE-20EL1612LP 20.00 16.00 12.00 IS2 263.25

SCE-20EL2006LP 20.00 20.00 6.00 IS2 242.34

SCE-20EL2008LP 20.00 20.00 8.00 IS2 255.87

SCE-20EL2010LP 20.00 20.00 10.00 IS2 270.07

SCE-20EL2012LP 20.00 20.00 12.00 IS2 284.17

SCE-20EL2408LP 20.00 24.00 8.00 IS2 275.56

SCE-24EL1206LP 24.00 12.00 6.00 IS2 218.97

SCE-24EL1606LP 24.00 16.00 6.00 IS2 239.89

SCE-24EL1608LP 24.00 16.00 8.00 IS2 253.42

SCE-24EL2006LP 24.00 20.00 6.00 IS2 260.80

SCE-24EL2008LP 24.00 20.00 8.00 IS2 275.56

SCE-24EL2010LP 24.00 20.00 10.00 IS2 292.78

SCE-24EL2012LP 24.00 20.00 12.00 IS2 307.54

SCE-24EL2016LP 24.00 20.00 16.00 IS2 337.06

SCE-24EL2406LP 24.00 24.00 6.00 IS2 281.71

SCE-24EL2408LP 24.00 24.00 8.00 IS2 297.70

SCE-24EL2410LP 24.00 24.00 10.00 IS2 314.93

SCE-24EL2412LP 24.00 24.00 12.00 IS2 329.69

SCE-24EL2416LP 24.00 24.00 16.00 IS2 362.90

SCE-24EL3008LP 24.00 30.00 8.00 IS2 329.69

SCE-24EL3010LP 24.00 30.00 10.00 IS2 355.51

SCE-24EL3012LP 24.00 30.00 12.00 IS2 380.54

SCE-30EL1606LP 30.00 16.00 6.00 IS2 263.25

SCE-30EL2008LP 30.00 20.00 8.00 IS2 303.85

SCE-30EL2010LP 30.00 20.00 10.00 IS2 319.84

SCE-30EL2406LP 30.00 24.00 6.00 IS2 309.63

SCE-30EL2408LP 30.00 24.00 8.00 IS2 329.69

SCE-30EL2410LP 30.00 24.00 10.00 IS2 355.51

SCE-30EL2412LP 30.00 24.00 12.00 IS2 366.59

SCE-30EL2416LP 30.00 24.00 16.00 IS2 404.72

SCE-30EL2420LP 30.00 24.00 20.00 IS2 441.62

SCE-30EL2424LP 30.00 24.00 24.00 IS2 478.53

SCE-30EL3008LP 30.00 30.00 8.00 IS2 369.05

SCE-30EL3010LP 30.00 30.00 10.00 IS2 410.87

SCE-30EL3012LP 30.00 30.00 12.00 IS2 423.17

SCE-30EL3608LP 30.00 36.00 8.00 IS2 408.42

SCE-36EL2408LP 36.00 24.00 8.00 IS2 362.90

SCE-36EL2410LP 36.00 24.00 10.00 IS2 392.42

SCE-12DLP12 9.00 9.00 13.67

SCE-12P24 9.00 21.00 27.86

SCE-16P12 13.00 9.00 14.81

SCE-16DLP14 13.00 11.00 17.72

SCE-16P16 13.00 13.00 24.57

SCE-20P16 17.00 13.00 30.37

SCE-20P12 17.00 9.00 23.14

SCE-20P16 17.00 13.00 30.37

SCE-20P20 17.00 17.00 35.44

SCE-24P20 21.00 17.00 45.57

SCE-12P24 9.00 21.00 27.86

SCE-24P16 21.00 13.00 32.92

SCE-24P20 21.00 17.00 45.57

SCE-24P24 21.00 21.00 53.18

SCE-30P24 27.00 21.00 63.29

SCE-30P16 27.00 13.00 45.57

SCE-30P20 27.00 17.00 55.70

SCE-30P24 27.00 21.00 63.29

SCE-30P30 27.00 27.00 83.55

SCE-36P30 33.00 27.00 101.27

SCE-36P24 33.00 21.00 75.96

SCE-36EL2412LP 36.00 24.00 12.00 IS2 404.72

SCE-36EL2416LP 36.00 24.00 16.00 IS2 418.25

SCE-36EL3008LP 36.00 30.00 8.00 IS2 408.42

SCE-36EL3010LP 36.00 30.00 10.00 IS2 435.47

SCE-36EL3012LP 36.00 30.00 12.00 IS2 452.70

SCE-36EL3016LP 36.00 30.00 16.00 IS2 498.22

SCE-36EL3020LP 36.00 30.00 20.00 IS2 542.51

SCE-36EL3608LP 36.00 36.00 8.00 IS2 452.70

SCE-36EL3610LP 36.00 36.00 10.00 IS2 488.77

SCE-36EL3612LP 36.00 36.00 12.00 IS2 501.91

SCE-36EL3616LP 36.00 36.00 16.00 IS2 551.11

SCE-40EL2412LP 40.00 24.00 12.00 IS2 428.10

SCE-42EL2410LP 42.00 24.00 10.00 IS2 457.63

SCE-42EL3008LP 42.00 30.00 8.00 IS2 449.01

SCE-42EL3010LP 42.00 30.00 10.00 IS2 471.15

SCE-42EL3012LP 42.00 30.00 12.00 IS2 496.98

SCE-42EL3016LP 42.00 30.00 16.00 IS2 528.98

SCE-42EL3608LP 42.00 36.00 8.00 IS2 499.46

SCE-42EL3610LP 42.00 36.00 10.00 IS2 524.06

SCE-42EL3612LP 42.00 36.00 12.00 IS2 551.11

SCE-42EL3616LP 42.00 36.00 16.00 IS2 605.24

SCE-48EL2408LP 48.00 24.00 8.00 IS2 429.32

SCE-48EL2412LP 48.00 24.00 12.00 IS2 477.30

SCE-48EL3008LP 48.00 30.00 8.00 IS2 498.72

SCE-48EL3010LP 48.00 30.00 10.00 IS2 512.98

SCE-48EL3016LP 48.00 30.00 16.00 IS2 574.49

SCE-48EL3608LP 48.00 36.00 8.00 IS2 542.51

SCE-48EL3610LP 48.00 36.00 10.00 IS2 573.27

SCE-48EL3612LP 48.00 36.00 12.00 IS2 600.33

SCE-48EL3616LP 48.00 36.00 16.00 IS2 658.14

SCE-48EL3620LP 48.00 36.00 20.00 IS2 715.97

SCE-60EL2412LP 60.00 24.00 12.00 IS2 551.11

SCE-60EL3608LP 60.00 36.00 8.00 IS2 649.48

SCE-60EL3610LP 60.00 36.00 10.00 IS2 667.98

SCE-60EL3612LP 60.00 36.00 12.00 IS2 698.74

SCE-60EL3616LP 60.00 36.00 16.00 IS2 765.17

SCE-60EL3620LP 60.00 36.00 20.00 IS2 832.83

SCE-60EL3624LP 60.00 36.00 24.00 IS2 1,127.62

SCE-72EL3012LP 72.00 30.00 12.00 IS2 749.18

SCE-72EL3016LP 72.00 30.00 16.00 IS2 856.21

SCE-72EL3024LP 72.00 30.00 24.00 IS2 941.08

SCE-72EL3612LP 72.00 36.00 12.00 IS2 799.62

SCE-72EL3616LP 72.00 36.00 16.00 IS2 910.33

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-36P36 33.00 33.00 118.99

SCE-40P24 37.00 21.00 86.08

SCE-42P24 39.00 21.00 91.14

SCE-42P30 39.00 27.00 116.47

SCE-42P36 39.00 33.00 136.72

SCE-48P24 45.00 21.00 98.74

SCE-48P30 45.00 27.00 129.13

SCE-48P36 45.00 33.00 154.46

SCE-60P24 57.00 21.00 129.13

SCE-60P36 57.00 33.00 189.89

SCE-72P30 69.00 27.00 210.15

SCE-72P36 69.00 33.00 225.33

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

70

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

71

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

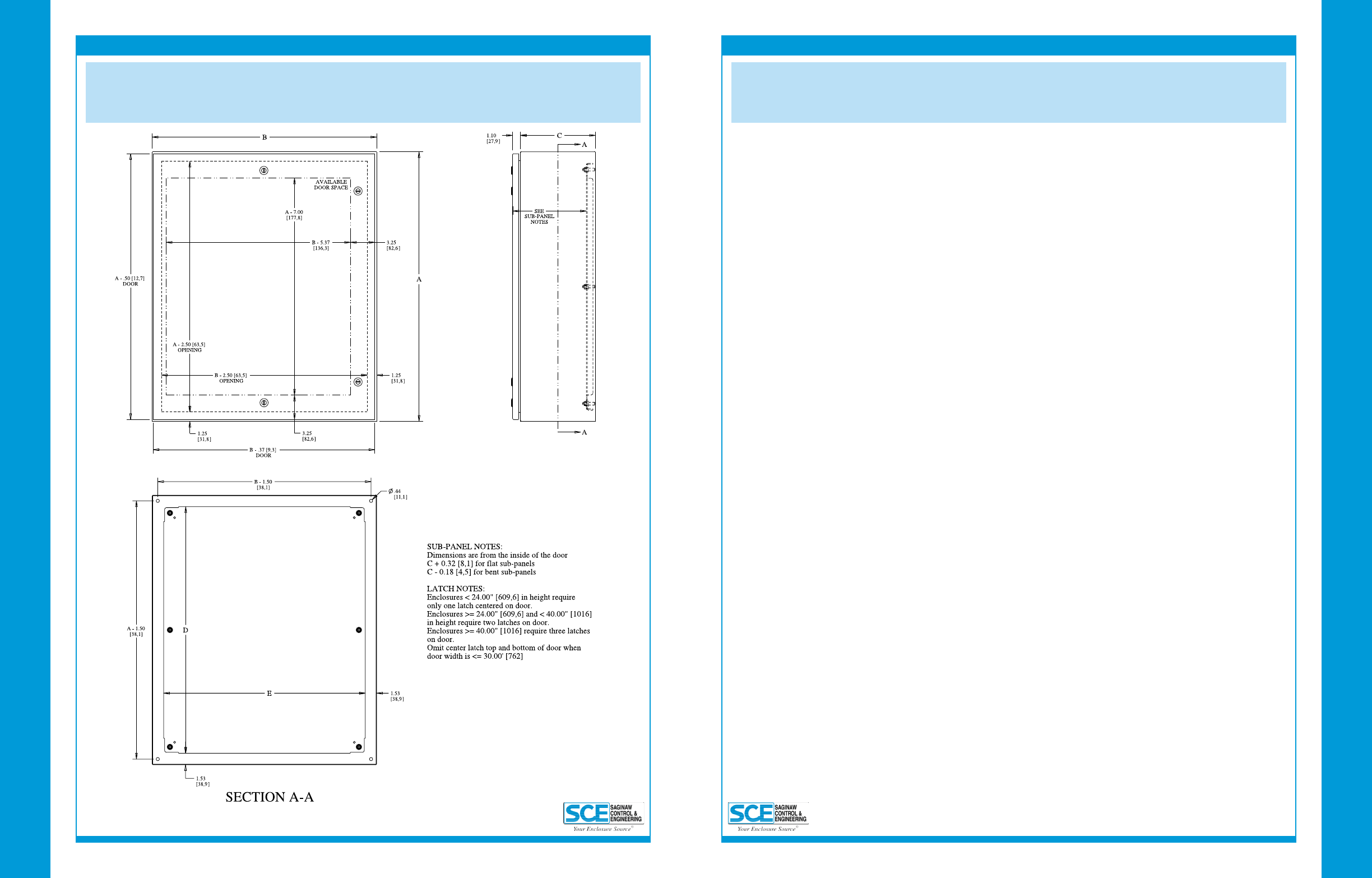

ENVIROLINE® SERIES SINGLE-DOOR ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES ENCLOSURES

Enviroline® Series enclosures are an all purpose enclosure with a durable powder

coatnishor#4brushednishin304&316/316Lstainlesssteel.

Available in carbon steel and stainless steel.

Available in disconnect styles, as well as free-standing enclosures.

Enviroline®SeriesenclosuresareNEMA12/4orNEMA12/4/4Xenclosureswith

quarterturnlatches.

Enviroline®SeriesenclosuresfeaturetheexclusiveSCEremovablehingewhich

allowsthedoortoswingopen180˚.

 TheSCE designedhinge canbe removedby removingthe retainingclip and

pulling the pin.

 Thedoorsareinterchangeable.

 Flangetroughcollararounddooropeningchannelsliquidsawayfromthedoor.

Easy to install swing-out panel kits that mount to the concealed hinges.

 Thequarterturnlatchescanbereplacedwithavarietyoflatches,includingwing

knob, keylocking, padlocking, coinproof, and tamper resistant inserts.

Quarter turn latches can also be replaced with several handles,

including chrome keylocking & padlocking, and the black 5” and 7” SCE handles,

including keylocking, padlocking, and coinproof.

 Athree-pointlatchingsystemisavailableforenclosuresover40”high.

Holes in back of the enclosure for mounting or installing optional

mounting foot kit (SCE-ELMFK4 or SCE-ELMFK4SS).A hole plug kit is

included if holes are not needed.

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

72

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

73

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

CLAMP FASTENED SINGLE-DOOR ENCLOSURES

Phone (989) 799-6871

Fax (989) 799-4524

Clamp Fastened

Single-Door Enclosures

Application -

Designed to house electrical and electronic

controls, instruments, and components.

Provides protection from dust, dirt, oil

and water. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth, no holes or knockouts.

• Flange trough collar around all sides of

door opening.

• Door clamps are quick and easy to

operate.

• Concealed hinge.

• Hasp and staple for padlocking.

• Oil resistant gasket.

• Collar studs for mounting optional

panels.

• Ground stud on door.

• Removable print pocket furnished if

height and width of enclosure is 24” or

more.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE A3 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

Clamp Fastened

Single-Door Enclosures

CLAMP FASTENED SINGLE-DOOR ENCLOSURES

ENCLOSURE PRODUCT CODE A3 SUB-PANEL (P3)

Wall-Mount Enclosures

2

Change Made

Application -

Designed to house electrical and electronic

controls, instruments, and components.

Provides protection from dust, dirt, oil

and water. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth, no holes or knockouts.

• Flange trough collar around all sides of

door opening.

• Door clamps are quick and easy to

operate.

• Concealed hinge.

• Hasp and staple for padlocking.

• Oil resistant gasket.

• Collar studs for mounting optional

panels.

• Ground stud on door.

• Removable print pocket furnished if

height and width of enclosure is 24” or

more.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

SCE-12H2406LP 12.00 24.00 6.00 IS2 238.27

SCE-12H2408LP 12.00 24.00 8.00 IS2 253.33

SCE-16H1206LP 16.00 12.00 6.00 IS2 213.19

SCE-16H1208LP 16.00 12.00 8.00 IS2 223.22

SCE-16H1210LP 16.00 12.00 10.00 IS2 233.25

SCE-16H1606LP 16.00 16.00 6.00 IS2 228.25

SCE-16H1608LP 16.00 16.00 8.00 IS2 240.78

SCE-16H2006LP 16.00 20.00 6.00 IS2 245.80

SCE-16H2008LP 16.00 20.00 8.00 IS2 258.34

SCE-20H1206LP 20.00 12.00 6.00 IS2 225.73

SCE-20H1208LP 20.00 12.00 8.00 IS2 238.27

SCE-20H1606LP 20.00 16.00 6.00 IS2 245.80

SCE-20H1608LP 20.00 16.00 8.00 IS2 258.34

SCE-20H1610LP 20.00 16.00 10.00 IS2 270.87

SCE-20H1612LP 20.00 16.00 12.00 IS2 285.93

SCE-20H2006LP 20.00 20.00 6.00 IS2 263.35

SCE-20H2008LP 20.00 20.00 8.00 IS2 278.41

SCE-20H2010LP 20.00 20.00 10.00 IS2 293.45

SCE-20H2406LP 20.00 24.00 6.00 IS2 283.43

SCE-20H2408LP 20.00 24.00 8.00 IS2 300.48

SCE-20H3006LP 20.00 30.00 6.00 IS2 341.10

SCE-24H1206LP 24.00 12.00 6.00 IS2 238.10

SCE-24H1208LP 24.00 12.00 8.00 IS2 253.33

SCE-24H1210LP 24.00 12.00 10.00 IS2 265.86

SCE-24H1606LP 24.00 16.00 6.00 IS2 260.85

SCE-24H1608LP 24.00 16.00 8.00 IS2 275.89

SCE-24H2006LP 24.00 20.00 6.00 IS2 283.43

SCE-24H2008LP 24.00 20.00 8.00 IS2 300.98

SCE-24H2010LP 24.00 20.00 10.00 IS2 316.04

SCE-24H2012LP 24.00 20.00 12.00 IS2 333.58

SCE-24H2016LP 24.00 20.00 16.00 IS2 366.19

SCE-24H2406LP 24.00 24.00 6.00 IS2 305.99

SCE-24H2408LP 24.00 24.00 8.00 IS2 323.55

SCE-24H2410LP 24.00 24.00 10.00 IS2 341.10

SCE-24H2412LP 24.00 24.00 12.00 IS2 358.66

SCE-24H2416LP 24.00 24.00 16.00 IS2 393.78

SCE-24H3008LP 24.00 30.00 8.00 IS2 358.66

SCE-30H1606LP 30.00 16.00 6.00 IS2 285.93

SCE-30H2006LP 30.00 20.00 6.00 IS2 311.00

SCE-30H2008LP 30.00 20.00 8.00 IS2 331.07

SCE-30H2010LP 30.00 20.00 10.00 IS2 348.61

SCE-30H2406LP 30.00 24.00 6.00 IS2 338.60

SCE-30H2408LP 30.00 24.00 8.00 IS2 358.66

SCE-30H2410LP 30.00 24.00 10.00 IS2 378.73

SCE-30H2412LP 30.00 24.00 12.00 IS2 398.79

SCE-30H2416LP 30.00 24.00 16.00 IS2 438.92

SCE-30H2420LP 30.00 24.00 20.00 IS2 479.05

SCE-12P24 9.00 21.00 27.86

SCE-16P12 13.00 9.00 14.81

SCE-16P16 13.00 13.00 24.57

SCE-20P16 17.00 13.00 30.37

SCE-20P12 17.00 9.00 23.14

SCE-20P16 17.00 13.00 30.37

SCE-20P20 17.00 17.00 35.44

SCE-24P20 21.00 17.00 45.57

SCE-30P20 27.00 17.00 55.70

SCE-12P24 9.00 21.00 27.86

SCE-24P16 21.00 13.00 32.92

SCE-24P20 21.00 17.00 45.57

SCE-24P24 21.00 21.00 53.18

SCE-30P24 27.00 21.00 63.29

SCE-30P16 27.00 13.00 45.57

SCE-30P20 27.00 17.00 55.70

SCE-30P24 27.00 21.00 63.29

SCE-30H2424LP 30.00 24.00 24.00 IS2 519.19

SCE-30H3008LP 30.00 30.00 8.00 IS2 401.30

SCE-30H3012LP 30.00 30.00 12.00 IS2 446.44

SCE-30H3608LP 30.00 36.00 8.00 IS2 443.93

SCE-36H1606LP 36.00 16.00 6.00 IS2 303.48

SCE-36H2406LP 36.00 24.00 6.00 IS2 371.21

SCE-36H2408LP 36.00 24.00 8.00 IS2 393.78

SCE-36H2410LP 36.00 24.00 10.00 IS2 416.36

SCE-36H2412LP 36.00 24.00 12.00 IS2 438.92

SCE-36H2416LP 36.00 24.00 16.00 IS2 489.09

SCE-36H3006LP 36.00 30.00 6.00 IS2 418.86

SCE-36H3008LP 36.00 30.00 8.00 IS2 443.93

SCE-36H3010LP 36.00 30.00 10.00 IS2 469.01

SCE-36H3012LP 36.00 30.00 12.00 IS2 491.60

SCE-36H3016LP 36.00 30.00 16.00 IS2 541.76

SCE-36H3020LP 36.00 30.00 20.00 IS2 589.41

SCE-36H3608LP 36.00 36.00 8.00 IS2 491.60

SCE-36H3612LP 36.00 36.00 12.00 IS2 546.77

SCE-36H3616LP 36.00 36.00 16.00 IS2 599.43

SCE-42H2408LP 42.00 24.00 8.00 IS2 431.40

SCE-42H3008LP 42.00 30.00 8.00 IS2 486.58

SCE-42H3010LP 42.00 30.00 10.00 IS2 511.65

SCE-42H3012LP 42.00 30.00 12.00 IS2 539.24

SCE-42H3016LP 42.00 30.00 16.00 IS2 594.42

SCE-42H3608LP 42.00 36.00 8.00 IS2 541.76

SCE-42H3610LP 42.00 36.00 10.00 IS2 569.34

SCE-42H3612LP 42.00 36.00 12.00 IS2 599.43

SCE-42H3616LP 42.00 36.00 16.00 IS2 657.13

SCE-48H2408LP 48.00 24.00 8.00 IS2 466.51

SCE-48H3008LP 48.00 30.00 8.00 IS2 529.22

SCE-48H3010LP 48.00 30.00 10.00 IS2 556.80

SCE-48H3016LP 48.00 30.00 16.00 IS2 644.58

SCE-48H3608LP 48.00 36.00 8.00 IS2 589.41

SCE-48H3610LP 48.00 36.00 10.00 IS2 622.02

SCE-48H3612LP 48.00 36.00 12.00 IS2 652.12

SCE-48H3616LP 48.00 36.00 16.00 IS2 714.82

SCE-48H3620LP 48.00 36.00 20.00 IS2 777.52

SCE-60H3608LP 60.00 36.00 8.00 IS2 687.22

SCE-60H3610LP 60.00 36.00 10.00 IS2 724.84

SCE-60H3612LP 60.00 36.00 12.00 IS2 759.96

SCE-60H3620LP 60.00 36.00 20.00 IS2 902.92

SCE-72H3012LP 72.00 30.00 12.00 IS2 812.62

SCE-72H3016LP 72.00 30.00 16.00 IS2 929.27

SCE-72H3024LP 72.00 30.00 24.00 IS2 1,020.81

SCE-72H3612LP 72.00 36.00 12.00 IS2 867.81

SCE-72H3616LP 72.00 36.00 16.00 IS2 985.70

SCE-30P24 27.00 21.00 63.29

SCE-30P30 27.00 27.00 83.55

SCE-36P30 33.00 27.00 101.27

SCE-36P16 33.00 13.00 53.18

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-36P36 33.00 33.00 118.99

SCE-42P24 39.00 21.00 91.14

SCE-42P30 39.00 27.00 116.47

SCE-42P36 39.00 33.00 136.72

SCE-48P24 45.00 21.00 98.74

SCE-48P30 45.00 27.00 129.13

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

SCE-72P30 69.00 27.00 210.15

SCE-72P36 69.00 33.00 225.33

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

74

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

75

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

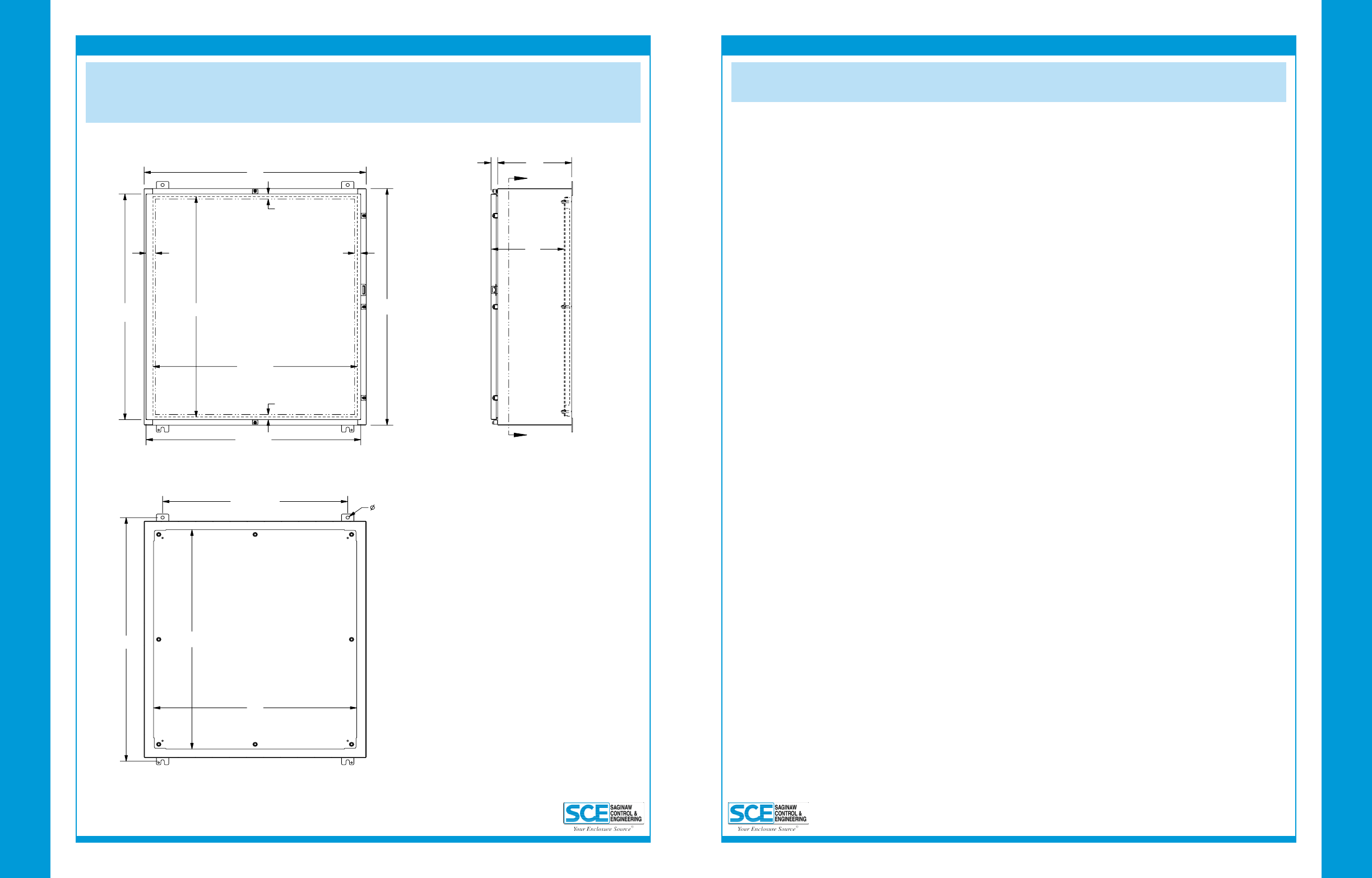

CLAMP FASTENED SINGLE DOOR ENCLOSURES

TECHNICAL DATA

Phone (989) 799-6871

Fax (989) 799-4524

Phone (989) 799-6871

Fax (989) 799-4524

NOTES

Wall-Mount Enclosures

2

A

SEE

SUB-PANEL

NOTES

C

1.07

[27]

D

E

A + 1.25

[32]

B - 6.00 [152] OR

B - 2.50 [64] WHEN

B < 12.00 [305]

.56

[14]

A - 2.90 [74]

OPENING

B - 2.90 [74]

OPENING

.91

[23]

1.00

[25]

.91

[23]

1.50

[38]

B - 1.20 [31]

DOOR

A - 1.94

[49]

DOOR

A

B

SUB-PANEL NOTES:

Dimensions are from the inside of the door

C + .30 [8] for at sub-panels

C - .20 [5] for bent sub-panels

CLAMPING NOTES:

Enclosures < 27.00 [686] in height require

two clamps on door.

Enclosures >= 27.00 [686] in height require

three clamps on door.

Omit center clamp top and bottom of door

when door width is <= 30.00 [762]

HLPN4

AVAILABLE

DOOR SPACE

SECTION A-A

76

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

77

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

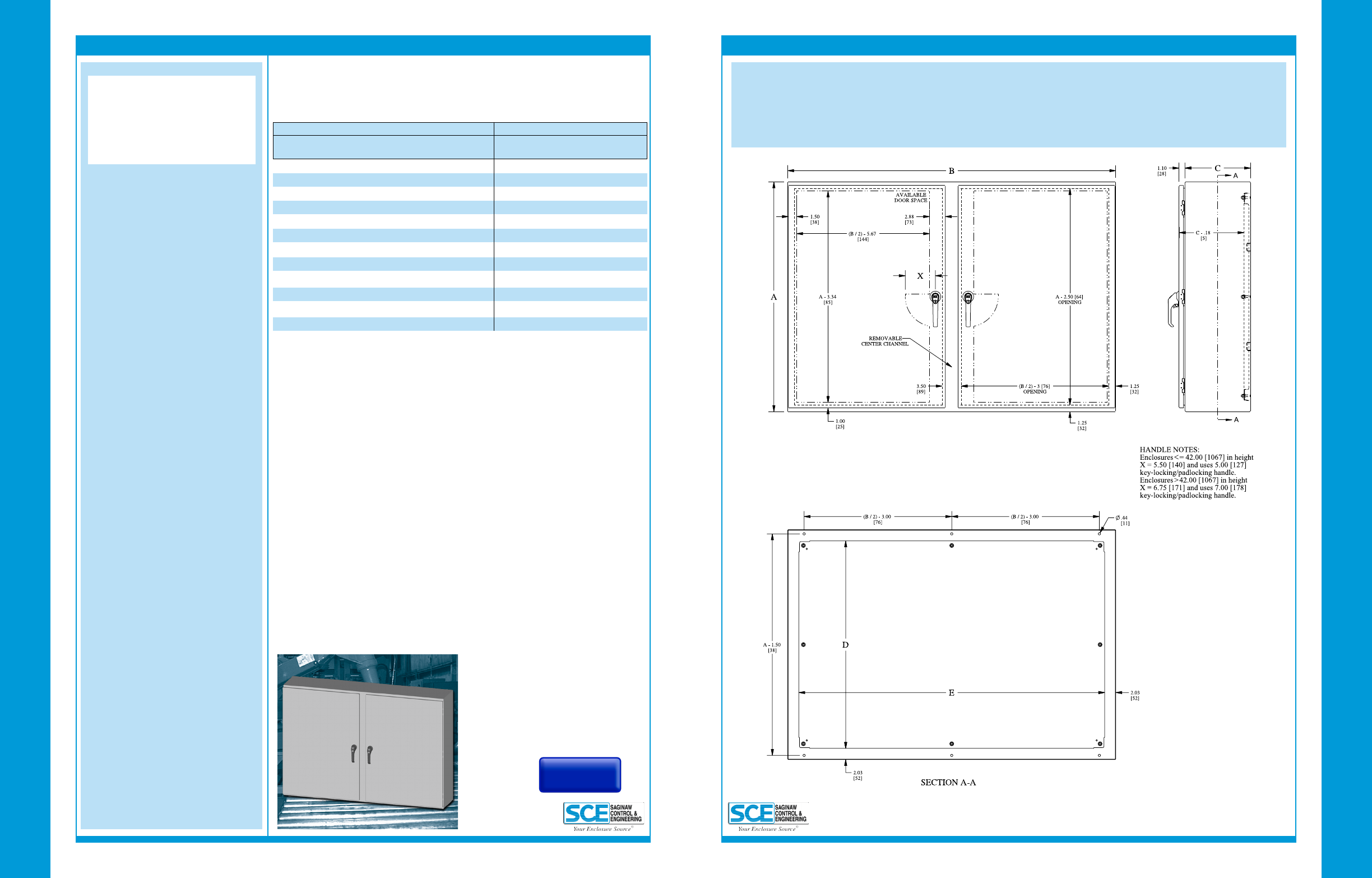

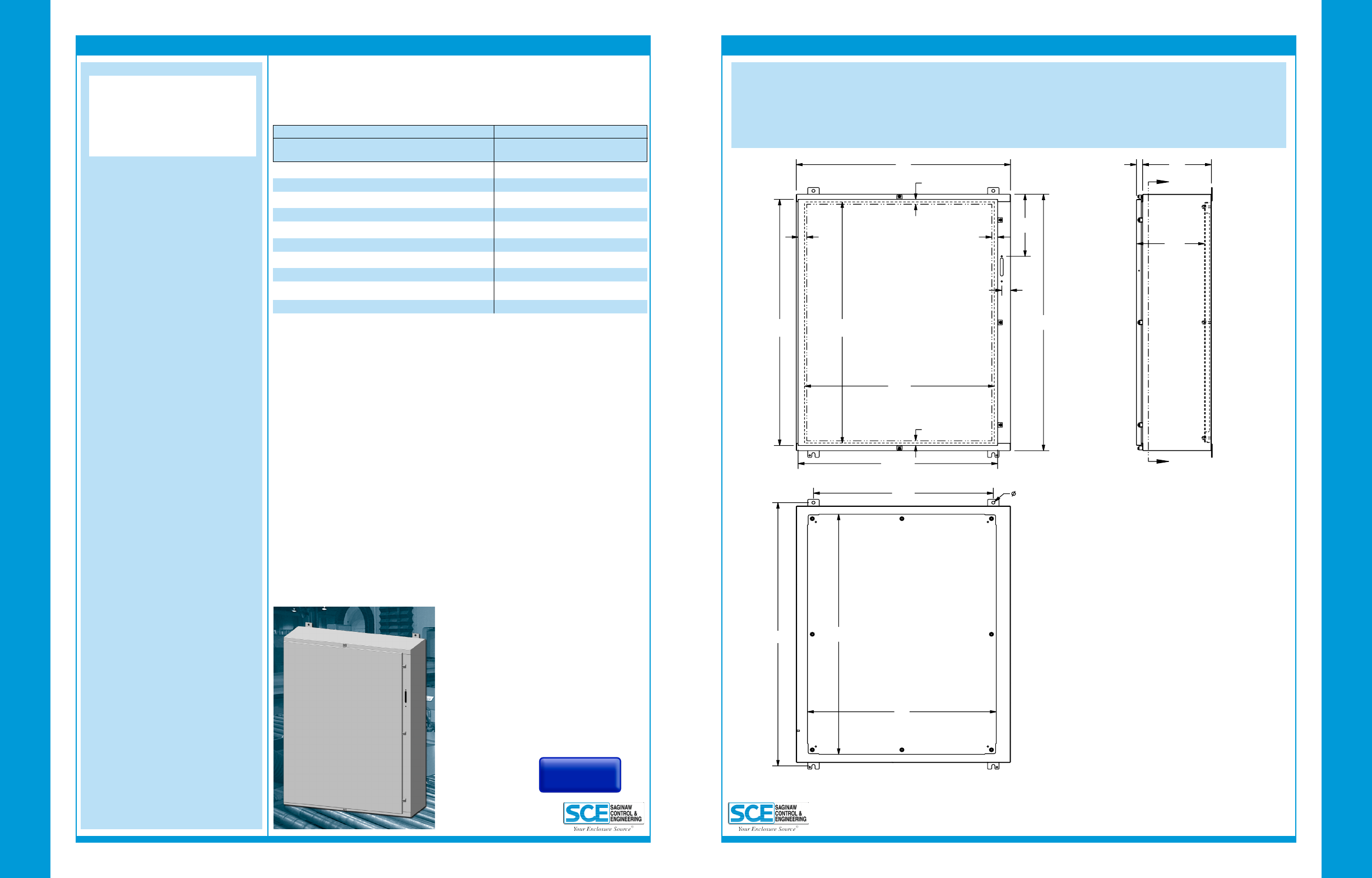

ENVIROLINE® SERIES WALL-MOUNT TWO-DOOR

ENCLOSURES WITH 3-POINT HARDWARE

Phone (989) 799-6871

Fax (989) 799-4524

Enviroline® Series

Wall-Mount Two-Door

Enclosures With

3-Point Hardware

Application -

Designed to house electrical and electronic

controls, instrumentation and components.

For installation information, consult our

Installation Manual at www.saginawcontrol.

com. For outdoor applications a drip shield

is recommended.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Collar studs provided for mounting

optional panels.

• Removable center posts permit easy

panel installation.

• Mounting holes in back of the enclosure

for wall mounting.

• Mounting hardware, sealing washers and

hole plugs included.

• Stainless steel concealed hinges.

• Removable and interchangeable doors.

• Black keylocking/padlocking handles.

• 3-point latching mechanism.

• Removable print pocket.

• Oil & water resistant gasket.

• Ground stud on door and body.

Options -

Optional mounting foot kit available

(SCE-ELMFK6).

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS4 - Industry Standards -

NEMA Type 3R, 4, 12 & Type 13

UL Listed Type 3R, 4 & 12

CSA Type 3R, 4 & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE A4 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

ENVIROLINE® SERIES WALL-MOUNT

TWO-DOOR ENCLOSURES WITH 3-POINT HARDWARE

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-24EL4210WFLP 24.00 42.00 10.00 IS4 821.92

SCE-24EL4810WFLP 24.00 48.00 10.00 IS4 854.84

SCE-30EL4210WFLP 30.00 42.00 10.00 IS4 866.84

SCE-30EL4810WFLP 30.00 48.00 10.00 IS4 954.91

SCE-30EL6010WFLP 30.00 60.00 10.00 IS4 1,055.50

SCE-36EL4216WFLP 36.00 42.00 16.00 IS4 1,047.13

SCE-36EL4812WFLP 36.00 48.00 12.00 IS4 1,101.45

SCE-36EL6012WFLP 36.00 60.00 12.00 IS4 1,223.32

SCE-42EL4212WFLP 42.00 42.00 12.00 IS4 1,166.94

SCE-42EL4812WFLP 42.00 48.00 12.00 IS4 1,273.68

SCE-42EL6012WFALP 42.00 60.00 12.00 IS4 1,420.06

SCE-48EL4812WFLP 48.00 48.00 12.00 IS4 1,383.23

SCE-42P24 39.00 21.00 91.14

SCE-48P24 45.00 21.00 98.74

SCE-42P30 39.00 27.00 116.47

SCE-48P30 45.00 27.00 129.13

SCE-60P30 57.00 27.00 159.52

SCE-42P36 39.00 33.00 136.72

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

SCE-42P42 39.00 39.00 156.97

SCE-48P42 45.00 39.00 177.24

SCE-60BFP42 56.00 38.00 230.41

SCE-48P48 44.00 44.00 212.67

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

***Special Instructions apply for IS3, IS4 and IS6

to maintain the environmental rating of Type 3R

for these parts. See the Special Instructions on

the Industry Standards page in the Technical

Information Section.

Back to

Wall-Mount

Enclosures

78

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

79

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

OVERLAPPING TWO-DOOR

WALL-MOUNT ENCLOSURES

Overlapping

Two-Door Wall-Mount

Enclosures

Application -

Designed to house electrical and electronic

controls, instruments and components.

Provides protection from dust, oil and

water. For outdoor application a drip shield

and drain holes are required. For installation

information, consult our Installation Manual

at www.saginawcontrol.com.

Construction -

• 0.075” carbon steel or stainless steel.

• Seams continuously welded and ground

smooth, no holes or knockouts.

• Flange trough collar around all sides of

door opening.

• Gasketed overlapping doors eliminate

need for center post.

• Black zinc die cast keylocking/padlocking

handle.

• 3-point latching mechanism.

• Latch rods have ramp shoes for easier

door closing.

• Concealed hinge.

• Removable and interchangeable doors.

• Removable print pocket provided on door

with 3-point latch.

• Oil resistant door gasket.

• Collar studs for mounting optional sub-

panel.

• Ground stud on door.

• Mounting hardware, sealing washer and

hole plug included.

Options -

Optional mounting foot kit available

(SCE-ELMFK6).

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS3 - Industry Standards -

NEMA Type 3R, 12 & Type 13

UL Listed Type 3R & 12

CSA Type 3R & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE A4 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

Phone (989) 799-6871

Fax (989) 799-4524

OVERLAPPING TWO-DOOR WALL-MOUNT ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-244208WFLP 24.00 42.00 8.00 IS3 531.50

SCE-244808WFLP 24.00 48.00 8.00 IS3 576.22

SCE-244812WFLP 24.00 48.00 12.00 IS3 615.84

SCE-304210WFLP 30.00 42.00 10.00 IS3 635.82

SCE-304810WFLP 30.00 48.00 10.00 IS3 690.46

SCE-306010WFLP 30.00 60.00 10.00 IS3 799.74

SCE-364212WFLP 36.00 42.00 12.00 IS3 740.14

SCE-364216WFLP 36.00 42.00 16.00 IS3 805.15

SCE-364810WFLP 36.00 48.00 10.00 IS3 794.78

SCE-364812WFLP 36.00 48.00 12.00 IS3 807.20

SCE-364816WFLP 36.00 48.00 16.00 IS3 881.94

SCE-366012WFLP 36.00 60.00 12.00 IS3 941.31

SCE-366016WFLP 36.00 60.00 16.00 IS3 1,048.69

SCE-424212WFLP 42.00 42.00 12.00 IS3 817.12

SCE-424216WFLP 42.00 42.00 16.00 IS3 928.01

SCE-424812WFLP 42.00 48.00 12.00 IS3 891.63

SCE-424816WFLP 42.00 48.00 16.00 IS3 1,000.42

SCE-426012WFALP 42.00 60.00 12.00 IS3 1,040.65

SCE-426016WFALP 42.00 60.00 16.00 IS3 1,193.48

SCE-484812WFLP 48.00 48.00 12.00 IS3 973.60

SCE-484816WFLP 48.00 48.00 16.00 IS3 1,138.64

SCE-42P24 39.00 21.00 91.14

SCE-48P24 45.00 21.00 98.74

SCE-42P30 39.00 27.00 116.47

SCE-48P30 45.00 27.00 129.13

SCE-60P30 57.00 27.00 159.52

SCE-42P36 39.00 33.00 136.72

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

SCE-42P42 39.00 39.00 156.97

SCE-48P42 45.00 39.00 177.24

SCE-60BFP42 56.00 38.00 230.41

SCE-48P48 44.00 44.00 212.67

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

***Special Instructions apply for IS3, IS4 and IS6

to maintain the environmental rating of Type 3R

for these parts. See the Special Instructions on

the Industry Standards page in the Technical

Information Section.

Back to

Wall-Mount

Enclosures

80

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

81

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

Enviroline

®

Series

Single-Door Enclosures

For Flange-Mounted

Disconnects

Application -

Designed to house most standard type

disconnects. For installation information,

consult our Installation Manual at www.

saginawcontrol.com. For outdoor application

a drip shield is recommended.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Oil-resistant gasket.

• Collar studs provided for mounting

optional sub-panels.

• Disconnect cutout provided on ange.

• Concealed hinge.

• Doors are interchangeable and easily

removed by pulling hinge pins.

• 3-point latching mechanism.

• Latches are opened or closed with a

screwdriver (optional tamper-resistant

inserts are available).

• Mounting holes on back of enclosure.

• Mounting hardware, sealing washers,

and hole plugs included.

• Ground studs on door and body.

• Black zinc die cast coinproof/padlocking

handle.

Disconnect switch (or circuit breaker)

and operating mechanism are not

furnished with this enclosure.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS3 - Industry Standards -

NEMA Type 3R, 12 & Type 13

UL Listed Type 3R & 12

CSA Type 3R & 12

IEC 60529 IP 55

IS4 - Industry Standards -

NEMA Type 3R, 4, 12 & Type 13

UL Listed Type 3R, 4 & 12

CSA Type 3R, 4 & 12

IEC 60529 IP 66

Phone (989) 799-6871

Fax (989) 799-4524

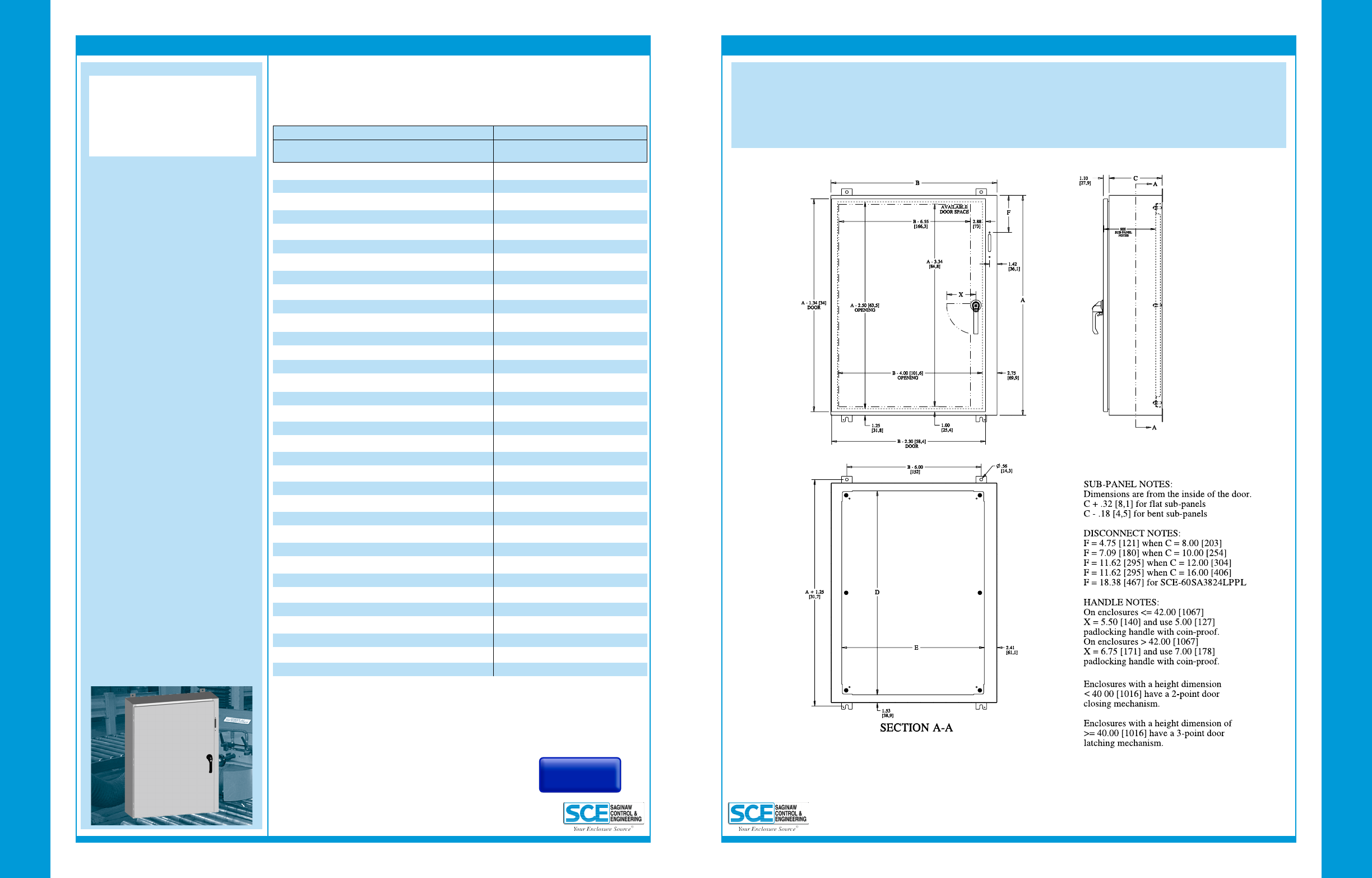

ENVIROLINE® SERIES SINGLE-DOOR ENCLOSURES

FOR FLANGE-MOUNTED DISCONNECTS

TECHNICAL DATA

ENVIROLINE® SERIES SINGLE-DOOR ENCLOSURES

FOR FLANGE-MOUNTED DISCONNECTS

ENCLOSURES PRODUCT CODE E3 SUB-PANEL (P3)

Wall-Mount Enclosures

2

SCE-20XEL2108LP 20.00 21.38 8.00 IS4 349.36

SCE-20XEL2110LP 20.00 21.38 10.00 IS4 367.82

SCE-24XEL2108LP 24.00 21.38 8.00 IS4 376.43

SCE-24XEL2508LP 24.00 25.38 8.00 IS4 405.95

SCE-24XEL2510LP 24.00 25.38 10.00 IS4 425.65

SCE-30XEL2508LP 30.00 25.38 8.00 IS4 450.25

SCE-30XEL2510LP 30.00 25.38 10.00 IS4 473.62

SCE-36XEL2508LP 36.00 25.38 8.00 IS4 496.98

SCE-36XEL2510LP 36.00 25.38 10.00 IS4 521.58

SCE-36XEL3108LP 36.00 31.38 8.00 IS4 554.81

SCE-36XEL3110LP 36.00 31.38 10.00 IS4 586.79

SCE-36XEL3112LP 36.00 31.38 12.00 IS4 618.78

SCE-36XEL3116LP 36.00 31.38 16.00 IS4 675.37

SCE-42XEL3110LP 42.00 31.38 10.00 IS4 642.15

SCE-42XEL3112LP 42.00 31.38 12.00 IS4 676.59

SCE-42XEL3116LP 42.00 31.38 16.00 IS4 735.64

SCE-42XEL3710LP 42.00 37.38 10.00 IS4 699.97

SCE-42XEL3712LP 42.00 37.38 12.00 IS4 752.87

SCE-42XEL3712LP12 42.00 37.38 12.00 IS3 908.77

SCE-42XEL3716LP 42.00 37.38 16.00 IS4 826.68

SCE-48XEL3710LP 48.00 37.38 10.00 IS4 778.70

SCE-48XEL3712LP 48.00 37.38 12.00 IS4 820.53

SCE-48XEL3712LP12 48.00 37.38 12.00 IS3 800.53

SCE-48XEL3716LP 48.00 37.38 16.00 IS4 889.41

SCE-60XEL3710LP 60.00 37.38 10.00 IS4 907.87

SCE-60XEL3712LP 60.00 37.38 12.00 IS4 953.38

SCE-60XEL3716LP 60.00 37.38 16.00 IS4 1,040.74

SCE-60XEL3716LP12 60.00 37.38 16.00 IS3 1,020.74

SCE-20P20 17.00 17.00 35.44

SCE-24P20 21.00 17.00 45.57

SCE-24P24 21.00 21.00 53.18

SCE-30P24 27.00 21.00 63.29

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-42P30 39.00 27.00 116.47

SCE-42P36 39.00 33.00 136.72

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

***Special Instructions apply for IS3, IS4 and IS6

to maintain the environmental rating of Type 3R

for these parts. See the Special Instructions on

the Industry Standards page in the Technical

Information Section.

Part numbers that end in “LP12” omit center quarter turn latches on the top and bottom of

the door.

Back to

Wall-Mount

Enclosures

82

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

83

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

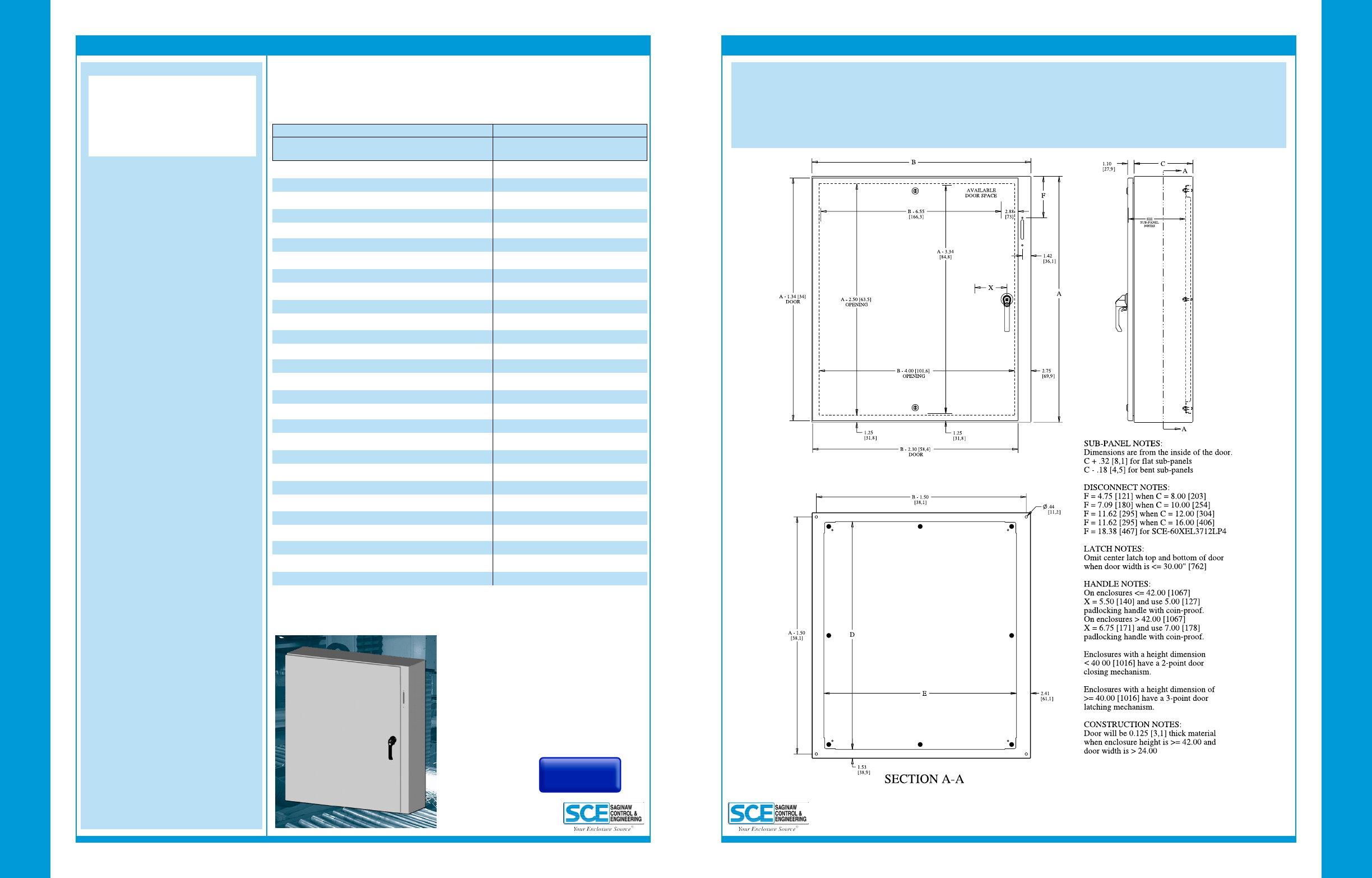

SINGLE-DOOR ENCLOSURES FOR FLANGE-MOUNTED

DISCONNECTS WITH SCE DOOR HARDWARE

Phone (989) 799-6871

Fax (989) 799-4524

Single-Door Enclosures

For Flange-Mounted

Disconnects with

SCE Door Hardware

ENCLOSURE PRODUCT CODE A5 SUB-PANEL (P3)

Application -

Designed to house most standard type

disconnects. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth.

• Flange trough collar around all sides of

door opening.

• Concealed hinge.

• Removable print pocket furnished if

height and width of enclosure is 24” or

more.

• Oil-resistant gasket.

• Collar studs provided for mounting

optional sub-panels.

• Cutouts provided in ange for mounting

disconnect operating handle.

• Ground stud on door.

• 3-point latching mechanism.

• Black zinc die cast coinproof/padlocking

handle.

Disconnect switch (or circuit breaker)

and operating mechanism are not

furnished with this enclosure.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS1 - Industry Standards -

NEMA Type 12 & Type 13

UL Listed Type 12

CSA Type 12

IEC 60529 IP 55

Phone (989) 799-6871

Fax (989) 799-4524

SINGLE-DOOR ENCLOSURES

FOR FLANGE-MOUNTED DISCONNECTS

TECHNICAL DATA

.

Wall-Mount Enclosures

2

SCE-20SA2208LPPL 20.00 21.38 8.00 IS1 465.86

SCE-20SA2210LPPL 20.00 21.38 10.00 IS1 483.60

SCE-24SA2208LPPL 24.00 21.38 8.00 IS1 491.19

SCE-24SA2210LPPL 24.00 21.38 10.00 IS1 511.43

SCE-24SA2608LPPL 24.00 25.38 8.00 IS1 521.57

SCE-24SA2610LPPL 24.00 25.38 10.00 IS1 541.83

SCE-30SA2208LPPL 30.00 21.38 8.00 IS1 529.16

SCE-30SA2210LPPL 30.00 21.38 10.00 IS1 554.48

SCE-30SA2608LPPL 30.00 25.38 8.00 IS1 564.62

SCE-30SA2610LPPL 30.00 25.38 10.00 IS1 589.92

SCE-30SA2612LPPL 30.00 25.38 12.00 IS1 615.25

SCE-36SA2608LPPL 36.00 25.38 8.00 IS1 594.99

SCE-36SA2610LPPL 36.00 25.38 10.00 IS1 638.03

SCE-36SA3208LPPL 36.00 31.38 8.00 IS1 670.95

SCE-36SA3210LPPL 36.00 31.38 10.00 IS1 703.87

SCE-36SA3212LPPL 36.00 31.38 12.00 IS1 734.24

SCE-36SA3216LPPL 36.00 31.38 16.00 IS1 792.49

SCE-42SA3208LPPL 42.00 31.38 8.00 IS1 726.65

SCE-42SA3210LPPL 42.00 31.38 10.00 IS1 759.57

SCE-42SA3212LPPL 42.00 31.38 12.00 IS1 792.49

SCE-42SA3216LPPL 42.00 31.38 16.00 IS1 849.45

SCE-42SA3808LPPL 42.00 37.38 8.00 IS1 795.01

SCE-42SA3810LPPL 42.00 37.38 10.00 IS1 830.47

SCE-42SA3812LPPL 42.00 37.38 12.00 IS1 868.44

SCE-42SA3816LPPL 42.00 37.38 16.00 IS1 917.82

SCE-48SA2610LPPL 48.00 25.38 10.00 IS1 868.44

SCE-48SA3808LPPL 48.00 37.38 8.00 IS1 858.30

SCE-48SA3810LPPL 48.00 37.38 10.00 IS1 896.29

SCE-48SA3812LPPL 48.00 37.38 12.00 IS1 936.81

SCE-48SA3816LPPL 48.00 37.38 16.00 IS1 1,015.30

SCE-60SA3808LPPL 60.00 37.38 8.00 IS1 979.84

SCE-60SA3810LPPL 60.00 37.38 10.00 IS1 1,025.41

SCE-60SA3812LPPL 60.00 37.38 12.00 IS1 1,071.00

SCE-60SA3816LPPL 60.00 37.38 16.00 IS1 1,159.60

SCE-20P20 17.00 17.00 35.44

SCE-24P20 21.00 17.00 45.57

SCE-24P24 21.00 21.00 53.18

SCE-30P20 27.00 17.00 55.70

SCE-30P24 27.00 21.00 63.29

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-42P30 39.00 27.00 116.47

SCE-42P36 39.00 33.00 136.72

SCE-48P24 45.00 21.00 98.74

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Back to

Wall-Mount

Enclosures

84

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

85

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

CLAMP FASTENED SINGLE-DOOR ENCLOSURES FOR

FLANGE-MOUNTED DISCONNECTS

Phone (989) 799-6871

Fax (989) 799-4524

Clamp Fastened

Single-Door Enclosures

For Flange-Mounted

Disconnects

Application -

Designed to house most standard type

disconnects. For installation information,

consult our Installation Manual at www.

saginawcontrol.com. For outdoor application

a drip shield is recommended.

Construction -

• 0.075” carbon steel.

• Seams continuously welded and ground

smooth.

• Continuous hinge with stainless steel

hinge pin.

• Stainless steel clamps on three sides of

door.

• Flange trough collar around all sides of

door opening.

• Interior print pocket.

• Collar studs provided for mounting

optional panels.

• Oil-resistant door gasket.

• Disconnect cutout provided on ange.

• Ground stud on door.

• No stiffener required.

Disconnect switch (or circuit breaker)

and operating mechanism are not

furnished with this enclosure.

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS2 - Industry Standards -

NEMA Type 4, 12 & Type 13

UL Listed Type 4 & 12

CSA Type 4 & 12

IEC 60529 IP66

ENCLOSURE PRODUCT CODE A3 SUB-PANEL (P3)

Phone (989) 799-6871

Fax (989) 799-4524

CLAMP FASTENED SINGLE-DOOR ENCLOSURES

FOR FLANGE-MOUNTED DISCONNECTS

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-24HS2108LP 24.00 21.38 8.00 IS2 456.48

SCE-24HS2508LP 24.00 25.38 8.00 IS2 494.10

SCE-30HS2508LP 30.00 25.38 8.00 IS2 546.77

SCE-36HS2508LP 36.00 25.38 8.00 IS2 601.95

SCE-36HS3108LP 36.00 31.38 8.00 IS2 677.19

SCE-36HS3112LP 36.00 31.38 12.00 IS2 749.93

SCE-42HS3112LP 42.00 31.38 12.00 IS2 822.67

SCE-42HS3712LP 42.00 37.38 12.00 IS2 915.47

SCE-48HS3712LP 48.00 37.38 12.00 IS2 995.72

SCE-60HS3712LP 60.00 37.38 12.00 IS2 1,158.75

SCE-24P20 21.00 17.00 45.57

SCE-24P24 21.00 21.00 53.18

SCE-30P24 27.00 21.00 63.29

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-42P30 39.00 27.00 116.47

SCE-42P36 39.00 33.00 136.72

SCE-48P36 45.00 33.00 154.46

SCE-60P36 57.00 33.00 189.89

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

A

C - .20

[5]

C

1.07

[27]

B

A

F

D

E

.56

[14]

B - 6.00

[152]

A + 1.25

[32]

B - 2.58 [66]

DOOR

A - 1.94

[49]

DOOR

A - 2.90

[74]

OPENING

B - 4.28

[109]

OPENING

1.53

[39]

1.00

[25]

1.50

[38]

.90

[23]

.90

[23]

N4SDEFFMD

DISCONNECT NOTES:

F = 8.63 [219] when C = 8.00 [203]

F = 11.63 [295] when C = 12.00 [304]

CLAMPING NOTES:

Enclosures < 27.00 [686] in height require

two clamps on door.

Enclosures >= 27.00 [686] in height require

three clamps on door.

Omit center clamp top and bottom of door

when door width is <= 30.00 [762]

AVAILABLE

DOOR SPACE

SECTION A-A

Back to

Wall-Mount

Enclosures

86

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

87

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Wall-Mount Enclosures

2

Phone (989) 799-6871

Fax (989) 799-4524

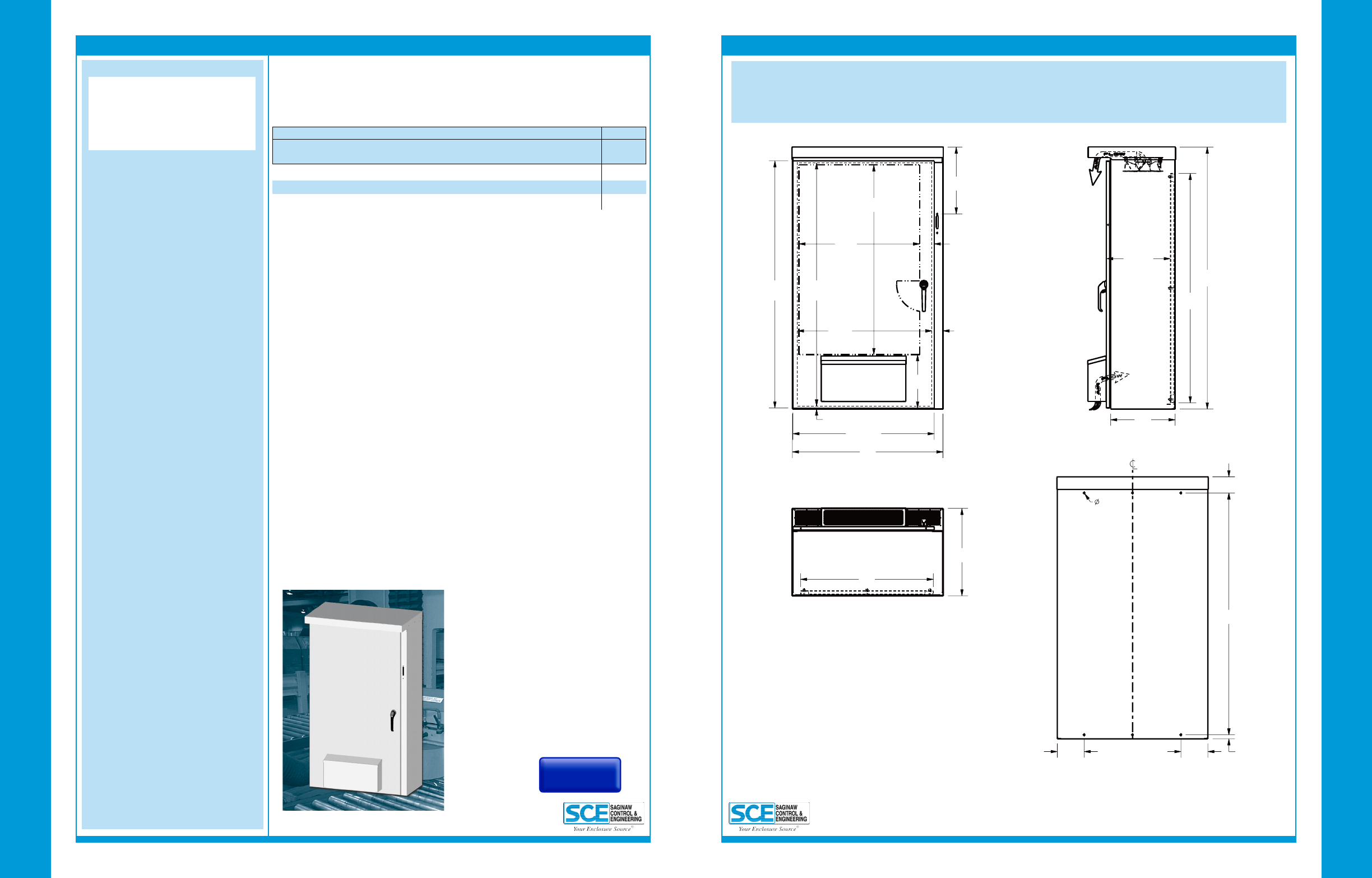

VENTED TYPE 3R ENCLOSURES

FOR FLANGE-MOUNTED DISCONNECTS

Catalog Height Width Depth Fan Fan System Filter Filter Industry List

No. (A) (B) (C) Size Qty. CFM Size Qty. Standard Price Sub-Panel

Vented Type 3R

Disconnect

Enclosure ENCLOSURE PRODUCT CODE N3

Phone (989) 799-6871

Fax (989) 799-4524

VENTED TYPE 3R DISCONNECT ENCLOSURES

TECHNICAL DATA

Application -

Designed to house electrical controls,

drives, instruments and components used

in an outdoor environment to provide a

degree of protection for the equipment

inside the enclosure against ingress of

solid foreign objects (falling dirt); and

provide a degree of protection with respect

to the harmful effects on the equipment

due to the ingress of water (rain, sleet,

snow). Designed to house most standard

disconnects. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” galvannealed steel.

• 3-point latching mechanism.

• Provisions for sub-panel.

• Doors open 180 degrees.

• Disconnect cutout provided on ange.

• Concealed hinges.

• Vented top hood with bug screen.

• Top mounted fans.

• Vented rain hood with lter kits in door.

• Din Rail mounting provisions inside

top for installation of thermostat and

terminals.

• Oil resistant gasket.

• Ground studs on door and body.

• Mounting holes for optional mounting

straps.

• 3/8-16 grounding kit.

• Sub-panel mounting hardware included.

• 115 volt fan.

• Black zinc die cast coinproof/padlocking

handle.

Finish -

White powder coated inside and out.

Optional sub-panels are powder coated

white.

IS7 - Industry Standards -

NEMA Type 3R

UL Listed Type 3R

CSA Type 3R

IEC 60529 IP32

E

C + 5.70

[145]

4.00

[102]

A - 5.00

[127]

1.00

[25]

6.69

[170]

6.69

[170]

.44

[11]

A

C

D

C - .20 [5]

INSIDE

DOOR

B

B - 2.30 [58]

DOOR

A - 3.67

[93]

DOOR

B -7.43

[189]

A - 17.92

[455]

3.63

[92]

A - 4.67

[119]

OPENING

B - 4.00

[102]

OPENING

2.75

[70]

13.25

[337]

.75

[19]

16.62

[422]

T3XVR

AVAILABLE

DOOR SPACE

REAR OF ENCLOSURE

SCE-47XVR2514 47.00 25.38 14.00 IS7 1,217.47

SCE-53XVR3716 53.00 37.38 16.00 IS7 1,852.57

SCE-65XVR3716 65.00 37.38 16.00 IS7 2,073.52

10” 1 300 FLT66 2 SCE-42P24

10” 1 300 FLT88 2 SCE-48P36

10” 2 600 FLT88 2 SCE-60P36

Wall-Mount Enclosures

2

Back to

Wall-Mount

Enclosures

88

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

89

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

Phone (989) 799-6871

Fax (989) 799-4524

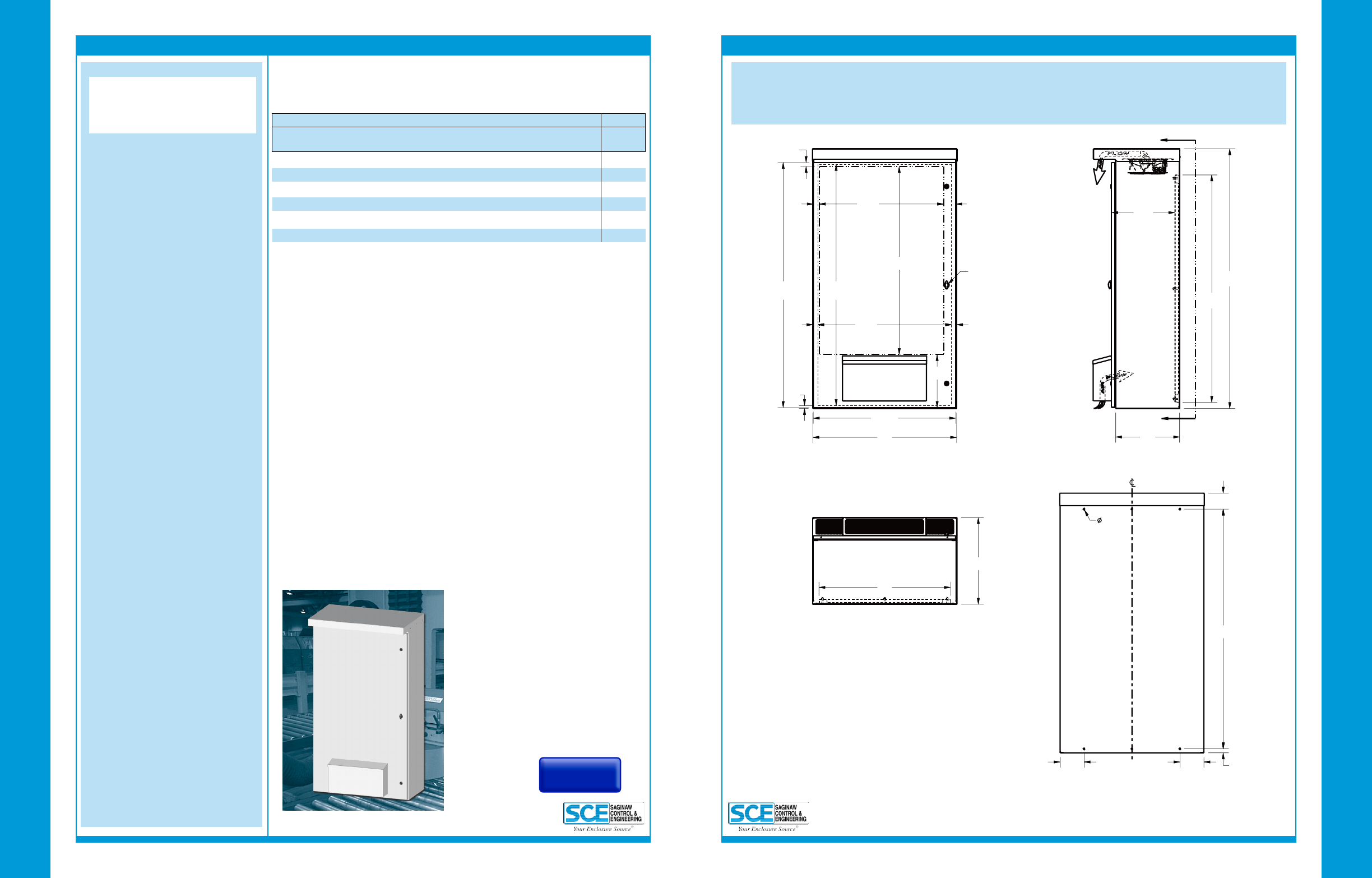

VENTED TYPE 3R ENCLOSURES

TECHNICAL DATA

VENTED TYPE 3R ENCLOSURES

Catalog Height Width Depth Fan Fan System Filter Filter Industry List

No. (A) (B) (C) Size Qty. CFM Size Qty. Standard Price Sub-Panel

Application -

Designed to house electrical controls,

drives, instruments and components used

in an outdoor environment to provide a

degree of protection for the equipment

inside the enclosure against ingress of

solid foreign objects (falling dirt); and

provide a degree of protection with respect

to the harmful effects on the equipment

due to the ingress of water (rain, sleet,

snow). For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.075” galvannealed steel.

• Black quarter turn latches and padlock

wing knob.

• Provisions for sub-panel.

• Doors open 180 degrees.

• Concealed hinges.

• Vented top hood with bug screen.

• Top mounted fans.

• Vented rain hood with lter kits in door.

• Din Rail mounting provisions inside

top for installation of thermostat and

terminals.

• Oil resistant gasket.

• Ground studs on door and body.

• Mounting holes for optional mounting

straps.

• 3/8-16 grounding kit.

• Sub-panel mounting hardware included.

• 115 volt fan.

Finish -

White powder coated inside and out.

Optional sub-panels are powder coated

white.

IS7 - Industry Standards -

NEMA Type 3R

UL Listed Type 3R

CSA Type 3R

IEC 60529 IP32

Vented Type 3R

Enclosure

A

E

C + 5.70

[45]

C - .20

[5]

D

A

C

4.00

[102]

A - 5.00

[127]

1.00

[25]

6.00

[152]

6.00

[152]

.44

[11]

B

B - .37 [9]

DOOR

A - 3.67

[93]

DOOR

A - 4.67

[119]

OPENING

B - 2.50

[64]

OPENING

1.25

[32]

1.25

[32]

.75

[19]

3.00

[76]

B - 4.87

[124]

1.50

[38]

A - 17.92

[455]

1.00

[25]

13.25

[337]

T3VR

AVAILABLE

DOOR SPACE

PADLOCKING

WING KNOB

VIEW A-A

Wall-Mount Enclosures

2

ENCLOSURE PRODUCT CODE N3

6” 1 107 FLT66 2 SCE-24P24

6” 1 107 FLT66 2 SCE-30P24

6” 1 107 FLT66 2 SCE-36P24

10” 1 300 FLT66 2 SCE-42P24

10” 1 300 FLT88 2 SCE-48P36

10” 2 600 FLT88 2 SCE-60P36

SCE-29VR2412 29.00 24.00 12.00 IS7 672.08

SCE-35VR2412 35.00 24.00 12.00 IS7 751.88

SCE-41VR2412 41.00 24.00 12.00 IS7 850.26

SCE-47VR2414 47.00 24.00 14.00 IS7 1,027.03

SCE-53VR3616 53.00 36.00 16.00 IS7 1,652.13

SCE-65VR3616 65.00 36.00 16.00 IS7 1,868.78

Back to

Wall-Mount

Enclosures

90

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

91

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

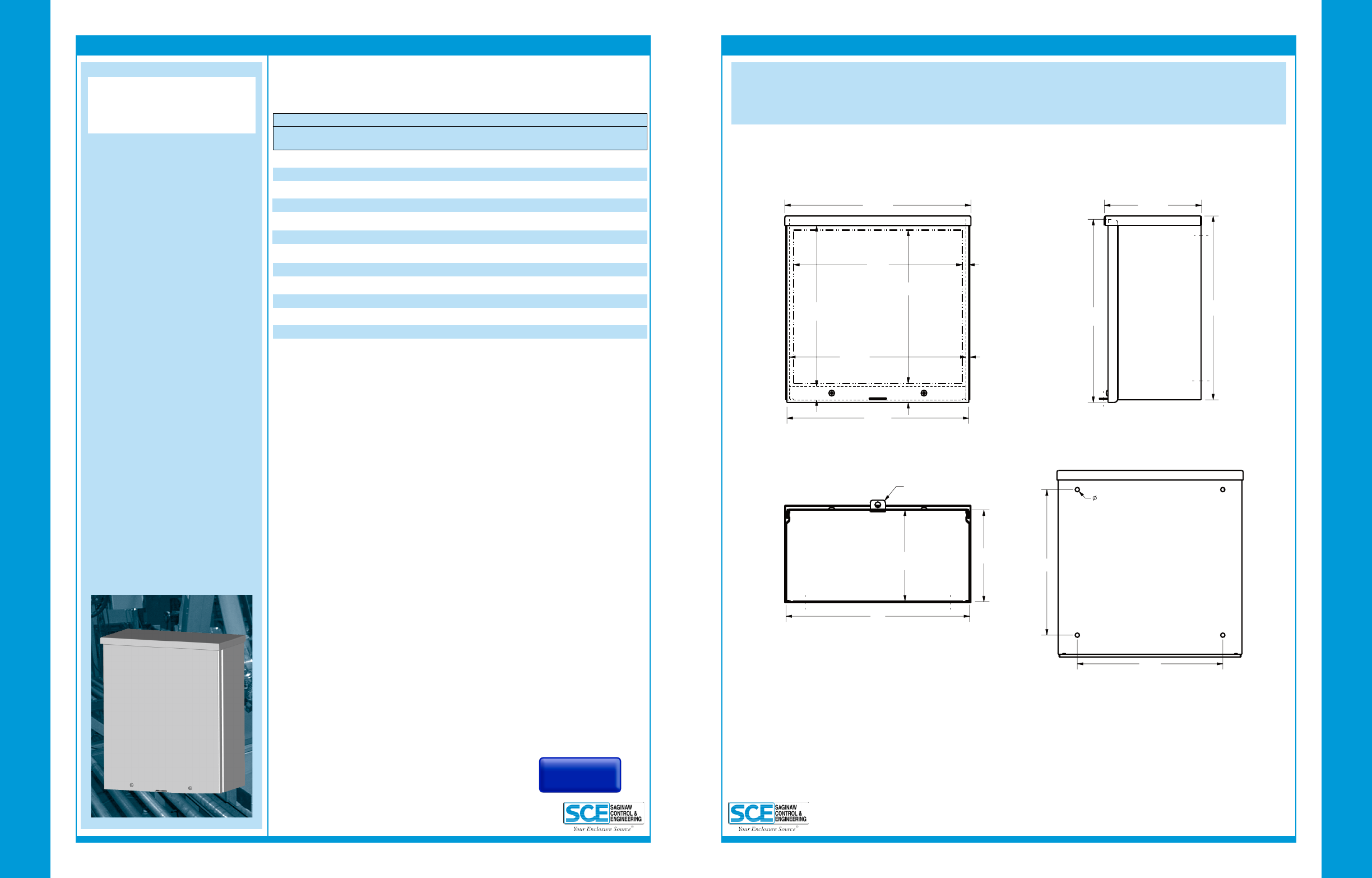

HINGED COVER TYPE 3R ENCLOSURES

Hinged Cover Type 3R

Enclosures ENCLOSURE PRODUCT CODE N3 SUB-PANEL (P3)

Application -

Designed to house electrical controls,

instruments and components in an outdoor

environment. Protects against rain, sleet

and snow. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.048”, 0.060” & 0.075” galvannealed

steel.

• Concealed hinges.

• Spot weld construction.

• Rain cap.

• Mounting hole in back of enclosure.

• Provisions for sub-panel.

• Black quarter turn latches.

• Doors open 180 degrees.

• Black quarter turn latch with padlocking

provisions.

• Oil resistant gasket.

• Ground studs on door and body.

• 3/8-16 grounding kit.

• Sub-panel mounting hardware included.

Options -

Optional mounting straps or mounting foot

kits available.

Finish -

ANSI-61 gray powder coat inside and out.

Optional sub-panels are powder coated

white.

IS7 - Industry Standards -

NEMA Type 3R

UL Listed Type 3R

CSA Type 3R

IEC 60529 IP32

Phone (989) 799-6871

Fax (989) 799-4524

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Phone (989) 799-6871

Fax (989) 799-4524

HINGED COVER TYPE 3R ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

1.50

[38]

1.25

[32]

.34

[9]

D

1.53

[39]

SEE

SUB-PANEL

NOTES

C + 1.70

[43]

C

1.53

[39]

E

A

B

B - .37 [9]

DOOR

A - 1.22

[31]

DOOR

B + .20

[5]

A - 2.97

[75]

A - 2.26

[57]

OPENING

B - 4.87

[124]

B - 2.50

[64]

OPENING

3.00

[76]

1.25

[32]

1.50

[38]

1.25

[32]

.75

[19]

.88

[22]

LATCH NOTES:

Enclosures < 24.00 [610] high require

only one padlocking latch centered on door.

Enclosures >= 24.00 [610] AND

< 40.00 [1016] high require two latches

on door

Enclosures >= 40.00 [1016] high

require three latches.

SUB-PANEL NOTES:

Dimensions are from the inside of the door

C + 0.32 [8] for at sub-panels

C + 0.18 [5] for bent sub-panels

3RHC

AVAILABLE

DOOR SPACE

A-A

PADLOCKABLE

WING KNOB

MOUNTING HOLES

TYPICAL 4 PLACES

DETAIL A-A

SCE-12R1206LP 12.00 12.00 6.00 IS7 76.66

SCE-12R1208LP 12.00 12.00 8.00 IS7 80.71

SCE-16R1206LP 16.00 12.00 6.00 IS7 99.88

SCE-16R1208LP 16.00 12.00 8.00 IS7 104.67

SCE-20R1606LP 20.00 16.00 6.00 IS7 134.15

SCE-20R1608LP 20.00 16.00 8.00 IS7 140.54

SCE-24R2006LP 24.00 20.00 6.00 IS7 205.54

SCE-24R2008LP 24.00 20.00 8.00 IS7 215.39

SCE-24R2012LP 24.00 20.00 12.00 IS7 231.21

SCE-24R2016LP 24.00 20.00 16.00 IS7 250.38

SCE-30R2408LP 30.00 24.00 8.00 IS7 284.18

SCE-30R2412LP 30.00 24.00 12.00 IS7 300.86

SCE-30R2416LP 30.00 24.00 16.00 IS7 322.06

SCE-36R2408LP 36.00 24.00 8.00 IS7 416.42

SCE-36R2412LP 36.00 24.00 12.00 IS7 435.69

SCE-36R2416LP 36.00 24.00 16.00 IS7 454.97

SCE-36R3008LP 36.00 30.00 8.00 IS7 442.40

SCE-36R3012LP 36.00 30.00 12.00 IS7 463.04

SCE-36R3016LP 36.00 30.00 16.00 IS7 482.10

SCE-42R3012LP 42.00 30.00 12.00 IS7 522.38

SCE-42R3016LP 42.00 30.00 16.00 IS7 549.06

SCE-12DLP12 9.00 9.00 13.67

SCE-16P12 13.00 9.00 14.81

SCE-20P16 17.00 13.00 30.37

SCE-24P20 21.00 17.00 45.57

SCE-30P24 27.00 21.00 63.29

SCE-36P24 33.00 21.00 75.96

SCE-36P30 33.00 27.00 101.27

SCE-42P30 39.00 27.00 116.47

Back to

Wall-Mount

Enclosures

92

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

93

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

SCREW COVER TYPE 3R ENCLOSURES

Screw Cover Type 3R

Enclosures ENCLOSURE PRODUCT CODE N3

Catalog Height Width Depth Industry List

No. (A) (B) (C) Standard Price

Application -

Designed to house electrical controls,

instruments and components in an outdoor

environment. Protects against rain, sleet

and snow. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.048” & 0.063” galvannealed steel.

• Spot weld construction.

• Rain cap.

• Mounting hole in back of enclosure.

• Slip on removable screw.

• Padlocking provisions.

• No gasket.

• No sub-panel or provisions.

• Ground studs on door and body.

Options -

Optional mounting straps available.

Finish -

ANSI-61 gray powder coated inside and out.

IS7 - Industry Standards -

NEMA Type 3R

UL Listed Type 3R

CSA Type 3R

IEC 60529 IP32

Phone (989) 799-6871

Fax (989) 799-4524

Phone (989) 799-6871

Fax (989) 799-4524

SCREW COVER TYPE 3R ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

C + .35 [9]

TOP

A - .05

[1]

DOOR

A

C - .05 [1]

USABLE

SPACE

B

B - 2.50

[64]

A - 2.50

[64]

.28

[7]

B + .16 [4]

TOP

.44

[11]

1.25

[32]

.88

[22]

B - 1.00

[25]

A - 2.00

[51]

B - .48 [12]

OPENING

A - 1.50

[38]

OPENING

.24

[6]

B - .12 [3]

DOOR

C

3RSC

AVAILABLE

DOOR SPACE

REAR OF

ENCLOSURE

PROVISIONS

FOR

PADLOCK

SCE-4R44 4.00 4.00 4.00 IS7 53.90

SCE-6R64 6.00 6.00 4.00 IS7 56.94

SCE-6R66 6.00 6.00 6.00 IS7 59.27

SCE-8R64 8.00 6.00 4.00 IS7 64.61

SCE-8R66 8.00 6.00 6.00 IS7 70.97

SCE-10R84 10.00 8.00 4.00 IS7 79.20

SCE-10R86 10.00 8.00 6.00 IS7 84.11

SCE-10R104 10.00 10.00 4.00 IS7 95.08

SCE-10R106 10.00 10.00 6.00 IS7 111.58

SCE-12R104 12.00 10.00 4.00 IS7 119.50

SCE-12R106 12.00 10.00 6.00 IS7 124.41

SCE-12R124 12.00 12.00 4.00 IS7 130.75

SCE-12R126 12.00 12.00 6.00 IS7 139.17

Back to

Wall-Mount

Enclosures

94

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

95

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

GENERAL PURPOSE TYPE 1 ENCLOSURES

General Purpose

Type 1 Enclosures ENCLOSURE PRODUCT CODE N1 SUB-PANEL (N1)

Catalog Height Width Depth Industry List Catalog Panel Panel List

No. (A) (B) (C) Standard Price No. Height (D) Width (E) Price

Application -

Designed to house electrical controls,

instruments and components in areas

that do not require oil, water and dust tight

protection. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.048”, 0.060” & 0.075” carbon steel

depending on its size.

• Spot weld construction.

• Standoffs provided for mounting optional

sub-panels.

• Butt hinge.

• Doors open 180 degrees.

• Black quarter turn latches.

• Latches are opened or closed with a

screwdriver.

• Ground stud on door.

• Mounting holes in back of enclosure.

• Sub-panel mounting hardware included.

Options -

• Tamper-resistant inserts available.

• Optional mounting straps available

Finish -

ANSI-61 gray powder coated inside and

out. Optional sub-panels are powder coated

white.

IS8 - Industry Standards -

NEMA Type 1

UL Listed Type 1

CSA Type 1

IEC 60529 IP30

*Perforated sub-panels available in the accessory section.

Phone (989) 799-6871

Fax (989) 799-4524

GENERAL PURPOSE TYPE 1 ENCLOSURES

TECHNICAL DATA

Wall-Mount Enclosures

2

Phone (989) 799-6871

Fax (989) 799-4524

SCE-6N604LP 6.00 6.00 4.00 IS8 30.27

SCE-8N604LP 8.00 6.00 4.00 IS8 33.04

SCE-8N804LP 8.00 8.00 4.00 IS8 36.68

SCE-8N806LP 8.00 8.00 6.00 IS8 41.28

SCE-10N804LP 10.00 8.00 4.00 IS8 40.29

SCE-10N806LP 10.00 8.00 6.00 IS8 45.52

SCE-10N1004LP 10.00 10.00 4.00 IS8 40.92

SCE-10N1006LP 10.00 10.00 6.00 IS8 50.23

SCE-12N1004LP 12.00 10.00 4.00 IS8 48.44

SCE-12N1006LP 12.00 10.00 6.00 IS8 54.80

SCE-12N1204LP 12.00 12.00 4.00 IS8 53.05

SCE-12N1206LP 12.00 12.00 6.00 IS8 60.13

SCE-12N1208LP 12.00 12.00 8.00 IS8 67.14

SCE-14N1204LP 14.00 12.00 4.00 IS8 57.79

SCE-14N1206LP 14.00 12.00 6.00 IS8 65.46

SCE-14N1208LP 14.00 12.00 8.00 IS8 73.08

SCE-16N1206LP 16.00 12.00 6.00 IS8 98.04

SCE-16N1208LP 16.00 12.00 8.00 IS8 106.84

SCE-16N1606LP 16.00 16.00 6.00 IS8 109.57

SCE-16N1608LP 16.00 16.00 8.00 IS8 119.19

SCE-16N2006LP 16.00 20.00 6.00 IS8 121.09

SCE-20N1606LP 20.00 16.00 6.00 IS8 121.09

SCE-20N1608LP 20.00 16.00 8.00 IS8 132.41

SCE-20N2006LP 20.00 20.00 6.00 IS8 132.99

SCE-20N2008LP 20.00 20.00 8.00 IS8 145.52

SCE-20N2010LP 20.00 20.00 10.00 IS8 158.06

SCE-24N1606LP 24.00 16.00 6.00 IS8 131.91

SCE-24N2006LP 24.00 20.00 6.00 IS8 147.17

SCE-24N2008LP 24.00 20.00 8.00 IS8 161.03

SCE-24N2010LP 24.00 20.00 10.00 IS8 174.83

SCE-24N2406LP 24.00 24.00 6.00 IS8 149.12

SCE-24N2408LP 24.00 24.00 8.00 IS8 164.32

SCE-24N2412LP 24.00 24.00 12.00 IS8 194.33

SCE-30N2406LP 30.00 24.00 6.00 IS8 165.84

SCE-30N2408LP 30.00 24.00 8.00 IS8 184.23

SCE-30N2412LP 30.00 24.00 12.00 IS8 216.79

SCE-30N3008LP 30.00 30.00 8.00 IS8 207.99

SCE-36N2406LP 36.00 24.00 6.00 IS8 192.87

SCE-36N2408LP 36.00 24.00 8.00 IS8 211.73

SCE-36N2412LP 36.00 24.00 12.00 IS8 245.16

SCE-36N3006LP 36.00 30.00 6.00 IS8 211.16

SCE-36N3008LP 36.00 30.00 8.00 IS8 231.98

SCE-36N3012LP 36.00 30.00 12.00 IS8 273.50

SCE-6N6MP 4.00 4.00 2.82

SCE-8N6MP 6.00 4.00 3.26

SCE-8N8MP 6.00 6.00 3.82

SCE-10N8MP 8.00 6.00 4.46

SCE-10N10MP 8.00 8.00 5.27

SCE-12N10MP 10.00 8.00 6.03

SCE-12N12MP 10.00 10.00 7.10

SCE-14N12MP 12.00 10.00 7.92

SCE-16N12MP 14.00 10.00 11.58

SCE-16N16MP 14.00 14.00 19.21

SCE-20N16MP 18.00 14.00 21.62

SCE-20N20MP 18.00 18.00 27.84

SCE-24N16MP 22.00 14.00 22.89

SCE-24N20MP 22.00 18.00 31.67

SCE-24N24MP 22.00 22.00 36.97

SCE-30N24MP 28.00 22.00 43.99

SCE-30N30MP 28.00 28.00 58.07

SCE-36N24MP 34.00 22.00 52.80

SCE-36N30MP 34.00 28.00 70.39

Back to

Wall-Mount

Enclosures

96

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

97

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

Phone (989) 799-6871

Fax (989) 799-4524

General Purpose Type 1

Enclosures with

Knockouts

Application-

Designed to house electrical controls,

instruments and components in areas

that do not require oil, water and dust tight

protection. For installation information,

consult our Installation Manual at www.

saginawcontrol.com.

Construction -

• 0.048”, 0.063” & 0.075” carbon steel

depending on its size.

• Spot weld construction.

• Knockouts provided in the top, bottom,

right and left side.

• Standoffs provided for mounting optional

sub-panels.

• Butt hinge.

• Doors open 180 degrees.

• Keylocking quarter turn latch.

• Ground stud on door.

• Mounting holes in back of enclosure.

• Sub-panel with 2” x 2” mounting grid

pattern included.

Options -

Optional mounting feet available.

Finish -

Precaution Blue, Safety Orange or Taupe

Tan powder coat nish inside and out.

Sub-panels are powder coated white.

IS8 - Industry Standards -

NEMA Type 1

UL Listed Type 1

CSA Type 1

IEC 60529 IP30

GENERAL PURPOSE TYPE 1 ENCLOSURES

WITH KNOCKOUTS

Note: Part Numbers ending in the letter:

(B) Precaution Blue

(O) RAL 8023 Orange

(T) Taupe Tan

ENCLOSURE PRODUCT CODE N1 SUB-PANEL (N1)

Catalog Height Width Depth Industry List Panel Panel List

No. (A) (B) (C) Standard Price Height (D) Width (E) Price

*UL-Non UL Listed 16 ga enclosures.

Phone (989) 799-6871

Fax (989) 799-4524

GENERAL PURPOSE TYPE 1 ENCLOSURES WITH KNOCKOUTS

TECHNICAL DATA

Wall-Mount Enclosures

2

SCE-18N1606NK-T 18.00 16.00 6.00 IS8 128.86

SCE-18N1606NK-B 18.00 16.00 6.00 IS8 128.86

SCE-18N1606NK-O 18.00 16.00 6.00 IS8 128.86

SCE-24N2006NK-T 24.00 20.00 6.00 IS8 152.30

SCE-24N2006NK-B 24.00 20.00 6.00 IS8 152.30

SCE-24N2006NK-O 24.00 20.00 6.00 IS8 152.30

SCE-36N2406NK-T 36.00 24.00 6.00 IS8 234.30

SCE-36N2406NK-B 36.00 24.00 6.00 IS8 234.30

SCE-36N2406NL-T* 36.00 24.00 6.00 IS17 201.28

SCE-36N2406NL-B* 36.00 24.00 6.00 IS17 201.28

SCE-36N2406NL-O* 36.00 24.00 6.00 IS17 201.28

16.00 14.00

22.00 18.00

34.00 22.00

Included

Back to

Wall-Mount

Enclosures

98

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

99

SAGINAW CONTROL & ENGINEERING • STOCK PRICE LIST

NOTES NOTES

Phone (989) 799-6871

Fax (989) 799-4524

Phone (989) 799-6871

Fax (989) 799-4524

Wall-Mount Enclosures

2

Wall-Mount Enclosures

2

SCE Catalog Wall Mount Enclosures

Navigation menu

Versions of this User Manual:

Views

Navigation
