www.soundcraft.com

Part No: 5055926 E & OE 01/2015

Soundcraft, Harman International Industries Ltd.,

Cranborne House, Cranborne Road, Potters Bar, Hertfordshire EN6 3JN, UK

T: +44 (0)1707 665000 F: +44 (0)1707 660742 E: soundcraft@harman.com

Soundcraft USA, 8500 Balboa Boulevard, Northridge, CA 91329, USA

T: +1-818-893-8411 F: +1-818-920-3208 E: soundcraft-usa@harman.com

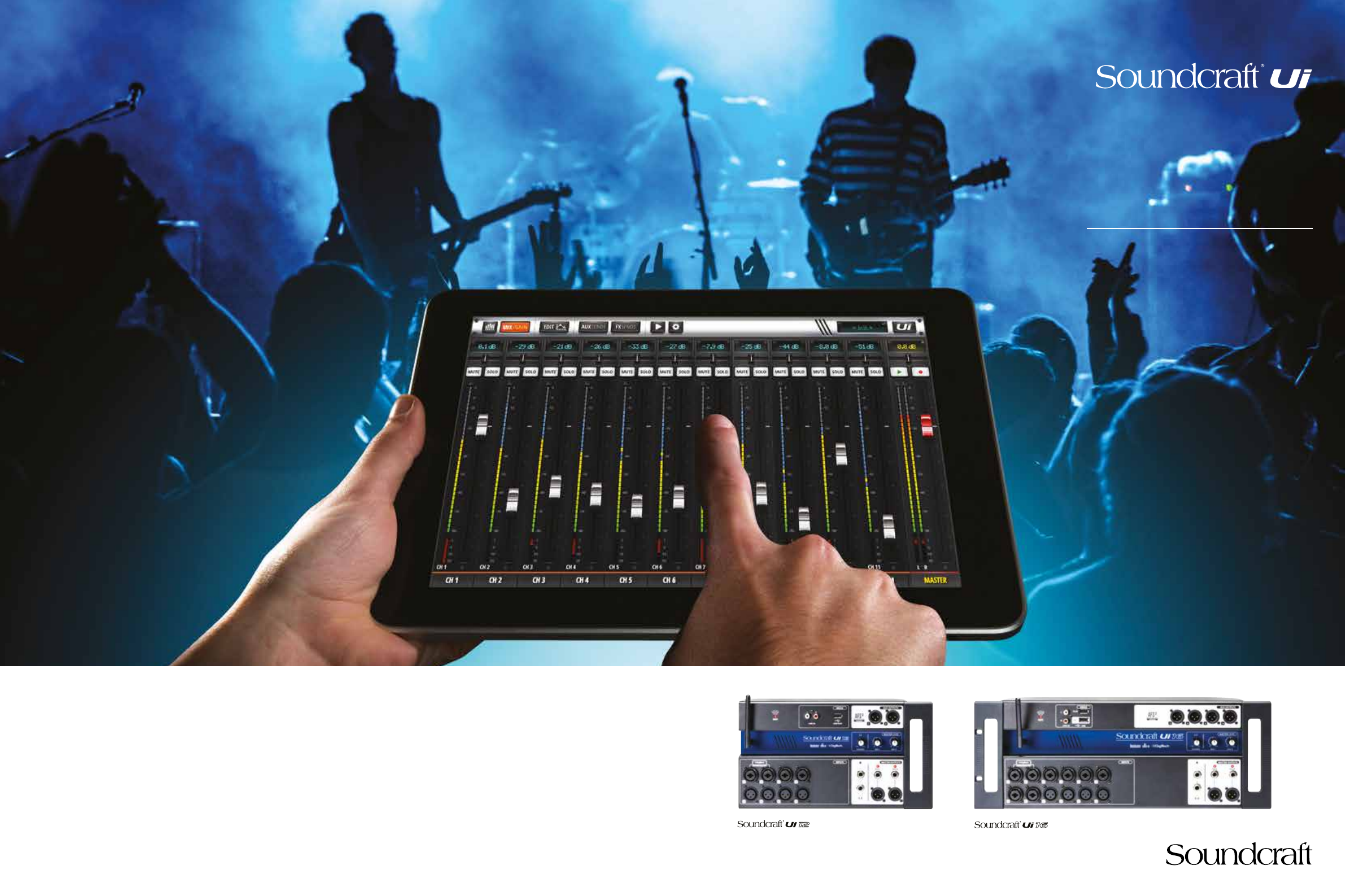

Remote-Controlled Digital Mixer

Ui12 Ui16

Hardware Form Floor Floor/Rack

Wi-Fi Router Onboard Yes Yes

Ethernet control Yes Yes

Total Inputs 12 16

XLR Mic Inputs 4 Mic/Line, 4 Mic 8 Mic/Line, 4 Mic

Hi-Z/instrument channels 2 2

Main Outputs XLR and 1/4” XLR and 1/4”

Aux / Monitor Sends 2 balanced XLR 4 balanced XLR

USB Playback 2-channel 2-channel

USB Stereo Recording No 2-channel

HDMI Output No Yes

Headphone 1/4” out 2 2

Stereo RCA Line input Yes Yes

Includes

Ui packs a complete digital mixing system into a compact, road-rugged stagebox format, with built-in Wi-fi and the ability to be controlled

by any connected device via a standard web browser - no Apps, no OS limitations, no constraints on how or where you mix.

Ui is safe, simple and secure, empowering you to be able to mix easily from anywhere in the venue and supercharge your live sound with

powerful digital mix features and dedicated processing from some of the biggest names in the business - dbx®, Lexicon® and Digitech®.

Ui. A new standard in remote-controlled digital mixers.

Any device. Anywhere.

The freedom to mix.

• Tablet/PC/Smartphone Controlled Digital Mixer

• Integrated Wi-Fi

• Cross-platform compatibility with iOS, Android,

Windows, Mac OS, and Linux devices

• Use up to 10 control devices (tablets, phones,

PCs) simultaneously

• Legendary Harman Signal Processing from

dbx®, Digitech®, and Lexicon®

• Fully recallable and remote-controlled mic

preamps

• 4-band Parametric EQ, High-Pass Filter,

Compressor, De-esser and Noise Gate on input

channels

• 31-band Graphic EQ, Noise Gate and

Compressor on all outputs

• Real-Time Frequency Analyser (RTA) on inputs

and outputs

• 3 dedicated Lexicon® FX effects processors:

Reverb, Delay and Chorus

• Subgroups, Mute Groups, View Groups, and

more mixer controls

• Show/Snapshot recall with channel safes and

security lockout

• 2-channel USB audio playback and recording

(recording available on Ui16 only)

Key features

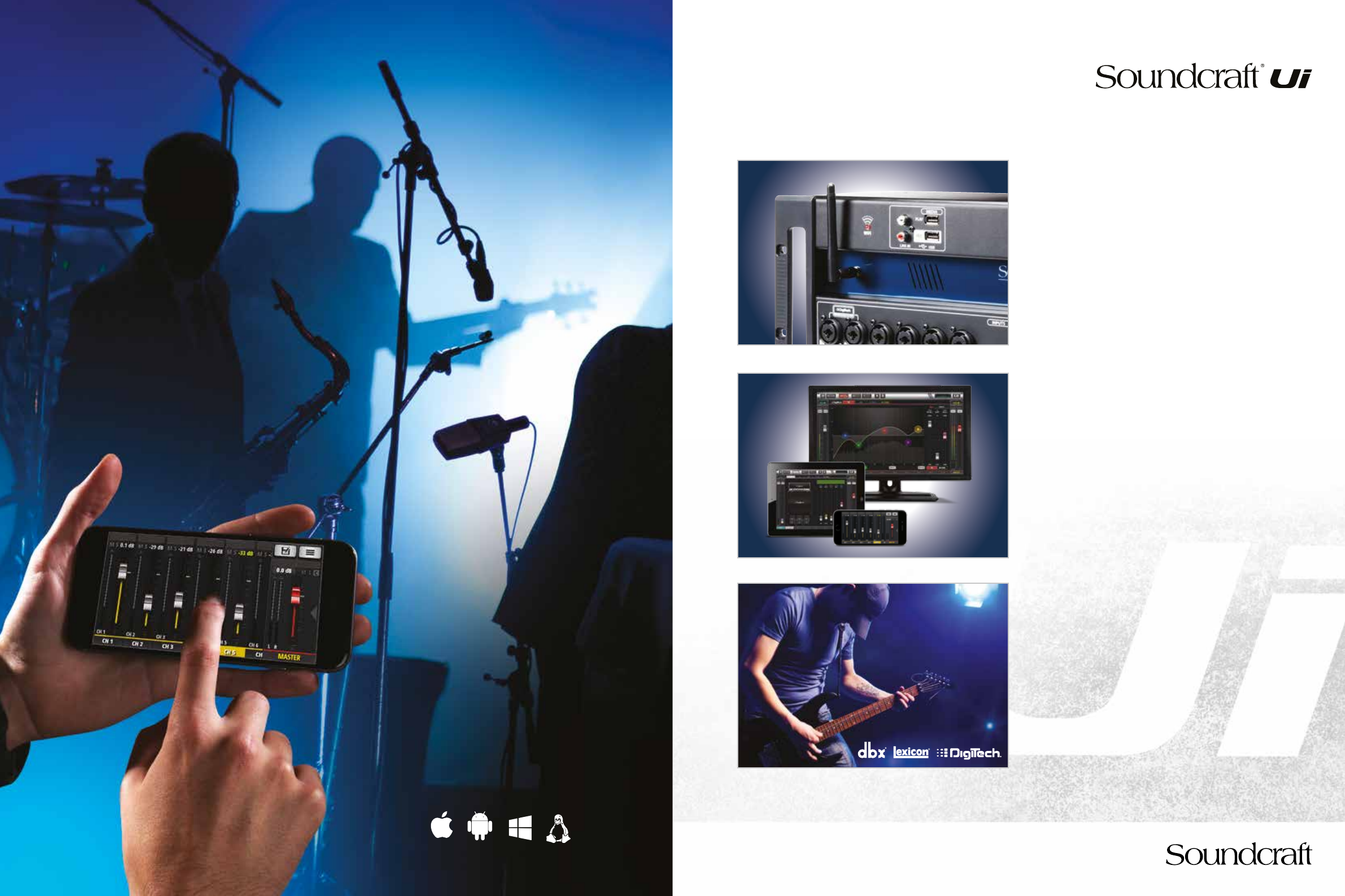

Tablet, PC, smartphone? Ui’s revolutionary

browser-based interface lets you use any

device, in any combination - regardless of

platform. Ui is fully compatible with iOS,

Android, Windows, Mac OS and Linux devices.

Mix on a large format computer screen, adjust

front of house on a tablet, and set monitor

mixes from smartphones - it’s up to you.

Mix with any device

No dongles. No unsecure connections. No worries.

With Ui there’s no need to setup and configure an external router.

The hardware has an integrated Wi-Fi router onboard, enabling

direct remote control of your mixer’s functions.

Wired Ethernet connection is also provided and can be used in

conjunction with the Wi-Fi connected devices.

Everybody gets control. But not of everything.

Up to 10 devices can be connected simultaneously with security

settings applied to each to limit the parameters they have access

to. So musicians can control their monitor mixes with no danger of

affecting the front-of-house sound.

It all adds up to quicker, easier set-ups, happier musicians and a

better live sound.

Mix with Soundcraft and you’re always in good company. As part of

the Harman Group, we’ve selected premium effects and processing

from dbx®, Digitech® and Lexicon® to bring truly professional

‘outboard-quality’ live sound production power to your mix.

Don’t settle for generic style effects - Ui offers the best tools to

help you put on a great show, including dbx® dynamics processing,

advanced feedback suppression, Digitech® Amp/Stompbox

Modelling, and three Lexicon® effects processors for stunning

reverbs, delays and choruses.

Integrated Wi-Fi

Connect up to 10 devices simultaneously

Legendary live sound processing

Onstage. Offstage.

The freedom to mix.

All trademarks are acknowledged as the property of

their respective owners.

Every input on Ui features full channel processing to get a great

sound on any vocal or instrument, including a 4-band Parametric EQ,

High-Pass Filter, Compressor, De-esser and Noise Gate.

Outputs feature a 31-band Graphic EQ, dbx® AFS2 Advanced

Feedback Suppression, Noise Gate and Compressor.

There’s also a full complement of all the mixer functions you’d

expect - including subgroups, mute groups and view groups.

With Ui’s Snapshot recall system, you can create the perfect mix

for a show, or even individual songs, and save the settings to be

recalled at will.

Need a subdued, effects-laden mix for the acoustic ballad? No

problem, just call it up. Then hit recall to load in the settings for the

full-tilt rock number that follows it up.

Ui hardware is loaded with all the connectivity you’ll need to run the

show. XLR mic and combo inputs with fully recallable and remote-

controlled mic pre’s, stereo RCA inputs and dedicated Hi-Z inputs,

optimised for acoustic guitars, electric guitars and basses.

Outputs include balanced XLR and 1/4” main outs, XLR Aux outs

and headphone connectivity.

There’s even USB connectivity for 2-channel playback and recording

direct to USB storage devices (recording on Ui16 only).

Powerful digital mix features

Save the perfect settings for every song

Uncompromised connectivity

Powered by

Dynamics

dbx® compression, De-Essing and noise gate processing

on every input channel

FX

3 dedicated FX busses feeding award winning Lexicon®

effect processors.

dbx® AFS2

Advanced feedback suppression allowing maximum gain

before feedback on all aux outputs. Keep feedback at bay

even in the most extreme monitoring environments.

Digitech® Amp & Stompbox Modelling

Providing 100’s of amp, cab and effect combinations to

satisfy any guitarists rig requirements.

Bus Sends

Create monitor mixes for your fellow musicians or adjust

your own from your phone or tablet interface.

EQ with RTA

Real Time Analyser on every channel with 120 frequency

points and fast refresh.
