SmartRF™ Packet Sniffer

User Manual

SWRU187F

2/32

Table of contents

1 INTRODUCTION ........................................................................................................................................3

1.1 PROTOCOLS .....................................................................................................................................................4

1.2 HARDWARE PLATFORM...................................................................................................................................5

1.3 DATA FLOW .................................................................................................................................................. 10

1.4 SOFTWARE .................................................................................................................................................... 10

2 USER INTERFACE ................................................................................................................................... 11

2.1 LAUNCH WINDOW ........................................................................................................................................ 11

2.2 PACKET SNIFFER WINDOW OF AN ACTIVE SESSION ........................................................................................ 11

2.3 MENUS AND TOOLBARS ................................................................................................................................ 13

2.4 PACKET BROADCAST. .................................................................................................................................... 14

2.5 CAPTURING DEVICE ...................................................................................................................................... 15

2.6 RADIO CONFIGURATION ................................................................................................................................ 16

2.7 SELECT FIELDS .............................................................................................................................................. 18

2.8 PACKET DETAILS ........................................................................................................................................... 19

2.9 ADDRESS BOOK ............................................................................................................................................. 20

2.10 DISPLAY FILTER ............................................................................................................................................ 21

2.11 TIME LINE ..................................................................................................................................................... 22

3 ENCRYPTED PAYLOAD ........................................................................................................................ 24

3.1 HOW TO USE THE DECRYPTION FEATURE ....................................................................................................... 24

3.2 LIMITATIONS ................................................................................................................................................. 24

4 KNOW ISSUES .......................................................................................................................................... 25

4.1 BLUETOOTH LOW ENERGY ........................................................................................................................... 25

5 FORMAT OF PACKETS SAVED TO FILE .......................................................................................... 26

6 EXPORTING REGISTER SETTINGS FROM SMARTRF™ STUDIO ............................................. 27

7 HELP ........................................................................................................................................................... 28

8 TROUBLESHOOTING ............................................................................................................................. 29

9 GENERAL INFORMATION ................................................................................................................... 31

9.1 DOCUMENT HISTORY .................................................................................................................................... 31

SWRU187F

3/32

1 Introduction

The SmartRF™ Packet Sniffer is a PC software application used to display and store RF packets

captured with a listening RF HW node. Various RF protocols are supported. The Packet Sniffer filters

and decodes packets and displays them in a convenient way, with options for filtering and storage to a

binary file format.

The Packet Sniffer is installed separately from SmartRF® Studio, and must be downloaded from the

Texas Instruments web site.

A shortcut for all supported signalling protocols will be placed on the Windows "Start menu" after the

installation.

SWRU187F

4/32

1.1 Protocols

The supported protocols can be seen in the Launch window when starting the packet sniffer. The

following combinations of protocols and HW (RF Device) are supported:

Protocol

Version

Capture device

Can be used to

capture packets from

Bluetooth®

low energy

Bluetooth

core spec 4.0

CC2540 USB Dongle

CC2540EM+SmartRF05EB

CC2540

Bluetooth® low

energy devices

ZigBee

2007/PRO

2006

2003

CC2531 USB Dongle

CC2530EM+SmartRF04EB/SmartRF05EB

CC2520EM+SmartRF05EB

CC2430EM+SmartRF04EB/SmartRF05EB

CC2431EM+SmartRF04EB/SmartRF05EB

CC2430DB

CC2420

CC2430

CC2431

CC2480

CC2520

CC2530

CC2531

2003

CC2420EM+CC2400EB

CC2420

RF4CE

ZigBee RF4CE 1.0.1

CC2531 USB Dongle

CC2530EM+SmartRF04EB/SmartRF05EB

CC2520EM+SmartRF05EB

CC2430EM+SmartRF04EB/SmartRF05EB

CC2431EM+SmartRF04EB/SmartRF05EB

CC2430DB

CC2533

CC2530

CC2531

SimpliciTI

1.1.1

1.1.0

1.0.6

1.0.4

1.0.0

CC2531 USB Dongle

CC2530EM+SmartRF04EB/SmartRF05EB

CC2520EM+SmartRF05EB

CC2430EM+SmartRF04EB/SmartRF05EB

CC2431EM+SmartRF04EB/SmartRF05EB

CC2430DB

CC2430

CC2431

CC2520

CC2530

CC2531

CC1110EM1+SmartRF04EB/SmartRF05EB

CC1111 USB Dongle

CC1101EM+TrxEB

CC110LEM+TrxEB

CC113LEM+TrxEB

CC1100

CC1100E

CC1101

CC110L

CC115L

CC1110

CC1111

CC430

CC2510EM+SmartRF04EB/SmartRF05EB

CC2511 USB Dongle

CC2500

CC2510

CC2511

CC1120EM+TrxEB

CC1121EM+TrxEB

CC1120

CC1121

Generic

Any

CC2531 USB Dongle

CC2530EM+SmartRF04EB/SmartRF05EB

CC2520EM+SmartRF05EB

CC2430EM+SmartRF04EB/SmartRF05EB

CC2431EM+SmartRF04EB/SmartRF05EB

CC2430DB

CC2420

CC2430

CC2431

CC2480

CC2520

CC2530

CC2531

CC2533

CC1110EM+SmartRF04EB/SmartRF05EB

CC1111 USB Dongle

CC1100

CC1100E

CC1101

CC110L

CC115L

CC1150

CC1110

CC1111

CC430

CC2510EM+SmartRF04EB/SmartRF05EB

CC2500

When sniffing in the sub-1 GHz frequency bands, you need hardware that supports the operating frequencies. Also note that

CC1110 and CC1111 have limited support for some frequencies supported by CC1100E.

SWRU187F

5/32

CC2511 USB Dongle

CC2550

CC2510

CC2511

CC1120EM+TrxEB

CC1121EM+TrxEB

CC1120

CC1121

Table 1: Supported protocols

1.2 Hardware Platform

The packet sniffer can be used with different HW platforms. The following HW can be used:

CC2400EB + CC2420EM

CC2430DB

SmartRF04EB + (CC2430EM, CC2530EM, CC1110EM or CC2510EM)

SmartRF05EB + (CC2430EM, CC1110EM, CC2510EM, CC2520EM or CC2530).

TrxEB + (CC1101EM, CC110LEM, CC113LEM, CC1120EM or CC1121EM)

CC2531 USB Dongle.

CC Debugger + SmartRFCCxx10TB

CC2540 USB Dongle.

The applicable board must be connected to the PC through USB.

Figure 1: CC2400EB + CC2420

Note:

The Packet Sniffer started when selecting “IEEE802.15.4/ZigBee (CC2420)” will be different from the

others. A different GUI application will be started. The most important difference is that the packets will

only be stored in a RAM buffer. That means the GUI application will not be able to handle more packets

when the buffer is full. See the user manual for “Packet Sniffer CC2420” for more details. The manual

can be found under the “documentation” option of the start menu: start->Texas Instruments->Packet

Sniffer->Documentation->Packet Sniffer CC2420 user manual

SWRU187F

6/32

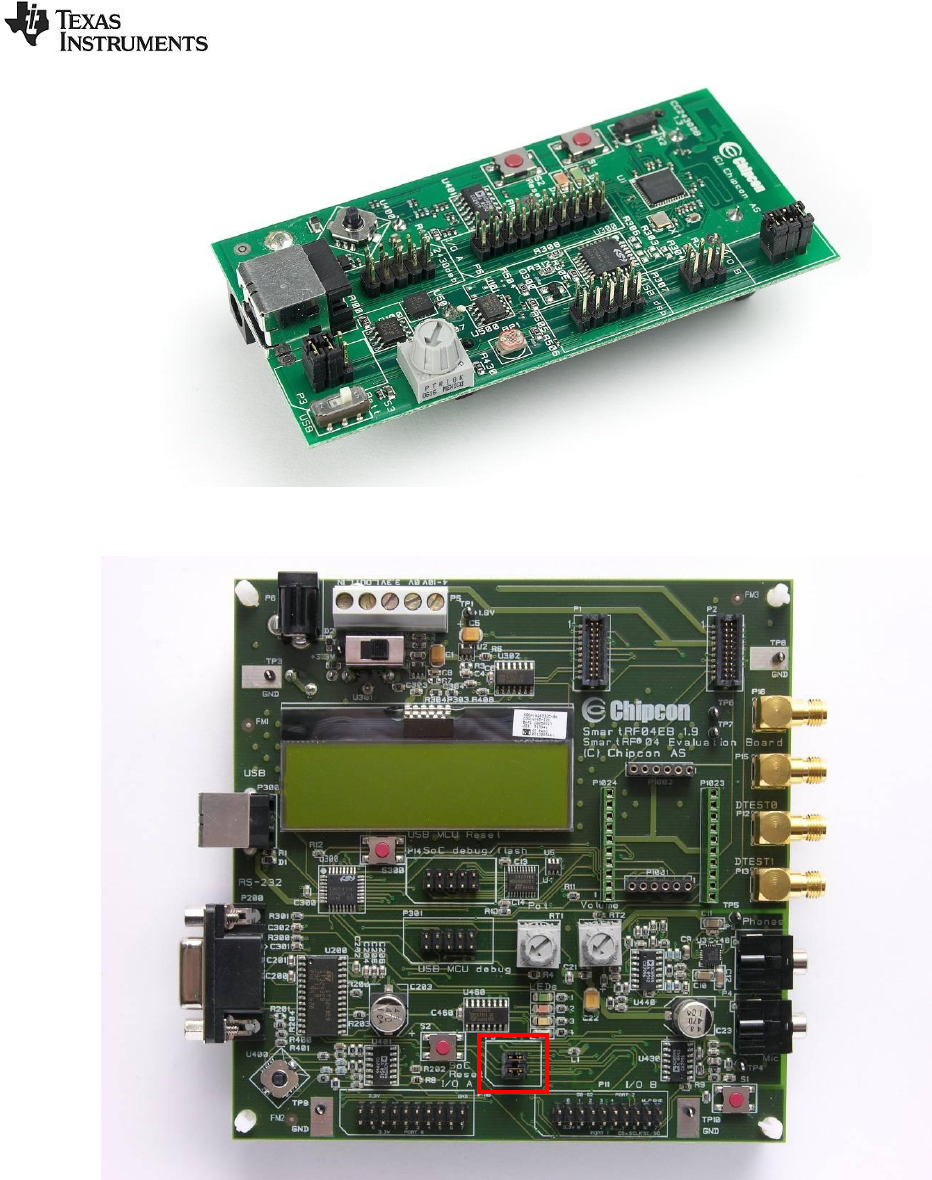

Figure 2: CC2430DB

Figure 3: SmartRF04EB

Note:

Observe the jumpers on header P3. For revision A and B of CC2430 (register CHVER ≤ 0x02), the

jumpers must be set in the horizontal direction (in parallel with the display) like in Figure 2. For newer

revisions of CC2430, the jumpers should be set in the vertical direction (this is the default position).

SWRU187F

7/32

Figure 4: SmartRF05EB

Figure 5: CC2511/CC1111 USB Dongle

Both the CC2511 and the CC1111 USB Dongle can be used as capturing device with the packet sniffer.

The Dongles must be pre-programmed with special firmware in order to work with the packet sniffer.

After installation of the packet sniffer, the hex file to be programmed can be found on the following

directory: <installation directory>\General\Firmware\ sniffer_fw_ccxx11.hex

The firmware can be programmed with the SmartRF Flash Programmer. To program the firmware on

the dongle, it must be connected to SmartRF05EB or the CC Debugger via the debug connector. See

user manual for the flash programmer for details on how to use the flash programmer.

SWRU187F

8/32

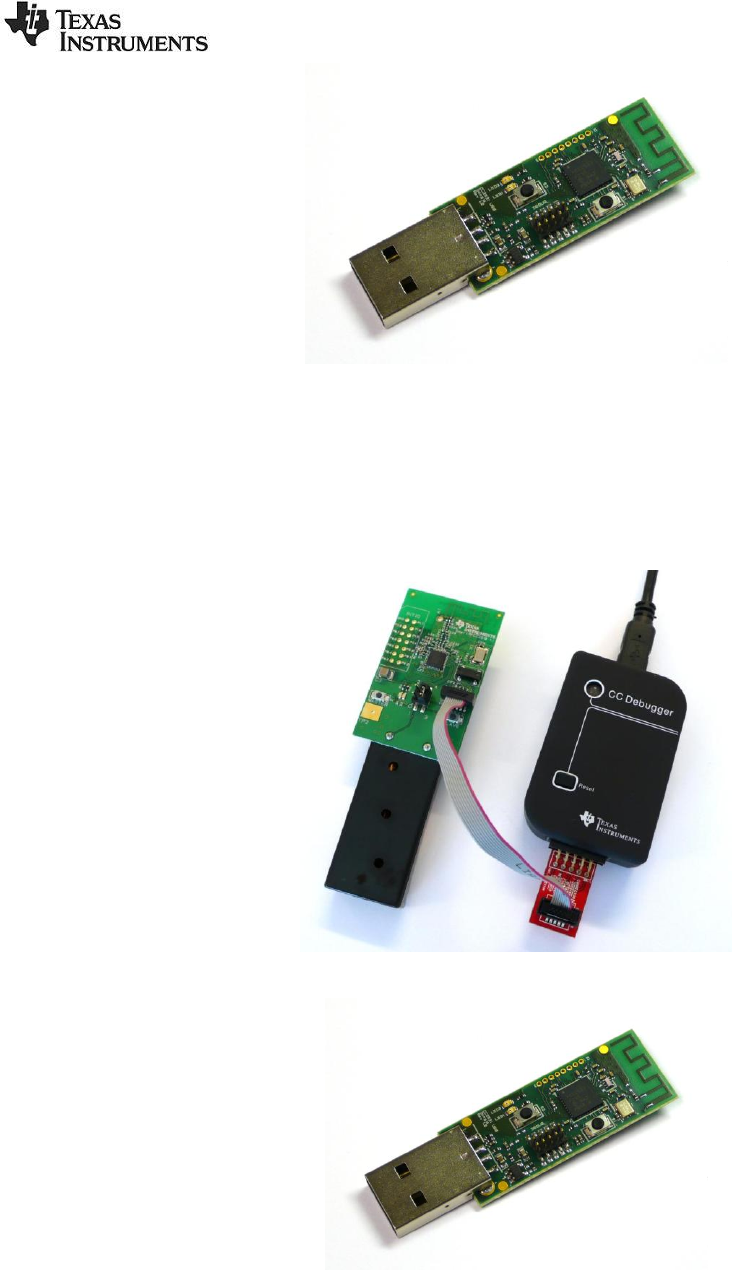

Figure 6: CC2531 USB Dongle

The CC2531 USB Dongle must be pre-programmed with special firmware in order to work with the

packet sniffer. After installation of the packet sniffer, the hex file to be programmed can be found on the

following directory: <installation directory>\General\Firmware\sniffer_fw_cc2531.hex

The firmware can be programmed with the SmartRF Flash Programmer. To program the firmware on

the CC2531 Dongle, it must be connected to SmartRF05EB or the CC Debugger via the debug

connector. See user manual for the flash programmer for details on how to use the flash programmer.

Figure 7: CC Debugger + SmartRFCCxx10TB

Figure 8: CC2540 USB Dongle

The CC2540 USB Dongle must be pre-programmed with special firmware in order to work with the

packet sniffer. After installation of the packet sniffer, the hex file to be programmed can be found on the

following directory: <installation directory>\General\Firmware\sniffer_fw_cc2540.hex

The firmware can be programmed with the SmartRF Flash Programmer. To program the firmware on

the CC2540 Dongle, it must be connected to SmartRF05EB or the CC Debugger via the debug

connector. See user manual for the flash programmer for details on how to use the flash programmer.

SWRU187F

9/32

Figure 9, TrxEB

The USB MCU on the TrxEB board must be programmed with FW revision “0014” or newer. The

revision can be seen in the SmartRF Flash Programmer or SmartRF Studio when the board is

connected to the PC with a USB cable.

SWRU187F

10/32

1.3 Data flow

On the PC side the packets will be stored in a disk buffer. The total amount of packets that can be

stored depends on the packet size and the size of the hard disk. During operation the packets will be

cached in a RAM buffer to improve the access time when a packet is to be displayed in the GUI.

Figure 10: Dataflow for the packet sniffer (SoC) below shows the data flow for the packet sniffer.

Connected Device PC

SoC/Transceiver*

Data Buffer**

USB controller

Data Buffer

Abstraction layer

8 kB buffer

Screen/GUI

Temporary

Disk file

Cache buffer

In RAM

Figure 10: Dataflow for the packet sniffer (SoC)

* For the moment it is only the CC2520 transceiver that is supported by the packet sniffer.

** The buffer is only applicable for the System on Chip devices (SoC).

If the PC application is not able to read the packets from the connected devices data buffer fast enough,

an “Overflow” error will be given by the device and the packet sniffer will show the error on screen.

1.4 Software

The firmware on the SoC‟s required to run the sniffer will be checked and loaded automatically, if

needed, when the sniffer is started. This can be seen on the status bar in the lower left corner.

The same apply for the USB controller, but the user will be asked to do the update and the user has the

possibility to reject the update. In that case it might be that the sniffer is not working properly.

The following operating systems are supported:

Windows XP/Pro (32 bit)

Windows Vista (32 bit)

Windows Vista (64 bit)

Windows 7 (32 bit)

Windows7 (64 bit)

SWRU187F

11/32

2 User Interface

2.1 Launch Window

To select between the different options for protocol and HW configuration, a launch window will be

shown when starting the sniffer.

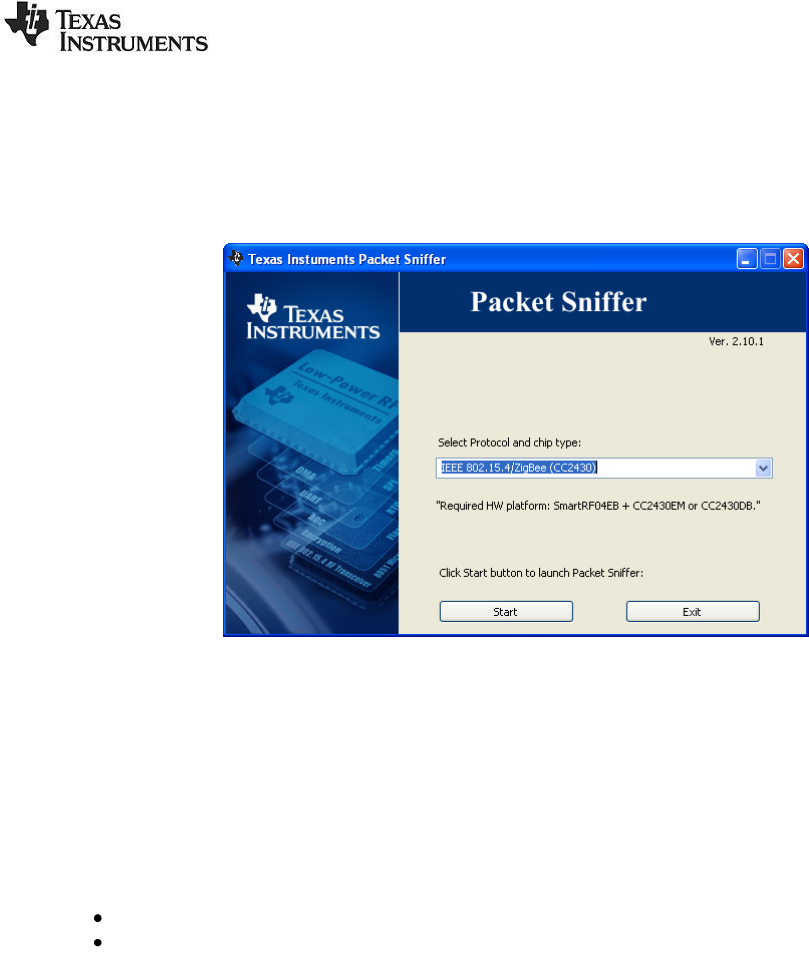

Figure 11: Screen shot of the packet sniffer launch window

To start the packet sniffer a combination of protocol and chip type should be selected. Then the start

button should be clicked. If a packet sniffer session has been started and the launch window is closed,

the sniffer session will still remain active and must be closed explicit if required.

2.2 Packet Sniffer window of an active session

The main window of the packet sniffer can be divided into two sections:

At the top: A packet list, which displays the various fields of the decoded packets.

At the bottom: The following seven tabs:

o Capturing device: Selects which capturing device to use.

o Radio Configuration: Input data to configure the radio of the capturing device. E.g.

Channel number for IEEE 802.15.4 devices.

o Select fields: Select which fields to display in the packet list.

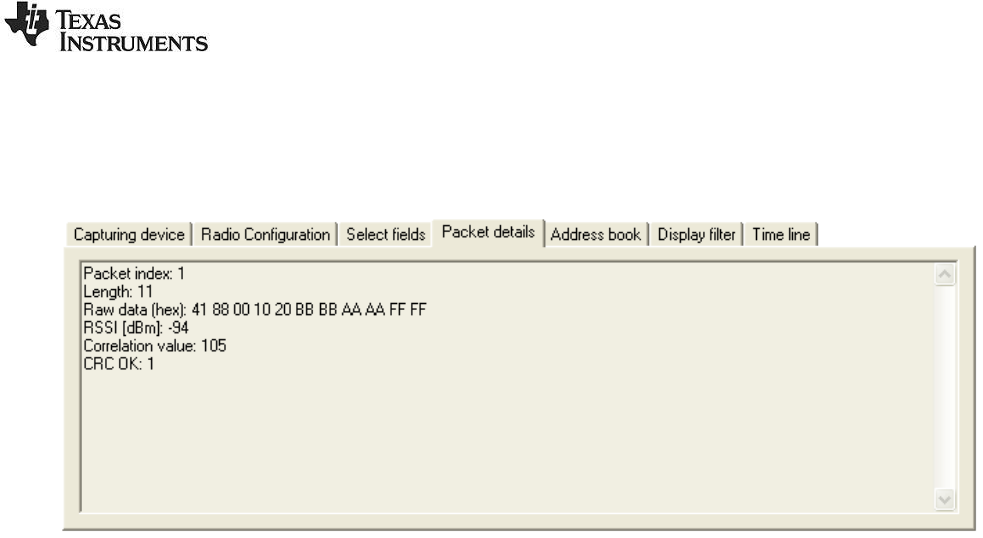

o Packet details: Displays additional packet details (e.g. raw data).

o Address book: Contains all known nodes from the current session. Addresses can be

registered automatically or manually, and they can be changed or deleted.

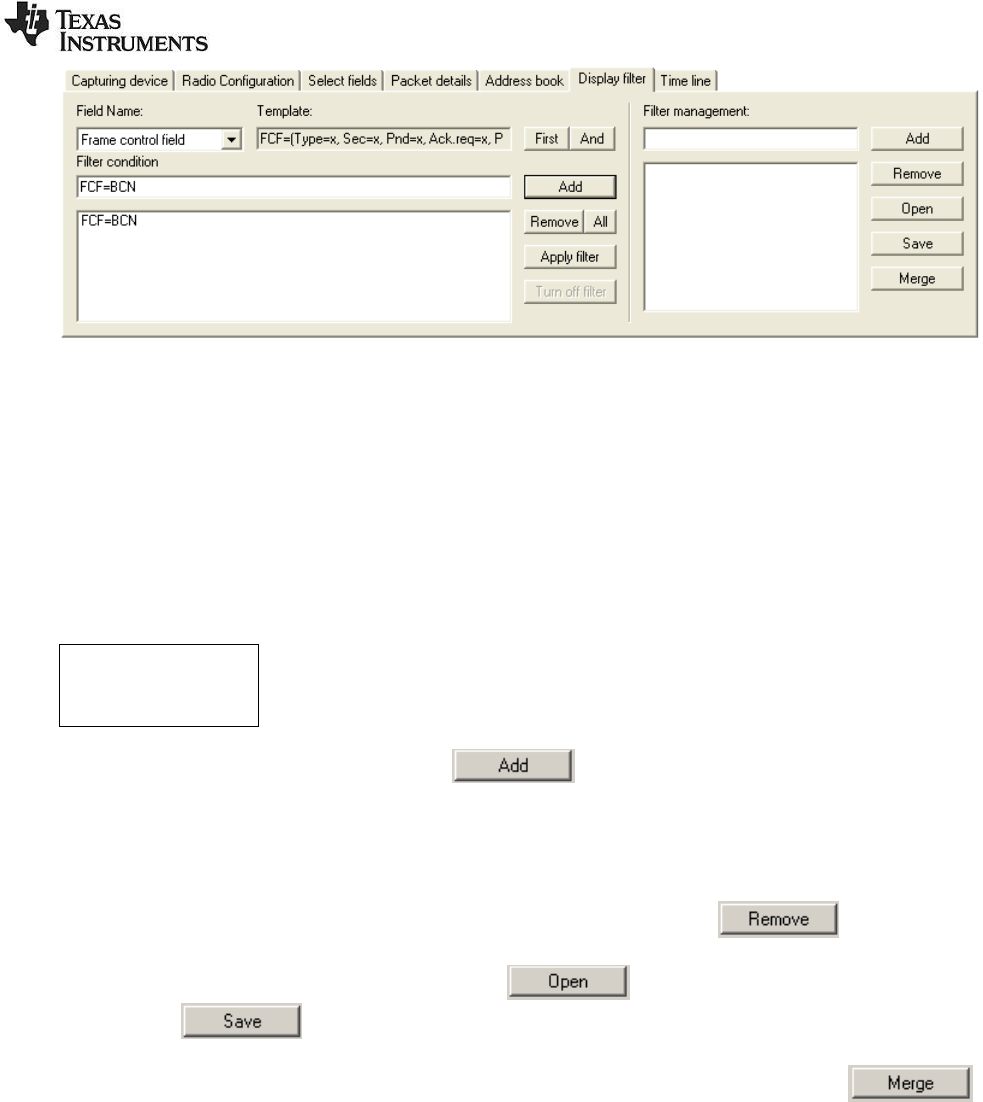

o Display filter: Packet filtering with user defined filter conditions. A list of all fields which

can be used to define the filter condition is given. From this list a filter condition can be

defined by combining these fields with AND and OR operators.

o Time line: Displays a large sequence of packets, about 20 times as many as in the

packet list, and sorted by either source or destination addresses.

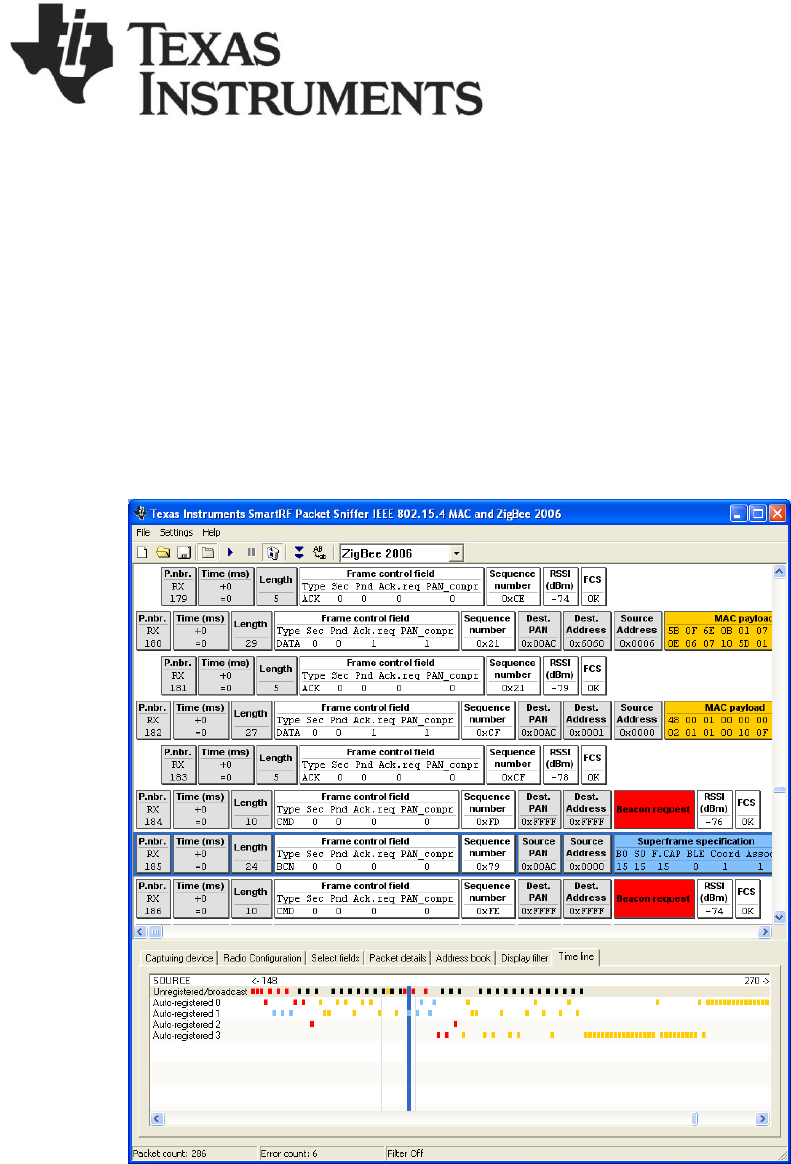

The packet sniffer screenshot in Figure 12 shows an example from the IEEE802.15.4/ZigBee protocol.

The status bar displays the total (unfiltered) number of captured packets, the number of packets with

errors (checksum error and the number of occurrences of buffer overflow) and the status of the filter

function. If filter is on, it will show the number of packets which have passed current filter conditions.

SWRU187F

12/32

Figure 12: Packet sniffer screenshot from the IEEE8022.15.4/ZigBee protocols

SWRU187F

13/32

2.3 Menus and Toolbars

Button

Key

Description

FileReset...

Empties the packet buffer and the packet list.

FileOpen data...

Load packet buffer from file

FileSave data...

Save packet buffer to file

* Display the tabs at the bottom of the window.

Start the packet sniffer (does not empty the

buffer)

Pause the packet sniffer

* Delete all captured packets when starting

Switch automatic scrolling on/off

Switch between normal font or small font in the

packet view window.

Settings 

Cash buffer size…

* The size of the packet RAM buffer in

megabytes.

Settings 

Clock multiplier…

* A clock multiplier, which allows you to

compensate for clock speed differences on the

connected device and the hardware running the

network application

Settings 

Packet broadcast ...

* Configuration of packet broadcast.

Enable/disable the feature, select broadcast

address and UDP port number, select broadcast

only

Help 

About the PSD file format

Help on the file format used to save data.

HelpUser Manual

Opens this document in your PDF file viewer

HelpRev. History

Revision history (bug fixes, new features, etc.)

The application is closed by double-clicking in the top left corner, or single-clicking on the X-symbol in

the top right corner.

Items marked with a star (*) are saved to Windows registry between each session.

For the ZigBee and SimpliciTI protocol there are options to select the protocol version. This can be

seen in the toolbar as a drop down list: . The selected version will be saved

between each session.

Cash buffer size:

The cash buffer is a RAM buffer that is allocated to contain packets that is displayed by the packet

sniffer. It is used to optimize the access time when the GUI asks for information to display a packet.

The cash buffer function tries to anticipate which packets that will be requested next and will try to load

the buffer with these packets in the background.

Clock multiplier:

A clock multiplier, which allows you to compensate for clock speed differences on the connected device

and the hardware running the network application (Synchronizing the clock on the sniffer device with

the clock on the network devices).

Example:

Ensure that the time stamps are given in microseconds to get accurate numbers (default). Measure a

known time interval (e.g. the distance between a few beacons for the IEEE 802.15.4 protocol). Divide

the desired value by the real value, and enter this floating-point factor into this field. Clock multiplier:

SWRU187F

14/32

2.4 Packet broadcast.

From version 2.14 of the General Packet Sniffer it is possible to stream packet data to other

applications via a UDP-port. This feature can be configured from the Settings -> Packet broadcast

menu. The feature can be disabled altogether, and it is possible to select broadcast IP-address and

UDP port. The IP-address is restricted to the „local’ interface to avoid inadvertently flooding the network

with packets. Optionally the operator may choose to broadcast data only. This is useful when capturing

data over time for storage as it avoid the problem of the buffers of the Packet Sniffer GUI application

filling up.

Figure 13: Packet broadcast setup

A PERL-script is provided as an example of how to use the broadcast data. It is located in <installation

directory>\scripts\udp_receive.pl. It received data on port 4000 and displays the packets in

hexadecimal format. Please note that the packet format is the same as the PSD-format described in

chapter 5 Format of packets saved to file . To save a PSD-file, the application will have to pad the

payload so it makes up the total number of bytes given in the <protocol>.plt file (Located in the plugin

folder). The file contain “Packet_length_raw_data=n” where n is the buffer size excluding the packet

info byte. E.g.: “Packet_length_raw_data=150” means that the total number of bytes for each packet

should be 151.

Figure 14: Sample packet in Packet Sniffer GUI

Figure 15: Sample packet as shown by udp_receive.pl

SWRU187F

15/32

2.5 Capturing device

The Capturing device tab is used to select the required device.

Depending on the selected protocol, the applicable devices will be shown in the list. The list will

automatically be updated when an applicable device is connected to a USB connector.

The Capturing device must be selected before the packet sniffer can be started (which is done by

clicking the tool bar button, or hitting the F5 key).

Figure 16: Capturing device

Sniffer communication interface:

If the EB type is CC Debugger and the chip type is CC1110 or CC2510, an additional option will be

visible in the Capturing device panel. The sniffer communication interface must be selected.

The default value is USART0 and is applicable when CC Debugger is used together with the

SmartRFCCxx10TB board. See figure below.

USART1 should be used for all other combinations with CC1110EM or CC2510EM.

SWRU187F

16/32

2.6 Radio Configuration

The Radio Configuration tab is used to select the parameter values required to configure the radio of

the capturing device.

The parameters depend on the selected capturing device.

IEEE 802.15.4 devices:

For IEEE 802.15.4 devices, the required channel must be selected.

Proprietary devices:

These radios support a lot of programmable RF parameters.

The radio settings should be given in a text file. The file can be created by SmartRF® Studio. This

makes it easy to get all the correct register settings calculated by SmartRF® Studio. See chapter 6 for

further details.

After installation of the SmartRF™ packet sniffer, a default file will be available in the subdirectory of the

applicable plugin.

The format of the file is shown in the example below:

SWRU187F

17/32

#Name |Addr. |Val.|Description

#--------+------+----+-----------------------------------------------------------

PKTLEN |0xDF02|0xFD|Packet length.

PKTCTRL1 |0xDF03|0x04|Packet automation control.

PKTCTRL0 |0xDF04|0x05|Packet automation control.

FSCTRL1 |0xDF07|0x07|Frequency synthesizer control.

FREQ2 |0xDF09|0x1C|Frequency control word, high byte.

FREQ1 |0xDF0A|0x80|Frequency control word, middle byte.

FREQ0 |0xDF0B|0x00|Frequency control word, low byte.

MDMCFG4 |0xDF0C|0x2D|Modem configuration.

MDMCFG3 |0xDF0D|0x3B|Modem configuration.

MDMCFG2 |0xDF0E|0x73|Modem configuration.

MDMCFG1 |0xDF0F|0x22|Modem configuration.

MDMCFG0 |0xDF10|0xF8|Modem configuration.

DEVIATN |0xDF11|0x00|Modem deviation setting (when FSK modulation is enabled).

MCSM1 |0xDF13|0x0C|Main Radio Control State Machine configuration.

MCSM0 |0xDF14|0x10|Main Radio Control State Machine configuration.

FOCCFG |0xDF15|0x1D|Frequency Offset Compensation Configuration.

BSCFG |0xDF16|0x1C|Bit synchronization Configuration.

AGCCTRL2 |0xDF17|0xC7|AGC control.

AGCCTRL1 |0xDF18|0x00|AGC control.

AGCCTRL0 |0xDF19|0xB2|AGC control.

FREND1 |0xDF1A|0x56|Front end RX configuration.

FREND0 |0xDF1B|0x10|Front end RX configuration.

FSCAL3 |0xDF1C|0xA9|Frequency synthesizer calibration.

FSCAL2 |0xDF1D|0x0A|Frequency synthesizer calibration.

FSCAL1 |0xDF1E|0x00|Frequency synthesizer calibration.

FSCAL0 |0xDF1F|0x11|Frequency synthesizer calibration.

PA_TABLE0|0xDF2E|0xFF|PA Output Power Setting.

When the file is selected, the register values will be shown in the “Registers” frame.

To modify the register value, double click the register name. The register name will appear in the

“Register update” frame. The value can be changed in the “Value” field. Click on “Apply” to use the new

value. The changes can be seen in the “Register” frame. The new values can be written to file with a

click on the “Write to file” button.

Bluetooth Low Energy devices:

For Bluetooth Low Energy devices, the Advertising channel must be selected.

The capture device can be configured to follow a data connection between a specific Bluetooth low

energy master (initiator) and slave device. In the "Radio Configuration tab", click the checkbox next to

the "Connect to Initiator Address" and write the address of the initiator (master) device. If this option is

not selected, the capture device will start following the first data connection that appears on the current

advertising channel

SWRU187F

18/32

2.7 Select fields

The field selection tab can be used to select which fields to display and which to hide in the packet list.

This feature is particularly useful for low-resolution screens (less than 1024x768). The fields are

grouped in several colour coded categories.

The time stamp can be displayed in microseconds or milliseconds. The payload data can be displayed

as hex-bytes or as plain-text. In plain-text format all non-printable characters will be replaced by a "*".

The Selected Fields list box gives the possibility to select predefined field groups. It is also possible to

select “all” or “none”.

Each frame can be shown either with its LQI (Link Quality Indication, ranging from 0x00 to 0xFF) or

RSSI (Received Signal Strength Indicator with an approximation to the actual RF level, in dBm). The

LQI parameter is derived from the IEEE802.15.4/ZigBee protocol specification. The exact definition will

depend on the used protocol.

The example below shows the fields defined for the SimpliciTI protocol.

Figure 17: Select Fields panel

Tips:

Extended selection is used to operate the controls:

To select a range of fields:

o Click and drag over the fields that should be selected, or....

o ... select the first field, hold down the "Shift" key, and select the last field.

To select/unselect a single field:

o Hold down the "Ctrl" key and click on the field to be toggled.

SWRU187F

19/32

2.8 Packet details

By double-clicking on a packet in the packet list, additional details, as shown below, will be displayed.

This example show details from the SimpliciTI protocol.

Figure 18: Packet details panel

The packet index shows the index for each captured packet, starting with index 1 for the first packet.

The RSSI value is read from the connected device and adjusted with a given offset value to get an

approximate value in dBm. The correlation value is equal to the value read from the connected device.

See the datasheet of the connected device for detailed information on the RSSI and correlation values.

SWRU187F

20/32

2.9 Address book

The address book contains all known Node addresses from the most recent session. By selecting

"Auto-register" (on by default), the packet sniffer will register all addresses automatically and add

entries into the address book. The example below show the fields defined for the IEEE 802.15.4/ZigBee

protocols.

Figure 19: Address book panel

Nodes are added/replaced manually by clicking the "Add" button, or by pressing the "Enter" key while

standing in one of the top fields.

Nodes can be removed by clicking the "Remove" button, or by pressing the "Delete" key while a node is

selected in the address list.

Nodes can be moved up/down by using the rightmost buttons, or the "Alt + U" and "Alt + D" key

combinations.

Depending on the protocol it may be required with manual editing of the fields in the address book to

correct for address conflicts.

Below are examples where manual editing for the IEEE 802.15.4 protocol are given.

There has been a PAN ID conflict.

A device has left the network, and another device has been given an already used short

address (the extended address will be replaced).

Association response commands have not been detected.

Tips:

Fast editing of node names can be done using the following procedure:

1. Select the first auto-registered item in the address list

2. Hit "Enter" to copy the data and move to the node name field

3. Enter the new name

4. Hit "Enter" to replace the old entry and move back to the address list

5. Move one line down by using the down arrow.

6. Go to step 2

SWRU187F

21/32

2.10 Display filter

The Display filter tab allows for filtering on all fields defined in the Field Name window.

A template is provided to ease the definition of the filter condition. The template will show the short

name for each field. If the field has sub fields, the definition of all sub fields will be shown within

brackets. Some fields will be dependent of other fields. This will also be shown in the template.

When the required field is selected, the template can be moved to the single line Filter condition window

by pushing the button or the button. The “First” button will remove all existing conditions

and set current template as the first condition. The “And” button will add current template to the existing

conditions and the conditions will be evaluated with the AND operator. When the template has been

moved to the single line Filter condition window, it must be modified to give the real values of the

requested fields. The value is indicated with an “x” in the template. If the filter condition of a field with

sub fields only requires evaluating the first sub field value, the sub field value can be given without

brackets.

Example:

Figure 20 below shows an example from the IEEE 802.15.4/ZigBee protocols. The template

of the Frame control field is:

FCF=(Type=x, Sec=x, Pnd=x, Ack_req=x, Intra_PAN=x)

If it is only required to test on the “Type” sub field, the condition can be simplified the following

way:

FCF=BCN

Note: This is only possible for the first field in the definition of sub fields.

It is not required to fill in the values of all fields. If the filter condition only requires checking some of the

sub fields, only those fields should be given.

Example:

Same as previous example, but this time it includes checking the “Type” and “Ack_req”

values. This condition should be given as follows:

FCF=(Type=BCN, Ack_req=1)

When all conditions that should be evaluated with the AND operator are defined, the condition can be

moved to the multi line Filter condition window with the button (“Enter” will give the same

result). In this window several filter conditions can be added and all the conditions in “vertical” direction

will be evaluated with the OR operator. To summarize: Conditions in the horizontal direction are

evaluated with the AND operator. Conditions in vertical direction are evaluated with the OR operator.

To remove a line from the multi line filter condition, select the required line and click the

button. To remove all the lines from the multi line filter condition, click the button.

The button will activate the filter and the packet window will be redrawn with packets that

comply with the given filter condition. The button should be used to disable the filter

function. The packet window will be redrawn again and all packets will be visible. The filter function can

be enabled and disabled while the sniffer is running.

SWRU187F

22/32

Figure 20: Display filter panel

Filter management:

On the right side of the panel, a Filter management function is provided. The filter management

contains a database of defined filters. The database can be saved to a file and read from a file. The file

is formatted as a plain text file and can be manually updated if required.

Below is an example of a filter database file. The filter name is given within square brackets [ ] and the

filter conditions are given on the following lines. In this example the filter condition is: Dest. Address =

0x2430 OR 0x1749

[address]

DAD=0x2430

DAD=0x1749

To add a filter definition to the database, the button should be used. In order to add the

filter to the database, a filter name must be given in the window to the left of the button. When the name

is given and the “Add” button is pushed, the current filter definition (the multi line window of the filter

condition) will be added to the filter database. The name of the filter will appear in the list of filters

(Window below the filter name).

To remove a filter, select the required filter in the list of filters and push the button.

The filter database can be read from a file with the button. To save the filter database to

a file, use the button.

To add filter definitions from a file, without deleting the existing filters in the database, the

button should be used. This will open the given file and add the filters to the existing filter database. If

the given filter name already exist in the filter database, the name will be modified with an additional

digit at the end of the name.

To use a filter from the filter database, double click on the filter name and the filter condition will appear

in the multi line filter condition window at the left side.

Note:

When packets are filtered out, the delta times shown in the Time fields still show the delta time to the

previous packet captured, not the previous packet shown.

2.11 Time line

The time line displays all received packets, ordered horizontally by the time of reception and vertically

by source or destination address. Selecting a packet from the time line will instantly be reflected in the

packet list, and vice versa, thus allowing for efficient navigation in large collections of packets.

SWRU187F

23/32

Figure 21: Time line panel

Double-click in the left section of the time line to switch between destination and source.

Packets are selected by clicking and/or holding down the left mouse button.

The time line can be scrolled clicking and holding down the right mouse button (drag).

SWRU187F

24/32

3 Encrypted Payload

Decryption of encrypted data is only supported by the Bluetooth low energy packet parser.

3.1 How to use the decryption feature

1. Copy the file “ltk.txt” with the Long-term key (LTK) to the root directory “c:\”.

The file can be found in the “BLE” plugin directory.

Typically: C:\Program Files\Texas Instruments\Packet Sniffer\General\Plugin\ble

2. Modify "ltk.txt" with the right ltk. The format is MSO-LSO.

E.g. If the ltk=0x00112233445566778899AABBCCDDEEFF

The file will have to be "00112233445566778899AABBCCDDEEFF" as its very first line

3. Run the sniffer like normal. Encrypted packets will be decrypted and flagged as "Encryption

Enabled". Payload and MIC will be displayed on the GUI.

3.2 Limitations

Decryption is supported with the following limitations:

1. The decryption will fail if one or more packets are sent but failed to be captured by the capturing

device. The decryption algorithm depends on the timing, packet counters (one for each side)

and the direction of the packet. There are algorithms in the parser to determine these

parameters but they can‟t capture all the scenarios where one or more packets missing.

SWRU187F

25/32

4 Know Issues

4.1 Bluetooth Low Energy

The capture device currently ignores the connection timeout parameter for an active connection. This

means that the sniffer will not know that a connection between two BLE devices is "down" if no new

packets are received for the duration of the connection timeout. The reason this is not supported by the

sniffer, is to remedy the case where the sniffer follows a data connection between two remote devices

and thus is likely to lose a number of packets for a period of time that exceeds the connection timeout.

When the actual connection is terminated due to a connection timeout, the sniffer must be stopped

(click the pause/stop icon) and restarted (click the play icon) in order to follow a new connection.

SWRU187F

26/32

5 Format of packets saved to file

The figure below describe the packet format for packets saved to a Packet Sniffer Data(PSD) file. The

number of bytes is given for each field.

1 4 8 21 sn

FCS

Spare

Payload

Length

Timestamp

Packet number

Packet Information

Figure 22: Packet format in PSD file

Packet Information:

New field introduced from version 2.3.0. Contains information used by the packet sniffer to read the

data correctly.

Bit 0: Length includes FCS.

Bit 1: Correlation used.

Bit 2: Incomplete packet.

Bit 3-7: Not used.

Timestamp:

64 bit counter value. To calculate the time in microseconds this value must be divided by a number

depending on the clock speed used to drive the counter tics on the target. (E.g. CC2430EM -> 32,

CCxx10 -> 26, SmartRF05EB + CC2520EM -> 24). The timestamp on the first packet will be used as

offset value for all packets. That means that packet number 1 will be shown in the packet sniffer with

time = 0.

Length:

The length will or will not include the FCS field depending on Bit 0 in the Packet information.

Payload:

Packet Information Bit 0 = 0  n = Length

Packet Information Bit 0 = 1  n = Length – 2

FCS:

The checksum of the frame has been replaced by the radio chip in the following way:

BYTE 1: RSSI and if Correlation used, this byte is also used to calculate the LQI value.

BYTE 2: Bit 7: Indicate CRC OK or not.

Bit 6-0: If Correlation used: Correlation value.

If Correlation not used: LQI.

See data sheet for the applicable chip for further details.

Spare:

The number of spare bytes depends on the total amount of bytes used by the packet sniffer to save the

packet. The number of bytes depends on the protocol and can bee seen from the description of the

packet format under the help menu.

SWRU187F

27/32

6 Exporting register settings from SmartRF™ Studio

SmartRF™ Studio and its user manual can be downloaded from the Texas Instruments web site. See

the SmartRF™ Studio user manual for more details.

When the correct device has been selected, a list of preferred register settings will be shown in the

“Normal view” tab. After selecting the preferred register settings and optionally changing any of the

open the following window:

Figure 23: SmartRF Studio Code Export

Select “Packet sniffer settings”. The register settings with correct formatting can be seen in the

“Preview” tab to the right. Select “Export to file” to save the settings to file.

SWRU187F

28/32

7 Help

The packet sniffer provides help through so-called tool-tips. By moving the cursor over a field (e.g. a

button or a text field) and holding it in the same position for about half a second, the text will appear in a

yellow box slightly below the cursor:

Figure 24: Display filter panel with the tool-tip shown

Keyboard and mouse button events will cause the tool-tip to disappear, or not be displayed at all.

SWRU187F

29/32

8 Troubleshooting

This section contains some troubleshooting tips that should be used if the packet sniffer does not

function as expected. Execute the steps one by one until the problem is solved.

A) The evaluation board is not detected (it does not appear in the list box in the Setup tab)

Using smartRF04EB + CC2430EM

Make sure that the USB cable is connected and that a CC2430EM is mounted.

Check that the jumper between I_OUT and I_IN is connected.

Check that the jumpers on P3 are mounted correctly (see the CC2430DK user manual).

Press the "Reset" button.

Using 2430DB

Make sure that the USB cable is connected and power switch is in USB position.

Check that the jumper on P3 pin 1-2 is mounted

Check that all tree jumpers on P5 are mounted

Press the "Reset" button.

B) When pressing the “start button”, the following message is given:

"Not able to Start Sniffer. Try upgrade of USB firmware".

Check if latest Firmware version of the USB controller is used. This should be version 0037 or

later. This can be seen by using the SmartRF Flash Programmer from Texas Instruments. The

figure below show an example from the flash programmer. The column “EB firmware rev” will

show the version. The Flash Programmer can be download from the Texas Instruments web

site.

Figure 25: SmartRF Flash Programmer

C) When pressing the "start button", the sniffer stops immediately (the start button is not grayed

out)

SWRU187F

30/32

Disconnect the USB cable from the SmartRF04EB or CC2430DB board, and plug it back in.

Press the "Reset" button on the board.

Disconnect the power cable from all evaluation boards and install the latest version of the

packet sniffer.

Reboot the computer.

D) The program does not respond

Press the "Reset" button on the connected Evaluation Board (EB).

E) The packets are not decoded correctly

Packets with an FCS failure will probably not be parsed correctly (FCS = ERR).

Make sure that the packet really is correctly formatted (compare the fields with the raw data in

the packet details tab).

F) Weird packets appear in the packet sniffer when not transmitting anything

CC2430 will try receiving packets down to the RF noise floor. Sometimes it will also decode

packets which are decoded from noise only. These will appear in the packet sniffer. To avoid

this, enable FCS filtering in the toolbar.

G) The packet sniffer stays “idle” and does not receive any packets after “start button” has been

pressed.

Check that correct channel is used in the setup panel.

Check the jumper settings, see section 1.2 in this document. If a SmartRF04EB board with an

CC2430EM module is used, make sure that the jumpers are set correct depending on the chip

revision. Revision A and B (register CHVER ≤ 0x02), horizontal. Later revisions, vertical.

H) Error message when trying to start the packet sniffer.

If an error message about missing msvcp80.dll appears, or the error message shown below

appears when attempting to start the application, you may be required to install an additional

package from Microsoft.

The package contains some additional runtime components needed by applications developed with

Visual C++. To resolve this problem, download the file vcredist_x86.exe from the URL below and

install the package.

http://www.microsoft.com/Downloads/details.aspx?FamilyID=32bc1bee-a3f9-4c13-9c99-

220b62a191ee&displaylang=en

SWRU187F

31/32

9 General Information

9.1 Document History

Revision

Date

Description/Changes

07/07/2011

Added new HW platforms:

- TrxEB + one of the following EM‟s: CC1101, CC110L, CC113L, CC1120 or CC1121

14/03/2011

Description of Packet Broadcast added.

22/10/2010

The table with combinations of protocols+HW has been updated.

A picture of the HW platform for CC2420 is added.

25/08/2010

Document updated with information about capturing device used for the Bluetooth Low

Energy protocol. Screen shots have been updated.

03/11/2009

SmartRFCCxx10TB added as possible capturing device.

19/02/2009

Description for SmartRF05EB added.

03/09/2008

First revision.

SWRU187F

32/32

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements,

improvements, and other changes to its products and services at any time and to discontinue any product or service without

notice. Customers should obtain the latest relevant information before placing orders and should verify that such information is

current and complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order

acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s

standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this

warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily

performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and

applications using TI components. To minimize the risks associated with customer products and applications, customers should

provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask

work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services

are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such

products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under

the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of

TI.

Reproduction of TI information in TI data books or data sheets is permissible only if reproduction is without alteration and is

accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is

an unfair and deceptive business practice. TI is not responsible or liable for such altered documentation. Information of third

parties may be subject to additional restrictions.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service

voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business

practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would

reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement

specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications

of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related

requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any

applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its

representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products

are specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet

military specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-

grade is solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in

connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products

are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any non-

designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio

Data Converters dataconverter.ti.com Automotive www.ti.com/automotive

DSP dsp.ti.com Broadband www.ti.com/broadband

Clocks and Timers www.ti.com/clocks Digital Control www.ti.com/digitalcontrol

Interface interface.ti.com Medical www.ti.com/medical

Logic logic.ti.com Military www.ti.com/military

Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork

Microcontrollers microcontroller.ti.com Security www.ti.com/security

RFID www.ti-rfid.com Telephony www.ti.com/telephony

RF/IF and ZigBee® Solutions www.ti.com/lprf Video & Imaging www.ti.com/video

Wireless www.ti.com/wireless

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

SmartRF™ Packet Sniffer User Manual (Rev. F) Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
