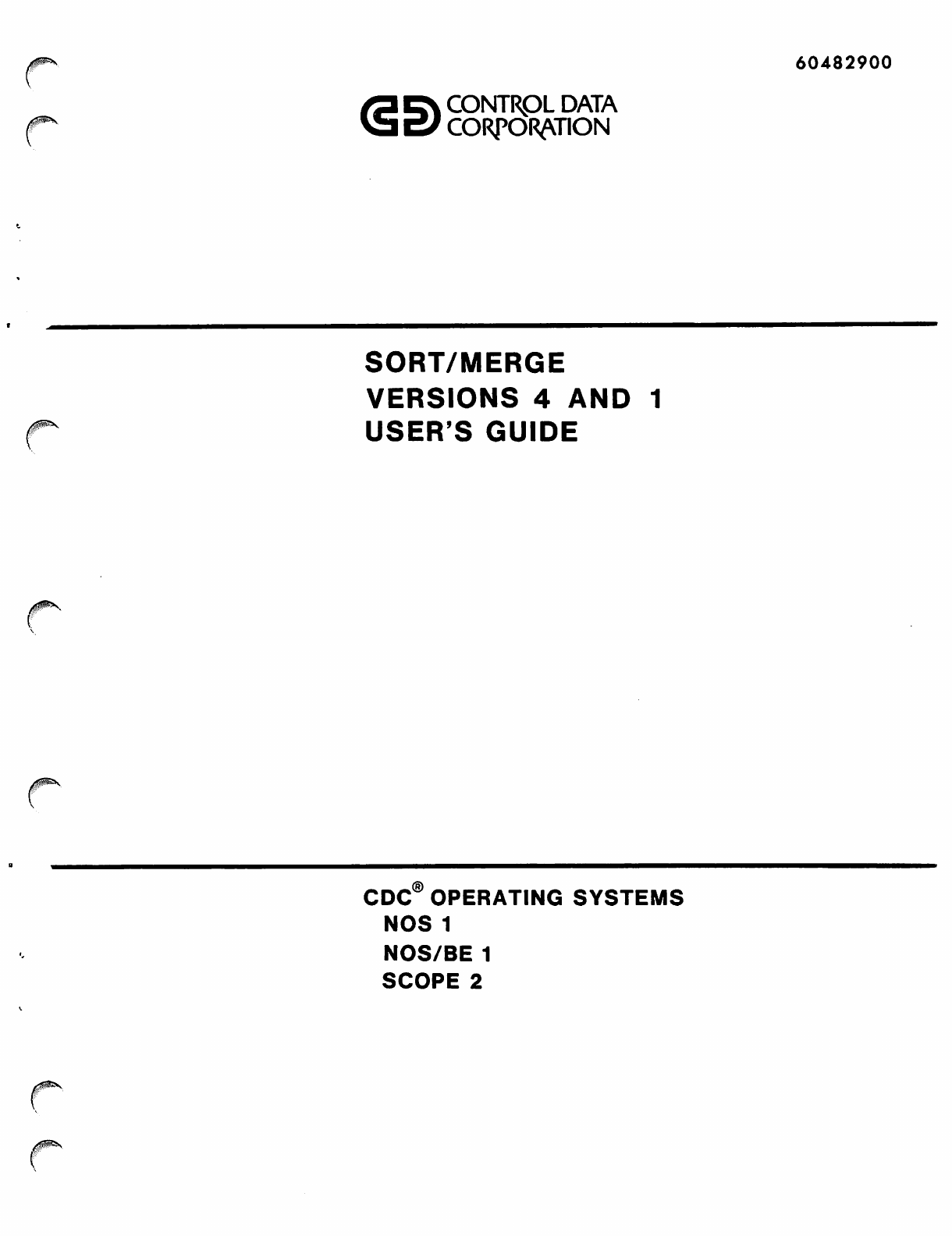

60482900

CONTROL DATA

CORPORATION

SORT/MERGE

VERSIONS 4 AND 1

USERS GUIDE

0^\

CDC® OPERATING SYSTEMS

NOS 1

NOS/BE 1

SCOPE 2

REVISION RECORD

Revision

A (05-15-79)

Description

Original release.

REVISION LETTERS I, 0, Q, AND X ARE NOT USED

^COPYRIGHT CONTROL DATA CORPORATION 1979

All Rights Reserved

Printed in the United States of America

Address comments concerning this manual to:

CONTROL DATA CORPORATION

Publications and Graphics Division

P. 0. BOX 3492

SUNNYVALE, CALIFORNIA 94088-3492

or use Comment Sheet in the back of this manual

ii 60482900 A

LIST OF EFFECTIVE PAGES

New features, as well as changes, deletions, and additions to information in this manual are indicated by bars in the

margins or by a dot near the page number if the entire page is affected. A bar by the page number indicates pagina

tion rather than content has changed.

Page

Cover

Inside Cover

Title Page

ii

iii/iv

v thru viii

1-1 thru 1-4

2-1 thru 2-4

3-1 thru 3-4

4-1 thru 4-10

5-1 thru 5-7

6-1 thru 6-3

A-l thru A-4

B-l

B-2

C-l thru C-3

Index-1.

Comment Sheet

Mailer

Back Cover

Revision

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

A

Page Revision Page Revision

60482900 A iii/iv

0^

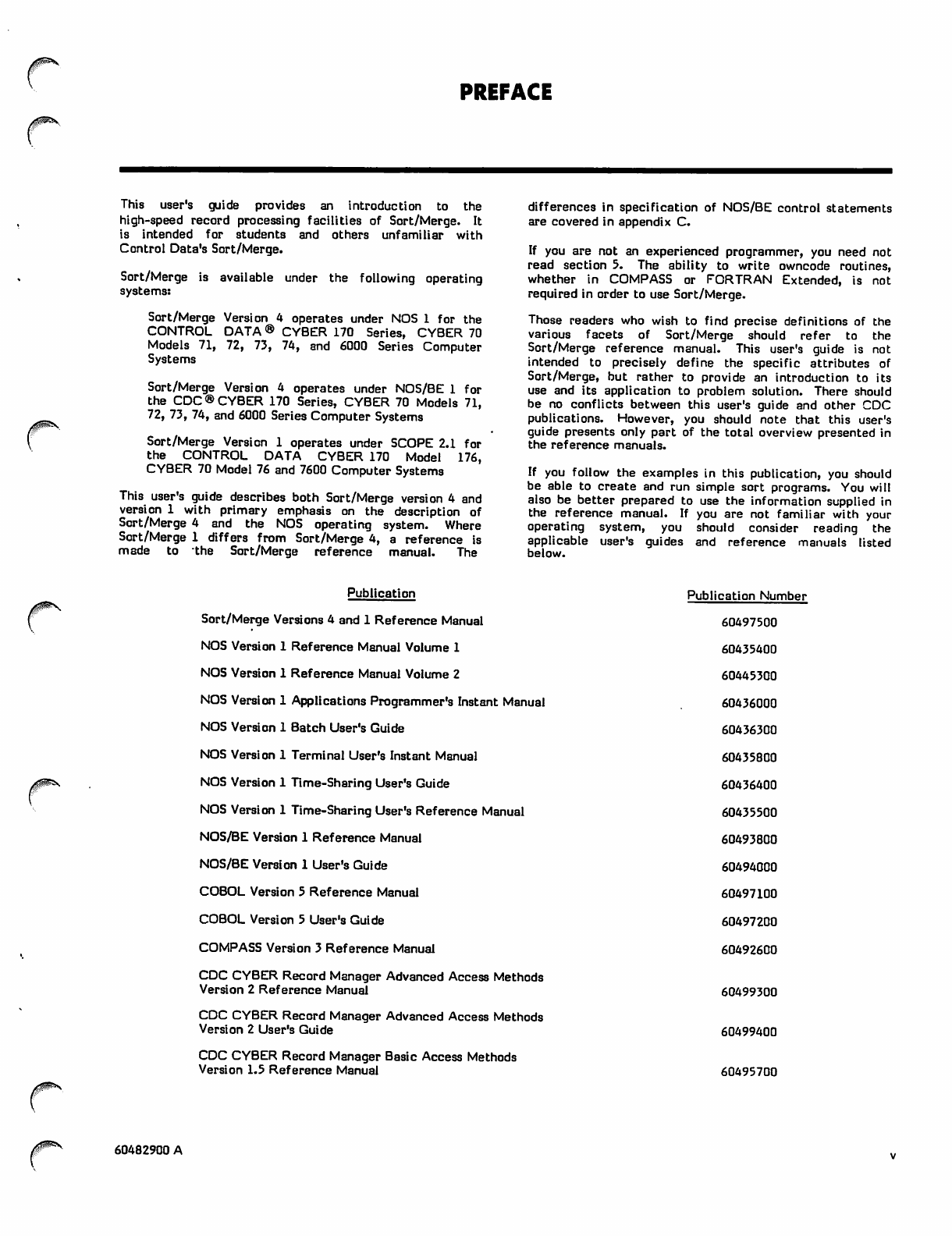

PREFACE

This user's guide provides an introduction to the

high-speed record processing facilities of Sort/Merge. It

is intended for students and others unfamiliar with

Control Data's Sort/Merge.

Sort/Merge is available under the following operating

systems:

Sort/Merge Version 4 operates under NOS 1 for the

CONTROL DATA ® CYBER 170 Series, CYBER 70

Models 71, 72, 73, 74, and 6000 Series Computer

Systems

Sort/Merge Version 4 operates under NOS/BE 1 for

the CDC ©CYBER 170 Series, CYBER 70 Models 71,

72, 73, 74, and 6000 Series Computer Systems

Sort/Merge Version 1 operates under SCOPE 2.1 for

the CONTROL DATA CYBER 170 Model 176,

CYBER 70 Model 76 and 7600 Computer Systems

This user's guide describes both Sort/Merge version 4 and

version 1 with primary emphasis on the description of

Sort/Merge 4 and the NOS operating system. Where

Sort/Merge 1 differs from Sort/Merge 4, a reference is

made to "the Sort/Merge reference manual. The

differences in specification of NOS/BE control statements

are covered in appendix C.

If you are not an experienced programmer, you need not

read section 5. The ability to write owncode routines,

whether in COMPASS or FORTRAN Extended, is not

required in order to use Sort/Merge.

Those readers who wish to find precise definitions of the

various facets of Sort/Merge should refer to the

Sort/Merge reference manual. This user's guide is not

intended to precisely define the specific attributes of

Sort/Merge, but rather to provide an introduction to its

use and its application to problem solution. There should

be no conflicts between this user's guide and other CDC

publications. However, you should note that this user's

guide presents only part of the total overview presented in

the reference manuals.

If you follow the examples in this publication, you should

be able to create and run simple sort programs. You will

also be better prepared to use the information supplied in

the reference manual. If you are not familiar with your

operating system, you should consider reading the

applicable user's guides and reference manuals listed

below.

0^>\

Publication

Sort/Merge Versions 4 and 1 Reference Manual

NOS Version 1 Reference Manual Volume 1

NOS Version 1 Reference Manual Volume 2

NOS Version 1 Applications Programmer's Instant Manual

NOS Version 1 Batch User's Guide

NOS Version 1 Terminal User's Instant Manual

NOS Version 1 Time-Sharing User's Guide

NOS Version 1 Time-Sharing User's Reference Manual

NOS/BE Version 1 Reference Manual

NOS/BE Version 1 User's Guide

COBOL Version 5 Reference Manual

COBOL Version 5 User's Guide

COMPASS Version 3 Reference Manual

CDC CYBER Record Manager Advanced Access Methods

Version 2 Reference Manual

CDC CYBER Record Manager Advanced Access Methods

Version 2 User's Guide

CDC CYBER Record Manager Basic Access Methods

Version 1.5 Reference Manual

Publication Number

60497500

60435400

60445300

60436000

60436300

60435800

60436400

60435500

60493800

60494000

60497100

60497200

60492600

60499300

60499400

60495700

60482900 A

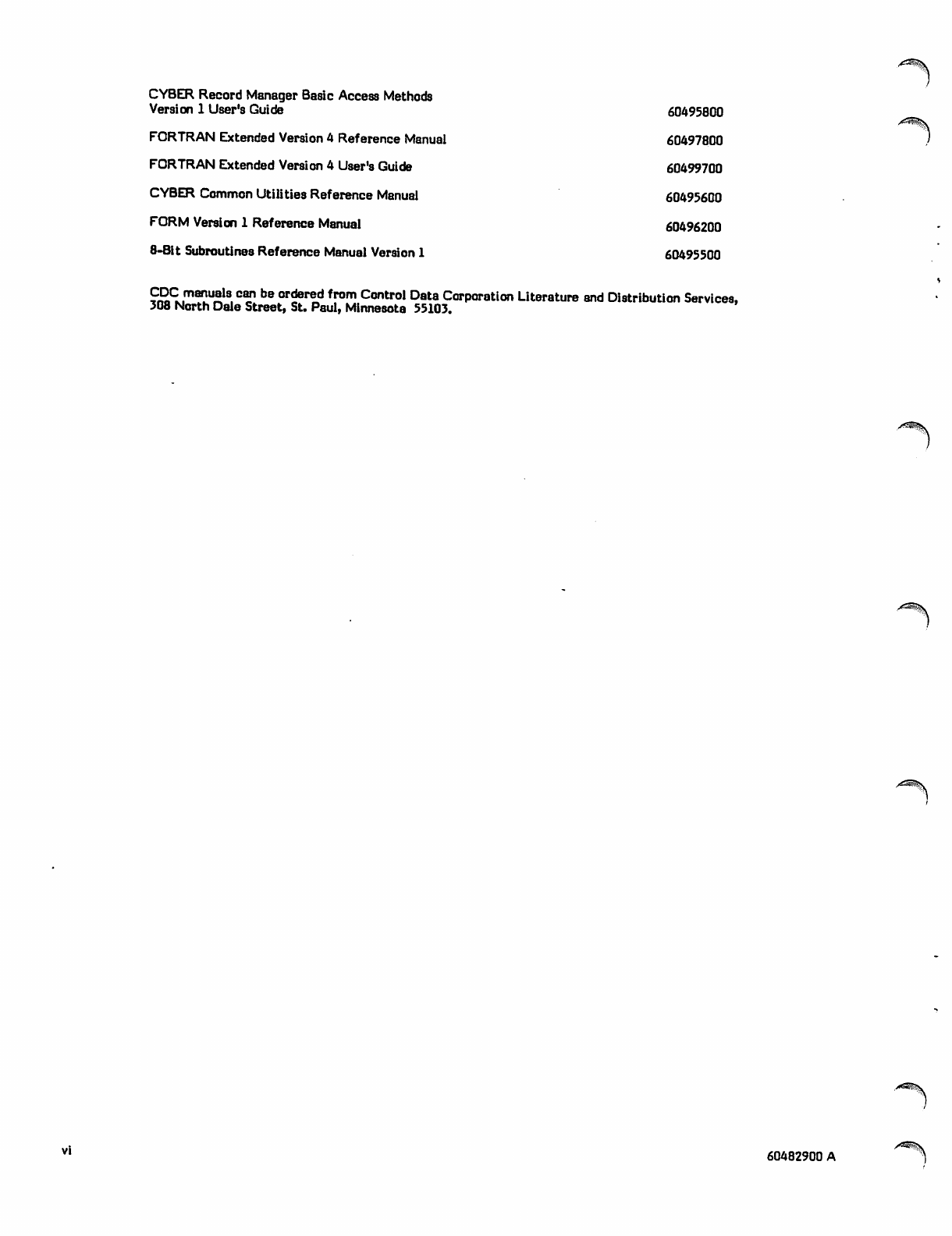

CYBER Record Manager Basic Access Methods

Version 1 User's Guide 60495800

FORTRAN Extended Version 4 Reference Manual 60497800

FORTRAN Extended Version 4 User's Guide 60499700

CYBER Common Utilities Reference Manual 60495600

FORM Version 1 Reference Manual 60496200

8-Blt Subroutines Reference Manual Version 1 60495500

KJt ma?u~ 8.c? be ordered from Control Data Corporation Literature and Distribution Services,

308 North Dale Street, St. Paul, Minnesota 55103.

60482900 A

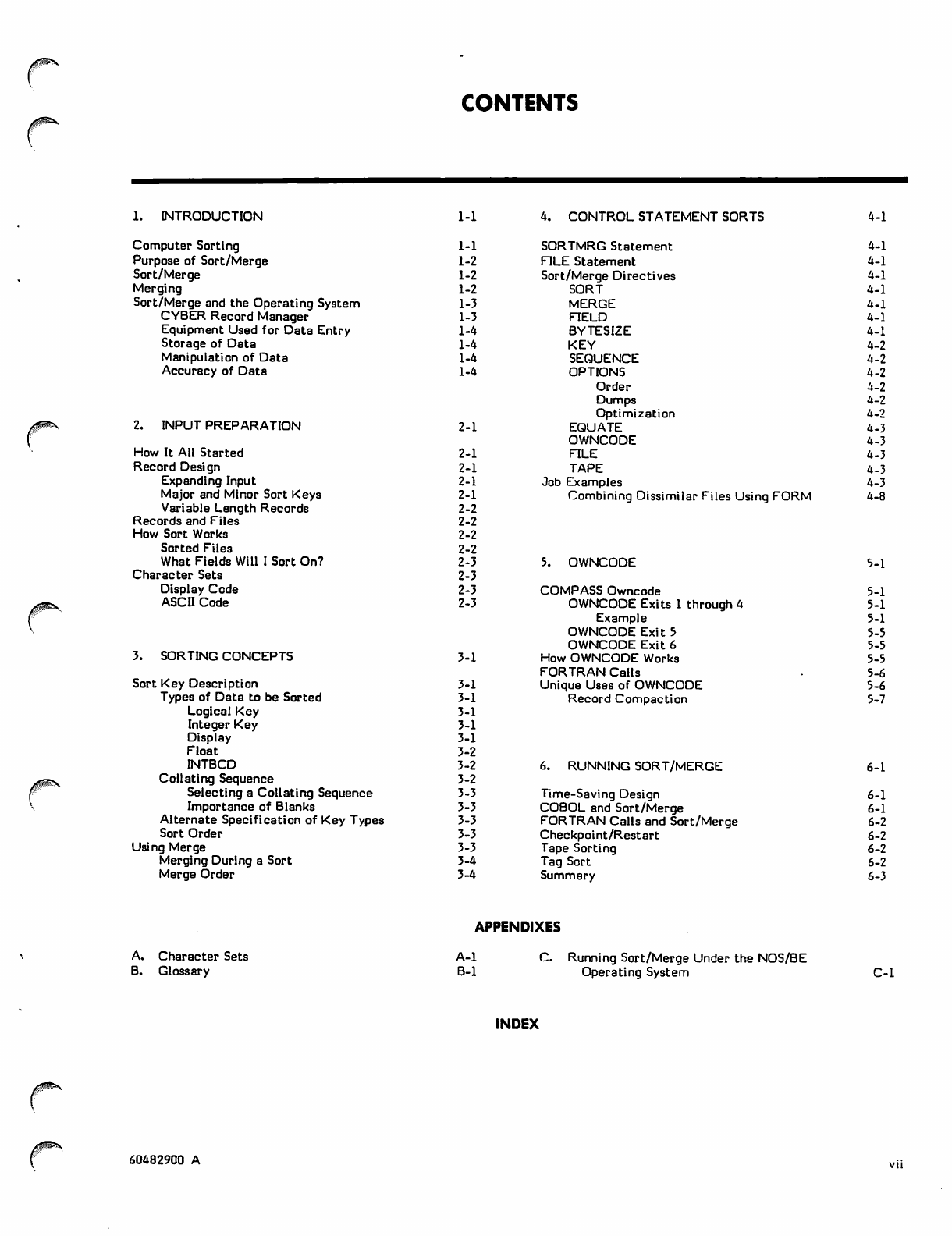

CONTENTS

0$$^

1. INTRODUCTION

Computer Sorting

Purpose of Sort/Merge

Sort/Merge

Merging

Sort/Merge and the Operating System

CYBER Record Manager

Equipment Used for Data Entry

Storage of Data

Manipulation of Data

Accuracy of Data

2. INPUT PREPARATION

How It All Started

Record Design

Expanding Input

Major and Minor Sort Keys

Variable Length Records

Records and Files

How Sort Works

Sorted Files

What Fields Will I Sort On?

Character Sets

Display Code

ASCII Code

3. SORTING CONCEPTS

Sort Key Description

Types of Data to be Sorted

Logical Key

Integer Key

Display

Float

INTBCD

Collating Sequence

Selecting a Collating Sequence

Importance of Blanks

Alternate Specification of Key Types

Sort Order

Using Merge

Merging During a Sort

Merge Order

1-1 4. CONTROL STATEMENT SORTS 4-1

1-1 SORTMRG Statement 4-1

1-2 FILE Statement 4-1

1-2 Sort/Merge Directives 4-1

1-2 SORT 4-1

1-3 MERGE 4-1

1-3 FIELD 4-1

1-4 BYTESIZE 4-1

1-4 KEY 4-2

1-4 SEQUENCE 4-2

1-4 OPTIONS 4-2

Order 4-2

Dumps 4-2

Optimization 4-2

2-1 EQUATE 4-3

OWNCODE 4-3

2-1 FILE 4-3

2-1 TAPE 4-3

2-1 Job Examples 4-3

2-1 Combining Dissimilar Files Using FORM 4-8

2-2

2-2

2-2

2-2

2-3 5. OWNCODE 5-1

2-3

2-3 COMPASS Owncode 5-1

2-3 OWNCODE Exits 1 through 4 5-1

Example 5-1

OWNCODE Exit 5 5-5

OWNCODE Exit 6 5-5

3-1 How OWNCODE Works 5-5

FORTRAN Calls 5-6

3-1 Unique Uses of OWNCODE 5-6

3-1 Record Compaction 5-7

3-1

3-1

3-1

3-2

3-2

3-2

3-3

3-3

3-3

3-3

3-3

3-4

3-4

6. RUNNING SORT/MERGE

Time-Saving Design

COBOL and Sort/Merge

FORTRAN Calls and Sort/Merge

Checkpoint/Restart

Tape Sorting

Tag Sort

Summary

6-1

6-1

6-1

6-2

6-2

6-2

6-2

6-3

APPENDIXES

A.

B.

Character Sets

Glossary

A-l

B-l Running Sort/Merge Under the NOS/BE

Operating System C-l

INDEX

yfl$^\

60482900 A

FIGURES

1-1 Simple Two-Way Tape Merge 1-3 4-8

4-1 Record Format 4-4

4-2 Input Records 4-5 4-9

4-3 Sort Directives 4-5 4-10

4-4 NOS Control Statements 4-5 4-11

4-5 Sort Output by Name 4-6 5-1

4-6 Creating a NOS Permanent File 4-7

4-7 Sort by Department, Name, and Salary 4-7

User Sequence Sort by Department,

Salary, and Age

Sort for Seniority List

Sort Using INTBCD Collating Sequence

Reformatting Records Using FORM

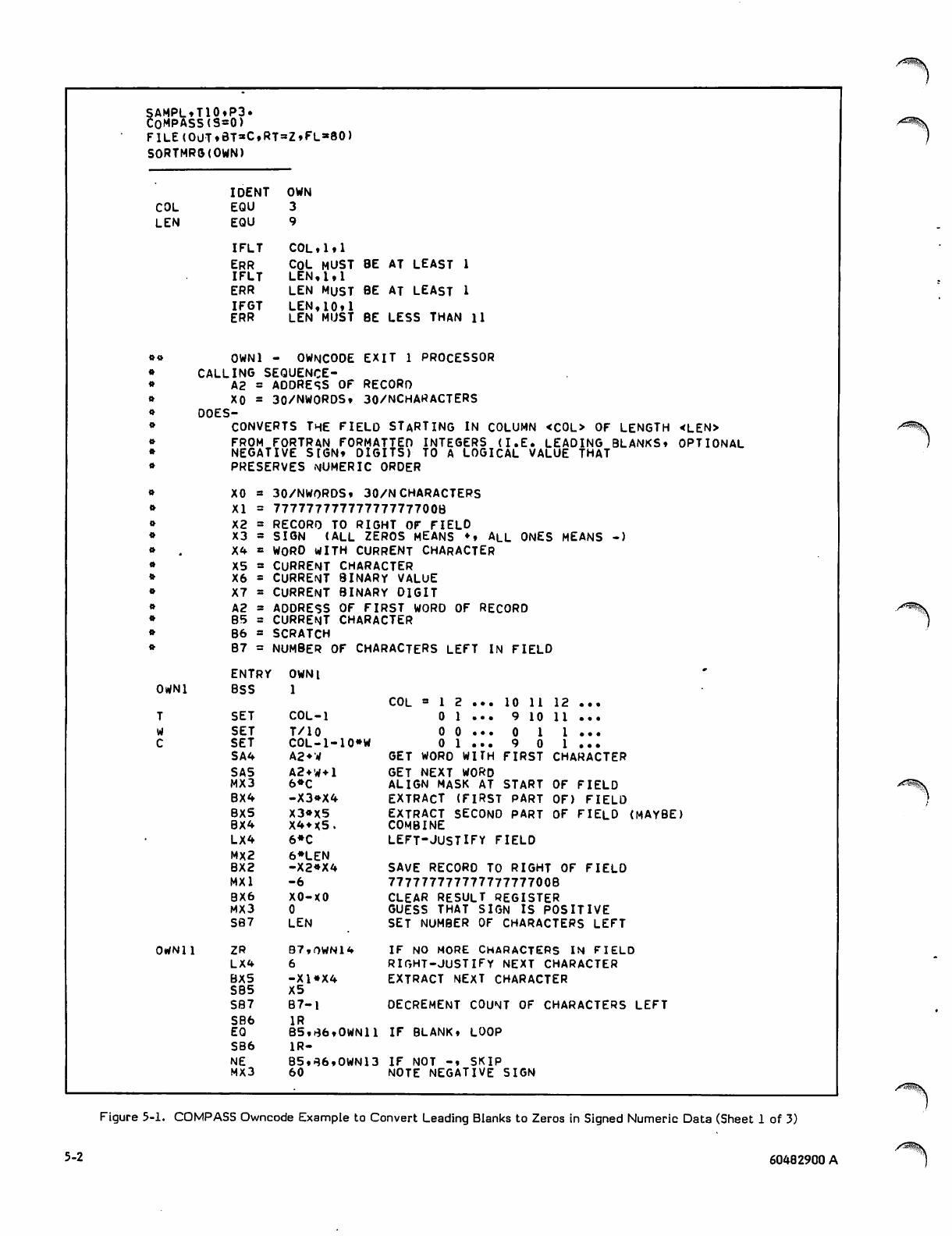

COMPASS Owncode Example to Convert

Leading Blanks to Zeros in Signed

Numeric Data

4-8

4-8

4-9

4-9

5-2

TABLES

3-1 Sign Overpunch Codes 3-2

60482900 A

INTRODUCTION

Sorting information is part of our everyday lives. Sorting

is the process of arranging information into a predefined

sequence so as to enhance its value. Sorted information is

easier to search. Imagine how useful a telephone

directory or a dictionary would be if the information were

not sorted in alphabetical order.

Or imagine trying to make use of all of the raw data

collected during a nationwide census. The tremendous

volume of raw data collected represents little usable

information before it is sorted, totaled, and compiled into

meaningful statistics. Before the introduction of data

processing equipment, the time required to complete the

tabulation of these statistics was awesome.

One of the first card sorting machines was devised by

Herman Hollerith to help solve this problem. At the time

Mr. Hollerith worked for the Census Bureau, cards

containing all statistics were handwritten, hand sorted

into various categories and counted, resorted into other

categories and counted again, until all categories were

compiled. Hollerith's basic change was to use a hand

punch to punch the information into 240 separate areas of

a standardized card. Each area had a specific meaning,

such as age group, sex, and so on. His card reading

machine had forty dial counters. Whenever a hole was

encountered in the card in a specific area, the dial wired

to that hole would be incremented by 1. An entire card

could be read in only six passes. A card box with 26

separate compartments was attached to the card reader.

Depending on which connections were made, one of the

lids would open automatically to allow the reader operator

to drop the card in and then close the lid.

Approximately 100 of his machines were used to tabulate

the 1890 U.S. census. These machines are considered the

first of the data processing machines. Though slow and

tedious, they reduced the 1890 census tabulation effort

from an anticipated 7 years to less than 3 years. Because

these machines were hand-fed, they reached average

speeds of up to 20 cards per minute.

As the years passed, the card sorting machine was

improved by adding an automatic card feed. Later

improvements added chutes, gates, and multiple pockets

which received the cards. The importance of the card and

its position within the stack grew in relation to the

importance of the data contained in the card.

The basic concept of sorting cards changed to ordering all

of the cards based on the content of a single card column

as opposed to the individual value of each punch as used

previously. By defining a field, for example, as a numeric

amount contained in card columns 65 through 70, if all

cards were sorted on column 70 in the first pass,

column 69 in the second pass, and so on, all of the cards

would be in correct numerical sequence after column 65

had been sorted. Whether the amount field would be in

ascending or descending numeric order depended on the

order in which the card sorter operator had stacked them

after each pass. Considering that card sorters processed

about 300 cards per minute by 1930, and that a sort on a

6-column field required 6 passes, the time required to sort

a box of 2000 cards was about one hour.

Later improvements to the electromechanical card sorting

devices allowed them to reach speeds in excess of 1000

cards per minute, but still required that each column of a

field be sorted. And only after the cards were sorted

could the information they contained be totaled and

printed. The amount of hand labor required to sort and

print a few boxes of cards was staggering by today's

standards, yet the card sorter was considered a

labor-saving device at the time.

The compute rs o f the early 1 9 50s could store the

information from cards on magnetic tape, sort this

information into sequences, merge these sorted sequences,

and write the completely sorted information to tape for

subsequent tabulation and printing. Manual labor was no

longer needed to handle card decks for more than the

initial input pass.

Sorting information remains one of the major uses of

computers in business applications, such as credit card

processing. More importance is now attached to the

information the card contains than the card itself, yet in

numerous applications the cards themselves are still

physically sorted and returned to the customer. The

electromechanical card sorter still plays a role, though a

diminishing one, in present day operations. It is now

cheaper to read cards, sort the information, and punch

new cards rather than physically sort the input card file.

COMPUTER SORTING

The use of computers for sorting information has changed

the concepts originally applied to sorting. A record is no

longer considered limited to the information that can be

contained in a single card. A sort run is no longer

measured in terms of how many boxes of cards can be

sorted in one hour.

Much work has been done in the last 25 years to improve

computer sorting techniques. Many books discuss the

various techniques and their applications, and yet the use

of computers has not altered sorting procedures nearly as

much as it has emphasized the need for speed and the

ability to handle a very large number of records in one

sort.

Computer sorting can still be compared, in concept, to the

s o r t i n g o f p l a y i n g c a r d s . T h e f o l l o w i n g e x a m p l e

illustrates these concepts.

If a person is given one complete deck of playing cards

and asked to put them in order, the procedure is a simple

one. Most people will make an initial distribution by suit,

creating four files of equal size. After that, each file can

be sorted by holding the 13 cards of a suit in one hand

while the cards are shifted about and placed in order. As

soon as each of the four suits has been ordered, the four

are stacked together and the job is completed. In sort

terminology, this was accomplished by the following basic

sorting methods: a distribution, an internal sort, and then

a final merge of the four sorted files.

60482900 A 1-1

<K»jX

A more realistic picture of most sorting problems is

created if the above problem is complicated slightly.

Assume that 52 cards are taken from a stack of cards

which contains four decks. The procedure outlined above

might work for this case as well, but there are good

reasons to doubt that it will. It is extremely unlikely that

the initial distribution by suit will produce four groups of

equal size. In fact, there might not even be four groups or

files, and the cards selected might contain two to four

identical cards. If we also add the stipulation that 15 is

the maximum number of cards that can be held at one

time, the solution for the second case is considerably

more difficult. It can be solved by a combination of

methods, but either the sequence of operations will have

to be altered or the initial distribution will have to be

modified.

The foregoing example illustrates well one of the basic

problems of all sorting routines; as the number of records

to be sorted grows, the complexity of the sort grows even

faster. Unlike other aspects of cur modern age, larger is

not easier, nor less costly per item, when sorting records.

PURPOSE OF SORT/MERGE

The basic reason for sorting is to arrange items in order.

Ordered information makes reports more meaningful.

Order sugges ts critical relationships. Searc hes for

information, whether by humans or by machines, are

faster through ordered lists.

Sorting information into alphabetic and/or numeric order

is the simplest method of classifying items. For example,

many libraries use card files to aid users in finding

information. Most libraries maintain a card file by book

title and by author, but refer to the books by an assigned

number. An additional subject card file is often available

as a cross-reference aid. The books themselves are

usually classified according to other sorting systems, so

the assigned number is the key item in finding the book,

and the number is found from the card files. It is much

easier to search through the cards to find the book you

want than it would be to search through all of the books.

This method of assigning a number to an entity is referred

to as indexing, a concept often used in sorting very large

records. A computer sort of an index is much easier and

faster than a sort of the large records. The time saved in

sorting usually offsets the time spent in creating the index.

R e p o r t s t h a t c o n t a i n a l a r g e a m o u n t o f r a n d o m

information or raw data are not very useful. Critical

relationships can be obscured by the sheer volume of

data. Sorted information offers immediate comparison.

For example, it might be of interest to a large corporation

to determine how wide a salary range exists for a given

pay grade in various geographical locations. A simple

report of all persons' records in that pay grade could run

on for many pages. Sorting the records by pay grade and

by region would give immediate comparison. More

complex sorts based on pay grade, region, age, sex, and so

forth, could offer much more information on reasons for

the disparities.

To find the record for one employee manually in a large

file usually requires a great deal of time. If the file were

in random order, the time required to perform such a

search would average one-half of the time required to

scan the entire file. If the file is ordered, search time can

be reduced considerably. This is as true of a computer

file as it is of a hand-sorted card file. For example, to

find a record in a randomly organized file of

1-2

1000 records averages the time required to search 500

records. In a sorted file of the same size, the time

required would average the time to search 10 records.

SORT/MERGE

Sort/Merge is a generalized sorting and merging program

available on Control Data CYBER 170, CYBER 70, 6000

Series and 7000 Series computers.

The purpose of Sort/Merge is to rearrange records in the

sequence you specify. You must supply the basic

information about the records you wish to sort or merge

and how you wish them sorted; the Sort/Merge program

will then determine optimum internal settings to achieve

efficiently what you have specified and carry out that

function. Many types of data can be sorted, such as 60-bit

integers, 60-bit floating point numbers, and even unsigned

binary integers of any length.

The data can be alphabetic names, or codes consisting of

alphabetic, numeric, or other special characters. If, for

some reason, the standard order of the alphabet does not

suit your needs, you can specify your own order of

characters.

The order into which the characters are to be arranged is

called a collating sequence. Four standard collating

sequences are available, or you can create your own

collating sequence if you wish.

Up to 100 files can be sorted and merged into one output

file. You can supply your own procedures to be executed

at certain points during the sort or merge processes.

Sort/Merge is invoked with a single control statement

from a terminal or a batch job. Optional parameters

allow you to specify more complex operations as the need

arises.

Sort/Merge also provides a set of procedures that can be

called from a user program written in FORTRAN or in

COMPASS assembly language. The same Sort/Merge can

be called by use of the COBOL SORT verb.

MERGING

The merge has been used as the basis for many sorting

routines. The principles of sorting by merging are

relatively simple. A two-way tape sort was once the

popular method of sorting by merging and serves well to

illustrate this concept.

If a given computer has the ability to read and write

records from tape and select the smaller of the records

brought in, a series of random numbers can be sorted as

follows:

The first pass of the sort merges two single records

to create a sequence of two records.

The second pass using the output of the first pass as

input, merges a pair of these two-record sequences,

one from each of the two input tapes, and writes

four-record strings on the output tapes.

Repeating these merging passes will eventually place

all records in the file into one sequence.

60482900 A

/#^\

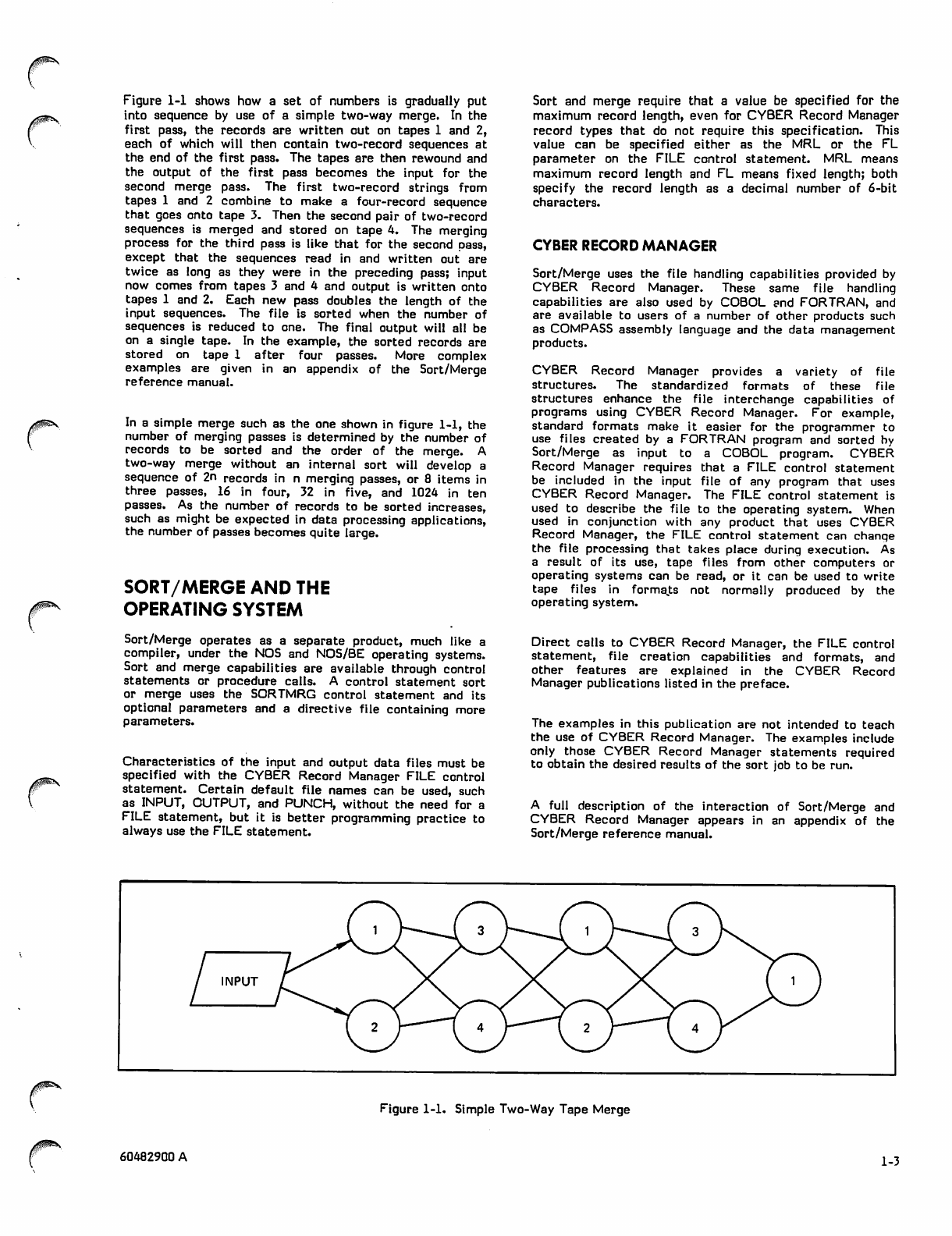

Figure 1-1 shows how a set of numbers is gradually put

into sequence by use of a simple two-way merge. In the

first pass, the records are written out on tapes 1 and 2,

each of which will then contain two-record sequences at

the end of the first pass. The tapes are then rewound and

the output of the first pass becomes the input for the

second merge pass. The first two-record strings from

tapes 1 and 2 combine to make a four-record sequence

that goes onto tape 3. Then the second pair of two-record

sequences is merged and stored on tape 4. The merging

process for the third pass is like that for the second pass,

except that the sequences read in and written out are

twice as long as they were in the preceding pass; input

now comes from tapes 3 and 4 and output is written onto

tapes 1 and 2. Each new pass doubles the length of the

input sequences. The file is sorted when the number of

sequences is reduced to one. The final output will all be

on a single tape. In the example, the sorted records are

stored on tape 1 after four passes. More complex

examples are given in an appendix of the Sort/Merge

reference manual.

In a simple merge such as the one shown in figure 1-1, the

number of merging passes is determined by the number of

records to be sorted and the order of the merge. A

two-way merge without an internal sort will develop a

sequence of 2n records in n merging passes, or 8 items in

three passes, 16 in four, 32 in five, and 1024 in ten

passes. As the number of records to be sorted increases,

such as might be expected in data processing applications,

the number of passes becomes quite large.

SORT/MERGE AND THE

OPERATING SYSTEM

Sort and merge require that a value be specified for the

maximum record length, even for CYBER Record Manager

record types that do not require this specification. This

value can be specified either as the MRL or the FL

parameter on the FILE control statement. MRL means

maximum record length and FL means fixed length; both

specify the record length as a decimal number of 6-bit

characters.

CYBER RECORD MANAGER

Sort/Merge uses the file handling capabilities provided by

CYBER Record Manager. These same file handling

capabilities are also used by COBOL and FORTRAN, and

are available to users of a number of other products such

as COMPASS assembly language and the data management

products.

CYBER Record Manager provides a variety of file

structures. The standardized formats of these file

structures enhance the file interchange capabilities of

programs using CYBER Record Manager. For example,

standard formats make it easier for the programmer to

use files created by a FORTRAN program and sorted by

Sort/Merge as input to a COBOL program. CYBER

Record Manager requires that a FILE control statement

be included in the input file of any program that uses

CYBER Record Manager. The FILE control statement is

used to describe the file to the operating system. When

used in conjunction with any product that uses CYBER

Record Manager, the FILE control statement can change

the file processing that takes place during execution. As

a result of its use, tape files from other computers or

operating systems can be read, or it can be used to write

tape files in formajts not normally produced by the

operating system.

Sort/Merge operates as a separate product, much like a

compiler, under the NOS and NOS/BE operating systems.

Sort and merge capabilities are available through control

statements or procedure calls. A control statement sort

or merge uses the SORTMRG control statement and its

optional parameters and a directive file containing more

parameters.

Characteristics of the input and output data files must be

specified with the CYBER Record Manager FILE control

statement. Certain default file names can be used, such

as INPUT, OUTPUT, and PUNCH, without the need for a

FILE statement, but it is better programming practice to

always use the FILE statement.

Direct calls to CYBER Record Manager, the FILE control

statement, file creation capabilities and formats, and

other features are explained in the CYBER Record

Manager publications listed in the preface.

The examples in this publication are not intended to teach

the use of CYBER Record Manager. The examples include

only those CYBER Record Manager statements required

to obtain the desired results of the sort job to be run.

A full description of the interaction of Sort/Merge and

CYBER Record Manager appears in an appendix of the

Sort/Merge reference manual.

Figure 1-1. Simple Two-Way Tape Merge

r60482900 A 1-3

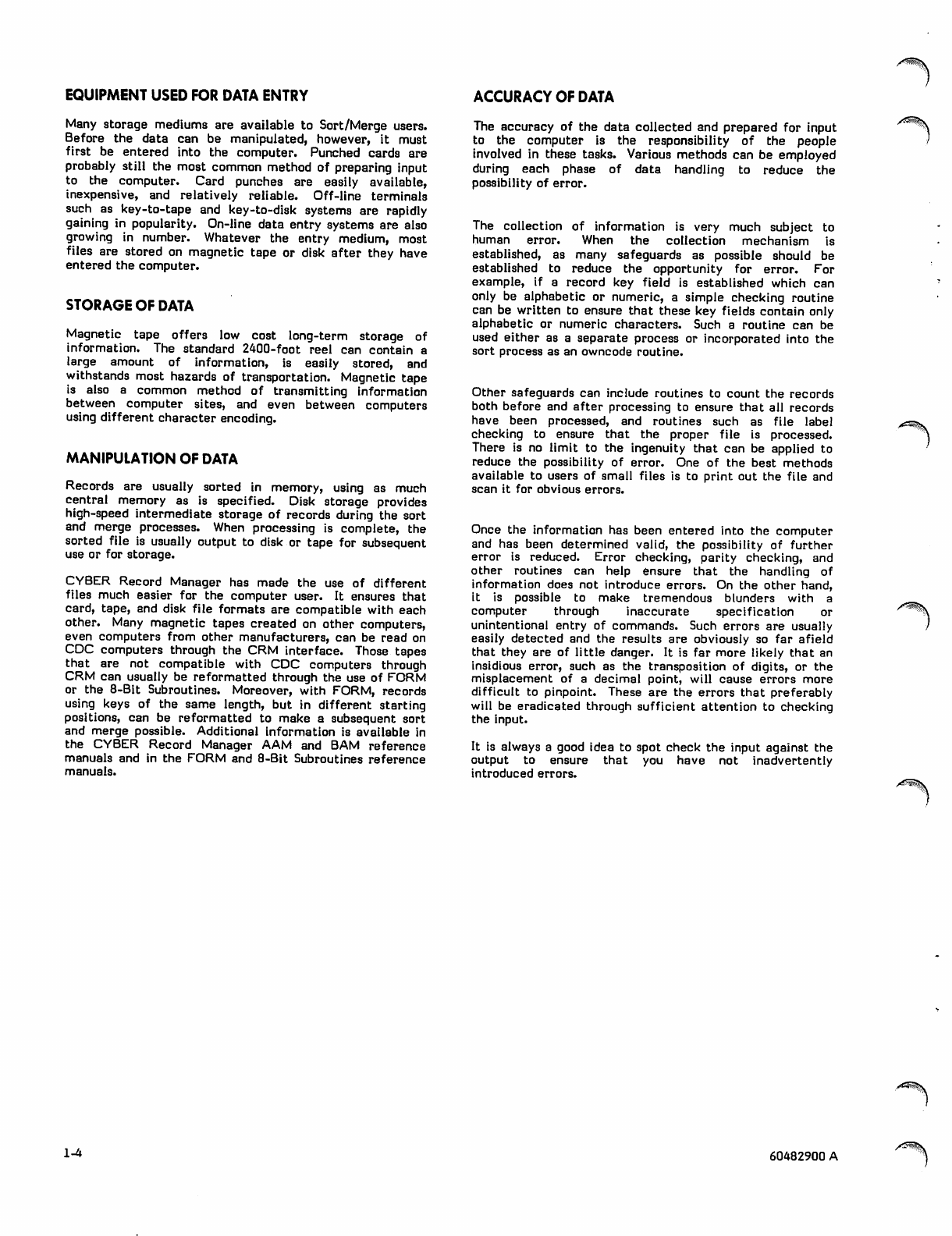

EQUIPMENT USED FOR DATA ENTRY

Many storage mediums are available to Sort/Merge users.

Before the data can be manipulated, however, it must

first be entered into the computer. Punched cards are

probably still the most common method of preparing input

to the computer. Card punches are easily available,

inexpensive, and relatively reliable. Off-line terminals

such as key-to-tape and key-to-disk systems are rapidly

gaining in popularity. On-line data entry systems are also

growing in number. Whatever the entry medium, most

files are stored on magnetic tape or disk after they have

entered the computer.

STORAGE OF DATA

Magnetic tape offers low cost long-term storage of

information. The standard 2400-foot reel can contain a

large amount of information, is easily stored, and

withstands most hazards of transportation. Magnetic tape

is also a common method of transmitting information

between computer sites, and even between computers

using different character encoding.

MANIPULATION OF DATA

Records are usually sorted in memory, using as much

central memory as is specified. Disk storage provides

high-speed intermediate storage of records during the sort

and merge processes. When processing is complete, the

sorted file is usually output to disk or tape for subsequent

use or for storage.

CYBER Record Manager has made the use of different

files much easier for the computer user. It ensures that

card, tape, and disk file formats are compatible with each

other. Many magnetic tapes created on other computers,

even computers from other manufacturers, can be read on

CDC computers through the CRM interface. Those tapes

that are not compatible with CDC computers through

CRM can usually be reformatted through the use of FORM

or the 8-Bit Subroutines. Moreover, with FORM, records

using keys of the same length, but in different starting

positions, can be reformatted to make a subsequent sort

and merge possible. Additional information is available in

the CYBER Record Manager AAM and BAM reference

manuals and in the FORM and 8-Bit Subroutines reference

manuals.

ACCURACY OF DATA

The accuracy of the data collected and prepared for input

to the computer is the responsibility of the people

involved in these tasks. Various methods can be employed

during each phase of data handling to reduce the

possibility of error.

The collection of information is very much subject to

human error. When the collection mechanism is

established, as many safeguards as possible should be

established to reduce the opportunity for error. For

example, if a record key field is established which can

only be alphabetic or numeric, a simple checking routine

can be written to ensure that these key fields contain only

alphabetic or numeric characters. Such a routine can be

used either as a separate process or incorporated into the

sort process as an owncode routine.

Other safeguards can include routines to count the records

both before and after processing to ensure that all records

have been processed, and routines such as file label

checking to ensure that the proper file is processed.

There is no limit to the ingenuity that can be applied to

reduce the possibility of error. One of the best methods

available to users of small files is to print out the file and

scan it for obvious errors.

Once the information has been entered into the computer

and has been determined valid, the possibility of further

error is reduced. Error checking, parity checking, and

other routines can help ensure that the handling of

information does not introduce errors. On the other hand,

it is possible to make tremendous blunders with a

computer through inaccurate specification or

unintentional entry of commands. Such errors are usually

easily detected and the results are obviously so far afield

that they are of little danger. It is far more likely that an

insidious error, such as the transposition of digits, or the

misplacement of a decimal point, will cause errors more

difficult to pinpoint. These are the errors that preferably

will be eradicated through sufficient attention to checking

the input.

It is always a good idea to spot check the input against the

output to ensure that you have not inadvertently

introduced errors.

1-4 60482900 A

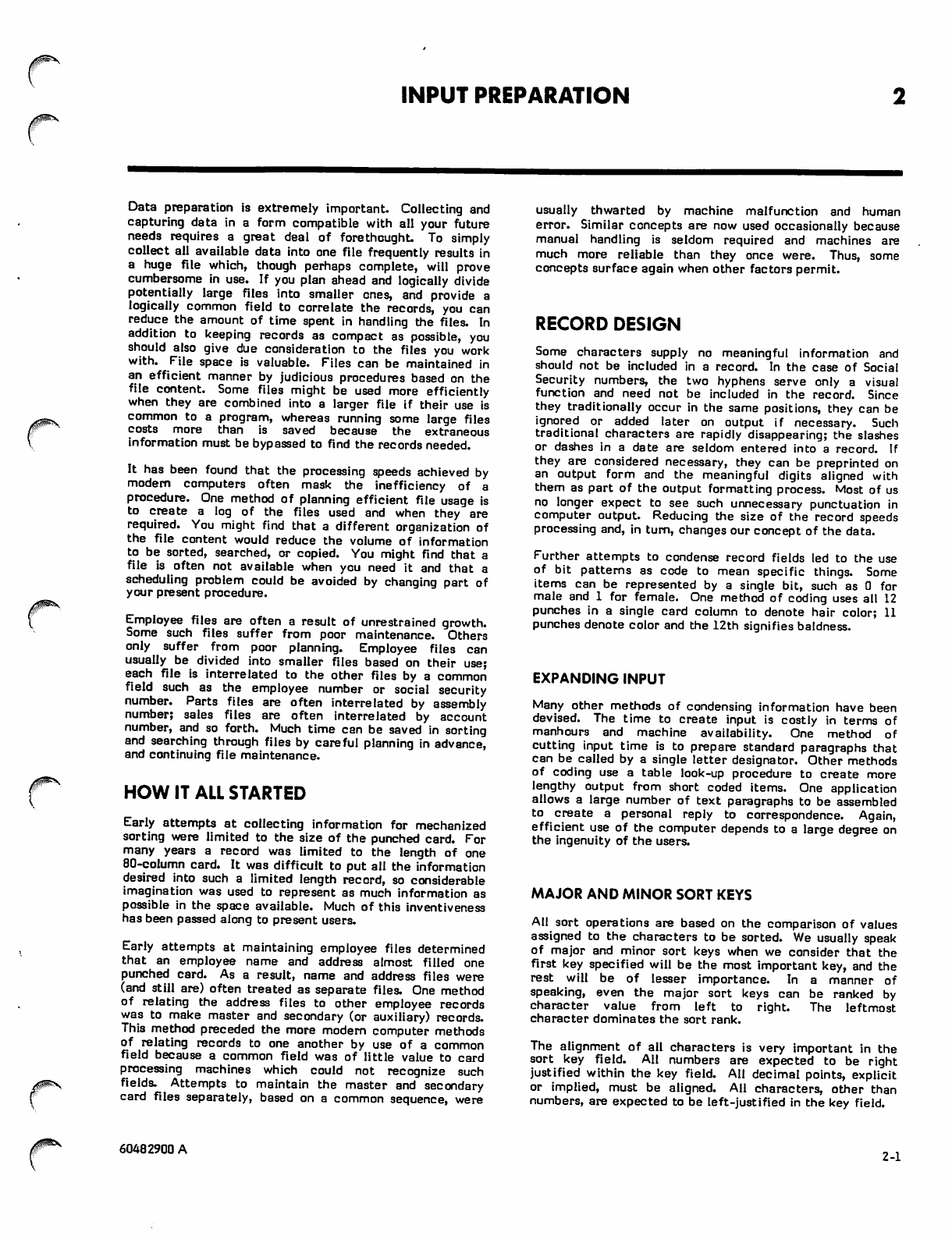

INPUT PREPARATION

0$&\

/$$&**.

/#rs-.

r

Data preparation is extremely important. Collecting and

capturing data in a form compatible with all your future

needs requires a great deal of forethought. To simply

collect all available data into one file frequently results in

a huge file which, though perhaps complete, will prove

cumbersome in use. If you plan ahead and logically divide

potentially large files into smaller ones, and provide a

logically common field to correlate the records, you can

reduce the amount of time spent in handling the files. In

addition to keeping records as compact as possible, you

should also give due consideration to the files you work

with. File space is valuable. Files can be maintained in

an efficient manner by judicious procedures based on the

file content. Some files might be used more efficiently

when they are combined into a larger file if their use is

common to a program, whereas running some large files

costs more than is saved because the extraneous

information must be bypassed to find the records needed.

It has been found that the processing speeds achieved by

modem computers often mask the inefficiency of a

procedure. One method of planning efficient file usage is

to create a log of the files used and when they are

required. You might find that a different organization of

the file content would reduce the volume of information

to be sorted, searched, or copied. You might find that a

file is often not available when you need it and that a

scheduling problem could be avoided by changing part of

your present procedure.

Employee files are often a result of unrestrained growth.

Some such files suffer from poor maintenance. Others

only suffer from poor planning. Employee files can

usually be divided into smaller files based on their use;

each file is interrelated to the other files by a common

field such as the employee number or social security

number. Parts files are often interrelated by assembly

number; sales files are often interrelated by account

number, and so forth. Much time can be saved in sorting

and searching through files by careful planning in advance,

and continuing file maintenance.

HOW IT AU STARTED

Early attempts at collecting information for mechanized

sorting were limited to the size of the punched card. For

many years a record was limited to the length of one

80-column card. It was difficult to put all the information

desired into such a limited length record, so considerable

imagination was used to represent as much information as

possible in the space available. Much of this inventiveness

has been passed along to present users.

Early attempts at maintaining employee files determined

that an employee name and address almost filled one

punched card. As a result, name and address files were

(and still are) often treated as separate files. One method

of relating the address files to other employee records

was to make master and secondary (or auxiliary) records.

This method preceded the more modern computer methods

of relating records to one another by use of a common

field because a common field was of little value to card

processing machines which could not recognize such

fields. Attempts to maintain the master and secondary

card files separately, based on a common sequence, were

usually thwarted by machine malfunction and human

error. Similar concepts are now used occasionally because

manual handling is seldom required and machines are

much more reliable than they once were. Thus, some

concepts surface again when other factors permit.

RECORD DESIGN

Some characters supply no meaningful information and

should not be included in a record. In the case of Social

Security numbers, the two hyphens serve only a visual

function and need not be included in the record. Since

they traditionally occur in the same positions, they can be

ignored or added later on output if necessary. Such

traditional characters are rapidly disappearing; the slashes

or dashes in a date are seldom entered into a record. If

they are considered necessary, they can be preprinted on

an output form and the meaningful digits aligned with

them as part of the output formatting process. Most of us

no longer expect to see such unnecessary punctuation in

computer output. Reducing the size of the record speeds

processing and, in turn, changes our concept of the data.

Further attempts to condense record fields led to the use

of bit patterns as code to mean specific things. Some

items can be represented by a single bit, such as 0 for

male and 1 for female. One method of coding uses all 12

punches in a single card column to denote hair color; 11

punches denote color and the 12th signifies baldness.

EXPANDING INPUT

Many other methods of condensing information have been

devised. The time to create input is costly in terms of

manhours and machine availability. One method of

cutting input time is to prepare standard paragraphs that

can be called by a single letter designator. Other methods

of coding use a table look-up procedure to create more

lengthy output from short coded items. One application

allows a large number of text paragraphs to be assembled

to create a personal reply to correspondence. Again,

efficient use of the computer depends to a large degree on

the ingenuity of the users.

MAJOR AND MINOR SORT KEYS

All sort operations are based on the comparison of values

assigned to the characters to be sorted. We usually speak

of major and minor sort keys when we consider that the

first key specified will be the most important key, and the

rest w i l l be o f le s s e r impo r t a n c e. I n a ma n n e r of

speaking, even the major sort keys can be ranked by

character value from left to right. The leftmost

character dominates the sort rank.

The alignment of all characters is very important in the

sort key field. All numbers are expected to be right

justified within the key field. All decimal points, explicit

or implied, must be aligned. All characters, other than

numbers, are expected to be left-justified in the key field.

60482900 A 2-1

The major difference between numeric and nonnumeric

data is the sign which requires that the sort order be

reversed when the sign changes. When numbers go from

positive to negative, or vice versa, the sort order must

change. The left column of table 3-1 illustrates this

change in sort order.

Input is often presorted into groups prior to sorting or

processing. For instance, all records can be presorted into

groups based on the first letter of the name or address,

and these groups can be processed on a regular calendar

basis, such as A through D on Monday; E through H on

Tuesday, and so forth.

/<W!8|N

VARIABLE LENGTH RECORDS

Record length can vary from very short to very long;

there is no length restriction cn the size of records, but

there are restrictions on the types of long records that

can be processed by Sort/Merge. These restrictions are

noted under Types of Data to be Sorted in section 3.

In other applications, all processing might be subject to

purely mechanical function limitations, such as the

number of records that can be processed in a single shift,

and work quotas can be established based on this number.

Presorting files to establish a logical work base, based on

name, region, or other logical basis defines a portion of

the work load for each shift, and ensures that the entire

file workload is completed in planned steps.

Records of variable length can occur in the same file;

however, the sort keys must be contained in that portion

of the record which contains fields common to the rest of

the file. For example, if all records in a file have

identical fields defined through character position 80, but

some of the records are 400 characters in length, the

records can be sorted only on the fields included in the

first 80 characters.

Also, it is not necessary to output the remaining

characters of the variable length records if they have no

value to the user of that output. An owncode routine can

be written to strip away the extraneous information

before it is sorted by using owncode exit 1, or by

reformatting the records in the file before sorting, you

can drop off the extra characters before sorting the file.

If, for example, a report is desired to compare only a few

fields, it could be advantageous to only output those few

fields. A chart to depict age and salary for a large

organization could be created from a payroll file, and only

those two fields need be obtained. The remainder of the

record would be superfluous. Again, an owncode routine

can be written for this purpose.

In the case of variable length records, it is always

preferable to specify the fixed length fields in the record

before the variable length fields. It is only possible to

sort records on those key fields which have a constant

position in relation to the beginning of the record.

RECORDS AND FILES

Files can be organized based on how often they will be

used. Some files need only be used on a monthly basis or

less, whereas others might be used daily. To search

through the records not needed, on a regular basis, is a

wasteful process.

Sorting can be an extremely time-consuming process.

Since sorting does not change or improve data, many

consider it a nonproductive process. All efforts toward

spending as little time possible in sorting records are

worthwhile. If a sort can be avoided either by entering

data in the desired order or by processing records in their

present order, the sort should be avoided. If sorting is

essential, it should be made as efficient as possible. Some

installations have found that much sorting can be avoided

or reduced, thus reducing the need for additional

equipment and manpower, or even freeing present staff

for other, more productive, assignments.

HOW SORT WORKS

A record is composed of fields. A field is the smallest

amount of information you wish to sort. You define a

field by its length and its starting position within each

record. You can sort all of the records in a file based on

the content of a single field. That field is then called the

key field or sort key.

A file can be sorted on more than one key field, or on a

combination of key fields. For example, a payroll file can

be sorted on the name field, or by age (as the major key)

and salary (as the minor key). In the latter case, if two or

more employees are the same age, their records should

appear on the output file in order by salary. The sort

program compares the information in a key field with the

information in the same key field of all the records in the

file, and places all of the records in that file in the order

you have specified. If you specify ascending sequence, the

lowest number or the lowest character, according to the

collating sequence, will be output first, followed by the

next lowest, and so cn. If you specify descending

sequence, the highest number or character will be output

first. If you are sorting signed numeric values, the order

will change when the sign changes.

Installations using extremely large files often divide the

workload so that a large file is only run in sections, and

the total file run is completed only once per week or once

per month. When the entire file is too large to run in one

pass, sections are run independently. For example, an

inquiry to IRS might result in the reply that names

beginning with S are run only on the 17th workday of each

month. In many cases where gigantic files are involved

and the workload precludes individual handling, such

division of jobs is common. To provide a more reactive

response would require such a large computer installation

that it would be cost-prohibitive.

SORTED FILES

A file is said to be a sorted file when all of the records

are in a defined sequence. This means that all of the

records are in order as defined by at least one key field.

Sorting a file on the first field, in the case of an employee

file, would result in a sorted file. Later rearrangement of

the file into the order of another field, such as Social

Security number or age, also results in a sorted file. The

only difference is that the file is sorted on another field.

A file can be sorted on as many fields as there are fields

in the record.

2-2 60482900 A

WHAT FIELDS WILL I SORT ON?

It is a good idea to consider all possible future uses of a

file you are creating. Will you be sorting on all of the

fields in each record? Will the file be compatible with

other files already created? Will there be a need to

merge this file with other files? What interrelationships

exist now — and what are other possible future needs?

You will probably sort a payroll file on name, salary, and

so forth more than on an address field. In fact, it is highly

unlikely that you will ever specify a street address as a

sort field, and only slightly more likely that a city or state

will ever be used as a sort key. On the other hand, the

postal ZIP code is gaining in importance and the reduced

postal rate for presorted mail makes it worthwhile to be

able to sort o n ZIP c o d e s for employee mailings.

Therefore, the ZIP code should be defined as a separate

field when creating records if you want to take advantage

of this reduced rate.

CHARACTER SETS

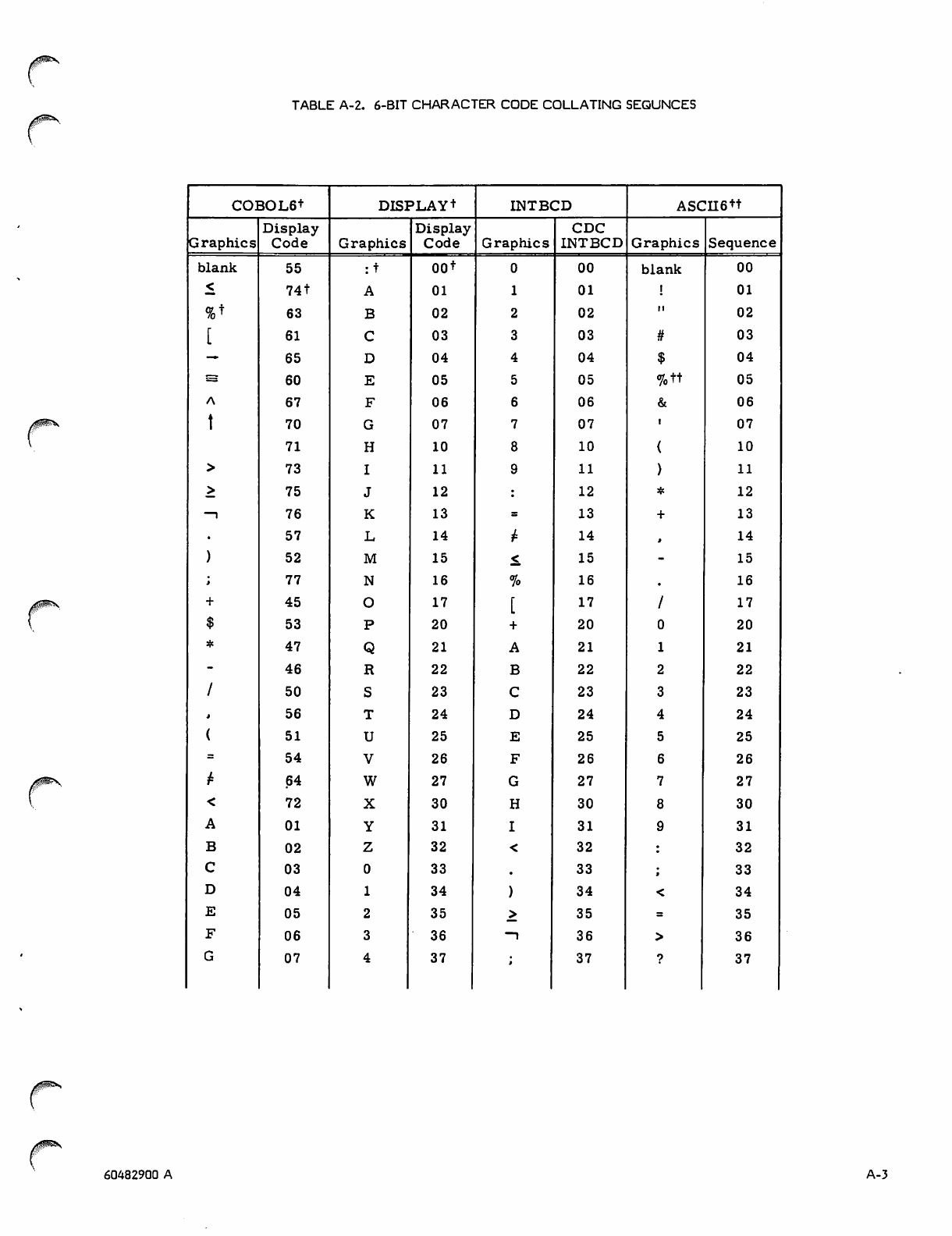

Four character sets are available on the Control Data

computer systems described in this user's guide:

CDC 64-character set

CDC 63-character set

ASCII 64-character set

ASCII 63-character set

Only one of these character sets will be in use at your

installation. It was selected when the software was

installed. You cannot change it; but you must be aware of

the set in use so as to determine the type of output

translation you will receive. Please note the character

set in use at your installation on the inside of the front

cover for future reference.

To understand the meaning of a character set requires

that you recognize certain aspects of computer encoding.

No character enters the computer as a character, nor is it

stored as a character. When you punch the letter A in a

punched card, the letter is translated into the punch

combination 12-1. This means that a hole is punched in

rows 12 and 1 in the card column containing the letter A.

When this punched card is read by the card reader, the

12-1 punch combination, not the letter A, is translated

into a binary bit pattern of 000001 and sent to the

computer along with other similarly translated

information from the card. Graphic characters, such as

the letter A, are recognized only by the card punch,

terminal, and line printer. All of the rest of the computer

equipment deals only with binary bit patterns.

DISPLAY CODE

Control Data computers are binary machines which use

display code representation. Most CDC computers use a

6-bit binary string to represent one character. Because

binary information is difficult for people to read, an

additional representation of the bit string is used: the six

binary digits are also recognized in groups of three, and

the result indicated in an octal (base eight) numbering

system. A character in display code is then a two-digit

number from 00 to 77. For example, the binary value

000001 represents the letter A in the computer. In display

code, the same value is expressed as 01 which represents

the letter A.

For a full overview of the character sets, see appendix A;

for a good explanation of the octal number system, see

the NOS/BE user's guide. The binary designations 000000

through 111111 are available using the 64-character sets.

The 000000 grouping is not used with the 63-character

sets.

ASCII CODE

Most of the characters available under the display code

character set are also available under the ASCII character

set. A few special symbols are not represented in both

character sets.

The ASCII (American Standard Code for Information

Interchange) character set is essentially an 8-bit

character set which defines only 128 of the possible 256

characters. It was developed as an industry standard,

chiefly to make the interchange of information

represented by different computer manufacturers'

machines more compatible. All of the 128 defined ASCII

characters could be represented by seven bits. However,

since the Control Data character codes discussed here are

6-bit codes, all information input in ASCII format is

converted to 6-bit code between the input medium and

central memory — and is again converted between

memory and the output medium. ASCII input usually

comes only from tape, ASCII-CRT and ASCII-TTY

terminals; ASCII output is usually returned to the same

devices, plus the extended character set printer.

Obviously, only a subset of the 128 ASCII codes can be

represented by a 6-bit character set which only allows

representation of 64 characters.

Lowercase characters are treated as uppercase. The less

common characters are usually ignored or treated as

blanks. If the ASCII 8-bit characters must be maintained,

options are available t h rough FORM and t he 8 - B it

Subroutines to support the remaining ASCII characters,

such as the 96-character subset, but these subsets are

limited to the applications which support them.

Minor discrepancies exist between the ASCII and display

code character sets; for example, when you specify a

quote (") on an ASCII input device, a not equal {-) symbol

is printed on a display code printer. Other differences are

noted in appendix A.

Characters in any standard CDC 6-bit format can be

sorted. Data on tape can be converted to CDC 6-bit

format either directly, or through use of one of the

available utility programs.

For example, tape files created on an IBM computer will

probably be in IBM standard EBCDIC 8-bit format. These

files could be converted on the same or a similar IBM

computer to ASCII 8-bit format for interchange with a

CDC computer. If this is done, the ASCII format will

allow the CDC computer to read and process the IBM

file. The ASCII output will be limited to the CDC 63- or

64-character set in use; the remaining characters will be

ignored. More likely, however, is the case where the

EBCDIC 8-bit tape appears at a CDC installation and the

intent is to merge the files contained on the tape with

certain other files on CDC 6-bit tape. To do this requires

/JE^™*k 60482900 A 2-3

the use of FORM or the 8-Bit Subroutines programs, or an The content of an EBCDIC print tape can be most easily

intricate owncode routine which must be created for this determined by printing at least part of the tape using the

purpose. FORM is the easiest utility to learn to use, and 8-Bit Subroutines utility COPY8P developed for the ^^

certainly is the easiest method of converting the express purpose of printing IBM format tapes. To use )

information to CDC format. Examples of this conversion COPY8P requires the use of an upper/lowercase print

and the exchanges possible are shown in the FORM train on a CDC 512 or 580 printer as described in the

reference manual. 8-Bit Subroutines reference manual.

2-4 60482900 A

SORTING CONCEPTS

y ^ \

Sorting is the process of arranging items in order. Order

is defined by the person doing the sorting, though

reasonable agreement exists as to the proper order of

things. We know we can sort all items into any order we

establish, and proceed on that basis.

Single alphabetic items can be sorted quite simply.

Everyone knows the alphabet. However, if we wish to

consider all letters, and do the job properly, then what is

to be done with letters from other languages such as 2 and

T, not to mention lowercase letters, special symbols, and

punctuation marks?

The decimal numbers 0 through 9 can be sorted quite

easily. A computer can handle this type of sorting with no

problem. The octal numbers 0 through 7 are also sorted

quite as easily by the computer, as are the binary numbers

0 and 1. Yet, if we encounter a value on a printout of

101101, do we really know what that value is? It could be

101101 decimal, or 45 decimal expressed in binary, or 55

octal (which is the blank in display code), or even 2D in

hexadecimal, or the minus sign in ASCII.

AU data must be described exactly. Otherwise the

computer will not process it correctly, nor will we be

satisfied with the result. Even blanks pose a problem.

Should they collate before or after letters or numbers?

Not all special characters can be processed by computer

due to the limited size of the character set. Sorting the

special characters is a matter of preference. The special

graphics are treated differently in the various character

sets and are collated in different order as well. For this

reason, they are considered arbitrary characters. It is

generally agreed that B should follow A, and that 3 should

follow 2, but you must decide whether you wish (3 to

precede or follow^. Also keep in mind that not all

special characters appear in all character sets. The

predefined collating sequences of the arbitrary characters

are shown in appendix A for the collating sequences

available. If these predefined collating sequences are not

suitable, you can create your own collating sequence.

SORT KEY DESCRIPTION

You must define every field to be used as a sort key. Sort

key descriptions include the following information:

Key length

Starting location of key within record

Type of data found in key field

Sort order

Collating sequence to be used (for character keys

only)

Key field length is specified as the number of bits and

bytes in the field; the default is a 6-bit character.

Starting position of a sort key field can be anywhere

within a record but it must be the same for all records of

all files to be sorted or merged.

Key type defines the type of data in each sort field as

described below.

TYPES OF DATA TO BE SORTED

Any meaningful data that can be logically translated into

a binary computer code can be sorted into the order you

specify. Certain limitations are inherent in this

statement. All character data to be sorted should be

limited to the 63 or 64 characters available; however,

data can be expressed in other forms as well, and need not

be limited to 6-bit binary values, as shown below. In some

cases you might wish to transform the keys into another

form to achieve your purpose. Tag sorting, for example,

is mentioned in section 6.

Logical Key

Unsigned binary integers of any length can be sorted. In

actuality, it is unimportant to the computer how the

binary integers are divided for human recognition. The

binary integers are assumed to be positive values and are

sorted by magnitude. This type of sorting data by actual

binary value is also of importance in sorting other types of

data as will be explained later. As an example, when you

specify a sort of DISPLAY characters with the DISPLAY

collating sequence, Sort/Merge automatically assumes

logical key sorting because it is faster.

Integer Key

Any 60-bit integer can be sorted in this manner. The CDC

computer word size is 60 bits, which is large enough for

most uses. The 60 bits you choose from the record to be

sorted need not start or end on a character or word

boundary. Any consecutive 60-bit value from any portion

of the record can be chosen. It is considered better

programming practice to restrict these 60-bit values to

word boundaries. This permits easier field specification

and promotes compatibility with other products that

might be used to handle the record.

Display

Most data in character form is written in display code; it

can be any number of 6-bit characters. Display code is

usually sorted by a predefined collating sequence as

defined in appendix A. Display code is the standard CDC

character code. The DISPLAY key should always be

specified when character data is used.

60482900 A 3-1

Signed Numeric Data

Numbers that require a sign to show they represent a plus

or minus value, such as debit or credit amounts in an

accounting file, are referred to as signed numeric values.

The sign, plus or minus, can appear in one of four places.

When the sign is plus it is often omitted because all values

are assumed to be positive unless otherwise specified.

The sign is often an overpunch representation over the

last (rightmost) digit in the field because previous

accounting systems used this method. Other accounting

systems used the sign as an overpunch over the first

(leftmost) digit, though this method was never as popular.

If the sign is not carried as an overpunch, it will appear

either as the first or last character in the numeric field.

When the sign is specified separately as the last

character, all values must carry the sign. In any case, the

sign position must be consistent throughout the file to be

sorted.

Sorting signed numeric data requires that the order,

ascending or descending, change at the point the sign

changes. If descending order was specified, positive

values are output in descending order. At the point the

values become negative, the numbers are output in

ascending order.

All signed numeric values must be stored internally as

display code. A numeric digit with an overpunch is

represented in display code as the character it becomes as

shown in table 3-1.

TABLE 3-1. SIGN OVERPUNCH CODES

Sign Value Key Punch Code from Equivalent

of of Digit Punch and Display

Field Digit Sign Overpunch Code Character

+912-9

+812-8

+712-7

+612-6

+512-5

+412-4

+312-3

+212-2

+112-1

+012-0

-011-0

-111-1

_211-2

-311-3

-411-4

-511-5

-611-6

-711-7

-811-8

"911-9

The easiest format of signed numeric data to sort is one

which uses the leading sign as a separate character in a

constant position in a value with leading zeros, such as

-00153.62. Plus signs must be specified.

When sorting signed numeric data, you must specify

additional parameters in the FIELD directive. If the sign

is an overpunch, you must specify SIGN and LEADING or

TRAILING to identify the location of the overpunch. If

the sign is not an overpunch, you must also specify

SEPARATE. For example, if a separate sign character is

used as shown above, the last three parameters of the

FIELD directive must be ... ,SIGN,LEADING,SEPARATE.

Note that positive integers, display code numbers without

a sign, can be mixed with integers that have a sign

overpunch in an input file.

Float

If you are dealing with floating point numbers, you can

specify FLOAT. Any 60-bit normalized or unnormalized

floating point numbers can be sorted. They can start at

any bit position within the record. They are sorted only

by numeric value. Any floating point number written

under the CDC NOS or NOS/BE operating system by a

binary write can be sorted. See the Sort/Merge reference

manual for the permissible range.

INTBCD

The use of INTBCD is limited to specific collating

purposes. The internal BCD character code was common

to some CDC 3000 Series computers, and has fallen into

disuse in larger computers. One reason for this continued

capability is that it allows upward mobility of data from

smaller CDC computers. INTBCD should not be specified

as a key type unless you have a real need to use it and

understand exactly what you intend to do with it.

COLLATING SEQUENCE

Just as the character set determines what binary

equivalent is assigned to the graphic character input to

the computer, the collating sequence determines the order

of each binary equivalent to one another. Thus, the

collating sequence determines the precedence given to

each character, whether it is in graphic or binary form.

The collating sequence usually specifies that B will follow

A and that 2 will follow 1, and so forth.

Changing the collating sequence specification changes the

order of the items output from a sort.

The collating sequence applies only to character data, not

to numeric data. The collating sequence can be any of the

following:

ASCII6

COBOL6

DISPLAY

INTBCD

OWN

The collating sequence can be specified as one of the

existing four collating sequences, or you can specify your

own collating sequence if you wish. The collating

sequence chosen need not correspond to the character set

used in coding the data. The character set in use

determines the translation between the 6-bit binary value

and one of the letters, digits, and special characters

available as graphics. You cannot change the character

set. The collating sequence, on the other hand,

determines the precedence given to each character

already translated, when the key is sorted. You can select

the collating sequence.

yrfSslN

/t*^\

3-2 60482900 A

0^&\

If you do not specify a collating sequence, a default

collating sequence will be assumed. For example, if the

character set in use at your installation is the CDC

character set, the default collating sequence will be

COBOL6. If the character set in use is the ASCII set, the

default collating sequence will be ASCII6.

If the file that is being sorted is subsequently to be

merged or compared with another file, it is essential that

the two files are arranged according to identical collating

sequences.

Selecting a Collating Sequence

The DISPLAY collating sequence usually is the default

collating sequence because the DISPLAY character set is

native to the CDC CYBER computers. This makes its use

much more efficient than COBOL6 or ASCII6. However,

the DISPLAY collating sequence orders blanks and special

characters after alphabetic and numeric characters. For

this reason it is not the best collating sequence for most

directory sequence applications.

If you compare the collating sequences in appendix A, you

will notice that the ASCII6 collating sequence orders

numbers ahead of letters, while COBOL6 orders letters

ahead of numbers. This difference in collating sequences

can at times be made to work to your advantage.

When selecting the collating sequence of a large data file,

there are a number of factors that should be carefully

considered. If there is a possibility the file will be used on

other computers, the 8-bit ASCII code is a more

frequently used code for information interchange.

Therefore, it could be advantageous to select the ASCII6

collating sequence now. When the file is converted, it will

be in the desired sequence without requiring a sort as part

of the conversion process.

One overriding consideration in selecting a collating

sequence is the sequence of any other file with which the

data is to be processed. When data is to be used with

another file, it must be in the same sequence as that file.

Advance planning to ensure the greatest degree of

compatibility between files that might be used together

can significantly reduce processing time.

Importance of Blanks

To further demonstrate the differences among the

collating sequences, consider the following three names:

JOHNS AMOS

JOHNSON CLIFFORD

JOHNSTON ALFRED

When these names are input as shown, with a blank

between the last and first names, they will sort

differently depending on the collating sequence chosen.

The COBOL6 and ASCII6 collating sequences will order

them as shown above.

The DISPLAY collating sequence will arrange them as:

JOHNSON CLIFFORD

JOHNSTON ALFRED

JOHNS AMOS

The INTBCD collating sequence will arrange them as:

JOHNSON CLIFFORD

JOHNS AMOS

JOHNSTON ALFRED

The Sort/Merge reference manual describes how you can

create your own collating sequence.

ALTERNATE SPECIFICATION OF

KEY TYPES

There can be advantages in specifying a different key type

than the one you would expect to use under some

circumstances. Sort/Merge processes integer keys and

logical keys faster than floating point or character coded

keys. Thus, when possible, it can be to your advantage to

specify the key type which allows the faster sort. When

you have reached the level of expertise to want the

fastest possible sort, see the Sort/Merge reference manual

for additional information on this subject.

SORT ORDER

Most readers will agree that the normal order of the

alphabet is A through Z and the normal order of numbers

is 0 through 9. This order is often called ascending order

because it goes from the item of lowest precedence to the

item of highest precedence. To reverse this order of

precedence results in descending order.

Student grades are often given based on a scale of 0

through 100 or on the scale A through F. In the case of

numbers, 100 is the best possible mark, whereas in the

case of letter grades, A is the best possible mark. When

sorting a file of student grades, in order for the best

marks to appear at the top of the list, letter grades should

be sorted in ascending order and number grades in

descending order.

Sort/Merge allows you to specify the order you desire,

ascending or descending, for each key field to be sorted.

USING MERGE

A merge is simply the process of putting together two or

more files that are in the same sequence based on the

same key. A merge run results in one new file containing

all of the records from the input files in the same

sequence as they were supplied.

Merge is most commonly used to combine existing sorted

files. Whenever new data is to be added to existing files,

a merge is the most efficient method to use. (A merge

operation is almost as fast as a copy operation.) Merges

are also most useful in combining related sets of data,

such as address files with payroll files for employee

reports and tax reports.

If two files to be merged are not in the same sequence,

one of them must be sorted to match the other prior to

the merge. If files that are not in the same sequence are

merged, the entire resulting file will require sorting at

some future time. The time required to sort all of the

data compared to the time to sort and merge only part of

the data is the valid comparison. The larger the file, the

more time the sort takes.

/^P!v 60482900 A 3-3

The frequency with which files are merged depends on the

application. An airline ticket handling file might merge

updates to the file on very short notice, if not totally

interactively. Certain legal applications are based on

daily postings, such as the title insurance for real

property. All transactions must be entered into the

master file by the start of the next business day. A merge

of the previous day's activity provides the best answer to

such a problem. A sort of the entire file is not necessary.

A large university might keep computer files on its

students that would only need to be updated once per

quarter or semester. State and Federal income tax files

are usually updated only once per year. The United States

census is only conducted every 10 years.

The basic process of a merge operation is to arrange data

from two or more ordered lists by interleaving the records

from the ordered lists.

In its simplest form, a merge is the process of taking the

next sequential item from one of two ordered lists,

moving that item to the output file, and repeating the

process. The term merge assumes that the input data has

been presorted.

The purpose of a merge is to create a single ordered

output list.

MERGING DURING A SORT

The process of merging is often performed as a part of the

process of sorting. Consider for instance that the amount

of central memory available for sorting can only contain

1000 records while the file to be sorted contains more

than 2000 records. The records cannot all fit into central

memory and be sorted in a single process. Thus, the input

is sorted into separate strings of a length that will fit into

the available central memory. These strings are usually

stored on a disk file for subsequent merging with other

sorted strings. A replacement technique that is used

during the formation of these strings allows them to

contain more records than can be contained in central

memory, but in this case there will be at least two strings

formed. These strings are then merged to form the final

output file of the sort.

MERGE ORDER

When only two strings are created, the merge order is

two. If three strings are created, the merge order is

three. There is a practical limit to the number of strings

that can be merged efficiently. This number varies

according to several different factors; it is usually

between 2 and 64. The dominant factor in the selection of

a merge order is the amount of central memory available;

however, it can also be affected by the total number of

strings to be merged and the amount of disk activity

within the system.

If the number of sorted strings does not exceed the merge

order, all the strings can be merged and written to the

output file with no intermediate merge. If the number of

sorted strings is greater than the merge order, several

strings must be merged to form longer strings. This

procedure is repeated until the number of strings is less

than or equal to the merge order, at which time the

strings are merged onto the output file.

Merge order setting is applicable only to disk sorts. The

merge order for tape sorts is determined by the number of

tape drives available. The default merge order is

computed by Sort/Merge for each sort based on algorithms

which yield optimum performance for most users.

Sort/Merge users who frequently execute very similar

sorts of very large files might try to improve Sort/Merge

performance by selecting and specifying a merge order;

however, it is more likely that an inefficient merge order

will be chosen that will degrade Sort/Merge performance.

It is worthwhile to compare merge order settings only

when all other variables are unchanged.

/C."mi$K ■

The merge order formulas appear in appendix

Sort/Merge reference manual.

F of the

/ ^ \

3-4 60482900 A

CONTROL STATEMENT SORTS

j^^

Control statement sorts are also known as directive sorts.

Either term is acceptable. Either term differentiates this

type of sort from the FORTRAN Extended calls to

Sort/Merge, the macro calls to Sort/Merge, and the

COBOL SORT verb. The sort directives specify exactly

what is to occur during the execution of the Sort/Merge

run. The directives are closely related to the file to be

sorted. They do not interface with the operating system.

As a result, the directives need not be changed if you run

the Sort/Merge job on the NOS or the NOS/BE operating

system.

SORTMRG STATEMENT

The SORTMRG control statement, on the other hand,

functions in the same manner as a compiler call. It is the

only Sort/Merge control statement. It is an operating

system call, which results in the compilation of a

Sort/Merge program based on the parameters specified, or

upon the default values assumed. It should be noted that

some default values, such as merge order, are not

preselected but are actually computed to determine the

most efficient setting.

FILE STATEMENT

Because Sort/Merge performs all input and output through

CYBER Record Manager, a CYBER Record Manager FILE

statement must be provided for every output file to be

processed by a directive sort or merge. A FILE statement

i s n o t n e e d e d f o r t h e fi l e n a m e d I N P U T. A f u l l

description of the required FILE statement appears in the

Sort/Merge reference manual. The FILE statement should

not be confused with the FILE directive.

Sort/Merge also requires, for internal use, that a value for

the maximum record length be set. This value can be

specified either by the MRL or the FL parameters on the

FILE control statement, or by the MRL parameter on the

OWNCODE directive. If the value is specified more than

once, the largest value specified is used by Sort/Merge as

the value for all files.

restrictions are placed on separators when used with

certain directives; these are explained with the directives

which restrict their use.

Use of the comma is recommended in all cases where a

choice of separators is allowed. Only the comma is used

as a separator in the following directive descriptions.

Blanks occurring before and after separators are ignored

by the system except in the case of the SEQUENCE

directive. Refer to the Sort/Merge reference manual for

a complete list of the restrictions on their use.

The Sort/Merge directives can be specified in any order,

except that END must be the last directive in the

sequence.

SORT

If you wish to sort records, the SORT directive must be

specified. The SORT directive usually has no parameters.

In the case of a tape sort, a parameter specifying the tape

sort is required. For Sort/Merge 1, an optional parameter

allows you to specify the amount of large central memory

to be used as a buffer area.

MERGE

The MERGE directive specifies merge-only processing.

Either SORT or MERGE can be specified, not both.

MERGE has no parameters.

FIELD

The key field on which you wish to sort must be defined

and named in the FIELD directive. Each field is given a

name and is identified by starting position, length, and key

type. At least one FIELD directive must be specified; up

to 100 fields are allowed.

SORT/MERGE DIRECTIVES

The Sort/Merge directives can fill all columns from 1

through 72 of a punched card or an input line. Directives

can be continued on the next line by starting the

continuation line with a comma. The number of

continuation lines is not limited.

Comments can be entered by placing an asterisk in

column 1. Comments can be placed anywhere in the

Sort/Merge input deck. They are printed when they are

encountered during processing but they do not in any way

affect processing.

A number of special characters are reserved by the

Sort/Merge program as field or parameter separators for

directives. Terminators (characters which end a

directive) are not required and are ignored. Additional

Additional parameters are available to specify a separate

+ or - sign for numeric data in display code, or as an

overpunch. These parameters are described in section 3

and in the Sort/Merge reference manual.

BYTESIZE

The size of the bytes referenced in the FIELD directive

for each job is predefined by the BYTESIZE directive. If

BYTESIZE is omitted, the default of 6 bits per byte is

assumed. BYTESIZE does not permit the use of 8-bit

bytes for character input. It is provided only as a

convenience for specifying fields by byte and bit positions.

You can specify the starting position of the sort key by

byte, by bit, or a combination of the two. If you specify

by byte, the number of bytes from the beginning of the

60482900 A 4-1

record starts with 1. The same is true with bits; however,

ycu must preface the number of bits with a period. Or,

you can combine bytes and bits by separating them with a

period, such as 4.4, which means byte 4, bit 4 (the 22nd

bit in the record if BYTESIZE is 6—this could also be

specified by .22).

characters

binary 010100 001000 001001 010011

t

bit 22

For key types other than DISPLAY, you might wish to

specify words instead of bytes. One method of doing this

is to specify BYTESIZE equal to 60.

KEY

The KEY directive is required to specify the order and

collating sequence of the sort keys. As the FIELD

directive identifies the field to be sorted and gives it a

name, the KEY directive specifies the order and collating

sequence for the named key field.

A different sort order and collating sequence can be

specified for each key field identified by keyname. Up to

100 keys can be specified.

You can specify order, ascending or descending, by A or

D. If you do not specify order, ascending order is assumed.

The collating sequence can be one of the standard

collating sequences: ASCII6, COBOL6, DISPLAY, or

INTBCD; or your own collating sequence, which you must

define by use of the SEQUENCE directive. In any case,

you will only need to select a collating sequence if you

have defined the key type as INTBCD or DISPLAY on the

FIELD directive.

SEQUENCE

With this directive you can specify your own collating

sequence or change the default collating sequence to a

different standard collating sequence.

If you choose to specify your own collating sequence, you

can specify it in characters, octal values, or both. If you

use characters, they will refer to the binary equivalents

defined by the character set named in the FIELD

directive. Octal values refer to the binary value in the

character positions, regardless of the character set

specified in the FIELD directive. Octal values are

expressed as two-digit values; single digit values are

assumed to be characters. A blank is only allowed to

represent a blank in the SEQUENCE directives. The

special characters used as separators in the SEQUENCE

directive can only be specified as octal values in the new

collating sequence. See the Sort/Merge reference manual

for details.

OPTIONS

The OPTIONS directive allows you to exercise more direct

control over some parts of the Sort/Merge run. User

options can be divided into three categories: order,

dumps, and optimization.

Order

The RETAIN option allows you some control over sorting

records with identical sort keys. When this parameter is

specified, records with identical sort keys are output in

the same order as they were read, as specified by the

FILE directive. When this parameter is omitted, records

with identical sort keys are sequenced arbitrarily.

RETAIN does not work with MERGE runs.

The VERIFY option, when specified, causes the output file

to be checked for correct sequencing. If the order of

records on the output file is incorrect, the job stops and

the output file is lost.

VERIFY is most often used to verify the order of records

from merged input files or records inserted through

owncode exits (exits 3, 4, 5). There is nothing to gain by

specifying VERIFY for a sort run with no owncodes.

Owncode is described in section 5.

When VERIFY is not specified, a sequence error during a

merge run with no records inserted results in only an error

message; all records are written to the output file, but

they need not be in order.

There can be an advantage to not specifying VERIFY when

you want to insert records, such as page headers, out of

sequence through use of owncode (exits 3 and 4); no

checking takes place and the records are inserted as

specified. Merge cannot use owncode exits 1 and 2.

Dumps

The VOLDUMP is a carryover from the days of tape

sorting, when it could be expected that some tapes would

be bad, and when power failures or machine malfunctions

were commonplace events. A checkpoint at the end of

each tape volume reduced reprocessing when such

problems occurred. A VOLDUMP now means that a

checkpoint will be taken at the end-of-volume on input

and at the new-volume condition on output whether on

tape or disk.

Checkpoint dumps can also be specified at specific

intervals such as after every 1000 records. The concept

of a checkpoint dump is a good idea, yet in actual practice

it is better to use other methods to achieve the same

result. Checkpointing requires that a dump be taken and

stored at regular intervals and that system resources be

tied up to manage this process. In practice, it is faster to

break up a large sort into smaller sort files because

overall sorting time is reduced and system overhead is

lower.

The option DUMP(nn) can be used to specify that a dump

be taken every time the specified decimal number of

records is read from the input file or written to the output

file. DUMP can also be specified without the specific

number appended, in which case a checkpoint is taken

after each group of 50 000 records by default.

The NODUMP option specifies that no checkpoint dumps

will be taken.

Optimization

Three options are available to you in the form of directive

parameters: two influence the sorting process itself, and

one can be used to change the merge order.

4-2 60482900 A

05r&\

^ P K \

The COMPARE and EXTRACT options are mutually

exclusive within a sort. The key comparison technique

runs faster but requires more central processor time; the

key extraction technique runs slower but requires less

central processor time. If neither option is chosen,

Sort/Merge will choose the better technique according to

its own algorithm. This algorithm usually yields the

better choice, but should you wish to test the validity of

the algorithm for a particular sort run, you can make the

run twice, using both options, to satisfy your curiosity.

On sufficiently large sort runs, an occasional check of

both options is warranted to determine that time is not

being wasted.

The ORDER option allows you to specify the merge order

used during a particular sort run. Merge order determines

the number of merge buffers used during the intermediate

merge phase to merge sorted strings into longer sorted

strings, as described in section 3.

Merge order cannot be specified for COBOL sorts, nor can

merge order be specified for a tape sort since the number

of available tape drives determines the merge order.

Sort/Merge computes the most efficient merge order

based on formulas which should yield the most efficient

performance. Though it is possible that a user change in

merge order could produce a faster sort, it is more likely

that a user change to the merge order would degrade

Sort/Merge performance.

EQUATE

The EQUATE directive allows you to declare one or more

characters in a collating sequence equal to another

character in the collating sequence. For example, leading

blanks do not collate the same as leading zeros in numeric

data. This can be a problem, depending on the collating

sequence selected. To avoid this problem, you can equate

the blank to zero. However, equating the blank to zero

does not move the sign in signed numeric data (see

section 5). To equate the blank to zero, you can specify

either the characters or their display code octal

equivalents as shown below:

EQUATE,DISPLAY( ,0)

or

EQUATE,DISPLAY(55,33)

Refer to the Sort/Merge reference manual before using

the EQUATE directive.

OWNCODE

If you have specified the owncode capabilities as

described in section 5, you must use the OWNCODE

directive to specify legal entry point names to relocatable

owncode exit routines. The OWNCODE directive should

not be confused with the SORTMRG control statement

parameter OWN which is also required when owncode

binaries are to be input on a file name other than INPUT.

Owncode is described in section 5.

FILE

In addition to the FILE control statement required by

CYBER Record Manager, you must also supply a FILE

directive to specify all of the input and output files to be

used during a sort run. For a merge run, you need only

specify the merge input files and the output file; for a

sort run, you can specify either INPUT or SORT and

OUTPUT. You must specify the name of the file as that

given on the FILE control statement. You can also

specify the system action to be performed when

processing is complete, such as close and rewind or unload

the file.

A local (or a NOS indirect access permanent file) can be

sorted upon itself; that is, the output filename and the

input filename can be the same.

The order in which the input files are specified determines

the order in which they will be read. If you have specified

the RETAIN option, records with duplicate or equal keys

will be output in the order they were read.

TAPE

If you wish to use the tape version of Sort/Merge, you

must use the TAPE directive to specify the names of the

intermediate merge files. You must also specify a tape

parameter, either POLYPHASE or BALANCED, in the

SORT directive.

Tape sorting should be avoided if possible. If a tape sort

cannot be avoided, refer to the Sort/Merge reference

manual appendix on tape sorting. The difference between

BALANCED and POLYPHASE is explained there.

POLYPHASE is usually the faster tape sort unless more

than eight tape drives are available. When 10 or more

drives are available, a BALANCED sort might be faster.

A simple tape sort is described in section 1. Do not

confuse a disk sort, using tape input and tape output, with

a tape sort. A disk sort stores the sorted strings on disk

as the intermediate storage medium. A tape sort stores

the sorted strings on tape. A tape sort is only chosen

when insufficient disk facilities are available.

JOB EXAMPLES

After you have created or selected the file you wish to

sort, you will need to write the specifications which will

direct the sort process. These specifications, called the

sort directives, affect only the sort process. Sort

directives do not change even when the sort is run on a

different CDC computer, or under either the NOS or

NOS/BE operating system. The control stateme nts,

however, are different for the two operating systems.

Only the NOS operating system control statements are

given in the following examples. The NOS/BE control

statements are given in appendix C.

If you would like to practice running sort programs, you

might wish to create a file of punched cards similar to

that used in the examples which follow. Practice of this

nature can s h a r p e n your ability t o work w i t h your

operating system as well as with Sort/Merge.

The record format shown in figure 4-1 is used for the

practice examples in this section. The input deck created

in this format is shown in figure 4-2.

Figure 4-2 gives the punched card input created for

practice with the following examples. These punched

cards are intentionally formatted in a manner similar to

the examples contained in section 4 of the Sort/Merge

reference manual.

The sort directives shown in figure 4-3 will put the

preceding records in alphabetical order by employee name.

60482900 A 4-3

24 26 27 33 39 41 42

Name Salary Start Date

Name

Job

23-character display coded field.

2-character display coded field containing a job grade identifier:

2

4employee

foreman

6

8

10

12

supervisor

manager

general manager

director

Dept

Salary

Start Date

Age

Sex

1-character display coded field containing a department identifer:

A production department

B shipping department

C personnel department

D accounting department

E sales department

6-character display coded field with leading zeros.

6-character display coded field in the format mmddyy:

mm decimal number of month

dd decimal day of month

yy last two digits of calendar year

2-character display coded field.

1-character display coded field.

male

female

MS 1-character display coded field containing marital status:

M married

S single

D divorced

Figure 4-1. Record Format

These directives can appear in any order except that END

must appear last. The SORT directive declares that the

sort process is selected. The FILE directive declares that

input is to come from the card reader since the card

reader is the default input source. Output is to the file

NEW instead of OUTPUT, because the file must be

rewound and copied using COPYSBF (copy shifted binary

file) as shown in figure 4-4. If COPYSBF is not used, the

first character of each print line will be taken for the

printer carriage control character and thus disappear. In

addition to losing the first character of each line of

output, the output will appear in a strange format since

many of the first characters of each output line will cause

multiple line skips or skip to a new page. COPYSBF

causes the first character of each line to be blank which,

as a printer carriage control character, causes the printer

to space to the next line (single space). This example

shows output going to the file NEW which is rewound and

output after being shifted one position by COPYSBF.

The sort key field identified by the FIELD directive is

NAME starting in column 1, and extending 23 characters

in length, in display code. The key on which the file will

be sorted is the field NAME as identified in the FIELD

directive; output is to be in ascending order, and in display

code collating sequence.

Some directives require the use of certain characters that

would otherwise be allowed as general delimiters. These

characters must then be used only for their specified

functions. All of the exceptions are noted in the

Sort/Merge reference manual; exceptions are noted here

only when encountered in the examples.

In addition to the sort directives, you will also need to

supply the operating system control statements. The NOS

control statements shown in figure 4-4 were prepared to

sort a deck of punched cards (figure 4-2) using the sort

dire ctives give n i n figure 4-3. The NOS/BE control

statements are given in appendix C.

4-4 60482900 A

BOER,GEORGE A00079512237428MS

HANGiLXSA 000058511277723F5

OURANO,HEucN A00163509016836FO

MILLER,FLORLNCE A000610050378 22FS

POPOV,IVAN E00066 507097723MS

MARTIN,RICHARD A0Q092112157338MM

SOKOL,DONALD A0021C812C76346MM

JONES,CHERYL D00068508277524FM

LOPEZ, COSME A00367C030776 22MM

CHANG,ROBERT A0QJ6840 2017625MS

JOHNSON,ANNABcLLt C001472Q4036928FM

NEWMAN,ANDREW A00071007017724MM

WILSON,DOUGLAS £000910120573 36M0

OUBOIS,ANORL A000625031578 21MS

OAVIS .ROBERT £0010750 1C37335MS

TAYLOR,JENNIFER A0OG62510117722FS

MULDER,HE NK B00091104017441MM

BERNARD,JOHN A00062501157719MS

WILLIAMS,BENEDICT A0017210 81672 39MO

MEYER, WILLIAM A0008750 3Q17632MS

SMITH,JOHN A000810091373 48MM

PLTIT,ARNCLO A0Q0625Q 2217820MS

JOHNSON, AR MA ND E00141010207232MS

BROWN, JAMES a00070009117623MS

ANDERSON,TIMOTHY AQ0J70G05257526MM

LI, WANG A0007100 11077 31MS

CARLSON,JACK E031975083C7436MD

SMITH,ROBE RTA A00375011227527FS

COHEN,JOSEPH A0008750 40474 35MO

SCHULZ,CHARLES* AOOO€2«04017818MS

SMITH,MARGERY E00113502157528FS

KIM,LEE A00061011227719FS

BAKKER, JOACHIM 4Q0071001117624M3

IVANOV, LEONARD A00072 3081576 32MM

GOMEZ,LINDA C00063504217721FS

WILLIAMS,ROBERT A0007900 3157631MS

GARCIA,ARTHUR 800073302297634MM

JONES,FRANCES 900075 M.1037427FS

PETROV,GEORGE C000750Q6307629MD

FISCHER,OAVIO A00062506017821MS

Figure 4-2. Input Records

SORT

FILEJNPUT=INPUT,OUTPUT=NEW

FIELD,NAME{1,23,DISPLAY)

KEY. NAME (A.DISPLAY)

END

Figure 4-3. Sort Directives

For the NOS operating system you will need to supply the

typical job, user, and charge control statements, as shown

in figure 4-4. In addition, you must supply a CYBER

Record Manager FILE control statement in order to

change the default block type and record type, and specify

the length of the longest record, for the output file. If

you do not supply this information on a FILE control

statement, the job will either terminate with a fatal error

or yield unusable output. The reason for this problem is

that the CYBER Record Manager default for the file NEW

is BT=I,RT=W. Since NEW is to be listed on the printer,

the CYBER Record Manager FILE statement specifying

FILE(NEW,BT=C,RT=Z,FL=80) is required.

The block types and record types are explained in the

CYBER Record Manager publications listed in the preface.

jobcard.

USE R (usernum.passwrd)

CHARGE{accounting information)

FILE(NEW,BT=C,RT=Z,FL=80)

SORTMRG.

REWIND.NEW.

COP YSB F, N EW,0 UTPUT.

7/8/9 multipunched in column 1

sort directives (Figure 4-3)

7/8/9 multipunched in column 1

input records (Figure 4-2)

6/7/8/9 multipunched in column 1

Figure 4-4. NOS Control Statements

Because the input default is for card format, there is no

need to specify the FILE control statement for INPUT in

these examples.

The SORTMRG control statement is all that is needed to

call Sort/Merge. All of the necessary values are selected

by default or computed based on other parameters

supplied.

The output is rewound and all records shifted as a result

of the COPYSBF statement before being printed.

The resulting output should appear as shown in figure 4-5.

The header line states 7C DIRECTIVES which means that

Sort/Merge version 4 directives were used. Users of

directives in the Sort/Merge version 3 format will find 6C

DIRECTIVES in the header. The remainder of the header

line shows that Sort/Merge version 4.6 installed at level

495 as run on March 29, 1979 at 2.06 P.M. The sort

directives specified for this run are listed. No other

information appears on page 1. A horizontal line in the

figure indicates a page break.

Page 2 (and on) gives the printed sorted output. The last

page of output header gives the job name assigned by the

operating system as it appeared on the banner page, the

date of the run, additional information about the

computer installation, the computer serial number and the

operating system used.

The dayfile indicates a successful run by not indicating

any errors. The job control statements are listed in the

order they were executed and the Sort/Merge statistics

are set off by asterisks. The key comparison technique

was selected by the program; no records were inserted or

deleted on input or on output; 40 records were input and

40 records were output. The merge order determined by

the Sort/Merge program for this job was 12. Accounting

information is printed to indicate the time and resources

used. Depending on the installation, this information is

also used to bill the group or project named in the

CHARGE statement.

The sorted output shown in figure 4-5 was cataloged as a

permanent file for future use as input to other practice

jobs. The SAVE,NEW. card in the job control statement

section causes the file NEW to be saved as a NOS indirect

access permanent file as shown in figure 4-6.

60482900 A 4-5

7 C DIRECTIVES SORT/MERGE 4.6 L495 79/03/29. 14.06.50, PAGE

SORT

FILE, INPUT=I NPIT , OUTPU T= NEW

FIELD,NAME (1,23,DISPLAY)

KEY, NAMECA, DISPLAY |

ENO

ANDERSON,TIMOTHY

BAKKERt JOACHIM

BERNARD, JOHN

BOER,GEORGE

8R0HN, JAMES

CARLSON, JACK

CHANG, ROBERT

COHEN, JOSEPH

OA VIS,ROBERT

DUBOIS, AND RE

OURAND,HELEN

FISCHER, DAVID

GARCIA,ARTHUR

GOMEZ,LINOA

I VA NOV,LEONARD

JOHNSON, ANNA BELLE

AOO

AOO

AOO

AOO

AOO

8 E00

2 AOO

AOO

E00

AOO

AOO

AOO

aoo

coo

AOO

COO

070 00

07100

06250

079 51

07000

19750

068 40

087 50

10750

062 50

16 350

062 50

07380

06350

0 72 30

14720

5257526MM

11176 24 MS

1157719MS

22 3 74 28 MS

9117623MS

8 30 74 3 6 MO

20176 25 MS

40474 35 MO

10 3 73 35 MS

31578 21 MS

90168 36FO

6017821MS

229 76 34MM

4217721FS

815 76 32 MM

4036928FM

SMITH, ROBE RTA

SOKOL,OONALO

TAYLOR,JENNlFtR

WANG, LISA

WILLIAMS,BENEDICT

WILLIAMS,ROBERT

WILSON,DOUGLAS

4 A00075011227527FS

8 A00210 ei2076646MM

2 A00Q62510117722FS

2 000058511277723FS

6 A001721Q8167239MG

2 A00079Q03157631MS

2 E00091012057336MD

ACLYAFA. 79/03/29.(22) SVL SN6 14 NOS

14.06.45.EXNRC.

14.06.45.UCCR, 6125, 0.052KCOS.

14. 06.45.USER (usernum.passwrd)

14. 06.45.CHARGE (accounting information)

14.06.45.FlL£(NEW,BTsC,RT=Z,PL=80l

14. 06.47.SORTMRG.

14.06.51.♦♦♦KEY COMPARISON USED

14.06.52. ♦♦ INSERTIONS OURING INPUT •♦••♦♦♦♦•o

14.06.52. ♦♦ DELETIONS OURING INPUT ♦ ♦•••••♦•(j

14.06.52. ♦♦ TOTAL RECOROS SORTED •••♦•♦♦•w

14.06.52. ♦♦ INSERTIONS OURING OUTPUT »*»*♦»♦♦•()

14.06.52. ♦♦ DELETIONS OURING OUTPUT ♦♦*♦***♦*<}

14.06.52. ♦♦ TOTAL RECORDS OUTPUT ♦•♦♦♦#»#<t0

14.06.52. ♦♦ M E R G E O R D E R U S E D • ♦♦♦♦♦♦»12

14.06.53. ♦♦ENO SORT RUN

14.06.53.REWINO,NEW.

14. 06. 53. COPYSBF, NEW, OUTPUT.

14.06.53. ENO OF INFORMATION ENCOUNTERED.

14.06.53.UEA0, 0.002KUNS.

14.06.53.UEPF, 0.005KUNS.

14.06.53.UEMS, 0.564KUNS.

14.06.53.UECP, 0.367SECS.

14.06.53.AESR, 2.634UNTS.

14.07.C5.UCLP, 6122, 0.256KLNS.

/ ^ ^ s k

Figure 4-5. Sort Output by Name

4-6 60482900 A

yfllS&E^

y^^V

EXNRC.

USER(usernum,passwrd)

CHARGE{accounting information)

FILE{NEW,BT=C.RT=Z,FL=80)

SORTMRG.

REWIND,NEW.

COPYSBF.N EW.OUTPUT.

SAVE,NEW.

7/8/9 multipunched in column 1

sort directives

7/8/9 multipunched in column 1

input records

6/7/8/9 multipunched in column 1

Figure 4-6. Creating a NOS Permanent File

Users of NOS permanent files will encounter both direct

and indirect access permanent files. Their use is quite

different. For purposes of these examples, only indirect

access permanent files are used. Large files might be

better served by using direct access permanent files. The

choice of type of NOS permanent file is described in the

NOS Time-Sharing user's guide.

By saving your input file as a permanent file, you can

access it time after time with a single control statement.

In this instance, it is very simple to input the card deck

created for practice examples (shown in figure 4-2), make

the file permanent with the SAVE,NEW control statement,

and refer to the permanent file in subsequent jobs by using

the GET,NEW control statement. You should purge the

permanent file when you no longer need it.

Figures 4-7 and 4-8 are quite similar to the examples

given in section 4 of the Sort/Merge reference manual.

Figure 4-7 illustrates a sort of the practice file based on

department. All of the names are sorted alphabetically;

identical names are further sorted on salary.

Some sort directives are arbitrarily continued on the next

line to fit the format of the example. These directives

are normally up to 72 characters in length.

Figure 4-8 illustrates the ease with which you can alter

the order of the departments by specifying your own

collating sequence for the sorting of the departments.

One method of creating a seniority list of employees is

illustrated in figure 4-9. Assuming this list will be used to

determine the order of employee layoffs should the need

arise, the last hired should be at the top of the list. The

major sort key is the employee start date, beginning with

the most recent. The secondary key is set by age, starting

with the youngest. Thus, if two or more employees

started on the same date, those who are younger will be

listed first.

The most notable aspect of this example is the manner in

which the sort on the start date should be specified. The

date consists of three separate parts. The most important

part is the year, second is the month, and last is the day

of the month. This sort format must be used to correctly

sort the dates. The date is divided into three keys in this

example. Each part is sorted as a separate field. This is

not really necessary; the date could be sorted on two keys,

1 S D ? T

2 FlLE,INPUT=INPUT,OUTPUT=NEW

3 FIELD,NAME(1,23,DISPLAY),0EPT126.1,

4 ,0ISPLAY),SALARY(27,6• DISPLAY)

5 K E f , D E P T ( A , D I S P L AY ) .NA HECA.OISP LAY),

6 ,SALARY(D,DISPLAY)

7 t < n

ANDERSON, TI1OTHY A0U07000 5257526MM

BAKKER,JOAC-iIM AOii071001117624MS

SERNAfcOtJOrH A0GQ625Q1157719MS

BOER, GEORGE A0C079512237*28MS

BROWN, J AMES A0C07QG09H7623MS

CHANG .ROBERT A0C06840 2017625MS

COHEN,JOSEPH A0G087504047435MO

OUBCIS.ANORE AOU062503157821HS

OURANO.HELE^ A0C16350SQ16836FD

FISCHER,DAVID A0u0625(i6017821MS

IVANOVtLEONARJ AQGQ7230815763ZMN

KIM,LEE AOC061J11227719FS

LI, WANG AQI.Q71001107731MS

LOPEZ ,C0SM£ AOQ0673Q30 77622MM

MARTIN,RICH^RJ •X AG3092112157338MM

MEYER,WILLIAM '•* A0038750 30l7e32MS

MlLLEfi»FLO*E^£ AOC061005G37822FS

NEW MAN, AN DREW AQ0071Q07017724MM

P£TIT,ARNOLJ A0QQ625a2217820HS

SCHULZ,CHA?_E5 AC3062504017818MS

SMITH «J0HN A0C081009187348MM

SMITH,ROBERTA AOu075011227527FS

SOKOL ,00 NAL J AQG210812076e46MM

TAYLOR, JENNIFER A0CQ62510117722FS

WILLIAMS, BENEDICT A00172108167239MO

WILLIAMS, ROBERT A0G879GQ3157631MS

GARCIA,ART-|JR BUC07360 2297634HM

JONES,FRANCES 80G375811037427FS

MULOES.HENK >* BQuQ91104Q17441MM

GOMEZ ,LIN DA C0C063504217721FS

JOHftSCN,ANN43ELLE CGG147204U36928FM

PETROV,GEORiE Cfli0750Q6307629MD

JONES ,CH£RY. D0C068508277624FM

WANG, LISA D00058511277723FS

CARLS ON,JAC< E0j1975Q8307436MO

0AVIS,R03E?T E0U075Q10 37335MS

JOHNS CN.ARMA.MO <♦£0:i410l0207232MS

POPOV,IVAN EOC06650 70 97723MS

SMITH,MARGERY *♦E0G11350 2157528FS

WILSON,00 Ui.AS E00091012057336MO

Figure 4-7. Sort by Department, Name, and Salary

the first on the year and the second on the month and day

together as a four-digit field.

Dates specified in the form mmddyy require specification

of at least two fields, yy and mmdd. If the dates entered

into the file were formatted as yymmdd, only one sort key

field would be needed.

You might wish to note that another example, illustrated

in figu re 4-10, shows that specifying the FIELD as

DISPLAY code and the KEY as INTBCD results in no

significant change to the alphabetic order of employee

names. This is because the alphabet runs in the same

order in both character sets and collating sequences. Such

specification on a sort key field which contained letters,

digits, and special characters would emphasize the

differences between the DISPLAY and INTBCD collating

sequences. The collating sequences are given in

appendix A.

60462900 A 4-7

1 SORT

2 FILE.INPUTsNEH,OUTPUT?:NEW

3 FIELD,0EPT(26,1, OISPLAY),SALARY(27,6,

4 .DISPLAY).AGE(39 .2,DISPLAY)

5 KEY.OEPT(A.OMN). SALARY(D.DISPLAY),

6 ,AGE(D,DISPLAY)

7 SEQUENCE,OWNCE.C ,0,8,A)

8 ENO

CARLSON.JACK E00197508307436MO

JOHNSON,ARMANO E00141010207232MS

SMITH,MARGERY E00113502157528FS

OAVIS,ROBERT EO0107501037335MS

WILSON,OOUGLAS E00091012057336MO

POPOV,IVAN E0 00 66507097723MS

JOHNSON,ANNABELLE C00147204036928FM

PETROV.GEORGE C00075006307629MD

GOHEZ.LINOA C00063504217721FS

JONES.CHERYL 0000 68508277624FH

WANG.LISA 0000 58511277723FS

MULOER.HENK ** B00091104017441MM

JONES.FRANCES B00075811037427FS

GARCIA,ARTHUR 80007380229763%MM

SOKOL.OONALO A00210812076846HM

WILLIAMS.BENEDICT A00172108167239MD

OURAND,HELEN A00163509016836FO

MARTIN,RICHARD A00092112157338HM

COHEN.JOSEPH A00087504047435MO

MEYER,WILLIAM AQ0087503017632MS

SMITH,JOHN A0 0081009187348MM

BOER.GEORGE A00079512237428MS

WILLIAMS,ROBERT A00079003157631HS

SMITH.ROBERTA A00075011227527FS

IVANOV.LEONARD A00072306157632MH

LI .WANG A00071001107731MS

NEWMAN,ANDREW A000710Q7017724MH

BAKKER,JOACHIM A00071001117624MS

ANDERSON,TIMOTHY A00070005257526MM

BROWN.JAMES A00Q70009117623MS

CHANG.ROBERT A00068402017625MS

LOPEZ,COSME A00067003077622MM

TAYLOR,JENNIFER A00062510117722FS

DUBOIS.ANORE A00062503157821MS

FISCHER,OAVID A00062506017821MS

PETIT,ARNOLD A00062502217820MS

BERNARO.JOHN AQ0062501157719MS

SCHULZ,CHARLES A00062504017818MS

MILLER,FLORENCE A00061005037822FS

KIM,LEE A00061011227719FS

Figure 4-8. User Sequence Sort by Department,

Salary, and Age

COMBINING DISSIMILAR FILES USING FORM

One basic premise of sort files is that the key fields be

identical in length and starting position. A sort can only

be specified on these parameters.

In order to combine files, it is necessary that at least one

record field in each file match. If for example, you wish

to combine two large sorted files, such as university

student grade files, and different fields have been used for

similar information, you can use FORM to modify the

records in one of the files to match the records in the

other file. The FORM reference manual gives an example

of such use.

1 SORT

2 FILE.INPUT=NEW.OUTPUT=NEW

3 FIELD.START1I37.2, OISPLAY),

4 ,START2(33, 2, OISPLAY),

5 ,START3(35,2,OISPLAY),

6 ,AGE(39,2,DISPLAY)

7 KEY.STARTKO, DISPLAY),

8 ,START2(0,DISPLAY) ,START3(0,OISPLAY),

9 ,AGE(A,OISPLAY)

10 END

FISCHER,OAVID A00062506017821MS

MILLER.FLORENCE A00061005037822FS

SCHULZ,CHARLES A00062504017818MS

DUBOIS,ANDRE A00062503157821MS

PETIT,ARNOLD A00062502217820MS

WANG,LISA D00058511277723FS

KIM,LEE A00061011227719FS

TAYLOR,JENNIFER A00062510117722FS

POPOV,IVAN E00066507097723MS

NEWMAN,ANDREW A00071007017724MM

GOMEZ,LINDA C00063504217721FS

BERNARD,JOHN A00062501157719MS

LI.WANG A00071001107731MS

BROWN.JAMES A00070009117623MS

JONES.CHERYL O00066508277624FM

IVANOV,LEONARD A00072306157632MM

PETROV,GEORGE C00075006307629MD

WILLIAMS,ROBERT A00079003157631MS

LOPEZ,COSME A00067003077622MM

MEYER.WILLIAM A00087503017632MS

GARCIA.ARTHUR 800073802297634MM

CHANG.ROBERT A00066402017625MS

BAKKER,JOACHIM A00071001117624MS

SMITH,ROBERTA A00075011227527FS

ANDERSON,TIMOTHY A00070005257526MM

SMITH,MARGERY E00113502157528FS

BOER.GEORGE A00079512237428MS

JONES.FRANCES B00075811037427FS

CARLSON,JACK E00197508307436MD

COHEN,JOSEPH A00087504047435MO

MULDER,HENK B00091104017441MM

MART IN,RICHARD A00092112157338MM

WILSON,DOUGLAS E000910120 57336MO

SMITH,JOHN A0 0081009187348MM

DAVIS,ROBERT E00107501037335MS

JOHNSON,ARMANO E00141010207232MS

WILLIAMS,BENEDICT A00172108167239MO

JOHNSON.ANNABELLE C00147204036928FM

SOKOL,DONALD A00210812076846MM

OURAND,HELEN A00163509016836FD

Figure 4-9. Sort for Seniority List

In the following example, figure 4-11, the output file

which has been sorted on the name field only will be

reformatted using FORM to illustrate the report

formatting capabilities of FORM. The FORM directives

used are shown with the formatted output. FORM can be

used to expand the records by placing a row of blanks

between the key fields as shown here, or it can be used to

change the layout of the keyfields within each record so

as to match the format of other records if you wish to

merge files which are composed of identical key fields but

in different formats.

For some statistical reports only a small portion of a large

record needs to be extracted for sorting in order to

0^^!\

4-8 60482900 A

0^\

1 S 3 ? T

2 FLE,INPJT=N£W, OUTPUT= MINE

3 FIEL0,NA1E(1,23,DISPLAY)

4 KEY,NAMEIA,INTBCD)

5 £ > n

ANOERSON.TUDTHY A00070005257526MM

BAKKER, JOACHIM AQG071QQ111762 4MS

BERNARD, JOrM A0G062501157719MS

80ER, GEORGE A00079512237428MS

BROWN,JAMES A0GG7000911762 3MS

CARLS ON, JAC< E0G1975083Q7436MO

CHANG,ROBERT AOQ068402017625MS

COHEN,JOSEPH A0G087504047435MD

OAV IS,ROBERT E0G107501037335MS

OUBOIS,ANDRE A0G06250 3157821MS

DURANO.HELEN A0G16350S016836FO

F I S C H E R , O AV I D AQG0625G6017821HS

GARCIA,ARTHJ* B00073802297634MM

GOMEZ ,LINOA C00U63504217721FS

IVANOV,LEONARD A0G07230 8157632MM

JOHNSON,ANNABcLLE COG147204036928FM

JOHNS ON, ARMANO E001(»1G10207232MS

JONES,CHERYL D0006850827762«*FM

JONES,FRANCES B00075811037<t27FS

KIM,LEE A00061011227719FS

LI, HANG A00071001107731MS

LOPEZ,COSME A00067003077622MM

MARTIN, RICH4<U A0G092112157338MM

MEYER,WILLHM «♦A00d87503«)17e32MS

MILLER,FLORENCE A0GG610050 37822FS

MULDER,H£N< B0QG911040174H1MM

NEWMAN,ANOREW AQUG710G7017724MM

P E T I T, A R N O L D A0306250 2217820MS

PETROV, G E O R i E COG075 0063076 2 9MD

P O P O V, I VA N E0006650 7097723MS

SCHULZ,CHAR-ES A00Q62504017818MS

SMITH,J0HN A00081G09187348MM

SMITH,MAR3£iY E0011350 215752 8FS

SMITH .ROBERTA A 0 0 0 7 5 0 1 1 2 2 7 5 2 7 F S

SOKOL,OONALD AOQ2108120768h6MM

TAYLOR,JE<m-£R A00062510117722FS

WANG,LISA O0O058511277723FS

WILLIAMS,BENEDICT AQG172108167239MD

WILLIAMS,R33£<T AOGQ79003157631MS

WIL S O N , D O U G . A S E000910120 57336MD

Figure 4-10. Sort Using INTBCD Collating Sequence

produce the desired results. For example, one such case

could be used where only three short fields from each very

long record are to be obtained, sorted, totaled, or

analyzed. This information could be arranged in order by

doing a normal sort of the file and then doing further work

by using another program thus ensuring the desired order

of the output. Such a sort alone would require a large

amount of time if the file itself were large. Another

method is available which could be used to avoid the

handling of such lengthy records.

Such might be the case where a student name, student

number, and grade point average are to be sorted based on

grade point above a certain level to determine the dean's

list, and below a certain level to determine first those on

probation and second, those to be dropped because of low

grades. If the list is to be prepared from the master file

of all student records, such records could easily be quite

large.

INP(NEW)

QLT (FORMAT, 3G0 = X)

R E F ( F C R M AT, i < 2 - , X 4 = 2 4 X 3 , N < t - 2 7 N b , $ $ ,

NE-33K6,S S,X3=39X2,X2-41X1,X2 = 42X1]

SUMMARY

I N P U T F I L E - N t W 40 RECORDS READ

O U T P U T F I L E - F O R M AT tO RECORCS WRI TTEN

ENO OF RUN.

AN0ERo0N,TI10THY w7iiC G52575 26

BAKKER,JOACHIM u 7 i . u 2 1 1 1 7 6 2<4

BERNASO.JOHM y 625 J11577 19

80£R, GEORGE g795 12237* 28

BROWN, JAMES u 7Gc G 9 11 7 6 23

CnANG .ROBERT 1684 G20176 25

COHEN,JOSEPH „875 C4U4 7<* 35

0U8CIS,AN0RE u625 C31578 21

OURAND,HELE^ 1635 39C168 36

FISCHER, DAVlO -625 C60178 21

l VA N O V, L E O N A R J u72J C81576 32

KIM,LEE jblu 112277 19

L I , W A N G „71v G11077 31

LOPEZ,COSME w67«j C3j776 22

MARTIN, RICHARD b92l 121573 38

MEYER ,WILLI A1 1.875 S3C17b 32

MILLER,FLORENJE uolu G 5 G 3 7 8 22

NtWMAN.ANOREW u71- 070177 24

PETIT .ARNOLD u625 u22178 20

SCHULZ, C H AFES u 625 j t u l ? 9 18

SMITH,JOHN u8lu G91873 48

SHITH,ROBERT A <♦L75C 112275 27

SOKOL .DONALD ^108 12C768 40

TAYLOR,JENNIFiR itsaZa 101177 22

WILLIAMS, BENEDICT 1721 08lb72 39

WILLIAMS, ROBERT j79J u3l5 7b 31

GARCIA,ARUJR U738 C22976 3<t

JONES,FRANCES w75d 11G37H 27

MULDER,HEN< i . 9 11 C4017h

GOMEZ,LIN OA o b35 u*2177 21

JOHNS CN,ANNABELLE 1**72 04C369 28

PETROV,GEORSE j75Q 0630 76 29

JONES,CHERr. w685 U82776 24

A AMG,LISA g585 112777 23

CARLSON,JAC< 197s 08307^ 36

O AV I S , R O B E R T i.G75 G1J373 35

JOHNSON, ARM AN J 141C L02072 32

POPOV,IVAN o 665 070977 23

SMITH .MARGERY 1 1 3 5 C21575 28

WILS0N,0DUj_ AS w91l 1205 73 36

Figure 4-11. Reformatting Records Using FORM

The easiest method would probably be to use FORM to

extract the desired fields (such as student name, student

number, and grades) from the master file to create a

shorter sort file. Then a sort of the new file could be used

to order all other records ranked by grade level, using an

owncode exit to discard all of the passing records of

students who had not made the dean's list.

60482900 A 4-9

The sorted file output in order of top grades could be

resorted for an alphabetical dean's list, and the lower

grades resorted again in student number order for the

mailing of required probation notices. Other examples of

FORM usage are illustrated in the FORM reference

manual.

4-10 60482900A

/f&\ OWNCODE

/g?p*\

y0»&O\

This section will be of interest chiefly to experienced

programmers. Sort/Merge provides a record handling

capability which allows you to supply your own code for a

specific purpose. There are six exits available to gain

control of the sort or merge in progress to enter a routine

you have written. No owncode routines are supplied by

the Sort/Merge program. When your owncode routine has

achieved its purpose, a jump is made to Sort/Merge

processing at the exit point according to the address in

your entry point.

The first part of this section requires your ability to write

programs in the COMPASS assembly language. Although

owncode routines are not required for Sort/Merge

execution, they provide the capability for you to insert,

substitute, modify, or delete input and output records.

Users of owncode when using the FORTRAN calls

described later in this section can write their own

subroutines in FORTRAN. COBOL users are not provided

owncode exits. They can, however, use the INPUT

PROCEDURE and the OUTPUT PROCEDURE to achieve

similar results without leaving the COBOL program.

The Sort/Merge program provides a highly efficient

sorting and merging capability through the standard

Sort/Merge parameters. In order to maintain this level of

efficiency, the standard parameters limit the operations

that can be specified. Additional operations that you

might wish to perform on the records or files probably can

be done in conjunction with the sort or merge owncode

exits to access the record or file at the opportune point in

processing.

The reasons for wanting to use owncode can be as varied

as the owncode exits will allow. Many of the problems

you might encounter in attempting to sort a file are

a l l e v i a t e d b y p r o p e r u s e o f t h e s o r t d i r e c t i v e s .

Specification of a different collating sequence or

character set, or changing the sequence and/or equating

characters to one another will solve many problems. Most

of the remaining problems which cannot be addressed by

the directives can be resolved through use of the owncode

exits. These allow you to exit sort or merge at an

appropriate point to enter an owncode subroutine in

COMPASS, or to enter a FORTRAN owncode subroutine

through a FORTRAN call.

The owncode exits do not supply the code to achieve a

specific purpose. You must supply your own subroutine to

be used when an owncode exit is taken. Sort/Merge will

deliver the record at the point in processing specified by

the owncode exit number.

COMPASS OWNCODE

AU COMPASS owncode subroutines must be assembled in

relocatable binary form prior to the Sort/Merge run and

placed in the input deck or made available from an

alternate source as specified by one of the SORTMRG

control statement parameter options.

Sort/Merge 4 provides six owncode exits that can be used

during processing. Sort/Merge 1 provides five owncode

exits. Each of the exits is numbered. Each exit serves a

specific function. Each exit is available after a specific

point in processing.

Owncode exits allow the examination and changing of

information at four critical points during the sort process,

and, in addition, allow handling of records with equal

keys. Only Sort/Merge 4 allows processing of nonstandard

labels.

OWNCODE EXITS 1 THROUGH 4

Owncode exits 1, 2, 3, and 4 allow you to insert, delete, or

change records. Exits 5 and 6 have special uses which are

explained later.

Operations include the use of exit 1 to edit input records

to make sorting easier; or exit 2 to add records prior to

the sort process.

After the sort, you can again change or add records

through use of exits 3 or 4.

Example

An important use of owncode exit 1 can be illustrated in

the solution of a problem often encountered in sort

pr o ce s si n g. Nu m er i c i nf o rm a ti o n i s o ft e n p r e p ar e d

without leading zeros in the sort key fields. Because

leading blanks collate differently than leading zeros, the

sorted output will not be in correct order. As mentioned

previously, the zero and the blank can be equated (by

directive) in many cases to avoid this problem. However,

in some cases, such as with signed numeric data, where

the position of the sign is not fixed, you will have to

resort to the owncode exit 1 capability to change the

leading blanks to zeros in order to fix the sign position to

ensure that the records will collate correctly.

The owncode example given in figure 5-1 shows one

method of solving the above problem using owncode exit 1

and a COMPASS subroutine. A number of various methods

can be used to reach the same goal; the method shown

here is one of the more simple means of converting

leading blanks to leading zeros and fixing the position of

the sign.

The sorting of dates is often more complicated than

expected as you might have noted in figure 4-9. Dates

are more easily sorted when their format is changed to

yymmdd so as to allow a sort on only one key field. This

format is not a common one, though it can easily be

achieved through use of an owncode table look-up routine.

Imagine trying to sort an existing file on a date field

created using letters and digits such as JUL041776. Such

dates can be changed (through use of a table look-up

procedure with owncode exit 1) to 17760704.

60482900 A 5-1

SAMPL, T10 ,P3.

Compass(s «0>

FILE(OUT♦6T*C,RT=Z»FL*80)

SORTMRS(OWN)

IDENT OWN

COL EQU

LEN EQU

IFLT COL.1,1

ERR COL MUST BE AT LEAST 1

IFLT LEN,1,1

ERR LEN MUST BE AT LEAST 1

IFGT LENt10,l

ERR LEN MUST 8E LESS THAN 11

Oil OWN1 - OWNCOOE EXIT 1 PROCESSOR

•CALLING SEQUENCE-

«A2 = ADDRESS OF RECORD

»XO = 30/NWORDS, 30/NCHARACTERS

«OOES-

»CONVERTS THE FIELD STARTING IN COLUMN <COL> OF LENGTH <LEN>

»FROM FORTRAN FORMATTED INTEGERS (I.E. LEADING BLANKS, OPTIONAL

»NEGATIVE SIGN, DIGITS) TO A LOGICAL VALUE THAT

»PRESERVES NUMERIC ORDER

»XO « 30/NWORDS, 30/NCHARACTERS

»XI = 77777777777777777700B

oX2 = RECORD TO RIGHT OF FIELO

«X3 » SIGN (ALL ZEROS MEANS ♦» ALL ONES MEANS -)

»X4 = WORD WITH CURRENT CHARACTER

«X5 = CURRENT CHARACTER

»X6 = CURRENT BINARY VALUE

»X7 - CURRENT BINARY DIGIT

ft A2 = ADDRESS OF FIRST WORD OF RECORD

«B5 = CURRENT CHARACTER

»B6 = SCRATCH

«B7 = NUMBER OF CHARACTERS LEFT IN FIELD

ENTRY OWN I

OitfNl BSS COL = 1 2 ... 10 11 12 ...

TSET COL-1 0 1 . . . 9 1 0 11 . . .

WSET T/10 0 0 . . . 0 1 1 . . .

cSET COL-1-10<» W 0 1 . . . 9 0 1 . . .

SA4 A2*V GET WORD WITH FIRST CHARACTER

SAS A2*W*1 GET NEXT WORD

MX3 6»C ALIGN MASK AT START OF FIELD

BX4 -X3»X4 EXTRACT (FIRST PART OF) FIELD

BXS X3»X5 EXTRACT SECOND PART OF FIELD (MAYBE)

BX4 X4*<5. COMBINE

LX4 6*C LEFT-JUSTIFY FIELD

MX2 6»LEN

BX2 -X2»X4 SAVE RECORD TO RIGHT OF FIELD

MXl -6 77777777777777777700B

BX6 XO-XO CLEAR RESULT REGISTER

MX3 GUESS THAT SIGN IS POSITIVE

S87 LEN SET NUMBER OF CHARACTERS LEFT

OtfNl] ZR B7.0WN1* IF NO MORE CHARACTERS IN FIELD

LX4 RIGHT-JUSTIFY NEXT CHARACTER

BXS -X1*X4 EXTRACT NEXT CHARACTER

SB5 X5

SB7 B7-1 DECREMENT COUNT OF CHARACTERS LEFT

SB6 1R

EQ B5,*6,0WN11 IF BLANK, LOOP

SB6 1R-

NE 85**6,OWN13 IF NOT -, SKIP

MX3 60 NOTE NEGATIVE SIGN

Figure 5-1. COMPASS Owncode Example to Convert Leading Blanks to Zeros in Signed Numeric Data (Sheet 1 of 3)

5-2 60482900 A

/$f?^^.

0WN12 ZR B7.0WN14 IF END OF FIELD, JUMP

LX4 RIGHT-JUSTIFY NEXT CHARACTER

BX5 -X1*X4 EXTRACT NEXT CHARACTER

SB5 XS

SB7 B7-1 DECREMENT COUNT OF CHARACTERS LEFT

0WN13 SB6 IRQ

LT B5»86»ERROR IF CHARACTER LESS THAN +0+, ERROR

SB6 1R9

GT 85,B6,ERROR IF CHARACTER GREATER THAN +9+, ERROR

SX7 10

1X6 X6«X7

SX7 85-IR0

1X6 X6*X7 RESULT * 10»RESULT ♦ DIGIT

EQ OWN 12 GO TRY FOR NEXT CHARACTER

OWN 14 BSS (HERE AT END OF FIELD)

BX6 X3-X6 APPLY SIGN TO RESULT

LX6 60-6»LEN LEFT-JUSTIFY RESULT

MX3

BX6 X3-X6 TOGGLE SIGN BIT

MX3 6»L£N

BX6 X3«X6 STRIP EXCESS ONES (IF NEGATIVE)

8X6 X6*x2 APPEND RECORD TO IMMEDIATE RIGHT OF FIELD

LX6 -6*C ALIGN FIELD

SA4 A2*4 GET WORD FOR FIRST CHARACTER

MX3 6*C MASK ALIGNED AT START OF FIELD

BX4 X3»<4 DELETE ORIGINAL FIELD

BX2 -X3»X6 INSERT CREATED RESULT

BX7 X4*X2 COMBINE

SA7 A<* STORE BACK

SAS A2*W*1 GET NEXT WORO. JUST IN CASE

BXS -X3«X5

BX2 X3*X6

BX7 X2*X5

SA7 A5

EQ OWN I GO BACK WITH RECORD

ERROR SAl OWN I

LXi 30

SB7 XI

JP B7*l

EJECT

«» 0WN3 - owncode EXIT 3 PROCESSOR

• CALLING SEOUENCE-

oA2 = ADDRESS OF RECORD

•XO = 30/NWORDS, 30/NCHARACTERS

» DOES-

i» CONVERTS THE FIELD STARTING IN COLUMN <COL> OF LENGTH <LEN>

»FROM THE FORMAT CREATED BY OWN1 TU FORTRAN FORMATTED INTEGERS

•(I.E. LEADING BLANKS, OPTIONAL NEGATIVE SIGN, DIGITS).

»XO = 30/NWORDS, 30/NCHARACTERS

»X I = 0.10000000001

»X2 - RECORf) TO IMMEDIATE RIGHT OF FIELD

»' X3 = SIGN

»X4 = NUMBER AT START QF LOOP

»XS = NEXT NUMBER

•X6 = CHARACTERS

•X7 = RIGHT-JUSTIFIED CHARACTER

»A2 = ADDRESS OF FIRST WORD OF RECORD

oB7 = number of characters left in field

ENTRY OWN 3

0WN3 BSS

TSET COL-1

wSET T/10

CSET COL-l-10fl

SA4 A2*W GET WORD WITH FIRST CHARACTER

SA5 A2*w*l GET NEXT WQrtD, JUST In CASE

Mx3 6*C MASK STARTIN6 AT FIELD

BX4 -X3«X4 DELETE BEFORE FIELD

BX5 X3*X5 DELETE AFTE* FIELD+9

Figure 5-1. COMPASS Owncode Example to Convert Leading Blanks to Zeros in Signed Numeric Data (Sheet 2 of 3)

60482900 A 5-3

BX4 X4*X5 COMBINE

LX4 6»C LEFT-JUSTIFY FIELD

MX2 6»LEN

BX2 -X2»X4 SAVE RECORD TO IMMEDIATE RIGHT OF FIELD

MX3 MASK FOR SIGN BIAS

BX3 -X4»X3 1 IFF NEGATIVE

AX3 59 777777777777777777776 IFF NEGATIVE

LX4 SHIFT TO EXTENDABLE SIGN

AX4 61-6»LEN EXTEND TO RIGHT

BX4 X4-X3 TAKE ABSOLUTE VALUE OF NUMBER

SB7 LEN NUMBER OF CHARACTERS LEFT TO SET UP

MX6 CLEAR RESULT REGISTER

SAl =0.10000000001

0WN31 PXS X4

NX5 (E.G.) 123456789.0

FX5 X5*X1 ( E . G . ) 1 2 3 4 5 6 7 8 . 9 0 1 2

UX5 X5,35

LX5 X5,*5 (E.G.) 12345678

1X7 X5 + X5 ( E . G . ) 1 2 3 4 5 6 7 8 * 2

LX5 (E.G.) 12345678*8

1X7 X5*X7 ( E . G . ) 1 2 3 4 5 6 7 8 0

AX5 (E.G.) 12345*78

1X7 X4-X7 (E.G.) 9

SX7 X 7 * l R 0 CONVERT TO DIGIT CHARACTER

BX6 X6 * < 7 INSERT INTO RESULT

LX6 -6 MAKE ROOM FOR NEXT CHARACTER

SB7 87-1 DECREMENT NUMBER OF CHARACTERS LEFT TO SET

BX4 X5 (E.G.) 12345678

NZ X4,0WN31 IF MORE DIGITS, LOOP

PL X3,QWN32 IF POSITIVE* SKIP

SX7 1R- INSERT NEGATIVE SIGN CHARACTER

BX6 X6*X7

LXb -6

SB7 B7-1

0WN32 ZR B7,QWN33 if field already full* skip

SX7 1R insert a blank character

BX6 X6*X7

LX6 -6

SB7 B7-1

EQ OWN 32 GO TRY AGAIN

0WN33 BX6 X6*X2 COMBINE LEFT-JUSTIFIED CHARACTERS AND

RECORD TO IMMEDIATE RIGHT OF FIELD

LX6 -6»C ALIGN FIELD WITH RECORD

SA4 A2*rf GET WORD FOR FIRST CHARACTER

MX3 6*C MASK ALIGNEO AT START OF FIELD

BX4 X3°X4 DELETE CREATED FIELD

BX2 -X3»X6 INSERT FORTRAN CHARACTERS

BX7 X4*X2 COMBINE

SA7 A4 STORE

SAS A2*W*1 GET NEXT WORD, JUST IN CASE

BXS -X3»X5

BX2 X3»X6

BX7 X2 + XS

SA7 A5

EQ OWN 3 EXIT

END

SORT

FILES»SORT=INPUT ♦OUT»UT=OUT

FIELD,<(3,9,LOGICAL)

KEYfK

0w>JCODE,l=OwNl,3 =OWN3

END

{Input Records here!

Figure 5-1. COMPASS Owncode Example to Convert Leading Blanks to Zeros in Signed Numeric Data (Sheet 3 of 3)

5-4 60482900 A

After sorting all of the records on the dates (as changed

for this sort run through use of owncode exit 1), an exit 3

table look-up owncode routine could be used to change the

format of the output date to July 4, 1776. Even though

this use of owncode appears complicated, it requires far

less processing time than a separate subroutine would

require to do a similar translation.

In most cases, files containing records modified through

use of owncode to simplify or speed the sort process are

not modified back to their original state; they are usually

left in their more easy to sort format to avoid duplicate

processing each time they are used. To illustrate, the

date that was originally stored as JUL041776 was changed

to 17760704 for sorting purposes and the file was stored in

this format. When this file is updated, any new input

should first be sorted using the same sort routine with its

owncode table look up code before merging the new input

with the existing file. Output returned to its initial state

through use of owncode exit 3 does not change the format

of the records stored on the sort input file.

Another variation on this change is even easier to use.

When the date is converted from the original format by

means of a table look-up procedure and owncode exit 1,

the new format is stored as part of the same record. In

this manner, you can sort the record based on the easily

sorted format and output the more easily recognized

format. Your record would change from JUL041776 to

3UL0417760704 as a result of the owncode exit 1. Thus,

you would sort this field on the last eight characters and

output the date as the first nine characters.

Variations of this concept allow you to sort any type of

information you might define because you can transform

any data into a sortable field tag and append the tag to

your original record.

Exits 1 and 2 owncode routines are not allowed in a

merge-only run to ensure that the input records remain in

sorted order. You can achieve the same purpose by using

either exits 3 and 4 in a merge-only run or exits 1 and 2 in

a sort run with supplementary merge files. If you specify

an exit 1 or 2 owncode routine in a merge-only run, the

exit is ignored and a nonfatal diagnostic message occurs.

OWNCODE EXIT 5

One typical use for the owncode routines is to handle

duplicate or equal keys. Equal keys can be duplicate keys,

or a key comprised of characters treated the same (as the

result of an EQUATE directive), or created equal because

of a signed numeric overpunch.

When equal sort keys are encountered in two or more

records, the method of handling such records often needs

to be defined. Just because the sort keys are equal does

not mean that the records are identical. In many cases,

you will want to be able to control the order of records

with equal keys. One of the controls available to you is to

output the records containing equal keys in the order they

were input. This control is available by specifying

RETAIN on the Sort/Merge OPTIONS directive. Owncode

is not required in such a case.

Using owncode exit 5 will allow you to stop and compare

records with equal keys. If the records are exact

duplicates, you might wish to delete one record. In the

case where two identical orders were booked in one day

from one company, you would most likely wish to flag the

records to remind you to check the validity of both

orders. Owncode exit 5 allows you to modify or replace

either or both records or to retain both records without

modification. It is more difficult to delete both equal

records, but it can be done by having the owncode exit 5

routine signal an owncode exit 3 routine.

At times equal record keys are considered to indicate an

error, such as in a file that should only contain one entry

for each customer. In such files, it would be proper to

delete any duplicate records. Exit 5 can be used to

identify records with equal sort keys. If the record

overlap is sufficient to ensure that a record is indeed a

duplicate, then deletion of the duplicate record is quite

simple. You merely need to provide the address and

length of the record you wish to keep in registers A2

and XO, and modify the return address.

Owncode routines can also be used to write all

questionable records to an exception file for separate

processing. When this is done, the questionable records

are usually deleted from the file being processed. (The

file should be closed in the owncode exit 4 routine.) When

the exception file is corrected, it can be sorted and

merged with the original file.

Another use of duplicate key processing allows you to

count records. If, for example, you wanted to determine

the number of items of each particular size article sold

during a given period, you might specify sufficient sort

keys to uniquely identify the articles and sizes you wish to

tally, append a count field containing 1, and then use

owncode exit 5 to add the counts for each duplicate

record key found in the articles sold file. (The record

containing the appended count field is retained while the

other record is omitted.) The sort run will then list every

item sold, in the order specified, with total sales of each

item.

In cases where only the items that sold more than a

certain number are of interest, further owncode output

specification could be used to delete all records whose

numerical tally is below that level. Thus, in this manner,

you could create a base for next year's reorder levels, a

list of this season's most popular items, and so forth.

OWNCODE EXIT 6

Owncode exit 6 is used for checking or verifying

nonstandard labels on files. Most files will not use

nonstandard labels; owncode exit 6 is not needed for these

files. If your CYBER Record Manager FILE control

statement specifies LT=NS,ULP*NO, you will need to

refer to the Basic Access Methods reference manual

information on label processing. The use of the GETL and

PUTL macros described there requires a knowledge of

COMPASS assembly language.

Owncode exit 6 is only available to users of Sort/Merge 4;

this capability is not supported for Sort/Merge 1.

HOW OWNCODE WORKS

When you specify an owncode exit in your Sort/Merge

program, register A2 contains the address of the current

data record and register XO contains the record length. In

addition, during entry into owncode exit 5, registers A3

and X4 are used for the address and length of the second

record of a comparison involving equal sort key data.

Transfer from Sort/Merge to the owncode routines is

accomplished with a return jump (RJ) instruction which

fills the entry point of the owncode routine with a return

to the Sort/Merge program. To return to Sort/Merge

control (and leave the owncode routine), your code must

60482900 A 5-5

return to the entry point of the owncode routine. This is

the normal return address. You can request specific

processing action by altering the return address in the

entry point of the owncode routine. You will usually do

this by putting the normal return address in a B register,

Bn, and jumping to Bn+1, Bn+2, or Bn+3. (This operation is

often described in text but not in code as NR+1, NR+2, or

NR+3.) When the function you have chosen is complete, a

normal return address to the entry point of the owncode

routine causes a jump to Sort/Merge to continue normal

processing.

The specific owncode functions available to you are

described in detail in the Sort/Merge reference manual.

Further details of the COMPASS instructions are

presented in the COMPASS reference manual.

FORTRAN CALLS

A set of library routines is provided for calling Sort/Merge

from a FORTRAN program. The use of Sort/Merge in

conjunction with FORTRAN provides a record and file

handling capability often overlooked by the typical

programmer using FORTRAN. Calls to Sort/Merge allow

the FORTRAN programmer to use the Sort/Merge

owncode exits to access records and files more easily than

is possible directly from FORTRAN.

Moreover, calls to Sort/Merge owncode allow the

FORTRAN programmer to write subroutines in FORTRAN

instead of COMPASS, and use variables instead of

constants as parameters.

The FORTRAN calls require that all conventions for using

FORTRAN statements be observed when using these

calls. The more commonly used FORTRAN calls are

l i s t e d b e l o w w i t h t h e i r c o r r e s p o n d i n g S o r t / M e r g e

directives.

CALL SMSORT SORT directive

CALL SMMERGE MERGE directive

CALL SMFILE FILE directive

CALL SMKEY KEY directive

CALL SMSEQ SEQUENCE directive

CALL SMEQU EQUATE directive

CALL SMOPT OPTIONS directive

CALL SMEND END directive

CALL SMOWN OWNCODE directive

CALL SMRTN No corresponding directive

As with the Sort/Merge directives, the first call should be

to either SMSORT or SMMERGE; the last call must be to

SMEND, which initiates processing using the information

collected by the other calls. The SMSORT and SMMERGE

calls require that you specify the maximum record length,

in characters, of the records to be sorted as the first

parameter. You can also specify the number of CM words

to be used for working storage if you wish, though the

default of 22 000 octal words is usually sufficient.

The full list of FORTRAN calls and how to use them

appears in the FORTRAN Extended reference manual and

in the Sort/Merge reference manual.

The use of Sort/Merge owncode complements the

capabilities of FORTRAN; their combined use provides

both excellent record handling and computing power.

For example, consider a problem where a series of

worldwide experiments over a number of years has

resulted in the collection of voluminous amounts of data

concerning the effects of temperature and pressure on

radio waves. Though most of these readings were

recorded in metric measurement (Celsius and millimeters

of mercury), a great number were recorded in nonmetric

values (Fahrenheit and inches of mercury). One advantage

exists in that all records within each file are consistent;

all files are either metric or nonmetric. In order to

combine all of the data for input to a program written in

FORTRAN, the data must first be converted to all metric

equivalents and sorted into order based on temperature as

the major sort key and pressure as the minor sort key.

Convert the nonmetric information in each nonmetric file

to metric equivalents before combining all of the files.

The most straightforward method of combining and

sorting all of the data is to sort all files into order and

then merge them.

The FORTRAN call to Sort/Merge owncode exit 1 is one

of the best methods available for solving the problem of

conversion. Record manipulation is handled entirely by

S o r t / M e r g e . T h e o w n c o d e r o u t i n e i s w r i t t e n i n

FORTRAN; each temperature and pressure value is

converted to metric, the values in metric are sorted and

output to an intermediate file in one operation. When all

of the files to be converted are in metric, and all of the

metric files are sorted, all intermediate files are merged

to create the single input file for the processing program.

Such operations are not as easily managed if attempted

only within FORTRAN.

The following problem illustrates that raw input is of

little value before it has been organized into a more

usable form. The problem is to determine which zones of

a given real estate area are appreciating the fastest, the

frequency of sales in each zone, and how much each zone

has appreciated since last year. With thousands of real

property sales each year spread over hundreds of zones, it

becomes a task for the computer to determine such

statistics.

To obtain a sorted comparison, all sales within each zone

must be totaled and averaged. The averages for this year

must be compared to the averages for last year in order to

compute average appreciation. If averages are not

available for last year, they too must be computed. Then

the difference between this year's average and last year's

average can be computed for each zone. The differences

are sorted in descending order by zone, along with other

desired information, to create a usable report.

One method of creating such a report is to use FORTRAN

to create records that contain the desired information,

sort these records based on the percentage of

appreciation, add report headers through use of owncode,

and output a formatted report.

The sort specified would probably be made through a

FORTRAN call to the sort routine, and the owncode

exits 3 and 4 header additions would naturally follow.

UNIQUE USES OF OWNCODE

One unique use of the Sort/Merge owncode routines is to

sort text entries for an index or for a glossary. For an

index, it is possible to create a row of leading dots the

length of the index line, and overlay the initial portion of

the line with the entry and the final portion of the line

with the page reference to create a typical entry that

looks like this:

Symbol generator 42

These lines can easily be sorted to create the index.

/^%.

5-6 60482900 A

For a glossary, you might consider a standard entry which

starts with the term to be defined, followed by a blank

line and then the descriptive text. The final output might

look like:

DIRECT! VES-

Instructions that supplement processing defined by

the SORTMRG control statement for execution of

Sort/Merge record processing.

To create a glossary that can be sorted, you will need to

create each glossary entry as a single continuous record.

Owncode exit 3 is then used, following the sort of the

records, to format the glossary entries.

Other uses which are often overlooked include

preprocessing of input such as stripping away headings in a

report file for subsequent sorting, pagination of reports,

combination of entries, deletion of duplicate entries,

reformatting reports, adding headings, creating footnotes,

controlling page depth, blanking certain fields in reports,

and so on.

As a final note, if you have part of your information

already sorted, this can sometimes be made to work in

your favor. For example, when creating an index, page

number references will be in page number order in your

intermediate file. Thus, on output of multiple page

references, you can first check to delete duplicates, and

the remaining references will remain in numerical order if

you have specified the RETAIN option throughout the run.

RECORD COMPACTION

Many variations of compaction are possible. Using

owncode routines or FORM, you can extract the key fields

of interest from all the records in a file, and sort only the

new records. For example, you might wish to extract only

the age and salary fields from a payroll file to create an

age/salary profile chart.

You would probably find a number of identical short

records. Rather than keep each record separately, it

could be worthwhile to keep only one copy of each

identical record, with a count field appended to the record

to keep track of the number of times an identical record

is encountered. In this manner, the identical records can

be deleted, thus shortening the total length of the file.

Owncode exit 5 makes this process simple because the

exit is available on every duplicate key encountered. On

creation of the profile chart, the amplitude of the

identical entries will have to be expanded by the number

of identical occurrences recorded in the appended count

field.

It might occur, for example, on a civil service or military

payroll profile that the number of unique salaries is quite

low but the number of identical records quite high. Thus,

the profile input file would be much shorter than the

original file. Not only would each record be shorter, but

the compacting of ichntical entries would substantially

reduce the number of records in the file.

60482900 A 5-7

RUNNING SORT/MERGE

0^\

Time is one of the main considerations when sorting

records. Sorting is generally an extremely

time-consuming process. After the desired order of the

records has been established and the present condition of

the records is known, an efficient procedure should be

established to make the sort process as efficient as

possible. Establishing an efficient procedure is very

important because sorting can require large amounts of

computer time; moreover, most sort jobs are repeated on

a regular basis. A small saving on each run, therefore,

can compound to a significant saving over the course of a

year.

To establish an efficient procedure requires a great deal

of planning and checking. It includes all of the steps

involved in creating the records and files to be sorted, the

order of the output desired, the specification of the

Sort/Merge directives, and even the time of day the sort

is to be run. For example, if sort is to be run in a

multiprogramming environment, it can be beneficial to

run the sort program with certain types of jobs which will

not result in much competition for the system resources.

If jobs compete for resources, time can be lost through

the swapping in and out of one or more of the jobs. If

tremendously large sort jobs are to be run, you might

consider scheduling them for the hours of low system

activity to avoid such conflict or try to balance the job

mix to avoid conflict.

At the point the sort run is initiated, the avenues

available to you are limited in respect to time-saving

opportunities. There is usually little choice as to the

computer to be used, the sort program available, the form

of the existing input files, and the desired order of

output. The length of time required to sort any given file

depends on the characteristics of the records and the

characteristics of the computer to be used. Since these

are usually fixed, only a few options such as available

central memory and the possibility of additional hardware

devices can be controlled at this point. Most time-saving

methods must be considered before the records and files

to be sorted are created.

TIME-SAVING DESIGN

The length of records affects the sort process. Long

records require a larger amount of central memory,

reducing the number of records that can be stored as a

sorted string. Shorter records increase the number, thus

requiring fewer passes during the sort phase. The length

of the records can only be controlled during the process of

designing and creating the records as noted in section 2.

The size of the files to be sorted can also be reduced if

they are organized so that only active records are sorted;

inactive records can be relegated to another file. File

space is valuable so you should be careful that inactive or

useless information is either stored on another file,

archived, or purged when it is no longer of use. Such a

process is known as file maintenance. File maintenance

includes keeping the file up to date by adding records as

well as deleting or modifying them. It is also important to

monitor the use of each file to determine which files are

active and which should be reorganized. If the use of one

file often requires the use of another file, you should

consider consolidating the two files to reduce the

overhead associated with handling two files.

Extremely long records require a large amount of time

and memory to sort. It might be advantageous to create a

tag sort environment where only the key need be sorted,

thus reducing the time and central memory requirements.

Also, w h e n a l ong r e c o r d pro v e s diffic u l t to r e a d,

subsequent read attempts cost a great deal of time for a

long record, whereas for a short key, an added saving

accrues.

If you work with large files, you will be concerned about

possible machine malfunction, power failures, and other

potential problems. Checkpointing files being sorted is a

good idea which can work to your advantage; however,

dividing large files into smaller files makes them much

more manageable, and is a superior insurance of

successful completion. Not only is sort time reduced, but

overhead is also reduced since no time is required for a

checkpoint dump nor is a device required to receive the

dump. Note that the checkpoint/restart option is not

available to tape sort users.

Efficient organization of records, excellent file

management, working with smaller files, and a proven

procedure will make the required sort jobs run faster and

ensure optimum performance.

COBOL AND SORT/MERGE

The COBOL SORT verb calls the same Sort/Merge

program available under the operating system. Identical

input should result in identical output because there is no

difference between the sort program available under

COBOL and the sort program available under the

operating system. The choice of which sort to specify, for

COBOL programmers, depends on other factors.

For a small sort job, it probably will not be advantageous

to leave COBOL to specify a sort under the operating

system. You won't need to store registers, variables, and

so forth. However, a COBOL SORT ties up the COBOL

field length which often reduces the amount of central

memory available to the sort process. When large files

are involved, you might well find an advantage in leaving

COBOL to take advantage of the additional field length

which could improve the speed and efficiency of the sort

program. This decision depends on the size of the file to

be sorted and the size of the COBOL program competing

for field length.

One point worthy of note is that a COBOL SORT is often

specified because the COBOL programmer is not

accustomed to specifying an operating system sort.

Actual specification of the COBOL SORT is different

from the specification of the operating system sort,

though the concepts are the same. For a complete

description of the COBOL Sort/Merge facility, see the

COBOL reference manual.

/pP'N

60482900 A 6-1

As a general rule, a sort which is not extremely large will

run just as fast under either COBOL SORT or the

operating system SORTMRG control statement. If you

have serious doubts whether there will be sufficient field

length under COBOL, then by all means consider using the

operating system Sort/Merge program.

Another effective method of reducing field length conflict

when using large files and a large COBOL program is to

segment the COBOL program and put the sort into a short

segment.

There are no owncode exits available to the COBOL

programmer such as those available to the COMPASS and

FORTRAN programmers. On the other hand, COBOL

programmers can use procedures to achieve most of the

same results. COBOL allows the use of INPUT

PROCEDURE and OUTPUT PROCEDURE phrases to

specify the procedure to be executed under system control

either at the time the SORT statement is executed or

after the records have been sorted. The INPUT

PROCEDURE can include statements to select, create, or

modify records before the sort process begins. Thus, the

same functions of Sort/Merge owncode are available to

the COBOL programmer though their specifications are

totally different.

When using the INPUT or OUTPUT PROCEDURE, the

COBOL programmer must be wary of the problems that

can be created. Changing the length of the record can

shift the position of the sort key fields so they no longer

match the original specification or the rest of the record

to be sorted. Extending the length of the records can

cause some records to exceed the record length specified.

Deleting records without being aware of a future need for

them can prove catastrophic.

Use of the COBOL SORT is described in the COBOL

reference manual and the COBOL 5 user's guide.

FORTRAN CALLS AND SORT/MERGE

FORTRAN calls allow the use and specification of

owncode routines written in FORTRAN. The FORTRAN

calls are almost identical with the Sort/Merge directives.

They are described fully in the Sort/Merge reference

manual.

A number of the arguments concerning the advantages of

the COBOL SORT verb versus the operating system sort

hold true for the FORTRAN calls to Sort/Merge as well.

It can be advantageous to sort without leaving the

FORTRAN program; however, this convenience is not

without its cost in field length that otherwise might be

used by Sort/Merge for more efficient operation.

One method of avoiding a field length conflict between a

large FORTRAN program and large sort files is to use

separate job steps with control statements. Another

method is to use overlays and ensure that the sort occurs

in a short overlay.

CHECKPOINT/RESTART

The use of checkpoint/restart is recommended in many

applications to allow you to recover some of the work

already done in case of a power failure or machine

malfunction. In the case of Sort/Merge there are other

options that you should consider. Checkpointing a

program requires that you specify a certain point or a

certain number of records after which the operating

system will take a dump of the work done to that point.

In case of job failure, you can return to that point in

processing rather than start anew.

A checkpoint dump requires that system resources such as

disk space or tape units be assigned for the dump. Such

resource allocation often reduces the resources available

to the Sort/Merge program.

As noted previously, reducing the size of the files you

wish to sort, sorting them, and then merging them can be

faster than sorting one large file. If you compare this

procedure with the checkpoint/restart procedure, you will

find that time is saved in sorting, and that the same

insurance against machine or system malfunction is

afforded.

Shorter files sort faster on a relative basis than do long

files, and reducing the system overhead associated with

checkpointing a file adds to the speed achieved by sorting

smaller files.

Refer to the Sort/Merge reference manual for details of

checkpoint/restart usage.

TAPE SORTING

The tape variant of Sort/Merge provides two forms of

processing, balanced and polyphase. A tape sort is not the

same as a disk sort with tape input and output. A tape

sort does not require disk units. Sort/Merge is most

efficient when the disk oriented version is used. Use of

tape sorts is discouraged when disk facilities are available

because tape is less reliable and is usually less efficient.

In cases where the size of records and the size of files

seems to require specification of a tape sort, you might

consider dividing the large files into smaller files to be

presorted and merged later rather than use the tape sort.

Other reasons for not specifying a tape sort include the

need for many tape units to contain all of the scratch

tapes required, and the added possibility for operator

error, in addition to the almost certain occurrence of tape

parity errors in a multireel environment. Also, a tape sort

cannot be checkpointed. Tape sorts are explained in the

Sort/Merge reference manual appendix.

Note that backup tape files are usually maintained in step

sequence, so that if any one operation is unsuccessful, you

can back up to the next previous step to recover. It is not

uncommon to see up to four levels of such backup files

being retained as insurance against loss of information on

tape.

The polyphase sort is usually more efficient than the

balanced sort. In a situation where you can have the

opportunity to try both types of tape sort on the same or

very similar files, the best way to determine the better

sort is to try both and compare. The number of tape

drives available best determines which tape sort is better;

the balanced sort becomes preferable when you can

commit eight or more tape drives to the sort.

TAG SORT

When records to be sorted are extremely large, it is

sometimes quite time-consuming or impossible to sort

them because few will fit into the memory available. It is

often easier and better to sort such large records by

creating a key which identifies the record and includes

sufficient information to link the key to the record, and

then sort only the keys. When they are in order, the

/,c^\

/^™Hv

6-2 60482900 A

records can then be retrieved in sorted order from their

storage locations on disk in the order of the sorted keys.

This is called a tag sort.

Depending on the application, it is often advantageous to

never order the records themselves on disk, but rather to

order only the output.

Keys can be created in a number of ways depending on

your needs. One common method of creating keys is to

use an algorithm which extracts the sort key from the

record along with disk address values which identify the

location of the record and appends this value to the key

field to be sorted. When the keys are all sorted, the

records can be retrieved in sorted order from the disk

containing them. This type of sort technique is usually

only undertaken by systems programmers.

SUMMARY

The following points are offered for your consideration

before starting any sort or merge operation:

• If you can avoid sorting information, you will

probably save time.

• Sorting small files and merging sorted files is faster

than sorting one large file.

If possible, sort only the information you need, not

the entire record.

• Always sort files before merging them with larger

files.

It is always better to make smaller sort runs than to

checkpoint larger sort runs.

It is usually true that the time required to sort half

the records requires less than half the time needed to

sort all the records. A shorter sort is usually more

efficient. As the size of a sort grows, the number of

records sorted per second decreases.

Be very careful when using owncode to change record

size or sort key field position before sorting the file.

Always keep backup files. You can always go back if

you keep previous information. Some installations

keep up to four levels of backup files.

/pp?^

60482900 A 6-3

0®%

CHARACTER SETS

r

CONTROL DATA operating systems offer the following

variations of a basic character set:

CDC 64-character set

CDC 63-character set

ASCII 64-character set

ASCII 63-character set

Graphic character representation appearing at a terminal

or printer depends on the installation character set and

the terminal type. Characters shown in the CDC Graphic

column of the standard character set table are applicable

to BCD terminals; ASCII graphic characters are applicable

to ASCII-CRT and ASCII-TTY terminals.

STANDARD COLLATING SEQUENCES

/$$$£\

The set in use at a particular installation was specified

when the operating system was installed. You cannot

change it.

Depending on another installation option, the operating

system assumes an input card deck has been punched

either in 026 or in 029 mode (regardless of the character

set in use).

Under NOS, the alternate mode can be specified by a 26

or 29 punched in columns 79 and 80 of any 6/7/9 card. In

addition, 026 mode can be specified by a card with 5/7/9

multipunched in column 1, and 029 mode can be specified

by a card with 5/7/9 multipunched in column 1 and a 9

punched in column 2. Under NOS/BE, the alternate mode

can be specified by a 26 or 29 punched in columns 79 and

80 of the job statement or any 7/8/9 card. The specified

mode remains in effect through the end of the job unless

it is reset.

If the installation character set is the CDC character set,

the collating sequence default is COBOL6. If the

installation character set is ASCII, the collating sequence

default is ASCII6.

COLLATION OF ARBITRARY CHARACTERS

Several graphics are not common for all codes. Where

these differences in graphics occur, arbitrary assignment

of collation positions and of translations between codes

must be made. For example, display code data that is

collated in the ASCII6 collating sequence requires

assignment of specific graphics. One of these graphics is

the identity character = (60) in display code that is

interpre t ed a s the number charact e r (//) in ASCII6

collating sequence in table A-2.

60482900 A A-l

TABLE A-l. STANDARD CHARACTER SETS

Display

CDC ASCII

Hollerith External

Code Graphic Punch BCD Graphic Punch Code

(octal) (026) Code Subset (029) (octal)

oof : (colon)ft 8-2 00 : (colon) ^ 8-2 072

01 12-1 61 12-1 101

02 12-2 62 12-2 102

03 12-3 63 12-3 103

04 12-4 64 12-4 104

05 12-5 65 12-5 105

06 12-6 66 12-6 106

07 12-7 67 12-7 107

10 12-8 70 12-8 110

11 12-9 71 12-9 111

12 11-1 41 11-1 112

13 11-2 42 11-2 113

14 11-3 43 11-3 114

15 11-4 44 11-4 115

16 11-5 45 11-5 116

17 11-6 46 11-6 117

20 11-7 47 11-7 120

21 11-8 50 11-8 121

22 11-9 51 11-9 122

23 0-2 22 0-2 123

24 0-3 23 0-3 124

25 0-4 24 0-4 125

26 0-5 25 0-5 126

27 0-6 26 0-6 127

30 0-7 27 0-7 130

31 0-8 30 0-8 131

32 0-9 31 0-9 132

33 12 060

34 01 061

35 02 062

36 03 063

37 04 064

40 05 065

41 06 066

42 07 067

43 10 070

44 11 071

45 12 60 12-8-6 053

46 11 40 11 055

47 11-8-4 54 11-8-4 052

50 0-1 21 0-1 057

51 0-8-4 34 12-8-5 050

52 12-8-4 74 11-8-5 051

53 11-8-3 53 11-8-3 044

54 8-3 13 8-6 075

55 blank no punch 20 blank no punch 040

56 , (comma) 0-8-3 33 , (comma) 0-8-3 054

57 . (period) 12-8-3 73 . (period) 12-8-3 056

60 0-8-6 36 8-3 043

61 8-7 17 12-8-2 133

62 1 t 0-8-2 32 11-8-2 135

63 %*t 8-6 16 %" 0-8-4 045

64 8-4 14 " (quote) 8-7 042

65 r- 0-8-5 35 (underline) 0-8-5 ... 137

66 11-0 or 11-8-21u 52 12-8-7 or 11-0TTT 041

67 0-8-7 37 12 046

70 11-8-5 55 ' (apostrophe) 8-5 047

71 11-8-6 56 0-8-7 ... 077

72 12-0 or 12-8-2m 72 12-8-4 or 12-0TTT 074

73 11-8-7 57 0-8-6 076

74 8-5 15 8-4 100

75 12-8-5 75 0-8-2 134

76 —1 12-8-6 76 - (circumflex) 11-8-7 136

77 ; (semicolon) 12-8-7 77 ; (semicolon) 11-8-6 073

Twelve zero bits at th e end of a 60-bit word in a zero b yte record are an e nd of record mark rather than

two colons.

TTlrt installations using a 63-graphic set. display code 00 rlas no associated graphic or card code; display

code 63 is the colon (8-2 punch). The % graphic and related card codes do not exist and translations

yield a blank (55o).

mThe alternate Hollerit h (026) and ASCII (029) punches are accepted for ir put only.

yCSi!^.

A-2 60482900 A

TABLE A-2. 6-BIT CHARACTER CODE COLLATING SEQUNCES

COBOL6t DISPLAY t INTBCD ASCH6+t

Graphics Display

Code Graphics Display

Code Graphics

CDC

INTBCD Graphics Sequence

blank 55 :t 00 + 00 blank 00

<74t 01 01 01

%t 63 02 02 ii 02

[61 03 03 03

—65 04 04 04

s60 05 05 %t+ 05

A67 06 06 06

t70 07 07 07

71 10 10 10

>73 11 11 11

>75 12 12 12

—1 76 13 13 13

•57 14 14 14

)52 15 15 15

t77 16 16 16

+45 17 17 17

$53 20 20 20

*47 21 21 21

-46 22 22 22

/50 23 23 23

»56 24 24 24

(51 25 25 25

=54 26 26 26

¥64 27 27 27

<72 30 30 30

A01 31 31 31

B02 32 32 32

C03 33 33 33

D04 34 34 34

E05 35 35 35

F06 36 —l 36 36

G07 37 37 37

/ffP^v

60482900 A A-3

TABLE A-2. 6-BIT CHARACTER CODE COLLATING SEQUENCE (Contd)

COBOL6 t

Graphics

H

I

V

J

K

L

M

N

O

P

Q

R

]

S

T

U

V

W

X

Y

Z

0

1

2

3

4

5

6

7

8

9

Display

Code

10

11

66

12

13

14

15

16

17

20

21

22

62

23

24

25

26

27

30

31

32

00 +

33

34

35

36

37

40

41

42

43

44

DISPLAY +

Graphics Display

Code

blank

[

]

%t

V

A

t

i

<

>

<

>

INTBCD

Graphics

CDC

INTBCD

Code

40 40

41 41

42 42

43 43

44 •M 44

45 45

46 46

47 47

50 50

51 51

52 52

53 53

54 54

55 55

56 56

57 57

60 blank 60

61 61

62 62

63+ 63

64 64

65 65

66 66

67 67

70 70

71 71

72 72

73 73

74 74

75 75

76 76

77 77

ASCU6++

Graphics

@

A

B

C

D

E

F

G

H

I

J

K

L

M

N

O

P

Q

R

S

T

U

V

W

X

Y

Z

[

\

]

Sequence

40

41

42

43

44

45

46

47

50

51

52

53

54

55

56

57

60

61

62

63

64

65

66

67

70

71

72

73

74

75

76

77

tUnder the CDC 63-character set, there is no percent graphic; the colon is display code 63. Display

Code 00 is not used.

ttUnder the ASCII 63-character set, there is no percent graphic; the colon collates in position 05, not

position 32.

A-4 60482900 A

GLOSSARY

J^N

/^PN

Advanced Access Methods (AAM) -

A file manager that processes indexed sequential,

direct access, and actual key file organizations, and

supports the Multiple-Index Processor. (See CYBER

Record Manager.)

Balanced Tape Sort -

Sort that always keeps its intermediate tapes divided

into the same two groups. Sorted strings are merged

from one group to another as long as possible, then

the direction is reversed.

Basic Access Methods (BAM) -

A file manager that processes sequential and word

addressable file organizations. (See CYBER Record

Manager.)

Buffer -

An intermediate storage area used to compensate for

a difference in rates of data flow, or time of event

occurrence, when transmitting data between central

memory and an external device during input/output

operations.

Collating Sequence -

Sequence that determines precedence given to

character data for sorting, merging, and comparing.

CYBER Record Manager -

A generic term relating to the common products

AAM and BAM that run under the NOS and NOS/BE

operating systems and that allow a variety of record

types, blocking types, and file organizations to be

created and accessed. The execution time

input/output of COBOL 4, COBOL 5, FORTRAN

Extended 4, Sort/Merge 4, ALGOL 4, and the DMS-170

products is implemented through CYBER Record

Manager. Neither the input/output of the NOS and

NOS/BE operating systems themselves nor any of the

system utilities such as COPY or SKIPF is

implemented through CYBER Record Manager. All

CYBER Record Manager file processing requests

ultimately pass through the operating system

input/output routines.

Direct Access File -

In the context of CYBER Record Manager, a direct

access file is one of the five file organizations. It is

characterized by the system hashing of the unique

key within each file record to distribute records

randomly in blocks called home blocks of the file.

In the context of NOS permanent files, a direct

access file is a file that is accessed and modified

directly, as contrasted with an indirect access

permanent file.

Directives -

Instructions that supplement processing defined by

the SORTMRG control statement for execution of

Sort/Merge record processing.

File-

A logically related set of information; the largest

collection of information that can be addressed by a

file name. Starts at beginning-of-information and

ends at end-of-information.

FILE Control Statement -

A CYBER Record Manager control statement that

contains parameters used to build the file information

table for processing. Must be provided for every

input or output file to be processed by a directive

sort or merge. Not to be confused with the

Sort/Merge FILE directive.

File Information Table (FIT) -

A table through which a user program communicates

with CYBER Record Manager. All file processing

executes on the basis of fields in the table. Some

fields can be set by the Sort/Merge user in the FILE

control statement.

Key Comparison -

Internal technique of comparing sort keys that usually

requires less elapsed time and more central

processing time than key extraction.

Key Extraction -

Internal technique of comparing sort keys that usually

requires less central processing time and more

elapsed time than key comparison.

Macro -

Sequence of source statements that are saved and

then assembled when needed through a macro call.

Used when Sort/Merge functions as a COMPASS

subroutine for a COMPASS program or as a

relocatable program generated for the COBOL SORT

verb.

Merge Order -

Internal parameter governing the number of buffers

used by Sort/Merge Version 4 in the intermediate

merge phase.

Owncode Routine -

Closed COMPASS subroutine written by the user that

provides the capability to insert, substitute, modify,

or delete input and output records during Sort/Merge

processing.

Polyphase Tape Sort -

Sort with only one intermediate output tape for each

merge phase; however, the output tape is changed for

each merge phase. A polyphase tape sort usually can

sort more records than a balanced tape sort in the

same amount of time and with the same number of

intermediate tapes.

Random File -

In the context of CYBER Record Manager, a file with

word addressable, indexed sequential, direct access,

or actual key organization in which individual records

can be accessed by the values of their keys.

60482900 A B-l

Record - Sort Key -

CYBER Record Manager defines a record as a group Field of information within each record in a sort or

of related characters. A record or a portion thereof merge input file used to determine the order in which

is the smallest collection of information passed records are written to the output file.

between CYBER Record Manager and a user

program. Eight different record types exist, as Sort Order -

defined by the RT field of the file information table. Order for sorting keys, either ascending or descending.

Signed Numeric Data - Tape Sort -

Integer data stored internally in display code. Sorts Sort that has its intermediate scratch files residing

according to the magnitude and the sign of the on tape rather than disk. Original input file and/or

i n t e g e r t h e d i s p l a y c o d e r e p r e s e n t s . fi n a l o u t p u t fi l e c a n r e s i d e o n d i s k o r t a p e .

S^!\

B-2 60482900 A )

RUNNING SORT/MERGE UNDER THE

NOS/BE OPERATING SYSTEM

r

00$>K.

This appendix illustrates the basic differences between

the NOS and the NOS/BE operating systems with respect

to Sort/Merge and includes the NOS/BE control

statements you will need to run the job examples given in

section 4 if your installation is using the NOS/BE

operating system.

As noted previously, the Sort/Merge directives need not

be changed because of a change of operating system.

Certain limitations apply if you are using Sort/Merge

Version 1 which is required if your computer is a

CYBER 170 Model 176, a CYBER 70 Model 76, or a

7600. Refer to the Sort/Merge reference manual for

these limitations. Users of the remaining CYBER 170 and

CYBER 70 models and the 6000 Series computers will use

Sort/Merge Version 4 described in the same publication.

User programs can call Sort/Merge with COMPASS

assembly language macros, the FORTRAN Extended

interface routine calls, or through the COBOL language.

These uses are described in detail in the Sort/Merge

reference manual and in the respective language

reference manuals.

CONTROL STATEMENT FORMATS

The major differences between the control statements

required for the NOS and NOS/BE operating systems from

the Sort/Merge user's perspective are in the areas of the

job control statement including accounting information

and in the use of permanent files. Other important

differences are noted only where they apply to this user's

guide. You should refer to the user's guide and reference

manuals applicable to your operating system for all details.

ACCOUNTING INFORMATION

As you have noted in the practice examples, NOS usually

requires a USER and a CHARGE control statement

following the job control statement. These are used for

identification and accounting purposes. If these control

statements are not given, or are incorrect, the run will

terminate with a message indicating the error.

Procedures vary from installation to installation

depending on the accounting methods in use. Interactive

users at some installations are limited in the number of

attempts they are allowed when signing onto the system.

NOS/BE users are often required to include their

accounting information on the job control statement

following the terminator. Other installations require this

information on a separate ACCOUNT control statement.

Security procedures usually terminate any unauthorized

job. You might wish to note the accounting information

required at your installation inside the front cover. You

should be careful with this information because your

account will be billed for all jobs run under this number.

PERMANENT FILES

Users of NOS permanent files will encounter both direct

and indirect access permanent files. Their use is quite

different. For purposes of these examples, only indirect

access permanent files are used. Large files might be

better served by using direct access permanent files. The

choice of type of NOS permanent file is described in the

NOS Time-Sharing user's guide. There is no NOS/BE

counterpart for direct and indirect access files.

If during a NOS job, you wish to save a file for future use,

such as for input to another job, a simple SAVE,filename

is the minimum control statement you can specify to

create an indirect access permanent file. This file will be

saved for the number of days your installation allows.

When you wish to use this file again in a subsequent job,

all you need enter to access the file is the control

statement GET,filename.

NOS/BE permanent files can be used in a similar manner.

NOS/BE requires that you enter CATALOG,filename,id to

make an existing local file permanent and

ATTACH,filename,id to access an existing permanent

file. Before you can create the permanent file, however,

you must first allocate file space for it through use of the

REQUEST,*PF control statement. NOS/BE also allows

you to keep up to 5 cycles of one permanent file under one

file name; there is no NOS counterpart for this concept.

The" length of time that a NOS/BE permanent file is kept

depends on the time you specify, or on the operating

system default. At the installation where these jobs were

run, the default retention period is set at 5 days. By

running a job using the permanent file more often than

every 5 days, the 5-day period is renewed. When the file

is no longer needed, it is automatically purged from the

system 5 days later. If you specify a longer period, you

should purge the permanent file when you no longer need

i t .

JOB EXAMPLES

The following NOS/BE control statement examples will

allow you to run the practice examples given. For more

information on your operating system and the control

statements available, you should consult the NOS/BE

user's guide or the NOS Batch user's guide or the NOS

Time-Sharing user's guide.

The NOS control statements given in figure 4-4 can be

replaced with the NOS/BE control statements shown in

figure C-l. Each figure caption includes the figure

number of the related NOS example.

Under NOS/BE, the T parameter on the job statement

specifies a time limit for the job in octal seconds. The

time limit also influences the priority given the job in the

input queue. Too high a limit can reduce the job priority.

Too low a limit can stop the job before it completes.

Refer to the NOS/BE user's guide for details.

60482900 A C-l

Figure C-2 is the NOS/BE counterpart of figure 4-5. The

explanations associated with figure 4-5 also apply here.

Figure C-3 illustrates how you can create a NOS/BE

permanent file of the sorted output file. When creating a

permanent file under NOS/BE, you must specify an ID for

the file and you can specify a retention period if you wish

as shown with the CATALOG statement in figure C-3. To

subsequently access this permanent file requires a

statement such as ATTACH,NEW,ID=ME. Both the

CATALOG and the ATTACH statements allow a large

number of parameters for various purposes. These

parameters are described in the NOS/BE user's guide and

the NOS/BE reference manual.

jobcard. user and accounting information

FILE(NEW,6T=C,RT=Z,FL=80)

SORTMRG.

REWIND.NEW.

COPYSBF.NEW.OUTPUT.

7/8/9 multipunched in column 1

sort directives

7/8/9 multipunched in column 1

input records

6/7/8/9 multipunched in column 1

Figure C-l. NOS/BE Control Statements (Figure 4-4)

r c n t p e c T I E S S O R T / M E R G E 4 . 6 L 4 9 7 0 3 / 2 9 / 7 9 1 4 . 1 9 . 1 1 . F A G E 1

t S O R T

? FILE,TNPUTsINPUTtOUTPUT=NE*

* FIELCfNAMEd,??, DISPLAY)

4 KEY, MMECA,DISPLAY)

* E N O

AN0FPSON,TTM0 "MY A0O0700052«752*MM

BRKKFP, JOACHIf AnOO71Q011l7^2«.MS

BERNARD,JOHN ?. A000625011S7719MS

BOEo,GEORGE Ani)0 7<J5l223742«MS

BROWN,J AMES AOn070009117fi21MS

CP«»LSON,JACK E0019750830743€MD

CHAW,, ROBERT ?. A0OQ68402017e2RMS

COHEN,JOSEPH Ani)08 7«504n4743*MO

D AV I S , R O B E R T 7. E00107«Sni03733«;MS

DUBOIS,BNOPF A03n6??n3l578-?1MS

n U PA M P, H F L E N A0ni63509ni683fFD

FISCHFR, OAVID Annn*i2506017821MS

GARCIA,ARTHUR B00073B022C761t»MM

G0ME7,LTNDA C0On635042t7721FS

IVANOV,LEONARn An0072308157632MM

JOHNSON , ANNAB «H.LE CP0147204036928FM

JOHNSON, ARMANI" E001410102D7232MS

SMITH,ROBERTA A0007S011227S27FS

S0KOL,0nNAL0 <* A00210812n7684eMM

TAYLOR,JENNIFER An0062c1011772?FS

MPNG,LTSA D000,»«511277721FS

MILLIAM<*fBENFriCT A0017210816723PMD

WILLIAM?,ROBE FT A000^100315763tMS

WILSON, OO'JGLA 5 E000910120?7336MO

s^$$\

Figure C-2. NOS/BE Sort Output by Name (figure 4-5) (Sheet 1 of 2)

C-2 60482900 A

M F S N R 1 - f Y B 7 l , - < ; N i n P 6 R S V / I 2 C 03/16/79

14.in.nq.cxRC 1G* FROM

14,19.n*?.ip ronno44* word^ - F I L E I N P U T , D C 0 4

14.19. 0*.EXPC 1,T10. user and accounting nformation

14.1Q.09.FILE INEW,RT=C,PT=Z,FL= 80)

14. l««. 10.SORT M?G.

14. 1<».12,»»*K'Y COMPAPT^ON US?

14.19.1?. ** INSERTIONS CUFING INPUT «****♦» * »rj

14.19.1«. *» TELETIONS OURING INPUT » »***»*»»ri

14.IP.1«:. ♦• 10TAL RECORDS SORTED * *»»*#»*i4rj

14.1*. 1*. ** INSERTIONS DURING OUTPUT * ¥♦»*** xW(\

14.19.1?, ♦» fELETION? OURING OUTPUT * ««*»****{)

1 4 . 1 9 . 1 * 5 . • » T O TA L R F C O R O S O U T P U T T »**+***{, fl

14.19.IS. ** >ERGE OROco USEO ♦»»♦*»♦»13

14.1«.1 = . »»E^0 SORT FUN

1 4 . 1 9 . 1 « ? . R F W I f n , N E W .

14.19.1«.COPY^BFtNEW,OUTPUT.

1 4 . 1 P. 1 « 5 . 0 P r 0 0 0 0 S l 2 W O R O S - F T L E C U T P ' J T , DC u n

lfc.l9.1«?.M5 7c3<» WOROS ( 107?2 MAX USED)

14.1P.1C.CPA .210 SFC. . 2 1 0 A O J .

14.1<».1*.CPB .270 SEC. .270 ADJ.

l4.iq.1c.xo .347 SEC. .3'. 7 ADJ.

14.19.15.CM 14.601 KWS. .801 AOJ.

1 4 . 1 9 . 1 * . S S , 7 ? 0

14.lQ.m.PP *.05«> SEC. DATE 01/29/79

1«».1P.1?.EJ cNO OF JOB, »•

Figure C-2. NOS/BE Sort Output by Name (figure 4-5) (Sheet 2 of 2)

rEXRC1.T10. accounting information

REQUEST,NEW,*PF.

FILE(NEW,BT=C,RT=Z,FL=80)

SORTMRG.

CATALOG,NEW,ID=ME,RP=10.

REWIND.NEW.

COPYSBF.NEW.OUTPUT.

7/8/9 multipunched in column 1

sort directives

7/8/9 multipunched in column 1

input records

6/7/8/9 multipunched in column 1

Figure C-3. Creating a NOS/BE Permanent

File (Figure 4-6)

60482900 A C-3

{*%:

0^,

INDEX

ACCOUNT C-l

ASCII code 2-3, A-l

ATTACH C - l

GET 4-7

Glossary B-l

00^*-.

Blanks, importance 3-3

Blanks, leading 5-1, 4-3

CATALOG C-l

Character sets 2-3, A-l

CHARGE statement 4-5

Checkpoint 6-2, 4-2

COBOL SORT 6-1

Collating sequence 3-2, A-3

COMPARE 4-3

COPYSBF 4-4

CYBER Record Manager 1-3, 4-5

Data input 1-4

Data storage 1-4

Directives

BYTESIZE 4-1

END 4-1

EQUATE 4-3

FIELD 4-1

FILE 4-3

KEY 4-2

MERGE 4-1

OPTIONS 4-2

SEQUENCE 4-2

SORT 4-1

TAPE 4-3

OWNCODE 4-3

Display code 2-3, A-l

DUMP 4-2

Dumps, checkpoint 4-2, 6-1

EBCDIC 2-4

Examples 4-3, C-l

EXTRACT 4-3

Hollerith, Herman 1-1

Input preparation 2-1

INTBCD 3-2, 4-7

Merge order 3-4

NODUMP 4-2

NOS/BE C-l

OWN 4-3

OWNCODE 5-1

Permanent files

NOS 4-5

NOS/BE C-l

Record design 2-1, 6-1

RETAIN 4-2, 5-7

REQUEST C-l

SAVE 4-5

Sign overpunch codes 3-2

Singed numeric data 3-2

SORT directive example 4-4

SORT keys 3-1

SORT order 3-3

SORTMRG statement 4-1

Tag sort 6-2

Tape sort 6-2

USER statement 4-5

FILE statement 4-1, 4-5

FORM 1-4,4-8

FORTRAN calls 5-6, 6-2

Variable length records 2-2

VERIFY 4-2

VOLDUMP 4-2

60482900 A Index-1

0*^1

COMMENT SHEET

MANUAL TITLE: Sort/Merge Versions 4 and 1 User's Guide

PUBLICATION NO.: 60482900

REVISION: A

This form is not intended to be used as an order blank. Control Data Corporation

welcomes your evaluation of this manual. Please indicate any errors, suggested

additions or deletions, or general comments on the back (please include page number

references). °

Please reply

FOLD

No reply necessary

FOLD

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

FIRST CLASS

BUSINESS REPLY MAIL

PERMIT NO. 8241 MINNEAPOLIS, MINN.

POSTAGE WILL BE PAID BY

CONTROL DATA CORPORATION

Publications and Graphics Division

P.O . BOX 3 492

Sunnyvale, California 94088-3492

\— FOLD FOLD

NO POSTAGE STAMP NECESSARY IF MAILED IN U.S.A.

FOLD ON DOTTED LINES AND TAPE

NAME:

COMPANY:

STREET ADDRESS;

CITY/STATE/ZIP:

TAPE TAPE

v_-
