Spraying Equipment Product Guide

523 33 44

1300 745 826 silvan.com.au2

Turbomiser

Sprayers

Suntuff Series 200/400/500L 7

Compact Supaflo 1000L 8

Oktopus Sprayer 9

Supaflo Series 2000L 10

Stiletto Series 2000L 11

Stiletto Powerhead 2000L 12

Orchard Sprayer 3000L 13

Supaflo Series 3500L 14

G2E Supaflo Series 4000L 15

G2 Supaflo Series 4000L 16

Cannon Jet Sprayer 17

Powerhead Conveyor 18

SCRAM Jet/AVO Jet 18

Radak Conveyor 19

High Pressure pumps 20

Sprayer Options 22

P42E/P45E 400L 26

P50E 600L 27

P55DS 600L 28

P55DS 600L Airboom 29

P50E 1500/2000L 30

P55DS 2000L 31

Optional Turbomiser Heads 32

TGS Series 2000/3500L 36

TGS Series 3000L 37

G2E TGS Series 4000L 38

Turbowrap & Tri Wrap

2000/3500L 39

Turbowrap & Tri Wrap 3000L 40

G2E Turbowrap &

Tri Wrap 4000L 41

Turbo SCRAM Turbowrap &

Tri Wrap 2000/3500L 42

Turbo SCRAM Turbowrap &

Tri Wrap 4000L 43

300/400/600L EconoPak 46

400/600/800L PasturePak 47

800/1000L EconoMax 48

400/600L Super Series 49

800/1100L Super Series 50

1600/1900L Super Series 51

200/300/400L Slimline Series 52

800/1000L Slimline Series 53

Cane boom 600/800/1100L 54

Casotti 600/800/1100L 55

Air

Assist

Sprayers Overrow

SprayersLinkage

Sprayers

56 62 69 75

Spraying

Information

Booms &

Accessories

Guidance &

Accessories

Trailed Pasture Sprayer 63

Trailed Economy Pasture

Sprayer 64

Trailed Turf Sprayer 1000/2000L 65

Tray Mount Turf Sprayer 400L 66

Trailed Vineyard

Herbicide Sprayer 67

Trailed Orchard Herbicide 68

Vineyard & Orchard Booms 58

Field & Cane Booms 59

Devil Booms 60

Silmix, Foam Markers &

Hosereels 61

Monitors 70

Guidance Systems 71

Bravo Tree Sensor Kits/

IBX100 Isobus 72

Bravo Spray Rate Controllers 73

Electric Control Kits 74

Sled &

Trailed

Sprayers

Choosing the Right Pump 75

Nozzle Selection &

Output Chart 76

Air Assist/Turbomiser

Ordering Checklist 78

Terms and Conditions 79

Brisbane

Perth

Hamilton NZ

Sydney

Melbourne

head ofﬁce

AUSTRALIA & NEW ZEALAND

DEALER NETWORK

5 Silvan distribution centres with a national dealer network

SILVAN

Silvan was founded in 1962 and is devoted to those connected to the

land. A pioneer in the development and manufacture of agricultural

machinery to meet the needs of Australasia’s producers. Silvan

combines strong innovative management with a comprehensive

understanding of today’s agribusiness.

Quality, Reliability and Innovation - These values determine the way

Silvan operates and a commitment to the success of customers, partners,

investors and employees. Silvan embraces change and growth, facing the

challenges and opportunities of modern agriculture. More than 50 years

later, Silvan are still leaders in the agricultural market with Silvan’s

“Big Red Tanks” a constant in the Australasian agricultural landscape.

SILVAN SPRAYERS

A leader in the design of high and low volume horticultural sprayers,

Silvan has evolved into the largest Australasian manufacturer of world-

class crop protection sprayers and related machinery. Specialised

equipment has been developed for crops including vegetables,

grapes, apples, pears, citrus, bananas, olives, sugar cane and turf.

FARM MACHINERY

Silvan Australia’s farm machinery range comprises a broad selection from

the world’s most prominent manufacturers including; Nobili mulchers,

Breviglieri tillage equipment, Sitrex hayrakes and fertiliser spreaders.

Silvan also manufactures high quality agricultural implements including

rotary slashers, carryalls & post hole diggers.

1300 745 826 silvan.com.au4

Silvan’s range of Air Assist Sprayers

have been developed to meet the needs

of growers for greater efficiency, safety

and spray performance.

Air Assist

Sprayers

1300 745 826 silvan.com.au6

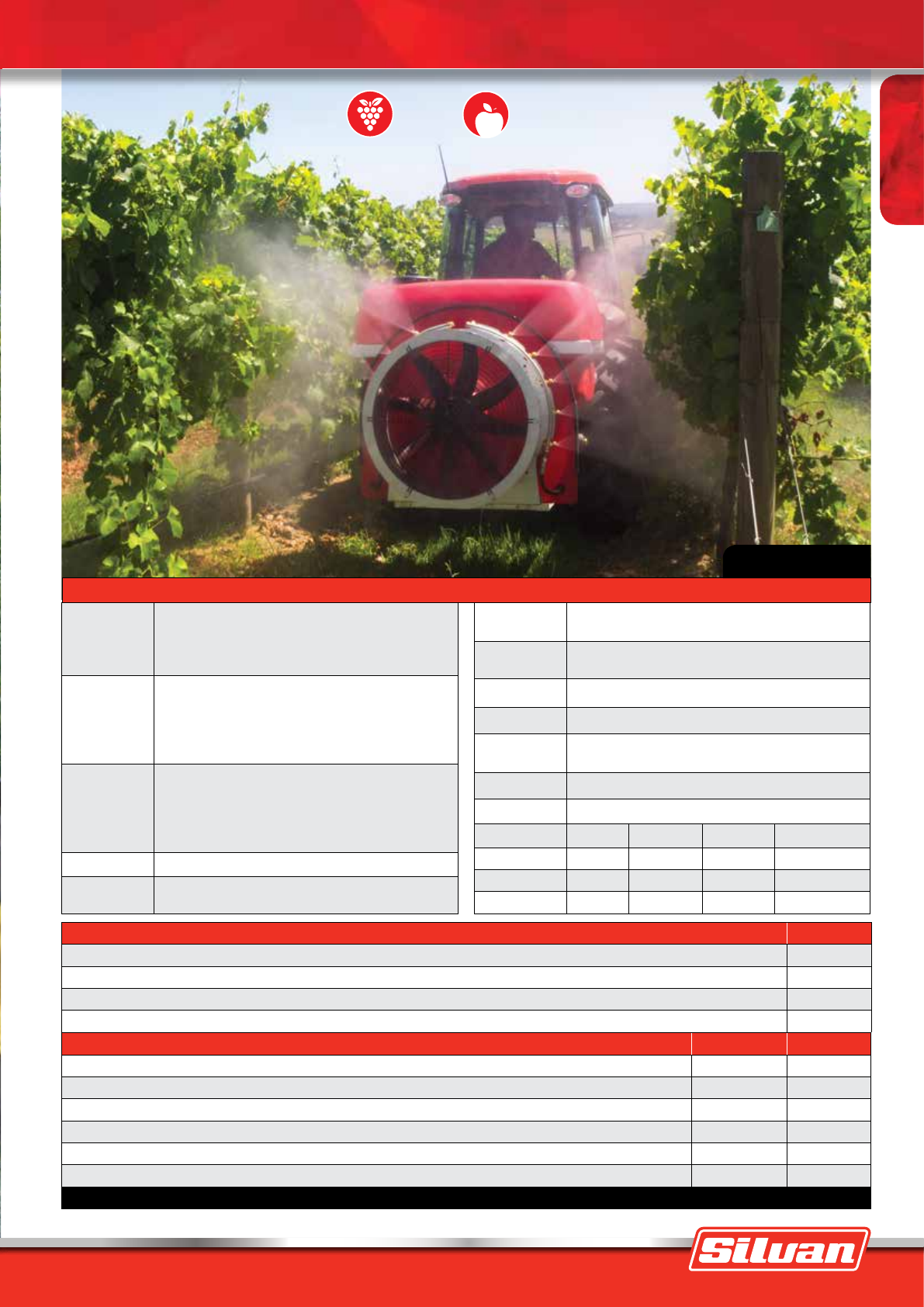

Hand wash tank.

Controls are simple and

easy to calibrate.

The axial flow fan has been designed

with curved blades to substantially

increase performance while using

less horsepower. Blade pitch can be

easily adjusted to obtain the desired

performance.

Polytuff UV stabilised,

impact resistant tank.

Galvanised chassis & frame

for longer working life.

Wide range of wheels to suit

application and soil conditions.

Single or two speed gearbox

with neutral position for

air volume adjustment.

Trailed units available with

single (fixed or suspension) axle

or tandem suspension axle for

increased stability.

Brass high pressure pumps fitted

as standard on trailed units.

Designed for professional agricultural use in orchards

and vineyards, Silvan’s air assist sprayers are fitted with

reliable and highly efficient air delivery systems.

The axial flow fan produces a high volume of air directed

deep into the canopy while avoiding damage to fruit

or blooms. Canopy penetration is not a question of air

velocity, but being able to displace the air that is already

in place, in and around the foliage.

Non-drip flip-over nozzles are accurately positioned

within the airstream to direct the atomised spray into

the canopy, creating an even and consistent droplet size.

This improved airstream penetrates to the heart of

the canopy and reaching the highest parts of the tree.

It provides excellent coverage of upper and lower leaf

surfaces.

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast anodised aluminium body.

APS71: 67L/min. capacity 5000kPa pressure

APS96: 88L/min. capacity 5000kPa pressure.

FAN SIZE

Axial flow type, fan with curved nylon reinforced blades,

galvanised cowling and protective mesh cover.

600mm with 8 blades on 200L unit

700mm with 8 blades on 400L unit

800mm with 10 blades on 500L unit

NOZZLES

Flip-over type for dilute/concentrate spraying, ceramic jets,

stainless steel swirl-plates.

200L unit: 10 nozzles (5 per side) twist on/off

400L unit: 12 flip over nozzles (6 per side) twist on/off

500L unit: 14 flip over nozzles (7 per side) twist on/off

GEARBOX Single-speed with neutral position, oil-bath type.

CONTROLS 3 outlet with pressure regulator. 400/500L models standard

with extra length hoses - for tractor control mount.

TANK Polytuff, impact resistant, polyethylene construction

with litre calibrations, non-spill screw-down lid.

FRAME Galvanised steel, suit cat I & II linkage

(200L cat I linkage only)

AGITATION 200L: bypass, 400L / 500L: dual bypass

PRESSURE GAUGE Glycerine filled gauge, located on the control valve.

FILTRATION Lid strainer, suction line strainer and stainless steel nozzle

filters.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

HP REQUIRED 200/400L: Minimum 25 PTO HP, 500L: Minimum 40 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DO26-71 1070 1000 1060 90

DO47-71 1330 1190 1200 134

DO58-96 1400 1190 1325 140

MODEL SPECIFICATIONS

MODEL DESCRIPTION CODE

SUNTUFF 200L: APS71 Pump, 600mm fan D026-71

SUNTUFF 400L: APS71 Pump, 700mm fan D047-71

SUNTUFF 500L: APS96 Pump, 800mm fan D058-96

SUNTUFF 500L: APS96 Pump, 800mm fan, electric controls D058-96E

DEALER FITMENT OPTIONS FAN SIZE (MM) CODE

One - sided conveyor 800 D99-99

Two - sided deflector 600 D99-98

Two - sided deflector 700 D99-92B

Two- sided conveyor 700 D99-177

Two - sided deflector 800 D99-100

Bottom air deflectors 600/700/800 D99-63

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

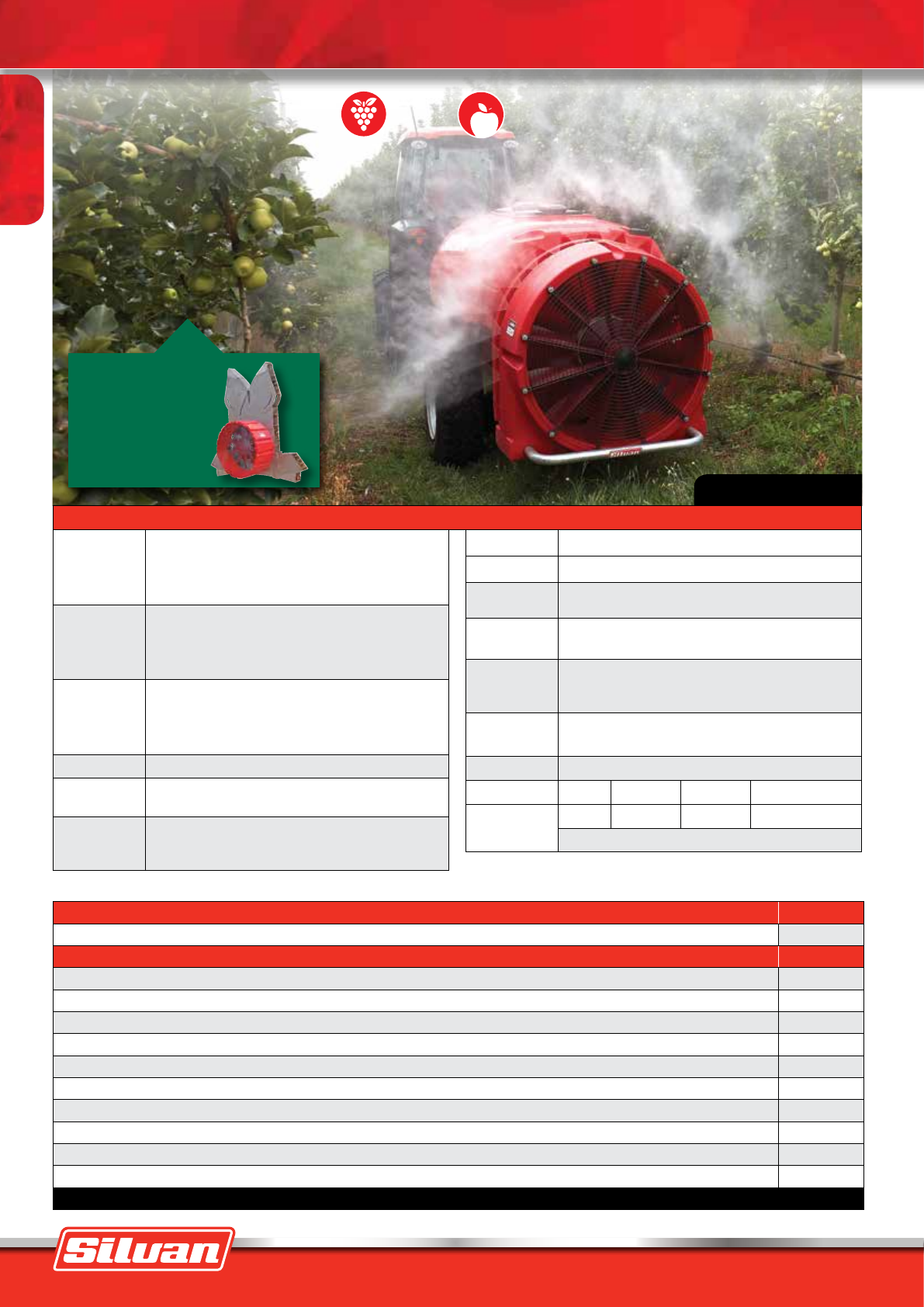

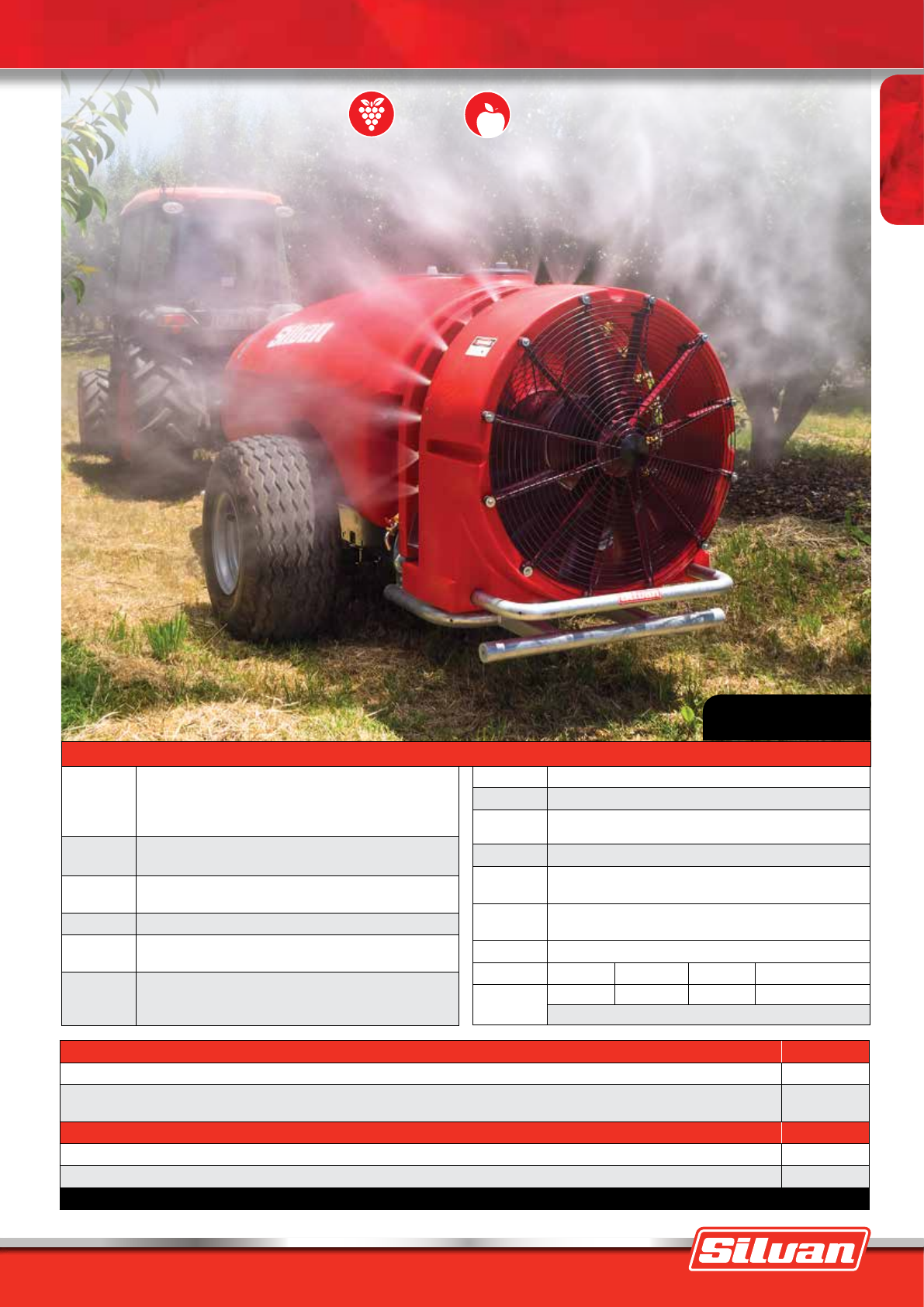

Pictured: 400L Suntuff

Orchards

Vineyards

Linkage Suntuff

1300 745 826 silvan.com.au8

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

and corrosion resistant, cast anodised aluminium body

with brass heads and manifold.

IDS960:93L/min. capacity, 5000kPa pressure.

IDS1401:135L/min. capacity, 5000kPa pressure.

FAN SIZE 700mm axial flow type, 8 bladed fan with curved nylon

reinforced blades and protective mesh cover.

NOZZLES

Flip-over type for dilute/concentrate spraying. Ceramic

HCC nozzles. 12 double sided nozzles (6 per side) twist

on/off.

GEARBOX Single speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves, master valve, electric

pressure regulator and in-cab controls.

MAIN TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, flip-top easy open lid,

40mm drain valve.

FLUSH TANK 80L flush tank with top fill. Used to flush pump, filter,

spray lines and nozzles.

HAND WASH TANK 15L fresh water hand wash tank.

FRAME Galvanised steel with jockey wheel

and adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE 100mm, 0-60 bar glycerine filled gauge

with bar increments.

FILTRATION Lid strainer and suction line filter.

WHEEL EQUIPMENT 50mm Duraflex axle. 2 x 15” tubeless tyres on painted

rims (speed rating 30 km/h).

PTO DRIVESHAFT Quality driveshaft with quick release pins and

safety cover.

HP REQUIRED Minimum 40 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

AB11AF8R

2860 1100 1500 300

Length measured with drawbar in shortest position.

MODEL DESCRIPTION CODE

SUPAFLO 1000L: IDS960 pump, 700mm fan & electric valve controls AB11AF8R

FACTORY OPTIONS CODE

IDS1401 pump, 135L/min. capacity, 5000kPa pressure D99-179

Two-sided deflector D99-92B

Two- sided conveyor D99-177

Bottom air deflectors D99-63

Wide axle (1400mm) D99-178

Bravo 180S automatic rate controller D99-143

Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

Orchards

Vineyards

Pictured: 1000L Compact Supaflo

with two- sided conveyor

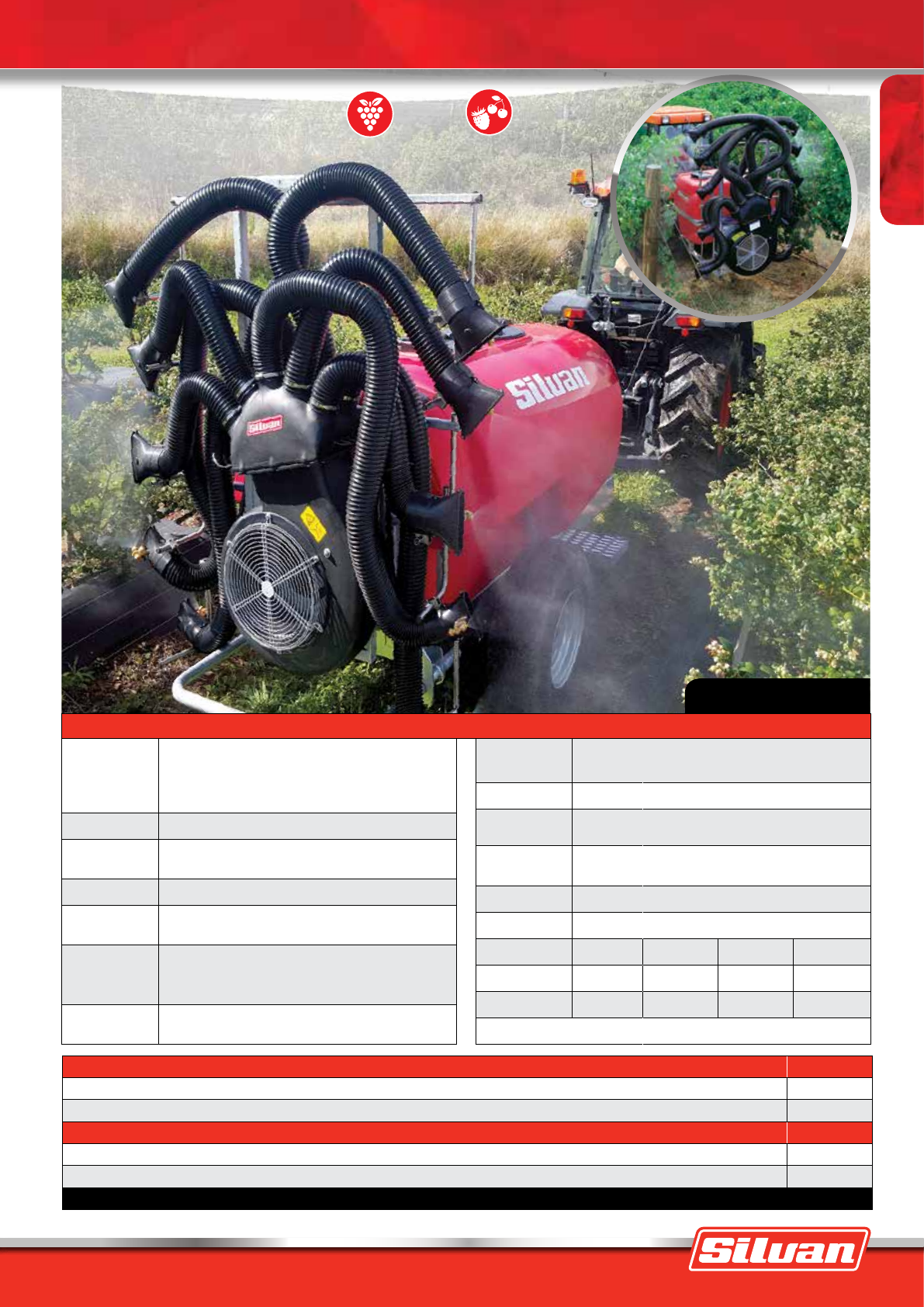

Trailed Compact Supaﬂo 1000L

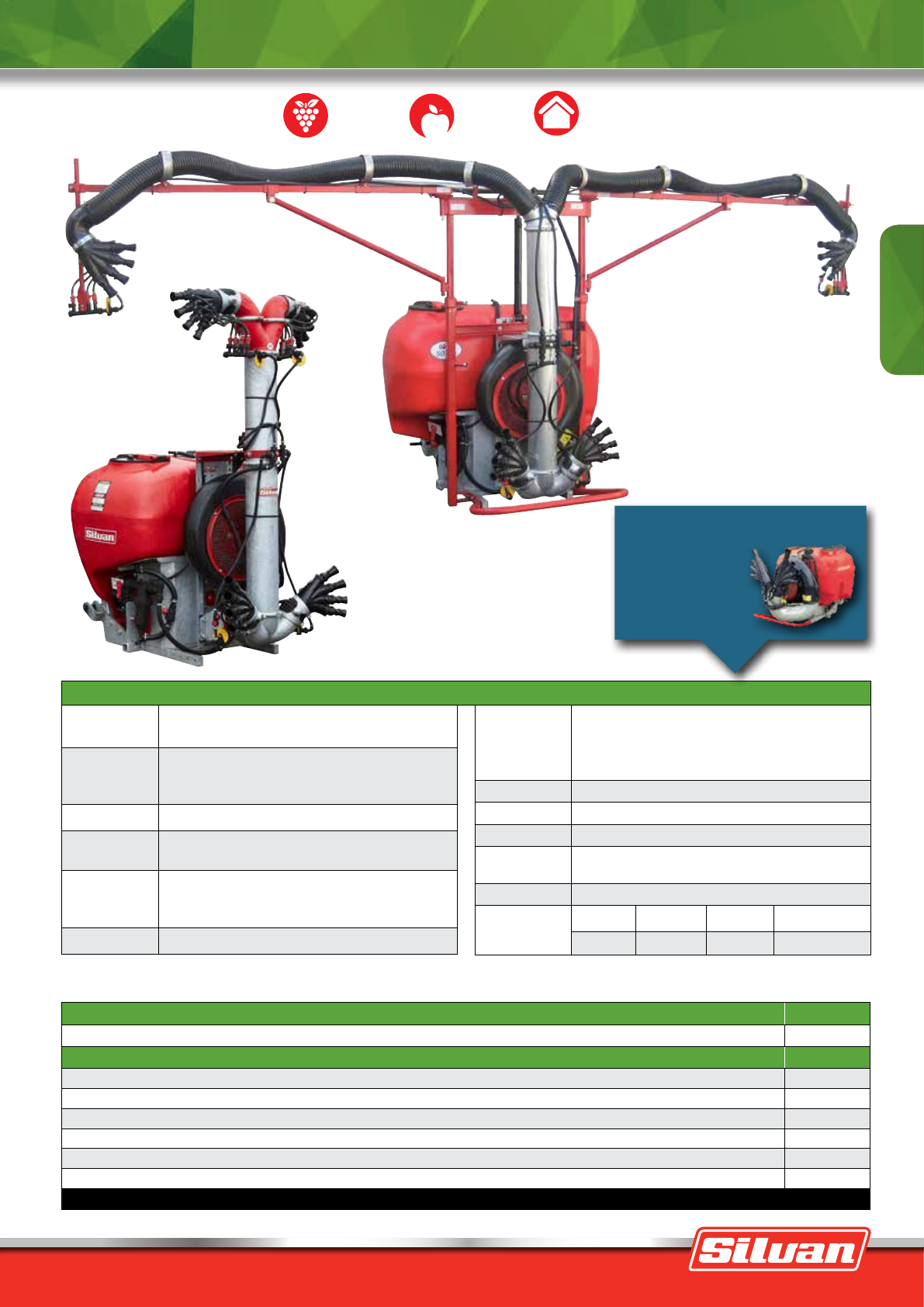

Berries

Vineyards

PUMP

Silvan oil-backed diaphragm type with nitrile

diaphragms, corrosion resistant, cast anodised aluminium

body. APS96: 88L/min. capacity, 5000kPa pressure

APS121:115L/min capacity, 5000kPa pressure.

FAN SIZE 450mm diameter turbine fan, 10 fishtail outlets.

NOZZLES Flip-over type for dilute/concentrate spraying with ceramic

hollow cone nozzles and 10 nozzles (5 per side) twist on/off.

GEARBOX Two speed with neutral position, oil-bath type.

CONTROLS 40 bar electric section valves, master valve, electric

pressure regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill lid. 40 litre fresh water tank

fitted to 2000L unit.

FRAME 500L: Galvanised steel, suit cat I & II linkage

2000L: Galvanised steel with jockey wheel & adjustable drawbar.

AGITATION 500L: Dual bypass.

2000L: Pump bypass plus venturi agitator.

PRESSURE GAUGE 100mm, 0-60 bar glycerine filled gauge with bar increments.

FILTRATION Lid strainer, suction line strainer and stainless steel

nozzle filters.

2000L WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality driveshaft with quick release pins and safety cover.

HP REQUIRED Minimum 50HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

D05SLV-96 1400 1190 2500 140

D20SLV-121EGL 3750 1540 2500 640

Length measured with drawbar in shortest position.

MODEL DESCRIPTION CODE

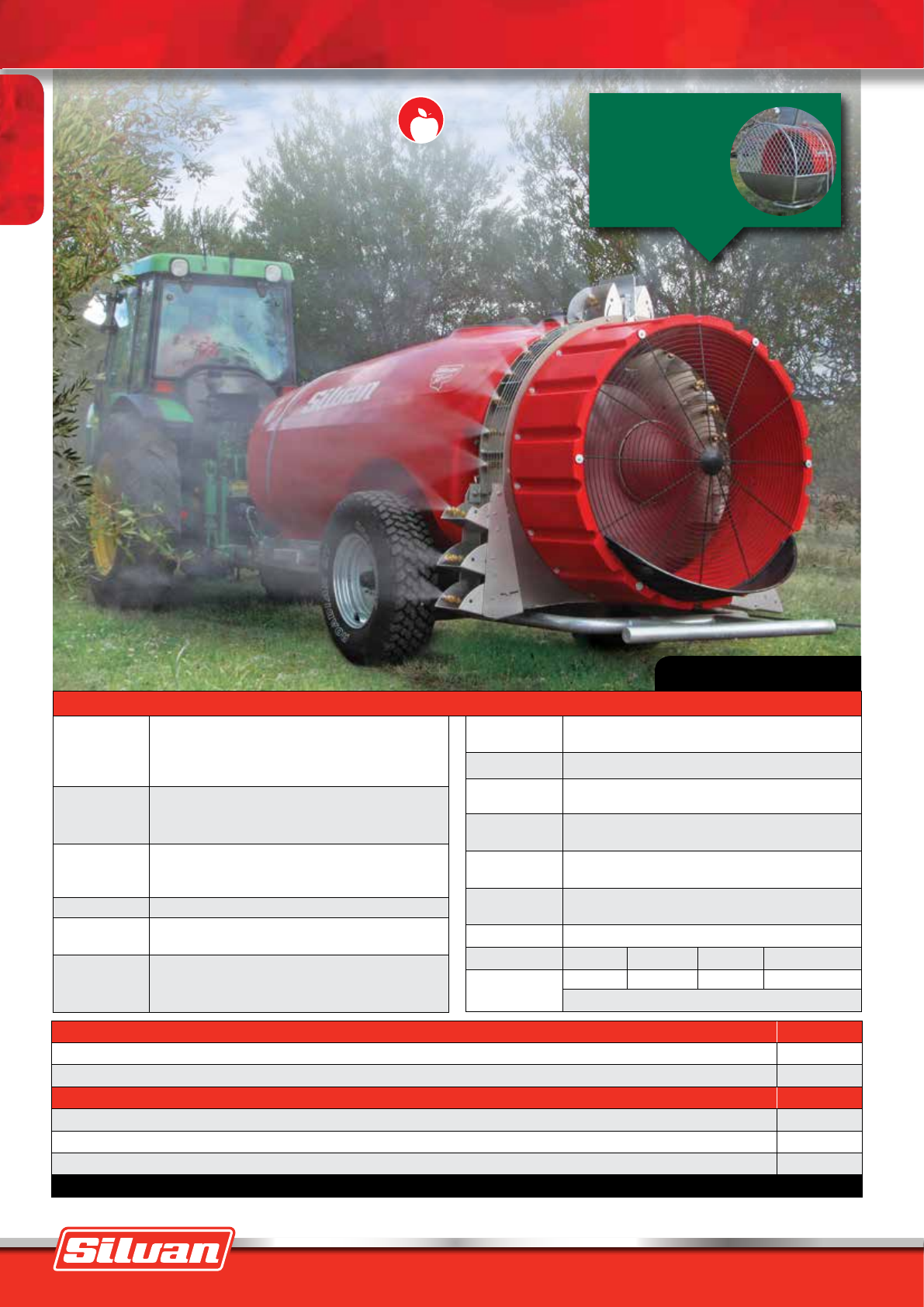

OKTOPUS 500L LINKAGE: APS96 pump, Oktopus fan, electric valve controls D05SLV-96

OKTOPUS 2000L TRAILED: APS121 pump, Oktopus fan, electric valve controls, Glideflex axle D20SLV-121EGL

FACTORY OPTIONS CODE

Bravo 180S automatic rate controller D99-143

Flotation tyres - 400/60 x 15.5” with fixed axle (in lieu of standard singles) D99-80

Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

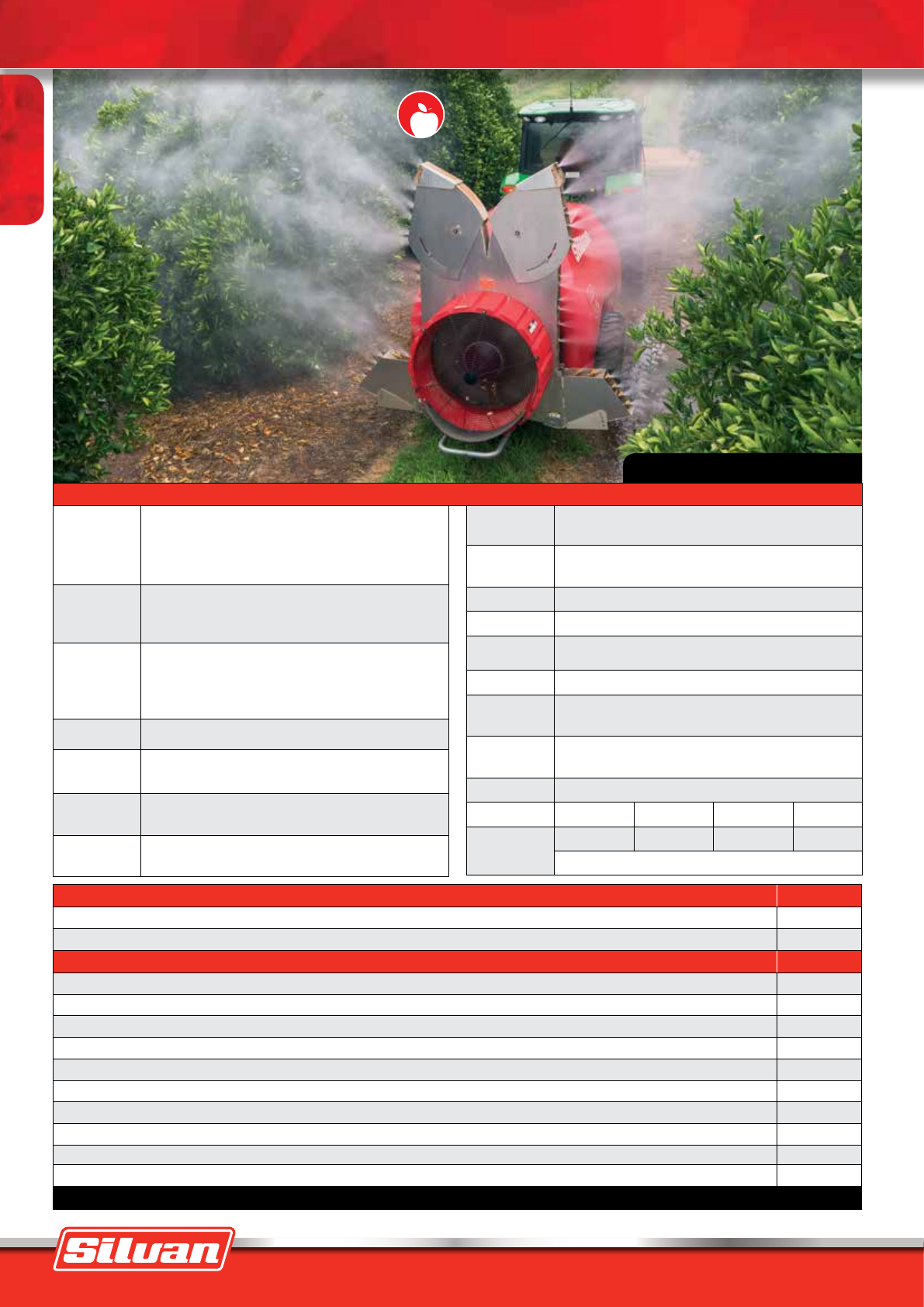

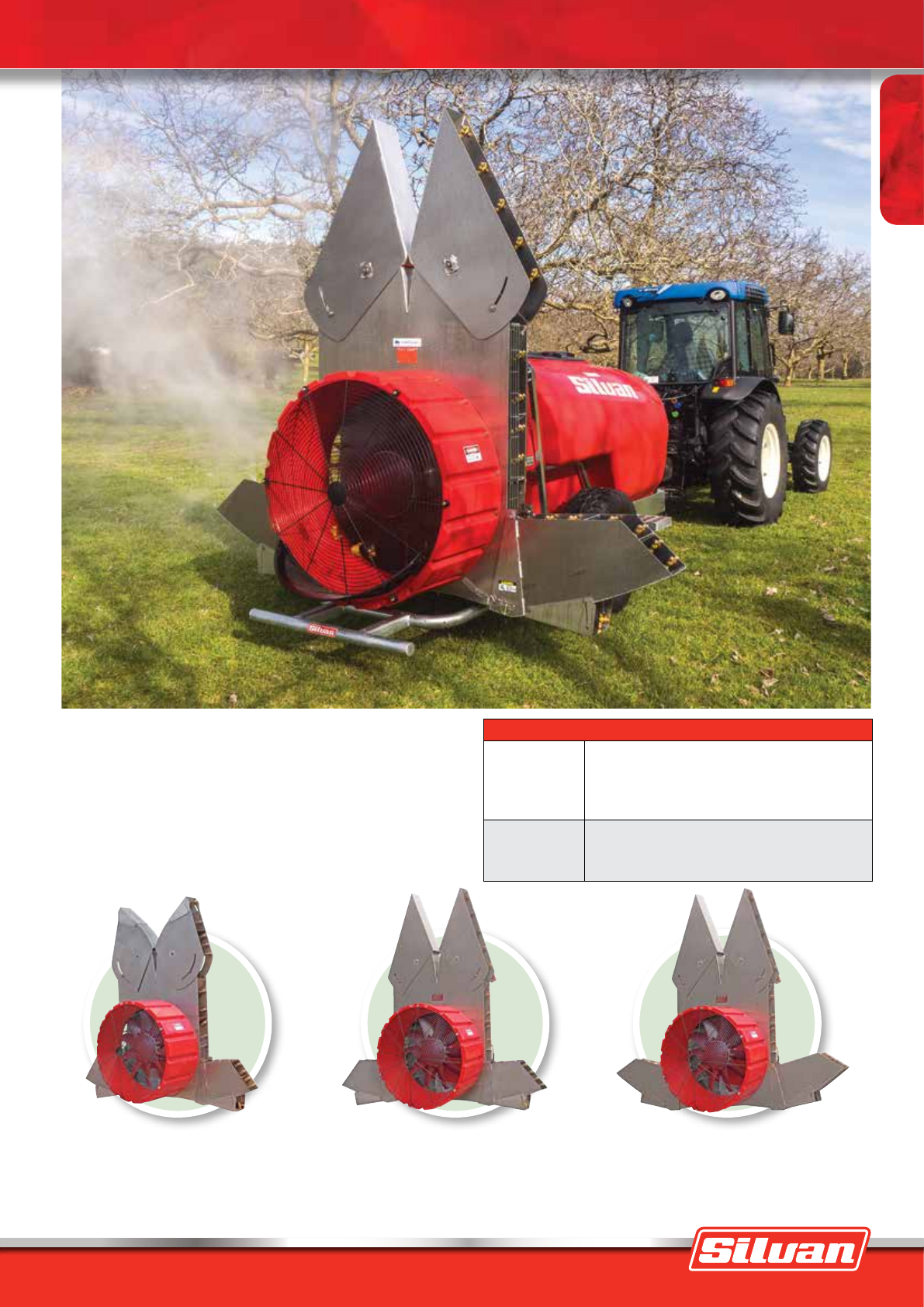

Pictured: 2000L Oktopus

Trailed Compact Supaﬂo 1000L Oktopus Sprayer

1300 745 826 silvan.com.au10

FRAME Galvanised steel with jockey wheel & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE 100mm, 0-60 bar glycerine filled gauge with bar increments.

FILTRATION Lid strainer, suction line strainer & stainless steel

nozzle filters.

WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 60 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DAB23AF8G 3750 1540 1530 640

Length measured with drawbar in shortest position.

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast anodised aluminium body with brass

heads and manifold.

IDS1701:161L/min. capacity, 5000kPa pressure.

FAN SIZE

900mm axial flow type, 10 bladed fan with curved nylon

reinforced blades, air straightening vanes and protective mesh

cover. Powerhead & Radak fitted with 920mm axial flow type,

10 bladed fan, centrifugal clutch and protective mesh cover.

NOZZLES

Flip-over type for dilute/concentrate spraying. Ceramic jets,

stainless steel swirl-plates. 16 double sided nozzles (8 per

side) twist on/off. The Powerhead has 24 double sided nozzles

(12 per side) and the Radak has 32 (16 per side).

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 bar electric section valves, master valve, electric pressure

regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, flip-top easy open lid, 40mm drain valve

and built-in chemical mixer. 40L fresh water hand wash tank.

MODEL DESCRIPTION CODE

SUPAFLO 2000L: IDS1701 pump, 900mm fan, electric valve controls, wide angle shaft & Glideflex axle DAB23AF8G

FACTORY OPTIONS CODE

Powerhead Conveyor (in lieu of standard fan cowling) D99-184

Radak Conveyor - Manual adjustment of top and bottom wings (In lieu of standard fan cowling) D99-135

Hydraulic kit for Radak Conveyor (top wings) D99-155B

SCRAM Jet (to suit Radak Conveyor) D99-180

One sided conveyor D99-41

Leaf guard (to suit Powerhead & Radak) D99-175

Twin nozzle (includes extra nozzles) D99-182

Two-sided poly vineyard conveyor D99-111

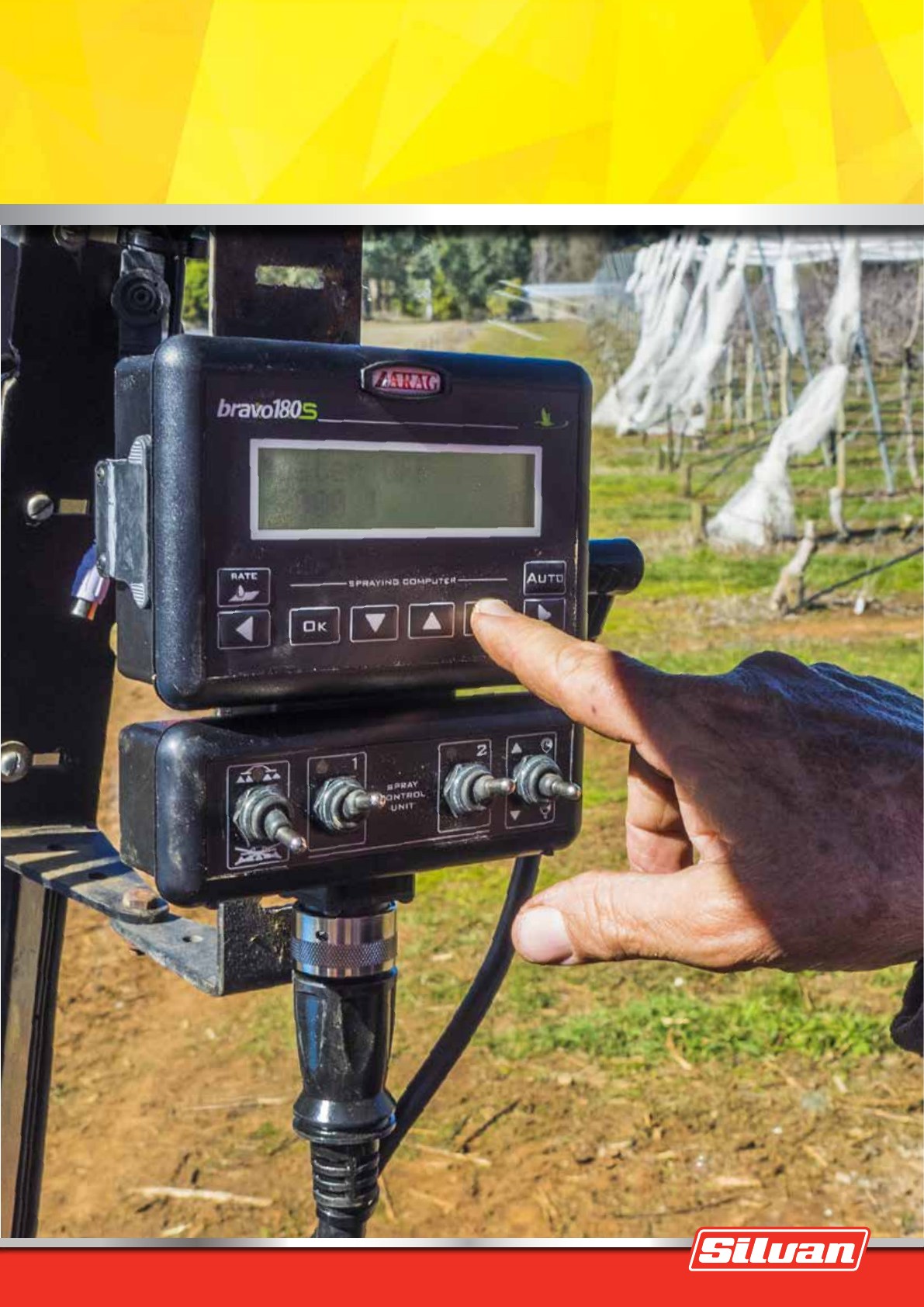

Bravo 180S automatic rate controller D99-143

Flotation tyres - 400/60 x 15.5” with fixed axle (in lieu of standard singles) D99-80

Note: Not all options will fit all models. Extra charges may apply to fitting of some options. Fitting of Powerhead & Radak includes upgrade to 920mm fan and uprated gearbox

MODEL SPECIFICATIONS

Pictured: 2000L Supaflo

FOR MORE

INFORMATION

ON THE RADAK

CONVEYOR

SEE PAGE 19

Orchards

Vineyards

Trailed Supaﬂo 2000L

FRAME Galvanised steel with jockey wheel & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE

GAUGE 100mm, 0-60 bar glycerine filled gauge with bar increments.

FILTRATION Lid strainer, suction line strainer and stainless steel nozzle filters.

WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on galvanised

rims (max speed rating 30 km/h).

PTO

DRIVESHAFT

Quality Bondioli & Pavesi driveshaft with quick release pins &

safety cover.

HP REQUIRED Minimum 60 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DST23AF8G 3800 1540 1500 640

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast anodised aluminium body with brass

heads and manifolds.

IDS1701: 161L/min. capacity 5000kPa pressure.

FAN SIZE 900mm axial flow type, 10 bladed fan with curved nylon reinforced

blades, air straightening vanes and protective mesh cover.

NOZZLES Flip-over type for dilute/concentrate spraying. Ceramic jets,

stainless steel swirl-plates, 16 nozzles with twist on/off.

GEARBOX Oil-bath type, 2-speed with neutral position.

CONTROLS 40 bar electric section valves, master valve, electric pressure

regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, easy open lid, 40mm drain valve and built-in

15L fresh water tank.

MODEL SPECIFICATIONS

MODEL DESCRIPTION CODE

STILETTO 2000L: IDS1701 pump, 900mm fan, electric valve controls, Glideflex axle, wide angle shaft DST23AF8G

STILETTO 2000L: IDS1701 pump, 900mm fan, Glidefex axle, wide angle shaft,

Bravo 180S automatic rate controller DST23AB8G

FACTORY OPTIONS CODE

Twin nozzles (includes extra nozzles) D99-182

Flotation tyres - 400/60 x 15.5” with fixed axle (in lieu of standard singles) D99-80

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

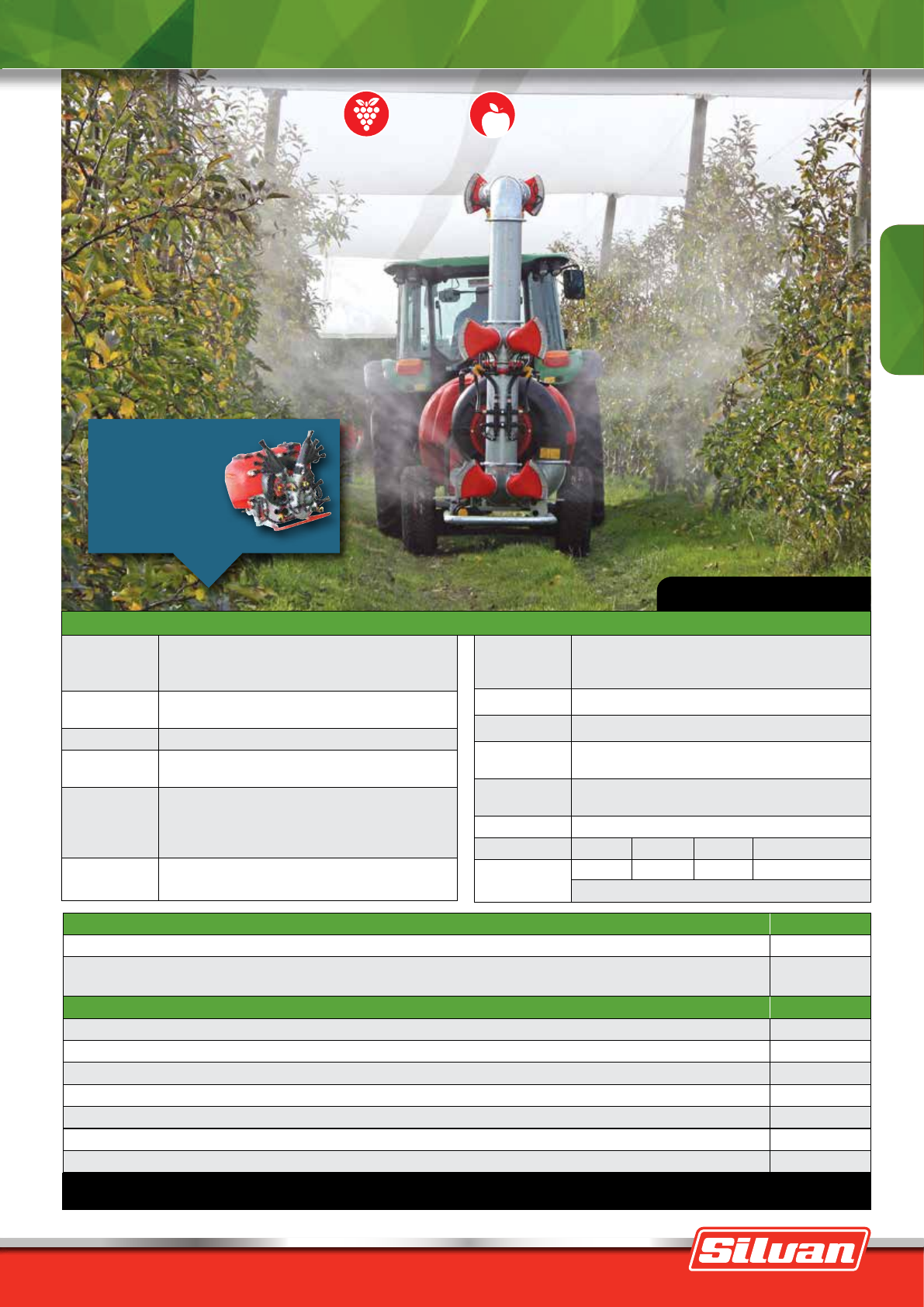

Pictured: 2000L Stiletto with

optional flotation tyres

Orchards

Vineyards

Trailed Supaﬂo 2000L Trailed Stiletto 2000L

1300 745 826 silvan.com.au12

MODEL SPECIFICATIONS

FRAME Galvanised steel with jockey wheel and

adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE 100mm, 0-60 bar glycerine filled gauge with bar increments.

FILTRATION Lid strainer, suction line strainer and stainless steel nozzle

filters.

WHEEL

EQUIPMENT

Glideflex suspension axle with 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity driveshaft with

quick release pins & safety cover.

HP REQUIRED Minimum 70 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DST23PF8G 4100 1700 1500 680

Length measured with drawbar in shortest position.

MODEL DESCRIPTION CODE

STILETTO 2000L:

IDS1701 pump, 920mm Powerhead fan, electric valve controls, Glideflex axle, wide angle shaft

DST23PF8G

STILETTO 2000L: IDS1701 pump, 920mm Powerhead fan, Glideflex axle, wide angle shaft, Bravo 180S automatic rate controller DST23PB8G

FACTORY OPTIONS CODE

Leaf guard (to suit Powerhead) D99-175

Twin nozzles (includes extra nozzles) D99-182

Flotation tyres - 400/60 x 15.5” with fixed axle (in lieu of standard singles) D99-80

Note: Not all options will fit all models.Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast anodised aluminium body with brass

heads and manifolds.

IDS1701: 161L/min. capacity 5000kPa pressure.

FAN SIZE

920mm axial flow type, 10 bladed fan with curved nylon

reinforced blades, centrifugal clutch for soft engagement/

disengagement and protective mesh cover.

NOZZLES

24 flip-over nozzle bodies for dilute/concentrate spraying

with on/off. 12 ceramic hollow cone nozzles per side and

12 ceramic jets with stainless steel swirl-plates per side.

GEARBOX Oil-bath type, 2-speed with neutral position.

CONTROLS 40 bar electric section valves, master valve, electric

pressure adjustment and in cab control.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, easy open lid, 40mm drain valve,

built-in 15L fresh water tank and chemical mixer.

MODEL SPECIFICATIONS

Pictured: 2000L Stiletto Powerhead

FOR MORE

INFORMATION ON

THE LEAF GUARD

SEE PAGE 22

Orchards

Trailed Stiletto Powerhead 2000L Trailed 3000L Orchard Sprayer

Orchards

Trailed Stiletto Powerhead 2000L

MODEL DESCRIPTION CODE

SUPAFLO 3000L: IDS2001 pump, 920mm Powerhead fan, electric valve controls, Glideflex axle AB64PF7G

SUPAFLO 3000L: IDS2001 pump, 920mm Radak fan, electric valve controls, Glideflex axle AB64RF7G

FACTORY OPTIONS CODE

Hydraulic kit for Radak Conveyor (top wings) D99-155B

SCRAM Jet (to suit Radak conveyor) D99-180

Leaf guard (to suit Powerhead & Radak) D99-175

Twin nozzles (includes extra nozzles) D99-182

Bravo 180S automatic rate controller D99-143

BKT flotation tyres - 558-400/55 - 22.5 (in lieu of standard singles) D99-79

IDS2600 pump,249L/min. capacity, 5000kPa pressure D99-149

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

and corrosion resistant, cast aluminium body with brass

heads and manifolds.

IDS2001: 182L/min. capacity 5000kPa pressure.

FAN SIZE

920mm axial flow type, 10 bladed fan with curved nylon

reinforced blades, centrifugal clutch for soft engagement/

disengagement and protective mesh cover.

NOZZLES

24 flip-over nozzle bodies for dilute/concentrate spraying

with on/off. 12 ceramic hollow cone nozzles per side and

12 ceramic jets with stainless steel swirl-plates per side.

(16 per side with Radak conveyor).

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves with master valve, electric

pressure regulator and in cab controls.

MAIN TANK 3400L polytuff impact resistant polyethylene construction,

calibrated sightline, flip top lid, 50mm camlock bottom fill.

FLUSH TANK 205L polytuff tank with top fill. Used to flush pump, filter,

spray lines and nozzles.

HAND WASH TANK 55L polytuff tank with top fill.

CHEMICAL

INDUCTION Venturi suction probe.

FRAME Galvanised steel, heavy duty stand & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE

Glycerine filled gauge located on valve bank.

FILTRATION Suction line filter, pressure filter, nozzle cup strainers.

WHEEL EQUIPMENT Glideflex axle with 16” implement tyres

(speed rating 30km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity driveshaft

with quick release pins & safety cover.

HP REQUIRED Minimum 80 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

AB64PF7G 3995 1755 1800 1000 (approx)

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

FOR MORE

INFORMATION ON

TWIN NOZZLES

SEE PAGE 22

Trailed 3000L Orchard Sprayer

Pictured: 3000L unit with Radak

conveyor and optional leaf guard

1300 745 826 silvan.com.au14

MODEL DESCRIPTION CODE

SUPAFLO 3500L: IDS1701 pump, 900mm fan, electric valve controls, Glideflex axle DAB33AF7G

SUPAFLO 3500L: IDS2600 pump, 900mm fan, electric valve controls, Glideflex axle DAB36AF7G

FACTORY OPTIONS CODE

Powerhead Conveyor (in lieu of standard fan cowling) D99-184

Radak Conveyor - Manual adjustment of top and bottom wings (In lieu of standard fan cowling) D99-135

SCRAM Jet (to suit Radak conveyor) D99-180

Hydraulic kit for Radak Conveyor (top wings) D99-155B

Leaf guard (to suit Powerhead & Radak) D99-175

Two-sided poly vineyard conveyor D99-111

Twin nozzles (includes extra nozzles) D99-182

Bravo 180S automatic rate controller D99-143

BKT flotation tyres 558-400/55 - 22.5 (in lieu of standard singles) D99-79

Tandem suspension axle with 10 x 15” wheels D99-75

Note: Not all options will fit all models. Extra charges may apply to fitment of some options. Fitment of Powerhead & Radak includes upgrade to 920mm fan & uprated gearbox

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

and corrosion resistant, anodised cast aluminium body

with brass heads and manifolds.

IDS1701: 161L/min. capacity, 5000kPa pressure.

IDS2600: 249L/min. capacity, 5000kPa pressure.

FAN SIZE

900mm axial flow type, 10 bladed fan with curved nylon

reinforced blades with air straightening vanes and

protective mesh cover. Powerhead and Radak fitted with

920mm axial flow type, 10 bladed fan, centrifugal clutch

and protective mesh cover.

NOZZLES

Flip-over type for dilute/concentrate spraying. Ceramic

jets, stainless steel swirl-plates. 16 double sided nozzles

(8 per side) twist on/off. The Powerhead has 24 double sided

nozzles (12 per side) and the Radak has 32 (16 per side).

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves with master valve,

electric pressure regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, built-in chemical mixer and

40L fresh water hand wash tank.

FRAME Galvanised steel with jockey wheel and

adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE Glycerine filled gauge located on valve bank.

FILTRATION Lid strainer, suction line filter and nozzle cup strainers.

WHEEL EQUIPMENT Glideflex suspension axle fitted with 16” tyres and

galvanised rims (speed rating 30km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity driveshaft

with quick release pins & safety cover.

HP REQUIRED Minimum 80 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DAB33AF7G

4755 1830 1800 800

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

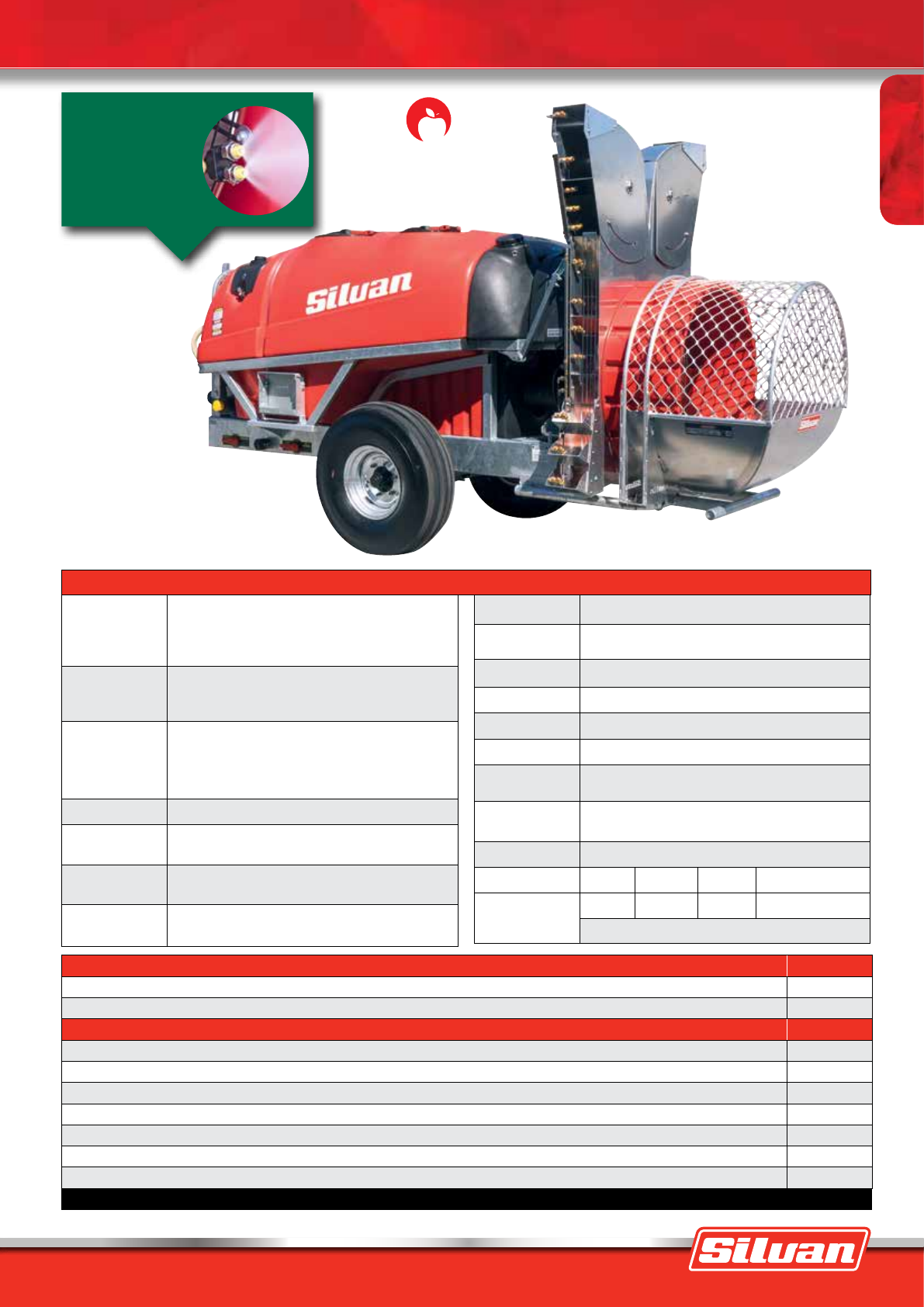

Pictured: 3500L Supaflo with

optional Powerhead conveyor

Orchards

Trailed G2E 4000LTrailed Supaﬂo 3500L

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast aluminium body with brass heads &

manifolds. IDS1701:161L/min. capacity, 5000kPa pressure.

FAN SIZE

920mm axial flow type,10 bladed fan with curved nylon

reinforced blades, centrifugal clutch for soft engagement/

disengagement and protective mesh cover.

NOZZLES

24 flip-over nozzle bodies for dilute/concentrate spraying with

on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic

jets with stainless steel swirl plates per side. (16 per side with

the Radak conveyor).

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves with master valve, electric

pressure regulator and in cab controls.

MAIN TANK Polytuff impact resistant polyethylene construction with

calibrated sight line. 50mm Camlock top & bottom fill.

HAND

WASH TANK

15L polytuff tank filled through cap.

Located next to bottom fill.

MODEL DESCRIPTION CODE

SUPAFLO G2E 4000L: IDS1701 pump, 920mm Powerhead fan, electric valve controls, Glideflex axle EAB43PF2G

SUPAFLO G2E 4000L: IDS1701 pump, 920mm Radak fan, electric valve controls, Glideflex axle EAB43RF2G

FACTORY OPTIONS CODE

Hydraulic kit for Radak Conveyor (top wings) D99-155B

SCRAM Jet (to suit Radak conveyor) D99-180

AVO Jet (to suit Radak conveyor) D99-187

Leaf guard (to suit Powerhead & Radak) D99-176

Twin nozzles (includes extra nozzles) D99-182

Bravo 180S automatic rate controller D99-143

Tandem suspension axle with 11.5/80 - 15.3 tyres D99-78

BKT flotation tyres - 558-400/55 - 22.5 (in lieu of singles) D99-79

IDS2001 pump,182L/min. capacity, 5000kPa pressure D99-148

IDS2600 pump,249L/min. capacity, 5000kPa pressure. D99-149

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

CHEMICAL

INDUCTION Venturi suction probe.

FRAME Galvanised steel, heavy duty stand & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE

GAUGE Glycerine filled gauge located on valve bank.

FILTRATION Suction line filter, pressure filter, nozzle cup strainers.

WHEEL

EQUIPMENT

Glideflex axle with 13.0/65 - 18” implement tyres

(speed rating 30km/h).

PTO

DRIVESHAFT

Quality Bondioli & Pavesi constant velocity driveshaft with

quick release pins & safety cover.

HP REQUIRED Minimum 80 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

EAB43PF2G

5050 1880 2020 1220

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

FOR MORE

INFORMATION

ON THE AVO JET

SEE PAGE 18

Orchards

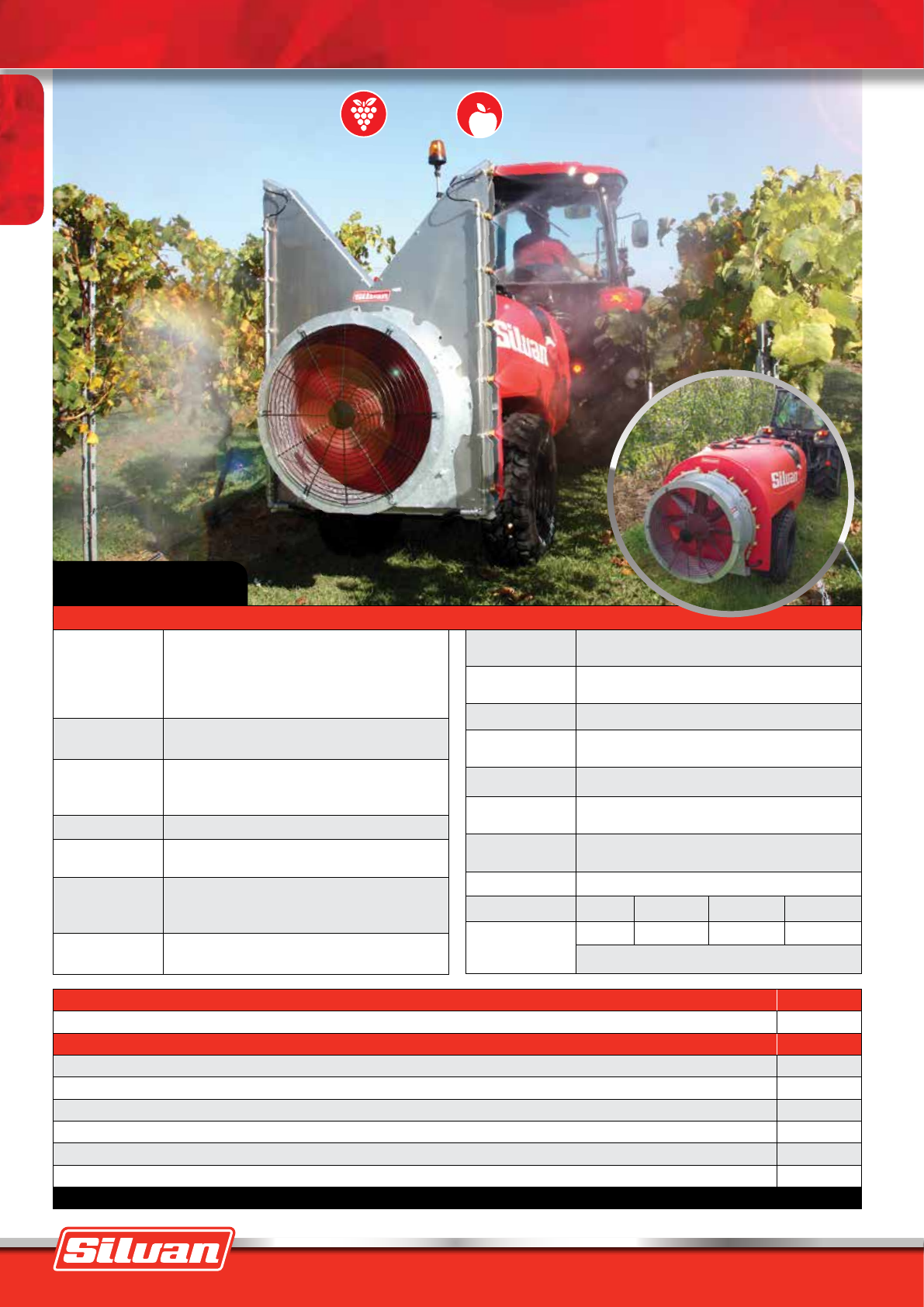

Pictured: 4000L G2E with Radak

Trailed G2E 4000LTrailed Supaﬂo 3500L

1300 745 826 silvan.com.au16

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms and

corrosion resistant, cast aluminium body with brass heads and

manifolds.

IDS1701:161L/min. capacity, 5000kPa pressure.

FAN SIZE

920mm axial flow type, 10 bladed fan with curved nylon

reinforced blades, centrifugal clutch for soft engagement/

disengagement and protective mesh cover.

NOZZLES

24 flip-over nozzle bodies for dilute/concentrate spraying with

on/off. 12 Ceramic hollow cone nozzles per side and 12 ceramic

jets with stainless steel swirl plates per side. (16 per side with

the Radak conveyor).

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves with master valve, electric

pressure regulator and in cab controls.

MAIN TANK Polytuff impact resistant polyethylene construction with

calibrated sight line. 50mm Camlock top & bottom fill.

FLUSH TANK 330L polytuff tank with top fill. Used to flush pump, filter,

spray lines and nozzles.

MODEL DESCRIPTION CODE

SUPAFLO G2 4000L: IDS1701 pump, 920mm Powerhead fan, electric valve controls, Glideflex axle AB43PE2G

SUPAFLO G2 4000L: IDS1701 pump, 920mm Radak fan, electric valve controls, Glideflex axle AB43RE2G

FACTORY OPTIONS CODE

Hydraulic kit for Radak Conveyor (top wings) D99-155B

SCRAM Jet (to suit Radak conveyor) D99-180

AVO Jet (to suit Radak conveyor) D99-187

Leaf guard (to suit Powerhead & Radak) D99-176

Twin nozzles (includes extra nozzles) D99-182

Bravo 180S automatic rate controller D99-143

Tandem suspension axle with 11.5/80 - 15.3 tyres D99-78

BKT flotation tyres - 558-400/55 - 22.5 (in lieu of singles) D99-79

IDS2001 pump,182L/min. capacity, 5000kPa pressure. D99-148

IDS2600 pump,249L/min. capacity, 5000kPa pressure. D99-149

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

HAND WASH

TANK

60L polytuff tank filled through cap. Tap located next to

chemical mixer hopper.

MIXER TANK Chemical mixer hopper with tap controls for rinse, transfer and

main tank rinse. Venturi transfer back to main tank.

FRAME Galvanised steel, heavy duty stand & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE

GAUGE Glycerine filled gauge located on valve bank.

FILTRATION Suction line filter, pressure filter, nozzle cup strainers.

WHEEL

EQUIPMENT

Glideflex axle with 13.0/65 - 18” implement tyres

(speed rating 30km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity driveshaft with

quick release pins & safety cover.

HP REQUIRED Minimum 80 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

AB43PE2G 5550 1880 2020 1400

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

Orchards

Pictured: 4000L G2 Supaflo with Radak

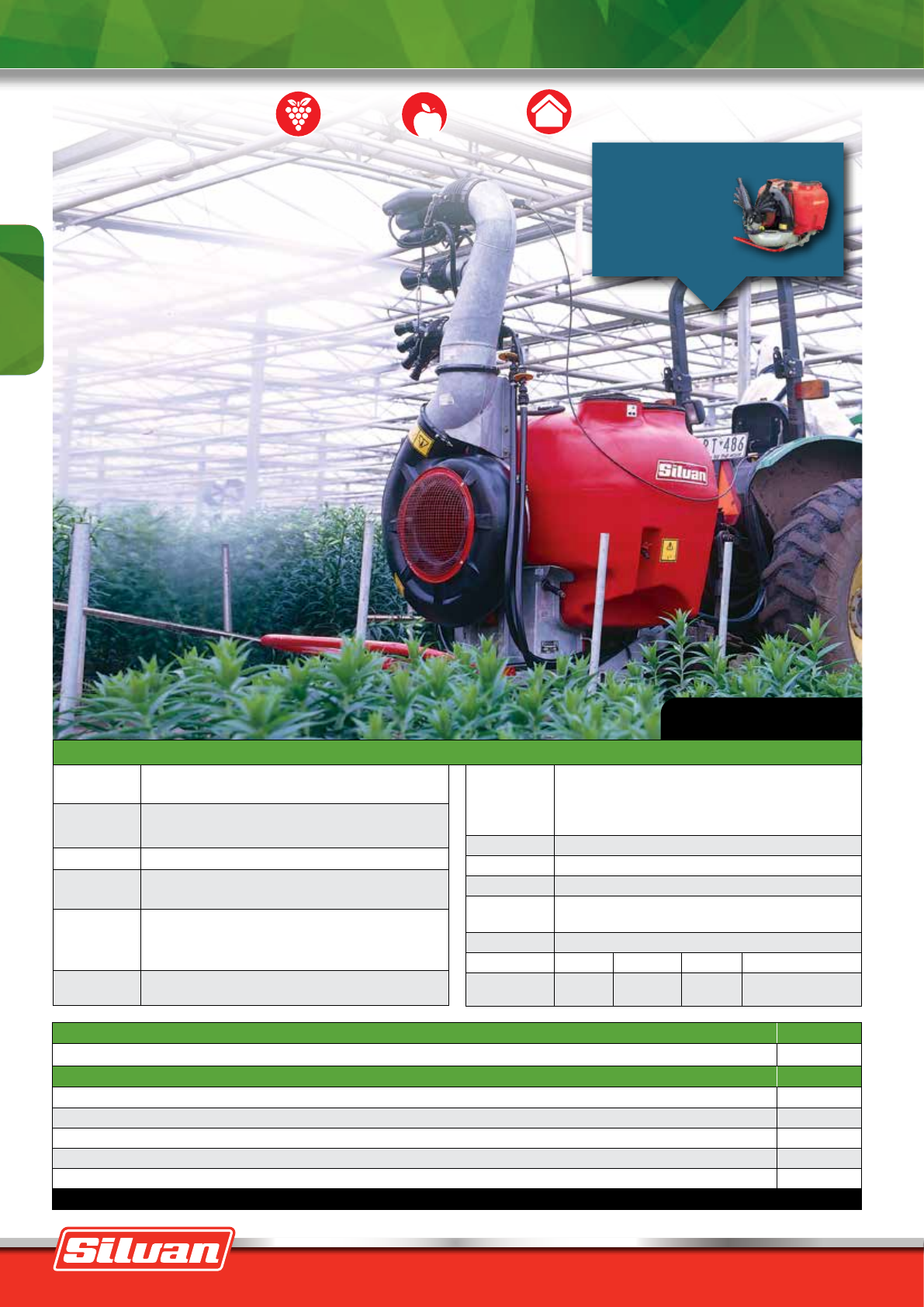

Trailed G2 Supaﬂo 4000L Silvan Cannon Jet Sprayer

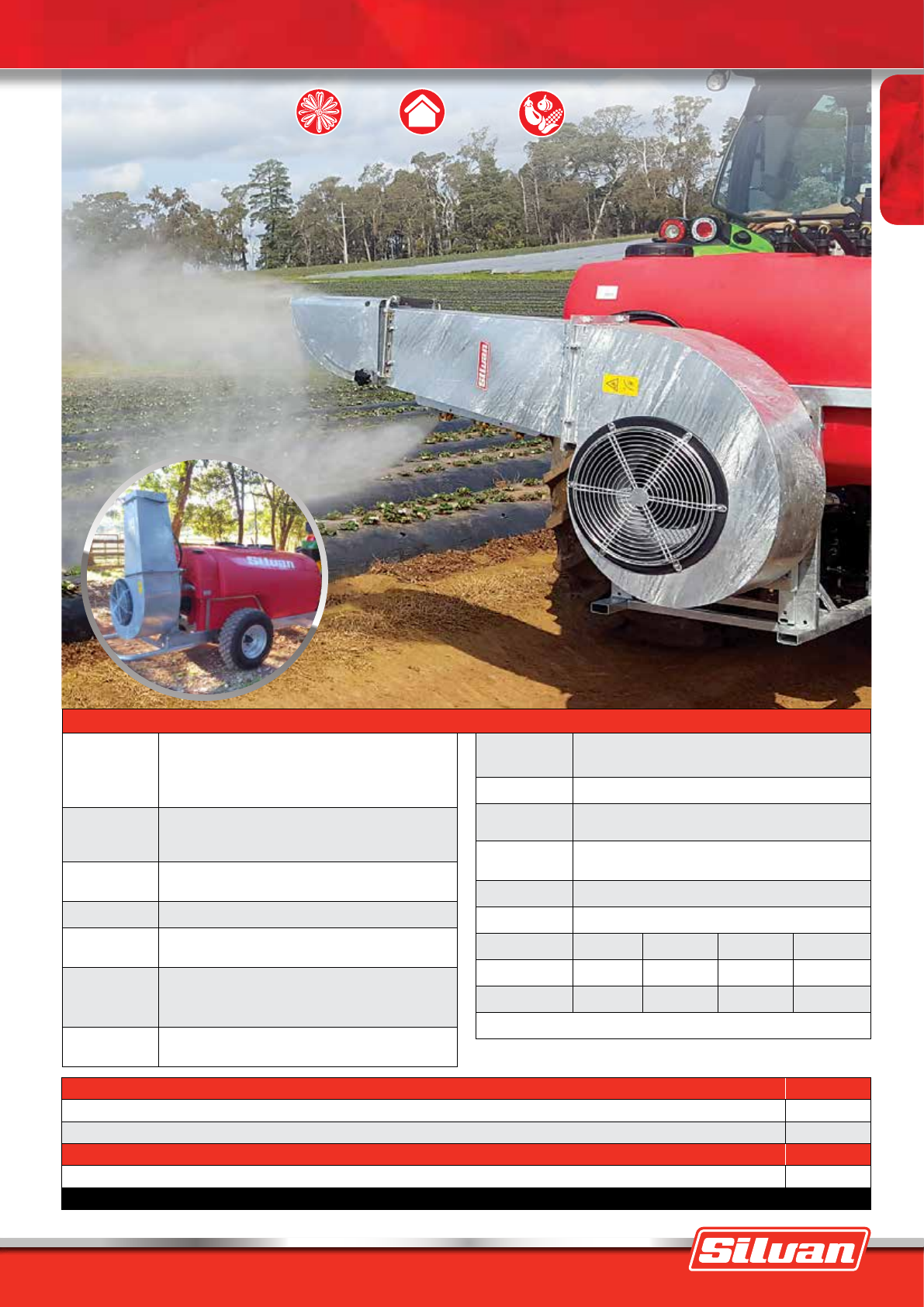

PUMP

Silvan oil-backed diaphragm type with nitrile

diaphragms, corrosion resistant, cast anodised aluminium

body. APS96: 88L/min. capacity, 5000kPa pressure

IDS1701: 161L/min capacity, 5000kPa pressure.

FAN SIZE

450mm diameter twin turbine fan with galvanised frame

and spray head. Hydraulic angle adjustment and manual

top wing adjustment.

NOZZLES Flip-over type with ceramic hollow cone nozzles. 9 nozzles

(6 in cannon head, 3 in side of cannon) with twist on/off.

GEARBOX Two speed with neutral position, oil-bath type.

CONTROLS 40 bar electric section valves, master valve, electric

pressure regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill lid. 40 litre fresh water tank

fitted to 2000L unit.

FRAME 500L: Galvanised steel, suit cat I & II linkage

2000L: Galvanised steel with jockey wheel & adjustable drawbar.

AGITATION 500L: Dual bypass

2000L: Pump bypass plus venturi agitator.

PRESSURE GAUGE 100mm, 0-60 bar glycerine filled gauge with bar increments.

FILTRATION Lid strainer, suction line strainer and stainless steel

nozzle filters.

2000L WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality driveshaft with quick release pins and safety cover.

HP REQUIRED Minimum 75HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

D05JET-96 1400 1190 2500 140

D20JET-121GL 3750 1540 2500 640

Length measured with drawbar in shortest position.

MODEL DESCRIPTION CODE

CANNON JET 500L LINKAGE: APS96 pump, Cannon jet fan, electric valve controls D05JET-96

CANNON JET 2000L TRAILED: IDS1701 pump, Cannon jet fan, electric valve controls, Glideflex axle D20JET-1701GL

FACTORY OPTIONS CODE

Bravo 180S automatic rate controller D99-143

Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

Flowers Greenhouse Vegetables

Trailed G2 Supaﬂo 4000L Silvan Cannon Jet Sprayer

1300 745 826 silvan.com.au18

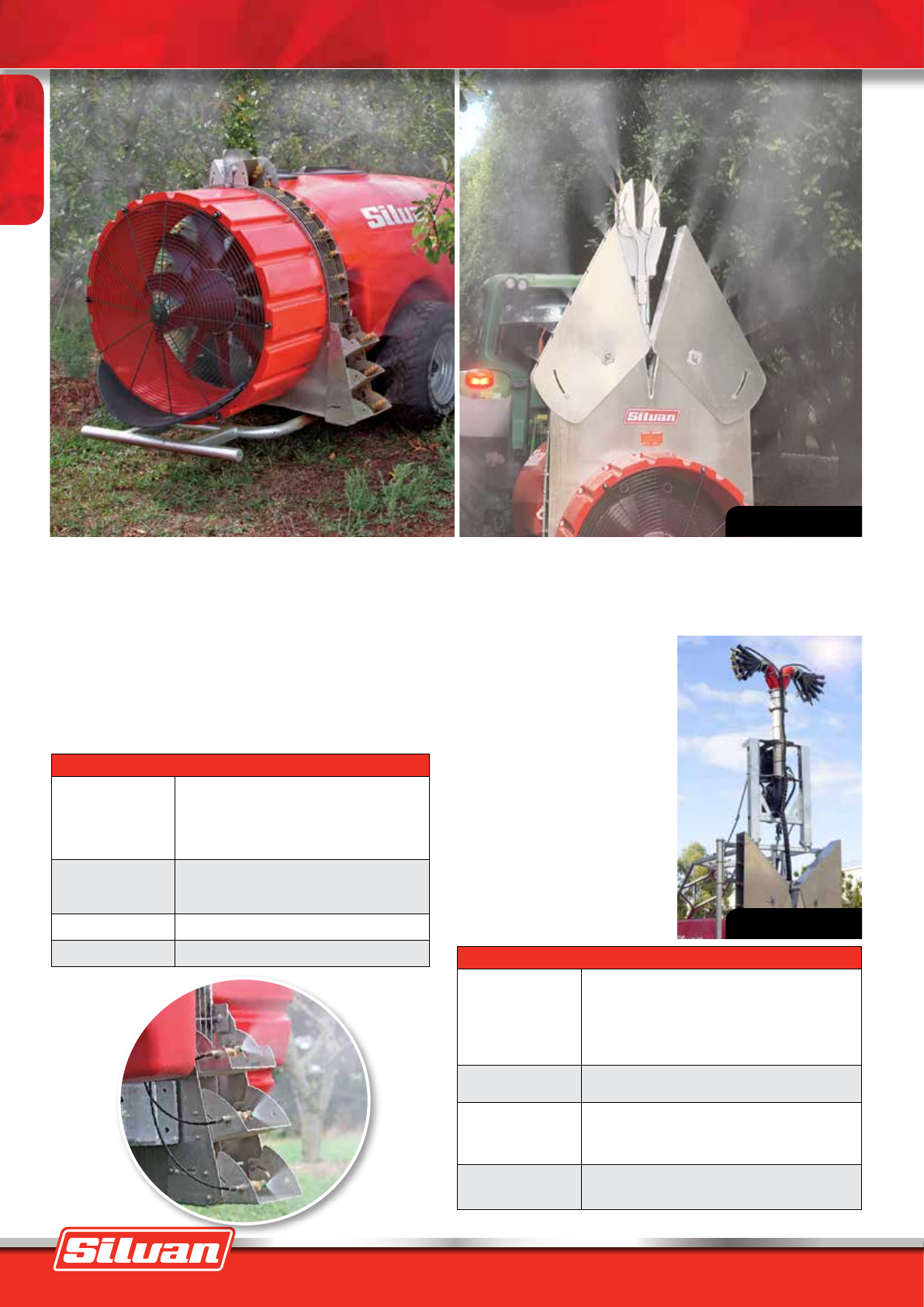

MODEL SPECIFICATIONS

CONVEYOR

Aluminium construction, double-sided conveyor.

Top sections are manually adjustable for tree

height, bottom wings adjustable for covering lower

branches. Patented Air Volute delivery system.

NOZZLES

Flip-over type for dilute/concentrate spraying.

Ceramic hollow cone jets with 24 twist on/off

nozzles (12 per side).

SUITED ROW WIDTH Up to 6 metres.

SUITED TREE HEIGHT Up to 5 metres. MODEL SPECIFICATIONS

FAN

320mm turbine fan hydraulically driven from tractor

remotes. Hydraulic motor opposite to air intake with

adjustable flow valve and case drain for return oil flow.

Fitted with 12V oil cooler.

Required hydraulic oil flow: 60L/min at 80 Bar pressure

CONVEYOR SCRAM Jet: Adjustable aluminium double sided vanes.

AVO Jet: Adjustable double sided air outlets.

NOZZLES

SCRAM Jet: Flip-over type (for dilute/concentrate

spraying) or adjustable cannons (2 per side).

AVO Jet: Adjustable cannons (4 per side).

SUITED TREE HEIGHT SCRAM JET: Up to 12 metres (when fitted with Radak).

AVO JET: Up to 15 metres (when fitted with Radak).

The Powerhead is a revolutionary and efficient air conveyor that produces

an adjustable spray-laden air stream to match the shape and height of the

canopy. Ideal for spraying apples, pears, almonds and stone fruit trees

with lower canopies.

• Internal vanes to direct the airstream into the canopy which also helps

maximise the fan’s output

• Small top wings to direct air into the upper canopy

• Lower wings to direct airﬂow from underneath, opening up the canopy for

greater spray penetration

• Stainless steel spraylines with 12 ﬂip over nozzles each side

Utilising a turbine fan hydraulically driven from the tractor remotes the auxiliary

fan unit is positioned above the top wings of the Radak conveyor. The high

velocity air stream produced by the fan is directed into the tree canopy to add

extra coverage to that obtained by the Radak conveyor.

The SCRAM Jet has two nozzles in each

adjustable chute can be fitted with

solid cone jets or adjustable cannons to

produce large droplets from the turbine

fan into the tallest canopy. The AVO Jet

has four nozzles per side assisted by five

air outlets mounted to a hydraulically

controlled frame which can be lowered

for road transport. AVO Jet is available on

4000L sprayer only.

Note: Hydraulic return line not supplied

with quick connect coupling - recommend

connecting directly to tractor return.

SCRAM Jet/AVO JetPowerhead Conveyor Radak Conveyor

Pictured: SCRAM Jet

Pictured: AVO Jet

SCRAM Jet/AVO Jet

STANDARD RADAK

Code: D99-135

Row width: Up to 8m

Tree height: Up to 8m

TALL TOP RADAK-

STD BOTTOM WINGS

Code: D99-135T

Row width: Up to 8m

Tree height: Up to 10m

TALL TOP RADAK-

WIDE BOTTOM WINGS

Code: D99-135TW

Row width: Up to 10m

Tree height: Up to 10m

MODEL SPECIFICATIONS

CONVEYOR

Aluminium construction, double-sided conveyor.

Top sections via manual or hydraulic operation adjustable

for tree height, bottom wings lift for transport.

Patented Air Volute delivery system.

NOZZLES Flip-over type for dilute/concentrate spraying. Ceramic

hollow cone jets with 32 twist on/off nozzles (16 per side).

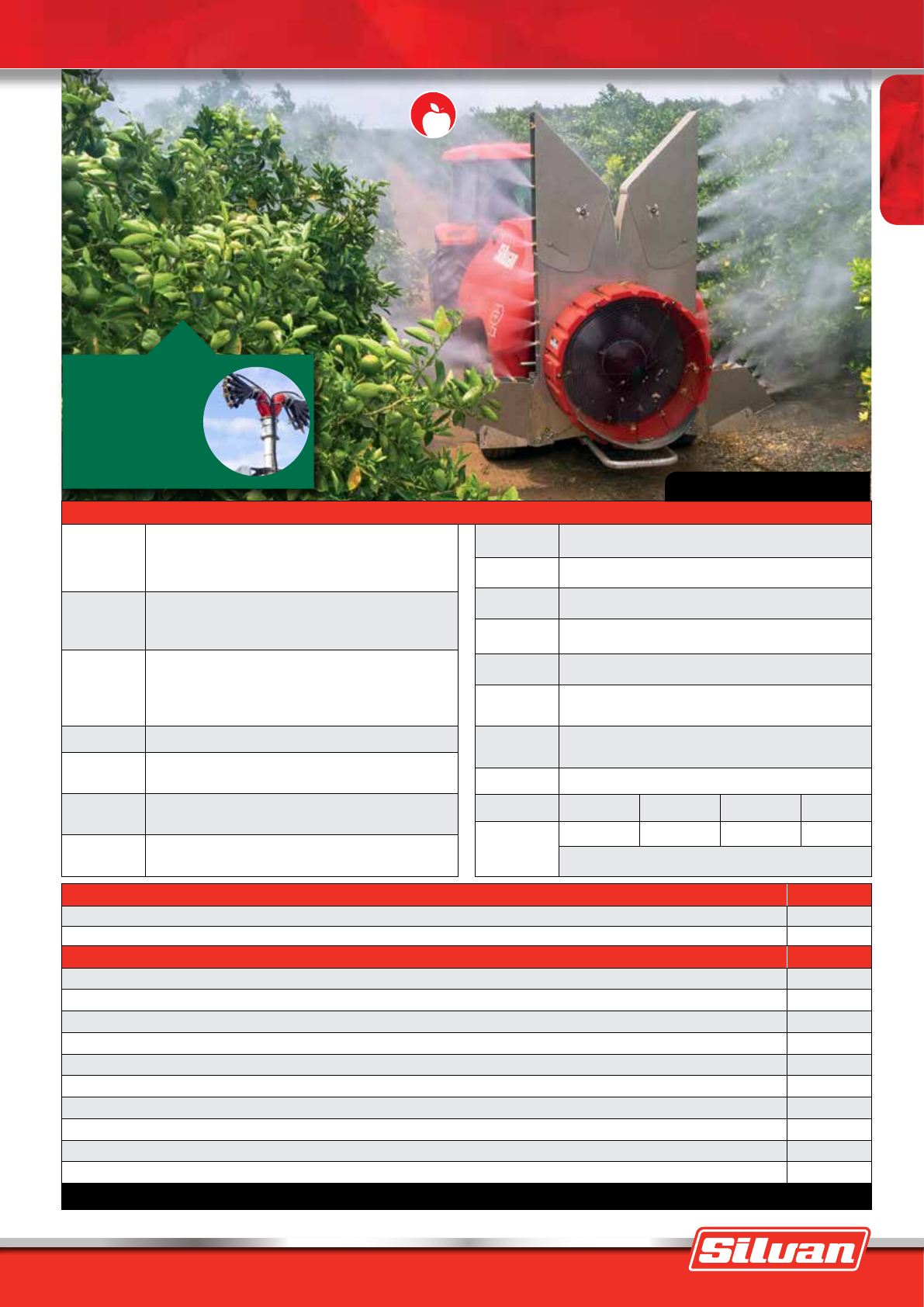

Growers with taller crop canopies prefer the Radak® conveyor which comes in

three options to suit different canopy shapes and sizes.

The patented air volute design maximises the use of the airflow generated by

the 920mm fan, the Radak ensures thorough coverage of the targeted canopy

by directing airflow into the foliage from underneath via the bottom wings. The

venturi effect opens up the tree canopy to aid spray penetration and coverage.

Ideal for tall tree crops throughout Australia such as macadamias, avocados,

mangoes, olives, citrus and lychees.

Radak Conveyor

1300 745 826 silvan.com.au20

MODEL SPECIFICATIONS

PUMP L/MIN @ MAX

PRESSURE

MAX PRESSURE

(kPA) KG SHAFT CODE

APS71 67 5000 18.4 Male - Female CAPS071

APS71 67 5000 18.4 Male - Male CAPS071S

APS96 88 5000 22.5 Male - Female CAPS096MF

APS96 88 5000 22.5 Male - Male CAPS096

APS121 115 5000 38.0 Male - Male CAPS121

APS145 142 5000 46.0 Male - Male CAPS145

APS166 163 5000 56.0 Male - Male CAPS166

BRASS MANUAL

CONTROL VALVE Suitable for APS series, IDS1701 pumps BRA-17020623

BRASS MANUAL

CONTROL VALVE

BRA-17020623

APS166

• Diaphragms: 5

• Output @ 540 RPM: 163 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 20.5

• L x W x H (mm): 370 x 389 x 420

• Weight (kg): 56

APS145

• Diaphragms: 4

• Output @ 540 RPM: 142 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 18

• L x W x H (mm): 342 x 380 x 420

• Weight (kg): 46

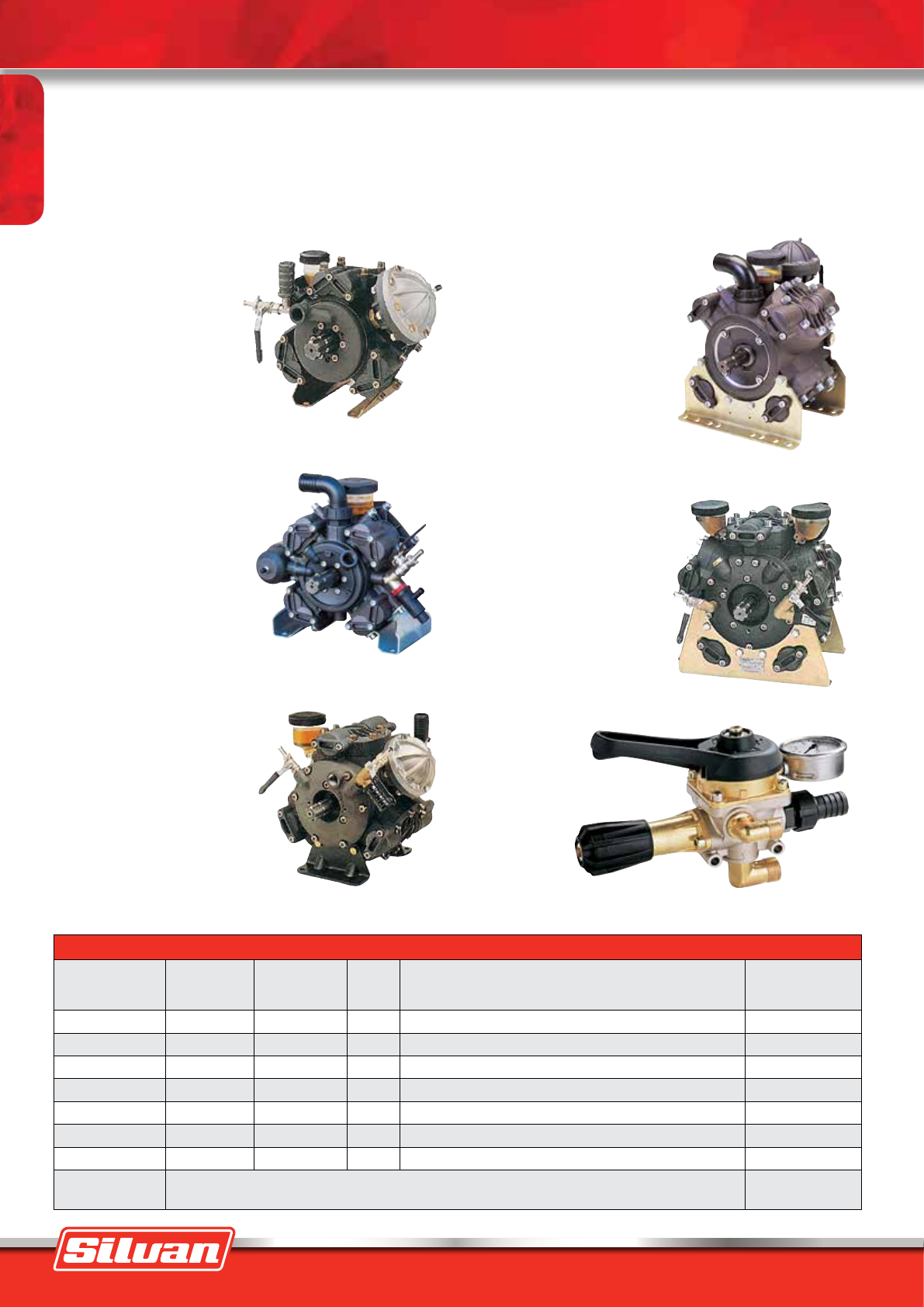

High Pressure Diaphragm Pumps

APS SERIES

All Silvan APS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming and feature a corrosion resistant cast anodised

aluminium body. Tough and reliable they will run dry without risk of damage. All pumps are supplied with appropriate hose connections, mounting base

plates and 1 3/8” six splined shaft.

APS71

• Diaphragms: 3

• Output @ 540 RPM: 67 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Female or Male – Male

• HP required at max. pressure: 9.1

• L x W x H (mm): 238 x 343 x 289

• Weight (kg): 18.4

APS121

• Diaphragms: 3

• Output @ 540 RPM: 115 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 14.5

• L x W x H (mm): 329 x 387 x 356

• Weight (kg): 38

APS96

• Diaphragms: 4

• Output @ 540 RPM: 88 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Female or Male – Male

• HP required at max. pressure: 11.7

• L x W x H (mm): 236 x 345 x 340

• Weight (kg): 22.5

High Pressure Diaphragm Pumps

IDS1701 / IDS2001

IDS960 / IDS1401

IDS SERIES

All Silvan IDS series high pressure diaphragm pumps are built for 540 RPM operation, are self-priming & feature a corrosion resistant cast

anodised aluminium body with brass heads and manifold. Tough and reliable they will run dry without risk of damage. All pumps are supplied with

appropriate hose connections, mounting base plates and 1 3/8” six splined shaft.

IDS1701

• Diaphragms: 4

• Output @ 540 RPM: 161 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 19.9

• L x W x H (mm): 298 x 499 x 396

• Weight (kg): 60

IDS2001

• Diaphragms: 4

• Output @ 540 RPM: 182 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 22.4

• L x W x H (mm): 298 x 499 x 369

• Weight (kg): 60

IDS960

• Diaphragms: 4

• Output @ 540 RPM: 93 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 11.5

• L x W x H (mm): 268 x 350 x 334

• Weight (kg): 30.3

IDS1401

• Diaphragms: 3

• Output @ 540 RPM: 135 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 16.6

• L x W x H (mm): 298 x 404 x 396

• Weight (kg): 45

IDS2200 / IDS2600

IDS2200

• Diaphragms: 6

• Output @ 540 RPM: 208 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 26.2

• L x W x H (mm): 357 x 463 x 500

• Weight (kg): 76

IDS2600

• Diaphragms: 6

• Output @ 540 RPM: 249 L/min

• Max. pressures (kPa/psi): 5000/725

• Shaft: Male – Male

• HP required at max. pressure: 32.1

• L x W x H (mm): 357 x 463 x 500

• Weight (kg): 76

High Pressure Diaphragm Pumps

MODEL SPECIFICATIONS

PUMP L/MIN @50 BAR

MAX PRESSURE

MAX

PRESSURE

(kPA)

KG SHAFT CODE

IDS960 93 5000 30.3 Male - Male CDS960

IDS1401 135 5000 45.0 Male - Male CDS1401

IDS1701 161 5000 60.0 Male - Male CDS1701

IDS2001 182 5000 60.0 Male - Male CDS2001

IDS2200 208 5000 76.0 Male - Male CDS2200-1

IDS2600 249 5000 76.0 Male - Male CDS2600-1

1300 745 826 silvan.com.au22

ONE SIDED CONVEYOR

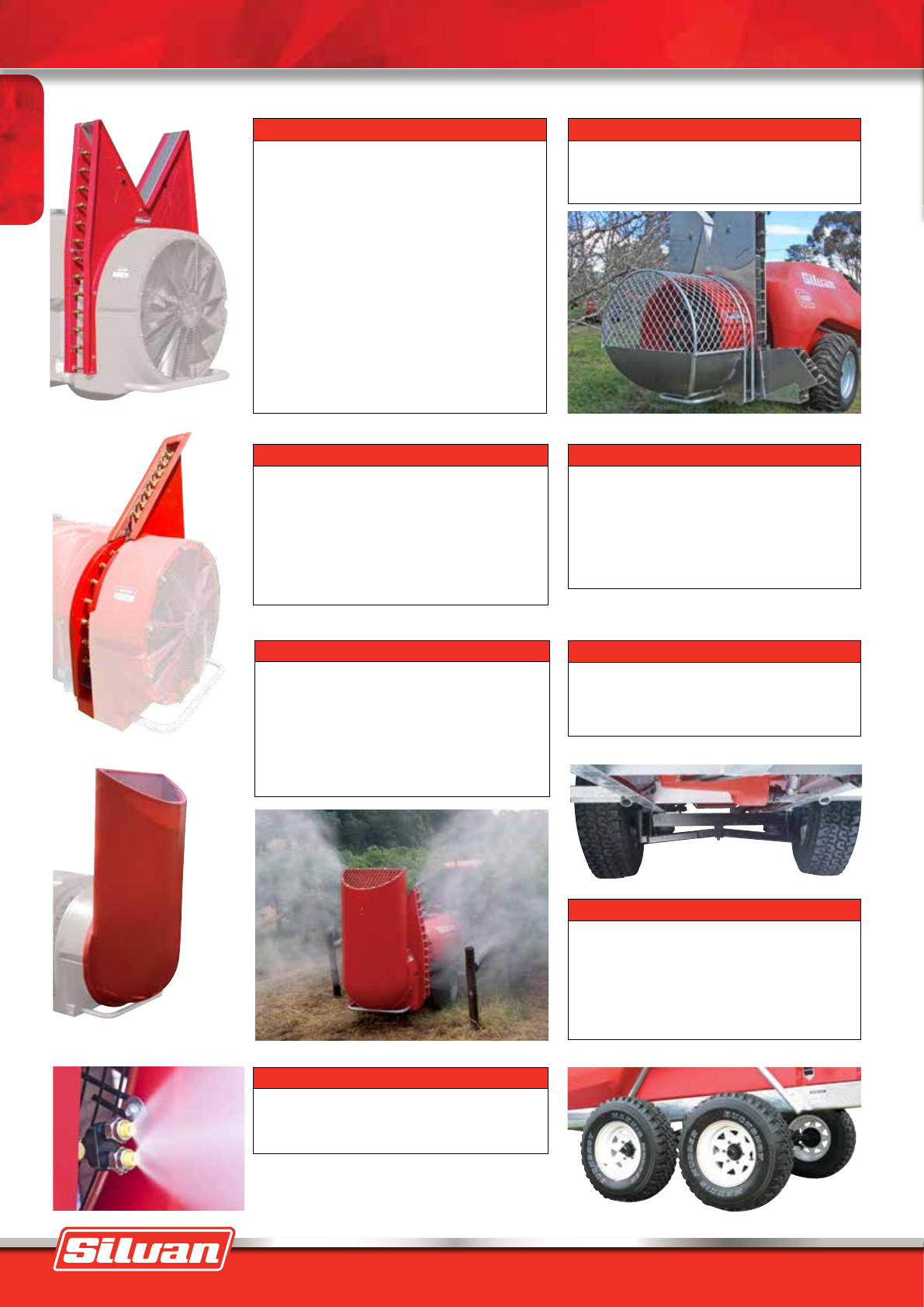

Ideal for use in tree crops, the conveyor directs the air

outwards and into the canopy increasing spray efficiency.

• Fibreglass construction with stainless

steel spray lines.

• Flip-over ceramic hollow cone nozzles on one side

provides accurate spray coverage and easy changeover

for spraying at lower pressure.

SNORKEL

The Snorkel has been designed to help prevent damage

to fruit caused by the delivery of air that includes sand

and debris. It also helps to minimise downtime by

avoiding blocked fan guards. The Silvan Snorkel is made

from polytuff impact resistant polyethylene which is

lightweight and robust and can be easily fitted to the fan

cowl of most Silvan 900mm air assist units.

TWIN NOZZLES

Silvan’s twin nozzle adaptor can be fitted to any flip-over

nozzle holder. These allow higher application rates with

smaller nozzles for greater droplet size control.

DOUBLE SIDED VINEYARD CONVEYOR

The double sided vineyard conveyor is designed to

maximise the air output of the 900mm axial flow fan when

spraying a vertical canopy such as vines or trellis grown

tree crops.

There is no air lost from the top of the fan as it

is all directed outwards and into the canopy.

• Brings the air stream closer to the canopy.

• Maximises fan’s air capacity for larger, denser canopies

• Stainless steel and poly construction.

• 12 flip over nozzles each side allows accurate spray

placement to canopy.

• Ceramic hollow cone jets on one side of flip over

nozzles for low pressure spraying.

• Adjustable vane in top of conveyor for smaller canopies

or early season growth.

GLIDEFLEX SUSPENSION SYSTEM

The patented Glideflex suspension system ensures a smooth

ride whether the tank is full or empty. This minimises wear

and tear on the sprayer and tractor, and improves the ride

comfort for the operator.

TANDEM SUSPENSION AXLE

The rugged durability of the Australian designed Simplicity

tandem suspension axle gives a smoother ride over rough

or uneven terrain. This optional axle assembly is designed

to share the load over both wheels, reducing impact to the

frame and spray heads and virtually eliminating body roll for

faster travel and effective spray application.

WHEELS & TYRES

Many of Silvan’s horticulture/viticulture sprayers can be

fitted with a range of tyres and rims including ‘All Terrain’

tyres on 10.5 x 15” galvanised rims, ‘flotation’ tyres on

400 x 15.5” galvanised rims or ‘Gripster’ tyres on 12.5 x 18”

galvanised rims (to suit boggy conditions such as those in

Banana plantations). Note: Optional axles may be required

to fit some wheel options.

LEAF GUARD

The leaf guard is designed to prevent fan blockages and

fruit damage from leaves and debris. It can be easily fitted

to any Powerhead or Radak sprayer (920mm fan).

Sprayer Options

Turbomisers

The Turbomiser utilises the best air shear

technology to achieve optimum spray

coverage using less water. A range of spray

heads are available to suit the application.

Sprayer Options

1300 745 826 silvan.com.au24

Turbomiser Superior Features

The Turbomiser is a highly advanced, low volume, air

shear sprayer that provides smooth, low maintenance

operation. It includes an innovative range of easy to

calibrate interchangeable spray heads. Used for a variety

of crops including citrus, vines, vegetables, avocados,

mangos, apples, pears, strawberries, bananas, stone

fruit and macadamias, the Turbomiser can be easily

setup up to suit individual agricultural needs.

Since Silvan first launched the Turbomiser in 1983, it

has fast become Australia’s preferred vineyard sprayer.

It has gained uncontested status amongst major

corporate wineries and used by many leading farm

managers simply because it is still the most effective

crop protection system in the industry.

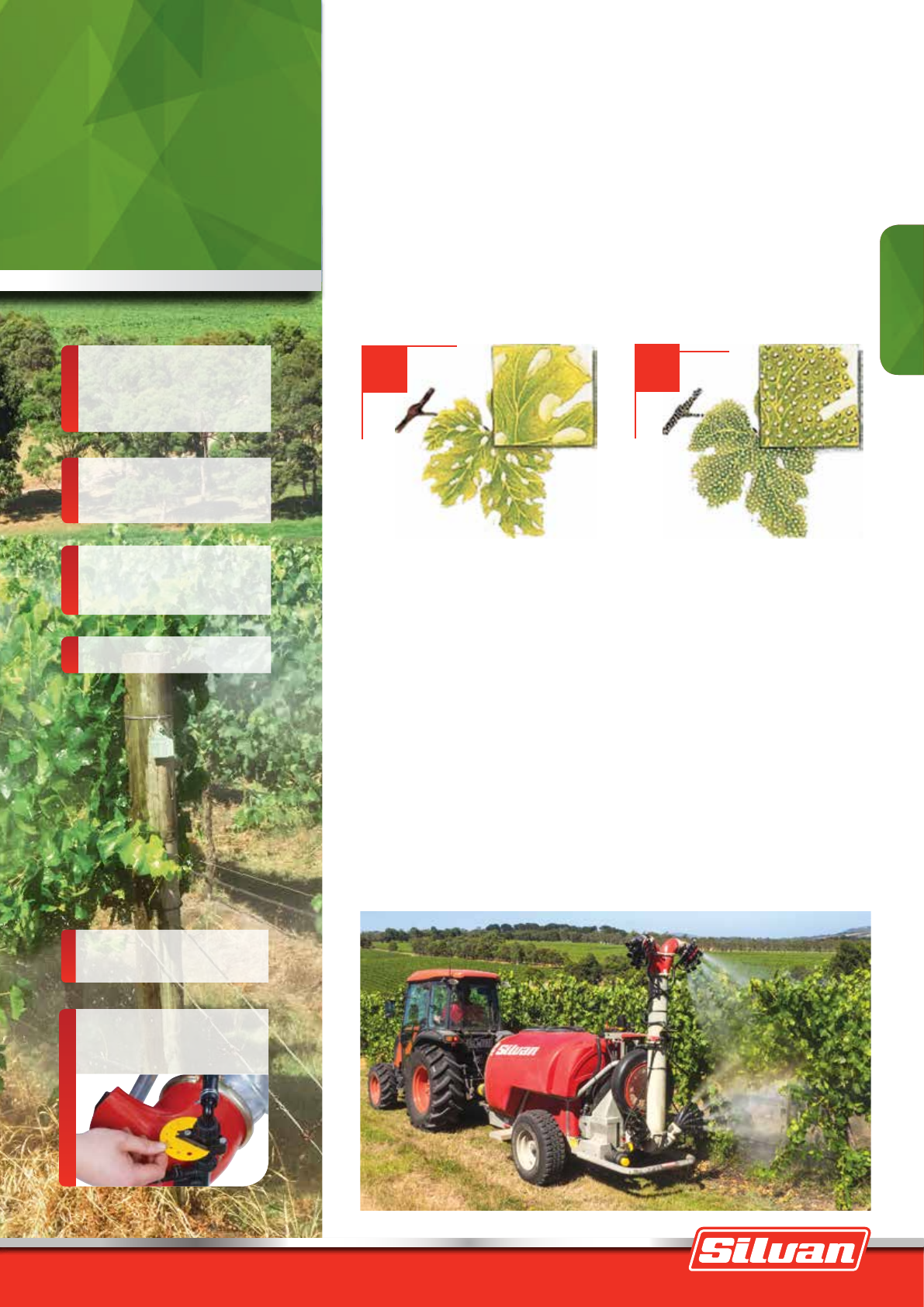

THE TURBOMISER ADVANTAGE

Silvan’s range of Turbomiser sprayers ensure excellent plant coverage and superb pest and

disease control with minimal maintenance whilst reducing contamination to the soil and the

environment through low volume air shear technology.

Low volume, air shear sprayers can cover the same vegetative surface sprayed by ‘dilute

volume’ machines, but with a much lower quantity of water. As a comparison, a single tank of

water used in a Turbomiser could cover up to the same area covered by 3 tanks used in a dilute

spray application rate sprayer.

Atomisation of the spray liquid in a Silvan Turbomiser is achieved by introducing the water and

chemical mixture into a very powerful air stream through a venturi tube. The air stream then

shears the liquid into a narrow range of droplets.

Turbomisers atomise the liquid and mix it with the current of air so well that the droplets are

carried into the more hidden areas of the plants. With a narrow droplet spectrum it is possible to

double, triple or quadruple the number of droplets per square centimetre of vegetative surface while

using significantly less water than dilute spray rates. This also causes the droplets to stay on the

vegetation instead of running off onto the soil which means you maximise the effect of your spray

chemicals.

To achieve complete coverage and thorough contact on the foliage, it is only necessary to replace

the air in and around the plant with the air from the low volume sprayer. Since the air and spray are

homogeneous, where the air arrives, so does the chemical.

The Silvan Turbomiser “Low Volume” system significantly improves spraying time by its ability to

apply chemicals at faster ground speed reducing the number of tank refills and the lost time spent

travelling between fills. The time saved can be important in ensuring chemicals are applied to the

crop at their optimum efficiency for pest and disease control.

This illustrated comparison demonstrates the likely difference between a vineyard leaf sprayed

by a ‘Dilute Volume’ machine (diagram: A) and Silvan’s ‘Low Volume’ Turbomiser (diagram: B).

UV stabilised, impact resistant

polyethylene tank with a smooth

inner surface for easier cleaning

and avoiding chemical residue.

Galvanised steel framework

and chassis and ensures

a longer working life.

Low maintenance centrifugal pump.

Automatic tensioning of the fan

drive maintains the belt tension,

avoiding slipping and wear.

Simple & low maintenance rotating

calibration discs regulate chemical

flow to each head.

Spray heads available for a range of

applications and most crop types.

Turbomiser Superior Features

Vineyards Greenhouse

1300 745 826 silvan.com.au26

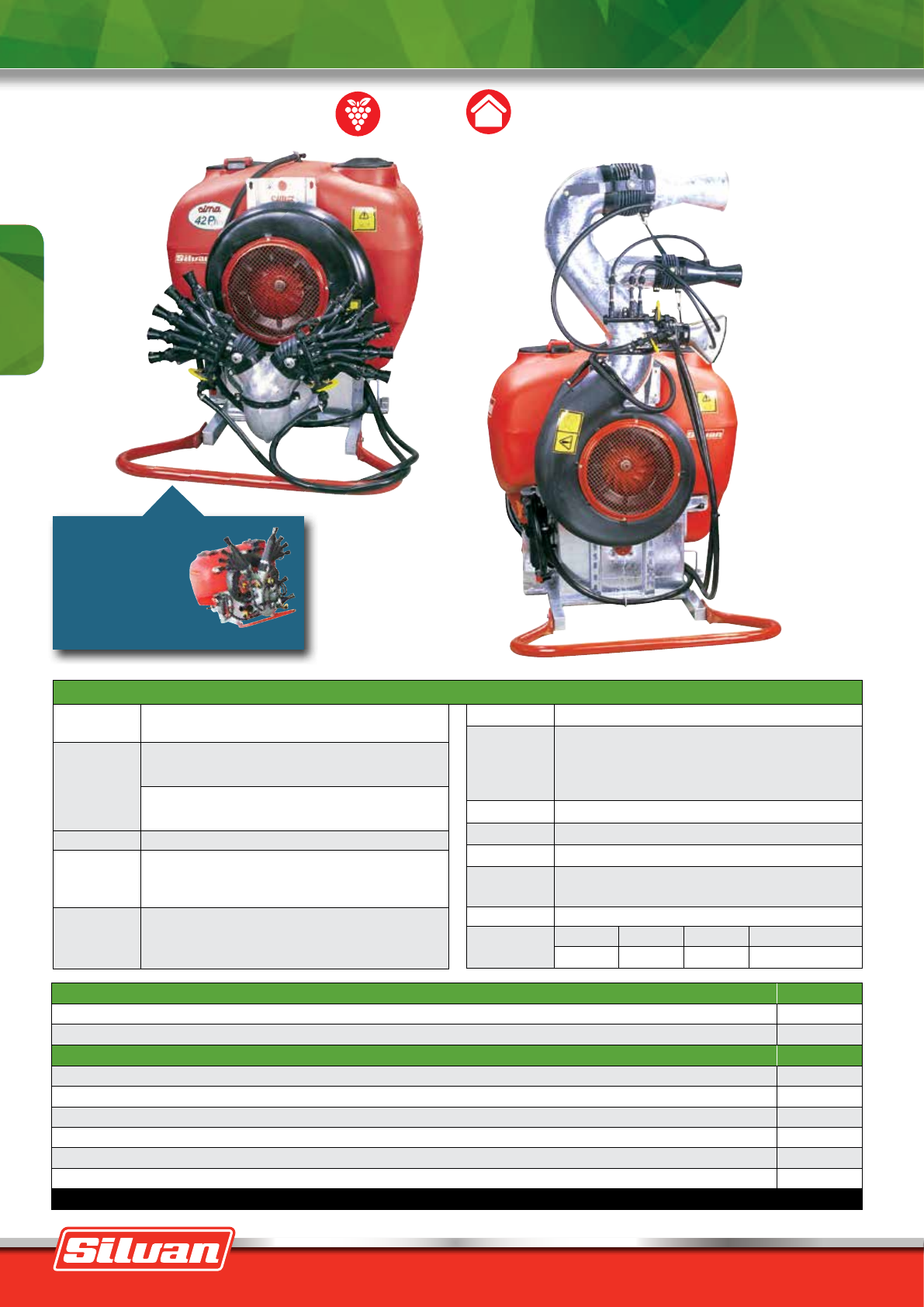

MODEL SPECIFICATIONS

PUMP CD32 centrifugal pump 140L/min constructed from toughened

nylon. Stainless steel shaft & viton/ceramic seal.

FAN SIZE

P42E: 420 mm dia. turbine fan, 3900 rpm.

Power consumed 18 kw / 35HP.

P45E: 450 mm dia. turbine fan, 4500 rpm.

Power consumed 28 kw / 40HP.

NOZZLES Air shear.

CONTROLS

Two sided electric on/off control with control box mounted in

cabin. Rotary plate distribution regulators with 15 settings and

manual pressure adjustment.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath fan housing.

MODEL DESCRIPTION CODE

400L P42E LINKAGE TURBOMISER:

P42E Fan (spray head not included)

GTM-P42N

400L P45E LINKAGE TURBOMISER:

P45E Fan (spray head not included)

GTM-P45N

FACTORY OPTIONS CODE

Super cannon for P42E GT42-1

Super cannon for P45E GT45-1

Manual turntable for Super Cannon GT55-4

Hydraulic turntable for Super Cannon GT55-9

Double sided diffuser head (5 outlets per side) for P42E GT40-2

Vineyard head - 4 heads (4x4) for P45E GT45-11

Note: Not all options will fit all models. Extra charges may apply to fitment of some options. Sprayers depicted with optional sprayhead

Pictured: P42E 400L with

optional double sided

diffuser head

FRAME Galvanised RHS steel construction, cat II linkage.

TANK

Polytuff impact resistant polyethylene construction, calibrated

sight line, non-spill lids, hydro chemical mixer in larger basket,

lids with basket strainers, separate in-built 18L fresh water

hand wash tank.

AGITATION Bypass and pneumatic.

PRESSURE GAUGE Protected 100 mm glycerine gauge fitted at front of sprayer.

FILTRATION Lid strainer and suction line strainer.

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

and safety cover.

HP REQUIRED Minimum 35 PTO HP.

GTM-P45N

(LESS HEAD)

L (MM) W (MM) H (MM) KG (DRY)

1000 1100 1150 207

MODEL SPECIFICATIONS

AVAILABLE WITH

TURBOMISER

HEAD OPTIONS

SEE PAGE 32

Pictured: P45E 400L

with optional Super

Cannon head

Linkage P42E & P45E Turbomiser

Vineyards Greenhouse

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill lids, hydro chemical mixer in

larger basket, lids with basket strainers, separate in-built

18L fresh water hand wash tank.

FRAME Galvanised RHS steel construction, cat II linkage.

AGITATION Bypass and pneumatic.

FILTRATION Lid strainer and suction line strainer.

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 55 PTO HP.

DIMENSIONS

GTM-P50N

(LESS HEAD)

L (MM) W (MM) H (MM) KG (DRY)

1100 1450 1150 220

MODEL SPECIFICATIONS

PUMP CD32 centrifugal pump, 140L/min. constructed from toughened

nylon. Stainless steel shaft & viton/ceramic seal.

FAN SIZE P50E: 500mm dia. turbine fan, 4000 rpm.

Power consumed 40 kw / 55HP.

NOZZLES Air shear.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath housing.

CONTROLS

Two sided electric on/off control with control box mounted in

cabin. Rotary plate distribution regulators with 15 settings

and manual pressure adjustment.

PRESSURE GAUGE Protected 100mm glycerine gauge fitted at front of sprayer.

MODEL DESCRIPTION CODE

600L P50E LINKAGE TURBOMISER:

P50E Fan (spray head not included)

GTM-P50N

FACTORY OPTIONS CODE

Vineyard head - 4 heads (4 x 4) GT55-11

Two row vineyard head GT50-TCF2M2M

Super Cannon head GT55-1

Manual turntable for Super Cannon GT55-4

Hydraulic turntable for Super Cannon GT55-9

Bravo 180S automatic rate controller GT-24

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.Sprayer depicted with optional sprayhead.

Pictured: P50E 600L with

optional two row vineyard head

MODEL SPECIFICATIONS

AVAILABLE WITH

TURBOMISER

HEAD OPTIONS

SEE PAGE 32

Pictured: P50E 600L with

optional vineyard head

Orchards

Linkage P42E & P45E Turbomiser Linkage P50E Turbomiser

1300 745 826 silvan.com.au28

MODEL SPECIFICATIONS

PUMP CD32 centrifugal pump, 140L/min. constructed from toughened

nylon. Stainless steel shaft & viton/ceramic seal.

FAN SIZE P55DS:550mm dia. turbine fan, 3700 rpm.

Power consumed 50 kw/70HP.

NOZZLES Air shear.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath fan housing.

CONTROLS

Two sided electric on/off control with control box mounted in

cabin. Rotary plate distribution regulators with 15 settings

and manual pressure adjustment.

PRESSURE

GAUGE Protected 100mm glycerine gauge fitted at front of sprayer.

Pictured: P55DS 600L with

optional Super Cannon head

MODEL DESCRIPTION CODE

600L P55DS LINKAGE TURBOMISER:

P55DS fan (spray head not included)

GTM-P55DS

FACTORY OPTIONS CODE

Vineyard head - 4 heads (4 x 5) GT55D-40

Orchard Cannon head GT55-13

Super Cannon head GT55D-1

Hydraulic turntable for Super Cannon GT55D-9

Bravo 180S automatic rate controller GT-24

Note: Not all options will fit all models. Extra charges may apply to fitment of some options. Sprayer depicted with optional sprayhead.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill lids, hydro chemical mixer in

larger basket, lids with basket strainers, separate

in-built 18L fresh water hand wash tank.

FRAME Galvanised RHS steel construction, cat II linkage.

AGITATION Bypass and pneumatic.

FILTRATION Lid strainer and suction line strainer.

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 70 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

GTM-P55DS

(LESS HEAD) 1100 1450 1150 250

MODEL SPECIFICATIONS

AVAILABLE WITH

TURBOMISER

HEAD OPTIONS

SEE PAGE 32

Vineyards Greenhouse

Orchards

Linkage P55DS Turbomiser

MODEL SPECIFICATIONS

PUMP CD32 centrifugal pump 140L/min. constructed from toughened

nylon. Stainless steel shaft & Viton/ceramic seal.

BOOM OPTIONS 7m hydraulic fold - 15 fishtail air shear spray outlets.

12m hydraulic fold - 18 fishtail air shear spray outlets.

BOOM ARM

Each arm can be independently folded for turning at row end,

640 mm height adjustment to boom with hydraulic ram, safety

break away action.

FAN SIZE P55DS: 550mm dia. turbine fan, 3700 rpm.

Power consumed 50 kw / 70HP.

NOZZLES

Low volume fishtail outlets, spacings

and angle fully

adjustable, ideal for row crops.

CONTROLS Electric 3 section valves with on/off, in cab control box

and manual pressure adjustment.

MODEL DESCRIPTION CODE

600L P55DS LINKAGE AIRBOOM SPRAYER:

P55DS fan, 7m hydraulic fold Airboom, fishtail air shear spray outlets

GTMP55N07

600L P55DS LINKAGE AIRBOOM SPRAYER: P55DS fan, 12m hydraulic fold Airboom, fishtail air shear spray outlets GTMP55N12

FACTORY OPTIONS CODE

Bravo 180S automatic rate controller GT-24

TRANSMISSION Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath housing.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill lids, hydro chemical mixer

in larger basket, lids with basket strainers, separate in-built

18L fresh water hand wash tank.

FRAME Galvanised RHS steel frame, cat II lift pins with 2 positions.

AGITATION Bypass and pneumatic.

FILTRATION Lid strainer and suction line strainer

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 70 PTO HP.

GTMP55N07

(WHEN FOLDED)

L (MM) W (MM) H (MM) KG (DRY)

5400 1700 1500 400

MODEL SPECIFICATIONS

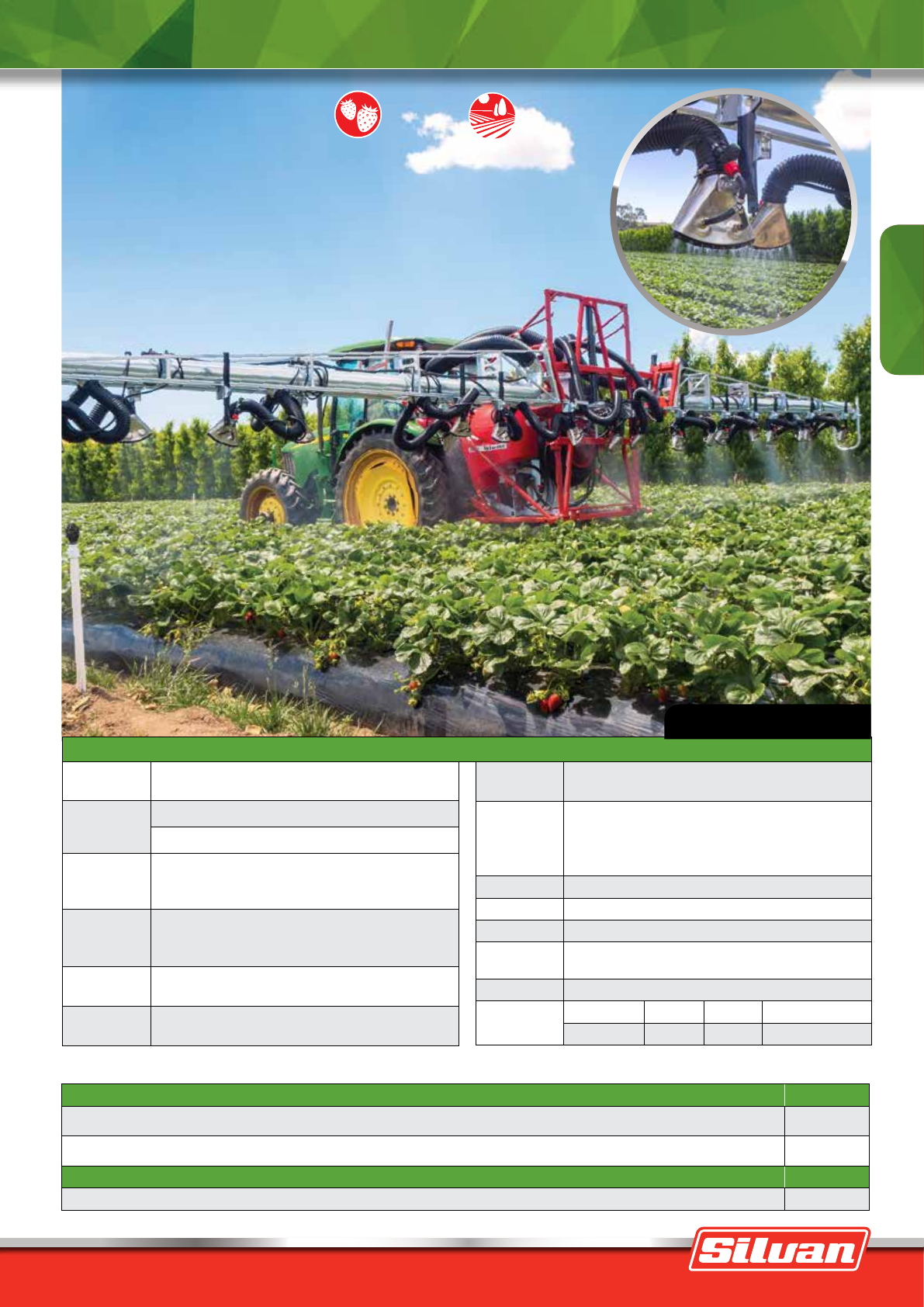

Pictured: P55DS 600L with 12m Airboom

Strawberries Row Crop

Linkage P55DS Turbomiser Linkage Airboom Turbomiser

1300 745 826 silvan.com.au30

MODEL SPECIFICATIONS

PUMP CD32 centrifugal pump, 140L/min, constructed from

toughened nylon. Stainless steel shaft & viton/ceramic seal.

FAN SIZE P50E: 500mm dia. turbine fan, 4000 rpm.

Power consumed 40 kw / 55HP.

NOZZLES Air shear.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath housing.

CONTROLS

Two sided electric on/off control with pressure regulation

operated from control box mounted in cabin. Rotary plate

distribution regulators with 15 settings.

Large 100 mm pressure gauge.

TANK

1500/2000 - Polytuff impact resistant polyethylene

construction, calibrated sight line, large non-spill flip top lid,

built-in chemical mixer and 40L fresh water tank.

MODEL DESCRIPTION CODE

1500L P50E TRAILED TURBOMISER:

P50E fan, Glideflex axle, wide angle PTO shaft (Spray head not included)

GTM15P-P50NGL

2000L P50E TRAILED TURBOMISER:

P50E fan, Glideflex axle, wide angle PTO shaft (Spray head not included)

GTM20P-P50NGL

FACTORY OPTIONS CODE

Vineyard head - 4 heads (4x4) GT55-11

Bravo 180S automatic rate controller GT-24

Hydraulic drive pump GT55-22

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options. Sprayer depicted with optional sprayhead.

FRAME Galvanised steel chassis, adjustable drawbar with jockey

wheel.

AGITATION Pump bypass plus venturi agitator.

FILTRATION Lid strainer and large capacity suction filter.

WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 55 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

GTM15P-P50NGL

(LESS HEAD) 3860 1540 1350 550

GTM20P-P50NGL

(LESS HEAD) 3970 1540 1350 650

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

AVAILABLE WITH

TURBOMISER

HEAD OPTIONS

SEE PAGE 32

Vineyards Orchards

Pictured: 1500L with optional Vineyard head

Trailed P50E 1500/2000L Turbomiser

MODEL DESCRIPTION CODE

2000L P55DS TRAILED TURBOMISER: P55DS fan, Glideflex axle, wide angle PTO shaft (spray head not included)

GTM20P-P55DSGL

2000L P55DS TRAILED TURBOMISER: P55DS fan, Glideflex axle, wide angle PTO shaft, automatic rate controller,

Hypro hydraulic pump (spray head not included)

GTM20P-P55DSGHLP

FACTORY OPTIONS CODE

Vineyard head - 4 head (4x5)

GT55D-40

Hi Lo Orchard Head (4 outlets)

GT55D-6

Turbo Tower head (6 outlets)

GT55D-7

Orchard Cannon head GT55-13

Bravo 180S automatic rate controller GT-24

Hydraulic drive pump

GT55-22

Tandem suspension axle

D99-76

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models. Extra charges may apply to fitment of some

options. Sprayer depicted with optional sprayhead.

MODEL

SPECIFICATIONS

PUMP

CD32 centrifugal pump, 140L/min constructed

from toughened nylon. Stainless steel shaft and

viton/ceramic seal.

FAN SIZE P55DS: 550mm dia. turbine fan, 3700 rpm.

Power consumed 50 kw / 70HP.

NOZZLES Air shear.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub & oil bath fan housing.

CONTROLS

Two sided electric on/off control with pressure regulation

operated from control box mounted in cabin. Rotary plate

distribution regulators with 15 settings. Large 100mm

pressure gauge.

FRAME Galvanised steel chassis, adjustable drawbar with

jockey wheel.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, large non-spill flip top lid, built-in

Chemical mixer and 40L fresh water hand wash tank.

AGITATION Pump bypass plus venturi agitator.

FILTRATION Lid strainer and large capacity suction filter.

WHEEL

EQUIPMENT

Glideflex suspension axle, 2 x 15” tubeless tyres on

galvanised rims (max speed rating 30 km/h).

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 70 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

GTM20P-P55DSGL

(LESS HEAD)

3970 1540 1350 650

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

AVAILABLE WITH

TURBOMISER

HEAD OPTIONS

SEE PAGE 32

Vineyards Orchards

Pictured: 2000L with optional Turbo Tower

Trailed P50E 1500/2000L Turbomiser Trailed P55DS 2000L Turbomiser

1300 745 826 silvan.com.au32

VINEYARD HEAD / P45-P55DS

Specifically designed for spraying

trellis trained crops targeting the

crop from both the top and bottom

via multi-directional spray heads

i.e. height, tilt, angle, etc.

TURBO TOWER / P55DS

Suited to the largest Turbomiser

fan, the tower utilises six

multidirectional spray heads to

ensure accurate and complete

coverage of tall tree crops.

ORCHARD CANNON / P55DS

Suited to the largest Turbomiser fan,

the Orchard Cannon utilises double

sided orchard heads with two cannons

per side for effective coverage in

medium to tall tree crops like citrus,

almonds and olives.

HI LO ORCHARD HEAD / P55DS

Designed for tree crops. The spray

tower includes four air shear fishtail

outlets providing an air stream top

and bottom that converges in the

middle for a full canopy coverage.

SUPER CANNON / P42-P55DS

Designed for single side applications

to ground crops and vegetables via

multi-directional sprayheads i.e.

height, tilt, angle, etc. Optional

turntable turns cannon left to right.

Vineyards

Orchards

Orchards Orchards

Greenhouse

BH18 / P55DS

The BH18 Turbomiser is a specialised sprayer designed to ensure accurate chemical application on strawberries grown in

tunnels on raised tables. Air outlets above and below the tables are designed to create turbulance for effective coverage.

The BH18 can be fitted to 1000 or 2000L trailed sprayers.

Turbomiser Heads

Strawberries

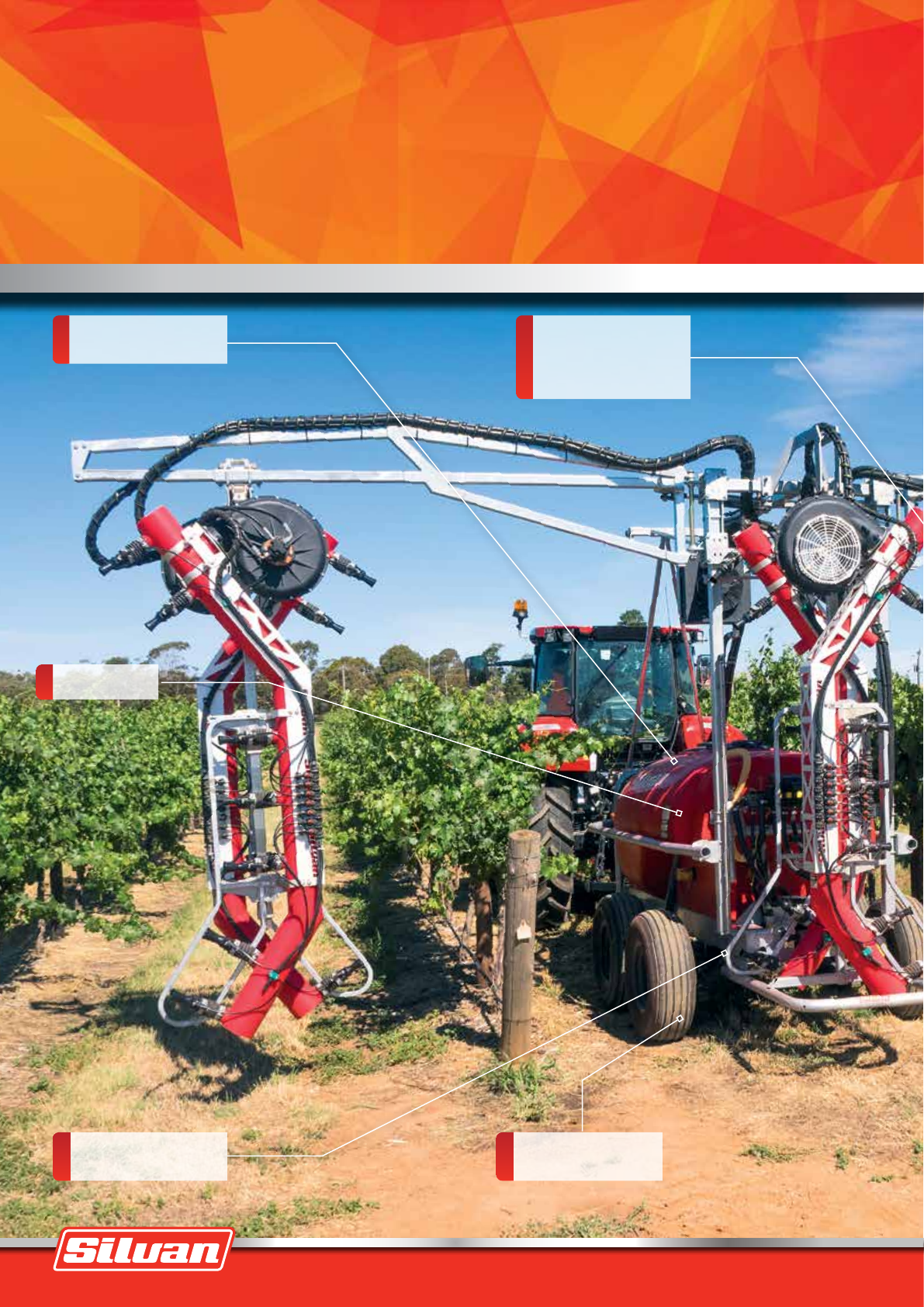

With improved performance and greater

flexibility from multiple spray outlets and

precise control, Silvan’s over row sprayers

are the next generation in vineyard spraying.

Over Row

Sprayers

Tandem suspension axle

for a smoother ride.

1300 745 826 silvan.com.au34

Polytuff UV stabilised,

impact resistant tank.

TGS & Turbomiser sprayers

have multiple spray outlets

for greater flexibility and

more targeted spraying.

Hand wash tank.

Galvanised chassis & frame

for longer working life.

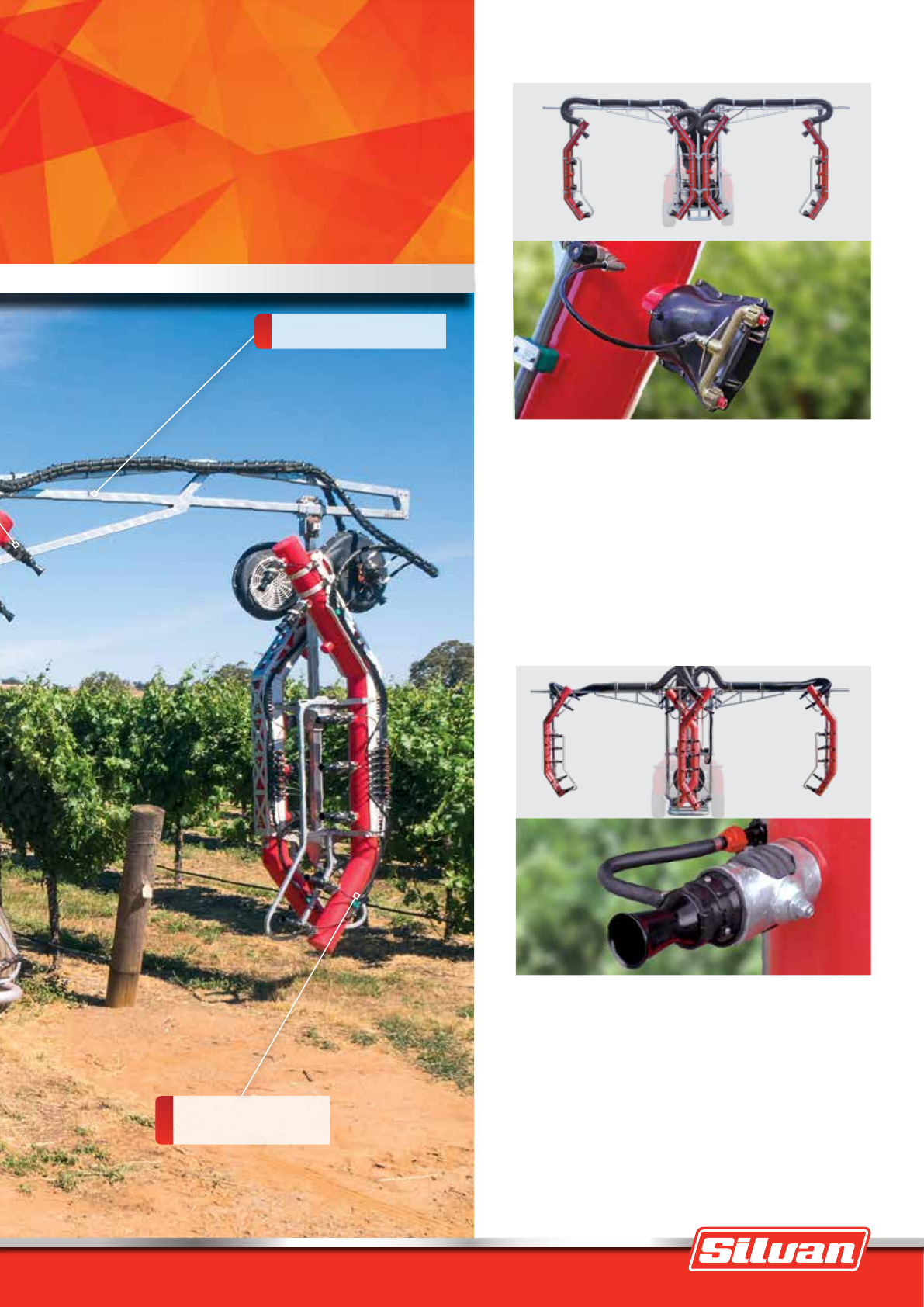

Silvan Over Row sprayers have been developed

to improve spray coverage of vine canopies – and

consequently the efficacy of pest and disease control –

when spraying multiple rows in just one pass. The best

and most efficient spray technology is utilised ensuring

an even distribution of spray throughout the entire

canopy, minimising drift and off target spraying.

Silvan offers a complete range of multi-row vineyard

sprayers with a choice of air assist or air shear

depending on the application. Both are available in

2 & 3 row configurations and all utilise multiple outlet

‘wrap’ air delivery tubes for greater air turbulence

and added flexibility.

The ‘wrap’ tubes completely surround the canopy, while

cane bars protect the lower nozzles from being knocked

and damaged. The TGS and standard Turbomiser

models utilise a single PTO drive centrifugal fan, while

the Turbo SCRAM Turbomiser uses multiple 320mm

‘Wrap’ tubes surround canopy

for greater turbulence.

Fully galvanised superstructure.

The multi-row TGS spray head uses a turbine fan and curved air tubes

to effectively penetrate sprawling vine canopies. Each air diffuser with

dual spray nozzles feature swivel adjustment and have an air divider to

direct the air evenly to wherever the air diffuser is set. The TGS has the

flexibility to be used for concentrate spraying at low application rates

or dilute spraying at higher rates.

The Turbomiser’s centrifugal fan creates a strong current of air

which is directed through the air tubes and out the venturi diffusers.

With air speeds of up to 170 knots, the liquid is sheared into a narrow

range of droplets. This high speed air ensures the spray is directed into

the heart of the canopy. The added advantage with our air shear system

is it uses up to 75% less water for the same canopy coverage.

TURBOMISER - 2 & 3 ROW CONFIGURATIONS

TGS - 2 & 3 ROW CONFIGURATIONS

hydraulic drive centrifugal fans for reduced power

requirements and greater control.

Adjustable outlets together with the fan evenly disperse

the spray-laden air for better turbulence within the

canopy which reduces water and chemical cost and

meets growers needs for crop protection.

1300 745 826 silvan.com.au36

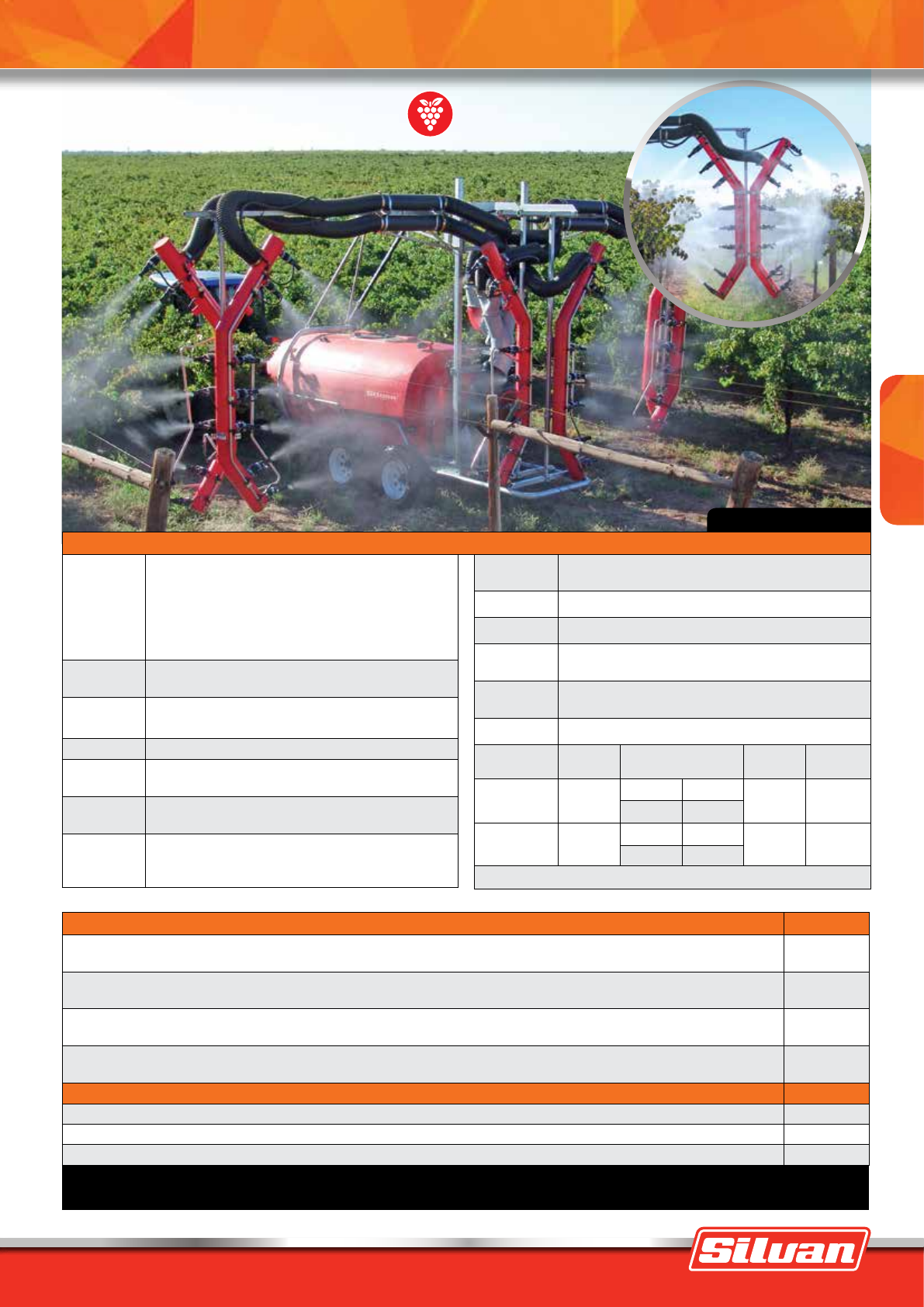

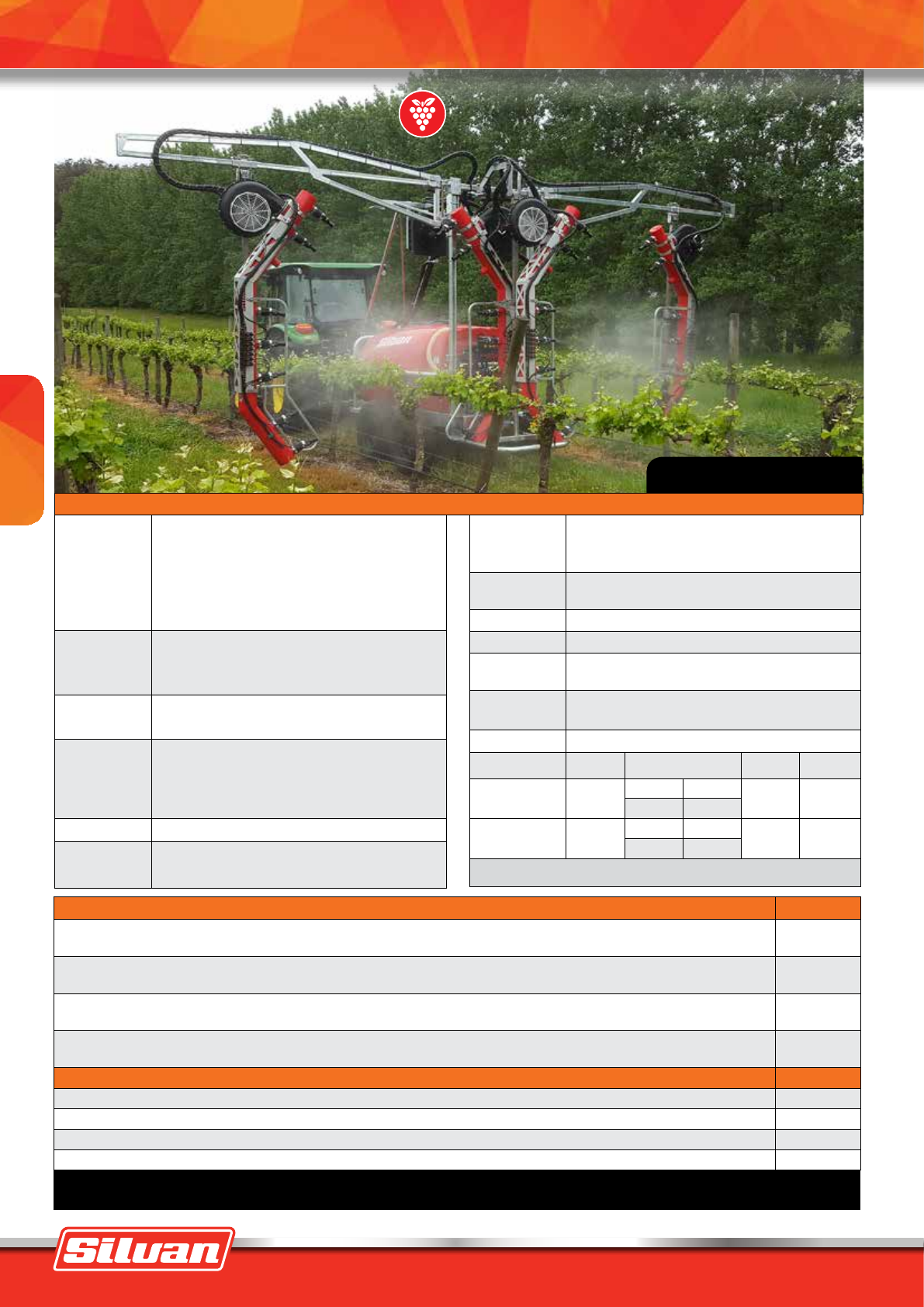

MODEL SPECIFICATIONS

HEAD

Multi row spraying head with air assist diffusers and twin

spray nozzles. Each air diffuser features swivel adjustment

and air deflector. Poly air tubes shaped to surround canopy.

Both arms have independent hydraulic fold with manual width

& height adjustment (2 tractor remote sets required).

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

and corrosion resistant, cast anodised aluminium body

with brass heads and manifolds.

IDS1701: 161L/min. capacity 5000kPa pressure.

FAN SIZE 500mm twin impeller turbine fan, power consumed

48 kw (64HP).

NOZZLES Twin hollow cone ceramic nozzles per outlet with individual

on/off non-drip taps.

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves, master valve, electric

pressure regulator and in cab controls.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, flip top easy open lid, 50mm camlock

bottom fill and 40L fresh water hand wash tank.

MODEL DESCRIPTION CODE

2 ROW 2000L TGS: IDS1701 pump, electric valve controls, 500mm twin turbine fan DTG23NF5S2

2 ROW 3500L TGS: IDS1701 pump, electric valve controls, 500mm twin turbine fan DTG33NF5S2

3 ROW 3500L TGS: IDS1701 pump, electric valve controls, 500mm twin turbine fan DTG33NM5S3

FACTORY OPTIONS CODE

IDS2600 pump, 249L/min capacity, 5000kPa pressure D99-149

Bravo 180S automatic rate controller D99-143

Hydraulic vertical lift (1 extra set of tractor remotes required) TGS-LIFT

Quick turning hitch D99-170

Twin galvanised snorkel D99-172

Hydraulic row width adjustment -

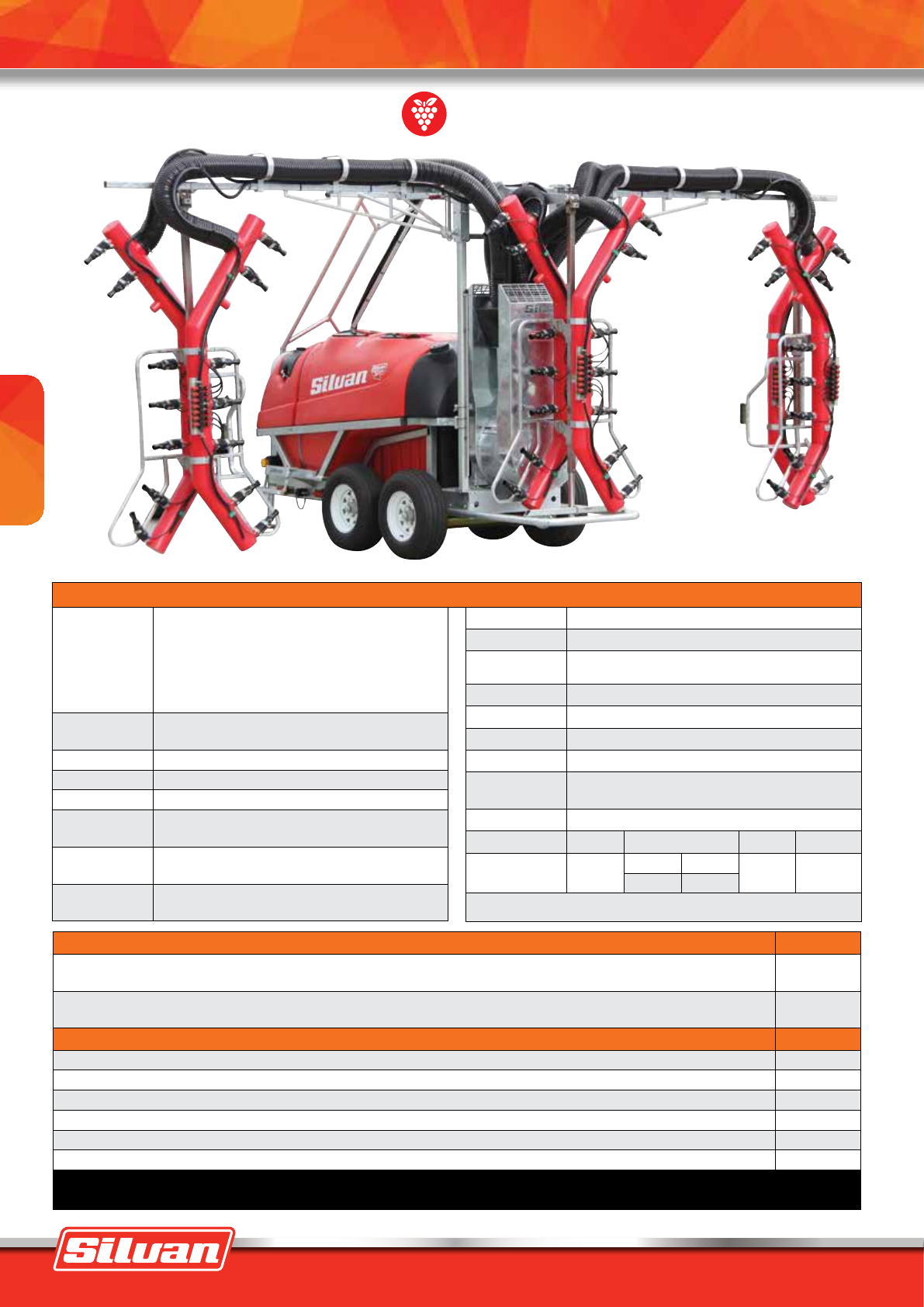

Pictured: 3 Row 3500L TGS

FRAME

Galvanised steel chassis, adjustable drawbar & jockey wheel.

With optional twin galvanised snorkel

CHEM INDUCTION Suction probe with detachable hose.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE 0-60 bar glycerine filled gauge fitted to pump.

FILTRATION Lid strainer and suction line strainer.

WHEEL EQUIPMENT Tandem simplicity suspension with 10 x 15” wheels & tyres.

(2000L) or 11.5 x 15.3” wheels & tyres (3500L)

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED Minimum 75 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

DTG23NF5S2 4300 less head 1800 3300 980

folded 2600

DTG33NF6S2 5075 less head 1800 3300 1020

folded 2800

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

Vineyards Berries

Trailed TGS Vineyard Sprayer 3000L TGS Vineyard Sprayer

MODEL DESCRIPTION CODE

2 ROW 3000L TGS: IDS2001 pump, electric valve controls, 500mm twin turbine fan TG64NF5I2

3 ROW 3000L TGS: IDS2001 pump, electric valve controls, 500mm twin turbine fan TG64NM5I3

FACTORY OPTIONS CODE

IDS2600 pump, 249L/min capacity, 5000kPa pressure D99-149

Bravo 180S automatic rate controller D99-143

Hydraulic vertical lift (1 extra set of tractor remotes required) TGS-LIFT

Quick turning hitch D99-170

Twin galvanised snorkel D99-172

Hydraulic row width adjustment -

Road kit D99-151

Over row work lights D99-152

MODEL SPECIFICATIONS

HEAD

Multi row spraying head with air assist diffusers and twin

spray nozzles. Each air diffuser features swivel adjustment

and air deflector. Poly air tubes shaped to surround canopy.

Left and right arms have independent hydraulic fold with

manual width and height adjustment

(2 sets of tractor remotes required).

PUMP

Silvan oil-backed diaphragm type with nitrile

diaphragms with brass heads and manifolds.

IDS2001: 182L/min. capacity 5000kPa pressure.

FAN SIZE 500mm twin impeller turbine fan.

Power consumed 48 kw/64HP.

NOZZLES Twin hollow cone ceramic nozzles per outlet with individual

metering on/off non-drip taps.

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves, master valve, electric pressure

regulator and in cab controls.

MAIN TANK 3400L Polytuff impact resistant polyethylene construction,

calibrated sightline, flip top lid, 50mm camlock bottom fill.

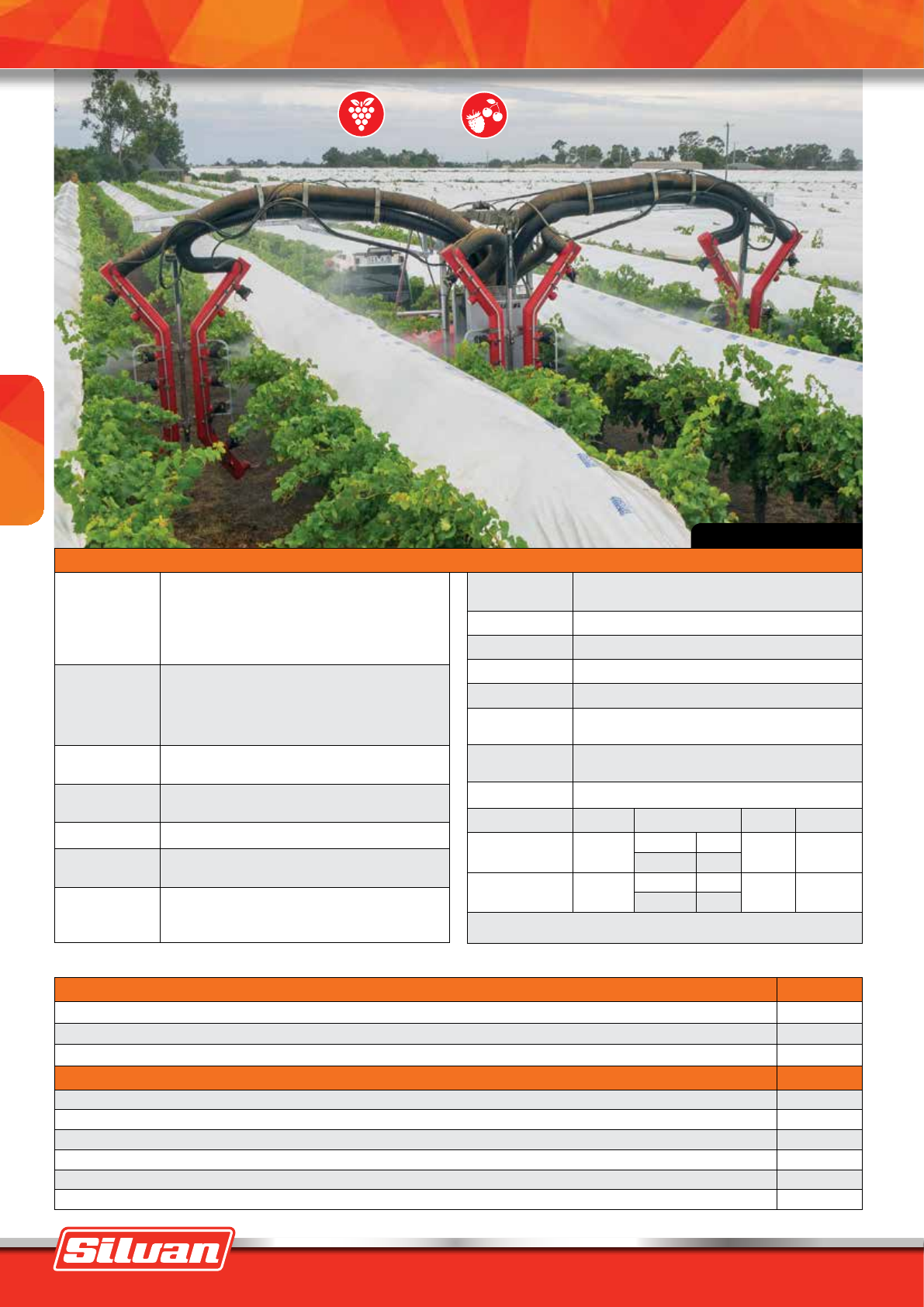

Pictured: 2 Row 3000L TGS with optional

twin galvanised snorkel

FLUSH TANK 205L polytuff tank with top fill. Used to flush pump,

filter, spray lines and nozzles.

HAND WASH TANK 15L polytuff tank with top fill.

CHEM INDUCTION Venturi suction probe.

FRAME Galvanised steel chassis, heavy duty stand & adjustable drawbar.

AGITATION Pump bypass plus venturi agitator.

PRESSURE GAUGE Glycerine filled gauge located on the valve bank.

FILTRATION Suction line filter and pressure filter.

WHEEL EQUIPMENT

Tandem independent suspension with 10 x 15” tyres.

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED Minimum 75 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

TG64NF5I2 3995 less head 1755 3300 1500

folded 2470

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

OPTIONAL OVERSIZE ROAD

KIT WITH 12V TAIL LIGHTS &

INDICATORS

Vineyards

Trailed TGS Vineyard Sprayer 3000L TGS Vineyard Sprayer

Vineyards

1300 745 826 silvan.com.au38

MODEL DESCRIPTION CODE

2 ROW 4000L G2E TGS: IDS2001 pump, electric valve controls, 500mm twin turbine fan ETG44NF6S2

3 ROW 4000L G2E TGS: IDS2001 pump, electric valve controls, 500mm twin turbine fan ETG44NM6S3

FACTORY OPTIONS CODE

IDS2600 pump, 249L/min capacity, 5000kPa pressure D99-149

Bravo 180S automatic rate controller D99-143

Hydraulic vertical lift (1 extra set of tractor remotes required) TGS-LIFT

Quick turning hitch D99-170

Twin galvanised snorkel D99-172

Hydraulic row width adjustment -

Road kit D99-151

Over row work lights D99-152

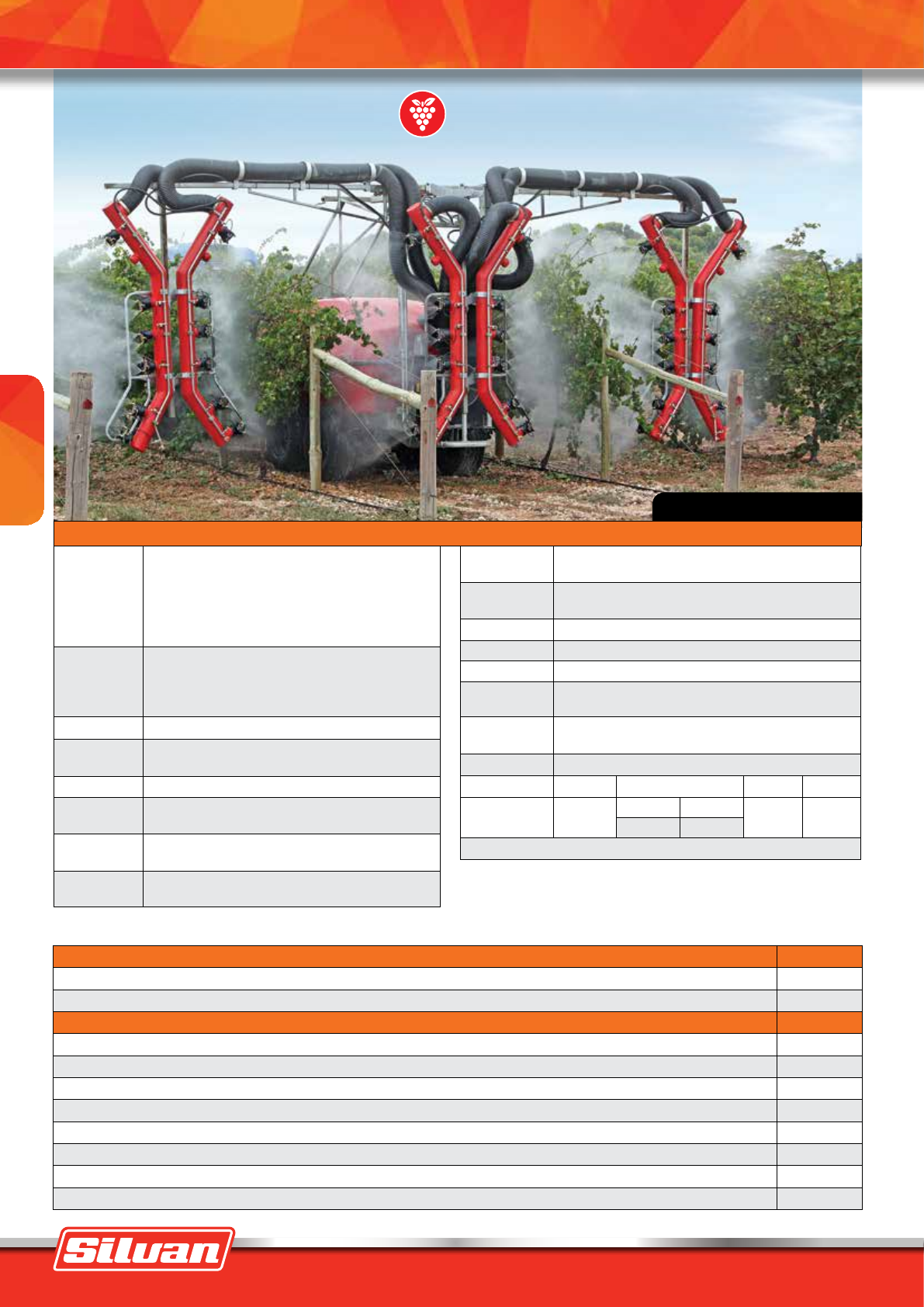

Pictured: 3 Row 4000L G2E TGS

MODEL SPECIFICATIONS

HEAD

Multi row spraying head with air assist diffusers and twin spray

nozzles. Each air diffuser features swivel adjustment and air

deflector. Poly air tubes shaped to surround canopy. Left and

right arms have independent hydraulic fold with manual width

and height adjustment. (2 sets of tractor remotes required).

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

with brass heads and manifolds.

IDS2001: 182L/min. capacity 5000kPa pressure.

FAN SIZE 500mm twin impeller turbine fan, power consumed 48 kw (64HP).

NOZZLES Twin hollow cone ceramic nozzles per outlet with individual

metering on/off non-drip taps.

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS 40 Bar electric section valves, master valve, electric pressure

regulator and in cab controls.

MAIN TANK Polytuff impact resistant polyethylene construction with

calibrated sightline & 50mm camlock top & bottom fill.

HAND WASH

TANK Polytuff tank filled through cap. Located next to bottom fill.

CHEMICAL

INDUCTION Venturi suction probe.

FRAME Galvanised steel chassis, adjustable drawbar

& heavy duty stand.

AGITATION Pump bypass and twin venturi agitators.

PRESSURE GAUGE Glycerine filled gauge located on the valve bank.

FILTRATION Suction line filter and pressure filter.

WHEEL

EQUIPMENT Tandem simplicity suspension with 11.5 x 15.3” tyres.

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED Minimum 75 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG(DRY)

ETG44NF6S2 5230 less head 1950 3300 1820

folded 2800

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

4000L G2E TGS Vineyard Sprayer Turbowrap & Tri Wrap Turbomiser

Vineyards

MODEL SPECIFICATIONS

HEAD

Two row spraying head: 28 venturi air shear adjustable nozzles

with individual metering and on/off taps.

Three row spraying head: 42 venturi air shear adjustable nozzles

with individual metering and on/off taps. Left & right arms are

independent hydraulic folding with adjustable width & centre

frame. Boom frame is galvanised.

PUMP Stainless steel, hydraulic drive centrifugal pump,

350 L/min. Stainless steel shaft and Viton/ceramic seal.

FAN SIZE P55DSE: 550mm dia. turbine fan, 3700 rpm.

Power consumed 50 kw / 67HP.

NOZZLES Air shear.

GEARBOX Multiplication type through multi-grip, multi-vee belt and

pulley, over-run free wheeling hub and oil bath fan housing.

CONTROLS Electric section valves with Bravo 180S automatic

rate controller. Large 100mm pressure gauge.

TANK

Polytuff impact resistant polyethylene construction, calibrated

sight line, flip top easy open lid, 50mm camlock bottom fill and

40L fresh water tank.

MODEL DESCRIPTION CODE

2000L P55DSE TRAILED 2 ROW TURBOWRAP: Includes sprayheads, P55DSE fan, hydraulic drive stainless steel pump, automatic spray rate controller, wide

angle shaft, tandem suspension axle GTU28CB5S2

3500L P55DSE TRAILED 2 ROW TURBOWRAP: Includes sprayheads, P55DSE fan, hydraulic drive stainless steel pump, automatic spray rate controller, wide

angle shaft, tandem suspension axle GTU38CB5S2

2000L P55DSE TRAILED 3 ROW TRI-WRAP: Includes sprayheads, P55DSE fan, hydraulic drive stainless steel pump, automatic spray rate controller, wide

angle shaft, tandem suspension axle GTU28CB5S3

3500L P55DSE TRAILED 3 ROW TRI-WRAP: Includes sprayheads, P55DSE fan, hydraulic drive stainless steel pump, automatic spray rate controller, wide

angle shaft, tandem suspension axle GTU38CB5S3

FACTORY OPTIONS CODE

Quick turning hitch D99-170

Hydraulic row width/height adjustment -

Bravo 180S spray rate controller with hydraulic controls (in lieu) J99-180

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

Pictured: 3500L Tri-Wrap

FRAME Galvanised steel chassis, adjustable drawbar with

jockey wheel.

AGITATION Venturi agitator.

FILTRATION Lid strainer and large capacity suction filter.

WHEEL

EQUIPMENT

Tandem simplicity suspension with 10 x 15” tyres (2000L)

or 11.5 x 15.3” tyres (3500L).

PTO

DRIVESHAFT

Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED 70 PTO HP (2 row), 90 PTO HP (3 row).

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

GTU28CB5S2 4600 less head 1800 3300 990

folded 2600

GTU38CB5S2 4975 less head 1800 3300 1100

folded 2800

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

4000L G2E TGS Vineyard Sprayer Turbowrap & Tri Wrap Turbomiser

1300 745 826 silvan.com.au40

MODEL SPECIFICATIONS

HEAD

Two row spraying head: 28 venturi air shear nozzles with

individual metering and on/off taps. Three row spraying

head: 42 venturi air shear adjustable nozzles with

individual metering and on/off taps. Left & right arms have

independent hydraulic folding with adjustable width &

centre frame. Boom frame is fully galvanised.

PUMP Stainless steel hydraulic centrifugal pump, 350 L/min.

Stainless steel shaft and Viton/ceramic seal.

FAN SIZE

500mm twin impeller turbine fan. Power cons. 48 kw/64HP.

NOZZLES Air shear.

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS Electric section valves with Bravo 180S automatic

rate controller. Large 100mm pressure gauge.

MAIN TANK 3400L Polytuff impact resistant polyethylene construction,

calibrated sightline, flip top lid, 50mm camlock bottom fill.

FLUSH TANK 205L Polytuff tank with top fill. Used to flush pump, filter,

spray lines and nozzles.

MODEL DESCRIPTION CODE

3000L TRAILED TURBOWRAP - 2 ROW: Includes sprayheads, twin fan, hydraulic drive stainless steel pump,

automatic rate controller, wide angle shaft, tandem suspension axle TU68NB5I2

3000L TRAILED TRI WRAP - 3 ROW: Includes sprayheads, twin fan, hydraulic drive stainless steel pump,

automatic rate controller, wide angle shaft, tandem suspension axle TU68NB5I3

FACTORY OPTION CODE

Quick turning hitch D99-170

Hydraulic row width/height adjustment -

Bravo 180S spray rate controller with hydraulic controls (in lieu) J99-180

Twin galvanised snorkel D99-172

Road kit D99-151

Over row work lights D99-152

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

Pictured: 3000L Tri Wrap

HAND WASH TANK 15L polytuff tank with top fill.

CHEM INDUCTION Venturi suction probe.

FRAME Galvanised steel chassis, heavy duty stand and

adjustable drawbar.

AGITATION Venturi agitator.

PRESSURE GAUGE Glycerine filled gauge located on the valve bank.

FILTRATION Suction line filter and pressure filter.

WHEEL EQUIPMENT Tandem independent suspension with 10 x 15” tyres.

PTO DRIVESHAFT Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED Minimum 75 PTO HP.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

TU68NB5I2 3995 less head 1755 3300 1500

folded 2470

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

Vineyards

3000L Turbowrap & Tri Wrap Turbomiser

Pictured: 4000L GE2 Tri Wrap with optional

twin galvanised snorkel

MODEL SPECIFICATIONS

HEAD

Two row spraying head: 28 venturi air shear nozzles with

individual metering and on/off taps. Three row spraying head:

42 venturi air shear adjustable nozzles with individual metering

and on/off taps. Left & right arms have independent hydraulic

folding with adjustable width & centre frame.

Boom frame is fully galvanised.

PUMP Stainless steel, hydraulic drive centrifugal pump,

350 L/min. Stainless steel shaft and Viton/ceramic seal.

FAN SIZE 500mm twin impeller turbine fan. Power consumed 48 kw/64HP.

NOZZLES Air shear.

GEARBOX 2-speed with neutral position, oil-bath type.

CONTROLS Electric section valves with Bravo 180S automatic rate

controller. Large 100mm pressure gauge.

TANK

Polytuff impact resistant polyethylene construction with

calibrated sightline, 50mm camlock top and bottom fill and

hand wash tank.

MODEL DESCRIPTION CODE

4000L GE2 TRAILED TURBOWRAP - 2 ROW: Includes sprayheads, twin fan, hydraulic drive stainless steel pump,

automatic rate controller, wide angle shaft, tandem suspension axle ETU48NB6S2

4000L GE2 TRAILED TRI-WRAP - 3 ROW: Includes sprayheads, twin fan, hydraulic drive stainless steel pump,

automatic spray rate controller, wide angle shaft, tandem suspension axle ETU48NB6S3

FACTORY OPTION CODE

Quick turning hitch D99-170

Hydraulic row width/height adjustment -

Bravo 180S spray rate controller with hydraulic controls (in lieu) J99-180

Twin galvanised snorkel D99-172

Road kit D99-151

Over row work lights D99-152

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

FRAME Galvanised steel chassis, adjustable drawbar & heavy duty stand.

AGITATION Twin venturi agitators.

PRESSURE GAUGE Glycerine filled gauge located on valve bank.

FILTRATION Suction line filter and pressure filter.

WHEEL

EQUIPMENT Tandem simplicity suspension with 11.5 x 15.3” tyres.

PTO

DRIVESHAFT

Quality Bondioli & Pavesi constant velocity (wide angle)

driveshaft with quick release pins & safety cover.

HP REQUIRED 75 PTO HP (2 row Turbowrap), 90 PTO HP (3 row Tri-Wrap).

DIMENSIONS L (mm) W (mm) H (mm) KG (dry)

ETU48NB5S2 5230 less head 1950 3300 2000

folded 2800

Length measured with drawbar in shortest position.

MODEL SPECIFICATIONS

Vineyards

3000L Turbowrap & Tri Wrap Turbomiser 4000L G2E Turbowrap & Tri Wrap Turbomiser

1300 745 826 silvan.com.au42

MODEL SPECIFICATIONS

HEAD

Two row spraying head: 28 venturi air shear adjustable

nozzles with individual metering and on/off taps.

Three row spraying head: 42 venturi air shear adjustable

nozzles with individual metering and on/off taps. Left &

right arms are independent hydraulic folding with adjustable

width & centre frame. Boom frame is galvanised.

PUMP

Stainless steel, hydraulic drive centrifugal pump,

350 L/min. Stainless steel shaft and Viton/ceramic seal.

Driven by tractor remotes.

FANS 320 mm turbine fan, one per air tube, 3600 rpm.

Power consumed 29 kw / 38HP.

HYDRAULIC

CONTROL

Hitch mounted hydraulic power pack with; 40L oil reservoir

with cartridge particulate filter, motors fitted with case

drain, hydraulic distribution block incorporates anti-

cavitation and pressure relief valves, 12V oil cooler.

NOZZLES Air shear.

CONTROLS Electric section valves with Bravo 180S automatic

rate controller. Large 100mm pressure gauge.

MODEL DESCRIPTION CODE

2000L TURBO SCRAM TRAILED 2 ROW TURBOWRAP: Includes sprayheads, 4 x 320mm fans, hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle STU28HB5S2

3500L TURBO SCRAM TRAILED 2 ROW TURBOWRAP: Includes sprayheads, 4 x 320mm fans, hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle STU38HB5S2

2000L TURBO SCRAM TRAILED 3 ROW TRI-WRAP: Includes sprayheads, 6 x 320mm fans, hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system tandem suspension axle STU28HB5S3

3500L TURBO SCRAM TRAILED 3 ROW TRI-WRAP: Includes sprayheads, 6 x 320mm fans, hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle STU38HB5S3

FACTORY OPTIONS CODE

Bravo 180S spray rate controller with hydraulic controls (in lieu) J99-180

Hydraulic row width/height adjustment -

Hydraulic pump driven through power pack D99-185

100L Flush Tank (to suit 3500L unit) J99-112

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, flip top easy open lid, 50mm camlock

bottom fill and 40L fresh water tank.

FRAME Galvanised steel chassis, linkage hitch fitted with hydraulic

power pack.

AGITATION Venturi agitator.

FILTRATION Lid strainer and large capacity suction filter.

WHEEL EQUIPMENT Tandem simplicity suspension with 10 x 15” tyres (2000L)

or 11.5 x 15.3” tyres (3500L).

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 60 PTO HP (2 row), 80 PTO HP (3 row).

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

STU28HB5S2 4600 less head 1800 3300 990

folded 2600

STU38HB5S2 4975 less head 1800 3300 1100

folded 2800

Length measured with linkage hitch.

MODEL SPECIFICATIONS

Vineyards

Pictured: 2000L 2 Row Turbo SCRAM

Turbo SCRAM Turbowrap & Tri Wrap 4000L Turbo SCRAM Turbowrap & Tri Wrap

MODEL SPECIFICATIONS

HEAD

Two row spraying head: 28 venturi air shear adjustable

nozzles with individual metering and on/off taps.

Three row spraying head: 42 venturi air shear adjustable

nozzles with individual metering and on/off taps. Left &

right arms are independent hydraulic folding with adjustable

width & centre frame. Boom frame is galvanised.

PUMP

Stainless steel, hydraulic drive centrifugal pump,

350 L/min. Stainless steel shaft and Viton/ceramic seal.

Driven by tractor remotes.

FANS 320 mm turbine fan, one per air tube, 3600 rpm.

Power consumed 29 kw / 38HP.

HYDRAULIC

CONTROL

Hitch mounted hydraulic power pack with; 40L oil reservoir

with cartridge particulate filter, motors fitted with case

drain, hydraulic distribution block incorporates anti-

cavitation and pressure relief valves, 12V oil cooler.

NOZZLES Air shear.

CONTROLS Electric section valves with Bravo 180S automatic

rate controller. Large 100mm pressure gauge.

MODEL DESCRIPTION CODE

4000L G2E TURBO SCRAM TRAILED 2 ROW TURBOWRAP: Includes sprayheads 4 x 320mm fans, Hydraulic drive stainless steel pump, automatic spray rate

controller, self contained hydraulic drive system, tandem suspension axle SETU48HB6S2

4000L G2 TURBO SCRAM TRAILED 2 ROW TURBOWRAP: Includes sprayheads 4 x 320mm fans, Hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle STU48HB6S2

4000L G2E TURBO SCRAM TRAILED 3 ROW TRI-WRAP: Includes sprayheads 6 x 320mm fans, Hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system tandem suspension axle SETU48HB6S3

4000L G2 TURBO SCRAM TRAILED 3 ROW TRI-WRAP: Includes sprayheads 6 x 320mm fans, Hydraulic drive stainless

steel pump, automatic spray rate controller, self contained hydraulic drive system, tandem suspension axle STU48HB6S3

FACTORY OPTIONS CODE

Bravo 180S spray rate controller with hydraulic controls (in lieu) J99-180

Hydraulic row width/height adjustment -

Hydraulic pump driven through power pack D99-185

100L Flush Tank (to suit G2E) J99-112

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be written on order. Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, flip top easy open lid, 50mm camlock

bottom fill and hand wash tank.

(G2 fitted with flush tank and chemical mixer hopper)

FRAME Galvanised steel chassis, linkage hitch fitted with hydraulic

power pack.

AGITATION Venturi agitator.

FILTRATION Lid strainer and large capacity suction filter.

WHEEL EQUIPMENT Tandem simplicity suspension axle with 11.5 x 15.3” tyres.

PTO DRIVESHAFT Quality Bondioli & Pavesi driveshaft with quick release pins

& safety cover.

HP REQUIRED Minimum 65 PTO HP (2 row), 80 PTO HP (3 row)

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

SETU48HB6S2 5230 less head 1950 3300 1820

folded 2800

STU48HB6S2 5730 less head 1950 3300 2000

folded 2800

Length measured with linkage hitch.

MODEL SPECIFICATIONS

Vineyards

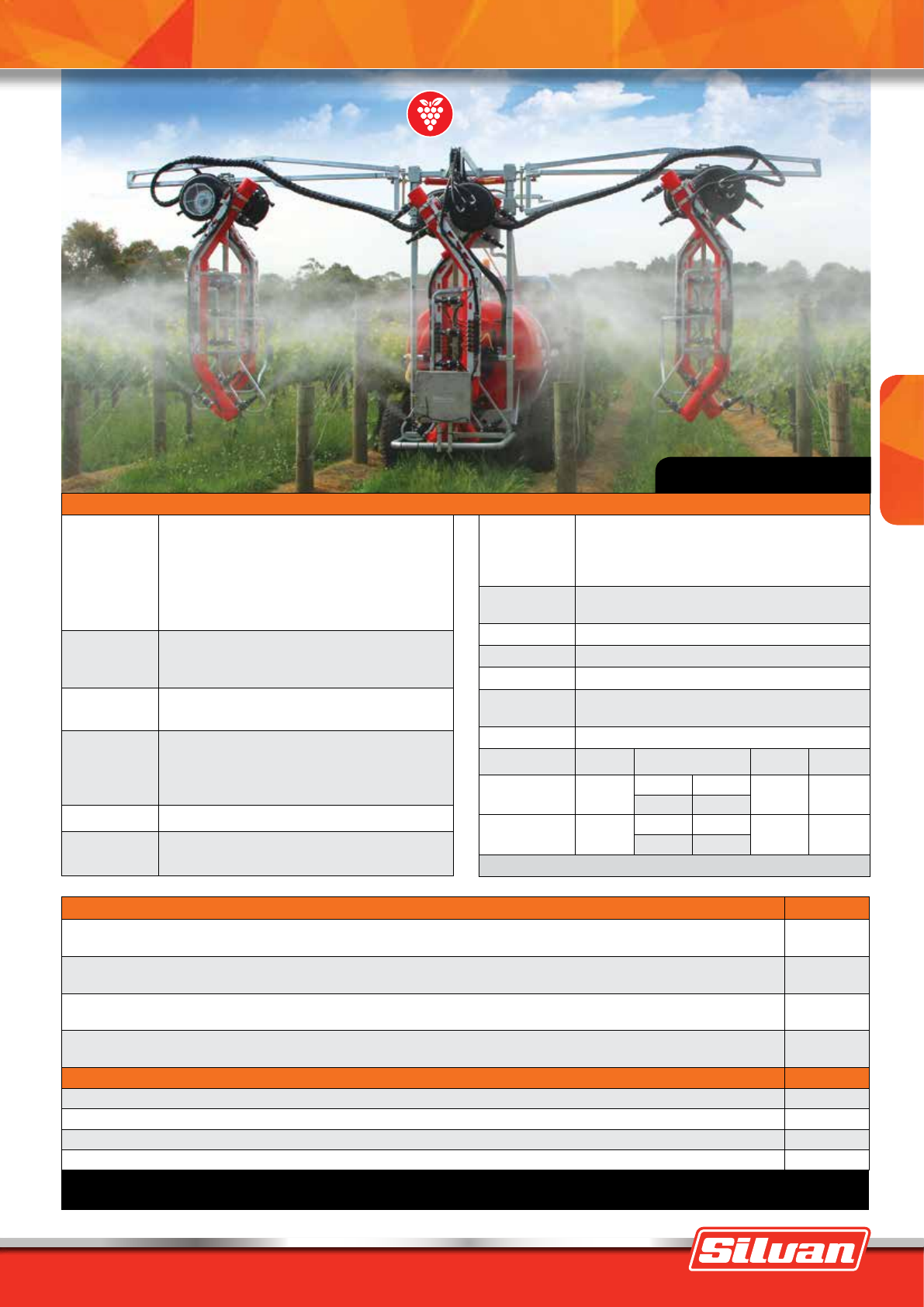

Pictured: 4000L 3 Row Turbo SCRAM

Turbo SCRAM Turbowrap & Tri Wrap 4000L Turbo SCRAM Turbowrap & Tri Wrap

1300 745 826 silvan.com.au44

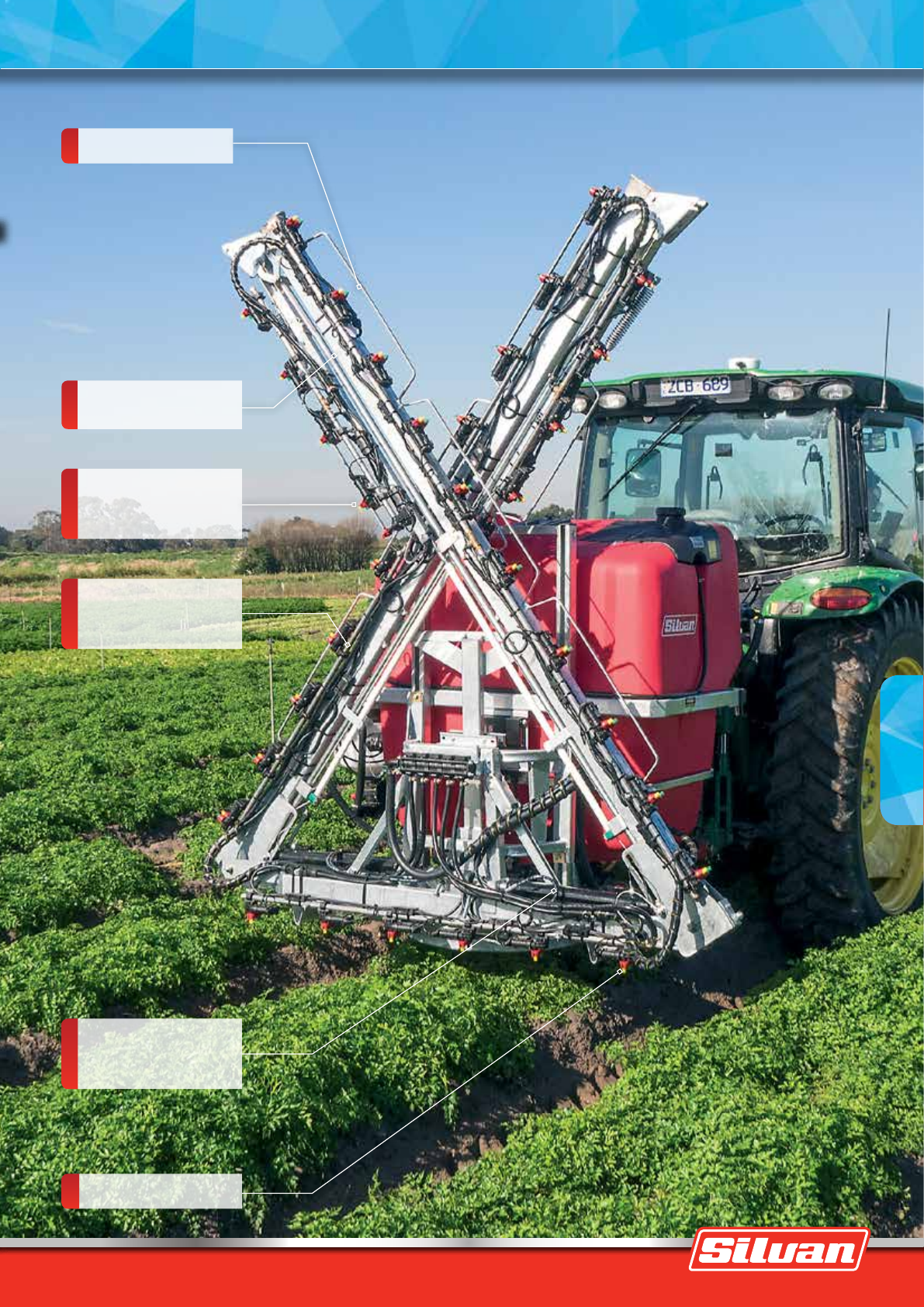

Linkage

Sprayers

Silvan linkage sprayers can be equipped to suit

herbicide & fungicide applications in a range

of crops and are ideal for the management of

harmful pests that impact farm productivity.

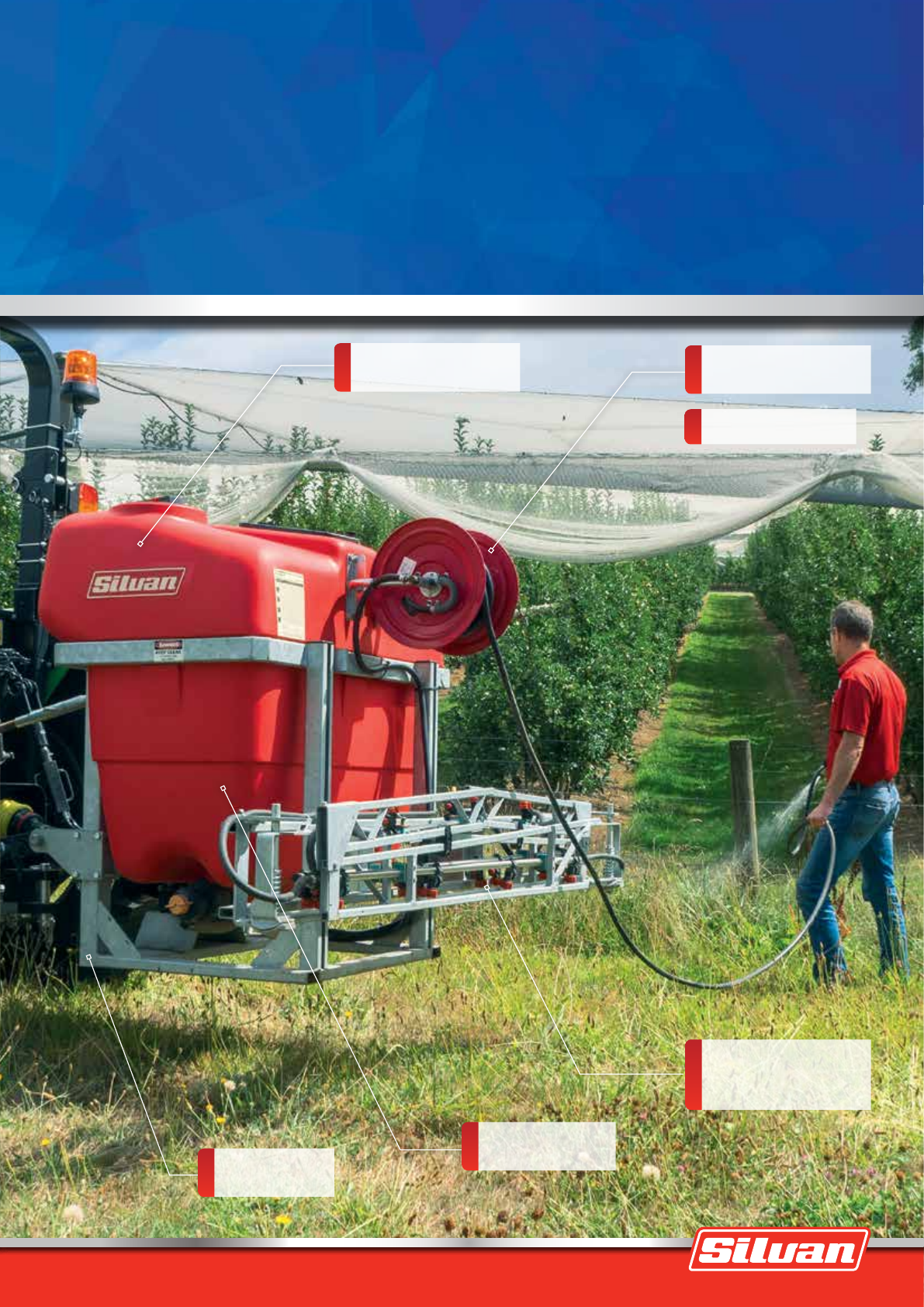

Extensive range of tank

sizes from 200 to 1900L.

Range of fully galvanised crop

specific manual or hydraulic fold

booms from 6 to 15 metres.

Flexible control options.

Galvanised frame for

long working life.

Polytuff impact resistant

tanks with in-built sight line.

A range of hose reels and

foam marker options.

Silvan is a leader in the design of three point linkage

sprayers and the largest Australasian manufacturer of

best-in-class linkage sprayers and related machinery.

With over fifty years experience, we can advise a sprayer

to match your tractor and application, whether for one

hectare or one thousand.

Insects and fungi can restrict a plant’s growth, whilst

weeds compete for water and nutrients reducing pasture

production. The Silvan series of three point linkage

sprayers are ideal for the management of harmful

pests that impact farm productivity.

Silvan’s range of sprayers can be equipped to suit

herbicide, insecticide and fungicide applications in a

range of crops including orchards, vineyards, vegetables,

sugar cane and pasture production. With an extensive

range of fully galvanised booms, hose reels & control

options, you can customise to your application.

1300 745 826 silvan.com.au46

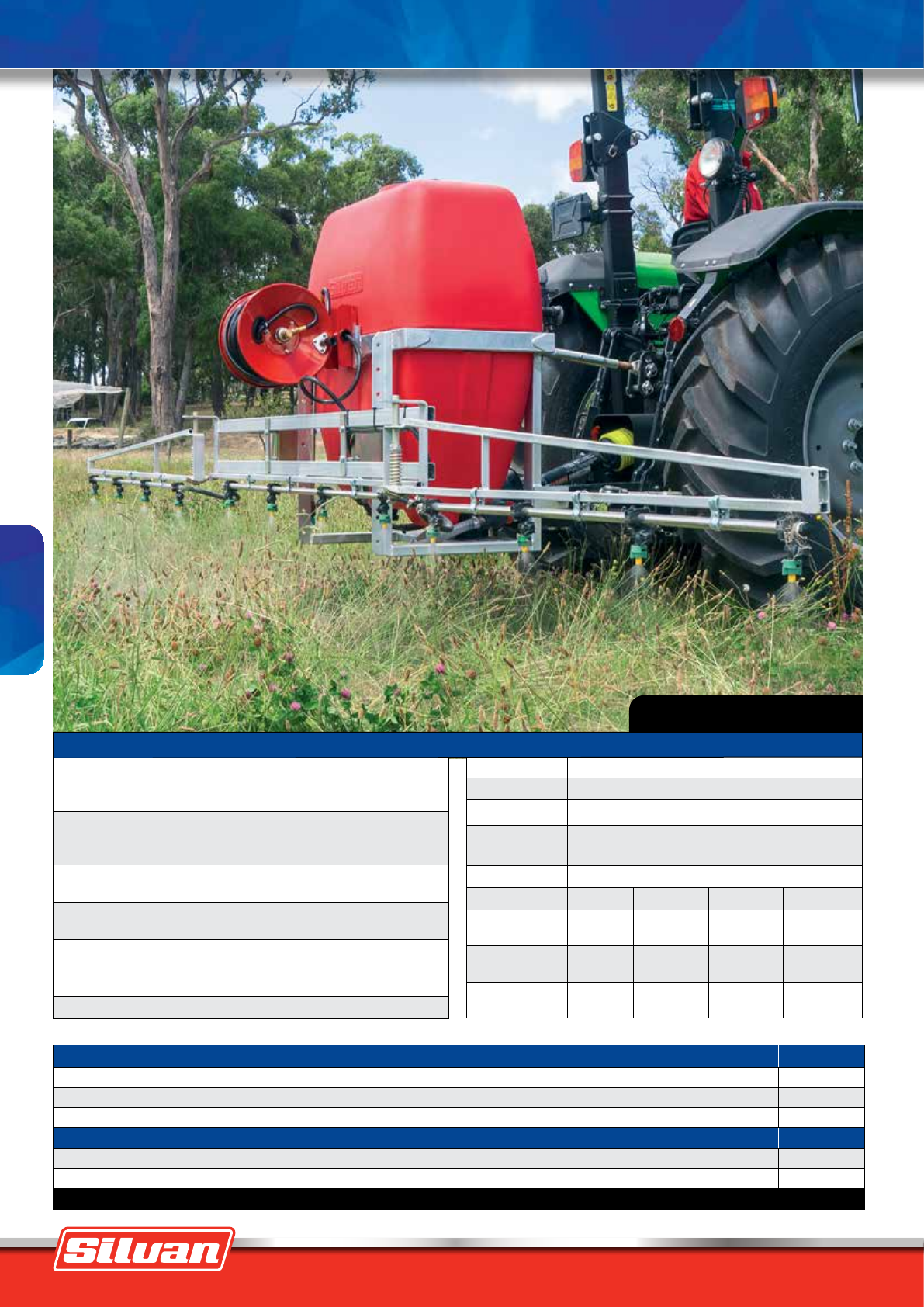

Pictured: 400L EconoPak

MODEL DESCRIPTION CODE

300L ECONOPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 6m Econopak boom KBC300

400L ECONOPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 6m Econopak boom KBC400

600L ECONOPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 6m Econopak boom KBC600

OPTIONS* CODE

14L foam marker (single side) K99-31

16L foam marker (double side) K99-39

*Note: Dealer fitment. $500 charge applies for factory fitment.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with nitrile

diaphragms and cast anodised aluminium body.

BP60/20: 58 L/min. capacity 2000kPa pressure.

BOOM

Econopak boom: 6m with stainless steel spray lines,

non-drip nozzle holders, fully galvanised frame and spring

loaded safety break back/forward.

NOZZLES Air induction nozzles with strainer in bayonet fit non-drip

nozzle holders at 50cm spacings.

CONTROLS 3 outlet manual control valve with pressure regulator.

Mounted forward for easy access.

TANK

Polytuff impact resistant polyethylene construction,

moulded litre calibrations and non-spill screw-down lid

with single breather.

FRAME Fully galvanised steel, cat I & II linkage.

AGITATION Bypass agitation.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer and nozzle strainers.

HOSE REEL Fitted with rear-mounted Eco hosereel, 30m of 10mm hose

and Spotjet spraygun with adjustable spray nozzle.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

KBC300

(WITH BOOM) 1105 2067 1070 116

KBC400

(WITH BOOM) 1105 2067 1310 121

KBC600

(WITH BOOM) 1200 2067 1400 151

MODEL SPECIFICATIONS

EconoPak - Linkage Sprayer

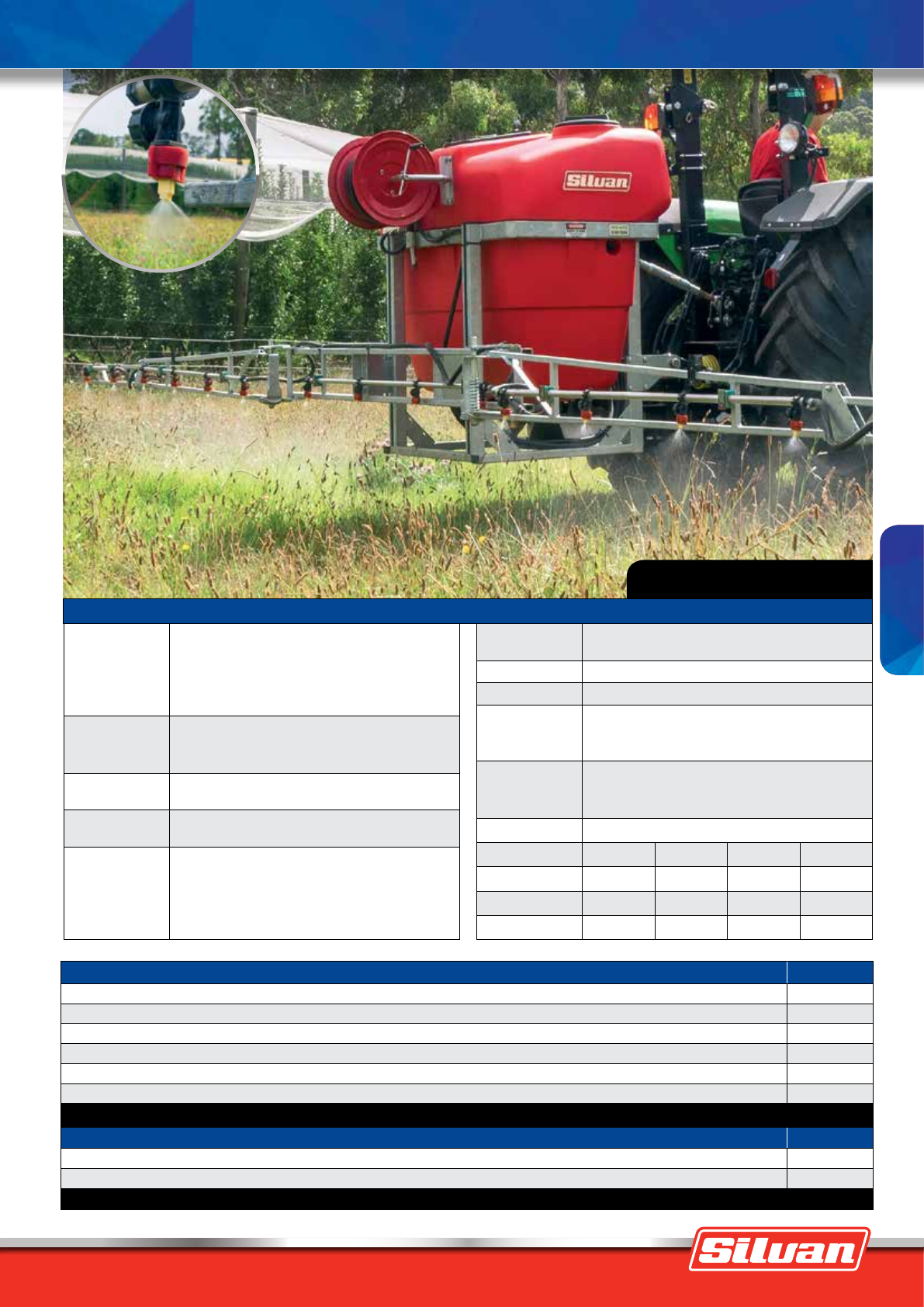

MODEL DESCRIPTION CODE

400L PASTUREPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 6m Field boom KBE400

400L PASTUREPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 8m Field boom KBF400

600L PASTUREPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 6m Field boom KBE600

600L PASTUREPAK LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 8m Field boom KBF600

800L PASTUREPAK LINKAGE SPRAYER: BP75/20 pump, reel, hose & gun, 6m Field boom KBE800

800L PASTUREPAK LINKAGE SPRAYER: BP75/20 pump, reel, hose & gun, 8m Field boom KBF800

NOTE: BOOM AND HOSE REEL NOT FITTED. $500 ASSEMBLY CHARGE APPLIES

OPTIONS* CODE

14L foam marker (single side) K99-31

16L foam marker (double side) K99-39

*Note: Dealer fitment. $500 charge applies for factory fitment.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body with raised pump mount.

BP60/20: 58 L/min. capacity 2000kPa pressure.

BP75/20: 71 L/min. capacity 2000kPa pressure.

BOOM

Field boom: 6m or 8m with stainless steel spray lines,

non-drip nozzle holders, fully galvanised frame, nozzle

protection and spring loaded safety break back/forward.

NOZZLES Air induction nozzles with strainer in bayonet fit non-drip

nozzle holders at 50cm spacings.

CONTROLS 3 outlet manual control valve with pressure regulator.

Mounted forward for easy access.

TANK

Low profile, 400/600/800L polytuff impact resistant

polyethylene construction, external sightline with floating

ball and non-spill offset screw-down lid with single

breather. 15L fresh water tank with screw down lid and

on/off tap. 4L toolbox with polyethylene lid.

Pictured: 600L PasturePak with 8m boom

FRAME Fully galvanised steel, cat I & II linkage on 400L,

cat II linkage on 600L and 800L.

AGITATION Bypass agitation.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION

Lid strainer, suction line strainer with stop valve fitted at

side of tank to enable easy filter maintenance and nozzle

cup strainers.

HOSE REEL

Fitted with rear-mounted hosereel, including 20m of

12mm I.D. quality pressure hose & Triam 49 spraygun with

convenient trigger action & spray pattern adjustment.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

KBE400 (WITH BOOM) 1050 2067 1200 150

KBE600 (WITH BOOM) 1350 2067 1300 180

KBE800 (WITH BOOM) 1460 2067 1315 210

MODEL SPECIFICATIONS

EconoPak - Linkage Sprayer PasturePak - Linkage Sprayer

1300 745 826 silvan.com.au48

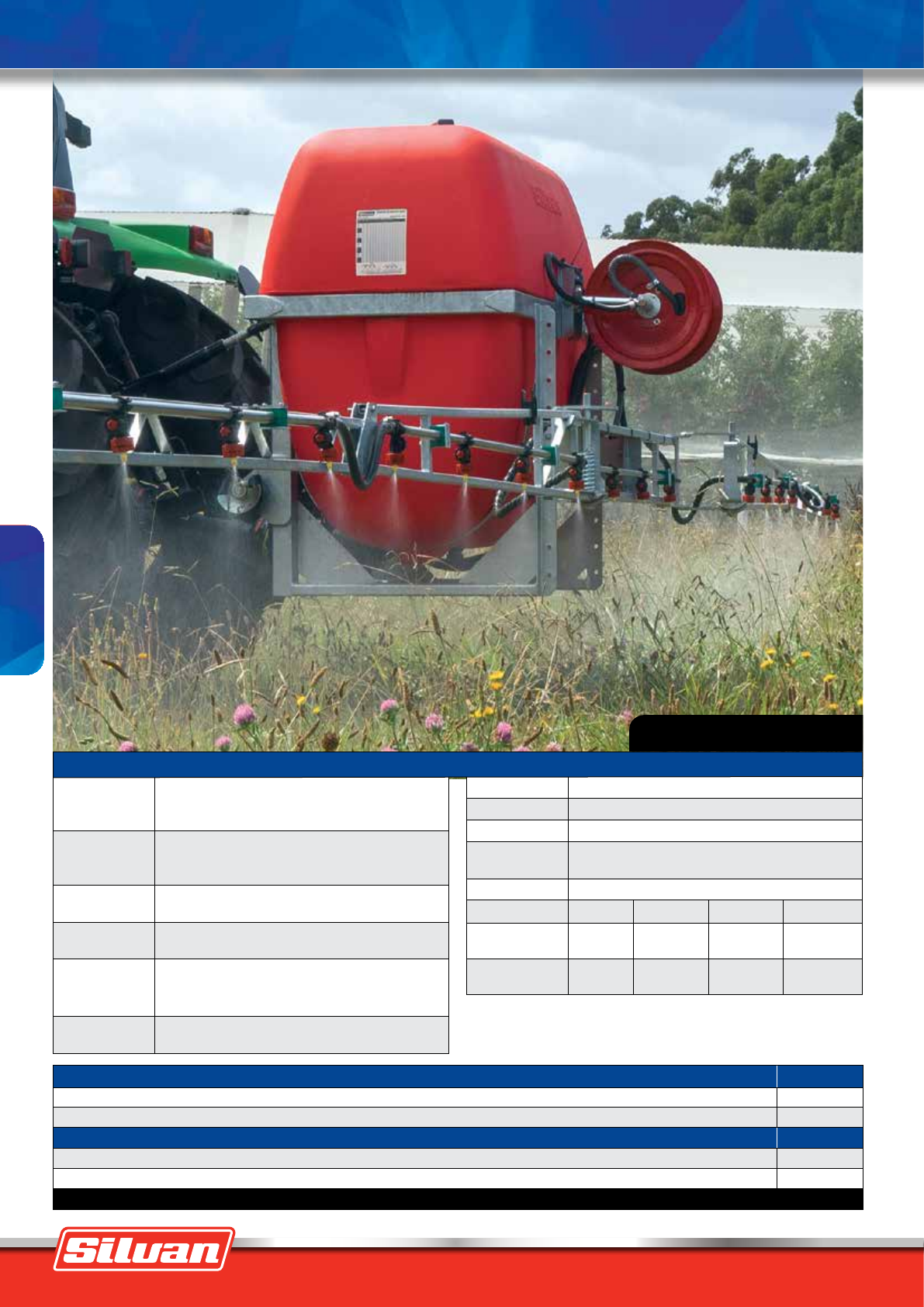

Pictured: 800L EconoMax

MODEL DESCRIPTION CODE

800L ECONOMAX LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 10m Field boom KBC800

1000L ECONOMAX LINKAGE SPRAYER: BP60/20 pump, reel, hose & gun, 10m Field boom KBC1000

OPTIONS* CODE

14L foam marker (single side) K99-31

16L foam marker (double side) K99-39

*Note: Dealer fitment. $500 charge applies for factory fitment.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with nitrile

diaphragms and cast anodised aluminium body.

BP60/20: 58 L/min. capacity 2000kPa pressure.

BOOM

10m with stainless steel spray lines, non-drip nozzle

holders, fully galvanised frame, nozzle protection and

spring loaded safety break back/forward.

NOZZLES Air induction nozzles with strainer in bayonet fit non-drip

nozzle holders at 50cm spacings.

CONTROLS 3 outlet manual control valve with pressure regulator.

Mounted forward for easy access.

TANK

Polytuff impact resistant polyethylene construction,

moulded litre calibrations and non-spill screw-down lid

with single breather.

FRAME Fully galvanised steel.

800L model : Cat I & II linkage 1000L model : Cat II linkage

AGITATION Bypass agitation.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer and nozzle strainers.

HOSE REEL Fitted with rear-mounted hosereel, 20m of 12mm hose and

Triam 49 spraygun with trigger action pattern adjustment.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

KBC800

(WITH BOOM) 1440 2067 1370 116

KBC1000

(WITH BOOM) 1760 2067 1370 121

MODEL SPECIFICATIONS

EconoMax - Linkage Sprayer Super 400/600L - Linkage Sprayer

EconoMax - Linkage Sprayer

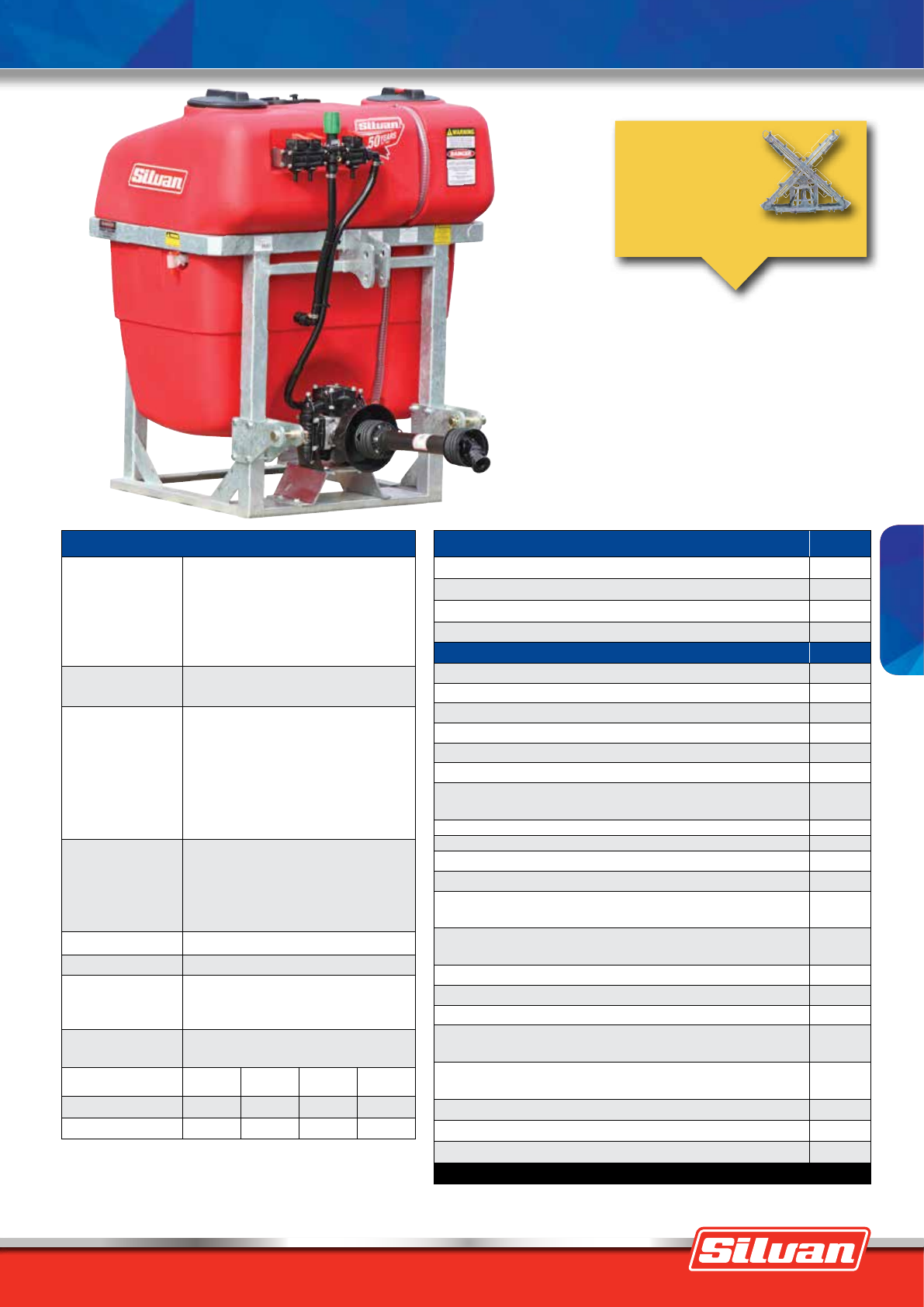

Pictured: 600L with BP60/20 pump

MODEL DESCRIPTION CODE

400L LINKAGE: BP60/20 pump, no boom K04N-60

400L LINKAGE: BP125/20 pump, no boom K04N-105

600L LINKAGE: BP60/20 pump, no boom K06N-60

600L LINKAGE: BP125/20 pump, no boom K06N-105

FACTORY OPTIONS* CODE

6m Field boom 032-044-6

8m Field boom 032-044-8

10m Field boom 032-044-10

6m Devil boom with hydraulic fold 032-19D

8m Devil boom with hydraulic fold 032-25D

10m Devil boom with hydraulic fold 032-32DM

Hydraulic lift, galvanised single hydraulic

system - 6, 8 & 10m devil booms 032-19DL

8 Jet vine boom 032-G

10 Jet vine boom 032-H

Olive boom (Used with BP125/20 pump only)

032-R

Undervine and mid row boom 032-HERB

Boomless nozzle mounting kit

(brass nozzle not included) K99-10

70L flush tank kit to flush the filter,

spraylines and nozzles (600L only) K99-47

14L foam marker (single side) K99-31

16L foam marker (double side) K99-39

57L Paddock marker foam marker K99-43

Economy hosereel, 20m hose

(12mm ID) with Triam spraygun

180E02012CT

Reel tuff 12V remote reel with Turbo 400 spray gun (600L only) inc. APS41 pump

upgrade K99-51

Electric on/off control 3 section K99-34

Electric control 3 section with in cab pressure adjustment K99-29

Bravo 180S automatic rate controller J99-151

Note: Not all options will fit all models. Extra charges may apply to fitment.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type

with nitrile diaphragms and corrosion resistant,

cast anodised aluminium body with raised

pump mount.

BP60/20: 58L/min. capacity 2000kPa pressure

BP125/20: 121L/min. capacity 2000kPa pressure

CONTROLS 3 outlet manual control valve with

pressure regulator.

TANK

Low profile, 400 and 600L Polytuff impact

resistant polyethylene construction, external

sightline with floating ball and non-spill offset

screw-down lid with single breather. 15L

freshwater tank with screw-down lid and on/off

tap. 4L toolbox with polythylene lid.

FRAME

Galvanised steel with adjustable cat I & II hitch

on 400L and cat II hitch on 600L. Vertical boom

channel for positioning the boom at the optimum

spray height.

AGITATION Bypass agitation.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION

Lid strainer, suction line strainer with stop valve

fitted at the side of the tank to enable ease of

filter maintenance.

PTO DRIVESHAFT Quality driveshaft with quick release pins &

safety cover.

DIMENSIONS L (mm) W (mm) H (mm) Kg (dry)

K04N-60 (LESS BOOM)

930 1020 1200 90

K06N-60 (LESS BOOM)

1025 1150 1300 105

FOR BOOM

& HOSE REEL

SPECIFICATIONS

SEE PAGES 58-61

Super 400/600L - Linkage Sprayer

1300 745 826 silvan.com.au50

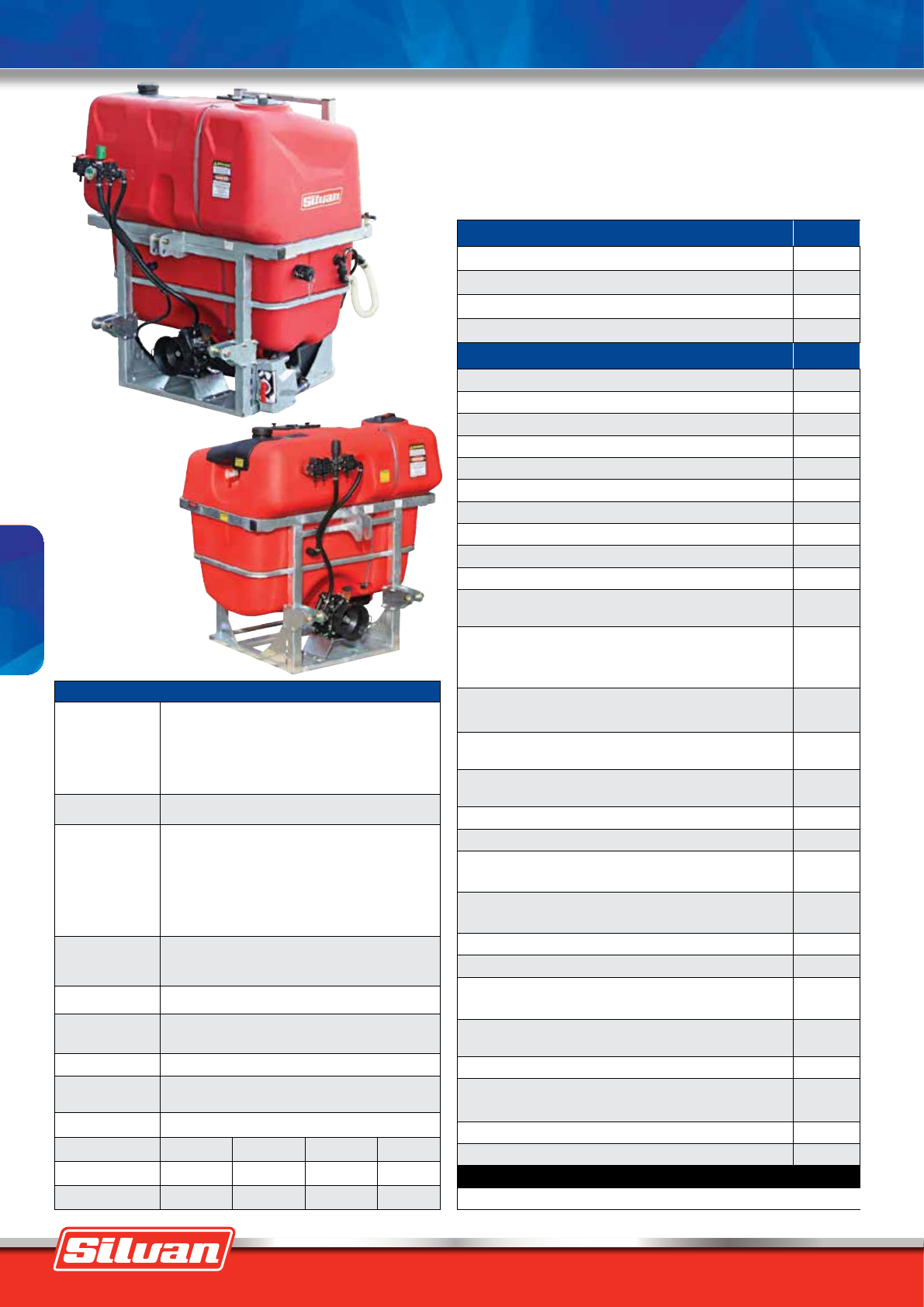

MODEL DESCRIPTION CODE

800L LINKAGE: BP75/20 pump, no boom K08N-75

800L LINKAGE: BP125/20 pump, no boom K08N-125

1100L LINKAGE: BP75/20 pump, no boom K11NH-75

1100L LINKAGE: BP125/20 pump, no boom K11NH-125

FACTORY OPTIONS* CODE

6m Field boom 032-044-6

8m Field boom 032-044-8

10m Field boom 032-044-10

6m Devil boom with hydraulic fold 032-19D

8m Devil boom with hydraulic fold 032-25D

10m Devil boom with hydraulic fold 032-32DM

10m HD Devil boom with hydraulic fold 032-32D

12m HD Devil boom with hydraulic fold** 032-40D

14m HD Devil boom with hydraulic fold** 032-48D

15m HD Devil boom with hydraulic fold** 032-50D

Hydraulic lift, galvanised single hydraulic system - 6, 8 & 10m devil

booms 032-19DL

Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m

HD Devil booms 032-40DL

Hydraulic lift with airbag suspension - 10, 12, 14 & 15m HD Devil

booms 032-40DLAB

8 Jet vine boom (Used with BP60/20 pump only) 032-G

10 Jet vine boom (Used with BP60/20 pump only) 032-H

Olive boom (Use with BP125/20 pump only) 032-R

Undervine and mid row boom 032-HERB

Boomless nozzle mounting kit

(brass nozzle not included) K99-10

70L flush tank kit to flush the filter, spraylines and nozzles K99-47

16L foam marker (double side) K99-39

57L Paddock marker foam marker K99-43

Economy hosereel, 20m hose

(12mm ID) & Triam spraygun

180E02012CT

Reel tuff 12V remote reel with Turbo

400 spray gun.

inc. APS41 pump upgrade

K99-51

Electric on/off control 3 section K99-34

Electric control 3 section with in cab pressure adjustment K99-29

Bravo 180S automatic rate controller J99-151

Silmix chemical hopper K99-21

Note: Not all options will fit all models. Extra charges may apply to fitment.

** If fitting 12, 14 & 15m HD Devil boom to a 800L TPL add $800 for heavier frame

Pictured: 1100L

with BP125/20 pump

and optional flush tank

Pictured: 800L

with BP125/20 pump

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body with raised pump mount.

BP75/20: 71L/min. capacity 2000kPa pressure.

BP125/20: 121L/min. capacity 2000kPa pressure.

CONTROLS 3 outlet manual control valve with pressure regulator.

TANK

Low profile, 800 and 1100L Polytuff impact resistant

polyethylene construction, external sightline with

floating ball and non-spill offset screw-down lid with

single breather. 15L freshwater tank with screw-down

lid and on/off tap. 4L toolbox with polythylene lid.

50mm Camlock bottom fill (1100L only).

FRAME Galvanised steel, with adjustable cat II hitch. Vertical

boom channel positions boom at optimum spray height.

AGITATION Bypass agitation.

CHEMICAL

INDUCTION 1100L: Venturi suction probe with detachable hose.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer with stop valve fitted at

the side of the tank to enable ease of filter maintenance.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

K08N-75 (LESS BOOM) 1350 1395 1315 145

K11NH-75 (LESS BOOM) 1350 1395 1610 160

Super 800/1100L - Linkage Sprayer 1600/1900L - Linkage Sprayer

MODEL DESCRIPTION CODE

1600L LINKAGE: BP125/20 pump, no boom K16NH-125

1900L LINKAGE: BP125/20 pump, no boom K19NH-125E

FACTORY OPTIONS* CODE

10m HD Devil boom with hydraulic fold 032-32D

12m HD Devil boom with hydraulic fold 032-40D

14m HD Devil boom with hydraulic fold 032-48D

15m HD Devil boom with hydraulic fold 032-50D

Hydraulic lift with airbag suspension -

10, 12, 14 and 15m HD Devil Booms 032-40DLAB

Parellelogram airbag suspension -

10, 12, 14 and 15m HD Devil Booms

(no hydraulic lift)

032-

40DLAB-2

57L Paddock marker foam marker K99-43

Bravo 180S automatic rate controller J99-146

Note: Not all options will fit all models. Extra charges may apply to fitment.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body with raised pump mount.

BP125/20: 121L/min. capacity 2000kPa pressure.

CONTROLS

3 section Silvamatic electric controls with pressure

compensating direct acting valves. On/off and pressure

adjustment in cab.

TANK

1600 and 1900L Polytuff impact resistant polyethylene

construction, external sightline with floating ball and

non-spill offset screw-down lid with single breather.

10L hand wash tank with screw-down lid and on/off

tap. 150L flush tank with screw down lid and external

sightline. 50mm Camlock bottom fill.

FRAME

Galvanised steel, with adjustable cat II & cat III hitch.

Vertical boom channel positions boom at

optimum spray height.

AGITATION Bypass agitation.

CHEMICAL

INDUCTION 30L Silmix chemical hopper mounted on side of tank.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer with stop valve fitted at

the side of the tank to enable ease of filter maintenance.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (mm) W (mm) H (mm) KG (dry)

K16NH-125

(LESS BOOM)

1480 2300 2300 650

K19NH-125E

(LESS BOOM)

1480 2300 2570 665

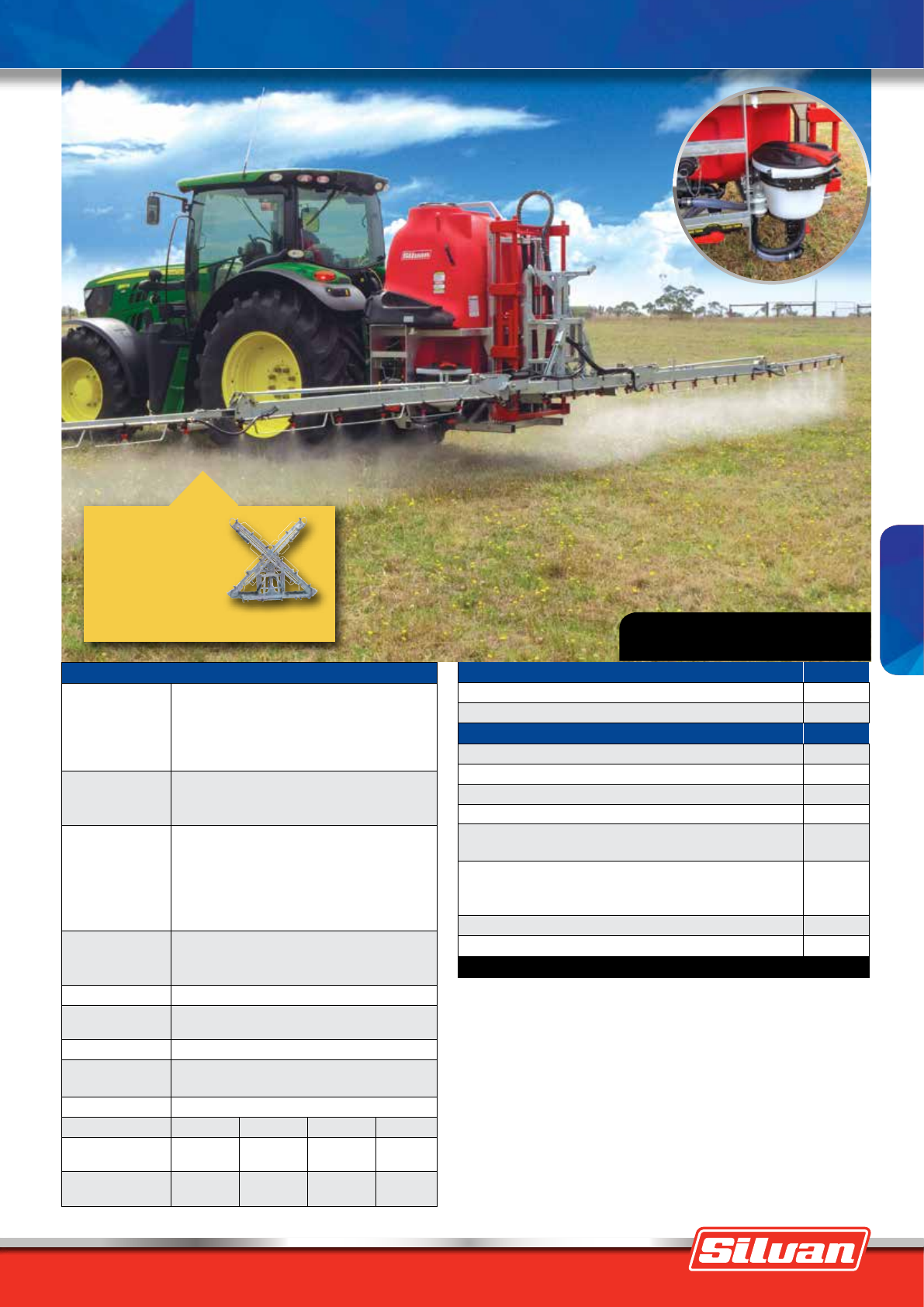

Pictured: 1600L Linkage Sprayer with

optional 14m HD Devil boom

Super 800/1100L - Linkage Sprayer 1600/1900L - Linkage Sprayer

FOR BOOM

& HOSE REEL

SPECIFICATIONS

SEE PAGES 58-61

1300 745 826 silvan.com.au52

MODEL DESCRIPTION CODE

200L LINKAGE SPRAYER:

BP20/15 pump, no boom

K02S-20

300L LINKAGE SPRAYER:

BP20/15 pump, no boom

K03-20

300L LINKAGE SPRAYER:

BP60/20 pump, no boom

K03-60

400L LINKAGE SPRAYER:

BP60/20 pump, no boom

K04-60

DEALER FITTED OPTIONS CODE

6m Field boom 032-044-6

8m Field boom 032-044-8

8 Jet vine boom (Used with BP60/20 pump only) 032-G

10 Jet vine boom (Used with BP60/20 pump only) 032-H

Undervine & mid row boom 032-HERB

Boomless nozzle mounting kit

(brass nozzle not included) K99-11

14L foam marker (single side) K99-31

16L foam marker (double side) K99-39

Economy hosereel, 30m hose (12mm ID),

PA spray gun & extension lance 180E03010C

Electric on/off control-3 section

(GOYEN solenoids) M99-14

Note: Not all options will fit all models.

Extra charges may apply to factory fitment of some options.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast

anodised aluminium body.

BP20/15: 20L/min. capacity 1500kPa pressure.

BP60/20: 58L/min. capacity 2000kPa pressure.

CONTROLS BP20/15: 2 outlet control valve with pressure regulation.

BP60/20: 3 outlet control valve with pressure regulation.

TANK

Polytuff impact resistant polyethylene construction,

moulded litre calibrations and non-spill screw-down lid

with single breather.

FRAME Fully galvanised steel, cat. I & II linkage.

AGITATION Bypass agitation.

PRESSURE GAUGE

0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety

cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

K02S-20 920 740 920 60

K03-20 1105 740 1070 70

K04-60 1105 740 1310 75

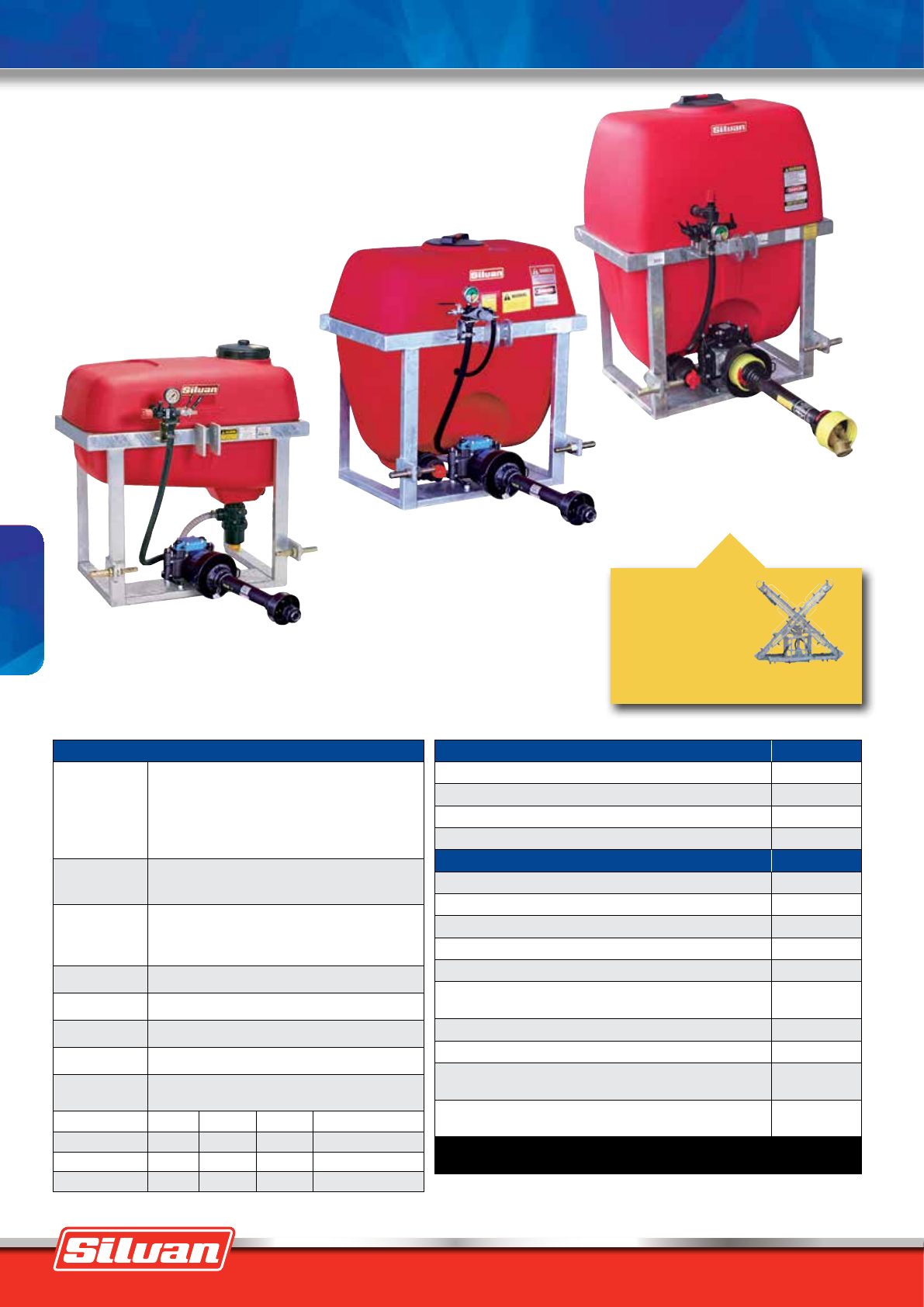

Pictured: 200L with BP20/15 pump

Pictured: 300L with

BP20/15 pump

Pictured: 400L

with BP60/20 pump

FOR BOOM

& HOSE REEL

SPECIFICATIONS

SEE PAGES 58-61

Slimline 200/300/400L - Linkage Sprayer

MODEL DESCRIPTION CODE

800L LINKAGE: BP60/20 pump, no boom K08-60

800L LINKAGE: BP125/20 pump, no boom K08-105

1000L LINKAGE: BP60/20 pump, no boom K10-60

1000L LINKAGE: BP125/20 pump, no boom K10-105

FACTORY OPTIONS* CODE

6m Field boom 032-044-6

8m Field boom 032-044-8

10m Field boom 032-044-10

6m Devil boom with hydraulic fold 032-19D

8m Devil boom with hydraulic fold 032-25D

10m Devil boom with hydraulic fold 032-32DM

10m HD Devil boom with hydraulic fold 032-32D

12m HD Devil boom with hydraulic fold** 032-40D

14m HD Devil boom with hydraulic fold** 032-48D

15m HD Devil boom with hydraulic fold** 032-50D

Hydraulic lift, galvanised single hydraulic system - 6, 8 & 10m devil booms 032-19DL

Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 & 15m HD devil

booms 032-40DL

Hydraulic lift, with airbag suspension -

10, 12, 14 & 15m HD devil booms 032-40DLAB

8 Jet vine boom 032-G

10 Jet vine boom 032-H

Olive boom (Used with BP125/20 pump only) 032-R

Undervine and mid row boom 032-HERB

70L flush tank kit to flush the filter, spraylines

and nozzles (1000L only) K99-47

16L foam marker (double side) K99-39

57L Paddock marker foam marker K99-43

Economy hosereel, 20m hose (12mm ID)

& Triam spraygun 180E02012CT

Electric control 3 section with in cab pressure adj K99-29

Bravo 180S automatic rate controller J99-151

Silmix chemical hopper K99-21

Note: Not all options will fit all models. Extra charges may apply to fitment.

** If fitting 12, 14, & 15m Devil boom to a 800L TPL add $800 for heavier frame

Pictured: 1000L unit with BP125/20

pump and one lever control valve

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type

with nitrile diaphragms and corrosion resistant,

cast anodised aluminium body with raised pump

mount (1000L only).

BP60/20: 58L/min. capacity 2000kPa pressure.

BP125/20: 121L/min. capacity 2000kPa pressure.

CONTROLS

BP60/20: 3 outlet control valve with pressure

regulation. BP125/20: 1 lever, 4 outlet control

valve with pressure regulation.

TANK

Polytuff impact resistant polyethylene

construction, moulded litre calibrations and non-

spill screw-down lid with single breather.

FRAME

800L model: Galvanised steel, cat. 1 & II linkage.

1000L model: Galvanised steel with adjustable

cat II hitch system. Vertical boom channel for

positioning the boom at the optimum spray height.

AGITATION Bypass agitation.

PRESSURE

GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer.

PTO DRIVESHAFT Quality driveshaft with quick release pins

& safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

K08-60

(LESS BOOM) 1330 980 1370 120

K10-60

(LESS BOOM) 1650 1250 1370 170

FOR BOOM

& HOSE REEL

SPECIFICATIONS

SEE PAGES 58-61

Slimline 200/300/400L - Linkage Sprayer Slimline 800/1000L - Linkage Sprayer

1300 745 826 silvan.com.au54

MODEL DESCRIPTION CODE

600L LINKAGE SPRAYER

BP60/20 pump, no boom K06N-60C

600L LINKAGE SPRAYER

BP125/20 pump, no boom K06N-125C

800L LINKAGE SPRAYER

BP75/20 pump, no boom K08N-75C

800L LINKAGE SPRAYER

BP125/20 pump, no boom K08N-125C

1100L LINKAGE SPRAYER

BP75/20 pump, no boom K11NH-75C

1100L LINKAGE SPRAYER

BP125/20 pump, no boom K11NH-125C

BOOM OPTIONS

CODE

4 ROW CANE BOOM

035-4N

6 ROW CANE BOOM

035-6N

Broadacre boom attachment (to suit 4 row) 035-4B

Broadacre boom attachment (to suit 6 row) 035-6B

Hydraulic lift, galvanised single

hydraulic system 032-40DL

FACTORY OPTIONS

CODE

70L flush tank kit to flush the filter,

spraylines and nozzles K99-47

Electric control 3 section with

in cab pressure adjustment K99-29

Electric control 4 section with

in cab pressure adjustment K99-49

Electric control 5 section with

in cab pressure adjustment K99-50

Bravo 180S automatic rate controller J99-151

Silmix chemical hopper K99-21

Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

MODEL

SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body.

BP60/20: 58 L/min. capacity 2000kPa pressure.

BP75/20: 71 L/min. capacity 2000kPa pressure.

BP125/20: 121 L/min. capacity 2000kPa pressure.

BOOM

Cane boom: 4 row or 6 row. Fully galvanised construction, to

suit row widths from 1.5 - 1.8m with 500-1300mm shield spray

head and brush skirts. Spray heads have heavy duty hinges to

withstand drag, parallelogram tracking system.

NOZZLES 2 x twin nozzle bodies per spray head and

air induction nozzles.

CONTROLS 4 outlet single lever control valve with pressure regulation

and gauge.

TANK

Low profile 600/800/1100L Polytuff impact resistant

polyethylene construction, external sightline with floating

ball and non-spill offset screw-down lid with single breather.

15L freshwater tank with screw-down lid and on/off tap.

4L toolbox with polythylene lid. 50mm Camlock bottom fill and

venturi chemical suction probe (1100L only).

FRAME Fully galvanised steel, cat II adjustable hitch.

AGITATION Bypass agitation.

PRESSURE

GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer and suction line strainer with stop valve fitted at

side of tank to enable ease of filter maintenance.

PTO

DRIVESHAFT

Quality driveshaft with quick release pins &

safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

K06N-60C 1025 1150 1300 105

K08N-75C 1350 1395 1315 145

K11NH-75C 1350 1395 1610 160

Pictured: 1100L with 6 row cane boom

Cane Boom - Linkage Sprayer Casotti - Linkage Sprayer

MODEL DESCRIPTION CODE

600L LINKAGE CASOTTI SPRAYER:

APS71 pump, Casotti kit

K06N-71WG

800L LINKAGE CASOTTI SPRAYER:

APS71 pump, Casotti kit

K08N-71WG

1100L LINKAGE CASOTTI SPRAYER:

APS71 pump, Casotti kit

K11N-71WG

CASOTTI KIT:

With mounting brackets and hydraulic hoses

K99-36

MODEL SPECIFICATIONS

PUMP

Silvan oil-backed diaphragm type with nitrile diaphragms

and corrosion resistant, cast anodised aluminium body.

APS71: 71L/min. capacity 5000kPa pressure.

CASOTTI MOTOR

An electric 12 volt motor is connected to the tractor

battery which powers the oscillating movement of the

nozzle arms. The arms swing 180º. This movement is

symmetrical to the tractor’s passage.

CONTROLS 2 outlet brass manual control valve with pressure

regulator. Mounted forward for easy access.

TANK

Low profile 600/800/1100L Polytuff impact resistant

polyethylene construction, external sightline with floating

ball and non-spill offset screw-down lid with single

breather. 15L freshwater tank with screw-down lid and

on/off tap. 4L toolbox with polythylene lid. 50mm Camlock

bottom fill (1100L only).

FRAME Fully galvanised steel, cat II linkage.

AGITATION Bypass agitation.

SPRAY JETS 3 oscillating high pressure jets (20 bar)

Up to 12m spray coverage.

PRESSURE GAUGE 0-60 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer with stop valve fitted at

side of tank to enable ease of filter maintenance.

PTO DRIVESHAFT Quality driveshaft with quick release pins &

safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

K06N-71WG

(LESS KIT) 1025 1150 1300 105

K08N-71WG

(LESS KIT) 1350 1395 1315 145

K11N-71WG

(LESS KIT) 1350 1395 1610 160

MODEL SPECIFICATIONS

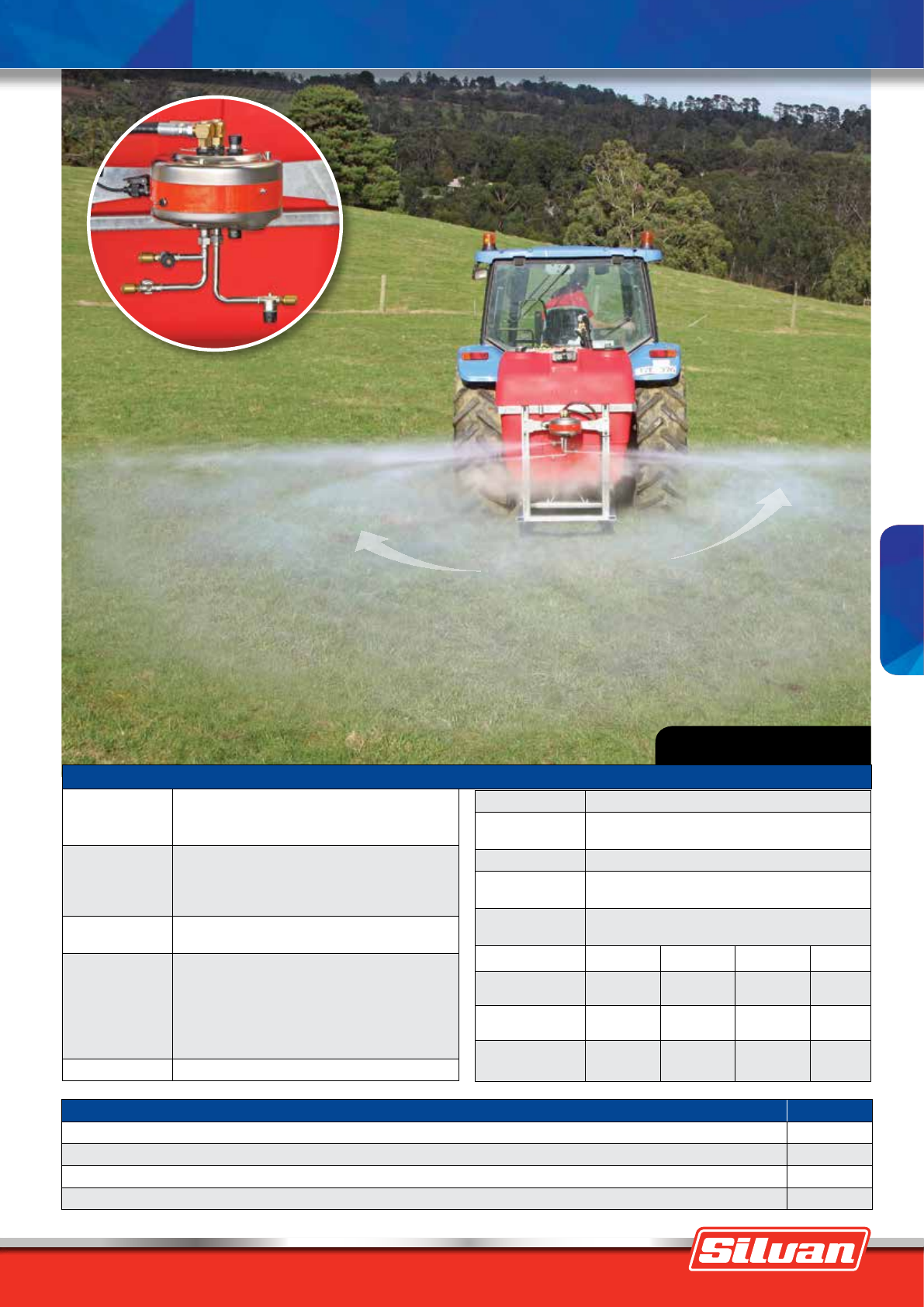

Pictured: 600L Casotti

Casotti - Linkage Sprayer

1300 745 826 silvan.com.au56

Booms &

Accessories

Silvan’s three point linkage and trailed

sprayers can be fitted with various

booms, hose reels and foam marker

options depending on the specific

requirements of the application.

Air induction nozzles for

excellent spray coverage

and reduced drift.

Integrated nozzle protection.

Non drip nozzle holders.

Stainless steel spraylines

for corrosion resistance

and longer working life.

Hydraulic folding options

delivers in-cab control for

increased convenience.

Galvanised boom for corrosion

resistance and rust protection.

Silvan Booms Features

1300 745 826 silvan.com.au58

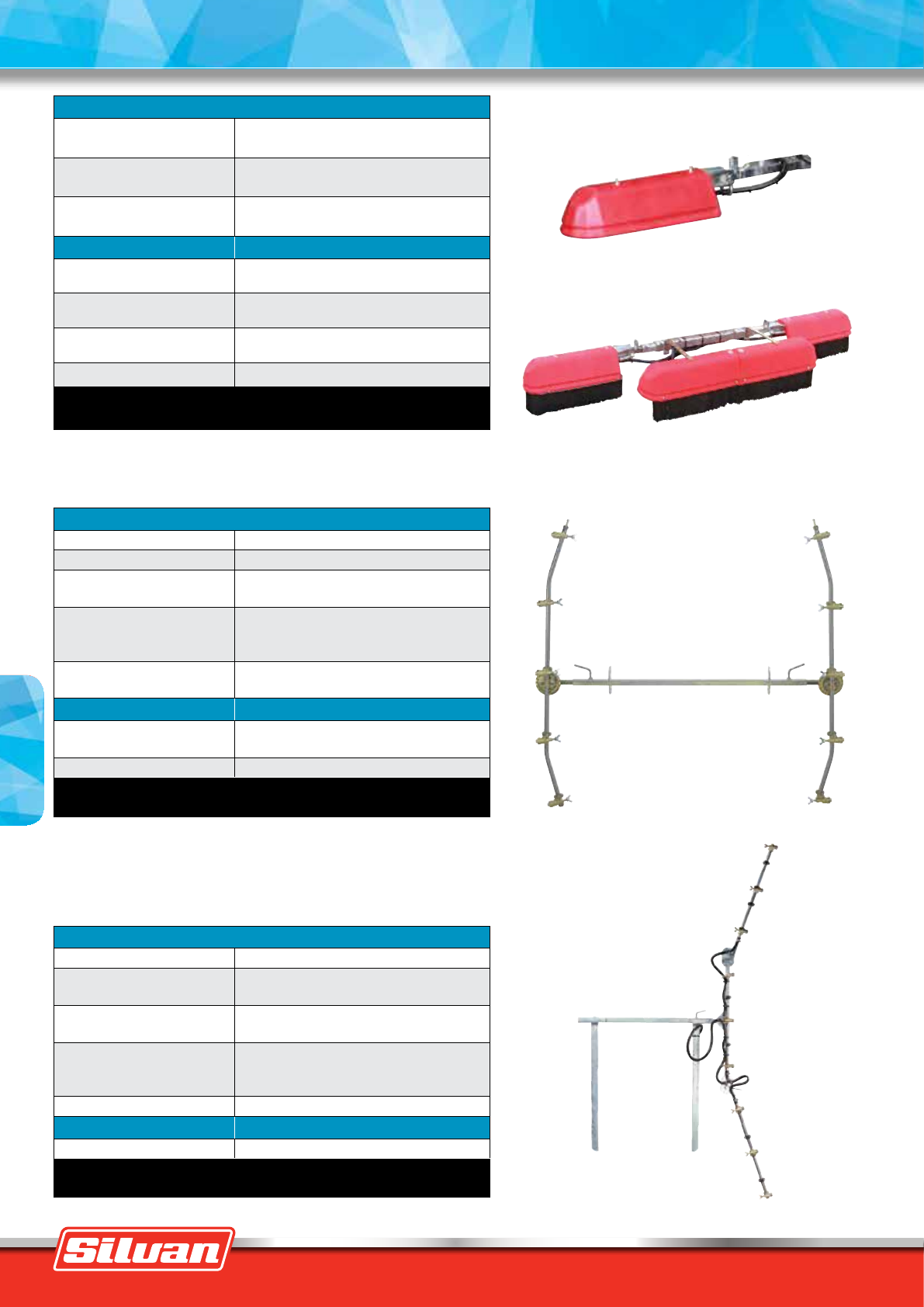

10 Jet Vine boom

UNDER VINE SHIELDED BOOM SPECIFICATIONS

CONSTRUCTION Plated RHS frame with spring loaded breakaways to

protect the boom if an obstacle is struck.

SHIELD Durable poly boom shields with optional brush

skirts to minimise spray drift and avoid snagging.

NOZZLES Double swivel nozzle holders can be fitted with

flat fan or off-centre nozzles.

DESCRIPTION CODE

UNDER VINE SHIELDED BOOM

480mm long

PF000040

UNDER VINE SHIELDED BOOM

600mm long

PF000039

UNDER VINE AND MID ROW BOOM

Includes brush skirts (2.5-4.5m)

032-HERB

BRUSH SKIRT

GP00600010

Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

ADJUSTABLE VINE BOOM SPECIFICATIONS

SIZE 8 jet and 10 jet.

CONSTRUCTION Plated RHS frame with stainless steel spraylines.

BOOM ADJUSTMENT Two telescopic arms for width adjustment with

pivoting spraybars to adjust spray angle.

NOZZLES

High pressure adjustable brass nozzle holder with

ceramic tips. Nozzles can be adjusted from cone to

straight jet. Nozzle body angle also variable.

CAPACITY Recommended 60L/min pump for 8 jet and 90L/min

pump for 10 jet vine boom.

DESCRIPTION CODE

ADJUSTABLE VINE BOOM

8 Jet vine boom 032-G

10 Jet vine boom 032-H

Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

OLIVE BOOM SPECIFICATIONS

SIZE 9 jet.

CONSTRUCTION Fully galvanised all steel construction with

stainless steel spraylines.

BOOM ADJUSTMENT Telescopic arm for width adjustment together with

pivoting spraybars to adjust spray angle.

NOZZLES

High pressure adjustable brass nozzle holder with

ceramic tips. Nozzles can be adjusted from cone to

straight jet. Nozzle body angle also variable.

CAPACITY Recommended 120L/min pump.

DESCRIPTION CODE

OLIVE BOOM 032-R

Note: Not all options will fit all models.

Extra charges may apply to fitment of some options.

Olive boom

Under vine and mid row boom

Under vine shielded boom

Vineyard & Orchard Booms

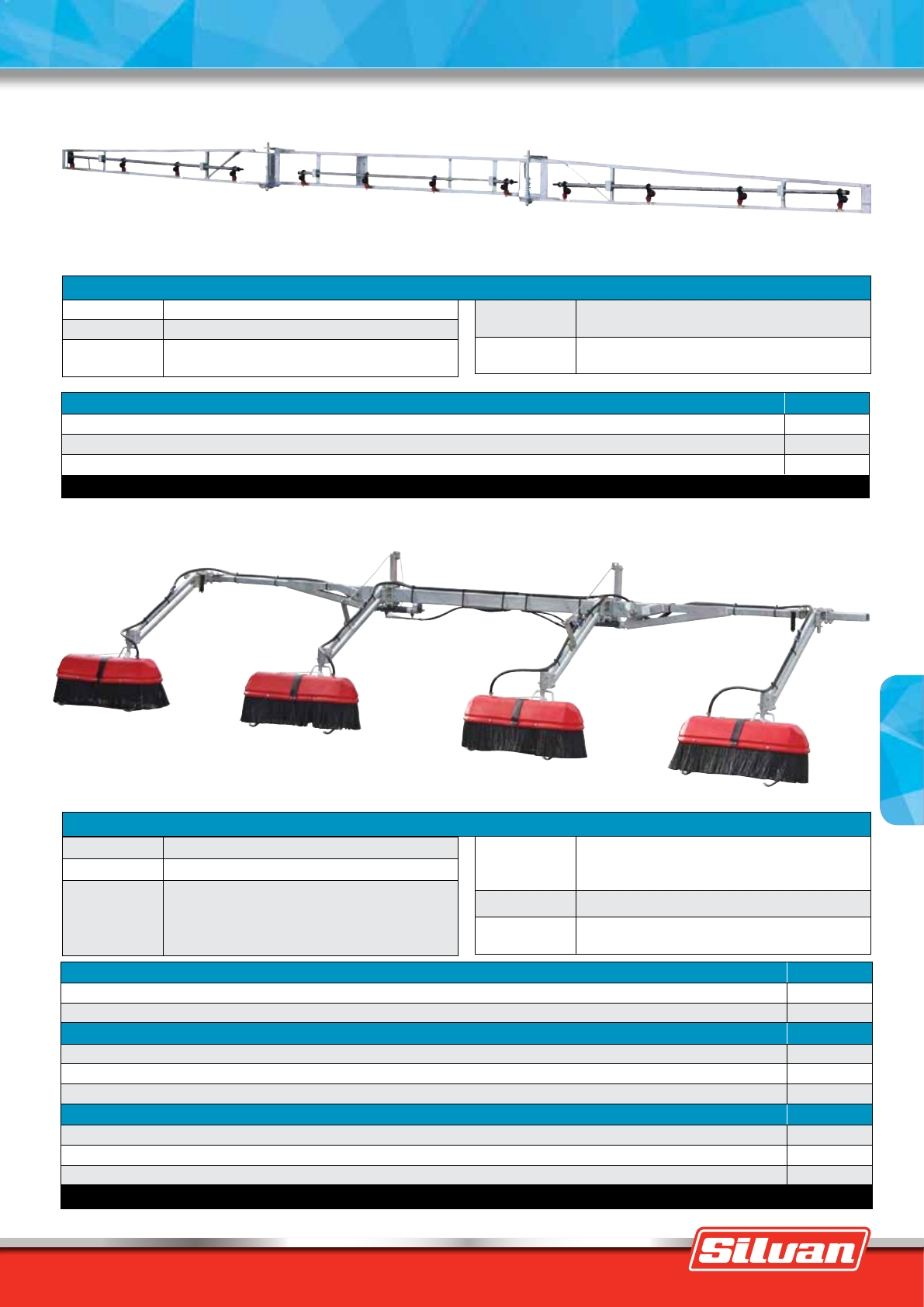

FIELD BOOM SPECIFICATIONS

SIZE 6, 8 and 10m.

CONSTRUCTION Fully galvanised all steel construction.

BOOM ADJUSTMENT Booms fold horizontally at rear of sprayer. Break back

device that protects boom if obstruction is hit.

SPRAYLINES Stainless steel spraylines with 50cm nozzle spacings

and nozzle protection

NOZZLES Non-drip nozzle holders, supplied with air induction

nozzles and nozzle strainers.

4 Row Cane boom

6m Field boom

MODEL DESCRIPTION CODE

4 ROW CANE BOOM WITH HYDRAULIC FOLD 035-4N

6 ROW CANE BOOM WITH HYDRAULIC FOLD 035-6N

FACTORY OPTIONS CODE

Broadacre boom attachment (to suit 4 row) 035-4B

Broadacre boom attachment (to suit 6 row) 035-6B

Hydraulic lift

032-40DL

ACCESSORIES CODE

Cane Boom Shield Assembly (pair)

K99-40

Cane Boom Parallelogram Arm - Inner (pair)

K99-41

Cane Boom Parallelogram Arm - Outer (pair)

K99-42

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

CANE BOOM SPECIFICATIONS

SIZE 4 row or 6 row to suit row widths from 1.5 to 1.8m

CONSTRUCTION Robust fully galvanised construction.

SPRAYHEADS

Fitted with heavy duty hinges to withstand drag and

parallelogram tracking system. Shielded spray head

available standard as 900mm with fitted with brush skirts.

500-1300mm width sprayhead options are available.

BOOM FOLDING

Hydraulic twin folding ram mechanism (folding requires one

set of tractor remotes) with automatic cable fold mechanism

for spray heads.

SPRAYLINES Stainless steel spraylines.

NOZZLES Two twin swivel nozzle bodies per spray head with air

induction nozzles and nozzle strainers.

CANE BOOM SPECIFICATIONS

FIELD BOOM SPECIFICATIONS

DESCRIPTION CODE

6M FIELD BOOM 032-044-6

8M FIELD BOOM 032-044-8

10M FIELD BOOM 032-044-10

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

Field & Cane Booms

1300 745 826 silvan.com.au60

MODEL DESCRIPTION WEIGHT CODE

6M DEVIL BOOM WITH HYDRAULIC FOLD 60kg 032-19D

8M DEVIL BOOM WITH HYDRAULIC FOLD 120kg 032-25D

10M DEVIL BOOM WITH HYDRAULIC FOLD 133kg 032-32DM

10M HD DEVIL BOOM WITH HYDRAULIC FOLD & SELF LEVELLING 200kg 032-32D

12M HD DEVIL BOOM WITH HYDRAULIC FOLD & SELF LEVELLING 215kg 032-40D

14M HD DEVIL BOOM WITH HYDRAULIC FOLD & SELF LEVELLING 235kg 032-48D

15M HD DEVIL BOOM WITH HYDRAULIC FOLD & SELF LEVELLING 240kg 032-50D

FACTORY OPTIONS CODE

Hydraulic lift, galvanised single hydraulic system for 6, 8 & 10m Devil booms 032-19DL

Hydraulic lift, galvanised single hydraulic system for 10, 12, 14 & 15m Devil booms 032-40DL

Hydraulic lift, airbag suspension system for HD Devil booms 032-40DLAB

Parallelogram/airbag suspension for HD Devil booms (excludes hydraulic lift) 032-40DLAB-2

Note: Extra charges may apply to fitment of some options.

DEVIL BOOM SPECIFICATIONS

SIZE 6, 8, 10, 12, 14 and 15m

CONSTRUCTION Fully galvanised high-tensile steel

truss-section frame.

SPRAYLINES Stainless steel spraylines with 50cm nozzle spacings

and air induction nozzles.

BOOM ADJUSTMENT

Two independent hydraulic rams. (Folding requires 2 sets of

tractor remotes). Spring loaded breakback of outer arm.

Hydraulic boom tilt adjustment available on HD Devil booms

in lieu of self levelling (requires an extra set of tractor

remotes).

6m Devil boom 8m Devil boom

12m HD Devil boom

10m Devil boom

14m & 15m HD Devil boom

DEVIL BOOM SPECIFICATIONS

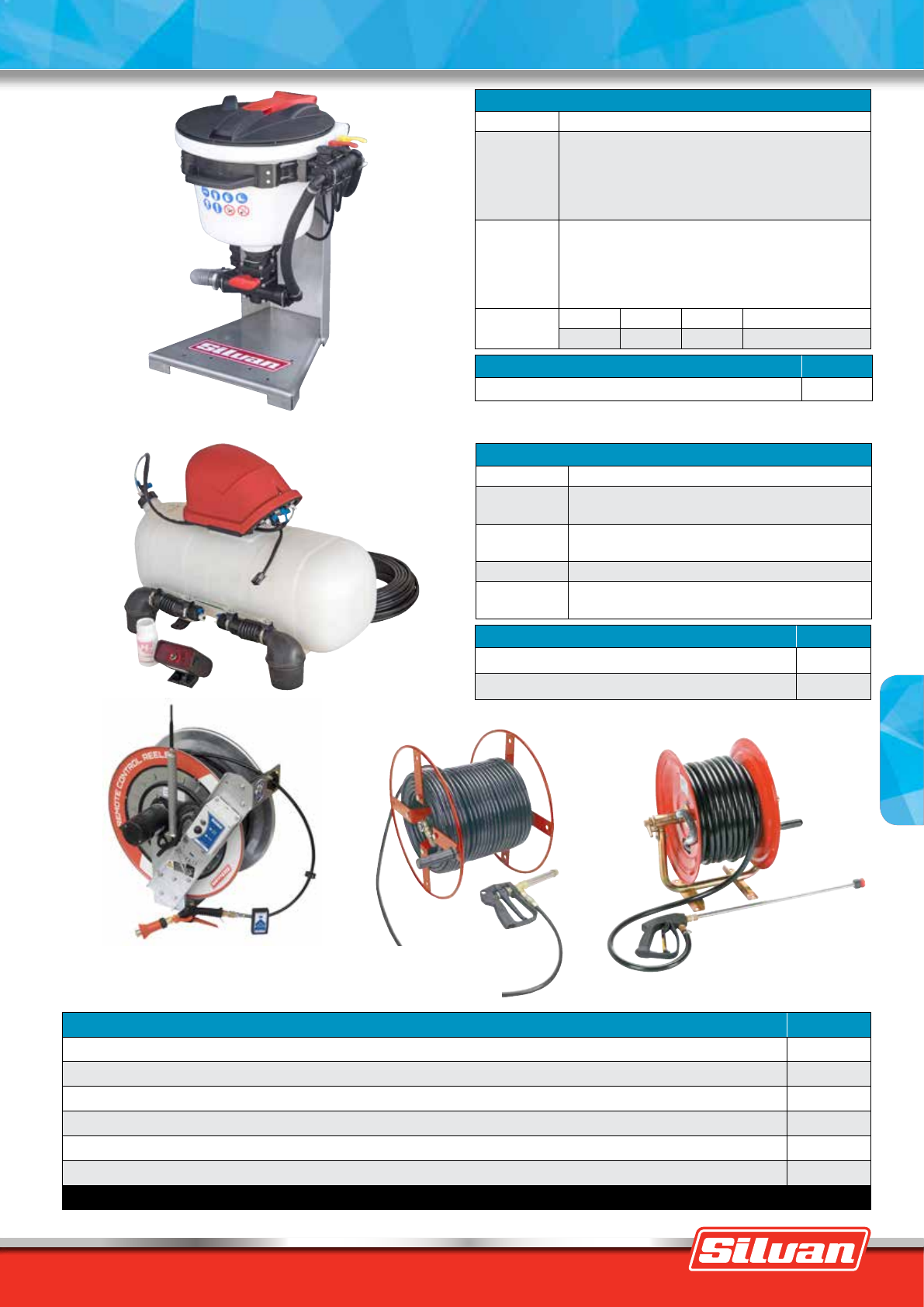

Devil Booms Accessories

PADDOCK FOAM MARKER

TANK Polyethylene tank with moulded litre calibration indicators.

COMPRESSOR Fully sealed, dust free compressor and electrics box with

air breather.

CONTROLS Double sided operation with electric cab control.

Needle valve for foam output adjustment.

DROPPERS 2 foam droppers.

HOSE 16L: 16m of delivery hose.

57L: 36m of delivery hose.

MODEL DESCRIPTION CODE

16L FOAM MARKER 042D-16S

57L PADDOCK FOAM MARKER 042D-57

FREE STANDING SILMIX

TANK 30L polyethylene tank with 455mm hinged lid.

FUNCTION

Uses external water supply to activate venturi inductor at the

base of the unit to transfer chemicals from hopper to sprayer

tank. The same water supply operates the wash bar and drum

rinse nozzle in the hopper. Transfer system requires minimum

2 Bar water pressure to operate (max 8 bar).

CONTROLS

3 on/off taps to control:

1. Powder washer bar inside hopper.

2. Drum rinse nozzle.

3. Chemical transfer venturi. Also has ball valve at base of unit

to isolate the tank from the induction venturi.

DIMENSIONS

L (MM) W (MM) H (MM) KG (DRY)

640 640 830 15

MODEL DESCRIPTION CODE

SILVAN 30L SILMIX ON FRAME 042J-06ST

FACTORY OPTIONS CODE

Reel tuff 12V remote reel (including bracket for super series linkage units) K99-51

Economy reel, 20m x 12mm ag hose & Triam 49 spray gun 180E02012CT

Economy reel, 30m x 10mm ag hose & PA spray gun with stainless steel extension 180E03010C

Pitarm reel, 100m x 12mm ag hose & Triam 49 spray gun 180P10012C

Pitarm reel, 100m x 12mm nylon tube & Triam 49 spray gun 180P10012T

Pitarm reel bracket (for sled units) 454-44

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

Pictured: Economy reel kit

with 30m of 10mm ag hose

& PA spray gun

Pictured: Pitarm reel kit with

100m of 12mm nylon tube hose

& Triam 49 spray gun

Pictured: Reel tuff

12V remote reel

Pictured: 57L

Paddock foam marker

Accessories

1300 745 826 silvan.com.au62

Trailed & Sled

Mount Sprayers

Silvan offer sprayers for specific

applications which can be customised

with an extensive range of options.

Designed for use in vineyards, pasture,

turf and vegetable production.

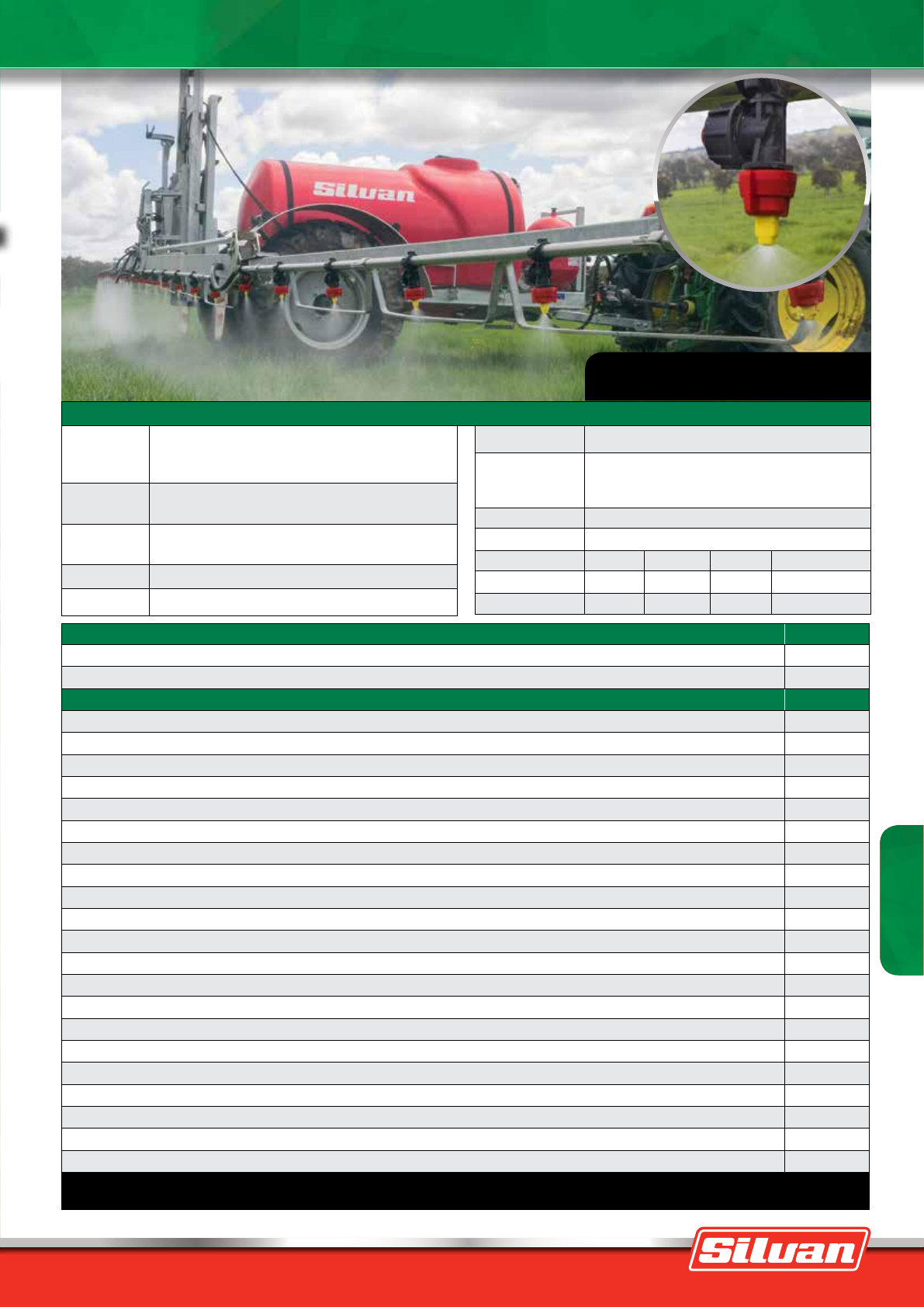

Trailed Pasture Sprayer

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with nitrile

diaphragms & corrosion resistant cast anodised aluminium

body. BP125/20: 121L/m. capacity 2000kPa pressure.

TANK Polytuff impact resistant polyethylene construction

with calibrated sight line & non-spill screw down lid.

CHASSIS Galvanised RHS steel construction with adjustable drawbar

and operator platform.

AXLE 2m track axle with 14.9 x 24” lug tyre.

BOTTOM FILL Bottom fill with 2” camlock coupling.

MODEL SPECIFICATIONS

MODEL DESCRIPTION CODE

2500L PASTURE SPRAYER: BP125/20 pump, 3 section electric valve controls 2A0000FA

3000L PASTURE SPRAYER: BP125/20 pump, 3 section electric valve controls 3A0000FA

FACTORY OPTIONS CODE

BP200/20 pump, 195 L/min. capacity, 2000kPa pressure J99-82

Hydraulic drive centrifugal pump J99-126

5 section Silvamatic electric controls (in lieu) J99-13

Bravo 180S automatic rate controller (in lieu) J99-146

Bravo 180S automatic rate controller to suit hydraulic control (in lieu) J99-180

Mudguards (to suit 14.9 x 24” wheels) J99-162

Adjustable track axle (minimum 1500mm) with 11.2 x 44” Lug tyres (2500L only) J99-84

Simplicity tandem axle with 15” Lug tyres D99-76

2m track axle with 31 x 13.5” Turf tyre J99-85

10m HD Devil boom with self levelling 032-32D

12m HD Devil boom with self levelling 032-40D

14m HD Devil boom with self levelling* 032-48D

15m HD Devil boom with self levelling* 032-50D

Hydraulic lift, galvanised single hydraulic system - 10, 12, 14 and 15 HD Devil booms 032-40DL

Airbag suspension & hydraulic lift (to suit HD Devil boom) 032-40DLAB

Parallelogram/airbag suspension (to suit HD Devil boom) - no hydraulic lift 032-40DLAB-2

57L Paddock Foam Marker K99-43

Venturi suction probe J99-60

Silmix Chemical Hopper K99-21

3 Section electric over hydraulic control J99-117

5 Section electric over hydraulic control J99-143

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

*When fitting 14 & 15m HD devil boom 032-40DLAB or 032-40DLAB-2 must be added.

Pictured: 2500L Pasture sprayer with optional 15m

Devil boom, mudguards and hydraulic lift

FILTER Lid strainer, suction line filter.

CONTROLS

3 section Silvamatic electric controls with pressure

compensating direct acting valves.

In cab on/off & pressure adjustment with pressure gauge.

FLUSH TANK 100L

FRESH WATER Hand wash tap fitted to flush tank.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

2A0000FA 4400 2400 2500 800

3A0000FA 4400 2400 2500 850

Trailed Pasture Sprayer

1300 745 826 silvan.com.au64

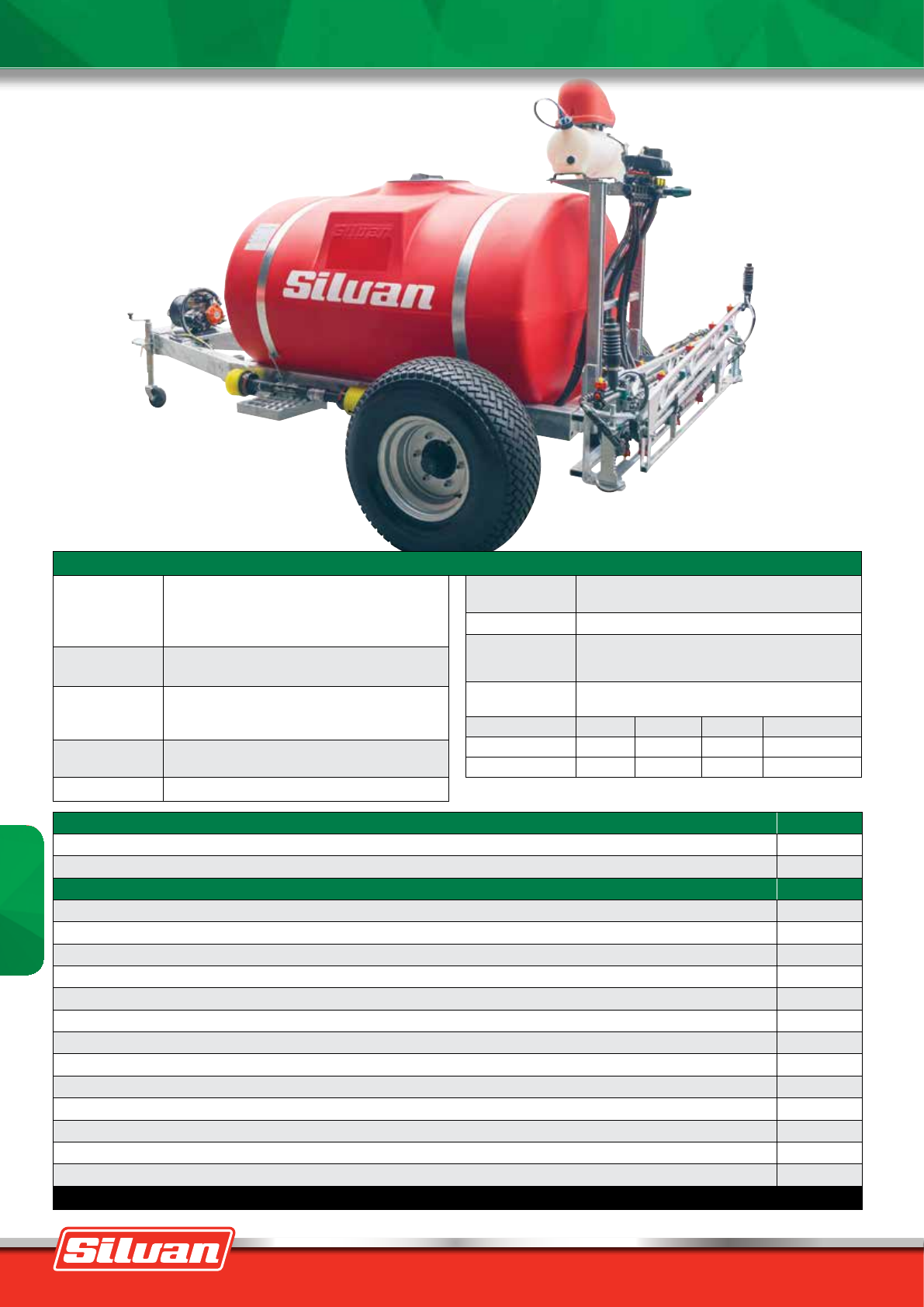

Pictured: 2000L Economy Pasture sprayer with optional electric

controls, 8 metre field boom and 16 Litre foam marker

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body. BP60/20: 58L/min capacity 2000kPa

pressure. BP125/20: 121L/min. capacity 2000kPa pressure

CONTROLS One lever 3 outlet control with pressure regulator

mounted on adjustable arm.

TANK

Polytuff impact resistant polyethylene construction,

calibrated sight line, non-spill screw-down lid with dual

breathers.

FRAME Galvanised RHS steel construction, jockey wheel & height

adjustable tow hitch.

AGITATION Bypass action.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge mounted on

adjustable arm.

FILTRATION Lid strainer and suction line strainer

WHEELS 60mm straight single axle fitted with 15” tubeless tyres

on galvanised rims (max speed rating 30km/h).

PTO Quality driveshaft with quick release pins & safety cover.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

J10-S60 1400 2600 1620 290

J20-S105 1550 3500 2100 440

MODEL SPECIFICATIONS

MODEL DESCRIPTION CODE

1000L PASTURE SPRAYER: BP60/20 diaphragm pump manual controls on pump. J10-S60

2000L PASTURE SPRAYER: BP125/20 diaphragm pump manual controls on pump. J20-S105

FACTORY OPTIONS CODE

6m Field boom 032-044-6

6m Devil boom with hydraulic fold 032-19D

8m Field boom 032-044-8

8m Devil boom with hydraulic fold 032-25D

10m Field boom 032-014-10

10m Devil boom with hydraulic fold 032-32DM

6, 8 and 10m Devil boom hydraulic lift 032-19DL

Undervine and mid row boom 032-HERB

16L foam marker (double sided) K99-39

Electric valve controls with pressure regulator and in cab pressure adjustment K99-29

Economy hosereel, 20m hose (10mm ID) and Triam spraygun 180E02012CT

Bravo 180S automatic rate controller J99-151

BP125/20, 121L/min capacity, 2000kPa driven by 5.5HP Honda CUSH-14

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

Trailed Economy Pasture Sprayer Trailed Turf Sprayer

MODEL SPECIFICATIONS

PUMP

Silvan self-priming, oil-backed diaphragm type with nitrile

diaphragms and corrosion resistant, cast anodised body.

Direct coupled to 6.5HP Honda motor. BP125/20:

121L/min. capacity 2000 kPa.

CONTROLS 3 outlet control with pressure regulator mounted on

pump. Pressure gauge on control unit.

TANK

1000/2000L polytuff impact resistant polyethylene

construction. Calibrated sight line. Non-spill

screw-down lid with breather.

FRAME Galvanised RHS steel construction with jockey wheel.

AGITATION Bypass action and venturi agitator.

MODEL DESCRIPTION CODE

1000L TURF SPRAYER: BP125/20 diaphragm pump, direct coupled to 6.5HP Honda motor,

manual controls on pump and Pitarm hosereel with fish mouth nozzle. PR10-01

2000L TURF SPRAYER: BP125/20 diaphragm pump, direct coupled to 6.5HP Honda motor,

manual controls on pump and Pitarm hosereel with fish mouth nozzle. PR20-2

FACTORY OPTIONS CODE

6m Field boom 032-044-6

6m Devil boom with hydraulic fold 032-19D

8m Field boom 032-044-8

8m Devil boom with hydraulic fold 032-25D

10m Field boom 032-014-10

10m Devil boom with hydraulic fold 032-32DM

6, 8 and 10m Devil boom hydraulic lift 032-19DL

16L foam marker (double sided) K99-39

Electric valve controls with pressure regulator and in cab pressure adjustment K99-29

Bravo 180S automatic rate controller J99-151

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Suction line filter & lid strainer.

WHEELS

Tubeless 29 x 13.5 - 15” turf tyres with galvanised rims

on 1000L unit.

Tubeless 31 x 13.5 - 15” turf tyres with galvanised rims

on 2000L unit.

HOSEREEL 30m of 19mm PVC hose and fish mouth

fertiliser nozzle.

DIMENSIONS L (MM) W (MM) H (MM) KG (DRY)

PR10-01 3400 1870 1825 275

PR20-2 3500 1550 2100 400

MODEL SPECIFICATIONS

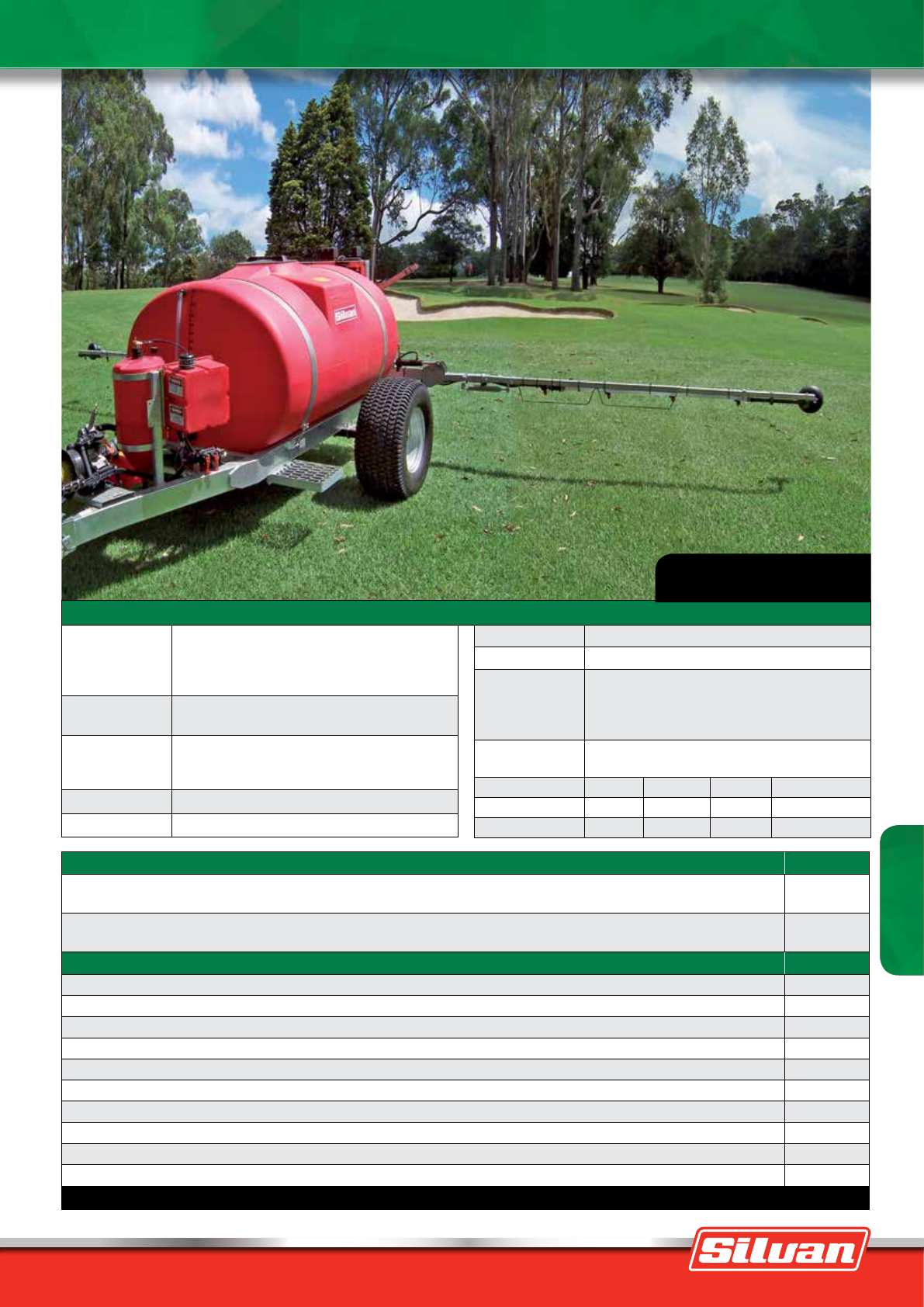

Pictured: Trailed Turf Sprayer with optional

8m Devil boom and foam marker

Trailed Turf Sprayer

1300 745 826 silvan.com.au66

MODEL DESCRIPTION CODE

400L TRAY DE-MOUNTABLE SLED SPRAYER: Sled mounted with BP60/20 pump with 5.5HP Honda engine,

electric controls, economy reel, 20m hose and gun (no boom) CUSH-07

FACTORY OPTIONS CODE

6m Field boom 032-044-6

6m Devil boom with hydraulic fold 032-19D

16L Paddock foam marker (double sided) K99-39

Bravo 180S automatic rate controller (includes BP125/20 pump upgrade) CUSH-12

BP125/20 pump, 121 L/min capacity, 2000kPa driven by 5.5HP Honda CUSH-14

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with nitrile

diaphragms and corrosion resistant, cast anodised aluminium

body. BP60/20: 58 L/min capacity, 2000kPa pressure, direct

driven by 5.5HP Honda with 6.1 reduction gear box.

CONTROLS 3 section electric valves. Control box with pressure adjustment

and on/off switches mounted on arm close to operator.

TANK

400L Polytuff impact resistant polyethylene construction with

calibratrated external sightline, non-spill screw-down lid,

internal baffle and sump.

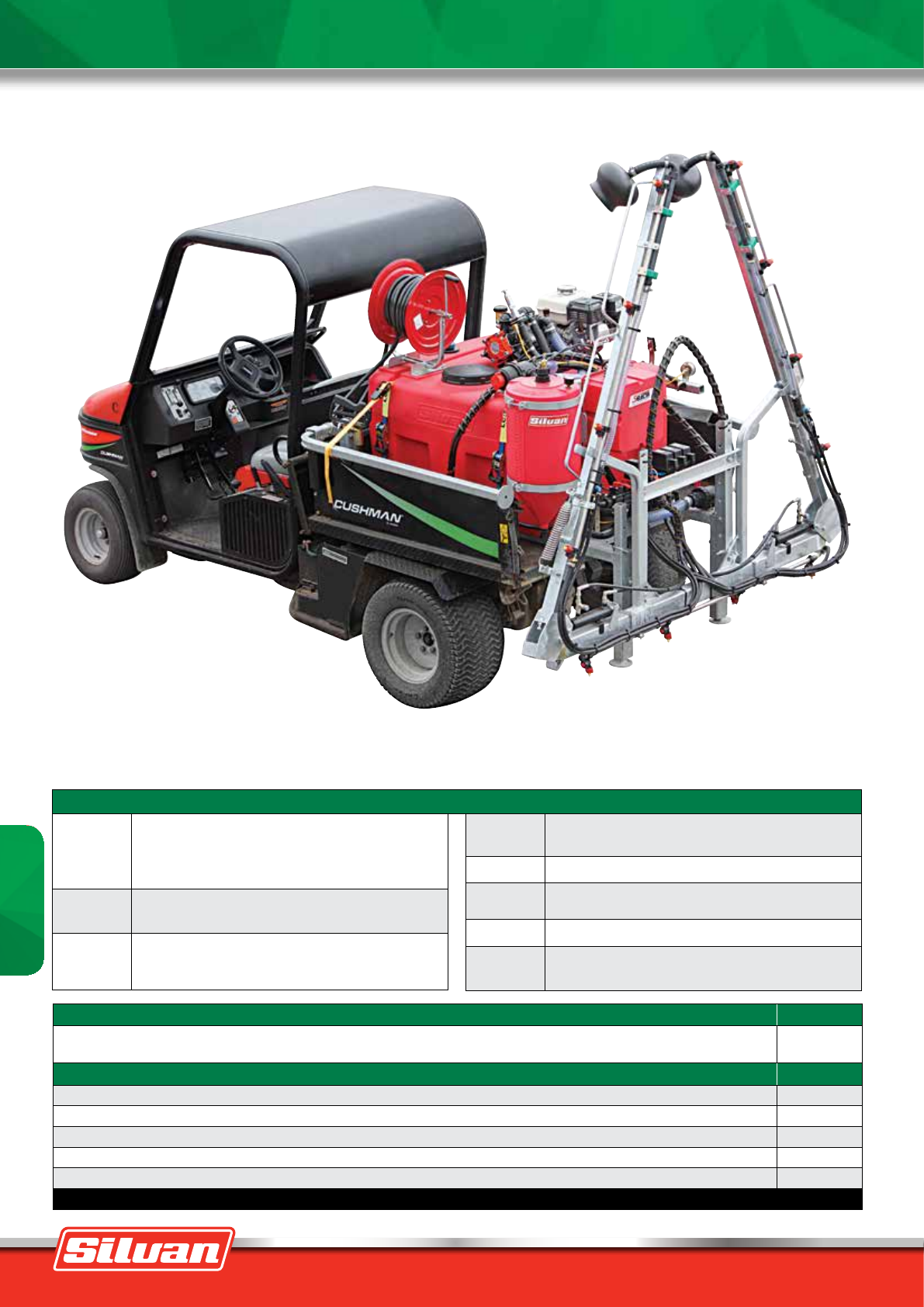

Pictured: 400L tray demountable sled sprayer with optional hydraulic

6m Devil boom and foam marker. (Vehicle shown for illustrative purposes only)

Suited to 1.2m x 1.4m tray

FRAME Fully galvanised RHS steel sled frame for fitment into tray body.

Removable stand legs when not in use.

AGITATION Bypass action and venturi jet.

PRESSURE

GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer and suction line strainer.

HOSEREEL Economy hose reel with 20m x 12mm ag hose and

Triam 49 spray gun.

MODEL SPECIFICATIONS

Tray Mount Turf Sprayer Trailed Vineyard Herbicide

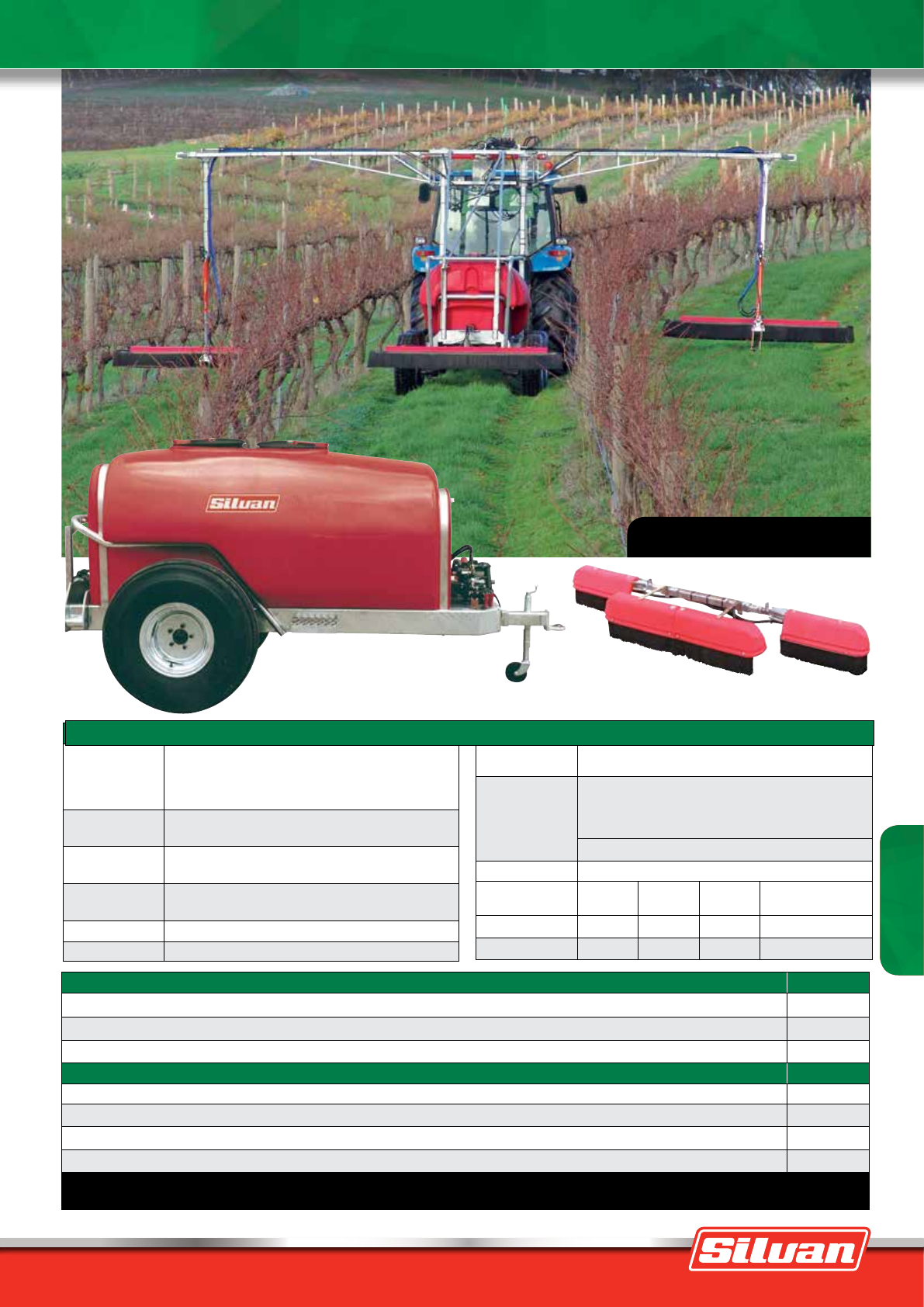

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with nitrile

diaphragms & corrosion resistant, cast anodised aluminium

body. BP125/20: 121L/min. capacity 2000 kPa pressure

CONTROLS Silvamatic 3 section electric valve on/off with in-cab

electric pressure adjustment from control box.

TANK Polytuff impact resistant polyethylene construction,

calibrated sight line & flip-top easy open lid.

FRAME Galvanised RHS steel construction, jockey wheel

& adjustable tow hitch.

AGITATION Bypass action.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

MODEL DESCRIPTION CODE

2000L TRAILED HERBICIDE SPRAYER: BP125/20 Pump, electric valve controls JB2000-125

2000L TRAILED 3 ROW HERBICIDE SPRAYER: BP125/20 Pump (with under-vine and mid row booms) JB2000-1253RT

3000L TRAILED 3 ROW HERBICIDE SPRAYER: BP125/20 Pump (with under-vine and mid row booms) JB3000-1253RT

FACTORY OPTION CODE

Undervine and mid row boom (to suit JB2000-125) 032-HERB

Bravo 180S automatic spray rate controller J99-146

Hydraulic drive centrifugal pump J99-126

Hydraulic row width and height adjustment -

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be on order. Note: Extra charges may apply to fitment of some options.

Note: Not all options will fit all models. Extra charges may apply to fitment of some options.

Pictured above: 2000L herbicide

unit with non-standard 16” wheels Pictured: Optional undervine and mid row boom

FILTRATION Lid strainer & suction line strainer.

WHEEL EQUIPMENT

SINGLE ROW: 50mm Duraflex axle with 50mm drop and

sliding adjustment. 15” tyres on galvanised rims (max.

speed rating 30 km/h).

3 ROW: Tandem suspension axle with 10” x 15” wheels.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS

(WITH BOOM) L (MM) W (MM) H (MM) KG (DRY)

JB2000-125 3000 1800 1530 400

JB2000-1253RT 4600 1800 3300 990

MODEL SPECIFICATIONS

Pictured: Trailed herbicide sprayer

with under-vine & mid row booms

Trailed Vineyard Herbicide

1300 745 826 silvan.com.au68

MODEL DESCRIPTION CODE

2000L TRAILED ORCHARD HERBICIDE SPRAYER: BP125/20 Pump and hydraulic fold boom JB2BA-125

FACTORY FITTED OPTIONS CODE

Bravo 180S automatic spray rate controller J99-146

Hydraulic drive centrifugal pump J99-126

When ordering hydraulic drive pumps, tractor hydraulic capacity and system must be on order. Note: Extra charges may apply to fitment of some options.

MODEL SPECIFICATIONS

PUMP

Silvan self-priming oil-backed diaphragm type with

nitrile diaphragms and corrosion resistant, cast anodised

aluminium body.

BP125/20: 121L/min. capacity 2000 kPa pressure

CONTROLS 3 section electric valve on/off with electric pressure

adjustment from cab mounted control box.

TANK Polytuff impact resistant polyethylene construction,

calibrated sight line.

BOOM

6 metre fully galvanised hydraulic fold boom with stainless

steel spraylines and air induction nozzles. Front mounted

boom arms with independent hydraulic fold and rear

mounted centre boom.

FRAME Galvanised RHS heavy duty steel construction, jockey wheel

and adjustable tow hitch.

AGITATION Bypass action.

PRESSURE GAUGE 0-25 Bar dual stage glycerine filled gauge.

FILTRATION Lid strainer, suction line strainer & nozzle strainers.

WHEEL EQUIPMENT Single axle with 31/13.5 x 15” flotation tyres.

PTO DRIVESHAFT Quality driveshaft with quick release pins & safety cover.

DIMENSIONS

(BOOM FOLDED) L (MM) W (MM) H (MM) KG (DRY)

JB2BA-125 3500 1550 2100 440

MODEL SPECIFICATIONS

Pictured: Trailed 2000L sprayer

with optional hydraulic drive pump

FULL SHIELDED BOOM AVAILABLE

Trailed Orchard Herbicide

For increased spraying efficiency,

various technology options such as

automatic spray rate controllers,

in-cab electric controls and GPS

guidance systems are available.

Guidance Systems

and Controllers

1300 745 826 silvan.com.au70

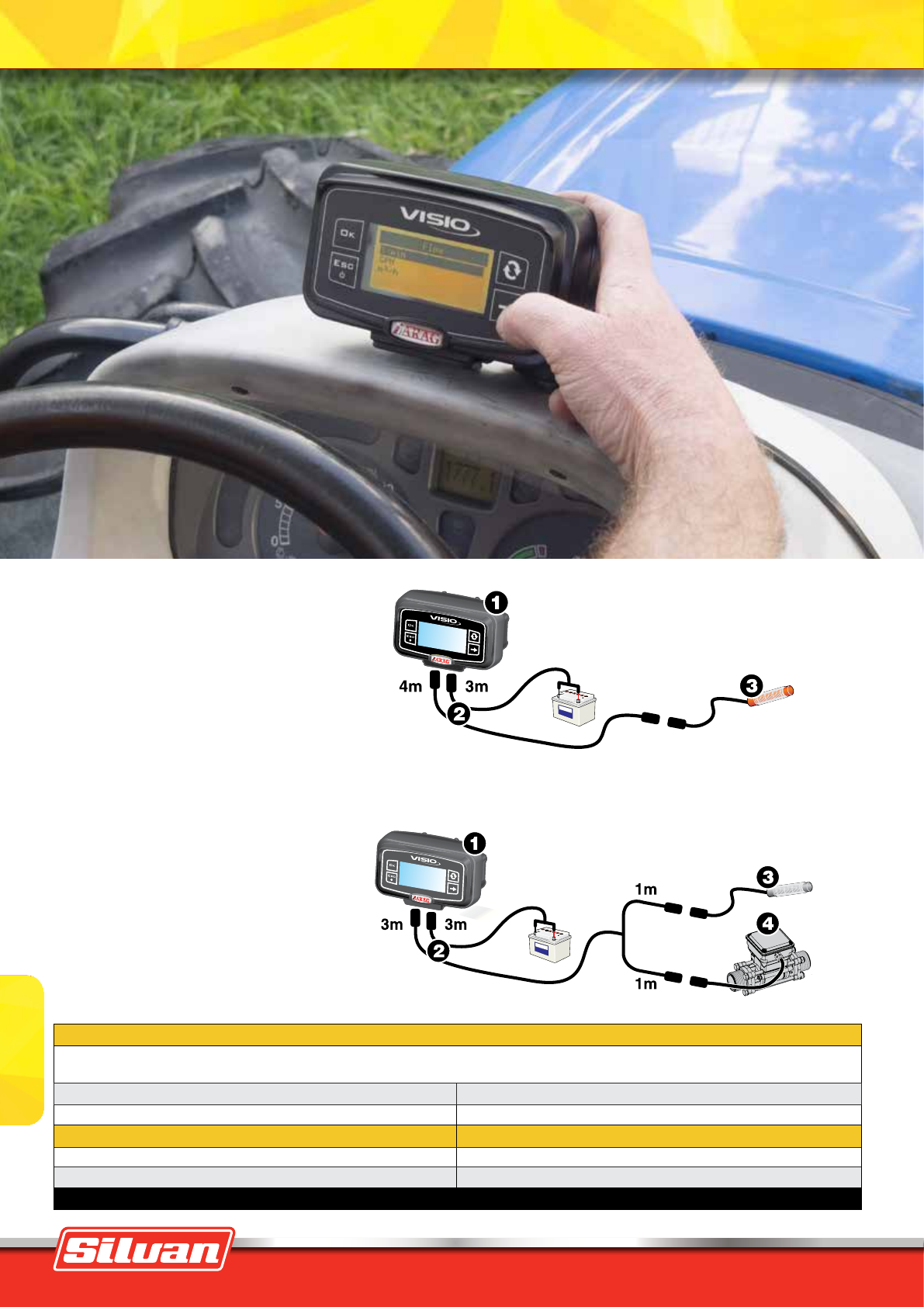

VISHA

VISHAF10200

1. Visio Display unit

2. Cable kit for two sensors

3. Inductive speed sensor

4. 10 - 200 L/min Wolf flowmeter

1. Visio display unit

2. Cable kit for one sensor

3. Inductive speed sensor

VISIO HECTARE METER

Simultaneous display of area and ground

speed using an inductive speed sensor.

VISIO RATE MONITOR

Display of ground speed, area, flow rate,

application rate and volume using a

10-200 L/min (40 Bar) flow sensor.

VISIO SPECIFICATIONS

Visio is the innovative multi-function display featuring compact dimensions and accuracy at an affordable price. It can be connected to several sensors,

to view a wide range of data from agricultural spraying applications.

KIT CONTENTS Display, cable kits, speed/flow sensors

DISPLAY Backlit LCD screen

DESCRIPTION CODE

VISIO Hectare Meter VISHA

VISIO Rate Monitor VISHAF10200

Note: Extra components may be needed

Guidance SystemsVisio Spray Monitor

NAVIGATOR LT

The Navigator LT is a complete GPS system with 5.7” display that provides enhanced visual guidance with a light bar and on screen guidance.

The SD card port can be used to download reports on where you have sprayed, area covered and time spent.

FEATURES 5.7” display, SD card port, external antenna, integrated GPS receiver

DESCRIPTION CODE

NAVIGATOR LT GPS 4674A1000

MATRIX 430

The Matrix 430 utilises GPS technology to guide tractors and machinery during boom spraying or fertiliser spreading to minimise overlap/underlap.

FEATURES 4.3” colour display, integrated USB port, external patch antenna

DESCRIPTION CODE

MATRIX 430 GD430-GLO-P-L

Circle Pivot Guidance

Last Pass Guidance

Curved A-B Guidance

Straight A-B Guidance

MATRIX GUIDANCE FUNCTIONS

NAVIGATOR GUIDANCE FUNCTIONS

Guidance SystemsVisio Spray Monitor

1300 745 826 silvan.com.au72

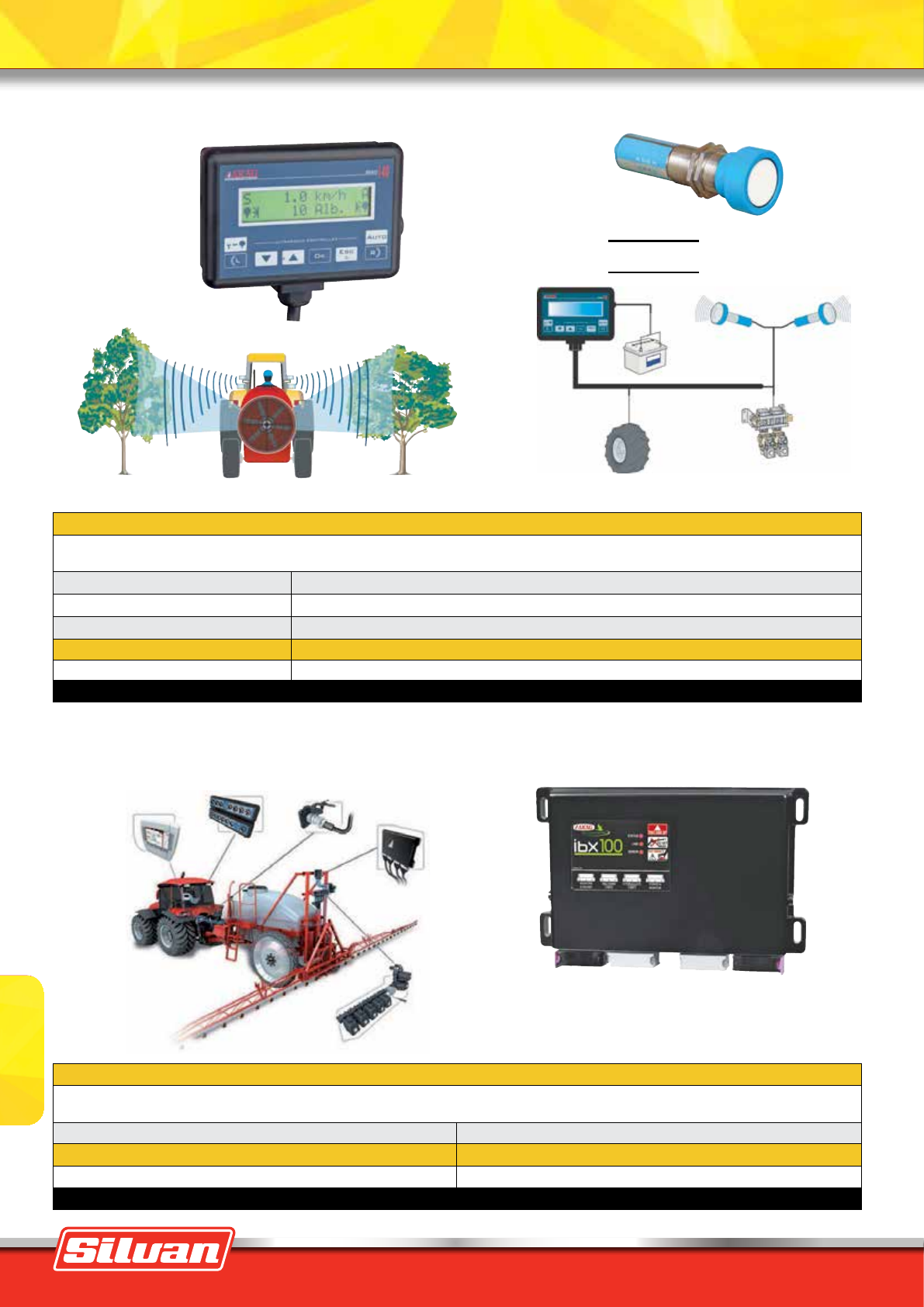

BRAVO 140 KIT SPECIFICATIONS

The Bravo 140 tree sensor detects tree canopies, trunks or stakes via ultrasonic sensors mounted at the front of the sprayer. The sprayer then only sprays the tree, not

the spaces in between. You not only use significantly less chemical, your tank refills are reduced saving you time and money.

DISPLAY Speed, sprayed tree, number of trees, sensor status

CONTROL Up to 2 ultrasonic sensors and 2 sections

KIT CONTENTS Kit includes control box, tractor loom, sprayer loom, ultrasonic sensors, speed sensor and solenoids

DESCRIPTION CODE

ARAG BRAVO 140 D99-165

Note: Extra components may be needed

Bravo140

Ultrasonic

Sensor

IBX100 ISOBUS SPRAYER CONTROL

An ISOBUS compatible controller designed to integrate with tractor terminals such as John Deere® and Topcon®. It utilises the existing ISOBUS compatible tractor

terminal for spray rate control and automatic section control.

CONTROL Controls up to 13 spray sections, 9 hydraulic controls

DESCRIPTION CODE

IBX100 CONTROL UNIT 4679004

Note: Extra components may be needed

Bravo Rate Controller KitsBravo Tree Sensor Kits

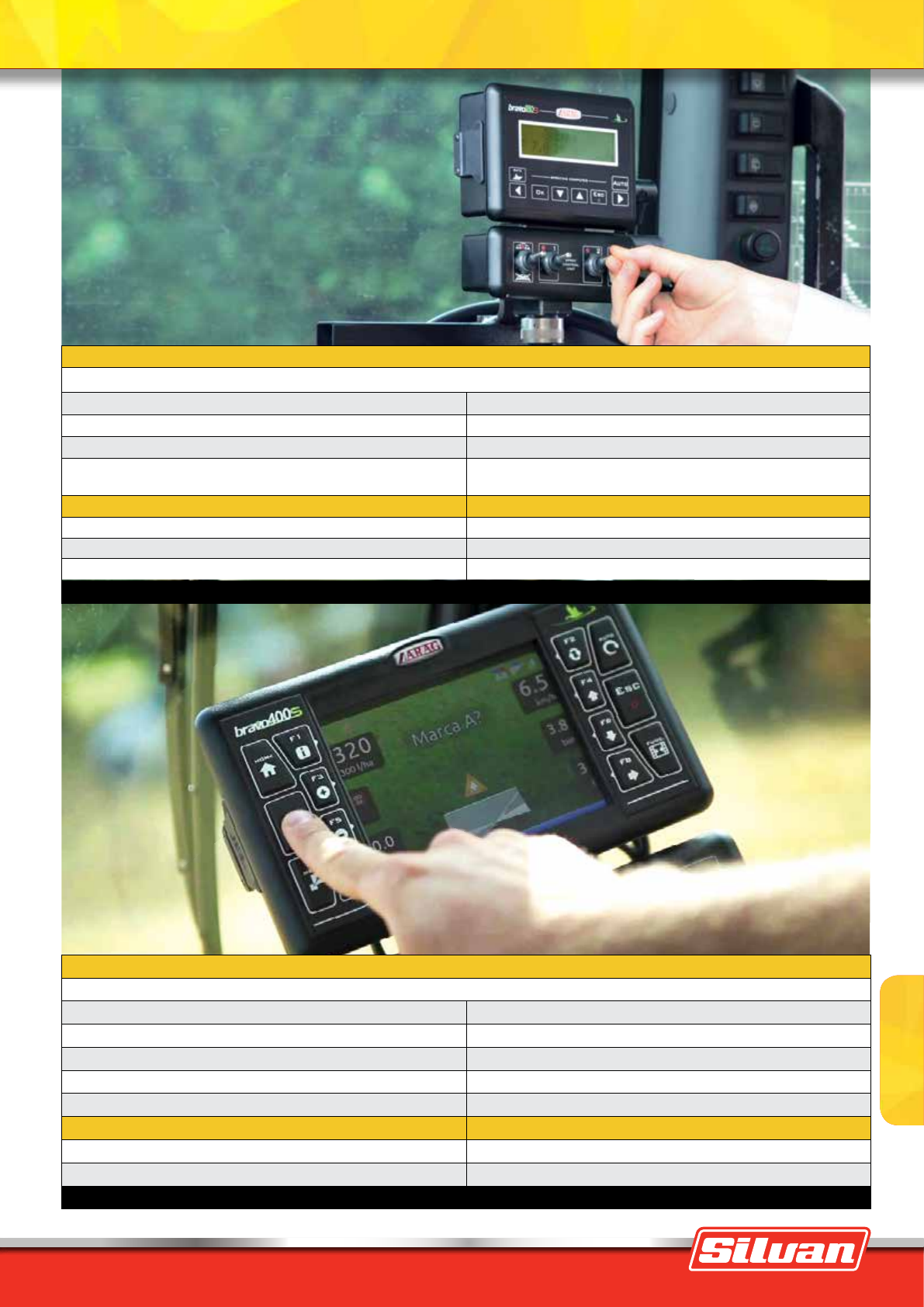

BRAVO 400S LT SPRAY RATE CONTROLLER SPECIFICATIONS

A highly flexible combination of GPS guidance, automatic section control and accurate rate control allows unmatched efficiency.

DISTRIBUTION CONTROL Automatic adjustment of spray application rate by measuring flow and speed.

SECTIONS Controls up to 7 spray sections (3 wire valves only) and 7 hydraulic functions.

KIT CONTENTS Control box, tractor loom, sprayer loom and GPS antenna.

MEMORY SD card to store working reports; path and treatment data for each area.

DISPLAY High resolution 5.7” display.

DESCRIPTION CODE

ARAG Bravo 400S LT - 7 sections 4674L0701

ARAG Bravo 400S LT - 7 sections + 7 hydraulic 4674L0713

Note: Extra components including electric valves and flow meter may be needed

BRAVO 180S SPRAY RATE CONTROLLER KIT SPECIFICATIONS

A compact and easy to use spray controller that ensures constant and precise rate control.

DISTRIBUTION CONTROL Automatic adjustment of spray application rate by measuring flow and speed.

SECTIONS Control of up to 5 sections.

KIT CONTENTS Kit includes control box, tractor loom, sprayer loom and speed sensor.

DISPLAY Simultaneous display of application rate (l/ha) and: speed, area, sprayed quantity,

tank level, flow rate (l/min), operating time and distance.

DESCRIPTION CODE

ARAG Bravo 180S - 2 sections (For horticultural applications) BRAVO180SHKIT

ARAG Bravo 180S - 4 sections (For multi-row applications) BRAVO180HKIT

ARAG Bravo 180S - 5 sections (For broadacre applications) BRAVO180BAKIT

Note: Extra components including electric valves and flow meter may be needed

Bravo Rate Controller Kits

1300 745 826 silvan.com.au74

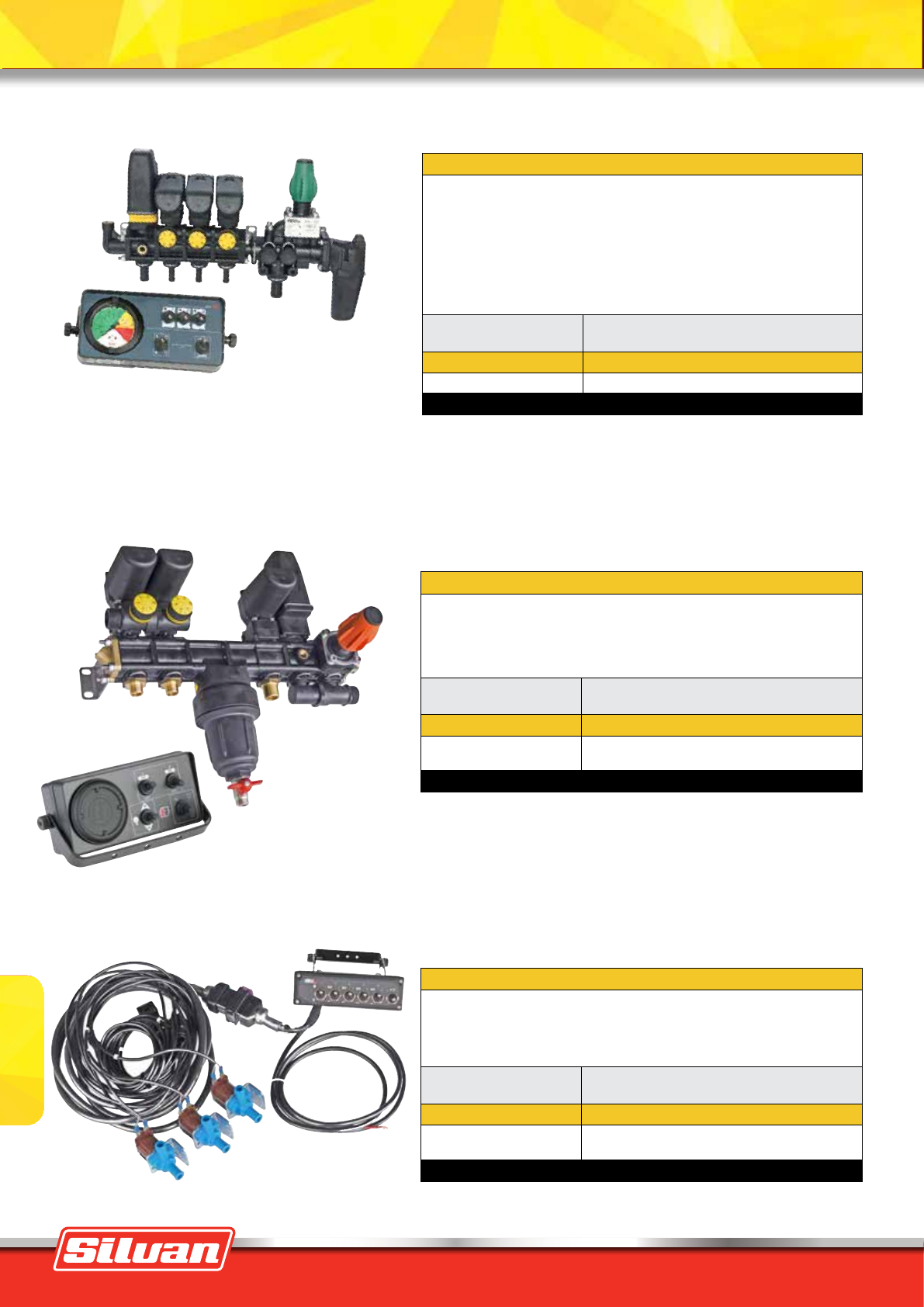

SILVAMATIC ELECTRIC SPRAY CONTROL KIT

Features an in-cab control box with proportional pressure compensating valves

designed to maintain constant pressure and output even after one or more boom

sections are closed.

• Direct acting valves

• Stainless steel components and viton seals

• 3 boom section outlet with 12mm tails

• On/off and pressure adjustment switch

• Individual valves have own compensating device

KIT CONTENTS Kit includes control box, tractor loom, sprayer loom

and valves

DESCRIPTION CODE

SILVAMATIC CONTROL KIT 461530A

Note: Extra components may be needed

HIGH PRESSURE ELECTRIC VALVE KIT

Modular 12 volt DC electric control kit ideal for use on high pressure orchard sprayers.

Supplied complete with 2 on/off electric valves for left or right side spraying and 1 bypass

electric valve, electric pressure regulator, manual pressure regulator and pressure filter.

Control switch box suitable for mounting in tractor cabin with electric wiring loom.

KIT CONTENTS Kit includes control box, tractor loom, sprayer loom

and valves

DESCRIPTION CODE

HIGH PRESSURE ELECTRIC

VALVE KIT D99-80

Note: Extra components may be needed

ELECTRIC SOLENOID KIT

Medium pressure control kit is ideal for boom spray applications and is available in three

section on/off with control box suitable for mounting in tractor cabin and electric wiring

loom. Maximum operating pressure 10 Bar.

Note: Pressure regulator and hose not included.

KIT CONTENTS Kit includes control box, tractor loom, sprayer loom

and solenoids

DESCRIPTION CODE

MEDIUM PRESSURE ELECTRIC

SOLENOID KIT M99-14

Note: Extra components may be needed. Pressure regulator and hoses not included

Electric Control Kits

PUMP

MODEL

CAPACITY

(FULL PRESS)

MAX

PRESURE

BP20/15 19 L/min. 15 bar

BP60/20 58 L/min. 20 bar

BP75/15 71 L/min. 20 bar

BP125/20 121 L/min. 20 bar

BP151/20 138 L/min. 20 bar

BP171/20 162 L/min. 20 bar

BP265/20 252 L/min. 20 bar

EXAMPLE:

Application rate: 100 l/ha

Tractor speed: 12 km/h

Boom width: 10 m

Tank capacity: 800L

Pump output required = 100 x 12 x 10

600

= 20 L/min

CALCULATIONS REQUIRED FOR OUTPUT PER NOZZLE

L/min/nozzle = L/Ha x Km/h x row width (m)

600 x no. of nozzles

PUMP

MODEL

CAPACITY

(FULL PRESS)

MAX

PRESURE

APS 71 67 L/min. 50 bar

APS 96 88 L/min. 50 bar

APS 121 115 L/min. 50 bar

APS 145 142 L/min. 50 bar

APS 166 163 L/min. 50 bar

IDS 1701 161 L/min. 50 bar

IDS 2001 182 L/min. 50 bar

IDS 2200 208 L/min. 50 bar

IDS 2600 249 L/min. 50 bar

EXAMPLE:

Application rate: 2000 l/ha

Tractor speed: 5 km/h

Tree spacing: 5 m

Tank capacity: 2000L

Pump output required = 2000 x 5 x 5

600

= 83.3 l/min

FINDING THE RIGHT PUMP

SILVAN LINKAGE OR TRAILED SPRAYER

STEP 1 Determine the application rate, boom width (in metres) and the tractor speed for the job.

STEP 2 Allow between 2% and 5% of the tank volume to be recirculated

every minute to provide agitation. If venturi agitators are used, allow for the volume of liquid

used by the venturi jet. When venturi’s are used they usually become the primary method

of agitation so the allowance for the percentage of tank volume to be recirculated can be

disregarded. There is always agitation from the pump (diaphragm or piston type) when it is in

bypass mode.

STEP 3 Use the following formula to calculate the pump output required by the boom.

Pump output required (l/min) = Application rate (l/ha) x Speed (km/h) x Boom width (m)

600

STEP 4 Allow 2% tank volume for agitation (example 800 x 2% =16L/min.) Add this amount to

required pump output for spraying to find total volume required from pump

(example 20 + 16 = 36L/min).

STEP 5 Select a pump from the table at right to match required total output.

SILVAN AIR ASSIST SPRAYER

STEP 1 Determine the application rate (l/ha), the tractor speed and the row width of the crop

being sprayed.

STEP 2 Allow between 2% and 5% of the tank capacity to be recirculated every minute for agitation.

The lower percentage can be used where mechanical agitation is fitted.

STEP 3 Use the following formula to calculate the pump output required by the sprayer.

Pump output (l/min) = Application rate (l/ha) x Speed (km/h) x Row width (m)

600

STEP 4 Allow 2% tank volume for agitation (eg 2000 x 2% = 40L/min). Add this amount to required

pump output for spraying to find the total volume required from the pump

(example 83.3L/min + 40L/min = 123.3L/min).

STEP 5 Select a pump from the table above to match required total output.

NOTE: From the above table either the APS 145 or APS 166 would be suitable, but the APS 166

will give more flexibility if larger application rates are needed.

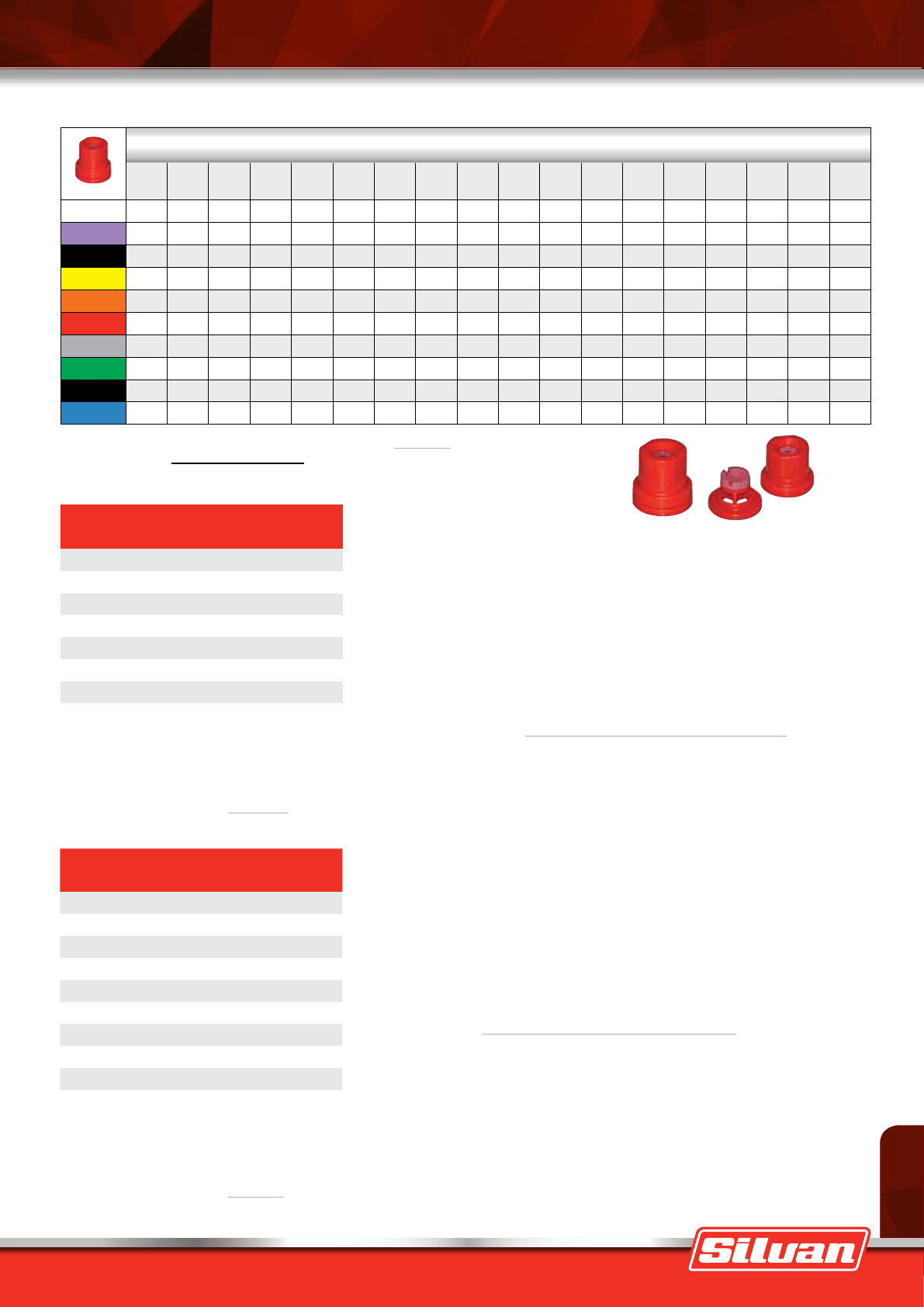

CAPACITY (L/min)

BAR

HCC005 0.19 0.22 0.25 0.27 0.29 0.31 0.33 0.35 0.36 0.38 0.40 0.41 0.42 0.44 0.45 0.47 0.48 0.49

HCC0075 0.30 0.35 0.39 0.42 0.46 0.49 0.52 0.55 0.57 0.60 0.62 0.65 0.67 0.69 0.71 0.73 0.75 0.77

HCC01 0.40 0.46 0.52 0.57 0.61 0.65 0.69 0.73 0.77 0.80 0.83 0.86 0.89 0.92 0.95 0.98 1. 01 1.03

HCC015 0.60 0.69 0.77 0.85 0.92 0.98 1.04 1. 10 1. 15 1.20 1.25 1.30 1.34 1.39 1.43 1.47 1.51 1.55

HCC02 0.80 0.92 1.03 1. 1 3 1.22 1.31 1.39 1.46 1.53 1.60 1.67 1.73 1.79 1.85 1.90 1.96 2.01 2.07

HCC025 1.00 1. 1 5 1.29 1.41 1.53 1.63 1.73 1.83 1.91 2.00 2.08 2.16 2.24 2.31 2.38 2.45 2.52 2.58

HCC03 1.20 1.39 1.55 1.70 1.83 1.96 2.08 2.19 2.30 2.40 2.50 2.59 2.68 2.77 2.86 2.94 3.02 3.10

HCC035 1.40 1.62 1.81 1.98 2.14 2.29 2.42 2.56 2.68 2.80 2.91 3.02 3.13 3.23 3.33 3.43 3.52 3.61

HCC04 1.60 1.85 2.07 2.26 2.44 2.61 2.77 2.92 3.06 3.20 3.33 3.46 3.58 3.70 3.81 3.92 4.03 4.13

HCC05 2.00 2.31 2.58 2.83 3.06 3.27 3.46 3.65 3.83 4.00 4.16 4.32 4.47 4.62 4.76 4.90 5.03 5.16

HCC CERAMIC HOLLOW CONE NOZZLES

Spraying Information

eg: 500 x 7 x 3

600 x 6 = 1.09 L/min/nozzle

1300 745 826 silvan.com.au76

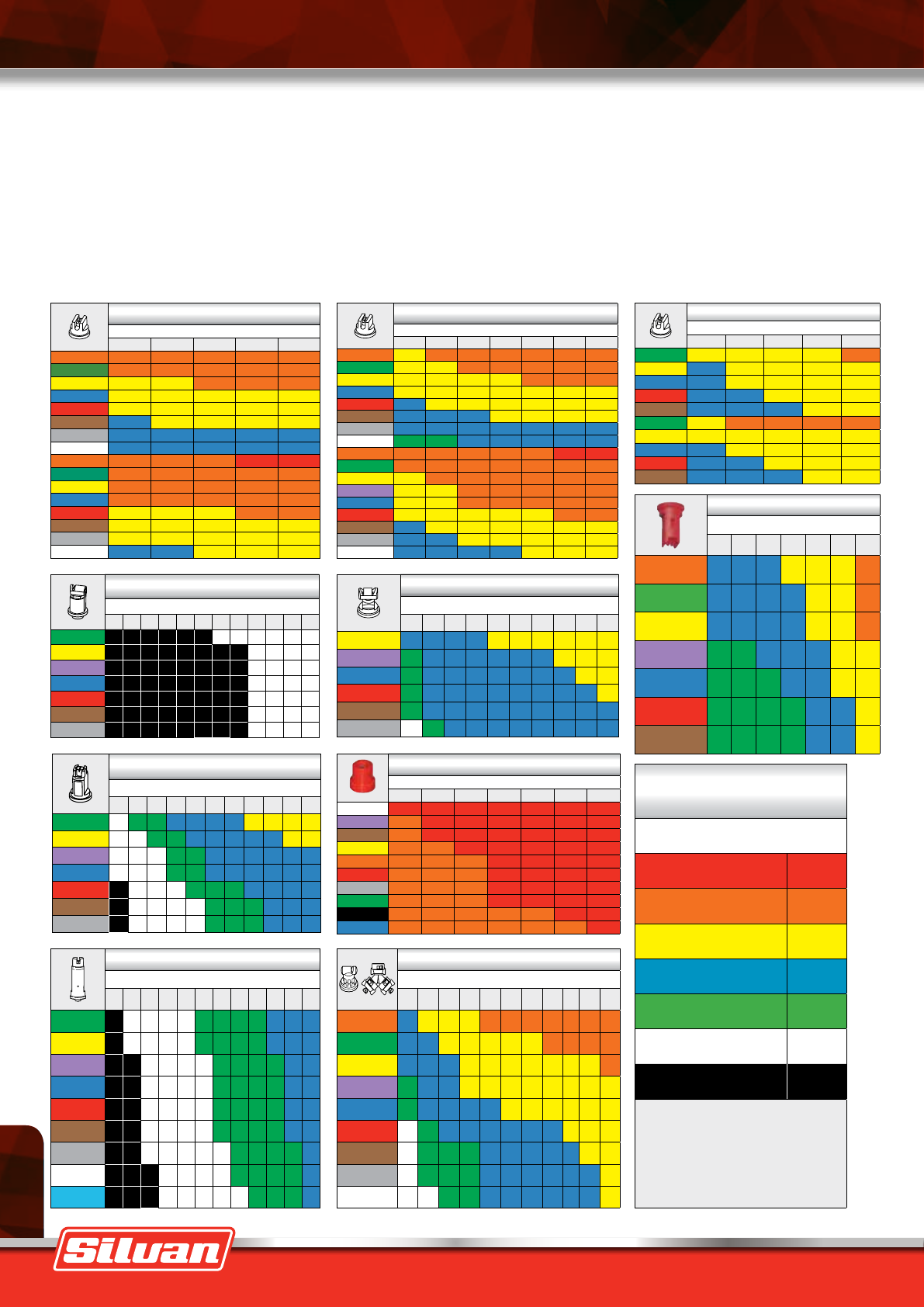

Nozzle selection is often based upon droplet size. The droplet size from a nozzle becomes very important when the efficacy of a particular plant protection

chemical is dependent on coverage, or the prevention of spray leaving the target area is a priority. Refer to the chemical label for droplet size regulations.

The majority of the nozzles used in agriculture can be classified as producing either fine, medium, coarse, or very coarse droplets. Nozzles that produce fine

droplets are usually recommended for post-emergence applications, which require excellent coverage on the intended target area. The most common nozzles

used in agriculture are those that produce medium sized droplets. Nozzles producing medium and coarse-sized droplets can be used for contact and systemic

herbicides, pre-emergence surface-applied herbicides, insecticides and fungicides.

An important point to remember when choosing a spray nozzle that produces a droplet size in one of the seven categories is that one nozzle can produce different

droplet size classifications at different pressures. A nozzle might produce medium droplets at low pressures, while producing fine droplets as the pressure is

increased. Droplet size classes are shown in the following tables to assist in choosing an appropriate spray tip.

AI Teejet and AIC Teejet

BAR

2 2

533

5 4 4

555

5 6 6

5 7 8

AI110015

UC XC XC XC XC VC VC VC VC

CCC

AI11002

UC XC XC XC XC VC VC VC VC

CCC

AI110025

UC UC XC XC XC XC VC VC VC VC

C C

AI11003

UC UC XC XC XC XC VC VC VC VC

C C

AI11004

UC UC XC XC XC XC VC VC VC VC

C C

AI11005

UC UC XC XC XC XC VC VC VC VC

C C

AI11006

UC UC XC XC XC XC XC VC VC VC VC

AI11008

UC UC UC XC XC XC XC VC VC VC VC

AI11010

UC UC UC XC XC XC XC XC VC VC VC

Turbo Twinjet (TTJ60)

BAR

5 2 2

533

544

555

5 6

J60-11002

C C C C

MMMMMM

J60-110025

CCCCCC

MMM

J60-11003

CCCCCCC

M M

J60-11004

CCCCCCCC

J60-11005

CCCCCCCCC

J60-11006

XC VC

CCCCCCCC

IDK Lechler

BAR

5 2 2

53456

IDK12001 IDKS8001

C C C

M M M F

IDK120015

IDKS80015

C C C C

M M F

IDK12002 IDKS8002

C C C C

M M F

IDK120025

IDKS80025 VC VC

C C C

M M

IDK12003 IDKS8003 VC VC VC

C C

M M

IDK12004 IDKS8004 VC VC VC VC

C C

IDK12005 IDKS8005 VC VC VC VC

C C

HCC Spray-Jet

BAR

3456810 15

HCC005 VF VF VF VF VF VF VF

HCC0075 FVF VF VF VF VF VF

HCC01 FVF VF VF VF VF VF

HCC015 F F VF VF VF VF VF

HCC02 F F F VF VF VF VF

HCC025 FFFVF VF VF VF

HCC03 FFFVF VF VF VF

HCC035 FFFVF VF VF VF

HCC04 FFFFFVF VF

HCC05 FFFFFFVF

XR Teejet and XRC Teejet

BAR

1 1

522

533

5 4

XR8001

FFFFFF

XR80015

M M

FFFFF

XR8002

MMMM

F F F

XR8003

MMMMMMM

XR8004

MMMMMM

XR8005

CCC

M M M M

XR8006

CCCCCCC

XR8008

VC VC

CCCCC

XR11001

FFFFF

VF VF

XR110015

FFFFFFF

XR11002

FFFFFF

XR110025

M M

FFFFF

XR11003

M M

FFFFF

XR11004

MMMMM

F F

XR11005

MMMMMM

XR11006

C C

MMMMM

XR11008

CCCC

M M M

TP Teejet

2 2

533

5 4

TP8001

F F F F F

TP80015

F F F F F

TP8002

M M

F F F

TP8003

M M M M M

TP8004

M M M M M

TP8005

M M M M

TP8006

C C C C C

TP8008

C C C C C

TP11001

F F F

VF VF

TP110015

F F F F F

TP11002

F F F F F

TP11003

F F F F F

TP11004

M M M

F F

TP11005

M M M M M

TP11006

M M M M M

TP11008

C C

M M M

DG Teejet

BAR

2 2

533

5 4

DG80015

M M M M

DG8002

MMMM

DG8003

MMMM

DG8004

C C

MMM

DG8005

C C C

M M

DG110015

FFFF

DG11002

MMMMM

DG11003

MMMM

DG11004

C C

MMM

DG11005

C C C

M M

Turbo Teejet Induction (TTI)

1 1

522

533

544

555

5 6 7

TTI110015 UC UC UC UC UC UC XC XC XC XC XC XC

TTI11002 UC UC UC UC UC UC UC UC XC XC XC XC

TTI110025 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11003 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11004 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11005 UC UC UC UC UC UC UC UC XC XC XC XC

TTI11006 UC UC UC UC UC UC UC UC XC XC XC XC

AIXR Teejet

BAR

1 1

522

533

544

5 5 5

5 6

AIXR110015 XC VC VC

CCCC

M M M M

AIXR11002 XC XC VC VC

CCCCC

M M

AIXR110025 XC XC XC VC VC

C C C C C C

AIXR11003 XC XC XC VC VC

C C C C C C

AIXR11004 UC XC XC XC VC VC VC

C C C C

AIXR11005 UC XC XC XC XC VC VC VC

CCC

AIXR11006 UC XC XC XC XC VC VC VC

CCC

Turbo Teejet and Turbo Teejet Duo

BAR

1 1

522

533

5 4 4

555

5 6

TT11001

11001

MMM

F F F F F F F

TT110015

110015

C C

MMMMM

F F F F

TT11002

11002

C C C

M M M M M M M

TT110025

110025

C C

M M M M M M M M

TT11003

11003 VC

CCCC

M M M M M M

TT11004

11004 XC VC

CCCCCC

M M M

TT11005

11005 XC VC VC VC

C C C C C

M M

TT11006

11006 XC VC VC VC

C C C C C C

TT11008

11008 XC XC VC VC

C C C C C C

KEY

DROPLET SIZE COLOUR REFERENCE

VERY FINE VF

FINE F

MEDIUM M

COARSE C

VERY COARSE VC

EXTRA COARSE XC

ULTRA COARSE UC

Droplet size classifications are

based on BCPC specifications and

in accordance with ASAE Standard

S-572 at the date of printing.

Classifications are subject to change.

Spraying Information Spraying Information

7777

ISO STANDARD NOZZLE OUTPUT CHART FOR 80˚/110˚ NOZZLES

ISO

COLOUR

CODE

LIQ

PRES

BAR

CAPACITY

L/MIN.

APPLICATION RATE:LS PER HECTARE AT KM/H.

6 8 10 12 14 16 18 20 22 24 26 28 30

km/h km/h km/h km/h km/h km/h km/h km/h km/h km/h km/h km/h km/h

FAN TIP

ORANGE

80-01

110-01

100 MESH

2.0 0.33 65 49 39 33 28 24 22 20 18 16 15 14 13

2.5 0.37 73 55 44 37 31 27 24 22 20 18 17 16 15

3.0 0.40 80 60 48 40 34 30 27 24 22 20 18 17 16

3.5 0.43 86 65 52 43 37 32 29 26 23 22 20 18 17

4.0 0.46 92 69 55 46 39 35 31 28 25 23 21 20 18

FAN TIP

GREEN

80-015

110-015

100 MESH

2.0 0.49 98 74 59 49 42 37 33 29 27 25 23 21 20

2.5 0.55 110 82 66 55 47 41 37 33 30 27 25 23 22

3.0 0.60 120 90 72 60 51 45 40 36 33 30 28 26 24

3.5 0.65 130 97 78 65 56 49 43 39 35 32 30 28 26

4.0 0.69 139 104 83 69 59 52 46 42 38 35 32 30 28

FAN TIP

YELLOW

80-02

110-02

50 MESH

2.0 0.65 131 98 78 65 56 49 44 39 36 33 30 28 26

2.5 0.73 146 110 88 73 63 55 49 44 40 37 34 31 29

3.0 0.80 160 120 96 80 69 60 53 48 44 40 37 34 32

3.5 0.86 173 130 104 86 74 65 58 52 47 43 40 37 35

4.0 0.92 185 139 111 92 79 69 62 55 50 46 43 40 37

FAN TIP

BLUE

80-03

110-SF-03

50 MESH

2.0 0.98 196 147 118 98 84 74 65 59 53 49 45 42 39

2.5 1.10 219 164 131 110 94 82 73 66 60 55 51 47 44

3.0 1.20 240 180 144 120 103 90 80 72 65 60 55 51 48

3.5 1.30 259 194 156 130 111 97 86 78 71 65 60 56 52

4.0 1.39 277 208 166 139 119 104 92 83 76 69 64 59 55

FAN TIP

RED

80-04

110-04

50 MESH

2.0 1.31 261 196 157 131 112 98 87 78 71 65 60 56 52

2.5 1.46 292 219 175 146 125 110 97 88 80 73 67 63 58

3.0 1.60 320 240 192 160 137 120 107 96 87 80 74 69 64

3.5 1.73 346 259 207 173 148 130 115 104 94 86 80 74 69

4.0 1.85 369 277 222 185 158 139 123 111 101 92 85 79 74

FAN TIP

BROWN

80-05

110-05

50 MESH

2.0 1.63 326 245 196 163 140 122 109 98 89 82 75 70 65

2.5 1.82 364 273 218 182 156 137 121 109 99 91 84 78 73

3.0 2.00 400 300 240 200 171 150 133 120 109 100 92 86 80

3.5 2.16 432 324 259 216 185 162 144 130 118 108 100 93 86

4.0 2.31 462 346 277 231 198 173 154 139 126 115 107 99 92

FAN TIP

GREY

80-06

110-06

50 MESH

2.0 1.96 392 294 235 196 168 147 131 118 107 98 90 84 78

2.5 2.19 438 329 263 219 188 164 146 131 120 110 101 94 88

3.0 2.40 480 360 288 240 206 180 160 144 131 120 111 103 96

3.5 2.59 518 389 311 259 222 194 173 156 141 130 120 111 104

4.0 2.77 554 416 333 277 238 208 185 166 151 139 128 119 111

FAN TIP

WHITE

80-08

110-08

50 MESH

2.0 2.61 522 392 313 261 224 196 174 157 142 131 120 112 104

2.5 2.92 584 438 350 292 250 219 195 175 159 146 135 125 117

3.0 3.20 640 480 384 320 274 240 213 192 175 160 148 137 128

3.5 3.46 692 519 415 346 297 260 231 208 189 173 160 148 138

4.0 3.70 740 555 444 370 317 278 247 222 202 185 171 159 148

Factors affecting Calibration of Boom Sprays

1. Application rate in Litres per hectare 2. Travel Speed of Tractor

The tractor travel speed is the most important variable in sprayer performance.

A 10% change in tractor speed gives a 10% change in application rate.

This can lead to over or under application of chemicals. Determine the speed

by measuring 100 metres then time in seconds how long it takes to cover the

100 metres. If spraying in hilly terrain time distance both up hill and down hill

and average the results.

THE FORMULA FOR SPEED IS:

km/h = 360

Time in seconds for 100 metres

3. Nozzle Spacing on boom (Std nozzle spacing is 50 cm).

4. Calculate required output per nozzle:

L/min/

nozzle =

L/ha x km/h x nozzle spacing (cm)

60,000

e.g. 100 x 10 x 50

= 0.83 L/min/

nozzle

60,000

Where application rate is: 100 L/Ha, speed is 10 km/h and nozzle

spacing is 50 cm.Use the nozzle output charts to select the correct nozzle tip

for your application.

5. Check the calibration procedure

Use a measuring jug and stopwatch to check the output of several nozzles

across the boom at the recommended pressure. If the outputs vary slightly

from the chart then adjust the pressure in the system to achieve the

correct volume. If nozzle flow rates are greater than 5% above or below the

manufacturer’s charts then the whole sprayer system needs to be checked for

leaks, blockages etc,cleaned out and the calibration process repeated until

accuracy is attained.

The nozzle charts also allow application rates to be determined if the tractor

speed, the nozzle and the spraying pressure are known.

Spraying Information Spraying Information

PRODUCT CODE (SILVAN USE ONLY) W/O NUMBER (SILVAN USE ONLY)

DELIVERY DATE DEALER ORDER NO

Dealership / Customer Name: Order Date:

Dealership / Customer Address:

Postcode:

Other Instructions:

Dealer Sign-off: Customer Sign-off:

1. MODEL

SUNTUFF G2E G2 TGS G2 TURBOMISER

SUPAFLO G2 SUPAFLO TURBOMISER TPL STD TURBOSCRAM

STILETTO STD TGS STD TURBOMISER G2E TURBOSCRAM

3000L G2E TGS G2E TURBOMISER OTHER

2. TANK SIZE

200L 400L 500L 600L

1000L 1500L 2000L 3000L

3500L 4000L

3. PUMPS

APS71 APS96 IDS960 IDS1401

IDS1701 IDS2001 IDS2200 IDS2600

HYDRAULIC* STD OTHER *tractor hydraulic flow

4. FAN

600MM POWERHEAD TURBO P42 OKTOPUS

700MM STD RADAK TURBO P45 CANNON JET

800MM TALL TOP STD BOTTOMS TURBO P50

900MM TALL TOP WIDE BOTTOMS TURBO P55

5. CONTROLS

MANUAL ELECTRIC BRAVO 180S BRAVO 180S HYDRAULIC

BRAVO 300S RCU BRAVO 400S IBX100 (ISOBUS) OTHER

6. WHEELS

31 x 10.5 M/T 31 x 10.5 RIB 11.5/80 X 15.3 400/60 x 15.5

11.00 x 16 12.4 x 18 400/55 22.5 12.4 x 24

7. AXLES

STRAIGHT 100mm DROP Glideflex TANDEM AXLE

50mm LAP Note: All units except 3000L use Simplicity tandem axle

8. ROWS SPRAYED

SINGLE ROW TWO ROWS THREE ROWS

9. OPTIONS

ONE SIDED CONVEYOR VINEYARD CONVEYOR ORCHARD HEAD (TURBO) HYDRAULIC LIFT

TWO SIDED DEFLECTOR QUICK TURN HITCH ORCHARD CANNON (TURBO) HYDRAULIC ROW WIDTH

BOTTOM AIR DEFLECTORS VINEYARD HEAD (TURBO) TURBO TOWER ROAD KIT

TWO SIDED CONVEYOR SUPER CANNON (TURBO) HI LO ORCHARD (TURBO) WORK LIGHTS

10. NOZZLE/RATE CONTROLLER SETUP

SPEED = APPL / RATE # 1 = ROW WIDTH # 1 = NOZZLES =

CROP = APPL / RATE # 2 = ROW WIDTH # 2 = CANOPY HEIGHT =

Note: failure to complete the nozzle/rate controller section will result in standard nozzles being fitted and any other nozzles supplied at dealer/customer cost

Conditions: (1) Sprayer Specification Checklist must be signed by dealer or authorised representative and faxed with purchase order to 1800 745 826

(2) Purchase order will not be processed without a completed Sprayer Specification Checklist.

(3) Silvan will not commence building or purchasing components for machine orders placed by dealers without the checklist being filled out to accompany their order.

(4) Silvan reserves the right not to accept for return any machine that has been manufactured and supplied according to the dealer checklist specifications.

78 1300 745 826 silvan.com.au

Terms and ConditionsAir Assist/Turbomiser Ordering Checklist

AVAILABILITY

Products in the Silvan Spraying Equipment Product Guide are available through

authorised Silvan dealers.

TERMS

The Silvan terms and conditions are set out in your individual trading terms

and at www.silvan.com.au/terms.

Price

All Prices are suggested list Price in AU dollars. Price are subject to change without

prior notice. For stocking incentive programmes refer to your individual trading

terms, or contact customer services staff on 1300 745 826.

GST

All Price are shown both inclusive of GST and exclusive of GST.

All invoices will include GST.

FREIGHT CHARGES

Price are ex Silvan Distribution Centres in Melbourne, Brisbane, Perth and Sydney

(Sydney has limited stock lines). Check with Silvan Customer Service for freight

charges into your area. Freight and handling charges will be

added to the invoice amount.

TITLE AND RISK

Silvan retains title to all goods until paid for in full in clear funds. Risk in respect

of goods passes to you as soon as the goods leave the Silvan Distribution Centre.

PPSA

Silvan may register a security interest over the goods as security for any payment.

You will need to provide Silvan with all information, documents and consents as

Silvan requires to register and maintain this security interest.

MINIMUM ORDER VALUE

A $75 Minimum Order Value (Excl. GST) applies to all standard orders. Orders under

the required minimum value will attract a $23 handling charge (Excl. GST).

A $250 Minimum Order Value (Excl. GST) applies to hardware range orders.

Urgent/breakdown orders don’t have a required Minimum Order Value,

and attract a $23 priority fee (Excl. GST).

WARRANTY

The only warranty provided by Silvan is set out on the forms accompanying the

goods (for a copy please contact the Silvan Customer Service Centre). No other

warranty or representation is made by Silvan. The terms of Silvan’s warranties are

subject to the operation of any law including the Australian Consumer Law.

CANCELLATIONS

1. Cancellations made on the day the order was placed:

a. If stock isn’t dispatched, no handling fee applies

b. If stock has been dispatched a restocking fee applies

2. Cancellations made after the day the order was placed,

a restocking fee will apply.

RETURNS POLICY

1. Before returning any product to Silvan, a Return Authorisation (RA) Number

and approval form must be obtained from Silvan Customer Service.

Goods WILL NOT be accepted without an RA number and form.

2. All returns must be requested within 14 days of the invoice date.

3. Goods will only be accepted for credit if they are

returned undamaged and in a saleable condition.

4. Return freight will be paid by the Customer if the goods are returned at the

Customer’s volition, unless authorised by the Company in writing prior to

return of the goods.

5. Written claims must reference Silvan invoice numbers, and must be dated

and state the reason for the claim.

6. A restocking fee will be applied if the goods have been dispatched according

to the order.

7. Return of products valued under $50 (Excl.GST) won’t

be accepted if dispatched according to the order.

CLAIMS

Pricing & Freight Claims need to be made within 14 days of the invoice date.

Any claims after this for pricing discrepancies will not be accepted. Claims for

Freight Damage need to be made within 14 days of the invoice date by notifying

Silvan Customer Service. Claims received after this will not be accepted.

DISCOUNT CODES

Refer to individual Trading Terms for specific discounts.

FOR A FULL LIST OF TERMS & CONDITIONS, PLEASE VISIT WWW.SILVAN.COM.AU/TERMS

Terms and Conditions

2018-2019

Spraying Equipment Product Guide

Reference No: 070-SIL-PL-14

070-SILSPRAY-18

For more information call 1300 745 826 or visit www.silvan.com.au

All items in this catalogue have been included in good faith

on the basis that the goods described were available at the

time this book was published. Failure of suppliers to deliver

in accordance with samples, descriptions, or at all, or other

unintentional causes may result in some lines being unavailable.

Space may prevent some dealers from stocking all items. All

brand names and product names used in this publication are

trade names, registered trade marks, or pending trade marks

of their respective owners.

SILVAN AUSTRALIA PTY. LTD. ABN 48 099 851 144

Head Ofﬁce: 244-264 Greens Road, Dandenong South, Victoria, Australia 3175

QLD. Ofﬁce: Warehouse 2, 30 Gow Street, Moorooka, Queensland 4105

W.A. Ofﬁce: 12 Cressall Road, Balcatta, Western Australia 6021

Freecall: 1300 SILVAN | Fax: 1800 SILVAN

Email: info@silvanaust.com | Web: silvan.com.au

Spraying Equipment Product Guide 2018 No Prices LR

Navigation menu

Versions of this User Manual:

Views

Navigation
