WT151M / WT152M

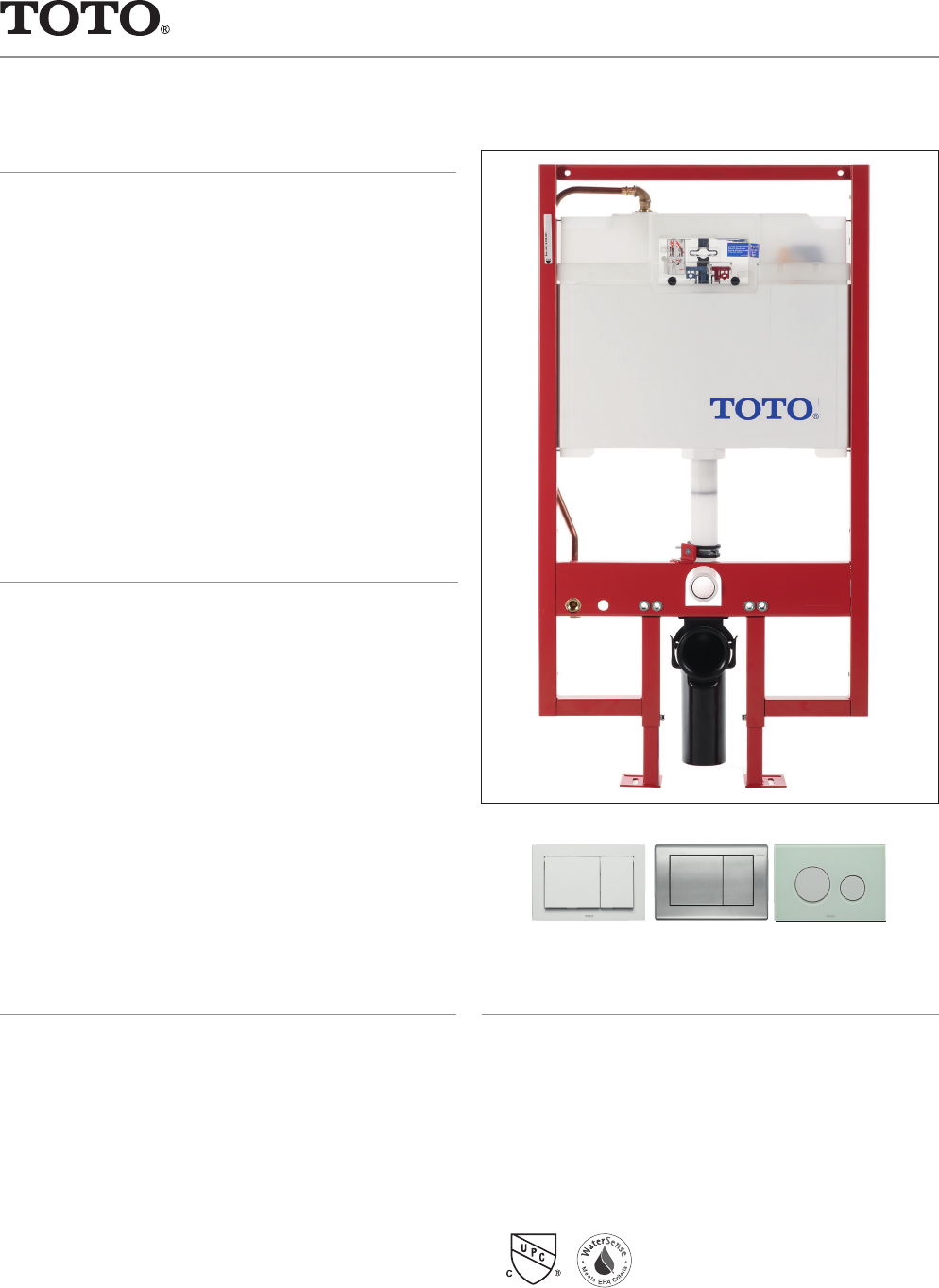

DuoFit® In-Wall Tank System, 1.6GPF & 0.9GPF
FEATURES
• Dual-Max flushing system, low consumption
(1.6GPF/6.0LPF & 0.9GPF/3.4LPF)
Avg. flush 1.28GPF
• Adjustable 15"-19" mounting height
• Saves up to 9" of floor space compared to
standard floor-mounted toilet
• Support up to 880lbs
• Commercial 2" x 6" or optional residential installa-
tion with 2" x 4" wall studs with waste outlet kit
• 1-pc blow molded polyethylene tank to prevent
leaks
• 2" x 6" Polyethylene outlet included
• Pre-plumbed for optional Washlet® connection
• Complete with #01 Cotton bolt caps
MODELS
• WT151M - with Pex-C washlet supply line
• WT152M - with copper washlet supply line
• YT800#WH - White
• YT820#SS - Brushed Stainless Steel
• YT820#CP - Polished Chrome
• YT830#WH- Glass/White
Optional Outlets (sold separately)
• THU343 2" x 4" outlet HDPE & PVC
• THU335 2" x 6" outlet cast iron
• THU468 Washlet connection kit
• CT418F(G) Aquia® wall-hung toilet by TOTO
(sold separately)
PRODUCT SPECIFICATION
This universal height, high-efficiency, dual flushing,
in-wall tank system toilet shall be 1.6GPF & 0.9GPF.
Requires TOTO toilet model CT418FG. In-Wall tank
system shall be TOTO Model WT15_________M____.
CODES/STANDARDS
• Meets and exceeds
o Carrier system: ASME A112.6.2
o Tank trim: IAPMO PS50, CSA B125.3,
ASSE1002
• Certifications: IAPMO(cUPC), and others
• Code compliance: UPC, IPC, NSPC, NPC Canada,
and others
Certified by
IAPMO R&T
White
Glass/White
Brushed Stainless Steel or
Polished Chrome
White
Glass/White
Brushed Stainless Steel or
Polished Chrome
White
Glass/White
Brushed Stainless Steel or
Polished Chrome
SPECIFICATIONS
• Water Use 1.6 GPF & 0.9GPF
(6.0 LPF & 3.4LPF)
• Flush System Dual-Max
• Min. Water Pressure 8 psi (static)
• Installation Height 15" to 19" (projected range)
• Warranty One Year Limited Warranty
• Material Various
• Shipping Weight WT151M / WT152M - 38lbs.
• Shipping Dimensions WT151M / WT152M
48" x 26-1/2" x 6"
WT151M / WT152M
DuoFit™ In-Wall Tank System, 1.6GPF & 0.9 GPF
# SS-00545 V.12
Ph: (888) 295-8134 | Fax: (800) 699-4889 | www.totousa.com | © TOTO USA
INSTALLATION NOTES
These dimensions and specifications are subject to change without notice
FFL
3-1/2"
" 5 1
" 9 1
" 2
2" x 4"
or 2” x 6"
2" x 4"
or 2” x 6"
16" 16"
12.7" 12.7"
" 2 5 - " 2 / 1 - 4 4
Shown with
CT418FG 2" x 6" installation
Finished
Floor
3-1/2"
5-1/2"
b
1/2" NPT
Water Supply
Washlet
Connection
1/2" NPT
Electrical
Outlet
(optional)
F or dimesion b:
Cast Iron Drain: 3"
PE Drain: 3-1/2"
9" of space saved
over traditional
fl oor-mounted toilet
a
For dimesion a: 1-3/4"
2" x 4" installation
Maximum Wall Panel
Thickness 2"
" 0 1
7"
Adequate structural bracing is required.
