1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 1/45

A Stick Figure Guide to the Advanced

Encryption Standard (AES)

Sep 22, 2009

(A play in 4 acts. Please feel free to exit along with the stage character that best

represents you. Take intermissions as you see ﬁt. Click on the stage if you have a hard

time seeing it. If you get bored, you can jump to the code. Most importantly, enjoy the

show!)

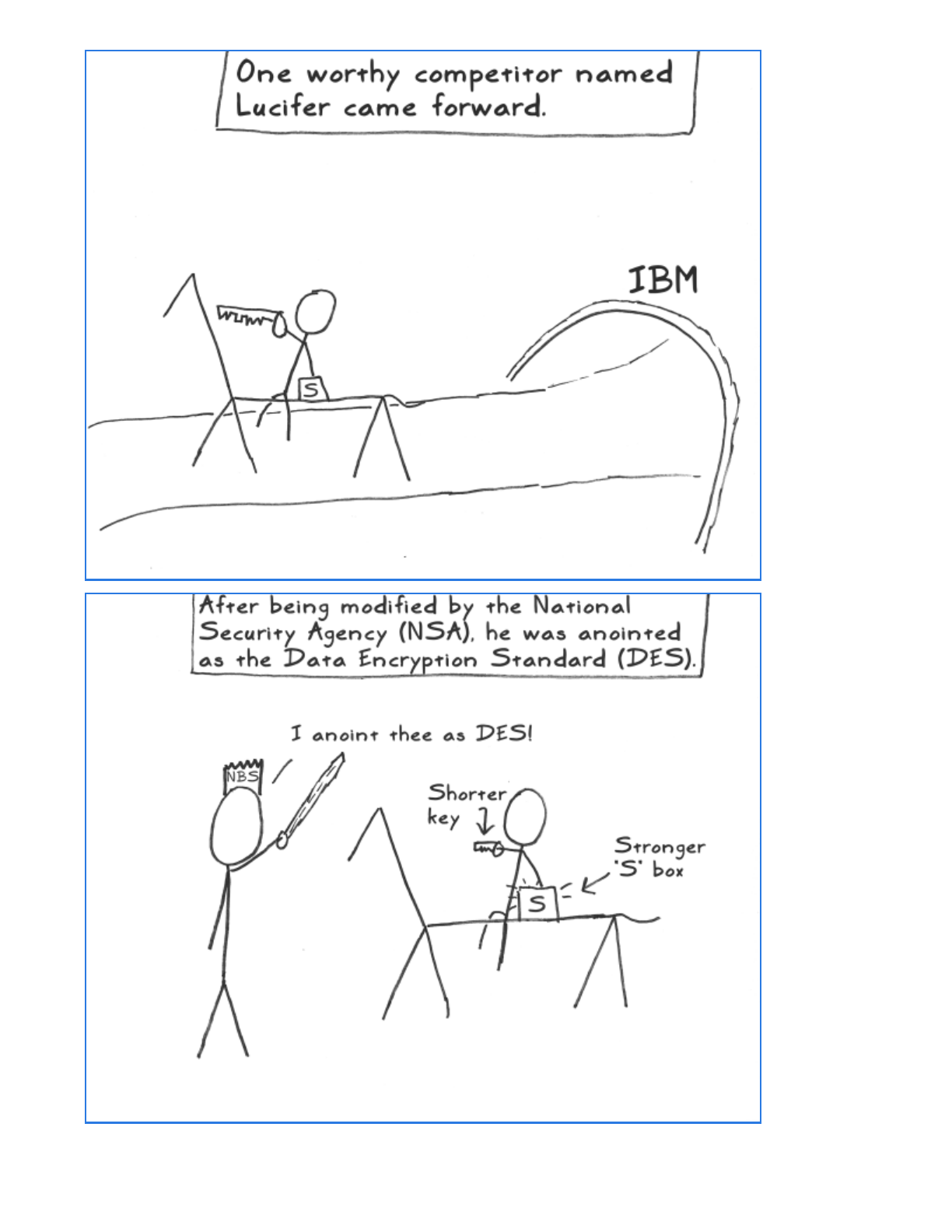

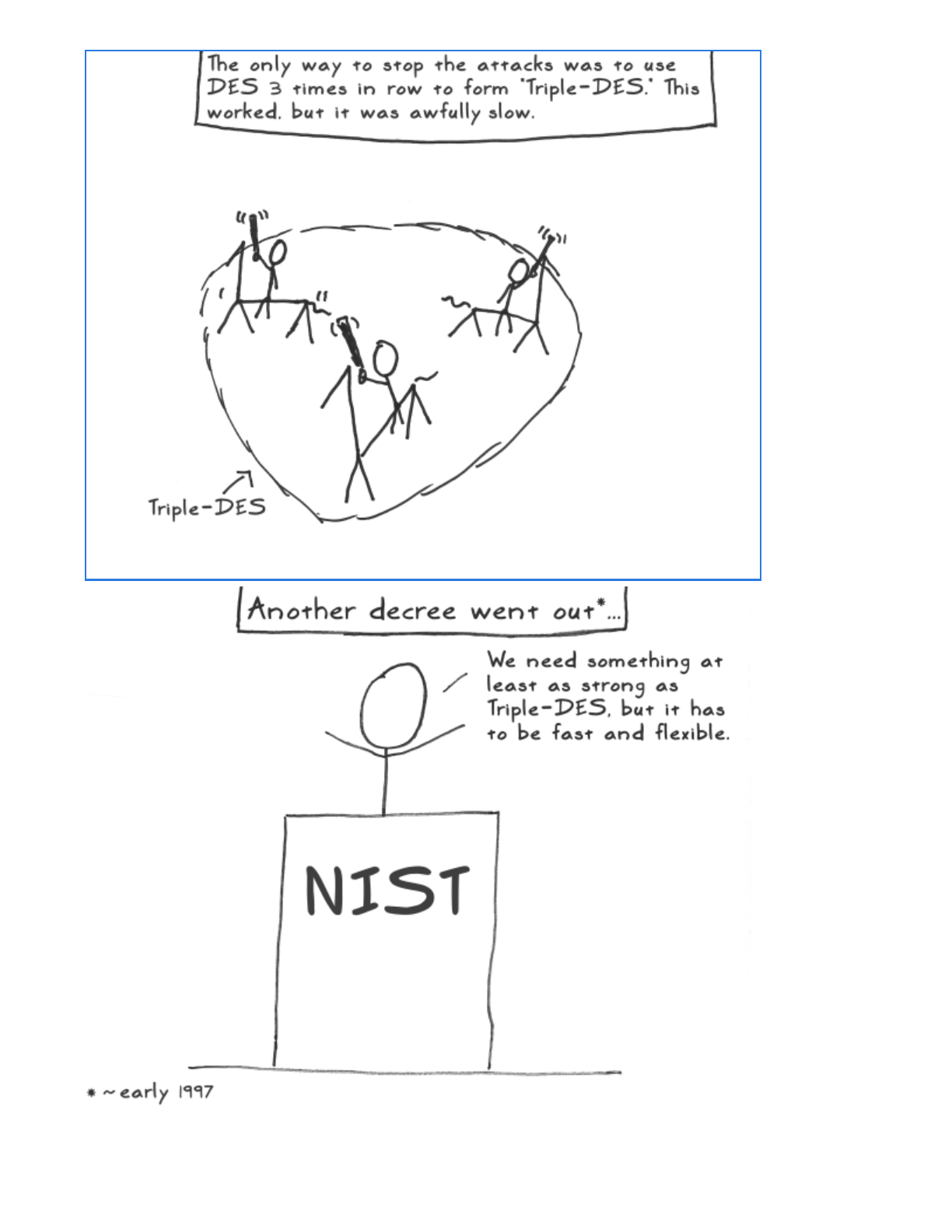

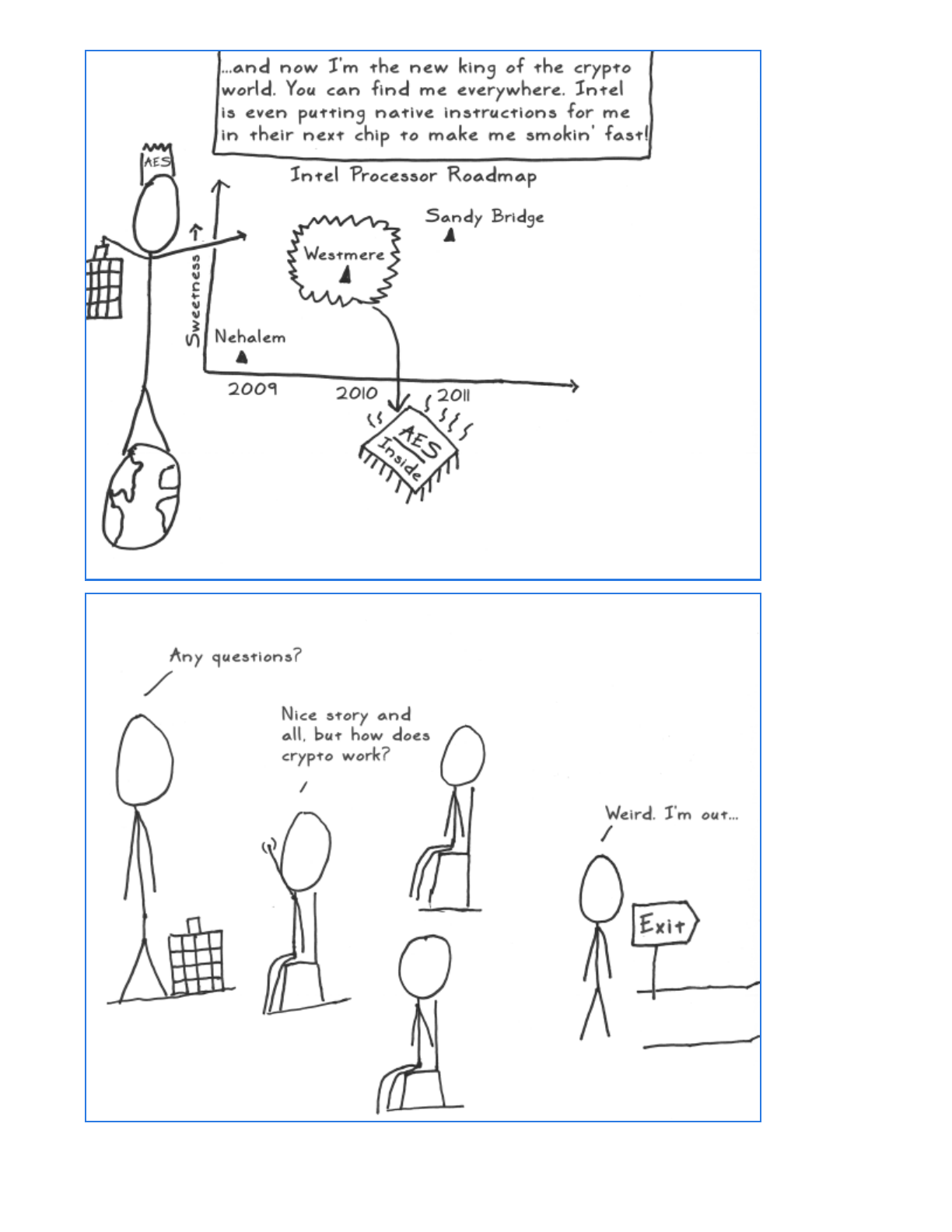

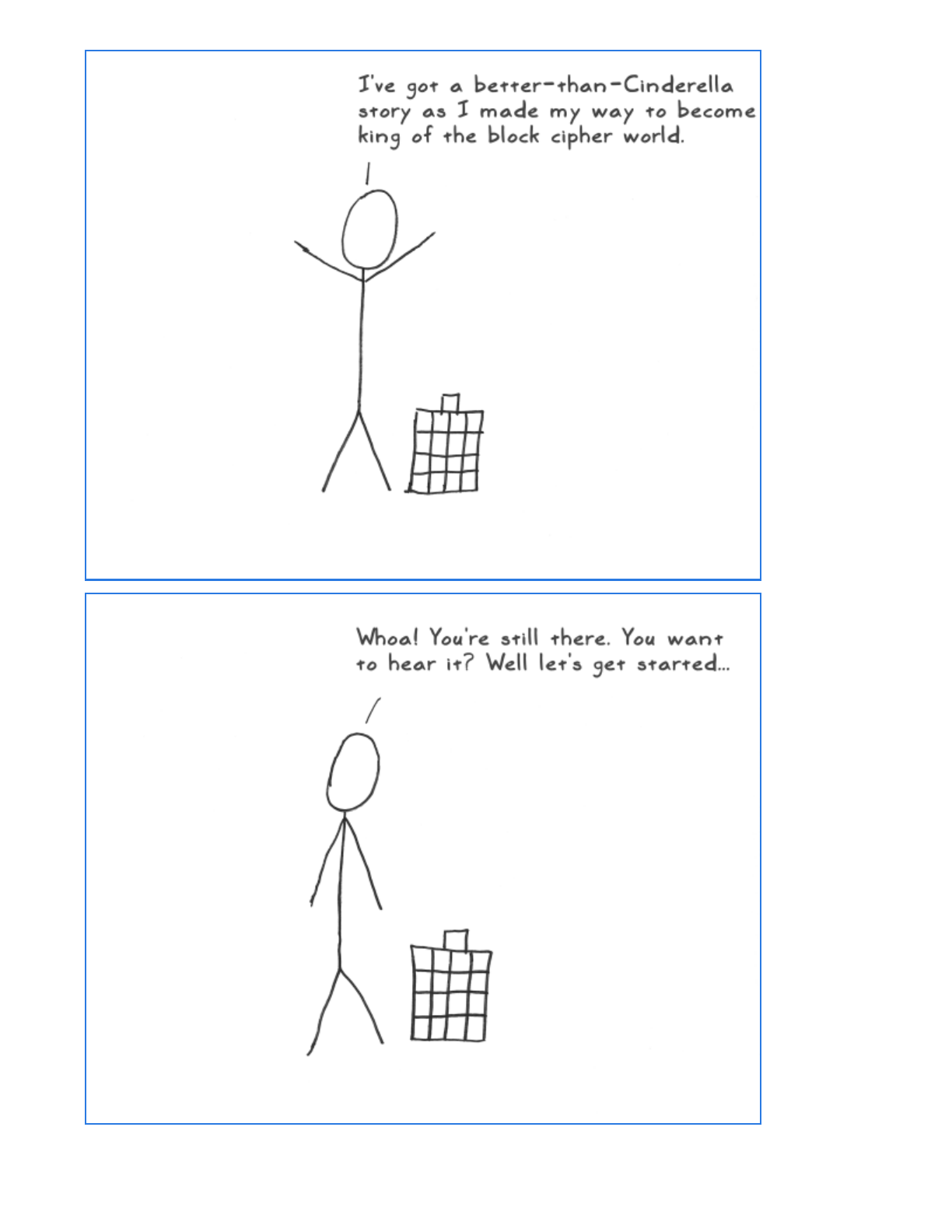

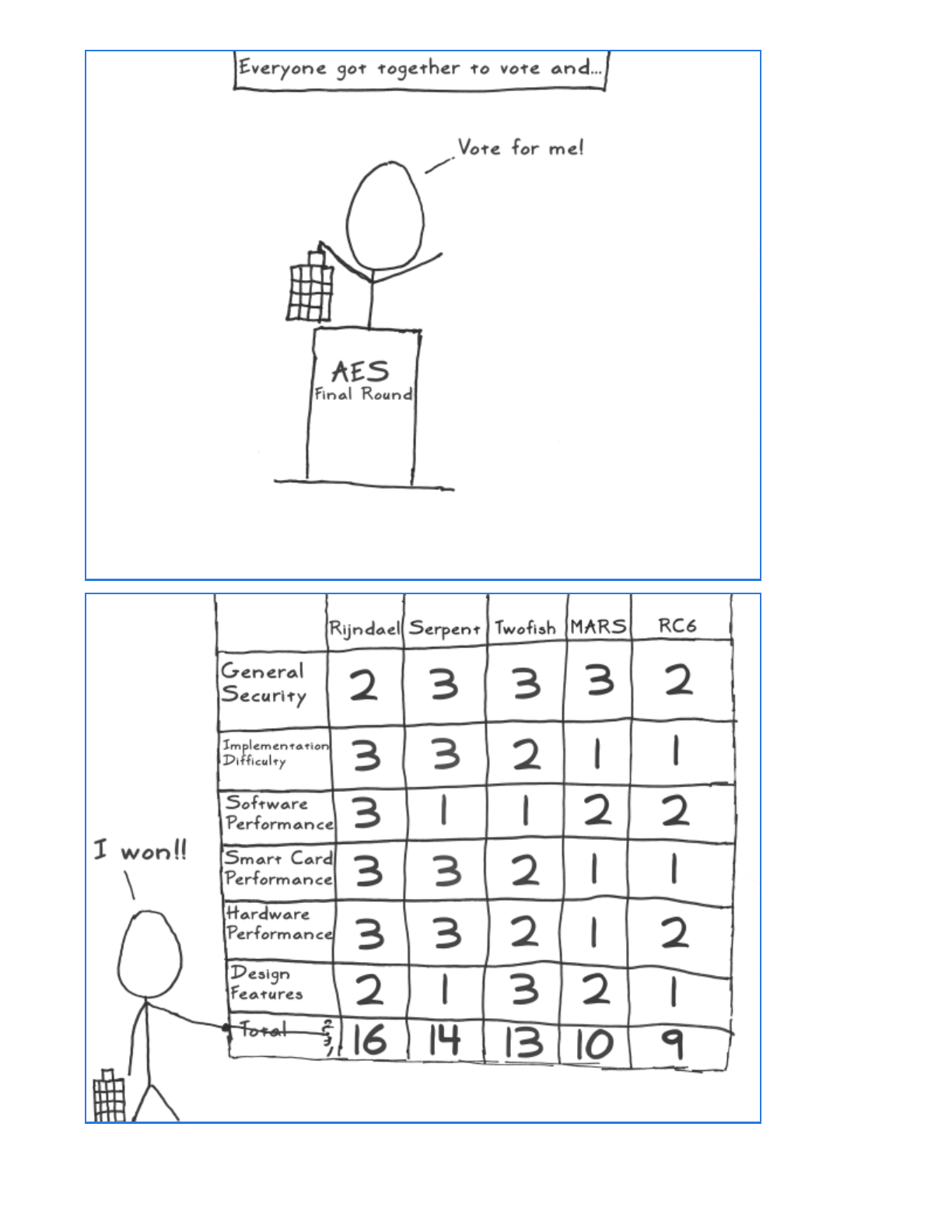

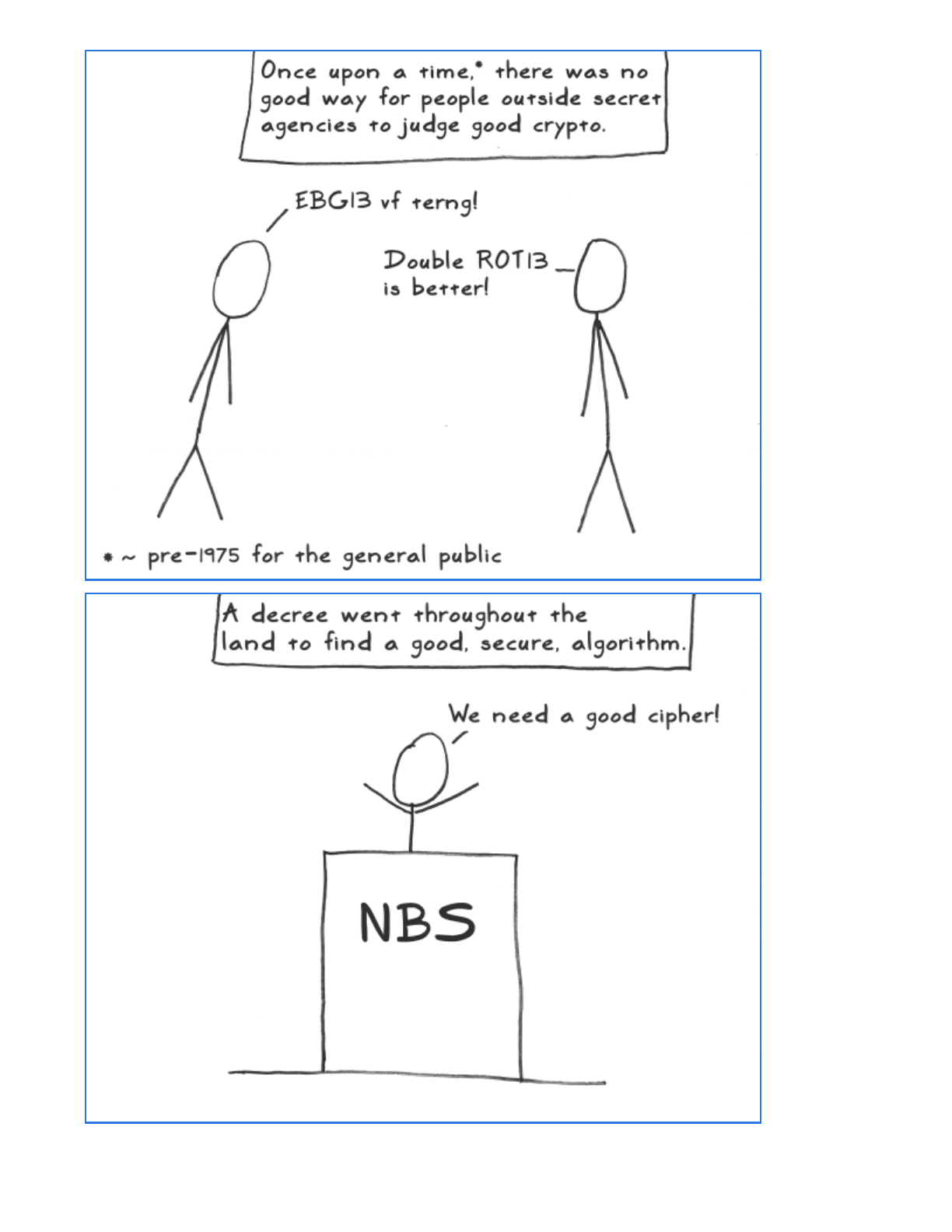

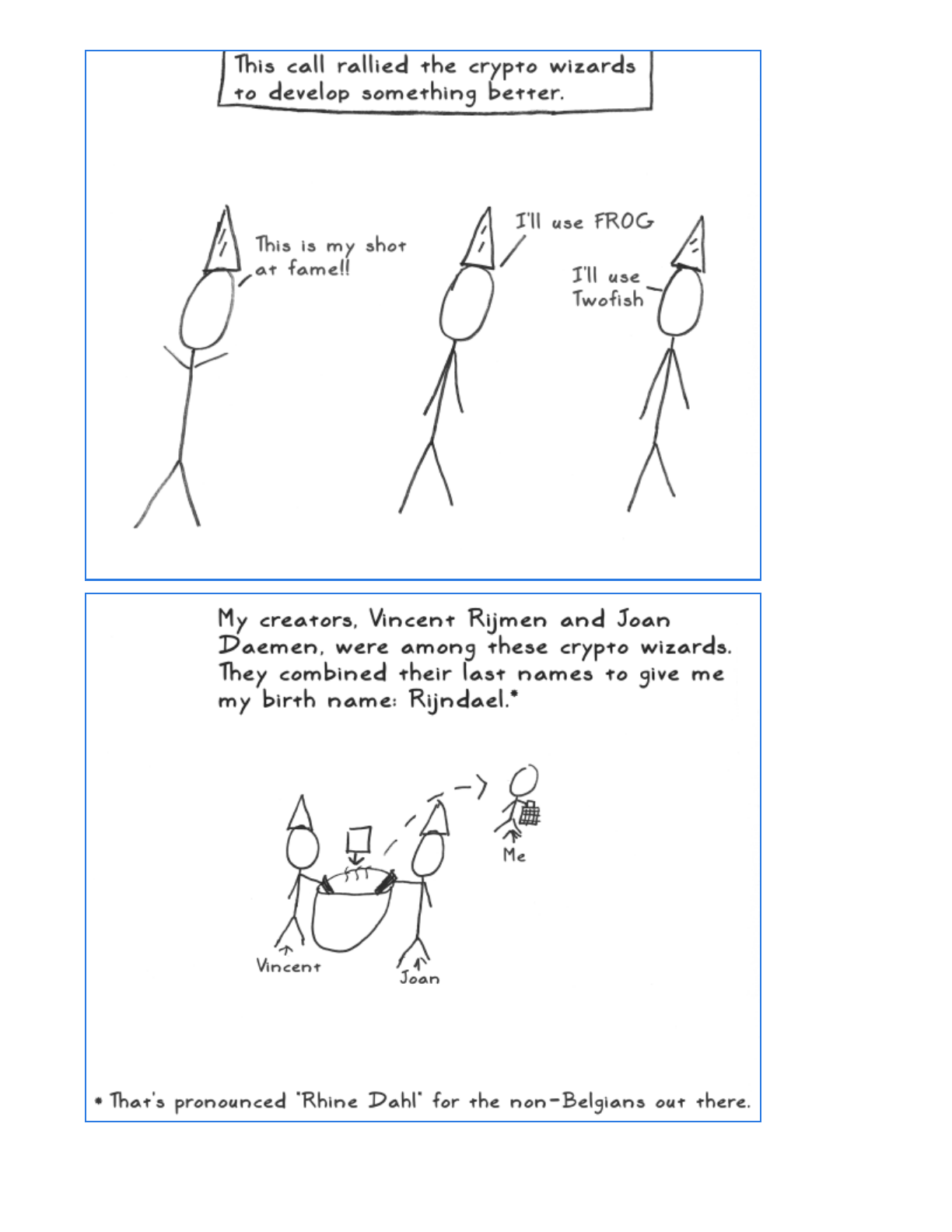

Act 1: Once Upon a Time…

Moserware About

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 2/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 3/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 4/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 5/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 6/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 7/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 8/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 9/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 10/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 11/45

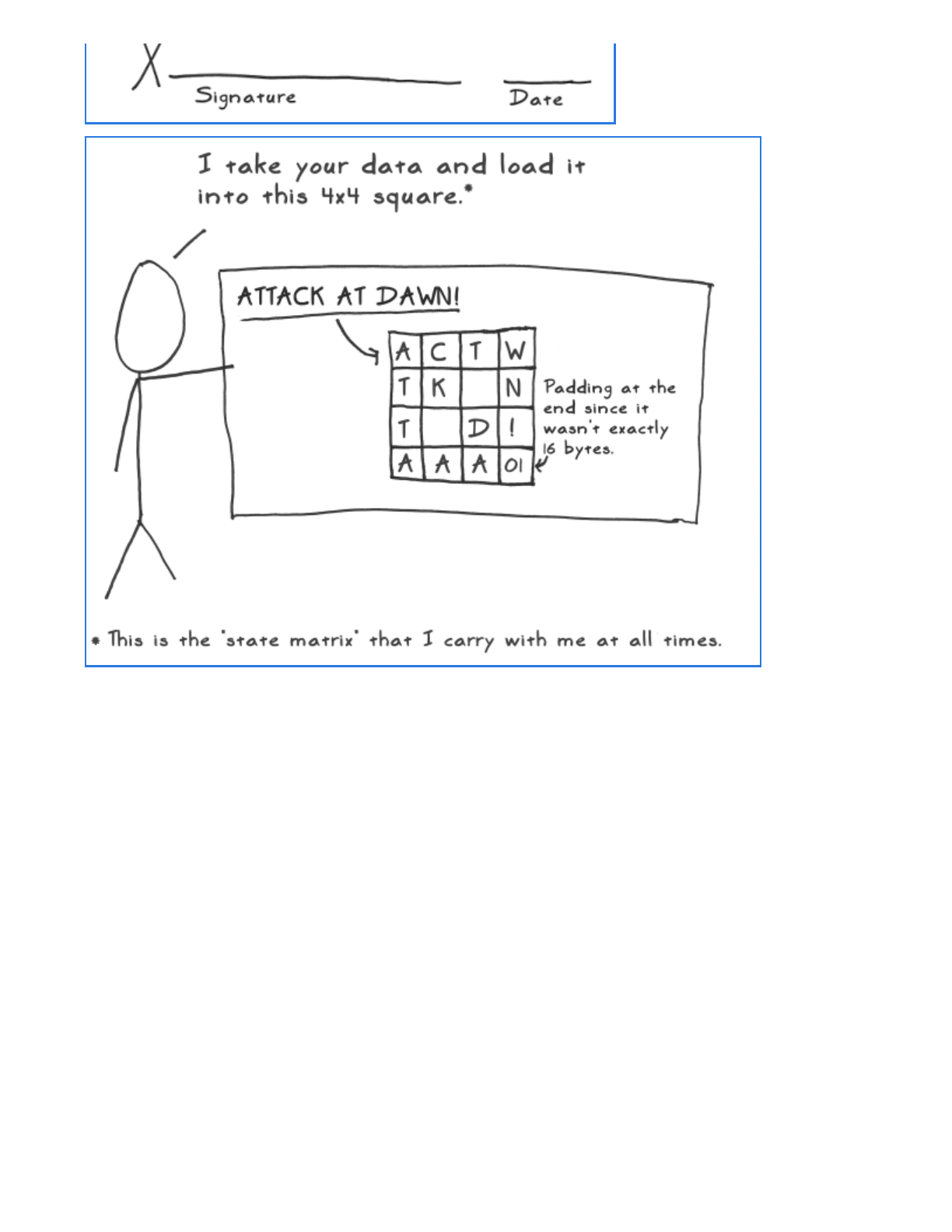

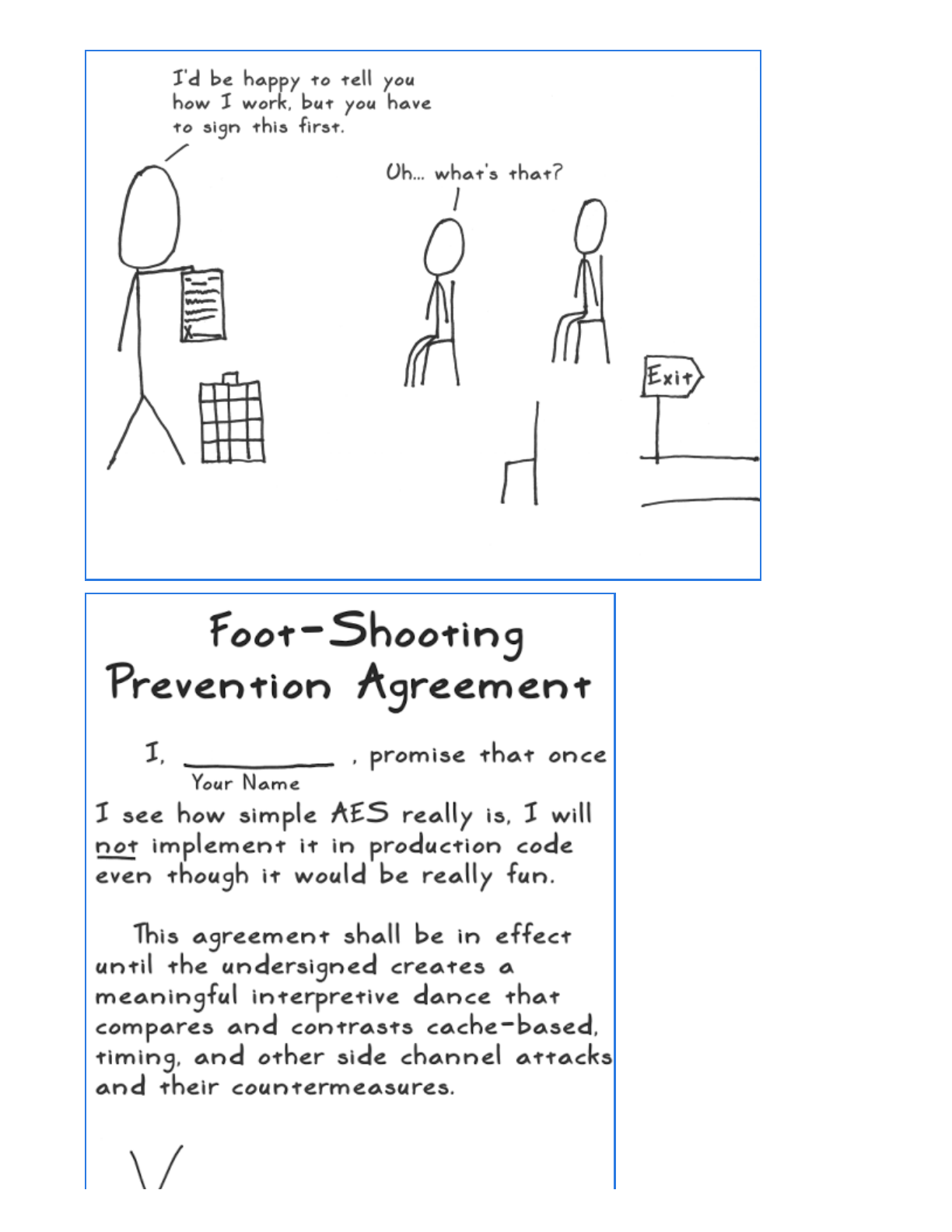

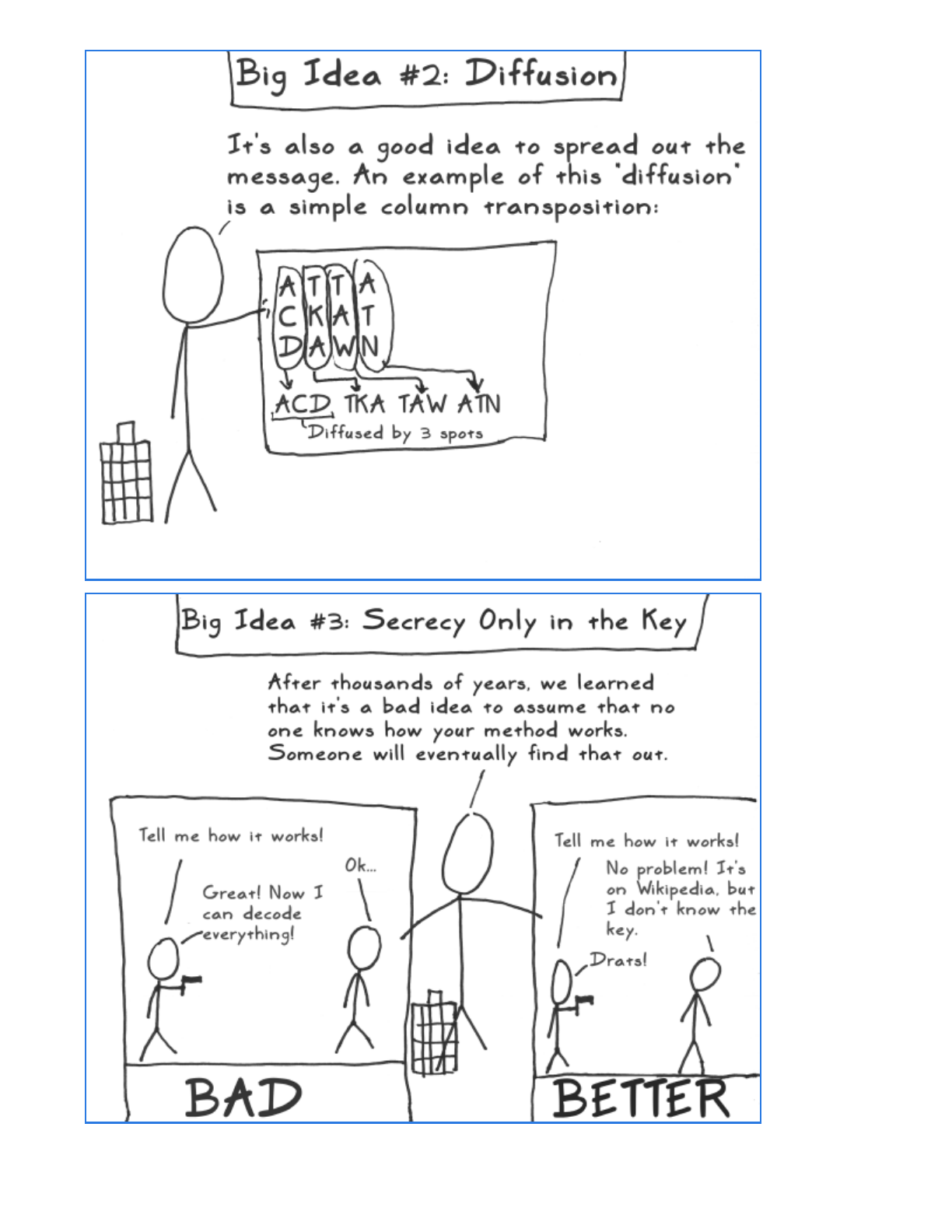

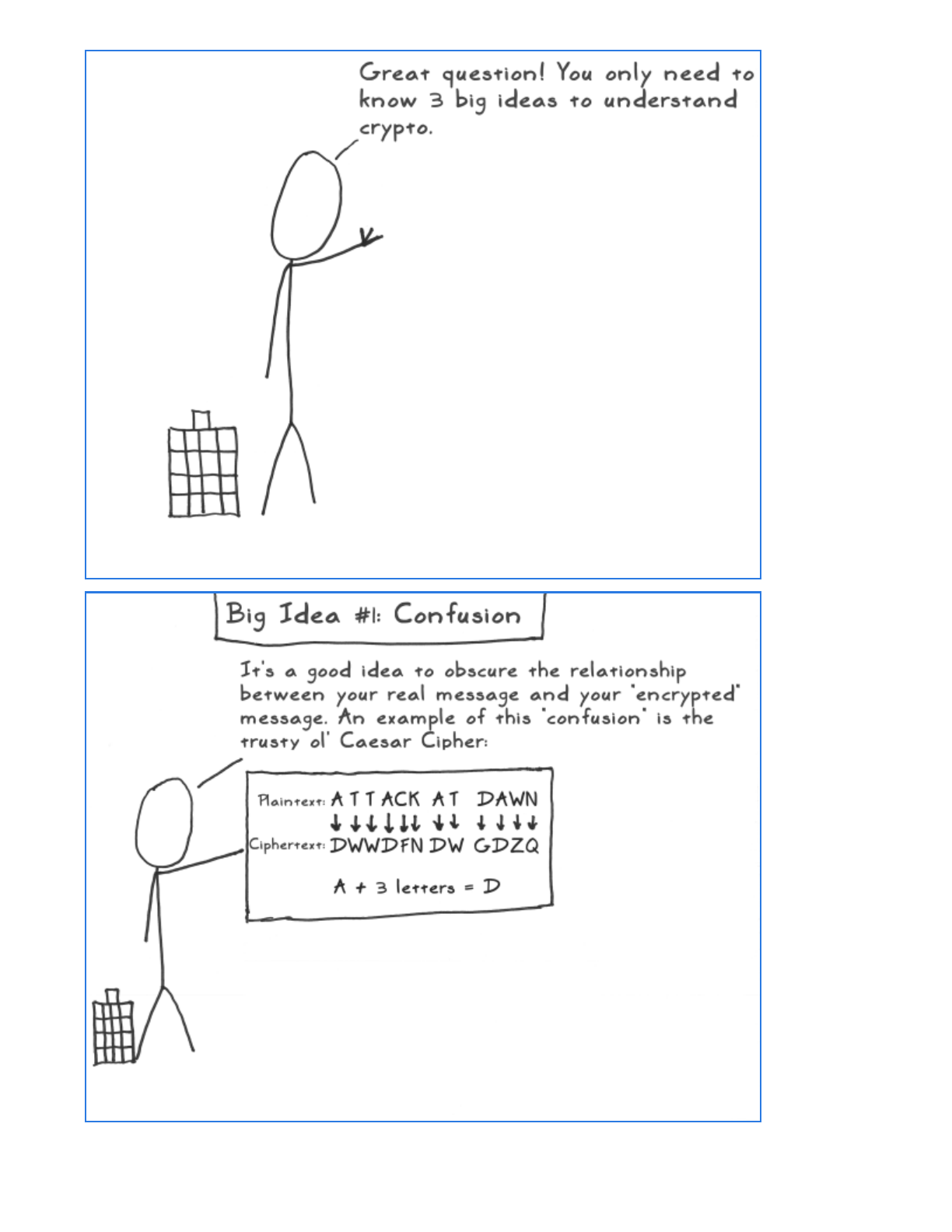

Act 2: Crypto Basics

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 12/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 13/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 14/45

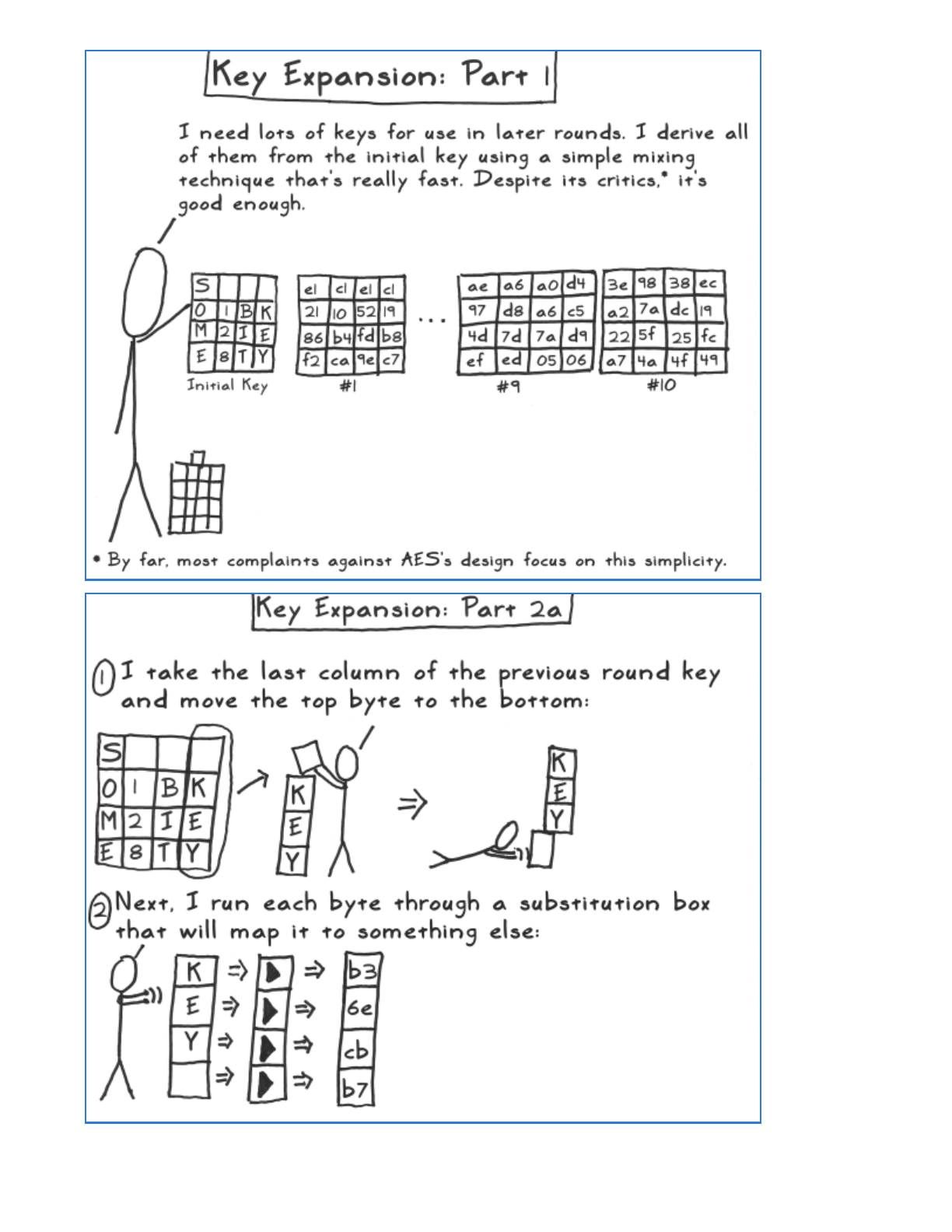

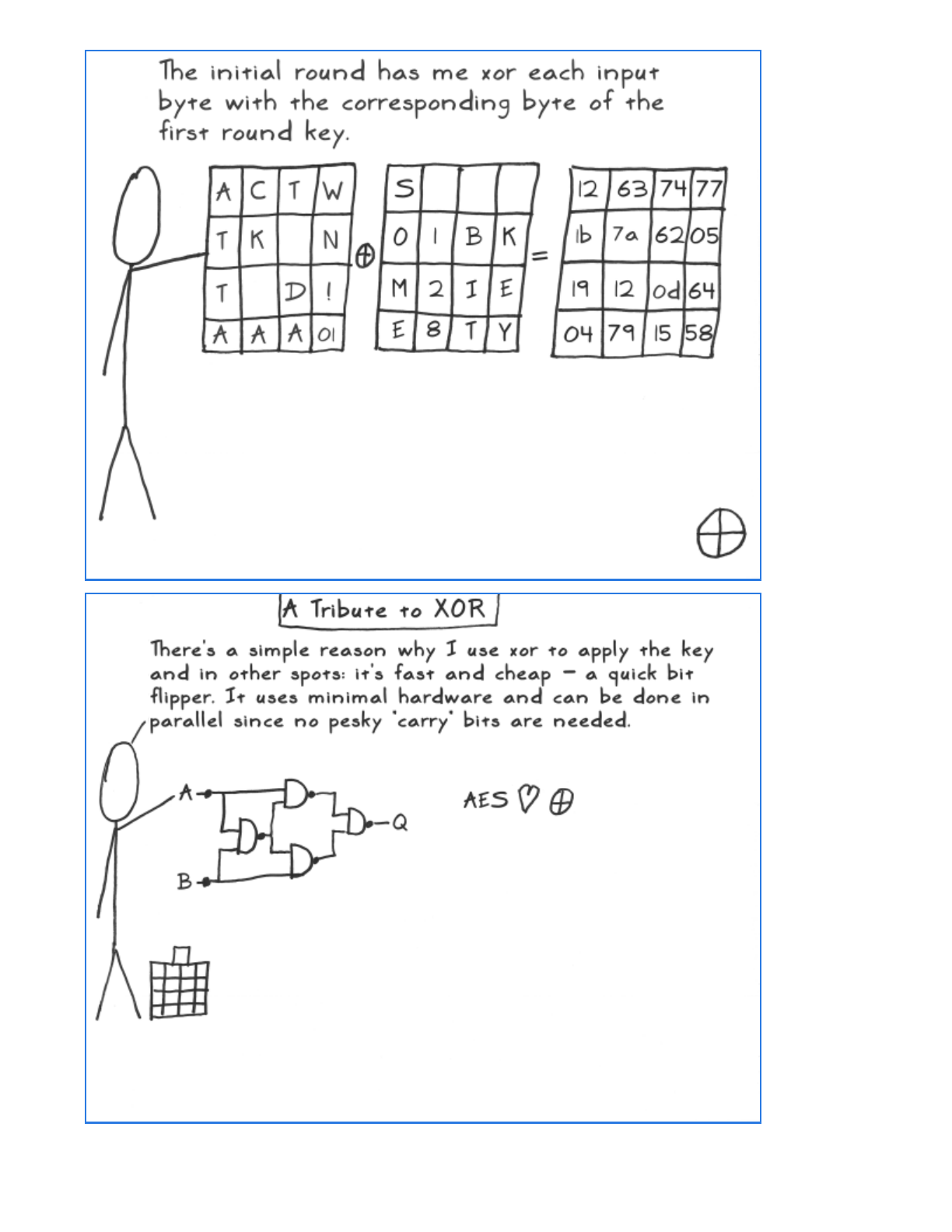

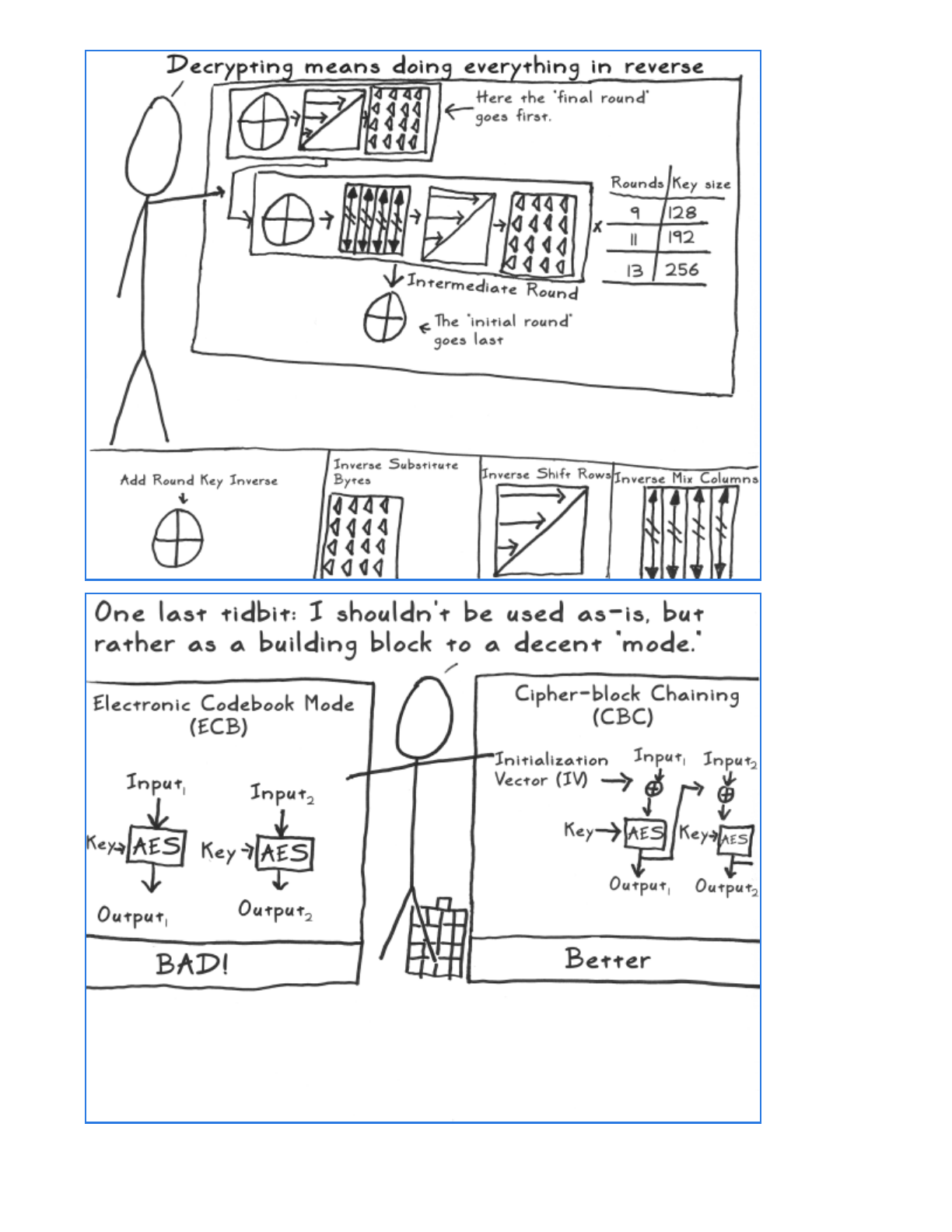

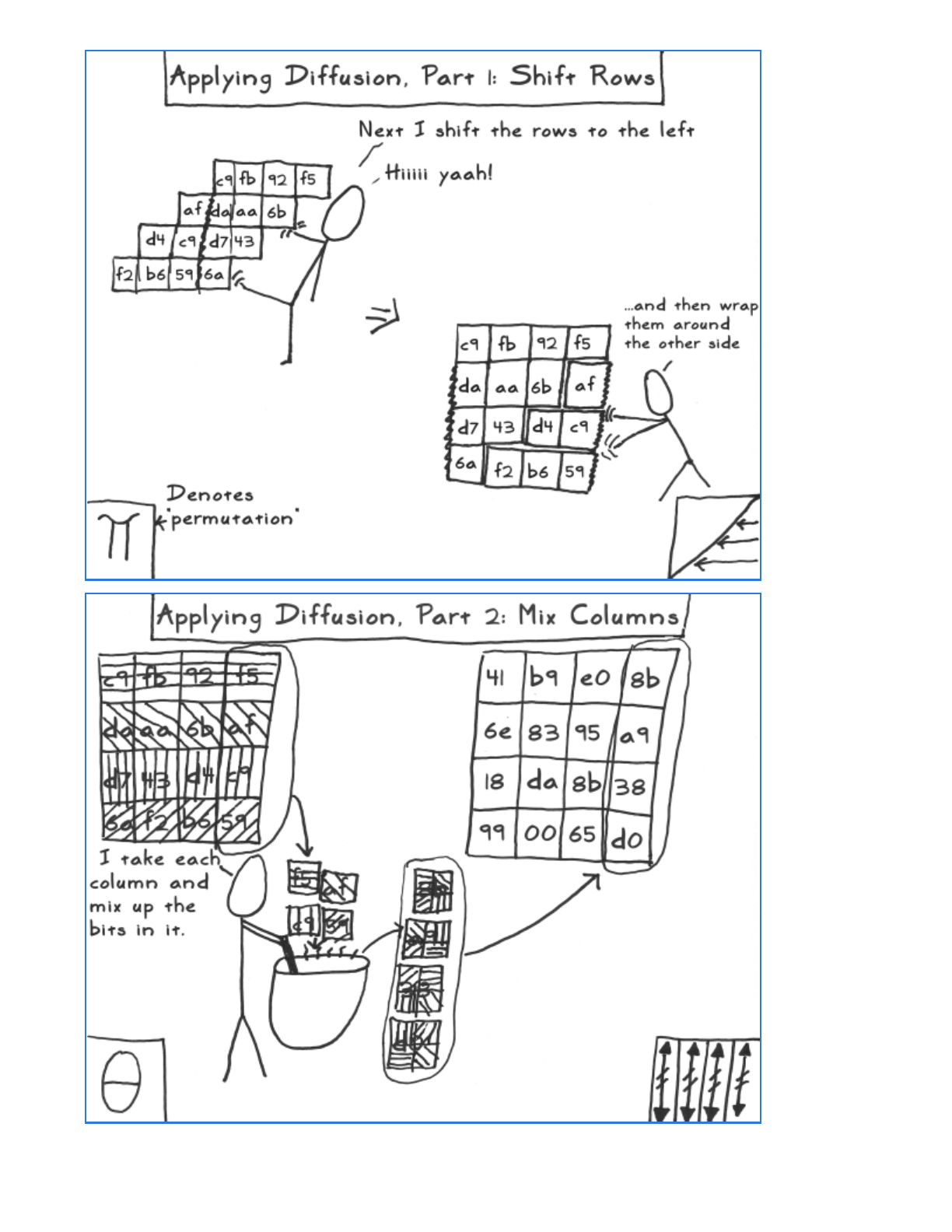

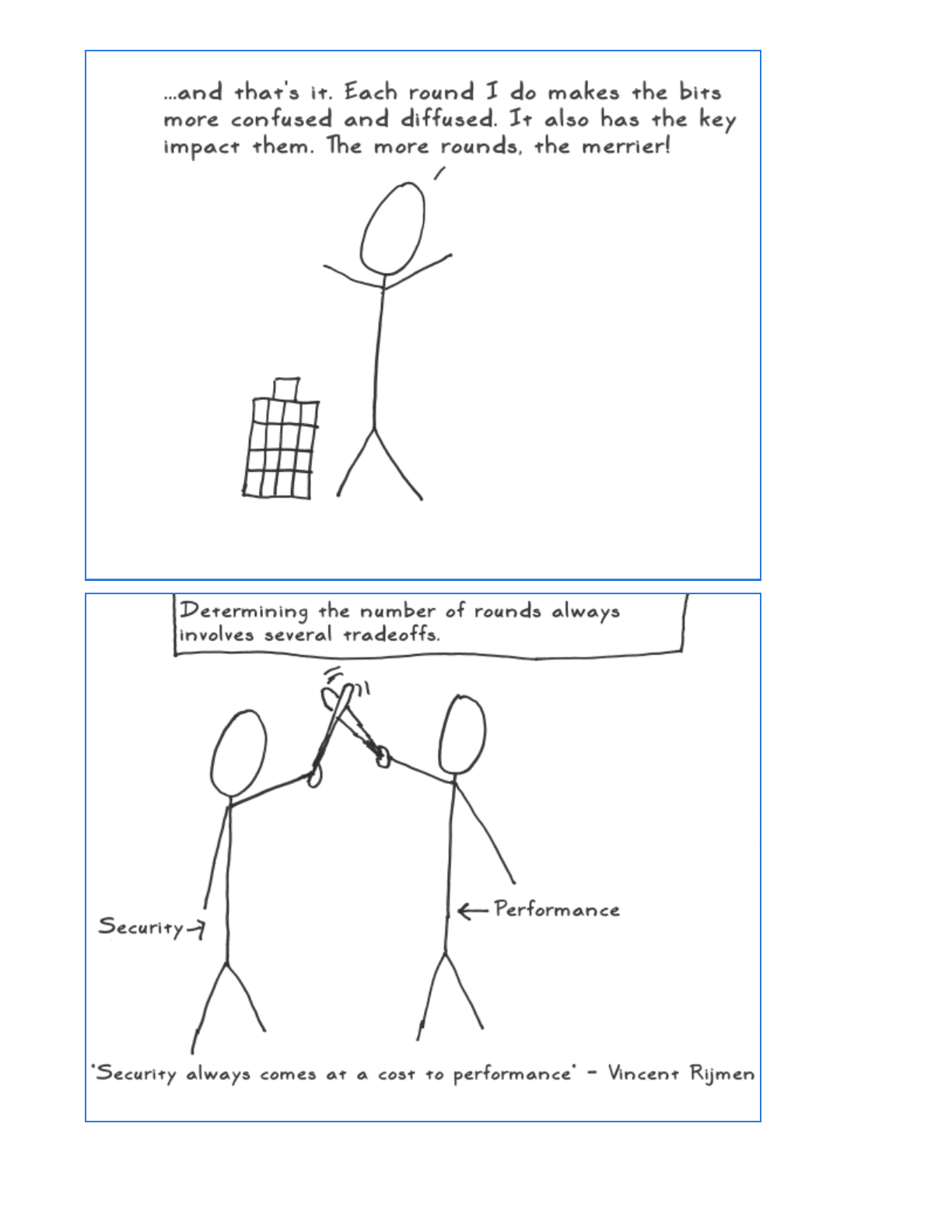

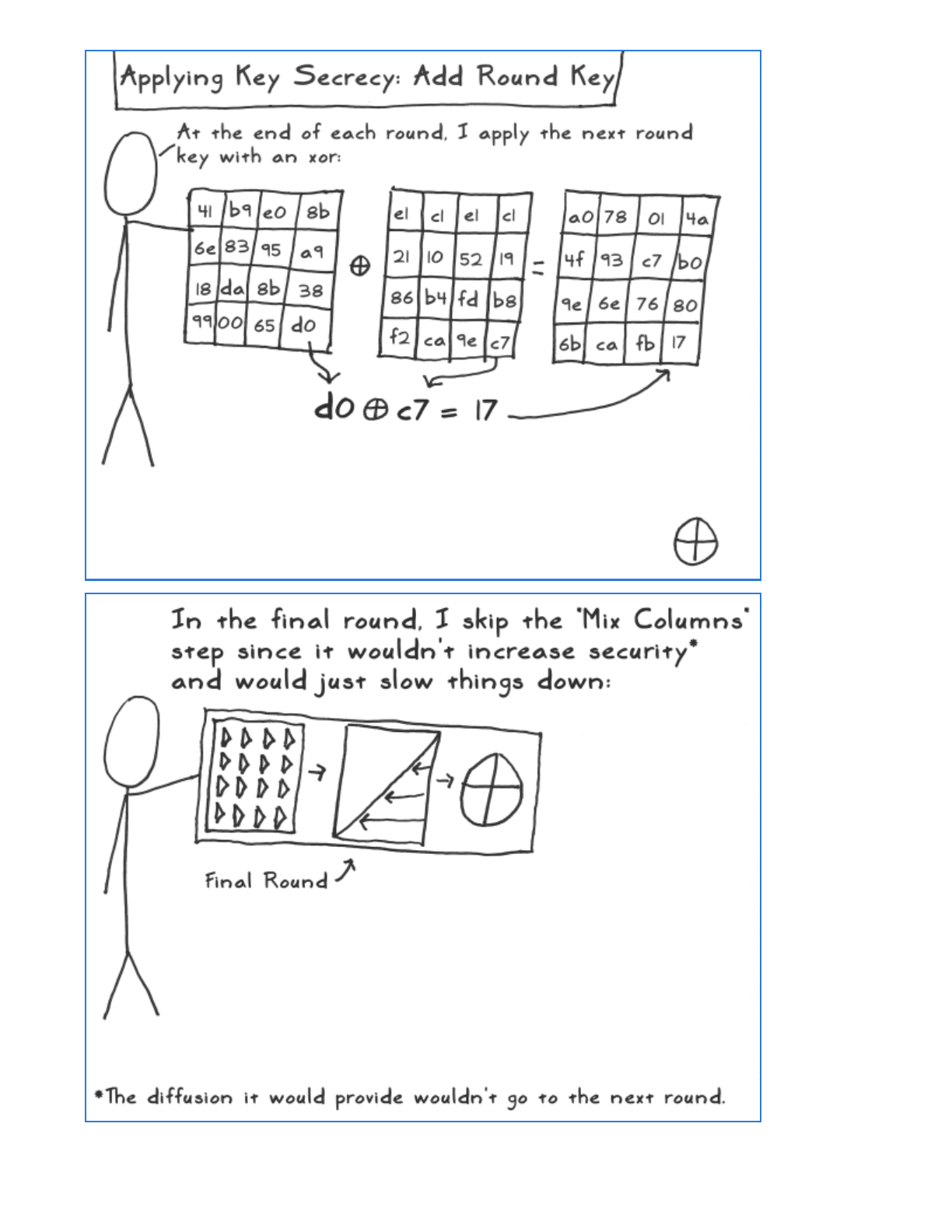

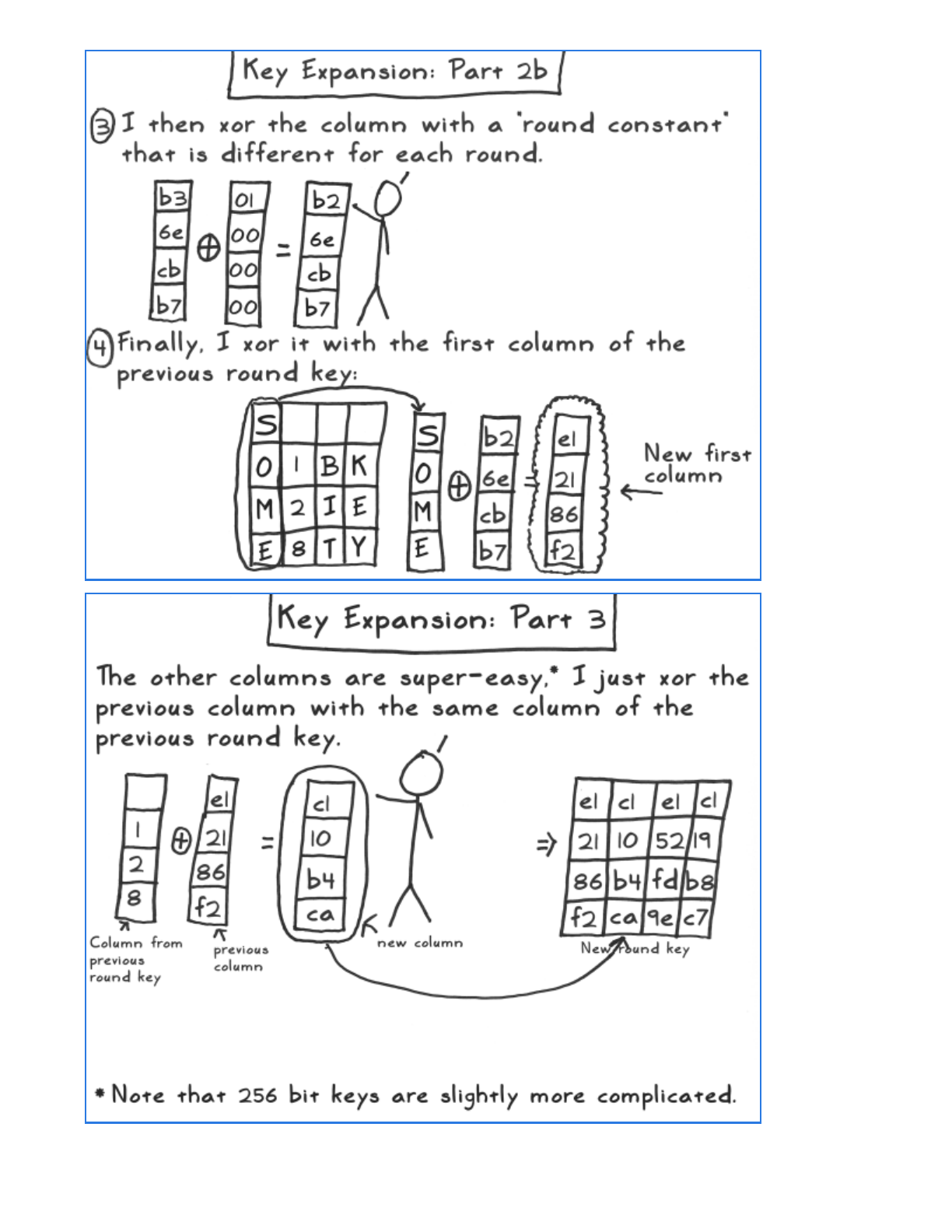

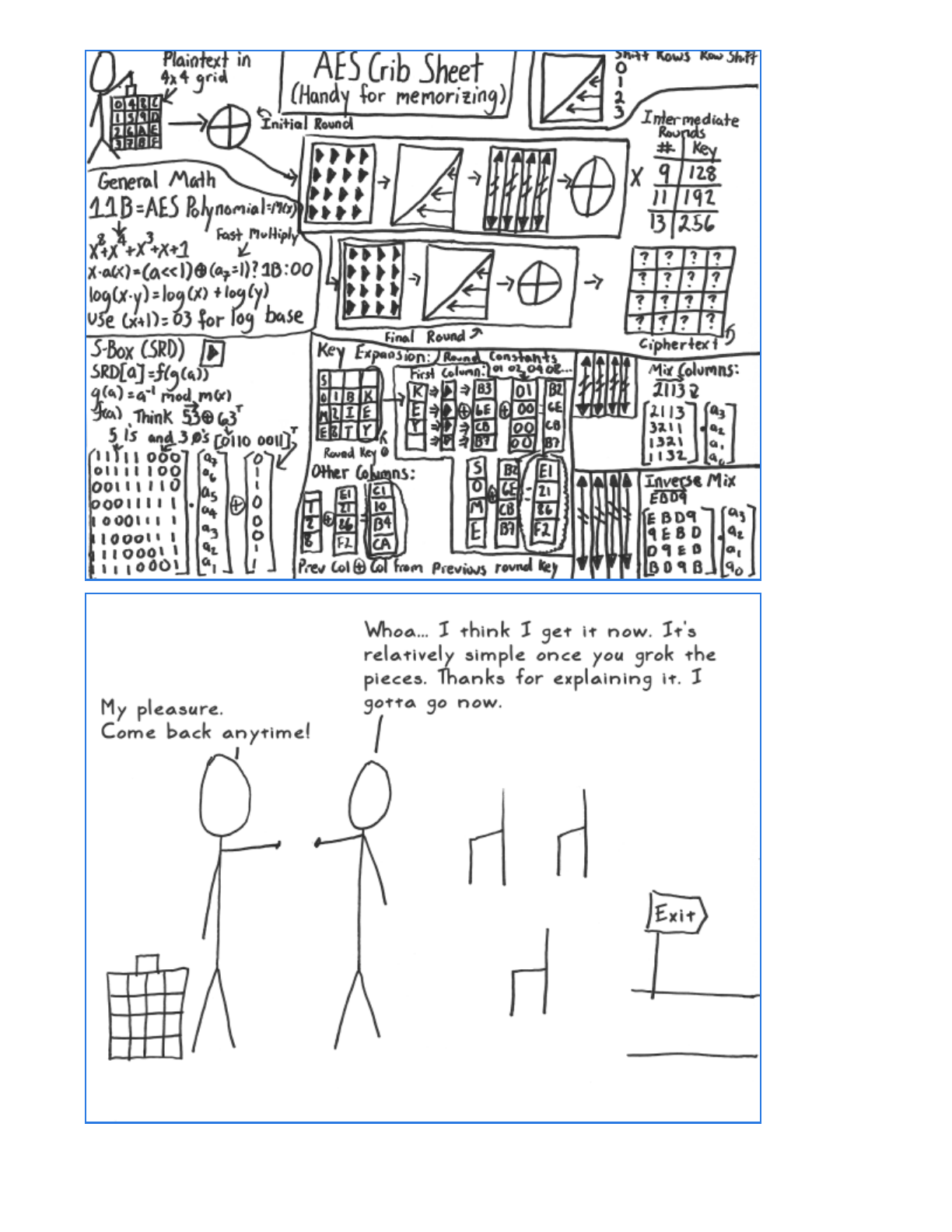

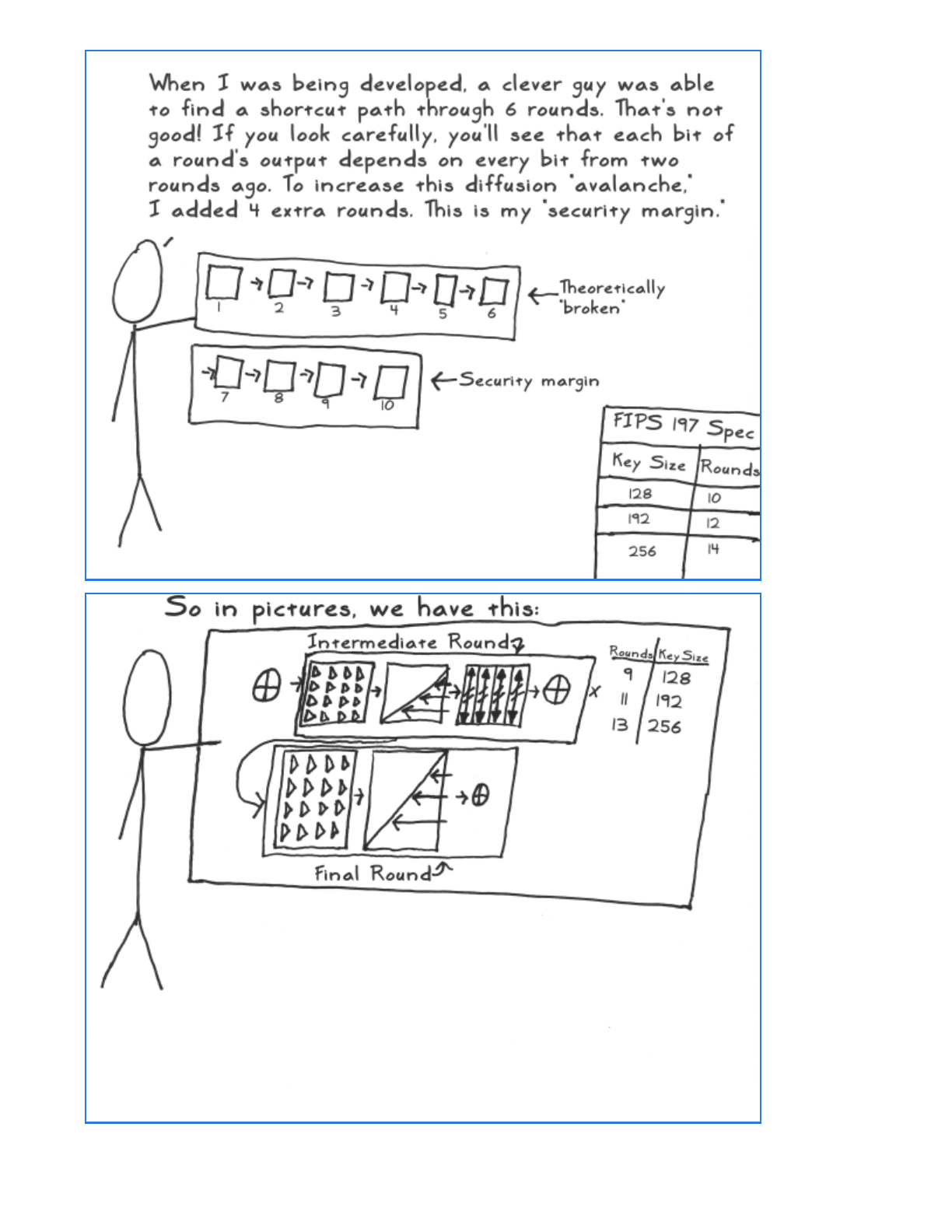

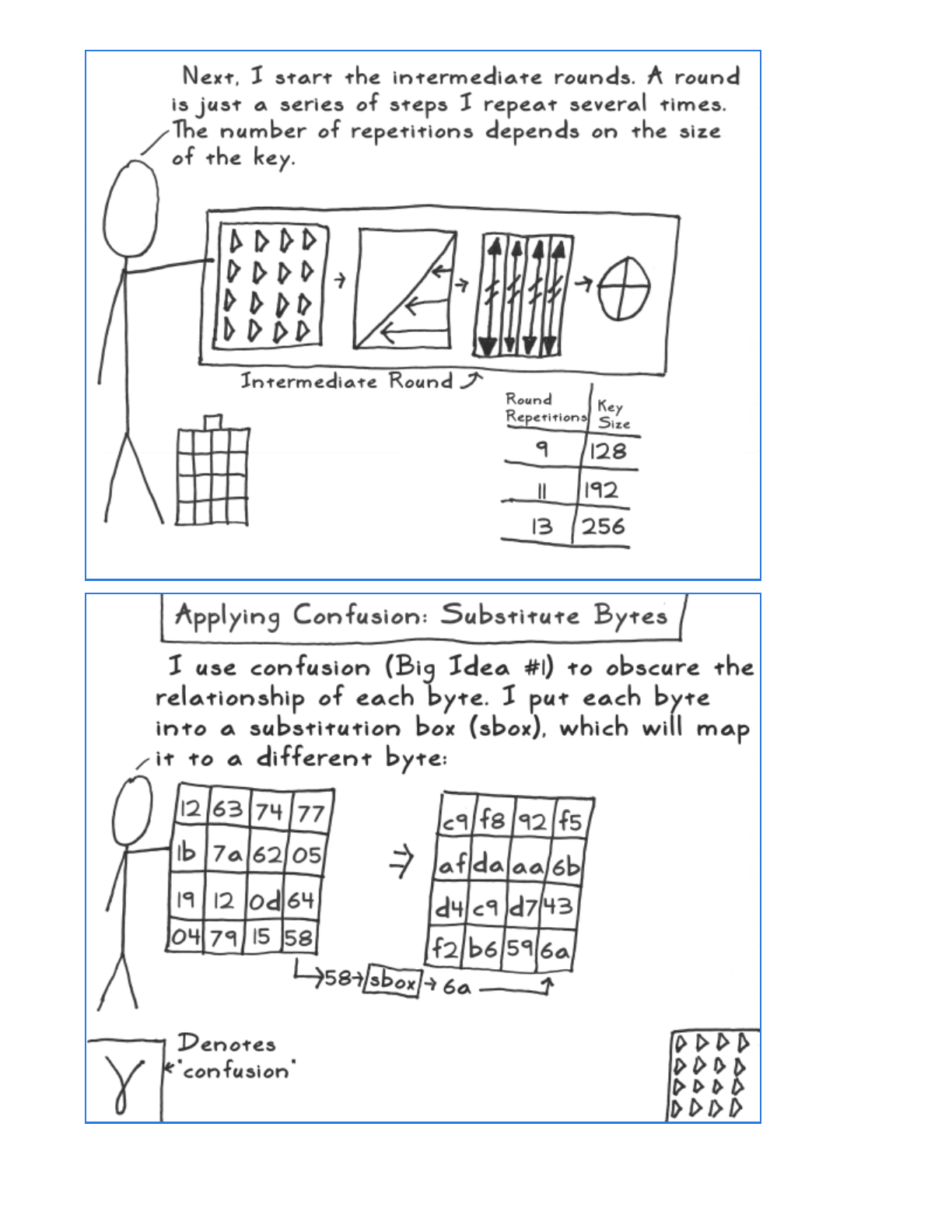

Act 3: Details

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 15/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 16/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 17/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 18/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 19/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 20/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 21/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 22/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 23/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 24/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 25/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 26/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 27/45

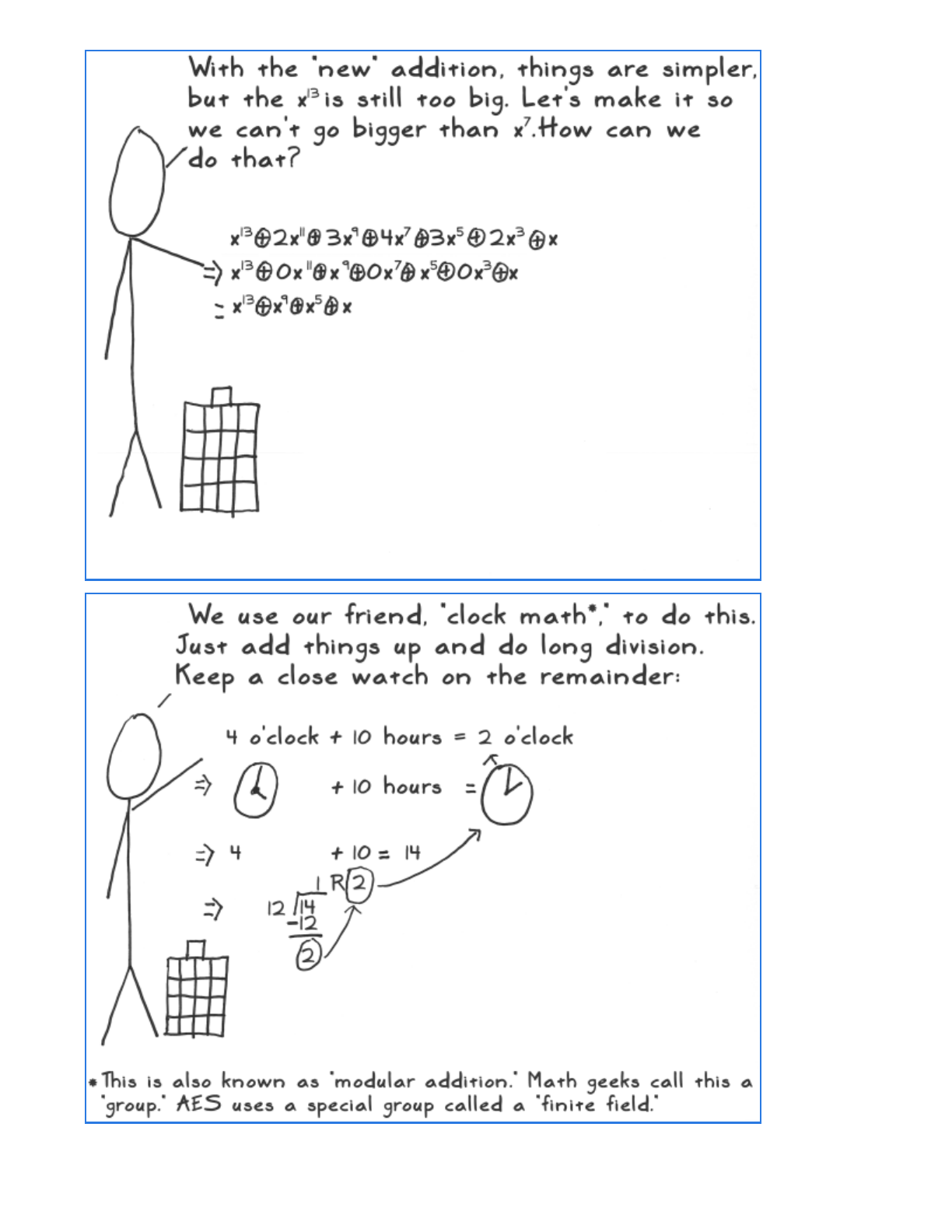

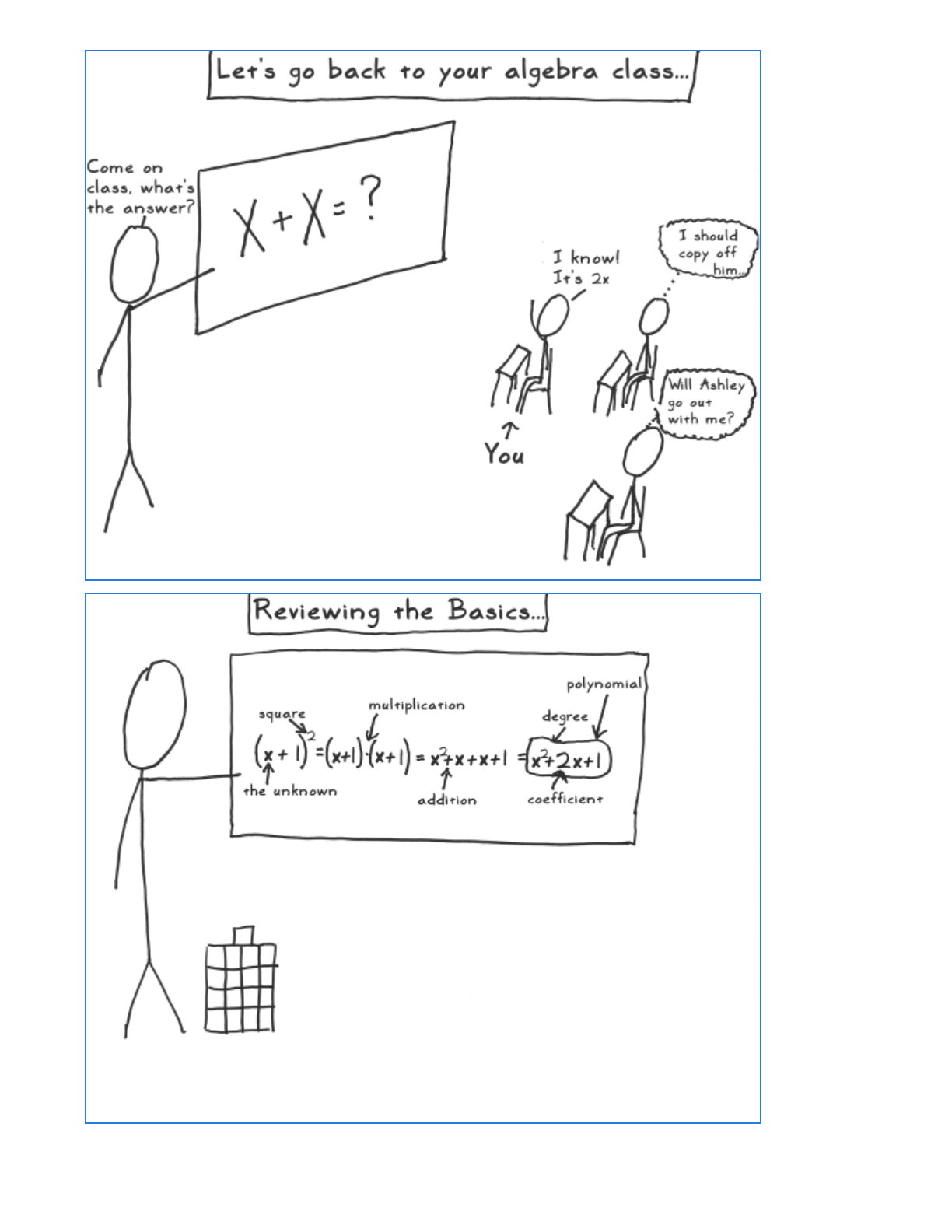

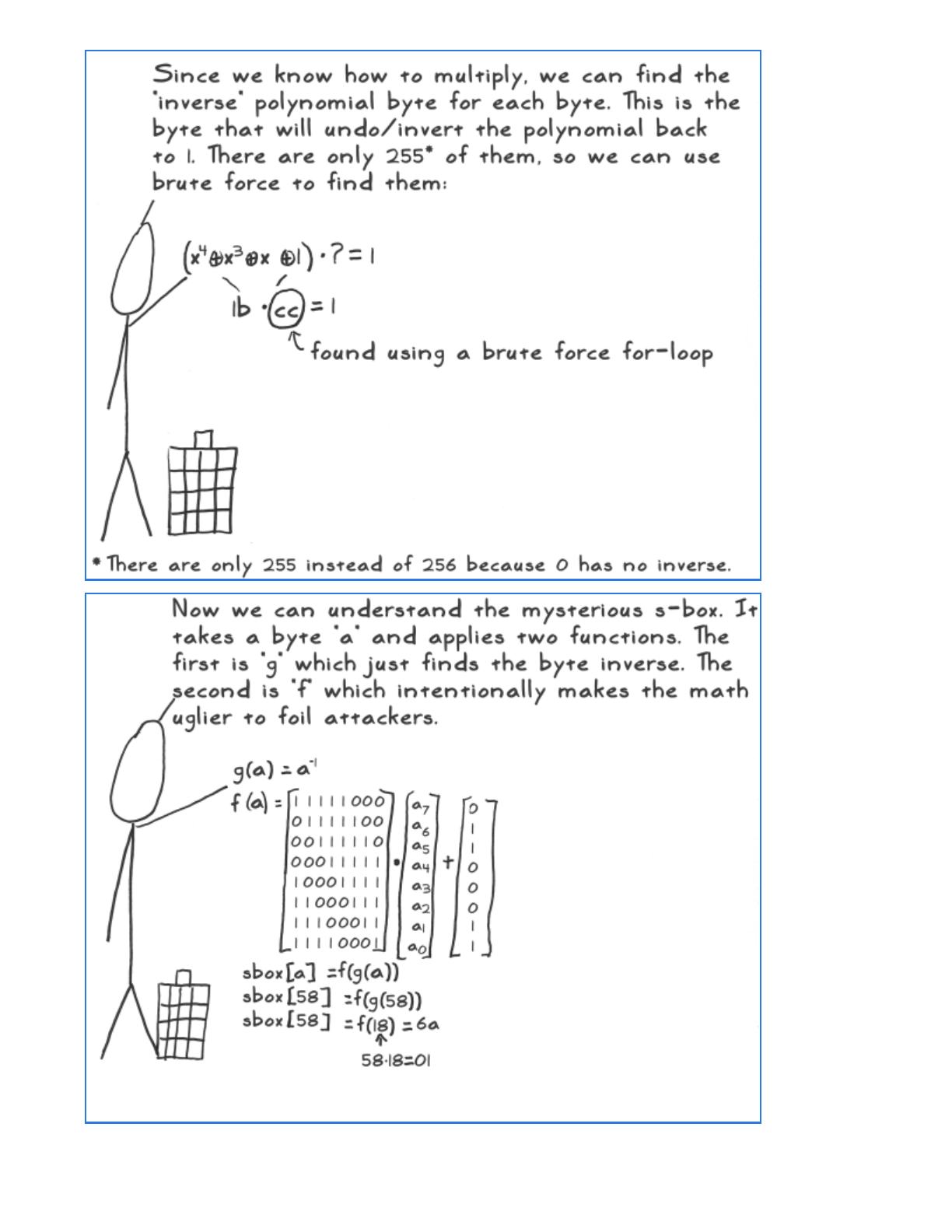

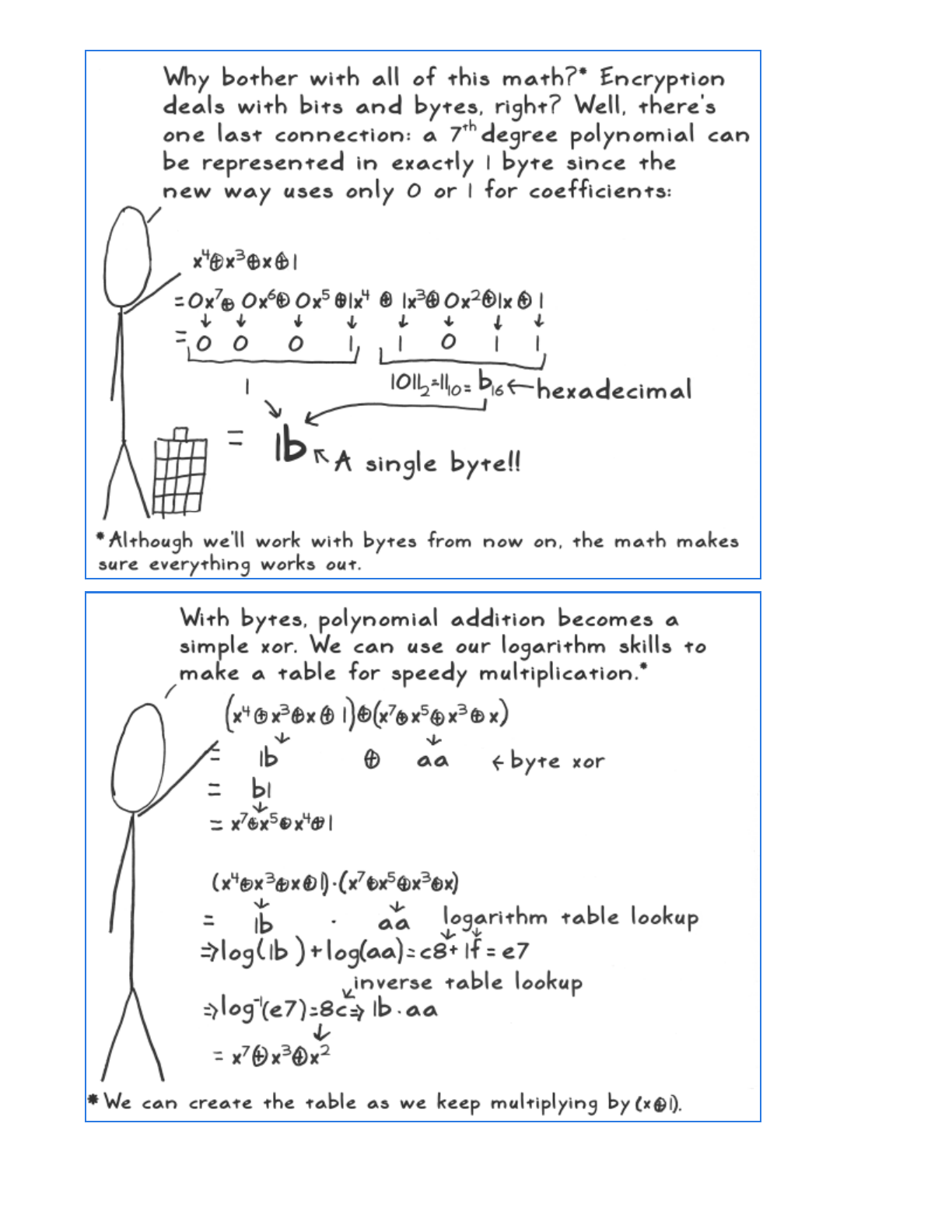

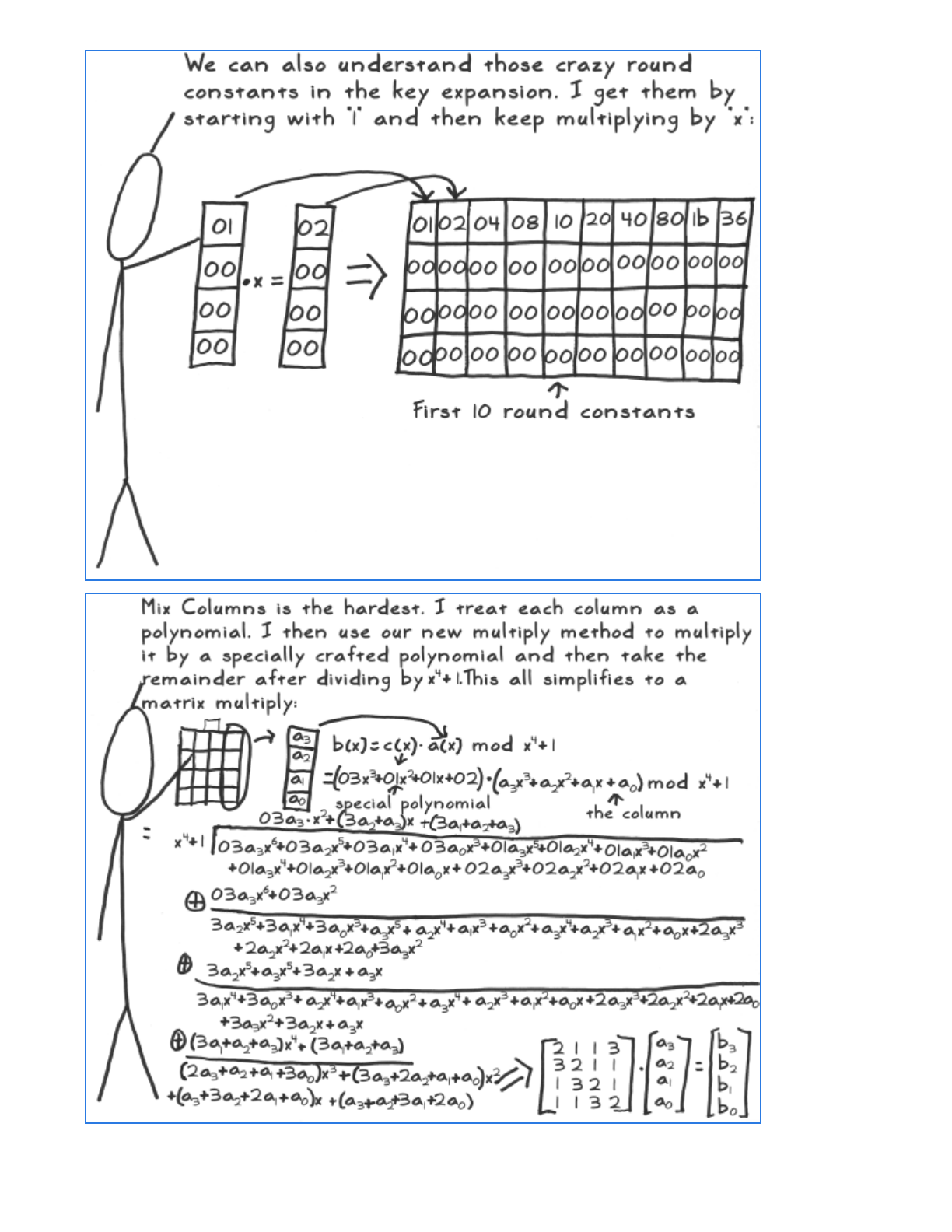

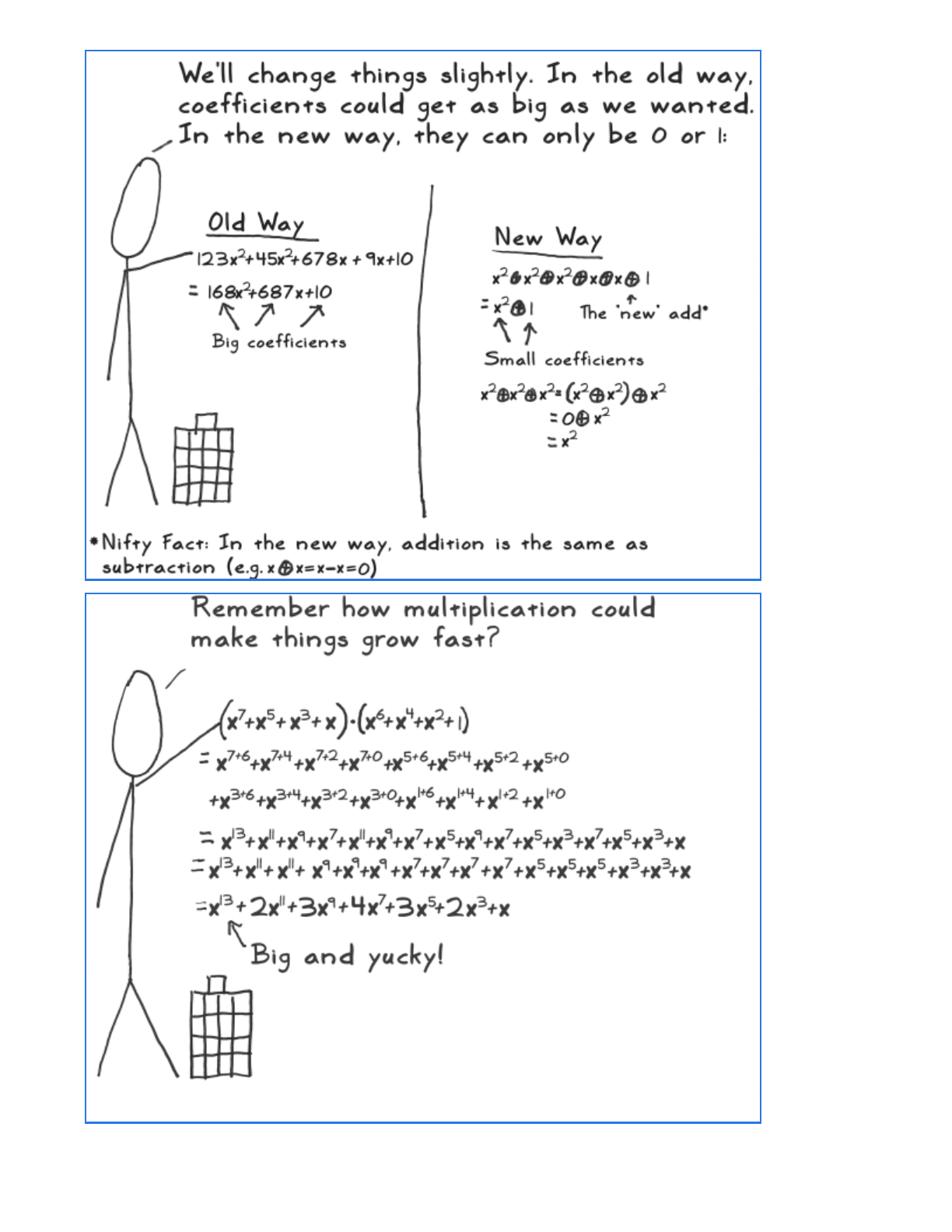

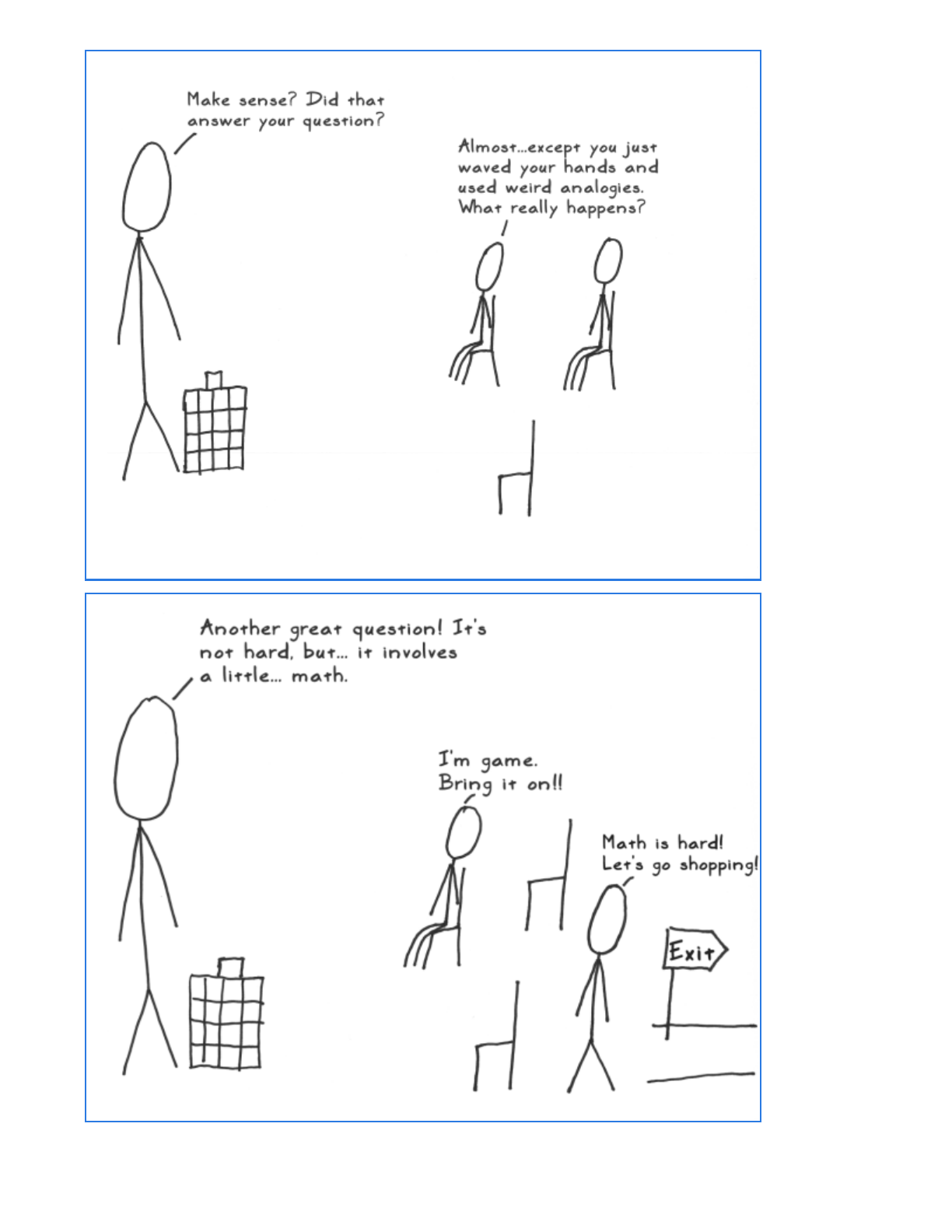

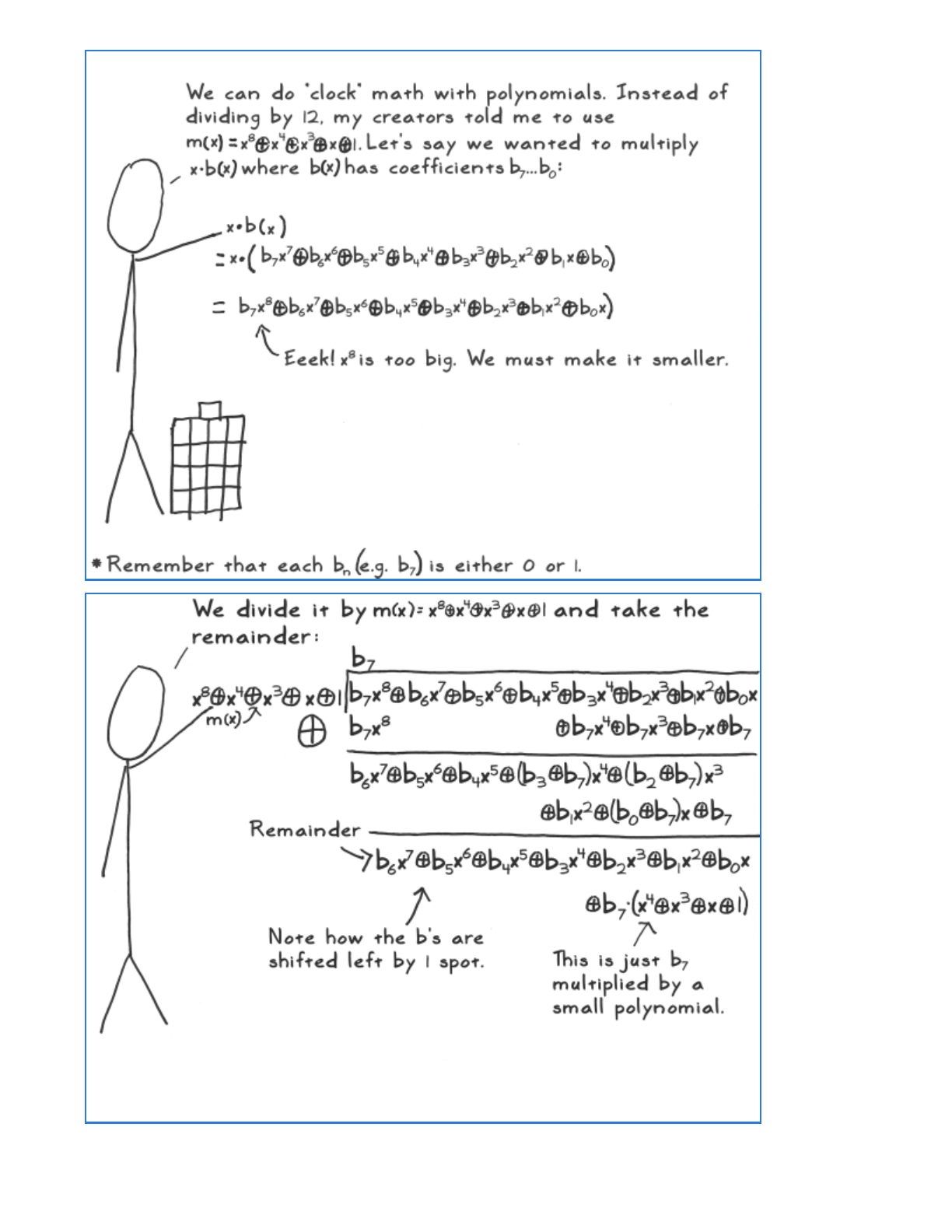

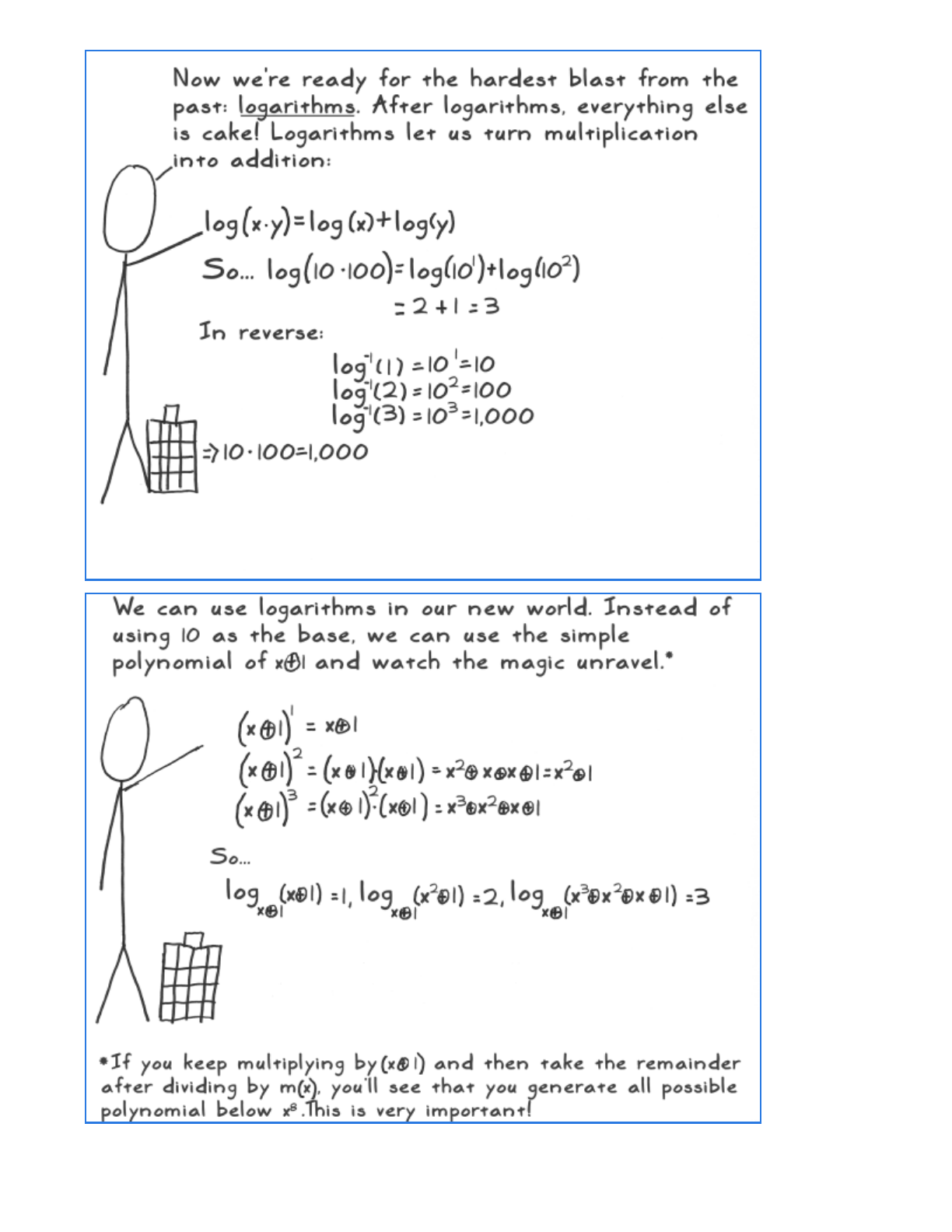

Act 4: Math!

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 28/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 29/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 30/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 31/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 32/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 33/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 34/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 35/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 36/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 37/45

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 38/45

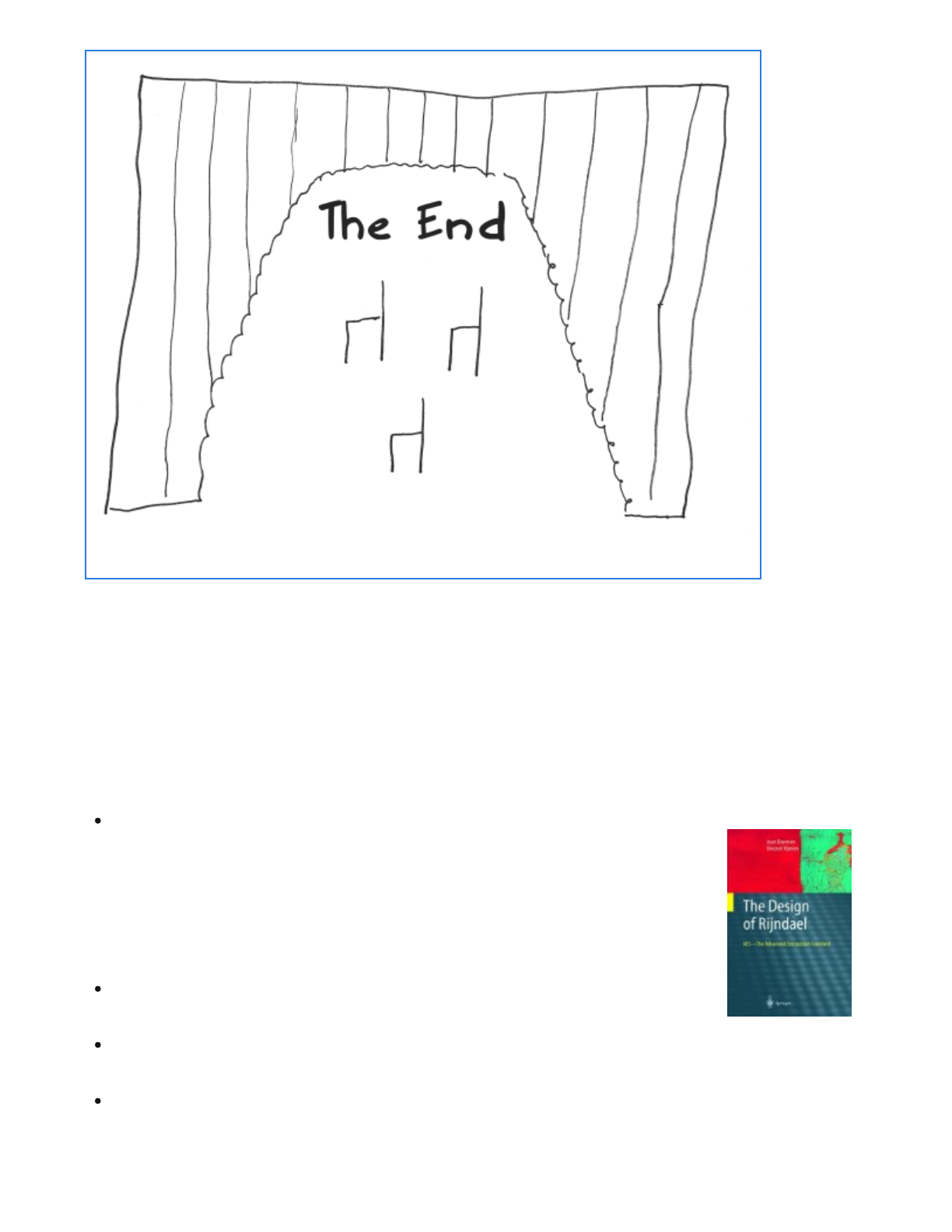

Epilogue

I created a heavily-commented AES/Rijndael implementation to go along with this post and put

it on GitHub. In keeping with the Foot-Shooting Prevention Agreement, it shouldn’t be used for

production code, but it should be helpful in seeing exactly where all the numbers came from in

this play. Several resources were useful in creating this:

The Design of Rijndael is the book on the subject, written by the

Rijndael creators. It was helpful in understanding speciﬁcs, especially

the math (although some parts were beyond me). It’s also where I got

the math notation and graphical representation in the left and right

corners of the scenes describing the layers (SubBytes, ShiftRows,

MixColumns, and AddRoundKey).

The FIPS-197 speciﬁcation formally deﬁnes AES and provides a good

overview.

The Puzzle Palace, especially chapter 9, was helpful while creating

Act 1. For more on how the NSA modiﬁed DES, see this.

More on Intel’s (and now AMD) inclusion of native AES instructions can be found here and

in detail here. - Other helpful resources include Wikipedia, Sam Trenholme’s AES math

series, and this animation.

1/20/2018 A Stick Figure Guide to the Advanced Encryption Standard (AES)

http://www.moserware.com/2009/09/stick-ﬁgure-guide-to-advanced.html 39/45

Please leave a comment if you notice something that can be better explained.

Update #1: Several scenes were updated to ﬁx some errors mentioned in the comments.

Update #2: By request, I’ve created a slide show presentation of this play in both PowerPoint

and PDF formats. I’ve licensed them under the Creative Commons Attribution License so that

you can use them as you see ﬁt. If you’re teaching a class, consider giving extra credit to any

student giving a worthy interpretive dance rendition in accordance with the Foot-Shooting

Prevention Agreement.
