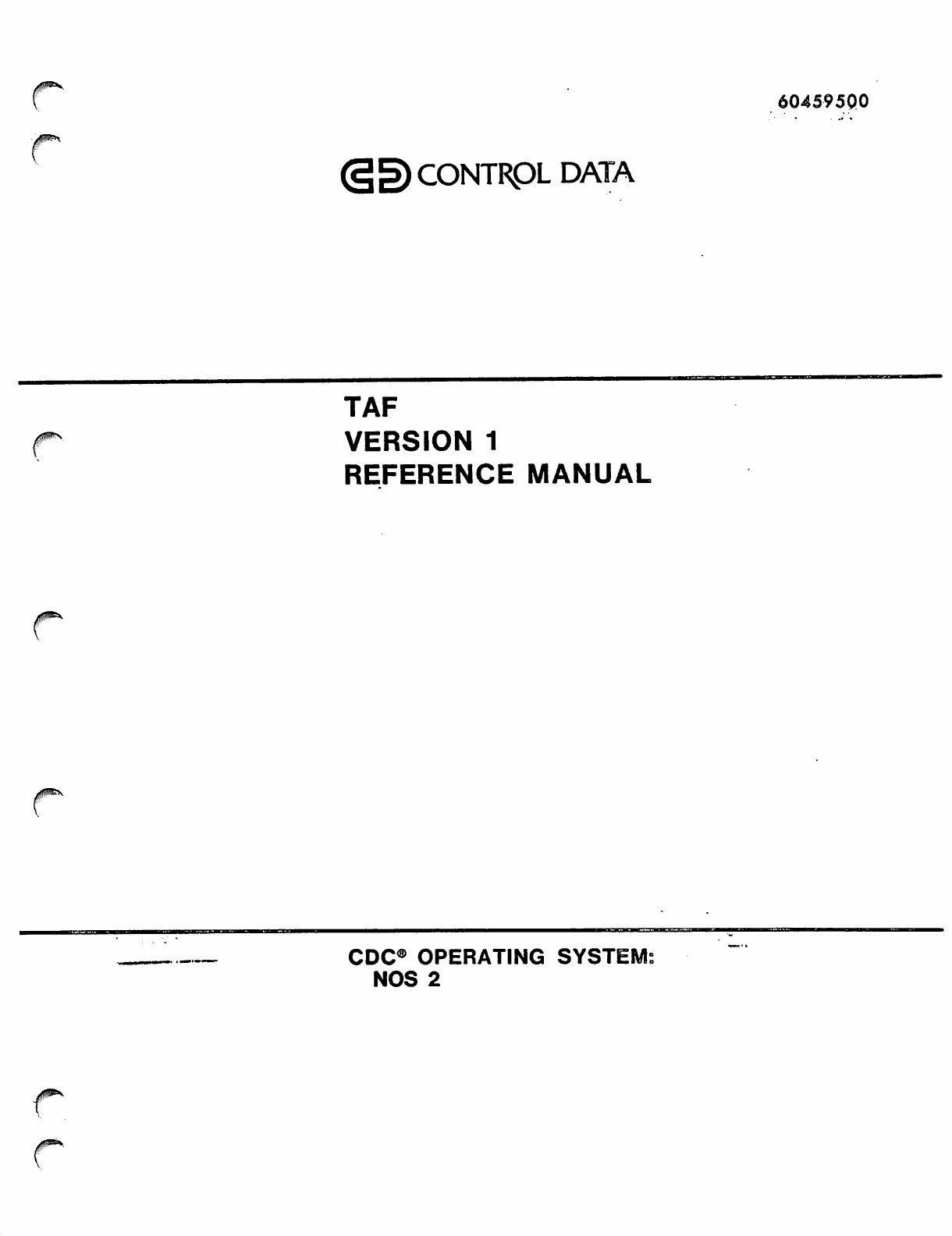

TAF_Ver_1_Ref_Man_60459500C_Mar85 TAF Ver 1 Ref Man 60459500C Mar85

60459500

CONTRPL DATA

TAF

VERSION 1

REFERENCE MANUAL

J0&K

CDC® OPERATING SYSTEM:

NOS 2

REVISION RECORD

b / ^ w

REVISION

(04-26-82)

B

(01-27-83)

(03-29-85)

Publication No.

60459500

DESCRIPTION

Manual released. This manual reﬂects NOS 2.0 at PSR level 562. New TAF feature documented in this

manual is TAF automatic recovery. Features documented in the TAF/CRM Reference Manual that are

reﬂected in this manual are: TAF/CRM automatic recovery, TAF/CRM batch concurrency, TAF/CRM batch

recovery, and TAF/CRM MIP and AK support.

Manual updated to PSR level 580. New RMKDEF statements were added to the xxJ ﬁle for multiple index

ﬁle recovery and clariﬁcations were made of LIBTASK and recovery descriptions. Addition of the

Login/Logout appendix, and revision of the Terminal Deﬁnition appendix and the Line Transmission

Key appendix. This edition obsoletes all previous editions.

Manual updated to NOS 2.4.1 at PSR level 630. This revision reﬂects the addition of the user

statement to the TAF conﬁguration ﬁle and of the send message task (STASK). Appendix G, Terminal

Deﬁnition Commands, and appendix J, Accessing a Host, have been revised. The IBM 3270 terminal has

been added to the set of supported terminals. Several technical and editorial changes have been

made.

REVISION LETTERS 1, O. Q, S. X AND Z ARE NOT USED.

Address comments concerning this

manual to:

by Control Data Corporation

Printed in che United States of America

Control Data Corporation

Publications and Graphics Division

4201 North Lexington Avenue

St. Paul, Minnesota 55112

or use Comment Sheet in che back of

this manual.

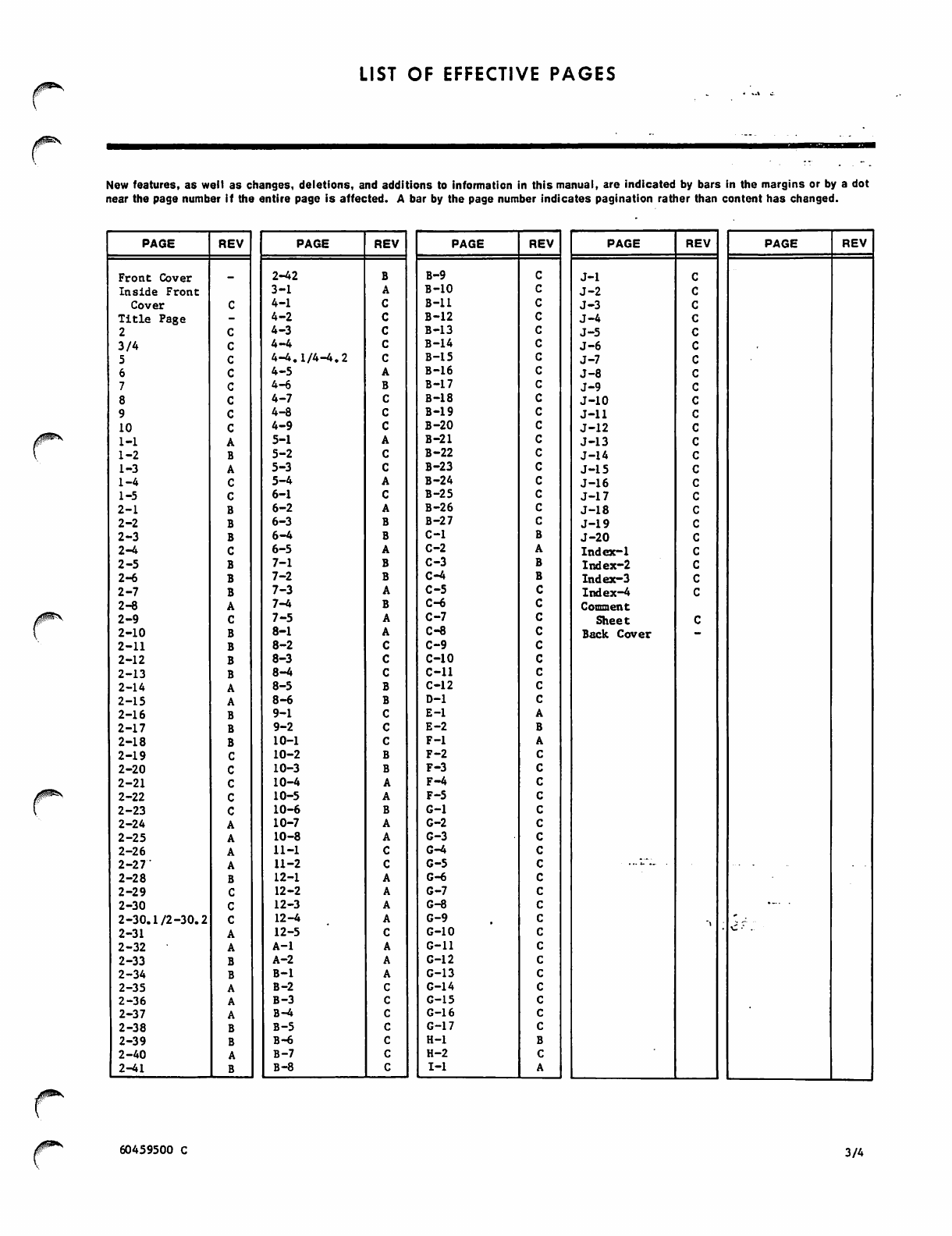

LIST OF EFFECTIVE PAGES

New features, as well as changes, deletions, and additions to information in this manual, are indicated by bars in the margins or by a dot

near the page number if the entire page is affected. A bar by the page number indicates pagination rather than content has changed.

PAGE REV

Front Cover

Inside Front

Cover

Title Page

2

3/4

5

6

7

8

9

10

1-1

1-2

1-3

1-4

1-5

2-1

2-2

2-3

2-4

2-5

2-6

2-7

2-8

2-9

2-10

2-11

2-12

2-13

2-14

2-15

2-16

2-17

2-18

2-19

2-20

2-21

2-22

2-23

2-24

2-25

2-26

2-27

2-28

2-29

2-30

2-30.1/2-30.2

2-31

2-32

2-33

2-34

2-35

2-36

2-37

2-38

2-39

2-40

2-41

PAGE REV

2-42

3-1

4-1

4-2

4-3

4-4

4-4.1/4-4.2

4-5

4-6

4-7

4-8

4-9

5-1

5-2

5-3

5-4

6-1

6-2

6-3

6-4

6-5

7-1

7-2

7-3

7-4

7-5

8-1

8-2

8-3

8-4

8-5

8-6

9-1

9-2

10-1

10-2

10-3

10-4

10-5

10-6

10-7

10-8

11-1

11-2

12-1

12-2

12-3

12-4

12-5

A-l

A-2

B-l

B-2

B-3

B-4

B-5

B-6

B-7

B-8

PAGE REV

B-9

B-10

B-ll

B-12

B-l 3

B-14

B-l 5

B-16

B-l 7

B-18

B-l 9

B-20

B-21

B-22

B-23

B-24

B-25

B-26

B-2 7

C-l

C-2

C-3

C-4

C-5

C-6

C-7

C-8

C-9

C-10

C-ll

C-l 2

D-l

E-l

E-2

F - l

F-2

F-3

F-4

F-5

G-l

G-2

G-3

G-4

G-5

G-6

G-7

G-8

G-9

G-10

G-ll

G-l 2

G-13

G-14

G-15

G-l 6

G-l 7

H-l

H-2

1-1

PAGE REV

J-l

J-2

J-3

J-4

J-5

J-6

J-7

J-8

J-9

J-10

J-ll

J-12

J-l 3

J-14

J-l 5

J-16

J-l 7

J-18

J-l 9

J-20

Index-1

Index-2

Index-3

Index-4

Comment

Sheet

Back Cover

...-;.

'1

PAGE REV

60459500 C 3/4

/^^%

J ^ * PREFACE

The CONTROL DATA® Transaction Facility (TAF),

Version 1.3, is a network host product. It is a

network application that requires the facilities of

the Network Access Method (NAM) and the 255x Series

Communications Control Program (CCP). TAF runs as a

subsystem of the Network Operating System (NOS),

Version 2, and may be used with COMPASS, FORTRAN, or

COBOL.

This manual documents the executive portion of TAF.

The three data managers available for use with TAF

are each documented in their respective reference

manuals. These are:

• CDC® CYBER Database Control System, Version

2 (CDCS)

• CDC TAF/CRM Data Manager Version 1 (CRM)

• CDC TOTAL Data Manager Version 2

Refer to the list of related publications for full

titles and publication numbers of the respective

manuals.

AUDIENCE

This manual is for the data administrator and

applications programmer. The data administrator

(DA) is a person or a group of people responsible

for installing and maintaining the transaction

subsystem. This person or group sets up the data

base and describes the relationships among the

various elements. The DA is concerned with the

internal design of the system and can modify many of

the system components to suit site requirements. An

applications programmer is a person who writes tasks

in FORTRAN, COBOL, or COMPASS to be used by the end

user (terminal operator). Using these tasks, the

terminal operator can access and update the data

base with little or no knowledge of TAF. New users

of TAF should consult the TAF I User's Guide as a

ﬁrst source of information. It is an introductory

text for inexperienced users.

The user must be familiar with basic NOS operations

such as running a compilation job. The NOS 2

Reference Set, Volume 2, acquaints the new user with

the fundamentals of NOS. The NOS 2 Reference Set,

Volume 3, is for the high-level language applications

programmer who is already familiar with NOS. The

NOS 2 Reference Set, Volume 4, is for the COMPASS

applications programmer.

TERMINOLOGY AND CONVENTIONS

References in this manual to the transaction

subsystem imply every aspect of TAF. References to

the transaction executive imply the controlling

portion of TAF, the portion described in this

manual. References to FORTRAN imply either FORTRAN

Extended Version 4 or FORTRAN Version 5; TS mode is

not allowed (that is, the SEQ, TS, and OPT-O

parameters are not allowed on the FTN command).

References to COBOL imply Version 5.

Where brackets, [ ], are used in task request format

descriptions, they indicate optional parameters.

The term alphanumeric refers to any combination of

the letters A through Z and the numbers zero through

nine; special characters are not included.

Conventions for word formats are as follows:

• Crosshatching indicates a field is not used

by or is not applicable to TAF.

• Reserved fields may contain information

useful to TAF internal processing. The user

should not expect them to contain any partic

ular values.

• Fields labeled with mnemonics indicate that

a speciﬁc parameter must be inserted (gener

ally described after the word format).

• Fields with numeric identifiers indicate the

actual value that is used or returned for a

particular request.

Models 815, 825, 835, 845, and 855 of the CYBER 170

Computer Systems share many of the functional and

architectural attributes of the CYBER 180 computer

systems (models 810, 830, 835, 840, 845, 850, 855,

and 860). The term CYBER 180-class machines de

scribes these similar models collectively.

Extended memory for model 176 is large central

memory extended (LCME). Extended memory for models

865, 875 and CYBER 180-class machines is uniﬁed

extended memory (UEM). Extended memory for models

865 and 875 may also include either extended core

storage (ECS) or extended semiconductor memory

(ESM). Extended memory for all other NOS computer

systems is either ECS or ESM. ECS and ESM are the

only forms of extended memory that can be shared in

a linked shared device multimainframe complex and

can be accessed by a distributed data path (DDP).

In this manual, extended memory refers to all forms

of extended memory unless otherwise noted.

Programming information for the various forms of

extended memory can be found in the COMPASS 3

Reference Manual and in the appropriate computer

system hardware reference manual.

60459500 C

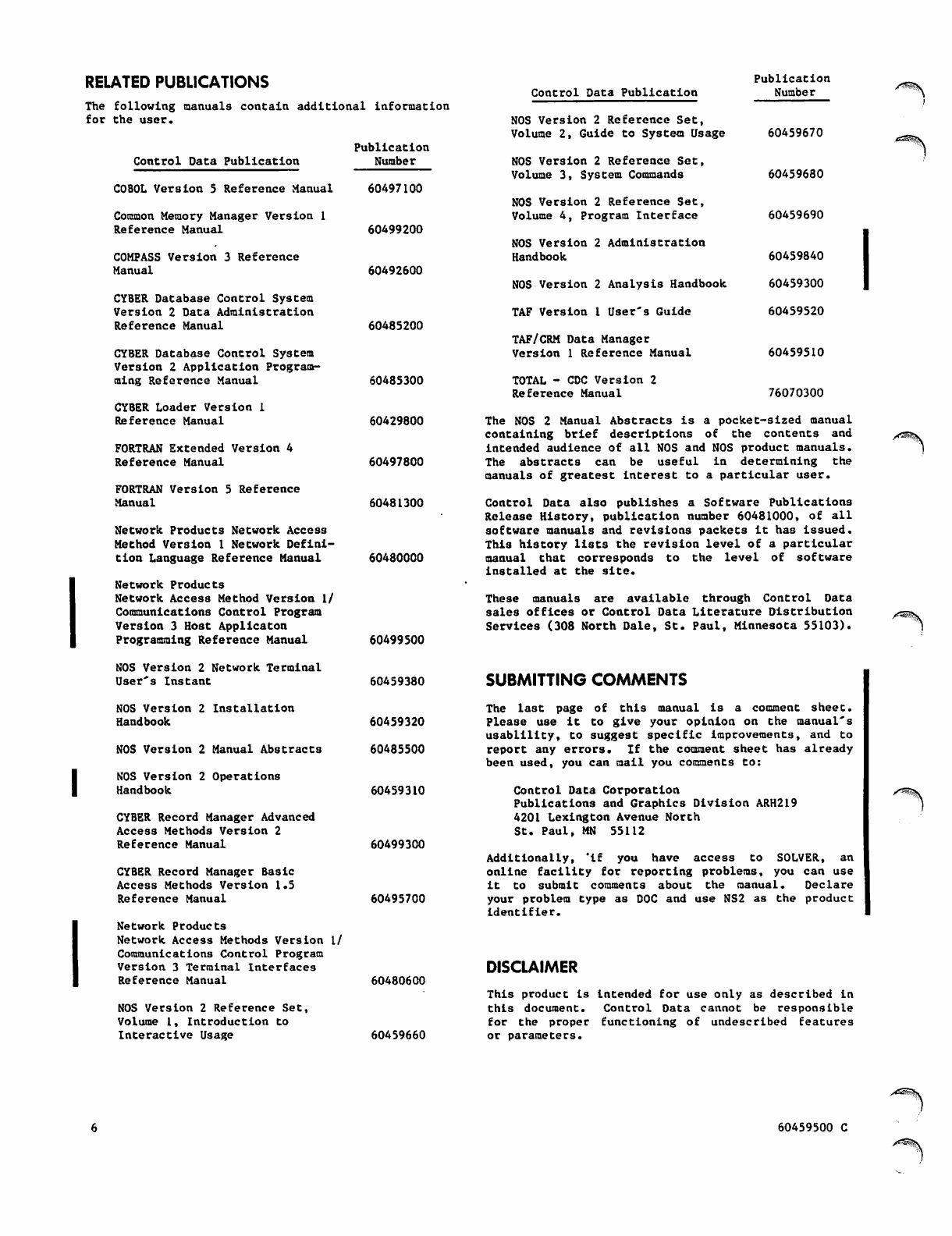

RELATED PUBLICATIONS

The following manuals contain additional information

for the user.

Publication

Control Data Publication Number

COBOL Version 5 Reference Manual 60497100

Common Memory Manager Version 1

Reference Manual 60499200

COMPASS Version 3 Reference

Manual 60492600

CYBER Database Control System

Version 2 Data Administration

Reference Manual 60485200

CYBER Database Control System

Version 2 Application Program

ming Reference Manual 60485300

CYBER Loader Version 1

Reference Manual 60429800

FORTRAN Extended Version 4

Reference Manual 60497800

FORTRAN Version 5 Reference

Manual 60481300

Network Products Network Access

Method Version I Network Deﬁni

tion Language Reference Manual 60480000

Network Products

Network Access Method Version 1/

Communications Control Program

Version 3 Host Applicaton

Programming Reference Manual 60499500

NOS Version 2 Network Terminal

User's Instant 60459380

NOS Version 2 Installation

Handbook 60459320

NOS Version 2 Manual Abstracts 60485500

NOS Version 2 Operations

Handbook 60459310

CYBER Record Manager Advanced

Access Methods Version 2

Reference Manual 60499300

CYBER Record Manager Basic

Access Methods Version 1.5

Reference Manual 60495700

Network Products

Network Access Methods Version 1/

Communications Control Program

Version 3 Terminal Interfaces

Reference Manual 60480600

NOS Version 2 Reference Set,

Volume 1, Introduction to

Interactive Usage 60459660

Publication

Control Data Publication Number

NOS Version 2 Reference Set,

Volume 2, Guide to Systeo Usage 60459670

NOS Version 2 Reference Set,

Volume 3, System Commands 60459680

NOS Version 2 Reference Set,

Volume 4, Program Interface 60459690

NOS Version 2 Administration

Handbook 60459840

NOS Version 2 Analysis Handbook 60459300

TAF Version 1 User's Guide 60459520

TAF/CRM Data Manager

Version 1 Reference Manual 60459510

TOTAL - CDC Version 2

Reference Manual 76070300

The NOS 2 Manual Abstracts is a pocket-sized manual

containing brief descriptions of the contents and

intended audience of all NOS and NOS product manuals.

T h e a b s t r a c t s c a n b e u s e f u l i n d e t e r m i n i n g t h e

manuals of greatest interest to a particular user.

Control Data also publishes a Software Publications

Release History, publication number 60481000, of all

software manuals and revisions packets it has issued.

This history lists the revision level of a particular

manual that corresponds to the level of software

installed at the site.

These manuals are available through Control Data

sales ofﬁces or Control Data Literature Distribution

Services (308 North Dale, St. Paul, Minnesota 55103).

SUBMITTING COMMENTS

The last page of this manual is a comment sheet.

Please use it to give your opinion on the manual's

usablility, to suggest speciﬁc improvements, and to

report any errors. If the comment sheet has already

been used, you can mail you comments to:

Control Data Corporation

Publications and Graphics Division ARH219

4201 Lexington Avenue North

St. Paul, MN 55112

Additionally, 'if you have access to SOLVER, an

online facility for reporting problems, you can use

it to submit comments about the manual. Declare

your problem type as DOC and use NS2 as the product

identiﬁer.

DISCLAIMER

This product is intended for use only as described in

this document. Control Data cannot be responsible

for the proper functioning of undescribed features

or parameters.

/^^K

60459500 C

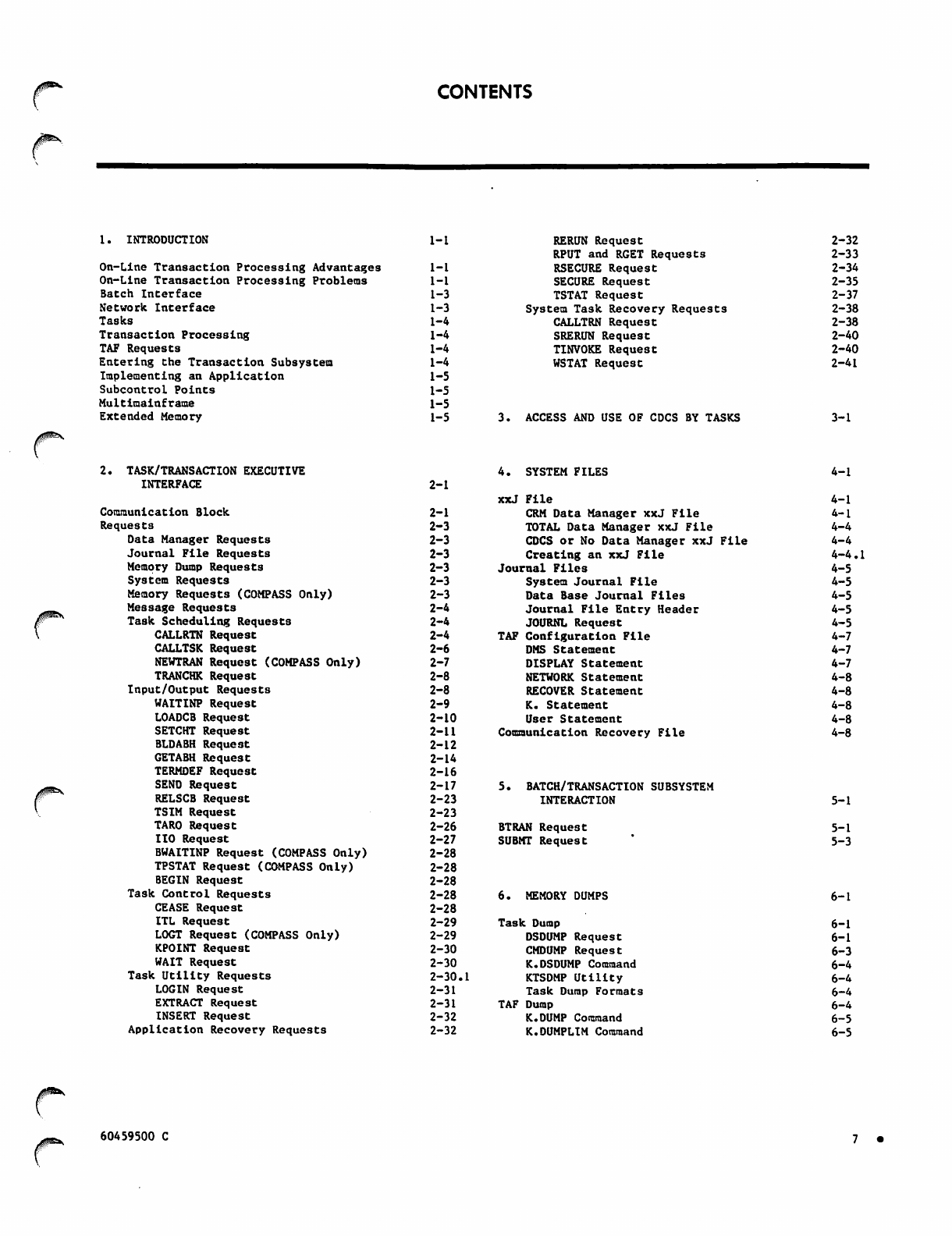

J^V CONTENTS

1. INTRODUCTION l-l

On-Line Transaction Processing Advantages l-l

On-Line Transaction Processing Problems l-l

Batch Interface 1-3

Network Interface 1-3

Tasks 1-4

Transaction Processing 1-4

TAF Requests 1-4

Entering the Transaction Subsystem 1-4

Implementing an Application 1-5

Subcontrol Points 1-5

Multimainframe 1-5

Extended Memory 1-5

RERUN Request

RPUT and RGET Requests

RSECURE Request

SECURE Request

TSTAT Request

System Task Recovery Requests

CALLTRN Request

SRERUN Request

TINVOKE Request

WSTAT Request

3. ACCESS AND USE OF CDCS BY TASKS

2-32

2-33

2-34

2-35

2-37

2-38

2-40

2-41

3-1

2. TASK/TRANSACTION EXECUTIVE

INTERFACE

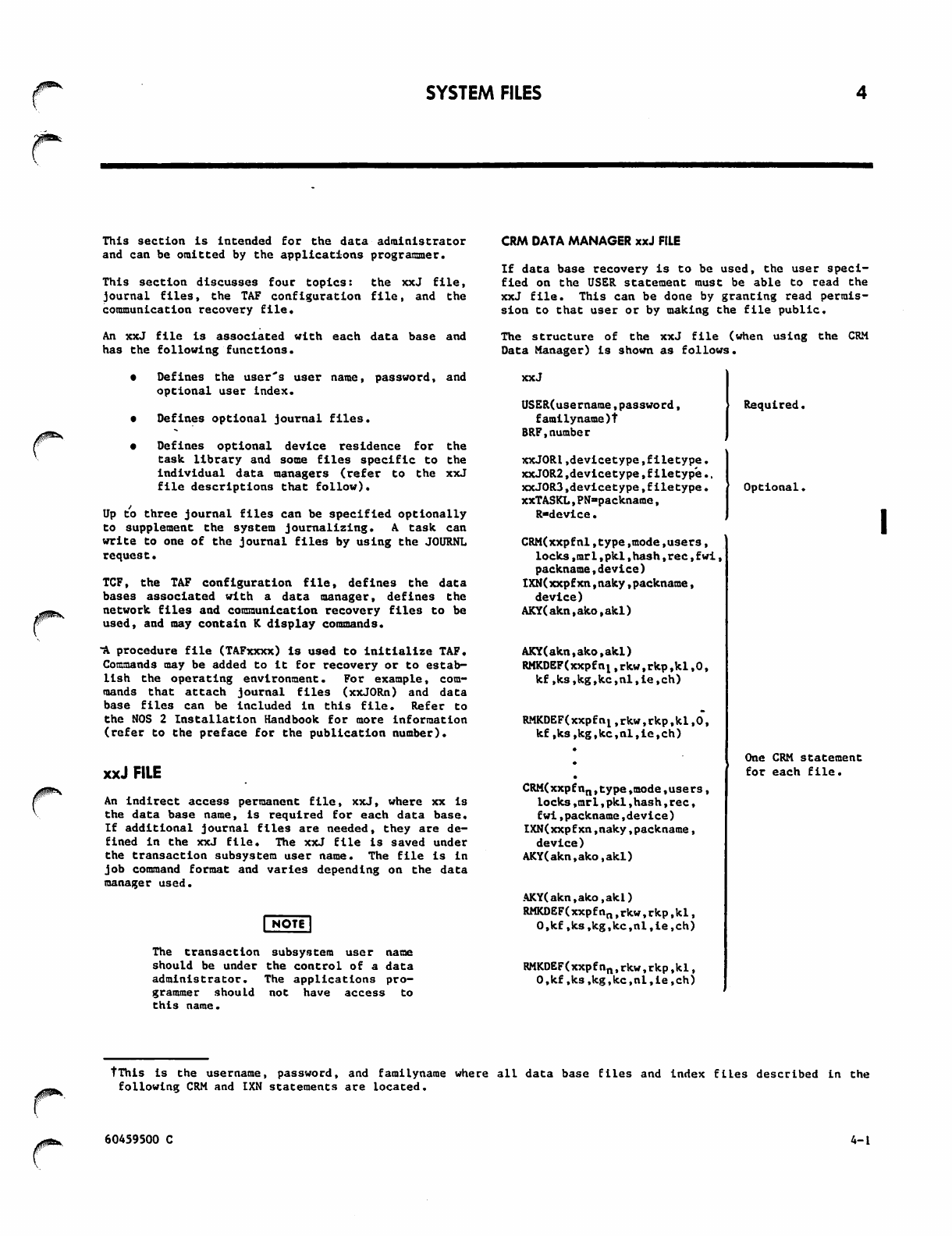

4. SYSTEM FILES 4-1

2-1

r

Communication Block

Requests

Data Manager Requests

Journal File Requests

Memory Dump Requests

System Requests

Memory Requests (COMPASS Only)

Message Requests

Task Scheduling Requests

CALLRTN Request

CALLTSK Request

NEWTRAN Request (COMPASS Only)

TRANCHK Request

Input/Output Requests

WAITINP Request

LOADCB Request

SETCHT Request

BLDABH Request

GETABH Request

TERMDEF Request

SEND Request

RELSCB Request

TSIM Request

TARO Request

I10 Request

BWAITINP Request (COMPASS Only)

TPSTAT Request (COMPASS Only)

BEGIN Request

Task Control Requests

CEASE Request

ITL Request

LOGT Request (COMPASS Only)

KPOINT Request

WAIT Request

Task Utility Requests

LOGIN Request

EXTRACT Request

INSERT Request

Application Recovery Requests

xxJ File 4-1

2-1 CRM Data Manager xxJ File 4-1

2-3 TOTAL Data Manager xxJ File 4-4

2-3 CDCS or No Data Manager xxJ File 4-4

2-3 Creating an xxJ File 4-4.1

2-3 Journal Files 4-5

2-3 System Journal File 4-5

2-3 Data Base Journal Files 4-5

2-4 Journal File Entry Header 4-5

2-4 JOURNL Request 4-5

2-4 TAF Conﬁguration File 4-7

2-6 DMS Statement 4-7

2-7 DISPLAY Statement 4-7

2-8 NETWORK Statement 4-8

2-8 RECOVER Statement 4-8

2-9 K. Statement 4-8

2-10 User Statement 4-8

2-11 Communication Recovery File 4-8

2-12

2-14

2-16

2-17 5. BATCH/TRANSACTION SUBSYSTEM

2-23 INTERACTION 5-1

2-23

2-26 BTRAN Request 5-1

2-27 SUBMT Request 5-3

2-28

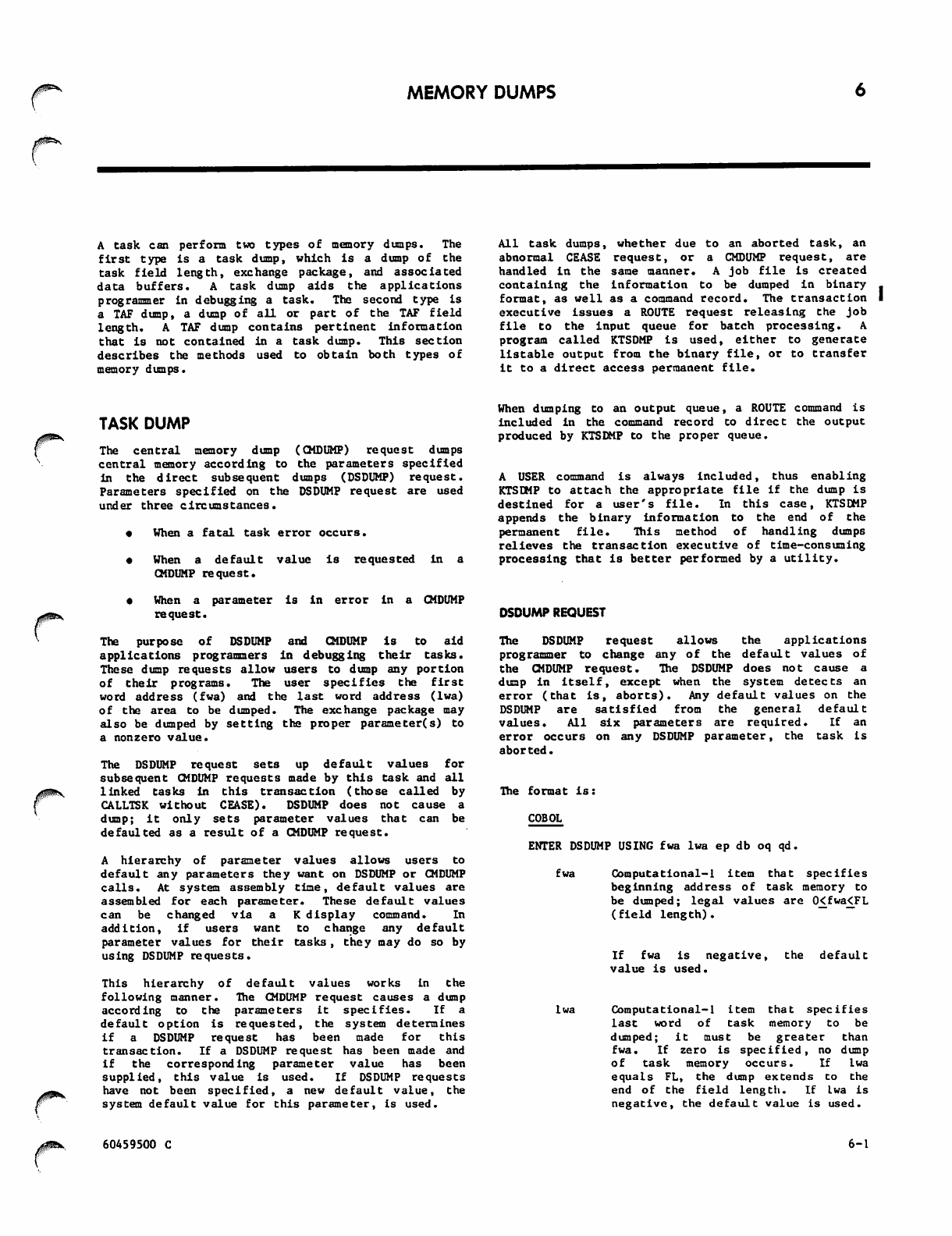

2-28 6. MEMORY DUMPS 6-1

2-28

2-29 Task Dump 6-1

2-29 DSDUMP Request 6-1

2-30 CMDUMP Request 6-3

2-30 K.DSDUMP Command 6-4

2-30.1 KTSDMP Utility 6-4

2-31 Task Dump Formats 6-4

2-31 TAF Dump 6-4

2-32 K.DUMP Command 6-5

2-32 K.DUMPLIM Command 6-5

60459500 C

7. APPLICATIONS INTERFACE FOR AUTOMATIC

RECOVERY

Purpose

Concepts

Named-Transactions and Run Units

Data Base Recovery

Transaction Recovery

Coding

Coding Structures for Data Base Recovery

Only

Transactions Using CRM

TAF Transactions Using CDCS

Coding Structures for Transaction Recovery

Transactions Using CRM

TAF Transactions Using CDCS

Terminal Recovery Considerations

CALLTSK without CEASE and RECOVERY

Multiple Data Manager Use

TOTAL Data Manager Use

8. DATA ADMINISTRATOR AND OPERATOR INTERFACE

FOR RECOVERY

Recovery Overview

Hardware Conﬁguration Considerations

Installation

TAF K Display

Initial K Display

K.INT Command

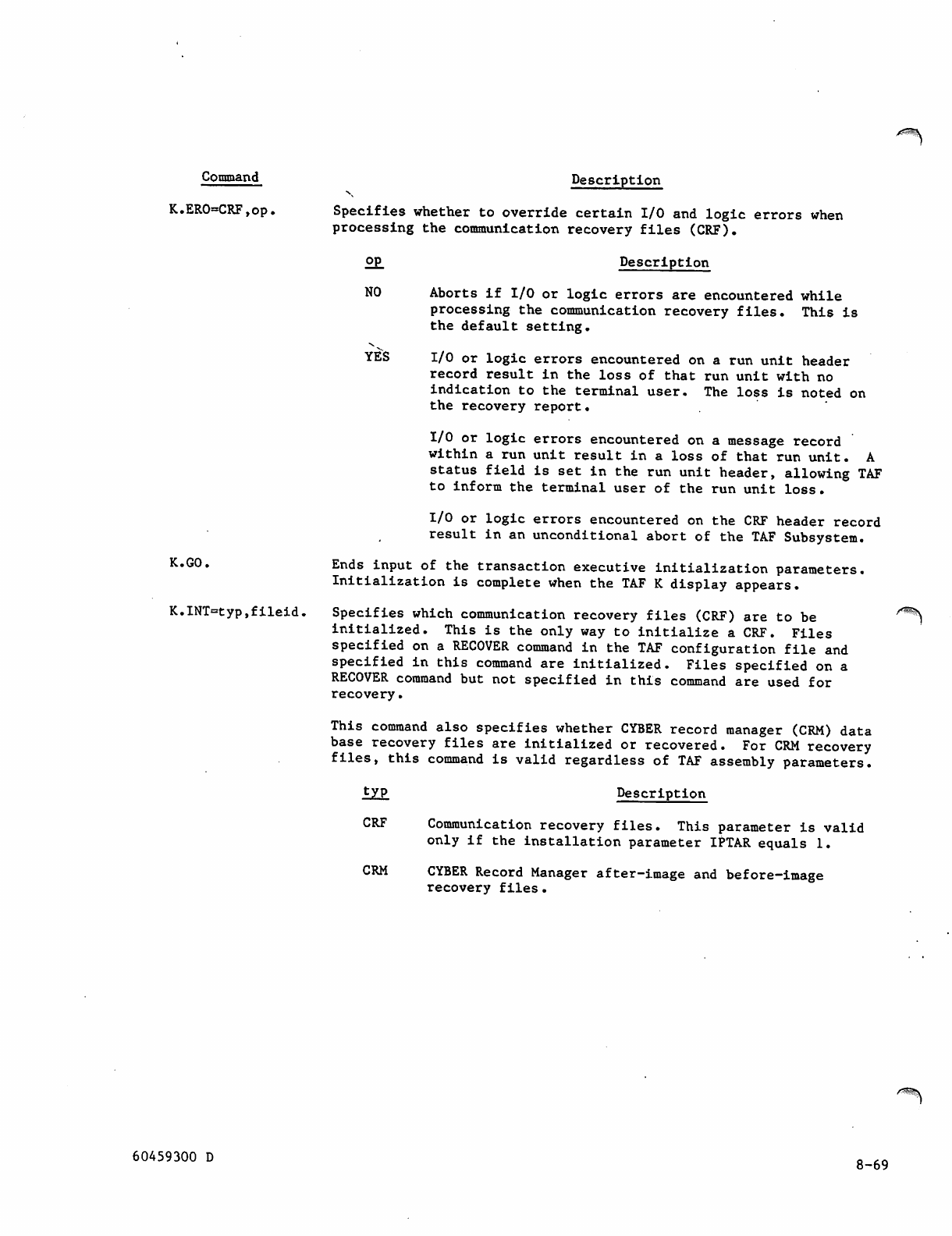

K.ERO Command

K.REC Command

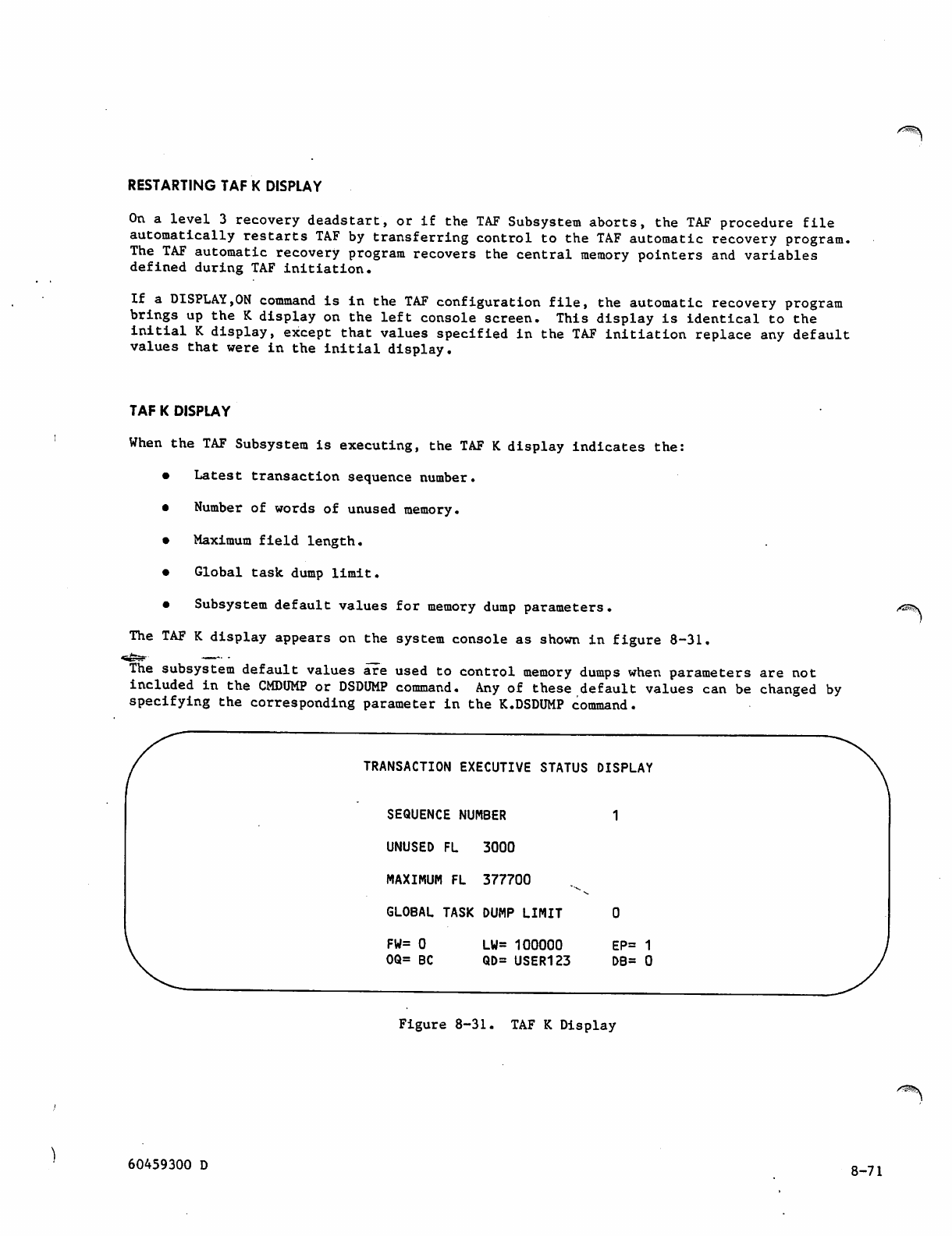

Restart K Display

TCF/CRF Recovery Considerations

TAF Conﬁguration File

Communication Recovery File

Error Override

File Reformatting

Multiple Communication Recovery Files

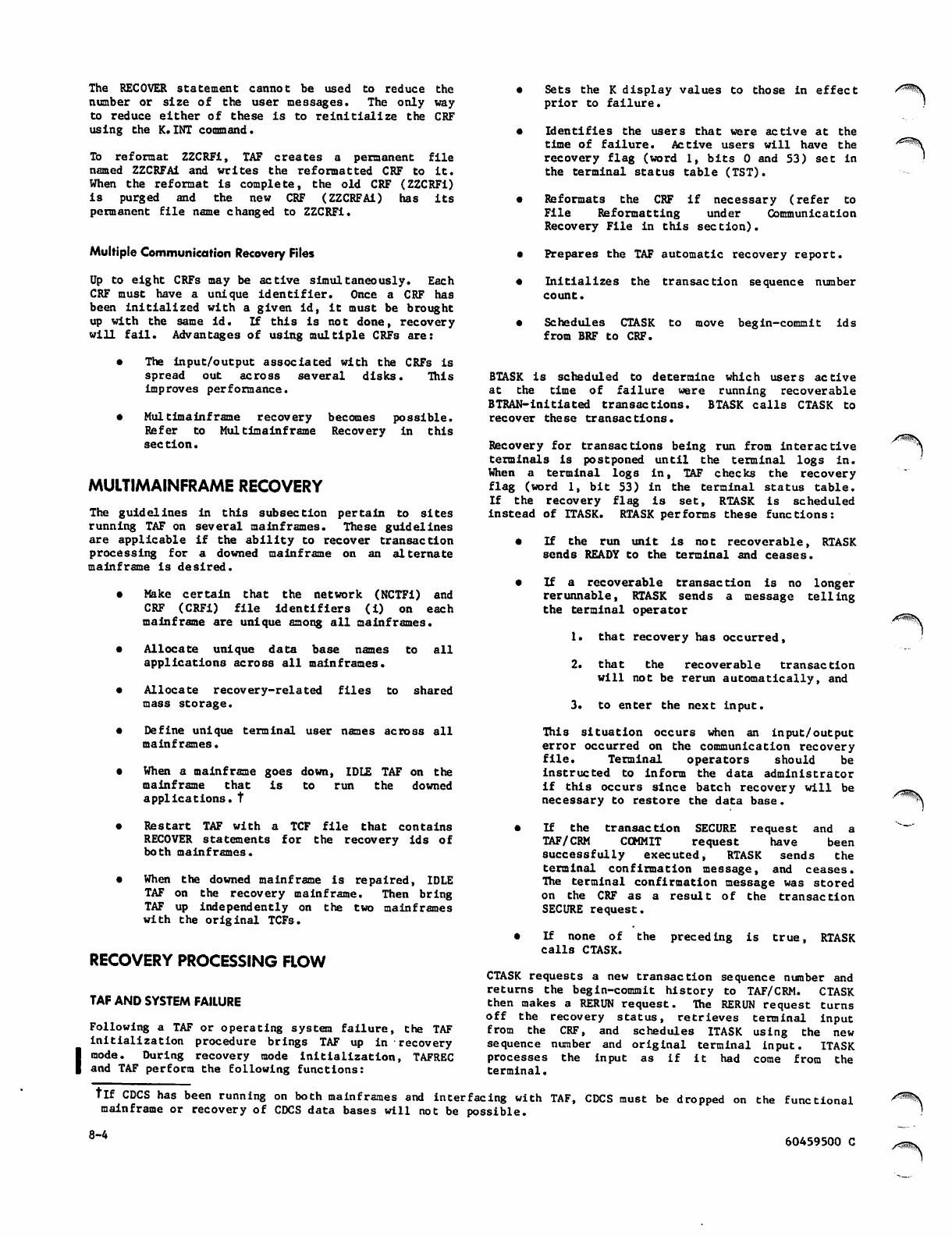

Multimainframe Recovery

Recovery Processing Flow

TAF and System Failure

NAM Failure

Terminal Failure

CDCS Failure

Task Failure

TAF Termination

TAF Automatic Recovery Report

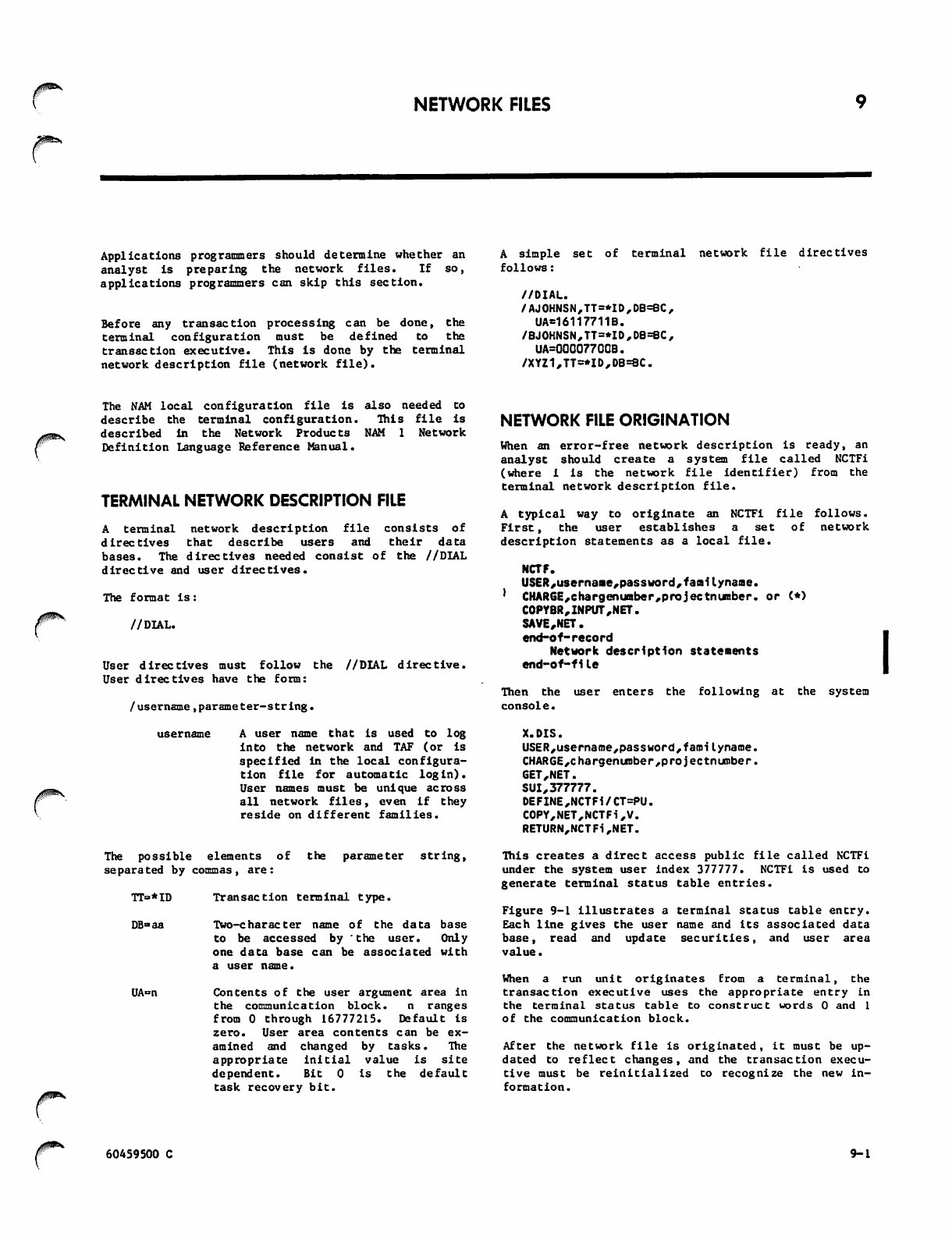

9. NETWORK FILES

7-1

7-2

7-3

7-4

7-5

8-1

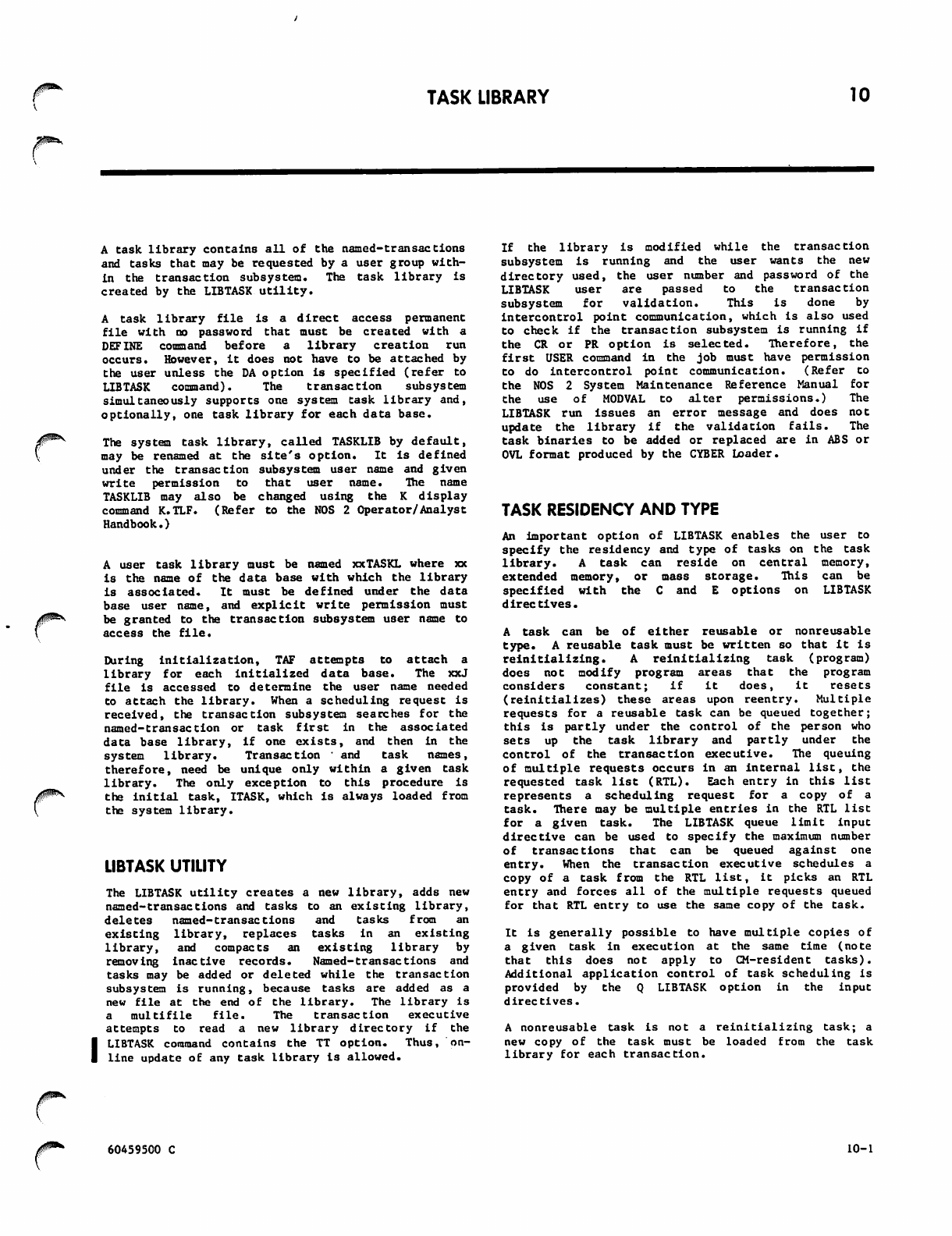

10. TASK LIBRARY 10-1

LIBTASK Utility 10-1

Task Residency and Type 10-1

LIBTASK Command 10-2

Input Directives 10-5

Named-Transaction Input Directive 10-5

Task Input Directive 10-5

Scheduling Priority 10-7

Creating a New Task Library 10-7

Updating an Existing Task Library 10-7

Deleting a Task from a Task Library 10-7

Ignoring a Task in the Replacement File 10-8

11. REQUIRED SYSTEM TASKS AND TRANSACTIONS U-l

BTRAN Recovery Task (BTASK) 11-

Data Base Recovery Task (CTASK) 11-

Initial Task (ITASK) 11-

K Display Task (KDIS) 11-

Logout Task (LOGT) 11-

Message Abort (MSABT) 11-

Inactive Task (OFFTASK) 11-2

CDCS Rerun Task (RCTASK) 11-2

Run Unit Recovery Task (RTASK) 11-2

Terminal Network Description File

Network File Origination

8-1 Send Message Task (STASK) 11-2

8-2 System Message Task (SYSMSG) 11-2

8-2 Execute Named Task (XTASK) 11-2

8-2

XTRAN Transaction 11-2

8-3 12. ITASK SYSTEM TASK 12-1

8-3

8-3 Macros 12-1

8-3 TIMCNT Macro 12-1

8-3 TRAN Macro 12-1

8-3 STRAN Macro 12-1

8-3 ITASK Description 12-2

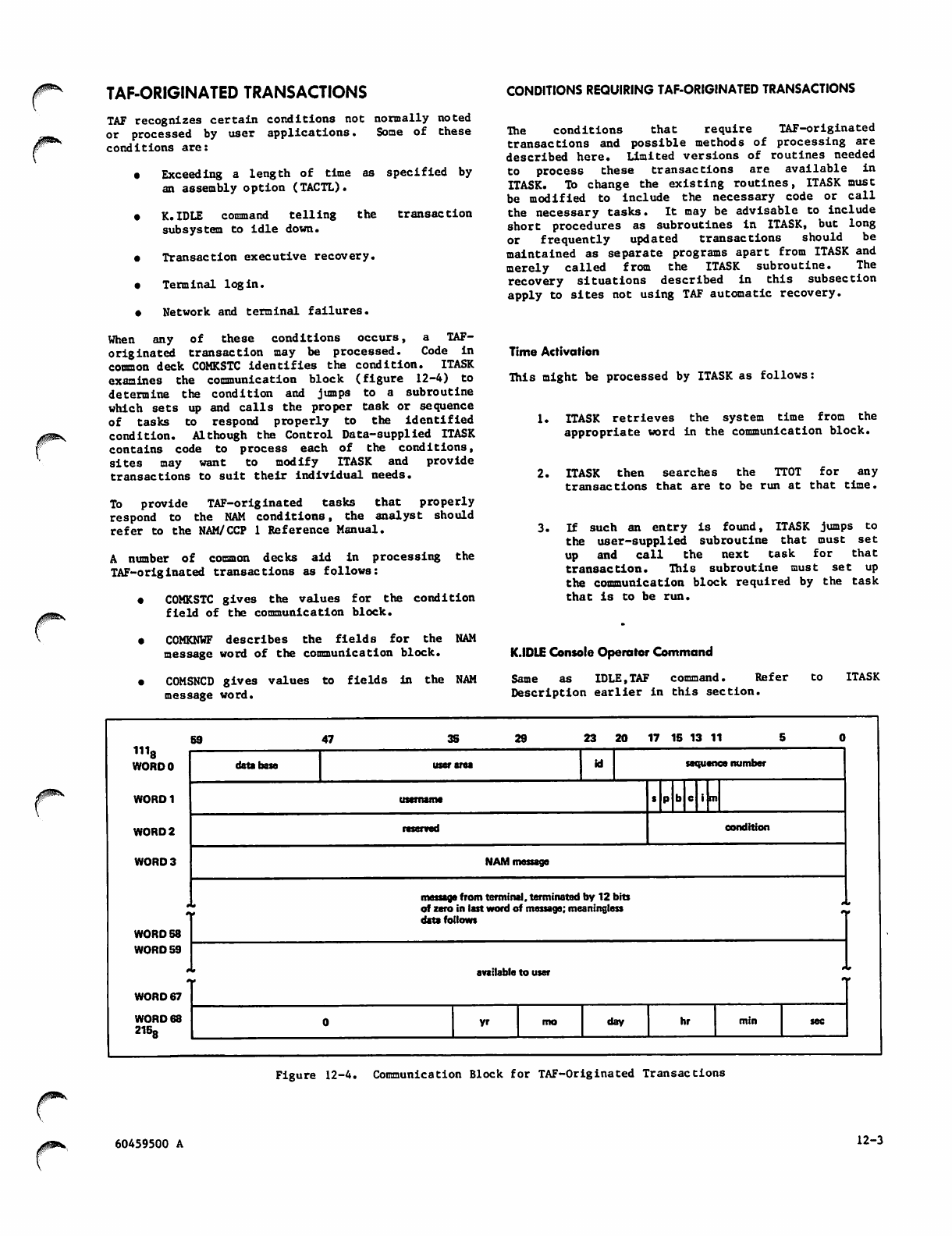

8-3 TAF-Originated Transactions 12-3

8-4 Conditions Requiring TAF-Originated

8-4 Transactions 12-3

8-4 Time Activation 12-3

8-4 K.IDLE Console Operator Command 12-3

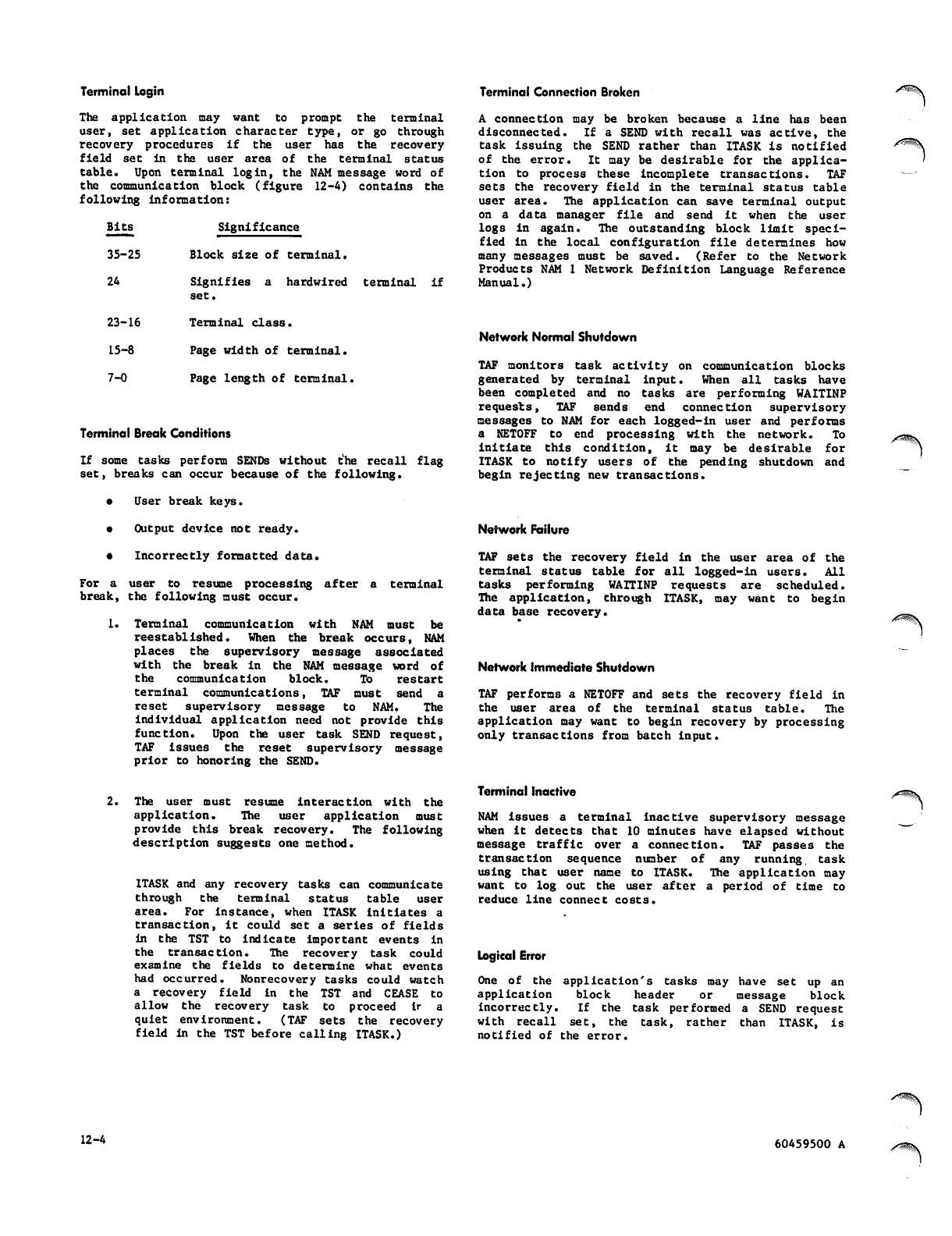

8-5 Terminal Login 12-4

8-5 Terminal Break Conditions 12-4

8-5 Terminal Connection Broken 12-4

8-5 Network Normal Shutdown 12-4

8-5 Network Failure 12-4

8-6 Network Immediate Shutdown 12-4

Terminal Inactive 12-4

Logical Error 12-4

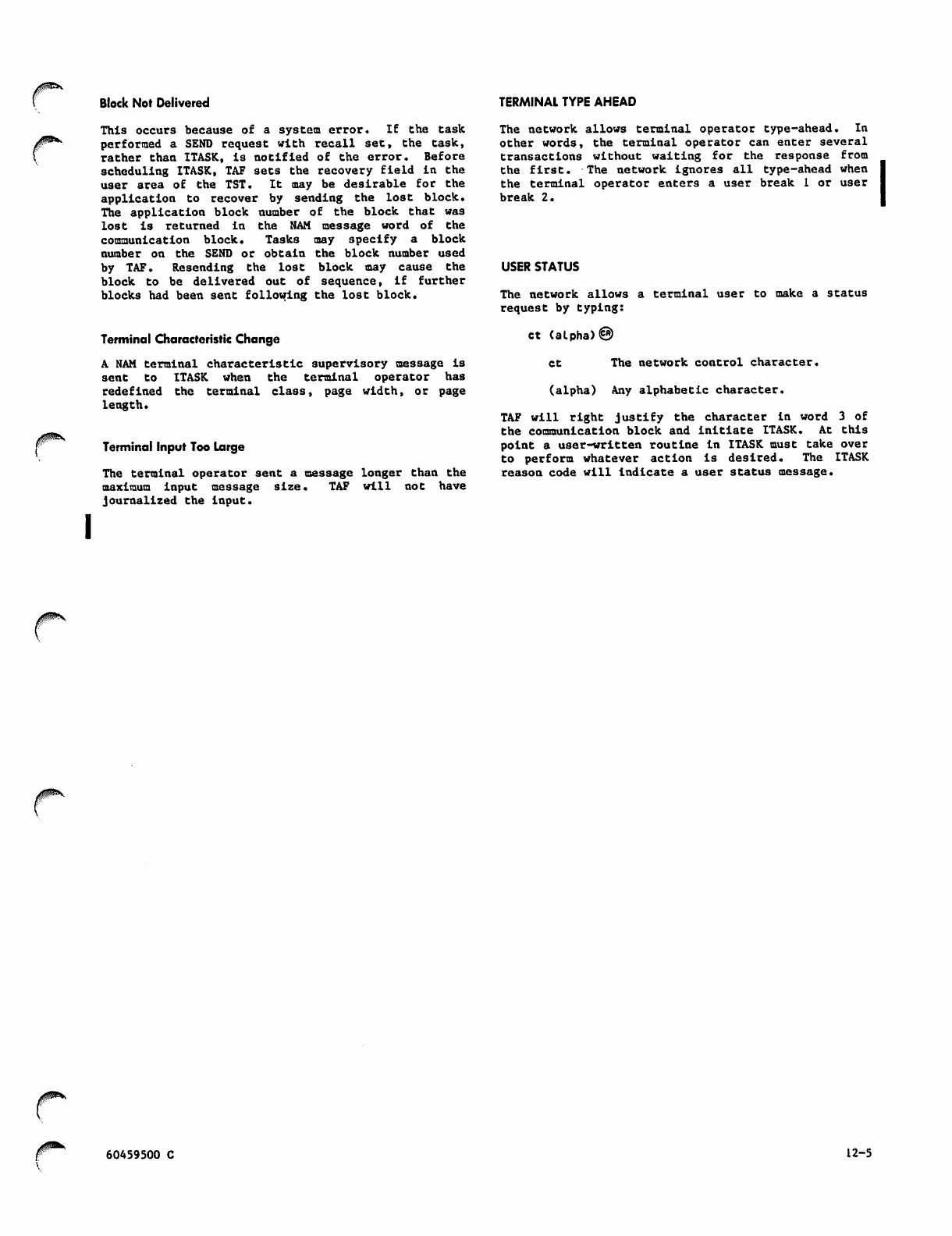

Block Not Delivered 12-5

9-1 Terminal Characteristic Change 12-5

Terminal Input Too Large 12-5

9-1 Terminal Type Ahead 12-5

9-1 User Status 12-5

/rfS^ly

A. CHARACTER SETS

B. DIAGNOSTIC MESSAGES

APPENDIXES

A-l D. SAMPLE COMMAND LIST STRUCTURES

B-l

COMPASS Task Command List Structure

FORTRAN Task Command List Structure

COBOL Task Command List Structure

D-l

C. GLOSSARY C-l E. FILES USED BY TAF E-l

• 8 60459500 C

Jffev

F. INSTALLATION OVERVIEW

G. TERMINAL DEFINITION COMMANDS

Introduction

Terminal Deﬁnition Command Format

Restrictions

Terminal Deﬁnition Commands

(AB) - Abort Output Block Character

(AR) - Automatic Character Recognition

(BF) - Blocking Factor

(BR) - Break Key as User Break 1

(BS) - Backspace Character

(Bl) - Interruption or User Break 1

Character

(B2) - Termination or User Break 2

Character

(CH) - Display Terminal Characteristics

(CI) - Carriage Return Idle Count

(CN) - Cancel Character

(CP) - Cursor Positioning after Input

(CT) - Network Control Character

(DL) - Delimiters for Single-Message

Transparent Input Mode

(EB) - End-of-Block Character

(EL) - End-of-Line Character

(EP) - Echoplex Mode

(FA) - Full-ASCII Input Mode

(HC) - Host Connection

(HD) - Display of Host Nodes

(HN) - Host Node Selection

(HS) - Host Selection

(IC) - Flow Control for Input Devices

(IN) - Input Device and Transmission Mode

(LI) - Line Feed Idle Count

(LK) - Lockout of Unsolicited Messages

(MS) - Message to Network Operator

(OC) - Flow Control for Output Devices

(OP) - Output Device Selection

(PA) - Parity Processing

(PG) - Page Waiting

(PL) - Page Length

(PW) - Page Width

(SE) - Special Editing Mode

(TC) - Terminal Class Command

(TM) - Terminating a Terminal-Host

Connection

(XL) - Multimessage Transparent Mode

JP^

F-l

G-l

G-2

G-3

G-4

G-5

G-6

G-7

G-8

G-9

G-10

G-ll

G-l 2

G-12

G-13

H. DELIMITING AND TRANSMITTING TERMINAL INPUT H-l

Physical End-of-Line (Line Feed) H-l

Logical End-of-Line (Carriage Return) H-l

Message Transmission H-l

I. DETECTION OF POTENTIALLY BLOCKED TASKS I-I

J. ACCESSING A HOST J-l

Brief Description of Access J-l

Step 1 - Gathering Information J-i

Step 2 - Setting Up Your Terminal J-l

Step 3 - Connecting Your Terminal to the

Network J-l

Step 4 - Identifying Your Terminal to the

Network J-3

Step 5 - Selecting a Host J-3

Step 6 - Connecting to the Selected Host J-3

Step 7 - Identifying Yourself and Your

Terminal to the Host J-4

Step 8 - Selecting a Network Application J-4

Detailed Description of Access J-4

Step 1 - Gathering Information J-4

Step 2 - Setting Up Your Terminal J-7

Step 3 - Connecting Your Terminal to the

Network J-8

Step 4 - Identifying Your Terminal to the

Network J-8

Procedure for Asynchronous Terminals J-8

Procedure for HASP Terminals J-9

Procedure for Mode 4 Terminals J-10

Procedure for Bisynchronous Terminals J-10

Step 5 - Selecting a Host J-10

Selecting a Host J-10

Selecting a Speciﬁc Host Path J-iI

Controlling the Display of Host Paths J—11

Step 6 - Connecting to the Selected Host J-13

Step 7 - Identifying Yourself and Your

Terminal to the Host J-13

Automatic Login J-14

Login Dialog J-14

Step 8 - Selecting a Network Application J-15

Automatic Connection J-15

Manual Connection J-15

Abbreviated Login and Application

Connection J-16

Switching to a Different Application J-16

Direct Switches J-16

Indirect Switches J-17

Dialog for Direct and Indirect Switches J-17

Restarting Login Identiﬁcation J-17

Direct Restarts J-17

Indirect Restarts J-17

Secure Login Restarts J-17

Disconnecting from a Host J-18

Disconnecting with Application Commands J-18

Disconnecting with Host Commands J-18

Disconnecting with a Network Software

Command J-18

Reconnecting to a Host or Connecting

to a Different Host J-18

Disconnecting from One Host and

Connecting to a Different Host J-18

Interruptions J-19

Communicating with the Network Operator J-19

Receiving Messages J-19

Sending Messages J-19

Preventing Messages J-19

Suspensions of Communication J-19

Communication Failures J-19

Application Failures J-20

Disconnection from an Application

and/or Host J-20

Disconnection from the Network J-20

INDEX

0^ 60459500 C

FIGURES

1-1 TAF Control Point for CDCS Data Manager

1-2 TAF Control Point for TAF/CRM

Data Manager

1-3 TAF Control Point for TOTAL

Data Manager

2-1 Communication Block Format

2-2 CALLRTN

2-3 CALLRTN (Chain)

2-4 CALLRTN (Multiple Chains)

2-5 CALLTSK with CEASE Request

2-6 CALLTSK without CEASE Request

2-7 NEWTRAN Parameter Table

2-8 TRANCHK Parameter Table

2-9 LOADCB Parameter Table

2-10 SETCHT Parameter Table

2-11 GETABH Parameter Table

2-12 TERMDEF Parameter Table

2-13 SEND Parameter Table

2-14 TSIM Parameter Table

2-15 TARO Parameter Table

2-16 IIO Parameter Table

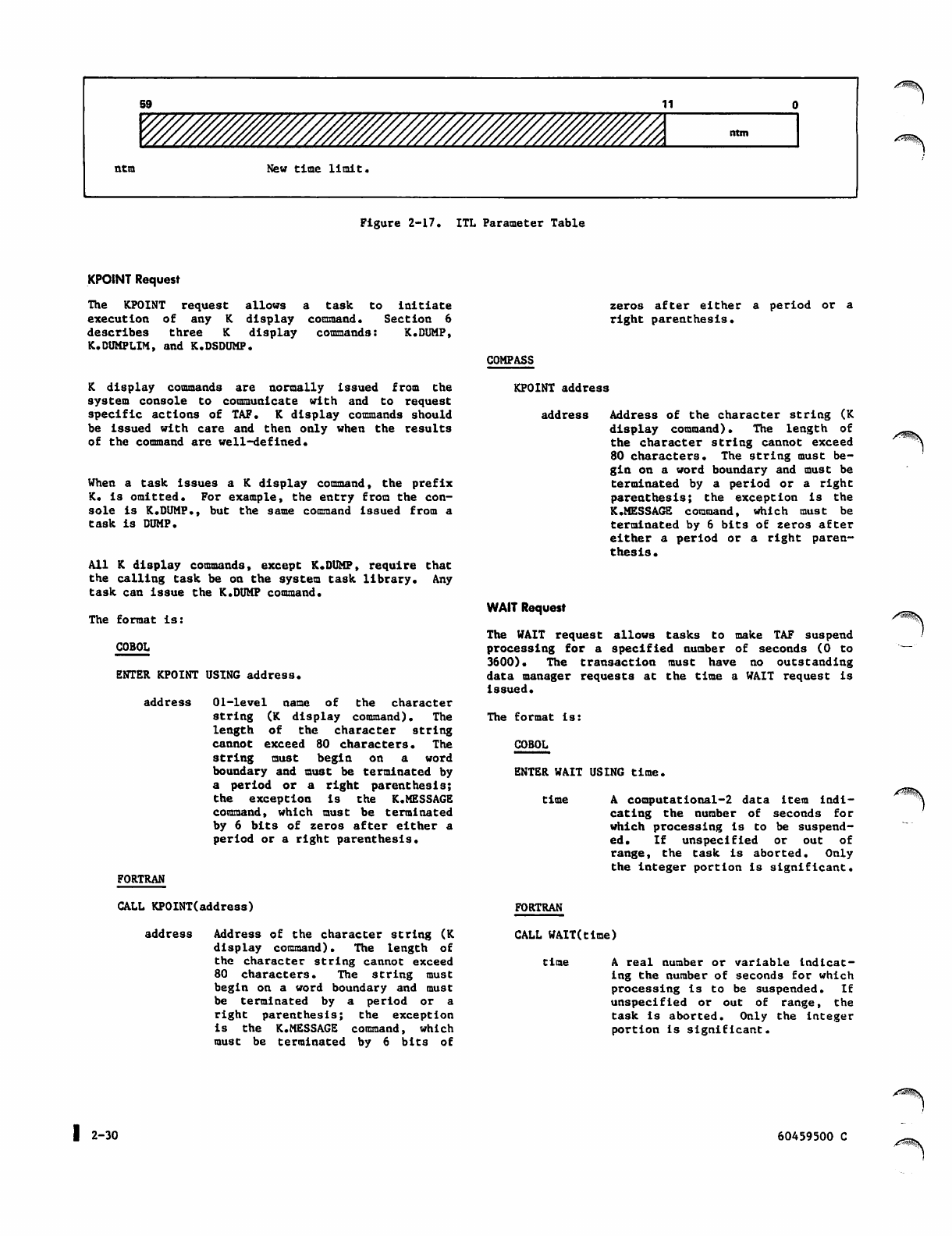

2-17 ITL Parameter Table

4-1 Journal File (Buffered and

Nonbuffered Structure)

4-2 Journal File Entry Header

4-3 JOURNL Parameter Table

5-1 BTRAN Header Word

5-2 BTRAN Request

5-3 SUBMT Parameter Table

1-2 5-4

6-1

1-2 6-2

6-3

1-3 7-1

2-2

2-5 8-1

2-5

2-5 9-1

2-6

2-7 10-1

2-7 12-1

2-8 12-2

2-11 12-3

2-13 12-4

2-15

2-17 D-l

2-23 D-2

2-25 D-3

2-27 J-l

2-27 J-2

2-30 J-3

J-4

4-2 J-5

4-6 J-6

4-6 J-7

5-2 J-8

5-2 J-9

5-3

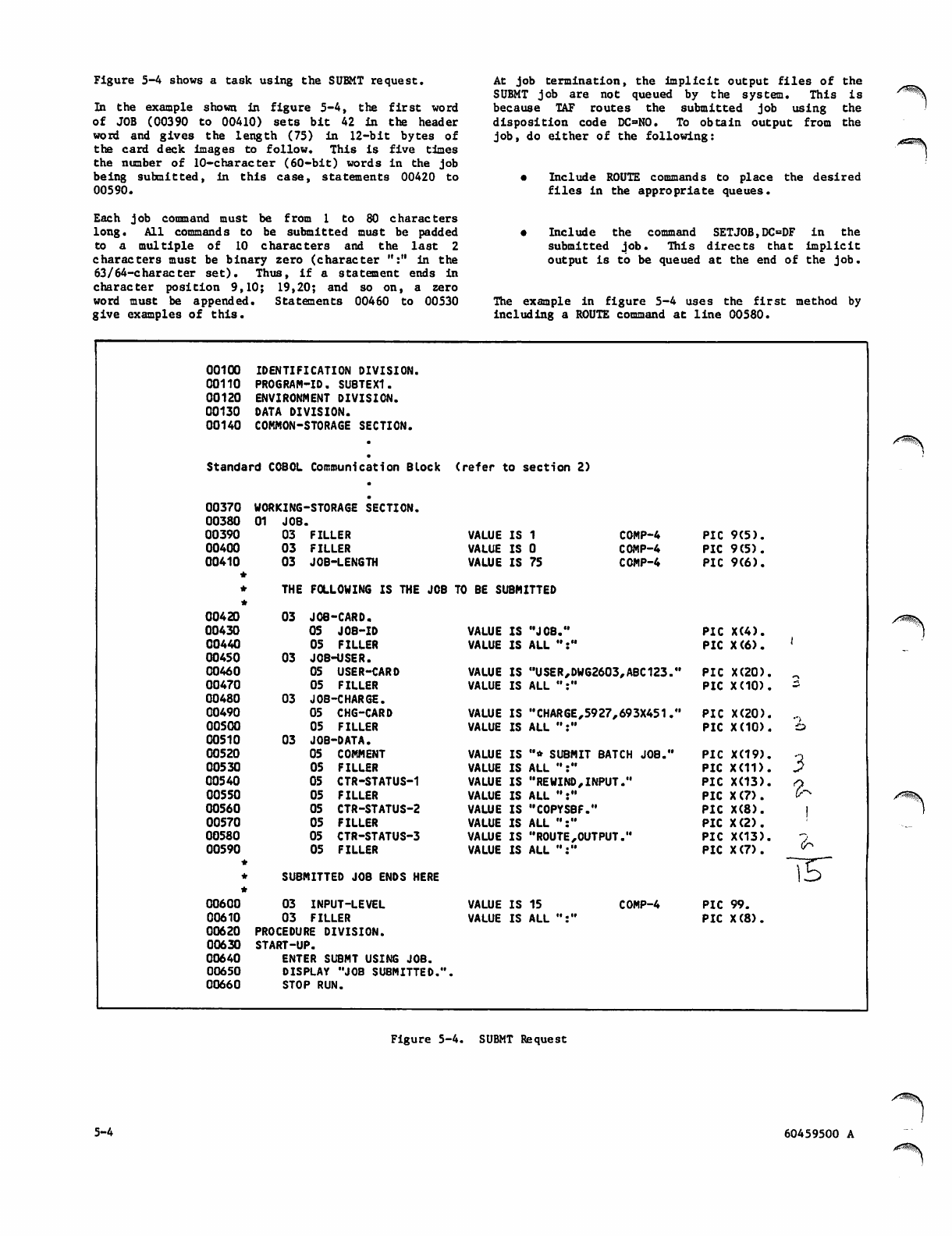

SUBMT Request 5-4

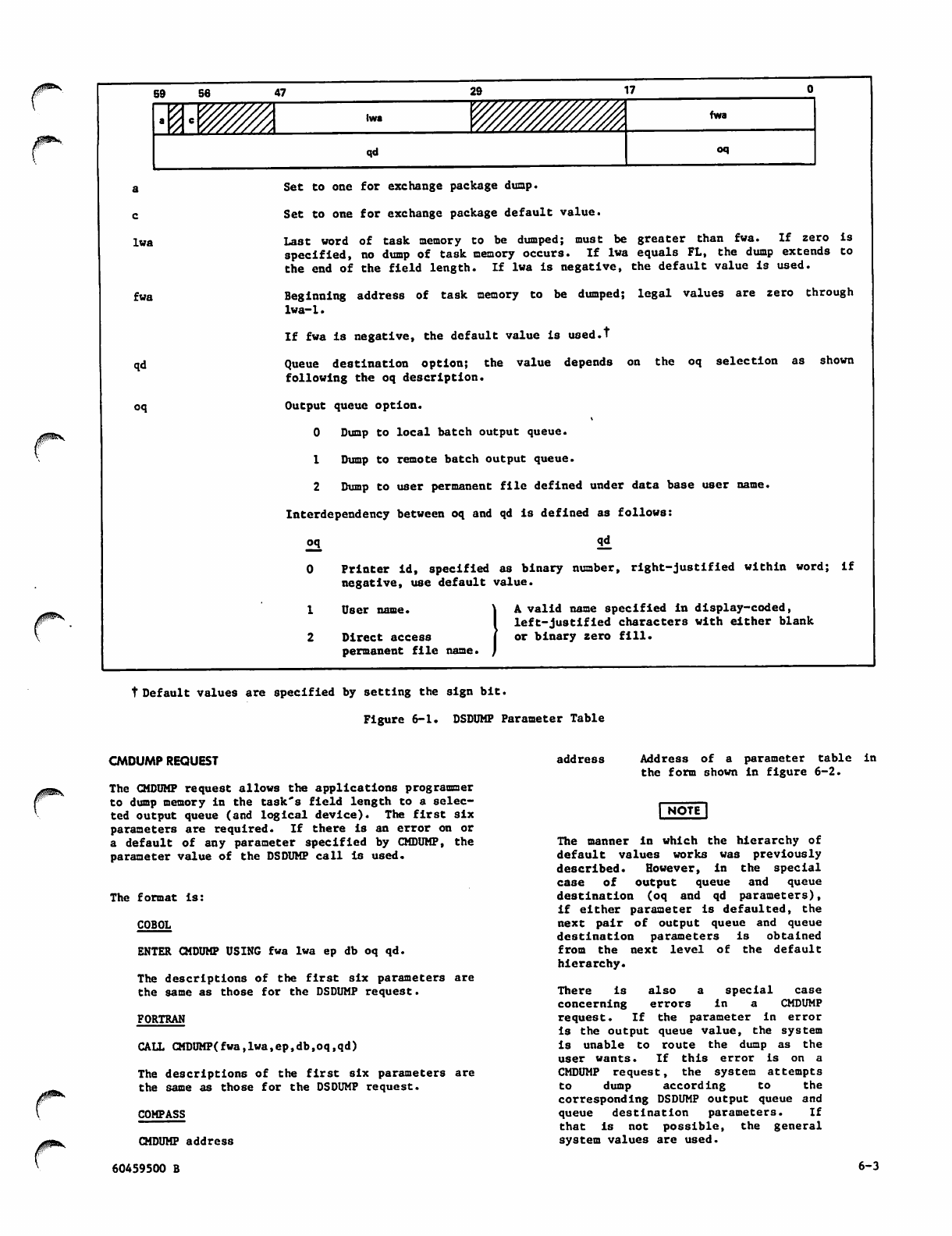

DSDUMP Parameter Table 6-3

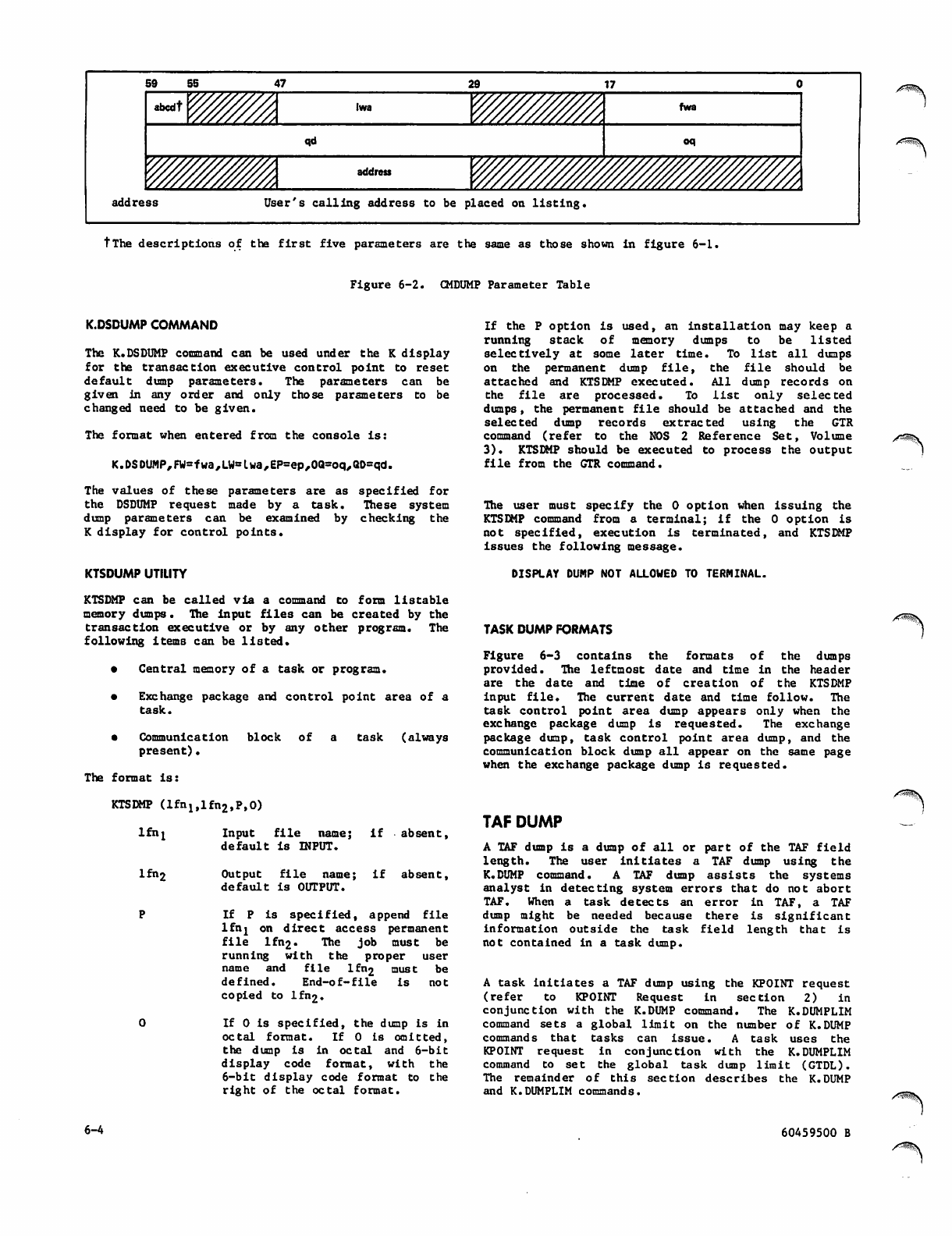

CMDUMP Parameter Table 6-4

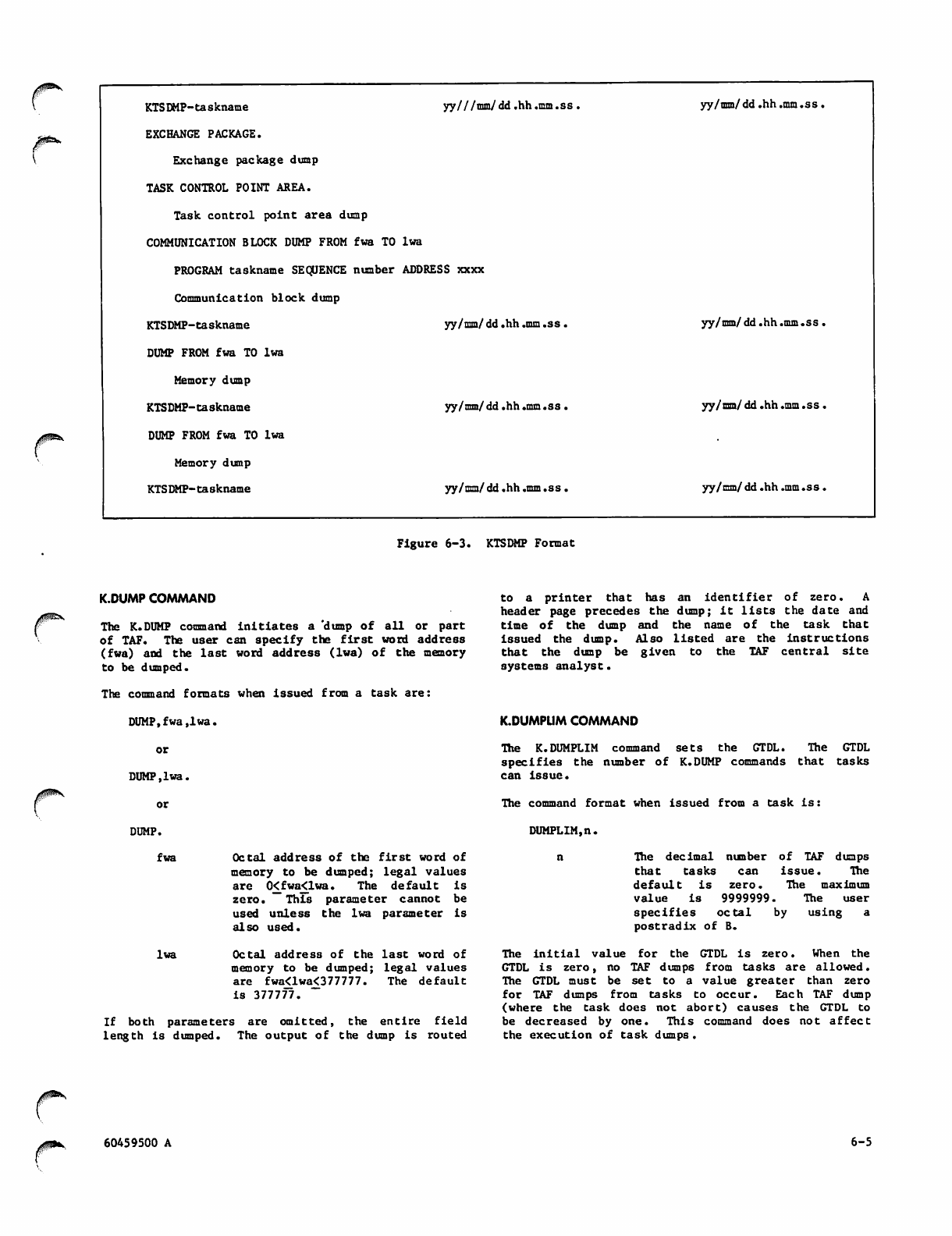

KTSDMP Format 6-5

Recoverable TAF Transaction

Using CDCS 7-4

Format of Part Three of the TAF

Automatic Recovery Report 8-6

Communication Between a Terminal Status

Table and a Communication Block 9-2

Task Library Report 10-4

Format of a TTOT Table Entry 12-1

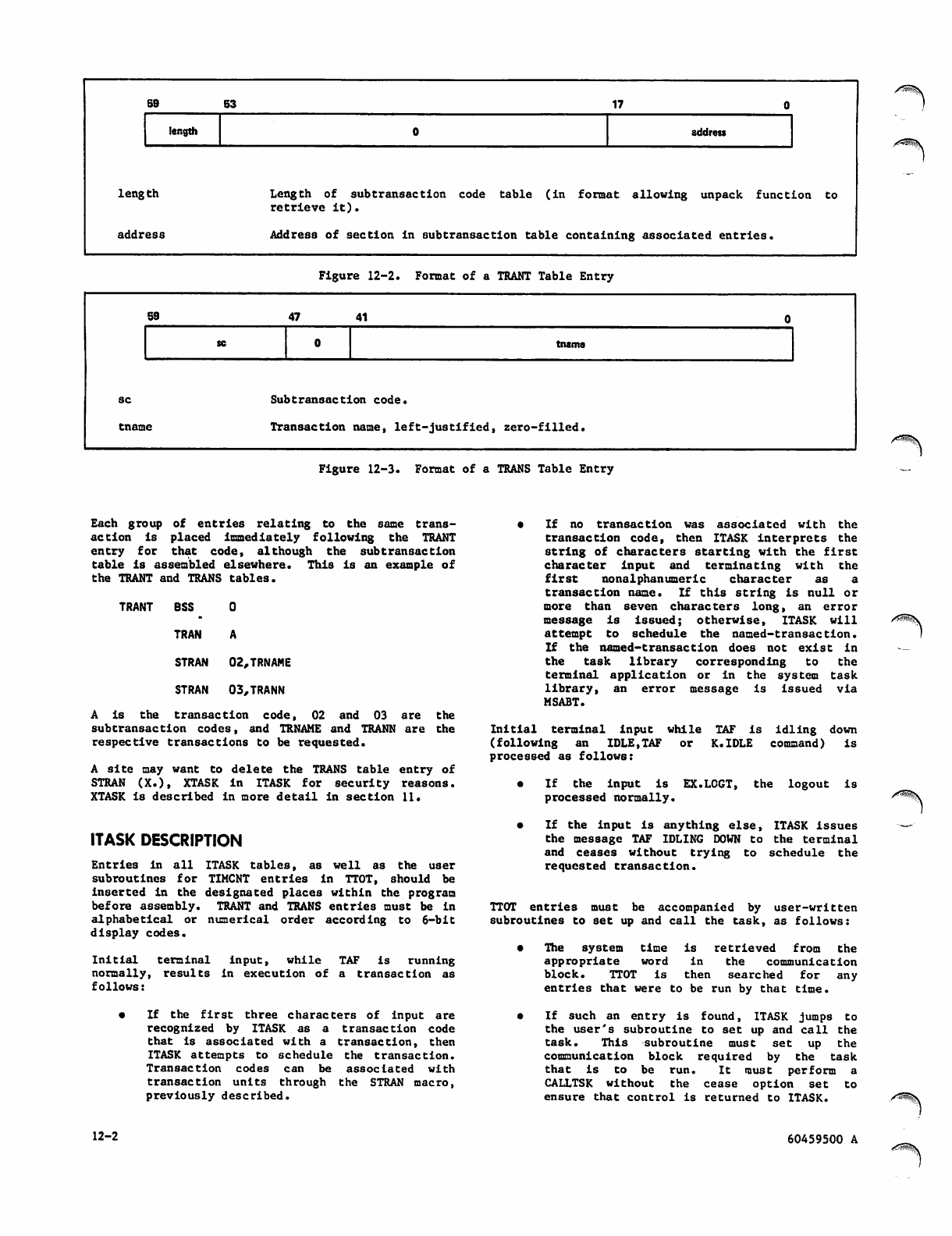

Format of a TRANT Table Entry 12-2

Format of a TRANS Table Entry 12-2

Communication Block for TAF-

Originated Transactions 12-3

C O M PA S S C o m m a n d L i s t S t r u c t u r e D - l

FORTRAN Command List Structure D-l

COBOL Command List Structure D-l

Separate Acoustic Coupler J-2

Data Set Built into the Terminal J-2

Data Sets with Switches and Buttons J-2

Termina l with Built-in Acoust ic Couple r J-3

Interactive Display Console J-5

Interactive Printer Console J-5

Remote Batch Terminal J-6

Host Availability Display J-ll

Sample Login from an Asynchronous

Terminal J-13

TABLES

2-1 BLDABH Request Parameters

2-2 Application Block Header

2-3 COBOL SEND Request Parameters

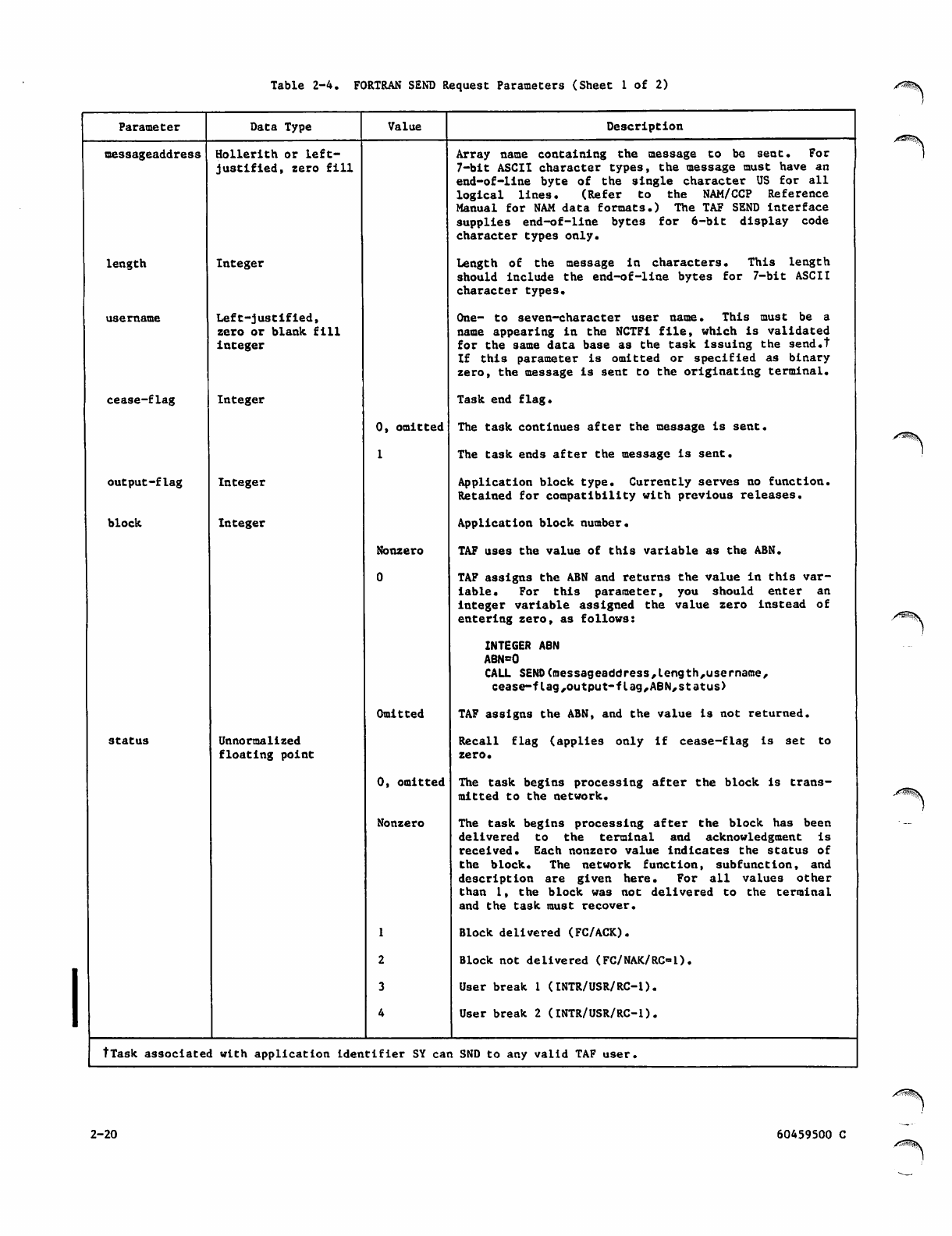

2-4 FORTRAN SEND Request Parameters

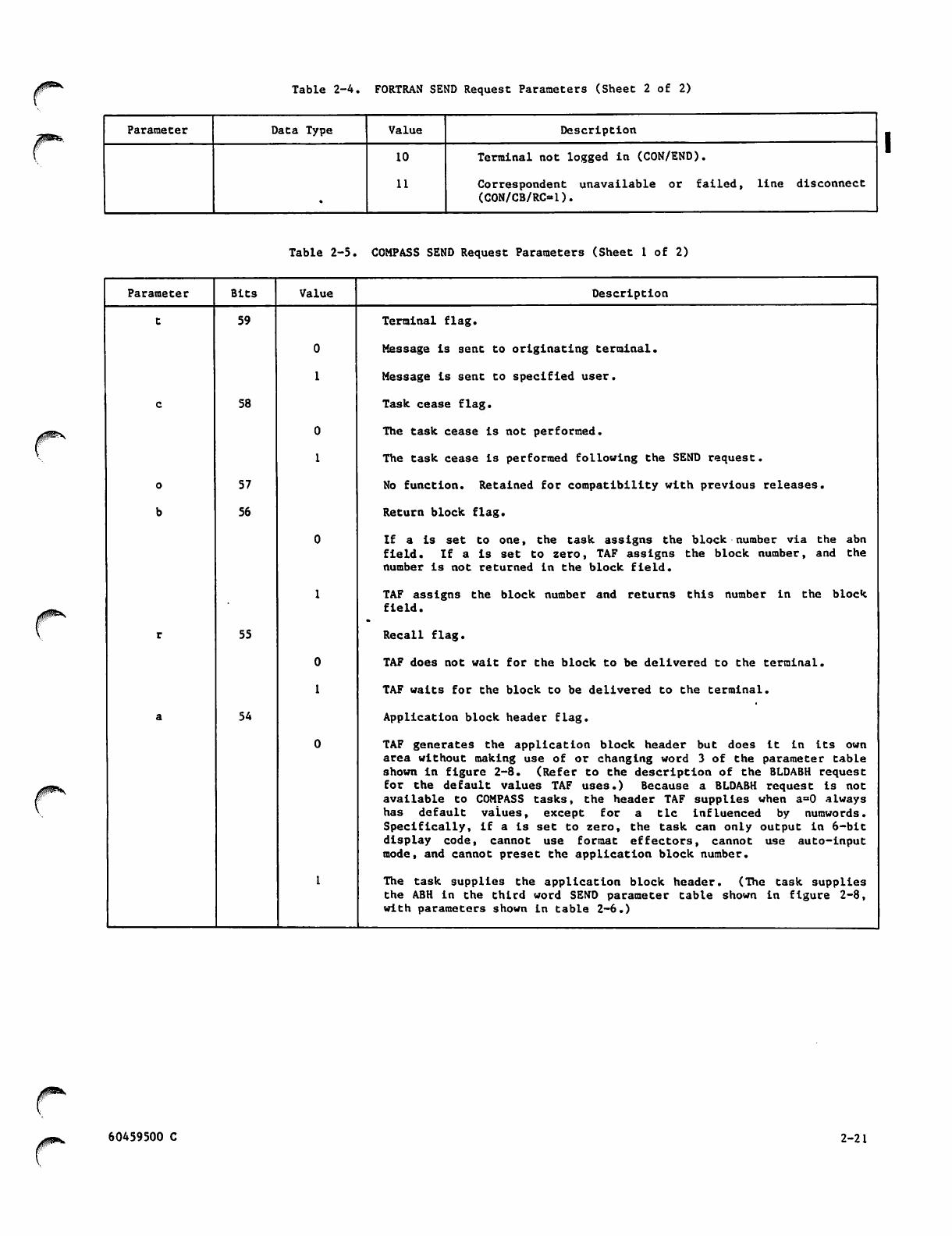

2-5 COMPASS SEND Request Parameters

2-6 COMPASS SEND Parameter Interrelationships 2-24

2-7 TSAT Keyword Descriptions 2-39

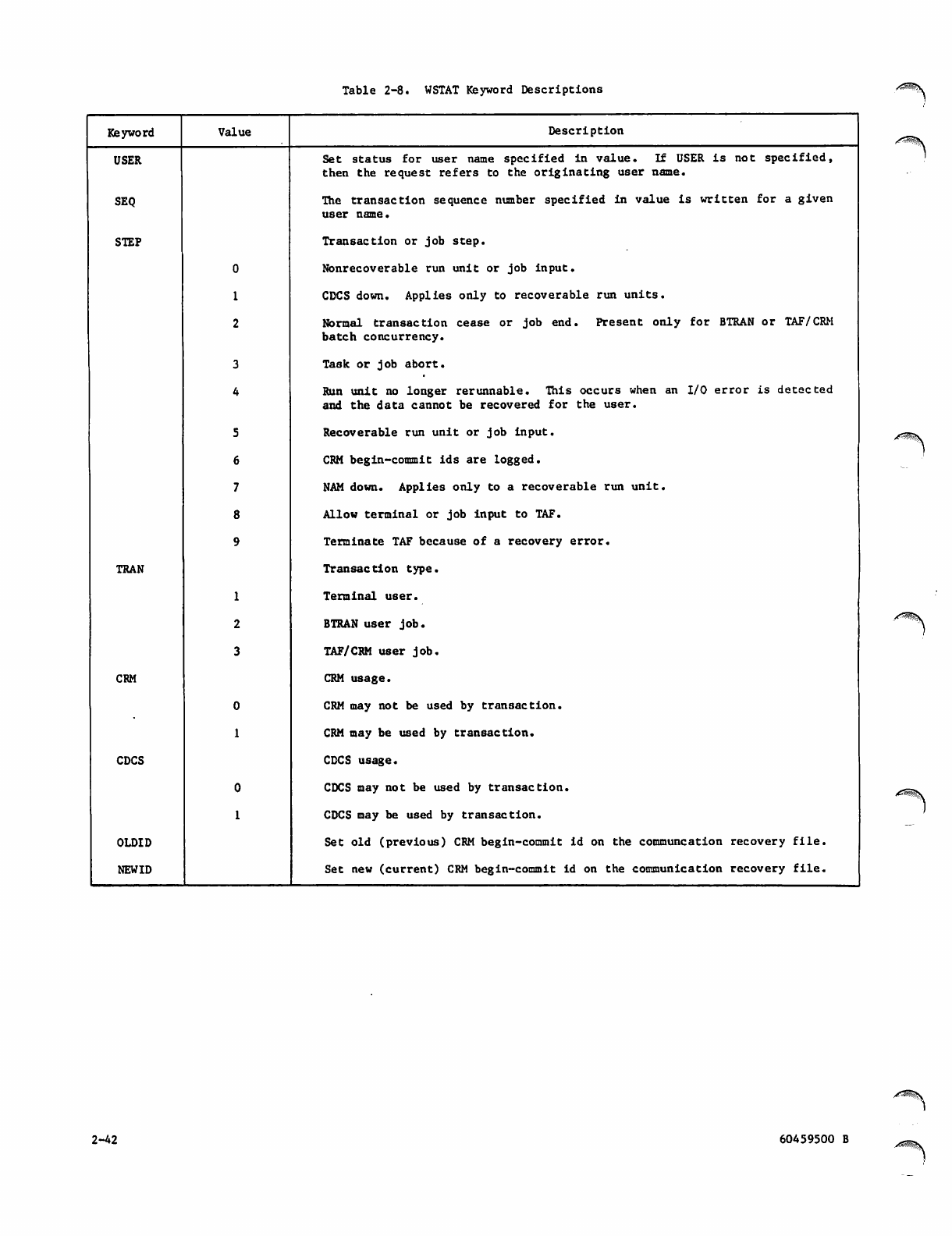

2-8 WSTAT Keyword Descriptions 2-42

5-1 BTRAN Status Values 5-2

2-13 A-l

2-15

2-18 E-l

2-20 F-l

2-21 G-l

2-24 G-2

H-l

7-Bit ASCII Code Standard Print

63/64-Character Set

Files Used by TAF

Installation Overview

Default Terminal Deﬁnitions

Parameter Ranges for Terminal

Deﬁnition Commands

Default Message Delimiter and

Transmission Keys

A-l

E-l

F-2

G-l 5

G-16

H-2

/*S3l8v

• 1 0 60459500 C /iS|!X

INTRODUCTION

/fp^>,

J8*V

TAF is a network product that controls transaction

processing. Transaction processing consists of

taking an existing collection of information, called

a data base, and correcting old data or adding new

d a t a t o c r e a t e a n u p - t o - d a t e d a t a b a s e . S u c h a

correction or addition is called a transaction.

In a transaction processing system, the data base

must be efﬁciently structured and easily accessible

to the user. A data manager provides these features.

Control Data offers the following data managers for

use with TAF.

• The CYBER Database Control System (CDCS).

• The CYBER Record Manager (CRM). (TAF

supports only those features documented In

the TAF/CRM Data Manager 1 Reference Manual.)

• The TOTAL Data Manager.

All data managers can operate concurrently.

However, a single transaction can use only:

• CDCS and one other data manager,

or

• CDCS alone,

or

• One other data manager alone.

The most important feature of TAF is its efﬁcient

system resource utilization. TAF's transaction

processing differs from other modes of operation in

that a task only contains application code.

Terminal communications are handled by one terminal

communications interface. Data base communications

are handled by one copy of a data base manager.

When tasks need to be loaded, they are simply copied

from a task library to a subcontrol point; none of

the normal overhead of loading is incurred.

The TAF control point contains application tasks as

subcontrol points. When a task completes, one of

the following occurs:

• I t m a y b e i m m e d i a t e l y r e u s e d b y o t h e r

waiting transactions (no reloading is

necessary).

• Another task may be loaded in its place.

• Other active tasks may be moved up in memory

and the remaining memory returned to the

system for use by non-TAF applications.

TAF will expand its memory to a maximum value as

needed.

Wh en th er e i s n o t ra n sa cti on acti vi ty, TAF size is

reduced to a small amount of memory. When input is

sensed, TAF rolls back in to service the request.

Figures 1-1, 1-2, and 1-3 summarize the TAF control

point and its operation.

T h e m a i n f u n c t i o n o f TA F i s o n - l i n e t r a n s a c t i o n

processing; that is, direct 'operator interface with

the data base through a terminal.

ON-LINE TRANSACTION PROCESSING

ADVANTAGES

Some advantages associated with on-line transaction

processing are:

• The operator submitting the data through TAF

can make immediate data corrections.

• The operator can verify that operations have

completed successfully. TAF allows the

operator to view additions or corrections to

the data base to verify their accuracy.

• The data base is updated in seconds. TAF

provides immediate updating capability,

which allows other transactions to make use

of the updated data base.

ON-LINE TRANSACTION PROCESSING

PROBLEMS

So me pro ble m s a ss o ci a te d with on-l ine tran sac tio n

processing and the methods that TAF uses to

alleviate them include the following.

• It is difficult to schedule and control

multiple jobs. TAF solves the problem of

multiple job control scheduling by using

subcontrol points. Like the operating

system that controls and schedules jobs to

control points (where they are processed),

TAF controls and schedules transaction

processing programs to portions of its

control point called subcontrol points.

Subcontrol points are protected from each

other by CYBER hardware memory protection.

• The terminal interface is complicated. TAF

minimizes terminal programming by using

simple input/output (I/O) commands that are

processed by the standard network terminal

interface.

60459500 A 1-1

COMMANDS DATA

BASE

D ATA

DESCRIPTION

TAF

COMMUNICA

TION

EXECUTIVE

TASKS

DATA

BASE

MANAGER

LIBTASK TASK

LIBRARY

BATCH PROGRAM

DATA

DEFINITION

^^

DATA

DESCRIP

TION

Figure 1-1. TAF Control Point for CDCS Data Manager

TAF

TRANSACTIONS

COMMUNICA

TION

EXECUTIVE

TASK

LIBRARY

DATA

BASE

INTERACTIVE OR

BATCH PROGRAM

INTERACTIVE

OR BATCH

PROGRAM

DATA

MANAGER

cCOMMANDS

Figure 1-2. TAF Control Point for TAF/CRM Data Manager

1-2 60459500 B

yrfSS^S.

J^s

DATA

DESCRIPTION

TRANSACTIONS

COMMUNICA

TION

EXECUTIVE EXECUTIVE

TASK

LIBRARY OATA

BASE

DATA

MANAGER

BATCH PROGRAM

x rCOMMANOS

Figure 1-3. TAF Control Point for TOTAL Data Manager

^^v

BATCH INTERFACE

A batch interface with TAF is also available. The

batch interface can generate large reports without

tying up a terminal until the listing has been

printed. The report can be printed at a high-speed

central site printer. Batch mode can also be used

for testing and debugging. The batch interface is

described in section 5.

NETWORK INTERFACE

The network terminal interface uses NAM and 255x

communications processors. This interface is used

by all other network products (for example, Remote

Batch Facility and Interactive Facility). If

validated, terminal users may select these

applications as well as TAF. The network provides

the following features for transaction processing.

• Managing network protocol.

• Buffering and queuing data for regulating

data ﬂow.

• Supporting a wide variety of terminals

through standardization of data formats as

well as providing the ability to handle

transparent data.

• Sharing network among communication-oriented

services.

60459500 A

The network makes use of the interactive virtual

terminal (IVT) concept. This concept abstracts

c e r t a i n f u n c t i o n s o f a v a r i e t y o f r e a l t e r m i n a l s .

The applications programmer need not be concerned

with character sets and communications protocols.

• An IVT has an input/output device that sends

or receives certain amounts of data termed

logical lines* These logical lines are

transformed into physical lines of characters

of the appropriate character set for the

real terminal.

• Logical lines that exceed the physical

capacity of the real terminal are

automatically folded into two or more

physical lines.

• The spacing of logical lines of output can

be fu r t her co n t rol l e d b y th e u s e o f fo rma t

effectors.

• Output to a device may be optionally paged,

so that data that would overwrite any output

being displayed is not sent until the

terminal user has acknowledged the preceding

output.

Both the application and the terminal user

can redeﬁne terminal characteristics of the

actual terminal, which may differ from those

assumed, and supply or redeﬁne the

operational controls provided.

1-3

When an application requires features not provided

by the IVT but known to exist on the connected real

terminal, the application may do one of the

following.

• Embed appropriate control characters in the

output text.

• Transfer data in transparent mode, in which

case all transforms are inhibited, and the

a p p l i c a t i o n h a s d i r e c t a c c e s s t o a n d

responsibility for all real terminal

features including the character set.

TASKS

The applications programmer implements a transaction

system by writing tasks. A task is a program with a

TAF interface that performs a speciﬁc function. A

single task or several tasks perform a sequence of

events called a transaction. Tasks can read and

update information on the user's data base. They

can send messages to terminals and receive input.

Tasks can also schedule other tasks to assist in

completing transactions.

Tasks that run under TAF can be written in COBOL,

FORTRAN, or COMPASS. A task differs from a normal

batch or interactive program in that it contains

calls to TAF commands and data manager commands and

m u s t h a v e a c o m m o n b l o c k ( r e f e r r e d t o a s t h e

communication block) deﬁned. The communication

block is needed to receive terminal input and pass

data between tasks. (The communication block is

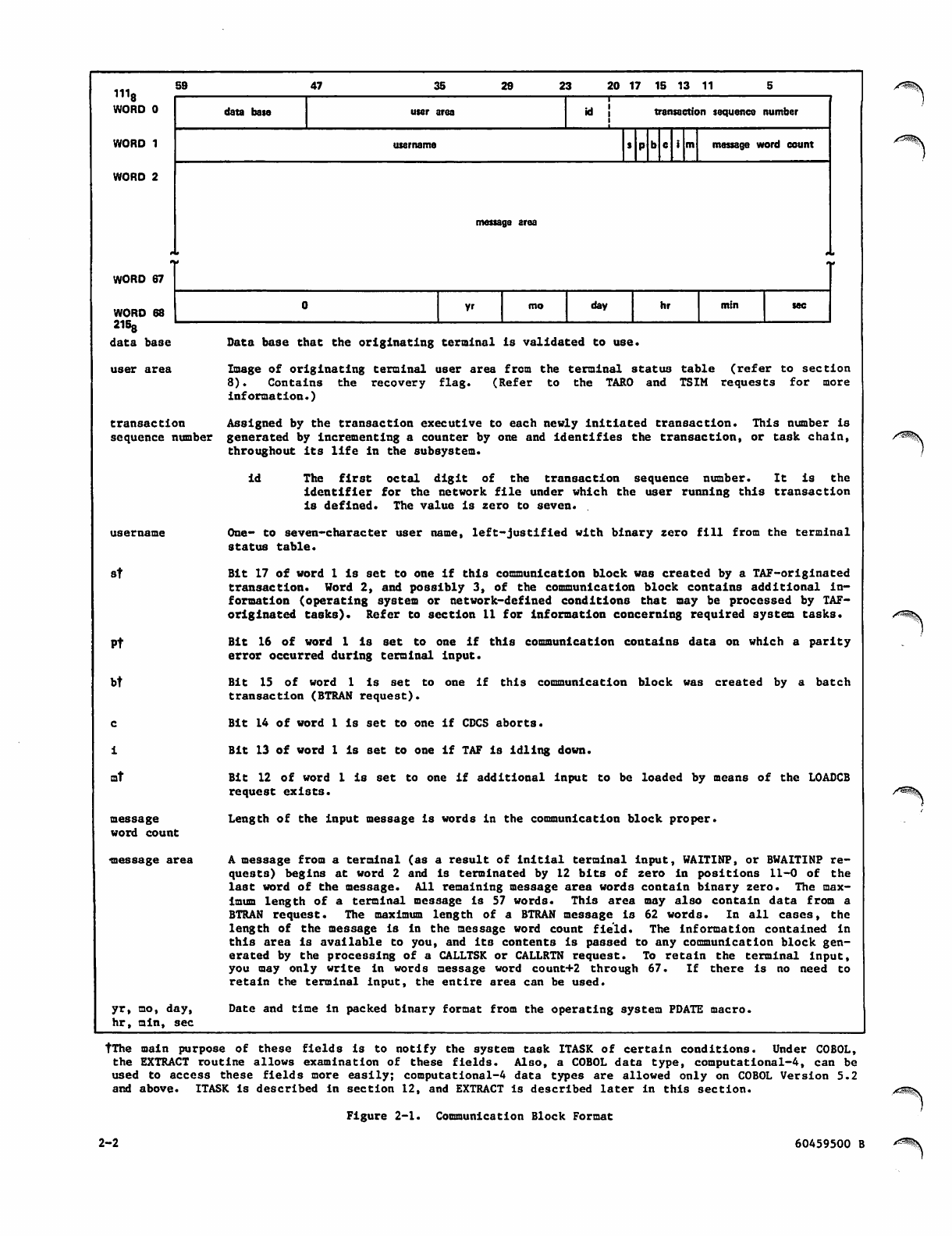

described in section 2.)

Binary copies of each task are stored in the task

library. The LIBTASK utility is used to place these

binary copies on the task library. Section 10

describes the task library and LIBTASK.

Tasks written in COBOL must be compiled with the TAF

parameter on the COBOL command. Tasks written in

FORTRAN must be compiled with the Z parameter on the

FORTRAN command (FORTRAN 4) or with DB=0 on the FTN5

command (FORTRAN 5).

TRANSACTION PROCESSING

After following the login procedures outlined in

appendix J, the user indicates the transaction to be

performed by entering a code that is assigned by the

system designers. Such a code could specify that a

user is entering a loan payment; another code would

be used to close out a loan, and so on. TAF receives

this Initial input and places it in a communication

block. This communication block is the means by

which the data is passed from a terminal to a task

or from task to task.

When a transaction is completed, the communication

block is released and can be used by other

tra nsactio ns.

After the communication block has been constructed,

TAF schedules an initial task (ITASK) to interpret

the code the user entered. Using this code, ITASK

requests TAF to schedule the appropriate task(s) to

process the transaction. The task scheduled may

also call other tasks to assist in completing the

transaction.

TAF REQUESTS

Communication between terminals and tasks is

accomplished by using TAF requests. Output can be

sent to a transaction terminal from the task by

u s i n g t h e S E N D r e q u e s t . W h e n t h i s r e q u e s t i s

processed, control passes to TAF. TAF extracts the

message from the task and passes it to the network.

The message is then transmitted to the transaction

terminal, and control passes back to the task for

additional processing.

When a task requires additional input from the

terminal, the WAITINP request is used. The task

performs a SEND request to send output to the

terminal, prompting the terminal operator for the

needed input. The WAITINP request is then

processed. Since the terminal operator takes

seconds to respond to the request, the task is

rolled out of central memory and the subcontrol

point and communication block are released. These

resources can then be used to process other

t r a n s a c t i o n s w h i l e t h e t e r m i n a l o p e r a t o r i s

responding. When TAF receives the requested input,

it places it into a new communication block, and the

task is rolled into an available subcontrol point.

The new communication block is passed to the task,

and the task continues processing.

Thes e and o ther re qu ests ar e f ur th er described in

sections 2 and 5.

ENTERING THE TRANSACTION SUBSYSTEM

The subsystem you will be accessing is the TAF

subsystem. There are various procedures for

accessing this transaction subsystem. These methods

are discussed in detail in appendix J. Using

appendix J, a coordinator of TAF activities at a

particular site who knows the types of users and

a p p l i c a t i o n s a t t h e s i t e c a n d e t e r m i n e t h e m o s t

desirable access procedures.

Because of the ﬂexibility of the network and the

transaction subsystem, the procedure to access the

transaction subsystem can vary substantially from

site to site. Therefore, the coordinator of

transaction subsystem operations at each site should

provide each user, or terminal location, with a

detailed login procedure for that site.

The site should also provide information concerning

terminal characteristics. A variety of terminal

classes Is supported for use on the network with

1-4 60459500 C

J#*^

TAF. Each of these terminal classes has character

istics, which the analyst can change by modifying the

network ﬁles and which you can change by entering

terminal deﬁnition commands.

A discussion of the terminal characteristics, the

defaults for each terminal class, and the procedure

for changing these characteristics at a terminal is

included in appendix G.

IMPLEMENTING AN APPLICATION

T h e f o l l o w i n g s t e p s s p e c i f y t h e p r o c e d u r e f o r

implementing an application.

1. Review this manual.

2. Design the application including:

• Selection of the data manager (CDCS

and/or CRM, or TOTAL) to allow the

correct choice of ﬁle types, ﬁle

structure, and ﬁle interaction.

• Selection of recovery and backup

techniques, including journalizing

o f ﬁ l e s .

Refer to the CYBER Database Control System 2

Reference Manuals, the TAF/CRM Data Manager

1 Reference Manual, or the TOTAL - CDC 2

Reference Manual for more information (publi

cation numbers are listed in the preface).

3. Describe and Install the data base using the

data manager. Refer to the appropriate data

manager reference manual for this procedure.

4 . Te s t l o a d t h e d a t a b a s e u s i n g t h e d a t a

manager commands (usually done in batch

mode).

5. Using the application design, write the

a p p l i c a t i o n t a s k s t o p r o c e s s t r a n s a c t i o n

input.

6. Optionally modify ITASK to reﬂect the

actual application. Tasks MSABT, LOGT, and

SYSMSG may also require modiﬁcation.

(Refer to section 11.)

7. Build a task library. (Refer to section 10.)

8 . B u i l d a n x xJ ﬁ le . ( R e f e r t o se c t i o n 4 . )

9. Build a network ﬁle, and use NDL to

conﬁgure terminals and establish login

sequences and terminal characteristics.

10. Build the TAF conﬁguration ﬁle (TCF).

(Refer to section 4.)

Tasks reside at subcontrol points within the ﬁeld

length of the transaction executive. Each task runs |

with its own exchange package, reference address

(relative to the transaction executive), and ﬁeld

length (a subset of the ﬁeld length of the trans

ac tio n exec uti v e) . A t a sk , t h ere for e , c an res ide in

any contiguous segment within the transaction execu

tive ﬁeld length. Memory is allocated in 100g

word blocks located on even lOOg word boundaries

(for example, 32100g to 32200s). A subcontrol

point consists of one 120g word block of memory

for system use, followed by sufﬁcient blocks to

contain an entire task.

The subcontrol point feature allows the transaction

executive to control each task. Some of the advant

ages associated with the subcontrol points are:

• Isolating one subcontrol point from other

subcontrol points and the transaction

executive. This means that no application

program can destroy the transaction

executive or circumvent system security.

• Blocking RA+1 requests from a subcontrol

point. No requests are allowed directly

fr om a su bc ont ro l p oint to NOS. A ny such

r e q u e s t s a r e i n t e r c e p t e d b y t h e s y s t e m

monitors, which return control to the

transaction executive. Thus, the only RA+l

requests a task can legally issue are those

processed by the transaction executive.

This includes requests to the data managers.

The transaction subsystem allows a maximum of 31

subcontrol points. An installation parameter sets

the number of subcontrol points that the transaction

executive initializes. When the transaction

executive is loaded, the operator can select a

number of subcontrol points other fhan this default

value. The number of subcontrol points must not be

less than 2 nor greater than 31. Once the

transaction subsystem is initialized, no change in

the number of subcontrol points is allowed. The

optimum number of subcontrol points is selected by

the site.

Each subcontrol point requires eight words of table

space. No space, other than a table entry, is

allocated for a subcontrol point unless it is

active. Each active subcontrol point has 11lg

words reserved, beginning at RA, similar to those

used for batch control points.

MULTIMAINFRAME

Under a multimalnframe conﬁguration, the transaction

subsystem can be run on either or both mainframes.

However, a data base and J0UR0 ﬁle (section 4)

cannot be shared by the transaction subsystems.

Each subsystem must have a unique data base.

11. Test the system.

SUBCONTROL POINTS

The following discussion is intended for analysts

and may be omitted by the applications programmer.

EXTENDED MEMORY

TAP does not allow the use of your access to

extend ed m emory. However, th e TAF procedur e ﬁle

can declare data ﬁles and libraries as extended

memory-resident.

60459500 C 1-5

/^^%\

0^*- TASK/TRANSACTION EXECUTIVE INTERFACE

0^^

A task is isolated from th e data manager and the

remainder of the system by the transaction

executive. The isolation guarantees that errors in

a task do not propagate beyond the task. The

following types of requests constitute the interface

between the task and the transaction executive.

• Data manager requests

• Journal file requests

• Memory dump requests

• System requests

• Task scheduling requests

• Input/output requestst

• Task control requests

• Ta s k u t i l i t y r e q u e s t s

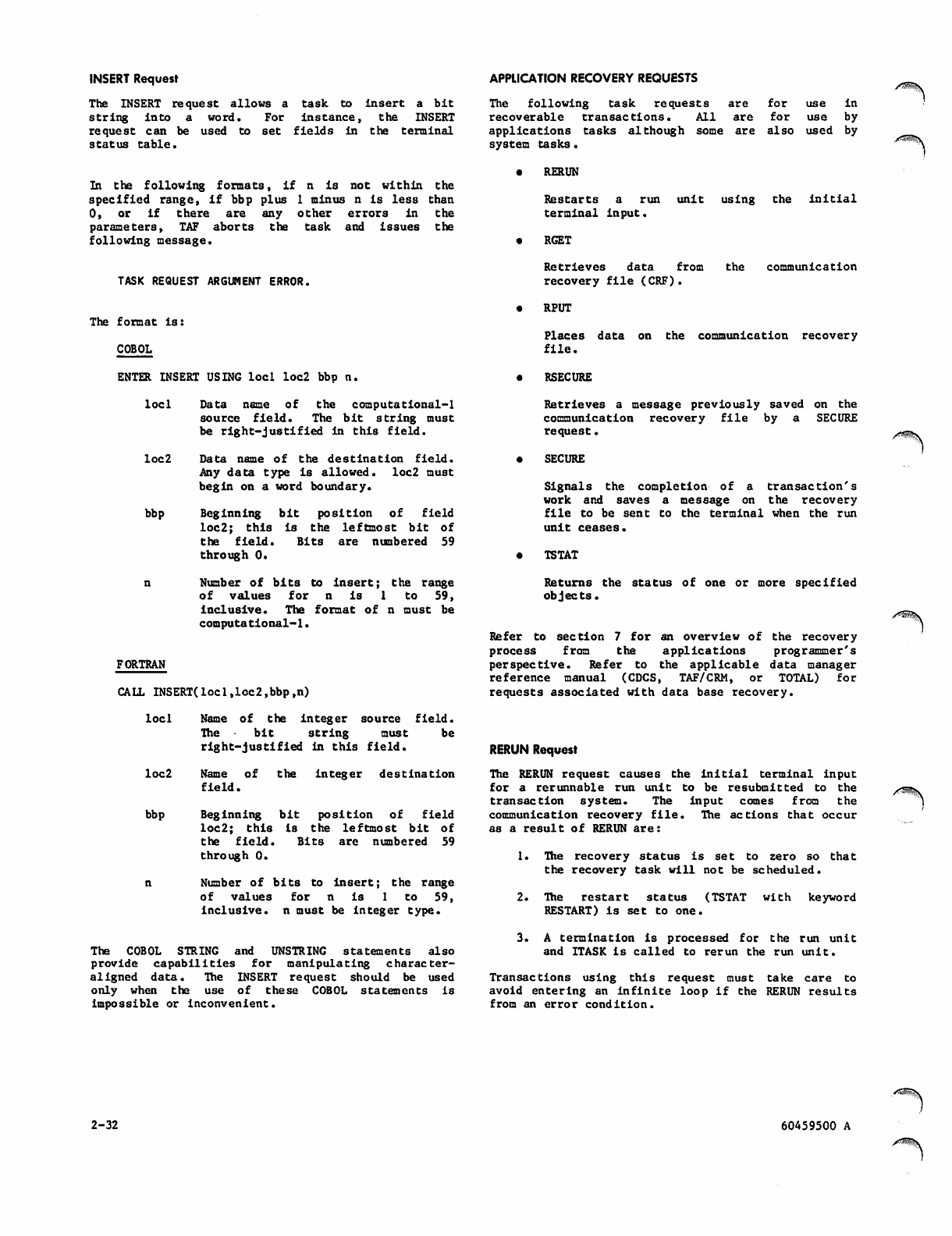

• Application recovery requests

• System recovery requests

Internally, a task performs a request by loading

address RA+1 of its subcontrol point. This activity

is not visible to the applications programmer who

uses the macros or calls given In this section. The

transaction executive uses the request parameters to

determine what processing is required by the task.

The address ﬁeld and any ﬁelds in a parameter list

that reference an address contained within the task

are veriﬁed to ensure that the address referenced

is within the ta sk ﬁe ld length.

Tasks communicate with each other and accumulate

input by using the communication block. The

communication block is discussed next, followed by

the types of requests.

the communication block (refer to the description of

m in ﬁgure 2-1). If the communication block is

passed between tasks in a transaction and overﬂow

data is present, other tasks in the transaction can

access this data with a LOADCB request.

If COBOL is used, the communication block must be

described in the COMMON-STORAGE SECTION. Shown here

is an example of such a description:

DATA DIVISION.

COMMON-STORAGE SECTION.

01 COMMUNICATION-BLOCK.

03 CB-HEADER-AREA-WORD-ZERO.

05 CB-OATA-BASE-NAME

05 CB-USER-TST-AREA

05 CB-TRANS SEQ-NUMBER

03 CB-HEADER-AREA-WORD-ONE.

05 CBHJSERNAME

05 CB-INPUT-STATUS-BYTE

05 CB-MESSAGE-WORD-COUNT

03 CB-MESSAGE-AREA

03 USER-AREA

03 CB-TRAILER-AREA.

05 FILLER

05 CB-PACKED-0ATE.

07 CB-YEAR

07 CB-M0NTH

07 CB-DAY

05 CB-PACKED-TIME.

07 CB-H0UR

07 CB-MINUTE

07 CB-SEC0ND

WORKING-STORAGE SECTION.

PIC X(2).

COMP-4 PIC 9C6).

COMP-4 PIC 9(6).

PIC X(7).

COMP-4 PIC 9.

COMP-4 PIC 99.

PIC X(570).

PIC X<90).

PIC X(4).

COMP-4 PIC 9.

COMMUNICATION BLOCK

Communication between a chain of tasks is provided

by the communication block. The initial input or

the input from a terminal as a result of the WAITINP

request (refer to Input/Output Requests later in this

section) is also stored in the communication block.

The communication block can be used to pass parame

ters or data from task to task. The format of the

communication block is shown in ﬁgure 2-1. The

length of terminal input is not restricted by the

length of the communication block. The LOADCB re

quest is available to read extra input that overﬂows

T h i s w i l l b e r e f e r r e d t o i n t h e m a n u a l a s t h e

standard COBOL communication block because of the

correspondence between it and the ﬁelds shown and

described in ﬁgure 2-1. However, applications

programmers may ﬁnd it convenient to use a more

abbreviated communication block when possible.

C O M P - 4 i s s p e c i ﬁ e d f o r d a t a a r e a s i n t e n d e d f o r

numerical information. Refer to the COBOL 5 Refer

ence Manual for information on the relationship

between the number of digits speciﬁed in the

picture clause for COMP-4 data and the number of

bits reserved.

TThe standard CMR-supported, compiler-generated I/O calls from FORTRAN and COBOL are not allowed.

SORT verb is not supported.

The COBOL

J^ 60459500 B 2-1

1118

WORD 0

WORD 1

WORD 2

59 4 7 3 5 2 9 2 3 2 0 17 15 13 1 1 5

data bate user area i d | t r a n s a c t i o n s e q u e n c e n u m b e r

i

usemame message word count

message area

WORD 67

WORD 68

215g

data base

user area

vr day hr min

Data base that the originating terminal is validated to use.

Image of originating terminal user area from the terminal status table (refer to section

8). Contains the recovery ﬂag. (Refer to the TARO and TSIM requests for more

information.)

transaction Assigned by the transaction executive to each newly initiated transaction. This number is

sequence number generated by incrementing a counter by one and identiﬁes the transaction, or task chain,

throughout its life in the subsystem.

id The ﬁrst octal digit of the transaction sequence number. It is the

identiﬁer for the network ﬁle under which the user running this transaction

is deﬁned. The value is zero to seven. .

username

st

Pt

bt

c

i

mt

message

word count

•message area

yr, mo, day,

hr, min, sec

One- to seven-character user name, left-justiﬁed with binary zero ﬁll from the terminal

status table.

Bit 17 of word 1 is set to one if this communication block was created by a TAF-originated

transaction. Word 2, and possibly 3, of the communication block contains additional in

formation (operating system or network-deﬁned conditions that may be processed by TAF-

originated tasks). Refer to section 11 for information concerning required system tasks.

Bit 16 of word 1 is set to one if this communication contains data on which a parity

error occurred during terminal input.

Bit 15 of word 1 is set to one if this communication block was created by a batch

transaction (BTRAN request).

Bit 14 of word 1 is set to one if CDCS aborts.

Bit 13 of word 1 is set to one if TAF is idling down.

Bit 12 of word 1 is set to one if additional input to be loaded by means of the LOADCB

request exists.

Length of the input message is words in the communication block proper.

A message from a terminal (as a result of initial terminal input, WAITINP, or BWAITINP re

quests) begins at word 2 and is terminated by 12 bits of zero in positions 11-0 of the

last word of the message. All remaining message area words contain binary zero. The max

imum length of a terminal message is 57 words. This area may also contain data from a

BTRAN request. The maximum length of a BTRAN message is 62 words. In all cases, the

length of the message is in the message word count ﬁeld. The information contained in

this area is available to you, and its contents is passed to any communication block gen

erated by the processing of a CALLTSK or CALLRTN request. To retain the terminal input,

you may only write in words message word count+2 through 67. If there is no need to

retain the terminal input, the entire area can be used.

Date and time in packed binary format from the operating system PDATE macro.

TThe main purpose of these ﬁelds is to notify the system task ITASK of certain conditions. Under COBOL,

the EXTRACT routine allows examination of these ﬁelds. Also, a COBOL data type, computational-4, can be

used to access these ﬁelds more easily; computational-4 data types are allowed only on COBOL Version 5.2

and above. ITASK is described in section 12, and EXTRACT is described later in this section.

Figure 2-1. Communication Block Format

2-2 60459500 B

If FORTRAN is used, the communication block must be

in the ﬁrst block of labeled common.

If more data is input than can be contained in the

communication block, the LOADCB request may be used

to obtain the input.

REQUESTS

The following paragraphs describe the various types

of requests a task can make. They describe task

scheduling, input/output, task control, and task

utility requests and show the formats for making

these requests from tasks written in FORTRAN, COBOL,

and COMPASS.

COBOL Statements

ACCEPT x FROM DATE.

ACCEPT x FROM TIME.

ACCEPT item FROM TTY.

DISPLAY item UPON TTY.

These requests are described in detail in Volume 4

of the NOS 2 Reference Set, FORTRAN Extended 4

Reference Manual, FORTRAN 5 Reference Manual, and

the COBOL 5 Reference Manual. (Refer to the preface

for publication numbers.)

DATA MANAGER REQUESTS

A task can make data manager requests to one of the

data managers, (CDCS, CRM, or TOTAL) supported by

the transaction subsystem. (Refer to the preface

for a list of the publications that document these

data managers and the requests used.)

MEMORY REQUESTS (COMPASS ONLY)

Tasks can interrogate the status of and change their

central memory (CM) ﬁeld length (FL) via the RA+1

requests MEM and RFL. The format of these calls is

doc ument ed f or t he MEMORY m acro in the NOS 2

Reference Set, Volume 4. The use of these requests

in TAF is restricted as follows:

JOURNAL FILE REQUESTS

A task can supplement automatic journal ing by

w r i t i n g d a t a o n a j o u r n a l ﬁ l e . J o u r n a l ﬁ l e s a n d

the journal requests are discussed in section 4.

MEMORY DUMP REQUESTS

These requests are discussed in section 6.

SYSTEM REQUESTS

System requests from transaction tasks are limited

to the following.

COMPASS Macros

ABORT

DATE x

ENDRUN

JDATE x

MEMORY (as described bel ow)

MESSAGE x (to console B display, line one

only)

PDATE x

RTTME x

TIME x

FORTRAN Functions and Subroutine Calls

DATE(x) or CALL DATE(x)

JDATE(x) or CALL JDATE(x)

TTME(x) or CALL TIME(x)

60459500 B

Me mo ry reques ts sho uld b e i ss ued w ith the

re c a ll ( r p a r ame t e r); ot h e rwi s e , c o ntr o l ma y

be returned before the request is processed.

There is an upper limit beyond which a task is

not allowed to increase its CM space; this

limit is referred to as the maximum task ﬁeld

length (MFL). The MFL for each task is equal

to the task FL plus the value speciﬁed by the

EF LIBTASK directive for the task (refer to

section 10). If a task attempts to exceed

this value, it may be aborted (refer to docu

mentation of the MEMORY macro NA parameter in

the NOS 2 Reference Set, Volume 4).

Field length cannot be decreased to less than

the last word address of the default commun

ication block transfer address rounded up to

the nearest 100s«

A non-CM-resident task making a memory request

may be rolled out of CM if the request cannot

be satisﬁed initially.

Since a task making a memory request may be

rolled out, it may be desirable to free locked

data manager resources prior to the request.

Tasks will also be allowed to use the common memory

manager (CMM) with the following restrictions:

The processing performed by CMM for the task

must not result in CMM using the fast dynamic

loader or the task will be aborted.

• The preceding restrictions on use of MEM and

RFL requests apply.

Common memory manager requests are documented in

detail in the Common Memory Manager 1 Reference

Manual.

2-3

MESSAGE REQUESTS • NEWTRAN

COMPASS tasks can issue messages to the operator or

the JOURO ﬁle by using the RA+1 request MSG. The

function code determines the disposition of the

message. Function code zero causes the message to

be written to only the JOURO ﬁle. Function code

one causes the message to be placed in line one of

the B display.

FORTRAN termination messages are also written to the

JOURO ﬁle.

COBOL and FORTRAN tasks can issue messages to TAF's

dayﬁle by using the TMSG request. The tasks that

iss ue this request must reside in th e syst em t ask

library. TASKLX6

The TMSG request issues a message to TAF's dayﬁle.

The format is:

Initiates up to ﬁve new tasks (COMPASS

only).

• TRANCHK

Checks to see if a speciﬁc task is active

(COMPASS only).

1 NOTE |

If a list has either no tasks or more

than ﬁve tasks, TAF aborts the task

and issues the following error

message on the screen.

TASK REQUEST ARGUMENT ERROR

COBOL

ENTER TMSG USING message[.length].

message A 01-level data item containing

the dayﬁle message.

length A computational-l data item

specifying the length of the

message in characters. The

maximum length is 80 characters.

FORTRAN

CALL TMSG(message,length)

message The name of the array that

contains the dayﬁle message.

length An integer specifying the length

of the message in characters.

T h e m a x i m u m l e n g t h i s 8 0

characters.

TASK SCHEDULING REQUESTS

A task, including ITASK (refer to section 11), can

call in order a list of other tasks. This process

is referred to as task scheduling. The following

four requests can be used to schedule tasks.

• CALLRTN

Calls up to ﬁve tasks. Upon completion of

the called chain of tasks, returns control

to the calling task.

• CALLTSK

Calls up to ﬁve tasks. The task making the

call either ceases or continues to run,

allowing the new task chain to proceed

independently.

CALLRTN Request

The CALLRT N request is use d to request that t he

transaction executive schedule a task or series of

tasks, with control returning to the calling task

upon completion of the called tasks. A CALLRTN

request cannot be made while data manager requests

are outstanding. The current communication block is

passed to the called tasks and returned to the

caller when the caller is reinitiated. Upon return,

the caller begins execution immediately after the

CALLRTN request. Only the information in the

communication block may have changed. Return from

the called tasks to the caller takes place

automatically after the last called task ceases. A

task waiting for return may be temporarily rolled

from memory.

The format is:

COBOL

ENTER CALLRTN USING task! task2«..taskn.

task^ Parameter whose value Is a one-

to seven-character alphanumeric

task name. The tasks are

scheduled by CALLRTN in the

o r d e r s p e c i ﬁ e d . F r o m o n e t o

ﬁve tasks can be speciﬁed.

FORTRAN

CALL CALLRTN(taskl,task2 taskn)

taski Parameter whose value is a one-

to seven-character alphanumeric

task name, left-justiﬁed with

either blank or binary zero ﬁll

to a w o rd b o u ndar y. T h e t a s k s

are scheduled by CALLRTN in the

order speciﬁed. From one to

ﬁve tasks can be speciﬁed.

y*^^\

2-4 60459500 C

COMPASS

CALLRTN address

com m u n i c a t i on b l o c k b a c k to th e ca l l i n g t a s k an d

allow it to continue execution at the instruction

immediately following the CALLRTN command.

/^v

address Address of a list of from one to

ﬁve task names. Each task name

must be left-justiﬁed with

binary zero ﬁll to a word

boundary. The list is

terminated by a word of binary

zeros. Tasks are scheduled by

CALLRTN in the order they appear

on the list.

("note"!

If taski, speciﬁed on a CALLRTN

request, makes a CALLRTN request,

taskj + 1 through task,,, speci

ﬁed on the original CALLRTN request,

a r e n o t sc h e d u l e d . ( R e f e r t o ﬁ g u r e

2-4.)

The following diagrams illustrate CALLRTN processing.

TASK

A

TASK

8

TASK

c

TASK

O

1

1 *

1—

I a >

1'

C B .

■— v . ,

C.B. #■C8.

CALLRTN

CS.

JS»\

I n ﬁ g u r e 2 - 2 , TA S K A , a t s u b c o n t r o l p o i n t X ,

executes a CALLRTN to TASK B. TAF will ﬁrst load a

copy o f TA S K B to a n av a i l a b l e su b c o n t r o l po i n t

(unless a serially reusable copy of TASK B is

already at a subcontrol point or CM-resident). TAF

will then copy the contents of TASK A's

communication block (CB) to TASK B's communication

block area. TASK B begins execution. When TASK B

has completed execution, TAF will copy the

communication block, which was probably modiﬁed by

TASK B, back to TASK A and allow TASK A to continue

execution at the instruction immediately following

the CALLRTN command.

Figure 2-3. CALLRTN (Chain)

Figure 2-4 illustrates the processing referred to in

the preceding note. The majority of the data inputs

are handled by the TASK B-C-D chain. When an excep

tion is f o u n d i n TA S K C, exc e p t i o n pr o c e s s i n g i s

invoked in the TASK E-F chain. Each new CALLRTN

command cancels the previous one (TASK D is not

executed), but TAF will always bring control back to

the instruction immediately following the original

CALLRTN command (TASK A). The communication block

is passed from task to task as shown in ﬁgures 2-2

and 2-3.

TAF

1C B .

!1

14

/

1/

1

1 • »

TASK A TASK a

CS. CS.

CALLRTN

SUBCONTRO

POINT X J SUMONTROL

POINT Y

Figure 2-2. CALLRTN

The CALLRTN command allows a chain (list) of up to

ﬁve tasks to be called. Figure 2-3 shows TASK A

calling a chain of three tasks. As each task in the

chain is completed, TAF will automatically pass the

communication block to the next task in the chain

and allow that task to execute. When the last task

in the chain has completed, TAF will pass the

MAIN

PROCESSING

PATH

> ALTERNATE

PROCESSING

PATH

TASK

A

CALLRTN

TASK |

B .

CALLRTN

i ^ r

L_J

task]

-1

I

_*_

TASK

E

TASK I

D I

TASK

F

Figure 2-4. CALLRTN (Multiple Chains)

/|P"v 60459500 B 2-5

CALLTSK Request

The CALLTSK request is used to request that the

transaction executive schedule a task or series of

tasks (task chain). Included in this request is a

parameter option that enables task branching or a

CEASE function to be performed after the call is

ho no re d. If t he tas k is not t o c ea se on thi s cal l,

a branching of the chain initiates a new chain that

is Independent of the original chain. The new chain

is assigned a new sequence number for unique

identiﬁcation within the transaction subsystem

(ﬁgure 2-1). The number of branches allowed by a

transaction is controlled by an assembly constant

MAXBW. If a CALLTSK request without a CEASE request

is issued from a recoverable transaction, recovery

may be affected. Refer to CALLTSK without CEASE and

Recovery in section 7.

The format is:

code

COBOL

ENTER CALLTSK USING task code task1#. .tas^.

task Parameter whose value is a one-

Co seven-character alphanumeric

task name. This task is the

next task to call in the present

task chain (same sequence

number) if code is set to zero;

otherwise, it is the ﬁrst task

o f a b r a n c h c h a i n ( t h e c a l l e d

task gets a different sequence

number and proceeds independently

of the calling task).

code Computational-l item whose value

i s n o n z e r o i f t h e c a l l i n g t a s k

is to continue after the

request, initiating an

independent task chain. If the

value of this parameter is zero,

t h e c a l l i n g t a s k c e a s e s a f t e r

this request. This parameter

must be speciﬁed.

task^ parameter whose value is a one-

to seven-character alphanumeric

t a s k na m e . Fr o m z e r o t o f o u r

t a s k s c a n b e s p e c i ﬁ e d . Th e s e

tasks are scheduled after the

one speciﬁed in the task

parameter.

FORTRAN

CALL CALLTSK(task,code,taskj,..., task^

task Parameter whose value is a one-

to seven-character alphanumeric

t a s k n a m e , l e f t - j u s t i ﬁ e d w i t h

either blank or binary zero ﬁll

to a word boundary. This task

is th e ne xt t ask to ca ll i n t h e

present task chain (same

sequence number) if code is set

t o z e r o ; o t h e r w i s e , i t i s t h e

ﬁrst task of a branch chain

(the called task gets a

different sequence number and

proceeds independently of the

calling task).

task*

Integer whose value is nonzero

i f t h e c a l l i n g t a s k i s t o c o n

tinue after the request, initiat

ing an independent task chain.

If the value of this parameter

is zero, the calling task ceas es

after this request. If not

speciﬁed, the default is zero.

Parameter whose value is a one-

to seven-character alphanumeric

t a s k n a m e , l e f t - j u s t i ﬁ e d w i t h

e i t h e r b l a n k o r b i n a r y z e r o ﬁ l l

to a word boundary. From zero

to four tasks can be speciﬁed.

These tasks are scheduled after

t h e o n e s p e c i ﬁ e d i n t h e t a s k

parameter.

COMPASS

CALLTSK address,cease

address Address of a list of from one to

ﬁve task names. Each task name

oust be left-justiﬁed with bina

ry zero ﬁll to a word boundary.

The list is terminated by a word

of binary zeros. CALLTSK sched

ules the tasks in the order they

appear on the list.

cease If speciﬁed, the calling task

ceases after this request. If

not speciﬁed, the calling task

continues after the request. In

this case the CALLTSK initiates

an independent task chain.

The following ﬁgures illustrate CALLTSK processing.

Figure 2-5 shows TASK A making a CALLTSK with a CEASE

request to TASK B. TAF will load a copy of TASK B to

an available subcontrol point (this step is not nec

essary if a serially reusable copy of TASK B is al

ready at a subcontrol point or is CM-resident). The

communication block will be copied from TASK A to

TASK B. TASK A's subcontrol point is released for

use by other transactions, and TASK B is allowed to

begin execution.

TASK

A

TASK

B

x s H T A F

X

CS.

CALLTSK

1'

Nx

C S .

^-

-l,«»*"

*****

CB.

2-6

Figure 2-5. CALLTSK with CEASE Request

60459500 B

/$^N The CALLTSK without a CEASE request allows a new

asynchronous chain to be started. In ﬁgure 2-6,

TASK A uses this command to call TASK B. TAF will

copy the contents of TASK A's communication block to

a new communication block. A copy of TASK B will be

loaded to an available subcontrol point (unless a

serially reusable copy of TASK B is already at a

subcontrol point or is CM-resident). The new

communication block will be copied to TASK B. TASK

A is allowed to continue execution and TASK B is

allowed to begin execution.

NEWTRAN Request (COMPASS Only)

The NEWTRAN request initiates a new transaction

chain with a unique sequence number and with the

data base, user area, and user name set to zero in

the communication block. The NEWTRAN request is

designed for system use, primarily by ITASK, and is

provided only for COMPASS.

The format is:

COMPASS

NEWTRAN address

address Address of a parameter table in

the form shown in ﬁgure 2-7.

TASK

A

TAF

CS. NEW CB. r— CB.

CALLTSK

I

TASK

B

Figure 2-6. CALLTSK without CEASE Request

J*5^

59 2 3 0

*

9

V/MMfr^^^^^^^^^^^, sequence

task|

* *

t #

task

0

seqt

tasl

jence The transaction executive returns a new 24-bit binary transaction sequence number

in this ﬁeld.

One- to seven-character task name, left-justiﬁed with binary zero ﬁll. From

one to ﬁve tasks can be speciﬁed; the list is terminated by a word of binary

zeros. NEWTRAN schedules the task In the order they appear on the list.

Figure 2-7. NEWTRAN Parameter Table

60459500 B 2-7

TRANCHK Request

The T RA NC HK request d et er mi nes th e status of a

transaction. This request is provided only for

COMPASS.

The format is:

COMPASS

TRANCHK address

address Address of a parameter table in

the form shown in ﬁgure 2-8.

BLDABH

Builds the application block header to use

different character types, terminal format

effectors, and auto input.

• GETABH

Returns the last application block header to

the task.

• TERMDEF

Deﬁnes the operational controls or format

of the terminal.

/■fSSsV

INPUT/OUTPUT REQUESTS

The following requests are associated with

input/output.

• WAITINP

Places terminal input data in the

communication block. Equivalent to a read

request.

• LOADCB

Reads data that overﬂowed the communication

block.

• SETCHT

Sets character type for terminal input.

• S E N D

Sends data to terminal. Equivalent to a

write request.

• RELSCB

Releases memory used for extra communication

blocks.

• T S I M

Reads terminal status table.

• TA R O

Writes into terminal status table.

59 4 1 1 7

y///y////vyywyfﬁwZ'. sequence status

sequence Binary transaction sequence number which identiﬁes the transaction

task chain).

( t a s k o r

st a t u s The system returns one of the following as status in this ﬁeld.

1 The task chain is still active.

0 The task chain is Inactive.

,<?S^v

/ s l %

Figure 2-8. TRANCHK Parameter Table

2-8 60459500 A

no

Limits total number of requests (RA+1 calls)

a task can make.

BWAITINP

Speciﬁes that terminal input data is to be

placed in a location in the task ﬁeld length

that is not reserved for the communication

block.

TPSTAT

Returns a value indicating that the active

terminal subsystem is NAM.

BEGIN

When a WAITINP request is processed, all communica

tion blocks are released and the task is rolled out.

All data in the communication block, except the

transaction sequence number, will be lost, so the

user should save any data to be preserved prior to

the request. When input arrives from the terminal, a

new communication block is generated, and the task is

restarted. The new communication block will contain

the transaction sequence number associated with the

task prior to the WAITINP request. If the request

does not return a normal status, the information in

the communication block is meaningless.

The format is:

COBOL

ENTER WAITINP USING status time.

Speciﬁes the area where the terminal trans

m i s s i o n i s to b e pl a c e d i n t h e t a s k ﬁe l d

length. It does not return the communication

block to the ﬁrst word address of the task

unless the task requests.

s t a t u s C o m p u t a t i o n a l - l i t e m t h a t t h e

system sets to indicate the sta

tus of the WAITINP request. Upon

completion of the request, status

has one of the following values.

J ^ ^

j^^\

WAITINP Request

The WAITINP request (wait for terminal input) reads

data from a terminal. Internally, this request in

forms the transaction executive that the next input

received from a terminal is to be passed directly to

t h e r eq u e s t i n g t a s k an d i s no t t o i n i t i a t e a ne w

transaction. The data entered is placed in the mes

sage area of the communication block. The data held

in the communication block prior to the WAITINP is

lost.

The ﬁrst parameter is a data item or variable whose

value the system sets to indicate the reception of

terminal input or an error condition. An optional

second parameter of the request speciﬁes a time

limit, after which processing of the transaction is

restarted even if no input has been received from

the terminal. time

NOTE

0 T h e r e q u e s t p r o c e s s e d

normally; terminal input

appears in the normal

input portion (begins in

t h e t h i r d w o r d ) o f t h e

communication block.

< 0 Another task is waiting

for input from the origi

nating terminal. The

WAITINP request must be

reissued if input is

desired.

> 0 The time delay elapsed

before input was received

from the terminal.

Computational-l item that con

tains the time limit, in decimal

s e c o n d s , t o w a i t f o r i n p u t . I f

not speciﬁed, the default is 480

seconds. The maximum value is

2048 seconds.

CM-resident tasks and tasks not asso

ciated with a terminal (batch origin)

are not permitted to make a WAITINP

request (task aborts).

At least one message (SEND) must be

sent to the terminal before making a

WAITINP request, and at least one SEND

request from the original task chain

must follow a message received follow

ing a WAITINP request.

No data manager requests may be active

when a task makes a WAITINP request.

All tasks that make WAITINP requests

mu st be e nte red in t he task libr ar y

with the scheduling queue limit set

to one. (Refer to section 10.)

WAITINP does not cause any data mana

ger cease requests to be Issued.

Therefore, any resources locked or

reserved by a transaction prior to a

WAITINP continue to be Locked or

reserved during and after the WAITINP.

FORTRAN

CALL WAITINP(status,time)

st a t u s Integer variable that the system

sets to indicate the status of

the WAITINP request. Upon com

pletion of the request, status

has one of the following values.

0 T h e r e q u e s t p r o c e s s e d

normally; terminal input

appears in the normal

Input portion (begins in

t h e t h i r d w o r d ) o f t h e

communication block.

< 0 Another task is waiting

for input from the origi

nating terminal. The

WAITINP request must be

reissued if input is

desired.

60459500 C 2-9

> 0 The time delay elapsed

before input was received

from the terminal.

time Integer time limit, in decimal

s e c o n d s , t o w a i t f o r i n p u t . I f

not speciﬁed, the default is

480 seconds. The maximum value

is 2048 seconds.

The overﬂow data can be requested as many times

d u r i n g a t r a n s a c t i o n a s d e s i r e d . E a c h t i m e , t h e

overﬂow data is transmitted as speciﬁed previously.

The format is:

COBOL

^^\

ENTER LOADCB USING buffer status r.

COMPASS

WAITINP time

time

buffer

status

Time limit, in decimal seconds,

to wait for input. If not

speciﬁed, the default is 480

seconds. The maximum value is

2048 seconds.

Status of the WAITINP macro is determined by the

following:

• Word 2 of the communication block contains 1

if the time delay elapsed before input wa s

received from the terminal.

• The X6 register contains a negative value if

an o t h er t a sk i s w a i t ing fo r in p u t f r o m t h e

originating terminal. The WAITINP request

must be reissued if input is desired. (Word

2 o f t h e c o m m u n i c a t i o n b l o c k s h o u l d b e

checked before X6 is checked.)

• The X6 register is set to zero if the request

processed normally; terminal input appears in

the normal input portion (begins in the third

word) of the communication block. (Word 2 of

the communication block should be checked

before X6 is checked.)

LOADCB Request

If the transaction input data exceeds the message

area of the communication block, bit 12 of word 1 of

the communication block (the i ﬁeld) is set. The

LOADCB request loads the remainder of the input

message into a user-deﬁned buffer. This buffer is

a single contiguous block of storage for all

additional communication blocks. No headers or

trailers appear In this area.

The maximum input size is determined by an installa

tion parameter.

The data that remains after the communication block

message area ﬁlls (referred to here as overﬂow

data) is transferred to the user-deﬁned buffer. If

the LOADCB request is made with no data overﬂow (i

ﬁeld not set) or if a RELSCB request was made prior

to the LOADCB request, no data is transferred and the

s t a t u s w o r d i s s e t t o z e r o . I f th e o v e r ﬂ o w d a t a

consists of more words than will ﬁt in the buffer,

the bu ffer is ﬁlled, an d th e status wor d is set to

a value greater than the number of words in the

buffer. If the overﬂow data can be contained in

the buffer, the overﬂow data is transferred to the

buffer, and the number of words transferred is set

in the status word.

A 01-level item identifying the

user-deﬁned buffer area.

Computational-l item that the

system sets to indicate the

LOADCB equest status. The

signiﬁcance of the value set

has been described earlier in

the LOADCB request description.

Computational-l item. If a non

zero value is entered for this

parameter, any message data that

overﬂows the LOADCB buffer spec

iﬁed with the buffer parameter

is released (same as RELSCB).

FORTRAN

CALL L0ADCB(buffer,length,status,r)

b u f f e r A n a r r a y i d e n t i f y i n g t h e u s e r -

deﬁned buffer area.

length Integer length of the array spec

iﬁed with the buffer parameter

in words.

s t a t u s V a r i a b l e t h a t t h e s y s t e m s e t s t o

Indicate the LOADCB request

status. The signiﬁcance of the

value set has been described

earlier in the LOADCB request

description. This value is also

returned as the value of the

function, if LOADCB is called as

a FORTRAN function.

r Integer variable. If a nonzero

value is entered for this param

eter, any message data that over

ﬂows the LOADCB buffer speciﬁed

w i t h t h e b u f f e r p a r a m e t e r i s

released (same as RELSCB).

As stated in the description of the status

parameter, the LOADCB request can be referenced as a

FORTRAN function. The format of the function is

LOADCB(buffer,length,status ,r); the parameters are

the same as those already described. The value of

the function is the value of the status parameter.

COMPASS

LOADCB address

address Address of a parameter table in

the format shown in ﬁgure 2-9.

/ S ^ .

The LOADCB macro status is returned in the X6 regis

ter. The signiﬁcance of the value returned has been

described earlier in the LOADCB request description.

2-10 60459500 B

SETCHT Request

The SETCHT request allows a task to change the appli

cation character type (ACT) of terminal messages

placed in the communication block.

rNOTTI

This is an optional request; the de

fault character type is 6-bit display

code characters.

The following character types are available.

• 7-bit ASCII, seven and one-half characters

per word.

• 7 - b i t A S C I I c h a r a c t e r s , r i g h t - j u s t i f i e d i n

12-bit bytes, ﬁve characters per word.

• 6-bit display code characters, 10 characters

per word.

This request causes TAF to send a change input char

acter type supervisory message to NAM. For more

information about supervisory messages, refer to the

NAM/CCP Reference Manual.

The format is:

COBOL

ENTER SETCHT USING username status act.

username

st a t u s

NOTE act

This request does not change the data

currently held in communication

blocks for the task. For example, a

LOADCB request gets data in the

former character type, while the next

WAITINP request gets data in the new

character type.

If 7-bit ASCII characters are used to

originate transactions, ITASK transac

tion tables must be set up in terms

of ASCII and not display code.

A 0 1 - l e v e l i t e m c o n t a i n i n g a

one- to seven-character user

name, left-justiﬁed with blank

ﬁll. The user name may also be

speciﬁed with a computational-l

item with binary zero ﬁll. If

the item contains only binary

zeros, the character type

applies to the originating

terminal. This user name must

be a name appearing in an NCTFi

ﬁle. A user name consisting of

the character P with binary zero

ﬁll cannot be speciﬁed.

Computational-l item whose value

is s e t by TAF t o in d i ca te use r

name status. This value is zero

if the user is not logged in and

one if the request is processed

normally. The task is aborted

if the user name is not deﬁned

o r i f t h e d a t a b a s e f o r t h e

speciﬁed user does not match

the data base of the originating

user.

A 01-level item containing one

of the following words,

left-justiﬁed.

ASCII7 7-bit ASCII. Seven

and one-half char

acters per word.

A S C I I S 7 - b i t A S C I I , r i g h t -

j u s t i ﬁ e d i n 1 2 - b i t

bytes, ﬁve charac

ters per word.

DISPLAY 6-bit display code.

59 4 7 2 9 17

rWatMlength '<M[MW/a buffer

r

lengt

bu ffe

h

r

If bit 59 is set to one, any message data

is released (same as RELSCB).

Length of the LOADCB buffer in words.

First word address of the buffer area.

that overﬂows the LOADCB buffer

Figure 2-9. LOADCB Parameter Table

60459500 B 2-11

FORTRAN

CALL SETCHT(username,status ,act)

status

act

One- to seven-character user

name, left-justiﬁed with zero

o r b l a n k ﬁ l l . I f t h e t e r m i n a l

name is zero, the character type

applies to the originating termi

nal. This user name must be a

name appearing in an NCTFi ﬁle.

Unnormalized ﬂoating-point num

ber whose value speciﬁes the

user name status. This value is

z e r o i f t h e us e r i s n o t l o g g e d

i n a n d o n e i f t h e r e q u e s t i s

processed normally.

The task is aborted if the user

name is not deﬁned or if the

data base for the speciﬁed user

does not match the data base of

the originating user.

Parameter containing one of the

following words, left-justiﬁed

with binary zero or blank ﬁll.

A S C I I 7 7 - b i t A S C I I , s e v e n

and one-half char

acters per word.

ASCII5 7-bit ASCII, right-

justiﬁed in 12-bit

bytes, ﬁve charac

ters per word.

DISPLAY 6-bit display code.

COMPASS

SETCHT address

address Address of a parameter table in

the form shown in ﬁgure 2-10.

BLDABH Request

The BLDABH request builds or modiﬁes the application

block header (ABH). This header accompanies every

block passing between TAF and NAM, and thus is used

during communication between TAF and terminals. It

contains detailed information describing the block

it accompanies.

• Tr a ns p a r e n t mo d e s p e c i f i c a t i o n . Tr a n s p a r e n t

mode inhibits all data transforms and allows

the task direct access to the real terminal

fe at ure s.

• T e r m i n a l f o r m a t e f f e c t o r s p e c i f i c a t i o n .

Format effectors control printing (or the

cursor on display terminals).

• Auto-input mode specification. Auto-input

mode allows a ﬁll in the form type of trans

action. This is provided since the ﬁrst n

characters of a message output to the termi

nal via the SEND request (ABT=2 only) can be

used to form the ﬁrst n characters of subse

quent input from the terminal. If n is

greater than 20, only the ﬁrst 20 characters

are returned, followed by the entered text.

It is not necessary to use the BLDABH request before

every SEND. It is needed when a selectable param

eter on the ABH for the next SEND differs from a

setting on the ABH for the previous SEND. In other

wo r ds, a set t ing of a pa r a me t e r o nce se l ect e d b y

BLDABH stays In effect for that task unless changed

by a subsequent BLDABH request. If a task issues a

BLDABH request and then calls another task, the new

task must also issue a BLDABH request because the

request parameters are not passed to it. If a task

i s t o b e r e u s a b l e , t h e t a s k s h o u l d i n i t i a l i z e t h e

ABH if the default values have been changed.

D e f a u l t v a l u e s a r e s u p p l i e d o n t h e A B H . I f t h e

default values are the desired values, no BLDABH

request is required. Default values have been

selected to remain compatible with prior versions of

the transaction subsystem.

The format is:

COBOL

ENTER BLDABH USING ﬁeldj value j.. .ﬁe ldn valuen.

field£ A 01-level item containing a

three-character, left-justiﬁed

ﬁeld for which a value is to be

set. field £ can be binary zero

or blank-ﬁlled. The possible

values are listed in table 2-1.

value£ A computational-l item whose

value is set for the correspond

ing ﬁeldj. The ﬁeldi and

value£ parameters must appear

in pairs. The possible values

a n d d e s c r i p t i o n s a r e l i s t e d i n

table 2-1.

.^^t\

(4"£fl?^V

This is an optional request. The

default application block header spec

iﬁes 6-bit display code characters,

nontransparent mode, no format effec

tors, and no auto input.

To use some of the NAM features, a task must use the

BLDABH request to modify the ABH. Some of the

features provided via the ABH are:

• Character type specification of messages sent

t o a t e r m i n al . Ei t h e r 7 - b i t A S C I I o r 6 - b i t

display code characters may be used.

FORTRAN

CALL BLDABH(ﬁeld1,value1,...,ﬁeldn,valuen)

ﬁelds Variable containing a three-

c h a r a c t e r , l e f t - j u s t i ﬁ e d ﬁ e l d

for which a value is to be set.

ﬁeldj can be binary zero or

blank-ﬁlled. The possible

values are listed in table 2-1.

value £ Integer that is set for the

corresponding ﬁeldj. The

ﬁeldi and value^ parameters

must appear in pairs. The

possible values and descriptions

are listed in table 2-1.

2-12 604S9500 B

Example: COMPASS

The following request builds the ABH with ACT-4,

NFE-O, and AIM-1.

CALL BLDABH<3LACT,4,3LNFE,0,3LAIM,1)

The COMPASS user speciﬁes changes to the ABH

with the SEND request (described later in this

section).

59 17 5 0

username S//0//A' ^ ^ type

fﬂ

mm mmmmm mstatus

username

type

status

One- to seven-character user name, left-justiﬁed with zero ﬁll. If the user

name is zero, the character type applies to the originating terminal.

Binary value for character type:

2 7-bit ASCII, seven and one-half characters per word.

3 7 - b i t A S C I I , r i g h t - j u s t i ﬁ e d i n 1 2 - b i t b y t e s .

4 6-bit display code.

Address of a word in which TAF returns an unnormalized ﬂoating-point number to

indicate the user status. This value is zero if the user is not logged in and

one if the request is processed normally. The task is aborted if the user name

is not deﬁned or if the data base for the speciﬁed user does not match the

data base of the originating user.

JpSx.

Figure 2-10. SETCHT Parameter Table

Table 2-1. BLDABH Request Parameters

0&»i

ﬁeldj valuej Description ﬁeldi value£ Description

ACT Application character

type.

It No format effectors in

the message.

2 7-bit ASCII charac

ters, seven and one-

AIM Auto-input mode.

half per word. No auto-input mode.

3 7-bit ASCII charac

ters, right-justiﬁed

in 12-bit bytes, ﬁve

It Auto-input mode se

lected.

per word. XPT Tr a n s p a r e n t m o d e . A p

plies only to 7-bit

4t 6-bit display code

characters, 10 per

ASCII character types.

word. Ot Interactive virtual

termin al d ata tra nsforms

t o c o n s o l e d e v i c e s a r e

NFE F o r m a t e f f e c t o r s i n

message.

Format effectors ap

performed. (This option

m u s t b e s e l e c t e d f o r

output to batch devices.)

pear in the message. IVT transforms are

(Refer to the NAM/CCP inhibited.

Reference Manual.)

TThese ar<s default values supplied by TAF, FORTRAN, and COBOL library routines for BLDABH and SEND.

These ar<z also the defailit values for the COMPASS SEND request when the task d oes not specify the ABH.

0^- 60459500 B 2-13

GETABH Request

The GETABH request allows a task to examine the ABH

that accompanied the last message.

NOTE

This is an optional request. Terminal

input and output can be done without

using it.

request is processed normally.

T h e t a s k i s a b o r t e d i f t h e u s e r

name is not deﬁned or if the

data base for the user name does

n o t m atch t h e d a t a ba s e o f t h e

originating user.

ﬁelds A 01-level item containing a

three-character ﬁeld for which a

value is desired, left-justiﬁed

with binary zero or blank ﬁll.

The possible ﬁelds and values

are described in table 2-2.

/?«§^v

If ro SEND has been issued since the last input from

the terminal, the GETABH request allows the task to

obtain the ABH that accompanied the input block from

the network. If a SEND has been issued, the ABH

u s e d f o r t h e S E N D i s o b t a i n e d . T h i s r e q u e s t i s

useful for obtaining the character type, character

count, and parity error ﬁelds.

("note"!

The parity error indicators can also

be obtained from the communication

block, but it may be easier for the

COBOL task to use GETABH to obtain

this indicator.

The format is:

COBOL

ENTER GETABH USING username status ﬁeld}

value}...ﬂeldn valuen.

username A 01-level item containing a one-

to seven-character user name,

left-justiﬁed with blank ﬁll.

The user name may also be

speciﬁed with a computational-l

i t e m w i t h b i n a r y z e r o ﬁ l l . I f

the item contains only binary

zero, the ABH for the originating

terminal is returned. This user

name must be a name appearing in

the NCTFi ﬁle. A user name

consisting of the character P

with binary zero ﬁll cannot be

speciﬁed.

status Computational-l item whose value

is set by TAF to indicate the

status of the user name. status

c o n t e n t s i s z e r o i f t h e u s e r i s

no t log ge d i n a nd is o ne if t he

value^ Computational-l item in which the

va l u e f or t h e d e sired ﬁ e l d i s t o

be returned. The ﬁeldi and

value^ items must appear in

pairs.

FORTRAN

CALL GETABH(username,status,ﬁeld},value},...,

ﬁeldn,valuen)

username Parameter whose value is a one-

to seven-character user name,

left-justiﬁed with binary zero

or blank ﬁll. If the user name

is b i n a ry z e r o , the A B H f or t h e

originating user is returned.

status Unnormalized ﬂoating-point num

ber whose value is set by TAF to

indicate the user name status,

status contents is zero if the

user is not logged in and greater

t h a n z e r o i f t h e r e q u e s t i s

processed normally. The task is

aborted if the user name is not

d e ﬁ n e d o r i f t h e d a t a b a s e f o r

the user name does not match the

data base of the originating user.

ﬁeldA Variable containing a left-

justiﬁed, three-character ﬁeld

for which a value is desired.

The possible ﬁelds and values

are described in table 2-2.

value£ Name of an unnormalized floating

point variable in which TAF re

turns the value of the desired

ﬁeld.

COMPASS

GETABH address

a d d r e s s A d d r e s s o f a p a r a m e t e r t a b l e i n

the format shown in ﬁgure 2-11.

2-14 60459500 A

Table 2-2. Application Block Header

0$^*..

ﬁeldi

ABT

ADR

ABN

ACT

Bits

59-54

53-42

41-24

23-20

NFE

value h

15

Description

Application block type.

Null input block.

Data block; not the last

(applies to SEND only).

Data block; last or only

block.

Addressing information; TAF

assigns this area for out

put, NAM for Input.

Application block number.

This area is user- or TAF-

assigned for SEND requests.

You assign this area caus

ing the block parameter on

the SEND request.

Application character type.

7-bit ASCII characters,

seven and one-half per

word.

7-bit ASCII characters,

right-justiﬁed in 12-bit

bytes, ﬁve per word.

6-bit display code charac

ters, 10 per word.

Format effectors.

Format effectors are pres

ent in the SEND message.

Format effectors are not

present in the SEND

message.

ﬁeldi

XPT

BIT

TLC

Bits

14

12

value£

11-0

Description

Transparent bit.

Nontransparent data; IVT

transforms are used.

If application character

t y p e i s s e t t o t w o o r

three, IVT transforms are

inhibited. If ACT is set

t o f o u r , t h i s b i t i s

ignored on output.

For input, if XPT is set to

o n e a n d A C T i s s e t t o

four, TAF changes ACT to

three. You must change ACT

back to four when no more

transparent input is

expec ted.

For input, parity error

ﬂag; for output, auto-

input mode ﬂag.

No parity error, no auto-

input mode.

For input, a parity error

was detected; for output,

use of auto-inp ut m ode is

speciﬁed.

Text length in units speci

ﬁe d by A C T. This ﬁe l d i s

assigned by TAF or by you

for output. NAM assigns

t h i s ﬁ e l d f o r i n p u t . T h e

text length includes the

unit separator. A unit

separator is 12 through 66

bits of zero for 6-bit dis

play code characters and US

for 7-bit ASCII code

characters.

59

username

st a t u s

abh

17

username ' # # %

Wvyytvyyyfvy J9Zf%% status

abh

One- to seven-character user name, left-justiﬁed with binary zero ﬁll.

user name is zero, the ABH for the originating terminal is returned.

If th e

Address of a word in which TAF returns are unnormalized ﬂoating-point number to

indicate the user name status, status is zero if you are not logged in and one

if the request is processed normally. The task is aborted if the user name is

not deﬁned or if the data base for the user name does not match the data base of

the originating user.

Application block header,

table 2-2.

The format and description of this word is listed in

jp>v

60459500 A

Figure 2-11. GETABH Parameter Table

2-15

TERMDEF Request

The TERMDEF request can be used by a task to deﬁne

or modify terminal characteristics, where those of

the connected real terminal differ from the assump

tions made for the network's IVT model. This request

can also be used to tailor the operational controls

of the terminal.

I note"!

This is an optional request. Terminal

input and output can be done without

it . E a c h t e r m i n a l t h a t l ogs i n t o the

network is associated with a default

se t of t e rmi n al c har a cte r ist i cs. (R e

fer to appendix G.)

A complete list of terminal characteristics is pro

vided in the NAM/CCP Reference Manual and appendix G

of this manual. Characteristics that may be modiﬁed

include:

• Terminal physical page width.

• Number of physical lines on a terminal page.

• Specification of a character used to cancel

an input logical line in progress.

• Specification of a character to be used as a

break character. User breaks are sent to

the application task for processing.

• Set transparent input mode. This setting

exists for only one logical input line.

The format is:

COBOL

ENTER TERMDEF USING username status ﬁeld}

ﬁeld2...ﬁeldn.

username A 01-level item containing a

one- to seven-character user

name, left-justiﬁed with blank

ﬁll. The user name may also be

speciﬁed with a computational-l

item with binary zero ﬁll. If

the item contains only binary

zero, the terminal deﬁnition

speciﬁed applies to the

originating terminal. This user

name must be a name appearing in

an NCTFi ﬁle. A user name

c o n s i s t i n g o f t h e c h a r a c t e r P

with binary zero ﬁll cannot be

speciﬁed.

status Computational-l item that TAF

sets to indicate user name

status, status contents is zero

if the user is not logged in and

is one if the request is

processed normally. The task is

aborted if the user name is not

deﬁned or if the user's data

b a s e do es n o t m a t c h the d a ta

base of the originating user.

ﬁeldi A left-justiﬁed 01-level item

with binary zero or blank ﬁll,

containing the characteristic

(for example, PW»60, PL»35, or

CN -2 B) . A maximum of 17 n on -

blank, nonbinary zero characters

i s a l l o w e d . T h e c h a r a c t e r i s t i c s

are described in the NAM/CCP

Reference Manual and appendix G

of this manual. If the NAM/CCP

Reference Manual speciﬁes x or

h, a 6-bit display code alphanu

meric representation is required

(where x is a 7-bit ASCII charac

ter and h is a hexadecimal

character).

FORTRAN

CALL TERMDEF(username,status ,ﬁeld},

ﬁ e l d 2 , . . . , ﬁ e l d n )

username Parameter whose value is a one-

to seven-character user name,

left-justiﬁed with binary zero

or blank ﬁll. If the user name

i s z e r o , t h e t e r m i n a l d e ﬁ n i t i o n

speciﬁed applies to the origi

nat ing termi nal. This user name

must be a name appearing in an

NCTFi ﬁle.

status Variable in which TAF places an

unnormalized ﬂoating-point num

ber to indicate user name status.

status contents is zero if the

user is not logged in and greater

than zero if the request is proc

essed normally. The task is

aborted if the user name is not

deﬁned or if the data base for

the user does not match the data

base of the originating user.

ﬁeldi A left-justiﬁed variable with

binary zero or blank ﬁll, con

taining the characteristic (for

example, PW-60, PL=35, or CN=2B).

A maximum of 17 nonblank, non-

binary zero characters is

allowed. The characteristics

are described in the NAM/CCP

Reference Manual and appendix G

of this manual. If the NAM/CCP

Reference Manual speciﬁes x or

h, a 6-bit display code alpha

numeric representation is

required (where x is a 7-bit

ASCII character and h is a

hexadecimal character).

Example:

The following request designates the page width

to be 60 characters, the page length to be 40

lines, and the plus character (ASCII representa

tion is 2B) to be the cancel character for user

USER5; it then assigns the status to variable

STATUS.

CALL TERMDEFC5HUSER5,STATUS,5LPW=60,

5LPL=40,5LCN=2B>

y£-»!S\

2-16 60459500 B

f^ Example:

The following statements redeﬁne the

transparent input mode text delimiter to be a

slant (ASCII representation is 2F) and the

character count delimiter to be 4096.

DATA MSG/10HDL=X2F,C40,2L96/

CALL TERMDEF(5HUSER5,STATUS,MSG>

END

COMPASS

TERMDEF address

address Address of a parameter table in

the format shown in ﬁgure 2-12.

SEND Request

The SEND request sends a message to a user; that is,

it performs a write operation. If the task does not

specify the user to which the message should be

se nt , i t is direc te d t o the ter mi nal t hat o rig in at ed

the transaction. At least one SEND request to the

originating terminal must occur from the primary

task chain for each message received. The task can

also specify that the task be ended when the message

is sent.

There is both a limit on the total output that one

task can send (MAXTO), t and a limit on the output

one task can send before it is rolled out, pending

the transfer of the output to the terminal or

terminals (MLIM).t Also, the maximum output length

for one SEND request is determined by the MAXWSt

Installation parameter.

A task can specify the status parameter in COBOL and

FORTRAN or the r parameter in COMPASS so that the

task will wait until the network acknowledges that

the message has been delivered to the user. If

recall is selected, any error detected on the output

message causes the task performing the SEND request

to be restarted. Therefore, tasks performing SEND

requests with recall should check status and

compensate for errors. Use of recall can simplify

recovery since the task issuing the SEND request is

in f o r med of th e pr o b lem at th e ﬁr s t a d d ress af t e r

the SEND. When recall is selected, the task is

rolled out if the message length exceeds the MLIM

installation parameter. Any data manager resources

held by the task, such as locked records, remain

assigned for the duration of the rollout. If

reserving these resources for this period of time

will impact the performance of the application,

tasks should release all ﬁle and record locks

before executing the SEND request.

If recall is not selected, ITASK is informed of the

problem, rather than the task that issued the

request. ITASK is informed because the issuing task

may have already terminated when the message

delivering problem is detected.

59 43 17 11

username //^

Wa ec

yyyyyyyyyyy

W, status

y/fﬂfﬂ$y

WWk string

z

string + n

status

string

One- to seven-character user name, left-justiﬁed with binary zero ﬁll. If the

user name is binary zero, the terminal deﬁnition speciﬁed applies to the

originating user.

The number of 7-bit ASCII characters (at seven and one-half characters per word)

is available in string + 2. Adding two is necessary because string begins in bit

43. If no characters are speciﬁed in the string, cc should equal two.

An address of a word in which TAF returns the user name status in unnormalized

ﬂoating-point format. The status contents is zero if the user is not logged in

and greater than zero if the request is processed normally. The task is aborted

if the user name is not deﬁned or if the data base for the user does not match

the data of the originating user.

A s t r i n g o f 7 - b i t A S C I I c h a r a c t e r s , i n h e x a d e c i m a l no t a t i o n , le f t - j u s t i ﬁ e d i n

the ﬁeld, deﬁning the terminal characteristic. (Refer to the NAM/CCP Reference

Manual for a list of these characteristics.) As an example, to change the cancel

key to a +, the string CN«*f is written as 434E3D2B. string + n is the last word

needed for the string.

Figure 2-12. TERMDEF Parameter Table

^^K tRefer to the NOS 2 Installation Handbook (refer to the preface for the publication number)

60459500 B 2-17

The format of the message on the terminal depends on

the terminal class and the format effectors in the

message. For example, on synchronous terminals the

cursor for entering the next message to the host

(upline) is always the ﬁrst character of the line.

On asynchronous terminals the cursor follows the

last character of output; this assumes no format

effectors are in the message. The NAM/CCP Reference

Manual contains complete information on terminal

protocols.

The format is:

COBOL

ENTER "SEND" USING messageaddress username

cease-ﬂag output-ﬂag block status length.

The parameters are described in table 2-3.

FORTRAN

CALL SEND(messageaddress,length,username,

cease-ﬂag.output-ﬂag,block,status)

The parameters are described in table 2-4.

COMPASS

SEND address

address Address of a

the format

2-13. This

parameters in

be us ed wit h

table shows

b e t w e e n S E N D

Setting parameters

parameter table in

shown in ﬁgure

ﬁgure and the

table 2-5 should

table 2-6. This

interrela tionships

parameters.

shown in the

NOTE

top portion of table 2-6 results

in the corresponding events

shown in the bottom portion.

Under COBOL, SEND must be enclosed in

quotation marks, because SEND is a

reserved word for that compiler.

The entire four-word block must be present, even

if the last three words are not used.

Table 2-3. COBOL SEND Request Parameters (Sheet 1 of 2)

Parameter Data Type Value Description

messageaddress 01-level display item Data item containing the message to be sent. For 7-bit

ASCII character types, the message must have an end-of-

line byte of the single character US for all logical

lines. (Refer to the NAM/CCP Reference Manual for NAM

data formats.) The TAF SEND interface supplies end-of-

line bytes for 6-bit display code character types only.

username 01-level display item, Data item containing a one- to seven-character user

or computational-l name. If this parameter is omitted or speciﬁed as

C0MP-1 VALUE ZERO, the message is sent to the originat

ing terminal. This user name must be a name appearing

in the NCTFi ﬁle and must be validated for the same

data base as the sending task.t A user name consisting

of the character P with binary zero ﬁll cannot be

speciﬁed. The user name can be binary zero or blank-

ﬁlled.

cease-ﬂag Computational-l Task end ﬂag.

0, omitted The task continues after the message is sent.

1 The task ends after the message is sent.

tTasks associate d with application identiﬁer SY can SEND to any valid TAF user.

/^B5X

2-18 60459500 B

Table 2-3. COBOL SEND Request Parameters (Sheet 2 of 2)

Parameter Data Type Value Description

output-ﬂag Computational-l Application block type. Currently serves no function.

Retained for compatibility with previous releases.

block Computational-l Application block number (ABN) data name.

Nonzero TAF uses the value contained in the data name as the

ABN.

0TAF assigns the ABN and returns this as the value in

this data name.

Omitted TAF assigns the ABN, and the value is not returned.

status Computational-l Recall ﬂag; this parameter applies only if the cease-

ﬂag is set to zero.

0, omitted The task begins processing after the block is transmit

ted to the network.

Nonzero The task begins processing after the block has been de

livered to the user and acknowledgment is received.

Each nonzero value indicates the status of the block.

The network function, subfunction, and description are

given here. For all values other than 1, the block was

not delivered to the user and the task must recover.

IBlock delivered (FC/ACK).

2Block not delivered (INTR/USR/RC-1).

3User break 1 (INTR/USR/RC-1).

4User break 2 (INTR/USR/RC-1).

10 Terminal not logged in (CON/END).

11 Correspondent unavailable or failed, line disconnect

(C0N/CB/RC-1).

length Computational-l Length of the message in characters. This length

should Include end-of-line bytes for 7-bit ASCII char

acter types. For 6-bit display code output, the COBOL

compiler-generated length is used if the length param

eter is omitted.

J^ 60459500 C 2-19

Table 2-4. FORTRAN SEND Request Parameters (Sheet 1 of 2)

Parameter Data Type Value Description

messageaddress Hollerith or left-

justiﬁed, zero ﬁll

length

username

cease-ﬂag

output-ﬂag

block

Integer

Left-justiﬁed,

ze ro or bla nk ﬁll

integer

Integer

st a t u s Unnormalized

ﬂoating point

0, omitted

1

Nonzero

0

Omitted

0, omitted

Nonzero

Array name containing the message to be sent. For

7-bit ASCII character types, the message must have an

en d - of- l i n e b y te o f t h e s i n gle ch a r act e r U S fo r a l l

l o g i c a l l i n e s . ( R e f e r t o t h e N A M / C C P R e f e r e n c e

Manual for NAM data formats.) The TAF SEND interface

supplies end-of-line bytes for 6-bit display code

character types only.

Length of the message in characters. This length

should include the end-of-line bytes for 7-bit ASCII

character types.

One- to seven-character user name. This must be a

name appearing in the NCTFi ﬁle, which is validated

for the same data base as the task issuing the send.t

If this parameter is omitted or speciﬁed as binary

zero, the message is sent to the originating terminal.

Task end ﬂag.

The task continues after the message is sent.

The task ends after the message is sent.

Application block type. Currently serves no function.

Retained for compatibility with previous releases.

Application block number.

TAF uses the value of this variable as the ABN.

TAF assigns the ABN and returns the value in this var

iable. For this parameter, you should enter an

integer variable assigned the value zero instead of

entering zero, as follows:

INTEGER ABN

ABN=0

CALL SEND(messageaddress,length,username/

cease-ﬂag,output-ﬂag,ABN,status)

TAF assigns the ABN, and the value is not returned.

Recall ﬂag (applies only if cease-ﬂag is set to

zero.

The task begins processing after the block is trans

mitted to the network.

The task begins processing after the block has been

delivered to the terminal and acknowledgment is

received. Each nonzero value indicates the status of

the block. The network function, subfunction, and

description are given here. For all values other

than 1, the block was not delivered to the terminal

and the task must recover.

Block delivered (FC/ACK).

Block not delivered (FC/NAK/RC-l).

User break 1 (INTR/USR/RC-1).

User break 2 (INTR/USR/RC-1).

tTask associated with application identiﬁer SY can SND to any valid TAF user.

2-20 60459500 C

0^ Table 2-4. FORTRAN SEND Request Parameters (Sheet 2 of 2)

Parameter Data Type Value Description

10

11

Terminal not logged in (CON/END).

Correspondent unavailable or failed, line disconnect

(C0N/CB/RC-1).

Table 2-5. COMPASS SEND Request Parameters (Sheet I of 2)

Parameter Bits Value Description

t59 Terminal ﬂag.

0Message is sent to originating terminal.

1Message is sent to speciﬁed user.

c58 Task cease ﬂag.

0The task cease is not performed.

1The task cease is performed following the SEND request.

o57 No function. Retained for compatibility with previous releases.

b56 Return block ﬂag.

0If a is set to one, the task assigns the block number via the abn

ﬁe ld . I f a i s s et to zero, TA F a ss igns the b loc k num be r, a nd the

number is not returned in the block ﬁeld.

1TAF assigns the block number and returns this number in the block

ﬁeld.

r55 Recall ﬂag.

0TAF does not wait for the block to be delivered to the terminal.

1TAF waits for the block to be delivered to the terminal.

a54 Application block header ﬂag.

0TAF generates the application block header but does it in its own

area without making use of or changing word 3 of the parameter table

shown in ﬁgure 2-8. (Refer to the description of the BLDABH request

for the default values TAF uses.) Because a BLDABH request is not

available to COMPASS tasks, the header TAF supplies when a=0 always

has default values, except for a tic inﬂuenced by numwords.

Speciﬁcally, if a is set to zero, the task can only output in 6-bit

display code, cannot use format effectors, cannot use auto-input

mode, and cannot preset the application block number.

IThe task supplies the application block header. (The task supplies

the ABH in the third word SEND parameter table shown in ﬁgure 2-8,

with parameters shown in table 2-6.)

J^v 60459500 C 2-21

Table 2-5. COMPASS SEND Request Parameters (Sheet 2 of 2)

Parameter Bits Value Description

messageaddress 47-30 Address of message. For 6-bit display code character type, the

message must contain an end-of-line byte from 12 to 66 bits of

zero. For 7-bit ASCII characters, the message must have an end-of-

line byte of the single character US for all logical lines in the

output block. (Refer to the NAM/CCP Host Application Programmers

Reference Manual.)

numwords 17-0 Number of words in the message. If the a ﬁeld is set to one, this

ﬁeld is not used. The tic ﬁeld must be used to specify the mes

sage length. The numwords ﬁeld must contain the unit separator.

username 59-18 User name from one to seven characters with binary zero ﬁll. If

the t ﬁeld is set to one, this parameter must be speciﬁed. If

the t ﬁeld is set to zero, this ﬁeld is ignored.

block 17-0 Application block number. If the b ﬁeld is set to one, TAF

returns the application block number in this ﬁeld.

abtt 59-54 Application block type. This parameter is ignored by TAF. It is

retained for compatibility with previous systems.

1Indicates that this is not the last data block of the message.

2Indicates that this is the last or only data block of the message.

abn t 41-24 Application block number. If the b ﬁeld is set to one, TAF

assigns and stores a value in the block ﬁeld. If the b ﬁeld is

set to zero, this value is stored in block.

actt 23-20 Application character type.

27-bit ASCII characters, seven and one-half per word.

-37-bit ASCII characters, right-justiﬁed in 12-bit bytes, ﬁve per

word.

46-bit display code characters, 10 per word.

nfet 15 Format effectors.

0Format effectors appear in the SEND message. Refer to the NAM/CCP

Host Application Programmers Reference Manual for information

concerning format effectors.

1No format effectors appear in the SEND message.

x p t t 14 Transparent bit.

0Nontransparent data. IVT transforms are used.

1If the act ﬁeld is set to two or three, IVT transforms are inhib

ited. If the act ﬁeld is set to four, this bit is ignored.

aimt 12 Auto-input mode.

0No auto-input mode.

IAuto-input mode enabled.

tlct 11-0 Te x t l e n g t h i n u n i t s s p e c i ﬁ e d b y t h e a c t ﬁ e l d . I f a n o u t p u t

block contains multiple logical lines, all logical lines must

contain end-of-llne bytes, which must be included in the character

count.

status 59-0 Status of the user name. This ﬁeld is used only if the r ﬁeld

is set to one. The value of this ﬁeld Is a supervisory message

returned by the network. (Refer to the NAM/CCP Host Application

Programmers Reference Manual for a description of the supervisory

messages.)

tThese parameters apply onl.y if the a ﬁeld is set to one.

2-22 60459500 C

595857565554 4 7 4 1 2 9 2 3 2 0 1 7 1 5 1 3 1 1

messageaddress numwords

block

abt abn Vs

act

status

tic

Figure 2-13. SEND Parameter Tablet

r

RELSCB Request

The RELSCB request releases all overﬂow

communication blocks tt to the system. After an

RELSCB request is processed, subsequent LOADCB

requests return a status word of zero.

The format is:

COBOL

ENTER RELSCB.

There are no parameters.

FORTRAN

CALL RELSCB

There are no parameters.

COMPASS

RELSCB

There are no parameters.

TSIM Request

The TSIM request provides limited interrogation of

the terminal status table. This table, in central

memory, is derived from the network ﬁle (refer to

section 9). The TSIM request can search four ﬁelds

in the table.

• Data base name field

• User argument field

• Communication line field

• User name field

The two-word TST entry of the users that meet a

deﬁned criterion (criterion) is returned to the

user. The ﬁeld speciﬁed by code is examined in

each terminal table entry by taking the logical

product of the ﬁeld and mask to isolate a portion

of the ﬁeld. The logical difference of this

product and criterion value is then obtained. If

this result is zero, the terminal entry is placed in

list. No action occurs if it is not zero; that Is,

the user does not meet the speciﬁed criterion. For

example, an application could use this to obtain a

list of the users that are allowed to use a particu

lar data base by selecting the data base ﬁeld to be

searched for a certain name.

If the task data base is not the same as the one

being interrogated, then the list equals zero.

The format is:

COBOL

ENTER TSIM USING code mask criterion rlength

list length.

code Computational-l item whose value

Indicates which ﬁeld is to be

searched:

Value Field

0 Data base name ﬁeld.

1 U s e r a r g u m e n t ﬁ e l d .

2 Communication line

ﬁeld.

3 User name ﬁeld.

mask Parameter whose value is taken as a

binary mask. It is used in compil

ing the list of user names.

cri te ri on C ri te rion v alue f or the s ea rch.

rlength Computational-l item whose value TAF

sets to indicate the number of en

tries found.

list Item in which TAF lists found en

t r i e s . I f z e r o o r a b s e n t , n o l i s t

is returned but rlength is given as

the number of found entries.

length Computational-l item whose value

indicates the number of words that

list can hold. If zero or absent,

no list is returned but rlength is

given as the number of found

entries. Only the lowest order 12

bits of this value are used.

0^*- tThe parameters are described in table 2-5.

ttDescribed under LOADCB Request.

60459500 C 2-23

co <u eo

£c

S6 44 •h

Ui •o .*

<44 <o

H o 0)

'-' *j

mCO •o

au<u

03 CQ

aID

«j •o

44 9)

a. -h

e ^

bl i-( Xt

3 J H

e cu

ca m

5B

S2

CO •*-

0) •a

i-t tu

Ml

0

N^ eo ( 0 4 ) U ( J U

• H 4 3 C O u O

S-3 o n o

CO cu

u43

o

44 44

COa0) x<

U-l 0)

oU-l CO ca

u.

CO BQ 0) CU <->

O J > £ C « - H

CO 44 X co bl

4 4 C — I

C / J W C U i- i H co

., -< ■H<U 4 - 1 > ,

3 43 -,

ca CO

•H 44 CO ■o

u00 >. T4 CU cu

cu b. (- "8 5

E E

C/l

•s es C U • •

U > N 44 >, 8 ^ cu

43 CU 43 43 3 43 bi 4 = • •

c > . cu 44 <u 44 CU 4 4 O

43 eo-a cj -a u-t •o 4 4 X I C 4 4 44

CO it C O C U U-l cu 3 4) cu cu u*

o cu « c • - c cu O . C u -a O X I

« -rt CO -H ■wC - W CO cu

*3 B V 6 X B • h e O. <A C O c

43 00 E »- U b l ca CO ~4 3 b ,

•W <u cu CU O 91 4 4 3

cu ca CU 4J cu 44 44 4 J u CO 4J CO 44

x c a •e cu 4= CU cu 3 C U b i 3 44 CU

H t o H t > H TJ (h •o < X I H a . C / J b i

2-24 60459500 A

J^**- FORTRAN

CALL TSIM(code,mask,criterion,rlength,list,

length)

entries found,

a l s o r e t u r n e d

function value.

This value is

as a FORTRAN

code Integer whose value indicates

which ﬁeld is to be searched:

Value Field

0 Data base name ﬁeld.

1 User argument ﬁeld.

2 Communication line

ﬁeld.

3 User name ﬁeld.

m a s k P a r a m e t e r w h o s e v a l u e i s t a k e n

as a binary mask. It is used in

compiling the list of user names.

c r i t e ri o n Cr i t e r io n va lu e fo r t h e s e a r c h .

r l e n g t h In t e g e r v a r i a b l e wh o s e v a l ue TA F

sets to indicate the number of

list

leng th

Name of an array in which TAF

places a list of found entries.

If zero or absent, no list is

r e t u r n e d , b u t r l e n g t h i s g i v e n

as the number of found entries.

Integer variable whose value

indicates the number of words

that list can hold. If zero or

absent, no list is returned, but

rl eng th i s g iv e n a s t he num ber

of found entries. Only the

l o w e s t o r d e r 1 2 b i t s o f t h i s

value are used.

COMPASS

T S I M a d d r e s s

address Address of a parameter table in

the format shown in ﬁgure 2-14.

wordl

word 2

word 3

code

59 47 29 17

code list length rlength

mask

criterion

list

length

rlength

mask

criterion

Integer whose value indicates which ﬁeld is to be searched:

Value Field

0 Data base name ﬁeld.

1 User argument ﬁeld.

2 Communication line ﬁeld.

3 U s e r n a m e ﬁ e l d .

Location of list to contain found entries. If zero or absent, no list is

returned, but rlength is given as the number of found entries.

Number of words that list can hold. If zero or absent, no list is returned, but

rlength is given as the number of found entries. Only the lowest order 12 bits

of this value are used.

The address at which TAF returns the number of entries found.

Value to be taken as a binary mask. It is used in compiling the list of user

names.

Criterion value for the search.

Figure 2-14. TSIM Parameter Table

r60459500 A 2-25

TARO Request

The TARO request allows the task to manipulate the

user argument ﬁeld in the terminal status table

en tr y o f a p artic ul ar us er. (Re fe r to sec ti on 9 fo r

further information.) The user argument ﬁeld (24

bi t s) is oper a te d on i n t h e f oll owi n g m ann er. Th e

logical product of the user argument ﬁeld and the

lower 24 bits of mask are taken; then the logical

difference of this result and value is determined.

This value is placed in return and replaces the old

user argument ﬁeld. This allows the user to test a

speciﬁc ﬁeld to obtain its value and to establish

a particular value in the ﬁeld. For example, bit 1

of the user argument ﬁeld may be used to establish

a terminal recovery condition. The TARO request

operates in the following manner.

Case 1: The request interrogates the user argument

ﬁeld and determines whether the recovery

bit (bit 1) is set. The value of this bit

in the user area is not changed and is

placed in return. (Only bits 0 through 3

are shown in this example.)

user argument ﬁeld

of TST

mask parameter

log ical 010

product 010

logical

difference

010

000

010

value parameter

r e t u r n v a l u e ■ n e w

user argument ﬁeld

Case 2: The request sets the recovery bit.

logical

product

logical

difference

000

010

000

plO

010

user argument ﬁeld

mask parameter

value parameter

return value ■ n e w

user argument ﬁeld

Case 3: The request clears the recovery bit.

logical

product

logical

difference

010

000

user argument ﬁeld

mask parameter

value parameter

return value = new

user argument ﬁeld

The format is:

COBOL

ENTER TARO USING value mask username return.

value Item whose value is a 24-bit

value to be used to alter the

user argument ﬁeld.

mask Parameter whose value is taken

a s a b i n a r y m a s k . O n l y t h e

lowest 24 bits are used.

username A 01-level item containing a

o n e - t o s e v e n - c h a r a c t e r a l p h a

numeric user name. The user

n a m e c a n a l s o b e a

computational-l item containing

a binary zero (designating the

originating user).

return Item whose value TAF sets to

indicate the resultant user

argument bits.

FORTRAN

CALL TAR0(value,mask,username,return)

value Parameter whose 24-bit value is

used to alter user arguments.

Parameter whose value is taken

a s a b i n a r y m a s k . O n l y t h e

lowest 24 bits are used.

Parameter whose value is a one-

to seven-character alphanumeric

user name, containing either

blank or binary zero ﬁll to a

word boundary. If this

p a r a m e t e r i s o m i t t e d o r i s a

binary zero, then the

originating user is used.

Parameter in which TAF places

the resultant user argument

bits. This value is also

optionally returned as the value

of a FORTRAN function.

mask

username

return

COMPASS

TARO address

address Address of a parameter table in

the format shown in ﬁgure 2-15.

2-26 60459500 A

110 Request FORTRAN

The 110 request allows a task to change its own I/O

limit as measured in RA+1 calls from the task. Any

request given in this manual or any data manager

request is considered an RA+1 call. The default

value is 320 calls.

The format of the request is:

COBOL

ENTER 110 USING nio.

nio Computational-l item whose value

speciﬁes the new I/O limit.

CALL 110(nio)

nio

COMPASS

110 address

address

I n t e g e r w h o s e v a l u e s p e c i ﬁ e s

the new I/O limit.

Address of a parameter table in

the format shown in ﬁgure 2-16.

JPBK

59 53 29 23 17

username return

^w, value

tys/s

V/A mask

username

return •

value

mask

O n e - t o s e v e n - c h a r a c t e r u s e r n a m e , l e f t - j u s t i ﬁ e d w i t h b i n a r y z e r o ﬁ l l , f o r

which the operation is performed. If username is a binary zero, then the

originating user is used.

Location in which to place the resultant user argument bits.

24-bit value to be used to alter the user argument ﬁeld.

Value to be taken as a binary mask. Only the lowest 24 bits are used.

j^v

Figure 2-15. TARO Parameter Table

59 17

wmmmmmmMmmm nio

nio New I/O limit.

Figure 2-16. 110 Parameter Table

60459500 A 2-27

BWAITINP Request (COMPASS Only)

The BWAITINP request allows a task to move data from

a terminal to a task ﬁeld location. This location

has th e sa m e f o r m at a s th e c o m m unic a t i o n b l o ck

(refer to ﬁgure 2-1). The request is processed the

same as a WAITINP request, except that when the

terminal data is moved to the speciﬁed location, it

is moved to the area speciﬁed by the supplied

parameter (address), not the ﬁrst word address of

the task (as In the WAITINP request). The ﬁrst

word address is not changed by the execution of this

request.

The format is:

BWAITINP address

address Address of ﬁrst word of the

storage area where the terminal

data is to be moved.

TAF does not pass this terminal data to tasks called

with the CALLTSK and CALLRTN requests.

TPSTAT Request (COMPASS Only)

The TPSTAT request is retained for compatibility

with previous releases of TAF. It was used to

enable a task to determine under which of two

terminal subsystems the task was running. Now, all

the tasks run under NAM. Therefore, the request

always returns a 1.

The format is:

TPSTAT address

address Address containing a 1 in bit 0

to indicate NAM is active.

The format is:

COBOL

ENTER BEGIN USING buffer.

buffer A 01-level item identifying the

user-deﬁned buffer area.

FORTRAN

CALL BEGIN(buffer)

buffer

COMPASS

BEGIN address

address

A n a r r a y n a m e i d e n t i f y i n g t h e

user-deﬁned buffer area.

Address of the user-deﬁned

buffer area.

TASK CONTROL REQUESTS

These requests are used for task control.

• CEASE

End a task.

• I T L

Set a task time limit.

• L O G T

L o g a t e r m i n a l o u t o f TA F.

• KPOINT

Initiate execution of K display commands.

• W A I T

Suspend processing for a given amount of

time.

/<P**«iKJV

/"sa^v

BEGIN Request

The BEGIN request allows a task to specify the area

where the terminal input data is to be placed, If an

area other than the ﬁrst word address of the task

ﬁeld length is desired. It supports programming

languages that do not reserve the ﬁrst word address

of the task for the common block that is used for

the communication block. The task must be Installed

in the appropriate task library with the (solicited)

input directive, because the default is

unsolicited. If task chains are involved, the

c a l l i n g ta s k m u s t is s u e a B E G I N r e q u e s t be f o r e

resuming execution of the original task, because the

calling task must be able to obtain the

communication block containing the returned data

from the called task. The returned communication

block in solicited mode is in the same form as in

unsolicited mode. Unless there is a speciﬁc need

for this request, its use is not recommended because

more execution overhead is required to support the

secondary load request.

CEASE Request

The CEASE request provides task end processing and

transaction completion processing. If a

predetermined task list exists for the chain (that

is, subsequent tasks have been requested for

scheduling, or the CEASE is a return from a CALLRTN

request), no special processing occurs on a CEASE

request from a task. However, if the request is

f r o m t h e ﬁ n a l t a s k i n t h e c h a i n , t h e t r a n s a c t i o n

e x e c u t i v e r e l e a s e s a l l c o m m u n i c a t i o n b l o c k s an d

notiﬁes the data manager that updated records

should be replaced on the data base. The one

exception to this procedure occurs if a task selects

an abnormal CEASE by use of an optional parameter.

A task that terminates in this manner is

automatically the ﬁnal task in the chain. After an

abnormal CEASE occurs, all communication blocks are

released and records updated by the task but not yet

updated on the data base are not replaced on the

data base.

2-28 60459500 B

/P9**

The format is:

COBOL

ENTER CEASE USING a.

Computational-l item whose value

indicates the type of CEASE selected:

0

1

-1

217-1 > a > 1

Type of CEASE

Normal CEASE.

Abnormal CEASE with

out memory dump.

Normal CEASE and ter

minal remains locked.

Abnormal CEASE with

memory dump.t

-1 > a > -(217-1) Reserved for CDC.

Any other values produce undeﬁned

results and should not be used.

217-1 > a > 1

Type of CEASE

Abnormal CEASE with

memory dump.t

-1 > a > -(217-1) Reserved for CDC.

Any other values produce undeﬁned

results and should not be used.

ITL Request

The ITL request allows a task to set the time limit

for the task to a new value. The time limit is

expressed in exchange jump time units (that is, the

number of times a task executed its full time slice

without interruption). In addition, each call to

this function decreases the CPU priority of the task

by 1 until the lower limit of priority is reached to

ensure good s erv ice to other t ask s. The tim e limit

d e f a u l t v a l u e i s a p r o d u c t o f t w o i n s t a l l a t i o n

parameters. The released value is 1.12 CPU

seconds. If this is exceeded, the task aborts and

the message TIME LIMIT EXCEEDED is issued to the

terminal.

/pi£v

FORTRAN

CALL CEASE(a)

a Integer whose value indicates the type

of CEASE selected:

a T y p e o f C E A S E

0Normal CEASE.

IAbnormal CEASE with

out memory dump.

-1 Normal CEASE and ter

minal remains locked.

217-i > a > 1 Abnormal CEASE with

memory dump.t

-1 > a > -(217-1) Reserved for CDC.

Any other values produce undeﬁned

results and should not be used.

The format is:

COBOL

ENTER ITL USING ntm.

ntm

FORTRAN

Computational-l item whose value

speciﬁes the new time limit.

CALL ITL(nto)

ntm

COMPASS

Integer whose value speciﬁes the

new time limit.

ITL address

address Address of a parameter table in

the format shown in ﬁgure 2-17.

COMPASS

CEASE

Integer whose value indicates the type

of CEASE selected:

0

1

-1

Type of CEASE

Normal CEASE.

Abnormal CEASE with

out memory dump.

Normal CEASE and ter

minal remains locked.

LOGT Request (COMPASS Only)

The LOGT request logs out a terminal from TAF and

returns it to nontransaction mode. The terminal can

then access other interactive applications. A

system task is provided using this request. (Refer

to System Tasks in section 11.)

The format is:

COMPASS

LOGT

There are no parameters.

tDumps are identiﬁed by the transaction subsystem user name or by the appropriate DSDUMP parameter (refer to

section 6).

60459500 C 2-29

59 11

W^ WMMﬂftfo ntm

ntm New time limit.

Figure 2-17. ITL Parameter Table

KPOINT Request

The KPOINT request allows a task to initiate

execution of any K display command. Section 6

describes three K display commands: K.DUMP,

K.DUMPLIM, and K.DSDUMP.

zeros after either a period or a

right parenthesis.

COMPASS

K display commands are normally issued from the

system console to communicate with and to request

speciﬁc actions of TAF. K display commands should

be Issued with care and then only when the results

of the command are well-deﬁned.

When a task issues a K display command, the preﬁx

K. is omitted. For example, the entry from the con

sole is K.DUMP., but the same command Issued from a

task is DUMP.

All K display commands, except K.DUMP, require that

the calling task be on the system task library. Any

task can issue the K.DUMP command.

The format is:

COBOL

ENTER KPOINT USING address.

address 01-level name of the character

string (K display command). The

length of the character string

cannot exceed 80 characters. The

string must begin on a word

boundary and must be terminated by

a period or a right parenthesis;

the exception is the K.MESSAGE

command, which must be terminated

by 6 bits of zeros after either a

period or a right parenthesis.

FORTRAN

KPOINT address

address Address of the character string (K

d i s p l a y c o m m a n d ) . Th e l e ng t h o f

the character string cannot exceed

80 characters. The string must be

gin on a word boundary and must be

terminated by a period or a right

parenthesis; the exception is the

K.MESSAGE command, which must be

terminated by 6 bits of zeros after

either a period or a right paren

thesis.

WAIT Request

The WAIT request allows tasks to make TAF suspend

processing for a speciﬁed number of seconds (0 to

360 0 ) . T h e t r an s ac t i on mu s t h a v e no o u t s t a n d i ng

data manager requests at the time a WAIT request is

issued.

The format is:

COBOL

ENTER WAIT USING time.

time A computational-2 data item indi

cating the number of seconds for

which processing is to be suspend

ed. If unspeciﬁed or out of

range, the task is aborted. Only

the Integer portion is signiﬁcant.

/^H§s.

CALL KP0INT(address)

address Address of the character string (K

display command). The length of

the character string cannot exceed

80 characters. The string must

begin on a word boundary and must

be terminated by a period or a

right parenthesis; the exception

is the K.MESSAGE command, which

must be terminated by 6 bits of

FORTRAN

CALL WAIT(time)

time A real number or variable indicat

ing the number of seconds for which

processing is to be suspended. If

unspeciﬁed or out of range, the

ta sk is a bor ted . O nl y t he int eg er

portion is signiﬁcant.

2-30 60459500 C /*«&.

COMPASS TASK UTILITY REQUESTS

WAIT address The following task utility requests provide capabili

ties for the FORTRAN and COBOL user, some of which

address The address of a word specifying the are difﬁcult to do because they are at the bit

n u m b e r o f s e c o n d s ( N ) f o r w h i c h l e v e l ,

processing is to be suspended. The

word has the form 48/0,12/N. If • LOGIN

unspeciﬁed or out of range, the

task is aborted. Determine if a speciﬁed user is logged in.

• EXTRACT

Extract a bit string from a word.

• I N S E R T

Insert a bit string into a word.

j0^\

60459500 C 2-30.1/2-30.2 |

/P9**-

LOGiN Request

The LOGIN request allows a task to determine if a

speciﬁed user is logged in before it issues a SEND

request to that user. TAF aborts a task that issues

a SEND request without recall to a user who is not

logged in.

| NOTJ"|

It is possible for the receiving user

to log out after the task issues a

LOGIN request and before the task

issues a SEND request. Therefore, it

is recommended that the task issue

the SEND request soon after issuing

the LOGIN request.

EXTRACT Request

The EXTRACT request allows a task to extract a bit

st r i n g fr o m a wo r d a n d move i t to a n o ther w o r d,

right-justiﬁed. For instance, the EXTRACT request

can be us ed t o ch eck ﬁelds in th e te rmina l st atus

table or the communication block.

In the following request formats, if n is not within

the speciﬁed range, if bbp plus 1 minus n is less

than 0, or if there are any other errors in the

parameters, TAF aborts the task and issues the

following message.

TASK REQUEST ARGUMENT ERROR.

The format is:

COBOL

ENTER EXTRACT USING loci loc2 bbp n.

0$^

The format is:

COBOL

ENTER LOGIN USING username status.

username A one- to seven-character alpha

numeric user name, left-justi

ﬁed. A binary zero speciﬁes

the user associated with the

tran saction that is running.

status Address of the location to

contain the returned status.

The format of the returned

status is computational-l.

Values for status are:

0 User not logged in.

1 U ser lo g g ed i n.

FORTRAN

CALL LOGTN(username,status)

username A one- to seven-character alpha

numeric user name, left-justi

ﬁed. Possible forms are nHf

and nLf (refer to the FORTRAN

Extended 4 Reference Manual). A

b i n a r y z e r o s p e c i ﬁ e s t h e u s e r

associated with the transaction

that is running.

status Address of the location to

contain the returned status.

The format of the returned

status is integer. Values for

status are:

0 User not logged in.

1 U ser lo g g ed i n.

loci

loc2

bbp

Data name of the source ﬁeld.

Any data type is allowed, loci

must begin on a word boundary.

Data name of the computational-l

destination ﬁeld. The bit

string is right-justiﬁed in

this ﬁeld.

Beginning bit position of ﬁeld

l o c i ; t h i s i s t h e l e f t m o s t b i t

of the ﬁeld. Bits are numbered

59 through 0.

Number of bits to extract; the

r a n g e o f v a l u e s f o r n i s 1 t o

59, inclusive. The format of n

must be computational-l.

FORTRAN

CALL EXTRACT(locl,loc2,bbp,n)

loci Name of the integer source ﬁeld.

loc2 Name of the integer destination

ﬁeld. The bit string is right-

justiﬁed in this ﬁeld.

bbp Beginning bit position of ﬁeld

l o c i ; t h i s i s t h e l e f t m o s t b i t

of the ﬁeld. Bits are numbered

59 through 0.

n Number of bits to extract; the

r a n g e o f v a l u e s f o r n i s 1 t o

59, inclusive. n must be

integer type.

The COBOL STRING and UNSTRING statements also

provide capabilities for manipulating character-

aligned data. The EXTRACT request should be used

only when the use of these COBOL statements is

impossible or inconvenient.

j ^ y

60459500 A 2-31

INSERT Request APPLICATION RECOVERY REQUESTS

The INSERT request allows a task to insert a bit

string into a word. For instance, the INSERT

request can be used to set ﬁelds in the terminal

status table.

The following task requests are for use in

recoverable transactions. All are for use by

applicati ons tasks although s ome are also u sed by

system tasks.

In the following formats, if n is not within the

speciﬁed range, if bbp plus 1 minus n is less than

0, or if there are any other errors in the

parameters, TAF aborts the task and issues the

following message.

TASK REQUEST ARGUMENT ERROR.

The format is:

COBOL

RERUN

R e s t a r t s a r u n

terminal input.

RGET

unit using the initial

Retrieves data from

recovery ﬁle (CRF).

the communication

RPUT

Plac es data on the co mmunica tion recover y

ﬁle.

ENTER INSERT USING loci loc2 bbp n.

l o c i D a t a n a m e o f t h e c o m p u t a t i o n a l - l

source ﬁeld. The bit string must

be right-justiﬁed in this ﬁeld.

loc2 Data name of the destination ﬁeld.

Any data type is allowed. loc2 must

begin on a word boundary.

bbp Beginning bit position of ﬁeld

loc2; this is the leftmost bit of

the ﬁeld. Bits are numbered 59

through 0.

n Number of bits to insert; the range

o f v a l u e s f o r n i s 1 t o 5 9 ,

inclusive. The format of n must be

computational-l.

FORTRAN

CALL INSERT(locl,loc2,bbp,n)

loci Name of the integer source ﬁeld.

The - bit string must be

r i g h t - j u s t i ﬁ e d i n t h i s ﬁ e l d .

loc2

bbp

Name of

ﬁeld.

the integer destination

Beginning bit position of ﬁeld

loc2; this is the leftmost bit of

the ﬁeld. Bits are numbered 59

through 0.

Number of bits to insert; the range

o f v a l u e s f o r n i s 1 t o 5 9 ,

inclusive, n must be integer type.

The COBOL STRING and UNSTRING statements also

provide capabilities for manipulating character-

aligned data. The INSERT request should be used

only when the use of these COBOL statements is

impossible or inconvenient.

RSECURE

Retrieves a message previously saved on the

communication recovery ﬁle by a SECURE

request.

SECURE

Signals the completion of a transaction's

work and saves a message on the recovery

ﬁle to be sent to the terminal when the run

unit ceases.

TSTAT

Returns the status of one or more speciﬁed

objects.

Refer to section 7 for an overview of the recovery

process from the applications programmer's

perspective. Refer to the applicable data manager

reference manual (CDCS, TAF/CRM, or TOTAL) for

requests associated with data base recovery.

RERUN Request

The RERUN request causes the initial terminal input

for a rerunnable run unit to be resubmitted to the

transaction system. The input comes from the

communication recovery ﬁle. The actions that occur

as a result of RERUN are:

1. T h e r eco v er y stat u s i s s e t t o z e ro so t hat

the recovery task will not be scheduled.

2. The restart status (TSTAT with keyword

RESTART) is set to one.

3. A term ina tio n i s p r oc e ss e d f or the run uni t

and ITASK is called to rerun the run unit.

Transactions using this request must take care to

avoid entering an inﬁnite loop if the RERUN results

from an error condition.

/ < ^ s

2-32 60459500 A

The format is:

COBOL

ENTER RERUN USING status,

status A computational-l data item

wh ose v alu e i s s et by TAF to

indicate the status of the

request. The values are:

0 No errors.

29 Recovery is not in

stalled.

3 3 R u n u n i t i s n o t r e -

runnable.

FORTRAN

CALL RERUN (status)

status An integer variable in which

TAF will return a status. The

values are:

0 No errors.

29 Recovery is not in

stalled.

3 3 R u n u n i t i s n o t r e -

runnable.

RPUT and RGET Requests

The RPUT request allows a task to put application-

dependent data on the communication recovery ﬁle.

The RGET request allows the task to retrieve the

data placed on the recovery ﬁle by an RPUT. The

length of the data in each request and the number of

slots for data on the recovery ﬁle is speciﬁed at

TAF initialization on the RECOVER statement in the

TCF (refer to section 4). TAF maintains the data on

a user name basis. TAF does not modify the user

data unless the communication recovery ﬁle is

initialized. These requests may be used by any task

when TAF automatic recovery is installed.

The format is:

COBOL

ENTER "RPUT" USING message,index[.status .message-

length, act].

ENTER "RGET" USING message,index,status .message-

length(,act].

message An 01-level data item that

contains the message. This is

an input parameter for RPUT and

an output parameter for RGET.

index A computational-l data item

indicating the index for the

recovery record. Index 1

p o i n t s t o t h e ﬁ r s t r e c o r d i n

user area of the communication

recovery ﬁle; index 2 points

to the second record in user

status

message-

length

act

a r e a o f t h e c o m m u n i c a t i o n

recovery ﬁle, and so on. This

parameter is input for both

RPUT and RGET. The maximum

value of index is the value of

the number parameter in the

RECOVER statement in the TCF.

A computational-l data item

wh o s e v a lue is se t by TAF to

i n d i c a t e t h e s t a t u s o f t h e

request. The values are:

0 No errors.

19 The index is outside of

the user recovery ﬁle

message area (RPUT

only).

20 No message (RGET only).

21 T h e m e s sag e do e s n o t

ﬁt in the recovery

ﬁle message area (RPUT

only).

22 The message does not

ﬁt in the user message

area (RGET only).

23 Incorrect application

character type (act).

2 8 T h e R G E T a c t i s n o t

equal to the RPUT act.

29 TAF automatic recovery

is not installed.

A computational-l data item

indicating the length of the

message in the message units

speciﬁed by the act parameter.

This parameter is required when

using message units other than

6-b i t di s p l a y c o d e . T his i s a n

input par ameter f or R PU T. Fo r

RGET, the user sets the message-

length of the area to receive

the message. Upon completion

of RGET, TAF places the length

o f t h e m e s s a g e i n m e s s a g e -

length.

A computational-l data item

indicating the application

character type. The type is

the same as for NAM. This is

an input parameter. The values

are:

2 7-bit ASCII characters,

seven and one-half per

word.

3 7-bit ASCII characters,

right-justiﬁed in 12-

bit bytes, ﬁve per

word.

4 6-bit display code char

acters, 10 per word.

This is the default

value.

60459500 B 2-33

FORTRAN

CALL RPUT(message,index,status.message-length

t.act])

CALL RGET(message,index,status ,message-length

[,act])

message

index

status

The name of an array that

contains the message. This is

an input parameter for RPUT and

output parameter for RGET.

An integer variable indicating

the index for recovery record.

I n d e x 1 p o i n t s t o t h e ﬁ r s t

record in user area of the

c o m m u n i c a t i o n r e c o v e r y ﬁ l e ;

i n d e x 2 p o i n t s t o t h e s e c o n d

record in user area of the

communication recovery ﬁle,

and so on. This parameter is

input for both RPUT and RGET.

The maximum value of index is

the value of the number

parameter in the RECOVER

statement in the TCF.

An integer variable whose value

is s e t b y TA F to in d i c a t e t h e

status of the request. The

values are:

act An integer variable indicating

the application character

type. The type is the same as

for NAM. This is an input

parameter. The values are:

2 7-bit ASCII characters,

seven and one-half per

word.

3 7-bit ASCII characters,

right-justiﬁed in 12-

bit bytes, ﬁve per

word.

4 6-bit display code

characters, 10 per

word. This is the

default value.

RSECURE Request

The RSECURE request allows a recovery task to obtain

a message previously saved on the communication

recovery ﬁle by a SECURE request. After obtaining

the message, the task would normally send the

message to the appropriate terminal. Any task may

use this request if automatic recovery has been

installed with TAF.

The format is:

0 No errors.

19 The index is outside of

the user recovery area.

20 No message (RGET only).

21 T h e m e s sag e do e s n o t

ﬁt in the recovery

ﬁle message area (RPUT

only).

22 The message does not

ﬁt in the user message

area (RGET only).

23 Incorrect application

character type (act).

2 8 T h e R G E T a c t i s n o t

equal to the RPUT act.

29 TAF automatic recovery

is not installed.

COBOL

ENTER "RSECURE" USING message,status ,

message-length ,ac t,format-effec tor,

transparent-mode.

message

st a t u s

An 01-level data item that

contains the message. This is

an output parameter.

A computational-l data item

whose v a l u e is se t by TAF t o

i n d i c a t e t h e s t a t u s o f t h e

request. The values are:

0 No errors.

20 No message.

2 2 T h e m e s s a g e d o e s n o t

ﬁt in the user message

area.

29 Recovery

stalled.

is not in-

message- An integer variable indicating

length the length of message in the

message units speciﬁed by the

act parameter. This is an

input parameter for RPUT. For

RGET, the user sets the message-

length of the area to receive

the message . Up on c omp letion

of the request, TAF returns the

message-length as recorded on

the communication recovery ﬁle.

m e s s a g e - A c o m p u t a t i o n a l - l d a t a I t e m

length indicating the length of

message in the message units

speciﬁed by the act

parameter. Before issuing the

r e q u e s t , t h e u s e r s e t s t h e

message-length area in the

t a s k . U p o n c o m p l e t i o n o f t h e

request, TAF returns the

message-length as recorded on

the communication recovery ﬁle.

2-34 60459500 B

format-

effector

A computational-l data item

indicating the application

character type. The type is

the s a m e as fo r NAM. B e f o r e

issuing the request, the user

se t s t he a ct. Up on com p let i on

of the request, TAF returns the

act as recorded on the recovery

ﬁle. The values are:

2 7-bit ASCII characters,

seven and one-half per

word.

3 7-bit ASCII characters,

right-justiﬁed in 12-

bit bytes, ﬁve per

word.

4 6-bit display code

characters, 10 per

word. This is the

default value.

A computational-l data item

indicating format effector

usage. The values are:

0 F o r m a t eff e c t o r s appear

in the message.

1 No format effectors

appear in the message.

A computational-l data item

indicating transparent mode

usage. Default is nontranspar

ent mode. The values are:

0 Nontransparent data.

Interactive virtual

terminal transforms are

used.

1 T r a n s p a r e n t d a t a . I V T

transforms are inhib

ited.

FORTRAN

CALL RSECURE(message,status,message-length, act,

format-effector,transparent-mode)

message-

length

transpar

ent-mode

message

status

The name of an array that

contains the message. This is

an output parameter.

An integer variable whose value

Is set by TAF to indicate the

s t a t u s o f t h e r e q u e s t . T h e

values are:

0 No errors.

20 No message.

22 T h e m e s sag e do e s n o t

ﬁt in the user message

area.

29 Recovery is not in

stalled.

act

An integer variable indicating

the length of the message in

message units speciﬁed by the

act parameter. Before issuing

the request, the user sets the

message-length area in the

t a s k . U p o n c o m p l e t i o n o f t h e

request, TAF returns the

message length as recorded on

the communication recovery ﬁle.

An integer variable indicating

the application character

type. The type is the same as

NAM. Before issuing the

request, the user sets the

act. Upon completion of the

request, TAF returns the act as

recorded on the recovery ﬁle.

The values are:

2 7-bit ASCII characters,

seven and one-half per

word.

3 7-bit ASCII characters,

right-justiﬁed in 12-

bit bytes, ﬁve per

word.

4 6-bit display code

characters, 10 per

word. This is the

default value.

An integer variable indicating

format effector usage. The

values are:

0 Format effectors appear

in the message.

1 No format effectors

appear in the message.

An integer variable indicating

transparent mode usage. The

values are:

0 Nontransparent data.

Interactive virtual

terminal transforms are

used.

1 Transparent data. IVT

transforms are inhib

ited.

SECURE Request

The SECURE request tells the transaction executive

tha t th e work of the ru n un it i s co mplete. All that

remains is to commit the data base and end the run

unit. The SECURE request includes a terminal

conﬁrmation message. This message will be sent at

the run unit end time (normal CEASE). If the commit

request fails, the task may RERUN the run unit or

issue a CEASE request with abnormal termination. In

either case, the SECURE message will not be sent.

format-

effec tor

transpar

ent-mode

60459500 A 2-35

TAF records the message associated with SECURE on

p e r m a n e n t s t o r a g e s o t h a t t h e m e s s a g e c a n b e

d e l i v er e d in s p i t e o f s ys t e m or t e rm i n a l f a i l u re s .

If no failures occur, the message will be sent from

the task's SECURE message area. This means that the

SECURE, data base commit, and CEASE must occur in

the same task. TAF assumes that the message has

been acknowledged by the terminal operator when the

operator enters the next transaction input. The

SECURE message may appear twice if recovery is done

after a failure, but it is guaranteed to appear at

least once. TAF also saves the NAM application

block header with the message so that it will be

sent with the correct character type and mode. Only

the last SECURE message is saved per run unit. Any

t a s k ma y u s e t h i s re q u e s t i f r e c o v e r y h a s b e e n

installed with TAF; however, if the run unit is not

recoverable, the SECURE message will not be issued

to the terminal upon recovery (only at initial CEASE

time).

message-

length

act

A computational-l data item

indicating the length of the

message in the message units

speciﬁed by the act

parameter. This is an input

parameter. It is required when

the act parameter does not

specify display.

A computational-1 data item

indicating the application

character type. The type is

the same as for NAM. This is

an input parameter. The values

are:

2 7-bit ASCII characters,

seven and one-half per

word.

For a BTRAN run unit the message is recorded on the

communication recovery ﬁle but no message is sent

to the terminal/username. The RECOVER statement

maximumsize parameter speciﬁes the message size

that can be recorded on the communication recovery

ﬁle.

The format of the message on the terminal depends on

the terminal class and the format effectors in the

message. Refer to the SEND request description

earlier in this section for more information.

The format is:

COBOL

ENTER "SECURE" USING message,statusf,message-

length,act ,format-effector .transparent-mode] .

format-

effec tor

7-bit ASCII characters,

right-justiﬁed in 12-

bit bytes, ﬁve per

word.

6-bit display code

characters, 10 per

word. This is the

default value.

A computational-l data item

indicating format effector

usage* This is an optional

parameter. It is necessary

o n l y i f f o r m a t e f f e c t o r s a r e

used. The default is no format

effectors. The values are:

message A 01-level data item that

contains the message. This is

an input parameter.

status A computational-l data item

wh o s e v a lue is se t by TAF to

indicate the status of the

request. The values are:

0 No errors.

21 The message is too

l a r g e t o ﬁ t i n T A F ' s

communication recovery

ﬁle. Refer to the

RECOVER statement maxi

mumsize parameter.

23 Incorrect application

character type.

0 Format effectors appear

in the message.

1 No format effectors

appear in the message.

transpar- A computational-l data item

ent-mode indicating transparent mode

usage. This is an optional

parameter. It is necessary

only if transparent mode is

used. The default is

nontransparent mode. The

values are:

0 Nontransparent data.

Interactive virtual

terminal transforms are

used.

24 Incorrect format-

effector value.

25 Incorrect transparent-

mode value.

1 Transparent data. IVT

transforms are inhib

ited.

26 The message exceeds the

maximum length for SEND. FORTRAN

27 The message exceeds the

maximum length for a

run unit.

29 TAF automatic recovery

is not installed.

CALL SECURE (message,status,message-length

[ ,act,format-effector.transparent-mode])

message The name of an array that

contains the message. This is

an input parameter.

2-36 60459500 A

status An integer variable whose value

is set by TAF to indicate the

s t a t u s o f t h e r e q u e s t . T h e

values are:

0 No errors.

21 The message is too large

to ﬁt in the communica

tion recovery ﬁle.

Refer to the RECOVER

statement maximumsize

parameter.

23 Incorrect application

character type.

24 Incorrect format effect

or value.

25 Incorrect transparent-

mode value.

26 The message exceeds the

maximum length for SEND.

27 The message exceeds the

maximum length for a

run unit.

transpar- An integer variable indicating

ent-mode transparent mode usage. This

is an optional parameter. It

is necessary only if

transparent mode is used. The

default is nontransparent

mode. The values are:

0 Nontransparent data.

Interactive virtual

terminal transforms are

used.

1 Transparent data. IVT

transforms are inhib

ited.

TSTAT Request

The TSTAT request returns information about the

current user or run unit. It is used by both system

tasks and applications (user) tasks.

The format is:

COBOL

J8*V

message-

length

act

29 TAF automatic recovery

is not installed.

An integer variable indicating

the length of the message in

the message units speciﬁed by

the act parameter. This is an

input parameter.

An integer variable indicating

the application character

type. The type is the same as

for NAM. This is an input

parameter. The values are:

2 7-bit ASCII characters,

seven and one-half per

word.

3 7-bit ASCII characters,

right-justiﬁed 12-bit

bytes, ﬁve per word.

6-bit display

characters, 10

word. This is

default value.

code

per

the

format- An integer variable indicating

effector format effector usage. This is

an optional parameter. It is

necessary only if format effec

tors are used. The default is

no format effectors. The

values are:

0 F o r m a t eff e c t o r s appear

in the message.

1 No format effectors

appear in the message.

ENTER "TSTAT** USING status .keyword j, value j,...,

keywordn,valuen.

status A computational-l data item

wh ose v alu e i s s et by TAF to

i n d i c a t e t h e s t a t u s o f t h e

request. The values are:

0 No errors.

12 The keyword speci

ﬁed requires TAF

automatic recov

ery. TAF automatic

recovery is not

installed.

13 End of NEXT proc

essing.

14 USER is not deﬁned

in the network ﬁle.

400+i keyword^ is invalid.

keyword ^ An 01-level item that contains

a one- to seven-character

keyword for which a value is

desired. The keyword must be

left-justiﬁed and blank-

ﬁlled. Refer to table 2-7 for

keyword deﬁnitions.

value^ A data item to which TAF returns

the value for the corresponding

keyword. The keyword^ and

value^ ﬁelds must appear in

pairs. For USER, NEXT, OLDID,

and NEWID usage is display. For

all other TSTAT keywords, usage

is computational-l.

60459500 A 2-37

FORTRAN TSTAT System Task Keywords

CALL TSTAT (status .keyword j, value j keyworda,

valuen)

status An integer variable whose value

is set by TAF to indicate the

status of the request. The

values are:

Keywords NEXT, STEP, TRAN, OLDID, NEWID are

used by BTASK to read sequentially the

communication recovery ﬁle to ﬁnd batch

(BTRAN) run units that require rerunning.

BTASK uses the SRERUN request with username

to rerun BTRAN run units.

0 No errors.

12 The keyword speci

ﬁ e d r e q u i r e s T A F

automatic recov

ery. TAF automatic

recovery is not

Installed.

13 End of NEXT proc

essing .

14 USER is not deﬁned

in the ne two rk ﬁle.

400+i keywordi is invalid.

ke y w ord . £ A v a ria b le t hat co n tai n s a on e -

t o s e v e n - c h a r a c t e r l e f t - j u s -

t i ﬁ e d k e y w o r d f o r w h i c h a

value is desired. The keyword

must be blank-ﬁlled. Refer to

table 2-7 for keyword

deﬁnitions.

value^ A variable ﬁeld to which TAF

returns the value of the de

sired keyword. The keyword^

and valuer must appear in

pairs. For USER, NEXT, OLDID,

and NEWID valuer is character

d a t a . F o r a l l o t h e r T S T A T

keywords, valuer is an

integer.

Some TSTAT keywords (both as COBOL and FORTRAN

parameters) are meant for user tasks and others are

meant for system tasks, such as BTASK, CTASK, and

RTASK.

TSTAT User Task Keywords

• Keywords RESTART, OLDID, and NEWID are meant

for use by application tasks that use

multiple data manager begin-commit sequences

to determine If the run unit is in a

restarted state and, if so, where to begin

processing*

• Keywords STEP, TRAN, OLDIN, NEWID, CRM, and

CDCS are used by RTASK during terminal

l o g i n / r e l o g i n t o d e t e r m i n e i f a r u n u n i t

requires rerun. The SEQ (sequence number)

returned is the transaction sequence number

that was ﬁrst assigned to the run unit.

RTASK can be either a system task or a user

task.

SYSTEM TASK RECOVERY REQUESTS

Applications programmers can skip this subsection

since all the requests documented here are available

only to system tasks (that is, tasks residing on the

system task library). Recovery requests that are for

use by both system tasks and application tasks are

documented under Application Recovery Requests ear

lier in this section. Refer to section 8 for an

overview of the recovery process from the data admin

istrator's perspective. Refer to the applicable data

manager reference manual (CDCS, TAF/CRM, or TOTAL)

for requests associated with data base recovery. The

following task requests are used by system tasks for

transaction recovery.

■ CALLTRN

Initiates a run unit*

• SRERUN

Resubmits initial terminal input for a rerun-

nable run unit.

• TINVOKE

Returns or speciﬁes a system identiﬁer for

begin-commit sequences in this job.

• W S TAT

Records information needed for recovery

processing.

CALLTRN Request

The CALLTRN request causes the initiation of a run

unit. It is available only to the system task ITASK.

The actions that occur as a result of CALLTRN are:

1. ITASK ceases. If an error condition is de

tected, an error message is issued to the

terminal via MSABT.

2. The initial terminal input is logged on the

CRF if the transaction is recoverable. The

transaction will not be scheduled for execu

tion until this circular input-output (CIO)

operation is complete.

3. If the transaction initiated is recoverable,

the commitment history of the previous recov

erable run unit for this user is released.

2-38 60459500 B

Table 2-7. TSTAT Keyword Descriptions

Keyword Value Description

USER

STEP

jgPN

TRAN

CRM

CDCS

RESTART

OLDID

NEWID

Return status for the user/terminal speciﬁed in value. If USER or NEXT

is not speciﬁed, then the request refers to the originating terminal/

user. Only one of USER/NEXT can be speciﬁed in a single TSTAT request.

Reserved for tasks on system task library.

Return the next user from the communication recovery ﬁle(s). NEXT is

available only to system tasks. When NEXT is speciﬁed, all other key

words will refer to the next user. Only one of USER/NEXT can be speciﬁed

in a single TSTAT request.

Return the transaction sequence number for speciﬁed user.

Run unit or job step.

Nonrecoverable run unit or job input.

CDCS down. This applies only to a recoverable run unit.

Normal transaction CEASE or job end. Present only for BTRAN or TAF/CRM

batch concurrency jobs.

Task or job abort.

Run unit is no longer rerunnable. This occurs when an I/O error is

detected and the data cannot be recovered for the user.

Recoverable run unit or job input.

CRM begin-commit ids are logged.

NAM down. This applies only to a recoverable run unit.

Run unit type.

Terminal user.

BTRAN user jobs.

TAF/CRM user job.

CRM usage.

CRM may not be used by the transaction.

CRM may be used by the transaction.

CDCS usage.

CDCS may not be used by the transaction.

CDCS may be used by the transaction.

Run unit is not in restarted state.

Run unit is in restarted state. This state occurs when a RERUN request

was issued.

Return the old (previous) CRM begin-commit id from the communication

recovery ﬁle.

Return the new (current) CRM begin-commit id from the communication

recovery ﬁle.

0^*.

60459500 B 2-39

The format is:

COBOL

ENTER CALLTRN USING tname.

31 username is not in the

network ﬁle.

tname

FORTRAN

01-level data item containing a

one- to seven-character trans

action name.

CALL CALLTRN(tname)

tname An integer containing a one- to

seven-character transaction

name, left-justiﬁed with blank

ﬁll.

SRERUN Request

The SRERUN request causes the initial terminal input

for a rerunnable run unit to be resubmitted to the

transaction subsystem. The input is retrieved from

the communication recovery ﬁle. The actions that

occur as result of SRERUN are:

• T h e r e c o v e r y s t a t u s i s s e t t o ze r o s o th a t

the recovery task will not be scheduled.

• The restart status (TSTAT with keyword

RESTART) is set to one.

• The SRERUN is done without requesting run

unit termination.

The format is:

COBOL

ENTER SRERUN USING status[.username].

status A computational-l data item in

which TAF will return a

status. The values are:

0 No errors.

29 Recovery not installed.

31 username not in network

ﬁle.

33 Run unit not rerunnable.

username 01-level data item containing a

o n e - t o s e v e n - c h a r a c t e r u s e r

n a m e . I f t h i s p a r a m e t e r I s

omitted, the rerun applies to

the user name under which the

current task is running.

FORTRAN

CALL SRERUN(status[,username])

status An integer in which TAF will

return a status. The values

are:

0 No errors.

29 Recovery is not in

stalled.

33 Run unit

rerunnable.

is not

username A variable containing a one- to

seven-character user name, left-

justiﬁed and blank-ﬁlled. If

this parameter is omitted, the

rerun applies to the originating

user.

TINVOKE Request

The TINVOKE request returns a system identiﬁer to

be used for all begin-commit sequences in the job or

task. For TAF, this system identiﬁer is the trans

action sequence number. Optionally, for the recovery

case, the job or task may supply an old system iden

tiﬁer. This establishes the task or job as a

continuation of a previous task or job.

The format is:

COBOL

ENTER TINVOKE USING status,new-system-id,

old-system-id.

status A computational-l item in which

TAF will return a status* The

values are:

0 Request successful.

32 old-system-id unknown.

new-system-id A computational-l item in which

TAF will return a system identi

ﬁ e r t o b e u s e d f o r a l l b e g i n -

commit sequences in the job or

task.

old-system-id A computational-l item in which

the task or job supplies the

old system identiﬁer that

establishes the task or job as

a continuation of the old one.

FORTRAN

CAIi TINVOKE(status.new-system-id,old-system-id)

status An integer variable in which

TA F w i l l r e t u r n a s t a t u s . T h e

values are:

0 Request successful.

32 old-system-id unknown.

new-system-id An integer in which TAF will

return a system identiﬁer to

be used for all begin-commit

sequences in the task or job.

old-system-id An integer in which the task or

job supplies the old system

identiﬁer that establishes the

program as a continuation of a

previous one.

/tf^&sjV

/_C^v

2-40 60459500 A

WSTAT Request

The WSTAT request records information needed for

recovery processing on the communication recovery

ﬁle or TAF system tables. WSTAT is used by system

task CTASK.

The format is:

COBOL

ENTER "WSTAT" USING status .keyword!.valuet,...,

keywordn,valuen.

status A computational-l item whose

value is set by TAF to indicate

the status of th e request. The

values are:

0 No errors.

29 Keyword speciﬁed

requires TAF auto

matic recovery. TAF

a u t o m a t i c re c o v e r y

is not installed.

30 End of NEXT process

ing.

31 USER is not deﬁned

in the network ﬁle.

FORTRAN

CALL WSTAT(status.keywordi,valuei,.

valuen)

,keywordn,

st a t u s

keyword^

An inte ger wh os e valu e i s s et

b y TA F t o g i v e t h e s t a t u s o f

the request. The values are:

0 No errors.

29 Keyword speciﬁed

requires TAF auto

matic recovery. TAF

a u t o m a t i c r e c o v e r y

is not installed.

30 E n d o f NE X T p r o cess

ing.

31 USER is not deﬁned

in the network ﬁle.

400+i keyword^ is invalid.

A variable containing a one- to

seven-character keyword for

w h i c h a v a l u e i s s p e c i ﬁ e d .

The keyword must be left-

justiﬁed and blank-ﬁlled.

Refer to table 2-8 for keyword

deﬁnitions.

400+i keyword^ is invalid.

keyword^ An 01-level item containing a

one- to seven-character keyword

for which a value is speci

ﬁed. The keyword must be left-

justiﬁed and blank-ﬁlled. Re

f e r t o t a b l e 2 - 8 f o r k e y w o r d

deﬁnitions.

v a l u e ^ A c o m p u t a t i o n a l - l i t e m t h a t c o n

tains the value for the desired

keyword. The keyword^ and

valuej ﬁelds must appear in

pairs.

value£ Integer that contains the value

of the preceding keyword. The

keyword j and value j_ must

appear in pairs.

The WSTAT keywords (both for COBOL and FORTRAN param

eters) are given in table 2-8. All keywords neces

sary for recovery processing for a user name must be

speciﬁed in the WSTAT request. For instance, CTASK

makes a TSTAT request specifying NEXT, SEQ, STEP,

TRAN, CRM, and CDCS followed by a WSTAT with SEQ,

TRAN, CRM, CDCS, OLDID, NEWID, USER, and STEP. Any

keyword not speciﬁed retains the value associated

with it on the previous WSTAT request.

60459500 B 2-41

Ta b l e 2 - 8 . W S TAT K e y w or d D e s cr i pt i on s

Keyword Value Description

USER Set status for user name speciﬁed in value. If USER is not speciﬁed,

then the request refers to the originating user name.

SEQ The transaction sequence number speciﬁed in value is written for a given

user name.

STEP Transaction or job step.

0 Nonrecoverable run unit or job input.

1 CDCS down. Applies only to recoverable run units.

2 Normal transaction cease or job end. Present only for BTRAN or TAF/CRM

batch concurrency.

3 Task or job abort.

4 Run unit no longer rerunnable. This occurs when an I/O error is detected

and the data cannot be recovered for the user.

5 Recoverable run unit or job input.

6CRM begin-commit ids are logged.

7 NAM down. Applies only to a recoverable run unit.

8Allow terminal or job input to TAF.

9 Terminate TAF because of a recovery error.

TRAN Transaction type.

1 Terminal user.

2 BTRAN user job.

3TAF/CRM user job.

CRM CRM usage.

0 CRM may not be used by transaction.

1CRM may be used by transaction.

CDCS CDCS usage.

0CDCS may not be used by transaction.

1 CDCS may be used by transaction.

OLDID Set old (previous) CRM begin-commit id on the communcation recovery ﬁle.

NEWID Set new (current) CRM begin-commit id on the communication recovery ﬁle.

y^$w$?V

2-42 60459500 B

J ^ v ACCESS AND USE OF CDCS BY TASKS

The CYBER Database Control System can be used alone

or with one other data manager (CRM or TOTAL) in the

same transaction. If a task is to use CDCS, the

CDCS reference manuals listed in the preface should

be consulted for information on how to set up the

data base (schema, subschema, master directory, and

ﬁles). This data base is associated with CDCS and

the ﬁles will be at the control point of CDCS

during execution. Tasks can use the CDCS verbs for

data b as e acce ss pro vi ded th at the y are c ompiled

with the appropriate subschema relating them to a

CDCS data base.

In the following, xx represents the two-character

da ta base i den ti ﬁer.

A TAF application (known by the xx identiﬁer in the

TCF) is linked to a CDCS data base by means of the

subschemas used in the tasks associated with the

application (these are the tasks on xxTASKL). All

tasks in a transaction must use the same subschema

or a fatal task error (detected by CDCS) will occur.

A transaction will be considered to be connected to

CDCS if it has successfully issued a request to CDCS

and the terminate request to CDCS has not been

completed. (A CDCS terminate request from other

than the last task in a chain will be ignored.) If

the last task in the chain does not issue a CDCS

terminate request, one will be issued automatically

when the last task completes.

A task will abort if it attempts to use CDCS when

CDCS is not present in the system or if CDCS aborts

while a transaction is connected to it. If a task

aborts while it is connected to CDCS, TAF will issue

an abnormal termination notice to CDCS for the task

(unless the abort originated with CDCS).

Refer to sections 7 and 8 for information regarding

recoverable transactions and CDCS/transaction aborts.

The following TAF ﬁles are associated with an

application using CDCS:

TCF

xxJ

xxTASKL

xxJORl

XXJ0R2

xxJ0R3

Required.

Required unless all tasks are on

system task library.

Optional.

The possibility of a deadlock involving CDCS and

another data manager (TOTAL or CRM) exists. For

instance, if task X locks some resources under one

data manager and then tries to lock other resources

under another data manager that task Y initially

locked, then the two tasks may be deadlocked if task

Y tries to lock any of the resources locked by task

X. It is the responsibility of the installation,

applications programmers, and the data administrator

to prevent these situations from occurring. Such

deadlocks can be prevented by locking resources in a

speciﬁed order only, for example, lock in data

manager A resources ﬁrst, then data manager B

resources, and so forth.

RESTRICT clauses cause tasks to automatically

request additional central memory. All of the

advice and requirements relevant to a task

requesting that its FL be increased apply when

RESTRICT clause processing is used (refer to Memory

Requests, section 2).

JlP^V

60459500 A 3-1

SYSTEM FILES

<#fﬁv

0^**

This section is intended for the data administrator

and can be omitted by the applications programmer.

This section discusses four topics: the xxJ ﬁle,

journal ﬁles, the TAF conﬁguration ﬁle, and the

communication recovery ﬁle.

An xxJ ﬁle is associated with each data base and

has the following functions.

• Defines the user's user name, password, and

optional user index.

• Defines optional journal files.

• Defines optional device residence for the

task library and some ﬁles speciﬁc to the

in di vid ua l d ata m ana ge rs (r efe r to the xxJ

ﬁle descriptions that follow).

Up to three journal ﬁles can be speciﬁed optionally

to su pplement t he system journalizing. A task c an

write to one of the journal ﬁles by using the JOURNL

request.

TCF, the TAF conﬁguration ﬁle, deﬁnes the data

bases associated with a data manager, deﬁnes the

network ﬁles and communication recovery ﬁles to be

used, and may contain K display commands.

■A procedure file (TAFxxxx) is used to initialize TAF.

Commands may be added to it for recovery or to estab

lish the operating environment. For example, com

mands that attach journal ﬁles (xxJORn) and data

base ﬁles can be included In this ﬁle. Refer to

the NOS 2 Installation Handbook for more information

(refer to the preface for the publication number).

xxJ FILE

An indirect access permanent ﬁle, xxJ, where xx is

the data base name, is required for each data base.

If additional journal ﬁles are needed, they are de

ﬁned in the xxJ ﬁle. The xxJ ﬁle Is saved under

the transaction subsystem user name. The ﬁle is in

job command format and varies depending on the data

manager used.

NOTE

The transaction subsystem user name

should be under the control of a data

administrator. The applications pro

grammer sh ou ld not hav e a cc es s to

this name.

CRM DATA MANAGER xxJ FILE

If data base recovery is to be used, the user speci

ﬁed on the USER statement must be able to read the

xxJ ﬁle. This can be done by granting read permis

sion to that user or by making the ﬁle public.

The structure of the xxJ ﬁle (when using the CRM

Data Manager) is shown as follows.

xxJ

USER(username,password,

familyname)t

BRF,number

xxJORl,devlcetype,ﬁletype.

xxJ0R2.devicetype, ﬁletype.,

xxJ0R3 ,devicetype,ﬁletype.

xxTASKL,PN~packname,

R-device.

CRM(xxpfnl,type.mode,users,

locks,mrl,pkl.hash,rec,fwi,

packname,device)

IXN(xxpfxn,naky,packname,

device)

AKY(akn,ako,akl)

RMKDEF(xxpfn1,rkw,rkp.kl,0,

kf ,ks,kg,kc,nl,ie,ch)

RMKDEF(xxpfnl,rkw,rkp,kl.O,

kf,ks,kg.kc.nl,le,ch)

CRM(xxpfnn,type,mode,users,

locks,mrl,pkl.hash,rec,

fwi, packname.device)

IXN(xxpfxn,naky.packname,

device)

AKY(akn,ako,akl)

RMKDEF(xxpfnn,rkw,rkp,kl,

O.kf,ks,kg,kc.nl,le.ch)

RMKDEF(xxpfnn,rkw,rkp,kl,

O.kf,ks,kg,kc,nl,ie,ch)

Required.

Optional,

One CRM statement

for each ﬁle.

tThis is the username, password, and familyname where all data base ﬁles and index ﬁles described In the

following CRM and IXN statements are located.

60459500 C 4-1

The IXN and AKY statements are necessary only for

multiple indexed ﬁles. The IXN statement describes

the index ﬁle; the AKY statement describes an alter

nate key. There is one AKY statement per alternate

key. The RMKDEF statement is necessary if the ﬁle

has multiple indexes and is recoverable. The RMKDEF

statement in the xxJ ﬁle must be identical to the

RMKDEF statement used in the initial MIPGEN creation

of the data base ﬁle. There must be one RMKDEF

statement for each alternate key in the xxJ ﬁle.

More information on RMKDEF can be found in the CRM

AAM 2 Reference Manual.

The parameters for the xxJ ﬁle are:

xx Data base name.

I password Batch password.

number Number of before image recovery

ﬁles for this data base.

The mode parameter controls access

to the ﬁle to ensure that either

TAF or a batch job can write on or

m o d i f y t h e ﬁ l e a t a g i v e n t i m e .

However, TAF and a batch job can

read the ﬁle simultaneously. Refer

to the ATTACH command in the NOS 2

Reference Set, Volume 3, for access

modes granted for different combin

ations of multiple access.

NOTE

If the TAF procedure ﬁle attaches a

ﬁle that is described on a CRM state

ment, the mode speciﬁed in the TAF

procedure ﬁle overrides the mode par

ameter in the xxJ ﬁle.

devicetype

ﬁletype

packname

device

xxpfn^

type

mode

Device type:

MS Mass storage.

MT Seven-track tape.

NT Nine-track tape.

File type (refer to ﬁgure 4-1)i

B Buffered write.

locks

RNonbuffered write.

Pack name of the auxiliary device on

which the user's task library or data

b a s e ﬁ l e s r e s i d e . T h i s p a r a m e t e r

is optional on the CRM statement.

Type of device on which the user's

task library or data base ﬁles

reside. For example, DI (for an

8 4 4 ) o r D I 3 ( f o r a m u l t i u n i t 8 4 4

consisting of three devices). This

parameter is optional on the CRM

statement.

Two- to seven-character ﬁle name.

xx is the data base name. pfn^ is

the remaining zero to ﬁve charac

ters in the data base ﬁle name.

CRM ﬁle type:

AK Actual key.

DA Direct access.

IS Indexed sequential.

Attach mode of ﬁle xxpfn^;

M Modify, append, or read.

R Read.

RM Read, with another user

concurrently attaching the

ﬁle in mode M.

W Write, modify, append, or

read.

Number of transactions allowed to

open ﬁle xxpfn^ concurrently.

When TAF terminates, the TAF dayﬁle

contains a message that gives the

number of OPEN requests not granted

because the value of the users par

ameter was exceeded. Each user uses

38 words plus the pkl parameter size

(In words).

Number of records the transaction

c a n l o c k f o r ﬁ l e x x p f n * ; . W h e n

TAF terminates, the TAF dayﬁle

contains a message that gives the

number of locks not granted because

the value of the locks parameter was

exceeded. Each lock uses two words

plus the pkl parameter size (in

words).

BUFFERED NONBUFFERED

3-WORD HEADER 3-WORD HEADER

DATA DATA

EOR

3-WORD HEADER 3-WORD HEADER

DATA

EOR

•

./S^jjk

Fi gu re 4-1. Jou rn al Fi le

(Buffered and Nonbuffered Structure)

4-2 60459500 C >f5il!\

/P8^

mrl

pkl

hash

Number specifying the maximum record

length (in characters) for ﬁle

xxpfn^.

Number specifying

characters of the

ﬁle xxpfn^.t

the length in

primary key for

One- to seven-character indirect

access ﬁle that contains the binary

code of the hashing routine for ﬁle

xxpfnj.. This indirect access ﬁle

must be stored under the username

parameter on the USER statement.

The entry point for the hashing rou

tine must be this ﬁle name (hash).

If this parameter is omitted, CRM

uses the hashing routine supplied

with CRM. This parameter applies

only for CRM direct access ﬁles.

File recoverability.

R T h i s ﬁ l e i s r e c o v e r a b l e .

N This ﬁle is not recoverable.

When rec is not speciﬁed, N

is assumed.

NOTE

Adding recoverable ﬁles to the data

base that has a record or key length

larger than any previously speciﬁed

re co verab le ﬁl e c auses rec ove ry ﬁle

validation errors during TAF initial

ization. Before image recovery ﬁles

need to be recreated and after image

recovery ﬁles need to be dumped to

tape (via DMREC) and recreated. To

ensure full data base recoverability,

recoverable ﬁles should only be added

to the data base following a normal

termination of TAF.

fwi Forced write indicator. When the

forced write indicator is OFF, the

modiﬁed data ﬁle buffers are writ

ten to disk when space is needed.

When the forced write indicator is

ON, all data ﬁle buffers that are

modiﬁed in core are written to disk

immediately. If fwi is not speci

ﬁed, the forced write indicator is

set to OFF.

Y Sets forced write ON for this

ﬁle.

N Sets forced write OFF for

t h i s ﬁ l e .

x x p f x n P e r m a n e n t ﬁ l e n a m e o f t h e i n d e x

ﬁle; must begin with the two-letter

application identiﬁer xx.

naky

akn

ako

atcl

rkw

rkp

kl

kf

ks

kg

kc

Number of alternate keys in the index

ﬁle.

Alternate key number. Alternate key

description statements for one data

base ﬁle must be ordered in a con

tinuous sequence by alternate key

number. For a detected key, this is

the only parameter present in the

statement.

Alternate key offset. The position

in the record of the ﬁrst character

of the alternate key. This corre

sponds to the key offset parameter

used on data manager requests access

ing the record by this key. The

ﬁrst position in the record is char

acter position number one (not zero).

Length of

characters.

alternate key in

Relative word in the record in which

the alternate key begins, counting

from 0; required.

Relative beginning character position

within the relative key word (rkw),

counting from 0; required.

Number of characters in the key, 1

to 255; required.

Required to mark position for the

reserved ﬁeld.

Key format; required.

0 or S Symbolic.

1 o r I In t e g e r.

2 or U Unco Hated symbolic.

3 or P Purge alternate key deﬁ

nition from the index.

S u b s t r u c t u r e f o r e a c h p r i m a r y k e y

list in the index; optional.

U Unique (default).

I Indexed sequential; recom

mended for efﬁciency in

processing.

F First-in, ﬁrst-out.

Length in characters of the repeating

group in which the key resides.

Number of occurrences of the repeat

ing group; zero for T-type records,

and a number for a repeating group

embedded within the record.

tThe user can specify octal numbers and decimal numbers by using a postradix of B or D, respectively.

Decimal is the default.

/#*N 60459500 C 4-3

nl

ie

ch

Null suppression; a null value is

all spaces (symbolic key) or all

zeros (integer key):

0 Null values

(default).

are indexed

N Null values are not indexed.

Include/exclude sparse control char

acter:

I Include alternate key value

if the record contains a

sparse control character.

E Exclude alternate key value

if the record contains a

sparse control character.

Characters that qualify as sparse

control characters; up to 36 letters

and digits can be speciﬁed as a

cha ra cter stri ng .

n User index (obtained from site

analyst).

devicetype Device type:

MS Mass storage.

MT Seven-track tape.

NT Nine-track tape,

ﬁletype File type (refer to ﬁgure 4-1):

B Buffered write.

R N o n b u f f e r e d w r i t e .

packname Pack name of the auxiliary device on

which the user's task library

(xxTASKL) or data sets will reside.

device Type of device on which the user's

ﬁle will reside [for example, DI

( f o r 8 4 4 ) o r D I 3 ( f o r a m u l t i u n i t

844 consisting of three devices)].

TOTAL DATA MANAGER xxJ FILE

The following shows the structure of the xxJ ﬁle

when using the TOTAL Data Manager.

xxJ

USER(username,password,familyname)t

UI»n.

xxJORl.devicetype,ﬁletype.

xxJ0R2.devicetype,ﬁletype.

xxJ0R3.devicetype,ﬁletype.

xxTASKL,PN-packname,R-device.

NL.

LG,PN=packnarae,R-device.

aaaa,PNapackname,R-device

Optional.

Either the NL

statement or the

LG statement must

be selected. PN

and R parameters

are optional. NL

causes TOTAL to

not log recovery

data. LG causes

TOTAL to log re

covery data.

PN and R parame

ters are optional.

zzzz,PNapackname,R-device

The parameters for the xxJ ﬁle are:

xx Data base name.

password Batch password.

Four-character data set names.

CDCS OR NO DATA MANAGER xxJ FILE

If an application uses CDCS and one of the other data

managers (CRM or TOTAL)-, then the xxJ ﬁle should be

structured as speciﬁed for the other data manager.

If an application accesses only the CDCS Data Manager

or no data manager, the structure of the xxJ ﬁle is

as follows:

xxJ

USER(username,password,familyname)t

xxJORl,devicetype,ﬁletype.

xxJ0R2,devicetype,ﬁletype. Optional.

xxJ0R3.devicetype,ﬁletype.

xxTASKL,PN-packname,R-device

The parameters are:

Parameter Description

xx Application (data base) name.

password Batch password,

devicetype Device type:

MS Mass storage.

MT Seven-track tape.

NT Nine-track tape.

tTAF locates the data base using the familyname parameter in the procedure ﬁle that initializes TAF and the

username and password parameters in the xxJ ﬁle. The username, password, and familyname parameters are

used for validation.

/<5SR^\

4-4 60459500 C

ﬁletype File type (refer to ﬁgure 4-1): CREATING AN xxJ FILE

B Buffered write. To enter an xxJ ﬁle, the data administrator can run

a batch job to create and save the ﬁle under the

R Nonbuffered write. transaction subsystem user name. This can also be

done at a terminal through IAF. (Refer to the NOS 2

packname Pack name of the auxiliary device on Reference Set, Volume 1, for IAF operating

which the user's task library instructions.)

resides.

device Type of device on which the user's

task library resides.

/0&< 60459500 C 4-4.1/4-4.2 |

/^!j\

0^\

JOURNAL FILES

The two types of journal ﬁles are system and data

base ﬁles.

SYSTEM JOURNAL FILE

The system journal ﬁle (a direct access ﬁle named

JOURO that may be deﬁned under the transaction sub

system user name or may be set up by the TAFxxxx

procedure ﬁle at initialization) is not associated

with any particular data base. All transaction data

(input from terminals), errors, and transaction com

pletion notiﬁcation is automatically recorded on

JOURO. The terminal status table is also journalized

periodically. Data sent to terminals by tasks is not

recorded on JOURO. JOURO will be created at initial

ization if not already present under the transaction

facility user name.

jnum Journal File

JOURO (the system journal

ﬁ l e t o w h i c h t h e t r a n s a c

tion executive normally

makes journal entries).

Data base journal ﬁle

xxJORl.

Data base journal ﬁle

xxJ0R2.

Data base

xxJ0R3.

journal ﬁle

message Name- of the 01-level data item con

taining the message to be journal

ized.

DATA BASE JOURNAL FILES

The transaction subsystem allows up to three user-

speciﬁed direct access journal ﬁles for each data

base. The allowable names are xxJORl, xxJ0R2, and

xxJ0R3, where xx is the data base name. At initial

ization, TAF checks the xxJ ﬁles associated with

all active applications to determine which xxJORn

ﬁles are needed. It will then attach any speciﬁed

xxJORn ﬁles not already at the control point and

attempt to deﬁne any which it cannot ﬁnd. The

transaction subsystem user name must have write

pe r m i s s i o n on t h e s e ﬁl e s . Wh e n a ta s k m a k es a

journal request (refer to JOURNL request in this sec

tion) , the data base for which the originating termi

nal is validated is used to determine the journal

ﬁ l e o n w h i c h t o w r i t e . I f t h e t a s k i s a s s o c i a t e d

with a terminal validated for all data bases, the

data base speciﬁed on the last data base request is

used to determine the proper journal ﬁle.

JOURNAL FILE ENTRY HEADER

Each journal ﬁle entry (refer to JOURNL request) has

a header In the format shown in ﬁgure 4-2.

JOURNL REQUEST

The JOURNL request allows ﬁle entries to be made to

supplement automatic journalizing.

The format is:

FORTRAN

CALL JOURNL(jnum.message,length)

jnum Integer whose value indicates the

nu m be r of t h e j our n al ﬁl e t o whic h

the entries are to be made.

Journal File

JOURO (the system journal

ﬁle to which the transaction

executive normally makes

j ournal en tr ie s).

Data base

xxJORl.

Data base

xxJ0R2.

Data base

xxJ0R3.

journal

ﬁ l e

ﬁle

message Name of the array containing the mes

sage to be journalized.

l e n g t h I n t e g e r w h o s e v a l u e s p e c i ﬁ e s t h e

length of the message in characters.

COMPASS

JOURNL address

address Address of a parameter table in the

form shown in ﬁgure 4-3.

COBOL

ENTER JOURNL USING jnum message.

jnum Computational-l item whose value in

dicates the number of the journal

ﬁle to which the entries are to be

made. The value of this parameter

must be right-justiﬁed and zero-

ﬁlled.

If a journal ﬁle is deﬁned on magnetic tape and an

end-of-reel is detected, the transaction executive

unloads the tape and checks for another tape on which

t o w r i t e . I f t h e o p e r a t o r h a s n o t p r e a s s i g n e d a

unit, the journal ﬁle is placed on mass storage. If

the operator enters the K.ASSIGN command, the trans

action executive copies the mass storage journal ﬁle

to the tape and places all subsequent entries on the

tape. If the mass storage ﬁle does not ﬁt on the

tape, the message * UNABLE TO USE TAPE* is issued.

j f * K 60459500 A 4-5

59 35 29 17 11

sequence origin reserved length

task name hr min see

username reserved

sequence

origin

length

task name

hr,min, sec

username

Transaction sequence indicator.

Origin indicator (octal):

0 Task origin (JOURNL request).

1 Transaction subsystem origin (input).

2 Data manager origin.

3 Transaction subsystem recovery/statistical data.

4 End-of-transaction indicator.

5 Incomplete block of terminal input data.

6 Terminal input for an interactive task.

7 Illegal intercontrol point transfer.

10 On-line LIBTASK update (TT option).

11 CDCS detected error (words following header contain error message).

12 MSG request with zero function code. Normal FORTRAN messages are logged

with this function code.

Length of entry (equals header plus data block).

Name of task if task origin requested.

Packed time (hour, minute, second).

User name associated with transaction, if task origin.

y^SSN

Figure 4-2. Journal File Entry Header

59 53 3 5 1 7 0

'////

m> jnum numwords message

jnum Journal ﬁle number, right-justiﬁed with binary zero ﬁll:

0 JOURO (right-justiﬁed with binary zero ﬁll: makes journal entries).

1 to 3 Data base journal ﬁle (xxJORl, xxJOR2, or xxJ0R3).

numwords Length of message in words.

message Address of message to be journalized.

/*tWsv

Figure 4-3. JOURNL Parameter Table

4-6 60459500 B

TAF CONFIGURATION FILE

The TAF conﬁguration ﬁle is a required indirect

access permanent ﬁle saved under the transaction

facility user name. This ﬁle is used during TAF

initialization and recovery. If it is not local

when the TAFREC command is reached, TAFREC will

attempt to get it from TAF's user index. The TCF

has the following format:

USER,UN,PW,FM.

DMS ,datamanager,switen,xxj,

XX 2 , . . . , 2CKﬁ.

NETWORK,ID-i,FM-faraily,

UN-username.

RECOVER,ID-i,MS»maximumsize,

NM-number.

TABCON.n

DISPLAY,status.

K. command Rvalue i ,

K. commandnsvalue(i

At least one of

each required.

Required or not

allowed (refer to

statement de

scription.

Required for

b a t c h c o n c u r

rency. Refer to

the TAF/CRM Data

Manager Reference

Manual.

Optional.

OFF Data bases speciﬁed

on the same statement

are not made available

for TAF processing.

xxi Data base identiﬁer. Must not

be duplicated on the same or

any other active DMS statement.

For the CRM Data Manager, it is

the two-letter data base name.

For the TOTAL Data Manager, this

parameter has the format:

xxyyyy

which is the data base name (the

DBMODt ﬁle name) speciﬁed in

the DATA-BASE-NAMEt statement

of the DBDLt statements, xx is

the unique TAF data base name

and yyyy is any combination of

four alphanumeric characters.

A separate DMS statement for CDCS (OTHER) is not

necessary if CDCS is to be used in conjunction with

another data manager.

The TCF ﬁle must contain at least one DMS statement

and each DMS statement with status set to ON must

have at least one data base identiﬁer or TAF will

abort.

The maximum number of data bases that may be associ

ated with one data manager is speciﬁed by the in

stallation parameter MAXDB. This value is 25 unless

it is altered by the user's site.

jgp*v

DMS STATEMENT

DMS statements on the TCF are used to specify the

data managers to be loaded by TAF and the applica

tions (data bases) to be associated with each data

manager.

The format is:

DMS.datamanager.switch.xxj,xx2,...,xxn.

data

manager

r

switch

Name of the data manager. Must

be CRM, TOTAL, or OTHER. The

same data manager can be speci

ﬁed on any number of DMS state

ments. Use the datamanager

value OTHER for specifying an

application that is either not

associated with a data manager

or is associated only with the

CDCS Data Manager.

Data manager status.

ON or OFF.

Mus t be

ON The speciﬁed data

manager (TOTAL or CRM)

will be loaded. The

data bases speciﬁed

on the same statement

are to be made avail

able for TAF process

ing. These data bases

are referred to as

active.

The maximum length of each DMS statement is 160 6-bit

display code characters.

DISPLAY STATEMENT

The DISPLAY statement on the TCF controls whether or

not the TAF K display will appear at the consoLe dur

ing initialization and recovery. However, an error

in a K display command causes TAFREC to issue an

error message and bring up the K display for correc

tions regardless of the DISPLAY statement. The

format is:

DISPLAY,status.

status A variable having one of the

following values.

ON K display will appear

at the console during

initialization and

recovery to enable the

operator to make

changes at those times.

O F F K d i s p l a y w i l l n o t

appear at the console

during Initialization

and recovery.

4m<- tRefer to the TOTAL - CDC 2 Reference Manual for a detailed description.

60459500 C 4-7

NETWORK STATEMENT

The NETWORK statements on the TCF declare the

network ﬁles (NCTFi) TAF uses to determine the

users allowed to access TAF. There must be at least

one and a maximum of eight NETWORK statements. The

format is:

NETWORK,ID-i,FM-familyname,UN=username.

i An integer specifying a unique

network ﬁle identiﬁer. The

range is zero to seven. This

identiﬁer is used in

constructing the name of the

network ﬁle (NCTFi).

familyname The family name under which the

network ﬁle exists. If the

familyname parameter is not

speciﬁed, the default family

name is used.

TAF will use. The name of the corresponding CRF is

ZZCRFi. The CRF resides under the same family and

user name as the corresponding network ﬁle.

K. STATEMENT

Any K display commands that can be issued under the

initial K display can appear in the TCF. Values

speciﬁed in the TCF become the default values in

place of the installation defaults (refer to the K

display utilities in the NOS 2 Analysis Handbook for

t h e i n s t a l l a t i o n d e f a u l t v a l u e s ) . I f t h e o p e r a t o r

changes any of these values during initialization,

those changes remain in effect if TAF is restarted

in recovery mode.

If K display commands are used in the TCF, they must

appear consecutively.

/^^^Sv

The user name under which the

network ﬁle exists. If the

username parameter is not

speciﬁed, the TAF user name is

used.

RECOVER STATEMENT

The RECOVER statement on the TCF declares the set of

ﬁles TAF is to use when in recovery mode. This

directive is required if TAF is assembled with

recovery, but it is not allowed if TAF is assembled

without recovery.

The format is:

RECOVER,ID-i,MS-maximumsize,NM-number.

1 An integer specifying a unique

recovery ﬁle id. The range is

zero to seven. This id is the

id used in constructing the

name of the communication

recovery ﬁle (ZZCRFi). Only

one id may be speciﬁed per

RECOVER statement. The id must

match an id speciﬁed in a

NETWORK statement.

maximumslze An integer specifying the maxi

mum size of the message, in

words, that TAF will record on

the communication recovery ﬁle.

The default Is 57. Maximum is

installation parameter MAXWS.

This is the maximum message

size for the RPUT and SECURE

requests.

number An integer specifying the maxi

mum number of user messages that

can be recorded on the communi

cation recovery ﬁle via the

RPUT request. The default Is

zero, the maximum is 10.

Each RECOVER statement speciﬁes a recovery id. This

id determines the communication recovery ﬁle that

USER STATEMENT

The USER statement on the TCF speciﬁes the user

name under which TAF is to run. This user name

should be deﬁned through MODVAL to have the same

user index as deﬁned by the installation parameter

TRUI. Only one USER statement is allowed in the

TCF. The format is as follows:

USER,UN,PW,FM.

or

ACCOUNT,UN,PW.FM.

Parameter Description

U N T h e u s e r n a m e u n d e r w h i c h T A F i s t o

run.

P W T h e b a t c h p a s s w o r d f o r t h e u s e r n a m e .

F M T h e f a m i l y u n d e r w h i c h TA F i s t o r u n .

The USER statement should be the ﬁrst statement in

the TCF.

COMMUNICATION RECOVERY FILE

A communication recovery ﬁle is a ﬁle TAF uses to

maintain recovery information about recoverable

t r a n s a c t i on s . N ew C R F s a r e cr e a t e d an d e xis t i n g

CRFs are reinitialized at initialization time by

using the K.INT command (refer to section 8). There

can be up to eight of these ﬁles (named CRFO,

CRF1,...,CRF7).

Each one corresponds to a network ﬁle having the

same Identiﬁer (NCTFO, NCTFI,....NCTF7). For every

user description statement in a network ﬁle, there

Is a user entry in the corresponding CRF. These

entries are added and deleted as follows:

• New user entries are added to a CRF by

adding a user description statement to the

corresponding network ﬁle.

• User entries are removed from a CRF by

removing the user description statement from

the corresponding network ﬁle.

4-8 60459500 C

TRANSACTION FACILITY (TAF) K DISPLAYS

The following commands control operation of the TAF Subsystem. Initiate the TAF Subsystem

by using the TAFffff command before issuing these commands.

INITIATING TAF K DISPLAY

When the transaction executive is brought to a control point, the message

REQUEST *K* DISPLAY appears at the control point if a DISPLAY,ON command is speciﬁed

in the TAF conﬁguration ﬁle. Respond with the entry:

K,TAF.

Any of the following initialization commands can then be entered. If no values are to be

changed, enter the command:

K.END.

Values are decimal unless otherwise indicated.

Command

K.BFL=n.

K.CMB=n.

K.ECS=n.

K.EFL=n.

K.END.

Description

Changes the starting and minimum ﬁeld length allocated by TAF to

CRM (200008 < n < 100000s). Default is 700008.

Changes the maximum number of communication blocks allowed to the

TAF Subsystem (7 < n <^ 40). Default is 40.

Sets the extended memory ﬁeld length to be used by the transaction

executive; n is octal thousands of words. Default is 0.

Changes the maximum additional central memory ﬁeld length made

available to CRM for buffers and capsules (0 < n < 100000s).

Default is 0.

Ends input of the transaction executive initialization parameters.

Initialization is completed when the TAF K display appears.

8-68 60459300 D

Command

K.ER0=CRF,op.

Description

Speciﬁes whether to override certain I/O and logic errors when

processing the communication recovery ﬁles (CRF).

K.GO.

K.INT=typ,ﬁleid,

NO

YES

op Description

Aborts if I/O or logic errors are encountered while

processing the communication recovery ﬁles. This is

the default setting.

I/O or logic errors encountered on a run unit header

record result in the loss of that run unit with no

indication to the terminal user. The loss is noted on

the recovery report.

I/O or logic errors encountered on a message record

within a run unit result in a loss of that run unit. A

status ﬁeld is set in the run unit header, allowing TAF

to inform the terminal user of the run unit loss.

I/O or logic errors encountered on the CRF header record

result in an unconditional abort of the TAF Subsystem.

Ends input of the transaction executive initialization parameters.

Initialization is complete when the TAF K display appears.

Speciﬁes which communication recovery ﬁles (CRF) are to be

initialized. This is the only way to initialize a CRF. Files

speciﬁed on a RECOVER command in the TAF conﬁguration ﬁle and

speciﬁed in this command are initialized. Files speciﬁed on a

RECOVER command but not speciﬁed in this command are used for

recovery.

This command also speciﬁes whether CYBER record manager (CRM) data

base recovery ﬁles are initialized or recovered. For CRM recovery

ﬁles, this command is valid regardless of TAF assembly parameters.

HE

CRF

CRM

Description

Communication recovery ﬁles. This parameter is valid

only if the installation parameter IPTAR equals 1.

CYBER Record Manager after-image and before-image

r e c o v e r y ﬁ l e s .

60459300 D 8-69

Command D e sc r i Dt i o n

ﬁleid Description

n A d i g i t f r o m 1 t o 7 t h a t d e ﬁ n e s a C R F t o b e

initialized. The digit corresponds to the ID parameter

on the RECOVER command in the TAF conﬁguration ﬁle.

This parameter is not valid for CRM recovery ﬁles.

ALL If typ is CRF, all communication recovery ﬁles deﬁned

by RECOVER commands in the TAF conﬁguration ﬁle are

initialized. If typ is CRM, all CRM recovery ﬁles are

initialized.

NOTE

This parameter must be used with caution

when typ is CRM since the CRM update history

currently on the after-image recovery ﬁles

is lost.

K.MFL=n.

K.REC=a.

NONE If typ is CRF, communication recovery ﬁles are

initialized; all communication recovery ﬁles speciﬁed

in RECOVER commands in the TAF conﬁguration ﬁle are

recovered. If typ is CRM, all CRM data bases are

recovered based on information in the existing recovery

ﬁles. No CRM recovery ﬁles are initialized. This

ﬁleid is the default for both typ=CRF and typ=CRM.

Sets the maximum ﬁeld length to be used by the transaction

executive (40000 < n <_ 376600). Default is 376600.

Speciﬁes whether to set the recovery bit in the user area of each

terminal status table entry (YES or NO). If YES, the user recovery

bit is set. If NO, the value of the user recovery bit is not

changed from what it was before the command was issued. Default is

NO.

K.SCP=n.

K.STOP.

K.TFL=n.

K.TLF=ﬁlename,

Changes the number of subcontrol points (2 <^ n < 31). Default is 31

Aborts the TAF Subsystem initialization unconditionally.

Changes the value used as the upper bound for TARGET. This is the

amount of memory CRM uses for data and index blocks

(100008 <n< 100000s). Default is 30000s. F°r more

information, refer to the CYBER Record Manager Advanced Access

Methods Version 2 Reference Manual.

Changes the name of the system task library ﬁle (any valid ﬁle

name). Default is TASKLIB.

y?5^3K

8-70 60459300 D

RESTARTING TAF K DISPLAY

On a level 3 recovery deadstart, or if the TAF Subsystem aborts, the TAF procedure ﬁle

automatically restarts TAF by transferring control to the TAF automatic recovery program.

The TAF automatic recovery program recovers the central memory pointers and variables

deﬁned during TAF initiation.

If a DISPLAY,ON command is in the TAF conﬁguration ﬁle, the automatic recovery program

brings up the K display on the left console screen. This display is identical to the

initial K display, except that values speciﬁed in the TAF initiation replace any default

values that were in the initial display.

TAF K DISPLAY

When the TAF Subsystem is executing, the TAF K display indicates the:

• Latest transaction sequence number.

• Number of words of unused memory.

• Maximum field length.

• Global task dump limit.

• Subsystem default values for memory dump parameters.

The TAF K display appears on the system console as shown in ﬁgure 8-31.

/i^iSSv

The subsystem default values are used to control memory dumps when parameters are not

included in the CMDUMP or DSDUMP command. Any of these default values can be changed by

specifying the corresponding parameter in the K.DSDUMP command.

TRANSACTION EXECUTIVE STATUS DISPLAY

SEQUENCE NUMBER 1

UNUSED FL 3000

MAXIMUM FL 377700

GLOBAL TASK DUMP LIMIT 0

FW= 0

0Q= BC

LW= 100000

QD= USER123

EP= 1

DB= 0

Figure 8-31. TAF K Display

60459300 D 8-71

/$ S \

The default parameter values for the CMDUMP and DSDUMP commands are given on the TAF K

display shown in ﬁgure 8-31.

Parameter Description

DB This parameter is not used. It is retained for compatibility with

previous releases of NOS.

EP Exchange package:

0 Do not dump the exchange package.

1 Dump the exchange package.

FW First word address of the task memory to be dumped.

L W L a s t w o r d a d d r e s s o f t h e t a s k m e m o r y t o b e d u m p e d .

OQ Output queue:

BC Local batch.

RB Remote batch.

PF Permanent ﬁle.

QD Queue destination:

User name (if OQ=BC).

Equipment identifier (if OQ«RB).

Permanent ﬁle name (if OQ=PF).

TAF K-DISPLAY COMMANDS

When the transaction executive is at its control point, the following commands can be

entered from the system console or submitted from tasks using the KPOINT request. Any task

can issue the K.DUMP command. Only tasks that reside on the system task library can issue

the other K-display commands. (Refer to the TAF Reference Manual for additional information

on the KPOINT request and the system task library.)

Command Description

K.ASSIGN,est. Assigns a magnetic tape unit to be used for a journal ﬁle, est is

the EST ordinal of the tape unit. The ﬁrst form of the command

or makes unit est available for the transaction executive to assign to

the next tape journal ﬁle that encounters end of reel. Two tape

K.ASSIGN,est,db,n. units may be preassigned. If a tape has not been preassigned in

this manner, an end-of-reel on a journal ﬁle causes subsequent

en t r ie s f o r tha t ﬁ le to be p l ace d o n dis k .

/$BN

8-72 60459300 D

0!&$£\

Command

K.DEBUG.

K.DR0P,n.

Description

The second form of the command forces journal ﬁle n (n=l, 2, or 3)

for data base db, deﬁned as a tape ﬁle, from disk to tape. The

transaction executive copies the data from the disk journal ﬁle to

tape est and places all subsequent entries for that ﬁle on the

tape. This command is necessary after the transaction executive

i n i t i a l i z a t i o n t o a s s i g n t a p e u n i t s to t h e t a p e jo u r n a l ﬁ l e s o r

after an end-of-reel on a tape journal ﬁle when no tape had been

preassigned to the transaction executive. All data residing on the

disk for"the tape journal ﬁle must ﬁt on the tape assigned by this

command or the transaction executive will unload the tape and issue

the message *UNABLE TO USE TAPE*.

Turns on the application interface program (AIP) debug option', which

logs all messages on trace ﬁle ZZZZZDN. Use this command only when

TAF is installed with the DEBUG option.

Drops an executing task at subcontrol point n.

K.DSDUMP,FW=addr, Allows you to modify the standard system default parameters

LW=addr,EP=pkg, controlling memory dumps. The command does"not directly cause a

OQ=outq,QD=qdest, dump. Rather, it sets default values to be used when a subsequent

DB=db. CMDUMP request is received or when abort conditions occur. Refer to

TAF K Display, earlier in this sectrton, for explanations-of the

parameters•

K.DUMP,fwa,lwa. Dumps all or part of the ﬁeld length of the Transaction Facility

from the ﬁrst word address (fwa) to the last word address (lwa) of

the area to be dumped. The default value for fwa is 0 and for lwa

is 377777s. The default base is octal. If no parameters are

speciﬁed, the entire ﬁeld length is dumped. The output is routed

to a printer that has an ID of 0.

Unlike other K-display commands, the K.DUMP command can be issued

from any task. Other K-display commands can be issued by tasks only

if they are on the system task library (refer to the TAF Reference

Manual).

Since secure information may be contained in a dump of the

Transaction Facility, the following safeguards have been set up to

protect dumped information; however, the installation must take the

ultimate responsibility for the protection of dumped information.

• The global task dump limit (GTDL) can be set by the

K.DUMPLIM command to limit the number of times the K.DUMP

command can be issued from tasks. The initial value of the

GTDL is 0 (zero), so the K.DUMP command is disabled from use

by a task by default.

• For all dumps of the Transaction Facility, whether you

initiated it or a task did, a one-page header precedes the

dump. This header page indicates the output is secure and

should be given only to the TAF central site systems analyst

• When the Transaction Facility is dumped, the message TAF

FIELD LENGTH DUMP RELEASED is issued to the system dayﬁle,

the Transaction Facility dayﬁle, and line one of the

control point.

604 59 300 D 5-73

M&\

Command

K.DUMPLIM,n. Sets GTDL to value n

GTDL is set to 0.

Description

(0 <^ n < 9999999). If n is not speciﬁed, the

The GTDL is the number of times the K.DUMP command can be issued

from tasks. This value is displayed on the TAF K display shown in

ﬁgure 8-31. The initial value of the GTDL is 0. When the GTDL is

0, no dumps of the Transaction Facility can occur from tasks. Thus,

the K.DUMP command is disabled from tasks by default.

To enable the K.DUMP command for tasks, issue the K.DUMPLIM command

to set the GTDL to a value greater than zero. Each time a task

Issues a K.DUMP command, the GTDL is decreased by one until it

equals zero. When the ﬁrst K.DUMP command is issued from a task

with the GTDL equal to zero, the message

GLOBAL TASK DUMP LIMIT EXHAUSTED

is issued to the Transaction Facility dayﬁle, the system dayﬁle,

and line one of the control point. Also, the message

DUMPS LOST

is displayed on the K display in place_of the value of the GTDL.

This message remains until the value of GTDL is set to a value

greater than or equal to zero. The K.DUMPLIM command should be used

with care in system tasks, since this might allow unauthorized users

to alter the GTDL.

K.IDLE. Idles down the transaction control point. Once idle down has been

initiated, no new transactions will be permitted but currently

executing transactions will be allowed to ﬁnish.

K.JEND,db,n.

K.MAXFL,n.

Forces end-of-reel processing (writes an EOI and rewinds the ﬁle)

on tape journal ﬁle n of data base db. If n is not a tape journal

ﬁle, the command is ignored.

Alte r s the transacti o n executive max i m u m ﬁeld length. The

transaction executive does not attempt to obtain more than n words

of storage. This command is rejected if the value for n is more

than 376600s or less than tne ﬁeld length currently required for

TAF.

K. MESSAGE, TN=b.

message.

K.NODEBUG.

Directs the transaction executive to send message to a terminal

speciﬁed by terminal name b.

Turns off the application interface program (AIP) debug option,

which logs all messages on trace ﬁle ZZZZZDN. Use this command

only when TAF is installed with the DEBUG option.

8-74 60459300 D

Command

K.OFFTASK,a,db.

K.ONTASK.a,db.

K.ROLLTIM,nnnnnn.

Description

Disables the use of task a, where a is the task name in the data

base db task library directory (dbTASKL). The data base name db is

not speciﬁed for tasks in the system task library.

Reverses the effect of a previous OFFTASK command for the speciﬁed

task a in the data base db task library directory (dbTASKL). The

data base name db is not speciﬁed for tasks in the system task

li b ra r y (TA S KL I B) .

Changes the amount of time that TAF will retain its ﬁeld length

between communication input messages; nnnnnn is speciﬁed in units

of milliseconds. Refer to the installation parameter ITRTL in the

NOS 2 Installation Handbook.

K.SWITCH. Causes the console K display to change to a display listing all

allowable console commands. When K.SWITCH is entered a second time,

the normal display returns. This command activates task KDIS and

forces TAF to remain rolled in.

K.TBCON,nn.

K.TST,TN=a,DB=db,

U=nnnn,UL=mmmm,

NN=b.

Changes the number of TAF/CRM batch concurrency users; nn is less

than or equal to the value speciﬁed on the TBCON command in TAF's

conﬁguration ﬁle (TCF).

Changes entries in the termin al status table for terminal a. The

following entries can be changed: data base name db, user area

upper 12 bits (nnnn), user area lower 12 bits (mmmm), and new

terminal name b. The changes do not affect the network and

simulation ﬁles. Do not use this command if the terminal is logged

in.

<£**?\

60459300 D 8-75

TAF/CRM STATUS K DISPLAYS AND COMMANDS

You can use the K display to monitor the status of CRM, CRM data bases, or CRM data base

permanent ﬁles while TAF/CRM is running if CRMTASK is present on the system task library.

To get the CRM status K display enter:

K.DIS,CRMTASK.

After the K display is assigned to the task, the display in ﬁgure 8-32 is brought to the

left screen.

CRMTASK

AVAILABLE COMMANDS,

K.CRMSTAT.

K.CRMSTAT,DB.

K.CRMSTAT,DBPFNXX.

K.DBUP,DB.

K.DBUP,DBPFNXX.

K.DBDOWN,DB.

K.DBDOWN,DBPFNXX.

K.END.

Figure 8-32. CRMTASK K Display

The following commands are available under CRMTASK.

Command

K.CRMSTAT.

Description

Selects the CRM status K display (see ﬁgure 8-33). This display

shows the status of all CRM data bases.

K.CRMSTAT,db. Selects the CRM data base status K display (see ﬁgure 8-34). This

display shows the status of the speciﬁc CRM data base with

identiﬁer db. It also shows the ﬁle name and status of the

before-image ﬁles.

K.CRMSTAT,dbﬁle.

K.DBDOWN.db.

Selects the CRM ﬁle status K display (see ﬁgure 8-35). This

display shows the status of the speciﬁc permanent ﬁle in a CRM

data base with ﬁle name dbﬁle.

Makes a speciﬁc CRM data base with identiﬁer db unavailable for

processing. When this command executes, the CRMTASK command

directory appears on the K display.

8-76 60459300 D

/^a&%

Command

K.DBDOWN,dbﬁle.

K.DBUP.db.

K. DBUP,dbﬁle.

Description

Makes a speciﬁc permanent ﬁle in a CRM data base with ﬁle name

dbﬁle unavailable for processing. When this command executes, the

CRMTASK command directory appears on the K display.

Makes a speciﬁc CRM data base with identiﬁer db available for

processing. When this command executes, the CRMTASK command

directory appears on the K display.

Makes a^speciﬁc permanent ﬁle in a CRM data base with ﬁle name

dbﬁle available for processing. When this command executes, the

CRMTASK command directory appears on the K display.

** CRM STATUS **

nnn TRANSACTIONS IN INPUT QUEUE,

nn ACTIVE TRANSACTIONS,

nnn TRANSACTIONS IN OUTPUT QUEUE,

CRM DATA BASES ,_

D B S T A T U S D B S T A T U S D B S T A T U S

AA UP BB IDEL CC DOWN

DD DOWN EE DOWN FF UP

GG UP

VALID COMMANDS ARE -

CRMSTAT. CRMSTAT,DB. CRMSTAT,DBPFN. END. +. ■

DBUP,DB. DBUP,DBPFN. DBDOWN,DB. DBDOWN,DBPFN,

/^$\

Figure 8-33. CRM Status K Display

60459300 D 5-7 7

** CRM DATA BASE STATUS **

DATA BASE = db

AFTER IMAGE FILE = arfname

DATA BASE STATUS = UP

PRU-S REMAINING = nnn

BEFORE IMAGE FILES AND STATUSES

ZZAAB01-U ZZAAB02-U ZZAAB03-U ZZAAB04-D ZZAAB05-U

ZZAAB06-U ZZAAB07-D

FILE STATUS FILE STATUS FILE STATUS

AAPFN01 UP ' AAPFN02 DOWN AAPFN03 DOWN

AAPFN04 IDLE AAPFN05 UP AAPFN06 UP

AAPFN07 UP

VALID COMMANDS ARE -

CRMSTAT. CRMSTAT,DB. CRMSTAT,DBPFN. END. +. ■

DBUP,DB. DBUP,DBPFN. DBDOWN,DB. DBDOWN,DBPFN.

Figure 8-34. CRM Data Base Status K Display

** CRM FILE STATUS **

FILE NAME = AAPFN01

FILE STATUS = UP

RECOVERABLE = YES

PACK NAME = PACKNAM

DEVICE TYPE = DJ3

ATTACH MODE = RM

SIZE OF PRIMARY KEY = 80

NUMBER OF ALTERNATE KEYS = 3

ACTIVE USERS = 4

ACTIVE LOCKS = 8

VALID COMMANDS ARE -

CRMSTAT. CRMSTAT,DB. CRMSTAT,DBPFN. END.

DBUP,DB. DBUP,DBPFN. DBDOWN,DB. DBDOWN,DBPFN,

Figure 8-35. CRM File Status K Display

8-78 60459300 D

For the CRM status and CRM data base status displays, if all the information does not ﬁt on

one screen, you can bring up additional pages by entering the following command.

K.+ .

To return to the ﬁrst page of the display, enter the following command.

K.-.

At any time you can return to the initial CRMTASK K display (ﬁgure 8-32) by entering the

following command.

K.MENU.

To end CRM status K-display processing, enter the following command.

K.END.

^2$!\

60459300 D 8-79

Each user entry in a CRF contains space for initial To reduce the number of user messages and/or the

transaction input, RPUT messages, and a SECURE mes- message size, the CRF must be reinitialized using

sage. Two important CRF attributes are the number the K.INT command (refer to section 8).

of messages, number, that a recoverable run unit may

record on the ﬁle and the maximum size of these Under certain circumstances a CRF is reformatted

messages, maximumsize. The values for these param- during recovery. Refer to section 8 for details.

eters are given in the RECOVER statement in the TCF.

r

60459500 C 4-9

/^I\

/■^tv

BATCH/TRANSACTION SUBSYSTEM INTERACTION

r

The transaction subsystem interfaces with the batch

subsystem in three ways. First, batch jobs can

initiate tasks by using the BTRAN request. Second,

tasks ca n ro ute jobs to the batch input q ueue by

using the SUBMT request. Third, batch jobs can

access TAF/CRM data ﬁles using the TAF/CRM batch

concurrency feature.

The BTRAN and SUBMT requests are described in this

section. The TAF/CRM batch concurrency feature is

described in the TAF/CRM Data Manager 1 Reference

Manual.

BTRAN REQUEST

The BTRAN request enables a batch job to start a

transaction. The transaction is passed to the

transaction executive through the system control

point mechanism; therefore, the user must be

validated for system control point communication

(AW°CUCP). The user passes a transaction to the

transaction executive via the header word shown in

ﬁgure 5-1.

Multiple logins under one user name are not

permitted in TAF. Thus, the user name for a job

issuing a BTRAN request must not be in use within

TAF by a transaction terminal or another batch job.

Any SEND (or DISPLAY) requests in a BTRAN-initiated

transaction must explicitly specify a user name

different from the one under which the batch job is

being run. Unlike a terminal-initiated transaction,

BTRAN-initiated transactions are not required to

issue any SEND request. A transaction can use the

TSTAT request with the TRAN keyword to determine

whether it was initiated with BTRAN.

The format is:

COBOL

ENTER BTRAN USING transaction status.

Name of the 01-level item

containing the header word

for the transaction to be

submitted.

Name of the data that con

tains the returned status;

the status is returned as a

computational-l value.

Decimal status values are shown in table 5-1.

t ran sac tion

status

FORTRAN

The user calls the BTRAN request in two ways.

The ﬁrst method is a FORTRAN function.

i=BTRAN(transaction)

transaction

Integer variable that con

tains the request status

after BTRAN is called. The

user must declare BTRAN as

an integer.

Name of the array containing

the header word for the

transaction to be submitted.

The second method is a subroutine call.

CALL BTRAN(transaction,status)

transae tion

status

Name of the array containing

the header word for the

transaction to be submitted.

Address of the variable that

contains the returned status;

the status is returned as an

integer value.

Decimal status values are shown in table 5-1.

COMPASS

BTRAN transaction

transae tion Address of the header word

for the transaction to be

submitted.

The status of the request is returned in regi

ster X6.

Decimal status values are shown in table 5-1.

Figure 5-2 demonstrates the use of BTRAN.

In the example shown in ﬁgure 5-2, LP3 is the name

of the transaction to be processed by TAF. 50 is an

i t e m o f d a t a t o b e u s e d b y. t h i s t r a n s a c t i o n .

STATUS»n goes to the OUTPUT file associated with the

batch job. Output from the transaction cannot be

sent to the user name under which the job is being

run. Output to other user names (terminals) is

permitted but not required.

j^^. 60459500 A 5-1

59 1 7 0

reserved length

transaction data

length

transaction data

Length of the transaction in words; Includes the header word and the trans

action data.

Transaction name (or transaction name and input data) to be processed by TAF.

>£3$!%>t

Figure 5-1. BTRAN Header Word

BTRANEX.

USER,XYZ1234,XYZ1.

CHARGE,*

C0B0L5.

LIBLOAD(TRANLIB,BTRAN)

LGO.

- - E O R - -

IDENTIFICATION DIVISION.

PROGRAM-ID. BTRANEX.

ENVIRONMENT DIVISION.

CONFIGURATION SECTION.

SOURCE-COMPUTER. CYBER.

OBJECT-COMPUTER. CYBER.

DATA DIVISION.

WORKING-STORAGE SECTION.

01 BATCH-TRANSACTION.

02 RESERVED-AREA

02 DATA-LENGTH

02 TRANSACTION-DATA

01 BTRAN-STATUS

PROCEDURE DIVISION.

START-RUN.

ENTER BTRAN USING BATCH-TRANSACTION, BTRAN-STATUS.

DISPLAY "STATUS*" BTRAN-STATUS.

STOP RUN.

PIC X<7)

VALUE 2 C O K P - 4 PIC 9999

VALUE I S " L P 3 , 5 0 " PIC X(6)

VALUE IS 0 COMP-1 PIC 9999

Figure 5-2. BTRAN Request

Table 5-1. BTRAN Status Values

Value Description Value Description

ITransaction submission is complete. 15 The user name associated with the batch

3T h e t r a n s a c t i o n e x e c u t i v e i s n o t job issuing the BTRAN request is not

validated in network ﬁle (job is

present. aborted).

5T h e t r a n s a c t i o n e x e c u t i v e I s b u s y

(should not occur; inform site 17 The user name associated with the batch

7

analyst).

The submit block is too long; the maxi

job issuing the BTRAN request is cur

rently in use within TAF.

mum length is 62 words. 19 A conﬂict in access types was detec

11 The transaction subsystem is not de

ﬁned as a system control point (should

not occur; inform site analyst).

ted, the previous transaction run

under the speciﬁed user name was

recoverable and not associated with a

BTRAN-initiated transaction.

13 Access to TAF is denied because TAF i3

idling down. 21 The transaction data is not within the

ﬁeld length oE the batch job.

5-2 60459500 C

SUBMT REQUEST

The SUBMT request allows a task to route a job to the

local batch input queue. The address parameter in

the call points to the area in the task ﬁeld length

that contains the job to be routed in control word

format. This format is described in conjunction with

the READCW macro in the NOS 2 Reference Set, Volume

4 (refer to the preface for the publication number).

Using this format, the job may consist of multiple

records.

The format is:

COBOL

ENTER SUBMT USING address.

address Name of the 01-level item

containing the job data to be

routed. This data is in the

format shown in ﬁgure 5-3.

COMPASS

SUBMT address

FORTRAN

address Address of the ﬁrst word of the

job data to be routed in control

word format as shown in ﬁgure

5-3.

The ﬁrst word at address must be a control word in

the format s hown p re viously. The le ngth ﬁ el d mu st

specify the number of 12-bit bytes occupied by the

data in the PRU (maximum of 320 bytes, equivalent to

640 characters). The level number in the trailing

control word speciﬁes whether the PRU is an end-of-

record or end-of-ﬁle. If a logical record extends

over more than one PRU, the level number for the

ﬁrst PRU of the record must be nonzero and other

than 173.

A leading and a trailing control word must be

present for each PRU of data.

CALL SUBMT(address)

a d d re s s N a m e o f an a r r a y c o n t a i n i n g t h e

job data to be routed. This

data is in the format shown in

ﬁgure 5-3.

Typically, the data would consist of commands which |

wou l d co m pris e on e re c o rd. A d d i t iona l da t a to be

processed by the batch job could also be present and

typically constitute subsequent records.

59 » 7 4 2 2 3

4

0 1 0 Itngth

data word

number of

y central

, memory word*

data word

p 4

data word

lave)

length

level

Length in 12-bit (two-character) bytes of job data following

(must be ﬁve times the number of the central memory words).

Logical record level number:

0 or omitted This PRU is an end-of-record.

17g This PRU is an end-of-ﬁle.

this control word

Figure 5-3. SUBMT Parameter Table

60459500 C 5-3

Figure 5-4 shows a task using the SUBMT request.

In the example shown in ﬁgure 5-4, the ﬁrst word

of JOB (00390 to 00410) sets bit 42 in the header

word and gives the length (75) in 12-bit bytes of

the card deck images to follow* This is ﬁve times

the number of 10-character (60-bit) words in the job

being submitted, in this case, statements 00420 to

00590.

At job termination, the implicit output ﬁles of the

SUBMT job are not queued by the system. This is

because TAF routes the submitted job using the

disposition code DCaN0. To obtain output from the

job, do either of the following:

Include ROUTE commands to place the desired

ﬁles in the appropriate queues.

/ J 5 W ^ k

Each job command must be from 1 to 80 characters

long. All commands to be submitted must be padded

to a multiple of 10 characters and the last 2

characters must be binary zero (character ":" in the

63/64-character set). Thus, if a statement ends in

character position 9,10; 19,20; and so on, a zero

word must be appended. Statements 00460 to 00530

give examples of this.

• Include the command SETJOB,DC=DF in the

submitted job. This directs that implicit

output is to be queued at the end of the job.

The example in ﬁgure 5-4 uses the ﬁrst method by

including a ROUTE command at line 00580.

00100 IDENTIFICATION DIVISION.

00110 PROGRAM -ID. SUBTEX1.

00120 ENVIRONMENT DIVISION.

00130 DATA DIVISION.

00140 COMMON-STORAGE SECTION.

Standard COBOL Com munication Block ( r e f e r t o !s e c t i o n 2 )

00370 WORKING -STORAGE SECTION.

00380 0 1 J O B

00390 03 FILLER VALUE IS 1 COMP-4 PIC 9(5).

00400 03 FILLER VALUE IS 0 C O M P - 4 PIC 9(5).

00410 03 JOB-LENGTH VALUE IS 75 COMP-4 PIC 9(6).

*THE FOLLOWING IS THE JOB TO BE SUBMITTED

00420 03 JOB-CARD.

00430 0 5 J O B - I D VALUE IS "JOB." PIC X(4).

00440 0 5 F I L L E R VALUE IS A L L " : " PIC X(6).

00450 03 JOB-USER.

00460 05 USER-CARD VALUE IS "USER,DWG2603,ABC123." PIC X(20).

00470 0 5 F I L L E R VALUE IS A L L " : " PIC X(10).

00480 03 JOB-CHARGE.

00490 05 CHG-CARD VALUE IS "CHARGE,5927,693X451." PIC X(20).

00500 0 5 F I L L E R VALUE IS A L L " : " PIC X(10).

00510 03 JOB-DATA.

00520 05 COMMENT VALUE IS "* SUBMIT BATCH J08." PIC X(19).

00530 0 5 F I L L E R VALUE IS A L L " : " PIC X ( 1 1 ) .

00540 05 CTR-STATUS-1 VALUE IS "REWIND,INPUT." PIC X(13). 2-

00550 05 FILLER VALUE IS A L L " : " PIC X(7).

00560 05 CTR-STATUS-2 VALUE IS "C0PYSBF." PIC X(8).

00570 0 5 F I L L E R VALUE IS A L L " : " PIC X(2).

00580 05 CTR-STATUS-3 VALUE IS "R0UTE,0UTPUT." PIC X<1 3 ) . /L

00590 0 5 F I L L E R VALUE IS A L L " : " PIC X(7). <r>

*

*SUBMITTED JOB ENDS HERE 15"

00600 03 INPUT-LEVEL VALUE IS 15 COMP-4 PIC 99.

00610 03 FILLER VALUE IS A L L " : " PIC X(8).

00620 PROCEDURE DIVISION.

00630 START-UP.

00640 ENTER SUBMT USING JOB.

00650 DISPLAY "JOB SUBMITTED."

00660 STOP RUN.

Figure 5-4. SUBMT Request

5-4 60459500 A

MEMORY DUMPS

A task can perform two types of memory dumps. The

ﬁrst type is a task dump, which is a dump of the

task ﬁeld length, exchange package, and associated

data buffers. A task dump aids the applications

programmer in debugging a task. The second type Is

a TAF dump, a dump of all or part of the TAF ﬁeld

length. A TAF dump contains pertinent information

that is not contained in a task dump. This section

describes the methods used to obtain both types of

memory dumps.

All task dumps, whether due to an aborted task, an

abnormal CEASE request, or a CMDUMP request, are

handled in the same manner. A job ﬁle is created

containing the information to be dumped in binary

format, as well as a command record. The transaction

executive issues a ROUTE request releasing the job

ﬁ l e t o t h e i n p u t q u e u e f o r b a t c h p r o c e s s i n g . A

program called KTSDMP is used, either to generate

listable output from the binary ﬁle, or to transfer

it to a direct access permanent ﬁle.

r

TASK DUMP

The central memory dump (CMDUMP) request dumps

central memory according to the parameters speciﬁed

in the direct subsequent dumps (DSDUMP) request.

Parameters speciﬁed on the DSDUMP request are used

under three circumstances.

• When a fatal task error occurs.

• When a default value is requested in a

CMDUMP request.

• When a parameter is in error in a CMDUMP

request.

The purpose of DSDUMP and CMDUMP is to aid

applications programmers in debugging their tasks.

These dump requests allow users to dump any portion

of their programs. The user speciﬁes the ﬁrst

word address (fwa) and the last word address (lwa)

of the area to be dumped. The exchange package may

also be dumped by setting the proper parameter(s) to

a nonzero value.

The DSDUMP request sets up default values for

subsequent CMDUMP requests made by this task and all

linked tasks in this transaction (those called by

CALLTSK without CEASE). DSDUMP does not cause a

dump; it only sets parameter values that can be

defaulted as a result of a CMDUMP request.

A hierarchy of parameter values allows users to

default any parameters they want on DSDUMP or CMDUMP

calls. At system assembly time, default values are

assembled for each parameter. These default values

can be changed via a K display command. In

addition, if users want to change any default

parameter values for their tasks, they may do so by

using DSDUMP requests.

T h i s h i e r a r c h y o f d e f a u l t v a l u e s w o r k s i n t h e

following manner. The CMDUMP request causes a dump

according to the parameters it speciﬁes. If a

default option is requested, the system determines

if a DSDUMP request has been made for this

transaction. If a DSDUMP request has been made and

if the corresponding parameter value has been

supplied, this value is used. If DSDUMP requests

have not been speciﬁed, a new default value, the

system default value for this parameter, is used.

When dumping to an output queue, a ROUTE command is

included in the command record to direct the output

produced by KTSDMP to the proper queue.

A USER command is always included, thus enabling

KTSDMP to attach the appropriate ﬁle if the dump is

destined for a user's ﬁle. In this case, KTSDMP

appends the binary information to the end of the

permanent ﬁle. This method of handling dumps

relieves the transaction executive of time-consuming

processing that is better performed by a utility.

DSDUMP REQUEST

The DSDUMP request allows the applications

programmer to change any of the default values of

the CMDUMP request. The DSDUMP does not cause a

dump in itself, except when the system detects an

error (that is, aborts). Any default values on the

DSDUMP are satisﬁed from the general default

values* All six parameters are required. If an

error occurs on any DSDUMP parameter, the task is

aborted.

The format is:

COBOL

ENTER DSDUMP USING fwa lwa ep db oq qd.

fwa Computational-1 item that speciﬁes

beginning address of task memory to

be dumped; legal values are 0<fwa<FL

(ﬁeld length).

If fwa is negative,

value is used.

the default

lwa Computational-l item that speciﬁes

last word of task memory to be

dumped; it must be greater than

fwa. If zero is speciﬁed, no dump

of task memory occurs. If lwa

equals FL, the dump extends to the

end of the ﬁeld length. If lwa is

negative, the default value is used.

60459500 C 6-1

ep

db

oq

qd

Computational-l item that speciﬁes

exchange package option.

0 Do not dump exchange package.

> 0 Dump exchange package.

< 0 Use default value.

Performs no function. Retained for

compatibility with previous releases.

Computational-l item that speciﬁes

output queue option.

< 0 Use default value (refer to

following note).

0 Dump to local batch output

queue.

1 Dump to remote batch output

queue*

2 Dump to user permanent ﬁle

deﬁned under data base user

number.

Queue destination option; value

depends on oq selection.

oq

0

qd

Printer id, speciﬁed as a

computational-l number. If

negative, use default value

(refer to following note).

U s e r ' A valid name

number speciﬁed in

display-coded,

Direct left-justiﬁed

access ▶characters

permanent with either

ﬁle name blank or

binary zero

.ﬁll.

| NOTE |

If either oq or qd is negative, the

default value will be used for both,

regardless of the option selected for

the other.

FORTRAN

CALL DSDUMP(fwa,lwa,ep,db ,oq,qd)

fwa Octal integer that speciﬁes the be

ginning address of task memory to be

dumped; legal values are zero<fwa<FL

(ﬁeld length). -

If fwa is negative, the default

value is used.

lwa Octal integer that speciﬁes the

last word of task memory to be

dumped; must be greater than fwa.

ep

db

oq

qd

I f z e r o i s s p e c i ﬁ e d , n o d u m p o f

task memory occurs. If lwa equals

FL, the dump extends to the end of

the ﬁeld length. If lwa is

negative, the default value is used.

Integer that speciﬁes the exchange

package option.

0 Do not dump exchange package.

> 0 Dump exchange package.

< 0 Use default value.

Performs no function. Retained for

compatibility with previous releases.

Output queue option.

< 0 Use default value (refer to

following note).

0 Dump to local batch output

queue.

1 Dump to remote batch queue.

2 Dump to user permanent ﬁle

deﬁned under data base user

number.

Queue destination option;

depends on oq selection.

value

oq qd

0 Integer specifying printer

id. If negative, use

default value (refer to

following note).

1User v A valid name

name 1 speciﬁed in

1 display-coded,

1 left-justiﬁed

Direct [characters with

access 1 either blank or

permanent 1 binary zero

ﬁle name >' ﬁ l l .

| NOTE |

I f ei t h e r o q o r q d i s n e g a ti v e , t h e

default value will be used for both,

regardless of the option selected for

the other.

COMPASS

DSDUMP address

address Address of a parameter table. The

table has the form shown in ﬁgure

6-1.

6-2 60459500 A y^^&fSV

5 9 5 6 47 29 17

agc'ft//,7//A lwa 'Mttttfr'WM, fwa

qd oq

a

c

lwa

fwa

qd

oq

Set to one for exchange package dump.

Set to one for exchange package default value.

Last word of task memory to be dumped; must be greater than fwa. If zero is

speciﬁed, no dump of task memory occurs. If lwa equals FL, the dump extends to

the end of the ﬁeld length. If lwa Is negative, the default value is used.

Beginning address of task memory to be dumped; legal values are zero through

lwa-1.

If fwa is negative, the default value is used.t

Queue destination option; the value depends on the oq selection as shown

following the oq description.

Output queue option.

0 Dump to local batch output queue.

1 Dump to remote batch output queue.

2 Dump to user permanent ﬁle deﬁned under data base user name.

Interdependency between oq and qd is deﬁned as follows:

oq

0

1

2

qd

Printer id, speciﬁed as binary number, right-justiﬁed within word; if

negative, use default value.

User name.

Direct access

permanent ﬁle name.

A valid name speciﬁed in display-coded,

left-justiﬁed characters with either blank

or binary zero ﬁll.

t Default values are speciﬁed by setting the sign bit.

Figure 6-1. DSDUMP Parameter Table

/0^

CMDUMP REQUEST

The CMDUMP request allows the applications programmer

to dump memory in the task's ﬁeld length to a selec

ted output queue (and logical device). The ﬁrst six

parameters are required. If there is an error on or

a default of any parameter speciﬁed by CMDUMP, the

parameter value of the DSDUMP call is used.

The format is:

COBOL

ENTER CMDUMP USING fwa lwa ep db oq qd.

The descriptions of the ﬁrst six parameters are

the same as those for the DSDUMP request.

FORTRAN

CALL CMDUMP(fwa,lwa,ep,db,oq,qd)

The descriptions of the ﬁrst six parameters are

the same as those for the DSDUMP request.

COMPASS

CMDUMP address

60459500 B

address Address of a parameter table in

the form shown in ﬁgure 6-2.

1 note!

The manner in which the hierarchy of

default values works was previously

described. However, in the special

case of output queue and queue

destination (oq and qd parameters),

if either parameter is defaulted, the

next pair of output queue and queue

destination parameters is obtained

from the next level of the default

hierarchy.

There is also a special case

concerning errors in a CMDUMP

request. If the parameter in error

is the output queue value, the system

is unable to route the dump as the

user wants. If this error is on a

CMDUMP request, the system attempts

to dump according to the

corresponding DSDUMP output queue and

queue destination parameters. If

that is not possible, the general

system values are used.

6-3

5 9 5 5

address

47 29 17

abcdt lwa W//////////// fwa

qd oq

^^i^ address mmmmmmmm

User's calling address to be placed on listing.

/SSSSV

TThe descriptions of the ﬁrst ﬁve parameters are the same as those shown in ﬁgure 6-1.

Figure 6-2. CMDUMP Parameter Table

K.DSDUMP COMMAND

The K.DSDUMP command can be used under the K display

for the transaction executive control point to reset

default dump parameters. The parameters can be

given in any order and only those parameters to be

changed need to be given.

The format when entered from the console is:

K.DSDUMP,FW=fwa,LW=lwa,EP=ep/OQ=oq/QD=qd.

The values of these parameters are as speciﬁed for

the DSDUMP request made by a task. These system

dump parameters can be examined by checking the

K display for control points.

KTSDUMP UTILITY

KTSDMP can be called via a command to form lis table

memory dumps. The input ﬁles can be created by the

transaction executive or by any other program. The

following items can be listed.

Central memory of a task or program.

Exchange package and control point area of a

task.

Communica tion

pre se nt).

block of a task (always

The format is:

KTSDMP (lfn.1,lfn2,P,0)

l f t H Input ﬁle name; if absent,

default is INPUT.

lfn2 O u t p u t ﬁ l e n a m e ;

default is OUTPUT.

if absent,

I f P i s s p e c i ﬁ e d , a p p e n d ﬁ l e

lfnj on direct access permanent

ﬁle lfn2. The job must be

running with the proper user

name and ﬁle lfn2 must be

deﬁned. End-of-ﬁle is not

copied to lfn2.

If 0 is speciﬁed, the dump is in

o c t a l f o r m a t . I f 0 i s o m i t t e d ,

the dump is in octal and 6-bit

display code format, with the

6-bit display code format to the

right of the octal format.

6-4

If the P option is used, an installation may keep a

running stack of memory dumps to be listed

selectively at some later time. To list all dumps

on the permanent dump ﬁle, the ﬁle should be

attached and KTSDMP executed. All dump records on

the ﬁle are processed. To list only selected

dumps, the permanent ﬁle should be attached and the

selected dump records extracted using the GTR

command (refer to the NOS 2 Reference Set, Volume

3). KTSDMP should be executed to process the output

ﬁle from the GTR command.

The user must specify the 0 option when issuing the

KTSDMP command from a terminal; if the 0 option is

not speciﬁed, execution is terminated, and KTSDMP

issues the following message.

DISPLAY DUMP NOT ALLOWED TO TERMINAL.

TASK DUMP FORMATS

Figure 6-3 contains the formats of the dumps

provided. The leftmost date and time in the header

are the date and time of creation of the KTSDMP

i n p u t ﬁ l e . T h e c u r r e n t d a t e a n d t i me f o l l o w. T h e

task control point area dump appears only when the

exchange package dump is requested. The exchange

package dump, task control point area dump, and the

communication block dump all appear on the same page

when the exchange package dump is requested.

TAF DUMP

A TAF dump is a dump of all or part of the TAF ﬁeld

length. The user initiates a TAF dump using the

K.DUMP command. A TAF dump assists the systems

analyst in detecting system errors that do not abort

TAF. Whe n a task detects an error in TAF, a TAF

dump might be needed because there is signiﬁcant

information outside the task ﬁeld length that is

not contained in a task dump.

A task initiates a TAF dump using the KPOINT request

(refer to KPOINT Request in section 2) in

conjunction with the K.DUMP command. The K.DUMPLIM

command sets a global limit on the number of K.DUMP

c o m m a n d s t h a t ta sks c a n i s s u e . A ta s k us e s t h e

KPOINT request in conjunction with the K.DUMPLIM

command to set the global task dump limit (GTDL).

The remainder of this section describes the K.DUMP

and K.DUMPLIM commands.

60459500 B

/r5sts

/<"*8fV

KTSDMP-taskname yy///mm/dd.hh.mm.ss. yy/mm/dd .hh.mm.ss.

EXCHANGE PACKAGE.

Exchange package dump

TASK CONTROL POINT AREA.

Task control point area dump

COMMUNICATION BLOCK DUMP FROM fwa TO lwa

PROGRAM taskname SEQUENCE number ADDRESS xxxx

Communication block dump

KTSDMP-taskname yy/mm/dd.hh.mm .ss. yy/mm/dd.hh.mm.ss.

DUMP FROM fwa TO lwa

Memory dump

KTSDMP-taskname yy/mm/dd.hh.mm.ss . yy/mm/dd.hh.mm .ss.

DUMP FROM fwa TO lwa

Memory dump

KTSDMP-taskname yy/mm/dd.hh.mm.ss. yy/mm/dd.hh .mm .ss .

Figure 6-3. KTSDMP Format

jifMﬁfﬂ^^

K.DUMP COMMAND

The K.DUMP command initiates a 'dump of all or part

of TAF. The user can specify the ﬁrst word address

(fwa) and the last word address (lwa) of the memory

to be dumped.

The command formats when issued from a task are:

DUMP,fwa,lwa.

or

DUMP,lwa.

or

DUMP.

fwa Octal address of the ﬁrst word of

memory to be dumped; legal values

are 0<fwa<lwa. The default is

zero . T h i s pa r a m e t e r ca n n o t be

used unless the lwa parameter is

also used.

lwa Octal address of the last word of

memory to be dumped; legal values

are fwa<lwa<377777. The default

is 377777.

If both parameters are omitted, the entire ﬁeld

length is dumped. The output of the dump is routed

to a printer that has an identiﬁer of zero. A

header page precedes the dump; it lists the date and

time of the dump and the name of the task that

issued the dump. Also listed are the instructions

that the dump be given to the TAF central site

systems analyst.

K.DUMPLIM COMMAND

The K.DUMPLIM command sets the GTDL. The GTDL

speciﬁes the number of K.DUMP commands that tasks

can issue.

The command format when issued from a task is:

DUMPLIM.n.

n The decimal number of TAF dumps

that tasks can issue. The

default is zero. The maximum

value is 9999999. The user

speciﬁes octal by using a

postradix of B.

The ini t i a l va l u e fo r th e GT D L is ze r o . Wh e n th e

GTDL is zero, no TAF dumps from tasks are allowed.

The GTDL must be set to a value greater than zero

for TAF dumps from tasks to occur. Each TAF dump

(where the task does not abort) causes the GTDL to

be decreased by one. This command does not affect

the execution of task dumps.

JS^K

60459500 A 6-5

APPLICATIONS INTERFACE FOR AUTOMATIC RECOVERY

This section describes automatic recovery as it

affects task writing. Recovery-related information

applicable to the applications programmer is covered.

Additional information of interest to the system in

stallation and maintenance personnel can be found in

section 8 of this manual.

PURPOSE

The purpose of the TAF automatic recovery feature is

to enable site personnel to design TAF transactions

that can recover quickly and predictably from system

failures, and maintain the data base in a consistent

state across failures* Terminal operators will be

able to determine the status of transactions upon re

covery so the possibility of issuing a double update

to the data base or of missing a data base update is

greatly reduced. The recovery will be automatic in

the sense that TAF and the data manager will deter

mine which data base updates to roll back, and which

transactions to restart upon initialization after a

failure. Site personnel need only select recovery

mode when bringing TAF back up.

CONCEPTS

There are two basic components to automatic recovery:

da t a b a s e r e cov e ry a nd t ran s a cti o n r e cov e r y. D ata

base recovery ensures that the data base is always in

a consistent and known state, even if a failure occurs

during a run unit. Transaction recovery automatically

reruns recoverable run units that were active at the

time of a failure. It also guarantees that the termi

nal operator will receive a conﬁrmation message when

the run unit completes.

NAMED-TRANSACTIONS AND RUN UNITS

A transaction is a task or a series of linked tasks*

The linking can be internal to the tasks using the

CALLTSK and/or CALLRTN requests, or external to the

tasks using the LIBTASK /tname directive. Refer to

section 10 for a complete description of this direc

tive. Transactions deﬁned using the /tname directive

are referred to as named-transact ions. In most dis

cussions in this section and throughout this manual,

it is not necessary to distinguish between the coding

that comprises a transaction and the execution of that

code. However, when the distinction is important, the

execution of a transaction is referred to as a run

unit. The terms executing transaction, running trans

action, and run unit can be used interchangeably. A

run unit is recoverable only if it is the execution of

a named-transaction and the RC parameter was speciﬁed

when the named-transaction was deﬁned. There are

differen ce s in te rm in ol og y betw ee n CDCS an d TA F.

What is referred to as a transaction in TAF is always

called a run unit in CDCS. The processing bounded by

the begin statement (DB$BEG or BEGTRAN) and the commit

statement (DB$CMT or COMMITRAN) is referred to as a

transaction in CDCS. Each of these transactions has

an id supplied within the application.

DATA BASE RECOVERY

Automatic data base recovery is available to

transactions using the CDCS and/or the TAF/CRM Data

Managers. Data base recovery is based on the

concept of a begin-commit sequence. A begin-commit

sequence is a portion of a transaction, designated

by the programmer, that contains one or more data

base updates that are to be treated as a unit.

Should a failure occur during a recoverable run

unit, data base recovery ensures that all the

updates within a begin-commit sequence are performed

or that none of them are. It also provides a means

by which the transaction can determine which

begin-commit sequences had successfully completed

prior to failure so that on restart, the transaction

can avoid performing those updates a second time.

Data base begin-commit sequences are identiﬁed in a

transaction by placing a data base BEGIN request at

the beginning of the sequence and a data base COMMIT

request at the end of the sequence. (The BEGIN and

COMMIT requests have different forms depending on

the data manager and source language being used.)

The data base BEGIN request includes a parameter for

assigning an identiﬁer to the begin-commit

sequence. This identiﬁer (selected by the

programmer) is preserved across failures and can be

retrieved upon restart to enable the transaction to

determine how far processing had gone prior to

failure. The data base COMMIT request tells the

data manager that the updates are to be made

permane n t . A fa i l u r e be f o r e a d a t a ba s e CO M M I T

causes all updates for this sequence to be rolled

back. This means that the data base is returned to

the state it was in at the time the BEGIN for this

s e q u en c e wa s is s u e d . I f a f ai l u r e o c cu r s af t e r a

da t a b a se C OM M IT, a ll u pda t es f or t he co m mit t ed

sequence are retained. A transaction can terminate

an update sequence without committing the updates by

issuing a data base FREE request.

TRANSACTION RECOVERY

Transaction recovery restarts recoverable run units

that were active at the time of a system or terminal

failure. Transaction recovery also uses the concept

of a begin-commit sequence. With transaction

recovery, the BEGIN is implicit in the initiation of

any recoverable run unit. The transaction COMMIT is

speciﬁed with a SECURE request indicating that the

work of the transaction is complete. The SECURE

request should immediately precede the last data

base commit request in the transaction.

When a recoverable run unit is initiated from a

terminal or a batch job (via a BTRAN request), TAF

logs the initial input on the communication recovery

ﬁle. If a failure occurs during the run unit, auto

matic recovery takes place when TAF is subsequently

brought back up. At that time the data base recovery

ro ut in e i s c al le d i n t o r es to re the data base to a

consistent state.

60459500 B 7-1

Then, the transaction recovery routine examines all

run units that were active at the time of failure to

determine which should be rerun. For run units

initiated from a terminal, a ﬂag is set in the

terminal status table and the decision is postponed

u n t i l t h e t e r m i n a l l o g s b a c k i n . F o r r u n u n i t s

initiated by BTRAN, the decision and restart, if

necessary, are made Immediately. This decision

process is summarized in the following steps.

1. Is this transaction designated as recoverable?

YES NO

Go to step 2. Do not rerun*

2. Does this transaction use CDCS?

Y E S N O

Rerun. Go to step 3.

3. Was the t ransacti on SECU RE a t th e ti me o f

failure?

YES

Go to step 4.

NO

Rerun.

4. Did an incomplete begin-commit sequence exist

at the time of failure?

YES

Rerun.

NO

Send SECURE

message. Do

not rerun.

begin request must be reissued and the

update process restarted. Therefore,

whenever possible, TAF/CRM transactions

should request the record locks before

making the DBEGIN request. For transactions

using CDCS, the lock request is implicit in

the record READ.

CODING STRUCTURES FOR DATA BASE RECOVERY ONLY

Transactions Using CRM

A transaction that uses the CRM Data Manager may be

structured as follows. In addition, the recovery

parameter must be speciﬁed on the xxJ ﬁle CRM

statement for any ﬁle to be updated by this

transaction. Although only one begin-commit

sequence is shown, actual transactions can contain

as many separate (nonnested) begin-commit sequences

as desired. Multiple data base updates are

permitted within a begin-commit sequence.

OPEN request(s).

Record lock request(s).

DBEGIN request.

(data base processing/updating)

DBCOMIT or DBFREE request.

CLOSE request.

CODING

Automatic recovery requires a transaction to contain

a speciﬁc set of requests in a predetermined

order. The following outlines show some suggested

structures for recoverable transactions.

The OPEN, CLOSE, and LOCK requests need not appear

in the places shown. The restrictions placed on

these requests by TAF/CRM and CDCS automatic

recovery are as follows:

• O P E N

A n O P E N r e q u e s t c a n n o t o c c u r w i t h i n a

begin-commit sequence in a transaction using

CDCS.

• CLOSE

A C L O S E r e q u e s t c a n n o t a p p e a r w i t h i n a

begin-commit sequence in any transaction.

• L O C K

TAF Transactions Using CDCS

TAF transactions using the CDCS data management

system may be structured as follows to take

advantage of data base recovery. Although only one

begin-commit sequence is shown, actual TAF

transactions can contain as many separate

(nonnested) begin-commit sequences as desired.

Multiple data base updates are permitted within a

begin-commit sequence.

In all the CDCS outlines in this section where a

F O R T R A N r e q u e s t n a m e i s d i f f e r e n t f r o m t h e

equivalent COBOL request name, the FORTRAN name is

given in parentheses.

OPEN ﬁle request(s).

DB$BEG (BEGINTRAN) request.

(data base processing/updating)

A record lock conﬂict within a begin-commit

sequence causes all updates in the sequence

to be rolled back. If this happens, the DB$CMT (COMMITTRAN) or DBSDROP (DROPTRAN) request,

CLOSE ﬁle request(s).

7-2 60459500 B

/^Ss!\

CODING STRUCTURES FOR TRANSACTION RECOVERY (data base processing)

/P^K.

.jgSP^s

J^&K

Transactions Using CRM

Recoverable transactions using the CRM Data Manager

can be divided into two categories: single

begin-commit sequence transactions and multiple

begin-commit sequence transactions. A single

begin-commit sequence transaction needs only to

include a SECURE request immediately before the

COMMIT request. If a failure occurs before the

COMMIT request is successfully executed, the data

base will automatically be rolled back and the

transaction rerun at recovery time. A multiple

begin-commit sequence transaction must ﬁrst

determine if recovery is in progress. If it is, the

transaction must then discover which was the last

successfully committed begin-commit sequence and

begin processing with the following begin-commit

sequence. For this purpose, the data base BEGIN

requests require a user-supplied identiﬁer to be

included as part of the request. All identiﬁers

used within a single transaction must be unique for

the restart point to be unambiguous.

Single Begin-Commit Sequence Transaction

OPEN ﬁles.

Record lock request(s).

DBEGIN request.

(data base processing)

SECURE request.

DBCOMIT request.

CLOSE request,

transaction CEASE

terminal.

SECURE message is sent to

In the preceding transaction, if a failure

interrupts processing any time prior to the DBCOMIT

request, TAF automatic recovery reruns the

transaction from the beginning. If a failure

interrupts processing after the DBCOMIT request,

automatic recovery only sends the SECURE message to

the terminal.

Multiple Begin-Commit Sequence Transaction

OPEN ﬁles.

TSTAT request using keywords RESTART, OLDID.

If RESTART value is zero or OLDID value is

blank, begin processing at SEQN1.

If OLDID is SEQN1

begin processing at SEQN2.

If OLDID IS SEQN(n-l)

begin processing at SEQNn.

Processing Module(s)

SEQN1.

Record lock request(s).

DBEGIN request, begin-commit id = SEQN1.

Perform processing module(s).

DBCOMIT request.

SEQN2.

Record lock request(s).

DBEGIN request, begin-commit id = SEQN2.

Perform processing module(s).

DBCOMIT request.

SEQN3.

SEQNn.

Record lock request(s).

DBEGIN request, begin-commit id = SEQNn.

Perform processing module(s).

SECURE request.

DECOMIT request.

CLOSE ﬁles.

transaction CEASE — SECURE message is sent to

terminal.

TAF Transactions Using CDCS

A recoverable TAF transaction using CDCS must ﬁrst

determine if recovery is in progress. If it is, the

TAF transaction must determine the last successfully

committed begin-commit sequence. This is necessary

even for single begin-commit sequence transactions

because all recoverable run units using CDCS are

rerun during recovery regardless of whether the last

begin-commit sequence was successfully committed.

The failure may have occurred after the COMMIT

request and before the transaction CEASE. Rerunning

from the start would cause a double update for the

transaction. The transaction must begin processing

at the ﬁrst begin-commit sequence following the

last successful COMMIT. If the ﬁnal begin-commit

sequence was successfully committed prior to

failure, the transaction need only retrieve and send

the SECURE message to the terminal.

Figure 7-1 shows the structure of a recoverable,

multiple begin-commit sequence transaction that uses

CDCS. The decision process that determines where to

begin during recovery is shown in expanded form for

clarity. The use of subscripted variables for

begin-commit ids would allow for condensed code in

the case of a large number of begin-commit sequences.

CDCS applications programmers should be aware of

some terminology differences between TAF automatic

recovery documentation and CDCS automatic recovery

documentation. The term transaction in CDCS

documentation refers to what TAF documentation calls

a b e g i n - c o m m i t s e q u e n c e ; t h a t i s , a l l p r o c e s s i n g

starting with a data base begin request and ending

with the corresponding data base commit request.

Similarly, CDCS documentation uses the term

transaction-id to refer to what TAF documentation

calls the begin-commit id.

JS^**"

60459500 A 7-3

OPEN ﬁle(s).

TSTAT request, Keyword RESTART.

If RESTART value is zero (If not being recovered.)

DBSGTID (ASSIGNID) request (Get new RESTART-id.)

RPUT request (Save new RESTART-id on CRF.)

begin processing at SEQN1. (Skip to ﬁrst begin-commit sequence.)

ELSE

RGET request. (Retrieve old RESTART-id from CRF)

DB$ASK (FINDTRAN) request. (Get Id of last committed begin-commit

If the begin-commit id is blank sequence. This also assigns the old

begin processing at SEQN1. RESTART-id to this transaction.)

If the begin-commit id is SEQN1

begin processing at SEQN2.

IF the begin-commit id is SEQN2

If the begin-commit id is SEQN(n-l)

begin processing at SEQNn.

If the begin-commit id is SEQNn or **********

begin processing at WRAP-UP.

Processing Module(s)

(data base processing/updating)

SEQN1.

DB$BEG (BEGINTRAN) request, begin-commit id * SEQN1.

Perform processing module(s).

DB$CMT (COMMITRAN) request.

SEQN2.

SEQNn.

DB$BEG (BEGINTRAN) request, begin-commit id - SEQNn.

Perform processing module(s).

SECURE request.

DB$CMT (COMMITRAN) request.

RESTART-value equal to zero.

WRAP-UP.

If RESTART value is not zero

RSECURE request (Retrieve SECURE message from CRF.)

SEND request. (Send SECURE message to terminal.)

CLOSE request(s).

Transaction cease.

Figure 7-1. Recoverable TAF Transaction Using CDCS /*^$^\

TERMINAL RECOVERY CONSIDERATIONS

If a communication subsystem, TAF, or system failure

occurs, an application cannot assume that the termi

nal contains any particular set of data. The last

message may not have been transferred to the termi

nal, or the terminal operator may not have noticed

the message. Also, login procedures or terminal

failures may destroy the screen.

Terminal recovery is also dependent upon the type of

terminal and the form used on the terminal. On hard

cop y term inals, the termin al m ay not n eed al l th e

data resent. In fact resending the data may spoil

the form. O n c at ho de ray tub es (C RTs) , the d ata

entered by the operator may need to be sent after

recovery to indicate what still needs speciﬁcation.

Applications must design their terminal dialog so

that the operator has no doubts about the state of

the run unit by sending a ﬁnal message via SECURE

indicating unmistakably that the run unit was suc

cessfully completed. The transaction system guaran

tees that the operator will see this message in all

cases when the run unit completed successfully;

otherwise, the operator might reenter the transaction

causing a double update of the data base.

Applications that require many terminal interactions

must reconstruct the screen from the data base upon

recovery.

7-4 60459500 B

CALLTSK WITHOUT CEASE AND RECOVERY

A CALLTSK without CEASE starts a new run unit. This

n e w r u n u n i t i s n o t r e c o v e r a b l e . I t w i l l b e

restarted only if the calling task is part of a

recoverable run unit and the task makes the CALLTSK

request again upon restart.

Care is necessary when using SECURE, RSECURE, RPUT,

and RGET from run units initiated by CALLTSK without

CEASE. Such run units may write or read the same

recovery data being written or read by the

originating run unit.

MULTIPLE DATA MANAGER USE

Correct recovery cannot be assured for nested or

overlapping begin-commit sequences using both CDCS

and CRM. A transaction may use both CDCS and CRM

provided that begin-commit sequences are neither

nested nor overlapping.

TOTAL DATA MANAGER USE

The TOTAL Data Manager does not use the concept of

begin-commit for data base recovery. Applications

using this data manager, however, may Implement data

base recovery using current TOTAL features and TAF

automatic recovery. If TAF automatic recovery is

installed, such tasks may use any of the requests

described in section 2 of this manual, including the

application recovery requests.

During recovery, transactions that do not use CRM or

CDCS and that were active at the time of failure are

rerun unless the SECURE request data resides on the

communication recovery ﬁle. If the SECURE message

is present, the transaction is not rerun but the

SECURE message is sent to the terminal.

j#^

60459500 A 7-5

DATA ADMINISTRATOR AND OPERATOR INTERFACE FOR RECOVERY

/P^^-.

^>v

This section contains recovery information of inter

est to persons responsible for the installation and

maintenance of the transaction subsystem.

RECOVERY OVERVIEW

The TAF recovery package consists of two major compo

nents: transaction recovery and data base recovery.

Data base recovery can be further subdivided into the

automatic component and the batch component. The

integrated system works like this:

A transaction is declared to be recoverable when it

is added to the application task library. The data

managers (CRM and CDCS) provide methods of declaring

data ﬁles recoverable. Upon initiation of a recov

erable transaction, ITASK schedules the transaction

via a CALLTRN request. Then the original input (that

is, the transaction name and all unsolicited data) is

logged to the communication recovery ﬁle before the

transaction begins execution. The transaction must

indicate to the data manager that it wishes to open

a begin-commit sequence by making a data base BEGIN

request. When the transaction requests to update a

data ﬁle, the following occurs.

• The record as read from the data file (the rec

ord In this state is called the before image)

is logged to a before image recovery ﬁle, also

known as the before image log ﬁle.

• The record is processed by the transaction.

• The updated record (called the after image) is

logged to an after image recovery ﬁle when the

program makes a write, rewrite, or delete re

quest. The updated record is also written to

the d ata ﬁle at this time.

After an update or a series of updates, the transac

tion Indicates to the data manager that it wishes to

close the begin-commit sequence by making a data base

COMMIT request. If the transaction does not intend

to open another begin-commit sequence, it indicates

to TAF that its work is done by issuing a SECURE re

quest just prior to the COMMIT request. TAF logs a

message associated with the SECURE request to the CRF

and sends this message to the terminal when the ﬁnal

transaction CEASE request is processed.

If a failure occurs prior to the BEGIN request, the

data base is unaffected and the transaction is re

started upon recovery using the original data logged

on the CRF.

If a failure occurs between the BEGIN and COMMIT

requests, the data manager rolls back the data base

by applying the before images from the before image

recovery ﬁle (BRF) to the affected data ﬁles. The

data base is then in the same state as it was at the

beginning of the begin-commit sequence. The trans

action is restarted upon recovery using the data on

the CRF.

60459500 A

If a fa i lu r e o cc u rs af ter the COM MIT r equ est , t he

data base is not rolled back, all updates become per

manent when the COMMIT is processed. Whether the

transaction is restarted depends upon the data mana

ger being used. CDCS transactions are restarted if a

failure occurs any time prior to the ﬁnal transac

tion CEASE request. CRM transactions are rerun un

less both a COMMIT and SECURE request have been suc

cessfully issued. The applications tasks must be de

signed to handle cases where restart can occur after

a COMMIT has been successfully executed. Refer to

section 7 for some suggested transaction structures.

A B R F ﬁ l e i s u s e d r e p e a t e d ly b y th e a p p l i c a t io n.

Only the before images for the current begin-commit

sequence need to be saved so each new begin-commit

sequence can overwrite the previous one.

An after image recovery ﬁle (ARF) is continuous.

New after images are written sequentially until the

ﬁle is full. At that time, logging is switched to

a second ARF while the after images from the ﬁrst

ARF are dumped to tape.

The ARF ﬁles are not used for automatic recovery.

They provide a backup in case a CRF, BRF, or data

ﬁle becomes damaged. If this happens, the data ad

ministrator can use batch recovery to reload the data

ﬁle(s) from the dump tape and apply, after images

from an ARF dump, thus restoring the data base to a

correct state as of any desired point in time.

The function performed by each of the recovery compo

nents are as follows.

• Transaction recovery

- Logs the initial input to the CRF.

- Logs and sends the SECURE message.

- R est a rts re cov e rab l e t r ans a cti o ns a fte r a

failure.

• Data base recovery

- Automatic component

. Rolls back updates in uncommitted

begin-commit sequences.

. Logs before images to the BRF.

• Logs after images to the ARF.

. Switches after image logging when an

ARF is full and submits a batch job to

dump the full ARF to tape.

- Batch component

. Dumps full ARFs to tape.

. Dumps data ﬁles to tape upon request.

8-1

• Restores data base files from data file

and ARF tapes.

• Maintains a directory of dumped files.

The nomenclature used here is speciﬁc to the TAF/CRM

Data Manager. CDCS automatic recovery uses similar

concepts but different terminology. The details

associated with data base recovery are documented in

the respective data manager reference manuals. The

remainder of this section covers the details of

transaction recovery.

HARDWARE CONFIGURATION CONSIDERATIONS

Recovery cannot succeed if failures affect more than

one component of the recovery system. For example,

if a single hardware failure destroys both the recov

ery ﬁles and the data base, there is no recovery

other than to restore the data base from a backup

copy (ﬁle dump). For this reason, the data base

ﬁles, the communication recovery ﬁles, the before

image recovery ﬁles, and the after image recovery

ﬁ l e s s h o u l d b e a s s i g n e d t o p h y s i c a l l y s e p a r a t e

de v i c e s . A l s o , th e b a c ku p d i r e c t o r y ﬁ l e f o r b a t c h

recovery should not reside on the same device as the

ARFs.

The dump tape storage area should be physically

separate from the area housing the disk drives.

Automatic recovery also depends on the integrity of

single input/output operations. An on-line motor-

generator is essential to ensure that disk operations

underway at the time of a power failure have time to

complete correctly.

Performance improvements through the use of multiple

CRFs and BRFs (TAF/CRM only) will be realized only if

each additional ﬁle resides on a separate device.

INSTALLATION

A procedure ﬁle for TAF initialization and recovery

is presented in the NOS 2 Installation Handbook.

Transaction recovery is enabled or disabled by the

installation parameter IPTAR. If IPTAR is set to

one, transaction recovery is enabled; if IPTAR is set

to zero, transaction recovery is disabled.

If recovery is disabled, these requests will not be

honored in recovery mode:

CALLTRN

RERUN

RGET

RPUT

RSECURE

SECURE

TINVOKE

TSTAT

WSTAT

For logging of input on CRF.

Except for keywords USER and NEXT.

Except for keywords STEP (=8 or =9)

and USER.

A number of other installation parameters have an

effect on recovery. Refer to the NOS 2 Installation

Handbook for details.

TAF K DISPLAY

INITIAL K DISPLAY

Three K display commands are available to perform

recovery-related functions: K.INT, K.ERO, and K.REC.

K.INT Command

The K.INT command speciﬁes which recovery ﬁle(s)

are to be initialized. This is the only means of

initalizing a CRF. Files listed on a RECOVER state

ment in the TCF and on this command will be initial

ized. Files listed on a RECOVER statement but not on

this command will be used for recovery. The INT com

mand also speciﬁes whether CRM data base recovery

ﬁles (ARFs and BRFs) are to be initialized or recov

ered. When used for CRM recovery ﬁles, this command

is valid regardless of TAF installation options.

The format is:

K. INT-type,ﬁleid

type File type. The options are:

CRF

CRM

Command relates to the

communication recovery

ﬁle. This option valid

only if installation

parameter IPTAR » 1.

Command relates

recovery ﬁles.

to CRM

ﬁleid File identiﬁer. The options are:

digits

0-7

ALL

. E a c h d i g i t i n t h e s t r i n g

speciﬁes a CRF to be

initialized. The digit

corresponds to the id

parameter on the RECOVER

s t a t e m e n t i n t h e T C F.

This option is not valid

if type is CRM.

If type is CR F, all CRFs

listed In TCF RECOVER

statements are to be

initialized. If type is

CRM, all CRM after image

recovery ﬁles are to be

initialized.

NOTE

This option must be used with caution

as the CRM data base update history

currently residing on the recovery

ﬁles will be lost.

NONE If type is CRF, no CRF is

to be initialized (all

CRFs listed in TCF RECOVER

sta temen ts a re t o be re

covered) . If type is CRM,

no CRM recovery ﬁles will

be initialized. NONE is

the default for both

values of type.

X^&SK

8-2 60459500 C

K.ERO Command

The K.ERO command speciﬁes whether to override

certain I/O or logical errors encountered during

processing of the communication recovery ﬁle(s).

The format is:

K. ERO»CRF ,o ption

option Error override option.

NO or YES.

Must be

NO Abort if I/O or logical er

rors are encountered when

processing the communication

recovery ﬁle(s). This is

the default.

YES I/O or logical errors en

countered on a run unit

header record will result in

the loss of that run unit

w i t h n o i n d i c a t i o n t o t h e

terminal user. The loss

will be noted on the recov

ery report.

I / O o r l o g i c a l e r r o r s e n

countered on a message rec

ord within a run unit will

result in a loss of that run

unit. However, a status in

dicator would be set in the

run unit header that would

enable the terminal user to

be informed.

If DISPLAY,ON is selected in the TCF, the K display

is issued. This display is identical to the initial

K display except that if any values were changed at

initialization, the changed values are retained on

the restarted K display. This does not apply to

K.INT and K.ERO commands. Changed values for these

commands are not retained after TAFREC completes.

(This prevents inadvertent initialization of

recovery ﬁles in a recovery situation).

TCF/CRF RECOVERY CONSIDERATIONS

TAF CONFIGURATION FILE

The TCF contains several recovery-related items.

• The RECOVER statement indicates the CRF

identiﬁer (z er o t o seven) an d t he size and

number of messages that can be written to

the CRF.

• Default K display values can be changed by

placing K display commands in the TCF.

• The DISPLAY statement provides the option of

having the K display brought up at

i n i t i a l i z a t i o n a n d r e c o v e r y t o a l l o w t h e

operator to override any of the default

values.

Details on these statements are given with the TCF

description in section 4.

I/O or logical errors en

countered on the CRF header

record will result in uncon

ditional abort of TAF.

K.REC Command

The K.REC command sets the user recovery bit in the

terminal status ta ble . The f orm at is:

K.REC-nnn

n n n R e c o v e r y o p t i o n . M u s t b e Y E S o r

NO.

YES Set the user recovery bit in

the terminal status table.

NO Do not change the present

setting of the user recovery

bit.

The use of multiple CRFs is indicated by multiple

RE CO VER s tat em ents in the TCF. E ach R ECO VE R

statement corresponds to a separate CRF. For each

RECOVER statement there must be a corresponding

NETWORK statement. Refer to Use of Multiple

Communication Recovery Files in this section and

Communication Recovery File in section 4.

COMMUNICATION RECOVERY FILE

Error Override

Certain errors on the CRF ﬁle(s) can be overridden

by us i n g t h e K. ERO K d i s p lay c omma n d ( r e f er t o

Initial K Display in this section). Input/output

errors on the CRF encountered during the running of

t r a n s a c t i o n s c a u s e TA F t o a b o r t an d TA F R E C t o

attempt recovery of all readable data from the CRF.

J8^

RESTART K DISPLAY

The K display that TAF formats at initialization will

be displayed only if a DISPLAY statement with the ON

parameter selected appears in the TCF. Refer to sec

tion 4 for details on the DISPLAY statement. If the

K display is brought up, the operator makes any

desired changes and types K.GO or K.END to resume

processing. K.STOP will abort TAFREC.

On a level 3 deadstart, or if TAF aborts , the TAF

procedure ﬁle automatically restarts TAF by trans

ferring control to TAFREC. TAFREC recovers the low

CM pointers and variables that were deﬁned at TAF

initialization via the initial K display.

File Reformatting

TAF recovery processing reformats the CRF under the

following circumstances.

• If the number of user messages per recovery

unit is increased in the number parameter on

the RECOVER statement.

• If the size of user messages per recovery

unit is increased in the maximumsize

parameter on the RECOVER statement.

• If a new user is added to or deleted from

the corresponding network ﬁle.

60459500 C 8-3

The RECOVER statement cannot be used to reduce the

number or size of the user messages. The only way

to reduce either of these is to reinitialize the CRF

using the K.INT command.

To reformat ZZCRFi, TAF creates a permanent ﬁle

named ZZCRFAi and writes the reformatted CRF to it.

When the reformat is complete, the old CRF (ZZCRFi)

i s p u r g e d a n d t h e n e w C R F ( Z Z C R FA i ) h a s i t s

permanent ﬁle name changed to ZZCRFi.

Multiple Communication Recovery Files

Up to eight CRFs may be active simultaneously. Each

CRF must have a unique identiﬁer. Once a CRF has

been initialized with a given id, it must be brought

up with the same id. If this is not done, recovery

will fail. Advantages of using multiple CRFs are:

• The input/output associated with the CRFs is

spread out across several disks. This

improves performance.

• Mul timainf rame recovery becomes possible.

Refer to Mul timainf rame Recovery in this

sec tion.

MULTIMAINFRAME RECOVERY

The guidelines in this subsection pertain to sites

running TAF on several mainframes. These guidelines

are applicable if the ability to recover transaction

processing for a downed mainframe on an alternate

mainframe is desired.

• Make certain that the network (NCTFi) and

C R F ( C R F i ) ﬁ l e i d e n t i ﬁ e r s ( i ) o n e a c h

mainframe are unique among all mainframes.

• Allocate unique data base names to all

applications across all mainframes.

• Allocate recovery-related files to shared

mass storage.

• Define unique terminal user names across all

mainframes.

• When a mainframe goes down, IDLE TAF on the

mainframe that is to run the downed

applications, t

• Restart TAF with a TCF file that contains

RECOVER statements for the recovery ids of

both mainframes*

• When the downed mainframe is repaired, IDLE

TAF on the recovery mainframe. Then bring

TAF up independently on the two mainframes

with the original TCFs.

RECOVERY PROCESSING FLOW

TAF AND SYSTEM FAILURE

Following a TAF or operating system failure, the TAF

initialization procedure brings TAF up in recovery

mode. During recovery mode initialization, TAFREC

and TAF perform the following functions:

• Sets the K di sp la y v alu es to t ho se in effe ct

prior to failure.

• I d e n t i f i e s th e u s e r s tha t w e r e acti v e a t the

time of failure. Active users will have the

recovery ﬂag (word 1, bits 0 and 53) set in

the terminal status table (TST).

• Reformats the CRF if necessary (refer to

File Reformatting under Communication

Recovery File in this sec tion).

• Prepares the TAF automatic recovery report.

• Initializes the transaction sequence number

count.

• Schedules CTASK to move begin-commit ids

from BRF to CRF.

BTASK is scheduled to determine which users active

at the time of failure were running recoverable

BTRAN-initiated transactions. BTASK calls CTASK to

recover these transactions.

Recovery for transactions being run from interactive

terminals is postponed until the terminal logs in.

When a terminal logs in, TAF checks the recovery

ﬂag (word 1, bit 53) in the terminal status table.

If the recovery ﬂag is set, RTASK is scheduled

instead of ITASK. RTASK performs these functions:

• If the run unit is not recoverable, RTASK

sends READY to the terminal and ceases.

• If a recoverable transaction is no longer

rerunnable, RTASK sends a message telling

the terminal operator

1. that recovery has occurred,

2. that the recoverable transaction

will not be rerun automatically, and

3. to enter the next input.

Th i s s itu ati on o cc u rs whe n a n inpu t /o u tpu t

error occurred on the communication recovery

ﬁle. Terminal operators should be

instructed to inform the data administrator

if this occurs since batch recovery will be

necessary to restore the data base.

• If the transaction SECURE request and a

TAF/CRM COMMIT request have been

successfully executed, RTASK sends the

terminal conﬁrmation message, and ceases.

The terminal conﬁrmation message was stored

on the CRF as a result of the transaction

SECURE request.

• If none of the preceding is true, RTASK

calls CTASK.

CTASK requests a new transaction sequence number and

returns the begin-commit history to TAF/CRM. CTASK

then makes a RERUN request. The RERUN request turns

off the recovery status, retrieves terminal input

from the CRF, and schedules ITASK using the new

sequence number and original terminal input. ITASK

processes the input as if it had come from the

terminal.

tlf CDCS has been running on both mainframes and interfacing with TAF, CDCS must be dropped on the functional

mainframe or recovery of CDCS data bases will not be possible.

8-4 60459500 C /<Sfev

J^v NAM FAILURE

I f NA M f a i l s , TA F c o n t i n u e s ru n n i ng . T h e r o ll o u t

table is searched to suspend transactions that were

initiated by an interactive terminal and are waiting

for input (the wait time in the rollout table is set

to zero). All other active transactions continue to

run. When a running transaction issues a network re

quest , it is suspended if recoverable and the request

is issued to the original terminal (without recall In

the case of SEND). If the transaction is not recov

erable, it is terminated. Suspended transactions are

processed as follows:

• A terminal-login-delay flag is set in the

terminal status table to prevent terminal

login until the next step is completed.

• CTASK is scheduled to recover the data base

associated with the transaction and to issue

a WSTAT request to clear the delay ﬂag.

• At the time the terminal logs in, RTASK is

scheduled either to send the SECURE message

or to rerun the transaction.

TAF wil l period ica lly attem pt reconnec tio n to N AM.

When NAM becomes available, terminal operators will

have to go through the login dialog required for the

terminal. Upon terminal reconnection to TAF, TAF

issues an appropriate message to tell the terminal

operator the current state of the terminal work.

When CDCS is again accepting requests, TAF will

rerun those recoverable run units whose processing

was suspended, as previously described.

TASK FAILURE

TAF does the following when a task fails:

• TAF sends a failure or end run unit message

to the data manager. The data manager rolls

back updates in any incomplete being-commit

sequences.

TAF l o gs t he rea s on for th e f a ilu r e i n t h e

journal ﬁle.

TAF calls system task MSABT. The Control

Data-furnished version of MSABT sends a

m e s s a g e e x p l a i n i n g th e e r r o r c o n d i t i o n to

t h e te r mi n a l . Si t e s ma y m o d if y M S AB T t o

meet special requirements.

TAF reloads the task if the task has other

run units queued on it or is central memory-

resident.

Run units aborted because task failures are

not rerun. Failure of the logged in

terminal, NAM, or CDCS does not cause a task

failure for a recoverable run unit.

jP1^

TERMINAL FAILURE

Processing for an individual terminal failure is the

same as described for NAM abort.

CDCS FAILURE

If CDCS fails, TAF continues running. When TAF

detects a CDCS abort, it does the following to run

units using CDCS:

• If the run unit is recoverable, its proces

sing is suspended and an informative message

is issued. The terminal operator may wait

for the run unit to be automatically rerun

when CDCS becomes available, or may enter a

new transaction. In the latter case, the

run unit will not be rerun when CDCS becomes

available.

• I f t h e r u n u n i t i s n o t r e c o v e r a b l e , i t i s

aborted and an error message is issued to

the originating terminal.

TAF sets a ﬂag in the CRF for suspended run units

waiting to use CDCS.

TAF, on a periodic basis, will check to see if CDCS

is running and ready for transaction processing.

TAF TERMINATION

TAF goes through termination processing when:

• The computer operator or terminal operator

forces execution of a K.IDLE request.

• The computer operator enters IDLE,TAF.

• TAF (Including any data manager in its field

length) fails.

• A l e v e l 3 deads t a r t oc c u r s .

When TAF receives a K.IDLE or IDLE,TAF command, TAF

tells ITASK with an idle message. ITASK then:

• Tells terminal users entering a new

transaction that shutdown is occurring.

• P r o h i bits new t r a nsact i o n s fr o m st a r ting.

When no more transactions are running (no

communication blocks are reserved), TAF does an

ENDRUN to give control to TAF2. TAF2 tells the data

manager(s) about shutdown and records a shutdown

status on the CRF. When TAF is subsequently brought

up, no recovery takes place since all users were

inactive at termination.

/fS^V 60459500 B 8-5

TAF AUTOMATIC RECOVERY REPORT

This report is produced by TAFREC and placed on

local ﬁle ZZIRRF. A site may save the report on

permanent storage and/or route the report to a

printer by including appropriate statements in the

TAF procedure ﬁle. The report consists of four

parts.

• Part one is a co py o f the TAF con figurati on

ﬁle. Each directive is printed. If a

directive error occurs, a message is printed

on the following line.

Part two is an image of the initial

K display. If the same command is used

repeatedly, only the last image of that

command is listed.

Part three is a report

processed. The format of

shown in ﬁgure 8-1.

on eac h CRF

t h i s p a r t i s

Part four is a summary consisting of the to

tal number of terminals recovered, initial

ized, and deleted, and the number of concur

rent batch and BTRAN requests recovered.

/*^%\

TERMINAL TSEQ TYPE STEP DATE TIME COMMENT

TERM1 1234 TERM REC 82/04/26. 08.20.1. RECOVERED

TERM2 1240 BATCH END 82/04/26. 08 .20.11. RECOVERED

TERM3 82/04/26. 08.25.20. INITIALIZED

TERM4 1251 BTRAN REC 82/04/26. 08.20.11. RECOVERED

terminal

tseq

type

step

date

time

Terminal/user name.

Transaction sequence number of the last run unit,

Transaction type (refer to TSTAT request).

Transaction step (refer to TSTAT request).

Date of last recorded run unit.

Time of last recorded run unit.

</^^V

Figure 8-1. Format of Part Three of the TAF Automatic Recovery Report

8-6 60459500 B

NETWORK FILES

Applications programmers should determine whether an

analyst is preparing the network ﬁles. If so,

applications programmers can skip this section.

Before any transaction processing can be done, the

terminal conﬁguration must be deﬁned to the

transaction executive. This is done by the terminal

ne t wo r k d esc rip t io n ﬁle (ne t wor k ﬁ le) .

A simple set of terminal network ﬁle directives

follows:

//DIAL.

/AJ0HNSN,TT=*ID,DB=8C,

UA=16117711B.

/BJOHNSN,TT=*ID,DB=BC,

UA=00007700B.

/XYZ1,TT=*ID,DB=8C.

The NAM local conﬁguration ﬁle is also needed to

describe the terminal conﬁguration. This ﬁle is

described in the Network Products NAM 1 Network

Deﬁnition Language Reference Manual.

TERMINAL NETWORK DESCRIPTION FILE

A terminal network description ﬁle consists of

directives that describe users and their data

bases. The directives needed consist of the //DIAL

directive and user directives.

The format is:

//DIAL.

User directives must follow the //DIAL directive.

User directives have the form:

/username,parameter-string.

username A user name that is used to log

into the network and TAF (or is

speciﬁed in the local conﬁgura

tion ﬁle for automatic login).

User names must be unique across

all network ﬁles, even if they

reside on different families.

T h e p o s s i b l e e l e m e n t s o f t h e p a r a m e t e r s t r i n g ,

separated by commas, are:

TT=>*ID Transaction terminal type.

DB=aa

UA=n

Two-character name of the data base

to be accessed by 'the user. Only

one data base can be associated with

a user name.

Contents of the user argument area in

the communication block. n ranges

from 0 through 16777215. Default is

zero. User area contents can be ex

amined and changed by tasks. The

appropriate initial value is site

dependent. Bit 0 is the default

task recovery bit.

NETWORK FILE ORIGINATION

When an error-free network description is ready, an

analyst should create a system ﬁle called NCTFi

( w h e r e i i s t h e n e t w o r k ﬁ l e i d e n t i ﬁ e r ) f r o m t h e

terminal network description ﬁle.

A typical way to originate an NCTFi ﬁle follows.

First, the user establishes a set of network

description statements as a local ﬁl e.

NCTF.

USER,username,password,familynaae.

' CHARGE,chargenuraber,projectnumber. or (*)

COPYBR,INPUT,NET.

SAVE,NET .

end-of-record

Network description statements

e n d - o f - ﬁ l e

Then the user enters the following at the system

console.

X.DIS.

USER,username,password,familyname.

CHARGE,chargenumber,projectnumber.

GET,NET.

SUI,377777.

DEFINE,NCTFi/CT=PU.

COPY,NET,NCTFi,V.

RETURN,NCTFi,NET.

This creates a direct access public ﬁle called NCTFi

under the system user index 377777. NCTFi is used to

generate terminal status table entries.

Figure 9-1 illustrates a terminal status table entry.

Each line gives the user name and its associated data

base, read and update securities, and user area

value.

When a run unit originates from a terminal, the

transaction executive uses the appropriate entry in

the terminal status table to construct words 0 and 1

of the communication block.

After the network ﬁle is originated, it must be up

dated to reﬂect changes, and the transaction execu

tive must be reinitia lized t o re cognize the new in

formation.

60459500 C 9-1

TERMINAL STATUS TABLE ENTRY

59

communication line ﬁeld

A

55 53 42 38 24 17 11

WordO

Wordl

Word 2

Word 68

■t

Word 1

id

A

L

D

C

R

N

ACN

ACN reserved database

/user argument ﬁeld

/ / IF NT

database sequence number

*g' message count

COMMUNICATION BLOCK

(refer to section 2 for more information)

Function

User active.

Terminal logged in.

Terminal down.

Connection requested from network or terminal off.

Recovery required.

Recoverable transaction run.

Application connection number.

Word 2

id Function

MMultiple block input being sent.

IInput wanted.

FLast message block sent.

PConnection to be postponed.

CCDCS abort.

NT Number of transactions received from terminal.

^ r ^ t ^ v

/*S§\

Figure 9-1. Communication Between a Terminal Status Table and a Communication Block

9-2 60459500 C

TASK LIBRARY 10

A task library contains all of the named-transactions

and tasks that may be requested by a user group with

in the transaction subsystem. The task library is

created by the LIBTASK utility.

A task library ﬁle is a direct access permanent

ﬁle with no password that must be created with a

D E F I N E c o m m a n d b e f o r e a l i b r a r y c r e a t i o n r u n

occurs. However, it does not have to be attached by

the user unless the DA option is speciﬁed (refer to

L I B TA S K c o m m a n d ) . T h e t r a n s a c t i o n s u b s y s t e m

simultaneously supports one system task library and,

optionally, one task library for each data base.

The system task library, called TASKLIB by default,

may be renamed at the site's option. It is deﬁned

under the transaction subsystem user name and given

write permission to that user name. The name

TASKLIB may also be changed using the K display

command K.TLF. (Refer to the NOS 2 Operator/Analyst

Handbook.)

A user task library must be named xxTASKL where xx

is the name of the data base with which the library

is associated. It must be deﬁned under the data

base user name, and explicit write permission must

be granted to the transaction subsystem user name to

access the ﬁle.

During initialization, TAF attempts to attach a

l i b r a r y f o r e a c h i n i t i a l i z e d d a t a b a s e . T h e x x J

ﬁle is accessed to determine the user name needed

to attach the library. When a scheduling request is

received, the transaction subsystem searches for the

named-transaction or task ﬁrst in the associated

data base library, if one exists, and then in the

system library. Transaction ' and task names,

therefore, need be unique only within a given task

library. The only exception to this procedure is

the initial task, ITASK, which is always loaded from

the system library.

LIBTASK UTILITY

The LIBTASK utility creates a new library, adds new

named-transactions and tasks to an existing library,

deletes named-transactions and tasks from an

existing library, replaces tasks in an existing

library, and compacts an existing library by

removing inactive records. Named-transactions and

tasks may be added or deleted while the transaction

subsystem is running, because tasks are added as a

new ﬁle a t t h e en d of th e li b r a r y. T h e l i b r a r y i s

a multiﬁle ﬁle. The transaction executive

attempts to read a new library directory if the

LIBTASK command contains the TT option. Thus, on

line update of any task library is allowed.

If the library is modiﬁed while the transaction

subsystem is running and the user wants the new

directory used, the user number and password of the

LIBTASK user are passed to the transaction

s u b s y s t e m f o r v a l i d a t i o n . T h i s i s d o n e b y

intercontrol point communication, which is also used

to check if the tra nsac tion subsystem is running if

t h e C R o r P R op t i o n i s se l e c t e d . Th e r e f o r e , t h e

ﬁrst USER command in the job must have permission

to do intercontrol point communication. (Refer to

the NOS 2 System Maintenance Reference Manual for

the use of MODVAL to alter permissions.) The

LIBTASK run Issues an error message and does not

update the library if the validation fails. The

task binaries to be added or replaced are in ABS or

OVL format produced by the CYBER Loader.

TASK RESIDENCY AND TYPE

An important option of LIBTASK enables the user to

specify the residency and type of tasks on the task

l i b r a r y . A t a s k c a n r e s i d e o n c e n t r a l m e m o r y,

extended memory, or mass storage. This can be

s p e c i ﬁ e d w i t h t h e C a n d E o p t i o n s o n L I B TA S K

d i r e c t i v e s .

A task can be of either reusable or nonreusable

type. A reusable task must be written so that it is

reinitializing. A reinitializing task (program)

does not modify program areas that the program

considers constant; if it does, it resets

(reinitializes) these areas upon reentry. Multiple

requests for a reusable task can be queued together;

this is p art ly unde r the control of the person wh o

sets up the task library and partly under the

control of the transaction executive. The queuing

of m ul ti pl e r eq ue st s occurs in an i nt er na l list, t he

requested task list (RTL). Each entry in this list

represents a scheduling request for a copy of a

task. There may be multiple entries in the RTL list

for a given task. The LIBTASK queue limit input

directive can be used to specify the maximum number

of transactions that can be queued against one

en try. W he n t h e t ra nsa cti on exe cu tiv e s che dul es a

cop y of a task from the RTL lis t, i t pi cks an RTL

entry and forces all of the multiple requests queued

for that RTL entry to use the same copy of the task.

It is generally possible to have multiple copies of

a g iv e n t ask in e x ecu tio n a t the sam e t i me (n ote

that this does not apply to CM-resident tasks).

Additional application control of task scheduling is

provided by the Q LIBTASK option in the input

directives.

A n o n r e u s abl e t ask i s n o t a r e i n i t i al i z i n g tas k ; a

new copy of the task must be loaded from the task

library for each transaction.

60459500 C 10-1

The task type can be speciﬁed with the D option on

L I B T A S K d i r e c t i v e s . T h e q u e u e l i m i t c a n b e

speciﬁed with the QL option.

If a task is speciﬁed as central memory-resident

and reusable, it is loaded to a subcontrol point

when TAF is initialized and, unless the task aborts,

remains at that subcontrol point to service

transactions as long as TAF is running. If the task

aborts, another copy of it will be loaded. It is a

single copy task. No additional copies of this task

are loaded to process requests after queue limit has

been reached.

LIBTASK COMMAND

The LI BTASK co mm an d has t wo formats. The ﬁ rs t

format allows speciﬁcation of the ﬁle containing

input directive statements; this format is:

LIBTASK(Pl,P2,...,Pn>

The second format speciﬁes that input directive

statements are included in this LIBTASK command.

This format is:

LIBTASKtPi.pj,...,Z,...,Pn);dx;d2;...;dn.

; Unique delimiter that does not occur

in any d^ input directives. This

delimiter does not have to be a

semicolon.

dj Input directive statement (refer to

Input Directives in this sec tion).

The input directives on a LIBTASK command remain in

eff e c t for a ta s k in a n existing t a s k library u n t i l

the task is speciﬁed in a subsequent LIBTASK

command; that is, the most recent input directives

(including default input directives) for a task take

precedence over earlier input directives. However,

t h i s is n o t tr u e f o r a t a s k t h a t is n o t in a t a s k

library; in this case, the ﬁrst input directives

(including default input directives) take precedence.

For example, you specify the following command:

LIBTASK(p1,p2,P3,...,pn);*T1 DL.

This command logically deletes task Tl. If you

specify task Tl in a subsequent LIBTASK command and

do not specify DL, the task is activated (by

default).

The LIBTASK com and cannot exceed 80 characters.

The parameters (pf) for either format can be in

any order and are:

Parame ter Description

I Speciﬁes the ﬁle containing input

directives. The ﬁle is not rewound

b e f o r e p r o c e s s i n g . A l l d i r e c t i v e s

that do not refer to a task name

pre sent on the B ﬁle or P ﬁle are

ignored. Options are:

I File is COMPILE.

Parameter

I=lfn

1-0

Description

File is speciﬁed by

you.

/Sa^V

No directive

exists.

ﬁ l e

Omitted Default ﬁle is INPUT.

Speciﬁes the ﬁle containing task

binaries to be added to the library.

These may be tasks already existing

i n t h e l i b r a r y or t h e y m a y b e n e w

ones. The ﬁle is rewound before

processing. Options are:

B File is LGO.

B-lfn F i l e i s s p e c i ﬁ e d b y

you.

B-0 No binary ﬁle exists.

Omitted Default ﬁle is LGOB.

Speciﬁes the ﬁle on which output is

written. Options are:

L File is OUTPUT.

L-lfn File is speciﬁed by

you.

L«0 No output is written.

Omitted Default ﬁle is OUTPUT.

Speciﬁes the name of a direct access

permanent ﬁle to be used as the

library ﬁle. The ﬁle is required.

Options are:

P

P-lfn

P-0

Omitted

File is TASKLIB.

File is speciﬁed by

you.

No old library ﬁle

exists.

Default

TASKLIB.

ﬁ l e is

Speciﬁes a newly deﬁned direct ac

cess permanent ﬁle to be written as

the new library ﬁle. Use of this

option eliminates the complete copy

o f t h e P ﬁ l e t o a s c r a t c h ﬁ l e o n

the PR option, thus signiﬁcantly

reducing the purge time for long

libraries. The P ﬁle is not purged.

Options are:

N File is TASKLIB.

N»lfn File is specified by

you.

Omitted Default ﬁle is the

ﬁle speciﬁed by P.

J^'^Wt^\

10-2 60459500 B /^S\

J^ Parameter

LO

TN

DA

CR

Description

Produces a report of tasks and their

attributes, named-transactions with

attributes, and names of member

tasks. It is not necessary to

specify the TT option when using LO

if I»0 and B=0. Figure 10-1 shows

t h e f o r m a t o f t h e r e p o r t . T h e

options are:

LO Same as LO»A.

LO=A Report all tasks and

transae tions.

LO«T Report only tasks.

LO=X Report only trans

actions.

omitted No report

produced.

is

Speciﬁes the name of a task or

transaction. This parameter is

valid only when the LO parameter is

also speciﬁed. If LO-T, TN names a

task; if LO=X, TN names a

transaction. The options are:

TN*tname The task or trans

action (tname) is

the only one re

ported on.

omitted All tasks or all

transactions are re

ported on.

Disables all attaches and returns of

the library ﬁles in the LIBTASK

program. With this option selected,

the N ﬁle and the ﬁle speciﬁed by

P must be attached prior to the

LIBTASK call. If a library is

a t t a c h e d i n t h e pr o p e r m o d e f r o m

another user name, the DA option

must be selected so that LIBTASK

does not try to attach the

appropriate libraries under the user

name from which the update is being

run.

Creates a new task library. LIBTASK

reads one task at a time from the B

ﬁle, checks for an input directive

for the task, constructs a directory

e n t r y , a n d i n s e r t s t h e e n t r y i n

alphabetical order in the library

d i r e c t o r y. T h e d i r e c t o r y i s w r i t t e n

at the end of the library. This

option applies only if LIBTASK was

able to attach the task library

(speciﬁed by the N option) in write

mode.

Parameter

PR

TT

Description

Removes inactive task binaries and

old directories from the task

library. LIBTASK processes the B

ﬁle and the input directives norm

ally and, if N is not speciﬁed,

copies the entire library to a

scratch ﬁle. The current binary

for each task in the library is then

transferred from the scratch ﬁle to

the library ﬁle, and the directory

is updated and written at the end.

Therefore, only one copy of each

task and one directory remain in the

library. If N is speciﬁed, no

s c r a t c h ﬁ l e i s w r i t t e n , a n d P i s

not purged. The new library ﬁle

contains only the latest copy of

each active task and one directory.

This opt ion applies only i f LIBTASK

wa s able to atta c h t h e t ask li bra r y

(speciﬁed by the N option) in w rit e

mode.

Instructs the transaction executive

to update the TAF-resident copy of

the task library directory while TAF

is running. If not speciﬁed, TAF

will not become aware of the update

until the next time it is

initialized.

The installation parameters TLDMN and

TREMN are used to specify the amount

of space to be reserved for adding

tasks and transactions for each of

the TAF-resident task library direc

tories. The default allows 10 addi

tions for each. Although further

additions can be made to your task

li bra ry, th e y w il l not be rec ogn i ze d

by TAF until TAF is reinitialized.

Th e re is n o l i mi t to t h e n umb e r o f

times existing tasks can be replaced.

The user name from which LIBTASK is

being run must be the same as the

user number in the xxJ ﬁle associ

ated with the library being modiﬁed,

and TAF must be able to attach the

library in write mode in order for

the update of TAF's copy of the TLD

to take place. You must be validated

for intercont rol point communication

(the CSTP bit in user's access word

must be set) to use the TT option.

Each time you use the TT parameter

with the LIBTASK command, a ﬁle is

added to your task library.

Speciﬁes that input directives are

on the LIBTASK command. This option

overrides the I option.

/$PV

60459500 B 10-3

Part 1. Task listing. Generated if LO-A or LO-T.

TASK PRIORITY FIELD EXTRA ATTR

NAME BEG MAX QL LENGTH FL DCEORQ

taski bp mp ql ﬂeﬂ a t t r i b

taskg bp mp ql ﬂeﬂ a t t r i b

taskn bp mp ql ﬂeﬂ a t t r i b

taski Task name.

bp Beginning priority.

mp Maximum priority.

ql Queue limit.

ﬂ Field length required by the task.

e ﬂ E x t r a ﬁ e l d l e n g t h t h e t a s k m a y r e q u e s t .

attrib Task attribute list. The attribute is in effect if the letter appears.

D Destructive code.

C Central memory-resident.

E Extended memory-resident.

0 Task is OFF.

R Solicited communication block.

Q Queueing enforced.

Part 2. Transaction listing. Generated if LO-A or LO-X.

Refer to Task Input Directives,

later in this section, for infor

mation about these attributes.

TRANSACTION

UNIT 1ST

TASKS

2ND 3RD 4TH 5TH

D.M.

CD RECOVER

tnamei

tnamej

taski

task2

taskg

task3

task/;

tasks

datamanager

re

tname3 taski task2 task3 task/; tasks datamanager re

tnamei Transaction name.

taski

data-

manager

Task names. If any task does not exist in this library, its name is enclosed in

parentheses.

The data managers used by the named-transaction. May be either or both:

C Transaction uses CRM.

D Transaction uses CDCS.

Use of the indicated data manager is allowed if the letter appears.

Recovery indicator. For recoverable transactions, RC appears in this position.

/^8^S\

Figure 10-1. Task Library Report

10-4 60459500 A

INPUT DIRECTIVES

J0^*\

NAMED-TRANSACTION INPUT DIRECTIVE

The named-transaction input directive is used to

create and delete named-transactions.

The format is:

/ tname, Tl=« task 1, T2- task2, T3- task3, T4- task4,

T5-task5,RC,DM»datamanager,DL.

t n a m e T r a n s a c t i o n n a m e . M u s t b e o n e

to seven alphanumeric characters.

taski Name of the task(s) in the named-

transaction, tname. The tasks

will be executed in the order

listed. If a task issues a

CALLTSK with CEASE, the remaining

tasks in the original transaction

will not be executed.

RC Recovery indicator. When this

parameter is speciﬁed, this

transaction is recoverable. If

not speciﬁed, this transaction

is not recoverable.

datamanager The data manager(s) that may be

used by this named-transaction.

If a recoverable transaction

attempts to use CDCS or CRM and

its usage was not declared via

this parameter, the run unit will

be aborted. This parameter is

valid only if the RC parameter is

also speciﬁed. The options are:

C The transaction uses CRM.

D The transaction uses

CDCS.

DL Causes the deletion of transac

tion tname from the task library.

If speciﬁed, this parameter must

be the only parameter in addition

to the tname parameter on the

d irec tive.

Additional tasks can be made part of the execution

of a named-trans action if they are initiated via a

CALLRTN or CALLTSK with CEASE. A CALLTSK with

CEASE, however, will prevent any remaining tasks in

the original transaction from being executed.

A task may be part of more than one named-

transaction.

Declaring the named-transaction recoverable is

necessary but not sufﬁcient to ensure correct

recovery from failures. The transaction must also

be co nstructed to sup por t recove ry as spe ciﬁed in

section 7 of this manual.

Tasks speciﬁed in this directive do not have to

exist in the data base task library. This allows

system tasks to be included in the named-transaction

d e ﬁ n it i o n . N a m e d - t r a n s a c t i o n s w it h ta s k s th a t do

not exist in the data base task library are enclosed

by parentheses in the report generated by using the

LIBTASK LO parameter.

Adding or deleting tasks within a named-transaction

o r a l t e r i n g o t h e r a t t r i b u t e s i s a c c o m p l i s h e d b y

respecifying the directive in full.

TASK INPUT DIRECTIVE

To alter task characteristics, directive statements

m a y b e e n t e r e d i n t h e d i r e c t i v e ﬁ l e . O n l y o n e

statement should appear for each task. These

characteristics are kept in the directory for use by

th e t r ans a c t i o n exe c u t i v e whe n t h e t a s k is to b e

executed.

The directive statement format is:

*name Pi,P2 Pn«

n a m e i s t h e t a s k n a m e a n d p ^ i s a n y o f t h e

following input directives in any order.

Directive Description

BP-nn Beginning scheduling priority of

task.

B P B e g i n n i n g p r i o r i t y d e f a u l t s t o 2 5 g .

BP omitted Beginning priority defaults to 20g.

C Speciﬁes a memory-resident task.

The default is a disk-resident task.

D Speciﬁes a destructive code (non-

reusable) task that is removed from

the subcontrol point when the task

is completed. The default is a

reusable task. This option is

recommended when debugging a task.

DL Speciﬁes that a task (name) is

logically deleted. All logically

deleted tasks are physically deleted

from the task library when the

LI BTASK comm an d c ont ai n s the PR

option.

Speciﬁes an extended memory-

resident library copy of the task.

The default is mass storage-resident.

If tasks are speciﬁed as extended

memory-resident, the transaction

executive loads as many as will ﬁt

into its available extended memory

during initialization and leaves the

remaining tasks on the mass storage

ﬁle. If no extended memory is

available, all tasks are loaded from

mass storage.

If a LIBTASK command specifying the

TT option is issued while the trans

action executive is running, no

tasks are replaced or added to

extended memory, and one of the

following situations occurs.

• Old copy of task in extended

memory and new copy in

e x t e n d e d m e m o r y. T he n e w

copy is ignored, and the old

copy remains on the library

in extended memory.

60459500 A 10-5

Directive Description Directive Description

• Old copy not in extended

memory and new copy in

extended memory. The new

copy is used but is read

from mass storage.

• Old copy in extended memory

and new copy not in extended

memory. The new copy is

loaded from mass storage.

E F - e ﬂ S p e c i ﬁ e s t h e m a x i m u m a m o u n t b y

which a task will be allowed to

increase its initial ﬁeld length,

eﬂ is assumed to be octal unless it

contains an 8 or 9 or is followed by

a trailing D. The default value is

z e r o . E F w i l l be i n c r e a s e d t o th e

next multiple of lOOg if it is not

already such a multiple. The maximum

ﬁeld length allowed for the task is

(initial task FL) + eﬂ. The value

of eﬂ can range from 0 to 300000g.

IG Speciﬁes that a task (name) In the

ﬁle speciﬁed with the B option is

ignored.

MP»nn Maximum scheduling priority of task

(for future use in aging tasks).

MP Maximum priority defaults to 50g.

MP omitted Maximum priority defaults to 40g.

0 Sets task to OFF; requests for the

task are routed to the OFF TASK

routine (refer to OFFTASK in section

11). The default is ON.

Q Speciﬁes that queuing is to be

forced, described as follows. This

option alters the normal scheduling

priority of the task (refer to

Scheduling Priority) as follows:

1. When there are no active copies

of the task, the ﬁrst copy of

the task is scheduled as usual

(refer to Scheduling Priority).

A n a c t i v e t a s k i s a c o p y o f a

task which is both:

• At a subcontrol point or

rolled out.

• In the process of

handling a transaction

or has transactions

queued against it (the

co py ).

If a LIBTASK function specifying the

TT parameter is issued while the

transaction executive is running and

an attempt is made to change the Q

attribute of a task on a library in

use by TAF, then the Q attribute

change will not affect TAF schedul

ing until the executive is

reinitialized.

This parameter is not applicable to

CM-resident tasks.

QL-n Speciﬁes the number of requests, up

to a maximum of ﬁve, that can be

queued for an RTL entry for a task.

If a task uses a large amount of

m e m o r y and e x ecu t e s ra p id l y, pe r

formance is not degraded if requests

are queued. In this case, multiple

copies of the task require too much

memory. If a task does a large

amount of I/O, then performance is

degraded if requests are queued. In

this case, multiple copies of the

task enhance performance.

QL Queue entry limit defaults to ﬁve.

QL omitted Queue entry limit defaults to three.

R Speciﬁes that the FL assigned to a

CM-resident task is to be reduced to

the Initial load value each time the

transaction is run. The default is

no reduce. Non-CM-resident tasks

are always started with their

initial load value.

2. While t here are fr om one to s ix

active copies of the task in

TAF, another copy of the task is

not scheduled until the number

of transactions queued against

its RTL entries equals or

exceeds the queue limit

speciﬁed by the QL directive.

When a n RTL entry is used to

schedule a task, it is released

and made available for

requesting the scheduling of

other tasks.

3. When the number of active copies

of the task equals seven,

additional copies of the task

will not be scheduled. This

applies ev en if the q ue ue lim it

is 1 .

SC Sets the task communication block

load status to solicited. This

means you must request the

communication block and supply a

valid address (using the BEGIN

request) after the task is initi

ated. The default is unsolicited.

All directives for one task must appear on the same

line. The following situation will result in only

Pj being recognized as an input directive for

TASKI.

*TASK1 pj.

*TASK1 p2.

*TASK1 pn,

Improper way to specify

input directives.

/<3SS|y

10-6 60459500 B

00$^**,

SCHEDULING PRIORITY

When the tasks are queued, the scheduler will attempt

to load the tas k w it h t h e h ig h es t c urr ent prio ri ty.

If there are several tasks with the highest priority,

the task with the lowest ﬁeld length requirement

will be selected for loading. When a task enters the

queue, the beginning priority (BP) is used as the

task's current priority. The current priority is

then aged (incremented by one) every second up to the

maximu m pr iority (MP). Tasks in t he q ueue having

identical current priorities and ﬁeld length re

quirements normally will be scheduled in the order

they entered the queue.

With these directives, classes of tasks can be

created. For example, if two classes were created

(X and Y) their priorities could be:

XBP = 25g

YBP = 308

XMP = 408

YMP = *58

In this case, no tasks in X could be scheduled until

all tasks in Y having a current priority greater than

40s had been scheduled.

CREATING A NEW TASK LIBRARY

The following examples show how you can create a new

task library. An explanation is provided after each

LIBTASK command.

LIBTASK(P»0,N-lfn !,CR,B-lfn2,1)

LIBTASK copies ﬁle lfn2 to ﬁle lfnj according

to input directives in the COMPILE ﬁle and adds a

new sorted task library directory at the end of ﬁle

lfnj.

LIBTASK(P-lfn2,N-lfh1,Z);*name

PliP2»»*»»Pn«

L I B TA S K c o p i e s ﬁ l e l f n 2 t o ﬁ l e l f n j a n d a d d s a

new sorted task library directory at the end of ﬁle

lfni according to input directives on the LIBTASK

command.

LIBTASK( P-lfn2,N-lfnj,PR,Z);*name

PlfP2»*'*»Pn«

LIBTASK copies all active (not logically deleted or

replaced) task binaries from ﬁle lfn2 to ﬁle

lfn} and adds a new sorted task library directory

at the end of ﬁle lfnj according to input

directives on the LIBTASK command.

LIBTASK(P=lfn2,N=lfn1,B-lfn3,I)

LIBTASK copies ﬁle lfn2 to ﬁle lfnj, copies

ﬁle lfn3 to ﬁle lfnj according to input

directives in the COMPILE ﬁle, and adds a new

sorted task library directory at the end of ﬁle

lfnj.

LIBTASK(P=lfn2,N=lfni,B=lfn3,PR,I)

LIBTASK copies all active (not logically deleted or

replaced) task binaries from ﬁle lfn2 to ﬁle

lfnj, copies ﬁle lfn3 to ﬁle lfnj according

to input directives in the COMPILE ﬁle, and adds a

new sorted task library directory at the end of ﬁle

lfn^

60459500 A

UPDATING AN EXISTING TASK LIBRARY

The following examples show how you can update (add

new tasks and delete and replace existing tasks) an

existing task library without supplying any

binaries. An explanation is provided after each

LIBTASK command.

LIBTASK(P-lfn1,Z);*name Pi,p2 Pn •

LIBTASK adds a new sorted task library directory at

the end of ﬁle lfn! according to input directives

on the LIBTASK command.

LIBTASK(P=lfn1,PR,Z);*name Pi,p2»•••»Pn«

LIBTASK copies all active (not logically deleted or

replaced) tasks from ﬁle lfnj onto a scratch

ﬁle, copies the scratch ﬁle back onto ﬁle lfnj,

and adds a new sorted task library directory to the

end of ﬁle lfn! according to the input directive

on the LIBTASK command. This command is not valid

when TAF is up and has attached ﬁle lfn!.

LIBTASK(P«lfni,B-lfn2,Z);*name

Pl»P2»'»»»Pn»

L I B TA S K c o p i e s ﬁ l e l f n 2 t o t h e e n d o f ﬁ l e l f n t

according to input directives on the LIBTASK

statement. LIBTASK adds a new sorted task library

di r e cto r y to t h e e n d of ﬁ l e lf n!.

LIBTASK(P«lfn!,B»lfn2,PR,I-lfn3)

LIBTASK copies all active (not logically deleted or

replaced) tasks from ﬁle lfn! onto a scratch

ﬁle, copies the scratch ﬁle back onto ﬁle lfn!,

copies ﬁle lfn2 to the end of ﬁle lfnj

according to input directives on ﬁle lfn3, and

adds a new sorted task library directory to the end

of ﬁle lfn!. Tnis command is not valid when TAF

is up and has attached ﬁle lfn!.

DELETING A TASK FROM A TASK LIBRARY

With the DL input directive on the LIBTASK command,

you can logically . delete a task from the task

l i b r a r y i f TA F i s u p a n d h a s a t t a c h e d t h e t a s k

library as follows:

LIBTASK(P-lfn!,TT,Z);*name DL.

In this example, LIBTASK logically deletes a task

( n a m e ) f r o m f i l e l f n ! . T n e * T ° P t i o n i s r e q u i r e d

when TAF is up. The DL input directive is the only

input directive allowed for the named task.

With the PR option on the LIBTASK command, you can

delete inactive tasks from the task library when TAF

is not up and when TAF is up but has not attached

the task library.

LIBTASK(P=lfn!,PR,Z);*name DL.

In this example, LIBTASK physically deletes a task

(name) from ﬁle Ifn^ TAF must not have the ﬁle

attached when this command is executed.

10-7

IGNORING A TASK IN THE REPLACEMENT FILE In this example, LIBTASK skips a binary task (name) ^

on ﬁle lfn2 when copying ﬁle lfn2 to ﬁle I

With the IG input directive on the LIBTASK command, lfn!. The IG input directive is the only input

the user can tell LIBTASK to ignore a task binary in directive allowed for the named task.

the replacement ﬁle speciﬁed with the B option as -*=^s

follows: )

LIBTASK(P-lfn1,B=lfn2,Z);*name IG.

10"8 60459500 A

0^**- REQUIRED SYSTEM TASKS AND TRANSACTIONS 11

The applications programmer should be aware of the

functions of these tasks but may omit the detailed

information contained in this and section 12.

ITASK recognizes the transaction code EX., which is

used to call the system transaction XTRAN. This

special transaction code is reserved for XTRAN.

Several system tasks are required with every

application: BTRAN recovery task (BTASK), data base

recovery task (CTASK), initial task (ITASK),

K display director (KDIS), logout transaction

terminal (LOGT), message abort (MSABT), inactive

task (OFFTASK), CDCS rerun task (RCTASK), run unit

recovery task (RTASK), system message (SYSMSG), and

execute named tasks (XTASK). Each must reside on

the system task library of every transaction

system. Limited versions of these system tasks are

supplied by Control Data; however, modiﬁcations to

t h e s e t a s k s a r e o f t e n n e c e s s a r y f o r s p e c i ﬁ c

applications. One additional system task, CRMTASK,

is required if the TAF/CRM Data Manager is used.

Refer to the TAF/CRM Data Manager 1 Reference Manual

for information on CRMTASK.

Directions for installing these tasks are contained

in the TAF Installation section of the NOS 2 Instal

lation Handbook.

BTRAN RECOVERY TASK (BTASK)

BTASK recovers rerunnable BTRAN run units. BTASK

must be installed on the TAF system library.

DATA BASE RECOVERY TASK (CTASK)

CTASK helps TAF/CRM recover the data base during TAF

initialization, terminal failure, and NETWORK

failure. CTASK must be installed on the TAF system

library.

INITIAL TASK (ITASK)

The primary functions of ITASK are analyzing

terminal input and TAF-originated transactions. If

the TAF-originated transaction ﬁeld is set in the

communication block (ﬁgure 2-1), TTASK uses a table

to initiate the processing routine associated with

that type of transaction. Otherwise, TTASK examines

three characters, starting with the ﬁrst character

of the input message. The ﬁrst of these three

characters is the transaction code; the other two

comprise the sub transaction code entered from a

terminal.

("NOTE"!

Because TTASK schedules tasks, care

must be taken to avoid entering an

inﬁnite loop when a task calls TTASK.

TTASK is described in more detail in section 12.

K DISPLAY TASK (KDIS)

KDIS is a system task scheduled by the transaction

executive when the K.SWITCH command is entered by

the console operator. KDIS requests the K display

and displays a complete list of K display commands.

The K display commands are discussed in the NOS 2 I

Analysis Handbook. |

LOGOUT TASK (LOGT)

This task logs a terminal out of TAF. However, the

task does not log the terminal off the computer

system. The task sends a message, END OF

TRANSACTION SESSION; performs a LOGT request; and

performs a CEASE request. The terminal is then

available for login to TAF or other network

applications.

MESSAGE ABORT (MSABT)

Message abort (MSABT) is a system task that sends

error messages to the originating terminal when a

transaction is terminated due to a system-detected

error. MSABT checks for error codes that were

placed in the communication block by the transaction

executive or the initial task. When an error code

is detected, MSABT sends the appropriate error

message and initiates an abnormal CEASE function.

MSABT is scheduled in the same manner as other tasks.

If the TOTAL Data Manager is used, MSABT must be

modiﬁed to perform a FREEX command. This ensures

that TOTAL records are released if a task aborts.

Error messages issued by MSABT are described in

appendix B.

00*. 60459500 C 11-1

INACTIVE TASK (OFFTASK)

This task is provided to give you control over an

i n t e r n a l c o n d i t i o n t h a t m i g h t b e t h e r e s u l t o f

o p e r a t i o n a l e r r o r. O F F TA S K i s s c h e d u l e d b y t h e

transaction executive when a request has been

received for an inactive task. The task may be

inactive or off due to the use of the K.OFFTASK

command or use of a LIBTASK directive when the task

was placed in the library. OFFTASK sends an error

message to the originating terminal and ceases

abnormally. It is expected that you will expand the

t a s k t o h a n d l e a n y s p e c i ﬁ c c o n d i t i o n s t h a t m a y

exist when a transaction is interrupted by an

inactive task.

SEND MESSAGE TASK (STASK)

This task sends a message to the terminal and then

terminates. STASK is called from ITASK only when

ITASK is to terminate after sending a message to the

terminal.

SYSTEM MESSAGE TASK (SYSMSG)

This task sends K.MESSAGE-entered messages and

K display diagnostic messages to terminals. It

calls the subroutine in COMKCBT passing the user

argument bits. The word re turn ed is sent after the

message is sent.

/£ 5 S| v

CDCS RERUN TASK (RCTASK)

When CDCS becomes available after a failure, RCTASK

is activated. RCTASK determines which terminals

were effected by the CDCS failure and reruns their

transactions (if rerunnable).

RUN UNIT RECOVERY TASK (RTASK)

The recovery task RTASK is a Control Data-supplied

recovery task that will handle most transaction

application needs; however, some sites may wish to

modify RTASK to handle special requirements. The

following discussion will aid understanding of RTASK

in case a modiﬁcation is required. RTASK must be

available to all applications. This implies that it

must be present on the TAF system task library

(TASKLIB) or en all of the data base task libraries.

It may be on the TASKLIB and any number of selected

data base task libraries. In this case, only those

applications without their own copy of RTASK will

use the version on TASKLIB.

After terminal disconnects, or NAM, TAF, and system

failures, the terminal must go through the login

pro c e d u r e s w it h TAF. T h e foll o w i n g s t e ps o u t l i n e

the decision process followed by RTASK. When a true

condition is encountered, the remaining steps are

skipped.

1. If the run unit Is not recoverable because

RC was not speciﬁed on the LIBTASK directive

for the named-transaction, RTASK sends the

message READY to the terminal.

2. If the run unit is not rerunnable because of

an I/O error encountered by TAFREC, RTASK

tells the terminal operator recovery has

occurred and to enter the next command.

3. If the run unit Is secure and the data base

i s c o m m i t t e d , RTA S K s e n d s t h e t e r m i n a l

conﬁrmation (SECURE) message.

4. RTASK tells the terminal operator that

recovery has occurred, that the transaction

is being rerun, and reruns the transaction.

EXECUTE NAMED TASK (XTASK)

The execute named task (XTASK) is a special task

scheduler used to execute most named tasks. It will

not execute tasks by the names ITASK, KDIS, MSABT,

OFFTASK, SYSMSG, and XTASK. These are the names of

required system tasks. XTASK can be used to

schedule LOGT as a means of logging a terminal out

of transaction mode. XTASK is initiated via system

transaction XTRAN, described following the XTASK

description.

EX.task

EX.

task

Special three-character transaction

code which causes ITASK to schedule

XTRAN via a CALLTRN request. XTRAN

speciﬁes XTASK as its only task.

One- to seven-character alphanumeric

t a s k n a m e , l e f t - j u s t i ﬁ e d ( n o s p a c e

between EX. and task) with a

nonalphanumeric character terminator.

A site may want to delete the TRANS table entry of

STRAN (X.), XTASK in the TRANT table of ITASK, or

the system task XTASK altogether for security

reasons. XTASK was provided as a means of

scheduling tasks, and as an example of how a site

might use such a task. However, it may provide too

much ﬂexibility, and therefore should be used with

discretion.

XTRAN TRANSACTION

Transaction XTRAN must be deﬁned when the system

task library is created. XTRAN will be scheduled

when the three-character code EX. is entered from a

terminal. This transaction allows scheduling any

task in the local or system task library as

described under XTASK.

The characteristics of XTRAN are:

• Task name is XTASK.

• No data managers.

• N o t r e c o v e r a b l e .

sf^^X

11-2 60459500 C

ITASK SYSTEM TASK 12

r

/0^*-

This section describes some of the features,

options, and requirements of ITASK.

MACROS

ITASK contains three tables. These tables are set

up for the following codes.

• Time a task is to be run

• Tr a n s a cti o n co d e

• Sub transaction code

A macro is used to set up each type of ITASK table.

These three COMPASS macros, TIMCNT, TRAN, and STRAN,

are discussed here.

TIMCNT MACRO

The TIMCNT macro makes an entry in the table of

time-originating tasks (TTOT). TTOT contains the

time a transaction or task is to be initiated and an

address.

One TTOT contains all of the entries, regardless of

the a p p l i c a ti o n t h a t is to u s e th e m . Th i s feature

allows tasks to be run at predetermined times

without speciﬁc task requests or terminal Input to

initiate the r u n .

The format is:

TIMCNT hr,min,sec,address

h r H o u r .

min Minute.

sec Second.

address Routine address.

The TTOT table format is:

Word 1 TTOT, number o f entries i n the

table.

Word 2

and following Ta ble en t rie s .

The format of a TTOT entry is shown in ﬁgure 12-1.

TRAN MACRO

Th e T R A N m a c r o s e t s u p en t r i es f o r t h e t a b l e o f

t r a n s a c t i o n c o d e s ( T R A N T ) . T R A N T c o n t a i n s t h e

address of the table of subtransaction codes for

that particular transaction code. ITASK assumes

that the TRANT table is set up in 6-bit display code

order. It uses the 6-bit display code value of the

transaction code you enter to locate the proper

entry in TRANT.

The format is:

TRAN code

co d e On e -ch a r a cte r tr a n sac t i o n c o d e.

The format of an entry in TRANT is shown in ﬁgure

12-2.

STRAN MACRO

T h e ST R A N m a c r o m a ke s en t r i e s i n t h e t a b l e o f

subtransaction codes (TRANS). TRANS contains the

subtransaction code and the corresponding

transaction name.

The format is:

STRAN sc,tname

sc Two-character subtransaction code.

tname Name of the transaction to be called.

The format of an entry in TRANS is shown in ﬁgure

12-3.

59 4 1 1 7 1 1 S 0

address 'wmmmmmm hr min sec

addr

hrmii

ess

tisec

Address is the tag of a user-written subroutine that is called by I

and call the desired transaction or task.

ITASK then clears the table entry so the request is not repeated.

Time the transaction or task Is to be initiated in hours, minutes, s

TASK to

nd secoi

set up

ids.

0^^ Figure 12-1. Format of a TTOT Table Entry

60459500 A 12-1

59 53 1 7 0

to

length address

length

address

Length of subtransaction code table (in format allowing unpack function

retrieve it).

Address of section in subtransaction table containing associated entries.

Figure 12-2. Format of a TRANT Table Entry

59 4 7 4 1

sc tname

sc

tname

Subtransaction code.

Transaction name, left-justiﬁed, zero-ﬁlled.

Figure 12-3. Format of a TRANS Table Entry

Each group of entries relating to the same trans

action is placed immediately following the TRANT

e n t r y f o r t h a t c o d e , a l t h o u g h t h e s u b t r a n s a c t i o n

table is assembled elsewhere. This is an example of

the TRANT and TRANS tables.

TRANT BSS

TRAN

STRAN 02,TRNAME

STRAN 03,TRANN

A is the transaction code, 02 and 03 are the

subtransaction codes, and TRNAME and TRANN are the

respective transactions to be requested.

A site may want to delete the TRANS table entry of

STRAN (X.), XTASK In ITASK for security reasons.

XTASK is described in more detail in section 11.

ITASK DESCRIPTION

E n t r i es i n a l l I TA SK t a b l e s , a s we l l a s t h e u s e r

subroutines for TIMCNT entries in TTOT, should be

inserted in the designated places within the program

before assembly. TRANT and TRANS entries must be in

alphabetical or numerical order according to 6-bit

display codes.

Initial terminal input, while TAF is running

normally, results in execution of a transaction as

follows:

• I f t h e f i r s t t h r e e c h a r a c t e r s o f i n p u t a r e

recognized by ITASK as a transaction code

that is associated with a transaction, then

ITASK attempts to schedule the transaction.

Transaction codes can be associated with

transaction units through the STRAN macro,

previously described.

• If no transaction was associated with the

transaction code, then ITASK interprets the

string of characters starting with the ﬁrst

c h a r a c t e r i n p u t a n d t e r m i n a t i n g w i t h t h e

ﬁrst nonalphanumeric character as a

transaction name. If this string is null or

more than seven characters long, an error

message is issued; otherwise, ITASK will

attempt to schedule the named-transaction.

If the named-transaction does not exist in

the task library corresponding to the

terminal application or in the system task

l i b r a r y , a n e r r o r m e s s a g e i s i s s u e d v i a

MSABT.

Initial terminal input while TAF is idling down

(following an IDLE,TAF or K.IDLE command) is

processed as follows:

• If the input is EX.LOGT, the logout is

processed normally.

• If the input is anything else, ITASK issues

the message TAF IDLING DOWN to the terminal

and ceases without trying to schedule the

requested transaction.

TTOT entries must be accompa nied by user-written

subroutines to set up and call the task, as follows:

• The system time is retrieved from the

a p p r o p r i a t e w o r d i n t h e c o m m u n i c a t i o n

b l o c k . T T O T i s t h e n s e a r c h e d f o r a n y

entries that were to be run by that time.

• If such an entry is found, ITASK jumps to

the user's subroutine to set up and call the

task. This subroutine must set up the

communication block required by the task

t h a t i s t o b e r u n . I t m u s t p e r f o r m a

C A L LT S K w i t h o u t t h e c e a s e op t i o n s e t to

ensure that control is returned to ITASK.

12-2 60459500 A

TAF-ORIGINATED TRANSACTIONS CONDITIONS REQUIRING TAF-ORIGINATED TRANSACTIONS

/0^**

^^v

TAF recognizes certain conditions not normally noted

or processed by user applications. Some of these

conditions are:

• Exceeding a length of time as specified by

an assembly option (TACTL).

• K.IDLE command telling

subsystem to idle down.

the transaction

• Transaction executive recovery.

• Terminal login.

• Network and terminal failures.

When any of these conditions occurs, a TAF-

originated transaction may be processed. Code in

common deck COMKSTC identiﬁes the condition. ITASK

examines the communication block (ﬁgure 12-4) to

determine the condition and jumps to a subroutine

which sets up and calls the proper task or sequence

of tasks to respond properly to the identiﬁed

condition. Although the Control Data-supplied ITASK

contains code to process each of the conditions,

sites may want to modify ITASK and provide

transactions to suit their individual needs.

To provide TAF-originated tasks that properly

respond to the NAM conditions, the analyst should

refer to the NAM/CCP 1 Reference Manual.

A number of commo n decks ai d in proc essin g th e

TAF-originated transactions as follows:

• COMKSTC gives the values for the condition

ﬁeld of the communication block.

• COMKNWF describes the fields for the NAM

message word of the communication block.

• COMSNCD gives values to fields In the NAM

message word.

The conditions that require TAF-originated

transactions and possible methods of processing are

described here. Limited versions of routines needed

to process these transactions are available in

TTASK. To change the existing routines, ITASK must

be modiﬁed to include the necessary code or call

the necessary tasks. It may be advisable to include

short procedures as subroutines in ITASK, but long

or frequently updated transactions should be

maintained as separate programs apart from ITASK and

merely called from the ITASK subroutine. The

r e c o v e r y s i t u a t i o n s d e s c r i b e d i n t h i s s u b s e c t i o n

apply to sites not using TAF automatic recovery.

Time Activation

This might be processed by ITASK as follows:

1 . I TA S K r e t r i e v e s t h e s y s t e m t i m e f r o m t h e

appropriate word in the communication block.

2. TTASK then searches the TTOT for any

transactions that are to be run at that time.

3. If su c h an en t ry I s f o u nd, I TASK ju m p s t o

the user-supplied subroutine that must set

up and call the next task for that

transaction. This subroutine must set up

the communication block required by the task

that is to be run.

K.IDLE Console Operator Command

Same as IDLE,TAF command. Refer to ITASK

De s cr i pti on ear l ier in t h is se cti on.

1118

WORDO

WORD1

WORD 2

WORD 3

WORD 58

WORD 59

WORD 67

WORD 68

2158

59 47 3 5 2 9 2 3 2 0 1 7 1 5 1 3 1 1 5 0

database user area id sequence number

user name i nft

reserved condition

NAM message

»message from terminal, terminated by 12 bits

of zero in last word of message; meaningless

data follows

t

i

available to user

0yr mo day hr min sec

Figure 12-4. Communication Block for TAF-Originated Transactions

60459500 A 12-3

Terminal Login Terminal Connection Broken

The application may want to prompt the terminal

user, set application character type, or go through

recovery procedures if the user has the recovery

ﬁeld set in the user area of the terminal status

table. Upon terminal login, the NAM message word of

the communication block (ﬁgure 12-4) contains the

following information:

Signiﬁcance

24

Block size of terminal.

Signiﬁes a hardwired terminal if

s e t .

A connection may be broken because a line has been

disconnected. If a SEND with recall was active, the

task issuing the SEND rather than ITASK is notiﬁed

of the error. It may be desirable for the applica

tion to process these incomplete transactions. TAF

sets the recovery ﬁeld in the terminal status table

user area. The application can save terminal output

on a data manager ﬁle and send it when the user

logs in again. The outstanding block limit speci

ﬁed in the local conﬁguration ﬁle determines how

many messages must be saved. (Refer to the Network

Products NAM 1 Network Deﬁnition Language Reference

Manual.)

/>^«i\

23-16 Terminal class.

15-8 Page width of terminal.

7-0 Page length of terminal.

Terminal Break Conditions

If some tasks perform SENDs without the recall ﬂag

set, breaks can occur because of the following.

• User break keys.

• Output device not ready.

• Incorrectly formatted data.

For a user to resume processing after a terminal

break, the following must occur.

1. Terminal communication with NAM must be

reestablished. When the break occurs, NAM

places the supervisory message associated

with the break in the NAM message word of

the communication block. To restart

terminal communications, TAF must send a

reset supervisory message to NAM. The

individual application need not provide this

function. Upon the user task SEND request,

TAF issues the reset supervisory message

prior to honoring the SEND.

Network Normal Shutdown

TAF monitors task activity on communication blocks

gen e r a ted b y t e r m inal in p u t . W h e n a l l ta s k s h a v e

been completed and no tasks are performing WAITINP

requests, TAF sends end connection supervisory

messages to NAM for each logged-in user and performs

a NETOFF to end processing with the network. To

i n i t i a t e t h i s c o n d i t i o n , i t m a y b e d e s i r a b l e f o r

ITASK to notify users of the pending shutdown and

begin rejecting new transactions.

Network Failure

TAF sets the recovery ﬁeld in the user area of the

terminal status table for all logged-in users. All

tasks performing WAITINP requests are scheduled.

The application, through ITASK, may want to begin

data base recovery.

Network Immediate Shutdown

TAF performs a NETOFF and sets the recovery ﬁeld in

the user area of the terminal status table. The

application may want to begin recovery by processing

only transactions from batch input.

2. The user must resume interaction with the

application. The user application must

provide this break recovery. The following

description suggests one method.

ITASK and any recovery tasks can communicate

t h r o u g h t h e t e r m i n a l s t a t u s t a b l e u s e r

area. For instan ce, when ITASK initiates a

transaction, it could set a series of ﬁelds

in the TST to indicate important events in

the transaction. The recovery task could

examine the ﬁelds to determine what events

had occurred. Nonrecovery tasks could watch

a recovery ﬁeld in the TST and CEASE to

allow the recovery task to proceed ir a

quiet environment. (TAF sets the recovery

ﬁeld in the TST before calling ITASK.)

Terminal Inactive

NAM issues a terminal inactive supervisory message

when it detects that 10 minutes have elapsed without

message trafﬁc over a connection. TAF passes the

tr ans a ct i on seq u en c e n umb e r o f a ny r un n ing , t a sk

using that user name to ITASK. The application may

want to log out the user after a period of time to

reduce line connect costs.

Logical Error

One of the application's tasks may have set up an

application block header or message block

incorrectly. If the task performed a SEND request

w i t h r e c a l l s e t , t h e t a s k , r a t h e r t h a n I TA S K , i s

no t i ﬁed of th e e r ror.

12-4 60459500 A

J^*v

jﬂ^lfes^

Block Not Delivered

This occurs because of a system error. If the task

performed a SEND request with recall set, the task,

rather t ha n ITAS K, is notiﬁed o f the e rr or. B ef or e

scheduling ITASK, TAF sets the recovery ﬁeld in the

user area of the TST. It may be desirable for the

application to recover by sending the lost block.

The application block number of the block that was

lost is returned in the NAM message word of the

communication block. Tasks may specify a block

number on the SEND or obtain the block number used

by TAF. Resending the lost block may cause the

block to be delivered out of sequence, if further

blocks had been sent following the lost block.

Terminal Characteristic Change

A NAM terminal characteristic supervisory message is

sent to ITASK when the terminal operator has

redeﬁned the terminal class, page width, or page

length.

Terminal Input Too Large

The terminal operator sent a message longer than the

maximum input message size. TAF will not have

journalized the input.

TERMINAL TYPE AHEAD

The network allows terminal operator type-ahead. In

other words, the terminal operator can enter several

transactions without waiting for the response from

the ﬁrst. The network ignores all type-ahead when

the terminal operator enters a user break 1 or user

break 2.

USER STATUS

The network allows a terminal user to make a status

request by typing:

ct (alpha)®

ct The network control character.

(alpha) Any alphabetic character.

TAF will right justify the character In word 3 of

the communication block and Initiate ITASK. At this

point a user-written routine In ITASK must take over

to perform whatever action is desired. The ITASK

reason code will Indicate a user status message.

J^*

60459500 C 12-5

0^,

0^^ CHARACTER SETS

Ta b l e A - l li st s the c h a r a c t e r co d e s f o r the A S C I I

63/64-character sets. Users should check with a

s i t e a n a l y s t t o s e e w h i c h c h a r a c t e r s e t i s b e i n g

used.

Table A-l. 7-Bit ASCII Code Standard Print 63/64-Character Set (Sheet 1 of 2)

ASCII

Character

0mK

7-Bit ASCII Code

Octal

072

101

102

103

104

105

106

107

110

Ul

112

113

114

115

116

117

120

121

122

123

124

125

126

127

130

131

132

060

061

062

063

064

065

066

067

070

071

053

055

052

057

050

051

044

075

Hexadecimal

3A

41

42

43

44

45

46

47

48

49

4A

4B

4C

4D

4E

4F

50

51

52

53

54

55

56

57

58

59

5A

30

31

32

33

34

35

36

37

38

39

2B

2D

2A

2F

28

29

24

3D

6-Bit

Display Code

(Octal)

001

01

02

03

04

05

06

07

10

11

12

13

14

15

16

17

20

21

22

23

24

25

26

27

30

31

32

33

34

35

36

37

40

41

42

43

44

45

46

47

50

51

52

53

54

t In the 63/64-character set, this 6-bit display code represents

a null character. Also, use of the colon in program and data

ﬁles may cause problems. This is particularly true when it

is used in print and format statements.

60459500 A A-l

Table A-l. 7-Bit ASCII Code Standard Print 63/64-Character Set (Sheet 2 of 2)

ASCII

Character

7-Bit ASCII Code 6-Bit

Display Code

(Octal)

Octal Hexadecimal

(space)

>

i

l

]

X

ii

!

&

1

<

>

@

\

*

040

054

056

043

133

135

045

042

137 tt

041

046

047

077

074

076

100

134

136

073

20

2C

2E

23

5B

5D

25

22

5F

21

26

27

3F

3C

3E

40

5C

5E

3B

55

56

57

60

61

62

63t

64

65

66

67

70

71

72

73

74

75

76

77

tin the 63/64-character set, this 6-bit display code repre

sents a colon (:), 7-bit ASCII code 072, 7-bit hexadecimal

code 3A.

ttOn TTY models having no underline, the back arrow (—) takes

its place.

/<^V

/<^^\

A-2 60459500 A

DIAGNOSTIC MESSAGES B

This appendix contains an alphabetical listing of Lowercase letters are used within a message to

messages which may be important to the TAF identify variable ﬁelds. All messages beginning

programmer. Each message is followed by an with lowercase (variable) ﬁelds are listed

explanation of the message and/or the circumstances alphabetically according to the ﬁrst nonvariable

causing it to be issued, the recommended action, and ﬁeld after the messages that begin with nonvariable

the routine which issued the message. ﬁelds.

jpx

/ $ ^ K

60459500 A B_l

MESSAGE

cmd ACCEPTED..

AFTER IMAGE ACCUMULATOR TABLE OVERFLOW.

AFTER IMAGE RECOVERY FILE IS FULL.

db AFTER IMAGE RECOVERY FILES UNAVAILABLE.

AIP DEBUG OPTION TURNED OFF.

AIP DEBUG OPTION TURNED ON.

AIP TOO LARGE FOR LOADING.

ﬁlename ALLOCATED.

APPLICATION ERROR - NO TERMINAL OUTPUT.

APPLICATION FAILED - applnam

APPLICATION NETTED OFF - applnam

APPLICATION NETTED ON - applnam

ARF BLOCK SIZE IS LARGER THAN BUFFER.

ARF DUMP TAPE HEADER ERROR.

ARF ENTRY TABLE OVERFLOW

ARF FILE HEADER ERROR.

ARF HEADER ERROR.

ARF HEADER STATUS (3) POSSIBLE ERROR.

ARF ORDINAL MUST BE 01 OR 02.

ARITHMETIC OR OTHER SOFTWARE ERROR IN TASK.

ATTACH ERROR ON - ﬁlename.

SIGNIFICANCE

The network has accepted your terminal

d e ﬁ n i t i o n c o m m a n d c m d .

W h e n u p d a t i n g a ﬁ l e , t h e a f t e r i m a g e

accumulation table was ﬁlled.

T h e a c t i v e a f t e r i m a g e r e c o v e r y ﬁ l e u s e d

b y TA F i s f u l l .

TAF/CRM data manager tried to bring up an

after image recovery ﬁle for data base db

but failed. Possible reasons for the

failure:

- ATTACH error

- ARF header name is incorrect

- ARF header status error

- CIO error on ARF

- Change in ARF block length

- ARF f ull

If the data base was down previously, it

will remain down. If not down, it will now

be idling down.

Self-explanatory.

Informative message. All network messages

will be placed on trace ﬁle ZZZZZDN.

A fatal error occurred causing TAF to abort.

Informative message.

A task error. A transaction has run without

either an error message or a SEND being

sent to the originating terminal.

An application has stopped without making a

request to NAM to terminate.

Application applnam has requested

termination of network access.

An application has successfully requested

and attained network access.

The maximum block length ﬁeld in the

header record for an ARF is larger than the

maximum block length (installation

parameter) allocated by TAF/CRM data

manager.

No header found on ARF tape.

Too many recoverable ﬁle names exist on

this ARF.

No header was found on the ARF ﬁle.

No ARF header on what is supposed to be an

ARF.

ARF header status shows a possible error

condition.

ARFs can have only 01 or 02 as an ordinal.

A task error. Hardware or the system

detected a software error in the task.

The transaction executive cannot attach the

ﬁle ﬁlename under present conditions.

This usually implies that the ﬁle does not

exist or modify permission has not been

given to the TAF user name.

ACTION

None.

The size of the AAIT

table in OMPEC must be

increased. Inform the

data administrator.

This ﬁle must be dumped

by DMREC.

Correct problem with

ARFs.

None.

Inform site analyst.

TWFA must be increased

in deck COMKTAF.

None.

Correct task or inform

data base administrator.

Restart application

and/or contact central

software support,

analyst.

None.

The ﬁle must be dumped

using DMREC and

preallocated.

Use alternate tape if

available.

Increase the size of the

TLOG table with

installation parameter

TLOGL.

Down the data base, dump

the data base, purge the

old ARF, and create a

new one.

Check ARF for validity,

inform data

administrator.

Inform data

administrator.

Correct directive name

(ARF/BRF).

Correct task or inform

data base administrator.

Correct error and

reinitialize executive,

or inform the data

administrator.

ROUTINE

CCP

DMREC

(AAI)

.ysfesx

TAF

AAMI

TAF

DMREC

MSABT

NVF

DMREC

AAMI

DMREC

OMREC

DMREC

MSA8T

TAF

• B-2 60459500 C

#^

JP*s

MESSAGE

ATTACH ERROR ON PF xxxxxxx.

ATTACH MODE MUST BE W, M, R, OR RM.

n.nnn AVERAGE ACTIVE SUBCONTROL POINTS.

n.nnn AVERAGE OUTSTANDING CDCS REQUESTS.

BACKUP DIRECTORY - xxxxxxx HAS BEEN

RECONSTRUCTED.

BATCH CONCURRENCY DISABLED.

BATCH RECOVERY ACTIVE ON DATA BASE

BEGIN CRM TASK RECOVERY.

BFL - xxxxxxxB, MINIMUM REQUIRED = zzzzzzzB.

BINARY RECORD WAS LESS THAN 64D WORDS LONG.

BINARY RECORD WAS NEITHER ABSOLUTE NOR

OVERLAY FORMAT.

BLOCK BUFFER OVERFLOW.

BLOCK BUFFER TOO SMALL.

BLOCK LOAD ERROR.

BLOCKAGE AMONG CM RESIDENT TASKS.

BOTH AFTER IMAGE FILES ACTIVE.

BRF PARAMETER TOO LARGE OR INVALID.

BTASK - TAF AUTOMATIC RECOVERY NOT

INSTALLED.

BTASK - TASK LOGICAL ERROR.

SIGNIFICANCE

When attempting to attach a permanent ﬁle

xxxxxxx, an error was encountered.

The mode parameter on the CYBER

Record Manager (CRM) statement

must be one of the speciﬁed values.

n.nnn is the average number of simul

taneously active subcontrol points when

TAF is not rolled out. An active

subcontrol point is one which is in

recall, is waiting to use the CPU, or is

currently assigned the CPU. The

sampling rate is once per second.

n.nnn is the average number of out

standing (uncompleted) systemThentrol

t requests per second, r se

The sampling rate is once per second.

No directory ﬁle for the speciﬁed data

base. A new directory was generated from

the information on the xxJ ﬁle.

TAF was brought up without BATCH

concurrency enabled. CTBCON=Q).

Self-explanatory

TAF/CRM has received a recovery indication

from TAF.

Information on the actual value of the

beginning ﬁeld length and the minimum

value TAF/CRN requires for the Common

Memory Manager Buffer.

The task binary ﬁle contains records in

the wrong format.

The task binary ﬁle contains records in

the wrong format.

When attempting a record load operation,

the data block buffer was found to be too

small.

Tape block on ARF was too large for buffer.

Block load of a ﬁle failed because no

header was found on dump tape. Or, the

targeted f1le or the tape does not match

request ﬁle name.

The sum of initial ﬁeld lengths for the CM

resident tasks exceeds the minimum size of

total task area.

Both after image recovery ﬁles for a data

base are active. The after image ﬁles

must be dumped by DMREC, if not already

dumped.

The parameter on the BRF statement is

nonnumeric, the value is greater than the

installation parameter BMAX, or too many

parameters were speciﬁed.

A keyword speciﬁed in a TSTAT request

requires TAF automatic recovery to be

installed.

An unexpected error status was returned.

ACTION

Check for valid

directive ﬁle name and

presence of a direct

access permanent ﬁle by

that name.

Correct the mode

parameter on the CRM

statement or inform the

data admini s trator.

None.

Inform data

administrator.

Ask data administrator

to bring up TAF with

BATCH concurrency

ENABLED.

Wait for the completion

of batch recovery, then

reinitialize the

transaction subsystem.

None.

Ensure that a LOAD was

performed after

compilation of the tasks.

Ensure that a LOAD was

performed after

compilation of the tasks.

Increase the length

of the working buffer

WBUF. Inform the data

administrator.

Increase size of buffer

and try again.

Load from previous dump

tape.

Correct error.

Dump the after image

recovery ﬁles.

Correct BRF statement or

reassemble TAF and

related decks with a

larger value for BMAX

(if possible).

Inform the data

administrator.

Inform the data

administrator.

ROUTINE

DMREC

TAF

DMREC

BAAML

TAF1

AAMI

LIBTASK

DMREC

TAF

8TASK

BTASK

60459500 C 8-3 •

MESSAGE

BTASK - xxxxxxx TRANSACTION NOT RUNNABLE

NOW.

BTASK - USER NOT DEFINED IN NETWORK FILE.

C. B. NOT AVAILABLE TO SCHEDULE CTASK.

CALLRTN NESTED CALL LIMIT EXCEEDED.

CANNOT DEFINE REFORMATTED FILE - ﬁlename.

CDCS ABORTED PLEASE WAIT.

CDCS CONNECTION ESTABLISHED.

CDCS INVOKE FAILURE.

CDCS NOT AVAILABLE.

CDCS REQUESTED ABORT.

CHANGED TLD DETECTED - ﬁlename, username.

CIO ERROR ON RECOVERY FILE

*CMM* ERROR.

CMMBFL IS NOT LARGE ENOUGH.

CONFLICTING LIBTASK OPTIONS - p1,p2.

SIGNIFICANCE

This occurs when an I/O error is detected

and the data base cannot be recovered for

the user xxxxxxx.

The user is not deﬁned in the NETWORK ﬁle

on a TSTAT request.

Communication block not available to

schedule CTASK.

A task error. An attempt was made to nest

CALLRTN requests more than 16 levels.

A reformat of the TAF COMMUNICATIONS

recovery ﬁle was necessary, but when

attempting to DEFINE the reformatted ﬁle

(ZZCRFAi), an error occurred.

A TAF transaction was using CDCS while CDCS

aborted. The transaction will be rerun

after CDCS comes back up.

Informative message. The connection

between TAF and CDCS has been established.

CDCS ﬁles are not available.

Your TAF transaction attempted to use CDCS

when it was not present in the system, CDCS

aborted while your transaction was waiting

for completion of a CDCS request (SSC), or

CDCS aborted while your transaction was

rolled out.

TAF aborted the TAF transaction as a result

of a request by CDCS. The detailed error

message returned by CDCS is available in

the JOURO ﬁle and will be sent to the

terminal.

An unrecognizable library directory format

was encountered during a library directory

update attempt.

A CIO error was encountered while trying to

position the ARF or BRF correctly.

A *CMM* error occurred. Memory cannot be

granted to load *OPEN* routine.

The size of the beginning ﬁeld length

(8FL> for the Common Memory Manager Buffer

is not large enough to contain CMMTFL

and CKMCAP and the user's FIT-S and

FSTT-S.

The user speciﬁed an incorrect combination

of LIBTASK command options. Possible

incorrect combinations of p1 and p2 are:

- CR,PR

- CR,TT

- PR,TT

- T T, N

Another possible incorrect combination

gives P=0,-N for p1,p2. This means that

the user speciﬁed P=0 but did not specify

N.

ACTION

Inform the data

administrator.

Inform the data

administrator.

Increase the number of

communication blocks at

initialization time

using the K.MC8- command.

Correct task or inform

data base administrator.

Purge the existing ﬁle

indicated by ﬁlename.

Operator can log off by

typing in EX.LOGT, or

wait for CDCS.

None.

Inform site analyst or

data administrator. The

transaction should be

rerun after the problem

is ﬁxed.

Inform data

administrator.

Inform data

administrator.

Inform site analyst.

Reinitialize the

transaction subsystem or

inform the site analyst.

Inform data base

administrator.

Data base administrator

can either

1) Increase the size of

CMMBFL, or

2) decrease the size of

CMMTFL, or

3) decrease the size of

CMMCAP.

The user must choose

either p1 or p2. For

the P=0,-N combination,

the user must specify N

if no old task libr ary

(P=0) exists.

ROUTINE

BTASK

TAF

MSABT

TAFREC

ITASK

TAF

MSABT

MSA8T

MSABT

TAF

TAF1

AAMI

TAF

/?i^\

/*^5§k

LIBTASK

CONTROL CARD ARGUMENT ERRORS.

CRF HEADER ERROR - ﬁlename.

User speciﬁed TT option when task

library was not attached by TAF.

Errors exist in the parameters on the

LIBTASK command.

I/O errors or logical errors were

encountered in the header record of the

named CRF. The ﬁle is unusable,

ﬁlename File name

Correct and rerun.

Initialize the ﬁle

using the K.INT initial

K display command.

LIBTASK

TAFREC

• B - 4 60459500 C

MESSAGE

CRF RECOVERY/INITIAUZATION ABORTED.

CRF RECOVERY/INITIALIZATION COMPLETE.

CRF RECOVERY UNIT ERROR - ﬁlename.

SIGNIFICANCE

CRM(...parameter-list...)

CRM DATA MANAGER NOT LOADED.

Informative message.

I/O errors or logical errors were

encountered in a run unit of the named CRF.

This is a copy of a CRM statement that is

in error. A subsequent message follows.

An AAM request for CRM was issued by a task

and the CRM Data Manager was not loaded

into TAF at initialization time.

ACTION ROUTINE

The action depends on TAFREC

the message preceding

this one in the dayﬁle.

None. TAFREC

Attempt to recover any TAFREC

good information using TAF

the K.ERO=YES initial K

display command, or

initialize the ﬁle

using the K.INT initial

K display command.

Inform the data TAF

administrator.

Check the DMS statements MSABT

in the TCF which specify

which data managers are

to be loaded by TAF.

For CRM users, you need

a DMS statement such as:

DMS,CRM,ON,xx,xx,...,xx

CRM DATA MANAGER SUCCESSFULLY LOAOED.

CRM ERROR nnnB IGNORED ON OPEN OF ﬁlenara.

CRM ERROR ENCOUNTERED.

CRM ERROR xxx IN UPDATE PROCESSOR.

^^N

CRM ERROR IN ZZdbOIR (GET).

CRM TASK RECOVERY IMPOSSIBLE.

CRMTASK - DATA BASE DOWNED BY OPERATOR.

CRMTASK - DATA BASE/FILE BEING IDLED.

CRMTASK - DATA BASE/FILE CANNOT BE UPPED.

CRMTASK - DATA BASE/FILE NAME UNKNOWN.

CRMTASK - INCORRECT REQUEST.

CRMTASK - INCORRECT REQUEST FORMAT.

Self-explanatory.

A non-fatal CRM error, nnnB, was returned

to the TAF/CRM data manager while issuing

CRM requests associated with opening a

recoverable CRM ﬁle, ﬁlenam, for the

ﬁrst time. This error is ignored.

A CRM error occurred while processing the

directory. The CRM error is either an

incorrect key or end of ﬁle when this is

the only output message.

A CRM error has occurred during the

application of the after image to a data

ﬁle.

A CRM error was encountered when trying to

retrieve a VSN record from the directory on

a ﬁle load.

Recovery is not possible when the recovery

ﬁle structure is found to be inconsistent

with TAF/CRM tables and parameters

speciﬁed on xxJ ﬁles.

DMREC notiﬁed TAF that the data base was

recovered. But AAMI was not able to access

it because it had been downed by the

operator.

AAMI will not process any requests on an

idle data base/ﬁle.

AAMI was not able to bring up the data

base or ﬁ le.

DMREC request had an incorrect data base

or ﬁle name.

CRMTASK was not called correctly by DMREC.

AAMI rejected this request.

where xx = any data base

identiﬁer.

None.

Informative.

Inform data

administrator.

Note which error has

occurred and locate

references to the error

in the CRN/AAM Reference

Manual for appropriate

action.

Inform data

administrator.

The last reported BRF

must be corrected or

reallocated.

Only an operator may up

the data base that

he/she downed. It

cannot be upped

automatically.

After the cause of the

data base/ﬁle being

idle has been ﬁxed, the

operator must bring it

up.

Oata administrator

must investigate

the cause of AAMI

inability to bring

ﬁle/data base up.

Call the data

administrator to

investigate the cause.

There may be a

transaction in the

system attempting to use

functions reserved for

DMREC.

An analyst should

investigate the reason

fo r t h i s re j e c t i on .

TAF

AAMI

DMREC

TAF

DMREC

AAMI

CRMTASK

60459500 C B-5 •

MESSAGE

CRMTASK - INCORRECT TT SEQUENCE NUMBER.

SIGNIFICANCE

AAMI does not recognize the TT sequence

number returned by DMREC.

ACTION

Call the analyst to

investigate the

discrepancy between

DMREC and TAF.

ROUTINE

CRMTASK

CRMTASK - NOT ALL DATA BASE FILES UPPED.

CRMTASK TIMEOUT.

DMREC recovered the data base but AAMI was

unable to attach/open all of data base

ﬁles.

A terminal job timed out while waiting for

the next command.

Data administrator CRMTASK

should investigate why

only some of the data

base ﬁles came up.

A valid command must be CRMTASK

entered within the

default time of 480

seconds.

CRT - CIO ERROR. A CIO error was generated when creating a

log ﬁle.

Purge the log ﬁle and

try again (check ﬁle

name).

DMREC

CSM - INCORRECT COMMUNICATION FUNCTION.

CTASK - DATA BASE OR FILE DOWN.

CTASK - DATA BASE OR FILE IDLE.

CTASK - FILE IS NOT INSTALLED.

CTASK - INCORRECT RECOVERY CASE.

CTASK - NO CRM RECOVERY FILES FOR DATA BASE.

CTASK SYSTEM IDENTIFIER UNKNOWN.

CTASK - TABLE AREA NOT LARGE ENOUGH.

CTASK - TASK LOGICAL ERROR.

An incorrect or unrecognizable request was

received by the transaction executive from

th e CPU monit o r.

The data base, TAF/CRM, or ﬁle is down on

an RSTDBI request.

The data base, TAF/CRM, or ﬁle is idle on

an RSTDBI request.

The data base or ﬁle is not available in

th e x xJ ﬁl e on a CR M STAT r e ques t .

The recovery case selected for processing

was incorrect.

There is no recovery ﬁle assigned to the

data base on an RSTDBI request.

T h e o l d s y s t e m i d e n t i ﬁ e r i s u n k n o w n w h e n

issuing a TINVOKE request.

Take tab l e a r e a s u p p l i e d b y C TA S K f o r a

CMRSTAT request is not large enough.

An unexpected error status was returned.

Inform site analyst.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

TAF

CTASK

CTASK - TRANSACTION NOT RERUNABLE.

CTASK - TRMREC ERROR.

CTASK - USER NOT DEFINED IN NETWORK FILE.

The TAF transaction was not rerunnable and

a RERUN was attempted.

One of the following occurred:

- There was no outstanding DBEGIN request.

- An error was encountered on a data base

or recovery ﬁle.

- The data base or TAF/CRM is down.

The user speciﬁed on a TSTAT, WSTAT, or

RERUN request is not deﬁned in the NETWORK

ﬁ l e .

Inform the data

administrator.

Inform the data

administrator.

Inform the data

administrator.

CTASK

CYCLE NUMBER IS OUTSIDE LIMITS. The speciﬁed cycle number is outside the

limits set by the installation parameter

(CYUCM).

Check the maximum cycle

number and rerun.

DMREC

(CYC)

DATA BASE/FILE ALREADY DOWN OR IDLE.

DATA BASE/FILE CANNOT BE UPPED.

CRMTASK issued a DBDOWN request to AAMI,

but the data base or ﬁle name was already

down or idle.

CRMTASK issued a DBUP request but AAMI was

not able to bring up the data base or ﬁle

name.

Inform data base

administrator.

Inform data base

administrator.

CRMTASK

OATA BASE/FILE NAME UNKNOWN. CRMTASK - issued a CRMSTAT, DBUP, or DBDOWN

request but the data base or ﬁle name was

not found.

Inform data base

administrator.

CRMTASK

DATA BASE NAME IN CRM FILE NAME DOES NOT

MATCH xxJ.

DATA BASE NAME OR FILE NAME MISSING.

DATA BASE NAME OR FILE NAME(S) BOTH

SPECIFIED.

The two-character data base name from the

ﬁle name on the CRM statement does not

ma t c h t h e xx J h e a de r.

No ﬁle name or data base name on directive.

Self-explanatory.

Correct the CRM

statement and try again.

Include ﬁle name or

data base name on

directive.

Eliminate ﬁle name or

data base name from the

directive.

DMREC

• 8-6 60459500 C

MESSAGE

DATA BASE NOT IN EOT

DATA BLOCK BUFFER OVERFLOW.

DATA MANAGER USAGE NOT SELECTED.

SIGNIFICANCE

Self-explanatory.

DB - NAME MUST NOT START WITH THE LETTER Z.

/^^ DEFINE ERROR ON FILE.

*DEL*

DELIMITER WAS NOT RECOGNIZED.

DIRECTIVE CONTAINS AN INCORRECT DATE/TIME.

DIRECTIVE FORMAT ERROR.

DIRECTIVE KEYWORD NOT VALID.

DIRECTIVE NOT PRECEDED BY EDIT DIRECTIVE.

DIRECTORY HEADER FROM THE COPY.

OIRECTORY IS FULL-NO MORE ADDITIONS ALLOWED.

DIRECTORY UNUSABLE.

DISPLAY DUMP NOT ALLOWED TO TERMINAL.

DMREC COMPLETE.

DMREC FAILED - xxxxxxx zz.

DMREC TAPE LABEL ERROR.

DOWNED BRF TABLE OVERFLOW.

ARF tape block size is too large for buffer

allocated for it.

A recoverable TAF transaction tried to use

either the CDCS or CRM Data Managers and

the usage of the data manager was not

selected on the LIBTASK input which

declared the named-transaction to TAF.

A data base name was found which starts

with the letter Z. These are reserved

names.

An error in deﬁning PRU size or In trying

to deﬁne the log ﬁle was encountered on a

create dir e c t i v e.

The system has deleted the last line of

input. This occurred when the terminal

operator entered the cancel character (CN)

followed by the end of line/end of block

terminator.

An incorrect delimiter or an unrecognizable

delimiter was encountered on a directive.

A directive contains an unrecognizable

date/time.

Error in one or more directive parameter

formats.

The wrong delimiter on the directive

parameter was used, or the directive

keyword is not valid.

This directive must be preceded by an edit

directive.

Informative message.

The maximum length of the task library

directory has been reached.

Attempt to reconstruct the directory failed.

A 6-bit display code dump to a terminal is

not allowed.

Informative message. The output f1le may

contain other informative messages and

should be reviewed.

The DMREC job submitted by TAF failed,

xxxxxxx is the directive being processed,

and zz is the data base name.

No tape header was found on ARF to be used

for an update function.

Table of downed BRFs has overﬂowed.

ACTION

Reinitialize the

transaction executive,

or inform the site

analyst.

Inform the data

administrator and

lengthen buffer WBUF.

Respecify the

characteristics of the

named-transaction via

the LIBTASK directive,

or design the

transaction not to use

CDCS or CRM Data

Managers.

Change the data base

name to one not

beginning with Z. If

the name appears on an

NCTF entry, contact the

user and request a new

identiﬁer. If the name

appears on the TCF, make

the change on the

applicable DMS statement

or inform the data

administrator.

Correct PRU length on

create directive.

None.

Check directive format

and rerun.

Correct the directive

and rerun.

Correct directive and

rerun.

Correct directive and

rerun.

Include an edit

directive.

None.

LIBTASK must be

reassembled to allow for

a larger directory.

Check the output for the

detailed error message.

Specify the 0 option on

the KTSDMP command if a

dump to a terminal is

desired.

None.

ROUTINE

TAF1

DMREC

MSABT

TAFREC

DMREC

CCP

DMREC

(SPR)

DMREC

OMREC

LIBTASK

OMREC

KTSDMP

DMREC

Notify the data base DMREC

administrator and

correct as directed.

Check for correct ARF DMREC

tape. Use alternate ARF (UPD)

tape if available.

Inform data DMREC

administrator. (BRT)

J^"v

60459500 C 8-7 •

MESSAGE

DSP ERROR ec RETURNED ON J08 ROUTE.

DSP ERROR ec RETURNED ON TASK SUBMIT,

DUMP TAPE SPECIFIES NON-STANDARD

COMPRESSION.

DUMP WILL START OVER

cmd DUPLICATE CHARACTER

DUPLICATE DATA BASE IN TCF - xx.

DUPLICATE DUMP ENTRY ON ADD.

DUPLICATE ENTRY ON ADD.

DUPLICATE PARAMETER.

DUPLICATE VSN ENTRY ON ADD.

DXB CONVERSION ERROR ON TRANSACTION SEQUENCE

NUMBER.

ECS READ ERROR.

ECS TASK tasknsme NOW MS RESIDENT.

ECS WRITE PARITY ERROR ENCOUNTERED.

EDITING COMPLETE.

END OF FILE REACHED.

END OF VSN TABLE.

ENTER NEXT TRANSACTION.

ERROR IN ACCOUNT/USER CARD ARGUMENT.

ERROR IN ADD/DELETE VSN.

ERROR IN 8RF PARAMETER IN xxJ FILE.

ERROR IN BUILDING OIRECTORY ENTRIES.

ERROR IN BUILDING RECOVERY TABLES.

SIGNIFICANCE

DSP has informed the transaction subsystem

that an error was detected in routing a job

for task dump processing, ec is the DSP

error code.

DSP has informed the transaction subsystem

that an error other than a job or user

statement error was detected, ec is the

DSP error code.

When trying to reload a record formatted

dump tape, the compression mode was

nonstandard.

DMREC attempted to execute the DUMP

directive but encountered errors.

The value you speciﬁed in the terminal

deﬁnition command cmd conﬂicts with

another terminal deﬁnition.

Active data base identiﬁer, xx, in the TCF

is not unique.

When trying to add a ﬁle dump entry to the

directory with an add directive, a

duplicate entry was found.

When trying to modify the directory a

duplicate of the entry was found.

A duplicate VSN or duplicate ﬁle name was

detected on a single directive.

When trying to add a VSN entry to the

directory with an add directive, a

duplicate entry was found.

An error occurred while converting the

number in the table entry to binary.

Self-explanatory.

Task taskname could not be loaded into

extended memory because of insufﬁcient

storage. It Is loaded Into mass storage.

Self-explanatory.

Informative message.

DMREC has reached the end of the VSN table

on a LOAD or RECOVER process.

Option C was selected to allow the entry of

the next transaction. The previous

recoverable information is lost.

The charge or user statement in the xxJ

ﬁ l e i s i n e r r o r.

The number of added or deleted entries does

not match the number of active ﬁles.

The parameter on the BRF statement is

non-numeric, or the value exceeds the

installation parameter BMAX.

An error was encountered when DMREC

attempted to add or update a directory

record.

An error was encountered while attempting

to retrieve a record from the directory

ﬁle.

ACTION

Inform site analyst.

Inform site analyst,

Try loading from a

previous dump tape and

inform the data

administrator.

None.

Try another value.

Fix TCF so that xx

appears only once among

active (ON) DMS

statements.

List the directory for

visual check and try

again.

List the directory and

check for the needed

entry.

Correct directive and

rerun.

List the directory for

visual check and try

again.

Inform data

administrator.

Inform customer engineer.

If task must be resident

in extended memory, more

extended memory space

must be allocated for

the TAF user name.

Refer to the NOS 2

Installation Handbook.

Inform customer engineer.

None.

Check the dayﬁle for

possible tape errors

which may cause this

condition.

Enter next transaction.

Correct the charge/user

statement and try again.

Check edit directives

and list the directory

for a visual check.

Correct value parameter.

Inform data

administrator, correct

as directed and rerun.

Try an update from an

earlier ﬁle and inform

the data administrator.

ROUTINE

TAF

DMREC

S^§\

CCP

TAF

DMREC

TAF

OMREC

DMREC

DMREC /-rSi§\

RTASK

DMREC

(B8E)

DMREC

(BRT) ^eSSRv

• 8-8 60459500 C

MESSAGE

ERROR IN BUILDING *RMKDEF* FILE.

ERROR IN CRM CARD ARGUMENTS.

ERROR IN CRM -PUT- (RECORD LOAD).

ERROR IN EDIT PROCESSING.

ERROR IN IXN CARD ARGUMENTS.

ERROR IN LIST PROCESSING.

ERROR IN LOADING AAMI.

ERROR IN LOADING HASH CODE ﬁlename.

ERROR IN LOADING NAM.

ERROR IN LOADING TOTAL.

ERROR IN READING TASKLIB-ﬁlename.

ERROR IN RECORD DUMP.

ERROR IN RETRIEVING VSN.

ERROR IN SUBMITTED FILE.

ERROR ON xxJ FILE ARGUMENTS.

ERROR STATUS nnnB ON BACKUP DIRECTORY.

ERROR(S) ENCOUNTERED IN OMREC PROCESSING.

FATAL CIO ERROR STATUS.

FIELD LENGTH EXCEEOED FOR CMM.

FIELD LENGTH EXCEEDED FOR LOCKS.

SIGNIFICANCE

DMREC is trying to build a ﬁle of RMKDEF

statements to be used in a subsequent

MIPGEN run. An error has occurred in

building the RMKDEF ﬁle.

The CRM statement in the xxJ ﬁle is in

error.

An error was encountered while attempting

to execute a CRM put onto the data ﬁle.

Editing processor has encountered an error

in trying to execute the directive.

The IXN statement in the xxJ ﬁle is in

error.

Errors in generating list as described on

directive.

The loader encountered errors while loading

the TAF CRM AAM interface (AAMI).

The loader encountered errors while loading

the hashing routine code that is on ﬁle

ﬁlename.

The library ﬁle NETIO does not contain the

entry points required for TAF.

The loader encountered errors while loading

Total and the data base descriptor modules

(DBMODs).

Error occurred during transaction executive

initialization or extended memory-resident

task loading. File speciﬁed as task

library was incorrectly formatted;

therefore, it could not be read or loaded

into extended memory correctly.

During a record dump, DMREC 1s unable to

recognize the ﬁrst record on the dump ﬁle

as an FSTT.

No VSN has been found in the directory that

satisﬁes the directive.

An incorrect parameter has been detected on

a SUBMT call from a task.

The xxJ ﬁle contains statements in error,

which causes the transaction subsystem to

abort.

CRM error has occurred on directory ﬁle.

Fatal errors were encountered during

processing.

A TAF CIO operation returned a fatal error

status which aborted TAF.

TAF does not have enough ﬁeld length to

allocate the space potentially required by

CMM.

TAF does not have enough initialization

ﬁeld length for allocating lock tables.

ACTION

Make sure that RMKDEF

statements are correctly

formatted in the XXJ

ﬁle; then rerun the

program.

Correct the CRM

statement and try again.

Try to load from

previous dump tape.

Check the edit directive

parameters and inform

data admini s trator.

Correct the IXN

statement and try again.

Check list directive for

accuracy and retry.

The site analyst should

consult the CYBER Loader

Reference Manual (listed

in the preface).

The site analyst should

consult the CYBER Loader

Reference Manual (listed

in the preface).

The site analyst should

consult the CYBER Loader

Reference Manual (listed

in the preface).

The site analyst should

consult the CYBER Loader

Reference Manual (listed

in the preface).

Inform site analyst.

Check structure of ﬁle

to be dumped for IS, DA

or AK type and try again.

Check directive

parameters. If correct,

inform data

administrator.

Correct task or inform

data base administrator.

Examine xxJ ﬁle.

Inform TAF data

administrator.

Inform site analyst.

Check the output ﬁle

for the detailed error

message.

Inform site analyst.

Increase TAF

initialization ﬁeld

length.

Decrease the locks

parameter on the CRM

statement, increase the

TAF initialization ﬁeld

length, or inform site

analyst.

ROUTINE

DMREC

GRM

DMREC

OMREC

DMREC

TAF

DMREC

MSABT

TAF

OMREC

(FER)

OMREC

TAF

60459500 C B-9 •

MESSAGE

FIELD LENGTH EXCEEDED FOR RECORD.

FIELD LENGTH EXCEEDED FOR USERS.

FILE ATTACH/DEFINE ERROR

xxﬁlen - FILE, ERROR ON LOCK FUNCTION.

xxﬁlen - FILE, ERROR ON OPEN FUNCTION.

FILE xxJ NOT FOUND.

FILE NAME CONFLICT.

FILE NAME MISMATCH ON TAPE HEADER RECORD.

FILE NAME MUST BE 2-7 CHARACTERS.

FILE NOT ATTACHED - ﬁlename.

FILE hash NOT FOUND.

SIGNIFICANCE

TAF does not have enough ﬁeld length to

allocate the space for the record buffer.

TAF does not have enough initialization

ﬁeld length for allocating ﬁle control

tables.

An error was detected in attaching or

deﬁning an ARF or BRF.

An error occurred while attempting to lock

the speciﬁed ﬁle. Possible causes are:

- No free ﬁle lock table entry (TKOK).

- Another task has ﬁle locked.

- Another task has record locked.

An error occurred while attempting to open

the speciﬁed ﬁle. Possible causes are:

- No free ﬁle control table entry (TFCB).

- *CRM* error on OPEN function.

- Incorrect key length.

- Incorrect record length.

Transaction subsystem aborts. Data base in

TCF ﬁle has no xxJ ﬁle, or a PFM error

occurred.

The input ﬁle name speciﬁed on the KTSDMP

command is the same as the output f1le name

speciﬁed.

File name on ARF tape and attached ARF

don't match.

The xxpfni parameter on the CRM statement

must be two to seven characters, the ﬁrst

two (xx) being the data base name.

Either the P or the N parameter ﬁle was

not attached when the DA option was used;

ﬁlename 1s the permanent ﬁle name.

The Indirect ﬁle named hash containing the

binary code of the hashing routine was not

found under the username parameter on the

USER statement in the xxJ ﬁle or a PFM

error occurred.

ACTION ROUTINE

Decrease the record size TAF

speciﬁed in the xxJ

ﬁle or increase the TAF

initialization ﬁeld

length.

Decrease the users TAF

parameter on the CRM

statement, increase the

TAF initialization ﬁeld

length, or inform site

analyst.

C h e c k t h e A R F s a n d t h e TA F 1

BRFs for attach mode and

processing mode and

co rrect if neces sary.

Rerun the job at another AAMI

time. If problem

persists, Increase the

number of lock table

en t ri e s .

Correct error. If not AAMI

possi b l e , conta c t site

analyst.

Inform TAF data TAF

administrator or site

analyst.

Correct error and rerun. KTSDMP

C h e c k ﬁ l e n a m e o n A R F D M R E C

tape being used.

Correct the xxpfni TAF

parameter on the CRM

statement or inform

data admini s trator.

Ensure that the ﬁle is LIBTASK

deﬁned or attached

prior to entering the

LIBTASK statement.

E n s u r e t h a t ﬁ l e h a s h i s T A F

saved under the username

parameter or inform data

administrator. Consult

the CYBER Loader Reference

Manual (listed in the

preface).

/ ^ k

/^sSSs

FILE ORGANIZATION IS NOT IS, DA OR AK.

FILE TCF EMPTY.

FILE TCF NOT FOUND.

FILE TYPE MUST BE AK, DA, OR IS.

FILE TYPE NOT ARF OR BRF.

FL TOO LARGE- nnnnnnB,taskname,tasklibrary.

The ﬁle organization parameter on the CRM

statement was not speciﬁed as either IS,

DA, or AK.

An empty TCF exists under the TAF user name.

The TCF was not found under the user name

of the Transaction Facility.

The type parameter on the CRM statement

must be AK (actual key), IS (indexed

sequential) or DA (direct access).

On a create function a ﬁle name was used

that does not conform to the ARF/BRF naming

conventions.

The initial load ﬁeld length, nnnnnnB, for

task taskname on task library taskiibrary

exceeds the minimum size of the transient

task area (potential space available to

contain transient tasks). Thus a situation

could arise in which it would not be

possible to load the task.

Correct the CRM

statement and try again.

Place the necessary

information on TCF.

Create a TCF f1le under

the TAF user name.

Correct the type

parameter on the CRM

statement or inform the

data admini s trator.

Check ﬁle name on

create directive.

Correct error.

DMREC

TAF

OMREC

/*-%m>%\

• 8-10 60459500 C )

j0^z\

/gp«V

0^*

MESSAGE

FORMAT ERROR IN THE NETWORK DESCRIPTION

FILE.

FSTT READ ERROR.

FWA .GE. LWA+1.

GET ERROR ON PF xxxxxxx.

CONTROL CHARACTERSharHOST AVAILABLE

display

ENTER INPUT TO CONNECT TO HOST

HOST BUSY CONTROL CHARACTER=char

display

ENTER char HD TO SEE HOST STATUS

HOST CONNECTED

display

READY FOR INPUT

CONTROL CHARACTER- char

HOST CONNECTED

display

TERMINAL DISABLED BY NOP

CONTROL CHARACTERShar

HOST CONNECTED

display

READY FOR INPUT

CONTROL CHARACTERS char

HOST DISCONNECTED CONTROL CHARACTERShar

display

ENTER INPUT TO CONNECT TO HOST

HOST DISCONNECTED CONTROL CHARACTERS har

display

TERMINAL DISABLED 8Y NOP

HOST NOT AVAILABLE.

SIGNIFICANCE

During transaction executive

initialization, one or more errors were

found to exist in the network description

ﬁ l e .

No FSTT found on a record load dump tape.

There is a logical error in the structure

of the input ﬁle which implies that the

ﬁrst word address is greater than or equal

to the last word address plus one.

No indirect access permanent ﬁle, for use

as an own code ﬁle, has been found.

Your selected host is available.

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

character for your terminal.

The host rejected your attempt to connect.

display The host availability

display (HAD), which only

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

character for your terminal.

You are connected to the host.

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

character for your terminal.

The network operator has disabled your

terminal. No further input is possible,

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command,

char The network control

character for your terminal.

You are connected to the host.

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

character for your terminal.

You have been disconnected from the host.

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

character for your terminal.

The network operator has disabled your

terminal. No further input is possible,

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command,

c h a r T h e n e t w o r k c o n t r o l

character for your terminal.

NAM is not communicating with the 255x

communications processors. Either NAM was

not initialized or has since failed.

ACTION

Inform site analyst.

ROUTINE

TAF

Load from previous tape. DMREC

Inform data base administra KTSDMP

Check for the presence

of the ﬁle and try

again.

Enter any input to

initiate your connection

to the host.

Check the status of

the hosts in your

conﬁguration.

Proceed with your login

to the host.

DMREC

CCP

None. CCP

Proceed with your login

to the host.

CCP

None. CCP

Initialize NAM if it was

not initialized

previously; inform site

analyst if NAM was

active but a malfunction

occurred.

TAF

c60459500 C B-11 •

MESSAGE

HOST UNAVAILABLE CONTROL CHARACTERShar

display

ENTER char HD TO SEE HOST STATUS

IGNORE TABLE OVERFLOW,

xx ILLEGAL COMMAND

ILLEGAL DATA BASE IN xxJ FILE.

ILLEGAL FL REDUCTION.

ILLEGAL JOURNAL FILE REQUEST.

ILLEGAL KEY BEGINNING CHARACTER.

ILLEGAL KEY ORDINAL.

ILLEGAL LIBTASK ATTEMPT - ﬁlename,

username.

ILLEGAL NUM8ER FOR LOCKS.

ILLEGAL NUMBER FOR USERS.

ILLEGAL NUMBER OF ALTERNATE KEYS.

ILLEGAL PARAMETER IN RA+1 CALL.

ILLEGAL TASK NAME REQUESTED FOR SCHEDULING,

cmd ILLEGAL TERMINAL CLASS

ILLEGAL TERMINAL INPUT REQUEST.

cmd ILLEGAL VALUE

INACTIVE TASK REQUESTED.

INCOMPLETE PARAMETER.

SIGNIFICANCE

Yo u h a v e a t t e m p ted a connecti o n t o a h o s t

t h a t i s n o t u p .

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command,

char The network control

character for your terminal.

Ignore table, TTIG, is too small.

The characters xx must be a terminal

deﬁnition mnemonic or interactive status

command.

O n e o f t h e s t a t e m e n t s i n t h e x x J ﬁ l e

speciﬁes an incorrect xx parameter and

causes the transaction subsystem to abort.

Task request to reduce FL would cause the

last word address of the communication

b l o c k t o b e o u t s i d e t h e t a s k F L .

Either a task requested that an entry be

m a d e o n a n u n d e ﬁ n e d TA F j o u r n a l ﬁ l e , o r

the task attempted to make an entry longer

than 2499 CM words on a TAF journal ﬁle.

The key offset parameter on an AKY

statement in the xxJ ﬁle, is missing or

incorrect.

The key ordinal parameter on the AKY

statement is missing or incorrect.

The transaction executive validates all

dynamic attempts to change the task library

by comparing the user name of the requester

a g a i n s t t h e l i s t o f d a t a b a s e u s e r n a m e s .

If it does not match, or if the library

ﬁle 1s not attached by TAF, the

transaction executive issues this dayﬁle

message, where username is the user name of

the incorrect attempt.

The locks parameter on the CYBER Record

Manager (CRM) statement 1s In error. One

of the following format conditions exists.

- A nonnumeric character.

- A c h a r a c t e r a f t e r a p o s t r a d i x o f B o r D .

- A n 8 o r 9 w i t h a p o s t r a d i x o f B .

The user's parameter on the CRM statement

i s i n e r r o r. O n e o f t h e f o l l o w i n g f o r m a t

conditions exists.

- A nonnumeric character.

- A c h a r a c t e r a f t e r a p o s t r a d i x o f B o r D .

- A n 8 o r 9 w i t h a p o s t r a d i x o f B .

The number of alternate keys on the IXN

statement is missing or incorrect.

A t a s k e r r o r . T h e p a r a m e t e r s s p e c i ﬁ e d i n

a request from a task are either

insufﬁcient or incorrect.

The task requested was not found in the

t a s k l i b r a r y d i r e c t o r y .

The value you speciﬁed in the terminal

deﬁnition command cmd is not valid for

y o u r t e r m i n a l .

A task error. A WAITINP request was issued

b y a m e m o r y r e si d e nt t a s k or b y a t a s k th at

did not originate from a terminal.

You speciﬁed an invalid value in the

terminal deﬁnition command cmd.

An attempt was made to schedule a task

wh ich has bee n tu rned off with a K. OFFTA SK

command or a LIBTASK directive.

A parameter on a DMREC directive was not

completed correctly.

ACTION

Check the status of

the hosts in your

conﬁguration.

ROUTINE

CCP

Inform site analyst to

enlarge TTIG table.

Ensure the accuracy of

your entry and retry.

Examine xxJ ﬁles.

Inform the TAF data

administrator.

Inform data

administrator.

Inform data base administra

Correct AKY command.

Correct AKY statement.

Correct and reinitialize

transaction executive.

Correct the locks

parameter on the CRM

statement or inform the

analyst.

Correct the user's

parameter on the CRM

statement or inform the

data admini s trator.

Correct IXN statement.

Correct task or inform

data base administrator.

Correct task or inform

data base administrator.

Choose an appropriate

value (refer to appendix

J).

Correct task or inform

data base administrator.

Choose a valid value

(refer to appendix J).

Correct condition or

inform site analyst.

Correct the parameter on

the faulty directive.

OMREC

CCP

TAF

MSABT

TAF

(AKY)

TAF

(AKY)

TAF

(IXN)

MSABT

CCP

MSABT

CCP

OFFTASK

DMREC

• B-12 60459500 C

MESSAGE

INCORRECT COMMANO.

INCORRECT COMMON MEMORY MANAGER REQUEST.

INCORRECT FAMILY NAME IN EOT.

INCORRECT FWA FOR LOAD.

INCORRECT POSITION IN THE DIRECTORY.

INCORRECT SU8-TRANSACTI0N CODE - INITIAL TASK.

INCORRECT TOTAL INTERLOCK REQUEST.

INCORRECT WORD COUNT ON TERMINAL OUTPUT.

INITIAL TASK NOT IN TASK LI8RARY DIRECTORY.

INITIALIZATION OPTIONS.

INPUT DISCARDED

INPUT DISCAROED

INSUFFICIENT FIELD LENGTH FOR THIS COMMAND.

INSUFFICIENT FL FOR DATA MANAGER.

INTERMEDIATE IGNORE TABLE OVERFLOW.

INVALID DATA BASE NAME ON DMS STATEMENT.

INVALID DATA MANAGER PARAMETER

SIGNIFICANCE

One of the following errors occurred:

1. A command was entered other than what

was on the menu.

2 . A te r m i n a l C R M S TAT r e q u e s t di d r o t

request its own data base.

3. A terminal origin job tried to request

the menu.

4. Unpack errors on the terminal message.

Memory request with reserved bits in the

parameter block set incorrectly.

Self-explanatory.

The FWA of the load was not equal to 1118.

Task binaries must be in absolute format.

The directory structure is inconsistent or

positioning is incorrect.

There is an unrecognizable subtransaction

code in the terminal input.

One of the following.

- A t a s k t h a t i s n o t o n t h e s y s t e m t a s k

library issued a CHKON request.

- A task issued a CHKON request with a

C H K O N r e q u e s t al r e a d y i n ef f e c t .

- A task issued a CHKOFF request without

ﬁrst issuing a CHKON request.

- A t a s k t h a t i s s u e d a C H K O F F r e q u e s t h a d

a s e q u e n c e n u m b e r d i f f e r e n t fr o m a ta s k

that issued a CHKON request.

One or more of the following task errors

occurred on a SEND request.

- The word count was less than or equal to

zero.

- There was an attempt to use SEND MAXWS

or m o r e CM w o r d s o f i n f or m a t io n i n o ne

SEND; MAXWS is an installation option.

- There was an attempt to use SEND MAXTO

or more CM words of information by one

task through a series of SEND requests.

MAXTO is an Installation option.

The task library ﬁle does not contain the

initial task (ITASK).

This message precedes messages indicating

the values of the initial K display options

either during initialization or recovery.

The network has discarded the last input

from your terminal. May be caused by

entering a user break or interactive status

command while awaiting a response to a

previous user break or interactive status

command.

The system has discarded user input.

CRMTASK issued a CRMSTAT request but AAMI

was not able to complete it because the

table area supplied by the user was not

large enough.

The transaction executive requires more

ﬁeld length at initialization time than is

avallable.

Intermediate ignore table FTAB is too

small. Too many potentially recoverable

ﬁles have been encountered when reading

ARF's.

A data base name associated with TAF, CRM,

or OTHER exceeds two characters.

An error has been detected in the parameter

list on a data manager request.

ACTION

Ensure that the command

is correct. If problem

persists, inform the

site analyst.

Do not set reserved bits.

Reinitialize the

transaction executive or

inform the site analyst.

Ensure that the correct

load procedure is

performed.

Inform data

administrator.

Correct terminal input

or inform data base

administrator.

Inform data base

administrator.

ROUTINE

CRMTASK

Correct task or inform

data base administrator.

Inform site analyst.

None.

Reenter your last input.

Reenter input.

Inform data base

administrator.

Correct error and

reinitialize executive.

Inform site analyst to

enlarge table FTAB.

Correct the DMS

statement on TCF ﬁle.

Correct the data manager

request statement.

MSABT

TAF1

LIBTASK

DMREC

(GPL)

MSABT

TAF

CCP

TAF1

CRMTASK

TAF

OMREC

(BRT)

TAF

MSABT

/ # ^

60459500 C B-13 •

MESSAGE

INVALID TASK NAME.

INVAHO TCF ENTRY.

INVALID TRANSACTION DIRECTORY HEADER

ﬁlename.

ﬁlenam IS INCONSISTENT.

xxJ FILE ERROR - CRM DM NOT LOADED.

xxJ FILE ERROR - TAF DM NOT LOADED.

xxJ FILE ERROR - TOTAL DM NOT LOADED.

xx J FILE NOT FOUND.

JOURNAL TYPE DOES NOT MATCH xxJ FILE.

K.BFL=n.

K.CMB=nn.

K.£CS=nrmK.

K.ERO-a.

K.ERO=CRF,xxx.

K.INT=1.

K.INT=CRF,xxxxxxx.

K. INT =CRM, xxxx.

K.MDM=n.

K.MFL=nnnnnnB.

K.REC=a.

K.SCP=nn.

K.TLF=a.

K. COMMAND NOT VALID.

K-DISPLAY COMMAND UNSUCCESSFUL, DROP

IGNORED—-command.

K-DISPLAY COMMAND UNSUCCESSFUL, FORMAT

ERROR—command.

K-DISPLAY COMMAND UNSUCCESSFUL, ILLEGAL

COMMAND— comm and.

K DISPLAY COMMAND UNSUCCESSFUL, SYSTEM

BUSY—command.

SIGNIFICANCE

The error message was issued for one of the

following reasons:

- Initialization of a task by the name of

BTASK, CTASK, ITASK, KDIS, MSABT,

OFFTASK, RCTASK, RTASK, SYSMSG, or XTASK

was attempted using XTASK. These are

names of required system tasks and will

not be initiated by XTASK.

- A zero length task name was speciﬁed.

- A task name of more than seven

characters was speciﬁed.

The previous dayﬁle mesage is the

statement in TCF which is incorrect.

The transaction directory (TRD) header word

is not TRD .

The inconsistent ﬁle bit is set for

recoverable ﬁle, ﬁlenam. This indicates

a failure (either of TAF or the sytem)

occurred while CRM was trying to update

more than one block. All of the blocks may

not have been updated and this would cause

the ﬁle to be ﬂagged as inconsistent.

A data manager related statement is

speciﬁed in the xxJ ﬁle but that data

manager 1s not loaded on to TAF.

A data manager related statement is

speciﬁed in the xxJ ﬁle but that data

manager 1s not loaded on to TAF.

A data manager related statement is

speciﬁed in the xxJ ﬁle but that data

manager 1s not loaded on to TAF.

When using the TAF's user name and

p a s s w o r d , a n x x J ﬁ l e f o r t h i s d a t a b a s e

was not found.

TAF journal ﬁle entries in the xxJ ﬁle do

not match the ﬁles themselves. This

causes the transaction subsystem to abort.

Values of the initial K display options at

either initialization or recovery.

ACTION

C o r r e c t t h e t a s k n a m e .

ROUTINE

XTASK

A K. command in the TCF ﬁle is improperly

formatted.

A K.DROP or K.DDROP could not be processed

because the task was in recall, the

interactive executive denied a request, or

a command was issued during the initial

load of the task. The command ﬁeld is the

attempted command or request; blanks

indicate no command was issued.

T h e r e i s a n e r r o r i n t h e s y n t a x o f t h e

command or in one of the parameters. The

co m mand ﬁ eld is t he at t empt e d com m and o r

blanks if the command is longer than seven

c h a r a c t e r s o r c o n t a i n s a n i n c o r r e c t

character.

The command is not a valid K display

command or was misspelled. The command

ﬁ e l d i s t h e a t t e m p t e d c o m m a n d .

The system is busy and cannot respond to

t h e r e q u e s t . T h e c o m m a n d ﬁ e l d i s t h e

attempted command.

C o r r e c t t h a t s t a t e m e n t

in TC F.

Inform TAF site analyst.

I t i s n e c e s s a r y t o

recover the affected

ﬁle. AAMI will submit

an OMREC job to do this.

I n f o r m s i t e a n a l y s t t o

change the xxJ or TCF

ﬁle.

Inform site analyst to

change the xxJ or TCF

ﬁle.

I n f o r m s i t e a n a l y s t t o

change the xxJ or TCF

ﬁle.

Ensure xxJ ﬁle exists

for this data base and

try again.

Inform TAF data

administrator. Examine

x x J ﬁ l e f o r t h e TA F

journal ﬁle entries.

None.

Correct the statement in

the TCF or inform the

TAF analyst.

Re ent er the K. DRO P or

K.DDROP command. When

the recall operation,

time-sharing request, or

initial load operation

is completed, TAF

accepts the command and

aborts the task.

Correct the command and

retry the operation.

Correct the command and

retry the operation.

Retry the operation.

TAFREC

TAF

AAMI

TAF

DMREC

TAF

SYSMSG

• B- 1 4 60459500 C

ji^s

j d P ^

MESSAGE

K.MAXFL,nnnnnnB.

K.MAXFL REJECTED.

KEYWORO IS ILLEGAL FOR THIS FUNCTION.

n.nnn KILO CDCS REQUEST REJECTS FOR BUSY.

n.nnn KILO CDCS REQUEST REJECTS FOR MAXR.

n.nnn KILO CDCS REQUESTS FROM TASKS,

n.nrm KILO ITASK RELOADS.

n.nnn KILO LOCK REJECTS-ﬁlename.

n.nnn KILO LOCKS-ﬁlename.

n.nnn KILO NO COMMUNICATION BLOCKS.

n.nm KILO NO FL FOR TASK LOAD.

n.nnn KILO NO SUBCONTROL POINTS.

n.nnn KILO OPEN REJECTS-ﬁlename.

n.nnn KILO OPENS-ﬁlename.

n.nnn KILO STORAGE MOVES OF TASKS.

n.nnn KILO TAF FL INCREASES.

SIGNIFICANCE

The run-time K display command K.MAXFL was None,

entered with the indicated value.

ACTION

n.nnn KILO TASK RECALLS.

A v a l u e w a s en t e r e d wh i c h c a u s e d p o t e n t i a l

blocked tasks to be detected.

A keyword was used that is not valid for

the selected directive.

Total number of SSC rejects for busy when

less than seven outstanding CDCS SSC

requests existed at the time of the current

request.

To t a l n u m b e r of SS C a t t e m p t s whe n t h e r e

were seven (MAXR) outstanding CDCS SSC

requests.

Total number of CDCS SSC requests issued by

tasks. The number does not include

terminate requests which are blocked by TAF.

Upon transaction facility termination, this

message indicates how many reloads of ITASK

occurred. Because ITASK is a central

memory resident task, if it makes a fatal

error, it must be reloaded.

TAF CRM could not lock records in ﬁlename

for a task because the locks parameter on

the CRM statement for that ﬁle was not

large enough.

TAF CRN processed nnnn locks for ﬁle

ﬁlename.

Upon transaction facility termination, this

message indicates the number of times a

communication block was needed and was not

available.

Upon transaction facility termination, this

message indicates the number of times TAF

was unable to obtain enough memory to load

tasks.

Upon transaction facility termination, this

message indicates the number of times a

subcontrol point area was needed and was

not available.

TAF CRM could not open ﬁle ﬁlename for a

task because the user's parameter on the

CRN statement is not large enough.

TA F C R N p rocess e d n n n n opens fo r ﬁ l e

f1lename.

Upon transaction facility termination, this

message indicates the number of subcontrol

points that were moved. This is done to

m a k e m o r e e f f e c t i v e u s e o f t h e ﬁ e l d l e n g t h

Of TA F.

Upon transaction facility termination, this

message indicates the number of times TAF

increased its ﬁeld length while trying to

satisfy an internal request for a block of

memory. This internal request is often

issued to obtain memory in which to load a

task.

Upon transaction facility termination, this None,

message indicates the number of times tasks

were put in recall. This is an internal

statistic over which the applications

programmer has little control.

Reenter K.MAXFL with a

larger value.

Check format of

directive and valid key

w o r d s f o r t h a t d i r e c t i v e .

None.

ROUTINE

TAF

OMREC

TAF

None.

Inform site analyst.

T h e s i t e a n a l y s t s h o u l d

consider increasing the

locks parameter on the

C R M st a t e m e n t i f l o c k

failures occur

frequently.

None.

Inform site analyst.

The site analyst might

want to consider using

the K.CMB command during

TAF Initialization.

Inform site analyst.

The site analyst might

want to consider using

the K.MFL command during

TAF initialization.

Inform site analyst.

The site analyst might

want to consider using

the K.SCP command during

TAF initialization.

T h e s i t e a n l a y s t s h o u l d

consider increasing the

users parameter on the

CRM statement if open

failures occur

frequently.

None.

TAF

60459500 C B-15 •

MESSAGE

n.nnn KILO TASK RECALLS FOR OUTPUT.

n.nnn KILO TASK RELOADS.

n.nnn KILO TASK ROLLOUT COMPLETES.

n.nnn KILO TASK ROLLOUT STARTS.

n.nnn KILO TRANSACTION ABORTS.

n.nnn KILO TRANSACTIONS PROCESSED.

KL PARAMETER OR CRM CARD NOT SPECIFIED

PROPERLY.

KTSDMP COMPLETE.

LBL - CIO ERROR.

LIBRARY DIRECTORY EMPTY - ﬁlename.

LIBRARY DIRECTORY ERROR - ﬁlename.

LIBRARY DIRECTORY TOO LONG - ﬁlename.

LIBRARY FILE TIME OUT.

LIBTASK ERROR CONDITION UNKNOWN.

LIBTASK PFM ERROR DETECTED.

LIST COMPLETE.

LOAD ERROR IN HASHING ROUTINE.

LOADING ECS taskname.

LOG ENTRY TABLE OVERFLOW.

SIGNIFICANCE

Upon transaction facility termination, this

message indicates the number of times tasks

were put in recall because the network

block limit (NBL parameter on a TERMINAL

statement) for the terminal in use was

reached.

Upon transaction facility termination, this

message indicates how many reloads of tasks

occurred. TAF reloads tasks that have

fatal errors if one of the following is

true.

- The task is central memory resident.

- There are queued transactions waiting to

use the task.

Upon transaction facility termination, this

message indicates the number of times TAF

rolled out tasks. This statistic excludes

the number of times the rollout operation

did not complete.

Upon transaction facility termination, this

message indicates the number of times TAF

initiated a rollout operation. Rollout

includes writing a task to disk and

releasing the task subcontrol point space.

In some cases, the task is allowed to stay

central memory resident for a while before

it is rolled out.

Upon transaction termination, this message

indicates how many transaction tasks have

aborted.

Upon TAF termination, this message

indicates the number of TAF transactions

processed.

The KL parameter or the CRN statement was

speciﬁed improperly or speciﬁed as zero

length.

Dump completed normally.

A CIO error was encountered because no

trailer record was found on a block load.

The task library ﬁle Indicated does not

contain a directory.

The task library ﬁle indicated contains a

nonrecognizable directory.

The directory record on the task library

ﬁle Indicated exceeded the maximum length

allowed by the transaction executive (398

entries).

The library ﬁle was busy for the length of

time speciﬁed by an assembly constant, so

LIBTASK was unable to attach it. Another

user apparently has the ﬁle attached and

will not allow modiﬁcation.

The error condition for the error

processing routine ERR within LIBTASK was

unknown.

A permanent ﬁle error other than FILE BUSY

was received when the library ﬁle attach

was attempted.

Informative message.

When attempting to load the hashing routine

on a record load operation, a load error or

no entry point in the hashing routine was

found.

Informative message. The transaction

subsystem is loading task taskname.

Too many recoverable data base ﬁle names

exist on ARF.

ACTION

Refer to the Network

Access Method Network

Deﬁnition Language

Reference Manual (listed

in the preface).

Inform site analyst.

ROUTINE

TAF

TAF /^^\

None.

TAF

Data administrator may

have to correct data

base to account for

transactions.

None.

Correct the CRM

statement and try again.

None.

Load from previous dump

tape.

Inform site analyst.

Retry at a later time.

Inform data base administra

Correct and rerun.

None.

Check for valid hashing

routine, inform analyst.

None.

Increase size of table

(TLOG).

TAF

DMREC

KTSDMP

DMREC

TAF

LIBTASK

DMREC

OMREC

TAF

OMREC

(8LT)

• B-16 60459500 C 1

0^^

MESSAGE

MAXIMUM TERMINALS EXCEEDED.

MEMORY OVERFLOW DURING INITIALIZATION.

MEMORY REQUEST FOR ECS NOT ALLOWED.

MEMORY REQUEST WITH D.M.

REQUEST OUTSTANDING.

NFL TOO LARGE -

nnnnnnB,taskname,task library.

MINIMUM TAF MFL NEEDED = nnnnnnB.

J^v

yf$$ft\

MISSING AKY CARD.

MISSING HEADER WORD ON xxJ FILE.

MISSING HEAOER WORD ON XXJ FILE.

MORE THAN FIVE TASKS IN TASK CHAIN.

MORE THAN ONE ARF SPECIFIED.

MORE THAN ONE ENTRY POINT ON A *54* TABLE.

MORE THAN ONE USER STATEMENT IN TCF.

MRL PARAMETER ON CRM CARD NOT SPECIFIED

PROPERLY.

NS REDUCTION INVALID - ﬁlename.

SIGNIFICANCE

More than IPTST transaction terminals have

been deﬁned in the Network File(s).

TAF aborted because its ﬁeld length for

initialization was insufﬁcient.

Incorrect request of extended memory by

task.

A task error. MEM or RFL request attempted

with data manager requests outstanding.

The MFL (initial ﬁeld length plus

expandable ﬁeld length) of the non-CN

resident task (taskname) on task library

(tasklibrary) exceeds the minimum size of

the transient task area (potential space

available to contain transient tasks).

Thus a situation could arise in which it

would not be possible to complete

processing of this task.

Potentially blocked tasks were detected at

one of the following times:

- TAF initialization

- Attempted task library update

- Attempt to change TAF maximum FL via

K.MAXFL command

The above operation did not complete

normally. The maximum FL of TAF must be at

least nnnnnnB. If nnnnnnB exceeds the

largest ﬁeld length possible for TAF

(377700B), then other corrective action is

needed.

Number of AKY statements does not match

number of alternate keys on IXN statement.

The ﬁrst statement on the xxJ ﬁle is in

error, causing the transaction subsystem to

abort.

No header word on xxJ was found.

A task error. Only ﬁve tasks can be

requested for scheduling in one CALLRTN,

CALLTSK, or NEWTRAN request; more than ﬁve

were requested.

More than one ARF was speciﬁed on the DUMP

directive.

Multiple entry points are not allowed in

tasks.

Self-explanatory.

The MRL parameter on the CRM statement was

speciﬁed improperly or speciﬁed as zero

length.

The maximum message size, speciﬁed via the

MS parameter on the RECOVER directive, was

less than the actual message record size on

the named CRF.

ACTION

Reduce number of

terminal deﬁnition

statements or increase

IPTST and reassemble

TAFREC.

Inform site analyst.

IFL- in deck TAF should

be increased.

Increasing the central

memory ﬁeld length

parameter on the RFL

command in the TAF

initialization procedure

ﬁ l e ( f f f f ) d o e s n o t

correct this problem.

Contact data

administrator.

Correct task or inform

data base administrator.

Reduce the task FL or

EF, or increase the TAF

FL.

Correct error.

Nod ify the IXN statement

or adjust the number of

AKY statements so the

two match.

Examine xxJ ﬁles for

header xxJ. Inform the

TAF data administrator.

Correct xxJ ﬁle and

rerun.

Correct task or inform

data base administrator.

Correct the directive

and rerun.

Rewrite the task with

only one entry point.

Delete the extra

USER statement.

Correct the CRN

statement and try again.

Correct the RECOVER

directive or select

initialization of the

named CRF via the K.INT

initial K display

command if reducing the

message size is actually

required. (Note that

K.INT will destroy the

current recovery

information).

ROUTINE

TAFREC

TAF

MSABT

TAF

(XXJ)

TAF

DMREC

MSABT

DMREC

LIBTASK

TAFREC

DMREC

TAFREC

/0^~ 60459500 C B-17 •

MESSAGE

MSABT CALL ERROR.

NAKY PARAMETER ON THE IXN CARD NOT SPECIFIED

PROPERLY.

NAM ERROR - ILLOGICAL ABT.

NAM ERROR - INCORRECT ABH.

NAM FUNCTION NOT FOUND.

NAM LOGICAL ERROR.

NAM NOT AVAILABLE.

NAM PHYSICAL ERROR EC=ec.

NAM REJECT.

NEED AT LEAST xx SUBCONTROL POINTS.

NETOFF COMPLETE.

NETON COMPLETE.

NETWORK FILE NOT FOUND - ﬁlename.

NETWORK SHUT DOWN DETECTED.

NM REDUCTION INVALID - ﬁlename.

NO ACCOUNT/USER CARD IN xxJ FILE.

NO ACCOUNT/USER CARD ON XXJ FILE.

NO ALTERNATE KEY SPECIFIED ON IXN CARD.

NO ARF DUMP ENTRIES - DUMP IGNORED.

NO ARF DUMP ENTRIES IN DIRECTORY.

SIGNIFICANCE

MSABT was called with an incorrect error

code.

The NAKY parameter is not speciﬁed

properly or of 2ero length.

The application block type (ABT) sent to

TAF by NAM is unrecognizable.

The application block header (ABH) sent to

TAF by NAM is unrecognizable.

TAF received a supervisory message from NAM

which had an unrecognizable primary or

secondary function code.

NAM sent TAF a message out of order or an

unrecognizable message.

Informative message indicating that TAF is

currently at a control point but NAM is

not. TAF transactions can be initiated

from batch only, or TAF-CRM data bases may

be accessed from batch or interactive jobs.

NAM has detected a physical error indicated

by error code ec.

During login processing, NAM rejected the

terminal.

There are more CN resident tasks deﬁned

than subcontrol points. If non-CM resident

tasks exist, there must be at least one

more subcontrol point than there are CN

resident tasks.

Informative message indicating that TAF is

no longer communicating with NAN. NAN

initiated shutdown procedures prior to loss

of communications.

Informative message indicating that TAF is

communicating with NAN.

The network description ﬁle, NCTFI, could

not be found.

Self-explanatory.

The maximum number of user messages,

speciﬁed by the NM parameter on the

RECOVER directive, was less than the actual

number of user messages on the named CRF.

The USER statement in the xxJ ﬁle is not

present, causing the transaction subsystem

to abort.

No user statement exists on the xxJ ﬁle.

Self-explanatory.

When trying to build directory entries for

an ARF dump function, no ARF ﬁle was found.

A search of the directory for the targeted

VSNs of ARF tapes was unsuccessful.

ACTION

Inform data base

administrator.

Correct the IXN

statement and try again.

Contact Central Software

Support.

Contact Central Software

Support.

Contact Central Software

Support.

Contact Central Software

Support.

Bring NAM to a control

point, if desired.

Refer to the NAM

Reference Manual for the

meaning of this error

code.

Inform site analyst.

Reinitialize the

transaction executive

and assign more

subcontrol points, or

reduce the number of CM

resident tasks.

When NAN is available,

the central site console

operator command K.NAMON

can be used to resume

communications between

TAF and NAM.

None.

Check that correct

parameters were

speciﬁed on the NETWORK

directive corresponding

to ﬁlename.

None.

Correct the RECOVER

directive or select

initialization of the

named CRF via the K.INT

initial K display

command if reducing the

number of user messages

is actually required.

(Note that K.INT will

destroy the current

recovery information).

Add USER statement in

xxJ ﬁle. Inform the

TAF data administrator.

Correct the xxJ ﬁle and

rerun.

Correct the IXN

statement and try again.

Include ARF ﬁle name on

dump.

Check time and data or

VSN used to delineate

update.

ROUTINE

MSABT

DMREC

TAF

TAFREC

TAF

TAFREC

/ s ^ v

TAF

DMREC

(CXJ)

DMREC

• 8-18 60459500 C 1

0r*«

NESSAGE

NO 8RF CARD FOR CRN DATA BASE.

NO BRF CARD FOUND IN xxJ FILE.

SIGNIFICANCE

There is no BRF statement in the xxJ ﬁle

before the ﬁrst CRM statement for the data

base.

There is no BRF statement in the xxJ ﬁle

for the data base.

ACTION

A BRF statement is

r e q u i r e d . I f n o

recovery is desired, the

number of speciﬁed

ﬁles on the BRF should

be zero.

A BFF card is required

and must be added to the

xxJ ﬁle.

ROUTINE

TAF

DMREC

/^^

NO CRM CARD FOUND IN xxJ FILE.

NO DATA BASE ID FOR DATA MANAGER.

NO DATA BASE NAME IN xxJ FOR TOTAL.

NO DIRECTIVES.

NO DUMP RECORD WITH SPECIFIED VSN.

NO FILE NAME SPECIFIEO ON CRM CARD.

NO FILE NAME SPECIFIED ON IXN CARD.

Self-explanatory.

A t l e a s t o n e d a t a b a s e i d e n t i ﬁ e r m u s t b e

s p e c i ﬁ e d o n ea c h a c t i ve ( O N ) D M S s t a t e m e n t .

Self-explanatory.

No directives were supplyed to DMREC.

DMREC could not locate a dump record with

the speciﬁed VSN.

A C R M s t a t e m e n t in t h e x x J ﬁ l e di d n o t

c o n t a i n a ﬁ l e n a m e .

T h e x x J ﬁ l e h a s a n I X N s t a t e m e n t th a t d o e s

not contain a ﬁle name.

Correct the CRN

statement and try again.

Add data base identiﬁer

to DNS statement(s) or

s p e c i f y s t a t u s a s O F F.

Add data base name to

xxJ ﬁle.

S u p p l y t h e c o r r e c t

d i r e c t i v e s a n d r e r u n .

C h e c k d i r e c t o r y w i t h

list directive for

pro p e r V S N .

Correct the xxJ ﬁle and

try again.

Correct IXN statement on

xxJ ﬁle and rerun.

DMREC

TAF

DNREC

DMREC

DNREC

DMREC

(RXJ)

NO FILES TO DUMP. No ﬁles have been speciﬁed on a dump

directive.

Include ﬁle name on

directive.

DMREC

NO HOSE CONNECTED.

NO HOST AVAILABLE CONTROL CHARACTERShar

display

ENTER char HD TO SEE HOST STATUS

NO HOST CONNECTED CONTROL CHARACTERS har

display

ENTER INPUT TO CONNECT TO HOST

NO HOST SELECTED CONTROL CHARACTERshar

display

ENTER char HN=NOD6 NUMBER or

HS=NAME TO SELECT HOST

NO KEY LENGTH SPECIFIED ON CRM CARD.

NO MAXIMUM RECORD LENGTH SPECIFIED ON THE

CRM CARD.

NO RECORD FOUND FOR GIVEN VSN - DATE/TIME.

NO SPACE FOR ARF/BRF BUFFER.

YOU HAVE ENTERED A (ct)TM COMMAND WHEN

THERE IS NO HOST CONNECTION.

No hosts are available.

display The host availability

display (HAD), which

appears if you have enabled

it using the HD terminal

deﬁnition command.

char The network control

c h a r a c t e r f o r y o u r t e r m i n a l .

Yo u h a v e a t t e m p t e d t o d i s c o n n e c t y o u r

terminal from a host when you have no

connection to a host.

display The host availability

display (HAD), which only

appears if you have enabled

it using the HD terminal

deﬁnition command.

You have not selected a host and a host is

available.

display The host availability

display (HAD), which

appears if you have enabled

i t u s i n g t h e H D t e r m i n a l

deﬁnition command,

char The network control

c h a r a c t e r f o r y o u r t e r m i n a l .

The KL parameter on the CRM statement was

not speciﬁed.

The MRL parameter on the CRM statement was

not speciﬁed.

The ﬁle speciﬁed or implied on the load

cannot be found on the directory.

No space was available for an ARF or BRF

buffer.

Enter (ct)HD to display

host status and then

enter (ct)HN=nn or =mm

t o c o n n e c t t o t h e

selected host.

Check the status of

the hosts in your

conﬁguration.

Enter a HD terminal

d e ﬁ n t i o n c o m m a n d t o

determine the status of

h o s t s i n t h e s y s t e m , o r

enter any input to

initiate your connection

to the host.

Select a host.

Correct the CRM

statement and try again.

Correct the CRN

statement and try again.

Check load directive for

correct ﬁle loading

parameters.

Increase ﬁeld length of

ONREC.

RTN?

CCP

DNREC

DMREC

60459500 C B-19 •

MESSAGE

NO TERMINALS IN NETWORK FILE - ﬁlename.

NO TRANSACTION NAME IS DEFINED IN TASK

LIBRARY.

NOT ALL DATA BASE FILES UPPED.

NOT AVAILA8LE.

ﬁlename NOT FOUND.

xxxxxxx NOT FOUND IN DIRECTORY,

xxxxxxx NOT IN DIRECTORY.

xxxxxx NOT INITIALIZED BY TOTAL.

STATUS IS yyyy.

NOTE FAILURE, THEN TYPE IN CFO, JSN. GO.

NULL DESCRIPTION FILE.

OFF TASK taskname-LIBRARY libraryname.

ONLY *8L0CK* or *RECORD* CAN FOLLOW FILE

NAME.

OPEN ERROR ON COPY OF THE DIRECTORY.

OPERATOR OVERRIDE.

OPERATOR TERMINATION.

PACKED OATE/TIME CONVERSION ERROR.

SIGNIFICANCE

A valid network ﬁle was found but no

transaction terminals were deﬁned in

No named transaction appears in any task

library.

CRMTASK issued a DBUP request but AAMI was

unable to attach/open all of the data base

ﬁles.

K display message indicating that the entry

is not available for this version.

The user speciﬁed the P option on the

KTSDMP command; one of the two ﬁles was

not in the user's permanent ﬁle catalog or

a PFM error occurred.

Speciﬁed ﬁle 1s not found in the

directory.

Error - The task or named TAF transaction

unit, xxxxxxx, was speciﬁed in the TN

parameter but was not found on the task

library or transaction u n it directory.

An error was encountered on the TOTAL data

base.

An error occurred that requires operator

notiﬁcation.

Self-explanatory.

Task taskname in task library libraryname

could not be loaded from extended memory or

recovered and loaded from mass storage.

Task was turned off. TAF transactions

using tasks will abort.

Self-explanatory.

An open error was generated when trying to

access the directory ﬁle.

Operator has overridden TAF.

Operator typed in K.STOP in K display

command.

An error was generated when converting the

directive date/time to a packed date/time.

ACTION

Ensure the network ﬁle

is correctly named. The

network ﬁle is NCTFi

(i=id speci ﬁed on

network directive in

TCF).

If appropriate, deﬁne

named transactions.

Inform data base

administrator.

None.

Specify a different ﬁle

name or inform a site

analyst.

Check the ﬁle name and

the list directory.

Ensure the correct task

or transaction name was

speciﬁed with the TN

parameter. Check task

or transaction listing

for presence of

speciﬁed unit.

Regenerate TOTAL data

base. Refer to TOTAL

Reference Manual for

status.

The operator should log

the failure, or notify

the data base

administrator and/or

cor rec t a s di rec t ed , i f

the error was not

recovered by DMREC.

Create a description

ﬁle (NCTF1 where 1 is

the machine identiﬁer

speciﬁed on the network

statement in the TCF).

Inform site analyst.

Library must be

recreated.

Correct error and rerun.

ROUTINE

TAFREC

TAF

CRMTASK

TAF

KTSDMP

DMREC

TAF

DMREC

TAF

DMREC

S^^\

Inform data

administrator.

DMREC X*^5\

None. TAF

None. TAFREC

Check the date and time

used on directive and

rerun.

DMREC

PARAMETER FORMAT ERROR.

PARITY ERROR IN TAPE WITH VSN=vsn.

nnnn PER CENT CPU USAGE.

PERCENT PARAMETER NOT SPECIFIED PROPERLY.

PF xxxxxxx - NOT ON xxJ FILE.

The input directive contains an incorrect

ﬁle name - too many characters or

nonalphanumeric characters.

Tape with vsn has been mounted and has a

parity error.

Summary message indicating CPU usage by the

transaction subsystem.

The percent parameter was not of the

correct format or was speciﬁed greater

than 100.

The xxJ ﬁle does not have the speciﬁed

CRM data ﬁle deﬁned.

Correct directive and

rerun.

Clean the tape or

repla c e it.

None.

Correct directive and

rerun.

Make necessary xxJ ﬁle

entry (CRN statement).

DMREC

OMREC

TAF

OMREC

DMREC

(RXJ)

,<i*!t§\

• B-20 60459500 C )

Jp^.

r

MESSAGE

PF xxxxxxx - READ ONLY.

POSSIBLE BLOCKAGE AMONG CM RESIDENT TASKS.

POTENTIALLY BLOCKED TASKS DETECTED.

RA+1 CALL ERROR.

RA+1 CALL PARAMETER AOORESS OUTSIOE FL.

RA+1 CALL WITH ILLEGAL FUNCTION CODE.

REAO ERROR ON TAPE.

READ/WRITE ERROR ON TAPE.

RECORD NUMBER ERROR.

xx - RECOVERABLE OATA 8ASE.

RECOVERABLE FILE PARAMETER MUST BE *R* OR

*N*

RECOVERABLE RUN UNIT DELETED - username.

RECOVERY COMPLETE.

RECOVERY FILE INCONSISTENT

RECOVERY FILE INITIALIZATION ERROR

RECOVERY IMPOSSIBLE.

RECOVERY NOT POSSIBLE NOW 8ECAUSE DATA BASE

FILE IS DOWN. SELECT DESIRED OPTION FROM

FOLLOWING LIST BY ENTERING LETTER.

A WA I T 5 MIN U T E S A N D TRY A G A I N . TA F

WILL WAIT 5 MINUTES BEFORE

ATTEMPTING RERUN OF TRANSACTION.

B LOG OFF. THE PREVIOUS RECOVERABLE

INFORMATION WILL REMAIN INTACT. LOG

IN AT A LATER TIME TO ATTEMPT RERUN.

C ALLOW ENTRY OF NEXT TRANSACTION.

THE PREVIOUS RECOVERABLE INFORMATION

WILL BE LOST.

SIGNIFICANCE

An attempt has been made to write on a ﬁle

d e ﬁ n e d i n t h e x x J ﬁ l e a s r e a d o n l y .

The sum of the maximum ﬁeld lengths (MFLs)

for the CM resident tasks exceeds the

minimum size of the total task area

(potential space available to contain

tasks). Thus one or more CM resident tasks

could be blocked from completing.

During TAF initialization, potentially

blocked tasks were detected. Preceding

error messages contain additional details.

There was an unrecognizable task request.

A parameter in a task request was outside

the ﬁeld length of the task.

There was an unrecognizable task request

f o r s y s t e m a c t i o n .

Error in attempting to read an after image

dump tape.

A tape error has been encountered. If

possible, use another tape.

No header or an incorrect header or a

missing he ader has been found on an A RF

when updating a ﬁle.

TAF/CRM is beginning task recovery process

for recoverable data base xx.

The recovery parameter of the *CRM*

statement in the *xxJ* ﬁle is incorrect.

The recoverable run unit for username which

appeared on the CRF has been deleted

because username did not appear in the

c o r r e s p o n d i n g N C T F i ﬁ l e .

The transaction executive or interactive

subsystem has successfully completed

recovery.

The ARF or BRF table header information

does not match the buffer header

information.

An error has occurred during initialization

because of the ARF or BRF ﬁle.

A fatal error occurred during transaction

executive initialization or the recovery

ﬁle prepared by the TAF initialization

routine does not exist or could not be read.

Self-explanatory.

ACTION

Change the xxJ ﬁle

access mode.

Correct error.

Correct task or inform

data base administrator.

Correct task or inform

data base administrator.

Correct task or inform

data base administrator.

Inform the data

administrator.

On all dumps, use

another tape; on other

DMREC functions, inform

data administrator.

Inform data

administrator.

None.

Fix the *CRM* statement.

None.

Dump the database

associated with the

inconsistent ARF or

BRF using DMREC.

Re-create the ARF or

BRF using DNREC and

reinitialize the

transaction subsystem.

Refer to the error

message following this

one for the error

condition description.

Check dayﬁle for a

speciﬁc error message

or inform the site

analyst.

Inform data base

administrator. The data

base ﬁle must be

brought up for recovery.

ROUTINE

DNREC

TAF

MSABT

DMREC

AAMI

ORMEC

TAFREC

TAF

IAFEX

TAF1

A AN I

TAF

RTASK

/P^

60459500 C B-21 •

NESSAGE

RECOVERY, RERUNNING TRANSACTION.

RECOVERY, TRANSACTION NOT RERUNNABLE, ENTER

NEXT TRANSACTION.

REFERENCE MAOE TO INCORRECT TERMINAL NAME.

REPEAT..

REQUEST COMPLETE.

REQUESTEO ECS NOT AVAILABLE.

SEND TO TERMINAL NOT LOGGED IN.

SSF FUNCTION nn RECEIVED ERROR mm FOR

zzzzzzz.

SYSTEM ABORT OF TASK.

SYSTEM TASK LIBRARY MISSING TASK, taskname.

TABLE OVERFLOW-TOO MANY TASKS.

TAF COMMUNICATIONS RECOVERY FILE NOT FOUND

- ﬁlename.

TAF/CRM CRM STATUS nnnnB IN FUNCTION

yyyyyyy.

TAF/CRN DATA MANAGER NOT LOADED IN TAF.

TAF/CRM FUNCTION CODE NOT VALID.

TAF/CRM TAF status nnn IN FUNCTION yyyyyyy.

TAF DATA NOT WITHIN UCP FL.

SIGNIFICANCE

The last entered TAF transaction input

caused TAF a rerunnable transaction to be

executed. A failure occurred before the

completion of the transaction and the

transaction executive is rerunning the

transact i o n.

An input/output error in the TRF caused

loss of recovery data and the system cannot

restart the TAF transaction automatically.

The terminal name or user name speciﬁed

has not been deﬁned.

Data will now be accepted by the network.

The terminal origin CRMTASK request is

complete.

The amount of extended memory requested was

not available in a contiguous block.

A terminal issued a SEND without recall and

one of the following occurred.

- TAF was not connected to NAN.

- The terminal to which the SEND was

attempted was not logged into TAF.

- TAF received a STOP supervisory message

for the destination terminal.

TAF received error code mm (octal) while

issuing SSF function code nn (octal) for

job zzzzzzz.

The operator aborted the task (via a K.DROP

or K.DDROP command), or a data manager

error caused the task to abort.

Taskname is not on system library or not

enough communication blocks are allocated.

The managed tables used by LIBTASK are not

large enough for the number of tasks or

directives.

The recovery ﬁle could not be found.

A CRN status error occurred on a TAF/CRM

request.

This message is returned to the dayﬁle of

a batch concurrency job that attempted to

access a CRM ﬁle while CRM was not loaded

in TAF.

TAF/CRM cannot process the request issued

because it is an unrecognizable function

code. This is an internal error.

A TAF status error occurred on a TAF/CRM

request.

TAF cannot access data from user program

because the address speciﬁed is outside

the user control point ﬁeld length.

ACTION

Wait for TAF transaction

output.

Inform the data

administrator or the

transaction

administrator. The data

base may or may not have

been committed. Do not

rerun the TAF

transaction until the

state of the data base

can be determined.

Correct task or inform

data base administrator.

None.

Reinitialize with

ex tended memory

requested.

less

Correct error condition

or inform data base

administrator.

Inform TAF site analyst.

Inform data base

administrator.

Add taskname to system

library or increase

number of communication

blocks.

LIBTASK must be

reassembled with larger

table allocation.

- Check that the

correct familyname

and user name were

speciﬁed on NETWORK

statement.

- Check if TRFi should

be initiaized via

K.INT initial K

display command.

Check AAM reference

manual for meaning of

the status code and

correct error.

Ask the data base

analyst to bring up TAF

with CRM. Rerun job

when TAF/CRN is

available.

Inform data base

administrator.

Check TAF/CRM reference

manual for meaning of

status code and correct

error.

Correct program.

ROUTINE

RTASK

MSABT

CCP

CRMTASK

TAF

MSABT

TAF

MSABT

TAF

LIBTASK

TAFREC

8AAML

BAAML

/f^^V

• 6-22 60459500 C )

jpﬁfc.

MESSAGE

TAF ERROR CODE NOT DEFINED.

TAF FUNCTION CODE NOT VALID.

TAF IDLE.

TAF IDLE (GO OR DROP).

TAF IDLING DOWN.

TAF INTERNAL ERROR.

TAF NOT PRESENT (GO OR DROP).

TAF RECOVERY REQUEST ERROR.

TAF SUBSYSTEM NOT DEFINED AS A SCP

TAF TERMINATE.

TAF TRANSACTION NAME UNKNOWN.

j0^K

TAF TRANSACTION NOT RERUNNABLE.

TAF TWO OUTSTANDING REQUESTS.

TAF USER NOT VALID FOR TAF ACCESS.

TAF USER NUMBER ACTIVE.

TAPE NOT READABLE.

TASK CEASE WITH REQUESTED ABORTED.

TASK EDITING COMPLETE.

TASK LIBRARY DIRECTORY EMPTY.

604S9SO0 C

SIGNIFICANCE

TAF or TAF/CRM has returned an error code

that the routine RQS was not programmed to

handle.

TAF cannot process the request issued

because it is an unrecognizable function

code. This is an internal error.

Informative message. This message appears

only on the B display when TAF is idle.

Access to TAF denied because it is idling

down.

TAF is idling down only EX.LOGT will be

accepted by TAF.

TAF has found internal data to be

inconsistent.

The TAF subsystem was not present when a

batch job tried to connect to it.

TAF cannot recover a batch user because of

an internal TSTAT error.

TAF was not deﬁned as a system control

point when it was brought up.

The transaction subsystem was dropped via

DSD command IDLE,TAF and was not restarted.

The transaction name requested for

scheduling was not found in either the data

base or system task library in TAF.

There was an attempt to rerun a transaction

and an error occurred.

TAF received another request from a user

program before the previous request was

satisﬁed. This is an internal error.

The batch job tried to access TAF (via a

BTRAN) and the user name under which the

job was run was not validated in the

network ﬁle of TAF.

Another batch or terminal job is currently

accessing TAF/CRM under this user name.

On a record load of a ﬁle the dump tape

was found incomplete - no trailer record.

The task requested on abnormal CEASE with

or without memory dump.

Dayﬁle message indicating that the run has

terminated. Normal LIBTASK output consists

of four lists - the input directives, the

tasks on the current library, the tasks

added to the library, and the tasks

replaced on the library. After these lists,

the time and date of the last library

modiﬁcation are given. If errors occurred

during processing of the task binary ﬁle,

a list of error messages also appears. If

the LIBTASK run was initiated from a

terminal, the directive and current library

lists do not appear.

The last record of the library ﬁle is

empty.

ACTION

Inform responsible

individual for

maintaining system.

Inform data base

administrator.

None.

Operator: Type G0,jsn.

or drop job with

0ROP,jsn. Others:

Informative message only.

Log off by typing

EX. LOGT.

Perform a dump of TAF or

inform site analyst.

Operator: Bring up TAF

and type GO.jsn. or drop

job with DR0P,jsn.

Others: Informative

message only.

Inform data base

administrator.

Inform data base

administrator.

None.

Enter correct

transaction name or

deﬁne the unknown

transaction name in the

task library or check to

see whether nonexistent

tasks are deﬁned in the

t r a n s a c t i o n .

Inform the data

administrator. The

administrator may check

the TAF dayﬁle for the

possible cause of the

error.

Inform data base

administrator.

Inform TAF data

administrator to enter

the user name in the

network ﬁle of TAF.

Resubmit job at a later

time.

Load from previous dump.

Inform data base

administrator.

Refer to next dayﬁle

message.

ROUTINE

BAANL

BAAML

TAF

BAAML

ITASK

TAF

8AAML

BAAML

TAF

NSABT

RTASK

BAANL

BAAML

TAF

8AAML

OMREC

MSABT

LIBTASK

Ensure that the correct

ﬁle has been speciﬁed;

if so, the library must

be recreated.

LIBTASK

8-23 •

MESSAGE

TASK LIBRARY DIRECTORY EMPTY - libraryname.

TASK LIBRARY DIRECTORY ERROR - libraryname.

TASK LIBRARY DIRECTORY ERRORS.

TASK LIBRARY DIRECTORY TOO LONG.

TASK LIBRARY DIRECTORY TOO LONG

libraryname.

TASK NOT VALIDATED FOR REQUEST.

taskname - TASK RECOVERED,

taskname - TASK RECOVERY FAILED.

TASK REQUEST ARGUMENT ERROR.

TASK REQUESTED CEASE 8EF0RE DM FINISHED.

TASK TIME LIMIT.

nnn TASKS NOT LOADED INTO ECS.

TERMINAL DISABLED BY NOP.

TERMINAL NOT AVAILABLE.

TERMINAL TIMEOUT, OPTION B ASSUMED.

TERMINATION IN PROGRESS.

TLD OVERFLOW.

TN REQUIRES EITHER LO=T OR LO=X.

TOO MANY BRANCHES IN TASK CHAIN REQUESTED.

SIGNIFICANCE

The ﬁle speciﬁed as the task library

contains no recognizable directory. TAF

aborts.

Ta s k l i b r a r y l i b r a r y n a m e c o n t a i n s n o

recognizable directory. TAF aborts.

The ﬁrst word of the last record on the

library ﬁle does not contain the directory

header.

T h e d i r e c t o r y i s t o o l o n g f o r t h e b u f f e r

allocated.

The length of the indicated task library

d i r e c t o r y e x c e e d s t h e l i m i t s p e c i ﬁ e d b y

the installation parameter TLDMT.

O n e o f t h e f o l l o w i n g a c t i o n s h a s o c c u r r e d .

- The terminal operator initiated a TAF

t r a n s a c t i o n w h i c h t r i e d t o p e r f o r m a n

a c t i o n a s s o c i a t e d w i t h a d a t a b a s e f o r

which the terminal was not validated.

- A NEWTRAN request was issued by a task

not in the system task library (TASKLIB),

The speciﬁed task has been recovered.

The speciﬁed task recovery attempt has

failed.

A parameter error occurred in a request.

T h e ta s k r e q u e s t e d t o e n d b e f o r e t h e d a t a

manager completed all outstanding requests.

The task exceeded n time slices. The

length of the time slice is set by an

installation parameter. The number of time

slices, n, allowed for the execution of a

ta s k c an b e c h an g e d wi t h a t a s k I T L r e qu e s t.

An insufﬁcient amount of extended memory

was available to load all tasks. The nnn

ﬁeld is the number of tasks not loaded.

The network operator has disabled your

terminal. No further input is possible.

A n i n t e r a c t i v e u s e r h a s a t t e m p t e d t o l o g i n

with recovery outstanding on a batch

concurrency or BTRAN user

Sel f-explanatory.

The interactive subsystem has begun

dump/disconnect/recovery procedures due to

an abort or termination condition.

S p a c e i s r e s e r v e d a t i n i t i a l i z a t i o n t o

dynamically add tasks to the TAF resident

copy of each task directory. The number of

tasks is limited (default is 10) by the

installation parameter TLDL. This message

i n d i c a t e s t h a t m o r e t a s k s t h a n a l l o w e d ha v e

been added since the most recent TAF

initialization. The extra tasks will be

ignored by TAF until it is reinitialized.

The TN parameter was speciﬁed on the

LIBTASK command without a corresponding

L0=T or L0=X parameter.

Only three branches are allowed in the task

c h a i n ; mo r e t h a n t h r e e w e r e re q u e s t e d .

ACTION

Inform site analyst.

Task library libraryname

must be corrected and

TAF reinitialized.

Inform site analyst.

Task library must be

corrected.

Correct and rerun.

This may be altered by

changing an assembly

constant.

Si2e of task library

must be reduced or TAF

and LIBTASK must be

reassembled with TLDNT

increased.

Perform the appropriate

action.

- Inform the data

adm inistrat or. Set

up the terminal

name in the network

ﬁle to use the data

base. The system

data base (SY) may be

used.

- Put the task on

TASKLIB.

None.

Inform data

administrator.

Correct task or inform

data base administrator.

Correct task or inform

data base administrator.

Increase time slices or

inform data base

administrator.

Check extended memory

requested and

reinitialize with more

extended memory if

appropriate.

None.

Recover the batch

concurrency or BTRAN

user.

None.

ROUTINE

TAF

LIBTASK

TAF

MSABT

AAMI

MSABT

TAF

CCP

RTASK

TAF

IAFEX

TAF

Specify correct

combination of list

option parameters.

Correct task or inform

data base administrator.

LIBTASK

MSABT

• B-24 60459500 C

MESSAGE

TOO MANY DATA BASE NAMES.

TOO MANY FILE NAMES OR VSN-S SPECIFIED.

TOO MANY FILES IN TOTAL DATA BASE.

TOO MANY NEW TRANSACTIONS ON TRANSACTION

DIRECTORY - ﬁlename.

TOO MANY RA+1 CALLS.

TOO MANY TAF JOURNAL FILES IN xxJ FILE.

TOTAL DATA MANAGER NOT LOADED.

TOTAL DATA MANAGER SUCCESSFULLY LOADED.

TOTAL DID NOT RECOVER PROPERLY

STATUS IS yyyy.

TRAN. SEQ. zzzzzzzzB with ID xxxxx MIGHT BE

BAD.

TRANSACTION DIRECTORY EMPTY.

TRANSACTION DIRECTORY EMPTY - ﬁlename.

TRANSACTION DIRECTORY ERROR.

TRANSACTION DIRECTORY ERROR - ﬁlename.

TRANSACTION DIRECTORY TOO LONG - ﬁlename.

TRANSACTION DIRECTORY TOO LONG.

TRANSACTION SESSION ENDED.

TT OPTION REQUIRES USER NUMBER.

UN=username NOT VALID ON FM=family.

UNABLE TO ATTACH TOTAL BINARIES.

SIGNIFICANCE

The number of data base names associated

wi t h one d a ta ma n ager v ia DM S s tat e ment s

exceeds the value of MAXDB.

The VSN or ﬁle name limit was exceeded on

a directive.

Self-explanatory.

Informative message. During an on line

update of a task library, TAF detected that

the transaction directory (TRD) was longer

than allowed (the number of new additions

exceeds installation parameter TRDMN).

Excess named TAF transaction deﬁnitions

will be discarded.

Only n monitor requests are allowed; more

than n occurred, where n 1s an assembly

constant.

More than three TAF journal ﬁles per data

base were speciﬁed, causing the

transaction subsystem to abort.

TOTAL data manager was called but has not

been loaded.

Self-explanatory.

An error status yyyy was returned on a

TOTAL FINAL call. Refer to Diagnostics in

the TOTAL Reference Manual for yyyy.

A BRF disk error has occurred and the

transaction sequence numbers listed in the

dayﬁle might contain errors.

Probable corruption of task library ﬁle.

Error — Too many transaction definitions

exist in the transaction directory.

Too many transactions exist in

named-transaction directory.

Option B was selected and TAF logged the

terminal off leaving the previous

recoverable inforraaton intact.

When updating a task library on-line (TT

option is speciﬁed on LIBTASK command),

the user name must be speciﬁed prior to

the LIBTASK command so the library

associated with that user name can be found.

Username on the speciﬁed familyname is

not valid. The user name and familyname

may not be deﬁned or are incorrect in xxJ

ﬁ l e .

File of TOTAL binaries is not under the

user index of the transaction subsystem or

a PFM error occurred.

ACTION

Decrease the number of

data base names

associated with the data

manager.

Check the installation

parameters TVSNL and

TDFNL for maximums.

Reduce the number of

entries in the TCF ﬁle

or increase TMAXFIL.

None. When TAF is next

initialized, the new

transaction deﬁnitions

will be included.

Inform site analyst.

Possibly a task is in a

loop.

Examine xxJ ﬁle for

xxJOR entries. Inform

the TAF data

administrator.

Inform data base

administrator.

None.

library. Make sure the

number of transactions

does not exceed

Installation parameter

TRDMT or reassemble TAF

and LIBTASK increasing

the size of the

installation parameter

TRDMT.

Either reduce number of

named-transactions

declared or contact TAF

site analyst.

Log in at a later time

to attempt rerun.

Specify user name via

USER or CHARGE command

before LI8TASK command

and rerun job.

Inform site analyst.

Correct error and

reinitialize transaction

executive, or inform

site analyst.

ROUTINE

TAF

DMREC

TAF

MSABT

TAF

MSABT

TAF

Correct error and TAF

reinitialize transaction TAF

executive.

Inform data base DMREC

administrator of the REC

error.

Regenerate task library. LIBTASK

Regenerate task library. TAF

Regenerate task library. LIBTASK

Regenerate task library. TAF

Regenerate task LIBTASK

LIBTASK

RTASK

LIBTASK

TAF

60459500 C B-25 •

MESSAGE

UNABLE TO ATTACH TOTAL D8M0D BINARIES.

UNKNOWN FILE FORMAT.

UNKNOWN NAMED TRANSACTION UNIT REQUESTED FOR

SCHEDULING.

UNRECOGNIZABLE CIO ERROR CODE.

UNRECOGNIZABLE HEADER TYPE.

USER STATEMENT DOES NOT APPEAR IN TCF.

USER STATEMENT NOT VALID ON FAMILY.

VALID LO OPTIONS ARE LO, LO=A, LO=T or LO=X.

VALID OPTIONS ARE A, B, OR C.

cmd VALUE INAPPROPRIATE

VSN ALREADY EXISTS.

VSN - xxxxxx ALREADY IN DIRECTORY.

VSN AND OATE/TIME CANNOT CO-EXIST ON LOAD

DIRECTIVE.

VSN ASSIGNED DOES NOT MATCH VSN REQUESTED.

VSN DOES NOT EXIST.

VSN IS NOT FIRST REEL.

VSN OR DATE/TIME NOT SPECIFIED.

VSN TABLE OVERFLOW.

W A I T. .

WAIT ING

WAITINP FROM MULTI QUEUED TASK.

WRONG ENTRY WHILE READING VSN ENTRIES.

WRONG VSN USED.

ZZdbAnn - ACTIVE ARF.

• 8-26

SIGNIFICANCE

One or more of the DBMOD ﬁles listed on

the TOTAL DMS statement in the TCF ﬁle

could not be attached under the user name

of the transaction subsystem or a PFM error

occurred.

There is a logical error In the structure

of the input ﬁle. It does not conform to

the established format rules.

The transaction name requested for

scheduling was incorrect.

Self-explanatory.

When interpreting ARF after image header

types, one has been found incorrect.

Self-explanatory.

The user name speciﬁed by the USER

statement is not valid on the family.

The LO parameter was speciﬁed on the

LIBTASK command with an incorrect list

option.

The option entered was not A, 8, or C.

The value you speciﬁed in the terminal

deﬁnition command cmd is not appropriate

for your terminal.

When attempting to use the edit/add

directives, the VSN speciﬁed was found to

already exist on the directory.

The VSN supplied for this operation was

found to already exist on the directory.

On a load directive the date/time keywords

cannot be used with VSN keyword.

The VSN assigned as a result of a DMREC ADO

subdirective does not agree with the VSN

speciﬁed on the subdirective.

When attempting to access a directory, the

speciﬁed VSN was not found on the

directory.

When attempting to modify a directory, the

speciﬁed VSN was not the ﬁrst reel of th

s e t . the

When attempting to delete directory

entries, no VSN or date/time was speciﬁed.

Too many VSN entries were encountered for

this directive.

The network is unable to accept any further

data from your terminal. Oata that was

entered is discarded. This is normally a

temporary situation caused by buffer

shortages in the host or the network.

Option A was selected and TAF will wait 5

minutes before attempting a rerun of the

transact i o n.

A WAITINP request was issued by a task that

was scheduled to process more than one TAF

transaction or by a task that was called

with return.

The VSN record read from the directory has

an incorrect format.

Either the wrong VSN was used or no header

was found on ARF.

File ZZdbAnn is the active image recovery

ﬁle for data base db.

ACTION

Correct error and

reinitialize transaction

executive, or inform

site analyst.

None.

Enter the correct

transaction name.

Inform site analyst.

Inform data

administrator.

Add a USER statement to

the TCF.

Validate user on

speciﬁed family or

correct USER statement.

Specify one of the

following valid list

options LO, L0=A, LO=T

or LO=X.

Reenter a valid option.

Choose an appropriate

value (refer to appendix

J).

Continue processing.

Try another VSN.

Correct the directive

and rerun.

Correct the VSN conﬂict.

List the directory for

further Information.

Specify the ﬁrst reel

of the multireel set.

Specify VSN or date/time

and rerun.

Check directive and

increase TVSN size if

necessary.

Wait for the REPEAT.,

message.

None.

Inform data

administrator.

Make sure the correct

ARF is being used and

retry.

Informative message.

ROUTINE

TAF

KTSDMP

ITASK

TAF

DMREC

TAFREC

LIBTASK

RTASK

CCP

DMREC

OMREC

DMREC

OMREC

(BVT)

CCP

RTASK

C o r r e c t t a s k o r i n f o r m M S A B T

data base administrator.

DMREC

OMREC

AAMI

/<!*5S%k

60459500 C

MESSAGE

ZZdbBnn - 8RF RECOVERY

FILE.

ZZdbOIR UNREADA8LE.

SIGNIFICANCE

TAF/CRM is beginning to roll back data base

updates from ﬁle ZZdbBnn.

When trying to expand a data ﬁle, an.

attempt to read the directory ﬁle failed.

ACTION

File name entry can be

restored by adding an

appropriate CRM

statement to the xxJ

ﬁ l e .

Inform data

administrator.

ROUTINE

AAMI

DMREC

^ffP*\

60459500 C B-2? •

0 ^ \ I

j/^rX

^psv. GLOSSARY

AAM

Refer to Advanced Access Methods.

ABH

Refer to Application Block Header.

ABN

Refer to Application Block Number.

Absolute code

Code in which all required external references

have been satisﬁed. All addresses refer to

speciﬁc locations within the job ﬁeld length.

ABT

Refer to Application Block Type.

ACN

Refer to Application Connection Number.

ACT

Refer to Application Character Type.

Actual Key

T h e p r i m a r y k e y f o r a r e c o r d i n a ﬁ l e w i t h

actual key organization; indicates the storage

location of the record.

Actual Key (AK) File

A mass storage ﬁle in which each record is

stored at the location indicated by the primary

key. For initial actual key ﬁles, the primary

key must specify the block and record slot number

in which the record is stored. For extended

a c t u a l k e y ﬁ l e s , t he p ri m a r y k e y is a r e c o r d

number that AAM converts to the storage location

of the record. Access is random or sequential.

Address

The location of a word in memory. The location

is designated by number or symbolic name.

Advanced Access Methods (AAM)

A ﬁle manager that processes indexed sequential,

direct access, and actual key ﬁle organizations,

and supports the Multiple Index Processor. Refer

to CYBER Record Manager.

After Image

A copy of a DMS-170 data base record after it

has been modiﬁed.

After Image Recovery File (ARF)

A ﬁle upon which TAF writes after images of

records in recoverable ﬁles when a request to

update such a record is processed within a

begin-commit sequence.

AK File

Refer to Actual Key File.

Alias

A data name used in a subschema in place of a

schema data name.

Alphabetic Character

A character belonging to the set of letters A

through Z and the space.

Alphanumeric

Consisting of alphabetic and/or numeric

characters only.

Alternate Key

A key, other than the primary key, by which an

indexed sequential, direct access, or actual key

ﬁle can be accessed.

ANSI

American National Standards Institute. An

organization that establishes standards for the

beneﬁt of its member organizations.

Application

In TAF, a set of data ﬁles and the set of tasks

associated with those ﬁles.

Application

A program resident in a host computer that

provides an information storage, retrieval,

and/or processing service to a remote user via

the data communication network. IAF is an

example of an application.

Application Block Header (ABH)

A single 60-bit word description accompanying

every block passing between an application and

NAM.

Application Block Number (ABN)

A ﬁeld in the application block header. An

application-assigned number used to identify a

particular data message block.

/0^ 60459500 B C-l

Application Block Type (ABT)

A ﬁeld in the application block header deﬁning

the accompanying block as either data or

supervisory, null or not null, and indicating if

this is the last block of a message.

Application Character Type (ACT)

A ﬁeld in the application block header deﬁning

the byte size of text characters.

Application Connection Number (ACN)

A number assigned by the communications

supervisor program to identify a particular

logical connection within an application.

Application Switching

The process of leaving the control of one

application and entering the control of another,

without going through another complete login

sequence.

supplied to NVF from the local conﬁguration

ﬁle. Parameters supplied through automatic log

in conﬁguration of a terminal suppress prompting

for the corresponding dialog entries and override

any entries made from the terminal. Automatic

login is required for terminals (passive devices)

incapable of conducting dialog with NVF.

Backup Directory

A direct access ﬁle automatically allocated and

maintained by DMREC. It contains information

about the data base, index and after image recov

ery ﬁles for an application. The ﬁle name is

ZZxxDIR where xx is the application identiﬁer.

Backup Dump

A copy of all or selected portions of a data

base, which is produced on a regularly scheduled

basis for the explicit purpose of data base

recovery.

Batch Job

Area

A uniquely named DMS-170 data base subdivision

that contains data records; a ﬁle.

In st ructi on s a nd data sub mi tted as a c om ple te

unit without further user intervention. The job

can be punched on cards or created and submitted

from a terminal.

ARF Batch Mode

Refer to After Image Recovery File.

ASCII

American National Standard Code for Information

Interchange. The standard character set and

code used for information interchange between

systems.

ASCII Mode

Use of the American National Standard Code for

Information Interchange; a 128-character set.

It includes both uppercase and lowercase letters.

Assemble

To transform a COMPASS language program into a

form that the computer can execute directly.

During assembly, machine language operation

codes are substituted for COMPASS codes and

machine addresses for symbolic addresses.

COMPASS performs the assembly.

Attach

The process of making a permanent ﬁle

accessible to a job by specifying the proper

permanent ﬁle identiﬁcation and passwords.

Auto Mode

Mode of entering information into a primary ﬁle

where the system automatically generates line

numbers. This allows you to correct, insert,

and delete lines easily because you can

reference each line by its line number.

Automatic Login

The process whereby one or more of the Network

Validation Facility login dialog parameters is

The state of a mode 4A terminal during which

batch data is transmitted from the terminal's

card reader to central ﬁles and/or from central

ﬁles to the terminal's line printer. Also, the

state of an asynchronous terminal during which

input transmission occurs on a block-by-block

basis.

Batch Test Facility

An absolute program residing on the CDCS system

library that allows CDCS to run at the same

control point as a user program.

Before Image

A copy of a DMS-170 data base record before it

has been modiﬁed.

Before Image Recovery File (BRF)

A ﬁle to which TAF/CRM writes the before images

of records in recoverable ﬁles when a request

to read such a record is processed from within a

begin-commit sequence.

Begin-commit sequence

A series of data base updates beginning with a

data base begin request and ending with a data

base commit or data base free request.

Beginning-of-Information (BOI)

The start of the ﬁrst user record in a ﬁle.

Tape labels and system-supplied information,

such as an index block or control word, do not

affect beginning-of-information.

Binary File

Usually a noneditable ﬁle containing a pre

compiled program.

/*^S§\

C-2 60459500 A

J ^ '

J^fe*

B i t

An a b b r e v i ation o f bi n a r y di g i t . I t Is a si n g l e

digit, 0 or 1, In a binary number. Also used to

represent the smallest unit of information. A

central memory word (one storage location)

contains 60 bits.

Block

In the context of network communications, a por

tion or all of a message. A message is divided

into blocks to facilitate buffering, transmis

sion, error detection, and correction for vari

able length data streams.

During Input from a terminal, a block is a single

transmission comprising one or more lines of one

or more messages.

During input to an application, a block is a

single line comprising part or all of a message.

Terminal transmission blocks are divided into as

many application input blocks as needed to

provide one block of input per terminal input

line, until the message is completed.

During output to a terminal, a block is one or

more lines comprising one message.

BOI

BP

Refer to Beginning-of-information.

Beginning Priority.

BRF

Refer to Before Image Recovery File.

Called Task

A task which Is the object of a CALLTSK or a

CALLRTN request.

Calling Task

A task which executes a CALLSTK or a CALLRTN

request.

Carriage Control

The control exercised over the format of printed

output. The leftmost character of the data line

to be printed is the carriage control character.

Carriage control is also called format control.

CB

Communication Block.

CCP

Communications Control Program.

CDCS

Central Memory (CM)

The main storage device whose storage cells

(words) can be addressed by a computer program

and from which instructions and data can be

l o a d e d d i r e c t l y i n t o r e g i s t e r s f r o m w h i c h t h e

instructions can be executed or from which data

can be manipulated.

Character

Any alphabetic, numeric, or special symbol that

can be encoded. This term applies to the graphic

characters for an Input or output device, and to

uniquely encoded control characters used by a

terminal. Unless speciﬁed otherwise, characters

are ASCII 8-bit byte characters.

Charge Number

An alphanumeric identiﬁer the installation uses

to allocate charges to individual users for

system usage.

CIO

Circular Input/Output

Close

A set of terminating operations performed on a

ﬁle when input and output operations are

complete. All ﬁles processed by the CYBER

Record Manager must be closed.

CM

Refer to Central Memory.

CMM

Common Memory Manager.

COBOL

Refer to CYBER Database Control System.

Common Business-Oriented Language. This higher

level language simpliﬁes the programming of

business data applications.

Command

A sequence of words and characters that call a

system routine to perform a job step. The com

mand must conform to format speciﬁcations and

end with either a period or a right parenthesis.

A command is sometimes called a control

statement.

Communication Recovery File (CRF)

Files used for the automatic recovery feature.

Compile

To translate a program from a higher level pro

gramming language (for example, FORTRAN or BASIC)

into machine Instructions called object code.

60459500 B C-3

Concurrency Data Base Status Block

Simultaneous access to the same data in a data

base by two or more applications during a given

span of time.

Console

A terminal devoted to network control processing.

There may be three such terminals: the network

operator's (NOP) terminal, the local operator's

(LOP) terminal, and the network processing unit

console.

CRF

Refer to Communication Recovery File.

CRM

Refer to CYBER Record Manager.

CRT

Cathode Ray Tube.

CYBER Database Control System (CDCS)

The DMS-170 controlling module that provides the

interface between an application and a data base.

CYBER Loader

The utility that prepares programs for execution

by placing program instruction and data blocks

in central memory.

CYBER Record Manager (CRM)

A software product that allows a variety of

record types, blocking types, and ﬁle organiza

tions to be created and accessed. Products like

COBOL 5, FORTRAN Extended 4, FORTRAN 5, Sort/

Merge 4, Sort/Merge 5, ALGOL 5, and DMS 170 use

the CYBER Record Manager to manage execution

time input/output. Neither the input/output of

the operating system nor that of most of the

system utilities such as COPY or SKIFF is

implemented through the CYBER Record Manager.

All CYBER Record Manager ﬁle processing

requests ultimately pass through the operating

system input/output routines.

DA

Refer to Data Administrator.

Data Administrator (DA)

The individual who leads the design,

programming, implementation, and maintenance

efforts associated with a DMS-170 controlled

data base.

Data Base

A systematically organized, central pool of

information; organization is described by a

speciﬁc schema.

An area of memory deﬁned within an application

to which CDCS returns information concerning the

status of operations on data base ﬁles and

relations. The status block is updated after

each CDCS operation.

Data Block

A block in which user records are stored in an

indexed sequential or actual key ﬁle. Data

blo ck s truct ure is d eﬁned by th e us er, o r A AM

defaults are accepted. Contrast with Index

Block for indexed sequential ﬁles.

Data Description Language (DDL)

The language used to structure a DMS-170 schema

and subschema.

Data Management System

Refer to Database Management System.

Database Management System

A generalized computer program which handles the

mechanics of storing, updating, and accessing

data for multiple applications.

Dayﬁle

A chronological ﬁle created during job

execution which forms a permanent accounting and

j o b h i s t o r y r e c o r d . D a y ﬁ l e m e s s a g e s a r e

generated by operator action or when commands

are processed. A copy of the dayﬁle is printed

with the output for each job. You must

explicitly request it in an interactive job.

DBREC

U t i l i t y u s e d t o p r e p a r e ﬁ l e s f o r t r a n s a c t i o n

recovery using CDCS.

DDL

Refer to Data Description Language.

Deadlock

A situation that arises i n con current data base

access when two or more applications are contend

ing for a resource that is locked by one of the

other ones, and none of the programs can proceed

without that resource.

Deadstart

The process of initializing the system by

loading the operating system library programs

and any of the product set from magnetic tape or

d i s k . D e a d s t a r t r e c o v e r y i s r e i n i t i a l i z a t i o n

after system failure.

Default

A system-supplied option used when you do not

supply the option.

/?-$%&$!.

C-4 60459500 B

Delimiter

A character used to separate statement elements,

such as words and literal constants, or other

strings of text.

Device

The physical recording medium of random mass

storage, such as a disk pack.

Device Set

j0^^i

A group of rotating mass storage devices. No

device can belong to more than one device set.

Every ﬁle must be contained within one device

set, but can be on different devices in that

device set.

Direct Access File

A CYBER Record Manager ﬁle containing records

stored randomly in home blocks according to the

hashed value of the primary key in each record.

Files must be mass storage-resident. All

allocation for home blocks occurs when the ﬁle

is opened on its creation run. Access is random

or sequential. It may be attached to your job

a n d a l l c h a n g e s a r e m a d e o n t h e ﬁ l e i t s e l f

rather than a temporary copy of the ﬁle.

Di rec tiv es

The instructions that supplement processing

deﬁned by a command or by a program call for

execution of a utility function or member of a

product set. Directives do not appear in the

command record; they are usually In a separate

record of the ﬁle INPUT or a ﬁle referenced In

a command. Directives are required for execution

of FORM, the CREATE utility, and EDITLIB, among

others.

Disk

A unit composed of one or more ﬂat, circular

plates with magnetic material on both sides that

is used to store large amounts of data or

programs.

Display Code

A 6-bit-dlsplay code set used to represent

alphanumeric and special characters.

Displays

Two console screens or a split screen used to

display system and job information, operator

messages, and contents of central memory.

Through the console keyboard, the operator can

control the operation of the system. The

displays are identiﬁed by alphabetic

characters; some used frequently are: job status

(B), system ﬁles (H), and dayﬁle messages (A).

Dump

A printed listing of the contents of the central

processor registers and a predetermined number

of words within central memory that pertain to a

job.

Dynamic Access

Access mode that allows a nonsequential ﬁle on

mass storage to be accessed randomly or

sequentially, depending on the format of the

access statement.

ECS

Refer to Extended Core Storage.

End-of-File (EOF)

A boundary within a sequential ﬁle, but not

necessarily the end of a ﬁle, that can be

referenced by name. The actual end of a named

ﬁle is d e ﬁ n e d b y EO I . Fo r la b e l e d t a p e , E O F

and EOI (denoted by the E0F1 label) are the

same. For multiﬁle tape ﬁles, EOF and EOI do

not correspond. In the product set manuals, an

end-of-ﬁle is also referred to as an

end-of-partition.

End-of-Information (EOI)

An indicator that marks the physical end of a

named ﬁle.

End-of-Record (EOR)

The terminator of a logical record. On a PRU

device, a short PRU or a zero-length PRU with a

level designator of 0 indicates EOR. On tapes

that are not PRU devices, an inter record gap

Indicates EOR.

EOF

Refer to End-of-File.

EOI

Refer to End-of-Inforraation.

EOR

Refer to End-of-Record.

ESM

Extended Semiconductor Memory.

Exchange Package

A t a b l e tha t c ont a i n s inf o r m a t i o n u s e d d u r i n g

job execution. It is printed as part of the

output when a job aborts.

Extended

A terra used in conjunction with indexed sequen

tial, direct access, and actual key ﬁles to

denote a speciﬁc type of Internal processing by

AAM and MIP. Processing is indicated by setting

the ORG FIT ﬁeld to NEW.

Extended Core Storage (ECS)

Optional additional memory. ECS contains 60-bit

words; it has a large amount of storage and fast

transfer rates. ECS can be used only for program

and data storage, not for program execution.

Special hardware instructions exist for transfer

ring data between central memory and ECS.

60459500 C C-5

Extended Memory

An extension to central memory which is physi

cally located outside of the machine. Formerly

referred to as extended core storage (ECS) or

large central memory (LCM).

Family Name

Name of the permanent ﬁle storage device or set

of devices on which all of your permanent ﬁles

are stored. When you request a permanent ﬁle,

the system looks for it on this family (group) of

devices. Usually a system has only one family

of permanent ﬁle devices but it is possible to

have alternate families in the system. You

specify which family you are using when you log

in. Your family name is given to you by your

employer, instructor, or computer personnel.

Fast Dynamic Loader (FDL)

A f a c i l i t y t h a t p r o v i d e s f a s t l o a d i n g a n d

unloading of specially formatted code called

capsules. The amount of memory required for job

execution can be greatly reduced because

capsules can be easily loaded and unloaded as

needed, freeing memory for other uses.

FDL

Refer to Fast Dynamic Loader.

FE

Refer to Format Effector.

FET

Refer to File Environment Table.

Field Length (FL)

The area in central memory allocated to a

particular job; the only part of central memory

that a job can directly access. Also the number

of central memory words required to process a

job.

F i l e

A c o l l e c t i o n o f i n f o r m a t i o n r e f e r r e d t o b y a

ﬁle name (from one through seven characters,

either letters or numbers). You can create a

ﬁle at the terminal or retrieve a ﬁle from

permanent ﬁle storage for use during a terminal

session.

FILE Command

A command that supplies ﬁle information table

values after a source language program is

compiled or assembled but before the program is

executed. Basic ﬁle characteristics such as

organization, record type, and description can

be speciﬁed in the FILE command.

File Environment Table (FET)

A table within a program's ﬁeld length through

which the program communicates with operating

system input/output routines. One FET exists

for each ﬁle in use by the program.

File Information Table (FIT)

A table through which a user program

communicates with the CYBER Record Manager. For

d i r e c t p r o c e s s i n g t h r o u g h C R M , a u s e r m u s t

initiate establishment of this table. All ﬁle

processing executes on the basis of information

i n t h i s t a b l e . T h e u s e r c a n s e t F I T ﬁ e l d s

directly or use parameters in a ﬁle access call

that sets the ﬁelds indirectly. Some product

set members set the ﬁelds automatically for the

user.

File Organization

Deﬁned by ORGANIZATION clause. Can be sequen

t i a l , i n d e x e d , r e l a t i v e , d i r e c t , a c t u a l - k e y, o r

word-address. Established at the time the ﬁle

is created and cannot change as long as the ﬁle

exists. Affects access mode, open mode, and for

mats of statements that can be used to manipulate

ﬁle records.

File Statement

Command for the CYBER Record Manager that

speciﬁes parameters for the FIT at the time the

ﬁle is opened.

File Statistics Table (FSTT)

A table generated and maintained by the CYBER

Record Manager to collect statistics about each

direct access, indexed sequential, and actual key

ﬁle. The FSTT is a permanent part of a ﬁle

and contains information such as organization

type, size of blocks and the number of current

accesses.

FIT

Refer to File Information Table.

FL

Refer to Field Length.

Flag

A character or bit that signals the occurrence

or presence of a particular condition.

FORM

A general purpose ﬁle management utility for

manipulating records and creating and converting

ﬁles.

Format Effector (FE)

A control symbol used by certain protocols (for

instance, the HASP protocol).

FORTRAN

FORmula TRANslation. A language that solves

algebraic and scientiﬁc problems using symbols

and statements that closely resemble

mathematical notation.

FSE

Refer to Full Screen Editor.

/tf$^\

C-6 60459500 C

FSTT Input

jpsv

Refer to File Statistics Table.

Full Screen Editor

The editing facility that enables you to edit

ﬁles In a screen format or a llne-by-line

format.

GTDL

Global Task Dump Limit.

HAD

Host availability display.

Hashing

The method of using primary keys to search for

relative home block addresses of records in a

ﬁle with direct access storage structure.

Header

A word or set of words at the beginning of a

block, record, ﬁle, or buffer which contains

control information for that unit of data.

Host

Information ﬂowing upline from the terminal to

the host computer.

Interactive

A mode of job processing in which the user

enters a command or input to an executing

program and receives an immediate response.

Interactive Access Facility (IAF)

An application that provides a terminal operator

with the i n t e r a ctive p r o c e s sing c a p a b i l i ty. The

interactive facility makes terminal input/output

and ﬁle input/output appear the same to an

executing program.

I/O

Input /O utput.

IS File

Refer to Indexed Sequential File.

Itemize

A utility routine that produces a listing of the

contents of a ﬁle or library.

A computer that executes applications.

IAF

IVT

Interactive Virtual Terminal.

0^

Refer to Interactive Access Facility.

Index

In t h e c o n t e x t of A A M , a s e r i e s of k e y s an d

pointers to records associated with the keys.

The system creates an index for AAM ﬁles which

re la te s a ltern at e r ec or d k ey s t o p ri mary keys,

using the ﬁle deﬁned by the second

implementor-name of an ASSIGN clause.

In general context, a computer storage area or

register, the content of which represents the

identiﬁcation of a particular element.

Index Block

For an indexed sequential ﬁle, a block with

ordered keys and pointers to data blocks and

other index blocks, forming a directory of the

records within a ﬁle.

Indexed Sequential (IS) File

A ﬁle organization in which the CYBER Record

Manager maintains records in sorted order by use

of a programmer-deﬁned key, which need not be

within the record. Keys may be integer, ﬂoating

point, or symbolic; access Is random or sequen

tial. Files contain index blocks and data

blocks.

Indirect Access File

A NOS permanent ﬁle that you access by making a

temporary copy of the ﬁle (GET or OLD command).

You create or alter it by saving or substituting

the contents of an existing temporary ﬁle

(REPLACE or SAVE command).

Job

All co m p u t e r-re l a t e d a c t i v i ty a s s ocia t e d wi t h a

terminal session from login to logout. A batch

job consists of instructions and data submitted

as a complete unit.

Key

A group of contiguous characters or numbers the

user deﬁnes to identify a record in a CRM ﬁle.

LCME

Large Central Memory Extended.

LDSET

The loader directive used to control the

process under a variety of conditions.

load

LGO

The default name of the ﬁle to which language

processors write executable code during program

assembly or compilation.

Load Sequence

A sequence of load operations which encompasses

all of the loader's processing from the time that

no thi ng i s l oad ed unt il the ti me ex ec u ti o n b e

gins. It includes initialization, speciﬁcation

of speciﬁed Loader requests, and the completion

of the load.

60459500 C C-7

Loader Multiple Index File

A software product that prepares programs for

execution by placing program instructions and

d a t a b l o c k s i n c e n t r a l m e m o r y a n d l i n k i n g

references In the program to the appropriate

external routines.

Local

Refers to data that exists only during the proc

essing of a single job and that can only be

accessed by that job.

Local Operator (LOP)

The network operator who monitors line, terminal,

and application activities in the network.

Login

The procedure used at an interactive terminal to

gain access to the system.

Logout

The procedure by which

session. You type BYE. you end terminal

LOP

Refer to Local Operator.

Macro

A sequence of source commands that are saved and

then assembled whenever needed through a macro

call.

Mass Storage

Magnetic disk or extended memory that can be

accessed randomly as well as sequentially.

Master Directory

A ﬁle containing information used by CDCS in

processing. This information consists of schema

and subschema tables, media parameters, and data

base procedure library and logging speciﬁca

tions.

MFL

Maximum Field Length.

MIP

Refer to Multiple Index Processor.

MP

Maximum Priority.

Multiﬁle Set

A tape ﬁle set having more than one tape ﬁle.

Multimainframe Operation

Operation that provides mechanisms by which more

than one computer can share mass storage devices.

An indexed sequential, direct access, or actual

key ﬁle that has alternate keys deﬁned.

Multiple Index Processor (MIP)

A processor that allows AAM ﬁles to be accessed

by alternate keys.

NAM

Refer to Network Access Method.

NCT

Network Communication Table.

NCTF

Refer to Network Description File.

NDL

Refer to Network Deﬁnition Language.

Network Access Method (NAM)

A software package that provides a generalized

metho d of us ing a commun ic at ions n et work f or

switching, buffering, queuing, and transmitting

data. NAM is a set of Interface routines used

by a terminal servicing facility for shared

access to a network of terminals and other

applications, so that the facility program does

not need to support the physical structures and

protocols of a private communication network.

Network Deﬁnition Language (NDL)

The compiler-level language used to deﬁne the

network conﬁguration ﬁle and local conﬁg

uration ﬁle contents.

Network Description File (NCTF)

File that must be present if the transaction

facility is used. The ﬁle is prepared by the

site analyst.

NOS

Network Operating System.

Numeric Character

Digits 0 through 9.

Object Code

The machine language version of a program that

has been translated (compiled) from source code

written in a higher level language.

Open

A set of preparatory operations performed on a

ﬁle before input and output can take place;

required for all CRM ﬁles.

/^S^v

| C - 8 60459500 C

Operating System Physical Record Unit (PRU)

Th e s e t o f s yst e m p rog ram s t h at co ntr ols th e

execution of computer programs and provides

scheduling, error detection, input/output

control, accounting, compilation, storage

assignment, and other related services.

Operation

A particular function performed on units of

data; for instance, opening or closing an area,

or storing or deleting a record.

Order Dependent

Used to describe items which must appear in a

speciﬁc order.

Order Independent

Used to describe items which need not appear in

any speciﬁc order. Parameters, particularly

those with keywords, may be order independent.

Output

Information ﬂowing downline from host to

terminal.

Output File

The ﬁle on which the system writes information

to the user. Unless another ﬁle name is speci

ﬁed, the output ﬁle is printed at the terminal.

Pack Name

A one- to seven-character name that identiﬁes

the auxiliary device to be accessed In a

permanent ﬁle request.

Parameter

A vari able th at i s gi ven a speci ﬁc v alu e fo r a

particular purpose or process.

Parity

In writing data, an extra bit is either set or

cleared in each byte so that every byte has

either an odd number of set bits (odd parity) or

a n e v e n n u m b e r o f s e t b i t s ( e v e n p a r i t y ) .

Parity is checked on a read for error detection

and possible recovery.

Password

A name or word entered during login to provide

extra security for your user name. A unique

password ensures that no one else can log into

the system using your user name and access your

ﬁles.

Permanent File

A ﬁle stored on mass storage. This ﬁle is

cataloged by the system so that its location and

identiﬁcation are always known to the system.

Permanent ﬁles cannot be destroyed accidentally

during normal system operation. They are

protected by the system from unauthorized access

according to privacy controls speciﬁed by the

ﬁle owner.

60459500 C

The amount of information transmitted by a

single physical operation of a speciﬁed

device. For mass storage ﬁles, a PRU is 64

central memory words (640 characters); for

magnetic tape ﬁles, the size of the PRU depends

upon the tape format. A PRU that is not full of

user data is called a short PRU; a PRU that has

a level terminator but no user data is called a

zero-length PRU.

Primary Key

A key whose value uniquely Identiﬁes a record

and d ete rmines t he location of the record in a

ﬁle. The primary key for a ﬁle must be

deﬁned when the ﬁle is created and must be

used to update the ﬁle. Contrast with Alternate

Key.

Procedure

A user-deﬁned set of instructions that are

referenced by name. The instructions consist of

procedure directives and system commands.

Procedure File

A ﬁle containing one or more procedures.

PRU

Refer to Physical Record Unit.

PSN

Packet-Switching Network.

Purge

To delete a permanent ﬁle from the system.

This enables releasing its mass storage space,

erasing its catalog entries, and so forth.

Queue

A sequence of blocks, tables, messages, and so

f o r t h . M o s t N P U q u e u e s a r e m a i n t a i n e d b y

leaving the queued elements in place and using

tables of pointers to the next queued element.

Most queues operate on a ﬂrst-ln, ﬁrst-out

basis. A series of workllst entries for a

speciﬁc terminal is an example of an NPU queue.

RA

Refer to Reference Address.

RAE

Refer to Reference Address.

Record

A unit of information. In the CYBER Record

Manager and its language processors, a record is

a unit of information produced by a single read

or write request. Eight different record types

exist within CRM. The user deﬁnes the

structure and characteristics of records within

a ﬁle by declaring a record format.

Other parts of the operating system and Its

products might have additional or different

deﬁnitions of records.

C - 9 |

Record Slot Number Rewind

The position of a record within a block in an

actual k ey ﬁle; sp ec iﬁ ed by th e low-order b its

of the primary key.

Record Type

The term record type can have one of several

meanings, depending on the context. The CYBER

Record Manager deﬁnes eight record types estab

lished by an RT ﬁeld in the ﬁle information

ta bl e. Ta bl es output by the loa der a re cl assi

ﬁed as record types such as text, relocatable,

or absolute, depending on the ﬁrst few words of

the tables.

Recovery

A process that makes a data base useful after

some type of software or hardware failure has

occurred.

Reference Address (RA and RAE)

RA is the absolute central memory address that

is the starting, or zero, relative address

assigned to a program. Addresses within the

program are relative to RA. RA+1 is used as the

communication word between the user program and

monitor. RAE is the absolute extended memory

starting address assigned to the ﬁle.

Release System

A software system delivered to a customer. In

installing a system, the customer, but not an

individual applications programmer, can use

d e f a u l t v al u e s o r p a r a m e te r s th a t di ff e r f r om

the released system.

Relocatable Code

Code that can be loaded into any region of the

job ﬁeld length. External references have not

yet been satisﬁed.

Request

A s t a t e m e n t t h a t i d e n t i ﬁ e s a f u n c t i o n t o b e

p e r f o r m e d . Of t e n th e r e a r e item s u s e d b y or

resulting from the function that are required as

parameters in the request.

Reserved Word

An identiﬁer that has a predeﬁned meaning to a

compiler and must not appear In a source program

as a user-deﬁned word or name.

R e s t a r t I d e n t i ﬁe r F il e

Random permanent ﬁle used for a start

Identiﬁer in recovery by CDCS.

Returned Value

The value returned from a procedure invoked as a

function, or the value returned by a buiLt-in

function.

An operation that positions a ﬁle at

beginning-of-information.

RMS

Refer to Rotating Mass Storage.

Rollback

The process of restoring a data base to a

previous state.

Rotating Mass Storage (RMS)

A disk storage device.

RTL

Requested Task List.

Satisfying External References

The process of searching one or more libraries

and loading programs that contain entry points

matching external references that are currently

unsatisﬁed.

Schema

A detailed description of the internal structure

of a data base.

Separator

A character used to separate parameters in a

command•

Sequential (SQ) File

A ﬁle in which records are accessed in the

order in which they occur. Any ﬁle can be

accessed sequentially. Sequential ﬁles must be

accessed sequentially because no key or address

is associated with each record in the ﬁles.

Source Code

Code input to the computer for later translation

into executable machine language instructions

(object code).

SQ File

Refer to Sequential File.

Stimulator

A collection of central memory and peripheral

processor programs which enters a hypothetical

work load Into the system to analyze the effects

of such a load on response time and system

r e l i a b i l i t y .

String

A sequence of contiguous characters or bits

treated as a unit.

y^^v

| C-10 60459500 C

J^*v Subschema

A detailed description of the portion of a data

base to be made available to one or more

applications.

Supervisory Message

A message block in the host not directly Involved

with the transmission of data, but which provides

information for establishing and maintaining an

environment for the communication of data between

the application and NAM, then through the network

to a destination or from a source. Supervisory

messages may be transmitted to an NPU in the

format of a service message.

TAF Conﬁguration File (TCF)

A ﬁle created and maintained by the data admini

strator specifying which data managers are active

and the applications to be associated with each.

Task

A program to be executed under the transaction

subsystem. Tasks are stored in absolute binary

format on libraries which must be available to

the transaction subsystem.

Task Library Directory (TLD)

The directory on each task library which contains

information on the tasks in the library. TAF

makes its own copy of each TLD at initialization

and uses this copy to locate requested tasks.

TCF

Refer to TAF Conﬁguration File.

Terminal

The equipment a person uses to communicate with

the computer.

Terminal Class

An NDL parameter describing the physical attri

butes of a group of similar terminals, in terms

of an archetype terminal for the group.

Terminal Session

Period between the time you physically connect

the terminal to the system in preparation for

login to the time you log out.

Text Mode

Mode of entering information Into a primary ﬁle

w i t h o u t sp eci f y i n g li ne n u m b e rs. I t is u s u a lly

used to create data ﬁles. If a ﬁle does not

contain line numbers, you can change lines by

using an editing facility such as the Full

Screen Editor.

Transaction

A task or a series of tasks executed as a unit

under the transaction subsystem. All tasks in a

transaction have the same transaction sequence

number. In CDCS, the term data base transaction

refers to the process which this manual calls a

begin-commit sequence.

Transaction Library Directory (TRD)

The directory on each task library which contains

information on the transactions in the library.

TAF makes its own copy of each TRD at initializa

tion and uses this copy to locate requested

transactions.

Transaction Name

The one to seven alphanumeric character name

given to a transaction created with the /tname

input directive from the LIBTASK utility.

Transaction Recovery File

Random permanent ﬁle used for before image

records necessary for recovery by CDCS.

Transaction Sequence Number

A unique number assigned by TAF to each transac

ti on. It I s u sed by TAF f or tas k i den tiﬁ cat io n .

Transparent Mode

A software feature provided by the Network Access

Method and the network processing unit (NPU).

When transparent mode transmission occurs between

an application and a terminal the Network Access

Method does not convert data to or from 6-bit

display code, and the NPU does not edit the char

acter stream or convert the characters to or from

7-bit ASCII code. When no parity is in effect for

the terminal and transparent mode transmission

occurs, all seven bits of the character byte can

be used to represent characters In character sets

(such as EBCDIC).

TRD

Refer to Transaction Library Directory.

TST

Terminal Status Table.

TTOT

Table of Time-Originating Tasks.

UEM

Uniﬁed Extended Memory.

TLD UJN

Refer to Task Library Directory. User Job Name.

60459500 C C-l I

User Index VSN

A unique 17-bit identiﬁer that is associated

with each user name. The user index is used by

the permanent ﬁle manager to identify the device

and catalog track for the user's ﬁles.

User Name

A system access word that must be supplied by

the user for validation purposes at login.

Utility

A program designed to help the user perform spe

ciﬁc functions such as permanent ﬁle mainte

nance, library maintanence, and ﬁle editing.

Virtual Terminal

A software concept for CCP that converts all

types of upline messages to one of two formats:

batch virtual terminal or interactive virtual

terminal. By this method, applications in the

host need only to be able to process data in IVT

or BVT format rather than in the multiplicity of

formats which real terminals use. Downline

me ssa g es fro m t h e h ost to r e al te rmi nal s a r e

converted from IVT or BVT to real terminal

format. The IVT/BVT processors are a part of

the NPU's network communications software.

Volume Serial Number (VSN)

A one- to six-character identiﬁer that identi

ﬁes the volume of magnetic tape for the opera

t o r .

Refer to Volume Serial Number.

Word

A group of bits (or 6-bit characters) between

boundaries imposed by the computer system. A

word is 60 bits in length. The bits are numbered

59 through 0, starting from the left. It is also

composed of ﬁve 12-bit bytes, numbered 0 through

4, from the left.

Working Storage Area

An area within the user's ﬁeld length intended

for receipt of data from a ﬁle or transmission

of data to a ﬁle.

Write Mode

Allows a user to write, modify, append, read,

execute, or purge the ﬁle (modify permission

applies only to direct access ﬁles).

xx J Files

Files created and maintained by the data

administration which associates a particular

user with a particular application.

Zero-Length PRU

A PRU that contains system information, but no

user data. Under the CYBER Record Manager, a

zero-length PRU level of 17 is a partition bound

ary. Under NOS, a zero-length PRU deﬁnes EOF.

/^sffs^V

C-12 60459500 C

/#^- SAMPLE COMMAND LIST STRUCTURES

/fP^V

The sample command list structures in this appendix

demonstrate the use of various parameters that are

available. The default input and output ﬁles can

be used to reduce the number of control language

statements needed to bring about a compile, load,

and LIBTASK sequence, because the default binary

output ﬁles are the binary input ﬁles for

subsequent processors.

For example:

C0B0L5,TAF,UC1.

L0AD/LG0.

N0G0,LG0B.

LIBTASK,P=RLTASKL,TT.

It Is assumed that each of the following lists is

preceded by job and USER commands. Some sites may

require a CHARGE command.

COMPASS TASK COMMAND LIST STRUCTURE

A sample command list that assembles a COMPASS

a p p l i c a t i o n p r o g r a m a n d l o a d s I t o n t o a t a s k

library, RLTASKL, is illustrated in ﬁgure D-l.

FORTRAN TASK COMMAND LIST STRUCTURE

A sample command list that compiles a FORTRAN

application program and loads it onto a task

library, RLTASKL, is Illustrated in ﬁgure D-2.

FTN,DB=0.t

LDSET,LIB=TRANLIB,LIB=TRANF5.

L0AD,LG0.

N060,L60B.

ATTACH,RLTASKL/M=W.

LIBTASK,P=RLTASKL,TT,I=0.

end-of-record

OVERLAY,ABS,0,0.

PROGRAM TASK2 tt

FORTRAN task appears here

end-of-ﬁle

ATTACH,0PL/UN=use rname.

COMPASS.

LDSET,LIB=TRANLIB,LIB=TRANF4.

L0AD,lG0.

N0G0,LG0B.

LIBTASK,P=RLTASKL,B=LGOB TT 1=0.

e n d - o f - r e c o r d

IDENT

ENTRY

OPL XTEXT

C0K8L 8SS 69

END

end-of-ﬁle

TASK

COMKMAC

COMPASS task appears here

TThe SEQ, TS, and OPT-0 options are not allowed.

TtTASK2 is the name of the task.

Figure D-2. FORTRAN Command List Structure

COBOL TASK COMMAND LIST STRUCTURE

A sample command list that compiles a COBOL

application program and loads it onto a task

library, RLTASKL, is illustrated in ﬁgure D-3.

C0B0L5,TAF,UC1.

LDSET,LIB=TRANLIB,LIB=TRANC5.

L0AD,LG0.

N0GO,LG08.

LIBTASK,P=RLTASKL,B=LGOB,TT,I=0.

end-of-record

COBOL task appears here

e n d - o f - ﬁ l e

Figure D-l. COMPASS Command List Structure F i g u r e D -3 . C OB OL Co mm an d L is t S tr u c t u r e

NOTE NOTE |

The system OPL must be attached for

COM KMAC to be called in the COMPASS

program. Consult site personnel for

the appropriate command.

Under COBOL, the PROGRAM-ID name is

used for the task name. Only alpha

numeric names c an b e used as tas k

names.

0^*

60459500 C D-l

/ * ^ < s \

Jp^ FILES USED BY TAF

Table E-l lists ﬁles used by TAF.

08-^

Table E-l. Files Used by TAF

Name File Name Typet Creation Residence Quantity Description

Communication

recovery ﬁle ZZCRFi

Automatic

if K.INT

declared

Same as

NCTFi 1-8

Contains recovery informa

tion for each user. In

c l u d e s s t a t u s , i n i t i a l i n

put, RPUT messages, and

SECURE message.

Before image

recovery ﬁle ZZxxBnn

User or

automatic Application

1-63

per data

base

Contains before images of

data records.

After image

recovery ﬁle ZZxxAnn

User or

automatic Application

Contains after images of

data records.

Network

ﬁle NCTFi User

Sp e ciﬁ e d i n

TCF; default

is TAF DT

1-8

Deﬁnes valid users for

each network id.

Temporary

recovery ﬁle ZZCRFAI Automatic Local

Created during CRF refor

matting. Becomes new CRF.

Backup

directory ﬁle ZZxxDIR Automatic Application

1 per

data

base

C o n t a i n s r e c o r d o f d a t a

ﬁle dumps and ARF dumps.

TAF I n i t ia liza

tion procedure

ﬁle

Selected

by

user

User or

automatic System

Contains commands for ini

tializing and recovering

TAF.

TAF

initialization

ﬁle

ZZTTF Automatic Local

Contains TAF low core

pointer TST.

TAF initial

ization recovery

report

ZZIRRF Automatic Local

Contains recovery report

for data administrator.

TAF

conﬁguration

ﬁ l e

TCF User TAF

Speciﬁes data managers and

applications in use. Con

tains K display commands,

CRF ids, NCTF ids.

xxJ

ﬁ l e xxJ User TAF

1 per

data

base

Associates applications

with data managers and de

scribes data ﬁles and

their attributes.

System task

library TASKLIB User TAF

Contains required and op

t i o n a l s y s t e m t a s k s a n d

transactions.

Task library xxTASKL User Application

1 per

data

base

Contains all tasks and

transactions for a par

ticular application.

tType D is a direct access perma nent ﬁle; type L is a l o c a l ﬁ l e ; type I is ail indirect permanent ﬁle.

60459500 A E-l

In addition to the files described in table E-l, the SCRA-SCRZ _—

following reserved ﬁles are used by TAF. No task 0^,

or procedure ﬁle called by TAF can attach or use SCR1-SCR5 )

any ﬁle having one of these names. "-^-'

TROB

KTSROLL

MAP

OUTPUT

ZZZZZ.. (ﬁle names starting with ﬁve Zs)

RECOVER

0^^^\

; "1

E"2 60459500 B

INSTALLATION OVERVIEW

Table F-l is provided to aid the systems analyst and procedures detailed in the respective manuals. The

data administrator in performing TAF installation. complete name and publication number of each entry

It is a chronologically ordered outline of the in the Manual column follows the table.

ifjJ^V

60459500 A F_l

Table F-l. Installation Overview (Sheet I of 3)

Area

1. Install NOS.

2. Install

communications

subsystem.

3 . I n s t a l l

product set

(COBOL, and

so forth).

4. Modify/create

TAF subsystem.

Step

5 . I n s t a l l

transaction

application.

1. Evaluate installation parameters.

Some items of interest at initial

installation are:

TAF username.

TAF user index.

TAF password.

TAF charge, project numbers.

TAF communication interface

2550s or multiplexers.

• Num ber of terminals.

2. Modify TAF on deadstart media if

required, or

3. Modify TAF on a running NOS system.

4. Install TAF username and charge.

5. Install procedure ﬁle to initiate TAF.

6. Install automatic Initiation of TAF upon

deadstart if desired.

Manual

NOS IHB

NOS ANHB

NOS IHB

NOS ANHB

CCP Reference

NAM Reference

NDL Reference

NOS IHB

1. Assign a team to do data base design. TAF

interfaces to CDCS, CRM, and TOTAL. Areas

in data base design that require examina

tion Include:

• Elements to be accessed.

• Relationships between the elements.

• Data manager to be used.

• File, record types, and element

types to be used to store the data.

• Data formats for the tasks.

• Mass storage of the data base.

NOS IHB

NOS Reference V3

NOS ANHB

NOS IHB

NOS ADHB

NOS IHB

NOS ANHB

Manual Keyword

COBOL 5

FORTRAN 4

FORTRAN 5

COMPASS

Transaction

facility

TAF Reference

TOTAL Reference

AAM Reference

TAF/CRM Reference

TAF User's Guide

CDCS Reference

Transaction facil

ity, GTR, LIBEDIT,

LIBGEN

SYSEDIT

TAF in s tal l a t ion

parameters

MODVAL, PROFILE

TAF

IPRDECK

F-2 60459500 C

Table F-l. Installation Overview (Sheet 2 of 3)

Area

0^-

J^

Step

• Specific processing to be assigned to

tasks and the relationships between

tasks. For TAF, tasks involved with

I/O should be small since the tasks

will occupy memory for some time.

Tasks that are often used and run

quickly may be made core-resident.

Tasks that are often used should be

reusable to avoid task loading.

• Data base recovery.

2. Assign a team to do the communications

interface. Areas to examine are:

• Network Access Methods features

and workings.

• Communication Control Program

and 2550 hardware, communication

lines, terminals, and so forth.

• Network definition language (NDL).

• TAF termin al I /O reques ts.

• Message formats, terminal operator

interactions.

• Recovery of terminal communications.

• Interface specifications with the

tasks's data management activities.

• NOS and network stimulators.

3. Install a prototype application using the

following steps. Revise design as more Is

learned about the capability and perform

ance trade-offs. Use stimulators to test

the design under a large terminal load.

4. Describe and install the data base using the

appropriate data manager.

• CDCS.

• C R M .

• T O TA L .

5. Describe and install terminal network ﬁles,

A. Install TAF's NCTFi ﬁle.

B. Install NAM's LCF and NCF network

ﬁles.

C. Install terminal users in NOS

validation ﬁles.

6. Modify procedure ﬁle that initializes TAF

for special preprocessing procedures,

such as preparing for recovery.

Manual

NAM Reference

CCP Reference

NDL Reference

TAF Reference

NOS ANHB

NPS Reference

TAF Reference

CDCS Reference

TAF Reference

TAF/CRM

Reference

TAF Reference

TOTAL Reference

TAF Reference

NOS ANHB

NDL Reference

Manual Keyword

xxJ ﬁles

NOS ADHB

NOS IHB

Network ﬁles

Network description

ﬁles

MODVAL, PROFILE

TAF

60459500 C F-3

Table F-l. Installation Overview (Sheet 3 of 3)

Area

6. Test the

transaction

application.

7. TAF operation

al commands.

8. Modify per

formance of

TAF and

application.

Step

7. Write application tasks.

• COBOL 5.

FORTRAN 4.

FORTRAN 5.

COMPASS.

8. Modify ITASK to map transaction codes to

their associated transactions. Code for

handling system transactions and error

processing may be desired depending upon

application.

9. Modify other TAF-furnished system tasks if

desired.

LOGT - terminal logout request.

MSABT - task.

SYSMSG - TAF system messages.

RTASK.

RCTASK.

CTASK.

BTASK.

CRMTASK.

Interface speciﬁcations with the

tasks data management activities.

10. Build data base task libraries.

11. Build TAF system library.

12. Build data base journal ﬁles xxJ to give

TAF user name for data base.

13. Build the TAF conﬁguration ﬁle.

1. Initialize TAF from computer console.

2. Status TAF from computer console.

3. Terminate TAF from computer console.

1. TAF installation parameters.

2. Terminal stimulations.

Manual

TAF Reference

TAF User's Guide

COBOL 5 Reference

COBOL 5 User's

Guide

FORTRAN 4

Reference

FORTRAN 5

Reference

COMPASS Reference

NOS Reference V4

TAF Reference

NOS IHB

TAF Reference

TAF/CRM Reference

CDCS Reference

TAF Reference

NOS IHB

TAF Reference

TAF/CRM Reference

TAF Reference

NOS OHB

NOS IHB

Manual Keyword

F-4

ITASK

TAF

System tasks

LIBTASK

TAF

LIBTASK

xxJ ﬁles

Transaction

subsystem

TAF

/*^i\

60459500 C

Control Data Manual Manual Title Publication Number

0^\

jf^y

AAM Reference

CCP Reference

CDCS Reference

COBOL 5 Reference

COBOL 5 User's Guide

COMPASS Reference

FORTRAN 4 Reference

FORTRAN 5 Reference

NAM Reference

NDL Reference

NOS ADHB

NOS ANHB

NOS IHB

NOS OHB

NOS Reference V3

NOS Reference V4

NPS Reference

TAF/CRM Reference

TAF Reference

TAF User's Guide

TOTAL Reference

CYBER Record Manager Advanced Access Methods

Version 2 Reference Manual

Communications Control Program Version 3

Reference Manual

CYBER Database Control System Version 2

Data Administration Reference Manual

CYBER Database Control System Version 2

Application Programming Reference Manual

COBOL Version 5 Reference Manual

COBOL Version 5 User's Guide

COMPASS Version 3 Reference Manual

FORTRAN Extended Version 4 Reference Manual

FORTRAN Version 5 Reference Manual

Network Products Network Access Method Version I

Reference Manual

Network Products Network Access Method Version 1

Network Deﬁnition Language Reference Manual

NOS Version 2 Administration Handbook

NOS Version 2 Analysis Handbook

NOS Version 2 Installation Handbook

NOS Version 2 Operations Handbook

NOS Version 2 Reference Set,

Volume 3, System Commands

NOS Version 2 Reference Set,

Volume 4, Program Interface

Network Products Stimulator Version 1

Reference Manual

TAF/CRM Data Manager Version 1

Reference Manual

TAF Version 1 Reference Manual

TAF Version 1 User's Guide

TOTAL - CDC Version 2 Reference Manual

60499300

60471400

60485200

60485300

60497100

60497200

60492600

60497800

60481300

60499500

60480000

60459840

60459300

60459320

60459310

60459680

60459690

60480500

60459510

60459500

60459520

76070300

r

60459500 C F-5

TERMINAL DEFINITION COMMANDS

/#*v

INTRODUCTION

The network, through which terminals access a host

and its applications (like TAF), can support many

types of terminals. All supported terminals are

grouped by the network into 18 standard terminal

classes. Each terminal class has speciﬁc operating

characteristics, also referred to as terminal

characteristics. These terminal characteristics,

taken together, make up a terminal deﬁnition and

are predeﬁned by the network to closely match the

operating characteristics of actual terminals. The

network accepts changes to any of these terminal

deﬁnitions through terminal deﬁnition commands.

These commands specify one or more parameters, each

of which may give a new value to a terminal char

acteristic. Tables G-l and G-2 list these terminal

deﬁnitions, the default values, and possible values

for each of the 18 classes.

The tables use the following abbreviations when iden

tifying the terminal types for each terminal class:

Abbreviation

HASP

HAZ

POST

PRE

Tek

Terminal

Terminals using the Houston

A u t o m a t i c S p o o l i n g P r o g r a m

communication protocol.

Hazeltine.

HASP terminals that only sup

port postprint format control.

HASP terminals that only sup

por t prepr int for mat control.

Tektronix (teletypewriter emu

lation) •

istics of your terminal do not match those of its

assigned terminal class, you can change the values

of the terminal characteristics or even change the

terminal class by using the terminal deﬁnition

commands described in this appendix. You can enter

terminal deﬁnition commands any time the terminal

is connected to the network (refer to appendix J for

information on how to access a host).

When you use a terminal deﬁnition command to change

a value, that change remains in effect until the

terminal is disconnected from the network or another

terminal deﬁnition command is used to change the

value. Even application switching and logout do not

change the values of the terminal characteristics if

the terminal has not been disconnected from the

network. Disconnecting your terminal from the net

work (that is, disconnecting the phone and redialing

on dial-up terminals or turning a dedicated terminal

off and then on again) causes all terminal character

istics to be reset to site-deﬁned default values.

The site deﬁnes these values using the Network

Deﬁnition Language (NDL).

You can also reset your terminal's characteristics

by entering the TC command. The TC command resets

your terminal characteristics to the default values

speciﬁed by the Communications Control Program

(CCP). Note that CCP-deﬁned values may differ from

the site-deﬁned NDL values.

It is also possible to change terminal deﬁnitions

using the TRMDEF command or by using control byte 16

fro m an In te ractive job . The TRMDEF command i s

described under Terminal Control Commands in the NOS

Reference Set, Volume 3, System Commands. Refer to

NOS Reference Set, Volume 4, Program Interface, for

information on control bytes.

TTY

UT

X.25

X3.64

Teletype.

User Terminal.

Terminals connected to a packet

switching network (PSN) using

the X.25 communication proto

col.

Terminals conforming to the

ANSI X3.64 standard.

When a terminal logs in to the network, either the

network assumes It to be of a certain terminal class

or assigns it a terminal class that resembles the

terminal's actual characteristics. If you do not

know the terminal class in use, you can enter the CH

command (described in this appendix) to ascertain

the terminal class and some of the characteristics

of your terminal. In either case, if the character-

TERMINAL DEFINITION COMMAND FORMAT

This section describes the general format of a

terminal deﬁnition command. The speciﬁc format of

each command appears later In this appendix.

General formats:

ct keyword-valuet

ct keywordj-valuei ct keyword2*value2

...ct keywordn»valuent

Parameter

ct

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command. Table G-l gives

tThe spaces shown are for clarity only. Do not include spaces when you enter a terminal deﬁnition command.

60459500 C G-l

Parameter Description

the default network control char

ac te r f or you r t er min al. t

keyword Represents a mnemonic associated

with a terminal characteristic.

value Speciﬁes a particular value

a s s o c i a t e d w i t h t h e t e r m i n a l

deﬁnition mnemonic. Table G-2

g i v e s t h e r a n g e o f v a l u e s f o r

e a c h t e r m i n a l d e ﬁ n i t i o n k e y

word. On some commands the

■value portion of the command is

optional and defaults to <-Y.

keyword^ Same as keyword.

value^ Same as value.

The second format allows you to make multiple ter

minal deﬁnitions in one line. If the line extends

beyond character position 54, the results are unpre

dictable. Also, if you change the network control

character ct in a concatenated group of commands,

the CT command does not take effect until the re

maining commands in the group have been processed.

As with all commands described in this manual, you

must press the message transmission key in order for

the system to process your command. Appendix K of

the NOS Reference Set, Volume 3, System Commands,

shows the default message transmission keys for the

various terminal classes. This appendix describes

how you can change the message transmission key

(refer to the EB and EL commands).

Example:

To change the page width of a 200 User Terminal,

enter these characters

ZPW-50

and press the SEND key. The X character is the

network control character, PW is the keyword

associated with page width, 50 is the new page width

for the terminal, and the SEND key is the message

transmission key for a 200 User Terminal.

RESTRICTIONS

You should not enter terminal deﬁnition commands

while output is in progress. The network may not be

able to perform such commands immediately.

The network presets all user-adjustable terminal

characteristics any time you establish a connection

to the network. The site administrators choose

these preset values. Additionally, when a terminal

is disconnected from the network and then recon

nected, the network resets any terminal character

istics you have changed to their preset values.

To enter a terminal deﬁnition command at asynch

ronous terminals from which you can enter more than

one line before transmitting (IN=»BK is specified).

the terminal deﬁnition command must be the last

input line in the transmission. If the input is from

paper tape (IN-PT is speciﬁed), the tape reader must

stop. Unpredictable results can occur if more input

follows the terminal deﬁnition command in the trans

mission block.

Characters or character codes you specify for the

value portion of terminal deﬁnition commands are

subject to the following restrictions:

• You cannot use the following ASCII charac

ters (or their character codes) in the value

portion of the AB, CN, BS, Bl, B2, CT, EB,

or EL commands:

any lowercase or uppercase alphabetic

character

any digit 0 through 9

NUL

SOH

STX

■

DEL

space

• The ASCII characters or character codes you

specify for the AB, BS, Bl, B2, CN, CT, EB,

and EL terminal deﬁnitions must all be

different, except that AB and CN can have

the same value and EB and EL may have the

same value.

• If output flow control is used, do not use

DCls and DC33 In the AB, CN, BS, Bl, B2, CT,

EB, or EL commands.

TERMINAL DEFINITION COMMANDS

This subsection describes the function and format of

each terminal deﬁnition command. The headings

consist of the command name (a two-character

mnemonic) followed by the terminal attribute it

deﬁnes. Generally, the format descriptions do not

show the default values or ranges of values since

th ey var y w i th te rm i na l clas s. Tab le s G-l an d G -2

show this information. If you are unable to ﬁnd

the key on your keyboard that corresponds to a

particular character given in table G-l, consult the

documentation for your terminal.

This section refers to categories of terminal classes

to which commands apply. The categories are as

follows:

Category

Asynchronous

Mode 4

HASP

Bisynchronous

X.25 PSN

3270

Terminal Classes

1 through 8

10, 11, 12, 13, 15

9, 14

16, 17, 18

1, 2, 3, 5, 6, 7, 8

18

/■SSN

/^^%s

TYou must press the ATTN key on a 2741-compatible terminal before entering this character.

• G-2 60459500 C

(AB) - ABORT OUTPUT BLOCK CHARACTER

The AB command speciﬁes the character used to abort

an output block. When you enter this character from

the terminal as the only character in a line, the

current transmission block of output to the terminal

is discarded.

(BF) • BLOCKING FACTOR

Format:

ct AB-ab

Parameter

ct

ab

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

Speciﬁes t h e ne w abort o u t p u t

block character. This character

must differ from the characters

deﬁned for BS, Bl, B2, CT, EB,

and EL.

This command only applies to asynchronous terminals

and is not valid for X.25 PSN terminals.

(AR) - AUTOMATIC CHARACTER RECOGNITION

The AR command allows you to change the terminal's

character set or Its line speed, in many cases, by

means of a switch on the terminal or a removable

type ball. You can enter this command any time

after the system prompts you for input, even before

you enter your user name during login.

Format:

ct AR

The BF command sets the size of intermediate data

blocks that will be delivered to the host.

Format:

ct BF-bf

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

bf Speciﬁes the blocking factor.

You can specify the following

values for bf:

bf Description

0 Selects a line feed

character and a char

acter count of 100

as data-forwarding

signals.

1 Selects a character

c o u n t o f 1 0 0 a s a

data-forwarding

signal.

2 Selects a character

c o u n t o f 2 0 0 a s a

data-forwarding

signal.

Regardless of the blocking factor, an end-of-line

character (carriage return) forwards data to the

host.

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

After entering the AR command, you must select the

terminal speed and enter a carriage return. The

system a ckn owledges th e ca rri age return operation

and indicates that the line speed recognition is

complete by returning two line feeds. If your

terminal cannot change its line speed, no line feed

responses occur. At this point, enter a closing

parenthesis followed by a carriage return so that

the system can recognize the terminal's new

character set. When the system recognizes the new

character set, it issues a line feed and the message

AR ACCEPTED., to indicate you can continue. This is

also the auto-recognition procedure used to connect

the terminal to the system (refer to the login/

logout procedures in Volume 1, Introduction to

Interactive Usage).

This command only applies to asynchronous terminals

and is not valid for X.25 PSN terminals. X.25 PSN

terminals use the ASCII code and character set.

(BR) • BREAK KEY AS USER BREAK 1

The BR command determines if the BREAK key

(interruption key for interactive output) also

functions as the interruption sequence (user break I

sequence) when entered during output and as the

cancel character when entered during input.

Format:

ct BR-option

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Determines if this feature is en

abled or disabled. A value of Y

enables and a value of N disables

this feature.

This command only applies to asynchronous terminals.

For X.25 PSN terminals, the BREAK key can only

>^v

60459500 C G-3

function as the interruption sequence whether entered

during input or output.

(BS) • BACKSPACE CHARACTER

The BS command speciﬁes the character used to

delete the previous input character.

Format:

ct BS«bs

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

bs Speciﬁes the new backspace char

act e r. T h i s c h a r a cter mu s t di f

fer from the characters currently

deﬁned for AB, Bl, B2, CN, CT,

EB, and EL.

It is possible to backspace only to the beginning of

the current physical line; additional backspaces are

disregarde d. When a page w idth of 0 is selected,

the network assumes a page width of 100 characters

for backspacing. If the page width is in the range

20 through 56, backspacing Into previous physical

lines is sometimes permitted.

This command only applies to asynchronous terminals

only.

(Bl) - INTERRUPTION OR USER BREAK 1 CHARACTER

The Bl command speciﬁes the character that, when

entered as the only character in a logical line

(Interruption character followed by the message

transmission key), causes program interruption.

Format:

ct Bl-ubl

Parameter

ct

ubl

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes the new user break 1

character. This character must

d i ff e r f r o m th e c h a ract e r s cu r

rently deﬁned for AB, BS, B2,

CN, CT, EB, and BL.

The interruption sequence is discussed in section 17.

The BR command determines whether the BREAK key can

also function as the Bl character.

This command does not apply to bisynchronous 2780

and 3780 terminals.

(B2) - TERMINATION OR USER BREAK 2 CHARACTER

The B2 command speciﬁes the character that, when

entered as the only character in a logical line (ter

mination character followed by the message transmis

sion key), causes program termination.

Format:

ct B2-ub2

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

u b 2 S p e c i ﬁ e s t h e n e w u s e r b r e a k 2

character. This character must

differ from the characters cur

rently deﬁned for AB, BS, Bl,

CN, CT, EB, and EL.

The termination sequence is discussed in section 17.

This command does not apply to bisynchronous 2780 and

3780 terminals.

(CH) • DISPLAY TERMINAL CHARACTERISTICS

The CH command displays some of the terminal's cur

rent characteristics.

Format:

ct CH

Parameter Description

c t R e p r e s e n t s t h e n e t w o r k c o n t r o l

character for your terminal as

deﬁned by the CT terminal def

inition command.

The CH command produces a display in the following

format:

TC-tc,BS-bs,CN»cn,AB=ab,Bl-ubl,B2"ub2,EL«"el,EB=eb

where the variable portions appear as ASCII charac

ters If printable, mnemonics (for example, STX) If

nonprlntable, or N/A if the attribute is not appli

cable.

(Cl) • CARRIAGE RETURN IDLE COUNT

The CI command speciﬁes the number of idle charac

ters to be inserted into the output stream after a

carriage return.

Format:

ct CI»ci

• G - 4 60459500 C

Parameter Description Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

ci Speciﬁes the new carriage return

idle count. This value can be

from 0 to 99 or the string CA. A

value of CA restores the carriage

return idle count to the default

value.

When t he network p ro du ce s a c arriage re tu rn , th e

network outputs the speciﬁed number of idle charac

ters before outputting the next line. This allows

time for the carriage return function and ensures

that characters are not lost because of printing

attempts during the carriage return operation.

This command only applies to asynchronous terminals.

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

option Indicates whether to send a res

ponse to the terminal or not. A

value of Y indicates yes and N

indicates no.

This command applies only to asynchronous terminals

(except 2741s). If CP-Y and IN-KB are selected, the

system responds to the line feed key by sending a

carriage return and responds to an EL or EB charac

t e r b y s e n d i n g t h e c u r s o r p o s i t i o n i n g r e s p o n s e

speciﬁed by the EL or EB command. If IN=BK is

selected or you are at an X.25 PAD terminal, the

system responds only to the EB character by sending

the cursor positioning response selected by the EB

command.

jjKSBN. (CN) • CANCEL CHARACTER

The CN command speciﬁes the character used to cancel

the logical line currently being input.

Format:

ct CN»CQ

(CT) • NETWORK CONTROL CHARACTER

The CT command speciﬁes a network control character

for the terminal. When you enter this character as

the ﬁrst character of a logical line, it signals

that what follows is a terminal deﬁnition command

or a special command that the network forwards to

your application with a preemptive status.

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

en Speciﬁes the new cancel char

acter. This character must

differ from the characters

currently deﬁned for BS, Bl,

B2, CT, EB, and EL.

When you enter the cancel character as the last

character in a line, the entire logical line in

progress is cancelled. The system responds to a

cancel line character by printing *DEL* on the next

line and positioning the carriage to the beginning

of a new line. The BR command determines whether

the BREAK key can also function as the CN character.

This command does not apply to bisynchronous 2780,

3270, and 3780 terminals.

(CP) - CURSOR POSITIONING AFTER INPUT

The CP command determines whether or not the system

sends the terminal a response to the line feed key,

the EL character, and the EB character.

Format:

ct CP»option

Format:

ct CT-char

Parameter

ct

char

Description

Represents the current network

control character for your ter

minal.

Speciﬁes the new network con

trol character. This character

must differ from the characters

currently deﬁned for AB, BS,

Bl, B2, CN, EB, and EL.

If you enter the CT command in a line with multiple

terminal deﬁnitions, the new value char does not

take effect until the complete line is processed.

(DL) - DELIMITERS FOR SINGLE-MESSAGE TRANSPARENT INPUT

MODE

The DL command speciﬁes the delimiters that

terminate single-message transparent Input mode.

When you initiate transparent input mode (IN»X,

IN-XK, or IN»XP), the network reads your input and

sends it to the system without translation until it

encounters a delimiter. If your terminal's parity

is set to even, odd, or zero (PA=E, 0, or Z), the

parity bit is stripped (set to zero) before the

c h a r a c t e r s a r e s e n t t o t h e h o s t , a l t h o u g h n o

60459500 C G-5

t r a n s l a t i o n o c c u r s . I f y o u r t e r m i n a l ' s p a r i t y i s

set to none or ignore (PA=N or I), the parity bit is

not stripped. See the NAM/CCP Terminal Interfaces

Reference Manual for more information on transparent

input and parity. The ﬁrst delimiter encountered

terminates transparent input mode.

Format:

ct DL»Xxx,Ccount,TO

Parameter

ct

Description

Xxx

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

Speciﬁes the 2-digit hexadecimal

code (xx) of the character you

want as a delimiter. The network

does not send the character as

part of the input data. When you

specify a hexadecimal code above

7F, you must have previously set

your ter- minal's parity to none

(PA-N) or ignore (PA-I); other

wise the network cannot detect

t h e c o d e w h e n i t o c c u r s i n a

transparent mode message. If the

terminal's parity is set to none,

the 8-bit hexadecimal code input

from the terminal is matched

against the 8-bit hexadecimal

code speciﬁed as the delimiter

(xx). If the terminal's parity

is set to ignore, the bottom 7

bits of the terminal input are

matched against the bottom 7 bits

of the speciﬁed delimiter (xx).

Speciﬁes a decimal value (count)

fr om 1 to 409 51 that f unc ti on s

as a character count delimiter.

Speciﬁes that a timeout of be

tween 200 and 400 milliseconds

will be a transparent mode de

l i m i t e r .

You can select any of the three types of delimiters:

character delimiter (specify Xxx), character count

delimiter (specify Ccount), and timeout delimiter

(specify TO).

The parameter values for DL are order-independent

and optional. However, you must specify at least

one of the parameter values. You can omit trailing

commas if you do not specify all three types of

delimiters.

Entering this command with any number of new

delimiters cancels all transparent mode input

delimiters already in effect, including those

speciﬁed with the XL command.

The DL command applies only to asynchronous and mode

4 terminals. Terminal class 4 is conﬁgured with

the RETURN key as the only transparent mode

terminator and mode 4 terminals are conﬁgured with

Ccount

TO

the SEND or ETX key as their only transparent mode

terminator. For X.25 devices, the PAD forwarding

signal always acts as a transparent mode terminator

in addition to any other options selected.

(EB) • END-OF-BLOCK CHARACTER

The EB command deﬁnes the end-of-block character

and deﬁnes the cursor-positioning response to that

character. The EB character acts as the message

transmission key for terminals operating in block

mode (refer to the IN command).

Format:

ct EB-eb,cpr

Parameter

ct

eb

cpr

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

Speciﬁes the new end-of-block

character. You can specify the

following values for eb:

eb Description

char Selects the new EB

character. This

character must dif

fer from the charac

t e r s c u r r e n t l y d e

ﬁned for AB, BS, Bl,

B2, CN, and CT.

EB Selects the default

end-of-block charac

ter or character se

quence .

EL Selects the current

logical end-of-line

character.

Speciﬁes the cursor-positioning

response to the EB character.

You can specify the following

values for cpr:

cpr Description

CR Send a carriage re

turn to the terminal.

L F S e n d a l i n e f e e d t o

the terminal.

CL

NO

Send a carriage re

turn and a line feed

to the term inal.

Send no response.

The two EB parameters (EB=eb and cpr) are optional

and order-independent. If you omit one, the system

retains its previous value.

tThese values are valid within the network. However, unless changed during installation, the maximum logical

input line length in IAF (160 characters) limits you.

• G-6 60459500 C

This command is valid only for asynchronous ter

minals, except for paper tape devices and 2741 ter

minals. The end-of-block character for mode 4 ter

minals is ETX and is not changeable. The X.25 PAD

forw arding signal is th e default for X.25 PSN ter

minals and always acts as an end-of-block. If you

specify the char form of the eb parameter, it is only

effective if It occurs as the last character in a

packet sequence.

The CP command enables or disables the cursor-

positioning response speciﬁed by the cpr parameter.

(EL) • END-OF-LINE CHARACTER

T h e E L c o m m a n d d e ﬁ n e s t h e l o g i c a l e n d - o f - l i n e

character (carriage return) and deﬁnes the cursor-

positioning response to that character. It also

deﬁnes the message transmission key for asynch

ronous terminals not operating in block mode (refer

to the IN command).

Format:

ct EL«el, cpr

Parameter

ct

el

/#**>

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

Speciﬁes the new logical end-of-

line character. You can specify

the following values for el:

el Description

char Selects the new EL

character. This

character must dif

fer from the charac

ters currently de

ﬁ n e d f o r A B , B S ,

Bl, B2, CN, and CT.

EB Selects the current

end-of-block char

acter or character

sequence.

EL Selects the default

logical end-of-line

character.

cpr Description

CL Send a carriage re

turn and a line feed

to the term inal.

NO Send no response.

The two EL parameters (el and cpr) are optional and

order-Independent. If you omit one, the system

retains its previous value.

This command does not apply to 2741, HASP, 3270, and

bisynchronous 2780 and 3780 terminals; the cpr

par ame ter does not ap ply to m ode 4 or X.25 PSN

terminals; and the char speciﬁcation does not apply

to mode 4 terminals.

The CP command enables or disables the cursor-

positioning response speciﬁed by the cpr parameter.

(EP) • ECHOPLEX MODE

The EP command enables or disables the echoing of

input characters back to the terminal.

Format:

ct EP-option

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

Speciﬁes whether to enable (Y)

or disable (N) input echoing.

Some terminals can perform their own character

echoing, such as terminals with a HALF/FULL duplex

sw i tch . I f the s wit c h i s i n t h e H A LF pos i tio n , s et

the EP value to N, and the terminal echoes the

input. If the switch is in the FULL position, set

the EP value to Y and the network echoes the input.

You can use the EP command and full-duplex mode as a

security measure. If you are in full-duplex mode

and EP is Y during login, the system echoes all of

your input except your password. This is not true,

however, if you enter your user name and password on

the same line.

This command only applies to asynchronous terminals

(except 2741s) but is not valid for X.25 PSN

terminals.

c p r S p e c i ﬁ e s t h e c u r s o r - p o s i t i o n i n g

response to the EL character.

You can specify the following

values for cpr:

cpr

CR

LF

Description

Send a carriage re

turn to the terminal.

Send a line feed

the terminal.

to

(FA) • FULL ASCII INPUT MODE

The FA command enables or disables the full-ASCII

input mode.

Format:

ct FAdoption

60459500 C G-7

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

option Speciﬁes whether to enable (Y)

or disable (N) the full-ASCII

input mode.

In full-ASCII input, all 128 ASCII characters,

including NUL, DEL, STX, LF, and all BLK and

message-forwarding signals (which are normally

discarded), are sent to the host. Exceptions to

this are the following characters:

• NULs, DELs and LFs when encountered as the

ﬁrst character of an input line or as the

character following a message-forwarding

signal

• CRs that follow LFs when inputting from

paper tape

• DC3s that follo w t he EL c ha racte r whe n in

putting from paper tape

• DCls and DC3s when output control (OC-Y) is

selected

In full-ASCII mode, the network does not recognize

the terminal functions associated with the mnenomics

Bl, B2, CN, AB, and BS. The network does recognize

terminal deﬁnition commands and other commands

beginning with the CT character.

If SE is in effect when you select FA or if FA is in

effect when you select SE, FA takes precedence and

SE will not be effective until FA is turned off. If

full-ASCII mode Is enabled when you select trans

parent input mode, the network, suspends the full-

ASCII mode until the transparent input mode

terminates.

This command only applies to asynchronous and mode 4

terminals.

The host selected is used until either you change it

or until your terminal is disconnected from the host.

(HD) • DISPLAY OF HOST NODES

The HD command controls when the system displays the

host availability display (HAD), which shows all

paths you can select to connect your terminal to a

host. If your computer system is a multihost

system, your site may choose to show the HAD

whenever you disconnect from a host unless you

inhibit the display.

Format:

ct HD-option

Parameter

ct

option

Description

Represents Che network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Represents Y or N. Y enables

and N disables the automatic

displaying of the HAD.

If you specify HD-Y, you get a display of the HAD

immediately and at any time you disconnect from the

host (for example, after you enter the TM command or

after you log out of an application without

switching to another application). You also get a

header and trailer line along with the HAD (refer to

the TM command).

The HAD has the following format:

message CONTROL CHARACTER»ct

NPU NODE-npu TERMINAL NAME-terminal

/'SjS^v

HOST NODE SELECTED/

CONNECTED

STATUS

host} nodei condltloni statusi

host 2 node 2 condition2 status2

(HC) • HOST CONNECTION

The HC command sets or changes the host connected to

your terminal. The host availability display (HAD)

shows the available hosts (refer to the HD command

for more information on the HAD). This command

disconnects you from your current host and

establishes a new host connection. This command is

equivalent to HS or HN followed by TM.

Format:

ct HC«hostname

Parameter

ct

hostname

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

speciﬁes the name of the host

to which you want your terminal

connected. The valid entries

appear in the HAD.

host. noder conditionn statusr

The variable items In the display have the following

descriptions.

Description

ct

npu

terminal

host*;

A message describing the status

of your current host connection.

Network control character cur

rently deﬁned for your terminal.

The node number of the Network

Processing Unit (NPU) your ter

minal is connected to.

The name of your terminal.

Represents the I- to 7-character

name of a host. The ﬁeld may

be blank.

• G - 8 60459500 C

<(#Sv

r

Item

node^

condition^

Description

Represents a node number (1-31).

Indicates that you have selected

node^ (S), that you are con

nec te d to the h ost us ing no de^

(C), or that node^ has been

a u t o ma t i c al l y se l e c t e d an d t h e

connection to the host is in

progress (SA).

status£ Represents

AVAILABLE.

AVAILABLE or NOT

(HN) - HOST NOOE SELECTION

The HN command 3ets or changes the host or the path

( n o d e ) t o a h o s t t h r o u g h w h i c h y o u r t e r m i n a l i s

connected. This command does not disconnect you

from your current host connection. You must log out

or disconnect with the Secure Login command or TM

terminal deﬁnition command before you can connect

to the new selection.

Format:

Your terminal uses the path to host with the least

trafﬁc. The path selected is used until either you

change it or until your terminal Is disconnected

from the host.

(IC) - FLOW CONTROL FOR INPUT DEVICES

The IC command speciﬁes whether the terminal

recognizes DC3s as a stop signal and DC Is as a

resume signal for terminal input.

Format:

ct IC- opt io n

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes whether to enable (Y)

or disable (N) input control.

ct HN-node

Input control applies to asynchronous terminals,

including paper tape devices (except 2741 and X.25

PSN terminals).

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

n o d e S p e c i ﬁ e s a n o d e n u m b e r . T h e

default is the node the network

processing unit is presently

using to access its supervisor

(CS).

The host availability display (HAD) lists all nodes

your terminal can use. Refer to the HD command for

a description of the HAD.

(HS) - HOST SELECTION

The HS command selects a host which is connected to

your terminal. The host availability display (HAD)

shows the available hosts (refer to the HD command).

(IN) - INPUT DEVICE AND TRANSMISSION MODE

The IN command identiﬁes the input device and the

transmission mode of the device. As the input

device, you can specify one of the following:

• A keyboard.

• A p ape r t ap e r ead er.

As the input transmission mode, you can specify

either:

• Normalized line mode (one message or logical

line per terminal transmission block).

• Normalized block mode (one or more logical

lines or messages collected Into a block

bef o r e it is tr a n s m i t t ed).

• Transparent mode (input Is not edited or

translated by the network).

Format: Format:

ct HS»ho3tname

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

hostname Speciﬁes the name of the host to

which you want your terminal con

nected. The valid entries appear

in the HAD.

ct IN-in

Parameter

ct

in

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

S p e c i ﬁ e s t h e I n p u t de v i c e an d

transmission mode. You can

sp ec ify the fol lo win g v al u es for

I n :

60459500 C G-9

in Description

BK Selects block mode

as from a form ter

minal and normalized

input mode.

KB Selects a keyboard

in c h a r a c t e r or l i n e

mode and normalized

input mode.

PT Selects paper tape

and normalized input

mode.

Parameter Description

value Speciﬁes the new line feed idle

count. This value can be from 0

to 99 or the string CA. A value

of CA restores the line feed idle

count to the default value.

The line feed idle count is similar to the carriage

return idle count (CI), except that the idle char

acters are output after a line feed instead of after

the carriage return.

This command only applies to asynchronous terminals.

X Selects the current

input device and

transparent input

mode.

XK Selects the keyboard

and transparent in

put mode.

XP Selects paper tape

and transparent input

mode.

When the IN value is XK, XP, or X, terminal input is

sent to the host in transparent mode blocks. Trans

parent mode continues until the system encounters a

previously deﬁned transparent mode terminator.

When the IN value is XK and transparent mode ter

minates, the IN value automatically reverts to KB.

When the IN value is XP and transparent mode ter

minates, the IN value automatically reverts to PT.

When the IN value is X and transparent mode ter

minates, the IN value automatically reverts to the

value that was previously in effect.

When the IN value is PT or XP, the network sends the

X-ON code to start the paper tape reader automat

ically after the end of a message is output to the

terminal and the message empties the terminal's

output queue.

The IN command is not applicable to HASP, 3270 or

bisynchronous 2780 and 3780 terminals. 2741 ter

minals can only select IN-KB, IN-X, and IN-XK. Mode

4 terminals, which are always in block mode, and

X.25 PSN terminals cannot select PT or XP mode.

(LI) . LINE FEED IDLE COUNT

The LI command speciﬁes the number of idle

characters to be inserted into the output stream

following a line feed.

Format:

ct LI»value

Parameter

ct

Description

Represents t he net wo rk co nt ro l

character for your terminal as

d e ﬁ n e d b y t h e C T t e r m i n a l

deﬁnition command.

(LK) - LOCKOUT OF UNSOLICITED MESSAGES

The LK command determines whether unsolicited mes

sages from the network operator appear at your ter

minal.

Format:

ct LK-option

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

option Speciﬁes whether to lock out

unsolicited messages. A value

of Y locks out the messages and

a value of N allows the messages

to appear.

This command is not valid for bisynchronous 2780 and

3780 terminals.

(MS) - MESSAGE TO NETWORK OPERATOR

The MS command sends a message to the network

operator.

Format:

ct MS«message

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

message Speciﬁes your message to the

operator. You can use any

string of 50 characters or less.

If you are having problems with the network (such as

difﬁculty connecting to IAF), you can communicate

these problems to the network operator using the MS

command•

Jf-tmgK

• G-10 60459500 C

(OC) - FLOW CONTROL FOR OUTPUT DEVICES

The OC command speciﬁes whether the terminal gen

erates DC3s as a stop signal to the network and DCls

as a resume signal for terminal output.

(PA) - PARITY PROCESSING

The PA command speciﬁes the parity processing to be

performed by the network.

Format:

ct OC«option

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes whether to enable (Y)

or disable (N) output control.

ct PA-pa

Parameter

ct

pa

If the network receives a DC3 while output control

is enabled, it suspends output until it receives a

DC1 or until you send another block of input.

Output control applies to asynchronous terminals,

including paper tape devices (except 2741s).

(OP) • OUTPUT DEVICE SELECTION

The OP command speciﬁes the type of output device.

Format:

ct OP«op

Parameter

ct

op

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal

deﬁnition command.

S p e c i ﬁ e s t h e o u t p u t d e v i c e .

You can specify the following

values for op:

op Description

DI Speciﬁes a display

device.

PR Speciﬁes a printer.

PT Speciﬁes a paper

tape punch.

You can punch a tape in any mode, but the network

does not provide the proper X-OFF characters unless

OP has a value of PT.

If you select OP-PR, the network does line folding

and page bounding for asynchronous and X.25 PSN

terminals. If OP=>DI, the network assumes the ter

minal performs these functions Itself.

This command only applies to asynchronous terminals

(except 2741s). OP-PT does not apply to X.25 PSN

terminals.

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes the type of parity pro

cessing. You can specify the

following values for pa:

pa Description

E Set parity bit for

even parity during

output, and check

for even parity and

set parity bit to

zero on input.

N In transparent mode,

do not set or c hec k

t h e p a r i t y b i t b e

cause it is part of

the input or output

data. In normalized

mode, set the parity

bit to zero on input

and output.

0 Set parity bit for

odd parity during

output, and check

f o r o d d p a r i t y a n d

set parity bit to

zero on input.

Z Set parity bit to

zero on output and

check parity bit

against zero on

input.

1 In transparent mode,

do not set or check

t h e p a r i t y b i t b e

cause It is part of

the input or output

data. Ignore the

parity bit when

checking for trans

parent input mode

delimiters. In nor

malized mode, set the

parity bit to zero

on input and output.

This command only applies to asynchronous terminals

(except 2741s). For X.25 PSN terminals, the parity

bit is set to 0 and not checked for input.

J ^ V 60459500 C G-ll

(PG) • PAGE WAITING

The PG command enables or disables page waiting at

t h e t e r m i n a l d u r i n g o u t p u t . I f y o u e n a b l e p a g e

waiting, the terminal stops at the end of each

output page for your acknowledgement (a null input

line) before output continues.

Format:

ct PG-option

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes whether to enable (Y)

or disable (N) page waiting.

Wh en you enter a n ul l i nput line to ge t t he ne xt

page of output, the null input line has no other

meaning.

Page waiting does not apply to bisynchronous 2780 or

3780 terminals or to HASP terminals.

(PL) - PAGE LENGTH

The PL command establishes the maximum number of

physical lines that can be printed as one page. If

OP h as a va l ue of P R , t he netw ork auto mat ic a ll y

positions the carriage to the top of the form after

PL lines have been output.

Format:

ct PL-pl

Parameter

ct

Pi

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Speciﬁes the page length. You

can specify 0 or any value from

8 to 255. PL-0 selects an In

ﬁnitely long page.

The PL value must be nonzero if you want to enable

page waiting, since page waiting only occurs after

the number of lines deﬁned by pl-1 are output.

Parameter Description

ct Represents the network control

character for your terminal as

deﬁned by the CT term ina l de f

inition command.

p w S p e c i ﬁ e s t h e p a g e w i d t h . Y o u

can specify a value of 0 or any

v a l u e f r o m 2 0 t o 2 5 5 . P W - 0

selects an inﬁnitely long line.

(SE) - SPECIAL EDITING MODE

The SE command enables or disables the

editing variant of normalized input mode.

special

Format:

ct SE»option

Parameter

ct

option

Description

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Enables (Y) or disables (N)

special editing operations.

When special editing is in effect, any backspace

character entered is stored for transmission to the

host. Similarly, a line feed entry produces a

normal line feed operation at the terminal and the

network stores the line feed character code for

transmission to the host. A backspace followed by a

line feed causes the system to output a bell and an

exclamation point on an ASCII terminal or an in

verted caret (v) on an APL terminal below the last

character entered.

This command is only valid for asynchronous ter

minals but not for X.25 PSN terminals.

(TC) - TERMINAL CUSS COMMAND

The TC command speciﬁes a terminal class for your

terminal. The terminal class associates your

terminal with a predeﬁned set of terminal

characteristics. To effectively use a terminal

class, choose a terminal class whose default

terminal deﬁnition corresponds to the

characteristics of your terminal.

Format:

(PW) - PAGE WIDTH

The PW command establishes the maximum number of

characters that the terminal prints on one output

line. If OP has the value PR, the system automat

ic a lly st a rt s a ne w li ne a fte r p w ch ara c ter s h a ve

been output.

Format:

ct PW»pw

ct TC-tc

Parameter Description

c t R e p r e s e n t s t h e n e t w o r k c o n t r o l

character for your terminal as

deﬁned by the CT terminal def

inition command.

tc Speciﬁes the terminal class.

The value tc can be from 1 to 17.

• G-12 60459500 C

The following list associates terminal class values

with terminal types:

Parameter

ct

J 0 ^ L y

tc

I

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

Terminal Type

M33, M35, M37, M38 teletypes

CDC 713-10, 722, 751-1, 752, 756

CDC 721

IBM 2741

M40 teletypes

Hazeltine 2000

Terminals conforming to the ANSI

X3.64 standard (DEC VT100)

Tektronix 4010, 4014

HASP protocol, postprint format

control

200 User Terminal

CDC 714-30

CDC 711-10

CDC 714-10/20

HASP protocol, preprint format

control

CDC 734, 731-12, 732-12

IBM 2780

IBM 3780

IBM 3270

A terminal that is not shown as belonging to a ter

minal class may still be operational. The terminal

can be assigned to a terminal class having similar

characteristics and the terminal's deﬁnition can be

modiﬁed as necessary to correctly deﬁne the opera

tional characteristics of the terminal.

If your terminal is on an auto-recognition line and

Its terminal class is other than 1, 4, 10, or 13,

you can use the TC command to change its terminal

class to ensure proper operation.

If you include a TC command in a sequence of ter

minal deﬁnition commands, enter the TC command

ﬁrst as It resets all other terminal character

istics.

(TM) - TERMINATING A TERMINAL-HOST CONNECTION

The TM command severs the connection between your

terminal and a host.

Format:

ct TM

Description

Represents the network control

character for your terminal as

deﬁned by the CT command.

You can use the TM command if your application does

not respond to your input. The system responds to

the TM command in the following manner:

host status

had

prompt

CONTROL CHARACTER=ct

The variable items have the following descriptions:

Item

host status

ct

had

prompt

J®>^

Description

Indicates the status of the host

you have just speciﬁed or to

which you are/were connected.

You can get any one of the fol

lowing messages:

HOST AVAILABLE

HOST BUSY

HOST CONNECTED

HOST DISCONNECTED

HOST UNAVAILABLE

NO HOST AVAILABLE

NO HOST CONNECTED

NO HOST SELECTED

Represents the network control

character for your terminal as

deﬁned by the CT command.

Represents the host availability

display (HAD). The HAD appears

only if you have enabled its

automatic display (refer to the

HD command).

Represents an action the system

wants you to take or a status

message. You can get any one of

the following prompts:

ENTER Ct HD TO SEE HOST

STATUS

ENTER Ct HN=NN TO SELECT HOST

ENTER INPUT TO CONNECT TO

HOST

INPUT DISCARDED

READY FOR INPUT

TERMINAL DISABLED BY NOP

(XL) - MULTIMESSAGE TRANSPARENT MODE

The network provides a transparent mode that allows

you to remain in transparent input mode even after

message blocks have been forwarded to the applica

tion. The XL command speciﬁes the multimessage-

forwarding signal and the terminator for transparent

Input mode. If your terminal's parity Is set to

even, odd, or zero (PA-E, 0 or Z), the parity bit Is

stripped (set to zero) before the characters are

sent to the host, although no translation occurs.

If your terminal's parity Is set to none or ignore

(PA«N or I), the parity bit Is not stripped. See

the NAM/CCP Terminal Interfaces Reference manual for

more Information on transparent Input and parity.

60459500 C G-13

Format: Parameter Description

ct XL-Xxx,Ccount,TO,Yyy

Parameter Description

ct

Xxx

Ccount

TO

Yyy

Represents the network control

character for your terminal as

deﬁned by the CT terminal def

inition command.

Selects the character with the

two-digit hexadecimal represen

tation xx as the messageforward-

ing signal. If you do not

specify a value yy, the occur

rence of two successive charac

ters deﬁned by xx acts as a ter

minator for transparent input

mode. When you specify a hexa

decimal code above 7F, you must

have previously set your ter

minal's parity to none (PA-N) or

ignore (PA-I); otherwise the net

work cannot detect the code when

it occurs in a transparent mode

message.

Selects a decimal value from 1

to 40951 as a character count

that functions as a message-

forwarding signal.

Selects timeout as a transparent

input mode terminator.

Selects the character with the

two-digit hexadecimal represen

t a t i o n y y a s a t e r m i n a t o r f o r

transparent input mode when it

follows xx. When you specify a

hexadecimal code above 7F, you

must have previously set your

terminal's parity to none (PA-N)

or ignore (PA-I); otherwise the

network cannot detect the code

when it occurs in a transparent

mode message.

Yyy, If speciﬁed, must follow the Xxx parameter;

otherwise, it is ignored. The parameters are

otherwise order-independent. You must specify at

least one of Xxx or TO to select a transparent mode

terminator. When it immediately follows the

character deﬁned by Xxx on input, the character

deﬁned by yy terminates transparent input mode.

The characters deﬁned by Xxx and Yyy can be

identical or you can omit Yyy. In either case, two

s u c c e s s i v e i n p u t c h a r a c t e r s d e ﬁ n e d b y X x x a r e

required to terminate transparent mode.

The message-forwarding signals and mode terminators

are not sent to the host.

This command cancels all transparent mode termina

tors and delimiters deﬁned by the DL command or a

previous XL command. You can select multimessage

transparent input mode by using the XL command in

conjunction with the IN command and selecting IN-X,

IN-XK, or IN-XP.

This command does not apply to HASP and bisynchro

nous terminals.

/SE8V

/^'SaSSs.

tThese values are valid with the network. However, unless changed during Installation, the maximum logical

input line length in IAF (160 characters) limits you. y/^S^V

• G-14 60459500 C

Table G-l. Default Terminal Deﬁnitions

/^PN

0^*-.

Naa-

eooic

Teratnel Types

Detcriptloa

TIT

Ml)

CDC

713-10.

722,731-1.

712,796

C D C ! I M

721 2741

TTt IhAZ

M40-2 2000

X3.64

occ

VT100

T e k j

4000 x.:7T

any

HASP 1 CDC

POST i 200

j UT

CDC

714-10

CDC

711-10

COC

714-10,

714-20

HASP

PRE

CDC

734

IBM !

2710

in

1780

UN

3270

TC

Al

W

as

Terminal clou

A b or t ou t p u t bl o c k

Slocking (actor

teckapace character

CAB

1

IS

CAM

I

SS

J i

CAN

1

IS IS

] 1

CAB

I

none

CAB

I

as

CAB

1

IS

CAB

I

IS

(0)

na

(I)

na

oa

na

10

na

I

na

11

na

I

na

12

na

1

na

1)

na

1

14

na

13

na

16

na

17

na

IS

na

I

na

!(6)

tl Oa.r break 1 ou ou ou OU su DU DU (I) na na

12 Our brack 1 OC* OCA OCA OCA 0C4 DC* oc* (l> na ae )<7)

a

CI

I r a a k a a u a . r b r e ak 1

(and cancel character)

Carriage renin tdlee

na

a

<l>

(1)

na

na na

na

na na

na

am

na

aCancel character CAB CAB CAB CAB CAB CAN CAB (I) na na

a

Conor paaltloalnt

Network control

character

(SC ISC ESC

aa

Xtsc ISC isc (I)

na

X

na

X

na

X

na

X

ne

X

na

X

na

X

na

X

ne

X

na

X

DL Slsgle-axaeaga treae-

nercot Input aoda

Character dallalcer Ct at CR KL Cl at Cl Cl (1) na (41 (4) (4) (4) ne (*) ne oa Z !

Character count

dellalter

: o * j 2043 204) na 204) 2041 204) 204) (1) na no na na ne na na na na

Timeout dellaiter Bo Bo Bo aa Bo No No No (1) na na na ne ne na na na

utad-of-block

Character COT tor tOT na COT COT COT COT (2) aa (4) (4) (4) (4) Oat (4) na na na

Cureor poaltlonlng CL CL na CL CL CL CL Bo na Bo No No Bo ft* No na na na

a. Cod-of-logical line

Character Cl Ct BL at at Ct Cl (1) na (3) (S> ()> (3) TU ()) na ne na

Conor poaltlonlng L» LP LP na if LP LP LT Bo na No No No Bo rt* No na na na

aCchoplcx aoda na na no na na na tu na na ne na

tu foil ASCII Input aoda na (l* aa na na

tc Input device (1cm

control

na aa na na na na na na na na am na

IB Input device Kl Kg Kl Kl Kl CK no CK BK ax MC aa BK na KB

It Line (oed tdlee (I) KM na na aa na aa na na na

Ulockout NOP aeeaatea (1) No No No Bo Bo No No na na ft

oc Output device (lew

control

na na

or O u t p u t de v i c e ft 01 01 rt DI 01 01 DI (I) na na na ae na oa na na «M na

PA rarity processing aa ()) na as na ne •» na n a . na oa na

PS

n.

feae waiting

fare length 24 30 24 27 24 33

(1)

(I)

aa

01) 16 16 16

aa

01)

na

0

na

024

fW hfe width 72 SO (0 1)2 to 74 CO 74 (I) SO ao SO SO to eo 80 60 120 ao

sc Special adltlRf aoda na na na na na na na na na ne na

IL rtolttaeesaie

transparent Input eode No Bo No No No No No No No na No No No No n. No na na na

(0) Teralnale belong to urelul claaece 1 th

(1) Sua a. (oc the tcralMt If It were not ec

( I ) C a d - o t - p a ck e t l ao u e n c e ( H b i t I t re e e t t o

(1) The portly bit 1. Ignored oa Input and to

(4) CTX (moulting (roa eh. SEND key).

(5) CSC A (reeuttlng (roa th. CAJUIUCI tfTUXN

(6) Prograa attention k«r 1 1. a valid eaar b

( 7 ) P r o g r a a a t t e n t i o n k e y 2 l e a «a t ! 4 ti a a r b

o u g h ) o f i

nnected via

t.ro).

generated fo

key).

a a k 1 .

c a k 2 .

through t.

i packet-swt

r o u t p u t a a

thing

o r t h *

networt

beele

k.

t.ral nal type.

60459500 C G-15

Table G-2. Parameter Ranges for Terminal Deﬁnition Commands (Sheet I of 2)

Kae-

Bonli

Terolnal Typea

Deacrlptlon

tty

N33

CDC

713-10,

722,751-1,

752,756

CDC

721

laM

2741

TTT

K40-2

HAZ

2000

X3.64

OEC

VT100

Te k

4000

X.25

any

HASP

POST

CDC

200

OT

CDC

714-30

CDC

711-10

CDC

714-10,

714-20

HASP

PRE

CDC

734

IBM

2780

IBM

3780

IBM

3270

TC Terminal claia (0) 10 11 12 13 14 IS 16 17 18

AB Abort output block (1) (1) (I) (1) (1) (I) (0 (1) na na na na na na aa na na oa na

BF Blocking factor 0-2 0-2 0-2 0-2 0-2 0-2 0-2 0-2 (2) na 0-2 C-2 0-2 0-2 na 0-2 na na 0-2

BS Backepaco character (1) (1) (I) (1) (0,(7) ( l > (I) (1) (2) ne na na na na aa na na na na

Bl User break 1 (1) (1) (I) (1) (1) (1) (1) ( t > (2) ( l > (1) (I) (1) (I) (1) (1) na na (D

B2 Ueer break 2 (1) (l) (1) (1) <n (O <1> (1) (2) (1) (1) (1> (1) (1) (1) (I) na na (1)

BR Brtak aa uaar break I

(and cancel character)

Y. N

(Y,N)

Y, N

(Y.N)

Y. N

(Y.N)

na

Y, N

(Y,N)

Y,N

(Y.N)

Y. N

(Y.N)

Y. N

(Y.N)

(2)

oa

na na na na na na na na na na

Cl Carriage re cum ldlea 0-99,

ca

0-99,

CA

0-99,

CA

0-99,

CA

0-99,

CA

0-99,

CA

0-99.

ca

0-99,

CA

(2) na na na na na na na na na na

CN Cancel character ( i > (1) ( l > (1) (1) (1) (1) ( l > (2) (1) (I) (1) (1) (1) (1) (1) na na (1)

CP Curaor poaltlonlng Y. N Y. N Y. N na Y.N Y.N Y,N Y.N (2) na na na na na na na na na na

CT Network control

character

(1) (1) <l> (1) (1) (1) u> (1) (2) (1) (1) ( l > (I) (1) (t) (1) (I) (I) (1)

DL Slngla-aeiMge

tranapareat Input

lode

Character dellatter 0-FF 0-FF 0-FF 6D 0-F F 0- FF 0- FF 0-FF (2> na 03 03 03 03 na 03 na na na

Character count

dellalter

1-4095 1-4095 na na 1-4093 1-4093 1-4093 1-4093 (2> na na oa na na na na na na oa

Tlstcout dellalter TO TO TO na TO TO TO TO (2) na na na na na na na ne na na

EB End-of-block

Character (1).

E l ,

EB

O ) .

EL,

EB

( l >

EL,

EB

na (1).

E l ,

EB

(I).

EL,

EB

(l>.

EL.

EB

(1),

ei.

EB

(2) na EB CB EB EB na EB na na na

Curaor poatclonlng (3> (3) (3) na (3) (3) (3) (3) (2) na No No H> No na No na na na

EL End-of-logleal line

Character <n,

EL,

SB

(t).

EL,

EB

Cl.

EB

na (1).

E l ,

»

(l>.

E l ,

EB

(I).

EL,

EB

(1).

EL,

EB

(2) na EB,

EL

EB,

El

EB.

El

EB,

EL

na CB,

EL

na na na

Curaor poaltlonlng <3) <3) (3) na (3) (3) (3) (3) No na No So No No na No na na na

(0) Teralnala belong to terminal claasea 1 thr

(1) Any character froa the ASCII 128-character

DEL, or space.

(2) Sab* aa (or Che terminal If It were not co

(3) CR, LF, CL, NO.

(4) KB, PT, BK, X, XK, XP.

(3) PK. DI, PT.

(6 ) S u e «■ for the teratnat If It were not co

(7) ASCII BS character code (8 he»;adcclaal) ca

ough 3

a c t »

nnected

nnot be

or 3 t h

ccpt an

by a p

uaed.

rough 8.

y lowereaae or

acket-awltchtng

acket-ewttchtnu.

ippercaea alphabetic

network.

artwork. Parity tr.

Chirac

ixtnret

ear, a

<»i i

iy digit

ifxil and

0 through 9, NULL. SOH, STX

ia Kcnorated (or output.

• ■•

• G-16 60459500 C >*^™^v

Table G-2. Parameter Ranges for Terminal Deﬁnition Commands (Sheet 2 of 2)

0$^.

Kne-

■onlc Deacrlptlon

Teralnal Typea

TTY

H33

CK

713-10,

722,751-1.

752,756

CDC

721

IBM

2741

TTT

H40-2

HAZ

2000

X3.&4

DEC

VT100

Tek

4000

X.25

any

HASP

POST

CDC

200

UT

CDC

714-30

CDC

711-10

CDC

714-10.

714-20

HASP

PRE

CDC

734

IBM

2780

IBM

3780

IBM

3270

EP Cchoplax aoda Y. N Y. N Y, N na Y. N Y. N Y. N Y. N na na na aa na na na na na na na

FA Full ASCII Input aode Y,N Y.N Y. N Y.N Y.N Y. N Y. N Y. N (2) na Y.N Y. N Y.N Y. N na Y. N na na na

IC Input device (low

control

Y, N Y. H Y. N na Y. N Y. N Y. N Y.N na na na na na na na na na na na

IN Input device (4) (4) (4) KB,XX.

X

(4) (4) (4) (4) na na na na na

LI Line feed ldlea 0-99,

CA

0-99.

CA

0-99,

CA

0-99,

CA

0-99.

CA

0-99,

CA

0-99

a0-99,

CA

(2) na na na na na oa na na na n a '

!

LK lockout aeaeagea Y.N Y. N Y. N Y. N Y.N Y.N Y. N Y. N (2) Y.N Y. N Y. H T. N Y. N Y. N Y. N na na Y . N j

OC Output device ﬂow

c o n t r o l

Y.N Y. N Y. N na Y.N Y.N Y. N Y. N na na na na na na na na na na " i

OP Output device (5) (3) (5) PR,

DI

(5) (5) ( S ) (5) PR,

DI

na na na na na na na na na n. j

PA Parity processing Z.O,

E.N

Z.O.

E.N

Z.O

E.N

na Z.O.

E.N

Z.O,

E.N

Z.O.

E.N

Z.O.

E.H

(6) na na na na na na na na na na

PC Page waiting Y. N Y. N Y. N Y. N Y. N Y. N Y.N Y.N (2) na Y.N Y. N Y.N Y. N na Y. N na na Y. N

PL Page length 0 , 8 -

255

0 . 8 -

255

0 , 8 -

255

0,8-

255

0,8-

255

0.8-

255

0 , 8 -

255

0 , 8 -

255

(2) 0,8-

255

0 . 8 -

255

0,8-

255

0,8-

255

0.8-

255

0,8-

255

PW Page width

235

0.20-

255

0.20-

255

0,20-

255

0.20-

255

0,20-

255

0,20-

255

0,20-

255

0,20- (2)

255

0,20-

255

0,20-

255

0,20-

255

0,20-

255

0,20-

255

0,20-

255

0,20-

255

0,20-

255

0,20- 0,20-

255

SE Special editing aode Y.N T.N Y. N Y.N Y.N Y.N Y.N Y. N aa na na na na na na na na na na

TC Teralnal claaa Input 1,2.3.

5-8

1 . 2 . 3 ,

5-8

1 . 2 . 3 ,

5-8

1 . 2 . 3 ,

5-8

1 . 2 . 3 .

5-8

1 . 2 . 3 ,

5-8

1 . 2 . 3 .

5-8

1 . 2 . 3 ,

5-8

10,15 11-13 11-13 11-13 14 10,15 16 17 18

XL Kultlaeaeage

tranaparent Input

aode

Character dellalter 0-FF 0-FF O-FF 2D 0-FF 0-FF O-FF O-FF (2) na 03 03 03 03 oa 03 na na na

Character teralnator 0-FF 0-FF 0-FF 2D 0-F F 0-FF 0 -FF O-FF (2) na oa na oa aa na oa na na na

Timeout dellalter TO TO TO na TO TO TO TO na na na na oa na aa na na na na

Character count

dellalter

I-409S 1-4095 1-409! na 1-4095 1-4093 1-4095 1-4095 (2) oa na aa oa oa na na na na na

(0) Teralnala belong to uralnal claoeee I th

(1) Any character (roa the ASCII 128-eharacte

OIL, or apace.

(2) Saae aa (or the teralnel If It were not c

(3) CR, IF, CL, NO.

(4) KB. PT. BK, X, XK. XP.

(3) P I, D I, PT.

(6) Seae aa for the terminal If It were not c

(7) ASCII BS character code (8 bcxadeclaal) c

rough 3 or 5 through 8

r eat except any lower

onnccted by a packet-a

annot be uaed.

eaae or upperca

witching networ

ae alphabetic

k.

k . P a r i t y l a

character, any digit

Ignored on Input and

0 through 9, MILL. SOU, STX

la generated for output.

0^ 60459500 C G-17

DELIMITING AND TRANSMITTING TERMINAL INPUT

/0^

0^\

/ ^ S V

You can transmit input to an application in normal

ized mode (also called character mode) or transparent

mode (also called binary mode). In transparent input

mode, the network does not convert any of your input

but sends it directly to your application. Charac

ters like LF and BS, which the network normally

strips from the input stream, become part of the data

sent to your application. Appendix G describes how

you delimit and transmit input in transparent mode

(refer to the DL and XL commands). The default input

mode for all supported terminal classes is normalized

mode, however. The remainder of this appendix

describes how to delimit and transmit terminal input

in normalized mode under the default conditions of

t h e v a r i o u s t e r m i n a l c l a s s e s . ( A p p e n d i x G a l s o

describes how you can change these defaults.)

stored in the communication block chain until the

message transmission key is pressed.

LOGICAL END-OF-LINE (CARRIAGE RETURN)

You terminate a logical line of input with a

carriage return key. A logical line can consist of

one or more physical lines but not vice versa. The

network may respond to the carriage return by

advancing the cursor or carriage to the next line

(refer to the EL command in appendix G).

MESSAGE TRANSMISSION

PHYSICAL END-OF-LINE (LINE FEED)

In terminal classes 1 through 8, you can terminate a

physical line of input with a line feed key. The

network also terminates a physical line of output

whenever the page width of a terminal is reached

( r e f e r t o t h e P W c o n n a n d i n a p p e n d i x G ) . T h e

network may respond to the line, feed key by

advancing the cursor or carriage to the beginning of

the next line (refer to the CP command in appendix

G).

This key is transparent to TAF. When the terminal

is not in block mode, it performs the same function

as the carriage return but does not initiate the

transaction. Rather, it causes the message to be

You transmit your input to the network with the

message transmission key. For non-blocks ode devices,

the message transmission key is the carriage return

key. Hence, for these terminal classes, logical

lines are transmitted separately. When the

delimiter for the logical end-of-line and

transmission key are different (as with block mode

devices, including PSN and mode 4 terminals), the

terminal stores logical lines until you press the

transmission key. It then sends the single

transmission consisting of multiple logical lines to

the network. The network sends each logical line

separately to your application.

Table H-l shows the keys used by the various

terminal classes to perform the three functions just

described.

60459500 B H-l

Table H-l. Default Message Delimiter and Transmission Keys

Terminal Class

Function

Physical End-of-

Line (Line Feed)

Logical End-of-Line

(Carriage Return)

Message

Transmission Key

1LINE FEED RETURN RETURN

2JRETURN RETURNt

4ATTN RETURN RETURN

5NEW LINE RETURN RETURN

6LF CR CR

7LINE FEED CARRIAGE RETURN CARRIAGE RETURN

8LF RETURN RETURN

9Varies tt Va r i e s t t V a r i e s t t

10 None RETURN SEND

11 None RETURN SEND

12 None NEW LINE ETX

13 None NEW LINE ETX

14 Variestt Variestt Variestt

15 None NEW LINE SEND

16 None EM EOT

17 None EM EOT

18 None Varies ENTER

tlf in block mode, refer to terminal documentation for terminal key equivalences.

Those listed are for character and line modes,

tt Terminals operating under HASP protocol use different keys for this purpose.

H-2 60459500 C

DETECTION OF POTENTIALLY BLOCKED TASKS

/pPNv

0^\

TAF prevents situations from occuring in which the

execution of a task is blocked because it is

impossible under the circumstances to obtain the

needed central memory space for the task, whether

for an initial load or a memory increase. Several

terms will be deﬁned to aid in the description of

how potentially blocked tasks are detected:

• Minimum size of the total task area

The total task area is the CM in which TAF

will schedule tasks. It includes the space

o c c u p i e d b y C M - r e s i d e n t t a s k s . T h e a r e a

extends from the ﬁrst word address into

which tasks can be loaded to the maximum

ﬁel d le n g t h o f TA F. T h e si z e of th i s a r e a

ﬂuctuates if the TAF/CRM Data Manager is

used. The minimum size of this area occurs

when the TAF/CRM buffer takes on its maximum

size.

• Minimum size of the transient task area

The transient task area is that portion of

the total task area not occupied by

CM-resident tasks. The minimum size of this

area is deﬁned to be the minimum size of

th e to t a l t a s k a r ea m i nus t he s u m o f th e

MFLs of all CM-resident tasks.

One or more tasks will be considered to be

potentially blocked under the following

circumstances.

• If the initial field lengths of the

CM-resident tasks are so large that they all

couldn not be loaded together.

• If the sum of the MFLs for the CM-resident

tasks exceeds the minimum size of the total

task area.

• If the MFL of a non-CM-resident task exceeds

the minimum size of the transient task area.

Following are the situations when potentially

blocked tasks are detected and the actions that are

taken.

• At TAF initialization. Potentially blocked

tasks result in TAF being aborted.

• W h e n TA F i s inf o r m e d , vi a th e LI B TA S K T T

option, of the update of a task library

attached by TAF and the library contains

potentially blocked tasks, the update will

be rejected.

• When an attempt is made to reduce the MFL of

TAF via the K.MAXFL command to a value that

r e s u l t s i n p o t e n t i a l l y b l o c k e d t a s k s , t h e

command will be rejected.

The preceding checking assumes that the maximum

ﬁeld length of TAF is set (by default, via K.MFL,

or via K.MAXFL commands) to a value that can be

attained.

j^HPn,

60459500 A I - 1

J^v ACCESSING A HOST

/iﬂs^K

This appendix describes the steps used to access a

host and to use CDC network software. The login

procedure can be divided into eight steps.

Gathering information.

Setting up your terminal.

Connecting your terminal to the network.

Identifying your terminal to the network.

Selecting a host.

Connecting to the selected host.

Identifying yourself and your terminal to

the host.

• Selecting a network application.

The ﬁrst part of this appendix gives a brief

description of the eight steps. The second part of

the appendix gives a more detailed description of

the same eight steps followed by additional general

information. You may ﬁnd the brief description of

the steps sufﬁcient to accomplish login at your

site. If not, consult the detailed description. In

addition to more detail, it provides shortcuts, the

various options that are available at any given

step, and failure conditions.

BRIEF DESCRIPTION OF ACCESS

STEP 1 • GATHERING INFORMATION

Find the answers to the following questions.

• Is your terminal hardwired to the system?

• Which key is the data transmission key for

your terminal?

• If you have a dialup terminal, what telephone

number must you dial?

• Into which of the following categories does

your terminal fall?

Asynchronous terminals

Asynchronous terminals using X.25

protocol

CDC mode 4 synchronous terminals

Houston Automatic Spooling Program

(HASP) terminals

Bisynchronous terminals like IBM

2780/3780

Bisynchronous terminals like IBM 3270

• Must you supply a family name, user name,

password, and application name during login?

If so, get the required information.

• Does your terminal use the ASCII character

set and code?

STEP 2 - SETTING UP YOUR TERMINAL

• Turn power switch on.

• Load and initialize any software or control-

ware needed by your terminal.

• Set the terminal's duplex or echoplex switch

to the correct position (typically HALF if

your keyboard entries appear unduplicated on

your console's screen or printer).

• Set the terminal's parity switch to its

proper position.

• Set the line speed switch to its proper

setting.

• Set the transmission mode to either the

character or line mode position.

• Set the online/offline switch to the online

position.

STEP 3 • CONNECTING YOUR TERMINAL TO THE NETWORK

Skip this step if your terminal is hardwired.

Otherwise, determine which of the conﬁgurations in

ﬁgures J-l, J-2, J-3, and J-4 most closely matches

your terminal and follow the instructions in the

ﬁgure.

60459500 C J-l

1.

2.

3.

4.

5.

Turn on coupler.

Pick up receiver.

Dial phone number.

Wait for high-pitched tone.

Fit receiver into coupler. Be

sure you put the cord end of

the receiver into the correct

cup, as indicated on the

coupler.

&\

l\w\

lo^^=" 1 ( .

/C="*iS!v

Figure J-l. Separate Acoustic Coupler

1. Pick up receiver.

2. Push button, such as ORIG but

ton on Teletype model 33 or 35.

3. Dial phone number.

4. Wait for high-pitched tone.

5. Push button, such as ORIG but

ton on Teletype model 33 or 35.

6. Replace receiver.

__J

S3

o

□

o

Figure J-2. Data Set Built Into the Terminal

1. Pick up receiver.

2. Set switch to TALK or pu3h TALK

button.

3. Dial phone number.

4. Wait for high-pitched tone.

5. Set switch to DATA or push DATA

button.

6. Replace receiver.

Figure J-3. Data Sets with Switches and Buttons

• J - 2 60459500 C / £ ^ v

1. Pick up receiver.

2. Dial phone number.

3. Wait for high-pitched tone.

4. Fit receiver into coupler. Be

sure you put the cord end of

the receiver into the correct

cup, as indicated on the

coupler.

000 000000000

oaaaoac.

OOQOO

ooc

Figure J-4. Terminal with Built-in Acoustic Coupler

STEP 4 - IDENTIFYING YOUR TERMINAL TO THE NETWORK

If th e ne two r k do es n o t p r ompt yo u wi thi n a few

seconds after you are connected to it (there might

be a light on the terminal that indicates when your

t e r m i n a l i s c o n n e c t e d ) , p e r f o r m t h e a p p r o p r i a t e

following steps.

• F o r a s yn c h r o n o u s te r m i n a l s no t u s i n g X. 2 5

protocol:

a. Press the key that transmits a carriage

return. The network responds with two

line feeds when it recognizes your line

speed.

b. Type a closing parenthesis (not required

if the terminal uses the ASCII character

set and code) and press the carriage

return key. When the network recognizes

your character code set, it responds

with a line feed.

• For asynchronous terminals using X.25

protocol:

Get the Information from your site.

• For mode 4 synchronous terminals:

Press the data transmission key.

• F o r H A S P a n d 2 7 8 0 / 3 7 8 0 b i s y n c h r o n o u s

terminals:

Send a /*C0NFIG card image.

• For 3270 bisynchronous terminals:

No identiﬁcation is necessary.

STEP 5 - SELECTING A HOST

If you have a choice of hosts or host paths (multi-

host), the network displays a list of the hosts and

host paths that are available and prompts you to

make a selection. Otherwise, you can enter:

ct HD

to get a list of hosts, ct is your terminal's net

work control character (refer to the NOS Reference

Set, Volume 3, System Commands).

Make your selection with one of the following

commands *

ct HN=node

or

ct HS=hostnarae

node is the number of a host path; and hostname is

the name of a host.

STEP 6 • CONNECTING TO THE SELECTED HOST

If your terminal was not automatically connected to

a host, the network prompts you to connect. Enter a

carriage return to make the connection.

0^ 60459500 C J-3

STEP 7 ■ IDENTIFYING YOURSELF AND YOUR TERMINAL TO

THE HOST

Once your terminal is connected to the host, the host

displays a banner similar to:

WELCOME TO THE NOS SOFTWARE SYSTEM.

COPYRIGHT CONTROL DATA 1978, 198X.

date time terminal name

site identiﬁcation NOS 2 PSR Level number

Following this banner, you may be prompted for a

family name, then a user name, then a password, and

ﬁnally an application name (if there is no

default). For each prompt, enter the appropriate

Information followed by a carriage return.

STEP 8 • SELECTING A NETWORK APPLICATION

If your login is successful, your terminal is placed

under the control of the requested or default

application, which then prompts you for a command.

Your site can ask the network software to

determine certain things about your terminal

when the terminal joins the network. This

process is called automatic recognition.

[Terminals using X.25 packet-switching net

works (PSN) cannot use automatic recogni

t i o n . ]

If y ou r n et wo rk is conﬁgured f or aut om at ic

recognition, you must perform an extra step

each time you connect your terminal to the

n e t w o r k . I f y o u r t e r m i n a l i s n o t s o c o n

ﬁgured, you may skip questions 3 and 4.

3. What protocol does your terminal use?

Your terminal must ﬁt Into one of the

following categories.

• Asynchronous terminals that work like

teletypewriters or IBM 2741 ter

minals.

• Asynchronous using an X.25 PSN

through a packet assembly/disassembly

(PAD) service; these terminals work

like teletypewriters.

DETAILED DESCRIPTION OF ACCESS

The following description covers in more detail the

eight steps brieﬂy described earlier. Although each

of the steps is always performed when a terminal

accesses the system, you might ﬁnd that your net

work's administrators can make many of these steps

unnecessary by having the software perform the steps

for you.

STEP 1 - GATHERING INFORMATION

If you know the answers to the following questions,

or can get the answers from people at your site, the

text following each question will tell you which

steps and corresponding subsections of this appendix

you can skip. If you cannot answer the questions,

r e a d a l l o f t h e s u b s e c t i o n s ; e a c h p r o c e d u r e

description contains hints for answering the

questions.

1. Is the terminal hardwired, or is it a dial-

up terminal?

A hardwired terminal is connected directly

to the network through a device called a

modulator/demodulator (modem). A modem can

be either a separate box, or built into the

terminal. A dial-up terminal temporarily

connects to the network through a telephone

line and either an acoustic coupler or a

telephone data set (a coupler or data set

does the same things as a modem).

If you do not need to dial a telephone number

to use the network, then your terminal is

hardwired. (A nearby telephone does not ne

cessarily mean the terminal is dial-up.)

2. Is your network conﬁgured for automatic

recognition?

• CDC mode 4 synchronous; mode 4A ter

minals work like the CDC 200 User

Terminal, while mode 4C terminals

work like CDC 711 or 714 terminals.

• HASP terminals.

• Bisynchronous terminals that work

like IBM 2780, 3270 or 3780 ter

minals .

If your terminal operating manual does not

te l l y o u w h a t p r oto c ol y our term i nal us e s,

question 4 and the terminal classes shown in

the NOS Reference Set, Volume 3, System Com

mands might help you answer this question.

If your network is not conﬁgured for auto

matic recognition, skip question 4.

4. What class of terminal is it?

Many different kinds of terminals exist.

The network software assigns terminals it

supports to classes. If you know what the

terminal class is, that will tell you the

protocol, as follows:

Class Protocol

1 thru 8 Asynchronous or X.25

asynchronous

9 and 14 HASP bisynchronous

10 and 15 CDC mode 4A synchronous

11 thru 13 CDC mode 4C synchronous

16 and 17 I BM 278 0 an d 3 7 80 bi

synchronous

18 IBM 3270 bisynchronous

Other Site-deﬁned

/<K!§Sv

• J - 4 60459500 C /-SS^y

/a&Hn^

Terminals in classes 1 through 8 sometimes

are called interactive terminals. A console

has an input and output device that can be

used for dialog with the network. Most

consoles use a television-like screen or a

typewriter-like mechanism to convey output

information. Almost all consoles have a

keyboard for entering information to the

n e t w o r k . S o m e c o n s o l e s m i g h t a l s o u s e

mechanisms such as magnetic tape cassettes

or paper tape reader/punches for input or

output.

Terminals in classes 9 through 18 sometimes

are called remote batch terminals or remote

job entry terminals. Such terminals have an

interactive console and can also have batch

devices the network can use for input only

or for out put on ly.

Figure J-5 shows a console with a display

screen and a keyboard. Figure J-6 shows a

console with a printer and a keyboard.

Figure J-7 shows a remote batch terminal

with a console, card reader, and a batch

printer device.

Figure J-5. Interactive Display Console

^ms^fev

Figure J-6. Interactive Printer Console

60459500 C J - 5 •

Figure J-7. Remote Batch Terminal

5 . W h a t ke y e n d s a l i n e o f d a t a ? W h a t k e y

sends data? (Does the terminal use block

mode?)

You should know when data leaves your ter

minal so that you know when to expect a res

ponse from the network or the host computer.

Your terminal operator's guide should tell

you what key or keys send data from your

terminal.

Terminals transmit information in one of the

following ways.

• A character at a time (transmission

occurs as you enter each character).

• A l in e a t a tim e ( tr an smiss io n m ig ht

occur when you end each line).

• Several lines at a time, called a

block (transmission occurs when you

direct the terminal to transmit).

Terminals that send data a character at a

time are treated by the network as if they

sent characters a line at a time. Until you

end the line by entering a character or set

of characters called an end-of-llne charac

ter, you can backspace within the line and

change data. When you enter the end-of-line

character, the network processes the data.

The end-of-line character used can be changed

b y y o u , by a si t e ad m i n i st r a t o r, o r b y a n

application. We represent the end-of-line

character for such terminals by a carriage

retu r n .

This appendix assumes you enter an end-of-

line character after each command.

Terminals that send data a character at a

time u su al ly s en d the e nd -o f- li ne characte r

when you use a key called the end-of-line key

(remember, the character can be changed).

The end-of-line key might be labeled CARRIAGE

RETURN, RETURN, RET, NEWLINE, NEXT, ATTN, or

CR.

Terminals that transmit a line at a time

usually send the end-of-line character and

transmit the line when you use the end-of-

line key. If the character is changed, then

you must enter the character as the last

entry on the line before pressing the end-

of-line key. The end-of-line key might be

labeled CARRIAGE RETURN, RETURN, RET,

NEWLINE, NEXT, ATTN, or CR.

Terminals that send data a block at a time

do not transmit your data to the network

when you press an end-of-line key. Until

you press a key called the end-of-block key,

you can position the cursor anywhere within

• J - 6 60459500 C

yﬂﬂP^y

any unsent line and change data. This key

might be labeled SEND, ETX, EOT, or XMIT.

When you press the end-of-block key, the

network processes each line of data as if it

had been transmitted one line at a time.

The network expects each block from a block

mode terminal to end with a character or set

of characters called the end-of-block indi

cator. The end-of-block indicator used can

be changed by you, by a site administrator,

or by an application program. We do not show

the end-of-block indicator in the examples.

Terminals that transmit a block at a time

usually send the end-of-block character and

transmit all lines in the block when you use

the end-of-block key. If the character is

changed, then you must enter the character

at the end of the last line before pressing

the end-of-block key.

Terminals that transmit blocks are sometimes

said to work in batch mode; do not confuse

this kind of batch mode operation with re

mote batch data transmissions. Remote batch

data transmissions are simply transmissions

of ﬁles from or to the host using batch de

vices, bypassing the terminal.

6. What telephone number is appropriate?

If your terminal is hardwired, you may skip

questions 6 and 7.

Your network might use a speciﬁc telephone

number for terminals that communicate at a

certain speed, for terminals operating in

block mode, or for all terminals using cer

tain protocols.

The telephone number you use determines

whether you need to complete some of the

procedures. If you do not know what numbers

you should use, get help from a site admin

i s t r a t o r .

7. Is your terminal automatically connected to

a host?

If it is, skip question 8.

8. What is the name or node number for the host

you need to use?

9. Will your terminal be automatically logged

in?

If so, skip question 10.

10. What is the family name, user name, and

password appropriate for you on the host

system you will be using?

You can get this information from site

administrators.

11. Is your terminal automatically connected to

a network application?

If so, you will not have to select an

application at login.

STEP 2 - SETTING UP YOUR TERMINAL

If your terminal is hardwired, you can probably skip

most of this subsection; hardwired terminals are

usually set up once and left in the appropriate

co nd it ion. Befor e u si ng this s ubsec ti on , r ev iew t he

applicable terminal operator's manual, which des

cribes the procedures for setting up your terminal.

If you a re u sing an X.25 termin al, follo w th e PAD

access procedures supplied by the packet-switching

network service.

Switch settings are important. The number, type,

settings, and names of switches vary from terminal

to terminal. Some terminals use buttons or toggles

for switches; others use software option selections

as switches.

If other people have used your terminal to connect

to the network, the switches should be set correctly;

do not change them. Directions for setting the

switches may be posted near your terminal.

Here is a suggested procedure to follow when setting

up your terminal:

1. Turn on the power switch.

2. Load and initialize any software or control-

ware needed by your terminal. You will ﬁnd

detailed information on this task in your

terminal's operator manual.

3. Set the terminal's duplex or echoplex switch

to the correct position (use HALF if you are

not sure). If you wish to have the display

of your login password suppressed, you must

use full duplex. If nothing you enter

appears on your console after you connect to

the network, the network must display char

acters for your console. The NOS Reference

Set, Volume 3, System Commands describes how

to enable and disable character echoing by

the network (refer to the EP command).

4. Set the terminal's parity switch to the

proper position. If garbled output appears

at your console after you connect to the

network , the n e t w o r k m u s t use a di fferent

parity choice for your terminal. The NOS

Reference Set, Volume 3, System Commands

describes how to change parity use by the

network (see the PA command).

5. S e t th e li n e speed s w i t c h t o a s p e e d th a t

matches one associated with the telephone

numbers you were given. If you do not know

the line speed you should use, set the

switch to any position for X.25, mode 4

synchronous, or bisynchronous terminals; set

the switch to 30 characters per second (300

bits per second) for asynchronous terminals.

6. Set the transmission mode switch to either

the character or line mode position (you can

change it later if you have a block mode

terminal). For example: on a Viking 721,

select the CHAR option; on a CDC 751, set

the switch to the CHAR position; on a CDC

200 User Terminal, set the switch to the

LINE position.

#^

60459500 C J-7

7. Set the online/ofﬂine switch to the position

that permits online communications. For ex

ample: on a Viking 721, select the ON option

of the LINE setting; on a CDC 713, turn off

the LOCAL indicator switch; on a Teletype,

set the LINE/OFF/LOCAL switch to the LINE

position; on a CDC 200 User Terminal con

sole, set the ATTENDED/UNATTENDED switch to

the ATTENDED position.

You are now ready to connect your terminal to the

network.

• Connect to the selected host.

• Identify yourself and your terminal to the

host (log in).

• Select a network application.

The software usually sends you a message that helps

you decide which step comes next. If nothing

appears at your terminal within a few seconds, you

pr oba bly need to i de n ti fy the term ina l t o t he ne t

work.

STEP 3 - CONNECTING YOUR TERMINAL TO THE NETWORK STEP 4 • IDENTIFYING YOUR TERMINAL TO THE NETWORK

To begin communication, your terminal must be

physically connected to the network. If your

terminal is hardwired, skip the remainder of this

subsection; this subsection applies only to dial-up

terminals.

A dial-up terminal uses either an acoustic coupler

(asynchronous terminal) or a data set (asynchronous,

X.25, bisynchronous, or synchronous terminal) to

link itself to the network.

An acoustic coupler can be built into the terminal.

Figure J-4 shows a terminal with a built-in acoustic

coupler and gives directions to connect the terminal

to the network.

An acoustic coupler can also be separate from the

terminal. Figure J-l shows an acoustic coupler

separate from a terminal and gives directions to

connect the terminal to the network.

A data set can be built into the terminal. Figure

J-2 shows a terminal with a data set built in and

gives directions to connect the terminal to the

network.

A stand-alone data set can have either a switch

labeled TALK and DATA or individual buttons labeled

TALK and DATA. Figure J-3 shows both a data set

with switches and a data set with buttons and gives

directions to connect the terminal to the network.

Once you have established physical connection to the

net w o r k h a r d ware , yo u mi g ht n e e d t o Id e n tif y th e

terminal to the network software.

This identiﬁcation procedure, called automatic

recognition, is not always needed. It does not

a p p l y to X . 2 5 t e r mi n a l s . I t d o es n o t a p p ly i f t h e

c o m m u n i c a t i o n l i n e u s e d b y y o u r t e r m i n a l is n o t

conﬁgured for automatic recognition.

If your terminal does not display any information

within a few seconds of physical connection, you

should complete one of the identiﬁcation procedures

described in the following subsections. The pro

cedure you use depends on the terminal protocol,

which you can determine if you know the terminal's

type and/or class.

If yo u do not complete the iden tiﬁ cat ion procedure

within the allowed time, the network disconnects a

dial-up terminal. Hang up the phone and redial the

number if you are using a dial-up terminal. You

must restart the procedure for a hardwired terminal.

Procedure for Asynchronous Terminals

For an asynchronous terminal, which belongs in

terminal classes 1 through 8, complete this pro

cedure within 1 minute:

After you dial the phone number, either you get a

h i g h - p i t c h t o n e o r a n o p e r a t o r a n s w e r s . I f a n

operator answers, ask for your terminal to be con

nected, wait for the tone, and then place the re

ceiver in the coupler or set the data set switch or

button to the on or data position. If you get a

busy signal, wait and redial or try another number.

If your terminal has an indicator (sometimes marked

DSR, DATA SET READY, or SYSTEM ACTIVE), it lights to

let you know that the terminal is connected to the

network. Wait approximately 2 seconds after the

light comes on before entering data.

You are now ready for the next step. You might need

to do one or all of the following:

• Identify your terminal to an X.25 network

(this appendix does not describe this pro

cedure).

• Identify your terminal to the CDC network.

• Select a host.

1. Wait about 2 seconds after the light that

indicates your terminal is connected to the

network comes on.

2 . P r e s s t h e c a r r i a g e r e t u r n k e y t o i d e n t i f y

the li ne spe ed use d b y your te rm in al . Th e

network software responds with two line

feeds.

3. If your terminal uses an APL, EBCD, or cor

respondence code character set, type a

closing parenthesis; if your terminal uses

an ASCII character set, you need not type in

anything.

4 . P r e s s t h e c a r r i a g e r e t u r n k e y t o i d e n t i f y

the character and code set used by the

terminal. The network software responds

with a line feed.

The software sends you a message that helps you

decide which step comes next. Turn to the sub

section appropriate for the next step you must

perform.

/&m$£\

• J - 8 60459500 C

Procedure for HASP Terminals Parameter Description

r

^ " f P f t y

>^^S\

HASP terminals belong either to terminal class 9 or

14. For automatic recognition of your HASP ter

minal, you might need to modify the signon block or

enter a special statement*

The ﬁrst information transmitted by a HASP terminal

a f t e r i t i s c o n n e c t e d t o t h e n e t w o r k i s c a l l e d a

signon block. A terminal might handle signon block

transmission in one of several ways.

• Some terminals automatically transmit a sig

non block that begins with the characters:

/•SIGNON

The se eight char acters and t he i nformat ion

following them imitate the card required by

some IBM host systems for terminal identi

ﬁcation. This transmission can occur with

out your knowledge or Intervention if the

information is built into the ﬁrmware or

hardware.

• Some terminals require you to enter informa

tion for the signon block before they will

transmit anything to the network; however,

they only allow the block to contain infor

mation beginning with the eight characters

/*SIGNON. These characters and other infor

mation might be required as:

-A command from the console.

-A card read from any card reader.

-A card read from a speciﬁc card reader.

• S o me t e rmi n a l s r e q uir e yo u to e n t e r s i g non

block information before they will transmit

anything to the network, but the content of

the signon block is left up to you. Whether

the Information can be entered from the con

sole or from a card reader depends on the

terminal.

The network software cannot use information from a

/♦SIGNON card image. When such a card image is

received in a signon block, the signon block con

tents are discarded.

Instead, the network software uses a /*CONFIG state

ment for the automatic recognition procedure. You

can send the /*CONFIG statement in the signon block

when your terminal permits you to provide the con

tents of that block.

If the signon block does not contain the /*CONFtG

s t a t e m e n t a n d t h e t e r m i n a l m u s t u s e a u t o m a t i c

recognition, a prompt requesting that statement is

sent to the terminal console. When a prompt for the

st at ement appear s, ente r the sta tem en t t hr oug h a

card reader.

The format of the /*CONFIG statement is:

/*C0NFIG,t i,CO=co,CR=x,LP=x,CP=y,PL=z

Blanks are not allowed within the statement; a blank

ends parameter processing. The parameters, which

you can specify in any order, are:

ti Terminal type:

POST HASP postprint (de

fault); this is ter

minal class 9.

PRE HASP preprint; this

is terminal class 14.

C0=co Conﬁguration ordinal, a decimal

integer from 1 to 255; the de

fault is 1. Use the conﬁgura

tion ordinal to select one of

several terminal deﬁnitions de

ﬁned for the line that describes

a speciﬁc combination of addi

tional characteristics. Site ad

ministration personnel can tell

you the correct number to use*

CR=x Identiﬁes available card

readers. The default i s 1.

LP=x Identiﬁes available line

prin t e r s . T h e de f a u l t is 1.

CP=y Identiﬁes available card

punches; y cannot equal z. The

default is 1.

PL=z Identiﬁes available plotters; y

cannot equal z. No default

exists for z; you cannot omit

PL-z if you have a plotter.

x, y, or z is a list of numbers speciﬁed by either:

1 / 2 / . . . / 7

ALL (all numbers from 1 through 7)

The numbers you use for x, y, and z must match the

HASP stream numbers used for the corresponding de

vices within the workstation. Site administration

personnel should have this Information if you do not

know what numbers to use.

For example:

/*C0NFIG,PRE,C0=2,CR=2,LP=2/3,CP=4/PL=5

identiﬁes your terminal as the second preprinting

workstation deﬁned for the communication line,

having:

• A card reader and line printer on stream 2.

• Another printer on stream 3.

• A card punch on stream 4.

• A plotter on stream 5.

If no prompt for a /*C0NFIG statement appears, you

are ready for the next step.

The software se nds you a message tha t helps you

decide which step comes next. Turn to the

subsection appropriate for the next step you must

perform.

60459500 C J-9

Procedure for Mode 4 Terminals

Mode 4 terminals belong to terminal classes 10

through 13 and 15. For automatic recognition, press

the end-of-block key within 1 minute of physical con

nection.

You are ready for the next step. The software sends

you a message that helps you decide which step comes

next. Turn to the subsection appropriate for the

next step you must perform.

Procedure for Bisynchronous Terminals

Bisynchronous terminals belong to terminal classes

1 6 , 1 7 , a n d 1 8 . E n t e r a / * C 0 N F I G s t a t e m e n t t o

specify the type of terminal and the devices avail

able at it.

The format of the /*C0NFIG statement is:

/*C0NFIG,ti,C0=co,CR,LP*CP=y

Blanks are not allowed within the statement; a blank

ends parameter processing. The parameters, which you

can specify in any order, are as follows:

Parameter

ti

C0=co

CR

LP

CP=y

Description

Terminal type:

2780 IBM 2780 (default);

this is terminal

class 16.

3780 IBM 3780; this is

terminal class 17.

3270 IBM 3270; this is

terminal class 18.

The conﬁguration ordinal, a

de c ima l i n teg e r f rom 1 thr o ugh

25 5 ; t h e d e f aul t is 1. U s e t h e

conﬁguation ordinal to select

on e o f se v e r a l te r m i na l d e ﬁ n i

tions deﬁned for the line that

describes a speciﬁc combination

of additional characteristics.

Site personnel can tell you the

correct number to use.

Indicates an available card

reader; assumed if not speciﬁed.

Indicates an available line

printer; assumed if not spe

ciﬁed.

Indicates an available card

punch; assumed not to exist if

not specified. The »y portion is

not allowed for 2780; for 3270 or

3780, the y portion is required

and can be either 2 or 3 to cor

respond to the device selection

character DC2 or DC3.

For example:

/*C0NFIG,3780,C0=4,CR,LP,CP=2

identifes your terminal as a 3780 terminal having:

• A card reader and line printer*

• A card punch, which is selected by the char

acter code DC2.

If no prompt for a /*CONFIG statement appears, you

are ready for the next step.

The software expecting the next step sends you a

message which helps you decide which procedure comes

n e x t . Tu r n t o t h e s u b s e c t i o n a p p r o p r i a t e f o r t h e

next step you must perform.

STEP 5 • SELECTING A HOST

You might need to select the host, which runs the

software you want to use. This is not necessary if

your Installation personnel select a host path for

your terminal when the network is conﬁgured.

You can select or change a site-deﬁned host path

after you connect your terminal to the network. The

host path selected is used until either you change

it o r un t i l yo u r te r m i n a l i s disc o n n e c t e d fr o m th e

network.

More than one host path can be available to each

host from a terminal. If one host path fails, you

can select an alternate route to the host.

Selecting a Host

You can select a host or override a site-deﬁned host

selection with the following terminal deﬁnition com

mand.

ct HS=hostname

ct represents the network control character for your

terminal. For most asynchronous terminals this is

ESC or X,

Each host may be conﬁgured with a unique name.

This name (1 through 7 characters) is indicated by

hostname.

For example:

%HS=ARHN0S

would select the path with the least trafﬁc to the

host called ARHNOS (Z represents your terminal's

network control character).

If you specify the name, your terminal uses the host

pa th w it h t h e l eas t t raf ﬁc.

If you do not know the name you need, the host

availability display (HAD) can show you what names

are available. That display is described later in

this appendix.

Once you have selected your host, you are ready for

the next step.

• J - 1 0 60459500 C

Selecting a Speciﬁc Host Path

Use the following terminal deﬁnition command to

select your own host path or to override the site-

deﬁned host path.

ct HN=nn

ct represents the network control character for your

terminal. For most asynchronous terminals this is

ESC or X.

Each access has a unique number, called a node

number. The host node number (1 through 31) is

indicated by nn.

The software sends you a message that helps you

decide which step comes next. Turn to the sub

section appropriate for the next step you must

perform.

Controlling the Display of Host Paths

The host availability display (HAD) (ﬁgure J-8)

lists all host paths your terminal can currently use

to gain access to the host and all hosts in the net

work. You can turn display of the HAD on and off or

request the display with the following terminal def

inition command.

iggjSRay

For example:

%HN=2

would select access 2 (Z represents your terminal's

network control character).

If you omit the node number, your terminal uses the

host path the network is using to communicate with

its supervising host.

If you do not know the node number you need, the host

availability display (HAD) can show you what numbers

are available. That display is described in the

following subsection. Each node number may have a

name for Its host, provided by your site to help you

identify the corresponding host system on the HAD.

Once you have selected the host path, you are ready

for the next step.

ct HD=option

ct represents the network control character for your

terminal. For most asynchronous terminals this is

ESC or Z.

If the display mode Is N (no), you receive only two

lines at your terminal (the host status message and

the prompt message) instead of the full display when

you disconnect your terminal from a host.

If you enter HD=Y or HD, the full display is issued

immediately when you disconnect your terminal from

the host. You then have a choice of hosts and/or

host paths to which you can request connection.

If you have a multihost system, typically the HAD

appears when you ﬁrst access the network. This

appearance is controlled by site installation.

Display

host status

NPU NODEs

HOST

message

xx TERMINAL

NODE

NAME= yyyyyy

CONTROL CHARACTER

SELECTED/

CONNECTED

= ct

STATUS

host-)

hosts

node-)

nodes

condition-)

conditions

status-)

statusj

hostn noden co nd it io nn statusn

prompt message

Figure J-8. Host Availability Display (Sheet 1 of 2)

/ f & i

60459500 C J-l I

Field Description

host status

message

Status of a given host, which can be one of the following:

ct

xx

yyyyyy

host.;

node,

condition^

status;

prompt

message

Message

HOST CONNECTED

NO HOST SELECTED

NO HOST AVAILABLE

HOST UNAVAILABLE

HOST BUSY

HOST DISCONNECTED

HOST AVAILABLE

NO HOST CONNECTED

Meaning

You are connected

to the host.

Host is available;

you have not selected

a host.

No hosts are avail

able.

You have selected

a host that is not

up.

Connection rejected

by host.

Connection to host

terminated.

You have selected

host that is up.

You are not connected

to a host.

You Also See:

prompt

message d or e

prompt

message b

prompt

message a

prompt

message a

prompt

message a

prompt

message c or e

prompt

message c

prompt

message c

Network control character currently deﬁned for your terminal.

The number of the host node you are connected to.

The terminal number of your terminal.

The 1- to 7-character name of a host; if the network only has

one host, this can be blank.

The host node number used in selecting a path through the network;

1 < node*; < 31.

S ■ selected, not connected

C - connected, not selected

SC ■ selected and connected

SA ■ selected, attempting connection

Either AVAILABLE or NOT AVAILABLE; a host is only available when

it is connected to the network.

Action to take In response to a host status message, which can be

one of the following:

prompt message a: ENTER Ct HD TO SEE HOST STATUS

prompt message b: ENTER ct HN=nn TO SELECT HOST

prompt message c: ENTER INPUT TO CONNECT TO HOST

prompt message d: READY FOR INPUT

prompt message e: TERMINAL DISABLED BY NOP

prompt message f: INPUT DISCARDED

Figure J-8. Host Availability Display (Sheet 2 of 2)

• J - 1 2 60459500 C

yUSfﬂJ^ STEP 6 • CONNECTING TO THE SELECTED HOST

Your site personnel might have conﬁgured your

terminal so that it is automatically connected with

a host. If so, the network continues to attempt

connection indeﬁnitely either until the connection

is completed or until you stop it by entering ct

TM. You can tell the network is attempting to

connect you when the HAD shows a SA status for any

host. If your terminal is automatically connected

to a host, you may skip this subsection. If not,

you will have to ask for the connection to be made.

You can ask to be connected to the selected host by

entering a carriage return. If the carriage return

is not preceded by an empty line, the information is

discarded (unless it Is a valid terminal deﬁnition

command).

If your connection is rejected, you are notiﬁed.

If you select another host path you must make

another entry to complete a connection. The network

software physically disconnects dial-up devices if

you do not attempt connection to a host within 2

minutes of completing the previous step.

Once you are connected to a host, you are ready for

the next step.

Your site might also require use of a secure login

initiation sequence, prior to login, to ensure that

you send your user identiﬁcation to the correct

host software. If required, the sequence contains a

site-selected security character and the sequence

will be recognized by the system at any time. De

pending on your terminal type, the secure login

initiation sequence is entered in one of the follow

ing ways.

• At an asynchronous terminal (not 2741),

press the interactive interrupt key (BREAK

or ATTN) and type the character at a 2741

terminal, press the NL key twice. Then

enter the ATTN key, the character, and press

the NL key.

• At an X.25 terminal, press the interactive

interrupt key, type the character, and press

the message transmission key.

• At a mode 4 terminal, clear the screen, press

SEND, clear the screen again, type the char

acter, and press the end-of-block key.

• At a HASP terminal, type the character and

press the end-of-line key.

• At a 2780 or 3780, enter /* and the character

from the console or a card reader.

STEP 7 • IDENTIFYING YOURSELF AND YOUR TERMINAL TO

THE HOST

Th e step th a t i d ent i ﬁes yo u a n d y our te r min a l t o

the host system is called login. Your terminal is

identiﬁed to the host system by assigning it a

family name, a user name, and a password. The host

can prompt you for each of these things.

Your site can set up your terminal connection so

that part or all of your login is done automati

cally. If so, you might not see the corresponding

prompt and you need not enter the information.

• At a 3270, clear the screen, press the pro

gram attention 1 key, type the security char

acter, and press the ENTER key.

Th i s ac t i on m o m ent a r i l y d i s conn e c t s y o u fr o m t h e

host. You might need to reconnect your terminal to

the host (if connection is not automatic). Now you

are guaranteed that you are sending your login

entries to the correct host software.

Refer to ﬁgure J-9 for a sample login from an

asynchronous terminal. In the example, the terminal

has not been conﬁgured by site personnel for auto

matic login. Everything you would typically enter

is shown in lowercase.

j^p^H..

WELCOME TO THE NOS SOFTWARE SYSTEM.

COPYRIGHT CONTROL DATA 1978, 198X.

85/03/01. 09/51.06. T05A50

CDC NETWORK OPERATING SYSTEM

FAMILY:

USER NAME: jrc3069

PASSWORD: jane

/T05A50 - APPLICATION: iaf

NOS 2

Figure J-9. Sample Login from an Asynchronous Terminal

/#^- 60459500 C J-13

Automatic Login

The family name or user name assigned to your ter

minal for an automatic login can be:

• A mandatory value.

• A default value.

• A primary value.

If a mandatory value is assigned, you do not receive

a prompt and cannot use any other value.

If a default value is assigned, you are prompted and

you can either: enter an empty line as a response

to the system prompt if you want either the default

family or user name to apply, or respond to the

prompt with another value.

The default family name value assigned to your

terminal for automatic login can be different from

t h e d e f a u l t v a l u e u s e d b y t h e h o s t f o r a f a m i l y

name. You can override the login default even when

you do not know the system default; this procedure

is described in the following subsection.

If a primary value is assigned, you do not receive a

prompt the ﬁrst time login occurs while you are

connected to the host. Subsequent logins (refer to

Restarting Login Identiﬁcation) do prompt you. You

can override a primary value for user name by

entering a different value during an abbreviated

login. Abbreviated login is described in a later

subsection.

Login Dialog

Login begins when the system displays the following

lines.

WELCOME TO THE NOS SOFTWARE SYSTEM.

COPYRIGHT CONTROL DATA 1978, 198X.

Then a line appears with the date, time, and

terminal name; for example:

83/12/28. 15.23.58. TERM201

Next is a line your site supplies that identiﬁes

the host system used; something similar to:

CDC NETWORK OPERATING SYSTEM NOS 2

The next line is either of the following prompts.

FAMILY:

This indicates that no mandatory or primary

family name has been assigned to your ter

minal. Enter the 1- to 7-character name of

the storage device that contains your per

manent ﬁles and press t he carri age return.

If you want to us e the default login family

name, just press the carriage return after

th e FAM I LY pr omp t appe a rs. You can a lso

enter a value of 0 to override a preassigned

login default family name and use the system

default family name. If you have no preas

signed default family name, carriage return

selects the system default family name.

USER NAME:

Thi3 indicates that no mandatory or primary

user name has been assigned to your terminal.

Enter the user name you were given. The user

name, which can contain any combination of

digits, letters, and asterisks, identiﬁes

you as the terminal operator.

The next prompt appears only after a USER NAME

prompt has appeared. This ﬁnal prompt is either:

PASSWORD:

XXXXXXX

The system attempts to preserve your password's

secrecy. If you have set your terminal at full

duplex (refer to the NOS Reference Set, Volume 3,

System Commands), your password will not be displayed

when you enter it. You will not see what you type

in. At some terminals, the network overprints

several characters on a line and asks you to type

your password on that line, as shown by the second

PASSWORD prompt. After creating this row of over-

struck characters, the cursor moves back to the

ﬁrst character.

Enter the password currently associated with your

user name. If you must enter the user name, you

also must enter the password. No default exists for

a password.

J-14 60459500 C

y^PfeS

You must respond to each prompt within 2 minutes.

If you ta ke too lon g t o r es pon d, this mess ag e i s

displayed at your terminal.

TIMEOUT.

Your terminal is then disconnected from the host.

If you enter an unacceptable family name, user name,

or password, you receive either the following

message:

IMPROPER LOGIN, TRY AGAIN.

FAMILY:

if no mandatory family name is assigned to your

term in al , o r:

IMPROPER LOGIN, TRY AGAIN.

USER NAME:

if a mandatory family name is assigned. Reenter all

needed login information, beginning with the

requested parameter, regardless of when the error

occurred.

Yo u must s p e l l e a c h login e n t r y c o r r e c t l y. If yo u

make a mistake, such as typing the letter 0 for the

numeral 0 or the number 1 for the letter 1, your

login will not be successful. Try again when the

prompting sequence restarts.

You are allowed four consecutive chances to complete

the login procedure. If you make four unsuccessful

attempts to complete login, this message appears at

your terminal:

USER RETRY LIMIT.

Your terminal is then disconnected from the host.

If this happens, check the spelling of all of the

e n t r i e s . I f y o u s p e l l e d e v e r y t h i n g c o r r e c t l y ,

contact a site administrator.

When the family name, user name, and password are

accepted by the host, you must next connect your

terminal to an application, if there is no default

network application.

STEP 8 • SELECTING A NETWORK APPLICATION

Your s ite m ay be se t u p s o tha t you r ter mi na l i s

connected to the IAF application automatically. Or

your site may connect your terminal automatically to

another application, depending on the installation.

If so, you might not see the corresponding prompt.

If not, you must complete this step yourself.

You are allowed several chances to make a correct

ent ry. Ho wever, if y ou f ai l to connec t su cc essfu lly

after four consecutive attempts, your terminal is

automatically disconnected from the host. If this

happens, check the spelling of the name you used.

If the spelling was correct, contact a site

administrator.

Automatic Connection

Your host may permit you access only to one network

application, or an application can be connected

automatically. Your host site can conﬁgure your

connection for either possibility by preassigning an

automatic connection application name.

A preassigned automatic application connection can

be either mandatory or primary for the connection or

it c an be mandator y for t he use r. If ei th er y ou or

your connection has a preassigned mandatory appli

cation, you are not prompted, you are automatically

connected to that application, and you cannot use

any other application. If a mandatory application

program is not running in the host, you are logged

out and disconnected from that host.

If a primary value is assigned, you are not prompted

for the initial connection request after identifying

your terminal to the host, and connection to that

program occurs automatically. If that connection is

not successful or if you disconnect from that appli

cation program, you have a choice of actions; you can

select another application or disconnect from the

host.

To override a primary automatic application connec

tion on the ﬁrst attempt to select an application,

name a different application in an abbreviated login

entry (described later in this appendix) following a

login prompt.

When a primary value is assigned, you are prompted

on subsequent attempts to select an application,

such as when you are switching applications. When

you are prompted to enter an application name and

you want to be connected to your primary applica

tion, enter an empty line as a response.

Manual Connection

This procedure begins when you see the following

prompting message.

terminalname - APPLICATION:

The terminalname variable on this line is the same

terminal name as the one on the ﬁrst line of your

login sequence. If your terminal is automatically

logged into a network application, you do not

receive this prompt.

When you receive the APPLICATION prompt, enter the

letters and digits that identify the network appli

cation you want to access; for example, IAF for the

Interactive Facility. You can access CDC-written

applications from the following list that are in

stalled at your site:

• Remote Batch Facility (enter RBF).

• I n t e r a c t i v e F a c i l i t y ( e n t e r I A F ) .

• Transaction Facility (enter TAF).

• Terminal Verification Facility (enter TVF).

• Message Control System (enter MCS).

• PLATO (enter PNI, which stands for the

PLATO-NAM Interface).

Oth e r a pp licat i o n s , wr i t t en a t y o u r s i t e , migh t b e

available.

60459500 C J-15

You must respond to the prompt within 2 minutes. If

you take too long to respond, this message is

displayed at your terminal.

TIMEOUT.

Your terminal is then disconnected from the host.

You must spell your entry correctly. If you make a

mistake, such as typing the letter 0 for the numeral

0 or the letter 1 for the number 1, you receive the

following error message:

ILLEGAL APPLICATION, TRY AGAIN,

terminalname - APPLICATION:

The terminal name is indicated by terminalname. You

can also receive this message if your user name is

not permitted access to the application you named.

If you did not spell the name correctly, try again.

If you did spell the name correctly, disconnect your

terminal and contact a site administrator.

If you make four unsuccessful attempts to enter an

application name, this message appears at your ter

minal.

APPLICATION RETRY LIMIT.

Your terminal is then disconnected from the host.

This step is complete when the application you re

quest connects to your terminal. The application

you asked to use might print an identiﬁcation line

next.

Whether the program sends such a message or not, you

can use commands recognized by that application. If

you need to disconnect your terminal from the appli

cation, the application probably has a command for

that purpose. If the program has no such command,

the subsection called Disconnecting from a Host des

cribes a command you can use.

To use the site-deﬁned login default family name,

enter:

,RLS4525,PASS123,IAF

To o v e r r i d e y o u r s i t e - d e ﬁ n e d l o g i n d e f a u l t f a m i l y

name with the host's default family name, enter:

0,RLS4525,PASS123,IAF

To use a login default family name and user name

deﬁned by the site for your terminal, enter:

///IAF

To also use a default application name deﬁned by

the site for your terminal, enter:

You can supply combined entries in response to the

FAMILY, USER NAME, and PASSWORD prompts. Although

you do not need to complete the remaining sequence

on the same line, you must enter the information in

the correct order: family name, user name, password,

and application (if there is no default). For

example:

FAMILY: systema

USER NAME: rls4525,pass123

terminalname - APPLICATION: iaf

If you supply a user/password combination that is

overridden by a mandatory speciﬁcation, this mes

sage is displayed.

VOLUNTEERED USER/PASSWORD IGNORED.

If you offer an application name that is overridden

by a preassigned mandatory application, the follow

ing message is displayed.

VOLUNTEERED APPLICATION IGNORED.

y^s^s.

ABBREVIATED LOGIN AND APPLICATION CONNECTION

You can shorten the standard login and application

connection procedures by entering all of the re

quired information at once. For example, in res

ponse to the FAMILY prompt, you can enter the fol

lowing information on the same line.

FAMILY: familynanie,username,password,application

Separate all entries with a comma. The entries are

order-dependent. Use a comma to indicate any default

or unused entries.

You do not receive any of the remaining login selec

tion prompts if you use this abbreviated login pro

cedure, unless you omit a required entry or supply an

entry that is not recognized. Your password entry is

not protected by the system when you use an abbrevi

ated login procedure.

Here are some examples. To log In and connect to

the Interactive Facility application IAF with a

family name of SYSTEMA, a user name of RLS4525, and

a password of PASS123, enter:

SYSTEMA,RLS4525,PASS123,IAF

SWITCHING TO A DIFFERENT APPLICATION

Unless you have a mandatory network application

assigned for your terminal, you can transfer your

terminal's connection from the current application

to another application. There are two ways to do

this, depending on the commands used by the current

application.

Direct Switches

You can switch in one step by entering a switch com

mand recognized by the current application. The fol

lowing switch commands are recognized by CDC-written

network applications:

Application

RBF

IAF

MCS

Command

IAF

BYE,application

LOGIN,application

For example, if your terminal is connected to RBF,

y o u ca n g a in a c c e s s to I A F b y en t e r i ng t h e I A F

command.

y^v

• J - 1 6 60459500 C

Do not enter any more input until the application

acknowledges it has processed your switch command.

Otherwise, you may lose the input.

Indirect Switches

If your current application does not have a command

for a direct switch, you must disconnect your ter

minal from the current application with a command

r e c o g n i z e d b y t h a t a p p l i c a t i o n . T h e n y o u m u s t

request another application connection from the

host. The following disconnection commands are

recognized by CDC-written network applications:

Program Command

RBF END

IAF BYE,

MCS END

TAF EX.LOGT

TVF END

For example, you can switch your terminal connection

from RBF to an application other than IAF by

entering the END command. You then receive a prompt

for a new application name. Do not enter any more

input until the application acknowledges it has

processed your disconnection command. Otherwise,

you might lose the input.

Dialog for Direct and Indirect Switches

After disconnecting the application, the system in

dicates that a connection switch is in progress by

issuing this message.

application - CONNECT TIME hh.mm.ss.

The application that was just disconnected is In

dicated by application and the time that passed

while the terminal was connected to the program is

indicated by hh.mm.ss.

If you used a switch command, you receive an iden

tifying me ss ag e f ro m your ne w a pp li ca ti on . If yo u

used a disconnection command, you receive another

prompt for an application name.

terminalname - APPLICATION:

unless the terminal is permitted access to only one

application. If so, you are disconnected from the

host.

If you enter the name of another application in res

ponse to the APPLICATION prompt, you are connected

to that application.

RESTARTING LOGIN IDENTIFICATION

There are many reasons why you might want to restart

login identiﬁcation and the subsequent application

connection. Perhaps you have several user names

available to you, each with permission to use dif

ferent host resources. Or perhaps someone else left

the terminal connected to an application you do not

need, and you do not want to use their user name.

There are three ways to restart login, depending on

the commands recognized by the current application

and installation options.

Direct Restarts

You can restart host identiﬁcation by entering a

login command recognized by the current application.

The following login commands are recognized by CDC-

written network applications:

Application

RBF

IAF

MCS

Command

LOGIN

HELLO

LOGIN

For example, if your terminal is connected to IAF,

you can restart login by entering the HELLO command.

Do not enter any more input until the application

acknowledges it has processed your command. Other

wise, you may lose the input.

Indirect Restarts

If your current application does not have a command

for a direct switch, you must disconnect your ter

minal from the current program with a command rec

ognized by that application. Then you must request

restart of login from the host. The disconnection

commands recognized by CDC-written network applica

tion are described earlier in this section under

Switching to a Different Application.

For example, you can restart your terminal login from

RBF by entering the END command. You then receive a

prompt for a new application name. Do not enter any

more input until the application acknowledges it has

processed your disconnection command. Otherwise, you

might lose the input.

Secure Login Restarts

If your site has selected the secure login initiation

option and deﬁned a security character, the sequence

may be entered at any time to immediately disconnect

from the current application and initiate the user

login procedure.

After entering the disconnection command, you receive

another prompt for an application name:

terminalname - APPLICATION:

unless the terminal is permitted access to only one

application program. If so, you are disconnected

from the host and can restart login by reconnecting.

If you receive the APPLICATION prompt, you use one

of the following commands to ask the host system to

restart login:

HELLO

LOGIN

60459500 C J-17

DISCONNECTING FROM A HOST

You might want to disconnect your terminal from a

host for several reasons, for example:

• You want to disconnect from the network

properly, without leaving behind an indica

tion that something went wrong; disconnecting

from a host is the ﬁrst step in disconnect

ing from a CDC network.

• You are allowed access to more than one host

system, and you want to transfer your ter

minal's connection from the current host to

another host.

There are four ways to do this, depending on the

commands used by the current application.

Disconnecting with Application Commands

You can disconnect in one step by entering a host

disconnection command recognized by the current

application. The following host disconnection

commands a re rec og ni ze d b y CDC-written n et wo rk

applications:

The following host disconnection commands are valid

responses to the APPLICATION prompt on CDC host

systems:

8YE

LOGOUT

For example, you can disconnect your terminal from

RBF by entering the END command. You then receive a

prompt for a new application name and enter BYE.

Disconnecting with a Network Software Command

You normally end a connection with a host by using a

command to disconnect you from an application and/or

a command to log out of the host. Events might make

it impossible for you to do either. When this

happens, you can end your terminal's connection to

the host by entering this terminal deﬁnition

command.

Ct TM

ct represents the network control character. For

most asynchronous terminals this is ESC.

/T*®&?&\

Program

RBF

IAF

MCS

Command

LOGOUT or LOGOFF

BYE or LOGOUT or GOODBYE

BYE or LOGOUT

The network responds to your TM command with a new

host availablity display. You can use the TM com

mand if an application does not respond to your

entries.

For example, if your terminal is connected to IAF,

you can disconnect from the host by entering the BYE

command.

Disconnecting with Host Commands

If your current application does not have a command

for direct disconnection, you must ﬁrst disconnect

your terminal from the current program with a com

mand recognized by that application. Then you must

request host disconnection from the host. Applica

tion disconnection commands are described earlier in

this section under Switching to a Different Applica

tion.

After disconnecting the application, the system in

dicates that a connection switch is in progress by

issuing this message:

application - CONNECT TIME hh.mm.ss.

The application that was just disconnected is indi

cated by application and the time that passed

while the terminal was connected to the program is

indicated by hh.mm.ss.

You then receive another prompt for an application

program name:

terminalname - APPLICATION:

unless the terminal is permitted access to only one

ap p li c ati on. If s o , y ou a re di sco nne c te d from th e

host anyway.

Reconnecting to a Host or Connecting to a Different Host

For a single host system, after your terminal is dis

connected from the host, this message is printed.

HOST DISCONNECTED. CONTROL CHARACTER = Ct

ct is the network control character,

is followed by the prompting message.

ENTER INPUT TO CONNECT TO HOST

This message

You can then attempt another connection to the same

host by sending any input you want. If you have a

m u l t i h o s t s y s t e m , t y p i c a l l y t h e H A D w i l l b e d i s

played between these two messages. To reach a dif

ferent host, you must complete the procedures for

Selecting a Host and Connecting to the Selected Host

described earlier in this appendix.

Disconnecting from One Host and Connecting to a Different

Host

You can disconnect from one host establish a connec

tion with another host using the single command

ct HC = hn

ct is the network control character, and hn is the

name of the desired host.

/^v

• J - 1 8 60459500 C ^*^v

/ptfev

INTERRUPTIONS

Events can sometimes interrupt your input or output.

These interruptions fall into two categories.

• Interruptions for communication with the

network operator.

• Temporary suspensions in communication.

Communicating with the Network Operator

The term network operator includes any operator who

has access to the network, including the host oper

ato r. Any n e twork op e r a t o r c a n se n d a n d re c e i v e

messages that involve you.

Receiving Messages

The network operator can send short messages to a

terminal. The message appears at your terminal in

this format.

FROM NOP message text

These messages can appear at any time a new line of

output is possible at your terminal. For example,

the network operator might want to Inform all con

nected terminals that communication is going to be

suspended intentionally with this message.

FROM NOP SHUTDOWN IN 5 MIN

Sending Messages

You can respond to such messages by entering the

following terminal deﬁnition command.

ct MS=message

ct represents the network control character,

most asynchronous terminals this is ESC.

For

The message text must not exceed 50 graphic charac

ters. Because the network operator can be located

at a terminal that does not support many special

characters, you should avoid characters not in the

ASCII 63-character subset described in appendix A of

the NOS Reference Set, Volume 2, Guide to System

Usage.

You can also begin dialog with the network operator.

Fo r ex a m p le, i f y o u ne e d t o us e a re m o t e b a t c h

printer that has been logically disabled, the entry:

%MS=PLEASE ENABLE LP=M4C555

causes the message PLEASE ENABLE LP-M4C555 to appear

at the network operator's terminal, preﬁxed by the

terminal name of your terminal. The Z character

represents the network control character for your

terminal.

Preventing Messages

S o m e t i m e s i t i s i m p o r t a n t t h a t o u t p u t t o y o u r

terminal does not include unplanned messages from

th e n etw ork ope r at or. Yo u c an pr ev ent deli ver y o f

messages from the network operator by locking them

out with the following terminal deﬁnition command.

ct LK=option

ct represents the network control character,

most asynchronous terminals this is ESC.

For

After you enter this command with the option Y, any

message to your terminal from the network operator

is discarded by the network software. Messages are

discarded until you again allow delivery by using

the command with the option N.

Site administrators can conﬁgure your terminal so

that messages are discarded as soon as the terminal

is connected to the network. A netw ork applicatio n

can also change the LK option in use.

Suspensions of Communication

Sometimes, message trafﬁc in the network is so heavy

t h a t a l l s t o r a g e i s t e m p o r a r i l y u s e d u p . A l s o , a

host may be too busy to accept data. During these

times, the network software takes steps that tempor

arily stop input until enough output has occurred to

free additional storage.

Although storage may be low, sometimes the network

cannot prevent you from entering data. Therefore,

the network discards each message from your terminal

and sends this message to your terminal.

WAIT . .

When the following message appears, you can reenter

any information that was previously discarded.

REPEAT . .

If your terminal transmits more than one message at

a time, you must determine which information you

need to reenter. The application might have

commands that can help you determine which messages

it received.

Communication Failures

Events can occur that:

• Cause your application to fail.

• Disconnect your terminal from an application.

• Disconnect your terminal from the host.

• Disconnect your terminal from the network.

60459500 C J-19

Application Failures Disconnection from the Network

I f a n a p p l i c a t i o n f a i l s a f t e r y o u r t e r m i n a l i s

connected, this message is displayed.

APPLICATION FAILED.

application CONNECT TIME hh.mm.ss.

terminalname - APPLICATION:

The length of time your terminal was connected to

the application is speciﬁed by hh.mm.ss;

application is the name of the application; and

terminalname represents the terminal name the

n e t w o r k us es t o ide n t i f y th e t e r m i n a l . Yo u eith e r

can select another application or log out.

Disconnection from an Application and/or a Host

An application is Informed of two events that you

might want to take action on.

• Long periods of device inactivity.

• Pending network shutdown.

The network software informs an application if more

than 10 minutes have elapsed without any

communication between a device at your terminal and

the application. An application can:

• Ignore this time interval.

• Ask you for continued dialog.

• Disconnect from your terminal or from the

device with or without telling you.

The effect of device inactivity depends on the

application with which the device is currently

connected.

When shutdown of the network is pending, the network

operator can enter a command that informs all

applications of the pending event. Your application

might take actions that either result in connection

termination or application failure. It also might

send you a message to warn you of the event.

If you receive a message from an application

indicating that shutdown is pending, you should take

steps immediately to save all data or ﬁles you are

currently using. Then end connection with both the

application and the host as soon as possible.

The network informs you that it has lost

communication with the host software by displaying

the host status message:

HOST DISCONNECTED. CONTROL CHARACTER = Ct

followed by the prompting message:

ENTER INPUT TO CONNECT TO HOST

If you have a multihost system, the HAD will be

displayed between these two messages.

If you are at a dial-up terminal and you do not

attempt to connect to the same or a different host

within 2 minutes, your terminal is disconnected from

the network.

If communication between the network and the host

software resumes, you must connect to the host and

log in again but you do not need to access the net

work again (perform dial-up and auto-recognition pro

ce du re s). Th ese h ost com mu nicat io n f ai lu res o ccur

either when the host has been shut down or when hard

ware fails in the communication path between the net

work and the host.

All network software conditions (that is, parameters

that may be set with terminal deﬁnition commands)

ar e re t ain e d a c r oss ho s t d i s conn e c tio n ex cept fo r

transparent, full ASCII, and special edit input

modes. Refer to the NOS Reference Set, Volume 3,

System Commands for a discussion of these commands.

Failures in the communication path between the net

work hardware and your terminal are treated by the

network software as if your terminal had failed.

These failures can occur because of hardware prob

lems, or maybe because you entered an input charac

ter during output. If you hold the interactive out

put interrupt key down for too long, a communication

failure can occur. This key is identiﬁed in the NOS

Reference Set, Volume 3, System Commands.

There are several tests for communication failures.

If your terminal has a CTS, ON-LINE, or CARRIER in

dicator, the light goes out when a failure occurs.

At other terminals, if a failure has occurred, re

questing the host availability display produces no

response from the network.

Batch input and ouput devices associated with the

failed console stop running, and batch device con

nections are ended. The network software does not

distinguish between dial-up and hardwired terminals

when processing terminal failures.

Terminal failures require you to complete new access

and login procedures to resume communication with the

network. Terminal failures always cause disconnec

tion when the terminal is on a dial-up line.

yS^awSX

• J - 2 0 60459500 C

INDEX

jfﬂSSBSi^

Accessing a host J-l

Accessing transaction subsystem

ACT 2 -11

After image recovery ﬁle 8-1

AKY statement 4-1

Alternate keys 4-2

Application block header

Building 2-12

Examining 2-14

Modifying 2-12

Application character type 2-11

ARF 8-i

Attach mode 4-2

Audience 5

Auto-Input mode 1-3; 2-12

Automatic recovery

Description 7-1; 8-1

Report 8-4,6

Requests

Application 2-32

System 2-38

Backup directory ﬁle 8-2

Batch

I n t e r f a c e 1 - 3 ; 5 - 1

Subsystem interaction 5-1

Batch output 5-4

Batch recovery 8-1

Before image recovery ﬁle 8-1

Begin-commit identiﬁer 7-1,3

Begin-commit sequence 7-1; 8-1

BEGIN request

1-4

Data base 7-•1,3; 8-1

TA F 2 - 2 8

BLDABH request 2-12

Blocked tasks I-•1

BRF 8-1

BTASK system task 8-4

BTRAN request 5-■I; 7-1

Build ABH 2-12

BWAITINP request 2-28

Call tasks 2-4

CALLRTN 2-4

CALLTRN request 2-38; 8-1

CALLTSK 7-4,5

CALLTSK request 2-6

CDCS 1-2; 3-1; 4-4; 7-1,3

CEASE request 2-28

Chain 2-4

Change ACT 2-11

Change CMDUMP request values

Change I/O Limit 2-28

Change task ﬁeld length

Character sets * '

Character type

CLOSE requests

CMDUMP request

COMMIT requests

6-1

2-3;

A-l

2-11

7-2

6-3

7-1,3; 8-1

10-6

Commit updates 7-3

Communication block

Deﬁned 2-1

Diagram 2-2

Dump 6-4

Load overﬂow data 2-10

Release overﬂow data 2-23

TAF-originated transactions 12-3,4

Communication recovery ﬁle

Description 4-1,8; 7-1; 8-1

Error override 8-3

Multiple 3-4

Reformat 8-3

User messages

Read 2-33

Write 2-33

Concurrent users 4-2

Conﬁrmation message 2-35; 7-1

Create task library 10-7

Create xxJ ﬁle 4-4

CRF 4-1,8

C R M ﬁ l e t y p e 4 - 2

CYBER Database Control System 1-1,2; 3-1; 4-4

CYBER Record Manager Data Manager 1-1,2; 4-1,2

Data base

Describe 9-1

J o u r n a l ﬁ l e s 4 - 5

Maximum number of 4-7

Reco v e r y 7- 1 ; 8- 1

Data manager

Concurrency l-l; 3-1

Requests 2-3

xxJ ﬁles 4-1,4

Deadlocks 3-1

Deﬁne terminal characteristics 2-16

10-7

9-1

2-31

2-28

8-2

Delete tasks from task library

Describe users and data bases

Determine if user is logged In

Determine subsystem for task

D i a g n o s t i c s B - l

DIAL directive 9-1

Oisable transaction recovery

DISPLAY statement 4-7

DMS statement 4-7

DSDUMP request 6-1

Dump Communication block 6-4

Exchange package 6-4

TA F ﬁ e l d l e n g t h 6 - 4

Ta s k ﬁ e l d l e n g t h 6 - 3 , 4

E C S 5

End task 2-28

Entering transaction subsystem 1-4

E n t r y h e a d e r, j o u r n a l ﬁ l e 4 - 5

ERO command 8-3

Error messages B-l

Establish system identiﬁer 2-40

60459500 C Index-1

Examine ABH 2-14

Execute named task 11-2

Exe c u t i n g t r a n sact i o n 7- 1

Extend ﬁeld length 2-3; 10-6

Extended core storage 1-5

Extended memory 5; 1-5

Extract bit string from word 2-31

EXTRACT request 2-31

File

CRM type 4-2

Deﬁnitions E-l

Descriptions E-l

I n d e x 4 - 2

Files

Journal 4-5

JOURO 4-5

NCTFI 4-8

Network 4-8; 9-1

Procedure 4-1

Recoverable 8-1

Recovery 4-8; 8-1

Re se rve d E-2

System 4-1

TCF 4-1,7; E-l

xxJ 4-1,2,4

xxJORn 4-4

xxTASKL 10-1

Force d write i n d i c a t o r 4 - 3

Format effectors 2-12,15

Free req ue st s 7 -1

FSE C-6

GETABH request 2-14

Global task dump limit

GTD L 6 -5

6-5

Hardware conﬁguration 8-2

Ignore task in replacement ﬁle 10-8

110 request 2-28

Implement application 1-5

Index ﬁle 4-2

Initate a run unit 2-38

Initial task 1-3; U-l; 12-1

Initialize recovery ﬁles 8-2

Initiate new transaction chain 2-6

Input/output

Limit 2-28

Requests 2-8

Input overﬂow 2-10,23

Insert bit string into word 2-31

INSERT request 2-32

Installing TAF F-l

INT command 8-2

Interactive virtual terminal 1-3; 2-16

Interrogate TST 2-23

ITASK 1-4; 11-1; 12-1

IT L r e que st 2 -2 9

IVT 1-3; 2-16

IXN statement 4-2

Journal ﬁles 4-5

JOURNL request 4-5

JOURO ﬁle 4-5

• Index-2

K display commands 2-30; 4-8; 6-1,4; 8-2,3

K.DSDUMP command 6-4

K.DUMP command 6-5

K.DUMPLIM command 6-5

K.ERO command 8-3

8-2

8-3

4-8

K.INT command

K.REC command

K. statement

KDIS U-l

KPOINT request 2-30

H-l

KTSDMP utility/request 6-4

Libraries 10-1

LIBTASK command 10-2

LIBTASK input directives 10-5

LIBTASK utility/command 10-1

Line feed and transmission keys

List tasks on library 10-3

Load overﬂow blocks

LOADCB request 2-10

Lock conﬂict 7-2

LOGIN request 2-31

Login terminal to TAF

Logout task ll-l

Logout terminal from TAF 2-29; 11-1

LOGT request 2-29

LOGT system task 11-1

2-10

1-4

Macros 12-1

Manipulate user area of TST 2-26

Memory

Changing from tasks 2-3; 10-5

Dump requests 6-1

Dumps 6-1

Requests 2-3

Message abort 11-1

Modify ABH 2-12

Modify terminal characteristics 2-16

Move data from terminal to task 2-28

MSABT ll-l

Multlmainframe 1-5

Multimainframe recovery 8-4

Multiple indexed ﬁles 4-2

Multiple RECOVER statements 8-3

NAM 1-3; 12-3

Named-transaction 7-1; 10-5

NCTFi ﬁle 4-8

NDL 1-5

Network

Access Method 1-3; 12-3

Deﬁnition language 1-5

File origination 9-1

Files 4-8; 9-1

I n t e r f a c e 1 - 3

NETWORK statement 4-8; 8-3

NEWTRAN request 2-7

OFFTASK 11-2

On-line transaction processing

OPEN requests 7-2

Output from SUBMT jobs 5-4

Override 1/0 errors 8-3

l - l

60459500 C

Parameter

SEND request 2-18

Par ameter table 2-25

Procedure ﬁle 4-1,4

Put recovery data on CRF 2-33,41

RSECURE request 2-34

RTASK system task 8-4; 11-2

Complete 2-35

Initate 2-38

Running transaction 7-1

jgpss,

4-8; 8-2,3

8-1

8-5

RA+1 calls 1-5; 2-1

RC parameter 7-1

RCTASK system task 11-2

Read data from terminal 2-8

Read recovery data 2-33

Read SECURE message 2-34

Record data on journal ﬁle 4-5

Record lock conﬂict 7-2

Record locks 4-2

RECOVER statement

Recoverable ﬁles

Recovery

CDCS 7-1

CDCS failure

CRF ﬁle 8-3

Data base 7-1; 8-1

Disable 8-2

File identiﬁer 4-8

F l a g 8 - 4

General 7-1; 8-1

Hardware conﬁguration 8-2

Initialize ﬁles 8-2

K display commands 4-8; 8-2

Multimainframe 8-4

Multiple data manager tasks 7-5

NAM fai l u r e 8- 5

Override I/O errors 8-3

Overview 7-1; 8-1

Processing ﬂow 8-4

Requests

Application 2-33

System 2-38

System failure 8-4

TAF/CRM Data Manager 7-1

TAF failure 8-4

Task failure 8-5

T C F ﬁ l e 8 - 3

Terminal 7-4; 8-5

Transaction 7-1; 8-1

Recovery indicator 10-5

Application 2-32

System 2-38

Release overﬂow blocks 2-23

RELSCB request 2-23

Requests

Data manager 2-3

Input/output 2-8

Journal ﬁle 2-3; 4-5

Memory 2-3

Memory dump 6-1

Message 2-4

Recovery

Application 2-32

System 2-38

System 2-3

Task

Control 2-28

Scheduling 2-4

Utility 2-30

Rerun request 2-32

Reserved ﬁles E-2

RESTRICT clause processing 3-1

Resubmit terminal input 2-32,40

Retrieve recovery data 2-33

RGET request 2-33

RPUT request 2-33

Sample deck s tru ctu res D-l

Schedule tasks 2-4; 10-7

Scheduling priority 10-7

SECURE message

Acknowledge 2-36

BTRAN 2-36

Description 7-3; 8-1

R e t r i e v e 2 - 3 4

W r i t e 2 - 3 5

SECURE request 2-35; 7-1,3; 8-1

Send message task 11-2

Send message to user 2-17

SEND request 2-17

Set GTDL 6-5

Set system identiﬁer 2-40

S e t t i m e l i m i t fo r t a s k 2 - 2 9

Set transaction sequence number 2-40

Set user recovery bit 8-3

SETCHT request 2-11

Specify communication block location 2-28

SRERUN request 2-40

Start transaction using batch job 5-1

Start update sequence 7-3

STASK 11-2

St a t us o f c u r ren t tr ansa c t ion 2- 3 7

Status of current user 2-37

S t a t u s o f t r a n s a c t i o n 2 - 8

STRAN macro 12-1

Subcontrol points 1-5

Submit batch job from task 5-3

Submitting comments 5

SUBMT request 5-3

Subtransaction codes 12-1

Supervisory messages 2-11

Suspend processing 2-30

SYSMSG 11-2

System

Files 4-1

J o u r n a l ﬁ l e s 4 - 5

Requests 2-3

Ta s k l i b r a r y 1 0 - 1

Tasks ll-l

TABCON statement 4-7

Tables

Terminal status (TST) 9-2

TAF

Automatic recovery report 8-4,6

Conﬁguration ﬁle 4-7; E-l

Control point 1-1,2

Installation F-l

Originated transactions 12-3

Procedure ﬁle 4-1,4

Termination 8-5

TAF/CRM Data Manager 7-1

TAFREC 8-4

TARO request 2-26

Task

Chain 2-4

Control requests 2-28

Deﬁned 1-4; 2-1

Dump 6-1

Field length changes 2-3; 10-6

Library

60459500 C Index-3

Create 10-7

Deﬁned 10-1

Delete task from 10-7

Ignore task in replacement ﬁle

List tasks 10-3

Update 10-7

Pause 2-30

Queue limit 10-6

Queuing 10-1,6,7

Residency 10-1

Scheduling priority 10-7

Scheduling requests 2-4

Type 10-1

U t i l i t y r e q u e s t s 2 - 3 0

Task library report 10-3,4

TASKLIB 10-1

Tasks

Blocked I-I

Call 2-4

End 2-29

Schedule 2-4; 10-7

Time-originating 12-1

TCF ﬁle 4-1,7; E-l

TERMDEF request 2-16

Terminal

Characteristics

Deﬁne 2-16; G-l

General 12-4,5

Modify 2-16; G-l

Deﬁnition commands G-l

Failure 7-4; 8-5

Network description ﬁle 9-1

Recovery 7-4

Status request 12-5

Status table

Figure of 9-2

I n t e r r o g a t e 2 - 2 3

Manipulate user area 2-26

Recovery bit 8-3

Terminology and conventions 5

TIMCNT macro 12-1

Time-originating tasks 12-1

TINVOKE request 2-40

TMSG request 2-4

TOTAL Data Manager 1-1,3; 4-4; 7-5

TOTAL task area 1-1

TPSTAT request 2-28

TRAN macro 12-1

TRANCHK request 2-8

TRANS 12-1

10-8

Transaction

Codes 12-1

Coding 7-2

Deﬁned 1-1

Named 7-1

P r o c e s s i n g 1 - 4

Recovery 7-1; 8-1

Rerun 2-32

Subsystem

Entering 1-4

Interaction 5-1

TAF-originated 12-3

Transaction-Id 7-3

Transaction sequence number

Transient task area 1-1

Transparent mode 2-12

TRANT 12-1

2-2,40

TSIM request

T S T 9 - 2

TSTAT request

TTOT 12-1

Type ahead

2-23

2-37

12-5

Updating task library 10-7

User recovery bit 8-3

USER statement 4-8

User status 12-5

Wa i t f o r te r m i na l in p u t 2- 9

WAIT request 2-30

WAITINP request 2-9

Write data to CRF 2-33,41

WSTAT request 2-41

XTASK 11-2

XTRAN system transaction 11-2

xxJ ﬁles

CDCS Data Manager 4-4

Creating 4-4

CRM Data Manager 4-2

No data manager 4-4

TOTAL 4-4

xxJORn ﬁle 4-4

xxTASKL ﬁle 10-I

• I n d e x - 4 60459500 C

/0^^l COMMENT SHEET

MANUAL TITLE: CDC TAF Version 1 Reference Manual

PUBLICATION NO.: 60459500 REVISION: C

NAME_ -

COMPANY:

/gs\, o

/p**^

STREET ADDRESS:

CITY: .STATE: ZIP CODE:

This form is not intended to bo used as an order blank. Control Data Corporation welcomes your evaluation of

this manual. Please indicate any errors, suggested additions or deletions, or general comments below {please

include page number references).

D Please Reply D No Reply Necessary

NO POSTAGE STAMP NECESSARY IF MAILED IN U.S.A.

FOLD FOLD

FIRST CUSS

BUSINESS REPLY MAIL

PERMIT NO. 8241 MINNEAPOLIS, MINN.

POSTAGE WILL BE PAID BY

CONTROL DATA CORPORATION

Publications and Graphics Division

ARH219

4201 North Lexington Avenue

Saint Paul, Minnesota 55112

NO POSTAGE

NECESSARY

IF MAILED

IN THE

UNITED STATES

_i

<

FOLD
