TFT Series SDK Manual

TFT

TFT Series

Series

Communication

Communication Protocol

Protocol

Protocol SDK

SDK

Development

Development Handbook

Handbook

—————————————————————————————————

Date:

Date: July

July

July ,

,

, 20

20

20 12

12

If there is some change of information in this handbook, ZKSoftware won't inform specially.

�

ZKSoftware Inc. is our company logo. Biokey is core technology logo of ZKSoftware. Both

logos have been registered in China and America.

Other trademarks and product names mentioned in this handbook are produced by other

companies. ZKSoftware Inc. has no property of them.

Please solve use problems (instead of development kit problem) during development by

yourself.

ZKSoftware has no responsibility for data loss caused by users or programs.

This handbook is designed on the basis of SDK 6. 2 . 4 . 1 .

Contents

1

1 SDK

SDK

SDK Description.......................................................................................................................................

Description.......................................................................................................................................

Description....................................................................................................................................... 8

8

2

2 Quick

Quick

Quick Start................................................................................................................................................

Start................................................................................................................................................

Start................................................................................................................................................ 8

8

2. 1 Terms .............................................................................................................................................. 8

2. 2 Common Processes........................................................................................................................10

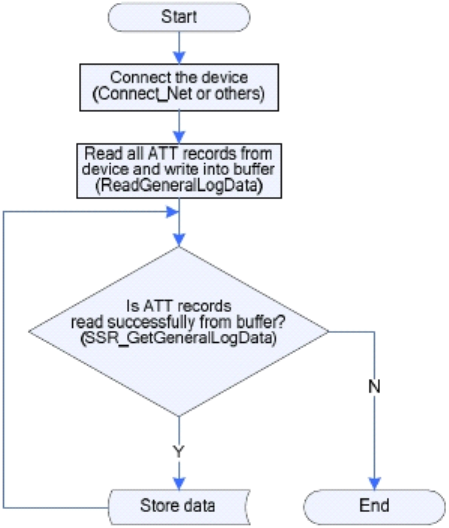

2. 2 .1 Downloading Attendance Records ........................................................................................10

2. 2 .2 Downloading Operation Records...........................................................................................11

2. 2 .3 Setting Access Control..........................................................................................................11

2. 2 .4 Downloading User Information, or Fingerprint Templates ......................................................12

2. 2 .5 Receiving Real-time Events ..................................................................................................13

2. 2 .6 Enrolling Users Online (Uploading Information,and Fingerprint Templates of Users)..............13

2. 2 .7 Uploading Short Messages ...................................................................................................14

3

3 Related

Related Attributes

Attributes

Attributes ...................................................................................................................................14

...................................................................................................................................14

3.1 AccGroup........................................................................................................................................14

3.2 AccTimeZones................................................................................................................................15

3.3 BASE64..........................................................................................................................................15

3.4 CardNumber ...................................................................................................................................15

3.5 CommPort ......................................................................................................................................15

3.6 ConvertBIG5...................................................................................................................................15

3.7 PINWidth ........................................................................................................................................15

3.8 GetStrCardNumber .........................................................................................................................15

3.9 SetStrCardNumber .........................................................................................................................16

4

4 Real-time

Real-time

Real-time Event

Event

Event Functions......................................................................................................................16

Functions......................................................................................................................16

4.1 Obtaining Real-Time Events............................................................................................................16

4.1.1 RegEvent..............................................................................................................................16

4.1.2 ReadRTLog ..........................................................................................................................17

4.1.3 GetRTLog.............................................................................................................................18

4.2 Real-Time Events ...........................................................................................................................18

4.2.1 OnConnected .......................................................................................................................18

4.2.2 OnDisConnected ..................................................................................................................18

4.2.3 OnAlarm ...............................................................................................................................18

4.2.4 OnDoor.................................................................................................................................19

4.2.5 OnAttTransactionEx..............................................................................................................19

4.2.6 OnEnrollFingerEx .................................................................................................................20

4.2.7 OnFinger ..............................................................................................................................20

4.2.8 OnFingerFeature ..................................................................................................................20

4.2.9 OnHIDNum...........................................................................................................................20

4.2.10 OnNewUser ........................................................................................................................20

4.2.11 OnVerify .............................................................................................................................21

4.2.12 OnWriteCard.......................................................................................................................21

4.2.13 OnEmptyCard.....................................................................................................................21

4.2.14 OnEMData..........................................................................................................................21

5

5 Common

Common

Common Functions.................................................................................................................................21

Functions.................................................................................................................................21

5.1 Device Connection Functions..........................................................................................................21

5.1.1 Connect_Net.........................................................................................................................21

5.1.2 Connect_Com.......................................................................................................................22

5.1.3 Disconnect............................................................................................................................23

5.2 Data Management Functions ..........................................................................................................23

5.2.1 Attendance Record Data.......................................................................................................23

5.2.1.1 ReadGeneralLogData ............................................................................................... 23

5.2.1.2 ReadAllGLogData..................................................................................................... 23

5.2.1.3 SSR_GetGeneralLogData......................................................................................... 24

5.2.1.4 ClearGLog................................................................................................................ 25

5.2.2 Operation Record Data .........................................................................................................26

5.2.2.1 ReadSuperLogData .................................................................................................. 26

5.2.2.2 ReadAllSLogData ..................................................................................................... 26

5.2.2.3 GetSuperLogData..................................................................................................... 26

5.2.2.4 GetAllSLogData........................................................................................................ 29

5.2.2.5 ClearSLog ................................................................................................................ 29

5.2.2.6 GetSuperLogData2................................................................................................... 29

5.2.3 User Information Functions ...................................................................................................30

5.2.3.1 ReadAllUserID.......................................................................................................... 30

5.2.3.2 SSR_EnableUser...................................................................................................... 31

5.2.3.3 SetUserInfoEx .......................................................................................................... 31

5.2.3.4 GetUserInfoEx .......................................................................................................... 32

5.2.3.5 DeleteUserInfoEx...................................................................................................... 33

5.2.3.6 SSR_GetAllUserInfo ................................................................................................. 33

5.2.3.7 SSR_GetUserInfo..................................................................................................... 34

5.2.3.8 SSR_SetUserInfo ..................................................................................................... 35

5.2.4 Registration Data Functions (Including Both User Information and Fingerprint)......................35

5.2.4.1 SSR_DeleteEnrollData ............................................................................................. 35

5.2.4.2 SSR_DeleteEnrollDataExt ........................................................................................ 36

5.2.5 Fingerprint Template Functions.............................................................................................37

5.2.5.1 ReadAllTemplate ...................................................................................................... 37

5.2.5.2 SSR_GetUserTmp.................................................................................................... 37

5.2.5.3 SSR_GetUserTmpStr................................................................................................ 38

5.2.5.4 SSR_SetUserTmp .................................................................................................... 38

5.2.5.5 SSR_SetUserTmpStr................................................................................................ 39

5.2.5.6 SSR_DelUserTmp .................................................................................................... 40

5.2.5.7 SSR_SetUserTmpExt ............................................................................................... 40

5.2.5.8 SSR_DelUserTmpExt ............................................................................................... 41

5.2.5.9 SetUserTmpEx ......................................................................................................... 41

5.2.5.10 SetUserTmpExStr................................................................................................... 42

5.2.5.11 GetUserTmpEx ....................................................................................................... 43

5.2.5.12 GetUserTmpExStr................................................................................................... 44

5.2.6 Others ..................................................................................................................................45

5.2.6.1 SMS Functions ......................................................................................................... 45

5.2.6.2 Work Code Functions ............................................................................................... 49

5.2.6.3 Holiday Functions ..................................................................................................... 50

5.2.6.4 DST Functions.......................................................................................................... 51

5.2.6.5 Shortcut Keys ........................................................................................................... 53

5.2.6.6 Fingerprint Template Conversion Functions............................................................... 55

5.2.7 System Data Management Functions....................................................................................58

5.2.7.1 ClearKeeperData ...................................................................................................... 58

5.2.7.2 ClearData ................................................................................................................. 58

5.2.7.3 GetDataFile .............................................................................................................. 59

5.2.7.4 SendFile ................................................................................................................... 59

5.2.7.5 RefreshData ............................................................................................................. 60

5.2. 8 Attendance Photo............................. ....................................................................................60

5.2. 8 .1 GetPhotoNamesByTime ...........................................................................................60

5.2. 8 .2 GetPhotoByName..................................................................................................... 60

5.2. 8 .3 GetPhotoCount......................................................................................................... 60

5.2. 8 .4 ClearPhotoByTime.................................................................................................... 60

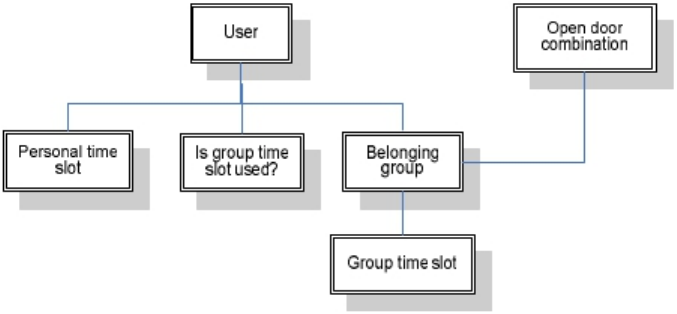

5.3 Access Control Functions (Time Slot, Group, Open Door Combination)........................................60

5.3.1 GetUserGroup ......................................................................................................................60

5.3.2 SetUserGroup.......................................................................................................................61

5.3.3 GetTZInfo .............................................................................................................................61

5.3.4 SetTZInfo..............................................................................................................................62

5.3.5 SSR_SetUnLockGroup .........................................................................................................63

5.3.6 SSR_GetUnLockGroup.........................................................................................................63

5.3.7 SSR_SetGroupTZ.................................................................................................................64

5.3.8 SSR_GetGroupTZ ................................................................................................................64

5.3.9 GetUserTZs..........................................................................................................................65

5.3.10 SetUserTZs ........................................................................................................................66

5.3.11 GetUserTZStr .....................................................................................................................66

5.3.12 SetUserTZStr......................................................................................................................67

5.3.13 ACUnlock ...........................................................................................................................68

5.3.14 GetACFun...........................................................................................................................68

5.3.15 GetDoorState......................................................................................................................68

5.3.16 UseGroupTimeZone ...........................................................................................................69

5.4 Device Management Functions .......................................................................................................69

5.4.1 IsTFTMachine.......................................................................................................................69

5.4.2 GetDeviceStatus...................................................................................................................70

5.4.3 GetDeviceInfo.......................................................................................................................71

5.4.4 SetDeviceInfo .......................................................................................................................74

5.4.5 SetDeviceTime .....................................................................................................................74

5.4.6 SetDeviceTime2 ...................................................................................................................75

5.4.7 GetDeviceTime.....................................................................................................................75

5.4.8 GetSerialNumber ..................................................................................................................75

5.4.9 GetProductCode ...................................................................................................................76

5.4.10 GetFirmwareVersion ...........................................................................................................76

5.4.11 GetSDKVersion ..................................................................................................................77

5.4.12 GetDeviceIP .......................................................................................................................77

5.4.13 SetDeviceIP........................................................................................................................78

5.4.14 GetDeviceMAC ...................................................................................................................78

5.4.15 SetDeviceMAC ...................................................................................................................78

5.4.16 GetWiegandFmt..................................................................................................................79

5.4.17 SetWiegandFmt ..................................................................................................................79

5.4.18 GetCardFun........................................................................................................................80

5.4.19 SetDeviceCommPwd ..........................................................................................................80

5.4.20 SetCommPassword ............................................................................................................81

5.4.21 QueryState .........................................................................................................................81

5.4.22 GetVendor ..........................................................................................................................82

5.4.23 GetDeviceStrInfo ................................................................................................................82

5.4.24 GetPlatform ........................................................................................................................82

5.4.25 ReadAOptions ....................................................................................................................83

5.4.26 GetSysOption .....................................................................................................................83

5.4.27 SetSysOption......................................................................................................................84

5.5 others .............................................................................................................................................84

5.5.1 Device Control Functions ......................................................................................................84

5.5.1.1 ClearAdministrators .................................................................................................. 84

5.5.1.2 EnableDevice ........................................................................................................... 85

5.5.1.3 EnableClock ............................................................................................................. 85

5.5.1.4 DisableDeviceWithTimeOut ...................................................................................... 86

5.5.1.5 PowerOffDevice........................................................................................................ 86

5.5.1.6 RestartDevice........................................................................................................... 86

5.5.1.7 SleepDevice ............................................................................................................. 87

5.5.2 Online Registration Functions ...............................................................................................87

5.5.2.1 StartEnrollEx............................................................................................................. 87

5.5.2.2 StartVerify................................................................................................................. 88

5.5.2.3 StartIdentify .............................................................................................................. 88

5.5.2.4 CancelOperation....................................................................................................... 88

5.5.3 Card Operation Functions .....................................................................................................89

5.5.3.1 WriteCard ................................................................................................................. 89

5.5.3.2 EmptyCard ............................................................................................................... 89

5.5.4 Others ..................................................................................................................................90

5.5.4.1 GetLastError............................................................................................................. 90

5.5.4.2 GetHIDEventCardNumAsStr ..................................................................................... 90

5.5.4.3 CaptureImage........................................................................................................... 91

5.5.4.4 UpdateFirmware ....................................................................................................... 91

5.5.4.5 BeginBatchUpdate.................................................................................................... 92

5.5.4.6 BatchUpdate............................................................................................................. 92

5.5.4.7 CancelBatchUpdate.................................................................................................. 93

5.5.4.8 PlayVoice ................................................................................................................. 93

5.5.4.9 PlayVoiceByIndex ..................................................................................................... 94

6

6 FAQs

FAQs

FAQs ........................................................................................................................................................94

........................................................................................................................................................94

6.1 How to Download Attendance Records? .........................................................................................94

6.2 How to Create a User Online?.........................................................................................................94

6.3 How to Import or Download Data from USB Disk? ...........................................................................94

6.4 How to Use Biokey to Write the Collected Fingerprint Templates Offline?........................................97

6.5 How to Obtain All Information of All Users? .....................................................................................97

6.6 How to Connect to the Device? .......................................................................................................97

6.7 Password Is Invalid After SetUserInfo Is Used.................................................................................98

6.8 How to Convert an Online Template into an Offline Template? ........................................................98

6.9 Demo Program Fails to Connect to the Device. ...............................................................................98

6.10 Offline Fingerprint Device Keeps Working After Being Connected..................................................98

6.11 Illegal Characters Are Displayed or Screen Display Is Abnormal After Non-English Names or Short

Messages Are Uploaded to the Device..................................................................................................99

6.12 Card Management Problems.........................................................................................................99

6.13 Firewall or Router Traversal ..........................................................................................................99

6.14 Difference between ZKFinger10.0 and ZKFinger9.0 and Comparison between Templates...........100

6.15 Uploading a Large Capacity of Fingerprints .................................................................................100

6.16 Differences between High-speed Upload and Ordinary Upload....................................................100

6.17 How to Determine Whether the Device Uses ZKFinger10.0 or ZKFinger9.0?...............................100

6.18 How to Upload, Download, and Delete ZKFinger10.0 Templates? ...............................................101

6.19 How to Upload, Download, and Delete ZKFinger9.0 Templates? .................................................102

1

1 SDK

SDK

SDK Description

Description

The offline communication SDK is an interface for data communication with offline fingerprint

devices, access control devices, and RFID card devices. It can be used to conveniently manage

user information and fingerprints, download attendance records, operation records, user

information, and fingerprint templates, set devices, and configure access control. The SDK is

used to:

1. Download attendance records.

2. Upload and download user information, card information, fingerprints, and face information.

3. Set access control rules of access control devices.

4. Set device time, match thresholds, etc.

5. Trigger various events of devices in real time, for example, fingerprint verification.

6. Directly enroll users online.

7. Set SMS and work code (available only on devices that support this function) of users.

8. Set personalized prompt tones, function keys, etc.

2

2 Quick

Quick

Quick Start

Start

2.

2. 1

1

1 Terms

Terms

1. Real-time event

After the SDK and the device communicate with each other successfully, some operations

on the device (for example, connecting to the device, verifying a user, and enrolling a user)

trigger corresponding events in real time, and data is transmitted to the PC (host computer).

The triggered events are called real-time events. Users can monitor device states and user

operations in real time through real-time events.

2.

3.

4.

5.

FP

Shortened form of "fingerprint".

Fingerprint algorithm

A fingerprint algorithm refers to the algorithm used to generate and verify fingerprint

templates. At present, ZKFinger 9.0 is the latest fingerprint algorithm used by ZKSoftware

black & white devices. It is a high-speed algorithm with higher performance. For details, see

FAQs.

High-speed buffer

A high-speed buffer refers to the memory requested by the SDK on a PC during usage. In

the data upload or download process, data is first saved in the buffer before being

processed.

Time slot, group, open door combination

These three terms are the most important concepts of access control.

A time slot is a time range. A time slot includes the time information of one week, and a time

range is specified for each day of this week. For example, the following expression indicates

a time range from 00:00 to 22:11 in each day of one week:

00002211000022110000221100002211000022110000221100002211. Generally, 50 time

slots can be set in the device.

A group is a collection. When many users have the same access control privileges, these

users can be added to the same group and use the group time slot. Then, time slots can be

set for the group.

An open door combination refers to the groups that are required for unlock. If the open door

combination contains only one group, it indicates that the door is opened when any of the

users in this group passes verification. If the open door combination contains two or more

groups, the door is opened only after all groups pass verification. For example, an open

door combination contains groups A and B, the door is opened only after a member of group

A and a member of group B pass verification.

The following figure shows the relationship of the three concepts:

6. Operation record

An operation record, also called management record, is a record generated when users or

administrators operate on the device, for example, powering on/off the device and enrolling

a user.

2.

2. 2

2

2 Common

Common

Common Processes

Processes

For details, see the descriptions of the demo program.

2.

2. 2

2

2 .1

.1

.1 Downloading

Downloading

Downloading Attendance

Attendance

Attendance Records

Records

2.

2. 2

2

2 .2

.2

.2 Downloading

Downloading

Downloading Operation

Operation

Operation Records

Records

Start

Connect the device

(Connect_Net or others)

Read all operation records

from device and write into

buffer

(ReadSuperLogData)

Is operation records read

successfully from buffer?

(GetSuperLogData)

N

Y

2.

2. 2

2

2 .3

.3

.3 Setting

Setting

Setting Access

Access

Access Control

Control

Start

Connect the device

(Connect_Net or

others)

Define time slot

(SetTZInfo)

Store data

End

Is group time slot used?

(UseGroupTimeZone or

GetUserTZStr)

N

Y

Define group time slot

(SetGroupTZStr)

Set user group

(SetUserGroup)

Set personal time

slot

(SetUserTZStr)

Set open door combination

(SSR_SetUnlockGroups)

End

2.

2. 2

2

2 .4

.4

.4 Downloading

Downloading

Downloading User

User

User Information,

Information,

Information, or

or

or Fingerprint

Fingerprint

Fingerprint Templates

Templates

The left diagram shows the process of downloading the information of all users. The right

diagram shows the process of downloading the information of a specified user.

Start

Connect the device

(Connect_Net or others)

Start

Connect the device

(Connect_Net or others)

Read all user information

and write it to PC buffer

(ReadAllUserID)

Download

user information

Read all fingerprints and

(SSR_GetUserInfo )

write them into PC buffer

（ReadAllTemplate ）

Y

Is user

information read

successfully from PC

buffer?

(SSR_GetAllUserInfo)

Y

Obtain card number of the user

(attribute:Cardnumber or

GetStrCardNumber)

N

Obtain card number of the user

(attribute:Cardnumber or

GetStrCardNumber)

Obtain fingerprint

template of the user

(SSR_GetUserTmpStr

or GetUserTmpExStr)

End

N

Obtain fingerprint

template of the user

(SSR_GetUserTmpStr

or GetUserTmpExStr)

End

2.

2. 2

2

2 .5

.5

.5 Receiving

Receiving

Receiving Real-time

Real-time

Real-time Events

Events

Real-time events can be received in two modes. The second mode is recommended.

Start Start

Connect the device

(Connect_Net or others)

Connect the device

(Connect_Net or others)

N

Is real-time

read successfully

from PC buffer

(ReadRTLog)

Register real-time

events to be triggered

(Regevent)

Y

Obtain real-time

events from buffer

and trigger them

End

(GetRTLog)

2.

2. 2

2

2 .6

.6

.6 Enrolling

Enrolling

Enrolling Users

Users

Users Online

Online

Online (Uploading

(Uploading

(Uploading Information,and

Information,and

Information,and Fingerprint

Fingerprint

Fingerprint Templates

Templates

Templates of

of

Users)

There are two online user enrollment modes. The left diagram shows the process in which the

device accesses the enrollment interface to enroll a user after being connected. The right

diagram shows the process of creating a user on the device and uploading the card number,

password, and fingerprint information for the user (that is, enrolling a card user, a password user,

and a fingerprint user).

Connect the device

(Connect_Net or others)

Start online

enrollment

(StartEnroll)

Is enrollment

end?

Y

Enable device to

wait for user

verification

(startIdentify)

End

Connect the device

(Connect_Net or others)

Register card

Set card number of the user

(attribute:cardnumber or

SetStrCardNumber)

Register user and password

Upload user information to device. Create the user

if the user does not exist

(SSR_SetUserInfo)

Register fingerprint

Upload fingerprint template to specified user

(SSR_SetUserTmpStr or

SetUserTmpExStr)

End

2.

2. 2

2

2 .7

.7

.7 Uploading

Uploading

Uploading Short

Short

Short Messages

Messages

Start

Connect the device

(Connect_Net or others)

Define SMS

(SetSMS)

Is personal

SMS used?

Y

Allocate SMS to user

(SSR_SetUserSMS)

N

End

3

3 Related

Related Attributes

Attributes

3.1

3.1 AccGroup

AccGroup

Usage:

Usage: Set or obtain the group to which a user belongs.

If this attribute is set before user information is uploaded, the user group is set when SetUserInfo

is used to upload user information. Otherwise, AccGroup is 1 by default.

Type:

Type: LONG, writable

3.2

3.2 AccTimeZones

AccTimeZones

Usage:

Usage: Set the time slot of a user.

If this attribute is set before user information is uploaded, the time slot of a user is set when

SetUserInfo is used to upload user information.

Type:

Type: LONG *. It can be regarded as a long one-dimensional array with subscript 3.

Readable/writable

3.3

3.3 BASE64

BASE64

Usage:

Usage: When the value is set to True, the SDK outputs the character string template in base64

codes. Otherwise, the SDK outputs the character string template in hexadecimal codes.

Type:

Type: LONG, readable/writable

3.4

3.4 CardNumber

CardNumber

Usage:

Usage: Set or read the card number of a user. If this attribute is unavailable, use

GetStrCardnumber and SetStrCardnumber instead.

Type:

Type: LONG, readable/writable

3.5

3.5 CommPort

CommPort

Usage:

Usage: Set the number of the serial port or the port for RS485 communication.

Type:

Type: LONG, readable/writable

3.6

3.6 ConvertBIG5

ConvertBIG5

Usage:

Usage: When the value is set to True, the SDK automatically converts the font from simplified

Chinese to traditional Chinese for offline development. This function is invalid for series products

of Multilanguage versions. Do not set this function in this case.

Type:

Type: LONG, readable/writable

Caution:

Caution: This attribute is invalid for Multilanguage versions. In addition, you do not need to

modify this attribute for ZEM100 5.22, ZEM200 5.30, and later versions.

3.7

3.7 PINWidth

PINWidth

Usage:

Usage: Indicate the maximum length of the user ID (Arabic numeral).

Type:

Type: LONG, read only

3.8

3.8 GetStrCardNumber

GetStrCardNumber

[Definition]

VARIANT_BOOL GetStrCardNumber([out] BSTR* ACardNumber)

[Usage]

Obtain the value of cardnumber of the SDK. Generally, this function can be used to obtain

the card number of a user immediately after the user information is obtained.

[Parameter]

AcardNumber

Card number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserInfo

3.9

3.9 SetStrCardNumber

SetStrCardNumber

[Definition]

VARIANT_BOOL SetStrCardNumber([in] BSTR ACardNumber)

[Usage]

Set the value of cardnumber of the SDK. Generally, this function can be used to set the card

number of a user before the user information is set.

[Parameter]

AcardNumber

Card number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserInfo

4

4 Real-time

Real-time

Real-time Event

Event

Event Functions

Functions

4.1

4.1 Obtaining

Obtaining

Obtaining Real-Time

Real-Time

Real-Time Events

Events

4.1.1

4.1.1 RegEvent

RegEvent

[Definition]

VARIANT_BOOL RegEvent( [in] LONG dwMachineNumber, [in] LONG EventMask)

[Usage]

Register required real-time events.

[Parameter]

dwMachineNumber:

Device number

EventMask:

Code of an event. Values are as follows:

1

2 (1<<1)

4 (1<<2)

8 (1<<3)

16 (1<<4)

256 (1<<7)

512 (1<<8)

1024 (1<<9)

2048 (1<<10)

4096 (1<<11)

8192 (1<<12)

16384 (1<<13)

OnAttTransaction, OnAttTransactionEx

OnFinger

OnNewUser

OnEnrollFinger

OnKeyPress

OnVerify

OnFingerFeature

OnDoor, OnAlarm

OnHIDNum

OnWriteCard

OnEmptyCard

OnDeleteTemplate

To register multiple real-time events, perform the XOR operation between binary codes of

related events. For example, to register all real-time events, the value of EventMask is

65535.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadRTLog, GetRTLog

4.1.2

4.1.2 ReadRTLog

ReadRTLog

[Definition]

VARIANT_BOOL ReadRTLog( [in] LONG dwMachineNumber)

[Usage]

Read real-time events and write them to the buffer of the PC. This function can be used with

GetRTLog to actively obtain real-time events from the device after the PC connects to the

device successfully.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetRTLog

4.1.3

4.1.3 GetRTLog

GetRTLog

[Definition]

VARIANT_BOOL GetRTLog(LONG dwMachineNumber)

[Usage]

Obtain an event from the buffer of the PC and trigger the event. This function can be used

with ReadRTLog to actively obtain real-time events from the device after the PC connects to

the device successfully.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadRTLog

4.2

4.2 Real-Time

Real-Time

Real-Time Events

Events

4.2.1

4.2.1 OnConnected

OnConnected

This event is triggered when the PC connects to the device successfully. No value is returned.

4.2.2

4.2.2 OnDisConnected

OnDisConnected

This event is triggered when the PC disconnects from the device successfully. No value is

returned.

4.2.3

4.2.3 OnAlarm

OnAlarm

OnAlarm (LONG AlarmType,LONG EnrollNumber,LONG Verified)

This event is triggered when the device reports an alarm.

[Return

[Return Value]

Value]

Alarm Type: Type of an alarm. 55: Tamper alarm. 58: False alarm. 32: Threatened alarm.

34: Anti-pass back alarm.

EnrollNumber: User ID.

Verified: Whether to verify

The value is 0 when a tamper alarm, false alarm, or

threatened alarm is given. The value is the user ID when

other threatened alarm or anti-pass back alarm is given.

The value is 0 when a tamper alarm, false alarm, or

threatened alarm is given. The value is 1 when other

alarms are given.

4.2.4

4.2.4 OnDoor

OnDoor

OnDoor (LONG EventType)

This event is triggered when the device opens the door.

[Return

[Return Value]

Value]

EventType: Open door type

4: The door is not closed. 53: Exit button. 5: The door is closed. 1: The door is opened

unexpectedly.

4.2.5

4.2.5 OnAttTransactionEx

OnAttTransactionEx

OnAttTransactionEx (BSTR EnrollNumber,LONG IsInValid,LONG AttState, LONG

VerifyMethod,LONG Year, LONG Month, LONG Day, LONG Hour, LONG Minute, LONG Second,

LONG WorkCode)

This event is triggered after verification succeeds.

[Return

[Return Value]

Value]

EnrollNumber: UserID of a user.

IsInValid: Whether a record is valid. 1: Not valid. 0: Valid.

AttState: Attendance state.

0 — Check-In (default value)

1 — Check-Out

2 — Break-Out

3 — Break-In 4 — OT-In 5 — OT-Out

VerifyMethod: Verification mode. Generally,

0:

password

verification, 1:

fingerprint

verification, 2: card verification.

In multi-verification mode:

FP_OR_PW_OR_RF

FP

PW

RF

FP_OR_PW

FP_OR_RF

PW_OR_RF

PIN_AND_FP

FP_AND_PW

FP_AND_RF

PW_AND_RF

0

1

2

3

4

5

6

7

8

9

10

11

FP_AND_PW_AND_RF

PIN_AND_FP_AND_PW

FP_AND_RF_OR_PIN

12

13

14

Year/Month/Day/Hour/Minute/ Second indicates the time when verification succeeds.

WorkCode: work code returned during verification. Return 0 when the device does not

support work code.

4.2.6

4.2.6 OnEnrollFingerEx

OnEnrollFingerEx

OnEnrollFinger (LONG EnrollNumber, LONG FingerIndex, LONG ActionResult, LONG

TemplateLength)

This event is triggered when a fingerprint is registered.

[Return

[Return Value]

Value]

EnrollNumber: User ID of the fingerprint being registered

FingerIndex: Index of the current fingerprint

ActionResult: Operation result. Return 0 if the operation is successful, or return a value

greater than 0.

TemplateLength: Length of the fingerprint template

4.2.7

4.2.7 OnFinger

OnFinger

This event is triggered when a fingerprint is placed on the fingerprint sensor of the device. No

value is returned.

4.2.8

4.2.8 OnFingerFeature

OnFingerFeature

OnFingerFeature (LONG Score)

This event is triggered when a user places a finger and the device registers the fingerprint.

[Return

[Return Value]

Value]

Score: Quality score of a fingerprint

4.2.9

4.2.9 OnHIDNum

OnHIDNum

OnHIDNum (LONG CardNumber)

This event is triggered when a card is swiped.

[Return

[Return Value]

Value]

CardNumber: Number of a card that can be an ID card or an HID card. If the card is a Mifare

card, the event is triggered only when the card is used as an ID card.

4.2.10

4.2.10 OnNewUser

OnNewUser

OnNewUser (LONG EnrollNumber)

This event is triggered when a new user is successfully enrolled.

[Return

[Return Value]

Value]

EnrollNumber: UserID of the newly enrolled user.

4.2.11

4.2.11 OnVerify

OnVerify

OnVerify (LONG UserID)

This event is triggered when a user is verified.

[Return

[Return Value]

Value]

When verification succeeds, UserID indicates the ID of the user. Return the card number if

card verification is successful, or return -1.

4.2.12

4.2.12 OnWriteCard

OnWriteCard

OnWriteCard (LONG EnrollNumber, LONG ActionResult, LONG Length)

This event is triggered when the device writes a card.

[Return

[Return Value]

Value]

EnrollNumber: ID of the user to be written into a card

ActionResult: Result of writing user information into a card. 0: Success. Other values:

Failure.

Length: Size of the data to be written into a card

4.2.13

4.2.13 OnEmptyCard

OnEmptyCard

OnEmptyCard (LONG ActionResult)

This event is triggered when a Mifare card is emptied.

[Return

[Return Value]

Value]

ActionResult: Result of emptying a card. 0: Success. Other values: Failure.

4.2.14

4.2.14 OnEMData

OnEMData

OnEMData (LONG DataType, LONG DataLen, CHAR* DataBuffer)

This event is triggered when the device sends an unknown event to SDK.

[Return

[Return Value]

Value]

DataType: Type of the returned event

DataLen: Data length

DataBuffer: Actual data

5

5 Common

Common

Common Functions

Functions

5.1

5.1 Device

Device

Device Connection

Connection

Connection Functions

Functions

5.1.1

5.1.1 Connect_Net

Connect_Net

[Definition]

VARIANT_BOOL Connect_Net( [in] BSTR IPAdd, [in] long Portl)

[Usage]

Connect to the device via the IP address and set up a network connection with the device.

[Parameter]

IPAdd:

IP address of the device

Port:

Port number used for connecting to the device. The default value is 4370.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

Disconnect, Connect_Com, Connect_USB

5.1.2

5.1.2 Connect_Com

Connect_Com

[Definition]

VARIANT_BOOL Connect_Com( [in] long ComPort, [in] long MachineNumber, [in] long

BaudRate)

[Usage]

Connect to the device via a serial port, that is, via RS232 or RS485 port.

Note: This function can be also used for some devices that use USB Client to communicate

with the PC. However, the USB client driver must be first installed to simulate a serial port.

After the installation succeeds, you can view the serial port number via the device manager

on the PC or find the virtual serial port number via the program. For details, see "USBClient"

of the demo program.

[Parameter]

ComPort:

Serial port number of the PC for connecting to the device

MachineNumber:

Device number

BaudRate:

Baud rate

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

Disconnect, Connect_Net, Connect_USB

5.1.3

5.1.3 Disconnect

Disconnect

[Definition]

Disconnect(void)

[Usage]

Disconnect from the device and release related resources.

[Parameter]

None

[Return

[Return Value]

Value]

None

[Related

[Related Function]

Function]

Connect_Net, Connect_Com, Connect_USB

5.2

5.2 Data

Data

Data Management

Management

Management Functions

Functions

5.2.1

5.2.1 Attendance

Attendance

Attendance Record

Record

Record Data

Data

5.2.1.1

5.2.1.1 ReadGeneralLogData

ReadGeneralLogData

[Definition]

VARIANT_BOOL ReadGeneralLogData( [in] long dwMachineNumber)

[Usage]

Read attendance records and write them into the internal buffer of the PC. This function is

the same as ReadAllGLogData.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadAllGLogData, GetAllGLogData, GetGeneralLogData, GetGeneralLogDataStr,

ClearGLog, GetGeneralExtLogData

5.2.1.2

5.2.1.2 ReadAllGLogData

ReadAllGLogData

[Definition]

VARIANT_BOOL ReadAllGLogData ( [in] long dwMachineNumber)

[Usage]

Read attendance records and write them into the internal buffer of the PC. This function is

the same as ReadGeneralLogData.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadGeneralLogData, GetAllGLogData, GetGeneralLogData,

GetGeneralLogDataStr,

ClearGLog, GetGeneralExtLogData

5.2.1.3

5.2.1.3 SSR_GetGeneralLogData

SSR_GetGeneralLogData

[Definition]

VARIANT_BOOL SSR_GetGeneralLogData( [in] LONG dwMachineNumber, [out] BSTR*

dwEnrollNumber, [out] LONG* dwVerifyMode, [out] LONG* dwInOutMode, [out] LONG*

dwYear, [out] LONG* dwMonth, [out] LONG* dwDay, [out] LONG* dwHour, [out] LONG*

dwMinute, [out] LONG* dwSecond, [out] LONG* dwWorkcode)

[Usage]

Read attendance records one by one from the internal buffer. Before using this function, you

can use ReadAllGLogData or ReadGeneralLogData to read attendance records from the

device and write them into the internal buffer of the PC. Each time this function is executed,

the pointer points to the next attendance record.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

Pointer pointing to a BSTR variable. The value is the user ID of the received

attendance record. The value consists of up to 24 bits.

dwVerifyMode

Pointer pointing to a long variable. The value is the verification mode of the received

attendance record. The values are as follows:

Generally, 0: password verification, 1: fingerprint verification, 2: card verification.

In multi-verification mode:

FP_OR_PW_OR_RF

FP

PW

RF

FP_OR_PW

FP_OR_RF

PW_OR_RF

0

1

2

3

4

5

6

7

PIN_AND_FP

FP_AND_PW

FP_AND_RF

PW_AND_RF

FP_AND_PW_AND_RF

PIN_AND_FP_AND_PW

FP_AND_RF_OR_PIN

8

9

10

11

12

13

14

dwInOutMode

Pointer pointing to a long variable. The value is the AttState of the received

attendance record. The values are as follows:

0 — Check-In (default value)

1 — Check-Out 2 — Break-Out

3 — Break-In 4 — OT-In 5 — OT-Out

dwYear, dwMonth, dwDay, dwHour, dwMinute, dwSecond

Pointers pointing to long variables. The values are the date and time of the received

attendance record.

dwWorkcode

Pointer pointing to a long variable. The value is the work code of the received

attendance record.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadGeneralLogData

5.2.1.4

5.2.1.4 ClearGLog

ClearGLog

[Definition]

VARIANT_BOOL ClearGLog([in] long dwMachineNumber)

[Usage]

Clear all attendance records from the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ClearSLog, ClearKeeperData

5.2.2

5.2.2 Operation

Operation

Operation Record

Record

Record Data

Data

5.2.2.1

5.2.2.1 ReadSuperLogData

ReadSuperLogData

[Definition]

VARIANT_BOOL ReadSuperLogData( [in]long dwMachineNumber)

[Usage]

Read operation records and write them into the internal buffer of the PC. This function is the

same as ReadAllSLogData.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadAllSLogData, GetAllSLogData, GetSuperLogData, ClearSLog

5.2.2.2

5.2.2.2 ReadAllSLogData

ReadAllSLogData

[Definition]

VARIANT_BOOL ReadAllSLogData( [in] long dwMachineNumber)

[Usage]

Read operation records and write them into the internal buffer of the PC. This function is the

same as ReadSuperLogData.

[Parameter]

dwMachineNumber:

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadSuperLogData, GetAllSLogData, GetSuperLogData, ClearSLog

5.2.2.3

5.2.2.3 GetSuperLogData

GetSuperLogData

[Definition]

VARIANT_BOOL

GetSuperLogData(

[in] long

dwMachineNumber,

[out] long*

dwTMachineNumber, [out] long* dwSEnrollNumber, [out] long* Params4, [out] long*

Params1, [out] long* Params2, [out] long* dwManipulation, [out] long* Params3, [out] long*

dwYear, [out] long* dwMonth, [out] long* dwDay, [out] long* dwHour, [out] long* dwMinute)

[Usage]

Value

Value of

of

dwManipulation

Meaning

Meaning of

of

dwManipulation

Params1

Params1 Params2

Params2

Params2 Params3

Params3

Params3 Params4

Params4

0 Power on

1 Power off

3 Alarm

Alarm type. 58:

False alarm. 54:

Door entry alarm,

53: Exit button

alarm, 55: Tamper

alarm, 65535:

Alarm off

4 Enter menu

Read operation records one by one from the internal buffer. Before using this function, you

can use ReadAllSLogData or ReadSuperLogData to read operation records from the device

and write them into the internal buffer of the PC. Each time this function is executed, the

pointer points to the next operation record. This function is the similar to GetSuperLogData2

except that GetSuperLogData2 can be used to obtain more accurate operation record time

(in seconds).

[Parameter]

dwMachineNumber

Device number

dwTMachineNumber

Pointer pointing to a long variable. The value is the device number of the received

operation record.

dwSEnrollNumber

Pointer pointing to a long variable. The value is the administrator ID of the received

operation record.

Params4

Pointer pointing to a long variable. The value varies with dwManipulation.

Params1

Pointer pointing to along variable. The value varies with dwManipulation.

Params2

Pointer pointing to a long variable. The value varies with dwManipulation.

dwManipulation

Pointer pointing to a long variable. The value is the operation type. The specific

values are as follows:

Value

Value of

of

dwManipulation

Meaning

Meaning of

of

dwManipulation

Params1

Params1 Params2

Params2

Params2 Params3

Params3

Params3 Params4

Params4

5 Change setting

Number of the set

option

6

Register a

fingerprint

ID of the operated

user

Operation

result. 0:

Success.

Other

values:

Failure.

Index of the

registered

fingerprint

Length of the

fingerprint

template (2:

Threatened

fingerprint)

7

Register a

password

14

Create an MF

card

ID of the operated

user

Number of

fingerprints

written into

the MF card

Size of

fingerprint

data written

into the MF

card

20

Copy data from

the MF card to

the device

Number of

fingerprints

read out

from the MF

card

22

Restore factory

setting

30 Enroll a new user

ID of the operated

user

Operation

result

32

Threatened alarm

Whether to verify.

0: Key alarm. 1:

Verify alarm

Note: When the value is Verify alarm,

dwSEnrollNumber returns the ID of the

threatened user.

34 Anti-pass back

Whether the alarm

is an anti-pass

back alarm.

Params3

Pointer pointing to a long variable. The value varies with dwManipulation.

dwYear, dwMonth, dwDay, dwHour, dwMinute

Pointers pointing to long variables. The values are the date and time of the received

operation record.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetSuperLogData2, GetAllSLogData

5.2.2.4

5.2.2.4 GetAllSLogData

GetAllSLogData

[Definition]

GetAllSLogData( [in] long dwMachineNumber, [out] long* dwTMachineNumber, [out] long*

dwSEnrollNumber, [out] long* dwSMachineNumber, [out] long* dwGEnrollNumber, [out]

long* dwGMachineNumber, [out] long* dwManipulation, [out] long* dwBackupNumber, [out]

long* dwYear, [out] long* dwMonth, [out] long* dwDay, [out] long* dwHour, [out] long*

dwMinute)

[Usage]

Read operation records one by one from the internal buffer. Before using this function, you

can use ReadAllSLogData or ReadSuperLogData to read operation records from the device

and write them into the internal buffer of the PC. Each time this function is executed, the

pointer points to the next operation record. This function is the same as GetSuperLogData

except that interface names are different to achieve compatibility.

[Parameter]

Same as GetSuperLogData

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetSuperLogData

5.2.2.5

5.2.2.5 ClearSLog

ClearSLog

[Definition]

VARIANT_BOOL ClearSLog([in] long dwMachineNumber)

[Usage]

Clear all operation records from the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ClearGLog, ClearKeeperData

5.2.2.6

5.2.2.6 GetSuperLogData2

GetSuperLogData2

[Definition]

VARIANT_BOOL GetSuperLogData2([in] LONG dwMachineNumber, [out] LONG*

dwTMachineNumber, [out] LONG* dwSEnrollNumber, [out] LONG* Params4, [out] LONG*

Params1, [out] LONG* Params2, [out] LONG* dwManipulation, [out] LONG* Params3,

[out] LONG* dwYear, [out] LONG* dwMonth, [out] LONG* dwDay, [out] LONG* dwHour,[out]

LONG* dwMinute, [out] LONG* dwSecs)

[Usage]

Read operation records one by one from the internal buffer. Before using this function, you

can use ReadAllSLogData or ReadSuperLogData to read operation records from the device

and write them into the internal buffer of the PC. Each time this function is executed, the

pointer points to the next operation record. This function is the similar to GetSuperLogData

except that GetSuperLogData can be used to obtain more accurate operation record time

(in seconds).

[Parameter]

dwYear, dwMonth, dwDay, dwHour, dwMinute, dwSecs

Pointers pointing to long variables. The values are the date and time of the received

operation record.

For other parameters, see GetSuperLogData.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadAllSLogData, GetSuperLogData

5.2.3

5.2.3 User

User

User Information

Information

Information Functions

Functions

5.2.3.1

5.2.3.1 ReadAllUserID

ReadAllUserID

[Definition]

VARIANT_BOOL ReadAllUserID( [in] long dwMachineNumber)

[Usage]

Read all user information except fingerprint templates, such as user ID, password, name,

and card number, and write the user information into the memory of the PC. After this

function is executed, you can use GetAllUserID to take out user information.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetAllUserID

5.2.3.2

5.2.3.2 SSR_EnableUser

SSR_EnableUser

[Definition]

VARIANT_BOOL EnableUser( [in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

long dwEMachineNumber, [in] long dwBackupNumber, [in] VARIANT_BOOL bFlag)

[Usage]

Set whether a user is enabled.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwEMachineNumber, dwBackupNumber

Invalid parameter without specific meanings

bFlag

User enable flag. True: Enabled. False: Disabled.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.2.3.3

5.2.3.3 SetUserInfoEx

SetUserInfoEx

[Definition]

VARIANT_BOOL SetUserInfoEx( [in] LONG

dwMachineNumber,

[in] LONG

dwEnrollNumber, [in] LONG VerifyStyle, [in] BYTE* Reserved)

[Usage]

Upload the user verification mode or group verification mode. Only the devices supporting

multiple verification modes support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

VerifyStyle

Verification mode

The values of user verification mode set by black & white devices range from 1 to 15,

that is, there are 15 verification modes. For details, see parameters of

GetGeneralLogData. If group verification mode is used, the values of verification

mode range from 129 to 134, representing groups 1 to 5 respectively.

For TFT access control fingerprint devices: 0 (group verification mode),

128(FP/PW/RF), 129(FP), 130(PIN), 131(PW), 132(RF), 133(FP&RF), 134(FP/PW),

135(FP/RF), 136(PW/RF), 137(PIN&FP), 138(FP&PW), 139(PW&RF),

140(FP&PW&RF), 141(PIN&FP&PW), 142(FP&RF/PIN).

Reserved

Reserved parameter temporarily without specific meanings.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserInfoEx, DeleteUserInfoEx

5.2.3.4

5.2.3.4 GetUserInfoEx

GetUserInfoEx

[Definition]

VARIANT_BOOL GetUserInfoEx( [in] LONG

dwMachineNumber,

[in] LONG

dwEnrollNumber, [out] LONG* VerifyStyle, [out] BYTE* Reserved)

[Usage]

Obtain the user verification mode. Only the devices support multiple verification modes

support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

VerifyStyle

Verification mode of the user described by dwEnrollNumber. The values are as

follows:

The values of user verification mode set by black & white devices range from 1 to 15,

that is, there are 15 verification modes. For details, see parameters of

GetGeneralLogData. If group verification mode is used, the values of verification

mode range from 129 to 134, representing groups 1 to 5 respectively.

For TFT access control fingerprint

device:

0 (group verification mode),

128(FP/PW/RF), 129(FP), 130(PIN), 131(PW), 132(RF), 133(FP&RF), 134(FP/PW),

135(FP/RF), 136(PW/RF), 137(PIN&FP), 138(FP&PW), 139(PW&RF),

140(FP&PW&RF), 141(PIN&FP&PW), 142(FP&RF/PIN).

Reserved

Reserved parameter without specific meanings.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserInfoEx, DeleteUserInfoEx

5.2.3.5

5.2.3.5 DeleteUserInfoEx

DeleteUserInfoEx

[Definition]

VARIANT_BOOL

DeleteUserInfoEx( [in]

LONG

dwMachineNumber,

[in] LONG

dwEnrollNumber)

[Usage]

Delete the multiple verification modes of the specified user. Only the devices supporting

multiple verification modes support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserInfoEx, GetUserInfoEx

5.2.3.6

5.2.3.6 SSR_GetAllUserInfo

SSR_GetAllUserInfo

[Definition]

VARIANT_BOOL GetAllUserInfo( [out] long

dwMachineNumber,

[out]

long*

dwEnrollNumber, [out] BSTR * Name, [out] BSTR * Password, [out] long * Privilege, [out]

VARIANT_BOOL * Enabled)

[Usage]

Obtain all user information. Before executing this function, you can use ReadAllUserID to

read out all user information and write it into the memory. Each time GetAllUserInfo is

executed, the pointer points to the next user information. After all user information is read,

False is returned. The difference between this function and GetAllUserID is that this function

can obtain more information.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

Name

User name

Password

User password

Privilege

User privilege. 0: common user, 1: enroller, 2: administrator, 3: super administrator

dwEnable

Whether the user is enabled. 1: Enabled. 0: Disabled.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadAllUserID, GetAllUserID

5.2.3.7

5.2.3.7 SSR_GetUserInfo

SSR_GetUserInfo

[Definition]

VARIANT_BOOL

SSR_GetUserInfo( [in]

LONG

dwMachineNumber,

[in] BSTR

dwEnrollNumber, [out] BSTR* Name, [out] BSTR* Password, [out] LONG* Privilege, [out]

VARIANT_BOOL* Enabled)

[Usage]

Obtain the information of the specified user.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

Name

Name of the user described by dwEnrollNumber

Password

Password of the user described by dwEnrollNumber

Privilege

Privilege of the user described by dwEnrollNumber. 3: administrator, 0: common user

Enabled

User enable flag. 1: Enabled. 0: Disabled

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetUserInfo

5.2.3.8

5.2.3.8 SSR_SetUserInfo

SSR_SetUserInfo

[Definition]

VARIANT_BOOL SetUserInfo( [in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

BSTR Name, [in] BSTR Password, [in] long Privilege, [in] VARIANT_BOOL Enabled)

[Usage]

Set user information. If the user is unavailable, the device automatically creates the user.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

Name

User name to be set

Password

User password to be set. If the value is null, the user password on the device is

cleared.

Privilege

User privilege. 0: common user, 1: enroller, 2: administrator, 3: super administrator

Enabled

User enable flag. 1: Enabled. 0: Disabled

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserInfo

5.2.4

5.2.4 Registration

Registration

Registration Data

Data

Data Functions

Functions

Functions (Including

(Including

(Including Both

Both

Both User

User

User Information

Information

Information and

and

and Fingerprint)

Fingerprint)

5.2.4.1

5.2.4.1 SSR_DeleteEnrollData

SSR_DeleteEnrollData

[Definition]

VARIANT_BOOL DeleteEnrollData([in] long dwMachineNumber, [in] long dwEnrollNumber,

[in] long dwEMachineNumber, [in] long dwBackupNumber)

[Usage]

Delete registration data.

[Parameter]

dwMachineNumber, dwEMachineNumber

Device number

dwEnrollNumber

User ID

dwBackupNumber

Index of the fingerprint

The value ranges from 0 to 9. It this case, the device also checks whether the user

has other fingerprints or passwords. If no, the device deletes the user.

When the value is 10, the device deletes the password. The device also checks

whether the user has fingerprint data. If no, the device deletes the user.

When the value is 11 or 13, the device deletes all fingerprint data of the user. When the

value is 12, the device deletes the user (including all fingerprints, card numbers and

passwords of the user).

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetEnrollData, GetEnrollData

5.2.4.2

5.2.4.2 SSR_DeleteEnrollDataExt

SSR_DeleteEnrollDataExt

[Definition]

VARIANT_BOOL SSR_DeleteEnrollDataExt([in]LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwBackupNumber)

[Usage]

Delete registration data. The difference between this function and SSR_DeleteEnrollData is

that this function can delete all fingerprints. This function achieves a higher efficiency.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwBackupNumber

Index of the fingerprint

The value ranges from 0 to 9. It this case, the device also checks whether the user

has other fingerprints or passwords. If no, the device deletes the user.

When the value is 0, the device deletes the password. The device also checks

whether the user has fingerprint data. If no, the device deletes the user.

When the value is 11 or 13, the device deletes all fingerprint data of the user. When

the value is 12, the device deletes the user (including all fingerprints, card numbers

and passwords of the user).

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetUserInfo ,

,

,SSR_SetUserTmp, SSR_DeleteEnrollData

5.2.5

5.2.5 Fingerprint

Fingerprint

Fingerprint Template

Template

Template Functions

Functions

5.2.5.1

5.2.5.1 ReadAllTemplate

ReadAllTemplate

[Definition]

VARIANT_BOOL ReadAllTemplate([in] LONG dwMachineNumber)

[Usage]

Read out all fingerprint templates from the device and write them into the memory of the PC.

This function is used to read out and write all the fingerprints into the memory at a time. This

function achieves a higher speed in comparison with the way of obtaining fingerprints one

by one.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.2.5.2

5.2.5.2 SSR_GetUserTmp

SSR_GetUserTmp

[Definition]

VARIANT_BOOL GetUserTmp([in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

long dwFingerIndex, [out] BYTE* TmpData, [out] long * TmpLength)

[Usage]

Obtain the ZKFinger 9.0 fingerprint templates of a user in binary mode. The only difference between this

function and GetUserTmpStr is the fingerprint template format.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTmp

5.2.5.3

5.2.5.3 SSR_GetUserTmpStr

SSR_GetUserTmpStr

[Definition]

VARIANT_BOOL GetUserTmpStr([in] long dwMachineNumber,[in] long dwEnrollNumber,

[in] long dwFingerIndex, [out] BSTR* TmpData, [out] long * TmpLength)

[Usage]

Obtain the ZKFinger 9.0 fingerprint templates of a user in string form. The only difference between this

function and GetUserTmp is the fingerprint template format.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTmpStr

5.2.5.4

5.2.5.4 SSR_SetUserTmp

SSR_SetUserTmp

[Definition]

VARIANT_BOOL SetUserTmp([in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

long dwFingerIndex, [in] BYTE* TmpData)

[Usage]

Upload the ZKFinger 9.0 fingerprint templates of a user in binary mode. The only difference between this

function and SetUserTmpStr is the fingerprint template format. Caution: The user must have

been created on the device. If the same index is already registered by the user, the

fingerprint template will be overwritten.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTmp

5.2.5.5

5.2.5.5 SSR_SetUserTmpStr

SSR_SetUserTmpStr

[Definition]

VARIANT_BOOL SetUserTmpStr([in] long dwMachineNumber, [in]long dwEnrollNumber, [in]

long dwFingerIndex, [in]BSTR TmpData)

[Usage]

Set the ZKFinger 9.0 fingerprint templates of a user in string form. The only difference between this

function and SetUserTmp is the fingerprint template format. Caution: The user must have

been created on the device. If the same index is already registered by the same user, the

fingerprint template will be overwritten.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

TmpData

Fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTmpStr

5.2.5.6

5.2.5.6 SSR_DelUserTmp

SSR_DelUserTmp

[Definition]

VARIANT_BOOL DelUserTmp([in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

long dwFingerIndex)

[Usage]

Delete the fingerprint template of a specified user.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTmp, SetUserTmp

5.2.5.7

5.2.5.7 SSR_SetUserTmpExt

SSR_SetUserTmpExt

[Definition]

VARIANT_BOOL SSR_SetUserTmpExt([in] LONG dwMachineNumber, [in] LONG

IsDeleted,[in] BSTR dwEnrollNumber,[in] LONG dwFingerIndex, [in] BYTE* TmpData)

[Usage]

Upload the ZKFinger 9.0 fingerprint templates of a user. This function is an enhancement of

SSR_SetUserTmp.

[Parameter]

dwMachineNumber

Device number

IsDeleted

Deletion flag, that is, whether to overwrite the original fingerprint if the fingerprint with

the specified index to be uploaded already exists in the device. 1: Overwrite the

original fingerprint. 0: Not overwrite the original fingerprint.

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9.

TmpData

Fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetUserTmp

5.2.5.8

5.2.5.8 SSR_DelUserTmpExt

SSR_DelUserTmpExt

[Definition]

VARIANT_BOOL SSR_DelUserTmpExt([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex)

[Usage]

Delete the fingerprints of a specified user. The difference between this function and

DelUserTmp is that DelUserTmp supports 24-bit user ID.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Index of the fingerprint. The value ranges from 0 to 9. When the value is 13, all

fingerprints of the user are deleted.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_DelUserTmp

5.2.5.9

5.2.5.9 SetUserTmpEx

SetUserTmpEx

[Definition]

VARIANT_BOOL SetUserTmpEx([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[in] LONG Flag, [in] BYTE* TmpData)

[Usage]

Upload ordinary fingerprint templates or duress fingerprint templates of a user in

binary mode (ZKFinger 10.0) . The only difference between this function and SetUserTmpExStr is the

fingerprint template format. Caution: The user must have been created on the device, or

the user information must be uploaded together with the fingerprint templates. If the

template with the same index is already registered by the same user, the fingerprint

template will be overwritten. Note: TFT devices supporting duress fingerprints (with

firmware version 6.60 or later) can support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Fingerprint index

Flag

Flag used to indicate whether the fingerprint template is valid or is a duress

fingerprint template. 0: Invalid; 1: Valid; 3: duress fingerprint template.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTmpEx, SSR_SetUserInfo, BeginBatchUpdate, BatchUpdate

5.2.5.10

5.2.5.10 SetUserTmpExStr

SetUserTmpExStr

[Definition]

VARIANT_BOOL

SetUserTmpExStr([in]

LONG

dwMachineNumber,

[in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[in] LONG Flag, [in] BSTR TmpData)

[Usage]

Upload ordinary fingerprint templates or duress fingerprint templates of a user in string

mode (ZKFinger 10.0) . The only difference between this function and SetUserTmpEx is the fingerprint

template format. Caution: The user must have been created on the device, or the user

information must be uploaded together with the fingerprint templates. If the template with

the same index is already registered by the same user, the fingerprint template will be

overwritten. Note: TFT devices supporting duress fingerprints (with firmware version

6.60 or later) can support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Fingerprint index

Flag

Flag used to indicate whether the fingerprint template is valid or is a duress

fingerprint template. 0: Invalid; 1: Valid; 3: duress fingerprint template.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTmpExStr, SSR_SetUserInfo, BeginBatchUpdate, BatchUpdate

5.2.5.11

5.2.5.11 GetUserTmpEx

GetUserTmpEx

[Definition]

VARIANT_BOOL GetUserTmpEx([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[out] LONG * Flag, [out] BYTE* TmpData, [out]

LONG* TmpLength)

[Usage]

Download ordinary fingerprint templates or duress fingerprint templates of a user in

binary mode (ZKFinger 10.0) . The only difference between this function and GetUserTmpExStr is the

fingerprint template format. Note: TFT devices supporting duress fingerprints (with

firmware version 6.60 or later) can support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Fingerprint index

Flag

Flag used to indicate whether the fingerprint template is valid or is a duress

fingerprint template. 0: Invalid; 1: Valid; 3: duress fingerprint template.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTmpEx, SSR_GetUserInfo

5.2.5.12

5.2.5.12 GetUserTmpExStr

GetUserTmpExStr

[Definition]

VARIANT_BOOL

GetUserTmpExStr([in]

LONG

dwMachineNumber,

[in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[out] LONG * Flag, [out] BSTR* TmpData, [out]

LONG* TmpLength)

[Usage]

Download ordinary fingerprint templates or duress fingerprint templates of a user in

string mode (ZKFinger 10.0) . The only difference between this function and GetUserTmpEx is the

fingerprint template format. Note: TFT devices supporting duress fingerprints (with

firmware version 6.60 or later) can support this function.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex

Fingerprint index

Flag

Flag used to indicate whether the fingerprint template is valid or is a duress

fingerprint template. 0: Invalid; 1: Valid; 3: duress fingerprint template.

TmpData

Fingerprint template data

TmpLength

Fingerprint template length

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTmpExStr, SSR_GetUserInfo

5.2.6

5.2.6 Others

Others

5.2.6.1

5.2.6.1 SMS

SMS

SMS Functions

Functions

5.2.6.1.1

5.2.6.1.1 SetSMS

SetSMS

[Definition]

VARIANT_BOOL SetSMS( [in] LONG dwMachineNumber, [in] LONG ID, [in] LONG Tag, [in]

LONG ValidMinutes, [in] BSTR StartTime, [in] BSTR Content)

[Usage]

Add a short message to the device. To set a short message of a user, use SetUserSMS to

allocate the short message to the user.

[Parameter]

dwMachineNumber

Device number

ID

Short message number

Tag

Short message type. 253: public short message, 254: personal short message, 255:

reserved short message

ValidMinutes

Valid duration of a short message. The value ranges from 0 to 65535. That is, the

short message becomes valid at StartTime and keeps valid for ValidMinutes.

StartTime

Start time when a short message becomes valid, in a string format of yyyy-mm-dd

hh:mm:ss

Content

Content of a short message

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetSMS, DeleteSMS, ClearSMS, SetUserSMS

5.2.6.1.2

5.2.6.1.2 SSR_SetUserSMS

SSR_SetUserSMS

[Definition]

VARIANT_BOO SetUserSMS( [in] LONG dwMachineNumber, [in] LONG dwEnrollNumber,

[in] LONG SMSID)

[Usage]

Set a short message of a user, that is, allocate the short message with the specified number

in the device to a specific user.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

SMSID

Short message number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetSMS, GetSMS, DeleteSMS, ClearSMS

[

[Supporting Device ]

]

Only TFT devices support this function. For black & white devices, see ssr_SetUserSMS.

5.2.6.1.3

5.2.6.1.3 GetSMS

GetSMS

[Definition]

VARIANT_BOOL GetSMS([in] LONG dwMachineNumber, [in] LONG ID, [out] LONG* Tag,

[out] LONG* ValidMinutes, [out] BSTR* StartTime, [out] BSTR *Content)

[Usage]

Obtain details of a short message (including content, start time, short message type, and

valid duration) by short message number.

[Parameter]

dwMachineNumber

Device number

ID

Short message number

Tag

Short message type. 253: public short message, 254: personal short message, 255:

reserved short message

ValidMinutes

Valid duration of a short message. The value ranges from 0 to 65535. That is, the

short message becomes valid at StartTime and keeps valid for ValidMinutes.

StartTime

Start time when a short message becomes valid

Content

Content of a short message

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetSMS, SetUserSMS, GetSMS, DeleteSMS, ClearSMS

5.2.6.1.4

5.2.6.1.4 DeleteSMS

DeleteSMS

[Definition]

VARIANT_BOOL DeleteSMS( [in] LONG dwMachineNumber, [in] LONG ID)

[Usage]

Delete a short message with the specified number from the device.

[Parameter]

dwMachineNumber

Device number

ID

Short message number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetSMS, ClearSMS

5.2.6.1.5

5.2.6.1.5 SSR_DeleteUserSMS

SSR_DeleteUserSMS

[Definition]

VARIANT_BOOL DeleteUserSMS([in]LONG dwMachineNumber, [in]LONG

dwEnrollNumber, [in] LONG SMSID)

[Usage]

Delete the specified short message of a specified user. In this case, only the mapping

between the user and short message, instead of the short message, is deleted.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

SMSID

Short message number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserSMS

5.2.6.1.6

5.2.6.1.6 ClearUserSMS

ClearUserSMS

[Definition]

VARIANT_BOOL ClearUserSMS([in] LONG dwMachineNumber)

[Usage]

Clear only all mappings between a user and short messages, instead of short messages.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ClearSMS, SetSMS

5.2.6.1.7

5.2.6.1.7 ClearSMS

ClearSMS

[Definition]

VARIANT_BOOL ClearSMS([in] LONG dwMachineNumber)

[Usage]

Clear all the short messages from the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetSMS

5.2.6.2

5.2.6.2 Work

Work

Work Code

Code

Code Functions

Functions

5.2.6.2.1SSR_GetWorkCode

[Definition]

VARIANT_BOOL GetWorkCode( [in] LONG WorkCodeID, [out] BSTR * AWorkCode)

[Usage]

Obtain the ID of the specified work code. For details, see SetWorkCode.

[Parameter]

WorkCodeID

ID of the work code

AWorkCode

ID of the work code described by WorkCodeID

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetWorkCode

5.2.6.2.2

5.2.6.2.2 SSR_SetWorkCode

SSR_SetWorkCode

[Definition]

VARIANT_BOOL SetWorkCode( [in] LONG WorkCodeID, [in] LONG AWorkCode)

[Usage]

Define the work code with the specified number. Note: Black & white devices support work

codes in all ranges. However, after this function is used to define work codes, only the work

codes within the defined range can be input. For example:

SetWorkCode (1, 345)

SetWorkCode (2, 567)

In the preceding example, only the work codes 345 and 567 can be input.

[Parameter]

WorkCodeID

ID of a work code

AWorkCode

ID of the work code described by WorkCodeID

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetWorkCode

5.2.6.2.3

5.2.6.2.3 SSR_DeleteWorkCode

SSR_DeleteWorkCode

[Definition]

VARIANT_BOOL DeleteWorkCode( [in] LONG WorkCodeID)

[Usage]

Delete the work code with specified ID. For details, see SetWorkCode.

[Parameter]

WorkCodeID

ID of the work code

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetWorkCode, GetWorkCode, ClearWorkCode

5.2.6.2.4

5.2.6.2.4 SSR_ClearWorkCode

SSR_ClearWorkCode

[Definition]

VARIANT_BOOL SSR_ClearWorkCode(void)

[Usage]

Delete all customized work codes.

[Parameter]

None

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_GetWorkCode, SSR_SetWorkCode, SSR_DeleteWorkCode

5.2.6.3

5.2.6.3 Holiday

Holiday

Holiday Functions

Functions

5.2.6.3.1

5.2.6.3.1 SSR_GetHoliday

SSR_GetHoliday

[Definition]

VARIANT_BOOL SSR_GetHoliday( [in] LONG dwMachineNumber, [in] LONG HolidayID,

[out] LONG* BeginMonth, [out] LONG* BeginDay, [out] LONG* EndMonth, [out] LONG*

EndDay, [out] LONG* TimeZoneID)

[Usage]

Obtain holiday settings on the device by holiday ID.

[Parameter]

dwMachineNumber

Device number

HolidayID

Holiday ID

BeginMonth, BeginDay

Start time of holidays

EndMonth, EndDay

End time of holidays

TimeZoneID

Time slot ID of holidays

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetHoliday

5.2.6.3.2

5.2.6.3.2 SSR_SetHoliday

SSR_SetHoliday

[Definition]

VARIANT_BOOL SSR_SetHoliday( [in] LONG dwMachineNumber, [in] LONG HolidayID, [in]

LONG BeginMonth, [ in] LONG BeginDay, [in] LONG EndMonth, [in] LONG EndDay, [in]

LONG TimeZoneID)

[Usage]

Set holidays.

[Parameter]

dwMachineNumber

Device number

HolidayID

Holiday ID

BeginMonth, BeginDay

Start time of holidays

EndMonth, EndDay

End time of holidays

TimeZoneID

ID of the time slot of holidays

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_GetHoliday

5.2.6.4

5.2.6.4 DST

DST

DST Functions

Functions

5.2.6.4.1

5.2.6.4.1 SetDaylight

SetDaylight

[Definition]

VARIANT_BOOL

SetDaylight( [in] LONG dwMachineNumber, [in]

LONG Support, [in]

BSTR BeginTime, [in] BSTR EndTime)

[Usage]

Set whether to use daylight saving time (DST), start time and end time of DST.

[Parameter]

dwMachineNumber

Device number

Support

Whether to use DST. 1: use, 0: not use

BeginTime

Start time of DST, in format of mmdd hh:mm

EndTime

End time of DST, in format of mmdd hh:mm

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetDaylight

5.2.6.4.2

5.2.6.4.2 GetDaylight

GetDaylight

[Definition]

VARIANT_BOOL GetDaylight ( [in] LONG dwMachineNumber, [out] LONG* Support, [out]

BSTR* BeginTime, [out] BSTR* EndTime)

[Usage]

Obtain DST settings of the current device.

[Parameter]

dwMachineNumber

Device number

Support

Whether to use DST. 1: use, 0: not use

BeginTime

Start time of DST, in format of mmdd hh:mm

EndTime

End time of DST, in format of mmdd hh:mm

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDaylight

5.2.6.5

5.2.6.5 Shortcut

Shortcut

Shortcut Keys

Keys

5.2.6.5.1

5.2.6.5.1 SSR_SetShortkey

SSR_SetShortkey

[Definition]

VARIANT_BOOL SSR_SetShortkey( [in] LONG ShortKeyID, [in] LONG ShortKeyFun, [in]

LONG StateCode,

[in]

BSTR StateName,

[in]

LONG

StateAutoChange,

[in]

BSTR

StateAutoChangeTime)

[Usage]

Set a specific function key, equal to the function of defining function keys of the TFT device.

[Parameter]

ShortKeyID

ID of a shortcut key. The mappings are as follows: F1 — 1, F2 — 2, F3 — 3 …

ShortKeyFun

Function of a shortcut key.

0: not defined, 1: state key, 2: work code, 3: view short messages

The value of this parameter affects the settings of the four parameters below. See

descriptions of the four parameters below.

StateCode

State of a state key.

If the set key is not a state key, the value of this parameter is ignored. That is, if the

value of ShortKeyFun is not 1, the value of this parameter is ignored.

If the set key is a state key (that is, the value of ShortKeyFun is 1), this parameter

specifies the state of the set state key. The valid value ranges from 0 to 255. The

states of state keys must be unique. If the states of state keys are repeated, the

function cannot be called. For example, the F2 key is a state key and its state value is

2. If you use this function to set F3 as a state key and specify 2 as the state value of

F3, you cannot call this function.

StateName

Name of a state key.

If the set key is not a state key, the value of this parameter is ignored. That is, if the

value of ShortKeyFun is not 1, the value of this parameter is ignored.

If the set key is a state key (that is, the value of ShortKeyFun is 1), this parameter

specifies the name of the set state key. The value consists of up to 18 characters.

StateAutoChange

If the set key is not a state key, the value of this parameter is ignored. That is, if the

value of ShortKeyFun is not 1, the value of this parameter is ignored.

If the set key is a state key (that is, the value of ShortKeyFun is 1), this parameter

specifies whether the automatic change function of the set state key is enabled. 0:

disabled, 1: enabled.

StateAutoChangeTime

If the set key is not a state key, the value of this parameter is ignored. That is, if the

value of ShortKeyFun is not 1, the value of this parameter is ignored.

If the set key is a state key, this parameter specifies the automatic change time of the

set state key. The requirements are as follows:

1. “ 08:30;09:00;08:00;12:00;11:12;00:00;00:00; ”

2. Hour and minute are separated by ":" without any space. Days are separated by ";"

without any space.

3. The automatic change time of each day (with one week as a cycle) must be

specified, that is, the device changes from attendance state to the state described by

StateName (the value is defined by StateCode) when the specified time is reached. If

no automatic change occurs in a specific day, set hour and minute to 0.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_GetShortkey

5.2.6.5.2

5.2.6.5.2 SSR_GetShortkey

SSR_GetShortkey

[Definition]

VARIANT_BOOL SSR_GetShortkey( [in] LONG ShortKeyID, [in] LONG *ShortKeyFun, [in]

LONG *StateCode, [in] BSTR *StateName, [in] LONG *AutoChange, [in] BSTR

*AutoChangeTime)

[Usage]

Obtain the setting of a specific function key.

[Parameter]

ShortKeyID

ID of the specified key to be obtained. The mappings are as follows: F1 ? 1, F2 ? 2,

F3 ? 3 ……

ShortKeyFun

Function of the specified key.

0: not defined, 1: state key, 2: work code, 3: view short messages

StateCode

If the specified key is a state key (that is, the value of ShortKeyFun is 1), return the

state of this state key, Otherwise, return 0.

StateName

If the specified key is a state key (that is, the value of ShortKeyFun is 1), return the

name of this state key. Otherwise, return a null string.

AutoChange

If the specified key is a state key (that is, the value of ShortKeyFun

ShortKeyFun

ShortKeyFun is 1

1

1), return

whether this state key is automatically changed. Otherwise, return 0.

AutoChangeTime

If the specified key is a state key (that is, the value of ShortKeyFun

ShortKeyFun

ShortKeyFun is 1

1

1), return

automatic change time (in string form) of this state key. Otherwise, return a null

string.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetShortkey

5.2.6.6

5.2.6.6 Fingerprint

Fingerprint

Fingerprint Template

Template

Template Conversion

Conversion

Conversion Functions

Functions

5.2.6.6.1

5.2.6.6.1 GetFPTempLength

GetFPTempLength

[Definition]

GetFPTempLength( [in] BYTE* dwEnrollData, [out] long * Len)

[Usage]

Calculate the length of a specified fingerprint template.

[Parameter]

dwEnrollData

Pointer pointing at the fingerprint template

Len

Length of the fingerprint template described by dwEnrollData

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetFPTempLengthStr

5.2.6.6.2

5.2.6.6.2 GetFPTempLengthStr

GetFPTempLengthStr

[Definition]

GetFPTempLengthStr( [in] BSTR dwEnrollData, [out] long * Len)

[Usage]

Calculate the length of a specified fingerprint template.

[Parameter]

dwEnrollData

Fingerprint template in string form

Len

Length of the fingerprint template described by dwEnrollData

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetFPTempLength

5.2.6.6.3

5.2.6.6.3 FPTempConvert

FPTempConvert

[Definition]

VARIANT_BOOL FPTempConvert( [in] BYTE* TmpData1, [out] BYTE* TmpData2, [out] long

*Size)

[Usage]

Convert an offline fingerprint template into a Biokey fingerprint template. The only difference

between this function and FPTempConvertStr is the data format.

[Parameter]

TmpData1

Offline fingerprint template to be converted

TmpData2

Converted Biokey fingerprint template

Size

Size of the converted Biokey fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

FPTempConvertStr, FPTempConvertNew, FPTempConvertNewStr

5.2.6.6.4

5.2.6.6.4 FPTempConvertStr

FPTempConvertStr

[Definition]

VARIANT_BOOL

FPTempConvertStr( [in] BSTR TmpData1, [out] BSTR* TmpData2, [out]

long *Size)

[Usage]

Convert an offline fingerprint template into a Biokey fingerprint template in string form. The

only difference between this function and FPTempConvert is the data format.

[Parameter]

TmpData1

Offline fingerprint template to be converted

TmpData2

Converted Biokey fingerprint template

Size

Size of the converted Biokey fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

FPTempConvert, FPTempConvertNew, FPTempConvertNewStr

5.2.6.6.5

5.2.6.6.5 FPTempConvertNew

FPTempConvertNew

[Definition]

VARIANT_BOOL FPTempConvertNew( [in] BYTE* TmpData1, [out] BYTE* TmpData2, [out]

long *Size)

[Usage]

Convert a Biokey fingerprint template into an offline fingerprint template. The only difference

between this function and FPTempConvertNewStr is the data format.

[Parameter]

TmpData1

Offline fingerprint template to be converted into

TmpData2

Converted offline fingerprint template

Size

Size of the converted offline fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

FPTempConvertNewStr, FPTempConvert, FPTempConvertStr

5.2.6.6.6

5.2.6.6.6 FPTempConvertNewStr

FPTempConvertNewStr

[Definition]

VARIANT_BOOL FPTempConvertNewStr( [in] BSTR TmpData1, [out] BSTR* TmpData2,

[out] long *Size)

[Usage]

Convert a Biokey fingerprint template into an offline fingerprint template in string form. The

only difference between this function and FPTempConvertNew is the data format.

[Parameter]

TmpData1

Offline fingerprint template to be converted into

TmpData2

Converted offline fingerprint template

Size

Size of the converted offline fingerprint template

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

FPTempConvertNew, FPTempConvert, FPTempConvertStr

5.2.7

5.2.7 System

System

System Data

Data

Data Management

Management

Management Functions

Functions

5.2.7.1

5.2.7.1 ClearKeeperData

ClearKeeperData

[Definition]

VARIANT_BOOL ClearKeeperData( [

[

[in ]

]

]long dwMachineNumber)

[Usage]

Clear all data in the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ClearGLog, ClearSLog

5.2.7.2

5.2.7.2 ClearData

ClearData

[Definition]

VARIANT_BOOL ClearData( [in] LONG dwMachineNumber, [in] LONG DataFlag)

[Usage]

Clear the record specified by DataFlag from the device.

[Parameter]

dwMachineNumber

Device number

DataFlag

Type of the records to be cleared. The value ranges from 1 to 5. The meanings are

as follows:

1. Attendance record

2. Fingerprint template data

3. None

4. Operation record

5. User information

When the value of this parameter is 5, all user data in the device is deleted. Note: All

fingerprint templates are also deleted.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ClearKeeperData

5.2.7.3

5.2.7.3 GetDataFile

GetDataFile

[Definition]

VARIANT_BOOL

GetDataFile( [in] LONG dwMachineNumber, [in] LONG DataFlag, [in]

BSTR FileName)

[Usage]

Obtain the specified data file from the device.

[Parameter]

dwMachineNumber

Device number

DataFlag

Type of the data file to be obtained

1. Attendance record data file

2. Fingerprint template data file

3. None

4. Operation record data file

5. User information data file

6. SMS data file

7. SMS and user relationship data file

8. Extended user information data file

9. Work code data file

FileName

Name of the obtained data file

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

5.2.7.4

5.2.7.4 SendFile

SendFile

[Definition]

VARIANT_BOOL SendFile( [in] LONG dwMachineNumber, [in] BSTR FileName)

[Usage]

Send files to the device, usually to the /mnt/mtdblock/

/mnt/mtdblock/

/mnt/mtdblock/ directory. For TFT devices, if user

pictures or advertisement pictures are sent, the files should be named in the following

formats and automatically moved to corresponding directories.

Naming of advertisement pictures: prefix "ad" +a numeral ranging from 1 to 20 + suffix ".jpg",

for example, ad_4.jpg


Naming of user pictures: user ID + ".jpg", for example, 1.jpg


[Parameter]

dwMachineNumber

Device number

FileName

Name of the file to be sent

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

ReadFile

5.2.7.5

5.2.7.5 RefreshData

RefreshData

[Definition]

VARIANT_BOOL RefreshData([in] long dwMachineNumber)

[Usage]

Refresh the data in the device. This function is usually called after user information or

fingerprints are uploaded. In this way, the modifications take effect immediately.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.2.

5.2. 8

8

8 Attendance

Attendance

Attendance Photo


5.2.

5.2. 8

8

8 .1

.1

.1 GetPhotoNamesByTime

GetPhotoNamesByTime

[Definition]

VARIANT_BOOL GetPhotoNamesByTime([in]long dwMachineNumber, [in]long iFlag, [in]BSTR sTime,

[in]BSTR eTime, [out]BSTR* AllPhotoName)

[Usage]

Download attendance photo names from device.

[Parameter]

dwMachineNumber

Device number

iFlag

When iFlag is 0, download all photos from device. When iFlag is 1, download photo between

sTime and eTimesTime

Begin time, format: YYYY-MM-DD hh:mm:sseTime

End time, format: YYYY-MM-DD hh:mm:ssAllPhotoName

Attendance photo names. Format: verify succeed photo(\t d

elimiter

) + \n + verify failed photo(\tdelimiter)

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.2.

5.2. 8

8

8 .

.

. 2

2

2 GetPhotoBy

GetPhotoBy

GetPhotoBy Name

Name

[Definition]

VARIANT_BOOL GetPhotoByName([in]long dwMachineNumber, [in]BSTR PhotoName, [out]BYTE*PhotoData, [out]long* PhotoLength)

[Usage]

Download attendance photo .

[Parameter]

dwMachineNumber

Device number

PhotoName

Photo's name

PhotoData

The binary data of photo

PhotoLength

The size of photo data

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetPhotoNamesByTime

5.2.

5.2. 8

8

8 .

.

. 3

3

3 GetPhoto

GetPhoto

GetPhoto Count

Count

[Definition]

VARIANT_BOOL GetPhotoCount([in]long dwMachineNumber, [in]long* Count, [in]long iFlag)

[Usage]

Get the number of attendance photo .

[Parameter]

dwMachineNumber

Device numberCount

Number of attendance photo.iFlag

When iFlag is 0, get the number of all attendance photo, when iFlag is 1, get the number ofverify succeed photo, when iFlag is 2, get the number of verify failed photo.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.2.

5.2. 8

8

8 .

.

. 4

4

4 ClearPhotoByTime

ClearPhotoByTime

[Definition]

VARIANT_BOOL ClearPhotoByTime([in]long dwMachineNumber, [in]long iFlag, [in]BSTR sTime,

[in]BSTR eTime)

[Usage]

Delete attendance photo .

[Parameter]

dwMachineNumber

Device number

iFlag

When iFlag is 0, delete all attendance photo, when iFlag is 1, delete the photos between sTime

and eTimesTime

Begin timeeTime

End time

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.3

5.3 Access

Access

Access Control

Control

Control Functions

Functions

Functions (Time

(Time

(Time Slot,

Slot,

Slot, Group,

Group,

Group, Open

Open

Open Door

Door

Combination)

5.3.1

5.3.1 GetUserGroup

GetUserGroup

[Definition]

VARIANT_BOOL GetUserGroup( [in] long dwMachineNumber, [in] long dwEnrollNumber,

[out] long *UserGrp)

[Usage]

Obtain the number of the group to which a specified user belongs.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

UserGrp

Group number of the user described by dwEnrollNumber. The value ranges from 1 to

5.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserGroup

5.3.2

5.3.2 SetUserGroup

SetUserGroup

[Definition]

VARIANT_BOOL SetUserGroup( [in] long dwMachineNumber, [in] long dwEnrollNumber, [in]

long UserGrpl)

[Usage]

Set the group to which a specified user belongs.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

UserGrpl

Group number. The value ranges from 1 to 5.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserGroup

5.3.3

5.3.3 GetTZInfo

GetTZInfo

[Definition]

VARIANT_BOOL GetTZInfo( [in] long dwMachineNumber, [in] long TZIndex, [out] BSTR

*TZ)

[Usage]

Obtain the information of the time slot with the specified number.

[Parameter]

dwMachineNumber

Device number

TZIndex

Time slot index

TZ

Time slot with the index described by TZIndex. Every eight bits represent a time slot,

in format of hhmmhhmm. For example,

10111223000023590000235900002359000023590000235900002359 indicates a

time slot covering the whole day from Monday to Saturday and from 10:11 to 12:23 of

Sunday.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetTZInfo

5.3.4

5.3.4 SetTZInfo

SetTZInfo

[Definition]

VARIANT_BOOL SetTZInfo( [in] long dwMachineNumber, [in] long TZIndex, [in] BSTR TZ)

[Usage]

Set the information of the time slot with the specified number.

[Parameter]

dwMachineNumber

Device number

TZIndex

Time slot index

TZ

Time slot to be set. Every eight bits represent a time slot, in format of hhmmhhmm.

For example, 10111223000023590000235900002359000023590000235900002359

indicates a time slot covering the whole day from Monday to Saturday and from 10:11

to 12:23 of Sunday.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetTZInfo

5.3.5

5.3.5 SSR_SetUnLockGroup

SSR_SetUnLockGroup

[Definition]

VARIANT_BOOL

SSR_SetUnLockGroup(

[in]

LONG

dwMachineNumber,

[in]

LONG

CombNo, [in] LONG Group1, [in] LONG Group2, [in] LONG Group3, [in] LONG Group4, [in]

LONG Group5)

[Usage]

Set the open door combination.

[Parameter]

dwMachineNumber

Device number

CombNo

Combination number. The value ranges from 1 to 10, that is, the device supports a

maximum of 10 open door combinations.

Group1, Group2, Group3, Group4, Group5

Number of the group in the open door combination. Each open door combination

contains five group numbers. Each group number ranges from 1 to 99. For example,

SSR_SetUnLockGroup (1, 1, 2, 23, 14, 0, 56) means that the open is opened only

when members of groups 2, 23, 14, and 56 pass verification.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_GetUnLockGroup

5.3.6

5.3.6 SSR_GetUnLockGroup

SSR_GetUnLockGroup

[Definition]

VARIANT_BOOL SSR_GetUnLockGroup( [in] LONG dwMachineNumber, [in] LONG CombNo,

[out] LONG* Group1, [out] LONG* Group2, [out] LONG* Group3, [out] LONG* Group4, [out]

LONG* Group5)

[Usage]

Obtain the open door combination by open door combination number.

[Parameter]

dwMachineNumber

Device number

CombNo

Combination number. The value ranges from 1 to 10.

Group1, Group2, Group3, Group4, Group5

Specific combinations of specified open door groups, that is, which groups are

contained in a combination. The group number is returned. Each combination

contains a maximum of five groups. Each group number ranges from 1 to 99.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetUnLockGroup

5.3.7

5.3.7 SSR_SetGroupTZ

SSR_SetGroupTZ

[Definition]

VARIANT_BOOL SSR_SetGroupTZ( [in] LONG dwMachineNumber, [in] LONG GroupNo,

[in] LONG Tz1, [in] LONG Tz2, [in] LONG Tz3, [in] LONG VaildHoliday, [in] LONG VerifyStyle)

[Usage]

Set the time slot of a group.

[Parameter]

dwMachineNumber

Device number

GroupNo

Group number. The value ranges from 1 to -99.

Tz1, Tz2, Tz3

Time slot index. Each group can contain three time slots.

VaildHoliday

Whether holiday settings are valid

VerifyStyle

Verification mode of a group. Meanings: 0(FP/PW/RF), 1(FP), 2(PIN), 3(PW), 4(RF),

5(FP&RF),

6(FP/PW), 7(FP/RF), 8(PW/RF), 9(PIN&FP), 10(FP&PW),11(PW&RF),

12(FP&PW&RF), 13(PIN&FP&PW), 14(FP&RF/PIN)

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_GetGroupTZ

5.3.8

5.3.8 SSR_GetGroupTZ

SSR_GetGroupTZ

[Definition]

VARIANT_BOOL SSR_GetGroupTZ( [in] LONG dwMachineNumber, [in] LONG GroupNo,

[out] LONG* Tz1, [out] LONG* Tz2, [out] LONG* Tz3, LONG* VaildHoliday, LONG*

VerifyStyle)

[Usage]

Obtain the time slots of a group.

[Parameter]

dwMachineNumber

Number of the fingerprint device

GroupNo

Group number. The value ranges from 1 to 99.

Tz1 , Tz2, Tz3

Indexes of the three time slots of a specified combination. Each group number

ranges from 1 to 50.

VaildHoliday

Whether holiday settings are valid.1: valid, 0: invalid

VerifyStyle

Verification mode of the fingerprint device. Values: 0(FP/PW/RF), 1(FP), 2(PIN),

3(PW), 4(RF), 5(FP&RF), 6(FP/PW), 7(FP/RF), 8(PW/RF), 9(PIN&FP), 10(FP&PW),

11(PW&RF),

12(FP&PW&RF), 13(PIN&FP&PW), 14(FP&RF/PIN)

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SSR_SetGroupTZ

5.3.9

5.3.9 GetUserTZs

GetUserTZs

[Definition]

VARIANT_BOOL

GetUserTZs( [in] long dwMachineNumber, [in] long UserID, [out] long

*TZs)

[Usage]

Obtain the time slot setting of a user. Each user has three time slots. The only difference

between this function and GetUserTZStr is the format of returned time slot index.

[Parameter]

dwMachineNumber

Device number

UserID

User ID

TZs

Open door time slot of a user. The TZs pointers have three values that store indexes

of three time slots respectively. The indexes of three time slots can be obtained by

using TZs[0], TZs[1], and TZs[2] respectively.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTZs, SetUserTZStr

5.3.10

5.3.10 SetUserTZs

SetUserTZs

[Definition]

VARIANT_BOOL SetUserTZs( [in] long dwMachineNumber, [in] long UserID, [in] long *TZs)

[Usage]

Set the time slot of a user. A maximum of three time slots can be set for each user. The

difference between this function and SetUserTZStr is the format of imported time slot index.

[Parameter]

dwMachineNumber

Device number

UserID

User ID

TZs

Time slot index. When TZs[ 3 ] is 0 , the group setting is used. When TZs[ 3 ] is not 0 , a time slot

number set by the user can be specified. This parameter is a long pointer. Indexes of three time

slots can be imported respectively by TZs[0], TZs[1], and TZs[2].

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTZs, GetUserTZStr

5.3.11

5.3.11 GetUserTZStr

GetUserTZStr

[Definition]

VARIANT_BOOL GetUserTZStr(

[in]

long dwMachineNumber,

[in]

long UserID,

[out] BSTR

*TZs)

[Usage]

Obtain the time slots of a user. The only difference between this function and GetUserTZs is

the format of returned time slot index.

[Parameter]

dwMachineNumber

Device number

UserID

User ID

TZs

Unlock time slot of a user. The formats are as follows:

Black & white access control devices: X1:X2:X3. X1, X2, and X3 represent the

indexes of the customized time slots used by the user. To determine whether the user

uses the group time slot, check the return value of the UseGroupTimeZone function.

For example, if user A uses customized time slots 1, 2, and 3, the fingerprint device

returns "1:2:3".

TFT access control devices: X1:X2:X3:X4. X 4 represents whether to use the group

time slot. If the value is 0 , the group time slot is used; if the value is 1

1

1, the group

time slot is not used, that is, the personal time slot is used. X 1 , X 2 , and X 3 represent

the indexes of the used time slots. For example, if user A uses customized time slots

1 and 2, the fingerprint device returns "1: 2 : 0:1 ".

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetUserTZStr, GetUserTZs

5.3.12

5.3.12 SetUserTZStr

SetUserTZStr

[Definition]

VARIANT_BOOL SetUserTZStr( [in] long dwMachineNumber, [in] long UserID, [in] BSTR

TZs)

[Usage]

Set the time slots of a user. Time slots are separated by ":". The only difference between this

function and SetUserTZs is the format of imported time slot index.

[Parameter]

dwMachineNumber

Device number

UserID

User ID

TZs

S ee GetUserTZStr.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetUserTZStr, SetUserTZs

5.3.13

5.3.13 ACUnlock

ACUnlock

[Definition]

VARIANT_BOOL ACUnlock( [in] long dwMachineNumber, [in] long Delay)

[Usage]

Open the door, enable the open door controller to output a unlock signal, and close the door

after 10-second delay.

[Parameter]

dwMachineNumber

Device number

Delay

Open door delay

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.3.14

5.3.14 GetACFun

GetACFun

[Definition]

VARIANT_BOOL GetACFun( [out] long* ACFun)

[Usage]

Obtain whether the device has the access control function.

[Parameter]

ACFun

Flag of the access control function of the device. 0: no access control, 1: simple

access control, 2: middle-level access control, 6: high-level access control, 14:

high-level access control + always open, 15: access control available

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.3.15

5.3.15 GetDoorState

GetDoorState

[Definition]

VARIANT_BOOL GetDoorState( [in] LONG MachineNumber, [out] LONG* State)

[Usage]

Obtain the current door state. 1: opened, 0: closed . It is Deprecated, please refer to OnDoor Event.

[Parameter]

MachineNumber

Device number

State

Door state

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.3.16

5.3.16 UseGroupTimeZone

UseGroupTimeZone

[Definition]

VARIANT_BOOL UseGroupTimeZone(void)

[Usage]

Determine whether a user uses the group time slot setting. This function must be used

together with GetUserTZs or GetUserTZStr to ensure the correct return values. That is, use

GetUserTZs or GetUserTZStr to obtain the time slot settings of the specified user, and then

use UseGroupTimeZone to determine whether the user uses the group time slot setting.

[Parameter]

None

[Return

[Return Value]

Value]

Return True if the group time slot is used, or return False.

[Related

[Related Function]

Function]

GetUserTZs, GetUserTZStr

5.4

5.4 Device

Device

Device Management

Management

Management Functions

Functions

5.4.1

5.4.1 IsTFTMachine

IsTFTMachine

[Definition]

VARIANT_BOOL IsTFTMachine([in] LONG dwMachineNumber)

[Usage]

Determine whether the current device is a TFT device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if the current device is a TFT device. Return False if the current device is a

black & white device.

[Related

[Related Function]

Function]

None

5.4.2

5.4.2 GetDeviceStatus

GetDeviceStatus

[Definition]

VARIANT_BOOL GetDeviceStatus( [in] long dwMachineNumber, [in] long dwStatus, [out]

long* dwValue)

[Usage]

Obtain the data storage status of the device, for example, number of administrators and

number of current users.

[Parameter]

dwMachineNumber

Device number

dwStatus

Data to be obtained. The value ranges from 1 to 22. Values:

1

2

3

4

5

6

7

8

9

Number of administrators

Number of registered users

Number of fingerprint templates in the device

Number of passwords

Number of operation records

Number of attendance records

Fingerprint template capacity

User capacity

Attendance record capacity

10 Residual fingerprint template capacity

11 Residual user capacity

12 Residual attendance record capacity

21 Number of faces

22 Face capacity

Returned 0 in other cases.

dwValue

Value of dwStatus

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.3

5.4.3 GetDeviceInfo

GetDeviceInfo

[Definition]

VARIANT_BOOL GetDeviceInfo( [in] long dwMachineNumber, [in] long dwInfo, [out] long*

dwValue)

[Usage]

Obtain related information of the device, such as language and baud rate.

[Parameter]

dwMachineNumber

Device number

dwInfo

Type of the information to be obtained. The value ranges from 1 to 68 (except for 65).

Values:

1

2

3

Maximum number of administrators. Generally, return 500.

Device number

Language

The return values received by dwValue are as follows:

0

1

2

3

Language with suffix "E", usually representing English

Others

Language with suffix "T", usually representing traditional Chinese

Language with suffix "L", usually representing Thai language

4

5

6

7

8

9

Idle duration (minutes). That is, the device enters standby state or is powered off

after keeping idle for a period specified by this value.

Lock duration, namely, driver lock duration

Number of attendance record alarms. That is, the device reports an alarm when

the number of attendance records reaches this value.

Number of operation record alarms. That is, the device reports an alarm when

the number of operation records reaches this value.

Repeated record time, that is, the minimum interval of opening the same

attendance record by the same user

Baud rate in RS232/RS485 communication

The return values received by dwValue are as follows:

0

1

2

3

4

5

6

1200bps

2400

4800

9600

19200

38400

57600

Others: 115200

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

82

29

Parity check. Generally, return 0.

Stop bit. Generally, return 0.

Date separator. Generally, return 1.

Whether network function is enabled. Values: 1: enabled, 0: disabled

Whether RS232 is enabled

Whether RS485 is enabled

Whether voice function is supported

Whether high-speed comparison is performed

Idle mode, that is, the state that the device enters after idle period. Values: 87:

power-off, 88: hibernate

Automatic power-off time point. The default value is 255, that is, the device does

not power off automatically.

Automatic power-on time point. The default value is 255, that is, the device does

not power on automatically.

Automatic hibernation time point. The default value is 255, that is, the device

does not hibernate automatically.

Automatic ring time point. The default value is 65535, that is, the device does

not ring automatically.

1:N match threshold

Match threshold during registration

1:1 match threshold

Whether to display match score during verification

Number of concurrent unlock users

Verify only card number

Network speed

The return values received by dwValue are as follows:

1

4

5

100M-H

10M-F

100M-F

8 AUTO

Others: 10M-H

30

31

32

33

34

35

Whether the card must be registered

Waiting time before the device automatically returns when there is temporarily

no operation

Waiting time before the device automatically returns when no response is

returned after the PIN is input

Waiting time before the device automatically returns when there is response

after entering the menu

Time format

Whether 1:1 match must be used

36 — 40 Automatic ring time points 2, 3, 4, 5, and 6. The default values are 65535

65535

65535 ,

that is, the device does not ring automatically.

41 — 56 Automatic state change time points 1 to 16. The default values are -1

-1

-1 , that is,

the device does not change state automatically.

57

58

59

60

61

62

63

64

66

67

68

Wiegand failure ID

Wiegand threaten ID

Wiegand region-position code

Wiegand output pulse width

Wiegand output pulse interval

Start sector of Mifare card for storing fingerprints

Total sectors of Mifare card for storing fingerprints

Number of fingerprints stored on Mifare card

Whether to display attendance state

Not available temporarily

Not supported

8999 In this case, dwValue is used as both input and output parameters. As the

input parameter, dwValue represent the name of another option to be obtained.

As the output parameter, dwValue represents the value of the option (in this

case, dwValue is similar to GetSysOption).

Note: The return values of the preceding time points are numerals. To convert the

numeral into the time point, convert the value into a binary numeral where the lowest

eight bits represent minute and the highest bits represent hour. For example, if the

return value is 2860, it can be converted into 101100101100 in binary, of which the

lowest eight bits 00101100 (that is, 44) and the highest eight bits are 00001011 (that

is, 11), that is, the actual time point is 11:44.

dwValue

Value described by dwInfo

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceInfo

5.4.4

5.4.4 SetDeviceInfo

SetDeviceInfo

[Definition]

VARIANT_BOOL

SetDeviceInfo( [in] long dwMachineNumber, [in] long dwInfo, [in] long

dwValue)

[Usage]

Set the related information of the device, such as language and repeated record time.

[Parameter]

dwMachineNumber

Device number

dwInfo

Type of the information to be set. The value ranges from 1 to 20. For the meanings of

values, see GetDeviceInfo.

dwValue

Value of the information described by dwInfo

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetDeviceInfo

5.4.5

5.4.5 SetDeviceTime

SetDeviceTime

[Definition]

VARIANT_BOOL SetDeviceTime( [in] long dwMachineNumber)

[Usage]

Set the local computer time to the device time. To set the specified time, see

SetDeviceTime2.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceTime2, GetDeviceTime

5.4.6

5.4.6 SetDeviceTime2

SetDeviceTime2

[Definition]

VARIANT_BOOL SetDeviceTime2( [in] LONG dwMachineNumber, [in] LONG dwYear, [in]

LONG dwMonth, [in] LONG dwDay, [in] LONG dwHour, [in] LONG dwMinute, [in] LONG

dwSecond)

[Usage]

Set the device time (or specify the time).

[Parameter]

dwMachineNumber

Device number

dwYear, dwMonth, dwDay, dwHour, dwMinute, dwSecond

Date and time to be set

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceTime, GetDeviceTime

5.4.7

5.4.7 GetDeviceTime

GetDeviceTime

[Definition]

VARIANT_BOOL GetDeviceTime( [in] long dwMachineNumber, [out] long* dwYear, [out]

long* dwMonth, [out] long* dwDay, [out] long* dwHour, [out] long* dwMinute, [out] long*

dwSecond)

[Usage]

Obtain the device time.

[Parameter]

dwMachineNumber

Device number

dwYear, dwMonth, dwDay, dwHour, dwMinute, dwSecond

Long pointers pointing to variables. The values are the date and time of the device.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceTime, SetDeviceTime2

5.4.8

5.4.8 GetSerialNumber

GetSerialNumber

[Definition]

VARIANT_BOOL

GetSerialNumber(

[in]

long

dwMachineNumber,

[out]

BSTR*

dwSerialNumber)

[Usage]

Obtain the serial number of the device.

[Parameter]

dwMachineNumber

Device number

dwSerialNumber

Serial number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.9

5.4.9 GetProductCode

GetProductCode

[Definition]

VARIANT_BOOL

GetProductCode( [in] long

dwMachineNumber,

[out] BSTR*

lpszProductCode)

[Usage]

Obtain device name.

[Parameter]

dwMachineNumber

Device number

lpszProductCode

Device name

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.10

5.4.10 GetFirmwareVersion

GetFirmwareVersion

[Definition]

VARIANT_BOOL GetFirmwareVersion( [in] long dwMachineNumber, [out] BSTR* strVersion)

[Usage]

Obtain the firmware version of the device.

[Parameter]

dwMachineNumber

Device number

strVersion

Firmware version

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.11

5.4.11 GetSDKVersion

GetSDKVersion

[Definition]

VARIANT_BOOL GetSDKVersion( [out] BSTR* strVersion)

[Usage]

Obtain the SDK version.

[Parameter]

strVersion

SDK version

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.12

5.4.12 GetDeviceIP

GetDeviceIP

[Definition]

VARIANT_BOOL GetDeviceIP( [in] long dwMachineNumber, [out] BSTR *IPAddr)

[Usage]

Obtain the IP address of the device.

[Parameter]

dwMachineNumber

Device number

IPAddr

IP address

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceIP

5.4.13

5.4.13 SetDeviceIP

SetDeviceIP

[Definition]

VARIANT_BOOL SetDeviceIP( [in] long dwMachineNumber, [in] BSTR IPAddr)

[Usage]

Set the IP address of the device.

[Parameter]

dwMachineNumber

Device number

IPAddr

IP address

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetDeviceIP

5.4.14

5.4.14 GetDeviceMAC

GetDeviceMAC

[Definition]

VARIANT_BOOL GetDeviceMAC( [in] LONG dwMachineNumber, [out] BSTR *sMAC)

[Usage]

Obtain the MAC address of the device.

[Parameter]

dwMachineNumber

Device number

sMAC

MAC address

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceMAC

5.4.15

5.4.15 SetDeviceMAC

SetDeviceMAC

[Definition]

VARIANT_BOOL SetDeviceMAC( [in] LONG dwMachineNumber, [in] BSTR sMAC)

[Usage]

Set the MAC address of the device.

[Parameter]

dwMachineNumber

Device number

sMAC

MAC address

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetDeviceMAC

5.4.16

5.4.16 GetWiegandFmt

GetWiegandFmt

[Definition]

VARIANT_BOOL GetWiegandFmt(

[in] LONG

dwMachineNumber,

[out] BSTR

*sWiegandFmt)

[Usage]

Obtain Wiegand format of the device.

[Parameter]

dwMachineNumber

Device number

sWiegandFmt

Wiegand format

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetWiegandFmt

5.4.17

5.4.17 SetWiegandFmt

SetWiegandFmt

[Definition]

VARIANT_BOOL SetWiegandFmt( [in] LONG dwMachineNumber, [in] BSTR sWiegandFmt)

[Usage]

Set Wiegand format of the device.

[Parameter]

dwMachineNumber

Device number

sWiegandFmt

Wiegand format

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetWiegandFmt

5.4.18

5.4.18 GetCardFun

GetCardFun

[Definition]

VARIANT_BOOL GetCardFun( [in] LONG dwMachineNumber, [in] LONG* CardFun)

[Usage]

Obtain whether the device supports the RF card.

[Parameter]

dwMachineNumber

Device number

CardFun

Values: 1: The device supports only RF card verification. 2: The device supports both

RF card verification and fingerprint verification. 0: The device does not support RF

card verification.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.19

5.4.19 SetDeviceCommPwd

SetDeviceCommPwd

[Definition]

VARIANT_BOOL SetDeviceCommPwd(

[in]

LONG

dwMachineNumber, [in] LONG

CommKey)

[Usage]

Set the communication password of the device. The communication password is stored in

the device.

[Parameter]

dwMachineNumber

Device number

CommKey

Communication password

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetCommPassword

5.4.20

5.4.20 SetCommPassword

SetCommPassword

[Definition]

VARIANT_BOOL SetCommPassword( [in] long CommKey)

[Usage]

Set the communication password of the PC. A connection can be set up only when the PC

and the device use the same communication password.

[Parameter]

CommKey

Communication password

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetDeviceCommPwd

5.4.21

5.4.21 QueryState

QueryState

[Definition]

VARIANT_BOOL QueryState( [out] LONG *State)

[Usage]

Query the current state of the device.

[Parameter]

State

Current state of the device. Values are as follows:

0

1

2

3

4

5

Waiting

Registering a fingerprint

Identifying a fingerprint

Accessing menu

Busy (doing other tasks)

Waiting for writing data into card

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.22

5.4.22 GetVendor

GetVendor

[Definition]

VARIANT_BOOL GetVendor( [in] BSTR* strVendor)

[Usage]

Obtain the vendor name of the device.

[Parameter]

strVendor

Vendor name of the device

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.23

5.4.23 GetDeviceStrInfo

GetDeviceStrInfo

[Definition]

VARIANT_BOOL GetDeviceStrInfo( [in] LONG dwMachineNumber, [in] LONG dwInfo, [out]

BSTR* Value)

[Usage]

Obtain the manufacturing time of the device.

[Parameter]

dwMachineNumber

Device number

dwInfo

This parameter can be set to 1 only.

Value

Manufacturing time of the device

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetDeviceInfo

5.4.24

5.4.24 GetPlatform

GetPlatform

[Definition]

VARIANT_BOOL GetPlatform( [in] LONG dwMachineNumber, [out] BSTR* Platform)

[Usage]

Obtain the platform name of the device.

[Parameter]

dwMachineNumber

Device number

Platform

Platform name

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.4.25

5.4.25 ReadAOptions

ReadAOptions

[Definition]

VARIANT_BOOL ReadAOptions( [in] BSTR AOption, [out] BSTR* AValue)

[Usage]

Read the values of specified configuration parameters from the device. The parameters

beginning with "~" are skipped.

[Parameter]

Aoption

Parameter name

Avalue

Value of the parameter described by Aoption

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetSysOption

5.4.26

5.4.26 GetSysOption

GetSysOption

[Definition]

VARIANT_BOOL

GetSysOption( [in] LONG dwMachineNumber, [in] BSTR Option, [out]

BSTR* Value)

[Usage]

Obtain the parameters from the device. Note: This function can be used to obtain the

algorithm version used by the device.

[Parameter]

dwMachineNumber

Device number

Option

Parameter name. When the parameter is the character string "~ZKFPVersion", if the

returned Value is 10, the current device uses ZKFinger10.0; if the returned Value is

null or 9, the current device uses ZKFinger9.0.

Value

Value of the parameter described by Option

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

SetSysOption

5.4.27

5.4.27 SetSysOption

SetSysOption

[Definition]

VARIANT_BOOL

SetSysOption( [in] LONG dwMachineNumber, [in] BSTR Option, [in]

BSTR Value)

[Usage]

Configure the parameters in the device.

[Parameter]

dwMachineNumber

Device number

Option

Name of the parameter to be set

Value

Value of the parameter described by Option

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

GetSysOption

5.5

5.5 others

others

5.5.1

5.5.1 Device

Device

Device Control

Control

Control Functions

Functions

5.5.1.1

5.5.1.1 ClearAdministrators

ClearAdministrators

[Definition]

VARIANT_BOOL ClearAdministrators([in] long dwMachineNumber)

[Usage]

Clear all administrator privileges from the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.1.2

5.5.1.2 EnableDevice

EnableDevice

[Definition]

VARIANT_BOOL EnableDevice( [in] long dwMachineNumber, [in] VARIANT_BOOL bFlag)

[Usage]

Enable or disable the device. If the device is disabled, the fingerprint sensor, keypad, card

modules, etc. are disabled.

[Parameter]

dwMachineNumber

Device number

bFlag

User enable flag. 1: Enabled. 0: Disabled.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.1.3

5.5.1.3 EnableClock

EnableClock

[Definition]

VARIANT_BOOL EnableClock( [in] LONG Enabled)

[Usage]

Enable or disable the clock display with colon ":". If enabled, the device clock is displayed

with a colon and synchronized to the main interface. If disabled, the clock is displayed

without a colon.

[Parameter]

Enabled

Display control. 1: Enabled. 0: Disabled.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.1.4

5.5.1.4 DisableDeviceWithTimeOut

DisableDeviceWithTimeOut

[Definition]

VARIANT_BOOL DisableDeviceWithTimeOut( [in] LONG dwMachineNumber, [in] LONG

TimeOutSec)

[Usage]

Disable the device for a period of time.

[Parameter]

dwMachineNumber

Device number

TimeOutSec

Duration of disabling the device

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

EnableDevice

5.5.1.5

5.5.1.5 PowerOffDevice

PowerOffDevice

[Definition]

VARIANT_BOOL PowerOffDevice( [in] long dwMachineNumber)

[Usage]

Power off the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.1.6

5.5.1.6 RestartDevice

RestartDevice

[Definition]

VARIANT_BOOL RestartDevice( [in] LONG dwMachineNumber)

[Usage]

Restart the device.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

PowerOffDevice

5.5.1.7

5.5.1.7 SleepDevice

SleepDevice

[Definition]

VARIANT_BOOL SleepDevice( [in] long dwMachineNumber)

[Usage]

Enable the device to enter hibernation mode.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

RestartDevice, PowerOffDevice, ResumeDevice, SuspendDevice

5.5.2

5.5.2 Online

Online

Online Registration

Registration

Registration Functions

Functions

5.5.2.1

5.5.2.1 StartEnrollEx

StartEnrollEx

[Definition]

VARIANT_BOOL StartEnroll( [in] LONG UserID, [in] LONG FingerID ，[in] LONG Flag)

[Usage]

Enroll a user, and enable the device to enter enrollment state and wait until the user place a

finger. Note: After this function is used, and a user enrolls the same finger three times to

complete enrollment, the device may make no response. In this case, use StartIdentify to

force the device to enter waiting state.

[Parameter]

UserID

ID of the user to be enrolled

FingerID

Index of the fingerprint of the user to be enrolled. The value ranges from 0 to 9.

Flag

Whether the fingerprint template is valid or is a threatened fingerprint template. 0:

Invalid; 1: Valid; 3: Threatened fingerprint template.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

CancelOperation, StartVerify, StartIdentify

5.5.2.2

5.5.2.2 StartVerify

StartVerify

[Definition]

VARIANT_BOOL StartVerify( [in] LONG UserID, [in] LONG FingerID)

[Usage]

Start 1:1 verification.

[Parameter]

UserID

ID of the user to be verified

FingerID

Index of the fingerprint of the user to be verified. The value ranges from 0 to 9.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

StartIdentify, CancelOperation

5.5.2.3

5.5.2.3 StartIdentify

StartIdentify

[Definition]

VARIANT_BOOL StartIdentify(void)

[Usage]

Start 1: N comparison and enable the device to enter 1:N verification state.

[Parameter]

None

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

CancelOperation, StartVerify

5.5.2.4

5.5.2.4 CancelOperation

CancelOperation

[Definition]

VARIANT_BOOL CancelOperation(void)

[Usage]

Cancel the current fingerprint enrollment state of the device.

[Parameter]

None

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

StartEnroll, StartEnrollEx

5.5.3

5.5.3 Card

Card

Card Operation

Operation

Operation Functions

Functions

5.5.3.1

5.5.3.1 WriteCard

WriteCard

[Definition]

VARIANT_BOOL WriteCard( [in] LONG dwMachineNumber, [in] LONG dwEnrollNumber, [in]

LONG dwFingerIndex1, [in] BYTE* TmpData1, [in] LONG dwFingerIndex2, [in] BYTE*

TmpData2, [in] LONG dwFingerIndex3, [in] BYTE* TmpData3, [in] LONG dwFingerIndex4, [in]

BYTE* TmpData4,)

[Usage]

Write the information and fingerprint template of a specified user into the MF card. After this

function is called, the MF card must be verified by the device.

[Parameter]

dwMachineNumber

Device number

dwEnrollNumber

User ID

dwFingerIndex1, dwFingerIndex2, dwFingerIndex3, dwFingerIndex4

Index of fingerprint (0-3)

TmpData1, TmpData2, TmpData3, TmpData4

Fingerprint templates corresponding to fingerprints. TmpData1 cannot be null.

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

EmptyCard

5.5.3.2

5.5.3.2 EmptyCard

EmptyCard

[Definition]

VARIANT_BOOL EmptyCard( [in] LONG dwMachineNumber)

[Usage]

Clear the data from the MF card.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

WriteCard

5.5.4

5.5.4 Others

Others

5.5.4.1

5.5.4.1 GetLastError

GetLastError

[Definition]

GetLastError( [out] long* dwErrorCode)

[Usage]

Obtain the last error information.

[Parameter]

dwErrorCode

Error code returned. Values are as follows:

-100

-10

-5

-4

-3

-2

-1

0

1

4

101

Operation failed or data not exist

Transmitted data length is incorrect

Data already exists

Space is not enough

Error size

Error in file read/write

SDK is not initialized and needs to be reconnected

Data not found or data repeated

Operation is correct

Parameter is incorrect

Error in allocating buffer

[Return

[Return Value]

Value]

None

[Related

[Related Function]

Function]

Return True if it is successful, or return False.

5.5.4.2

5.5.4.2 GetHIDEventCardNumAsStr

GetHIDEventCardNumAsStr

[Definition]

VARIANT_BOOL GetHIDEventCardNumAsStr([out] BSTR* strHIDEventCardNum)

[Usage]

Obtain the number of the card that is latest used.

[Parameter]

strHIDEventCardNum

Number of the card lately used

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

OnHIDNum

5.5.4.3

5.5.4.3 CaptureImage

CaptureImage

[Definition]

VARIANT_BOOL

CaptureImage( [in] VARIANT_BOOL FullImage, [in] LONG *Width, [in]

LONG *Height, [in] BYTE *Image, [in] BSTR ImageFile)

[Usage]

Capture the image of the fingerprint on the fingerprint sensor.

[Parameter]

FullImage

Whether to capture the entire image. Return True if the device captures the whole

image. Return False if the device captures only the fingerprint.

Width

Width of the image to be captured

Height

Height of the image to be captured


Binary fingerprint image

ImageFile

Storage name of the specified fingerprint image to be captured (including the storage

path)

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.4.4

5.5.4.4 UpdateFirmware

UpdateFirmware

[Definition]

VARIANT_BOOL UpdateFirmware( [in] BSTR FirmwareFile)

[Usage]

Upgrade the firmware. To use this function, you need to obtain corresponding firmware from

technical engineers of ZKSoftware.

[Parameter]

FirmwareFile

File name of the firmware to be upgraded (including the path)

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

None

5.5.4.5

5.5.4.5 BeginBatchUpdate

BeginBatchUpdate

[Definition]

VARIANT_BOOL

BeginBatchUpdate(

[in]

LONG

dwMachineNumber,

[in]

LONG

UpdateFlagl)

[Usage]

Start uploading data in batches. For example, if you call this function before uploading data

such as user templates and user information, the SDK stores the data temporarily in the

buffer during upload. Then, you can run BatchUpdate to import temporary data into the

device.

[Parameter]

dwMachineNumber

Device number

UpdateFlagl

Fingerprint overwrite flag, that is, when a user fingerprint template is uploaded, if the

fingerprint index has been specified for an existing fingerprint, the device prompts

whether to overwrite the existing fingerprint template. 1: Forcibly overwrite, 0: Not

overwrite

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

BatchUpdate, CancelBatchUpdate

5.5.4.6

5.5.4.6 BatchUpdate

BatchUpdate

[Definition]

VARIANT_BOOL BatchUpdate( [in] LONG dwMachineNumber)

[Usage]

Start uploading data in

batches.

Generally,

this

function is

used

only

after

BeginBatchUpdate is used to upload related data.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

BeginBatchUpdate, CancelBatchUpdate

5.5.4.7

5.5.4.7 CancelBatchUpdate

CancelBatchUpdate

[Definition]

VARIANT_BOOL CancelBatchUpdate( [in] LONG dwMachineNumber)

[Usage]

Cancel uploading data in batches. Generally, this function can be used to release the buffer

reserved for batch upload after BeginBatchUpdate and before BatchUpdate.

[Parameter]

dwMachineNumber

Device number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

BeginBatchUpdate, BatchUpdate

5.5.4.8

5.5.4.8 PlayVoice

PlayVoice

[Definition]

VARIANT_BOOL PlayVoice( [in] LONG Position, [in] LONG Length)

[Usage]

Play tones with the specified consecutive numbers. Tone numbers are determined by the

device. You can view the tone numbers in Voice Test menu of the device. Generally, the

values range from 0 to 11.

[Parameter]

Position

Start tone number

Length

End tone number

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

PlayVoiceByIndex

5.5.4.9

5.5.4.9 PlayVoiceByIndex

PlayVoiceByIndex

[Definition]

VARIANT_BOOL PlayVoiceByIndex( [in] LONG Index)

[Usage]

Play tones with the specified numbers. Tone numbers are determined by the device. You

can view the tone numbers in Voice Test menu of the device. Generally, the values range

from 0 to 11.

[Parameter]

Index

Number of the tone to be played

[Return

[Return Value]

Value]

Return True if it is successful, or return False.

[Related

[Related Function]

Function]

PlayVoice

6

6 FAQs

FAQs

6.1

6.1 How

How

How to

to

to Download

Download

Download Attendance

Attendance

Attendance Records?

Records?

First, use ReadGeneralLogData to read all attendance records and write them into the memory.

Then, use

GetGeneralLogData

repeatedly

to

obtain attendance

records. When

GetGeneralLogData returns False, it means that all attendance records are obtained. Then, you

can write the obtained records into database or display them in other forms to finish downloading.

You can follow the same steps to down operation records.

6.2

6.2 How

How

How to

to

to Create

Create

Create a

a

a User

User

User Online?

Online?

First, use SetuserInfo to write user information (such as enrollment number, password, and

name) into the device. Then, use SetUserTmpStr/SetUerTmp/SetEnrollDataStr/SetEnrollData to

set fingerprint templates for the user. This method improves enrollment efficiency and is suitable

when user information has been collected and stored in media such as database.

To upload user information and corresponding fingerprint templates in batches, use

BeginBatchUpdata or SetUserInfo together with SetUserInfo, BarchUpdata, EnableDevice, or

RefreshData. For details, see demo program.

6.3

6.3 How

How

How to

to

to Import

Import

Import or

or

or Download

Download

Download Data

Data

Data from

from

from USB

USB

USB Disk?

Disk?

Many existing offline products support data download from USB disks. Many customers are

concerned about data formats of USB disks. As the downloaded data formats are complex,

ZKSoftware provides a tool for importing data from USB disks to database. Database is open for

customers to download data. In addition, ZKSoftware also provides examples on how to process

data files (*.dat, etc.) collected from USB disks and how to write the data into specified data files.

All structs adopt 1 byte alignment mode.

Data in USB disks include user information, fingerprint templates, face templates, attendance

records, and short messages. Detailed data structures are used in demo program. They are

described briefly below:

User data structure:

typedef struct _User_{

U16 PIN; //Internal number of a user

U8 Privilege;

char Password[8];

char Name[24];

U8 Card[4];

U8 Group;

U16 TimeZones[4];

char PIN2[24]; //User ID

}

Data structure of 9.0 fingerprint template:

typedef struct _Template_{

U16 Size;

U16 PIN;

BYTE FingerID;

//fingerprint template length

//internal user ID, which corresponds to PIN2 in user table

// fingerprint backup index

BYTE Valid;

BYTE Template[MAXTEMPLATESIZE]; //maximize template length

} //MAXTEMPLATESIZE 602 Bytes

Data structure of template.fp10:

typedef struct _Template_{

U16 Size;

U16 PIN;

BYTE FingerID;

BYTE Valid;

BYTE *Template; //template

}

Attendance record,

struct _AttLog_{

//entire structure data size

//user ID

//fingerprint index

//flag

U16 PIN;

U8 PIN2[24];

BYTE verified;

time_t time_second;

BYTE status;

U32 workcode;

BYTE reserved[4];

}

Exported as a text file:

attlog.dat format

explanation:

segment:

BadgeNumber(employee number),

checktime,

DeviceID,

checktype(check status),

VerifyCode(verification ways:password or fingerprint or other)

Workcode

There is an Ascii code #9(Tab) between each segment. When development, move to the

segment value you want to choose by "Tab".

If the device has the output data protection function, the serial number of the current device is

displayed in first line and the hash value in the last line of the file to which attendance records are

exported from USB disk.

Data structure of SMS

typedef struct _SMS_{

BYTE Tag;

U16 ID;

//category

//data content flag. 0 indicates that the record is invalid.

U16 ValidMinutes;

U16 Reserved;

U32 StartTime;

//valid minutes. 0 indicates that the record is permanently valid.

//start time

BYTE Content[MAX_SMS_CONTENT_SIZE+1];

//short message content

}

// MAX_SMS_CONTENT_SIZE

60 Bytes

Data structure between SMS and user pin//user->sms,udata.dat

typedef struct _UData_{

U16 PIN;

U16 SmsID;

//0 indicates that the record is invalid

}GCC_PACKED TUData, *PUData; //4Bytes

Data structure of face template:

typedef struct _FaceTmp_{

U16 Size;//face template size

U16 PIN;//user ID

BYTE FaceID;//Face ID

BYTE Valid;//flag

U16 Reserve;//reserve

U32 ActiveTime;

U32 VfCount;//Verify Count

BYTE FaceTmp[FACE_TMP_MAXSIZE]

} //FACE_TMP_MAXSIZE=1024*2+512

6.4

6.4 How

How

How to

to

to Use

Use

Use Biokey

Biokey

Biokey to

to

to Write

Write

Write the

the

the Collected

Collected

Collected Fingerprint

Fingerprint

Fingerprint Templates

Templates

Offline?

When a fingerprint is collected, Biokey usually obtains the fingerprint template during enrollment.

For example, the currently enrolled fingerprint template can be obtained via OnEnroll. After

obtaining the fingerprint template, Biokey converts it into an offline fingerprint template. Then, the

template can be written into the device.

6.5

6.5 How

How

How to

to

to Obtain

Obtain

Obtain All

All

All Information

Information

Information of

of

of All

All

All Users?

Users?

Use ReadAllUserID to read IDs of all users and write them into memory. Then, use GetAllUserID

repeatedly to obtain EnrollNumber of users, and use GetUserInfo to obtain user information. If

necessary, you can also use GetUserTmpStr to obtain the fingerprint templates in string form.

6.6

6.6 How

How

How to

to

to Connect

Connect

Connect to

to

to the

the

the Device?

Device?

During connection, the device can be regarded as an independent PC. However, the IP address

of the device must match the IP address to be connected. Some devices, for example F4,

support serial port connection and network connection. Therefore, during different connections,

you need to set the device differently, modify communication mode, and set the controller switch

to TCP/IP or RS232/485. Otherwise, the connection may fail. Sometimes, if the device fails to be

connected due to busy serial ports, you can restart the program. If the application keeps

connecting

to the device

without

being manually disconnected,

you can use

DisableDeviceWithTimeOut to set the automatic disconnection time of the device. If some

connections are used to download or modify data via serial ports or network, you can use

EnableDevice to keep the device working and restore the connections after communication

finishes, so as to maintain data consistency and avoid unknown errors.

6.7

6.7 Password

Password

Password Is

Is

Is Invalid

Invalid

Invalid After

After

After SetUserInfo

SetUserInfo

SetUserInfo Is

Is

Is Used.

Used.

After SetUserInfo is called, Password may be set to null. If so, password verification will fail. To

keep the password unchanged when writing user information, use GetUserInfo to obtain user

password and transmit the password value to the Password parameter of SetUserInfo before

using SetUserInfo.

6.8

6.8 How

How

How to

to

to Convert

Convert

Convert an

an

an Online

Online

Online Template

Template

Template into

into

into an

an

an Offline

Offline

Offline Template?

Template?

Use FPTempConvertNew to convert the collected templates into offline fingerprint templates.

See related descriptions of Biokey SDK for how to obtain the templates collected by Biokey.

FPTempConvertNew is used to convert binary fingerprint templates. Parameters temp1 and

temp2 are binary parameters. You can also use FPTempConvertNewStr to convert Biokey

fingerprint templates of string type into offline fingerprint templates.

6.9

6.9 Demo

Demo

Demo Program

Program

Program Fails

Fails

Fails to

to

to Connect

Connect

Connect to

to

to the

the

the Device.

Device.

After the attendance management program is installed, users can connect to the device by using

the attendance management program, but cannot connect to the device by using demo program.

The reason is that DLL is copied to the directory of the attendance management program but

registered in the installation directory during program installation. Generally, SDK loads controls

from the system directory. Therefore, if the SDK version in the system directory is different from

that in the attendance software directory, conflicts occur. (DLL function addresses of different

versions are different, but OCX functions are the same in programming. Therefore, the problem

is found only during runtime.)

Caution:

Caution: The

The

The common

common

common procedure

procedure

procedure for

for

for registering

registering

registering the

the

the SDK

SDK

SDK in

in

in the

the

the system

system

system is

is

is as

as

as follows:

follows:

1. If an SDK has been already registered in the system, run regsvr32

regsvr32

regsvr32 /u

/u

/u zkemkeeper.dll

zkemkeeper.dll

zkemkeeper.dll to

unregister the original SDK.

2. Copy all DLLs to the system directory, for example, win2000 is located in winnt\system32.

3. Run regsvr32 "registration path\zkemkeeper.dll" to register the SDK.

4. Correctly load controls in development environment (learn the usage of development tool by

yourself. Relevant details are omitted here).

5. Try to use the SDK of the same version in development or running environment.

6.10

6.10 Offline

Offline

Offline Fingerprint

Fingerprint

Fingerprint Device

Device

Device Keeps

Keeps

Keeps Working

Working

Working After

After

After Being

Being

Connected.

After connecting the SDK to the offline fingerprint device, use EnableDevice to keep the offline

fingerprint device working (see EnableDevice), so as to maintain data consistency and avoid

unknown errors. After the offline fingerprint device is working, the keypad and fingerprint sensor

stop working. After communication finishes, disconnect the SDK from the device or use

EnableDevice again to restore the offline fingerprint device to normal state.

DisableDeviceWithTimeOut is recommended.

6.11

6.11 Illegal

Illegal

Illegal Characters

Characters

Characters Are

Are

Are Displayed

Displayed

Displayed or

or

or Screen

Screen

Screen Display

Display

Display Is

Is

Abnormal

Abnormal After

After

After Non-English

Non-English

Non-English Names

Names

Names or

or

or Short

Short

Short Messages

Messages

Messages Are

Are

Uploaded

Uploaded to

to

to the

the

the Device.

Device.

First, check whether the device supports the specified language. For example, if the current

language of the device is English, but an Arabic name is uploaded to the device, the name

cannot be displayed normally. If the device already supports the language, but the name still

cannot be displayed, use related functions to convert the user name into UTF-8 format (for

example, use AnsiToUTF8() in Dephi), and then use SetUserInfo to upload the user name.

6.12

6.12 Card

Card

Card Management

Management

Management Problems

Problems

How to register a card in the device? How to obtain the user card?

The SDK has the cardnumber parameter. If this parameter is invisible in development

environment, use GetStrCardNumber and SetStrCardNumber instead.

For a user enrolled in the device, the card number is a kind of user information. When

SetUserInfo is used to set user information, cardnumber is automatically used as the card

number and set for the user.

The procedure for registering a card is as follows:

Set cardnumber -> Upload user information

The procedure for obtaining the card number of a user is as follows:

Obtain information of the specified user -> Obtain cardnumber

Note: The card number is internally defined as four unsigned bytes of long type. If VB does not

support four unsigned bytes, verification can be started after the last three bytes of the card

number are input (if the last three bytes are different from each other).

6.13

6.13 Firewall

Firewall

Firewall or

or

or Router

Router

Router Traversal

Traversal

In most cases, the device to be connected needs to traverse firewalls or routers, and UDP socket

and port 4370 are used for SDK communication. Therefore, UDP and port 4370 must be enabled

on firewalls or routers. If the device traverses gateways via port mapping, the device can be

accessed via port number and IP address of routers. Generally, if UDP and port 4370 are

enabled and can be pinged, the device can be connected. Certainly, in the case of data

download, network connection must be considered. In addition, some devices that support

SOAP ports can be accessed via embedded Web Server and SOAP.

Caution: The zem100 series products can traverse internet via port mapping. For zem200

products, as the devices run on Linux, they can be accessed after the gateway is configured if

the local network environment supports gateway communication. Certainly, there are still some

other methods for accessing the device, for example, VPN and IP mapping. The connection

scheme should be selected according to specific network environments.

6.14

6.14 Difference

Difference

Difference between

between

between ZKFinger10.0

ZKFinger10.0

ZKFinger10.0 and

and

and ZKFinger9.0

ZKFinger9.0

ZKFinger9.0 and

and

Comparison

Comparison between

between

between Templates

Templates

Algorithm

Algorithm performance:

performance:

performance: Compared with ZKFinger9.0, ZKFinger10.0 achieves better false

acceptance rate (FAR), false rejection rate (FRR), and enrollment rejection rate (ERR), better

image processing effect of low-quality fingerprints (for example, fingerprints are too dry or too

wet, or users have worn or injury), and 10 times faster comparison.

Template

Template size:

size:

size: The size of a ZKFinger10.0 fingerprint template is about 1.6 KB. The size of a

ZKFinger9.0 fingerprint template is about 512B. When ZKFinger10.0 is used, a Mifare card with

at least 2 KB capacity should be used for data storage.

Template

Template compatibility:

compatibility:

compatibility: The ZKFinger10.0 and ZKFinger9.0 fingerprint templates are

incompatible with each other. If a user who have already registered ZKFinger9.0 fingerprint

templates wants to use ZKFinger10.0, the user has to register fingerprint templates again, and

vice versa.

6.15

6.15 Uploading

Uploading

Uploading a

a

a Large

Large

Large Capacity

Capacity

Capacity of

of

of Fingerprints

Fingerprints

Large capacity usually means over 1500 fingerprints. Some devices can hold 8000 fingerprints or

more. Fingerprint templates must be uploaded in batches. In this mode, the upload is much

faster. For how to upload fingerprint templates in batches, see descriptions of batch process

function.

6.16

6.16 Differences

Differences

Differences between

between

between High-speed

High-speed

High-speed Upload

Upload

Upload and

and

and Ordinary

Ordinary

Ordinary Upload

Upload

In an ordinary upload, each time upload functions (such as SetUserinfo and SetUserTmpStr) are

used, the SDK communicates with the device and uploads related data to the device.

In a high-speed upload, BeginBatchUpdata is used to create a temporary buffer to store the data

to be uploaded in subsequent operations. Then, BatchUpdata can be used to upload all the data

in the buffer to the device at a time. This mode greatly reduces communications between the

SDK and the device, and raises the speed of large-capacity upload in particular.

6.17

6.17 How

How

How to

to

to Determine

Determine

Determine Whether

Whether

Whether the

the

the Device

Device

Device Uses

Uses

Uses ZKFinger10.0

ZKFinger10.0

ZKFinger10.0 or

or

ZKFinger9.0?

Use the following function:

VARIANT_BOOL GetSysOption( [in] LONG dwMachineNumber, [in] BSTR Option, [out] BSTR*

Value)

The Option parameter constantly "~ZKFPVersion". If the returned Value is 10, the device uses

ZKFinger10.0. If the returned Value is 9 or null (null is returned as old TFT devices do not have

this value), the device uses ZKFinger9.0.

For example:

zkem.GetSysOption(EmManth.EmMan.Dev.MachineNumber,'~ZKFPVersion',verSionFp);

If verSionFp='10', the device uses ZKFinger10.0

If verSionFp= ‘ 9 ’ or verSionFp= ‘’ , the device uses ZKFinger9.0

6.18

6.18 How

How

How to

to

to Upload,

Upload,

Upload, Download,

Download,

Download, and

and

and Delete

Delete

Delete ZKFinger10.0

ZKFinger10.0

Templates?

ZKFinger10.0 provides faster comparison, but the template size and storage mode are different

from those of older versions:

When ZKFinger10.0 is used, the size of a fingerprint template is about 1.6 KB. When an older

version is used, the size of a fingerprint template is smaller than 608B.

You can use follow function to upload,download and delete ZKFinger10.0 Templates:

VARIANT_BOOL SetUserTmpEx

SetUserTmpEx

SetUserTmpEx ([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[in] LONG Flag, [in] BYTE* TmpData)

VARIANT_BOOL GetUserTmpEx

GetUserTmpEx

GetUserTmpEx ([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[out] LONG * Flag, [out] BYTE* TmpData, [out]

LONG* TmpLength)

VARIANT_BOOL SetUserTmpExStr

SetUserTmpExStr

SetUserTmpExStr ([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[in] LONG Flag, [in] BSTR TmpData)

VARIANT_BOOL GetUserTmpExStr

GetUserTmpExStr

GetUserTmpExStr ([in] LONG dwMachineNumber, [in] BSTR

dwEnrollNumber, [in] LONG dwFingerIndex,[out] LONG * Flag, [out] BSTR* TmpData, [out]

LONG* TmpLength)

The above four functions can upload and download both ordinary fingerprint templates (Flag=1)

and threatened fingerprint templates (Flag=3). Additionally, they can be used for both

ZKFinger10.0 templates and ZKFinger9.0 templates.

To delete ZKFinger10.0 templates, you can use the following functions (these two functions are

used on TFT devices to delete fingerprint templates):

VARIANT_BOOL SSR_DelUserTmp

SSR_DelUserTmp

SSR_DelUserTmp ([in] LONG dwMachineNumber, [in] BSTR EnrollNumber,

[in]LONG dwFingerIndex)

VARIANT_BOOL SSR_DelUserTmpExt

SSR_DelUserTmpExt

SSR_DelUserTmpExt ([in] LONG

dwMachineNumber,

[in] BSTR

dwEnrollNumber, [in]LONG dwFingerIndex)

Note:

Ver6.60 is the internal version of device firmware. You can obtain it by using

GetFirmwareVersion after SDK connects to the device (or by using the attendance software).

Caution: The internal version obtained is different from the firmware version that you view on the

device.

6.19

6.19 How

How

How to

to

to Upload,

Upload,

Upload, Download,

Download,

Download, and

and

and Delete

Delete

Delete ZKFinger9.0

ZKFinger9.0

Templates?

The functions used to upload and download ordinary ZKFinger9.0 templates (that is,

SSR_GetUserTmp, SSR_GetUserTmpStr, SSR_SetUserTmp, and SSR_SetUserTmpStr) in

earlier SDK versions are continuously used in the present SDK version.

New functions (that is, SetUserTmpEx, GetUserTmpEx,

SetUserTmpExStr,

and

GetUserTmpExStr) are also added in the present SDK version. These functions can upload and

download both ordinary fingerprint templates (Flag=1) and threatened fingerprint templates

(Flag=3). But they are used only on the TFT devices with firmware Ver6.60 or later. Additionally,

they can be used for both ZKFinger10.0 templates and ZKFinger9.0 templates.

To delete ZKFinger9.0 templates, you can use SSR_DelUserTmp or SSR_DelUserTmpExt.

TFT Series SDK Manual

MYTHRIAN1-1515443218397-TFT_SDK_Manual

MYTHRIAN2-1515649029975-TFT_SDK_Manual

MYTHRIAN2-1515653271197-TFT_SDK_Manual

TFT_SDK_Manual

TFT_SDK_Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
