TB8100 base station

Task Manager

Programming Guide

Application Note TN-1154-AN

15 September 2006

Page 2 of 32 TN-1154-AN

Contents

1 Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

1.1 Creating Task Manager Tasks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

1.2 Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

1.3 Actions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

1.4 Timers, Counters, and Flags . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

2 How Task Manager works . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

2.1 Overruns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

2.2 Transition Into and Out of Run mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

3 Tips For Programming Task Manager Tasks . . . . . . . . . . . . . . . . . . . . . . . . 15

3.1 Laying Out Your Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

3.2 Enhancements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

4 Simple Task Manager Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.1 Responding To a Digital Input . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.2 Setting Digital Outputs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

4.3 Controlling the Auxiliary Power Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.4 Alarm Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

4.5 Disabling a Configured Function. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.6 Changing Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

4.7 Selecting Profiles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

4.8 Remote Control Using a Radio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5 Task Manager Application Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.1 Repeater Changeover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

5.2 Data and Speech Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

5.3 Base Station with Automatic Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

5.4 Base Station that Controls Landing Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.5 Scanning Repeater . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

5.6 Improvements to Alarm Center Dial-Out . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

TN-1154-AN Page 3 of 32

6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

7 Testing and Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Associated Documentation

TB8100 Service Kit User’s Manual (MBA-00010-xx) and online Help.

TN-947-AN TB8100 Base Station Computer Controlled Interface

Protocol

1 Introduction

This technical note aims to give guidance to system integrators who need to

make use of Task Manager’s more advanced capabilities. It complements the

Service Kit online Help and manual, which provide detailed information on

Service Kit forms and on individual Task Manager inputs and actions.

Task Manager is a powerful processing engine that adds intelligence to each

base station, enhancing its flexibility and configurability. As part of the

firmware running on the reciter's digital board, Task Manager is able to

respond to various inputs or operating parameters. Task Manager monitors

a wide range of base station parameters. If one of them changes, Task

Manager can take appropriate action, for example by changing channel,

setting the digital output, or disabling a configured function. What action (if

any) Task Manager takes depends on the tasks it has been given. Using the

Service Kit, you are able to define these tasks.

TB8100 base stations are fully functional without any Task Manager tasks.

Many base stations do not need a single Task Manager task. Others may need

a few tasks to carry out simple functions such as sending a regular alarm log

to the Alarm Center or using the digital inputs and outputs. In a standard

base station, Task Manager is able to process up to 20 tasks. For more

complex applications such as scanning, the ‘Advanced Profiles and Task

Manager’ license (TBAS020) is required. This makes it possible for Task

Manager to process up to 200 tasks.

External computer equipment can carry out similar functions to Task

Manager. Using the proprietary Tait computer-controlled interface (CCI)

protocol, it can read the state of base station parameters and instruct the base

station to carry out any of the actions that Task Manager can. For more

details, see TN-947-AN.

Tasks are statements in a very simple programming language. Tasks say what

action is to be carried out when a monitored parameter changes. All tasks

have one of two forms:

IF <input>, THEN <action>

Page 4 of 32 TN-1154-AN

IF NOT <input> THEN <action>.

For example:

IF Receiving valid signal THEN Activate digital output 1.

IF NOT Receiving valid signal THEN Deactivate digital output 1.

This example code works as follows. Task Manager continually monitors the

receiver gate, along with many other base station parameters. When the

receiver unmutes, the input ‘receiving valid signal’ becomes true. When

Task Manager next processes its tasks, it executes the first task, which results

in the action of activating digital output 1.

Similarly, when the call ends, the receiver gate mutes. The condition ‘IF

NOT receiving valid signal’ becomes true. When Task Manager next

processes its tasks, it executes the second task, which deactivates digital

output 1.

This simple code example shows how Task Manager can use a digital output

pin to tell external equipment whether the receiver is unmuted.

Task Manager only operates when the base station is in Run mode. The

Service Kit does not need to be connected for the tasks to be performed.

1.1 Creating Task Manager Tasks

To change the way Task Manager works, you add and modify tasks using the

Service Kit, and then you program the changes into the base station. In

effect, you are creating scripts that make the base station perform simple

actions. This customizes the way the base station operates without

modifying its firmware. Figure 1 shows an example Task Manager form

with its list of tasks. To create a task, you select an input and an action, each

from a drop-down list, and then insert it into one of the folders or subfolders

in the task list. Comments function as headings under which tasks are

grouped. For more details on working with this form, see the Service Kit

manual or online Help. Help buttons alongside the input and action boxes

provide context-sensitive Help for the particular input or action that you

have selected.

TN-1154-AN Page 5 of 32

1.2 Inputs

Task Manager inputs are binary in nature. They can only have two states: on

or off, enabled or disabled, set or cleared. Inputs are of two main types,

‘basic’ and ‘override.’ For a list of all inputs, see Table 1 on page 13.

Basic inputs Basic inputs come from various parts of the base station. They include all

alarms. At the beginning of the processing cycle (see “How Task Manager

works” on page 9), basic inputs are latched; their state cannot change until

the current processing cycle is completed.

Override inputs Override inputs can only become true through a Task Manager override

action. They are internal to Task Manager. When an override action occurs,

the change is immediately available and can affect the processing of

subsequent tasks in the list.

Other inputs For counters, timers and flags, see “Timers, Counters, and Flags” on page 8.

The state of each digital output is also available as an input to Task Manager.

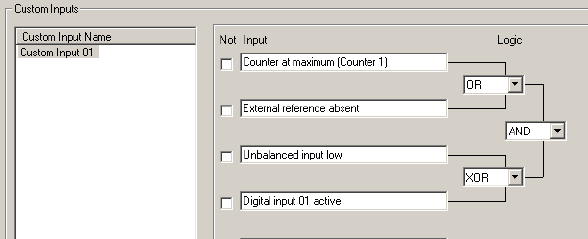

For custom inputs, see “Custom inputs” on page 17.

Input Menus Figure 2 gives an overview of the drop-down menus that allow you to select

an input. The main menu contains general items and the submenus group

inputs that relate to Alarms, signalling profiles, channel profiles, and system

I/O.

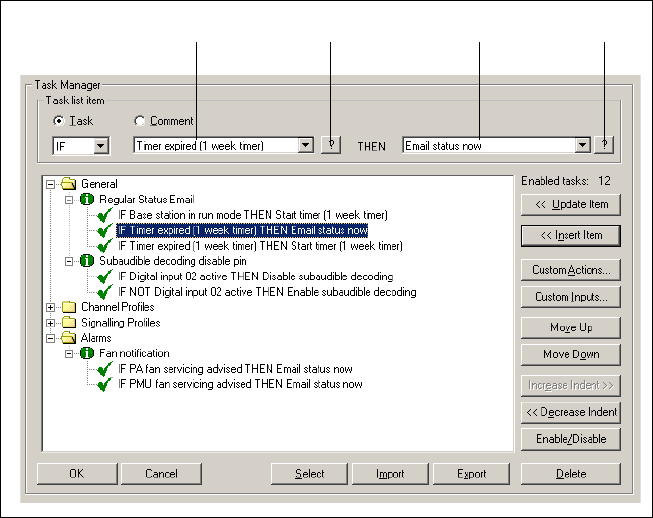

Figure 1 Task Manager form

Selected input Help Selected action Help

Page 6 of 32 TN-1154-AN

1.3 Actions

Task Manager actions are similarly binary in nature. They can turn a digital

output on or off, set or clear a flag, enable or disable a function. They trigger

an action but cannot provide any parameters that configure that action.

Actions are of two main types, ‘override’ and ‘do now’. These actions have

different effects.

Override actions Override actions enable, disable, or toggle a configured base station

function. As most of these functions are enabled by default, the main use of

override actions is to let you turn off a function such as talk through

repeater, power saving, or even the receiver as a whole.

Override actions work by changing the state of a system flag, which is a

particular kind of Task Manager variable. System flags can only be changed

by an override action. Their status is made available at the end of the

processing cycle to other software processes, influencing their logic. The

status of system flags is displayed in Monitor > Base Station > System Flags.

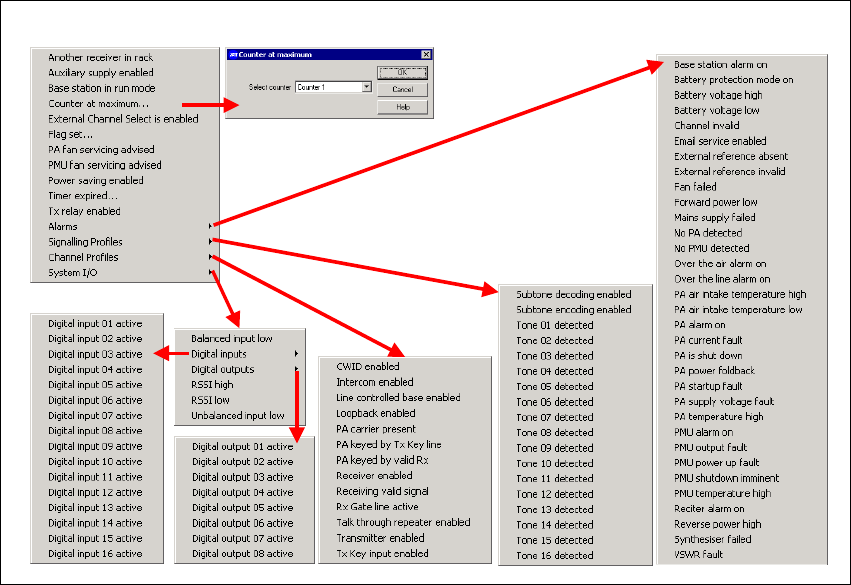

Figure 2 Input menus

TN-1154-AN Page 7 of 32

Each override action has a corresponding system flag. When an override

action is carried out (for example Enable power saving), it ‘enables’

(turns on) the equivalent system flag (in this case, the ‘Power save’ system

flag). Enabling this flag makes the equivalent override input (in this case,

Power saving enabled) become true. Any tasks with that input will be

processed.

‘Do Now’ actions ‘Do now’ actions are carried out immediately after the task is processed.

Task Manager does not wait until the end of the processing cycle before

making the action available externally. If another ‘do now’ action is

processed while the first is still being carried out, it has no effect. If, for

example, a task list has two tasks with the action Send CWID now, and

both are executed, only one CWID will be sent.

Other actions There are actions based on the state of counters, timers and flags, see

“Timers, Counters, and Flags” on page 8. There are also custom actions,

see “Custom actions” on page 18. Channel actions and digital output

actions do not behave quite like override or like do now actions. The result

of these actions is immediately available internally to Task Manager, but is

only made available externally at the end of the processing cycle. Consider,

for example, a task list with the following:

IF Input A THEN Go to channel 5

IF Input A THEN Make current channel the default

IF Input B THEN Go to channel 6

The first task sets the (internal) channel number to 5. The second task makes

channel 5 the default (even though the base station is still operating

externally on its previous channel). The third task changes the internal

channel number to 6. At the end of the processing cycle, the base station

changes to channel 6. It does not try to change to channel 5.

The situation is similar with digital output actions:

IF Input A THEN Activate digital output 1

If digital output 1 active THEN Send CWID now

If Input B Then Deactivate digital output 1

In this example, the CWID will be sent, but digital output 1 will not in fact

be activated.

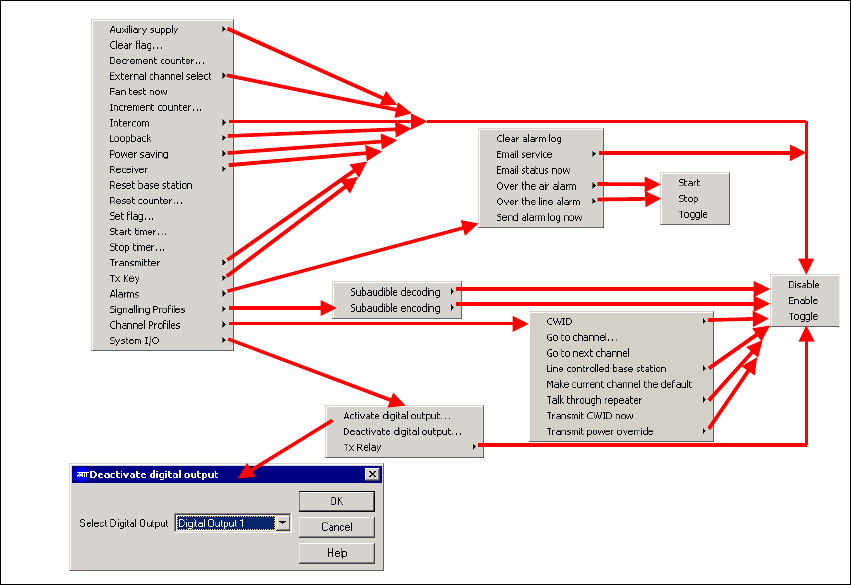

Action Menus Figure 3 gives an overview of the drop-down menus that allow you to select

an action. The main menu contains general items and the submenus group

actions that relate to Alarms, signalling profiles, channel profiles, and system

I/O.

Page 8 of 32 TN-1154-AN

1.4 Timers, Counters, and Flags

Timers, counters, and flags enhance Task Manager’s capabilities. Actions can

set them and inputs can read them. They are exclusively internal to Task

Manager and can only affect the state of Task Manager inputs.

Task Manager monitors their state and can trigger an action if a timer

expires, a counter reaches its maximum, or a flag is set or cleared. The

Service Kit can monitor the current state of all timers, counters, and flags.

Timers Timers can be considered as a number of 10 ms intervals that must elapse

before the timer reaches its maximum and the input ‘Timer expired’ is

triggered. Tasks can start and stop timers.When a timer is started, it returns

to the beginning of its timing period. Stopping a timer halts timing, so that

the timer cannot expire and cause any actions.

Timers can be used to add a delay between an event and the desired resulting

action. They can also be used to repeatedly toggle a function on and off, for

example to impose a duty cycle on it. If the on time and the off time are

unequal, two timers are needed.

A timer can have a maximum value of 0 ms, which means that it expires

instantly.

Figure 3 Action menus

TN-1154-AN Page 9 of 32

Short timers may not be accurate. A 10 ms timer will expire at the next 10

ms interval (‘tick’). This could in practice be anywhere between 1 and 10

ms after a task starts the timer, depending on how long Task Manager takes

to process its tasks. However, if there are overruns, it could take significantly

longer than 10 ms. Tait therefore recomments that you avoid short timers

(<50 ms) if the task list has more than 10 enabled tasks.

Counters Counters cannot go past maximum value or roll over (start again after

reaching the maximum). Actions can increment or decrement them. Only

when they reach the maximum can they trigger actions.

Flags Tasks can set a flag, and the setting of a flag can be an input to an action.

This is a useful method of making visible a particular status. It is important

to distinguish these flags from system flags. These flags are internal to Task

Manager, can be given a meaningful name, and are available for use in tasks.

They play no role at all until tasks are created that set them or read them.

System flags affect the logic of software processes in the reciter and have fixed

names. They also have a default setting that is re-established on entry into

Run mode.

2 How Task Manager works

Basic description The basic Task Manager concept is shown in Figure 4. A Task Manager

‘tick’ occurs every 10 milliseconds. At each tick, Task Manager begins

processing the tasks in its task list. First it reads the state of the inputs, then

it processes the tasks in its list, beginning with the first and ending with the

last. If the input of a task has not changed, nothing happens. If the input has

changed, processing the task causes the previous state of an output to be

overwritten. Finally, once the tasks in the list have been processed, Task

Manager carries out the actions by sending instructions to other software

processes running on the base station.

Page 10 of 32 TN-1154-AN

Actions triggered by

events It is important to emphasise that Task Manager only executes an task action

if the task input changes from false to true. In other words, tasks are triggered

by events, not states. Take, for example, the following task:

IF digital input 01 active THEN Increment counter 1.

The counter does not increment by 1 every 10 ms when digital input 1 is

active. It only increments when digital input 1 changes from being inactive

to active.

The situation is similar with inverted inputs, for example:

IF NOT digital input 01 active THEN Increment counter 1.

The counter does not increment by 1 every 10 ms when digital input 1 is

inactive. It only increments when the input part of the task becomes true,

that is, when digital input 1 changes from active to inactive.

Tasks processed in

order Task Manager processes its tasks strictly in order. It begins with the first task

in the task list with a changed input and ends with the last. This means that

tasks in the General folder are processed first and tasks in the Alarms folder

last. Statements within profile folders (for example the folder for the default

channel folder) are only processed if that profile is referenced by the current

channel.

Figure 4 Task Manager processing cycle

Read inputs

10 ms

tick

Process tasks

Update outputs

Send instructions

TN-1154-AN Page 11 of 32

More detailed

description Figure 5 shows in more detail the way Task Manager operates.

Task Manager monitors external base station parameters and updates

information about their state. This information consists of the basic inputs,

which are most of the inputs into the Task processing engine (there are

system flags, flags, counters, and timers as well). When the 10 ms ‘tick’

occurs, Task Manager starts processing the task list. First it latches the basic

inputs so that they do not change during the processing cycle (if for

example, an alarm occurs during task processing, it will not be processed

until the next processing cycle). Then Task Manager processes the

combinatorial logic of any custom inputs, so as to determine whether the

custom input has changed state. Next it starts going through the task list,

from top to bottom. (An optimisation means that it in fact only processes

tasks with changed inputs.) It executes each task, carrying out the required

action.

‘Do now’ actions are immediately made available to external software

processes. All other actions initially only set Task Manager variables. The

new state of these variables is immediately available internally. Later, when

processing the task list is completed, these new variable states are sent to

external software processes, changing channel, setting digital outputs, or

enabling/disabling their operation.

For example:

IF digital input 01 active THEN Enable power saving

IF Power saving enabled THEN Set flag (1)

Figure 5 Task Manager operation

Task Manager

Task Manager Variables

Task processing

Compute

custom

inputs

Basic

inputs

Inputs Actions

Do now actions

Channel actions

Digital output actions

Enable/disable

Monitoring

Base

station

parameters

flags timers

System flags

Alarms

Rx gate

Carrier

Digital inputs

Run mode

etc

count-

ers

Page 12 of 32 TN-1154-AN

In this case, the first task has the override action of enabling power saving.

This changes a system flag. The new state of the Power saving system flag is

immediately available as a Task Manager input, which happens to be the

input of the very next task on the list. Accordingly, Flag 1 will be set. Only

after the processing of the task list is complete does Task Manager instruct

the base station to enable power saving.

The important point to note is that the input ‘power saving enabled’ became

true, even though Task Manager had not yet issued an instruction to the base

station to enable power saving.

2.1 Overruns

If the inputs to more than about 10 tasks have become true since the last

10 ms tick, Task Manager may be unable to process its task list within 10 ms,

so that overruns occur, as shown in Figure 6. Complex custom inputs may

also add to the time that Task Manager needs. If there is an overrun, Task

Manager skips the processing of the task list but still does the following

essential things. Immediately after each tick it reads the state of digital inputs.

It also makes sure that it advances timers by the required number of 10 ms

ticks once it has finished the previous processing cycle. The result is that

tasks triggered by a timer may occur later than expected. In Figure 6, a timer

that should have expired at tick 5 will not expire till well after tick 6 and will

only be processed after tick 7. Of course, this is only of concern where exact

timing is required.

Figure 6 Task Manager Overruns

Tick 1

10 ms

Tick 7

70 ms

Tick 6

60 ms

Tick 5

50 ms

Tick 4

40 ms

Tick 3

30 ms

Tick 2

20 ms

Reading digital inputs

Advancing timers by 10ms

Processing tasks

Updating outputs and performing actions

TM Events

Key:

bbbbbbb

EDCD E C D E C C D E CC C

TM has

overrun tick 3

Because it

overran, TM does

not process tick 3

TM has

overrun ticks

5 & 6

Because it overran,

TM does not

process ticks 5 & 6

TN-1154-AN Page 13 of 32

2.2 Transition Into and Out of Run mode

When the base station goes into Run mode, Task Manager starts operating.

The input ‘Base station in Run mode’ becomes true and any tasks with that

input are processed. In addition, other tasks are processed. This happens

because Task Manager sets the previous state flag of all tasks to ‘unknown,’

so that Task Manager sees a transition from ‘unknown’ to the default setting,

which can be false or true. So, for example, tasks with ‘IF receiver enabled’

as an input will be processed, because Task Manager sees a transition from

‘unknown’ to ‘true.’ However, tasks with ‘IF NOT receiver enabled’ will not

be processed.

The transition to Run mode also sets all system flags to their defaults. If, for

example, a Task Manager override has disabled subaudible decoding, and

then the base station goes out of and back into Run mode, subaudible

decoding will be re-enabled (most system flags are enabled by default).

Table 1 lists all Task Manager inputs, indicating whether they are ‘external’

(basic) or ‘internal’ (a system flag, counter, timer or flag) and displaying the

default settings of internal inputs.

When the base station goes out of Run mode into Standby mode, Task

Manager stops operating. Task Manager variables (for example the system

flags) are frozen but can be read by other processes. However, in a recent

optimisation (version 3.00), Task Manager does carry out one processing

cycle after the base station goes into Standby mode. This makes it possible

for it to process tasks with the input ‘IF NOT base station in Run mode,’

for example to set a digital output while in Standby mode:

IF NOT Base station in Run mode THEN Activate digital output 1

IF Base station in Run mode THEN Deactivate digital output 1

Table 1 Task Manager inputs

Classification Input Type Default

General Another receiver in rack External n/a

Auxiliary Supply Enabled Internal Disabled

Base station in run mode External n/a

Counter at maximum (ident)Internal 0

External channel select enabled Internal Enabled

Flag set (ident)Internal n/a

Power saving enabled Internal Enabled

Syslog service enabled Internal Enabled

Timer expired (ident)Internal 0

Tx relay enabled Internal Enabled

Page 14 of 32 TN-1154-AN

Alarms (all alarms) External n/a

Over the air alarm on Internal Disabled

Over the line alarm on Internal Disabled

Channel Profile CWID enabled Internal Enabled

Intercom enabled Internal Enabled

Line controlled base enabled Internal Enabled

Loopback enabled Internal Disabled

PA carrier present External n/a

PA keyed by Tx Key line External n/a

PA keyed by valid Rx External n/a

Receiver enabled Internal Enabled

Receiving valid signal External n/a

Rx Gate line active External n/a

Talk through repeated enabled Internal Enabled

Transmitter enabled Internal Enabled

Tx Key input enabled Internal Enabled

Transmit power overridden Internal Disabled

Signalling Profile Subtone decoding enabled Internal Enabled

Subtone encoding enabled Internal Enabled

Tone 01 detected – Tone 16 detected External n/a

System I/O Balanced input low External n/a

Digital Input 01 active – Digital Input

16 active

External n/a

Digital Output 01 active – Digital

Output 08 active

Internal Deactivated

RSSI high External n/a

RSSI low External n/a

Unbalanced input low External n/a

Table 1 Task Manager inputs (Continued)

Classification Input Type Default

TN-1154-AN Page 15 of 32

3 Tips For Programming Task Manager Tasks

Pay attention to the following when you create sets of Task Manager tasks:

Important Do not create the task:

IF Base station in Run mode THEN Reset base

station

This results in an inoperable base station. Be careful with

any tasks using powerful actions such as Reset base

station.

Create tasks for

events, not states Make sure that your thinking is oriented to events and not states when you

create tasks. Tasks are triggered by events. An action only occurs if the input

changes from false to true.

Inverses are always

available It may appear that there is no suitable input for a task, when the inverse of

an input fits exactly. For example, there is no input ‘Balanced input receiving

signal,’ but you can use ‘IF NOT balanced input low,’ and configure the

threshold between not receiving a signal and receiving one in the Thresholds

form.

Tasks often need to

be in pairs When you create a task to carry out an action, you often need to create an

opposite task to reverse that action.

IF digital input 1 active THEN disable subaudible encoding

IF NOT digital input 1 active THEN enable subaudible coding

If you only have the first task, subaudible signalling would be disabled the

first time digital input 1 goes active and would continue to be disabled

indefinitely, even if digital input 1 is turned on and off.

IF receiving valid signal THEN start timer 1

IF NOT receiving valid signal THEN stop timer 1

Do now actions, on the other hand, are usually standalone:

IF Tone 2 detected THEN Reset base station

Order can be

important If a task changes a system flag, a counter, a timer, or a flag, the new state is

available immediately. Other Task Manager variables are also available

immediately. Other task actions do not cause a change until Task Manager

performs its actions at the end of the processing cycle.

A task that uses a system flag, a counter, or a flag as an input will be processed

in the current processing cycle if it comes after the action that sets it but not

if it comes before.

Page 16 of 32 TN-1154-AN

For example, in the following pair of tasks, making the digital line active

causes a counter to reach its maximum, which in turn enables loopback:

IF Digital input 1 active THEN Increment counter 1

IF Counter at maximum (counter 1) THEN Enable loopback

If the order of these two tasks was reversed, loopback would be not be

enabled in the same 10 ms processing cycle. However, the next processing

cycle would register that the counter had reached its maximum and the task

would be processed.

You probably need

tasks for the

initialisation

process

Your Task Manager code needs to be able to handle power outages and

transitions to Standby mode and back to Run mode, as well as the initial

start-up. The Task Manager input Base station in Run mode can be used

for any tasks you need to carry out the initialisation process. A power outage

results in a return to default settings, not to the settings that Task Manager

has established during its operation. Check that the default settings of system

flags and the inputs derived from them are as you want (see Table 1 on

page 13). For example if you want the talk-through repeater function to be

normally disabled, you need a task to change the start-up default:

IF Base station in Run mode THEN Disable talk through

repeater

In trunking systems, you can enable auxiliary power in Run mode, but

disable it in Standby mode:

IF Base station in Run mode THEN Enable auxiliary supply

IF NOT Base station in Run mode THEN Disable auxiliary supply

This turns off the trunking equipment when you take the base station out

of service.

3.1 Laying Out Your Code

Folders Tasks must be inserted into one of the available folders. It is not necessary to

put an alarm task in the Alarms folder or a General task in the General

folder. Occasionally, you may want to put a general task in the Alarms folder

to ensure that it is processed at the end of the processing cycle.

You cannot put a task in the top-level Channel Profiles or Signalling Profiles

folder, these can only contain folders for each defined profile. Tasks in a

profile folder are only processed if the current channel uses that profile.

Using comments Comments are used as titles for the tasks indented underneath them. The

title should describe the purpose or the function of the group of tasks. This

will help future maintainers.

TN-1154-AN Page 17 of 32

Using indenting Indenting a task assigns it to the comment above. Indenting a comment lets

you create a subheading for the tasks that follow.

Hiding code Folders and comments have a little box alongside that displays a + or a -.

Click on the box to display or hide the item’s subfolders or assigned tasks.

Hiding items stops the screen getting too cluttered.

Disabling tasks You can disable tasks in the task list that you do not want to be processed.

This lets you, for example, maintain a common task list for all base stations

in the system, as part of a master configuration file. Simply disable the tasks

not applicable to each particular base station.

3.2 Enhancements

Task Manager has a number of additional features that help to increase the

power of its task statements.

Profile Folders Putting Task Manager tasks in a profile folder means that they are only

available if the current channel uses that profile. This means that it is possible

to set up a base station to switch between two (or more) sets of Task Manager

tasks. Set up two channels with the same frequency information, but assign

different channel profiles. Place different sets of Task Manager tasks into the

different profiles. Then set up General Task Manager tasks to switch

between channels. For example:

IF Tone 1 detected THEN Go to channel Repeater

IF Tone 2 detected THEN Go to channel LineCtrl

Where Repeater and LineCtrl are the names of two channels in the channel

table.

Using the channel profiles in this way can save you from having to use lots

of combinational logic. However, it does take ~300 ms to change channel.

During this time, tasks that run in profile folders are not available.

Custom inputs You cannot create entirely new inputs, but you can combine a number of

existing inputs to form a custom input. You select the inputs and specify the

combinational logic that will be used to make the custom input true or false

when the states of the various inputs are combined. For example, you might

create a custom input using a number of minor alarms that will trigger

sending a status message to the Alarm Center.

Custom inputs are specified as a logic tree as shown below. Evaluation is

done from left to right.

Page 18 of 32 TN-1154-AN

The above custom input is evaluated in this way. First,Counter at

maximum (1) is OR'ed with External reference absent and then

Unbalanced input low is XOR'ed with Digital input 01 active.

Finally, the results of those two operations is AND'ed.

Custom inputs are not allowed directly in other custom inputs. One way

around this is for the custom input to set and clear a flag. This makes it

possible to combine more than eight items in a custom input. For example:

Custom input 1 combines eight alarms

Custom input 2 combines another four alarms

When custom input 1 becomes true, it sets Flag 1

When custom input 2 becomes true, it sets Flag 2.

Custom input 3 combines Flag 1 and Flag 2.

Note You cannot export and import custom inputs and custom actions.

If the Task Manager code uses these input and action types inten-

sively in a system with many base stations, Tait recommends that

you save the whole configuration file and use it as the basis of new

configurations for the other base stations.

Custom actions You can combine a number of actions into a custom action. This can

simplify the code.

For example, you could set up custom actions for enabling and disabling

CTCSS. Each custom action contains all of the actions required to enable or

disable the function.

The ‘Enable CTCSS’ custom action consists of:

Enable subaudible decoding

Enable subaudible encoding

Set flag (CTCSS_Active)

The ‘Disable CTCSS’ custom action consists of:

Disable subaudible decoding

Disable subaudible encoding

Clear flag (CTCSS_Active)

TN-1154-AN Page 19 of 32

With these custom actions, you only need two tasks to use a digital input to

enable and disable CTCSS:

IF digital input (02) active THEN Enable CTCSS

IF NOT digital input (02) active THEN Disable CTCSS

4 Simple Task Manager Functions

The following section gives some example Task Manager code fragments.

These let you carry out simple functions. They can also serve as building

blocks in more complex applications.

4.1 Responding To a Digital Input

Digital inputs have no built-in function; you construct tasks that determine

the base station’s response to their activation or deactivation. Here are some

suggestions.

Subtone Decode

Disable Pin When digital input # is active, the base station disables the decoding of

subaudible signalling.

IF Digital input # active THEN Disable subaudible decoding

IF NOT Digital input # active THEN Enable subaudible decoding

Cancel Alarms Pin When the digital input is activated, Task Manager action ceases to dial up an

Alarm Center to send alarm logs and status messages.

IF Digital input # active THEN Disable alarm service

IF NOT Digital input # active THEN Enable alarm service

External alarm

response If the digital input is wired to (for example) the site facility’s door alarm, the

dispatcher can be alerted to the triggering of this alarm.

IF Digital input # active THEN Start over the line alarm

IF NOT Digital input # active THEN Stop over the line alarm

4.2 Setting Digital Outputs

Digital outputs also have no built-in function in the base station; they are

under the control of Task Manager so that you can determine their function.

Page 20 of 32 TN-1154-AN

4.3 Controlling the Auxiliary Power Output

In the default configuration setting, the auxiliary power output at the rear

of the PMU is automatically turned on when mains power is on. Task

Manager is not involved. However, you can configure the auxiliary power

output to be under the control of Task Manager (Configure > Base Station

> Miscellaneous). This is the only way to turn the auxiliary power output

on, if the base station only uses DC power.

4.4 Alarm Notification

Alarms are notified only by Task Manager action. These actions can be

triggered at regular intervals, using a timer, and/or in response to alarms

(Base station alarm on for any alarm, a custom input for up to eight

alarms.)

Enabling Email/

Alarm Log If your system has an Alarm Center, Task Manager action can send the alarm

log (Send alarm log now) or send the alarm log together with the status

of all alarm parameters (Email status now). Tasks can do this at regular

intervals (for example, once a week) and/or in response to an alarm.

IF Base station in Run mode THEN Start timer (1 week timer)

IF Timer expired (1 week timer) THEN Email status now

IF Timer expired (1 week timer) THEN Start timer (1 week timer)

Note that the base station has a configurable minimum interval between one

sending of the alarm log or status message and another, to prevent flooding

the Alarm Center with calls.

Suppose, for example, the minimum interval is 30 minutes, and the

following task is set up:

IF Reverse power high THEN Email status now

If the reverse power alarm is triggered, the base station will dial out to the

Alarm Center and send its alarm log and status message. If the fault is

intermittent and the alarm continues to go on and off, the base station will

not dial out again until 30 minutes after the previous dial-out. It will then

send the alarm log and status as they currently are, not as they were when

the alarm was triggered for a second time. In other words, items for sending

to the Alarm Center are not queued.

Enabling over-the-

air or over-the-line

pips

Alarms can also be notified by sending pips over the air or down the line.

IF Base station alarm on THEN Start over the air alarm

IF NOT Base station alarm on THEN Stop over the line alarm

TN-1154-AN Page 21 of 32

Temporarily

cancelling alarm

logging

It may be useful to be able to temporarily stop sending alarms to the Alarm

Center, for example if testing or commissioning is generating frequent

alarms.

IF Tone 02 detected THEN Disable email service

IF Tone 03 detected THEN Enable email service

4.5 Disabling a Configured Function

Task Manager can disable a number of configured base station functions. It

does this by changing the state of the relevant system flag. The Service Kit

displays all system flags (Monitor > Task Manager > System Flags).

For example:

IF Digital input 03 active THEN Disable talk through repeater

IF NOT Digital input 03 active THEN Enable talk through

repeater

4.6 Changing Channel

The current operating channel is generally selected by the configuration (set

the default channel in Configure > Base Station > General) or by hardware

(you switch digital inputs after enabling and configuring hardware channel

selection in Configure > Base Station > System Interface).

Task Manager offers additional methods for selecting the current operating

channel. If the base station has an Advanced Profiles and Task Manager

feature license, these methods can be used to change any channel setting.

Simply create channels and profiles with the configurations desired and use

Task Manager tasks to change from one to another.

Make sure that your Task Manager code gives the expected result after

power outages and transitions out of and back into Run mode.

Selecting a different

channel Task Manager has actions that can select a different channel from that

specified by the configuration: Go to channel nn and Go to next

channel.

IF Tone 03 detected THEN Go to channel Channel 004

IF Tone 04 detected THEN Go to channel Channel 003

These actions do not work if hardware channel selection is enabled.

Shifting channel

selection between

hardware and

configuration

Task Manager can shift the control of channel selection between the digital

inputs and the configuration. You must have enabled and configured

hardware channel selection and selected a default channel using the Service

Kit.

Page 22 of 32 TN-1154-AN

Task Manager controls the system flag H/W channel select. This flag is

enabled by default, which means that hardware channel selection will work.

If you disable this flag, control of channel selection reverts to software, and

the channel configured as the default becomes the current operating

channel.

IF Tone 03 detected THEN Disable external channel select

IF Tone 04 detected THEN Enable external channel select

Tip Alternatively, use the digital inputs to instruct the base station to

use the software-selected channel. Simply set the digital inputs to

select channel number 000.

Shifting channel

selection between

Task Manager and

hardware

Task Manager change channel actions override the default channel selected

by the configuration, but they do not override hardware channel selection.

If hardware channel selection is enabled, the base station continues to

operate on the channel selected by hardware, even if Task Manager processes

a change channel action. However, the Task Manager action does change

the internal ‘software channel number.’ If hardware channel selection is

subsequently disabled, the base station will change to the channel specified

by the latest Task Manager action.

For example

IF Base station in Run mode THEN Go to channel Channel 002

IF Base station in Run mode THEN Start timer (Timer 01)

IF Timer (Timer 01) expired THEN Disable external channel

select

In this example, the base station will operate initially using the channel

defined by the digital inputs, for example Channel 001, even though Task

Manager has selected Channel 002. The base station does remember

Channel 002 as its ‘software channel number.’ Once the timer expires, Task

Manager disables hardware channel selection and the base station changes to

Channel 002.

Changing the

default channel You can use Task Manager to change the default channel. This is the

equivalent of changing the configuration. The new default channel appears

in the General form (Configure > Base Station > General).

Monitoring the

current channel For all the above channel selection methods, the Channel form (Monitor >

Monitoring > Channel) displays the channel currently in use.

TN-1154-AN Page 23 of 32

4.7 Selecting Profiles

Generally, the base station uses the channel profile and the signalling profile

that are assigned to the current operating channel. However, Task Manager

can override the channel table’s selection of channel and/or signalling

profiles and then its own tasks select the profiles used. This gives greater

flexibility in the assigning of profiles and a greater number of combinations

of assigned profiles and other channel settings.

Enabling Task

Manager selection

of profiles

The system flags TM signalling profile and TM channel profile are disabled

by default. When they are disabled, the base station uses the profiles assigned

to the current operating channel.

When these system flags are enabled, control of profile selection is passed to

Task Manager. If Task Manager does not select a profile, the base station uses

the default profile. If a Task Manager task selects a profile, the base station

uses that profile.

Disabling the Task Manager selection of profiles can be used to pass the

control of profiles back to the channel table. If a Task Manager task selects a

profile, the base station ‘remembers’ that profile, and if control subsequently

passes back to Task Manager, that profile will be used.

Selecting channel

profiles Here is an example set of Task Manager tasks:

IF Base station in Run mode THEN Enable TM channel profile

selection

IF Digital input 01 active THEN Select channel profile (Ch prof 2)

IF Digital input 02 active THEN Select channel profile (Ch prof 3)

Selecting signaling

profiles Here is an example set of Task Manager tasks:

IF Base station in Run mode THEN Enable TM signalling profile

selection

IF Digital input 03 active THEN Select signalling profile (Sig prof

IF Digital input 04 active THEN Select signalling profile (Sig prof

Monitoring profiles You can monitor the base station and see which profiles it is currently using.

The Channel form (Monitor > Monitoring > Channel) displays the profiles

currently in use, even if they are selected by Task Manager, not the current

channel. You cannot tell from this form whether Task Manager has selected

the profile, but you can select Monitor > Task Manager > System Flags. If

the TM signalling profile or the TM channel profile flag is enabled, Task

Manager has selected the corresponding profile.

Page 24 of 32 TN-1154-AN

4.8 Remote Control Using a Radio

If the base station has an Advanced Profiles and Task Manager feature

license, you can program radio to transmit using different subaudible

signaling and use each CTCSS tone or DCS code to carry out a different

action.

The following example controls the talk through repeater function:

IF Tone 02 detected THEN Disable talk through repeater

IF Tone 03 detected THEN Enable talk through repeater

5 Task Manager Application Examples

Task Manager makes it possible for you to build complex functions into the

base station. Here are some examples of to give you an idea of what can be

done.

Important While Tait has carefully tested Task Manager, no guarantee

can be given that these examples will work correctly for

your system. Make sure that you thoroughly test any set of

Task Manager tasks before commissioning the system.

5.1 Repeater Changeover

A line-controlled base station is connected to a console that provides tone

on idle. The following Task Manager tasks automatically convert the

TB8100 to a talk-through repeater if the line fails. When the line is re-

established, the TB8100 reverts to line-controlled operation.

IF Base station in Run mode THEN Disable talk through

repeater

This disables the base station’s talk through repeater mode whenever it enters

Run mode.

IF Balanced input low THEN Enable talk through repeater

IF Balanced input low THEN Disable line-controlled base

station

IF Balanced input low THEN Start over the air alarm

If the line fails, the input line level falls below the prescribed minimum. This

triggers Task Manager actions that switch off the line-controlled base station

mode, enable the talk through repeater mode, and start sending alarm pips

over the air.

IF NOT Balanced input low THEN Disable talk through repeater

TN-1154-AN Page 25 of 32

IF NOT Balanced input low THEN Enable line-controlled base

station

IF NOT Balanced input low THEN Stop over the air alarm

When the line is re-established, Task Manager actions re-establish the line-

controlled base station function and stop the alarm.

5.2 Data and Speech Service

A repeater needs to relay speech as well as data. The speech needs to be pre-

emphasised while the data needs the full band from < 50 Hz to 3000 Hz.

Speech is sent with a CTCSS tone.

The base station needs to be able to automatically change between repeating

pre-emphasised audio and repeating full band audio.

To achieve this, follow these steps:

1. Set up Channel 1 as a speech repeater. The channel profile (Signal

Path tab) is set to De-emph Speech Band / Pre-emph Speech Band.

2. Set up Channel 2 as a data repeater. The channel profile (Signal Path

tab) is set to Flat Full Band.

3. Set Timer 1 to 150 milliseconds, corresponding to the time that the

base station needs to decode subaudible signalling.

4. Create two custom inputs:

Data Chan Detected, which consists of Timer 1 expired AND

Tone 1 NOT detected.

Speech Chan Detected, which consists of Timer 1 expired AND

Tone 1 detected.

5. Create the following Task Manager tasks for Channel 1:

IF Receiving valid signal THEN Start timer 1

IF NOT Receiving valid signal THEN Stop timer 1

IF Data Chan Detected THEN Go to channel 002

Receiving a valid signal on Channel 1 starts a timer. If no subaudible

signalling is detected when the timer expires, the custom input Data

Channel Detected becomes true and Task Manager instructs the base station

to go to channel 002.

6. Create the following Task Manager tasks for Channel 2

IF Receiving valid signal THEN Start timer 1

IF NOT Receiving valid signal THEN Stop timer 1

IF Speech Chan Detected THEN Go to channel 001

Page 26 of 32 TN-1154-AN

Receiving a valid signal on Channel 2 starts a timer. If subaudible signalling

is detected before the timer expires, the custom input Speech Channel

Detected becomes true and Task Manager instructs the base station to go to

channel 001.

5.3 Base Station with Automatic Charging

If the battery voltage goes low, the base station operates on lower power,

starts the generator and sends transmitter pips. As soon as the battery voltage

is back to normal, transmitter power is increased. The generator continues

for one hour (or until a high battery voltage alarm is triggered). This ensures

that the battery is properly charged.

To set this up, follow these steps:

1. Set up Channel 1 at 100 watts for mains power and 60 watts for bat-

tery power.

2. Set up Channel 2 as a low battery channel, with only 25 watts output

power.

3. Set up Timer 1 as Generator On timer with a duration of one hour.

4. Set up a custom action End of Charging with the following actions:

Deactivate Digital Output 1 AND

Stop timer 1 (Generator On timer)

Stop over the air alarm

5. Set up the following Task Manager tasks:

IF Battery voltage low THEN Go to channel 002

IF NOT Battery voltage low THEN Go to channel 001

When the battery voltage is low, this switches operation to Channel 002,

which has a reduced PA output power.

IF Battery voltage low THEN Activate Digital Output #1.

IF Battery voltage low THEN Start over the air alarm

IF Battery voltage low THEN Start timer #1.

When the battery voltage is low, a digital output is set, which starts the

generator. Additional actions turn on over the air pips and start a timer that

will turn the generator off.

IF Battery voltage high THEN End of Charging

IF Timer #1 expired THEN End of Charging

These two tasks stop the generator when the battery voltage gets too high

or when the Generator On time expires.

TN-1154-AN Page 27 of 32

5.4 Base Station that Controls Landing Lights

A small private airport does not have full time air traffic control. When

landing at night, the pilot needs to switch on the runway lights. Pilots have

VHF radios without CTCSS, Selcall, or any other signalling. The pilot

presses PTT three times within two seconds to switch on the lights.

1. Wire Digital Output #6 to control the lights.

2. Give Counter #1 a maximum of 3.

3. Give Timer #1 a maximum of 2 seconds.

4. Give Timer #2 a maximum of 30 minutes

5. Set up the following Task Manager tasks:

IF Receiving valid signal THEN Start timer (Timer 1)

IF Receiving valid signal THEN Increment counter (Counter 1)

IF Timer expired (Timer 1) THEN Reset counter (Counter 1)

This set of tasks detects three presses of PTT, provided they occur

before Timer #1 expires.

IF Counter at maximum (Counter 1) THEN Start timer (Timer 2)

IF Counter at maximum (Counter 1) THEN Activate Digital

Output 6

IF Counter at maximum (Counter 1) THEN Reset counter

(Counter 1)

This set of tasks starts the lights timer, turns the lights on, and re-starts

the counter for detecting three presses of PTT.

IF Timer expired (Timer 2) THEN Deactivate Digital Output 6

This task turns the lights off when the 30 minutes has elapsed.

5.5 Scanning Repeater

In a two-repeater site, Task Manager makes it possible for either repeater to

turn into a scanning repeater if the other repeater fails. The scanning

repeater handles both channels, providing a complete backup system.

When a repeater fails, the other starts scanning. It changes to a channel, waits

a few 100ms, checks the received signal, and, if nothing is there, it goes to

the next channel. If there is a signal, it will just repeat it as usual, complete

with all the signalling and line output requirements for that channel. Here a

single base station is providing the same service but with a poorer

throughput.

IF Base station in Run mode THEN Start timer (ChangeChannel)

IF Receiving valid signal THEN Stop timer (ChangeChannel)

IF Receiving valid signal THEN Stop timer (On Channel)

IF NOT Receiving valid signal THEN Start timer (On Channel)

IF Timer expired (ChangeChannel) THEN Go to next channel

IF Timer expired (ChangeChannel) THEN Start timer

(ChangeChannel)

Page 28 of 32 TN-1154-AN

IF Timer expired (On Channel) THEN Go to next channel

IF Timer expired (On Channel) THEN Start timer (ChangeChannel)

The channel change time is currently ~300ms. The CTCSS decode time is

~150ms. Hence it takes about 450ms to scan a channel with CTCSS tones.

Tait therefore recommends that you set the ChangeChannel timer to

500ms. The OnChannel timer needs to be long enough to make sure that

the conversation has ended.

This example is a straightforward scanner. It will search through all the

channels in the channel table looking for activity. A small variation on this

can make it stay on its home channel until an external signal triggers the

scanning.

5.6 Improvements to Alarm Center Dial-Out

Task Manager can prevent a base station dialling out to the Alarm Center

when an alarm triggers briefly and is then cleared.

Alarm dial-out only

if alarm continues

for one minute

This example set of tasks ensures that there is an alarm dial-out only if the

alarm is still active when a one-minute timer expires. A flag is used to

prevent the timer being repeatedly restarted if an alarm is chattering.

To set this up, follow these steps:

1. Set up the flag Timer running.

2. Set up the timer Alarm timer with a maximum of 1 minute.

3. Create the custom input Alarm still on. It consists of:

Timer expired (Alarm timer) AND Base station alarm on

4. Create the following tasks in the General folder.

IF Base station alarm on THEN Set flag (Timer running)

IF Flag set (Timer running) THEN Start timer (Alarm timer)

IF Timer expired (Alarm timer) THEN Clear flag (Timer running)

IF Alarm still on THEN Email status now.

Alarm dial-out if

alarm continues for

one minute or is

triggered three

times within a

minute

This example improves on the previous set of tasks by ensuring that there

still is an alarm dial-out if an alarm triggers briefly but repeatedly.

To set this up, follow these steps:

1. Set up the flag Timer running.

2. Set up the timer Alarm timer with a maximum of 1 minute.

3. Set up the counter Alarm counter with a maximum of 3.

TN-1154-AN Page 29 of 32

4. Create the custom input Alarm still on. It consists of:

Timer expired (Alarm timer) AND Base station alarm on

5. Create the custom action Start over. It consists of:

Clear flag (Timer running)

Stop timer (Alarm timer)

Reset counter (Alarm counter)

6. Create the following tasks in the General folder.

IF Base station alarm on THEN Set flag (Timer running)

IF Base station alarm on THEN Increment counter (Alarm

counter)

IF Flag set (Timer running) THEN Start timer (Alarm timer)

IF Timer expired (Alarm timer) THEN Clear flag (Timer running)

IF Alarm still on THEN Email status now.

IF Counter at maximum (Alarm counter) THEN Email status now

IF Timer expired (Alarm timer) THEN Start over

IF Counter at maximum (Alarm counter) THEN Start over

6 Specifications

The following are the maximum parameter values and maximum number of

items that Task Manager supports.

Item Maximum

Tasks and comments (lines in task list) 500

Enabled tasks (with Advanced Profiles and Task

Manager feature license)

200

Enabled tasks (without Advanced Profiles and Task

Manager feature license)

Custom inputs 20

Custom actions 20

Timers 16

Maximum timer duration 7 days or 168 hours

Counters 16

Counter maximum 200,000

Flags 16

Log of recent task actions 40 tasks

Page 30 of 32 TN-1154-AN

7 Testing and Debugging

Any Task Manager applications you create should be thoroughly tested

before going live. It may be helpful to set up the base station on the bench

with a CTU. This makes it easy to toggle digital inputs, read digital output,

feed noise into the receiver, and so on. The following are some tips to help

you.

Viewing the Log The Recent Actions form displays the Task Manager log. This displays the

last 40 tasks that were actioned. The log is cleared on entering Run mode.

You may therefore want to save the log to a file before going into Standby

mode or turning the base station off.

Note If you modify the base station’s task list, the Service Kit will not

correctly display tasks that were actioned beforehand.

Checking System

Flag states The System Flags form displays the current status of all system flags. This

shows you what base station functions Task Manager has disabled or re-

enabled.

Viewing flags/

counters/timers There are monitoring forms for flags, counters, and timers. They display the

current status of each group of items.

Optimising Service

Kit display The Service Kit polls the base station for updates. If the polling interval is

long, you will not see Task Manager changes until well after they have

occurred. You might want to temporarily reduce the polling interval while

you are testing and debugging (Select Tools > Configure Connections,

select the connection and click Edit).

Using flags for

debugging When debugging, you can add tasks that set or clear flags, and then view the

state of the flag to see if the condition to perform an action is present or not.

For example:

IF Tx Relay enabled THEN Set flag 1

IF NOT Tx Relay enabled THEN Clear flag 1

If you run out of flags, use a counter with a maximum value of ‘1’, or a

digital input that is not present on your system interface.

Shortening timers When testing timers, you can speed up the evaluation time by reducing

timer durations.

Printing the task list To print the list of tasks and other Task Manager information, from the

Service Kit select File > Print. Select Base station - Task Manager, and, if

appropriate, other categories such as Task Manager - Custom Actions.

TN-1154-AN Page 31 of 32

8 Troubleshooting

If Task Manager is behaving in an unexpected way, check the following list.

Missing a toggled

input If an external input is toggled twice during a processing cycle, the change

might not be seen. For example, if an input becomes true and then false

again within the processing cycle, tasks with that input may not be

processed. At the beginning of each 10 ms processing cycle, basic inputs are

latched. By the time the next processing cycle processes the task, its input

has become false again.

Outputs only

change once Actions (setting system flags, setting the channel number, ‘do now’ actions)

are only sent to other external TB8100 software processes at the end of the

processing cycle. This means that tasks can carry out an external action

several times, causing several internal changes, but there will only be a single

external action, at the end of the processing cycle.

Action can trigger

other actions

without ever

becoming visible

itself

External actions have an immediate effect internally. This means that their

new value is immediately available to subsequent tasks in the task list. For

example, an action could disable the receiver system flag, and this could

trigger a second action. If a third action enabled the receiver system flag, the

results of the second action would become visible, but the receiver would

never actually be disabled.

Flag does not clear

when expected It can happen that a flag does not clear when expected. If the flag is set at

the beginning of the processing cycle, cleared at its end, and then set again

at the beginning of the next cycle, tasks with ‘IF flag n set’ as their input do

not know that the input has changed and so are not processed.

Task in channel

profiles not

actioned until an

external channel

change

Task Manager only processes tasks in profiles that are assigned to the current

channel. If Task Manager changes channel, a change in the profile

assignment only occurs once the channel has actually changed. This takes

about 300 ms. It does not occur as soon as Task Manager has set the new

channel internally.

Page 32 of 32 TN-1154-AN

Publication Information

Issuing Authority This TN was issued by: Kurt Ebrecht

Technical Publications Manager

Distribution Level Associate.

Publication History

Amendment Record

Tait Contact Information

Corporate Head

Office

New Zealand

Tait Electronics Limited

P.O. Box 1645

Christchurch

New Zealand

For the address and telephone number of regional offices, refer to the

TaitWorld website:

We b s i t e: http://www.taitworld.com

Technical Support For assistance with specific technical issues, contact Technical Support:

E-mail: support@taitworld.com

We b s i t e: http://support.taitworld.com

Publication Date Author

28 April 2006 I Scott/S McQueen/L Chisholm

15 September 2006 L Chisholm

Publication Date Page Amendment

28 April 2006 First release

15 September 2006 Expanded 4.6 Changing channel. Added 4.7

Changing Profiles. 5.6 Improvements to Alarm

Center Dial-Out. Warning about some TM tasks.

TN 1154 AN TB8100 Tech Notes/Tech Notes/TN 1154c Task Manager Programming Guide

TECHNOTE/TB8000/TN-1154c TB8100 Task Manager Programming Guide TN-1154c TB8100 Task Manager Programming Guide

TB8100 Training Aids/TB8100 Training Resource CD/Interactive_engine/fscommand/TN1154 TN1154

Navigation menu

Versions of this User Manual:

Views

Navigation
