TN-923-SR Page 1 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
Applicability This Technical Note applies to the firmware utilised in Tait
Orca 5030, 5035 and 5040 MPT1327 Trunked radios.
It also applies to the Trunked Programming Application
v4.0.1 used to read/program radio personality files.
1. Introduction
What is in this
Technical Note?
What does it
work with?
The Orca Trunked Firmware v4.27 has been released to
manufacturing to replace the previous firmware (v4.26)
being installed in Tait Orca 5030, 5035 and 5040 Trunked
products.
Version 4.27 Firmware was first implemented in an Orca
TOP-XXXXX-XX, radio serial number XXXXXXXX, job
XXXXXXXX, on XXXXXXXXXX. (This information will be
inserted and the Technical Note updated when this
information is available).
This Firmware is compatible only with Tait Orca Trunked
Programming Application TOP-TPA v4.0.1 or later.
The TOP-TPA v4.0.1 is available on the Tait Portables
Programming Utilities (TPPU) v4.00.04 CD-ROM as IPN
406-00003-07, or available for download from
support.taitworld.com.
Technical Note TN-923-SR
Tait Orca 5030, 5035, 5040
Firmware Upgrade to 4.27 &
TOP-TPA Upgrade to 4.0.1
15 October 2004
TN-923-SR Page 2 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
2. Changes
What has been
resolved in this
release?
The Firmware version v4.27 resolves the following issues in
the Orca 5030, 5035 and 5040:
• Corrected issue where the volume control was not set
correctly when operating in ‘Handset’ mode. (Raised as
TIMS 15146).
• Corrected issue where ‘Full’ call queuing was operating
in the same fashion as ‘Unanswered’ call queuing.
(Raised as TIMS 26539).
• Corrected issue where the ‘Unanswered Call Timer’ was
double that of the programmed value. (Raised as TIMS
28015).
• If an emergency call is queued it will now be indicated as
having been an emergency call by displaying an ‘E’ in
front of the ‘CL1/1’ in the queue. ie the radio will
display ‘ECL1/1 Unit ID’. (Raised as TIMS 32154).
Implemented
Enhancements
The feature enhancements to the PC Application TOP-TPA
v4.0.1 below were implemented in conjunction with the
Firmware v4.27 changes.
• FOCUS 11764, 15341: Trunked Radio Ringing Options.
(Raised as TIMS 18690). The entire ‘User Selectable’
page has been re-organised to better define the
available options. Instead of one ‘User Selectable’ page
with all options, this has now been broken down into
three separate tabs – ‘General’, ‘Display’ and ‘Tones’.

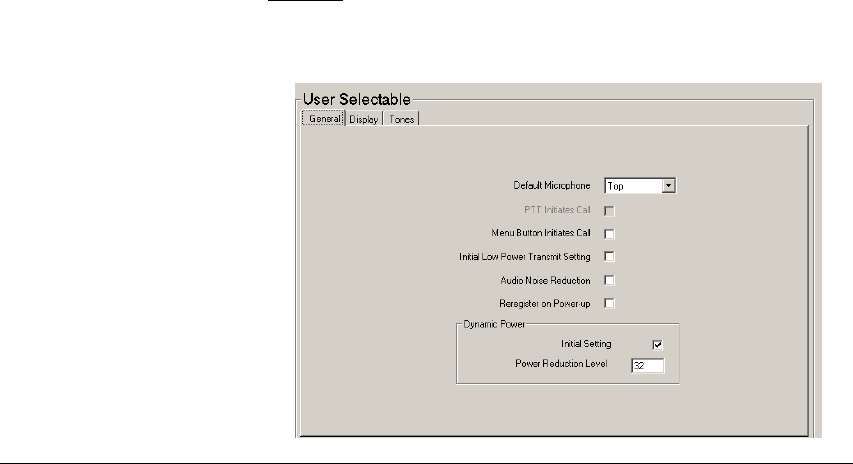

General
There have been no additions made to this tab. This groups
user selectable items that are not display or tone specific.
TN-923-SR Page 3 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com

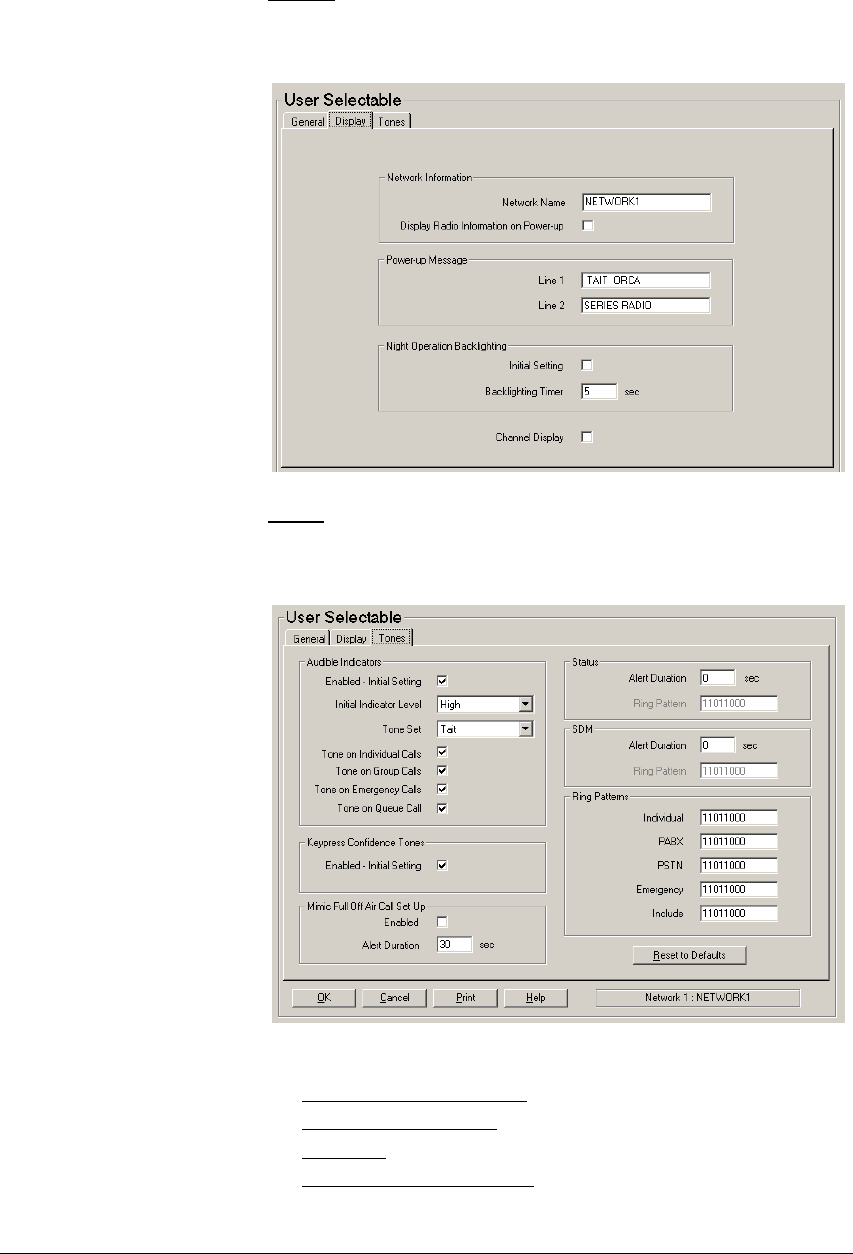

Display
There have been no additions made to this tab. This groups
user selectable items that are display specific.
Tones
This features a number of new features. These are
described below.
Audible Indicators
• Enabled – Initial Setting : No change in functionality
• Initial Indicator Level : No change in functionality
• Tone Set : No change in functionality
• Tone on Individual Calls : New function. When enabled
all incoming and outgoing individual call setup tones will
generate the normal setup tones. When disabled all
TN-923-SR Page 4 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
incoming and outgoing individual call setup tones are
disabled. Note: The tone set must be set to ‘Tait’
for this to be available.
• Tone on Group Calls : New function. When enabled all
incoming and outgoing group call setup tones will
generate the normal setup tones. When disabled all
incoming and outgoing group call setup tones are
disabled. Note: The tone set must be set to ‘Tait’
for this to be available.
• Tone on Emergency Calls : New function. When
enabled all incoming and outgoing emergency call setup
tones will generate the normal setup tones. When
disabled all incoming and outgoing emergency call setup
tones are disabled. Note: The tone set must be set
to ‘Tait’ for this to be available.
• Tone on Queue Calls : New function. When enabled all
incoming and outgoing queue call setup tones will
generate the normal setup tones. When disabled all
incoming and outgoing queue call setup tones are
disabled.
Keypress Confidence Tones
• Enabled – Initial Setting : No change in functionality
Status – New function
• Alert Duration : The length of time the radio alerts the
user to a status message having been received can now
be altered. If this value is set to anything other than
zero, then the ‘Ring Pattern’ field will become available.
• Ring Pattern : Allows an eight digit code using the
numerical values 1 and 0 to define a ‘ring sequence’. 1
indicates a tone, and 0 indicates a gap.
Note: The tone set must be set to ‘Tait’ for this to be
available.
SDM – new function
• Alert Duration : The length of time the radio alerts the
user to a SDM having been received can now be altered.
If this value is set to anything other than zero, then the
‘Ring Pattern’ field will become available.
• Ring Pattern : Allows an eight digit code using the
numerical values 1 and 0 to define a ‘ring sequence’. 1
indicates a tone, and 0 indicates a gap.
Note: The tone set must be set to ‘Tait’ for this to be
available.
Ring Patterns – new function
TN-923-SR Page 5 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
• Individual : Allows an eight digit code using numerical
values 1 and 0 to define a ‘ring sequence’ when an
individual call is received. 1 indicates a tone, and 0
indicates a gap.
• PABX : Allows an eight digit code using numerical values
1 and 0 to define a ‘ring sequence’ when a PABX call is
received. 1 indicates a tone, and 0 indicates a gap.
• PSTN : Allows an eight digit code using numerical values
1 and 0 to define a ‘ring sequence’ when a PSTN call is
received. 1 indicates a tone, and 0 indicates a gap.
• Emergency : Allows an eight digit code using numerical
values 1 and 0 to define a ‘ring sequence’ when an
emergency call is received. 1 indicates a tone, and 0
indicates a gap.
• Include : Allows an eight digit code using numerical
values 1 and 0 to define a ‘ring sequence’ when an
include call is received. 1 indicates a tone, and 0
indicates a gap.
Note: Either Full Off Air Call Setup or Mimic Full Off
Air Call Setup must be enabled and the tone set must
be ’Tait’ for these Ring Patterns fields to be available.
Mimic Full Off Air Call Set Up – new function
• Enabled : This allows the radio to ‘mimic’ the Full Off Air
Call Set Up (FOACSU) functionality when the system
does not support FOACSU.
• Alert Duration : Specifies the length of time the radio
will alert the user when the Mimic FOACSU option is
enabled.
Operational Example
1. Radio A has Mimic FOASCU enabled with an alert
duration of 30 seconds. The system does not
support FOACSU.
2. Radio B calls Radio A.
3. Radio A goes to the traffic channel immediately,
however it begins ringing like in a FOACSU system.
4. Approximately every 6 seconds Radio A transmits a
‘ring’ over the air to Radio B. This indicates to Radio
B that the call is unanswered.
5. Radio A user presses PTT. Radio stops ringing and
communications take place as normal.
6. If Radio A uses does not press the PTT before the
Alert Duration expires the radio will clear the call
down.
TN-923-SR Page 6 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
Limitation
Due to the called radio transmitting a ‘ring’ over the air
to indicate to the calling radio that the call is
unanswered there may occasionally be instances where
the system or calling radio may issue a clear down and
the called radio will not receive this clear down – due to
it transmitting at the same time.
• FOCUS 14917: Call queuing has been enhanced, with
the label previously called ‘None’ being renamed to
‘Last’ to accurately reflect the operation. (Raised as
TIMS 28390).
When ‘Last’ is selected only the last unanswered
call is queued.
Also when call queuing is set to ‘Last’, instead of the
user having to navigate through the queue menu
structure, the Unit ID of the last missed call will be
displayed on the LCD of a 5035 or 5040. The user may
PTT to immediately call back the unit displayed on the
LCD.
TN-923-SR Page 7 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com

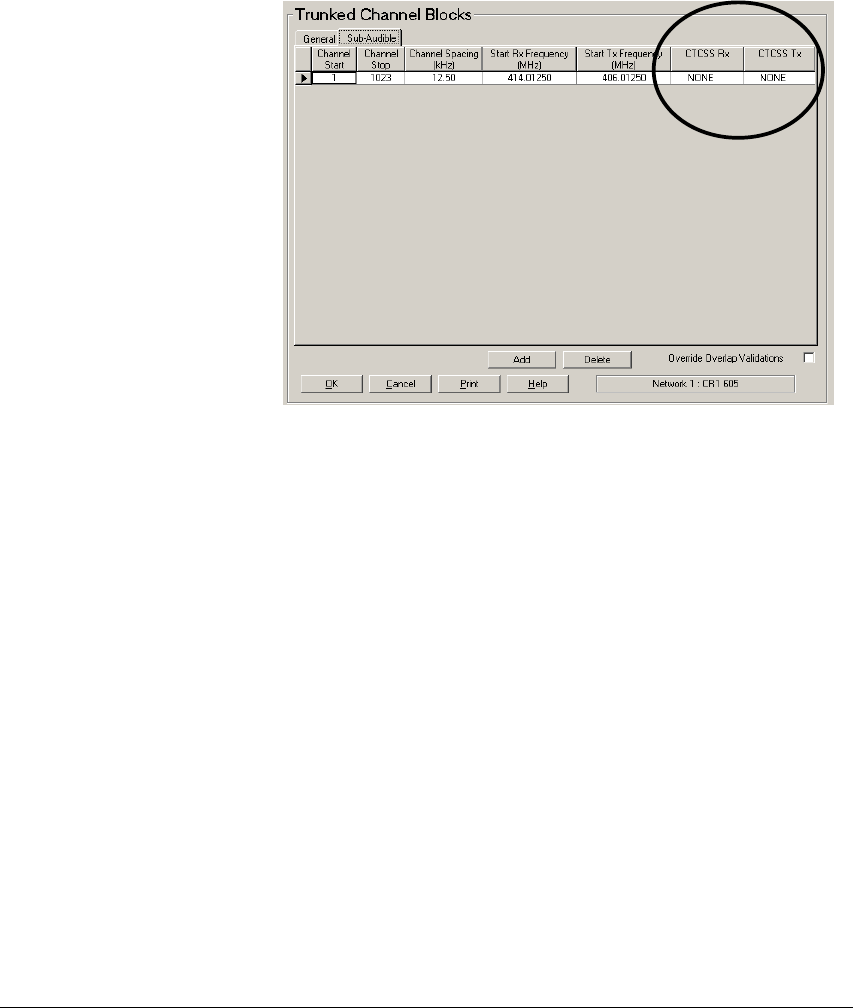

• A transmit and receive CTCSS frequency can now be
defined for each trunked channel block. The CTCSS Rx
field sets the sub-audible signalling that the radio must
receive on the traffic channel before the activity is
regarded as valid and the mute is opened. The CTCSS
Tx field sets the sub-audible signalling that accompanies
each transmission made on the traffic channel. (Raised
as TIMS 29443).
Note: The sub-audible frequency will only be used
on the traffic channel.
Changes to the
TOP-TPA v3.8.0
• Under specific circumstances an application error would
occur when attempting to add a Nokia ANN Fleet.
(Raised as TIMS 28149).
• If attempting to program a conventional radio, the
application would return an error, but modify some of
the fields in the application. (Raised as TIMS 31067).
• The ‘Motion Sensor’ option has been removed from the
‘Worker Detection’ drop-down list on the ‘SOS Call
Options page, as no mainstream motion sensor
accessory is available at this time. (Raised as TIMS
32390).
Compliance Issues None, unless specifically required by Network Operator.
CSO Instruction CSO’s – Please inform all logistics, sales and technical staff
of these changes
TN-923-SR Page 8 of 8 15 October 2004
Tait Electronics Limited
PO Box 1645, Christchurch, New Zealand
Telephone: +64–3–358–3399
Facsimile: +64–3–358–3903
support.taitworld.com
3. Issuing Authority
Name and Position
of Issuing Officer
Tim Lummis
Technical Support Engineer
Confidentiality Confidential – This message or document contains
proprietary information intended only for the person(s) or
organisation(s) to whom it is addressed. All Recipients are
legally obliged to not disclose Tait technological or business
information to any persons or organisations without the
written permission of Tait.
Distribution
Level
Accredited Service Centre and above
Document
History
Original Release
15 October 2004
TPL

Navigation menu
