TND 540 Operating Instructions 740 EN
User Manual: Pdf TND 540 - Operating Instructions User Guide for Rand McNally GPS, Free Instruction Manual
Open the PDF directly: View PDF
.
Page Count: 69
User Manual
TND™ User Manual i
FCC Compliance Statement
This device complies with part 15 of the FCC rules. Operation is subject
to the following two conditions: (1) this device may not cause harmful inter-
ference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses, and can radiate radio frequency energy and may cause harmful
interference to radio communications if not installed and used in
accordance with the instructions. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment o and on, the user is
encouraged to try to correct the interference by one of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet that is on a dierent circuit
from the GPS unit.
• Consult the dealer or an experienced radio/TV technician for help.
When using the device, ensure that the antenna of the device is at least 20
cm away from all persons.
IC Compliance Statement
This device complies with Part 15 of the FCC Rules and Industry Canada
license-exempt RSS standard(s). Operation is subject to the following
two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference
that may cause undesired operation of the device.
This Class B digital apparatus complies with Canadian ICES-003.
IC Caution
Intentional or unintentional changes or modications to the equipment not
expressly approved by Rand McNally could void the user’s authority
to operate the equipment.
IC attestation de conformité
Ce dispositif est conforme à la norme FCC Partie 15 et aux norme(s)
RSS permis-exempte(s) d’Industrie Canada. L’opération est soumise
aux deux conditions suivantes:
3. Ce dispositif ne peut pas provoquer d’interférence nocive et
4. Ce dispositif doit accepter toute interference reçue, y compris
les interférences qui peuvent causer un mauvais fonctionnement
du dispositif.
Cet appareil numérique de la classe B est conforme à la norme
NMB-003 du Canada.
Attention
Les changements ou modications à l’équipement, que ce soient
intentionnelles ou non, non expressément approuvés par Rand McNally
pourraient annuler l’autorisation de l’utilisateur à utiliser cet équipement.
IC: 10199A-01001A
TND™ User Manual ii
About GPS
The Global Positioning System (GPS) is a constellation of satellites that
a GPS receiver uses to calculate geographical positions. To determine
a position, data from at least three satellites is required. To determine
elevation, the data from four or more satellites is required. Accuracy of
the positioning varies from 10 feet to several hundred feet, depending
on vehicle placement and the surrounding environment.
Geographical terrain (such as mountains), man-made structures (such as
highway overpasses, bridges, and tall buildings), as well as weather
can interfere with the GPS signal. For best GPS reception, position the
device and mount with a clear line of sight to the sky. Some vehicles
may have a limited view of the sky due to metal sun shields or a
metallized windshield coating.
Map data includes the geographical coordinates for address locations and
points of interest (POIs). With GPS reception, your device calculates a route
to your selected location.
Customer Support
Call toll-free:
1-877-446-4863
Service hours:
Monday through Friday, 7 a.m. to 6 p.m. CT
(Except ocial holidays)
E-mail:
TNDSupport@randmcnally.com
TND™ User Manual iii
Table of Contents
1. Your Device .......................................................................................................................1
Safety Information ..........................................................................................................1
What’s Included ........................................................................................................... 2
Charge the Battery ...................................................................................................... 2
Install the Mount ............................................................................................................. 2
Your TND™ ..................................................................................................................... 3
2. Settings ............................................................................................................................ 6
Main Menu ...................................................................................................................... 6
Guide to Truck Tools and Device Preferences ......................................................... 7
Truck Info ...................................................................................................................... 8
General Preferences ............................................................................................... 9-10
Route Preferences ........................................................................................................10
Map Preferences ........................................................................................................... 11
Warnings .....................................................................................................................12
3. Maps & Routing ..............................................................................................................13
Map Views ................................................................................................................... 14
Search for an Address ............................................................................................ 15-16
Search for Points of Interest .....................................................................................17
Rout Map Window .......................................................................................................18
View Directions .......................................................................................................19-21
Eits Quick View .............................................................................................................22
Route to Here, Set Origin ........................................................................................23
Add as Via ............................................................................................................ 23-24
Alternate Routes .......................................................................................................... 25
Junction View.................................................................................................................26
Location and Route Options ....................................................................................27
Virtual Dashboard ........................................................................................................28
Reset Trip Information .................................................................................................29
4. Destinations ....................................................................................................................30
Tips ................................................................................................................................31
New Location ...............................................................................................................32
Route to Address/City/Intersection ................................................................. 33-35
Address Book ......................................................................................................... 36-37
Multi-Stop Trips ..................................................................................................... 38-40
Tap on Map .................................................................................................................... 41
Avoid List ....................................................................................................................42
Points of Interest (POIs) ........................................................................................ 43-46
Local Search ...................................................................................................................47
Conrmation Windows................................................................................................48
Toll Costs, Route Compare ......................................................................................... 49
5. Tools & Features ............................................................................................................50
Wi-Fi ..............................................................................................................................50
Weather ...........................................................................................................................51
Fuel Prices ....................................................................................................................52
Trac ............................................................................................................ 53-54
Truck Tools ....................................................................................................................55
Status ..........................................................................................................................56
Mileage .........................................................................................................................57
Trails ..............................................................................................................................58
Fuel Logs ........................................................................................................................59
Quick Planner ............................................................................................................60
Road Atlas Information ................................................................................................61
Calendar, Notes, Unit Converter, Calculator ......................................................... 62
5. DriverConnect .................................................................................................................63
6. Connect With Rand.......................................................................................................64
Tell Rand ....................................................................................................................64
More Information ........................................................................................................65
Note: Some screens may appear slightly dierent, depending on device model
and software version.
TND™ User Manual 1
Caution: Important Safety Information
Navigation
• Use this navigation device at your own risk.
• Use this navigation device only when it is safe to do so.
• Look at the display only when it is safe to do so.
• Trac regulations always have priority over any instructions from the
navigation system.
• Follow navigation system instructions only when local regulations and
road trac allow you do so.
• Make sure that the mount is securely mounted and properly
adjusted before each trip.
• Note: If you do not understand the spoken instructions or are unsure
of what to do next, refer to the navigation map on your navigation
device.
Installation
• Make sure that the mount does not impair the driver’s visibility.
• Do not attach the mount within the airbag deployment zone.
• When installing the mount, make sure that it does not pose a risk
in the event of an accident.
• Do not run cables directly next to safety-relevant devices and
power supplies.
• After installation, check all safety-relevant equipment.
• Connect the wall charger to a 120V or 240V outlet only.
• Connect the vehicle charger to a 12V outlet only.
1. Your Device
Device
• Do not use sharp-edged objects on the device touch screen.
• The device is not waterproof and is not protected against water dam-
age.
• Protect the device from extreme temperatures. Operating
temperature for the device is between 32 degrees F and
120 degrees F.
• Do not open the navigation device casing.
• Do not attempt to replace the battery. Contact Rand McNally
Customer Support with questions about the battery.
• Always follow local regulations when disposing of this device.
• Note: Make sure that there are no kinks in the cable and that
it will not be damaged by any sharp objects.
• Note: Use only a moist cloth to clean the navigation device.
• Note: Do not pull the cable to unplug the unit.
TND™ User Manual 2
TND 540: What’s Included
• Rand McNally TND™
• Suction cup mount with adjustable bracket
• Vehicle charger
• Mini USB cable
• Anti-glare screen protector
Charge the Battery
It is recommended that the device is always
connected to a power source during use.
Note: The vehicle may need to be on for the device to charge.
1. Your Device
Install the Mount
Note: Follow all local regulations governing the placement of the mount.
1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective lm.
4. Adjust the angle of the mount using the thumbscrews.
5. Pull the suction cup lever up to release suction.
6. Plug the power cord into the device and the vehicle’s 12-volt
power source.
7. Optional: To use your vehicle’s speakers, connect an AUX cable from
the device’s AUX out to your vehicle’s AUX in port.
8. Slide the device onto the mount.
9. Place and hold the mount suction cup against the
mounting surface.
10. Press the suction cup lever down until it snaps into place.
11. Adjust the device so that it can be easily seen and does not
block the driver’s line of sight.
2
3
4
5
1
2
34
5
1
Thumbscrews
Press down
to hold
TND™ User Manual 3
1. Your Device
TND™ User Manual 4

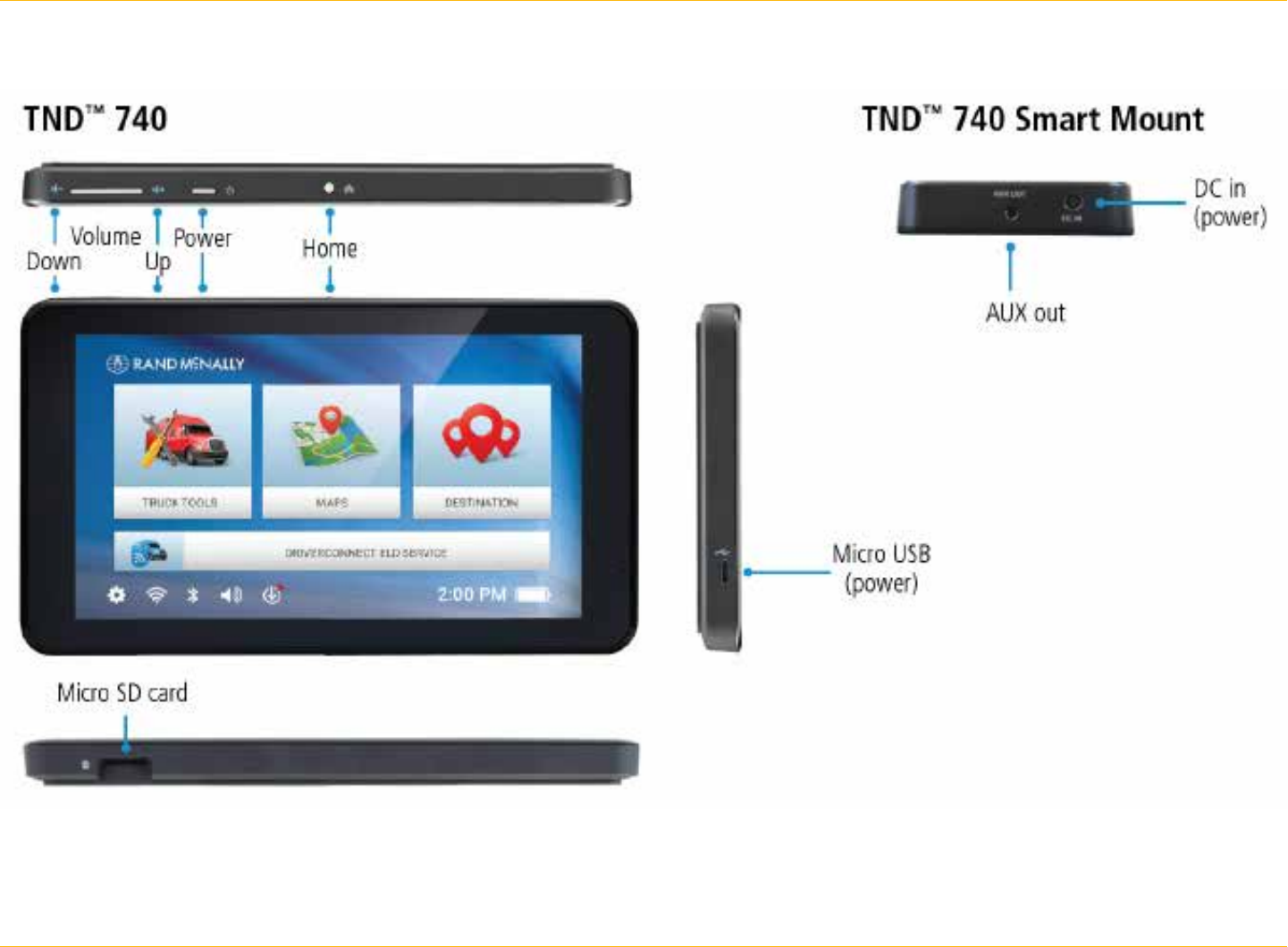

TND 740: What’s Included
• Rand McNally TND™
• Magnetic mount
• Windshield mount with suction cup
• Vehicle charger
• USB cable
• Anti-glare screen protector
Charge the Battery
It is recommended that the device is always
connected to a power source during use.
Note: The vehicle may need to be on for the device to charge.
1. Your Device
Install the Mount
Note: Follow all local regulations governing the placement of the mount.
1. Select an area with a line of sight to the sky and GPS satellites.
2. Clean and dry the mounting area.
3. Remove the suction cup protective lm.
4. Adjust the angle of the mount using the thumbscrews.
5. Pull the suction cup lever up to release suction.
6. Plug the power cord into the device and the vehicle’s 12-volt
power source.
7. Optional: To use your vehicle’s speakers, connect an AUX cable from
the Magnetic mount AUX out to your vehicle’s AUX in port.
8. Slide the device onto the mount.
9. Place and hold the mount suction cup against the
mounting surface.
10. Press the suction cup lever down until it snaps into place.
11. Adjust the device so that it can be easily seen and does not
block the driver’s line of sight.
Press down
to hold
Thumbscrews
6
2
3
4
5
1
6
2
3
4
5
1
TND™ User Manual 5
1. Your Device
TND™ User Manual 6
2. Settings
Main Menu
1 Truck Tools
Select to enter truck information, set warnings, and access other tools.
2 Go To Map
Tap to view location on the map.
3 Guided Search
Tap to select an address or point of interest (POI).
4 DriverConnect
Tap to launch the DriverConnect app and log hours of service (HOS),
Driver-Vehicle Inspection Reports (DVIRs), and other compliance fea
tures.
Note: You must connect the TND to Rand McNally electronic
logging device (ELD), such as the ELD-50 or DC-200, in order to use this
software.
5 Battery Power and Time Indicators
6 System Updates
Tap to check for software or system updates.
7 Brightness
Tap to adjust the screen brightness.
Volume
Tap to increase or decrease spoken instructions volume, and mute or
unmute spoken instructions.
Note: You can also tap this icon when it appears on the map screen
to mute/unmute.
Bluetooth
Tap to set up a Bluetooth connection.
Wi-Fi
Tap to select a Wi-Fi network or hotspot.
Settings
Tap to set device, route, or map preferences.
Note: Not all settings are available on all models.
1 2 3
5
678910
4
11
11
8
9
10
Look for this icon for help tips on many screens.
TND™ User Manual 7
2. Settings
Truck Tools Page
Truck Info
Hazmat Type........................................................ 8
Weight (Empty) .................................................. 8
Weight (Loaded) ............................................... 8
Height ................................................................. 8
Width ................................................................. 8
Trailers ................................................................. 8
Number of Axles ................................................ 8
General Preferences
System Settings ................................................... 9
Skin Type ............................................................... 9
Vehicle Type ........................................................ 9
Yard Time Zone ................................................... 9
Day/Night Mode ................................................ 9
My Custom POIs ................................................ 9
Mileage Log ......................................................... 9
Screen Click ......................................................... 9
Tutorial ................................................................. 9
Voice Name ........................................................ 9
Language ............................................................. 9
Units ................................................................. 9
Load Prompt/Notication .............................. 9
T
oll Prompt/Notication .................................10
Clock Setting ......................................................10
Contact & About ..............................................10
Route
Use T
rac ............................................................ 10
Recalculation
.....................................................10
Freeways
.............................................................10
Ferries ................................................................10
T
unnels ...............................................................10
T
urn Announcements .....................................10
Junction View Distance ..................................10
ETA Adjustment ................................................10
Route ...............................................................10
Tollways ................................................................10
U-T
urns ...............................................................10
Cross Country Borders ...................................10
Dirt Roads ...........................................................10
Manage Avoid List ........................................... 10
Fast Recalc .......................................................... 10
Map
Map Style .............................................................11
Map Auto Zoom ................................................11
Lane Guidance ...................................................11
POI Icons .............................................................11
T
ruck POI Icons ..................................................11
Address Book Icons ..........................................11
T
ruck Icon .............................................................11
Bus Icon ................................................................11
Car/Light T
ruck Icon .........................................11
Map View Mode ...............................................11
Route Color .........................................................11
Warnings
Warning/Alert Prompts ..................................12
Auto Dismiss Warnings ..................................12
Curve Warnings ................................................12
Hill Warnings ....................................................... 12
Engine Brake Warnings .................................. 12
Narrow Road Warnings...................................12
State/Province Border Alert ..........................12
State/Province
Border/Timezone Change ........................12
T
oll Booth Alert ..................................................12
Construction Area ............................................ 12
Speed Limit Warning....................................... 12
Speed Limit Change Warning ......................12
Weigh Station .....................................................12
Device Preferences Page Device Preferences Page
1. Tap and to view the options.
2. Tap the option to be set.
3. Enter the new information.
4. Tap X to close and save changes.
TND™ User Manual 8
2. Settings
Width Use the + and - buttons or enter a numeric
value by tapping the calculator.
Trailers Straight
48’
53’
Double
Triple
Number of Axles Use the + and - buttons.
Truck Info Options
Hazmat Type None
Explosives
Gases
Flammable Liquids
Flammable Solids
Oxidizers
Poison
Radioactive
Corrosives
Other
PIH
Weight (Empty) Use the + and - buttons or enter a numeric
value by tapping the calculator.
Weight (Loaded) Use the + and - buttons or enter a numeric
value by tapping the calculator.
See Load Option in
Preferences › General (page 8)
or on the Main Menu (page 4).
Height Use the + and - buttons or enter a numeric
value by tapping the calculator.
Truck Info Options
TND™ User Manual 9
2. Settings
General Preferences Options
General Preferences Options
My Custom POIs Manage Custom POIs
Select a Category to Edit
Hide All Icons on Map
Go to Map
Mileage Log Truck/Bus Only
Car Only
Truck & Car
Don’t Log Mileage
Screen Click Click O
Click On
Tutorial View Tutorial and Tips
Voice Name Allison
Samantha
Susan
Tom
Language English (Basic)
English (Advanced)
Español
Français
For the screen and spoken instructions.
Units U.S. Standard
Metric
Auto Select
Load Prompt/ Prompt
Notication Always Loaded
Preferences
System Settings System Settings
GPS Repair
System Update
Skin Type Modern
Classic
Defaults to Modern. Use Classic skin type
for the look and feel of older TND models.
Vehicle Type Truck
Car/Light Truck
Bus
Yard Time Zone Hawaii
Alaska
Pacic Time
Arizona
Mountain Time
Central Time
Indiana (East)
Atlantic (Canada
Newfoundland
Day / Night Mode Automatic
Always Day
Always Night
• Tap and to view the options.
• Tap the option to be set.
• Enter the new information.
• Tap X to close and save changes.
TND™ User Manual 10
2. Settings
General Preferences Options
Route Preferences Options
Turn Announcements Set three distances at which you want
to be warned about an upcoming turn.
The rst announcement will be the farthest
from the turn and the third the closest.
Junction View Distance Tap - or + to set the distance
ETA Adjustment Increase ETA more
Increase ETA some
ETA OK
Decrease ETA some
Decrease ETA more
Route Fastest Route
Shortest Route
Tollways Allow Tollways
Avoid Tollways
U-Turns Allow U-Turns
Avoid U-Turns
Cross Country Borders Allow Crossing Borders
Avoid Crossing Borders
Dirt Roads Allow Dirt Roads
Avoid Dirt Roads
Manage Avoid List Roads
States/Provinces
Areas
Routes
Fast Recalc O
On
Preferences - continued
Toll Prompt/ Enabled
Notication Disabled
Clock Setting 12-Hour Clock
24-Hour Clock
Contact & About Tap to show version information and
copyrights.
Route Preferences Options
Note: The default settings for your device were optimized for the vehicle
route. Use the options below to ne-tune these settings.
Use Trac On
O
Recalculation Manual Recalculate
Auto Recalculate
Freeways Allow All (Default)
Avoid Freeways
Avoid Small Roads
Prefer Freeways
Ferries Allow Ferries
Avoid Ferries
Tunnels Allow Tunnels
Avoid Tunnels
TND™ User Manual 11
2. Settings
Preferences - continued
Map Preferences Options
.Map Style Light
Dark
High Contrast
Map Auto Zoom O
On, Auto Scale
On, Street Scale
On, City Scale
On, State Scale
Set to auto scale to keep the current
vehicle position and the next turn
in the map view at all times. Set to
street/city/state scale to specify the
maximum scale of the zoom.
Note: When in 3D Map mode with
Auto Zoom on, the map will change
to North Up at certain zoom levels. Also,
the visual turn screen will not appear in
3D mode with Auto Zoom on because a
close up view of the turn is not needed.
Lane Guidance O
On
POI Icons O
On
Select icons to display on map.
Select restaurants, banks, gas
stations, etc. to display on the
map.Tapanycategorytollinthe
square and display those icons.
Truck POI Icons O
On
Select icons to display on map.
Address Book Icons O
On
Truck Icon 2D
3D
Bus Icon 2D
3D
Car/Light Truck Icon 2D
3D
Scroll left or right to select the vehicle
icon and color to display on the map.
Map View Mode Heading Up
North Up
3D View
Route Color Move the slider to the left or right to
set the route color.
Map Preferences Options
TND™ User Manual 12
2. Settings
Warning/Alert Prompts None
Audio & Visual
Visual
Audio
Auto Dismiss Warnings Never
After 2 Seconds
After 10 Seconds
After 30 Seconds
Curve Warnings Set warning distance to curves
areas by using the + and - buttons.
Hill Warnings Set warning distance to upcoming hills
areas by using the + and - buttons.
Engine Brake Warnings Set warning distance to begin braking
areas by using the + and - buttons.
Narrow Road Warnings Set warning distance to narrow roads
areas by using the + and - buttons.
State/Province Set warning distance to state/province
Border Alert borders by using the + and - buttons.
State or Province Border/ O
Timezone Change On
Warning Preferences Options
Preferences - continued
Warning Preferences Options
Warning Display Size Full Screen
Small Bar
Toll Booth Alert Set warning distance to toll booths
by using the + and - buttons.
Construction Area Set warning distance to construction
areas by using the + and - buttons.
Speed Limit Set warning distance to speed limit
changes by using the + and - buttons.
Set the amount over the posted limit at
which the warning appears.
Set a user-dened maximum speed to
be warned whenever the vehicle
exceeds that speed, regardless of limits.
Speed Limit Change Set warning distance to a change in
the speed limit by using the + and -
buttons.
Weigh Station Set warning distance to weigh stations
by using the + and - buttons.
Note: To turn warnings o completely, tap “-” until OFF displays.
TND™ User Manual 13
3. Maps
Main Menu
Search For an Address
Tap to type in any address or search by keyword.
Compass Direction
Tap to change the map display. An icon displays the selected option:
North up (N), heading up (arrow), or 3D.
Zoom In
Tap to zoom in.
` Route Distance
Reects the distance from your point of origin to your destination.
Zoom Out
Tap to zoom out.
Map View Tab
Tap to expand the map screen. By default, icons are minimized to
show simply the search bar, compass direction, and zoom. Tap again
to switch back to the default view.
Exit Points of Interest (POI)
Tap to view POIs along the exit ahead.
Live Data
Tap to view fuel, weather, and trac along the route. (Requires Wi-Fi)
Virtual Dashboard
Current Speed
Tap to display the Virtual Dashboard.
Clock/Elevation
Tap to toggle between the clock and elevation.
Home (Main Menu)
Tap to return to the TND home screen.
Basic Map View
Expanded Map View
1 2
12
8
3
4
5
6
7
9
10 11 6
2
3
4
5
6
7
8
9
10
11
12
1
TND™ User Manual 14
3. Maps
Search For an Address
1. Tap the search bar at the top of the Navigation screen to type in any
address or search by keyword. Or, tap any of the categories to search for
specic types of destinations.
2. Once a destination is entered, tap Navigate and your route options will
display.
3. Select either the fastest route or an alternate route.
4. Tap Start Navigation to begin the route.
Note: If a keyword search does not give the results you need, refer to the
Guided Search section beginning in Chapter 4.
TND™ User Manual 15
3. Maps
Helpful Tips on Entering Addresses
Auto-Complete Feature
Enter the rst few characters in a name and a short list displays
names that start with the typed characters. Continue entering characters
until the searched-for name displays in the list. Tap the name to select it.
Cities
Cities with common names, such as “Athens”, may have multiple locations.
The tablet will list all locations. If a name does not display, continue typing
characters until the name you are looking for displays in the list.
State or County Routes
If you’re entering a State or County Route, it’s usually best to rst either enter
the State or County initials, (for example, State Road 535 would be entered
as “SR”) but you may also need to try other options, such as “State Road” or
“CA” for California, for example.
Nearby vs Along Route
You can modify the search to include all areas near your current location by
selecting Nearby, or in areas along your current route by selecting Along
Route. Tap the Change button to alternate between these searches.
Truck Loads
After setting a destination, you must conrm if the truck is loaded or not. Tap
a button to indicate:
Empty: The truck is not loaded
Loaded: The truck is loaded
Always Loaded: The Loaded option will always be selected, and this page
will no longer display.
TND™ User Manual 16
3. Maps
Points of Interest
You can also use the Map function to search for Points of Interest (POIs)
along your route, or near your current location. POIs are organized by cat-
egories.
1 Tap a POI category in the Search bar.
2 Displays POIs nearby, or along your route.
3 Tap to view additional POI categories..
4 Select a category, and locate a POI from the expanded list.
Note: Turns red when speed limit warning exceeded.
(See page 12 to set speed limit alert.)
5 Tap the POI.
6 Tap Navigate, Add to Address Book, or Add as Via.
Note: The Address Book icon in the Search bar contains a list of destina-
tions you have added to your address book.
1
2
3
4
5 6
TND™ User Manual 17
Route Map Window 8 Map View Tab
Tap to simplify the map screen. Icons are minimized to show simply the
zoom, next maneuver, and miles/time.
9 Home Screen
10 Miles/Time
Displays remaining distance. Tap to select from: yard arrival time,
arrival time, remaining time, yard time, and elevation.
11 Current Mile Marker
Tap to open a “Tell Rand” message.
12 Current Information
View current information by city, street, or upcoming intersection. Also
displays advanced lane guidance and weather overlay key, when enabled.
Tap to change. (Note: For some destinations, the “Am I close?” feature
counts down addresses as the vehicle approaches.)
13 Current Speed
Tap to display the Virtual Dashboard. Turns red for speed warnings.
14 Virtual Dashboard
15 Location and Route Options
Tap to see current location information, change route settings, detour,
cancel a route, and manage avoided roads.
16 Speed Limit
Orange for truck limit; white for general limit. Tap to open a “Tell Rand”
message about speed limits.
1 Next Maneuver
Tap to repeat spoken next maneuver instructions.
2 Road Name
Name of street you will turn onto next.
3 Directions Slide-Out List
Tap to select a route display option.
4 Compass Direction
Tap to change the map display. An icon in the upper right corner displays
the selected option: North up (N), heading up (arrow), or 3D (3). Also dis-
plays Wi-Fi status.
5 Exits Quick View
Slide out to show upcoming exit information.
6 Live Data
Tap to view Trac, Weather, and Fuel Price Information.
Note: This feature requires a Wi-Fi connection.
7 Zoom In/Zoom Out
3. Maps
City, county, and state Current street name
Next intersecting street name Advanced lane guidance
1
2
3
13
12
11 10
8
15
16
7
6
5
4
914
17
TND™ User Manual 18
3. Maps
View Directions
Route Display Options
When rst opened, the slide-out list displays in Detail View showing each
maneuver.
Use and to view the instructions.
To change the route display, choose Detail View, Highway View, Trip Summa-
ry (for multi-stop trips), or Map View (to view the route from start to nish).
Distance
Displays the distance for each road segment.
Street/Road Name
Displays the street name you will be on after performing the next maneu-
ver. Tap any item in the list to view it on the map and to detour around it if
necessary.
Leg
Number of the leg (for multi-stop trips) and distance.
Highway Name
Displays the highway you will be on.
.
Detail View
Highway View
1
2
3
4
2
3
4
1
TND™ User Manual 19
3. Maps
Directions Slide-Out List
Route Display Options
1. When rst opened, the slide-out list displays in Detail View showing
each maneuver.
2. Use and to view the instructions.
3. To change the display option, tap the radio button on the bottom of the
screen. See Highway View, Trip Summary (for multi-stop trips), and
Summary Map View at left.
1 Next Maneuver
Displays the remaining distance until the next maneuver.
2 Distance
Displays the distance for each road segment.
3 Street/Road Name
Displays the street name you will be on after performing the next
maneuver. Tap on any item in the list to view it on the map and to
detour around it if necessary. (Note: For multi-stop trips, highways in
each leg are listed, color-coded by segment.)
4 Total Distance and Time
Total distance and time for the entire trip.
5 Leg
Number of the leg and distance.
6 Leg Destination
Leg destination.
Trip Summary (for multi-stop trips)
Highway View
1
2
3
Summary Map View (entire trip)
6
4
4
5
TND™ User Manual 20
3. Maps
Trip Summary View (for multi-stop trips)
Map View (entire route)
View Directions Continued
Total (or Approximate) Distance and Time
Displays the total distance and time for the entire multi-stop trip.
Leg
Number of the leg (for multi-stop trips) and distance.
Destination
Destination for that leg of the trip.
Remove Stop
Tap to remove the stop from the trip.
1
2
34
12
3
4
1
TND™ User Manual 21
3. Maps
Exits Quick View
Slide out to show Points of Interest and amenities at upcoming exits.
The list displays the distance to the next exit, exit number, and a count of
available amenities.
1. Tap an exit to bring up a list of POIs and amenities at that exit.
2. Tap All, Fuel, Food, or Hotel to display locations by category.
3. Tap any item in the list to route to that location.
TND™ User Manual 22
3. Maps
Route to Here, Set Origin, Add as Via
You can drag the map with your nger to move it to another location. The
crosshairs will display when you move the map. Place the crosshairs over the
location you are looking for. When you nd the location, press and hold the
screen for a few seconds and choose Route to Here, Set Origin, or Add
as Via.
Crosshairs
Drag the crosshairs over the desired location.
Route to Here
Tap Route to Here to navigate to the location.
Set Origin
Tap to set the location as the origin. The origin is the starting point of
the route.
Save to Address Book
Add the location to your address book.
As as Via
Add the location as a via point between the origin and the destination.
Use this feature to create multi-stop trips.
Avoid or Detour
Add the location as a point to avoid on all future routes, and/or to cre
ate a detour around the location.
Location Icon
Shows the distance, in miles, from your current location to the crosshairs
on the map. Tap to re-center the map on your current truck location.
12
3
4
5
6
2
3
4
5
6
1
7
7
TND™ User Manual 23
3. Maps
Add as Via (Multi-Stop Trips)
To create a multi-stop trip, you must select and begin navigation to a loca-
tion. Once the TND begins navigating, select another address (or POI), and
select the Add as Via option.
1 Select Add as Via.
2 Select where to add the via point to the trip. You can add it to the begin
ning of the trip, add it to the end of trip, or manually reorder multiple via
points by selecting Reorder Trip.
3 To reorder a trip, select the destination to move up or down in the list.
4 Use the arrow buttons to move that destination (destinations order rst
to last in top to bottom order, respectively.
5 Tap OK to navigate the newly ordered multi-stop trip..
1
2
3
4
5
TND™ User Manual 24
3. Maps
Alternate Routes / Avoid Tolls
The TND Map will often select multiple routes to reach your destination. You
can choose to navigate to any of the routes oered. The routes will display
in dierent colors on the map.
1 Select Add as Via.
2 Select which route to use, and tap Start Navigation.
3 If the selected route contains toll costs, a warning box displays. You can
choose:
• Use Current Route to use the current route anyway (incurring tolls)
• Compare Routes to compare alternate routes to select a route without
tolls
• Don’t Prompt for Tools to prevent additional toll warnings from dis-
playing
1
2
3
TND™ User Manual 25
Junction View
When on a route, Junction View displays when you have an upcoming
maneuver. Set distance in Preferences > Route. Once past the maneuver,
Junction View closes and the previous window displays.
1 Signs to follow for the next maneuver.
2 Number and direction of lanes for the next maneuver.
3 Distance to the upcoming maneuver. Distance decreases as you
approach the ramp.
4 Lane assist arrow.
5 Return to previous window.
Turn View
Displays for upcoming turns. Set distance in Preferences > Route.
3. Maps
1
2
3
4
5
TND™ User Manual 26
3. Maps
Location and Route Options
1 Nearest cross street
2 Current road you’re on, current town you’re in
3 Latitude and longitude at current location
4 Return to previous window
5 Detour
6 Detour the entire route and add it to the avoid list.
Around Part of the Route
1. On the left side of the Window, tap the number of miles
on the route to be avoided.
2. The route is recalculated.
Around a Specic Roadway
1. On the right side of the Window, tap and to view
a list of roads in the current route.
2. Tap on one or more roadways to be avoided.
A check mark appears in front of each selected road.
3. Tap Detour to recalculate the route.
Note: Tap Cancel Detour to remove detours.
7 Skip to next stop (for multi-stop trips).
8 Cancel current route.
9 Save current location to the Address Book.
10 Access list of avoided roads.
11 Access Route Preferences.
12 Access list of temporary avoids/detours.
14
5
2
3
6
9
78
10 11 12
TND™ User Manual 27
3. Maps
Virtual Dashboard
To show the Virtual Dashboard, tap the Current Speed.
1 Current direction of travel.
2 Displays current times at the yard, current location
and destination, as well as estimated time of arrival.
3 Sunrise and sunset times based on vehicle location
(latitude/longitude) and day.
4 Current speed (above) and posted speed limit (below).
Note: Turns red when speed limit warning exceeded.
(See page 12 to set speed limit alert.)
5 Elevation at current location.
6 Percentage of current trip completed, distance to next maneuver,
and the number of miles and time spent on the trip to this point.
7 Match with truck’s odometer to automatically update new fuel logs.
8 Return to the Route Map Window.
9 Gather trip information for up to three trips.
Includes odometer settings, hours, and speeds.
10 Reset trip information for the selected trip (Tab 1, Tab 2 or Tab 3).
11 Select to automatically reset the information in each tab after
the vehicle has remained stationary for the specied number of hours.
12 View fuel logs and add fuel purchase information.
Tap here
1
2
12
8
3
4
5
6
7
9
10 11
TND™ User Manual 28
3. Maps
Manually Reset Trip Information
1. Tap on the tab you want to reset.
2. To set the odometer for the selected tab back to zero,
tap Reset All.
3. Information is captured as you travel the route.
Automatically Reset Trip Information
To reset trip information after the vehicle has remained stationary after
a specic number of hours:
1. Tap on the tab you want to reset.
2. Tap Auto Reset.
3. Tap to increase the number of hours.
4. Tap to decrease the number of hours.
5. To save changes, tap Change.
6. The Tab displays the auto reset number of hours.
TND™ User Manual 29
Destinations
To access this window, tap Guided Search on the map.
1 Back
Tap to return to the map.
2 New Location
Tap to route to a new location by address, city center, intersection,
or latitude/longitude.
3 History
Tap to route to a recently entered location.
4 Address Book
Tap to view a list of saved locations.
5 Multi-Stop Trips
Tap to view a list of saved multi-stop trips or to create a new one.
6 Points of Interest/POIs
Tap to search for a point of interest (POI) such as a gas station,
restaurant, etc.
Local Search
Tap to search for local businesses, restaurants, and more
by name or keyword. (Note: Wi-Fi connection required.)
4. Destinations
1
2 3 4
5 6
7
7
TND™ User Manual 30
Helpful Tips on Entering Addresses
Auto-Complete Feature:
Enter the rst few characters in a name and a short list displays
a couple of names that start with the typed characters.
On the keyboard, the only keys available are for the next valid
characters in a search name.
Continue entering characters until the searched-for name displays
in the list. Tap on the name to select it.
Cities:
Some cities with common names such as “Athens” have several types
of names associated with a city.
If a name does not display, continue typing characters until the name
you are looking for displays in the list.
Streets:
If the next letter in the street name can not be selected on the keyboard,
tap Expand Search to search a greater area.
The Expand Search button can also help locate addresses that may actually
be in a dierent town, spelled slightly dierently, or in a neighboring town.
Note: If you’re entering a State or County Route, it’s typically best to rst
either enter the State or County initials (for example, State Road 535 would
be entered as “SR”) but you may also need to try other options, such as “State
Road” or “CA” for California, for example.
4. Destinations
Tap to view a longer list of names
matching the typed characters.
Add a space.
Delete last character and move
back one space.
Type a number,apostrophe, hyphen,
or other symbol.
TND™ User Manual 31
New Location
1 Address
Tap to route to an address by entering the city, street, and number,
or by entering the zip code and street.
2 City Center
Tap to route to a city center.
3 Intersection
Tap to route to two intersecting roads in a city.
4 Back
Tap to return to the previous window.
5 Enter Lat/Long
Tap to route to a location by latitude and longitude.
6 Go To Map
Tap to return to the map.
4. Destinations
1 2 3
4
5
6
TND™ User Manual 32
Search for an Address
1. Tap Guided Search > New Location > Address.
2. Type the rst few characters in the city name. As you type,
a short list of matching city names displays.
3. Tap on a city to select it.
• If the city is not displayed on the short name list, continue typing
characters in the city name or tap List to display a long list of city
names. Use the up and down arrows to view all cities/states.
Tap on a city to select it.
Note: If a city name appears twice within a state, you may need to check
both for your specic address.
4. Or tap Enter Zip Code. Type the zip code.
5. Type the rst few characters in the street name, or if the next
characters of the street name cannot be selected on the keyboard,
tap Expand Search and search a wider area.
6. Tap on the street name from the displayed list.
7. Tap the house number or tap List to show a list of address ranges
and select a range.
Note: To enter the House Number before the street, tap this button in step
5. This preference will be saved for subsequent address entry.
8. Tap on the street number range from the list.
The Conrmation Window displays.
9. Tap Begin New Route to navigate to the location.
4. Destinations
TND™ User Manual 33
Route to a City Center
1. Tap Guided Search > New Location > City Center.
2. Type the rst few characters in the city name.
3. Tap on the city/state name.
The Conrmation Window displays.
4. Tap Begin New Route to navigate to the location.
Route to an Intersection
5. Tap Guided Search > New Location > Intersection.
6. Type the rst few characters in the city name.
7. Tap on the city name.
8. Type the rst few characters in the primary street name, or if the next
characters of the street name cannot be selected on
the keyboard, tap Expand Search and search a wider area.
9. Tap on the street name in the list.
10. Type the rst few characters in the intersecting street name.
11. Tap on the intersecting street name.
The Conrmation Window displays.
12. Tap Begin New Route to navigate to the location.
4. Destinations
TND™ User Manual 34
Route to a Latitude/Longitude
1. Tap Guided Search > New Location > Enter Lat/Long
2. Tap in the Latitude eld.
3. Enter the latitude of the location and tap Enter.
4. Tap in the Longitude eld.
5. Enter the longitude of the location and tap Enter.
6. Tap Go. The Conrmation Window displays.
7. Tap Begin New Route to navigate to the location.
Note: There are two ways to enter latitude/longitude: by decimal degrees
or by degrees, minutes, and seconds.
4. Destinations
TND™ User Manual 35
Address Book
Add Locations to the Address Book from the Conrmation Window
:
1. Ta p Save to Address Book.
2. Tap Yes to accept the default name or tap No to display a keyboard.
3. Type the name of the location and tap Enter to save the location
in the Address Book. The Conrmation Window re-displays.
Entries
• Tap Guided Search > Address Book.
Entries are alphabetically sorted by Name.
• To sort by Distance or Date, tap Sort By.
• Use the up and down arrows to scroll through the list or use the
alphabet buttons on the left.
• Tap the Search eld to search the Address Book by keyword.
• The notepad icon indicates a note has been added for this location.
Route to an Address Book Location
1. Tap Guided Search > Address Book.
• Tap on the All Addresses tab or
• Tap on the Groups tab.
2. Tap on an address to select it.
The Conrmation Window displays.
3. Tap Begin New Route to navigate to the location.
4. Destinations
TND™ User Manual 36
Create a Group
1. Tap Guided Search > Address Book.
2. Tap on the Groups tab.
3. Tap New Group.
4. Type the group name.
5. To select a dierent color folder, tap .
6. Tap on a color, then tap Close.
7. When nished, tap Enter.
Tap on the next to a group to delete the group.
Addresses will still be saved in the Address Book.
Note: You can also choose to display address book icons
on the map.
Add an Address to a Group
1. Tap Guided Search > Address Book.
2. Tap the Groups tab.
3. Tap on the group you want to add an address to.
4. Tap New Location.
5. Tap Enter New Address, History, Address Book, or POI.
6. If you selected:
• History, Saved, or POI, the selected location is added to
the group.
• Enter a New Address, tap Yes to accept the default name
or tap No to display a keyboard and enter a new name.
Remove an Address From a Group
1. Tap Guided Search > Address Book.
2. Tap on the Group tab.
3. Tap on the Group you want to remove the address from.
4. Tap on the next to the address to be removed.
5. Tap Yes.
4. Destinations
TND™ User Manual 37
Create a Multi-Stop Trip
1. Tap Guided Search > Multi-Stop Trips.
2. Tap New Trip.
3. Type the trip name.
4. To select a dierent color folder, tap .
5. Tap on a color, then tap Close.
6. When nished, tap Enter.
Note: A multi-stop trip can include up to 50 stops.
Add a Stop
Note: You can add locations in the order you want to route to them
or reorder stops later
From the Main Menu:
1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route.
3. Tap Add Locations.
4. To add an address, tap Enter New Address, History,
Address Book, or POI.
5. A Conrmation Window asks if you want to add another stop.
Tap:
• Yes to add another stop
• No if the route is complete.
6. Tap Back to save changes.
Remove a Stop
1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route.
3. Tap on the next to the stop to be removed.
4. Tap Yes.
4. Destinations
TND™ User Manual 38
Reorder Routes
Optimize Automatically
After all locations have been added to a multi-stop trip, you can run
the optimizer wizard to organize your trip.
1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Automatic/Optimize.
5. Tap Select First Stop and select the rst stop, or No Preference.
6. Tap Select Last Stop and select the last stop, or No Preference.
7. Tap Yes to return to your current location to complete the route
or No to complete the route at the last stop.
8. Tap Start Trip to begin the route.
Note: There is a limit of ten stops that can be optimized automatically.
Reorder a Route Manually
1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route you want to optimize.
3. Tap Reorder Trip.
4. Tap Manual.
5. Tap on the stop to be moved and tap the arrows to move stops
up or down.
6. When nished, tap OK.
7. Tap Start Trip to begin the route.
4. Destinations
TND™ User Manual 39
Select and Run a Saved Route
1. Tap Guided Search > Multi-Stop Trips.
2. Tap on the route to select it.
3. Tap Start Trip. The Conrmation Window displays.
4. Tap Begin New Route to navigate to the location.
5. The TND™ calculates the route to your rst stop.
When you have reached the stop, a message displays.
6. Tap:
• Next Stop - To calculate a route to the next stop in the route.
• Skip Next Stop - To skip the next stop and calculate a route
to the stop after the next one.
• End Current Trip - To end the route at the current stop.
Note: To view your entire trip, select Summary Map View from the
Route Display Options.
Delete a Route
1. Tap Guided Search > Multi-Stop Trips.
The Multi-Stop Trips window displays.
2. Tap on the next to the route to be deleted.
3. A conrmation message displays.
4. Tap:
• Yes to delete the route.
• No to keep the route.
4. Destinations
TND™ User Manual 40
4. Destinations
Avoid List
From the map, set specic locations to avoid. Tap on the map and select
Permanent Avoid. Choose Avoid Route, Avoid Road, or Avoid Area.
Or, if the location is along an active route, choose Detour.
Avoid Route
Choose whether to avoid an upcoming distance on an active route, in
the left column, or a specic road section, in the right column. Or,
select Avoid Entire Route. The route is recalculated and the avoided
sections are added to the Avoid List, under Routes.
Avoid Road
Add the selected road segment to the Avoid List, under Roads.
(Note: Reposition the map after zooming in or out to be sure to select
the right location.) Road segments that have been permanently
avoided are shown in pink on the map when zoomed in. Tap on a
segment and tap Remove Avoid to remove the segment from the
Avoid List.
Detour
Detour around a road segment on an active route. The route is
recalculated, but the road segment is only avoided temporarily and
does not appear on the Avoid List. To cancel the detour, tap the icon
in the lower left-hand corner of the map screen and select Detour.
Avoid Area
Set an area on the map to avoid. Increase/decrease the size of the
area using the and buttons. Tap Save to add the area to the
Avoid List, under Areas. Enter a name for the area. If an active route
has been entered, the route does not recalculate. Avoided areas are
shown on the map in pink.
To remove items from the Avoid List, tap Manage Avoid List in Prefer-
ences > Route. Tap the to remove. Tap Roads in the Avoid List to view
avoided roads on the map. You may need to re-enter your destination to
recalculate an active route.
Avoid Options
Avoid Route
Avoid Area
TND™ User Manual 41
Points of Interest (POIs)
1 My Truck
Tap to search for a point of interest near the current vehicle location.
2 City
Tap to search for a point of interest in a city.
3 My Route
Tap to search for a point of interest along the vehicle route.
4 Destination
Tap to search for a point of interest near the route destination.
5 Back
Tap to return to the previous window.
6 Custom POI
Tap to select a custom POI location.
7 Quick Stops
Tap to nd a truck-friendly POI near the current truck location.
8 Go to Map
Tap to return to the map.
4. Destinations
1
3
678
4
5
2
TND™ User Manual 42
Points of Interest (POIs)
1 Travel Center
Tap to search for a travel center with truck amenities.
(See page 28 to lter by amenities.)
2 Truck Services
Tap to search for a truck services POI. (See page 28 to lter by
amenities.)
3 Parking & Rest Areas
Tap to search for truck parking or a rest stop.
4 Weigh Station/Border Crossings
Tap to search for a truck weigh station and international border cross
ings.
5 CAT Scales
Tap to search for a CAT scale location.
6 Dealers
Tap to search for a truck dealership.
7 Other Categories
Tap to select a consumer (non-truck) related point of interest.
8 Back
Return to previous window.
4. Destinations
12 3
4 5 6 7
8
TND™ User Manual 43
Other Categories
1. Tap Guided Search > Points of Interest.
2. Select a search type (My Truck/My Car, City, My Route,
End of Day, or Destination).
3. Tap Other Categories.
4. Tap on a category. (For example, tap Hospital/Emergency.)
5. If necessary, tap on a subcategory type. (For example, tap Pharmacy.)
6. Tap on a location from the list
or
7. Tap All.
8. Tap on the Spell button to display the keyboard.
9. Type the rst characters in the POI name.
10. Tap on the POI name in the displayed list.
4. Destinations
TND™ User Manual 44
Select and Filter Travel Center Amenities and Truck Services
Truck-related Travel Center points of interest can include over 70 dierent
types of amenities. To select only the travel centers with the amenities that you
are interested in, lter your search results.
1. Tap Guided Search > Points of Interest.
2. Select a search type (My Truck/My Car, City, My Route,
End of Day, or Destination).
3. Tap Travel Center or Truck Service.
4. Tap Select Services.
5. Click on the check box of each amenity to be included in
the search.
6. Tap OK.
The Travel Center window displays POI locations with your
selected amenities.
7. Tap on a location from the list.
8. A check next to Filter indicates the search terms have been applied.
Tap Filter to return to general search results.
Rate a Truck Point of Interest
You can rate truck POIs from the Conrmation Window.
For each POI, the top row indicates the community rating from
fellow drivers for the point of interest. The bottom row indicates
your individual rating.
1. Tap on the POI Ratings button.
2. Use and to rate the facility.
3. Tap Create Comment and type a personal comment on the facility.
4. Tap Enter to save the comment.
5. Tap Back to save changes.
4. Destinations
TND™ User Manual 45
Note: This feature requires a Wi-Fi connection.
Use Local Search to search the Internet for a restaurant, business, or any
type of location by name, keyword, or category. Tap Guided Search > Lo-
cal Search.
Choose whether to search:
near your truck
in a specic city
near your destination
Select a category, or tap Keywords to search using a specic name
(e.g., “Subway”) or a keyword (“sandwich”).
Tap Nearby Food to show a list of area restaurants based
on your current location.
Tap My Local History to show a list of previous searches.
4. Destinations
1
2
3
4
5
1 2 3
4 5
TND™ User Manual 46
4. Destinations
Conrmation Windows
1 Destination Address
The selected location address.
Begin New Route
Tap to route to destination.
Compare Routes
Tap to choose between two routes
Add as Via
Add this location as an interim stop between the origin and destination.
This automatically makes the current route a multi-stop trip.
Save to Address Book
Add the location to the Address Book or add to Address Book group. (See
page 18).
Atlas
Cross-reference to printed Rand McNally Motor Carriers’ Road Atlas.
(Page numbers apply to the most recent Atlas.)
Go to Map
Tap to view this location on a map.
Set Origin
Tap to set the location as the starting point of a route.
Map Preview
Displays a preview of the destination location on the map.
Details
Tap to view phone number and amenities at this location.
POI Rating
Tap to rate or add a comment to this location.
Edit Entry
Rename or edit this entry in the Address Book.
Note
Add a note about this location in the Address Book.
Back
Tap to return to previous window.
Address Book
New Location
1
2
Truck POI
5
6
3
4
14
7
811
8 12 13
9
10
8
14
1
4 5
3
6
7
2
3
4
5
6
7
8
9
10
11
12
13
14
9
1
14
3
5
2
4
2
6
Screens dier according to destination type:
9
TND™ User Manual 47
4. Destinations
Toll Costs
From the destination conrmation screen, tap Begin New Route. If the
calculated route includes tolls, a message appears.
Use Current Route
Show estimated toll costs and continue along the calculated route.
Compare Routes
Compare the calculated toll route to an alternate route without tolls.
(See below.)
Don’t Prompt for Tolls
Use the current route and disable this prompt for subsequent route
calculations.
Note: You can re-enable this prompt in Preferences > General.
Route Compare
1. From the destination conrmation window, tap Compare Routes to
calculate and display two routes and choose between them.
2. Choose to ignore tolls and calculate two routes based solely on route
preferences, or to calculate a primary route (which may include tolls)
and an alternate route without tolls.
3. The top of the screen displays the total distance and time for each
route, as well as any estimated toll costs. Zoom in to get a closer look
at each route on the map.
4. Tap either button at the top of the screen to select that route. If the
route includes tolls, estimated toll cost will display.
1
3
2
1 32
TND™ User Manual 48
5. Tools & Features
Wi-Fi
For information on setting up a Wi-Fi hotspot through your cellular phone or
laptop computer, please visit www.randmcnally.com/wihelp for
basic instructions, or contact your wireless carrier.
Note: Wi-Fi connectivity requires a supporting feature and data plan from
your wireless service provider. As the user, you are responsible for all data
charges. Please contact your wireless service provider to make sure
you do not exceed the limits of your data plan.
Once you have established a Wi-Fi hotspot:
1. Tap Wi-Fi icon on the home screen.
(Also accessible from the Preferences menu.)
2. The device searches for available hotspots.
3. Tap the hotspot you want to connect to.
4. Enter the network password. (Note: Many passwords are case
sensitive.)
5. A conrmation message displays when a connection is established.
TND™ User Manual 49
5. Tools & Features
Weather
Notes:
• This feature requires a Wi-Fi connection.
• The refresh speed of the weather display is dependent on the
connection speed. Weather information is updated every few
minutes while Wi-Fi connection is active.
• Weather display depends on active weather patterns and
map zoom level.
To view current weather information and the three-day forecast for
your location, tap the Live Data icon on the map screen and
tap the Weather tab.
1 View details for current weather alerts.
2 View weather information at your destination.
Note: You can view weather information at any other location
by tapping the map and then the Wi-Fi icon and the Weather icon.
3 Select type of weather overlay to display on the map.
4 Select from a variety of weather types:
• No weather (turn o )
• Trac impact
• Temperature
• Feels like
• Current precipitation intensity and type
• Probability of precipitation
• Forecasted precipitation intensity, type, and clouds
• Forecasted precipitation intensity and type
• Dew point
• Relative humidity
• Wind speed
5 Slide to adjust the transparency of the overlay on the map.
Note: Use the slider to readjust for visibility when switching
between day and night modes.
1
3 2
4
5
Tap to re-display city, street, or intersection.
TND™ User Manual 50
5. Tools & Features
Fuel Prices
Note: This feature requires a Wi-Fi connection.
To show fuel prices, tap the Live Data icon on the map screen and
tap the Fuel Prices tab.
1 Displays stations and prices, with distance as the crow ies.
Check to show the icons and prices on the map screen.
Sort by distance or price.
Apply lters for type of fuel and specic brand.
Check to show fuel prices along the route.
1
32 4 5 2
3
4
5
TND™ User Manual 51
5. Tools & Features
Trac
NOTE: This feature requires a Wi-Fi connection.
To view current trac information along your route and near your loca-
tion:
1. Tap Live Data > Settings on the map screen. Tap the Trac radio
button to display the trac overlay on the map.
2. Tap the Trac tab.
3. The Trac tab displays trac events along your route.
4. Use the Flow and Incidents checkboxes to view or hide each type
of trac events
5. Tap the X to return to the map.
6. Trac pattern display on the map as colored lines. Trac Incidents
display as icons.
Trac indicators:
Green: Light or no trac
Yellow: Moderate to heavy trac
Red: Slow trac
Tap any trac icon for incident details.
TND™ User Manual 52
5. Tools & Features
Trac Icons
Danger Accident Incident Closure
Exit blocked Entrance blocked Trac Carpool Road work
Obstruction Stop Ahead Road condition Temperature
Wind Activities Security Delay Cancel
Size/weight limit Visibility Heavy
trac
Moderate
trac
Light
trac
Travel time
Speed Limit Change
HOV Lanes
TND™ User Manual 53
5. Tools & Features
Truck Tools
Note: Some features are not available in Truck Mode. Tap Truck Tools on the
Home screen to access the Truck Tools apps:
Truck Info
Enter truck information (weight, length, etc.).
Status, Trails, Mileage, and Fuel
View driving, on-duty, and maintenance timers; state logs; trails;
and fuel purchase information. (See pages 44-47.)
Motor Carrier’s Road Atlas
Displays the Road Atlas app.
Rand Motor Carrier’s Road Info
View Rand McNally Truck Emergency contact information and
truck regulations.
Quick Planner
Between any two cities or towns, quickly calculate the distance,
driving time, and cost.
Calendar
Calculator
Unit Converter
Quickly convert distance, weight, and temperature.
Notes
Add, edit, and manage notes.
Tell Rand
Compose a message to send to Rand McNally.
GPS Repair
Diagnose and x errors in GPS and map data.
TND™ User Manual 54
5. Tools & Features
Status
Note: Odometers count up and record the current mileage. Maintenance
counters count down. When a maintenance timer counts down to 2,000 miles,
a reminder displays each time the TND starts.
1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Status tab.
Tap a eld to make adjustments to mileage. The mileage continue to count
down from the changed value.
1. Tap
--
to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. Tap Change.
On the right, use the Reset To eld to set the most common reset
value, normally zero. At the beginning of each day or run,
tap Reset to set the value back to zero for odometers and 15,000
or 35,000 for maintenance odometers.
1. Tap
--
to decrease the setting.
2. Tap + to increase the setting.
3. Tap the calculator to display a keyboard. Enter a number and tap Enter.
4. Tap Reset.
TND™ User Manual 55
5. Tools & Features
Mileage
1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Mileage tab to view list of logs for the current year,
ordered by quarter.
4. To view quarterly mileage logs for previous years, tap Year.
Tap on a quarter to view log entries.
5. Tap on a quarter to view details. Tap View by Date/View by State
and Empty/Loaded for more information.
To delete a log, tap on the next to the log entry to be deleted.
Tap Yes to delete the log.
Note: Load Option and Driver Status control how logs are recorded.
TND™ User Manual 56
5. Tools & Features
Trails
Use Trails to record a “bread-crumb” path of GPS coordinates where
your truck has traveled.
1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Trails tab.
4. To record a trail, tap New Trail.
5. To end the trail, tap the pause icon on the map screen.
6. The trail is recorded in the Trails tab.
7. Tap on a trail to view details.
8. Tap Show on Map to display the trail on the map screen.
9. Tap Edit Name to change the name of the trail.
10. Tap Set Color to change the color of the trail.
Note: The Trails feature is also accessible from the Address Book.
TND™ User Manual 57
5. Tools & Features
Fuel Logs
1. Tap Truck Tools.
2. Tap Status, Trails, Mileage, and Fuel.
3. Tap the Fuel tab to view a list of fuel logs by quarter.
4. Tap +Fuel to record the date, location and cost of fuel purchase.
5. Tap on any eld to edit.
6. Check Taxable to include the purchase in the fuel log.
7. Tap Save (Note: Fuel economy is calculated automatically.)
8. Once fuel purchases have been entered, tap on a quarter to view the
details.
9. You can View by State or View by Month.
10. Tap the state or month to view fuel purchases.
11. Tap View All to see all fuel purchases.
TND™ User Manual 58
5. Tools & Features
Quick Planner
Use this tool to quickly estimate the mileage and time between any
two cities or towns.
1. Tap Truck Tools.
2. Tap Quick Planner.
The revenue or cost per mile used in the last computation displays.
3. Ta p From City 1 and select the city.
4. Tap To City 2 and select the city.
5. The distance displays.
6. Tap Cost per Mile and enter the per mile rate or tap Total and
enter the total amount.
7. Tap the new dollar amount and tap Enter.
8. The dollar amounts readjust automatically.
9. Tap Average Speed (MPH) enter a speed:
• Ta p
--
or + to decrease or increase the speed.
• Tap the calculator to enter a speed.
10. Tap Change.
11. The driving time displays.
TND™ User Manual 59
5. Tools & Features
Road Atlas Information
To reference the Rand McNally Motor Carriers’ Road Atlas:
1. Tap Truck Tools.
2. Tap Motor Carrier’s Road Atlas.
3. Select the appropriate map from the drop-down on the right.
4. Select the legend on the left to view map information.
TND™ User Manual 60
5. Tools & Features
Calendar
1. Tap Truck Tools.
2. Tap Calendar.
3. Use the arrows to view other months and years.
4. Tap Today to return to the current date.
Notes
1. Tap Truck Tools.
2. Tap Notes.
3. Tap New Note.
4. Tap a note in the list to view and edit.
Unit Converter
5. Tap Truck Tools.
6. Tap Converter.
7. Tap on the rst eld and select the unit type.
8. Tap on the second eld and enter the value to be converted.
9. Tap Enter.
Calculator
1. Tap Truck Tools.
2. Tap Calculator.
TND™ User Manual 61
6. DriverConnect
DriverConnect
The DriverConnect app provides a fully-compliant electronic logbook
solution. DriverConnect lets you track and log Hours of Services,Driver-
Vehicle Inspection Reports, Fuel purchases, and more. Reports can be
generated for roadside inspections.
The DriverConnect app connects to a Rand McNally Electronic Logging
Device (ELD) over a Bluetooth connection. The app automatically syncs
driving data from the ELD with the Rand McNally DriverConnect web
services via a Wi-Fi or cellular transmission.
Visit http://www.randmcnally.com/category/e-logs for up-to-date
information on compatible ELDs.
Sign Up or Log In
To use DriverConnect,you must log in with an existing account, or create a
new account. If you are part of a eet, your Fleet Manager will provide login
information for you.
You can use your login information to access the DriverConnect portal,
where you can view reports and stored information.
Visit https://www.driverconnect.randmcnally.com to access the
DriverConnect portal.
TND™ User Manual 62
7. Connect With Rand
Tell Rand
While you’re en route with your TND™, you can enter messages for Rand
McNally regarding construction, truck restrictions, addresses, your device,
and more. The next time you connect to the Rand McNally Dock, you can
reopen, edit, and send the message.
1. Tap Truck Tools.
2. Tap Tell Rand. On the left side, tap Current Location.
Enter Dierent Location or Find Location on Map.
Note: You can open a Tell Rand speed limit message by tapping
the speed limit or mile marker on the map screen. Or open a
Tell Rand with the power button by setting the Quick Power Press
to Tell Rand.
3. If you selected Enter Dierent Location, enter it as an address.
If you selected Find Location on Map, tap on the map to set the
crosshairs at that location, then tap Back.
4. On the right side, tap the type of message you want to send.
5. Type your message.
6. Tap Enter to send the message.
7. To discard the message and return to the previous window,
tap Back.
TND™ User Manual 63
For more information
• Rand McNally Website
www.randmcnally.com/TND540
• Support
www.randmcnally.com/support
• GPS accessories
store.randmcnally.com
• Facebook
www.facebook.com/randmcnally
6. Connect With Rand
TND™ User Manual 64
Trademarks
Rand McNally, the Rand McNally logo, the globe logo, and IntelliRoute are
registered trademarks and TND and Rand McNally Dock are trademarks of
RM Acquisition LLC, d/b/a Rand McNally.
The Trucker’s Friend and National Truck Stop Directory are
registered trademarks of TR Information Publishers.
TruckDown is a registered trademark of TruckDown Info International, Inc.
Wi-Fi is a registered trademark of the Wi-Fi Alliance.
InfoGation is a registered trademark of InfoGation Corporation.
Local search information provided by CityGrid Media.
Weather data provided by myweather.com.
Fuel prices provided by OPIS.
Trac information provided by INRIX, Inc.
© 2017 Rand McNally. © 2017 HERE. All rights reserved.
Rand McNally follows a continuous improvement process and reserves
the right to provide enhancements that may not be reected in the
pictures and specications in this manual.
The information contained herein may be changed at any time without prior
notication. Neither this manual nor any parts thereof may be
reproduced for any purpose whatsoever without the express written
consent of Rand McNally, Inc., nor may it be transmitted in any form
either electronically or mechanically, including photocopying, and
recording. All technical specications, drawings, etc. are subject to
copyright law.
