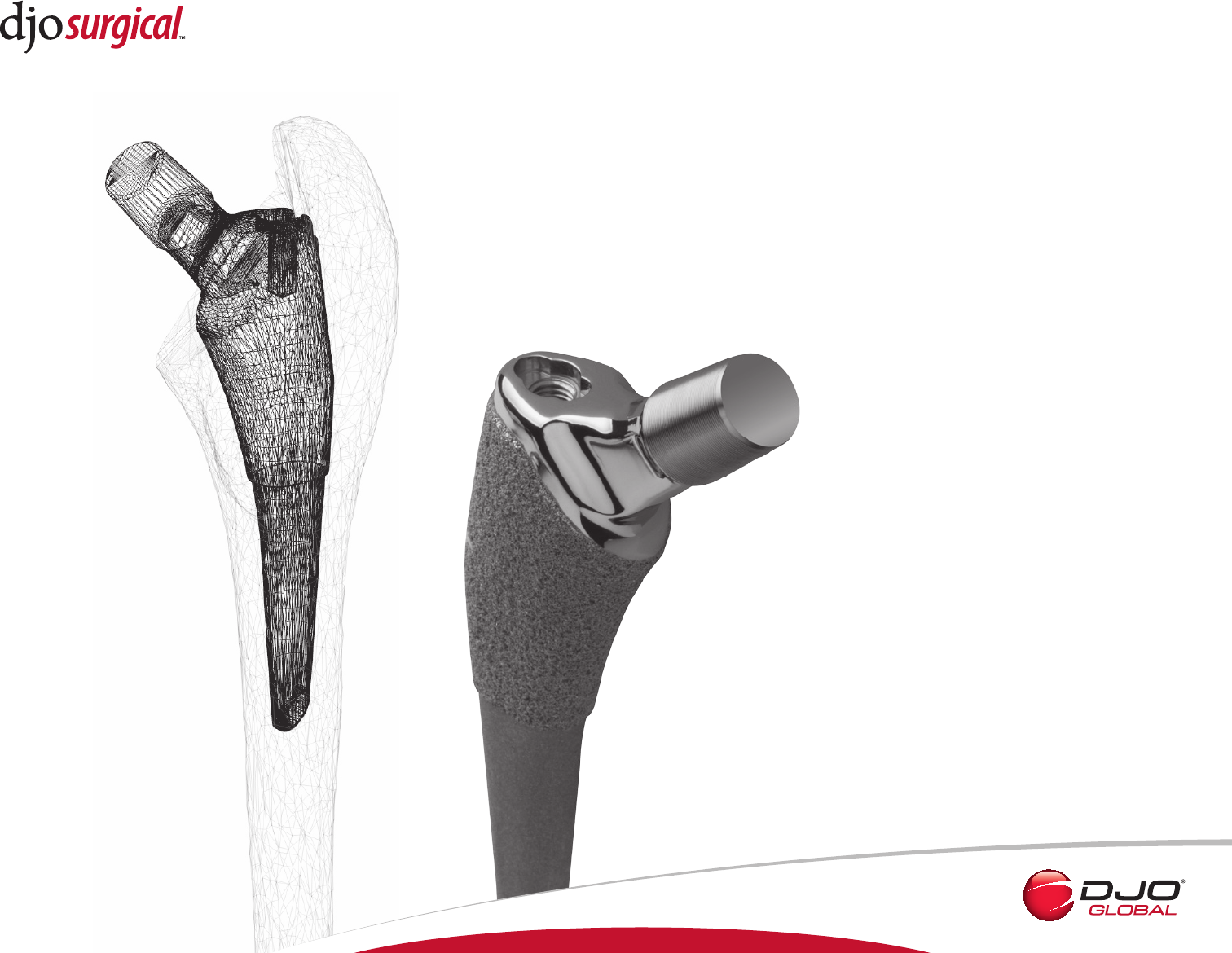

TaperFill® Tri-Taper™ Hip System

a Short Stem Optimized

2 ▷ DJO Surgical Advances in Tapered Tech Brochure

TaperFill® Tri-Taper™ Hip System

System Overview

• Ti Alloy material

• 14 stem sizes

• 135° neck angle

• Broach only system

• ~30 mm reduced stem lengths vs.

the Linear® Hip stem

• P2 proximal porous coating

8mm

Reduced neck

geometry for

increased ROM

Reduced lateral

shoulder for ease of

insertion.

EasyLead™ Distal Tip

Protects Bone and

facilitates final positioning

1

Proximal AP taper for

enhanced stability

2

Reduced Distal

taper to avoid

stress shielding

Standard and Oset options

Direct lateralization of the neck allows

for increased stability without increased

leg-length

Data Driven Tri-Taper™ Design

Anthropomorphic data, constructed from

CT scans of male and female femurs, was

used to determine optimal stem design

and AP growth. A 12 degree proximal

taper (1) provides inherent fixation and

rotational stability through increased

surface area contact with cortical bone

structures. A 4 degree distal taper (2)

reduces the possibility of stress shielding

and helps account for proximal/distal

mismatch.

The ML taper (3) of the TaperFill™ stem is

identical to DJO’s Linear® Hip stem which

has demonstrated over 17 years of clinical

success.

Clinically successful

ML taper geometry

17 year clinical history

3

12°

4°

3

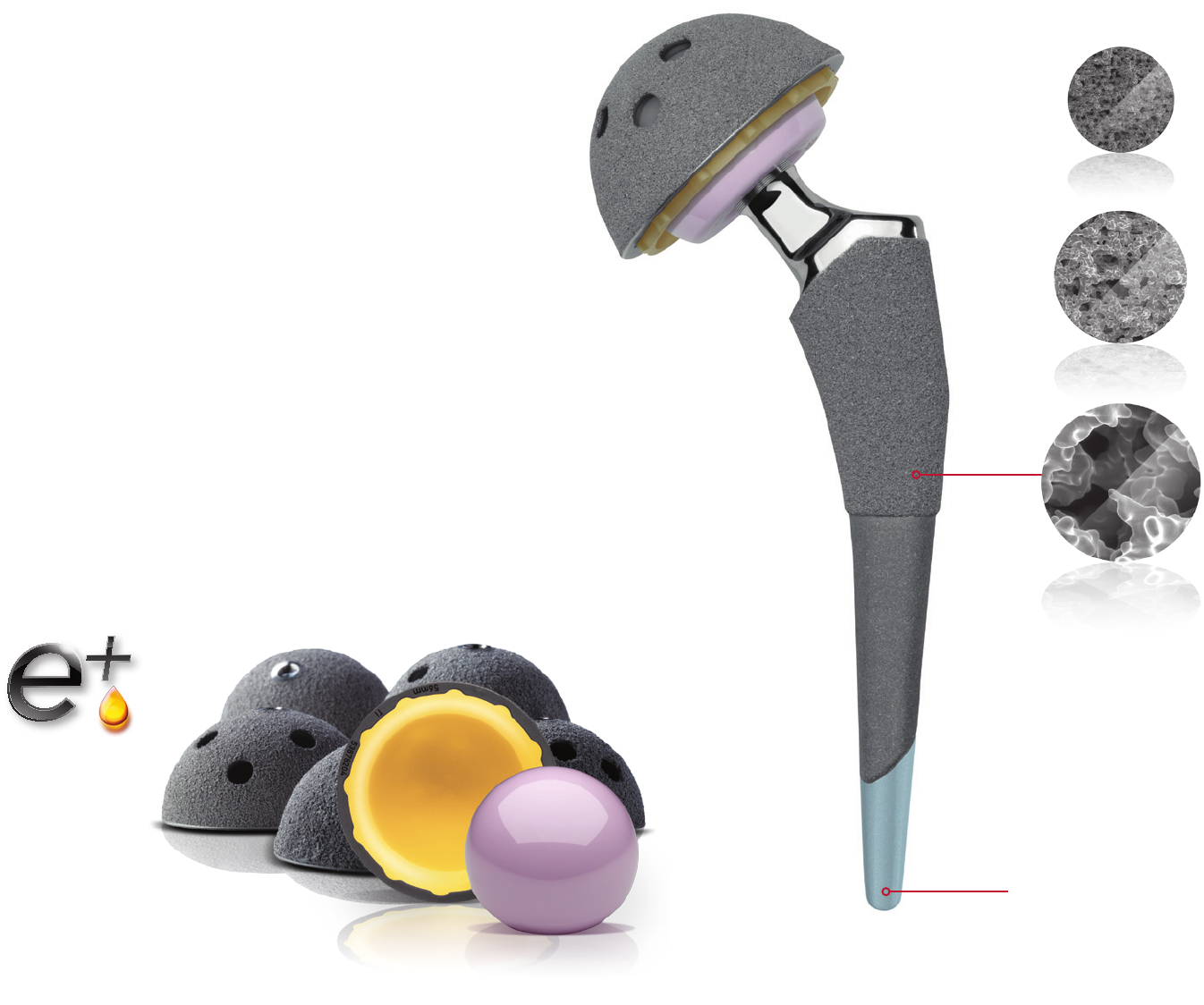

HXe+

FMP Acetabular Shell w/ P2

The Ideal Vitamin E

blended polyethylene

TM

P2, a new proprietary Titanium Porous coating by DJO

Surgical, is the first porous porous coating in the world

wherein the non-spherical bead itself is also porous – giving

it its name, P-Squared (P²). Consisting of variability in pore

sizes, very similar to a “lava rock” type of structure, P² aids in

the apposition of bone for superior in-growth results.

Advanced Bearing Surfaces

TaperFill® is compatible with DJO’s advanced bearing surface options.

HXe+ provides all the wear advantages of highly crosslinked UHMWPE

without the reduction of material strength. HXe+ is a proprietary blended

resin that neutralizes the negative eects of free radicals, negating the need

to re-melt or anneal the material after cross-linking.

Biolox Delta Ceramic heads are available in sizes up to 44mm.

Circumferential Proximal P2 Porous

coating for 0.35mm pressfit

~30mm shorter than

Linear Hip stem

P2™

200x

50x

25x

©2014 Encore Medical, L.P. 0020228-131 rev A 05/14

CAUTION: Federal Law (USA)

restricts this device to sale by

or on the order of a physician.

See package insert

for a complete listing of

indications, contraindications,

warnings, and precautions.
