d&b Y-Series 1

Y-Series Y

2d&b Y-Series d&b Y-Series 3

Contents

The d&b System reality �� 4

The Y-Series �� 6

The Y7P loudspeaker and Yi7P loudspeaker ��10

The Y10P loudspeaker and Yi10P loudspeaker �� 11

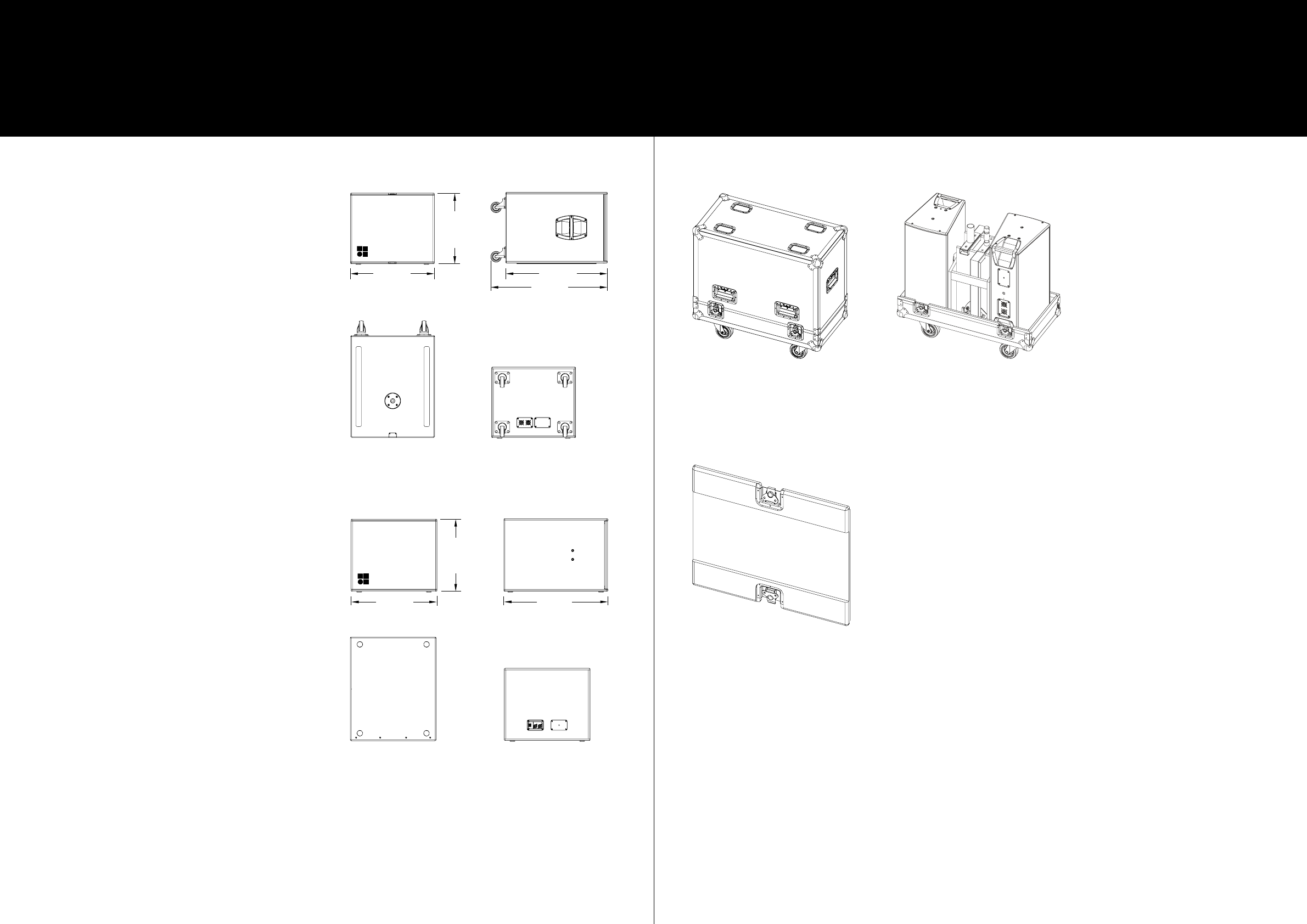

The B6 subwoofer and Bi6 subwoofer ��12

The Y7P, Y10P and B6 transport accessories �� 13

The Y8 loudspeaker and Yi8 loudspeaker ��14

The Y12 loudspeaker and Yi12 loudspeaker ��15

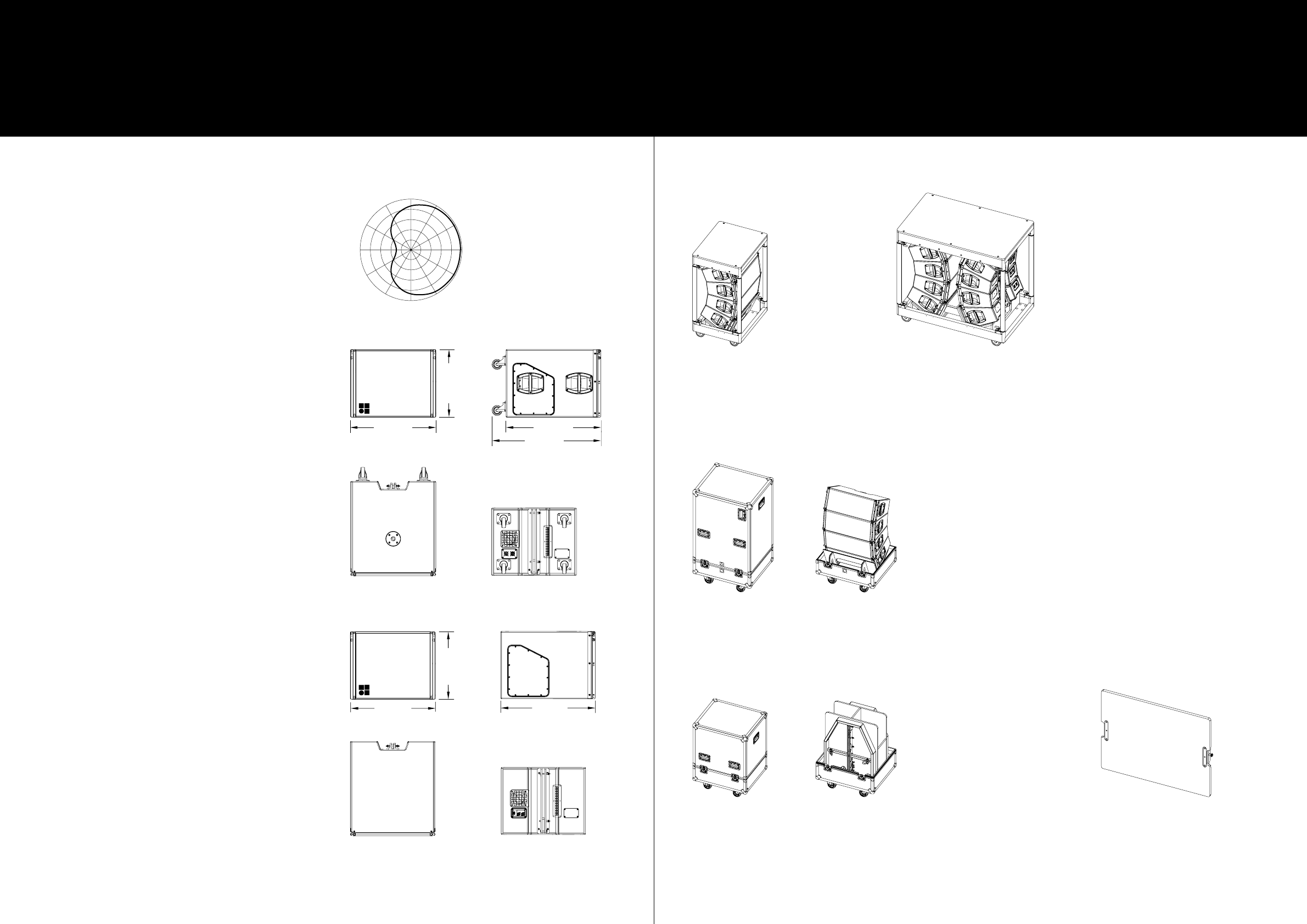

The Y subwoofer and Yi subwoofer ��16

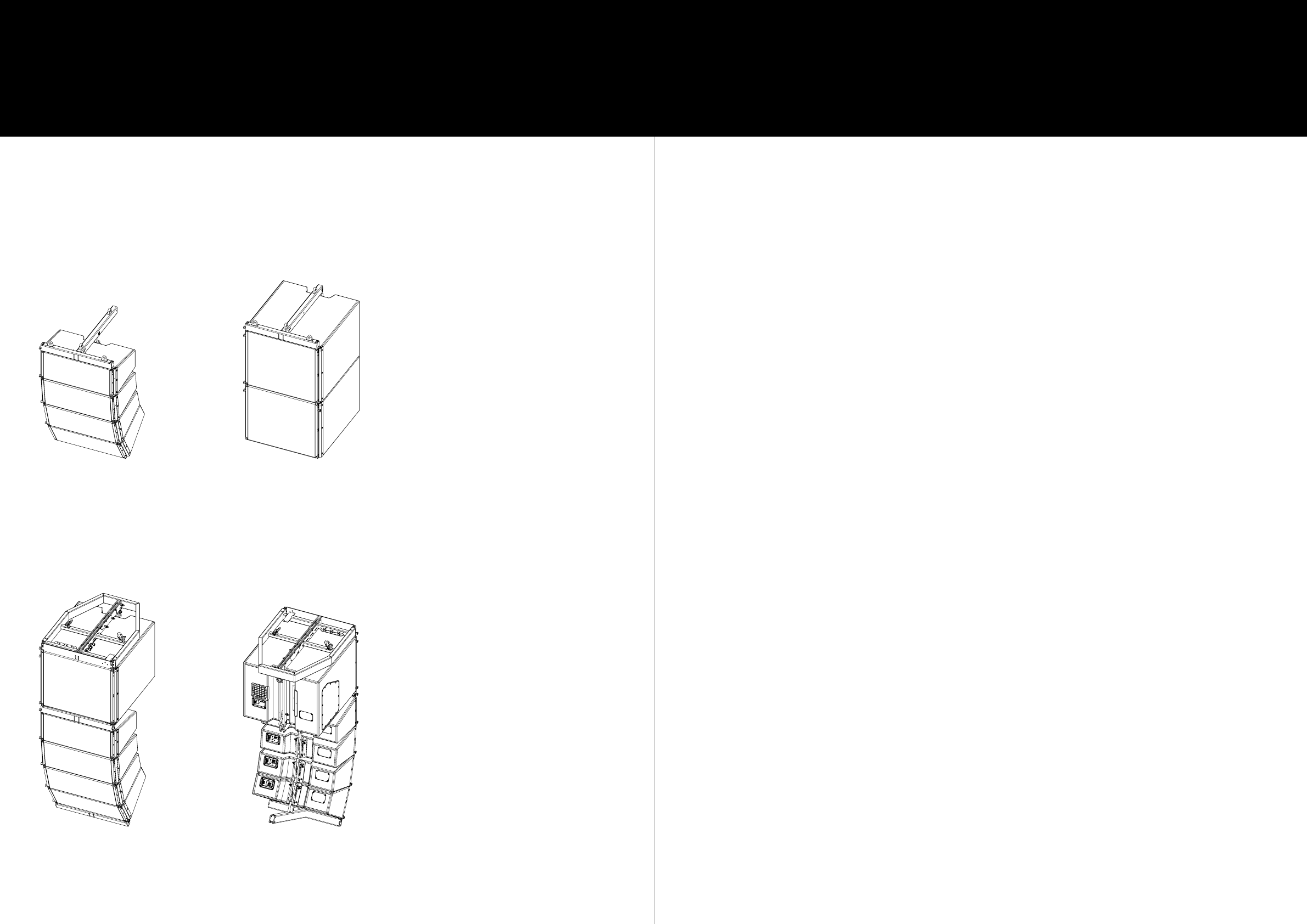

The Y8, Y12 and Y-SUB transport accessories �� 17

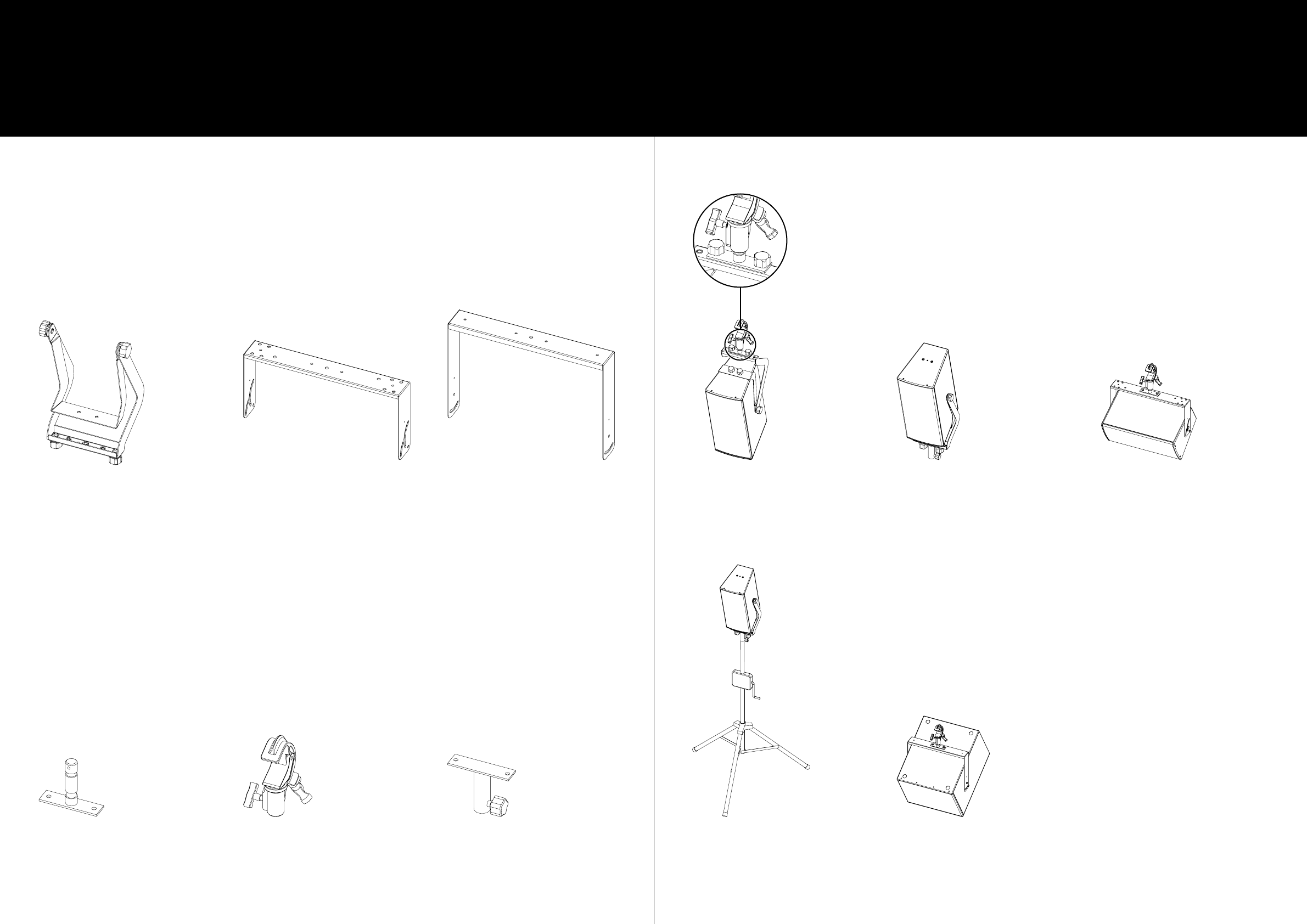

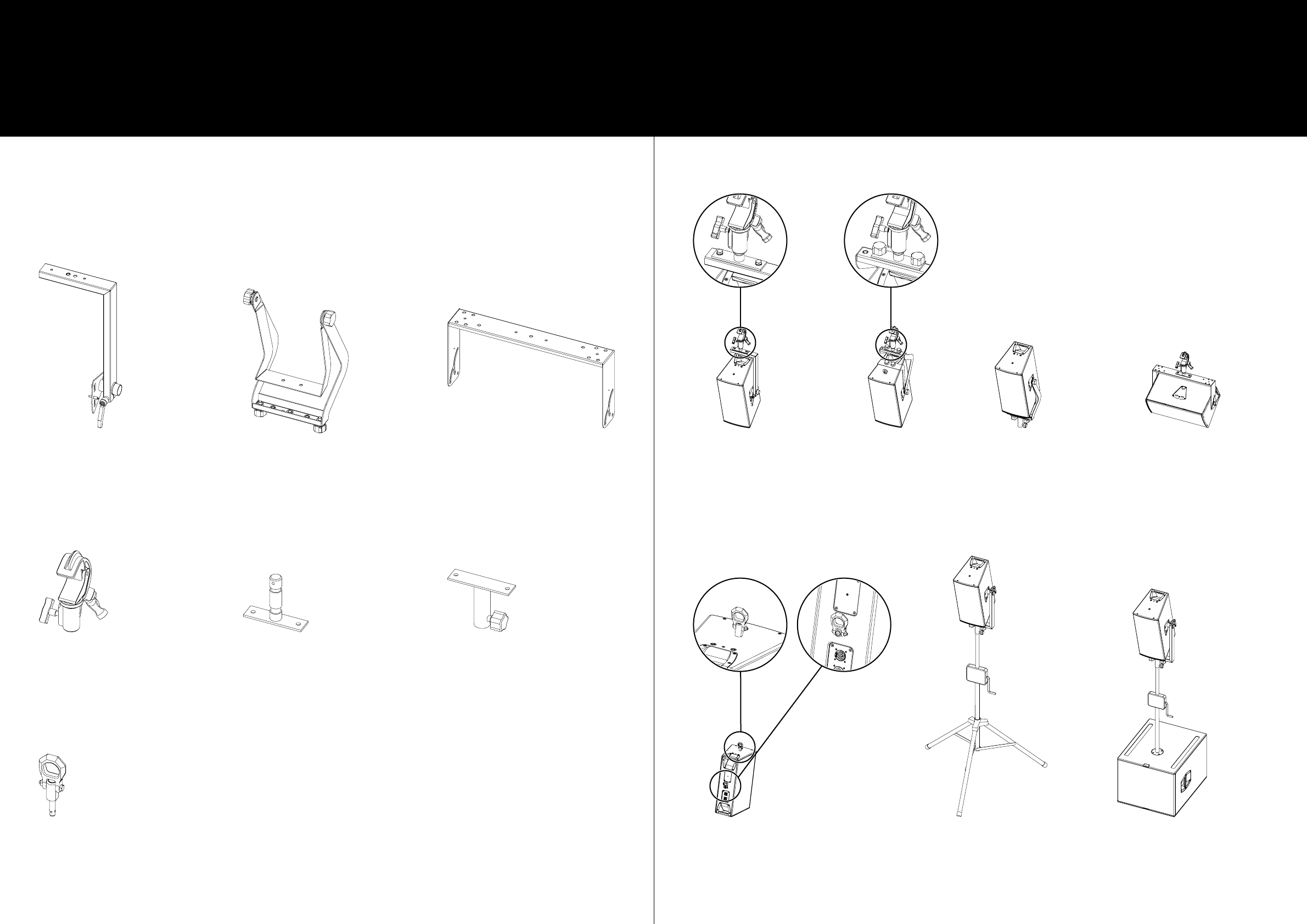

The Y-Series mounting accessories and examples ��18

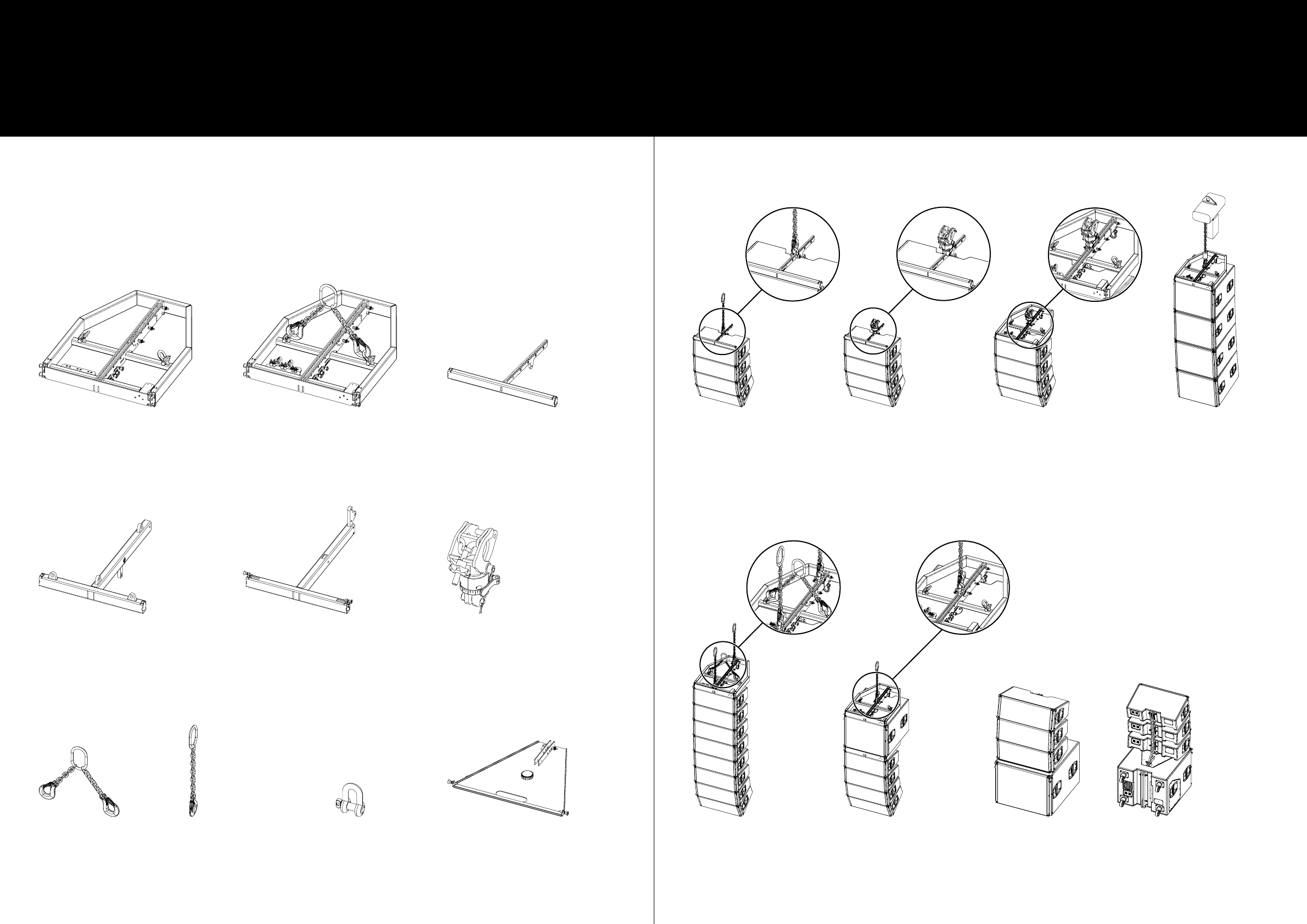

The Y-Series rigging accessories and examples ��22

The Yi Weather Resistant and

Special Colour options��25

The d&b ArrayCalc simulation software ��26

The d&b NoizCalc immission modelling software ��28

The d&b R1 Remote control software ��29

The d&b amplifiers �� 30

The operation with d&b amplifiers ��32

The Y-Series frequency responses ��33

The d&b amplifier output modes �� 34

The DS10 Audio network bridge �� 36

The DS100 Signal Engine �� 36

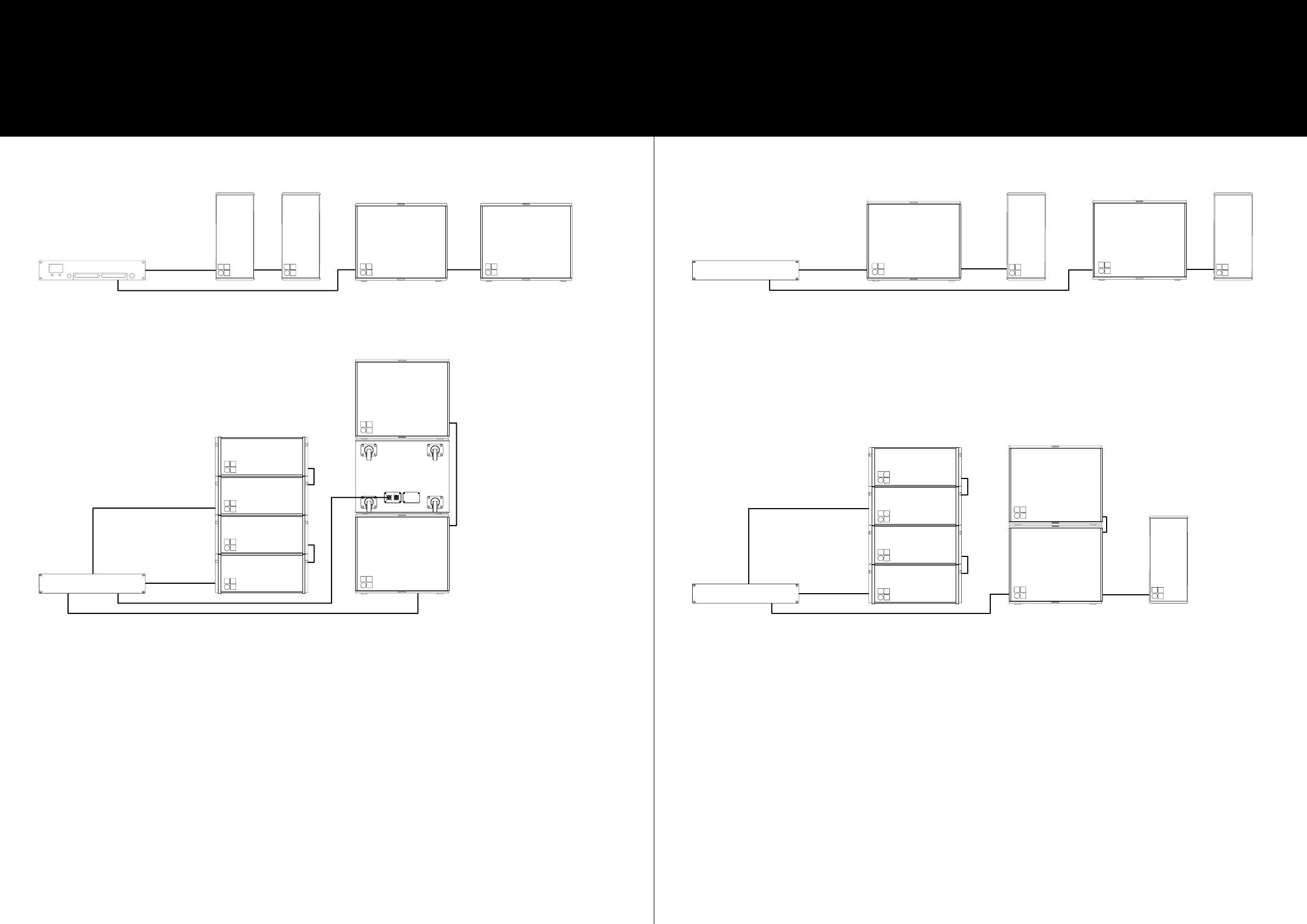

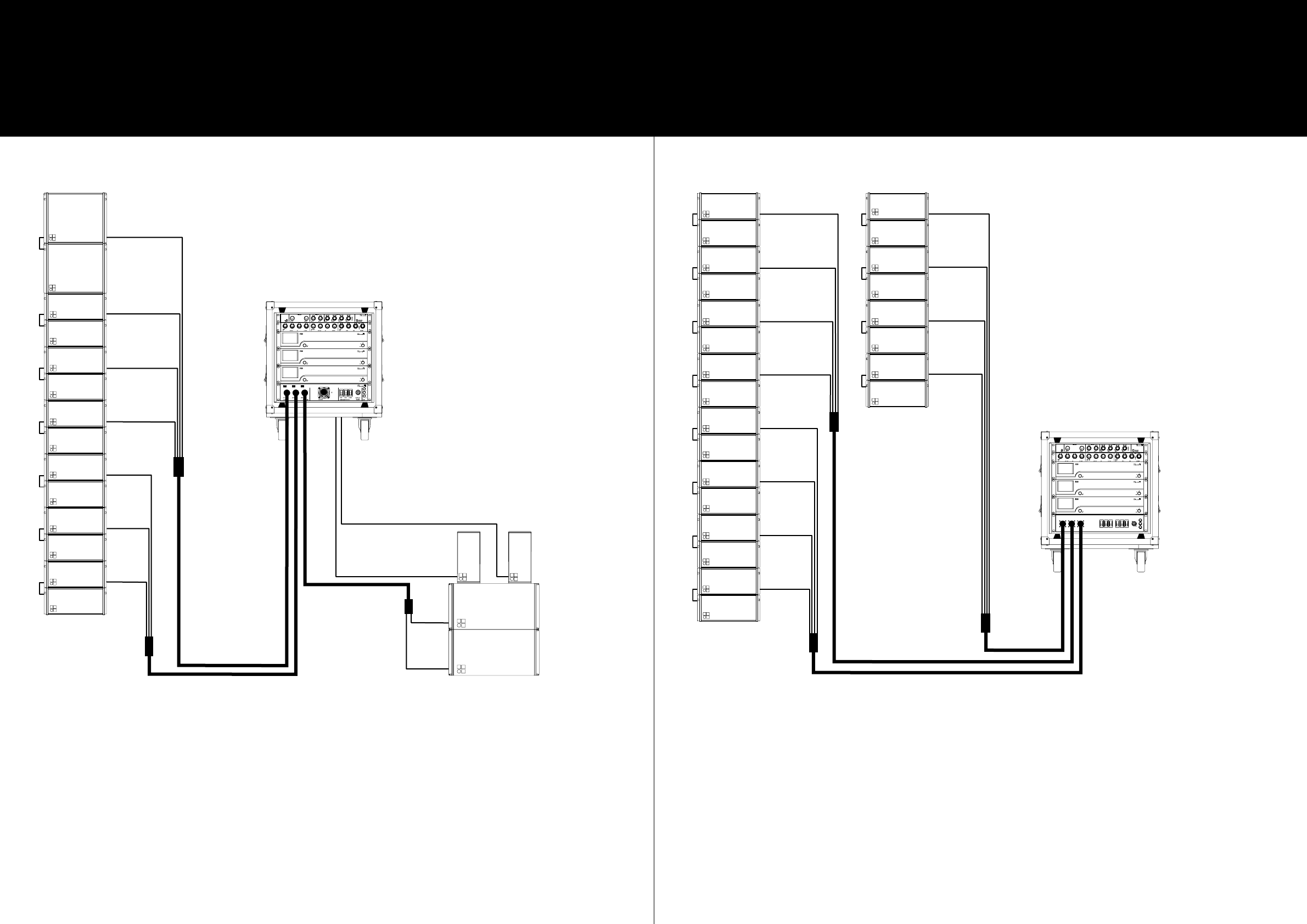

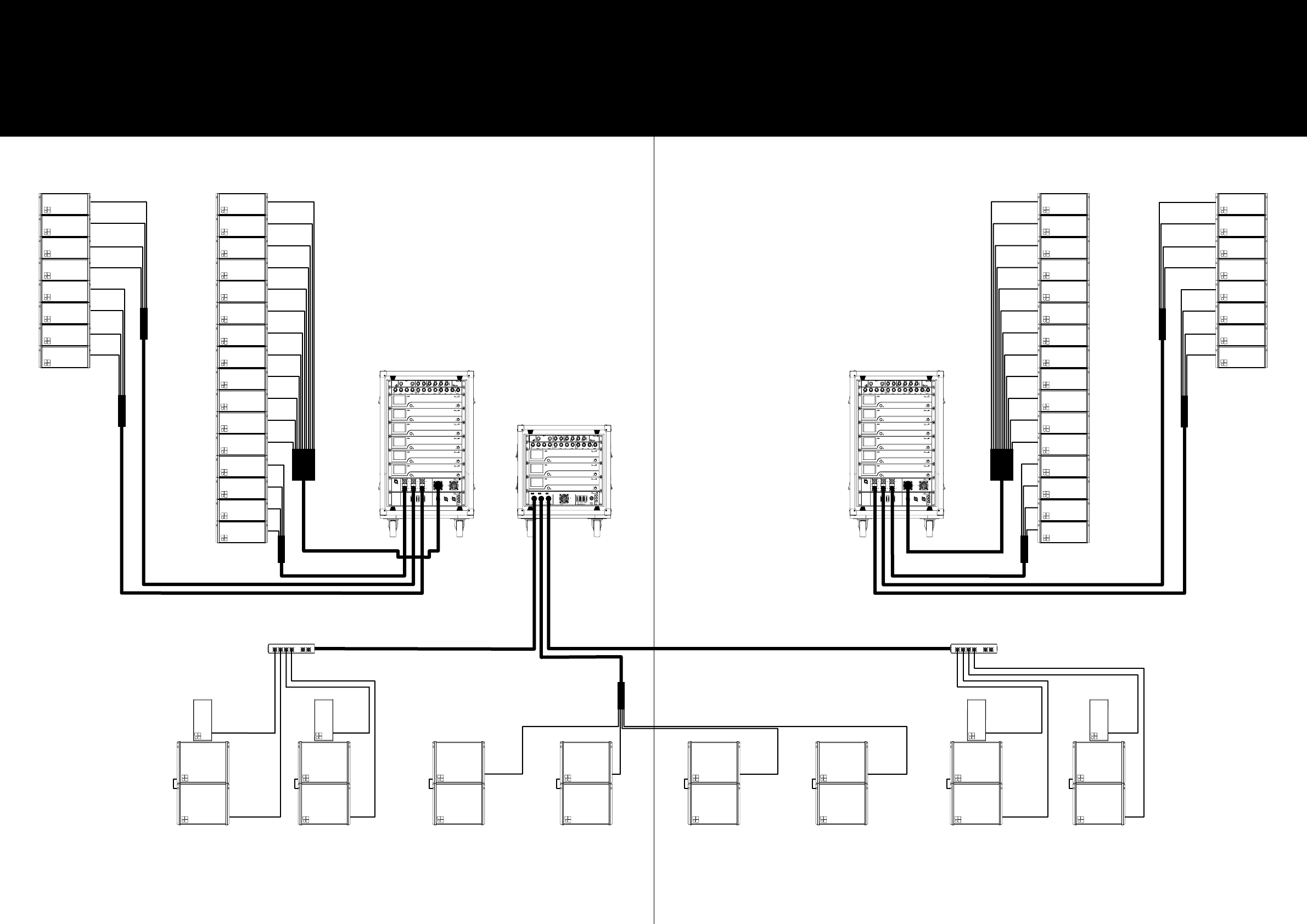

The Y-Series configuration examples ��37

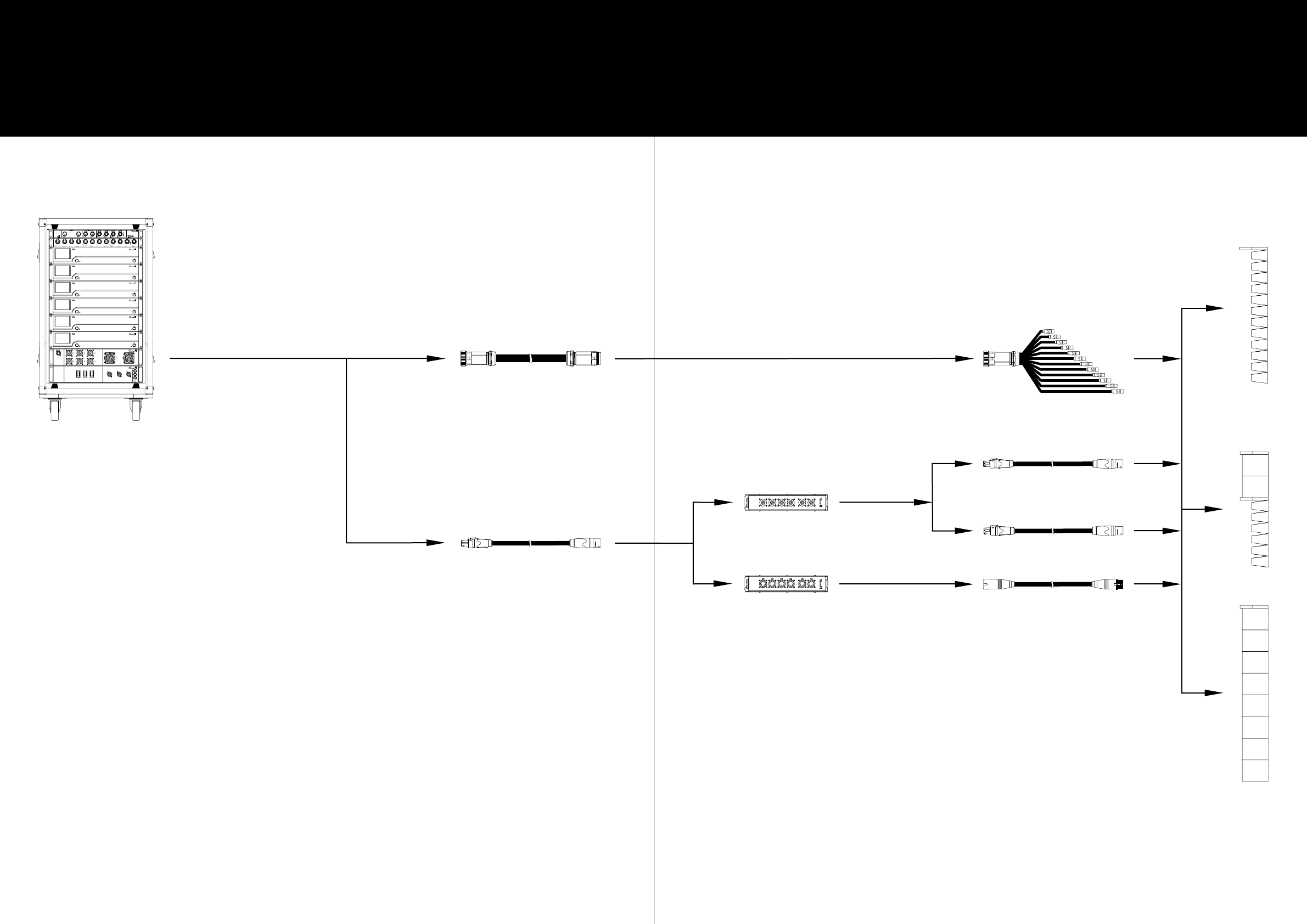

The Y-Series cables and adapters ��42

The Y-Series product overview ��46

d&b Y-Series 5

The d&b System Reality

4d&b Y-Series

As the name implies a d&b audiotechnik system is not just

a loudspeaker� Nor is it merely a sum of the components:

loudspeakers, amplifiers, signal processors, networking, software

and accessories� Right from the outset the d&b audiotechnik

approach was to build integrated sound reinforcement systems

that actually are more than the combination of parts: an

entirety where each fits all� Every element is tightly specified,

precisely aligned and carefully matched to achieve maximum

efficiency� For ease of use, all the user-definable parameters

are incorporated, allowing the possibility of adjustment, either

directly, via remote control surfaces, or integrated within wider

networks� Neutral sound characteristics leave the user all the

freedom needed to realize whatever the brief� At the same

time d&b offers finance, service and support, a knowledgeable

distribution network, education and training as well as technical

information, so the same optimal acoustic result is achieved

consistently by every system anywhere, at any time� In reality:

the d&b System reality�

6d&b Y-Series d&b Y-Series 7

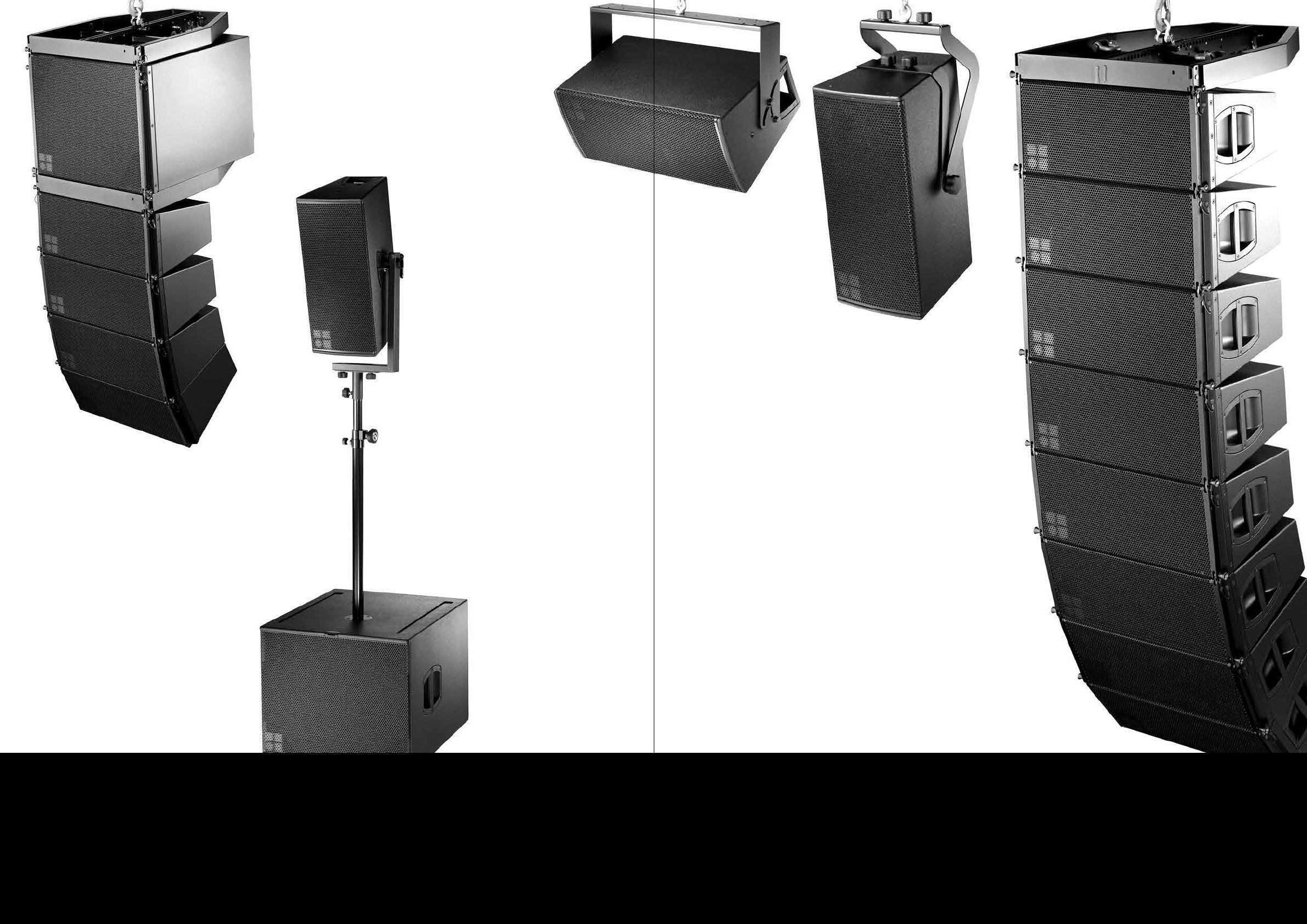

The Y-Series loudspeakers are designed with a clear

perspective to provide flexible and configurable solutions, even

in the most arduous sound reinforcement situations� Performing

arts, conferences, religious events and live shows; applications

all demanding strict qualities in the performance, look and feel of

a loudspeaker� On one side the Y-Series provides adept small to

medium scale, stand alone or distributed point source solutions,

whereas on the other hand the wide spectrum of midsized line

array potential is inherited from its bigger brothers, the V-Series

and J-Series� Flexible horizontal dispersion characteristics

combined with either rotatable horns or innovative custom

waveguides ensure constant directivity over a wide bandwidth�

Dipolar driver arrangements deliver accurate dispersion

control, while a deep LF performance is derived from the

bass-reflex design� Three point rigging systems are integrated

into the arrayable cabinets, even the cardioid subwoofer, these,

together with ground stacking options, present an abundance of

opportunity for deployment� The Yi loudspeakers differ only

slightly in cabinet construction, finish and mounting hardware�

They are intended for permanently installed performance

spaces where the specification is rider driven by the artist or

mix engineer’s preferences� Both the Yi cabinets and mounting

hardware can be properly colour matched to interior designs and

weather protected for climatically hostile environments�

d&b Y-Series 98 d&b Y-Series

An extensive range of standardized transport solutions is offered

for the Y-Series, consisting of touring cases, touring carts as well

as transport lids� Complete cabling structures including multicores

and breakouts are also available, alongside extensive mounting

options� Amplifier Touring rack assemblies can be provided for

either three D20 amplifiers, three D80 amplifiers, or six D80

amplifiers� The DS10 Audio network bridge can be supplied in

these fully equipped system racks, which also house mains power

distribution units, connector interfaces and all internal cabling�

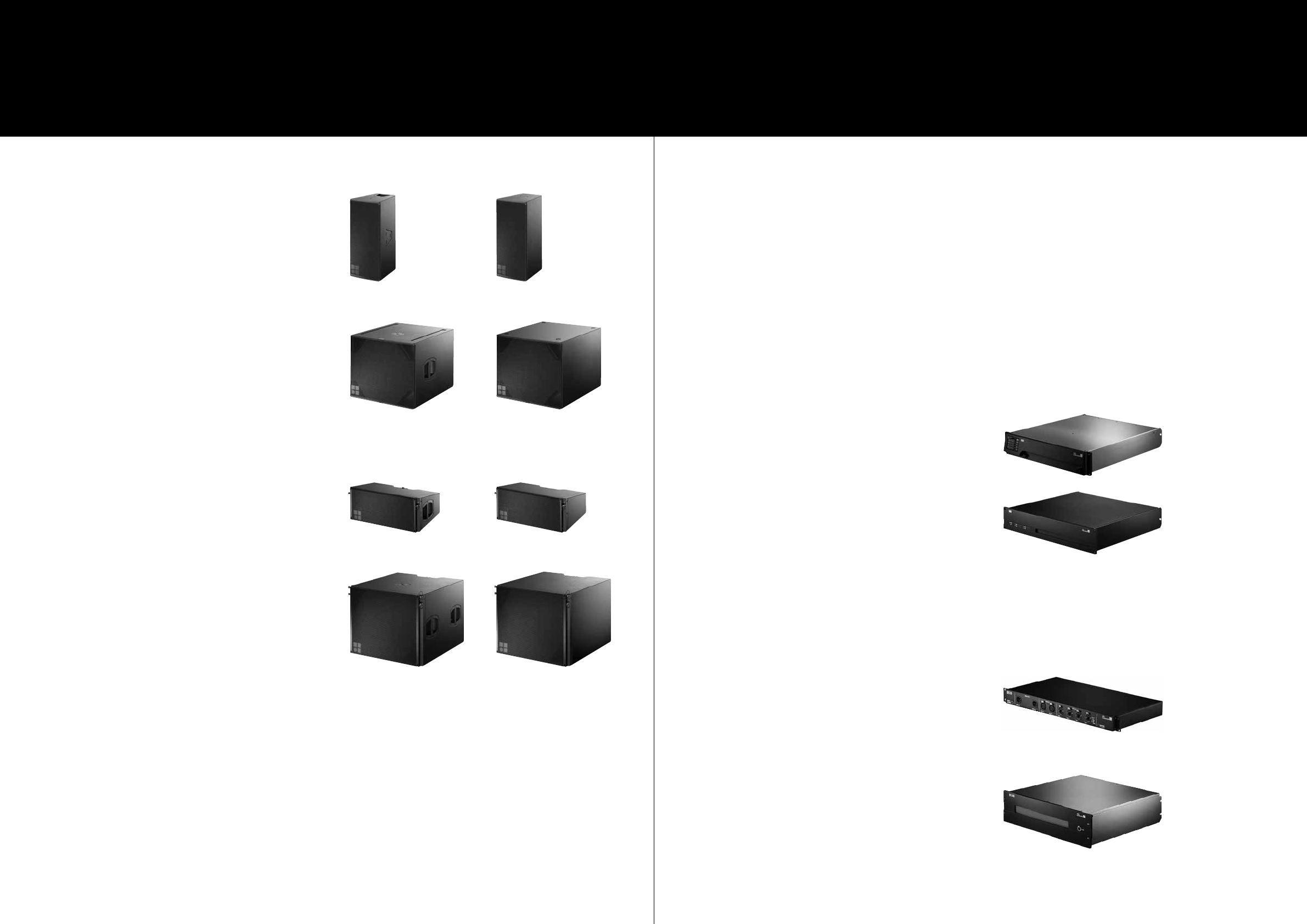

The Y-Series

Y7P, Y10P loudspeaker Yi7P, Yi10P loudspeaker

Y8, Y12 loudspeaker Yi8, Yi12 loudspeaker

B6 subwoofer Bi6 subwoofer

Y subwoofer Yi subwoofer

The Y7P and Yi7P as well as the Y10P and Yi10P point

source loudspeakers both feature the same dipolar arrangement

with two 8" drivers centered around a 1�4" HF compression

driver mounted on a CD horn with 75° x 40° and 110° x 40°

dispersion characteristics respectively� A rotatable horn enables

deployment in either orientation, whilst an innovative bass-reflex

and port design gives an increased LF performance� The high

performance omnidirectional B6 and Bi6-SUB feature a single

18" long excursion driver, intended for ground stacked

applications only�

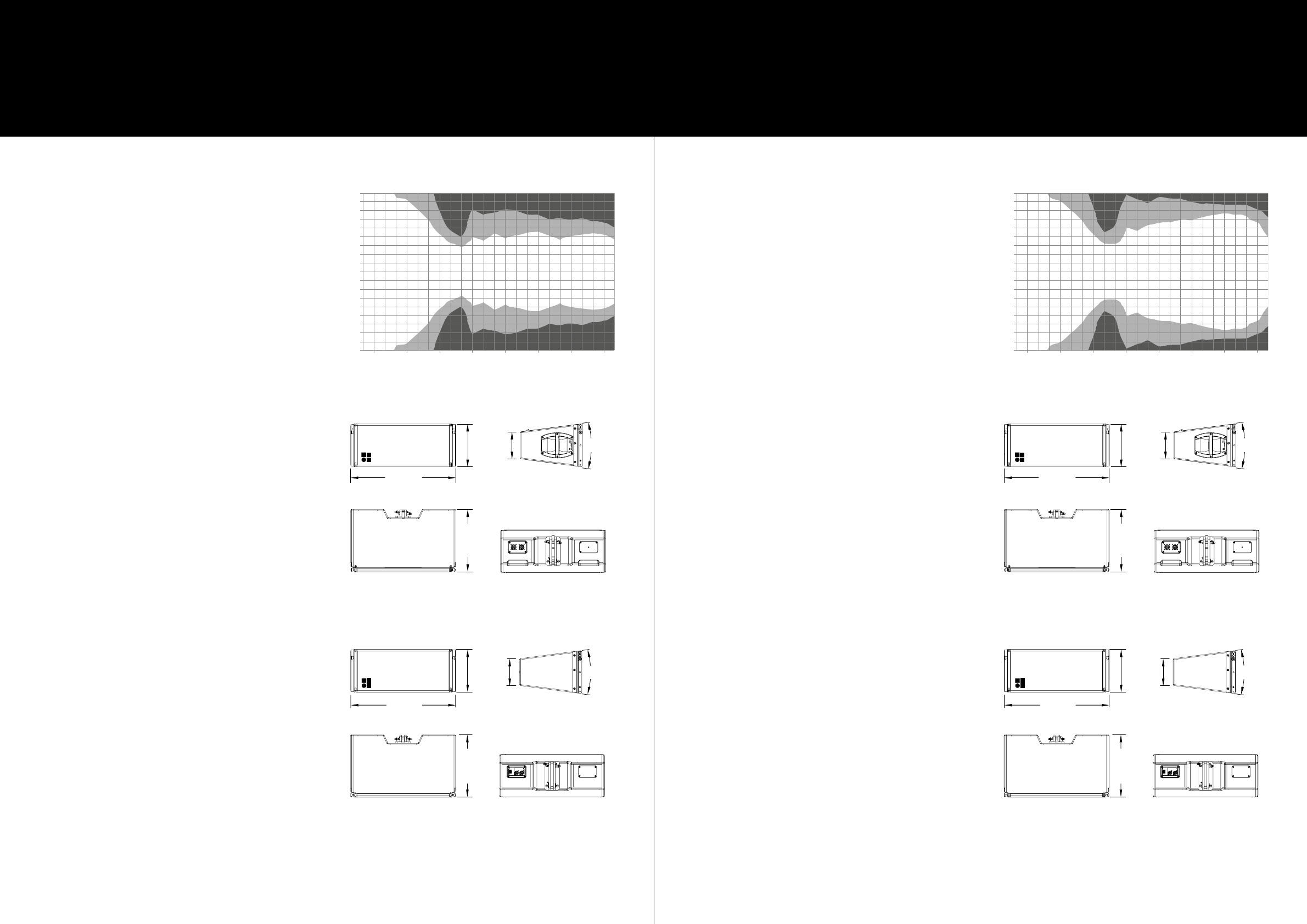

The Y8 and Y12 and the installation specific Yi8 and Yi12

line array modules also share the same driver arrangement,

with two 8" dipolar mounted drivers and a 1�4" HF driver

combined with a central wave transformer� The advanced bass-

reflex and port arrangement delivers full bandwidth capabilities

with an extended LF output� Due to the dipolar arrangement of

the LF drivers, a broadband, horizontal directivity control is

maintained down to approximately 500 Hz for the different

dispersion options, 80° for the Y8 and 120° for the Y12�

The arrayable, cardioid Y and Yi both house two long excursion

neodymium drivers, powered by a single amplifier channel�

The 18" and 12" drivers arranged in an integrated cardioid

setup, avoid unwanted energy behind the system�

All Y loudspeakers are finished with a PCP (Polyurea Cabinet

Protection) coating that provides mobile systems with protection

against impact and resistance to the adverse effects on cabinets

caused by changing ambient outdoor conditions� The Yi cabinets

feature an impact resistant paint finish; Weather Resistant and

Special Colour options are available�

D80 amplier

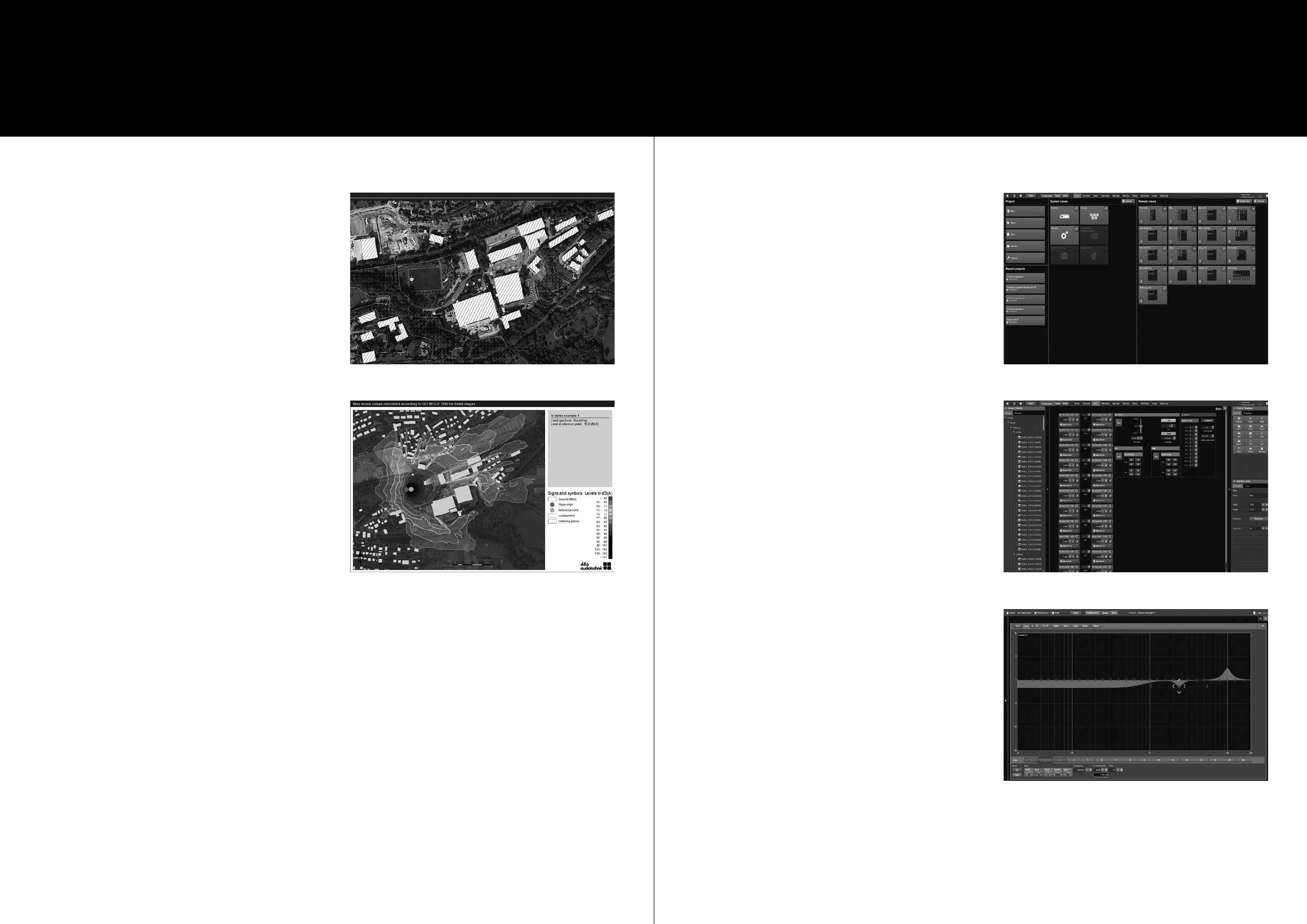

The d&b software offering aides the entire system setup process�

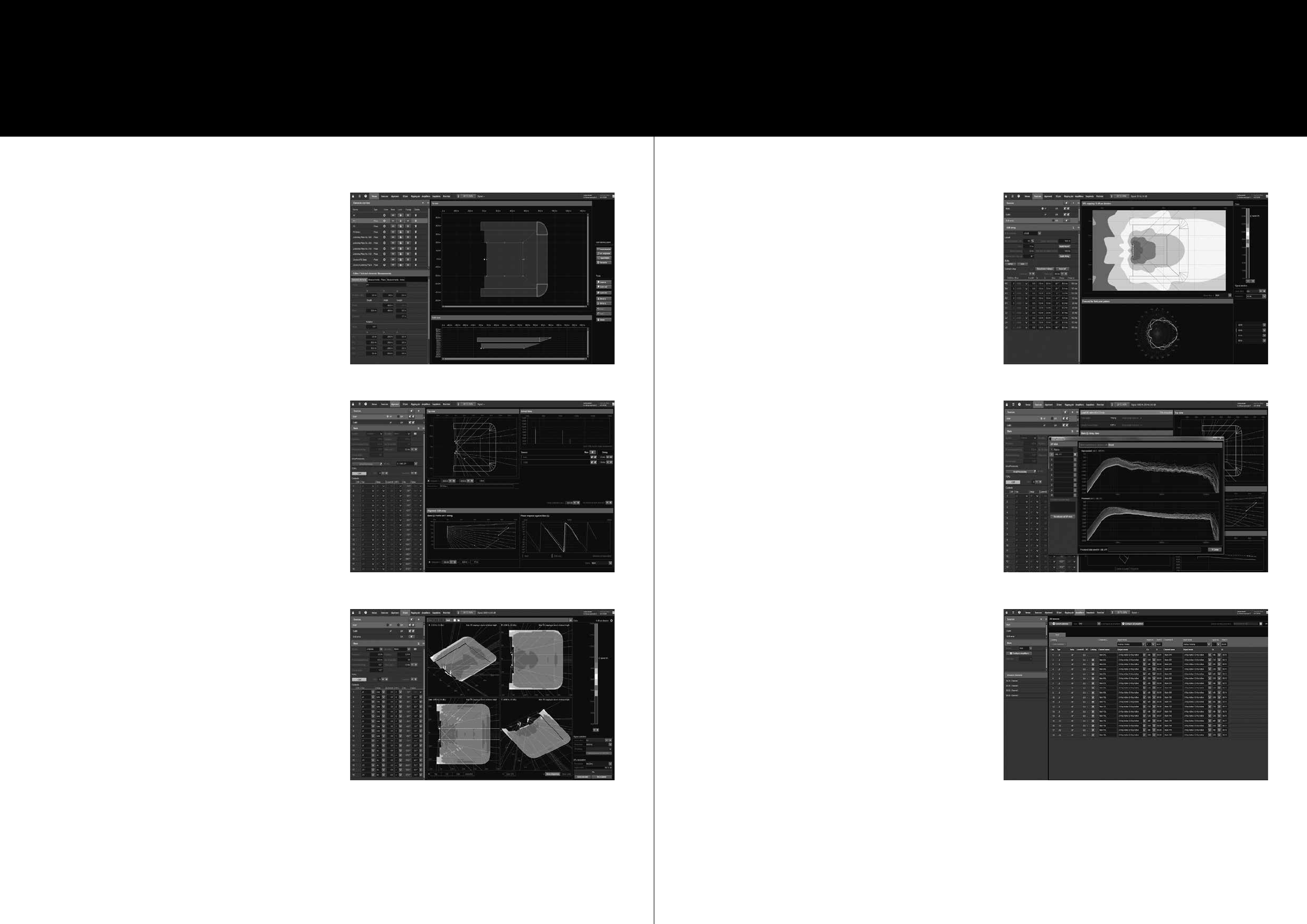

The d&b ArrayCalc simulation software allows the virtual

optimization of loudspeaker line arrays, point source and column

loudspeakers as well as subwoofers and their adjustment to

venue conditions� The d&b NoizCalc immission modelling

software uses international standards to model noise immission

from d&b loudspeaker systems� NoizCalc takes data from

ArrayCalc and calculates the sound propagation towards the far

field� The complete system configuration simulated in ArrayCalc

is assimilated by the d&b R1 Remote control software into

an intuitive graphical user interface to manage the amplifiers,

and loudspeakers, from anywhere in the venue�

d&b amplifiers are specifically designed for use with d&b

loudspeakers, and are at the heart of the d&b system approach�

These devices contain extensive Digital Signal Processing

capabilities to provide comprehensive loudspeaker management

and specific switchable filter functions to precisely target the

system response for a wide variety of applications� The four

channel D80 amplifier is intended for both mobile and

installation applications requiring the highest Sound Pressure

Levels� The installation specific four channel 30D amplifier is

intended for permanent integration within venues which

require medium to high Sound Pressure Levels� These amplifiers

all provide extensive user-definable equalization containing

two 16-band equalizers with parametric, notch, shelving and

asymmetric filters as well as delay capabilities of up to

10 seconds�

The DS10 Audio network bridge provides 16 AES3

outputs and interfaces between the Dante audio transport

protocol and the d&b amplifiers�

The DS100 Signal Engine is based on a specialized

rack mount 3 RU audio processor with Audinate Dante

networking� It provides a 64 x 64 audio matrix with level

and delay adjustments at all cross points� Additional software

modules provide dynamic source positioning and emulated

acoustics functions�

DS10 Audio network bridge

30D amplier

DS100 Signal Engine

d&b Y-Series 1110 d&b Y-Series

Y7P/Yi7P loudspeaker

The compact, 2-way passive Y7P loudspeaker and Yi7P

loudspeaker feature two 8" drivers in a dipole arrangement with

a 1�4" compression driver mounted onto a rotatable CD horn�

The Yi7P is the installation version of the Y7P loudspeaker and

differs only in cabinet construction, finish and mounting

hardware� Sophisticated horn geometry combined with the

advanced

bass-reflex port design delivers full bandwidth capabilities with

an extended LF output� These point source, high performance

cabinets offer 75° horizontal directivity matched with a vertical

dispersion of 40°; the horn can be rotated by 90° to enable

horizontal orientation�

The Y7P/Yi7P provide a broad variety of deployment

possibilities, especially when used as a stand-alone full range

system, or combined with other elements from the Y-Series, either

ground stacked or flown�

The loudspeaker cabinets are constructed from marine plywood,

the Y7P has an impact and weather protected PCP (Polyurea

Cabinet Protection) finish, while the Yi7P has an impact resistant

paint finish� The front of the loudspeaker cabinets are protected

by a rigid metal grill� The Y7P cabinet incorporates a pair of

handles whilst M10 threaded inserts are provided for attaching

d&b rigging hardware�

System data

Frequency response (–5 dB standard) �� 59 Hz - 18 kHz

Frequency response (–5 dB CUT mode) ��118 Hz - 18 kHz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��132 dB

with 30D/D20 ��135 dB

with D80 ��137 dB

Input level (100 dB SPL/1 m) �� –17 dBu

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 ms) ��400/1600 W

Nominal dispersion angle (h x v) �� 75° x 40°

Components �� 2 x 8" driver with neodymium magnet

��1�4" exit compression driver

��passive crossover network

Connections Y7P ��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Yi7P �� 2 x NL4 and screw terminal block

Weight Y7P/Yi7P ��18 kg (40 lb)

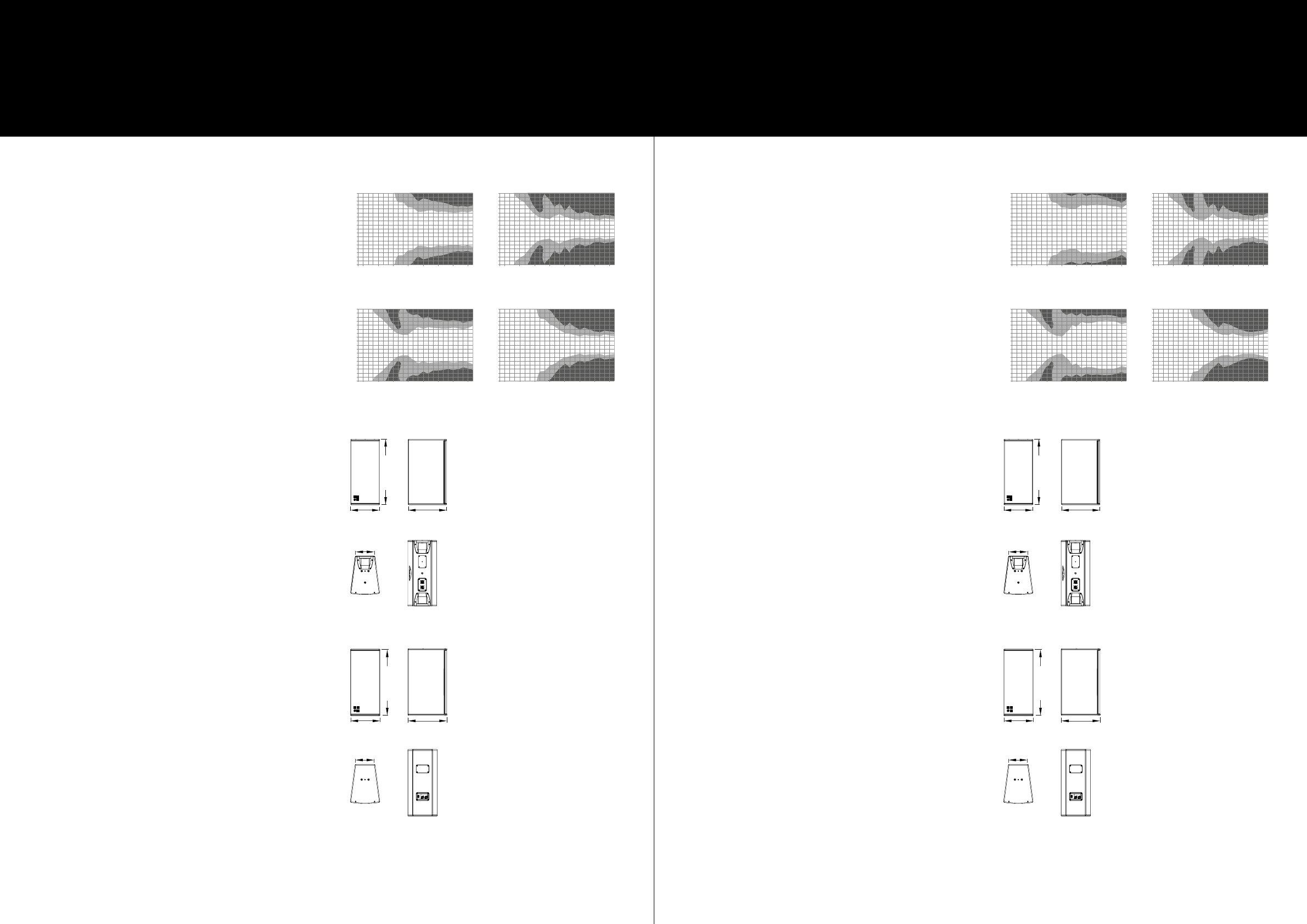

Y7P cabinet dimensions in mm [inch]

Fr

ont view Side view

257 [10]

Top view Rear view

341 [13.4]

580 [22.8]

174 [6.85]

Fr

ont view

Top view

Side view

Rear view

257 [10] 341 [13.4]

580 [22.8]

174 [6.85]

Yi7P cabinet dimensions in mm [inch]

The Y7P loudspeaker

The Yi7P loudspeaker

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

2 Dispersion angle vs frequency plotted using lines of equal sound pressure (isobars)

at –6 dB and –12 dB

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y7P and Yi7P horizontal

dispersion characteristics2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y7P and Yi7P vertical dispersion

characteristics2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y7P and Yi7P horizontal

dispersion characteristics/

horizontal setup, horn rotated2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y7P and Yi7P vertical dispersion

characteristics/horizontal setup,

horn rotated2

Y10P cabinet dimensions in mm [inch]

Yi10P cabinet dimensions in mm [inch]

Fr

ont view Side view

257 [10]

Top view Rear view

341 [13.4]

580 [22.8]

174 [6.85]

The Y10P loudspeaker

The Yi10P loudspeaker

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

2 Dispersion angle vs frequency plotted using lines of equal sound pressure (isobars)

at –6 dB and –12 dB

Y10P/Yi10P loudspeaker

The compact, 2-way passive Y10P loudspeaker and Yi10P

loudspeaker feature two 8" drivers in a dipole arrangement with

a 1�4" compression driver mounted onto a rotatable CD horn�

The Yi10P is the installation version of the Y10P loudspeaker and

differs only in cabinet construction, finish and mounting

hardware� Sophisticated horn geometry combined with the

advanced

bass-reflex port design delivers full bandwidth capabilities with

an extended LF output� These point source, high performance

cabinets offer 110° horizontal directivity matched with a vertical

dispersion of 40°; the horn can be rotated by 90° to enable

horizontal orientation�

The Y10P/Yi10P provide a broad variety of deployment

possibilities, especially when used as a stand-alone full range

system, or combined with other elements from the Y-Series, either

ground stacked or flown�

The loudspeaker cabinets are constructed from marine plywood,

the Y10P has an impact and weather protected PCP (Polyurea

Cabinet Protection) finish, while the Yi10P has an impact resistant

paint finish� The front of the loudspeaker cabinets are protected

by a rigid metal grill� The Y10P cabinet incorporates a pair of

handles whilst M10 threaded inserts are provided for attaching

d&b rigging hardware�

System data

Frequency response (–5 dB standard) �� 59 Hz - 18 kHz

Frequency response (–5 dB CUT mode) ��118 Hz - 18 kHz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��131 dB

with 30D/D20 ��134 dB

with D80 �� 136 dB

Input level (100 dB SPL/1 m) �� –17 dBu

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 ms) ��400/1600 W

Nominal dispersion angle (h x v) ��110° x 40°

Components �� 2 x 8" driver with neodymium magnet

��1�4" exit compression driver

��passive crossover network

Connections Y10P ��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Yi10P �� 2 x NL4 and screw terminal block

Weight Y10P/Yi10P ��18 kg (40 lb)

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y10P and Yi10P horizontal

dispersion characteristics2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y10P and Yi10P vertical

dispersion characteristics2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y10P and Yi10P horizontal

dispersion characteristics/

horizontal setup, horn rotated2

90

60

30

0

–

30

–

60

–

90

125 250 5002k1k 4k 8k 16k

Y10P and Yi10P vertical

dispersion characteristics/

horizontal setup, horn rotated2

Fr

ont view

Top view

Side view

Rear view

257 [10] 341 [13.4]

580 [22.8]

174 [6.85]

d&b Y-Series 1312 d&b Y-Series

B6-SUB cabinet dimensions in mm [inch]

580 [22.8]

805 [31.7]

700 [27.5]

490 [19.3]

Fr

ont view Side view

Top vie

wR

ear view

Bi6-SUB cabinet dimensions in mm [inch]

580 [22.8] 700 [27.5]

490 [19.3]

Front view Side view

Top view Rear view

The B6 subwoofer

The Bi6 subwoofer

B6/Bi6 subwoofer

The B6-SUB and Bi6-SUB are high performance subwoofers

designed for ground stacked applications, housing

a long excursion 18" driver built into a bass-reflex design�

The Bi6-SUB is the installation version of the B6 subwoofer and

differs only in cabinet construction, finish and mounting

hardware�

When three or any multiple of three B6 or Bi6 subwoofers are

used, they can be positioned in a Cardioid Subwoofer Array,

achieving exceptional directivity control in lower frequencies and

significantly reducing the energy radiating towards to the rear�

The cabinets are constructed from marine plywood, the B6-SUB

has an impact and weather protected PCP (Polyurea Cabinet

Protection) finish, while the Bi6-SUB has an impact resistant paint

finish� The front of the loudspeaker cabinet is protected by a rigid

metal grill backed by an acoustically transparent foam� The side

panels of the B6-SUB incorporate two handles, whilst four wheels

are mounted to the rear and the enclosure features two runners

to protect the bottom panel from scratching� Two correspondingly

shaped recesses are incorporated into the top panel of each

B6-SUB cabinet to accept these runners, preventing cabinet

movement when stacked� An M20 threaded flange in the top

panel accepts the d&b Loudspeaker stand winder M20�

System data

Frequency response (–5 dB standard) ��37 Hz - 140 Hz

Frequency response (–5 dB 100 Hz mode) ��37 Hz - 110 Hz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��128 dB

with 30D/D20 ��131 dB

with D80 �� 134 dB

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 msec) ��500/2000 W

Components �� 1 x 18" driver

Connections B6��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Bi6 �� 2 x NL4 and screw terminal block

Weight B6/Bi6 �� 41/38 kg (90/84 lb)

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

E7925

B6-SUB Transport lid

E7473

Touring case 2 x Y7P/Y10P

Dimensions (H x W x D):

775 x 812 x 417 mm

30�5 x 32 x 16�4 inch

Net weight: 38 kg (84 lb)

The Y7P, Y10P and B6 transport accessories

d&b Y-Series 1514 d&b Y-Series

Y8 cabinet dimensions in mm [inch]

630 [24.8]

257 [10]

375 [14.8]

162 [6.4]

Fr

ont vie

wS

ide view

Top vie

wR

ear view

15°

90

80

70

60

50

40

30

20

10

0

–1

0

–

20

–

30

–

40

–

50

–

60

–

70

–

80

–

90

125250 5002k1k 4k 8k 16k

Y8 and Yi8 horizontal dispersion characteristics2

630 [24.8]

257 [10]

375 [14.8]

162 [6.4]

Fr

ont view Side view

Top vie

wR

ear view

15°

Yi8 cabinet dimensions in mm [inch]

The Y8 loudspeaker

The Yi8 loudspeaker

Y8/Yi8 loudspeaker

The compact Y8 and Yi8 line array loudspeakers are designed

for use in vertical columns� The 2-way passive design features

two 8" drivers in a dipole arrangement and a centrally mounted

1�4" compression driver with a wave transformer� The Yi8 is the

installation version of the Y8 loudspeaker and differs only in

cabinet construction, finish and mounting hardware�

Sophisticated horn geometry combined with the advanced

bass-reflex port design delivers full bandwidth capabilities

with an extended LF output� These high performance line array

modules offer 80° horizontal directivity controlled down to

500 Hz�

The mechanical and acoustical design enables vertical arrays of

up to twenty four loudspeakers with vertical splay angles from

0° to 14° with a 1° resolution� It can be used in columns of

purely Y8 loudspeaker or Yi8 loudspeaker or combined with

Y12/Yi12 and/or Y-SUB/Yi-SUB cabinets�

The loudspeaker cabinets are constructed from marine plywood,

the Y8 has an impact and weather protected PCP (Polyurea

Cabinet Protection) finish, while the Yi8 has an impact resistant

paint finish� The front of the loudspeaker cabinet is protected by

a rigid metal grill backed by an acoustically transparent foam�

Each side panel of the Y8 incorporates a handle while two

additional recessed grips are provided at the rear� Three point

rigging hardware is integrated into the loudspeaker enclosure�

System data

Frequency response (–5 dB standard) �� 54 Hz - 19 kHz

Frequency response (–5 dB CUT mode) ��100 Hz - 19 kHz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��134 dB

with 30D/D20 ��137 dB

with D80 �� 139 dB

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 ms) ��400/1600 W

Nominal dispersion angle (h) ��80°

Splay angle settings �� 0° - 14° (1° increment)

Components �� 2 x 8" driver with neodymium magnet

��1�4" exit compression driver

��passive crossover network

Connections Y8��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Yi8 �� 2 x NL4 and screw terminal block

Weight Y8/Yi8 ��20 kg (44 lb)

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

2 Dispersion angle vs frequency plotted using lines of equal sound pressure (isobars)

at –6 dB and –12 dB

Y12 cabinet dimensions in mm [inch]

630 [24.8]

257 [10]

375 [14.8]

162 [6.4]

Fr

ont vie

wS

ide view

To

p vie

wR

ear view

15°

630 [24.8]

257 [10]

375 [14.8]

162 [6.4]

Fr

ont view Side view

To

p vie

wR

ear view

15°

Yi12 cabinet dimensions in mm [inch]

Y12 and Yi12 horizontal dispersion characteristics2

90

80

70

60

50

40

30

20

10

0

–1

0

–

20

–

30

–

40

–

50

–

60

–

70

–

80

–

90

125250 5002k1k 4k 8k 16k

The Y12 loudspeaker

The Yi12 loudspeaker

Y12/Yi12 loudspeaker

The compact Y12 and Yi12 line array loudspeakers are

designed for use in vertical columns� The 2-way passive design

features two 8" drivers in a dipole arrangement and a centrally

mounted 1�4" compression driver with a wave transformer�

The Yi12 is the installation version of the Y12 loudspeaker

and differs only in cabinet construction, finish and mounting

hardware� Sophisticated horn geometry combined with the

advanced bass-reflex port design delivers full bandwidth

capabilities with an extended LF output� These high performance

line array modules offer 120° horizontal directivity controlled

down to 500 Hz�

The mechanical and acoustical design enables vertical arrays of

up to twenty four loudspeakers with vertical splay angles from

0° to 14° with a 1° resolution� It can be used in columns of

purely Y12 loudspeaker or Yi12 loudspeaker or combined with

Y8/Yi8 and/or Y-SUB/Yi-SUB cabinets�

The loudspeaker cabinets are constructed from marine plywood,

the Y12 has an impact and weather protected PCP (Polyurea

Cabinet Protection) finish, while the Yi12 has an impact resistant

paint finish� The front of the loudspeaker cabinet is protected by

a rigid metal grill backed by an acoustically transparent foam�

Each side panel of the Y12 incorporates a handle while two

additional recessed grips are provided at the rear� Three point

rigging hardware is integrated into the loudspeaker enclosure�

System data

Frequency response (–5 dB standard) �� 54 Hz - 19 kHz

Frequency response (–5 dB CUT mode) ��100 Hz - 19 kHz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��134 dB

with 30D/D20 ��137 dB

with D80 �� 139 dB

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 ms) ��400/1600 W

Nominal dispersion angle (h) �� 120°

Splay angle settings �� 0° - 14° (1° increment)

Components �� 2 x 8" driver with neodymium magnet

��1�4" exit compression driver

��passive crossover network

Connections Y12 ��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Yi12 �� 2 x NL4 and screw terminal block

Weight Y12/Yi12 ��20 kg (44 lb)

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

2 Dispersion angle vs frequency plotted using lines of equal sound pressure (isobars)

at –6 dB and –12 dB

d&b Y-Series 1716 d&b Y-Series

700 [27.5]

804 [31.6]

500 [19.7]

630 [24.8]

Front vie

wS

ide view

Top view Rear view

Y-SUB cabinet dimensions in mm [inch]

630 [24.8] 700 [27.5]

500 [19.7]

Fr

ont view Side view

Top view Rear view

Yi-SUB cabinet dimensions in mm [inch]

30

60

90

120

300

330

240

270

210

150

18

00

Cardioid polar pattern

The Y subwoofer

The Yi subwoofer

Y/Yi subwoofer

The Y-SUB and Yi-SUB are actively driven cardioid subwoofers

powered by a single amplifier channel� The Yi-SUB is the

installation version of the Y-SUB and differs only in cabinet

construction, finish and mounting hardware� They house two long

excursion neodymium drivers in an integrated cardioid setup, an

18" driver in a bass-reflex chamber facing to the front and a 12"

driver in a two chamber bandpass design radiating towards

the rear�

The cardioid dispersion pattern resulting from this arrangement

avoids the distribution of energy behind the system, providing the

greatest accuracy of low frequency reproduction and reducing

the energy dispersed into unwanted areas� The Y-SUB and

Yi-SUB are fitted with three point rigging hardware and can be

flown in columns of purely Y or Yi subwoofers, at the top of a

Y/Yi array or used in a ground stacked setup�

The cabinets are constructed from marine plywood, the Y-SUB

has an impact and weather protected PCP (Polyurea Cabinet

Protection) finish while the Yi-SUB has an impact resistant paint

finish� The front of the loudspeaker cabinet is protected by a rigid

metal grill backed by an acoustically transparent foam, whilst the

side panels of the Y-SUB incorporate four handles with four

wheels mounted to the rear�

System data

Frequency response (–5 dB standard) ��39 Hz - 140 Hz

Frequency response (–5 dB 100 Hz mode) ��39 Hz - 110 Hz

Max� sound pressure (1 m, free field)1 ��

with D6/10D ��128 dB

with 30D/D20 ��131 dB

with D80 ��134 dB

Loudspeaker data

Nominal impedance ��8 ohms

Power handling capacity (RMS/peak 10 ms) ��600/2400 W

Splay angle settings �� 0° and 2�5°

Components �� 1x 18" driver with neodymium magnet

�� 1x 12" driver with neodymium magnet

Connections Y-SUB ��2 x NLT4 F/M

�� optional 2 x NL4 or 2 x EP5

Connections Yi-SUB �� 2 x NL4 and screw terminal block

Weight Y-SUB/Yi-SUB ��52/49 kg (115/108 lb)

1 Broadband measurement, pink noise, crest factor 4, peak measurement, linear weighting

E7470

Touring cart 4 x Y8/Y12

Dimensions (H x W x D):

1200 x 600 x 730 mm

47�3 x 23�7 x 29 inch

Total weight: 130 kg (285 lb)

Max� top load: 100 kg (220 lb)

E7471

Touring cart 8 x Y8/Y12

Dimensions (H x W x D):

1200 x 1200 x 730 mm

47�3 x 47�3 x 29 inch

Total weight: 230 kg (510 lb)

Max� top load: 200 kg (440 lb)

E7472

Touring case 4 x Y8/Y12

Dimensions (H x W x D):

1271 x 724 x 626 mm

50 x 28�5 x 24�6 inch

Net weight: 61 kg (135 lb)

E7924

Y-SUB Transport lid

E7475

Touring case 2 x Y Flying frame

Dimensions (H x W x D):

962 x 724 x 628 mm

38 x 28�5 x 24�7 inch

Net weight: 51 kg (112 lb)

The Y8, Y12 and Y-SUB transport accessories

d&b Y-Series 1918 d&b Y-Series

Safety approval

d&b loudspeakers and accessories are designed for setup and

use within situations requiring compliance with the provisions

and directives of the DGUV regulation 17 (formerly BGV C1)�

Z5049

Flying pin 8mm1

Z5012

Pipe clamp for TV Spigot

For a tube diameter up to

70 mm/2�75"

Z5024

Loudspeaker stand adapter

Z5010

TV Spigot with xing plate

Z5397

YP Swivel bracket

Z5399

YP Mounting bracket

Z5398

YP Horizontal bracket

The Y7P, Y10P and B6-SUB mounting accessories

1 For static loads only� Not intended for attaching secondardy saftey devices�

Y7P/Y10P with

Z5397 YP Swivel bracket

Z5009 Loudspeaker stand with winder

Z5024 Loudspeaker stand adapter

The Y7P, Y10P and B6-SUB mounting examples

Y7P/Y10P with

Z5397 YP Swivel bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

Y7P/Y10P with

2 x Z5049 Flying pin 8mm

Y7P/Y10P with

Z5398 YP Horizontal bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

Y7P/Y10P with

Z5399 YP Mounting bracket

Z5024 Loudspeaker

stand adapter

Y7P/Y10P with

Z5399 YP Mounting bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

Y7P/Y10P with

Z5397 YP Swivel bracket

Z5013 Loudspeaker stand winder M20

Z5024 Loudspeaker stand adapter

d&b Y-Series 2120 d&b Y-Series

Safety approval

d&b loudspeakers and accessories are designed for setup and

use within situations requiring compliance with the provisions

and directives of the DGUV regulation 17 (formerly BGV C1)�

Z5389

Bi6-SUB Horizontal bracket

The Yi7P, Yi10P and Bi6-SUB mounting accessories

Z5399

YP Mounting bracket

Z5398

YP Horizontal bracket

Z5010

TV Spigot with xing plate

Z5012

Pipe clamp for TV Spigot

For a tube diameter up to

70 mm/2�75"

Z5024

Loudspeaker stand adapter

Yi7P/Yi10P with

Z5399 YP Mounting bracket

Z5009 Loudspeaker stand with winder

Yi7P/Yi10P with

Z5399 YP Mounting bracket

Z5024 Loudspeaker stand adapter

Bi6-SUB with

Z5389 Bi6 Horizontal bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

Yi7P/Yi10P with

Z5398 YP Horizontal bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

The Yi7P, Yi10P and Bi6-SUB mounting examples

Yi7P/Yi10P with

Z5399 YP Mounting bracket

Z5010 TV Spigot with xing plate

Z5012 Pipe clamp

d&b Y-Series 2322 d&b Y-Series

Safety approval

d&b loudspeakers and accessories are designed for setup and

use within situations requiring compliance with the provisions

and directives of the DGUV regulation 17 (formerly BGV C1)�

Z5390

Y Flying frame

Supplied with

1 x Z5392 Y Safety chainset

2 x Y Load adapter

1 x Y Load adapter for rota clamp

2 x Front link

Z5390

Y Flying frame

For a maximum of twenty four

Y8/Y12/Yi8/Yi12 loudspeakers or

ten Y/Yi subwoofers

Z5394

Y Flying adapter

For a maximum of six Y8/Y12

loudspeakers; supplied with 1t Shackle

The Y8/Yi8, Y12/Yi12 and Y/Yi-SUB

rigging accessories

Z5393.001

Y Mounting frame bottom

Z5393.000

Y Mounting frame top

For a maximum load equivalent to six

Yi8/Yi12 loudspeakers

Z5147

Rota clamp

WLL: 500 kg (1100 lb)

for a tube diameter up

to 51 mm/2"

Z5391

Y Hoist connector chain

Z5392

Y Safety chainset

E6507

1t Shackle

Z5396

Y Base plate

Y-SUB column with

Z5390 Y Flying frame

Y-Series ground stack with

Z5396 Y Base plate

The Y8, Y12 and Y-SUB rigging examples

Y8/Y12 array with

Z5394 Y Flying adapter

Z5391 Y Hoist connector chain

Y8/Y12 array with

Z5394 Y Flying adapter

Z5147 Rota clamp

Y8/Y12 array with

Z5390 Y Flying frame

Z5147 Rota clamp

Y8/Y12 array with

Z5390 Y Flying frame

2 x Z5391 Y Hoist connector chain

Z5392 Y Safety chainset

Y-Series array with

Z5390 Y Flying frame

Z5391 Y Hoist connector chain

d&b Y-Series 2524 d&b Y-Series

Safety approval

d&b loudspeakers and accessories are designed for setup and

use within situations requiring compliance with the provisions

and directives of the DGUV regulation 17 (formerly BGV C1)�

The Yi8, Yi12 and Yi-SUB rigging examples

Yi8/Yi12 array with

Z5393.000 Y Mounting frame top

Yi-SUB column with

Z5393.000 Y Mounting frame top

Yi array with

Z5390 Y Flying frame

2 x Z5393.001 Y Mounting frame bottom

The Yi cabinets and appropriate accessories are also available

with a Weather Resistant or Special Colour option� Both options

can be combined�

Weather Resistant (WR) option

The WR option enables operation of loudspeakers in changing

ambient conditions, however it is not intended to enable

permanent, unprotected operation of loudspeakers outdoors�

A cover must also be positioned over the loudspeakers� Cabinets

used outdoors even with the WR option should always be aimed

either horizontally or with a downward tilt� The Yi-SUB should

always be positioned without any vertical tilt� Yi loudspeakers

with the Weather Resistant option are supplied with a fixed

cable� PG cable type H07RN-F 2 x 2�5 mm²/AWG 13 with

a length of 5�5 m (18 ft) as standard or length as required�

Additionally, the Yi loudspeakers supplied with the WR option,

based on a PCP finish (Polyurea Cabinet Protection), are also

available in RAL colour versions�

Special Colour (SC) option

The paint finish of all loudspeaker cabinets and most accessories

can be executed in almost all RAL colours in accordance with the

RAL colour table� All rigging fittings at the rear of the cabinet,

Front links and Locking pins remain in black� Other paint finishes

such as metallic are available on request� The acoustically

transparent foam fitted behind the rigid metal grill is also painted

with the requested RAL colour�

The Yi Weather Resistant and

Special Colour options

d&b Y-Series 2726 d&b Y-Series

The d&b ArrayCalc simulation software

Sources, SUB array

ArrayProcessing

Ampliers

Both simulations reflect changes in delay time to the single

sources in real time� The d&b ArrayCalc simulation software is

available at www�dbaudio�com, along with further information

and video tutorials�

Prediction

The level distribution resulting from the interaction of all

active sources can be mapped onto the audience areas in a

three-dimensional view, which can also be zoomed, rotated

and exported as a graphics file� EASE and DXF data export

capabilities are also available� A rigging plot with all necessary

coordinates, dimensions and weights of arrays is generated for

export and printing and a parts list, detailing all components

required� The d&b ArrayCalc Viewer app presents this key

information for positioning and flying a d&b audiotechnik

loudspeaker system on a mobile device� Once the system has

been designed, calculated and optimized, all relevant project

information can be shared via email, AirDrop, or downloaded

onto any iOS or Android device�

ArrayProcessing

The optional ArrayProcessing function applies powerful filter

algorithms to optimize the tonal (spectral) and level (spatial)

performance of a line array column over the audience area

defined by its mechanical vertical coverage angle� Within the d&b

ArrayCalc simulation software, spectral and level performance

targets over the listening areas can be defined while specific level

drops or offsets can be applied to certain areas, to assign

reduced level zones� ArrayProcessing applies a combination of

FIR and IIR filters to each individual cabinet in an array to achieve

the targeted performance, with an additional latency of only 5�9

ms� This significantly improves the linearity of the response over

distance as well as seamlessly correcting for air absorption� In

addition, ArrayProcessing employs the same frequency response

targets for all d&b line arrays, to ensure all systems share a

common tonality� This provides consistent sonic results regardless

of array length or splay settings� The resulting coverage is

enhanced with spectral consistency and defined level distribution,

achieving more linear dispersion and total system directivity to

cover longer distances or steep listening areas effectively�

R1 Remote Control Software

R1 uses the same project file created by ArrayCalc and

generates an intuitive graphical user interface including complete

details of the simulated system, loudspeakers, amplifiers, remote

IDs, groups, ArrayProcessing data and all configuration

information� This workflow removes the need to manually transfer

data from one software program to the other�

The d&b ArrayCalc simulation software is the prediction tool

for d&b line arrays, column and point source loudspeakers as

well as subwoofers� This is a comprehensive toolbox for all tasks

associated with acoustic design, performance prediction,

alignment, rigging and safety parameters� For safety reasons

d&b line arrays must be designed using the d&b ArrayCalc

simulation software� ArrayCalc is available as a native stand-

alone application for both Microsoft Windows1(Win7 or higher)

and Mac OS X2 (10�7 or higher) operating systems� In

combination with the d&b Remote Network, this can significantly

reduce setup and tuning time in mobile applications and allows

for precise simulations when planning installations� Listening

planes can be defined in the venue tab, creating a three

dimensional representation of any audience area in a given

venue� This can also include balconies, side stalls, arenas, in the

round scenarios or festivals� Special functions assist in obtaining

accurate dimensions with laser distance finders and

inclinometers�

Simulation

Up to fourteen flown arrays or subwoofer columns can be

defined in a project file as single hangs or in pairs� A selection of

d&b point source loudspeakers can also be fully integrated as

well as a ground stacked SUB array consisting of up to fifty one

positions� All can be freely positioned according to their intended

application, for example as main hang, outfill, nearfill or delay�

Position, orientation, aiming and coverage details are displayed�

Level over distance is calculated for each source with high

resolution in real time, for either band limited or broadband input

signals� The comprehensive simulation precisely models the

actual performance of the system, taking into account input level,

all system configuration options (such as CUT, CPL, HFC or

INFRA), limiter headroom and air absorption� Acoustic obstacles,

such as video screens, can be added to a model� Acoustic

shadowing, whether by these obstacles, or a balcony overhang,

is taken into consideration� The load status of all array rigging

components is calculated accurately and displayed to determine

whether a given array is within the load tolerance� Subwoofer

array design is assisted by coverage and polar plot prediction�

A specialized algorithm allows the user to specify subwoofer

positions and a coverage angle, which is then converted into

appropriate delay settings that result in the desired dispersion�

The alignment tab enables different sources to be time aligned to

one another, as well as showing arrival times and Sound Pressure

Levels at a definable reference point on one of the audience

areas� For alignment of the flown system with the ground stacked

SUB array, the phase response of both the SUB array and a

flown source is calculated at a definable reference point�

Venue

Alignment

3D Plot quad

1 Microsoft Windows is a registered trademark or trademark of Microsoft Corporation in

the United States and/or other countries

2 Mac OS X is a trademark of Apple Inc�, registered in the U�S� and other countries

d&b Y-Series 2928 d&b Y-Series

1 Microsoft Windows is a registered trademark or trademark of Microsoft Corporation in

the United States and/or other countries

2 Mac OS X is a trademark of Apple Inc�, registered in the U�S� and other countries

The d&b R1 Remote control software

The remote control capability of the d&b Remote network enables

central control and monitoring of a complete d&b loudspeaker

system from anywhere in the network, be it from a computer in the

control room, at the mix position, or on a wireless tablet in the

auditorium� This central access to all functions through the d&b

Remote network, to controls as well as detailed system and device

diagnostics information, unlocks the full potential of the d&b

system approach� In a typical user workflow, the d&b Remote

network takes settings optimized in the ArrayCalc Simulation

Software and applies these to all the amplifiers within the

network� R1 uses the same project file created by ArrayCalc

allowing system configuration to be quickly accomplished,

providing more time for verification and fine tuning�

All features, functions and controls available on the front panel

of d&b amplifiers may be remotely controlled and/or monitored

using the d&b R1 Remote control software� This allows each

channel of the amplifier to be controlled and enables the

creation of groups of loudspeakers� When grouped together, a

button or fader can control the overall system level, zone level,

equalization and delay, power ON/OFF, MUTE, as well as

loudspeaker specific function switches such as CUT/HFA/HFC

and CPL� An offline mode is provided for preparation in advance

of an event, without the amplifiers being present or connected�

d&b System check verifies that the system performs within a

predefined condition, while the Array verification function

automatically identifies the physical position of a loudspeaker in

an array to check that the system is cabled correctly� Extensive

facilities for storing and recalling system settings are provided

allowing these to be repeated, as and when required� For mobile

applications, project files can be easily adjusted for use with a

different set of equipment at another location�

In installation projects system integrators can configure the

d&b Remote Network to offer access to different levels of control,

tailored to the operational demands� For example, power

ON/OFF for daily use, or more complex functionality for

detailed control� Password protection is available to restrict

access� Input and Load monitoring allow installation operators

to ensure optimum performance at all times� The d&b R1 Remote

control software enables d&b amplifiers to be remotely controlled

using both Ethernet and CAN-Bus in parallel�

The software is optimized for use with touch screen, mouse and

keyboard and runs on both Microsoft Windows1 (Win7 or

higher) and Mac OS X2 (10�7 or higher) operating systems�

Further information is provided in the d&b Amplifier and Software

brochure which is available for download at www�dbaudio�com�

Home

Remote in Conguration mode

16-band equalizer

The d&b NoizCalc immission modelling software

Editor

The d&b software uses international standards to model the far

field noise immission from multiple complex and coherently

emitting sources such as line arrays and subwoofer arrays�

Gaining permission and licenses to stage live open air events

often requires an official statement with a prediction of how noise

could impact on the surrounding area� Careful planning of the

combined directivity and the direction can influence the immission

result outside of the event area� NoizCalc takes all complex

loudspeaker data and a reference point from the d&b ArrayCalc

simulation software and calculates the sound propagation and

relative attenuation values towards the far field for a certain

scenario with particular meteorological conditions for one or

more d&b loudspeaker systems�

The results are displayed on a 3D terrain map showing the

calculated immission on the areas surrounding the audience

listening zones� This visual representation shows the actual

system performance in the far field, enabling users to optimize

for listeners while satisfying local noise restrictions and offsite

regulations� To ensure the results are reliable, NoizCalc includes

all complex data concerning the addition and subtraction of

sound waves, including phase information to describe the

combination and interaction effects within a loudspeaker

system consisting of multiple line arrays, subwoofer arrays and

delay systems�

NoizCalc models immissions in the far field according to the

internationally accepted ISO 9613-2 or Nord2000 calculation

standards� Ground characteristics can be set depending on the

absorbency or reflectivity of surfaces, while areas with volume

attenuating properties can be defined� Buildings can be included,

and the maximum reflection order option adjusts how many

reflections are calculated� Parameters for humidity, air pressure

and temperature ensure that the correct air absorption figures are

accounted� The ISO 9613-2 standard requires limited

meteorological information and assumes a worst case scenario�

The more sophisticated propagation model, Nord2000

enables a more precise handling of meteorological conditions

allowing the user to model with prevailing wind information� The

d&b NoizCalc immission modelling software is available at

www�dbaudio�com for registered download, along with further

information and video tutorials� It was developed in collaboration

with SoundPLAN, a specialist software developer for

environmental noise prediction�

Graphic plot

d&b Y-Series 3130 d&b Y-Series

different output configurations for different loudspeaker setups,

including Dual Channel mode, for passive setups, Mix TOP/SUB

mode, in which two channels are driven through a single output

connector, and 2-Way Active mode, which also sends the output

of two channels down one connector to drive appropriate

loudspeakers actively�

The d&b switch functions provide selected filters to precisely

tailor a wide variety of setups to their applications� Examples of

these switch functions are the CSA (Cardioid Subwoofer Array)

The d&b amplifiers are designed specifically to power d&b

loudspeakers and are the beating heart of the d&b System

reality� As such, they incorporate Digital Signal Processing for

comprehensive loudspeaker management, switchable filter

functions, remote capabilities and user-definable controls, to fulfil

the exact needs of each application�

Every loudspeaker configuration combines comprehensive system

limiting, and equalization and crossover settings to ensure

consistent results and optimal performance� d&b amplifiers offer

The d&b amplifiers

mode, to attenuate the high frequencies of a loudspeaker to

mimic the effect of far field listening�

These devices offer extended, user-definable equalization and

delay capabilities, eliminating the need for external processing

devices in the signal chain� All d&b amplifiers integrate with the

d&b Remote network to enable the remote control and

management of systems from anywhere within a network�

Further information is provided in the d&b Amplifier and Software

brochure which is available for download at www�dbaudio�com�

and HFC (High Frequency Compensation) modes� CSA increases

low frequency directivity control by minimising energy

transmission towards the rear while HFC compensates for air

absorption for loudspeakers covering far field listening positions�

In addition to these functions, d&b amplifiers offer a

comprehensive set of specific filters such as CUT, a cut mode for

TOP loudspeakers when used with d&b subwoofers; CPL, to

compensate for the coupling effect between loudspeakers in

close proximity to other loudspeakers or hard objects and HFA

Comparison of the d&b amplifiers

D80 30D D20 10D D6

User interface Encoder/colour TFT touchscreen LED indicators Encoder/colour TFT touchscreen LED indicators Encoder/LC display

Output channels 4 4 4 4 2

Input channels 4 x AES3 or 4 x analog or

2 x AES3 and 2 x analog 4 x AES3 and 4 x analog 4 x AES3 or 4 x analog or

2 x AES3 and 2 x analog 4 x AES3 and 4 x analog 2 x AES3 or 2 x analog

Latency 0�3 msec 0�3 msec 0�3 msec 0�3 msec 0�3 msec

User equalizers (per channel) 2 x 16-band 2 x 16-band 2 x 16-band 2 x 16-band 4-band

Delay 10 sec/3440 m 10 sec/3440 m 10 sec/3440 m 10 sec/3440 m 340 msec/116�9 m

Maximum output power

(THD+N < 0.5%, 12 dB crest factor)

4 x 2000 W into 8 ohms

4 x 4000 W into 4 ohms

4 x 800 W into 8 ohms

4 x 1600 W into 4 ohms

4 x 800 W into 8 ohms

4 x 1600 W into 4 ohms

4 x 350 W into 8 ohms

4 x 700 W into 4 ohms

2 x 350 W into 8 ohms

2 x 600 W into 4 ohms

Output routing Dual Channel, Mix TOP/SUB

2-Way Active

Dual Channel, Mix TOP/SUB

2-Way Active

Dual Channel, Mix TOP/SUB

2-Way Active

Dual Channel, Mix TOP/SUB

2-Way Active Dual Channel

Output connectors NL4/EP5 plus central NL8 Phoenix Euroblock NL4 plus central NL8 Phoenix Euroblock NL4

GPIO connector, 5 ports No Phoenix Euroblock No Phoenix Euroblock No

Cable compensation LoadMatch LoadMatch LoadMatch LoadMatch No

Power supply Autosensing switched mode

power supply with active PFC

Universal range switched mode

power supply with active PFC

Universal range switched mode

power supply with active PFC

Universal range switched mode

power supply with active PFC

Autosensing switched mode

power supply with active PFC

Mains voltage 100 - 127/208 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 240 V, 50 - 60 Hz 100 - 120/220 - 240, 50 - 60 Hz

Weight (kg/lb) 19/42 10�6/23�4 10�8/23�8 10�6/23�4 8/17�6

Dimensions 2 RU x 19" x 530 mm 2 RU x 19" x 435 mm 2 RU x 19" x 460 mm 2 RU x 19" x 435 mm 2 RU x 19" x 353 mm

Remote OCA via Ethernet/CAN OCA via Ethernet/CAN OCA via Ethernet/CAN OCA via Ethernet/CAN CAN

Airflow

d&b Y-Series 3332 d&b Y-Series

CSA mode

CSA (Cardioid Subwoofer Array) mode enables the combination

of three or multiples of three B6-SUB cabinets within an array

producing exceptional low frequency directivity control� The

amplifier channel for the centre subwoofer of the column, which

is physically pointed to the rear, has CSA selected� The forward

facing cabinets are driven with an amplifier channel set in the

standard mode� The resulting cardioid behaviour of the array will

significantly reduce the energy radiated to the rear� For further

information please refer to the d&b TI 330 Cardioid Subwoofer

Array, which is available for download at www�dbaudio�com�

Recommended amplifiers for mobile applications

Y7P Y10P B6 Y8 Y12 Y-SUB

D80 x x x x x x

Recommended amplifiers for installation applications

Yi7P Yi10P Bi6 Yi8 Yi12 Yi-SUB

D80 xxxxxx

30D xxxxxx

Maximum loudspeakers per amplifier channel

Y7P

Yi7P

Y10P

Yi10P

B6

Bi6

Y8

Yi8

Y12

Yi12

Y-SUB

Yi-SUB

222222

Available controller settings

Y7P

Yi7P

Y10P

Yi10P

B6

Bi6

Y8

Yi8

Y12

Yi12

Y-SUB

Yi-SUB

Arc/Line x x

CUT x x x x

HFC x x

HFA x x

CPL x x x x

100 Hz x x

CSA x

Amplifier controller setups

Arc and Line setups

The Arc mode is intended for line array loudspeakers when used

in curved array sections� The Line mode is used for long throw

array sections with three or more consecutive splay settings of

0°, 1° or 2°� Compared to the Arc mode, the mid/high range

is reduced to compensate for the extended near field�

CUT mode

Set to CUT, the cabinet low frequency level is reduced and is

configured for use with d&b active subwoofers�

HFC mode

Selecting the HFC (High Frequency Compensation) mode

compensates for loss of high frequency energy due to absorption

in air when loudspeakers are used to cover far field listening

positions� HFC has two settings which should be used selectively,

HFC1 for cabinets covering distances larger than 25 m (82 ft)

and HFC2 for those covering distances larger than 50 m

(164 ft)� This can be used to achieve the correct sound balance

between close and remote audience areas allowing all amplifiers

driving the array to be fed from the same signal source� Thus the

whole array performs with comparable headroom�

HFA mode

In HFA mode (High Frequency Attenuation), the HF response of

the system is rolled off� The HFA provides a natural, balanced

frequency response when a unit is placed close to listeners in

near field or delay use� HFA begins gradually at 1 kHz,

dropping by approximately 3 dB at 10 kHz� This roll off mimics

the decline in frequency response experienced when listening to

a system from a distance in a typically reverberant room or

auditorium�

CPL function

The CPL (Coupling) function compensates for coupling effects

between the cabinets of an array� CPL begins gradually around

1 kHz, with the maximum attenuation below 100 Hz� As

coupling effects increase with the length of the line array, the CPL

circuit can be set to dB attenuation values between 0 and –9�

100 Hz mode

The 100 Hz mode limits the upper operating frequency of the

subwoofer to 100 Hz, complementing top cabinets in full

range mode�

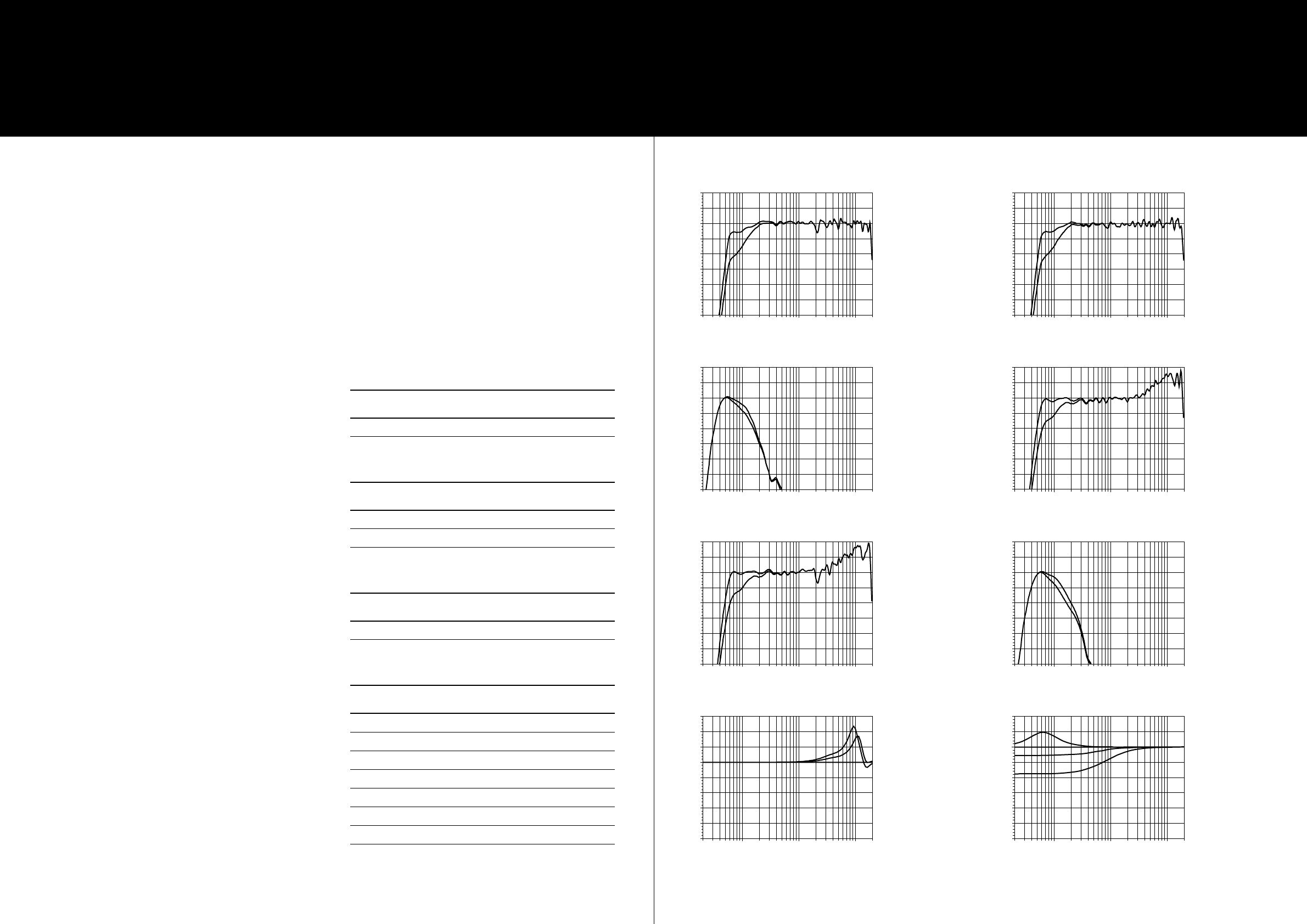

The operation with d&b amplifiers The Y-Series frequency responses

Y7P/Yi7P standard and CUT

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

B6-SUB/Bi6-SUB standard and 100 Hz

Y12/Yi12 standard and CUT (single cabinet)

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

20 100 1k 10k 20k

15

10

5

0

-5

-10

-15

-20

-25

HFC1

HFC2

Correction of HFC

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

Y10P/Yi10P standard and CUT

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

Y8/Yi8 standard and CUT (single cabinet)

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

Y-SUB/Yi-SUB standard and 100 Hz

+5 dB

-3 dB

-9 dB

20

10

5

0

-5

-10

-15

-20

-25

-30

100 1k 10k 20k

Correction of CPL

d&b Y-Series 3534 d&b Y-Series

The d&b amplifier output modes

D6 amplier in Dual Channel mode for Y7P, Y10P, Yi7P, Yi10P, Y8, Y12, Yi8, Yi12 as well as B6-SUB, Bi6-SUB, Y-SUB and Yi-SUB

6D

10D/30D/D20/D80 amplier in Dual Channel mode for Y7P, Y10P, Yi7P, Yi10P, Y8, Y12, Yi8, Yi12 as well as B6-SUB, Bi6-SUB, Y-SUB and Yi-SUB (B6-SUB as CSA)

10D/30D/D20/D80

10D/30D/D20/D80 amplier in Mix TOP/SUB mode for Y7P, Y10P, Yi7P, Yi10P, Y8, Y12, Yi8 or Yi12 and B6-SUB, Bi6-SUB, Y-SUB or Yi-SUB

10D/30D/D20/D80

10D/30D/D20/D80 amplier in a mixed conguration of Dual Channel and Mix TOP/SUB mode for Y7P, Y10P, Yi7P, Yi10P, Y8, Y12, Yi8 or Yi12 and B6-SUB,

Bi6-SUB, Y-SUB or Yi-SUB

10D/30D/D20/D80

d&b Y-Series 3736 d&b Y-Series

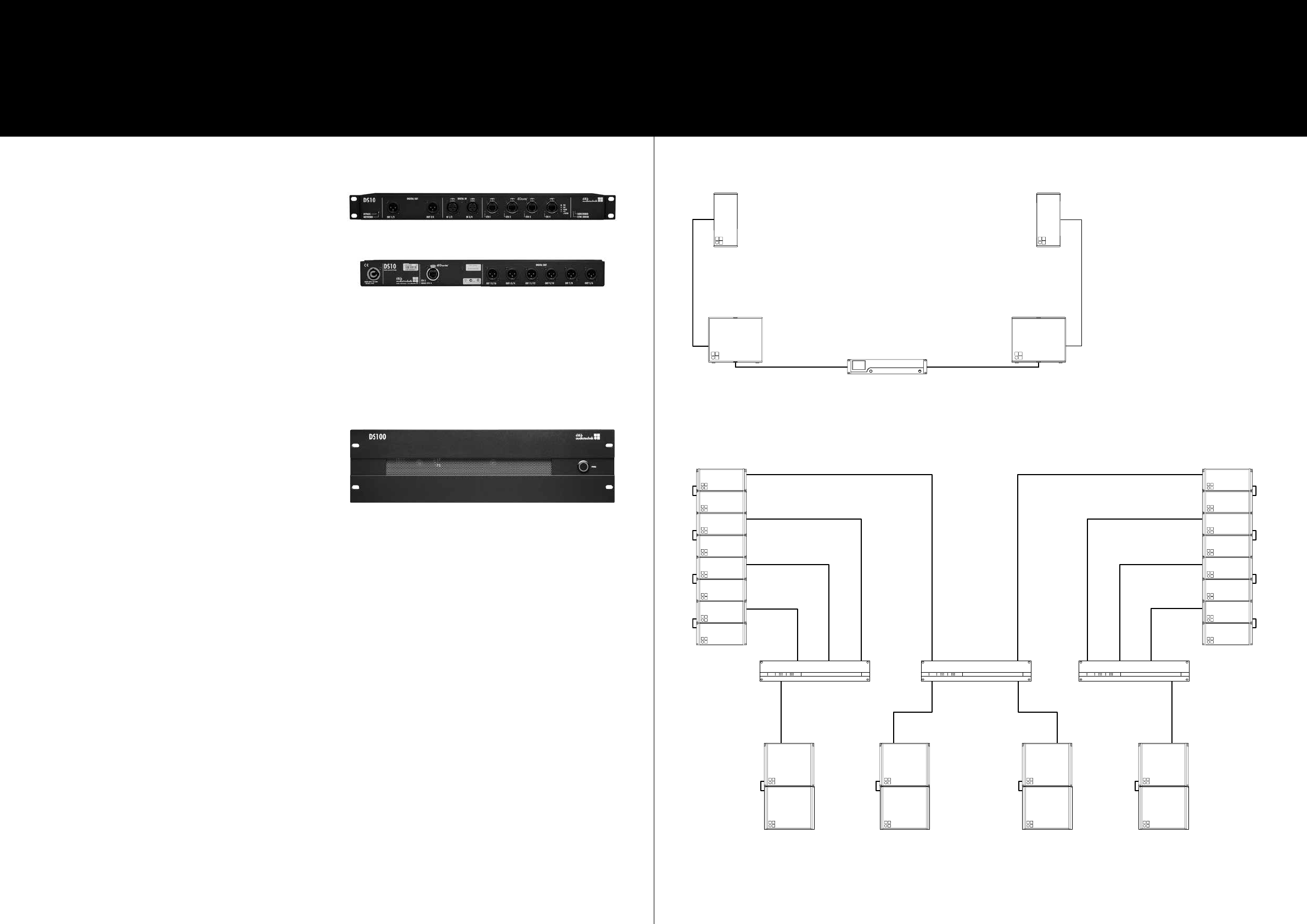

The Y-Series configuration examples

Y-Series L/R conguration comprising Y7P and B6-SUB with a D80 amplier in Mix TOP/SUB mode1

D80

B6-SUBB6-SUB

Y7P Y7P

Yi line array in L/R conguration with own Yi8/Yi12s and ground stacked Yi-SUBs with 30D ampliers in Dual Channel mode

1

Yi8

Yi12

Yi8

Yi12

Yi-SUB

30D 30D 30D

The DS10 Audio network bridge

The DS100 Signal Engine

DS10 Audio network bridge

The DS10 Audio network bridge interfaces between Dante

networks and AES3 digital audio signals, while also providing

distribution of Ethernet control data� Positioned within the signal

chain in front of the amplifiers, this 1 RU device expands the

d&b system approach� Each unit can deliver up to sixteen Dante

network channels via AES3 digital signal outputs� Additionally,

four AES3 input channels provide access to the Dante audio

network for applications such as a break-in from a Front of

House console�

The DS10 incorporates an integrated 5-port switch, offering a

primary and redundant network for the Dante protocol, as well

as advanced functions such as Multicast Filtering and VLAN

modes� Using the DS10 Audio network bridge, audio signals

and remote control data can be combined using a single

Ethernet cable�

DS100 Signal Engine

The d&b DS100 Signal Engine is the platform underneath the

Soundscape, based on a specialized rack mount 3 RU audio

processor with Audinate Dante networking� It provides a 64 x 64

audio matrix with level and delay adjustments at all cross points�

Additional software modules provide dynamic source positioning

and emulated acoustics functions�

The DS100 is a versatile tool for use within complex audio

systems to route and distribute multiple audio channels to

numerous amplifiers driving loudspeaker positions and zones,

show relay and break out rooms� The networking capabilities

with a Dante enabled processor are significant, particularly for

busy, multi-room complexes�

The DS100 completely integrates with the overall d&b system

approach, including loudspeakers, amplifiers, rigging, transport

and networking accessories and the DS10 Audio network

bridge� The complete system is designed and optimized in the

d&b ArrayCalc simulation software, and controlled via the d&b

R1 Remote control software�

The DS10 Audio network bridge front view

The DS10 Audio network bridge rear view

The DS100 Signal Engine front view

d&b Y-Series 3938 d&b Y-Series

Y8

Y-SUB

Y7P Y7P

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

D80

J-SUB

Y-Series conguration comprising Y8 and Y-SUB own array with ground stacked J-Subs and Y7P as nearll with D80 Touring rack1

The Y-Series configuration examples

1 These configurations are also valid for Yi loudspeakers

Y8

Y12

Y8

D20

PRI

SEC

VLAN

PRI

+FILTER

DS10

NETWORK

BYPASS

Y-Series conguration comprising Y8/Y12 mains and Y8 outll arrays with D20 Touring rack1

d&b Y-Series 4140 d&b Y-Series

The Y-Series configuration examples

with ArrayProcessing

1 These configurations are also valid for Yi loudspeakers

Y-Series conguration comprising Y8 mains and Y12 outll arrays driven with ArrayProcessing along with ground stacked Y-SUBs and Y7P as nearlls with

D80 Touring racks1

D80

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

L1 L2 L3 MAINS OUT L2 MAINS OUT L3MAINS OUT L1

AUXILIARY MAINS OUTPUTS 230V ~ 50Hz 16A 3680 W

AUXILIARY MAINS OUTPUTS 16A

4 CH OUTPUTS12 CH OUTPUT

AMP1/2/3

12 CH OUTPUT

AMP4/5/6

AMP1 AMP2 AMP3

CLASS 3 WIRING

AMP4 AMP5 AMP6

ETH/POE

INCLINOMETER

D80

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

L1 L2 L3 MAINS OUT L2 MAINS OUT L3MAINS OUT L1

AUXILIARY MAINS OUTPUTS 230V ~ 50Hz 16A 3680 W

AUXILIARY MAINS OUTPUTS 16A

4 CH OUTPUTS12 CH OUTPUT

AMP1/2/3

12 CH OUTPUT

AMP4/5/6

AMP1 AMP2 AMP3

CLASS 3 WIRING

AMP4 AMP5 AMP6

ETH/POE

INCLINOMETER

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

D80

Y-SUB

Y7P Y7P

Y-SUB

Y7PY7P

Y-SUB

Y8

ABCD A/BC/DABCD A/BC/D

Y12

d&b Y-Series 4342 d&b Y-Series

The Y-Series cables and adapters MC8 / MC24

Amplifiers in Dual Channel mode

D80

D20

)*+, )* +,

8I[[Q^M4; 5Q`<78;=*?Ia)K\Q^M

LJB

)*+, )* +,

8I[[Q^M4; 5Q`<78;=*?Ia)K\Q^M

LJB

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

D80

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

D80

D20

1 x D80 amplier

OUT: NL8

1 x D20 amplier

OUT: NL8

Z5570 / Z5571.xxx

3 x D80 Touring rack

OUT: LKA25F / 3 x NL8

Z5570 / Z5571.xxx

3 x D80 Touring rack

OUT: LKA25F / 3 x NL8

Z5327.000

Adapter LKA25M to 12 x NLT4M

Z5344.002

Adapter NLT8F to 4 x NLT4M

Z5344.000

Adapter NLT8F to 4 x EP5

Z5347.000

Breakoutbox NLT8 F/M

to 6 x EP5

Z5343.xxx

MC8 Cable NLT8 F/M

Z5340.xxx

MC4 Cable NLT4 F/M

Z2299.xxx

MC2.5 Cable NL4

Z2297.xxx

MC4SD Cable EP5

Z5328.xxx

MC24 LKA25 F/M Multicore

Z5344.001

Adapter NLT8F to 4 x NL4

Z5347.001

Breakoutbox NLT8 F/M

to 6 x NL4

Z5560 / Z5561.xxx

3 x D20 Touring rack

OUT: 3 x NL8

44 d&b Y-Series

The Y-Series cables and adapters MC8 / MC24

d&b Y-Series 45

$%&' $% &'

3DVVLYH/6 0L[72368%:D\$FWLYH

GE=

$%&' $% &'

3DVVLYH/6 0L[72368%:D\$FWLYH

GE=

D80

PRI

SEC

VLAN

PRI

+FILTER

DS10

BYPASS

NETWORK

L1 L2 L3 MAINS OUT L2 MAINS OUT L3MAINS OUT L1

AUXILIARY MAINS OUTPUTS 230V ~ 50Hz 16A 3680 W

AUXILIARY MAINS OUTPUTS 16A

4 CH OUTPUTS12 CH OUTPUT

AMP1/2/3

12 CH OUTPUT

AMP4/5/6

AMP1 AMP2 AMP3

CLASS 3 WIRING

AMP4 AMP5 AMP6

ETH/POE

INCLINOMETER

Amplifiers in Dual Channel mode

Z5576

D80 Touring rack assembly

OUT: 2 x LKA25F / 6 x NL8

Z5328.xxx

MC24 LKA25 F/M Multicore

Z5343.xxx

MC8 Cable NLT8 F/M

Z5347.001

Breakoutbox NLT8 F/M

to 6 x NL4

Z5327.000

Adapter LKA25M to 12 x NLT4M

Z5340.xxx

MC4 Cable NLT4 F/M

Z5343.xxx

MC8 Cable NLT8 F/M

Z2297.xxx

MC4SD Cable EP5

Z5347.000

Breakoutbox NLT8 F/M

to 6 x EP5

d&b Y-Series 4746 d&b Y-Series

The Y-Series product overview

Y loudspeakers Z0702�xxx Y7P loudspeaker

Z0703�xxx Y10P loudspeaker

Z0710�xxx B6 subwoofer

Z0707�xxx Y8 loudspeaker

Z0708�xxx Y12 loudspeaker

Z0709�xxx Y subwoofer

Loudspeaker Zxxxx�002 NLT4 F/M connector

connector options Zxxxx�000 EP5 connector

Zxxxx�001 NL4 connector

Yi loudspeakers Z0712�001 Yi7P loudspeaker NL4 connector

Z0713�001 Yi10P loudspeaker NL4 connector

Z0711�001 Bi6 subwoofer NL4 connector

Z0717�001 Yi8 loudspeaker NL4 connector

Z0718�001 Yi12 loudspeaker NL4 connector

Z0719�001 Yi subwoofer NL4 connector

WR Weather Resistant option1

SC Special Colour option2

Loudspeaker cases E7473�000 Touring case 2 x Y7P/Y10P

E7472�000 Touring case 4 x Y8/Y12

E7475�000 Touring case 2 x Y Flying frame

Loudspeaker carts E7470�000 Touring cart 4 x Y8/Y12

E7471�000 Touring cart 8 x Y8/Y12

Lids E7925�000 B6-SUB Transport lid

E7924�000 Y-SUB Transport lid

YP accessories Z5397�000 YP Swivel bracket

Z5398�000 YP Horizontal bracket3

Z5399�000 YP Mounting bracket3

Z5389�000 Bi6-SUB Horizontal bracket3

Z5010�000 TV Spigot with fixing plate

Z5012�500 Pipe clamp for TV Spigot

Z5049�000 Flying pin 8mm

Z5013�000 Loudspeaker stand winder M20

Z5009�000 Loudspeaker stand with winder

Z5024�000 Loudspeaker stand adapter

Y accessories Z5390�000 Y Flying frame3

Z5394�000 Y Flying adapter3

Z5393�000 Y Mounting frame top3

Z5393�001 Y Mounting frame bottom3

Z5396�000 Y Base plate

Z5391�000 Y Hoist connector chain

Z5392�000 Y Safety chainset

Z5147�001 Rota clamp

E6507�000 1t Shackle

1 WR only for Yi loudspeakers, on request

2 SC only for Yi loudspeakers, on request

3 SC on request

Remote network Z6118�000 R60 USB to CAN interface

Z6124�000 R70 Ethernet to CAN interface

Amplifiers Z2710�xxx D80 amplifier4

Z2750�xxx D20 amplifier4

Z2770�xxx 30D amplifier5

Z2760�xxx 10D amplifier5

Z2700�xxx D6 amplifier5

Processing and distribution Z4010�000 DS10 Audio network bridge

Z4100�000 DS100 Signal Engine

Amplifier rack assemblies Z5560�xxx 3 x D20 Touring rack6

Z5561�xxx 3 x D20 Touring rack (includes DS10)6

Z5330�xxx D80 Touring rack6

Z5562�xxx D80 Touring rack (includes DS10)6

Z5570�xxx 3 x D80 Touring rack6

Z5571�xxx 3 x D80 Touring rack (includes DS10)6

Z5576�xxx 6 x D80 Touring rack (includes DS10)6

Racks E7480�000 D20 Touring rack 2 RU, 19" SD, shock mounted, handles

E7468�000 D80 Touring rack 2 RU, 19" SD, shock mounted, handles

E7483�000 DS100 Touring rack 3 RU, 19" SD, shock mounted, handles

Cables and adapters Z5339�000 Multichannel extension cable

Z5343�xxx MC8 Cable NLT8 F/M

Z5345�001 Adapter 4 x NL4 to NLT8M

Z5344�002 Adapter NLT8F to 4 x NLT4M

Z5344�001 Adapter NLT8F to 4 x NL4

Z5344�000 Adapter NLT8F to 4 x EP5

Z5347�001 Breakoutbox NLT8 F/M to 6 x NL4

Z5347�000 Breakoutbox NLT8 F/M to 6 x EP5

Z5340�xxx MC4 Cable NLT4 F/M

Z5328�xxx MC24 LKA 25 F/M Multicore

Z5327�000 Adapter LKA25M to 12 x NLT4M

4 The complete list of mobile amplifier versions is available in the D Amplifier and Software ww

5 The complete list of installation amplifier versions is available in the xD Installation Amplifier and Software brochure

6 Further information is available in the D Amplifier and Software brochure

d&b Y-Series 48

www.dbaudio.com

The_Y Series_EN The Y Series EN

Navigation menu

Versions of this User Manual:

Views

Navigation
