ThoughtSpot on AWS

Quick Start Guide

Version 4.2

February 2017

Table of Contents

Contents

Chapter 1: Welcome to ThoughtSpot....................................................3

Contact ThoughtSpot......................................................................................................... 4

Chapter 2: Introduction.............................................................................. 6

About AWS..............................................................................................................................7

Chapter 3: Configuration........................................................................... 8

Configuration options......................................................................................................... 9

Chapter 4: Installation and setup..........................................................12

About the AMI...................................................................................................................... 13

Launch an instance.............................................................................................................13

Chapter 5: ThoughtSpot on AWS reference.....................................19

Network ports......................................................................................................................20

Chapter 1: Welcome to ThoughtSpot

Welcome to ThoughtSpot

Topics:

•Contact ThoughtSpot

Congratulations on purchasing the ThoughtSpot

instance. This guide will get you started with setting

up the Amazon Web Services (AWS) virtual machine

(VM) offering.

We hope your experience with ThoughtSpot is

excellent. Please let us know how it goes, and what

we can do to make it better.

Welcome to ThoughtSpot

Contact ThoughtSpot

You can contact ThoughtSpot by phone, mail, email, or by filing a support ticket.

File a support ticket

If you encounter a technical issue, file a support ticket using the Support Portal

ticket filing system at:

http://support.thoughtspot.com/

Please provide as much detail as possible about your issue, to help us resolve it

quickly.

You need a Support Portal login to file a ticket. Please contact ThoughtSpot to

get an account, if necessary.

Address

ThoughtSpot, Inc.

1 Palo Alto Square, Building 1, Suite 200

Palo Alto, CA 94306

Phone numbers

Table 1: Phone numbers

Phone Number Description

1-800-508-7008 ext 1 ThoughtSpot Support

1-800-508-7008 Toll free number for ThoughtSpot headquarters.

Welcome to ThoughtSpot

Table 2: Email addresses

Reason for contacting Email

For sales inquiries. sales@thoughtspot.com

For customer support and software update

inquiries.

support@thoughtspot.com

For other inquiries. hello@thoughtspot.com

Introduction

Chapter 2: Introduction

Introduction

Topics:

•About AWS

Before you set up your ThoughtSpot instance, here

is some information about the Amazon Web Services

(AWS) cloud, Amazon Elastic Compute Cloud (EC2),

Amazon Elastic Block Store (EBS), and how they all

work with ThoughtSpot.

Introduction

About AWS

AWS is a secure cloud services platform offered by Amazon. Using ThoughtSpot

on AWS allows you to easily add instances as your dataset grows.

You can do everything you'd normally want to do in a traditional database center

with AWS. It features an on-demand delivery of IT resources and applications via

the Internet with pay-as-you-go pricing.

Amazon EC2 is based on instance types and the region in which your instances

are running. When you are connected to an instance, you can use it just like you

use any other server. There is no minimum fee and you only pay for what you

use.

Using Amazon EC2 lets you develop and deploy applications faster since there

is no need to manage hardware. Therefore, it is easy to scale and manage

computing capacity.

As persistent block level storage volumes, Amazon EBS helps with scaling your

EC2 instances. Each EBS volume is automatically replicated to protect you from

component failure, and offers low-latency performance.

About ThoughtSpot on AWS

AWS can provide lots of memory and CPU for your ThoughtSpot instance, and it

can be easily updated from development instances.

Your database capacity will determine the number of instances you'll need and

the instance network/storage requirements. In addition, you can go with multiple

VMs based on your dataset size.

The security group setting of your ThoughtSpot instance on AWS is up to you.

You can find more information about which ports to open in the network ports

reference.

Configuration

Chapter 3: Configuration

Configuration

Topics:

•Configuration options

ThoughtSpot engineering has performed extensive

testing of the ThoughtSpot appliance on various

Amazon Elastic Compute Cloud (EC2) and Amazon

Elastic Block Store (EBS) configurations for best

performance, load balancing, scalability, and

reliability.

Configuration

Configuration options

You can find information here on which configuration of memory, CPU, storage,

and networking capacity you should be running for your instances. There are

also details on how to configure your placement groups.

Hardware configurations

There is only one available hardware configuration for deploying ThoughtSpot on

Amazon:

• r4.16xlarge

Below are charts depicting the specifications for the configuration for EC2 and

EBS requirements.

Table 3: EC2 requirements for deploying on Amazon

Instance name Data capacity vCPUs DRAM

r4.16xlarge Up to 250 GB 64 488 GB

Table 4: EBS requirements for deploying on Amazon

Instance name Data capacity Root volume

(SSD)

Data volume (SSD or HDD)

r4.16xlarge Up to 250 GB 1 vol 200 GB 2 vols 400 GB each

Attention: Both EC2 and EBS requirements must be fulfilled to deploy on

Amazon.

ThoughtSpot software license sizes

ThoughtSpot only sells software licenses in multiples of 250 GB of data. So

you can start with 250 GB, and add increments of 250 GB each time your data

capacity needs increase. You can also choose to start off with more than 250 GB

of data, as long as you know the best fit configuration for your data volume.

Configuration

Lego blocks

If you aren't sure what kind of configuration you need, it might help to think of

the hardware configurations in terms of simple Lego blocks. The r4.16xlarge size

can be seen as a 250 GB block.

Note: ThoughtSpot does not support sizes other than r4.16xlarge.

Since the minimum data volume offered is 250 GB, you would need one

r4.16xlarge block to match the data capacity. This scales linearly. So, 500 GB

would require two r4.16xlarge blocks.

Placement groups

A placement group is a logical grouping of instances within a single availability

zone. Placement groups are recommended for applications that benefit from low

network latency, high network throughput, or both.

ThoughtSpot relies on high connectivity between nodes of a cluster, which is

why creating a placement group is recommended. Being in same placement

group will give you the best shot at the highest bandwidth across AWS EC2

instances and the lowest latencies. This will make the node-node network reach

the closest AWS promised specs. Our default recommendation for a multi-

instance setup requires a placement group since it works best for our application

performance. Also, AWS will provide jumbo frames (9000 MTU) support in such

situations, and they don't charge extra for being in the same placement group.

Having said that, ThoughtSpot will still work with EC2s in the cluster across

placement groups in an availability zone.

Related information:

EC2 instance types

EC2 pricing

EBS pricing

Configuration

Placement groups

Installation and setup

Chapter 4: Installation and setup

Installation and setup

Topics:

•About the AMI

•Launch an instance

Here is an overview of the installation and setup

information for getting ThoughtSpot on Amazon

Web Services (AWS) Elastic Compute Cloud (EC2).

After you've determined your configuration options,

you must setup your virtual machines (VMs) using

an Amazon Machine Image (AMI). This AMI will be

shared with you by ThoughtSpot.

Installation and setup

About the AMI

An AMI is a preconfigured template that provides the information required to

launch an instance. Check with your ThoughtSpot contact to learn about the

latest version of the ThoughtSpot AMI.

You must specify an AMI when you launch an instance. An AMI includes the

following:

• A template for the root volume for the instance (for example, an operating

system, an appliance server, and applications).

• Launch permissions that control which AWS accounts can use the AMI to

launch instances.

• A block device mapping that specifics the volumes to attach to the instance

when it's launch.

About ThoughtSpot's AMI

The ThoughtSpot AMI comes provisioned with the custom ThoughtSpot image

to make hosting simple. Once you've provided your AWS account ID and region

where the VMs will be hosted, ThoughtSpot will share the current ThoughtSpot

base AMI with you. This AMI has ThoughtSpot specific applications on an Ubuntu

12.04 base image. The EBS volumes required for ThoughtSpot install in AWS

comes as part of the AMI. When you launch an EC2 instance from this image, the

EBS volumes automatically get sized and provisioned. The storage attached to

the base AMI is 200 GB (xvda), 2X400 GB (xvdb), and SSD gp2. It contains the

max disks so that it can take care of the full load of the VM.

Launch an instance

Follow these steps to set up the VMs and launch ThoughtSpot.

Installation and setup

ThoughtSpot instances on AWS need AWS EC2 instances to be provisioned in

the AWS account before ThoughtSpot can be installed and launched. Please

make sure you follow the guidelines below for your EC2 details:

• EC2 instance type: r4.16xlarge.

• Networking requirement: 10GbE network is needed between the VMs. This is

the default for the chosen VM type.

• Security: VMs need to be accessible from each other, which means they need

to be on the same Amazon Virtual Private Cloud (VPC) and subnetwork.

Additional external access may be required to bring data in/out of the VMs to

your network.

• Number of EC2 instances needed: Based on the datasets, the number of EC2

instances needed will vary. Also for staging larger datasets (> 50 GB per VM),

there may be a need to provision additional attached EBS volumes that are

SSD gp2 provisioned.

To set up the VMs and launch ThoughtSpot:

1. Log in to your AWS account from the AWS Amazon sign in page.

2. Provide ThoughtSpot Support with your AWS account ID and the region

where the VMs will be hosted. They will then grant you permissions and share

the current ThoughtSpot base AMI with you.

Tip: You can find your account ID and region on the top right corner of

the AWS console.

Installation and setup

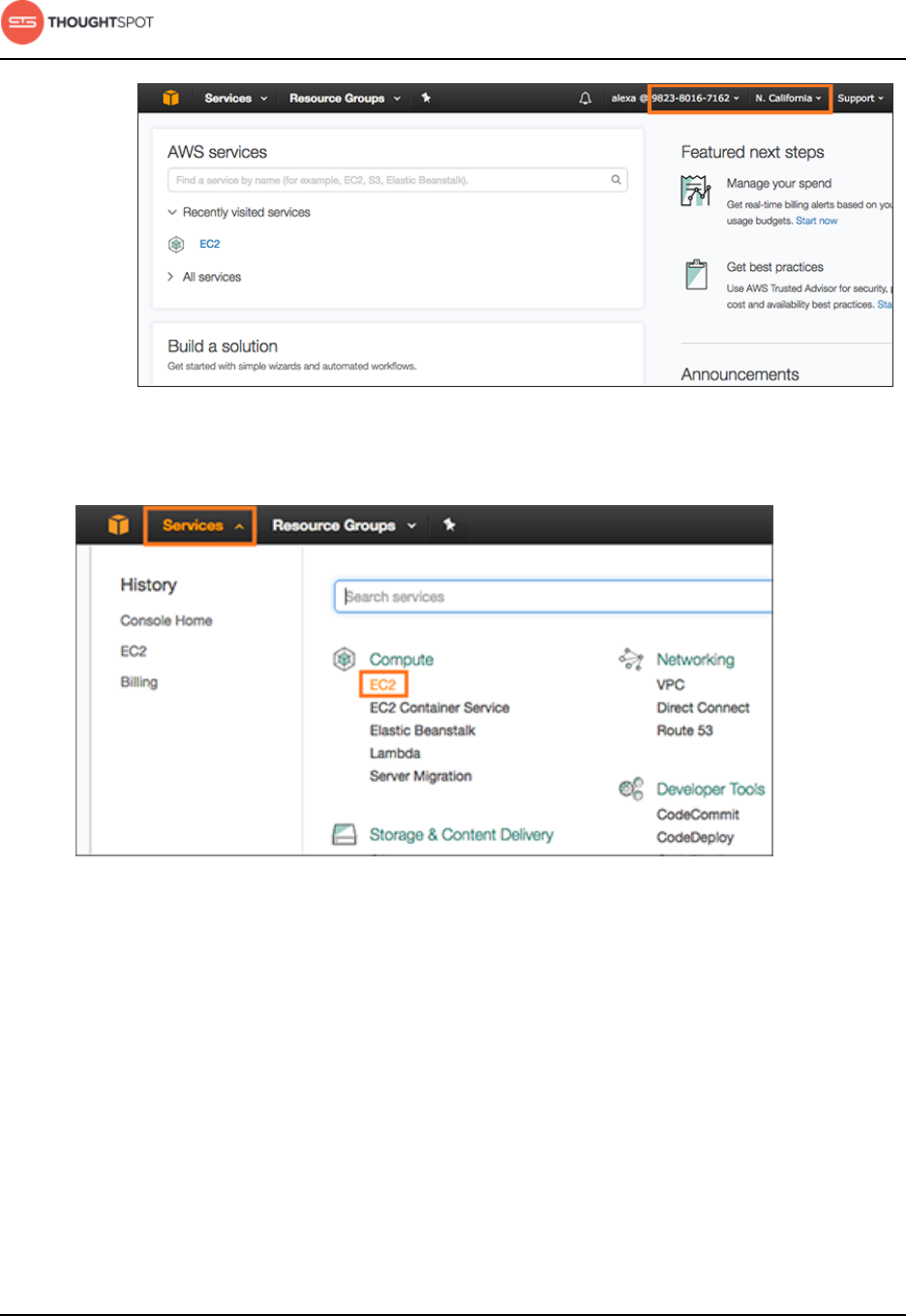

Figure 1: AWS account ID and region

3. Navigate to the EC2 service dashboard by clicking Services, then select EC2.

Figure 2: Navigate to the EC2 Dashboard

4. Make sure your selected region is correct on the top right corner of the

dashboard. If not, select a different region you would like to launch your

instance in. Let ThoughtSpot Support know if you change your region.

Installation and setup

Figure 3: Select a region to launch your instance in

5. Create an instance by clicking Launch Instance.

Figure 4: Launch an instance

6. Select the appropriate AMI from the AMI Selection step by clicking Select. The

ThoughtSpot shared AMI can be found under the My AMIs tab.

Installation and setup

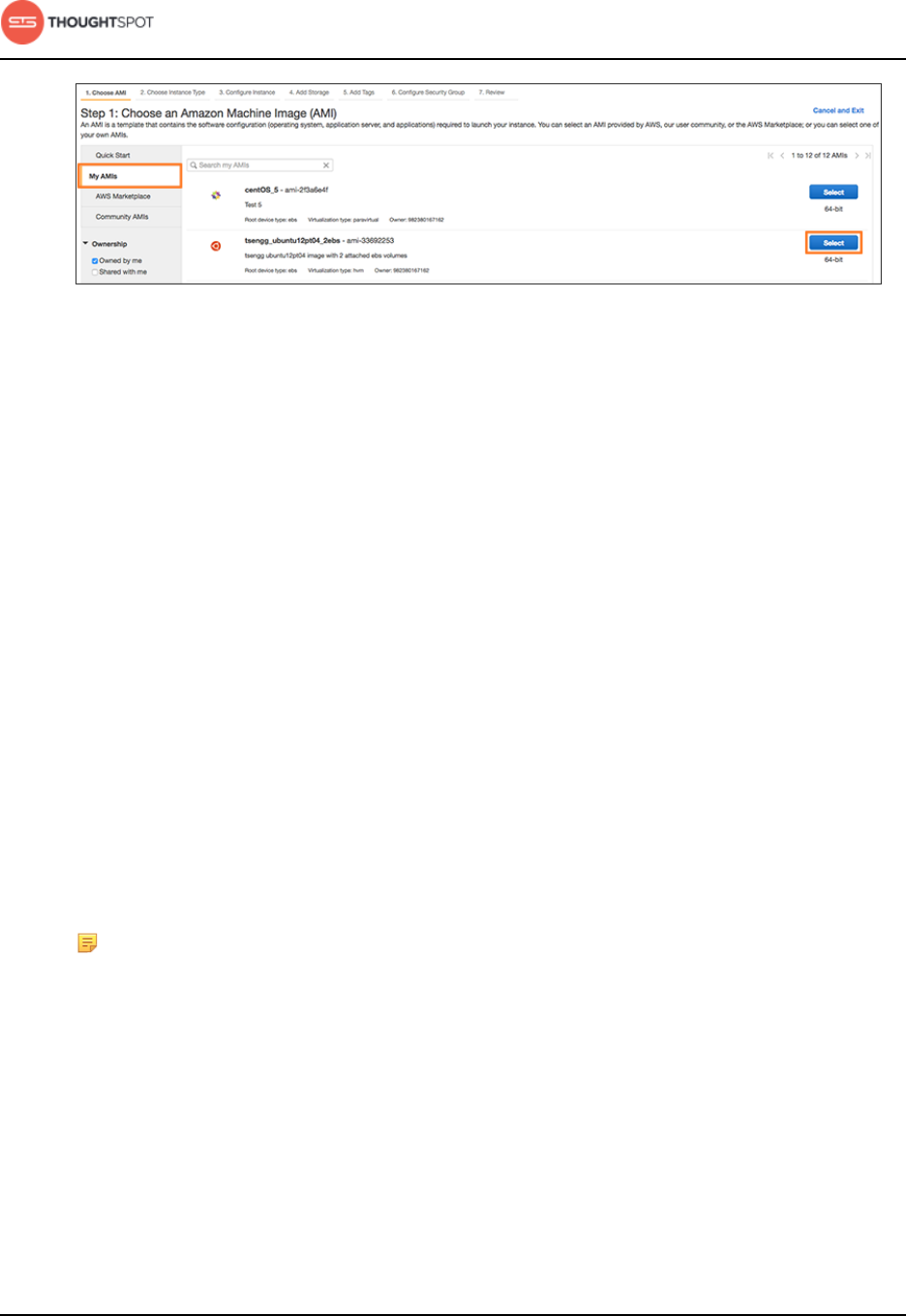

Figure 5: Select the AMI

7. Select r4.16xlarge as the instance type. Then click Next: Configure Instance

Details.

8. Configure the instances by choosing the number of EC2 instances you need

based on your EC2 details. The instances need to be on the same VPC and

subnetwork. Then click Next: Add Storage.

9. The default storage specified by the ThoughtSpot AMI should be populated.

Optionally, you can add extra storage. Based on the dataset size requirement

you might need to provision and prepare (formatting/file system placement)

an extra storage of 400 GB per VM that is SSD gp2 provisioned. Click Next:

Add Tags when you are done modifying the storage size.

10.Set a name for tagging your instances. Then click Next: Configure Security

Group.

11. Select an existing security group to attach new security groups to such that it

meets the security requirements for ThoughtSpot.

Note: Security setting for ThoughtSpot:

• The VMs need intragroup security, i.e. every VM in a cluster needs to

be accessible from one another. For easier configuration, it is better

to open all accesses from across VMs in a cluster.

• Additionally, more ports need to be opened on the VM to provide

data staging capabilities to your network. Check the network ports

Installation and setup

reference to determine the minimum required ports that need to be

opened for your ThoughtSpot appliance.

12.Click Review and Launch. After you have reviewed your instance launch

details, click Launch.

13.Choose a key pair. A key pair consists of a public and private key used to

encrypt and decrypt login information. If you don’t have a key pair, you should

create one, otherwise you won’t be able to SSH into the AWS instance later

on.

14.Click Launch Instances. Wait a few minutes for it to fully start up. Once it has

started up, it will show up on the EC2 console.

15.Contact ThoughtSpot Support to complete your ThoughtSpot installation.

Chapter 5: ThoughtSpot on AWS reference

ThoughtSpot on AWS reference

Topics:

•Network ports

This section contains a reference for ThoughtSpot on

Amazon Web Services (AWS).

Network ports

This reference lists the potential ports to open when

setting up your security group.

ThoughtSpot on AWS reference

Network ports

For regular operations and for debugging, there are some ports you will need to

keep open to network traffic from end users. Another, larger list of ports must be

kept open for network traffic between the nodes in the cluster.

Required ports for operations and debugging

The following ports need to be opened up to requests from your user

population. There are two main categories: operations and debugging.

Table 5: Network ports to open for operations

Port Protocol Service Name Direction Source Destination Description

22 SSH SSH bidirectional Administrators

IP addresses

All nodes Secure shell access.

Also used for scp

(secure copy).

80 HTTP HTTP bidirectional All users IP

addresses

All nodes Hypertext Transfer

Protocol for website

traffic.

443 HTTPS HTTPS bidirectional All users IP

addresses

All nodes Secure HTTP.

12345 TCP Simba bidirectional Administrators

IP addresses

All nodes Port used by ODBC

and JDBC drivers

when connecting to

ThoughtSpot.

Table 6: Network ports to open for debugging

Port Protocol Service Name Direction Source Destination Description

2201 HTTP Orion master

HTTP

bidirectional Administrator

IP addresses

All nodes Port used to debug

the cluster manager.

2101 HTTP Oreo HTTP bidirectional Administrator

IP addresses

All nodes Port used to debug

the node daemon.

ThoughtSpot on AWS reference

Port Protocol Service Name Direction Source Destination Description

4001 HTTP Falcon worker

HTTP

bidirectional Administrator

IP addresses

All nodes Port used to debug

the data cache.

4251 HTTP Sage master

HTTP

bidirectional Administrator

IP addresses

All nodes Port used to debug

the search engine.

Required ports for inter-cluster operation

Internally, ThoughtSpot uses static ports for communication between services in

the cluster. Do not close these ports from inter-cluster network communications.

In addition, a number of ports are dynamically assigned to services, which

change between runs. The dynamic ports come from the range of Linux

dynamically allocated ports (20K+).

Table 7: Network ports to open between the nodes in the cluster

Port Protocol Service Name Direction Source Dest. Description

80 TCP nginx inbound All nodes All nodes Primary app HTTP

port (nginx)

443 TCP Secure nginx inbound All nodes All nodes Primary app

HTTPS port

(nginx)

2100 RPC Oreo RPC port bidirectional All nodes All nodes Node daemon RPC

2101 HTTP Oreo HTTP port bidirectional Admin IP

addresses

and all nodes

All nodes Node daemon

HTTP

2181 RPC Zookeeper servers

listen on this

port for client

connections

bidirectional All nodes All nodes Zookeeper servers

listen on this

port for client

connections

2200 RPC Orion master RPC

port

bidirectional All nodes All nodes Internal

communication

ThoughtSpot on AWS reference

Port Protocol Service Name Direction Source Dest. Description

with the cluster

manager

2201 HTTP Orion master

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the cluster

manager

2210 RPC Cluster stats

service RPC port

bidirectional All nodes All nodes Internal

communication

with the stats

collector

2211 HTTP Cluster stats

service HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the stats

collector

2230 RPC Callosum stats

collector RPC port

bidirectional All nodes All nodes Internal

communication

with the BI stats

collector

2231 HTTP Callosum stats

collector HTTP

port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the BI stats

collector

2240 RPC Alert manager bidirectional All nodes All nodes Port where

alerting service

receives alert

events

2888 RPC Ports used by

Zookeeper servers

for communication

between

themselves

bidirectional All nodes All nodes Ports used by

Zookeeper servers

for communication

between

themselves

3888 RPC Ports used by

Zookeeper servers

for communication

bidirectional All nodes All nodes Ports used by

Zookeeper servers

for communication

ThoughtSpot on AWS reference

Port Protocol Service Name Direction Source Dest. Description

between

themselves

between

themselves

4000 RPC Falcon worker RPC

port

bidirectional All nodes All nodes Port used by

data cache for

communication

between

themselves

4001 HTTP Falcon worker

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the data

cache

4021 RPC Sage metadata

service port

(exported by

Tomcat)

bidirectional Admin IP

addresses

and all nodes

All nodes Port where search

service contacts

metadata service

for metadata

4201 HTTP Sage auto

complete server

HTTP interface

port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the search

service

4231 HTTP Sage index server

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the search

service

4232 RPC Sage index

server metadata

subscriber port

bidirectional All nodes All nodes Port used

for search

service internal

communication

4233 RPC Sage index server

RPC port

bidirectional All nodes All nodes Port used

for search

service internal

communication

4241 HTTP Sage auto

complete server

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Port used to

debug the search

service

ThoughtSpot on AWS reference

Port Protocol Service Name Direction Source Dest. Description

4242 RPC Sage auto

complete server

RPC port

bidirectional All nodes All nodes Port used

for search

service internal

communication

4243 RPC Sage auto

complete server

metadata

subscriber port

bidirectional All nodes All nodes Port used for

search internal

communication

4251 RPC Sage master RPC

port

bidirectional All nodes All nodes Port used

for search

service internal

communication

4405 RPC Diamond

(graphite) port

bidirectional All nodes All nodes Port used for

communication

with monitoring

service

4500 RPC Trace vault service

RPC port

bidirectional All nodes All nodes Trace collection

for ThoughtSpot

services

4501 HTTP Trace vault service

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Debug trace

collection

4851 RPC Graphite manager

RPC port

bidirectional All nodes All nodes Communication

with graphite

manager

4852 HTTP Graphite manager

HTTP port

bidirectional Admin IP

addresses

and all nodes

All nodes Debug graphite

manager

4853 RPC Elastic search

stack (ELK)

manager RPC port

bidirectional All nodes All nodes Communication

with log search

service

ThoughtSpot on AWS reference

Port Protocol Service Name Direction Source Dest. Description

4853 HTTP Elastic search

stack (ELK)

manager HTTP

port

bidirectional Admin IP

addresses

and all nodes

All nodes Debug log search

service

5432 Postgres Postgres database

server port

bidirectional All nodes All nodes Communication

with Postgres

database

8020 RPC HDFS namenode

server RPC port

bidirectional All nodes All nodes Distributed file

system (DFS)

communication

with clients

8080 HTTP Tomcat bidirectional All nodes All nodes BI engine

communication

with clients

8787 HTTP Periscope (UI)

service HTTP port

bidirectional All nodes All nodes Administration UI

back end

8888 HTTP HTTP proxy server

(tinyproxy)

bidirectional All nodes All nodes Reverse SSH

tunnel

11211 Mem-

cached

Memcached server

port

bidirectional All nodes All nodes BI engine cache

12345 ODBC Simba server port bidirectional All nodes All nodes Port used for ETL

(extract, transform,

load)

50070 HTTP HDFS namenode

server HTTP port

bidirectional All nodes All nodes Debug DFS

metadata

50075 HTTP HDFS datanode

server HTTP port

bidirectional All nodes All nodes Debug DFS data

Required ports for inbound and outbound cluster access

ThoughtSpot uses static ports for inbound and outbound access to a cluster.

ThoughtSpot on AWS reference

Table 8: Network ports to open for inbound access

Port Protocol Service Name Direction Source Dest. Description

22 SCP SSH bidirectional ThoughtSpot

Support

All nodes Secure shell access.

80 HTTP HTTP bidirectional ThoughtSpot

Support

All nodes Hypertext Transfer

Protocol for website

traffic.

443 HTTPS HTTPS bidirectional ThoughtSpot

Support

All nodes Secure HTTP.

12345 TCP Simba bidirectional ThoughtSpot

Support

All nodes Port used by ODBC

and JDBC drivers

when connecting to

ThoughtSpot.

Table 9: Network ports to open for outbound access

Port Protocol Service Name Direction Source Destination Description

443 HTTPS HTTPS outbound All nodes 208.83.

110.20

For transferring files to

thoughtspot.egnyte.com

(IP address 208.83.110.20).

587

SMTP SMTP or

Secure SMTP

outbound All nodes

and SMTP

relay

(provided by

customer)

All nodes Allow outbound access

for the IP address of

whichever email relay

server is in use. This is

for sending alerts to

ThoughtSpot Support.

389

636

TCP LDAP or

LDAPS

outbound All nodes

and LDAP

server

(provided by

customer)

All nodes Allow outbound access

for the IP address of the

LDAP server in use.

Thought Spot On AWS Quick Start Guide 4.2

Navigation menu

Versions of this User Manual:

Views

Navigation
