TRITON Service Manual
User Manual: Pdf
Open the PDF directly: View PDF
.
Page Count: 44
S
S
Se
e
er
r
rv
v
vi
i
ic
c
ce
e
e
M
M
Ma
a
an
n
nu
u
ua
a
al
l
l
TRITON
TRITON pro
TRITON proX
EXB-SCSI
EXB-MOSS
CONTENTS

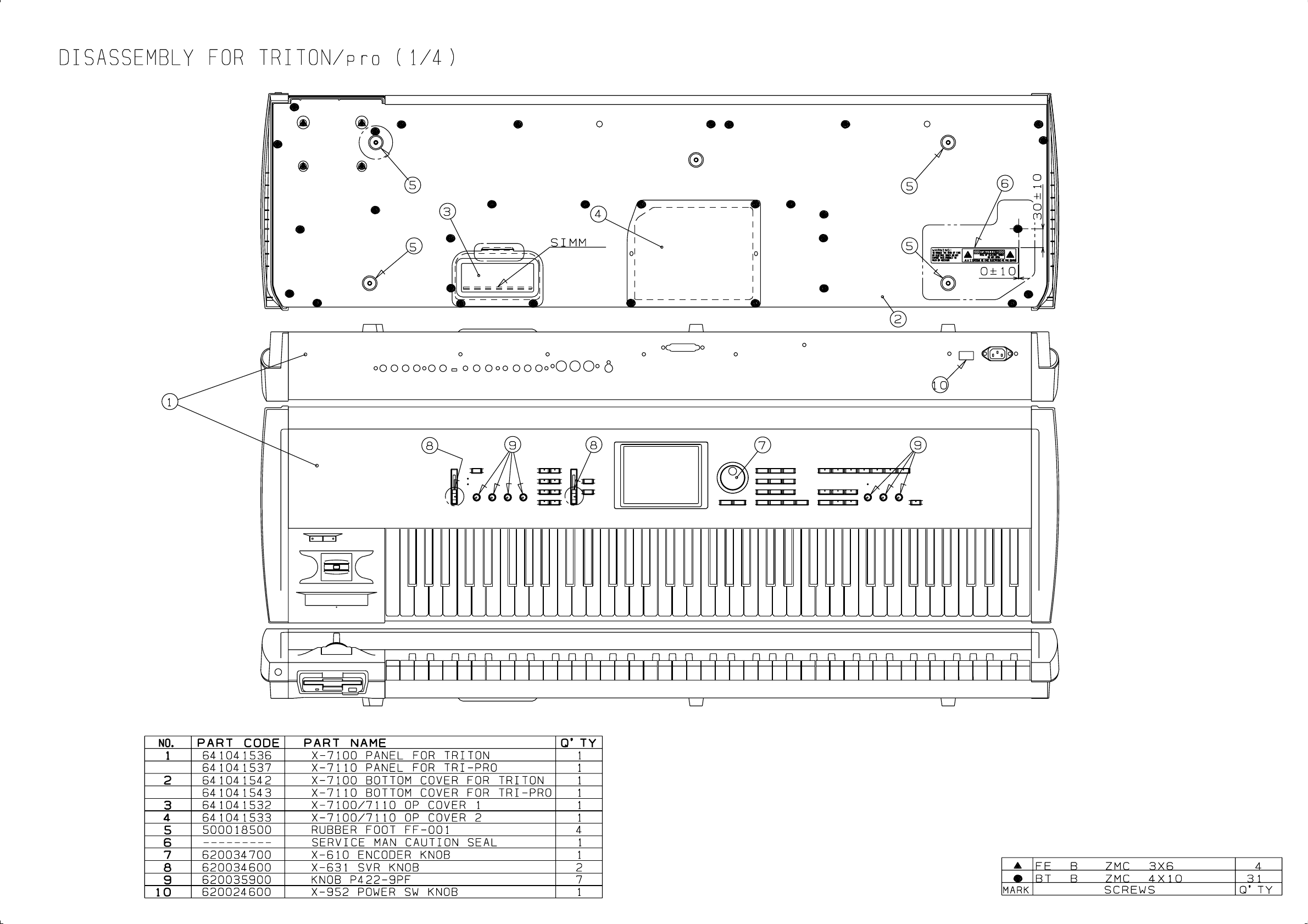

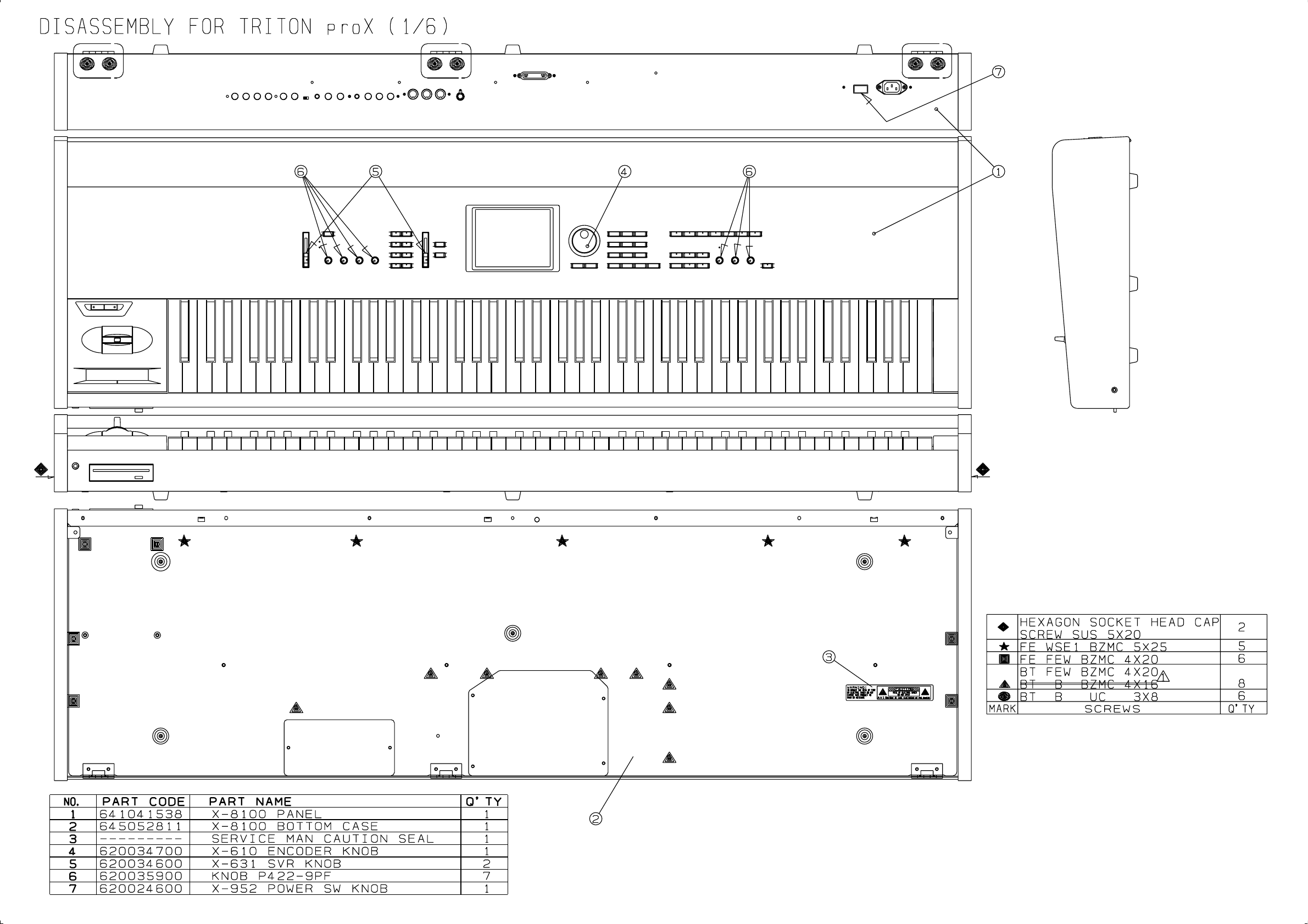

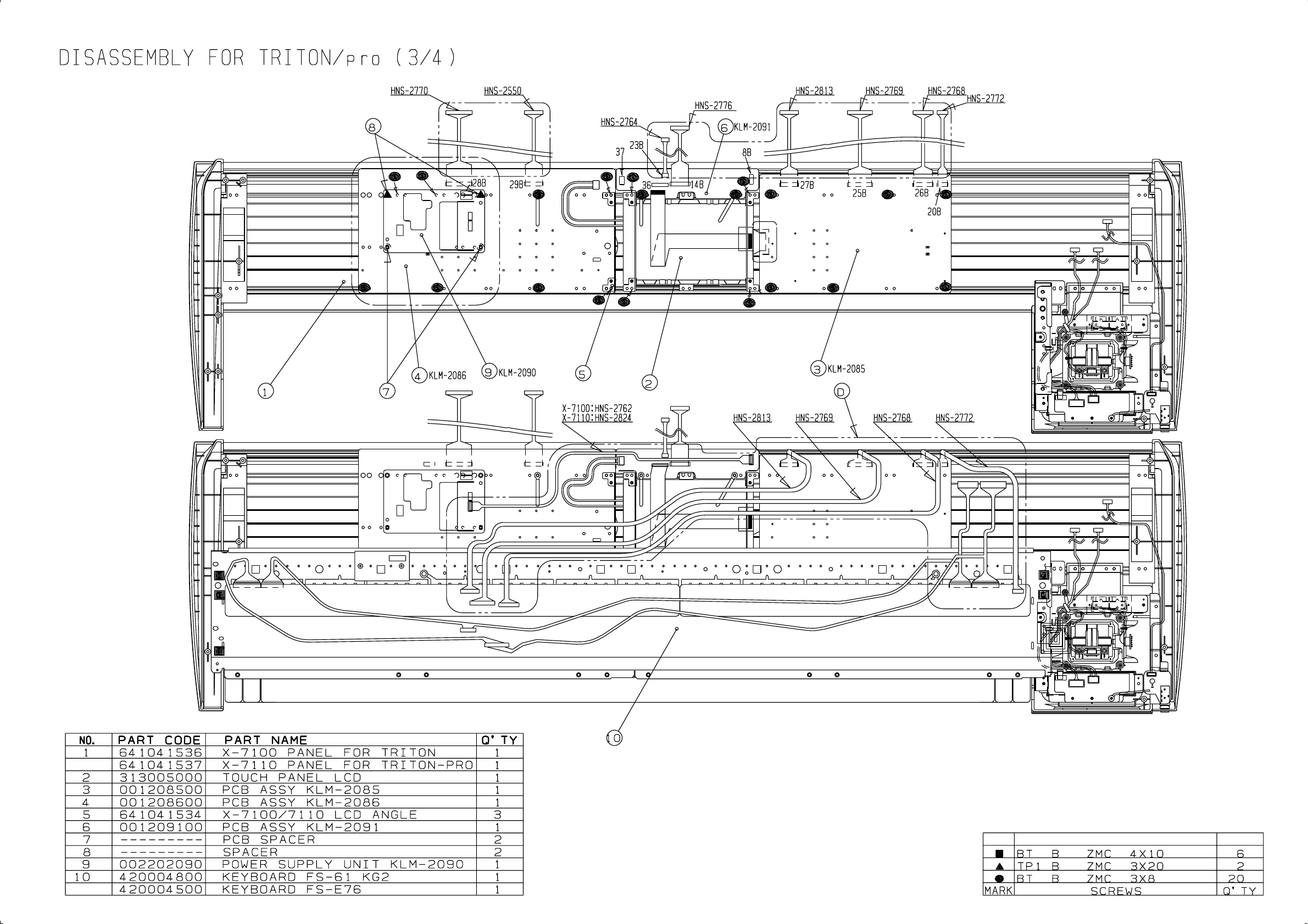

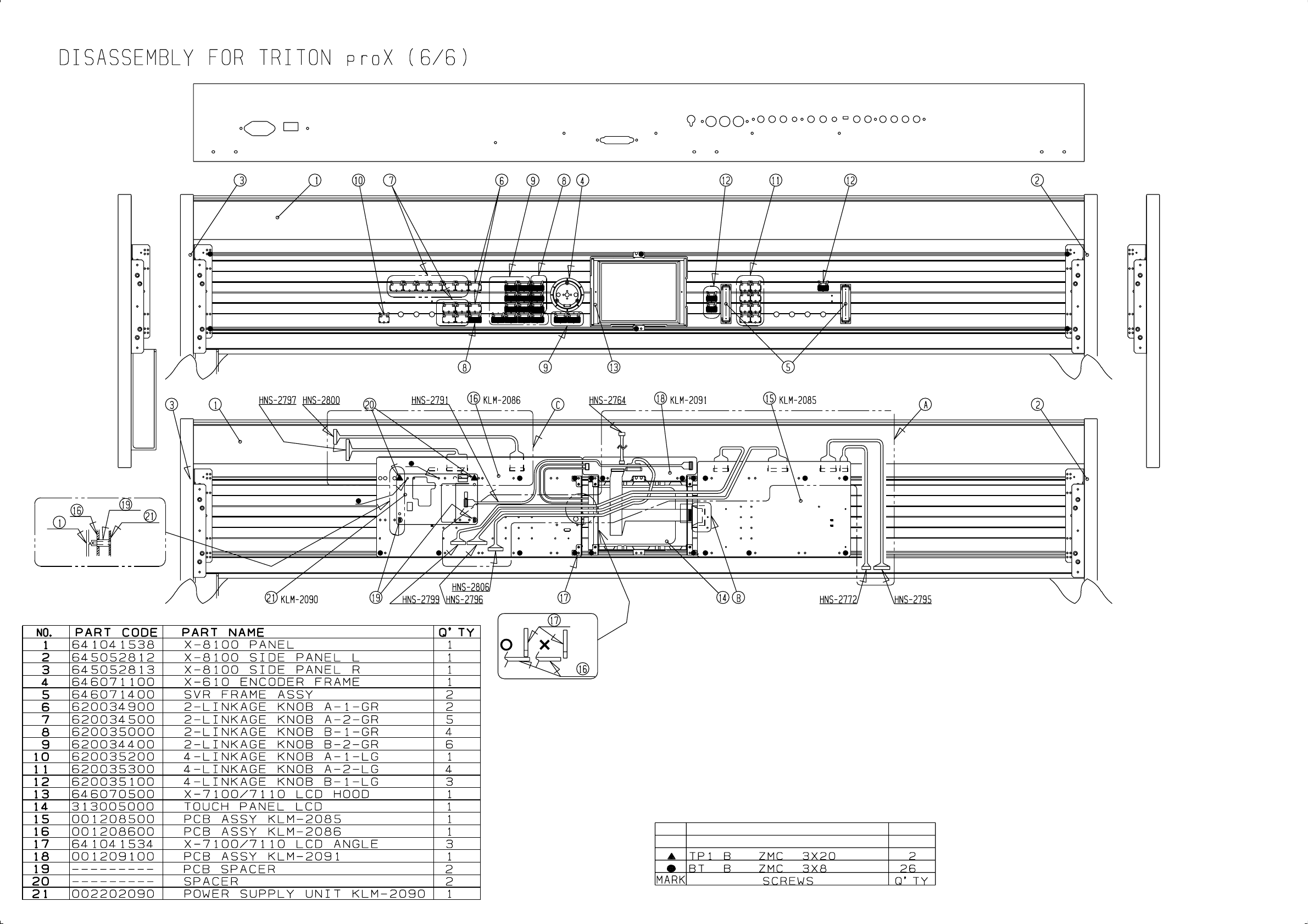

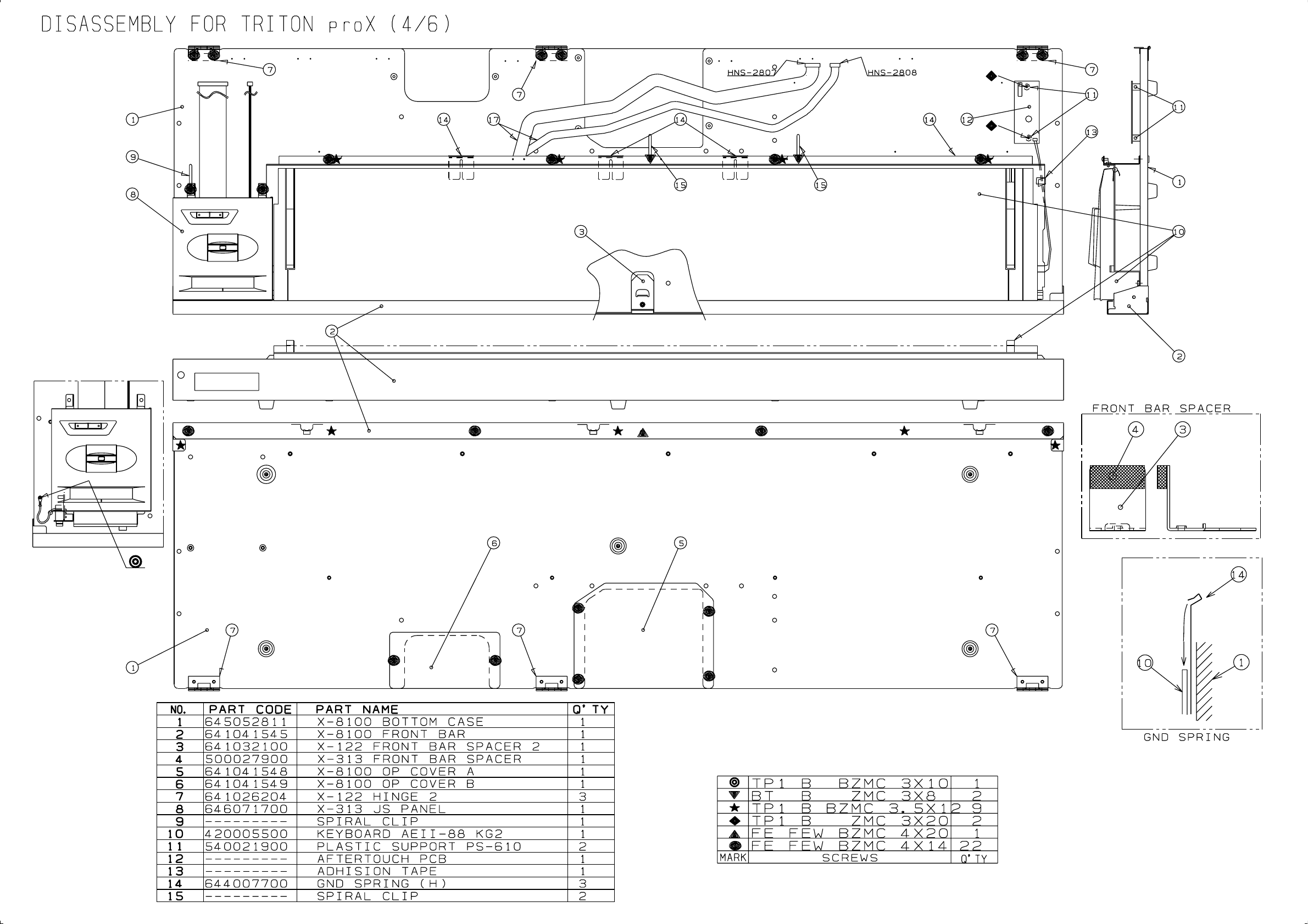

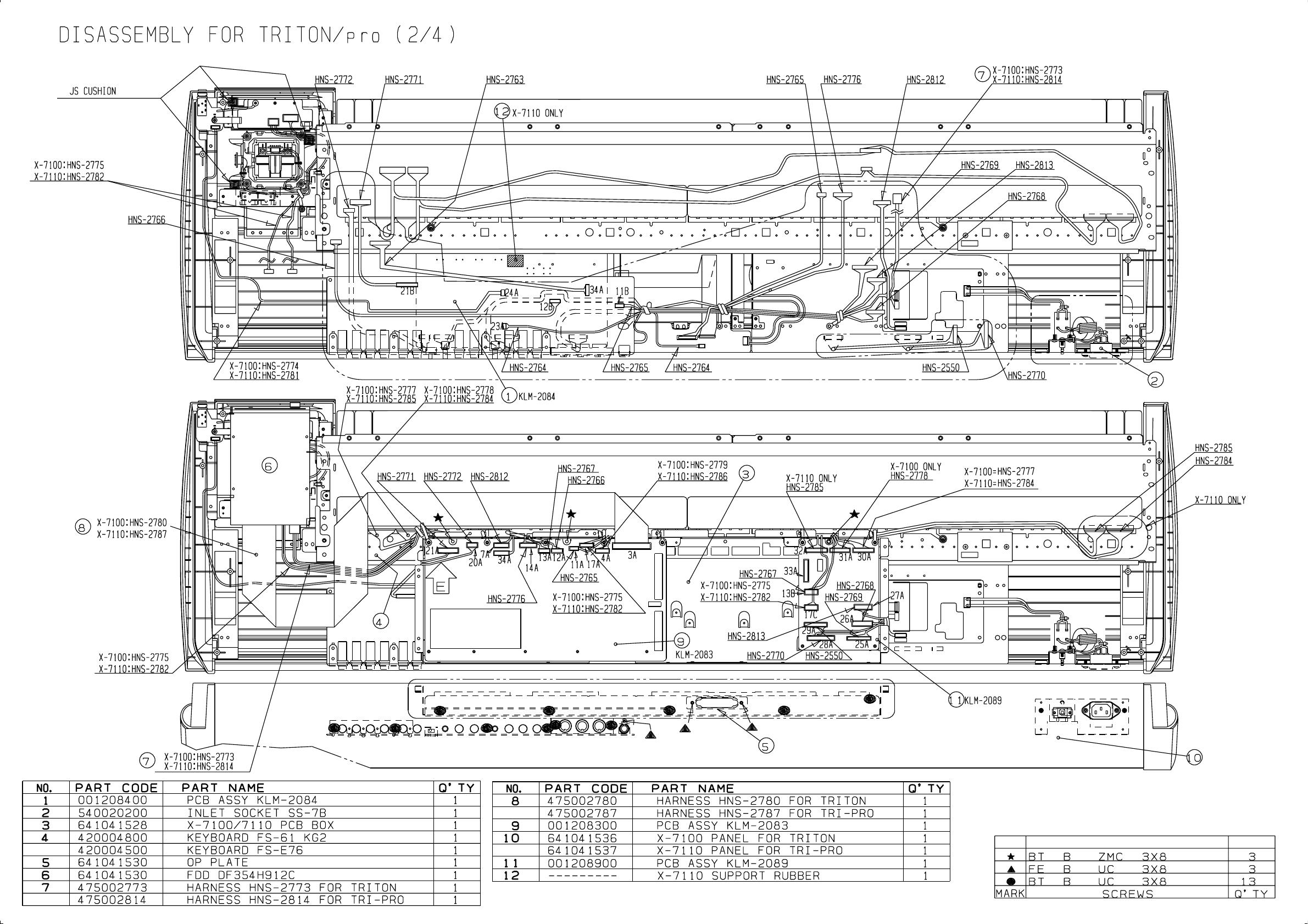

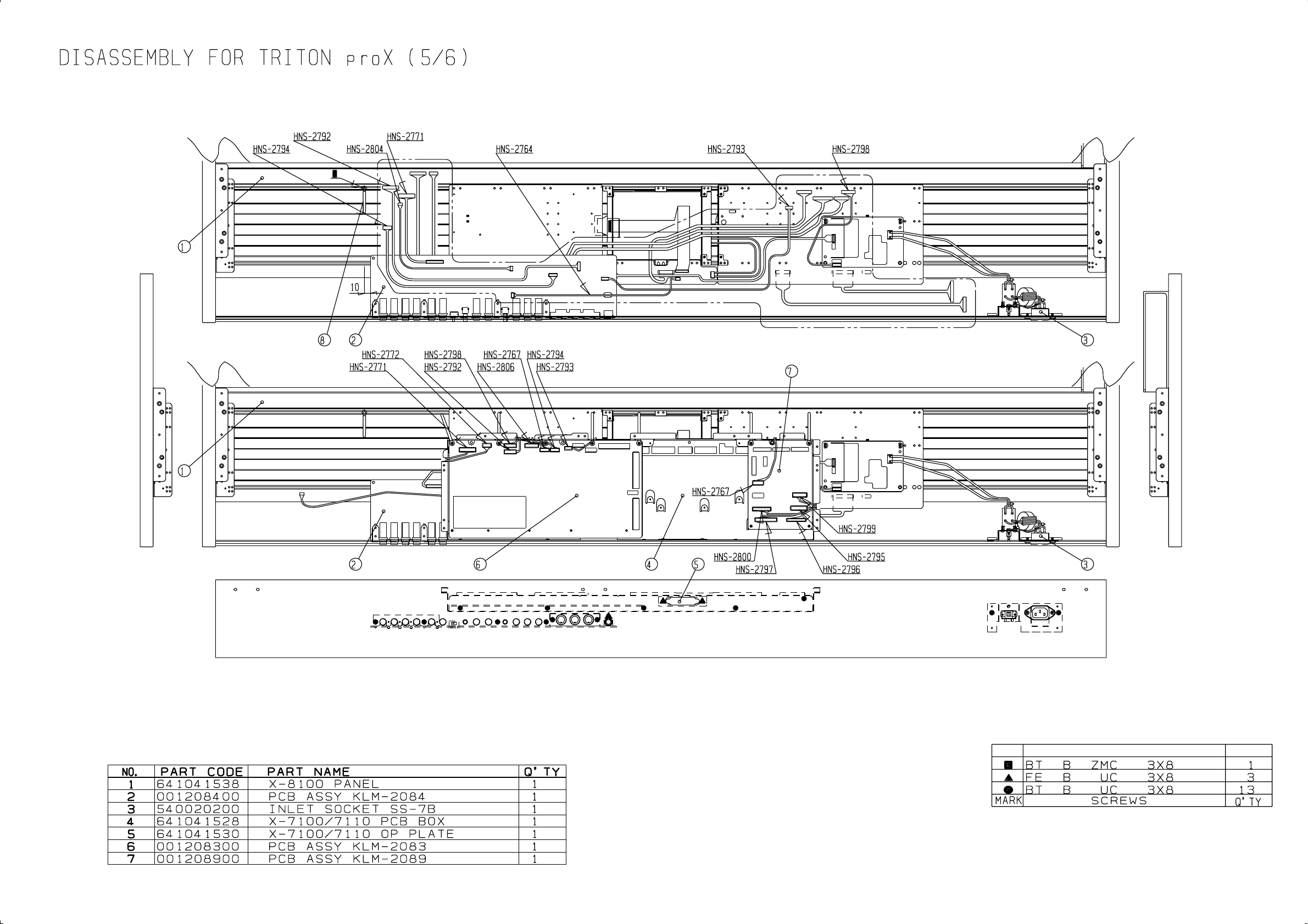

1) Structural Diagram - - - - - 2

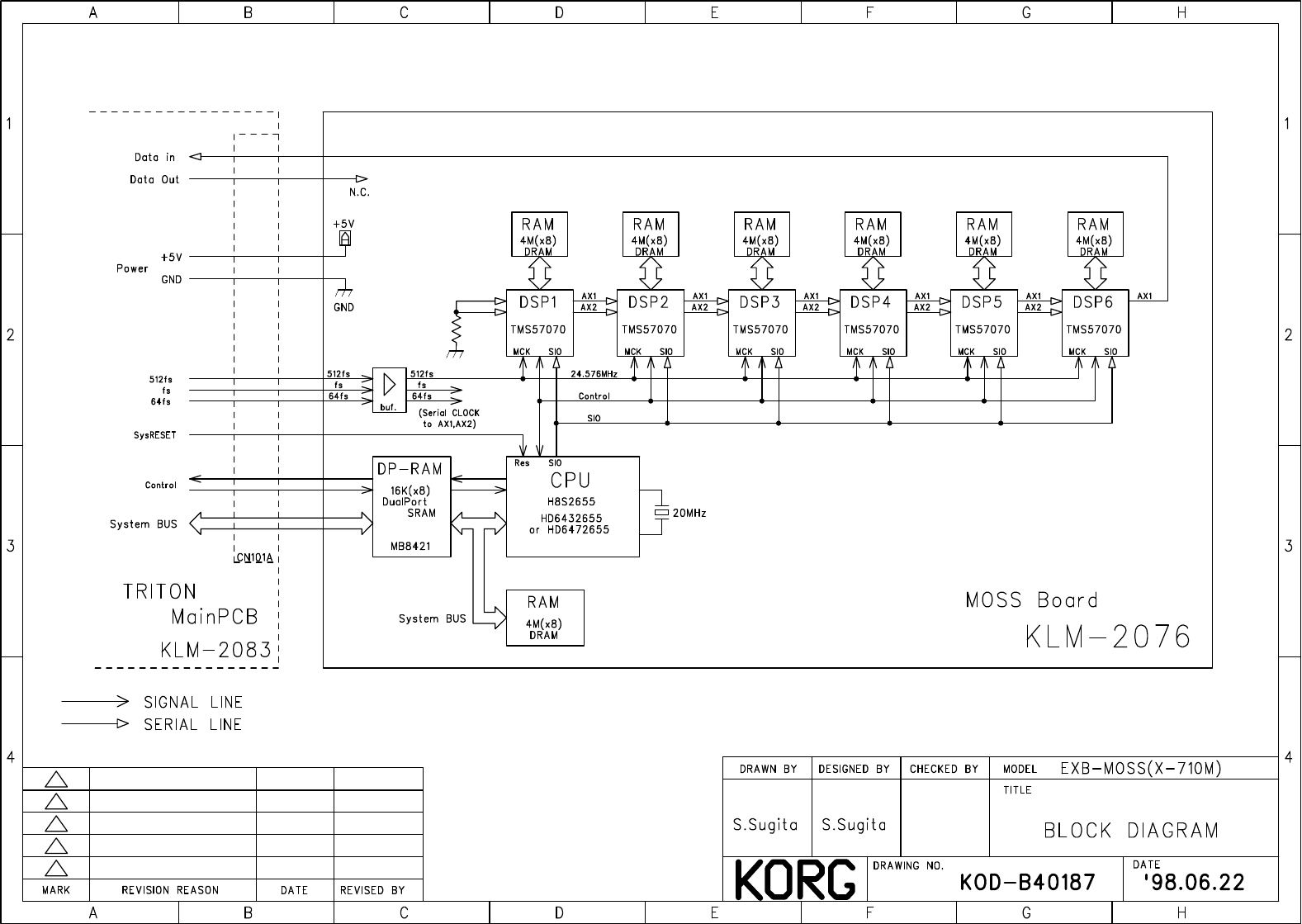

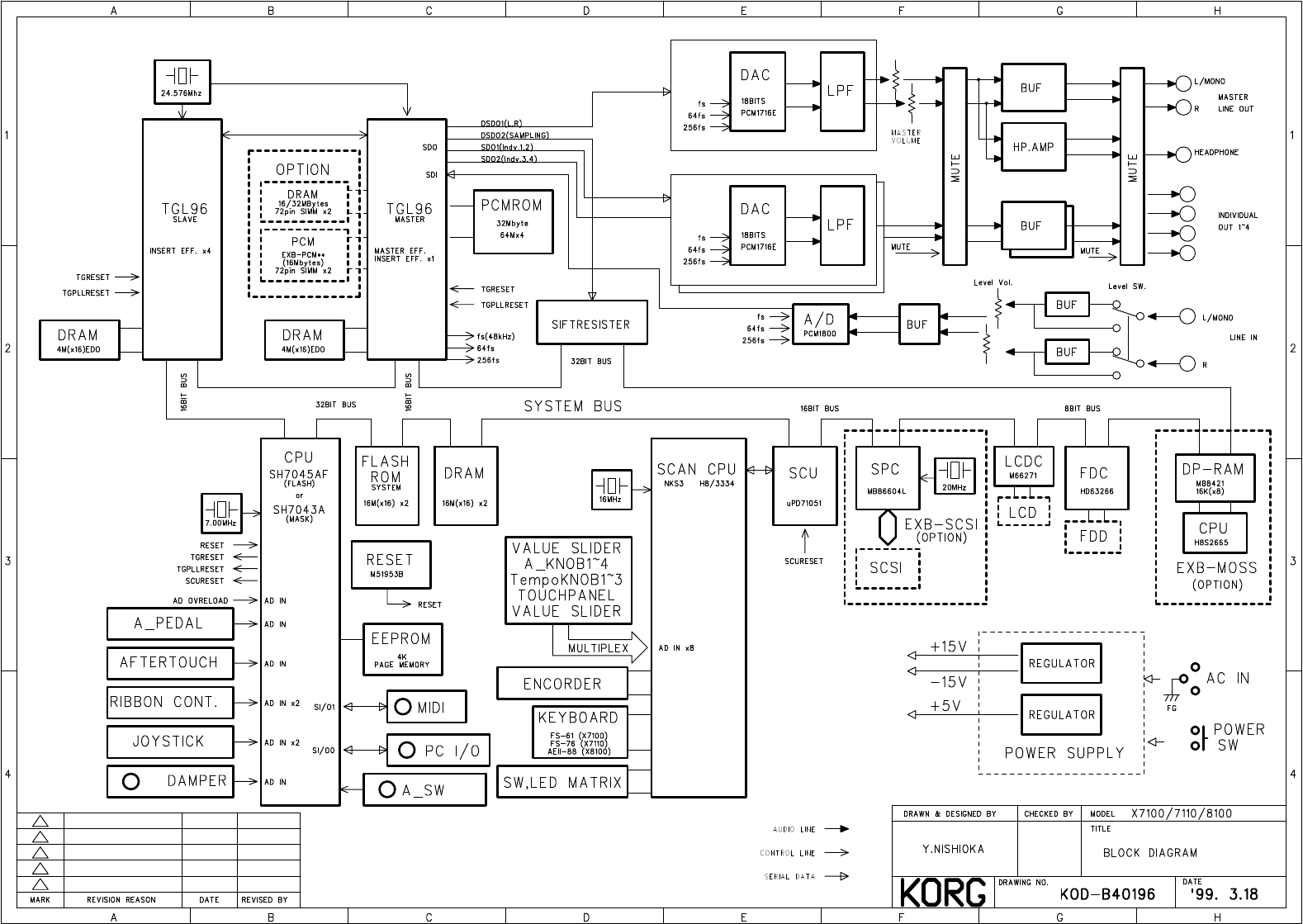

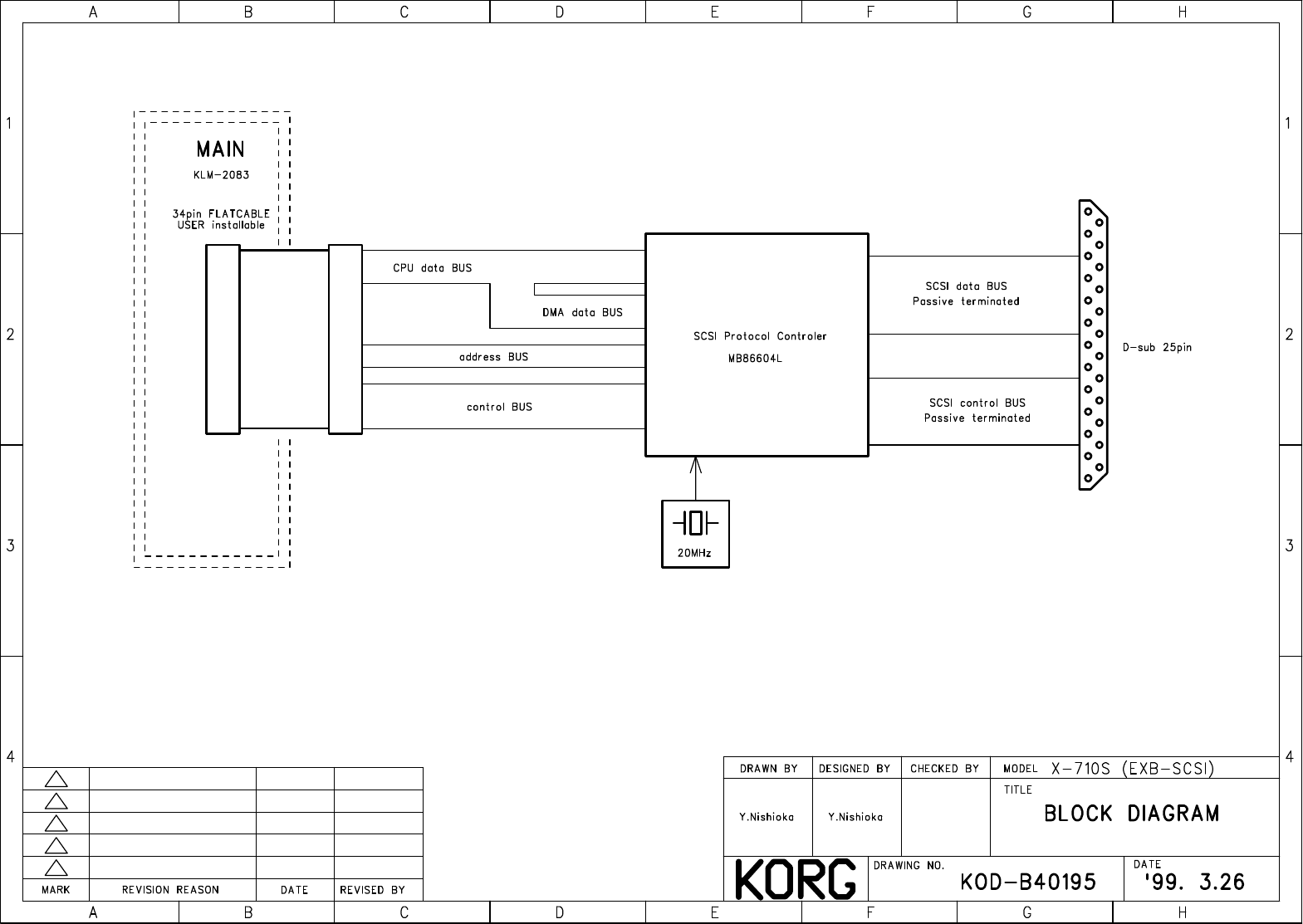

2) Block Diagram - - - - - - - - - 12

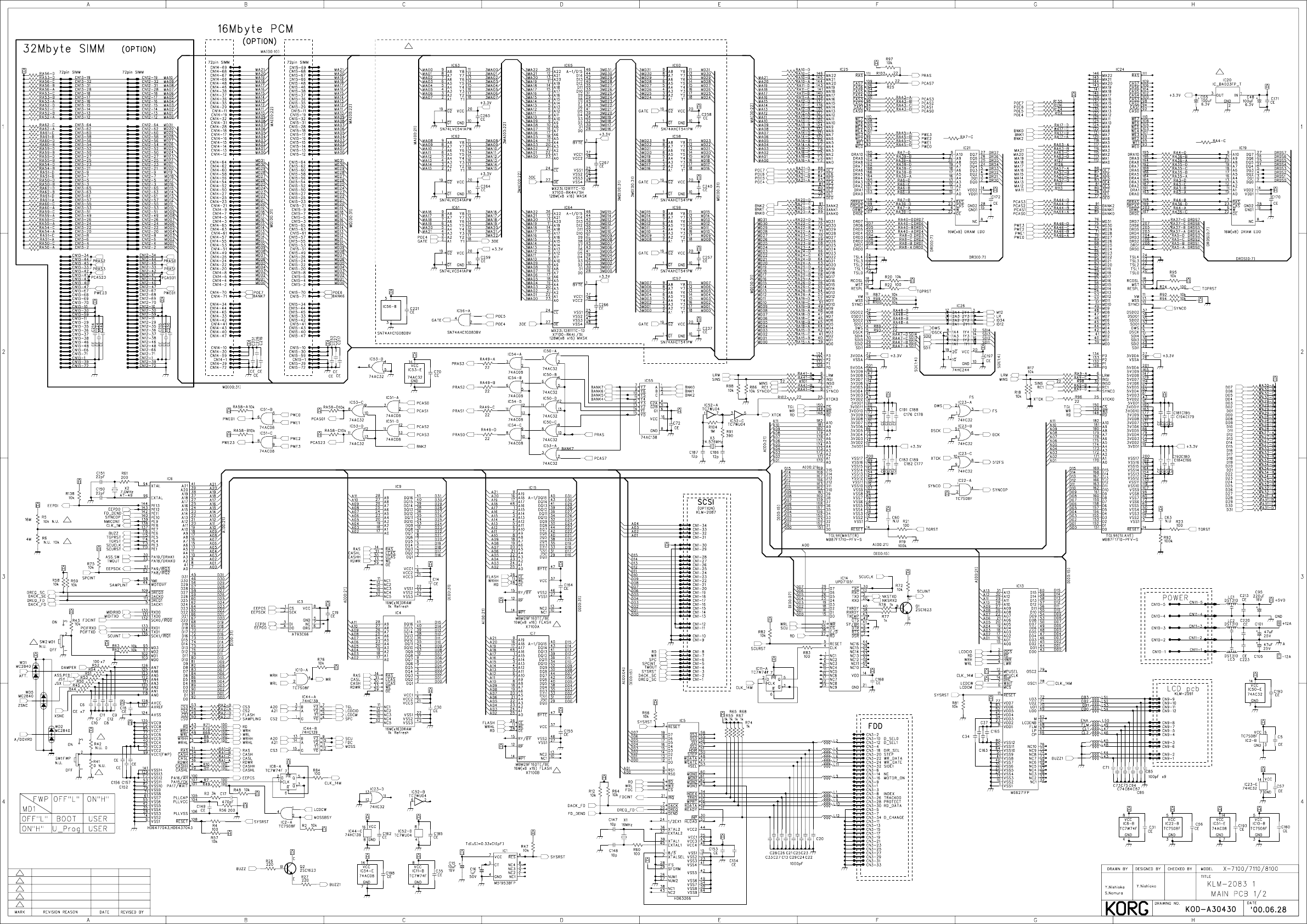

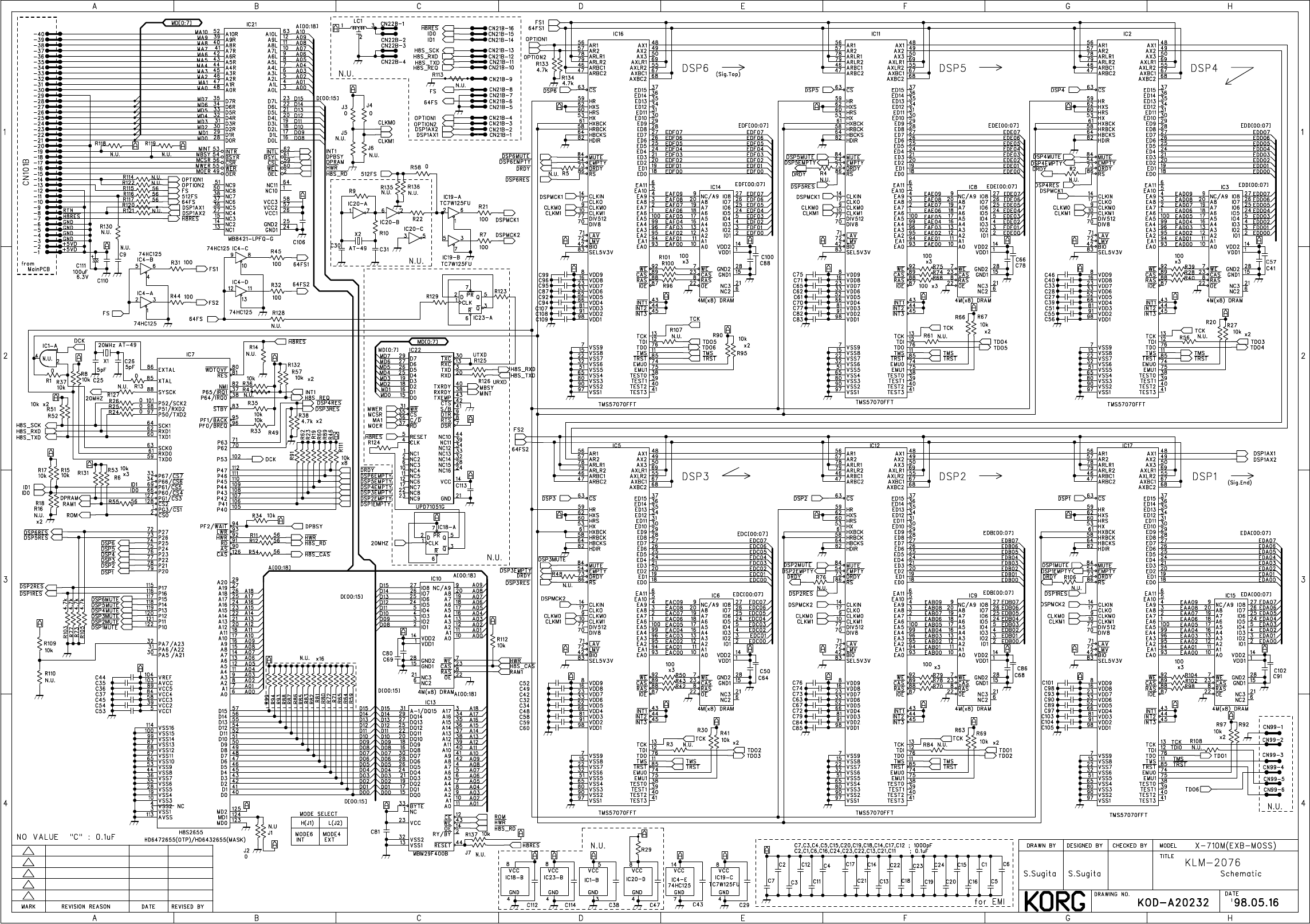

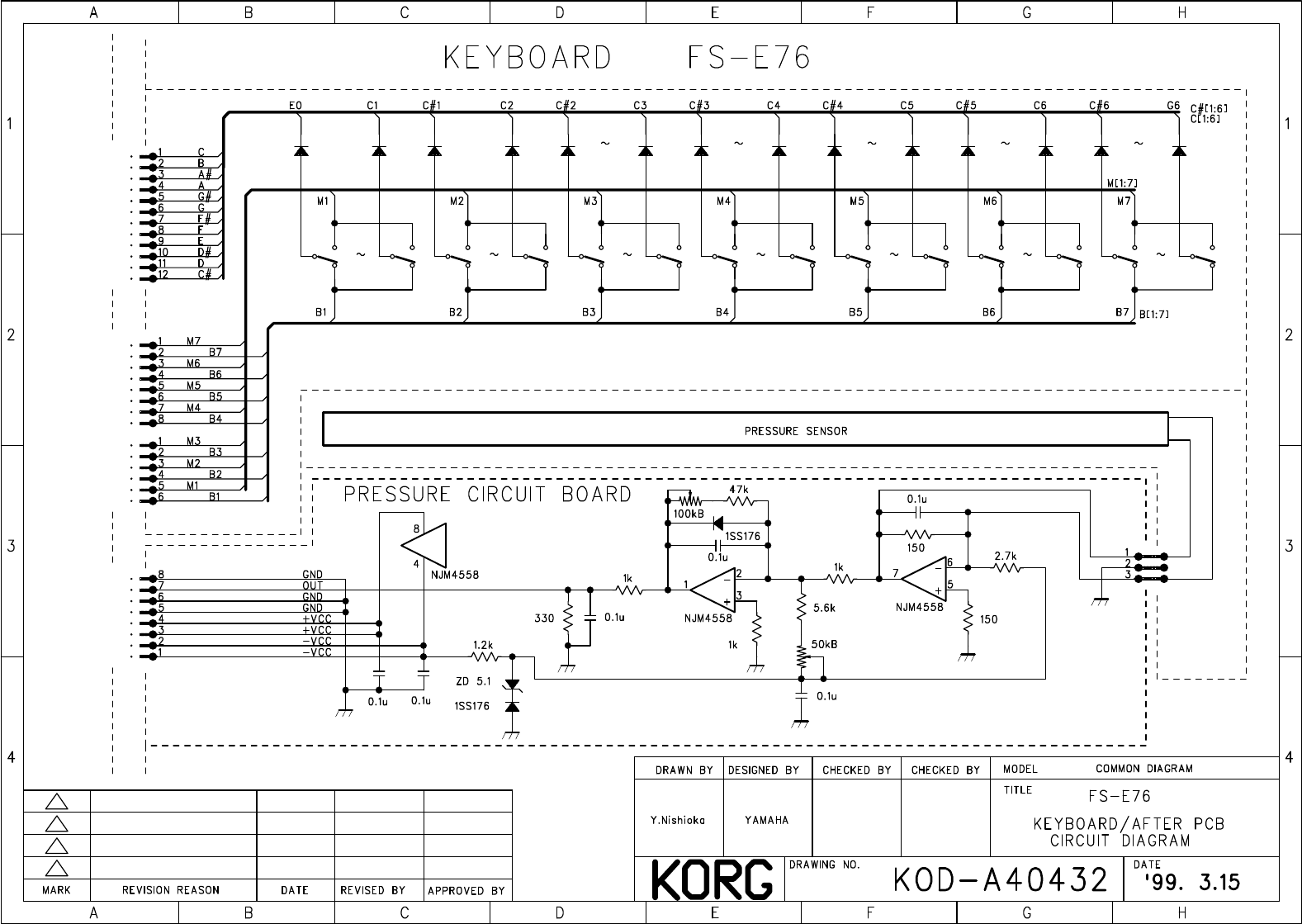

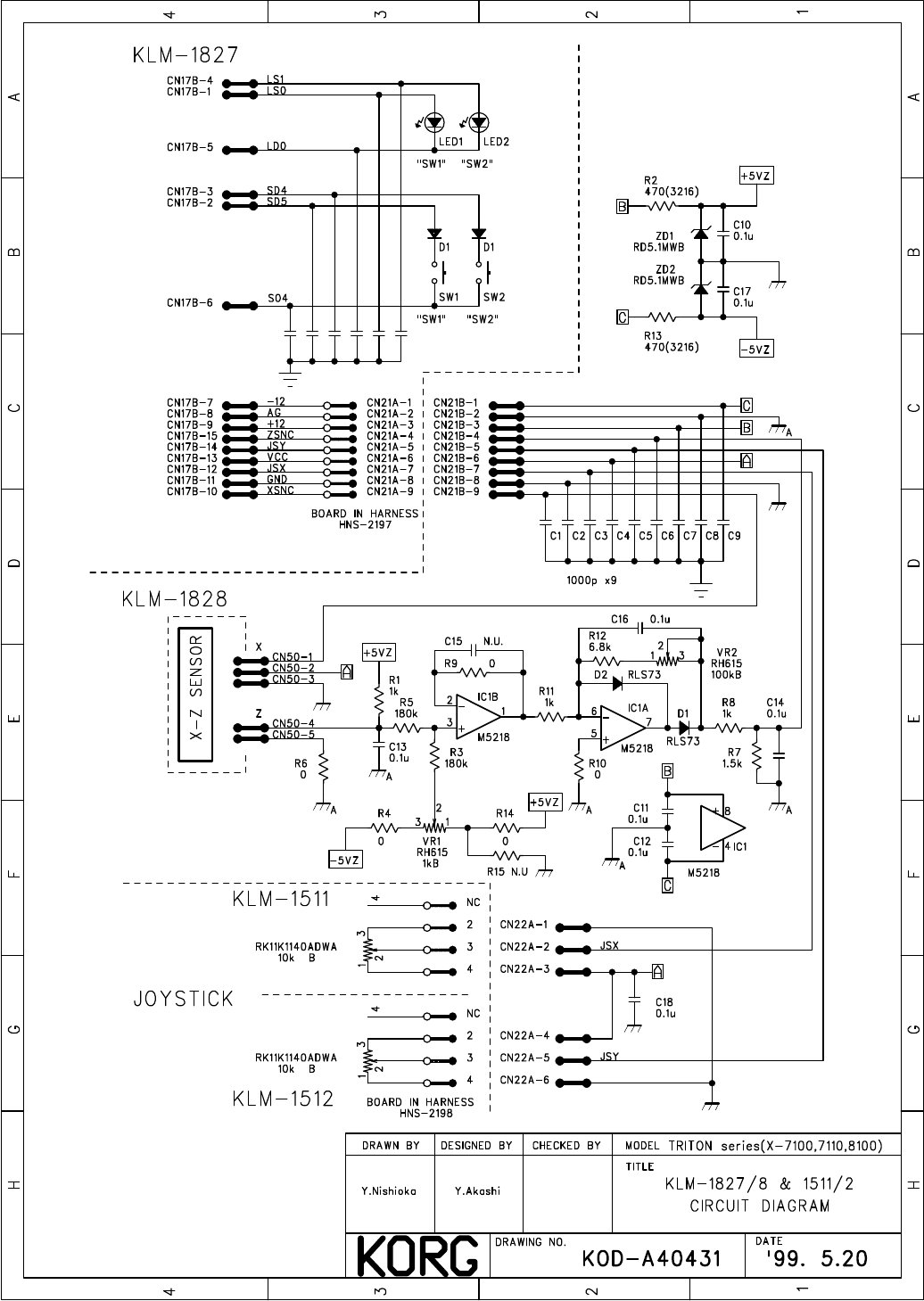

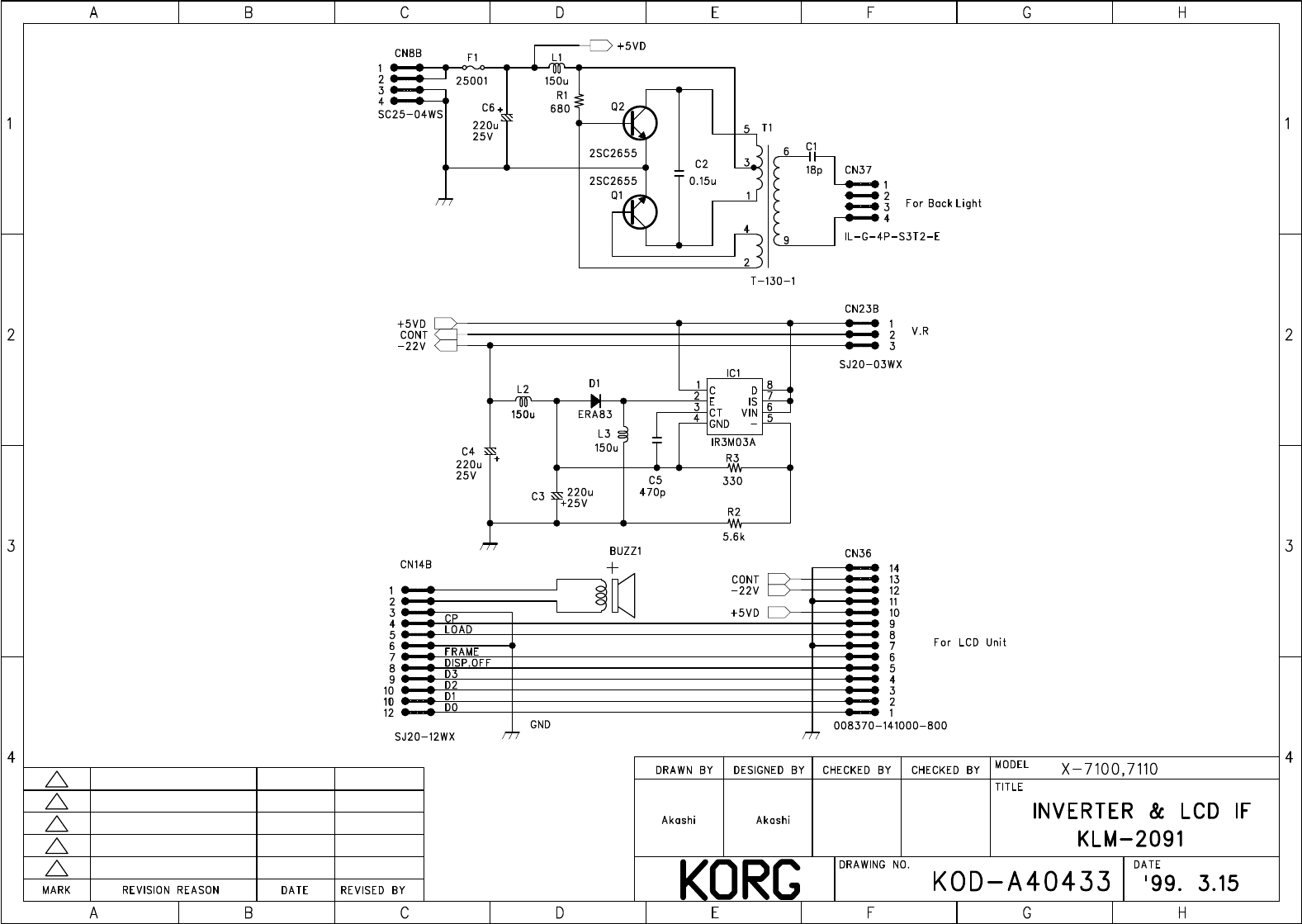

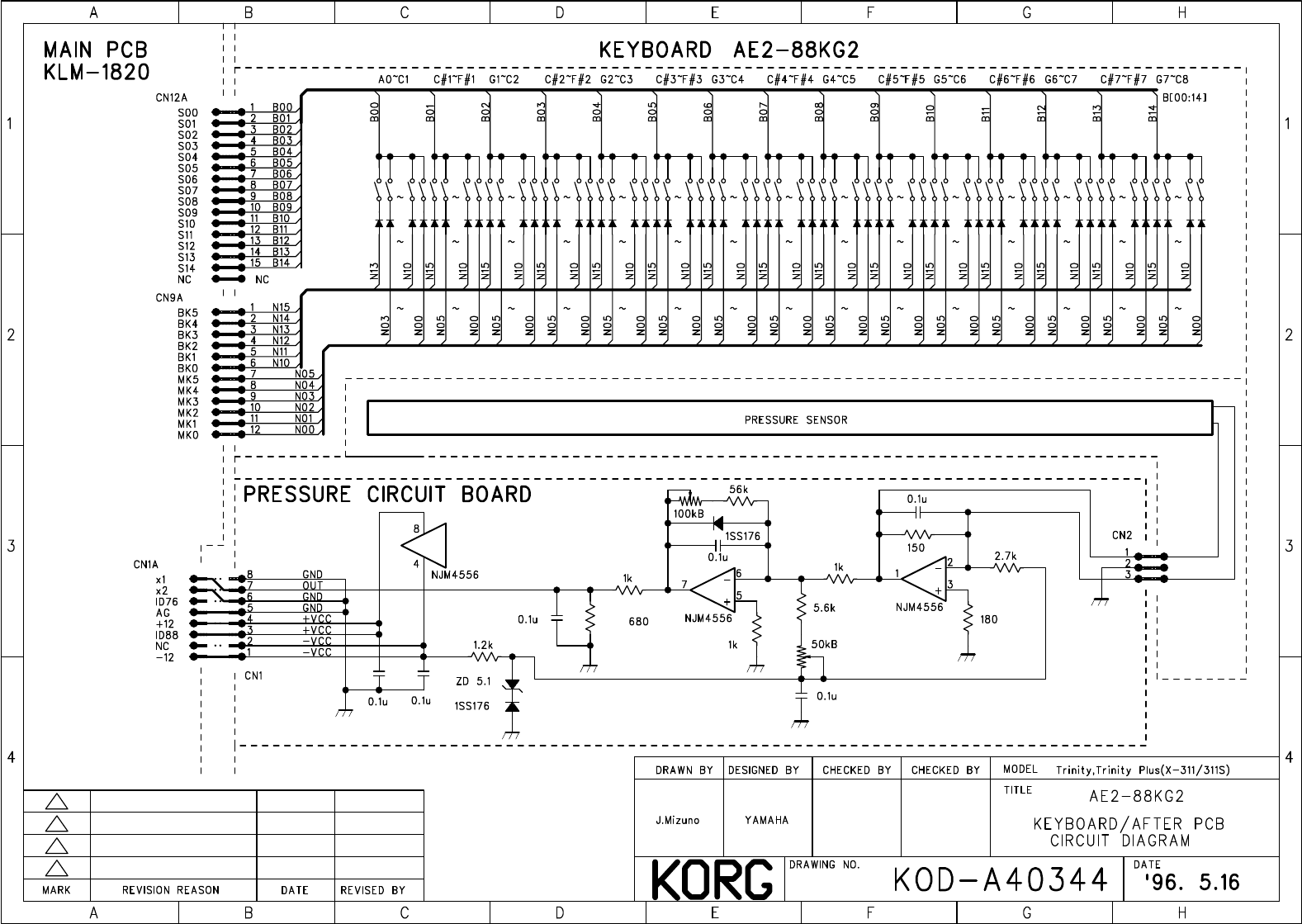

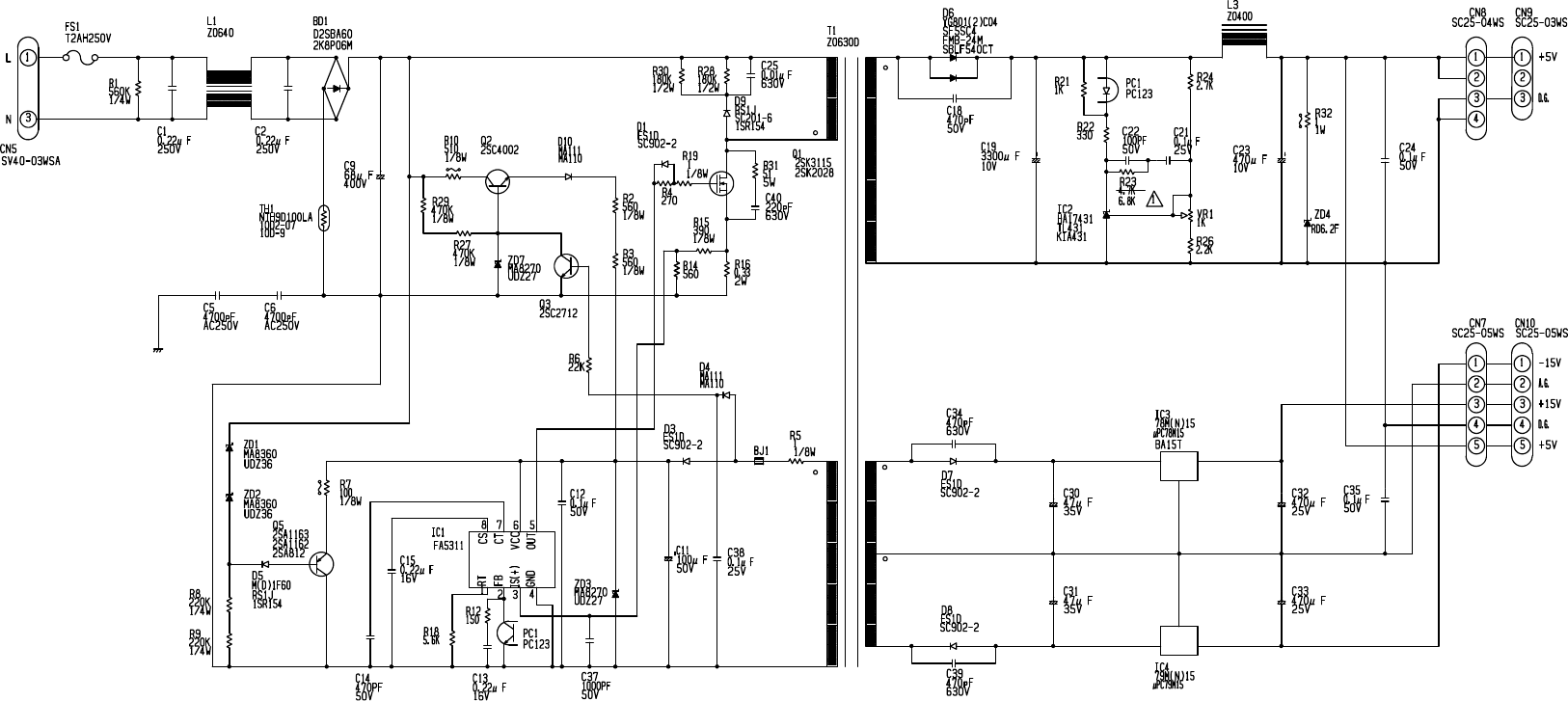

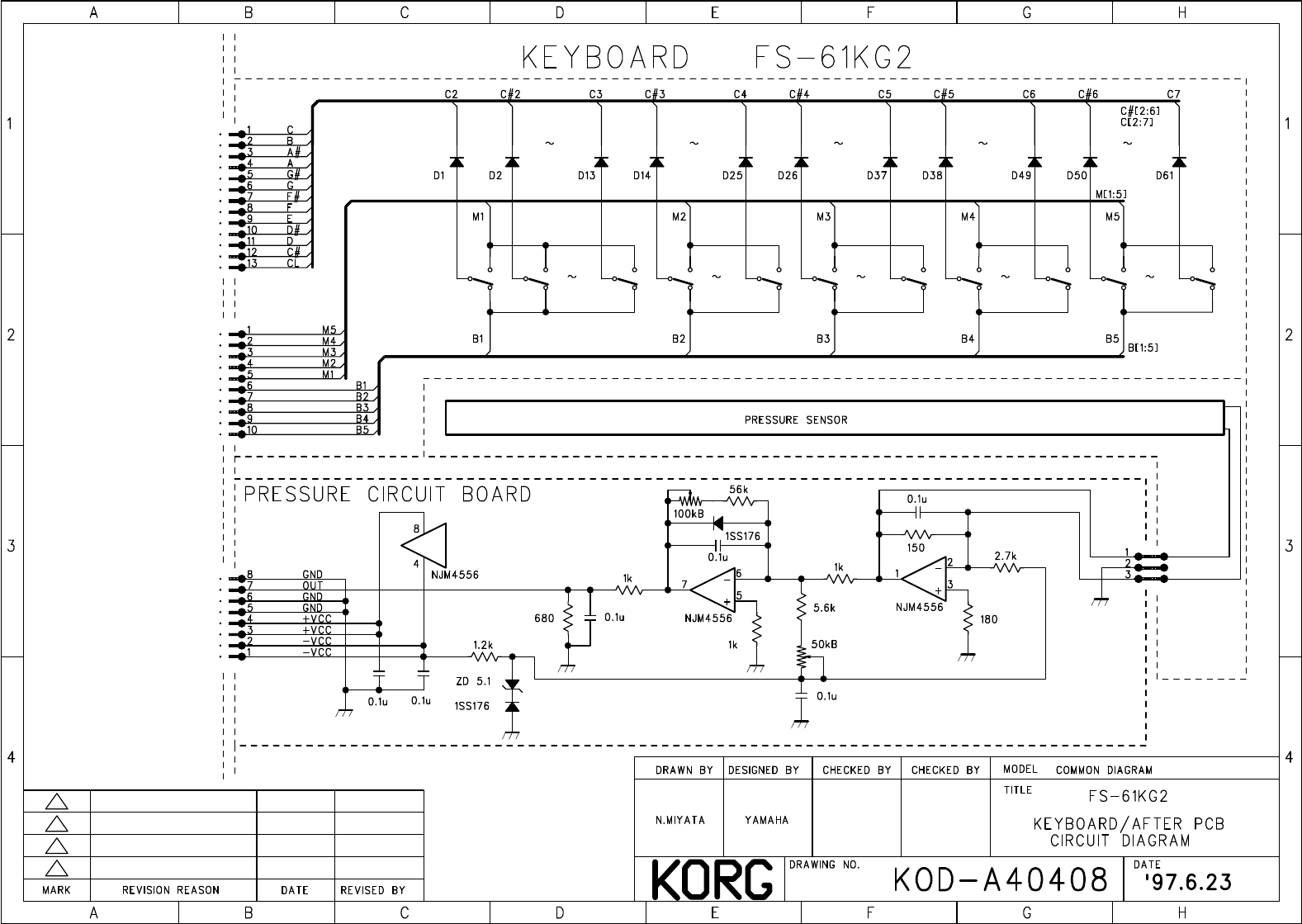

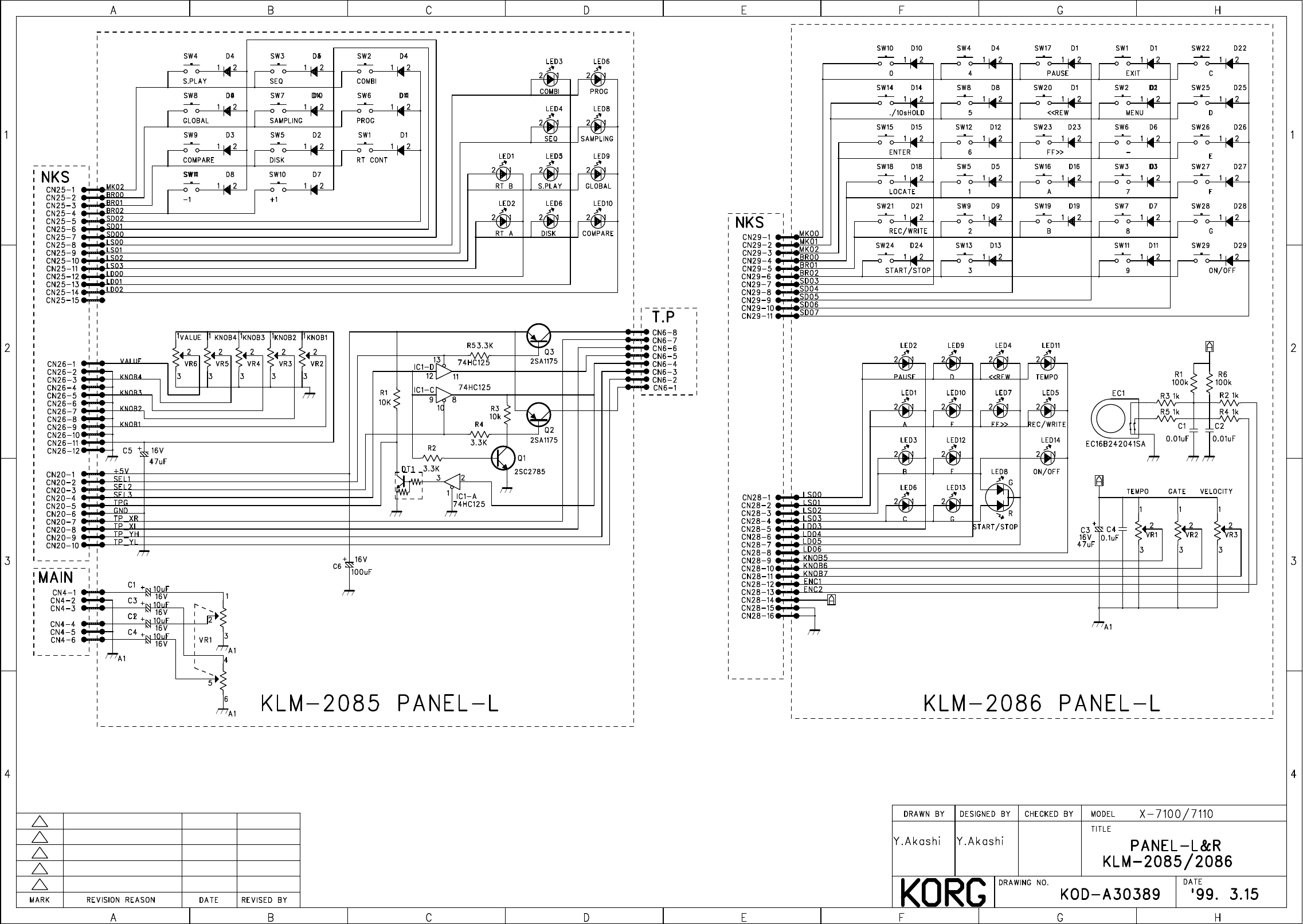

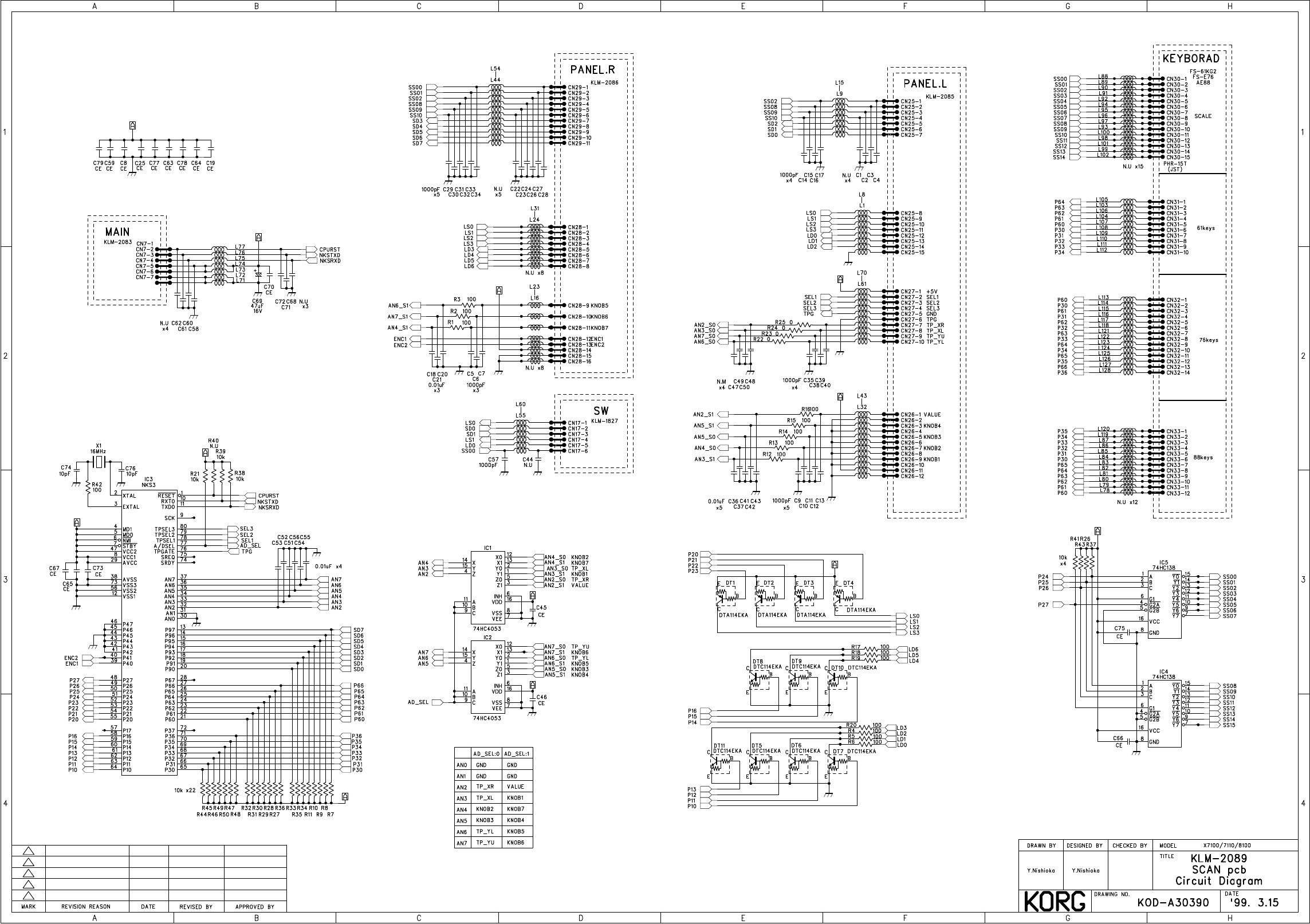

3) Circuit Diagram - - - - - - - - 15
4) Diagnostics - - - - - - - - - - - 27
5) Parts List - - - - - - - - - - - - - 28
Revision: 1.00
Issued date: Aug.24.1999
Issued by: KORG INC.
TRITON
How to start and operate the test mode
ENTER+5+POWER ON : FULL TEST
(SIMPLE TEST for SIMM)
ENTER+4+POWER ON : SIMM FULL TEST
ENTER+2+POWER ON : OMIT THE INTERNAL TEST
ENTER+9+POWER ON : INDICATE THE VERSION NUMBER
UP : ITEM UP
DOWN : ITEM DOWN
START/STOP(FF) : STEP UP
REW : STEP DOWN
How to reset the system
ENTER+0+POWER ON
NOTE:
When the test mode stars, the calibration values of Touch panel, JOY Stick and Pedal are reset.
When the test item is proceeded in order, please take the calibration at each item.
TRITON proX Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
2072160 72PIN SIMM 16MB M.PART 4,610
2202090 POWER SUPPLY UNIT KLM-2090 M.PART 2,260
304000050 TR 2SA1175 T ALL KLM-2085 10
304000050 TR 2SA1175 T ALL KLM-2084 10
304020070 TR 2SC2785 T ALL KLM-2085 10
304020150 TR 2SC1623-T1B (L7) KLM-2083 10
304020180 TR 2SC2878 A/B TPE2 KLM-2084 10
304020370 TR 2SC2655-Y KLM-2091 10
304050140 DIGITAL TR DTC114EKA T146 KLM-2089 10
304050150 DIGITAL TR DTA114EKA T146 KLM-2089 10
304050220 DIGITAL DTC114ESA TP KLM-2085 10
312010900 LED GL3ED8 KLM-2086 20
312013600 LED MOB31CR KLM-1827 10
313005000 TOUCH PANEL LCD KGJ-01S-5 M.PART 7,800
314001300 DIODE 1SS-133 T-77 KLM-2084 10
314001300 DIODE 1SS-133 T-77 KLM-1827 10
314001400 DIODE RLS-73 TE-11 KLM-1828 10
314003300 DIODE ERA83-004-V1 KLM-2091 20
314010300 DIODE 1S2076TD KLM-2085 10
314010300 DIODE 1S2076TD KLM-2086 10
314010310 LED HLMF-K200#2UM KLM-2085 10
314010310 LED HLMF-K200#2UM KLM-2086 10
314028200 ZENER DIODE RD5.1MW-T1B KLM-1828 10
314028800 LED SLZ-190B-09-T2 KLM-2086 10
314028800 LED SLZ-190B-09-T2 KLM-2085 10
314030100 ZENNER DIODE RD9.1ES T4 AB2 KLM-2084 10
315000500 DOUBLE DIODE MC-2840-T12-1 KLM-2083 10
315000800 DOUBLE DIODE MC-982-T12 KLM-2084 10
320001233 IC UPD71051GB-3B4 (44P QFP) KLM-2083 240
320001242 IC UPC4570HA KLM-2084 30
320004191 IC HD74HC125P KLM-2085 30
320004359 IC HD74HC05P KLM-2084 20
320004538 IC HD63266F KLM-2083 560
320004659 IC HD6433394A31F KLM-2089 560
320004663 IC HD64F7045F28 KLM-2083 2,770
320011026 IC M5216L KLM-2084 30
320011139 IC M5M34050P KLM-2084 210
320011184 IC M66271FP KLM-2083 690
320012223 IC MB87F1710 KLM-2083 2,080
320013131 IC IR3M03A KLM-2091 50
320040038 IC MX23C6410MC-10 BK4-H KLM-2083 710
320040039 IC MX23C6410MC-10 BK4-L KLM-2083 710
320040040 IC MX23C6410MC-10 BK5-H KLM-2083 710
320040041 IC MX23C6410MC-10 BK5-L KLM-2083 710
320040051 IC MX29F1610MC10C5 7100A KLM-2083 970
320040052 IC MX29F1610MC10C5 7100B KLM-2083 970
324001015 IC UPC4570G2-E2 (SOP) KLM-2083 30
324003004 IC TC7S08F(TE85L) KLM-2083 20
324003010 IC TC7WU04F TE12L KLM-2083 20
324003043 IC TC7W74F(TE12L) KLM-2083 30
324004003 IC HD74HC139FPER KLM-2083 20
324004004 IC HD74HC32FPEL KLM-2083 20
324004006 IC HD74HC00FPEL KLM-2083 20
324004024 IC HD74HC74FPER KLM-2083 20
324004050 IC HD74HC138FPEL KLM-2089 20
324004065 IC HD74HC164FPEL KLM-2083 40
324004146 IC HD74HC595FPER KLM-2083 60
1/5
TRITON proX Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
324004168 IC HD74HC4053FPEL KLM-2089 30
324009004 IC NJM78L05UA-TE2 KLM-2083 20
324011012 IC M51953BFP-600C (SOP) KLM-2083 20
324011017 IC M5218AFP-600C KLM-1828 20
324011017 IC M5218AFP-600C KLM-2083 20
324013018 IC PQ3TZ53U KLM-2083 80
324021005 IC AT93066-10SI/SC-2.7 KLM-2083 70
324021014 IC SN74LV138ANS-EL KLM-2083 30
324021015 IC SN74LV08ANS-EL KLM-2083 10
324021016 IC SN74LV32ANS-EL KLM-2083 10
324036008 IC PCM1716E/2K KLM-2083 260
324036009 IC PCM1800E/2K KLM-2083 330
324039001 IC KM416C1200BJ-6 KLM-2083 550
324039003 IC KM48C2104CK-6T/L6T KLM-2083 550
330001400 PHOTO COUPLER PC-910K KLM-2084 100
334000500 SB COIL SBT-0260 TF KLM-2084 20
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2089 70
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2083 70
335006500 CRYSTAL OSC. AT-49 24.576MHZ KLM-2083 70
335010700 CRYSTAL OSC. HC-49US 7.00MHZ KLM-2083 40
350002210 SEMI FIXED VR RH0615C13J8WA KLM-1828 10
350002410 SEMI FIXED VR RH0615C15 100K KLM-1828 10
360024500 VR RK11K1140ADWA 10KB(SPECIAL) KLM-1511/12 50
362007500 VR RK09K1110BJFA-10KB KLM-2084 30
362009007 VR RK11K1140AJ08 KLM-2085 50
362009007 VR RK11K1140AJ08 KLM-2086 50
362009015 VR RK09K12ACO KLM-2084 70
365007800 SLIDE VR RS30111AC00NB 10KB KLM-2085 50
365009500 SLIDE VR EWA NA0C10B14 10KB KLM-2085 50
370005000 REC EC11B15204A5 KLM-2086 140
373009000 SLIDE SW SSSS928400 KLM-2084 40
373009300 SLIDE SW ESD-11V121 KLM-2083 30
374000600 TOUCH SW EVQ11A09K KLM-2085 10
374000600 TOUCH SW EVQ11A09K KLM-2086 10
375010900 TOUCH SW EVQPAC07K KLM-1827 10
375012500 POWER SW SDDF3-1A-2 M.PART 110
400015700 POWER TRANSFORMER T-130-1 KLM-2091 330
402002800 COIL 2943-666671 KLM-1935 30
402400200 COIL SBCP-8015H KLM-2091 60
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2089 10
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2083 10
415003200 BUZZER CB-12AP-03 KLM-2091 40
415003700 KX-7100 SENSOR 1 M.PART 560
420005500 KEYBOARD AEII-88 KG2 M.PART 24,960
430008459 F.D TNFD-00P/01P M.PART 210
435002200 FDD DF354H912C M.PART 2,200
450003100 PHONE JACK LGR4609-7000 KLM-1935 20
450003100 PHONE JACK LGR4609-7000 KLM-2084 20
454005600 PHONE JACK YKB21-5006 KLM-2084 50
464400100 FUSE 125V 1A 251001 T-26 KLM-2091 60
471071501 CONNECTOR TOP B15B-PH-K-S(U) KLM-2089 10
471101040 CONNECTOR TOP SC25-04WS KLM-2091 10
471101050 CONNECTOR TOP SC25-05WS KLM-2083 10
471101050 CONNECTOR TOP SC25-05WS KLM-2084 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2084 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2091 10
471102030 CONNECTOR TOP SJ20-03WX KLM-1935 10
2/5
TRITON proX Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
471102050 CONNECTOR TOP SJ20-05WX KLM-2083 10
471102050 CONNECTOR TOP SJ20-05WX KLM-2084 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2085 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2083 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2089 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2084 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2089 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2083 10
471102080 CONNECTOR TOP SJ20-08WX KLM-2083 10
471102090 CONNECTOR TOP SJ20-09WX KLM-2083 10
471102100 CONNECTOR TOP SJ20-10WX KLM-2089 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2089 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2086 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2085 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2083 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2085 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2089 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2091 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2083 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2084 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2089 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2085 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2089 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2089 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2086 10
472092060 CONNECTOR SIDE SJ20-06WM KLM-1828 10
472092090 CONNECTOR SIDE SJ20-09WM KLM-1828 10
472093150 CONNECTOR SIDE SB20-15WL KLM-1827 10
474020600 CONNECTOR 52080-0510 KLM-1828 30
474021000 CONNECTOR 34P 5332-34T2 KLM-2083 60
474021200 CONNECTOR 40P 5332-40GS1 KLM-2083 90
474021300 DIN CONNECTOR TC7927-28-401 KLM-2084 60
474028600 CONNECTOR IL-G-4P-S3T2-SA KLM-2091 20
474028700 CONNECTOR 08FDZ-ST-BHL KLM-2085 50
474028800 CONNECTOR 008370-141-000-800 KLM-2091 40
474028900 SIMM CONNECTOR 52706-7220 KLM-2083 160
475002197 HARNESS HNS-2197 (BOARD IN) KLM-1827 40
475002198 HARNESS HNS-2198 (BOARD IN) KLM-1511/12 40
475002761 HARNESS HNS-2761 M.PART 40
475002764 HARNESS HNS-2764 M.PART 20
475002767 HARNESS HNS-2767 M.PART 50
475002771 HARNESS HNS-2771 M.PART 110
475002772 HARNESS HNS-2772 M.PART 70
475002791 HARNESS HNS-2791 M.PART 40
475002792 HARNESS HNS-2792 M.PART 50
475002793 HARNESS HNS-2793 M.PART 40
475002794 HARNESS HNS-2794 M.PART 40
475002795 HARNESS HNS-2795 M.PART 80
475002796 HARNESS HNS-2796 M.PART 80
475002797 HARNESS HNS-2797 M.PART 80
475002798 HARNESS HNS-2798 M.PART 30
475002799 HARNESS HNS-2799 M.PART 70
475002800 HARNESS HNS-2800 M.PART 60
475002801 HARNESS HNS-2801 M.PART 40
475002803 HARNESS HNS-2803 M.PART 90
475002804 HARNESS HNS-2804 M.PART 60
475002805 HARNESS HNS-2805 M.PART 110
3/5
TRITON proX Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
475002806 HARNESS HNS-2806 M.PART 80
475002807 HARNESS HNS-2807 M.PART 810
475002809 HARNESS HNS-2809 M.PART 80
475002810 HARNESS HNS-2810 M.PART 560
475008054 HARNESS HNS-8054 M.PART 10
480010380 DIN JACK YKF51-5041 (3P) KLM-2084 110
500024000 X-410 SPONGE SPACER KOC-F40666 M.PART 10
500027900 X-313 FRONT BAR SPACER F40740 M.PART 10
525001300 FERRITE CORE NFT-25 M.PART 80
540007200 WIRE BAND PLT-1M M.PART 10
540008600 SPIRAL CLIP CS-8 M.PART 10
540008601 SPIRAL CLIP CS-6 M.PART 10
540013100 CLIP A-1T M.PART 20
540020200 INLET SOCKET SS-7B M.PART 30
540021900 PLASTIC SUPPORT PS-610 M.PART 10
540023800 PLASTIC SUPPORT PS-312 M.PART 10
540023900 CIRCUIT BOARD SPACER MSPLS-6 M.PART 10
550016800 X-313 KEYBOARD FELT KOC-F40734 M.PART 50
575016700 LED SPACER LH-3-2 KLM-1827 10
575018400 LED SPACER LH-5-4.5 L=4.5MM KLM-2086 10
600005100 AC CORD KP-610 GTBS-3 KS-31AY M.PART UK 830
600005300 AC CORD DC-480-J01 M.PART JP 210
600005400 AC CORD EC-652-E03 M.PART WG 280
600005400 AC CORD EC-652-E03 M.PART GE 280
600005400 AC CORD EC-652-E03 M.PART FR 280
600005700 AC CORD UC-953-J01 M.PART US 210
600005700 AC CORD UC-953-J01 M.PART CN 210
600005800 AC CORD SC-111-J01 M.PART AU 250
620024600 X-952 POWER SW KNOB E40304-2 M.PART 20
620034400 X-610 2-LINKAGE B-2-GR M.PART 40
620034500 X-610 2-LINKAGE A-2-GR M.PART 40
620034600 X-631 SVR KNOB E40239-6 M.PART 10
620034700 X-610 ENCODER KNOB E40466-2 M.PART 30
620034800 X610 CONTROL KNOB ASSY M.PART 60
620034900 X610 2-LINKAGE KNOB A-1-GR M.PART 20
620035000 X610 2-LINKAGE KNOB B-1-GR M.PART 20
620035100 4-LINKAGE KNOB B-1-LG E20180 M.PART 10
620035200 4-LINKAGE KNOB A-1-LG E20180 M.PART 10
620035300 4-LINKAGE KNOB A-2-LG M.PART 20
620035900 KNOB P422-9PF(D.GR/W) M.PART 10
630029200 X-620 SHIELD SHEET L F40838-1 M.PART 50
630029300 X-620 SHIELD SHEET R F40838-2 M.PART 50
641026204 X-122 HINGE 2 KOC-C40872 M.PART 70
641031300 X-120 STOPPER PLATE KOC-C40887 M.PART 10
641031900 GND SPRING (A) KOC-C40890 M.PART 20
641032100 X-122 FRONT BAR SPACER 2 M.PART 50
641039700 X-115 POWER SW METAL FITTING M.PART 70
641041270 X-311/S/312 GND SPRING (H) M.PART 20
641041277 X-513/4/5 JACK PLATE 4 C41053 KLM-2084 40
641041320 X-313 FDD ANGLE L KOC-C30488 M.PART 80
641041321 X-313 FDD ANGLE R KOC-C30489 M.PART 60
641041326 X-313 FRS ANGLE KOC-C41058 M.PART 40
641041411 X-616 JOINT ANGLE 1 M.PART 60
641041436 GND PLATE M1866-A KOC-C40884-2 M.PART 10
641041479 X-013 JACK PLATE 5 KOC0C41132 M.PART 40
641041528 X-7100/7110 PCB BOX KOC-C10209 M.PART 390
641041530 X-7100/7110 OP PLATE C41143 M.PART 20
4/5
TRITON proX Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
641041534 X-7100/7110 LCD ANGLE C41145 M.PART 20
641041538 X-8100 PANEL KOC-C10206 M.PART 5,070
641041545 X-8100 FRONT BAR KOC-C10184-3 M.PART 910
641041548 X-8100 OP COVER A KOC-C41150 M.PART 190
641041549 X-8100 OP COVER B KOC-C41151 M.PART 140
644006200 X-011/012 WHEEL SPRING C40848 M.PART 10
644007700 GND SPRING KOC-C46014 M.PART 10
645052811 X-8100 BOTTOM CASE KOC-D10080 M.PART 2,070
645052812 X-8100 SIDE PLATE L D30152-2 M.PART 1,100
645052813 X-8100 SIDE PLATE R D30152-1 M.PART 1,100
646038900 X-011/012 JOYSTICK FRAME M.PART 40
646039000 X-011/012 VR PLATE KOC-E40309 M.PART 20
646039100 X-011/012 WHEEL SUPPORT E40308 M.PART 20
646039200 X-011/012 JOYSTICK LEVER M.PART 30
646070500 X-7100/7110 LCD HOOD E10167 M.PART 130
646071100 X-610 ENCODER FRAME E40467-2 M.PART 40
646071200 X-511/2 JS COVER E20134-4 M.PART 40
646071300 X-511/2 JS WHEEL E30148-4 M.PART 30
646071400 SVR FRAME ASSY 30LG M.PART 40
646071600 X-313 KEY BLOCK KOC-E20171-2 M.PART 130
646071700 X-313 JS PANEL KOC-E10119-2 M.PART 230
5/5
TRITON pro Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
2072160 72PIN SIMM 16MB M.PART 4,610
2202090 POWER SUPPLY UNIT KLM-2090 M.PART 2,260
304000050 TR 2SA1175 T ALL KLM-2085 10
304000050 TR 2SA1175 T ALL KLM-2084 10
304020070 TR 2SC2785 T ALL KLM-2085 10
304020150 TR 2SC1623-T1B (L7) KLM-2083 10
304020180 TR 2SC2878 A/B TPE2 KLM-2084 10
304020370 TR 2SC2655-Y KLM-2091 10
304050140 DIGITAL TR DTC114EKA T146 KLM-2089 10
304050150 DIGITAL TR DTA114EKA T146 KLM-2089 10
304050220 DIGITAL DTC114ESA TP KLM-2085 10
312010900 LED GL3ED8 KLM-2086 20
312013600 LED MOB31CR KLM-1827 10
313005000 TOUCH PANEL LCD KGJ-01S-5 M.PART 7,800
314001300 DIODE 1SS-133 T-77 KLM-2084 10
314001300 DIODE 1SS-133 T-77 KLM-1827 10
314001400 DIODE RLS-73 TE-11 KLM-1828 10
314003300 DIODE ERA83-004-V1 KLM-2091 20
314010300 DIODE 1S2076TD KLM-2086 10
314010300 DIODE 1S2076TD KLM-2085 10
314010310 LED HLMF-K200#2UM KLM-2085 10
314010310 LED HLMF-K200#2UM KLM-2086 10
314028200 ZENER DIODE RD5.1MW-T1B KLM-1828 10
314028800 LED SLZ-190B-09-T2 KLM-2085 10
314028800 LED SLZ-190B-09-T2 KLM-2086 10
314030100 ZENNER DIODE RD9.1ES T4 AB2 KLM-2084 10
315000500 DOUBLE DIODE MC-2840-T12-1 KLM-2083 10
315000800 DOUBLE DIODE MC-982-T12 KLM-2084 10
320001233 IC UPD71051GB-3B4 (44P QFP) KLM-2083 240
320001242 IC UPC4570HA KLM-2084 30
320004191 IC HD74HC125P KLM-2085 30
320004359 IC HD74HC05P KLM-2084 20
320004538 IC HD63266F KLM-2083 560
320004659 IC HD6433394A31F KLM-2089 560
320004663 IC HD64F7045F28 KLM-2083 2,770
320011026 IC M5216L KLM-2084 30
320011139 IC M5M34050P KLM-2084 210
320011184 IC M66271FP KLM-2083 690
320012223 IC MB87F1710 KLM-2083 2,080
320013131 IC IR3M03A KLM-2091 50
320040038 IC MX23C6410MC-10 BK4-H KLM-2083 710
320040039 IC MX23C6410MC-10 BK4-L KLM-2083 710
320040040 IC MX23C6410MC-10 BK5-H KLM-2083 710
320040041 IC MX23C6410MC-10 BK5-L KLM-2083 710
320040051 IC MX29F1610MC10C5 7100A KLM-2083 970
320040052 IC MX29F1610MC10C5 7100B KLM-2083 970
324001015 IC UPC4570G2-E2 (SOP) KLM-2083 30
324003004 IC TC7S08F(TE85L) KLM-2083 20
324003010 IC TC7WU04F TE12L KLM-2083 20
324003043 IC TC7W74F(TE12L) KLM-2083 30
324004003 IC HD74HC139FPER KLM-2083 20
324004004 IC HD74HC32FPEL KLM-2083 20
324004006 IC HD74HC00FPEL KLM-2083 20
324004024 IC HD74HC74FPER KLM-2083 20
324004050 IC HD74HC138FPEL KLM-2089 20
324004065 IC HD74HC164FPEL KLM-2083 40
324004146 IC HD74HC595FPER KLM-2083 60
1/5
TRITON pro Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
324004168 IC HD74HC4053FPEL KLM-2089 30
324009004 IC NJM78L05UA-TE2 KLM-2083 20
324011012 IC M51953BFP-600C (SOP) KLM-2083 20
324011017 IC M5218AFP-600C KLM-2083 20
324011017 IC M5218AFP-600C KLM-1828 20
324013018 IC PQ3TZ53U KLM-2083 80
324021005 IC AT93066-10SI/SC-2.7 KLM-2083 70
324021014 IC SN74LV138ANS-EL KLM-2083 30
324021015 IC SN74LV08ANS-EL KLM-2083 10
324021016 IC SN74LV32ANS-EL KLM-2083 10
324036008 IC PCM1716E/2K KLM-2083 260
324036009 IC PCM1800E/2K KLM-2083 330
324039001 IC KM416C1200BJ-6 KLM-2083 550
324039003 IC KM48C2104CK-6T/L6T KLM-2083 550
330001400 PHOTO COUPLER PC-910K KLM-2084 100
334000500 SB COIL SBT-0260 TF KLM-2084 20
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2089 70
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2083 70
335006500 CRYSTAL OSC. AT-49 24.576MHZ KLM-2083 70
335010700 CRYSTAL OSC. HC-49US 7.00MHZ KLM-2083 40
350002210 SEMI FIXED VR RH0615C13J8WA KLM-1828 10
350002410 SEMI FIXED VR RH0615C15 100K KLM-1828 10
360024500 VR RK11K1140ADWA 10KB(SPECIAL) KLM-1511/12 50
362007500 VR RK09K1110BJFA-10KB KLM-2084 30
362009007 VR RK11K1140AJ08 KLM-2085 50
362009007 VR RK11K1140AJ08 KLM-2086 50
362009015 VR RK09K12ACO KLM-2084 70
365007800 SLIDE VR RS30111AC00NB 10KB KLM-2085 50
365009500 SLIDE VR EWA NA0C10B14 10KB KLM-2085 50
370005000 REC EC11B15204A5 KLM-2086 140
373009000 SLIDE SW SSSS928400 KLM-2084 40
373009300 SLIDE SW ESD-11V121 KLM-2083 30
374000600 TOUCH SW EVQ11A09K KLM-2086 10
374000600 TOUCH SW EVQ11A09K KLM-2085 10
375010900 TOUCH SW EVQPAC07K KLM-1827 10
375012500 POWER SW SDDF3-1A-2 M.PART 110
400015700 POWER TRANSFORMER T-130-1 KLM-2091 330
402002800 COIL 2943-666671 KLM-1935 30
402400200 COIL SBCP-8015H KLM-2091 60
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2089 10
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2083 10
415003200 BUZZER CB-12AP-03 KLM-2091 40
415003700 KX-7100 SENSOR 1 M.PART 560
420004500 KEYBOARD FS-E76 M.PART 18,330
430008459 F.D TNFD-00P/01P M.PART 210
435002200 FDD DF354H912C M.PART 2,200
450003100 PHONE JACK LGR4609-7000 KLM-1935 20
450003100 PHONE JACK LGR4609-7000 KLM-2084 20
454005600 PHONE JACK YKB21-5006 KLM-2084 50
464400100 FUSE 125V 1A 251001 T-26 KLM-2091 60
471071501 CONNECTOR TOP B15B-PH-K-S(U) KLM-2089 10
471101040 CONNECTOR TOP SC25-04WS KLM-2091 10
471101050 CONNECTOR TOP SC25-05WS KLM-2083 10
471101050 CONNECTOR TOP SC25-05WS KLM-2084 10
471102030 CONNECTOR TOP SJ20-03WX KLM-1935 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2084 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2091 10
2/5
TRITON pro Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
471102050 CONNECTOR TOP SJ20-05WX KLM-2083 10
471102050 CONNECTOR TOP SJ20-05WX KLM-2084 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2084 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2085 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2089 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2083 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2083 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2089 10
471102080 CONNECTOR TOP SJ20-08WX KLM-2083 10
471102090 CONNECTOR TOP SJ20-09WX KLM-2083 10
471102100 CONNECTOR TOP SJ20-10WX KLM-2089 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2085 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2089 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2086 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2091 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2083 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2085 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2089 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2084 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2089 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2083 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2085 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2089 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2086 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2089 10
472092060 CONNECTOR SIDE SJ20-06WM KLM-1828 10
472092090 CONNECTOR SIDE SJ20-09WM KLM-1828 10
472093150 CONNECTOR SIDE SB20-15WL KLM-1827 10
474020600 CONNECTOR 52080-0510 KLM-1828 30
474021000 CONNECTOR 34P 5332-34T2 KLM-2083 60
474021200 CONNECTOR 40P 5332-40GS1 KLM-2083 90
474021300 DIN CONNECTOR TC7927-28-401 KLM-2084 60
474028600 CONNECTOR IL-G-4P-S3T2-SA KLM-2091 20
474028700 CONNECTOR 08FDZ-ST-BHL KLM-2085 50
474028800 CONNECTOR 008370-141-000-800 KLM-2091 40
474028900 SIMM CONNECTOR 52706-7220 KLM-2083 160
475002197 HARNESS HNS-2197 (BOARD IN) KLM-1827 40
475002198 HARNESS HNS-2198 (BOARD IN) KLM-1511/12 40
475002550 HARNESS HNS-2550 M.PART 60
475002761 HARNESS HNS-2761 M.PART 40
475002763 HARNESS HNS-2763 M.PART 50
475002764 HARNESS HNS-2764 M.PART 20
475002765 HARNESS HNS-2765 M.PART 40
475002766 HARNESS HNS-2766 M.PART 40
475002767 HARNESS HNS-2767 M.PART 50
475002768 HARNESS HNS-2768 M.PART 70
475002769 HARNESS HNS-2769 M.PART 80
475002770 HARNESS HNS-2770 M.PART 60
475002771 HARNESS HNS-2771 M.PART 110
475002772 HARNESS HNS-2772 M.PART 70
475002776 HARNESS HNS-2776 M.PART 90
475002781 HARNESS HNS-2781 M.PART 50
475002782 HARNESS HNS-2782 M.PART 100
475002784 HARNESS HNS-2784 M.PART 300
475002785 HARNESS HNS-2785 M.PART 100
475002786 HARNESS HNS-2786 M.PART 70
475002787 HARNESS HNS-2787 M.PART 650
3/5
TRITON pro Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
475002811 HARNESS HNS-2811 KLM-1935 10
475002812 HARNESS HNS-2812 M.PART 60
475002813 HARNESS HNS-2813 M.PART 60
475002814 HARNESS HNS-2814 M.PART 90
475002823 HARNESS HNS-2823 M.PART 30
475002824 HARNESS HNS-2824 M.PART 50
475008054 HARNESS HNS-8054 M.PART 10
480010380 DIN JACK YKF51-5041 (3P) M.PART 110
500018500 RUBBER FOOT FF-001 M.PART 10
500024000 X-410 SPONGE SPACER KOC-F40666 M.PART 10
525001300 FERRITE CORE NFT-25 M.PART 80
540007200 WIRE BAND PLT-1M M.PART 10
540008601 SPIRAL CLIP CS-6 M.PART 10
540020200 INLET SOCKET SS-7B M.PART 30
540023800 PLASTIC SUPPORT PS-312 M.PART 10
540023900 CIRCUIT BOARD SPACER MSPLS-6 M.PART 10
575016700 LED SPACER LH-3-2 KLM-1827 10
575018400 LED SPACER LH-5-4.5 L=4.5MM KLM-2086 10
600005100 AC CORD KP-610 GTBS-3 KS-31AY M.PART 830
600005300 AC CORD DC-480-J01 M.PART JP 210
600005400 AC CORD EC-652-E03 M.PART WG 280
600005400 AC CORD EC-652-E03 M.PART FR 280
600005400 AC CORD EC-652-E03 M.PART GE 280
600005700 AC CORD UC-953-J01 M.PART US 210
600005700 AC CORD UC-953-J01 M.PART EX 210
600005700 AC CORD UC-953-J01 M.PART CN 210
600005800 AC CORD SC-111-J01 M.PART AU 250
620024600 X-952 POWER SW KNOB E40304-2 M.PART 20
620034400 X-610 2-LINKAGE B-2-GR M.PART 40
620034500 X-610 2-LINKAGE A-2-GR M.PART 40
620034600 X-631 SVR KNOB E40239-6 M.PART 10
620034700 X-610 ENCODER KNOB E40466-2 M.PART 30
620034800 X610 CONTROL KNOB ASSY M.PART 60
620034900 X610 2-LINKAGE KNOB A-1-GR M.PART 20
620035000 X610 2-LINKAGE KNOB B-1-GR M.PART 20
620035100 4-LINKAGE KNOB B-1-LG E20180 M.PART 10
620035200 4-LINKAGE KNOB A-1-LG E20180 M.PART 10
620035300 4-LINKAGE KNOB A-2-LG M.PART 20
620035900 KNOB P422-9PF(D.GR/W) M.PART 10
641039700 X-115 METAL FITTING OF POWER SW M.PART 70
641041277 X-513/4/5 JACK PLATE 4 C41053 KLM-2084 40
641041326 X-313 FRS ANGLE KOC-C41058 M.PART 40
641041436 GND PLATE M1866-A KOC-C40884-2 KLM-1935 10
641041479 X-013 JACK PLATE 5 KOC0C41132 KLM-2084 40
641041528 X-7100/7110 PCB BOX KOC-C10209 M.PART 390
641041529 X-7100/7110 KB SUPPORT C30528 M.PART 60
641041530 X-7100/7110 OP PLATE C41143 M.PART 20
641041532 X-7100/7110 OP COVER 1 C30526 M.PART 110
641041533 X-7100/7110 OP COVER 2 C30527 M.PART 120
641041534 X-7100/7110 LCD ANGLE C41145 M.PART 20
641041537 X-7110 PANEL KOC-C10205 M.PART 3,810
641041543 X-7110 BOTTOM COVER KOC-C10208 M.PART 1,360
641041544 X-7110 KBF ANGLE KOC-C30529 M.PART 240
644006200 X-011/012 WHEEL SPRING C40848 M.PART 10
646038900 X-011/012 JOYSTICK FRAME M.PART 40
646039000 X-011/012 VR PLATE KOC-E40309 M.PART 20
646039100 X-011/012 WHEEL SUPPORT E40308 M.PART 20
4/5
TRITON pro Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
646039200 X-011/012 JOYSTICK LEVER M.PART 30
646070200 X-7100/7110 SIDE PANEL L M.PART 340
646070300 X-7100/7110 SIDE PANEL R M.PART 340
646070400 X-7100/7110 JS PANEL E10166 M.PART 210
646070500 X-7100/7110 LCD HOOD E10167 M.PART 130
646070700 X-7110 FRONT BAR KOC-E40476-2 M.PART 430
646071100 X-610 ENCODER FRAME E40467-2 M.PART 40
646071200 X-511/2 JS COVER E20134-4 M.PART 40
646071300 X-511/2 JS WHEEL E30148-4 M.PART 30
646071400 SVR FRAME ASSY 30LG M.PART 40
5/5
TRITON Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
2072160 72PIN SIMM 16MB M.PART 4,610
2202090 POWER SUPPLY UNIT KLM-2090 M.PART 2,260
304000050 TR 2SA1175 T ALL KLM-2084 10
304000050 TR 2SA1175 T ALL KLM-2085 10
304020070 TR 2SC2785 T ALL KLM-2085 10
304020150 TR 2SC1623-T1B (L7) KLM-2083 10
304020180 TR 2SC2878 A/B TPE2 KLM-2084 10
304020370 TR 2SC2655-Y KLM-2091 10
304050140 DIGITAL TR DTC114EKA T146 KLM-2089 10
304050150 DIGITAL TR DTA114EKA T146 KLM-2089 10
304050220 DIGITAL DTC114ESA TP KLM-2085 10
312010900 LED GL3ED8 KLM-2086 20
312013600 LED MOB31CR KLM-1827 10
313005000 TOUCH PANEL LCD KGJ-01S-5 M.PART 7,800
314001300 DIODE 1SS-133 T-77 KLM-1827 10
314001300 DIODE 1SS-133 T-77 KLM-2084 10
314001400 DIODE RLS-73 TE-11 KLM-1828 10
314003300 DIODE ERA83-004-V1 KLM-2091 20
314010300 DIODE 1S2076TD KLM-2086 10
314010300 DIODE 1S2076TD KLM-2085 10
314010310 LED HLMF-K200#2UM KLM-2085 10
314010310 LED HLMF-K200#2UM KLM-2086 10
314028200 ZENER DIODE RD5.1MW-T1B KLM-1828 10
314028800 LED SLZ-190B-09-T2 KLM-2086 10
314028800 LED SLZ-190B-09-T2 KLM-2085 10
314030100 ZENNER DIODE RD9.1ES T4 AB2 KLM-2084 10
315000500 DOUBLE DIODE MC-2840-T12-1 KLM-2083 10
315000800 DOUBLE DIODE MC-982-T12 KLM-2084 10
320001233 IC UPD71051GB-3B4 (44P QFP) KLM-2083 240
320001242 IC UPC4570HA KLM-2084 30
320004191 IC HD74HC125P KLM-2085 30
320004359 IC HD74HC05P KLM-2084 20
320004538 IC HD63266F KLM-2083 560
320004659 IC HD6433394A31F KLM-2089 560
320004663 IC HD64F7045F28 KLM-2083 2,770
320011026 IC M5216L KLM-2084 30
320011139 IC M5M34050P KLM-2084 210
320011184 IC M66271FP KLM-2083 690
320012223 IC MB87F1710 KLM-2083 2,080
320013131 IC IR3M03A KLM-2091 50
320040038 IC MX23C6410MC-10 BK4-H KLM-2083 710
320040039 IC MX23C6410MC-10 BK4-L KLM-2083 710
320040040 IC MX23C6410MC-10 BK5-H KLM-2083 710
320040041 IC MX23C6410MC-10 BK5-L KLM-2083 710
320040051 IC MX29F1610MC10C5 7100A KLM-2083 970
320040052 IC MX29F1610MC10C5 7100B KLM-2083 970
324001015 IC UPC4570G2-E2 (SOP) KLM-2083 30
324003004 IC TC7S08F(TE85L) KLM-2083 20
324003010 IC TC7WU04F TE12L KLM-2083 20
324003043 IC TC7W74F(TE12L) KLM-2083 30
324004003 IC HD74HC139FPER KLM-2083 20
324004004 IC HD74HC32FPEL KLM-2083 20
324004006 IC HD74HC00FPEL KLM-2083 20
324004024 IC HD74HC74FPER KLM-2083 20
324004050 IC HD74HC138FPEL KLM-2089 20
324004065 IC HD74HC164FPEL KLM-2083 40
324004146 IC HD74HC595FPER KLM-2083 60
1/5
TRITON Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
324004168 IC HD74HC4053FPEL KLM-2089 30
324009004 IC NJM78L05UA-TE2 KLM-2083 20
324011012 IC M51953BFP-600C (SOP) KLM-2083 20
324011017 IC M5218AFP-600C KLM-2083 20
324011017 IC M5218AFP-600C KLM-1828 20
324013018 IC PQ3TZ53U KLM-2083 80
324021005 IC AT93C66-10SI/SC-2.7 KLM-2083 70
324021014 IC SN74LV138ANS-EL KLM-2083 30
324021015 IC SN74LV08ANS-EL KLM-2083 10
324021016 IC SN74LV32ANS-EL KLM-2083 10
324036008 IC PCM1716E/2K KLM-2083 260
324036009 IC PCM1800E/2K KLM-2083 330
324039001 IC KM416C1200BJ-6 KLM-2083 550
324039003 IC KM48C2104CK-6T/L6T KLM-2083 550
330001400 PHOTO COUPLER PC-910K KLM-2084 100
334000500 SB COIL SBT-0260 TF KLM-2084 20
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2083 70
335005600 CRYSTAL OSC. AT-49 16.0MHZ KLM-2089 70
335006500 CRYSTAL OSC. AT-49 24.576MHZ KLM-2083 70
335010700 CRYSTAL OSC. HC-49US 7.00MHZ KLM-2083 40
350002210 SEMI FIXED VR RH0615C13J8WA KLM-1828 10
350002410 SEMI FIXED VR RH0615C15 100K KLM-1828 10
360024500 VR RK11K1140ADWA 10KB(SPECIAL) KLM-1511/12 50
362007500 VR RK09K1110BJFA-10KB KLM-2084 30
362009007 VR RK11K1140AJ08 KLM-2086 50
362009007 VR RK11K1140AJ08 KLM-2085 50
362009015 VR RK09K12ACO KLM-2084 70
365007800 SLIDE VR RS30111AC00NB 10KB KLM-2085 50
365009500 SLIDE VR EWA NA0C10B14 10KB KLM-2085 50
370005000 REC EC11B15204A5 KLM-2086 140
373009000 SLIDE SW SSSS928400 KLM-2084 40
373009300 SLIDE SW ESD-11V121 KLM-2083 30
374000600 TOUCH SW EVQ11A09K KLM-2086 10
374000600 TOUCH SW EVQ11A09K KLM-2085 10
375010900 TOUCH SW EVQPAC07K KLM-1827 10
375012500 POWER SW SDDF3-1A-2 M.PART 110
400015700 POWER TRANSFORMER T-130-1 KLM-2091 330
402002800 COIL 2943-666671 KLM-1935 30
402400200 COIL SBCP-8015H KLM-2091 60
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2083 10
404000500 CHIP SOLID INDUCTOR BLM21B102SPT TS KLM-2089 10
415003200 BUZZER CB-12AP-03 KLM-2091 40
415003700 KX-7100 SENSOR 1 M.PART 560
420004800 KEYBOARD FS-61 KG2 M.PART 10,920
430008459 F.D TNFD-00P/01P M.PART 210
435002200 FDD DF354H912C M.PART 2,200
450003100 PHONE JACK LGR4609-7000 KLM-2084 20
450003100 PHONE JACK LGR4609-7000 KLM-1935 20
454005600 PHONE JACK YKB21-5006 KLM-2084 50
464400100 FUSE 125V 1A 251001 T-26 KLM-2091 60
471071501 CONNECTOR TOP B15B-PH-K-S(U) KLM-2089 10
471101040 CONNECTOR TOP SC25-04WS KLM-2091 10
471101050 CONNECTOR TOP SC25-05WS KLM-2084 10
471101050 CONNECTOR TOP SC25-05WS KLM-2083 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2084 10
471102030 CONNECTOR TOP SJ20-03WX KLM-2091 10
471102030 CONNECTOR TOP SJ20-03WX KLM-1935 10
2/5
TRITON Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
471102050 CONNECTOR TOP SJ20-05WX KLM-2083 10
471102050 CONNECTOR TOP SJ20-05WX KLM-2084 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2085 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2084 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2083 10
471102060 CONNECTOR TOP SJ20-06WX KLM-2089 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2089 10
471102070 CONNECTOR TOP SJ20-07WX KLM-2083 10
471102080 CONNECTOR TOP SJ20-08WX KLM-2083 10
471102090 CONNECTOR TOP SJ20-09WX KLM-2083 10
471102100 CONNECTOR TOP SJ20-10WX KLM-2089 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2086 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2085 10
471102110 CONNECTOR TOP SJ20-11WX KLM-2089 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2091 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2089 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2085 10
471102120 CONNECTOR TOP SJ20-12WX KLM-2083 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2083 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2089 10
471102140 CONNECTOR TOP SJ20-14WX KLM-2084 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2089 10
471102150 CONNECTOR TOP SJ20-15WX KLM-2085 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2089 10
471102160 CONNECTOR TOP SJ20-16WX KLM-2086 10
472092060 CONNECTOR SIDE SJ20-06WM KLM-1828 10
472092090 CONNECTOR SIDE SJ20-09WM KLM-1828 10
472093150 CONNECTOR SIDE SB20-15WL KLM-1827 10
474020600 CONNECTOR 52080-0510 KLM-1828 30
474021000 CONNECTOR 34P 5332-34T2 KLM-2083 60
474021200 CONNECTOR 40P 5332-40GS1 KLM-2083 90
474021300 DIN CONNECTOR TC7927-28-401 KLM-2084 60
474028600 CONNECTOR IL-G-4P-S3T2-SA KLM-2091 20
474028700 CONNECTOR 08FDZ-ST-BHL KLM-2085 50
474028800 CONNECTOR 008370-141-000-800 KLM-2091 40
474028900 SIMM CONNECTOR 52706-7220 KLM-2083 160
475002197 HARNESS HNS-2197 (BOARD IN) KLM-1827 40
475002198 HARNESS HNS-2198 (BOARD IN) KLM-1511/12 40
475002550 HARNESS HNS-2550 M.PART 60
475002761 HARNESS HNS-2761 M.PART 40
475002762 HARNESS HNS-2762 M.PART 40
475002763 HARNESS HNS-2763 M.PART 50
475002764 HARNESS HNS-2764 M.PART 20
475002765 HARNESS HNS-2765 M.PART 40
475002766 HARNESS HNS-2766 M.PART 40
475002767 HARNESS HNS-2767 M.PART 50
475002768 HARNESS HNS-2768 M.PART 70
475002769 HARNESS HNS-2769 M.PART 80
475002770 HARNESS HNS-2770 M.PART 60
475002771 HARNESS HNS-2771 M.PART 110
475002772 HARNESS HNS-2772 M.PART 70
475002773 HARNESS HNS-2773 M.PART 80
475002774 HARNESS HNS-2774 M.PART 40
475002775 HARNESS HNS-2775 M.PART 90
475002776 HARNESS HNS-2776 M.PART 90
475002777 HARNESS HNS-2777 M.PART 130
475002778 HARNESS HNS-2778 M.PART 90
3/5
TRITON Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
475002779 HARNESS HNS-2779 M.PART 60
475002780 HARNESS HNS-2780 M.PART 630
475002811 HARNESS HNS-2811 KLM-1935 10
475002812 HARNESS HNS-2812 M.PART 60
475002813 HARNESS HNS-2813 M.PART 60
475002825 HARNESS HNS-2825 M.PART 30
475008054 HARNESS HNS-8054 M.PART 10
480010380 DIN JACK YKF51-5041 (3P) KLM-2084 110
500018500 RUBBER FOOT FF-001 M.PART 10
500024000 X-410 SPONGE SPACER KOC-F40666 M.PART 10
525001300 FERRITE CORE NFT-25 M.PART 80
540007200 WIRE BAND PLT-1M M.PART 10
540008601 SPIRAL CLIP CS-6 M.PART 10
540020200 INLET SOCKET SS-7B M.PART 30
540023800 PLASTIC SUPPORT PS-312 M.PART 10
540023900 CIRCUIT BOARD SPACER MSPLS-6 M.PART 10
575016700 LED SPACER LH-3-2 KLM-1827 10
575018400 LED SPACER LH-5-4.5 L=4.5MM KLM-2086 10
580026000 SERVICE MAN CAUTION 3 10
600005100 AC CORD KP-610 GTBS-3 KS-31AY M.PART UK 830
600005300 AC CORD DC-480-J01 M.PART JP 210
600005400 AC CORD EC-652-E03 M.PART FR 280
600005400 AC CORD EC-652-E03 M.PART GE 280
600005400 AC CORD EC-652-E03 M.PART WG 280
600005700 AC CORD UC-953-J01 M.PART EX 210
600005700 AC CORD UC-953-J01 M.PART CN 210
600005700 AC CORD UC-953-J01 M.PART US 210
600005800 AC CORD SC-111-J01 M.PART AU 250
620024600 X-952 POWER SW KNOB E40304-2 M.PART 20
620034400 X-610 2-LINKAGE B-2-GR M.PART 40
620034500 X-610 2-LINKAGE A-2-GR M.PART 40
620034600 X-631 SVR KNOB E40239-6 M.PART 10
620034700 X-610 ENCODER KNOB E40466-2 M.PART 30
620034800 X610 CONTROL KNOB ASSY M.PART 60
620034900 X610 2-LINKAGE KNOB A-1-GR M.PART 20
620035000 X610 2-LINKAGE KNOB B-1-GR M.PART 20
620035100 4-LINKAGE KNOB B-1-LG E20180 M.PART 10
620035200 4-LINKAGE KNOB A-1-LG E20180 M.PART 10
620035300 4-LINKAGE KNOB A-2-LG M.PART 20
620035900 KNOB P422-9PF(D.GR/W) M.PART 10
641039100 X-181 KBF ANGLE 2 KOC-C30405-2 M.PART 130
641039700 X-115 METAL FITTING OF POWER SW M.PART 70
641041277 X-513/4/5 JACK PLATE 4 C41053 M.PART 40
641041326 X-313 FRS ANGLE KOC-C41058 M.PART 40
641041436 GND PLATE M1866-A KOC-C40884-2 KLM-1935 10
641041479 X-013 JACK PLATE 5 KOC0C41132 KLM-2084 40
641041528 X-7100/7110 PCB BOX KOC-C10209 M.PART 390
641041529 X-7100/7110 KB SUPPORT C30528 M.PART 60
641041530 X-7100/7110 OP PLATE C41143 M.PART 20
641041532 X-7100/7110 OP COVER 1 C30526 M.PART 110
641041533 X-7100/7110 OP COVER 2 C30527 M.PART 120
641041534 X-7100/7110 LCD ANGLE C41145 M.PART 20
641041536 X-7100 PANEL KOC-C10204 M.PART 3,360
641041541 X181 KB ANGLE 3 KOC-30405-3 M.PART 120
641041542 X-7100 BOTTOM COVER KOC-C10207 M.PART 1,090
644006200 X-011/012 WHEEL SPRING C40848 M.PART 10
646038900 X-011/012 JOYSTICK FRAME M.PART 40
4/5
TRITON Parts List Ver1.00
Parts code Parts name and Spesfication PCB No. Unit Price(Yen)
646039000 X-011/012 VR PLATE KOC-E40309 M.PART 20
646039100 X-011/012 WHEEL SUPPORT E40308 M.PART 20
646039200 X-011/012 JOYSTICK LEVER M.PART 30
646070200 X-7100/7110 SIDE PANEL L M.PART 340
646070300 X-7100/7110 SIDE PANEL R M.PART 340
646070400 X-7100/7110 JS PANEL E10166 M.PART 210
646070500 X-7100/7110 LCD HOOD E10167 M.PART 130
646070600 X-7100 FRONT BAR KOC-E40476-1 M.PART 370
646071100 X-610 ENCODER FRAME E40467-2 M.PART 40
646071200 X-511/2 JS COVER E20134-4 M.PART 40
646071300 X-511/2 JS WHEEL E30148-4 M.PART 30
646071400 SVR FRAME ASSY 30LG M.PART 40
5/5
