B-T063AN-208-EN
TRT63A Brochure 1

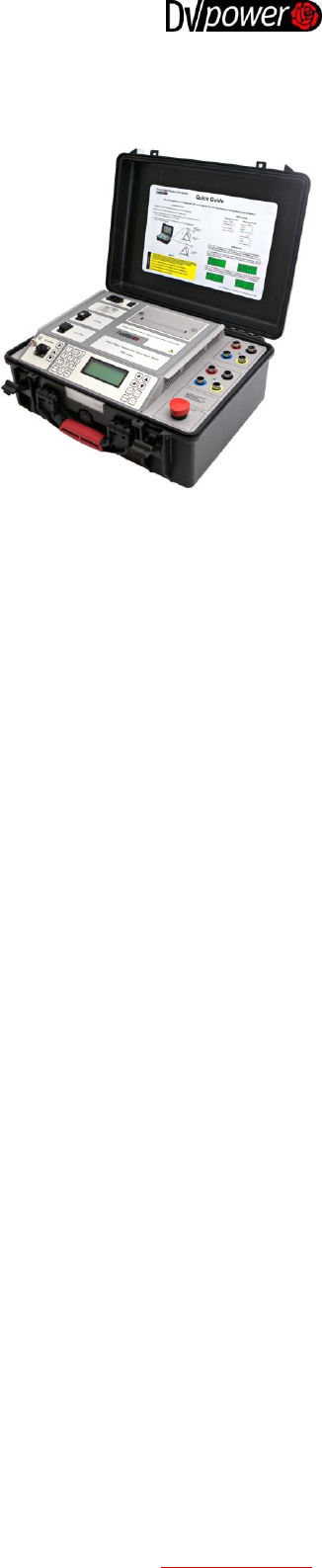

True Three-Phase Transformer Turns Ratio Tester TRT63A
Test voltages 1 V, 8 V, 40 V, 100 V, 250 V AC
Ratio range 0,8 – 50 000
The best accuracy of 0,03%
Measurement of turns ratio
Measurement of phase shift
Measurement of excitation current
Three-phase and single-phase test
Automatic vector group detection
Detailed analysis of test results using DV-Win software
Description
TRT63A is a true three-phase, fully automatic test set specially designed for turns ratio, phase shift and
excitation current measurements of power, distribution and instrument transformers. TRT63A
determines the transformer turns ratio by accurately measuring the voltages across the unloaded
transformer windings and then displaying the ratio of these voltages (ratios range from 0,8 to 50 000).
TRT63A is based on a state of the art technology, using the most advanced technique available today.
The test set can be used to test single-phase and three-phase transformers, both with and without taps
in accordance with the requirements of the IEC 60076-1 standard.
For a three-phase measurement, the test set is connected to all the three phases of a transformer to be
tested. If specific vector diagrams are selected for different types of transformers, the TRT63A will run a
specific test for each transformer type (i.e., single phase, Delta to y, Y to delta, Delta to delta, or Y to y)
without a need to switch the test hookup cables. It displays a turns ratio, phase shift and excitation
current, obtained with true three-phase and single-phase tests. With the AVGD test, TRT63A can
automatically detect vector group of a transformer.
TRT63A lets users enter a transformer’s nameplate voltages for the turns ratio deviation calculation.
This feature eliminates any error otherwise caused by an operator’s manual calculation. The TRT63A
also compares the test result with the calculated ratio and prints out the % of error for each test. It is
easy to read the instruments display and easy to follow the menu. There is enough memory in the
TRT63A to store 100 test records. Each record consists of 100 test readings. All measurements are
time and date stamped. The measurements can be printed on an optional built-in thermal printer using
the Print button.
The transformer excitation current, as well as the phase angles, help to detect transformer's shorted
turns or unequal number of turns connected in parallel. Operating conditions messages or error
messages identify incorrect test conditions, abnormal operating condition or winding problems.
TRT63A has a very high ability to cancel electrostatic and electromagnetic interference in HV electric
fields. It is achieved by a very efficient filtration. The filtration is made utilizing the proprietary hardware
and software design solutions.
True Three-Phase Transformer Turns Ratio Tester TRT63A
B-T063AN-208-EN
TRT63A Brochure 2
Application
The TRT63A is programmed to automatically test turns ratio, phase shift and excitation current of
power, distribution and instrument transformer types defined by CEI/IEC standards.

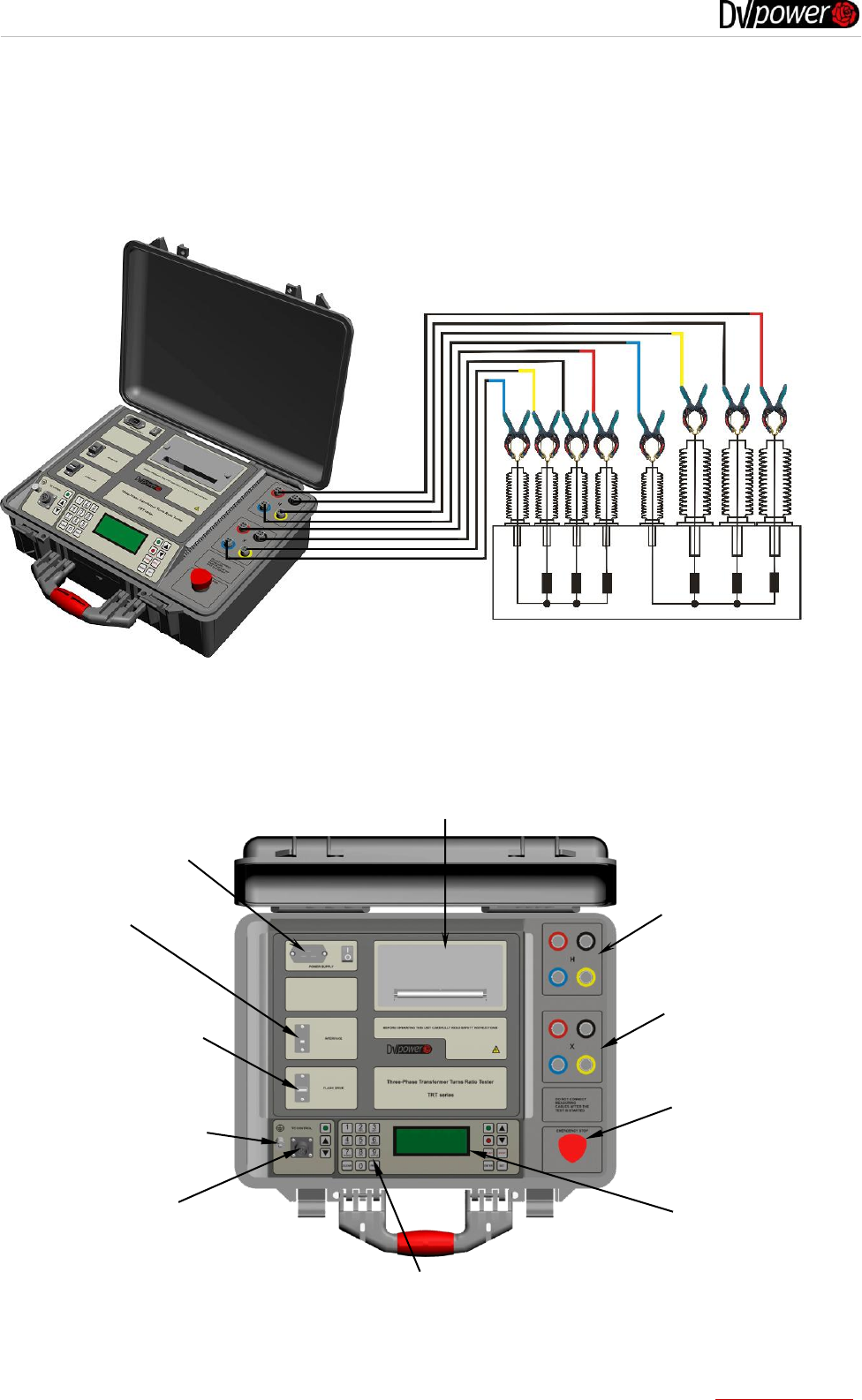

Connecting a test object to TRT63A
Features
PC communication
USB interface
LCD Screen
20 Characters by 4
Lines; LCD display
with backlight, visible
in bright sunlight
H terminals
Used for connecting
H cable set
TC Control
Used for remote controlling of
a Tap Changer
Flash drive
Used for direct download of
test results on a USB
memory stick
Thermal printer (built-in 112 mm wide)
Numeric printout of test results
X terminals
Used for connecting
X cable set
Emergency stop
button
Used for stopping the
test in case of an
emergency
Grounding
Used for grounding TRT63A
Alphanumeric keypad
Used for entering transformer data
True Three-Phase Transformer Turns Ratio Tester TRT63A
B-T063AN-208-EN
TRT63A Brochure 3

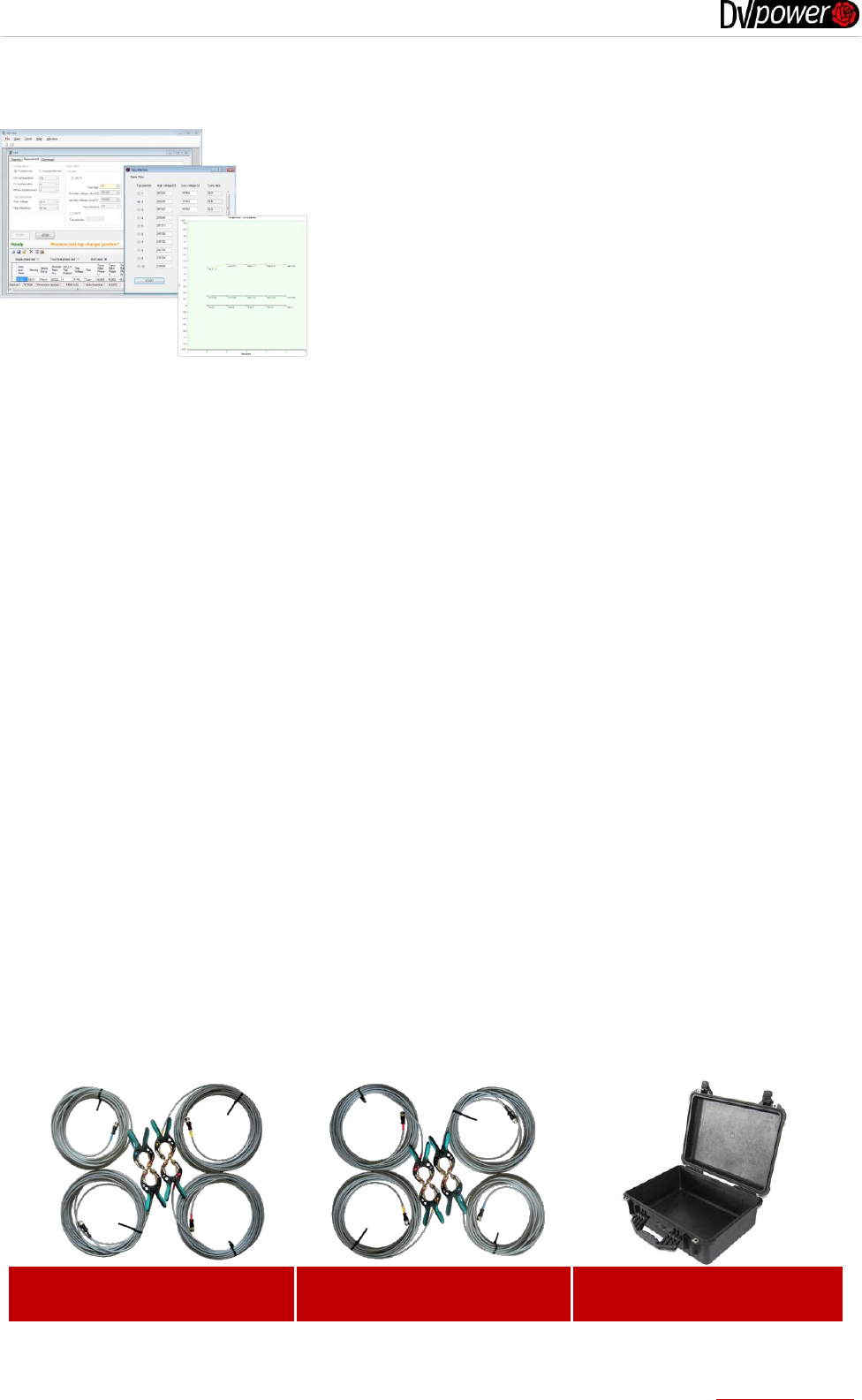

DV-Win software
Accessories
Included
Recommended
DV-Win PC software
H winding test lead set, 4 x 10 m with TTA clamps
Ground cable
X winding test lead set, 4 x 10 m with TTA clamps
USB cable
Cable plastic case – large size
Built-in Tap Changer Control Unit
Tap Changer Control cable set 5 m
Optional
Built-in thermal printer 112 mm
Thermal paper roll
Cable plastic case with wheels – large size
Cable plastic case – medium size
Cable plastic case with wheels – medium size
Transport case
Bluetooth communication module
Inverter 12 V DC to 230 V AC, 50 Hz
H winding test lead set, 4 x 5 m with TTA clamps
X winding test lead set, 4 x 5 m with TTA clamps
H winding test lead set, 4 x 15 m with TTA clamps
X winding test lead set, 4 x 15 m with TTA clamps
H winding test lead set, 4 x 20 m with TTA clamps
X winding test lead set, 4 x 20 m with TTA clamps
H winding cable extension set, 4 x 5 m
X winding cable extension set, 4 x 5 m
H winding cable extension set, 4 x 10 m
X winding cable extension set, 4 x 10 m
TRTC Verification Calibrator with associated cables
H winding test lead set with TTA
clamps*
X winding test lead set with TTA
clamps*
Cable plastic case
*The above cables are also available in several lengths.
Please contact DV Power for more information.
DV-Win software has the following features:
Full control of TRT63A functions from a PC.
Creating and storing test plans.
Download test results from the instrument.
Acquisition and analysis of test results.
Graphical display of test results.
Creating reports including numerical and graphical data.
Test results can be viewed, edited, saved, printed and
exported.
Zoom and pan graph feature.
True Three-Phase Transformer Turns Ratio Tester TRT63A
IBEKO Power AB
Contact
phone: +46 70 0925 000
sales@dv-power.com
Address
Stockholmsvägen 18
181 50 Lidingö, Sweden
TRT63A Brochure 4
Technical Data
Mains Power Supply
Connection: according to IEC/EN60320-1; UL498, CSA 22.2
Mains supply: 90 – 264 V AC, or 110 – 350 V DC
Frequency: 50/60 Hz
Input power: 250 VA
Fuse: 2 A / 250 V, type F, but not user replaceable
Output Data
Test voltage 1 V, 8 V, 40 V, 100 V, 250 V AC
3 x (1, 8, 40, 100, 250)3 V AC
Measurement
Ratio measuring range 0,8 – 50 000 (5-digit resolution)
Typical ratio accuracy:
@250 V AC
@100 V AC
@40 V AC
@8 V AC
@1 V AC
0,8 – 999: ±0,03%
0,8 – 999: ±0,05%
0,8 – 999: ±0,05%
0,8 – 999: ±0,05%
0,8 – 999: ±0,05%
1000 – 3999: ±0,05%
1000 – 3999: ±0,05%
1000 – 3999: ±0,1%
1000 – 3999: ±0,1%
1000 – 3999: ±0,1%
4000 – 14999: ±0,05%
4000 – 14999: ±0,1%
4000 – 14999: ±0,2%
4000 – 14999: ±0,2%
15000 – 19999: ±0,05%
15000 – 19999: ±0,2%
15000 – 19999: ±0,3%
20000 – 50000: ±0,1%
20000 – 50000: ±0,25%
Excitation current range 0 – 2 A
Typical excitation current accuracy ± (0,25% + 500 μA)
Excitation current resolution:
0 – 9,9999 mA 0,1 μA
10 – 99,999 mA 1 μA
100 – 999,99 mA 10 μA
1 – 2 A 100 μA
Phase angle range 360º
Typical phase angle accuracy ±0,05º
Phase angle resolution 0,01º
Display
LCD screen 20 characters by 4 lines; LCD display with backlight, visible in bright sunlight
Interface
TRT63A is equipped with a USB port to connect to an external computer
TRT63A is equipped with a USB flash drive to export results to USB memory stick
Test Result Storage
TRT63A can store up to 10 000 test results
Environmental conditions
Operating temperature: -10 ºC – + 55 ºC / 14 ºF – +131 ºF
Storage & transportation: -40 ºC – + 70ºC / -40 ºF – +158 ºF
Humidity: 5 % – 95 % relative humidity, non condensing
Dimensions and weight
Dimensions (W x H x D) 480 x 197 x 395 mm / 18.9 x 7.75 x 15.55 in
Weight 9 kg / 19.8 lbs
Applicable Standards
Installation/Overvoltage category: II
Pollution degree: 2
Safety LVD 2006/95/EC (CE Conform)
Standard EN 61010-1:2001
EMC Directive 2004/108/EC (CE Conform)
Standard EN 61326-1:2006
All specifications herein are valid at ambient temperature of + 25 °C and recommended accessories.
Specifications are subject to change without notice.
