Product Guide

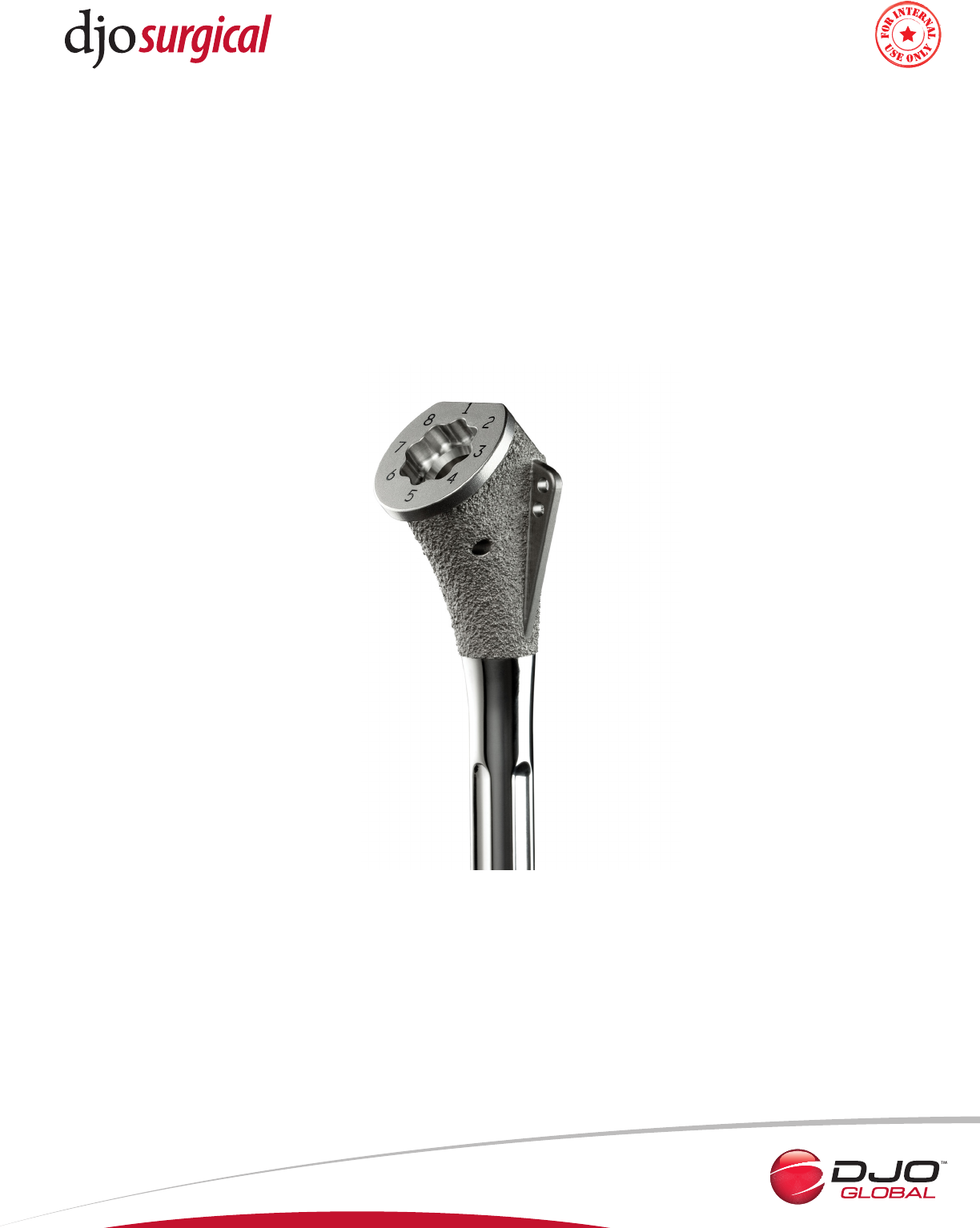

Turon™ Modular Shoulder System

Dial In

TM

INTERNAL USE ONLY

Dial In

2

Humeral Head Trialing

• WhentrialingwiththeAngledNeckTrialin

combinationwithanOsetHumeralHead

Trial,besuretonotethepositionofthe

AngledNeckTrialandtheOsetHumeral

HeadTrialrelativetotheosteotomysurface.

• Itisrecommendedtodialinandrecordthe

desiredpositionoftheAngledNeckTrialprior

torecordingthedeterminedpositionofthe

OsetHumeralHeadTrial.

• Ifpreferred,humeralheadtrialingmaybe

performedothenalstem.Afterglenoid

implantation,thesurgeonmaydesireto

proceedimmediatelytonalhumeralstem

implantationandperformhumeralhead

trialingothenalstem.

• ForinstanceswhentheTrialNecksare

diculttoremove,theHumeralNeck

Extractorcanbeused.

HumeralHeadOsteotomy

• Awelldonehumeralosteotomyrequiresthat

thesurgeonmaketheosteotomycutatorvery

nearthepatient’sanatomicneckandavoids

anaggressivecutwhichcoulddestabilizethe

rotatorcu.

• Failuretoremovetheposteriorosteophytescan

resultinadicultglenoidexposure.

GlenoidFaceplatePreparation

• TheGlenoidDrillGuideHandle(804-25-040)has

aspring-loadedthreadedtip.Toensureproper

assembly,the“spring-loaded”tipmustbeush

againsttheGlenoidSizing/DrillGuide,38mm–

54mm(804-25-101_105)priortoengagingthe

threads.Thespring-loadedtipisdesignedtohelp

preventcross-threadingandsecureatightt.

• Correctionofglenoidversionshouldrarely

exceed10degreesasthiscouldcompromise

bonestock.Ifgreaterdegreesofcorrectionare

necessary,itmaybeprudenttouseakeeled

component.

PeggedGlenoidTechnique

• Theinferiorpegsofthe38mmPeggedGlenoid

(520-01-238)areshorterthantotheother

PeggedGlenoidsizes.Thisiswhythereisa

separate38mmPegDrillGuide(804-25-124).

• Ensurethe5.0mmStopDrill(804-25-147)isin

proper“in-line”alignmentwiththeGlenoidDrill

Guidesandfreefromanysofttissueinterference.

Improperalignmentcanleadtostrippingand/or

bindingofthedrillagainstthedrillguide.

Head/Neck/Stem Interferences

Depending upon whether a

Straight or an Angled Neck

is used, there are certain

humeral head and stem

configurations that are not

compatible and may cause

head/stem interferences. A

listing of these head/stem

interferences is provided to

the right.

Stem Straight Neck Angled Neck

Size6 38mmx18mmOffset

HumeralHead

Size8 38mmx18mmOffset

HumeralHead

Size10 38mmx18mmOffset

HumeralHead

Size12 38mmx18mmOffset

HumeralHead

38mmx18mmOffset

HumeralHead

42mmx16mmOffset

HumeralHead

Size14

38mmx18mmOffset

HumeralHead

42mmx16mmOffset

HumeralHead

38mmx18mmOffset

HumeralHead

42mmx16mmOffset

HumeralHead

Size16

38mmx18mmOffset

HumeralHead

42mmx16mmOffset

HumeralHead

42mmx20mmOffset

HumeralHead

46mmx16mmOffset

HumeralHead

38mmx14mmNeutral

HumeralHead

38mmx18mmOffset

HumeralHead

42mmx16mmOffset

HumeralHead

42mmx20mmOffset

HumeralHead

46mmx16mmOffset

HumeralHead

Notes

INTERNAL USE ONLY 3

Dial In

I/SRadiusofCurvatureMismatch(mm)

Glenoids Humeral Heads

Size 38 Size 42 Size 46 Size 50 Size 54

Size38 8* 6 4 2 0

Size42 10 8 6 4 2

Size46 12 10 8 6 4

Size50 14 12 10 8 6

Size54 16 14 12 10 8

A/PRadiusofCurvatureMismatch(mm)

Glenoids Humeral Heads

Size 38 Size 42 Size 46 Size 50 Size 54

Size38 12* 10 8 6 4

Size42 14 12 10 8 6

Size46 16 14 12 10 8

Size50 18 16 14 12 10

Size54 20 18 16 14 12

*Sizepairingingrayrepresentrecommendedmismatch

Humeral Head and Glenoid Radius

of Curvature Mismatch

The Turon system is designed with a radius of curvature

mismatch between the humeral heads and the glenoid

components. The mismatch is dierent in the A/P and I/S

planes to optimize stability while allowing translational

articulation. Highlighted size pairings represent

recommended mismatches (see matrices).

ProximalHumeralPreparationforLesserTuberosity

orSubscapularisRepair

• Itispreferredtostaggerdrillholestoavoid

fractureofthegreatertuberosity

HumeralStemPress-fitTechnique

• Ifdesired,usecancellousbonefromtheresected

humeralheadtoperformimpactionbone

graftingortobonegraftanysmalldefectsand

ensureasecurepress-t.

HumeralImplantAssembly

• ForinstanceswhenanAngledHumeralNeck

isusedincombinationwithanOsetHumeral

Head,besuretopositionordialinthedesired

positionoftheAngledHumeralNeckrelativeto

theOsetHumeralHeadpriortoinitiatingthe

Morsetaper.

INTERNAL USE ONLY

Dial In

4

Frequently Asked Questions (FAQ)

1 General

1. Will Turon replace Foundation? If so, what will

happen to the Foundation Fracture System?

Yes,TuronwillreplacetheFoundationShoulder

System.Thiswillnothappenovernightandtherewill

beamplecommunicationsontheFoundationphase-

outplan.TheFoundationFractureSystemwillnotbe

phasedoutandwillcontinuetobesupported.

2. What is the IMIN™ neck technology? What does

IMIN stand for? Does any other company have a

similar technology?

TheIMIN™necktechnologyisdesignedtohelp

surgeonsdialintorestorepatientanatomy,optimize

jointstability,andimproverangeofmotion.IMIN

isanacronymforIntrinsicModularIndexable

Neck.Turonisthersttotalshouldersystemto

incorporatethistechnology.Noothercompanyhas

thistechnologyasitispatentedandownedbyDJO

Surgical.TheIMINnecktechnologyoriginatesfrom

ourhipstemsandiscurrentlyusedinourR-120and

AlfaIIhipstems.

3. What does Turon stand for?

ThenameTurondoesnotstandforanything.When

thenameTuronwasconceived,ithadnoreference

and/orbearingtoanypopularculture,themeor

translations.Coincidentally,Turondoestranslateto

“Polecat”inSpanishandisalsoaPhilippinebanana

snack–whichareprettyfunny.

4. What is a “Ream-and-Run” technique? Do we

have instruments for that?

The“ReamandRun”surgicaltechniquewas

developedbyDr.FrederickA.Matsen,III,ofUW

WashingtonMedicine,OrthopedicsandSports

Medicine,andinvolvesusingsmooth-facedglenoid

reamerstoplaneoandremovedamagedcartilage,

bonydefects,and/orglenoidbiconcavitiesduring

shoulderhemiarthroplasty,inwhich,noglenoid

implantisused.

“…the“reamandrun”approachmayallowactive

patientstoremaininvolvedintness,recreational,

andvocationalpursuitsthatwouldriskpremature

failureiftraditionaltotalshoulderarthroplastywere

tobeperformed.”1

Currently,DJOSurgicaldoesnotoerdedicated

instrumentationforthisprocedure.

1http://www.orthop.washington.edu/reamandrun

5. Are there any Turon sample sets, demo

instrument sets and/or acrylic models?

Therearecurrently20+Turonsampledemokits,

ofwhich,7arecurrentlyconsignedand13arein

circulation.

Thereare4marketinginstrumentsets,3ofwhichare

completeand1isincomplete,fordemonstrations,lab

andmeetingsupport.

Renderedplasticimplantacrylicmodelsareavailable

fororderanddemonstrationpurposes.Please

contactRaePepperatRae.Pepper@djoglobal.comto

placeanorder.

6. Are there digital templates for Turon? How do I

find out if my hospital or surgery center has access

to digital templates for Turon?

Yes,digitaltemplatesareavailableforTuron.In

ordertolearnwhetheryourhospitalorsurgery

centerhasaccesstothedigitaltemplates,youmust

rstndoutandcommunicatetoDJOSurgicalthe

MedicalImagingandPACS(PictureArchivingand

Communication)systemusedatthatfacility.

Intheeventthatyourfacilitydoesnothaveaccessto

Turondigitaltemplates,itmaytakeupto3monthsto

processtherequest.Weencourageyoutoaskyour

facilityandbegintheprocessasearlyaspossible.

Alternatively,hardcopiesoftheTuronx-ray

template(804-88-117)areavailablefororderthrough

CustomerService.

7. Is the angle of retroversion of the humerus

(shoulder joint) always 30°? How is it referenced?

No,itisnot.Thenormalangleofretroversionofthe

humerusisbetween20°and40°,withtheaverageof

30°asthegenerallyacceptedstandard.

“Theangleofretroversionistheangleformedbya

linedrawnthroughthecenterofthelongitudinal

INTERNAL USE ONLY 5

Dial In

Frequently Asked Questions (FAQ)

axisoftheneckandheadofthehumerusmeetinga

linedrawnalongthetransverseaxisofthecondyles,

whenthebaseisviewedfromabove,looking

straightdownfromabovetheheadofthehumerus;

thenormalangleofretroversionofthehumerusis

between20and40degrees(seeFigurebelow).”2

2.www.medilexicon.com

8. What is the correct amount of height dierence

between the superior aspect of the humeral head

to the greater tuberosity?

“Thearticularheadalwaysliesabovethegreater

tuberosity,butthedierencecanrangefrom

3-20mm.”3

Yoursurgeonwilldeterminethecorrectamountof

heightdierencewithinthisrange.Thegenerally

accepteddierenceisabout8mm.

3http://emedicine.medscape.com/article/1261320-overview#a04

9 . Who are the surgeon designers of the Turon?

MarkA.Frankle,MD–FloridaOrthopedicInstitute,

Tampa,FL

MarkA.Mighell,MD–FloridaOrthopedicInstitute,

Tampa,FL

RichardJ.Hawkins,MD–SteadmanHawkinsClinic

oftheCarolinas,Greenville,SC

KeithC.Watson,MD–OrthopedicSpecialty

Associates,FortWorth,TX

SperoG.Karas,MD–EmorySportsMedicineCenter,

Atlanta,GA

TheodoreF.Schlegel,MD–SteadmanHawkinsClinic

Denver,Denver,CO

2 Instrument

10. Does Turon instrument set have the same

retractors, i.e. – plastic darrach (t-shaped),

brown deltoid, two-prong glenoid, as in the RSP

instrument set? What retractors are available?

No,therearenoretractorsintheTuroninstrument

trays.Therearecurrently3dedicatedShoulder

RetractorloanersetsavailablethroughDistribution

Services.

11. The OR sta has a hard time attaching the

Glenoid Drill Guide Handle (804-25-040) to the

Glenoid Sizing/Drill Guide, 38mm – 54mm (804-25-

142_146). What would you recommend? Is there an

alternative handle we can use?

TheGlenoidDrillGuideHandlehasaspring-loaded

threadedtip.Toensureproperassembly,thespring-

loadedtipmustbeushagainsttheGlenoidSizing/

DrillGuidepriortoengagingthethreads.Tofacilitate

attachment,itisrecommendedtothreadthedrill

guideintothehandleratherthanthehandletothe

drillguide.

Alternatively,therearetwoGlenoidPressurizer/

PusherHandles(804-25-037)availablethancan

beusedassubstitutes.Pleasenotethatonlythe

rstthreadortwoofthesehandlesaresucient

toengagethedrillguide.Lastly,theFoundation

ShoulderGlenoidTemplateHandle(804-01-013)can

alsobeusedasasubstitute.

Retractors and quantities in the Shoulder Retractor Sets are as follows:

Qty Part No. Description

1804-00-097 GlenoidProtector

1804-00-098 DeltoidRetractor

1804-00-099 HumeralRetractor

1804-00-200 Darrach,Small

1804-00-201 Darrach,Large

2804-00-202 SpikedHohmann

1804-00-203 AnteriorGlenoid

1804-00-204 SmallPectoral

INTERNAL USE ONLY

Dial In

6

Frequently Asked Questions (FAQ)

12. Is the backside curvature or spherical radius

the same for all the Turon Glenoid Reamers, 38mm

– 54mm (804-25-142_146)? What about for Turon,

Foundation, and RSP?

Whilethediametersizesaredierentamongthe

Turonglenoidreamers,thebacksidecurvatureor

thesphericalradius,whichis38mm,isthesame

forallglenoidreamers.ThisisalsotrueforTuron,

Foundation,andRSP.

13. The Proximal Humeral Protector, Small/Large

(804-05-148_149)/Planer Guide, Straight/Angled

Neck (804-05-052_053)/Neck Trial, Angled/Straight

(804-15-005_006) is stuck on the Humeral Broach,

6mm – 16mm (804-05-106_116)/Humeral Stem,

6mm – 16mm (520-01-006_016) implant, what

should I do?

TheHumeralNeckExtractor(804-15-003)isavailable

toextractanyoftheabovementionedinstruments

andimplants.

14. What do the depth lines on the Humeral

Reamers, 6mm – 16mm (804-05-086_091) represent?

Startingfromtoptobottomorproximaltodistal,the

depthlinesonthehumeralreamersare“REVISION”

forrevisionorlongstem,“CEMENT”forcemented

application,and“PRESSFIT”forpress-tapplication.

15. Are the Turon humeral reamers the same as the

RSP reamers? What about the broach handles?

No,boththeRSPhumeralreamersandbroach

handlesaredierentfromTuron.

16. Is there separate instrumentation for the

revision/long humeral stems?

No,thereisnodedicatedrevision/longhumeralstem

instrumentation.Thesamehumeralreamersand

broachesareusedforrevision/longstemapplications.

PleaserefertotheRevision/LongStemsectionofthe

surgicaltechnique.

17. How do I order revision/long humeral stems

(520-01-106_116) should my surgeon request them?

Revision/longhumeralstemscanbeorderedthrough

DistributionServicesasloanerbanks.

18. Are there dedicated revision instruments?

Yes,therearededicatedrevisioninstruments.Below

isalistingoftherevisionandrelatedinstruments.

Pleaserefertothe“Revision”sectionoftheTuron

surgicaltechnique.

• HeadDistractor(804-05-046)

• HumeralNeckExtractor(804-15-003)and

RatchetingHandle(804-05-163)

• StemExtractor(804-05-047)

• HumeralBroachHandle(804-05-007)

19. The plastic cap on the Glenoid Drill Guide Pusher

(804-25-132) is damaged or missing, is there a

replacement?

Yes,thepartnumberfortheGlenoidDrillGuide

PusherReplacementCapis(804-25-232).Please

contactCustomerServiceforareplacement.

20. The screw to the Back Table Fixture (804-15-

102) is damaged or missing, is there a replacement

screw?

Yes,thepartnumberfortheBackTableFixture

ScrewReplacementis(804-15-202).Pleasecontact

CustomerServiceforareplacement.

3 Implant

21. What are the lengths of the primary and revision

humeral stems? Are they oered in the same

diameter sizes?

Thetablesbelowsummarizethehumeralstem

lengthsforbothprimaryandrevision/longstems.

Bothareoeredindiameters6,8,10,12,14and16mm

diametersizes.Lengthismeasuredfromtheproximal

apextothedistaltipofthehumeralstem.

INTERNAL USE ONLY 7

Dial In

Frequently Asked Questions (FAQ)

PRIMARY HUMERAL STEMS

Cat. No. Size (mm) Length (mm)

520-01-006 6115

520-01-008 8114

520-01-010 10 113

520-01-012 12 112

520-01-014 14 111

520-01-016 16 110

REVISION/LONG HUMERAL STEMS

Cat. No. Size (mm) Length (mm)

520-01-106 6200

520-01-108 8199

520-01-110 10 198

520-01-112 12 197

520-01-114 14 196

520-01-116 16 195

22. Why is a reverse (a.k.a. – female) Morse taper

important?

AreverseorfemaleMorsetaperprovidesforan

unobstructedaccessandpreparationoftheglenoid

facecomparedtoastandardormaleMorsetaper,

suchasintheFoundationstems.

23. What is the advantage to a collared humeral

stem design?

Acollaredstemhelpstopreventsubsidenceduringin

situ(inthebody)implantassembly.

24. Do the humeral heads sit flush on the humeral

osteotomy? Is there any gapping between the

humeral head and the osteotomy similar to

Foundation?

Thehumeralheadsaredesignedtoseatonthe

humeralneckswithsomeclearancebetweenthe

undersideoftheheadandtheosteotomy.Thisisto

preventtheriskofnon-engagementoftheMorse

taperduringinsitu(inthebody)implantassembly.

Thisclearanceisminimal,upto3.81mm(1.4mm

visiblegapbetweenthetopofthehumeralstem

collarandthehumeralhead)atitsgreatest,between

thehumeralheadandosteotomy,andcanbe

imperceptibleonradiographs.Thisclearanceisnotto

theextentofthegappingseenonFoundation,which

isabout5mm.

25. Are the Foundation and Turon humeral heads

compatible and interchangeable with each system’s

respective humeral stems?

Otherthandierencesinhumeralheadheight

oerings,theTuronandFoundationhumeral

headsareequivalentandarecompatibleand

interchangeable.

TheFoundationhumeralheadheightsare

17/22/27mmforalldiametersizes,i.e.–38,42,46,

50,54mm.Whereas,theTuronheightsare38mmx

14/16mm,42/46mmx14/16/20mm,and50/54mmx

18/22/26mm.

Note: There are no humeral head trials to allow for

interchangeable humeral head trialing between the two

shoulder systems.

26. What is the amount of oset on the Oset

Humeral Heads?

Theosetforallhumeralheadsizesis4mm.

27. Why is there not a 38mm x 14mm oset humeral

head size?

Itwasnotpossibletodesigna4mmosetintoasize

38mmx14mmhumeralhead.

28. In what situations would the Angled (7.5-degree)

Humeral Neck (520-00-001) be used?

Theangledhumeralneckwouldhelptreatpatients

withvariableneck-shaftanglesthatarenot135°to

allowforproperbiomechanicsandthereproduction

ofthehumeralcenterofrotation.

INTERNAL USE ONLY

Dial In

8

Frequently Asked Questions (FAQ)

29. What is the amount of press-fit on the humeral

stems?

TheproximalplasmasprayontheTuronhumeral

stemsprovidesa0.5mmoverallpress-t.

30. In what situations would the medial hole and

the anterior and posterior fin suture holes on the

humeral stem be used?

Theseholesareallsutureholesandareprimarilyused

fortuberosityrepairandxationduring3and4-part

proximalhumeralfracturerepairinhemiarthroplasty.

Theycanalsobeusedforadjunctivesofttissuerepair

andimplantxationforhemiarthroplastyandtotal

shoulderarthroplasty.

31. What is the

purpose of the recess

(see below Figure

with red arrow) at

the medial aspect

under the collar of

the humeral stem?

Therecessisdesigned

forthetipoftheStem

Extractor(804-05-

047)toseatinto

duringhumeralstem

removal.

32. What is the tiny metal wire that is embedded in

the glenoids central keel and superior peg for?

Itisatitaniumwirethatservesasaradiographic

markertoassessandviewglenoidplacementand

positioning.

33. Are the humeral stems similar between Turon

and Foundation?

No.TheTuronhumeralstemisshorterandhasa

smallerproximalbodycomparedtotheFoundation

humeralstem.ItalsohasareverseorfemaleMorse

taperdesignversusastandardormaleMorsetaper

design.Additionally,thelateralaspectoftheproximal

bodyisreducedandthereisnolateraln.Lastly,the

TuronhumeralstemshavethepatentedIMINneck

technologydesignedintothem.

34. What is the purpose of humeral head and

glenoid mismatch?

Thereisanaturalanatomicalmismatchinthe

radiusofcurvaturebetweenthehumeralheadand

glenoidfacethatcontributestopropershoulderjoint

biomechanics.Insimplerterms,thehumeralhead

curvatureis(generally)smallerthantheglenoidface

curvature.4Thismismatch,specicallyforshoulder

implants,rangesfrom0to10mm,withsomestudies

showinganoptimalmismatchrangebetween6and

10mm.5Restoringproperglenohumeralmismatch

inshoulderarthroplastycontributestoasuccessful

surgicaloutcome.

4”Thenormalglenohumeralrelationships.Ananatomicalstudyofone

hundredandfortyshoulders.”Iannottietal,JBoneJointSurgAm.1992

Apr;74(4):491-500.

5”Theinuenceofglenohumeralprostheticmismatchonglenoid

radiolucentlines:resultsofamulticenterstudy.”Walchetal,JBoneJoint

SurgAm.2002Dec;84-A(12):2186-91.

35. Can my surgeon upsize or downsize the humeral

head and glenoid size pairing?

Wecannotadvisesurgeonshowtoupsizeor

downsizehumeralheadandglenoidsizepairings

asitisanOFF-LABELuse.However,wecaninform

surgeonswhatthehumeralheadandglenoid

mismatchvaluesareamongdierentsizepairings

byreferringthemtothe“HumeralHeadandGlenoid

RadiusofCurvatureMismatchChart”.Onlythe

(0.25mmeachside)

INTERNAL USE ONLY 9

Dial In

surgeoncandecideoropttomismatchhumeralhead

andglenoidsizepairings.

36. The pegs are too long on the glenoid, can we cut

them down?

Yes.

37. What is the neck shaft-angle on the humeral

stem?

Thehumeralneck-shaftangleis135°.Dependingon

referencepoint,itcanalsobereferredtoas45°.

38. How is the humeral

neck-shaft angle

determined?

Usingan

anteroposterior

(A/P)radiograph,the

humeralneck-shaft

angleisdetermined

bytheintersection

ofalinedrawnon

thecentralaxisof

thehumeralshaft(A)

withalineCdrawn

perpendiculartothe

anatomicalneck(B)ofthehumerus.6

6http://www.springerimages.com/ImagesMedicineAndPublic

Health/1-10.1007_s10195-008-0019-1-1

39. What is the dierence in length between the

superior peg and the inferior pegs of the pegged

glenoid? Why the dierence?

Forthesize38mmglenoidonly,thedierence

betweenthelongersuperiorpegandshorterinferior

pegsis3.6mm.Allothersizes,i.e.–42to54mm,the

dierenceis1.7mm.

Thedierenceinlengthsisattributedtotheanatomy

oftheglenoid,wheretheglenoidvaultisgenerally

largersuperiorly.

40. What is the backside curvature for the Turon

and Foundation glenoids?

ThebacksidecurvatureforallTuronglenoids

is38mm.

Frequently Asked Questions (FAQ)

4 Conversion: Turon-RSP

41. Will my surgeon be able to

convert the Turon to an RSP?

Yes,theTuron-RSPconversionadaptorsareavailable.

TheTurontoRSPConversionModuleTrials,Oset

(804-02-074)andNeutral(804-02-073),willbe

backlledwiththeTuroninstrumentsetsandwillbe

housedinmiscellaneousboxintheTuronHumeral

HeadCase.TheTurontoRSPConversionModule

Implants,Oset(508-02-001)andNeutral(508-02-

000),areavailablethroughDistributorServices.

42. Can we promote the Turon humeral stem

combined with the Turon-RSP conversion adaptor

to our surgeons as a “press-fit” reverse shoulder?

No,thepromotionanduseoftheTuronhumeral

stemwiththeTuron-RSPconversionadaptorasa

“press-t”reverseshoulderisstrictlyOFF-LABEL.

43. Can we use Turon humeral heads

with the hemi adaptors for the RSP when

converting to a hemiarthroplasty?

Yes.DedicatedModularRSPtoTuronConversion

ModuleTrialshavebeenbacklledtoexisting

Turoninstrumentsetsandarehousedin

themiscellaneousboxintheTuronHumeral

HeadCase.Thetrialscomeintwosizes,6mm

(804-02-076)and12mm(804-02-077).

5 Surgical Technique/Procedure

44. The humeral shaft fractured during humeral

broaching/reaming, what should we do?

Regardlessofexperience,situationsliketheseare

oftentoughandveryunpredictable.However,

therearecertainsurgicalcasesthatprovide

informationtohelppreemptandprepareforthese

toughsituations,suchas,arevisionofapress-tor

cementedhumeralstem,humeralshaftdeformities

andmalunions,shortand/ornarrowhumeralcanals

–arejustafewexamples.

Topreparefororinthemidstofthesesituations,

besurethattheORstahasaccesstoanyofthe

135⁰

45⁰

INTERNAL USE ONLY

Dial In

10

Frequently Asked Questions (FAQ)

followinglistedtohelpwithfracturerepairand

completingthesurgicalprocedure.

• Revision/longhumeralstem

• C-armoruoroscope

• Cableset

• Bonecementremovaldevice(ifrevising/

removingacementedstem)

• SmallFragmentSet

• Allograft/graftingagent

Note: This is just an example list and should not be

viewed as standard list for all fracture situations.

45. When using an oset humeral head, how does a

surgeon mark or reference the determined humeral

head oset position on the humeral osteotomy?

Eachsurgeonwillhavetheirownmethodtomark

orreferencethepositionofthehumeralheadoset.

Acommonpracticeistouseanelectrocautery

orsurgicalpentomarktheosetpositionon

thehumeralosteotomysurfaceviaadetermined

landmark,suchasthebicipitalgroove.

46. After the surgeon planed the humeral

osteotomy with the planer disk and guide, there

is some residual bone. What should we do?

Removeanyresidualbonewithasmall

burrorotherpreferredmethodologyto

assuretherearenobonyimpediments.

47. What should we do when we are

in between sizes among humeral

stems? Humeral heads? Glenoids?

Intheeventthatyoursurgeonisinbetweensizes

amonghumeralstems,headsorglenoids,itis

prudenttogosmallerversuslargertoprevent

therisksofstressfracture,jointoverstu,implant

overhang,orimpingement.

48. My surgeon is experiencing diculty dislocating

the humeral head, what should I advise?

Inordertodislocatethehumeralhead,the

dissectionshouldbedirectedtothemedialhumeral

neck.Toaccomplishthisrequiresthatthearmis

externallyrotatedandthecapsuleisreleasedfrom

anteriortoposterioralongthemedialhumeralneck.

Dislocatetheheadanteriorlybycarefullyexternally

rotatingandextendingthearm.Gentleleverage

fromaDarrachorHohmannretractorfacilitates

humeralheaddislocationandhelpsretractthe

medialsofttissuesofthesubscapularis,pectoralis

major,andconjoinedtendon.Toreducethe

incidenceofintra-operativehumeralshaftfracture,

gentleexternalrotationandhumeralextension

shouldbeusedtodeliverthehumeralhead.A

DarrachorHohmannretractorattheposterior

surfaceofthehumeralheadcanbeusedasaskidto

levertheheadoutofthejoint.

6 Fractures

49. What are the critical factors in

addressing 3 and 4-part proximal humeral

fractures with a hemiarthroplasty?

Thecriticalfactorstoasuccessfuloutcomein

3and4-partproximalhumeralfracturesusing

hemiarthroplastyare:

• Properstemheight

• Properstemretroversion

• Propertuberosities(lesserandgreater

tuberosity)repair

• Jointstability

Preoperativeassessmentoftheproximalhumeral

comminutioniscriticaltoallowthesurgeonto

placethehumeralcomponentattheproperheight.

Comminutionofthemedialhumeralneckshouldbe

assessedandpiecesmeasuredtohelpidentifythe

positioninwhichthehumeralstemcomponentmust

beplaced.74-partfracturestypicallyfractureatthe

humeralneckpreservingthemedialcalcar,whichis

agoodreferenceforheightandversionrestoration

whenaligningwiththemedialaspectofthehumeral

stemcomponent.

Thestemsizeisusuallydeterminedonpreoperative

radiographsandevaluatedinatraoperatively

withhumeraltrialbroacheswhichbestt

thecanal.Thelargeststemwhichwillallow

adequateseatingandstabilityandcementingis

INTERNAL USE ONLY 11

Dial In

Frequently Asked Questions (FAQ)

chosen.8Analternativemethodistotemplate

theunaected/uninjuredhumeruswitharuler

toassistwithdeterminingproperlengthand

restorationofproximalhumeralanatomy.

Versionandheightcanbedeterminedthrough

trialreduction.Versionisdeterminedbyexingthe

elbowto90°andthetransverseepicondylaraxis

oftheelbowto0°.Thearmisexternallyrotated

toapointwherethehumeralheadwouldpoint

directlytotheglenoid.Thisisusuallybetween

30°and45°ofretroversion.9Abroachhandlewith

alignmentrodattachmentcanalsoassistwith

determiningproperhumeralstemcomponent

version.Aspongeorlappadcanbeplaced

aroundthebroachtrialorprosthesisanditcan

beimpactedintothecanal,allowingforenough

stabilitytodeterminetheappropriateheightof

thestemcomponentpriortocementing.10

Nonabsorbablesuturesareplacedatthebone

tendoninterfaceforretraction,reductionandrepair.

Alternatively,tuberositiescanbepinned.Reducethe

tuberositiestotheirnearanatomicpositionsbefore

cementinginthehumeralstemcomponent.Proper

humeralheadandstemcomponentplacement

shouldallowA/Ptranslationofapproximately50%,

andwhenthearmispulleddownthehumeralhead

shouldnotfallbelowthemidpointoftheglenoid.11

7-11“HemiarthroplastyforComplexFour-PartFractureoftheProximal

Humerus:TechnicalConsiderationsandSurgicalTechnique.”Dinesetal,

TheUniversityofPennsylvaniaOrthopaedicJournal15:29-36,2002.

50. Is there any dedicated fracture

instrumentation for Turon?

Therecurrentlyisnotanydedicatedfracture

instrumentationforTuron.However,thereis

dedicatedfractureinstrumentationthroughthe

FoundationFractureSystem.

51. Can I use the Foundation Fracture trials with

Turon for fracture cases?

No.TheFoundationFracturetrialsarenotcompatible

withtheTuronhumeralstems.Theproximal

bodyoftheFoundationislargerandthedistal

humeralstemislongercomparedtotheTuron.

52. Should I bring the RSP system as

a back-up to Turon for 3 and 4-part

proximal humeral fracture cases?

Yes,forinstanceswherecuteararthropathy

oranirreparablerotatorcuissuspected

andunderthedirectionofthesurgeon.

INTERNAL USE ONLY

Dial In

12

Chemical Composition of Turon Implants

ShoulderComponents CommonName Composition ASTMSpec

HumeralHeads CobaltChrome CoCrMo F799/F1537

HumeralNecks TitaniumAlloy Ti-6Al-V4 F136

HumeralStems TitaniumAlloy Ti-6Al-V4 F136

Glenoids Polyethylene UHMWPE F648

PorousCoatingonProximalStem

RadiographicMarkerinGlenoids

UnalloyedCommercially

PureTitanium CPTi F67

Chemical Composition of Turon Implants

Element Composition, %

(mass/mass)

Nitrogen,max.................................................................................0.05

Carbon,max...................................................................................0.08

Hydrogen,max.............................................................................. 0.012A

Iron,max...................................................................................... 0.25

Oxygen,max...................................................................................0.13

Aluminum................................................................................5.5—6.50

Vanadium..................................................................................3.5—4.5

TitaniumB..................................................................................balance

AMaterial0.032in.(0.813mm)andundermayhavehydrogencontentupto0.0150%.

BThepercentageoftitaniumisdeterminedbythedifferenceandneednotbedeterminedorcertified.

ASTM F136 — Titanium Alloy

Chemical Requirements

INTERNAL USE ONLY 13

Dial In

Chemical Composition of Turon Implants

Property Test Method Requirement

Resin Type Type 1 Type 2 Type 3

ViscosityNumber,mL/g, ASTMD4020(0.02%) 2000-3200 >3200 >3200

ElongationStress,(Minimum)† ASTMD4020 0.20 0.42 0.42

Ash,mg/kg,(Maximum) ISO3451-1 125 125 300

ExtraneousMatter, 4.2.1 3 3 25

No.Particles,(Maximum)

Titanium,mg/kg,(Maximum) 7.1.3.1 40 40 150

Aluminum,mg/kg,(Maximum) 7.1.3.1 20 20 100

Calcium,mg/kg,(Maximum) 7.1.3.1 5 5 50

Chlorine,mg/kg,(Maximum) 7.1.3.2 30 30 90

†Editoriallycorrected.

ASTM F648 — Polyethylene

Requirements for UHMWPE Powders

Composition % (mass/mass)

Element

Alloy 1

UNS R31537

(Low Carbon)

Alloy 2

UNS R31538

(High Carbon)

Alloy3

UNS R31539

(Dispersion Strengthened)

 min max min max min max

Carbon ...... 0.14 0.15 0.35 ...... 0.14

Aluminum ........................ 0.30 1.00

Lanthanum ........................ 0.03 0.20

Chromium 26.0 30.0 26.0 30.0 26.0 30.0

Molybdenum 5.0 7.0 5.0 7.0 5.0 7.0

Nickel ...... 1.0 ...... 1.0 ...... 1.0

Iron ...... 0.75 ...... 0.75 ...... 0.75

Silicon ...... 1.0 ...... 1.0 ...... 1.0

Manganese ...... 1.0 ...... 1.0 ...... 1.0

Nitrogen ...... 0.25 ...... 0.25 ...... 0.25

CobaltA Balance Balance Balance

AApproximatelyequaltothedifferenceof100%andthesumpercentageoftheotherspecifiedelements.Thepercentageofcobalt

differenceisnotrequiredtobereported.

ASTM F799/F1537 — Cobalt Chrome

Chemical Composition

INTERNAL USE ONLY

Dial In

14

Composition, % (mass/mass)

Element Grade 1

UNS R50250

Grade 2

UNS R50400

Grade 3

UNS R50550

Grade 4

UNS R50700

Nitrogen,max 0.03 0.03 0.05 0.05

Carbon,max 0.08 0.08 0.08 0.08

Hydrogen,maxB 0.015 0.015 0.015 0.015

Iron,max 0.20 0.30 0.30 0.50

Oxygen,max 0.18 0.25 0.35 0.40

Titanium balance balance balance balance

AForgingsaredesignatedGradeF-1,F-2,F-3,orF-4respectively.ForgingcompositionsareasspecifiedinTable1.

BMaximumhydrogencontentforbilletis0.0100wt%.

ASTM - Unalloyed Titanium

TABLE 1 Chemical Requirements

Chemical Composition of Turon Implants

PRIMARY HUMERAL STEMS REVISION/LONG HUMERAL STEMS

Cat. Number Size (mm)

“A”

Prosthesis

Length

(mm)

“B”

Stem Length

(mm)

Cat. Number Size (mm)

“A”

Prosthesis

Length

(mm)

“B”

Stem Length

(mm)

520-01-006 6115 77 520-01-106 6200 162

520-01-008 8114 71 520-01-108 8199 156

520-01-010 10 113 65 520-01-110 10 198 150

520-01-012 12 112 59 520-01-112 12 197 144

520-01-014 14 111 52 520-01-114 14 196 137

520-01-016 16 110 45 520-01-116 16 195 130

Key Dimensions

INTERNAL USE ONLY 15

Dial In

Key Dimensions

NEUTRAL HUMERAL HEADS

Cat. Number Siz

(mm)

“A”

Height

(mm)

“B”

Spherical

Diameter

(mm)

“C”

Ø Inner Diameter

(mm)

“D”

Spherical Offset

(mm)

“E”

Skirt

(mm)

520-38-014 38x14 14.0 19.0 31.4 7.6 2.6

520-38-018 38x18 18.0 19.0 33.6 3.7 2.6

520-42-016 42x16 16.0 21.0 35.7 7.6 2.6

520-42-020 42x20 20.0 21.0 37.6 3.7 2.6

520-46-016 46x16 16.0 23.0 38.4 9.7 2.6

520-46-020 46x20 20.0 23.0 41.0 5.7 2.6

520-46-024 46x24 24.0 23.0 42.0 1.7 2.6

520-50-018 50x18 18.0 25.0 42.7 9.7 2.6

520-50-022 50x22 22.0 25.0 45.1 5.6 2.6

520-50-026 50x26 26.0 25.0 45.9 1.7 2.6

520-54-018 54x18 18.0 27.0 45.4 11.7 2.6

520-54-022 54x22 22.0 27.0 48.3 7.6 2.6

520-54-026 54x26 26.0 27.0 49.7 3.7 2.6

INTERNAL USE ONLY

Dial In

16

OFFSET HUMERAL HEADS

Cat. Number Size

(mm)

“A”

Height

(mm)

“B”

Spherical

Diameter

(mm)

“C”

Ø Inner

Diameter

(mm)

“D”

Spherical

Offset

(mm)

“E”

Skirt

(mm)

“F”

Offset

(mm)

520-38-114 38x14 14.0 19.0 31.4 7.6 2.6 4.0

520-42-116 38x18 18.0 19.0 33.6 3.7 2.6 4.0

520-42-120 42x16 16.0 21.0 35.7 7.6 2.6 4.0

520-46-116 42x20 20.0 21.0 37.6 3.7 2.6 4.0

520-46-120 46x16 16.0 23.0 38.4 9.7 2.6 4.0

520-46-124 46x20 20.0 23.0 41.0 5.7 2.6 4.0

520-50-118 46x24 24.0 23.0 42.0 1.7 2.6 4.0

520-50-122 50x18 18.0 25.0 42.7 9.7 2.6 4.0

520-50-126 50x22 22.0 25.0 45.1 5.6 2.6 4.0

520-54-118 50x26 26.0 25.0 45.9 1.7 2.6 4.0

520-54-122 54x18 18.0 27.0 45.4 11.7 2.6 4.0

520-54-126 54x22 22.0 27.0 48.3 7.6 2.6 4.0

Key Dimensions

INTERNAL USE ONLY 17

Dial In

KEELED GLENOIDS

Cat. Number Size

(mm)

“A”

Length

(mm)

“B”

Width

(mm)

“C”

Thickness

(mm)

“D”

Keel Width

(mm)

“E”

Keel Length

(mm)

520-01-138 38 29.7 23.9 4.2 3.8 12.8

520-01-142 42 32.3 25.4 4.2 3.8 12.8

520-01-146 46 34.8 26.9 4.2 3.8 12.8

520-01-150 50 37.3 28.4 4.2 3.8 12.8

520-01-154 54 39.9 30.0 4.2 3.8 12.8

PEGGED GLENOIDS

Cat. Number Size

(mm)

“A”Length

(mm)

“B”Width

(mm)

“C”

Thickness

(mm)

“D”

Center

Peg Length

(mm)

“E”

Δ Between

Center Peg and

Superior Peg

(mm)

“F”

Δ Between

Center Peg and

Inferior Pegs

(mm)

520-01-238 38 29.7 23.9 4.2 15.0 3.2 7.4

520-01-242 42 32.3 25.4 4.2 15.0 3.2 5.3

520-01-246 46 34.8 26.9 4.2 15.0 3.2 5.3

520-01-250 50 37.3 28.4 4.2 15.0 3.2 5.3

520-01-254 54 39.9 30.0 4.2 15.0 3.2 5.3

Key Dimensions

©2011 Encore Medical, L.P.

CAUTION: Federal Law (USA)

restricts this device to sale by

or on the order of a physician.

See package insert

for a complete listing of

indications, contraindications,

warnings, and precautions.

0031106-002RevA01/12

TM

DJO Surgical I A DJO Global Company

T 800.456.8696 D 512.832.9500 F 512.834.6300

9800 Metric Blvd. I Austin, TX 78758 I U.S.A.

djosurgical.com
