The Abdus Salam

International Centre for Theoretical Physics

Strada Costiera, 11 I - 34151 Trieste, Italy

Earth System Physics Section - ESP

Regional Climatic Model RegCM

User’s Guide

Version 4.5

Trieste, Italy May 23, 2016

Filippo Giorgi, Fabien Solmon, Graziano Giuliani

Contents

1 Release Notes 5

2 Obtaining the model 7

2.1 SimpleModelUser .......................................... 7

2.2 ModelDeveloper ........................................... 7

3 Installation procedure 8

3.1 Softwarerequirements ........................................ 8

3.2 Conﬁguringbuild........................................... 9

3.2.1 Model conﬁguration at build stage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

3.3 Buildthemodelexecutables ..................................... 10

4 Accessing global datasets 11

4.1 Global dataset directory Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

4.2 StaticSurfaceDataset......................................... 11

4.3 CLMDataset ............................................. 12

4.4 CLM4.5Dataset ........................................... 12

4.5 SeaSurfaceTemperature ....................................... 13

4.6 Atmosphere and Land temperature Global Dataset . . . . . . . . . . . . . . . . . . . . . . . . . . 13

5 Running a test simulation using the model 14

5.1 Settinguptherunenvironment.................................... 14

5.2 Create the DOMAIN ﬁle using terrain . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

5.3 Create the SST using the sst program . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.4 Create the ICBC ﬁles using the icbc program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

5.5 FirstRegCMmodelsimulation.................................... 17

6 Localizing the model and running your simulation 19

6.1 Thecommentednamelist....................................... 19

6.1.1 dimparamnamelist...................................... 19

6.1.2 coreparamnamelist...................................... 20

6.1.3 geoparamnamelist ...................................... 21

6.1.4 terrainparamnamelist..................................... 22

6.1.5 debugparamnamelist..................................... 23

6.1.6 boundaryparamnamelist................................... 23

6.1.7 globdatparamnamelist.................................... 24

6.1.8 fnestparamnamelist ..................................... 25

6.1.9 perturbparamnamelist .................................... 25

6.1.10 restartparamnamelist..................................... 26

6.1.11 timeparamnamelist...................................... 26

6.1.12 outparamnamelist ...................................... 27

6.1.13 physicsparamnamelist .................................... 28

6.1.14 nonhydroparamnamelist................................... 29

6.1.15 subexparamnamelist..................................... 30

6.1.16 microparamnamelist..................................... 30

6.1.17 grellparam, emanparam, tiedtkeparam and kfparam namelists . . . . . . . . . . . . . . . 31

6.1.18 holtslagparamnamelist.................................... 32

6.1.19 uwparamnamelist ...................................... 33

6.1.20 slabocparamnamelist..................................... 33

6.1.21 tweakparamnamelist..................................... 33

6.1.22 rrtmparamnamelist...................................... 33

6.1.23 chemparamnamelist ..................................... 34

6.2 TheCLMoptions........................................... 37

6.3 TheCLM4.5options......................................... 38

6.4 Sensitivityexperimentshint...................................... 39

7 Postprocessing tools 41

7.1 Commandlinetools.......................................... 41

7.1.1 netCDFlibrarytools ..................................... 41

7.1.2 NetCDFoperatorsNCO ................................... 42

7.1.3 Climate data Operators CDO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

7.2 GrADSprogram............................................ 43

7.2.1 GrADSlimits......................................... 43

7.3 CISL’s NCL : NCAR Command Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.4 R Statistical Computing Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

7.5 Nonfreetools............................................. 44

8 Getting help and reporting bugs 45

8.1 TheGforgesite ............................................ 45

9 Appendices 47

9.1 IdentifyProcessor........................................... 47

9.2 Chosecompiler ............................................ 48

9.3 Environmentsetup .......................................... 49

9.4 Pre requisite library installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Chapter 1

Release Notes

The Regional Climate Model developed at ICTP has now reached its 4.5 release. The code base is actively

developed by a community of developers internal and external to ICTP, and this work is merged on the Gforge

site on gforge.ictp.it site.

The main new technical features of the release 4.5 are summarized in the following points:

•The MM5 non-hydrostatic dynamical core has been ported to the ICTP RegCM without removing the

existing hydrostatic core. Now the user can select in the input namelist which of the two dynamical cores he

wish to use.

•The SAV ﬁle strategy has changed to allow a better integration of the RegCM into the RegESM framework

and the user is required to modify the setting from previous version namelist ﬁles.

•The source for the topography is now the GMTED dataset which is an update to the USGS GTOPO dataset.

•The DUST 12 bin option has been added to the aerosol simulation types

•The chemistry/aerosol option now works along the CLM4.5 option

•The model supports soil moisture initialization from a previous run for both the BATS and the CLM4.5

surface models.

Bug Fixing:

•Bugs present in the CN schemes for the CLM4.5 implemented in RegCM have been ﬁxed

•A problematic interaction between the UW pbl and the new Microphisics has been ﬁxed

Next release V 5.X :

•New dynamical core from Giovanni Tumolo semi-implicit, semi-Lagrangian, p-adaptive Discontinuous

Galerkin method three dimensional model.

The model code is in Fortran 2003 ANSI standard. The development is done on Linux boxes, and the model

is known to run on IBM AIXTMplatforms, MacOSTMplatforms. No porting effort has been done towards non

Unix-like Operating Systems. We will for this User Guide assume that the reference platform is a recent Linux

distributon with a bash shell. Typographical convention is the following:

Table 1.1: Conventions

$> normal shell prompt

#> root shell prompt

$SHELL_VARIABLE a shell variable

Any shell variable is supposed to be set by the User with the following example syntax:

$> export REGCM_ROOT="/home/user/RegCM-4.5.0"

Hope you will ﬁnd this document useful. Any error found belongs to the RegCNET and can be reported to be

corrected in future revisions. Enjoy.

Chapter 2

Obtaining the model

2.1 Simple Model User

A packed archive ﬁle with the model code can be downloaded from:

http://gforge.ictp.it/gf/project/regcm/frs

and it can be later on decompressed and unpacked using:

$> tar -zxvf RegCM-4.5.0.tar.gz

2.2 Model Developer

If you plan to become a model developer, source code can be obtained via svn. The RegCM team strongly

encourages the contributing developers to enroll on the gforge site to always be up to date and to check on-line all

the news of the package.

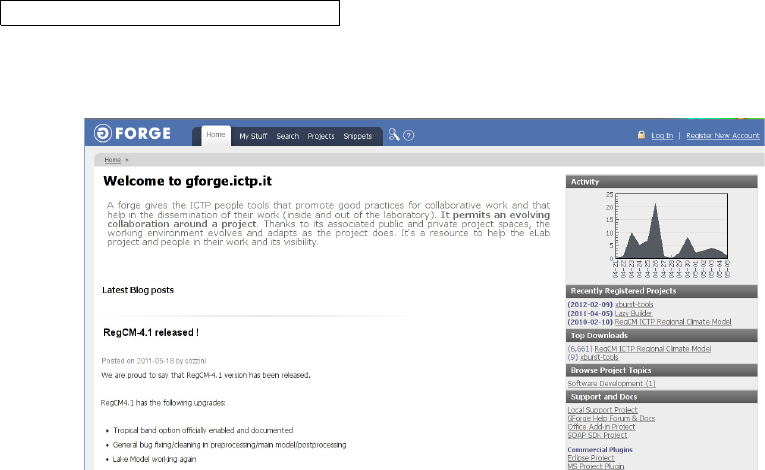

https://gforge.ictp.it/gf/project/regcm

The correct procedure is ﬁrst to register on the G-forge site, then ask the ICTP scientiﬁc team head Filippo

Giorgi to be enrolled as a model developer. After being ofﬁcially granted the status, you will gain access to the

model subversion repository.

Check that Subversion software is installed on your machine typing the following command:

$> svn --version

If your system answers command not found, refer to your System Administrator or software installation

manual of your OS to install the subversion software. As an example, on Scientiﬁc Linux the command to install

it as root is:

#> yum install subversion

If Subversion is installed, after enrolled just type the following command:

$> svn checkout https://gforge.ictp.it/svn/regcm/branches/regcm-core

To setup the model code from the SVN for your system, run the bootstrap.sh script:

$> ./bootstrap.sh

The system must have installed the autoconf,automake and libtool programs.

Chapter 3

Installation procedure

Whatever method is chosen to download the code, we assume that you have now on your working directory a new

directory, named RegCM-4.5.x. That directory will be for the rest of this guide referred as $REGCM_ROOT .

All the operations to build the model binaries will be performed in this directory.

3.1 Software requirements

In order to conﬁgure and install the RegCM code, the following software are needed:

1. GNU Make program

2. Fortran 2003 compiler

3. One in:

(a) C compiler for the serial option (enable-mpi-serial at conﬁgure)

(b) MPI2 Message Passing Library compiled with the above fortran compiler for parallel runs using

multiple core single machines or cluster of machines (default). Source code for the implementation

code was tested with can be obtained at:

http://www.open-mpi.org

4. netCDF (Rew and Davis (1990)) Format I/O library compiled with the above Fortran compiler with netCDF4

format support. Source code can be found from

ftp://ftp.unidata.ucar.edu/pub/netcdf

Optional requirements strongly suggested are :

1. NCO netCDF Operators for manging netCDF ﬁle. Most Linux distribution have this already packed, and

you should refer to your System Administrator or OS Software Installation manual to obtain it. Source code

is at:

http://nco.sourceforge.net/src

2. CDO Climatic data Operators for managing netCDF ﬁle. Most Linux distribution have this already packed,

and you should refer to your System Administrator or OS Software Installation manual to obtain it. Source

code is at:

https://code.zmaw.de/projects/cdo/ﬁles

3. A Scientiﬁc Plotting and Data Analysis Software such as:

•IGES GrADS 2.0 Graphical Analysis and Display System. Convenient helpers are packed in RegCM

to use GrADS with RegCM netCDF output ﬁles. Binaries and source code can be obtained from

http://www.iges.org/grads/downloads.html

•NCL, NCAR CISL Command Language. The NCL can read netCDF output ﬁles, and sample scripts

can be found in the Tools/Scripts/NCL directory. Binaries and source code can be obtained from

http://www.ncl.ucar.edu

4. A quick viewer for netCDF ﬁles like NcView:

http://meteora.ucsd.edu/ pierce/ncview home page.html

A script is shipped in the RegCM codebase in the Tools directory to help user compile and install required

packages, and its usage is detailed in chapter 9.

3.2 Conﬁguring build

The RegCM Version 4.5 is conﬁgured by a conﬁgure script, which will select the known working conﬁguration for

the supported architectures.

Currently tested and supported conﬁgurations (OS/Compiler) are:

1. Linux with GNU gfortran compiler version ≥4.6

2. Linux with IntelTMifort compiler version ≥12.0

3. Linux with PortlandTMpgf95 compiler version ≥12.0

4. Mac OsXTMwith gfortran compiler ≥4.6 from MacPorts

5. IBM AIXTMwith xlf2003 compiler

The 4.5 version of the RegCM model relies on the standard GNU autotools to conﬁgure and build the model

code.

The ﬁrst step is to change working directory to $REGCM_ROOT and run the configure script giving as arguments

the chosen compilers:

$> cd $REGCM_ROOT

$> ./configure # or, for intel : ./configure CC=icc FC=ifort

To know the list of arguments that can be given to the conﬁgure script, the script can be launched with the

--help command line argument.

$> ./configure --help

The useful arguments to successfully build the model are:

--with-netcdf Path to NetCDF installation (default: NETCDF

environment)

--with-hdf5 Path to HDF5 installation (default: HDF5

environment)

--with-szip Path to SZIP installation (default: SZIP

environment)

CC= C compiler command

CFLAGS= C compiler flags

LDFLAGS= linker flags, e.g. -L<lib dir> if you have libraries in a

nonstandard directory <lib dir>

LIBS= libraries to pass to the linker, e.g. -l<library>

CPPFLAGS= (Objective) C/C++ preprocessor flags, e.g. -I<include dir> if

you have headers in a nonstandard directory <include dir>

CPP= C preprocessor

FC= Fortran compiler command

FCFLAGS= Fortran compiler flags

MPIFC= MPI Fortran compiler command

3.2.1 Model conﬁguration at build stage

1. Enable debug

--enable-debug Enable debugging flags and per processor log file

If enabled, the model will be compiled using debug ﬂags for the compiler, which will allow the use of a

debugger such as gdb. More diagnostics will also be generated during model run. The default is to build

production binaries with all optimization ﬂags turned on.

2. Serial code using stub MPI library

--enable-mpiserial Use the included MPI replacement library for single

processor

The model is coded to use an MPI2 library to run in parallel mode using multiple cores/processors or run on

a cluster. To enable instead a serial compilation option, a stub MPI library with empty callbacks needs to be

compiled and linked to the executable. The RegCM team strongly suggest to build MPI enabled model also

on standalone systems, to take advantage of the multicore capabilities of any modern processor.

3. CLM option

--enable-clm Supply this option if you plan on using CLM option.

This option switches off the default Land model of RegCM (derived from BATS1e), and enables the use of

the Community Land Model V3.5 inside RegCM. The default is to use the RegCM BATS Land Model.

4. CLM 4.5 option

--enable-clm45 Supply this option if you plan on using CLM45 option.

This option switches off the default Land model of RegCM (derived from BATS1e), and enables the use of

the Community Land Model V4.5 inside RegCM. The default is to use the RegCM BATS Land Model.

3.3 Build the model executables

Now that everything is hopefully conﬁgured, you may use the make program to build executables.

$> make

This target will builds all model parts. The compilation is started in the whole model tree (PreProc, Main and

PostProc). Lot of messages will appear on screen, abd at the end all executables are built int the source directories.

To copy them to a bin directory in the model root or into a bin directory in the path speciﬁed with the preﬁx

argument to the configure script, esplicitly issue the command:

$> make install

Congratulations! You can now go to next step and run a test simulation.

Chapter 4

Accessing global datasets

The ﬁrst step to run a test simulation is to obtain static data to localize model DOMAIN and Atmosphere and

Ocean global model dataset to build initial and boundary conditions ICBC to run a local area simulation.

ICTP maintains a public accessible web repository of datasets on:

http://clima-dods.ictp.it/regcm4

We will in the following substitute this URL with a shell variable:

$> export ICTP_DATASITE=http://clima-dods.ictp.it/regcm4

As of now you are requested to download required global data on your local disk storage before any run attempt.

In the future, the ICTP ESP team has planned to make available an OpenDAP THREDDS Server to give remote

access to global dataset for creating DOMAIN and ICBC without the need to download the global dataset, but just

the required subset in space and time, using the ICTP web server capabilities to create that subset.

Our advice to you is to use handy transfer program such as uget, but below we will show you how to use

command line download tools curl and wget to get data.

4.1 Global dataset directory Layout

You are suggested to establish a convenient location for global datasets on your local storage. Keep in mind that

required space for a year of global data can be as large as 8 GBytes.

Having this in mind, we will now consider that you the user have identiﬁed on your system or have network

access to such a storage resource to store say 100 GB of data, and have it reachable on your system under the

$REGCM_GLOBEDAT location. On this directory, you are required to make the following directories:

$> cd $REGCM_GLOBEDAT

$> mkdir SURFACE CLM CLM45 SST EIN15

This does not ﬁll all possible global data sources paths, but will be enough for the scope of running the model

for testing its capabilities.

4.2 Static Surface Dataset

The model needs to be localized on a particular DOMAIN. The needed information are topography, land type

classiﬁcation and optionally lake depth (to run the Hostetler lake model) and soil texture classiﬁcation (to run the

chemistry option with DUST enabled).

This means downloading four ﬁles, which are global archives at 30second horizontal resolution on a global

latitude-longitude grid of the above data.

$> cd $REGCM_GLOBEDAT

$> cd SURFACE

$> curl -o GTOPO_DEM_30s.nc ${ICTP_DATASITE}/SURFACE/GTOPO_DEM_30s.nc

$> curl -o GLCC_BATS_30s.nc ${ICTP_DATASITE}/SURFACE/GLCC_BATS_30s.nc

Optional Lake and Texture datasets:

$> cd $REGCM_GLOBEDAT

$> cd SURFACE

$> curl -o ETOPO_BTM_30s.nc ${ICTP_DATASITE}/SURFACE/ETOPO_BTM_30s.nc

$> curl -o GLZB_SOIL_30s.nc ${ICTP_DATASITE}/SURFACE/GLZB_SOIL_30s.nc

4.3 CLM Dataset

If you are planning to enable the CLM option in the model, you will need a series of ﬁles with global land surface

characteristics datasets.

$> cd $REGCM_GLOBEDAT

$> cd CLM

$> curl -o mksrf_fmax.nc ${ICTP_DATASITE}/CLM/mksrf_fmax.nc

$> curl -o mksrf_glacier.nc ${ICTP_DATASITE}/CLM/mksrf_glacier.nc

$> curl -o mksrf_lai.nc ${ICTP_DATASITE}/CLM/mksrf_lai.nc

$> curl -o mksrf_lanwat.nc ${ICTP_DATASITE}/CLM/mksrf_lanwat.nc

$> curl -o mksrf_navyoro_20min.nc ${ICTP_DATASITE}/CLM/mksrf_navyoro_20min.nc

$> curl -o mksrf_pft.nc ${ICTP_DATASITE}/CLM/mksrf_pft.nc

$> curl -o mksrf_soicol_clm2.nc ${ICTP_DATASITE}/CLM/mksrf_soicol_clm2.nc

$> curl -o mksrf_soitex.10level.nc ${ICTP_DATASITE}/CLM/mksrf_soitex.10level.nc

$> curl -o mksrf_urban.nc ${ICTP_DATASITE}/CLM/mksrf_urban.nc

$> curl -o pft-physiology.c070207 ${ICTP_DATASITE}/CLM/pft-physiology.c070207

$> curl -o pft-physiology.c070207.readme \

> ${ICTP_DATASITE}/CLM/pft-physiology.c070207.readme

$> curl -o rdirc.05.061026 ${ICTP_DATASITE}/CLM/rdirc.05.061026

This is the input ﬁle for the clm2rcm program (see at 6.2).

4.4 CLM 4.5 Dataset

If you are planning to enable the CLM 4.5 option in the model, you will need a series of ﬁles with global land

surface characteristics datasets.

$> cd $REGCM_GLOBEDAT

$> cd CLM45

$> mkdir megan pftdata snicardata surface

$> for dir in megan pftdata snicardata surface; do cd $dir; \

wget ${ICTP_DATASITE}/CLM45/$dir/ -O - | \

wget -A ".nc" -l1 --no-parent --base=${ICTP_DATASITE}/CLM45/$dir/ \

-nd -Fri -; done

This is the input ﬁle for the mksurfdata program (see at 6.3).

4.5 Sea Surface Temperature

The model needs a global SST dataset to feed the model with ocean temperature. You have multiple choices for

SST data, but we will for now for our test run download just CAC OISST weekly for the period 1981 - present.

$> cd $REGCM_GLOBEDAT

$> cd SST

$> CDCSITE="ftp.cdc.noaa.gov/pub/Datasets/noaa.oisst.v2"

$> curl -o sst.wkmean.1981-1989.nc \

> ftp://$CDCSITE/sst.wkmean.1981-1989.nc

$> curl -o sst.wkmean.1990-present.nc \

> ftp://$CDCSITE/sst.wkmean.1990-present.nc

4.6 Atmosphere and Land temperature Global Dataset

The model needs to build initial and boundary conditions for the regional scale, interpolating on the RegCM grid

the data from a Global Climatic Model output. The GCM dataset can come from any of the supported models, but

we will for now for our test run download just the EIN15 dataset for the year 1990 (Jan 01 00:00:00 UTC to Dec

31 18:00:00 UTC)

$> cd $REGCM_GLOBEDAT

$> cd EIN15

$> mkdir 1990

$> cd 1990

$> for type in "air hgt rhum uwnd vwnd"

> do

> for hh in "00 06 12 18"

> do

> curl -o ${type}.1990.${hh}.nc \

> ${ICTP_DATASITE}/EIN15/1990/${type}.1990.${hh}.nc

> done

With this datasets we are now ready to go through the RegCM Little Tutorial in the next chapter of this User

Guide.

Chapter 5

Running a test simulation using the model

We will in this chapter go through a sample session in using the model with a sample conﬁguration ﬁle prepared

for this task.

5.1 Setting up the run environment

The model executables prepared in chapter 3 are waiting for us to use them. So let’s give them a chance.

The model test run proposed here requires around 100Mb of disk space to store the DOMAIN and ICBC in

input and the output ﬁles. We will assume here that you, the user, have already established a convenient directory

on a disk partition with enough space identiﬁed in the following discussion with $REGCM_RUN

We will setup in this directory a standard environment where the model can be executed for the purpose of

learning how to use it.

$> cd $REGCM_RUN

$> mkdir input output

$> ln -sf $REGCM_ROOT/bin .

$> cp $REGCM_ROOT/Testing/test_001.in .

$> cd $REGCM_RUN

Now we are ready to modify the input namelist ﬁle to reﬂect this directory layout. A namelist ﬁle in FORTRAN

is a convenient way to give input to a program in a formatted ﬁle, read at runtime by the program to setup its

execution behaviour. So the next step is somewhat tricky, as you need to edit the namelist ﬁle respecting its well

deﬁned syntax. Open your preferred text ﬁle editor and load the test_001.in ﬁle. You will need to modify for

the scope of the present tutorial the following lines:

FROM:

dirter = ’/set/this/to/where/your/domain/file/is’,

TO:

dirter = ’input/’,

FROM:

inpter = ’/set/this/to/where/your/surface/dataset/is’,

TO:

inpter = ’$REGCM_GLOBEDAT’,

where $REGCM_GLOBEDAT is the directory where input data have been downloaded in chapter 4.

FROM:

dirglob = ’/set/this/to/where/your/icbc/for/model/is’,

TO:

dirglob = ’input/’,

FROM:

inpglob = ’/set/this/to/where/your/input/global/data/is’,

TO:

inpglob = ’$REGCM_GLOBEDAT’,

and last bits:

FROM:

dirout=’/set/this/to/where/your/output/files/will/be/written’

TO:

dirout=’output/’

These modiﬁcations just reﬂect the above directory layout proposed for this tutorial, and any of these paths can

point anywhere on your system disks. The path is limited to 256 characters. We are now ready to execute the ﬁrst

program of the RegCM model.

5.2 Create the DOMAIN ﬁle using terrain

The ﬁrst step is to create the DOMAIN ﬁle to localize the model on a world region. The program which does this

for you reading the global databases is terrain .

To launch the terrain program, enter the following commands:

$> cd $REGCM_RUN

$> ./bin/terrain test_001.in

If everything is correctly conﬁgured up to this point, the model should print something on stdout, and the last

lines will be:

Grid data written to output file

Successfully completed terrain fields generation

In the input directory the program will write the following two ﬁles:

$> ls input

test_001_DOMAIN000.nc test_001_LANDUSE

The DOMAIN ﬁle contains the localized topography and landuse databases, as well as projection information

and land sea mask. The second ﬁle is an ASCII encoded version of the landuse, used for modifying it on request.

We will cover it’s usage later on. To have a quick look at the DOMAIN ﬁle content, you may want to use the

GrADSNcPlot program:

$> ./bin/GrADSNcPlot input/test_001_DOMAIN000.nc

If not familiar with GrADS program, enter in sequence the following commands at the ga-> prompt:

ga-> q file

ga-> set gxout shaded

ga-> set mpdset hires

ga-> set cint 50

ga-> d topo

ga-> c

ga-> set cint 1

ga-> d landuse

ga-> quit

this will plot the topography and the landuse on the X11 window.

5.3 Create the SST using the sst program

We are now ready to create the Sea Surface Temperature for the model, reading a global dataset. The program

which does this for you is the sst program, which is executed with the following commands:

$> cd $REGCM_RUN

$> ./bin/sst test_001.in

If everything is correctly conﬁgured up to this point, the model should print something on stdout, and the last

line will be:

Successfully generated SST

The input directory now contains a new ﬁle:

$> ls input

test_001_DOMAIN000.nc test_001_LANDUSE test_001_SST.nc

The SST ﬁle contains the Sea Surface temperature to be used in generating the Initial and Boundary Conditions

for the model for the period speciﬁed in the namelist ﬁle. Again you may want to use the GrADSNcPlot program

to look at ﬁle content:

$> ./bin/GrADSNcPlot input/test_001_SST.nc

If not familiar with GrADS program, enter in sequence the following commands at the ga-> prompt:

ga-> q file

ga-> set gxout shaded

ga-> set mpdset hires

ga-> set cint 2

ga-> d sst

ga-> quit

this will plot the interpolated sst ﬁeld on the X11 window.

5.4 Create the ICBC ﬁles using the icbc program

Next step is to create the ICBC (Initial Condition, Boundary Conditions) for the model itself. The program which

does this for you is the icbc program, executed with the following commands:

$> cd $REGCM_RUN

$> ./bin/icbc test_001.in

If everything is correctly conﬁgured up to this point, the model should print something on stdout, and the last

line will be:

Successfully completed ICBC

The input directory now contains two more ﬁles:

$> ls -1 input

test_001_DOMAIN000.nc

test_001_ICBC.1990060100.nc

test_001_ICBC.1990070100.nc

test_001_LANDUSE

test_001_SST.nc

The ICBC ﬁles contain the surface pressure, surface temperature, horizontal 3D wind components, 3D

temperature and mixing ratio for the RegCM domain for the period and time resolution speciﬁed in the input

ﬁle. Again you may want to use the GrADSNcPlot program to look at ﬁle content:

$> ./bin/GrADSNcPlot input/test_001_ICBC.1990060100.nc

If not familiar with GrADS program, enter in sequence the following commands at the ga-> prompt:

ga-> q file

ga-> set gxout shaded

ga-> set mpdset hires

ga-> set cint 2

ga-> d ts

ga-> c

ga-> set lon 10

ga-> set lat 43

ga-> set t 1 last

ga-> d ts

ga-> quit

this will plot the interpolated surface temperature ﬁeld on the X11 window, ﬁrst at ﬁrst time step and then a

time section in one of the domain points for a whole month.

We are now ready to run the model!

5.5 First RegCM model simulation

The model has now all needed data to allow you to launch a test simulation, the ﬁnal goal of our little tutorial.

The model command line now will differ if you have prepared the Serial or the MPI version. For the MPI

enabled version we will assume that your machine is a dual core processor (baseline for current machines, even

for laptops). Change the -np 2 argument to the number of processors you have on Your platform (on my laptop

QuadCore I use -np 4).

•MPI version 1

$> cd $REGCM_RUN

$> mpirun -np 8 ./bin/regcmMPI test_001.in

•Serial version 2

$> cd $REGCM_RUN

$> ./bin/regcmSerial test_001.in

Now the model will start running, and a series of diagnostic messages will be printed on screen. As this is a

simulation known to behave well, no stoppers will appear, so you may want now to have a coffee break and come

back in 10 minutes from now.

At the end of the run, the model will print the following message:

RegCM V4 simulation successfully reached end

The output directory now contains four ﬁles:

$> ls output

test_001_ATM.1990060100.nc test_001_SRF.1990060100.nc

test_001_RAD.1990060100.nc test_001_SAV.1990070100.nc

1Use regcmMPICLM if the CLM version has been conﬁgured

2Deprecated. Support will be dropped in future releases.

the ATM ﬁle contains the atmosphere status from the model, the SRF ﬁle contains the surface diagnostic

variables, and the RAD ﬁle contains radiation ﬂuxes information. The SAV ﬁle stores the status of the model at

the end of the simulation period to enable a restart, thus allowing a long simulation period to be splitted in shorter

simulations.

To have a look for example at surface ﬁelds, you may want to use the following command:

$> ./bin/GrADSNcPlot output/test_001_SRF.1990060100.nc

Assuming the previous crash course in using GraDS was received, you should be able to plot the variables in

the ﬁle.

This is the end of this little tutorial, and in the next chapter we will examine how to conﬁgure the model for

your research needs.

Chapter 6

Localizing the model and running your

simulation

We will examine in this chapter in more detail the namelist conﬁguration ﬁle, to give you the User a deeper

knowledge of model capabilities.

6.1 The commented namelist

In this section we will show you the commented namelist input ﬁle you will ﬁnd under $REGCM_ROOT/Doc with the

name README.namelist . All model programs seen so far, with the exception of the GrADS helper program, use

as input this namelist ﬁle, which is unique to a particular simulation. The model input namelist ﬁle is composed

by a number of different namelists, each one devoted to conﬁguring the model capabilities. A namelist in the

namelist ﬁle is identiﬁed with a starting &character followed by namelist name, and ends on a single line with the

\character.

6.1.1 dimparam namelist

This namelist contains the base X,Y,Z domain dimension information, used by the model dynamic memory

allocator to request the Operating System the memory space to store the model internal variables.

&dimparam

iy = 34, ! This is number of points in the N/S direction

jx = 48, ! This is number of points in the E/W direction

kz = 23, ! Number of vertical levels

dsmin = 0.01, ! Minimum sigma spacing (only used if kz is not 14, 18, or 23)

dsmax = 0.05, ! Maximum sigma spacing (only used if kz is not 14, 18, or 23)

nsg = 1, ! For subgridding, number of points to decompose. If nsg=1,

! no subgridding is performed. CLM3.5 does NOT work with

! subgridding enabled.

njxcpus = -1, ! Number of CPUS to be used in the jx (lon) dimension.

! If <=0 , the executable will try to figure out a suitable

! decomposition.

niycpus = -1, ! Number of CPUS to be used in the iy (lat) dimension.

! If <=0 , the executable will try to figure out a suitable

! decomposition.

The things you need to know here:

1. In the current version 4.5 the model parallelizes execution dividing the work between the processors, with

the minimum work per processor is 9 points or a box 3 ×3, so the maximum theorical number of processors

which can be used in a parallel run for the above conﬁguration is roughly 150, but for the communication

overhead the optimal would be around 12 or a 10 ×10 patch per processor.

2. If a custom number of sigma level is chosen (not 14, 18 or 23), the actual sigma values are calculated

mimimizing the a,bcoefﬁcients for the equation:

dsig(i) = dsmax ∗ai−1∗b0.5∗(i−2)∗(i−1)(6.1)

derived from the recursive relation:

dsig(i) = a(i)∗dsig(i−1)(6.2)

where a(i) = b∗a(i−1). We at ICTP normally use 23 levels for the non-hydrostatic core and 18 for the

hydrostatic core.

3. Specifying an nsg number greater than one triggers the subgrid BATS/CLM45 model on. There is no plan

to extend this feature to CLM3.5 model. This affects only surface variable calculations. All dynamical

variables are calculated still on the coarser grid. Rain in the current implementation is also calculated on the

coarser grid.

4. The njxcpus,niycpus parameters can be used to force a particular domain decomposition for any particular

hardware architecture. Normally the algorithm in the model code should be able to ﬁx the supposedly

optimally balanced decomposition.

6.1.2 coreparam namelist

This namelist is new to the RegCM 4.5 version, and controls which dynamical core is used in the model.

&coreparam

idynamic = 1, ! Choice of dynamical core

! 1 = MM4 hydrostatic core

! 2 = MM5 NON hydrostatic core

The things you need to know here:

1. For details about the two dynamical cores, refer to the Reference Manual.

2. The hydrostatic core is cheaper computationally, but physically it should be limited to resolution greater than

15km. For higher resolution, the non hydrostatic core is to be used.

3. The output variables of the two dynamical cores differ in the ATM ﬁles because of the different state variables

used. Vertical levels also differ.

4. The ICBC for the non-hydrostatic cannot be used for the hydrostatic run and the other way round.

5. Nesting using the FNEST option is supported in these conﬁgurations:

(a) hydrostatic nested into hydrostatic

(b) non-hydrostatic nested into hydrostatic

6. Selecting the non-hydrostatic core, the nonhydroparam namelist is read in.

6.1.3 geoparam namelist

This namelist is used by the terrain program to geolocate the model grid on the earth surface. The RegCM

model uses a limited number of projection engines. The value here are used by the other model programs to assert

consistency with the geolocation information written by the terrain program in the DOMAIN ﬁle.

The ﬁrst step in any application is the selection of model domain and resolution. There are no strict rules for

this selection, which in fact is mostly determined by the nature of the problem and the availability of computing

resources. The domain should be large enough to allow the model to develop its own circulations and to include

all relevant forcings and processes, and the resolution should be high enough to capture local processes of interest

(e.g. due to complex topography or land surface).

On the other hand the model computational cost increases rapidly with resolution and domain size, so a

compromise needs to be usually reached between all these factors.

This is usually achieved by experience, understanding of the problem or trial and error, however one tip to

remember is to avoid that the boundaries of the domain cross major topographical systems.

This is because the mismatch in the resolution of the coarse scale lateral driving ﬁelds and the model ﬁelds in

the presence of steep topography may generate spurious local effects (e.g. localized precipitation areas) which can

affect the model behavior, at least in adjacent areas.

&geoparam

iproj = ’LAMCON’, ! Domain cartographic projection. Supported values are:

! ’LAMCON’, Lambert conformal.

! ’POLSTR’, Polar stereographic. (Doesn’t work)

! ’NORMER’, Normal Mercator.

! ’ROTMER’, Rotated Mercator.

ds = 60.0, ! Grid point horizontal resolution in km

ptop = 5.0, ! Pressure of model top in cbar

clat = 45.39, ! Central latitude of model domain in degrees

! North hemisphere is positive

clon = 13.48, ! Central longitude of model domain in degrees

! West is negative.

plat = 45.39, ! Pole latitude (only for rotated Mercator Proj)

plon = 13.48, ! Pole longitude (only for rotated Mercator Proj)

truelatl = 30.0, ! Lambert true latitude (low latitude side)

truelath = 60, ! Lambert true latitude (high latitude side)

i_band = 0, ! Use this to enable a tropical band. In this case the ds,

! iproj, clat, clon parameters are not considered.

The things you need to know here:

1. The different projection engines produce better results depending on the position and extent of the domain.

In particular, regardless of hemisphere:

•Middle latitudes (around 45 degrees) - Lambert Conformal

•Polar latitudes (more than 75 degrees) - Polar Stereographic

•Low latitudes (up to 30 degrees and crossing the equator) - Mercator

•Crossing more than 45 degrees extent in latitude - Rotated Mercator

2. The model hydrostatic engine does not allow a resolution lower than 20km. If you want a higher resolution

consider using the subgridding scheme. ICTP plans to introduce in the future a non-hydrostatic compressible

core to the RegCM model.

3. Lowering the top pressure of the model can give you problems in regions with complex topography. Touch

the default after thinking twice on that.

4. Always specify clat and clon, the central domain point, and do ﬁne adjustment of the position moving

it around a little bit. A little shift in position and some tests can help you obtain a better representation of

coastlines and topography at the coarse resolutions.

5. If using LAMCON projection, take care to place the two true latitudes at around one fourth and three fourth of

the domain latitude space to better correct the projection distortion of the domain.

6. The pole position for the rotated mercator position should be as near as possible to the center domain

position.

7. For the i_band parameter, selecting this will enable the tropical band experiment, and the horizontal

resolution will be calculated from the number of jx points. The projection is set to Normal Mercator, the

center of the projection is set to clat = 0.0,clon = 180.0, and the grid point resolution is calculated as:

2∗π∗6370.0

jx (6.3)

Just remember:

(a) The model for a tropical band simulation is heavy, as the number of points is usually huge to obtain a

good horizontal resolution. Check any memory limit is disabled on your platform before attempting a

run.

(b) The model scales well on a cluster with a large number of processors.

6.1.4 terrainparam namelist

This namelist is used by the terrain program to know how you want to generate the DOMAIN ﬁle. You can control

its work using a number of parameters to obtain what you consider the best representation of the physical reality.

Do not underestimate what you can do at this early stage, having a good representation of the surface can lead to

valuable results later when the model calculates climatic parameters.

&terrainparam

domname = ’AQWA’, ! Name of the domain/experiment.

! Controls naming of input files

smthbdy = .false., ! Smoothing Control flag

! true -> Perform extra smoothing in boundaries

lakedpth = .false., ! If using lakemod (see below), produce from

! terrain program the domain bathymetry

ltexture = .false., ! If using DUST tracers (see below), produce

! the domain soil texture dataset

lsmoist = .false., ! Use Satellite Soil Moisture Dataset for

! initialization of soil moisture.

fudge_lnd = .false., ! Fudging Control flag, for landuse of grid

fudge_lnd_s = .false., ! Fudging Control flag, for landuse of subgrid

fudge_tex = .false., ! Fudging Control flag, for texture of grid

fudge_tex_s = .false., ! Fudging Control flag, for texture of subgrid

fudge_lak = .false., ! Fudging Control flag, for lake of grid

fudge_lak_s = .false., ! Fudging Control flag, for lake of subgrid

h2opct = 50., ! Surface min H2O percent to be considered water

h2ohgt = .true., ! Allow water points to have hgt greater than 0

ismthlev = 1, ! How many times apply the 121 smoothing

dirter = ’input/’, ! Output directory for terrain files

inpter = ’globdata/’, ! Input directory for SURFACE dataset

moist_filename = ’moist.nc’, ! Read initial moisture and snow from this file

The things you need to know here:

1. The domname will control the output ﬁle naming convention, all generated ﬁles will add this preﬁx to the old

V3 naming convention, giving you the capability to recognize different runs. Try to use always meaningful

names.

2. You can control the ﬁnal land-water mask using the h2opct parameter. This parameter can be used to have

more land points than calculated by the simple interpolation engine. Try it with different values to ﬁnd best

land shapes. A zero value means use just the interpolation engine, higher values will extend into ocean

points the land at land-water interface. The h2ohgt parameter allows also water points to have elevation

greater than zero to avoid wall effects on the coasts.

3. A number of ﬂags control the capability of the terrain program to modify on request the class type variables

in the DOMAIN ﬁle. You can modify on request the landuse, the texture and the lake/land interface. Running

once the terrain program, it will generate for you aside from the DOMAIN ﬁle a series of ASCII ﬁles you

can modify with any text editor. Running the terrain program the second time and setting a fudge ﬂag,

will tell the program to overwrite the selected variable with the modiﬁed value in the ASCII ﬁle. This can

be useful for sensitivity experiments in the BATS surface model or to design a scenario experiment.

4. Some of the land surface types in BATS have been little tested and used or are extremely simpliﬁed and thus

should be used cautiously. Speciﬁcally the types are: sea ice, bog/marsh, irrigated crop, glacier. If such

types are present in a domain, the user is advised to carefully check the model behavior at such points and

eventually substitute these types with others.

5. The inpter directory is expected to contain a SURFACE directory where the actual netCDF global dataset

are stored. The overall path is limited to 256 characters.

6. If the netCDF library is compiled with OpenDAP support, an URL can be used as a path in the dirter and

inpter variables. Note that the 256 character limit for paths holds in the whole program.

7. The lsmoist namelist entry triggers the interpolation on the domain area of a global dataset of satellite

measured surface soil moisture to estimate the initial model soil moisture. A simple algorithm extend the

surface soil moisture to all the soil layers.

8. The moist_filename if present triggers reading from the speciﬁed ﬁle the soil moisture on all model vertical

layers and use it to initialize the soil moisture content in an initial run. Note that for this a DOMAIN ﬁle created

for a CLM45 run cannot be used for a BATS run.

6.1.5 debugparam namelist

This namelist is used by all RegCM programs to enable/disable some debug printout. In the current release this

ﬂag is honored only by the model itself. If you are not a developer you may ﬁnd this ﬂags useless.

&debugparam

debug_level = 0, ! Currently value of 2 and 3 control previous DIAG flag

dbgfrq = 3, ! Interval for printout if debug_level >= 3

Just note that with current implementation, the output ﬁle syncing is left to the netCDF library. If You want to

examine step by step the output while the model is running, set the debug_level at value 3.

6.1.6 boundaryparam namelist

Being a limited area model, in order to be run RegCM4 requires the provision of meteorological initial and

time dependent lateral boundary conditions, typically for wind components, temperature, water vapor and surface

pressure. These are obtained by interpolation from output from reanalysis of observations or global climate model

simulations, which thus drive the regional climate model.

The lateral boundary conditions (LBC) are provided through the so called relaxation/diffusion technique which

consists of:

1. selecting a lateral buffer zone of n grid point width (nspgx)

2. interpolating the driving large scale ﬁelds onto the model grid

3. applying the relaxation + diffusion term

∂α

∂t=F(n)F1∗(αLBC −αmod )−F(n)F2∗∆2(αLBC −αmod )(6.4)

where αis a prognostic variable (wind components, temperature, water vapor, surface pressure). The ﬁrst

term on the rhs is a Newtonian relaxation term which brings the model solution (mod) towards the LBC ﬁeld

(LBC) and the second term diffuses the differences between model solution and LBC. F(n)is an exponential

function given by:

F(n) = exp −(n−1)

anudge(k)(6.5)

Where nis the grid point distance from the boundary (varying from 1 to nspgx): n−1 is the outermost

grid point, n=2 the adjacent one etc. The anudge array determines the strength of the LBC forcing and

depends on the model level k. In practice F(n)is equal to 1 at the outermost grid point row and decreases

exponentially to 0 at the internal edge of the buffer zone (nspgd) at a rate determined by anudge. Larger

buffer zones and larger values of anudge will yield a greater forcing by the LBC.

Typically for domain sizes of 100 grid points we use a buffer zone width of 10 −12 grid points, for large

domains this buffer zone can increase to values of 15 or even 20.

In the model anudge has three increasing values from the lower, to the mid and higher troposphere. For example

for nspgx =10 we use anudge equals to 1,2,3 for the lower, mid and upper troposphere, respectively.

This allows a stronger forcing in the upper troposphere to insure a greater consistency of large scale circulations

with the forcing LBC while allowing more freedom to the model in the lower troposphere where local high

resolution forcings (e.g. complex topography) are more important.

For nspgx of 15 −20, for example, anudge values could be increased to 2,3,4. As a rule of thumb, the choice

of the maximum anudge value should follow the conditions:

(nspgx −1)

anudge(k)≥3 (6.6)

&boundaryparam

nspgx = 12, ! nspgx-1 represent the number of cross point slices on

! the boundary sponge or relaxation boundary conditions.

nspgd = 12, ! nspgd-1 represent the number of dot point slices on

! the boundary sponge or relaxation boundary conditions.

high_nudge = 3.0, ! Nudge value high range

medium_nudge = 2.0, ! Nudge value medium range

low_nudge = 1.0 ! Nudge value low range

6.1.7 globdatparam namelist

This namelist is used by the sst and icbc ICBC programs. You can tell them how to build initial and bondary

conditions.

&globdatparam

ibdyfrq = 6, ! boundary condition interval (hours)

ssttyp = ’OI_WK’, ! Type of Sea Surface Temperature used

! One in: GISST, OISST, OI2ST, OI_WK, OI2WK,

! FV_A2, FV_B2, EH5A2, EH5B1, EHA1B,

! EIN75, EIN15, ERSST, ERSKT, CCSST,

! CA_XX, HA_XX, EC_XX, IP_XX, GF_XX,

! CN_XX

dattyp = ’EIN15’, ! Type of global analysis datasets used

! One in: ECMWF, ERA40, EIN75, EIN15, EIN25,

! ERAHI, NNRP1, NNRP2, NRP2W, GFS11,

! FVGCM, FNEST, EH5A2, EH5B1, EHA1B,

! CCSMN, ECEXY, CA_XX, HA_XX, EC_XX,

! IP_XX, GF_XX, CN_XX, MP_XX

chemtyp = ’MZCLM’, ! Type of Global Chemistry boundary conditions

! One in : MZ6HR, 6 hours MOZART output

! : MZCLM, MOZART climatology 1999-2009

gdate1 = 1990060100, ! Start date for ICBC data generation

gdate2 = 1990070100, ! End data for ICBC data generation

calendar = ’gregorian’, ! Calendar to use (gregorian, noleap or 360_day)

dirglob = ’input/’, ! Path for ICBC produced input files

inpglob = ’globdata/’, ! Path for ICBC global input datasets.

ensemble_run = .false., ! If this is a member of a perturbed ensemble

! run. Activate random noise added to input

! Look http://users.ictp.it/˜pubregcm/RegCM4/globedat.htm

! on how to download them.

Things you need to know here:

1. The gdate time window to build ICBC must be always greater or equal to the time window you plan to

run the model in. Different GCMs and reanalysis products have different length of the year. For example,

the reanalysis products employ the real year length (365 days + real leap years, i.e. and average length of

365.2422), the CCSM has a length of 365 days (no leap year), the HadCM has a length of 360 days (30 day

months). The RegCM4 length of the year has to be the same as in the forcing ﬁelds, and this can be set in

the variable dayspy. Please remember to always check the consistency of the length of the year.

2. Even if listed, not all the input engines are fully tested. Some of them need data which have been reformatted

by ICTP (they are not in the original format with which they are distributed by the institution producing

them). Some input data are not freely distibutable by ICTP, and you need a special agreement with the

owner to use them. Hopefully the situation is changing, and data exchange is becoming more and more the

basis for good science in the climatic ﬁeld.

3. The chemtyp paramter is read by the chem_icbc program. See below in 6.1.23 about chemistry boundary

conditions.

4. For notes on path, you can see the above in terrainparam namelist description at 5.

6.1.8 fnestparam namelist

This namelist is read if the FNEST is selected as dattyp in globdatparam namelist (see above in 6.1.7), and

permits the user to specify the output directory of the coarse resolution run already completed and the name of

the coarse domain, i.e. the domname namelist parameter used in the terrainparam coarse namelist (see above in

6.1.4).

The nested domain must be contained inside the coarse domain, and possibly the nested domain should not

overlap the boundary region of the coarse run. Those checks are left to the user.

If nothing is speciﬁed or namelist not present default is to search for a directory RegCM inside inpglob directory

for ﬁles without a domname, i.e. like ATM.YYYYMMDDHH.nc.

! Nesting control

&fnestparam

coarse_outdir = ’globdata/RegCM’, ! Coarse domain output dir if FNEST

coarse_domname = ’EUROPE’, ! Coarse domain domname

6.1.9 perturbparam namelist

This namelist lets you control to which input ﬁeld and of what fractional level a perturbation is added at ICBC

stage on the input ﬁelds. It is read by the ICBC program if the ensemble_run parameter in the globdatparam

namelist is set to true.

! Perturbation control for ensembles

&perturbparam

lperturb_topo = .false., ! Add perturbation to surface elevation

perturb_frac_topo = 0.001D0, ! Fractional value of the perturbation on topo

lperturb_ts = .false., ! Add perturbation to surface temeprature

perturb_frac_ts = 0.001D0, ! Fractional value of the perturbation on ts

lperturb_ps = .false., ! Add perturbation to surface pressure

perturb_frac_ps = 0.001D0, ! Fractional value of the perturbation on ps

lperturb_t = .false., ! Add perturbation to temperature

perturb_frac_t = 0.001D0, ! Fractional value of the perturbation on t

lperturb_q = .false., ! Add perturbation to humidity mixing ratio

perturb_frac_q = 0.001D0, ! Fractional value of the perturbation on q

lperturb_u = .false., ! Add perturbation to zonal velocity

perturb_frac_u = 0.001D0, ! Fractional value of the perturbation on u

lperturb_v = .false., ! Add perturbation to meridional velocity

perturb_frac_v = 0.001D0, ! Fractional value of the perturbation on v

Things you need to know here:

1. The perturb_frac should not exceed a percent of the ﬁeld value. The algorithm detail of the applied noise

can be found in O’Brien et al. (2011).

6.1.10 restartparam namelist

This namelist lets you control the time period the model is currently simulating in this particular run. You may

want to split longer runs for which you have prepared the ICBC’s into shorter runs, to schedule HPC resource

usage in a more collaborative way with other researcher sharing it: the regcm model allows restart, so be friendly

with other research projects which may not have this fortune (unless you are late for publication).

&restartparam

ifrest = .false. , ! If a restart

mdate0 = 1990060100, ! Global start (is gdate1, most probably)

mdate1 = 1990060100, ! Start date of this run

mdate2 = 1990060200, ! End date for this run

Things you need to know here:

1. After the simulation starts, on restart NEVER change the mdate0 value. The correct scheme for restart is:

•Set ifrest to .true.

•Set mdate1 to the value in mdate2

•Deﬁne the new value for mdate2

2. Consider that current RegCM convention is to place midnight of ﬁrst day of month as the last timestep in

previous month, except on ﬁrst model output ﬁle (ifrest =.false.). It is for this reason better to use as

start and end time a month boundary. We usually consider a month data ﬁle the basic unit of output, each

time you cross a month a new output ﬁle will be created for you.

6.1.11 timeparam namelist

This namelist contains model internal timesteps, used by the model as basic integration timestep and triggers for

calling internal parametric schemes.

&timeparam

dt = 150., ! time step in seconds

dtrad = 0., ! time interval solar radiation calculated (minutes)

dtsrf = 0., ! time interval at which land model is called (seconds)

dtcum = 0., ! time interval at which cumuls is called (seconds)

dtabem = 0., ! time interval absorption-emission calculated (hours)

dtchem = 900., ! time interval for chemistry reactions (seconds)

Things you need to know here:

1. If only dt is chosen, the other values are computed to align with dt and output frequencies to have 5minutes

for cumulus, 10minutes for surface, 30minutes for radiation, 18hr for absorption-emission.

2. All the internal timesteps need to be multiples of the base timestep dt. Note that the units are different, so

you need to convert the other timesteps in seconds before the check.

3. Surface, radiation and cumulus timesteps must be aligned on a 24htime window.

4. The dynamical hydrostatical core of RegCM requires a ﬁxed timestep, and you need to manually ﬁnd the

correct value which permits not to break the CourantFriedrichsLewy condition considering R. Courant and

Lewy (1928). A good rule of thumb is to have a dt not greater than three times the ds value in km speciﬁed in

the geoparam namelist at 6.1.3. A greater value may lower computing time, but in case of strong advection

may lead to non accurate computation or even the violation of CFL condition and the divergence of the

solution.

5. If you hit a non stable condition, the restart capability of the model may help ﬁnd the correct timestep just

for a particular period, using a different timestep at different times.

6. The surface model timestep should be of the order of 10minutes to keep computational cost low: lower

values may be used only in the case of very strong surface gradients.

7. A negative value for dtcum (the default) actually sets dtcum =dt, calling the cumulus convection scheme

every model timestep. For small dt, this value should be set to 5minute.

8. The absorption-emission computations are the most expensive in computational time in the radiation scheme,

which accounts overall for around 30% of the total execution time. The 18hours default allows for a

compromise for accuracy/cost and should avoid aliasing on a daily timeframe window.

6.1.12 outparam namelist

This namelist controls the model output engine, allowing you to enable/disable any of the output ﬁle writeout, or

to modify the frequency the ﬁelds are written in the ﬁles.

&outparam

ifsave = .true. , ! Create SAV files for restart

savfrq = 48., ! Frequency in hours to create them

ifatm = .true. , ! Output ATM ?

atmfrq = 6., ! Frequency in hours to write to ATM

ifrad = .true. , ! Output RAD ?

radfrq = 6., ! Frequency in hours to write to RAD

ifsts = .true. , ! Output STS (frequence is daily) ?

ifsrf = .true. , ! Output SRF ?

srffrq = 3., ! Frequency in hours to write to SRF

ifsub = .true. , ! Output SUB ?

subfrq = 6., ! Frequency in hours to write to SUB

iflak = .true., ! Output LAK ?

lakfrq = 6., ! Frequency in hours to write to LAK

ifchem = .true., ! Output CHE ?

ifopt = .false., ! Output OPT ?

chemfrq = 6., ! Frequency in hours to write to CHE

enable_atm_vars = 67*.true., ! Mask to eventually disable variables ATM

enable_srf_vars = 35*.true., ! Mask to eventually disable variables SRF

enable_rad_vars = 25*.true., ! Mask to eventually disable variables RAD

enable_sub_vars = 18*.true., ! Mask to eventually disable variables SUB

enable_sts_vars = 18*.true., ! Mask to eventually disable variables STS

enable_lak_vars = 18*.true., ! Mask to eventually disable variables LAK

enable_opt_vars = 19*.true., ! Mask to eventually disable variables OPT

enable_che_vars = 26*.true., ! Mask to eventually disable variables CHE

dirout = ’./output’, ! Path where all output will be placed

lsync = .false., ! If sync of output files at every timestep is

! requested. Note, it has a performance impact.

! Enabled by default if debug_level > 2

idiag = 0, ! Enable tendency diagnostic output in the ATM

! file. NOTE: output file gets HUGE.

do_parallel_netcdf_in = .false., ! This enables paralell input

! Each processors reads its slice in the

! input file. Enable ONLY in case of

! HUGE input bandwidth,

do_parallel_netcdf_out = .false., ! This enables paralell output if the

! hdf5/netcdf libraries support it and

! the model is compiled with :

! --enable-nc4-parallel

Things you need to know here:

1. The surface ﬁelds are the mean values in the interval speciﬁed by the frequency values. The dynamical ﬁelds

are instead the point value at the output time. Refer to the Reference Manual Giorgi (2011) for a detailed

description of the model output ﬁelds.

2. If the chemistry or lake model are not enabled, the values speciﬁed in the control ﬂags are not considered. If

nsg is not greater than one in dimparam at 6.1.1, the ifsub ﬂag is not considered.

3. For the output directory, the path variable has a limit of 256 characters. This path must be a local path on

disk where the user running the model has write permissions granted.

4. The enablevar logical arrays can be used to avoid saving one of the time dependent variables in the output

ﬁle, in the order they are saved in the output ﬁle itself. Note that geolocation and pressure variables cannot

be disabled.

6.1.13 physicsparam namelist

This namelist controls the model physics. You have a number of option here, and the best way to select the right set

is to carefully read the the Reference Manual Giorgi (2011). We are for the purposes of this User Guide not going

in detail in here, except in saying that probably you will need to run some experiments especially with different

cumulus convection schemes before ﬁnding out the best model setting. Although the mixed convection scheme

(Grell over land and Emanuel over ocean) seems to provide an overall better performance, our experience is that

there is no scheme that works best everywhere, therefore we advice to always do some sensitivity experiments to

select the best scheme for your application.

&physicsparam

iboudy = 5, ! Lateral Boundary conditions scheme

! 0 => Fixed

! 1 => Relaxation, linear technique.

! 2 => Time-dependent

! 3 => Time and inflow/outflow dependent.

! 4 => Sponge (Perkey & Kreitzberg, MWR 1976)

! 5 => Relaxation, exponential technique.

isladvec = 0, ! Semilagrangian advection scheme for tracers and

! humidity

! 0 => Disabled

! 1 => Enable Semi Lagrangian Scheme

iqmsl = 1, ! Quasi-monotonic Semi Lagrangian

! 0 => Standard Semi-Lagrangian

! 1 => Bermejo and Staniforth 1992 QMSL scheme

ibltyp = 1, ! Boundary layer scheme

! 0 => Frictionless

! 1 => Holtslag PBL (Holtslag, 1990)

! 2 => UW PBL (Bretherton and McCaa, 2004)

icup_lnd = 4, ! Cumulus convection scheme Over Land

icup_ocn = 4, ! Cumulus convection scheme Over Icean

! 1 => Kuo

! 2 => Grell

! 3 => Betts-Miller (1986) DOES NOT WORK !!!

! 4 => Emanuel (1991)

! 5 => Tiedtke (1996)

! 6 => Kain-Fritsch (1990), Kain (2004)

igcc = 2, ! Grell Scheme (icup == 2) Cumulus closure scheme

! 1 => Arakawa & Schubert (1974)

! 2 => Fritsch & Chappell (1980)

ipptls = 1, ! Moisture scheme

! 1 => Explicit moisture (SUBEX; Pal et al 2000)

! 2 => Explicit moisture Nogherotto/Tompkins

iocncpl = 0, ! Ocean SST from coupled Ocean Model through RegESM

! 1 => Coupling activated

iwavcpl = 0, ! Ocean roughness from coupled Wave Model through RegESM

! 1 => Coupling activated

iocnflx = 2, ! Ocean Flux scheme

! 1 => Use BATS1e Monin-Obukhov

! 2 => Zeng et al (1998)

! 3 => Coare bulk flux algorithm

iocnrough = 1, ! Zeng Ocean model roughness formula to use.

! 1 => (0.0065*ustar*ustar)/egrav

! 2 => (0.013*ustar*ustar)/egrav + 0.11*visa/ustar

! 3 => (0.017*ustar*ustar)/egrav

! 4 => Huang 2012 free convection and swell effects

! 5 => four regime formulation

iocnzoq = 1, ! Zeng Ocean model factors for t,q roughness

! 1 => 2.67*(re**d_rfour) - 2.57

! 2 => min(4.0e-4, 2.0e-4*re**(-3.3))

! 3 => COARE formulation as in bulk flux above

ipgf = 0, ! Pressure gradient force scheme

! 0 => Use full fields

! 1 => Hydrostatic deduction with pert. temperature

iemiss = 0, ! Use computed long wave emissivity

lakemod = 0, ! Use lake model

ichem = 0, ! Use active aerosol chemical model

scenario = ’A1B’, ! IPCC Scenario to use in A1B,A2,B1,B2

! RCP Scenarios in RPC2.6,RCP4.5,RCP6,RCP8.5

idcsst = 0, ! Use diurnal cycle sst scheme

iseaice = 0, ! Model seaice effects

idesseas = 0, ! Model desert seasonal albedo variability

iconvlwp = 1, ! Use convective algo for lwp in the large-scale

! This is reset to zero if using ipptls = 2

icldfrac = 0, ! Cloud fraction algorithm

! 0 : Original SUBEX

! 1 : Xu-Randall empirical

icldmstrat = 1, ! Simulate stratocumulus clouds

icumcloud = 1, ! Formulas to use for cumulus clouds (cf and lwc)

! Cloud fractions, only if mass fluxes are not

! available (Kuo and BM):

! 0,1 => cf = 1-(1-clfrcv)**(1/kdepth)

! 2 => cf = cloud profile

! Liquid water content:

! 0 => constant in cloud

! 1,2 => function of temperature

irrtm = 0, ! Use RRTM radiation scheme instead of CCSM

iclimao3 = 0, ! Use O3 climatic dataset from SPARC CMIP5

isolconst = 0, ! Use a constant 1367 W/mˆ2 instead of the prescribed

! TSI recommended CMIP5 solar forcing data.

islab_ocean = 0, ! Activate the SLAB ocean model

itweak = 0, ! Enable tweak scenario

6.1.14 nonhydroparam namelist

This namelist controls non-hydrostatic core for the upper radiative boundary conditions and the base state

temperature vertical proﬁle curve.

&nonhydroparam

logp_lrate = 50.0, ! Logp lapse rate d(T)/d(ln P) K/ln(Pa)

ifupr = 0, ! Upper radiative boundary condition (Klemp and Durran,

! Bougeault, 1983)

ckh = 1.0, ! Background diffusion multiplication factor

diffu_hgtf = 1, ! Add topographic effect to diffusion

nhbet = 0.4, ! Ikawa beta parameter (0.=centered, 1.=backward)

! determines the time-weighting, where zero gives a

! time-centered average and positive values give a bias

! towards the future time step that can be used for

! acoustic damping. In practice, values of

! nhbet = 0.2 - 0.4 are used (MM5 manual, Sec. 2.5.1)

nhxkd = 0.1, ! Time weighting for weighting old/new pp

1. The upper radiative boundary layer option has a high computational cost.

6.1.15 subexparam namelist

This namelist controls the SUBEX moisture scheme. Please consider carefully reporting in your work the tuning

you perform on this parameters. The parameters below are the ones currently used at ICTP.

&subexparam

ncld = 1, ! # of bottom model levels with no clouds (rad only)

qck1land = 0.0005, ! Autoconversion Rate for Land

qck1oce = 0.0005, ! Autoconversion Rate for Ocean

gulland = 0.65, ! Fract of Gultepe eqn (qcth) when prcp occurs (land)

guloce = 0.30, ! Fract of Gultepe eqn (qcth) for ocean

rhmax = 1.01, ! RH at whicn FCC = 1.0

rhmin = 0.01, ! RH min value

rh0land = 0.80, ! Relative humidity threshold for land

rh0oce = 0.90, ! Relative humidity threshold for ocean

tc0 = 238.0, ! Below this temp, rh0 begins to approach unity

cevaplnd = 1.0e-5, ! Raindrop evap rate coef land [[(kg m-2 s-1)-1/2]/s]

cevapoce = 1.0e-5, ! Raindrop evap rate coef ocean [[(kg m-2 s-1)-1/2]/s]

caccrlnd = 6.0, ! Raindrop accretion rate land [m3/kg/s]

caccroce = 6.0, ! Raindrop accretion rate ocean [m3/kg/s]

cllwcv = 0.3e-3, ! Cloud liquid water content for convective precip.

clfrcvmax = 0.75, ! Max cloud fractional cover for convective precip.

cftotmax = 0.75, ! Max total cover cloud fraction for radiation

conf = 1.00, ! Condensation efficiency

rcrit = 13.5, ! Mean critical radius

coef_ccn = 2.0, ! Geometric mean Diameter and standard deviation

abulk = 0.9, ! Bulk activation ratio

lsrfhack = .false. ! Surface radiation hack

We found that RegCM4 is especially sensitive to:

1. cevap : increasing cevap will generally decrease precipitation

2. gulland,guloce : increase of guland/guloce will generally lead to reduce precipitation

6.1.16 microparam namelist

This namelist controls the new microphysics scheme.

&microparam

stats = .false., ! Produce debug variables in output files

budget_compute = .false., ! Verify enthalpy and moisture conservation

nssopt = 1, ! Supersaturation Computation

! 0 => No scheme

! 1 => Tompkins

! 2 => Lohmann and Karcher

! 3 => Gierens

iautoconv = 4, ! Choose the autoconversion paramaterization

! => 1 Klein & Pincus (2000)

! => 2 Khairoutdinov and Kogan (2000)

! => 3 Kessler (1969)

! => 4 Sundqvist

rsemi = 1.0, ! Implicit/Explicit control

! NOT ACTIVATED YET - IT DOES NOT WORK!

! rsemi == 0 => scheme is fully explicit

! rsemi == 1 => scheme is fully implicit

! 0<rsemi<1 => scheme is semi-implicit

vfqr = 4.0, ! Rain fall speed (default is 4 m/s)

vfqi = 0.15, ! Ice fall speed (default is 0.15 m/s)

vfqs = 1.0, ! Snow fall speed (default is 1 m/s)

auto_rate_khair = 0.355, ! Autoconversion coefficient for iautoconv=2

auto_rate_kessl = 1.e-3, ! Autoconversion coefficient for iautoconv=3

auto_rate_klepi = 0.5e-3, ! Autoconversion coefficient for iautoconv=1

rkconv = 1.666e-4, ! Autoconversion coefficient for iautoconv=4

rcovpmin = 0.1, ! Minimum precipitation coverage

rpecons = 5.547e-5, ! Evaporation constant Kessler

6.1.17 grellparam, emanparam, tiedtkeparam and kfparam namelists

You are allowed here to tune the convection scheme selected above in 6.1.13 with the icup_lnd or icup_ocn

number if selected number is 2,4,5.

&grellparam

gcr0 = 0.0020, ! Conversion rate from cloud to rain

edtmin = 0.20, ! Minimum Precipitation Efficiency land

edtmin_ocn = 0.20, ! Minimum Precipitation Efficiency ocean

edtmax = 0.80, ! Maximum Precipitation Efficiency land

edtmax_ocn = 0.80, ! Maximum Precipitation Efficiency ocean

edtmino = 0.20, ! Minimum Tendency Efficiency (o var) land

edtmino_ocn = 0.20, ! Minimum Tendency Efficiency (o var) ocean

edtmaxo = 0.80, ! Maximum Tendency Efficiency (o var) land

edtmaxo_ocn = 0.80, ! Maximum Tendency Efficiency (o var) ocean

edtminx = 0.20, ! Minimum Tendency Efficiency (x var) land

edtminx_ocn = 0.20, ! Minimum Tendency Efficiency (x var) ocean

edtmaxx = 0.80, ! Maximum Tendency Efficiency (x var) land

edtmaxx_ocn = 0.80, ! Maximum Tendency Efficiency (x var) ocean

shrmin = 0.30, ! Minimum Shear effect on precip eff. land

shrmin_ocn = 0.30, ! Minimum Shear effect on precip eff. ocean

shrmax = 0.90, ! Maximum Shear effect on precip eff. land

shrmax_ocn = 0.90, ! Maximum Shear effect on precip eff. ocean

pbcmax = 50.0, ! Max depth (mb) of stable layer b/twn LCL & LFC

mincld = 150.0, ! Min cloud depth (mb).

htmin = -250.0, ! Min convective heating

htmax = 500.0, ! Max convective heating

skbmax = 0.4, ! Max cloud base height in sigma

dtauc = 30.0D0 ! Fritsch & Chappell (1980) ABE Removal Timescale (min)

&emanparam

minsig = 0.95, ! Lowest sigma level from which convection can originate

elcrit_ocn = 0.0011, ! Autoconversion threshold water content (g/g) (ocean)

elcrit_lnd = 0.0011, ! Autoconversion threshold water content (g/g) (land)

tlcrit = -55.0, ! Below tlcrit auto-conversion threshold is zero

entp = 1.5, ! Coefficient of mixing in the entrainment formulation

sigd = 0.05, ! Fractional area covered by unsaturated dndraft

sigs = 0.12, ! Fraction of precipitation falling outside of cloud

omtrain = 50.0, ! Fall speed of rain (Pa/s)

omtsnow = 5.5, ! Fall speed of snow (Pa/s)

coeffr = 1.0, ! Coefficient governing the rate of rain evaporation

coeffs = 0.8, ! Coefficient governing the rate of snow evaporation

cu = 0.7, ! Coefficient governing convective momentum transport

betae = 10.0, ! Controls downdraft velocity scale

dtmax = 0.9, ! Max negative parcel temperature perturbation below LFC

alphae = 0.2, ! Controls the approach rate to quasi-equilibrium

damp = 0.1, ! Controls the approach rate to quasi-equilibrium

epmax_ocn = 0.999, ! Maximum precipitation efficiency (ocean)

epmax_lnd = 0.999, ! Maximum precipitation efficiency (land)

&tiedtkeparam

iconv = 4, ! Actual used scheme.

entrmax = 1.75e-3, ! Max entrainment iconv=[1,2,3]

entrdd = 3.0e-4, ! Entrainment rate for cumulus downdrafts

entrpen = 1.75e-3, ! Entrainment rate for penetrative convection

entrscv = 3.0e-4, ! Entrainment rate for shallow convection iconv=[1,2,3]

entrmid = 1.0e-4, ! Entrainment rate for midlevel convection iconv=[1,2,3]

cprcon = 1.0e-4, ! Coefficient for determining conversion iconv=[1,2,3]

detrpen = 0.75e-4, ! Detrainment rate for penetrative convection iconv=4

entshalp = 2.0, ! shallow entrainment factor for entrorg iconv=4

rcuc_lnd = 0.05, ! Convective cloud cover for rain evporation iconv=4

rcuc_ocn = 0.05, ! Convective cloud cover for rain evporation iconv=4

rcpec_lnd = 5.55e-5, ! Coefficient for rain evaporation below cloud iconv=4

rcpec_ocn = 5.55e-5, ! Coefficient for rain evaporation below cloud iconv=4

rhebc_lnd = 0.7, ! Critical rh below cloud for evaporation iconv=4

rhebc_ocn = 0.9, ! Critical rh below cloud for evaporation iconv=4

rprc_lnd = 1.4e-3, ! conversion coefficient from cloud water iconv=4

rprc_ocn = 1.4e-3, ! conversion coefficient from cloud water iconv=4

rcrit1 = 13.5, ! Mean critical radius for ccn

&kfparam

kf_entrate = 0.03, ! Entrainment rate

kf_min_pef = 0.2, ! Minimum precipitation efficiency

kf_max_pef = 0.9, ! Maximum precipitation efficiency

kf_dpp = 150.0, ! Start elevation for downdraft above cloud base (mb)

kf_tkemax = 5.0, ! Maximum turbolent kinetic energy in sub cloud layer

kf_min_dtcape = 1800.0, ! Consumption time of CAPE low limit

kf_max_dtcape = 3600.0, ! Consumption time of CAPE high limit

Things you need to know here:

1. In case of mixed cumulus schemes (land/ocean), both the selected schemes conﬁguration namelist are read

in. Note in this case for the schemes only the relevant (Ocean or Land) control values are used.

2. Minimum and maximum values of the fraction of reevaporated water in the downdraft for the Grell scheme

is essentially a measure of the precipitation efﬁciency: increasing their value generally decrease convective

precipitation.

3. Again, read carefully the Reference Manual before attempting any tuning, and report in any work

modiﬁcation of this parameters.

6.1.18 holtslagparam namelist

You are allowed here to tune the Holtslag PBL scheme selected above in 6.1.13 with the ibltyp number if selected

number is 1.

&holtslagparam

ricr_ocn = 0.25, ! Critical Richardson Number over Ocean

ricr_lnd = 0.25, ! Critical Richardson Number over Land

zhnew_fac = 0.25, ! Multiplicative factor for zzhnew in holtpbl

ifaholtth10 = 1, ! First approximation for obhukov length, th10 formula:

! 1 => 0.5 * (t+tg) * (1+0.61*q)

! 2 => (0.25*t + 0.75*tg) * (1+0.61*q)

! 3 => theta + hf/(k*us)*log(z/10)

! t = air temp., tg = ground temp., q = wv mix. ratio

! hf = total heat flux, z = elevation

! theta = virt. pot. t

ifaholt = 1, ! th10 final adjustment:

! 0 => no adjustment

! 1 => max(th10,tg)

! 2 => min(th10,tg)

6.1.19 uwparam namelist

You are allowed here to tune the UW PBL scheme selected above in 6.1.13 with the ibltyp number if selected

number is 2.

&uwparam

iuwvadv = 0, ! 0=standard T/QV/QC advection, 1=GB01-style advection

! 1 is ideal for MSc simulation, but may have stability issues

atwo = 15.0, ! Efficiency of enhancement of entrainment by cloud evap.

! see Grenier and Bretherton (2001) Mon. Wea. Rev.

! and Bretherton and Park (2009) J. Clim.

rstbl = 1.5, ! Scaling parameter for stable boundary layer eddy length

! scale. Higher values mean stronger mixing in stable

! conditions

czero = 5.869, ! Czero constant in UW PBL (eqn 44a and pgs 856-857)

nuk = 5.0, ! Multiplicative factor for diffusion coefficients

6.1.20 slabocparam namelist

Here you deﬁne parameter and stage fot the Ocean q-ﬂux adjusted mixed layer model.

&slabocparam

do_qflux_adj = .false., ! Activate SLAB Ocean model surface fluxes adjust

! from an already created climatology

do_restore_sst = .true., ! Create during the run the SLAB Ocean model surface

! fluxes climatology to be used in a subsequent run

sst_restore_timescale = 5.0D0, ! Time interval in days in building the

! q-flux adjustment

mixed_layer_depth = 50.0D0, ! Depth in meters of the Ocean mixed layer.

6.1.21 tweakparam namelist

This namelist controls the tweaking of the model to obtain custom scenarioes, Is enabled if itweak is 1 in 6.1.13.

&tweakparam

itweak_sst = 0, ! Enable adding sst_tweak to input TS

itweak_temperature = 0, ! Enable adding temperature_tweak to input T

itweak_solar_irradiance = 0, ! Add solar_tweak to solar constant

itweak_greenhouse_gases = 0, ! Multiply gas_tweak_factors to GG concentrations

sst_tweak = 0.0D0, ! In K

temperature_tweak = 0.0D0, ! In K

solar_tweak = 0.0D0, ! In W m-2 (1367.0 is default solar)

gas_tweak_factors = 1.0D0, 1.0D0 , 1.0D0 , 1.0D0 , 1.0D0,

! CO2 CH4 N2O CFC11 CFC12

6.1.22 rrtmparam namelist

You are allowed here to tune the RRTM radiative scheme selected above in 6.1.13 with the irrtm number if

selected number is 1.

&rrtmparam

inflgsw = 2, ! 0 = use the optical properties calculated in prep_dat_rrtm

! (same as standard radiation)

! 2 = use RRTM option to calculate cloud optical properties

! from water path and cloud drop radius

iceflgsw = 3, ! Flag for ice particle specification

! 0 => ice effective radius, r_ec, (Ebert and Curry, 1992),

! r_ec must be >= 10.0 microns

! 1 => ice effective radius, r_ec, (Ebert and Curry, 1992),

! r_ec range is limited to 13.0 to 130.0 microns

! 2 => ice effective radius, r_k, (Key, Streamer Ref. Manual,

! 1996), r_k range is limited to 5.0 to 131.0 microns

! 3 => generalized effective size, dge, (Fu, 1996),

! dge range is limited to 5.0 to 140.0 microns

! [dge = 1.0315 * r_ec]

liqflgsw = 1, ! Flag for liquid droplet specification

! 0 => Compute the optical depths due to water clouds in ATM

! (currently not supported)

! 1 => The water droplet effective radius (microns) is input

! and the optical depths due to water clouds are computed

! as in Hu and Stamnes, J., Clim., 6, 728-742, (1993).

inflglw = 2, ! Flag for cloud optical properties as above but for LW

iceflglw = 3, ! Flag for ice particle specification as above but for LW

liqflglw = 1, ! Flag for liquid droplet specification as above but for LW

icld = 1, ! Cloud Overlap hypothesis

irng = 1, ! mersenne twister random generator for McICA COH

6.1.23 chemparam namelist

This namelist controls the chemistry and aerosol options in the RegCM model.

&chemparam

chemsimtype = ’CBMZ ’, ! Which chemical tracers to be activated.

! One in :

! DUST : Activate 4 dust bins scheme

! SSLT : Activate 2 bins Sea salt scheme

! DUSS : Activate DUST +SSLT

! DU12 : Activate 12 dust bins scheme

! CARB : Activate 4 species black/anthropic

! carbon simulations

! SULF : Activate SO2 and SO4 tracers

! SUCA : Activate both SUKF and CARB

! AERO : Activate all DUST, SSLT, CARB and SULF

! CBMZ : Activate gas phase and sulfate

! DCCB : Activate CBMZ +DUST +CARB

! POLLEN : Activate POLLEN transport scheme

ichsolver = 1, ! Activate the gas phase chemical solver CBMZ

ichsursrc = 1, ! Enable the emissions fluxes.

ichdrdepo = 1, ! 1 = enable tracer surface dry deposition. For dust,

! it is calculated by a size settling and dry

! deposition scheme. For other aerosol,a dry

! deposition velocity is simply prescribed further.

ichebdy = 1, ! Enable reading of chemical boundary conditions, otherwise

! put 0 in boundary conditions.

ichcumtra = 1, ! 1 = enable tracer convective transport.

ichremlsc = 1, ! 1 = enable tracer rainout

ichremcvc = 1, ! 1 = enable tracer washout

ichdustemd = 1, ! Choice for parametrisation of dust emission size distribution

! 1 = use the standard scheme (Alfaro et al., Zakey et al.)

! 2 = use a revised soil granulometry ref +

! Kok et al emission size distribution :

! Menut et al.,2012; + Kok et al., 2011

ichdiag = 0, ! 1 = enable writing of additional tracer tendency

! diagnostics in the output

idirect = 1, ! CHoice to enable or not aerosol feedbacks on radiation and

! dynamics (aerosol direct and semi direct effects)

! possible choice 1 or 2:

! 1 = no coupling to dynamic and thermodynamic. However

! the clear sky surface and top of atmosphere

! aerosol radiative forcings are diagnosed.

! 2 = allows aerosol feedbacks on radiative,

! thermodynamic and dynamic fields.

iindirect = 0, ! Enable sulfate first indirect effect in radiation scheme

! based on Qian et al., 2001

rdstemfac = 1.0,! Dust emission adjustment factor ( soil erodibility)

! linearly reduce or increase the dust flux

The chemsimtype parameter select one in a number of ﬁxed sets which deﬁne the nature and number of

chemical species and/or transported aerosols, together with wich relevant scheme is to be used in the simulation.

The implemented possible simulation types for the aerosol/chemistry options are:

1. DUST : Activate 4 dust bins scheme, with on line emission, transport and removal.

2. SSLT : Activate 2 sea salt bins scheme, with on line emission, transport and removal.

3. DUSS : Activate Dust and seasalt scheme, 6 tracers.

4. DU12 : Activate 12 dust bins scheme

5. CARB : Activate 4 species organic and black carbon in both hydrophobic and hydrophilic aerosol scheme,

with on line emission, transport and removal.

6. SULF : Activate SO2 and SO4 tracers with simple sulfate oxidation from oxidant climatology, with on line

emission, transport and removal.

7. SUCA : Activate both SULF and CARB.

8. AERO : Activate all DUST, SSLT, CARB and SULF

9. CBMZ : Activate CBMZ gas phase only option : 37 tracer are considered here.

10. DCCB : Activate CBMZ +DUST +CARB + sulfate-nitrate-ammonium aerosol calculated with the

ISORROPIA gas-aerosol thermodynamical scheme: 50 tracers are considered here.

The more tracer are used, the heavier computationally are the simulations and the outputs. The chemistry

outputs consist of one netCDF ﬁle per tracer, named explicitely and containing concentration ﬁelds + different

diagnostics, and one netCDF ﬁle giving the optical properties of the total aerosol mixture i.e. aerosol optical depth

and radiative forcing. For a big domain, this can require a huge amount of disk space to store the model results.

We will now detail the steps required to run a chemistry/aerosol simulation with the RegCM model.

Pre Processing

We need to perform a couple of operations in the pre-processing stage to prepare input datasets for an

aerosol/chemistry simulation.

1. In the case of a DUST,AERO or DCCB simulation, we need the model to prepare soil type dataset to be used

for dust emission calculation at the terrain program stage. The ltexture parameter in the terrainparam

namelist (see above in 6.1.4) should be set to .true..

2. After having prepared the static and boundary condition data with the icbc program for the atmosphere, we

need also to deﬁne chemical emissions and chemical boundary conditions.

The data needed for this second task come from different sources, both measurements data or GCM model

with a chemistry parametrization active.

1. Emission dataset. The pre processor can manage CMIP5 RCP and IASA anthropogenic emissions for present

day and future emission. For this, the global RCP emission dataset have ﬁrst been processed by ICTP to

match the species considered in the chemical solver CBMZ, and to aggregate different sector of emissions

that are present in the RCP ﬁelds (e.g. CO emission from biomass burning + fossil fuel + ship + . . .). The

resulting global ﬁles, as well as grid informations are publicly available on ICTP site :

http://clima-dods.ictp.it/regcm4/RCP_EMGLOB_PROCESSED

2. Chemical boundary conditions for important tracersare available through ICTP. We use monthly boundary

condition coming from global simulations (CAM + EC-EARTH) for aerosols, following different RCP

scenarios (HIST + future). For gas phase species, we now have 6 hourly chemical boundary conditions

issued from the MOZART CTM. Alternatively, we can use a climatology representative of monthly average

concentrations over the period 2000-2007 coming from the MOZART CTM. The oxidant ﬁelds, used in the

simple sulfate scheme, is also a climatology coming from MOZART CTM. The data are available on ICTP

site.

The steps to prepare the chemistry boundary conditions data are the following:

1. In case of a chemistry simulation type (CBMZ or DCCB), the global emission ﬁles must ﬁrst be interpolate to

the RegCM model grid using the following procedure:

•Create the RegCM model grid description ﬁle to be used by cdo to calculate weghts for a conservative

remapping interpolation:

$> cd $REGCM_RUN

$> ./bin/emcre_grid test_001.in

•Interpolate the global data on the RegCM grid with the interpolation script:

$> cd $REGCM_RUN

$> ./bin/interp_emissions test_001.in

The cdo program installation is mandatory in this case to perform this step. The interpolation is mass

conservative and is consistent for any ratio of model resolution/global emission resolution. Note the

programs and script uses the same root path of terrain and icbc programs for input and data directory. By

default, we expect the global emission to be at the same level than e.g. EIN15 in your data path layout. This

results in a ﬁle named *_CHEMISS.nc of monthly emission for the whole RCP period. You dont need to

reprocess the ﬁle if you change the date of your simulation, as long as you are in the RCP temporal windows

(for now, Historical from 1990-2010) . Which scenario to use is controlled by the scenario variable in the

physicsparam parameter namelist as above in 6.1.13

2. In function of the value of the chemsimtype parameter, the relevant boundary conditions will be produced

on the RegCM domain by running :

$> cd $REGCM_RUN

$> ./bin/chem_icbc test_001.in

That will result in 6 hourly chemical boundary conditions in your input directory (*_CHBC*.nc and/or

*_AEBC*.nc).

Run time parameters

The other chemparam namelist parameters, let you control run time behaviour of the model chemistry and aerosol

schemes.

1. ichsolver : relevant for gas-phase chemistry options, activate the chemical solver CBMZ. If different from

1, there is no chemical reactions and the tracer are only emitted, transported and removed.

2. ichsursrc : if set different from 1, the emission term is suppressed and only boundary conditions are

generating tracer in the domain.

3. ichdrdepo : if set different from 1, the dry deposition and sedimentation of tracers is disabled for chemistry

species.

4. ichremlsc : if set different from 1, rainout of chemical species is disabled.

5. ichremcvc : if set different from 1, washout of chemical species is disabled.

6. ichcumtra : if set different form 1, the convective transport of tracers is disabled.

7. = ichdiag : if set to 1, the writing of additional diagnostics in the chemistry output is enabled. Particularly,

all the 3D tendency terms (advection, turbulence, convection, boundary condition, chemistry, removal, etc.)

of the tracer equation are outputted at the frequency ichfreq. This is usefull for budget and sensitivity

studies, as well as debugging. This potentially can generate HUGE ﬁles.

8. idirect : Enable aerosol feedbacks on radiation.

•if equal to 1, only aerosol radiative forcing is calculated and outputted but there is NO aerosol radiative

feedback on climate. This can be viewed as a control run option.

•if equal to 2, there is a feedback of aerosol radiative forcing on climate ﬁelds, via perturbation of the

temperature tendency. This can be view as the perturbed run option.

9. ichdustemd : Choice for parametrisation of dust emission size distribution:

•if set to 1, the standard scheme s used (Alfaro et al., Zakey et al., 2006)

•if set to 2, the revised soil granulometry + Kok et al., 2011 emission size distribution is used.

10. rdstemfac : Scaling factor (erodibility) for tuning DUST emission ﬂux

Sparse notes

1. Outputs are in netCDF, so process with your favorite software.

2. The ﬂux and tendency variables, as well as radiative forcings, are accumulated and averaged between 2

output time steps (like precipitations). The concentration, burden and aerosol optical depth are instantaneous.

3. The outputs size can be huge, especially for full chemistry and diagnostic options. In the future, we might

have the choice of outputting selected variables only.

Not every possible dynamical conﬁguration has been tested for the chemistry option, so bugs might appear:

please report! CLM enables to calculate on line biogenic volatile hydrocarbon emissions, as well as chemical

deposition that can be used in RegCM. There are some ﬂags to activate when compiling CLM, we will update the

documentation when fully tested.

The Tiedke and Emmanuel schemes, when activated, offer a more detailed treatment of convective transport

than the simple mixing hypothesis used with other schemes. The UW planetary boundary layer option integrate

directly the emission and deposition ﬂux terms as part of the calculation of trurbulent tracer tendency.

6.2 The CLM options

We will now discuss from the user point of view how to use the model setup which need to be activated at conﬁgure

stage.

The CLM option if activated allows the user to run a simulation using the CLM surface model instead of the

default BATS1e model. We will not here go in deep in the difference between the two models, read the Reference

Manual for this. The executable of the model is different in the case of the CLM, and is named regcmMPICLM. Note

that in the CLM case only the MPI enabled compilation is supported (no serial), and no subgridding is possible

(nsg is always 1).

Enable

At conﬁgure stage (see 3.2.1), the option is to be enabled with the right command line argument to the conﬁgure

script

--enable-clm Supply this option if you plan on using CLM option.

This will enable a preprocessing ﬂag, and build a different model executable. Note that no modiﬁcations are

needed for any other part of the model, but this triggers the building of another pre-processing program, clm2rcm.

Prepare and run

The CLM conﬁguration requires a separate namelist in the namelist input ﬁle.

&clmparam

dirclm = ’input/’, ! CLM path to Input data produced by clm2rcm. If

! relative, It should be how to reach the Input dir

! from the Run dir.

clmfrq = 12., ! Frequency for CLM own output write

imask = 1, ! For CLM, Type of land surface parameterization

! 1 => using DOMAIN.INFO for landmask (same as BATS)

! 2 => using mksrf_navyoro file landfraction for

! landmask and perform a weighted average over

! ocean/land gridcells; for example:

! tgb = tgb_ocean*(1-landfraction)+tgb_land*landfraction

Things you need to know here:

1. The inpter path deﬁned in terrainparam namelist described in 6.1.4 is used also by the clm2rcm program.

See at 4.3 how to obtain needed datasets.

2. The ﬁle pft-physiology.c070207 should be manually copied in the dirclm directory before running the

model.

3. The clmfrq is relative to the output produced by the CLM model itself, and does not control the RegCM model

output. To know the CLM output ﬁle content, refer to CLM 3.5 documentation.

4. The imask = 2 option cannot be used with the icup_lnd or icup_ocn cumulus convection schemes 2,

which rely on the BATS1e landmask.

In the case of CLM run, the user needs to run, after the terrain program, the clm2rcm program, and copy the

pft-physiology.c070207 in the input directory:

$> cd $REGCM_RUN

$> ./bin/terrain regcm.in

$> ./bin/clm2rcm regcm.in

$> cp $REGCM_GLOBEDAT/CLM/pft-physiology.c070207 input/

The clm2rcm program interpolates global land characteristics datasets to the RegCM projected grid. The

content of the pft-physiology.c070207 ﬁle are described in the pft-physiology.c070207.readme ﬁle. All

the other pre-processing steps are just equal to the one detailed in chapter 5. To run the CLM option in the RegCM

model, just substitute the executable name:

$> mpirun -np 2 ./bin/regcmMPICLM regcm.in

Note that the CLM land model is much heavier than the BATS1e model, and computing time increases.

6.3 The CLM 4.5 options

We will now discuss from the user point of view how to use the model setup which need to be activated at conﬁgure

stage.

The CLM 4.5 option if activated allows the user to run a simulation using the CLM version 4.5 surface model

instead of the default BATS1e model. We will not here go in deep in the difference between the two models, read

the Reference Manual for this. The executable of the model is different in the case of the CLM 4.5, and is named

regcmMPICLM45. Note that in the CLM 4.5 case only the MPI enabled compilation is supported (no serial).

Enable

At conﬁgure stage (see 3.2.1), the option is to be enabled with the right command line argument to the conﬁgure

script

--enable-clm45 Supply this option if you plan on using CLM45 option.

This will enable a preprocessing ﬂag, and build a different model executable. Note that no modiﬁcations

are needed for any other part of the model, but this triggers the building of another pre-processing program,

mksurfdata.

Prepare and run

The CLM45 conﬁguration requires a separate entries in the namelist input ﬁle.

&clm_inparm

fpftcon = ’pft-physiology.c130503.nc’,

fsnowoptics = ’snicar_optics_5bnd_c090915.nc’,

fsnowaging = ’snicar_drdt_bst_fit_60_c070416.nc’,

hist_nhtfrq = 0,

&clm_soilhydrology_inparm

h2osfcflag = 1,

origflag = 0,

&clm_hydrology1_inparm

oldfflag = 0,

Things you need to know here:

1. The namelist 6.1.7 is used also by the mksurfdata program. See at 4.4 how to obtain needed datasets.

2. The hist_nhtfrq is relative to the output produced by the CLM 4.5 model itself, and does not control the

RegCM model output.

3. To know the CLM 4.5 output ﬁle content, refer to CLM 4.5 documentation.

In the case of CLM 4.5 run, the user needs to run, after the terrain program, the mksurfdata program.

$> cd $REGCM_RUN

$> ./bin/terrain regcm.in

$> ./bin/mksurfdata regcm.in

$> cp $REGCM_GLOBEDAT/CLM/pft-physiology.c070207 input/

All the other pre-processing steps are just equal to the one detailed in chapter 5. To run the CLM 4.5 option in

the RegCM model, just substitute the executable name:

$> mpirun -np 2 ./bin/regcmMPICLM45 regcm.in

6.4 Sensitivity experiments hint

Although the LBC forcing does provide a constraint for the model, as any RCM, RegCM4 is characterized by a

certain level of internal variability due to its non-liner processes (e.g. convection).

For example, if small perturbations are introduced in the initial or lateral boundary conditions, the model will

generally produce different patterns of, e.g. precipitation, that appear as (sometimes seemingly organized) noise

when compared to the control simulation.

This noise depends on domain size and climatic regimes, for example it is especially pronounced in warm

climate regimes (e.g. tropics or during the summer season) and large doamins.

When doing for example sensitivity experiments to model modiﬁcations, e.g. to land use change, this internal

variability noise can be misinterpreted as a model response to the factor modiﬁed.

Users of RegCM4 should be aware of this when they do sensitivity experiments. The best way to ﬁlter out this

noise is to perform ensembles of simulations and lok at the ensemble averages to extract the real model response

from the noise.

Chapter 7

Postprocessing tools

The new netCDF output format allows users to use a number of general purpose tools to postprocess model output

ﬁles. We will in this section do a quick review of some of the Open Source and Free Software ones.

7.1 Command line tools

Three major set of tools may help you do even complex calculation just from command line prompt.

7.1.1 netCDF library tools

The netCDF library itself offers three basic tools to play with netCDF archived data.

•ncdump program, generates a text representation of a speciﬁed netCDF ﬁle on standard output. The text

representation is in a form called CDL (network Common Data form Language) that can be viewed, edited,

or serve as input to ncgen, thus ncdump and ncgen can be used as inverses to transform data representation

between binary and text representations. ncdump may also be used as a simple browser for netCDF datasets,

to display the dimension names and lengths; variable names, types, and shapes; attribute names and values;

and optionally, the values of data for all variables or selected variables in a netCDF dataset. Sample usage

patterns:

1. Look at the structure of the data in the netCDF dataset:

ncdump -c test_001_SRF.1990060100.nc

2. Produce a fully-annotated (one data value per line) listing of the data for the variables time and tas,

using FORTRAN conventions for indices, and show the ﬂoating-point data with only four signiﬁcant

digits of precision and the time values with ISO format:

ncdump -v time,tas -p 4 -t -f \

fortran test_001_SRF.1990060100.nc

•ncgen program, the reverse of the ncdump program: generates a netCDF ﬁle or a C or FORTRAN program

that creates a netCDF dataset from a CDL input. Sample usage patterns:

1. From a CDL ﬁle, generate a binary netCDF ﬁle:

ncgen -o test_001_SRF.1990060100_modif.nc \

test_001_SRF.1990060100.cdl

2. From a CDL ﬁle, generate a Fortran program to write the netCDF ﬁle:

ncgen -f test_001_SRF.1990060100.cdl > prog.f

•nccopy utility copies an input netCDF ﬁle to an output netCDF ﬁle, in any of the four format variants, if

possible, and in function of the selected output format add compression ﬁlter and/or data chunking. Sample

usage patterns:

1. Convert a netCDF dataset to a netCDF 4 classic model compressed data ﬁle using shufﬂing to enhance

compression level:

nccopy -k 4 -d 9 -s test_001_SRF.1990060100.nc \

test_001_SRF.1990060100_compressed.nc

You can also ﬁnd, in the Tools/Programs/RegCM_read directory under $REGCM_ROOT a sample program to

read an output ﬁle using the netCDF library you can modify to ﬁt your needs.

7.1.2 NetCDF operators NCO

This set of tools can be considered a swiss army knife to manage netCDF datasets. There are multiple operators,

and Each operator takes netCDF ﬁles as input, then operates (e.g., derives new data, averages, hyperslabs,

manipulates metadata) and produces a netCDF output ﬁle. The single-command style of NCO allows users

to manipulate and analyze ﬁles interactively, or with simple scripts that avoid some overhead of higher level

programming environments. The major tools are:

•ncap2 netCDF Arithmetic Processor

•ncatted netCDF Attribute Editor

•ncbo netCDF Binary Operator

•ncea netCDF Ensemble Averager

•ncecat netCDF Ensemble Concatenator

•ncflint netCDF File Interpolator

•ncks netCDF Kitchen Sink

•ncpdq netCDF Permute Dimensions Quickly, Pack Data Quietly

•ncra netCDF Record Averager

•ncrcat netCDF Record Concatenator

•ncrename netCDF Renamer

•ncwa netCDF Weighted Averager

A comprehensive user guide can be found at:

http://nco.sourceforge.net/nco.html

Sample usage patterns:

1. Get value of tas variable at a particular point for all timesteps with a prescribed format one per line on stdout:

ncks -C -H -s "%6.2f\n" -v tas -d iy,16 -d jx,16 \

test_001_SRF.1990060100.nc

2. Extract one timestep of tas from a ﬁle and save into a new netCDF ﬁle:

ncks -c -v tas -d time,6 test_001_SRF.1990060100.nc \

test_001_SRF.1990060212.nc

3. Cat together a year worth of output data for the single tas variable into a single ﬁle:

ncrcat -c -v tas test_001_SRF.1990??0100.nc \

test_001_T2M.1990.nc

4. Get the DJF mean value of the tempertaure from a multiyear run:

ncra -c -v tas test_001_SRF.????120100.nc \

test_001_SRF.????010100.nc \

test_001_SRF.????020100.nc \

test_001_DJF_T2M.nc

We strongly encourage you to read the on-line user guide of the NCO tools. You will for sure get a boost on

your data manipulation and analysis skills.

7.1.3 Climate data Operators CDO

The monolithic cdo program from the Max Planck Institut f´

’ur Meteorologie implements a really comprehensive

collection of command line Operators to manipulate and analyse Climate and NWP model Data either in netCDF

or GRIB format. There are more than 400 operators available, covering the following topics:

•File information and ﬁle operations

•Selection and Comparision

•Modiﬁcation of meta data

•Arithmetic operations

•Statistical analysis

•Regression and Interpolation

•Vector and spectral Transformations

•Formatted I/O

•Climate indices

We wont make here a comprehensive analysis of this tool, but you can ﬁnd some ideas in the PostProc

directory on $REGCM_ROOT reading the two sample average and regrid scripts, which use a combination of NCO

programs and cdo operators to reach goal. A very simple usage pattern for example to obtain a monthly mean is:

cdo monmean test_001_T2M.1990.nc

7.2 GrADS program

This tool is the one mostly used at ICTP to analyze and plot model output results. It can be used either as an

interactive tool either as a batch data analysis tool. We have already written in chapter 5 about the helper program

GrADSNcPlot which can be used to interactively plot model output results. We will here detail why an helper

program is needed and how it does work. For information regarding the grads program itself, a comprehensive

guide may be found at:

http://www.iges.org/grads/gadoc/users.html

7.2.1 GrADS limits

The grads program is powerful, yet has limits:

1. Only the equirectangular projection or Plate Carr´

ee is supported. Some other projections can be used through

a pdef entry in the CTL ﬁle using the internal direct preprojection engines, but not all RegCM supported

projections are supported using direct engine.

2. NetCDF format allows multidimensional variables, while grads supports just four dimensional

(time,level,latitude,longitude) variables.

Luckily, these limits can be exceeded, carefully telling grads the RegCM data structure using the CTL ﬁle and

one ancillary proj ﬁle:

1. The grads program allows usage of the pdef BILIN option in the CTL ﬁle, which allows the user to specify

a supplementary ﬁle name. In this ﬁle are stored three lat-lon ﬂoating-point grids which have for each point

on the equirectangular grid the indexes i,j on the projected grid, as well as wind rotation values.

2. The grads program allows identifying four dimentional slices of a multidimensional variable as new

variables, providing them a unique name. This is how we are able to see in grads chemical output variables.

While the GrADSNcPlot program allows interactive plotting and after quitting the grads program removes the

CTL ﬁle and the proj ﬁle, the GrADSNcPrepare program only creates this two ﬁles, allowing share of the proj ﬁle

between multiple CTL ﬁles sharing the same RegCM domain (i.e. it creates just only once the proj ﬁle). To use

the grads program, you need to have both this ancillary ﬁles together with the data netCDF ﬁle.

To create the CTL ﬁle for the history CLM output ﬁle, you need to provide to the helper programs the path to

both the history CLM and the RegCM DOMAIN ﬁle, as in:

$ GrADSNcPrepare clmoutput.clm2.h0.2000-07-30-00000.nc test_DOMAIN000.nc

A collection of sample grads scripts commonly used at ICTP to plot simulation results can be found in the

Tools/Scripts/GrADS directory under $REGCM_ROOT.

7.3 CISL’s NCL : NCAR Command Language

This awesome tool from NCAR is an interpreted language designed for scientiﬁc data analysis and visualization.

Noah Diffenbaugh and Mark Snyder have created a website dedicated to visualizing RegCM3 output using

the NCAR Command Language (NCL). These scripts where built using RegCM3 model output converted to

netCDF using an external converter. They have been adapted to serve as very basic example scripts to process

a native RegCM 4.2 output data ﬁle or do some data analysis using the NCL language and are available in the

Tools/Scripts/NCL/examples directory. Travis O’Brien from the User Community also contributed sample

scripts, which may be found under the Tools/Scripts/NCL directory.

7.4 R Statistical Computing Language

The Rstatistical computing language is able with an add on package to load into interal data structure a

meteorological ﬁeld read from a netCDF RegCM output. A sample script to load and plot the 2m Temperature at

a selected timestep can be used as a reference to develop a real powerful statistical analysis of model results: it is

under Tools/Scripts/R.

7.5 Non free tools

Note that the netCDF format, using plugins or native capabilities, allows clean access to model output from a

number of non free tools like MatlabTMor IDLTM.

For a more complete list of tools, you are invited to scroll down the very long list of tools at:

http://www.unidata.ucar.edu/software/netcdf/software.html

Chapter 8

Getting help and reporting bugs

8.1 The Gforge site

A new welcoming home for the RegCM Community has been built with the help of Italian National Research

Council CNR Democritos Group on the e-science Lab E-Forge web site:

https://gforge.ictp.it/gf/project/regcm

Figure 8.1: The Gforge site

On this site you have access with a simple registration to a friendly bug tracking system under the tracker link,

allowing the users to post problems and bugs they discover.

It allows posting also of ﬁles to give you the opportunity to provide as much information as possible about

the environment the model is running at your institution, helping us better understand and solve efﬁciently your

problems.

Help us grow the model to ﬁt your requirements, giving the broader user community the beneﬁt of a valuable

tool to do better research.

Chapter 9

Appendices

We will review here a sample installation session of software needed to install the RegCM model.

The starting point is here a Linux system on a multicore processor box, and the ﬁnal goal is to have an optimized

system to run the model. I will use bash as my shell and assume that GNU development tools like make,sed,awk

are installed as part of the default Operating System environment as is the case in most Linux distro. I will require

also for commodity a command line web downloader such as curl installed on the system, along its development

libraries to be used to enable OpenDAP remote data access protocol capabilities of netCDF library. Standard ﬁle

management tools such as tar and gzip and wget are also required. The symbol $> will stand for a shell prompt.

I will assume that the process is performed as a normal system user, which will own all the toolchain. I will be

now just the regcm user.

9.1 Identify Processor

First step is to identify the processor to know its capabilities:

$> cat /proc/cpuinfo

This command will ask to the operating system to print processor informations. A sample answer on my laptop

is:

processor : 0

vendor_id : GenuineIntel

cpu family : 6

model : 30

model name : Intel(R) Core(TM) i7 CPU Q 740 @ 1.73GHz

stepping : 5

cpu MHz : 933.000

cache size : 6144 KB

physical id : 0

siblings : 8

core id : 0

cpu cores : 4

apicid : 0

initial apicid : 0

fpu : yes

fpu_exception : yes

cpuid level : 11

wp : yes

flags : fpu vme de pse tsc msr pae mce cx8 apic sep mtrr pge

mca cmov pat pse36 clflush dts acpi mmx fxsr sse sse2 ss ht tm pbe syscall

nx rdtscp lm constant_tsc arch_perfmon pebs bts rep_good nopl xtopology

nonstop_tsc aperfmperf pni dtes64 monitor ds_cpl vmx smx est tm2 ssse3

cx16 xtpr pdcm sse4_1 sse4_2 popcnt lahf_lm ida dts tpr_shadow vnmi

flexpriority ept vpid

bogomips : 3467.81

clflush size : 64

cache_alignment : 64

address sizes : 36 bits physical, 48 bits virtual

power management:

repeated eight time with Processor Ids from 0 to 7: I have a Quad Core Intel with Hyperthreading on (this

multiply by 2 the reported processor list). The processor reports here also to support Intel Streaming SIMD

Extensions V4.2, which can be later used to speed up code execution vectorizing ﬂoating point operation on any

single CPU core.

9.2 Chose compiler

Depending on the processor, we can chose which compiler to use. On a Linux box, we have multiple choices:

•GNU Gfortran

•G95

•Intel ifort compiler

•Portland compiler

•Absoft ProFortran

•NAG Fortran Compiler

and for sure other which I may not be aware of. All of these compilers have pros and cons, so I am just for

now selecting one in the pool only to continue the exposition. I am not selecting the trivial solution of Gfortran

as most Linux distributions have it already packaged, and all the other required software as well (most complete

distribution I am aware of for this is Fedora: all needed software is packaged and it is a matter of yum install).

So let us assume I have licensed the Intel Composer XE Professional Suite 13.0.0 on my laptop. My system

administrator installed it on the default location under /opt/intel, and I have my shell environment update

loading vendor provided script:

$> source /opt/intel/bin/compilervars.sh intel64

With some modiﬁcation (the path, the script, the arguments to the script), same step is to be performed for all

non-GNU compilers in the above list, and is documented in the installation manual of the compiler itself.

In case of Intel, to check the correct behaviour of the compiler, try to type the following command:

$> ifort --version

ifort (IFORT) 13.0.0 20120731

I am skipping here any problem that may arise from license installation for any of the compilers, so I am

assuming that if the compiler is callable, it works. As this step is usually performed by a system administrator on

the machine, I am assuming a skilled professional will take care of that.

9.3 Environment setup

We will now use the prereq_install shell script provided in the Tools/Scripts directory. Given the above

environment, we can edit the ﬁle and decomment the lines relative to the selected compiler.

# Working CC Compiler

#CC=gcc

CC=icc

#CC=pgcc

# Working C++ Compiler

#CXX=g++

CXX=icpc

#CXX=pgCC

# Working Fortran Compiler

#FC=gfortran

FC=ifort

#FC=pgf90

# Destination directory

DEST=/home/regcm/intelsoft

I am now ready to compile software.

9.4 Pre requisite library installation

The help script will build netCDF V4 and MPI libraries to be used to compile the RegCM model.

Then we can just execute the script:

$> ./prereq_install.sh

This script installs the netCDF/mpi librares in the

/home/regcm/intelsoft

directory. If something goes wrong, logs are saved in

/home/regcm/intelsoft/logs

Downloading ZLIB library...

Downloading HDF5 library...

Downloading netCDF Library...

Downloading MPICH2 Library...

Compiling MPI library.

Compiled MPI library.

Compiling zlib Library.

Compiled zlib library.

Compiling HDF5 library.

Compiled HDF5 library.

Compiling netCDF Library.

Compiled netCDF C library.

Compiled netCDF Fortran library.

Done!

To link RegCM with this librares use:

PATH=/home/regcm/intelsoft/bin:$PATH ./configure \

CC=icc FC=ifort \

CPPFLAGS=-I/home/regcm/intelsoft/include \

LDFLAGS=-L/home/regcm/intelsoft/lib \

LIBS="-lnetcdff -lnetcdf -lhdf5_hl -lhdf5 -lz"

The admins who must compile the pre requisite libraries are invited to look at the script, identifying the various

steps. The normal user should be content of the last printout message which details how to use the just built

libraries to compile RegCM model sources against. At run time an environment variable must be added to set

correct paths:

$> export PATH=/home/regcm/intelsoft/bin:$PATH

The above is needed to be repeated for any shell which is used to run RegCM programs, and can be appended

for convenience on the user shell startup scripts.

Bibliography

Giorgi, F., Regcm version 4.1 reference manual, Tech. rep., ICTP Trieste, 2011.

O’Brien, T. A., L. C. Sloan, and M. A. Snyder, Can ensembles of regional climate model simulations improve

results from sensitivity studies?, Climate Dynamics,37, 1111–1118, doi:10.1007/s00382-010-0900-5, 2011.

R. Courant, K. F., and H. Lewy, ¨

uber die partiellen differenzengleichungen der mathematischen physik,

Mathematische Annalen,100(1), 3274, 1928.

Rew, R. K., and G. P. Davis, Netcdf: An interface for scientiﬁc data access, IEEE Computer Graphics and

Applications,10(4), 76–82, 1990.

GNU Free Documentation License

Version 1.3, 3 November 2008

<http://fsf.org/>

Everyone is permitted to copy and distribute verbatim copies

of this license document, but changing it is not allowed.

0. PREAMBLE

The purpose of this License is to make a manual, textbook, or other

functional and useful document "free" in the sense of freedom: to

assure everyone the effective freedom to copy and redistribute it,

with or without modifying it, either commercially or noncommercially.

Secondarily, this License preserves for the author and publisher a way

to get credit for their work, while not being considered responsible

for modifications made by others.

This License is a kind of "copyleft", which means that derivative

works of the document must themselves be free in the same sense. It

complements the GNU General Public License, which is a copyleft

license designed for free software.

We have designed this License in order to use it for manuals for free

software, because free software needs free documentation: a free

program should come with manuals providing the same freedoms that the

software does. But this License is not limited to software manuals;

it can be used for any textual work, regardless of subject matter or

whether it is published as a printed book. We recommend this License

principally for works whose purpose is instruction or reference.

1. APPLICABILITY AND DEFINITIONS

This License applies to any manual or other work, in any medium, that

contains a notice placed by the copyright holder saying it can be

distributed under the terms of this License. Such a notice grants a

world-wide, royalty-free license, unlimited in duration, to use that

work under the conditions stated herein. The "Document", below,

refers to any such manual or work. Any member of the public is a

licensee, and is addressed as "you". You accept the license if you

copy, modify or distribute the work in a way requiring permission

under copyright law.

A "Modified Version" of the Document means any work containing the

Document or a portion of it, either copied verbatim, or with

modifications and/or translated into another language.

A "Secondary Section" is a named appendix or a front-matter section of

the Document that deals exclusively with the relationship of the

publishers or authors of the Document to the Document’s overall

subject (or to related matters) and contains nothing that could fall

directly within that overall subject. (Thus, if the Document is in

part a textbook of mathematics, a Secondary Section may not explain

any mathematics.) The relationship could be a matter of historical

connection with the subject or with related matters, or of legal,

commercial, philosophical, ethical or political position regarding

them.

The "Invariant Sections" are certain Secondary Sections whose titles

are designated, as being those of Invariant Sections, in the notice

that says that the Document is released under this License. If a

section does not fit the above definition of Secondary then it is not

allowed to be designated as Invariant. The Document may contain zero

Invariant Sections. If the Document does not identify any Invariant

Sections then there are none.

The "Cover Texts" are certain short passages of text that are listed,

as Front-Cover Texts or Back-Cover Texts, in the notice that says that

the Document is released under this License. A Front-Cover Text may

be at most 5 words, and a Back-Cover Text may be at most 25 words.

A "Transparent" copy of the Document means a machine-readable copy,

represented in a format whose specification is available to the

general public, that is suitable for revising the document

straightforwardly with generic text editors or (for images composed of

pixels) generic paint programs or (for drawings) some widely available

drawing editor, and that is suitable for input to text formatters or

for automatic translation to a variety of formats suitable for input

to text formatters. A copy made in an otherwise Transparent file

format whose markup, or absence of markup, has been arranged to thwart

or discourage subsequent modification by readers is not Transparent.

An image format is not Transparent if used for any substantial amount

of text. A copy that is not "Transparent" is called "Opaque".

Examples of suitable formats for Transparent copies include plain

ASCII without markup, Texinfo input format, LaTeX input format, SGML

or XML using a publicly available DTD, and standard-conforming simple

HTML, PostScript or PDF designed for human modification. Examples of

transparent image formats include PNG, XCF and JPG. Opaque formats

include proprietary formats that can be read and edited only by

proprietary word processors, SGML or XML for which the DTD and/or

processing tools are not generally available, and the

machine-generated HTML, PostScript or PDF produced by some word

processors for output purposes only.

The "Title Page" means, for a printed book, the title page itself,

plus such following pages as are needed to hold, legibly, the material

this License requires to appear in the title page. For works in

formats which do not have any title page as such, "Title Page" means

the text near the most prominent appearance of the work’s title,

preceding the beginning of the body of the text.

The "publisher" means any person or entity that distributes copies of

the Document to the public.

A section "Entitled XYZ" means a named subunit of the Document whose

title either is precisely XYZ or contains XYZ in parentheses following

text that translates XYZ in another language. (Here XYZ stands for a

specific section name mentioned below, such as "Acknowledgements",

"Dedications", "Endorsements", or "History".) To "Preserve the Title"

of such a section when you modify the Document means that it remains a

section "Entitled XYZ" according to this definition.

The Document may include Warranty Disclaimers next to the notice which

states that this License applies to the Document. These Warranty

Disclaimers are considered to be included by reference in this

License, but only as regards disclaiming warranties: any other

implication that these Warranty Disclaimers may have is void and has

no effect on the meaning of this License.

2. VERBATIM COPYING

You may copy and distribute the Document in any medium, either

commercially or noncommercially, provided that this License, the

to the Document are reproduced in all copies, and that you add no

other conditions whatsoever to those of this License. You may not use

technical measures to obstruct or control the reading or further

copying of the copies you make or distribute. However, you may accept

compensation in exchange for copies. If you distribute a large enough

number of copies you must also follow the conditions in section 3.

You may also lend copies, under the same conditions stated above, and

you may publicly display copies.

3. COPYING IN QUANTITY

If you publish printed copies (or copies in media that commonly have

printed covers) of the Document, numbering more than 100, and the

Document’s license notice requires Cover Texts, you must enclose the

copies in covers that carry, clearly and legibly, all these Cover

Texts: Front-Cover Texts on the front cover, and Back-Cover Texts on

the back cover. Both covers must also clearly and legibly identify

you as the publisher of these copies. The front cover must present

the full title with all words of the title equally prominent and

visible. You may add other material on the covers in addition.

Copying with changes limited to the covers, as long as they preserve

the title of the Document and satisfy these conditions, can be treated

as verbatim copying in other respects.

If the required texts for either cover are too voluminous to fit

legibly, you should put the first ones listed (as many as fit

reasonably) on the actual cover, and continue the rest onto adjacent

pages.

If you publish or distribute Opaque copies of the Document numbering

more than 100, you must either include a machine-readable Transparent

copy along with each Opaque copy, or state in or with each Opaque copy

a computer-network location from which the general network-using

public has access to download using public-standard network protocols

a complete Transparent copy of the Document, free of added material.

If you use the latter option, you must take reasonably prudent steps,

when you begin distribution of Opaque copies in quantity, to ensure

that this Transparent copy will remain thus accessible at the stated

location until at least one year after the last time you distribute an

Opaque copy (directly or through your agents or retailers) of that

edition to the public.

It is requested, but not required, that you contact the authors of the

Document well before redistributing any large number of copies, to

give them a chance to provide you with an updated version of the

Document.

4. MODIFICATIONS

You may copy and distribute a Modified Version of the Document under

the conditions of sections 2 and 3 above, provided that you release

the Modified Version under precisely this License, with the Modified

Version filling the role of the Document, thus licensing distribution

and modification of the Modified Version to whoever possesses a copy

of it. In addition, you must do these things in the Modified Version:

A. Use in the Title Page (and on the covers, if any) a title distinct

from that of the Document, and from those of previous versions

(which should, if there were any, be listed in the History section

of the Document). You may use the same title as a previous version

if the original publisher of that version gives permission.

B. List on the Title Page, as authors, one or more persons or entities

responsible for authorship of the modifications in the Modified

Version, together with at least five of the principal authors of the

Document (all of its principal authors, if it has fewer than five),

unless they release you from this requirement.

C. State on the Title page the name of the publisher of the

Modified Version, as the publisher.

D. Preserve all the copyright notices of the Document.

E. Add an appropriate copyright notice for your modifications

adjacent to the other copyright notices.

F. Include, immediately after the copyright notices, a license notice

giving the public permission to use the Modified Version under the

terms of this License, in the form shown in the Addendum below.

G. Preserve in that license notice the full lists of Invariant Sections

and required Cover Texts given in the Document’s license notice.

H. Include an unaltered copy of this License.

I. Preserve the section Entitled "History", Preserve its Title, and add

to it an item stating at least the title, year, new authors, and

publisher of the Modified Version as given on the Title Page. If

there is no section Entitled "History" in the Document, create one

stating the title, year, authors, and publisher of the Document as

given on its Title Page, then add an item describing the Modified

Version as stated in the previous sentence.

J. Preserve the network location, if any, given in the Document for

public access to a Transparent copy of the Document, and likewise

the network locations given in the Document for previous versions

it was based on. These may be placed in the "History" section.

You may omit a network location for a work that was published at

least four years before the Document itself, or if the original

publisher of the version it refers to gives permission.

K. For any section Entitled "Acknowledgements" or "Dedications",

Preserve the Title of the section, and preserve in the section all

the substance and tone of each of the contributor acknowledgements

and/or dedications given therein.

L. Preserve all the Invariant Sections of the Document,

unaltered in their text and in their titles. Section numbers

or the equivalent are not considered part of the section titles.

M. Delete any section Entitled "Endorsements". Such a section

may not be included in the Modified Version.

N. Do not retitle any existing section to be Entitled "Endorsements"

or to conflict in title with any Invariant Section.

O. Preserve any Warranty Disclaimers.

If the Modified Version includes new front-matter sections or

appendices that qualify as Secondary Sections and contain no material

copied from the Document, you may at your option designate some or all

of these sections as invariant. To do this, add their titles to the

list of Invariant Sections in the Modified Version’s license notice.

These titles must be distinct from any other section titles.

You may add a section Entitled "Endorsements", provided it contains

nothing but endorsements of your Modified Version by various

parties--for example, statements of peer review or that the text has

been approved by an organization as the authoritative definition of a

standard.

You may add a passage of up to five words as a Front-Cover Text, and a

passage of up to 25 words as a Back-Cover Text, to the end of the list

of Cover Texts in the Modified Version. Only one passage of

Front-Cover Text and one of Back-Cover Text may be added by (or

through arrangements made by) any one entity. If the Document already

includes a cover text for the same cover, previously added by you or

by arrangement made by the same entity you are acting on behalf of,

you may not add another; but you may replace the old one, on explicit

permission from the previous publisher that added the old one.

The author(s) and publisher(s) of the Document do not by this License

give permission to use their names for publicity for or to assert or

imply endorsement of any Modified Version.

5. COMBINING DOCUMENTS

You may combine the Document with other documents released under this

License, under the terms defined in section 4 above for modified

versions, provided that you include in the combination all of the

Invariant Sections of all of the original documents, unmodified, and

list them all as Invariant Sections of your combined work in its

license notice, and that you preserve all their Warranty Disclaimers.

The combined work need only contain one copy of this License, and

multiple identical Invariant Sections may be replaced with a single

copy. If there are multiple Invariant Sections with the same name but

different contents, make the title of each such section unique by

adding at the end of it, in parentheses, the name of the original

author or publisher of that section if known, or else a unique number.

Make the same adjustment to the section titles in the list of

Invariant Sections in the license notice of the combined work.

In the combination, you must combine any sections Entitled "History"

in the various original documents, forming one section Entitled

"History"; likewise combine any sections Entitled "Acknowledgements",

and any sections Entitled "Dedications". You must delete all sections

Entitled "Endorsements".

6. COLLECTIONS OF DOCUMENTS

You may make a collection consisting of the Document and other

documents released under this License, and replace the individual

copies of this License in the various documents with a single copy

that is included in the collection, provided that you follow the rules

of this License for verbatim copying of each of the documents in all

other respects.

You may extract a single document from such a collection, and

distribute it individually under this License, provided you insert a

copy of this License into the extracted document, and follow this

License in all other respects regarding verbatim copying of that

document.

7. AGGREGATION WITH INDEPENDENT WORKS

A compilation of the Document or its derivatives with other separate

and independent documents or works, in or on a volume of a storage or

distribution medium, is called an "aggregate" if the copyright

resulting from the compilation is not used to limit the legal rights

of the compilation’s users beyond what the individual works permit.

When the Document is included in an aggregate, this License does not

apply to the other works in the aggregate which are not themselves

derivative works of the Document.

If the Cover Text requirement of section 3 is applicable to these

copies of the Document, then if the Document is less than one half of

the entire aggregate, the Document’s Cover Texts may be placed on

covers that bracket the Document within the aggregate, or the

electronic equivalent of covers if the Document is in electronic form.

Otherwise they must appear on printed covers that bracket the whole

aggregate.

8. TRANSLATION

Translation is considered a kind of modification, so you may

distribute translations of the Document under the terms of section 4.

Replacing Invariant Sections with translations requires special

permission from their copyright holders, but you may include

translations of some or all Invariant Sections in addition to the

original versions of these Invariant Sections. You may include a

translation of this License, and all the license notices in the

Document, and any Warranty Disclaimers, provided that you also include

the original English version of this License and the original versions

of those notices and disclaimers. In case of a disagreement between

the translation and the original version of this License or a notice

or disclaimer, the original version will prevail.

If a section in the Document is Entitled "Acknowledgements",

"Dedications", or "History", the requirement (section 4) to Preserve

its Title (section 1) will typically require changing the actual

title.

9. TERMINATION

You may not copy, modify, sublicense, or distribute the Document

except as expressly provided under this License. Any attempt

otherwise to copy, modify, sublicense, or distribute it is void, and

will automatically terminate your rights under this License.

However, if you cease all violation of this License, then your license

from a particular copyright holder is reinstated (a) provisionally,

unless and until the copyright holder explicitly and finally

terminates your license, and (b) permanently, if the copyright holder

fails to notify you of the violation by some reasonable means prior to

60 days after the cessation.

Moreover, your license from a particular copyright holder is

reinstated permanently if the copyright holder notifies you of the

violation by some reasonable means, this is the first time you have

received notice of violation of this License (for any work) from that

your receipt of the notice.

Termination of your rights under this section does not terminate the

licenses of parties who have received copies or rights from you under

this License. If your rights have been terminated and not permanently

reinstated, receipt of a copy of some or all of the same material does

not give you any rights to use it.

10. FUTURE REVISIONS OF THIS LICENSE

The Free Software Foundation may publish new, revised versions of the

GNU Free Documentation License from time to time. Such new versions

will be similar in spirit to the present version, but may differ in

detail to address new problems or concerns. See

http://www.gnu.org/copyleft/.

Each version of the License is given a distinguishing version number.

If the Document specifies that a particular numbered version of this

License "or any later version" applies to it, you have the option of

following the terms and conditions either of that specified version or

of any later version that has been published (not as a draft) by the

Free Software Foundation. If the Document does not specify a version

number of this License, you may choose any version ever published (not

as a draft) by the Free Software Foundation. If the Document

specifies that a proxy can decide which future versions of this

License can be used, that proxy’s public statement of acceptance of a

version permanently authorizes you to choose that version for the

Document.

11. RELICENSING

"Massive Multiauthor Collaboration Site" (or "MMC Site") means any

World Wide Web server that publishes copyrightable works and also

provides prominent facilities for anybody to edit those works. A

public wiki that anybody can edit is an example of such a server. A

"Massive Multiauthor Collaboration" (or "MMC") contained in the site

means any set of copyrightable works thus published on the MMC site.

"CC-BY-SA" means the Creative Commons Attribution-Share Alike 3.0

license published by Creative Commons Corporation, a not-for-profit

corporation with a principal place of business in San Francisco,

California, as well as future copyleft versions of that license

published by that same organization.

"Incorporate" means to publish or republish a Document, in whole or in

part, as part of another Document.

An MMC is "eligible for relicensing" if it is licensed under this

License, and if all works that were first published under this License

somewhere other than this MMC, and subsequently incorporated in whole or

in part into the MMC, (1) had no cover texts or invariant sections, and

(2) were thus incorporated prior to November 1, 2008.

The operator of an MMC Site may republish an MMC contained in the site

under CC-BY-SA on the same site at any time before August 1, 2009,

provided the MMC is eligible for relicensing.

ADDENDUM: How to use this License for your documents

To use this License in a document you have written, include a copy of

the License in the document and put the following copyright and

license notices just after the title page:

Permission is granted to copy, distribute and/or modify this document

under the terms of the GNU Free Documentation License, Version 1.3

or any later version published by the Free Software Foundation;

with no Invariant Sections, no Front-Cover Texts, and no Back-Cover Texts.

A copy of the license is included in the section entitled "GNU

Free Documentation License".

If you have Invariant Sections, Front-Cover Texts and Back-Cover Texts,

replace the "with...Texts." line with this:

with the Invariant Sections being LIST THEIR TITLES, with the

Front-Cover Texts being LIST, and with the Back-Cover Texts being LIST.

If you have Invariant Sections without Cover Texts, or some other

combination of the three, merge those two alternatives to suit the

situation.

If your document contains nontrivial examples of program code, we

recommend releasing these examples in parallel under your choice of

free software license, such as the GNU General Public License,

to permit their use in free software.

User Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
