1 About the Document

1.1 Purpose

The purpose of this document is to provide detailed information on using the

TITAN toolset, that is, creating test suites from TTCN-3, ASN.1 modules and

test port files, by modifying a Makefile and using make to build executables.

1.2 Target Groups

This document is intended for users of the TITAN TTCN–3 Test Toolset

(product number: CRL 113 200/4). In addition to this document, readers

requiring additional information on creating and building test suites or writing

test ports are referred to the TITAN Programmer´s Technical Reference for

TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen.

Note: Test port writing requires a sound knowledge of C++ programming.

1.3 Typographical Conventions

This document uses the following typographical conventions:

 Bold is used to represent graphical user interface (GUI) components

such as buttons, menus, menu items, dialog box options, fields and

keywords, as well as menu commands. Bold is also used with ’+’ to

represent key combinations. For example, Ctrl+Click

 The character ‘/’ is used to denote a menu and sub-menu sequence.

For example, File / Open.

 Monospaced font is used represent system elements such as

command and parameter names, program names, path names, URLs,

directory names and code examples.

 Bold monospaced font is used for commands that must be entered at

the Command Line Interface (CLI).

Public

USER GUIDE

4 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

2 Overview of TITAN

This Test Executor is an implementation of the TTCN–3 Core Language

standard with support of ASN.1.

There are limitations to supported TTCN–3 language constructs in the Test

Executor. In addition, there are some non-standard extensions to the TTCN–3

language implemented by TITAN. Information on these limitations and

extensions and also some clarifications of how the standard has been

implemented in TITAN, refer to the TITAN Programmer´s Technical

Reference for TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen.

2.1 Components

The main components are the following:

 The Compiler, which translates TTCN–3 and ASN.1 modules

into C++

program code.

 The Base Library written in C++ language, which contains important

supplementary functions for the generated code.

 The Test Port(s), which facilitate the communication between the

TTCN–3 Test System and the System Under Test (SUT).

The generated C++ modules as well as the Test Ports should be compiled to

binary object code and linked together with the Base Library using a

traditional C++ compiler.

All parts, except the protocol specific Test Ports, are included in the binary

package of the Test Executor. The Test Executor is a protocol and platform

independent tool that can be easily adapted to any kind of protocols by writing

the appropriate Test Port. The generated C++ code is exactly the same on all

platforms, provided that the pre-compiled Base Library that matches the

operating system and C++ compiler is used. The Test Port may use operating

system calls or external library functions for sending or receiving messages

towards System Under Test so it may become platform dependent.

Writing a Test Port is not an easy task for the first time, but the Compiler

alleviates it by generating an empty skeleton for each function to be written.

This skeleton is also useful for checking the correctness of an existing test

suite because the Executable Test Program can be linked with this empty

Test Port. In this case the resulting program actually does nothing, but the

successful linking means that no modules or functions are missing from the

test suite.

Compilation of ASN.1 modules is necessary only if the test suite imports type definitions from ASN.1 modules.

Public

USER GUIDE

5 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

This document describes building and running test suites using the command

line.

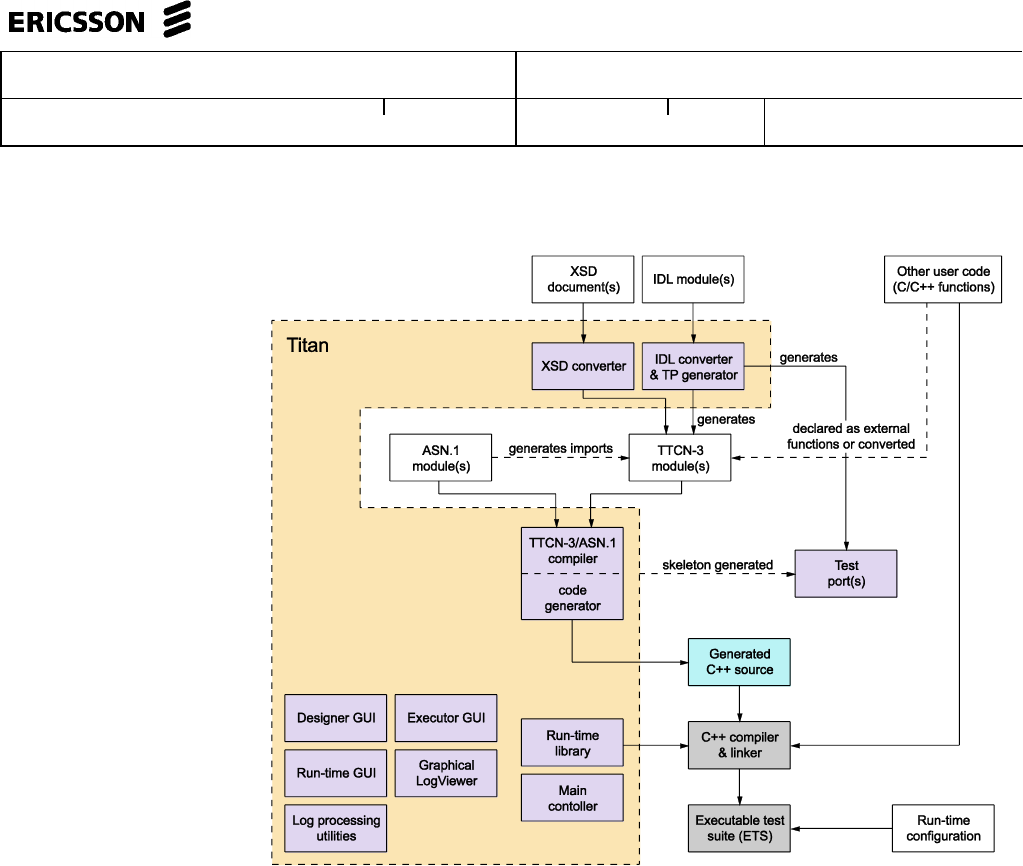

Figure 1 Titan structure

2.2 General Workflow

 Generating and editing a Makefile

 Building the executable

 Executing test suites

 Analyzing the execution log files.

2.3 Building Test Suites

Creating a TTCN–3 test suite involves building an executable from the initial

modules (TTCN–3, ASN.1 or both) and test port files. The process basically

comprises creating and modifying a Makefile and using the make command

to build the executable.

For detailed information, refer to Creating Executable Test Suites from the

Command-line.

Public

USER GUIDE

6 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

2.4 Executing Test Suites

After the test suite has been created a suitable configuration file has been

built, the executable is ready to run.

The test executor can operate in single or parallel mode. The single mode—

also called non-parallel mode—is thought for TTCN–3 test suites built around

a single test component. It is forbidden to create parallel test components in

single mode: the test suite is not supposed to contain any create operation

otherwise the test execution will fail. The parallel mode, on the other hand,

offers full-featured test execution including distributed and parallel execution.

The goal of introducing the single operating mode was to eliminate

redundancies and thereby increase the speed of execution. It is possible to

execute non-parallel test suites in parallel mode, but doing so results in

unnecessary overhead. The C++ code generated by the compiler is suitable

for both execution modes, there are no command line switches to select

mode. The only difference is that different Base Libraries must be linked in

single and parallel modes.

For detailed information on executing test suites in single or parallel mode,

refer to

Public

USER GUIDE

7 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

Executing Test Suites.

Public

USER GUIDE

8 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

3 Creating Executable Test Suites from the Command-line

This section describes the elementary commands that comprise the build

process. The primary audience of this section is the group of users who want

to integrate TTCN–3 to a new or an existing build system.

3.1 Using make

This section gives an example about how to create a new Makefile or

modify an existing one manually to make it capable of handling TTCN–3 test

suites. For example, if using many external libraries and program modules

with TTCN–3, it can be beneficial to write an own Makefile.

The generated skeleton is always a good starting point for a custom

Makefile.

The following lines are mandatory in the Makefile:

TTCN3_MODULES = MyModule.ttcn

ASN1_MODULES =

GENERATED_SOURCES = MyModule.cc

GENERATED_HEADERS = MyModule.hh

$(GENERATED_SOURCES) $(GENERATED_HEADERS):

$(TTCN3_MODULES) $(ASN1_MODULES)

$(TTCN3_DIR)/bin/compiler $(TTCN3_MODULES)

$(ASN1_MODULES)

TTCN3_MODULES and ASN1_MODULES contain the names of the TTCN–3

and ASN.1 files, respectively.

The variables GENERATED_SOURCES and GENERATED_HEADERS store the

name of the source and header files that the compiler will generate. This rule

calls the compiler with an argument list that contains the name of all TTCN–3

and ASN.1 files. Beginning from version 1.2.pl0 the compiler does not

duplicate the underscore (“_”) characters in output file names, so you may

safely use such module and file names that contain this character.

To compile the generated C++ code using make, the following rule in the

Makefile is also needed:

.cc.o:

g++ -c -I$(TTCN3_DIR)/include -Wall $<

Public

USER GUIDE

9 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

In this case simply issue the command make MyModule.o and the two

translation steps will be performed automatically in a row.

3.1.1 Rules for Modular Test Suites

The compiler supports modular TTCN–3 test suites as well. Each module is

translated to a separate C++ header and source file. These source files can

be compiled by the C++ compiler one-by-one separately.

The importing mechanisms work in the following way. For example, two

TTCN-3 modules are present in files A.ttcn and B.ttcn, respectively.

Definitions of module A may be used from module B, so the import from A

all; statement must be added to module B. The modules A and B must be

translated by the compiler in one step to A.cc, A.hh, B.cc and B.hh.

During the compilation from TTCN–3 to C++ of module B, the import

statement will be translated to #include "A.hh". This statement will be put

to the beginning of B.hh, so you can refer to any definitions of A in module B.

But note that when compiling B.cc, A.hh must exist and it must be up to

date.

Thus, additional rules are needed in the Makefile. It is recommended

adding them automatically using the utility makedepend.

Run the following command:

makedepend -I$TTCN3_DIR/include A.cc B.cc

This will add the rules to the end of the Makefile and they will be updated

upon re-running makedepend. For further details please consult the manual

page of makedepend(1).

Multiple imports of the same module are handled correctly. For example, if

importing all definitions of module C from both modules A and B in the

previous example, all three C++ source files will compile correctly.

3.2 Automatically Generated Makefile

This section describes the automatically generated Makefile, its structure,

the supported commands and the possibilities for customization.

3.2.1 Makefile Generation

The Makefile for a project can be generated using the generator tool

ttcn3_makefilegen.

A project usually consists of some TTCN–3 and

ASN.1 modules and at least one test port and results in an executable test

suite.

The makedepend utility is available on all supported platforms. It usually can be found in the X11 development

package.

Up to version 1.6pl4 Makefile generation was part of the compiler (using the -M option).

Public

USER GUIDE

10 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

Makefile generation is performed with the following command syntax:

$TTCN3_DIR/bin/ttcn3_makefilegen [options] <Main module>

{Module}* {Test_Port}* {Other_File}*

 [options] can be one or more of the options that are listed in the

TITAN Programmer´s Technical Reference for TITAN TTCN-3 Test

Executor

2/198 17-CRL 113 200/5 Uen.

 <Main module> is the main TTCN–3 Core Language module. The

argument can be either a file name (with or without path) or a module

name. The name of the desired executable will be derived from the

name of this module unless the -e option is used.

 {Module}* are additional TTCN–3 or ASN.1 modules, which are

directly or indirectly referenced (imported) from the main module and

thus required for building the executable test suite. Each argument

should be a file name (with or without path) or a module name.

 {Test Port}* specifies names of all test ports or other required C++

program modules. The names can be given with or without suffix.

 {Other File}* specifies the names of other files (configuration files,

shell scripts, and so on) that are used in this project.

For deatiled content of the generated Makefile, refer to Section 3.2.2.

3.2.1.1 Makefile Generation Algorithm

Before generating the Makefile the Makefile generator tries to figure out

the file name, module type and module name for each argument automatically.

It uses some heuristics which yield correct results in most cases, but not

always. Typically, the algorithm works perfectly with shell wildcards. For

example, if all source files reside in the same directory the following command

will generate the right Makefile:

$TTCN3_DIR/bin/ttcn3_makefilegen *.ttcn *.asn *.c*

The Makefile generator looks for an existing file for each argument. It tries

the given argument without any suffix, then the following list of suffixes are

tried in this

order: .ttcn, .ttcn3, .3mp, .ttcnpp, .ttcnin, .asn, .asn1, .cc, .c,

hh, .h, .cfg, .prj. Once a file is found, the Makefile generator tries to

guess its type as described below. If no suitable file is found for a given

argument the Makefile generator prints an error message and exits.

Public

USER GUIDE

11 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

In the case of TTCN–3 preprocessing (using the -p command line argument)

the TTCN–3 files with special suffix .ttcnpp will be added to the list of

TTCN–3 modules which need to be preprocessed before compilation. Files

with the .ttcnin suffix will be added to the list of TTCN–3 include files

(without the -p switch these will be added to the other files section of the

Makefile).

Then the Makefile generator tries to classify the file in the following

categories based on the contents and/or the suffix:

 TTCN–3 modules (based on contents)

 ASN.1 modules (based on contents)

 TTCN–3 include files (based on suffix, only with -p)

 C/C++ source files (based on suffix)

 C/C++ header files (based on suffix)

 other files (the rest)

The Makefile generator has two built-in “light” parsers that can decide

whether a file is a TTCN–3 or ASN.1 module, respectively. Those parsers

read only the first few lines of the input and do not check the syntactical

correctness of the modules. They are capable of retrieving the module name

as well.

If the Makefile generator ensured that the file is neither a TTCN–3 nor an

ASN.1 module then it checks whether the file has .cc, .c, .hh or .h suffix.

The content of the file is not examined anymore.

The remaining files (configuration files and so on) will be added to the other

files’ section of the Makefile. These files do not take part in the build

process, but they are added to the archive files created using the Makefile.

After the classification, the Makefile generator filters out the redundant

generated C++ files. If a given C/C++ file was found to be generated from one

of the given TTCN–3 or ASN.1 modules, a warning is printed and the file will

be dropped from the list of C/C++ files. That is, the file will not be added to the

list of user source files since it is already a member of the generated sources.

This feature is useful if one wants to regenerate the Makefile using the

shell wildcard *.cc while the generated files from the previous compilation

are still present.

Public

USER GUIDE

12 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

In the next step the algorithm tries to complete the list of C/C++ files by

checking the pairs of header and source files. If a C/C++ source file was

identified and a header file with the same name exists (only the suffix differs)

too, the Makefile generator will add the header file automatically. This step

is performed in the reverse direction too: the Makefile generator can find an

existing source file based on the header file given to it. Of course a C++

source file can exist without a header file or vice versa.

The Makefile generator continuously checks the uniqueness of files and

module names. If the same file was given more than once in the command

line the repeated argument is simply ignored and a warning message is

displayed. It is not allowed to use two or more different TTCN–3 or ASN.1

files containing modules with the same name because the generated C++

files would clash. For similar reasons the user C/C++ files cannot have

identical names even if they are located in different directories.

Finally the Makefile is generated based on the resulting data. If the

Makefile generator finds an existing Makefile in its working directory, it

will not be overwritten unless the option -f is used.

It is always assumed that the working directory of the generated Makefile

will be the same as the current working directory of the Makefile generator

even if the Makefile is placed into another directory using the -o switch.

When a path name passed to the Makefile generator contains a directory

part the Makefile generator analyzes and canonizes the directory name by

resolving relative directory references (such as . or ..) and symbolic links

pointing to directories.

If the path name does not contain any directory part or

it turns out that the file is located in the current working directory the

generated Makefile will refer to the file using a simple file name without

any directory. Files located in other directories will be referenced in a uniform

way using either absolute or relative path names depending on whether the

command line switch -a was specified or not. Thus it is not relevant whether

the file was given as relative or absolute path name in the command line.

The Makefile is generated based on the following assumptions:

 Each object and if applicable, shared object file is located in the same

directory as the C/C++ source file it is derived from. This allows the use

of efficient wildcard rules.

 The TTCN–3 /ASN.1 compiler will place all generated C++ files in the

current working directory.

Symbolic links pointing to files will not be resolved.

Public

USER GUIDE

13 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

3.2.1.2 Use of GNU make

If option -g is used, the resulting Makefile will be less redundant as it will

use some suffix substitution rules. These rules are supported only by GNU

make, other versions of the make utility will find such Makefiles erroneous.

The more of the file naming conventions below are fulfilled, the more suffix

substitution rules can be applied in the generated Makefile. If the rules are

only partially fulfilled, the Makefile will be also correct, but it will be more

difficult to maintain. It is recommended to follow these rules especially when

starting a new project.

 Unless option -c is used, all TTCN–3, ASN.1 and C++ modules should

reside in the current working directory. If these files are stored in a

different scheme (for example in a hierarchical directory tree) symbolic

links can be used to collect all input files into one build directory.

 The suffix should be .ttcn for TTCN–3 modules, .asn for ASN.1

modules and .cc for C/C++ files.

 The file name (without suffix) should be identical to the module name. If

the name of the ASN.1 module contains a hyphen, the corresponding

file name should contain an underscore character instead. For example,

the TTCN–3 module My_Module should be stored in

My_Module.ttcn and the file containing ASN.1 module My-ASN1-

Module should be named as My_ASN1_Module.asn.

 Each C/C++ module should have a header file with identical name, but

with the suffix .hh.

3.2.1.3 Use of Central Storage

Option -c can be used to create a Makefile that can use pre-compiled

files from one or more central directories to save disk space and compilation

time. Such Makefiles have different layout and more complex build rules.

The central directories should contain those common modules that do not

change frequently (type definitions, test ports, external functions, test

configurations, and so on). The central directories should be updated and

maintained by the project administrators while the individual testers are

developing their test cases in their working directory based on the common

files. Moreover, it is allowed to create a hierarchy of central directories, that is,

to use a directory that takes files from other central directories as a central

directory of another project. In such cases the files of all central directories

should be passed to the compiler for Makefile generation.

In addition to the above mentioned ones the following assumptions are used

in these Makefiles:

Public

USER GUIDE

14 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

 The compiler will generate C++ files only for those TTCN–3 and ASN.1

modules that are located in the current working directory. The

generated C++ files of the remaining TTCN–3 and ASN.1 modules

should be located in the same directory as the respective module. If a

module is located in a directory other than the current working directory

and it does not have pre-compiled files a symbolic link must be created

in the current working directory, which should point to the file containing

the module.

 Object and if applicable, shared object files will be created only from

those C/C++ source files that are located in the current working

directory. Object and if applicable, shared object files of the remaining

source files should be located in the same directory as the respective

source file.

 The TTCN–3 and ASN.1 modules of central directories should not

import definitions from the modules of the current working directory.

Importing in the reverse direction is allowed, of course.

 C/C++ files of central directories should not include header files of the

current working directory. Local C/C++ files can include headers from

other directories.

 The generated C++ files and object and if applicable, shared object files

of all central directories must be up-to-date before invoking make.

Otherwise the build process will fail immediately with an error

message.

In case of multi-level hierarchy of central directories the re-

compilation should be performed in bottom-up order in the central

directories.

 All directories must use the same environment, that is, same hardware

platform, operating system, version of TTCN–3 Executor and C++

compiler, command line switches, and so on, for building. Otherwise

compilation or run-time errors may occur.

Note that when a pre-compiled TTCN–3 or ASN.1 module is taken from a

central directory the following three files will be used from the central directory

during the build process. Thus it is essential to keep all these files always

consistent and up-to-date.

 The module itself when performing the semantic analysis on the local

modules importing it.

 The generated C++ header file when compiling the generated C++ files

of the importing modules.

 The object and if applicable, the shared object file when linking the

executable.

If an object and if applicable, a shared object file of a central directory is not up-to-date, but make is invoked it

tries to build that file instead of printing an error message. The build will usually fail due to missing access rights.

This is a known limitation of this Makefile system that cannot be easily solved in a generic way.

Public

USER GUIDE

15 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

3.2.1.4 TTCN–3 Preprocessing

Preprocessing of TTCN–3 source code is supported with the use of the option

-p. The TTCN–3 source files to be preprocessed must have the

suffix .ttcnpp; these files will be preprocessed with the C preprocessor

before being compiled. The compiler will detect all TTCN–3 files, including the

ones containing directives for the preprocessor, but only the ones with the

suffix .ttcnpp will be preprocessed. If any other suffix is used the user has

to edit the Makefile manually to add the file to the list of files which will be

preprocessed. The output of the preprocessing will be an intermediate file

with the extension .ttcn. Do not use the extension .ttcn for any TTCN–3

file that will be preprocessed; also avoid using the same name for

different .ttcn and .ttcnpp files. Files included in .ttcnpp files with C

preprocessor directive #include should have suffix .ttcnin.

3.2.2 Makefile Structure

This section presents the internal structure of the generated Makefile.

For example, the following command will generate a Makefile for TTCN–3

test suite ”Hello, world!”, which can be found in binary distribution:

$TTCN3_DIR/bin/ttcn3_makefilegen -gs MyExample.ttcn

PCOType.cc MyExample.cfg

The Makefile generator creates the Makefile with the following content:

# This Makefile was generated by the Makefile Generator

# of the TTCN-3 Test Executor version 1.6.pl5

# for Adam Delic (edmdeli@ehubuux110)

# on Tue Oct 10 13:53:04 2006

# Copyright Ericsson Telecom AB 2000-2014

# The following make commands are available:

# - make, make all Builds the executable test suite.

# - make archive Archives all source files.

# - make check Checks the semantics of TTCN-3 and ASN.1

# modules.

# - make port Generates port skeletons.

# - make clean Removes all generated files.

# - make compile Translates TTCN-3 and ASN.1 modules to

# C++.

# - make dep Creates/updates dependency list.

# - make objects Builds the object files without linking

# the executable.

# - make tags Creates/updates tags file using ctags.

# WARNING! This Makefile can be used with GNU make only.

# Other versions of make may report syntax errors in it.

# Do NOT touch this line...

.PHONY: all archive check clean dep objects

# Set these variables...

# The path of your TTCN-3 Test Executor installation:

# Uncomment this line to override the environment variable.

# TTCN3_DIR =

# Your platform: (SOLARIS, SOLARIS8, LINUX, FREEBSD or WIN32)

Public

USER GUIDE

16 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

PLATFORM = SOLARIS8

# Your C++ compiler:

CXX = g++

# Flags for the C++ preprocessor (and makedepend as well):

CPPFLAGS = -D$(PLATFORM) -I$(TTCN3_DIR)/include

# Flags for the C++ compiler:

CXXFLAGS = -Wall

# Flags for the linker:

LDFLAGS =

# Flags for the TTCN-3 and ASN.1 compiler:

COMPILER_FLAGS = -L

# Execution mode: (either ttcn3 or ttcn3-parallel)

TTCN3_LIB = ttcn3

# The path of your OpenSSL installation:

# If you do not have your own one, leave it unchanged.

OPENSSL_DIR = $(TTCN3_DIR)

# Directory to store the archived source files:

ARCHIVE_DIR = backup

# You may change these variables. Add your files if necessary...

# TTCN-3 modules of this project:

TTCN3_MODULES = MyExample.ttcn

# ASN.1 modules of this project:

ASN1_MODULES =

# C++ source & header files generated from the TTCN-3 & ASN.1

# modules of this project:

GENERATED_SOURCES = $(TTCN3_MODULES:.ttcn=.cc) $(ASN1_MODULES:.asn=.cc)

GENERATED_HEADERS = $(GENERATED_SOURCES:.cc=.hh)

# C/C++ Source & header files of Test Ports, external functions

# and other modules:

USER_SOURCES = PCOType.cc

USER_HEADERS = $(USER_SOURCES:.cc=.hh)

# Object files of this project that are needed for the executable

# test suite:

OBJECTS = $(GENERATED_SOURCES:.cc=.o) $(USER_SOURCES:.cc=.o)

# Other files of the project (Makefile, configuration files, and so on)

# that will be added to the archived source files:

OTHER_FILES = Makefile MyExample.cfg

# The name of the executable test suite:

TARGET = MyExample

# Do not modify these unless you know what you are doing...

# Platform specific additional libraries:

SOLARIS_LIBS = -lsocket -lnsl

SOLARIS8_LIBS = -lsocket -lnsl

LINUX_LIBS =

FREEBSD_LIBS =

WIN32_LIBS =

# Rules for building the executable...

all: $(TARGET) ;

objects: $(OBJECTS) ;

$(TARGET): $(OBJECTS)

$(CXX) $(LDFLAGS) -o $@ $ˆ \

-L$(TTCN3_DIR)/lib -l$(TTCN3_LIB) \

-L$(OPENSSL_DIR)/lib -lcrypto $($(PLATFORM)_LIBS)

.cc.o .c.o:

$(CXX) -c $(CPPFLAGS) $(CXXFLAGS) -o $@ $<

$(GENERATED_SOURCES) $(GENERATED_HEADERS): compile

@if [ ! -f $@ ]; then $(RM) compile; $(MAKE) compile; fi

check: $(TTCN3_MODULES) $(ASN1_MODULES)

$(TTCN3_DIR)/bin/compiler -s $(COMPILER_FLAGS) $ˆ

port: $(TTCN3_MODULES) $(ASN1_MODULES)

$(TTCN3_DIR)/bin/compiler -t $(COMPILER_FLAGS) $ˆ

compile: $(TTCN3_MODULES) $(ASN1_MODULES)

$(TTCN3_DIR)/bin/compiler $(COMPILER_FLAGS) $ˆ - $?

touch $@

tags: $(TTCN3_MODULES) $(ASN1_MODULES) \

Public

USER GUIDE

17 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

$(USER_HEADERS) $(USER_SOURCES)

$(TTCN3_DIR)/bin/ctags_ttcn3 --line-directives=yes $ˆ

clean:

-$(RM) $(TARGET) $(OBJECTS) $(GENERATED_HEADERS) \

$(GENERATED_SOURCES) compile \

tags *.log

dep: $(GENERATED_SOURCES) $(USER_SOURCES)

makedepend $(CPPFLAGS) $ˆ

archive:

mkdir -p $(ARCHIVE_DIR)

tar -cvhf - $(TTCN3_MODULES) $(ASN1_MODULES) \

$(USER_HEADERS) $(USER_SOURCES) $(OTHER_FILES) \

| gzip >$(ARCHIVE_DIR)/‘basename $(TARGET) .exe‘-\

‘date ’+%y%m%d-%H%M’‘.tgz

# Add your rules here if necessary...

3.2.3 Editing the Generated Makefile

Assume that the TTCN–3 and ASN.1 modules together with the test ports

have been written and a Makefile skeleton has been generated.

The Makefile generator recognizes the operating environment and sets up

some compiler/linker flags accordingly. The path to the TTCN–3 test executor

installation must be set in TTCN3_DIR before starting to use make. If

OpenSSL is installed and proprietary shared libraries will be used, the

variable OPENSSL_DIR may be changed to point to the directory of the

proprietary OpenSSL installation. In the above ”Hello, world!” example the

user also needs to change the execution mode (variable TTCN3_LIB) to non-

parallel.

Always perform the following checklist before the first build of the executable

test suite from the generated Makefile:

 Verify that the variable TTCN3_DIR is set to point to the root directory

of the TTCN–3 test executor installation. If this variable is automatically

set in the login script, this line can be removed from the Makefile.

 Ensure that the variable PLATFORM is set to match the test execution

platform

 Verify that the variable TTCN3_LIB contains the name of the

appropriate Base Library for the chosen operating mode, that is, ttcn3

for single and ttcn3-parallel for parallel execution mode!

 The variable CXX should point to the name or full path of the C++

compiler.

 The variables CPPFLAGS, CXXFLAGS and LDFLAGS should contain the

extra command line switches to be passed to the C++ preprocessor,

The test suite must be translated on the same platform on which it will be executed.

Public

USER GUIDE

18 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

compiler and linker, respectively

. For example, profiling or optimization

is set here.

 Using the variable COMPILER_FLAGS you can pass additional

command line options to the TTCN–3 /ASN.1 compiler.

 Ensure that the version of the TTCN–3 /ASN.1 compiler used is

identical to the version of Base Library it is linked with.

In case of version mismatch the generated C++ source files will not

compile and an #error notification will be received. This means that

changing to another version of TTCN–3 Test Executor, a full re-build of

all modules using make clean must be performed.

 Make sure to always build test ports from their source distribution.

A version mismatch between the object and if applicable, shared object

files may cause improper linkage or unpredictable behavior. It is thus

contra-indicated to link precompiled test port objects and if applicable,

shared objects into your executable (for example taken from a central

repository). If the Makefile was generated with the option -p check

also:

 The variable CPP should point to the name or full path of the used C

preprocessor.

 Command line options for the C preprocessor can be given using the

CPPFLAGS TTCN3 variable.

Warning: do not confuse it with the CPPFLAGS variable, which is used

on the generated C++ code.

 Specify additional files which are included (#include directive) into

ttcnpp files with the variable TTCN3_INCLUDES. These files will be

checked (modification time) at every build to determine if any dependent

files need to be recompiled. Any file with extension .ttcnin will be

added to TTCN3_INCLUDES by the Makefile generator.

3.2.4 Available Commands

The generated Makefile supports the following:

make all, make: Creates or updates the executable test suite. Performs only

those steps of compilation that are really necessary, that is, the output of

which is outdated.

For the detailed list and explanation of possible command line switches, refer to the manual page of the used

C++ compiler

Public

USER GUIDE

19 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

make archive: Creates a backup copy of all source files and other files in a

tar-gzip archive stored in directory set by the variable ARCHIVE_DIR

. The

command can be applied periodically: to avoid overwriting older versions, a

time stamp containing the current date and time is included in the name of the

archive file. The output of this command can be attached to trouble reports

submitted for the TTCN–3 compiler or other parts of the TTCN–3 toolset.

make check: Checks the syntax and semantics of the TTCN–3 and ASN.1

modules. This command does not create or update any generated files.

make clean: Removes all generated files (generated C++ files, object and

TITAN generated shared object files and the executable) and log files. This

command is useful when changing to another version of the test executor or

simply for saving disk space.

make compile: Translates the TTCN–3 and ASN.1 modules to C++. It is

useful when the user wants to carry out the compilation of the generated C++

code later. As a result, an empty file named compile is created in the

working directory. The attributes of this file contain the date and time of the

last compilation, which helps the compiler in selective code generation. It is

not recommended to change this file manually. The compiler will be invoked

only if one or more of the TTCN–3 or ASN.1 modules were modified after that

timestamp, otherwise the generated C++ files are up to date.

make diag: Lists general information about the environment and the build.

This information can be useful to fix build problem by the developers or the

support team.

The output contains:

- the compiler related information (titan version, build date, C++ version,

license information, see command "compiler –v"),

- main controller related information ( titan version, C++ compiler version,

build date, license information, see command "mctr_cli –v"),

- C++ compiler information (see command "g++ -v"),

- library creator info ( see command "ar –v"),

- values of environment variables $TTCN3_DIR, $ OPENSSL_DIR,

$XML_DIR, $PLATFORM.

make dep: Obsolete. Creates or updates the dependency list between the

C++ header and source files by invoking the utility makedepend. This

command must be invoked before the first compilation or when the list of

modules or test ports has changed. It is also necessary to run make dep if

an import statement has been added or removed in a module. The command

implies make compile and after that it modifies the Makefile itself. Used

only with older gcc versions.

make objects: Creates or updates the object files created from the C++

source files. This command has the same effect as make all except that

the executable test suite is not linked in the final step.

The value archive should not be assigned to the variable ARCHIVE_DIR otherwise the make archive command

will work incorrectly. Choose other directory name, like backup.

Public

USER GUIDE

20 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

make port: Creates Test Port skeleton header and source files for all port

types in the input TTCN-3 modules. Existing Test Port files will not be

overwritten.

make shared_objects: Creates the shared object files from object files,

compiled with -fPIC. This target is present only when dynamic linking is

enabled.

For detailed information, refer to the TITAN Programmer’s Reference [1].

make run: Creates or updates the executable test suite and then runs it. This

is only recommended for simple test suites in single mode. Running requires

a configuration file; its name by default is config.cfg. This file has to be

written by the user.

3.2.5 Building the Executable

Issue the command make dep when finished creating and editing the

Makefile. This command will translate all TTCN–3 and ASN.1 modules to

C++ and will find the dependencies between them automatically. The

Makefile will be modified; many lines will be appended to it.

Finally, issue the make command, which will build the executable test suite. If

any of the source files (TTCN–3 or ASN.1 modules or test port source files)

has been changed, issue the make command to get an up-to-date binary.

If TTCN–3 or ASN.1 modules or test ports are need to be added or removed

to or from the project, regenerate the Makefile skeleton or change the

variables TTCN3_MODULES, ASN1_MODULES, GENERATED_HEADERS,

GENERATED_SOURCES, OBJECTS or SHARED_OBJECTS accordingly. If a new

test port or other C/C++ module should be added, add it to the lines

USER_HEADERS, USER_SOURCES and OBJECTS or SHARED_OBJECTS.

It is recommended to use the makedepend utility together with make. This

ensures that all dependencies are handled correctly. Therefore, make dep

command must be issued before the first use of make and whenever the

module hierarchy (imports) changes!

Use the command make clean to remove all generated files.

3.2.6 Modifying the Generated Makefile

When there is a Makefile in a project, it should be updated each time a

further file is added or removed from the project.

However, some manual modifications were made to the originally created

Makefile skeleton, regeneration of the Makefile will cause the manually

performed changes to be lost. To avoid this situation, write a shell script

containing the Makefile updates, and configure this shell script to be

automatically run after each instance of Makefile regeneration.

Public

USER GUIDE

21 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

This way, there is no need to perform the same manual updates upon every

Makefile generation and file addition process.

The shell script example below can be used to automate the modification of

the Makefile with the updates every time it is regenerated.

Example Shell Script for Makefile Modification

#!/bin/sh

editcmd=’s/CPPFLAGS = -D$(PLATFORM) -I$(TTCN3_DIR)\

/include/CPPFLAGS = -D$(PLATFORM)

-I$(TTCN3_DIR)\/include -I$(ERLANG_DIR)\

/include -I$(OPENSSL_DIR)\/include/g

s/TTCN3_LIB = ttcn3-parallel/TTCN3_LIB = ttcn3/g

s/OPENSSL_DIR = $(TTCN3_DIR)/OPENSSL_DIR = \/mnt\/TTCN\/Tools\

/openssl-0.9.7d/g

s/ˆ makedepend/ \/mnt\/TTCN\/Tools\/makedepend-R6.6\

/bin\/makedepend/g

/ARCHIVE_DIR = ./ {

# Directory for ERLANG:

ERLANG_DIR = /OTP/LXA_11930_R9C_6/lib/erl_interface-3.4.2

}

s/-lcrypto $($(PLATFORM)_LIBS)/-lcrypto \\/g

/-lcrypto \\/ {

-L$(ERLANG_DIR)/lib -lerl_interface -lei $($(PLATFORM)_LIBS)

}

’

if [ ‘uname‘ = SunOS ]

then

case ‘uname -r‘ in

5.6) editcmd="$editcmd

s/CXX = g++/CXX = \/usr\/local\/gnu\/bin\/g++/g"

;;

5.7) editcmd="$editcmd

s/CXX = g++/CXX = \/mnt\/TTCN\/Tools\/gcc-3.0.4-sol7\/bin\/g++/g"

;;

5.8) editcmd="$editcmd

s/CXX = g++/CXX = \/usr\/local\/gnu\/gnu28\/gcc3.0.4_shared_sol8\

/bin\/g++/g"

;;

*) echo ’Unsupported Solaris version.’; exit 1

esac

else echo ’This script runs on Solaris only.’; exit 1

sed -e "$editcmd" <$1 >$2

Public

USER GUIDE

22 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

3.3 Manual Building

This section contains information useful for the experienced users who are

using a build framework other than make for TTCN–3 -based testing.

3.3.1 Compiling the Generated C++ Code

If the TTCN–3 test suite was successfully translated to C++, it’s a good idea

to check if the generated code contains any errors. The simplest way is to

compile it using a C++ compiler. Since the generated code refers to the base

library, run the following command:

g++ -c -I$TTCN3_DIR/include -Wall MyModule.cc

In the following, using of an GNU C++ compiler is assumed. If the TTCN–3

/ASN.1 compiler did not report any errors in the input test suite, the generated

C++ code must be correct (that is, compile without errors). After certain

TTCN–3 warnings (such as unreachable statements) the generated code may

trigger similar warnings in the C++ compiler.

The generated code has been tested on various versions of GNU C++ and

Sun Workshop C++ compilers. However, the code should work with any

standard-compliant C++ compiler since it does not depend on hardware or

compiler specific features. If the generated code fails to compile on a

supported platform and C++ compiler the situation is considered as a

compiler bug and a Trouble Report can be issued.

The switch -c tells the GNU C++ compiler to compile only and not to build an

executable because, for example, the main function is missing from the

generated code. The switch -I adds the $TTCN3_DIR/include directory to

the compiler’s standard include path. The optional argument, -Wall, forces

the compiler to report all warnings found in its input. This argument can be

used in GCC only.

The result after a successful compilation is an object file named MyModule.o

and if applicable, a shared object file named MyModule.so. If compilation

fails, a lot of error messages may be generated. For example, a miss-spelled

type name in an included test port can totally confuse the C++ compiler.

That’s why it is recommended to analyze the reason of the first error message

only.

3.3.2 Linking the Executable

In order to get the executable test suite, the following files must be linked:

The Trouble Report must include the compiler error message(s), all input files and command line switches of the

TTCN–3 /ASN.1 compiler, the platform and the exact version of TITAN TTCN–3 Test Executor and the C++

compiler. It is highly appreciated if the user could minimize the input by dropping out irrelevant modules and

definitions.

Public

USER GUIDE

23 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

 The object and if applicable, shared object files generated from all used

TTCN–3 modules.

 The object and if applicable, shared object files generated from all used

ASN.1 modules.

 The object and if applicable, shared object files generated from all used

test ports and any libraries that are used in the test ports.

 The parallel ttcn3-parallel or the non-parallel ttcn3 version of

the TTCN-3 Base Library depending on the chosen operating mode.

They reside in $TTCN3_DIR/lib.

 The shared library of OpenSSL, that is

$TTCN3_DIR/lib/libcrypto.so.

Assuming only one TTCN–3 module (called MyModule) and one test port

(called MyTestPort), the linking command will be the following for parallel

operation mode:

g++ -o MyModule MyModule.o MyTestPort.o -L$TTCN3_DIR/lib-

lttcn3-parallel -lcrypto

The linking command for single operation mode:

g++ -o MyModule MyModule.o MyTestPort.o -L$TTCN3_DIR/lib

-lttcn3 -lcrypto

The name of the executable file will be MyModule in both cases.

3.3.3 Dynamic Linking

In order to save disk and memory space, the TTCN–3 Base Library may be

dynamically linked to the executable. In this case use the following command

in single mode:

g++ -o MyModule MyModule.o MyTestPort.o -L$TTCN3_DIR/lib

-lttcn3-dynamic -lcrypto

In parallel mode use -lttcn3-parallel-dynamic instead of

-lttcn3-dynamic.

When running the executable, add the directory $TTCN3_DIR/lib to the

system library path (which is specified in /etc/ld.so.conf on most of

UNIX systems) or simply add it to the environment variable

LD_LIBRARY_PATH.

Public

USER GUIDE

24 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

From version 1.8pl2, ttcn3_makefilegen supports the generation of (per

module) shared objects. If this option is enabled with the -l command line

switch, the project’s working directory (together with the central storage

directories, if applicable) should be added to LD_LIBRARY_PATH in addition

to $TTCN3_DIR/lib. Otherwise, the resulting executable may not run. If

moving the executable from one machine to another, all the generated shared

object (.so) files should be copied as well. For more information about the –l

command line switch, please consult the TITAN Programmer’s Technical

Reference [1].

Public

USER GUIDE

25 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

4 Executing Test Suites

This chapter describes the modalities of test suite execution.

4.1 The Run-time Configuration File

The behavior of the executable test program is described in the run-time

configuration file.

Each section of the configuration file begins with a section name within

square brackets. Different sections use different syntax, thus the section

name determines the possible syntax of the members.

Refer to the TITAN Programmer´s Technical Reference for TITAN TTCN-3

Test Executor

2/198 17-CRL 113 200/5 Uen for details of the runtime configuration file

including descriptions of each of its sections and examples.

4.2 Running Non-parallel Test Suites

If an application is built for single operation mode the resulting executable

contains the ETS itself. It takes a single optional parameter: the name and

path of its configuration file. The ETS also accepts the command line options

-l and -v with the following semantics:

-l

Lists the names of all control parts and individually executable test cases of

the ETS to standard output. The list is suitable as the [EXECUTE] section of

a configuration file. Refer to TITAN Programmer´s Technical Reference for

TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen more details.

-v

Prints the tool version, license information and the name, compilation time,

checksum and (if available) the version info of the participating modules.

If the ETS contains exactly one module with a control part, then a

configuration file need not be specified. In this case, running the ETS with no

parameters will execute the control part. If more than one control part is

present (or none at all) then the configuration file is mandatory.

The ETS blocks until all test cases are executed as specified in the section

[EXECUTE] of its configuration file. Console log messages are displayed on

the terminal, while the execution log is written into LogFile.

Public

USER GUIDE

26 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

ETSes built for single operation mode are unable to act as HCs thus these

cannot be executed in the parallel environment. The test suite should be re-

linked with the parallel version of Base Library instead if this was the intention

(see section 3.2.3 for information on editing the Makefile).

4.3 Configuration

The TITAN runtime environment uses configuration files to control execution

of the test suites. An ordinary text editor can be used to create and modify

configuration files. The configuration file (with the default extension .cfg) is a

simple text file consisting of the following sections:

 Module parameters

This section contains the value of each parameter that is defined in the

TTCN-3 or ASN.1 modules of the project.

 Logging

This section indicates logging conditions: the name of the log file,

category and component based logging filters or the like.

 Testport parameters

This section specifies the parameters that are passed to the test ports

during the execution of the test suite.

 Define

This section contains definitions of macros that can be used in other

configuration file sections (except Include) for entry of recurring values.

 Include

Paths to additional configuration files may be listed in this section. The

host controller takes into account the values listed in those configuration

files, too.

 External commands

This section contains shell scripts that are called whenever a control

part or a test case is started or terminated.

 Execute

This section indicates which parts of the test suite will be executed. This

section is mandatory in single execution mode. Only test cases without

parameters, or testcases where every parameter has a default value,

can be started from this section.

Testcases with parameters can be started from the control part.

The following sections are used only in parallel mode:

 Groups

This section specifies a groups of hosts used in the Components

section.

Public

USER GUIDE

27 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

 Components

This section contains the rules that restrict the location of PTCs.

 Main controller

This section controls the behavior of the main controller when executing

a test suite.

TITAN processes the configuration file sequentially. If a section occurs

several times in the configuration file, all sections will be processed without an

error message.

Refer to the corresponding chapter of the TITAN Programmer´s Technical

Reference for TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen for details of the runtime configuration file

including descriptions of each of its sections and examples.

4.4 Running Parallel Test Suites

The test execution in parallel mode comprises the following steps:

1 Start Main Controller. (See Section 4.4.2.)

2 Start Host Controllers, that is, the executable test suite, on all

participating computers. (See Section 4.4.3.)

3 Create MTC.

4 Start the control part or a selection of test cases of a TTCN–3 module

on MTC.

5 View the verdicts of executed test cases on MC.

6 Terminate MTC after the end of execution.

7 Terminate HCs and MC.

8 Analyze the logs of each test component.

4.4.1 Parallel TTCN–3 Execution Architecture

The components of test environment form two main groups: the Test System

and the SUT. As TTCN–3 is used for black box testing, that is, the test suite

does not assume anything about the internal structure of the SUT, this section

describes the internal structure of Test System only. The Test System

consists of one or more test components, whose behaviors are entirely

described in a TTCN–3 test suite. The test system has other components for

special purposes, listed below.

Public

USER GUIDE

28 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

Each component of the test system runs independently, they are different

processes of the operating system. Every component executes one single

thread of control. The components can be located on different machines and,

of course, there can be more than one component running on the same

computer. In the latter case scheduling among them is provided by the

scheduler of the operating system. Regardless of their roles, all test

components execute binary code generated from the same C++ source code.

Their code consists of three parts: the code generated from the test suite by

the TTCN–3 compiler, the Test Ports and the TTCN–3 Base Library.

The components communicate with each other using TCP connections with

proprietary protocols and platform independently encoded abstract messages.

The components form three groups according to their functionality.

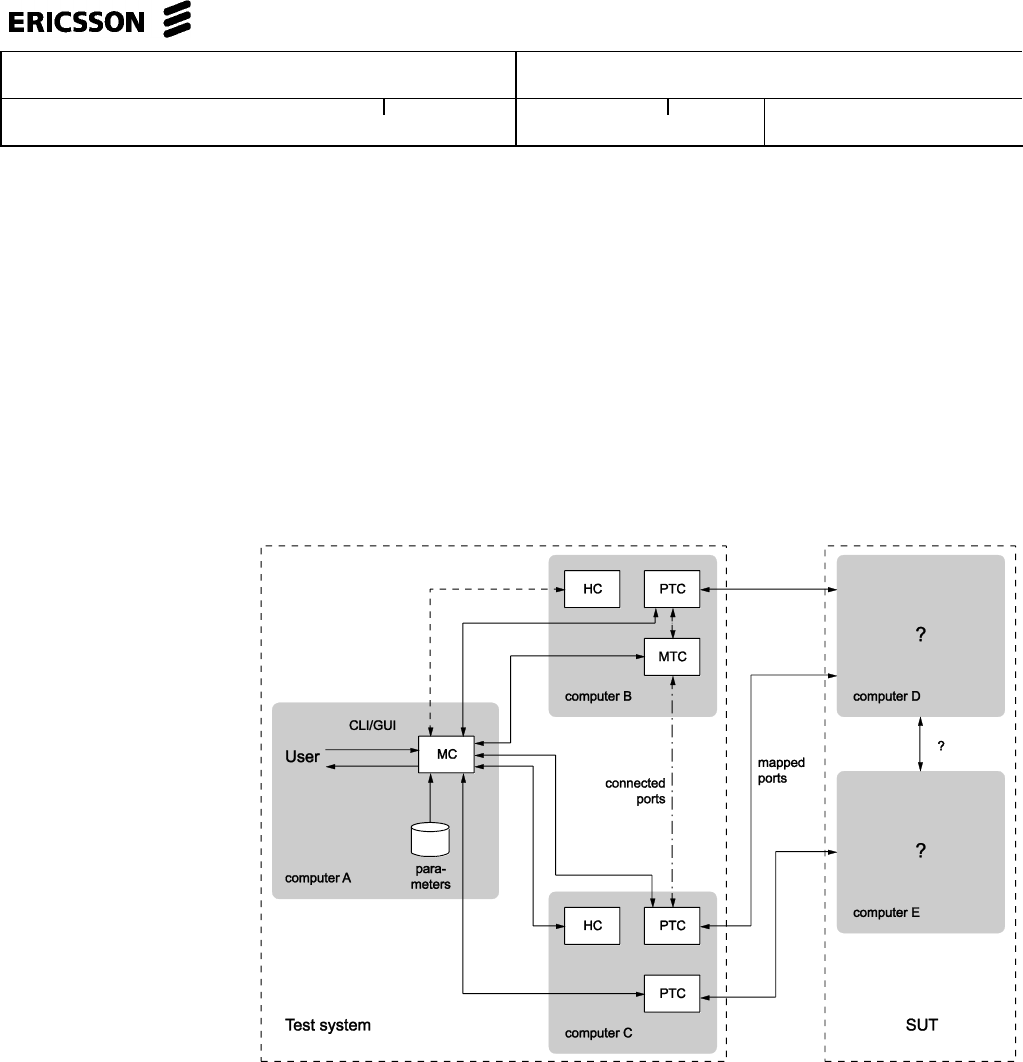

Figure 2 Components of parallel test execution

Public

USER GUIDE

29 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

 Main Controller (MC)

The Main Controller is a stand-alone application delivered with the

distribution ($TTCN3_DIR/bin/mctr). It is started manually by the

user and runs in one instance during the entire test execution. MC

provides the user with CLI to the test executor system. It arranges the

creation and termination of Main Test Component on user request and

the execution of module control part. It shows the user the verdicts of

executed test cases. MC has many hidden tasks that can only be

performed in a centralized way, for example component reference

assignment, verdict collection, and so on. MC maintains a control

connection with all other components.

 Host Controller (HC)

Host Controllers are instances (processes) of the executable test

program, that is, the translated test suite linked with Test Ports and

Base Library. Exactly one HC should be run on each computer that

participates in (distributed) TTCN–3 test execution. HCs are started by

the user manually on all participating computers. They maintain a

connection to MC and if MC wants a new test component to be created

on that host, HC duplicates itself and its child process will act as the

new test component.

 Test Component (TC)

Can be either the Main Test Component or a Parallel Test Component.

 Main Test Component (MTC)

The Main Test Component is an instance of the executable test

program that is firstly created on a user request. There is exactly one

MTC in the Test System. It can execute the control part of a TTCN–3

module if requested by the user. If a test case is executed MTC

changes its component type to the type specified in the runs on

clause of the testcase. Note that MTC is the only one test component

that can change its component type. MTC maintains a control

connection to MC.

 Parallel Test Component (PTC)

Parallel Test Components are also instances of the same executable

test program. TCs execute TTCN–3 functions written by the user in the

same way as in non-parallel mode. They are automatically created by

HC when requested from the MTC or other PTCs. PTCs also maintain a

connection to MC.

4.4.2 The TTCN–3 Main Controller

The binary executable of Main Controller is $TTCN3_DIR/bin/mctr_cli. It

takes the optional configuration file (section 4.1) as its single argument. The

variables in the section [MAIN CONTROLLER] of the configuration file

determine important MC properties, for detailed information refer to the TITAN

Programmer´s Technical Reference for TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen.

Public

USER GUIDE

30 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

The Main Controller has two operation modes: interactive and batch mode. In

interactive mode the user can control and monitor the test execution from a

CLI. Batch mode is useful for automated and unattended execution of parallel

and distributed tests. The actual operation mode depends on the

configuration file and is determined at program startup. If the option NumHCs

is set in the [MAIN CONTROLLER] section, the MC starts in batch mode,

otherwise interactive mode is selected.

4.4.2.1 Interactive Mode

After starting MC in interactive mode a welcome screen and command prompt

appear.

********************************************

* TTCN-3 Test Executor - Main Controller 2 *

* Version: 1.3.pl0 *

********************************************

MC2>

The MC command line interface uses the editline library which is compatible

with the GNU readline editing functionality. In addition to its powerful line

editing functions it provides command completion, line history and help

function.

Command completion is activated using the tabulator key. It presents the list

of applicable commands according to the typed prefix. The typing of the

command is concluded when a single alternative remains (for example

pressing key c followed by the tabulator puts the cmtc command onto the

command line).

The last couple of entered command lines are stored in the history buffer. The

implementation is based on GNU history library. The buffer elements can be

browsed with the cursor keys or an incremental search backward can be

performed following a <CTRL>-r keystroke and a lot more. History buffer

contents are automatically saved and loaded when the mctr cli is started

or stopped into a file named .ttcn3 history located in the home directory.

Note that console log messages as well as notifications of HC connection

establishments are printed on the MC’s screen and may disrupt its contents.

The following commands are accepted by the MC:

 help [command] displays the list of available commands or a short

use information about the command submitted as parameter.

 cmtc [hostname] creates the MTC on the given host. If the optional

hostname is omitted, the MTC will be created on the host whose HC

has connected first. Once an MTC is created, this command cannot be

used before terminating the MTC via emtc.

 smtc [module name[.control|.testcase name|.*]] is used

to start test execution. smtc has a single optional parameter defining the

name of the module or test case to start. The MTC must exist and it

Public

USER GUIDE

31 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

must be in idle state when using this command. smtc is a non-blocking

command, there is a prompt and it is possible to issue other commands

while the test case execution is proceeding.

When the module name argument is used (with or without the .control

suffix) then smtc starts executing the control part of that module.

When it is intended to select a single test case for execution, smtc is

told using the format module name.testcase name. Only those test

cases can be executed individually that have no formal parameters, or

every formal parameter has a default value.

It is also possible to execute all individually startable test cases defined

inside a module by specifying the module name.* as smtc parameter.

In case the optional parameter is omitted, the contents of the

[EXECUTE] section of the configuration file are run after each other if

that section was specified.

 emtc terminates MTC. When using this command MTC must be in idle

state, that is, it cannot be killed.

 info prints statistics and status information of the currently connected

HCs and test components.

 reconf instructs MC to re-read and re-distribute its configuration file to

the connected HCs. This feature is useful when restarting a test

campaign involving multiple HCs, because the tester configuration can

be altered eliminating the drawback of restarting and reconnecting all

elements of the test set-up manually. This feature is not implemented

yet!

 stop terminates test execution. The verdict of the actual test case will

not be considered in the statistics of the test suite.

 pause [on|off] sets whether to interrupt test execution after each

test case. For setting the state of the pause function on or off values

can be used. If the state of the pause function is on and the actual test

case is finished, the execution is stopped until the continue command is

issued. If pause is in off state and the actual test case is finished, the

execution is continued with the next test case. Using pause without

these options it simply prints the state of the pause function.

 continue resumes interrupted test execution.

 log [on|off] enables/disables console logging. It can be set using

on or off. If log is in off state no log messages will be printed to MC’s

console. Using log without these options it simply prints the state of

logging.

TTCN–3 assumes to have a single control part within an ETS. Our Test Executor, however, removed this

limitation and permits multiple module control parts within the ETS. The smtc command can be used to select

between the available control parts, which one needs to be executed. Moreover, it can be specified to execute a

number of different control parts, too.

Public

USER GUIDE

32 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

 ! escape prefix is used to execute command line contents in a subshell.

 exit terminates all HCs and MC itself. This command can be used

when test execution is not in progress. If MTC still exists it will be

terminated gracefully, like with emtc.

 quit is an alias to exit to provide backward compatibility.

4.4.2.2 Batch Mode

If MC is started in batch mode no command prompt is given. In order to

monitor the actual state of execution the console messages are printed to the

standard output.

In batch mode, the MC performs the following actions sequentially:

 MC waits until the specified number of HCs, that is given in

configuration option NumHCs, are connected.

 MTC is created on the host of firstly connected HC. Equivalent

command: cmtc

 The items of the [EXECUTE] section are launched sequentially.

Equivalent command: smtc

 After all items are finished the MTC is terminated. Equivalent command:

emtc

 The session and all HCs are shut down and MC exits. Equivalent

command: exit

If the [EXECUTE] section of the configuration file is empty or it is missing the

MC stops in batch mode immediately with an error message.

If a fatal error is encountered during initialization, for example due to an error

in the configuration file, no MTC is created and the session stops immediately.

If an error happens within a test case the normal error recovery routines are

activated and the execution continues with the next test case.

4.4.2.3 Performance Hints

Note that if performance tests are executed with a large number of test

components, MC can be a performance bottleneck in the test executor

system. If performance problems occur around the test executor, the first

thing that should be checked is the operating environment of MC. Running

MC on a dedicated computer with a powerful CPU can help in the most cases.

Public

USER GUIDE

33 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

MC maintains a control TCP connection with all other components (HCs, MTC

and PTCs). Each of these connections use an open file descriptor, which is a

limited resource in the operating system. If many test components should be

run simultaneously, this limitation can be a bottleneck. However, the number

of open files per process can be increased up to a so called hard limit (for

example 1024 on Solaris and unlimited

on Linux). The limit can be

increased by a built-in shell command

, of course, before starting MC. On the

other hand, the license key also limits the number of simultaneously active

PTCs, which is considered in MC when processing TTCN–3 create operations.

4.4.2.4 Displaying ASCII Art on Startup

The command line main controller displays an ASCII art file that is located in

the $TTCN3_DIR/etc/asciiart directory. There can be any number of

ASCII art text files in that directory, a random file will be chosen from those.

The file name can contain special filtering instructions, if such instructions are

detected in the file name then the file is grouped into the special files group,

all other files are in the normal group. If there is at least one file in the special

group that was not filtered out by the condition(s) given in the file name then

the file to be displayed will be chosen randomly from the list of special files. If

there are no such special files or all of these were filtered out by their filtering

instructions then a normal file will be displayed. The filtering instructions in the

file name are separated by dots, one instruction consists of a name and a

value which are separated by a dash. If the value is of numerical type then it

can be a single number or an interval, an interval consists of 2 numbers

separated by an underscore. Currently the following filtering condition name

and value pairs can be used:

Filter condition name

Value, type of value

Example

user

User name, string

user-edmdeli

weekday

Number/interval, 1-7

weekday-6_7

day

Number/interval, 1-31

day-1

month

Number/interval, 1-12

month-12

year

Number/interval

year-2013

hour

Number/interval, 0-23

hour-18_23

minute

Number/interval, 0-59

minute-30

second

Number/interval, 0-61

second-0_30

The total number of open files can also be a bottleneck on Linux kernel, which can be changed through the /proc

file system.

Called limit on tcsh and ulimit on bash. For more details please consult the manual page of the used shell.

Public

USER GUIDE

34 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

Example file names:

xmasparty.month-12.day-24_26.txt

weekendwork.weekday-6_7.txt

Displaying ASCII art can be prevented by deleting all files from the directory.

Adding some filtering conditions can be done by renaming the file according

to the above described naming rules.

4.4.3 The TTCN–3 Host Controller

The ETS built for parallel operation mode will act as Host Controller. After

starting up it establishes a TCP connection to MC (which must be started prior

to HC) and waits for requests. The executable takes two mandatory

arguments, the host name or IP address and the TCP port number that MC

listens on.

The optional command line switch -s can be used to specify the source

address of control connections towards MC. Either an IP address or a DNS

name can be given after the switch. Only such IP address is accepted that is

assigned to one of the local network interfaces. This option can be useful on

multi-homed hosts, that is, computers with more than one network interfaces,

in order to route all traffic of control connections to a separate network path to

avoid disturbances in the communication with SUT. If the option is omitted the

local IP address is chosen automatically based on MC’s IP address and the

kernel routing table. The test components, child processes of HC, will use the

same local IP address for their connections as the HC independent if it was

set manually or automatically.

The command line synopsis for HC is the following:

<executable_program_name> [-s <local_address>] <MC_host> <MC_port>

Note: In earlier versions, the HCs accepted an optional third command line

argument specifying the configuration file name. From version 1.3 (MC

version 2), the MC distributes configuration data to all participating HCs.

Consequently, the configuration file became a command line argument of the

MC.

The ETS linked in parallel mode accepts the command line switches -l and

-v like in single mode (see section 4.2). If the test execution is performed in

a distributed environment and file synchronization between computers is not

automatic (for example you use FTP instead of a shared NFS directory), it is

useful to check the module checksums and versions with flag -v on each

computer before starting the HCs.

If MC and HC runs on the same computer and you run Host Controllers on other computers as well, never use

localhost or 127.0.0.1 as host name argument to HC. The IP address that the HC’s connection comes from may

be transferred by MC to TCs running on other hosts. Giving out the local IP address may result in incorrect

behavior.

Public

USER GUIDE

35 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

From version 1.3.pl0 the MC checks the version of each connected HC

automatically in order to ensure the consistency of the distributed test system.

If the ETSes used in the same test campaign contain different TTCN–3

modules or different versions of the same TTCN–3 modules the HC

connections, except the firstly connected one, will be refused by the MC.

4.4.4 Logging in Parallel Mode

During test execution all test components create separate log files. Each log

file has the same format as presented in non-parallel mode. Logging into the

same, NFS shared directory makes the log analysis easier.

The name of log files can be explicitly set in the configuration file using a

metacharacter substitution mechanism. If the file names are not set, the

backward compatible default naming convention is used. It is important to

ensure that every component has its own unique log file name. Refer to the

TITAN Programmer´s Technical Reference for TITAN TTCN-3 Test Executor

2/198 17-CRL 113 200/5 Uen for more details.

In parallel mode the log messages sent to the console are transmitted through

the network and printed on the user interface of MC in normal cases. Thus it

is an unwise thing to log all messages to the console without filtering when

the test suite is used for load generation. If the control connection from a TC

or HC to MC is broken due to any error, the console log messages are written

to the standard error of the ETS locally.

4.4.5 Automation of Testing in Parallel Mode

The starting procedure of TTCN–3 tests in parallel mode can be a tiring task if

it has to be repeated the tests several times. We have developed a small

script that can do this work for you. It is based on the expect command,

which is an extension of the TCL scripting language. The script is called

ttcn3_start and is located in $TTCN3_DIR/bin. In order to use it a

working expect interpreter must be in the $PATH.

The script itself is very simple, it takes one mandatory and one or more

optional arguments. The first mandatory argument is the name of the ETS

that is launched. The second argument can be the name of the configuration

file that will be passed to MC during execution. If this argument is omitted or

the second argument does not resemble to a file name, the script will look for

file <ETS name>.cfg in its current working directory. If such file exists, it will

be used as configuration file. Otherwise MC will be launched without

configuration file.

Additionally, the IP address of the interface used for communication between

the MC and the ETS can be specified. The syntax is –ip followed by the IP

address in dotted decimal format, for example 192.168.0.1.

If not specified explicitly, the address defaults to the IP address of the local

machine.

Public

USER GUIDE

36 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

The rest of arguments are the list of test cases to be executed in format

<modulename>.<testcase name>. They are passed to MC command

smtc sequentially, see section 4.4.2 for details. If these arguments are

missing and a configuration file is present the items of section [EXECUTE]

will be executed, that is, smtc will be called without arguments. If neither

configuration file nor test cases are specified the control part of the main

TTCN–3 module, that is, the module that has the same name as the ETS, is

executed.

The script works the following way: first it launches the MC. If the environment

variable TTCN3_DIR is set the MC is started from directory

$TTCN3_DIR/bin (to find the right one multiple versions are present),

otherwise the command mctr cli is invoked using your search path. If the

configuration file is present it is passed to MC as a command line argument.

After that ttcn3_start launches the ETS, that is, the HC, locally with the

appropriate arguments. That is, the script guesses the host name and

extracts the TCP port number from the output of MC automatically. Then the

script issues the cmtc and the appropriate smtc commands in the MC

command prompt and waits until test execution is finished. Finally it

terminates the programs by issuing emtc and quit. It also takes care of

MC’s answers and issues the commands in the right state.

The messages coming from the standard output or standard error of MC, HC

and the test components are continuously displayed in the output of

ttcn3_start.

Note that this script does not support distributed test execution when more

than one HC has to be started.

Examples for the invocation of ttcn3_start:

$ ttcn3_start Main_Control

$ ttcn3_start Main_Control multi.cfg

$ ttcn3_start Main_Control –ip 10.10.10.10 multi.cfg

$ ttcn3_start Main_Control SNMP_Testcases.tc_110 SNMP_Testcases.tc_113

\ SNMP_Testcases.tc_114

$ ttcn3_start Main_Control multi.cfg SNMP_Testcases.tc_110 \

SNMP_Testcases.tc_113 SNMP_Testcases.tc_114

The script returns different exit codes which can be used by user written

software which invokes it. In case of success the return code is 0, in error

cases the return codes are the following:

Return code

Error description

The expect tool was not found.

Parameters are missing.

Cannot find the given executable.

The script cannot be used when MC

is run in batch mode.

Public

USER GUIDE

37 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

The MC has terminated

unexpectedly.

The given executable is not a TTCN-

3 executable in parallel mode.

The executable could not connect to

the MC.

The MTC cannot be created.

The MTC cannot be created on an

unknown host.

The MTC terminated unexpectedly.

4.5 Strange Behavior of the Executable

If modular test suites are executed, sometimes the executable test program

can do strange things, for example, the execution terminates without any

reason or the send functions of the Test Port is not called, and so on. This is

because out-of-date C++ header files are used for translating the C++ modules,

that is, there is a wrong Makefile.

This may happen when the Test Port files are renamed, so the compiler

regenerates them. Thus the C++ source files generated by the compiler see an

empty Test Port header file, but the fully functional Test Port object file is

linked to the executable. In this case, the linking will be successful, but during

the execution strange things can happen. The reason behind this phenomenon

is that the modules consider the raw binary structure of the same C++ class

different, for example they fetch the virtual function pointer from a wrong place.

Avoid these situations and re-compile all C++ files before reporting such bugs,

and the use of makedepend utility is strongly recommended.

Public

USER GUIDE

38 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

5 Log Processing

The logs generated by the test executor, although they are ASCII text files,

are perfect for machine processing, but not for analyzing by humans. To

make these log files more readable log formatting tools are provided. All of

these programs require the same license feature, LOGFORMAT. The programs

are designed so that they can be used either individually or bundled together

with UNIX pipelines.

Logmerge is useful for test suites that are run in parallel mode. It can merge

the logs of different PTC into one single file based on the timestamps.

Logfilter can be used for post filtering large log files based on the kind of

logged events. It can be specified to keep or remove the event type(s).

Logformat breaks the sent and received data structures into lines and

indents the fields according to their hierarchy. Moreover, if the test suite was

executed in single mode, the log formatter splits the logs of each test case

into separate files.

Repgen can present not only the formatted log files but the description and

TTCN–3 source code of test cases as well as the output of other network

monitor programs, like tcpdump, in HTML format. The test results can be

easily viewed by any JavaScript capable Web browser.

5.1 The logmerge Utility

The logmerge utility, which can be found in $TTCN3_DIR/bin, merges all

files given in the command argument into a single output file. The output of

logmerge is sorted based on the timestamps found in the log files.

The command line syntax is:

ttcn3_logmerge [ -o outfile ] [ file.log ] ...

ttcn3_logmerge -v

Available command line switches are:

-o outfile

Merges all input log files into outfile. If the outfile exists its contents will be

overwritten. This switch is optional, if it is omitted, merged logs will be printed

to standard output.

Public

USER GUIDE

39 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

-v

Prints version and license key information and exits.

Each line of the input files should contain an event in the following format:

Merging log files with different types of timestamps, for example with

timestamp format Time and DateTime, results in warning message(s), and

only files with same format are merged. Merging log files with timestamp

format Seconds is not. If a file contains one or more timestamp(s) that is in

wrong order, the resulting order will be incorrect too. In this case a warning

message will be printed to the standard error.

The output of the utility is the following:

where <component id> is taken from the name of the respective input file.

If the name of the input file is not in the format <ets name>.<host>-

<component id>.log, the whole input file name will be used as

<component id>. Events spreading over multiple lines are also handled

properly.

5.2 The logfilter Utility

The logfilter utility, which can be found in $TTCN3_DIR/bin, filters the input

log file given in the command line argument based on the event types in the

file, and filter parameters given in the program argument. The output is then

written to an output file if specified, or to the standard output. The program is

useful only if the variable LogEventTypes is set to yes in section

[LOGGING] of the configuration file.

The command line syntax is:

ttcn3_logfilter [ -o outfile ] {eventtype(+|-)}

[input.log]

ttcn3_logfilter -v | -h | -l

Available command line switches are:

-h

Prints help on using the utility.

-l

Prints the list of supported event types.

Public

USER GUIDE

40 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

-o outfile

Puts its output into outfile. If the outfile exists, its contents will be overwritten.

This switch is optional, if it is omitted, the output will be printed to standard

output.

-v

Prints version and license key information and exits.

The utility can handle one file at a time, giving more input files results an error.

If no input file is given, it reads the log from standard input. Logfilter can

be efficiently used as the middle stage of a pipeline, combined with

logmerge and logformat.

Event types to be included or excluded should be given without the TTCN

prefix, that is, as they appear in the log file. Undefined event type(s), that are

not listed in the [2], specified as filter parameters will cause warning

message(s), but will not cause the utility to quit. If there are parameters

specified both to include and to exclude one or more event types, the program

will quit with an error message, because in this case it is not well defined how

to handle other event types. All possible error and warning messages will be

printed to standard error.

5.3 The logformat Utility

The logformat utility, which can be found in $TTCN3_DIR/bin, reads the

unformatted log file generated by test executor from its standard input. It can

split up the log into several files based on the lines that are automatically

logged at the beginning or end of each test case. Furthermore, logformat

formats the sent and received messages in the log file. The structured values

are indented and each field is put into a new line according to the braces and

commas.

The command line syntax is:

ttcn3 logformat [ -i n ] [ -o outfile ] [ -s ] [ -n ]

[ file.log ] ...

ttcn3 logformat -v

The switches denoted by square brackets are optional. The following

command line options are available (listed in alphabetical order):

-i n

Sets the depth of each indentation level to n characters. The default value is 4.

If the sent or received PDU is too complex and has too deeply nested fields,

this number can be decreased to get more readable output.

Public

USER GUIDE

41 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

-o outfile

Places the output into file outfile. If the -s flag is also set, only those parts of

the log files will be written into this file that were logged outside the test cases,

that is, in control part or on PTCs. If this option is omitted, the formatted log

will be printed to standard output.

-s

If this option is set, the entries that were recorded during the execution of a

particular test case will be saved in a separate file in logformat’s working

directory. The name of this file will be identical to the name of the test case. If

the same test case is executed several times after each other, the results of

repeated test runs will be collected after each other. If the output file

contained some data before logformat was started, for example the results

of previous test run, the output file will be emptied and the old logs will be

destroyed.

logformat recognizes any types of timestamps that can be set in the

[LOGGING] section of the configuration file.

WARNING! This option is useless when formatting the log files of PTCs,

because these logs do not contain the name of the testcase the PTC belongs

to.

-n

If this option is set, newline and tab control characters are not modified, they

are printed as \n and \t.

-v

Prints version and license key information and exits.

logformat formats all files that are given as arguments and concatenates

them after each other. If no files are given, it reads the log from standard input.

5.4 The HTML Report Generator

The HTML report generator called repgen can be found in

$TTCN3_DIR/bin. The program requires one command line argument that

contains the name of its configuration file. The behavior of repgen can be

configured only through this file. If the switch -h is given instead of the name

of the configuration file, repgen prints a sample configuration file to its

standard output.

The configuration file of repgen is a simple text file which contains a

sequence of directives. Its usual suffix is .ts. Each directive starts with a

special keyword beginning with a hash mark (#) character. The first part of

configuration file should contain global settings, the description of test cases

can be added after that.

The following table summarizes all global settings:

Keyword

Meaning

Public

USER GUIDE

42 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

#Title

The name of the ETS. This string will be used as title in the

resulting HTML pages.

#Tab length

The report generator replaces all tabulator characters with

spaces in the TTCN–3 test cases and log files. This parameter

sets how many spaces a single tab character should be

replaced with. The default value is 8.

#Column width

The report generator breaks the long lines of the ATS and the

external monitor logs. The resulting lines in HTML output will

not be longer than this limit. The default value is 80 characters.

#TTCN-3 code

The name of the directory that contains the TTCN–3 source

files of the test suite. All files will be searched in this directory

whose name ends with .ttcn. repgen collects the source

code of test cases that are listed in the remainder of this

configuration file. The referenced functions, templates and

other definitions are not collected.

An absolute or a relative path may be entered, the starting

point is always the repgen’s working directory, for this and the

following three parameters. The same directory may be used

for many purposes because the file names do not clash.

#TTCN-3 log

The name of the directory that contains the log file(s) of the

test executor. The report generator splits and formats the log

files using the log formatter logformat. All files will be formatted

in this directory whose name ends with .log. If the log of one

test case can be found more than once in the log file(s), for

example, because of repeated test execution, the resulting

HTML page will contain the log of one execution. The others

will be lost.

#Other log

The name of the directory that contains the log files of the

external monitor programs, for example tcpdump. Each file

should contain the messages (network packets) recorded

during the execution of one test case. The log files in this

directory must be named as <testcase name>.dump where

<testcase name> stands for the name of the corresponding

test case. All files must be in ASCII format. logformat will

simply copy them into the destination directory and will not

change their content.

#Destination

The name of the destination directory where the files of the

resulting HTML report should be stored by repgen. The

starting page will be <title>-report.html in this directory and the

other files will be stored under sub-directory <title>-report,

where <title> stands for the string set as the value of

parameter #Title.

Note that each space and dash in this name will be replaced

by an underscore character.

After the global settings, the name and description of all test cases after each

other (in arbitrary order) can be listed. Note that repgen processes the

source code and logs only for those test cases that are listed in the

configuration file. The TTCN–3 code and logs of other test cases will be

silently ignored. A test case can be specified using the following keywords:

Public

USER GUIDE

43 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

Keyword

Meaning

#Testcase

The name of the test case. It must be the same as in the

TTCN–3 code.

#Purpose

A short summary of the test case describing in one sentence

what it does. It must not be longer than one line. These short

descriptions will be listed on the HTML page that lists the results

of all test cases in one table.

#Description

This section should contain the detailed description of the test

case. It may continue through several lines, until the next

#Testcase directive. Figures or message sequence charts can

be drawn using ASCII characters, but images cannot be

embedded.

For browsing the HTML reports the only thing needes is to open the starting

page, the file <title>-report.html in the destination directory, with a

JavaScript capable web browser. The reports should work with any versions

of Netscape and Microsoft Internet Explorer on any platforms. The reports can

be viewed locally or remotely using any web server.

The starting page consists of two list boxes and four buttons (in addition to the

title and the Ericsson logo). The test case can be selected in the left list box.

After selecting a test case the available descriptions and logs will be shown

on the right list box. The following items can be selected: Detailed

description, TTCN–3 code, TTCN–3 executor’s log, Other type of log. If

one or more items for the test case are missing from input files, the missing

option will not be shown. Select or unselect the available descriptions and

logs one-by-one independently by clicking on them.

After selecting a test case and its items the ”Show” button at bottom should

be pressed to view the selected logs and descriptions. A new browser window

will be opened for each test case and the selected items will be shown in

vertically split frames. The text in each frame can be scrolled independently.

Of course, the logformat tool is unable to figure out the relation between

the TTCN–3 source code and the produced log events.

In the root window, it is possible to walk through the available test cases step-

by-step using the buttons Previous and Next. The button Summary will bring

up another window that lists all test cases, their short descriptions and

verdicts in a single table to get a quick overview about the test results.

Example: In the following is an example configuration file of logformat. We

included the descriptions of the first three test cases only.

#Title ROHC

#Tab length 8

#Column width 80

#TTCN-3 code /home/ethpkr/ROHC

#TTCN-3 log /home/ethpkr/ROHC/log

#Other log ./

#Destination ./

#Testcase CTC01

Public

USER GUIDE

44 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

#Purpose Mode transition from Unidirectional to Optimistic mode.

#Description

Comp->IRs, Comp->IR_DYNs, Comp->UO-0s, Decomp->Feedback(mode

transition u->o), Comp->UO-0s

#Testcase CTC02

#Purpose Feedback processing in Unidirectional mode.

#Description

Testing the compressor’s feedback processing capabilities in U

mode.

#Testcase CTC03

#Purpose Operation in Optimistic mode (NACK).

#Description

Testing the compressor’s operation in Bidirectional Optimistic

mode. Preamble: taking the compressor to SO state and O mode.

After that a NACK is sent as an answer to a received compressed

packet. The answer for that should be an IR with dynamic chain

or UOR-2 or an IR-DYN packet.

[...]

Note: repgen was designed to present the results of non-parallel test cases.

In case of parallel test execution, the logs of PTCs cannot be browsed, only

the MTC log..

Warning: During its run repgen will start the other log formatter program

logformat. That is why repgen works correctly only if the directory

$TTCN3_DIR/bin is included to the path.

Public

USER GUIDE

45 (45)

Prepared (Subject resp)

No.

ETHBAAT Jeno Balasko

1/198 17-CRL 113 200/5 Uen

Approved (Document resp)

Checked

Date

Rev

Reference

ETHLEL Elemer Lelik

ETHGRY

2016-05-23

6 References

[1] Installation Guide for TITAN TTCN-3 Test Executor

1/1531-CRL 113 200/5 Uen

[2] TITAN Programmer´s Technical Reference for TITAN TTCN-3 Test

Executor

2/198 17-CRL 113 200/5 Uen

[3] Release Notes for TITAN TTCN-3 Test Executor

109 47-CRL 113 200/5 Uen

[4] TTCN–3 Style Guide

1/0113-FCPCA 101 35

[5] TTCN–3 Naming Convention

ETH/R-04:000010

User Guide For TITAN TTCN 3 Executor 2016

Navigation menu

Versions of this User Manual:

Views

Navigation
