Introduction
LDAP is a core protocol that is used to store user, role, and group information.Identity server already
supports connecting to LDAP supported authz systems for authentication and authorization. The idea of
this project is to make IS itself act as a LDAP protocol provider.

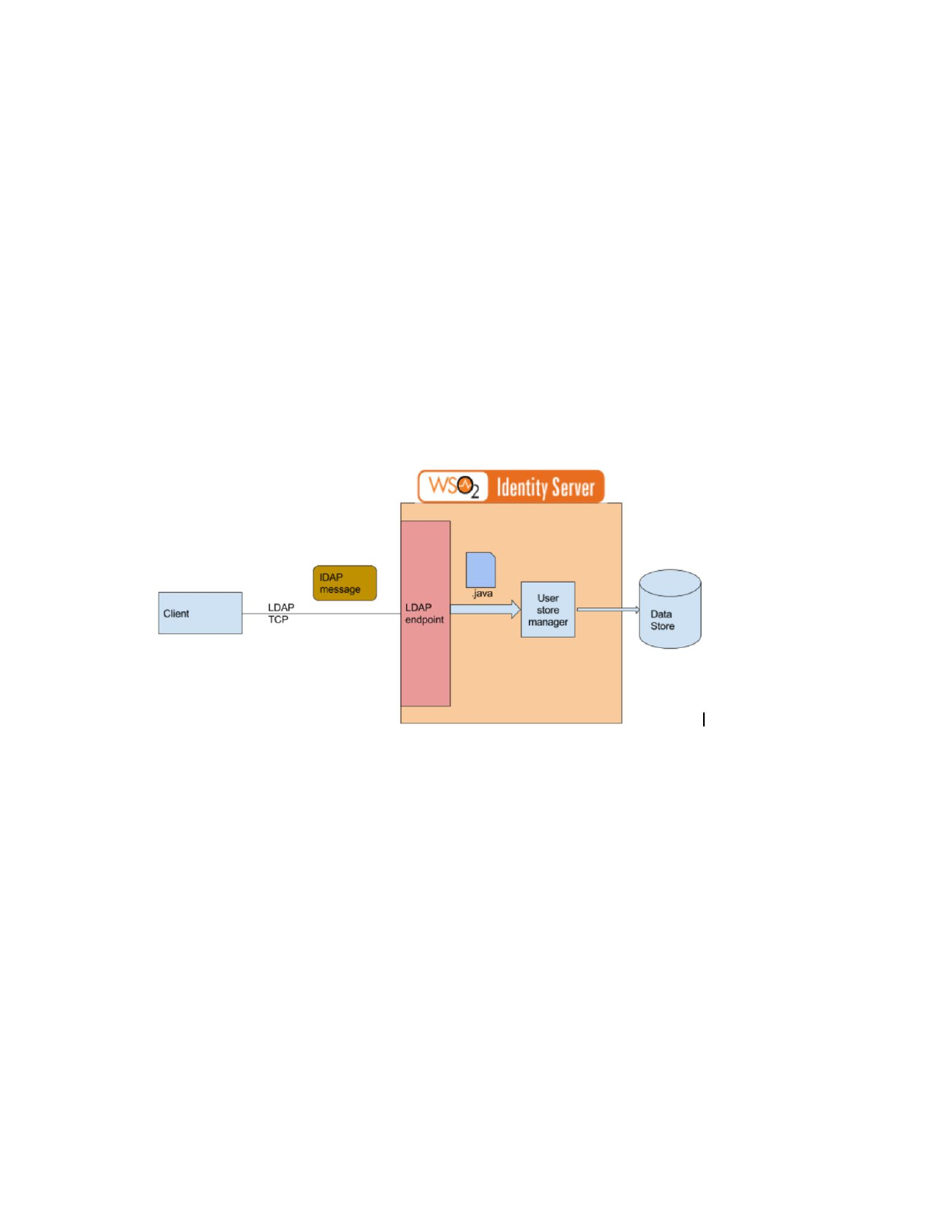

Identity server does expose a LDAP protocol endpoint by itself such that external ldap clients can connect
with IS directly. Here identity server uses userstore manager api to manage users in backend databases
such as JDBC,LDAP.
Following the order to setup LDAP endpoint
●Setup Identity.xml file
●Add new claim dialect
●Add apacheds-1.5.7.wso2v5.jar to {IS-HOME}/repository/components/dropins
●Add org.wso2.carbon.identity.inbound.ldap-1.0.0-SNAPSHOT.jar to
{IS-HOME}/repository/components/dropins
●Configure the primary user store
●Add user to wso2 IS userstore through ldap protocol
●Delete user from wso2 identity server userstore through ldap protocol
1. Setup Identity.xml file
enable
- If true the LDAP endpoint will start when server starts up.
instanceid
- An id given to the LDAP server instance.
connectionPassword
- The password of the admin. (uid=admin,ou=system)
workingDirectory
- Location where LDAP will store its schema files.
allowAnonymousAccess
- Should allow users to access LDAP server without
credentials.Default false.
accessControlEnabled
- Should access control be enabled among partitions. Default
true.
saslHostName
- Default host name to be used in SASL (Simple Authentication
and Security Layer). This property comes from apacheds
implementation itself.
saslPrincipalName
- Default SASL principal name. Again this property also comes
from apacheds implementation itself.
<LDAPEndPointConfig>
<enable>true</enable>
<port>10390</port>
<instanceId>default</instanceId>
<connectionPassword>admin</connectionPassword>
<workingDirectory>.</workingDirectory>
<allowAnonymousAccess>false</allowAnonymousAccess>
<accessControlEnabled>true</accessControlEnabled>
<denormalizeOpAttrsEnabled>false</denormalizeOpAttrsEnabled>
<maxPDUSize>2000000</maxPDUSize>
<saslHostName>localhost</saslHostName>
<saslPrincipalName>ldap/localhost@EXAMPLE.COM</saslPrincipalName>
</LDAPEndPointConfig>
2. Adding new claim dialect
When you are going to adding claim dialect into wso2 identity server there are two ways.
1.Add claim dialect to claim-config.xml file(Using file configuration)
2.Add claim dialect using Identity server ui(Using management console)
●Add claim dialect using claim-config.xml file
Create a claim Dialect
Claim
ClaimURI
DisplayNa
me
AttributeID
Description
MappedLocalClaim
1
http://wso2.org/ldap/claim/givenName
First Name
givenName
First Name
http://wso2.org/claims/givenname
2
http://wso2.org/ldap/claim/nickName
Nick Name
nickName
Nick Name
http://wso2.org/claims/nickname
3
http://wso2.org/ldap/claim/sn
Last Name
sn
Last Name
http://wso2.org/claims/lastname
4
http://wso2.org/ldap/claim/mail
Email
mail
Email
Address
http://wso2.org/claims/emailaddress
5
http://wso2.org/ldap/claim/dateOfBirth
DOB
dateOfBirth
Date of Birth
http://wso2.org/claims/dob
6
http://wso2.org/ldap/claim/gender
Gender
gender
Gender
http://wso2.org/claims/gender
7
http://wso2.org/ldap/claim/country
Country
country
Country
http://wso2.org/claims/country
8
http://wso2.org/ldap/claim/streetAddress
Street
Address
streetAddress
Street
Address
http://wso2.org/claims/streetaddress
9
http://wso2.org/ldap/claim/homePhone
Home
Phone
homePhone
Home Phone
http://wso2.org/claims/phoneNumbers.home
10
http://wso2.org/ldap/claim/otherPhone
Other Phone
otherPhone
Other Phone
http://wso2.org/claims/otherphone
11
http://wso2.org/ldap/claim/mobile
Mobile
mobile
Mobile
http://wso2.org/claims/mobile
12
http://wso2.org/ldap/claim/localityName
Locality
localityName
Locality
http://wso2.org/claims/locality
13
http://wso2.org/ldap/claim/stateOrProvinceNa
me
State
stateOrProvinc
eName
State
http://wso2.org/claims/stateorprovince
14
http://wso2.org/ldap/claim/postalCode
Postalcode
postalCode
Postalcode
http://wso2.org/claims/postalcode
15
http://wso2.org/ldap/claim/PPID
privatePersona
lIdentifier
PPID
http://wso2.org/claims/im
16
http://wso2.org/ldap/claim/cn
Full Name
cn
Full Name
http://wso2.org/claims/fullname
17
http://wso2.org/ldap/claim/organizationName
Organizatio
n
organizationN
ame
Organization
http://wso2.org/claims/organization
18
http://wso2.org/ldap/claim/telephoneNumber
Telephone
telephoneNum
ber
Telephone
http://wso2.org/claims/telephone
19
http://wso2.org/ldap/claim/uid
Username
uid
User name
http://wso2.org/claims/username
20
http://wso2.org/ldap/claim/role
Role
role
Role
http://wso2.org/claims/role
21
http://wso2.org/ldap/claim/createdDate
Created
Time
createdDate
Created
timestamp of
the user
http://wso2.org/claims/created
22
http://wso2.org/ldap/claim/im
Meta -
Version
im
Meta -
Version
http://wso2.org/claims/im
23
http://wso2.org/ldap/claim/lastModifiedDate
Last
Modified
Time
lastModifiedD
ate
Last
Modified
timestamp of
the user
http://wso2.org/claims/modified
24
http://wso2.org/ldap/claim/scimId
User ID
scimId
Unique ID of
the user
http://wso2.org/claims/userid
25
http://wso2.org/ldap/claim/url
URL
url
URL
http://wso2.org/claims/url
26
http://wso2.org/ldap/claim/homeEmail
Emails -
Home
Email
homeEmail
Home Email
http://wso2.org/claims/emails.home
27
http://wso2.org/ldap/claim/location
Location
location
Location
http://wso2.org/claims/location
28
http://wso2.org/ldap/claim/workEmail
Emails -
Work Email
workEmail
Work Email
http://wso2.org/claims/emails.work
Ex-You can add above information to claim-mgt.xml file according to this way.
<Claim>
<ClaimURI>http://wso2.org/ldap/claim/givenName</ClaimURI>
<DisplayName>First Name</DisplayName>
<AttributeID>givenName</AttributeID>
<Description>First Name</Description>
<Required />
<SupportedByDefault />
<MappedLocalClaim>http://wso2.org/claims/givenname</MappedLocalClaim>
</Claim>
More details -
https://docs.wso2.com/display/IS530/Adding+Claim+Dialects#AddingClaimDialects-Usingfileconfigurati
on
Also you can add claim dialect using identity server ui.
●Add claim dialect using identity server ui
More details -
https://docs.wso2.com/display/IS530/Adding+Claim+Dialects
3. Setup bundles
There are two bundles you should use for start ldap endpoint
1.apacheds orbit bundle
2.ldap endpoint bindle
You should copy these two bundles into <wso2-identityserver>/repository/components/dropins
As a back end databases you can configure any type of databases which has been supporting to wso2
identity server.
Configuring the Primary User Store
https://docs.wso2.com/display/IS530/Configuring+the+Primary+User+Store
4. Add User
First you should create Sample ldif file. Here you can define more than one users.
sample.ldif
dn: uid=test,ou=Users,dc=wso2,dc=org
objectClass: top
objectClass: identityPerson
objectClass: person
objectClass: organizationalPerson
objectClass: inetOrgPerson
objectClass: wso2Person
objectClass: scimPerson
cn: cntest
sn: sntest
givenName: testuser
mail: test@wso2.com
mobile: 0711234567
organizationName: wso2
uid: test
userPassword:: YWJjZGU=
country: Srilanka
createdDate: 2017-12-02T17:16:04
lastModifiedDate: 2017-12-02T17:16:04
scimId: e8c029b1-e397-412e-87db-2125bb3ada56
Open a new terminal
ldapadd -h localhost -p 10390 -D "uid=admin,ou=system" -w admin -f sample.ldif
5. Delete User
Open a new terminal
ldapdelete -h localhost -p 10390 -D "uid=admin,ou=system" -w admin "uid=test,ou=Users,dc=WSO2,dc=ORG"
