Utilities Developer’s Guide

An Open Source Asset for use with

TIBCO® Data Virtualization

Project Name

AS Assets Utilities

Document Location

This document is only valid on the day it was printed.

The source of the document will be found in the

ASAssets_Utilities folder

(https://github.com/TIBCOSoftware)

Purpose

Developer’s Guide

Utilities Developer’s Guide

Revision History

Version

Date

Author

Comments

1.0

06/22/2014

Mike Tinius

Initial revision

1.1

12/06/2017

Mike Tinius

Transitioned to Tibco for release 2017Q4

Related Documents

Name

Version

How To Use AS Utilities.pdf

2017Q4

Supported Versions

Name

Version

TIBCO® Data Virtualization

7.0 or later

Utilities Developer’s Guide

Table of Contents

1!Introduction ................................................................................................... 4!

Purpose ..................................................................................................................................... 4!

Audience ................................................................................................................................... 4!

References ................................................................................................................................ 4!

2!Utilities Overview .......................................................................................... 5!

What are the AS Assets Utilities? ............................................................................................. 5!

Recommended Development Tools .......................................................................................... 5!

3!Github Repository Structure ....................................................................... 6!

How Can I Download a Copy of the Utilities GitHub Repository? ............................................. 6!

Repository Folder Structure ...................................................................................................... 6!

DocumentationSource ..................................................................................................... 6!

DVSource ........................................................................................................................ 6!

DVSource/cis_objects ..................................................................................................... 6!

DVSource/scripts ............................................................................................................ 6!

JavaSource ..................................................................................................................... 6!

JavaSource/lib ................................................................................................................. 6!

Release 6!

Release/archive .............................................................................................................. 6!

4!Configuring the Eclipse Development Environment ................................. 7!

Checking Out the AS Utilities DV Source Code ........................................................................ 7!

Configure Eclipse Variables ...................................................................................................... 7!

Checking Out the AS Utilities Project ........................................................................................ 9!

Clone the AS Utilities Git repository to your local machine ............................................. 9!

Create a General project from the Git repository to control check-in ............................ 12!

Create a Java project from the Git repository JavaSource folder ................................. 14!

Build the AS Utilities jar files ......................................................................................... 16!

Debugging AS Utilities CJP (Java) Source Code ................................................................... 16!

Utilities Developer’s Guide

1 Introduction

Purpose

The purpose of this document is to provide detailed usage of the core Utilities. Utilities

are building blocks of functionality that, in some cases, provide a wrapper on top of the

TIBCO® Data Virtualization API and in other cases simply encapsulate a capability

deemed to be repeatable and useful.

This document covers the following topics:

• Advanced Services (AS) Assets Utilities Overview - Describes the history and use

of the AS Assets Utilities distribution.

• Extending and/or Contributing to the AS Assets Utilities distribution.

Audience

This document is intended to provide guidance for the following users:

• Developers

References

Product references are shown below. Any references to CIS or DV refer to the current

TIBCO® Data Virtualization.

• TIBCO® Data Virtualization was formerly known as

o Cisco Data Virtualization (DV)

o Composite Information Server (CIS)

Utilities Developer’s Guide

2 Utilities Overview

What are the AS Assets Utilities?

The AS Assets Utilities, or simply "The Utilities", were started as an internal project to collect the

ever-increasing number of simple SQL Scripts and custom Java procedures (CJPs) that ended up

being reusable at multiple customer sites. Rather than reinvent the wheel at each customer, it

was proposed that these simple procedures should be gathered and made available to all

customers free of charge as an open source offering.

The Utilities are made up of a number of procedures that perform relatively simple tasks, such as

string, date/time, and XML manipulation; interactions with the CIS repository or CIS host

filesystem; and helpers for working with another AS Asset known as "PDTool".

These procedures are not intended to be full custom solutions (though many end up being used

in such solutions) but are simple timesavers that make the life of a CIS developer easier.

Recommended Development Tools

CIS itself can (and should) be used for developing the SQL Script procedures. Any robust Java

IDE can be used to develop the CJPs, however up to this point, the CJP's have been developed

using Eclipse. The CJP artifacts in the open source repository (GitHub) are therefore geared

towards an Eclipse project.

Git is used as the version control system for the Utilities open source project. For those new to

Git, a visit to https://help.github.com/articles/set-up-git will provide an overview of Git and

instructions on downloading and setting up the basic Git tools.

Utilities Developer’s Guide

3 Github Repository Structure

How Can I Download a Copy of the Utilities GitHub Repository?

The GitHub master repository for the Utilities is located at

https://github.com/TIBCOSoftware/ASAssets_Utilities.

Repository Folder Structure

The folder structure of the GitHub repository contains CIS source, custom Java source,

documentation source, and distribution resources.

DocumentationSource

This folder contains the source versions of the user's guide and developer's guide (this document)

in Microsoft Word format. When a release version of a document is ready for distribution, it should

be saved in PDF format and placed in the Release folder.

DVSource

This folder contains the source code for the Utilities DV resources.

DVSource/cis_objects

This folder contains the exported CIS resources in the version control export format. Instead of a

single .CAR file, the resources are exported in a folder tree structure that matches the container

structure in CIS. A .CMF file named for the resource with a resource type suffix contains the

resource's source code, model, ownership information, annotation, permissions, etc. A container

will have a corresponding .CMF file contained inside it.

DVSource/scripts

This folder will contain (still in development) a number of Windows batch files and Linux shell

scripts that can be used to import the resources in the cis_objects folder into a CIS instance and

export resources from a CIS instance into the cis_objects folder structure.

JavaSource

This folder contains the source code for the Utilities DV resources. It contains an Eclipse project

that can be used to build individual CJP data source jars or all of them in one build. Each CJP

collection has a child folder here.

JavaSource/lib

This folder contains library jar files used to build the CJP jars. Open source libraries have

corresponding LICENSE.txt files. CIS libraries are named with a "cs" prefix.

Release

This folder contains the current release of the Utilities and corresponding documentation.

Release/archive

This folder contains past releases of the Utilities and corresponding documentation.

Utilities Developer’s Guide

4 Configuring the Eclipse Development Environment

Checking Out the AS Utilities DV Source Code

TBD. For now, the best way to make sure a new or updated SQL Script gets into the next release

is to send the script (plus documentation and examples!) in a CAR file to Mike Tinius.

Configure Eclipse Variables

There are two variables that need to be created. One is for Eclipse and one is for Ant.

Create DV_HOME for Eclipse.

In Eclipse, select Window > Preferences > Java > Build Path > Classpath Variables > New

Enter Name: DV_HOME

Path: Browse to your data virtualization home folder

Utilities Developer’s Guide

Create DV_HOME for Ant.

In Eclipse, select Window > Preferences > Ant > Runtime > Properties > Add Property

Enter Name: DV_HOME

Path: Locate your data virtualization home folder and type it or copy and paste it.

Utilities Developer’s Guide

Checking Out the AS Utilities Project

CJPs for the AS Utilities are currently developed in Eclipse. These instructions are based on the

Luna distribution of Eclipse (if not using this release then the following steps may need to be

modified. For instance, Luna includes the Git client, whereas earlier releases of Eclipse do not.) If

installing Eclipse for the first time, the "Eclipse Standard" (or "Eclipse IDE for Java Developers", if

space is tight) should be used.

Clone the AS Utilities Git repository to your local machine

For the next steps, start Eclipse and make sure to apply any updates (Help -> Check for

Updates).

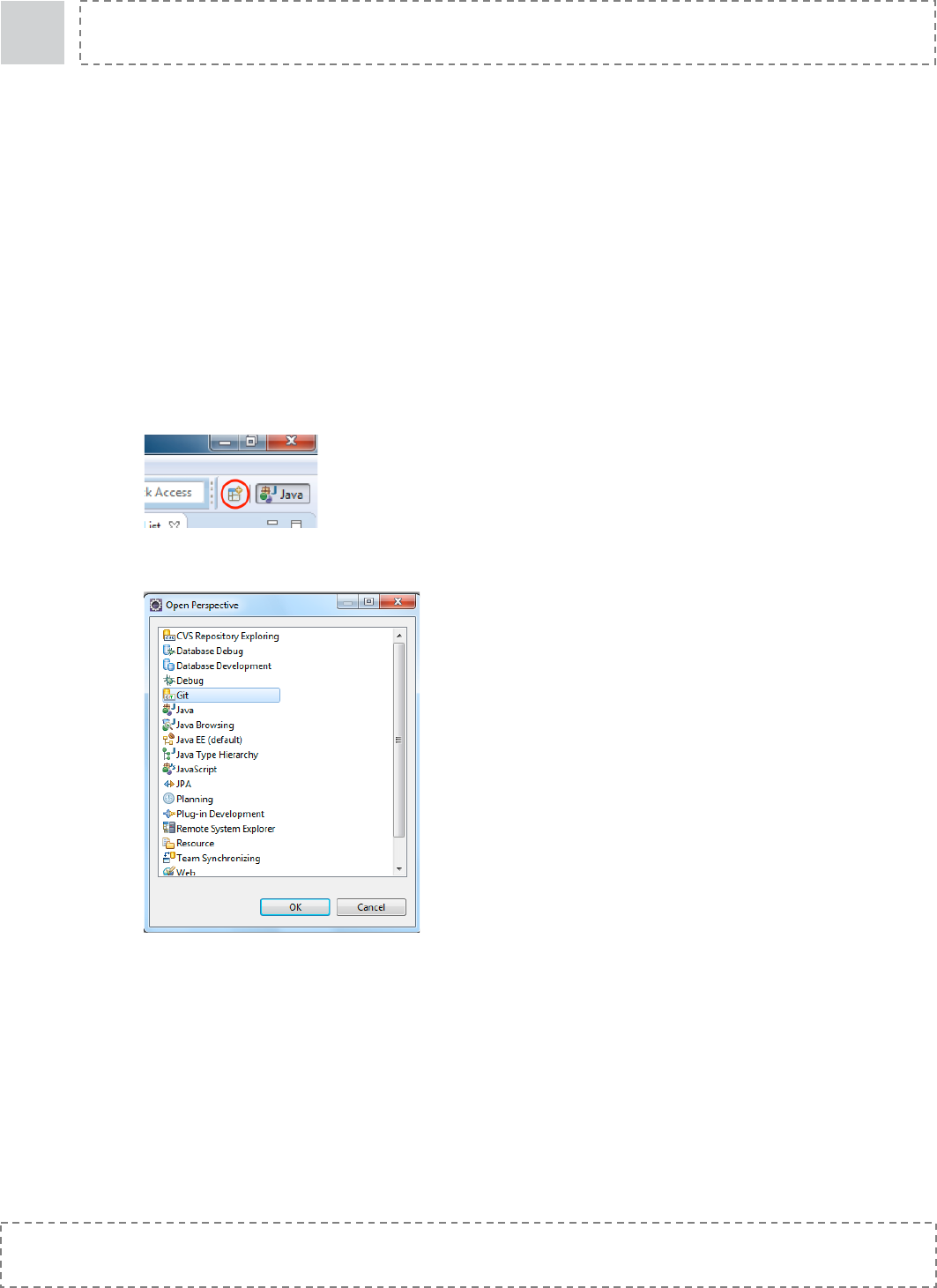

1. Open the Git perspective using the "Open Perspective" panel in the upper right of the

Eclipse screen:

2. Choose the Git perspective:

3. In the "Git Repositories" panel, click the "Clone a Git repository" link. Alternatively, go to

the "File" menu and select "New"->"Other…" Choose "Git"->"Git Repository" from the

resulting dialog.

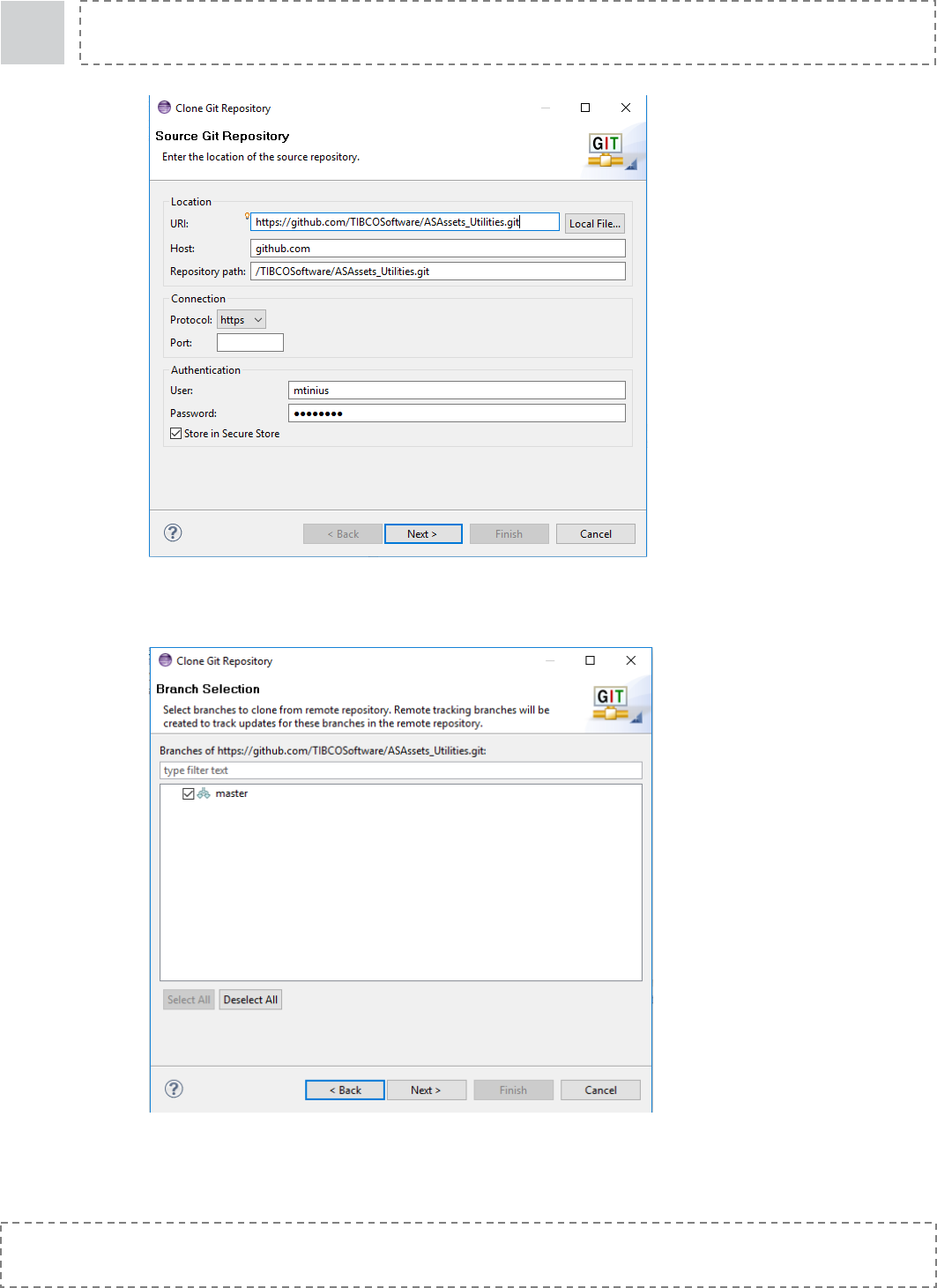

4. In the resulting dialog, paste the Git repository URL

https://github.com/TIBCOSoftware/ASAssets_Utilities.git into the "URI" field. The

"Host" and "Repository Path" fields should auto-populate. Enter your Git user name and

password and click "Next >".

Utilities Developer’s Guide

5. The "Branch Selection" screen should show one branch called "master". This should

already be selected so click "Next >".

Utilities Developer’s Guide

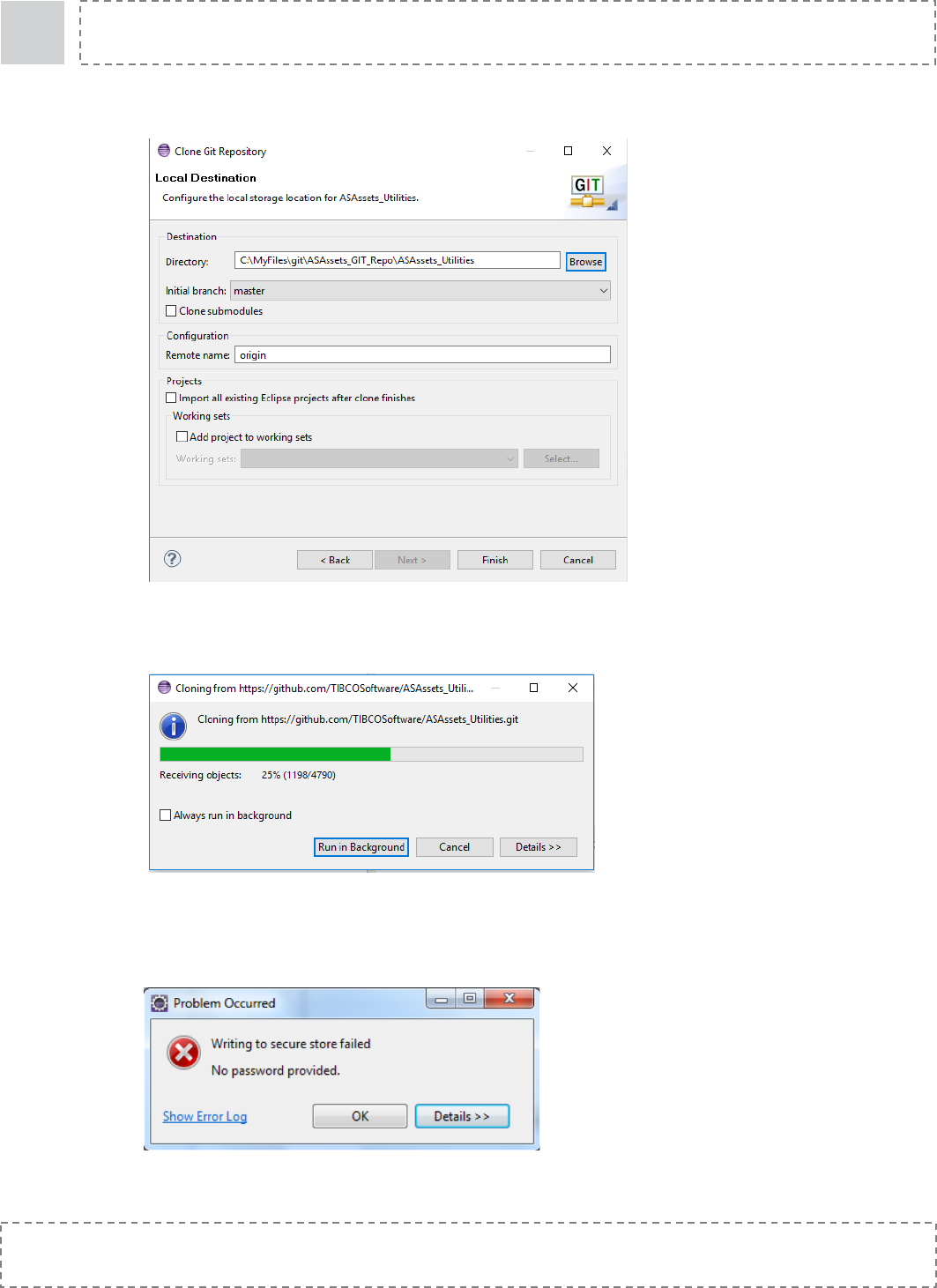

6. Choose the location where the downloaded source code should be stored. Click "Finish".

7. A progress dialog will appear indicating how far along the clone process is. Once done,

the ASAssets_Utilities clone should then appear in your Git Repositories list.

8. You may get an error stating that your secure store password has not been set. This can

be safely ignored but it's probably a good idea to go into the Eclipse preferences and set a

password for your secure storage.

Utilities Developer’s Guide

Create a General project from the Git repository to control check-in

1. Open the Java perspective clicking the "Java" perspective button in the upper right of the

Eclipse screen.

2. Right-click in the "Package Explorer" panel on the left side of Eclipse. Select "Import …"

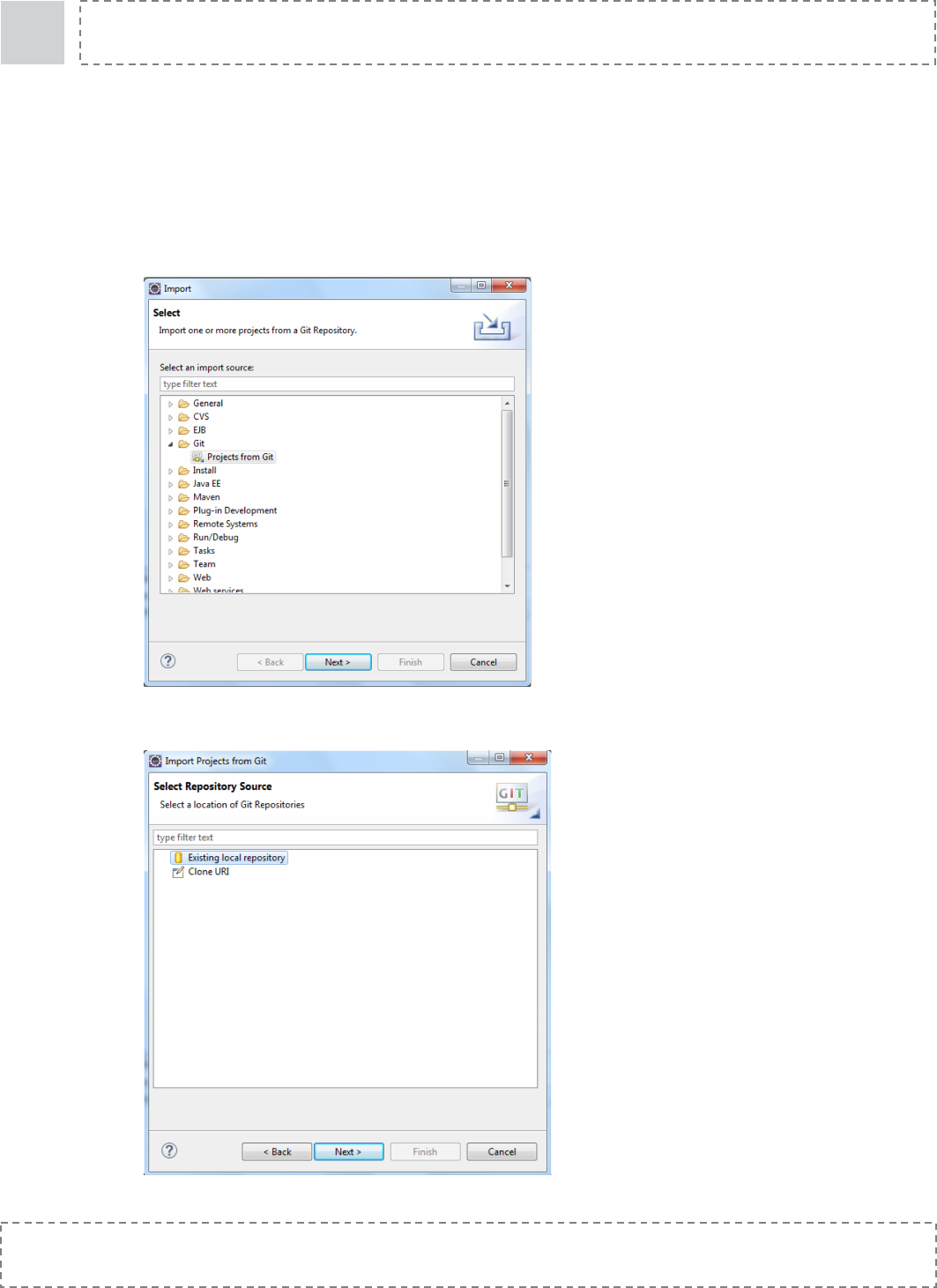

3. Drill into "Git" and select "Projects from Git". Click "Next >".

4. In the next panel choose "Existing local repository". Click "Next >".

Utilities Developer’s Guide

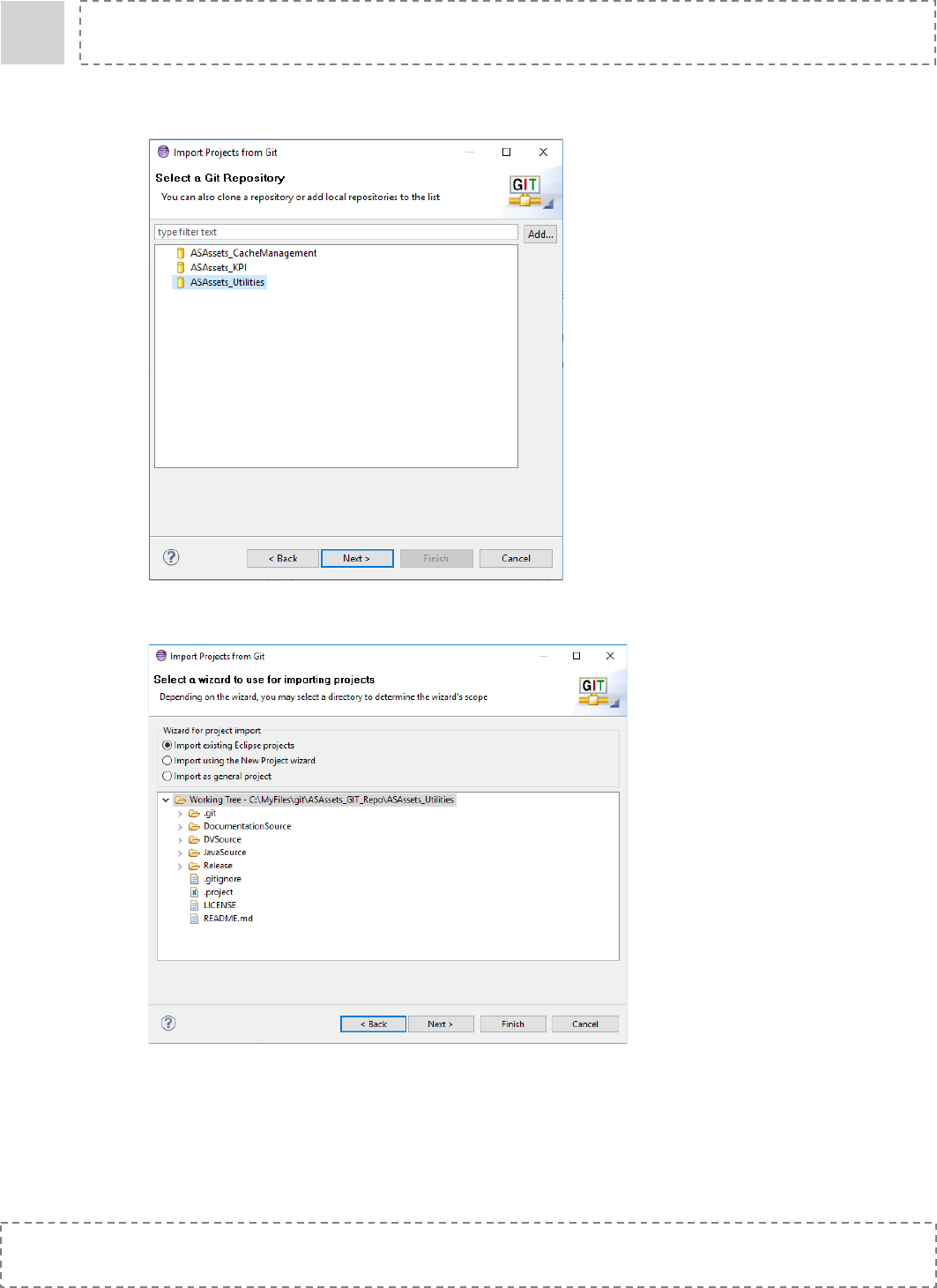

5. Choose the "ASAssets_Utilities" repository. Click "Next >".

6. Select "Import existing Eclipse projects" as the root folder to import. Click "Next >".

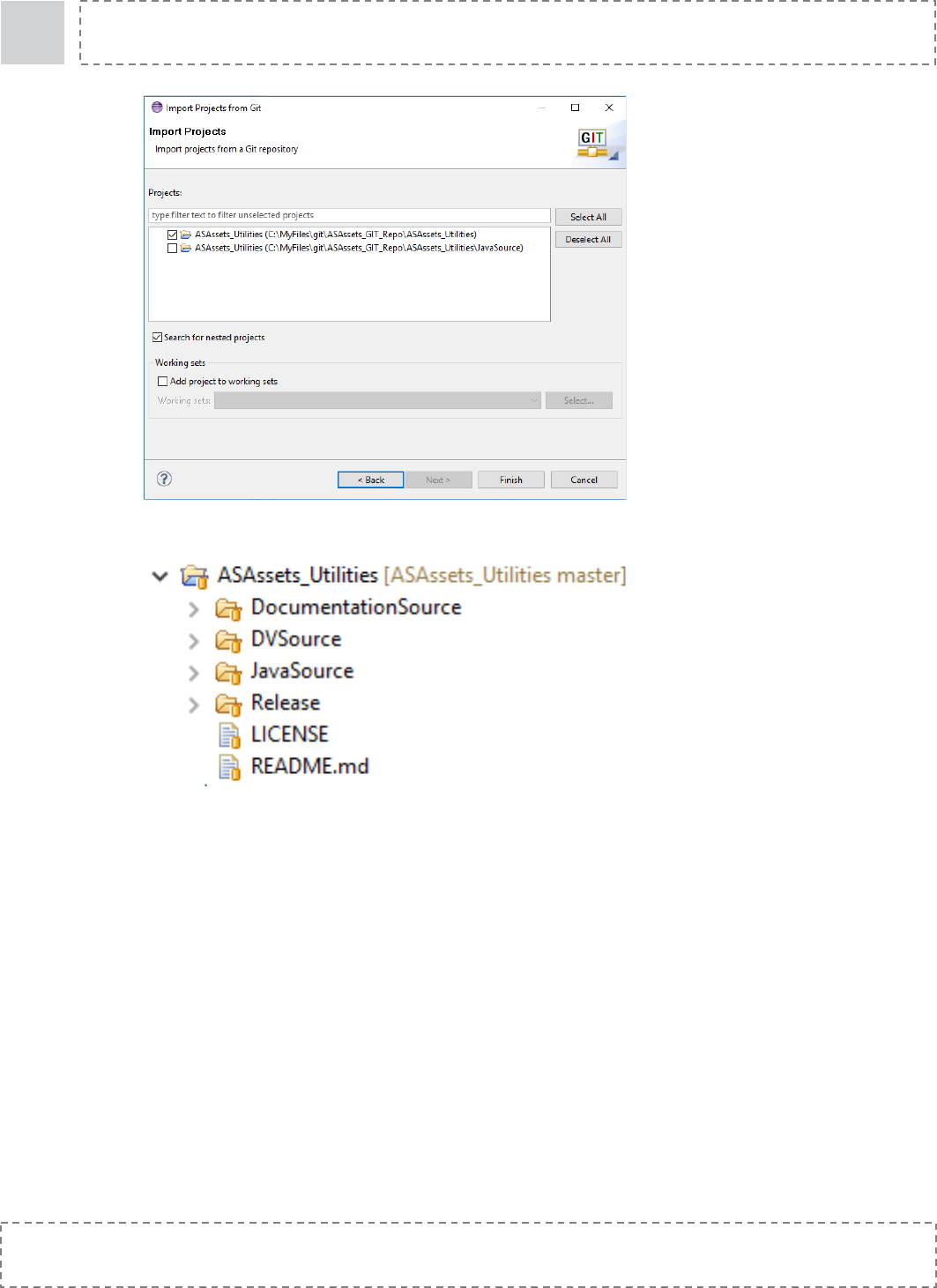

7. Select only the “ASAssets_Utilities” project and click "Finish".

Utilities Developer’s Guide

8. The imported project:

Create a Java project from the Git repository JavaSource folder

1. Open the Java perspective clicking the "Java" perspective button in the upper right of the

Eclipse screen.

2. Select File > New > Java Project

a. Enter ASAssets_Utilities_JavaSource

b. Unselect “Use default location”

c. Browse to the Git repository location and select ASAssets_Utilities/JavaSource

Utilities Developer’s Guide

d. Click “Finish”

Utilities Developer’s Guide

Build the AS Utilities jar files

Building the jar files for the CJP data sources is very straightforward. Each CJP folder contains a

"build.xml" file that can be used to build jar files individually. Alternatively, the "build.xml" file in the

project's root folder can be used to build all the jar files in one build. When one or more jar files

are built, they will appear in the "dist" folder in the project's root folder.

Debugging AS Utilities CJP (Java) Source Code

These steps discuss how you can debug the AS Utilities Java code using a remote CIS instance

to attach to.

1. Stop the CIS monitor from Control Panel:

2. Open a command line window to start CIS manually in debug mode

a. C:\CIS7.0.5\bin>composite_server.bat debug

3. Open your Eclipse workspace for ASAssets_Utitlities_JavaSource

a. Open the Debug Configurations and create a “Remote Java Application”

configuration for the ASAssets Utilities Java Project

b. Set the parameters as shown below for Host and Port.

c. Use this when debugging and setting breakpoints.

Utilities Developer's Guide

Utilities%20Developer's%20Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
