Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2
The AEROMAX is a MINIM compatible multi-function OSD built to a spec from the team behind MWOSD.
As a direct result of feedback from issues with overheating, reliability and noisy images on the genuine and
MinimOSD clones in popular use, they worked with one of the best suppliers in china to produce a new design to
not only significantly reduce these issue, but also to provide additional hardware support and expansion growth
for the future.
Recommended for use with BETAFLIGHT / CLEANFLIGHT / RACEFLIGHT and PX4/APM
There are many MinimOSD style clones out there – so why buy this one. What makes it worth the extra. Check
out why:
Key features:
• It’s from the guys at MWOSD – probably the most popular OSD firmware in the world today
• Far superior noise resistance from power fluctuations
• Uses the newest AB7456 chip – generates far less heat and uses far less power than MAX7456 based
clones
• Works down to less than 4v – VERY resilient to voltage fluctuations unlike normal MinimOSD clones
which lock up
• Flat bottom form factor for easy mounting – Just some thick double sided tape
• Standard 0.1” servo pins – Easy and simple to connect
• Gold plated pin via – higher quality
• Extra hardware support - protect your investment in the future
• Direct hardware support for non-standard FRSKY RSSI such as d4R-ii
Hardware Features:
• Updated MAX7456 compatible on-screen display IC
• Flicker free screen updates
• All the same features as the original – and more – and in a smaller package
• 35mm x 20mm size!
• 5V DC Supply that can tolerate up to 35v
• Regulated and filtered supply – less probability of display noise from power
• FTDI cable compatible pinout
• Two LED indicators
• Arduino bootloader – you can update this unlike some clones
• Supports direct monitoring of 2 batteries up to 6s without modification.
• Supports current sensor
• Supports Analog or Digital PWM RSSI signal. Also FRSKY D4R-ii - unlike clones
• Powered by Atmega 328P 16Mhz processor
• 3 wire camera / VTX connections – option to pass through power
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2
Connections:
• BAT1 - Main battery voltage monitoring (0-28v)
• BAT2 - Video battery voltage monitoring( 0-28v)
• RST - Reset (connect to ground to reset)
• CURR - Current sensor monitoring (0-5v)
• RSSI - RX RSSI sensor monitoring (0-5v Analogue or PWM)
• Vout - Video signal output to VTX
• Vin - Video signal input from Camera
• Vcam - Supply voltage between VTX and camera.
• 5V – Supply to / from board
• GND – Ground
• RX – Serial input to board
• TX – Serial output from board
• DTR – Serial reset for programming
Solder pad functions:
• The FRSKY RSSI filter jumper pad enables the use of FRSKY high frequency RSSI signals from units
such as the D4R-II. Enabling this permanently is recommended. Standard 50hx PWM RSSI is
unaffected by this jumper. Additionally, Analogue RSSI usually benefits with smoother readings when
enabled.
• VBAT1-VCAM jumper pad is used to link the main battery voltage connected from VBAT1 to the VCAM
connections for the video in and out. This can be used to reduce wiring in some installations. Ensure
connected items such as camera / VTX can operate on the full battery voltage if used.
Product notes:
• This product is intended for DIY use
• A level of technical expertise is required to assemble, install, configure and use
• This is not a plug and play product
• Soldering may be required
• Not all cameras are compatible with OSD’s - check for suitability
• No liabilities are assumed for its use, suitability of application or any consequence from its use of failure
WARNING
• This OSD is designed to be powered by 5v only. It can sustain significantly more however connected
peripherals may not.
• Any voltages greater than 5v should only be connected to BAT1 and BAT2 pins
• The VCAM pins for video in and out are connected together. This is to enable pass-through voltage, if
required, to the camera. It does NOT reduce voltages to 5v or 12v.
SOLDER PAD functions
• The FRSKY RSSI filter jumper pad enables the use of FRSKY high frequency RSSI signals from units
such as the D4R-II. Enabling this permanently is recommended. Standard 50hx PWM RSSI is
unaffected by this jumper. Additionally, Analogue RSSI usually benefits with smoother readings when
enabled.
• VBAT1-VCAM jumper pad is used to link the main battery voltage connected from VBAT1 to the VCAM
connections for the video in and out. This can be used to reduce wiring in some installations. Ensure
connected items such as camera / VTX can operate on the full battery voltage if used.
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2

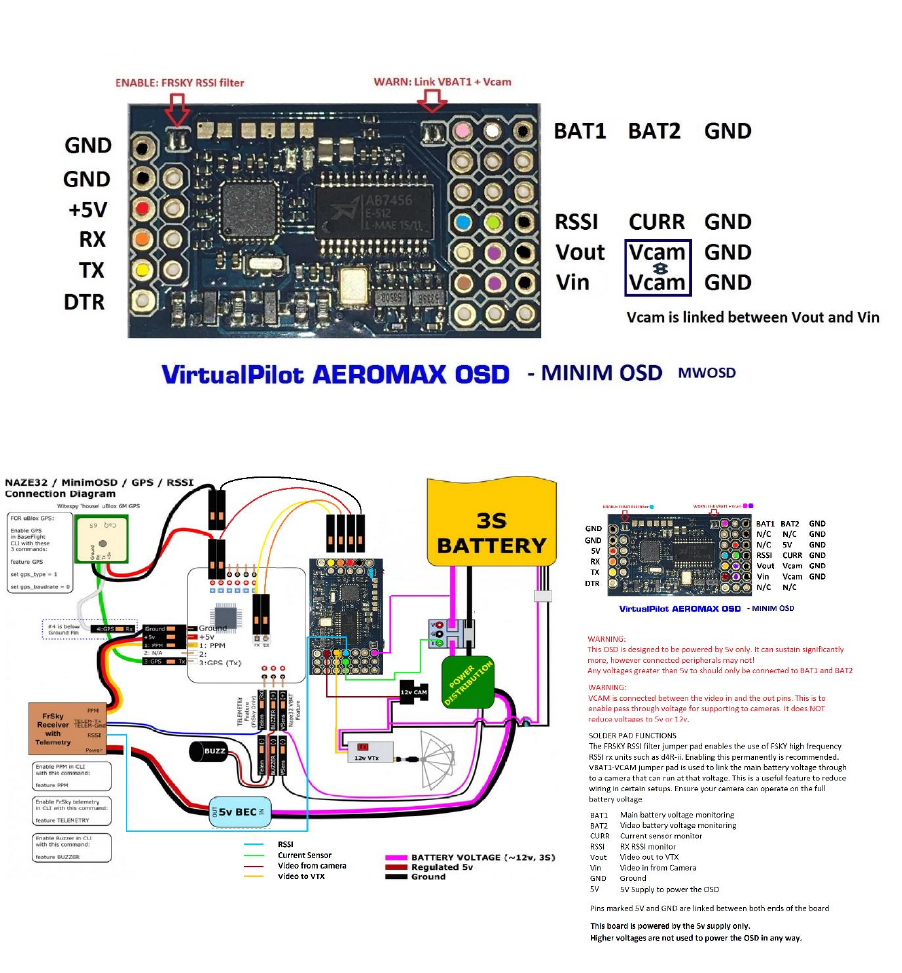

BETAFLIGHT / CLEANFLIGHT / iNAV installation
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2

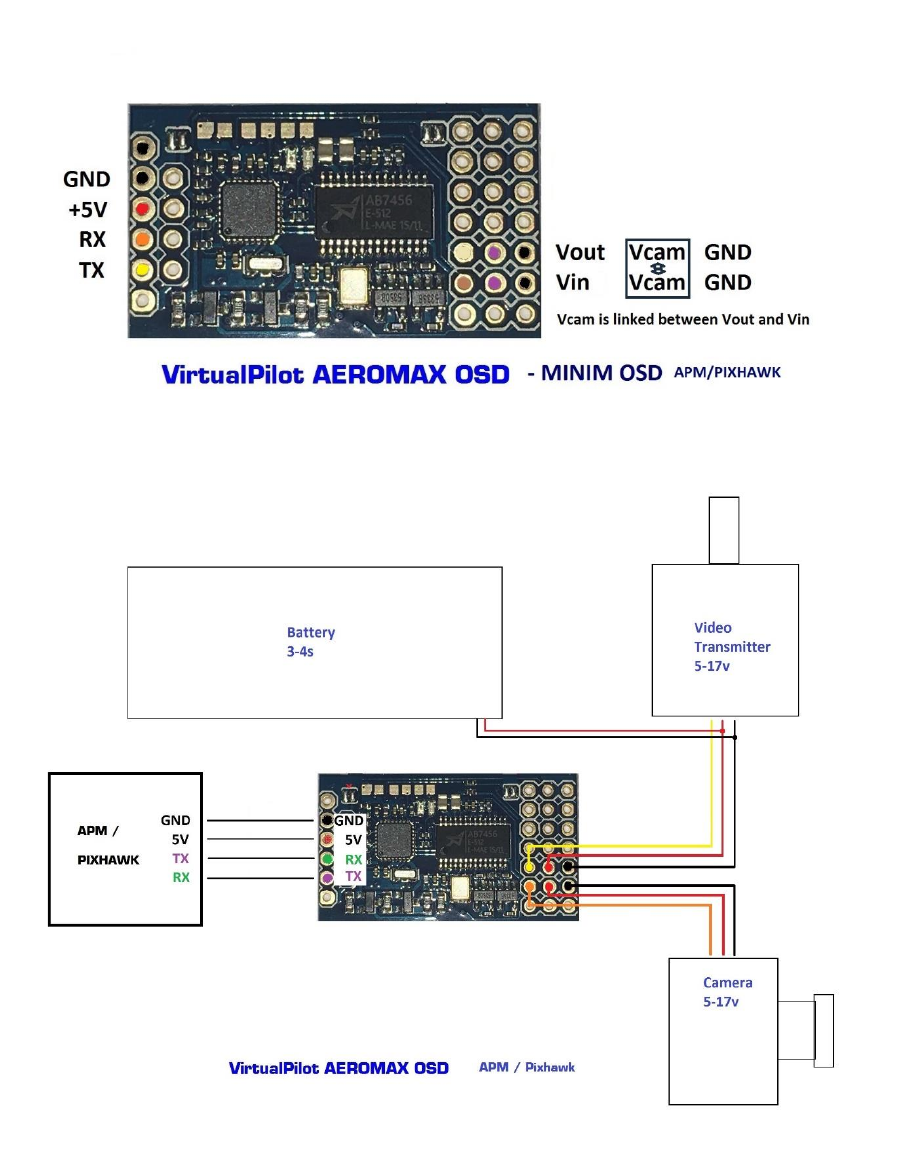

APM / PX4 installation
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2

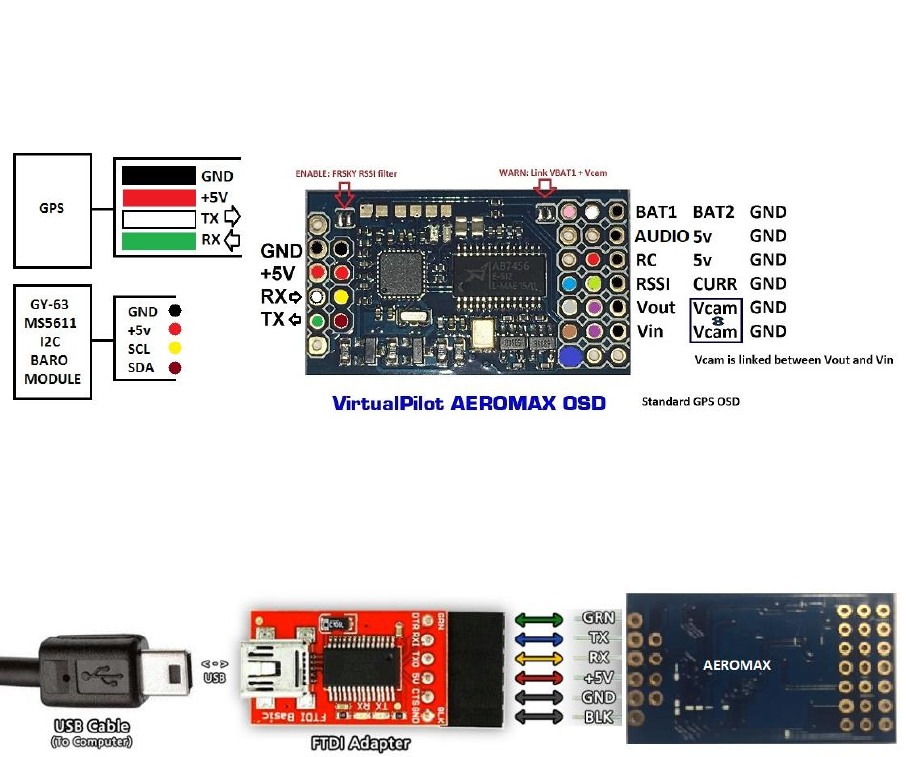

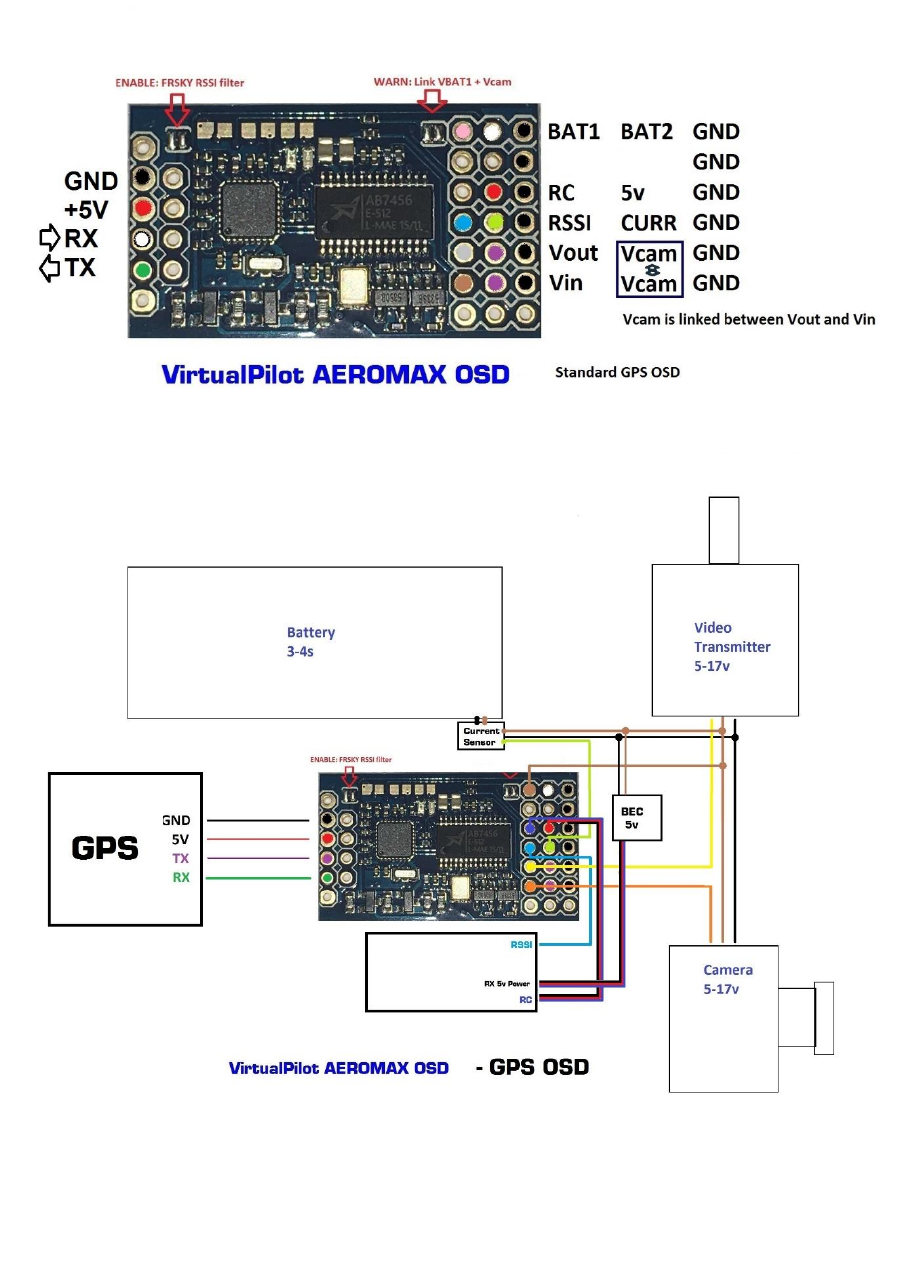

Standard GPS OSD – no flight controller
Additional support for GPS OSD and DJI NAZA users:
• Additional PWM input available – use screen switching / PPM and RSSI simultaneously
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2

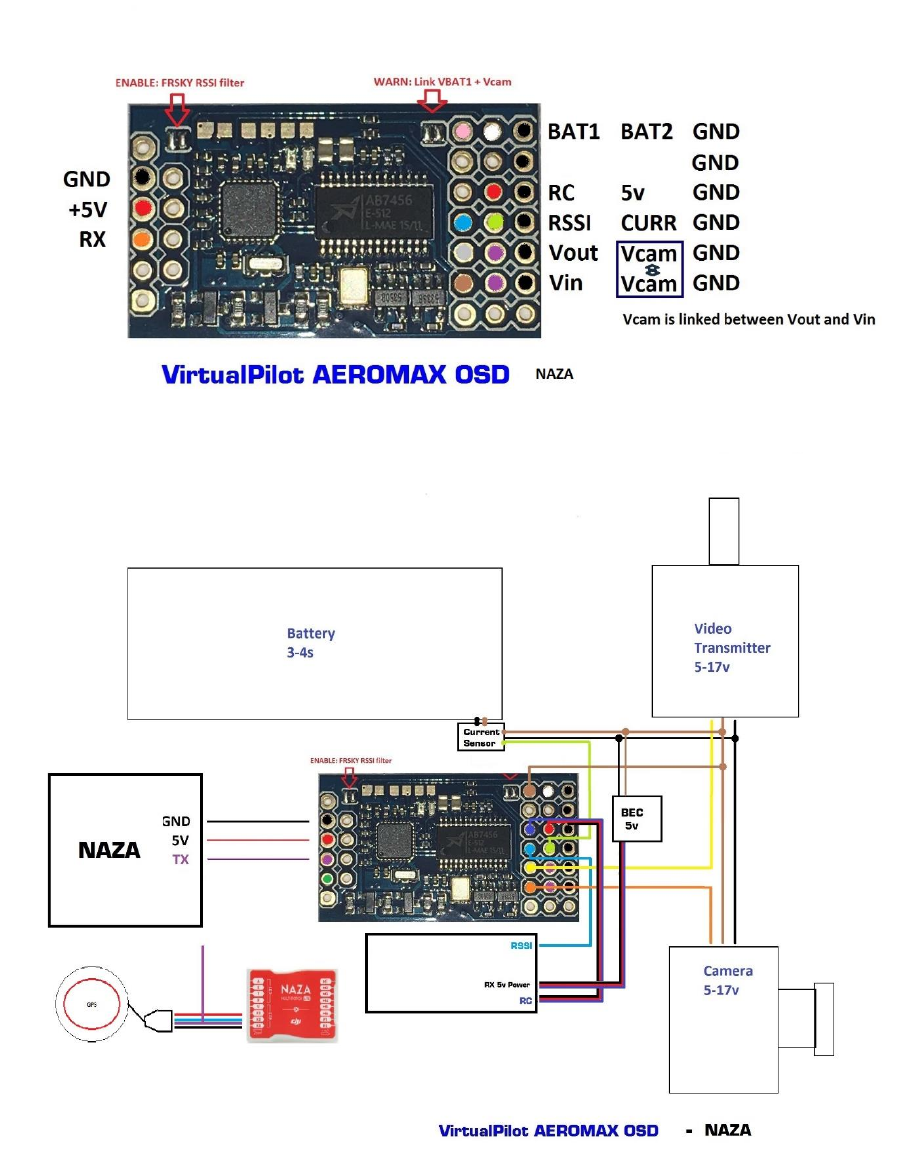

DJI Naza installation
Additional support for GPS OSD and DJI NAZA users:
Aeromax OSD
© VirtualPilot 2018 VirtualPilot AEROMAX OSD manual v1.2
• Additional PWM input available – use screen switching / PPM and RSSI simultaneously
GPSOSD with vario for FPV thermal gliding
FIRMWARE FLASHING connections
IMPORTANT NOTE: Connect ALL 6 pins for firmware flashing. Only center 4 are required for normal
operation.
