About This Manual

This manual describes how to use the Xilinx Foundation Express

program to translate and optimize a Verilog HDL description into an

internal gate-level equivalent.

Before using this manual, you should be familiar with the operations

that are common to all Xilinx software tools. These operations are

covered in the Quick Start Guide.

For additional information, go to http://support.xilinx.com. The

following table lists some of the resources you can access from this

page. You can also directly access some of these resources using the

provided URLs.

Resource Description/URL

Tutorial Tutorials covering Xilinx design flows, from design entry to verification

and debugging

http://support.xilinx.com/support/techsup/tutorials/index.htm

Answers

Database Current listing of solution records for the Xilinx software tools

Search this database using the search function at

http://support.xilinx.com/support/searchtd.htm

Application

Notes Descriptions of device-specific design techniques and approaches

http://support.xilinx.com/apps/appsweb.htm

Data Book Pages from The Programmable Logic Data Book, which describe device-

specific information on Xilinx device characteristics, including read-

back, boundary scan, configuration, length count, and debugging

http://support.xilinx.com/partinfo/databook.htm

Verilog Reference Guide

vi Xilinx Development System

Manual Contents

This manual covers the following topics.

• Chapter 1, “Foundation Express with Verilog HDL,” discusses

general concepts about Verilog and the Foundation Express

design process and methodology.

• Chapter 2, “Description Styles,” presents the concepts you need

to make the necessary architectural decisions and use the

constructs best suited for synthesis.

• Chapter 3, “Structural Descriptions,” discusses modules and

module instantiations.

• Chapter 4, “Expressions,” explains how to build and use expres-

sions with constant-valued expressions, operators, operands, and

expression bit-widths.

• Chapter 5, “Functional Descriptions,” describes the construction

and use of functional descriptions. Task statements and always

blocks are also discussed.

• Chapter 6, “Register and Three-State Inference,” describes how to

report inference results, control inference behavior, and infer

cells.

• Chapter 7, “Foundation Express Directives” describes Founda-

tion Express directives and their effect on translation.

• Chapter 8, “Writing Circuit Descriptions” describes how to write

a Verilog description to ensure an efficient implementation.

• Chapter 9, “Verilog Syntax,” contains syntax descriptions of the

Verilog language as supported by Foundation Express.

• Appendix A, “Examples,” presents examples that demonstrate

basic concepts of Foundation Express.

Xcell Journals Quarterly journals for Xilinx programmable logic users

http://support.xilinx.com/xcell/xcell.htm

Tech Tips Latest news, design tips, and patch information on the Xilinx design

environment

http://support.xilinx.com/support/techsup/journals/index.htm

Resource Description/URL

Verilog Reference Guide vii

Conventions

This manual uses the following typographical and online document

conventions. An example illustrates each typographical convention.

Typographical

The following conventions are used for all documents.

•Courier font indicates messages, prompts, and program files

that the system displays.

speed grade: -100

•Courier bold indicates literal commands that you enter in a

syntactical statement. However, braces “{ }” in Courier bold are

not literal and square brackets “[ ]” in Courier bold are literal

only in the case of bus specifications, such as bus [7:0].

rpt_del_net=

Courier bold also indicates commands that you select from a

menu.

File → Open

•Italic font denotes the following items.

• Variables in a syntax statement for which you must supply

values

edif2ngd design_name

• References to other manuals

See the Development System Reference Guide for more informa-

tion.

Verilog Reference Guide

viii Xilinx Development System

• Emphasis in text

If a wire is drawn so that it overlaps the pin of a symbol, the

two nets are not connected.

• Square brackets “[ ]” indicate an optional entry or parameter.

However, in bus specifications, such as bus [7:0], they are

required.

edif2ngd [option_name] design_name

• Braces “{ }” enclose a list of items from which you must choose

one or more.

lowpwr ={on|off}

• A vertical bar “|” separates items in a list of choices.

lowpwr ={on|off}

• A vertical ellipsis indicates repetitive material that has been

omitted.

IOB #1: Name = QOUT’

IOB #2: Name = CLKIN’

• A horizontal ellipsis “. . .” indicates that an item can be repeated

one or more times.

allow block block_name loc1 loc2 ... locn;

Online Document

The following conventions are used for online documents.

• Red-underlined text indicates an interbook link, which is a cross-

reference to another book. Click the red-underlined text to open

the specified cross-reference.

• Blue-underlined text indicates an intrabook link, which is a cross-

reference within a book. Click the blue-underlined text to open

the specified cross-reference.

Verilog Reference Guide ix

Contents

About This Manual

Manual Contents............................................................................ vi

Conventions

Typographical................................................................................. vii

Online Document ........................................................................... viii

Chapter 1 Foundation Express with Verilog HDL

Hardware Description Languages.................................................. 1-1

Foundation Express Design Process ............................................. 1-2

Using Foundation to Compile a Verilog HDL Design ..................... 1-3

Design Methodology ...................................................................... 1-4

Chapter 2 Description Styles

Design Hierarchy............................................................................ 2-2

Structural Descriptions................................................................... 2-2

Functional Descriptions.................................................................. 2-3

Mixing Structural and Functional Descriptions............................... 2-3

Asynchronous Designs .................................................................. 2-7

Chapter 3 Structural Descriptions

Modules.......................................................................................... 3-1

Macromodules................................................................................ 3-2

Port Definitions............................................................................... 3-3

Port Names .................................................................................... 3-4

Renaming Ports ........................................................................ 3-4

Module Statements and Constructs ............................................... 3-5

x Xilinx Development System

Verilog Reference Guide

Structural Data Types ............................................................... 3-6

parameter ............................................................................ 3-6

wire ...................................................................................... 3-7

wand .................................................................................... 3-8

wor....................................................................................... 3-8

tri.......................................................................................... 3-8

supply0 and supply1............................................................ 3-9

reg........................................................................................ 3-9

Port Declarations ...................................................................... 3-10

input ..................................................................................... 3-10

output................................................................................... 3-10

inout ..................................................................................... 3-11

Continuous Assignment............................................................ 3-11

Module Instantiations ..................................................................... 3-12

Named and Positional Notation ................................................ 3-13

Parameterized Designs............................................................. 3-14

Gate-Level Modeling................................................................. 3-14

Three-State Buffer Instantiation................................................ 3-15

Chapter 4 Expressions

Constant-Valued Expressions........................................................ 4-1

Operators ....................................................................................... 4-2

Arithmetic Operators................................................................. 4-3

Relational Operators................................................................. 4-4

Equality Operators .................................................................... 4-4

Handling Comparisons to X or Z............................................... 4-5

Logical Operators...................................................................... 4-6

Bit-wise Operators .................................................................... 4-7

Reduction Operators................................................................. 4-7

Shift Operators.......................................................................... 4-8

Conditional Operator................................................................. 4-8

Concatenation Operator............................................................ 4-9

Operator Precedence................................................................ 4-10

Operands ....................................................................................... 4-11

Numbers ................................................................................... 4-11

Wires and Registers.................................................................. 4-11

Bit-Selects............................................................................ 4-12

Part-Selects ......................................................................... 4-12

Function Calls ........................................................................... 4-12

Concatenation of Operands...................................................... 4-13

Expression Bit Widths .................................................................... 4-13

Verilog Reference Guide xi

Contents

Chapter 5 Functional Descriptions

Sequential Constructs.................................................................... 5-1

Function Declarations .................................................................... 5-2

Input Declarations..................................................................... 5-3

Function Output ........................................................................ 5-4

Memory Declarations................................................................ 5-5

Parameter Declarations ............................................................ 5-5

Integer Declarations.................................................................. 5-6

Function Statements ...................................................................... 5-6

Procedural Assignments ........................................................... 5-7

RTL Assignments...................................................................... 5-7

begin...end Block Statements ................................................... 5-10

if...else Statements ................................................................... 5-11

Conditional Assignments .......................................................... 5-12

case Statements ....................................................................... 5-13

Full Case and Parallel Case ..................................................... 5-14

casex Statements ..................................................................... 5-16

casez Statements ..................................................................... 5-17

for Loops................................................................................... 5-19

while Loops............................................................................... 5-20

forever Loops ............................................................................ 5-21

disable Statements ................................................................... 5-21

task Statements ............................................................................. 5-22

always Blocks................................................................................. 5-23

Event Expression...................................................................... 5-24

Incomplete Event Specification................................................. 5-25

Chapter 6 Register and Three-State Inference

The Inference Report................................................................ 6-1

Latch Inference Warnings......................................................... 6-2

Controlling Register Inference .................................................. 6-3

Inferring Latches ....................................................................... 6-5

Inferring SR Latches ............................................................ 6-5

Inferring D Latches .............................................................. 6-6

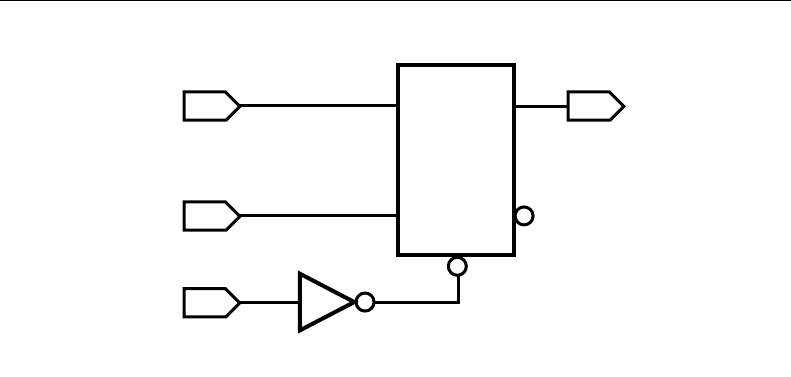

Simple D Latch ................................................................... 6-8

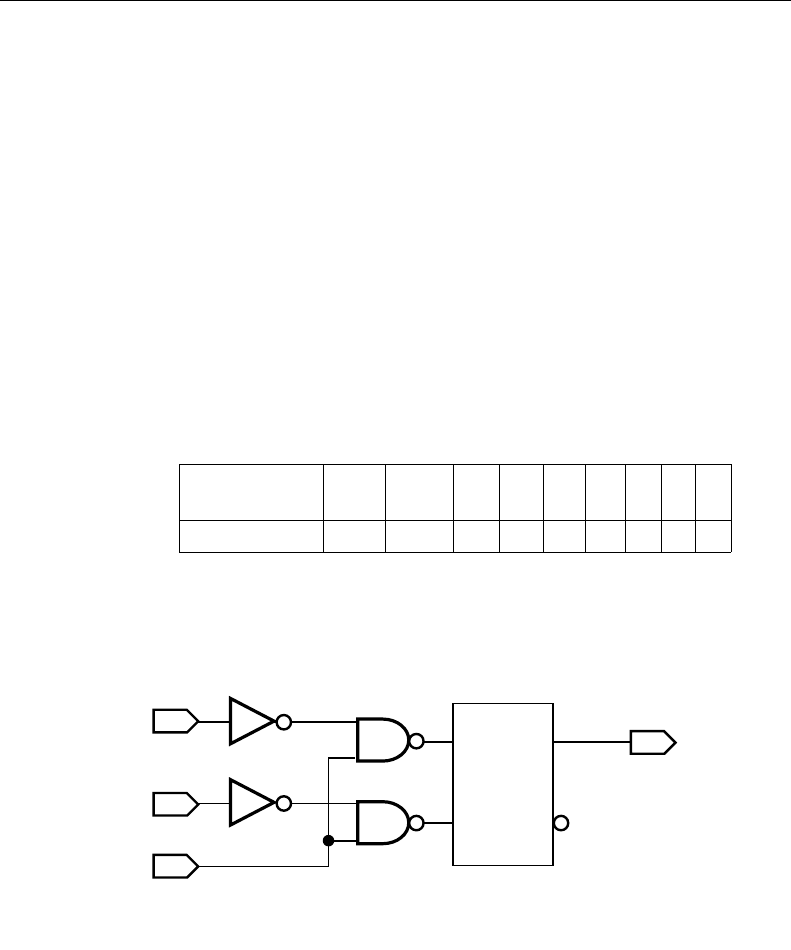

D Latch with Asynchronous Set or Reset ........................... 6-9

D Latch with Asynchronous Set and Reset ........................ 6-12

Understanding the Limitations of D Latch Inference............ 6-13

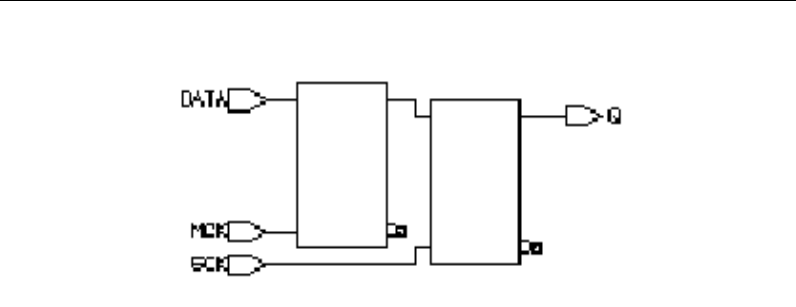

Inferring Master-Slave Latches............................................ 6-13

xii Xilinx Development System

Verilog Reference Guide

Inferring Flip-Flops.................................................................... 6-14

Inferring D Flip-Flops ........................................................... 6-14

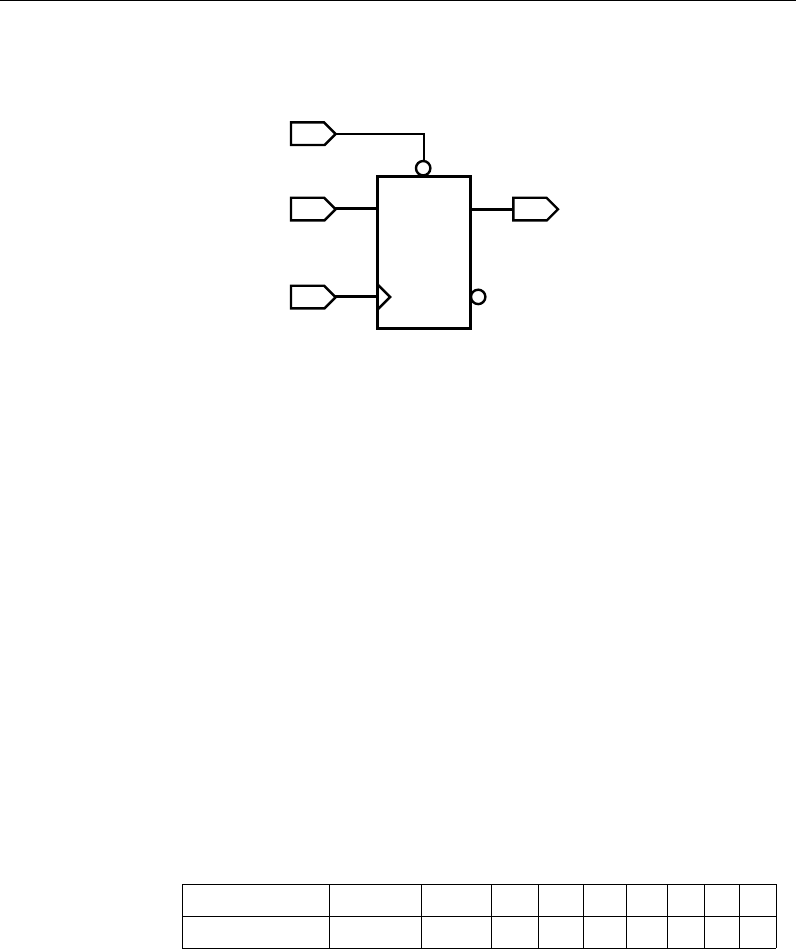

Simple D Flip-Flop .............................................................. 6-15

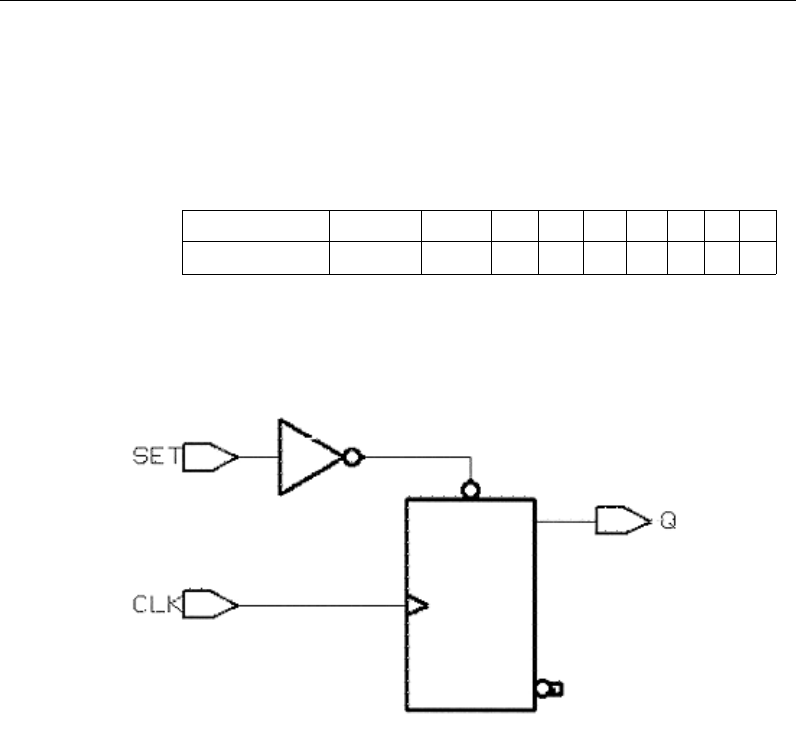

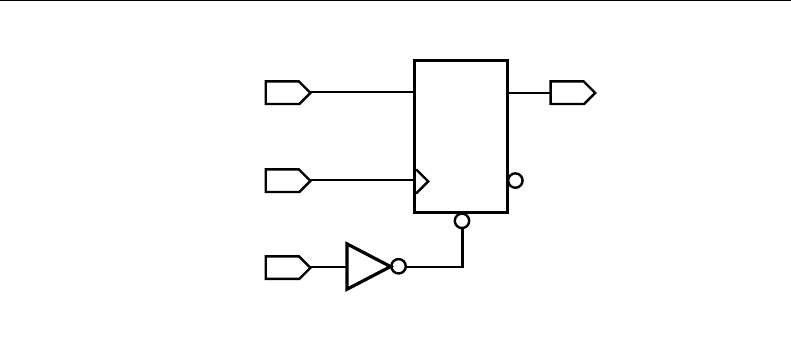

D Flip-Flop with Asynchronous Set or Reset ...................... 6-17

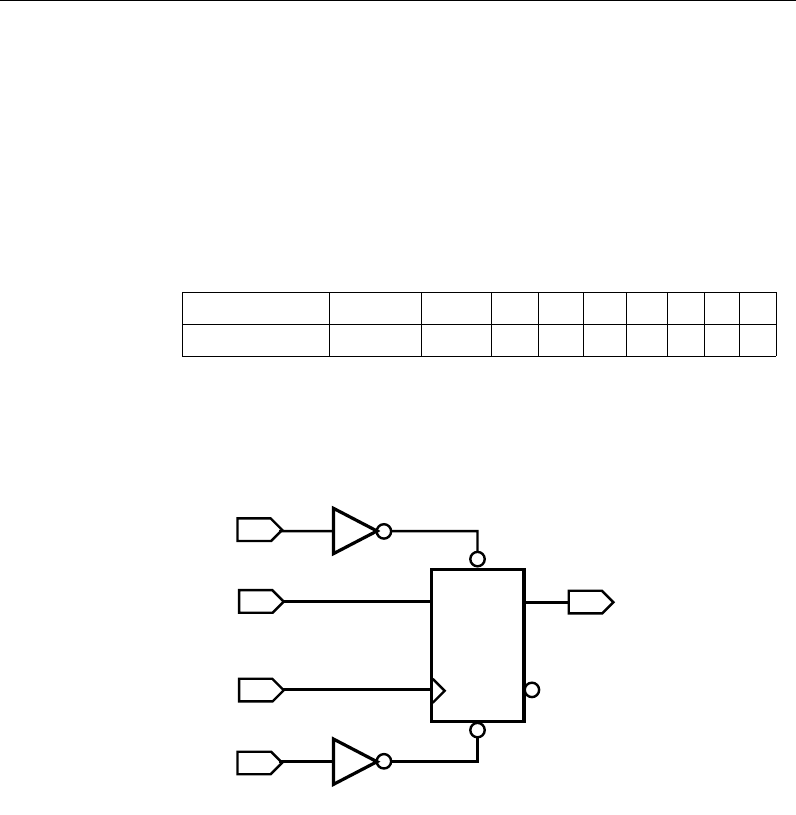

D Flip-Flop with Asynchronous Set and Reset ................... 6-19

D Flip-Flop with Synchronous Set or Reset ........................ 6-20

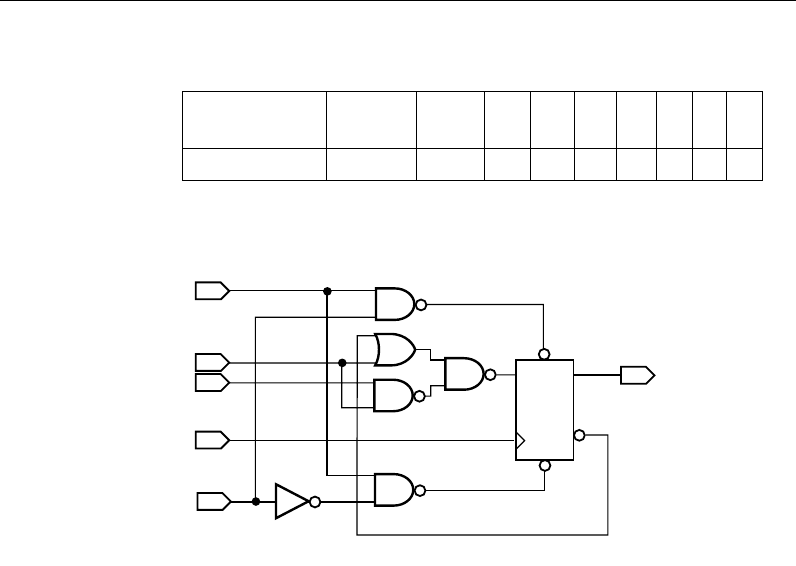

D Flip-Flop with Synchronous and Asynchronous Load ..... 6-22

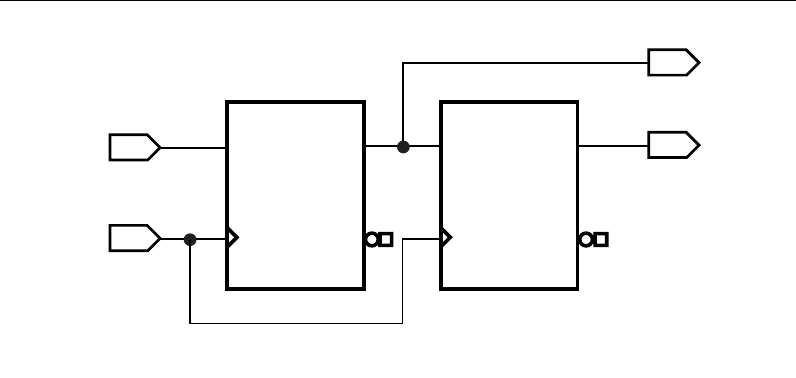

Multiple Flip-Flops with Asynchronous and Synchronous Controls

6-24

Understanding the Limitations of D Flip-Flop Inference....... 6-26

Inferring JK Flip-Flops.......................................................... 6-28

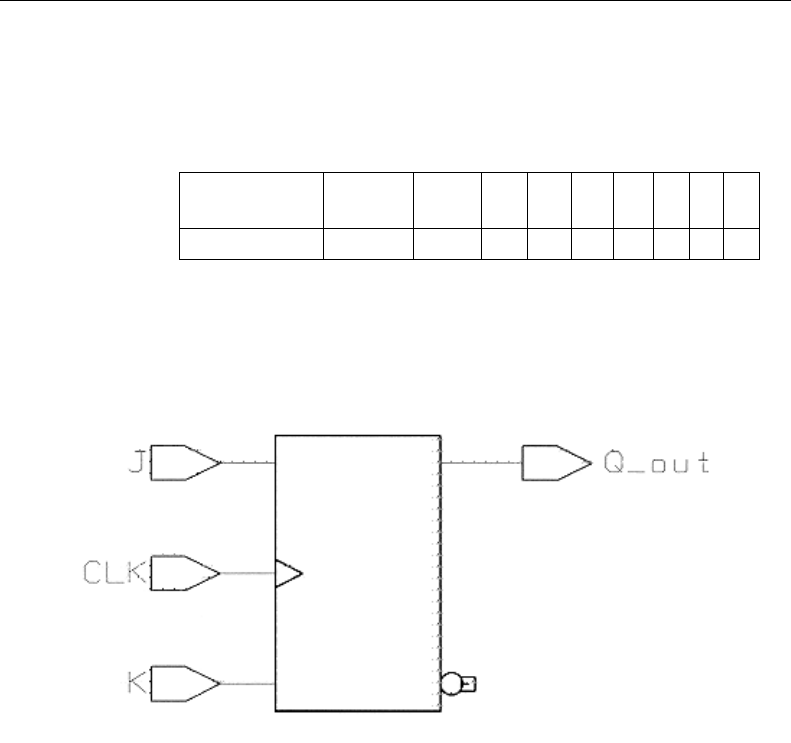

JK Flip-Flop ......................................................................... 6-28

JK Flip-Flop With Asynchronous Set and Reset ................. 6-29

Inferring Toggle Flip-Flops................................................... 6-31

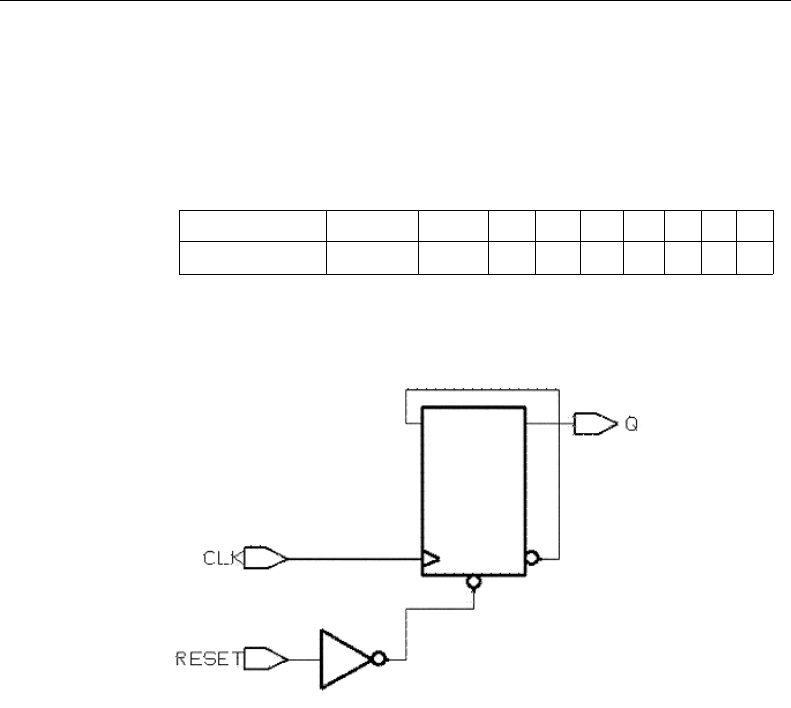

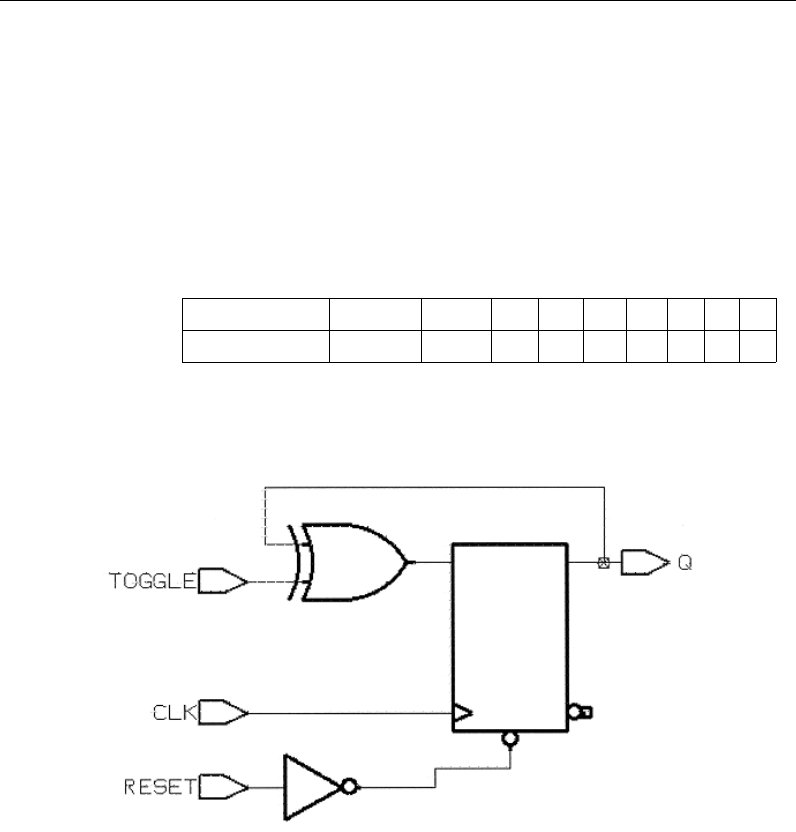

Toggle Flip-Flop With Asynchronous Set or Reset ............. 6-31

Toggle Flip-Flop With Enable and Asynchronous Reset .... 6-33

Getting the Best Results...................................................... 6-34

Minimizing Flip-Flop Count .................................................. 6-35

Correlating with Simulation Results ..................................... 6-36

Understanding Limitations of Register Inference...................... 6-37

Three-State Inference .................................................................... 6-38

Reporting Three-State Inference .............................................. 6-38

Controlling Three-State Inference............................................. 6-38

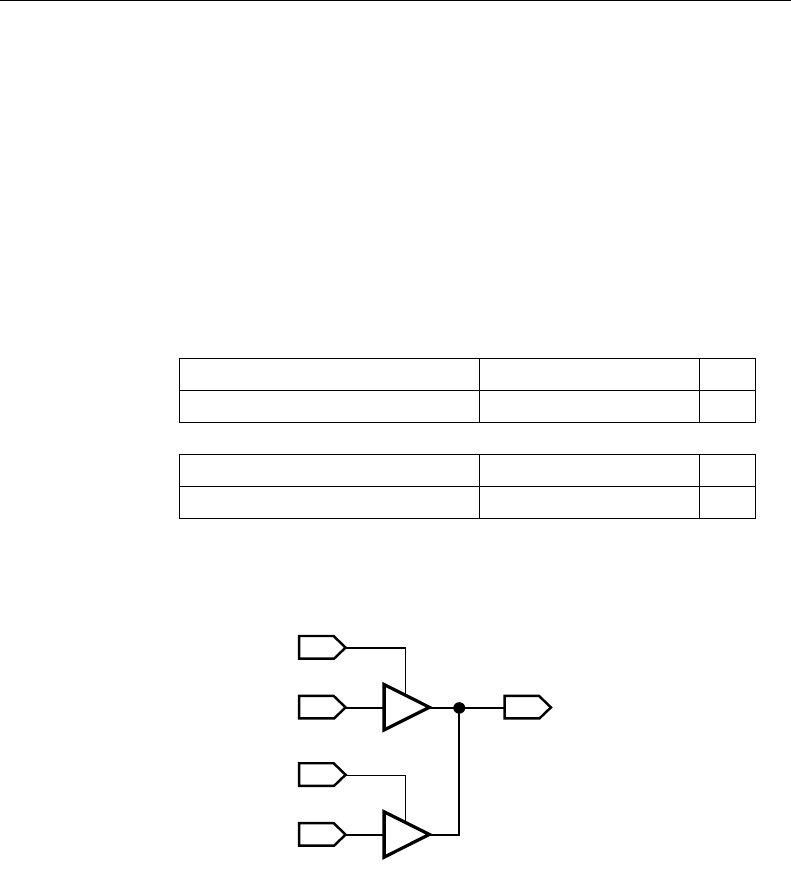

Inferring Three-State Drivers .................................................... 6-38

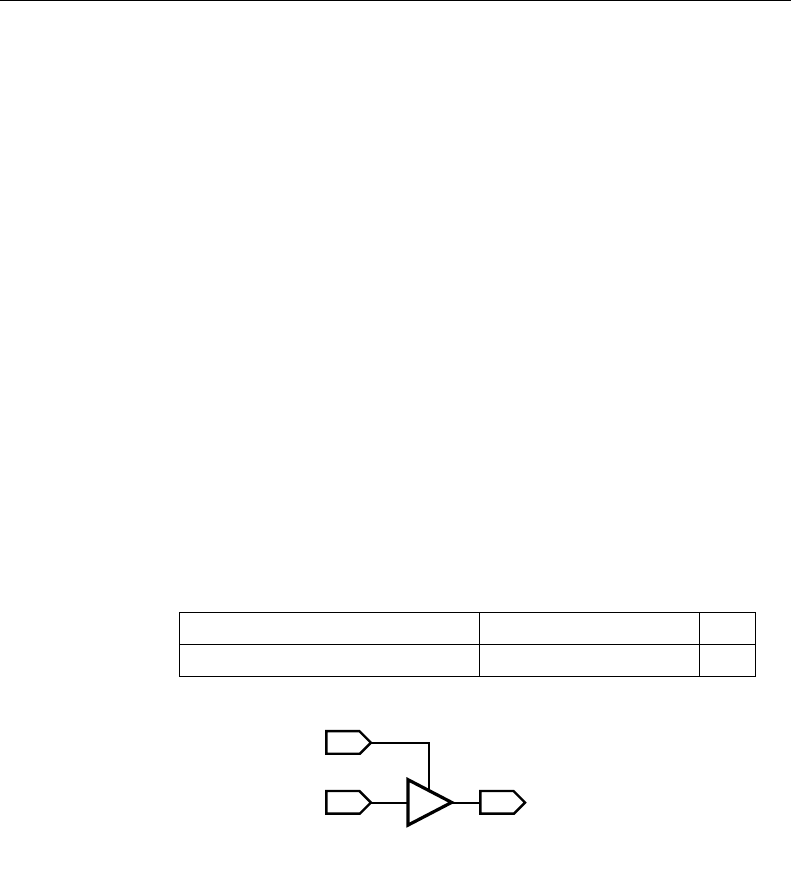

Simple Three-State Driver ................................................... 6-39

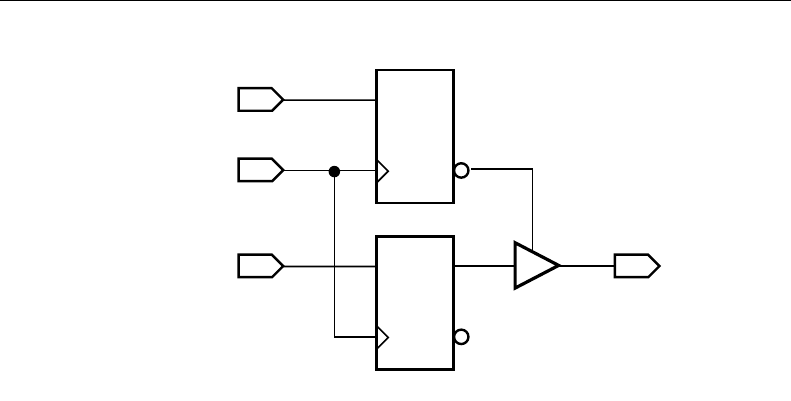

Registered Three-State Drivers ........................................... 6-42

Understanding the Limitations of Three-State Inference .......... 6-44

Chapter 7 Foundation Express Directives

Notation for Foundation Express Directives................................... 7-1

translate_off and translate_on Directives....................................... 7-2

parallel_case Directive ................................................................... 7-3

full_case Directive.......................................................................... 7-4

state_vector Directive..................................................................... 7-6

enum Directive ............................................................................... 7-7

Component Implication .................................................................. 7-12

Chapter 8 Writing Circuit Descriptions

How Statements Are Mapped to Logic........................................... 8-1

Design Structure ....................................................................... 8-2

Using Design Knowledge.......................................................... 8-5

Verilog Reference Guide xiii

Contents

Optimizing Arithmetic Expressions ........................................... 8-5

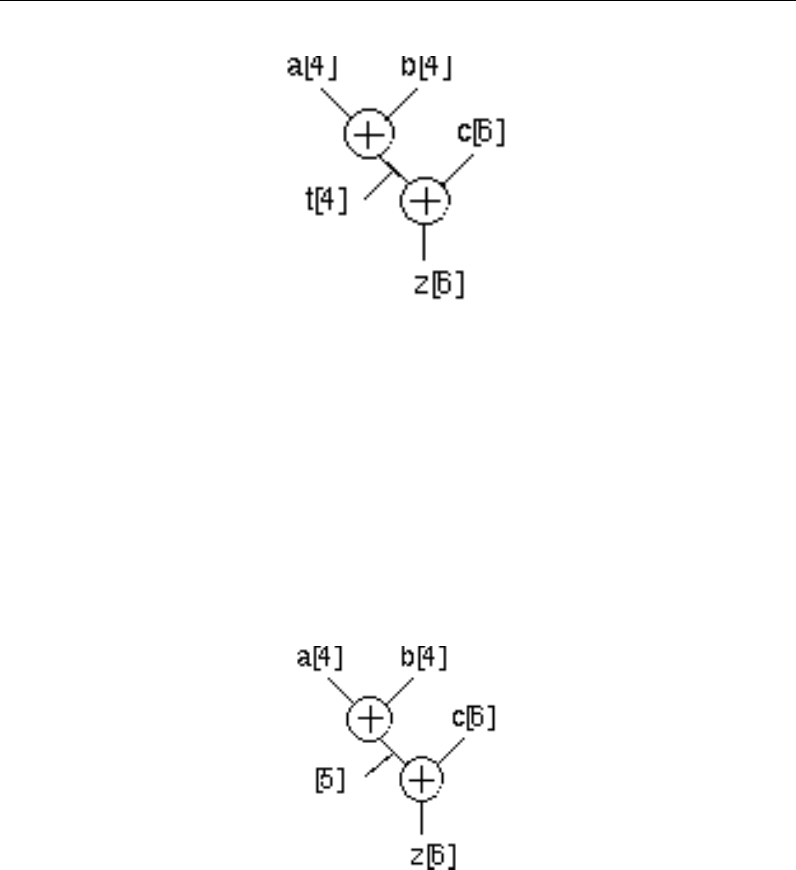

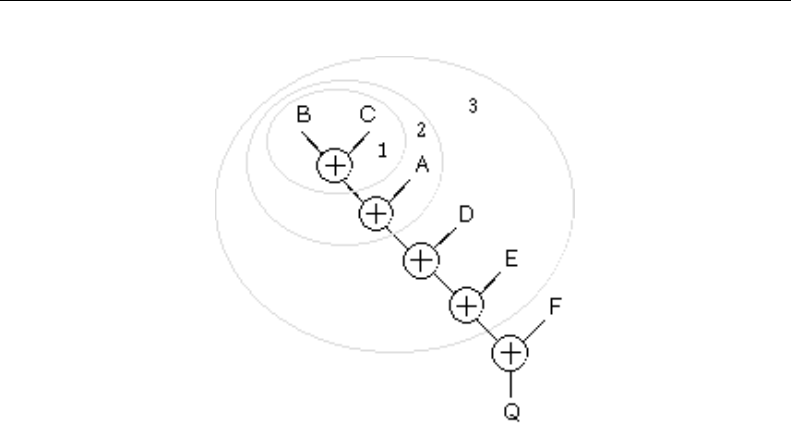

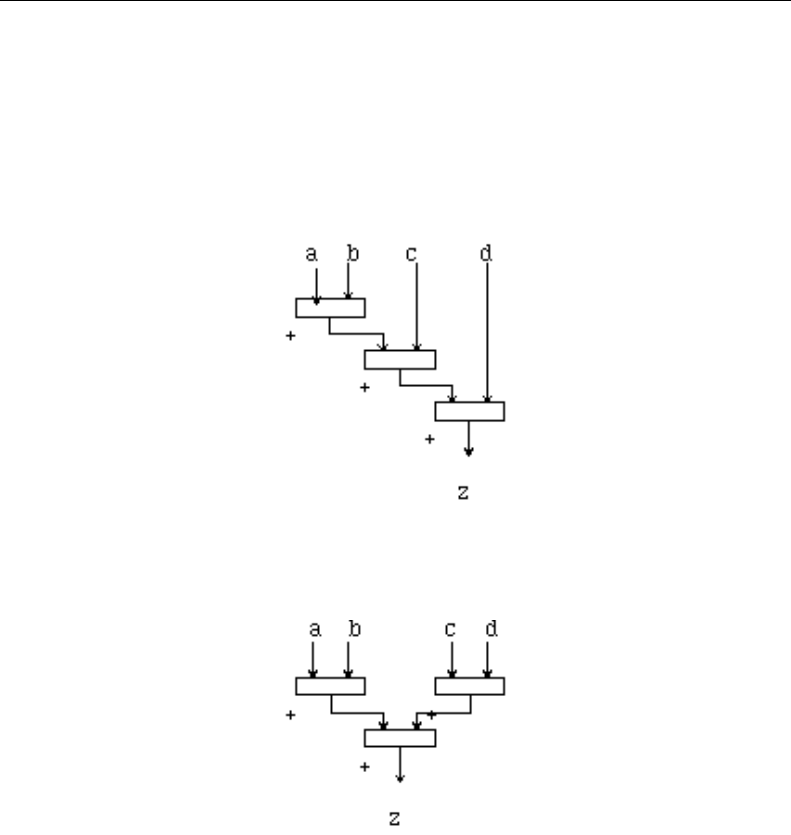

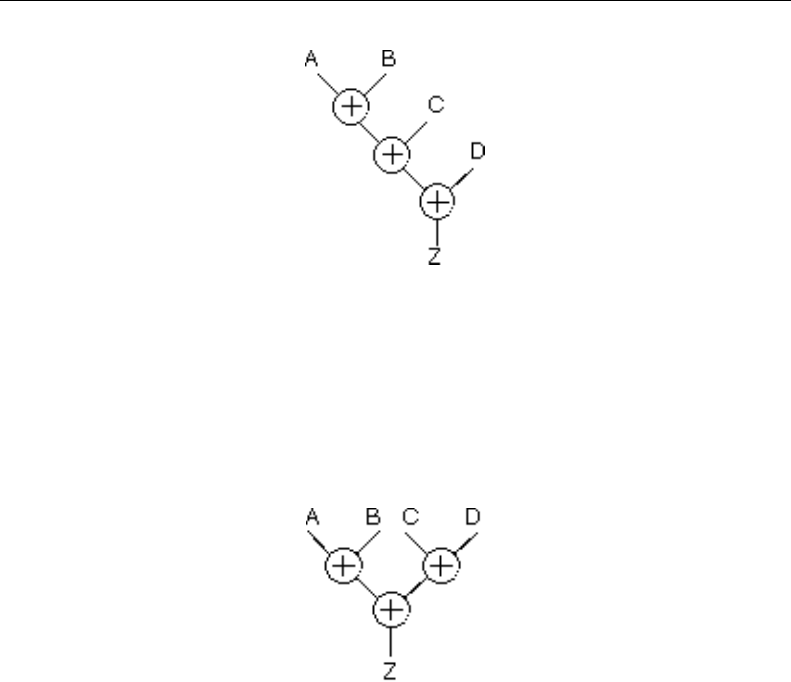

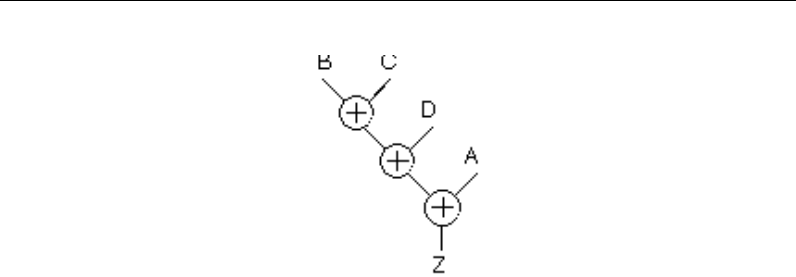

Arranging Expression Trees for Minimum Delay ................. 8-5

Considering Signal Arrival Times ........................................ 8-6

Using Parentheses ............................................................. 8-7

Considering Overflow Characteristics ................................. 8-8

Sharing Common Subexpressions ...................................... 8-9

Using Operator Bit-Width Efficiently.......................................... 8-11

Using State Information ............................................................ 8-12

Describing State Machines ....................................................... 8-14

Minimizing Registers................................................................. 8-18

Separating Sequential and Combinatorial Assignments........... 8-20

Don’t Care Inference...................................................................... 8-22

Limitations of Using Don’t Care Values .................................... 8-22

Differences Between Simulation and Synthesis ....................... 8-23

Propagating Constants................................................................... 8-24

Synthesis Issues ............................................................................ 8-24

Feedback Paths and Latches ................................................... 8-24

Synthesizing Asynchronous Designs........................................ 8-24

Designing for Overall Efficiency ..................................................... 8-26

Describing Random Logic......................................................... 8-26

Sharing Complex Operators ..................................................... 8-27

Chapter 9 Verilog Syntax

Syntax ............................................................................................ 9-1

BNF Syntax Formalism ............................................................. 9-1

BNF Syntax............................................................................... 9-2

Lexical Conventions....................................................................... 9-11

White Space.............................................................................. 9-11

Comments................................................................................. 9-12

Numbers ................................................................................... 9-12

Identifiers .................................................................................. 9-13

Operators.................................................................................. 9-14

Macro Substitution .................................................................... 9-14

Include Construct...................................................................... 9-14

Simulation Directives ................................................................ 9-15

Verilog System Functions ......................................................... 9-16

Verilog Keywords ........................................................................... 9-17

Unsupported Verilog Language Constructs ................................... 9-18

Unsupported Definitions and Declaration ................................. 9-18

Unsupported Statements .......................................................... 9-18

Unsupported Operators ............................................................ 9-19

Unsupported Gate-Level Constructs......................................... 9-19

xiv Xilinx Development System

Verilog Reference Guide

Appendix A Examples

Count Zeros—Combinatorial Version ............................................ A-1

Count Zeros—Sequential Version.................................................. A-3

Drink Machine—State Machine Version ........................................ A-6

Drink Machine—Count Nickels Version ......................................... A-9

Carry-Lookahead Adder................................................................. A-11

Verilog Reference Guide 1-1

Chapter 1

Foundation Express with Verilog HDL

Foundation Express translates and optimizes a Verilog HDL descrip-

tion into an internal gate-level equivalent, then compiles this repre-

sentation to produce an optimized architecture-specific design in a

given FPGA or CPLD technology.

This chapter introduces the main concepts and capabilities of Foun-

dation Express in the following sections.

• “Hardware Description Languages”

• “Foundation Express Design Process”

• “Using Foundation to Compile a Verilog HDL Design”

• “Design Methodology”

Hardware Description Languages

Hardware description languages (HDLs) describe the architecture

and behavior of discrete electronic systems. Modern HDLs and their

associated simulators are very powerful tools for integrated circuit

designers.

A typical HDL supports a mixed-level description in which gate and

netlist constructs are used with functional descriptions. This

mixed-level capability enables you to describe system architectures at

a very high level of abstraction, then incrementally refine a design’s

detailed gate-level implementation.

HDL descriptions play an important role in modern design method-

ology for three main reasons.

• You can verify design functionality early in the design process. A

design written as an HDL description can be simulated immedi-

ately. Design simulation at this higher level, before implementa-

Verilog Reference Guide

1-2 Xilinx Development System

tion at the gate-level, allows you to evaluate architectural and

design decisions.

• Using Foundation Express to compile Verilog and synthesize

logic, you can automatically convert an HDL description to a

gate-level implementation in a target FPGA or CPLD technology.

This step eliminates the former technology-specific design bottle-

neck, the majority of circuit design time, and the errors intro-

duced when you hand translate an HDL specification to gates.

• With Foundation Express logic optimization, you can automati-

cally transform a synthesized design into a smaller or faster

circuit. Foundation Express both synthesizes and optimizes logic.

For further information, refer to the Foundation Express online

help.

• An HDL description is more easily read and understood than a

netlist or schematic description. HDL descriptions provide tech-

nology independent documentation of a design and its function-

ality. Because the initial HDL design description is technology

independent, you can use it again to generate the design in a

different technology, without having to translate it from the orig-

inal technology.

Foundation Express Design Process

Foundation Express translates Verilog language hardware descrip-

tions to an internal design format. You can then use Foundation

Express to optimize and map the design to a specific FPGA tech-

nology library, as shown in the following figure.

Foundation Express with Verilog HDL

Verilog Reference Guide 1-3

Figure 1-1 Foundation Express Design Process

Foundation Express supports a majority of the Verilog constructs. For

exceptions, see the “Unsupported Verilog Language Constructs”

section of the “Verilog Syntax” chapter.

Using Foundation to Compile a Verilog HDL Design

When a Verilog design is read into Foundation Express, it is

converted to an internal database format so that Foundation Express

can synthesize and optimize the design. When Foundation Express

optimizes a design, it may restructure part or all of the design. You

control the degree of restructuring. You have the following options.

• Fully preserve a design’s hierarchy

• Combine certain modules with others

• Compress the entire design into one module (called flattening the

design), if it is beneficial

The following section describes the design process that uses Founda-

tion Express with a Verilog HDL simulator.

X8588

Verilog Description

Optimized

Technology-Specific

Netlist

FPGA Technology Library Foundation Express

Verilog Reference Guide

1-4 Xilinx Development System

Design Methodology

The figure below shows a typical design process that uses Founda-

tion Express and a Verilog HDL simulator. Each step of this design

model is described in detail after the figure.

Figure 1-2 Design Flow

X8589

Compare Outputs

Foundation

Express

FPGA Development System

Verilog HDL SimulatorVerilog HDL Simulator

Verilog HDL

Description

Verilog

Test Drivers

Simulation

Output

Simulation

Output

Foundation Express with Verilog HDL

Verilog Reference Guide 1-5

The following numbered steps correspond to the numbers in the

figure above.

1. Write a design description in the Verilog language.

This description can be a combination of structural and func-

tional elements (as shown in the “Description Styles” chapter). It

is used with both Foundation Express and a Verilog simulator.

2. Write Verilog language test drivers for the Verilog HDL simu-

lator.

The drivers supply test vectors for simulation and gather output

data. For information on writing these drivers, see the appro-

priate simulator manual.

3. Simulate the design by using a Verilog HDL simulator, and

verify that the description is correct.

4. Synthesize and optimize the Verilog design description into a

gate-level netlist using Foundation Express.

Foundation Express generates optimized netlists to satisfy timing

constraints for a targeted FPGA architecture.

5. Map and, then, place and route the FPGA netlist using your

FPGA development system. Generate a Verilog netlist for post-

place and route simulation.

The development system includes simulation models and inter-

faces required for the design flow.

6. Simulate the technology-specific version of the design with the

Verilog simulator.

You can use the original Verilog simulation drivers from Step 3

because module and port definitions are preserved through the

translation and optimization processes.

7. Compare the output of the gate-level simulation (Step 6) with the

output of the original Verilog description simulation (Step 3) to

verify that the implementation is correct.

Verilog Reference Guide

1-6 Xilinx Development System

Verilog Reference Guide 2-1

Chapter 2

Description Styles

A Verilog circuit description can be one of two types; a structural

description or a functional description, also referred to as a Register

Transfer Level (RTL) description. A structural description defines the

exact physical makeup of the circuit, showing the details of the

components and the connections between them. A functional or RTL

description describes a circuit in terms of its registers and the combi-

natorial logic between the registers.

The style of your initial Verilog description has a major effect on the

characteristics of the resulting gate-level design synthesized by Foun-

dation Express. The organization and style of a Verilog description

determines the basic architecture of your design. Because Foundation

Express automates most of the logic-level decisions required in your

design, you can concentrate on architectural tradeoffs.

You can use Foundation Express to make some of the high-level

architectural decisions. Certain Verilog constructs are well suited to

synthesis. To make these decisions and use the constructs, you need

to become familiar with the concepts covered in the following

sections of this chapter.

• “Design Hierarchy”

• “Structural Descriptions”

• “Functional Descriptions”

• “Mixing Structural and Functional Descriptions”

• “Register Selection”

• “Asynchronous Designs”

Verilog Reference Guide

2-2 Xilinx Development System

Design Hierarchy

Foundation Express maintains the hierarchical boundaries you define

when you use structural Verilog. These boundaries have two major

effects.

• Each module you specify in your HDL description is synthesized

separately and maintained as a distinct design. The constraints

for the design are maintained, and you can optimize each module

separately in Foundation Express.

• The modules that you instantiate within HDL descriptions are

maintained during input. The instance name you assign to

user-defined components is carried through to the gate-level

implementation.

The “Structural Descriptions” chapter discusses modules and

module instantiations.

Note: Foundation Express does not automatically maintain (create)

the hierarchy of other nonstructural Verilog constructs such as

blocks, loops, functions, and tasks. These elements of an HDL

description are translated in the context of their design.

The choice of hierarchical boundaries has a significant effect on the

quality of the synthesized design. You can optimize a design while

preserving these hierarchical boundaries using Foundation Express.

However, Foundation Express only partially optimizes logic across

hierarchical modules. Full optimization is possible across those parts

of the design hierarchy that are collapsed in Foundation Express.

Structural Descriptions

The structural elements of a Verilog description consist of generic

logic gates, library-specific components, and user-defined compo-

nents connected by wires. In one way, a structural description can be

viewed as a simple netlist composed of nets that connect instantia-

tions of gates. However, unlike a netlist, nets in the structural

description can be driven by an arbitrary expression that describes

the value assigned to the net. A statement that drives an arbitrary

expression onto a net is called a continuous assignment. Continuous

assignments are convenient links between pure netlist descriptions

and functional descriptions.

Description Styles

Verilog Reference Guide 2-3

A Verilog structural description can define a range of hierarchical

and gate-level constructs, including module definitions, module

instantiations, and netlist connections. Refer to the “Structural

Descriptions” chapter for more information.

Functional Descriptions

The functional elements of a Verilog description consist of function

declarations, task statements, and always blocks. These elements

describe the function of the circuit but do not describe its physical

makeup or layout. The choice of gates and components is left entirely

to Foundation Express.

You can construct functional descriptions with the Verilog functional

constructs described in the “Functional Descriptions” chapter. These

constructs can appear within functions or always blocks. Functions

imply only combinatorial logic; always blocks can imply either

combinatorial or sequential logic.

Although many Verilog functional constructs appear sequential in

nature (for example, for loops and multiple assignments to the same

variable), these constructs describe combinatorial logic networks.

Other functional constructs imply sequential logic networks. Latches

and registers are inferred from these constructs. Refer to the “Register

and Three-State Inference” chapter.

Mixing Structural and Functional Descriptions

When you use a functional description style in a design, you typically

describe the combinatorial portions of a design in Verilog functions,

always blocks, and assignments. The complexity of the logic deter-

mines whether you use one or many functions.

The example “Mixed Structural and Functional Descriptions” shows

how structural and functional description styles are mixed in a

design specification. In this example, the function detect_logic deter-

mines whether the input bit is a 0 or a 1. After making this determina-

tion, detect_logic sets ns to the next state of the machine. An always

block infers flip-flops to hold the state information between clock

cycles.

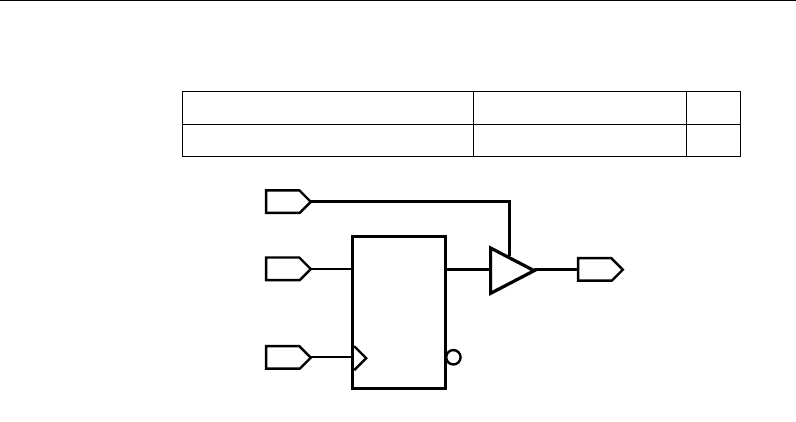

You can directly specify elements of a design as module instantia-

tions at the structural level. For example, see the three-state buffer, t1,

Verilog Reference Guide

2-4 Xilinx Development System

in the following example of mixed structural and functional descrip-

tions.

Note: The three-state buffers can be inferred. For more information,

refer to the “Three-State Inference” section of the “Register and

Three-State Inference” chapter.)

You can also use this description style to identify the wires and ports

that carry information from one part of the design to another.

// This finite state machine (Mealy type) reads one

// bit per clock cycle and detects three or more

// consecutive ones.

module three_ones(signal,clock,detect,output_enable);

input signal, clock, output_enable;

output detect;

// Declare current state and next state variables.

reg [1:0] cs;

reg [1:0] ns;

wire ungated_detect;

// declare the symbolic names for states

parameter NO_ONES=0,ONE_ONE=1,TWO_ONES=2

AT_LEAST_THREE_ONES=3;

// ************* STRUCTURAL DESCRIPTION *********** /

/ Instance of a three-state gate that enables output

three_state t1(ungated_detect,output_enable, detect);

// ***************** ALWAYS BLOCK ****************

// always block infers flip-flops to hold the state of

// the FSM.

always @ (posedge clock) begin

cs = ns;

end

// ************* FUNCTIONAL DESCRIPTION ************

function detect_logic;

input [1:0] cs;

input signal;

begin

Description Styles

Verilog Reference Guide 2-5

detect_logic = 0; // default value

if ( signal == 0 ) // bit is zero

ns = NO_ONES;

else // bit is one,increment state

case (cs)

NO_ONES: ns = ONE_ONE;

ONE_ONE: ns = TWO_ONES;

TWO_ONES, AT_LEAST_THREE_ONES:

begin

ns = AT_LEAST_THREE_ONES;

detect_logic = 1;

end

endcase

end

endfunction

// ************** assign STATEMENT **************

assign ungated_detect = detect_logic( cs, signal );

endmodule

To successfully synthesize a structural or functional HDL descrip-

tion, the description must conform to the three elements of Verilog

synthesis.

• Design methodology

Design methodology refers to the synthesis design process

described in the “Foundation Express with Verilog HDL” chapter

that uses Foundation Express and a Verilog HDL Simulator.

• Description style

Use the HDL design and coding style that makes the best use of

the synthesis process to obtain high quality results from Founda-

tion Express. See the “Writing Circuit Descriptions” chapter.

• Language constructs

The third component of the Verilog synthesis policy is the set of

Verilog constructs that describes your design, determines its

architecture, and gives consistently good results.

Foundation Express uses HDL constructs that maximize coding

flexibility while producing consistently good results. Although

Foundation Express can read the entire Verilog language, a few

HDL constructs cannot be synthesized. These constructs are

unsupported, because they cannot be realized in logic. For

Verilog Reference Guide

2-6 Xilinx Development System

example, you cannot use simulation time as a trigger, because

time is an element of the simulation process and cannot be real-

ized. See the “Unsupported Verilog Language Constructs”

section of the “Verilog Syntax” chapter for unsupported Verilog

constructs.

The placement of registers and the clocking scheme are important

architectural decisions. There are two ways to define registers in your

Verilog description; instantiating or inferring registers. Each method

has specific advantages and disadvantages.

You can directly instantiate registers into a Verilog description,

selecting from any element in your FPGA or CPLD library. (Clocking

schemes can be arbitrarily complex.) You can choose between a

flip-flop or a latch-based architecture. The main disadvantages to this

approach follow.

• The Verilog description is specific to a given technology, because

you choose structural elements from that technology library.

However, you can isolate that portion of your design with

directly instantiated registers as a separate component (module),

and, then, connect it to the rest of the design.

• The description is more difficult to write.

You can use some Verilog constructs to direct Foundation Express to

infer registers from the description. This method allows Foundation

Express to select the type of component inferred, based on

constraints. Therefore, if you need a specific component, you should

instantiate registers, instead of inferring them. However, some types

of registers and latches cannot be inferred.

The following advantages of inferring registers directly counter the

disadvantages of instantiating registers.

• Inferring registers is technology independent.

• With register inference, the Verilog description is much easier to

write.

Description Styles

Verilog Reference Guide 2-7

See the “Register Inference” section of the “Register and Three-

State Inference” chapter for a discussion of latch and register

inference.

Asynchronous Designs

You can use Foundation Express to construct asynchronous designs

that use multiple clocks or gated clocks. Although these designs are

logically and statically correct, they may not simulate or operate

correctly because of race conditions.

The “Foundation Express Directives” chapter describes how to write

Verilog descriptions of asynchronous designs.

Verilog Reference Guide

2-8 Xilinx Development System

Verilog Reference Guide 3-1

Chapter 3

Structural Descriptions

A Verilog circuit description can be one of two types; a structural

description or a functional description, also referred to as a Register

Transfer Level (RTL) description. A structural description defines the

exact physical makeup of the circuit, detailing components and the

connections between them. A functional or RTL description describes

a circuit in terms of its registers and the combinatorial logic between

the registers.

This chapter describes the construction of structural descriptions and

is divided into the following sections.

• “Modules”

• “Macromodules”

• “Port Definitions”

• “Module Statements and Constructs”

• “Module Instantiations”

Modules

The principal design entity in the Verilog language is a module. A

module consists of the module name, its input and output descrip-

tion (port definition), a description of the functionality or implemen-

tation for the module (module statements and constructs), and

named instantiations. The basic structural parts of a module are illus-

trated in the following figure.

Verilog Reference Guide

3-2 Xilinx Development System

Figure 3-1 Structural Parts of a Module

The following example shows a simple module that implements a

2-input NAND gate by instantiating an AND gate and an INV gate.

The first line of the module definition declares the name of the

module and a list of ports. The second and third lines declare the

direction for all ports. (Ports are either inputs, outputs, or bidirec-

tionals.) The fourth line in the description creates a wire variable.

The next two lines instantiate the two components, creating copies

named instance1 and instance2 of the components AND and INV.

These components connect to the ports of the module and are finally

connected by using the variable and_out.

module NAND(a,b,z);

input a,b; // Inputs to NAND gate

output z; // Outputs from NAND gate

wire and_out;// Output from AND gate

AND instance1(a,b,and_out);

INV instance2(and_out, z);

endmodule

Macromodules

The macromodule construct makes simulation more efficient by

merging the macromodule definition with the definition of the

calling (parent) module. However, Foundation Express treats the

macromodule construct as a module construct. Whether you use

X8759

MODULE

Module Name

and Port List

Module Statements

and Constructs

Definitions:

Port, Wire, Registers,

Parameters, Integers,

Functions

Module Instantiations

Structural Descriptions

Verilog Reference Guide 3-3

module or macromodule, the synthesis process, the hierarchy it

creates, and the end result are the same. The following example

shows how to use the macromodule construct.

macromodule adder (in1,in2,out1);

input [3:0] in1,in2;

output [4:0] out1;

assign out1 = in1 + in2;

endmodule

Note: When Foundation Express instantiates a macromodule, a new

level of hierarchy is created.

Port Definitions

A port list consists of port expressions that describe the input and

output interface for a module. Define the port list in parentheses after

the module name, as shown below.

module_name (port_list ) ;

A port expression in a port list can be any of the following.

• An identifier

• A single bit selected from a bit vector declared within the module

• A group of bits selected from a bit vector declared within the

module

• A concatenation of any of the above

Concatenation is the process of combining several single-bit or

multiple-bit operands into one large bit vector. For more information

on concatenation, see the “Concatenation Operator” section of the

“Expressions” chapter.

Explicitly declare each port in a port list as input, output, or bidirec-

tional in the module with an input, output, or inout statement. (See

the “Port Declarations” section of this chapter.) For example, the

module definition in the module definition example shows that

module NAND has three ports, a, b, and z, connected to 1-bit nets a,

b, and z. Declare these connections in the input and output state-

ments.

Verilog Reference Guide

3-4 Xilinx Development System

Port Names

Some port expressions are identifiers. If the port expression is an

identifier, the port name is the same as the identifier. A port expres-

sion is not an identifier if the expression is a single bit, a group of bits

selected from a vector of bits, or a concatenation of signals. In these

cases, the port is unnamed unless you explicitly name it.

The following example shows some module definition fragments that

illustrate the use of port names. The ports for module ex1 are named

a, b, and z, and are connected to nets a, b, and z, respectively. The

first two ports of module ex2 are unnamed; the third port is named z.

The ports are connected to nets a[1], a[0], and z, respectively. Module

ex3 has two ports; the first port is unnamed and is connected to a

concatenation of nets a and b; the second port, named z, is connected

to net z.

module ex1(a,b,z);

input a,b;

output z;

endmodule

module ex2(a[1],a[0],z);

input [1:0] a;

output z;

endmodule

module ex3({a,b},z);

input a,b;

output z;

endmodule

Renaming Ports

You can rename a port by explicitly assigning a name to a port

expression with the dot (.) operator. The module definition fragments

in the following example show how to rename ports. The ports for

module ex4 are explicitly named in_a, in_b, and out and are

connected to nets a, b, and z. Module ex5 shows ports named i1, i0,

and z connected to nets a[1], a[0], and z, respectively. The first port

for module ex6 (the concatenation of nets a and b) is named i.

module ex4(.in_a(a),.in_b(b),.out(z));

input a,b;

Structural Descriptions

Verilog Reference Guide 3-5

output z;

endmodule

module ex5(.i1(a[1]),.i0(a[0]),z);

input [1:0] a;

output z;

endmodule

module ex6(.i({a,b}),z);

input a,b;

output z;

endmodule

Module Statements and Constructs

Foundation Express recognizes the following Verilog statements and

constructs when they are used in a Verilog module.

• parameter declarations

• wire, wand, wor, tri, supply0, and supply1 declarations

• reg declarations

• input declarations

• output declarations

• inout declarations

• Continuous assignments

• Module instantiations

• Gate instantiations

• Function definitions

• always blocks

• task statements

Data declarations and assignments are described in this section.

Module and gate instantiations are described in the “Module Instan-

tiations” section of this chapter. Function definitions, task statements,

and always blocks are described in the “Functional Descriptions”

chapter.

Verilog Reference Guide

3-6 Xilinx Development System

Structural Data Types

Verilog structural data types include wire, wand, wor, tri, supply0,

and supply1. Although parameter does not fall into the category of

structural data types, it is presented here because it is used with

structural data types.

You can define an optional range for all the data types presented in

this section. The range provides a means for creating a bit vector. The

syntax for a range specification follows.

[msb : lsb]

Expressions for most significant bit (msb) and least significant bit

(lsb) must be non-negative constant-valued expressions.

Constant-valued expressions are composed only of constants, Verilog

parameters, and operators.

parameter

You can customize each instantiation of a module by using Verilog

parameters. By setting different values for the parameter when you

instantiate the module, you can cause constructions of different logic.

For more information, see the “Parameterized Designs” section of

this chapter.

A parameter symbolically represents constant values. The definition

for a parameter consists of the parameter name and the value

assigned to it. The value can be any constant-valued integer or

Boolean expression. If you do not set the size of the parameter with a

range definition or a sized constant, the parameter is unsized and

defaults to a 32-bit quantity. Refer to the “Constant-Valued Expres-

sions” section of the “Expressions” chapter for information about

constant formats.

You can use a parameter wherever a number is allowed, except when

you declare the number of bits in an assignment statement, which

will generate a syntax error as shown in the following example.

parameter size = 4;

assign out = in ? 4’b000 :size’b0101; //syntax error

You can define a parameter anywhere within a module definition.

However, the Verilog language requires that you define the param-

eter before you use it.

Structural Descriptions

Verilog Reference Guide 3-7

The following example shows two parameter declarations. Parame-

ters TRUE and FALSE are unsized and have values of 1 and 0, respec-

tively. Parameters S0, S1, S2, and S3 have values of 3, 1, 0, and 2,

respectively, and are stored as 2-bit quantities.

parameter TRUE=1, FALSE=0;

parameter [1:0]S0=3,S1=1,S2=0,S3=2;

wire

A wire data type in a Verilog description represents the physical

wires in a circuit. A wire connects gate-level instantiations and

module instantiations. With the Verilog language, you can read a

value from a wire from within a function or a begin...end block, but

you cannot assign a value to a wire within a function or a begin...end

block. (An always block is a specific type of begin...end block).

A wire does not store its value. It must be driven in one of two ways.

• By connecting the wire to the output of a gate or module

• By assigning a value to the wire in a continuous assignment

In the Verilog language, an undriven wire defaults to a value of Z

(high impedance). However, Foundation Express leaves undriven

wires unconnected. Multiple connections or assignments to a wire

short the wires together.

In the following example, two wires are declared; a is a single-bit

wire, and b is a 3-bit vector of wires. Its most significant bit (msb) has

an index of 2, and its least significant bit (lsb) has an index of 0.

wire a;

wire [2:0] b;

You can assign a delay value in a wire declaration, and you can use

the Verilog keywords scalared and vectored for simulation. Founda-

tion Express accepts the syntax of these constructs, but they are

ignored when the circuit is synthesized.

Note: You can use delay information for modeling, but Foundation

Express ignores this delay information. If the functionality of your

circuit depends on the delay information, Foundation Express might

create logic with behavior that does not agree with the behavior of

the simulated circuit.

Verilog Reference Guide

3-8 Xilinx Development System

wand

The wand (wired AND) data type is a specific type of wire.

In the following example, two variables drive the variable c. The

value of c is determined by the logical AND of a and b.

module wand_test(a,b,c);

input a,b;

output c;

wand c;

assign c = a;

assign c = b;

endmodule

You can assign a delay value in a wand declaration, and you can use

the Verilog keywords scalared and vectored for simulation. Founda-

tion Express accepts the syntax of these constructs, but they are

ignored when the circuit is synthesized.

wor

The wor (wired OR) data type is a specific type of wire.

In the following example, two variables drive the variable c. The

value of c is determined by the logical OR of a and b.

module wor_test(a, b, c);

input a, b;

output c;

wor c;

assign c = a;

assign c = b;

endmodule

tri

The tri (three-state) data type is a specific type of wire. All variables

that drive the tri must have a value of Z (high-impedance), except

one. This single variable determines the value of the tri.

Structural Descriptions

Verilog Reference Guide 3-9

Note: Foundation Express does not enforce the previous condition.

You must ensure that no more than one variable driving a tri has a

value other than Z.

In the following example, three variables drive the variable out.

module tri_test (out,condition);

input [1:0] condition;

output out;

reg a,b,c;

tri out;

always @ (condition) begin

a = 1’bz; //set all variables to Z

b = 1’bz;

c = 1’bz;

case (condition) //set only one variable to non-Z

2’b00 : a = 1’b1;

2’b01 : b = 1’b0;

2’b10 : c = 1’b1;

endcase

end

assign out = a; // make the tri connection

assign out = b;

assign out = c;

endmodule

supply0 and supply1

The supply0 and supply1 data types define wires tied to logic 0

(ground) and logic 1 (power). Using supply0 and supply1 is the same

as declaring a wire and assigning a 0 or a 1 to it. In the following

example, power is tied to logic 1 and gnd (ground) is tied to logic 0.

supply0 gnd;

supply1 power;

reg

A reg represents a variable in Verilog. A reg can be a 1-bit quantity or

a vector of bits. For a vector of bits, the range indicates the most

significant bit (msb) and least significant bit (lsb) of the vector. Both

Verilog Reference Guide

3-10 Xilinx Development System

regs must be non-negative constants, parameters, or constant-valued

expressions. The following example shows reg declarations.

reg x; // single bit

reg a,b,c; // 3 1-bit quantities

reg [7:0] q; // an 8-bit vector

Port Declarations

You must explicitly declare the direction (input, output, or bidirec-

tional) of each port that appears in the port list of a port definition.

Use the input, output, and inout statements, as described in the

following sections.

input

An input is a type of wire and is governed by the syntax of wire. You

declare all input ports of a module with an input statement. You can

use a range specification to declare an input that is a vector of signals,

as for input b in the following example. The input statements can

appear in any order in the description but must be declared before

they are used. The following is an example.

input a;

input [2:0] b;

output

Unless otherwise defined by a reg, wand, wor, or tri declaration, an

output is a type of wire and is governed by the syntax of wire. You

declare all output ports of a module with an output statement. An

output statement can appear in any order in the description, but you

must declare the output before you use it.

You can use a range specification to declare an output that is a vector

of signals. If you use a reg declaration for an output, the reg must

have the same range as the vector of signals. The following declara-

tion is an example.

output a;

output [2:0]b;

reg [2:0] b;

Structural Descriptions

Verilog Reference Guide 3-11

inout

You can declare bidirectional ports with the inout statement. An

inout is a type of wire and is governed by the syntax of wire. With

Foundation Express, you can connect only inout ports to module or

gate instantiations. You must declare an inout before you use it. The

following declaration is an example.

inout a;

inout [2:0]b;

Continuous Assignment

If you want to drive a value onto a wire, wand, wor, or tri, use a

continuous assignment to specify an expression for the wire value.

You can specify a continuous assignment in two ways.

• Use an explicit continuous assignment statement after the wire,

wand, wor, or tri declaration.

• Specify the continuous assignment in the same line as the decla-

ration for a wire.

The following example shows two equivalent continuous assign-

ments for wire a.

wire a; // declare

assign a = b & c; // assign

wire a = b & c; // declare and assign

The left side of a continuous assignment can be any of the following.

• A wire, wand, wor, or tri

• One or more bits selected from a vector

• A concatenation of any of these

The right side of the continuous assignment statement can be any

supported Verilog operator or any arbitrary expression that uses

previously declared variables and functions. You cannot assign a

value to a reg in a continuous assignment.

With Verilog, you can assign drive strength for each continuous

assignment statement. Foundation Express accepts drive strength,

but it does not affect the synthesis of the circuit. Keep this in mind

when you use drive strength in your Verilog source.

Verilog Reference Guide

3-12 Xilinx Development System

Assignments are performed bit-wise, with the low bit on the right

side assigned to the low bit on the left side.

• If the number of bits on the right side is greater than the number

on the left side, the high-order bits on the right side are

discarded.

• If the number of bits on the left side is greater than the number on

the right side, operands on the right side are zero-extended.

Module Instantiations

Module instantiations are copies of the logic in a module that define

component interconnections.

module_name instance_name1 (terminal, terminal, ...),

instance_name2 (terminal, terminal, ...);

A module instantiation consists of the name of the module

(module_name), followed by one or more instantiations. An instantia-

tion consists of an instantiation name (instance_name) and a connec-

tion list. A connection list is a list of expressions called terminals,

separated by commas. These terminals are connected to the ports of

the instantiated module. Module instantiations have the following

syntax.

(terminal1, terminal2, ...),

(terminal1, terminal2, ...);

Terminals connected to input ports can be any arbitrary expression.

Terminals connected to output and inout ports can be identifiers,

single- or multiple-bit slices of an array, or a concatenation of these.

The bit-widths for a terminal and its module port must be the same.

If you use an undeclared variable as a terminal, the terminal is

implicitly declared as a scalar (1-bit) wire. After the variable is implic-

itly declared as a wire, it can appear wherever a wire is allowed.

The following example shows the declaration for the module SEQ

with two instances (SEQ_1 and SEQ_2).

module SEQ(BUS0,BUS1,OUT); //description of module

//SEQ

input BUS0, BUS1;

output OUT;

...

Structural Descriptions

Verilog Reference Guide 3-13

endmodule

module top(D0,D1,D2,D3,OUT0,OUT1);

input D0, D1, D2, D3;

output OUT0, OUT1;

SEQ SEQ_1(D0,D1,OUT0), //instantiations of

//module SEQ

SEQ_2(.OUT(OUT1),.BUS1(D3),.BUS0(D2));

endmodule

Named and Positional Notation

Module instantiations can use either named or positional notation to

specify the terminal connections.

In name-based module instantiation, you explicitly designate which

port is connected to each terminal in the list. Undesignated ports in

the module are unconnected.

In position-based module instantiation, you list the terminals and

specify connections to the module according to each terminal’s posi-

tion in the list. The first terminal in the connection list is connected to

the first module port, the second terminal to the second module port,

and so on. Omitted terminals indicate that the corresponding port on

the module is unconnected.

In the example of module instantiations, SEQ_2 is instantiated with

named notation, as follows.

• Signal OUT1 is connected to port OUT of the module SEQ.

• Signal D3 is connected to port BUS1.

• Signal D2 is connected to port BUS0.

SEQ_1 is instantiated by using positional notation, as follows.

• Signal D0 is connected to port BUS0 of module SEQ.

• Signal D1 is connected to port BUS1.

• Signal OUT0 is connected to port OUT.

Verilog Reference Guide

3-14 Xilinx Development System

Parameterized Designs

With Verilog language, you can create parameterized designs by

overriding parameter values in a module during instantiation.You

can do this with the defparam statement or with the following syntax.

module module_name #(parameter_value,parameter_value,...)instance_name (terminal_list)

Foundation Express does not support the defparam statement but

does support the syntax above.

The module in the following example contains a parameter declara-

tion. The default value of the parameter width is 8, unless you over-

ride the value when the module is instantiated. When you change the

value, you build a different version of your design. This type of

design is called a parameterized design.

module foo (a,b,c);

parameter width = 8;

input [width-1:0] a,b;

output [width-1:0] c;

assign c = a & b;

endmodule

Foundation Express automatically manages templates and parame-

ters. Some errors due to parameter or port size mismatch are detected

when an implementation is created, not when the Verilog is read.

Gate-Level Modeling

Verilog provides several basic logic gates that enable modeling at the

gate level. Gate-level modeling is a special case of positional notation

for module instantiation that uses a set of predefined module names.

Foundation Express supports the following gate types.

•and

•nand

•or

Structural Descriptions

Verilog Reference Guide 3-15

•nor

•xor

•xnor

•buf

•not

•tran

Connection lists for instantiations of a gate-level model use positional

notation. In the connection lists for and, nand, or, nor, xor, and xnor

gates, the first terminal connects to the output of the gate, and the

remaining terminals connect to the inputs of the gate. You can build

arbitrarily wide logic gates with as many inputs as you want.

Connection lists for buf, not, and tran gates also use positional nota-

tion. You can have as many outputs as you want, followed by only

one input. Each terminal in a gate-level instantiation can be a 1-bit

expression or signal.

In gate-level modeling, instance names are optional. Drive strengths

and delays are allowed, but Foundation Express ignores them.

The following example shows two gate-level instantiations.

buf (buf_out,e);

and and4(and_out,a,b,c,d);

Note: Foundation Express parses but ignores delay options for gate

primitives. Because Foundation Express ignores the delay informa-

tion, it can create logic whose behavior does not agree with the simu-

lated behavior of the circuit. See the “Inferring D Flip-Flops” section

of the “Register and Three-State Inference” chapter for more informa-

tion.

Three-State Buffer Instantiation

Foundation Express supports the following gate types for instantia-

tion of three-state gates.

• bufif0 (active-low enable line)

• bufif1 (active-high enable line)

• notif0 (active-low enable line; output inverted)

• notif1 (active-high enable line; output inverted)

Verilog Reference Guide

3-16 Xilinx Development System

Connection lists for bufif and notif gates use positional notation.

Specify the order of the terminals as follows.

• The first terminal connects to the output of the gate.

• The second terminal connects to the input of the gate.

• The third terminal connects to the control line.

The following example shows a three-state gate instantiation with an

active high enable and no inverted output.

module three_state (in1,out1,cntrl1);

input in1,cntrl1;

output out1;

bufif1 (out1,in1,cntrl1);

endmodule

Verilog Reference Guide 4-1

Chapter 4

Expressions

In Verilog, expressions consist of a single operand or multiple oper-

ands separated by operators. You use expressions where a value is

required in Verilog.

This chapter explains how to build and use expressions. The chapter

is divided into the following sections.

• “Constant-Valued Expressions”

• “Operators”

• “Operands”

• “Expression Bit Widths”

Constant-Valued Expressions

A constant-valued expression is an expression whose operands are

either constants or parameters. Foundation Express determines the

value of these expressions.

In the following example, size-1 is a constant-valued expression. The

expression (op == ADD) ? a+b : a-b is not a constant-valued expres-

sion because the value depends on the variable op. If the value of op

is 1, b is added to a; otherwise, b is subtracted from a.

//all expressions are constant-valued,

//except in the assign statement.

module add_or_subtract(a,b,op,s);

//performs s=a+b if op is ADD

// s=a-b if op is not ADD

parameter size=8;

parameter ADD=1’b1;

Verilog Reference Guide

4-2 Xilinx Development System

input op;

input [size-1:0]a,b;

output[size-1:0]s;

assign s=(op==ADD)? a+b:a-b; //not a constant-

//valued expression

endmodule

The operators and operands used in an expression influence the way

that a design is synthesized. Foundation Express evaluates

constant-valued expressions and does not synthesize circuitry to

compute their value. If an expression contains constants, they are

propagated to reduce the amount of circuitry required. However,

Foundation Express does synthesize circuitry for an expression that

contains variables.

Operators

Operators identify the operation to be performed on their operands

to produce a new value. Most operators are either unary operators,

that apply to only one operand, or binary operators, that apply to two

operands. Two exceptions are conditional operators, which take three

operands, and concatenation operators, which take any number of

operands.

Foundation Express supports the Verilog language operators listed in

the following table. A description of the operators and their order of

precedence is given in the sections following the table.

Table 4-1 Verilog Operators Supported by Foundation Express

Operator Type Operator Description

Arithmetic Operators + - * /

%Arithmetic

Modules

Relational Operators >

Relational

Equality Operators ==

! = Logical equality

Logical inequality

Logical Operators !

| |

Logical NOT

Logical AND

Logical OR

Expressions

Verilog Reference Guide 4-3

In the following descriptions, the terms variable and variable operand

refer to operands or expressions that are not constant-valued expres-

sions. This group includes wires and registers, bit-selects and

part-selects of wires and registers, function calls, and expressions that

contain any of these elements.

Arithmetic Operators

Arithmetic operators perform simple arithmetic on operands. The

Verilog arithmetic operators follow.

•Addition (+)

• Subtraction (-)

• Multiplication (*)

• Division (/)

•Modules (%)

You can use the +, -, and * operators with any operand form

(constants or variables). You can use the + and - operators as either

Bit-wise Operators ~

^~ or ~^

Bit-wise NOT

Bit-wise AND

Bit-wise OR

Bit-wise XOR

Bit-wise XNOR

Reduction Operators &

~ &

~ |

~^ or ^~

Reduction AND

Reduction OR

Reduction NAND

Reduction NOR

Reduction XOR

Reduction XNOR

Shift Operators <<

>> Shift left

Shift right

Conditional Operator ? : Conditions

Concatenation

Operator { } Concatenation

Table 4-1 Verilog Operators Supported by Foundation Express

Operator Type Operator Description

Verilog Reference Guide

4-4 Xilinx Development System

unary or binary operators. Foundation Express requires that / and %

operators have constant-valued operands.

The following example shows three forms of the addition operator.

The circuitry built for each addition operation is different because of

the different operand types. The first addition requires no logic, the

second synthesizes an incrementer, and the third synthesizes an

adder.

parameter size=8;

wire[3:0]a,b,c,d,e;

assign c=size + 2; //constant + constant

assign d=a + 1; //variable + constant

assign e=a + b; //variable + variable

Relational Operators

Relational operators compare two quantities and yield a 0 or 1 value.

A true comparison evaluates to 1; a false comparison evaluates to 0.

All comparisons assume unsigned quantities. The circuitry synthe-

sized for relational operators is a bit-wise comparator whose size is

based on the sizes of the two operands.

The Verilog relational operators follow.

• Less than (<)

• Less than or equal to (<=)

• Greater than (>)

• Greater than or equal to (>=)

The following example shows a relational operator.

function [7:0] max(a,b);

input [7:0] a,b;

if(a>=b) max=a;

else max=b;

endfunction

Equality Operators

Equality operators generate a 0 if compared expressions are not equal

and a 1 if the expressions are equal. Equality and inequality compari-

sons are performed by bit.

Expressions

Verilog Reference Guide 4-5

The Verilog equality operators follow.

• Equality (==)

• Inequality (!=)

The following example shows the equality operator used to test for a

JMP instruction. The output signal jump is set to 1 if the two

high-order bits of instruction are equal to the value of parameter JMP;

otherwise, jump is set to 0.

module is_jump_instruction(instruction,jump);

parameter JMP=2’h3;

input [7:0] instruction;

output jump;

assign jump=(instruction[7:6]==JMP);

endmodule

Handling Comparisons to X or Z

Foundation Express always ignores comparisons to an X or a Z. If

your code contains a comparison to an X or a Z, a warning message is

displayed indicating that the comparison is always evaluated to

FALSE, which might cause simulation to disagree with synthesis.

The following example shows code from a file called test2.v. Founda-

tion Express always assigns Variable B to the value 1, because the

comparison to X is ignored.

always begin

if (A==1’bx) //this is line 10

B=0;

else

B=1;

end

When Foundation Express reads this code, it generates the following

warning message.

Warning: Comparisons to a “don’t care” are treated as

always being false in routine test2 line 10 in file

‘test2.v’. This may cause simulation to disagree with

synthesis. (HDL-170)

Verilog Reference Guide

4-6 Xilinx Development System

For an alternate method of handling comparisons to X or Z, use the

translate_on and translate_off directives to comment out

the condition and its first branch (the true clause) so that only the else

branch goes through synthesis.

Logical Operators

Logical operators generate a 1 or a 0, according to whether an expres-

sion evaluates to TRUE (1) or FALSE (0). The Verilog logical opera-

tors follow.

•Logical NOT (!)

• Logical AND (&&)

• Logical OR (||)

The logical NOT operator produces a value of 1 if its operand is zero

and a value of 0 if its operand is nonzero. The logical AND operator

produces a value of 1 if both operands are nonzero. The logical OR

operator produces a value of 1 if either operand is nonzero.

The following example shows logical operators.

module is_valid_sub_inst(inst,mode,valid,unimp);

parameter IMMEDIATE=2’b00,DIRECT=2’b01;

parameter SUBA_imm=8’h80,SUBA_dir=8’h90,

SUBB_imm=8’hc0,SUBB_dir=8’hd0;

input [7:0]inst;

input [1:0] mode;

output valid, unimp;

assign valid=(((mode==IMMEDIATE) && (

(inst==SUBA_imm)||

(inst==SUBB_imm)))||

((mode==DIRECT) && (

(inst==SUBA_dir)||

(inst==SUBB_dir))));

assign unimp=!valid;

endmodule

Expressions

Verilog Reference Guide 4-7

Bit-wise Operators

Bit-wise operators act on the operand bit by bit. The Verilog bit-wise

operators follow.

• Unary negation (~)

• Binary AND (&)

• Binary OR (|)

•Binary XOR (^)

• Binary XNOR (^~ or ~^)

The following is an example of bit-wise operators.

module full_adder(a,b,cin,s,cout);

input a,b,cin;

output s,cout;

assign s = a ^ b ^ cin;

assign cout = (a & b)|(cin & (a|b));

endmodule

Reduction Operators

Reduction operators take one operand and return a single bit. For

example, the reduction AND operator takes the AND value of all the

bits of the operand and returns a 1-bit result. The Verilog reduction

operators follow.

• Reduction AND (&)

• Reduction OR (|)

• Reduction NAND (~&)

• Reduction NOR (~|)

• Reduction XOR (^)

• Reduction XNOR (^~ or ~^)

The following example shows reduction operators.

module check_input (in, parity, all_ones);

input [7:0] in;

output parity, all_ones;

Verilog Reference Guide

4-8 Xilinx Development System

assign parity = ^ in;

assign all_ones = & in;

endmodule

Shift Operators

A shift operator takes two operands and shifts the value of the first

operand right or left by the number of bits given by the second

operand.

The Verilog shift operators follow.

• Shift left (<<)

• Shift right (>>)

After the shift, vacated bits are filled with zeros. Shifting by a

constant, results in minor circuitry modification (because only

rewiring is required). Shifting by a variable causes a general shifter to

be synthesized. The following example shows how a shift right oper-

ator is used to perform a division by 4.

module divide_by_4 (dividend,quotient);

input [7:0] dividend;

output [7:0] quotient;

assign quotient = dividend >> 2; //shift right 2

//bits

endmodule

Conditional Operator

The conditional operator (? :) evaluates an expression and returns a

value that is based on the truth of the expression. The following

example shows how to use the conditional operator. If the expression

(op == ADD) evaluates to TRUE, the value a + b is assigned to result;

otherwise, the value a - is assigned to result.

module add_or_subtract (a, b, op, result);

parameter ADD = 1’b0;

input [7:0] a, b;

input op;

output [7:0] result;

Expressions

Verilog Reference Guide 4-9

assign result = (op = = ADD) ? a + b:a - b;

endmodule

You can nest conditional operators to produce an if...then construct.

The following example shows the conditional operators used to eval-

uate the value of op successively and perform the correct operation.

module arithmetic (a b, op, result);

parameter ADD = 3’h0, SUB=3’h1, AND = 3’h2,

OR = 3’h3, XOR = 3’h4;

input [7:0] a, b;

input [2:0] op;

output [7:0] result;

assign result = ((op = = ADD) ? a + b:(

(op = = SUB) ? a - b:(

(op = = AND) ? a & b:(

(op = = OR) ? a |b:(

(op = = XOR)? a ^ b:(a))))));

endmodule

Concatenation Operator

Concatenation combines one or more expressions to form a larger

vector. In the Verilog language, you indicate concatenation by listing

all expressions to be concatenated, separated by commas, in curly

braces ({ }). Any expression except an unsized constant is allowed in a

concatenation. For example, the concatenation {1’b1, 1’b0, 1’b0} yields

the value 3’b100.

You can also use a constant-valued repetition multiplier to repeat the

concatenation of an expression. The concatenation {1’b1, 1’b0, 1’b0}

can also be written as {1’b1, {2 {1’b0}}} to yield 3’b100. The expression

{2 {expr}} within the concatenation repeats expr two times.

The following example shows a concatenation that forms the value of

a condition-code register.

output [7:0] ccr;

wire half_carry, interrupt, negative, zero,

overflow, carry;

Verilog Reference Guide

4-10 Xilinx Development System

...

assign ccr = {2’b00, half_carry, interrupt,

negative, zero, overflow, carry};

The following example shows an equivalent description for the

concatenation.

output [7:0] ccr;

...

assign ccr[7] = 1’b0;

assign ccr[6] = 1’b0;

assign ccr[5] = half_carry;

assign ccr[4] = interrupt;

assign ccr[3] = negative;

assign ccr[2] = zero;

assign ccr[1] = overflow;

assign ccr[0] = carry;

Operator Precedence

The following table lists the precedence of all operators, from highest

to lowest. All operators at the same level in the table are evaluated

from left to right, except the conditional operator (?:), which is evalu-

ated from right to left.

Table 4-2 Operator Precedence

Operator Description

[ ] Bit-select or part-select

( ) Parentheses

! ~ Logical and bit-wise negation

& | ~& ~| ^ ~^ ^~ Reduction operators

+ - Unary arithmetic

{ } Concatenation

* / % Arithmetic

+ - Arithmetic

<< >> Shift

> >= < <= Relational

== != Logical equality and inequality

&Bit-wise AND

Expressions

Verilog Reference Guide 4-11

Operands

You can use the following kinds of operands in an expression.

• Numbers

• Wires and registers

• Bit-selects

• Part-selects

• Function calls

The following sections explain each of these operands.

Numbers

A number is either a constant value or a value specified as a param-

eter. The expression size-1 in the example from the “Constant-Valued

Expressions” section of this chapter illustrates how you can use both

a parameter and a constant in an expression.

You can define constants as sized or unsized, in binary, octal,

decimal, or hexadecimal bases. The default size of an unsized

constant is 32 bits. Refer to the “Numbers” section of the “Verilog

Syntax” chapter for a discussion of the format for numbers.

Wires and Registers

Variables that represent both wires and registers are allowed in an

expression. If the variable is a multiple-bit vector and you use only

the name of the variable, the entire vector is used in the expression.

You can use bit-selects and part-selects to select single or multiple

^ ^~ ~^ Bit-wise XOR and XNOR

| Bit-wise OR

& & Logical AND

| | Logical OR

? : Conditional

Table 4-2 Operator Precedence

Operator Description

Verilog Reference Guide

4-12 Xilinx Development System

bits, respectively, from a vector. These are described in the next two

sections.

Wires are described in the “Module Statements and Constructs”

section of the “Structural Descriptions” chapter. Registers are

described in the “Function Declarations” section of the “Functional

Descriptions” chapter.

In the Verilog fragment shown in the following example, a, b, and c

are 8-bit vectors of wires. Because only the variable names appear in

the expression, the entire vector of each wire is used in evaluating the

expression.

wire [7:0] a, b, c;

assign c = a & b;

Bit-Selects

A bit-select is the selection of a single bit from a wire, register, or

parameter vector. The value of the expression in brackets ( [ ] ) selects

the bit you want from the vector. The selected bit must be within the

declared range of the vector. The following simple example shows a

bit-select with an expression.

wire [7:0] a, b, c;

assign c[0] = a [0] & b[0];

Part-Selects

A part-select is the selection of a group of bits from a wire, register, or

parameter vector. The part-select expression must be constant-valued

in the Verilog language, unlike the bit-select operator. If a variable is

declared with ascending indices or descending indices, the part-select

(when applied to that variable) must be in the same order.

You can also write the expression in the example of the wire oper-

ands (in the “Wires and Registers” section of this chapter) as shown

in the example below.

assign c[7:0] = a[7:0] & b[7:0]

Function Calls

In Verilog, you can call one function from inside an expression and

use the return value from the called function as an operand. Func-

tions in Verilog return a value consisting of one or more bits. The

Expressions

Verilog Reference Guide 4-13

syntax of a function call is the function name followed by a

comma-separated list of function inputs enclosed in parentheses. The

following example shows the function call ’legal’ used in an expres-

sion.

assign error = ! legal (in1,in2);

Functions are described in the “Function Declarations” section of the

“Functional Descriptions” chapter.

Concatenation of Operands

Concatenation is the process of combining several single-bit or

multiple-bit operands into one large bit vector. The use of the concat-

enation operator, a pair of braces ({ }), is described in the “Concatena-

tion Operator” section of this chapter.

The following example shows two 4-bit vectors (nibble1 and nibble2)

that are joined to form an 8-bit vector that is assigned to an 8-bit wire

vector (byte).

wire [7:0] byte;

wire [3:0] nibble1, nibble2;

assign byte = {nibble1, nibble2};

Expression Bit Widths

The bit width of an expression depends on the widths of the oper-

ands and the types of operators in the expression.

The “Expression Bit-Widths” table shows the bit-width for each

operand and operator. In the table, i, j, and k are expressions; L(i) is

the bit-width of expression i.

To preserve significant bits within an expression, Verilog fills in zeros

for smaller-width operands. The rules for this zero-extension depend

on the operand type. These rules are also listed in the “Expression

Bit-Widths” table.

Verilog classifies expressions (and operands) as either self-deter-

mined or context-determined. A self-determined expression is one in

which the width of the operands is determined solely by the expres-

sion itself. These operand widths are never extended.

Verilog Reference Guide

4-14 Xilinx Development System

Table 4-3 Expression Bit-Widths

Expression Bit Length Comments

unsized constant 32-bit self-determined

sized constant as specified self-determined

i + j max(L(i),L(j)) context-determined

i - j max(L(i),L(j)) context-determined

i * j max(L(i),L(j)) context-determined

i / j max(L(i),L(j)) context-determined

i % j max(L(i),L(j)) context-determined

i & j max(L(i),L(j)) context-determined

i | j max(L(i),L(j)) context-determined

i ^ j max(L(i),L(j)) context-determined

i ^~ j max(L(i),L(j)) context-determined

~i L(i)context-determined

i == j 1-bit self-determined

i !== j 1-bit self-determined

i && j 1-bit self-determined

i || j 1-bit self-determined

i > j 1-bit self-determined

i >= j 1-bit self-determined

i < j 1-bit self-determined

i <= j 1-bit self-determined

&i 1-bit self-determined

|i 1-bit self-determined

^i 1-bit self-determined

~&i 1-bit self-determined

~|i 1-bit self-determined

~^i 1-bit self-determined

i >> j L(i)j is self-determined

{i{j}} i*L(j)j is self-determined

i << j L(i)j is self-determined

Expressions

Verilog Reference Guide 4-15

The following example shows a self-determined expression that is a

concatenation of variables with known widths.

output [7:0] result;

wire [3:0] temp;

assign temp = 4’b1111;

assign result = {temp,temp};

The concatenation has two operands. Each operand has a width of

four bits and a value of 4’b1111. The resulting width of the concatena-

tion is 8 bits, which is the sum of the width of the operands. The value

of the concatenation is 8’b11111111.

A context-determined expression is one in which the width of the

expression depends on all operand widths in the expression. For

example, Verilog defines the resulting width of an addition as the

greater of the widths of its two operands. The addition of two 8-bit

quantities produces an 8-bit value; however, if the result of the addi-

tion is assigned to a 9-bit quantity, the addition produces a 9-bit

result. Because the addition operands are context-determined, they

are zero-extended to the width of the largest quantity in the entire

expression.

The following example shows context-determined expressions.

if (((1’b1 << 15) >> 15) = = 1’b0)

//This expression is ALWAYS true.

if ((((1’b1 << 15) >> 15)| 20’b0) = = 1’b0)

//This expression is NEVER true.

The expression ((1’b1 << 15) >> 15) produces a 1-bit 0 value (1’b0).

The 1 is shifted off of the left end of the vector, producing a value of 0.

The right shift has no additional effect. For a shift operator, the first

operand (1’b1) is context-dependent; the second operand (15) is self-

determined.

i ? j : k Max(L(j),L(k)) j is self-determined

{i,...,j} L(i)+...+L(j) self-determined

{i {j,...,k}} /*(L(j)+...+L(k)) self-determined

Table 4-3 Expression Bit-Widths

Expression Bit Length Comments

Verilog Reference Guide

4-16 Xilinx Development System

The expression (((1’b1 << 15) >> 15) | 20’b0) produces a 20-bit 1 value

(20’b1). 20’b1 has a 1 in the least significant bit position and 0s in the

other 19 bit positions. Because the largest operand within the expres-

sion has a width of 20, the first operand of the shift is zero-extended

to a 20-bit value. The left shift of 15 does not drop the 1 value off the

left end; the right shift brings the 1 value back to the right end,

resulting in a 20-bit 1 value (20’b1).

Verilog Reference Guide 5-1

Chapter 5

Functional Descriptions

A Verilog functional (or Register Transfer Level) description

describes a circuit in terms of its registers and the combinatorial logic

between the registers.

The following sections of this chapter describe how to construct and

use functional descriptions.

• “Sequential Constructs”

• “Function Declarations”

• “Function Statements”

• “task Statements”

• “always Blocks”

Sequential Constructs

Although many Verilog constructs appear sequential in nature, they

describe combinatorial circuitry. A simple description that appears to

be sequential is shown in the following example.

x=b;

if (y)

x=x + a;

Foundation Express determines the combinatorial equivalent of this

description. In fact, Foundation Express treats the statements in the

above example in the same way that it treats the statements in the

following example.

if (y)

x = b + a;

else

x = b;

Verilog Reference Guide

5-2 Xilinx Development System

To describe combinatorial logic, you write a sequence of statements

and operators to generate the output values you want. For example,

suppose the addition operator (+) is not supported, and you want to

create a combinatorial, ripple-carry adder. The easiest way to

describe this circuit is as a cascade of full adders, as in the following

example. The example has eight full adders, with each adder

following the one before. From this description, Foundation Express

generates a fully combinatorial adder.

function [7:0] adder;

input [7:0] a, b;

reg c;

integer i;

begin

c = 0;

for (i = 0;i <= 7; i = i + 1) begin

adder[i] = a[i] ^ b[i ^ c;

c = a[i] & b[i] | a[i] & c | b[i] & c;

end

endfunction

Function Declarations

Using a function declaration is one of three methods for describing

combinatorial logic. The other two methods are the always block,

described in the “always Blocks” section of this chapter and the

continuous assignment, described in the “Continuous Assignment”

section of the “Structural Descriptions” chapter. You must declare

and use Verilog functions within a module. You can call functions

from the structural part of a Verilog description by using them in a

continuous assignment statement or as a terminal in a module instan-

tiation. You can also call functions from other functions or from

always blocks.

Foundation Express supports the following Verilog function declara-

tions.

• Input declarations

• Output from a function

• Register declarations

• Memory declarations

Functional Descriptions

Verilog Reference Guide 5-3

• Parameter declarations

• Integer declarations

Functions begin with the keyword function and end with the

keyword endfunction. The width of the function’s return value (if

any) and the name of the function follow the function keyword, as

shown in the syntax below.

function [range] name_of_function;

[func_declaration]*

statement_or_null

endfunction

Defining the bit range of the return value is optional. Specify the

range inside square brackets ( [ ] ). If you do not define the range, a

function returns a 1-bit quantity by default. You set the function’s

output by assigning it to the function name. A function can contain

one or more statements. If you use multiple statements, enclose the

statements between a begin...end pair.

The following example shows a simple function declaration.

function [7:0] scramble;

input [7:0] a;

input [2:0] control;

integer i;

begin

for (i = 0;i <= 7;i = i + 1)

scramble[i] = a[i ^ control];

end

endfunction

Function statements that Foundation Express supports are discussed

under the “Function Statements” section of this chapter.

Input Declarations

Verilog input declarations specify the input signals for a function.

You must declare the inputs to a Verilog function immediately after

you declare the function name. The syntax of input declarations for a

function is the same as the syntax of input declarations for a module.

input [range] list_of_variables;

The optional range specification declares an input as a vector of

signals. Specify range inside square brackets ( [ ] ).

Verilog Reference Guide

5-4 Xilinx Development System

Note: The order in which you declare the inputs must match the

order of the inputs in the function call.

Function Output

The output from a function is assigned to the function name. A

Verilog function has only one output, which can be a vector. For

multiple outputs from a function, use the concatenation operation to

bundle several values into one return value. This single return value

can then be unbundled by the caller. The following example shows

how unbundling is done.

function [9:0] signed_add

input [7:0] a, b;

reg [7:0] sum;

reg carry, overflow;

begin

...

signed_add = carry,overflow,sum};

end

endfunction

...

assign {C, V, result_bus} = signed_add (busA, busB);

The signed_add function bundles the values of carry, overflow, and

sum into one value. This new value is returned in the assign state-

ment following the function. The original values are then unbundled

by the function that called the signed_add function.

A register represents a variable in Verilog. The syntax for a register

declaration follows.

reg [range] list_of_register_variables;

A reg can be a single-bit quantity or a vector of bits. The range param-

eter specifies the most significant bit (msb) and least significant bit

(lsb) of the vector enclosed in square brackets ( [ ] ). Both bits must be

nonnegative constants, parameters, or constant-valued expressions.

The following example shows some reg declarations.

Functional Descriptions

Verilog Reference Guide 5-5

reg x; //single bit

reg a,b,c; //3 single-bit quantities

reg [7:0] q; //an 8-bit vector

In Verilog language, you assign a value to a reg variable only within

a function or an always block.

In the Verilog simulator, reg variables can hold state information. A

reg variable can hold its value across separate calls to a function. In

some cases, Foundation Express emulates this behavior by inserting

flow-through latches. In other cases, it emulates this behavior

without a latch. The concept of holding state is elaborated in the

“Inferring Latches” section of the “Register and Three-State Infer-

ence” chapter.

Memory Declarations

The memory declaration models a bank of registers or memory. In

Verilog, the memory declaration is actually a two-dimensional array

of reg variables.

The following example shows memory declarations.

reg [7:0] byte_reg;

reg [7:0] mem_block [255:0];

In the above example, byte_reg is an 8-bit register and mem_block is

an array of 256 registers; each is 8 bits wide. You can index the array

of registers to access individual registers, but you cannot access indi-

vidual bits of a register directly. Instead, you must copy the appro-

priate register into a temporary one-dimensional register. For

example, to access the fourth bit of the eighth register in mem_block,

enter the following syntax.

byte_reg mem_block [7];

individual_bit = byte_reg [3];

Parameter Declarations

Parameter variables are local or global variables that hold values. The

syntax for a parameter declaration follows.

parameter [range] identifier = expression, identifier = expression;

The range specification is optional.

Verilog Reference Guide

5-6 Xilinx Development System

You can declare parameter variables as local to a function. However,

you cannot use a local variable outside of that function. Parameter

declarations in a function are identical to parameter declarations in a

module. The function in the following example contains a parameter

declaration.

function gte;

parameter width = 8;

input [width - 1 : 0] a, b;

gte = ( a >= b);

endfunction

Integer Declarations

Integer variables are local or global variables that hold numeric

values. The syntax for an integer declaration follows.

integer identifier_list;

You can declare integer variables locally at the function level or

globally at the module level. The default size for integer variables is

32 bits. Foundation Express determines bit-widths, except in the case

of a don’t care condition resulting during a compile.

The following example illustrates integer declarations.

integer a; //single 32-bit integer

integer b,c; //two integers

Function Statements

Foundation Express supports the following function statements.

• Procedural assignments

• Register transfer level (RTL) assignments

• begin...end block statements

• if...else statements

• case, casex, and casez statements

•for loops

• while loops

• forever loops

• disable statements

Functional Descriptions

Verilog Reference Guide 5-7

Procedural Assignments

Procedural assignments are assignment statements used inside a

function. They are similar to the continuous assignment statements

described in the “Continuous Assignment” section of the “Structural

Descriptions” chapter except that the left side of a procedural assign-

ment can contain only reg variables and integers. Assignment state-

ments set the value of the left side to the current value of the right

side. The right side of the assignment can contain any arbitrary

expression of the data types described in the “Structural Data Types”

section of the “Structural Descriptions” chapter including simple

constants and variables.

The left side of the procedural assignment statement can contain only

the following data types.

• reg variables

• Bit-selects of reg variables

• Part-selects of reg variables (must be constant-valued)

• Integers

• Concatenations of the previous data types

Foundation Express assigns the low bit on the right side to the low bit

on the left side.

• If the number of bits on the right side is greater than the number

on the left side, the high-order bits on the right side are

discarded.

• If the number of bits on the left side is greater than the number on

the right side, the right side bits are zero-extended.

Foundation Express allows multiple procedural assignments. The

following example shows procedural assignments.

sum = a + b;

control[5] = (instruction == 8’h2e);

{carry_in, a[7:0]} = 9’h 120;

RTL Assignments

Foundation Express handles variables driven by an RTL

(nonblocking) assignment differently than those driven by a proce-

dural (blocking) assignment.

Verilog Reference Guide

5-8 Xilinx Development System

In procedural assignments, a value passed along from variable A to

variable B to variable C results in all three variables having the same

value in every clock cycle. In the netlist, procedural assignments are

indicated when the input net of one flip-flop is connected to the input

net of another flip-flop. Both flip-flops input the same value in the

same clock cycle.

In RTL assignments, however, values are passed on in the next clock

cycle. Assignment from variable A to variable B occurs after one clock

cycle, if variable A has been a previous target of an RTL assignment.

Assignment from variable B to variable C always takes place after

one clock cycle, because B is the target when RTL assigns variable A’s

value to B. In the netlist, an RTL assignment shows flip-flop B

receiving its input from the output net of flip-flop A. It takes one

clock cycle for the value held by flip-flop Ato propagate to flip-flop B.

A variable can follow only one assignment method and, therefore,

cannot be the target of RTL as well as procedural assignments.

The following example is a description of a serial register imple-

mented with RTL assignments. The resulting schematic follows the

example.

module rtl (clk,data, regc, regd);

input data, clk;

output regc, regd;

reg regc, regd;

always @ (posedge clk)

begin

regc <= data;

regd <= regc;

end

endmodule

Functional Descriptions

Verilog Reference Guide 5-9

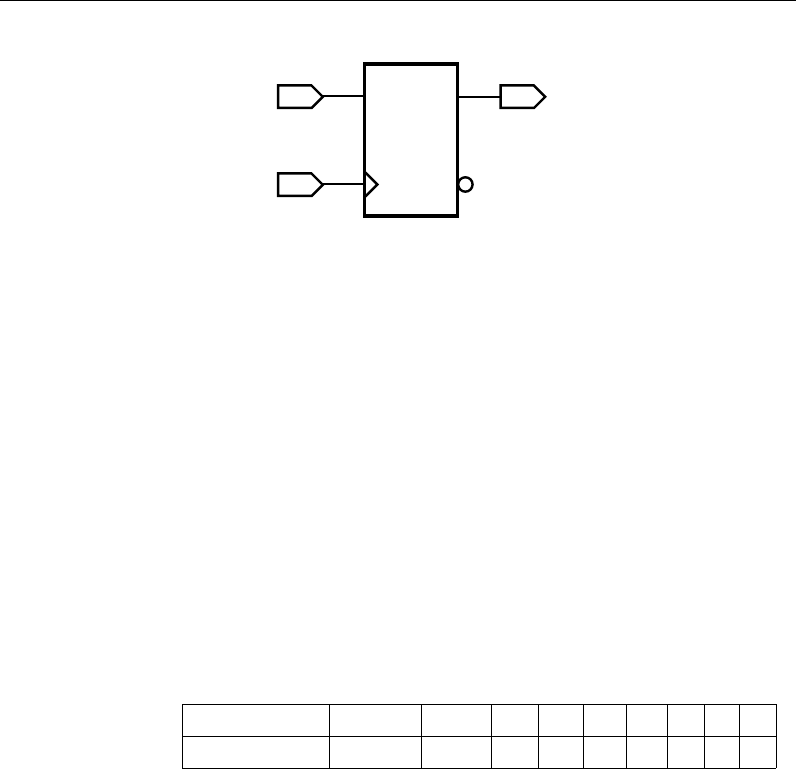

Figure 5-1 Schematic of RTL Assignments

If you use a procedural assignment, as in the figure above, Founda-

tion Express does not synthesize a serial register. Therefore, the

recently assigned value of rega, which is data, is assigned to regb, as

the schematic in the following figure indicates.

The following example shows a blocking assignment.

module rtl (clk,data, rega, regb);

input data, clk;

output rega, regb;

reg rega, regb;

always @(posedge clk)

begin

rega = data;

regb = rega;

end

endmodule

X8739

data

clk

regd

regc

Verilog Reference Guide

5-10 Xilinx Development System

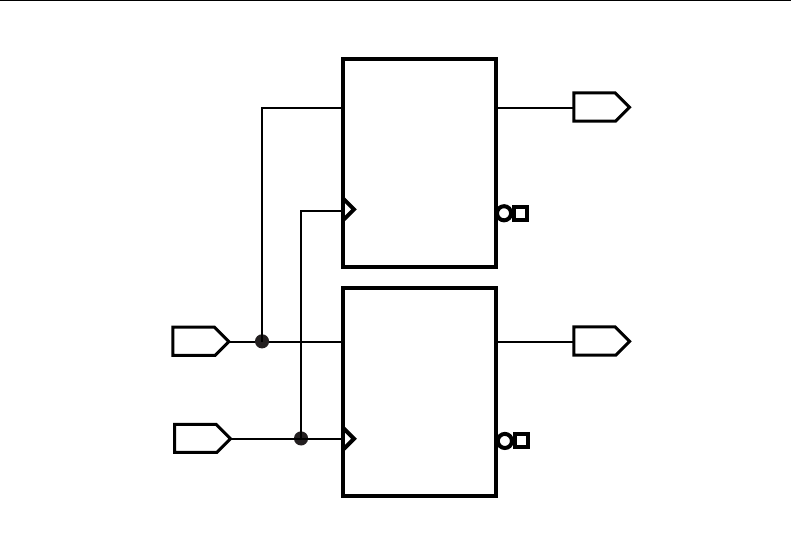

Figure 5-2 Schematic of Blocking Assignment

begin...end Block Statements

Block statements are a way of syntactically grouping several state-

ments into a single statement.

In Verilog, sequential blocks are delimited by the keywords begin

and end. These begin...end blocks are commonly used in conjunction

with if, case, and for statements to group several statements together.

Functions and always blocks that contain more than one statement

require a begin...end block to group the statements. Verilog also

supplies a construct called a named block, as shown in the example

below.

begin : block_name

reg local_variable_1;

integer local_variable_2;

parameter local variable_3;

... statements...

end

X8738

data regb

clk

rega

Functional Descriptions

Verilog Reference Guide 5-11

In Verilog, no semicolon (;) follows the begin or end keywords. You

identify named blocks by following the begin keyword with a colon

(:) and a block_name, as shown. You can use Verilog syntax to

declare variables locally in a named block. You can include reg,

integer, and parameter declarations within a named block but not in

an unnamed block. Named blocks allow you to use the disable state-

ment.

if...else Statements

The if...else statements execute a block of statements according to the

value of one or more expressions.

The syntax of if...else statements follows.

if (expr)

begin

... statements...

end

else

begin

... statements...

end

The if statement consists of the keyword if, followed by an expres-

sion enclosed in parentheses. The if statement is followed by a state-

ment or block of statements enclosed with the begin and end

keywords. If the value of the expression is nonzero, the expression is

true, and the statement block that follows is executed. If the value of

the expression is zero, the expression is false, and the statement block

that follows is not executed.

An optional else statement can follow an if statement. If the expres-

sion following the if keyword is false, the statement or block of state-

ments following the else keyword is executed.

The if...else statements can cause registers to be synthesized. Regis-

ters are synthesized when you do not assign a value to the same reg

variable in all branches of a conditional construct. Information on

registers is detailed in the “Register Inference” section of the

“Register and Three-State Inference” chapter.

Foundation Express synthesizes multiplexer logic (or similar select

logic) from a single if statement. The conditional expression in an if

statement is synthesized as a control signal to a multiplexer, which

determines the appropriate path through the multiplexer. For

Verilog Reference Guide

5-12 Xilinx Development System

example, the statements in the following example create multiplexer

logic controlled by c and place either a or b in the variable x.

if (c)

x = a;

else

x = b;

The following example illustrates how if and else can be used to

create an arbitrarily long if...else if...else structure.

if (instruction == ADD)

begin

carry_in = 0;

complement_arg = 0;

end

else if (instruction == SUB)

begin

carry_in = 1;

complement_arg = 1;

end

else

illegal_instruction = 1;

The following example shows nested if and else statements.

if (select [1])

begin

if (select[0]) out = in[3];

else out = in[2];

end

else

begin

if (select[0]) out = in[1];

else out = in[0];

end

Conditional Assignments

Foundation Express can synthesize a latch for a conditionally

assigned variable. If a path exists that does not explicitly assign a

value to a variable, the variable is conditionally assigned. See the

“Understanding the Limitations of D Flip-Flop Inference” section of

the “Register and Three-State Inference” chapter for more informa-

tion.

Functional Descriptions

Verilog Reference Guide 5-13

In the following example, the variable value is conditionally driven.

If c is not true, value is not assigned and retains its previous value.

always begin

if (c) begin

value = x;

end

y = value; //causes a latch to be synthesized

//for value

end

case Statements

The case statement is similar in function to the if...else conditional

statement. The case statement allows a multipath branch in logic that

is based on the value of an expression. One way to describe a multi-

cycle circuit is with a case statement (see the case statement example

after the case statement syntax). Another way is with multiple @

(clock edge) statements, which are discussed later in the loop section.

The syntax for a case statement is shown below.

case (expr)

case_item1 : begin

...statements...

end

case_item2 : begin

...statements...

end

default : begin

...statements...

end

endcase

The case statement consists of the keyword case, followed by an

expression in parentheses, followed by one or more case items (and

associated statements to be executed), followed by the keyword

endcase. A case item consists of an expression (usually a simple

Verilog Reference Guide

5-14 Xilinx Development System

constant) or a list of expressions separated by commas, followed by a

colon (:).

The expression following the case keyword is compared with each

case item expression, one by one. When the expressions are equal, the

condition evaluates to TRUE. Multiple expressions separated by

commas can be used in each case item. When multiple expressions

are used, the condition is said to be TRUE if any of the expressions in

the case item match the expression following the case keyword.

The first case item that evaluates to TRUE determines the path. All

subsequent case items are ignored, even if they are true. If no case

item is true, no action is taken. You can define a default case item

with the expression default, which is used when no other case item is

true.

The following example shows a case statement.

case (state)

IDLE: begin

if (start)

next_state = STEP1;

else

next_state = IDLE;

end

STEP1: begin

//do first state processing here

next_state = STEP2;

end

STEP2: begin

//do second state processing here

next_state = IDLE;

end

endcase

Full Case and Parallel Case

Foundation Express automatically determines whether a case state-

ment is full or parallel. A case statement is referred to as full case if all

possible branches are specified. If you do not specify all possible

branches, but you know that one or more branches can never occur,

you can declare a case statement as full case with the //synopsys

full_case directive. Otherwise, Foundation Express synthesizes a

latch. See the “parallel_case Directive” section of the “Foundation

Functional Descriptions

Verilog Reference Guide 5-15

Express Directives” chapter and “full_case Directive” section of the

“Foundation Express Directives” chapter for more information.

Foundation Express synthesizes optimal logic for the control signals

of a case statement. If Foundation Express cannot statically determine

that branches are parallel, it synthesizes hardware that includes a

priority encoder. If Foundation Express can determine that no cases

overlap (parallel case), it synthesizes a multiplexer, because a priority

encoder is not necessary. You can also declare a case statement as

parallel case with the //synopsys parallel_case directive. Refer to the

“parallel_case Directive” section of the “Foundation Express Direc-

tives” chapter.

The following example is a case statement that is both full and

parallel and does not result in either a latch or a priority encoder.

input [1:0] a;

always @(a or w or x or y or z) begin

case (a)

2’b11:

b = w ;

2’b10:

b = x ;

2’b01:

b = y ;

2’b00:

b = z ;

endcase

end

The following example shows a case statement that is parallel but not

full that is missing branches for the cases 2’b01 and 2’b10. This

example infers a latch for b.

input [1:0] a;

always @(a or w or z) begin

case (a)

2’b11:

b = w ;

2’b00:

b = z ;

endcase

end

The case statement in the following example is not parallel or full,

because the input values of w and x cannot be determined. However,

if you know that only one of the inputs equals 2’b11 at a given time,

Verilog Reference Guide

5-16 Xilinx Development System

you can use the // synopsys parallel_case directive to avoid synthe-

sizing a priority encoder. If you know that either w or x always

equals 2’b11 (a situation known as a one-branch tree), you can use the

//synopsys full_case directive to avoid synthesizing a latch.

always @( w or x) begin

case (2’b11)

b = 10 ;

b = 01 ;

endcase

end

casex Statements

The casex statement allows a multipath branch in logic according to

the value of an expression, just like the case statement. The differ-

ences between the case statement and the casex statement are the

keyword and the processing of the expressions.

The syntax for a casex statement follows.

casex (expr)

case_item1: begin

...statements...

end

case_item2: begin

...statements...

end

default: begin

...statements...

end

endcase

A case item can have expressions consisting of the following.

• A simple constant

• A list of identifiers or expressions separated by commas,

followed by a colon (:)

• Concatenated, bit-selected, or part-selected expressions

• A constant containing z, x, or ?

Functional Descriptions

Verilog Reference Guide 5-17

When a z, x, or ? appears in a case-item expression, it means that the

corresponding bit of the casex expression is not compared. The

following example shows a case item that includes an x.

reg [3:0] cond;

casex (cond)

4’b100x: out = 1;

default: out = 0;

endcase

In the above example, out is set to 1 if cond is equal to 4’b1000 or

4’b1001, because the last bit of cond is defined as x.

The following example shows a complicated section of code that can

be simplified with a casex statement that uses the ? value.

if (cond[3]) out = 0;

else if (!cond[3] & cond[2] ) out = 1;

else if (!cond[3] & !cond[2] & cond[1] ) out = 2;

else if (!cond[3] & !cond[2] & !cond[1] & cond[0] ) out = 3;

else if (!cond[3] & !cond[2] & !cond[1] & !cond[0] ) out = 4;

The following example shows the simplified version of the same

code.

casex (cond)

4’b1???: out = 0;

4’b01??: out = 1;

4’b001?: out = 2;

4’b0001: out = 3;

4’b0000: out = 4;

endcase

Foundation Express allows ?, z, and x bits in case items, but not in

casex expressions. The following example shows an invalid casex

expression.

express = 3’bxz?;

...

casex (express) //illegal testing of an expression

...

endcase

casez Statements

The casez statement allows a multipath branch in logic according to

the value of an expression, just like the case statement. The differ-

ences between the case statement and the casez statement are the

Verilog Reference Guide

5-18 Xilinx Development System

keyword and the way the expressions are processed. The casez state-

ment acts exactly the same as casex, except that x is not allowed in

case item; only z and ? are accepted as special characters.

The syntax for a casez statement follows.

casez ( expr )

case_item1: begin

... statements ...

end

case_item2: begin

... statements ...

end

default: begin

... statements ...

end

endcase

A case item can have expressions consisting of the following.

• A simple constant

• A list of identifiers or expressions separated by commas,

followed by a colon (:)

• Concatenated, bit-selected, or part-selected expressions

• A constant containing z or ?

When a casez statement is evaluated, the value z in the case item is

ignored. An example of a casez statement with z in the case item is

shown in the following example.

casez (what_is_it)

2’bz0: begin

//accept anything with least significant bit

//zero

it_is = even;

end

2’bz1: begin

//accept anything with least significant bit

//one

it_is = odd;

end

endcase

Foundation Express allows ? and z bits in case items but not in casez

expressions.

Functional Descriptions

Verilog Reference Guide 5-19

The following example shows an invalid expression in a casez state-

ment.

express = 1’bz;

...

casez (express) // illegal testing of an expression

...

endcase

for Loops

The for loop repeatedly executes a single statement or block of state-

ments. The repetitions are performed over a range determined by the

range expressions assigned to an index. Two range expressions

appear in each for loop: low_range and high_range. In the syntax

lines that follow, high_range is greater than or equal to low_range.

Foundation Express recognizes both incrementing and decrementing

loops. The statement to be duplicated is surrounded by begin and

end statements.

Note: Foundation Express allows four syntax forms for a for loop.

They include the following.

for (index = low_range;index < high_range;index = index + step)

for (index = high_range;index > low_range;index = index - step)

for (index = low_range;index <= high_range;index = index + step)

for (index = high_range;index >= low_range;index = index - step)

The following example shows a simple for loop.

for (i = 0; i <= 31; i = i + 1) begin

s[i] = a[i] ^ b[i] ^ carry;

carry = a[i] & b[i] | a[i] & carry |

b[i] & carry;

end

For loops can be nested, as shown in the following example.

for (i = 6; i >= 0; i = i - 1)

for (j = 0; j <= i; j = j + 1)

if (value[j] > value[j+1]) begin

temp = value[j+1];

value[j+1] = value[j];

value[j] = temp;

end

You can use for loops as duplicating statements. The following

example shows a for loop.

Verilog Reference Guide

5-20 Xilinx Development System

for ( i=0; i < 8; i = i+1 )

example[i] = a[i] & b[7-i];

The following example is the above for loop expanded into its long-

hand equivalent.

example[0] = a[0] & b[7];

example[1] = a[1] & b[6];

example[2] = a[2] & b[5];

example[3] = a[3] & b[4];

example[4] = a[4] & b[3];

example[5] = a[5] & b[2];

example[6] = a[6] & b[1];

example[7] = a[7] & b[0];

while Loops

The while loop executes a statement until the controlling expression

evaluates to FALSE. A while loop creates a conditional branch that

must be broken by one of the following statements to prevent combi-

natorial feedback.

@ (posedge clock) or @ (negedge clock)

Foundation Express supports while loops if you insert one of the

following expressions in every path through the loop.

@ (posedge clock) or @ (negedge clock)

The following example shows an unsupported while loop that has no

event expression.

always

while (x < y)

x = x + z;

If you add @ (posedge clock) expressions after the while loop in the

above example you get the supported version shown in the following

example.

always

begin @ (posedge clock)

while (x < y)

begin

@ (posedge clock);

x = x + z;

end

end;

Functional Descriptions

Verilog Reference Guide 5-21

forever Loops

Infinite loops in Verilog use the keyword forever. You must break up

an infinite loop with an @ (posedge clock) or @ (negedge clock)

expression to prevent combinatorial feedback, as shown in the

example below.

always

forever

begin

@ (posedge clock);

x = x + z;

end

You can use forever loops with a disable statement to implement

synchronous resets for flip-flops. The disable statement is described

in the next section. See the “Register Inference” section of the

“Register and Three-State Inference” chapter for more information on

synchronous resets.

Using the style illustrated in the example of the supported forever

loop above is not recommended, because you cannot test it. The

synthesized state machine does not reset to a known state; therefore,

it is impossible to create a test program for the state machine. The

example of the synchronous reset of state register using disable in a

forever loop (in the next section) illustrates how a synchronous reset

for the state machine can be synthesized.

disable Statements

Foundation Express supports the disable statement when you use it

in named blocks. When a disable statement is executed, it causes the

named block to terminate. A comparator description that uses disable

is shown in the following example.

begin : compare

for (i = 7; i >= 0; i = i - 1) begin

if (a[i] != b[i]) begin

greater_than = a[i];

less_than = ~a[i];

equal_to = 0;

// comparison is done so stop looping

disable compare;

end

Verilog Reference Guide

5-22 Xilinx Development System

end

//If we get here a == b

//If the disable statement is executed,the next three

//lines will not be executed

greater_than = 0;

less_than = 0;

equal_to = 1;

end

Note that the above example describes a combinatorial comparator.

Although the description appears sequential, the generated logic

runs in a single clock cycle.

You can also use a disable statement to implement a synchronous

reset, as shown in the following example.

always

forever

begin: Block

@ (posedge clock)

if (Reset)

begin

z <= 1’b0

disable Block;

end

z = a;

end

The disable statement in the example above causes the block

reset_label to immediately terminate and return to the beginning of

the block.

task Statements

In Verilog, the task statements are similar to functions except that

task statements can have output and inout ports. You can use the task

statement to structure your Verilog code so that a portion of code is

reusable.

In Verilog, tasks can have timing controls and they can take a

nonzero time to return. However, Foundation Express ignores all

timing controls, so synthesis might disagree with simulation if the

timing controls are critical to the function of the circuit.

Functional Descriptions

Verilog Reference Guide 5-23

The following example shows how a task statement is used to define

an adder function.

module task_example (a, b, c);

input [7:0] a, b;

output [7:0] c;

reg [7:0] c;

task adder;

input [7:0] a, b;

output [7:0] adder;

reg c;

integer i;

begin

c = 0;

for (i = 0; i <= 7; i = i + 1) begin

adder[i] = a[i] ^ b[i] ^ c;

c = (a[i] & b[i]) | (a[i] & c) | (b[i] & c);

end

endtask

always

adder (a, b, c); // c is a reg

endmodule

Note: Only reg variables can receive output values from a task; wire

variables cannot.

always Blocks

An always block can imply latches or flip-flops, or it can specify

purely combinatorial logic. An always block can contain logic trig-

gered in response to a change in a level or the rising or falling edge of

a signal. The syntax of an always block follows.

always @ (event-expression [or event-expression*]) begin

... statements ...

end

Verilog Reference Guide

5-24 Xilinx Development System

Event Expression

The event expression declares the triggers or timing controls. The

word or groups several triggers together. The Verilog language speci-

fies that if triggers in the event expression occur, the block is

executed. Only one trigger in a group of triggers needs to occur for

the block to be executed. However, Foundation Express ignores the

event expression unless it is a synchronous trigger that infers a

details.

In the following example, a, b, and c are asynchronous triggers. If any

triggers change, the simulator simulates the always block again and

recalculates the value of f. Foundation Express ignores the triggers

in this example because they are not synchronous. However, you

must indicate all variables that are read in the always block as trig-

gers.

always @ ( a or b or c ) begin

f = a & b & c

end

If you do not indicate all the variables as triggers, Foundation

Express gives a warning message similar to the following.

Warning: Variable ‘foo’ is being read in block

‘bar’declared on line 88 but does not occur in the

timing control of the block.

For a synchronous always block, Foundation Express does not

require all variables to be listed.

An always block is triggered by any of the following types of event

expressions.

• A change in a specified value. An example follows.

always @ ( identifier ) begin

... statements ...

end

In the example above, Foundation Express ignores the trigger.

• The rising edge of a clock. An example follows.

always @ ( posedge event ) begin

... statements ...

end

Functional Descriptions

Verilog Reference Guide 5-25

• The falling edge of a clock. An example follows.

always @ ( negedge event ) begin

... statements ...

end

• A clock or an asynchronous preload condition. An example

follows.

always @ ( posedge CLOCK or negedge reset ) begin

if !reset begin

... statements ...

end

else begin

... statements ...

end

• An asynchronous preload that is based on two events joined by

the word or. An example follows.

always @ ( posedge CLOCK or posedge event1 or

negedge event2 ) begin

if ( event1 ) begin

... statements ...

end

else if ( !event2 ) begin

... statements ...

end

else begin

... statements ...

end

When the event expression does not contain posedge or negedge,

combinatorial logic (no registers) is usually generated, although

flow-through latches can be generated.

Note: The statements @ (posedge clock) and @ (negedge clock) are

not supported in functions or tasks.

Incomplete Event Specification

An always block can be misinterpreted if you do not list all signals

entering an always block in the event specification.

Foundation Express builds a 3-input AND gate for the description in

the following example. However, when this description is simulated,

Verilog Reference Guide

5-26 Xilinx Development System

f is not recalculated when c changes, because c is not listed in the

event expression. The simulated behavior is not that of a 3-input

AND gate.

always @(a or b) begin

f = a & b & c;

end

The simulated behavior of the description in the following example is

correct because it includes all signals in event expression.

always @(a or b or c) begin

f = a & b & c;

end

In some cases, you cannot list all signals in the event specification.

The following example illustrates this problem.

always @ (posedge c or posedge p)

if (p)

z = d;

else

z = a;

In the logic synthesized for the example above, if d changes while p is

high, the change is reflected immediately in the output (z). However,

when this description is simulated, z is not recalculated when d

changes, because d is not listed in the event specification. As a result,

synthesis might not match simulation.

Asynchronous preloads can be correctly modeled in Foundation

Express only when you want changes in the load data to be immedi-

ately reflected in the output. In the example of an incomplete event

list, data d must change to the preload value before preload condition

p transits from low to high. If you attempt to read a value in an asyn-

chronous preload, Foundation Express prints a warning similar to the

one shown below.

Warning: Variable ‘d’ is being read asynchronously in

routine reset line 21 in file ‘/usrests/hdl/asyn.v’.

This might cause simulation-synthesis mismatches.

Verilog Reference Guide 6-1

Chapter 6

Foundation Express infers registers (latches and flip-flops) and three-

state cells. This chapter explains inference behavior and results in the

following sections.

• “Register Inference”

• “Three-State Inference”

By inferring registers, you can use sequential logic in your designs

and keep your designs technology-independent. A register is a

simple, one-bit memory device, either a latch or a flip-flop. A latch is

a level-sensitive memory device. A flip-flop is an edge-triggered

memory device.

Foundation Express’ capability to infer registers supports coding

styles other than those described in this chapter. However, for best

results, do the following.

• Restrict each always block to a single type of memory-element

inferencing: latch, latch with asynchronous set or reset, flip-flop,

flip-flop with asynchronous reset, or flip-flop with synchronous

reset.

• Use the templates provided in the “Inferring Latches” section

and “Inferring Flip-Flops” section of this chapter.

The Inference Report

Foundation Express generates a general inference report when

building a design. It provides the asynchronous set or reset, synchro-

nous set or reset, and synchronous toggle conditions of each latch or

Verilog Reference Guide

6-2 Xilinx Development System

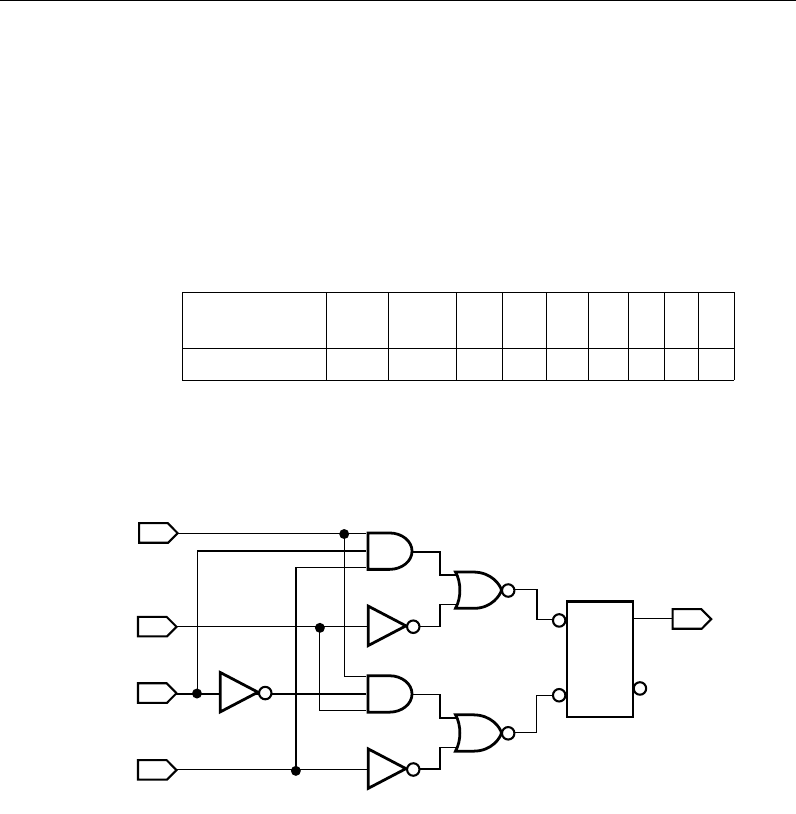

flip-flop, expressed in Boolean formulas. The following example

shows the inference report for a JK flip-flop.

Q_reg

Sync-reset: J’ K

Sync-set: J K’

Sync-toggle: J K

Sync-set and Sync-reset ==> Q: X

The inference report shows the following.

• Y indicates that the flip-flop has a synchronous reset (SR) and a

synchronous set (SS).

• N indicates that the flip-flop does not have an asynchronous reset

(AR), an asynchronous set (AS), or a synchronous toggle (ST).

In the inference report, the last section of the report lists the objects

that control the synchronous reset and set conditions. In the above

example, a synchronous reset occurs when J is low (logic 0) and K is

high (logic 1). The last line of the report indicates the register output

value when both the set and reset are active.

• zero (0)—Indicates that the reset has priority and the output goes

to logic 0

• one (1)—Indicates that the set has priority and the output goes to

logic 1

• X—Indicates that there is no priority and that the output value is

unstable

The “Inferring Latches” section and “Inferring Flip-Flops” section of

this chapter provide inference reports for each register template.

After you input a Verilog description, check the inference report to

verify the information.

Latch Inference Warnings

Foundation Express generates a warning message when it infers a

latch. The warning message is useful to verify that a combinatorial

design does not contain memory components.

Q_reg Flip-flop 1 - - N N Y Y N

Verilog Reference Guide 6-3

Controlling Register Inference

Use directives to direct the type of sequential device you want

inferred. The default is to implement the type of latch described in

the HDL code. These attributes override this behavior.

Foundation Express provides the following directives for controlling

• async_set_reset

When a signal has this directive set to TRUE, Foundation Express

searches for a branch that uses the signal as a condition. Founda-

tion Express then checks whether the branch contains an assign-

ment to a constant value. If the branch does, the signal becomes

an asynchronous reset or set.

Attach the async_set_reset directive to single-bit signals using the

following syntax.

// synopsys async_set_reset ”signal_name_list”

• async_set_reset_local

Foundation Express treats listed signals in the specified block as

if they have the async_set_reset directive set to TRUE.

Attach the async_set_reset_local directive to a block label using

the following syntax.

/* synopsys async_set_reset_local block_label ”signal_name_list” */

• async_set_reset_local_all

Foundation Express treats all signals in the specified blocks as if

they have the async_set_reset directive set to TRUE.

Attach the async_set_reset_local_all directive to block labels

using the following syntax.

/* synopsys async_set_reset_local_all “block_label_list” */

• sync_set_reset

When a signal has this directive set to TRUE, Foundation Express

checks the signal to determine whether it synchronously sets or

resets a register in the design.

Attach the sync_set_reset directive to single-bit signals using the

following syntax.

Verilog Reference Guide

6-4 Xilinx Development System

//synopsys sync_set_reset ”signal_name_list”

• sync_set_reset_local

Foundation Express treats listed signals in the specified block as

if they have the sync_set_reset directive set to TRUE.

Attach the sync_set_reset_local directive to a block label using

the following syntax.

/* synopsys sync_set_reset_local block_label ”signal_name_list” */

• sync_set_reset_local_all

Foundation Express treats all signals in the specified blocks as if

they have the sync_set_reset directive set to TRUE.

Attach the sync_set_reset_local_all directive to block labels using

the following syntax.

/* synopsys sync_set_reset_local_all ”block_label_list” */

• one_cold

A one-cold implementation means that all signals in a group are

active low and that only one signal can be active at a given time.

The one_cold directive prevents Foundation Express from imple-

menting priority encoding logic for the set and reset signals.

Add a check to the Verilog code to ensure that the group of

signals has a one-cold implementation. Foundation Express does

not produce any logic to check this assertion.

Attach the one_cold directive to set or reset signals on sequential

devices using the following syntax.

// synopsys one_cold ”signal_name_list”

•one_hot

A one-hot implementation means that all signals in a group are

active-high and that only one signal can be active at a given time.

The one_cold directive prevents Foundation Express from imple-

menting priority encoding logic for the set and reset signals.

Add a check to the Verilog code to ensure that the group of

signals has a one-hot implementation. Foundation Express does

not produce any logic to check this assertion.

Attach the one_hot directive to set or reset signals on sequential

devices using the following syntax.

Verilog Reference Guide 6-5

// synopsys one_hot ”signal_name_list”

Inferring Latches

In simulation, a signal or variable holds its value until that output is

reassigned. In hardware, a latch implements this holding-of-state

capability. Foundation Express supports inference of the following

types of latches.

•SR latch

•D latch

• Master-slave latch

The following sections provide details about each of these latch types.

Inferring SR Latches

Use SR latches with caution, because they are difficult to test. If you

decide to use SR latches, you must verify that the inputs are hazard-

free (do not glitch). During synthesis, Foundation Express does not

ensure that the logic driving the inputs is hazard-free.

The example of a SR latch below shows the Verilog code that imple-

ments the inferred SR latch shown in the following figure and

described in the “SR Latch Truth Table (Nand Type).” Because the

output y is unstable when both inputs have a logic 0 value, include a

check in the Verilog code to detect this condition during simulation.

Synthesis does not support such checks, so you must put the

translate_on and translate_off directives around the check. See the

“translate_off and translate_on Directives” section of the “Founda-

tion Express Directives” chapter for more information about special

comments in the Verilog source code. The inference report for an SR

latch shows the inference report that Foundation Express generates.

The following example shows an SR latch.

set reset y

0 0 Not stable

011

100

11y

Verilog Reference Guide

6-6 Xilinx Development System

module sr_latch (SET, RESET, Q);

input SET, RESET;

output Q;

reg Q;

//synopsys async_set_reset ”SET, RESET”

always @(RESET or SET)

if (~RESET)

Q = 0;

else if (~SET)

Q = 1;

endmodule

The following example shows an inference report for an SR latch.

y_reg

Async-reset: RESET’

Async-set: SET’

Async-set and Async-reset ==> Q: 1

Figure 6-1 SR Latch

Inferring D Latches

When you do not specify the resulting value for a signal under all

conditions, as in an incompletely specified if or case statement, Foun-

dation Express infers a D latch.

Q_reg Latch 1 - - Y Y - - -

X8590a

SET

RESET

Verilog Reference Guide 6-7

For example, the if statement in the following example infers a D

latch because there is no else clause. The Verilog code specifies a

value for output Q only when input GATE has a logic 1 value. As a

result, output Q becomes a latched value.

always @ (DATA or GATE) begin

if (GATE) begin

Q = DATA;

end

The case statement in the following example infers D latches, because

the case statement does not provide assignments to decimal for

values of I between 10 and 15.

always @(I) begin

case(I)

4’h0: decimal= 10’b0000000001;

4’h1: decimal= 10’b0000000010;

4’h2: decimal= 10’b0000000100;

4’h3: decimal= 10’b0000001000;

4’h4: decimal= 10’b0000010000;

4’h5: decimal= 10’b0000100000;

4’h6: decimal= 10’b0001000000;

4’h7: decimal= 10’b0010000000;

4’h8: decimal= 10’b0100000000;

4’h9: decimal= 10’b1000000000;

endcase

end

To avoid latch inference, assign a value to the signal under all condi-

tions. To avoid latch inference by the if statement in the above

example, modify the block as shown in the following examples. To

avoid latch inference by the case statement in the above example, add

the following statement before the endcase statement.

default: decimal= 10’b0000000000;

The following example shows how to avoid latch inference.

always @ (DATA, GATE) begin

Q = 0;

if (GATE)

Q = DATA;

end

The following example shows another way to avoid latch inference.

Verilog Reference Guide

6-8 Xilinx Development System

always @ (DATA, GATE) begin

if (GATE)

Q = DATA;

else

Q = 0;

end

Variables declared locally within a subprogram do not hold their

value over time, because every time a subprogram is called, its vari-

ables are reinitialized. Therefore, Foundation Express does not infer

latches for variables declared in subprograms. In the following

example, Foundation Express does not infer a latch for output Q.

function MY_FUNC

input DATA, GATE;

reg STATE;

begin

if (GATE) begin

STATE = DATA;

end

MY_FUNC = STATE;

end

end function

. . .

Q = MY_FUNC(DATA, GATE);

The following sections provide truth tables, code examples, and

figures for these types of D latches.

• Simple D latch

• D latch with asynchronous set or reset

• D latch with asynchronous set and reset

Simple D Latch When you infer a D latch, control the gate and data

signals from the top-level design ports or through combinatorial

logic. Gate and data signals that can be controlled ensure that simula-

tion can initialize the design.

The following example provides the Verilog template for a D latch.

Foundation Express generates the inference report shown following

the example for a D latch. The figure “D Latch” shows the inferred

latch.

Verilog Reference Guide 6-9

module d_latch (GATE, DATA, Q);

input GATE, DATA;

output Q;

reg Q;

always @(GATE or DATA)

if (GATE)

Q = DATA;

endmodule

The following example shows an inference report for a D latch.

Q_reg

reset/set:none

Figure 6-2 D Latch

D Latch with Asynchronous Set or Reset The templates in this

section use the async_set_reset directive to direct Foundation Express

to the asynchronous set or reset pins of the inferred latch.

The following example provides the Verilog template for a D latch

with an asynchronous set. Foundation Express generates the infer-

hBus MB AR AS SR SS ST

Q_reg Latch 1 - - N N - - -

DATA

GATE

X8591

Verilog Reference Guide

6-10 Xilinx Development System

ence report shown following the example for a D latch with asyn-

chronous set. The figure “D Latch with Asynchronous Set” shows the

inferred latch.

module d_latch_async_set (GATE, DATA, SET, Q);

input GATE, DATA, SET;

output Q;

reg Q;

//synopsys async_set_reset ”SET”

always @(GATE or DATA or SET)

if (~SET)

Q = 1’b1;

else if (GATE)

Q = DATA;

endmodule

The following example shows an inference report for a D latch with

asynchronous set.

Q_reg

Async-set: SET’

Figure 6-3 Latch with Asynchronous Set

hBus MB AR AS SR SS ST

Q_reg Latch 1 - - N Y - - -

X8592

SET

GATE

DATA

Verilog Reference Guide 6-11

Note: When the target technology library does not contain a latch

with an asynchronous set, Foundation Express synthesizes the set

logic using combinatorial logic.

The following example provides the Verilog template for a D latch

with an asynchronous reset. Foundation Express generates the infer-

ence report shown following the example for a D latch with asyn-

chronous reset. The figure “D Latch with Asynchronous Reset”

shows the inferred latch.

module d_latch_async_reset (RESET, GATE, DATA, Q);

input RESET, GATE, DATA;

output Q;

reg Q;

//synopsys async_set_reset ”RESET”

always @ (RESET or GATE or DATA)

if (~RESET)

Q = 1’b0;

else if (GATE)

Q = DATA;

endmodule

The following example shows an inference report for a D latch with

asynchronous reset.

Q_reg

Async-reset: RESET’

Q_reg Latch 1 - - Y N - - -

Verilog Reference Guide

6-12 Xilinx Development System

Figure 6-4 D Latch with Asynchronous Reset

D Latch with Asynchronous Set and Reset The following

example provides the Verilog template for a D latch with an active-

low asynchronous set and reset. This template uses the

async_set_reset_local directive to direct Foundation Express to the

asynchronous signals in block infer and uses the one_cold directive to

prevent priority encoding of the set and reset signals. For this

template, if you do not specify the one_cold directive, the set signal

has priority, because it serves as the condition for the if clause. Foun-

dation Express generates the inference report shown following the

example for a D latch with asynchronous set and reset. The figure “D

Latch with Asynchronous Set and Reset” shows the inferred latch.

module d_latch_async (GATE, DATA, RESET, SET, Q);

input GATE, DATA, RESET, SET;

output Q;

reg Q;

// synopsys async_set_reset_local infer ”RESET, SET”

// synopsys one_cold ”RESET, SET”

always @ (GATE or DATA or RESET or SET)

begin : infer

if (!SET)

Q = 1’b1;

else if (!RESET)

Q = 1’b0;

else if (GATE)

Q = DATA;

DATA

GATE

X8593a

RESET

Verilog Reference Guide 6-13

end

// synopsys translate_off

always @ (RESET or SET)

if (RESET == 1’b0 & SET == 1’b0)

$write (”ONE-COLD violation for RESET and SET.”);

// synopsys translate_on

endmodule

The following example shows an inference report for a D latch with

asynchronous set and reset.

Q_reg

Async-reset: RESET’

Async-set: SET’

Async-set and Async-reset ==> Q: X

Figure 6-5 D Latch with Asynchronous Set and Reset

Understanding the Limitations of D Latch Inference

A variable must always have a value before it is read. As a result, a

conditionally assigned variable cannot be read after the if statement

in which it is assigned. A conditionally assigned variable is assigned

a new value under some, but not all, conditions. The following

hBus MB AR AS SR SS ST

Q_reg Latch 1 - - Y Y - - -

X8594

SET

GATE

DATA

RESET

Verilog Reference Guide

6-14 Xilinx Development System

example shows an invalid use of the conditionally assigned variable

VALUE.

begin

if (condition) then

VALUE <= X;

Y <= VALUE; // Invalid read of variable VALUE

end

Inferring Master-Slave Latches

You can infer two-phase systems by using D latches. The following

example shows a simple two-phase system with clocks MCK and

SCK. The figure “Two-Phase Clocks” shows the inferred latches.

module latch_verilog (DATA, MCK, SCK, Q);

input DATA, MCK, SCK;

output Q;

reg Q;

reg TEMP;

always @(DATA or MCK)

if (MCK)

TEMP = DATA;

always @(TEMP or SCK)

if (SCK)

Q = TEMP;

endmodule

Verilog Reference Guide 6-15

Figure 6-6 Two-Phase Clocks

Inferring Flip-Flops

Foundation Express can infer D flip-flops, JK flip-flops, and toggle

flip-flops. The following sections provide details about each of these

flip-flop types.

Many FPGA devices have a dedicated set/reset hardware resource

that should be used. For this reason, you should infer asynchronous

set/reset signals for all flip-flops in the design. Foundation Express

will then use the global set/reset lines.

Inferring D Flip-Flops

Foundation Express infers a D flip-flop whenever the sensitivity list

of an always block includes an edge expression (a test for the rising or

falling edge of a signal). Use the following syntax to describe a rising

edge.

posedge SIGNAL

Use the following syntax to describe a falling edge.

negedge SIGNAL

When the sensitivity list of an always block contains an edge expres-

sion, Foundation Express creates flip-flops for all variables assigned

values in the block. The following example shows the most common

way of using an always block to infer a flip-flop.

always @(edge)

begin

Verilog Reference Guide

6-16 Xilinx Development System

end

Simple D Flip-Flop When you infer a D flip-flop, control the clock

and data signals from the top-level design ports or through combina-

torial logic. Clock and data signals that can be controlled ensure that

simulation can initialize the design. If you cannot control the clock

and data signals, infer a D flip-flop with asynchronous reset or set or

with a synchronous reset or set.

When you are inferring a simple D flip-flop, the always block can

contain only one edge expression.

The following example provides the Verilog template for a positive

edge-triggered D flip-flop. Foundation Express generates the infer-

ence report shown following the example for a positive edge-trig-

gered D flip-flop. The figure “Positive-Edge-Triggered D Flip-flop”

shows the inferred flip-flop.

module dff_pos (DATA, CLK, Q);

input DATA, CLK;

output Q;

reg Q;

always @(posedge CLK)

Q = DATA;

endmodule

The following example shows an inference report for a positive edge-

triggered D flip-flop.

Q_reg

set/reset/toggle: none

Q_reg Flip-flop 1 - - N N N N N

Verilog Reference Guide 6-17

Figure 6-7 Positive Edge-Triggered D Flip-Flop

The following example provides the Verilog template for a negative

edge-triggered D flip-flop. Foundation Express generates the infer-

ence report shown following the example for a negative edge-trig-

gered D flip-flop. The figure “Negative Edge-Triggered D Flip-Flop”

shows the inferred flip-flop.

module dff_neg (DATA, CLK, Q);

input DATA, CLK;

output Q;

reg Q;

always @(negedge CLK)

Q = DATA;

endmodule

The following example shows an inference report for a negative

edge-triggered D flip-flop.

Q_reg

set/reset/toggle: none

Q_reg Flip-flop 1 - - N N N N N

DATA

CLK

X8595

Verilog Reference Guide

6-18 Xilinx Development System

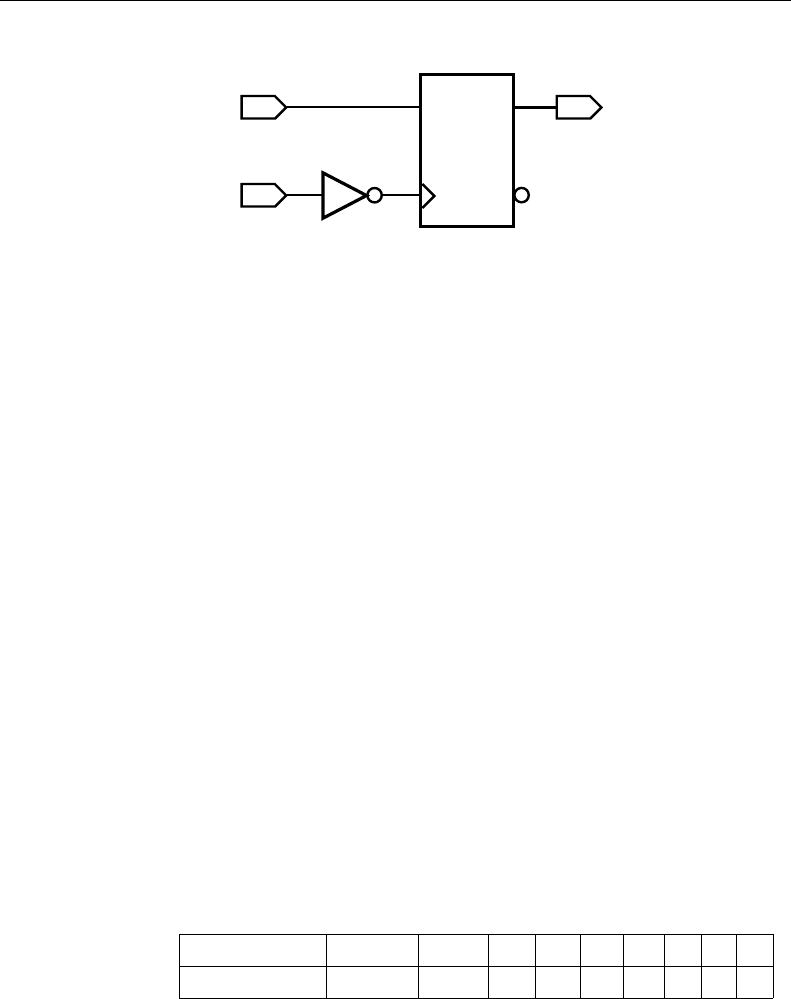

Figure 6-8 Negative Edge-Triggered D Flip-Flop

D Flip-Flop with Asynchronous Set or Reset When inferring a D

flip-flop with an asynchronous set or reset, include edge expressions

for the clock and the asynchronous signals in the sensitivity list of the

always block. Specify the asynchronous conditions using if state-

ments. Specify the branches for the asynchronous conditions before

the branches for the synchronous conditions.

The following example provides the Verilog template for a D flip-flop

with an asynchronous set. Foundation Express generates the infer-

ence report shown following the example for a D flip-flop with asyn-

chronous set. The figure “D Flip-Flop with Asynchronous Set” shows

the inferred flip-flop.

module dff_async_set (DATA, CLK, SET, Q);

input DATA, CLK, SET;

output Q;

reg Q;

always @(posedge CLK or negedge SET)

if (~SET)

Q = 1’b1;

else

Q = DATA;

endmodule

The following example shows an inference report for a D flip-flop

with asynchronous set.

Q_reg Flip-flop 1 - - N Y N N N

DATA

CLK

X8596

Verilog Reference Guide 6-19

Q_reg

Async-set: SET’

Figure 6-9 D Flip-Flop with Asynchronous Set

The following example provides the Verilog template for a D flip-flop

with an asynchronous reset. Foundation Express generates the infer-

ence report shown following the example for a D flip-flop with asyn-

chronous reset. The figure “D Flip-Flop with Asynchronous Reset”

shows the inferred flip-flop.

module dff_async_reset (DATA, CLK, RESET, Q);

input DATA, CLK, RESET;

output Q;

reg Q;

always @(posedge CLK or posedge RESET)

if (RESET)

Q = 1’b0;

else

Q = DATA;

endmodule

The following example shows an inference report for a D flip-flop

with asynchronous reset.

Q_reg

Async-reset: RESET

Q_reg Flip-flop 1 - - Y N N N N

DATA

CLK

X8597

SET

Verilog Reference Guide

6-20 Xilinx Development System

Figure 6-10 D Flip-Flop with Asynchronous Reset

D Flip-Flop with Asynchronous Set and Reset The following

example provides the Verilog template for a D flip-flop with active

high asynchronous set and reset pins. The template uses the one_hot

directive to prevent priority encoding of the set and reset signals. For

this template, if you do not specify the one_hot directive, the reset

signal has priority, because it is used as the condition for the if clause.

Foundation Express generates the inference report shown in the

inference report example for a D flip-flop with asynchronous set and

reset. The figure “D Flip-Flop with Asynchronous Set and Reset”

shows the inferred flip-flop.

Note: Most FPGA architectures do not have a register with an asyn-

chronous set and asynchronous reset cell available. For this reason,

avoid this construct.

module dff_async (RESET, SET, DATA, Q, CLK);

input CLK;

input RESET, SET, DATA;

output Q;

reg Q;

// synopsys one_hot ”RESET, SET”

always @(posedge CLK or posedge RESET or posedge SET)

if (RESET)

Q = 1’b0;

else if (SET)

Q = 1’b1;

DATA

CLK

X8598

RESET

Verilog Reference Guide 6-21

else Q = DATA;

// synopsys translate_off

always @ (RESET or SET)

if (RESET + SET > 1)

$write (”ONE-HOT violation for RESET and SET.”);

// synopsys translate_on

endmodule

The following example shows an inference report for a D flip-flop

with asynchronous set and reset.

Q_reg

Async-reset: RESET

Async-set: SET

Async-set and Async-reset ==> Q: X

Figure 6-11 D Flip-flop with Asynchronous Set and Reset

D Flip-Flop with Synchronous Set or Reset The previous exam-

ples illustrate how to infer a D flip-flop with asynchronous controls—

one way to initialize or control the state of a sequential device. You

can also synchronously reset or set the flip-flop (see the examples in

this section). The sync_set_reset directive directs Foundation Express

to the synchronous controls of the sequential device.

Q_reg Flip-flop 1 - - Y Y N N N

CLK

RESET

DATA

SET

X8599

Verilog Reference Guide

6-22 Xilinx Development System

When the target technology library does not have a D flip-flop with

synchronous reset, Foundation Express infers a D flip-flop with

synchronous reset logic as the input to the D pin of the flip-flop. If the

reset (or set) logic is not directly in front of the D pin of the flip-flop,

initialization problems can occur during gate-level simulation of the

design.

The following example provides the Verilog template for a D flip-flop

with synchronous set. Foundation Express generates the inference

report shown following the example for a D flip-flop with synchro-

nous set. The figure “D Flip-Flop with Synchronous Set” shows the

inferred flip-flop.

module dff_sync_set (DATA, CLK, SET, Q);

input DATA, CLK, SET;

output Q;

reg Q;

//synopsys sync_set_reset ”SET”

always @(posedge CLK)

if (SET)

Q = 1’b1;

else

Q = DATA;

endmodule

The following example shows an inference report for a D flip-flop

with synchronous set.

Q_reg

Sync-set: SET

Q_reg Flip-flop 1 - - N N N Y N

Verilog Reference Guide 6-23

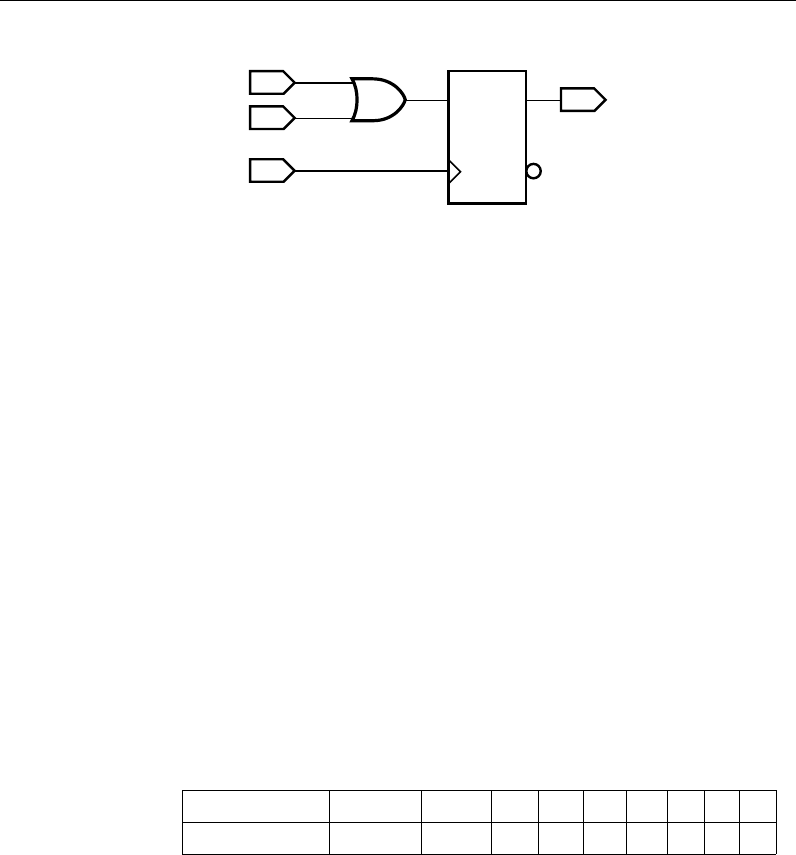

Figure 6-12 D Flip-Flop with Synchronous Set

The following example provides the Verilog template for a D flip-flop

with synchronous reset. Foundation Express generates the inference

report shown following the example for a D flip-flop with synchro-

nous reset. The figure “D Flip-Flop with Synchronous Reset” shows

the inferred flip-flop.

module dff_sync_reset (DATA, CLK, RESET, Q);

input DATA, CLK, RESET;

output Q;

reg Q;

//synopsys sync_set_reset ”RESET”

always @(posedge CLK)

if (~RESET)

Q = 1’b0;

else

Q = DATA;

endmodule

The following example shows an inference report for a D flip-flop

with synchronous reset.

Q_reg

Sync-reset: RESET’

Q_reg Flip-flop 1 - - N N Y N N

SET

DATA

CLK

X8600

Verilog Reference Guide

6-24 Xilinx Development System

Figure 6-13 D Flip-Flop with Synchronous Reset

D Flip-Flop with Synchronous and Asynchronous Load D flip-

flops can have asynchronous or synchronous controls. To infer a

component with both synchronous and asynchronous controls, you

must check the asynchronous conditions before you check the

synchronous conditions.

The following example provides the Verilog template for a D flip-flop

with synchronous load (called SLOAD) and an asynchronous load

(called ALOAD). Foundation Express generates the inference report

shown following the example for a D flip-flop with synchronous and

asynchronous load. The figure “D Flip-Flop with Synchronous and

Asynchronous Load” shows the inferred flip-flop.

module dff_a_s_load (ALOAD, SLOAD, ADATA, SDATA, CLK, Q);

input ALOAD, ADATA, SLOAD, SDATA, CLK;

output Q;

reg Q;

always @ (posedge CLK or posedge ALOAD)

if (ALOAD)

Q = ADATA;

else if (SLOAD)

Q = SDATA;

endmodule

RESET

DATA

CLK

X8601

Verilog Reference Guide 6-25

The following example shows an inference report for a D flip-flop

with synchronous and asynchronous load.

Q_reg

set/reset/toggle: none

Figure 6-14 D Flip-Flop with Synchronous and Asynchronous

Load

Multiple Flip-Flops with Asynchronous and Synchronous

Controls If a signal is synchronous in one block but asynchronous

in another block, use the sync_set_reset_local and

async_set_reset_local directives to direct Foundation Express to the

correct implementation.

In the following example, block infer_sync uses the reset signal as a

synchronous reset, while block infer_async uses the reset signal as an

asynchronous reset. Foundation Express generates the inference

report shown in the inference reports example for multiple flip-flops

with asynchronous and synchronous controls. The figure “Multiple

Flip-flops with Asynchronous and Synchronous Controls” shows the

resulting design.

module multi_attr (DATA1, DATA2, CLK, RESET, SLOAD, Q1, Q2);

input DATA1, DATA2, CLK, RESET, SLOAD;

hBus MB AR AS SR SS ST

Q_reg Flip-flop 1 - - N N N N N

X8602

ALOAD

ADATA

SLOAD

SDATA

CLK

Verilog Reference Guide

6-26 Xilinx Development System

output Q1, Q2;

reg Q1, Q2;

//synopsys sync_set_reset_local infer_sync ”RESET”

always @(posedge CLK)

begin : infer_sync

if (~RESET)

Q1 = 1’b0;

else if (SLOAD)

Q1 = DATA1; // note: else hold Q

end

//synopsys async_set_reset_local infer_async ”RESET”

always @(posedge CLK or negedge RESET)

begin: infer_async

if (~RESET)

Q2 = 1’b0;

else if (SLOAD)

Q2 = DATA2;

end

endmodule

The following example shows inference reports for multiple flip-flops

with asynchronous and synchronous controls.

Q1_reg

Sync-reset: RESET’

Q2_reg

Async-reset: RESET’

Q1_reg Flip-flop 1 - - N N Y N N

Q2_reg Flip-flop 1 - - Y N N N N

Verilog Reference Guide 6-27

Figure 6-15 Multiple Flip-Flops with Asynchronous and

Synchronous Controls

Understanding the Limitations of D Flip-Flop

Inference

If you use an if statement to infer D flip-flops, your design must meet

the following requirements.

• The signal in an edge expression cannot be an indexed expres-

sion.

The following always block is invalid because it uses an indexed

expression.

always @(posedge clk[1])

Foundation Express generates the following message when you

use an indexed expression in the always block.

X8603a

DATA2

DATA1 Q1

SLOAD

CLK

RESET

Verilog Reference Guide

6-28 Xilinx Development System

Error: In an event expression with ’posedge’ and

’negedge’ qualifiers, only simple identifiers are

allowed %s. (VE-91)

• Set and reset conditions must be single-bit variables.

The following reset condition is invalid because it uses a bused

variable.

always @(posedge clk and negedge reset_bus)

if (!reset_bus[1])

end

Foundation Express generates the following message when you

use a bused variable in a set or reset condition.

Error: The expression for the reset condition of the

’if’ statement in this ’always’ block can only be a

simple identifier or its negation (%s). (VE-92)

• Set and reset conditions cannot use complex expressions.

The following reset condition is invalid because it uses a complex

expression.

always @(posedge clk and negedge reset)

if (reset == (1-1))

end

Foundation Express generates the VE-92 message when you use

a complex expression in a set or reset condition.

• An if statement must occur at the top level of the always block.

The following example is invalid because the if statement does

not occur at the top level.

always @(posedge clk or posedge reset) begin

#1;

if (reset)

end

Foundation Express generates the following message when the if

statement does not occur at the top level.

Error: The statements in this ’always’ block are

outside the scope of the synthesis policy (%s). Only

an ’if’ statement is allowed at the top level in this

Verilog Reference Guide 6-29

’always’ block. Please refer to the HDL Compiler

reference manual for ways to infer flip-flops and

latches from ’always’ blocks. (VE-93)

Inferring JK Flip-Flops

When you infer a JK flip-flop, make sure you can control the J, K, and

clock signals from the top-level design ports to ensure that simulation

can initialize the design.The following sections provide code exam-

ples, inference reports, and figures for these types of JK flip-flops:

• JK flip-flop

• JK flip-flop with asynchronous set and reset

JK Flip-Flop In the JK flip-flop, the J and K signals act as active-

high synchronous set and reset. Use the sync_set_reset directive to

indicate that the J and K signals are the synchronous set and reset for

the design. The following table shows the inferred flip-flop..

The following example provides the Verilog code that implements

the JK flip-flop described in the ”Truth Table for JK Flip-Flop.”

module JK(J, K, CLK, Q);

input J, K;

input CLK;

output Q;

reg Q;

// synopsys sync_set_reset ”J, K”

always @ (posedge CLK)

case ({J, K})

2’b01 : Q = 0;

2’b10 : Q = 1;

2’b11 : Q = ~Q;

Table 6-1 Truth Table for JK Flip-Flop

JKCLK

Qn+1

0 0 Rising Qn

0 1 Rising 0

1 0 Rising 1

1 1 Rising QnB

XXFallingQ

Verilog Reference Guide

6-30 Xilinx Development System

endcase

endmodule

The following example shows the inference report generated by

Foundation Express for a JK flip-flop, and the figure following the

report, “JK Flip-Flop,” shows the inferred flip-flop.

Q_reg

Sync-reset: J’ K

Sync-set: J K’

Sync-toggle: J K

Sync-set and Sync-reset ==> Q: X

Figure 6-16 JK Flip-Flop

JK Flip-Flop With Asynchronous Set and Reset Use the

sync_set_reset directive to indicate the JK function. Use the one_hot

directive to prevent priority encoding of the J and K signals.

The following example provides the Verilog template for a JK flip-

flop with asynchronous set and reset.

module jk_async_sr (RESET, SET, J, K, CLK, Q);

input RESET, SET, J, K, CLK;

output Q;

hBus MB AR AS SR SS ST

Q_reg Flip-flop 1 - - N N Y Y Y

Verilog Reference Guide 6-31

reg Q;

// synopsys sync_set_reset ”J, K”

// synopsys one_hot ”RESET, SET”

always @ (posedge CLK or posedge RESET or posedge SET)

if (RESET)

Q = 1’b0;

else if (SET)

Q = 1’b1;

else

case ({J, K})

2’b01 : Q = 0;

2’b10 : Q = 1;

2’b11 : Q = ~Q;

endcase

//synopsys translate_off

always @(RESET or SET)

if (RESET + SET > 1)

$write (”ONE-HOT violation for RESET and

SET.”);

// synopsys translate_on

endmodule

The following table shows the inference report Foundation Express

generates for a JK flip-flop with asynchronous set and reset, and the

figure following the report, “JK Flip-Flop with Asynchronous Set and

Reset,” shows the inferred flip-flop.

Q_reg

Async-reset: RESET

Async-set: SET

Sync-reset: J’ K

Sync-set: J K’

Sync-toggle: J K

Async-set and Async-reset ==> Q: X

Sync-set and Sync-reset ==> Q: X

hBus MB AR AS SR SS ST

Q_reg Flip-flop 1 - - Y Y Y Y Y

Verilog Reference Guide

6-32 Xilinx Development System

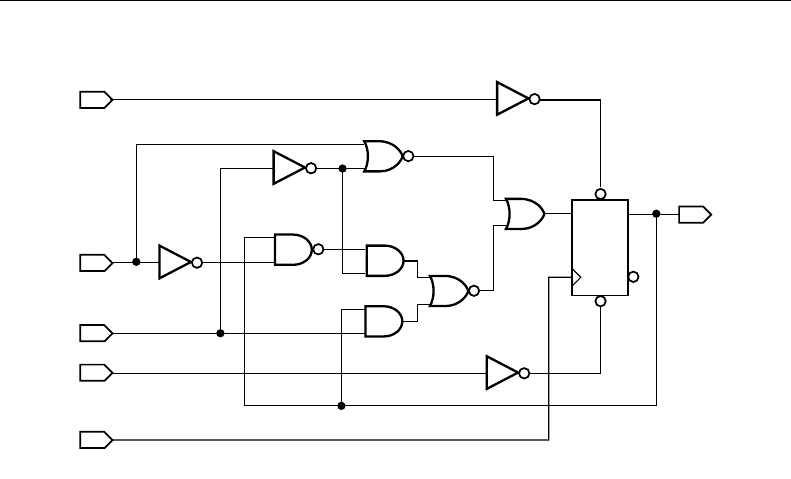

Figure 6-17 JK Flip-Flop with Asynchronous Set and Reset

Inferring Toggle Flip-Flops

To infer toggle flip-flops, follow the coding style in the following

examples.

You must include asynchronous controls in the toggle flip-flop

description. Without them, you cannot initialize toggle flip-flops to a

known state.

This section describes toggle flip-flops with an asynchronous set or

reset and toggle flip-flops with an enable and an asynchronous reset.

Toggle Flip-Flop With Asynchronous Set or Reset The

following example shows the template for a toggle flip-flop with

asynchronous set. Foundation Express generates the inference report

shown following the example, and the figure “Toggle Flip-Flop with

Asynchronous Set” shows the flip-flop.

module t_async_set (SET, CLK, Q);

input SET, CLK;

reg Q;

X8944

SET

CLK

Q_OUT

RESET

Verilog Reference Guide 6-33

always @ (posedge CLK or posedge SET)

if (SET)

Q = 1;

else

Q = ~Q;

endmodule

TMP_Q_reg

Async-set: SET

Sync-toggle: true

Figure 6-18 Toggle Flip-Flop with Asynchronous Set

The following example provides the Verilog template for a toggle

flip-flop with asynchronous reset. The table following the example

shows the inference report, and the figure following the report,

“Toggle Flip-Flop with Asynchronous Reset,” shows the inferred

flip-flop.

module t_async_reset (RESET, CLK, Q);

input RESET, CLK;

output Q;

reg Q;

TMP_Q_reg Flip-flop 1 - - N Y N N Y

Verilog Reference Guide

6-34 Xilinx Development System

always @ (posedge CLK or posedge RESET)

if (RESET)

Q = 0;

else

Q = ~Q;

endmodule

TMP_Q_reg

Async-reset: RESET

Sync-toggle: true

Figure 6-19 Toggle Flip-Flop with Asynchronous Reset

Toggle Flip-Flop With Enable and Asynchronous Reset The

following example provides the Verilog template for a toggle flip-

flop with an enable and an asynchronous reset. The flip-flop toggles

only when the enable (TOGGLE signal) has a logic 1 value.

Foundation Express generates the inference report shown following

the example, and the figure following the report, “Toggle Flip-Flop

with Enable and Asynchronous Reset,” shows the inferred flip-flop.

module t_async_en_r (RESET, TOGGLE, CLK, Q);

input RESET, TOGGLE, CLK;

TMP_Q_reg Flip-flop 1 - - Y N N N Y

Verilog Reference Guide 6-35

output Q;

reg Q;

always @ (posedge CLK or posedge RESET)

begin : infer

if (RESET)

Q = 0;

else if (TOGGLE)

Q = ~Q;

end

endmodule

TMP_Q_reg

Async-reset: RESET

Sync-toggle: TOGGLE

Figure 6-20 Toggle Flip-Flop with Enable and Asynchronous

Reset

Getting the Best Results

This section provides tips for improving the results you achieve

during flip-flop inference. The following topics are covered.

• Minimizing flip-flop count

TMP_Q_reg Flip-flop 1 - - Y N N N Y

Verilog Reference Guide

6-36 Xilinx Development System

• Correlating synthesis results with simulation results

Minimizing Flip-Flop Count

An always block that contains a clock edge in the sensitivity list

causes Foundation Express to infer a flip-flop for each variable

assigned a value in that block. Make sure your HDL description

builds only as many flip-flops as the design requires.

The description in the following example builds six flip-flops, one for

each variable assigned a value in the block (COUNT(2:0), AND_BITS,

OR_BITS, and XOR_BITS).

module count (CLK, RESET, AND_BITS, OR_BITS, XOR_BITS);

input CLK, RESET;

output AND_BITS, OR_BITS, XOR_BITS;

reg AND_BITS, OR_BITS, XOR_BITS;

reg [2:0] COUNT;

always @(posedge CLK) begin

if (RESET)

COUNT = 0;

else

COUNT = COUNT + 1;

AND_BITS = & COUNT;

OR_BITS = | COUNT;

XOR_BITS = ^ COUNT;

end

endmodule

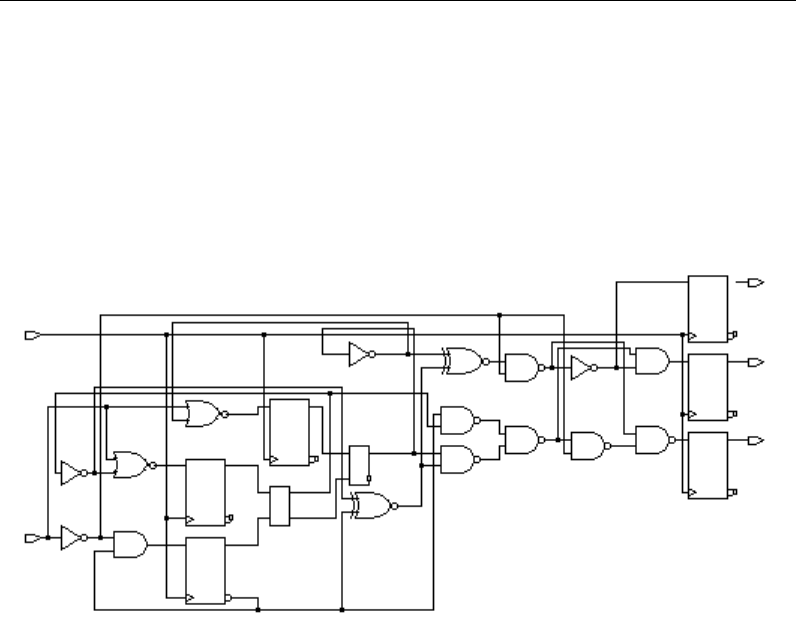

In the above design, the outputs AND_BITS, OR_BITS, and

XOR_BITS depend solely on the value of variable COUNT. If the

variable COUNT is registered, these three outputs do not need to be

registered.

To compute values synchronously and store them in flip-flops, set up

an always block with a signal edge trigger. To let other values change

asynchronously, make a separate always block with no signal edge

trigger. Put the assignments you want clocked in the always block

with the signal edge trigger, and put the other assignments in the

other always block. You use this technique to create Mealy machines.

Verilog Reference Guide 6-37

To avoid inferring extra registers, assign the outputs in an always

block that does not have a clock edge in its condition expression. The

following example shows a description with two always blocks, one

with a clock edge condition and one without. Put the registered

(synchronous) assignments into the block with the clock edge condi-

tion. Put the other (asynchronous) assignments in the other block.

This description style lets you choose the variables that are registered

and those that are not.

module count (CLK, RESET, AND_BITS, OR_BITS, XOR_BITS);

input CLK, RESET;

output AND_BITS, OR_BITS, XOR_BITS;

reg AND_BITS, OR_BITS, XOR_BITS;

reg [2:0] COUNT;

//synchronous block

always @(posedge CLK) begin

if (RESET)

COUNT = 0;

else

COUNT = COUNT + 1;

end

//asynchronous block

always @(COUNT) begin

AND_BITS = & COUNT;

OR_BITS = | COUNT;

XOR_BITS = ^ COUNT;

end

endmodule

The technique of separating combinatorial logic from registered or

sequential logic is useful to describe state machines. See the following

examples in Appendix A.

• “Count Zeros—Combinatorial Version”

• “Count Zeros—Sequential Version”

• “Drink Machine—State Machine Version”

• “Drink Machine—Count Nickels Version”

• “Carry-Lookahead Adder”

Verilog Reference Guide

6-38 Xilinx Development System

Correlating with Simulation Results

Using delay specifications with registered values can cause the simu-

lation to behave differently from the logic Foundation Express

synthesizes. For example, the description in the following example

contains delay information that causes Foundation Express to synthe-

size a circuit that behaves unexpectedly (the post-synthesis simula-

tion results do not match the pre-synthesis simulation results).

module flip_flop (D, CLK, Q);

input D, CLK;

output Q;

endmodule

module top (A, C, D, CLK);

reg B;

always @ (A or C or D or CLK)

begin

B <= #100 A;

flip_flop F1(A, CLK, C);

flip_flop F2(B, CLK, D);

end

endmodule

In the above example, B changes 100 nanoseconds after A changes. If

the clock period is less than 100 nanoseconds, output D is one or

more clock cycles behind output C during simulation of the design.

However, because Foundation Express ignores the delay informa-

tion, A and B change values at the same time and so do C and D. This

behavior is not the same as in the post-synthesis simulation.

When using delay information in your designs, make sure that the

delays do not affect registered values. In general, you can safely

include delay information in your description if it does not change

the value that gets clocked into a flip-flop.

Understanding Limitations of Register Inference

Foundation Express cannot infer the following components. You

must instantiate these components in your Verilog description.

• Flip-flops and latches with three-state outputs

Verilog Reference Guide 6-39

• Flip-flops with bidirectional pins

• Flip-flips with multiple clock inputs

• Multiport latches

• Register banks

Note: Although you can instantiate flip-flops with bidirectional pins,

Foundation Express interprets these cells as black boxes.

Three-State Inference

Foundation Express infers a three-state driver when you assign the

value of z to a variable. The z value represents the high-impedance

state. Foundation Express infers one three-state driver per block. You

can assign high-impedance values to single-bit or bused variables.

Reporting Three-State Inference

Foundation Express generates an inference report that shows infor-

mation about inferred devices.

The following example shows a three-state inference report.

The first column of the report indicates the name of the inferred

three-state device. The second column of the report indicates the type

of three-state device that Foundation Express inferred.

Controlling Three-State Inference

Foundation Express always infers a three-state driver when you

assign the value of z to a variable. Foundation Express does not

provide any means of controlling the inference.

Inferring Three-State Drivers

This section contains Verilog examples that infer the following types

of three-state drivers.

• Simple three-state drivers

• Registered three-state drivers

Three-State Device Name Type MB

OUT1_tri Three-State Buffer N

Verilog Reference Guide

6-40 Xilinx Development System

Simple Three-State Driver

This section shows a template for a simple three-state driver. In addi-

tion, this section supplies examples of how allocating high-imped-

ance assignments to different blocks affects three-state inference.

The following example provides the Verilog template for a simple

three-state driver. Foundation Express generates the inference report

shown in the inference report example for a simple three-state driver.

The figure “Three-State Driver” shows the inferred three-state driver.

module three_state (ENABLE, IN1, OUT1);

input IN1, ENABLE;

output OUT1;

reg OUT1;

always @(ENABLE or IN1) begin

if (ENABLE)

OUT1 = IN1;

else

OUT1 = 1’bz; //assigns high-impedance state

end

endmodule

The following example shows an inference report for a simple three-

state driver.

Figure 6-21 Three-State Driver

The following example shows how to place all high-impedance

assignments in a single block. In this case, the data is gated and Foun-

dation Express infers a single three-state driver. An inference report

for a single process follows the example. The figure “Inferring One

Three-State Driver” shows the schematic the code generates.

Three-State Device Name Type MB

OUT1_tri Three-State Buffer N

X8604

IN1 OUT1

ENABLE

Verilog Reference Guide 6-41

module three_state (A, B, SELA, SELB, T);

input A, B, SELA, SELB;

output T;

reg T;

always @(SELA or SELB or A or B) begin

T = 1’bz;

if (SELA)

T = A;

if (SELB)

T = B;

end

endmodule

The following example shows a single block inference report.

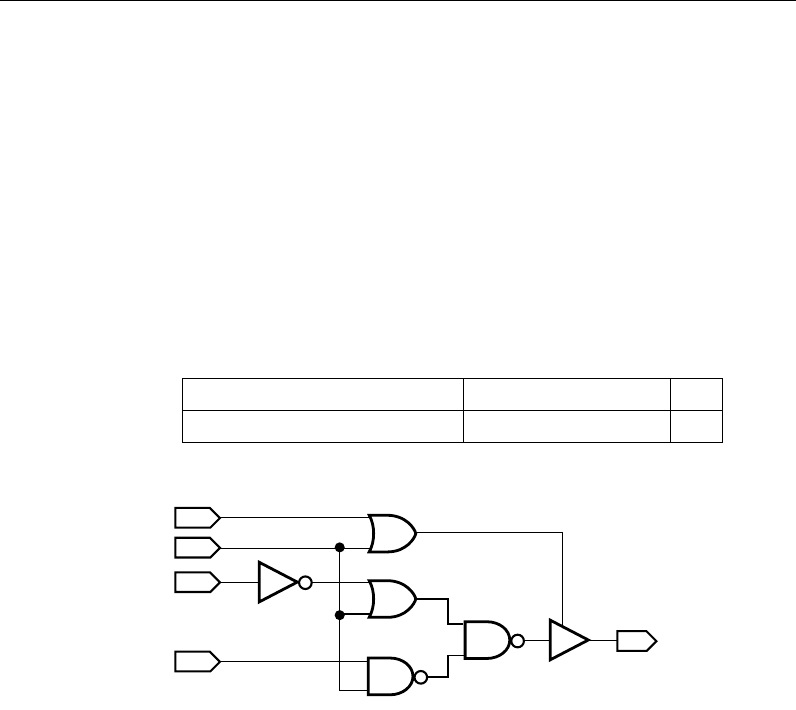

Figure 6-22 Inferring One Three-State Driver

The following example shows how to place each high-impedance

assignment in a separate block. In this case, Foundation Express

infers multiple three-state drivers. The inference report for two three-

state drivers follows the example. The figure “Inferring Two Three-

State Drivers” shows the schematic the code generates.

module three_state (A, B, SELA, SELB, T);

input A, B, SELA, SELB;

output T;

reg T;

Three-State Device Name Type MB

T_tri Three-State Buffer N

X8605

SELA

SELB

Verilog Reference Guide

6-42 Xilinx Development System

always @(SELA or A)

if (SELA)

T = A;

else

T = 1’bz;

always @(SELB or B)

if (SELB)

T = B;

else

endmodule

The following example shows an inference report for two three-state

drivers..

The following example shows an inference report for two three-state

drivers.

Figure 6-23 Inferring Two Three-State Drivers

Three-State Device Name Type MB

T_tri Three-State Buffer N

Three-State Device Name Type MB

T_tri2 Three-State Buffer N

X8606

SELA

SELB

Verilog Reference Guide 6-43

Registered Three-State Drivers

When a variable is registered in the same block in which it is three-

stated, Foundation Express also registers the enable pin of the three-

state gate.

The following example shows this type of code, and the inference

report for a three-state driver with registered enable follows the

example. The figure “Three-State Driver with Registered Enable”

shows the schematic the code generates.

module ff_3state (DATA, CLK, THREE_STATE, OUT1);

input DATA, CLK, THREE_STATE;

output OUT1;

reg OUT1;

always @ (posedge CLK) begin

if (THREE_STATE)

OUT1 = 1’bz;

else

OUT1 = DATA;

end

endmodule

The following example shows an inference report for a three-state

driver with registered enable.

Three-state Device Name Type MB

OUT1_tri

OUT1_tr_enable_reg Three-State Buffer

Flip-flop (width 1) N

Verilog Reference Guide

6-44 Xilinx Development System

Figure 6-24 Three-State Driver with Registered Enable

In the above figure, the three-state gate has a register on its enable

pin. The following example uses two blocks to instantiate a three-

state gate with a flip-flop only on the input. The inference report for a

three-state driver without registered enable follows the example. The

figure “Three-State Driver without Registered Enable” shows the

schematic the code generates.

module ff_3state (DATA, CLK, THREE_STATE, OUT1);

input DATA, CLK, THREE_STATE;

output OUT1;

reg OUT1;

reg TEMP;

always @(posedge CLK)

TEMP = DATA;

always @(THREE_STATE or TEMP)

if (THREE_STATE)

OUT1 = TEMP;

else

OUT1 = 1’bz;

endmodule

THREE_STATE

CLK

X8607

DATA OUT1

Verilog Reference Guide 6-45

The following example shows an inference report for a three-state

driver without registered enable.

Figure 6-25 Three-State Driver without Registered Enable

Understanding the Limitations of Three-State

Inference

You can use the Z value in the following ways.

• Variable assignment

• Function call argument

•Return value

You cannot use the z value in an expression, except for comparison to

z. Be careful when using expressions that compare to the z value.

Foundation Express always evaluates these expressions to FALSE,

and the pre- and post-synthesis simulation results might differ. For

this reason, Foundation Express issues a warning when it synthesizes

such comparisons.

The following example shows the incorrect use of the z value in an

expression.

OUT_VAL = (1’bz && IN_VAL);

The following example shows the correct use of the z value in an

expression.

if (IN_VAL == 1’bz) then

Three-State Device Name Type MB

OUT1_tri Three-State Buffer N

OUT1

CLK

DATA

THREE_STATE

X8608

Verilog Reference Guide

6-46 Xilinx Development System

Verilog Reference Guide 7-1

Chapter 7

Foundation Express Directives

Specific aspects of the synthesis process can be controlled by special

comments in the Verilog source code called Foundation Express

directives. Because these directives are just a special case of regular

comments, they are ignored by the Verilog HDL Simulator and do

not affect simulation.

Foundation Express directives and their effect on translation are

described in the following sections of this chapter.

• “Notation for Foundation Express Directives”

• “translate_off and translate_on Directives”

• “parallel_case Directive”

• “full_case Directive”

• “state_vector Directive”

• “enum Directive”

• “Component Implication”

Notation for Foundation Express Directives

The special comments that make up Foundation Express directives

begin, like all Verilog comments, with the characters // or /*. The //

characters begin a comment that fits on one line (most Foundation

Express directives fit on one line). If you use the /* characters to

begin a multiline comment, you must end the comment with */. You

do not need to use the /* characters at the beginning of each line, only

at the beginning of the first line.

Note: You cannot use // synopsys in a regular comment. In addition,

Foundation Express displays a syntax error if Verilog code is in a

// synopsys directive.

Verilog Reference Guide

7-2 Xilinx Development System

translate_off and translate_on Directives

The // synopsys translate_off and // synopsys translate_on direc-

tives tell Foundation Express to suspend translation of the source

code and restart translation at a later point. Use these directives when

your Verilog source code contains commands specific to simulation

that Foundation Express does not accept.

You turn translation off with the either of the following directives.

// synopsys translate_off

/* synopsys translate_off */

You turn translation back on with either of the following directives.

// synopsys translate_on

/* synopsys translate_on */

At the beginning of each Verilog file, translation is enabled. After

that, you can use the translate_off and translate_on directives

anywhere in the text. These directives must be used in pairs. Each

translate_off must appear before its corresponding translate_on. The

following example shows a simulation driver protected by a

translate_off directive.

module trivial (a, b, f);

input a,b;

output f;

assign f = a & b;

// synopsys translate_off

initial $monitor (a, b, f);

// synopsys translate_on

endmodule

/* synopsys translate_off */

module driver;

reg [1:0] value_in;

integer i;

trivial triv1(value_in[1], value_in[0]);

initial begin

for (i = 0; i < 4; i = i + 1)

#10 value_in = i;

end

endmodule

/* synopsys translate_on */

Foundation Express Directives

Verilog Reference Guide 7-3

parallel_case Directive

The // synopsys parallel_case directive affects the way logic is gener-

ated for the case statement. As explained in the “Full Case and

Parallel Case” section of the “Functional Descriptions” chapter, a case

statement generates the logic for a priority encoder. Under certain

circumstances, you might not want to build a priority encoder to

handle a case statement. You can use the parallel_case directive to

force Foundation Express to generate multiplexer logic instead.

The syntax for the parallel_case directive is either of the following

directives.

// synopsys parallel_case

/* synopsys parallel_case */

In the following example, the states of a state machine are encoded as

one hot signal. If the case statement in the example were imple-

mented as a priority encoder, the generated logic would be unneces-

sarily complex.

reg [3:0] current_state, next_state;

parameter state1 = 4’b0001, state2 = 4’b0010,

state3 = 4’b0100, state4 = 4’b1000;

case (1)//synopsys parallel_case

current_state[0] : next_state = state2;

current_state[1] : next_state = state3;

current_state[2] : next_state = state4;

current_state[3] : next_state = state1;

endcase

Use the parallel_case directive immediately after the case expression,

as shown above. This directive makes all case-item evaluations in

parallel. All case items that evaluate to TRUE are executed (not just

the first one) which might give you unexpected results.)

In general, use parallel_case when you know that only one case item

is executed. If only one case item is executed, the logic generated

from a parallel_case directive performs the same function as the

Verilog Reference Guide

7-4 Xilinx Development System

circuit when it is simulated. If two case items are executed, and you

have used the parallel_case directive, the generated logic is not the

same as the simulated description.

full_case Directive

The // synopsys full_case directive asserts that all possible clauses of

a case statement have been covered and that no default clause is

necessary. This directive has two uses; it avoids the need for default

logic, and it can avoid latch inference from a case statement by

asserting that all necessary conditions are covered by the given

branches of the case statement. As explained in the “Full Case and

Parallel Case” section of the “Functional Descriptions” chapter, a

latch can be inferred whenever a variable is not assigned a value

under all conditions.

The syntax for the full_case directive is either of the following direc-

tives.

// synopsys full_case

/* synopsys full_case */

If the case statement contains a default clause, Foundation Express

assumes that all conditions are covered. If there is no default clause,

and you do not want latches to be created, use the full_case directive

to indicate that all necessary conditions are described in the case

statement.

The following example shows two uses of the full_case directive.

Note that the parallel_case and full_case directives can be combined

in one comment.

reg [1:0] in, out;

reg [3:0] current_state, next_state;

parameter state1 = 4’b0001, state2 = 4’b0010,

state3 = 4’b0100, state4 = 4’b1000;

case (in) // synopsys full_case

0: out = 2;

1: out = 3;

2: out = 0;

endcase

Foundation Express Directives

Verilog Reference Guide 7-5

case (1) // synopsys parallel_case full_case

current_state[0] : next_state = state2;

current_state[1] : next_state = state3;

current_state[2] : next_state = state4;

current_state[3] : next_state = state1;

endcase

In the first case statement, the condition in == 3 is not covered. You

can either use a default clause to cover all other conditions, or use the

full_case directive (as in this example) to indicate that other branch

conditions do not occur. If you cover all possible conditions explic-

itly, Foundation Express recognizes the case statement as full-case, so

the full_case directive is not necessary.

The second case statement in the above example does not cover all 16

possible branch conditions. For example, current_state == 4’b0101 is

not covered. The parallel_case directive is used in this example

because only one of the four case items can evaluate to TRUE and be

executed.

Although you can use the full_case directive to avoid creating

latches, using this directive does not guarantee that latches will not

be built. You must still assign a value to each variable used in the case

statement in all branches of the case statement. The following

example illustrates a situation where the full_case directive prevents

a latch from being inferred for variable b, but not for variable a.

reg a, b;

reg [1:0] c;

case (c) // synopsys full_case

0: begin a = 1; b = 0; end

1: begin a = 0; b = 0; end

2: begin a = 1; b = 1; end

3: b = 1; // a is not assigned here

endcase

In general, use full_case when you know that all possible branches of

the case statement have been enumerated or, at least, all branches

that can occur. If all branches that can occur are enumerated, the logic

generated from the case statement performs the same function as the

simulated circuit. If a case condition is not fully enumerated, the

generated logic and the simulation are not the same.

Note: You do not need the full_case directive if you have a default

branch, or you enumerate all possible branches in a case statement,

Verilog Reference Guide

7-6 Xilinx Development System

because Foundation Express assumes that the case statement is

full_case.

state_vector Directive

The // synopsys state_vector directive labels a variable in a Verilog

description as the state vector of an equivalent finite state machine.

The syntax for the state_vector directive is one of the following.

// synopsys state_vector vector_name

/* synopsys state_vector vector_name */

The vector_name variable is the name chosen as a state vector. This

declaration allows Foundation Express to extract the labeled state

vector from the Verilog description. Used with the enum directive,

described in the next section, the state_vector directive allows you to

define the state vector of a finite state machine (and its encodings)

from a Verilog description. The following example shows one way to

use the state_vector directive.

Warning: Do not define two state_vector directives in one module.

Although Foundation Express does not issue an error message, it

recognizes only the first state_vector directive and ignores the

second.

reg [1:0] state, next_state;

// synopsys state_vector state

ays @ (state or in) begin

case (state) // synopsys full_case

0: begin

out = 3;

next_state = 1;

end

1: begin

out = 2;

next_state = 2;

end

2: begin

out = 1;

next_state = 3;

end

3: begin

Foundation Express Directives

Verilog Reference Guide 7-7

out = 0

if (in)

next_state = 0;

else

next_state = 3;

endcase

end

always @ (posedge clock)

state = next_state;

enum Directive

The // synopsys enum directive is designed to use with the Verilog

parameter definition statement to specify state machine encodings.

When a variable is marked as a state_vector (see the “state_vector

Directive” section of this chapter) and it is declared as an enum,

Foundation Express uses the enum values and names for the states of

an extracted state machine.

The syntax of the enum directive is either one of the following.

// synopsys enum enum_name

/* synopsys enum enum_name */

The following example shows the declaration of an enumeration of

type colors that is 3 bits wide and has the enumeration literals red,

green, blue, and cyan with the values shown.

parameter [2:0] // synopsys enum colors

red = 3’b000, green = 3’b001, blue = 3’b010, cyan =

3’b011;

The enumeration must include a size (bit-width) specification. The

following example shows an invalid enum declaration.

parameter /* synopsys enum colors */

red = 3’b000, green = 1;

// [2:0] required

The following example shows a register, a wire, and an input port

with the declared type of colors. In each of the following declarations,

the array bounds must match those of the enumeration declaration. If

you use different bounds, synthesis might not agree with simulation

behavior.

Verilog Reference Guide

7-8 Xilinx Development System

reg [2:0] /* synopsys enum colors */ counter;

wire [2:0] /* synopsys enum colors */ peri_bus;

input [2:0] /* synopsys enum colors */ input_port;

Even though you declare a variable to be of type enum, it can still be

assigned a bit value that is not one of the enumeration values in the

definition. The following example relates to the previous example

and shows an invalid encoding for colors.

counter = 3’b111;

Because 111 is not in the definition for colors, it is not a valid

encoding. Foundation Express accepts this encoding, because it is

valid Verilog code, but Foundation Express recognizes this assign-

ment as an invalid encoding and ignores it.

You can use enumeration literals just like constants, as shown in the

following example.

if (input_port == blue)

counter = red;

You can also use enumeration with the state_vector directive. The

following example shows how the state_vector variable is tagged by

using enumeration.

// This finite-state machine (Mealy type) reads 1 bit

// per cycle and detects 3 or more consecutive ones.

module enum2_V(signal, clock, detect);

input signal, clock;

output detect;

reg detect;

//Declare the symbolic names for states

parameter [1:0 //synopsys enum state_info

NO_ONES = 2’h0,

ONE_ONE = 2’h1,

TWO_ONES = 2’h2,

AT_LEAST_THREE_ONES = 2’h3;

//Declare current state and next state variables

reg [1:0] /* synopsys enum state_info */ cs;

reg [1:0] /* synopsys enum state_info */ ns;

// synopsys state_vector c

always @ (cs or signal)

Foundation Express Directives

Verilog Reference Guide 7-9

begin

detect = 0; //default values

if (signal == 0)

ns = NO_ONES;

else

case (cs) //synopsys full_case

NO_ONES: ns = ONE_ONE;

ONE_ONE: ns = TWO_ONES;

TWO_ONES, ns = AT_LEAST_THREE_ONES;

AT_LEAST_THREE_ONES:

begin

ns = AT_LEAST_THREE_ONES;

detect = 1;

end

endcase

end

always @ (posedge clock) begin

cs = ns;

end

endmodule

Enumerated types are designed to be used as whole entities. This

design allows Foundation Express to rebind the encodings of an

enumerated type more easily. You cannot select a bit or a part from a

variable that has been given an enumerated type. If you do, the

overall behavior of your design changes when Foundation Express

changes the original encoding. The following example shows an

unsupported bit-select.

parameter [2:0] /* synopsys enum states */

s0 = 3’d0, s1 = 3’d1, s2 = 3’d2, s3 = 3’d3,

s4 = 3’d4, s5 = 3’d5, s6 = 3’d6, s7 = 3’d7;

reg [2:0] /* synopsys enum states */ state,

next_state;

assign high_bit = state[2];// not supported

Because you cannot access individual bits of an enumerated type,

you cannot use component instantiation to hook up single-bit flip-

flops or three-states. The following example shows an example of this

type of unsupported bit-select.

DFF ff0 ( next_state[0], clk, state[0] );

DFF ff1 ( next_state[1], clk, state[1] );

Verilog Reference Guide

7-10 Xilinx Development System

DFF ff2 ( next_state[2], clk, state[2] );

To create flip-flops and three-states for enum values, you must imply

them with the posedge construct or the literal z, as shown in the

following example.

parameter [2:0] /* synopsys enum states */

s0 = 3’d0, s1 = 3’d1, s2 = 3’d2, s3 = 3’d3,

s4 = 3’d4, s5 = 3’d5, s6 = 3’d6, s7 = 3’d7;

reg [2:0] /* synopsys enum states */ state,

next_state;

parameter [1:0] /* synopsys enum outputs */

DONE = 2’d0, PROCESSING = 2’d1, IDLE = 2’d2;

reg [1:0] /* synopsys enum outputs */ out, triout;

always @ (posedge clk) state = next_state;

assign triout = trienable ? out : ’bz;

If you use the constructs shown in the example above, you can

change the enumeration encodings by changing the parameter and

reg declarations, as shown in the following example. You can also

allow Foundation Express to change the encodings.

parameter [3:0] /* synopsys enum states */

s0 = 4’d0, s1 = 4’d10, s2 = 4’d15, s3 = 4’d5,

s4= 4’d2, s5 = 4’d4, s6 = 4’d6, s7 = 4’d8;

reg [3:0] /* synopsys enum states */ state,

next_state;

parameter [1:0] /* synopsys enum outputs */

DONE = 2’d3, PROCESSING = 2’d1, IDLE = 2’d0;

reg [1:0] /* synopsys enum outputs */ out, triout;

always @ (posedge clk) state = next_state;

assign triout = trienable ? out : ’bz;

If you must select individual bits of an enumerated type, you can

declare a temporary variable of the same size as the enumerated type.

Assign the enumerated type to the variable, then select individual

bits of the temporary variable. The following example shows how

this is done.

Foundation Express Directives

Verilog Reference Guide 7-11

parameter [2:0] /* synopsys enum states */

s0 = 3’d0, s1 = 3’d1, s2 = 3’d2, s3 = 3’d3,

s4 = 3’d4, s5 = 3’d5, s6 = 3’d6, s7 = 3’d7;

reg [2:0] /* synopsys enum states */ state,

next_state;

wire [2:0] temporary;

assign temporary = state;

assign high_bit = temporary[2]; //supported

Note: Selecting individual bits from an enumerated type is not

recommended.

If you declare a port as a reg and as an enumerated type, you must

declare the enumeration when you declare the port. The following

example shows the declaration of the enumeration.

module good_example (a,b);

parameter [1:0] /* synopsys enum colors */

green = 2’b00, white = 2’b11;

input a;

output [1:0] /* synopsys enum colors */ b;

reg [1:0] b;

endmodule

The following example shows the wrong way to declare a port as an

enumerated type, because the enumerated type declaration appears

with the reg declaration instead of with the output port declaration.

This code does not export enumeration information to Foundation

Express.

module bad_example (a,b);

parameter [1:0] /* synopsys enum colors */

green = 2’b00, white = 2’b11;

input a;

output [1:0] b;

reg [1:0] /* synopsys enum colors */ b;

endmodule

Verilog Reference Guide

7-12 Xilinx Development System

Component Implication

In Verilog, you cannot instantiate modules in behavioral code. To

include an embedded netlist in your behavioral code, use the direc-

tives // synopsys map_to_module and // synopsys

return_port_name for Foundation Express to recognize the netlist as

a function being implemented by another module. When this subpro-

gram is invoked in the behavioral code, the module is instantiated.

The first directive, // synopsys map_to_module, flags a function for

implementation as a distinct component. The syntax follows.

// synopsys map_to_module modulename

The second directive identifies a return port, because functions in

Verilog do not have output ports. A return port name must be identi-

fied to instantiate the function as a component. The syntax follows.

// synopsys return_port_name portname

Note: Remember that if you add a map_to_module directive to a

function, the contents of the function are parsed and ignored and the

indicated module is instantiated. You must ensure that the function-

ality of the module instantiated in this way and the function it

replaces are the same; otherwise, pre-synthesis and post-synthesis

simulation do not match.

The following example illustrates the map_to_module and

return_port_name directives.

module mux_inst (a, b, c, d, e);

input a, b, c, d;

output e;

function mux_func;

// synopsys map_to_module mux_module

// synopsys return_port_name mux_ret

input in1, in2, cntrl;

** the contents of this function are ignored for

** synthesis, but the behavior of this function

** must match the behavior of mux_module for

** simulation purposes

begin

if (cntrl) mux_func = in1;

else mux_func = in2;

end

Foundation Express Directives

Verilog Reference Guide 7-13

endfunction

assign e = a & mux_func (b, c, d);

//this function call actually instantiates component /

/(module) mux_module

endmodule

module mux_module (in1, in2, cntrl, mux_ret);

input in1, in2, cntrl;

output mux_ret;

and and2_0 (wire1, in1, cntrl);

not not1 (not_cntrl, cntrl);

and and2_1 (wire2, in2, not_cntrl);

or or2 (mux_ret, wire1, wire2);

endmodule

Verilog Reference Guide

7-14 Xilinx Development System

Verilog Reference Guide 8-1

Chapter 8

Writing Circuit Descriptions

You can write many logically equivalent descriptions in Verilog to

describe a circuit design. However, some descriptions are more effi-

cient than others in terms of the synthesized circuit’s area and speed.

The way you write your Verilog source code can affect synthesis.

This chapter describes how to write a Verilog description to ensure

an efficient implementation. Topics include the following.

• “How Statements Are Mapped to Logic”

• “Don’t Care Inference”

• “Propagating Constants”

• “Synthesis Issues”

• “Designing for Overall Efficiency”

Here are some general guidelines for writing efficient circuit descrip-

tions:

• Restructure a design that makes repeated use of several large

components to minimize the number of instantiations.

• In a design that needs some, but not all, of its variables or signals

stored during operation, minimize the number of latches or flip-

flops required.

• Consider collapsing hierarchy for more efficient synthesis.

How Statements Are Mapped to Logic

Verilog descriptions are mapped to logic by the creation of blocks of

combinatorial circuits and storage elements. A statement or an oper-

ator in a Verilog function can represent a block of combinatorial logic

or, in some cases, a latch or register.

Verilog Reference Guide

8-2 Xilinx Development System

The description fragment shown in the following example represents

four logic blocks.

• A comparator that compares the value of b with 10

• An adder that has a and b as inputs

• An adder that has a and 10 as inputs

• A multiplexer (implied by the if statement) that controls the final

value of y

if (b < 10)

y = a + b;

else

y = a + 10;

The logic blocks created by Foundation Express are custom-built for

their environment. That is, if a and b are 4-bit quantities, a 4-bit adder

is built. If a and b are 9-bit quantities, a 9-bit adder is built. Because

Foundation Express incorporates a large set of these customized logic

blocks, it can translate most Verilog statements and operators.

Design Structure

Foundation Express provides significant control over the preoptimi-

zation structure, or organization of components, in your design.

Whether or not your design structure is preserved after optimization

depends on the options you select. Foundation Express automatically

chooses the best structure for your design. You can view the preopti-

mized structure in the schematic window and then correlate it back

to the original HDL source code.

You control structure by the way you order assignment statements

and the way you use variables. Each Verilog assignment statement

implies a piece of logic. The following examples illustrate two

possible descriptions of an adder’s carry chain. The second example

results in a ripple carry implementation, as in the first example. The

third example has more structure (gates), because the HDL source

includes temporary registers, and it results in a carry-lookahead

implementation, as in the second example.

// a is the addend

// b is the augend

// c is the carry

// cin is the carry in

c0 = (a0 & b0) |

Writing Circuit Descriptions

Verilog Reference Guide 8-3

(a0 | b0) & cin;

c1 = (a1 & b1) |

(a1 | b1) & c0;

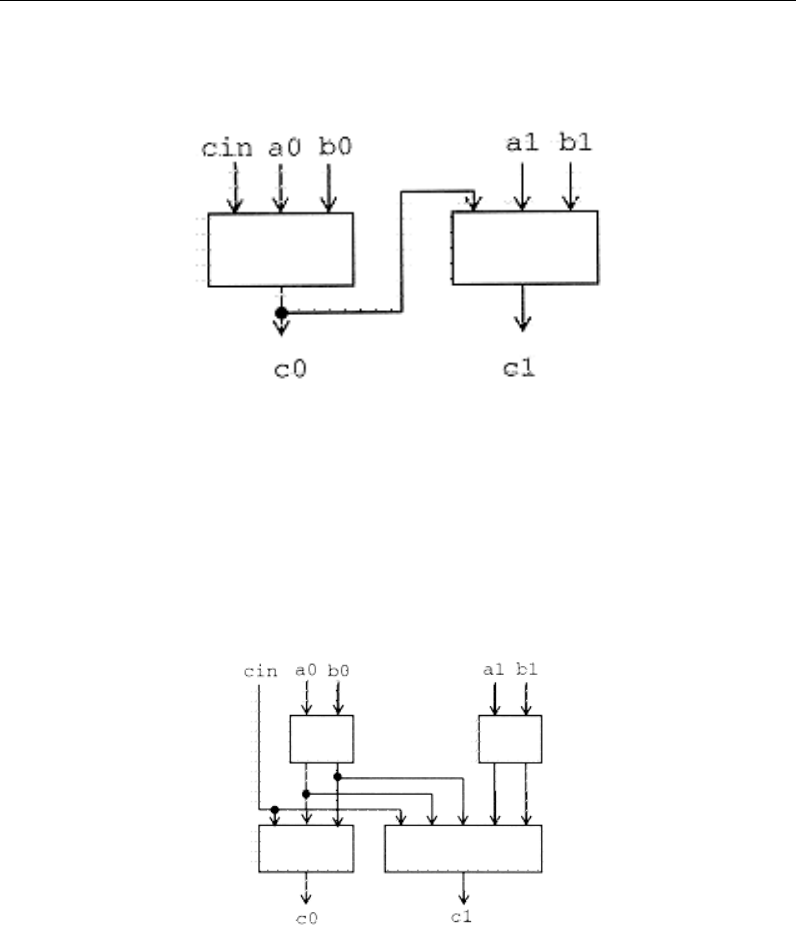

Figure 8-1 Ripple Carry Chain Implementation

// p’s are propagate

// g’s are generate

p0 = a0 | b0;

g0 = a0 & b0;

p1 = a1 | b1;

g1 = a1 & b1;

c0 = g0 | p0 & cin;

c1 = g1 | p1 & g0 | p1 & p0 & cin;

Figure 8-2 Carry-Lookahead Chain Implementation

You can also use parentheses to control the structure of complex

components in a design. Foundation Express uses parentheses to

Verilog Reference Guide

8-4 Xilinx Development System

define logic groupings. The following two examples illustrate two

groupings of adders. The circuit diagrams show how grouping the

logic affects the way the circuit is synthesized. When the first

example is parsed, (a + b) is grouped together by default, then c and d

are added one at a time.

z = a + b + c + d;

Figure 8-3 4-Input Adder

z = (a + b) + (c + d);

Figure 8-4 4-Input Adder with Parentheses

Note: Manual or automatic resource sharing can also affect the struc-

ture of a design.

Writing Circuit Descriptions

Verilog Reference Guide 8-5

Using Design Knowledge

In many circumstances, you can improve the quality of synthesized

circuits by better describing your high-level knowledge of a circuit.

Foundation Express cannot always derive details of a circuit architec-

ture. Any additional architectural information you can provide to

Foundation Express can result in a more efficient circuit.

Optimizing Arithmetic Expressions

Foundation Express uses the properties of arithmetic operators (such

as the associative and commutative properties of addition) to rear-

range an expression so that it results in an optimized implementa-

tion. You can also use arithmetic properties to control the choice of

implementation for an expression. Three forms of arithmetic optimi-

zation are discussed in this section.

• Arranging Expression Trees for Minimum Delay

• Sharing Common Subexpressions

Arranging Expression Trees for Minimum Delay

If your goal is to speed up your design, arithmetic optimization can

minimize the delay through an expression tree by rearranging the

sequence of the operations. Consider the statement in the following

example.

Z <= A + B + C + D;

The parser performs each addition in order, as though parentheses

were placed as shown, and constructs the expression tree shown in

the following figure:

Z <= ((A + B) + C) + D);

Verilog Reference Guide

8-6 Xilinx Development System

Figure 8-5 Default Expression Tree

Considering Signal Arrival Times If all signals arrive at the same

time, the critical path can be reduced to two adders.

Z <= (A + B) + (C + D);

The parser evaluates the expressions in parentheses first and

constructs a balanced adder tree, as shown in the following figure.

Figure 8-6 Balanced Adder Tree (Same Arrival Times for All

Signals

Suppose signals B, C, and D arrive at the same time and signal A

arrives last. The expression tree that produces the minimum delay is

shown in the following figure.

Writing Circuit Descriptions

Verilog Reference Guide 8-7

Figure 8-7 Expression Tree with Minimum Delay (Signal A

Arrives Last)

Using Parentheses You can use parentheses in expressions to

exercise more control over the way expression trees are constructed.

Parentheses are regarded as user directives that force an expression

tree to use the groupings inside the parentheses. The expression tree

cannot be rearranged to violate these groupings.

To illustrate the effect of parentheses on the construction of an

expression tree, consider the following example.

Q <= ((A + (B + C)) + D + E) + F;

The parentheses in the expression in the above example define the

following subexpressions, whose numbers correspond to those in the

figure following the example:

1 (B + C)

2 (A + (B + C))

3 ((A + (B + C)) + D + E)

These subexpressions must be preserved in the expression tree. The

default expression tree for the above examples are shown in the

following figure.

Verilog Reference Guide

8-8 Xilinx Development System

Figure 8-8 Expression Tree with Subexpressions Dictated by

Parentheses

Considering Overflow Characteristics When Foundation Express

performs arithmetic optimization, it considers how to handle the

overflow from carry bits during addition. The optimized structure of

an expression tree is affected by the bit-widths you declare for storing

intermediate results. For example, suppose you write an expression

that adds two 4-bit numbers and stores the result in a 4-bit register. If

the result of the addition overflows the 4-bit output, the most signifi-

cant bits are truncated. The following example shows how Founda-

tion Express handles overflow characteristics.

t <= a + b; // a and b are 4-bit numbers

z <= t + c; // c is a 6-bit number

In the above example, three variables are added (a + b + c). A tempo-

rary variable, t, holds the intermediate result of a + b. Suppose t is

declared as a 4-bit variable so the overflow bits from the addition of a

+ b are truncated. The parser determines the default structure of the

expression tree, which is shown in the following figure.

Writing Circuit Descriptions

Verilog Reference Guide 8-9

Figure 8-9 Default Expression Tree with 4-Bit Temporary

Variable

Now suppose the addition is performed without a temporary vari-

able (z = a + b + c). Foundation Express determines that five bits are

needed to store the intermediate result of the addition, so no over-

flow condition exists. The results of the final addition might be

different from the first case, where a 4-bit temporary variable is

declared that truncates the result of the intermediate addition. There-

fore, these two expression trees do not always yield the same result.

The expression tree for the second case is shown in the following

figure.

Figure 8-10 Expression Tree with 5-Bit Intermediate Result

Sharing Common Subexpressions

Subexpressions consist of two or more variables in an expression. If

the same subexpression appears in more than one equation, you

Verilog Reference Guide

8-10 Xilinx Development System

might want to share these operations to reduce the area of your

circuit. You can force common subexpressions to be shared by

declaring a temporary variable to store the subexpression, then use

the temporary variable wherever you want to repeat the subexpres-

sion. The following example shows a group of simple additions that

use the common subexpression (a + b).

temp <= a + b;

x <= temp;

y <= temp + c;

Instead of manually forcing common subexpressions to be shared,

you can let Foundation Express automatically determine whether

sharing common subexpressions improves your circuit. You do not

need to declare a temporary variable to hold the common subexpres-

sion in this case.

In some cases, sharing common subexpressions results in more

adders being built. Consider the following example, where A + B is a

common subexpression.

if cond1

Y <= A + B;

else

Y <= C + D;

end;

if cond2

Z <= E + F;

else

Z <= A + B;

end;

If the common subexpression A + B is shared, three adders are

needed to implement the following section of code.

(A + B)

(C + D)

(E + F)

If the common subexpression is not shared, only two adders are

needed: one to implement the additions A + B and C + D and one to

implement the additions E + F and A + B.

Foundation Express analyzes common subexpressions during the

resource sharing phase of the compile command and considers area

Writing Circuit Descriptions

Verilog Reference Guide 8-11

costs and timing characteristics. To turn off the sharing of common

subexpressions for the current design, use the constraint manager.

The Foundation Express parser does not identify common subexpres-

sions unless you use parentheses or write them in the same order. For

example, the two equations in the following example use the

common subexpression A + B.

Z <= D + A + B;

The parser does not recognize A + B as a common subexpression,

because it parses the second equation as (D + A) + B. You can force

the parser to recognize the common subexpression by rewriting the

second assignment statement as

Z <= A + B + D;

Z <= D + (A + B);

Note: You do not have to rewrite the assignment statement, because

Foundation Express recognizes common subexpressions automati-

cally.

Using Operator Bit-Width Efficiently

You can improve circuits by using operators more carefully. In the

following example, the adder sums the 8-bit value of a with the lower

4 bits of temp. Although temp is declared as an 8-bit value, the upper

4 bits of temp are always 0, so only the lower 4 bits of temp are

needed for the addition.

You can simplify the addition by changing temp to temp [3:0], as

shown in the following example. Now, instead of using eight full

adders to perform the addition, four full adders are used for the

lower 4 bits and four half adders are used for the upper 4 bits. This

yields a significant savings in circuit area.

input [7:0] a,b;

output [8:0] y;

function [8:0] add_lt_10;

input [7:0] a,b;

reg [7:0] temp;

begin

if (b < 10)

temp = b;

Verilog Reference Guide

8-12 Xilinx Development System

else

temp = 10;

add_lt_10 = a + temp [3:0]; // use [3:0] for

temp

end

endfunction

assign y = add_lt_10(a,b);

endmodule

Using State Information

When you build finite state machines, you can often specify a

constant value of a signal in a particular state. You can write your

Verilog description so that Foundation Express produces a more effi-

cient circuit.

The following example shows the Verilog description of a simple

finite state machine.

module machine (x, clock, current_state, z);

input x, clock;

output [1:0] current_state;

output z;

reg [1:0] current_state;

reg z;

/* Redeclared as reg so they can be assigned to in

always statements. By default, ports are wires and

cannot be assigned to in ’always’ */

reg [1:0] next_state;

reg previous_z;

parameter [1:0] set0 = 0,

hold0 = 1,

set1 = 2;

always @ (x or current_state) begin case

(current_state)

//synopsys full_case

/* declared full_case to avoid extraneous latches

set0:

begin

Writing Circuit Descriptions

Verilog Reference Guide 8-13

z = 0 ; //set z to 0

next_state = hold0;

end

hold0:

begin

z = previous_z; //hold value of z

if (x == 0)

next_state = hold0;

else

next_state = set1;

end

set1:

begin

z = 1; //set z to 1

next_state = set0;

end

endcase

end

always @ (posedge clock) begin

current_state = next_state;

previous_z = z;

end

endmodule

In the state hold0, the output z retains its value from the previous

state. To synthesize this circuit, a flip-flop is inserted to hold the state

previous_z. However, you can make some assertions about the value

of z. In the state hold0, the value of z is always 0. This can be deduced

from the fact that the state hold0 is entered only from the state set0,

where z is always assigned the value 0.

The following example shows how the Verilog description can be

changed to use this assertion, resulting in a simpler circuit (because

the flip-flop for previous_z is not required). The changed line is

shown in bold.

module machine (x, clock, current_state, z);

input x, clock;

output [1:0] current_state;

output z;

reg [1:0] current_state;

reg z;

Verilog Reference Guide

8-14 Xilinx Development System

/* Redeclared as reg so they can be assigned to in

always statements. By default, ports are wires and

cannot be assigned to in ’always’

reg [1:0] next_state;

parameter [1:0] set0 = 0,

hold0 = 1,

set1 = 2;

always @ (x or current_state) begin

case (current_state) //synopsys full_case

/* declared full_case to avoid extraneous latches

set0:

begin

z = 0 ; //set z to 0

next_state = hold0;

end

hold0:

begin

z = 0; //hold z at 0

if (x == 0)

next_state = hold0;

else

next_state = set1;

end

set1:

begin

z = 1; //set z to 1

next_state = set0;

end

endcase

end

always @ (posedge clock) begin

current_state = next_state;

end

endmodule

Describing State Machines

You can use an implicit state style or an explicit state style to describe

a state machine. In the implicit state style, a clock edge (negedge or

posedge) signals a transition in the circuit from one state to another.

Writing Circuit Descriptions

Verilog Reference Guide 8-15

In the explicit state style, you use a constant declaration to assign a

value to all states. Each state and its transition to the next state are

defined under the case statement. Use the implicit state style to

describe a single flow of control through a circuit (where each state in

the state machine can be reached only from one other state). Use the

explicit state style to describe operations such as synchronous resets.

The following example shows a description of a circuit that sums

data over three clock cycles. The circuit has a single flow of control, so

the implicit style is preferable.

module sum3 ( data, clk, total );

input [7:0] data;

input clk;

output [7:0] total;

reg total;

always

begin

@ (posedge clk)

total = data;

@ (posedge clk)

total = total + data;

@ (posedge clk)

total = total + data;

end

endmodule

Note: With the implicit state style, you must use the same clock

phase (either posedge or negedge) for each event expression. Implicit

states can be updated only if they are controlled by a single clock

phase.

The following example shows a description of the same circuit in the

explicit state style. This circuit description requires more lines of code

than the previous example, although Foundation Express synthesizes

the same circuit for both descriptions.

module sum3 ( data, clk, total );

input [7:0] data;

input clk;

output [7:0] total;

Verilog Reference Guide

8-16 Xilinx Development System

reg total;

reg [1:0] state;

parameter S0 = 0, S1 = 1, S2 = 2;

always @ (posedge clk)

begin

case (state)

S0: begin

total = data;

state = S1;

end

S1: begin

total = total + data;

state = S2;

end

default : begin

total = total + data;

state = S0;

end

endcase

end

endmodule

The following example shows a description of the same circuit with a

synchronous reset added. This example is coded in the explicit state

style. Notice that the reset operation is addressed once before the case

statement.

module SUM3 ( data, clk, total, reset );

input [7:0] data;

input clk, reset;

output [7:0] total;

reg total;

reg [1:0] state;

parameter S0 = 0, S1 = 1, S2 = 2;

always @ (posedge clk)

begin

if (reset)

state = S0;

Writing Circuit Descriptions

Verilog Reference Guide 8-17

else

case (state)

S0:begin

total = data;

state = S1;

end

S1:begin

total = total + data;

state = S2;

end

default : begin

total = total + data;

state = S0;

end

endcase;

end

endmodule

The following example shows how to describe the same function in

the implicit state style. This style is not as efficient for describing

synchronous resets. In this case, the reset operation has to be

addressed for every always @ statement.

module SUM3 ( data, clk, total, reset );

input [7:0] data;

input clk, reset;

output [7:0] total;

reg total;

always

begin: reset_label

@ (posedge clk)

if (reset)

begin

total = 8’b0;

disable reset_label;

end

else

total = data;

@ (posedge clk)

if (reset)

Verilog Reference Guide

8-18 Xilinx Development System

begin

total = 8’b0;

disable reset_label;

end

else

total = total + data;

@ (posedge clk)

if (reset)

begin

total = 8’b0;

disable reset_label;

end

else

total = total + data;

end

endmodule

Minimizing Registers

In an always block that is triggered by a clock edge, every variable

that has a value assigned has its value held in a flip-flop.

Organize your Verilog description so you build only as many regis-

ters as you need. The following example shows a description where

extra registers are implied.

module count (clock, reset, and_bits, or_bits,

xor_bits);

input clock, reset;

output and_bits, or_bits, xor_bits;

reg and_bits, or_bits, xor_bits;

reg [2:0] count;

always @(posedge clock) begin

if (reset)

count = 3’60;

else

count = count + 1;

and_bits = & count;

or_bits = | count;

xor_bits = ^ count;

Writing Circuit Descriptions

Verilog Reference Guide 8-19

end

endmodule

This description implies the use of six flip-flops: three to hold the

values of count and one each to hold and_bits, or_bits, and xor_bits.

However, the values of the outputs and_bits, or_bits, and xor_bits

depend solely on the values of count. Because count is registered,

there is no reason to register the three outputs. The synthesized

circuit is shown in the following figure.

Figure 8-11 Synthesized Circuit with Six Implied Registers

To avoid implying extra registers, you can assign the outputs from

within an asynchronous always block. The following example shows

the same logic described with two always blocks, one synchronous

and one asynchronous, which separate registered or sequential logic

from combinatorial logic. This technique is useful for describing finite

state machines. Signal assignments in the synchronous always block

are registered. Signal assignments in the asynchronous always block

are not. Therefore, this version of the design uses three fewer flip-

flops than the version in the above example.

module count (clock, reset, and_bits, or_bits,

xor_bits);

input clock, reset;

output and_bits, or_bits, xor_bits;

reg and_bits, or_bits, xor_bits;

Verilog Reference Guide

8-20 Xilinx Development System

reg [2:0] count;

always @(posedge clock) begin//synchronous

if (reset)

count = 3’b0;

else

count = count + 1;

end

always @(count) begin//asynchronous

and_bits = & count;

or_bits = | count;

xor_bits = ^ count;

end

endmodule

The more efficient version of the circuit is shown in the following

figure.

Figure 8-12 Synthesized Circuit with Three Implied Registers

Separating Sequential and Combinatorial

Assignments

To compute values synchronously and store them in flip-flops, set up

an always block with a signal edge trigger. To let other values change

asynchronously, make a separate always block with no signal edge

trigger. Put the assignments you want clocked in the always block

with the signal edge trigger and the other assignments in the other

always block. This technique is used for creating Mealy machines,

Writing Circuit Descriptions

Verilog Reference Guide 8-21

such as the one in the following example. Note that out changes asyn-

chronously with in1 or in2.

module mealy (in1, in2, clk, reset, out);

input in1, in2, clk, reset;

output out;

reg current_state, next_state, out;

always @(posedge clk or negedge reset)

// state vector flip-flops (sequential)

if (!reset)

current_state = 1’b0;

else

current_state = next_state;

always @(in1 or in2 or current_state)

// output and state vector decode (combinatorial)

case (current_state)

0: begin

next_state = 1;

out = 1’b0;

end

1: if (in1) begin

next_state = 1’b0;

out = in2;

end

else begin

next_state = 1’b1;

out = !in2;

end

endcase

endmodule

The schematic for this circuit is shown in the following figure.

Verilog Reference Guide

8-22 Xilinx Development System

Figure 8-13 Mealy Machine Schematic

Don’t Care Inference

You can greatly reduce circuit area by using don’t care values. To use

a don’t care value in your design, create an enumerated type for the

don’t care value.

Don’t care values are best used as default assignments to variables.

You can assign a don’t care value to a variable at the beginning of a

module, in the default section of a case statement, or in the else

section of an if statement.

Limitations of Using Don’t Care Values

In some cases, using don’t care values as default assignments can

cause the following problems.

• Don’t care values create a greater potential for mismatches

between simulation and synthesis.

• Defaults for variables can hide mistakes in the Verilog code.

For example, you might assign a default don’t care value to VAR.

If you later assign a value to VAR, expecting VAR to be a don’t

Writing Circuit Descriptions

Verilog Reference Guide 8-23

care value, you might have overlooked an intervening condition

under which VAR is assigned.

Therefore, when you assign a value to a variable (or signal) that

contains a don’t care value, make sure that the variable (or signal)

is really a don’t care value under those conditions. Note that

assignment to an x is interpreted as a don’t care value.

Differences Between Simulation and Synthesis

Don’t care values are treated differently in simulation and in

synthesis, and there can be a mismatch between the two. To a simu-

lator, a don’t care is a distinct value, different from a one or a zero. In

synthesis, however, a don’t care becomes a zero or a one (and hard-

ware is built that treats the don’t care value as either a zero or a one).

Whenever a comparison is made with a variable whose value is don’t

care, simulation and synthesis can differ. Therefore, the safest way to

use don’t care values is to do the following.

• Assign don’t care values only to output ports

• Make sure that the design never reads output ports

These guidelines guarantee that when you simulate within the scope

of the design, the only difference between simulation and synthesis

occurs when the simulator indicates that an output is a don’t care

value.

If you use don’t care values internally to a design, expressions Foun-

dation Express compares to don’t care values (X) are synthesized as

though values are not equal to X.

For example,

if A = ’X’ then

...

is synthesized as

if FALSE then

...

If you use expressions comparing values with X, pre-synthesis and

post-synthesis simulation results might not agree. For this reason,

Foundation Express issues the following warning.

Verilog Reference Guide

8-24 Xilinx Development System

Warning: A partial don’t-care value was read in

routine test line 24 in file ’test.v’ This may cause

simulation to disagree with synthesis. (HDL-171)

Propagating Constants

Constant propagation is the compile-time evaluation of expressions

that contain constants. Foundation Express uses constant propaga-

tion to reduce the amount of hardware required to implement

complex operators. Therefore, when you know that a variable is a

constant, specify it as a constant. For example, a + operator with a

constant of 1 as one of its arguments causes an incrementer, rather

than a general adder, to be built. If both arguments of an operator are

constants, no hardware is constructed, because Foundation Express

can calculate the expression’s value and insert it directly into the

circuit.

Comparators and shifters also benefit from constant propagation.

When you shift a vector by a constant, the implementation requires

only a reordering (rewiring) of bits, so no logic is needed.

Synthesis Issues

The next two sections describe feedback paths and latches that result

from ambiguities in signal or variable assignments and asynchronous

behavior.

Feedback Paths and Latches

Sometimes your Verilog source can imply combinatorial feedback

paths or latches in synthesized logic. This happens when a signal or a

variable in a combinatorial logic block (an always block without a

posedge or negedge clock statement) is not fully specified. A variable

or signal is fully specified when it is assigned under all possible

conditions.

Synthesizing Asynchronous Designs

In a synchronous design, all registers use the same clock signal. That

clock signal must be a primary input to the design. A synchronous

design has no combinatorial feedback paths, one-shots, or delay lines.

Synchronous designs perform the same function regardless of the

Writing Circuit Descriptions

Verilog Reference Guide 8-25

clock rate, as long as the rate is slow enough to allow signals to prop-

agate all the way through the combinatorial logic between registers.

Foundation Express synthesis tools offer limited support for asyn-

chronous designs. The most common way to produce asynchronous

logic in Verilog is to use gated clocks on registers. If you use asyn-

chronous design techniques, synthesis and simulation results might

not agree. Because Foundation Express does not issue warning

messages for asynchronous designs, you are responsible for verifying

the correctness of your circuit.

The following examples show two approaches to the same counter

design: The first example is synchronous, and the second example is

asynchronous.

module COUNT (RESET, ENABLE, CLK, Z);

input RESET, ENABLE, CLK;

output [2:0] Z;

reg [2:0] Z;

always @ (posedge CLK) begin

if (RESET) begin

Z = 3’b0;

end else if (ENABLE == 1’b1) begin

if (Z == 3’d7) begin

Z = 3’b0;

end else begin

Z = Z + 3’b1;

end

endmodule

The following example shows an asynchronous counter design.

module COUNT (RESET, ENABLE, CLK, Z);

input RESET, ENABLE, CLK;

output [2:0] Z;

reg [2:0] Z;

wire GATED_CLK = CLK & ENABLE;

Verilog Reference Guide

8-26 Xilinx Development System

always @ (posedge GATED_CLK or posedge RESET) begin

if (RESET) begin

Z = 3’b0;

end else begin

if (Z == 3’d7) begin

Z = 3’b0;

end else begin

Z = Z + 3’b1;

end

endmodule

The asynchronous version of the design uses two asynchronous

design techniques. The first technique is to enable the counter by

ANDing the clock with the enable line. The second technique is to use

an asynchronous reset. These techniques work if the proper timing

relationships exist between the asynchronous control lines (ENABLE

and RESET) and the clock (CLK) and if the control lines are glitch-

free.

Some forms of asynchronous behavior are not supported. For

example, you might expect the following circuit description of a one-

shot signal generator to generate three inverters (an inverting delay

line) and a NAND gate.

X = A ~& (~(~(~ A)));

However, this circuit description is optimized to the following.

X = A ~& (~ A); then X = 1;

Designing for Overall Efficiency

The efficiency of a synthesized design depends primarily on how you

describe its component structure. The next two sections explain how

to describe random logic and how to share complex operators.

Describing Random Logic

You can describe random logic with many different shorthand

Verilog expressions. Foundation Express often generates the same

optimized logic for equivalent expressions, so your description style

for random logic does not affect the efficiency of the circuit. The

following example shows four groups of statements that are equiva-

Writing Circuit Descriptions

Verilog Reference Guide 8-27

lent. (Assume that a, b, and c are 4-bit variables.) Foundation Express

creates the same optimized logic in all four cases.

c = a & b;

c[3:0] = a[3:0] & b[3:0];

c[3] = a[3] & b[3];

c[2] = a[2] & b[2];

c[1] = a[1] & b[1];

c[0] = a[0] & b[0];

for (i = 0; i <= 3; i = i + 1)

c[i] = a[i] & b[i];

Sharing Complex Operators

You can use automatic resource sharing to share most operators.

However, some complex operators can be shared only if you rewrite

your source description more efficiently. These operators follow.

• Noncomputable array index

• Function call

•Shifter

The following example shows a circuit description that creates more

functional units than necessary when automatic resource sharing is

turned off.

module rs(a, i, j, c, y, z);

input [7:0] a;

input [2:0] i,j;

input c;

output y, z;

reg y, z;

always @(a or i or j or c)

begin

z=0;

y=0;

if(c)

begin

z = a[i];

Verilog Reference Guide

8-28 Xilinx Development System

end

else

begin

y = a[j];

end

endmodule

The schematic for this code description is shown in the following

figure.

Writing Circuit Descriptions

Verilog Reference Guide 8-29

Figure 8-14 Circuit Schematic with Two Array Indexes

You can rewrite the circuit description in the above example so that it

contains only one array index, as shown in the following example.

Verilog Reference Guide

8-30 Xilinx Development System

The circuit in the following example is more efficient than that in the

above example, since it uses a temporary register, temp, to store the

value evaluated in the if statement.

module rs1(a, i, j, c, y, z);

input [7:0] a;

input [2:0] i,j;

input c;

output y, z;

reg y, z;

reg [3:0] index;

reg temp;

always @(a or i or j or c) begin

if(c)

begin

index = i;

end

else

begin

index = j;

end

temp = a[index];

z=0;

y=0;

if(c)

begin

z = temp;

end

else

begin

y = temp;

end

endmodule

The schematic is shown in the following figure.

Writing Circuit Descriptions

Verilog Reference Guide 8-31

Figure 8-15 Circuit Schematic with One-Array Index

Consider resource sharing whenever you use a complex operation

more than once. Complex operations include adders, multipliers,

shifters (only when shifting by a variable amount), comparators, and

most user-defined functions.

Verilog Reference Guide

8-32 Xilinx Development System

Verilog Reference Guide 9-1

Chapter 9

Verilog Syntax

This chapter presents the syntax description of the Verilog language

supported by Foundation Express and is divided into the following

sections.

•“Syntax”

• “Lexical Conventions”

• “Verilog Keywords”

• “Unsupported Verilog Language Constructs”

Syntax

This section presents the syntax of the supported Verilog language in

Backus Naur Form (BNF) and the syntax formalism.

Note: The BNF syntax convention used in this section differs from

other syntax convention used elsewhere in this manual.

BNF Syntax Formalism

White space separates lexical tokens.

name is a keyword.

<name> is a syntax construct definition.

<name> is a syntax construct item.

<name>? is an optional item.

<name>* is zero, one, or more items.

<name>+ is one or more items.

<port> <,<port>>* is a comma-separated list of items.

Verilog Reference Guide

9-2 Xilinx Development System

::= gives a syntax definition to an item.

||= refers to an alternative syntax construct.

BNF Syntax

<source_text>

::= <description>*

::= <module>

::= module <name_of_module> <list_of_ports>? ;

<module_item>*

endmodule

<name_of_module>

::= <IDENTIFIER>

<list_of_ports>

::= ( <port> <,<port>>* )

||= ( )

<port>

::= <port_expression>?

||= . <name_of_port> ( <port_expression>? )

<port_expression>

::= <port_reference>

||= { <port_reference> <, <port_reference>>* }

<port_reference>

::= <name_of_variable>

||= <name_of_variable> [ <expression> ]

||= <name_of_variable> [ <expression> :

<expression> ]

<name_of_port>

::= <IDENTIFIER>

Verilog Syntax

Verilog Reference Guide 9-3

<name_of_variable>

::= <IDENTIFIER>

<module_item>

::= <parameter_declaration>

||= <input_declaration>

||= <output_declaration>

||= <inout_declaration>

||= <net_declaration>

||= <reg_declaration>

||= <integer_declaration>

||= <gate_instantiation>

||= <module_instantiation>

||= <continuous_assign>

||= <function>

::= function <range>? <name_of_function> ;

<func_declaration>*

<statement_or_null>

endfunction

<name_of_function>

::= <IDENTIFIER>

<func_declaration>

::= <parameter_declaration>

||= <input_declaration>

||= <reg_declaration>

||= <integer_declaration>

::= always @ ( <identifier> or <identifier> )

||= always @ ( posedge <identifier> )

||= always @ ( negedge <identifier> )

||= always @ ( <egde> or <edge> or ... )

<edge>

::= posedge <identifier>

||= negedge <identifier>

Verilog Reference Guide

9-4 Xilinx Development System

<parameter_declaration>

::= parameter <range>? <list_of_assignments> ;

<input_declaration>

::= input <range>? <list_of_variables> ;

<output_declaration>

::= output <range>? <list_of_variables> ;

<inout_declaration>

::= inout <range>? <list_of_variables> ;

<net_declaration>

::= <NETTYPE> <charge_strength>? <expandrange>?

<delay>? <list_of_variables> ;

||= <NETTYPE><drive_strength>? <expandrange>?

<delay>? <list_of_assignments> ;

::= wire

||= wor

||= wand

||= tri

::= <range>

||= scalared <range>

||= vectored <range>

<reg_declaration>

::= reg <range>? <list_of_register_variables> ;

<integer_declaration>

::= integer <list_of_integer_variables> ;

<continuous_assign>

::= assign <drive_strength>? <delay>?

<list_of_assignments>;

Verilog Syntax

Verilog Reference Guide 9-5

<list_of_variables>

::= <name_of_variable> <, <name_of_variable>>*

<name_of_variable>

::= <IDENTIFIER>

<list_of_register_variables>

::= <register_variable> <, <register_variable>>*

<register_variable>

::= <IDENTIFIER>

<list_of_integer_variables>

::= <integer_variable> <, <integer_variable>>*

<integer_variable>

::= <IDENTIFIER>

<charge_strength>

::= ( small )

||= ( medium )

||= ( large )

<drive_strength>

::= ( <STRENGTH0> , <STRENGTH1> )

||= ( <STRENGHT1> , <STRENGTH0> )

::= supply0

||= strong0

||= pull0

||= weak0

||= highz0

::= supply1

||= strong1

||= pull1

||= weak1

||= highz1

Verilog Reference Guide

9-6 Xilinx Development System

<range>

::= [ <expression> : <expression> ]

<list_of_assignments>

::= <assignment> <, <assignment>>*

<gate_instantiation>

::= <GATETYPE> <drive_strength>? <delay>?

<gate_instance> <, <gate_instance>>* ;

::= and

||= nand

||= or

||= nor

||= xor

||= xnor

||= buf

||= not

<gate_instance>

::= <name_of_gate_instance>? ( <terminal> <,

<terminal>>* )

<name_of_gate_instance>

::= <IDENTIFIER>

::= <identifier>

||= <expression>

<module_instantiation>

::= <name_of_module>

<parameter_value_assignment>?

<module_instance> <,<module_instance>>* ;

<name_of_module>

::= <IDENTIFIER>

Verilog Syntax

Verilog Reference Guide 9-7

<parameter_value_assignment>

::= #( <expression> <,<expression>>*)

<module_instance>

::= <name_of_module_instance> (

<list_of_module_terminals>? )

<name_of_module_instance>

::= <IDENTIFIER>

<list_of_module_terminals>

::= <module_terminal>? <,<module_terminal>>*

||= <named_port_connection>

<,<named_port_connection>>*

<module_terminal>

::= <identifier>

||= <expression>

<named_port_connection>

::= . IDENTIFIER ( <identifier> )

||= . IDENTIFIER ( <expression> )

::= <assignment>

||= if ( <expression> )

<statement_or_null>

||= if ( <expression> )

<statement_or_null>

else

<statement_or_null>

||= case ( <expression> )

<case_item>+

endcase

||= casex ( <expression> )

<case_item>+

endcase

||= casez ( <expression> )

<case_item>+

endcase

||= for ( <assignment> ; <expression> ;

Verilog Reference Guide

9-8 Xilinx Development System

||= <seq_block>

||= disable <IDENTIFIER> ;

||= forever <statement>

||= while ( <expression> ) <statement>

<statement_or_null>

::= statement

||= ;

::= <lvalue> = <expression>

<case_item>

::= <expression> <,<expression>>* :

<statement_or_null>

||= default : <statement_or_null>

||= default <statement_or_null>

<seq_block>

::= begin

<statement>*

end

||= begin : <name_of_block>

<block_declaration>*

<statement>*

end

<name_of_block>

::= <IDENTIFIER>

<block_declaration>

::= <parameter_declaration>

||= <reg_declaration>

||= <integer_declaration>

::= <IDENTIFIER>

||= <IDENTIFIER> [ <expression> ]

||= <concatenation>

Verilog Syntax

Verilog Reference Guide 9-9

::= <primary>

||= <UNARY_OPERATOR> <primary>

||= <expression> <BINARY_OPERATOR>

||= <expression> ? <expression> : <expression>

<UNARY_OPERATOR>

::= !

||= ~

||= &

||= ~&

||= |

||= ~|

||= ^

||= ~^

||= -

||= +

<BINARY_OPERATOR>

::= +

||= -

||= *

||= /

||= %

||= ==

||= !=

||= &&

||= ||

||= <

||= <=

||= >

||= >=

||= &

||= |

||= <<

||= >>

::= <number>

||= <identifier>

||= <identifier> [ <expression> ]

||= <identifier> [ <expression> : <expression> ]

||= <concatenation>

||= <multiple_concatenation>

Verilog Reference Guide

9-10 Xilinx Development System

||= <function_call>

||= ( <expression> )

::= <NUMBER>

||= <BASE> <NUMBER>

||= <SIZE> <BASE> <NUMBER>

A number can have any of the following characters:

0123456789abcdefxzABCDEFXZ

<SIZE>

::= ’b

||= ’B

||= ’o

||= ’O

||= ’d

||= ’D

||= ’h

||= ’H

<SIZE>

A size can have any number of the following digits: 0123456789.

::= { <expression> <,<expression>>* }

<multiple_concatenation>

::= {<expression> {<expression><,<expression>>*} }

<function_call>

::= <name_of_function> ( <expression>

<,<expression>>*)

<name_of_function>

::= <IDENTIFIER>

Verilog Syntax

Verilog Reference Guide 9-11

An identifier is any sequence of letters, digits, and the underscore

character ( _ ), where the first character is a letter or underscore.

Upper case and lower case letters are treated as different characters.

Identifiers can be any size, and all characters are significant. Escaped

identifiers start with the backslash character (\) and end with a space.

The leading backslash character (\) is not part of the identifier. Use

escaped identifiers to include any printable ASCII characters in an

identifier.

<delay>

::= # <NUMBER>

||= # <identifier>

||= # ( <expression> <,<expression>>* )

Lexical Conventions

Foundation Express uses lexical conventions that are nearly identical

to those of the Verilog language. The types of lexical tokens that

Foundation Express uses are described in the following subsections.

•“White Space”

•“Comments”

• “Numbers”

• “Identifiers”

• “Operators”

• “Macro Substitution”

• “Include Construct”

• “Simulation Directives”

• “Verilog System Functions”

White Space

White space separates words in the input description and can contain

spaces, tabs, new lines, and form feeds. You can place white space

anywhere in the description. Foundation Express ignores white

space.

Verilog Reference Guide

9-12 Xilinx Development System

Comments

You can enter comments anywhere in a Verilog description in two

forms.

• Beginning with two backslashes //

Foundation Express ignores all text between these characters and

the end of the current line.

• Beginning with the two characters /* and ending with */

Foundation Express ignores all text between these characters, so

you can continue comments over more than one line.

Note: You cannot nest comments.

Numbers

You can declare numbers in several different radices and bit-widths.

A radix is the base number on which a numbering system is built. For

example, the binary numbering system has a radix of 2, octal has a

radix of 8, and decimal has a radix of 10.

You can use these three number formats.

• A simple decimal number that is a sequence of digits between 0

and 9

All constants declared in this way are assumed to be 32-bit

numbers.

• A number that specifies the bit-width, as well as the radix

These numbers are the same as the previous format, except they

are preceded by a decimal number that specifies the bit-width.

• A number followed by a two-character sequence prefix that spec-

ifies the number’s size and radix

The radix determines which symbols you can include in the

number. Constants declared this way are assumed to be 32-bit

numbers. Any of these numbers can include underscores ( _ ).

The underscores improve readability and do not affect the value

Verilog Syntax

Verilog Reference Guide 9-13

of the number. The table below summarizes the available radices

and valid characters for the number.

The following are examples of valid Verilog number declarations.

391 // 32-bit decimal number

’h3a13 // 32-bit hexadecimal number

10’o1567 // 10-bit octal number

3’b010 // 3-bit binary number

4’d9 // 4-bit decimal number

40’hFF_FFFF_FFFF // 40-bit hexadecimal number

2’bxx // 2-bits don’t care

3’bzzz // 3-bits high-impedance

Identifiers

Identifiers are user-defined words for variables, function names,

module names, and instance names. Identifiers can be composed of

letters, digits, and the underscore character ( _ ). The first character of

an identifier cannot be a number. Identifiers can be any length. Iden-

tifiers are case-sensitive, and all characters are significant.

An identifier that contains special characters, begins with numbers,

or has the same name as a keyword can be specified as an escaped

identifier. An escaped identifier starts with the backslash character

(\) followed by a sequence of characters, followed by white space.

The following are sample escaped identifiers.

\a+b \3state

\module \(a&b)|c

The Verilog language supports the concept of hierarchical names,

which can be used to access variables of submodules directly from a

higher-level module. Foundation Express partially supports hierar-

chical names. (For more information, see “Unsupported Verilog

Language Constructs” section of this chapter.)

Table 9-1 Verilog Radices

Name Character Prefix Valid Characters

binary ’b 0 1 x X z Z _ ?

octal ’o 0–7 x X z Z _ ?

decimal ’d 0–9 _

hexadecimal ’h 0–9 a–f A–F x X z Z _ ?

Verilog Reference Guide

9-14 Xilinx Development System

Operators

Operators are one-character or two-character sequences that perform

operations on variables. Some examples of operators are +, ~^, <=,

and >>. Operators are described in detail in the “Operators” section

of the “Expressions” chapter.

Macro Substitution

Macro substitution assigns a string of text to a macro variable. The

string of text is inserted into the code where the macro is encoun-

tered. The definition begins with the back quotation mark (‘),

followed by the keyword define, followed by the name of the macro

variable. All text from the macro variable until the end of the line is

assigned to the macro variable.

You can declare and use macro variables anywhere in the descrip-

tion. The definitions can carry across several files that are read into

Foundation Express at the same time. To make a macro substitution,

type a back quotation mark (‘) followed by the macro variable name.

Some sample macro variable declarations are shown in the following

example.

‘define highbits 31:29

‘define bitlist {first, second, third}

wire [31:0] bus;

‘bitlist = bus[‘highbits];

Text macros are not supported when used with sized constants, as

shown in the following example.

‘define SIZE 4

module test (in,out);

output [3:0] out;

input [3:0] in;

assign out = ’SIZE’b0101; //text macro from ‘define

//statement cannot be used with a sized constant

endmodule

Include Construct

The include construct in Verilog is similar to the #include directive in

C. You can use this construct to include Verilog code, such as type

Verilog Syntax

Verilog Reference Guide 9-15

declarations and functions, from one module into another module.

The following example shows an application of the include construct.

Contents of file1.v

‘define WORDSIZE 8

function [WORDSIZE-1:0] fastadder;

endfunction

Contents of secondfile

module secondfile (in1,in2,out)

‘include “file1.v”

wire [WORDSIZE-1:0] temp;

assign temp = fastadder (in1,in2);

endmodule

Included files can include other files, up to 24 levels of nesting. You

cannot use the include construct recursively.

Simulation Directives

Simulation directives refer to special commands that affect the opera-

tion of the Verilog HDL Simulator. You can include these directives

in your design description, because Foundation Express parses and

ignores them.

‘accelerate

‘celldefine

‘default_nettype

‘endcelldefine

‘endprotect

‘expand_vectornets

‘noaccelerate

‘noexpand_vectornets

‘noremove_netnames

‘nounconnected_drive

‘protect

‘remove_netnames

Verilog Reference Guide

9-16 Xilinx Development System

‘resetall‘timescale

‘unconnected_drive

Verilog System Functions

Verilog system functions are implemented by the Verilog HDL simu-

lators to generate input or output during simulation. Their names

start with a dollar sign ($). Foundation Express parses and ignores

Verilog system functions.

Verilog Syntax

Verilog Reference Guide 9-17

Verilog Keywords

Verilog uses keywords to interpret an input file. You cannot use these

words as user variable names unless you use an escaped identifier.

For more information, see the “Identifiers” section of this chapter.

always and assign begin

buf bufif0 bufif1 case

casex casez cmos deassign

default defparam disable

end endcase endfunction endmodule

endprimitive endtable endtask event

for force forever fork

function highz0 highz1 if

initial inout input integer

join large medium module

nand negedge nmos nor

not notif0 notif1 or

output parameter pmos posedge

primitive pulldown pullup pull0

pull1 rcmos reg release

repeat rnmos rpmos rtran

rtranif0 rtranif1 scalared small

strong0 strong1 supply0 supply1

table task time

tran tranif0 tranif1 tri

triand trior trireg tri0

tri1 vectored wait wand

weak0 weak1 while wire

wor xnor xor

Verilog Reference Guide

9-18 Xilinx Development System

Unsupported Verilog Language Constructs

Foundation Express does not support the following Verilog

constructs.

• Unsupported definitions and declarations

• Unsupported statements

• Unsupported operators

• Unsupported gate-level constructs

• Unsupported miscellaneous constructs

Constructs added to the Verilog Simulator in versions after Verilog

1.6 might not be supported.

If you use an unsupported construct in a Verilog description, Foun-

dation Express issues a syntax error such as the following.

event is not supported

Unsupported Definitions and Declaration

Foundation Express does not support the following Verilog

constructs.

• primitive definition

• time declaration

• event declaration

• triand, trior, tri1, tri0, and trireg net types

• Ranges and arrays for integers

Unsupported Statements

Foundation Express does not support the following Verilog

constructs.

• defparam statement

•initial statement

• repeat statement

• delay control

Verilog Syntax

Verilog Reference Guide 9-19

• event control

• wait statement

• fork statement

• deassign statement

• force statement

• release statement

Unsupported Operators

Foundation Express does not support the following Verilog

constructs.

• Case equality and inequality operators (=== and !==)

• Division and modulus operators for variables

Unsupported Gate-Level Constructs

Foundation Express does not support the following Verilog gate-

level constructs.

•nmos

•pmos

•cmos

• rnmos

•rpmos

•rcmos,

•pullup

•pulldown

•tranif0

•tranif1

•rtran

•rtranif0

•rtranif1

Verilog Reference Guide

9-20 Xilinx Development System

Verilog Reference Guide A-1

Appendix A

Examples

This appendix presents examples that demonstrate basic concepts of

Foundation Express.

• “Count Zeros—Combinatorial Version”

• “Count Zeros—Sequential Version”

• “Drink Machine—State Machine Version”

• “Drink Machine—Count Nickels Version”

• “Carry-Lookahead Adder”

Count Zeros—Combinatorial Version

Using this circuit is one possible solution to a design problem. Given

an 8-bit value, the circuit must determine two things:

• The presence of a value containing exactly one sequence of zeros

• The number of zeros in the sequence (if any)

The circuit must complete this computation in a single clock cycle.

The input to the circuit is an 8-bit value, and the two outputs the

circuit produces are the number of zeros found and an error indica-

tion.

A valid value contains only one series of zeros. If more than one

series of zeros appears, the value is invalid. A value consisting of all

ones is a valid value. If a value is invalid, the count of zeros is set to

zero. An example follows,

• The value 00000000 is valid, and the count is eight zeros.

• The value 11000111 is valid, and the count is three zeros.

• The value 00111110 is invalid.

Verilog Reference Guide

A-2 Xilinx Development System

A Verilog description and a schematic of the circuit are shown in the

following example and figure.

module count_zeros(in, out, error);

input [7:0] in;

output [3:0] out;

output error;

function legal;

input [7:0] x;

reg seenZero, seenTrailing;

integer i;

begin : _legal_block

legal = 1; seenZero = 0; seenTrailing = 0;

for ( i=0; i <= 7; i=i+1 )

if ( seenTrailing && (x[i] == 1’b0) ) begin

legal = 0;

disable _legal_block;

end

else if ( seenZero && (x[i] == 1’b1) )

seenTrailing = 1;

else if ( x[i] == 1’b0 )

seenZero = 1;

end

endfunction

function [3:0] zeros;

input [7:0] x;

reg [3:0] count;

integer i;

begin

count = 0;

for ( i=0; i <= 7; i=i+1 )

if ( x[i] == 1’b0 ) count = count + 1;

zeros = count;

end

endfunction

wire is_legal = legal(in);

assign error = ! is_legal;

assign out = is_legal ? zeros(in) : 1’b0;

endmodule

Examples

Verilog Reference Guide A-3

Figure A-1 Count Zeros—Combinatorial Version Block

Diagram

This example shows two Verilog functions: legal and zeros. The func-

tion legal determines if the value is valid. It returns a 1-bit value:

either 1 for a valid value or 0 for an invalid value. The function zeros

cycles through all bits of the value, counts the number of zeros, and

returns the appropriate value. The two functions are controlled by

continuous assignment statements at the bottom of the module defi-

nition. This example shows a combinatorial (parallel) approach to

counting zeros; the next example shows a sequential (serial)

approach.

Count Zeros—Sequential Version

The following example and figure show a sequential (clocked) solu-

tion to the “count zeros” design problem. The circuit specification is

slightly different from the specification in the combinatorial solution.

The circuit now accepts the 8-bit string serially, 1 bit per clock cycle,

using the data and clk inputs. The other two inputs follow.

• reset, which resets the circuit

• read, which causes the circuit to begin accepting data

The circuit’s three outputs follow.

• is_legal, which is true if the data is a valid value

Verilog Reference Guide

A-4 Xilinx Development System

• data_ready, which is true at the first invalid bit or when all 8 bits

have been processed

• zeros, which is the number of zeros if is_legal is true

module count_zeros(data,reset,read,clk,zeros,is_legal,

data_ready);

parameter TRUE=1, FALSE=0;

input data, reset, read, clk;

output is_legal, data_ready;

output [3:0] zeros;

reg [3:0] zeros;

reg is_legal, data_ready;

reg seenZero, new_seenZero;

reg seenTrailing, new_seenTrailing;

reg new_is_legal;

reg new_data_ready;

reg [3:0] new_zeros;

reg [2:0] bits_seen, new_bits_seen;

always @ ( data or reset or read or is_legal

or data_ready or seenTrailing or

seenZero or zeros or bits_seen ) begin

if ( reset ) begin

new_data_ready = FALSE;

new_is_legal = TRUE;

new_seenZero = FALSE;

new_seenTrailing = FALSE;

new_zeros = 0;

new_bits_seen = 0;

end

else begin

new_is_legal = is_legal;

new_seenZero = seenZero;

new_seenTrailing = seenTrailing;

new_zeros = zeros;

new_bits_seen = bits_seen;

new_data_ready = data_ready;

if ( read ) begin

if ( seenTrailing && (data == 0) )

begin

Examples

Verilog Reference Guide A-5

new_is_legal = FALSE;

new_zeros = 0;

new_data_ready = TRUE;

end

else if ( seenZero && (data == 1’b1) )

new_seenTrailing = TRUE;

else if ( data == 1’b0 ) begin

new_seenZero = TRUE;

new_zeros = zeros + 1;

end

if ( bits_seen == 7 )

new_data_ready = TRUE;

else

new_bits_seen = bits_seen+1;

end

always @ ( posedge clk) begin

zeros = new_zeros;

bits_seen = new_bits_seen;

seenZero = new_seenZero;

seenTrailing = new_seenTrailing;

is_legal = new_is_legal;

data_ready = new_data_ready;

end

endmodule

Verilog Reference Guide

A-6 Xilinx Development System

Figure A-2 Count Zero—Sequential Version Block Diagram

Drink Machine—State Machine Version

The next design is a vending control unit for a soft drink vending

machine. The circuit reads signals from a coin-input unit and sends

outputs to a change-dispensing unit and a drink-dispensing unit.

Input signals from the coin-input unit are nickel_in (nickel depos-

ited), dime_in (dime deposited), and quarter_in (quarter deposited).

Outputs to the vending control unit are collect (collect coins), to the

coin-input unit; nickel_out (nickel change) and dime_out (dime

change), to the change-dispensing unit; and dispense (dispense

drink), to the drink-dispensing unit. The price of a drink is 35 cents.

The Verilog description for this design, shown in the following

example uses a state machine description style. The description

includes the state_vector directive, which enables Foundation

Express to extract an equivalent state machine.

‘define vend_a_drink {D,dispense,collect} = {IDLE,2’b11}

module drink_machine(nickel_in, dime_in, quarter_in,

collect, nickel_out, dime_out,

dispense, reset, clk) ;

parameter IDLE=0,FIVE=1,TEN=2,TWENTY_FIVE=3,

FIFTEEN=4,THIRTY=5,TWENTY=6,OWE_DIME=7;

Examples

Verilog Reference Guide A-7

input nickel_in, dime_in, quarter_in, reset, clk;

output collect, nickel_out, dime_out, dispense;

reg collect, nickel_out, dime_out, dispense;

reg [2:0] D, Q; /* state */

// synopsys state_vector Q

always @ ( nickel_in or dime_in or quarter_in or reset )

begin

nickel_out = 0;

dime_out = 0;

dispense = 0;

collect = 0;

if ( reset ) D = IDLE;

else begin

D = Q;

case ( Q )

IDLE:

if (nickel_in) D = FIVE;

else if (dime_in) D = TEN;

else if (quarter_in) D = TWENTY_FIVE;

FIVE:

if(nickel_in) D = TEN;

else if (dime_in) D = FIFTEEN;

else if (quarter_in) D = THIRTY;

TEN:

if (nickel_in) D = FIFTEEN;

else if (dime_in) D = TWENTY;

else if (quarter_in) ‘vend_a_drink;

TWENTY_FIVE:

if( nickel_in) D = THIRTY;

else if (dime_in) ‘vend_a_drink;

else if (quarter_in) begin

‘vend_a_drink;

nickel_out = 1;

dime_out = 1;

end

FIFTEEN:

if (nickel_in) D = TWENTY;

else if (dime_in) D = TWENTY_FIVE;

Verilog Reference Guide

A-8 Xilinx Development System

else if (quarter_in) begin

‘vend_a_drink;

nickel_out = 1;

end

THIRTY:

if (nickel_in) ‘vend_a_drink;

else if (dime_in) begin

‘vend_a_drink;

nickel_out = 1;

end

else if (quarter_in) begin

‘vend_a_drink;

dime_out = 1;

D = OWE_DIME;

end

TWENTY:

if (nickel_in) D = TWENTY_FIVE;

else if (dime_in) D = THIRTY;

else if (quarter_in) begin

‘vend_a_drink;

dime_out = 1;

end

OWE_DIME:

begin

dime_out = 1;

D = IDLE;

end

endcase

end

always @ (posedge clk ) begin

Q = D;

end

endmodule

Examples

Verilog Reference Guide A-9

Figure A-3 Drink Machine—State Machine Version Block

Diagram

Drink Machine—Count Nickels Version

The following example uses the same design parameters as the

previous example with the same input and output signals. In this

version, a counter counts the number of nickels deposited. This

counter is incremented by one if the deposit is a nickel, by two if it’s a

dime, and by five if it’s a quarter.

module drink_machine(nickel_in,dime_in,quarter_in,collect,

nickel_out,dime_out,dispense,reset,clk);

input nickel_in, dime_in, quarter_in, reset, clk;

output nickel_out, dime_out, collect, dispense;

reg nickel_out, dime_out, dispense, collect;

reg [3:0] nickel_count, temp_nickel_count;

reg temp_return_change, return_change;

always @ ( nickel_in or dime_in or quarter_in or

collect or temp_nickel_count or

reset or nickel_count or return_change) begin

nickel_out = 0;

dime_out = 0;

dispense = 0;

Verilog Reference Guide

A-10 Xilinx Development System

collect = 0;

temp_nickel_count = 0;

temp_return_change = 0;

// Check whether money has come in

if (! reset) begin

temp_nickel_count = nickel_count;

if (nickel_in)

temp_nickel_count = temp_nickel_count + 1;

else if (dime_in)

temp_nickel_count = temp_nickel_count + 2;

else if (quarter_in)

temp_nickel_count = temp_nickel_count + 5;

// correct amount deposited?

if (temp_nickel_count >= 7) begin

temp_nickel_count = temp_nickel_count - 7;

dispense = 1;

collect = 1;

end

// return change

if (return_change || collect) begin

if (temp_nickel_count >= 2) begin

dime_out = 1;

temp_nickel_count = temp_nickel_count - 2;

temp_return_change = 1;

end

if (temp_nickel_count == 1) begin

nickel_out = 1;

temp_nickel_count = temp_nickel_count - 1;

end

always @ (posedge clk ) begin

nickel_count = temp_nickel_count;

return_change = temp_return_change;

end

endmodule

Examples

Verilog Reference Guide A-11

Figure A-4 Drink Machine—Count Nickels Version Block

Diagram

Carry-Lookahead Adder

The figure and example in this section show how to build a 32-bit

carry-lookahead adder. The adder is built by partitioning of the 32-bit

input into eight slices of 4 bits each. The PG module computes propa-

gate and generate values for each of the eight slices.

Propagate (output P from PG) is 1 for a bit position if that position

propagates a carry from the next-lower position to the next-higher

position. Generate (output G) is 1 for a bit position if that position

generates a carry to the next-higher position, regardless of the carry-

in from the next-lower position.

The carry-lookahead logic reads the carry-in, propagate, and

generate information computed from the inputs. It computes the

carry value for each bit position. This logic makes the addition opera-

tion an XOR of the inputs and the carry values.

The following list shows the order in which the carry values are

computed by a three-level tree of 4-bit carry-lookahead blocks (illus-

trated in the previous figure):

1. The first level of the tree computes the 32 carry values and the 8

group propagate and generate values. Each of the first-level

group propagate and generate values tells if that 4-bit slice prop-

Verilog Reference Guide

A-12 Xilinx Development System

agates and generates carry values from the next-lower group to

the next-higher. The first-level lookahead blocks read the group

carry computed at the second level.

2. At the second level of the tree, the lookahead blocks read the

group propagate and generate information from the four first-

level blocks and then compute their own group propagate and

generate information. They also read group carry information

computed at the third level to compute the carries for each of the

third-level blocks.

3. At the third level of the tree, the third-level block reads the prop-

agate and generate information of the second level to compute a

propagate and generate value for the entire adder. It also reads

the external carry to compute each second-level carry. The carry-

out for the adder is 1 if the third-level generate is 1 or if the third-

level propagate is 1 and the external carry is 1.

The third-level carry-lookahead block can process four second-level

blocks. Because there are only two second-level blocks in the

previous figure, the high-order 2 bits of the computed carry are

ignored, the high-order 2 bits of the generate input to the third-level

are set to 00 (zero), and the propagate high-order bits are set to 11.

This causes the unused portion to propagate carries but not to

generate them.

The following figure shows the three levels of a block diagram of the

32-bit carry-lookahead adder. The following example shows the code

for the adder.

Examples

Verilog Reference Guide A-13

Figure A-5 Carry-Lookahead Adder Block Diagram

Verilog Reference Guide

A-14 Xilinx Development System

‘define word_size 32

‘define word [‘word_size-1:0]

‘define n 4

‘define slice [‘n-1:0]

‘define s0 (1*‘n)-1:0*‘n

‘define s1 (2*‘n)-1:1*‘n

‘define s2 (3*‘n)-1:2*‘n

‘define s3 (4*‘n)-1:3*‘n

‘define s4 (5*‘n)-1:4*‘n

‘define s5 (6*‘n)-1:5*‘n

‘define s6 (7*‘n)-1:6*‘n

‘define s7 (8*‘n)-1:7*‘n

module cla32_4(a, b, cin, s, cout);

input ‘word a, b;

input cin;

output ‘word s;

output cout;

wire [7:0] gg, gp, gc; // Group generate, propagate,

// carry

wire [3:0] ggg, ggp, ggc;// Second-level gen., prop.

wire gggg, gggp; // Third-level gen., prop.

bitslice i0(a[‘s0], b[‘s0], gc[0], s[‘s0], gp[0], gg[0]);

bitslice i1(a[‘s1], b[‘s1], gc[1], s[‘s1], gp[1], gg[1]);

bitslice i2(a[‘s2], b[‘s2], gc[2], s[‘s2], gp[2], gg[2]);

bitslice i3(a[‘s3], b[‘s3], gc[3], s[‘s3], gp[3], gg[3]);

bitslice i4(a[‘s4], b[‘s4], gc[4], s[‘s4], gp[4], gg[4]);

bitslice i5(a[‘s5], b[‘s5], gc[5], s[‘s5], gp[5], gg[5]);

bitslice i6(a[‘s6], b[‘s6], gc[6], s[‘s6], gp[6], gg[6]);

bitslice i7(a[‘s7], b[‘s7], gc[7], s[‘s7], gp[7], gg[7]);

cla c0(gp[3:0], gg[3:0], ggc[0], gc[3:0], ggp[0], ggg[0]);

cla c1(gp[7:4], gg[7:4], ggc[1], gc[7:4], ggp[1], ggg[1]);

assign ggp[3:2] = 2’b11;

assign ggg[3:2] = 2’b00;

Examples

Verilog Reference Guide A-15

cla c2(ggp, ggg, cin, ggc, gggp, gggg);

assign cout = gggg | (gggp & cin);

endmodule

// Compute sum and group outputs from a, b, cin

module bitslice(a, b, cin, s, gp, gg);

input ‘slice a, b;

input cin;

output ‘slice s;

output gp, gg;

wire ‘slice p, g, c;

pg i1(a, b, p, g);

cla i2(p, g, cin, c, gp, gg);

sum i3(a, b, c, s);

endmodule

// compute propagate and generate from input bits

module pg(a, b, p, g);

input ‘slice a, b;

output ‘slice p, g;

assign p = a | b;

assign g = a & b;

endmodule

// compute sum from the input bits and the carries

module sum(a, b, c, s);

input ‘slice a, b, c;

output ‘slice s;

wire ‘slice t = a ^ b;

assign s = t ^ c;

endmodule

// n-bit carry-lookahead block

Verilog Reference Guide

A-16 Xilinx Development System

module cla(p, g, cin, c, gp, gg);

input ‘slice p, g;// propagate and generate bits

input cin; // carry in

output ‘slice c; // carry produced for each bit

output gp, gg; // group generate and group propagate

function [99:0] do_cla;

input ‘slice p, g;

input cin;

begin : label

integer i;

reg gp, gg;

reg ‘slice c;

gp = p[0];

gg = g[0];

c[0] = cin;

for(i = 1; i < ‘n; i = i+1) begin

gp = gp & p[i];

gg = (gg & p[i]) | g[i];

c[i] = (c[i-1] & p[i-1]) | g[i-1];

end

do_cla = {c, gp, gg};

end

endfunction

assign {c, gp, gg} = do_cla(p, g, cin);

endmodule
