N.D. 107-02

Service Bulletin

REFRIGERATORS REF 02-01

ZISW36DC ZISW42DC ZISW48DC

ZISB36DC ZISB42DC ZISB48DC

ZISS36DC ZISS42DC ZISS48DC

ZIS36NC ZIS42NC ZIS48NC

ZISS36NC ZISS42NC ZISS48NC

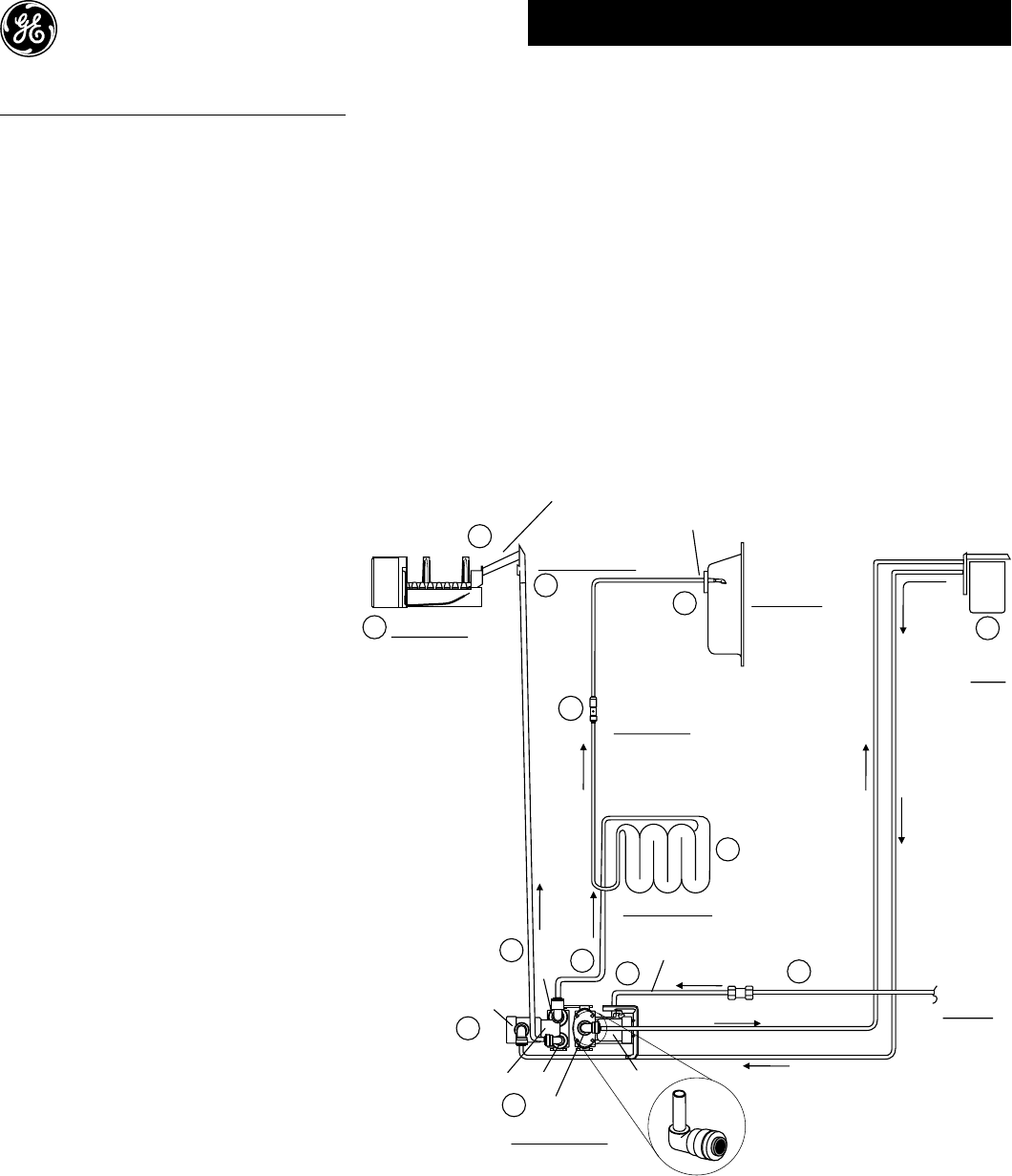

WATER SYSTEM DIAGRAM

FEBRUARY 2001

1. Brass coupling

2. Copper extension

3. Elbow connector at water

valve (orange)

a) leaking at valve

b) leaking at tubing

4. Water filter

5. Elbow connector at water

valve (brown)

a) leaking at valve

b) leaking at tubing

6. Elbow connector at water

valve (1/4")

a) leaking at valve

b) leaking at tubing

7. Plastic tube at fill grommet

8. Fill cup, fill tube

9. Icemaker

10. Elbow connector at water

valve (5/16")

a) leaking at valve

b) leaking at tubing

11. Water tank

12. 5/16" to 1/4" connector tank to

door

13. Tube @ dispenser

In February of 2000, a water filter was added to our Monogram side-by-side models.

The following diagram will help to better identify leak locations.

Please message one of the following Product Quality Engineers with leak locations after

repairs have been completed.

L010215 or mike.hamilton@appl.ge.com

L097360 or jim.rockwell@appl.ge.com

7

12

13

4

1

2

3

11

9

8

10

6

5

B

Brass

Coupling

A

Orange

107-02A

Copper

Extension

Water Tank

Water

Supply

Freezing (Adjust

Temp. after

Thawing)

Leaking Tank

(Replace)

5/16" to 1/4"

Connector

Fill Grommet

Dispenser

Leaking Behind Disp. Recess

(REF10-00)

Water

Filter

Fill Tube Freezing Up

Thaw-Add Heater (10-W)

Ice Maker

Water Valve

Dripping

Spacer Under

Watertank

(REF07-00)

Leaking Water

Valve (Must

Replace)

(REF01-01)

Brown

5/16"

1/4"

GE Monogram

General Electric Company

Appliance Park, Louisville, KY 40225
