XDoc.Tiff Developer Guide
User Manual: Pdf
Open the PDF directly: View PDF
.
Page Count: 42
RasterEdge.XDoc.TIFF for .NET SDK
Developer’s Guide
RasterEdge.DocImagingSDK 9.8.7
2016-05-19
I
Getting Started .................................................................................................................................. 1
System Requirements for .NET .................................................................................................. 1
Supported Operating System ............................................................................................ 1
Development Environments .............................................................................................. 1
.NET Framework versions supported ................................................................................ 1
Reference RasterEdge.XDoc.TIFF in .NET project ...................................................................... 2
Necessary Libraries ........................................................................................................... 2
Add References ................................................................................................................. 2
FAQ ............................................................................................................................................ 3
Errors On Visual Studio ..................................................................................................... 3
Errors On IIS ....................................................................................................................... 3
Feature List ........................................................................................................................................ 4
TIFF Generator .......................................................................................................................... 4
TIFF Document .......................................................................................................................... 4
TIFF Page ................................................................................................................................... 4
Annotations ............................................................................................................................... 4
Save ........................................................................................................................................... 4
Programmer Guide ............................................................................................................................ 5
TIFF Object Generator ............................................................................................................... 5
Extract TIFF document from TIFF file ................................................................................ 5
Create Tiff from Images ..................................................................................................... 6
Create TIFF file from Office ............................................................................................... 7
Create TIFF file from Open Office ...................................................................................... 7
Create TIFF from PDF......................................................................................................... 7
Create TIFF from CSV ......................................................................................................... 7
Create TIFF from RTF ......................................................................................................... 7
Create TIFF from Text ........................................................................................................ 7
Create TIFF Document object from file path/data ............................................................ 8
Working with Document ......................................................................................................... 10
Get Page Count................................................................................................................ 10
Get Document Type ........................................................................................................ 10
Insert/Add empty page(s) into a TIFF file ........................................................................ 11
Delete TIFF Page(s) .......................................................................................................... 13
Swap Two Pages .............................................................................................................. 14
Sort/Reorder TIFF Pages .................................................................................................. 15
Extract TIFF Page(s) to TIFF file/stream ........................................................................... 16
Get a Particular Page ....................................................................................................... 17
Rotate TIFF Page(s) .......................................................................................................... 17
Combine/Append TIFF Files ............................................................................................ 18
Split by page index .......................................................................................................... 20
Convert to Images ........................................................................................................... 22
TIFF Convert to PDF Document ....................................................................................... 25
Working with TIFF Page ........................................................................................................... 28
Get Page width/height .................................................................................................... 28
II
Convert to Image ............................................................................................................. 29
Working with Annotation ........................................................................................................ 34
Add Annotations ............................................................................................................. 34
Add Image Annotation .................................................................................................... 37
Save TIFF file ............................................................................................................................ 39
1
Getting Started
System Requirements for .NET
Supported Operating System
The following Microsoft Windows operating systems are supported:
-Microsoft Windows XP Home Edition
-Microsoft Windows XP Professional Edition
-Microsoft Windows XP Professional x64 Edition
-Microsoft Windows 2003 Server
-Microsoft Windows 2008 Server R2
-Microsoft Windows Vista
-Microsoft Windows Vista x64 Edition
-Microsoft Windows 7
-Microsoft Windows 7 Enterprise x64 Edition
-Microsoft Windows 7 Professional x64 Edition
-Microsoft Windows 2012 Server x64 Edition
Development Environments
You can use RasterEdge.XDoc.TIFF for .NET to develop applications in any development
environment that targets the .NET platform, but the following environments are explicitly
supported:
-Microsoft Visual Studio 2005
-Microsoft Visual Studio 2008
-Microsoft Visual Studio 2010
-Microsoft Visual Studio 2011
-Microsoft Visual Studio 2012
-Microsoft Visual Studio 2013
-Microsoft Visual Studio 2015
.NET Framework versions supported
The following .NET Framework versions are supported:
-.NET Framework 2.0
-.NET Framework 3.0
-.NET Framework 3.5
-.NET Framework 4.0
-.NET Framework 4.5
-.NET Framework 4.5.1
-.NET Framework 4.5.2
-.NET Framework 4.6
2
Reference RasterEdge.XDoc.TIFF in .NET project
Necessary Libraries
To use RasterEdge.XDoc.TIFF library successfully, the following libraries are necessary:
-RasterEdge.Imaging.Basic.dll
-RasterEdge.Imaging.Basic.Codec.dll
-RasterEdge.Imaging.Drawing.dll
-RasterEdge.Imaging.Processing.dll
-RasterEdge.XImage.Raster.Core.dll
-RasterEdge.XImage.Raster.dll
-RasterEdge.XDoc.TIFF.dll
Add References
The following steps will show you how to use in Visual Studio .NET:
1. In the Solution Explorer, expand the project node you want to add a reference to.
2. Right-click the project’s References node and select Add Reference.
3. In the Add Reference dialog box, Click Browse and Navigate to the specified folder.

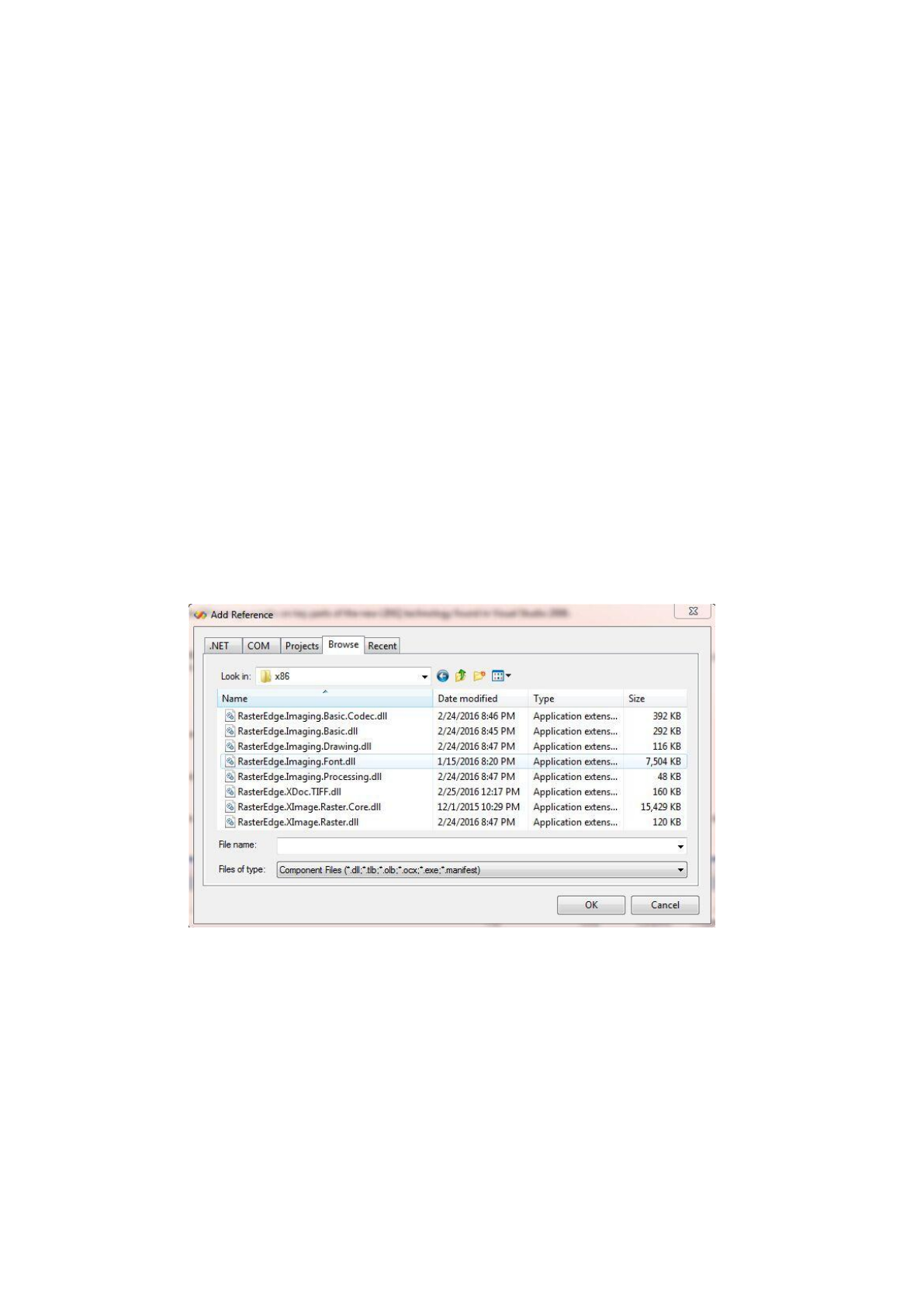

4. Select the dlls as listed in the following screenshot, Click OK.
5. The RasterEdge.XDoc.TIFF for .NET reference appears under the project's References
node.
If you want to know how to select dlls according to your specific development environment,
please refer to the Readme.txt file in the /Bin directory.
3
FAQ
Errors On Visual Studio
If you get the error as follows:
“Could not load file or assembly 'RasterEdge.XDoc.TIFF’or one of its dependencies. An
attempt was made to load a program with an incorrect format.”
Please check your project configures as following ways:
1. If you are using the .NET Framework 4.0 dlls, please confirm that:
Right-click the project -> Properties ->
a. Application -> Target framework: .NET Framework 4 or higher
b. Build -> Platform target: x86 if using x86 dlls, x64 if using x64.
2. If you are using the .NET Framework 2.0 dlls, please confirm that:
Right-click the project -> Properties ->
c. Application -> Target framework: .NET Framework 3.0 or 3.5
d. Build -> Platform target: x86 if using x86 dlls, x64 if using x64.
Errors On IIS
If you configure IIS to run and 500.19 error occurs, then it may be caused by:
1. Not registered the .net framework to the iis. (One of reasons: install a .net framework before
the installation of iis.)
2. The site configured in IIS has no sufficient authority to operate. (Modify permission)
There are some solutions:
1. cd to C:\Windows\Microsoft.NET\Framework64\v2.0.50727,Command to re-register net
framework to the iis:aspnet_regiis-i.
2. Right-click the correspond site-> Edit Permissions -> Security -> Group or user names-> Edit ->
Add -> Add Everyone usersgiven Full Control permissions.
If you get the error as follows:
“Could not load file or assembly “RasterEdge.Imaging.Basic” or any other one assembly or one of
its dependencies. An attempt was made to load a program with an incorrect format.”
Please check your IIS configure as following ways:
a. If you are using the .NET framework 4.0 or higher dlls, confirm that Web.config is using the
content in Web(for .net4.0 or higher).Config file.
b. After checking first step, if you are still facing the issue, confirm that:
If you are using x64 dlls, “Application Pools” -> "Set Application Pool Defaults… "->" Enable 32-Bit
Applications" should be false.
If you are using x86 dlls, “Application Pools” -> "Set Application Pool Defaults…" -> "Enable 32-Bit
Applications" should be true.
4
Feature List
TIFF Generator
- Create TIFF from byte array
- Create TIFF from file path
- Create TIFF from stream
- Create TIFF from bitmaps
- Create TIFF form PDF Document
- Create TIFF form Office Document
- Create TIFF form CVS Document
TIFF Document
- Get TIFF Document properties
- Get a particular TIFF page
- Convert To Images
- Append TIFF Document
- Combine TIFF Document
- Split Document
- Add TIFF page/pages
- Delete TIFF page/pages
- Extract TIFF pages
- Insert TIFF page/pages
- Sort TIFF page
- Swap TIFF page
- Rotate pages
TIFF Page
- Get TIFF page properties
- Convert To Image
Annotations
- Add Annotation
- Add Image Annotation
Save
- Save TIFF to file path
- Save TIFF to byte array
- Save TIFF to stream
5
Programmer Guide
TIFF Object Generator
Our RasterEdge.XDoc.TIFF dll allows developer create TIFF file from TIFF, PDF, Office, Open Office,
CSV, RTF, Text, Image and create empty TIFF file.
Extract TIFF document from TIFF file
There are two ways to extract TIFF file from source TIFF file.
First way:
1:Open an existing TIFF file.
2:Call method ExtractPages to extract a new TIFF file.
3:Call method Save/SaveToStream/SaveToBytes to save TIFF file.
The following demo code will show you how to complete the extraction:
C#
//open a TIFF file
String inputPath = @"F:\7Pages.tif";
String outputPath = @"F:\output.tif";
TIFFDocument tifDoc = new TIFFDocument(inputPath);
//define the page indexes to extract
int[] extractPageIndex = new int[] { 2, 4, 6 };
//extract page2, page4, page6,and use them to create a new TIFF file.
tifDoc.ExtractPages(extractPageIndex, outputPath);
Second way:
1: Call the static method GetOnePageDocument to extract a new TIFF file directly.
C#
//open a TIFF file
String inputFilePath = @"F:\input.tif";
String outputFilePath = @"F:\output.tif";
//get the first page from input,tif file, and use it to create a new TIFF file
TIFFDocument.GetOnePageDocument(inputFilePath, 0, outputFilePath);
Related API(s) (TIFFDocument.cs):
public override void ExtractPages(int[] extractIds, string filePath);
Description:
Extract a new TIFF file form the source TIFF file,and save it to the given file path.
Parameters:
Name
Description
Valid Value
extractIds
page index to extract
0 to page count - 1
filePath
output file path
a valid file path
6
public override void ExtractPages(int[] extractIds, Stream stream);
Description:
Extract a new TIFF file form the source TIFF file,and save it to the given stream
Parameters:
Name
Description
Valid Value
extractIds
page index to extract
0 to page count - 1
stream
output stream
a valid stream
public static void GetOnePageDocument(string sourceFilePath, int index,
string destnFilePath);
Description:
Extract a specifed page from source TIFF file and use it to create a new TIFF file.
Parameters:
Name
Description
Valid Value
sourceFilePath
input TIFF file path
must exist
index
the page to extract
0 to page count – 1
destnFilePath
output file path
a valid file path
Create Tiff from Images
When you have an array of images, you just need one step to create a tiff file with these images.
The following demo code will show you how to complete the creation:
C#
//get two imges.
Bitmap bmp1 = new Bitmap(@"F:\1.png");
Bitmap bmp2 = new Bitmap(@"F:\2.png");
Bitmap[] bmps = new Bitmap[] { bmp1, bmp2 };
//create the new TIFF file.
TIFFDocument tifDoc = new TIFFDocument(bmps);
Related API(s) (TIFFDocument.cs):
public TIFFDocument(Bitmap[] images);
Description:
Create TIFF file from images.
Parameters:
Name
Description
Valid Value
images
Images for creating TIFF file
Can’t be null
7
Create TIFF file from Office
http://www.rasteredge.com/how-to/csharp-imaging/word-convert-tiff
Create TIFF file from Open Office
//a link
Create TIFF from PDF
http://www.rasteredge.com/how-to/csharp-imaging/pdf-convert-tiff
Create TIFF from CSV
http://www.rasteredge.com/how-to/csharp-imaging/excel-convert-tiff
Create TIFF from RTF
http://www.rasteredge.com/how-to/csharp-imaging/word-convert-tiff
Create TIFF from Text
//a link
8
Create TIFF Document object from file path/data
You can easily create a TIFF document object from file path ,just follow the demo code below:
C#
//load TIFF file Document object from file path
String inputPath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputPath);
Related API(s) (TIFFDocument.cs):
public TIFFDocument(string fileName);
Description:
Create TIFF Document object from file path.
Parameters:
Name
Description
Valid Value
fileName
the file path stands for a TIFF file
there must be a valid tiff file
at the location
public TIFFDocument(byte[] fileData);
Description:
Create TIFF file from byte array, but the byte array must be a valid TIFF file.
Parameters:
Name
Description
Valid Value
fileData
a byte array contains a whole
valid tiff data
must be valid
public TIFFDocument(Stream stream);
Description:
Create a TIFF file from stream, but the stream must be a valid TIFF file.
Parameters:
Name
Description
Valid Value
stream
a stream contains a whole
valid tiff data
must be valid
public TIFFDocument(Bitmap[] images, ImageCompress imageCompression);
Description:
Create TIFF file from images with specified compression.
Parameters:
Name
Description
Valid Value
images
images for creating TIFF file
can’ t be null
imageCompression
set compression for output
TIFF file
Uncompressed, LZW, CCITT1D,
Group3Fax, Group4Fax, JPEG,
PackBits
9
public TIFFDocument(Bitmap[] images, ImageOutputOption options);
Description:
Create TIFF file from images with option setting.
Parameters:
Name
Description
Valid Value
images
images for creating TIFF file
can’ t be null
options
a series of settings for output
TIFF file
-
10
Working with Document
Get Page Count
The following demo codes will show you how to get the total page number of PDF file.
C#
//open a document.
String inputFilePath = @"C:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//get the total page number of the tiff file.
int pageNumber = tifDoc.GetPageCount();
Related API(s)(TIFFDocument.cs):
public override int GetPageCount();
Description:
Get the total page number of the TIFF file.
Return:
Total page number, 0 if failed.
Get Document Type
You can do as follow to get the document type of input file:
C#
//open a document.
String inputFilePath = @"C:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//get document type of the input file
DocumentType type = tifDoc.GetDocumentType();
Related API(s) (TIFFDocument.cs):
public override DocumentType GetDocumentType();
Description:
Get the document type of the input file.
Return:
TIFF, Invalid or other format if failed
11
Insert/Add empty page(s) into a TIFF file
To insert page(s) into TIFF file, you can work as follows:
1. Open two existing TIFF files through TIFFDocument object.
2. Extract the particular page from file A.
3. Call the AddPage, AddPages, InsertPage or InsertPages to complete the inserting page(s)
to file B.
4. Call the TIFFDocument object’s Save/SaveToStream/SaveToBytes method and save file B
object to file/stream.
The following demo codes will show you how to do:
C#
//open two tiff files
String inputFilePath_A = @"F:\input_A.tif";
String inputFilePath_B = @"F:\input_B.tif";
TIFFDocument tifDoc_A = new TIFFDocument(inputFilePath_A);
TIFFDocument tifDoc_B = new TIFFDocument(inputFilePath_B);
//get one page from file A
BasePage page = tifDoc_A.GetPage(0);
//insert the page into file B
//the third page will be the insert page in output.tif
tifDoc_B.InsertPage(page, 2);
tifDoc_B.Save(@"F:\output.tif");
Related API(s)( TIFFDocument.cs)
public override void InsertPage(BasePage basePage, int pageIdx);
Description:
Insert a tiff page to TIFF file at specified position.
Parameters:
Name
Description
Valid Value
basePage
a tiff page object
can’t be null
pageIdx
position of the inserted page.
0 to page count
public override void InsertPages(BasePage[] Bapages, int pageOffset);
Description:
Insert tiff pages to TIFF file at specified position.
Parameters:
Name
Description
Valid Value
Bapages
tiff page object array
length can’t be 0,page item can’t be null
pageOffset
position of the inserted page
0 to page count
public override void AddPage(BasePage newPage);
12
Description:
Add a tiff page to TIFF file, the new page will be the last page of the file
Parameters:
Name
Description
Valid Value
newPage
A tiff page object
can’t be null
public override void AddPages(BasePage[] pages);
Description:
Add tiff pages to TIFF file, the new pages will follow the last page of the file.
Parameters:
Name
Description
Valid Value
pages
tiff page object array
length can’t be 0 ,page item can’t be null
13
Delete TIFF Page(s)
To delete/remove TIFF page(s) form TIFF file, the following steps will be work:
1: Open an existing TIFF file.
2: Call the method DeletePage to delete specified page.
3: Call the method Save/SaveToBytes/SaveToStream to save the file to disk/stream.
The following demo code will show you how to delete TIFF page(s):
C#
//open a tiff file
String inputFilePath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//delete the first page
tifDoc.DeletePage(0);
//save the file
tifDoc.Save(@"F:\output.tif");
Related API(s) (TIFFDocument.cs):
public override void DeletePage(int pageIdx);
Description:
Delete the specified page from input TIFF file.
Parameters:
Name
Description
Valid Value
pageIdx
the page index of the delete page
0 to page count - 1
public void DeletePages(int[] deleteIds);
Description:
Delete TIFF pages from input TIFF file
Parameters:
Name
Description
Valid Value
deleteIds
the page index of delete pages
valid value of every item in the
array: 0 to page number - 1
public override void DeletePages(int fromPageId, int pageCount);
Description:
Delete specified TIFF pages form input TIFF file.
Parameters:
Name
Description
Valid Value
fromPageId
the page index of Page deletion starting
0 to page count - 1
pageCount
how much pages to delete
1 to page count - 1
14
Swap Two Pages
The following demo code will show you how to swap two pages’s place in TIFF file:
C#
//open a tiff file
String inputFilePath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//swap two pages' place
tifDoc.SwapTwoPages(0, 1);
//save the file
tifDoc.Save(@"F:\output.tif");
Related API(s) (TIFFDocument.cs):
public override void SwapTwoPages(int pageIdxF, int pageIdxB);
Description:
Swap two specified pages’ place
Parameters:
Name
Description
Valid Value
pageIdxF
the first page’s index
0 to page count - 1
pageIdxB
the second page’s index
0 to page count - 1
15
Sort/Reorder TIFF Pages
To sort TIFF file pages, you can do as follows:
1: Open an existing TIFF file.
2: Set the sort page index.
3: Call the SortPage method to complete the sorting pages.
4: Call the method Save/SaveToBytes/SaveToStream to save the file to disk/stream.
C#
//open a tiff file
String inputFilePath = @"F:\7Pages.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//show page count of the document
int pagecount = tifDoc.GetPageCount();
//define the new order:
//1:the length of the array MUST BE equal to the page count
//2:each page index SHOULD in the array and only once, otherwise,
//the method will throw an exception.
int[] pageOrders = new int[] { 4, 1, 3, 2, 6, 5, 0 };
tifDoc.SortPage(pageOrders);
//save the file
tifDoc.Save(@"F:\output.tif");
Related API(s) (TIFFDocument.cs):
public override void SortPage(int[] orderPageIdxs);
Description:
Sort the TIFF file pages with specified order;
Parameters:
Name
Description
Valid Value
orderPageIdxs
new order of TIFF pages
0 to page count - 1
16
Extract TIFF Page(s) to TIFF file/stream
To extract TIFF page(s) to a file or stream, the following steps will be helpful:
1. Open an existing TIFF file.
2. Define the page indexes will be extracted.
3. Call the method ExtractPages to extract pages and output to file or stream.
C#
//open a tiff file
String inputFilePath = @"F:\7Pages.tif";
//specify the output path of the extract TIFF file
String outputPath = @"F:\output.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//show the page count, the page index to extract must below page count
int pagecount = tifDoc.GetPageCount();
//select pages to extract
int[] pageIndexes = new int[] { 0, 1, 2 };
tifDoc.ExtractPages(pageIndexes, outputPath);
Related API(s) (TIFFDocument.cs):
public override void ExtractPages(int[] extractIds, string filePath);
Description:
Extract specified pages form TIFF file and save them into another TIFF file.
Parameters:
Name
Description
Valid Value
extractIds
the page indexes that will be extracted
0 to page count - 1
filePath
output file path
Valid file path
public override void ExtractPages(int[] extractIds, Stream stream);
Description:
Extract specified pages form TIFF file and save them into stream.
Parameters:
Name
Description
Valid Value
extractIds
the page indexes that will be extracted
0 to page count - 1
stream
output stream
Valid file stream or memory stream
17
Get a Particular Page
To get a particular page form TIFF file, the following demo code will be necessary:
C#
//open a tiff file
String inputFilePath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
// get the first page, actually the second page
TIFFPage page = (TIFFPage)tifDoc.GetPage(1);
Related API(s) (TIFFDocument.cs):
public override BasePage GetPage(int pageIdx);
Description:
Get specified page form TIFF Document.
Parameters:
Name
Description
Valid Value
pageIdx
The page index
0 to page count - 1
Rotate TIFF Page(s)
Rotate page 90 degree or Flip the page.
C#
//open a tiff file
String inputFilePath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
// get the first page, actually the second page
TIFFPage page = (TIFFPage)tifDoc.GetPage(0);
//rotate 90 degree.
page.Rotate(RotateOder.Clockwise90);
Related API(s) (TIFFPage.cs):
public void Rotate(RotateOder order);
Description:
Rotate page 90 degree or flip the page.
Parameters:
Name
Description
Valid Value
order
CounterClockwise/Clockwise/Flip the page
This is an enum
18
Combine/Append TIFF Files
The demo code to combine multiple TIFF files into one:
C#
String inputFilePath_1 = @"F:\1.tif";
String inputFilePath_2 = @"F:\2.tif";
String inputFilePath_3 = @"F:\3.tif";
String[] inputFilePaths = new String[3] { inputFilePath_1, inputFilePath_2,
inputFilePath_3 };
String outputPath = @"F:\output.tif";
//Combine 3 tiff files into one
TIFFDocument.CombineDocument(inputFilePaths, outputPath);
Related API(s) (TIFFDocument.cs):
public static void CombineDocument(Stream[] sourceFiles, string outFile);
Description:
Combine multiple TIFF files into one, and save it to the specified file path.
Parameters:
Name
Description
Valid Value
sourceFiles
these files will be combined into one TIFF file
valid TIFF file stream
outFile
output file path
valid file path
public static void CombineDocument(string[] sourceFiles, Stream stream);
Description:
Combine multiple TIFF files into one, and save it to the specified stream
Parameters:
Name
Description
Valid Value
sourceFiles
these files will be combined into one TIFF file
valid TIFF file path
stream
output file stream
valid stream
public static void CombineDocument(Stream[] sourceFiles, Stream stream);
Description:
Combine multiple TIFF files into one, and save it to the specified stream
Parameters:
Name
Description
Valid Value
sourceFiles
these files will be combined into one TIFF file
valid TIFF file stream
stream
output tiff stream
valid stream
19
public static void CombineDocument(string[] sourceFiles, string destn);
Description:
Combine multiple TIFF files into one, and save it to the specified file path
Parameters:
Name
Description
Valid Value
sourceFiles
these files will be combined into one TIFF file
valid TIFF file path
destn
output file path
valid file path
public override int AppendDocument(BaseDocument appendDoc);
Description:
Append new TIFF file to the original one.
Parameters:
Name
Description
Valid Value
appendDoc
the new TIFF file
can’t be null
20
Split by page index
The following demo code will spilt the TIFF file by page index:
C#
String inputFilePath = @"F:\7Pages.tif";
String outputPath_1 = @"F:\output_1.tif";
String outputPath_2 = @"F:\output_2.tif";
String[] outputFilePaths = new String[2] { outputPath_1, outputPath_2 };
//Split Tiff file into two files.
TIFFDocument.SplitDocument(inputFilePath, 3, outputFilePaths);
Related API(s) (TIFFDocument.cs):
public static void SplitDocument(string source, int index, string[]
fileName);
Description:
Split Tiff file into two and save them to the specified file path
Parameters:
Name
Description
Valid Value
source
input TIFF file path
valid input file path
index
0 to index pages will be the first output file, the
rest of pages will be the second output file.
0 to page count - 1
fileName
the path to save.
valid output file path
public static void SplitDocument(string source, int index, Stream[]
streams);
Description:
Split Tiff file into two and save them to stream.
Parameters:
Name
Description
Valid Value
source
input TIFF file path
valid input file path
index
0 to index pages will be the first output file, the
rest of pages will be the second output file.
0 to page count - 1
streams
the stream to save output files
valid stream
public static void SplitDocument(Stream inputFilePath, int[]
splitIndexes, Stream[] outputStreams);
Description:
Split Tiff file into files with specified page indexes and save them to streams.
Parameters:
Name
Description
Valid Value
inputFilePath
Input tiff file stream
valid input tiff stream
splitIndexes
The page indexes to be use to split file.
0 to page count - 1
streams
the stream to save output files
valid stream
21
public static void SplitDocument(Stream inputStream, int[] splitIndexes,
string[] outputFilePaths);
Description:
Split Tiff file into files with specified page indexes and save them to files on the disk.
Parameters:
Name
Description
Valid Value
inputFilePath
Input tiff file stream
valid input tiff stream
splitIndexes
The page indexes to be use to split file.
0 to page count - 1
outputFilePaths
File paths to save output tiff files.
valid file path
public static void SplitDocument(string inputFilePath, int[]
splitIndexes, Stream[] outputStreams);
Description:
Split Tiff file into files with specified page indexes and save them to streams.
Parameters:
Name
Description
Valid Value
inputFilePath
Input tiff file stream
valid input tiff stream
splitIndexes
The page indexes to be use to split file.
0 to page count - 1
outputStreams
the stream to save output files
valid stream
public static void SplitDocument(string inputFilePath, int[]
splitIndexes, string[] outputFilePaths);
Description:
Split Tiff file into files with specified page indexes and save them to files on the disk.
Parameters:
Name
Description
Valid Value
inputFilePath
Input tiff file stream
valid input tiff stream
splitIndexes
The page indexes to be use to split file.
0 to page count - 1
outputFilePaths
File paths to save output tiff files.
valid file path
22
Convert to Images
To convert TIFF Document to images, just follow the steps below:
1: Open an existing TIFF file.
2: Call the method ConvertToImages to complete the conversion.
The following demo code will show you how to convert TIFF document to images.
C#
//open a TIFF file
String inputPath = @"F:\7Pages.tif";
//set the output directory;
String outputDir = @"F:\Tiff2Png\";
TIFFDocument tifDoc = new TIFFDocument(inputPath);
//convert all pages to png images
//it will create png images in the directory whose name is "demo_"
//note:you must create the output folder on your disk.
tifDoc.ConvertToImages(ImageType.PNG, outputDir, "demo_");
Related API(s) (TIFFDocument.cs):
public override void ConvertToImages(ImageType target, string directory,
string fileName);
Description:
Convert all TIFF file pages to image with specified format and save them in the given folder.
Parameters:
Name
Description
Valid Value
target
format of output image
choose from the enum
directory
output directory
must exist
fileName
output images’ name without suffix.
a string
public override void ConvertToImages(ImageType targetType, Stream[]
streams);
Description:
Convert all TIFF file pages to image with specified format and save them in the stream
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
streams
output stream
valid stream
public override void ConvertToImages(ImageType targetType, float zoomValue,
Stream[] streams);
Description:
Convert all TIFF file pages to target format images with specified zoom value and save them to
streams,
Parameters:
23
Name
Description
Valid Value
targetType
format of output image
choose from the enum
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
streams
output stream
valid stream
public override void ConvertToImages(ImageType targetType, int resolution,
Stream[] streams);
Description:
Convert all TIFF file pages to target format images with specified resolution and save them to
streams.
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
resolution
resolution of output image
>0
streams
output stream
valid stream
public override void ConvertToImages(ImageType targetType, float zoomValue,
string directory, string fileName);
Description
Convert all TIFF file pages to target format images with specified zoom value and save them on
the given folder.
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
directory
output directory
must exist
fileName
output images’ name without suffix.
a string
public override void ConvertToImages(ImageType targetType, int resolution,
string directory, string fileName);
Description
Convert all TIFF file pages to target format images with specified resolution and save them on the
given folder.
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
resolution
Output image’s resolution
>0
directory
output directory
must exist
fileName
output images’ name without suffix.
a string
24
public override void ConvertToImages(ImageType targetType,
ImageOutputOption option, Stream[] streams);
Description:
Convert all TIFF file pages to target format image with option settings and save them to streams.
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
option
settings for output image
-
streams
output stream
valid stream
public override void ConvertToImages(ImageType targetType,
ImageOutputOption option, string directory, string fileName);
Description:
Convert all TIFF pages to target format images with option settings and save them to the given
folder.
Parameters:
Name
Description
Valid Value
targetType
format of output image
choose from the enum
option
settings for output image
-
directory
output directory
must exist
fileName
output images’ name without suffix.
a string
25
TIFF Convert to PDF Document
Add extra references:
If you want to Convert TIFF document to PDF document, you need add following dll:
-RasterEdge.XDoc.PDF.dll
To achieve the conversion, please do as follows:
1: Open an existing TIFF file.
2: Call the method ConvertToDocument to complete the conversion.
The following demo code will show you how to convert TIFF file to PDF file:
C#
//open a TIFF file
String inputPath = @"F:\input.tif";
String outputPath = @"F:\output.pdf";
TIFFDocument tifDoc = new TIFFDocument(inputPath);
//convert TIFF file to PDF file.
tifDoc.ConvertToDocument(DocumentType.PDF, outputPath);
Related API(s) (TIFFDocument.cs):
public override void ConvertToDocument(DocumentType targetType, string
filePath);
Description:
Convert TIFF file to PDF file, and save it to the given file path.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
filePath
output file path
a valid file path
public override void ConvertToDocument(DocumentType targetType, Stream
stream);
Description:
Convert TIFF file to PDF file, and save it to the stream.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
stream
output stream
a valid stream
public override void ConvertToDocument(DocumentType targetType, float
zoomValue, string filePath);
Description:
Convert TIFF file to PDF file with specified zoom value, and save it to the given file path.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
26
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,you
will get the original bitmap’s size
filePath
output file path
a valid file path.
public override void ConvertToDocument(DocumentType targetType, float
zoomValue, Stream desStream);
Description:
Convert TIFF file to PDF file with specified zoom value, and save it to the stream.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,you will
get the original bitmap’s size
desStream
output stream
a valid stream
public override void ConvertToDocument(DocumentType targetType,
ImageCompress compression, string filePath);
Description:
Convert TIFF file to PDF file with specified compression and save it to the given file path.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
compression
set output file’s compression
choose from the enum
filePath
output file path
a valid file path
public override void ConvertToDocument(DocumentType targetType,
ImageCompress compression, Stream desStream);
Description:
Convert TIFF file to PDF file with specified compression and save it to the stream
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
compression
set output file’s compression
choose from the enum
desStream
output stream
a valid stream
public override void ConvertToDocument(DocumentType targetType, int
resolution, string filePath);
Description:
Convert TIFF file to PDF file with specified resolution and save it to the given file path.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
27
resolution
resolution of output file
>0
filePath
output file path
a valid file path
public override void ConvertToDocument(DocumentType targetType, int
resolution, Stream desStream);
Description:
Convert TIFF file to PDF file with specified resolution and save it to the stream.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
resolution
resolution of output file
>0
desStream
output stream
A valid stream
public override void ConvertToDocument(DocumentType targetType, string
filePath, ImageOutputOption options);
Description:
Convert TIFF file to PDF file with option settings and save it to the given file path.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
filePath
output file path
a valid file path
options
Settings for output file
-
public override void ConvertToDocument(DocumentType targetType, Stream
desStream, ImageOutputOption options);
Description:
Convert TIFF file to PDF file with option settings and save it to the stream.
Parameters:
Name
Description
Valid Value
targetType
format of output file
DocumentType.PDF
desStream
output stream
a valid stream
options
Settings for output file
-
28
Working with TIFF Page
Get Page width/height
C#
//open a TIFF file
TIFFDocument tifDoc = new TIFFDocument(@"F:\input.tif");
TIFFPage page = (TIFFPage)tifDoc.GetPage(0);
//Get physical width of the page in inch
float width = page.GetWidth();
float height = page.GetHeight();
//Get width in pixel
int widthInPixel = page.GetWidthInPixel();
int heightInPixel = page.GetHeightInPixel();
Related API(s) (TIFFPage.cs):
public override float GetWidth();
Description:
Get TIFF page’s physical width in inch
Return:
0 if failed.
public override float GetHeight();
Description:
Get TIFF page’s physical height in inch
Return:
0 if failed.
public int GetWidthInPixel();
Description:
Get TIFF page’s width in pixel
Return:
0 if failed.
public int GetHeightInPixel();
Description:
Get TIFF page’s height in pixel
Return:
0 if failed.
29
Convert to Image
To convert TIFF page to image, you just need several steps as follows:
1: Open an existing TIFF file through TIFF document object.
2: Call Method GetPage to get a TIFF page object
3: Call method ConvertToImage to convert TIFF page to image and save it to file path, byte
array or stream.
The following demo code will show the conversion in details:
C#
//open a TIFF file
String inputFilePath = @"F:\7Pages.tif";
String outputFilePath = @"F:\output.png";
TIFFDocument tifDoc = new TIFFDocument(inputFilePath);
//get the first page of the file.
int pageIndex = 0;
TIFFPage page = (TIFFPage)tifDoc.GetPage(pageIndex);
//convert TIFF page to image
Bitmap bmp = page.ConvertToImage();
//save the bitmap to file path.
bmp.Save(outputFilePath);
Related API(s) (TIFFPage.cs):
public override Bitmap ConvertToImage();
Description:
Convert TIFF page to bitmap with default source page size.
Return:
A bitmap object, null if failed.
public override Bitmap ConvertToImage(float zoomValue);
Description:
Convert TIFF page to bitmap with specified zoom value.
Parameters:
Name
Description
Valid Value
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
public override Bitmap ConvertToImage(int targetResolution);
Description:
Convert TIFF page to bitmap with specified resolution.
Parameters:
Name
Description
Valid Value
targetResolution
resolution of the output image
integer, larger than 0
30
Return:
A bitmap object, null if failed.
public override Bitmap ConvertToImage(Size targetSize);
Description:
Convert TIFF page to bitmap with specified image size.
Parameters:
Name
Description
Valid Value
targetSize
size of the output image
can’t be null, width >0 && height >0
Return:
A bitmap object, null if failed.
public override Bitmap ConvertToImageFitHeight(int height);
Description:
Convert the TIFF page to bitmap with specified height, and the width will be scaled with the
same proportion.
Parameters:
Name
Description
Valid Value
height
height of the output image
>0
Return:
A bitmap object, null if failed.
public override Bitmap ConvertToImageFitWidth(int width);
Description:
Convert the TIFF page to bitmap with specified width, and the height will be scaled with the
same proportion.
Parameters:
Name
Description
Valid Value
width
width of the output image
>0
public override void ConvertToImage(ImageType toType, string filePath);
Description:
Convert TIFF page to bitmap with specified format and save it to specified file path.
Parameters:
Name
Description
Valid Value
toType
format of output
The value listed in the ImageType.cs
filePath
output file path
valid file path
public override void ConvertToImage(ImageType toType, float zoomValue,
string filePath);
Description:
Convert TIFF page to bitmap with specified format and zoom value.
Parameters:
Name
Description
Valid Value
31
toType
format of output
vhoose from the enum
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
filePath
output file path
valid file path
public override void ConvertToImage(ImageType toType, int resolution,
string filePath);
Description:
Convert TIFF page to bitmap with specified format and resolution.
Parameters:
Name
Description
Valid Value
toType
format of output
choose from the enum
resolution
resolution of output bitmap
>0
filePath
output file path
valid file path
public override byte[] ConvertToImageBytes(ImageType toType);
Description:
Convert TIFF page to bitmap with specified format
Parameters:
Name
Description
Valid Value
toType
format of the output file
choose from the enum
Return:
A byte array, null or empty byte array if failed.
public override byte[] ConvertToImageBytes(ImageType toType, float
zoomValue);
Description:
Convert TIFF page to bitmap with specified format and zoom value.
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
Return:
A byte array, null or empty byte array if failed.
public override byte[] ConvertToImageBytes(ImageType toType, int
targetResolution);
Description:
Convert TIFF page to bitmap with specified format and resolution.
Parameters:
Name
Description
Valid Value
32
toType
format of output file
choose from the enum
targetResolution
resolution of output bitmap
>0
Return:
A byte array, null or empty byte array if failed.
public override void ConvertToImageStream(ImageType toType, Stream stream);
Description:
Convert TIFF page to bitmap with specified format and save it to stream.
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
stream
stream to save output bitmap
can’t be null
public override void ConvertToImageStream(ImageType toType, float zoomValue,
Stream stream);
Description:
Convert TIFF page to bitmap with specified format and zoom value
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
zoomValue
the magnification of the output image.
if zoomValue*pageWidth>5500 or
zoomValue*pageHeight>5500,the
original bitmpa will be returned.
stream
stream to save output bitmap
can’t be null
public override void ConvertToImageStream(ImageType toType, int resolution,
Stream stream);
Description:
Convert TIFF page to bitmap with specified format and resolution
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
resolution
resolution of output bitmap
>0
stream
stream to save output bitmap
can’t be null
public override void ConvertToImage(ImageType targetType,
ImageOutputOption option, string filePath);
Description:
Convet TIFF page to target format image with option settings and save it to the given file path.
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
option
settings for output image
-
filePath
output file path
a valid string
33
public override void ConvertToImageStream(ImageType targetType,
ImageOutputOption option, Stream stream);
Description:
Convert all TIFF pages to target format images with option sittings and save them to streams.
Parameters:
Name
Description
Valid Value
toType
format of output file
choose from the enum
option
settings for output image
-
stream
output stream
a valid stream.
34
Working with Annotation
Add Annotations
In order to add annotation to tiff files, you will need to add extra reference:
- RasterEdge.Imaging.Annotation.dll
Three steps to add an annotation on the page:
1: Add RasterEdge.Imaging.Annotation dll to your reference.
2: Create a annotation through AnnotationGenerator
3: Add the annotation on the page.
There are 9 types annotation, and you can create them by calling the method below:
Type
Method
Line
AnnotationGenerator.CreateLineAnnotation()
Lines
AnnotationGenerator.CreateLinesAnnotation()
AnnotationGenerator.CreateEmbeddedImageAnnotation()
FreeHand
AnnotationGenerator.CreateFreeHandLineAnnotation()
Ellipse
AnnotationGenerator.CreateEllipseAnnotation()
Rectangle
AnnotationGenerator.CreateRectangleAnnotation()
Polygon
AnnotationGenerator.CreatePolygonAnnotation()
Text
AnnotationGenerator.CreateTextAnnotation()
RubberStamp
AnnotationGenerator.CreateRubberStampAnnotation()
Table 1-1
The following demo code will show you how to add a text annotation to tiff file:
C#
//open a TIFF file
TIFFDocument tifDoc = new TIFFDocument(@"F:\input.tif");
TIFFPage page = (TIFFPage)tifDoc.GetPage(0);
//create a text annotation
TextAnnotation annotation = AnnotationGenerator.CreateTextAnnotation(10,
100F, 200F, 100F, "www.RasterEdge.com", new System.Drawing.Font("Arial",
12F));
//add it on the page
page.AddAnnotation(annotation);
tifDoc.Save(@"F:\output.tif");
Related API(s) (TIFFPage.cs):
public override void AddAnnotation(AnnotationHandler annoHandler);
Description:
Add annotation on the page.
Parameters:
Name
Description
Valid Value
annoHandler
An annotation object
Created by the Method in the Table 1-1
35
public void AddAnnotation(AnnotationHandler annoHandler, float zoomValue);
Description:
Add annotation on the page.
Parameters:
Name
Description
Valid Value
annoHandler
An annotation object
Created by the Method in the Table 1-1
zoomValue
magnification of the annotation
>0
Bitonal(1 bits per pixel) TIFF File Note:
To keep the original tiff file’s color depth, we will convert all the annotations to black and white
format.
Fill color:
The rectangle on your tiff file will be only an outline without setting the fill color or setting the fill
color with a very light color.
C#
private static AnnotationHandler CreateRectangleAnnotattion()
{
RectangleAnnotation rect =
AnnotationGenerator.CreateRectangleAnnotation(new
RectangleF(0, 0, 100, 100));
return rect;
}
Set the fill color with a dark color and there will be a pure black block on your tiff file.
C#
private static AnnotationHandler CreateRectangleAnnotattion()
{
RectangleAnnotation rect =
AnnotationGenerator.CreateRectangleAnnotation(new
RectangleF(0, 0, 100, 100));
//Create a fill rectangle
rect.Fill = new
RasterEdge.Imaging.Annotation.Basic.AnnotationBrush();
rect.Fill.FillType = FillType.Solid;
//Set a dark color and you'll get a pure black block annotation
rect.Fill.Solid_Color = new REColor(Color.Black);
return rect;
}
36
Set the fill color only to ARGB(255,182,182,182) can get you a pure white block on the tiff file.
C#
private static AnnotationHandler CreateRectangleAnnotattion()
{
RectangleAnnotation rect =
AnnotationGenerator.CreateRectangleAnnotation(new
RectangleF(0, 0, 100, 100));
//Create a fill rectangle
rect.Fill = new
RasterEdge.Imaging.Annotation.Basic.AnnotationBrush();
rect.Fill.FillType = FillType.Solid;
//Only set color to RGBA(255,182,182,182) and you can get a pure
white block
rect.Fill.Solid_Color = new REColor(Color.FromArgb(255, 182,
182, 182));
return rect;
}
37
Add Image Annotation
The following demo code will show you how to add an image annotation to tiff file:
C#
//open a TIFF file
TIFFDocument tifDoc = new TIFFDocument(@"C:\input.tif");
//get specified tiff page
TIFFPage page = (TIFFPage)tifDoc.GetPage(0);
//load an image
BaseImage image = new REImage(@"C:\logo.png");
//set the image annotation location
PointF position = new PointF(200f,200f);
//add image annotation on the specified page location
page.AddImage(image, position);
tifDoc.Save(@"C:\output.tif");
Related APIs (TIFFPage.cs):
public override void AddImage(BaseImage image, PointF point);
Description:
Add an image on the page with specified location.
Parameters:
Name
Description
Valid Value
the image to add on the page
can’t be null
point
location of the image
x>=0 && x<=page.width
y>=0 && y<=page.height
public override void AddImage(BaseImage image, Rectangle targetRect,
ImageCompress compress, TransformType type);
Description:
Add an image annotation to specified Rectangle with image compression and transform on
the tiff page.
Parameters:
Name
Description
Valid Value
the image to add on the page
can’t be null
targetRect
The erea that the image annotation
will be added
-
compress
The compression method of added
image annotation
The value listed in the ImageCompress.cs
type
Transform type
The value listed in the TransformType.cs
public override void AddImage(BaseImage image, PointF point, float scale,
float left, float top, float right, float bottom);
38
Description:
Add an image annotation to specified page position with different scaling.
Parameters:
Name
Description
Valid Value
the image to add on the page
can’t be null
point
location of the image
x>=0 && x<=page.width
y>=0 && y<=page.height
scale
left
top
right
bottom
39
Save TIFF file
RasterEdge.XDoc.TIFF dll allows developer to save the TIFF document object to file path, stream
and byte array.
C#
//load TIFF file Document object from file path
String inputPath = @"F:\input.tif";
TIFFDocument tifDoc = new TIFFDocument(inputPath);
//save the tiff Document object to the file path
tifDoc.Save(@"F:\output.tif");
Related API(s) (TIFFDocument.cs):
public override void Save(string filePath);
Description:
Save TIFF document object to the given file path.
Parameters:
Name
Description
Valid Value
filePath
output file path
a valid file path
public override void SaveToStream(Stream stream);
Description:
Save TIFF document object to stream.
Parameters:
Name
Description
Valid Value
stream
output stream
a valid stream
public override byte[] SaveToBytes();
Description:
Save TIFF document object to byte array.
Return:
A byte array, null if failed.
