Dual Band FM Transceiver

FT-7800R

Technical Supplement

Introduction

This manual provides technical information necessary for servicing the FT-7800R Transceiver.

Servicing this equipment requires expertise in handling surface-mount chip components. Attempts by non-qualified

persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in

some countries.

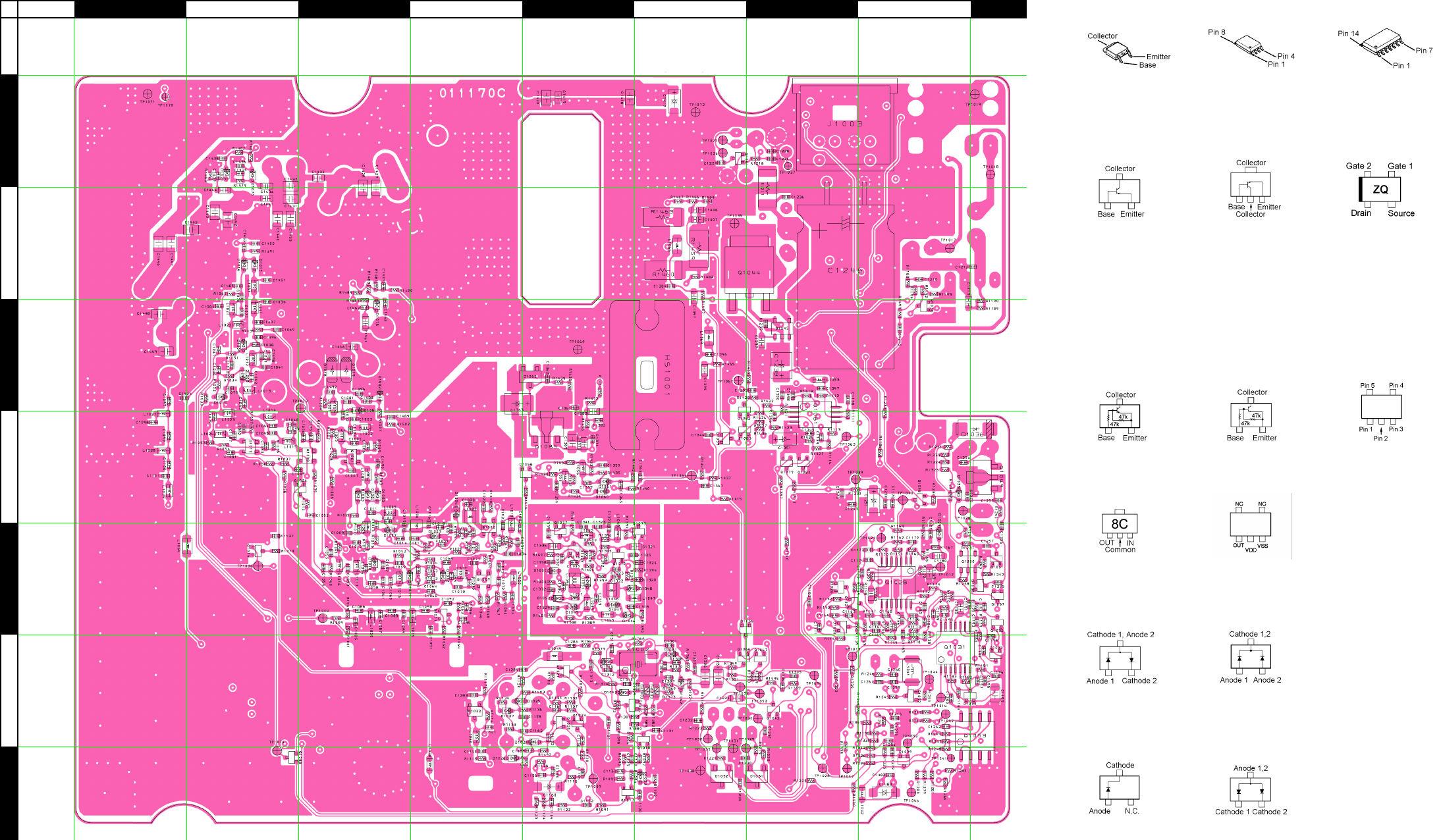

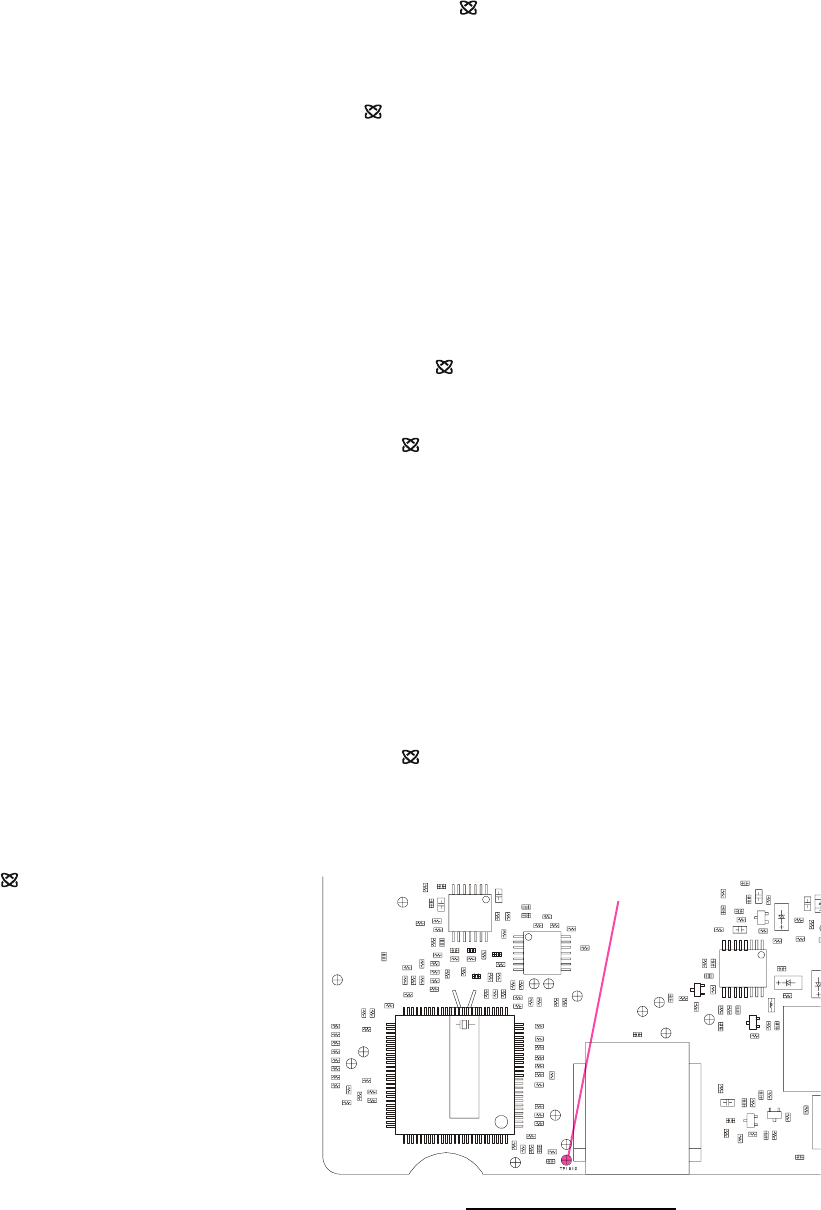

Two PCB layout diagrams are provided for each double-sided circuit board in the transceiver. Each side of thr board is

referred to by the type of the majority of components installed on that side (“leaded” or “chip-only”). In most cases one

side has only chip components, and the other has either a mixture of both chip and leaded components (trimmers, coils,

electrolytic capacitors, ICs, etc.), or leaded components only.

While we believe the technical information in this manual to be correct, Vertex Standard assumes no liability for dam-

age that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any

inconsistencies in the technical information would be appreciated.

Specifications ................................................ A-1

Exploded View & Miscellaneous Parts ..... B-1

Block Diagram ................................................C-1

Circuit Description ....................................... D-1

Alignment ....................................................... E-1

Contents

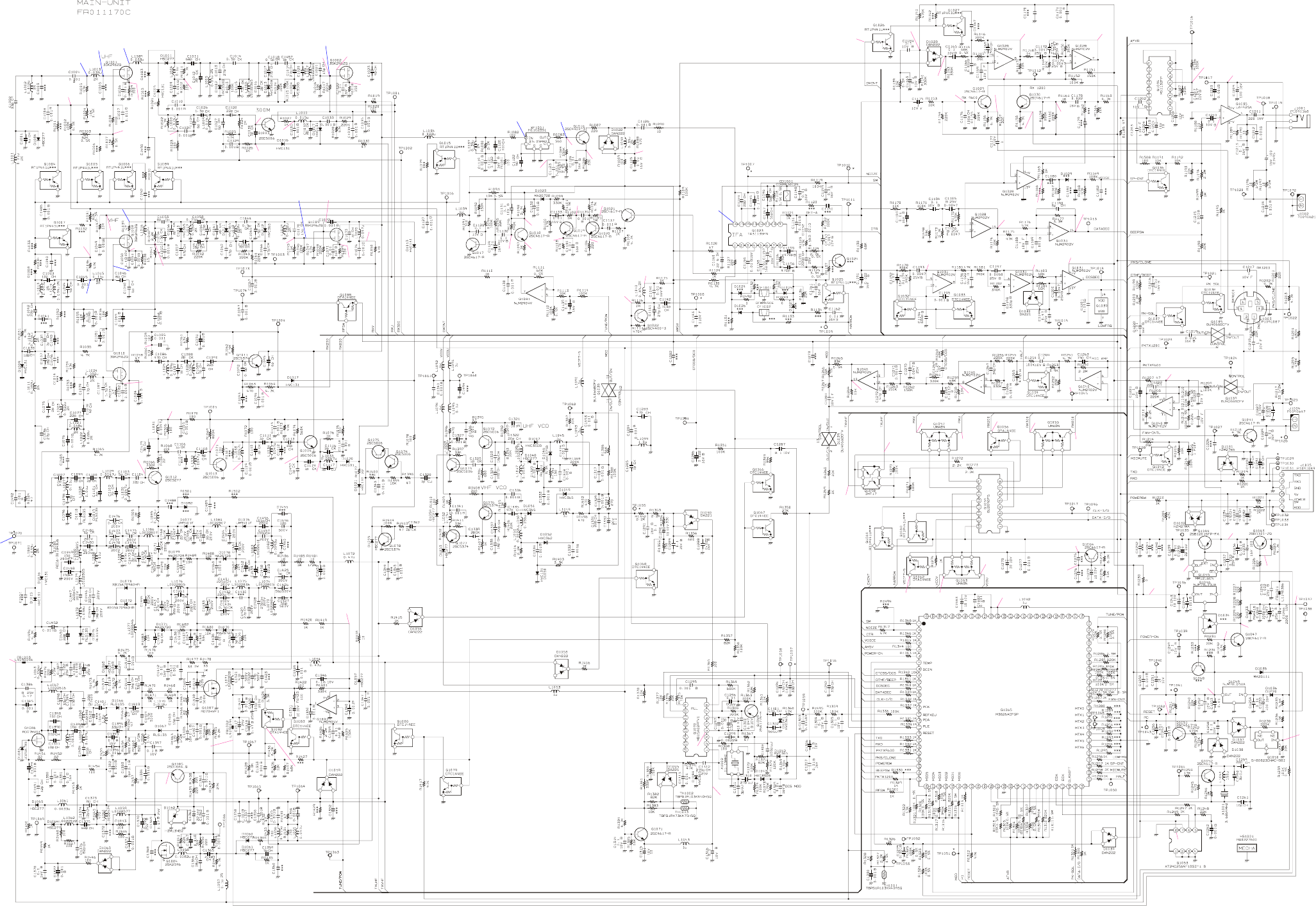

Board Unit (Schematics, Layouts & Parts)

MAIN Unit ................................................. F-1

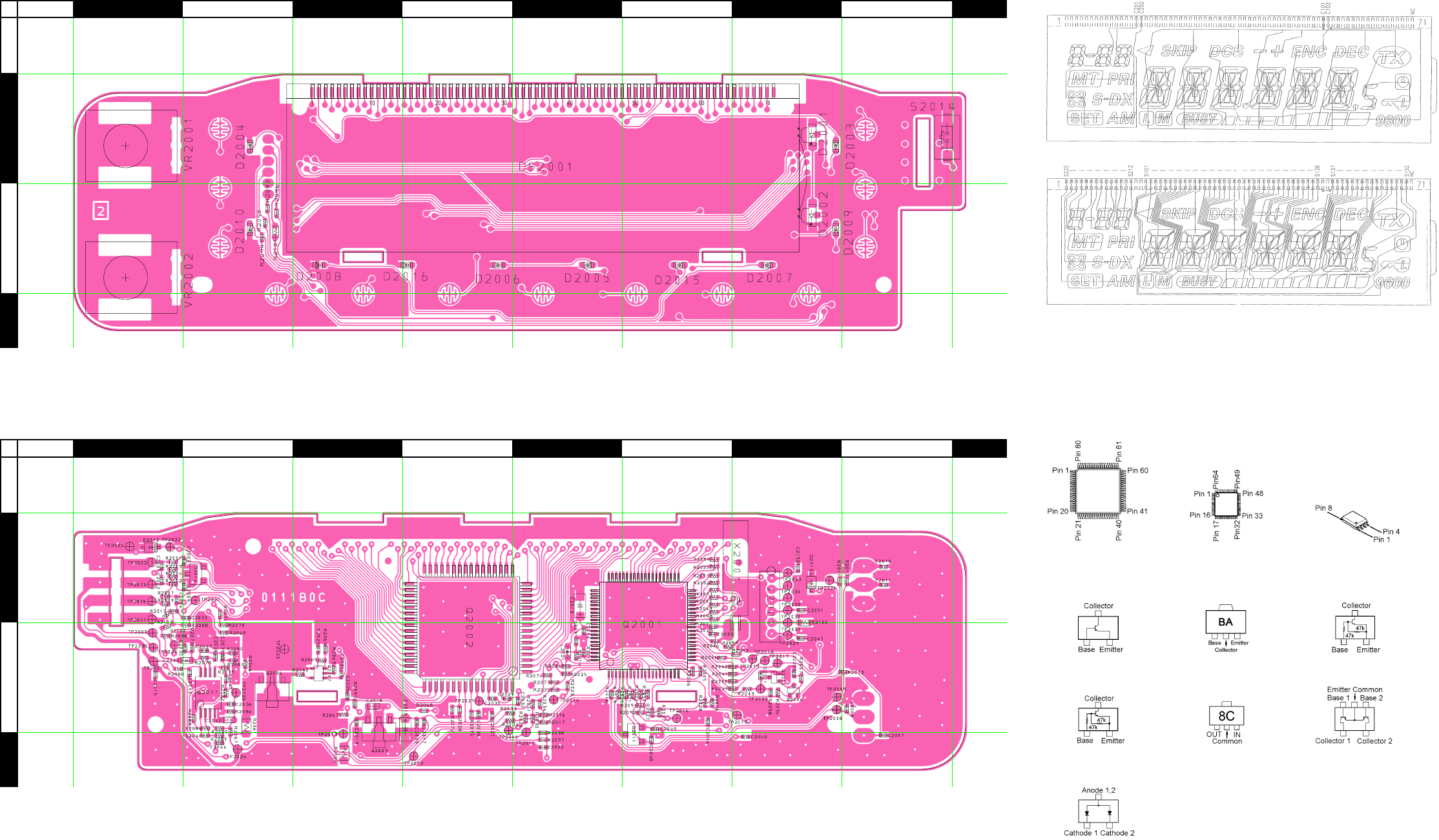

PANEL Unit ............................................. G-1

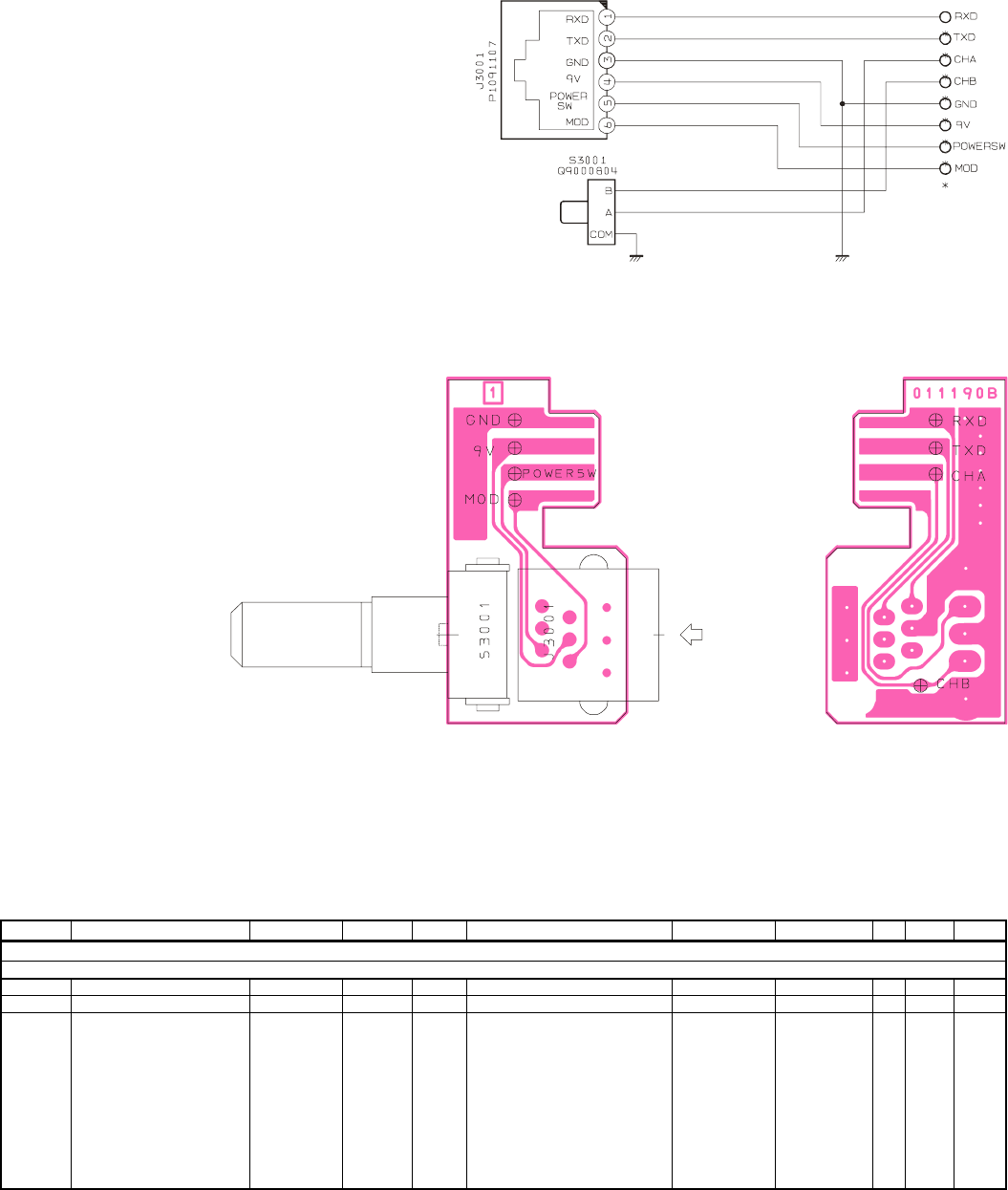

CH Unit ..................................................... H-1

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,

Kwun Tong, Kowloon, Hong Kong

Specifications

General

Frequency Range: RX: 108.000 - 520.000 MHz,

700.000 - 999.995 MHz (Cellular Blocked)

TX: 144.000 - 148.000 MHz or 144.000 - 146.000 MHz,

430.000 - 450.000 MHz or 430.000 - 440.000 MHz

Channel Steps: 5/10/12.5/15/20/25/50/100 kHz

Modes of Emission: F3E, F2D, F2A

Antenna Impedance: 50 Ohms, unbalanced (Antenna Duplexer built-in)

Frequency Stability: ±5 ppm @ 14 °F ~ +140 °F (–10 °C ~ +60 °C)

Operating Temperature Range: –4 °F ~ +140 °F (–20 °C ~ +60 °C)

Supply Voltage: 13.8 VDC (±15 %), negative ground

Current Consumption (Approx.): RX: 0.5 A (Squelched)

TX: 8.5 A

Case Size (W x H x D): 5.5” x 1.6” x 6.6” (140 x 41.5 x 168 mm) (w/o knobs & connectors)

Weight (Approx.): 2.2 lb. (1 kg)

Transmitter

Output Power: 50/20/10/5 W (144 MHz)

40/20/10/5 W (430 MHz)

Modulation Type: Variable Reactance

Maximum Deviation: ±5 kHz

Spurious Radiation: At least –60 dB below

Microphone Impedance:2 kΩ

DATA Jack Impedance: 10 kΩ

Receiver

Circuit Type: Double-conversion superheterodyne

Intermediate Frequencies: 45.05 MHz/450 kHz

Sensitivity: 0.8 µV (TYP) for 10 dB SN (108 - 137 MHz, AM)

0.2 µV for 12 dB SINAD (137 - 150 MHz, FM)

0.25 µV for 12 dB SINAD (150 - 174 MHz, FM)

0.3 µV (TYP) for 12 dB SINAD (174 - 222 MHz, FM)

0.25 µV (TYP) for 12 dB SINAD (222 - 300 MHz, FM)

0.8 µV (TYP) for 10 dB SN (300 - 336 MHz, AM)

0.25 µV for 12 dB SINAD (336 - 420 MHz, FM)

0.2 µV for 12 dB SINAD (420 - 520 MHz, FM)

0.4 µV (TYP) for 12 dB SINAD (800 - 900 MHz, FM)

0.8 µV (TYP) for 12 dB SINAD (900 - 999.99 MHz, FM)

Squelch Sensitivity: Better than 0.16 µV

Selectivity (–6dB/–60dB): 12 kHz/30 kHz

Maximum AF Output: 2 W @ 8 Ω for 10% THD

AF Output Impedance: 4-16 Ω

Specifications are subject to change without notice, and are guaranteed within the 144 and 430 MHz amateur bands only. Frequency

ranges will vary according to transceiver version; check with your dealer.

A-1

B-1

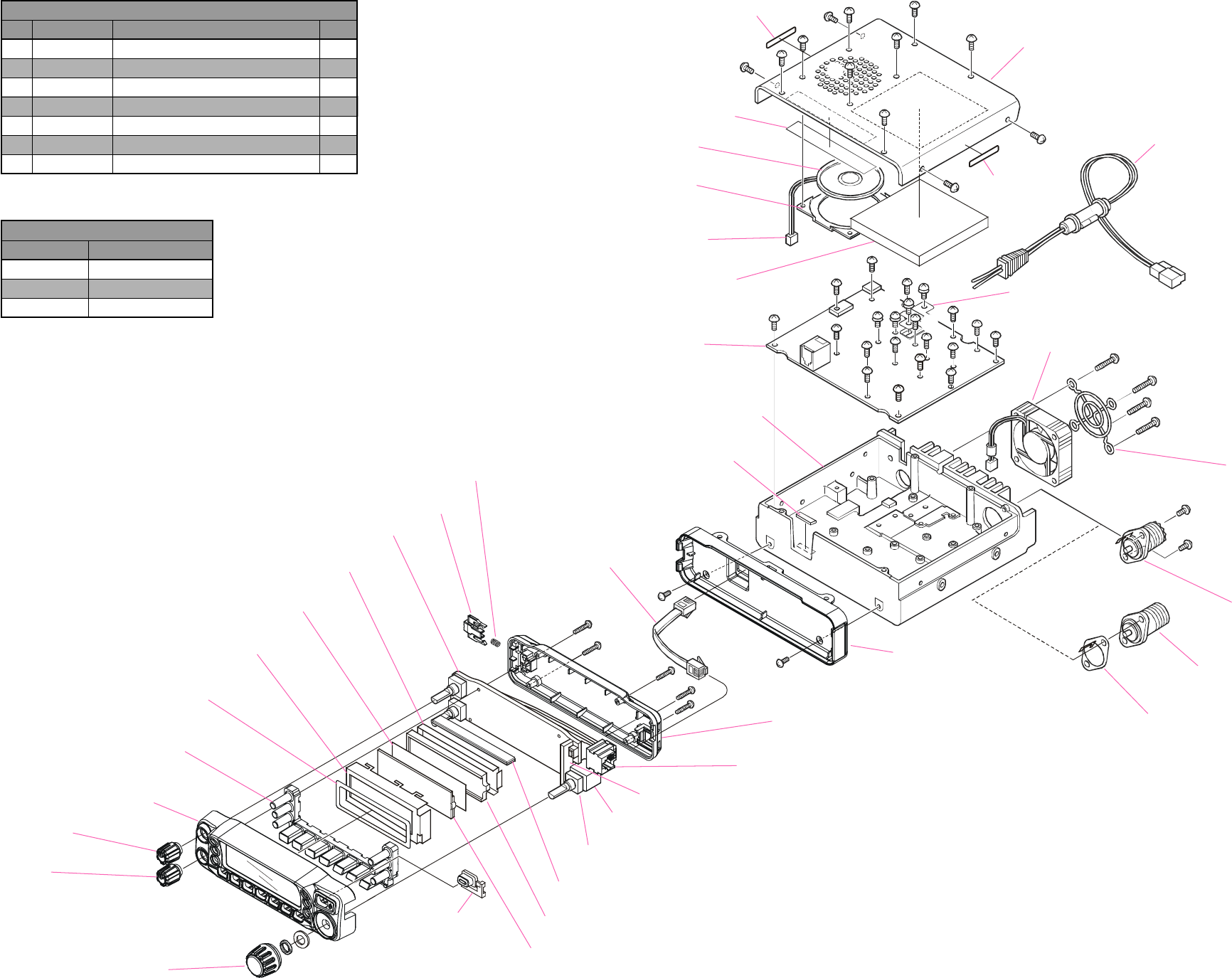

Exploded View & Miscellaneous Parts

M2090034A

FAN

P1090984

CONNECTOR (Ver: USA)

RA0552200

LCD SPACER

RA0540800

LCD HOLDER

G6090155

LCD

RA0539900

RUBBER KNOB

RA0540700

LIGHT GUIDE

RA0551900

REFLECTOR SHEET

RA0540900

INTER CONNECTOR

RA0541400

FRONT PANEL ASSY

(W/ WINDOW, DOUBLE FACE TAPE)

RA0540200

KNOB

RA0540100

ENCODER KNOB

RA0540300

KNOB

Q9000804

ROTARY ENCODER (W/ HEX NUT*, WASHER*)

RA0551800

DIFFUSER SHEET

CH UNIT

PANEL UNIT

RA0540200

KNOB

S5000206

FAN GUARD

M4090149

SPEAKER

T9206438A

WIRE ASSY

R0150630

HOLDER

RA02132A0

HIMERON TAPE

RA0438700

RUBBER

RA02668AA

CHASSIS

RA0551700

REAR PANEL ASSY

(W/ COIL SPRING, RELEASE KNOB)

RA0540400

RELEASE KNOB

RA0022900

COIL SPRING

T9101536

CT CABLE

RA0539800

SUB PANEL

CS1804001

CASE (W/ NYLON NET)

RA0322600

RUBBER SHEET

T9206876

WIRE ASSY

RA0415200 (x2 pcs)

GROUND PLATE

P1090547

CONNECTOR (Ver: EXP, AUS)

S5000236

WASHER (Ver: EXP, AUS)

P1091107

CONNECTOR

T9207057

WIRE ASSY

























Non-designated parts are available only

as part of a designated assembly.

MAIN UNIT

SUPPLIED ACCESSORIES

VXSTD P/N DESCRIPTION

Q0000081 FUSE 15A (x2 pcs)

AAA43X001 MIC MH-48A6J

T9021715 DC CABLE

R8139500

LABEL

R8139500

LABEL

SCREW LIST

No. VXSTD P/N DESCRIPTION QTY.

U31208007 OVAL HEAD SCREW M2.6X8B 8

U44308002 TAPTITE SCREW M3X8NI 17

U03310002 SEMS SCREW ASM3X10NI 4

U20308002 BINDING HEAD SCREW M3X8NI 2

U25320007 TAPTITE SCREW M3X20B 4

U23116007 TAPTITE SCREW M2X16B 5

U31206007 OVAL HEAD SCREW M2.6X6B 6

B-2

Note

Exploded View & Miscellaneous Parts

D-1

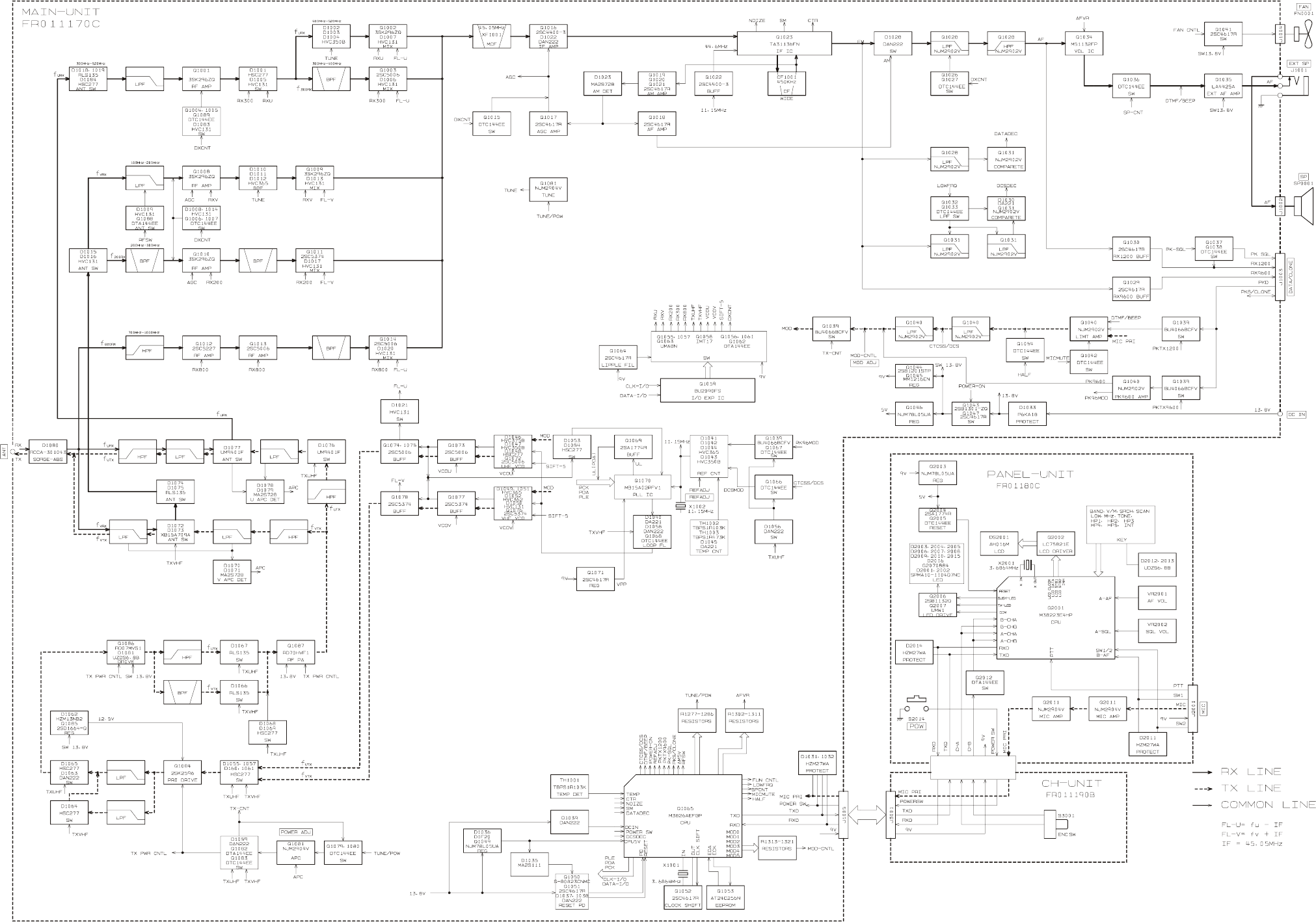

Block Diagram

D-2

Note

Block Diagram

Circuit Description

VHF Reception

The incoming VHF signal is passed through a low-pass

filter network, antenna switching diodes D1074 (RLS135),

D1075 (RLS135) and D1015 (HVC131), and another low-

pass filter network to the RF amplifier Q1008 (3SK296ZQ).

The amplified RF signal is passed through a varactor con-

trolled bandpass filter consisting of L1017, L1018, and

D1010, D1011, and D1012 (all HVC365), then applied to

the first mixer Q1009 (3SK296ZQ) along with the first

local signal from the PLL circuit.

The first local signal is generated between 189.05 MHz

and 193.05 MHz, depending on the receiving frequency,

by the VHF VCO, which consists of Q1076 (2SC5374) and

varactor diodes D1049 (HVC365), D1050 (HVC131),

D1051 (HVC365), and D1052 (HVC362).

UHF Reception

The incoming UHF signal is passed through a low-pass

filter network, antenna switching diodes D1077

(UM9401F) and D1018 (RLS135), D1019 (RLS135), and

D1084 (HSC277), and another low-pass filter network to

the RF amplifier Q1001 (3SK296ZQ). The amplified RF

signal is passed through a varactor-controlled band-pass

filter consisting of L1006 and L1007, and D1002, D1003,

and D1004 (all HVC350B), then applied to the first mixer

Q1002 (3SK296ZQ) along with the first local signal from

the PLL circuit.

The first local signal is generated between 384.95 MHz

and 404.95 MHz, depending on the receiving frequency,

by the UHF VCO, which consists of Q1072 (2SC5006)

and varactor diodes D1046 (HVC375B) and D1047

(HVC350B).

IF and Audio Circuits

The 45.05 MHz first IF signal is applied to the monolithic

crystal filter XF1001 which strips away unwanted mixer

products, and the IF signal is applied to the first IF ampli-

fier Q1016 (2SC4400). The amplified first IF signal is then

delivered to the FM IF subsystem IC Q1023 (TA31136FN),

which contains the second mixer, limiter amplifier, noise

amplifier, and FM detector.

The 44.6 MHz second local signal is derived from 11.15

MHz crystal X1002, the frequency of which is multiplied

by four at Q1022 (2SC4400), producing the 450 kHz sec-

ond IF signal when mixed with the first IF signal within

Q1023 (TA31136FN).

The 450 kHz second IF signal is applied to the ceramic

filter CF1001 which strips away all but the desired shig-

nal, and then passes through the limiter amplifier within

Q1023 (TA31136FN) to the ceramic discriminator CD1001

which removes any amplitude variations in the 450 kHz

IF signal before detection of speech.

The detected audio passes through the de-emphasis net-

work, a low-pass filter consisting of Q1028 (NJM2902V)

and associated circuitry, and a high-pass filter consisting

of Q1028 (NJM2902V) and associated circuitry. The fil-

tered audio signal is passed through the audio volume

control IC Q1034 (M51132FP) which adjusts the audio

sensitivity to compensate for audio level variations, then

delivered to the audio switch Q1036 (DTC144EE).

Squelch Control

When no carrier received, noise at the output of the de-

tector stage in Q1023 (TA31136FN) is amplified and band-

pass filtered by the noise amp section of Q1023

(TA31136FN). The resulting DC voltage is applied to pin

2 of main CPU Q1065 (M3826AEFGP), which compares

the squelch threshold level to that which set by the front

panel SQL knob.

While no carrier is received, pin 53 of Q1065

(M3826AEFGP) remains “low,” to disable audio output

from the speaker.

Transmit Signal Path

The speech signal from the microphone passes through

the MIC jack J2001 to AF amplifier Q2011 (NJM2904V)

on the PANEL unit. The amplified speech signal is sub-

jected to amplitude limiting by Q1040 (NJM2902V) on

the MAIN unit. The speech signal then passes through

low-pass filter network Q1040 (NJM2902V) and band

switch Q1039 (BU4066BCFV) to the VHF VCO or UHF

VCO.

VHF Transmit Signal Path

The adjusted speech signal from Q1040 (NJM2902V) is

delivered to VHF VCO Q1076 (2SC5374) which frequen-

cy modulates the transmitting VCO made up of D1049

(HVC365). The modulated transmit signal passes through

buffer amplifiers Q1077 and Q1078 (both 2SC5374). The

amplified transmit signal is then applied to the Pre-Drive

amplifier Q1084 (2SK2596) and Driver amplifier Q1086

(RD07MVS1), then finally amplified by Power amplifier

Q1087 (RD70HVF1) up to 50 Watts. This three-stage pow-

er amplifier’s gain is controlled by the APC circuit. The

50 Watt RF signal passes through high-pass filter and low-

pass filter network, antenna switch D1072 and D1073

(both XB15A709A), and another low-pass filter network,

and then is delivered to the ANT jack.

D-1

UHF Transmit Signal Path

The adjusted speech signal from Q1040 (NJM2902V) is

delivered to UHF VCO Q1072 (2SC5006) which frequen-

cy modulates the transmitting VCO made up of D1046

(HVC375B). The modulated transmit signal passes

through buffer amplifiers Q1073, Q1074, and Q1075 (all

2SC5006). The filtered transmit signal is then applied to

the Pre-Drive amplifier Q1084 (2SK2596) and Driver am-

plifier Q1086 (RD07MVS1), then finally amplified by Pow-

er amplifier Q1087 (RD70HVF1) up to 40 Watts. This

three-stage power amplifier’s gain is controlled by the

APC circuit. The 40 Watt RF signal passes through high-

pass filter and low-pass filter networks, antenna switch

D1077 (UM9401F), and another low-pass filter network,

and then is delivered to the ANT jack.

TX APC Circuit

A portion of the power amplifier output is rectified by

D1070 and D1071 (UHF: D1078 and D1079, all

MA2S728), then delivered to APC Q1081 (NJM2904V),

as a DC voltage which is proportional to the output level

of the power amplifier. The APC Q1081 (NJM2904V) com-

pares the rectified DC voltage from the power amplifier

and the reference voltage from the main CPU Q1065

(M3826AEFGP), to produce a control voltage, which reg-

ulates supply voltage to the Pre-Drive amplifier Q1084

(2SK2596), Drive amplifier Q1086 (RD07MVS1) and

Power amplifier Q1087 (RD70HVF1), so as to maintain

stable output power under varying antenna loading con-

ditions.

Circuit Description

PTT Circuit

When the PTT switch is pressed, pin 8 of sub CPU Q2001

(M38223E) goes “high”, which send the “PTT” command

to main CPU Q1065 (M3826AEFGP). When the CPU re-

ceives the “PTT” command, it engages Q1057 (UMA8N)

and Q1058 (IMT17), which activates the Tx circuit.

PLL Circuit

A portion of the output from the VCO Q1076 (2SC5374)

and Q1072 (2SC5006), passes through the programma-

ble divider section of the PLL IC Q1070 (MB15A02PFV1),

which divides the VCO frequency according to the fre-

quency dividing data that is associated with the current

frequency input from the main CPU Q1065

(M3826AEFGP). It is then sent to the phase comparator.

The 11.15 MHz frequency of the reference oscillator cir-

cuit derived from X1002 is divided by the reference fre-

quency divider section of Q1070 (MB15A02PFV1) into

4250 or 3400 parts to become 5 kHz or 6.25 kHz compar-

ative reference frequencies, which are utilized by the phase

comparator. The phase comparator section of Q1070

(MB15A02PFV1) compares the phase between the fre-

quency-divided oscillation frequency of the VCO circuit

and the comparative frequency and its output is a pulse

corresponding to the phase difference. This pulse is inte-

grated by the charge pump and loop filter of Q1070

(MB15A02PFV1) into a control voltage (VCV) to control

the oscillation frequency of the VCOs.

D-2

Alignment

Introduction and Precautions

The FT-7800R has been carefully aligned at the factory

for the specified performance across the 144 MHz and 430

MHz amateur bands. Realignment should therefore not

be necessary except in the event of a component failure.

All component replacement and service should be per-

formed only by an authorized Vertex Standard represen-

tative, or the warranty policy may be voided.

The following procedures cover the sometimes critical and

tedious adjustments that are not normally required once

the transceiver has left the factory. However, if damage

occurs and some parts are replaced, realignment may be

required. If a sudden problem occurs during normal op-

eration, it is likely due to component failure; realignment

should not be done until after the faulty component has

been replaced.

We recommend that servicing be performed only by au-

thorized Vertex Standard service technicians who are ex-

perienced with the circuitry and fully equipped for re-

pair and alignment. Therefore, if a fault is suspected, con-

tact the dealer from whom the transceiver was purchased

for instructions regarding repair. Authorized Vertex Stan-

dard service technicians realign all circuits and make com-

plete performance checks to ensure compliance with fac-

tory specifications after replacing any faulty components.

Those who do undertake any of the following alignments

are cautioned to proceed at their own risk. Problems

caused by unauthorized attempts at realignment are not

covered by the warranty policy. Also, Vertex Standard

must reserve the right to change circuits and alignment

procedures in the interest of improved performance, with-

out notifying owners.

Under no circumstances should any alignment be attempt-

ed unless the normal function and operation of the trans-

ceiver are clearly understood, the cause of the malfunc-

tion has been clearly pinpointed and any faulty compo-

nents replaced, and the need for realignment determined

to be absolutely necessary.

Required Test Equipment

The following test equipment (and thorough familiarity

with its correct use) is necessary for complete realignment.

Correction of problems caused by misalignment result-

ing from use of improper test equipment is not covered

under the warranty policy. While most steps do not re-

quire all of the equipment listed, the interactions of some

adjustments may require that more complex adjustments

be performed afterwards. Do not attempt to perform only

a single step unless it is clearly isolated electrically from

all other steps. Have all test equipment ready before be-

ginning, and follow all of the steps in a section in the or-

der presented.

Regulated DC Power Supply: adjustable from 11.5 to

16 VDC, 10 A

RF Signal Generator with calibrated output level at

500 MHz

Frequency Counter: ±0.1 ppm accuracy at 500 MHz

AF Signal Generator

SINAD Meter

Oscilloscope

Spectrum Analyzer

Deviation Meter (linear detector)

AF Millivoltmeter

AF Dummy Load: 8-Ohm, 5 W

DC Voltmeter: high impedance

Inline Wattmeter with 5% accuracy at 500 MHz

50-Ohm non-reactive Dummy Load: 50 watts at 500 MHz

VHF/UHF Sampling Coupler

Set up the test equipment as shown below, and apply 13.8

VDC power to the transceiver.

E-1

Power Supply

13.8 VDC

Pin 5

EXT SP

Frequency

Counter

Deviation

Meter

Inline

Wattmeter

50-ohm

Dummy Load

RF Sampling

Coupler

RF Signal

Generator

8-ohm

Dummy Load

SINAD

Meter

AF Signal

Generator

Alignment

Alignment Preparation & Precautions

A dummy load and inline wattmeter must be connected

to the main antenna jack in all procedures that call for

transmission, except where specified otherwise. Correct

alignment is not possible with an antenna. After complet-

ing one step, read the following step to determine wheth-

er the same test equipment will be required. If not, re-

move the test equipment (except dummy load and watt-

meter, if connected) before proceeding.

Correct alignment requires that the ambient temperature

in the repair shop be the same as that of the transceiver

and test equipment, and that this temperature be held

constant between 68 °C and 86 °F (20 °C ~ 30 °C). When

the transceiver is brought into the shop from hot or cold

air it should be allowed some time for thermal equaliza-

tion with the environment before alignment. If possible,

alignments should be made with oscillator shields and

circuit boards firmly affixed in place. Also, the test equip-

ment must be thoroughly warmed up before beginning.

Notes: Signal levels in dB referred to in alignment are

based on 0 dBµ = 0.5 µV (closed circuit).

Entering the Alignment mode

Alignment of the FT-7800R is performed using a front-

panel software-based procedure. To perform alignment

of the transceiver, it must first be placed in the “Align-

ment Mode,” in which the adjustments will be made and

then stored into memory.

To enter the Alignment mode:

1. Press and hold in the [MHz(PRI)] key and the Hyper

Memory [5] key while turning the radio on. Once the

radio is on, release these two keys.

2. Press the front panel keys in the following sequence.

[MHz(PRI)]  [TONE(HM/RV)] [LOW(ACC)] 

[BAND(SET)]  [V/M(MW)] 

[SCAN(SEL)]  [S.SCH(ARTS)]

3. Press and hold in the [ ] key to cause “A-0

REF.xxH” to appear on the display, this signifies that

the transceiver is now in the “Alignment mode.”

PLL Reference Frequency

1. Tune the frequency to 435.050 MHz, then set the Trans-

mit Power Level to “LOW.”

2. Press the [BAND(SET)] key while pressing and hold-

ing in the [ ] key, if needed, to set the Alignment

parameter to “A-0 REF.xxH.”

3. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding the

[] key, if needed, so that the counter frequency read-

ing is 435.050 MHz (±100 Hz).

RF Front-end Tuning

1. Connect the DC voltmeter to TP1010 on the MAIN

Unit, then inject a 439.050 MHz signal at a level of +10

dBµ (with 1 kHz modulation @±3.5 kHz deviation)

from the RF Signal Generator.

2. Tune the frequency to 439.050 MHz.

3. Press the [BAND(SET)] key while pressing and hold-

ing the [ ] key to set the Alignment parameter to

“A-1 TUN.xxH.”

4. Adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the DC voltmeter

reaches maximum deflection. The FT-7800R’s RF

Front-end has a broad bandwidth. Therefore, prior to

adjustment you must adjust the DIAL knob to set the

frequency to the middle of the band, in step 2, so you

can set peak in the DC voltmeter's deflection in the

center of the RF passband.

5. Tune the frequency to 145.050 MHz.

6. Inject a 145.050 MHz signal at a level of +10 dBµ (with

1 kHz modulation @±3.5 kHz deviation) from the RF

Signal Generator.

7. Adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the DC voltmeter

reaches maximum deflection. As in the previous sec-

tion, be sure to set the DIAL knob for the center of the

band prior to making this adjustment.

MAIN UNIT TEST POINTS

E-2

TP1010

Alignment

TX Power Output

1. Tune the frequency to 440.050 MHz, then set the Trans-

mit Power Level to “LOW.”

2. Press the [BAND(SET)] key while pressing and hold-

ing in the [ ] key to set the Alignment parameter to

“A-2 PWR.xxH.”

3. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [] key, if needed, so that the wattmeter reading

is 5 Watts (±0.5 Watt).

4. Increase the Transmit Power Level to “MID2.”

5. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [] key, if needed, so that the wattmeter reading

is 10 Watts (±0.5 Watt).

6. Increase the Transmit Power Level to “MID1.”

7. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the wattmeter reading

is 20 Watts (±0.5 Watt).

8. Increase the Transmit Power Level to “HIGH.”

9. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the wattmeter reading

is 40 Watts (±0.5 Watt).

10. Tune the frequency to 146.050 MHz, then set the Trans-

mit Power Level to “LOW.”

11. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while press and holding the [%]

key, as needed, so that the wattmeter reading is 5 Watts

(±0.5 Watt).

12. Increase the Transmit Power Level to “MID2.”

13. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the wattmeter reading

is 10 Watts (±0.5 Watt).

14. Increase the Transmit Power Level to “MID1.”

15. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the wattmeter reading

is 20 Watts (±0.5 Watt).

16. Increase the Transmit Power Level to “HIGH.”

17. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the wattmeter reading

is 50 Watts (±0.5 Watt).

TX Deviation

1. Tune the frequency to 440.050 MHz, then set the Trans-

mit Power Level to “LOW.”

2. Press the [BAND(SET)] key while pressing and hold-

ing in the [ ] key to set the Alignment parameter to

“A-3 DEV.xxH.”

3. Inject a 1 kHz audio tone at a level of 80 mV (–20 dBm)

from the Audio Generator.

4. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the deviation meter

reading is 4.2 kHz (±0.2 kHz) (EXP Version: 4.5 kHz

(±0.2 kHz)).

5. Tune the frequency to 146.050 MHz, then set the Trans-

mit Power Level to “LOW.”

6. Press the PTT switch to activate the transmitter, and

adjust the DIAL knob while pressing and holding in

the [ ] key, if needed, so that the deviation meter

reading is 4.2 kHz (±0.2 kHz) (EXP Version: 4.5 kHz

(±0.2 kHz)).

DCS TX Deviation

1. Tune the frequency to 440.050 MHz, then activate the

DCS with a “023” DCS code, and set the Transmit

Power Level to “LOW.”

2. Press the [BAND(SET)] key while pressing and hold-

ing in the [ ] key to set the Alignment parameter to

“A-4 DSC.xxH.”

3. Press the PTT switch to activate the transmitter (with

no microphone input), and adjust the DIAL knob while

pressing and holding in the [ ] key, if needed, so that

the deviation meter reading is between 0.50 kHz and

0.60 kHz.

4. Tune the frequency to 146.050 MHz, then activate the

DCS with a “023” DCS code, and set the Transmit

Power Level to “LOW.”

5. Press the PTT switch to activate the transmitter (with

no microphone input), and adjust the DIAL knob while

pressing and holding in the [ ] key, if needed, so that

the deviation meter reading is between 0.50 kHz and

0.60 kHz.

E-3

CTCSS TX Deviation

1. Tune the frequency to 440.050 MHz, then activate the

CTCSS Encoder with a “100 Hz” tone, and set the

Transmit Power Level to “LOW.”

2. Press the [BAND(SET)] key while press and holding

the [] key to set the Alignment parameter to “A-5

CTC.xxH.”

3. Press the PTT switch to activate the transmitter (with

no microphone input), and adjust the DIAL knob

while pressing and holding in the [] key, if needed,

so that the deviation meter reading is between 0.65

kHz and 0.75 kHz.

4. Tune the frequency to 146.050 MHz, then activate the

CTCSS Encoder with a “100 Hz” tone, and set the

Transmit Power Level to “LOW.”

5. Press the PTT switch to activate the transmitter (with

no microphone input), and adjust the DIAL knob while

pressing and holding in the [ ] key, if needed, so that

the deviation meter reading is between 0.65 kHz and

0.75 kHz.

Center Meter Sensitivity

1. Tune the frequency to 440.050 MHz.

2. Press the [BAND(SET)] key while press and holding

the [ ] key to set the Alignment parameter to “A-6

CNTL/V.”

3. Inject a 1 kHz audio tone at a level of +10 dBµ from

the Audio Generator.

4. Press the [LOW(ACC)] key while press and holding

the [ ] key.

S-Meter Sensitivity

1. Tune the frequency to 440.050 MHz.

2. Press the [BAND(SET)] key while press and holding

the [ ] key to set the Alignment parameter to “A-7

SM L/V.”

3. Inject a 440.050 MHz signal at a level of –5 dBµ (with

1 kHz modulation @±3.5 kHz deviation) from the RF

Signal Generator.

4. Press the [LOW(ACC)] key while pressing and hold-

ing in the [ ] key.

5. Increase the RF Signal Generator output level to +23

dBµ.

6. Press the [V/M(MW)] key while pressing and holding

in the [ ] key.

7. Tune the frequency to 146.050 MHz.

8. Inject a 146.050 MHz signal at a level of –5 dBµ (with

1 kHz modulation @±3.5 kHz deviation) from the RF

Signal Generator.

9. Press the [LOW(ACC)] key while pressing and hold-

ing in the [ ] key.

10. Increase the RF Signal Generator output level to +23

dBµ.

11. Press the [V/M(MW)] key while pressing and holding

in the [ ] key.

12. Tune the frequency to 230.050 MHz.

13. Inject a 230.050 MHz signal at a level of –5 dBµ (with

1 kHz modulation @±3.5 kHz deviation) from the RF

Signal Generator.

14. Press the [LOW(ACC)] key while pressing and hold-

ing in the [ ] key.

15. Increase the RF Signal Generator output level to +23

dBµ.

16. Press the [V/M(MW)] key while pressing and holding

in the [ ] key.

17. Tune the frequency to 850.050 MHz.

18. Inject a 850.050 MHz signal at a level of +3 dBµ (with

1 kHz modulation @±3.5 kHz deviation) from the RF

Signal Generator.

19. Press the [LOW(ACC)] key while pressing and hold-

ing in the [ ] key.

20. Increase the RF Signal Generator output level to +31

dBµ.

21. Press the [V/M(MW)] key while pressing and holding

in the [ ] key.

DC Voltmeter

1. Set the power supply voltage to 13.8 VDC.

2. Press the [BAND(SET)] key while pressing and hold-

ing in the [ ] key to set the Alignment parameter to

“A-8 BAT SC.”

3. Press the [SCAN(SEL)] key.

To close the Alignment mode, just press and hold in the

PWR switch for 0.5 seconds (to turn the power off). The

next time the transceiver is turned on, normal operation

may resume.

Alignment

E-4

F-1

MAIN Unit

Circuit Diagram

[–4.3 dBµ]

[+1.4 dBµ] [+18.8 dBµ] [+15.5 dBµ]

0.81 V

0.30 V

1.37 V

8.56 V

8.57 V

0.69 V

4.94 V

4.75 V

1.10 V 1.48 V

0.50 V

[+15.9 dBµ]

0.98 V

1.56 V

0.43 V

5.83 V

8.83 V

0.15 V

(+15.8 dBµ)

(+0.8 dBµ)

(–6.2 dBµ)

0.97 V

2.22 V

8.13 V

0.32 V

8.53 V

0.70 V

2.92 V

0.71 V

4.69 V

8.70 V

0.71 V

0.78 V

(–8.6 dBµ)

[–9.2 dBµ]

(3.55 V)

[3.30 V]

(3.25 V)

[3.62 V]

(11.45 V)

[11.23 V]

(12.60 V)

[12.54 V]

(xxx): Freq. = 146.05 MHz

[xxx]: Freq. = 440.05 MHz

(xxx): Freq. = 146.05 MHz

[xxx]: Freq. = 440.05 MHz

45.05 MHz

(+21.6 dBµ)

[+21.0 dBµ]

45.05 MHz

(+12.3 dBµ)

[+11.6 dBµ]

0.83 V

0.13 V

4.94 V

2.22 V

0.82 V 0.71 V

0.11 V

0.23 V

(12.73 V)

[12.76 V]

2.09 V

0.68 V

1.23 V

4.72 V

0.69 V

45.05 MHz

(+23.4 dBµ)

[+22.6 dBµ]

Q1023

Pin 1: 4.79 V

Pin 4: 4.81 V

Pin 8: 0.65 V

Pin 10: 4.81 V

1.89 V

8.65 V

8.17 V

4.67 V

6.68 V

0 V

AM: 3.74 V

1.42 V

AM: 2.03 V

1.10 V

AM: 3.35 V

2.00 V 2.00 V

2.00 V

2.33 V 1.78 V

1.78 V

2.33 V

2.01 V

2.00 V

1.91 V

4.98 V

0.93 V

0.91 V

1.88 V

1.89 V

8.82 V 8.80 V 8.86 V

8.87 V 8.86 V

4.98 V

5.65 V

4.90 V

5.00 V

4.97 V

4.86 V

Q1034

Pin 2: 8.33 V

Pin 14: 8.40 V

Pin 15: 3.57 V

Pin 16: 3.27 V

13.78 V

0 ~ 4.90 V

1.40 V

7.00 V

4.86 V

8.95 V

4.98 V

13.78 V

13.05 V

13.80 V

0.12 V

0.70 V

5.00 V

4.95 V

4.56 V

5.00 V

F-2

Note

MAIN Unit

F-3

MAIN Unit

Parts Layout (Side A)

ABCDEFGHI

2SA1774 (FR)

(Q1069)

2SB1301 (ZQ)

(Q1043)

2SC4400 (RT4)

(Q1016)

2SC4617 (BR)

(Q1019, 1020, 1029,

1030, 1047, 1064,

1071)

2SC5006 (24)

(Q1003, 1013, 1014,

1074, 1075)

2SC5277 (D2)

(Q1012)

2SC5374 (NA)

(Q1078)

2SK2596 (BX)

(Q1084)

BU2090FS

(Q1059)

M51132FP

(Q1034)

MB15A022PFV1

(Q1070)

TA31136FN

(Q1023)

BU4066BCFV

(Q1039)

NJM2902V

(Q1040)

DTA144EE (16)

(Q1056, 1062)

DTC144EE (26)

(Q1037, 1038, 1054,

1068)

IMT17 (T17)

(Q1058)

LA4425A

(Q1035)

M3826AEFGP

(Q1065)

NJM78L05 (8C)

(Q1046)

RD70HVF1

(Q1087)

UMA8N (A8)

(Q1055, 1057, 1063)

RD07MVS1

(Q1086)

DA221 (K)

(D1040)

DAN222 (N)

(D1022, 1063)

F-4

Parts Layout (Side B)

MAIN Unit

abcdefghi

2SC4400 (RT4)

(Q1022)

2SC4617 (BR)

(Q1017, 1018, 1021,

1041, 1051, 1052)

2SC5006 (24)

(Q1072, 1073)

2SC5374 (NA)

(Q1011, 1076, 1077)

NJM2902V

(Q1028, 1031)

DTA144EE (16)

(Q1082, 1088)

DTC144EE (26)

(Q1032, 1033, 1036,

1042, 1066, 1067,

1079, 1080, 1083)

NJM78L05 (8C)

(Q1049)

2SB1201S

(Q1044)

2SD1664 (DA)

(Q1085)

AT24C256

(Q1053)

NJM2904V

(Q1081)

MM1216ENRE (1C)

(Q1045)

S-80823CNMC

(Q1050)

DA221 (K)

(D1030, 1045)

DAN222 (N)

(D1028, 1037, 1038,

1039, 1056, 1058,

1059)

HZM13NB2 (132)

(D1062)

HZM27WA (27A)

(D1031, 1032)

3SK296ZQ (ZQ)

(Q1001, 1002, 1008,

1009, 1010)

F-5

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

PCB with Components CS1803001 USA A2U

CS1803004 EXP A1

CS1803005 EXP A2

CS1803006 EXP A3

CS1803007 EXP B1

CS1803008 EXP B2

CS1803009 EXP B3

CS1803010 EXP C1

CS1803011 EXP C2

CS1803012 EXP C3

CS1803013 EXP D1

CS1803014 EXP D2

CS1803015 AUS H1

CS1803016 AUS H2

P.C.B. W/O COMP. AH016M000 FR011170C 1-

C 1001 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- B c3

C 1002 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- B c4

C 1004 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4

C 1006 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4

C 1007 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4

C 1008 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4

C 1009 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5

C 1010 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5

C 1011 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- B c4

C 1012 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c4

C 1013 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B c5

C 1014 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c5

C 1015 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B c5

C 1016 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B d5

C 1017 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B d5

C 1018 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B d5

C 1019 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B d5

C 1021 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- B d5

C 1022 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d4

C 1023 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- A E4

C 1024 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5

C 1025 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A F5

C 1026 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- A F5

C 1027 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A F5

C 1028 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A E5

C 1029 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5

C 1030 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A E5

C 1031 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1032 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B d5

C 1033 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1034 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1035 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1036 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 AUS 1- B b3

C 1036 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 EXP 1- B b3

C 1036 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 USA 1- B b3

C 1037 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B b3

C 1038 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 AUS 1- B b3

C 1038 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 EXP 1- B b3

C 1038 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 USA 1- B b3

C 1039 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B b3

C 1042 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B b3

C 1043 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 AUS 1- B b3

C 1043 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 EXP 1- B b3

C 1043 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 USA 1- B b3

C 1044 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 AUS 1- B b4

C 1044 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 EXP 1- B b4

C 1044 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 USA 1- B b4

C 1045 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4

C 1046 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 AUS 1- B b4

C 1046 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 EXP 1- B b4

C 1046 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 USA 1- B b4

C 1047 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3

C 1048 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 AUS 1- B b4

C 1048 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 EXP 1- B b4

C 1048 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 USA 1- B b4

C 1049 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4

C 1050 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B c4

C 1051 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4

F-6

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1053 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B c5

C 1054 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 AUS 1- B c5

C 1054 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 EXP 1- B c5

C 1054 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 USA 1- B c5

C 1055 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5

C 1056 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 AUS 1- B c5

C 1056 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 EXP 1- B c5

C 1056 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 USA 1- B c5

C 1057 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B c5

C 1058 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B c5

C 1059 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B c5

C 1060 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B c5

C 1061 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c5

C 1062 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d5

C 1063 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B d5

C 1064 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B d5

C 1065 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 AUS 1- B d5

C 1065 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 EXP 1- B d5

C 1065 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 USA 1- B d5

C 1066 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d5

C 1067 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5

C 1068 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1069 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3

C 1070 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 AUS 1- B d5

C 1070 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 EXP 1- B d5

C 1070 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 USA 1- B d5

C 1071 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5

C 1072 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1073 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B d5

C 1074 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1075 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B b3

C 1076 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2

C 1077 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B b3

C 1078 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B b3

C 1079 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B b4

C 1080 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4

C 1081 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4

C 1082 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4

C 1084 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3

C 1085 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5

C 1086 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B c5

C 1087 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B c5

C 1088 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c5

C 1089 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B c5

C 1090 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B d5

C 1091 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1092 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B d5

C 1094 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5

C 1095 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A E5

C 1097 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B a3

C 1098 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a4

C 1099 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B a4

C 1100 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B a4

C 1101 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B a4

C 1102 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- A H4

C 1103 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- A H4

C 1104 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- A H5

C 1105 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A H5

C 1106 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A H5

C 1108 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A G5

C 1109 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F4

C 1110 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A F4

C 1111 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A F5

C 1113 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- A F5

C 1114 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A E5

C 1115 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5

C 1116 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A E5

C 1117 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- A E4

C 1118 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5

C 1119 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E6

C 1120 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 1- A F6

C 1121 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A E6

C 1122 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A E6

F-7

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1123 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F7

C 1124 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E7

C 1125 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E7

C 1126 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E7

C 1127 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5

C 1128 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f7

C 1129 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e7

C 1130 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f7

C 1131 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f6

C 1132 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e7

C 1133 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D7

C 1134 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D7

C 1135 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D7

C 1137 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e6

C 1138 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1139 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B g4

C 1140 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d7

C 1141 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B d6

C 1142 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A E6

C 1143 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A D7

C 1144 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A E7

C 1145 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A E7

C 1146 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- B e7

C 1147 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- A E7

C 1148 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E7

C 1149 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B7

C 1151 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D7

C 1152 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e7

C 1153 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B7

C 1154 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B e7

C 1155 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B e7

C 1156 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B e7

C 1157 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A E7

C 1158 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e6

C 1159 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e7

C 1160 CHIP TA.CAP. 22uF 6.3V TEMSVA0J226M-8R K78080047 1- B e7

C 1161 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e6

C 1162 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e6

C 1163 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g5

C 1164 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g5

C 1165 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B h5

C 1166 CHIP CAP. 0.0022uF 50V B GRM36B222K50PT K22178813 1- B h5

C 1168 CHIP CAP. 150pF 50V CH GRM36CH151J50PT K22178240 1- B h5

C 1169 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B h5

C 1171 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g5

C 1172 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B h5

C 1173 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B h5

C 1174 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B h5

C 1175 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B4

C 1176 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A B3

C 1177 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B1

C 1178 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A B4

C 1183 CHIP CAP. 0.0033uF 50V B GRM36B332K50PT K22178815 AUS 1- B h5

C 1183 CHIP CAP. 0.0033uF 50V B GRM36B332K50PT K22178815 EXP 1- B h5

C 1183 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 USA 1- B h5

C 1184 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 AUS 1- B h5

C 1184 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 EXP 1- B h5

C 1184 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 USA 1- B h5

C 1185 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 USA 1- B h5

C 1186 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 USA 1- B h5

C 1187 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- B b4

C 1188 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B h5

C 1189 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h5

C 1190 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- B h5

C 1191 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B h5

C 1192 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B i5

C 1193 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B i5

C 1194 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- B i6

C 1195 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B i6

C 1196 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B i6

C 1197 CHIP CAP. 0.0068uF 25V B GRM36B682J25PT K22148803 1- B i6

C 1198 CHIP CAP. 330pF 50V B GRM36B331K50PT K22178803 1- B i6

C 1199 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B i6

F-8

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1200 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B h6

C 1201 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A5

C 1202 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B3

C 1203 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A3

C 1204 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A2

C 1205 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A2

C 1206 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B3

C 1207 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B3

C 1208 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A2

C 1209 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A A2

C 1210 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B h2

C 1211 AL.ELECTRO.CAP. 220uF 16V RE2-16V221M 220UF K40129048 1- A A2

C 1212 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B i2

C 1213 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B h3

C 1214 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4

C 1215 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h3

C 1216 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h6

C 1217 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B1

C 1218 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B1

C 1219 CHIP CAP. 0.015uF 16V B GRM36B153K16PT K22128807 1- A B5

C 1220 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B5

C 1221 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B5

C 1222 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A B5

C 1223 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B h5

C 1224 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A5

C 1225 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f6

C 1227 AL.ELECTRO.CAP. 10uF 16V 16V100M4X7TR2 K46120004 1- A C1

C 1228 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g1

C 1229 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f1

C 1230 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f7

C 1231 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B g6

C 1232 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f6

C 1233 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f7

C 1234 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- A C6

C 1235 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A B2

C 1236 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2

C 1237 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B g3

C 1238 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B g3

C 1239 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1243 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2

C 1244 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B3

C 1245 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A B2

C 1246 AL.ELECTRO.CAP. 2200uF 16V RE3-16V222M 2200UF K40129064 1- B h1

C 1247 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A B1

C 1248 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A B1

C 1249 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g4

C 1250 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h4

C 1251 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B h4

C 1252 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B h4

C 1253 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B i4

C 1254 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h4

C 1255 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A A4

C 1256 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B i5

C 1257 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B i5

C 1258 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B i5

C 1259 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B h6

C 1260 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- B h6

C 1261 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B h6

C 1262 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h6

C 1263 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- A A5

C 1264 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A5

C 1265 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- A A5

C 1266 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A5

C 1267 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- A A5

C 1268 CHIP CAP. 0.0012uF 50V B GRM36B122K50PT K22178810 1- A B5

C 1269 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B6

C 1270 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B h6

C 1271 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B5

C 1272 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- A B5

C 1274 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F7

C 1277 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E7

C 1278 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F6

C 1279 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h7

F-9

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1280 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C4

C 1281 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B5

C 1283 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d6

C 1284 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d6

C 1285 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B e6

C 1286 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B h6

C 1287 CHIP CAP. 1uF 10V B GRM40B105K10PT(0.85) K22100803 1- B f6

C 1288 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A D5

C 1289 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D5

C 1290 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D5

C 1291 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D5

C 1292 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C6

C 1293 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A D6

C 1294 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A D6

C 1295 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5

C 1296 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D6

C 1297 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D5

C 1298 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D6

C 1299 CHIP CAP. 0.0022uF 50V B GRM36B222K50PT K22178813 1- A D5

C 1300 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A D6

C 1301 CHIP CAP. 47pF 50V UJ GRP1553U1H470JZ01E K22178319 1- B f6

C 1302 CHIP CAP. 6pF 50V UJ GRP1553U1H6R0DZ01E K22178307 1- B f6

C 1303 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f6

C 1304 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g6

C 1305 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g6

C 1306 CHIP CAP. 1uF 10V B GRM40B105K10PT(0.85) K22100803 1- B f6

C 1307 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f6

C 1308 CHIP CAP. 100pF 50V UJ GRP1553U1H101JZ01E K22178323 1- B f6

C 1309 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f6

C 1310 CHIP CAP. 27pF 50V UJ GRP1553U1H270JZ01E K22178316 1- B e6

C 1311 CHIP CAP. 3pF 50V UJ GRP1553U1H3R0CZ01E K22178304 1- B e6

C 1312 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- B e6

C 1313 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e6

C 1314 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A D6

C 1315 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D6

C 1316 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A D6

C 1317 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5

C 1318 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1319 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1320 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f5

C 1321 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e5

C 1322 CHIP CAP. 20pF 50V CH GRM36CH200J50PT K22178219 1- B e5

C 1323 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B e5

C 1324 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B f5

C 1325 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B e5

C 1326 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1327 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1328 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- A D5

C 1329 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1330 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A D5

C 1331 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A E5

C 1332 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1333 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5

C 1334 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1335 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e5

C 1336 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e5

C 1337 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B e5

C 1338 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B e5

C 1339 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B e5

C 1340 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5

C 1341 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e5

C 1342 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A D5

C 1343 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5

C 1345 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A E4

C 1346 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g4

C 1347 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1348 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1349 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B g4

C 1350 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1351 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B g4

C 1353 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g3

C 1354 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4

C 1355 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4

F-10

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1356 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4

C 1358 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4

C 1359 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B e4

C 1361 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3

C 1362 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3

C 1363 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B d3

C 1364 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f4

C 1365 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B e4

C 1366 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- A D4

C 1367 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f4

C 1369 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B e4

C 1370 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B e4

C 1371 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4

C 1373 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A D4

C 1374 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- A D4

C 1375 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- A D4

C 1376 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- A D4

C 1377 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3

C 1378 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D3

C 1379 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3

C 1380 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4

C 1381 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A E4

C 1382 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4

C 1383 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e4

C 1384 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f2

C 1385 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B3

C 1386 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A B4

C 1387 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C4

C 1388 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C4

C 1389 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A C4

C 1390 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C3

C 1391 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A D3

C 1392 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C3

C 1393 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C3

C 1394 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A C2

C 1395 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B f3

C 1396 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3

C 1397 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B f2

C 1398 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A C3

C 1399 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- A C3

C 1400 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- A C3

C 1401 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C3

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 USA A2 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. A1 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. A2 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. A3 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. B1 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. B2 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. B3 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. C1 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. C2 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. C3 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. D1 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. D2 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. H1 1- A C2

C 1403 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 VER. H2 1- A C2

C 1404 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A C2

C 1405 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- A D2

C 1406 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B f2

C 1407 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B f2

C 1408 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A D2

C 1410 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A D1

C 1411 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A G2

C 1412 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A G2

C 1413 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 USA A2 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. A1 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. A2 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. A3 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. B1 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. B2 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. B3 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. C1 1- A C2

F-11

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. C2 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. C3 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. D1 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. D2 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. H1 1- A C2

C 1414 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 VER. H2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 USA A2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A1 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A3 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B1 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B3 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C1 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C3 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. D1 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. D2 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. H1 1- A C2

C 1415 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. H2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 USA A2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A1 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. A3 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B1 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. B3 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C1 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. C3 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. D1 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. D2 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. H1 1- A C2

C 1416 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 VER. H2 1- A C2

C 1417 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B f1

C 1418 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B e1

C 1419 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e1

C 1420 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- B e1

C 1421 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A E1

C 1422 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A E2

C 1424 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a3

C 1425 CHIP CAP. 5pF 200V CH GRM1882C2D5R0CV01D K22234207 1- A F2

C 1426 FILM CAP. 56pF 500V UC232H0560J-T K33279035 1- A F1

C 1427 FILM CAP. 56pF 500V UC232H0560J-T K33279035 1- A F2

C 1428 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B c2

C 1429 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B c2

C 1431 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B b2

C 1432 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B b1

C 1433 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b2

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 USA A2 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A1 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A2 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A3 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B1 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B2 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B3 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C1 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C2 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C3 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D1 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D2 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H1 1- B b1

C 1434 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H2 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. FH 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 USA A2 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. A1 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. A2 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. A3 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. B1 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. B2 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. B3 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. C1 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. C2 1- B b1

F-12

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. C3 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. D1 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. D2 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. H1 1- B b1

C 1435 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 VER. H2 1- B b1

C 1436 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b1

C 1437 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B c2

C 1438 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 USA A2 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A1 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A2 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A3 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B1 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B2 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B3 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C1 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C2 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C3 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. D1 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. D2 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. H1 1- B b1

C 1439 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. H2 1- B b1

C 1440 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b2

C 1441 CHIP CAP. 7pF 200V CH GRM1882C2D7R0DV01D K22234209 1- B b2

C 1442 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b2

C 1443 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 USA A2 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A1 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A2 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A3 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B1 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B2 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B3 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C1 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C2 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C3 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D1 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D2 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H1 1- B b2

C 1444 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H2 1- B b2

C 1445 CHIP CAP. 18pF 200V CH GRM40CH180J200PT K22230219 1- B b2

C 1446 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B a2

C 1447 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B a2

C 1448 CHIP CAP. 15pF 200V CH GRM40CH150J200PT K22230218 1- B a3

C 1449 CHIP CAP. 15pF 200V CH GRM40CH150J200PT K22230218 1- B a3

C 1450 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 AUS 1- B b2

C 1450 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 EXP 1- B b2

C 1450 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 USA 1- B b2

C 1452 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2

C 1453 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4

C 1454 FILM CAP. 12pF 500V UC232H0120J-T K33279020 1- A F2

C 1456 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- A F2

C 1457 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- A F2

C 1458 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 USA A2 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A1 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A2 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A3 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B1 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B2 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B3 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C1 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C2 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C3 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D1 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D2 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H1 1- B c3

C 1461 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. FH 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 USA A2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. A1 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. A2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. A3 1- B c3

F-13

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. B1 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. B2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. B3 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. C1 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. C2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. C3 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. D1 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. D2 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. H1 1- B c3

C 1462 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 VER. H2 1- B c3

C 1463 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3

C 1464 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- A F3

C 1465 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A F3

C 1466 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- B c3

C 1467 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A G3

C 1468 CHIP CAP. 3pF 200V CJ GRM1883C2D3R0CV01D K22234205 1- A G3

C 1469 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 USA A2 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A1 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A2 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. A3 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B1 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B2 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. B3 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C1 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C2 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. C3 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. D1 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. D2 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. H1 1- A G3

C 1470 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 VER. H2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 USA A2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A1 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. A3 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B1 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. B3 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C1 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. C3 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D1 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. D2 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H1 1- A G3

C 1471 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 VER. H2 1- A G3

C 1472 CHIP CAP. 1.5pF 200V CK GRM1884C2D1R5CV01D K22234213 1- A G3

C 1473 CHIP CAP. 3pF 200V CJ GRM1883C2D3R0CV01D K22234205 1- A G3

C 1474 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A G3

C 1475 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A G3

C 1476 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- A H3

C 1477 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A H3

C 1478 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A H3

C 1479 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- A H4

C 1480 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A H3

C 1481 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A H3

C 1482 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B h7

C 1483 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B h7

C 1484 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A D2

C 1486 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A G4

C 1487 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B d5

C 1491 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- A D3

C 1492 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3

C 1493 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5

C 1495 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A A4

C 1497 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A F5

C 1499 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 AUS 1- B h5

C 1499 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 EXP 1- B h5

C 1500 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 AUS 1- B h5

C 1500 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 EXP 1- B h5

CD1001 CERAMIC DISC CDBM450C24 H7901390 1- A D7

CF1001 CERAMIC FILTER CFWM450E H3900466 1- A D6

D 1001 DIODE HSC277TRF G2070584 1- B c4

D 1002 DIODE HVC350B-TRF G2070596 1- B c5

F-14

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

D 1003 DIODE HVC350B-TRF G2070596 1- B d5

D 1004 DIODE HVC350B-TRF G2070596 1- B d4

D 1005 DIODE HVC131TRF G2070676 1- B c4

D 1006 DIODE HVC131TRF G2070676 1- A E5

D 1007 DIODE HVC131TRF G2070676 1- A E5

D 1009 DIODE HVC131TRF G2070676 1- B b3

D 1010 DIODE HVC365 TRF G2070902 1- B c5

D 1011 DIODE HVC365 TRF G2070902 1- B c5

D 1012 DIODE HVC365 TRF G2070902 1- B d5

D 1013 DIODE HVC131TRF G2070676 1- A E5

D 1015 DIODE HVC131TRF G2070676 1- B b2

D 1016 DIODE HVC131TRF G2070676 1- B b2

D 1017 DIODE HVC131TRF G2070676 1- A E5

D 1018 DIODE RLS135 TE-11 G2070128 1- B c3

D 1019 DIODE RLS135 TE-11 G2070128 1- B c3

D 1020 DIODE HVC131TRF G2070676 1- A E4

D 1021 DIODE HVC131TRF G2070676 1- A D4

D 1022 DIODE DAN222 TL G2070174 1- A E7

D 1023 DIODE MA2S72800L G2070858 1- B f7

D 1028 DIODE DAN222 TL G2070174 1- B g5

D 1030 DIODE DA221 TL G2070178 1- B h6

D 1031 DIODE HZM27WA-TR G2070530 1- B g7

D 1032 DIODE HZM27WA-TR G2070530 1- B f7

D 1033 SURGE ABSORBER P6KA18 Q9000721 1- A C1

D 1035 DIODE MA2S111-(TX) G2070614 1- B h4

D 1036 DIODE D1F20-4063 G2070474 1- B i4

D 1037 DIODE DAN222 TL G2070174 1- B i5

D 1038 DIODE DAN222 TL G2070174 1- B i5

D 1039 DIODE DAN222 TL G2070174 1- B h7

D 1040 DIODE DA221 TL G2070178 1- A D5

D 1041 DIODE HVC365 TRF G2070902 1- B f6

D 1042 DIODE HVC365 TRF G2070902 1- B f6

D 1043 DIODE HVC350B-TRF G2070596 1- B e6

D 1044 DIODE HVC365 TRF G2070902 1- B e6

D 1045 DIODE DA221 TL G2070178 1- B e6

D 1046 DIODE HVC375B-TRF G2070856 1- B e5

D 1047 DIODE HVC350B-TRF G2070596 1- B e5

D 1048 DIODE HSC277TRF G2070584 1- B e5

D 1049 DIODE HVC365 TRF G2070902 1- B e5

D 1050 DIODE HVC131TRF G2070676 1- B e5

D 1051 DIODE HVC365 TRF G2070902 1- B e5

D 1052 DIODE HVC362TRF G2070636 1- B e5

D 1053 DIODE HSC277TRF G2070584 1- A D5

D 1054 DIODE HSC277TRF G2070584 1- A D5

D 1055 DIODE HSC277TRF G2070584 1- A E4

D 1056 DIODE DAN222 TL G2070174 1- B f5

D 1057 DIODE HSC277TRF G2070584 1- A D4

D 1058 DIODE DAN222 TL G2070174 1- B e4

D 1059 DIODE DAN222 TL G2070174 1- B f4

D 1060 DIODE HSC277TRF G2070584 1- B e4

D 1061 DIODE HSC277TRF G2070584 1- B e4

D 1062 DIODE HZM13NB2 TR G2070894 1- B e3

D 1063 DIODE DAN222 TL G2070174 1- A E3

D 1064 DIODE HSC277TRF G2070584 1- A D3

D 1065 DIODE HSC277TRF G2070584 1- A D3

D 1066 DIODE RLS135 TE-11 G2070128 1- A C3

D 1067 DIODE RLS135 TE-11 G2070128 1- A D2

D 1068 DIODE HSC277TRF G2070584 USA A2 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. A1 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. A2 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. A3 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. B1 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. B2 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. B3 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. C1 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. C2 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. C3 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. D1 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. D2 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. H1 1- A C2

D 1068 DIODE HSC277TRF G2070584 VER. H2 1- A C2

D 1069 DIODE HSC277TRF G2070584 USA A2 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. A1 1- A C2

F-15

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

D 1069 DIODE HSC277TRF G2070584 VER. A2 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. A3 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. B1 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. B2 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. B3 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. C1 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. C2 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. C3 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. D1 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. D2 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. H1 1- A C2

D 1069 DIODE HSC277TRF G2070584 VER. H2 1- A C2

D 1070 DIODE MA2S72800L G2070858 1- B b1

D 1071 DIODE MA2S72800L G2070858 1- B b1

D 1072 DIODE XB15A709A0HR G2070826 1- A H1

D 1073 DIODE XB15A709A0HR G2070826 1- A H2

D 1074 DIODE RLS135 TE-11 G2070128 1- A H2

D 1075 DIODE RLS135 TE-11 G2070128 1- A H2

D 1076 DIODE UM9401F/TR G2070516 1- A F2

D 1077 DIODE UM9401F/TR G2070516 1- A F3

D 1078 DIODE MA2S72800L G2070858 1- B c3

D 1079 DIODE MA2S72800L G2070858 1- A G3

D 1080 SURGE ABSORBER RCCA-301Q43UA Q9000756 1- A H3

D 1081 DIODE UDZS TE-17 6.8B G2070888 1- A D3

D 1084 DIODE HSC277TRF G2070584 1- B c3

FB1001 BEADS COIL B-01-A L1190386 1- A B1

FB1002 FERRITE BEADS SMB304729 L9190094 1- A C1

FB1003 FERRITE BEADS SMB304729 L9190094 1- A C4

HS1001 HEATSINK PLATE RA0227600 1- B f3

J 1001 CONNECTOR HSJ6062-01-450 P1091168 1- A A1

J 1002 CONNECTOR SC25-02WS P0090621 1- A A4

J 1003 CONNECTOR MD-S6000-90 P1091087 1- B g1

J 1004 CONNECTOR B2B-ZR P0090647 1- A C1

J 1005 CONNECTOR MJ-66J-RD315K P1091049 1- A C7

L 1001 M.RFC 0.01uH 2% C1608CA-10NG L1691032 1- B c3

L 1002 M.RFC 0.012uH 2% C1608CA-12NG L1691033 1- B c4

L 1003 M.RFC 0.039uH 2% C1608CA-39NG L1691039 1- B c4

L 1004 M.RFC 0.1uH TFL0816-100N L1690981 1- B c5

L 1005 M.RFC 0.01uH 2% C1608CA-10NG L1691032 1- B c4

L 1006 COIL E2 0.28-1.0-4T-R L0022365 1- B d5

L 1007 COIL E2 0.28-1.0-4T-R L0022365 1- B d4

L 1008 M.RFC 0.015uH TFL0816-15 L1690493 1- A F5

L 1009 M.RFC 0.015uH TFL0816-15 L1690493 1- A F5

L 1010 M.RFC 0.015uH TFL0816-15 L1690493 1- B d5

L 1011 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b3

L 1012 M.RFC 0.056uH 2% C1608CA-56NG L1691041 AUS 1- B b3

L 1012 M.RFC 0.056uH 2% C1608CA-56NG L1691041 EXP 1- B b3

L 1012 M.RFC 0.056uH 2% C1608CA-56NG L1691041 USA 1- B b3

L 1013 M.RFC 0.047uH 2% C1608CA-47NG L1691040 AUS 1- B b3

L 1013 M.RFC 0.047uH 2% C1608CA-47NG L1691040 EXP 1- B b3

L 1013 M.RFC 0.047uH 2% C1608CA-47NG L1691040 USA 1- B b3

L 1014 M.RFC 0.039uH 2% C1608CA-39NG L1691039 AUS 1- B b4

L 1014 M.RFC 0.039uH 2% C1608CA-39NG L1691039 EXP 1- B b4

L 1014 M.RFC 0.039uH 2% C1608CA-39NG L1691039 USA 1- B b4

L 1015 M.RFC 0.15uH 2% C1608CA-R15G L1691101 AUS 1- B b4

L 1015 M.RFC 0.15uH 2% C1608CA-R15G L1691101 EXP 1- B b4

L 1015 M.RFC 0.15uH 2% C1608CA-R15G L1691101 USA 1- B b4

L 1016 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c5

L 1017 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B c5

L 1018 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B c5

L 1019 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B d5

L 1020 M.RFC 0.047uH TFL0816-47 L1690499 1- B d5

L 1021 M.RFC 0.068uH 2% C1608CA-68NG L1691042 1- B b3

L 1022 M.RFC 0.022uH 2% C1608CA-22NG L1691036 1- B b3

L 1023 M.RFC 0.022uH 2% C1608CA-22NG L1691036 1- B b4

L 1024 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b4

L 1025 M.RFC 0.039uH TFL0816-39 L1690498 1- B c5

L 1026 M.RFC 0.039uH TFL0816-39 L1690498 1- B d5

L 1027 M.RFC 0.01uH TFL0816-10 L1690491 1- B a4

L 1028 M.RFC 0.01uH TFL0816-10 L1690491 1- B a4

L 1029 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- B a4

L 1030 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A H4

L 1031 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A H5

F-16

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

L 1032 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A G5

L 1033 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F4

L 1034 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F5

L 1035 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A E4

L 1036 M.RFC 0.022uH TFL0816-22 L1690495 1- A F6

L 1037 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A F6

L 1038 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A E7

L 1039 M.RFC 1uH LK1608 1R0K-T L1690687 1- B d7

L 1040 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- B d6

L 1041 M.RFC 150uH FLC32T-151J L1690229 1- B h6

L 1042 M.RFC 1uH LK1608 1R0K-T L1690687 1- B h7

L 1043 M.RFC 1uH LK1608 1R0K-T L1690687 1- A D6

L 1044 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B e6

L 1045 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e5

L 1046 COIL E2 0.3-1.1-3T-R L0022579 1- B e5

L 1047 M.RFC 0.0039uH TFL0816-3N9 L1690486 1- B e5

L 1048 M.RFC 0.022uH TFL0816-22 L1690495 1- B e5

L 1049 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e5

L 1050 CHIP COIL 0.056uH LQN21A56NG04 L1690978 1- B e5

L 1051 M.RFC 0.0022uH TFL0510-2N2 L1690803 1- B e5

L 1052 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B e5

L 1053 M.RFC 1uH LK1608 1R0K-T L1690687 1- B g3

L 1054 M.RFC 0.47uH LK2125 R47K-T L1690315 1- B a5

L 1055 M.RFC 0.047uH TFL0816-47 L1690499 1- B e4

L 1056 M.RFC 0.015uH TFL0816-15 L1690493 1- B e4

L 1057 M.RFC 0.1uH 2% C1608CA-R10G L1691045 1- A C3

L 1058 M.RFC 0.0082uH TFL0816-8N2 L1690490 1- A D4

L 1059 COIL E2 0.35-1.6-4.5T-L L0022577 1- A D4

L 1060 COIL E2 0.3-1.1-3T-R L0022579 1- A D4

L 1061 COIL 0.0033uH AS050221-3R3NJ L0022825 1- A D3

L 1062 COIL E2 0.28-1.0-7TR L0022422 1- A D3

L 1063 COIL 0.056uH AS050635-56N L0022813 1- A C3

L 1064 COIL 0.0033uH AS050221-3R3NJ L0022825 1- A C3

L 1065 COIL 0.009uH AS050325-9R0NJ L0022826 1- A D2

L 1066 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B f2

L 1067 COIL E2 0.35-1.6-5.5T-L L0022616 1- A C3

L 1068 COIL E2 0.35-1.6-7T-L L0022390 1- A C3

L 1069 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B f3

L 1070 COIL 0.012uH AS080336-12N L0022810 1- A C2

L 1071 COIL A1 12.5T3.5D0.8UEW R L0022828 1- A E1

L 1072 M.RFC 0.47uH LK2125 R47K-T L1690315 1- A E3

L 1073 COIL A1 1.5T3.0D1.2UEW R L0022806 1- A F2

L 1074 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A F1

L 1075 COIL A1 4.5T3.5D1.0UEW R L0022836 1- A G1

L 1076 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A G2

L 1077 COIL E2 0.4-3.0-11.5T-L L0022646 1- A G2

L 1078 COIL 0.038uH AS050630-38N L0022818 1- A H2

L 1079 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A H2

L 1080 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A H3

L 1081 M.RFC 0.039uH 2% C1608CA-39NG L1691039 AUS 1- B b2

L 1081 M.RFC 0.039uH 2% C1608CA-39NG L1691039 EXPORT 1- B b2

L 1081 M.RFC 0.039uH 2% C1608CA-39NG L1691039 USA 1- B b2

L 1082 COIL 0.0093uH AS120252-9R3N L0022853 1- A F2

L 1083 COIL E2 0.25-1.9-5.5T-R L0022610 1- A F2

L 1084 COIL A1 2.5T3.0D1.2UEW R L0022807 1- A F3

L 1085 COIL 0.014uH AS050425-14NK L0022583 1- A G3

L 1086 COIL A1 2.5T3.0D1.2UEW R L0022807 1- A G3

L 1087 COIL 0.015uH AS100440-15N L0022811 1- A H3

L 1088 COIL 0.01uH AS1003-10NK L0022544 1- A H4

L 1089 M.RFC 0.033uH TFL0816-33 L1690497 1- B c4

L 1090 M.RFC 1uH LK1608 1R0K-T L1690687 1- A F6

L 1091 M.RFC 1uH LK1608 1R0K-T L1690687 1- A F6

L 1092 M.RFC 1uH LK1608 1R0K-T L1690687 1- A F6

L 1093 M.RFC 1uH LK1608 1R0K-T L1690687 1- A D5

L 1094 M.RFC 1uH LK1608 1R0K-T L1690687 1- A D5

L 1095 M.RFC 0.1uH TFL0816-100N L1690981 1- A D5

Q 1001 FET 3SK296ZQ-TL G4802968 1- B c4

Q 1002 FET 3SK296ZQ-TL G4802968 1- B d5

Q 1003 TRANSISTOR 2SC5006-T1 G3350068 1- A E5

Q 1008 FET 3SK296ZQ-TL G4802968 1- B c4

Q 1009 FET 3SK296ZQ-TL G4802968 1- B d5

Q 1010 FET 3SK296ZQ-TL G4802968 1- B b4

Q 1011 TRANSISTOR 2SC5374-TL G3353748 1- B d5

F-17

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

Q 1012 TRANSISTOR 2SC5277-D2-TL G3352778B 1- A H4

Q 1013 TRANSISTOR 2SC5006-T1 G3350068 1- A G4

Q 1014 TRANSISTOR 2SC5006-T1 G3350068 1- A E4

Q 1016 TRANSISTOR 2SC4400-3-TL G3344008C 1- A E7

Q 1017 TRANSISTOR 2SC4617 TL R G3346178R 1- B e7

Q 1018 TRANSISTOR 2SC4617 TL R G3346178R 1- B f6

Q 1019 TRANSISTOR 2SC4617 TL R G3346178R 1- A D7

Q 1020 TRANSISTOR 2SC4617 TL R G3346178R 1- A D7

Q 1021 TRANSISTOR 2SC4617 TL R G3346178R 1- B e6

Q 1022 TRANSISTOR 2SC4400-3-TL G3344008C 1- B d6

Q 1023 IC TA31136FN(EL) G1091605 1- A E7

Q 1028 IC NJM2902V-TE1 G1091679 1- B h5

Q 1029 TRANSISTOR 2SC4617 TL R G3346178R 1- A B3

Q 1030 TRANSISTOR 2SC4617 TL R G3346178R 1- A B3

Q 1031 IC NJM2902V-TE1 G1091679 1- B h6

Q 1032 TRANSISTOR DTC144EE TL G3070075 1- B i5

Q 1033 TRANSISTOR DTC144EE TL G3070075 1- B i6

Q 1034 IC M51132FP 600C G1091930 1- A B3

Q 1035 IC LA4425A G1092241 1- A A2

Q 1036 TRANSISTOR DTC144EE TL G3070075 1- B h3

Q 1037 TRANSISTOR DTC144EE TL G3070075 1- A B1

Q 1038 TRANSISTOR DTC144EE TL G3070075 1- A B1

Q 1039 IC BU4066BCFV-E2 G1093537 1- A B5

Q 1040 IC NJM2902V-TE1 G1091679 1- A B5

Q 1041 TRANSISTOR 2SC4617 TL R G3346178R 1- B f1

Q 1042 TRANSISTOR DTC144EE TL G3070075 1- B g6

Q 1043 TRANSISTOR 2SB1301-T2 ZQ G3213017Q 1- A B2

Q 1044 TRANSISTOR 2SB1201S-TL G3070195 1- B g2

Q 1045 IC MM1216ENRE G1092432 1- B g3

Q 1046 IC NJM78L05UA TE1 G1091325 1- A B2

Q 1047 TRANSISTOR 2SC4617 TL R G3346178R 1- A B2

Q 1049 IC NJM78L05UA TE1 G1091325 1- B i4

Q 1050 IC S-80823CNMC-B8I-T2 G1093635 1- B h5

Q 1051 TRANSISTOR 2SC4617 TL R G3346178R 1- B i5

Q 1052 TRANSISTOR 2SC4617 TL R G3346178R 1- B h6

Q 1053 IC AT24C256N-10SI-1.8 G1093837 1- B i6

Q 1054 TRANSISTOR DTC144EE TL G3070075 1- A A5

Q 1055 TRANSISTOR UMA8N TR G3070270 1- A G6

Q 1056 TRANSISTOR DTA144EE TL G3070074 1- A G6

Q 1057 TRANSISTOR UMA8N TR G3070270 1- A G6

Q 1058 TRANSISTOR IMT17 T110 G3070295 1- A H6

Q 1059 IC BU2090FS-E1 G1092187 1- A G6

Q 1062 TRANSISTOR DTA144EE TL G3070074 1- A F6

Q 1063 TRANSISTOR UMA8N TR G3070270 1- A F6

Q 1064 TRANSISTOR 2SC4617 TL R G3346178R 1- A F6

Q 1065 IC M3826AEFGP *1- A B6

Q 1066 TRANSISTOR DTC144EE TL G3070075 1- B f6

Q 1067 TRANSISTOR DTC144EE TL G3070075 1- B g6

Q 1068 TRANSISTOR DTC144EE TL G3070075 1- A E5

Q 1069 TRANSISTOR 2SA1774 TL R G3117748R 1- A C6

Q 1070 IC MB15A02PFV1-G-BND-EF G1092541 1- A D6

Q 1071 TRANSISTOR 2SC4617 TL R G3346178R 1- A D6

Q 1072 TRANSISTOR 2SC5006-T1 G3350068 1- B e5

Q 1073 TRANSISTOR 2SC5006-T1 G3350068 1- B f5

Q 1074 TRANSISTOR 2SC5006-T1 G3350068 1- A D5

Q 1075 TRANSISTOR 2SC5006-T1 G3350068 1- A D5

Q 1076 TRANSISTOR 2SC5374-TL G3353748 1- B e5

Q 1077 TRANSISTOR 2SC5374-TL G3353748 1- B e5

Q 1078 TRANSISTOR 2SC5374-TL G3353748 1- A E5

Q 1079 TRANSISTOR DTC144EE TL G3070075 1- B g4

Q 1080 TRANSISTOR DTC144EE TL G3070075 1- B g4

Q 1081 IC NJM2904V-TE1 G1091677 1- B g4

Q 1082 TRANSISTOR DTA144EE TL G3070074 1- B f3

Q 1083 TRANSISTOR DTC144EE TL G3070075 1- B f4

Q 1084 FET 2SK2596BXTL G3825967 1- A D4

Q 1085 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- B e4

Q 1086 FET RD07MVS1(TAPE) G3070320 1- A D3

Q 1087 FET RD70HVF1 G3090140 1- A E2

Q 1088 TRANSISTOR DTA144EE TL G3070074 1- B b7

R 1002 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A G4

R 1003 CHIP RES. 82k 1/16W 0.5% RR0510R-823-D J24189165 1- A G4

R 1004 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 AUS 1- B c4

R 1004 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 EXP 1- B c4

*: Please contact VERTEX STANDARD.

F-18

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1004 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 USA 1- B c4

R 1005 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c4

R 1007 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 AUS 1- A F4

R 1007 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 EXP 1- A F4

R 1007 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 USA 1- A F4

R 1008 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A F4

R 1009 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c4

R 1011 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c5

R 1012 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c5

R 1013 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c5

R 1014 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5

R 1015 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5

R 1016 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B d5

R 1017 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d5

R 1018 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B d4

R 1019 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d5

R 1020 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d5

R 1021 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c4

R 1022 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A F5

R 1023 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F5

R 1024 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A E5

R 1025 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A F5

R 1026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E5

R 1027 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d5

R 1028 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d5

R 1029 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d5

R 1030 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A E4

R 1031 CHIP RES. 82k 1/16W 0.5% RR0510R-823-D J24189165 1- A G4

R 1035 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b3

R 1036 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b4

R 1037 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4

R 1038 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 AUS 1- B c4

R 1038 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 EXP 1- B c4

R 1038 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 USA 1- B c4

R 1039 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c4

R 1040 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 AUS 1- B c5

R 1040 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 EXP 1- B c5

R 1040 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 USA 1- B c5

R 1041 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 AUS 1- B c5

R 1041 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 EXP 1- B c5

R 1041 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 USA 1- B c5

R 1042 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c5

R 1043 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d5

R 1044 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d5

R 1045 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B d5

R 1046 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B d5

R 1047 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d5

R 1048 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d5

R 1049 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B d5

R 1050 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B d5

R 1051 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b3

R 1054 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b4

R 1055 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- A G4

R 1056 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b4

R 1057 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 AUS 1- B b4

R 1057 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 EXP 1- B b4

R 1057 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 USA 1- B b4

R 1058 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b4

R 1059 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c5

R 1060 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c5

R 1061 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c5

R 1062 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- B d5

R 1063 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B d5

R 1064 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d5

R 1065 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2

R 1066 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A H5

R 1067 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A H5

R 1068 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A H5

R 1069 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A G5

R 1070 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A G5

R 1071 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A G4

R 1072 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F4

R 1073 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A G5

F-19

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1074 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 1- A F5

R 1075 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E5

R 1076 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E5

R 1077 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A E4

R 1078 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E5

R 1080 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A F6

R 1081 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E6

R 1082 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F6

R 1083 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A F7

R 1084 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A F7

R 1085 CHIP RES. 8.2k 1/16W 0.5% RR0510P-822-D J24189141 AUSA 1- A F7

R 1085 CHIP RES. 8.2k 1/16W 0.5% RR0510P-822-D J24189141 EXP 1- A F7

R 1085 CHIP RES. 8.2k 1/16W 0.5% RR0510P-822-D J24189141 USA 1- A F7

R 1086 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A E7

R 1087 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A E7

R 1088 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A E7

R 1089 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E7

R 1090 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A E7

R 1091 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e7

R 1092 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B e7

R 1093 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- A E7

R 1094 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e7

R 1095 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e7

R 1096 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B e6

R 1097 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f7

R 1098 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- B e6

R 1099 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A D7

R 1100 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f7

R 1101 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A D7

R 1102 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A D7

R 1103 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A D7

R 1104 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A D7

R 1105 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A D7

R 1106 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A D7

R 1107 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e6

R 1108 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e6

R 1109 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D7

R 1110 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g5

R 1111 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- B g4

R 1112 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B g3

R 1113 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B g4

R 1114 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B g4

R 1115 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d7

R 1116 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B d6

R 1117 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B d6

R 1118 CHIP RES. 1.5k 1/16W 0.5% RR0510P-152-D J24189123 1- B e7

R 1119 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E7

R 1121 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E7

R 1122 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B7

R 1123 CHIP RES. 47k 1/16W 0.5% RR0510R-473-D J24189159 1- B e7

R 1124 CHIP RES. 2.7k 1/16W 0.5% RR0510P-272-D J24189129 1- B e7

R 1125 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 1- B e7

R 1126 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B e7

R 1127 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A E7

R 1128 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A D7

R 1129 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d6

R 1130 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e6

R 1135 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e6

R 1136 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e6

R 1138 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B h6

R 1139 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- B g5

R 1140 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B g5

R 1141 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B g6

R 1143 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B h5

R 1144 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- B h6

R 1145 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- B h5

R 1146 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B h5

R 1147 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h5

R 1148 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h5

R 1149 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B g5

R 1150 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B h5

R 1151 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B h5

R 1152 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B h5

F-20

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1153 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3

R 1154 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3

R 1155 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3

R 1156 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1

R 1157 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A1

R 1158 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B3

R 1159 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3

R 1160 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3

R 1161 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B3

R 1163 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B3

R 1164 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5

R 1165 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B h5

R 1167 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B h5

R 1168 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h5

R 1169 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B h5

R 1170 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h6

R 1171 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B h5

R 1172 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 USA 1- B h5

R 1173 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 USA 1- B h5

R 1174 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h5

R 1175 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h5

R 1176 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h5

R 1177 CHIP RES. 3.3M 1/16W 5% RMC1/16S 335JTH J24189324 1- B h5

R 1178 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B i5

R 1179 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B i5

R 1180 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B i6

R 1181 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B i6

R 1182 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B h6

R 1183 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B h6

R 1184 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B h6

R 1185 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A2

R 1186 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B h4

R 1187 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B3

R 1188 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B h2

R 1189 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B i3

R 1190 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B i3

R 1191 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A3

R 1192 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h2

R 1193 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h2

R 1194 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- B h2

R 1195 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B1

R 1196 CHIP RES. 10 1/2W 5% RMC1/2 100JCTP J24275100 1- A A4

R 1197 CHIP RES. 10 1/2W 5% RMC1/2 100JCTP J24275100 1- A A4

R 1198 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B h6

R 1199 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B5

R 1200 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A B5

R 1201 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B6

R 1202 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1

R 1203 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B1

R 1204 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- A B1

R 1205 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A B1

R 1206 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B1

R 1207 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B h5

R 1208 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B5

R 1209 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B5

R 1210 CHIP RES. 56k 1/16W 0.5% RR0510R-563-D J24189161 1- A B5

R 1211 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B5

R 1212 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A5

R 1213 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A B5

R 1214 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A B5

R 1215 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5

R 1216 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f6

R 1217 CHIP RES. 33 1/2W 5% RMC1/2 330JCTP J24275330 1- B g2

R 1218 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B g1

R 1219 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g7

R 1220 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g7

R 1221 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f7

R 1222 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f6

R 1223 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1224 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g7

R 1225 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B2

R 1226 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2

R 1227 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2

F-21

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1228 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2

R 1229 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2

R 1230 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B g4

R 1231 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B2

R 1232 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B2

R 1235 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- B h4

R 1236 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B h4

R 1237 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h5

R 1238 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B h5

R 1239 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h4

R 1240 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B i4

R 1241 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h5

R 1242 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B i5

R 1243 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B i5

R 1244 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h6

R 1245 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B h6

R 1246 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B h6

R 1247 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h6

R 1248 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B h7

R 1249 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h6

R 1250 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A5

R 1251 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A5

R 1252 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A A5

R 1253 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- A A5

R 1254 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A5

R 1255 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A5

R 1256 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A5

R 1257 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A A5

R 1258 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A5

R 1259 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A B5

R 1260 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B h6

R 1261 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 AUS 1- A B6

R 1261 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 EXP 1- A B6

R 1261 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 USA 1- A B6

R 1262 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A B5

R 1263 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A B5

R 1264 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B6

R 1265 CHIP RES. 33k 1/16W 0.5% RR0510R-333-D J24189155 1- A B6

R 1266 CHIP RES. 56k 1/16W 0.5% RR0510R-563-D J24189161 1- A B6

R 1267 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5

R 1268 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5

R 1269 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g6

R 1270 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A H6

R 1271 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A G6

R 1272 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A G6

R 1273 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A G6

R 1274 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A G6

R 1275 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- A F6

R 1276 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A F7

R 1277 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 1- A A7

R 1278 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- A A7

R 1279 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h7

R 1280 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h7

R 1281 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h7

R 1282 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A7

R 1283 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A7

R 1284 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A7

R 1285 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- B h7

R 1286 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- B h7

R 1287 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1296 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1297 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1298 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h7

R 1299 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1300 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1301 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A6

R 1302 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- A A6

R 1303 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 1- A A6

R 1304 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A6

R 1305 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A6

R 1306 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A6

R 1307 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A6

R 1308 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A6

F-22

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1309 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A6

R 1310 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A A6

R 1311 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- A A6

R 1312 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B h6

R 1313 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h6

R 1314 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- A B6

R 1315 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A B6

R 1316 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B6

R 1317 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B6

R 1318 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B6

R 1319 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B6

R 1320 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B6

R 1321 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B6

R 1322 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g6

R 1323 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h4

R 1324 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h4

R 1325 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B h7

R 1326 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h7

R 1327 CHIP RES. 2.2k 1/16W 0.5% RR0510P-222-D J24189127 1- A B4

R 1328 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1329 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1331 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1332 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1333 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1334 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1335 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1336 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B6

R 1337 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B6

R 1338 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g7

R 1339 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g6

R 1340 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g6

R 1341 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B h6

R 1342 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B h7

R 1343 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B7

R 1344 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B7

R 1345 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B7

R 1346 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B7

R 1347 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A B7

R 1348 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B7

R 1349 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- B f6

R 1350 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B g6

R 1351 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f6

R 1352 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A D5

R 1353 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A D5

R 1354 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A D5

R 1355 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A D5

R 1356 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- A D5

R 1357 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B g4

R 1358 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B5

R 1359 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B g6

R 1360 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f6

R 1361 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B e6

R 1362 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C6

R 1363 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C6

R 1364 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- A D5

R 1365 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D5

R 1366 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A C6

R 1367 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A D6

R 1368 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f6

R 1369 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f6

R 1370 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B f6

R 1371 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B f6

R 1372 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e6

R 1373 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f6

R 1374 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e6

R 1375 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D6

R 1376 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D6

R 1377 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D6

R 1378 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5

R 1379 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e6

R 1380 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B e6

R 1381 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B e6

R 1382 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B f6

F-23

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1383 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B f6

R 1384 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A D6

R 1385 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- A D6

R 1386 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- A C5

R 1387 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E5

R 1388 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e5

R 1389 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B e5

R 1390 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B f5

R 1391 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B e5

R 1392 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B e5

R 1393 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e5

R 1394 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B f5

R 1395 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e5

R 1396 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B e5

R 1397 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B e5

R 1398 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A D5

R 1399 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5

R 1400 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A D5

R 1401 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B e5

R 1402 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A D5

R 1403 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A E5

R 1404 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B e5

R 1405 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B e5

R 1406 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e5

R 1407 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5

R 1408 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B e5

R 1409 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5

R 1410 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D5

R 1411 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B e5

R 1412 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A D5

R 1413 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A E5

R 1414 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E5

R 1415 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f4

R 1416 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e4

R 1417 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g4

R 1418 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A D4

R 1419 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g3

R 1420 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2

R 1421 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B g3

R 1422 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B g3

R 1423 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B g4

R 1424 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B g4

R 1425 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 USA A2 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. A1 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. A2 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. A3 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. B1 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. B2 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. B3 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. C1 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. C2 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. C3 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. D1 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. D2 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. H1 1- B g4

R 1426 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 VER. H2 1- B g4

R 1428 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- B g3

R 1430 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 USA A2 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. A1 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. A2 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. A3 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. B1 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. B2 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. B3 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. C1 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. C2 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. C3 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. D1 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. D2 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. H1 1- B e4

R 1431 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 VER. H2 1- B e4

F-24

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1432 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e4

R 1433 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 USA A2 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. A1 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. A2 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. A3 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. B1 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. B2 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. B3 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. C1 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. C2 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. C3 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. D1 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. D2 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. H1 1- B e4

R 1434 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 VER. H2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 USA A2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. A1 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. A2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. A3 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. B1 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. B2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. B3 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. C1 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. C2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. C3 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. D1 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. D2 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. H1 1- B e4

R 1435 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 VER. H2 1- B e4

R 1436 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- B g4

R 1437 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B f4

R 1438 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B e3

R 1439 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B e3

R 1440 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B e4

R 1441 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f4

R 1442 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e4

R 1443 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D4

R 1444 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 USA A2 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. A1 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. A2 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. A3 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. B1 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. B2 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. B3 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. C1 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. C2 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. C3 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. D1 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. D2 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. H1 1- A D4

R 1445 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 VER. H2 1- A D4

R 1446 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D3

R 1447 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D3

R 1448 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D3

R 1449 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D3

R 1450 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D3

R 1451 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B e3

R 1452 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B e3

R 1453 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E4

R 1454 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4

R 1455 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B f3

R 1456 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B e4

R 1457 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B f2

R 1459 CHIP RES. 820 1/2W 5% RK73K2HTE820-J J24279028 1- B f2

R 1460 CHIP RES. 820 1/2W 5% RK73K2HTE820-J J24279028 1- B f2

R 1461 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2

R 1462 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B f2

R 1463 CHIP RES. 470 1/2W 5% RMC1/2 471JCTP J24275471 1- B f2

R 1464 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f2

R 1465 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- B g3

R 1466 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B f2

F-25

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1467 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B f2

R 1468 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2

R 1469 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2

R 1470 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2

R 1471 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 USA A2 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A1 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A2 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A3 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B1 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B2 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B3 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C1 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C2 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C3 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D1 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D2 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H1 1- A C2

R 1472 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 USA A2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A1 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A3 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B1 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B3 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C1 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C3 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D1 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D2 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H1 1- A C2

R 1473 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H2 1- A C2

R 1474 CHIP RES. 220 1/2W 5% RMC1/2 221JCTP J24275221 1- A C3

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 USA A2 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A1 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A2 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. A3 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B1 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B2 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. B3 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C1 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C2 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. C3 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D1 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. D2 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H1 1- A C2

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 VER. H2 1- A C2

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 USA A2 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. A1 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. A2 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. A3 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. B1 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. B2 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. B3 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. C1 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. C2 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. C3 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. D1 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. D2 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. H1 1- A C3

R 1476 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 VER. H2 1- A C3

R 1477 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- A G2

R 1478 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- A G3

R 1479 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1

R 1480 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1

R 1481 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B c2

R 1482 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1

R 1483 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1

R 1484 CHIP RES. 10 1/2W 5% RMC1/2 100JCTP J24275100 1- A E3

R 1485 CHIP RES. 18 1W 5% RMC1 180JTE J24305180 1- A F3

R 1486 CHIP RES. 18 1W 5% RMC1 180JTE J24305180 1- A F3

R 1487 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c3

F-26

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

MAIN Unit

R 1488 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c2

R 1489 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c2

R 1490 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A G3

R 1491 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2

R 1492 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B e7

R 1493 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B e6

R 1495 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B g6

R 1496 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A D5

R 1497 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A D4

R 1498 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 USA 1- A A5

R 1499 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B h3

R 1500 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g7

R 1504 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c3

R 1505 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A F3

R 1506 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A H5

R 1508 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A A3

R 1509 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 AUS 1- B h5

R 1509 CHIP RES. 270k 1/16W 5% RMC1/16S 274JTH J24189054 EXP 1- B h5

R 1510 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 AUS 1- B h5

R 1510 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 EXP 1- B h5

TH1001 THERMISTOR TBPS1R103K440H5Q G9090067 1- A C4

TH1002 THERMISTOR TBPS1R103K440H5Q G9090067 1- B f6

TH1003 THERMISTOR TBPS1R473K475H5Q G9090068 1- B f6

X 1001 XTAL CSA-310 3.6864MHz 3.6864MHZ H0102988 1- A B6

X 1002 XTAL TSS-5032A 11.15MHz 11.15MHZ H0103268 1- B f6

XF1001 XTAL FILTER MFT45R6 45.05MHZ H1102351 1- A F6

SHIELD CASE VCO RA0272500 1-

GROUND PLATE RA0415200 1-

G-1

PANEL Unit

Circuit Diagram

1.58 V

5.00 V

DIM 1: 7.26 V

DIM OFF: 8.45 V

DIM 1: 4.36 V

DIM OFF: 0 V

5.00 V

3.15 V

8.68 V

3.57 V

8.90 V

G-2

Parts Layout (Side A)

PANEL Unit

HZM27WA (27A)

(D2011, 2014)

M38223M4M

(Q2001)

LC75821E

(Q2002)

NJM2904V

(Q2011)

NJM78L05 (8C)

(Q2003)

DTA144EE (16)

(Q2012)

DTC144EE (26)

(Q2005)

2SA1774 (FR)

(Q2004)

2SB1132 (BA)

(Q2006)

Parts Layout (Side B)

abcdefghi

ABCDEFGHI

UMW1 (W1)

(Q2007)

Common

Segment

LCD

(DS2001)

G-3

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

PANEL Unit

PCB with Components CB2349001 USA

CB2349003 EXP

CB2349004 AUS

Printed Circit Board AH016M000 FR0111800 1-

C 2001 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a1

C 2002 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a1

C 2003 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a1

C 2004 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a1

C 2005 CHIP CAP. 0.015uF 16V B GRM36B153K16PT K22128807 1- B b1

C 2006 CHIP CAP. 0.015uF 16V B GRM36B153K16PT K22128807 1- B a1

C 2007 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h3

C 2008 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h2

C 2010 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h1

C 2011 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B h1

C 2013 CHIP TA.CAP. 10uF 6.3V TEMSVA0J106M-8R K78080027 1- B e1

C 2014 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2

C 2015 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2

C 2016 CHIP TA.CAP. 10uF 6.3V TEMSVA0J106M-8R K78080027 1- B d2

C 2017 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d2

C 2018 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B c2

C 2019 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2

C 2020 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g2

C 2021 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2

C 2022 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- B f2

C 2023 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- B f2

C 2024 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2

C 2025 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B c2

C 2026 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2

C 2027 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d2

C 2028 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- B d2

C 2029 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B d2

C 2030 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B d2

C 2031 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2

C 2032 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e2

C 2033 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d2

C 2034 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B d2

C 2035 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2

C 2036 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2

C 2037 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B b2

C 2038 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B b2

C 2039 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B b2

C 2040 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b2

C 2041 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- B b3

C 2042 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B b2

C 2043 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2

C 2044 CHIP CAP. 0.0056uF 25V B GRM36B562K50PT K22148802 1- B b3

C 2047 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2

C 2050 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g1

C 2051 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g1

C 2052 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3

D 2001 LED SPMA10-1104Q7NC G2070878 1- A G1

D 2002 LED SPMA10-1104Q7NC G2070878 1- A G2

D 2003 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A G1

D 2004 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A B1

D 2005 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A E2

D 2006 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A D2

D 2007 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A G2

D 2008 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A C2

D 2009 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A G2

D 2010 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A B2

D 2011 DIODE HZM27WA-TR G2070530 1- B f3

D 2012 DIODE UDZS TE-17 6.8B G2070888 1- B a1

D 2013 DIODE UDZS TE-17 6.8B G2070888 1- B g1

D 2014 DIODE HZM27WA-TR G2070530 1- B b1

D 2015 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A F2

D 2016 LED 19-215UYOC/S530-A2/TR8 G2070884 1- A D2

DS2001 LCD 070520 G6090155 1- A E1

L 2001 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e2

L 2002 M.RFC 2.2uH LK1608 2R2K-T L1690634 1- B b2

P 2000 WIRE ASSY AH016M T9207057 1-

Q 2001 IC M38223M4M-366HP G1093984 1- B f2

Q 2002 IC LC75821E G1092191 1- B d2

Q 2003 IC NJM78L05UA TE1 G1091325 1- B c2

G-4

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

PANEL Unit

Q 2004 TRANSISTOR 2SA1774 TL R G3117748R 1- B g2

Q 2005 TRANSISTOR DTC144EE TL G3070075 1- B g2

Q 2006 TRANSISTOR 2SB1132 T100 Q G3211327Q 1- B b2

Q 2007 TRANSISTOR UMW1 TR G3070078 1- B c2

Q 2011 IC NJM2904V-TE1 G1091677 1- B b2

R 2001 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1

R 2002 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1

R 2003 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1

R 2004 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1

R 2005 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2006 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2007 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a1

R 2008 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2

R 2009 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a1

R 2011 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B g1

R 2012 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B g2

R 2013 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B h1

R 2014 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2015 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2016 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2017 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2018 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2019 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2020 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2021 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2022 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2023 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2025 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2

R 2027 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2028 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2029 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B e2

R 2030 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B e2

R 2031 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e2

R 2032 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d2

R 2033 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B d2

R 2034 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e2

R 2035 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B e2

R 2036 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f2

R 2037 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f2

R 2038 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B a2

R 2039 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2040 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2041 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2042 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2043 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g2

R 2044 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f2

R 2045 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B g2

R 2046 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B f2

R 2047 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f1

R 2048 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f1

R 2049 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f1

R 2050 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f1

R 2051 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- B f1

R 2052 CHIP RES. 20k 1/16W 0.5% RR0510R-203-D J24189150 1- B f1

R 2053 CHIP RES. 39k 1/16W 0.5% RR0510R-393-D J24189157 1- B f1

R 2054 CHIP RES. 82k 1/16W 0.5% RR0510R-823-D J24189165 1- B f1

R 2055 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B f1

R 2056 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B g2

R 2057 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g2

R 2058 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g2

R 2059 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B f2

R 2060 CHIP RES. 10 1/10W 5% RMC1/10T 100J J24205100 1- B c3

R 2061 CHIP RES. 10 1/10W 5% RMC1/10T 100J J24205100 1- B b2

R 2062 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c2

R 2063 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c2

R 2064 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c2

R 2065 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c2

R 2066 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- B b2

R 2067 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B c2

R 2068 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B d2

R 2069 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B b2

R 2070 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B b2

G-5

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

PANEL Unit

R 2071 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B b1

R 2072 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- B d2

R 2073 CHIP RES. 820 1/16W 5% RMC1/16S 821JTH J24189024 1- B e2

R 2074 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e2

R 2075 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2

R 2077 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2

R 2078 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- B b2

R 2079 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2

R 2080 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B b2

R 2081 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b2

R 2082 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b2

R 2083 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b2

R 2084 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 AUS 1- B b2

R 2084 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 EXP 1- B b2

R 2084 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 USA 1- B b2

R 2085 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b2

R 2086 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b2

R 2087 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b2

R 2088 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B a2

R 2089 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3

R 2090 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2

R 2091 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2

R 2092 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2

R 2093 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2

R 2094 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A B2

R 2095 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2

R 2096 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B2

R 2097 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B e3

R 2098 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B e2

R 2099 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- B c2

R 2100 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- B g1

R 2101 CHIP RES. 0 1/16W 5% RMC1/16 000JATP J24185000 1- A B2

R 2102 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a2

R 2103 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B a1

S 2014 TACT SWITCH SKQMAL N5090105 1- A H1

VR2001 POT. RK09D1130C2P 10KB J60800268 1- A A1

VR2002 POT. RK09D1130C2P 10KB J60800268 1- A A2

X 2001 XTAL CSA-310 3.6864MHz 3.6864MHZ H0102988 1- B f2

LCD HOLDER RA0540800 1-

INTER CONNECTOR RA0540900 1-

LIGHT GUIDE (LCD) RA0540700 1-

DIFFUSER SHEET RA0551800 1-

REFLECTOR SHEET RA0551900 1-

LCD SPACER RA0552200 1-

G-6

Parts List

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

PANEL Unit

Note

H-1

Circuit Diagram

CH Unit

Parts Layout

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

Side A SideB

Parts List

PCB with Components CB2350001

Printed Circuit Board AH016M000 FR0111900 1-

J 3001 CONNECTOR NTC-623PCBL6-B P1091107 1-

S 3001 ROTARY ENCODER EC11B15202AA Q9000804 1-

H-2

Note

CH Unit

VERTEX STANDARD CO., LTD.

No portion of this manual

may be reproduced

without the permission of

VERTEX STANDARD CO., LTD.

Yaesu FT 7800R Technical Supplement Service Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
