C YAESU FT 817 Service Manual

User Manual: Pdf YAESU--FT-817-Service-Manual

Open the PDF directly: View PDF .
Page Count: 102 [warning: Documents this large are best viewed by clicking the View PDF Link!]

Introduction
Contents
Specifications
Exploded View & Miscellaneous Parts

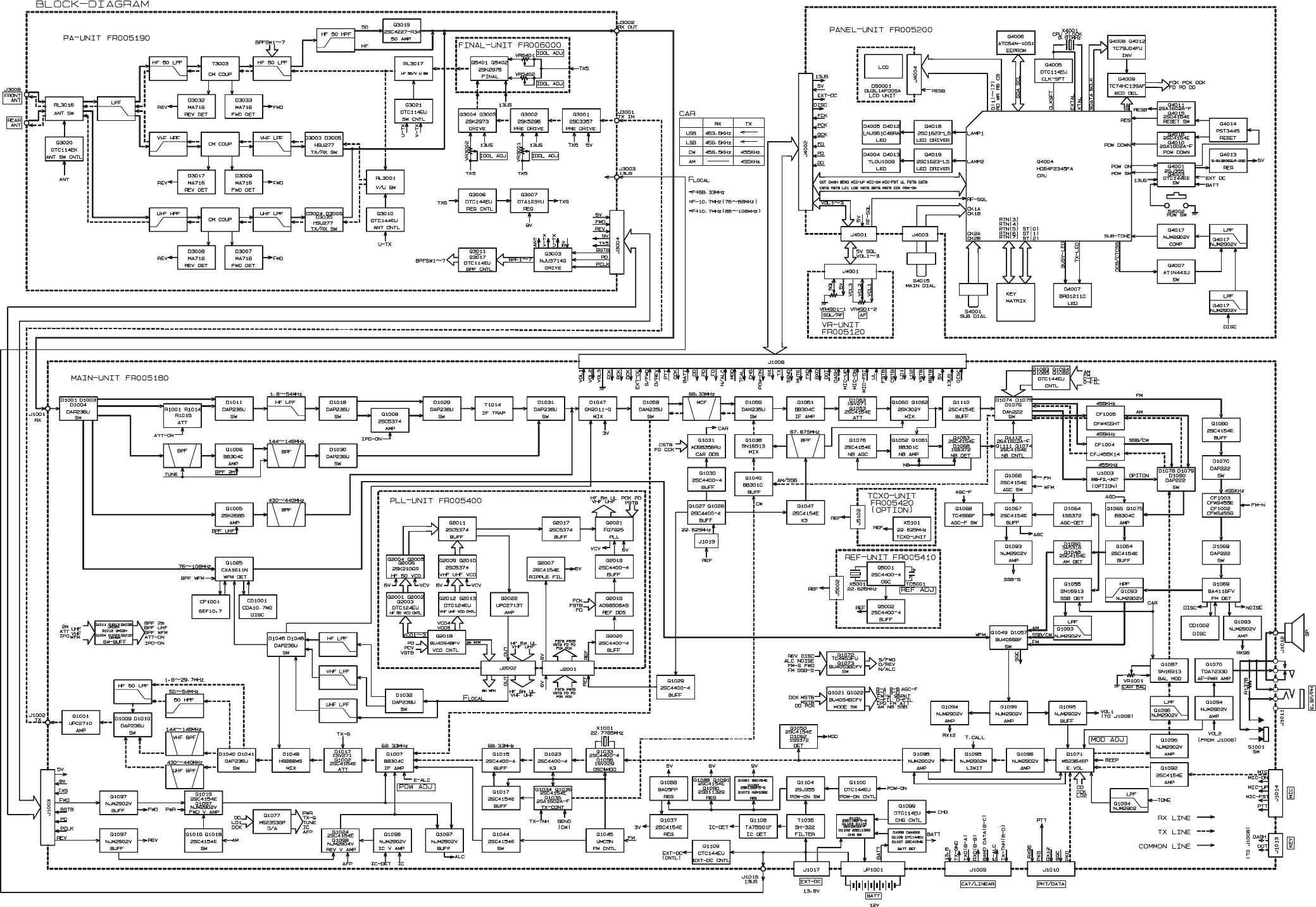

Block Diagram
Circuit Description
Alignment

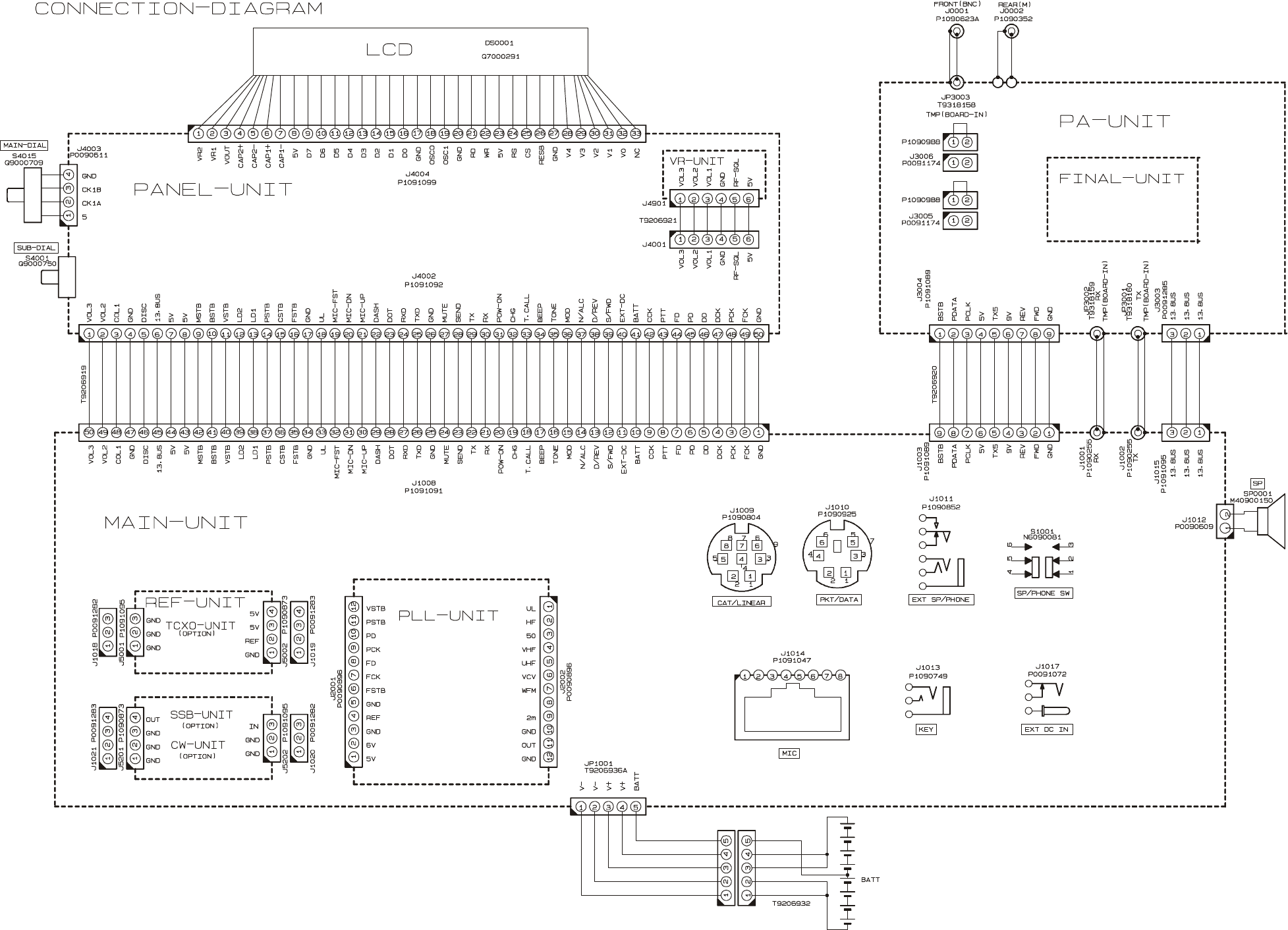

Interconnection Diagram

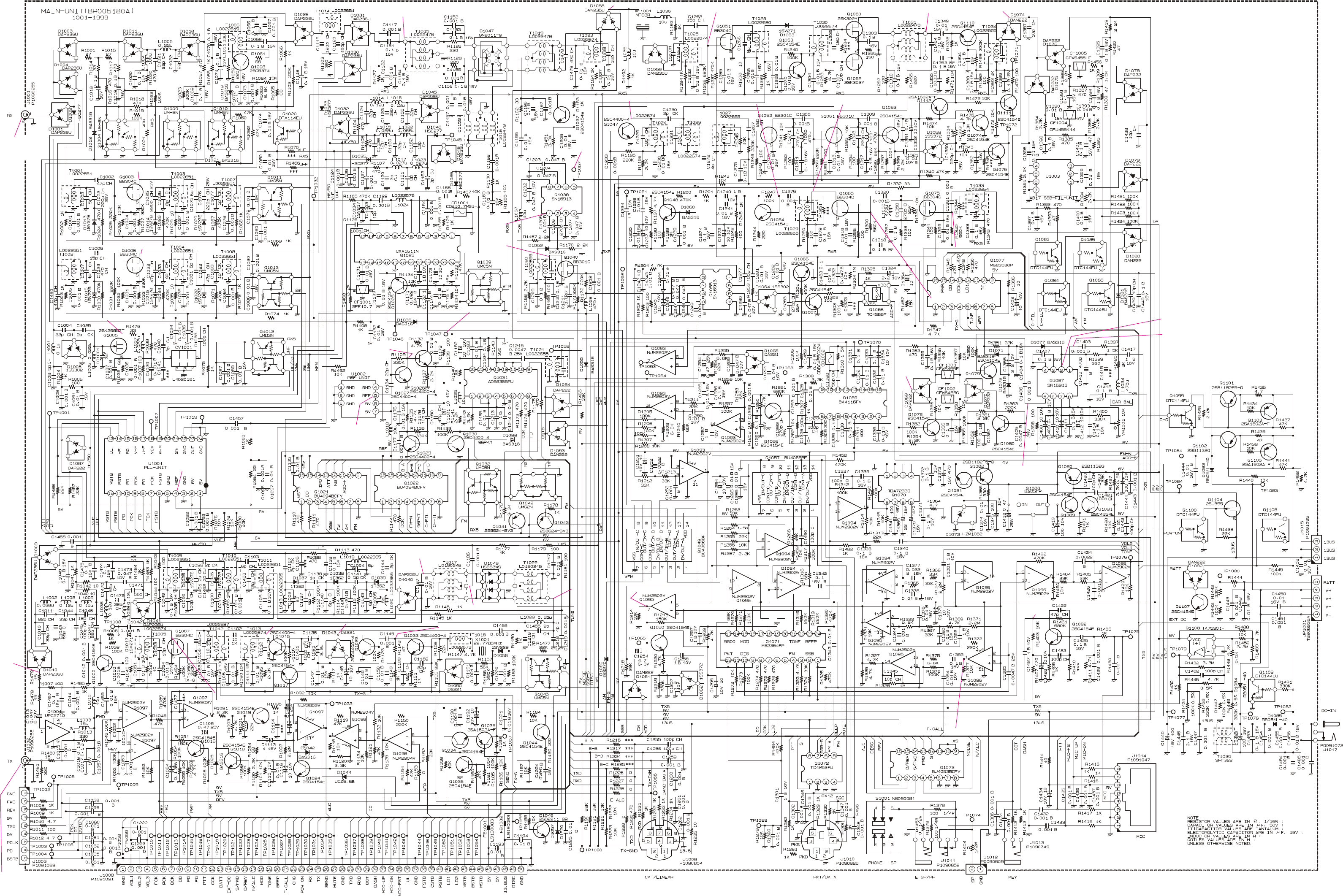

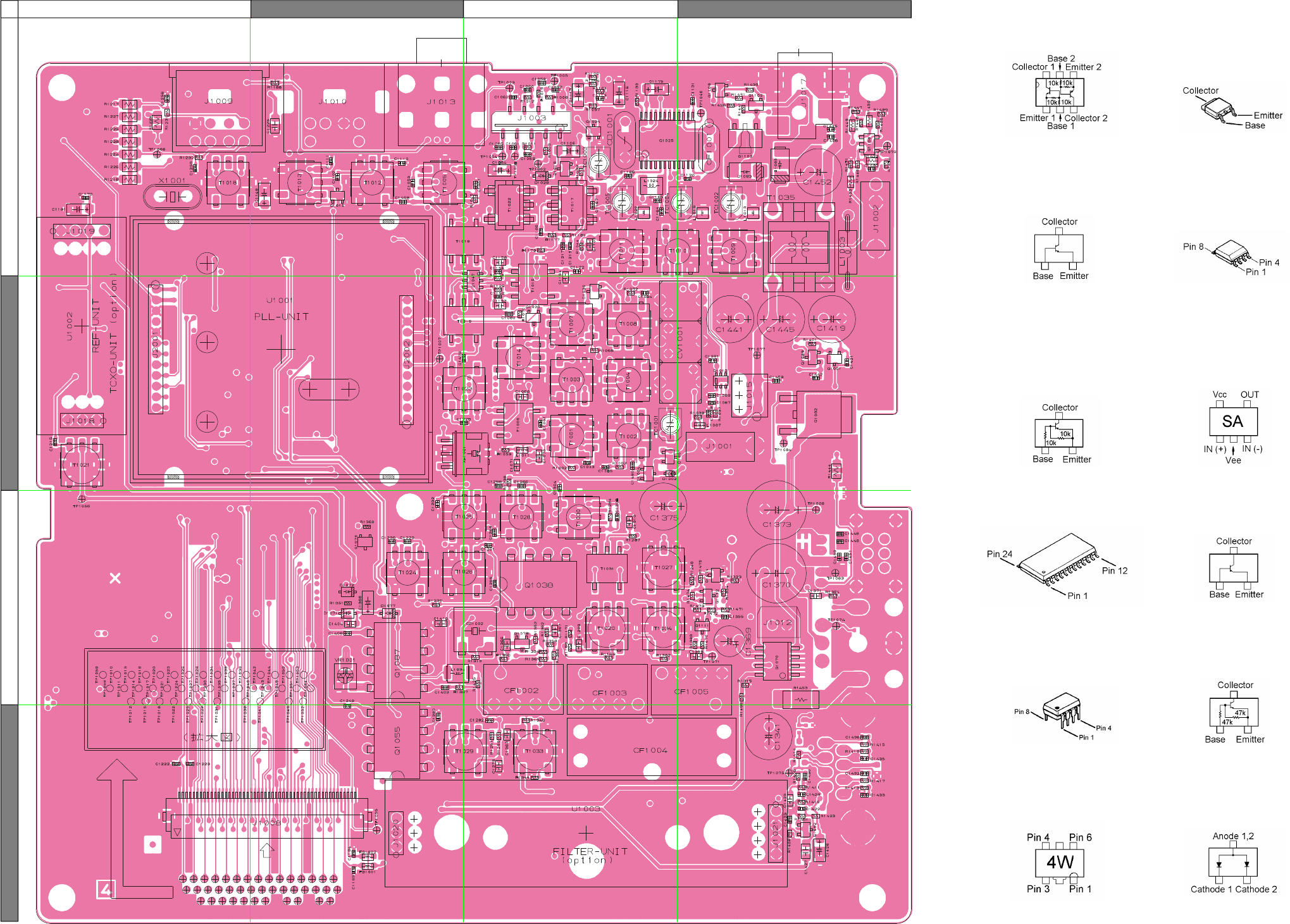

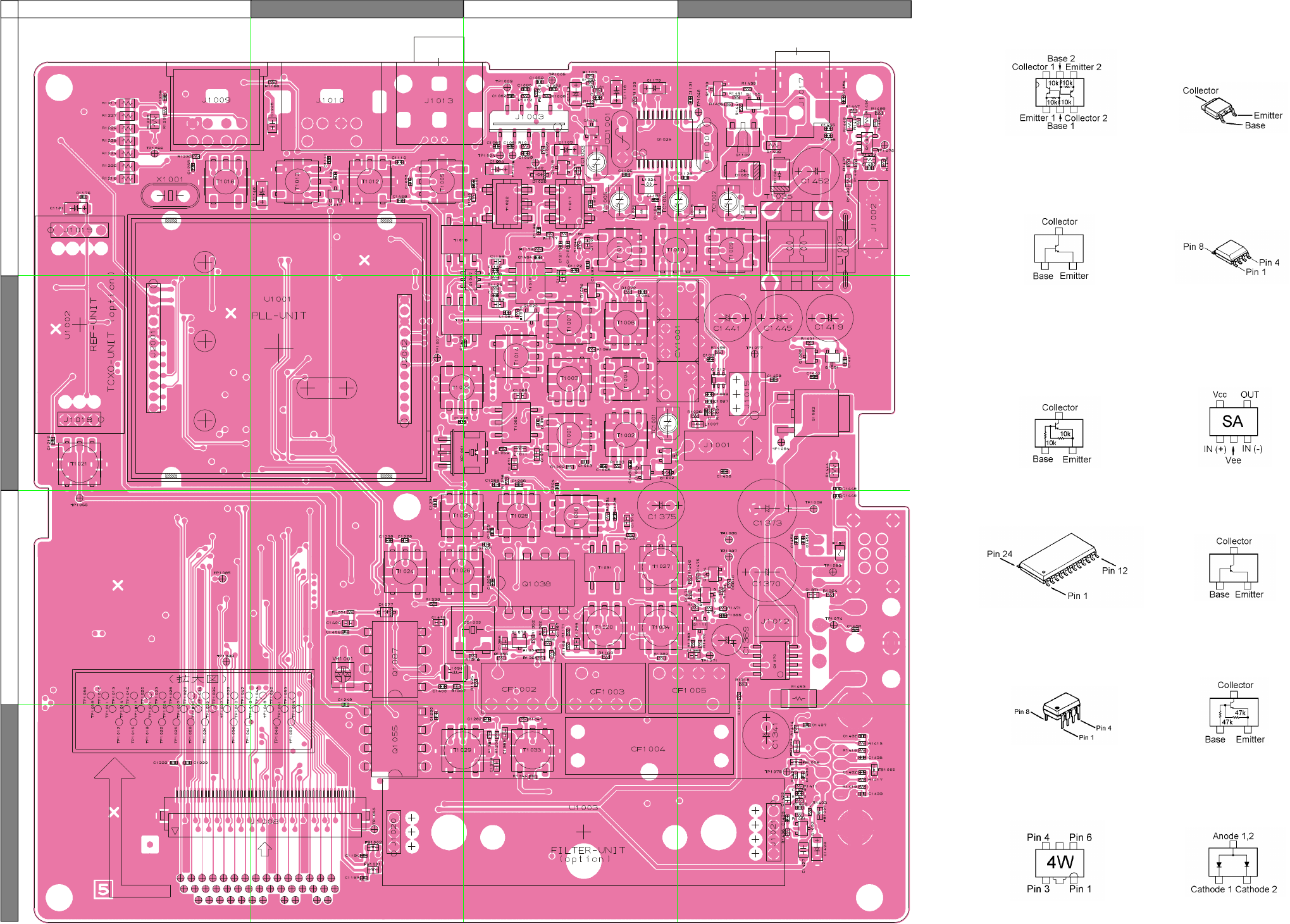

MAIN Unit

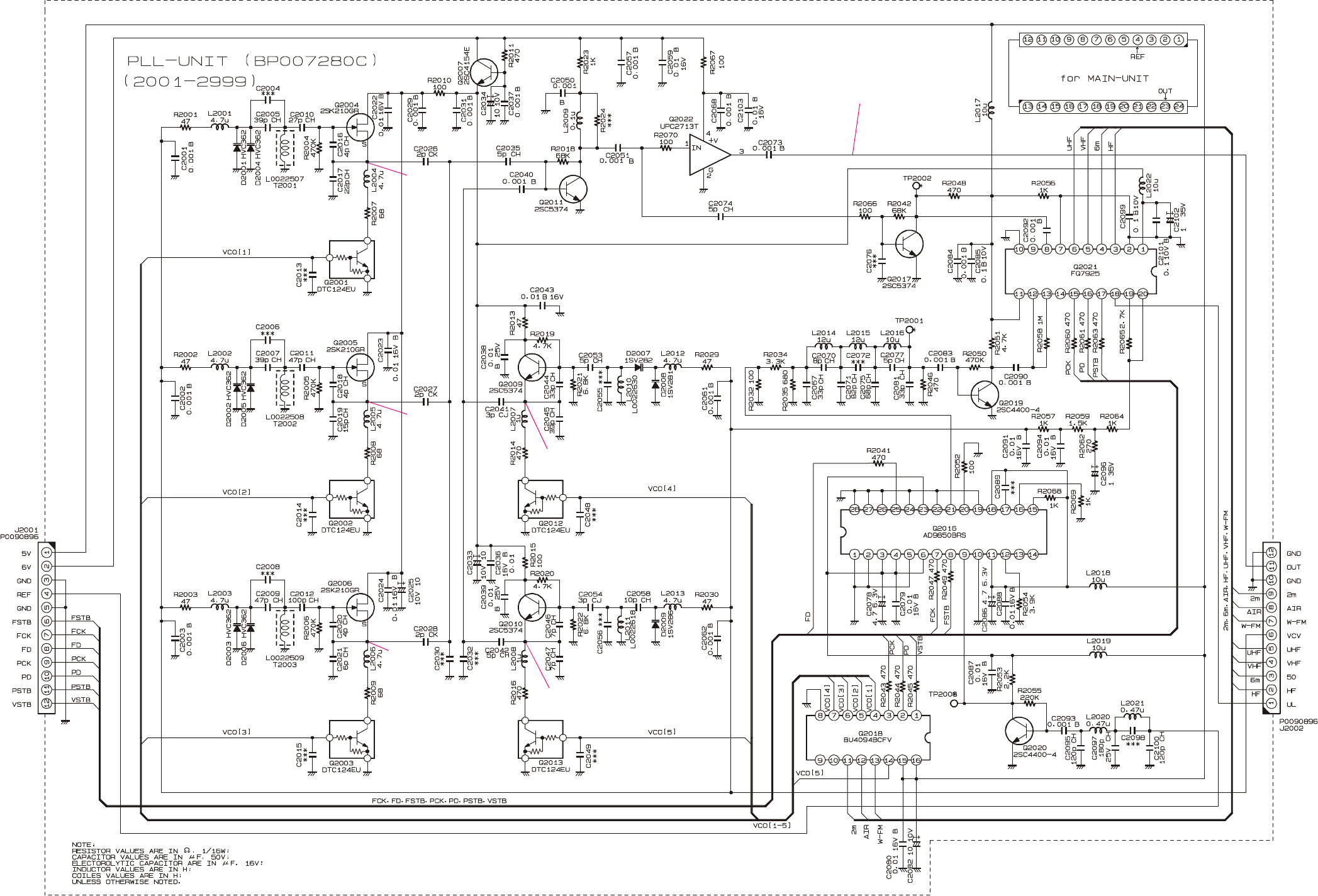

PLL Unit
REF UNIT

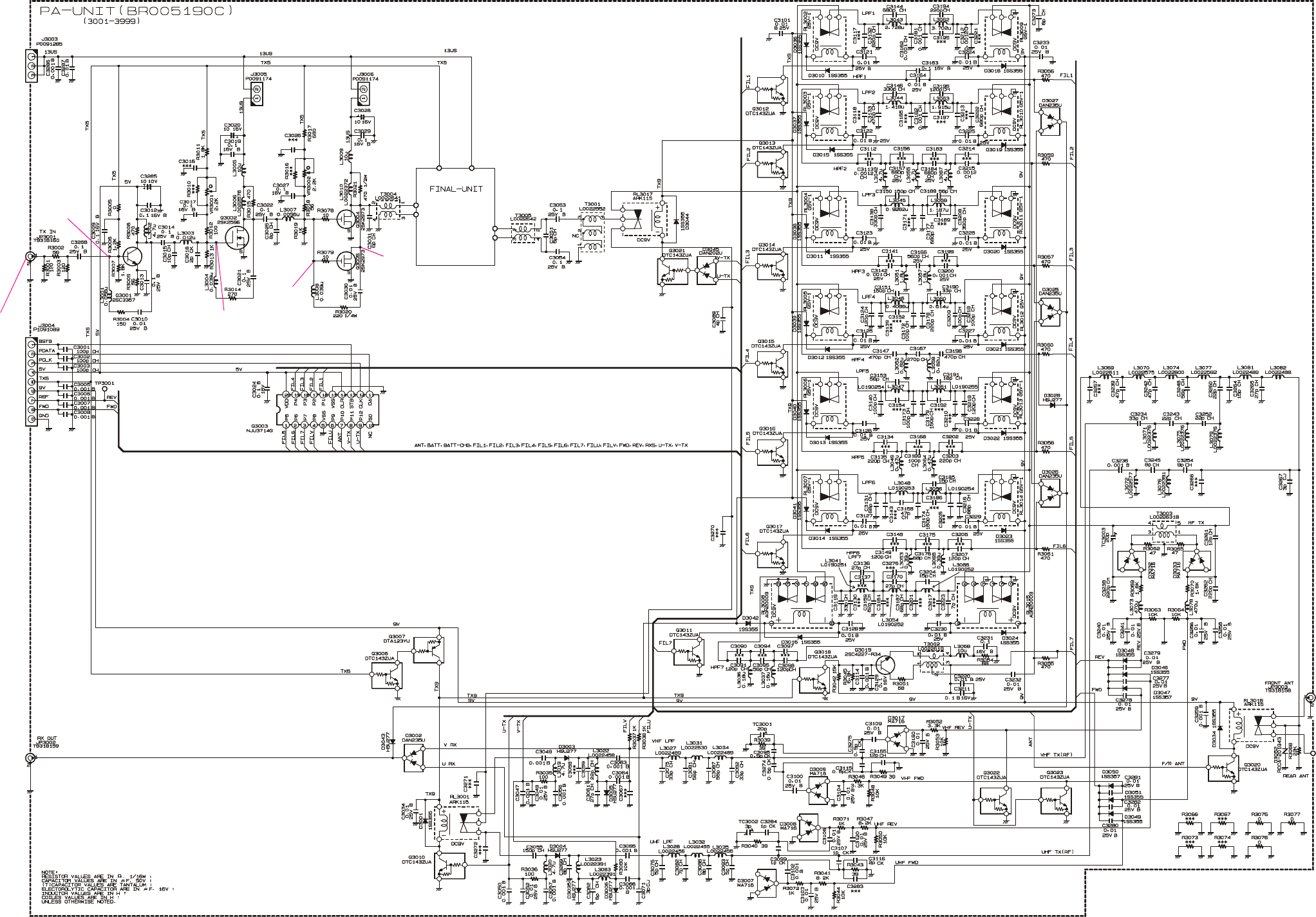

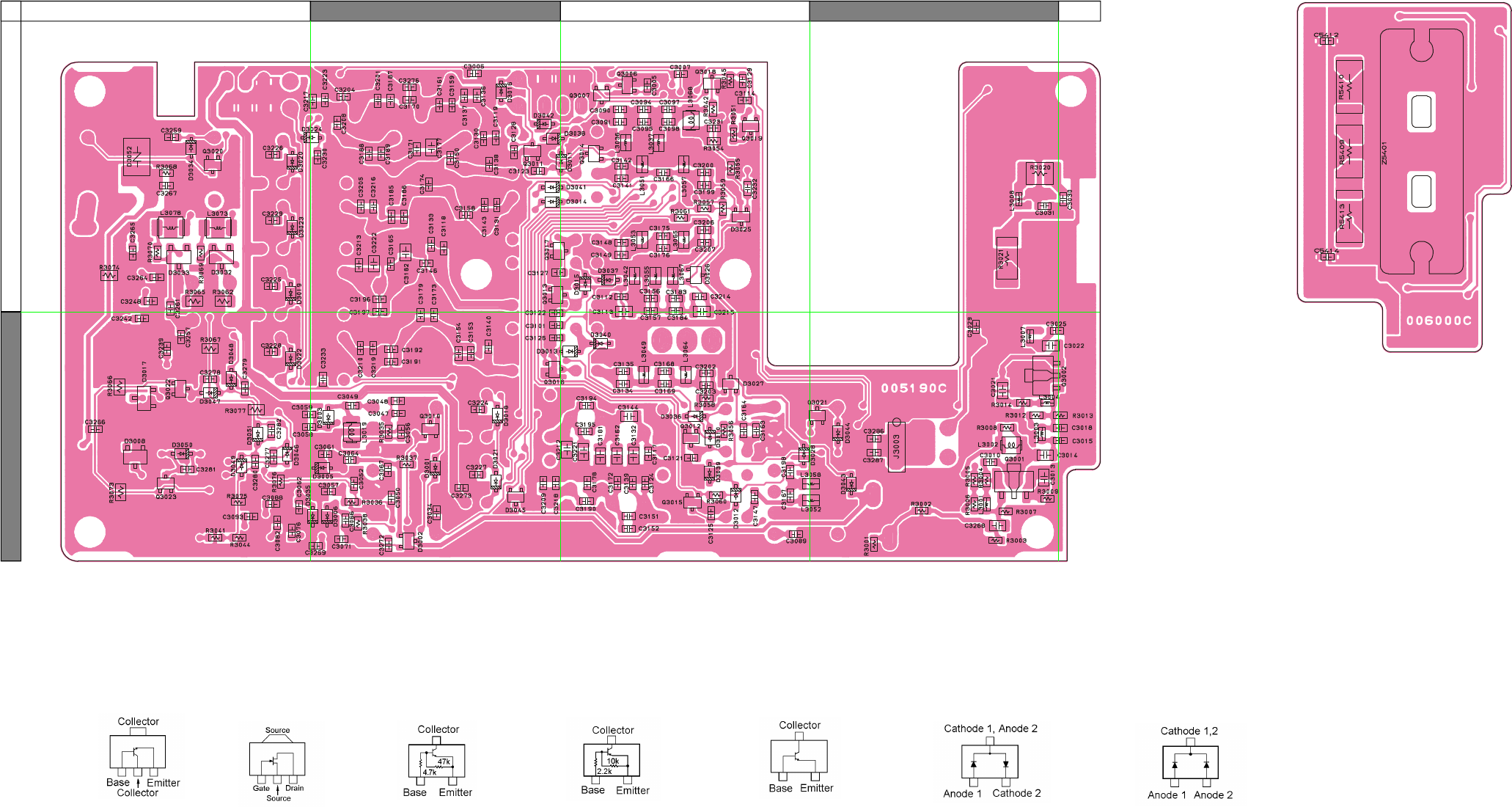

PA Unit

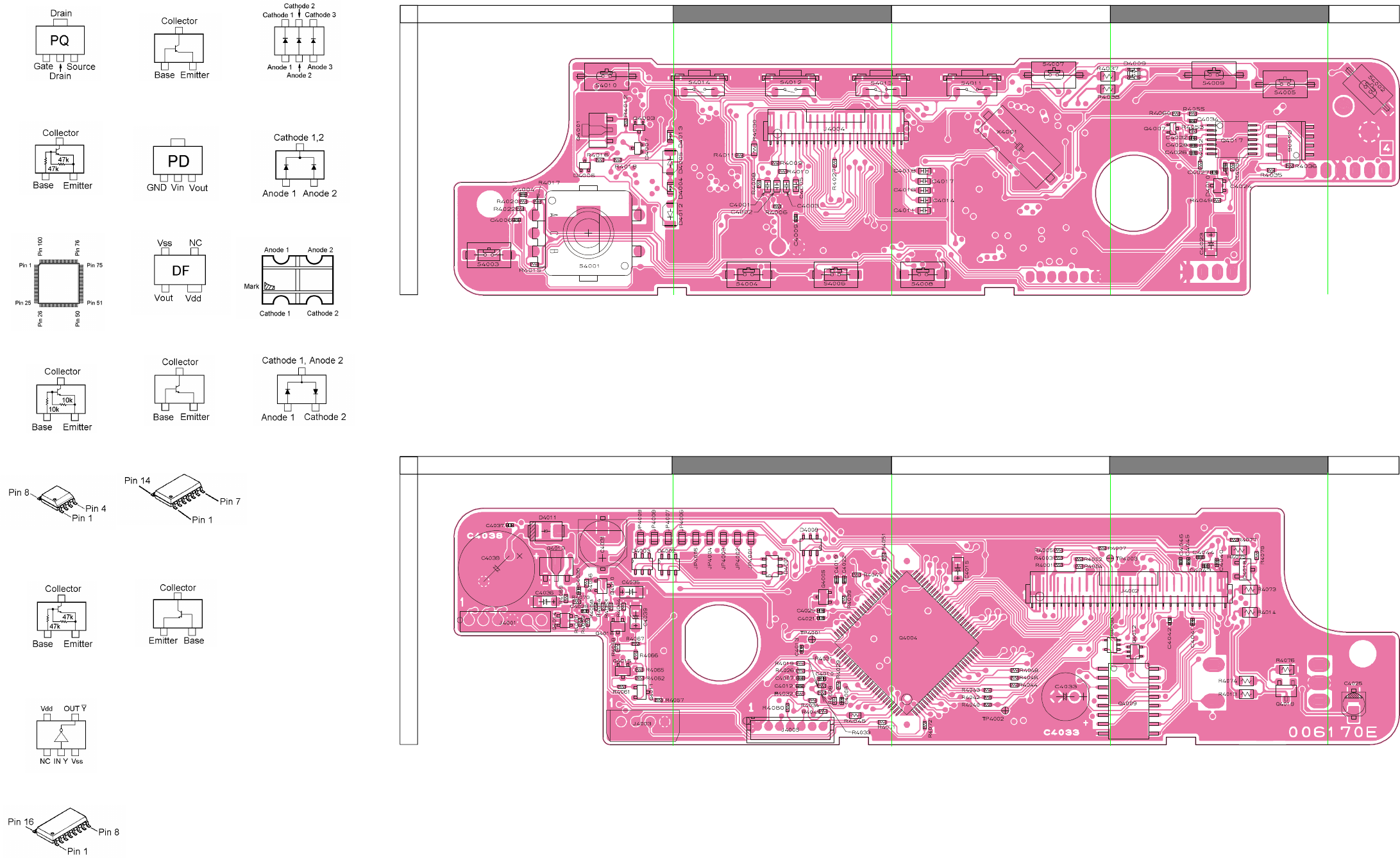

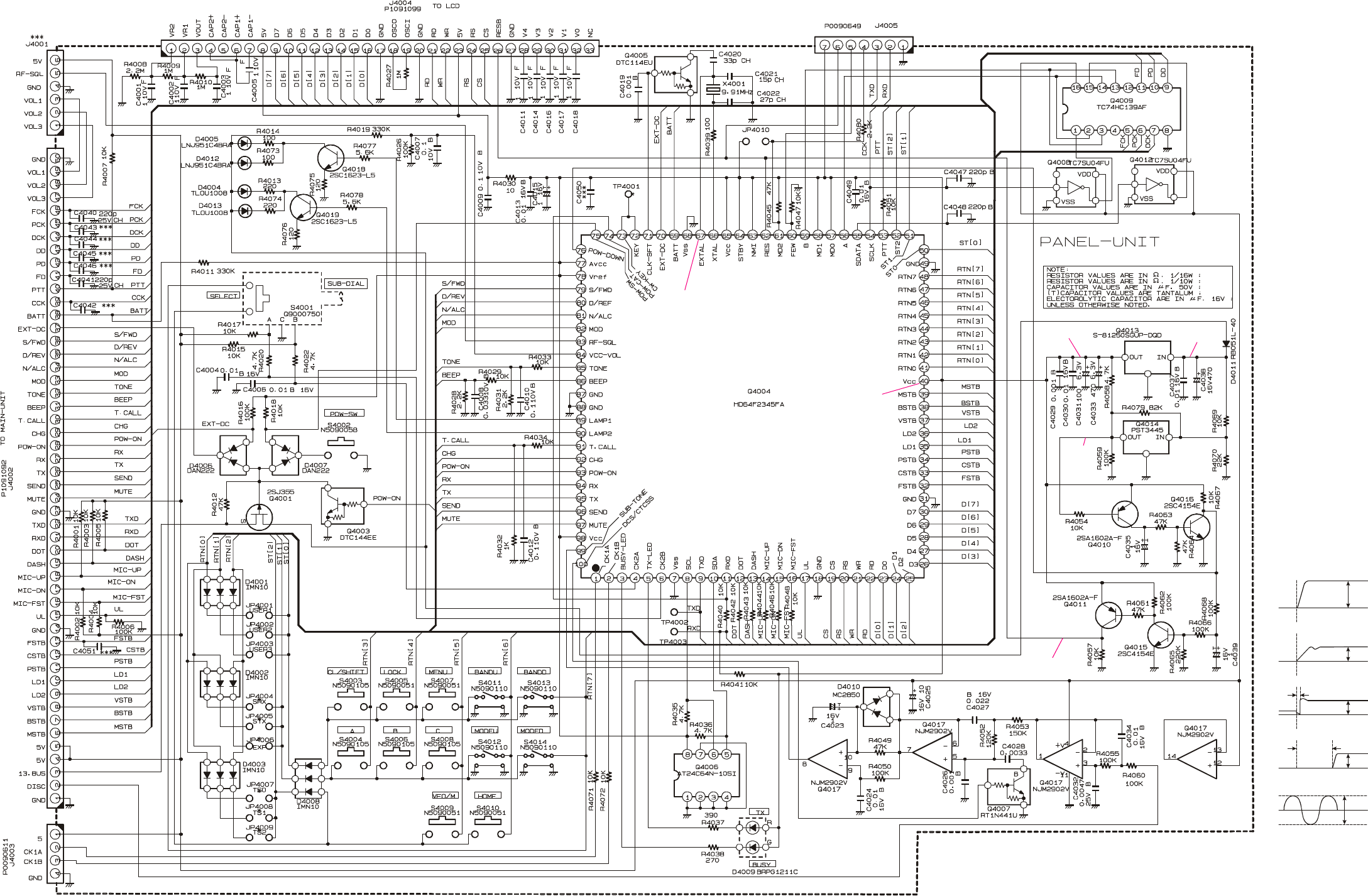

PANEL Unit
VR Unit

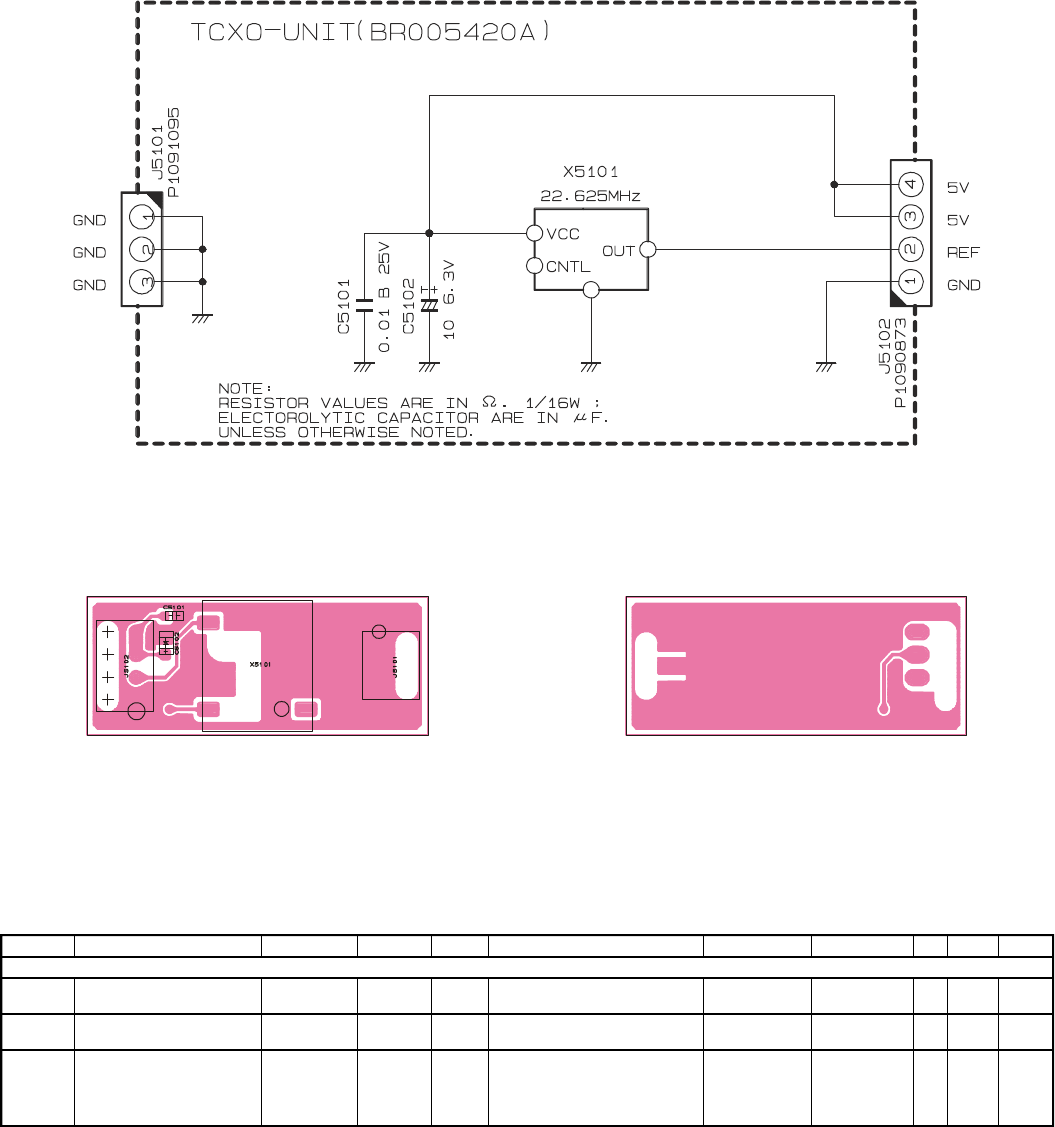

TCXO-9 Unit (Option)

(E137790A)

Technical Supplement

FT-817

HF / VHF / UHF

All Mode Transceiver

Introduction

This manual provides technical information necessary for

servicing the Yaesu FT-817 HF & V/UHF-Bands Trans-

ceiver. It does not include information on installation and

operation, which are described in the FT-817 Operating

Manual provided with the transceiver, or on accessories

which are described in their manuals.

The FT-817 is carefully designed to allow the knowledge-

able operator to make nearly all adjustments required for

various station conditions, modes and operator preferenc-

es simply from the controls on the panels, without open-

ing the case of the transceiver. The FT-817 Operating Man-

ual describes these adjustments, plus certain internal set-

tings.

Servicing this equipment requires expertise in handling

surface mount chip components. Attempts by unqualified

persons to service this equipment may result in perma-

nent damage not covered by warranty. For the major cir-

cuit boards, each side of the board is identified by the type

of the majority of components installed on that side. In

most cases one side has only chip components, and the

other has either a mixture of both chip and lead compo-

Contents

Specification .................................................. 2

Exploded View & Miscellaneous Parts..... 3

Block Diagram ............................................... 5

Circuit Description ....................................... 7

Alignment..................................................... 13

Interconnection Diagram........................... 23

nents (trimmers, coils, electrolytic capacitors, packaged

ICs, etc.), or lead components only.

While we believe the technical information in this manu-

al is correct, VERTEX STANDARD assumes no liability

for damage that may occur as a result of typographical or

other errors that may be present. Your cooperation in

pointing out any inconsistencies in the technical informa-

tion would be appreciated. VERTEX STANDARD reserves

the right to make changes in this transceiver and the align-

ment procedures, in the interest of technological improve-

ment, without notification of owners.

Board Unit (Schematics, Layouts & Parts)

MAIN Unit ...............................................................25

PLL Unit ...................................................................57

REF Unit ...................................................................65

PA / FINAL Unit......................................................71

PANEL Unit .............................................................89

VR Unit .....................................................................99

TCXO-9 Unit (Option) ..........................................100

VERTEX STANDARD CO., LTD.

4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan

VERTEX STANDARD

US Headquarters

10900 Walker Street, Cypress, CA 90630, U.S.A.

International Division

8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.

YAESU EUROPE B.V.

P.O. Box 75525, 1118 ZN Schiphol, The Netherlands

YAESU UK LTD.

Unit 12, Sun Valley Business Park, Winnall Close

Winchester, Hampshire, SO23 0LB, U.K.

VERTEX STANDARD HK LTD.

Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,

Kwun Tong, Kowloon, Hong Kong

Specifications

General

Frequency Range:

Receive: 100 kHz-30 MHz

50 MHz-54 MHz

76 MHz-108 MHz (WFM only)

87.5 MHz-108 MHz (EU)

108 MHz-154 MHz (USA)

144 MHz-148 (146) MHz (Other markets)

430 (420) MHz-450 (440) MHz

Transmit:160-6 Meters

2 Meters

70 Centimeters (Amateur bands only)

5.1675 MHz Alaska Emergency Frequency

(USA only)

Emission Modes:

A1 (CW), A3 (AM), A3J (LSB/USB), F3 (FM),

F1 (9600 bps packet), F2 (1200 bps packet)

Synthesizer Steps (Min.):

10 Hz (CW/SSB), 100 Hz (AM/FM)

Antenna Impedance:

50 Ohms, Unbalanced (Front: Type BNC, Rear: Type M)

Operating Temp. Range:

–10 °C to +60 °C (+14 °F to +140 °F)

Frequency Stability:

±4 ppm from 1 min. to 60 min after power on.

@25 °C: 1 ppm/hour

±0.5 ppm/1 hour @25 °C, after warmup

(with optional TCXO-9)

Supply Voltage:

Normal: 13.8 VDC ± 15 %, Negative Ground

Operating: 8.0-16.0 V, Negative Ground

FBA-28 (w/8 “AA” Alkaline Cells): 12.0 V

FNB-72 (Ni-Cd Battery Pack): 9.6 V (Option)

Current Consumption:

Squelched: 250 mA (Approx.)

Receive: 450 mA

Transmit: 2.0 A

Case Size (W x H x D):

135 x 38 x 165 mm (5.31” x 1.5” x 6.50”)

Weight (Approx.):

1.17 kg (2.58 lb)

w/Alkaline battery, antenna, w/o Microphone

Transmitter

RF Power Output:

5 W (SSB/CW/FM), 1.5 W (AM Carrier) @13.8 V

Modulation Types:

SSB: Balanced Modulator

AM: Early Stage (Low Level)

FM: Variable Reactance

FM Maximum Deviation:±5 kHz (FM-N: ±2.5 kHz)

Spurious Radiation:–50 dB (1.8-29.7 MHz)

–60 dB (50/144/430 MHz)

Carrier Suppression:>40 dB

Opp. Sideband Supp.:>50 dB

SSB Frequency Response:400 Hz-2600 Hz (–6 dB)

Microphone Impedance:

200-10k Ohms (Nominal: 600 Ohms)

Receiver

Circuit Type:Double-Conversion Superheterodyne

Intermediate Frequencies:

1st: 68.33 MHz (SSB/CW/AM/FM); 10.7 MHz (WFM)

2nd: 455 kHz

Sensitivity:SSB/CW AM FM

100 kHz-500 kHz – – –

500 kHz-1.8 MHz –32 µV –

1.8 MHz-28 MHz 0.25 µV 2 µV –

28 MHz-30 MHz 0.25 µV 2 µV 0.5 µV

50 MHz-54 MHz 0.2 µV 2 µV 0.32 µV

144/430 MHz 0.125 µV –0.2 µV

(IPO, ATT off, SSB/CW/AM = 10 dB S/N, FM = 12 dB SINAD)

Squelch Sensitivity:SSB/CW/AM FM

1.8 MHz-28 MHz 2.5 µV –

28 MHz-30 MHz 2.5 µV 0.32 µV

50 MHz-54 MHz 1 µV 0.2 µV

144/430 MHz 0.5 µV 0.16 µV

(IPO, ATT off)

Image Rejection:HF/50 MHz: 70 dB

144/430 MHz: 60 dB

IF Rejection:60 dB

Selectivity (–6/–60 dB):

SSB/CW: 2.2 kHz/4.5 kHz

AM: 6 kHz/20 kHz

FM: 15 kHz/30 kHz

FM-N: 9 kHz/25 kHz

SSB (optional YF-122S installed): 2.3 kHz/4.7 kHz (–66 dB)

CW (optional YF-122C installed): 500 Hz/2.0 kHz

AF Output:1.0 W (8 Ohms, 10% THD or less)

AF Output Impedance:4-16 Ohms

Specifications are subject to change without notice, and

are guaranteed within amateur bands only.

Frequency ranges vary according to transceiver version;

check with your dealer.

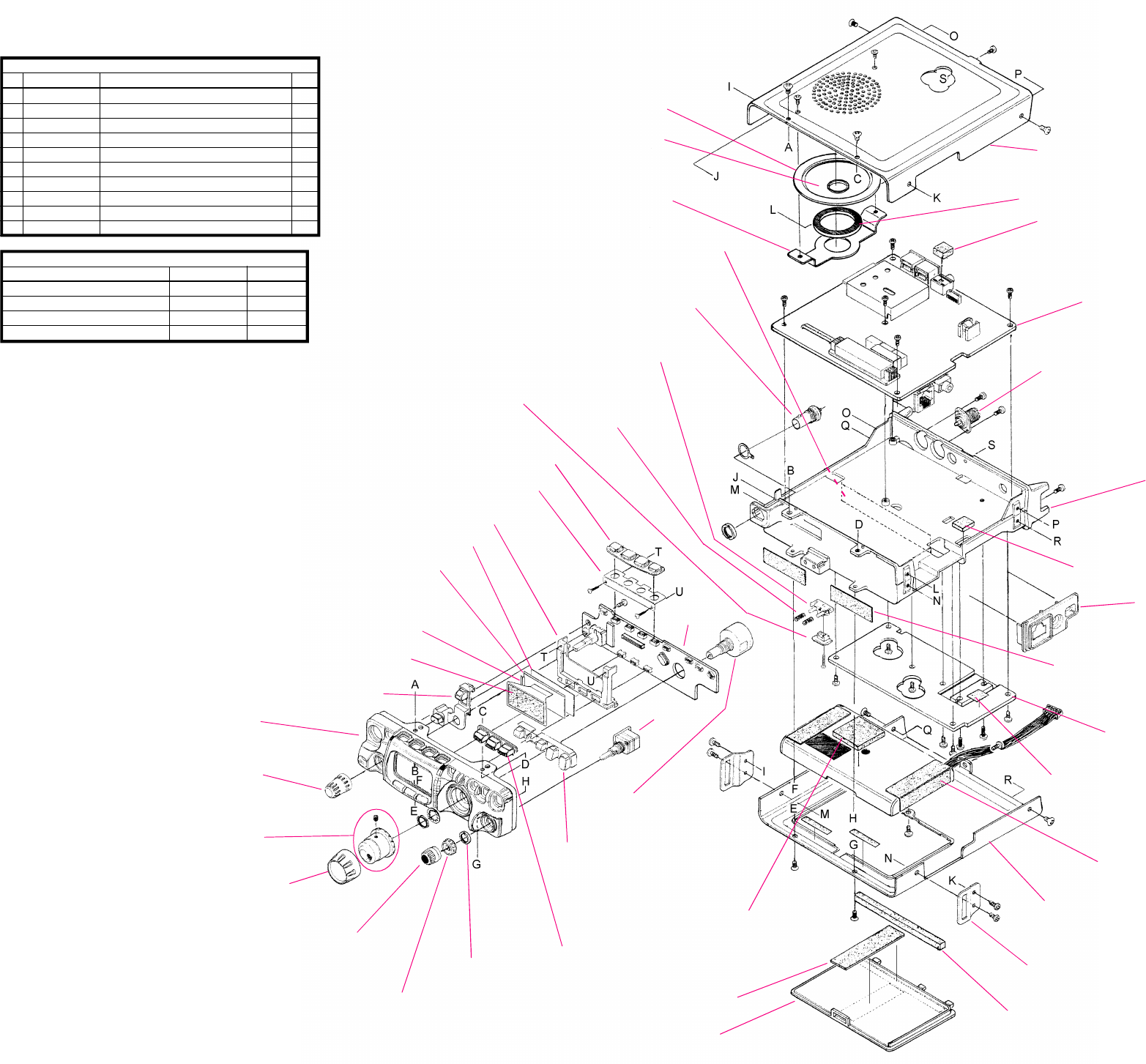

Exploded View & Miscellaneous Parts

RA026720B (Lot.36~)

RA026720A

CHASSIS

RA027660A

CONNECTOR COVER

CP6960001

TOP CASE ASS’Y (W/SP NET)

RA0270500

SP HOLDER

RA027150B (Lot.49~)

RA027150A

FRONT PANEL ASSY

RA0270300

RUBBER KNOB (ABC)

RA0270200

RUBBER KNOB (MODE)

RA0270100

RUBBER KNOB (CLAR)

RA027040A (Lot.35~)

RA0270400

RUBBER KNOB (PWR)

VR UNIT

RA026960A (Lot.54~)

RA0269600

ROTARY KNOB (SEL)

RA0269700

MAIN KNOB

RA0269800

RUBBER RING

RA0269400

ROTARY KNOB (AF)

RA0269500

ROTARY KNOB (SQL)

RA0276400 (X2 pcs)

BELT HOOK

RA027090A

BATTERY COVER

RA027080A

BOTTOM CASE

RA027530A

RELEASE KNOB (A)

MAIN UNIT

M4090150

SPEAKER

RA027540A

RELEASE KNOB (B)

RA027620B

COIL SPRING

(2 pcs)

RA0276300

HOLDER PLATE

PANEL UNIT

RA0271700

LCD HOLDER

Q7000291

LCD UNIT

RA027160A (Lot. 17~)

RA0271600

LIGHT GUIDE

RA0283600

REFLECTOR SHEET (A)

RA0289900

SPONGE RUBBER (BT-A)

RA0290000

SPONGE RUBBER (BT-B)

RA0293700

SPONGE RUBBER (CASE)

(Lot.23~ W/O CE)

RA0293600

PAD

RA0250800

PAD

RA0284300

SPONGE RUBBER (SH-B)

RA0284200 (X2 pcs)

SPONGE RUBBER (SH-A)

PA UNIT / FINAL UNIT

RA031630B (Lot.22~)

RA031630A (10~)

RA0316300 (8~)

RA0293500

SPONGE RUBBER (KEY-F)

RA0283900

SPONGE RUBBER (SP-B)

P1090352

CONNECTOR

P1091117A (Lot. 17~)

P1091117

CONNECTOR (w/ *1,*2)

RA0283800

SPONGE RUBBER (SP-A)

Q9000709A

ROTARY ENCODER

(W/ *3,*4)

AAB33X001

FBA-28

ÀÅ

ÅÅ

ÅÁ

RA0283700

REFLECTOR SHEET (B)

R6054387B

SPECIAL NUT

*3 *4

No. VXSTD P/N Description Qty.

U9900112 TAPTITE SCREW M2X8B 1

U02308001 SEMS SCREW SM3X8 2

U04306002 SEMS SCREW HSM3X6NI 1

U20205007 BINDING HEAD SCREW M2.6X5B 7

U23206001 TAPTITE SCREW M2.6X6 1

U24205001 TAPTITE SCREW M2.6X5 11

U24306002 TAPTITE SCREW M3X6NI 2

U31204007 OVAL HEAD SCREW M2.6X4B 2

U31205007 OVAL HEAD SCREW M2.6X5B 8

U9900012 TAPTITE SCREW M2X4 2

Screw List

Description VXSTD P/N VERS.

ANTENNA (YHA-63) Q3000174

MIC (MH-31A8J) A06870001

CABLE (E-DC-6) Q9000722 W/O CE

DC CABLE (DC 3A 1500MM) T9023003 W/ CE

ACCESSORIES

Exploded View & Miscellaneous Parts

DESCRIPTION VALUE V/W TOL. VS P/NMFR’S DESIG VERS.REF. LOT. SIDE

*** MAIN ASSY ***

P 0004 WIRE ASSY J1012 to SP T9206744 1-

P 0005 WIRE ASSY J1008 to J4002 T9206919 1-

P 0006 WIRE ASSY J1003 to J3004 T9206920 1-

P 0007 WIRE ASSY BATTERY CASE T9206940 1-

P 0007 WIRE ASSY BATTERY CASE T9206932A 3-

Block Diagram

Note:

Circuit Description

The FT-817 internal assembly consists of the MAIN Unit,

Control ( PANEL) Unit, and the PA Unit. The MAIN Unit

contains the receiver front end, PLL IC, and switching cir-

cuits, as well as the VCO Unit (local oscillator for trans-

mission and reception). The PANEL Unit contains the

CPU and reset circuits, as well as the power circuitry for

the LCD.

Receive Signal Circuitry

High-Frequency Circuit

The receive signal enters from the Front (J1001) or Rear

(J1002) ANT connector , as selected by relay RL3016 on

the PA Unit.

Signals between 0.1 and 154 MHz received at the an-

tenna terminal pass through an input low-pass filter com-

posed of L3081, L3082, C3264, and C3265.

Received 430 MHz signals, after passing through a high-

pass filter composed of L3071, L3076, C3245, and C3254

are passed through low-pass filter composed of L3028,

L3032, L3035, C076, C3082, C3088, and C3093, and then

are fed through the directional coupler to the UHF T/R

switch circuit composed of diode switch D3004/D3035

(both HSU277). The signal then is fed to MAIN Unit via

J3002.

Received 145 MHz signals, after passing through a high-

pass filter composed of L3071, L3075, L3079, C3234, C3245,

C3252, and C3260 are passed through low-pass filter com-

posed of L3027, L3031, L3034, C3075, C3081, and C3092,

and then are fed through the directional coupler to the

VHF T/R switch circuit, composed of diode switch D3003/

D3005 (both HSU277) . The signal then is fed to MAIN

Unit via J3002.

Received 0.1-54 MHz signals, after passing through the

first low-pass filter, are passed through another low-pass

filter composed of L3069, L3070, L3074, L3077, C3239,

C3242, and C3248, plus LPFs 1-7 (5th or 7th-order

Chebyschev type filter) and HPFs 1-7, utilizing seven dif-

ferent sections to create optimized bandpass responses for

the various amateur bands at 0.1-54 MHz. The signal then

is fed to the 50MHz pre-amplifier (when engaged) and on

to the MAIN Unit via J3002.

The receive signal then passes through the input attenua-

tor (-10dB) which consists of resistors R1001, R1014, and

R1015 plus diodes D1003/D1011 (both DAP236U) on the

MAIN Unit .

Incoming wideband FM (76-108 MHz) signals, after pass-

ing through a high-pass filter composed of L3071, L3075,

L3079, C3234, C3245, C3252, and C3260 are passed

through a low-pass filter composed of L3027, L3031,

L3034, C3075, C3081, and C3092 , and through a direc-

tional coupler, to the VHF T/R switch circuit, composed

of diode switch D3003/D3005 (both HSU277) . Then it is

fed to the MAIN Unit via J3002. The signal is delivered to

IC Q1025 (CXA1611N) which contains the front-end and

discriminator circuits for Wide-FM demodulation. Then

the audio signal is passed to analog switch IC Q1049

(BU4066BF).

The FT-817 includes four receiver front ends, each opti-

mized for a particular frequency range and mode combi-

nation.

1st Mixer Circuit/1st IF Circuit

The 1st mixer on the MAIN Unit consists of a quad MES

FET, D1047 (GN2011). The 1st local signal (68.430-538.330

MHz) from the PLL Unit is applied to the gates of each

FET in the 1st mixer.

The resulting output signal (the difference between the

local signal and receive signal) passes through a mono-

lithic crystal filter (MCF) XF1001 (MF68R, BW:±7.5 kHz)

to obtain the 1st IF signal having a center frequency of

68.33 MHz. The signal is then fed to the 2nd mixer circuit

on the MAIN Unit after it is amplified by FET Q1051

(BB304C).

2nd Mixer Circuit/2nd IF Circuit

The 2nd mixer consists of FETs Q1060 and Q1062 (both

2SK302Y) on the MAIN Unit. The 2nd local signal (67.875

MHz) is amplified by Q1047 (2SC4154E) and is applied

to each FET's gate in the 2nd mixer.

The signal output from the 2nd mixer passes through a

ceramic filter, or optional mechanical filter (U1003), to

become the 455-kHz 3rd IF signal.

Noise Blanker Circuit

A sample of the 2nd IF circuit is amplified by FETs Q1052

and Q1061 (both BB301C) on the MAIN Unit, and then

is rectified by D1068 (1SS372). The resulting DC voltage

passes through R1343 and R1345, C1360 and C1362, and

Q1076 (2SC4154E) to yield an average AGC voltage for

Circuit Description

controlling the amplification gain of the above FETs. Noise

pulses contained in the output from D1075 are detected

by Q1074 (2SC4154E) and are used to control the NB Gate.

AGC Circuit

The AGC circuit consists of D1064 (1SS372), transistor

Q1066 (2SC4154E), and associated parts on the MAIN

Unit. Output from the AGC circuit is fed back to the RF

and IF stages, controlling their gain levels.

FM IF Circuit/FM Demodulator Circuit

The 2nd IF signal is fed to IC Q1069 (BA4116FV) for FM

demodulation.

The FM demodulator IC contains a mixer, limiter ampli-

fier, filter amplifier, squelch trigger, and demodulator. The

IF input signal is band-limited by ceramic filter CD1002

(CDBC455CX24, BW:±4 kHz), amplified by the limiter

amplifier, and demodulated into an audio signal by the

demodulator; it then passes through a filter (R1308 and

C1293). The signal next passes through a de-emphasis cir-

cuit which consists of R1256 and C1286.

The squelch circuit selectively amplifies the noise com-

ponent of the demodulator output using the filter ampli-

fier inside the FM IC and the active band-pass filter con-

sisting of an externally attached resistor and capacitor. This

circuit uses a signal detected by D1065 (DA221).

SSB/CW Demodulator Circuit

The 2nd IF signal is applied to the SSB demodulator Q1055

(SN16913) on the MAIN Unit, which produces audio by

applying a carrier signal from the CAR-DDS IC (Q1031).

Similarly, the CW signal is demodulated using a carrier

signal which is offset by the "Pitch" frequency.

The demodulated SSB and CW signals are each stripped

of high-frequency components by an active low-pass fil-

ter which consists of op-amp IC Q1093-1 (NJM2902V).

Then, they enter the VR Unit via J1008.

AM Demodulator Circuit

The 2nd IF signal from the IF Unit is applied to diode

D1060 (BAS316) for AM demodulation .

The output from the detector passes through analog switch

Q1049 (BU4066BF). Then, it enters the VR Unit via J1008.

Audio Amplifier Circuit

The demodulated signal that is selected by one of analog

switches IC Q1057 (according to the reception mode)

passes through the audio amplifier IC Q1094 (NJM2902V),

volume control VR4901, and IC Q1070 (TDA7233D) to

drive the internal or external speaker with a maximum

output of approximately 1.0 Watt.

Transmit Signal Circuitry

Microphone Amplifier Circuit

The audio signal from microphone jack J1014 on the

MAIN Unit is amplified by transistor Q1092 (2SC4154E)

on the MAIN Unit, and then is applied to electronic vol-

ume IC Q1071 (M62364EP), which is controlled via the

User Menu (Item #46: SSB MIC).

The output (audio signal) from the electronic volume IC

is amplified by Q1096 (NJM2902V) and fed to balanced

modulator IC Q1087 (SN16913) through the low-pass fil-

ter IC Q1096 (NJM2902V).

During FM transmission, the audio signal is adjusted via

the User Menu (Item# 29 : FM MIC) . The audio signal

that has passed through the pre-emphasis circuit (C2201

and R2228 on the MAIN Unit) may be mixed with a tone

signal from CPU IC Q4004, and is then amplified and lim-

ited by op-amp IC Q1095-4 (NJM2902V) of the IDC cir-

cuit. The audio then passes through the splatter filter (sec-

ondary active low-pass filter) formed by op-amp IC

Q1095-1 (NJM2902V), R1321, and R1322, plus C1344, and

is then fed to the frequency-modulator circuit on the

MAIN Unit through R1183 and R1477 for setting of the

frequency deviation.

SSB Modulator Circuit

The carrier signal appropriate to the transmitting mode

(LSB or USB) is applied from the CAR-DDS Unit to bal-

anced modulator IC Q1087 (SN16913) on the MAIN Unit,

and is modulated by microphone audio.

The balanced modulator produces the upper and lower

side bands and carrier signal. The carrier and audio sig-

nal are suppressed and the carrier balance is adjusted by

VR1001. As a result, the output signal obtained is a DSB

signal with a carrier suppression of 30 dB or more (addi-

tional carrier suppression is supplied by the SSB filter).

The DSB modulated signal (1st IF signal: 455 kHz) then

passes through ceramic filter CF1004 (CFJ455K14) or the

optional mechanical filter U1003 on the MAIN Unit, strip-

ping residual carrier and the undesired sideband; the sig-

nal then passes as an SSB signal through buffer-amplifier

Q1040 (BB301C).

Circuit Description

AM Modulator Circuit

As in the SSB modulator circuit, a carrier signal from the

CAR-DDS Unit and an audio signal from the microphone

are applied to balanced modulator IC Q1087 (SN16913)

on the MAIN Unit.

The control signal from MODE SW IC Q1021

(BU4094BCFV) on the MAIN Unit causes a voltage labeled

"AM 5V" to be sent from transistor Q1079 (2SC4154E). This

voltage is applied to IC Q1087 via D1077 (BAS316), caus-

ing the balanced modulator to lose balance. The restored

carrier signal and modulated signal are then fed to the Tx

mixer via ceramic filter CF1004 (CFJ455K14) on the MAIN

Unit.

Frequency Modulation Circuit

The FM circuit uses a voltage controlled crystal oscillator

(VCXO) which consists mainly of Q1033 (2SC4400),

X1001 on the MAIN-Unit, varactor diode D1056

(HVC362), and T1018. The VCXO has a center frequency

of 22.7785MHz.

The FM signal is produced by applying a signal from the

FM microphone amplifier circuit to varactor diode D1056

and varying the crystal oscillator load capacity in propor-

tion to the signal voltage.

CW (A1) Signal Generator Circuit

When the transmitting mode is CW (A1), the control sig-

nal from D-A converter IC Q1077 (M62353GP) on the

MAIN Unit creates a "CW 5V" voltage. The voltage is

applied to balanced modulator IC Q1087 via D1071, pro-

viding a carrier from the balanced modulator for the in-

put to the transmit signal circuit of the MAIN Unit.

1st IF Circuit/1st Mixer Circuit

The 455 kHz 1st IF signal from the modulator circuit is

band-limited by the MAIN Unit's ceramic (CF1004) or

optional mechanical filter U1003 (XF5201 or XF5301) ac-

cording to the selected mode (CW, SSB, or AM). It is then

buffer-amplified by FET Q1040 (BB301C) and fed to 1st

mixer IC Q1038 (SN16913).

The IF Unit's double balanced mixer IC Q1038 (DBM) is

used as the 1st mixer. A local signal (67.875MHz) is pro-

duced by tripling the Reference frequency at Q1047

(2SC4154E), and this local signal is fed to the "local" port

of the doubly-balanced mixer IC, where it is mixed with

the 455 kHz 1st IF signal to produce a 68.33MHz 2nd IF

signal.

2nd IF Circuit/2nd Mixer Circuit

The 2nd IF signal passes through crystal filter XF1001

and then is fed to the 2nd mixer circuit.

The 2nd mixer consists of the MAIN Unit's D1049

(HSB88WS). The 2nd local signal (68.430-538.330MHz)

from the PLL Unit is applied to the gates of each FET in

the 2nd mixer.

High-Frequency Transmit Preamplifier Circuit

The transmit signal is passed through a low-pass filter (1.8-

29.7 MHz), a high-pass filter (50-54 MHz), a band-pass

filter (144-146 MHz), or a band-pass filter (430-440 MHz)

and then is amplified by Q1001 (UPC2710), and passed

onward to the PA Unit via J1002.

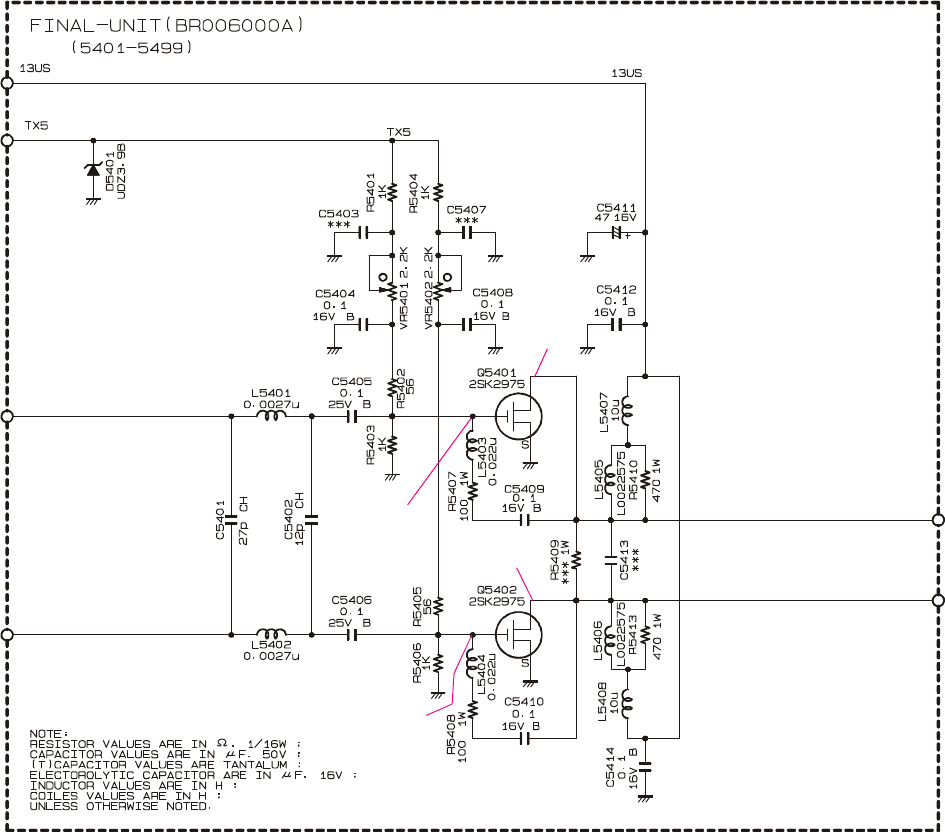

Power Amplifier Circuit

The transmit signal from the MAIN Unit arrives at con-

nector J3001 on the PA Unit.

The transmit signal (1.8 MHz to 430 MHz) delivered to

the PA Unit is amplified by pre-driver Q3001 (2SC3357),

driver Q3002 (2SK5296) and final amplifiers Q5401/Q5402

(2SK2975).

Low-Pass Filter (LPF) Circuit

The transmission signal from the power amplifier circuit

is passed through a low-pass filter which consist mainly

of RL3001-RL3015, RL3017, and corresponding inductor

and capacitor networks. The LPF is a 5th or 7th-order

Chebyschev type filter, utilizing nine different sections for

the various amateur bands at 1.8 ~ 430 MHz.

The low-pass filtered transmission signal is fed to the

FRONT ANT connector (J0001) or REAR ANT connector

(J0002) through the triplexer and directional coupler.

The directional coupler samples a part of the transmis-

sion power to detect forward power and reflected power.

A DC voltage corresponding to the relative forward/re-

flected power is produced by D3032/D3033 (both MA716,

1.8 to 54 MHz), D3009/D3017 (both MA716, 144 to 148

MHz), or D3007/D3008 (both MA716, 430 to 450 MHz) ,

and is used for automatic level control (ALC).

ALC Circuit

The output from the directional coupler is routed from

connector J3004 and applied to the ALC circuit via con-

nector J1003 on the MAIN Unit.

The ALC circuit consists of an op-amplifier circuit for

amplifying the forward and reflected voltage, a time-con-

Circuit Description

stant ALC amplifier, and a transmit signal control circuit

on the MAIN Unit.

The forward voltage from connector J1003 on the MAIN

Unit is added with a DC control voltage and is then ap-

plied to op-amp IC Q1097 (NJM2902V).

The reflected voltage is added with a DC control voltage

and is then applied to op-amp IC Q1098 (NJM2904V), In

the event of high SWR conditions (SWR of 3:1 or more),

transmitter output is reduced and a "High SWR" warn-

ing appears, thus protecting the PA Unit from potential

damage and alerting the operator to the high SWR situa-

tion.

The ALC amplifier amplifies the "forward" DC output via

transistor Q1019 (2SC4154). This output then passes

through a fast-attack, slow-delay RC time-constant circuit

which consists of R1097 and C1113 for the input to the Tx

signal control circuit on the MAIN Unit.

The TX control circuit adjusts the IF amplifier gain via

gate 2 of FET Q1007 (BB304C) of the 68.33 MHz IF ampli-

fier circuit to prevent the power output from exceeding

the preset level.

PLL Frequency Synthesizer

The PLL Frequency Synthesizer consists mainly of a mas-

ter reference oscillator circuit, 2nd local oscillator circuit,

plus the PLL IC, CAR-DDS, and REF-DDS units, which

digitally synthesize carrier outputs, and a PLL circuit

which contains a voltage controlled oscillator (VCO).

Master Reference Oscillator Circuit

The master reference oscillator uses a crystal oscillator

(oscillation frequency: 22.625MHz) composed of Q5001

(2SC4400-4), X5001, TC5001, C5001, R5005, and associated

components. The reference oscillator signal passes through

buffer amplifier Q5002 (2SC4400-4), C5004, C5007, R5003,

R5004, R5007, and is then fed to the MAIN Unit via J5002.

CAR-DDS Circuit /REF-DDS Circuit

DDS ICs Q1031 (AD9835BRU) and Q2016 (AD9850BAS)

each contain a shift register, selector, phase accumulator,

and ROM.

The reference oscillation frequency (22.625MHz) that is

delivered to each of the DDS Units is applied to each DDS

IC after amplification by transistors Q1028/Q2020 (both

2SC4400-4).

The DDS outputs contain digital amplitude data corre-

sponding to serial frequency data from CPU IC Q4004 of

the PANEL Unit. The DDS frequency range is 453.5 ~ 466.5

kHz (cf = 455.0 kHz) for the CAR-DDS, and 7.2-8.0 MHz

for the REF DDS.

2nd Local Oscillator Circuit

The 2nd L.O. circuit is a Hartley-type overtone oscillator

circuit (frequency: 67.875 MHz) composed of Q1047

(2SC4400) on the MAIN Unit.

1st Local Oscillator Circuit

VCO output is buffer-amplified by Q2008 (2SC4400),

Q2011, Q2014, and Q2016(all 2SC5374) and passes

through a low-pass filter. It is then fed to the Tx/Rx fre-

quency mixer circuitry on the MAIN Unit.

PLL Circuit

The PLL circuit is a frequency mixing type composed of a

VCO, mixer, PLL IC, and loop filter.

The VCO consists of five circuits (VCO1, VCO2, VCO3,

VCO4, and VCO5), with a frequency range of 68.430-

538.330 MHz divided into five bands, allocated to the five

VCO circuits. VCO1-VCO5 consist mainly of FETs Q2004,

Q2005, and Q2006 (all 2SK210GR), transistors Q2009,

Q2010 (both 2SC5374), diodes D2001-D2006 (all HVC362),

D2007 (1SV282), D2008 (1SV281), and D2009 (1SV286), and

coils T2001-T2003, L2010, and L2011.

The VCO switching signal from connector J2002 is used

to drive switching transistors Q2001, Q2002, Q2003,

Q2012, and Q2013 (all DTC124EU) to switch the source

terminal of the oscillator FET.

The 68.430-538.330 MHz VCO signal is fed to mixer D1047

(GN2011-Q).

The REF-DDS signal (7.2-8.0 MHz) is fed to PLL IC Q2022

(FQ7925) after it passes through a LPF composed of C2064,

C2067, C2069, C2071, C2075, L2014, L2015, and L2016 ,

and buffer amplifier Q2019 (2SC4400-4) .

The phase of the reference frequency and that of the sig-

nal input to PLL IC are compared, and a signal whose

pulse corresponds to the phase difference is produced.

The VCO frequency is controlled by a first lag filter which

consists of R2057, R2065, R2062, and C2090 and a second-

ary lag filter composed of C2085, C2088, and R2053.

Circuit Description

Control Circuitry

Microprocessor Circuit

The microprocessor circuit, which is composed of CPU

IC Q4004 (HD64F2345) and EEPROM IC Q4004 (ATC64N-

10S1), performs various types of processing, such as con-

trol signals, serial I/O, A/D conversion, dial counter cir-

cuit control, key input, and display functions.

The EEPROM memorizes various parameters and settings

(transmission frequency range, transmission output con-

trol) and carrier points according to the transceiver ver-

sion and the contents of memory channels.

Reset Circuit

The reset circuit consists mainly of PANEL Unit ICs Q4014

(PST3445), Q4015 (2SC4154E), Q4011 (2SA1602A), Q4016

(2SC4154E), and Q4010 (2SA1602A), and associated ca-

pacitors and resistors. This circuit controls the power-

down input port, CPU reset input, keyer CPU, and re-

lated circuits.

Dial Counter Circuit

The dial counter circuit consists of Main Dial and SEL (Se-

lector) Knob. This circuit detects a two-phase pulse hav-

ing a phase difference of 90 degrees and delivers it to CPU

IC Q4006 .

Serial Data Communication Circuit

The Serial Data Communication Circuit consists of ICs

Q4008, Q4009, Q4010, etc. on the PANEL-Unit. These ICs

distribute a set of serial data (Data/Clock/Strobe) gener-

ated by CPU to various devices, such as CAR-DDS, REF-

DDS, E.VOL, D/A, or Shift-Register for controlling ana-

log switching , band switching, VCO selection, etc. Serial

data communication is clock synchronous for the above

purposes, whereas the serial data is transferred to an asyn-

chronous signal for the CAT system for external computer

control of the transceiver).

Various types of data, such as operating frequency, mode,

and display data, are processed by CPU IC Q4004 .

The CAT (external computer control) signals are converted

to RS232 interface standard levels by the optional CAT

Interface Cable (CT-62).

Key Matrix Circuit

The key matrix circuit consists of PANEL Unit diodes

D4001-D4003 and D4006 (all IMN10) and the panel key

switches arranged on the matrix. When a key is pressed,

this circuit reads the input data for processing by the CPU.

Analog-Digital Converter Circuitry

Forward and reflected voltage, ALC, DISC, S-meter, etc.

metering options are selected by MAIN Unit IC Q1073

(BU4053BCF) and are fed to the A/D port of CPU IC Q4004

for conversion into digital values to be processed prior to

display on the LCD. The individual voltages, converted

into digital values, are displayed as PO, SWR, ALC, VCC,

and S-meter indications on the LCD panel.

LED Drive Circuit

The LED drive circuit consists of PANEL Unit transistors

Q4018 and Q4019 (both 2SC1623) and the LEDs. This cir-

cuitry drives (turns on/off) the appropriate LEDs.

LCD Circuit

Data processed by the CPU IC is sent as parallel data to

LCD Unit DS4001 .

CTCSS Tone Generator Circuit

The CTCSS tone generator circuit consists mainly of CPU

IC Q4004 and active filter IC Q1094 (NJM2902).

Electronic Keyer Circuit

The electronic keyer circuit consists of CPU IC Q4004.

When the CW mode is selected, this circuit controls the

generation of Morse characters.

Circuit Description

Note:

Alignment

Introduction

The FT-817 has been carefully aligned at the factory for

the specified performance across the amateur band. Re-

alignment should therefore not be necessary except in the

event of a component failure. All component replacement

and service should be performed only by an authorized

VERTEX STANDARD representative, or the warranty

policy may be voided.

The following procedures cover the sometimes critical and

tedious adjustments that are not normally required once

the transceiver has left the factory. However, if damage

occurs and some parts are replaced, realignment may be

required. If a sudden problem occurs during normal op-

eration, it is likely due to component failure; realignment

should not be done until after the faulty component has

been replaced.

We recommend that servicing be performed only by autho-

rized VERTEX STANDARD service technicians who are ex-

perienced with the circuitry and fully equipped for repair

and alignment. Therefore, if a fault is suspected, contact the

dealer from whom the transceiver was purchased for in-

structions regarding repair. Authorized VERTEX STAN-

DARD service technicians realign all circuits and make com-

plete performance checks to ensure compliance with fac-

tory specifications after replacing any faulty components.

Those who do undertake any of the following alignments

are cautioned to proceed at their own risk. Problems caused

by unauthorized attempts at realignment are not covered

by the warranty policy. Also, VERTEX STANDARD must

reserve the right to change circuits and alignment proce-

dures in the interest of improved performance, without

notifying owners. Under no circumstances should any align-

ment be attempted unless the normal function and opera-

tion of the transceiver are clearly understood, the cause of

the malfunction has been clearly pinpointed and any faulty

components replaced, and the need for realignment deter-

mined to be absolutely necessary.

Required Test Equipment

The following test equipment (and thorough familiarity

with its correct use) is necessary for complete realignment.

Correction of problems caused by misalignment result-

ing from use of improper test equipment is not covered

under the warranty policy. While most steps do not re-

quire all of the equipment listed, the interactions of some

adjustments may require that more complex adjustments

be performed afterwards. Do not attempt to perform only

a single step unless it is clearly isolated electrically from

all other steps. Have all test equipment ready before be-

ginning, and follow all of the steps in a section in the or-

der presented.

rRF Signal Generator with calibrated output level at 500

MHz

rDeviation Meter (linear detector)

rAC Voltmeter

rSINAD Meter

rInline Wattmeter with 5% accuracy at 500 MHz

rRegulated DC Power Supply: adjustable from 8 to 16.5

VDC, 5A

r50-Ohm Non-reactive Dummy Load: 5 W at 500 MHz

r150-Ohm Dummy Load: 5 W at 500 MHz

rFM Linear Detector

rFrequency Counter: ±0.1 ppm accuracy at 500 MHz

rAF Signal Generator

rDC Voltmeter: high impedance

rVHF Sampling Coupler

rAF Dummy Load: 4 Ohms, 5 W

Alignment Preparation & Precautions

A dummy load and inline wattmeter must be connected

to the main antenna jack in all procedures that call for

transmission, except where specified otherwise. Correct

alignment is not possible with an antenna. After complet-

ing one step, read the following step to determine whether

the same test equipment will be required. If not, remove

the test equipment (except dummy load and wattmeter, if

connected) before proceeding.

Correct alignment requires that the ambient temperature

in the repair shop be the same as that of the transceiver

and test equipment, and that this temperature be held

constant between 20° and 30°C (68° ~ 86°F). When the

transceiver is brought into the shop from hot or cold air it

should be allowed some time for thermal equalization with

the environment before alignment. If possible, alignments

should be made with oscillator shields and circuit boards

firmly affixed in place. Also, the test equipment must be

thoroughly warmed up before beginning.

Alignment

The alignment procedure for the FT-817 involves several

steps requiring that the case be opened to gain access to

the components to be adjusted. These procedures are de-

scribed first in the pages to follow. A number of align-

ment categories, however, may be accomplished without

opening the transceiver case, utilizing the Alignment

Menu feature which allows adjustments to be accom-

plished using the front panel controls.

Please survey the pages to follow. Depending on the

problem(s) needing correction, you may be able to skip to

the software-based alignment section.

Use external DC input of +13.8 Volts via the rear panel

DC input jack, for all alignment steps.

Local Oscillator Adjustment

Reference Frequency Adjustment

1. Connect the frequency counter to Q1038 (pin 5).

2. Adjust trimmer capacitor TC5001 (on the REF-Unit) for

a reading of 67.875 MHz (±10 Hz) on the frequency

counter.

3. Connect the RF millivoltmeter or an oscilloscope to

J5002 (pin 2) and confirm that the output level is at least

60 mVrms or 169 mVp-p.

PLL Adjustment

VCO VCV Adjustment

Connect the DC voltmeter to J2002 (pin 6) and referring

to the table below, tune the transceiver to each frequency

listed. Then confirm that the correct voltage is present, or

adjust the listed components for the required voltage.

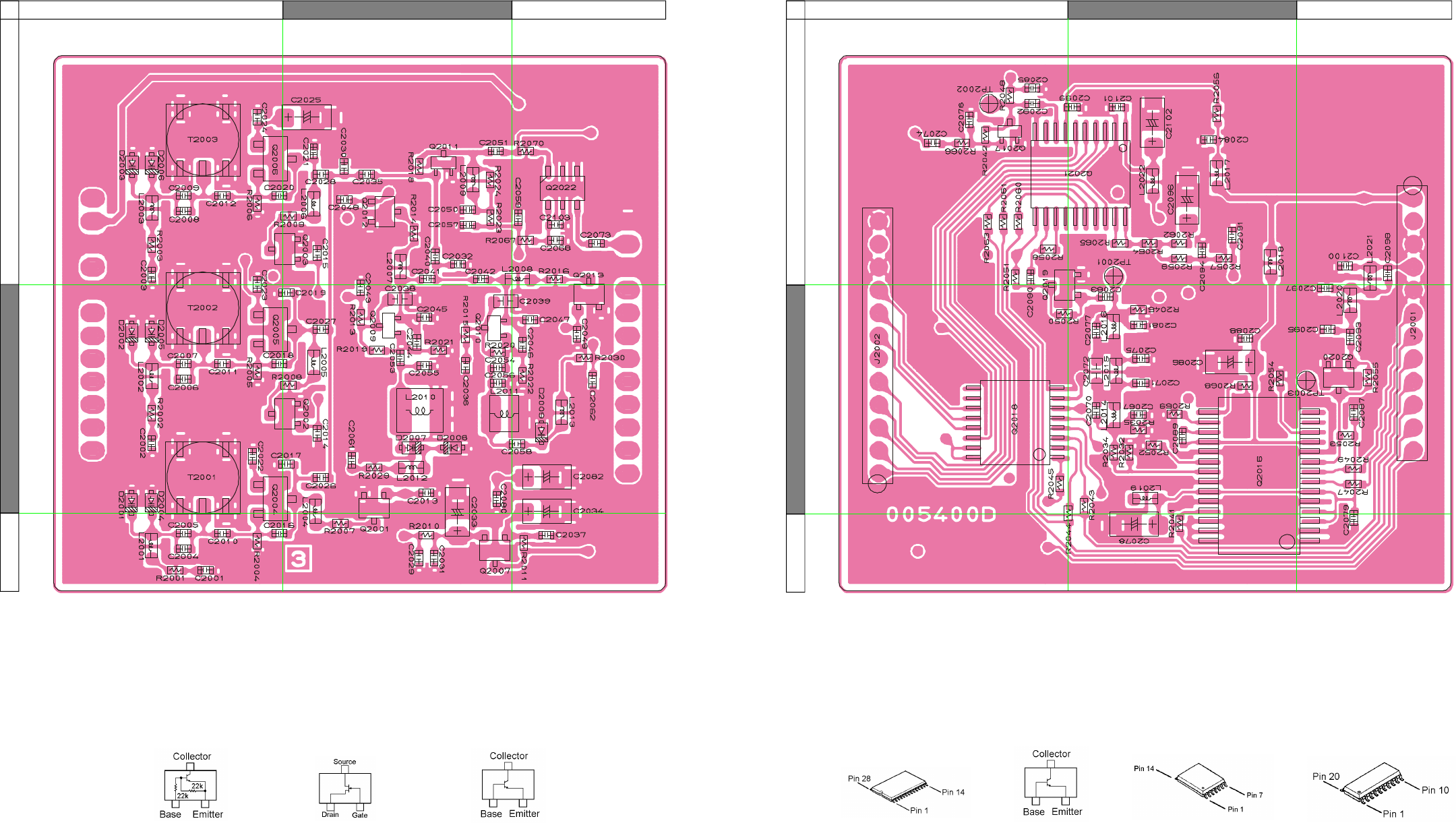

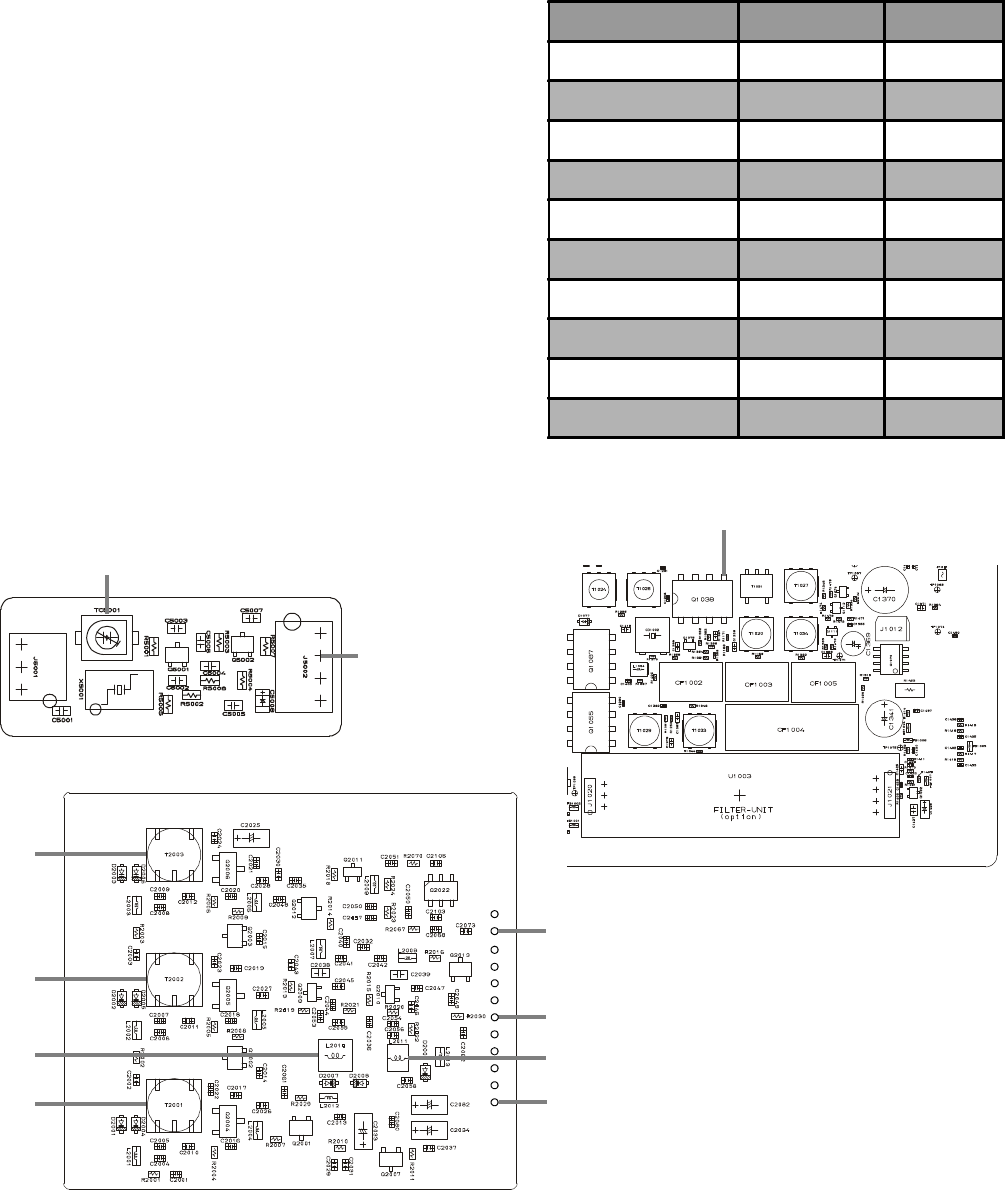

J5002

(Pin 2)

TC5001

Tune to : Adjust / Confirm For

13.895 MHz, CW mode Adjust T2001 4.6 V ±0.2 V

76.000 MHz, CW mode Confirm At least 0.5 V

29.995 MHz, CW mode Adjust T2002 4.2 V ±0.2 V

13.900 MHz, CW mode Confirm At least 0.8 V

53.995 MHz, CW mode Adjust T2003 4.4 V ±0.2 V

88.000 MHz, CW mode Confirm At least 0.8 V

146.000 MHz, CW mode Adjust L2010 3.8 V ±0.2 V

144.000 MHz, CW mode Confirm At least 3.0 V

440.000 MHz, CW mode Adjust L2011 2.4 V ±0.2 V

430.000 MHz, CW mode Confirm At least 1.0 V

T2003

T2002

T2001

L2010

J2002 (Pin 6)

L2011

J2002 (Pin 11)

J2002 (Pin 1)

Q1038 (pin 5)

Alignment

1st Local Output Level

1. Connect the RF millivoltmeter to J2002 (pin 11) and tune

the transceiver to 28.000 MHz in the CW mode.

2. Confirm that the RF level is at least +5 dBm (or 400

mVrms).

PLL "Unlock" Display Alert

1. Connect the DC voltmeter to J2002 (pin 1).

2. Disconnect the 4-pin plug connected to J5002 (REF-Unit),

and confirm that (A) the voltmeter shows less than 0.5 V

and (B) that "UNLOCK" is displayed on the LCD.

3. Re-connect the 4-pin plug to J5002, and confirm that

the voltmeter shows at least 3.5 V and that LCD dis-

play has returned to normal.

PA Unit Adjustment

Before alignment, set the mode to CW and tune the trans-

ceiver to 1.800 MHz. Nothing should be connected to the

CW Key Jack.

Driver Stage Idling Current

1. Remove the jumper connector at J3005, and insert an

ammeter in its place.

2. Press the microphone's PTT switch, and adjust VR3001

for an indication of 30 mA (±2 mA) on the ammeter.

3. Disconnect the ammeter and reinstall the jumper con-

nector at J3005

4. Remove the jumper connector at J3006 and insert the

ammeter in its place.

5. Press the PTT switch, and adjust VR3002 for an indica-

tion of 20 mA (±2 mA) on the ammeter.

6. Disconnect the ammeter and reinstall the jumper con-

nector at J3006.

Final Stage Idling Current

1. Connect the ammeter between the "13US" pin on PA

Unit and the "13US" pin of the Final Unit. The "13US"

line is currently connected by a wire; remove it so you

can connect the ammeter.

2. Turn both VR5401 and VR5402 fully counterclockwise.

3. Press the PTT switch, and adjust VR5401 for an indica-

tion of 45 mA (±2 mA) on the ammeter.

4. Press the PTT switch, and adjust VR5402 for an indica-

tion of 76 mA (±4 mA) on the ammeter.

5. Release the PTT switch. Re-connect the "13US" line be-

tween PA unit and Final Unit.

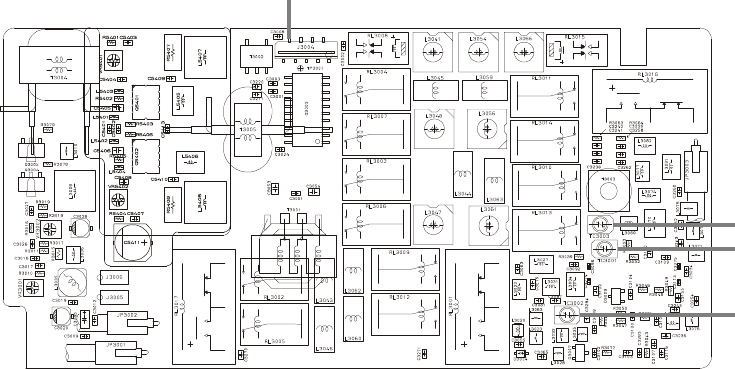

VR3001

VR3002

VR5402

VR5401

J3006

J3005

Jumper

Alignment

Local Oscillator Adjustment

2nd Local Adjustment

1. Connect the RF millivoltmeter or an oscilloscope to

Q1038 (pin 5).

2. Adjust T1024 and T1026 alternately for maximum in-

dication on the millivoltmeter or for maximum ampli-

tude on the oscilloscope.

3. Confirm the indicated voltage is at least 120 mVrms or

330 mVp-p.

3rd Local Adjustment

1. Connect the RF millivoltmeter or an oscilloscope to pin

5 of Q1055.

2. Key the transceiver in the CW mode, and adjust T1021

for maximum indication on the RF millivoltmeter.

3. Confirm that the indicated voltage is at least 70 mVrms

or 200 mVp-p.

TX IF Adjustment

CW TX IF Adjustment

1. Tune the frequency to 1.8 MHz in the CW mode. Con-

nect the RF millivoltmeter to J1002, terminated by a 50

Ohm dummy load.

2. Key the transceiver, and adjust T1020, T1012, and T1005

alternately for maximum indication on the RF

millivoltmeter.

FM TX IF Adjustment

1. Tune the frequency to the 29 MHz band in the FM mode.

Leave the RF millivoltmeter connected to J1002, still

terminated by the 50 Ohm dummy load.

2. Key the transceiver, and adjust T1012 and T1013 alter-

nately for the maximum indication on the RF

millivoltmeter.

3. Connect the frequency counter to T1022 (pin 5).

4. Again key the transceiver in the FM mode (without

microphone audio input). Adjust T1018 for a reading

of 68.3300 MHz (±50 Hz).

Carrier Balance Adjustment

1. Terminate J1002 with a 50 Ohm dummy load, and con-

nect a spectrum analyzer or a RF millivoltmeter to J1002.

2. Key the transceiver in the USB mode on the 28 MHz

band (without microphone input). Adjust VR1001 for

the maximum carrier suppression on the spectrum ana-

lyzer, or for the minimum indication on the RF

millivoltmeter.

VHF TX BPF Adjustment

1. Set the frequency at 145.995 MHz. Connect the RF

millivoltmeter to J1002 terminated by a 50ohm dummy load.

2. Key the transceiver on FM mode and adjust T1011,

T1010, and T1009 alternately for the maximum indica-

tion on RF millivoltmeter.

UHF TX BPF Adjustment

1. Set the frequency to 439.995 MHz. Connect the RF

millivoltmeter to J1002, which still should be termi-

nated by the 50 Ohm dummy load.

2. Key the transceiver in the FM mode, and adjust TC1005,

TC1004 and TC1002 alternately for maximum indica-

tion on the RF millivoltmeter.

RX Adjustment

The PA Unit must be connected during RX adjustment.

Note that the signal generator should not be connected to

J1008 (pin 15) because DC voltage is present there.

RX IF Adjustments

Connect the signal generator to the antenna connector, and

a SINAD meter to the speaker jack.

SSB IF Adjustment

1. Connect the DC voltmeter to J1008 (pin 15).

2. Tune the transceiver to 51.995 MHz. Inject an RF signal

from the signal generator at a level of 40 dBµ.

3. Adjust T1033, and T1029 alternately for the minimum

indication on the DC voltmeter.

4. Now select the FM mode. Turn off the RF injection from

the signal generator output.

5. Adjust T1034 for maximum indication on the DC volt-

meter.

FM IF Adjustment

1. Tune the transceiver to 51.995 MHz. Inject an RF signal

from the signal generator at a level of 10 dBµ, with 1

kHz of FM modulation at ±3.5 kHz deviation.

2. Adjust T1023, T1025, T1028, T1030 and T1034 alter-

nately for the best SINAD sensitivity.

VHF Band Alignment

1. Connect the DC voltmeter to J1008 (pin 15).

2. Tune the transceiver to 145.995 MHz. Inject an RF sig-

nal from the signal generator at a level of 40dBµ.

3. Adjust T1002, T1004, and T1008 alternately for the

minimum indication on the DC voltmeter.

Alignment

UHF Band Alignment

1. Connect the DC voltmeter to J1008 (pin 15).

2. Tune the transceiver to 439.995 MHz. Inject an RF sig-

nal from the signal generator at a level of 40dBµ.

3. Adjust TC1001 for minimum indication on the DC volt-

meter.

W-FM Reception Adjustment

1. Connect a SINAD meter to the speaker jack.

2. Tune the transceiver to 88.000 MHz. Inject an RF signal

from a signal generator at a level of 30dBµ, with

±22.5KHz deviation of a 1 kHz audio tone.

3. Adjust TC1003 for the best SINAD sensitivity. Then re-

duce the output level of the signal generator and ad-

just TC1003 again, as minor improvements of SINAD

may be difficult to observe if the SINAD reading is high.

Image Rejection Trap Adjustment

1. Connect the AF millivoltmeter to the speaker jack.

2. Tune the transceiver to 51.995 MHz in the CW mode.

Inject an RF signal from the signal generator at 68.330

MHz, with 50dBµ output.

3. Adjust T1014 for minimum indication on the AF

millivoltmeter. Then increase the output level of the

signal generator slightly, and adjust T1014 again (to

ensure maximum rejection).

Noise Blanker Adjustment

1. Connect the DC voltmeter to the base of Q1074. Tune

the transceiver to 51.995 MHz, and inject an RF signal

from the signal generator at a level of 6 dBµ.

2. Activate the noise blanker, and adjust T1027 for mini-

mum indication on the DC voltmeter.

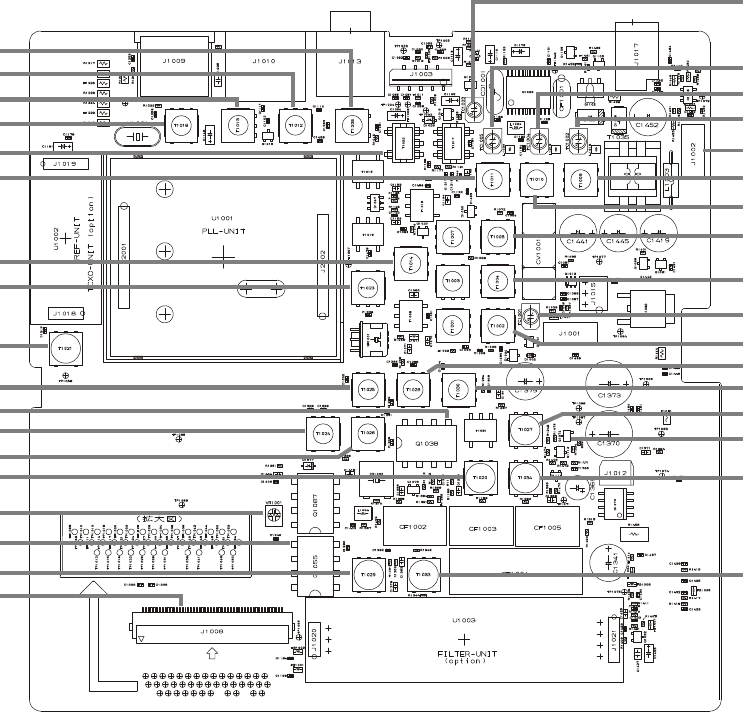

Q1055

(Pin 5)

T1024

T1021

T1018

T1022

(Pin 5)

VR1001

T1025

T1020

T1029

T1023

T1014

J1002

Q1074

(Base)

T1009

T1008

T1004

TC1001

T1030

T1027

T1002

T1028

T1026

T1033

Q1038

(Pin 5)

T1011

T1010

TC1002

TC1004

TC1005

T1013

T1012

T1005

J1008

(Pin 15)

T1034

TC1003

Alignment

CM Coupler Balance Adjustment

1. Terminate the antenna jack with a 50 Ohm dummy load.

Set the mode to CW, and connect the DC voltmeter to

J3004 (pin 7).

2. Tune the transceiver to 28.000 MHz, and key the trans-

ceiver.

3. Adjust TC3003 for minimum indication on the DC volt-

meter.

4. Tune the transceiver to 145.995 MHz (CW), and key

the transceiver.

5. Adjust TC3001 for minimum indication on the DC volt-

meter.

6. Tune the transceiver to 439.995 MHz (CW), and key

the transceiver.

7. Adjust TC3002 for minimum indication on the DC volt-

meter.

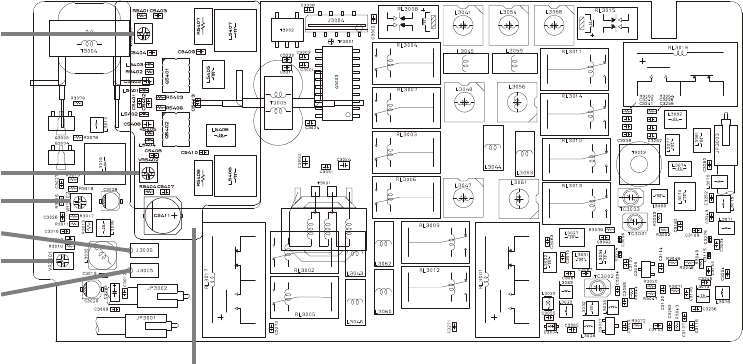

TC3001

TC3002

TC3003

J3004 (Pin7)

Alignment

Software Menu Alignment

For all the following alignment procedures, the antenna

connector should be connected to a dummy load and

wattmeter in all procedures requiring transmission, and

the signal generator should be connected when receiver

alignment is involved. General alignment conditions are

as follows, unless otherwise noted.

AF-gain knob : Center

RF-gain knob : Fully clockwise

SQL : Fully counterclockwise

ATT / IPO / CTCSS / DCS : Off

Output power : High

AGC : Auto

Break-in : On CW Keyer : Off

VOX : Off

Entering the Alignment Mode

To enter the Alignment Mode, press and hold in the

[A],[B], and [C] keys simultaneously; while holding them

in, turn on the transceiver. Once the transceiver comes on,

you may release the three keys. Now press and hold in

the [F] key for ½ second to activate the Menu, which will

be observed to contain a large number of selections not

normally available during regular Menu operation.

In the alignment procedures to follow, each alignment item is

selected by rotating the SEL knob, while adjustment of the se-

lected alignment parameter is accomplished by rotating the

main dial.. Press the [A] key to "set" certain designated param-

eters where a signal reading is made by the microprocessor (for

automatic setting of the parameter).

To store the alignment parameters after all items have been ad-

justed, press the [F] key for at least ½ second; this will cause the

transceiver to save all settings and exit the Menu mode.

RF Gain Adjustment

1. Tune the transceiver to 1.909 MHz (CW mode). Select

"01 HF1RXG" in the Alignment Menu by rotating the

SEL knob. Now inject an RF signal from the signal gen-

erator at 1.909 MHz at about 32dBµ output, and peak

the S-meter reading on the incoming signal by rotating

the main dial. When the peak is found, reduce the sig-

nal generator level to 12 dBµ.

2. Set the parameter "01 HF1RXG," such that the first dot

of the S-meter (S1) on the LCD is illuminated, by rotat-

ing the main dial. Rotating the main dial adjusts the

receiver's IF Gain around 1.9 MHz.

3. The remaining five RF gain adjustment points should

be aligned as shown in steps (1) and (2) above. The

output levels of the signal generator (for one "dot" of

S-meter deflection) at each frequency are shown below.

SSB S-Meter Adjustment

1. Tune the transceiver to 21.105 MHz on CW mode. In-

ject an RF signal from the signal generator at a level of

39dBµ, and peak the S-meter deflection on the incom-

ing signal.

2. Set the parameter "07 SSB-S9" so that exactly 6 dots of

the S-meter (S9) appear on the LCD by rotating the main

dial.

3. Now inject a signal on the same frequency at a level of

86dBµ.

4. Set the Alignment Menu parameter "08 SSB-FS" such

that all the dots of the S-meter on the LCD appear by

rotating the main dial.

FM S-Meter Adjustment

1. Tune the transceiver to 145.940 MHz (FM mode). Inject

an RF signal from the signal generator at a level of -3

dBµ, with ±3.5 kHz deviation of 1 kHz audio tone.

2. Select Alignment Menu item "09 FM-S1," and press the

[A] key to set this parameter.

3. Increase the output level of the signal generator up to

22dBµ. Select Alignment Menu item

"10 FM-FS," and press the [A] key to set this parameter.

FM Center Meter Adjustment

1. Tune the transceiver to 145.937 MHz (FM mode). Inject

an RF signal from the signal generator at a level of

10dBµ, with ±3.5 kHz deviation of a 1 kHz audio tone.

2. Set the frequency of the signal generator to 145.934 MHz

(3 kHz below the receiving frequency of the trans-

ceiver). Select Alignment Menu item "11 DISC-L," and

press [A] to set this parameter.

Frequency Select Menu # Output Level of SG

1.909 MHz 01 HF1RXG 15 dB

7.010 MHz 02 HF2RXG 15 dB

21.105 MHz 03 HF3RXG 12 dB

51.050 MHz 04 50MRXG 3 dB

145.940 MHz 05 VHFRXG 3 dB

440.000 MHz 06 UHFRXG 3 dB

Alignment

3. Tune the transceiver to 145.943 MHz (FM mode). leave

the signal generator at 10dBµ output, as before.

4. Set the frequency of the signal generator to 145.946 MHz

(3 kHz above the receiving frequency of the transceiver).

Select Alignment Menu item "12 DISC-H," and press

[A] to set this parameter.

FM Squelch Adjustment

1. Tune the transceiver to 145.940 MHz (FM mode). Con-

firm that the squelch knob is turned fully counterclock-

wise.

2. Select Alignment Menu item "13 FM-TH1," and press

the [A] key (without any RF input from the signal gen-

erator) to set this parameter.

3. Select Alignment Menu item "14 FM-TH2," and press

the [A] key again.

4. Inject an RF signal from the signal generator at 3 dBµ

output, with ±3.5 kHz deviation FM of a 1 kHz tone.

Select Alignment Menu item "15 FM-TI1," and press

the [A] key to set this parameter. 5. Select Alignment

Menu item "16 FM-TI2," leave the signal generator level

unchanged, and press the [A] key again.

Power Supply Voltage Display Adjustment

1. Tune the transceiver to the 144 MHz band (FM mode).

Confirm that the power supply voltage is 13.8V ±0.1V

(using the DC voltmeter).

2. Select the Alignment Menu item "VCC," and adjust the

parameter so that "138" is displayed on the LCD.

Over-Current Protection Adjustment

1. Select Alignment Menu item "18 HF1-IC." Tune the

transceiver to the 1.8 MHz band (CW mode), and key

the transceiver. Adjust this parameter for 7.0 W of trans-

mission power as measured on the external wattmeter.

2. The over-current protection Alignment Menu items, "19 HF2-

IC," "20 HF3-IC," "21 50M-IC," "22 VHF-IC," and "23 UHF

IC" should be adjusted in the same manner on the 7 MHz, 21

MHz, 50 MHz, 144 MHz, and 430 MHz bands, respectively.

Use the CW mode, and the precise frequency is not critical.

RF Power Adjustment

1. Tune the transceiver to the 1.8 MHz band (CW mode).

Select Alignment Menu item "24 HF1-HI." Key the

transmitter, and adjust this parameter for 5.0 W (±0.1

W) of output power.

2. Select Alignment Menu item "25 HF1-L3." Key the trans-

mitter, and adjust this parameter for 2.5 W (±0.2 W) of

output power.

3. Select Alignment Menu item "26 HF1-L2". Key down and

adjust the parameter for 1.0W (±0.2W) transmission power.

4. Select the menu item "27 HF1-L1." Key the transmitter,

and adjust this parameter for 0.5 W (±0.1 W) of output

power.

5. Other RF power adjustment menu, designated [HF2-

**], [HF3-**], [50M-**], [VHF-**], and [UHF-**] (four

adjustments each) should be adjusted in exactly the

same manner on the 7 MHz, 21 MHz, 50 MHz, 144 MHz

and 430 MHz bands, respectively. Use the CW mode,

and the precise frequency is not critical.

TX Gain Adjustment

1. Select the USB mode. Inject a 1 mV audio signal at 1

kHz from the AF generator into the microphone jack

(pin 4).

2. Tune the transceiver to the 1.8 MHz band and key the

transmitter. Select Alignment Menu item "48 HF1TXG,"

and adjust this parameter for 2.5 W (±0.1 W) of output

power. Note: to "key the transmitter" with no micro-

phone connected, you may connect pin 3 of the Mic

jack to ground (pin 2).

3. The other TX gain Alignment Menu selections, desig-

nated [49 HF2TXG], [50 HF3TXG], [51 50MTXG], [52

VHFTXG], and [53 UHFTXG,] should be adjusted in

the same manner on the 7 MHz, 21 MHz, 50 MHz, 144

MHz, and 430 MHz bands, respectively.

Power Meter Sensitivity Adjustment

1. Set the mode to CW, and the output power to HIGH.

Select Alignment Menu item "54 HF1POM," and key

the transceiver.

2. Set this parameter such that 8 dots of the power meter

scale are displayed on the LCD.

3. The other power meter sensitivity Alignment Menu se-

lections, designated [55 HF2POM], [56 HF3POM], [57

50MPOM], [58 VHFPOM], and [59 UHFPOM], should

be adjusted in the same manner on the 7 MHz, 21 MHz,

50 MHz, 144 MHz, and 430MHz bands, respectively. Use

the CW mode, and the precise frequency is not critical.

ALC Meter Adjustment

1. Tune the transceiver to the 21 MHz band on USB. Select

Alignment Menu item "60 ALC-1." Key the transceiver

(without microphone input), and press the [A] key. A

measurement value which microprocessor has computed

will displayed on the LCD; make a note of this value.

Alignment

2. Rotate the main dial to set this parameter four digits

below the value displayed in step 1.

3. After setting this parameter, confirm that all the dots

of the ALC meter have gone out.

4. Select Alignment Menu item "61 ALC-M." Inject a 4.0

mV AF signal at 1 kHz from the audio generator to the

microphone jack (pin 4), and key the transceiver.

5. Press the [A] key, and confirm that 5 dots on the ALC

meter scale are present.

Reverse ALC Adjustment

1. Set the mode to CW, and connect the 150-Ohm dummy

load to the antenna connector. Tune the transceiver to

the 1.8 MHz band, and select Alignment Menu item

"62 HF1-RV."

2. Key the transceiver, and set the parameter such that 6

dots of the power meter scale appear on the LCD.

3. The other reverse ALC adjustment menu, designated

[63 HF2-RV], [64 HF3-RV], [65 50M-RV], [66 VHF-RV,

and [67 UHF-RV], should be adjusted in the same man-

ner on the 7 MHz, 21 MHz, 50 MHz, 144 MHz, and 430

MHz bands, respectively. Use the CW mode, and the

precise frequency is not critical.

Carrier Level Adjustment

1. Tune the transceiver to the 21 MHz band. Connect the

50-Ohm dummy load to the antenna connector. Set the

mode to CW. Select Alignment Menu item "68 CW-

CAR," and key the transceiver.

2. Set this parameter such that 5 dots of the ALC meter

scale appear on the LCD.

3. Connect the oscilloscope to the antenna connector via

an appropriate attenuator.

4. Set the mode on AM. Select Alignment Menu item "69

AM-CAR." Inject a 1.0 mV audio signal at 1 kHz from

the audio generator into the microphone jack (pin 4).

5. Key the transceiver, and adjust this parameter for 33%

(AM) modulation on the oscilloscope.

FM Modulation Adjustment

1. Tune the transceiver to the 144 MHz band (FM mode).

Connect the FM linear detector to the antenna connector

via an appropriate attenuator. Select Alignment Menu

item "70 DEV-W." Inject a 15 mV audio signal at 1 kHz

from the audio generator to the microphone jack (pin 4).

2. Key the transceiver, and adjust this parameter for a

maximum deviation of ±4.5 kHz (±0.2 kHz) on the FM

linear detector.

3. Change the menu item to "71 DEV-N." Key the trans-

ceiver, and adjust this parameter for a maximum de-

viation of ±2.25 kHz (±0.1 kHz) on the FM linear detec-

tor.

4. Change the menu item to "72 M-MTR." Key the trans-

ceiver, and set this parameter such that 5 dots of the

MOD meter scale appear on the LCD.

5. Change the menu item to "73 CTCSS." Key the trans-

ceiver without microphone input, and adjust this pa-

rameter for a maximum deviation of ±0.7 kHz (±0.1 kHz)

on the FM linear detector.

6. Change the menu item to "74 DCS." Key the transceiver

without microphone input, and adjust the parameter

for a maximum deviation of ±0.7 kHz (±0.2 kHz) on the

FM linear detector.

SSB Carrier Point Adjustment

1. Tune the transceiver to the 21 MHz band. Select Align-

ment Menu item "75 LSB-CP." Set the mode to LSB, and

inject a 1 mV AF from an audio generator into the mi-

crophone jack (pin 4).

2. Key the transmitter, and vary the audio frequency of

the audio generator to find the frequency at which you

achieve the maximum output power of the transceiver.

Confirm that the output power is at least 2.5W; then

adjust the AF output level of the audio generator for

2.0 W (±0.1 W) output power from the transceiver.

3. Lower the audio frequency down to 400 Hz, and ad-

just this parameter for 0.6 W (±0.1 W) output power

from the transceiver.

4. Change the audio frequency to 2600 Hz, and confirm

that the output power is at least 0.5 W.

5. The adjustment for the USB carrier point is performed

in the same manner as done for LSB, by changing the

transmission mode to USB and the Alignment Menu

item to "76 USB-CP."

Alignment

Note:

Interconnection Diagram

Note:

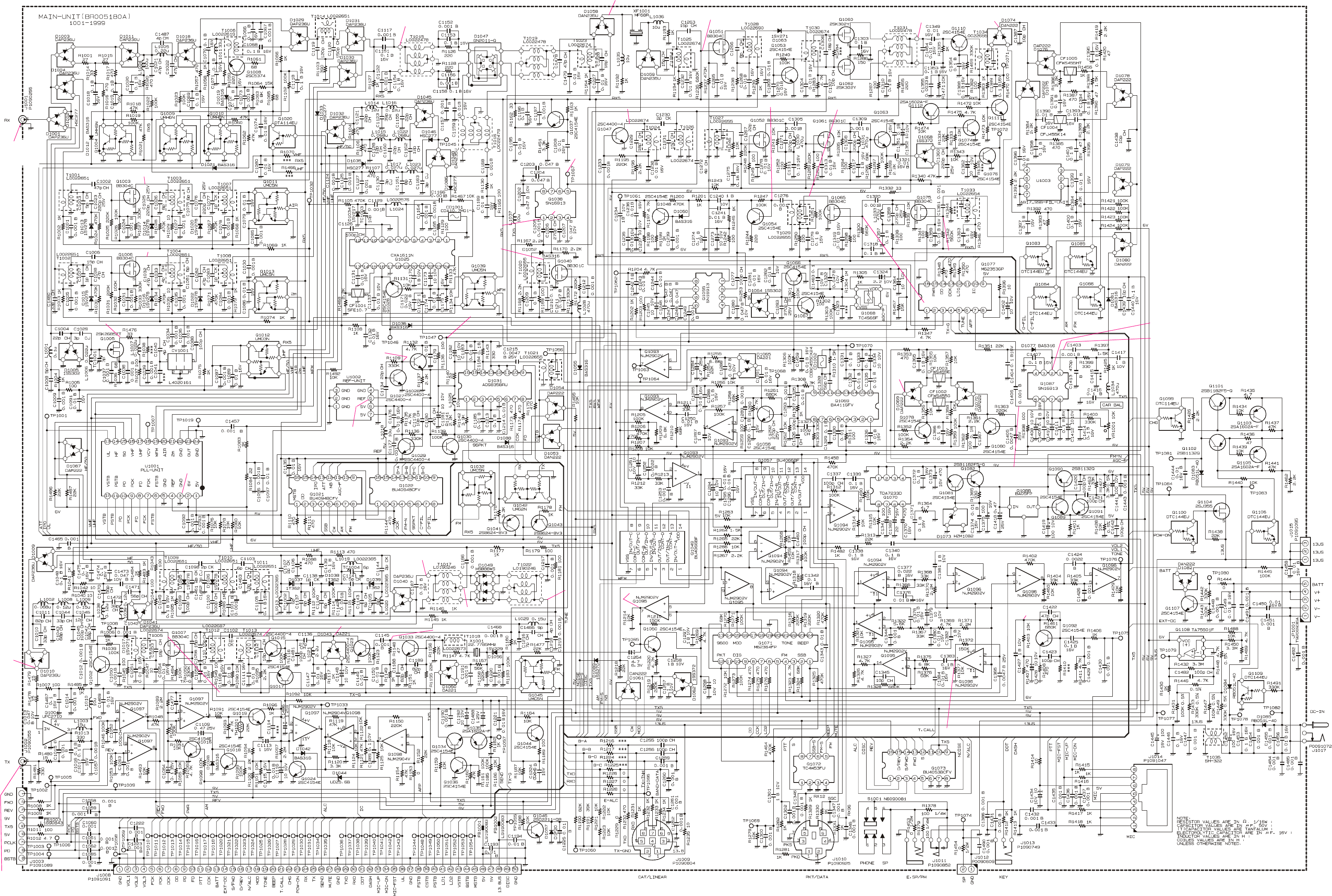

MAIN Unit

145.95 MHz: +18.5 dBµ

68.33 MHz: +6.1 dBµ 68.33 MHz: +0.6 dBµ 455 kHz: +36 dBµ 455 kHz: +28.5 dBµ

455 kHz (CW mode)*: +21.5 dBµ

455 kHz (CW mode)*: +68 dBµ

455 kHz (CW mode)*: +87 dBµ

455 kHz (CW mode)*: +94 dBµ

700 mVrms

200 mVrms

USB mode: (40 mVrms)

USB mode:

(54 mVrms)

USB mode:

(350 mVrms)

250 mVrms

600 mVrms

90 mVrms

USB mode: (2.5 mVrms)

USB mode: (5.0 mVrms)

455 kHz:

+54 dBµ

USB mode: (120 mVrms)

USB mode:

(30 mVrms)

FM mode: (11 mVrms)

FM mode: (500 mVrms)

USB mode: (220 mVrms)

FM mode: (220 mVrms)

FM mode: (1.0 mVrms)

FM mode: (150 mVrms)

USB mode: (100 mVrms)

FM mode: (150 mVrms)

FM mode: (450 mVrms)FM mode: (100 mVrms)

USB mode: (1.0 mVrms)

FM mode: (1.0 mVrms)

70 mVrms

USB mode: (110 mVrms)

FM mode: (210 mVrms)

USB mode: (130 mVrms)

FM mode: (80 mVrms)

439.95 MHz: +21.5 dBµ

145.95 MHz:

+15.5 dBµ

128 MHz: +13.5 dBµ

439.95 MHz: -9.0 dBµ

145.95 MHz: -9.0 dBµ

52.00 MHz: -4.1 dBµ

14.00 MHz: -5.2 dBµ

RX (TX)

RX: 145.95 MHz (MOD: f=1 kHz, DEV=3.5 kHz)

FM: 12 dB SINAD

*CW: S/N 10 dB

TX: 145.95 MHz, 5 W (connected to a 50-ohm dummyload)

(MIC Imput: f=1 kHz, level= 3 mVrms)

MAIN Unit

Note:

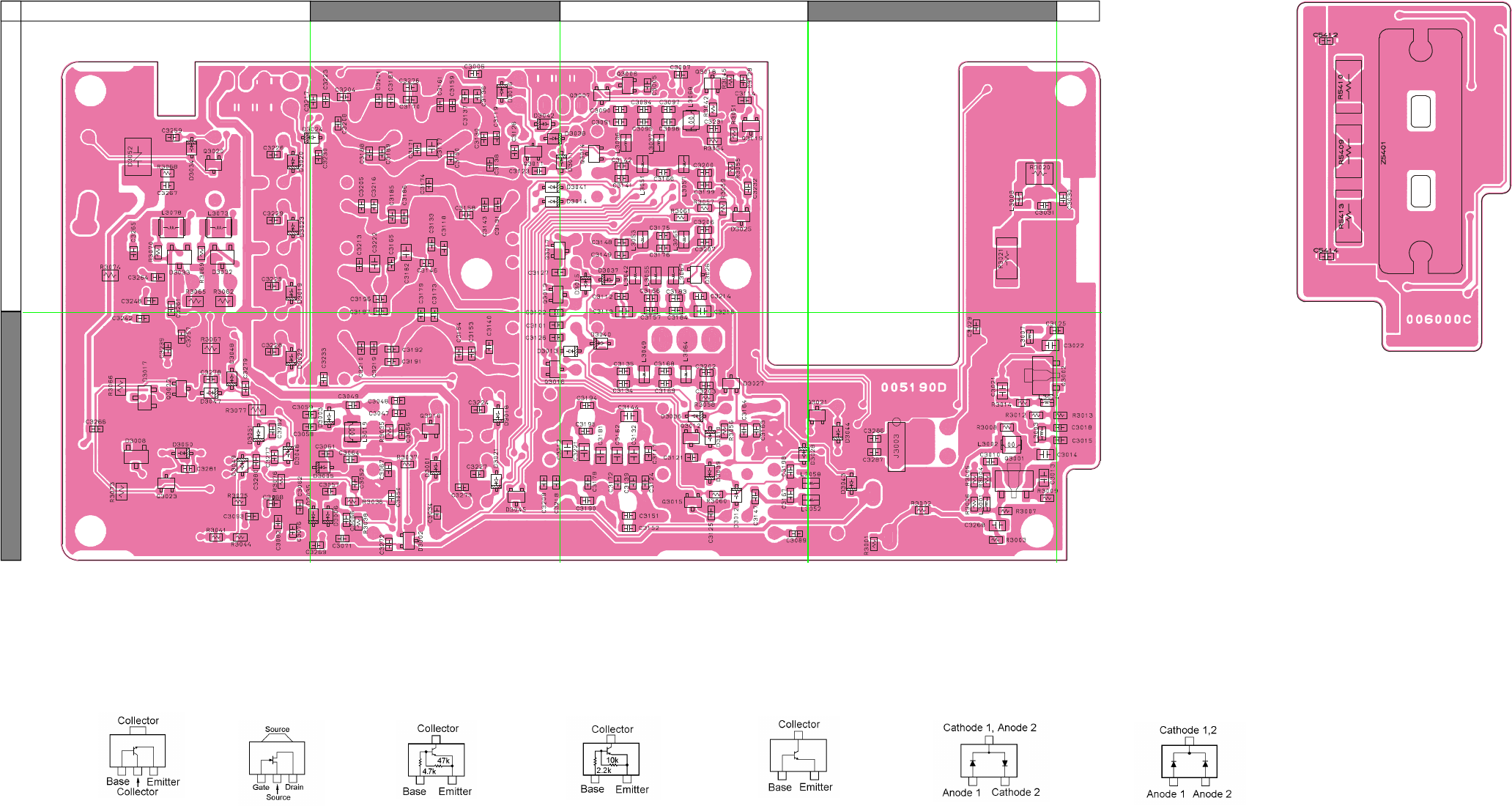

MAIN Unit

SN16913P

(Q1038, 1055, 1087)

2SB1182F5

(Q1082)

2SB1132

(Q 1102)

GN2011 (4W)

(D1047)

CXA1611N

(Q1025)

TDA7233D

(Q1070)

DAP236U (X)

(D1001, 1004, 1030)

2SC4154 (LE)

(Q1018, 1024, 1074, 1078,

1079, 1089, 1091, 1092, 1111)

2SC4400 (RT4)

(Q1015)

UMD3N (D3)

(Q1012)

TA75S01F (SA)

(Q1108)

2SA1602A (MF)

(Q1105, 1112)

DTC144EU (26)

(Q1109)

DTA114EU (14)

(Q1020)

Side A

ABCD

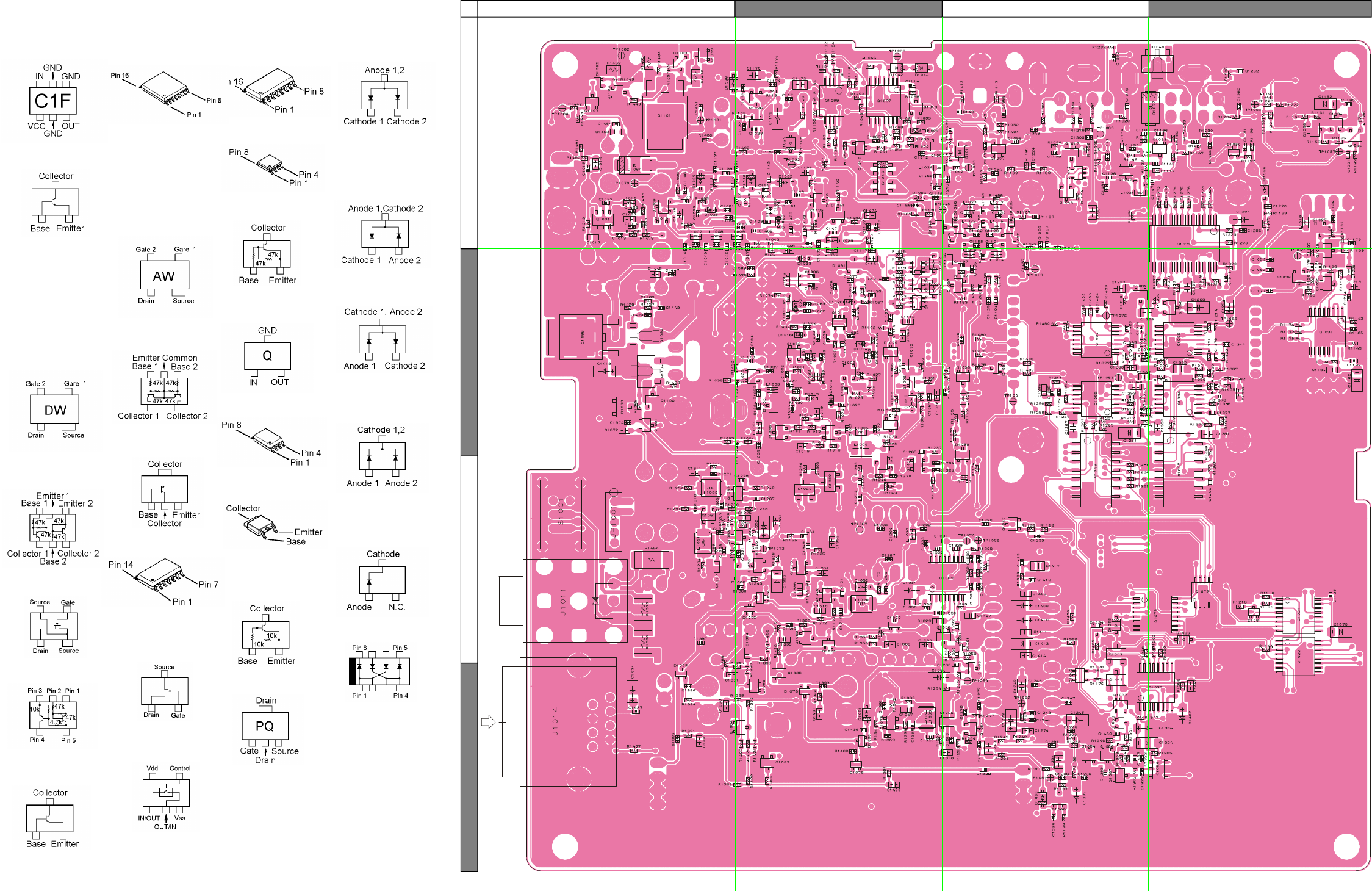

Parts Layout

MAIN Unit

2SB1182F5

(Q1101)

2SB1132

(Q1090)

BU4066BF

(Q1049, 1057)

NJM2902V

(Q1093, 1094, 1095,

1096, 1097)

TC4W53FU

(Q1072)

M62364FP

(Q1071)

NJM2904V

(Q1098)

1SS372 (N9)

(D1062, 1068)

DA221 (K)

(D1043, 1050, 1065)

1SS302 (C3)

(D1005, 1064)

HSB88WSTR

(D1049)

UPC2170T (C1F)

(Q1001)

UMH6N (H6)

(Q1004, 1009, 1010)

2SK2685ZT (WV-)

(Q1005)

UMC5N (C5)

(Q1011, 1013, 1032,

1039, 1045)

UMG2N (G2)

(Q1042)

TC4S66F (C9)

(Q1068)

DTC114EU (24)

(Q1099)

2SK302 (TY)

(Q1060, 1062)

2SD2211 (DQR)

(Q1046)

DTC144EU (26)

(Q1083, 1084, 1085,

1086, 1100, 1106)

2SC4154 (LE)

(Q1002, 1016, 1017,

1019, 1026, 1034, 1036,

1037, 1044, 1048, 1050,

1053, 1054, 1056, 1063,

1066, 1067, 1076, 1080,

1081, 1107, 1110)

2SC5374 (NA)

(Q1008)

2SC4400 (RT4)

(Q1023, 1027, 1028, 1029,

1030, 1033, 1047)

2SB624 (BV3)

(Q1041, 1043)

HZM10B2 (29)

(D1073)

2SA1602A (MF)

(Q1035, 1042, 1103)

2SB624 (BV3)

(Q1041, 1043)

BU4094BCFV

(Q1021, 1022)

AD9835BUR

(Q1031)

BA4116FV

(Q1069)

BU4053BCFV

(Q1073)

M62353GP

(Q1077)

DAP236U (X)

(D1003, 1009, 1010, 1011,

1018, 1029, 1031, 1032,

1040, 1041, 1045)

DAP222 (P)

(D1054, 1069, 1070, 1075,

1076, 1078, 1079, 1087)

DAN222 (N)

(D1053, 1061, 1074,

1080, 1082)

DAN235U (M)

(D1048, 1058, 1059)

Side B

2SJ355 (PQ)

(Q1104)

BB301CAW (AW)

(Q1040, 1052, 1061)

BA05FP (Q)

(Q1088)

BB304CDW (DW)

(Q1003, 1006, 1007,

1051, 1065, 1075)

MAIN Unit (Lot. 30~)

145.95 MHz: +18.5 dBµ

68.33 MHz: +6.1 dBµ

68.33 MHz: +0.6 dBµ 455 kHz: +36 dBµ 455 kHz: +28.5 dBµ

455 kHz (CW mode)*: +21.5 dBµ

455 kHz (CW mode)*: +68 dBµ

455 kHz (CW mode)*: +87 dBµ

455 kHz (CW mode)*: +94 dBµ

700 mVrms

200 mVrms

USB mode: (40 mVrms)

USB mode:

(54 mVrms)

USB mode:

(350 mVrms)

250 mVrms

600 mVrms

90 mVrms

USB mode: (2.5 mVrms)

USB mode: (5.0 mVrms)

455 kHz:

+54 dBµ

USB mode: (120 mVrms)

USB mode:

(30 mVrms)

FM mode: (11 mVrms)

FM mode: (500 mVrms)

USB mode: (220 mVrms)

FM mode: (220 mVrms)

FM mode: (1.0 mVrms)

FM mode: (150 mVrms)

USB mode: (100 mVrms)

FM mode: (150 mVrms)

FM mode: (450 mVrms)FM mode: (100 mVrms)

USB mode: (1.0 mVrms)

FM mode: (1.0 mVrms)

70 mVrms

USB mode: (110 mVrms)

FM mode: (210 mVrms)

USB mode: (130 mVrms)

FM mode: (80 mVrms)

439.95 MHz: +21.5 dBµ

145.95 MHz:

+15.5 dBµ

128 MHz: +13.5 dBµ

RX (TX)

RX: 145.95 MHz (MOD: f=1 kHz, DEV=3.5 kHz)

FM: 12 dB SINAD

*CW: S/N 10 dB

TX: 145.95 MHz, 5 W (connected to a 50-ohm dummyload)

(MIC Imput: f=1 kHz, level= 3 mVrms)

439.95 MHz: -9.0 dBµ

145.95 MHz: -9.0 dBµ

52.00 MHz: -4.1 dBµ

14.00 MHz: -5.2 dBµ

MAIN Unit (Lot. 30~)

Note:

MAIN Unit (Lot. 30~)

SN16913P

(Q1038, 1055, 1087)

2SB1182F5

(Q1082)

2SB1132

(Q 1102)

GN2011 (4W)

(D1047)

CXA1611N

(Q1025)

TDA7233D

(Q1070)

DAP236U (X)

(D1001, 1004, 1030)

2SC4154 (LE)

(Q1018, 1024, 1074, 1078,

1079, 1089, 1091, 1092, 1111)

2SC4400 (RT4)

(Q1015)

UMD3N (D3)

(Q1012)

TA75S01F (SA)

(Q1108)

2SA1602A (MF)

(Q1105, 1112)

DTC144EU (26)

(Q1109)

DTA114EU (14)

(Q1020)

Side A

ABCD

Parts Layout

MAIN Unit (Lot. 30~)

2SB1182F5

(Q1101)

2SB1132

(Q1090)

BU4066BF

(Q1049, 1057)

NJM2902V

(Q1093, 1094, 1095,

1096, 1097)

TC4W53FU

(Q1072)

M62364FP

(Q1071)

NJM2904V

(Q1098)

1SS372 (N9)

(D1062, 1068)

DA221 (K)

(D1043, 1050, 1065)

1SS302 (C3)

(D1005, 1064)

HSB88WSTR

(D1049)

UPC2170T (C1F)

(Q1001)

UMH6N (H6)

(Q1004, 1009, 1010)

2SK2685ZT (WV-)

(Q1005)

UMC5N (C5)

(Q1011, 1013, 1032,

1039, 1045)

UMG2N (G2)

(Q1042)

TC4S66F (C9)

(Q1068)

DTC114EU (24)

(Q1099)

2SK302 (TY)

(Q1060, 1062)

2SD2211 (DQR)

(Q1046)

DTC144EU (26)

(Q1083, 1084, 1085,

1086, 1100, 1106)

2SC4154 (LE)

(Q1002, 1016, 1017,

1019, 1026, 1034, 1036,

1037, 1044, 1048, 1050,

1053, 1054, 1056, 1063,

1066, 1067, 1076, 1080,

1081, 1107, 1110)

2SC5374 (NA)

(Q1008)

2SC4400 (RT4)

(Q1023, 1027, 1028, 1029,

1030, 1033, 1047)

2SB624 (BV3)

(Q1041, 1043)

HZM10B2 (29)

(D1073)

2SA1602A (MF)

(Q1035, 1042, 1103)

2SB624 (BV3)

(Q1041, 1043)

BU4094BCFV

(Q1021, 1022)

AD9835BUR

(Q1031)

BA4116FV

(Q1069)

BU4053BCFV

(Q1073)

M62353GP

(Q1077)

DAP236U (X)

(D1003, 1009, 1010, 1011,

1018, 1029, 1031, 1032,

1040, 1041, 1045)

DAP222 (P)

(D1054, 1069, 1070, 1075,

1076, 1078, 1079, 1087)

DAN222 (N)

(D1053, 1061, 1074,

1080, 1082)

DAN235U (M)

(D1048, 1058, 1059)

Side B

2SJ355 (PQ)

(Q1104)

BB301CAW (AW)

(Q1040, 1052, 1061)

BA05FP (Q)

(Q1088)

BB304CDW (DW)

(Q1003, 1006, 1007,

1051, 1065, 1075)

MAIN Unit (Lot. 32~)

145.95 MHz: +18.5 dBµ

68.33 MHz: +6.1 dBµ 68.33 MHz: +0.6 dBµ

455 kHz: +36 dBµ

455 kHz: +28.5 dBµ

455 kHz (CW mode)*: +21.5 dBµ

455 kHz (CW mode)*: +68 dBµ

455 kHz (CW mode)*: +87 dBµ

455 kHz (CW mode)*: +94 dBµ

700 mVrms

200 mVrms

USB mode: (40 mVrms)

USB mode:

(54 mVrms)

USB mode:

(350 mVrms)

250 mVrms

600 mVrms

90 mVrms

USB mode: (2.5 mVrms)

USB mode: (5.0 mVrms)

455 kHz:

+54 dBµ

USB mode: (120 mVrms)

USB mode:

(30 mVrms)

FM mode: (11 mVrms)

FM mode: (500 mVrms)

USB mode: (220 mVrms)

FM mode: (220 mVrms)

FM mode: (1.0 mVrms)

FM mode: (150 mVrms)

USB mode: (100 mVrms)

FM mode: (150 mVrms)

FM mode: (450 mVrms)FM mode: (100 mVrms)

USB mode: (1.0 mVrms)

FM mode: (1.0 mVrms)

70 mVrms

USB mode: (110 mVrms)

FM mode: (210 mVrms)

USB mode: (130 mVrms)

FM mode: (80 mVrms)

439.95 MHz: +21.5 dBµ

145.95 MHz:

+15.5 dBµ

128 MHz: +13.5 dBµ

RX (TX)

RX: 145.95 MHz (MOD: f=1 kHz, DEV=3.5 kHz)

FM: 12 dB SINAD

*CW: S/N 10 dB

TX: 145.95 MHz, 5 W (connected to a 50-ohm dummyload)

(MIC Imput: f=1 kHz, level= 3 mVrms)

439.95 MHz: -9.0 dBµ

145.95 MHz: -9.0 dBµ

52.00 MHz: -4.1 dBµ

14.00 MHz: -5.2 dBµ

MAIN Unit (Lot. 32~)

Note:

MAIN Unit (Lot. 32~)

SN16913P

(Q1038, 1055, 1087)

2SB1182F5

(Q1082)

2SB1132

(Q 1102)

GN2011 (4W)

(D1047)

CXA1611N

(Q1025)

TDA7233D

(Q1070)

DAP236U (X)

(D1001, 1004, 1030)

2SC4154 (LE)

(Q1018, 1024, 1074, 1078,

1079, 1089, 1091, 1092, 1111)

2SC4400 (RT4)

(Q1015)

UMD3N (D3)

(Q1012)

TA75S01F (SA)

(Q1108)

2SA1602A (MF)

(Q1105, 1112)

DTC144EU (26)

(Q1109)

DTA114EU (14)

(Q1020)

Side A

ABCD

Parts Layout

MAIN Unit (Lot. 32~)

2SB1182F5

(Q1101)

2SB1132

(Q1090)

BU4066BF

(Q1049, 1057)

NJM2902V

(Q1093, 1094, 1095,

1096, 1097)

TC4W53FU

(Q1072)

M62364FP

(Q1071)

NJM2904V

(Q1098)

1SS372 (N9)

(D1062, 1068)

DA221 (K)

(D1043, 1050, 1065)

1SS302 (C3)

(D1005, 1064)

HSB88WSTR

(D1049)

UPC2170T (C1F)

(Q1001)

UMH6N (H6)

(Q1004, 1009, 1010)

2SK2685ZT (WV-)

(Q1005)

UMC5N (C5)

(Q1011, 1013, 1032,

1039, 1045)

UMG2N (G2)

(Q1042)

TC4S66F (C9)

(Q1068)

DTC114EU (24)

(Q1099)

2SK302 (TY)

(Q1060, 1062)

2SD2211 (DQR)

(Q1046)

DTC144EU (26)

(Q1083, 1084, 1085,

1086, 1100, 1106)

2SC4154 (LE)

(Q1002, 1016, 1017,

1019, 1026, 1034, 1036,

1037, 1044, 1048, 1050,

1053, 1054, 1056, 1063,

1066, 1067, 1076, 1080,

1081, 1107, 1110)

2SC5374 (NA)

(Q1008)

2SC4400 (RT4)

(Q1023, 1027, 1028, 1029,

1030, 1033, 1047)

2SB624 (BV3)

(Q1041, 1043)

HZM10B2 (29)

(D1073)

2SA1602A (MF)

(Q1035, 1042, 1103)

2SB624 (BV3)

(Q1041, 1043)

BU4094BCFV

(Q1021, 1022)

AD9835BUR

(Q1031)

BA4116FV

(Q1069)

BU4053BCFV

(Q1073)

M62353GP

(Q1077)

DAP236U (X)

(D1003, 1009, 1010, 1011,

1018, 1029, 1031, 1032,

1040, 1041, 1045)

DAP222 (P)

(D1054, 1069, 1070, 1075,

1076, 1078, 1079, 1087)

DAN222 (N)

(D1053, 1061, 1074,

1080, 1082)

DAN235U (M)

(D1048, 1058, 1059)

Side B

2SJ355 (PQ)

(Q1104)

BB301CAW (AW)

(Q1040, 1052, 1061)

BA05FP (Q)

(Q1088)

BB304CDW (DW)

(Q1003, 1006, 1007,

1051, 1065, 1075)

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

*** MAIN UNIT ***

PCB with Components CP6778002 USA, W/O CE LABEL

PCB with Components CP6778003 EXPORT, W/O CE LABEL

PCB with Components CP6778004 AUSTRALIA, W/O CE LABEL

PCB with Components CP6778005 FRANCE, W/ CE LABEL

PCB with Components CP6778006 EXPORT, W/ CE LABEL

PCB with Components CP6778007 FRANCE, W/O CE LABEL

Printed Circuit Board FR005180D 1-

Printed Circuit Board FR005180E 30-

Printed Circuit Board FR005180F 32-

C 1001 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC2

C 1002 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- Bb2

C 1003 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- AC2

C 1004 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bb2

C 1005 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC2

C 1006 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- Bb2

C 1007 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- Bb2

C 1008 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- Bb2

C 1009 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1010 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- Ba1

C 1011 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- Ba1

C 1012 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1013 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Ba1

C 1014 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 1015 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 1015 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 47- Ba1

C 1016 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1-46 Ba1

C 1017 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba1

C 1018 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1019 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1020 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1021 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bb2

C 1021 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 6- Bb2

C 1022 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bb2

C 1022 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 6- Bb2

C 1023 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bb2

C 1024 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1025 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bb2

C 1026 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 1- Bb2

C 1027 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1028 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- Bb2

C 1029 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Bb2

C 1029 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 4- Bb2

C 1030 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1031 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1032 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- Bb2

C 1033 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- Bb2

C 1034 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1035 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1036 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1037 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1038 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1039 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD2

C 1040 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 1- Bb2

C 1040 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 5- Bb2

C 1042 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1043 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- Ba1

C 1044 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- Ba1

C 1045 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Ba1

C 1046 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- Bb1

C 1047 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- Bb1

C 1048 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1049 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba1

C 1050 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1051 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC1

C 1052 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AC1

C 1053 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- AB1

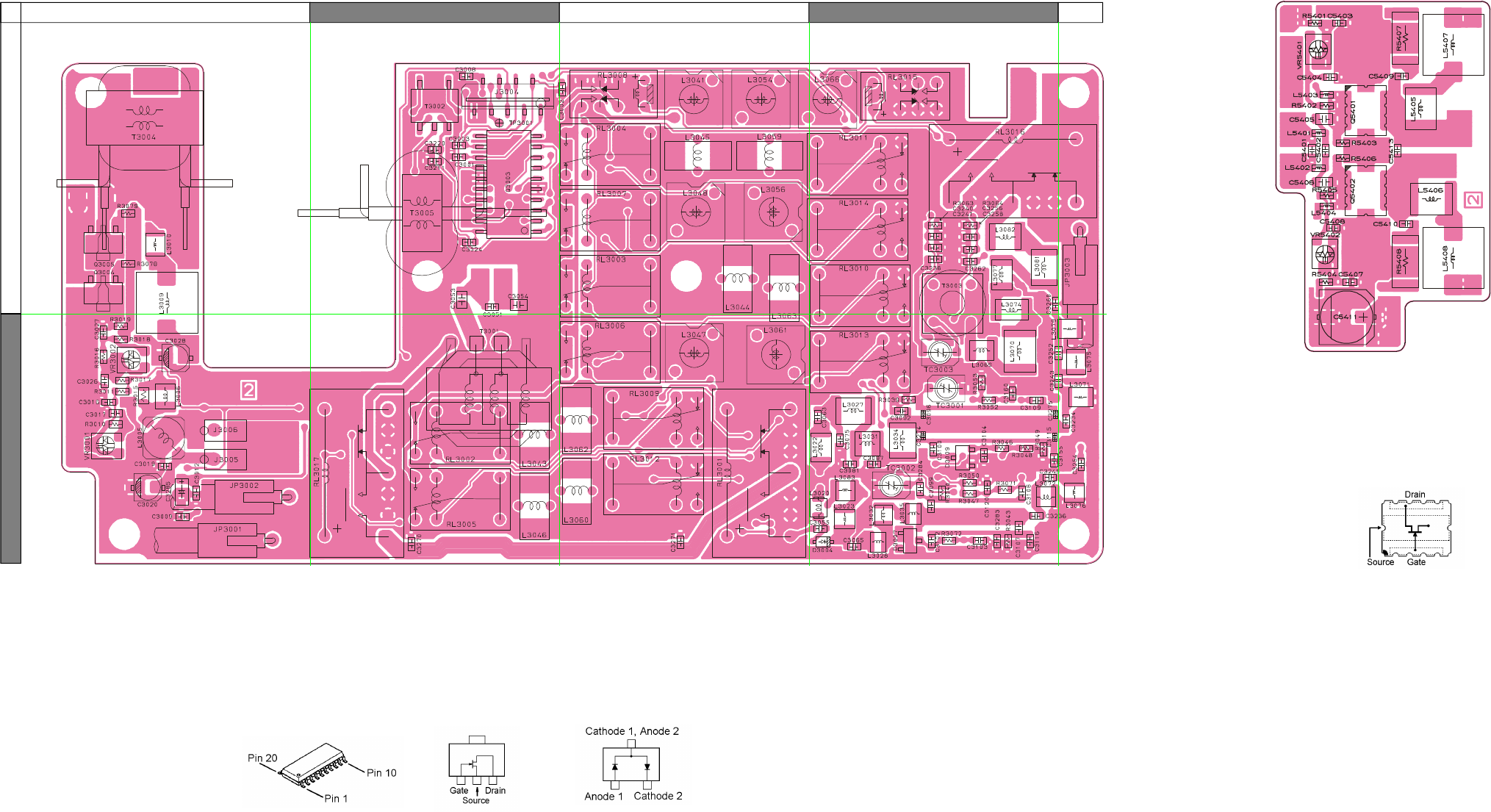

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1054 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1055 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1056 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- Bc1

C 1057 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 1058 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1059 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1060 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1061 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1062 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1063 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1064 CHIP TA.CAP. 0.1uF 35V TESVA1V104M1-8R K78160025 1- AC1

C 1065 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1066 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1067 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1068 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC2

C 1069 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1070 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC2

C 1071 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC2

C 1072 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1073 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1074 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb2

C 1075 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Bb2

C 1076 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bb2

C 1077 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- Bb2

C 1078 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1079 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb2

C 1080 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC2

C 1081 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Bb2

C 1082 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- Bb2

C 1083 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- Bb2

C 1084 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC2

C 1085 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1086 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb2

C 1087 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD2

C 1088 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bb2

C 1089 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD2

C 1091 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD2

C 1092 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd2

C 1093 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd2

C 1096 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1097 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1098 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Ba1

C 1099 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Ba1

C 1100 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bb1

C 1101 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1102 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- AB1

C 1103 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Bb1

C 1105 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC1

C 1107 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Ba1

C 1108 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1109 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- AC1

C 1110 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- AB1

C 1111 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB1

C 1112 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- Bc1

C 1113 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- AC1

C 1115 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC1

C 1116 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AC1

C 1117 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 1118 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1119 CHIP CAP. 120pF 50V CH GRM36CH121J50PT K22178238 1- Bb2

C 1120 CHIP CAP. 150pF 50V CH GRM36CH151J50PT K22178240 1- Bb2

C 1121 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bc1

C 1122 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1123 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- Bc2

C 1124 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1125 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1126 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AD1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1127 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1128 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- Bc1

C 1129 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1130 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 1- Bc1

C 1131 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD1

C 1132 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 1133 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 1134 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bd1

C 1135 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd3

C 1136 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- Bc1

C 1137 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Ba1

C 1138 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- Ba1

C 1139 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb1

C 1140 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Bb1

C 1141 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- Bb1

C 1142 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1143 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- Bb1

C 1144 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Bb1

C 1145 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1147 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd1

C 1148 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AB1

C 1149 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1150 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1151 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb2

C 1152 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC2

C 1153 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC2

C 1154 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC1

C 1155 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bc1

C 1156 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1157 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1158 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC1

C 1159 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 1160 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bc1

C 1161 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 1- Bc1

C 1162 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- Bc1

C 1163 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 1- Bc1

C 1164 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1165 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1166 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1168 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1169 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 1170 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bb1

C 1171 CHIP CAP. 0.022uF 16V BGRM36B223K16PT K22128806 1- Bb1

C 1172 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bb1

C 1173 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bb1

C 1174 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 1175 AL.ELECTRO.CAP. 1uF 50V RC2-50V010M(4X7) K40179001 1AC1

C 1175 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 2- AC1

C 1176 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA1

C 1177 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd2

C 1178 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Bd2

C 1179 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd1

C 1180 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- Bd2

C 1181 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AA1

C 1182 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Be2

C 1183 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1184 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd2

C 1185 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1186 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1187 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC1

C 1188 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- Bc1

C 1189 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- Bd1

C 1190 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1191 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1192 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bd1

C 1193 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB4

C 1194 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB4

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1195 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1196 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

C 1197 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1202 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb3

C 1203 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb3

C 1204 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb3

C 1205 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC3

C 1206 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- Bb3

C 1207 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb3

C 1208 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1209 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC3

C 1210 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1211 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb3

C 1212 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb3

C 1213 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd2

C 1214 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1215 CHIP CAP. 0.0047uF 25V BGRM36B472K25PT K22148830 1- AA2

C 1216 CHIP CAP. 7pF 50V CH GRM36CH070D50PT K22178209 1- Bc1

C 1217 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1218 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- Bb1

C 1219 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 1220 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1221 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd1

C 1222 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA4

C 1223 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA4

C 1224 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc1

C 1225 CHIP CAP. 0.01uF 50V BGRM40B103M50PT K22170817 1- AB1

C 1225 CHIP CAP. 0.01uF 50V BGRM40B103K50PT K22170826 3- AB1

C 1227 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1228 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- AB2

C 1229 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- AB3

C 1230 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Bc3

C 1231 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- AC3

C 1232 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB3

C 1233 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc3

C 1234 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc4

C 1235 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1236 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1237 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc4

C 1238 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB3

C 1239 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc4

C 1240 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc4

C 1241 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1242 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc4

C 1243 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1244 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1245 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc4

C 1246 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bc4

C 1247 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bc4

C 1248 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bc4

C 1249 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB3

C 1250 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1251 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc2

C 1252 CHIP CAP. 0.0022uF 50V BGRM36B222K50PT K22178813 1- Bc2

C 1253 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1254 CHIP TA.CAP. 4.7uF 6.3V TESVSP0J475M-8R K78080053 1- Bd2

C 1255 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bd1

C 1256 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AA1

C 1257 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc2

C 1258 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc2

C 1259 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA1

C 1260 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1261 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1262 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd1

C 1263 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- Bb3

C 1264 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- Bb3

C 1265 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb2

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1266 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 1- AC2

C 1267 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- Bb3

C 1268 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC2

C 1269 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC3

C 1270 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1271 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- Ba3

C 1272 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- Bb3

C 1273 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc4

C 1274 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc4

C 1275 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1276 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc4

C 1277 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bc4

C 1278 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1279 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC4

C 1280 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- AB4

C 1281 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1282 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC4

C 1283 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- Bc4

C 1284 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- Bb4

C 1285 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1286 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

C 1287 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc2

C 1288 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bc4

C 1289 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc3

C 1290 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1291 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc3

C 1292 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- Bc3

C 1293 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc3

C 1294 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bd1

C 1294 CHIP TA.CAP. 47uF 10V TEMSVC1A476M12R K78100024 32- Bd1

C 1295 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd1

C 1296 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd3

C 1297 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bd2

C 1298 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bd2

C 1300 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1301 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc1

C 1302 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1303 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1304 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC2

C 1305 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba3

C 1306 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- AC3

C 1307 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Bb3

C 1308 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Ba3

C 1309 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba3

C 1310 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC3

C 1311 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba3

C 1313 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba3

C 1317 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba3

C 1318 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc4

C 1319 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1320 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb4

C 1321 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1322 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bc4

C 1324 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1- Bc4

C 1325 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc3

C 1326 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bc3

C 1327 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bc3

C 1328 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- Bc3

C 1329 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1330 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1331 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1332 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1333 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1334 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bb3

C 1335 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1336 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1337 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bc2

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1338 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd2

C 1339 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd2

C 1340 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

C 1341 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MS(6X7) K40129038 1- AD4

C 1342 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

C 1343 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1344 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bd2

C 1345 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Bc2

C 1346 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1347 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1348 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1349 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1351 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1352 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bb3

C 1353 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1354 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1355 CHIP CAP. 0.0033uF 50V BGRM36B332K50PT K22178815 1- AD3

C 1357 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb4

C 1358 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- Bb4

C 1359 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb4

C 1360 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bb3

C 1361 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb4

C 1362 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bb3

C 1363 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC4

C 1364 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc4

C 1365 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1366 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC3

C 1367 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AC3

C 1368 CHIP TA.CAP. 2.2uF 10V TESVA1A225M1-8R K78100021 1-12

C 1369 AL.ELECTRO.CAP. 22uF 16V RC2-16V220M-T34(4X7) K46120008 1- AD3

C 1370 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- AD3

C 1371 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AD3

C 1372 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba2

C 1373 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- AD3

C 1374 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba2

C 1375 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MS(6X7) K40129038 1- AC3

C 1376 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1377 CHIP CAP. 0.022uF 16V BGRM36B223K16PT K22128806 1- Bd2

C 1378 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1379 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bd3

C 1380 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bd2

C 1381 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bd2

C 1382 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bd2

C 1383 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

C 1384 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 1385 CHIP CAP. 0.0047uF 25V BGRM36B472K25PT K22148830 1- Bc2

C 1386 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1387 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Ba3

C 1388 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1389 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AD3

C 1390 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba4

C 1391 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba4

C 1393 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb4

C 1394 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1395 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb3

C 1396 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba4

C 1397 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba4

C 1398 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba4

C 1399 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1400 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb4

C 1401 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb4

C 1402 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bd4

C 1403 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB3

C 1404 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AB3

C 1405 CHIP CAP. 0.0047uF 25V BGRM36B472K25PT K22148830 1- Bb3

C 1406 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB3

C 1407 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc3

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1408 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc3

C 1409 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc3

C 1410 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc3

C 1411 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc3

C 1412 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Bc3

C 1413 CHIP CAP. 470pF 50V BGRM36B471K50PT K22178805 1- Bc3

C 1414 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc3

C 1416 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AB3

C 1417 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- Bc3

C 1418 CHIP TA.CAP. 0.47uF 25V TESVA1E474M1-8R K78140009 1- Ba2

C 1418 CHIP TA.CAP. 0.47uF 35V TEMSVA1V474M-8R K78160029 24- Ba2

C 1419 AL.ELECTRO.CAP. 100uF 10V RC2-10V101M(6X7) K40109015 1- AD2

C 1420 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Ba2

C 1421 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AD2

C 1422 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- AD4

C 1423 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AD4

C 1424 CHIP CAP. 0.0022uF 50V BGRM36B222K50PT K22178813 1- Bc2

C 1425 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AD4

C 1426 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1427 CHIP CAP. 1uF 10V BGRM40B105K10PT K22100802 1- AD4

C 1428 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AD4

C 1429 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1430 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1431 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc1

C 1432 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1433 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1434 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- Ba4

C 1435 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1436 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD4

C 1437 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba4

C 1438 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Bb4

C 1439 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- Bb4

C 1440 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd4

C 1441 AL.ELECTRO.CAP. 100uF 10V RC2-10V101M(6X7) K40109015 1- AD2

C 1442 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AD2

C 1443 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba2

C 1444 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba1

C 1445 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MS(6X7) K40129038 1- AD2

C 1446 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba2

C 1447 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba2

C 1448 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD2

C 1449 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD3

C 1450 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD3

C 1451 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD3

C 1452 AL.ELECTRO.CAP. 100uF 16V RC2-16V101MS(6X7) K40129038 1- AD1

C 1453 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba1

C 1454 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 1455 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD1

C 1456 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD1

C 1457 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 1458 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD2

C 1459 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc4

C 1460 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bd2

C 1461 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- Ba1

C 1462 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 1- Bb1

C 1463 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- Bb1

C 1464 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb3

C 1465 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 1466 CHIP CAP. 9pF 50V CH GRM36CH090D50PT K22178211 1- Bb1

C 1467 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba1

C 1468 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1

C 1469 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba1

C 1470 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- Bb1

C 1471 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- Bb1

C 1472 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- Bb1

C 1473 CHIP CAP. 0.047uF 10V BGRM36B473K10PT K22108801 1- Bb1

C 1474 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 1475 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bb1

C 1478 CERAMIC CAP. 47pF 50V SL DD104SL470J50 K00175470 1- Bc2

C 1478 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 3- Bc2

C 1479 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC2

C 1480 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- AC2

C 1480 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 4- AC2

C 1481 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- Bc1

C 1482 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- AD1

C 1482 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 3- AD1

C 1483 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bc4

C 1484 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD1

C 1484 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 3- AD1

C 1484 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 30- AD1

C 1485 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 1485 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 3- Ba1

C 1485 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 30- Ba1

C 1486 CHIP TA.CAP. 1uF 10V TESVSP1A105M-8R K78100032 1- Bc1

C 1486 TANTALUM CAP. 1uF 25V TPDN1E010M8S(MX0) K76140013 3- Bc1

C 1486 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 30- Bc1

C 1487 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 6- Bb2

C 1488 TANTALUM CAP. 1uF 25V TPDN1E010M8S(MX0) K76140013 4- Bd1

C 1488 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 30- Bd1

C 1489 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 13- Bb1

C 1490 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 11- AD3

C 1490 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 30- AD3

C 1491 CHIP CAP. 0.001uF 50V BGRM40B102M50PT K22170805 11- Ba3

C 1491 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 30- Ba3

C 1492 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 11- Ba3

C 1492 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 30- Ba3

C 1500 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 32-46 Ba1

C 1501 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 32- Bb2

C 1502 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 32- Ba2

C 1503 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 32- Ba1

C 1504 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 32- Ba1

C 1505 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 32- Bd2

C 1506 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL35-

C 1507 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 W/ CE LABEL35-

C 1508 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 34-

C 1509 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 47-

C 1510 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 47-

C 1511 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 47-

CD1001 CERAMIC DISC CDA10.7MG1-A H7900890 1- AC1

CD1002 CERAMIC DISC CDBC455CX24-TC H7900980 1- AC3

CF1001 CERAMIC FILTER SFE10.7MA5-A H3900408 1- AD1

CF1002 CERAMIC FILTER CFWS455G H3900507 1- AC3

CF1003 CERAMIC FILTER CFWS455E H3900505 1- AC3

CF1004 CERAMIC FILTER CFJ455K14 H3900386 1- AD4

CF1005 CERAMIC FILTER CFWS455HT H3900508 1- AD3

CV1001 HELICAL RESONATOR 440MHz H5T-440 440M L4020161 1- AC2

D 1001 DIODE DAP236U T106 G2070592 1- AC2

D 1002 DIODE HSC277TRF G2070584 1- AC2

D 1003 DIODE DAP236U T106 G2070592 1- Bb2

D 1004 DIODE DAP236U T106 G2070592 1- AC2

D 1005 DIODE 1SS302 TE85R G2070088 1- Bb2

D 1009 DIODE DAP236U T106 G2070592 1- Ba1

D 1010 DIODE DAP236U T106 G2070592 1- Ba1

D 1011 DIODE DAP236U T106 G2070592 1- Bb2

D 1012 DIODE BAS316 G2070716 1- Bb2

D 1013 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1014 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1015 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1016 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1017 DIODE 1SV271 TPH3 G2070476 1- Bc1

D 1018 DIODE DAP236U T106 G2070592 1- Bb2

D 1019 DIODE BAS316 G2070716 1- Bb2

D 1020 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1021 DIODE BAS316 G2070716 1- Bb2

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

D 1022 DIODE 1SV278(TPH2) G2070616 1- Bb2

D 1025 DIODE 1SV278(TPH2) G2070616 1- Ba1

D 1026 DIODE 1SV278(TPH2) G2070616 1- Bb1

D 1028 DIODE BAS316 G2070716 1- AC1

D 1029 DIODE DAP236U T106 G2070592 1- Bb2

D 1030 DIODE DAP236U T106 G2070592 1- AC2

D 1031 DIODE DAP236U T106 G2070592 1- Bb2

D 1032 DIODE DAP236U T106 G2070592 1- Bc1

D 1033 DIODE HSC277TRF G2070584 1- Bb2

D 1034 DIODE 1SV217(TPH3) G2070568 1- Bb1

D 1035 DIODE HSC277TRF G2070584 1- Bc1

D 1036 DIODE BAS316 G2070716 1- Ba1

D 1037 DIODE 1T362-01-T8A G2070102 1- Ba1

D 1038 DIODE 1T362-01-T8A G2070102 1- Bb1

D 1039 DIODE 1T362-01-T8A G2070102 1- Bb1

D 1040 DIODE DAP236U T106 G2070592 1- Bb1

D 1041 DIODE DAP236U T106 G2070592 1- Bb1

D 1042 DIODE BAS316 G2070716 1- Bb1

D 1043 DIODE DA221 TL G2070178 1- Bc1

D 1044 DIODE UDZ TE-17 5.6B G2070552 1- Bb1

D 1044 DIODE UDZS TE-17 5.6B G2070910 59- Bb1

D 1045 DIODE DAP236U T106 G2070592 1- Bc1

D 1046 DIODE HSC277TRF G2070584 1- Bc1

D 1047 IC GN2011-Q(TX) G1092183 1- AC2

D 1048 DIODE DAN235U TL G2070176 1- Bb1

D 1049 DIODE HSB88WSTR G2070290 1- Bb1

D 1050 DIODE DA221 TL G2070178 1- Bd1

D 1052 DIODE BAS316 G2070716 1- Bb3

D 1053 DIODE DAN222 TL G2070174 1- Bc4

D 1054 DIODE DAP222-TL G2070432 1- Bc3

D 1055 DIODE BAS316 G2070716 1- Bc3

D 1056 DIODE 1SV229 TPH3 G2070256 1- Bd1

D 1057 DIODE D1F20-4063 G2070474 1- Bd1

D 1058 DIODE DAN235U TL G2070176 1- Bc2

D 1059 DIODE DAN235U TL G2070176 1- Bc2

D 1060 DIODE BAS316 G2070716 1- Bc4

D 1061 DIODE DAN222 TL G2070174 1- Bd3

D 1062 DIODE 1SS372(TE85R) G2070632 1- Bc2

D 1063 DIODE 1SV271 TPH3 G2070476 1- Bb3

D 1064 DIODE 1SS302 TE85R G2070088 1- Bc4

D 1065 DIODE DA221 TL G2070178 1- Bc4

D 1068 DIODE 1SS372(TE85R) G2070632 1- Bb3

D 1069 DIODE DAP222-TL G2070432 1- Bb3

D 1070 DIODE DAP222-TL G2070432 1- Bb3

D 1071 DIODE BAS316 G2070716 1-12

D 1072 DIODE BAS316 G2070716 1-12

D 1073 DIODE HZM10B2 TR G2070214 1- Ba2

D 1074 DIODE DAN222 TL G2070174 1- Bb3

D 1075 DIODE DAP222-TL G2070432 1- Ba4

D 1076 DIODE DAP222-TL G2070432 1- Bb3

D 1077 DIODE BAS316 G2070716 1- AB3

D 1078 DIODE DAP222-TL G2070432 1- Bb4

D 1079 DIODE DAP222-TL G2070432 1- Bb4

D 1080 DIODE DAN222 TL G2070174 1- Bb4

D 1081 DIODE BAS316 G2070716 1- Bb4

D 1082 DIODE DAN222 TL G2070174 1- Ba1

D 1083 DIODE RB051L-40TE25 G2070718 1- AD1

D 1084 DIODE RB051L-40TE25 G2070718 1-16 Ba1

D 1084 DIODE RB051L-40TE25 G2070718

W/O CE LABEL

17-29 Ba1

D 1084 DIODE RB051L-40TE25 G2070718 30- Ba1

D 1085 DIODE RB051L-40TE25 G2070718 1- AD1

D 1086 DIODE HSC277TRF G2070584 1- Bb1

D 1087 DIODE DAP222-TL G2070432 1- Bc2

D 1088 DIODE 1SS270TJ G2060004 1- Bd3

D 1088 DIODE BAS316 G2070716 3- Bd3

D 1089 DIODE 1SS270TJ G2060004 EXPORT 2Bd3

D 1089 DIODE 1SS270TJ G2060004 3- Bd3

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

D 1089 DIODE BAS316 G2070716 30- Bd3

F 1001 CHIP FUSE 3.15A KAB-2402-322NA31 Q0000087 30- AD3

FB1001 FERRITE BEADS BK1608HS601-T L9190083 1- AB4

FB1002 FERRITE BEADS BK1608HS601-T L9190083 1- AB4

FB1003 CHIP COIL BLM10A121SPT L1690843 10- AC1

FB1004 FERRITE BEADS BK1608HS601-T L9190083 30- AD4

FB1005 FERRITE BEADS BK1608HS601-T L9190083 30- AD4

FB1006 FERRITE BEADS BK1608HS601-T L9190083 30- AD4

FB1007 FERRITE BEADS BK1608HS601-T L9190083 30- AD4

J 1001 CONNECTOR TMP-J01X-A2 P1090255 1- AD2

J 1002 CONNECTOR TMP-J01X-A2 P1090255 1- AD1

J 1003 CONNECTOR 09FMN-BMTTN-TFT P1091089 1- AC1

J 1008 CONNECTOR FH12-50S-0.5SH P1091091 1- AB4

J 1009 CONNECTOR CSK-M50-08 R41-0576F P1090804 1- AA1

J 1010 CONNECTOR CSK-M50-06 R41-0599D P1090925 1- AB1

J 1011 CONNECTOR HSJ0917-01-140 P1090852 1- Ba3

J 1012 CONNECTOR SB20-02WS P0090609 1- AD3

J 1013 CONNECTOR HSJ0912-01-041 P1090749 1- AB1

J 1014 CONNECTOR R41-4904H P1091047 1- Ba4

J 1015 CONNECTOR 9117S-03D P1091095 1- AD2

J 1017 CONNECTOR LGP3131-0111 P0091072 1- AD1

J 1018 CONNECTOR 9210B-1-03Z172-T P0091282 1-

J 1019 CONNECTOR 9210B-1-04Z172-T P0091283 1-

J 1020 CONNECTOR 9210B-1-03Z172-T P0091282 1-

J 1021 CONNECTOR 9210B-1-04Z172-T P0091283 1-

JP1001 WIRE ASSY A1377 T9206936A 1- Ba3

L 1001 M.RFC 0.1uH HK1608 R10J-T L1690528 1- Bb2

L 1002 M.RFC 0.068uH HK1608 68NJ-T L1690526 1- Ba1

L 1003 M.RFC 15uH LAL03TA150K L1790097 1- AD1

L 1004 CHIP COIL 100uH LQH3N101K02M00- L1690099 1- Bb2

L 1005 M.RFC 0.22uH HK1608 R22J-T L1690940 1- Bb2

L 1006 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- Bb2

L 1007 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- AD2

L 1008 M.RFC 0.12uH HK1608 R12J-T L1690937 1- Ba1

L 1009 M.RFC 0.15uH HK1608 R15J-T L1690938 1- Bb1

L 1010 M.RFC 10uH LK1608 100K-T L1690689 1- Ba1

L 1011 M.RFC 33uH LK1608 330M-T L1690690 1- AC2

L 1013 COIL E2 0.28-1.0-4T-R L0022365 1- AD1

L 1014 M.RFC 0.12uH HK1608 R12J-T L1690937 1- Bc2

L 1015 M.RFC 0.068uH HK1608 68NJ-T L1690526 1- Bc1

L 1016 M.RFC 0.12uH HK1608 R12J-T L1690937 1- Bc2

L 1017 M.RFC 0.027uH HK1608 27NJ-T L1690521 1- Bc1

L 1018 M.RFC 10uH LK1608 100K-T L1690689 1- Bd1

L 1019 COIL E2 0.28-1.0-4T-R L0022365 1- AD1

L 1020 COIL E2 0.28-1.0-4T-R L0022365 1- AC1

L 1021 M.RFC 2.2uH LK1608 2R2K-T L1690634 1- Bc1

L 1022 M.RFC 0.068uH HK1608 68NJ-T L1690526 1- Bc1

L 1023 M.RFC 0.027uH HK1608 27NJ-T L1690521 1- Bc1

L 1024 COIL E2 0.25-1.85-8.5T-L L0022576 1- AC1

L 1025 M.RFC 10uH LK1608 100K-T L1690689 1- Bd2

L 1028 M.RFC 470uH FLC32T-471J L1690235 1- Bb3

L 1029 M.RFC 0.15uH HK1608 R15J-T L1690938 1- Bb1

L 1030 M.RFC 470uH FLC32T-471J L1690235 1- Ba3

L 1031 M.RFC 470uH FLC32T-471J L1690235 1- Ba3

L 1033 M.RFC 470uH FLC32T-471J L1690235 1- Bb4

L 1034 M.RFC 470uH FLC32T-471J L1690235 1- AB3

L 1035 M.RFC 10uH LK1608 100K-T L1690689 1- Bc2

L 1036 M.RFC 10uH LK1608 100K-T L1690689 1- Bc2

L 1037 M.RFC 10uH LK1608 100K-T L1690689 1- Bb3

L 1038 M.RFC 0.12uH HK1608 R12J-T L1690937 1- Bb2

L 1039 M.RFC 0.12uH HK1608 R12J-T L1690937 1- Bb1

L 1041 M.RFC 0.1uH HK1608 R10J-T L1690528 32- Bb2

L 1042 M.RFC 0.22uH HK1608 R22J-T L1690940 34-

L 1043 M.RFC 0.0056uH LBH1608T5N6D L1691183 47-

Q 1001 IC UPC2710T-E3 G1091844 1- Ba1

Q 1002 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb1

Q 1003 IC BB304CDW-TL G1093324 1- Bb2

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Q 1004 TRANSISTOR UMH6N TR G3070216 1- Bb2

Q 1005 FET 2SK2685ZT-TR G3826857 1- Bb2

Q 1006 IC BB304CDW-TL G1093324 1- Bb2

Q 1007 IC BB304CDW-TL G1093324 1- Bc1

Q 1008 TRANSISTOR 2SC5374-TL G3353748 1- Bb2

Q 1009 TRANSISTOR UMH6N TR G3070216 1- Bb2

Q 1010 TRANSISTOR UMH6N TR G3070216 1- Bb2

Q 1011 TRANSISTOR UMC5N TR G3070137 1- Bb2

Q 1012 TRANSISTOR UMD3N TR G3070211 1- AD2

Q 1013 TRANSISTOR UMC5N TR G3070137 1- Bb2

Q 1015 TRANSISTOR 2SC4400-4-TL G3344008D 1- AB1

Q 1015 TRANSISTOR 2SC4400-3-TL G3344008C 17- AB1

Q 1016 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb1

Q 1017 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc1

Q 1018 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AC1

Q 1019 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb1

Q 1020 TRANSISTOR DTA114EU T106 G3070083 1- AC2

Q 1021 IC BU4094BCFV-E1 G1092128 1- Bd3

Q 1021 IC BU4094BCFV-E2 G1093527 41- Bd3

Q 1022 IC BU4094BCFV-E1 G1092128 1- Bd3

Q 1022 IC BU4094BCFV-E2 G1093527 41- Bd3

Q 1023 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bc1

Q 1023 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bc1

Q 1024 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AC1

Q 1025 IC CXA1611N-T4 G1092695 1- AC1

Q 1026 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb1

Q 1027 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bd1

Q 1027 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bd1

Q 1028 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bd2

Q 1028 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bd2

Q 1029 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bd2

Q 1029 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bd2

Q 1030 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bd2

Q 1030 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bd2

Q 1031 IC AD9835BRU G1093142 1- Bd2

Q 1032 TRANSISTOR UMC5N TR G3070137 1- Bc4

Q 1033 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bd1

Q 1033 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bd1

Q 1034 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bd1

Q 1035 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- Bd1

Q 1036 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bd1

Q 1037 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc2

Q 1038 IC SN16913P G1090012 1- AC3

Q 1039 TRANSISTOR UMC5N TR G3070137 1- Bb1

Q 1040 IC BB301CAW-TL G1093186 1- Bb3

Q 1041 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- Bc4

Q 1042 TRANSISTOR UMG2N TR G3070088 1- Bc4

Q 1043 TRANSISTOR 2SB624-T2B BV3 G3206247C 1- Bc3

Q 1044 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc1

Q 1045 TRANSISTOR UMC5N TR G3070137 1- Bc1

Q 1046 TRANSISTOR 2SD2211 T100 QR G3422117Q 1- Bd1

Q 1047 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bc3

Q 1047 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bc3

Q 1048 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc4

Q 1049 IC BU4066BF-E2 G1092593 1- Bc3

Q 1050 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bd2

Q 1051 IC BB304CDW-TL G1093324 1- Bb3

Q 1052 IC BB301CAW-TL G1093186 1- Bb3

Q 1053 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb3

Q 1054 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc4

Q 1055 IC SN16913P G1090012 1- AB4

Q 1056 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc3

Q 1057 IC BU4066BF-E2 G1092593 1- Bd3

Q 1060 FET 2SK302Y TE85R G3803027Y 1- Bb3

Q 1061 IC BB301CAW-TL G1093186 1- Ba3

Q 1062 FET 2SK302Y TE85R G3803027Y 1- Bb3

Q 1063 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb3

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Q 1065 IC BB304CDW-TL G1093324 1- Bc4

Q 1066 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc4

Q 1067 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bc4

Q 1068 IC TC4S66F TE85R G1090893 1- Bd4

Q 1069 IC BA4116FV-E2 G1092616 1- Bc3

Q 1070 IC TDA7233D-TR G1091112 1- AD3

Q 1071 IC M62364FP 600D G1093033 1- Bd1

Q 1072 IC TC4W53FU TE12L G1091675 1- Bd3

Q 1073 IC BU4053BCFV-E1 G1092064 1- Bd3

Q 1073 IC BU4053BCFV-E2 G1093422 30- Bd3

Q 1074 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AD3

Q 1075 IC BB304CDW-TL G1093324 1- Bb4

Q 1076 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb3

Q 1077 IC M62353GP 70ED G1092621 1- Bd4

Q 1078 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AC3

Q 1079 TRANSISTOR 2SC4154-T11-1E G3341548E 1-12

Q 1080 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb3

Q 1081 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Ba2

Q 1082 TRANSISTOR 2SB1182-TLQ G3070063 1- AD2

Q 1083 TRANSISTOR DTC144EU T106 G3070041 1- Bb4

Q 1084 TRANSISTOR DTC144EU T106 G3070041 1- Bb4

Q 1085 TRANSISTOR DTC144EU T106 G3070041 1- Bb4

Q 1086 TRANSISTOR DTC144EU T106 G3070041 1- Bb4

Q 1087 IC SN16913P G1090012 1- AB3

Q 1088 IC BA05FP-E2 G1093209 1- Ba2

Q 1089 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AD2

Q 1090 TRANSISTOR 2SB1132 T100 Q G3211327Q 1- Ba2

Q 1091 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AD2

Q 1092 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AD4

Q 1093 IC NJM2902V-TE1 G1091679 1- Bc2

Q 1094 IC NJM2902V-TE1 G1091679 1- Bd2

Q 1095 IC NJM2902V-TE1 G1091679 1- Bd2

Q 1096 IC NJM2902V-TE1 G1091679 1- Bc2

Q 1097 IC NJM2902V-TE1 G1091679 1- Bb1

Q 1098 IC NJM2904V-TE1 G1091677 1- Bb1

Q 1099 TRANSISTOR DTC114EU T106 G3070084 1- Ba1

Q 1100 TRANSISTOR DTC144EU T106 G3070041 1- Ba2

Q 1101 TRANSISTOR 2SB1182-TLQ G3070063 1- Ba1

Q 1102 TRANSISTOR 2SB1132 T100 Q G3211327Q 1- AD1

Q 1103 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- Ba1

Q 1104 FET 2SJ355-T1 G3703558 1- Ba2

Q 1105 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- AD1

Q 1106 TRANSISTOR DTC144EU T106 G3070041 1- Ba1

Q 1107 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Ba1

Q 1108 IC TA75S01F TE85R G1091593 1- AD1

Q 1109 TRANSISTOR DTC144EU T106 G3070041 1- AD1

Q 1110 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Bb3

Q 1111 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AD3

Q 1112 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- AD3

R 1001 CHIP RES. 27 1/16W 5% RMC1/16S 270JTH J24189006 1- Bb2

R 1002 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC2

R 1003 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC2

R 1004 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1005 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba2

R 1006 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1007 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba1

R 1007 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 47- Ba1

R 1008 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC1

R 1009 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC1

R 1010 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1-9

R 1011 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 1012 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- AC1

R 1013 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1-46 Ba1

R 1014 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- Bb2

R 1015 CHIP RES. 27 1/16W 5% RMC1/16S 270JTH J24189006 1- Bb2

R 1016 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

R 1017 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1018 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb2

R 1019 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1020 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

R 1021 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb2

R 1022 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1023 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1024 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1025 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb2

R 1026 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1027 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bb2

R 1028 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1029 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bb2

R 1030 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1031 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb2

R 1032 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1033 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bb2

R 1034 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1035 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bb2

R 1036 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- Ba2

R 1037 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AD2

R 1038 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1-3 AD2

R 1039 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc1

R 1040 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bb1

R 1041 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1Bb2

R 1041 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 2- Bb2

R 1042 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bb1

R 1043 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba1

R 1044 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 1045 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 1046 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1047 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bc1

R 1048 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb1

R 1049 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc1

R 1050 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bc1

R 1051 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- Bb1

R 1051 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 13- Bb1

R 1053 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1054 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1055 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1056 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bb1

R 1057 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

R 1058 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1059 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- AC2

R 1060 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb2

R 1061 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- Bb2

R 1062 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb2

R 1063 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- Bb2

R 1064 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- Bb2

R 1065 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- Bb2

R 1066 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1067 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1068 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC2

R 1069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1071 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1072 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC2

R 1074 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1075 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 1076 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1078 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1080 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1083 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc2

R 1084 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- Bc2

R 1085 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- Ba1

R 1086 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- Bb1

R 1088 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba1

R 1089 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb1

R 1089 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 13- Bb1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1090 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 1091 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb1

R 1091 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 13- Bb1

R 1092 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 1093 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bb1

R 1094 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- AC1

R 1094 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 13- AC1

R 1095 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bc1

R 1096 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1097 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- AC1

R 1098 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1099 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AC1

R 1100 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- AC1

R 1101 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AC1

R 1102 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb2

R 1103 CHIP RES. 390 1/16W 5% RMC1/16S 391JTH J24189020 1- Bb2

R 1104 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc2

R 1105 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb1

R 1106 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc2

R 1107 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc1

R 1108 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1109 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bd1

R 1110 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd3

R 1111 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd3

R 1112 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 1113 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb1

R 1114 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1115 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 1116 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc1

R 1117 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd1

R 1118 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1119 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb1

R 1120 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- Bb1

R 1121 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb1

R 1122 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1123 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc1

R 1124 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1125 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1126 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- AC2

R 1127 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1128 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- AC2

R 1129 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1129 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 4- Bb1

R 1130 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1131 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1132 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd1

R 1133 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- AC1

R 1134 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1135 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1136 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bd2

R 1137 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bd2

R 1138 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bd2

R 1139 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd2

R 1140 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- Bd2

R 1141 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bd2

R 1142 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- Bd2

R 1143 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- Bd2

R 1144 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd3

R 1145 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1146 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1147 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd1

R 1148 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- Bc1

R 1149 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1150 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb1

R 1151 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1152 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bb1

R 1153 CHIP RES. 01/16W 5% RMC1/16S JPTH J24189070 1- Bb1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1154 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb1

R 1155 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bd1

R 1156 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bd1

R 1157 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- Bd1

R 1158 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bd1

R 1159 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

R 1160 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bd1

R 1161 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd1

R 1162 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- Bc2

R 1163 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc2

R 1164 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc2

R 1165 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb1

R 1167 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bc3

R 1168 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- AC3

R 1169 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC3

R 1170 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb3

R 1171 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- AC3

R 1172 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb3

R 1173 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd2

R 1174 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd2

R 1175 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd2

R 1176 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- Bc4

R 1177 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC1

R 1178 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc4

R 1179 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 1180 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1181 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 1182 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd1

R 1183 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd1

R 1184 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 1185 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd1

R 1186 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Be1

R 1187 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 1188 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AB1

R 1189 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc1

R 1190 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- Bd1

R 1191 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- Bd1

R 1192 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc2

R 1193 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc2

R 1194 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc3

R 1195 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bc3

R 1196 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bc3

R 1197 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bc4

R 1198 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc4

R 1199 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc4

R 1200 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bc4

R 1201 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc4

R 1202 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb3

R 1203 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc4

R 1204 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bc4

R 1205 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc2

R 1206 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc2

R 1206 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 6- Bc2

R 1207 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc2

R 1207 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 6- Bc2

R 1208 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

R 1209 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- Bc2

R 1210 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- Bc2

R 1211 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bc2

R 1212 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bc2

R 1213 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bc2

R 1214 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd2

R 1215 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- Bd2

R 1218 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bd3

R 1219 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bc2

R 1220 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1221 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1222 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

R 1223 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

R 1226 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- AA1

R 1227 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- AA1

R 1228 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- AA1

R 1229 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- AA1

R 1230 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd1

R 1231 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AA1

R 1232 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AA1

R 1233 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd1

R 1234 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd1

R 1235 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bd1

R 1236 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bb3

R 1236 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 3- Bb3

R 1237 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bb2

R 1238 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- AC2

R 1239 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AB3

R 1240 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb3

R 1241 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba3

R 1242 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc4

R 1243 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb3

R 1244 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- Bc4

R 1245 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc4

R 1246 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1247 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc4

R 1248 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb3

R 1249 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb3

R 1250 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC4

R 1251 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 5- AC4

R 1252 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba3

R 1253 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc4

R 1254 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bc4

R 1255 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- Bc4

R 1256 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1257 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc2

R 1258 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- Bc2

R 1259 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc3

R 1260 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bc3

R 1261 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- Bc3

R 1262 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc3

R 1263 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd3

R 1264 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- Bc3

R 1265 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bc3

R 1266 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc3

R 1267 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bc3

R 1268 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- Bd2

R 1269 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1270 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 AUSTRALIA 1- Bd2

R 1270 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 EXPORT 1- Bd2

R 1270 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 FRANCE 1- Bd2

R 1270 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 USA 1- Bd2

R 1271 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd2

R 1272 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd1

R 1273 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd1

R 1274 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd1

R 1275 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd1

R 1276 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd1

R 1279 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 1281 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1282 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1283 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bb3

R 1285 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba3

R 1286 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- Bb3

R 1287 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC3

R 1289 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Ba3

R 1291 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba3

R 1294 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba3

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1296 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- Ba3

R 1297 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba3

R 1298 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc4

R 1299 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Ba3

R 1300 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- Bc4

R 1300 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 3- Bc4

R 1301 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc4

R 1302 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc4

R 1303 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc4

R 1304 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- Bc4

R 1305 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd4

R 1306 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc4

R 1307 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc3

R 1308 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- Bc3

R 1309 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bc3

R 1310 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- AC3

R 1311 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc3

R 1312 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bc2

R 1313 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bc2

R 1314 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1315 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1316 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bd2

R 1317 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bd2

R 1318 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- Bd2

R 1319 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bd2

R 1320 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bd2

R 1321 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd2

R 1322 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- Bd2

R 1323 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd1

R 1324 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bd1

R 1324 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 4- Bd1

R 1325 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bd1

R 1326 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1327 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1328 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- Bc2

R 1328 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 4- Bc2

R 1329 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1330 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1331 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1332 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- Bb3

R 1333 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1334 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- AD3

R 1335 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb3

R 1338 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb4

R 1339 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb4

R 1340 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb3

R 1341 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb4

R 1342 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- Bb4

R 1342 CHIP RES. 560k 1/16W 5% RMC1/16S 564JTH J24189058 3- Bb4

R 1343 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb3

R 1346 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- AC4

R 1347 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bc4

R 1348 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc3

R 1349 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd3

R 1350 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bd3

R 1351 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- AB3

R 1352 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AC3

R 1353 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb3

R 1354 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- AC3

R 1355 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb3

R 1356 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AC3

R 1357 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb3

R 1358 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AC3

R 1359 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AC3

R 1360 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1-12

R 1361 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- AC3

R 1362 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC3

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1363 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bb3

R 1364 CHIP RES. 4.7 1/16W 5% RMC1/16S 4R7JTH J24189066 1- AD3

R 1365 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- Ba2

R 1366 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bd2

R 1367 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bd2

R 1368 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bd2

R 1369 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Bd2

R 1370 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- Bd2

R 1371 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- Bd2

R 1372 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bc2

R 1372 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 4- Bc2

R 1375 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- Bc2

R 1376 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1-1 Bc2

R 1376 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 EXPORT 2Bc2

R 1376 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 3Bc2

R 1376 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 4- Bc2

R 1377 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1378 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- Ba3

R 1379 CHIP RES. 100 1/4W 5% RMC1/4 101JATP J24245101 1- Ba3

R 1382 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC3

R 1383 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD3

R 1384 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Ba4

R 1385 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb4

R 1386 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Ba4

R 1387 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb4

R 1388 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb4

R 1389 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- Bb3

R 1390 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- Bb4

R 1391 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Ba4

R 1392 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb4

R 1393 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- Bb4

R 1394 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb4

R 1395 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- Bb4

R 1396 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- Bd4

R 1397 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- AB3

R 1398 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bc3

R 1399 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- Bc3

R 1400 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bc3

R 1401 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD2

R 1402 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bc2

R 1403 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD4

R 1404 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bc2

R 1405 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Bc2

R 1406 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1407 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba4

R 1408 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1408 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 4- AD4

R 1411 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AD4

R 1412 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1413 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bc1

R 1414 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- AD4

R 1415 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1416 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1417 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1418 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD4

R 1419 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb3

R 1420 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- Bb3

R 1421 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb4

R 1422 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb4

R 1423 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb4

R 1424 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb4

R 1425 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AC3

R 1426 CHIP RES. 2.2k 1/10W 5% RMC1/10T 222J J24205222 1- Ba1

R 1427 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 1- Ba2

R 1428 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- Ba2

R 1429 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1430 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AD1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1431 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- AD1

R 1432 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1- AD1

R 1433 CHIP RES. 330k 1/16W 0.5% RR0816R-334-D J24189172 1- AD1

R 1434 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 1435 CHIP RES. 4.7 1/10W 5% RMC1/10T 4R7J J24205479 1- Ba1

R 1436 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AD1

R 1437 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Ba1

R 1438 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Ba2

R 1439 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD1

R 1440 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 1441 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- AD1

R 1442 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Ba1

R 1443 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 1444 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- AD2

R 1445 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 1446 CHIP RES. 4.7k 1/16W 0.5% RR0510P-472-D J24189135 1- AD1

R 1447 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- AD1

R 1448 CHIP RES. 4.7k 1/16W 0.5% RR0510P-472-D J24189135 1- AD1

R 1449 CHIP RES. 330k 1/16W 0.5% RR0816R-334-D J24189172 1- AD1

R 1450 CHIP RES. 3.3M 1/16W 5% RMC1/16 335JATP J24185335 1- AD1

R 1451 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- Bc2

R 1453 CHIP RES. 01/2W 5% RMC1/2 JPATE J24275000 1- AD3

R 1454 CHIP RES. 01/2W 5% RMC1/2 JPATE J24275000 1- Ba3

R 1455 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- Bb3

R 1456 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb3

R 1457 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- Bc4

R 1458 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bd2

R 1459 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bd2

R 1460 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc2

R 1461 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- AD4

R 1462 CHIP RES. 4.7k 1/10W 5% RMC1/10T 472J J24205472 1- Ba1

R 1462 CHIP RES. 2.2k 1/10W 5% RMC1/10T 222J J24205222 10-31 Ba1

R 1463 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- Ba2

R 1464 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Bc1

R 1465 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc3

R 1467 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 1468 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Ba1

R 1469 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bb3

R 1470 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AD3

R 1471 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1472 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1473 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1474 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD3

R 1475 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AD3

R 1476 CHIP RES. 33 1/16W 5% RMC1/16S 330JTH J24189007 1- Bb2

R 1477 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bd1

R 1478 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 1- Ba1

R 1478 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 47- Ba1

R 1479 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 1- Ba1

R 1479 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 47- Ba1

R 1480 CHIP RES. 15 1/16W 5% RMC1/16S 150JTH J24189003 1-46 Ba1

R 1481 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1-46 Ba1

R 1482 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bd2

R 1483 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1484 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 1485 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Ba1

R 1486 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bc2

R 1487 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Bc2

R 1488 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AD1

R 1489 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AD1

R 1490 CHIP RES. 100k 1/16W 5% RMC1/16 104JATP J24185104 1- AD3

R 1490 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 3- AD3

R 1491 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- AD1

R 1491 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 3- AD1

R 1492 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- Bb1

R 1492 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 3- Bb1

R 1493 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

Main Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 1494 CARBON FILM RES. 100k 1/6W 5% RD16PJ104 100K J01225104 1- Bc1

R 1494 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 3- Bc1

R 1495 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 32- AD2

R 1496 CHIP RES. 1k 1/10W 5% RMC1/10T 102J J24205102 32- AD1

S 1001 SLIDE SWITCH HSW0805-01-010 N6090081 1- Ba3

T 1001 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1002 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1003 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1004 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1005 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB1

T 1006 COIL WIDE-TRANS. 990812213 L0022619 1- AC2

T 1007 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1008 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1009 COIL 05RF M5-N1 R12-T635Y L0022651 1- AD1

T 1010 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC1

T 1011 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC1

T 1012 COIL 05RF R12-T792Y L0022687 1- AB1

T 1013 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB1

T 1014 COIL 05RF M5-N1 R12-T635Y L0022651 1- AC2

T 1015 COIL WIDE-TRANS. 960812088 L0022478 1- AC2

T 1016 COIL WIDE-TRANS. 950812004 L0022479 1- AB1

T 1017 BALUN TRANSFOMERS B5F458DB-1011=P3 L0190246 1- AC1

T 1018 COIL 05RF M5-N1 R12-T660Y L0022673 1- AA1

T 1019 COIL WIDE-TRANS. 960812088 L0022478 1- AB2

T 1020 COIL 05RF K5-N1 R12-T639B L0022655 1- AC3

T 1021 COIL 05RF K5-N1 R12-T639B L0022655 1- AA2

T 1022 BALUN TRANSFOMERS B5F458DB-1011=P3 L0190246 1- AC1

T 1023 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB2

T 1024 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB3

T 1025 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB3

T 1026 COIL 05RF M5-N1 R12-T661Y L0022674 1- AB3

T 1027 COIL 05RF K5-N1 R12-T639B L0022655 1- AC3

T 1028 COIL 05RF R12-S978Y L0022501 1- AC3

T 1028 COIL 05RF M5-N1 R12-T804Y L0022690 3- AC3

T 1029 COIL 05RF K5-N1 R12-T639B L0022655 1- AB4

T 1030 COIL 05RF M5-N1 R12-T661Y L0022674 1- AC3

T 1031 COIL WIDE-TRANS. 960812088 L0022478 1- AC3

T 1033 COIL 05RF K5-N1 R12-T638B L0022654 1- AC4

T 1034 COIL 05RF K5-N1 R12-T639B L0022655 1- AC3

T 1035 EMI FILTER SH-322 Q9000752 1- AD1

TC1001 TRIMMER CAP. 3pF ECR-KN003A61X 3P K91000264 1- AC2

TC1002 TRIMMER CAP. 6pF ECR-KN006A61X 6P K91000225 1- AD1

TC1003 TRIMMER CAP. 10pF ECR-KN010C61X K91000226 1- AC1

TC1004 TRIMMER CAP. 6pF ECR-KN006A61X 6P K91000225 1- AC1

TC1005 TRIMMER CAP. 6pF ECR-KN006A61X 6P K91000225 1- AC1

TH1001 THERMISTOR TBPS1R223K460H5Q G9090085 1- Bb1

TH1002 THERMISTOR ERTJ0EV473J G9090120 47-

VR1001 POT. 10k EVN-5ESX50B14 J51811103 1- AB3

X 1001 XTAL UM-1 68.33MHz 68.33MHZ H0103242 1- AA1

XF1001 XTAL FILTER MF68R TR-6(3) H1102337 1- AB2

SHIELD CASE PLL RA0271100 1-

SHIELD CASE COVER RA0271200 1-

LEAF SPRING R0132100 1-

LEAF SPRING R0132100 1-22

LEAF SPRING R0132100

W/O CE LABEL

23-

LEAF SPRING R0132100 W/ CE LABEL23-

LEAF SPRING R0132100 W/ CE LABEL35-

LEAF SPRING R0152180 W/ CE LABEL23-

INSULATOR WASHER RA0335300 W/ CE LABEL23-

INSULATOR WASHER RA033530A W/ CE LABEL35-

LEAF SPRING R0132100 32-

*** FUSE-UNIT ***

Printed Circuit Board FR007440A 17-

D 9001 DIODE RB051L-40TE25 G2070718 17- B

F 9001 CHIP FUSE 3.15A KAB-2402-322NA31 Q0000087 17- B

PLL Unit

3.5 MHz

400 mVrms

21.0 MHz

700 mVrms

52.0 MHz

1.0 mVrms

435.0 MHz

170 mVrms

145.0 MHz

160 mVrms

3.5 MHz: 600mVrms

21.0 MHz: 600mVrms

52.0 MHz: 500mVrms

145.0 MHz: 300mVrms

435.0 MHz: 500mVrms

PLL Unit

DTC124EU (25)

(Q2001, 2002, 2003,

2012, 2013)

2SK210GR (YG)

(Q2004, 2005, 2006) 2SC4154 (LE)

(Q1007)

2SC5374 (RT4)

(Q2009, 2010, 2011)

Side A

ABC

BU4094BCFV

(Q2018) FQ7925

(Q2021)

Side B

abc

AD9850BRS

(Q2016) 2SC5374 (RT4)

(Q2017)

2SC4400 (NA)

(Q2019, 2020)

PLL Unit (Lot. 13~)

3.5 MHz

400 mVrms

21.0 MHz

700 mVrms

52.0 MHz

1.0 mVrms

435.0 MHz

170 mVrms

145.0 MHz

160 mVrms

3.5 MHz: 600mVrms

21.0 MHz: 600mVrms

52.0 MHz: 500mVrms

145.0 MHz: 300mVrms

435.0 MHz: 500mVrms

PLL Unit (Lot. 13~)

DTC124EU (25)

(Q2001, 2002, 2003,

2012, 2013)

2SK210GR (YG)

(Q2004, 2005, 2006) 2SC4154 (LE)

(Q1007)

2SC5374 (RT4)

(Q2009, 2010, 2011)

Side A

ABC

BU4094BCFV

(Q2018) FQ7925

(Q2021)

Side B

abc

AD9850BRS

(Q2016) 2SC5374 (RT4)

(Q2017)

2SC4400 (NA)

(Q2019, 2020)

PLL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

*** PLL UNIT ***

PCB with Components CB1151001

W/O CE LABEL

PCB with Components CB1151002 W/ CE LABEL

Printed Circuit Board FR005400D 1-

Printed Circuit Board FR005400E 13-

C 2001 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA3

C 2002 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA2

C 2003 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AA1

C 2005 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- AA3

C 2007 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- AA2

C 2009 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- AA1

C 2010 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- AA3

C 2011 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- AA2

C 2012 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- AA1

C 2016 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- AA3

C 2017 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- AB2

C 2018 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- AA2

C 2019 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- AB2

C 2020 CHIP CAP. 4pF 50V CH GRM36CH040C50PT K22178206 1- AA1

C 2021 CHIP CAP. 6pF 50V CH GRM36CH060D50PT K22178208 1- AB1

C 2022 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA2

C 2023 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA1

C 2024 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA1

C 2025 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AB1

C 2026 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 1- AB2

C 2026 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 3- AB2

C 2026 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 15- AB2

C 2026 CHIP CAP. 2pF 50V CK GRM36CK020C50PT K22178204 35- AB2

C 2027 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- AB2

C 2028 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- AB1

C 2028 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 35- AB1

C 2029 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB3

C 2031 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB3

C 2033 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AB2

C 2034 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AC2

C 2035 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- AB1

C 2035 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 35- AB1

C 2036 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB2

C 2037 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC3

C 2038 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AB2

C 2039 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AB2

C 2040 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1

C 2041 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- AB1

C 2042 CHIP CAP. 1pF 50V CK GRM36CK010C50PT K22178202 1- AB1

C 2043 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB2

C 2044 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- AB2

C 2045 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- AB2

C 2046 CHIP CAP. 7pF 50V CH GRM36CH070D50PT K22178209 1- AC2

C 2047 CHIP CAP. 7pF 50V CH GRM36CH070D50PT K22178209 1- AC2

C 2050 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1

C 2051 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1

C 2051 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 35- AB1

C 2053 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- AB2

C 2054 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 1- AB2

C 2057 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1

C 2058 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- AC2

C 2059 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC1

C 2061 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB2

C 2062 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC2

C 2067 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- Bb2

C 2067 CHIP CAP. 270pF 50V BGRM36B271K50PT K22178802 38- Bb2

C 2068 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AC1

C 2070 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 1- Bb2

C 2070 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 38- Bb2

C 2071 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- Bb2

C 2071 CHIP CAP. 390pF 50V BGRM36B391K50PT K22178804 38- Bb2

C 2072 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 38- Bb2

PLL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 2072 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 40- Bb2

C 2073 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1-34 AC1

C 2073 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809

W/O CE LABEL

35- AC1

C 2074 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- Ba1

C 2074 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 15- Ba1

C 2075 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- Bb2

C 2075 CHIP CAP. 390pF 50V BGRM36B391K50PT K22178804 38- Bb2

C 2077 CHIP CAP. 5pF 50V CH GRM36CH050C50PT K22178207 1- Bb2

C 2077 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 38- Bb2

C 2078 CHIP TA.CAP. 4.7uF 6.3V TEMSVA20J475M-8R K78080031 1- Bb3

C 2078 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 30- Bb3

C 2079 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc3

C 2080 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB2

C 2081 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- Bb2

C 2081 CHIP CAP. 220pF 50V BGRM36B221K50PT K22178801 38- Bb2

C 2082 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AC2

C 2083 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb2

C 2084 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 2085 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Ba1

C 2086 CHIP TA.CAP. 4.7uF 6.3V TEMSVA20J475M-8R K78080031 1- Bb2

C 2086 CHIP TA.CAP. 4.7uF 16V TEMSVA1C475M-8R K78120031 30- Bb2

C 2087 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bc2

C 2088 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb2

C 2090 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 2090 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 38- Ba1

C 2091 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 2091 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 3- Bb1

C 2092 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 2093 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bc2

C 2094 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 2094 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 3-12 Bb1

C 2095 CHIP CAP. 120pF 50V CH GRM36CH121J50PT K22178238 1- Bc2

C 2096 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- Bb1

C 2097 CHIP CAP. 180pF 25V CH GRM36CH181J25PT K22148201 1- Bc2

C 2099 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bb1

C 2100 CHIP CAP. 120pF 50V CH GRM36CH121J50PT K22178238 1- Bc1

C 2101 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bb1

C 2102 CHIP TA.CAP. 1uF 35V TEMSVA1V105M-8R K78160032 1- Bb1

C 2103 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AC1

C 2104 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 13- Bb2

C 2106 CHIP CAP. 3pF 50V CJ GRM36CJ030C50PT K22178205 W/ CE LABEL23- AC1

C 2107 CERAMIC CAP. 0.01uF 16V YEP050Y103N-A K28129001 6-

C 2108 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 W/ CE LABEL35-

C 2109 CHIP CAP. 8pF 50V CH GRM36CH080D50PT K22178210 W/ CE LABEL35-

D 2001 DIODE HVC362TRF G2070636 1- AA2

D 2002 DIODE HVC362TRF G2070636 1- AA2

D 2003 DIODE HVC362TRF G2070636 1- AA1

D 2004 DIODE HVC362TRF G2070636 1- AA2

D 2005 DIODE HVC362TRF G2070636 1- AA2

D 2006 DIODE HVC362TRF G2070636 1- AA1

D 2007 DIODE 1SV282(TPH3) G2070778 1- AB2

D 2008 DIODE 1SV281(TPH3) G2070620 1- AB2

D 2009 DIODE 1SV286(TPL3) G2070610 1- AC2

J 2001 CONNECTOR 9230B-1-12Z003-T P0090896 1- Bc1

J 2002 CONNECTOR 9230B-1-12Z003-T P0090896 1- Ba2

L 2001 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AA3

L 2002 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AA2

L 2003 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AA1

L 2004 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AB2

L 2005 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AB2

L 2006 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AB1

L 2007 M.RFC 1uH LK1608 1R0K-T L1690687 1- AB1

L 2008 M.RFC 1uH LK1608 1R0K-T L1690687 1- AC1

L 2009 M.RFC 0.1uH LK1608 R10K-T L1690407 1-34 AB1

L 2010 COIL E2 0.4-2.0-5.5T-L L0022630 1- AB2

L 2011 COIL E2 0.45-1.4-2.5T-L L0022618 1- AB2

L 2012 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AB2

PLL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

L 2013 M.RFC 4.7uH LK1608 4R7K-T L1690688 1- AC2

L 2014 M.RFC 12uH LK1608 120K-T L1691027 1- Bb2

L 2014 M.RFC 2.2uH LK1608 2R2K-T L1690634 38- Bb2

L 2015 M.RFC 12uH LK1608 120K-T L1691027 1- Bb2

L 2015 M.RFC 2.2uH LK1608 2R2K-T L1690634 38- Bb2

L 2016 M.RFC 10uH LK1608 100K-T L1690689 1- Bb2

L 2016 M.RFC 1.8uH LK1608 1R8K-T L1690847 38- Bb2

L 2017 M.RFC 10uH LK1608 100K-T L1690689 1- Bb1

L 2018 M.RFC 10uH LK1608 100K-T L1690689 1- Bb1

L 2019 M.RFC 10uH LK1608 100K-T L1690689 1- Bb2

L 2020 M.RFC 0.47uH LK1608 R47K-T L1690414 1- Bc2

L 2021 M.RFC 0.47uH LK1608 R47K-T L1690414 1- Bc1

L 2022 M.RFC 10uH LK1608 100K-T L1690689 1- Bb1

L 2023 M.RFC 0.018uH HK1005 18NJ-T L1691105 W/ CE LABEL35-

Q 2001 TRANSISTOR DTC124EU T106 G3070045 1- AB2

Q 2002 TRANSISTOR DTC124EU T106 G3070045 1- AB2

Q 2003 TRANSISTOR DTC124EU T106 G3070045 1- AB1

Q 2004 FET 2SK210GR TE85R G3802107G 1- AA2

Q 2005 FET 2SK210GR TE85R G3802107G 1- AA2

Q 2006 FET 2SK210GR TE85R G3802107G 1- AA1

Q 2007 TRANSISTOR 2SC4154-T11-1E G3341548E 1- AB3

Q 2009 TRANSISTOR 2SC5374-TL G3353748 1- AB2

Q 2010 TRANSISTOR 2SC5374-TL G3353748 1- AB2

Q 2011 TRANSISTOR 2SC5374-TL G3353748 1- AB1

Q 2012 TRANSISTOR DTC124EU T106 G3070045 1- AB1

Q 2013 TRANSISTOR DTC124EU T106 G3070045 1- AC2

Q 2016 IC AD9850BRS-REEL G1092567 1- Bb2

Q 2017 TRANSISTOR 2SC5374-TL G3353748 1- Ba1

Q 2018 IC BU4094BCFV-E1 G1092128 1- Ba2

Q 2018 IC BU4094BCFV-E2 G1093527 41- Ba2

Q 2019 TRANSISTOR 2SC4400-4-TL G3344008D 1- Ba2

Q 2019 TRANSISTOR 2SC4400-3-TL G3344008C 17-37 Ba2

Q 2020 TRANSISTOR 2SC4400-4-TL G3344008D 1- Bc2

Q 2020 TRANSISTOR 2SC4400-3-TL G3344008C 17- Bc2

Q 2021 IC FQ7925 G1091710 1- Bb1

Q 2022 IC UPC2713T-E3 G1092862 1- AC1

R 2001 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AA3

R 2002 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AA2

R 2003 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AA1

R 2004 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- AA3

R 2005 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- AA2

R 2006 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- AA1

R 2007 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- AB3

R 2008 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- AB2

R 2009 CHIP RES. 68 1/16W 5% RMC1/16S 680JTH J24189011 1- AB1

R 2010 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AB3

R 2011 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- AC3

R 2013 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AB2

R 2014 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- AB1

R 2015 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AB2

R 2016 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- AC1

R 2018 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- AB1

R 2019 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AB2

R 2020 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AB2

R 2021 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- AB2

R 2022 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- AC2

R 2023 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AB1

R 2023 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 35- AB1

R 2029 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AB2

R 2030 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- AC2

R 2032 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb2

R 2034 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- Bb2

R 2034 CHIP RES. 01/16W 5% RMC1/16S JPTH J24189070 38- Bb2

R 2035 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1-37 Bb2

R 2041 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb3

R 2042 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- Ba1

R 2043 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

PLL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 2044 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bb2

R 2045 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba2

R 2046 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1-37 Bb2

R 2047 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc2

R 2048 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba1

R 2049 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Bc2

R 2050 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- Ba2

R 2050 CHIP RES. 01/16W 5% RMC1/16S JPTH J24189070 38- Ba2

R 2051 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1-37 Ba1

R 2052 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb2

R 2052 CHIP RES. 27 1/16W 5% RMC1/16S 270JTH J24189006 38- Bb2

R 2053 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bc2

R 2054 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- Bb2

R 2054 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 38- Bb2

R 2055 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Bc2

R 2056 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 2057 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 2058 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- Ba1

R 2059 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- Bb1

R 2060 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba1

R 2061 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba1

R 2062 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- Bb1

R 2063 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- Ba1

R 2064 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 2065 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- Bb1

R 2066 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Ba1

R 2067 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AC1

R 2067 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 35- AC1

R 2068 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 2069 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb2

R 2070 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- AC1

R 2070 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 9- AC1

R 2070 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 15-22 AC1

R 2070 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 W/ CE LABEL23-34 AC1

R 2070 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017

W/O CE LABEL

23-34 AC1

R 2070 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 35- AC1

R 2071 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 35-

T 2001 COIL 05RF CS-4N 5203-JPS-076 L0022507 1- AA2

T 2002 COIL 05RF CS-4N 5203-JPS-077 L0022508 1- AA2

T 2003 COIL 05RF CS-4N 5203-JPS-078 L0022509 1- AA1

LEAF SPRING R0132100 W/ CE LABEL23-

LEAF SPRING R0132100 W/ CE LABEL47-

MYLAR SHEET (PLL) RA0335100 W/ CE LABEL23-34

SPONGE RUBBER (PLL) RA0352900 W/ CE LABEL35-

REF UNIT

(90 mVrms)

REF UNIT

2SC4400 (NA)

(Q5001, 5002)

Side B

Side A

REF UNIT (Lot. 41~)

(90 mVrms)

REF UNIT (Lot. 41~)

2SC4400 (NA)

(Q5001, 5002)

Side B

Side A

REF Unit

*** REF UNIT ***

PCB with Components CB1154001

Printed Circuit Board FR005410B 1-

Printed Circuit Board FR005410C 41-

C 5001 CHIP CAP. 27pF 50V UJ GRM39UJ270J50PT K22174318 1- A

C 5001 CHIP CAP. 30pF 50V UJ GRM39UJ300J50PT K22174319 6- A

C 5001 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 59- A

C 5002 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- A

C 5003 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- A

C 5004 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A

C 5005 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- A

C 5006 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- A

C 5007 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- A

C 5008 CHIP TA.CAP. 10uF 6.3V TESVSP0J106M-8R K78080055 1- A

J 5001 CONNECTOR 9117S-03D P1091095 1- A

J 5002 CONNECTOR 9117S-04D P1090873 1- A

Q 5001 TRANSISTOR 2SC4400-4-TL G3344008D 1- A

Q 5001 TRANSISTOR 2SC4400-3-TL G3344008C 17- A

Q 5002 TRANSISTOR 2SC4400-4-TL G3344008D 1- A

Q 5002 TRANSISTOR 2SC4400-3-TL G3344008C 17- A

R 5001 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- A

R 5002 CHIP RES. 330 1/16W 5% RMC1/16 331JATP J24185331 1- A

R 5003 CHIP RES. 330k 1/16W 5% RMC1/16 334JATP J24185334 1- A

R 5004 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- A

R 5005 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- A

R 5006 CHIP RES. 2.2k 1/16W 5% RMC1/16 222JATP J24185222 1- A

R 5007 CHIP RES. 4.7k 1/16W 5% RMC1/16 472JATP J24185472 1- A

TC5001 TRIMMER CAP. 10pF ECR-JA010A11X K91000227 1- A

TC5001 TRIMMER CAP. 20pF ECR-JA020E11X K91000228 59- A

X 5001 XTAL TOP-B 22.625MHz 22.625MHZ H0103235 1- A

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

REF Unit

Note:

PA UnitCircuit Diagram

(200 mVp-p)

(850 mVp-p)

(2.2 Vp-p)

(500 mVp-p)

(10.0 Vp-p)

(TX)

14.0 MHz, 5 W

FINAL Unit

Circuit Diagram

(20 Vp-p)

(22 Vp-p)

(5 Vp-p)

(TX)

14.0 MHz, 5 W

PA Unit / FINAL Unit

NJU3714G

(Q3003)

2SK2973 (K1)

(Q3004, 3005)

MA716 (M1U)

(Q3007, 3009)

2SK2975

(Q5401, 5402)

Side A

ABCDE

PA Unit Parts Layout FINAL Unit Parts Layout

PA Unit / FINAL Unit

2SC3357 (RK)

(Q3001) 2SK2596 (BX)

(Q3002) DTC143ZUA (123)

(Q3006, 3010, 3011, 3012,

3013, 3014, 3015, 3016, 3017,

3018, 3020, 3021, 3022, 3023)

DTA123YU (52)

(Q3007) 2SC4227 (R32)

(Q3019) DAN235U (M)

(Q3002,3025, 3026, 3027)

DAN202U (M)

(Q3045)

MA716 (M1U)

(Q3008, 3017,3032, 3033)

Side B

PA Unit Parts Layout FINAL Unit Parts Layout

Side B

abcde

PA Unit (Lot. 15~)Circuit Diagram

(200 mVp-p)

(850 mVp-p)

(2.2 Vp-p)

(500 mVp-p)

(10.0 Vp-p)

(TX)

14.0 MHz, 5 W

FINAL Unit

Circuit Diagram

(20 Vp-p)

(22 Vp-p)

(5 Vp-p)

(TX)

14.0 MHz, 5 W

PA Unit (Lot. 15~) / FINAL Unit

NJU3714G

(Q3003)

2SK2973 (K1)

(Q3004, 3005)

MA716 (M1U)

(Q3007, 3009)

2SK2975

(Q5401, 5402)

Side A

ABCDE

PA Unit Parts Layout FINAL Unit Parts Layout

PA Unit (Lot. 15~) / FINAL Unit

2SC3357 (RK)

(Q3001) 2SK2596 (BX)

(Q3002) DTC143ZUA (123)

(Q3006, 3010, 3011, 3012,

3013, 3014, 3015, 3016, 3017,

3018, 3020, 3021, 3022, 3023)

DTA123YU (52)

(Q3007) 2SC4227 (R32)

(Q3019) DAN235U (M)

(Q3002,3025, 3026, 3027)

DAN202U (M)

(Q3045)

MA716 (M1U)

(Q3008, 3017,3032, 3033)

Side B

PA Unit Parts Layout FINAL Unit Parts Layout

Side B

abcde

PA Unit

*** PA UNIT ***

PCB with Components CB1152001 W/O CE LABEL

PCB with Components CB1152002 W/ CE LABEL

Printed Circuit Board FR005190C 1-

Printed Circuit Board FR005190D 15-

C 3001 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- AB1

C 3002 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- AC1

C 3003 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- AB1

C 3005 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bc1

C 3006 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb1

C 3007 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bc1

C 3008 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- AB1

C 3009 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA2

C 3010 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bd2

C 3010 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bd2

C 3012 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA2

C 3013 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- Bd2

C 3014 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- Bd2

C 3015 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- Be2

C 3016 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23- AA2

C 3017 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA2

C 3018 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 1- Be2

C 3019 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA2

C 3020 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55-R K48120014 1- AA2

C 3021 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- Bd2

C 3022 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- Bd2

C 3024 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AB1

C 3025 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- Bd2

C 3026 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23- AA2

C 3027 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA2

C 3028 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55-R K48120014 1- AA2

C 3029 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bd2

C 3030 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Be1

C 3030 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Be1

C 3031 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 1- Bd1

C 3034 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3034 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3047 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3048 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3048 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3049 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3050 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3051 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- AB1

C 3052 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3052 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3053 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- AB1

C 3054 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- AB1

C 3055 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- AD2

C 3056 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3057 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3059 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- Ba2

C 3061 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- Bb2

C 3061 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 4- Bb2

C 3061 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 6- Bb2

C 3062 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 1- Ba2

C 3063 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- AD2

C 3064 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3065 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- AD2

C 3066 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bb2

C 3071 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 4-5 Bb2

C 3075 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- AD2

C 3076 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- Ba2

C 3081 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- AD2

C 3082 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 1- Ba2

C 3087 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- AD2

C 3088 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- Ba2

C 3089 CHIP CAP. 4pF 50V CH GRM39CH040C50PT K22174205 1- Bc2

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 3091 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bc1

C 3092 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- AD2

C 3093 CHIP CAP. 5pF 50V CH GRM39CH050C50PT K22174206 1- Ba2

C 3095 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- Bc1

C 3096 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- AD2

C 3098 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bc1

C 3099 CHIP CAP. 1pF 50V CK GRM39CK010C50PT K22174202 1- AD2

C 3100 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3100 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3101 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3101 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3102 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- AD2

C 3103 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3103 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3104 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3104 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3106 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3106 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3107 CHIP CAP. 1pF 50V CK GRM39CK010C50PT K22174202 1- AD2

C 3109 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3109 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3113 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- Bc2

C 3114 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bc1

C 3115 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- AD2

C 3116 CHIP CAP. 2pF 50V CK GRM39CK020C50PT K22174203 1- AD2

C 3119 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- Bb1

C 3120 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3120 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3121 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bc2

C 3121 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bc2

C 3122 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3122 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3123 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb1

C 3123 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb1

C 3124 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bc2

C 3125 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bc2

C 3125 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bc2

C 3126 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3126 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3127 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb1

C 3127 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb1

C 3128 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb1

C 3128 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb1

C 3129 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc1

C 3131 CHIP CAP. 68pF 50V CH GRM39CH680J50PT K22174231 1- Bb1

C 3132 CHIP CAP. 820pF 50V CH GRM40CH821J50PT K22170289 1- Bc2

C 3133 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- Bb1

C 3135 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- Bc2

C 3136 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 1- Bb1

C 3138 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- Bb1

C 3140 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bb2

C 3142 CHIP CAP. 0.001uF 25V CH GRM39CH102J25PT K22144204 1- Bc1

C 3144 CHIP CAP. 680pF 50V CH GRM40CH681J50PT K22170287 1- Bc2

C 3146 CHIP CAP. 330pF 50V CH GRM39CH331J50PT K22174253 1- Bb1

C 3147 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- Bc2

C 3149 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bc1

C 3150 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- Bb1

C 3151 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- Bc2

C 3153 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- Bb2

C 3155 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 1- AD2

C 3157 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- Bc1

C 3158 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 1- Bb1

C 3159 CHIP CAP. 82pF 50V CH GRM39CH820J50PT K22174233 1- Bb1

C 3160 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD2

C 3160 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD2

C 3162 CHIP CAP. 0.001uF 50V CH GRM40CH102J50PT K22170288 1- Bc2

C 3163 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc2

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 3164 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bc2

C 3164 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bc2

C 3166 CHIP CAP. 560pF 25V CH GRM39CH561J25PT K22144201 1- Bc1

C 3167 CHIP CAP. 270pF 50V CH GRM39CH271J50PT K22174251 1- Bc2

C 3169 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bc2

C 3170 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 1- Bb1

C 3172 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bc2

C 3173 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bb2

C 3174 CHIP CAP. 180pF 50V CH GRM39CH181J50PT K22174241 1- Bb1

C 3176 CHIP CAP. 68pF 50V CH GRM39CH680J50PT K22174231 1- Bc1

C 3177 CHIP CAP. 680pF 50V CH GRM40CH681J50PT K22170287 1- Bb1

C 3178 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- Bc2

C 3179 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- Bb2

C 3181 CHIP CAP. 0.001uF 50V CH GRM40CH102J50PT K22170288 1- Bc2

C 3182 CHIP CAP. 0.001uF 50V CH GRM40CH102J50PT K22170288 1- Bb1

C 3184 CHIP CAP. 680pF 25V CH GRM39CH681J25PT K22144203 1- Bc1

C 3185 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- Bb1

C 3187 CHIP CAP. 68pF 50V CH GRM39CH680J50PT K22174231 1- Bb1

C 3188 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- Bb1

C 3190 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- Bc2

C 3191 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 1- Bb2

C 3192 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 W/ CE LABEL 45- Bb2

C 3194 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- Bc2

C 3196 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bb1

C 3198 CHIP CAP. 470pF 50V CH GRM39CH471J50PT K22174249 1- Bc2

C 3200 CHIP CAP. 0.001uF 25V CH GRM39CH102J25PT K22144204 1- Bc1

C 3203 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- Bc2

C 3204 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- Bb1

C 3207 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bc1

C 3208 CHIP CAP. 390pF 50V CH GRM39CH391J50PT K22174255 1- Bb1

C 3209 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bb2

C 3211 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AB1

C 3212 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- Bc2

C 3215 CHIP CAP. 0.0012uF 50V CH GRM40CH122J50PT K22170290 1- Bc2

C 3216 CHIP CAP. 68pF 50V CH GRM39CH680J50PT K22174231 1- Bb1

C 3218 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 1- Bb2

C 3219 CHIP CAP. 120pF 50V CH GRM39CH121J50PT K22174237 1- Bb2

C 3220 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AB1

C 3220 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AB1

C 3222 CHIP CAP. 680pF 50V CH GRM40CH681J50PT K22170287 1- Bb1

C 3223 CHIP CAP. 7pF 50V CH GRM39CH070D50PT K22174208 1- Bb1

C 3224 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3224 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3225 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba1

C 3225 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba1

C 3226 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba1

C 3226 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba1

C 3227 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3227 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3228 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3228 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3229 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba1

C 3229 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba1

C 3230 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb1

C 3230 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb1

C 3231 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Bc1

C 3232 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bc1

C 3232 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bc1

C 3233 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Bb2

C 3233 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Bb2

C 3234 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- AE2

C 3236 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- AD2

C 3238 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- AD1

C 3239 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 1- Ba2

C 3240 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD1

C 3240 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD1

C 3241 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD1

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 3241 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD1

C 3242 CHIP CAP. 47pF 50V CH GRM39CH470J50PT K22174227 1- Ba2

C 3243 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- AD2

C 3245 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- AD2

C 3248 CHIP CAP. 56pF 50V CH GRM39CH560J50PT K22174229 1- Ba1

C 3252 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- AD2

C 3254 CHIP CAP. 9pF 50V CH GRM39CH090D50PT K22174210 1- AE2

C 3256 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD1

C 3256 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD1

C 3258 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- AD1

C 3258 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- AD1

C 3259 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Ba1

C 3260 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- AD1

C 3261 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 1- Ba1

C 3262 CHIP CAP. 220pF 50V CH GRM39CH221J50PT K22174243 1- AD1

C 3264 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- Ba1

C 3265 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 1- Ba1

C 3267 CHIP CAP. 3pF 50V CJ GRM39CJ030C50PT K22174204 1- Ba1

C 3268 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- Bd2

C 3269 CHIP CAP. 8pF 50V CH GRM39CH080D50PT K22174209 1- Bb2

C 3273 CHIP CAP. 6pF 50V CH GRM39CH060D50PT K22174207 1- Bb2

C 3274 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- AD2

C 3275 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- AD2

C 3277 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3277 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3278 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3278 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3279 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3279 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3280 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3280 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3281 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3281 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3282 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1- Ba2

C 3282 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 41- Ba2

C 3284 CHIP CAP. 1pF 50V CK GRM39CK010C50PT K22174202 1- AD2

C 3285 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- AA2

C 3286 CHIP CAP. 0.001uF 50V BGRM39B102K50PT K22174821 1- Bd2

C 3287 CHIP CAP. 0.01uF 50V BGRM39B103M50PT K22174823 1- Bd2

C 3288 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 3289 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 3290 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 3291 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 3292 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 3293 CHIP CAP. 5pF 200V CH GRM40CH050C200PT K22230207 W/ CE LABEL 45-

C 3293 CERAMIC CAP. 27pF 50V SL UP050SL270J-A-B K28179028 W/ CE LABEL 47-

D 3001 DIODE 1SS355 TE-17 G2070470 1- Bb2

D 3002 DIODE DAN235U TL G2070176 1- Bb2

D 3003 DIODE HSU277TRF G2070118 1- Bb2

D 3004 DIODE HSU277TRF G2070118 1- AD2

D 3005 DIODE HSU277TRF G2070118 1- Bb2

D 3006 DIODE HSU277TRF G2070118 1- Bb2

D 3007 DIODE MA716-(TX) G2070342 1- AD2

D 3008 DIODE MA716-(TX) G2070342 1- Ba2

D 3009 DIODE MA716-(TX) G2070342 1- AD2

D 3010 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3011 DIODE 1SS355 TE-17 G2070470 1- Bc1

D 3012 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3013 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3014 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3015 DIODE 1SS355 TE-17 G2070470 1- Bc1

D 3016 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3017 DIODE MA716-(TX) G2070342 1- Ba2

D 3018 DIODE 1SS355 TE-17 G2070470 1- Bb2

D 3019 DIODE 1SS355 TE-17 G2070470 1- Ba1

D 3020 DIODE 1SS355 TE-17 G2070470 1- Ba1

D 3021 DIODE 1SS355 TE-17 G2070470 1- Bb2

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

D 3022 DIODE 1SS355 TE-17 G2070470 1- Ba2

D 3023 DIODE 1SS355 TE-17 G2070470 1- Ba1

D 3024 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3025 DIODE DAN235U TL G2070176 1- Bc1

D 3026 DIODE DAN235U TL G2070176 1- Bc1

D 3027 DIODE DAN235U TL G2070176 1- Bc2

D 3028 DIODE HSU277TRF G2070118 1- Bc2

D 3032 DIODE MA716-(TX) G2070342 1- Ba1

D 3033 DIODE MA716-(TX) G2070342 1- Ba1

D 3034 DIODE 1SS355 TE-17 G2070470 1- Ba1

D 3035 DIODE HSU277TRF G2070118 1- Bb2

D 3036 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3037 DIODE 1SS355 TE-17 G2070470 1- Bc1

D 3038 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3039 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3040 DIODE 1SS355 TE-17 G2070470 1- Bc2

D 3041 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3042 DIODE 1SS355 TE-17 G2070470 1- Bb1

D 3043 DIODE HSU277TRF G2070118 1- Bd2

D 3044 DIODE 1SS355 TE-17 G2070470 1- Bd2

D 3045 DIODE DAN202U T106 G2070162 1- Bb2

D 3046 DIODE 1SS355 TE-17 G2070470 1- Ba2

D 3047 DIODE 1SS355 TE-17 G2070470 1Ba2

D 3047 DIODE 1SS357 TPH3 G2070346 2- Ba2

D 3048 DIODE 1SS355 TE-17 G2070470 1- Ba2

D 3049 DIODE 1SS355 TE-17 G2070470 1- Ba2

D 3050 DIODE 1SS355 TE-17 G2070470 1Ba2

D 3050 DIODE 1SS357 TPH3 G2070346 2- Ba2

D 3051 DIODE 1SS355 TE-17 G2070470 1- Ba2

D 3052 SURGE ABSORBER RCCA-201Q43UA Q9000755 1- Ba1

J 3003 CONNECTOR 9210B-1-03Z711-T P0091285 1- Bd2

J 3004 CONNECTOR 09FMN-BMTTN-TFT P1091089 1- AB1

J 3005 CONNECTOR IMSA-9202B-1-02-T P0091174 1- AA2

J 3006 CONNECTOR IMSA-9202B-1-02-T P0091174 1- AA2

JP3001 WIRE ASSY RED 105 TMP/TMP(B1) T9318160 1- AA2

JP3002 WIRE ASSY GRN 100 TMP/TMP(B1) T9318159 1- AA2

JP3003 WIRE ASSY GRA 145 TMP(B1)/* T9318158 1- AE1

JP3004 WIRE ASSY GRN 20 2/2 T50502000 W/ CE LABEL 47-

L 3001 M.RFC 0.056uH HK1608 56NJ-T L1690525 1- Bd2

L 3002 M.RFC 4.7uH ELJ-FC4R7KF L1690348 1- Bd2

L 3003 M.RFC 0.012uH HK1608 12NJ-T L1690517 1- Bd2

L 3004 M.RFC 0.039uH HK1608 39NJ-T L1690523 1- Bd2

L 3005 M.RFC 10uH 7B05NB-100M L1690988 1- AA2

L 3006 COIL E2 0.25-1.85-8.5T-L L0022576 1- AA2

L 3007 M.RFC 0.0056uH HK1608 5N6S-T L1690513 1- Bd2

L 3008 M.RFC 0.039uH HK1608 39NJ-T L1690523 1- Bd1

L 3009 M.RFC 10uH CDRH74-100MC L1690599 1- AA1

L 3010 COIL E2 0.3-1.7-7T-R L0022372 1- AA1

L 3019 M.RFC 4.7uH ELJ-FC4R7KF L1690348 1- Bb2

L 3020 M.RFC 4.7uH ELJ-FC4R7KF L1690348 1- AD2

L 3022 COIL E2 0.35-1.6-8T-L L0022458 1- AD2

L 3023 COIL E2 0.45-1.4-4T-L L0022391 1- AD2

L 3027 COIL E2 0.5-2.0-7T-R L0022489 1- AD2

L 3028 COIL E2 0.35-1.6-4T-L L0022456 1- AD2

L 3031 COIL E2 0.4-2.0-5.5T-L L0022630 1- AD2

L 3032 COIL E2 0.3-1.4-6T-L L0022455 1- AD2

L 3034 COIL E2 0.5-2.0-7T-R L0022489 1- AD2

L 3035 COIL E2 0.35-1.6-4T-L L0022456 1- AD2

L 3036 M.RFC 0.18uH LK2125 R18K-T L1690310 1- Bc1

L 3037 M.RFC 0.18uH LK2125 R18K-T L1690310 1- Bc1

L 3041 COIL S7-T3 R12-T726X L0190251 1- AC1

L 3042 M.RFC 4.7uH LK2125 4R7K-T L1690327 1- Bc1

L 3043 TOROIDAL COIL 2.728uH 2.728U T25-15 L0022657 1- AB2

L 3044 TOROIDAL COIL 1.418uH 1.418U T25-2 L0022659 1- AC1

L 3045 TOROIDAL COIL 0.9262uH 0.9262U T25-2 L0022661 1- AC1

L 3046 TOROIDAL COIL 0.4086uH 0.4086U T25-2 L0022663 1- AB2

L 3047 COIL S7-T3 R12-T729X L0190254 1- AC2

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

L 3048 COIL S7-T3 R12-T728X L0190253 1- AC1

L 3049 M.RFC 0.47uH LK2125 R47K-T L1690315 1- Bc2

L 3051 M.RFC 1.8uH LK2125 1R8K-T L1690322 1- Bc1

L 3052 M.RFC 0.82uH LK2125 R82K-T L1690318 1- Bd2

L 3053 M.RFC 0.39uH LK2125 R39K-T L1690314 1- Bc1

L 3054 COIL S7-T3 R12-T727X L0190252 1- AC1

L 3055 M.RFC 4.7uH LK2125 4R7K-T L1690327 1- Bc1

L 3056 COIL S7-T3 R12-T729X L0190254 1- AC1

L 3057 M.RFC 1.8uH LK2125 1R8K-T L1690322 1- Bc1

L 3058 M.RFC 0.82uH LK2125 R82K-T L1690318 1- Bd2

L 3059 TOROIDAL COIL 1.187uH 1.187U T25-2 L0022662 1- AC1

L 3060 TOROIDAL COIL 0.614uH 0.614U T25-2 L0022664 1- AB2

L 3061 COIL S7-T3 R12-T730X L0190255 1- AC2

L 3062 TOROIDAL COIL 3.702uH 3.702U T25-15 L0022658 1- AB2

L 3063 TOROIDAL COIL 1.915uH 1.915U T25-2 L0022660 1- AC1

L 3064 M.RFC 0.47uH LK2125 R47K-T L1690315 1- Bc2

L 3065 M.RFC 0.39uH LK2125 R39K-T L1690314 1- Bc1

L 3066 COIL S7-T3 R12-T727X L0190252 1- AD1

L 3067 M.RFC 4.7uH LK2125 4R7K-T L1690327 1- Bc1

L 3068 M.RFC 10uH ELJ-FC100K L1690200 1- Bc1

L 3069 COIL E2 0.25-1.9-8.5T-L L0022611 1- AD2

L 3070 COIL E2 0.4-3.0-9.5T-L L0022575 1- AD2

L 3071 COIL E2 0.3-1.7-8T-L L0022376 1- AE2

L 3072 COIL E2 0.35-1.6-4.5T-L L0022577 1- AD2

L 3073 M.RFC 470uH FLC32T-471J L1690235 1- Ba1

L 3074 COIL E2 0.25-1.9-12.5T-L L0022600 1- AD1

L 3075 COIL E2 0.3-1.7-8T-L L0022376 1- AE2

L 3076 COIL E2 0.45-1.4-4T-L L0022391 1- AE2

L 3077 COIL E2 0.25-1.9-12T-L L0022592 1- AD1

L 3078 M.RFC 470uH FLC32T-471J L1690235 1- Ba1

L 3079 COIL E2 0.3-1.7-8T-L L0022376 1- AE2

L 3081 COIL E2 0.5-2.0-7T-R L0022489 1- AD1

L 3082 COIL E2 0.5-2.0-6T-R L0022488 1- AD1

L 3083 COIL E2 0.45-1.4-4T-L L0022391 1- AD2

L 3084 M.RFC 33uH LK1608 330M-T L1690690 6-

L 3085 M.RFC 33uH LK1608 330M-T L1690690 6-

L 3086 M.RFC 33uH LK1608 330M-T L1690690 6-

L 3087 M.RFC 33uH LK1608 330M-T L1690690 6-

L 3088 M.RFC 33uH LK1608 330M-T L1690690 6-

P 3001 CONNECTOR IMSA-9206H-T P1090988 1-

P 3002 CONNECTOR IMSA-9206H-T P1090988 1-

Q 3001 TRANSISTOR 2SC3357-T2 G3333577 1- Bd2

Q 3002 FET 2SK2596BXTL G3825967 1- Bd2

Q 3003 IC NJU3714G-TE1 G1092768 1- AB1

Q 3004 FET 2SK2973-T13 G3829738 1- AA1

Q 3005 FET 2SK2973-T13 G3829738 1- AA1

Q 3006 TRANSISTOR DTC143ZUA T106 G3070188 1- Bc1

Q 3007 TRANSISTOR DTA123YU T106 G3070038 1- Bc1

Q 3010 TRANSISTOR DTC143ZUA T106 G3070188 1- Bb2

Q 3011 TRANSISTOR DTC143ZUA T106 G3070188 1- Bb1

Q 3012 TRANSISTOR DTC143ZUA T106 G3070188 1- Bc2

Q 3013 TRANSISTOR DTC143ZUA T106 G3070188 1- Bb1

Q 3014 TRANSISTOR DTC143ZUA T106 G3070188 1- Bc1

Q 3015 TRANSISTOR DTC143ZUA T106 G3070188 1- Bc2

Q 3016 TRANSISTOR DTC143ZUA T106 G3070188 1- Bb2

Q 3017 TRANSISTOR DTC143ZUA T106 G3070188 1- Bb1

Q 3018 TRANSISTOR DTC143ZUA T106 G3070188 1- Bc1

Q 3019 TRANSISTOR 2SC4227-T2 R34 G3342277D 1- Bc1

Q 3020 TRANSISTOR DTC143ZUA T106 G3070188 1- Ba1

Q 3021 TRANSISTOR DTC143ZUA T106 G3070188 1- Bd2

Q 3022 TRANSISTOR DTC143ZUA T106 G3070188 1- Ba2

Q 3023 TRANSISTOR DTC143ZUA T106 G3070188 1- Ba2

Q 3024 TRANSISTOR BA1A4M-T G3050001 W/ CE LABEL 47-

R 3001 CHIP RES. 120 1/16W 5% RMC1/16 121JATP J24185121 1- Bd2

R 3002 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- Bd2

R 3003 CHIP RES. 120 1/16W 5% RMC1/16 121JATP J24185121 1- Bd2

R 3004 CHIP RES. 150 1/16W 5% RMC1/16 151JATP J24185151 1- Bd2

PA Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 3005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 1- Bd2

R 3006 CHIP RES. 1.2k 1/16W 5% RMC1/16 122JATP J24185122 1- Bd2

R 3007 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- Bd2

R 3008 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- Bd2

R 3009 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- Bd2

R 3011 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- AA2

R 3012 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- Bd2

R 3013 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- Be2

R 3014 CHIP RES. 270 1/16W 5% RMC1/16 271JATP J24185271 1- Bd2

R 3015 CHIP RES. 470 1/10W 5% RMC1/10T 471J J24205471 1- AA2

R 3017 CHIP RES. 680 1/16W 5% RMC1/16 681JATP J24185681 1- AA2

R 3018 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- AA2

R 3019 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AA2

R 3020 CHIP RES. 220 1/4W 5% RMC1/4 221JATP J24245221 1- Bd1

R 3021 CHIP RES. 470 1/2W 5% RMC1/2 471JCTP J24275471 1- Bd1

R 3035 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- Bb2

R 3036 CHIP RES. 100 1/16W 5% RMC1/16 101JATP J24185101 1- Bb2

R 3037 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- Bb2

R 3038 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- Bb2

R 3039 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- AD2

R 3040 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- AD2

R 3041 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- Ba2

R 3042 CHIP RES. 15k 1/16W 5% RMC1/16 153JATP J24185153 1- Bc1

R 3043 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- AD2

R 3044 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- Ba2

R 3045 CHIP RES. 6.8k 1/16W 5% RMC1/16 682JATP J24185682 1- Bc1

R 3046 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 1- AD2

R 3046 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 3- AD2

R 3047 CHIP RES. 8.2k 1/16W 5% RMC1/16 822JATP J24185822 1- AD2

R 3048 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- AD2

R 3049 CHIP RES. 39 1/16W 5% RMC1/16 390JATP J24185390 1- AD2

R 3050 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- AD2

R 3051 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- Bc1

R 3052 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 1- AD2

R 3052 CHIP RES. 3.3k 1/16W 5% RMC1/16 332JATP J24185332 3- AD2

R 3053 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- AD2

R 3054 CHIP RES. 68 1/16W 5% RMC1/16 680JATP J24185680 1- Bc1

R 3055 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- Bc1

R 3056 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1- Bc2

R 3057 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1-5 Bc1

R 3058 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1-5 Bc2

R 3059 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1-5 Bc1

R 3060 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1-5 Bc2

R 3061 CHIP RES. 470 1/16W 5% RMC1/16 471JATP J24185471 1-5 Bc1

R 3062 CHIP RES. 47 1/10W 5% RMC1/10T 470J J24205470 1- Ba1

R 3063 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- AD1

R 3064 CHIP RES. 10k 1/16W 5% RMC1/16 103JATP J24185103 1- AD1

R 3065 CHIP RES. 47 1/10W 5% RMC1/10T 470J J24205470 1- Ba1

R 3068 CHIP RES. 22k 1/16W 5% RMC1/16 223JATP J24185223 1- Ba1

R 3069 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- Ba1

R 3070 CHIP RES. 1.8k 1/16W 5% RMC1/16 182JATP J24185182 1- Ba1

R 3071 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AD2

R 3072 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AD2

R 3075 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 1- Ba2

R 3076 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 1- Ba2

R 3077 CHIP RES. 01/10W 5% RMC1/10T 000J J24205000 1- Ba2

R 3078 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- AA1

R 3079 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- AA1

R 3080 CARBON FILM RES. 10k 1/6W 5% RD16TPJ103 10K J07225103 1-

RL3001 RELAY DC9V ARK115 DC9V M1190094 1- AC2

RL3002 RELAY DC9V G5V-1 DC9V M1190165 1- AB2

RL3003 RELAY DC9V G5V-1 DC9V M1190165 1- AC1

RL3004 RELAY DC9V G5V-1 DC9V M1190165 1- AC1

RL3005 RELAY DC9V G5V-1 DC9V M1190165 1- AB2

RL3006 RELAY DC9V G5V-1 DC9V M1190165 1- AC2

RL3007 RELAY DC9V G5V-1 DC9V M1190165 1- AC1

RL3008 RELAY DC9V AGN20009 DC9V M1190164 1- AC1

PA Unit

RL3009 RELAY DC9V G5V-1 DC9V M1190165 1- AC2

RL3010 RELAY DC9V G5V-1 DC9V M1190165 1- AD1

RL3011 RELAY DC9V G5V-1 DC9V M1190165 1- AD1

RL3012 RELAY DC9V G5V-1 DC9V M1190165 1- AC2

RL3013 RELAY DC9V G5V-1 DC9V M1190165 1- AD2

RL3014 RELAY DC9V G5V-1 DC9V M1190165 1- AD1

RL3015 RELAY DC9V AGN20009 DC9V M1190164 1- AD1

RL3016 RELAY DC9V ARK115 DC9V M1190094 1- AE1

RL3017 RELAY DC9V ARK115 DC9V M1190094 1- AB2

T 3001 COIL PWR-WIDE A0898 L0022552 1- AB2

T 3002 COIL WIDE-TRANS. 990812213 L0022619 1- AB1

T 3003 COIL 07WIDE TR-266C L0022631B 1- AD1

T 3004 COIL PWR-WIDE 3A6 RIB8X14X6.5 L0022641 1- AA1

T 3004 COIL PWR-WIDE 3A6 RIB8X14X6.5 L0022641A 9- AA1

T 3005 COIL PWR-WIDE 3A TR9.3X4.8X5.0 L0022642 1- AB1

T 3005 COIL PWR-WIDE 3A TR9.3X4.8X5.0 L0022642A 17- AB1

TC3001 TRIMMER CAP. 20pF ECR-KN020E61X K91000213 1- AD2

TC3002 TRIMMER CAP. 3pF ECR-KN003A61X 3P K91000264 1- AD2

TC3003 TRIMMER CAP. 20pF ECR-KN020E61X K91000213 1- AD2

VR3001 POT. 2.2k EVN-5ESX50BE3 J51811222 1- AA2

VR3002 POT. 2.2k EVN-5ESX50BE3 J51811222 1- AA2

LEAF SPRING R0132100 1-

LEAF SPRING R0132100 9-

LEAF SPRING R0132100 W/ CE LABEL 23-

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

PA UnitFinal Unit

*** FINAL UNIT ***

PCB with Components CB1333001 W/O CE LABEL

PCB with Components CB1333002 W/ CE LABEL

Printed Circuit Board FR006000C 1-

C 5401 CHIP CAP. 27pF 50V CH GRM39CH270J50PT K22174221 1- AA1

C 5402 CHIP CAP. 12pF 50V CH GRM39CH120J50PT K22174213 1- AA1

C 5403 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23- AA1

C 5404 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA1

C 5405 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- AA1

C 5406 CHIP CAP. 0.1uF 25V BGRM40B104M25PT K22140811 1- AA1

C 5407 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23- AA2

C 5408 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA1

C 5409 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA1

C 5410 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- AA1

C 5411 AL.ELECTRO.CAP. 47uF 16V ECEV1CA470SP K48120005 1- AA2

C 5412 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba1

C 5414 CHIP CAP. 0.1uF 16V BGRM39B104K16PT K22124805 1- Ba2

C 5415 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

C 5416 CHIP CAP. 100pF 50V CH GRM39CH101J50PT K22174235 W/ CE LABEL 23-

D 5401 DIODE UDZ TE-17 3.9B G2070576 1-

D 5401 DIODE UDZS TE-17 3.9B G2070906 54-

L 5401 M.RFC 0.0033uH HK1608 3N3S-T L1690510 1- AA1

L 5402 M.RFC 0.0033uH HK1608 3N3S-T L1690510 1- AA1

L 5403 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- AA1

L 5404 M.RFC 0.022uH HK1608 22NJ-T L1690520 1- AA1

L 5405 COIL E2 0.4-3.0-9.5T-L L0022575 1- AA1

L 5406 COIL E2 0.4-3.0-9.5T-L L0022575 1- AA1

L 5407 M.RFC 10uH CDRH74-100MC L1690599 1- AA1

L 5408 M.RFC 10uH CDRH74-100MC L1690599 1- AA2

Q 5401 FET 2SK2975-T11 G3829757 1- AA1

Q 5402 FET 2SK2975-T11 G3829757 1- AA1

R 5401 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AA1

R 5402 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- AA1

R 5403 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AA1

R 5404 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AA2

R 5405 CHIP RES. 56 1/16W 5% RMC1/16 560JATP J24185560 1- AA1

R 5406 CHIP RES. 1k 1/16W 5% RMC1/16 102JATP J24185102 1- AA1

R 5407 CHIP RES. 100 1W 5% RMC1 101JTE J24305101 1- AA1

R 5408 CHIP RES. 100 1W 5% RMC1 101JTE J24305101 1- AA2

R 5410 CHIP RES. 470 1W 5% RMC1 471JTE J24305471 1- Ba1

R 5413 CHIP RES. 470 1W 5% RMC1 471JTE J24305471 1- Ba1

VR5401 POT. 2.2k EVN-5ESX50BE3 J51811222 1- AA1

VR5402 POT. 2.2k EVN-5ESX50BE3 J51811222 1- AA2

HEATSINK PLATE RA0247900 1- Ba1

LEAF SPRING R0140030 W/ CE LABEL 23-

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

PA UnitFinal Unit

Note:

PANEL Unit

Circuit Diagram

(TX)

14.0 MHz, 5 W

(5 V)

13.1 V

Q4013, IN

Q4013, OUT

Q4014, OUT

Q4011,Collector (RESET)

Q4004, pin 67 (19.91 MHz)

5.0 V

SIN wave

5.0 Vp-p

6 ms

85 ms

•

‚

„

…

PANEL Unit

Parts Layout

IMN10 (N10)

(Q4001, 4002,

4003, 4008)

DAN222 (N)

(D4006, 4007)

BRPG1211C

(D4009)

MC2850 (A7)

(D4010)

DTA144EE (16)

(Q4003)

DTC114EU (24)

(Q4005)

AT24C64N

(Q4006)

RT1N441U (N3)

(Q4007)

TC7SU04FU (E6)

(Q4008, 4012)

2SA1602A (MF)

(Q4010, 4011)

S-81250SGUP (PD)

(Q4013)

2SC4154 (LE)

(Q4015, 4016)

NJM2902V

(Q4017)

2SC1623 (L5)

(Q4018, 4019)

Side B

Side A

ABCD

abcde

TC74HC139AF

(Q4009)

2SJ355 (PQ)

(Q4001)

HD64F2345

(Q4004)

PST3445UR (DF)

(Q4014)

PANEL Unit (Lot. 30~)

Circuit Diagram

(TX)

14.0 MHz, 5 W

(5 V)

13.1 V

Q4013, IN

Q4013, OUT

Q4014, OUT

Q4011,Collector (RESET)

Q4004, pin 67 (19.91 MHz)

5.0 V

SIN wave

5.0 Vp-p

6 ms

85 ms

•

‚

„

…

PANEL Unit (Lot. 30~)

Parts Layout

IMN10 (N10)

(Q4001, 4002,

4003, 4008)

DAN222 (N)

(D4006, 4007)

BRPG1211C

(D4009)

MC2850 (A7)

(D4010)

DTA144EE (16)

(Q4003)

DTC114EU (24)

(Q4005)

AT24C64N

(Q4006)

RT1N441U (N3)

(Q4007)

TC7SU04FU (E6)

(Q4008, 4012)

2SA1602A (MF)

(Q4010, 4011)

S-81250SGUP (PD)

(Q4013)

2SC4154 (LE)

(Q4015, 4016)

NJM2902V

(Q4017)

2SC1623 (L5)

(Q4018, 4019)

Side B

Side A

ABCD

abcde

TC74HC139AF

(Q4009)

2SJ355 (PQ)

(Q4001)

HD64F2345

(Q4004)

PST3445UR (DF)

(Q4014)

PANEL Unit

*** PANEL UNIT ***

PCB with Components CB1153002 VERSION A2, USA

PCB with Components CB1153003 VERSION A1

PCB with Components CB1153004 VERSION A3

PCB with Components CB1153005 VERSION B1

PCB with Components CB1153006 VERSION B2

PCB with Components CB1153007 VERSION B3

PCB with Components CB1153008 VERSION C1

PCB with Components CB1153009 VERSION C2

PCB with Components CB1153010 VERSION C3

PCB with Components CB1153011 VERSION D1

PCB with Components CB1153012 VERSION D2

PCB with Components CB1153013 VERSION H1, AUSTRALIA

PCB with Components CB1153014 VERSION H2, AUSTRALIA

PCB with Components CB1153015 VERSION E1, FRANCE

PCB with Components CB1153016 VERSION E2, FRANCE

PCB with Components CB1153017 VERSION E3, FRANCE

PCB with Components CB1153018 VERSION A2

Printed Circuit Board FR006170E 1-

Printed Circuit Board FR006170F 30-

C 4001 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AB1

C 4002 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AB1

C 4003 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AB1

C 4004 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA1

C 4005 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AB1

C 4006 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AA1

C 4007 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bb1

C 4008 CHIP CAP. 0.033uF 10V BGRM36B333K10PT K22108803 1- Bb1

C 4009 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- AB1

C 4010 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bb1

C 4011 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AC1

C 4012 CHIP CAP. 0.1uF 10V BGRM36B104K10PT K22108802 1- Bb1

C 4013 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Bb1

C 4014 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AC1

C 4015 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- Bc1

C 4016 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AC1

C 4017 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AC1

C 4018 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AC1

C 4019 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Bb1

C 4020 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- Bb1

C 4021 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- Bb1

C 4022 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- Bb1

C 4023 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- AD1

C 4024 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD1

C 4025 AL.ELECTRO.CAP. 10uF 16V RV2-16V100MB55-R K48120014 1- Be1

C 4026 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AD1

C 4027 CHIP CAP. 0.022uF 16V BGRM36B223K16PT K22128806 1- AD1

C 4028 CHIP CAP. 0.0033uF 50V BGRM36B332K50PT K22178815 1- AD1

C 4029 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- Ba1

C 4030 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba1

C 4031 AL.ELECTRO.CAP. 100uF 6.3V RV2-6V101M-R K48080005 1- Ba1

C 4032 CHIP CAP. 0.0047uF 25V BGRM36B472K25PT K22148830 1- AD1

C 4033 AL.ELECTRO.CAP. 470uF 6.3V RE2-6V471M 470UF K40089025 1- Bc1

C 4033 AL.ELECTRO.CAP. 470uF 6.3V RE3-6V471M 470UF K40089034 3- Bc1

C 4034 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AD1

C 4035 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- Ba1

C 4036 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1-31 Ba1

C 4037 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- Ba1

C 4038 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- Ba1

C 4038 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 3Ba1

C 4038 AL.ELECTRO.CAP. 470uF 16V URS1C471MNA K40129097 4- Ba1

C 4039 CHIP TA.CAP. 1uF 16V TESVA1C105M1-8R K78120009 1- Ba1

C 4040 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bd1

C 4041 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- Bd1

C 4042 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1-9 Bd1

C 4047 CERAMIC CAP. 220pF 50V BUP050B221K-A-B K28179083 10- Bb1

C 4047 CHIP CAP. 220pF 50V BGRM36B221K50PT K22178801 30- Bb1

C 4048 CERAMIC CAP. 220pF 50V BUP050B221K-A-B K28179083 10- Bb1

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

PANEL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

C 4048 CHIP CAP. 220pF 50V BGRM36B221K50PT K22178801 30- Bb1

C 4049 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 30- AC1

D 4001 DIODE IMN10 T108 G2070078 1- Bb1

D 4002 DIODE IMN10 T108 G2070078 1- Ba1

D 4003 DIODE IMN10 T108 G2070078 1- Ba1

D 4004 LED TLOU1008(T4) G2070796 1- AA1

D 4005 LED LNJ951C4BRA G2070806 1- AA1

D 4006 DIODE DAN222 TL G2070174 1- AA1

D 4007 DIODE DAN222 TL G2070174 1- AA1

D 4008 DIODE IMN10 T108 G2070078 1- Bb1

D 4009 LED BRPG1211C-TR G2070654 1- AD1

D 4010 DIODE MC2850-T11-1 G2070704 1- AD1

D 4011 DIODE RB051L-40TE25 G2070718 1- Ba1

D 4012 LED LNJ951C4BRA G2070806 1- AA1

D 4013 LED TLOU1008(T4) G2070796 1- AA1

DS4001 LCD UNIT DU3L1AF005A Q7000291 1-

J 4002 CONNECTOR FH12-50S-0.5SV P1091092 1- Bd1

J 4003 CONNECTOR SB20-04WS P0090611 1- Ba1

J 4004 CONNECTOR FH12-33S-0.5SV P1091099 1- AB1

J 4005 CONNECTOR B7B-ZR P0090649 1- Bb1

J 4005 CONNECTOR B7B-ZR P0090649 41- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A1 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B1 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C1 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D1 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E1 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION F 1- Bb1

JP4004 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A2 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B2 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C2 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D2 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E2 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION F 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H1 1- Bb1

JP4005 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A3 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B3 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C3 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E2 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E3 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION F 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H1 1- Bb1

JP4006 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H2 1- Bb1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A1 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A2 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION A3 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C1 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C2 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C3 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H1 1- Ba1

JP4007 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H2 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B1 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B2 1- Ba1

PANEL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION B3 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C1 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C2 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION C3 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E1 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E2 1- Ba1

JP4008 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E3 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D1 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION D2 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E1 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E2 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION E3 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H1 1- Ba1

JP4009 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION H2 1- Ba1

JP4010 WIRE ASSY A1377 T9206921 1- Bb2

Q 4001 FET 2SJ355-T1 G3703558 1- AA1

Q 4003 TRANSISTOR DTC144EE TL G3070075 1- AA1

Q 4004 IC HD6432345A20FA G1093519 AUSTRALIA 1- Bc1

Q 4004 IC HD6432345A20FA G1093519 EXPORT 1- Bc1

Q 4004 IC HD6432345A20FA G1093519 USA 1- Bc1

Q 4005 TRANSISTOR DTC114EU T106 G3070084 1- Bb1

Q 4006 IC AT24C64N-10SI-1.8-SL722A G1093171 1- AD1

Q 4007 TRANSISTOR RT1N441U-T11-1 G3070247 1- AD1

Q 4008 IC TC7SU04FU(TE85L) G1093085 1- Bd1

Q 4009 IC TC74HC139AF EL G1091447 1- Bd1

Q 4010 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- Ba1

Q 4011 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- Ba1

Q 4012 IC TC7SU04FU(TE85L) G1093085 1- Bd1

Q 4013 IC S-81250SGUP-DQD-T1 G1092939 1- Ba1

Q 4013 IC S-812C50AUA-C3E-T2 G1093652 51- Ba1

Q 4014 IC PST3445UR G1093232 1- Ba1

Q 4015 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Ba1

Q 4016 TRANSISTOR 2SC4154-T11-1E G3341548E 1- Ba1

Q 4017 IC NJM2902V-TE1 G1091679 1- AD1

Q 4018 TRANSISTOR 2SC1623-T2BL5 G3316237E 1- Bd1

Q 4019 TRANSISTOR 2SC1623-T2BL5 G3316237E 1- Bd1

R 4001 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4002 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4003 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4004 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4005 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4006 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AB1

R 4007 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4008 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- AB1

R 4009 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- AB1

R 4010 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- AB1

R 4011 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- AB1

R 4012 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- AA1

R 4013 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- Bd1

R 4014 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- Bd1

R 4015 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AA1

R 4016 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AA1

R 4017 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AA1

R 4018 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AA1

R 4019 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- Bb1

R 4020 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AA1

R 4022 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AA1

R 4026 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Bb1

R 4027 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- AB1

R 4028 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb1

R 4029 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4030 CHIP RES. 10 1/16W 5% RMC1/16 100JATP J24185100 1- AB1

R 4031 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- Bb1

R 4032 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- Bb1

R 4033 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4034 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4035 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AD1

R 4036 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AD1

PANEL Unit

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

R 4037 CHIP RES. 390 1/10W 5% RMC1/10T 391J J24205391 1- AC1

R 4038 CHIP RES. 270 1/10W 5% RMC1/10T 271J J24205271 1- AC1

R 4039 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- Bb1

R 4040 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4041 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4042 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4043 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4044 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4045 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Bb1

R 4045 CHIP RES. 47k 1/16W 5% RMC1/16 473JATP J24185473 3- Bb1

R 4045 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 30- Bb1

R 4046 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4047 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4048 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4049 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- AD1

R 4050 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AD1

R 4051 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4052 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- AD1

R 4053 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- AD1

R 4054 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 4055 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AD1

R 4056 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1-31 Ba1

R 4057 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 4058 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- Ba1

R 4059 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 4060 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AD1

R 4061 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Ba1

R 4062 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 4063 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Ba1

R 4064 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- Ba1

R 4065 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- Ba1

R 4065 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 3- Ba1

R 4065 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 32- Ba1

R 4066 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 4067 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 4068 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- Ba1

R 4069 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Ba1

R 4070 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- Ba1

R 4071 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bb1

R 4072 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- Bc1

R 4073 CHIP RES. 100 1/10W 5% RMC1/10T 101J J24205101 1- Bd1

R 4074 CHIP RES. 220 1/10W 5% RMC1/10T 221J J24205221 1- Bd1

R 4075 CHIP RES. 120 1/10W 5% RMC1/10T 121J J24205121 1- Bd1

R 4076 CHIP RES. 120 1/10W 5% RMC1/10T 121J J24205121 1- Bd1

R 4077 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- Bd1

R 4078 CHIP RES. 5.6k 1/16W 5% RMC1/16S 562JTH J24189034 1- Bd1

R 4079 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- Ba1

R 4080 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1-40 Bb1

R 4898 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1-2

R 4899 CHIP RES. 01/16W 5% RMC1/16 000JATP J24185000 VERSION F 1-29

S 4001 ROTARY ENCODER EC11E18244A3 Q9000750 1- AA1

S 4001 ROTARY ENCODER EC11E18244AE Q9000795 54- AA1

S 4002 TACT SWITCH SKQDAA N5090051 1- AE1

S 4002 TACT SWITCH SKQDAB N5090058 3- AE1

S 4003 TACT SWITCH SKQMAL N5090105 1- AA1

S 4004 TACT SWITCH SKQMAL N5090105 1- AB1

S 4005 TACT SWITCH SKQDAA N5090051 1- AD1

S 4006 TACT SWITCH SKQMAL N5090105 1- AB1

S 4007 TACT SWITCH SKQDAA N5090051 1- AC1

S 4008 TACT SWITCH SKQMAL N5090105 1- AC1

S 4009 TACT SWITCH SKQDAA N5090051 1- AD1

S 4010 TACT SWITCH SKQDAA N5090051 1- AA1

S 4011 TACT SWITCH SKQTLA N5090110 1- AC1

S 4012 TACT SWITCH SKQTLA N5090110 1- AB1

S 4013 TACT SWITCH SKQTLA N5090110 1- AB1

S 4014 TACT SWITCH SKQTLA N5090110 1- AB1

S 4015 ROTARY ENCODER RES20D50-201-1D Q9000709 1-

S 4015 ROTARY ENCODER RES20D50-201-1D Q9000709 3

PANEL Unit

S 4015 ROTARY ENCODER RES20D50-201-1G Q9000709A 4-

X 4001 XTAL SD3 9.91MHz 9.91MHZ H0103251 1- AC1

LIGHT GUIDE RA0271600 1-

LIGHT GUIDE RA027160A 17-

LCD HOLDER RA0271700 1-

LCD HOLDER RA027170A 42-

HOLDER PLATE RA0276300 1-

HOLDER PLATE RA027630A 42-

LEAF SPRING R0132100 W/ CE LABEL 23-

PLATE R0154650 W/ CE LABEL 23-

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

PANEL Unit

Note:

Side BSide A

*** VR UNIT ***

PCB with Components CB1359001

P.C.B. W/O COMP. FR0061200 1-

VR4901 POT. RK0972210 10KB/10KA J62800139 1- A

DESCRIPTION VALUE V/W TOL. VXSTD P/NMFR’S DESIG VERS.

REF. LOT. SIDE LAY ADR

Parts List

Parts Layout

Circuit Diagram

VR Unit

100

Circuit Diagram

Parts List

Parts Layout

Side BSide A

REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS.

LOT

SIDE

LAY ADR

Printed Circuit Board FR005860C 1-

C 5101 CHIP CAP. 0.01uF 25V BGRM39B103K25PT K22144803 1-

C 5102 CHIP TA.CAP. 10uF 6.3V TESVSP0J106M-8R K78080055 1-

J 5101 CONNECTOR 9117S-03D P1091095 1-

J 5102 CONNECTOR 9117S-04D P1090873 1-

X 5101 XTAL OSC 22.625MHz NTO-801BS 22.625MHZ H9500560 1-

TCXO-9 Unit (Option)

101

102

VERTEX STANDARD CO., LTD.

No portion of this manual

may be reproduced without

the permission of

VERTEX STANDARD CO., LTD.

Printed in Japan.

C YAESU FT 817 Service Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
