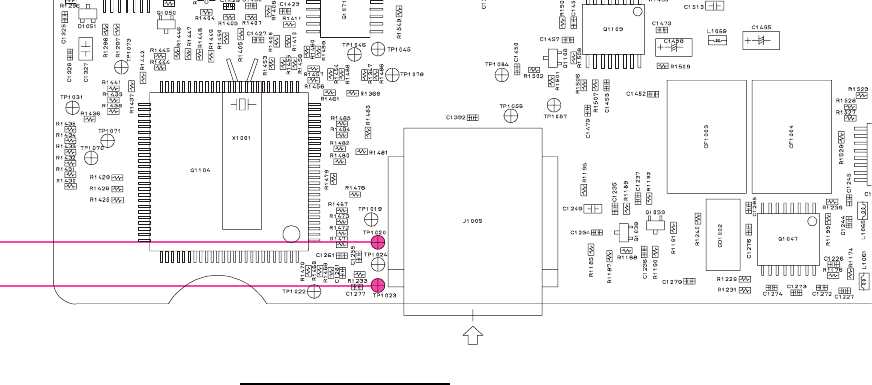

- MAIN Unit

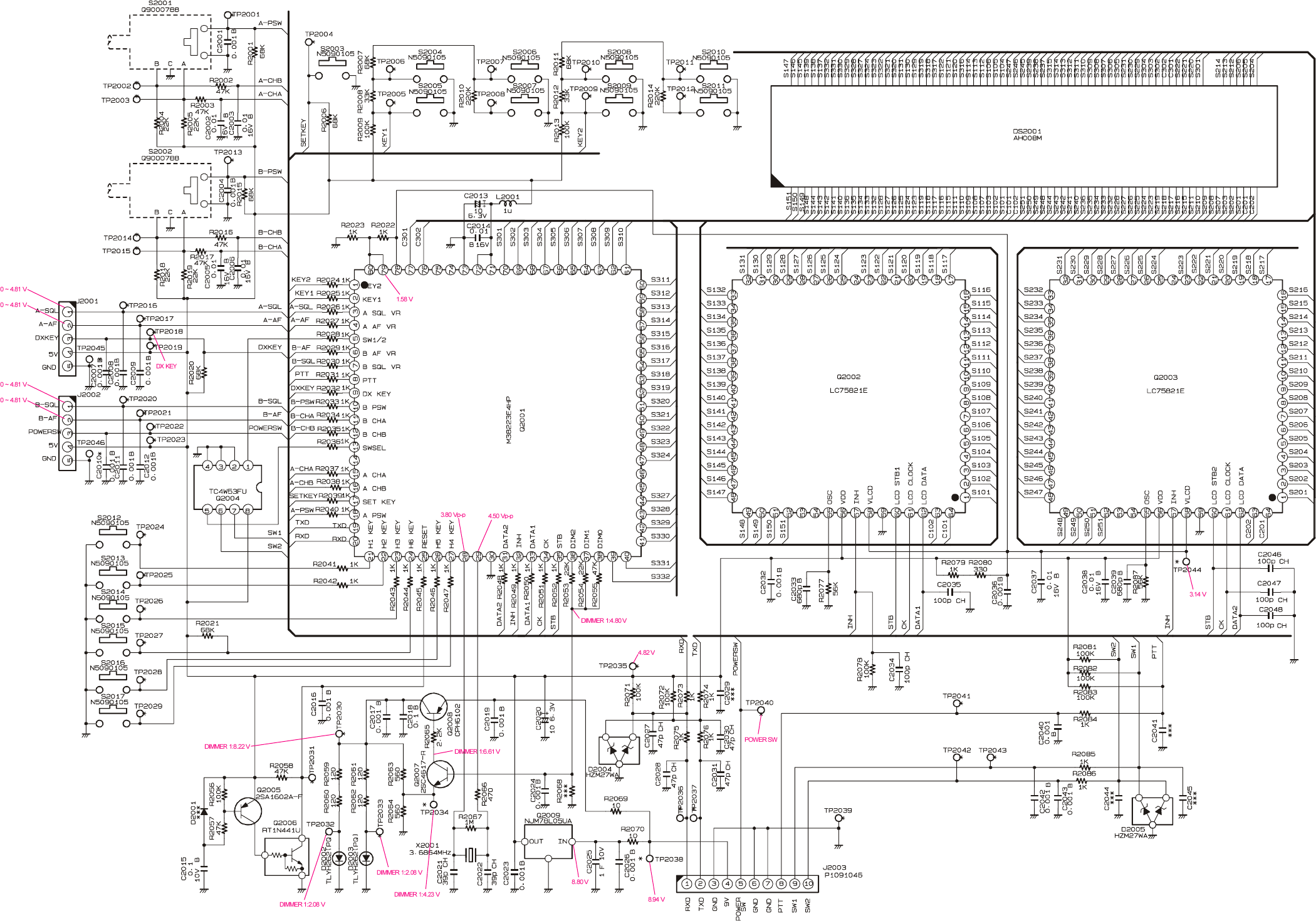

- PANEL Unit
- PANEL-SUB Unit

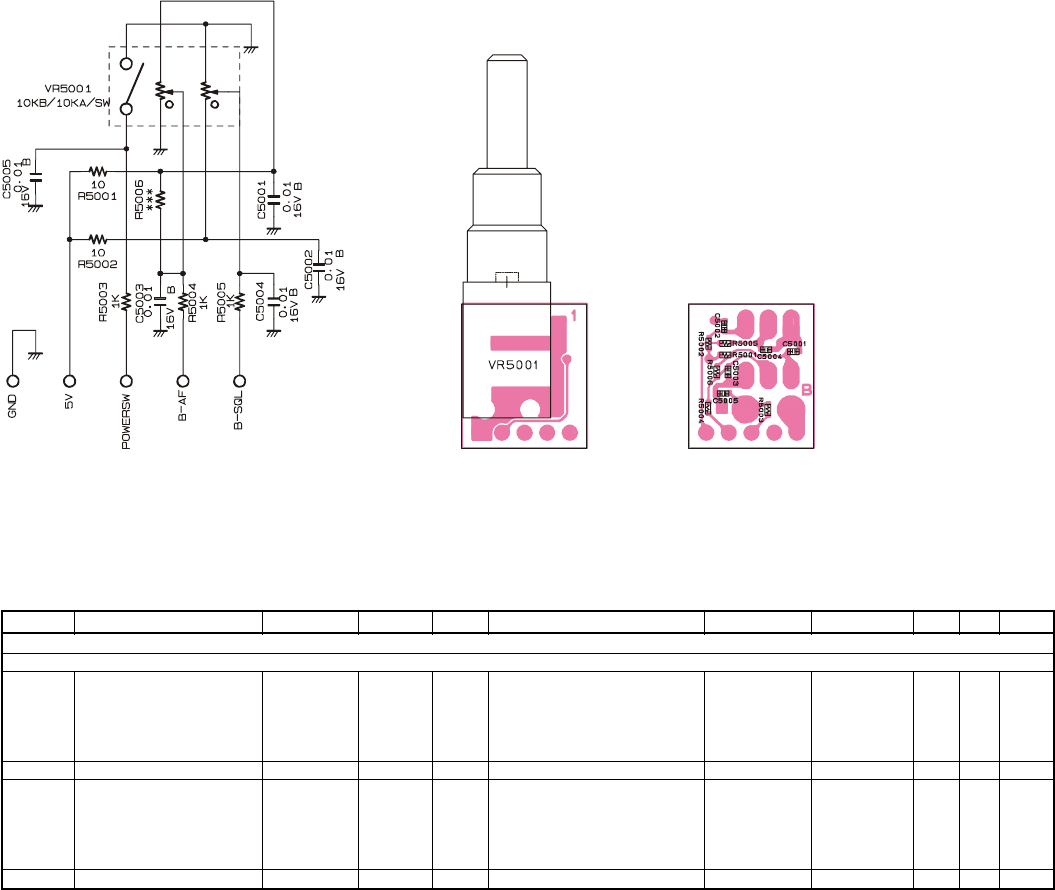

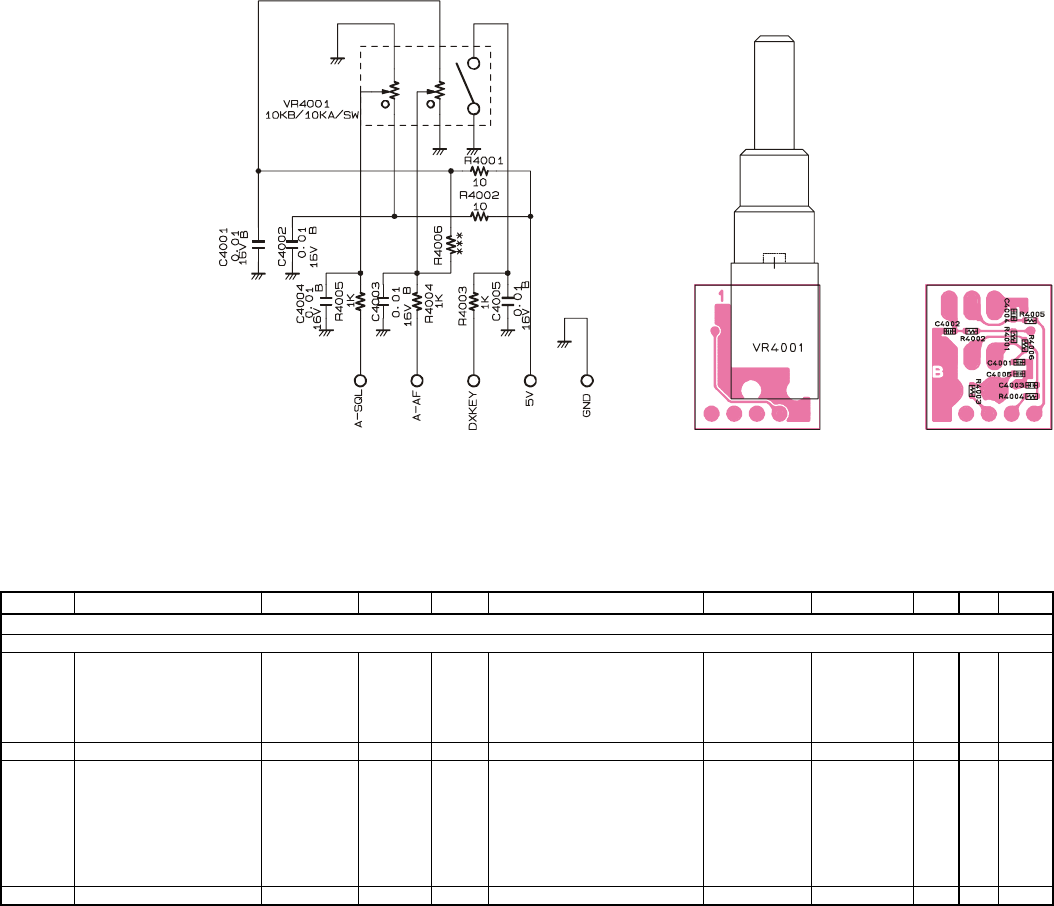

- VR-L Unit
- VR-R Unit
1
Dual Band FM Transceiver
FT-8800R
Technical Supplement
Introduction
This manual provides technical information necessary for servicing the FT-8800R Transceiver.
Servicing this equipment requires expertise in handling surface-mount chip components. Attempts by non-qualified
persons to service this equipment may result in permanent damage not covered by the warranty, and may be illegal in
some countries.

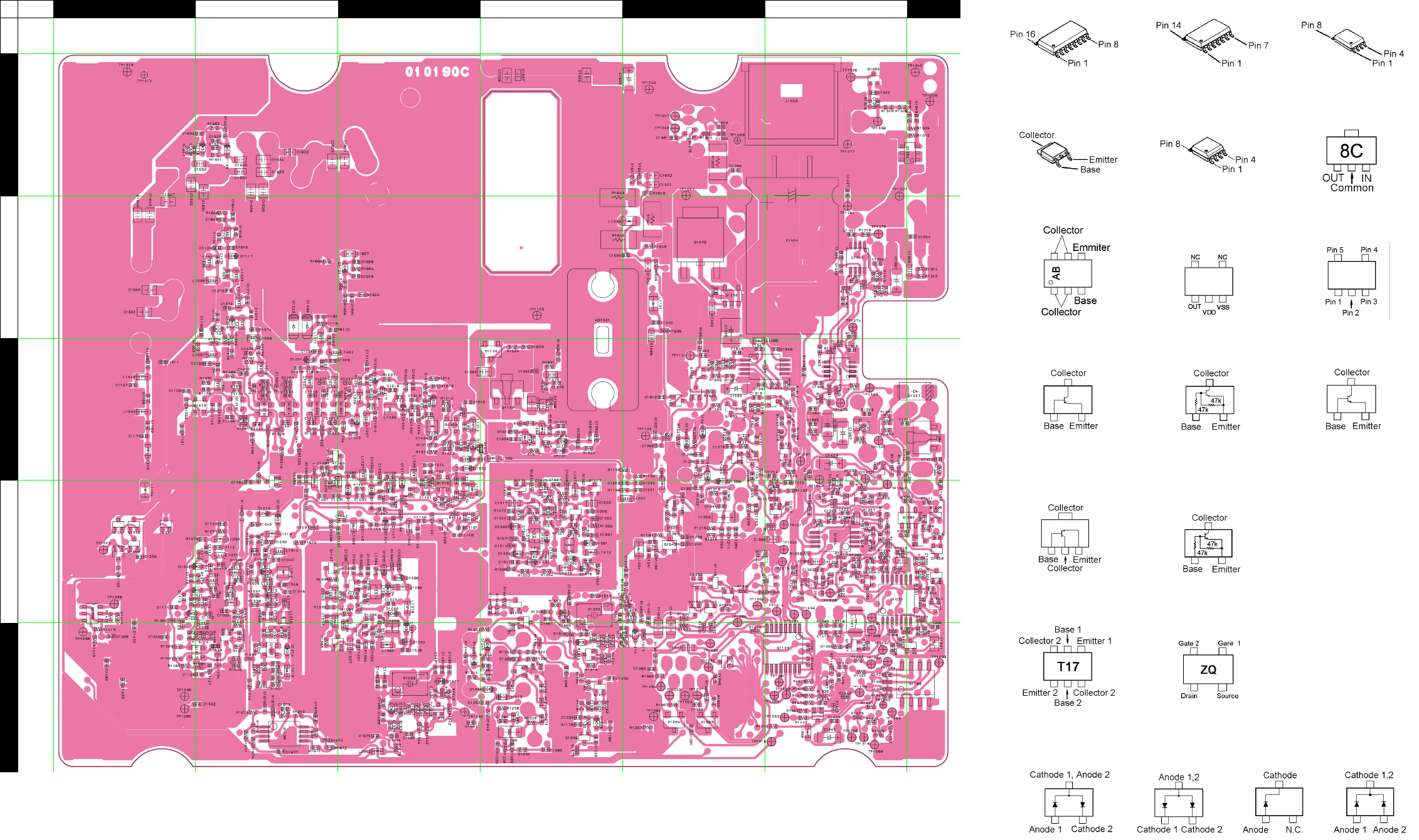

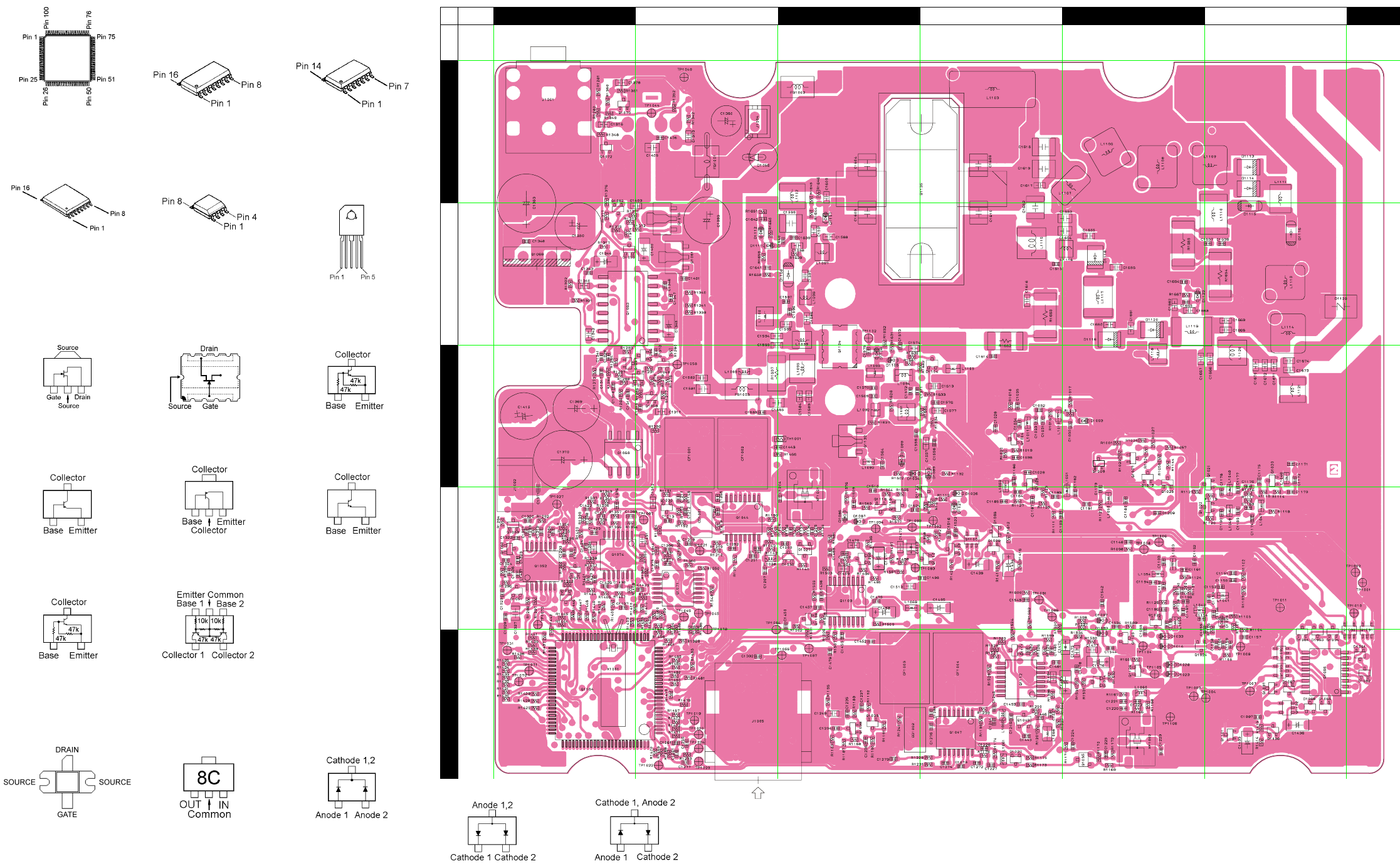

Two PCB layout diagrams are provided for each double-sided circuit board in the transceiver. Each side of thr board is
referred to by the type of the majority of components installed on that side (“leaded” or “chip-only”). In most cases one
side has only chip components, and the other has either a mixture of both chip and leaded components (trimmers, coils,
electrolytic capacitors, ICs, etc.), or leaded components only.
While we believe the technical information in this manual to be correct, Vertex Standard assumes no liability for dam-
age that may occur as a result of typographical or other errors that may be present. Your cooperation in pointing out any
inconsistencies in the technical information would be appreciated.
Specifications ..................................................... 2
Exploded View & Miscellaneous Parts ......... 3
Block Diagram .................................................... 5
Circuit Description ............................................ 7
Alignment ......................................................... 11
Contents
Board Unit (Schematics, Layouts & Parts)

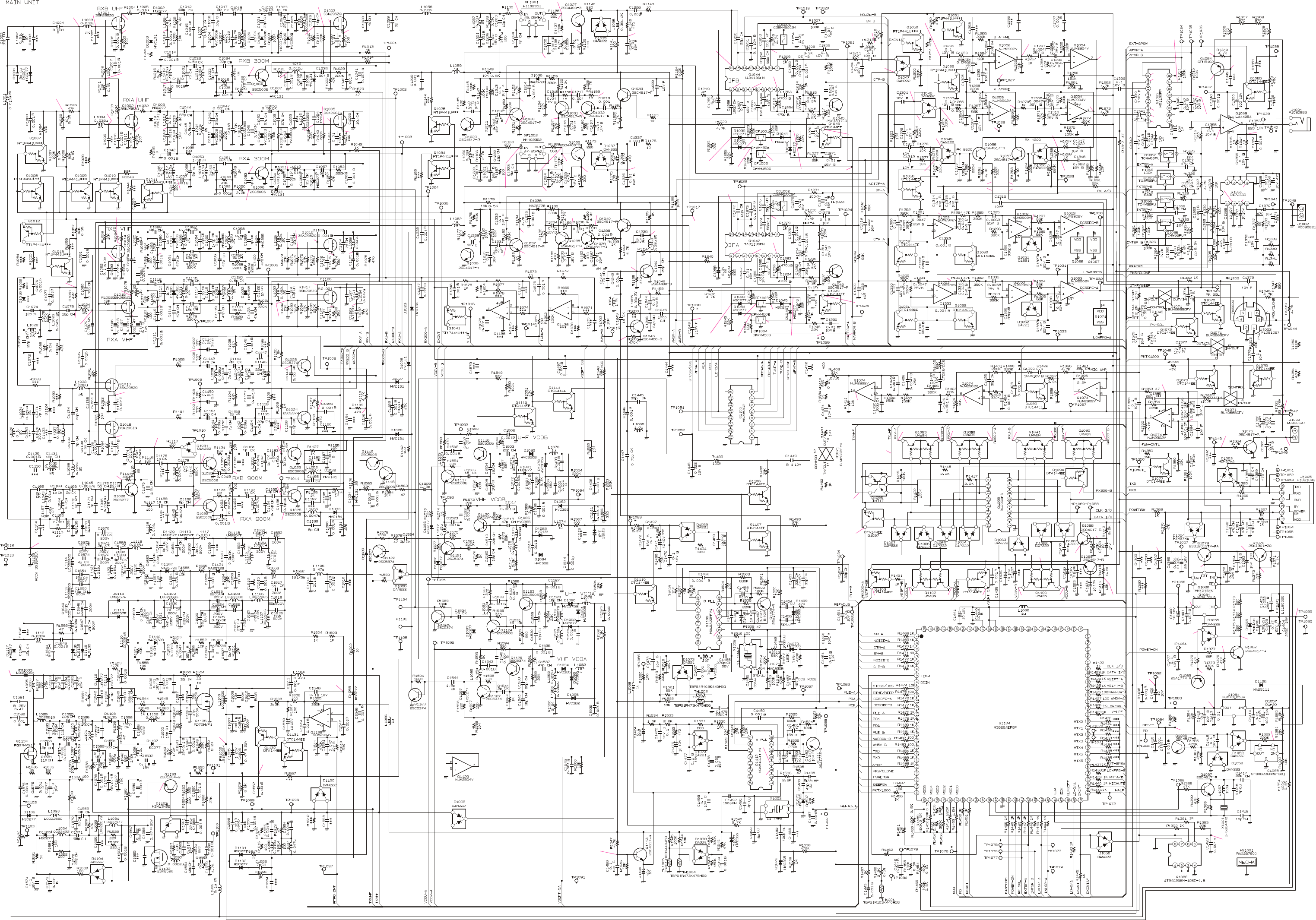

Main Unit ...................................................................... 17
Panel Unit ..................................................................... 45
Panel-Sub Unit ............................................................. 51
VR-L Unit ...................................................................... 53
VR-R Unit ...................................................................... 54
© 2003 VERTEX STANDARD CO., LTD. (EH018M90A)
VERTEX STANDARD CO., LTD.
4-8-8 Nakameguro, Meguro-Ku, Tokyo 153-8644, Japan
VERTEX STANDARD
US Headquarters
10900 Walker Street, Cypress, CA 90630, U.S.A.
International Division
8350 N.W. 52nd Terrace, Suite 201, Miami, FL 33166, U.S.A.
YAESU EUROPE B.V.
P.O. Box 75525, 1118 ZN Schiphol, The Netherlands
YAESU UK LTD.
Unit 12, Sun Valley Business Park, Winnall Close
Winchester, Hampshire, SO23 0LB, U.K.
VERTEX STANDARD HK LTD.
Unit 5, 20/F., Seaview Centre, 139-141 Hoi Bun Road,
Kwun Tong, Kowloon, Hong Kong
14
6
5
2
3
LOW
SQL SQL
VOL VOL
LOW V/M HM SCN
V/M HM SC N
KEY2
PWR
2
Specifications
GENERAL
Frequency Range: RX: 108.000 - 520.000 MHz,
700.000 - 999.995 MHz (Cellular Blocked)
TX: 144.000 - 146.000 MHz (or 144.000 - 148.000 MHz),
430.000 - 440.000 MHz (or 430.00 - 450.000 MHz)
Channel Steps: 5/10/12.5/15/20/25/50 kHz
Modes of Emission: F3, F2
Antenna Impedance: 50-Ohms, unbalanced (Antenna Duplexer built-in)
Frequency Stability: ±5 ppm @ 14° F ~ +140° F (–10 °C ~ +60 °C)
Operating Temperature Range: –4° F ~ +140° F (–20 °C ~ +60 °C)
Supply Voltage: 13.8 VDC (±15%), negative ground
Current Consumption (Approx.): RX: 0.5 A (Squelched)
TX: 8.5 A (144 MHz), 8.0 A (430 MHz)
Case Size (W x H x D): 5.5” x 1.6” x 6.6” (140 x 41.5 x 168 mm) (w/o knobs & connectors)
Weight (Approx.): 2.2 lb (1 kg)
TRANSMITTER
Output Power: 50/20/10/5 W (144 MHz),
35/20/10/5 W (430 MHz)
Modulation Type: Variable Reactance
Maximum Deviation: ±5 kHz
Spurious Radiation: Better than –60 dB
Microphone Impedance:2 kΩ
DATA Jack Impedance: 10 kΩ
RECEIVER
Circuit Type: Double-conversion superheterodyne
Intermediate Frequencies: 45.05 MHz/450 kHz (Main band),
47.25 MHz/450 kHz (Sub band)
Sensitivity (for 12dB SINAD): Better than 0.2 µV
Squelch Sensitivity: Better than 0.16 µV
Selectivity (–6dB/–60dB): 8 kHz/30 kHz
Maximum AF Output: 2 W @ 8 Ω for 5% THD
AF Output Impedance: 4-16 Ω
Specifications are subject to change without notice, and are guaranteed within the 144 and 430 MHz amateur bands only. Frequen-
cy ranges will vary according to transceiver version; check with your dealer.
3

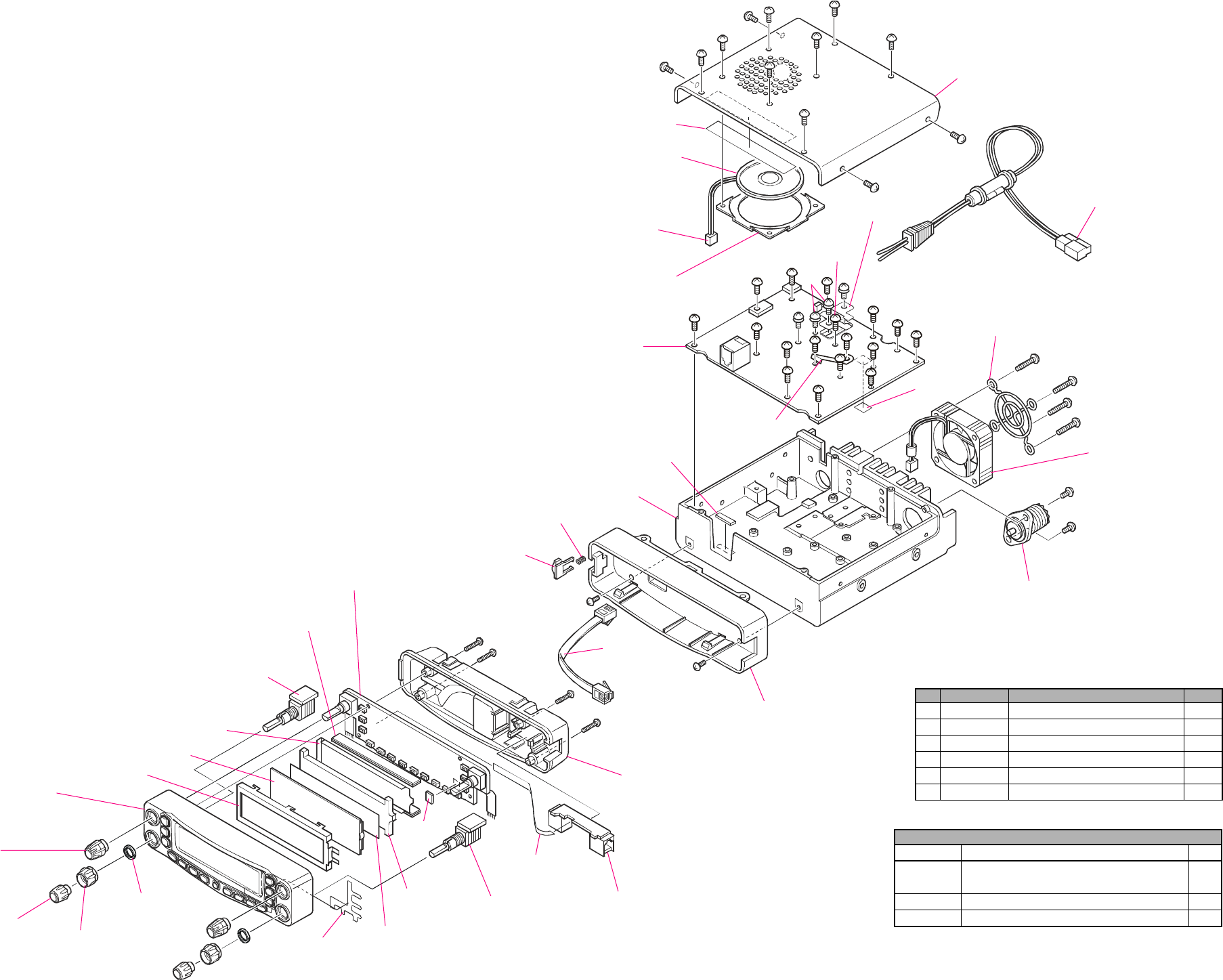

Exploded View & Miscellaneous Parts
RA0396700
LIGHT GUIDE
RA0396800
LCD HOLDER
RA0396900 (x2 pcs)
INTER CONNECTOR
RA0397100
REFLECTOR SHEET
RA0397000
DIFFUSER SHEET
M2090034A
FAN
M4090149
SPEAKER
RA0404400 (x2 pcs)
KNOB
RA0404300 (x2 pcs)
KNOB
RA0404200 (x2 pcs)
ENCODER KNOB
R6054387B (x2 pcs)
SPECIAL NUT
RA0507300
FRONT PANEL ASSY
RA0407200
SPACER
T9207010A
WIRE ASSY
RA040710A
LIGHT SHEET
T9206438A
WIRE ASSY
R0150630
HOLDER
RA02132A0
HIMERON TAPE
CS1770001
CASE (W/O NYLON NET)
T9206228
WIRE ASSY
RA040480A
SUB PANEL ASSY
(W/ COIL SPRING, RELEASE KNOB)
T9101509
CT CABLE
S5000206
FAN GUARD
P1090984
CONNECTOR
RA0446200
LEAF SPRING
RA0396100
REAR PANEL
RA02668AA
CHASSIS
RA0441300
PAD
RA0438700
RUBBER
G6090147A
LCD
VR-L Unit
VR-R UNIT
PANEL Unit
PANEL-SUB UNIT
MAIN UNIT
RA0415200 (x2 pcs)
GROUND PLATE
R0137550
COIL SPRING
RA026900A
RELEASE KNOB
No. VXSTD P/N DESCRIPTION QTY.
U23116007 TAPTITE SCREW M2X16B 4
U31206007 OVAL HEAD SCREW M2.6X6B 14
U44308002 TAPTITE SCREW M3X8NI 17
U03310002 SEMS SCREW ASM3X10NI 4
U20308002 BINDING HEAD SCREW M3X8NI 2
U20318007 BINDING HEAD SCREW M3X18B 4
Non-designated parts are available only
as part of a designated assembly.
SUPPLIED ACCESSORIES
VXSTD P/N DESCRIPTION QTY.
AAA43X001 MH-48A6J
1
A07530005 MH-42B6JS
(depending on transceiver version)
T9021715 DC POWER CORD W/FUSE 1
Q0000081 SPARE FUSE 15 A 2
4
Exploded View & Miscellaneous Parts
Note:

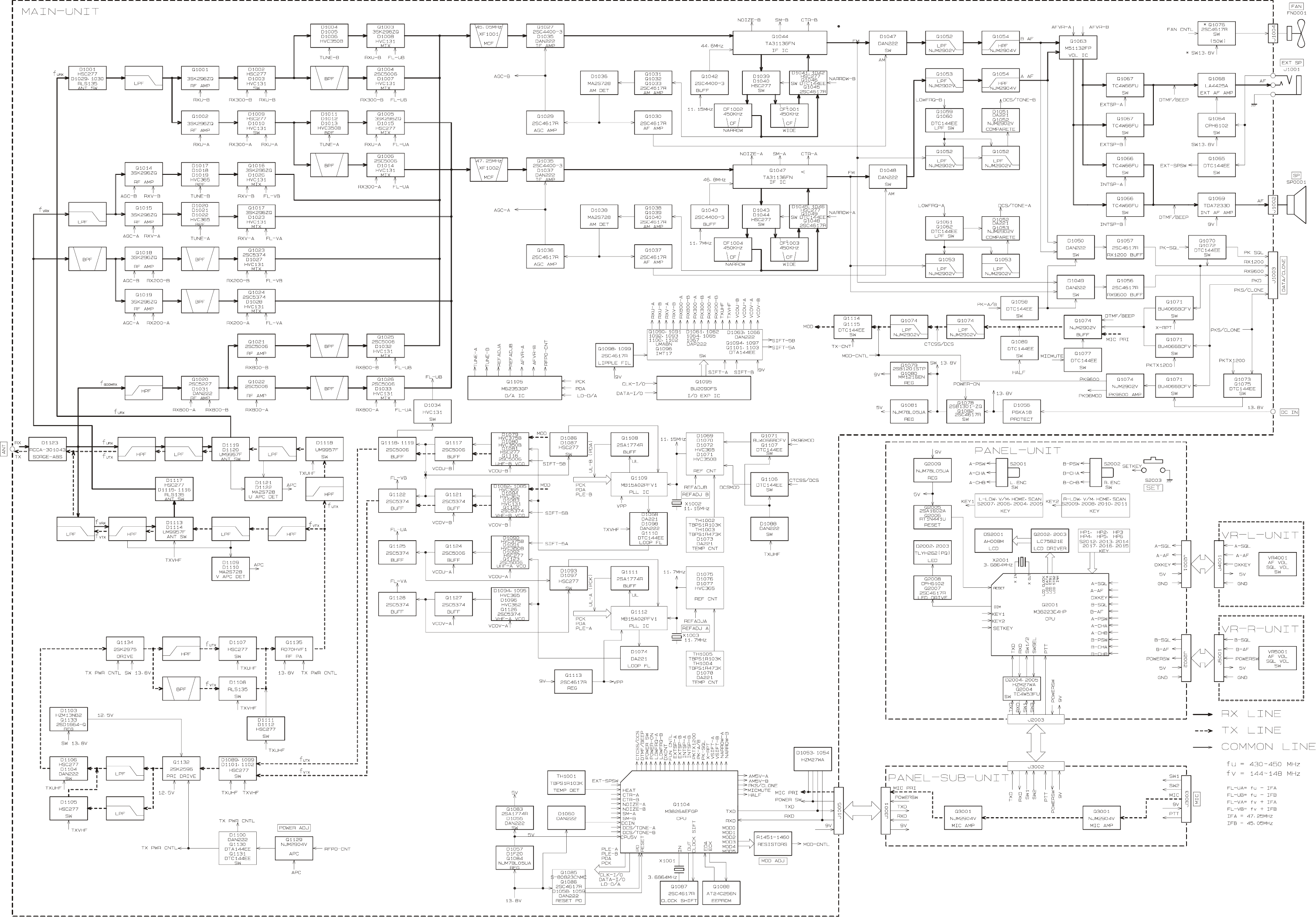

Block Diagram
5
Block Diagram
6
Note:
7
Circuit Description
Receiver Signal Path
“Main” Band 430 MHz Signal
The 430 MHz signal is passed through a high-pass filter
network and a low-pass filter network to the antenna
switch diodes D1029, D1030 (both RSL135) and D1001
(HSC277TRF), then passed through another low-pass fil-
ter network to the “Main” band RF amplifier Q1001
(3SK296ZQ).
The amplified 430 MHz signal is passed through the band
switch D1002 (HSC277) to the varactor-tuned band-pass
filter network consisting of D1004, D1005, and D1006 (all
HVC350B) and associated circuitry, then applied to the
first mixer Q1003 (3SK296ZQ). Meanwhile, the UHF lo-
cal signal from the UHF-VCO/B Q1116 (2SC5006) is de-
livered to first mixer Q1003, yielding the 45.05 MHz
“Main” band first IF.
“Main” Band 144 MHz Signal
The 144 MHz signal is passed through a low-pass filter
network and a high-pass filter network to the antenna
switch diodes D1113, D1114 (both UM9957F), D1115,
D1116 (both RLS135) and D1117 (both RLS135) then
passed through another low-pass filter network to the
“Main” band RF amplifier Q1014 (3SK296ZQ).
The amplified 144 MHz signal is passed through a varac-
tor-tuned band-pass filter network consisting of D1017,
D1018, D1019 (all HVC365) and associated circuitry to
the first mixer Q1016 (3SK296ZQ). Meanwhile, the VHF
local signal from the VHF-VCO/B Q1120 (2SC5374) is
delivered to first mixer Q1016, yielding the 45.05 MHz
“Main” band first IF.
“Main” Band IF and AF Signals
The 45.05 MHz “Main” band first local signal is delivered
to the monolithic crystal filter XF1001 which strips away
unwanted mixer products, then is passed through IF am-
plifier Q1027 (2SC4400) to the IF IC Q1044 (TA31136FN).
Meanwhile, a portion of the output of 11.15 MHz crystal
X1002 is multiplied fourfold by Q1042 (2SC4400) to pro-
vide the 44.6 MHz second local signal, then delivered to
the IF IC Q1044. Within the IF IC Q1044, the 44.6 MHz
second local signal is mixed with the 45.05 MHz “Main”
band first local signal to produce the 450 kHz “Main” band
second IF.
The 450 kHz “Main” band second IF is passed through
the filter switch D1039/D1041 (both HSC277) to the ce-
ramic filter CF1001 (CFWM450E) which strips away all
but the desired signal, then it passes through the IF am-
plifier within Q1044 to the ceramic discriminator CD1001
(CDBM450C24), which removes any amplitude variations
in the 450 kHz IF signal before detection of speech.
The demodulated “Main” band audio is passed through
the de-emphasis network, audio switch D1047 (DAN222),
low-pass filter network (consisting of Q1052 (NJM2902V)
and associated circuitry), and a high-pass filter network
(consisting of Q1054 (NJM2904V) and associated circuit-
ry). The filtered audio signal is passed through the audio
volume control IC Q1063 (M51132FP), which adjusts the
audio sensitivity to compensate for audio level variations,
then is delivered to the audio switch Q1066 and Q1067
(both TC4W66FU).
When the internal speaker is selected, the audio signal is
amplified by Q1069 (TDA7233D) then applied to the in-
ternal loudspeaker. When the external speaker is select-
ed, the audio signal is amplified by Q1068 (LA4425A),
then it passes through the EXT SP jack to the external loud-
speaker.
“Sub” Band 430 MHz Signal
The 430 MHz signal is passed through a high-pass filter
network and a low-pass filter network to the antenna
switch diodes D1029, D1030 (both RSL135) and D1001
(HSC277TRF), then passed through another low-pass fil-
ter network to the “Sub” band RF amplifier Q1002
(3SK296ZQ).
The amplified 430 MHz signal is delivered through the
band switch D1009 (HSC277) to the varactor-tuned band-
pass filter network consisting of D1011, D1012, D1013 (all
HVC350B) and associated circuitry, then applied to the
first mixer Q1005 (3SK296ZQ). Meanwhile, the UHF lo-
cal signal from the UHF-VCO/A Q1123 (2SC5006) is de-
livered to first mixer Q1005, yielding the 47.25 MHz “Sub”
band first IF.
“Sub” Band 144 MHz Signal
The 144 MHz signal is passed through a low-pass filter
network and a high-pass filter network to the antenna
switc diodes D1113, D1114 (both UM9957F), D1115,
D1116 (both RLS135) and D1117 (both RLS135), then
passed through another low-pass filter network to the
“Sub” band RF amplifier Q1015 (3SK296ZQ).
The amplified 144 MHz signal is passed through the var-
actor-tuned band-pass filter network consisting of D1020,
D1021, D1022 (all HVC365) and associated circuitry to
the first mixer Q1017 (3SK296ZQ). Meanwhile, the VHF
local signal from the VHF-VCO/A Q1126 (2SC5374) is
delivered to first mixer Q1017, yielding the 47.25 MHz
“Sub” band first IF.
“Sub” Band IF and AF Signal
The 47.25 MHz “Sub” band first IF is delivered to the
monolithic crystal filter XF1002 which strips away un-
wanted mixer products, then passed through the IF am-
plifier Q1035 (2SC4400) to the IF IC Q1047 (TA31136FN).
8
Meanwhile, a portion of the output of 11.7 MHz crystal
X1003 is multiplied fourfold by Q1043 (2SC4400) to pro-
vide the 46.8 MHz second local signal, then applied to the
IF IC Q1047. Within the IF IC Q1047, the 46.8 MHz second
local signal is mixed with the 47.25 MHz “Sub” band first
local signal to produce the 450 kHz “Sub” band second IF.
The 450 kHz “Sub” band second IF is delivered to the
ceramic filter CF1003 (CFWM450E) which strips away all
but the desired signal, then passed through the IF ampli-
fier within Q1047 to the ceramic discriminator CD1002
(CDBM450C24) which removes any amplitude variations
in the 450 kHz IF signal before detection of speech.
The demodulated “Sub” band audio is passed through the
de-emphasis network, audio switch D1048 (DAN222),
low-pass filter network (consisting of Q1053 (NJM2902V)
and associated circuitry) and the high-pass filter network
(consisting of Q1054 (NJM2904V) and associated circuit-
ry). The filtered audio signal is passed through the audio
volume control IC Q1063 (M511312FP), which adjusts the
audio sensitivity to compensate for audio level variations,
then is delivered to the audio switch Q1066 and Q1067
(both TC4W66FU).
When the internal speaker is selected, the audio signal is
amplified by Q1069 (TDA7233D) then applied to the in-
ternal loudspeaker. When the external speaker is select-
ed, the audio signal is amplified by Q1068 (LA4425A),
then it passes through the EXT SP jack to the external loud-
speaker.
Squelch Control
“Main” Band
When no carrier is being received on the “Main” band,
noise at the output of the detector stage in Q1044 is am-
plified and band-pass filtered by the noise amp section of
Q1044. The resulting DC voltage is delivered to pin 5 of
main CPU Q1104 (M38268MCL), which compares the
squelch threshold level to that which set by the front pan-
el SQL knob.
While no carrier is being received on the “Main” band,
pin 2 of Q1105 remain “low,” to disable the audio output
from the speaker.
“Sub” Band
When no carrier is being received on the “Sub” band, noise
at the output of the detector stage in Q1047 is amplified
and band-pass filtered by the noise amp section of Q1047.
The resulting DC voltage is delivered to pin 2 of main
CPU Q1104, which compares the squelch threshold level
to that which set by the front panel SQL knob.
While no carrier is being received on the “Right” band,
pin 15 of Q1105 remain “low,” to disable the audio out-
put from the speaker.
Transmitter Signal Path
AF Signal

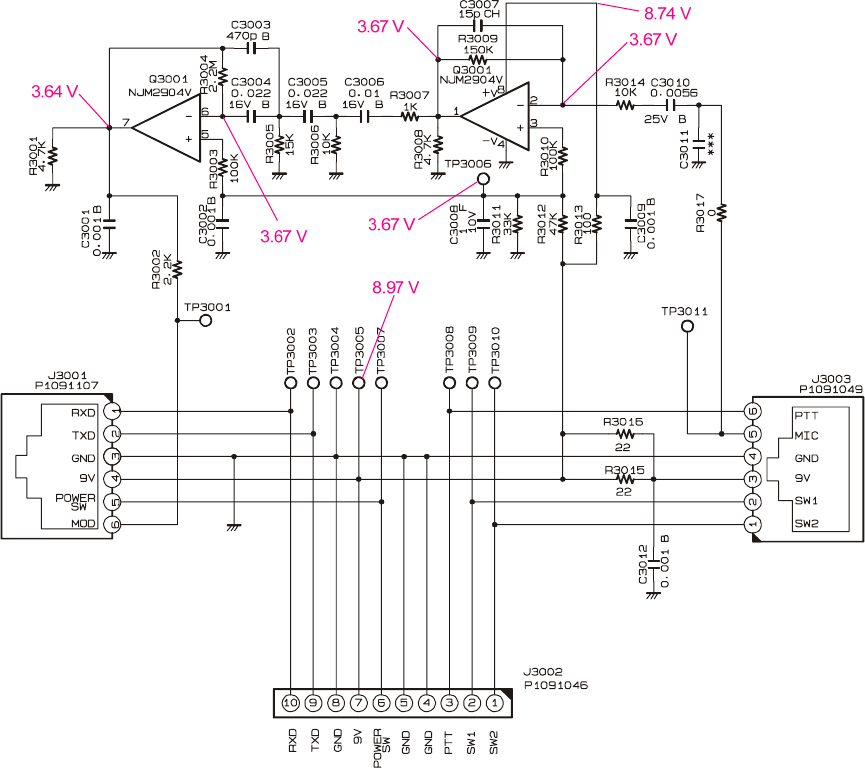

The speech signal from the microphone is passed through
the MIC jack J3003 to the AF amplifier Q3001 (NJM2904V)
on the PANEL-SUB UNT. The amplified speech signal is
passed through the panel separation jacks J3001 and J1005
to the MAIN Unit. On the MAIN UNIT, the speech signal
is delivered to the limiting amplifier Q1074 (NJM2902V) to
prevent over-modulation, then is delivered to a low-pass
filter network consisting of Q1074 and associated circuitry.
430 MHz Signal
The adjusted speech signal from Q1074 is passed through
transistor switch Q1114, Q1115 (both DTC144EE) to var-
actor diodes D1079 (HVC375B) and D1080 (HVC350B),
which frequency modulate the transmitting VCO, made
up of UHF-VCO/B Q1116 (2SC5006) and D1081
(HSC277).
The modulated transmit signal is passed through buffer
amplifiers Q1117, Q1118 and Q1119 (all 2SC5006) and
diode switches D1099, D1101 (both HSC277) to the pre-
drive amplifier Q1132 (2SK2596).
The amplified transmit signal from Q1132 is passed
through diode switch D1106 (HSC277) and the driver am-
plifier Q1134 (RD07MVS1) to the diode switch D1107
(HSC277), then finally amplified by power amplifier
Q1135 (RD70HVF1), providing up to 35 Watts of power
output. These three stages of the power amplifier’s gain
are controlled by the APC circuit.
The 35-Watt RF signal is passed through a high-pass fil-
ter network to the antenna switch D1118, D1119, and
D1120 (all UM9957F), then passed through a low-pass
filter network and another high-pass filter network to the
ANT jack.
144 MHz Signal
The adjusted speech signal from Q1074 is passed through
the transistor switch Q1114, Q1115 (both DTC144EE) to
varactor diodes D1082 and D1085 (both HVC365), which
frequency modulate the transmitting VCO, made up of
VHF-VCO/B Q1120 (2SC5374) and D1083 (HVC131).
The modulated transmit signal is passed through buffer
amplifiers Q1121 and Q1122 (both 2SC5374) and diode
switches D1089 and D1102 (both HSC277) to the pre-drive
amplifier Q1132 (2SK2596).
The amplified transmit signal from Q1132 is passed
through the diode switch D1105, D1106 (both HSC277)
and the driver amplifier Q1134 (RD07MVS1) to diode
switch D1108 (RLS135), then finally amplified by power
amplifier Q1135 (RD70HVF1) up to 50 Watts of power
output. These three stages of the power amplifier’s gain
are controlled by the APC circuit.
Circuit Description
9
The 50-Watt RF signal is passed through a low-pass filter
network to the antenna switch D1113 and D1114
(UM9957F), then passed through a high-pass filter net-
work and another low-pass filter network to the ANT jack.
APC (Automatic Power Control) Circuit
430 MHz
A portion of the power amplifier output is rectified by
D1121 and D1122 (both MA2S728) then delivered to APC
Q1129 (NJM2904V), as a DC voltage which is proportional
to the output level of the power amplifier.
At Q1129, the rectified DC voltage from the power am-
plifier is compared to the reference voltage from the main
CPU Q1104 to produce a control voltage, which regulates
the supply voltage to the pre-drive amplifier Q1132
(2SK2596), driver amplifier Q1134 (RD07MVS1), and
power amplifier Q1135 (RD70HVF1), so as to maintain
stable output power under varying antenna loading con-
ditions.
144 MHz
A portion of the power amplifier output is rectified by
D1109 and D1110 (both MA2S728) then delivered to APC
Q1129 (NJM2904V), as a DC voltage which is proportional
to the output level of the power amplifier.
At Q1129, the rectified DC voltage from the power am-
plifier is compared to the reference voltage from the main
CPU Q1104 to produce a control voltage, which regulates
the supply voltage to the pre-drive amplifier Q1132
(2SK2596), driver amplifier Q1134 (RD07MVS1), and
power amplifier Q1135 (RD70HVF1), so as to maintain
stable output power under varying antenna loading con-
ditions.
PTT (Push to Talk) Circuit
430 MHz
When the PTT switch is pressed, pin 8 of sub CPU Q2001
(M38223M4M) goes “high,” which sends the “PTT” com-
mand to main CPU Q1104.
When the “PTT” command is received, the main CPU
controls the I/O IC Q1095 (BU2090FS), causing pin 8 of
Q1095 to go “low” which activates the UHF TX switch
section of Q1096 (IMT17).
When the UHF TX switch section of Q1096 is activated, it
controls the antenna switch diodes D1118, D1119, and
D1120 (all UM9957F), modulator switching diode D1088
(DAN222), modulator switching transistor Q1114 and
Q1115 (both DTC144EE), diode switches D1099, D1101,
D1106 and D1107 (all HSC277), and APC switches Q1130
(DTA144EE) and Q1131 (DTC144EE), which activate the
430 MHz transmitter circuit.
144 MHz
When the PTT switch is pressed, pin 8 of sub CPU Q2001
(M38223M4M) goes “high,” which sends the “PTT” com-
mand to main CPU Q1104.
When the “PTT” command is received, the main CPU
controls the I/O IC Q1095 (BU2090FS), causing pin 9 of
Q1095 to go “low” which activates the VHF TX switch
section of Q1096 (IMT17).
When the VHF TX switch section of Q1096 is activated, it
controls the antenna switch diodes D1113 and D1114
(both UM9957F), D1117 (HSC277) and D1115, D1116
(RLS135), modulator switching transistor Q1114 and
Q1115 (both DTC144EE), diode switches D1089, D1102,
D1105, D1106 (all HSC277) and D1108 (RLS135), and APC
switches Q1130 (DTA144EE) and Q1131 (DTC144EE),
which activate the 144 MHz transmitter circuit.
PLL Circuit
“Main” band
A portion of the output from UHF-VCO/B Q1116
(2SC5006) is passed through buffer amplifier Q1117
(2SC5006) and diode switch D1086 (HSC277) to the pro-
grammable divider section of the PLL IC Q1109
(MB15A02PFV1), where it is divided according to the fre-
quency dividing data associated with the operating fre-
quency input from the main CPU Q1104. It is then sent to
the phase comparator.
A portion of the output from the VHF-VCO/B Q1120
(2SC5374) is passed through buffer amplifier Q1121
(2SC5374) and diode switch D1087 (HSC277) to the pro-
grammable divider section of the PLL IC Q1109, where it
is divided according to the frequency dividing data asso-
ciated with the operating frequency input from the main
CPU Q1104. It is then sent to the phase comparator.
The 11.15 MHz reference oscillator X1002 frequency is di-
vided by the reference frequency divider section of Q1109
into 2230 or 1784 parts, to become 5 kHz or 6.25 kHz com-
parative reference frequencies, which are utilized by the
phase comparator.
The phase comparator section of Q1109 compares the
phase between the frequency-divided oscillation frequen-
cy of the VCO circuit and the comparative frequency, and
its output is a pulse corresponding to the phase differ-
ence. This pulse is integrated by the loop filter into a con-
trol voltage (VCV) to control the oscillation frequency of
the VCOs.
Circuit Description
10
“Sub” band
A portion of the output from the UHF-VCO/A Q1123
(2SC5006) is passed through buffer amplifier Q1124
(2SC5006) and diode switch D1093 (HVC131) to the pro-
grammable divider section of the PLL IC Q1122
(MB15A02PFV1), where it is divided according to the fre-
quency dividing data associated with the operating fre-
quency input from the main CPU Q1104. It is then sent to
the phase comparator.
A portion of the output from the VHF-VCO/A Q1126
(2SC5374) is passed through buffer amplifier Q1127
(2SC5374) and diode switch D1097 (HVC131) to the pro-
grammable divider section of the PLL IC Q1122, where it
is divided according to the frequency dividing data asso-
ciated with the operating frequency input from the main
CPU Q1104. It is then sent to the phase comparator.
The 11.7 MHz reference oscillator X1003 frequency is di-
vided by the reference frequency divider section of Q1122
into 2340 or 1872 parts to become 5 kHz or 6.25 kHz com-
parative reference frequencies, which are utilized by the
phase comparator.
The phase comparator section of Q1122 compares the
phase between the frequency-divided oscillation frequen-
cy of the VCO circuit and the comparative frequency, and
its output is a pulse corresponding to the phase differ-
ence. This pulse is integrated by the loop filter into a con-
trol voltage (VCV) to control the oscillation frequency of
the VCOs.
Circuit Description
Power Supply Line
When the user presses and holds in the “Right” VOL knob
for 2 seconds, pin 23 of the main CPU Q1104 goes “low”
and pin 40 of main CPU Q1104 goes “high,” which acti-
vates the power switch Q1078 (2SB1301) and Q1082
(2SC4617), to supply 13.8 VDC to each circuit in the trans-
ceiver.
11
Alignment
Introduction and Precautions
The FT-8800R has been carefully aligned at the factory
for the specified performance across the 144 MHz and 430
MHz amateur bands. Realignment should therefore not
be necessary except in the event of a component failure.
All component replacement and service should be per-
formed only by an authorized Vertex Standard represen-
tative, or the warranty policy may be voided.
The following procedures cover the sometimes critical and
tedious adjustments that are not normally required once
the transceiver has left the factory. However, if damage
occurs and some parts are replaced, realignment may be
required. If a sudden problem occurs during normal op-
eration, it is likely due to component failure; realignment
should not be done until after the faulty component has
been replaced.
We recommend that servicing be performed only by au-
thorized Vertex Standard service technicians who are ex-
perienced with the circuitry and fully equipped for re-
pair and alignment. Therefore, if a fault is suspected, con-
tact the dealer from whom the transceiver was purchased
for instructions regarding repair. Authorized Vertex Stan-
dard service technicians realign all circuits and make com-
plete performance checks to ensure compliance with fac-
tory specifications after replacing any faulty components.
Those who do undertake any of the following alignments
are cautioned to proceed at their own risk. Problems caused
by unauthorized attempts at realignment are not covered
by the warranty policy. Also, Vertex Standard must re-
serve the right to change circuits and alignment procedures
in the interest of improved performance, without notify-
ing owners.
Under no circumstances should any alignment be attempt-
ed unless the normal function and operation of the trans-
ceiver are clearly understood, the cause of the malfunc-
tion has been clearly pinpointed and any faulty compo-
nents replaced, and the need for realignment determined
to be absolutely necessary.
Required Test Equipment
The following test equipment (and thorough familiarity
with its correct use) is necessary for complete realignment.
Correction of problems caused by misalignment result-
ing from use of improper test equipment is not covered
under the warranty policy. While most steps do not re-
quire all of the equipment listed, the interactions of some
adjustments may require that more complex adjustments
be performed afterwards. Do not attempt to perform only
a single step unless it is clearly isolated electrically from
all other steps. Have all test equipment ready before be-
ginning, and follow all of the steps in a section in the or-
der presented.
Regulated DC Power Supply: adjustable from 11.5 to
16 VDC, 10 A
RF Signal Generator with calibrated output level at
500 MHz
Frequency Counter: ±0.1 ppm accuracy at 500 MHz
AF Signal Generator
SINAD Meter
Oscilloscope
Spectrum Analyzer
Deviation Meter (linear detector)
AF Milivoltmeter
AF Dummy Load: 8-Ohm, 5 W
DC Voltmeter: high impedance
Inline Wattmeter with 5% accuracy at 500 MHz
50-Ohm non-reactive Dummy Load:
100 watts at 500 MHz
VHF/UHF Sampling Coupler

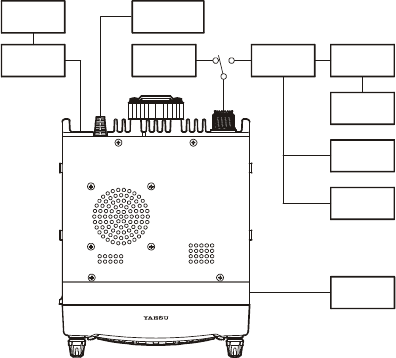

Set up the test equipment as shown for the transceiver
alignment, and apply 13.8 VDC power to the transceiver.
Alignment Preparation & Precautions
A dummy load and inline wattmeter must be connected
to the main antenna jack in all procedures that call for
transmission, except where specified otherwise. Correct
alignment is not possible with an antenna. After complet-
ing one step, read the following step to determine wheth-
er the same test equipment will be required. If not, re-
move the test equipment (except dummy load and watt-
meter, if connected) before proceeding.
Correct alignment requires that the ambient temperature
in the repair shop be the same as that of the transceiver
and test equipment, and that this temperature be held
constant between 68 °C and 86 °F (20 °C ~ 30 °C). When
the transceiver is brought into the shop from hot or cold
air it should be allowed some time for thermal equaliza-
tion with the environment before alignment. If possible,
alignments should be made with oscillator shields and
circuit boards firmly affixed in place. Also, the test equip-
ment must be thoroughly warmed up before beginning.
Notes: Signal levels in dB referred to in alignment are
based on 0 dBµ = 0.5 µV (closed circuit).
DUAL BAND FM TRANSCEIVER
FT-8800R
Power Supply
13.8 VDC
Pin 5
EXT SP
Frequency
Counter
Deviation
Meter
Inline
Wattmeter
50-ohm
Dummy Load
RF Sampling
Coupler
RF Signal
Generator
8-ohm
Dummy Load
SINAD
Meter
AF Signal
Generator
12
Alignment
Entering the Alignment mode
Alignment of the FT-8800R is performed using a front-panel
software-based procedure. To perform alignment of the trans-
ceiver, it must first be placed in the “Alignment Mode,” in which
the adjustments will be made and then stored into memory.
To enter the Alignment mode:
1. Press and hold in the “Left” band [V/M] key and the
Hyper Memory [6] key while turning the radio on.
Once the radio is on, release these two keys.
2. Press the front panel keys in the following sequence.
“Left” band [LOW] “Left” band [V/M]
“Left” band [HM] “Left” band [SCN]
“Right” band [LOW] “Right” band [V/M]
“Right” band [HM] “Right” band [SCN].
3. You will now note the appearance of “b-0 REF.xxH” on
the display, this signifies that the transceiver is now
in the “Alignment” mode.
PLL Reference Frequency
1. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
2. Tune the “Right” band frequency to 435.050 MHz.
3. Press and hold in the in the “Left” DIAL knob, if
needed, to set the Alignment parameter to “b-0
REF.xxH.”
4. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
counter frequency reading is 435.050 MHz (±100 Hz).
5. Press the “Right” band [SCN] key.
6. Press and hold in the in the “Right” DIAL knob, if
needed, to set the Alignment parameter to “A-0
REF.xxH.”
7. Tune the “Left” band frequency to 435.050 MHz.
8. Connect the frequency counter fed through the 0.001
µF capactor to the TP1104.
9. Adjust the “Right” DIAL knob, as needed, so that the
counter frequency reading is 387.800 MHz (±100 Hz).
RF Front-end Tuning
1. Connect the DC voltmeter to TP1020 on the MAIN
Unit, then inject a 439.050 MHz signal at a level of +10
dBµ (with 1 kHz modulation @ ±3.5 kHz deviation)
from the RF Signal Generator.
2. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
3. Tune the “Right” band frequency to 439.050 MHz.
4. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-1 TUN.xxH.”
5. Adjust the “Left” DIAL knob, as needed, so that the
DC voltmeter reading is 1.1 V.
6. Tune the “Right” band frequency to 145.050 MHz.
7. Inject a 145.050 MHz signal at a level of +10 dBµ (with
1 kHz modulation @ ±3.5 kHz deviation) from the RF
Signal Generator.
8. Adjust the “Left” DIAL knob, as needed, so that the
DC voltmeter reading is 1.2 V.
9. Press the “Right” band [SCN] key.
10. Press and hold in the in the “Right” DIAL knob, if
needed, to set the Alignment parameter to “A-1
TUN.xxH.”
11. Connect the DC voltmeter to TP1023 on the MAIN
Unit.
12. Tune the “Left” band frequency to 439.050 MHz.
13. Inject a 439.050 MHz signal at a level of +10 dBµ (with
1 kHz modulation @ ±3.5 kHz deviation) from the RF
Signal Generator.
14. Adjust the “Right” DIAL knob, as needed, so that the
DC voltmeter reading is 1.1 V.
15. Tune the “Left” band frequency to 145.050 MHz.
16. Inject a 145.050 MHz signal at a level of +10 dBµ (with
1 kHz modulation @ ±3.5 kHz deviation) from the RF
Signal Generator.
17. Adjust the “Right” DIAL knob, as needed, so that the
DC voltmeter reading is 1.2 V.
TP1020
TP1023
MAIN UNIT TEST POINTS
13
Alignment
TX Power Output
1. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
2. Tune the “Right” band frequency to 440.050 MHz, then
set the Transmit Power Level to “LOW.”
3. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-2 PWR.xxH.”
4. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 5 Watts (±0.5 Watt).
5. Increase the Transmit Power Level to “MID2.”
6. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 10 Watts (±0.5 Watt).
7. Increase the Transmit Power Level to “MID1.”
8. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 20 Watts (±0.5 Watt).
9. Increase the Transmit Power Level to “HIGH.”
10. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 35 Watts (±0.5 Watt).
11. Tune the “Right” band frequency to 146.050 MHz, then
set the Transmit Power Level to “LOW.”
12. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 5 Watts (±0.5 Watt).
13. Increase the Transmit Power Level to “MID2.”
14. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 10 Watts (±0.5 Watt).
15. Increase the Transmit Power Level to “MID1.”
16. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 20 Watts (±0.5 Watt).
17. Increase the Transmit Power Level to “HIGH.”
18. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
wattmeter reading is 50 Watts (±0.5 Watt).
TX Deviation
1. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
2. Tune the “Right” band frequency to 440.050 MHz, then
set the Transmit Power Level to “LOW.”
3. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-3 DEV.xxH.”
4. Inject a 1 kHz audio tone at a level of 80 mV from the
Audio Generator.
5. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
deviation meter reading is 4.5 kHz (±0.2 kHz) (USA
Version: 4.2 kHz (±0.2 kHz)).
6. Tune the “Right” band frequency to 146.050 MHz, then
set the Transmit Power Level to “LOW.”
7. Press the PTT switch to activate the transmitter, and
adjust the “Left” DIAL knob, as needed, so that the
deviation meter reading is 4.5 kHz (±0.2 kHz) (USA
Version: 4.2 kHz (±0.2 kHz)).
DCS Tx Deviation
1. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
2. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-4 DCS.xxH.”
3. Tune the “Right” band frequency to 440.050 MHz, then
activate DCS with the 023 DCS code, and set the Trans-
mit Power Level to “LOW.”
4. Press the PTT switch to activate the transmitter (with
no microphone input), and adjust the “Left” DIAL
knob, as needed, so that the deviation meter reading
is between 0.60 kHz and 0.80 kHz.
5. Tune the “Right” band frequency to 146.050 MHz, then
activate DCS with the 023 DCS code, and set the Trans-
mit Power Level to “LOW.”
6. Press the PTT switch to activate the transmitter (with
no microphone input), adjust the “Left” DIAL knob,
as needed, so that the deviation meter reading is be-
tween 0.60 kHz and 0.80 kHz.
14
CTCSS Tx Deviation
1. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
2. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-5 CTC.xxH.”
3. Tune the “Right” band frequency to 440.050 MHz, then
activate the CTCSS Encoder with a 100 Hz tone, and
set the Transmit Power Level to “LOW.”
4. Press the PTT switch to activate the transmitter (with
no microphone input), and adjust the “Left” DIAL
knob, as needed, so that the deviation meter reading
is between 0.65 kHz and 0.75 kHz.
5. Tune the “Right” band frequency to 146.050 MHz, then
activate the CTCSS Encoder with a 100 Hz tone, and
set the Transmit Power Level to “LOW.”
6. Press the PTT switch to activate the transmitter (with
no microphone input), and adjust the “Left” DIAL
knob, as needed, so that the deviation meter reading
is between 0.65 kHz and 0.75 kHz.
Center Meter Sensitivity
1. Inject a 440.050 MHz signal at a level of 10 dBµ from
the RF Signal Generator.
2. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
3. Tune the “Right” band frequency to 440.050 MHz.
4. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-6 CTRL/V.”
5. Press the “Left” band [LOW] key.
6. Press the “Right” band [SCN] key.
7. Tune the “Left” band frequency to 440.050 MHz.
8. Press and hold in the “Right” DIAL knob to set the
Alignment parameter to “A-6 CTRL/V.”
9. Inject a 440.050 MHz signal at a level of 10 dBµ from
the RF Signal Generator.
10. Press the “Left” band [LOW] key.
S-Meter Sensitivity
1. Inject a 440.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
2. Press the “Sub” band DIAL knob momentarily, if
needed, to switch the “Main” band to be the “Right”
band.
3. Tune the “Right” band frequency to 440.050 MHz.
4. Press and hold in the in the “Left” DIAL knob to set
the Alignment parameter to “b-7 SM L/V.”
5. Press the “Left” band [LOW] key.
6. Increase the RF Signal Generator output level to +23
dBµ.
7. Press the “Left” band [V/M] key.
8. Tune the “Right” band frequency to 146.050 MHz.
9. Inject a 146.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
10. Press the “Left” band [LOW] key.
11. Increase the RF Signal Generator output level to +23
dBµ.
12. Press the “Left” band [V/M] key.
13. Tune the “Right” band frequency to 230.050 MHz.
14. Inject a 230.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
15. Press the “Left” band [LOW] key.
16. Increase the RF Signal Generator output level to +23
dBµ.
17. Press the “Left” band [V/M] key.
18. Tune the “Right” band frequency to 350.05 MHz.
19. Inject an 350.05 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
20. Press the “Left” band [LOW] key.
21. Increase the RF Signal Generator output level to +23
dBµ.
22. Press the “Left” band [V/M] key.
23. Tune the “Right” band frequency to 850.05 MHz.
24. Inject an 850.05 MHz signal at a level of +3 dBµ from
the RF Signal Generator.
25. Press the “Left” band [LOW] key.
26. Increase the RF Signal Generator output level to +31
dBµ.
27. Press the “Left” band [V/M] key.
28. Press the “Right” band [SCN] key.
29. Tune the “Left” band frequency to 440.050 MHz.
30. Inject a 440.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
31. Press and hold in the in the “Right” DIAL knob to set
the Alignment parameter to “a-7 SM L/V.”
32. Press the “Left” band [LOW] key.
33. Increase the RF Signal Generator output level to +23
dBµ.
34. Press the “Left” band [V/M] key.
35. Tune the “Left” band frequency to 146.050 MHz.
36. Inject a 146.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
37. Press the “Left” band [LOW] key.
38. Increase the RF Signal Generator output level to +23
dBµ.
39. Press the “Left” band [V/M] key.
40. Tune the “Left” band frequency to 230.050 MHz.
41. Inject a 230.050 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
42. Press the “Left” band [LOW] key.
43. Increase the RF Signal Generator output level to +23
dBµ.
44. Press the “Left” band [V/M] key.
45. Tune the “Left” band frequency to 350.05 MHz.
46. Inject an 350.05 MHz signal at a level of –5 dBµ from
the RF Signal Generator.
47. Press the “Left” band [LOW] key.
48. Increase the RF Signal Generator output level to +23
dBµ.
Alignment
15
49. Press the “Left” band [V/M] key.
50. Tune the “Left” band frequency to 850.05 MHz.
51. Inject an 850.05 MHz signal at a level of +3 dBµ from
the RF Signal Generator.
52. Press the “Left” band [LOW] key.
53. Increase the RF Signal Generator output level to +31
dBµ.
54. Press the “Left” band [V/M] key.
Alignment
DC Voltmeter
1. Set the power supply voltage to 13.8 VDC.
2. Press and hold in the in the “Sub” band DIAL knob to
set the Alignment parameter to “b-8 BAT SC.”
3. Press the “Left” band [SCN] key.
To close the Alignment mode, just press and hold in the
“Right” VOL knob for 2 seconds (to turn the power off).
The next time the transceiver is turned on, normal opera-
tion may resume.
16
Note:
MAIN Unit
17
Circuit Diagram
0.80 V
1.36 V
[+2.7 dBu]
[+3.0 dBu]
[-1.4 dBu]
[+17.2 dBu]
0.29 V 8.56 V
8.55 V
0.29 V
[+16.9 dBu]
8.27 V
8.57 V
3.09 V
0.64 V
4.01 V
1.15 V 0.49 V
1.50 V
[+11.7 dBu]
[+13.4 dBu]
1.5 V
0.37 V
1.09 V
0.63 V
4.96 V
4.78 V
1.54 V
0.42 V 5.84 V
0.97 V (+16.5 dBu)
5.56 V
1.55 V
0.41 V
0.96 V
(+16.7 dBu)
8.11 V
8.12 V
0.34 V
0.33 V
(+18.3 dBu)
(+18.4 dBu)
0.96 V
(-4.3 dBu)
(+4.0 dBu)
8.11 V
8.14 V
0.33 V
0.31 V
0.68 V
0.68 V
2.80 V
2.80 V
0.66 V
7.78 V
0.75 V
0.68 V
0.68 V
8.71 V
(-8.5 dBu)
[-9.3 dBu]
(12.68V)
[12.80 V]
(12.80V)
[12.88 V]
(2.95V)
[3.66 V]
(11.68V)
[11.66 V]
(3.52V)
[3.32 V]
3.22 V
8.73 V
0.66 V
4.68 V
4.70 V
6.64 V
4.70 V
6.64 V
7.12 V
4.78 V 4.92 V 4.83 V 4.92 V 4.93 V 4.83 V
4.87 V 4.99 V
5.53 V
8.81 V
8.68 V
8.81 V
5.64 V
8.95 V 13.78 V
13.06 V
13.10 V
5.01 V
0.57 V
0.12 V
0.69 V
4.78 V 4.28 V
13.80 V
4.94 V
4.91 V 4.49 V
4.92 V
8.72 V
8.82 V 8.87 V 8.86 V 8.85 V 8.86 V 8.86 V 8.82 V 8.86 V
1.78 V
1.81 V
1.81 V
4.67 V
1.81 V
FAN on:4.14 V
off:0 V
FAN on:0.18 V
off:13.53 V
FAN on:11.98 V
off:13.78 V
1.35 V
1.28 V
0.52 V
8.85 V
6.47 V
13.56 V
13.00 V
13.78 V
3.22 V
3.58 V
8.41 V
3.22 V
3.58 V
AF VR-A:0~4.7 V
AF VR-B:0~4.7 V
1.91 V
1.89 V
1.91 V
1.91 V
1.89 V
1.89 V
1.05 V
AM 3.16 V
1.75 V
0.97 V
1.73 V
0.91 V
0.90 V
0.95 V
PK-A 2.32 V
PK-B 2.41 V
PK-A 1.42 V
PK-B 1.50 V
PK-A 1.39 V
PK-B 1.48 V
PK-A 2.39 V
PK-B 2.27 V
1.36 V
AM 1.97 V
0 V
AM 3.53 V
0 V
AM 3.70 V
1.35 V
AM 1.95 V
1.05 V
AM 3.33 V
4.84 V
0.65 V
4.84 V
4.81 V
45.05 MHz
(+27.5 dBu)
[+26.9 dBu]
Wide:4.13 V
Narrow:4.88 V
Narrow:2.76 V
Narrow:2.76 V
Wide:
2.40 V
Wide:
2.40 V
Wide:
1.73 V
Narrow:
2.09 V Wide:1.73 V
Narrow:2.09 V
47.25 MHz
(+26.8 dBu)
[+26.9 dBu]
AM 4.52 V
AM 4.52 V
0.65 V
4.84 V
4.81 V
4.84 V
Wide:4.11 V
Narrow:
4.81 V
Narrow:
2.73 V
Narrow:2.73 V
Wide:
2.38 V
Wide:
2.38 V
Wide:1.71 V
Narrow:2.05 V
Wide:1.71 V
Narrow:2.05 V
4.78 V
0.69 V
4.77 V
0.70 V
0.20 V
0.79 V 0.79 V
1.20 V
2.20 V
0.61 V
2.23 V
0.12 V
4.97 V
0.83 V
1.20 V
2.20 V
0.61 V
0.21 V
0.21 V
0.79 V
0.79 V
2.23 V
0.12 V 4.97 V
0.83 V
45.05 MHz
(+15.3 dBu)
[+14.8 dBu]
45.05 MHz
(+25.3 dBu)
[+24.3 dBu]
47.25 MHz
(+15.0 dBu)
[+14.9 dBu]
47.25 MHz
(+23.7 dBu) [+23.6 dBu]
( ) : 145.050 MHz
[ ] : 433.05 MHz
MAIN Unit
18
Note:
19
MAIN Unit
ABCDEFG
1
2
3
4
5
Side A
M51132FP
(Q1063)
M3826AEFGP
(Q1104)
BU2090FS
(Q1095)
MB15A02PFV1
(Q1109, 1112)
TA31136FN
(Q1044, 1047)
BU4066BCFV
(Q1071)
NJM2902V
(Q1052, 1074)
LA4425A
(Q1068)
TDA7233D
(Q1069)
2SK2596BX (BX)
(Q1132)
2SK2975
(Q1134)
2SA1774 (FR)
(Q1108, 1111)
2SB1301 (ZQ)
(Q1078)
2SC4400 (RT4)
(Q1027, 1035, 1043)
2SC4617 (BR)
(Q1030, 1038, 1039,
1056, 1057, 1082,
1098, 1099)
2SC5006 (24)
(Q1004, 1021, 1022,
1025, 1026, 1118,
1119)
2SC5277 (D2)
(Q1020)
2SC5374 (NA)
(Q1024, 1122, 1125,
1128)
DTC144EE (26)
(Q1058, 1059, 1060,
1070, 1072, 1110)
UMA8N (A8)
(Q1090, 1091, 1092,
1093, 1100, 1102)
DAP222 (P)
(D1061, 1062, 1064,
1065, 1067)
DA221 (K)
(D1051, 1068, 1074)
DAN222 (N)
(D1035, 1037, 1049,
1050, 1055, 1063,
1066, 1098, 1104)
NJM78L05 (8C)
(Q1081)
DTA144EE (16)
(Q1094, 1097, 1101,
1103)
RD70HVF1
(Q1135)
Parts Layout
20
MAIN Unit
abcdefg
1
2
3
4
5
Side B
2SA1774 (FR)
(Q1083)
NJM2902V
(Q1053)
NJM2904V
(Q1054, 1129)
TC4W66FU
(Q1066, 1067)
S-80823CNMC
(Q1085)
MM1216 (1C)
(Q1080)
2SB1201S
(Q1079)
2SC4400 (RT4)
(Q1042)
2SC4617 (BR)
(Q1029, 1031, 1032,
1033, 1036, 1037,
1040, 1045, 1048,
1076, 1086, 1087,
1113)
2SC5006 (24)
(Q1006, 1116, 1117,
1123, 1124)
2SC5374 (NA)
(Q1023, 1120, 1121,
1126, 1127)
DAN222 (N)
(D1031, 1047, 1048,
1058, 1059, 1060,
1088, 1100)
HZ27WA (27A)
(Q1053, 1054)
CPH6102 (AB)
(Q1064)
DA221 (K)
(D1052, 1073, 1078)
2SD1664 (DA)
(Q1133)
AT24C256N
(Q1088)
DTA144EE (16)
(Q1130)
DTC144EE (26)
(Q1046, 1049, 1061,
1062, 1065, 1073, 1075,
1077, 1089, 1106, 1107,
1114, 1115, 1131)
IMT17 (T17)
(Q1096)
M62353GP
(Q1105)
NJM78L05 (8C)
(Q1084)
HZM13NB2 (132)
(Q1103)
3SK296ZQ (ZQ)
(Q1001, 1002, 1003,
1005, 1014, 1015,
1016, 1017, 1018,
1019)
21
MAIN Unit
PCB with Component CS1795003 TYP: A2U
CS1795004 TYP: A1
CS1795005 TYP: A2
CS1795006 TYP: A3
CS1795007 TYP: B1
CS1795008 TYP: B2
CS1795009 TYP: B3
CS1795010 TYP: C1
CS1795011 TYP: C2
CS1795012 TYP: C3
CS1795013 TYP: D1
CS1795014 TYP: D2
CS1795015 TYP: H1
CS1795016 TYP: H2
Printed Circuit Board AH008M000 FR010190C 1-
C 1001 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- B b3
C 1002 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- B b3
C 1004 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1006 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1007 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1008 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1010 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1011 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1012 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- B c3
C 1013 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1014 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1015 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c3
C 1016 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B c3
C 1017 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c3
C 1018 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B c3
C 1019 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c3
C 1020 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c3
C 1021 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B c3
C 1022 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c3
C 1023 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B c3
C 1024 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B c3
C 1026 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- B c3
C 1027 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3
C 1028 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- A D3
C 1029 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A D3
C 1030 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E3
C 1031 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- A D3
C 1032 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- A D3
C 1033 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- A D3
C 1034 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A D3
C 1035 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3
C 1036 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A D3
C 1037 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1038 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c3
C 1039 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1040 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1041 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1042 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1043 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1044 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- B b4
C 1045 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b4
C 1046 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B b4
C 1047 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b4
C 1048 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b4
C 1049 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b4
C 1050 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B b4
C 1051 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b4
C 1052 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B b4
C 1054 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- B b5
C 1055 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b5
C 1056 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 1- A E5
C 1057 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1058 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B b4
C 1059 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- B b4
C 1060 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B b4
C 1061 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B b4
C 1062 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1063 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b5
C 1064 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1065 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1066 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B b5
C 1067 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
Parts List
22
MAIN Unit
C 1068 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1070 CHIP CAP. 30pF 50V CH GRM36CH300J50PT K22178223 1- B b2
C 1071 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B b2
C 1073 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B b2
C 1074 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- B b2
C 1075 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b3
C 1076 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1077 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1078 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- B b3
C 1079 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B b3
C 1080 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B b3
C 1081 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1082 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B b3
C 1083 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1086 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1087 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1088 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b3
C 1089 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B b3
C 1090 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b4
C 1091 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B b4
C 1092 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B c3
C 1093 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B c4
C 1094 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B c3
C 1095 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- B c3
C 1096 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B c4
C 1097 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B c4
C 1098 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c3
C 1099 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B c4
C 1100 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B c4
C 1101 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B c4
C 1102 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c3
C 1103 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1104 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B c3
C 1105 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c3
C 1106 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1107 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1108 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B b3
C 1109 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b4
C 1110 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1111 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a4
C 1112 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B b4
C 1113 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b4
C 1114 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a4
C 1115 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B b4
C 1116 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B a4
C 1117 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- B b4
C 1118 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- B b4
C 1119 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a4
C 1120 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b4
C 1121 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- B a4
C 1122 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B b4
C 1123 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a4
C 1124 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B a5
C 1125 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B b5
C 1126 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a5
C 1127 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B b5
C 1128 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1129 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 1131 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B b2
C 1132 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B b2
C 1134 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B b3
C 1135 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 1136 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1137 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1138 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B b3
C 1139 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a3
C 1140 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b3
C 1141 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1142 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B b4
C 1143 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B c4
C 1144 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c4
C 1145 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- B c4
C 1146 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B c4
C 1148 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1149 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- B c4
C 1150 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F4
C 1151 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- A F4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
23
MAIN Unit
C 1152 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- A F4
C 1153 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A F4
C 1154 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A E4
C 1155 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A E4
C 1157 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5
C 1158 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- A F5
C 1159 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F5
C 1162 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1163 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1165 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 1166 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B a3
C 1167 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B a3
C 1168 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B a3
C 1169 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B a3
C 1170 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B a3
C 1171 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- A F3
C 1172 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- A F3
C 1173 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- A F4
C 1174 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F4
C 1175 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- A F3
C 1176 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A F3
C 1178 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A F4
C 1179 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1181 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A E4
C 1182 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A E4
C 1183 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- A D4
C 1184 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A D4
C 1185 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A D4
C 1186 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- A D3
C 1187 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1188 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A F4
C 1190 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A F4
C 1191 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1193 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- A E4
C 1194 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- A E4
C 1195 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 1- A E4
C 1196 CHIP CAP. 0.5pF 50V CK GRM36CK0R5B50PT K22178285 1- A E4
C 1198 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1199 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A E4
C 1200 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1201 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4
C 1202 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B e4
C 1203 CHIP CAP. 10pF 50V CH GRM36CH100B50PT K22178297 1- B d4
C 1204 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A C4
C 1205 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C4
C 1206 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C4
C 1207 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B4
C 1208 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C4
C 1209 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1210 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1211 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B4
C 1212 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B4
C 1213 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B4
C 1214 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1215 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f4
C 1216 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f3
C 1217 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1218 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3
C 1219 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3
C 1220 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5
C 1221 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A E5
C 1222 CHIP CAP. 12pF 50V CH GRM36CH120J50PT K22178214 1- A E5
C 1223 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- A E5
C 1224 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E5
C 1225 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A E5
C 1226 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D5
C 1227 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5
C 1228 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a4
C 1229 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B d5
C 1230 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1231 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B d5
C 1232 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B d5
C 1233 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5
C 1234 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C5
C 1235 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C5
C 1236 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C5
C 1237 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
24
MAIN Unit
C 1238 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5
C 1239 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e4
C 1240 CHIP CAP. 27pF 50V CH GRM36CH270J50PT K22178222 1- B e4
C 1241 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e4
C 1242 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4
C 1243 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B d4
C 1244 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D5
C 1245 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A D5
C 1246 CHIP CAP. 24pF 50V CH GRM36CH240J50PT K22178221 1- A D5
C 1247 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1248 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a5
C 1249 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A C5
C 1250 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A B4
C 1251 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B4
C 1252 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- A B4
C 1253 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- B e4
C 1254 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B4
C 1255 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B5
C 1256 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B e3
C 1257 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1258 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1259 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B4
C 1260 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e4
C 1261 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B5
C 1262 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B e4
C 1263 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B e4
C 1264 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B e4
C 1265 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B4
C 1266 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3
C 1267 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e4
C 1268 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B e4
C 1269 CHIP TA.CAP. 22uF 6.3V TEMSVA0J226M-8R K78080047 1- B e4
C 1270 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3
C 1271 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3
C 1272 CHIP CAP. 20pF 50V CH GRM36CH200J50PT K22178219 1- A D5
C 1273 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A D5
C 1274 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- A D5
C 1275 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- B d5
C 1276 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D5
C 1277 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A B5
C 1278 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B d5
C 1279 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C5
C 1280 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d5
C 1281 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B5
C 1282 CHIP CAP. 220pF 25V CH GRM36CH221J25PT K22148203 1- B d5
C 1283 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B d5
C 1284 CHIP CAP. 470pF 50V B GRM36B471K50PT K22178805 1- B d5
C 1285 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A D5
C 1286 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1287 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c5
C 1288 CHIP TA.CAP. 22uF 6.3V TEMSVA0J226M-8R K78080047 1- B d5
C 1289 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1290 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1291 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1292 CHIP CAP. 0.0022uF 50V B GRM36B222K50PT K22178813 1- A A4
C 1294 CHIP CAP. 150pF 50V CH GRM36CH151J50PT K22178240 1- A A4
C 1295 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f4
C 1297 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1298 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1299 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1300 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f4
C 1301 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1302 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1303 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f4
C 1304 CHIP CAP. 0.0022uF 50V B GRM36B222K50PT K22178813 1- B f4
C 1306 CHIP CAP. 150pF 50V CH GRM36CH151J50PT K22178240 1- B f4
C 1307 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f4
C 1308 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1309 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1310 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f4
C 1311 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B3
C 1312 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B4
C 1313 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A B3
C 1314 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A3
C 1315 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B3
C 1316 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A1
C 1317 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A A3
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
25
MAIN Unit
C 1318 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A A3
C 1319 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A A4
C 1320 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A4
C 1321 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A A4
C 1322 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- A A4
C 1323 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4
C 1324 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A A4
C 1325 CHIP CAP. 0.0068uF 25V B GRM36B682J25PT K22148803 1- A A4
C 1326 CHIP CAP. 330pF 50V B GRM36B331K50PT K22178803 1- A A4
C 1327 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A A4
C 1328 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- A A4
C 1329 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B f4
C 1330 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B g4
C 1331 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B g4
C 1332 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- B g4
C 1333 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g4
C 1334 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B g5
C 1335 CHIP CAP. 0.0068uF 25V B GRM36B682J25PT K22148803 1- B g5
C 1336 CHIP CAP. 330pF 50V B GRM36B331K50PT K22178803 1- B g5
C 1337 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B g5
C 1338 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f5
C 1339 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A3
C 1340 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A2
C 1341 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A3
C 1342 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A2
C 1343 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A2
C 1344 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A A2
C 1345 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2
C 1346 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B2
C 1347 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A B2
C 1348 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A2
C 1350 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A A2
C 1353 AL.ELECTRO.CAP. 220uF 16V RE2-16V221M 220UF K40129048 1- A A2
C 1354 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 1355 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B f2
C 1356 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f2
C 1357 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f2
C 1358 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f2
C 1359 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f3
C 1360 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f3
C 1361 CHIP TA.CAP. 22uF 6.3V TEMSVA0J226M-8R K78080047 1- B f2
C 1362 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f2
C 1363 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1364 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f3
C 1365 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1366 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B f3
C 1367 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B f3
C 1368 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1369 AL.ELECTRO.CAP. 470uF 10V SMG10VB470M 470UF K40109040 1- A A3
C 1370 AL.ELECTRO.CAP. 470uF 16V RE3-16V471M 470UF K40129066 1- A A3
C 1372 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B f3
C 1373 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B1
C 1374 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f5
C 1375 CHIP CAP. 0.0015uF 50V B GRM36B152K50PT K22178811 1- A B4
C 1376 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A A4
C 1377 CHIP CAP. 0.015uF 16V B GRM36B153K16PT K22128807 1- A B4
C 1378 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A1
C 1379 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e1
C 1380 AL.ELECTRO.CAP. 10uF 16V 16V100M4X7TR2 K46120004 1- A B1
C 1381 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e1
C 1383 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f4
C 1384 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A A4
C 1385 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A A4
C 1386 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A B4
C 1387 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B e5
C 1388 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e5
C 1389 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e5
C 1390 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e5
C 1391 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B e5
C 1392 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- A B5
C 1393 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A B2
C 1394 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e1
C 1395 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B e2
C 1396 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e2
C 1400 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A B2
C 1401 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B2
C 1402 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B e2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
26
MAIN Unit
C 1403 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A A2
C 1404 AL.ELECTRO.CAP. 2200uF 16V RE3-16V222M 2200UF K40129064 1- B f1
C 1405 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A B1
C 1406 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A B1
C 1407 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f1
C 1408 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1409 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B f3
C 1410 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g4
C 1411 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g4
C 1412 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f3
C 1413 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B g3
C 1414 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B f3
C 1415 AL.ELECTRO.CAP. 100uF 16V 16V101M6X7TR2 K46120007 1- A A3
C 1416 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B g4
C 1417 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B f5
C 1418 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- B f5
C 1419 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B f5
C 1420 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f5
C 1421 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- A A4
C 1422 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A4
C 1423 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4
C 1424 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4
C 1425 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- A A4
C 1426 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4
C 1427 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A A4
C 1428 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B f5
C 1429 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B4
C 1430 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- A A4
C 1431 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- A B4
C 1433 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F5
C 1434 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D4
C 1436 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A F5
C 1438 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D4
C 1439 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a5
C 1440 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f5
C 1441 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B f5
C 1442 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f5
C 1443 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B3
C 1445 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- A D5
C 1446 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5
C 1447 CHIP CAP. 0.75pF 50V CK GRM36CKR75B50PT K22178286 1- A D5
C 1448 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B f5
C 1449 CHIP CAP. 1uF 10V B GRM40B105K10PT(0.85) K22100803 1- B e5
C 1450 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C4
C 1451 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e4
C 1452 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C5
C 1453 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C5
C 1454 CHIP CAP. 47pF 50V UJ GRP1553U1H470JZ01E K22178319 1- B d4
C 1455 CHIP CAP. 6pF 50V UJ GRP1553U1H6R0DZ01E K22178307 1- B d4
C 1456 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A C4
C 1457 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A C4
C 1458 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C4
C 1459 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C4
C 1460 CHIP CAP. 1uF 10V B GRM40B105K10PT(0.85) K22100803 1- B e5
C 1461 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1462 CHIP CAP. 100pF 50V UJ GRP1553U1H101JZ01E K22178323 1- B e4
C 1463 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B d5
C 1464 CHIP CAP. 27pF 50V UJ GRP1553U1H270JZ01E K22178316 1- B d5
C 1465 CHIP CAP. 3pF 50V UJ GRP1553U1H3R0CZ01E K22178304 1- B d4
C 1466 CHIP CAP. 270pF 25V CH GRM36CH271J25PT K22148248 1- B d4
C 1467 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1468 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C4
C 1469 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A C4
C 1470 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C4
C 1471 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A C4
C 1472 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C4
C 1473 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A C4
C 1474 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A E5
C 1475 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A E5
C 1476 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E5
C 1477 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A E5
C 1478 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- A E5
C 1479 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C5
C 1480 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D5
C 1481 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A D5
C 1482 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- A D5
C 1483 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A E5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
27
MAIN Unit
C 1484 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D5
C 1485 CHIP CAP. 6pF 50V UJ GRP1553U1H6R0DZ01E K22178307 1- B c5
C 1486 CHIP CAP. 47pF 50V UJ GRP1553U1H470JZ01E K22178319 1- B c5
C 1487 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5
C 1489 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c5
C 1490 CHIP CAP. 8pF 50V UJ GRP1553U1H8R0DZ01E K22178309 1- B c5
C 1491 CHIP CAP. 4pF 50V UJ GRP1553U1H4R0CZ01E K22178305 1- B c5
C 1492 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c5
C 1493 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- A D5
C 1494 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5
C 1495 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- A D4
C 1496 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B d4
C 1497 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A A4
C 1498 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1499 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1500 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1501 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1502 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d4
C 1503 CHIP CAP. 20pF 50V CH GRM36CH200J50PT K22178219 1- B d4
C 1504 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B d4
C 1505 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B d4
C 1506 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B d4
C 1507 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1508 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1509 CHIP CAP. 3pF 50V CJ GRM36CJ030B50PT K22178290 1- A C4
C 1510 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C4
C 1511 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1512 CHIP TA.CAP. 0.1uF 20V SKF-1D104M-RP K78130049 1- A C4
C 1513 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- A C4
C 1514 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1515 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1516 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1517 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d4
C 1518 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d4
C 1519 CHIP CAP. 22pF 50V CH GRM36CH220J50PT K22178220 1- B d4
C 1520 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B d4
C 1521 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B d4
C 1522 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1523 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d4
C 1524 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A C4
C 1525 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1526 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c5
C 1527 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c5
C 1528 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B c4
C 1529 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B c5
C 1530 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- B c5
C 1531 CHIP CAP. 1pF 50V CK GRM36CK010B50PT K22178287 1- B c5
C 1532 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a5
C 1533 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1534 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- A E4
C 1535 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c4
C 1536 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B c4
C 1537 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B c4
C 1538 CHIP CAP. 20pF 50V CH GRM36CH200J50PT K22178219 1- B c4
C 1540 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- B c4
C 1541 CHIP CAP. 2pF 50V CK GRM36CK020B50PT K22178289 1- B c4
C 1542 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E4
C 1543 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b4
C 1544 CHIP CAP. 1.5pF 50V CK GRM36CK1R5B50PT K22178288 1- A E5
C 1545 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D4
C 1546 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f3
C 1547 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3
C 1548 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B e3
C 1549 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3
C 1550 CHIP TA.CAP. 10uF 10V TEMSVA1A106M-8R K78100028 1- B e3
C 1551 CHIP CAP. 0.047uF 10V B GRM36B473K10PT K22108801 1- B e3
C 1552 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e3
C 1554 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1555 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1556 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C3
C 1558 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3
C 1559 CHIP CAP. 7pF 50V CH GRM36CH070B50PT K22178294 1- B d3
C 1560 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1561 CHIP TA.CAP. 22uF 16V TEMSVB21C226M-8R K78120028 1- B c3
C 1562 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1563 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B d3
C 1564 CHIP CAP. 18pF 50V CH GRM36CH180J50PT K22178218 1- A C3
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
28
MAIN Unit
C 1565 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e3
C 1566 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B d3
C 1567 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- B d3
C 1568 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1569 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A C3
C 1570 CHIP CAP. 8pF 50V CH GRM36CH080B50PT K22178295 1- A C3
C 1571 CHIP CAP. 68pF 50V CH GRM36CH680J50PT K22178232 1- A C3
C 1572 CHIP CAP. 82pF 50V CH GRM36CH820J50PT K22178234 1- A C3
C 1573 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C2
C 1574 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A C3
C 1575 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A C3
C 1576 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3
C 1577 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- A D3
C 1578 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d3
C 1579 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B d3
C 1580 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B d2
C 1581 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A B3
C 1582 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A B3
C 1583 CHIP CAP. 0.022uF 25V B GRM39B223K25PT K22144807 1- A C3
C 1584 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A C3
C 1585 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- A B3
C 1586 CHIP CAP. 18pF 50V CH GRM39CH180J50PT K22174217 1- A C2
C 1587 CHIP CAP. 10pF 50V CH GRM39CH100D50PT K22174211 1- A C2
C 1588 CHIP CAP. 39pF 50V CH GRM39CH390J50PT K22174225 1- A C2
C 1589 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e2
C 1590 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e2
C 1591 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A C2
C 1592 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e2
C 1593 CHIP CAP. 33pF 50V CH GRM39CH330J50PT K22174223 1- A B2
C 1594 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- A B2
C 1595 CHIP CAP. 22pF 50V CH GRM39CH220J50PT K22174219 1- A C2
C 1596 CHIP CAP. 10pF 50V CH GRM36CH100D50PT K22178212 1- A C2
C 1598 CHIP CAP. 150pF 50V CH GRM39CH151J50PT K22174239 1- A C2
C 1599 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A C2
C 1600 CHIP CAP. 15pF 50V CH GRM39CH150J50PT K22174215 1- A C1
C 1601 CHIP CAP. 0.1uF 16V B GRM39B104K16PT K22124805 1- B e1
C 1602 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B e1
C 1603 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A C2
C 1604 FILM CAP. 39pF 500V UC232H0390J-T K33279038 1- A C1
C 1605 CHIP TA.CAP. 1uF 25V TEMSVA1E105M-8R K78140013 1- B e1
C 1606 CHIP CAP. 0.47uF 25V B GRM40B474K25PT K22140824 1- B d1
C 1607 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- B d1
C 1608 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- B d1
C 1609 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A D1
C 1610 FILM CAP. 47pF 500V UC232H0470J-T K33279034 1- A D2
C 1611 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a3
C 1613 CHIP CAP. 0.001uF 50V B GRM39B102K50PT K22174821 1- A D3
C 1614 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D3
C 1615 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A D2
C 1617 CHIP CAP. 5pF 200V CH GRM1882C2D5R0CV01D K22234207 1- A D1
C 1618 FILM CAP. 56pF 500V UC232H0560J-T K33279035 1- A D1
C 1619 FILM CAP. 56pF 500V UC232H0560J-T K33279035 1- A D1
C 1620 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B b1
C 1621 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B c1
C 1623 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B b1
C 1624 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B b1
C 1625 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- B b1
C 1626 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b1
C 1627 CHIP CAP. 5pF 50V CH GRM36CH050B50PT K22178292 1- B b1
C 1628 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b1
C 1629 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b1
C 1630 CHIP CAP. 7pF 200V CH GRM1882C2D7R0DV01D K22234209 1- B b1
C 1631 CHIP CAP. 22pF 200V CH GRM40CH220J200PT K22230220 1- B b1
C 1632 CHIP CAP. 27pF 200V CH GRM40CH270J200PT K22230221 1- B a1
C 1633 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- B a1
C 1634 CHIP CAP. 0.0047uF 25V B GRM36B472K25PT K22148830 1- B c2
C 1635 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a1
C 1636 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- B a1
C 1637 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A F2
C 1638 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- A F2
C 1639 CHIP CAP. 33pF 50V CH GRM36CH330J50PT K22178224 1- A C2
C 1640 CHIP CAP. 56pF 50V CH GRM36CH560J50PT K22178230 1- A C2
C 1641 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B2
C 1642 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A B2
C 1643 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 1644 CHIP CAP. 24pF 50V CH GRM36CH240J50PT K22178221 1- B b2
C 1645 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- B b2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
29
MAIN Unit
C 1647 CHIP CAP. 18pF 200V CH GRM40CH180J200PT K22230219 1- B a2
C 1648 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B a2
C 1649 CHIP CAP. 220pF 200V CH GRM40CH221J200PT K22230232 1- B a2
C 1650 CHIP CAP. 15pF 200V CH GRM40CH150J200PT K22230218 1- B a2
C 1651 CHIP CAP. 15pF 200V CH GRM40CH150J200PT K22230218 1- B a2
C 1652 FILM CAP. 12pF 500V UC232H0120J-T K33279020 1- A D2
C 1653 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- A E2
C 1654 CHIP CAP. 100pF 200V CH GRM40CH101J200PT K22230228 1- A E2
C 1657 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- B c2
C 1658 CHIP CAP. 6pF 50V CH GRM36CH060B50PT K22178293 1- B c2
C 1659 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2
C 1660 CHIP CAP. 3pF 200V CJ GRM1883C2D3R0CV01D K22234205 1- A E2
C 1661 CHIP CAP. 3pF 200V CJ GRM1883C2D3R0CV01D K22234205 1- A E2
C 1662 CHIP CAP. 6pF 200V CH GRM1882C2D6R0DV01D K22234208 1- A E2
C 1663 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- A E2
C 1664 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- A E2
C 1665 CHIP CAP. 4pF 50V CH GRM36CH040B50PT K22178291 1- A E2
C 1666 CHIP CAP. 1.5pF 200V CK GRM1884C2D1R5CV01D K22234213 1- A F3
C 1667 CHIP CAP. 3pF 200V CJ GRM1883C2D3R0CV01D K22234205 1- A E3
C 1668 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A F2
C 1669 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A F2
C 1670 CHIP CAP. 0.5pF 200V CK GRM1884C2DR50CY21D K22234201 1- A F3
C 1671 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A F3
C 1672 CHIP CAP. 2pF 200V CK GRM1884C2D2R0CV01D K22234204 1- A F3
C 1673 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A F3
C 1674 CHIP CAP. 4pF 200V CH GRM1882C2D4R0CV01D K22234206 1- A F3
C 1676 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1678 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b5
C 1680 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f4
C 1681 CHIP CAP. 11pF 50V CH GRM39CH110J50PT K22174212 1-
C 1688 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1-
CD1001 CERAMIC DISC CDBM450C24 H7901390 1- A B4
CD1002 CERAMIC DISC CDBM450C24 H7901390 1- A C5
CF1001 CERAMIC FILTER CFWM450E H3900466 1- A B3
CF1002 CERAMIC FILTER CFWM450G H3900435 1- A B3
CF1003 CERAMIC FILTER CFWM450E H3900466 1- A C5
CF1004 CERAMIC FILTER CFWM450G H3900435 1- A D5
D 1001 DIODE HSC277TRF G2070584 1- B b3
D 1002 DIODE HSC277TRF G2070584 1- B c3
D 1003 DIODE HVC131TRF G2070676 1- A E3
D 1004 DIODE HVC350B-TRF G2070596 1- B c3
D 1005 DIODE HVC350B-TRF G2070596 1- B c3
D 1006 DIODE HVC350B-TRF G2070596 1- B c3
D 1007 DIODE HVC131TRF G2070676 1- B c3
D 1008 DIODE HVC131TRF G2070676 1- B c3
D 1009 DIODE HSC277TRF G2070584 1- B b4
D 1010 DIODE HVC131TRF G2070676 1- B b4
D 1011 DIODE HVC350B-TRF G2070596 1- B b4
D 1012 DIODE HVC350B-TRF G2070596 1- B b4
D 1013 DIODE HVC350B-TRF G2070596 1- B b4
D 1014 DIODE HVC131TRF G2070676 1- A E5
D 1015 DIODE HSC277TRF G2070584 1- B b5
D 1017 DIODE HVC365 TRF G2070902 1- B c4
D 1018 DIODE HVC365 TRF G2070902 1- B c4
D 1019 DIODE HVC365 TRF G2070902 1- B c4
D 1020 DIODE HVC365 TRF G2070902 1- B a4
D 1021 DIODE HVC365 TRF G2070902 1- B a4
D 1022 DIODE HVC365 TRF G2070902 1- B a4
D 1023 DIODE HVC131TRF G2070676 1- A E5
D 1026 DIODE HVC131TRF G2070676 1- A D4
D 1027 DIODE HVC131TRF G2070676 1- A D4
D 1028 DIODE HVC131TRF G2070676 1- A E5
D 1029 DIODE RLS135 TE-11 G2070128 1- B b2
D 1030 DIODE RLS135 TE-11 G2070128 1- B b2
D 1031 DIODE DAN222 TL G2070174 1- B a4
D 1032 DIODE HVC131TRF G2070676 1- B c3
D 1033 DIODE HVC131TRF G2070676 1- A E5
D 1034 DIODE HVC131TRF G2070676 1- A C3
D 1035 DIODE DAN222 TL G2070174 1- A C4
D 1036 DIODE MA2S72800L G2070858 1- B f4
D 1037 DIODE DAN222 TL G2070174 1- A D5
D 1038 DIODE MA2S72800L G2070858 1- B d5
D 1039 DIODE HSC277TRF G2070584 1- B e3
D 1040 DIODE HSC277TRF G2070584 1- B e3
D 1041 DIODE HSC277TRF G2070584 1- B e3
D 1042 DIODE HSC277TRF G2070584 1- B e3
D 1043 DIODE HSC277TRF G2070584 1- B d5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
30
MAIN Unit
D 1044 DIODE HSC277TRF G2070584 1- B d5
D 1045 DIODE HSC277TRF G2070584 1- B d5
D 1046 DIODE HSC277TRF G2070584 1- B c5
D 1047 DIODE DAN222 TL G2070174 1- B f4
D 1048 DIODE DAN222 TL G2070174 1- B f4
D 1049 DIODE DAN222 TL G2070174 1- A B3
D 1050 DIODE DAN222 TL G2070174 1- A B3
D 1051 DIODE DA221 TL G2070178 1- A A4
D 1052 DIODE DA221 TL G2070178 1- B f5
D 1053 DIODE HZM27WA-TR G2070530 1- B e5
D 1054 DIODE HZM27WA-TR G2070530 1- B e5
D 1055 DIODE DAN222 TL G2070174 1- A A2
D 1056 SURGE ABSORBER P6KA18 Q9000721 1- A B1
D 1057 DIODE D1F20-4063 G2070474 1- B g3
D 1058 DIODE DAN222 TL G2070174 1- B g4
D 1059 DIODE DAN222 TL G2070174 1- B g4
D 1060 DIODE DAN222 TL G2070174 1- B f5
D 1061 DIODE DAP222-TL G2070432 1- A G5
D 1062 DIODE DAP222-TL G2070432 1- A G5
D 1063 DIODE DAN222 TL G2070174 1- A F5
D 1064 DIODE DAP222-TL G2070432 1- A F5
D 1065 DIODE DAP222-TL G2070432 1- A F5
D 1066 DIODE DAN222 TL G2070174 1- A F5
D 1067 DIODE DAP222-TL G2070432 1- A F5
D 1068 DIODE DA221 TL G2070178 1- A C4
D 1069 DIODE HVC365 TRF G2070902 1- B d4
D 1070 DIODE HVC365 TRF G2070902 1- B e5
D 1071 DIODE HVC350B-TRF G2070596 1- B d5
D 1072 DIODE HVC365 TRF G2070902 1- B d4
D 1073 DIODE DA221 TL G2070178 1- B d5
D 1074 DIODE DA221 TL G2070178 1- A E5
D 1075 DIODE HVC365 TRF G2070902 1- B c5
D 1076 DIODE HVC365 TRF G2070902 1- B c5
D 1077 DIODE HVC365 TRF G2070902 1- B c5
D 1078 DIODE DA221 TL G2070178 1- B c5
D 1079 DIODE HVC375B-TRF G2070856 1- B d4
D 1080 DIODE HVC350B-TRF G2070596 1- B d4
D 1081 DIODE HSC277TRF G2070584 1- B d4
D 1082 DIODE HVC365 TRF G2070902 1- B d4
D 1083 DIODE HVC131TRF G2070676 1- B d4
D 1084 DIODE HVC362TRF G2070636 1- B d4
D 1085 DIODE HVC365 TRF G2070902 1- B d4
D 1086 DIODE HSC277TRF G2070584 1- A C4
D 1087 DIODE HSC277TRF G2070584 1- A C4
D 1088 DIODE DAN222 TL G2070174 1- B e4
D 1089 DIODE HSC277TRF G2070584 1- A D3
D 1090 DIODE HVC375B-TRF G2070856 1- B c4
D 1091 DIODE HVC350B-TRF G2070596 1- B c5
D 1092 DIODE HSC277TRF G2070584 1- B c5
D 1093 DIODE HVC131TRF G2070676 1- A E5
D 1094 DIODE HVC365 TRF G2070902 1- B c4
D 1095 DIODE HVC365 TRF G2070902 1- B c4
D 1096 DIODE HVC362TRF G2070636 1- B c4
D 1097 DIODE HVC131TRF G2070676 1- A E4
D 1098 DIODE DAN222 TL G2070174 1- A D4
D 1099 DIODE HSC277TRF G2070584 1- A C3
D 1100 DIODE DAN222 TL G2070174 1- B e3
D 1101 DIODE HSC277TRF G2070584 1- B d3
D 1102 DIODE HSC277TRF G2070584 1- B d3
D 1103 DIODE HZM13NB2 TR G2070894 1- B d3
D 1104 DIODE DAN222 TL G2070174 1- A D3
D 1105 DIODE HSC277TRF G2070584 1- A C3
D 1106 DIODE HSC277TRF G2070584 1- A C3
D 1107 DIODE HSC277TRF G2070584 1- A C2
D 1108 DIODE RLS135 TE-11 G2070128 1- A C2
D 1109 DIODE MA2S72800L G2070858 1- B b1
D 1110 DIODE MA2S72800L G2070858 1- B b1
D 1111 DIODE HSC277TRF G2070584 1- A B2
D 1112 DIODE HSC277TRF G2070584 1- A B2
D 1113 DIODE UM9957F/TR G2070562 1- A F1
D 1114 DIODE UM9957F/TR G2070562 1- A F1
D 1115 DIODE RLS135 TE-11 G2070128 1- A F2
D 1116 DIODE RLS135 TE-11 G2070128 1- A F2
D 1117 DIODE HSC277TRF G2070584 1- B b2
D 1118 DIODE UM9957F/TR G2070562 1- A E2
D 1119 DIODE UM9957F/TR G2070562 1- A E2
D 1120 DIODE UM9957F/TR G2070562 1- A E2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
31
MAIN Unit
D 1121 DIODE MA2S72800L G2070858 1- B c2
D 1122 DIODE MA2S72800L G2070858 1- A E2
D 1123 SURGE ABSORBER RCCA-201Q43UA Q9000755 1- A F2
D 1125 DIODE MA2S111-(TX) G2070614 1-
FB1001 BEADS COIL B-01-A L1190386 1- A B1
FB1002 FERRITE BEADS SMB304729 L9190094 1- A C1
FB1003 FERRITE BEADS SMB304729 L9190094 1- A B3
HS1001 HEATSINK PLATE RA0227600 1- B d3
J 1001 CONNECTOR HSJ6062-01-440 P1090983 1- A A1
J 1002 CONNECTOR SC25-02WS P0090621 1- A A3
J 1003 CONNECTOR MD-S6000-90 P1091087 1- B f1
J 1004 CONNECTOR B2B-ZR P0090647 1- A B1
J 1005 CONNECTOR MJ-66J-RD315K P1091049 1- A B6
JP1000 WIRE ASSY GRN 30 2/2 T50503000 1-
JP1001 WIRE ASSY GRN 20 2/2 T50502000 1-
JP1002 WIRE ASSY GRN 20 2/2 T50502000 1-
L 1001 M.RFC 0.015uH 2% C1608CA-15NG L1691034 1- B b2
L 1002 M.RFC 0.01uH 2% C1608CA-10NG L1691032 1- B b3
L 1003 M.RFC 0.039uH 2% C1608CA-39NG L1691039 1- B b3
L 1004 M.RFC 0.039uH 2% C1608CA-39NG L1691039 1- B b3
L 1005 M.RFC 0.01uH TFL0510-10N L1690811 1- B c3
L 1006 M.RFC 0.1uH TFL0816-100N L1690981 1- B c3
L 1007 M.RFC 0.01uH 2% C1608CA-10NG L1691032 1- B c3
L 1008 COIL E2 0.28-1.0-4T-R L0022365 1- B c3
L 1009 COIL E2 0.28-1.0-4T-R L0022365 1- B c3
L 1010 M.RFC 0.015uH TFL0816-15 L1690493 1- A D3
L 1011 M.RFC 0.015uH TFL0816-15 L1690493 1- A D3
L 1012 M.RFC 0.015uH TFL0816-15 L1690493 1- B c3
L 1013 M.RFC 0.1uH TFL0816-100N L1690981 1- B b4
L 1014 M.RFC 0.01uH 2% C1608CA-10NG L1691032 1- B b4
L 1015 COIL E2 0.28-1.0-4T-R L0022365 1- B b4
L 1016 COIL E2 0.28-1.0-4T-R L0022365 1- B b4
L 1017 M.RFC 0.015uH TFL0816-15 L1690493 1- B b4
L 1018 M.RFC 0.015uH TFL0816-15 L1690493 1- B b4
L 1019 M.RFC 0.015uH TFL0816-15 L1690493 1- B b5
L 1020 M.RFC 0.1uH 2% C1608CA-R10G L1691045 1- B b2
L 1021 M.RFC 0.056uH 2% C1608CA-56NG L1691041 1- B b2
L 1022 M.RFC 0.043uH 2% C1608CA-43NG L1691099 1- B b2
L 1023 M.RFC 0.043uH 2% C1608CA-43NG L1691099 1- B b2
L 1024 M.RFC 0.15uH 2% C1608CA-R15G L1691101 1- B b3
L 1025 M.RFC 1uH LK1608 1R0K-T L1690687 1- B b3
L 1026 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b4
L 1027 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B c3
L 1028 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B c3
L 1029 M.RFC 0.047uH TFL0816-47 L1690499 1- B c4
L 1030 M.RFC 1uH LK1608 1R0K-T L1690687 1- B b4
L 1031 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b4
L 1032 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b4
L 1033 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b4
L 1034 M.RFC 0.047uH TFL0816-47 L1690499 1- B b5
L 1035 M.RFC 0.068uH 2% C1608CA-68NG L1691042 1- B b2
L 1036 M.RFC 0.022uH 2% C1608CA-22NG L1691036 1- B b2
L 1037 M.RFC 0.022uH 2% C1608CA-22NG L1691036 1- B b3
L 1038 M.RFC 0.082uH 2% C1608CA-82NG L1691044 1- B b3
L 1039 M.RFC 0.039uH TFL0816-39 L1690498 1- B c4
L 1040 M.RFC 0.039uH TFL0816-39 L1690498 1- B c4
L 1041 M.RFC 0.039uH TFL0816-39 L1690498 1- A F4
L 1042 M.RFC 0.039uH TFL0816-39 L1690498 1- A E4
L 1043 M.RFC 0.01uH TFL0816-10 L1690491 1- B a3
L 1044 M.RFC 0.01uH TFL0816-10 L1690491 1- B a3
L 1045 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- B a3
L 1046 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F3
L 1047 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F4
L 1048 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F4
L 1049 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A F4
L 1050 M.RFC 0.0033uH TFL0816-3N3 L1690485 1- A E4
L 1051 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A E4
L 1052 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A D3
L 1053 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A E4
L 1054 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A E4
L 1055 M.RFC 0.0047uH TFL0816-4N7 L1690487 1- A E4
L 1056 M.RFC 0.022uH TFL0816-22 L1690495 1- B d3
L 1057 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- B d4
L 1058 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A B4
L 1059 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e4
L 1060 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A E5
L 1061 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A D5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
32
MAIN Unit
L 1062 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c5
L 1063 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- B e4
L 1064 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B e4
L 1065 M.RFC 0.39uH 2% C1608CA-R39G L1691107 1- A D5
L 1066 M.RFC 1uH LK1608 1R0K-T L1690687 1- B f5
L 1067 M.RFC 150uH FLC32T-151J L1690229 1- B f4
L 1068 M.RFC 1uH ELJ-ND1R0JF L1690977 1- A D5
L 1069 M.RFC 1uH LK1608 1R0K-T L1690687 1- A C4
L 1070 M.RFC 1uH LK1608 1R0K-T L1690687 1- B d4
L 1071 COIL E2 0.3-1.1-3T-R L0022579 1- B d4
L 1072 M.RFC 0.0039uH TFL0816-3N9 L1690486 1- B d4
L 1073 M.RFC 0.022uH TFL0816-22 L1690495 1- B d4
L 1074 M.RFC 1uH LK1608 1R0K-T L1690687 1- B d4
L 1075 CHIP COIL 0.056uH LQN21A56NG04 L1690978 1- B d4
L 1076 M.RFC 0.0022uH TFL0510-2N2 L1690803 1- B d4
L 1077 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B d4
L 1078 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c4
L 1079 COIL E2 0.3-1.1-3T-R L0022579 1- B c5
L 1080 M.RFC 0.0039uH TFL0816-3N9 L1690486 1- B c5
L 1081 M.RFC 0.022uH TFL0816-22 L1690495 1- B b4
L 1082 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c4
L 1083 CHIP COIL 0.056uH LQN21A56NG04 L1690978 1- B c4
L 1084 M.RFC 0.0082uH TFL0510-8N2 L1690810 1- B c4
L 1085 M.RFC 0.15uH LK1608 R15K-T L1690409 1- B b4
L 1086 M.RFC 1uH LK1608 1R0K-T L1690687 1- B e3
L 1087 M.RFC 0.047uH TFL0816-47 L1690499 1- B d3
L 1088 M.RFC 0.015uH TFL0816-15 L1690493 1- B d3
L 1089 M.RFC 0.1uH 2% C1608CA-R10G L1691045 1- A B3
L 1090 M.RFC 0.0082uH TFL0816-8N2 L1690490 1- A C3
L 1091 COIL E2 0.35-1.6-4.5T-L L0022577 1- A C3
L 1092 COIL E2 0.3-1.1-3T-R L0022579 1- A C3
L 1093 COIL E2 0.4-1.3-2T-L L0022580 1- A C3
L 1094 COIL E2 0.28-1.0-7TR L0022422 1- A C3
L 1095 COIL 0.056uH AS050635-56N L0022813 1- A C3
L 1096 COIL E2 0.4-1.3-2T-L L0022580 1- A C2
L 1097 COIL E2 0.45-1.4-2.5T-L L0022618 1- A C2
L 1098 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B e2
L 1099 COIL E2 0.35-1.6-5.5T-L L0022616 1- A C2
L 1100 COIL E2 0.35-1.6-7T-L L0022390 1- A B2
L 1101 M.RFC 1uH ELJ-ND1R0JF L1690977 1- B e2
L 1102 COIL 0.012uH AS080336-12N L0022810 1- A C1
L 1103 COIL A1 12.5T3.5D0.8UEW R L0022828 1- A D1
L 1104 M.RFC 0.47uH LK2125 R47K-T L1690315 1- B a4
L 1105 M.RFC 0.47uH LK2125 R47K-T L1690315 1- A D3
L 1106 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A E1
L 1107 COIL A1 1.5T3.0D1.2UEW R L0022806 1- A E1
L 1108 COIL A1 4.5T3.5D1.0UEW R L0022836 1- A E1
L 1109 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A F1
L 1110 COIL E2 0.4-3.0-11.5T-L L0022646 1- A F2
L 1111 COIL 0.038uH AS050630-38N L0022818 1- A F1
L 1112 M.RFC 0.039uH 2% C1608CA-39NG L1691039 1- B b2
L 1113 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A F2
L 1114 COIL A1 3.5T3.5D1.0UEW R L0022805 1- A F2
L 1115 COIL 0.01uH AS1003-10NK L0022544 1- A D2
L 1116 COIL E2 0.25-1.9-5.5T-R L0022610 1- A E2
L 1117 COIL 0.015uH AS100440-15N L0022811 1- A E2
L 1118 COIL 0.014uH AS050425-14NK L0022583 1- A E3
L 1119 COIL 0.015uH AS100440-15N L0022811 1- A E2
L 1120 COIL 0.015uH AS0803-15NK L0022536 1- A F3
L 1121 COIL 0.012uH AS080336-12N L0022810 1- A F3
Q 1001 FET 3SK296ZQ-TL G4802968 1- B b3
Q 1002 FET 3SK296ZQ-TL G4802968 1- B b3
Q 1003 FET 3SK296ZQ-TL G4802968 1- B c3
Q 1004 TRANSISTOR 2SC5006-T1 G3350068 1- A D3
Q 1005 FET 3SK296ZQ-TL G4802968 1- B b5
Q 1006 TRANSISTOR 2SC5006-T1 G3350068 1- B b5
Q 1014 FET 3SK296ZQ-TL G4802968 1- B b3
Q 1015 FET 3SK296ZQ-TL G4802968 1- B b3
Q 1016 FET 3SK296ZQ-TL G4802968 1- B c4
Q 1017 FET 3SK296ZQ-TL G4802968 1- B a5
Q 1018 FET 3SK296ZQ-TL G4802968 1- B b3
Q 1019 FET 3SK296ZQ-TL G4802968 1- B a3
Q 1020 TRANSISTOR 2SC5277-D2-TL G3352778B 1- A F3
Q 1021 TRANSISTOR 2SC5006-T1 G3350068 1- A F3
Q 1022 TRANSISTOR 2SC5006-T1 G3350068 1- A F4
Q 1023 TRANSISTOR 2SC5374-TL G3353748 1- B c4
Q 1024 TRANSISTOR 2SC5374-TL G3353748 1- A E5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
33
MAIN Unit
Q 1025 TRANSISTOR 2SC5006-T1 G3350068 1- A D3
Q 1026 TRANSISTOR 2SC5006-T1 G3350068 1- A E4
Q 1027 TRANSISTOR 2SC4400-3-TL G3344008C 1- A C4
Q 1029 TRANSISTOR 2SC4617 TL R G3346178R 1- B f4
Q 1030 TRANSISTOR 2SC4617 TL R G3346178R 1- A B4
Q 1031 TRANSISTOR 2SC4617 TL R G3346178R 1- B f3
Q 1032 TRANSISTOR 2SC4617 TL R G3346178R 1- B f3
Q 1033 TRANSISTOR 2SC4617 TL R G3346178R 1- B e3
Q 1035 TRANSISTOR 2SC4400-3-TL G3344008C 1- A E5
Q 1036 TRANSISTOR 2SC4617 TL R G3346178R 1- B d5
Q 1037 TRANSISTOR 2SC4617 TL R G3346178R 1- B d5
Q 1038 TRANSISTOR 2SC4617 TL R G3346178R 1- A C5
Q 1039 TRANSISTOR 2SC4617 TL R G3346178R 1- A C5
Q 1040 TRANSISTOR 2SC4617 TL R G3346178R 1- B d4
Q 1042 TRANSISTOR 2SC4400-3-TL G3344008C 1- B e4
Q 1043 TRANSISTOR 2SC4400-3-TL G3344008C 1- A D5
Q 1044 IC TA31136FN(EL) G1091605 1- A B4
Q 1045 TRANSISTOR 2SC4617 TL R G3346178R 1- B e3
Q 1046 TRANSISTOR DTC144EE TL G3070075 1- B e3
Q 1047 IC TA31136FN(EL) G1091605 1- A D5
Q 1048 TRANSISTOR 2SC4617 TL R G3346178R 1- B d5
Q 1049 TRANSISTOR DTC144EE TL G3070075 1- B d5
Q 1052 IC NJM2902V-TE1 G1091679 1- A A4
Q 1053 IC NJM2902V-TE1 G1091679 1- B f4
Q 1054 IC NJM2904V-TE1 G1091677 1- B f4
Q 1056 TRANSISTOR 2SC4617 TL R G3346178R 1- A B3
Q 1057 TRANSISTOR 2SC4617 TL R G3346178R 1- A A3
Q 1058 TRANSISTOR DTC144EE TL G3070075 1- A B3
Q 1059 TRANSISTOR DTC144EE TL G3070075 1- A A4
Q 1060 TRANSISTOR DTC144EE TL G3070075 1- A A4
Q 1061 TRANSISTOR DTC144EE TL G3070075 1- B g4
Q 1062 TRANSISTOR DTC144EE TL G3070075 1- B g4
Q 1063 IC M51132FP 600C G1091930 1- A A2
Q 1064 TRANSISTOR CPH6102-TL G3070223 1- B f1
Q 1065 TRANSISTOR DTC144EE TL G3070075 1- B f1
Q 1066 IC TC4W66FU TE12L G1091676 1- B f3
Q 1067 IC TC4W66FU TE12L G1091676 1- B f2
Q 1068 IC LA4425A G1092241 1- A A2
Q 1069 IC TDA7233D-TR G1091112 1- A A3
Q 1070 TRANSISTOR DTC144EE TL G3070075 1- A A1
Q 1071 IC BU4066BCFV-E2 G1093537 1- A B4
Q 1072 TRANSISTOR DTC144EE TL G3070075 1- A A1
Q 1073 TRANSISTOR DTC144EE TL G3070075 1- B f4
Q 1074 IC NJM2902V-TE1 G1091679 1- A A4
Q 1075 TRANSISTOR DTC144EE TL G3070075 1- B e4
Q 1076 TRANSISTOR 2SC4617 TL R G3346178R 1- B e1
Q 1077 TRANSISTOR DTC144EE TL G3070075 1- B e5
Q 1078 TRANSISTOR 2SB1301-T2 ZQ G3213017Q 1- A B2
Q 1079 TRANSISTOR 2SB1201S-TL G3070195 1- B e2
Q 1080 IC MM1216ENRE G1092432 1- B e2
Q 1081 IC NJM78L05UA TE1 G1091325 1- A B2
Q 1082 TRANSISTOR 2SC4617 TL R G3346178R 1- A A2
Q 1083 TRANSISTOR 2SA1774 TL R G3117748R 1- B f3
Q 1084 IC NJM78L05UA TE1 G1091325 1- B g3
Q 1085 IC S-80823CNMC-B8I-T2 G1093635 1- B f4
Q 1086 TRANSISTOR 2SC4617 TL R G3346178R 1- B g4
Q 1087 TRANSISTOR 2SC4617 TL R G3346178R 1- B f5
Q 1088 IC AT24C256N-10SI-1.8 G1093837 1- B g5
Q 1089 TRANSISTOR DTC144EE TL G3070075 1- B f3
Q 1090 TRANSISTOR UMA8N TR G3070270 1- A G4
Q 1091 TRANSISTOR UMA8N TR G3070270 1- A G4
Q 1092 TRANSISTOR UMA8N TR G3070270 1- A F5
Q 1093 TRANSISTOR UMA8N TR G3070270 1- A F5
Q 1094 TRANSISTOR DTA144EE TL G3070074 1- A F5
Q 1095 IC BU2090FS-E1 G1092187 1- A F5
Q 1096 TRANSISTOR IMT17 T110 G3070295 1- B a4
Q 1097 TRANSISTOR DTA144EE TL G3070074 1- A F5
Q 1098 TRANSISTOR 2SC4617 TL R G3346178R 1- A F5
Q 1099 TRANSISTOR 2SC4617 TL R G3346178R 1- A D4
Q 1100 TRANSISTOR UMA8N TR G3070270 1- A D4
Q 1101 TRANSISTOR DTA144EE TL G3070074 1- A F5
Q 1102 TRANSISTOR UMA8N TR G3070270 1- A F5
Q 1103 TRANSISTOR DTA144EE TL G3070074 1- A D4
Q 1104 IC M3826AEFGP 1- A A5
Q 1105 IC M62353GP 70ED G1092621 1- B f5
Q 1106 TRANSISTOR DTC144EE TL G3070075 1- B e4
Q 1107 TRANSISTOR DTC144EE TL G3070075 1- B e4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
Please contact VERTEX STANDARD.
34
MAIN Unit
Q 1108 TRANSISTOR 2SA1774 TL R G3117748R 1- A C4
Q 1109 IC MB15A02PFV1-G-BND-EF G1092541 1- A C4
Q 1110 TRANSISTOR DTC144EE TL G3070075 1- A D4
Q 1111 TRANSISTOR 2SA1774 TL R G3117748R 1- A D5
Q 1112 IC MB15A02PFV1-G-BND-EF G1092541 1- A D5
Q 1113 TRANSISTOR 2SC4617 TL R G3346178R 1- B d4
Q 1114 TRANSISTOR DTC144EE TL G3070075 1- B e4
Q 1115 TRANSISTOR DTC144EE TL G3070075 1- B e4
Q 1116 TRANSISTOR 2SC5006-T1 G3350068 1- B d4
Q 1117 TRANSISTOR 2SC5006-T1 G3350068 1- B d4
Q 1118 TRANSISTOR 2SC5006-T1 G3350068 1- A C4
Q 1119 TRANSISTOR 2SC5006-T1 G3350068 1- A C4
Q 1120 TRANSISTOR 2SC5374-TL G3353748 1- B d4
Q 1121 TRANSISTOR 2SC5374-TL G3353748 1- B d4
Q 1122 TRANSISTOR 2SC5374-TL G3353748 1- A D4
Q 1123 TRANSISTOR 2SC5006-T1 G3350068 1- B c5
Q 1124 TRANSISTOR 2SC5006-T1 G3350068 1- B b5
Q 1125 TRANSISTOR 2SC5374-TL G3353748 1- A E5
Q 1126 TRANSISTOR 2SC5374-TL G3353748 1- B c4
Q 1127 TRANSISTOR 2SC5374-TL G3353748 1- B b4
Q 1128 TRANSISTOR 2SC5374-TL G3353748 1- A E5
Q 1129 IC NJM2904V-TE1 G1091677 1- B e3
Q 1130 TRANSISTOR DTA144EE TL G3070074 1- B e3
Q 1131 TRANSISTOR DTC144EE TL G3070075 1- B e3
Q 1132 FET 2SK2596BXTL G3825967 1- A C3
Q 1133 TRANSISTOR 2SD1664 T100 Q G3416647Q 1- B d3
Q 1134 FET 2SK2975-T11 G3829757 1- A C3
Q 1135 FET RD70HVF1 G3090140 1- A D1
R 1001 CHIP RES. 15k 1/16W 0.5% RR0510R-153-D J24189147 1- A E3
R 1002 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1003 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3
R 1004 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B c3
R 1005 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c3
R 1006 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3
R 1007 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1008 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1009 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c3
R 1010 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B c3
R 1011 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c3
R 1012 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3
R 1013 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c3
R 1014 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B c3
R 1015 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- A E3
R 1016 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A D3
R 1017 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E3
R 1018 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D3
R 1019 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A D3
R 1020 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D3
R 1021 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c3
R 1022 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c3
R 1023 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c3
R 1025 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- B b3
R 1026 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1027 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A E3
R 1028 CHIP RES. 82k 1/16W 0.5% RR0510R-823-D J24189165 1- A E3
R 1030 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b3
R 1031 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b3
R 1032 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b3
R 1033 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b4
R 1034 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1035 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b5
R 1036 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1037 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1038 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b4
R 1039 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b5
R 1040 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B b5
R 1041 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B b5
R 1042 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b5
R 1045 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b4
R 1046 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B b4
R 1047 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1048 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b5
R 1049 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B b5
R 1050 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B b5
R 1051 CHIP RES. 1.2k 1/16W 5% RMC1/16S 122JTH J24189026 1- B b5
R 1052 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b5
R 1053 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B b5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
35
MAIN Unit
R 1057 CHIP RES. 82k 1/16W 0.5% RR0510R-823-D J24189165 1- A E3
R 1059 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3
R 1060 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1061 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1062 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3
R 1063 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1064 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1065 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B b3
R 1066 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1067 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c4
R 1068 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c4
R 1069 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c4
R 1070 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c4
R 1071 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B c4
R 1072 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c4
R 1073 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B c4
R 1074 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B c3
R 1075 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c4
R 1076 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1077 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B b4
R 1078 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1079 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a4
R 1080 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a4
R 1081 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a4
R 1082 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B a5
R 1083 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B a5
R 1084 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a5
R 1085 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B a5
R 1086 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B b5
R 1087 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B a5
R 1088 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- B b3
R 1089 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b3
R 1091 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b3
R 1092 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1093 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a3
R 1094 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1095 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b3
R 1096 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B b4
R 1097 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B b4
R 1098 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A E4
R 1100 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- B c4
R 1101 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B a3
R 1102 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A F4
R 1103 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F4
R 1104 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A F4
R 1106 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A F4
R 1107 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A F4
R 1108 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A F5
R 1109 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c4
R 1110 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B c4
R 1111 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A D4
R 1112 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D4
R 1113 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b2
R 1114 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A F4
R 1115 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A F4
R 1116 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F4
R 1117 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F4
R 1118 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A F4
R 1119 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A F4
R 1120 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A F4
R 1121 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4
R 1122 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4
R 1123 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B b4
R 1124 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4
R 1125 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- A D4
R 1126 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- A E4
R 1127 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D4
R 1128 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D4
R 1129 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E4
R 1130 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A E4
R 1131 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A E4
R 1132 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- A D3
R 1133 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B d4
R 1134 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e3
R 1135 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B d3
R 1136 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A C4
R 1137 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
36
MAIN Unit
R 1138 CHIP RES. 8.2k 1/16W 0.5% RR0510P-822-D J24189141 1- A C4
R 1139 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A C4
R 1140 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C4
R 1141 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B4
R 1142 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A B4
R 1143 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B4
R 1145 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f4
R 1146 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B e3
R 1147 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f4
R 1148 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B4
R 1149 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- A B4
R 1150 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1151 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1152 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B4
R 1153 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B f4
R 1154 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f4
R 1155 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B f3
R 1156 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B f3
R 1157 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B f3
R 1158 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B f3
R 1159 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B f3
R 1160 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B e3
R 1161 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e3
R 1162 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e3
R 1163 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e3
R 1164 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1166 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A E5
R 1167 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E5
R 1168 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E5
R 1169 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- A E5
R 1170 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A E5
R 1171 CHIP RES. 8.2k 1/16W 0.5% RR0510P-822-D J24189141 1- A E5
R 1172 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A E5
R 1173 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A D5
R 1174 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A D5
R 1175 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D5
R 1176 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A D5
R 1177 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d5
R 1178 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B d5
R 1179 CHIP RES. 10k 1/16W 0.5% RR0510P-103-D J24189143 1- B c5
R 1180 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5
R 1181 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d5
R 1182 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B d5
R 1183 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d5
R 1184 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d5
R 1185 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A C5
R 1186 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d5
R 1187 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C5
R 1188 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A C5
R 1189 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A C5
R 1190 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A C5
R 1191 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A C5
R 1192 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A C5
R 1193 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d5
R 1194 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d5
R 1195 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1196 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C5
R 1197 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B e4
R 1198 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B e4
R 1199 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D5
R 1200 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- A D5
R 1201 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A D5
R 1202 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b5
R 1203 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B e5
R 1204 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B b5
R 1205 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B e5
R 1206 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- B e4
R 1207 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1208 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B e4
R 1209 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1210 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1211 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f4
R 1212 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f4
R 1213 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B f4
R 1214 CHIP RES. 33k 1/16W 0.5% RR0510R-333-D J24189155 1- B e4
R 1215 CHIP RES. 2.7k 1/16W 0.5% RR0510P-272-D J24189129 1- B e4
R 1216 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 1- B e4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
37
MAIN Unit
R 1217 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e3
R 1218 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B e4
R 1219 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A B4
R 1220 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e3
R 1221 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B e4
R 1222 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e4
R 1223 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1224 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1225 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1226 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1227 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1228 CHIP RES. 2.7k 1/16W 0.5% RR0510P-272-D J24189129 1- B d5
R 1229 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D5
R 1230 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 1- B d5
R 1231 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D5
R 1232 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f4
R 1233 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B5
R 1234 CHIP RES. 33k 1/16W 0.5% RR0510R-333-D J24189155 1- B d5
R 1235 CHIP RES. 2.7k 1/16W 0.5% RR0510P-272-D J24189129 1- B d5
R 1236 CHIP RES. 3.3k 1/16W 0.5% RR0510P-332-D J24189131 1- B d5
R 1237 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5
R 1238 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B d5
R 1239 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A D5
R 1240 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C5
R 1241 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d5
R 1242 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d5
R 1243 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d5
R 1244 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c5
R 1245 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d5
R 1246 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d5
R 1247 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c5
R 1248 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c5
R 1249 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f4
R 1250 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B f4
R 1251 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f4
R 1252 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A A4
R 1253 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- B f4
R 1254 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- A A4
R 1255 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A4
R 1256 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A4
R 1257 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f4
R 1258 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B f4
R 1259 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B f4
R 1260 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A A4
R 1261 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f4
R 1262 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A3
R 1263 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f4
R 1264 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B f4
R 1265 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B f4
R 1266 CHIP RES. 68k 1/16W 0.5% RR0510R-683-D J24189163 1- B f4
R 1267 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- B f4
R 1268 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B f4
R 1269 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f4
R 1270 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f4
R 1271 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B f4
R 1272 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B f4
R 1273 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A3
R 1274 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B f4
R 1275 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f4
R 1276 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1277 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1278 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3
R 1279 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3
R 1280 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3
R 1281 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1
R 1282 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A1
R 1283 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A3
R 1284 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A3
R 1285 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A3
R 1286 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A B3
R 1287 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A3
R 1288 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A3
R 1289 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f4
R 1290 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B3
R 1291 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B3
R 1292 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A4
R 1293 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
38
MAIN Unit
R 1294 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A A4
R 1295 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A4
R 1296 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A4
R 1297 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A A4
R 1298 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A A4
R 1299 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B g4
R 1300 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B g4
R 1301 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g4
R 1302 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B g4
R 1303 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- B f5
R 1304 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f5
R 1305 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f5
R 1306 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B g1
R 1307 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B f1
R 1308 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B f1
R 1309 CHIP RES. 270 1/16W 5% RMC1/16S 271JTH J24189018 1- B f1
R 1310 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B g1
R 1311 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f4
R 1312 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f4
R 1313 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f1
R 1314 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B g2
R 1315 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B g2
R 1316 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f2
R 1317 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A A2
R 1318 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2
R 1319 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2
R 1320 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f2
R 1321 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A2
R 1322 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A2
R 1323 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B f3
R 1324 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B f2
R 1325 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B f2
R 1326 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B f2
R 1327 CHIP RES. 4.7M 1/16W 5% RMC1/16S 475JTH J24189337 1- B f2
R 1328 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f2
R 1329 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B f3
R 1330 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- B f3
R 1331 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f3
R 1332 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B f3
R 1333 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f3
R 1334 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B f2
R 1335 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f5
R 1336 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f3
R 1337 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B f3
R 1338 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- B f3
R 1339 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2
R 1340 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2
R 1341 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A B2
R 1342 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B1
R 1343 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A4
R 1344 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A4
R 1345 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- A B4
R 1346 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e4
R 1347 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B4
R 1348 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1
R 1349 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A1
R 1350 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- A A1
R 1351 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- A A1
R 1352 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A B1
R 1353 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B f4
R 1354 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A4
R 1355 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A B4
R 1356 CHIP RES. 56k 1/16W 0.5% RR0510R-563-D J24189161 1- A A4
R 1357 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A4
R 1358 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A A4
R 1359 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- A B4
R 1360 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1361 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e5
R 1362 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1363 CHIP RES. 33 1/2W 5% RMC1/2 330JCTP J24275330 1- B e1
R 1364 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B e1
R 1365 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5
R 1366 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5
R 1367 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5
R 1368 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5
R 1369 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1370 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
39
MAIN Unit
R 1371 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A2
R 1372 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A B2
R 1373 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A2
R 1374 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A2
R 1375 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A A2
R 1376 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- A A1
R 1377 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A A2
R 1378 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f3
R 1379 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f3
R 1381 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B f3
R 1382 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B f4
R 1383 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f4
R 1384 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B g3
R 1385 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f3
R 1386 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B g4
R 1387 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B g4
R 1388 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f5
R 1389 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B f5
R 1390 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B f5
R 1391 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1392 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1393 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B f5
R 1394 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B f3
R 1395 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- A A4
R 1396 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A A4
R 1397 CHIP RES. 3.9k 1/16W 5% RMC1/16S 392JTH J24189032 1- A A4
R 1398 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A A4
R 1399 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A A4
R 1400 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A4
R 1401 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A A4
R 1402 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- A A4
R 1403 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- A A4
R 1404 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A A4
R 1405 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A A4
R 1406 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f5
R 1407 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A A4
R 1408 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- A A4
R 1409 CHIP RES. 33k 1/16W 0.5% RR0510R-333-D J24189155 1- A A4
R 1410 CHIP RES. 56k 1/16W 0.5% RR0510R-563-D J24189161 1- A B4
R 1411 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1413 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- A F5
R 1414 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A F5
R 1415 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- A D4
R 1416 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- A D4
R 1417 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a4
R 1418 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B a5
R 1419 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a5
R 1420 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B a4
R 1421 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D4
R 1422 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1423 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1424 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1425 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1426 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f5
R 1427 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f5
R 1428 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1429 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VER.A2 DST:USA
1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
A1 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
A2 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C1 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C2 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D1 1- A A5
R 1430 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D2 1- A A5
R 1431 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
B1 1- A A5
R 1431 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
B2 1- A A5
R 1431 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C3 1- A A5
R 1431 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D1 1- A A5
R 1431 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D2 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
B3 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C1 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C2 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C3 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D1 1- A A5
R 1432 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D2 1- A A5
R 1435 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VER.A2 DST:USA
1- A A5
R 1436 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
A1 1- A A5
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
40
MAIN Unit
R 1436 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
B1 1- A A5
R 1436 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
C1 1- A A5
R 1436 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070
VERSION
D1 1- A A5
R 1437 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1438 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1439 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1440 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1441 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1442 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A5
R 1443 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1444 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1445 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1446 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1447 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1448 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1449 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1450 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A A4
R 1451 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1452 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1453 CHIP RES. 1.5M 1/16W 5% RMC1/16S 155JTH J24189063 1- A A4
R 1454 CHIP RES. 820k 1/16W 5% RMC1/16S 824JTH J24189060 1- A B4
R 1455 CHIP RES. 390k 1/16W 5% RMC1/16S 394JTH J24189056 1- A B4
R 1456 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B5
R 1457 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B4
R 1458 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B4
R 1459 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B4
R 1460 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- A B4
R 1461 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B5
R 1462 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1463 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B f5
R 1464 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B f3
R 1465 CHIP RES. 100k 1/16W 0.5% RR0510R-104-D J24189167 1- B f3
R 1466 CHIP RES. 2.2k 1/16W 0.5% RR0510P-222-D J24189127 1- A B3
R 1467 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1468 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1469 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1470 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1471 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1472 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1473 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1474 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f5
R 1475 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B f5
R 1476 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1477 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f5
R 1478 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1479 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1480 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1481 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1482 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B5
R 1483 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B5
R 1484 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1485 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B5
R 1486 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1487 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B f5
R 1488 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A B4
R 1489 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e5
R 1490 CHIP RES. 39k 1/16W 5% RMC1/16S 393JTH J24189044 1- B e4
R 1491 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A B4
R 1492 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e5
R 1493 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B e5
R 1494 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- A C4
R 1495 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- A C4
R 1496 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- A C4
R 1497 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1498 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A C4
R 1499 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e4
R 1500 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B d4
R 1501 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A C5
R 1502 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A C4
R 1503 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- A C4
R 1504 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C4
R 1505 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A C4
R 1506 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5
R 1507 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C5
R 1508 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4
R 1509 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C4
R 1510 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
41
MAIN Unit
R 1511 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B d5
R 1512 CHIP RES. 120k 1/16W 5% RMC1/16S 124JTH J24189050 1- B e4
R 1513 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B e5
R 1514 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5
R 1515 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B d5
R 1516 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d5
R 1517 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d4
R 1518 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B d4
R 1519 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B d5
R 1520 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D4
R 1521 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- B d5
R 1522 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B d5
R 1523 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- A D5
R 1524 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D5
R 1525 CHIP RES. 680k 1/16W 5% RMC1/16S 684JTH J24189059 1- A D5
R 1526 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- A D5
R 1527 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5
R 1528 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5
R 1529 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5
R 1530 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E5
R 1531 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- A E5
R 1532 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A E5
R 1533 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A E5
R 1534 CHIP RES. 1.5k 1/16W 5% RMC1/16S 152JTH J24189027 1- A E5
R 1535 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A D5
R 1536 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- A D5
R 1537 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c5
R 1538 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B c5
R 1539 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B c5
R 1540 CHIP RES. 2.7k 1/16W 5% RMC1/16S 272JTH J24189030 1- A D5
R 1541 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B c5
R 1542 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B c5
R 1543 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- B c5
R 1544 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B c5
R 1545 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c5
R 1546 CHIP RES. 18k 1/16W 5% RMC1/16S 183JTH J24189040 1- B d4
R 1547 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d4
R 1548 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B e4
R 1549 CHIP RES. 82k 1/16W 5% RMC1/16S 823JTH J24189048 1- A B4
R 1550 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A B4
R 1551 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e4
R 1552 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D4
R 1553 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d4
R 1554 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B d4
R 1555 CHIP RES. 180 1/16W 5% RMC1/16S 181JTH J24189016 1- B d4
R 1556 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B d4
R 1557 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d4
R 1558 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B d4
R 1559 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B d4
R 1560 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B d4
R 1561 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B d4
R 1562 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B d4
R 1563 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C4
R 1564 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4
R 1565 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- A C4
R 1566 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B d4
R 1567 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C4
R 1568 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A D4
R 1569 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B d4
R 1570 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d4
R 1571 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B d4
R 1572 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d4
R 1573 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B d4
R 1574 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d4
R 1575 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B d4
R 1576 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C4
R 1577 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C4
R 1578 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A D4
R 1579 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A D4
R 1580 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e4
R 1581 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A C4
R 1582 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- A D4
R 1583 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c4
R 1584 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c5
R 1585 CHIP RES. 680 1/16W 5% RMC1/16S 681JTH J24189023 1- B c5
R 1586 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c5
R 1587 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B c4
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
42
MAIN Unit
R 1588 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b5
R 1589 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E4
R 1590 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c4
R 1591 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- B c4
R 1592 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B c4
R 1593 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c4
R 1594 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B c4
R 1595 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1596 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B b4
R 1597 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A E4
R 1598 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A E4
R 1599 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D5
R 1600 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A D4
R 1601 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- A E5
R 1602 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- A C3
R 1603 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B f3
R 1604 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 1605 CHIP RES. 330k 1/16W 5% RMC1/16S 334JTH J24189055 1- B e3
R 1606 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e3
R 1607 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B e3
R 1608 CHIP RES. 3.3k 1/16W 5% RMC1/16S 332JTH J24189031 1- B e3
R 1609 CHIP RES. 6.8k 1/16W 5% RMC1/16S 682JTH J24189035 1- B e3
R 1610 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B f3
R 1611 CHIP RES. 470k 1/16W 5% RMC1/16S 474JTH J24189057 1- B f3
R 1613 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B d3
R 1614 CHIP RES. 150 1/16W 5% RMC1/16S 151JTH J24189015 1- B d3
R 1615 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B d3
R 1616 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- B d3
R 1617 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B d3
R 1618 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d3
R 1619 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- B d3
R 1620 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B d3
R 1621 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e3
R 1622 CHIP RES. 27k 1/16W 5% RMC1/16S 273JTH J24189042 1- B e3
R 1623 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B d3
R 1624 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- B d3
R 1625 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- B e3
R 1626 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e2
R 1627 CHIP RES. 12k 1/16W 5% RMC1/16S 123JTH J24189038 1- B d3
R 1628 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A C3
R 1629 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- A C3
R 1630 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C3
R 1631 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C3
R 1632 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A C2
R 1633 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- A D3
R 1634 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A D3
R 1635 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B d3
R 1636 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B d3
R 1637 CHIP RES. 220 1/2W 5% RMC1/2 221JCTP J24275221 1- A B3
R 1638 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e2
R 1639 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- A C2
R 1640 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B e2
R 1641 CHIP RES. 820 1/2W 5% RK73K2HTE820-OHMJ J24279028 1- B e2
R 1642 CHIP RES. 820 1/2W 5% RK73K2HTE820-OHMJ J24279028 1- B d2
R 1643 CHIP RES. 470 1/2W 5% RMC1/2 471JCTP J24275471 1- B d2
R 1644 CHIP RES. 1k 1/4W 5% RMC1/4 102JATP J24245102 1- A C2
R 1647 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B e1
R 1648 CHIP RES. 82 1/16W 5% RMC1/16S 820JTH J24189012 1- B e1
R 1649 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B e1
R 1650 CHIP RES. 8.2k 1/16W 5% RMC1/16S 822JTH J24189036 1- B e3
R 1651 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1
R 1652 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1
R 1653 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b1
R 1654 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- A F2
R 1655 CHIP RES. 33 1W 5% RMC1 330JTE J24305330 1- A E2
R 1656 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B c2
R 1657 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B a1
R 1658 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A B2
R 1659 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B2
R 1660 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B2
R 1661 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- A B2
R 1662 CHIP RES. 18 1/2W 5% RMC1/2 180JTE J24275180 1- A D2
R 1663 CHIP RES. 39 1W 5% RMC1 390JTE J24305390 1- A D2
R 1664 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c2
R 1665 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B c2
R 1666 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- B b2
R 1667 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- A E2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
43
MAIN Unit
R 1668 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B b2
R 1672 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b5
R 1673 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b4
R 1677 CHIP RES. 0 1/16W 5% RMC1/16S JPTH J24189070 1- B b5
R 1678 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B b5
R 1679 CHIP RES. 47 1/16W 5% RMC1/16S 470JTH J24189009 1- B c3
R 1680 CHIP RES. 220 1/16W 5% RMC1/16S 221JTH J24189017 1- A D3
R 1681 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C3
R 1682 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- A C3
R 1685 CARBON FILM RES. 5.6k 1/6W 5% RD16TPJ562 5.6K J07225562 1-
TH1001 THERMISTOR TBPS1R103K440H5Q G9090067 1- A C3
TH1002 THERMISTOR TBPS1R103K440H5Q G9090067 1- B d5
TH1003 THERMISTOR TBPS1R473K475H5Q G9090068 1- B d5
TH1004 THERMISTOR TBPS1R473K475H5Q G9090068 1- B c5
TH1005 THERMISTOR TBPS1R103K440H5Q G9090067 1- B c5
X 1001 XTAL CSA-310 3.6864MHz 3.6864MHZ H0102988 1- A A4
X 1002 XTAL TSS-5032A 11.15MHz 11.15MHZ H0103268 1- B d4
X 1003 XTAL TSS-6 11.7MHz TSS-5032A 11.7MHZ H0103264 1- B c5
XF1001 XTAL FILTER MFT45R6 45.05MHZ H1102351 1- A C4
XF1002 XTAL FILTER MFT47R 47.25MHZ H1102352 1- A E5
SHIELD CASE VCO RA0272500 1-
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
44
MAIN Unit
Note:
45
PANEL Unit
Circuit Diagram
46
PANEL Unit
Parts Layout
ABCDEFG
1
2
abcdefg
1
2
Side A
Side B
TC4W53FU
(Q2004)
2SA1602A (MF)
(Q2005)
2SC4617 (BR)
(Q2007)
RT1N441U (N3)
(Q2006)
HZM27WA (N3)
(D2004, 2005)
NJM78L05 (8C)
(Q2009)
CPH6102
(Q2008)
M38223M4M
(Q2001)
LC75821E
(Q2002, 2003)
47
PANEL Unit
PCB with Components CB2513001
Printed Circuit Board AH008M000 FR0084500 1-
C 2001 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2002 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B d2
C 2003 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B d2
C 2004 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2
C 2005 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B d2
C 2006 CHIP CAP. 0.022uF 16V B GRM36B223K16PT K22128806 1- B d2
C 2007 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2008 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2009 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2010 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2
C 2011 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2
C 2012 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B a2
C 2013 CHIP TA.CAP. 10uF 6.3V TEMSVA0J106M-8R K78080027 1- B c2
C 2014 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B c2
C 2015 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B f2
C 2016 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B e2
C 2017 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 2018 CHIP CAP. 0.1uF 10V B GRM36B104K10PT K22108802 1- B b2
C 2019 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B b2
C 2020 CHIP TA.CAP. 10uF 6.3V TEMSVA0J106M-8R K78080027 1- B f2
C 2021 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- B d2
C 2022 CHIP CAP. 39pF 50V CH GRM36CH390J50PT K22178226 1- B d2
C 2023 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2024 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2
C 2025 CHIP CAP. 1uF 10V F GRM39F105Z10PT K22105001 1- B f2
C 2026 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B g2
C 2027 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d2
C 2028 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f2
C 2030 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B d2
C 2031 CHIP CAP. 47pF 50V CH GRM36CH470J50PT K22178228 1- B f2
C 2032 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2
C 2033 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- B e2
C 2034 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c2
C 2035 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B d2
C 2036 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B c2
C 2037 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2
C 2038 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B e2
C 2039 CHIP CAP. 680pF 50V B GRM36B681K50PT K22178807 1- B b2
C 2040 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f2
C 2042 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f2
C 2043 CHIP CAP. 0.001uF 50V B GRM36B102K50PT K22178809 1- B f2
C 2046 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c2
C 2047 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c2
C 2048 CHIP CAP. 100pF 50V CH GRM36CH101J50PT K22178236 1- B c2
D 2002 LED TLYH262(PQ) G2090777 1- A F2
D 2003 LED TLYH262(PQ) G2090777 1- A F2
D 2004 DIODE HZM27WA-TR G2070530 1- B d2
D 2005 DIODE HZM27WA-TR G2070530 1- B d2
D 2006 DIODE UDZS TE-17 6.8B G2070888 1- B f2
D 2007 DIODE UDZS TE-17 6.8B G2070888 1-
DS2001 LCD 050442-2 G6090147A 1- A D2
J 2003 CONNECTOR IL-FHR-10S-HF-E3000 P1091046 1- B f2
L 2001 M.RFC 1uH LK1608 1R0K-T L1690687 1- B c2
Q 2001 IC M38223M4M-363HP G1093816 1- B d2
Q 2002 IC LC75821E G1092191 1- B e2
Q 2003 IC LC75821E G1092191 1- B b2
Q 2004 IC TC4W53FU TE12L G1091675 1- B c2
Q 2005 TRANSISTOR 2SA1602A-T11-1F G3116028F 1- B f2
Q 2006 TRANSISTOR RT1N441U-T11-1 G3070247 1- B e2
Q 2007 TRANSISTOR 2SC4617 TL R G3346178R 1- B c2
Q 2008 TRANSISTOR CPH6102-TL G3070223 1- B b2
Q 2009 IC NJM78L05UA TE1 G1091325 1- B g2
R 2001 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f2
R 2002 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g2
R 2003 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B g2
R 2004 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B g2
R 2005 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B g2
R 2006 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B d2
R 2007 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B e2
R 2008 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B e2
R 2009 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2010 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B e2
R 2011 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B c2
R 2012 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- B c2
R 2013 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B c2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
Parts List
48
PANEL Unit
R 2014 CHIP RES. 220k 1/16W 5% RMC1/16S 224JTH J24189053 1- B b2
R 2015 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B a2
R 2016 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B a2
R 2017 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B b2
R 2018 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B a2
R 2019 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B a2
R 2020 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B f2
R 2021 CHIP RES. 68k 1/16W 5% RMC1/16S 683JTH J24189047 1- B b2
R 2022 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2023 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2024 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2025 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2026 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2027 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2028 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2029 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2030 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2031 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2032 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2033 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B c2
R 2034 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2035 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2036 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2037 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2038 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2039 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2040 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2041 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2042 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2043 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2044 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2045 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2
R 2046 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2047 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2048 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2049 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2050 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2051 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2052 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2053 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d2
R 2054 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1- B d2
R 2055 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B d2
R 2056 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e2
R 2057 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B f2
R 2058 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- B e2
R 2059 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 1- B a2
R 2060 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 1- B a2
R 2061 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 1- B b2
R 2062 CHIP RES. 120 1/16W 5% RMC1/16S 121JTH J24189014 1- B b2
R 2063 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- B c2
R 2064 CHIP RES. 560 1/16W 5% RMC1/16S 561JTH J24189022 1- B c2
R 2065 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- B c2
R 2066 CHIP RES. 470 1/16W 5% RMC1/16S 471JTH J24189021 1- B d2
R 2067 CHIP RES. 1M 1/16W 5% RMC1/16S 105JTH J24189061 1- B d2
R 2069 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B c2
R 2070 CHIP RES. 10 1/10W 5% RMC1/10T 100J J24205100 1- B f2
R 2071 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2072 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2073 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2074 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2075 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B e2
R 2076 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2077 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- B e2
R 2078 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B e2
R 2079 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2
R 2080 CHIP RES. 330 1/16W 5% RMC1/16S 331JTH J24189019 1- B c2
R 2081 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2082 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2083 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- B d2
R 2084 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2085 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2086 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B d2
R 2087 CHIP RES. 56k 1/16W 5% RMC1/16S 563JTH J24189046 1- B b2
S 2001 ROTARY ENCODER EC12E2424404 Q9000788 1- A A2
S 2002 ROTARY ENCODER EC12E2424404 Q9000788 1- A G2
S 2003 TACT SWITCH SKQMAL N5090105 1- A D2
S 2004 TACT SWITCH SKQMAL N5090105 1- A C2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
49
PANEL Unit
S 2005 TACT SWITCH SKQMAL N5090105 1- A C2
S 2006 TACT SWITCH SKQMAL N5090105 1- A B2
S 2007 TACT SWITCH SKQMAL N5090105 1- A B2
S 2008 TACT SWITCH SKQMAL N5090105 1- A E2
S 2009 TACT SWITCH SKQMAL N5090105 1- A D2
S 2010 TACT SWITCH SKQMAL N5090105 1- A E2
S 2011 TACT SWITCH SKQMAL N5090105 1- A F2
S 2012 TACT SWITCH SKQMAL N5090105 1- A B2
S 2013 TACT SWITCH SKQMAL N5090105 1- A A2
S 2014 TACT SWITCH SKQMAL N5090105 1- A A2
S 2015 TACT SWITCH SKQMAL N5090105 1- A F2
S 2016 TACT SWITCH SKQMAL N5090105 1- A F2
S 2017 TACT SWITCH SKQMAL N5090105 1- A F2
X 2001 XTAL CSA-310 3.6864MHz 3.6864MHZ H0102988 1- B d2
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
50
PANEL Unit
Note:
51
PANEL-SUB Unit
Circuit Diagram
52
PANEL-SUB Unit
Parts Layout
Parts List
ABC
1
ABC
1
Side A
Side B
PCB with Components CB2514002 DST: USA
CB2514003 DST: EXP
CB2514004 DST: AUS
Printed Circuit Board AH008M000 FR0085700 1-
C 3001 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1
C 3002 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1
C 3003 CHIP CAP. 470pF 50V BGRM36B471K50PT K22178805 1- AB1
C 3004 CHIP CAP. 0.022uF 16V BGRM36B223K16PT K22128806 1- AB1
C 3005 CHIP CAP. 0.022uF 16V BGRM36B223K16PT K22128806 1- AB1
C 3006 CHIP CAP. 0.01uF 16V BGRM36B103K16PT K22128804 1- AB1
C 3007 CHIP CAP. 15pF 50V CH GRM36CH150J50PT K22178216 1- AB1
C 3008 CHIP CAP. 1uF 10V FGRM39F105Z10PT K22105001 1- AB1
C 3009 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1
C 3010 CHIP CAP. 0.0056uF 25V BGRM36B562K50PT K22148802 1- AB1
C 3012 CHIP CAP. 0.001uF 50V BGRM36B102K50PT K22178809 1- AB1
J 3001 CONNECTOR NTC-623PCBL6-B P1091107 1- AA1
J 3002 CONNECTOR IL-FHR-10S-HF-E3000 P1091046 1- AA1
J 3003 CONNECTOR MJ-66J-RD315K P1091049 1- AC1
Q 3001 IC NJM2904V-TE1 G1091677 1- AB1
R 3001 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AB1
R 3002 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 1- AB1
R 3003 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AB1
R 3004 CHIP RES. 2.2M 1/16W 5% RMC1/16S 225JTH J24189065 1- AB1
R 3005 CHIP RES. 15k 1/16W 5% RMC1/16S 153JTH J24189039 1- AB1
R 3006 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AB1
R 3007 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- AB1
R 3008 CHIP RES. 4.7k 1/16W 5% RMC1/16S 472JTH J24189033 1- AB1
R 3009 CHIP RES. 150k 1/16W 5% RMC1/16S 154JTH J24189051 1- AB1
R 3010 CHIP RES. 100k 1/16W 5% RMC1/16S 104JTH J24189049 1- AB1
R 3011 CHIP RES. 33k 1/16W 5% RMC1/16S 333JTH J24189043 1- AB1
R 3012 CHIP RES. 47k 1/16W 5% RMC1/16S 473JTH J24189045 1- AB1
R 3013 CHIP RES. 100 1/16W 5% RMC1/16S 101JTH J24189013 1- AB1
R 3014 CHIP RES. 10k 1/16W 5% RMC1/16S 103JTH J24189037 1- AB1
R 3015 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- AB1
R 3016 CHIP RES. 22 1/16W 5% RMC1/16S 220JTH J24189005 1- AB1
R 3017 CHIP RES. 01/16W 5% RMC1/16S JPTH J24189070 1- AB1
NJM2904V
(Q 3001)
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
53
PCB with Components CB2515001
Printed Circuit Board AH018M000 FR0085800 1-
C 4001 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 4002 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 4003 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 4004 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 4005 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
P 4000 WIRE ASSY AH008M T9206998 1-
R 4001 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B a1
R 4002 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B a1
R 4003 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
R 4004 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
R 4005 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
R 4006 CHIP RES. 22k 1/16W 5% RMC1/16S 223JTH J24189041 1 B a1
R 4006 CHIP RES. 2.2k 1/16W 5% RMC1/16S 222JTH J24189029 2- B a1
VR4001 POT. TP76D00A 10KB/10KB/SW J62800140 1- A A1
VR-L Unit
Parts LayoutCircuit Diagram
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
Side A Side B
54
VR-R Unit
Parts LayoutCircuit Diagram
Parts List
REF DESCRIPTION VALUE V/W TOL. MFR'S DESIG VXSTD P/N VERS. LOT
SIDE
LAY ADR
PCB with Components CB2516001
Printed Circuit Board AH008M000 FR0085900 1-
C 5001 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 5002 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 5003 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 5004 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
C 5005 CHIP CAP. 0.01uF 16V B GRM36B103K16PT K22128804 1- B a1
P 5000 WIRE ASSY AH008M T9206998 1-
R 5001 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B a1
R 5002 CHIP RES. 10 1/16W 5% RMC1/16S 100JTH J24189001 1- B a1
R 5003 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
R 5004 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
R 5005 CHIP RES. 1k 1/16W 5% RMC1/16S 102JTH J24189025 1- B a1
VR5001 POT. TP76D00A 10KB/10KB/SW J62800140 1- A A1
Side A Side B
18
Copyright 2003
VERTEX STANDARD CO., LTD.
All rights reserved.
No portion of this manual
may be reproduced
without the permission of
VERTEX STANDARD CO., LTD.
