Zimmer Periarticular Locking Plate System Brochure 97 2347 601 00 5ML Plating

: Pdf Zimmer Periarticular Locking Plating System Brochure Zimmer_Periarticular_Locking_Plating_System_Brochure 4 2016 pdf

Open the PDF directly: View PDF .
Page Count: 18

With the Periarticular Locking Plate System, Zimmer offers advanced solutions for

the management of comminuted fractures and fractures in which deficient bone

stock or poor bone quality is encountered. The system combines anatomically

contoured periarticular plates with locking screw technology. The unique plate

designs feature a transitioned profile that is thinner in the metaphyseal and

thicker in the diaphyseal areas. Locking screw holes

are combined with compression slots,

so that the plates can be used

both as locking devices and for

fracture compression.

Advanced fabricating technologies are guided

by data from a digital laser scanner that helps

to determine optimal implant contours.

Periarticular Locking Plate System

Combining anatomic fit with locking technology

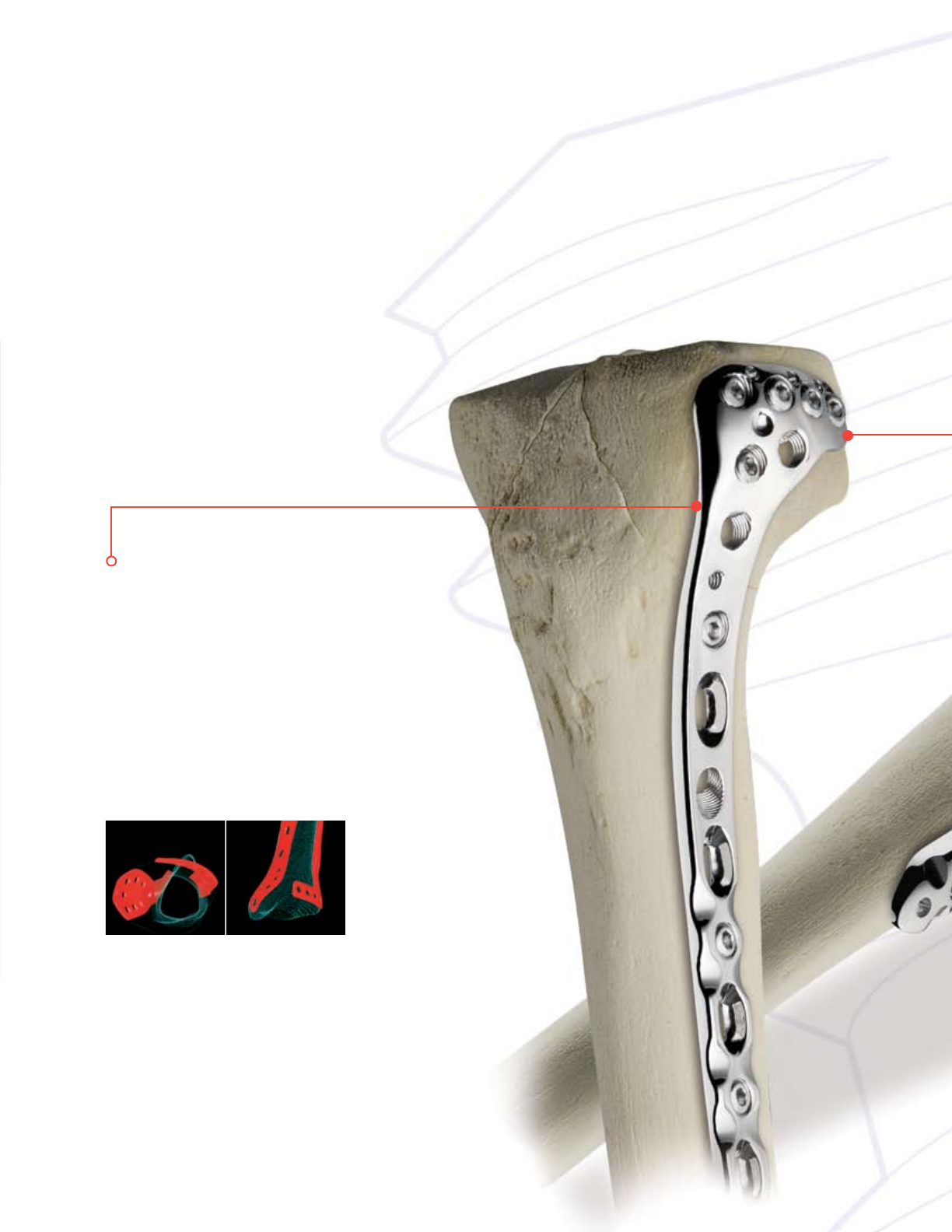

Precontoured plates that follow

the shape of the bone

One of the most difficult challenges in the treatment

of periarticular fractures is bending the plate to fit

the specific profile of the bone. Zimmer’s advanced

periarticular plates were developed using digital laser

bone-scanning technology. The data was used to

guide advanced fabricating technologies in the precise

manufacture of precontoured implants. The Periarticular

Locking Plates closely follow the shape of the bone to

create a fit that requires little or no additional bending.

Locking in the perfect fit

97-2347-601-00 5ML Printed in U.S.A. ©2006 Zimmer, Inc.

Zimmer ®

Periarticular

Locking Plate

System

+H124972347601001/$061113K067

Contact your Zimmer representative or visit us at www.zimmer.com

PULL

HERE

With the Periarticular Locking Plate System, Zimmer offers advanced solutions for

the management of comminuted fractures and fractures in which deficient bone

stock or poor bone quality is encountered. The system combines anatomically

contoured periarticular plates with locking screw technology. The unique plate

designs feature a transitioned profile that is thinner in the metaphyseal and

thicker in the diaphyseal areas. Locking screw holes

are combined with compression slots,

so that the plates can be used

both as locking devices and for

fracture compression.

Advanced fabricating technologies are guided

by data from a digital laser scanner that helps

to determine optimal implant contours.

Periarticular Locking Plate System

Combining anatomic fit with locking technology

Precontoured plates that follow

the shape of the bone

One of the most difficult challenges in the treatment

of periarticular fractures is bending the plate to fit

the specific profile of the bone. Zimmer’s advanced

periarticular plates were developed using digital laser

bone-scanning technology. The data was used to

guide advanced fabricating technologies in the precise

manufacture of precontoured implants. The Periarticular

Locking Plates closely follow the shape of the bone to

create a fit that requires little or no additional bending.

Locking in the perfect fit

97-2347-601-00 5ML Printed in U.S.A. ©2006 Zimmer, Inc.

Zimmer ®

Periarticular

Locking Plate

System

+H124972347601001/$061113K067

Contact your Zimmer representative or visit us at www.zimmer.com

With the Periarticular Locking Plate System, Zimmer offers advanced solutions for

the management of comminuted fractures and fractures in which deficient bone

stock or poor bone quality is encountered. The system combines anatomically

contoured periarticular plates with locking screw technology. The unique plate

designs feature a transitioned profile that is thinner in the metaphyseal and

thicker in the diaphyseal areas. Locking screw holes

are combined with compression slots,

so that the plates can be used

both as locking devices and for

fracture compression.

Advanced fabricating technologies are guided

by data from a digital laser scanner that helps

to determine optimal implant contours.

Periarticular Locking Plate System

Combining anatomic fit with locking technology

Precontoured plates that follow

the shape of the bone

One of the most difficult challenges in the treatment

of periarticular fractures is bending the plate to fit

the specific profile of the bone. Zimmer’s advanced

periarticular plates were developed using digital laser

bone-scanning technology. The data was used to

guide advanced fabricating technologies in the precise

manufacture of precontoured implants. The Periarticular

Locking Plates closely follow the shape of the bone to

create a fit that requires little or no additional bending.

Locking in the perfect fit

97-2347-601-00 5ML Printed in U.S.A. ©2006 Zimmer, Inc.

Zimmer ®

Periarticular

Locking Plate

System

+H124972347601001/$061113K067

Contact your Zimmer representative or visit us at www.zimmer.com

Low-profile fixation

accommodates both

patient and surgeon

Zimmer’s periarticular plate designs

decrease in thickness toward the

joint line to reduce the potential

for soft-tissue irritation and to

simplify any additional contouring.

The reduced thickness also allows

the implant to “autocontour” as

the screws draw the plate toward

the bone. The tapered plate shaft

design, combined with specialized

instrumentation, provides for

submuscular passage of the plate

and fixation that utilizes a minimally

invasive technique.

Conventional

Screw

Periarticular

3.5mm

Locking Screw

Periarticular

Self-Tapping Cortical

Bone Screw

The latest advancement

in fixation: locking screw

technology

Zimmer’s locking screw technology

gives surgeons the ability to create

a fixed-angle construct while using

familiar plating techniques.

The locking plate design does not

require compression between the

plate and bone to accommodate

loading. Therefore, screw purchase

in the bone can be achieved with

a thread profile that is shallower

than that of traditional screws.

In turn, the shallow thread profile

allows for screws with a large

core diameter to accommodate

loading with improved bending

and shear strength.

Meeting clinical needs

with a wide range of

options

The Periarticular Locking Plate

System was designed with the input

of experienced surgeons to ensure

that the components meet current

clinical needs and anticipate clinical

needs of the future. The plates are

available in a variety of lengths,

both left and right.

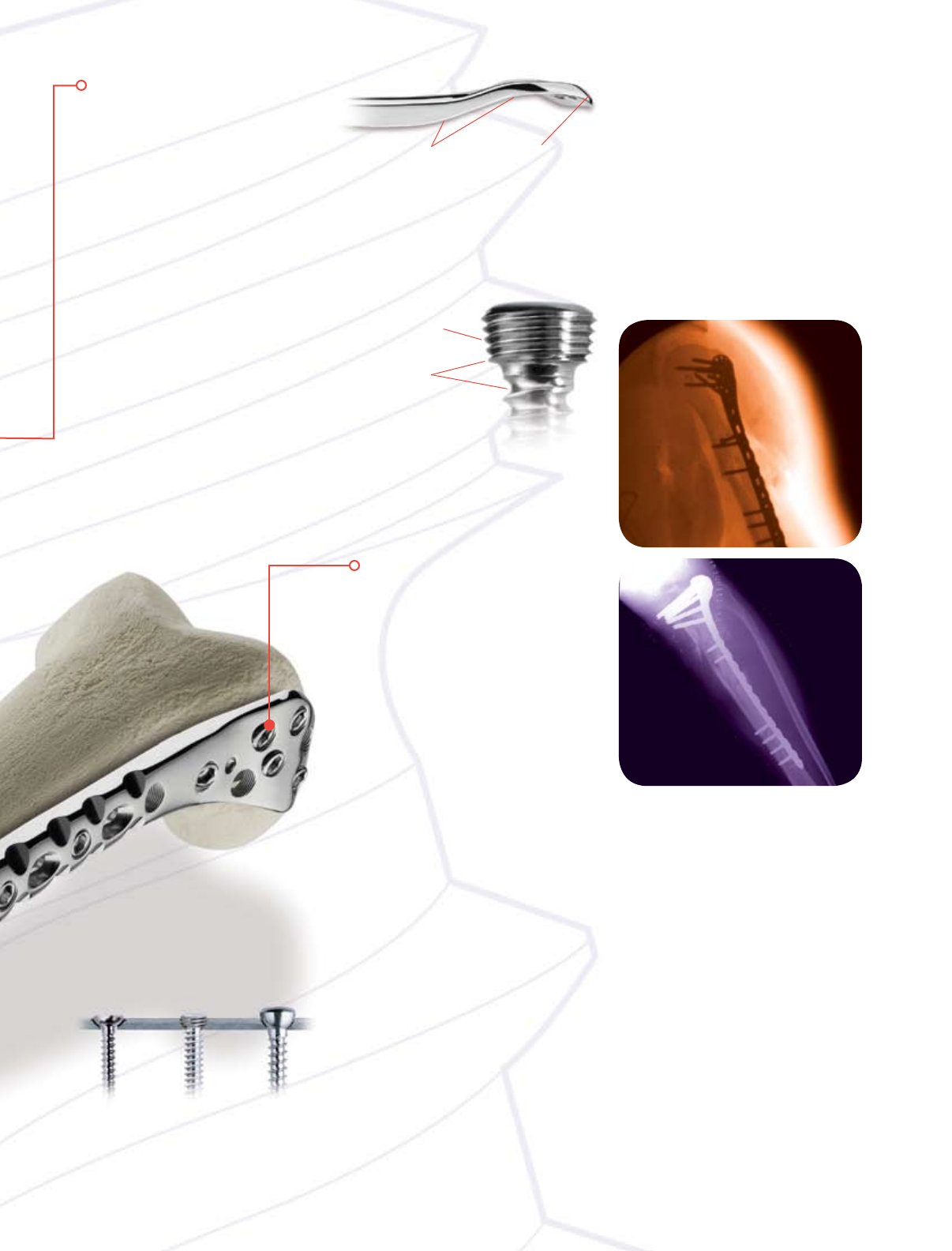

Thick-to-thin plate

profile makes the

plate autocontourable

Beveled edge allows

soft-tissue coverage

Double lead threads

(Double the shaft

thread pitch)

Head and shaft

travel at same rate

into plate and bone

Zimmer Periarticular Locking Plate System

components:

• Distal Lateral Femoral Plate

• 3.5mm and 5.5mm Proximal Lateral

Tibial Plates

• Distal Medial and Distal Lateral

Tibial Plates

• Proximal Humeral Plate

• Distal Radial Plates:

- Volar Lateral Column

- Volar Medial Column

- Dorsal T

- Dorsal Delta

- Radial Styloid

Tibial Periarticular

Fracture w/Proximal

Lateral Tibial

Locking Plate

Humeral Periarticular

Fracture w/Proximal

Humeral Locking Plate

Ordering Information

3.5mm Proximal Lateral Humeral Locking Plate

Left Right Description Holes Length

00-2358-002-04 00-2358-001-04 Proximal Lateral Humeral Locking Plate 4 90mm

00-2358-002-06 00-2358-001-06 Proximal Lateral Humeral Locking Plate 6 114mm

00-2358-002-08 00-2358-001-08 Proximal Lateral Humeral Locking Plate 8 138mm

00-2358-002-12 00-2358-001-12 Proximal Lateral Humeral Locking Plate 12 186mm

00-2358-002-16 00-2358-001-16 Proximal Lateral Humeral Locking Plate 16 234mm

PROXIMAL LATERAL HUMERAL LOCKING PLATES

Proximal Lateral Humeral Locking Plate Set Qty

00-2358-000-05 Proximal Lateral Humeral Locking

Plate Set (Contains the following)

00-2358-002-04 Proximal Lateral Humeral Locking Plate 1

00-2358-002-06 Proximal Lateral Humeral Locking Plate 1

00-2358-002-08 Proximal Lateral Humeral Locking Plate 1

00-2358-002-12 Proximal Lateral Humeral Locking Plate 1

00-2358-002-16 Proximal Lateral Humeral Locking Plate 1

00-2358-001-04 Proximal Lateral Humeral Locking Plate 1

00-2358-001-06 Proximal Lateral Humeral Locking Plate 1

00-2358-001-08 Proximal Lateral Humeral Locking Plate 1

00-2358-001-12 Proximal Lateral Humeral Locking Plate 1

00-2358-001-16 Proximal Lateral Humeral Locking Plate 1

3.5mm/2.7mm Periarticular Locking Instrument Set Qty

00-2360-000-02 3.5mm/2.7mm Periarticular Locking

Instrument Set (Contains the following)

00-1147-071-00 Cleaning Stylet 1

00-1147-076-00 Cleaning Brush 1

00-2358-040-00 3.5mm/2.7mm Locking Screw and Instrument

Case 1

00-2360-011-01 3.5mm/2.7mm Locking Plate Reduction

Instrument 2

00-2360-011-02 3.5mm/2.7mm Locking Plate Reduction

Sleeve 2

00-2360-012-03 Plate Reduction Spin Knob 2

00-2360-020-20 2.0mm Standard Cannula 4

00-2360-020-27 2.7mm Standard Cannula 4

00-2360-021-16 1.6mm Standard Cannula 4

00-2360-033-16 1.6mm Standard Drill-Tip Guide Wire

(5 per Box) 2 Bx

00-2360-040-35 3.5mm/2.7mm Locking Screw Standard

Depth Gauge 1

00-2360-041-35 3.5mm Cannulated Locking Screw

Depth Gauge 1

00-2360-053-27 2.7mm Locking Screw Tap 2

00-2360-053-35 3.5mm Locking Screw Tap 2

00-2360-054-35 3.5mm Cannulated Locking Screw Tap 2

00-2360-065-00 2.5mm Screwdriver Stop Ring 1

00-2360-065-25 2.5mm Hex Standard Screwdriver 2

00-2360-066-25 2.5mm Hex Standard Cannulated

Screwdriver 2

00-2360-071-27 2.7mm Standard Cannulated Drill 2

00-2360-080-00 Torque-Limiting Attachment 1

00-2360-086-00 Modular Handle 1

00-2360-088-00 3.5mm/2.7mm Cannula Inserter 1

00-2360-175-20 2.0mm Standard Drill 2

00-2360-205-27 2.7mm Standard Drill 2

00-4812-045-00 Large Hex Screwdriver 1

00-2360-050-25 2.5mm Hex Forward Captive Screwdriver 0

00-2360-051-25 2.5mm Hex Cannulated Forward Captive

Screwdriver 0

Compatible with:

Zimmer Periarticular 3.5mm Self-Tapping Cortical Screws; Zimmer

Periarticular 4.0mm Cancellous Screws

Screw and Instrument Sets

00-2360-000-02 3.5mm/2.7mm Periarticular Locking Instrument Set

00-2359-000-02 3.5mm/2.7mm Locking Screw Set

00-2358-000-05 Proximal Lateral Humeral Locking Plate Set

00-2360-000-14 Proximal Lateral Humeral Plate Standard Jig Set

Proximal Lateral Humeral Plate Standard Jig Set Qty

00-2360-000-14 Proximal Lateral Humeral Plate

Standard Jig Set (Contains the following)

00-2360-092-01 Proximal Lateral Humeral Plate Jig, Right 1

00-2360-092-02 Proximal Lateral Humeral Plate Jig, Left 1

00-2358-030-05 Proximal Lateral Humeral Locking Plate Case 1

Item Number Description Qty

00-2359-030-36 3.5mm Cannulated Locking Screw 30mm Lng 3

00-2359-035-36 3.5mm Cannulated Locking Screw 35mm Lng 3

00-2359-040-36 3.5mm Cannulated Locking Screw 40mm Lng 3

00-2359-045-36 3.5mm Cannulated Locking Screw 45mm Lng 3

00-2359-050-36 3.5mm Cannulated Locking Screw 50mm Lng 4

00-2359-055-36 3.5mm Cannulated Locking Screw 55mm Lng 4

00-2359-060-36 3.5mm Cannulated Locking Screw 60mm Lng 4

00-2359-065-36 3.5mm Cannulated Locking Screw 65mm Lng 4

00-2359-070-36 3.5mm Cannulated Locking Screw 70mm Lng 4

00-2359-075-36 3.5mm Cannulated Locking Screw 75mm Lng 3

00-2359-080-36 3.5mm Cannulated Locking Screw 80mm Lng 3

00-2359-085-36 3.5mm Cannulated Locking Screw 85mm Lng 3

00-2359-090-36 3.5mm Cannulated Locking Screw 90mm Lng 3

00-2359-030-37 3.5mm Cannulated Conical Screw 30mm Lng 2

00-2359-035-37 3.5mm Cannulated Conical Screw 35mm Lng 2

00-2359-040-37 3.5mm Cannulated Conical Screw 40mm Lng 2

00-2359-045-37 3.5mm Cannulated Conical Screw 45mm Lng 2

00-2359-050-37 3.5mm Cannulated Conical Screw 50mm Lng 2

00-2359-055-37 3.5mm Cannulated Conical Screw 55mm Lng 2

00-2359-060-37 3.5mm Cannulated Conical Screw 60mm Lng 2

00-2359-065-37 3.5mm Cannulated Conical Screw 65mm Lng 2

00-2359-070-37 3.5mm Cannulated Conical Screw 70mm Lng 2

00-2359-012-35 3.5mm Locking Screw 12mm Lng 2

00-2359-014-35 3.5mm Locking Screw 14mm Lng 2

00-2359-016-35 3.5mm Locking Screw 16mm Lng 2

00-2359-018-35 3.5mm Locking Screw 18mm Lng 2

00-2359-020-35 3.5mm Locking Screw 20mm Lng 2

00-2359-022-35 3.5mm Locking Screw 22mm Lng 2

00-2359-024-35 3.5mm Locking Screw 24mm Lng 2

00-2359-026-35 3.5mm Locking Screw 26mm Lng 2

00-2359-028-35 3.5mm Locking Screw 28mm Lng 2

00-2359-030-35 3.5mm Locking Screw 30mm Lng 2

00-2359-032-35 3.5mm Locking Screw 32mm Lng 3

00-2359-034-35 3.5mm Locking Screw 34mm Lng 3

00-2359-036-35 3.5mm Locking Screw 36mm Lng 3

00-2359-038-35 3.5mm Locking Screw 38mm Lng 3

00-2359-040-35 3.5mm Locking Screw 40mm Lng 3

00-2359-042-35 3.5mm Locking Screw 42mm Lng 3

3.5mm/2.7mm Locking Screw Set

Item Number Description Qty

00-2359-044-35 3.5mm Locking Screw 44mm Lng 3

00-2359-046-35 3.5mm Locking Screw 46mm Lng 3

00-2359-048-35 3.5mm Locking Screw 48mm Lng 3

00-2359-050-35 3.5mm Locking Screw 50mm Lng 3

00-2359-052-35 3.5mm Locking Screw 52mm Lng 2

00-2359-054-35 3.5mm Locking Screw 54mm Lng 2

00-2359-056-35 3.5mm Locking Screw 56mm Lng 2

00-2359-058-35 3.5mm Locking Screw 58mm Lng 2

00-2359-060-35 3.5mm Locking Screw 60mm Lng 2

00-2359-065-35 3.5mm Locking Screw 65mm Lng 2

00-2359-070-35 3.5mm Locking Screw 70mm Lng 2

00-2359-010-27* 2.7mm Locking Screw 10mm Lng 3

00-2359-012-27* 2.7mm Locking Screw 12mm Lng 3

00-2359-014-27* 2.7mm Locking Screw 14mm Lng 3

00-2359-016-27* 2.7mm Locking Screw 16mm Lng 3

00-2359-018-27* 2.7mm Locking Screw 18mm Lng 3

00-2359-020-27* 2.7mm Locking Screw 20mm Lng 3

00-2359-022-27* 2.7mm Locking Screw 22mm Lng 4

00-2359-024-27* 2.7mm Locking Screw 24mm Lng 4

00-2359-026-27* 2.7mm Locking Screw 26mm Lng 4

00-2359-028-27* 2.7mm Locking Screw 28mm Lng 4

00-2359-030-27* 2.7mm Locking Screw 30mm Lng 4

00-2359-032-27* 2.7mm Locking Screw 32mm Lng 4

00-2359-034-27* 2.7mm Locking Screw 34mm Lng 4

00-2359-036-27* 2.7mm Locking Screw 36mm Lng 4

00-2359-038-27* 2.7mm Locking Screw 38mm Lng 4

00-2359-040-27* 2.7mm Locking Screw 40mm Lng 4

00-2359-042-27* 2.7mm Locking Screw 42mm Lng 4

00-2359-044-27* 2.7mm Locking Screw 44mm Lng 4

00-2359-046-27* 2.7mm Locking Screw 46mm Lng 4

00-2359-048-27* 2.7mm Locking Screw 48mm Lng 4

00-2359-050-27* 2.7mm Locking Screw 50mm Lng 4

00-2359-052-27* 2.7mm Locking Screw 52mm Lng 3

00-2359-054-27* 2.7mm Locking Screw 54mm Lng 3

00-2359-056-27* 2.7mm Locking Screw 56mm Lng 3

00-2359-058-27* 2.7mm Locking Screw 58mm Lng 3

00-2359-060-27* 2.7mm Locking Screw 60mm Lng 3

* The proximal lateral humeral locking plate is designed for use with 3.5mm

screws and is not intended for use with the 2.7mm screw.

Ordering Information (continued)

DISTAL RADIAL VOLAR LOCKING PLATES

Also Available

00-2358-027-03 Radial Styloid Locking Plate, 3 Hole, 34mm Lng, Right

00-2358-027-05 Radial Styloid Locking Plate, 5 Hole, 51mm Lng, Right

00-2358-028-03 Radial Styloid Locking Plate, 3 Hole, 34mm Lng, Left

00-2358-028-05 Radial Styloid Locking Plate, 5 Hole, 51mm Lng, Left

2.4mm Locking Instrument Set Qty

00-2358-000-05 2.4mm Locking Instrument Set

(Contains the following)

00-2358-045-00 Distal Radial Locking Screw and

Instrument Case 1

00-2360-022-18 2.0mm/1.8mm Standard Cannula 4

00-2360-042-24 2.4mm/1.8mm Locking Screw Depth Gauge 1

00-2360-052-24 2.4mm Locking Screw Tap 2

00-2360-062-15 1.5mm Hex Forward Captive Screwdriver, QC 2

00-2360-062-25 2.5mm Hex Forward Captive Screwdriver, QC 2

00-2360-155-18 1.8mm Standard Drill 2

00-2360-175-20 2.0mm QC Drill Bit 2

00-4806-121-24 2.4mm QC Drill Bit (for Gliding Hole) 2

00-4808-024-01 2.4mm/1.8mm Double Drill Sleeve 1

00-4811-015-00 Screwdriver Handle, ZPS Mini, Stainless

Steel 1

00-4901-012-15 1.25mm Dia K-Wire, One End Trocar.,

6˝ Long 2

00-4901-016-15 1.6mm Dia K-Wire, One end Trocar.,

6˝ long 2

00-2348-035-00 3.5mm Dual-Compression Drill Guide 1

00-4806-110-25 2.5mm Drill Bit, 110mm 2

00-4806-110-35 3.5mm Drill Bit, 110mm (for Gliding Hole) 2

00-4808-035-01 3.5mm/2.5mm Double Drill Sleeve 1

00-4808-035-02 3.5mm/2.5mm Drill Sleeve 1

00-4810-002-01 Small Depth Gauge 1

00-4811-035-00 T-Handle, QC 1

00-4811-110-35 3.5mm Tap 2

00-4812-001-00 Screw Forceps 1

00-4812-035-00 Small Hex Screwdriver, 2.5mm Hex 1

00-4812-035-05 Small Holding Sleeve 1

00-4819-051-00 Pin Cutter (Used to cut 1.8mm Locking Pegs) 1

Compatible with:

Zimmer Periarticular 3.5mm Self-Tapping Cortical Screws with 2.7mm

Head; Zimmer 2.7mm Mini-Fragment Cortical Screws

Screw and Instrument Sets

00-2360-000-03 2.4mm Locking Instrument Set

00-2359-000-03 2.4mm Locking Screw Set

Periarticular Distal Radial Standard Jig Set Qty

00-2360-000-23 Periarticular Distal Radial Standard

Jig Set (Contains the following)

00-2360-096-01 Volar Lateral Column Jig, Right 1

00-2360-096-02 Volar Lateral Column Jig, Left 1

00-2360-097-01 Volar Medial Column Jig, Right 1

00-2360-097-02 Volar Medial Column Jig, Left 1

00-2360-098-01 Dorsal T Jig, Right 1

00-2360-098-02 Dorsal T Jig, Left 1

00-2360-099-01 Dorsal Delta Jig, Right 1

00-2360-099-02 Dorsal Delta Jig, Left 1

00-2360-025-05 Dorsal Radial Plate and Jig Plate 1

Distal Radial Locking Plate Set (Volar Plates) Qty

00-2358-000-04 Distal Radial Locking Plate Set

00-2358-013-02 Distal Volar Radial Locking Plate, Lateral Column, 2 Hole, 30mm Lng, Right 1

00-2358-013-03 Distal Volar Radial Locking Plate, Lateral Column, 3 Hole, 39mm Lng, Right 1

00-2358-013-04 Distal Volar Radial Locking Plate, Lateral Column, 4 Hole, 52mm Lng, Right 1

00-2358-013-06 Distal Volar Radial Locking Plate, Lateral Column, 6 Hole, 74mm Lng, Right 1

00-2358-013-08 Distal Volar Radial Locking Plate, Lateral Column, 8 Hole, 96mm Lng, Right 1

00-2358-013-10 Distal Volar Radial Locking Plate, Lateral Column, 10 Hole, 118mm Lng, Right 1

00-2358-014-02 Distal Volar Radial Locking Plate, Lateral Column, 2 Hole, 30mm Lng, Left 1

00-2358-014-03 Distal Volar Radial Locking Plate, Lateral Column, 3 Hole, 39mm Lng, Left 1

00-2358-014-04 Distal Volar Radial Locking Plate, Lateral Column, 4 Hole, 52mm Lng, Left 1

00-2358-014-06 Distal Volar Radial Locking Plate, Lateral Column, 6 Hole, 74mm Lng, Left 1

00-2358-014-08 Distal Volar Radial Locking Plate, Lateral Column, 8 Hole, 96mm Lng, Left 1

00-2358-014-10 Distal Volar Radial Locking Plate, Lateral Column, 10 Hole, 118mm Lng, Left 1

00-2358-017-02 Distal Volar Radial Locking Plate, Medial Column, 2 Hole 32mm Lng, Right 1

00-2358-017-03 Distal Volar Radial Locking Plate, Medial Column, 3 Hole 40mm Lng, Right 1

00-2358-017-04 Distal Volar Radial Locking Plate, Medial Column, 4 Hole 54mm Lng, Right 1

00-2358-017-06 Distal Volar Radial Locking Plate, Medial Column, 6 Hole 78mm Lng, Right 1

00-2358-018-02 Distal Volar Radial Locking Plate, Medial Column, 2 Hole 32mm Lng, Left 1

00-2358-018-03 Distal Volar Radial Locking Plate, Medial Column, 3 Hole 40mm Lng, Left 1

00-2358-018-04 Distal Volar Radial Locking Plate, Medial Column, 4 Hole 54mm Lng, Left 1

00-2358-018-06 Distal Volar Radial Locking Plate, Medial Column, 6 Hole 78mm Lng, Left 1

Item Number Description Qty

00-2359-008-24 2.4mm Locking Screw 8mm Lng 4

00-2359-010-24 2.4mm Locking Screw 10mm Lng 4

00-2359-012-24 2.4mm Locking Screw 12mm Lng 4

00-2359-014-24 2.4mm Locking Screw 14mm Lng 6

00-2359-016-24 2.4mm Locking Screw 16mm Lng 6

00-2359-018-24 2.4mm Locking Screw 18mm Lng 6

00-2359-020-24 2.4mm Locking Screw 20mm Lng 6

00-2359-022-24 2.4mm Locking Screw 22mm Lng 4

00-2359-024-24 2.4mm Locking Screw 24mm Lng 4

00-2359-026-24 2.4mm Locking Screw 26mm Lng 4

00-2359-028-24 2.4mm Locking Screw 28mm Lng 4

00-2359-030-24 2.4mm Locking Screw 30mm Lng 4

00-2359-032-24 2.4mm Locking Screw 32mm Lng 2

00-2359-034-24 2.4mm Locking Screw 34mm Lng 2

00-2359-036-24 2.4mm Locking Screw 36mm Lng 2

00-2359-038-24 2.4mm Locking Screw 38mm Lng 2

00-2359-040-24 2.4mm Locking Screw 40mm Lng 2

00-2359-018-18 1.8mm Locking Peg 18mm Lng 4

00-2359-020-18 1.8mm Locking Peg 20mm Lng 4

00-2359-022-18 1.8mm Locking Peg 22mm Lng 4

00-2359-024-18 1.8mm Locking Peg 24mm Lng 4

00-2359-026-18 1.8mm Locking Peg 26mm Lng 4

00-2359-028-18 1.8mm Locking Peg 28mm Lng 4

00-2359-030-18 1.8mm Locking Peg 30mm Lng 4

00-2359-040-18 1.8mm Locking Peg 40mm Lng 4

00-2359-008-25 2.4mm Conical Screw 8mm Lng 4

00-2359-010-25 2.4mm Conical Screw 10mm Lng 4

00-2359-012-25 2.4mm Conical Screw 12mm Lng 4

00-2359-014-25 2.4mm Conical Screw 14mm Lng 6

00-2359-016-25 2.4mm Conical Screw 16mm Lng 6

00-2359-018-25 2.4mm Conical Screw 18mm Lng 6

00-2359-020-25 2.4mm Conical Screw 20mm Lng 6

00-2359-022-25 2.4mm Conical Screw 22mm Lng 4

00-2359-024-25 2.4mm Conical Screw 24mm Lng 4

00-2359-026-25 2.4mm Conical Screw 26mm Lng 4

00-2359-028-25 2.4mm Conical Screw 28mm Lng 4

00-2359-030-25 2.4mm Conical Screw 30mm Lng 4

00-2359-032-25 2.4mm Conical Screw 32mm Lng 2

00-2359-034-25 2.4mm Conical Screw 34mm Lng 2

00-2359-036-25 2.4mm Conical Screw 36mm Lng 2

00-2359-038-25 2.4mm Conical Screw 38mm Lng 2

00-2359-040-25 2.4mm Conical Screw 40mm Lng 2

2.4mm Locking Screw Set

Item Number Description Qty

00-2348-008-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 8mm Lng 4

00-2348-010-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 10mm Lng 4

00-2348-012-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 12mm Lng 6

00-2348-014-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 14mm Lng 6

00-2348-016-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 16mm Lng 6

00-2348-018-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 18mm Lng 6

00-2348-020-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 20mm Lng 6

00-2348-022-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 22mm Lng 6

00-2348-024-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 24mm Lng 6

00-2348-026-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 26mm Lng 6

00-2348-028-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 28mm Lng 6

00-2348-030-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 30mm Lng 6

00-2348-032-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 32mm Lng 4

00-2348-034-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 34mm Lng 4

00-2348-036-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 36mm Lng 4

00-2348-038-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 38mm Lng 4

00-2348-040-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 40mm Lng 4

Existing Screws Included In Set No. 00-2359-000-03

Ordering Information (continued)

DISTAL RADIAL DORSAL LOCKING PLATES

Distal Radial Locking Plate Set (Dorsal T-Plates) Qty

00-2358-000-04 Distal Radial Locking Plate Set

00-2358-021-02 Distal Dorsal T Radial Locking Plate, 2 Hole, 36mm Lng, Right 1

00-2358-021-03 Distal Dorsal T Radial Locking Plate, 3 Hole, 44mm Lng, Right 1

00-2358-021-04 Distal Dorsal T Radial Locking Plate, 4 Hole, 56mm Lng, Right 1

00-2358-021-06 Distal Dorsal T Radial Locking Plate, 6 Hole, 77mm Lng, Right 1

00-2358-021-08 Distal Dorsal T Radial Locking Plate, 8 Hole, 98mm Lng, Right 1

00-2358-021-10 Distal Dorsal T Radial Locking Plate, 10 Hole, 119mm Lng, Right 1

00-2358-022-02 Distal Dorsal T Radial Locking Plate, 2 Hole, 36mm Lng, Left 1

00-2358-022-03 Distal Dorsal T Radial Locking Plate, 3 Hole, 44mm Lng, Left 1

00-2358-022-04 Distal Dorsal T Radial Locking Plate, 4 Hole, 56mm Lng, Left 1

00-2358-022-06 Distal Dorsal T Radial Locking Plate, 6 Hole, 77mm Lng, Left 1

00-2358-022-08 Distal Dorsal T Radial Locking Plate, 8 Hole, 98mm Lng, Left 1

00-2358-022-10 Distal Dorsal T Radial Locking Plate, 10 Hole, 119mm Lng, Left 1

00-2358-025-01 Distal Dorsal Delta Radial Locking Plate, 1 Hole, 40mm Lng, Right 1

00-2358-025-02 Distal Dorsal Delta Radial Locking Plate, 2 Hole, 52mm Lng, Right 1

00-2358-025-04 Distal Dorsal Delta Radial Locking Plate, 4 Hole, 74mm Lng, Right 1

00-2358-025-06 Distal Dorsal Delta Radial Locking Plate, 6 Hole, 95mm Lng, Right 1

00-2358-025-08 Distal Dorsal Delta Radial Locking Plate, 8 Hole, 117mm Lng, Right 1

00-2358-025-10 Distal Dorsal Delta Radial Locking Plate, 10 Hole, 138mm Lng, Right 1

00-2358-026-01 Distal Dorsal Delta Radial Locking Plate, 1 Hole, 40mm Lng, Left 1

00-2358-026-02 Distal Dorsal Delta Radial Locking Plate, 2 Hole, 52mm Lng, Left 1

00-2358-026-04 Distal Dorsal Delta Radial Locking Plate, 4 Hole, 74mm Lng, Left 1

00-2358-026-06 Distal Dorsal Delta Radial Locking Plate, 6 Hole, 95mm Lng, Left 1

00-2358-026-08 Distal Dorsal Delta Radial Locking Plate, 8 Hole, 117mm Lng, Left 1

00-2358-026-10 Distal Dorsal Delta Radial Locking Plate, 10 Hole, 138mm Lng, Left 1

2.4mm Locking Instrument Set Qty

00-2360-000-03 2.4mm Locking Instrument Set

(Contains the following)

00-2358-045-00 Distal Radial Locking Screw and Instrument

Case 1

00-2360-022-18 2.0mm/1.8mm Standard Cannula 4

00-2360-042-24 2.4mm/1.8mm Locking Screw Depth Gauge 1

00-2360-052-24 2.4mm Locking Screw Tap 2

00-2360-062-15 1.5mm Hex Forward Captive Screwdriver,

QC 2

00-2360-062-25 2.5mm Hex Forward Captive Screwdriver,

QC 2

00-2360-155-18 1.8mm Standard Drill 2

00-2360-175-20 2.0mm QC Drill Bit 2

00-4806-121-24 2.4mm QC Drill Bit (for Gliding Hole) 2

00-4808-024-01 2.4mm/1.8mm Double Drill Sleeve 1

00-4811-015-00 Screwdriver Handle, ZPS Mini, Stainless

Steel 1

00-4901-012-15 1.25mm Dia K-Wire, One End Trocar.,

6˝ Long 2

00-4901-016-15 1.6mm Dia K-Wire, One End Trocar.,

6˝ Long 2

00-2348-035-00 3.5mm Dual-Compression Drill Guide 1

00-4806-110-25 2.5mm Drill Bit, 110mm 2

00-4806-110-35 3.5mm Drill Bit, 110mm (for Gliding Hole) 2

00-4808-035-01 3.5mm/2.5mm Double Drill Sleeve 1

00-4808-035-02 3.5mm/2.5mm Drill Sleeve 1

00-4810-002-01 Small Depth Gauge 1

00-4811-035-00 T-Handle, QC 1

00-4811-110-35 3.5mm Tap 2

00-4812-001-00 Screw Forceps 1

00-4812-035-00 Small Hex Screwdriver, 2.5mm Hex 1

00-4812-035-05 Small Holding Sleeve 1

00-4819-051-00 Pin Cutter (Used to cut 1.8mm Locking Pegs) 1

00-4812-015-05 Mini Holding Sleeve 1

00-4812-015-01 Mini Hex Screwdriver Shaft 1

Compatible with:

Zimmer Periarticular 3.5mm Self-Tapping Cortical Screws

with 2.7mm Head; Zimmer 2.7mm Mini-Fragment Cortical Screws;

Zimmer Small-Fragment Instrument Set

Screw and Instrument Sets

00-2360-000-03 2.4mm Locking Instrument Set

00-2359-000-03 2.4mm Locking Screw Set

Periarticular Distal Radial Standard Jig Set Qty

00-2360-000-23 Periarticular Distal Radial Standard

Jig Set (Contains the following)

00-2360-096-01 Volar Lateral Column Jig, Right 1

00-2360-096-02 Volar Lateral Column Jig, Left 1

00-2360-097-01 Volar Medial Column Jig, Right 1

00-2360-097-02 Volar Medial Column Jig, Left 1

00-2360-098-01 Dorsal T Jig, Right 1

00-2360-098-02 Dorsal T Jig, Left 1

00-2360-099-01 Dorsal Delta Jig, Right 1

00-2360-099-02 Dorsal Delta Jig, Left 1

00-2360-025-05 Dorsal Radial Plate and Jig Plate 1

Item Number Description Qty

00-2359-008-24 2.4mm Locking Screw 8mm Lng 4

00-2359-010-24 2.4mm Locking Screw 10mm Lng 4

00-2359-012-24 2.4mm Locking Screw 12mm Lng 4

00-2359-014-24 2.4mm Locking Screw 14mm Lng 6

00-2359-016-24 2.4mm Locking Screw 16mm Lng 6

00-2359-018-24 2.4mm Locking Screw 18mm Lng 6

00-2359-020-24 2.4mm Locking Screw 20mm Lng 6

00-2359-022-24 2.4mm Locking Screw 22mm Lng 4

00-2359-024-24 2.4mm Locking Screw 24mm Lng 4

00-2359-026-24 2.4mm Locking Screw 26mm Lng 4

00-2359-028-24 2.4mm Locking Screw 28mm Lng 4

00-2359-030-24 2.4mm Locking Screw 30mm Lng 4

00-2359-032-24 2.4mm Locking Screw 32mm Lng 2

00-2359-034-24 2.4mm Locking Screw 34mm Lng 2

00-2359-036-24 2.4mm Locking Screw 36mm Lng 2

00-2359-038-24 2.4mm Locking Screw 38mm Lng 2

00-2359-040-24 2.4mm Locking Screw 40mm Lng 2

00-2359-018-18 1.8mm Locking Peg 18mm Lng 4

00-2359-020-18 1.8mm Locking Peg 20mm Lng 4

00-2359-022-18 1.8mm Locking Peg 22mm Lng 4

00-2359-024-18 1.8mm Locking Peg 24mm Lng 4

00-2359-026-18 1.8mm Locking Peg 26mm Lng 4

00-2359-028-18 1.8mm Locking Peg 28mm Lng 4

00-2359-030-18 1.8mm Locking Peg 30mm Lng 4

00-2359-040-18 1.8mm Locking Peg 40mm Lng 4

00-2359-008-25 2.4mm Conical Screw 8mm Lng 4

00-2359-010-25 2.4mm Conical Screw 10mm Lng 4

00-2359-012-25 2.4mm Conical Screw 12mm Lng 4

00-2359-014-25 2.4mm Conical Screw 14mm Lng 6

00-2359-016-25 2.4mm Conical Screw 16mm Lng 6

00-2359-018-25 2.4mm Conical Screw 18mm Lng 6

00-2359-020-25 2.4mm Conical Screw 20mm Lng 6

00-2359-022-25 2.4mm Conical Screw 22mm Lng 4

00-2359-024-25 2.4mm Conical Screw 24mm Lng 4

00-2359-026-25 2.4mm Conical Screw 26mm Lng 4

00-2359-028-25 2.4mm Conical Screw 28mm Lng 4

00-2359-030-25 2.4mm Conical Screw 30mm Lng 4

00-2359-032-25 2.4mm Conical Screw 32mm Lng 2

00-2359-034-25 2.4mm Conical Screw 34mm Lng 2

00-2359-036-25 2.4mm Conical Screw 36mm Lng 2

00-2359-038-25 2.4mm Conical Screw 38mm Lng 2

00-2359-040-25 2.4mm Conical Screw 40mm Lng 2

2.4mm Locking Screw Set

Item Number Description Qty

00-2348-008-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 8mm Lng 4

00-2348-010-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 10mm Lng 4

00-2348-012-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 12mm Lng 6

00-2348-014-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 14mm Lng 6

00-2348-016-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 16mm Lng 6

00-2348-018-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 18mm Lng 6

00-2348-020-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 20mm Lng 6

00-2348-022-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 22mm Lng 6

00-2348-024-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 24mm Lng 6

00-2348-026-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 26mm Lng 6

00-2348-028-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 28mm Lng 6

00-2348-030-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 30mm Lng 6

00-2348-032-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 32mm Lng 4

00-2348-034-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 34mm Lng 4

00-2348-036-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 36mm Lng 4

00-2348-038-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 38mm Lng 4

00-2348-040-35 3.5mm Cortical Self-Tapping (2.7mm Head)

Screw 40mm Lng 4

Existing Screws Included in Set No. 00-2359-000-03

Ordering Information (continued)

5.5mm Distal Lateral Femoral Locking Plates

Left Right Description Holes Length

00-2357-102-06 00-2357-101-06 Distal Lateral Femoral Locking Plate 6 159mm

00-2357-102-10 00-2357-101-10 Distal Lateral Femoral Locking Plate 10 223mm

00-2357-102-14 00-2357-101-14 Distal Lateral Femoral Locking Plate 14 287mm

00-2357-102-18 00-2357-101-18 Distal Lateral Femoral Locking Plate 18 349mm

DISTAL LATERAL FEMORAL LOCKING PLATES

Periarticular Distal Lateral Femoral Locking Plate Set Qty

00-2357-000-13 Periarticular Distal Lateral Femoral Locking

Plate Set (Contains the following)

00-2357-102-06 Distal Lateral Femoral Locking Plate, 6 Hole, Left 1

00-2357-102-10 Distal Lateral Femoral Locking Plate, 10 Hole, Left 1

00-2357-102-14 Distal Lateral Femoral Locking Plate, 14 Hole, Left 1

00-2357-102-18 Distal Lateral Femoral Locking Plate, 18 Hole, Left 1

00-2357-101-06 Distal Lateral Femoral Locking Plate, 6 Hole, Right 1

00-2357-101-10 Distal Lateral Femoral Locking Plate, 10 Hole, Right 1

00-2357-101-14 Distal Lateral Femoral Locking Plate, 14 Hole, Right 1

00-2357-101-18 Distal Lateral Femoral Locking Plate, 18 Hole, Right 1

5.5mm/4.5mm Periarticular Locking Instrument Set Qty

00-2360-000-01 5.5mm/4.5mm Periarticular Locking

Instrument Set (Contains the following)

00-1147-073-00 Cleaning Stylet 1

00-1147-078-00 Cleaning Brush 1

00-2358-035-00 5.5mm/4.5mm Locking Screw and

Instrument Case 1

00-2360-012-01 5.5mm/4.5mm Plate Reduction Instrument 2

00-2360-012-02 5.5mm/4.5mm Plate Reduction Sleeve 2

00-2360-012-03 Plate Reduction Spin Knob 2

00-2360-020-37 3.7mm Standard Cannula 4

00-2360-021-32 3.2mm Standard Cannula 4

00-2360-033-32 3.2mm Standard Drill-Tip Guide Wire

(5 per Box) 2 Bx

00-2360-040-45 4.5mm Locking Screw Standard

Depth Gauge 1

00-2360-041-55 5.5mm Cannulated Locking Screw

Depth Gauge 1

00-2360-053-45 4.5mm Locking Screw Tap 2

00-2360-054-55 5.5mm Cannulated Locking Screw Tap 2

00-2360-065-05 5.0mm Screwdriver Stop Ring 1 Bx

00-2360-065-50 5.0mm Hex Standard Screwdriver 2

00-2360-066-50 5.0mm Hex Standard Cannulated

Screwdriver 2

00-2360-071-47 4.7mm Standard Cannulated Drill 2

00-2360-080-00 Torque-Limiting Attachment 1

00-2360-085-00 Guide-Wire Inserter 1

00-2360-086-00 Modular Handle 1

00-2360-087-00 Ratcheting Modular Handle 1

00-2360-088-00 5.5mm/4.5mm Cannula Inserter 1

00-2360-090-04 5.5mm/4.5mm Standard Jig Sleeve 4

00-2360-225-37 3.7mm Standard Drill 2

00-2360-050-50 5.0mm Hex Forward Captive Screwdriver 0

00-2360-051-50 5.0mm Hex Cannulated Forward Captive

Screwdriver 0

Compatible with:

Zimmer Periarticular 4.5mm Self-Tapping Cortical Screws;

Zimmer Periarticular 6.5mm Cancellous Screws; Zimmer Basic

Instrument Set; Zimmer Standard Screw Set

Periarticular Distal Lateral Femoral Plate Standard Jig Set Qty

00-2360-000-11 Periarticular Distal Lateral Femoral Plate Standard

Jig Set (Contains the following)

00-2360-090-01 Distal Lateral Femoral Plate Jig, Right 1

00-2360-090-02 Distal Lateral Femoral Plate Jig, Left 1

00-2358-010-00 Distal Lateral Femoral Plate Jig Case 1

Screw and Instrument Sets

00-2359-000-01 5.5mm/4.5mm Locking Screw Set

Item Number Description Qty

00-2359-050-55 5.5mm Cannulated Locking Screw 50mm Lng 4

00-2359-055-55 5.5mm Cannulated Locking Screw 55mm Lng 4

00-2359-060-55 5.5mm Cannulated Locking Screw 60mm Lng 4

00-2359-065-55 5.5mm Cannulated Locking Screw 65mm Lng 4

00-2359-070-55 5.5mm Cannulated Locking Screw 70mm Lng 4

00-2359-075-55 5.5mm Cannulated Locking Screw 75mm Lng 4

00-2359-080-55 5.5mm Cannulated Locking Screw 80mm Lng 4

00-2359-085-55 5.5mm Cannulated Locking Screw 85mm Lng 4

00-2359-090-55 5.5mm Cannulated Locking Screw 90mm Lng 2

00-2359-095-55 5.5mm Cannulated Locking Screw 95mm Lng 2

00-2359-100-55 5.5mm Cannulated Locking Screw 100mm Lng 2

00-2359-050-56 5.5mm Cannulated Conical Screw 50mm Lng 2

00-2359-055-56 5.5mm Cannulated Conical Screw 55mm Lng 2

00-2359-060-56 5.5mm Cannulated Conical Screw 60mm Lng 2

00-2359-065-56 5.5mm Cannulated Conical Screw 65mm Lng 2

00-2359-070-56 5.5mm Cannulated Conical Screw 70mm Lng 2

00-2359-075-56 5.5mm Cannulated Conical Screw 75mm Lng 2

00-2359-080-56 5.5mm Cannulated Conical Screw 80mm Lng 2

00-2359-085-56 5.5mm Cannulated Conical Screw 85mm Lng 2

00-2359-090-56 5.5mm Cannulated Conical Screw 90mm Lng 2

00-2359-012-45 4.5mm Locking Screw 12mm Lng 2

00-2359-014-45 4.5mm Locking Screw 14mm Lng 2

5.5mm/4.5mm Locking Screw Set

Item Number Description Qty

00-2359-016-45 4.5mm Locking Screw 16mm Lng 2

00-2359-018-45 4.5mm Locking Screw 18mm Lng 2

00-2359-020-45 4.5mm Locking Screw 20mm Lng 2

00-2359-022-45 4.5mm Locking Screw 22mm Lng 2

00-2359-024-45 4.5mm Locking Screw 24mm Lng 2

00-2359-026-45 4.5mm Locking Screw 26mm Lng 2

00-2359-028-45 4.5mm Locking Screw 28mm Lng 4

00-2359-030-45 4.5mm Locking Screw 30mm Lng 4

00-2359-032-45 4.5mm Locking Screw 32mm Lng 4

00-2359-034-45 4.5mm Locking Screw 34mm Lng 4

00-2359-036-45 4.5mm Locking Screw 36mm Lng 4

00-2359-038-45 4.5mm Locking Screw 38mm Lng 4

00-2359-040-45 4.5mm Locking Screw 40mm Lng 4

00-2359-042-45 4.5mm Locking Screw 42mm Lng 4

00-2359-044-45 4.5mm Locking Screw 44mm Lng 4

00-2359-046-45 4.5mm Locking Screw 46mm Lng 4

00-2359-048-45 4.5mm Locking Screw 48mm Lng 4

00-2359-050-45 4.5mm Locking Screw 50mm Lng 4

00-2359-055-45 4.5mm Locking Screw 55mm Lng 4

00-2359-060-45 4.5mm Locking Screw 60mm Lng 2

00-2359-065-45 4.5mm Locking Screw 65mm Lng 2

00-2359-070-45 4.5mm Locking Screw 70mm Lng 2

5.5mm/4.5mm Locking Screw Set

Item Number Description Qty

00-2359-050-55 5.5mm Cannulated Locking Screw 50mm Lng 4

00-2359-055-55 5.5mm Cannulated Locking Screw 55mm Lng 4

00-2359-060-55 5.5mm Cannulated Locking Screw 60mm Lng 4

00-2359-065-55 5.5mm Cannulated Locking Screw 65mm Lng 4

00-2359-070-55 5.5mm Cannulated Locking Screw 70mm Lng 4

00-2359-075-55 5.5mm Cannulated Locking Screw 75mm Lng 4

00-2359-080-55 5.5mm Cannulated Locking Screw 80mm Lng 4

00-2359-085-55 5.5mm Cannulated Locking Screw 85mm Lng 4

00-2359-090-55 5.5mm Cannulated Locking Screw 90mm Lng 2

00-2359-095-55 5.5mm Cannulated Locking Screw 95mm Lng 2

00-2359-100-55 5.5mm Cannulated Locking Screw 100mm Lng 2

00-2359-050-56 5.5mm Cannulated Conical Screw 50mm Lng 2

00-2359-055-56 5.5mm Cannulated Conical Screw 55mm Lng 2

00-2359-060-56 5.5mm Cannulated Conical Screw 60mm Lng 2

00-2359-065-56 5.5mm Cannulated Conical Screw 65mm Lng 2

00-2359-070-56 5.5mm Cannulated Conical Screw 70mm Lng 2

00-2359-075-56 5.5mm Cannulated Conical Screw 75mm Lng 2

00-2359-080-56 5.5mm Cannulated Conical Screw 80mm Lng 2

00-2359-085-56 5.5mm Cannulated Conical Screw 85mm Lng 2

00-2359-090-56 5.5mm Cannulated Conical Screw 90mm Lng 2

00-2359-012-45 4.5mm Locking Screw 12mm Lng 2

00-2359-014-45 4.5mm Locking Screw 14mm Lng 2

Item Number Description Qty

00-2359-016-45 4.5mm Locking Screw 16mm Lng 2

00-2359-018-45 4.5mm Locking Screw 18mm Lng 2

00-2359-020-45 4.5mm Locking Screw 20mm Lng 2

00-2359-022-45 4.5mm Locking Screw 22mm Lng 2

00-2359-024-45 4.5mm Locking Screw 24mm Lng 2

00-2359-026-45 4.5mm Locking Screw 26mm Lng 2

00-2359-028-45 4.5mm Locking Screw 28mm Lng 4

00-2359-030-45 4.5mm Locking Screw 30mm Lng 4

00-2359-032-45 4.5mm Locking Screw 32mm Lng 4

00-2359-034-45 4.5mm Locking Screw 34mm Lng 4

00-2359-036-45 4.5mm Locking Screw 36mm Lng 4

00-2359-038-45 4.5mm Locking Screw 38mm Lng 4

00-2359-040-45 4.5mm Locking Screw 40mm Lng 4

00-2359-042-45 4.5mm Locking Screw 42mm Lng 4

00-2359-044-45 4.5mm Locking Screw 44mm Lng 4

00-2359-046-45 4.5mm Locking Screw 46mm Lng 4

00-2359-048-45 4.5mm Locking Screw 48mm Lng 4

00-2359-050-45 4.5mm Locking Screw 50mm Lng 4

00-2359-055-45 4.5mm Locking Screw 55mm Lng 4

00-2359-060-45 4.5mm Locking Screw 60mm Lng 2

00-2359-065-45 4.5mm Locking Screw 65mm Lng 2

00-2359-070-45 4.5mm Locking Screw 70mm Lng 2

PROXIMAL LATERAL TIBIAL LOCKING PLATES

5.5mm/4.5mm Periarticular Locking Instrument Set Qty

00-2360-000-01 5.5mm/4.5mm Periarticular Locking

Instrument Set (Contains the following)

00-1147-073-00 Cleaning Stylet 1

00-1147-078-00 Cleaning Brush 1

00-2358-035-00 5.5mm/4.5mm Locking Screw and

Instrument Case 1

00-2360-012-01 5.5mm/4.5mm Plate Reduction Instrument 2

00-2360-012-02 5.5mm/4.5mm Plate Reduction Sleeve 2

00-2360-012-03 Plate Reduction Spin Knob 2

00-2360-020-37 3.7mm Standard Cannula 4

00-2360-021-32 3.2mm Standard Cannula 4

00-2360-033-32 3.2mm Standard Drill-Tip Guide Wire

(5 per Box) 2 Bx

00-2360-040-45 4.5mm Locking Screw Standard

Depth Gauge 1

00-2360-041-55 5.5mm Cannulated Locking Screw

Depth Gauge 1

00-2360-053-45 4.5mm Locking Screw Tap 2

00-2360-054-55 5.5mm Cannulated Locking Screw Tap 2

00-2360-065-05 5.0mm Screwdriver Stop Ring 1 Bx

00-2360-065-50 5.0mm Hex Standard Screwdriver 2

00-2360-066-50 5.0mm Hex Standard Cannulated

Screwdriver 2

00-2360-071-47 4.7mm Standard Cannulated Drill 2

00-2360-080-00 Torque-Limiting Attachment 1

00-2360-085-00 Guide-Wire Inserter 1

00-2360-086-00 Modular Handle 1

00-2360-087-00 Ratcheting Modular Handle 1

00-2360-088-00 5.5mm/4.5mm Cannula Inserter 1

00-2360-090-04 5.5mm/4.5mm Standard Jig Sleeve 4

00-2360-225-37 3.7mm Standard Drill 2

00-2360-050-50 5.0mm Hex Forward Captive Screwdriver 0

00-2360-051-50 5.0mm Hex Cannulated Forward Captive

Screwdriver 0

Compatible with:

Zimmer Periarticular 4.5mm Self-Tapping Cortical Screws;

Zimmer Periarticular 6.5mm Cancellous Screws; Zimmer Basic

Instrument Set; Zimmer Standard Screw Set

Screw and Instrument Sets

00-2360-000-01 5.5mm/4.5mm Periarticular Locking Instrument Set

00-2359-000-01 5.5mm/4.5mm Locking Screw Set

5.5mm Proximal Tibial Standard Jig Set Qty

00-2360-000-12 5.5mm Proximal Tibial Standard Jig Set (Contains the following)

00-2360-091-01 5.5mm Proximal Lateral Tibial Plate Jig, Right 1

00-2360-091-02 5.5mm Proximal Lateral Tibial Plate Jig, Left 1

00-2358-015-00 5.5mm Proximal Lateral Tibial Plate and Jig Case 1

5.5mm Proximal Lateral Tibial Locking Plates

Left Right Description Holes Length

00-2357-006-04 00-2357-005-04 5.5mm Proximal Lateral Tibial Locking Plate 4 97mm

00-2357-006-06 00-2357-005-06 5.5mm Proximal Lateral Tibial Locking Plate 6 128mm

00-2357-006-08 00-2357-005-08 5.5mm Proximal Lateral Tibial Locking Plate 8 158mm

00-2357-006-10 00-2357-005-10 5.5mm Proximal Lateral Tibial Locking Plate 10 189mm

00-2357-006-12 00-2357-005-12 5.5mm Proximal Lateral Tibial Locking Plate 12 219mm

00-2357-006-14 00-2357-005-14 5.5mm Proximal Lateral Tibial Locking Plate 14 250mm

5.5mm Proximal Lateral Tibial Locking Plate Set Qty

00-2357-000-08 5.5mm Proximal Lateral Tibial Locking Plate Set

(Contains the following)

00-2357-006-00 5.5mm Proximal Lateral Tibial Locking Plate, 4 Hole, Left 1

00-2357-006-06 5.5mm Proximal Lateral Tibial Locking Plate, 6 Hole, Left 1

00-2357-006-08 5.5mm Proximal Lateral Tibial Locking Plate, 8 Hole, Left 1

00-2357-006-10 5.5mm Proximal Lateral Tibial Locking Plate, 10 Hole, Left 1

00-2357-006-12 5.5mm Proximal Lateral Tibial Locking Plate, 12 Hole, Left 1

00-2357-006-14 5.5mm Proximal Lateral Tibial Locking Plate, 14 Hole, Left 1

00-2357-005-04 5.5mm Proximal Lateral Tibial Locking Plate, 4 Hole, Right 1

00-2357-005-06 5.5mm Proximal Lateral Tibial Locking Plate, 6 Hole, Right 1

00-2357-005-08 5.5mm Proximal Lateral Tibial Locking Plate, 8 Hole, Right 1

00-2357-005-10 5.5mm Proximal Lateral Tibial Locking Plate, 10 Hole, Right 1

00-2357-005-12 5.5mm Proximal Lateral Tibial Locking Plate, 12 Hole, Right 1

00-2357-005-14 5.5mm Proximal Lateral Tibial Locking Plate, 14 Hole, Right 1

Ordering Information (continued)

DISTAL TIBIAL LOCKING PLATES

Distal Tibial Locking Plate Set Qty

00-2357-000-10 Distal Tibial Locking Plate Set (Contains the following)

00-2357-008-06 Distal Medial Tibial Locking Plate, 6 Hole, 120mm Lng, Left 1

00-2357-008-08 Distal Medial Tibial Locking Plate, 8 Hole, 144mm Lng, Left 1

00-2357-008-10 Distal Medial Tibial Locking Plate, 10 Hole, 168mm Lng,

Left 1

00-2357-008-14 Distal Medial Tibial Locking Plate, 14 Hole, 216mm Lng,

Left 1

00-2357-008-18 Distal Medial Tibial Locking Plate, 18 Hole, 264mm Lng,

Left Loaner Bank

00-2357-007-06 Distal Medial Tibial Locking Plate, 6 Hole, 120mm Lng,

Right 1

00-2357-007-08 Distal Medial Tibial Locking Plate, 8 Hole, 144mm Lng,

Right 1

00-2357-007-10 Distal Medial Tibial Locking Plate, 10 Hole, 168mm Lng,

Right 1

00-2357-007-14 Distal Medial Tibial Locking Plate, 14 Hole, 216mm Lng,

Right 1

00-2357-007-18 Distal Medial Tibial Locking Plate, 18 Hole, 264mm Lng,

Right Loaner Bank

00-2357-010-06 Distal Lateral Tibial Locking Plate, 6 Hole, 94mm Lng, Left 1

00-2357-010-08 Distal Lateral Tibial Locking Plate, 8 Hole, 118mm Lng,

Left 1

00-2357-010-10 Distal Lateral Tibial Locking Plate, 10 Hole, 142mm Lng,

Left 1

00-2357-010-14 Distal Lateral Tibial Locking Plate, 14 Hole, 189mm Lng,

Left 1

00-2357-010-18 Distal Lateral Tibial Locking Plate, 18 Hole, 237mm Lng,

Left Loaner Bank

00-2357-009-06 Distal Lateral Tibial Locking Plate, 6 Hole, 94mm Lng,

Right 1

00-2357-009-08 Distal Lateral Tibial Locking Plate, 8 Hole, 118mm Lng,

Right 1

00-2357-009-10 Distal Lateral Tibial Locking Plate, 10 Hole, 142mm Lng,

Right 1

00-2357-009-14 Distal Lateral Tibial Locking Plate, 14 Hole, 189mm Lng,

Right 1

00-2357-009-18 Distal Lateral Tibial Locking Plate, 18 Hole, 237mm Lng,

Right Loaner Bank

3.5mm Distal Lateral Tibial Locking Plates

Left Right Description Holes Length

00-2357-010-06 00-2357-009-06 Distal Lateral Tibial Locking Plate 6 94mm

00-2357-010-08 00-2357-009-08 Distal Lateral Tibial Locking Plate 8 118mm

00-2357-010-10 00-2357-009-10 Distal Lateral Tibial Locking Plate 10 142mm

00-2357-010-14 00-2357-009-14 Distal Lateral Tibial Locking Plate 14 189mm

00-2357-010-18 00-2357-009-18 Distal Lateral Tibial Locking Plate 18 237mm

Distal Tibial Standard Jig Set Qty

00-2360-000-13 Distal Tibial Standard Jig Set (Contains the following)

00-2360-094-01 Distal Medial Tibial Plate Jig, Right 1

00-2360-094-02 Distal Medial Tibial Plate Jig, Left 1

00-2360-095-01 Distal Lateral Tibial Plate Jig, Right 1

00-2360-095-02 Distal Lateral Tibial Plate Jig, Left 1

00-2358-020-00 Distal Tibial Plate and Jig Case 1

Screw and Instrument Sets

00-2360-000-02 3.5mm/2.7mm Periarticular Locking Instrument Set

00-2359-000-02 3.5mm/2.7mm Locking Screw Set

3.5mm/2.7mm Periarticular Locking Instrument Set Qty

00-2360-000-02 3.5mm/2.7mm Periarticular Locking

Instrument Set (Contains the following)

00-1147-071-00 Cleaning Stylet 1

00-1147-076-00 Cleaning Brush 1

00-2358-040-00 3.5mm/2.7mm Locking Screw and Instrument

Case 1

00-2360-011-01 3.5mm/2.7mm Locking Plate Reduction

Instrument 2

00-2360-011-02 3.5mm/2.7mm Locking Plate Reduction

Sleeve 2

00-2360-012-03 Plate Reduction Spin Knob 2

00-2360-020-20 2.0mm Standard Cannula 4

00-2360-020-27 2.7mm Standard Cannula 4

00-2360-021-16 1.6mm Standard Cannula 4

00-2360-033-16 1.6mm Standard Drill-Tip Guide Wire

(5 per Box) 2 Bx

00-2360-040-35 3.5mm/2.7mm Locking Screw Standard

Depth Gauge 1

00-2360-041-35 3.5mm Cannulated Locking Screw

Depth Gauge 1

00-2360-053-27 2.7mm Locking Screw Tap 2

00-2360-053-35 3.5mm Locking Screw Tap 2

00-2360-054-35 3.5mm Cannulated Locking Screw Tap 2

00-2360-065-00 2.5mm Screwdriver Stop Ring 1

00-2360-065-25 2.5mm Hex Standard Screwdriver 2

00-2360-066-25 2.5mm Hex Standard Cannulated

Screwdriver 2

00-2360-071-27 2.7mm Standard Cannulated Drill 2

00-2360-080-00 Torque-Limiting Attachment 1

00-2360-086-00 Modular Handle 1

00-2360-088-00 3.5mm/2.7mm Cannula Inserter 1

00-2360-175-20 2.0mm Standard Drill 2

00-2360-205-27 2.7mm Standard Drill 2

00-4812-045-00 Large Hex Screwdriver 1

00-2360-050-25 2.5mm Hex Forward Captive Screwdriver 0

00-2360-051-25 2.5mm Hex Cannulated Forward Captive

Screwdriver 0

Compatible with:

Zimmer Periarticular 3.5mm Self-Tapping Cortical

Screws; Zimmer Periarticular 4.0mm Cancellous Screws;

Zimmer Small-Fragment Instrument Set; Zimmer Small-

Fragment Screw Set

3.5mm Distal Medial Tibial Locking Plates

Left Right Description Holes Length

00-2357-008-06 00-2357-007-06 Distal Medial Tibial Locking Plate 6 120mm

00-2357-008-08 00-2357-007-08 Distal Medial Tibial Locking Plate 8 144mm

00-2357-008-10 00-2357-007-10 Distal Medial Tibial Locking Plate 10 168mm

00-2357-008-14 00-2357-007-14 Distal Medial Tibial Locking Plate 14 216mm

00-2357-008-18 00-2357-007-18 Distal Medial Tibial Locking Plate 18 264mm

Item Number Description Qty

00-2359-030-36 3.5mm Cannulated Locking Screw 30mm Lng 3

00-2359-035-36 3.5mm Cannulated Locking Screw 35mm Lng 3

00-2359-040-36 3.5mm Cannulated Locking Screw 40mm Lng 3

00-2359-045-36 3.5mm Cannulated Locking Screw 45mm Lng 3

00-2359-050-36 3.5mm Cannulated Locking Screw 50mm Lng 4

00-2359-055-36 3.5mm Cannulated Locking Screw 55mm Lng 4

00-2359-060-36 3.5mm Cannulated Locking Screw 60mm Lng 4

00-2359-065-36 3.5mm Cannulated Locking Screw 65mm Lng 4

00-2359-070-36 3.5mm Cannulated Locking Screw 70mm Lng 4

00-2359-075-36 3.5mm Cannulated Locking Screw 75mm Lng 3

00-2359-080-36 3.5mm Cannulated Locking Screw 80mm Lng 3

00-2359-085-36 3.5mm Cannulated Locking Screw 85mm Lng 3

00-2359-090-36 3.5mm Cannulated Locking Screw 90mm Lng 3

00-2359-030-37 3.5mm Cannulated Conical Screw 30mm Lng 2

00-2359-035-37 3.5mm Cannulated Conical Screw 35mm Lng 2

00-2359-040-37 3.5mm Cannulated Conical Screw 40mm Lng 2

00-2359-045-37 3.5mm Cannulated Conical Screw 45mm Lng 2

00-2359-050-37 3.5mm Cannulated Conical Screw 50mm Lng 2

00-2359-055-37 3.5mm Cannulated Conical Screw 55mm Lng 2

00-2359-060-37 3.5mm Cannulated Conical Screw 60mm Lng 2

00-2359-065-37 3.5mm Cannulated Conical Screw 65mm Lng 2

00-2359-070-37 3.5mm Cannulated Conical Screw 70mm Lng 2

00-2359-012-35 3.5mm Locking Screw 12mm Lng 2

00-2359-014-35 3.5mm Locking Screw 14mm Lng 2

00-2359-016-35 3.5mm Locking Screw 16mm Lng 2

00-2359-018-35 3.5mm Locking Screw 18mm Lng 2

00-2359-020-35 3.5mm Locking Screw 20mm Lng 2

00-2359-022-35 3.5mm Locking Screw 22mm Lng 2

00-2359-024-35 3.5mm Locking Screw 24mm Lng 2

00-2359-026-35 3.5mm Locking Screw 26mm Lng 2

00-2359-028-35 3.5mm Locking Screw 28mm Lng 2

00-2359-030-35 3.5mm Locking Screw 30mm Lng 2

00-2359-032-35 3.5mm Locking Screw 32mm Lng 3

00-2359-034-35 3.5mm Locking Screw 34mm Lng 3

00-2359-036-35 3.5mm Locking Screw 36mm Lng 3

00-2359-038-35 3.5mm Locking Screw 38mm Lng 3

00-2359-040-35 3.5mm Locking Screw 40mm Lng 3

00-2359-042-35 3.5mm Locking Screw 42mm Lng 3

3.5mm/2.7mm Locking Screw Set

Item Number Description Qty

00-2359-044-35 3.5mm Locking Screw 44mm Lng 3

00-2359-046-35 3.5mm Locking Screw 46mm Lng 3

00-2359-048-35 3.5mm Locking Screw 48mm Lng 3

00-2359-050-35 3.5mm Locking Screw 50mm Lng 3

00-2359-052-35 3.5mm Locking Screw 52mm Lng 2

00-2359-054-35 3.5mm Locking Screw 54mm Lng 2

00-2359-056-35 3.5mm Locking Screw 56mm Lng 2

00-2359-058-35 3.5mm Locking Screw 58mm Lng 2

00-2359-060-35 3.5mm Locking Screw 60mm Lng 2

00-2359-065-35 3.5mm Locking Screw 65mm Lng 2

00-2359-070-35 3.5mm Locking Screw 70mm Lng 2

00-2359-010-27 2.7mm Locking Screw 10mm Lng 3

00-2359-012-27 2.7mm Locking Screw 12mm Lng 3

00-2359-014-27 2.7mm Locking Screw 14mm Lng 3

00-2359-016-27 2.7mm Locking Screw 16mm Lng 3

00-2359-018-27 2.7mm Locking Screw 18mm Lng 3

00-2359-020-27 2.7mm Locking Screw 20mm Lng 3

00-2359-022-27 2.7mm Locking Screw 22mm Lng 4

00-2359-024-27 2.7mm Locking Screw 24mm Lng 4

00-2359-026-27 2.7mm Locking Screw 26mm Lng 4

00-2359-028-27 2.7mm Locking Screw 28mm Lng 4

00-2359-030-27 2.7mm Locking Screw 30mm Lng 4

00-2359-032-27 2.7mm Locking Screw 32mm Lng 4

00-2359-034-27 2.7mm Locking Screw 34mm Lng 4

00-2359-036-27 2.7mm Locking Screw 36mm Lng 4

00-2359-038-27 2.7mm Locking Screw 38mm Lng 4

00-2359-040-27 2.7mm Locking Screw 40mm Lng 4

00-2359-042-27 2.7mm Locking Screw 42mm Lng 4

00-2359-044-27 2.7mm Locking Screw 44mm Lng 4

00-2359-046-27 2.7mm Locking Screw 46mm Lng 4

00-2359-048-27 2.7mm Locking Screw 48mm Lng 4

00-2359-050-27 2.7mm Locking Screw 50mm Lng 4

00-2359-052-27 2.7mm Locking Screw 52mm Lng 3

00-2359-054-27 2.7mm Locking Screw 54mm Lng 3

00-2359-056-27 2.7mm Locking Screw 56mm Lng 3

00-2359-058-27 2.7mm Locking Screw 58mm Lng 3

00-2359-060-27 2.7mm Locking Screw 60mm Lng 3

Ordering Information (continued)

Compatible with:

Zimmer Periarticular 3.5mm Self-Tapping Cortical Screws; Zimmer

Periarticular 4.0mm Cancellous Screws; Zimmer Small-Fragment

Instrument Set; Zimmer Small-Fragment Screw Set

Screw and Instrument Sets

00-2360-000-02 3.5mm/2.7mm Periarticular Locking Instrument Set

00-2359-000-02 3.5mm/2.7mm Locking Screw Set

PROXIMAL LATERAL TIBIAL LOCKING PLATES

3.5mm/2.7mm Periarticular Locking Instrument Set Qty

00-2360-000-02 3.5mm/2.7mm Periarticular Locking

Instrument Set (Contains the following)

00-1147-071-00 Cleaning Stylet 1

00-1147-076-00 Cleaning Brush 1

00-2358-040-00 3.5mm/2.7mm Locking Screw and Instrument

Case 1

00-2360-011-01 3.5mm/2.7mm Locking Plate Reduction

Instrument 2

00-2360-011-02 3.5mm/2.7mm Locking Plate Reduction

Sleeve 2

00-2360-012-03 Plate Reduction Spin Knob 2

00-2360-020-20 2.0mm Standard Cannula 4

00-2360-020-27 2.7mm Standard Cannula 4

00-2360-021-16 1.6mm Standard Cannula 4

00-2360-033-16 1.6mm Standard Drill-Tip Guide Wire

(5 per Box) 2 Bx

00-2360-040-35 3.5mm/2.7mm Locking Screw Standard

Depth Gauge 1

00-2360-041-35 3.5mm Cannulated Locking Screw

Depth Gauge 1

00-2360-053-27 2.7mm Locking Screw Tap 2

00-2360-053-35 3.5mm Locking Screw Tap 2

00-2360-054-35 3.5mm Cannulated Locking Screw Tap 2

00-2360-065-00 2.5mm Screwdriver Stop Ring 1

00-2360-065-25 2.5mm Hex Standard Screwdriver 2

00-2360-066-25 2.5mm Hex Standard Cannulated

Screwdriver 2

00-2360-071-27 2.7mm Standard Cannulated Drill 2

00-2360-080-00 Torque-Limiting Attachment 1

00-2360-086-00 Modular Handle 1

00-2360-088-00 3.5mm/2.7mm Cannula Inserter 1

00-2360-175-20 2.0mm Standard Drill 2

00-2360-205-27 2.7mm Standard Drill 2

00-4812-045-00 Large Hex Screwdriver 1

00-2360-050-25 2.5mm Hex Forward Captive Screwdriver 0

00-2360-051-25 2.5mm Hex Cannulated Forward Captive

Screwdriver 0

3.5mm Proximal Tibial Standard Jig Set Qty

00-2360-000-15 3.5mm Proximal Tibial Standard Jig Set

(Contains the following)

00-2360-093-01 3.5mm Proximal Lateral Tibial Plate Jig, Right 1

00-2360-093-02 3.5mm Proximal Lateral Tibial Plate Jig, Left 1

00-2358-050-00 3.5mm Proximal Lateral Tibial Plate and Jig Case 1

3.5mm Proximal Lateral Tibial Locking Plates

Left Right Description Holes Length

00-2357-004-06 00-2357-003-06 3.5mm Proximal Lateral Tibial Locking Plate 6 104mm

00-2357-004-08 00-2357-003-08 3.5mm Proximal Lateral Tibial Locking Plate 8 128mm

00-2357-004-10 00-2357-003-10 3.5mm Proximal Lateral Tibial Locking Plate 10 152mm

00-2357-004-12 00-2357-003-12 3.5mm Proximal Lateral Tibial Locking Plate 12 176mm

00-2357-004-14 00-2357-003-14 3.5mm Proximal Lateral Tibial Locking Plate 14 200mm

00-2357-004-16 00-2357-003-16 3.5mm Proximal Lateral Tibial Locking Plate 16 224mm

3.5mm Proximal Lateral Tibial Locking Plate Set Qty

00-2357-000-09 Proximal Lateral Tibial Locking Plate Set

(Contains the following)

00-2357-004-06 3.5mm Proximal Lateral Tibial Locking Plate, 6 Hole, Left 1

00-2357-004-08 3.5mm Proximal Lateral Tibial Locking Plate, 8 Hole, Left 1

00-2357-004-10 3.5mm Proximal Lateral Tibial Locking Plate, 10 Hole, Left 1

00-2357-004-12 3.5mm Proximal Lateral Tibial Locking Plate, 12 Hole, Left 1

00-2357-004-14 3.5mm Proximal Lateral Tibial Locking Plate, 14 Hole, Left 1

00-2357-004-16 3.5mm Proximal Lateral Tibial Locking Plate, 16 Hole, Left 1

00-2357-003-06 3.5mm Proximal Lateral Tibial Locking Plate, 6 Hole, Right 1

00-2357-003-08 3.5mm Proximal Lateral Tibial Locking Plate, 8 Hole, Right 1

00-2357-003-10 3.5mm Proximal Lateral Tibial Locking Plate, 10 Hole, Right 1

00-2357-003-12 3.5mm Proximal Lateral Tibial Locking Plate, 12 Hole, Right 1

00-2357-003-14 3.5mm Proximal Lateral Tibial Locking Plate, 14 Hole, Right 1

00-2357-003-16 3.5mm Proximal Lateral Tibial Locking Plate, 16 Hole, Right 1

Item Number Description Qty

00-2359-030-36 3.5mm Cannulated Locking Screw 30mm Lng 3

00-2359-035-36 3.5mm Cannulated Locking Screw 35mm Lng 3

00-2359-040-36 3.5mm Cannulated Locking Screw 40mm Lng 3

00-2359-045-36 3.5mm Cannulated Locking Screw 45mm Lng 3

00-2359-050-36 3.5mm Cannulated Locking Screw 50mm Lng 4

00-2359-055-36 3.5mm Cannulated Locking Screw 55mm Lng 4

00-2359-060-36 3.5mm Cannulated Locking Screw 60mm Lng 4

00-2359-065-36 3.5mm Cannulated Locking Screw 65mm Lng 4

00-2359-070-36 3.5mm Cannulated Locking Screw 70mm Lng 4

00-2359-075-36 3.5mm Cannulated Locking Screw 75mm Lng 3

00-2359-080-36 3.5mm Cannulated Locking Screw 80mm Lng 3

00-2359-085-36 3.5mm Cannulated Locking Screw 85mm Lng 3

00-2359-090-36 3.5mm Cannulated Locking Screw 90mm Lng 3

00-2359-030-37 3.5mm Cannulated Conical Screw 30mm Lng 2

00-2359-035-37 3.5mm Cannulated Conical Screw 35mm Lng 2

00-2359-040-37 3.5mm Cannulated Conical Screw 40mm Lng 2

00-2359-045-37 3.5mm Cannulated Conical Screw 45mm Lng 2

00-2359-050-37 3.5mm Cannulated Conical Screw 50mm Lng 2

00-2359-055-37 3.5mm Cannulated Conical Screw 55mm Lng 2

00-2359-060-37 3.5mm Cannulated Conical Screw 60mm Lng 2

00-2359-065-37 3.5mm Cannulated Conical Screw 65mm Lng 2

00-2359-070-37 3.5mm Cannulated Conical Screw 70mm Lng 2

00-2359-012-35 3.5mm Locking Screw 12mm Lng 2

00-2359-014-35 3.5mm Locking Screw 14mm Lng 2

00-2359-016-35 3.5mm Locking Screw 16mm Lng 2

00-2359-018-35 3.5mm Locking Screw 18mm Lng 2

00-2359-020-35 3.5mm Locking Screw 20mm Lng 2

00-2359-022-35 3.5mm Locking Screw 22mm Lng 2

00-2359-024-35 3.5mm Locking Screw 24mm Lng 2

00-2359-026-35 3.5mm Locking Screw 26mm Lng 2

00-2359-028-35 3.5mm Locking Screw 28mm Lng 2

00-2359-030-35 3.5mm Locking Screw 30mm Lng 2

00-2359-032-35 3.5mm Locking Screw 32mm Lng 3

00-2359-034-35 3.5mm Locking Screw 34mm Lng 3

00-2359-036-35 3.5mm Locking Screw 36mm Lng 3

00-2359-038-35 3.5mm Locking Screw 38mm Lng 3

00-2359-040-35 3.5mm Locking Screw 40mm Lng 3

00-2359-042-35 3.5mm Locking Screw 42mm Lng 3

3.5mm/2.7mm Locking Screw Set

Item Number Description Qty

00-2359-044-35 3.5mm Locking Screw 44mm Lng 3

00-2359-046-35 3.5mm Locking Screw 46mm Lng 3

00-2359-048-35 3.5mm Locking Screw 48mm Lng 3

00-2359-050-35 3.5mm Locking Screw 50mm Lng 3

00-2359-052-35 3.5mm Locking Screw 52mm Lng 2

00-2359-054-35 3.5mm Locking Screw 54mm Lng 2

00-2359-056-35 3.5mm Locking Screw 56mm Lng 2

00-2359-058-35 3.5mm Locking Screw 58mm Lng 2

00-2359-060-35 3.5mm Locking Screw 60mm Lng 2

00-2359-065-35 3.5mm Locking Screw 65mm Lng 2

00-2359-070-35 3.5mm Locking Screw 70mm Lng 2

00-2359-010-27 2.7mm Locking Screw 10mm Lng 3

00-2359-012-27 2.7mm Locking Screw 12mm Lng 3

00-2359-014-27 2.7mm Locking Screw 14mm Lng 3

00-2359-016-27 2.7mm Locking Screw 16mm Lng 3

00-2359-018-27 2.7mm Locking Screw 18mm Lng 3

00-2359-020-27 2.7mm Locking Screw 20mm Lng 3

00-2359-022-27 2.7mm Locking Screw 22mm Lng 4

00-2359-024-27 2.7mm Locking Screw 24mm Lng 4

00-2359-026-27 2.7mm Locking Screw 26mm Lng 4

00-2359-028-27 2.7mm Locking Screw 28mm Lng 4

00-2359-030-27 2.7mm Locking Screw 30mm Lng 4

00-2359-032-27 2.7mm Locking Screw 32mm Lng 4

00-2359-034-27 2.7mm Locking Screw 34mm Lng 4

00-2359-036-27 2.7mm Locking Screw 36mm Lng 4

00-2359-038-27 2.7mm Locking Screw 38mm Lng 4

00-2359-040-27 2.7mm Locking Screw 40mm Lng 4

00-2359-042-27 2.7mm Locking Screw 42mm Lng 4

00-2359-044-27 2.7mm Locking Screw 44mm Lng 4

00-2359-046-27 2.7mm Locking Screw 46mm Lng 4

00-2359-048-27 2.7mm Locking Screw 48mm Lng 4

00-2359-050-27 2.7mm Locking Screw 50mm Lng 4

00-2359-052-27 2.7mm Locking Screw 52mm Lng 3

00-2359-054-27 2.7mm Locking Screw 54mm Lng 3

00-2359-056-27 2.7mm Locking Screw 56mm Lng 3

00-2359-058-27 2.7mm Locking Screw 58mm Lng 3

00-2359-060-27 2.7mm Locking Screw 60mm Lng 3

With the Periarticular Locking Plate System, Zimmer offers advanced solutions for

the management of comminuted fractures and fractures in which deficient bone

stock or poor bone quality is encountered. The system combines anatomically

contoured periarticular plates with locking screw technology. The unique plate

designs feature a transitioned profile that is thinner in the metaphyseal and

thicker in the diaphyseal areas. Locking screw holes

are combined with compression slots,

so that the plates can be used

both as locking devices and for

fracture compression.

Advanced fabricating technologies are guided

by data from a digital laser scanner that helps

to determine optimal implant contours.

Periarticular Locking Plate System

Combining anatomic fit with locking technology

Precontoured plates that follow

the shape of the bone

One of the most difficult challenges in the treatment

of periarticular fractures is bending the plate to fit

the specific profile of the bone. Zimmer’s advanced

periarticular plates were developed using digital laser

bone-scanning technology. The data was used to

guide advanced fabricating technologies in the precise

manufacture of precontoured implants. The Periarticular

Locking Plates closely follow the shape of the bone to

create a fit that requires little or no additional bending.

Locking in the perfect fit

97-2347-601-00 5ML Printed in U.S.A. ©2006 Zimmer, Inc.

Zimmer ®

Periarticular

Locking Plate

System

+H124972347601001/$061113K067

Contact your Zimmer representative or visit us at www.zimmer.com
