Chainsaws

User manual

WARNING! Read and understand all

safety warnings and instructions

carefully before using this machine.

Failure to follow the warnings and

instructions may result in electric

shock, fire and/or serious injury. Save

this manual for future reference.

ATTENTION! Products covered by this

manual will vary in appearance,

assembly, inclusions, description and

packaging.

NOTE! This manual covers multiple

styles of product as well as options /

accessories that may not be suitable

for the machine you have purchased.

Product Manual - Chainsaws

Index

Index ............................................................................................................................................................ 1

General Safety ............................................................................................................................................. 2

Chainsaw Safety........................................................................................................................................... 3

Parts Diagram .............................................................................................................................................. 6

Assembly ...................................................................................................................................................... 9

Before use .................................................................................................................................................. 10

Starting the Engine ..................................................................................................................................... 11

Stopping the Engine ................................................................................................................................... 12

Maintenance ............................................................................................................................................... 13

Transporting & Storage............................................................................................................................... 15

Troubleshooting .......................................................................................................................................... 16

Specifications ............................................................................................................................................. 18

Appendix .................................................................................................................................................... 22

Product Manual - Chainsaws

10814082100

General Safety

It is important you read and

understand the instruction

manual before first use and keep

the manual in a safe place for

future reference.

Safety precautions must be

observed to reduce the risk of

personal injury when operating

this machine.

DANGER! Keep clear of power

lines, contact can cause death.

It is strongly recommended that

a comprehensive training course

on machine use, fuel handling

safety and engine operation be

completed before attempting to

use this machine.

Like all power equipment this unit must

be handled carefully.

Look for power wires before starting

work.

Ensure you /your saw/branches you are

cutting don’t go near power wires.

Do not expose yourself or others to danger. Do

not permit others to use this machine unless

they have read this manual and are trained in

its operation. Do not operate if the equipment is

damaged or in an excessively worn state. To

reduce fire hazards keep the engine and

silencer free of debris, leaves or excessive

lubricant. Do not use any attachments or

accessories with the equipment other than the

ones recommended by the supplier. Serious

injury to the operator or bystanders can result

as well as cause damage to the machine.

Always use proper handles and / or shoulder

strap when using the equipment. Do not use the

unit if it is damaged or poorly adjusted. Never

remove the machine’s guards. Serious injury to

the operator or bystanders could result as well

as damage to the machine. Never leave the

machine running and unattended. Do not use

this unit for any job other than those for which it

is intended as described in this manual. During

or after operation of the engine, never touch hot

parts such as the muffler, the high voltage wire

or the spark plug. Do not operate the machine

in the rain or under wet conditions. Always

ensure all handles and guards are fitted when

using the machine. Always keep the machine

away from naked flame or sparks. Always stop

the engine before cleaning / clearing a blockage

or checking, maintenance or working on the

machine.

Working at heights

Always use a scissor lift, never work on a ladder

or in a tree, never work on an insecure support

and never operate your unit with one hand.

Always be sure of a safe and secure operating

position especially when working at heights.

Clothing and Equipment

Dress properly. Do not wear loose clothing or

jewellery which can be caught in moving parts.

Use of sturdy gloves, non-skid footwear, and

safety glasses is recommended;

Always wear ear protection. Loud

noises for an extended period of

time may damage your hearing.

Total face and head protection must

be worn to reduce injury from falling

branches.

Wear no-slip heavy duty work

gloves to improve your grip on the

brush cutter handle. Gloves also

reduce the transmission of machine

vibration to your hands.

The dust, vapour and smoke

produced during operation may be

dangerous to health. If the work

area is very dusty or smoky, wear a

respirator.

Transporting the Machine

The engine should be turned off when the

machine is moved between areas and when

transporting or storing the machine. Always turn

off the engine. Always fit the blade covers

before carrying your tool. When transporting in

a vehicle: properly secure your machine to

prevent turnover, fuel spillage and damage.

Fuelling

Fuel is extremely flammable.

Keep clear of naked flames. Do

not spill any fuel. Do not smoke

near fuel or the machine. Always

shut off the engine before refuelling. Do not fuel

a hot engine – fuel may spill and cause a fire.

Open the fuel cap carefully to allow any

pressure build-up in the tank to release slowly

and avoid fuel spillage. Fuel your machine only

in well ventilated areas. If you spill fuel, wipe

the machine immediately – if fuel gets on your

clothing, change immediately. To reduce the

risk of serious or fatal burn injuries, check for

fuel leakage. If fuel leakage is found, do not

start or run the engine until leak is fixed.

During Operation

Make sure you always have good balance and

secure footing. Always be aware of your

surroundings and stay alert for possible

hazards that you may not hear due to the noise

of the machine.

Never allow children to access the

machine.

Avoid operating while people, especially

children are nearby. To reduce the risk of injury,

do not allow any other persons within a radius

of 25 meters of your own position. To reduce

the risk of damage to property, also maintain

this distance from other objects (vehicles,

windows).

After Finishing Work

Always clean dust and dirt off the machine – do

not use any grease solvents. Always keep the

machine clean, especially, the fuel tank, its

surroundings, and the air cleaner. After the

engine has stopped, the muffler will still be hot.

Never place the machine in any places where

there are flammable materials such as dry

grass, combustible gases or combustible liquids

etc. Replace cutting tool covers.

Maintenance and Repairs

Service the machine regularly. Do not attempt

any maintenance or repair work not described

in the instruction manual. Have all other work

performed by a servicing dealer. We

recommend that you have servicing and repair

work carried out exclusively by an authorised

service person. Before proceeding to adjust or

repair the machine, be sure to stop the engine

and detach the spark plug lead. Never attempt

to make engine adjustments while the unit is

running to the operator. Always make engine

adjustments with the unit resting on a flat, clear

surface.

Product Manual - Chainsaws

10814082100

Chainsaw Safety

WARNING! Before attempting to do anything with the

chainsaw READ THE MANUAL.

WARNING! Chainsaws have the potential to inflict injuries

and/or create hazardous situations. The major causes of

accidents are ignorance of the hazards and operators'

apathy to common sense safety procedures.

WARNING! Do not rely exclusively on the safety devices

built into your saw. As chainsaw user, you should take

several steps to reduce chances of accident or injury. The

following list is not full or exhaustive - attend proper training

before using a chainsaw .PERSONAL PROTECTIVE

CLOTHING FOR CHAINSAW USERS

IMPORTANT! A chainsaw operator must not only ensure

that the machine is in safe operating condition but must also

wear protective clothing for optimum protection.

- Head Protection (hard hat). A hard hat should be worn at all times

as protection from failing material, and to reduce injuries from

kickback.

- Ear Protection (ear muffs/ear plugs). All operators and assistants

etc. should wear suitable ear protection. Chainsaws operate in the

region of 100-110 dB(A) at the operator's ear, therefore careful

consideration must be given to the attenuation of the ear protector.

- Eye Protection (goggles/glasses/mesh & perspex screens). The

chain on the saw rotates at more than 40 km/h, so chips and

material can be flung at the operator's eyes at very high speed.

- Leg Protection (trousers/chaps) leg protectors in a variety of Kevlar

and nylons are most effective in preventing cuts to the operators

legs – a common problem.

- Foot Protection (safety boots). These should have steel toe caps,,

non-slip deep tread soles or have metal sprigs or cleats to protect

toes from saw cuts and feet from failing material.

- Hand Protection (gloves/mittens). As well as protecting hands from

cuts, abrasions etc. and keeping them warm, they prevent

vibration induced problems such as Raynaud's Disease.

THE CHAINSAW

The chainsaw should have all safety mechanisms/guards installed

and working.

CHAINSAW KICKBACK

CRITICAL! Other than the obvious risk of physical contact with

a moving chain, the single most dangerous aspect of the saw

is 'kickback'.

This occurs when the bar nose contacts an object, resulting in an

instantaneous kick reaction which can launch the rotating chain toward

the users face/head. Severe injuries and sometimes death can result.

To prevent kickback:

- Avoid using the bar nose. Always be alert to anything coming in

contact with the bar nose.

- Ensure that safety chain is used, and that it is correctly sharpened

and tensioned.

- Always operate with two hands on the saw handles, with the

thumb of the left hand placed under the front handle.

- Avoid the use of the saw above the shoulders and always keep the

saw in front of the body.

CHAINSAW OPERATION

- Ensure that all safety features are fitted and operational before

starting to saw; that all nuts, covers, etc. are secure.

- To start, place saw on ground, with foot through rear handle/ hand

guard to steady the saw.

- When crosscutting or pruning, check if any branches are ‘under

tension’ before cutting.

- Seek advice and/or training in the use of the chainsaw. Many

accidents are the result of ignorance.

- Always wear the recommended personal protective clothing.

FELLING OF TREES

IMPORTANT! Tree felling should be carried out by trained and

experienced personnel only. Assistance and advice should be

sought if the operator is unsure how to fell a certain tree.

FIRE SAFETY

Chainsaws can easily start fires, for two reasons:

1. Poorly maintained and/or faulty exhaust systems.

2. Ignition of spilt fuels by internal sparks.

To avoid fires:

- Ensure muffler is in good condition and fitted with a spark arrester

screen.- Keep muffler clean of carbon build up and deposit.

- Ensure that saw is correctly tuned. Do not use on extreme fire

danger days. - Do not spill fuel over saw when refuelling.

Product Manual - Chainsaws

10814082100

Product Manual - Chainsaws

10814082100

Product Manual - Chainsaws

10814082100

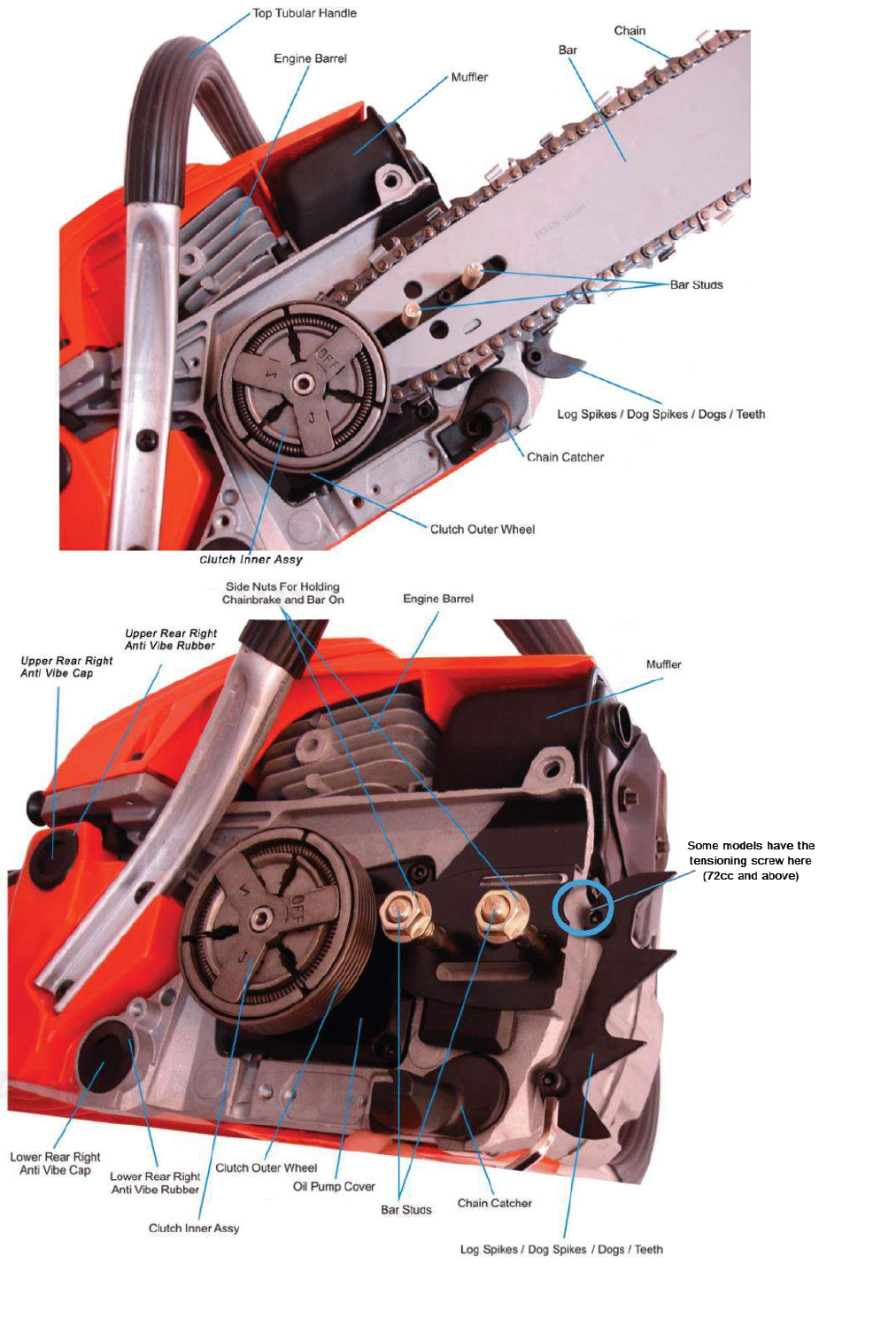

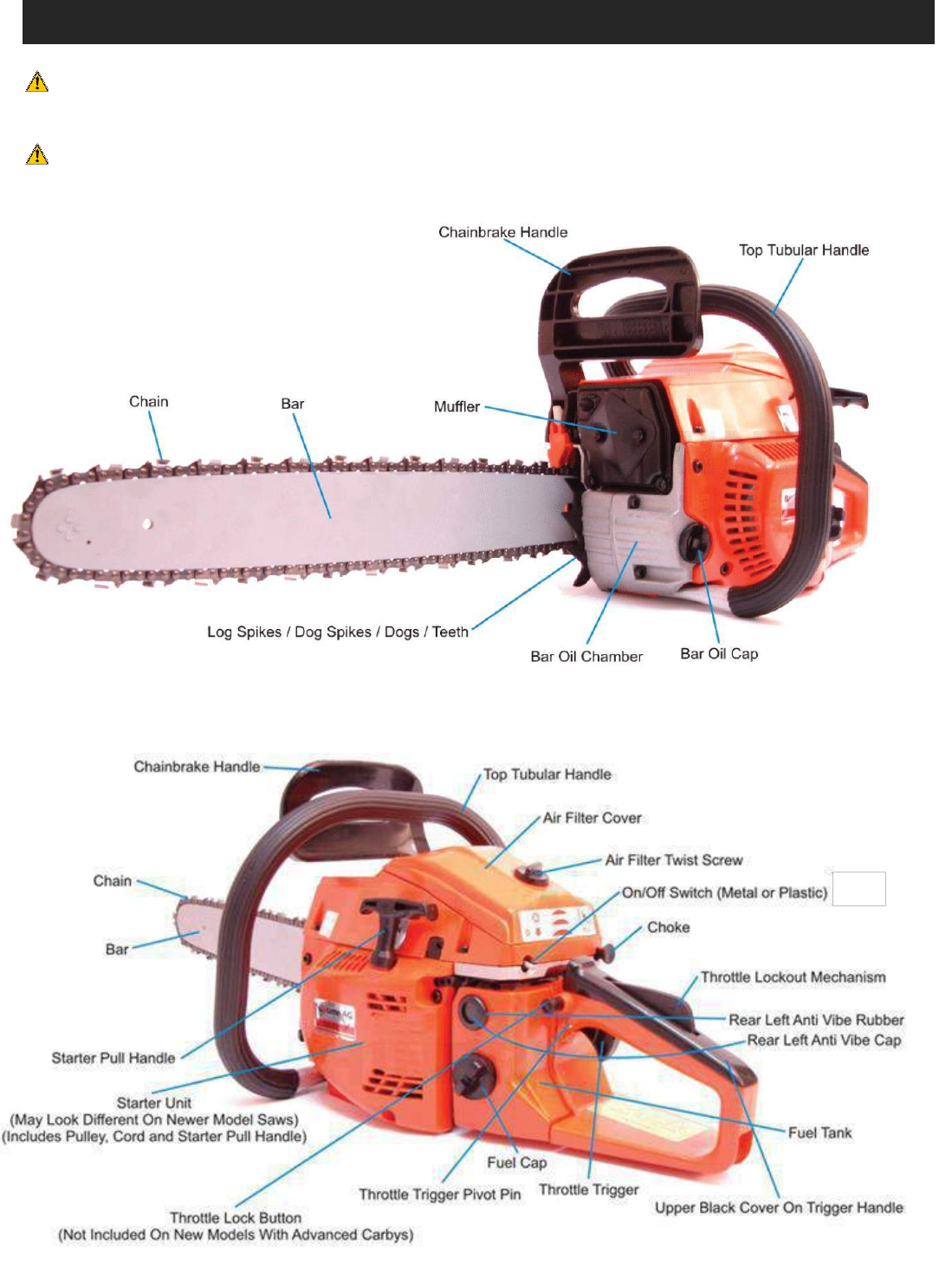

Parts Diagram

ATTENTION! Products covered by this manual will vary in appearance, assembly, inclusions, description and

packaging.

NOTE! All parts displayed are not included with every saw – parts supplied vary between model, batch and year

model.

Product Manual - Chainsaws

10814082100

Product Manual - Chainsaws

10814082100

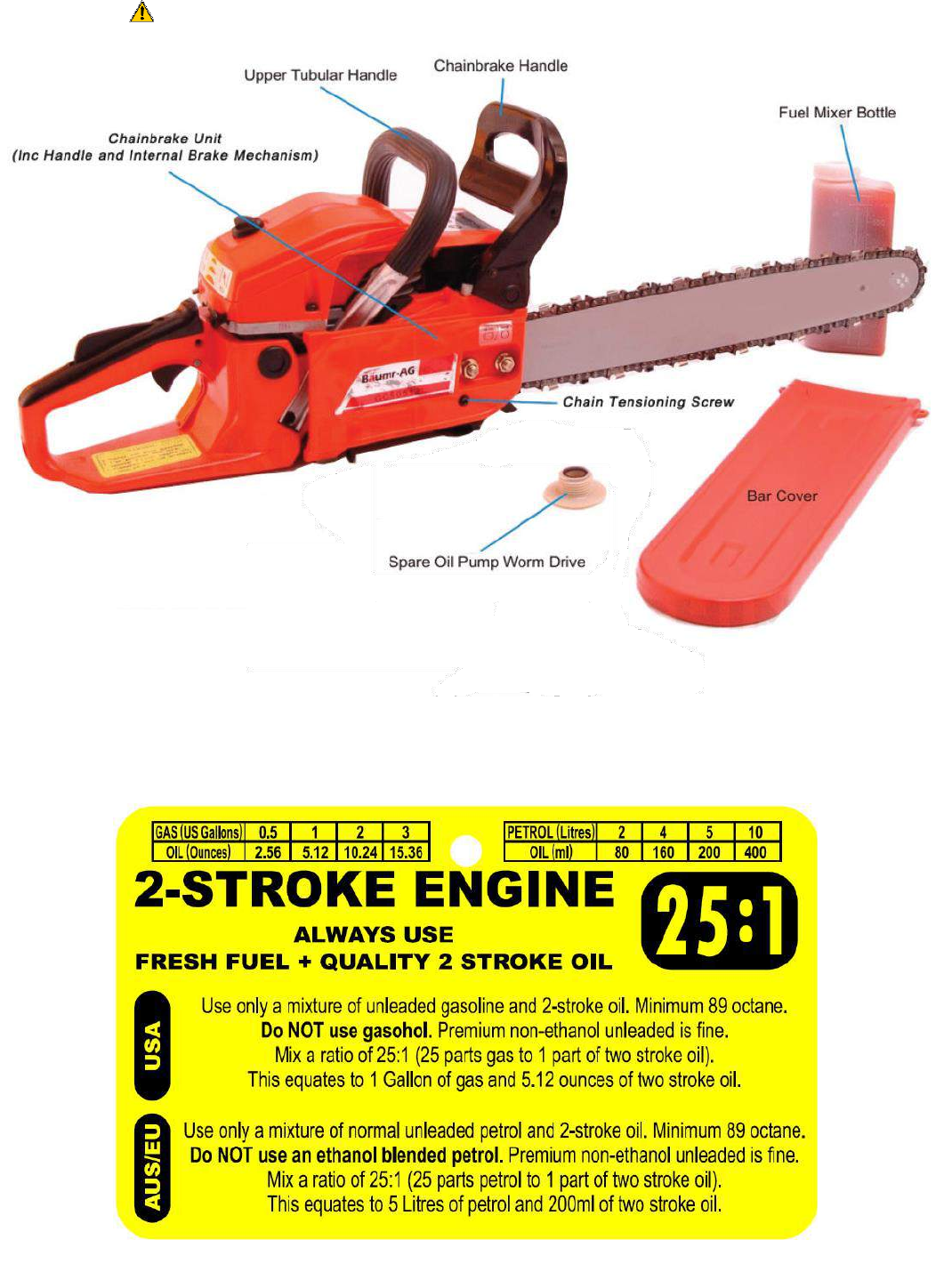

Spare oil pump worm drive for servicing later on (some models only)

Product Manual - Chainsaws

10814082100

Assembly

WARNING! The chainsaw has very sharp edges. Use thick protective gloves for safety.

Open the box and install the guide bar and the chainsaw on the power unit as follows:

1. Pull the chainbrake handle toward the rear of the saw (or pull in the direction that would be toward the rear of

the saw if the chainbrake was installed onto the saw).

2. Loosen the nuts and remove the chain brake cover assembly unit..

3. Install the “dog spikes” to the power unit (Models greater than 45cc only).

4. Gear the chain to the sprocket and, while fitting the chain around the guide bar, mount the guide bar to the

power unit. Adjust the position of the chain tensioner.

5. Fit the chain brake cover assembly unit to the power unit, ensuring that the pin for the chain tensioner goes

through the correct hole on the bar. Put the side bolts on “finger tight” only, do not tighten at this stage.

NOTE! Cutting chains are directional, ensure you have installed the chain right way round (A)

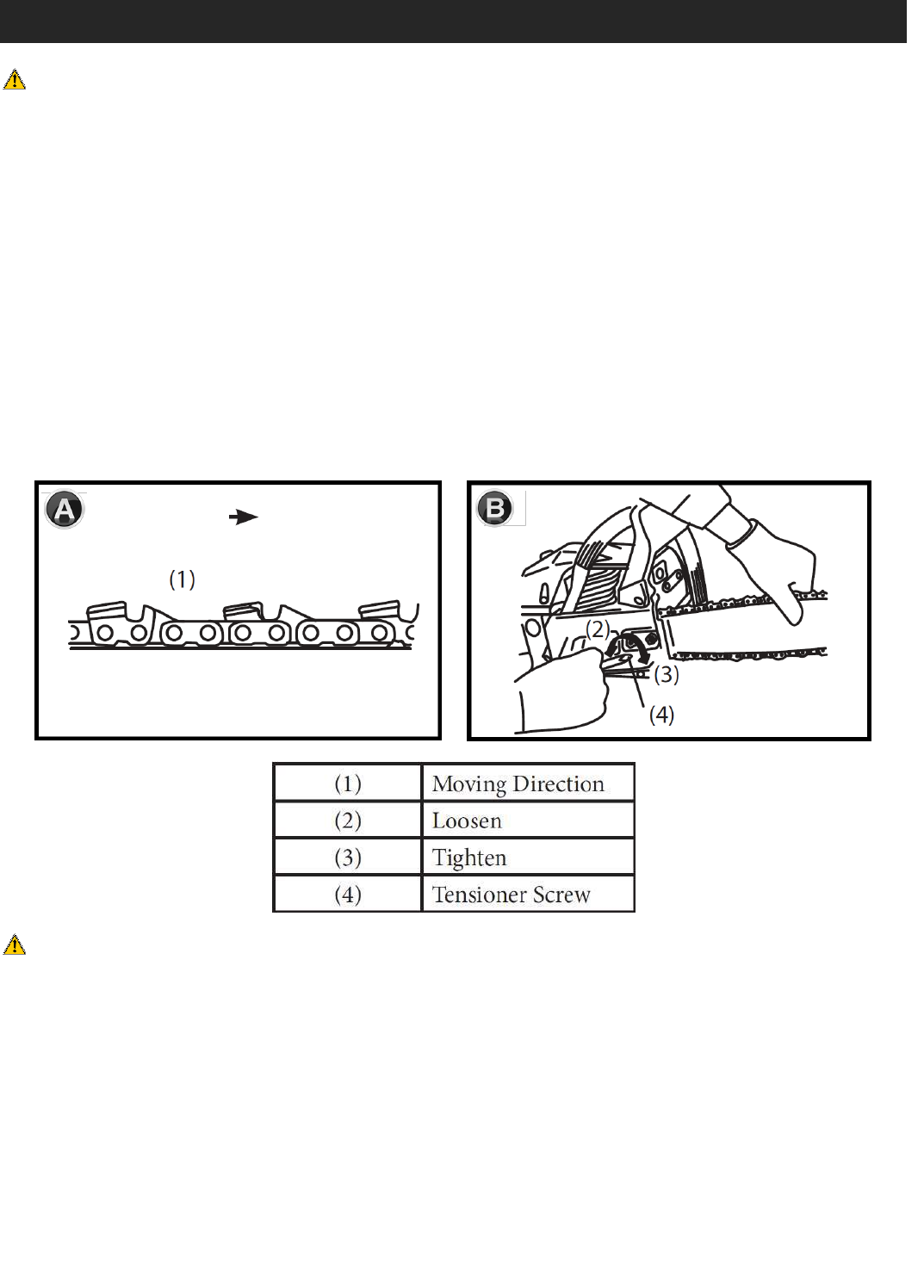

6. While holding up the tip of the bar, adjust the chain tension by turning the tensioner screw until the tie straps

just touch the bottom side of the bar rail (B).

7. Tighten the nuts securely with the bar tip held up (12-15 N.m.). Then check the chain for smooth rotation and

proper tension while moving it by hand. If necessary, readjust with the chain cover loose.

IMPORTANT! A new chain will stretch when first used. Check and readjust the

tension frequently as a loose chain can easily derail and cause rapid wear of

itself and the guide bar.

Product Manual - Chainsaws

10814082100

Adjusting the chain using the chain tensioner

WARNING! Always use protective, non-cut gloves when touching the cutting chain.

DANGER! Always disconnect the “spark plug lead” before touching the cutting chain.

IMPORTANT! After running a new chain for 5min the tension must be re-checked. An old chain must be checked

every 15min of use.

1. Disconnect the “spark plug lead” before adjusting your chain.

2. Slightly loosen the 13mm “main nuts” on the side of the chainsaw and tighten the chain tensioner with a flat

bladed screw driver until the chain is tight enough to not jump off the “guide bar”, the chain must have some

give or stress on the machine will result (Refer to parts diagrams for locations).

How to tension the cutting chain (use non-cut gloves)

Using a pair of protective gloves pull the chain around the bar by hand and loosen the adjustment if you feel tight

spots.

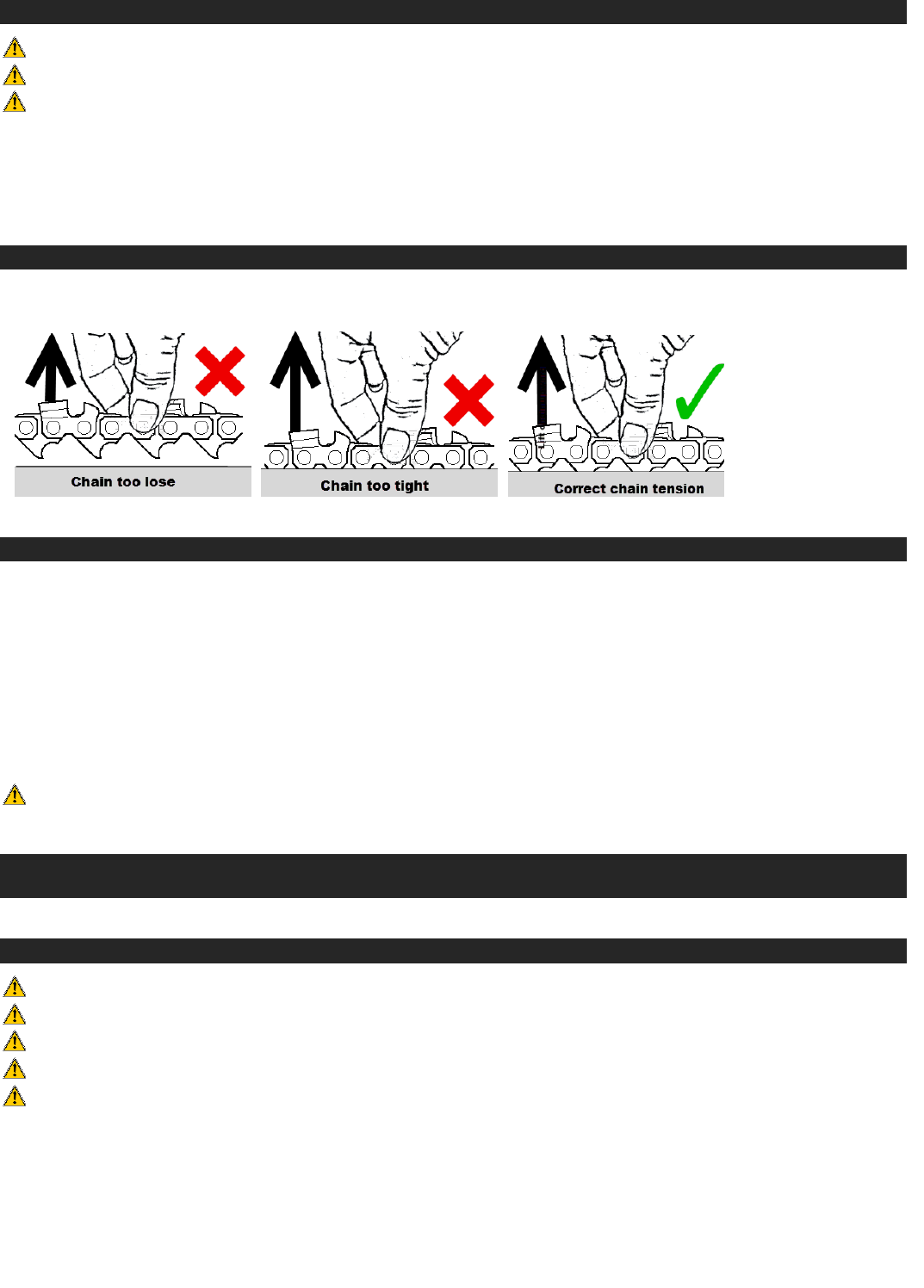

Perform a Snap Test

A quick way to measure the tension of a chainsaw chain is to perform what's known as a "snap test." A properly

tensioned chain will rapidly snap back into position around the top of the bar and show no signs of sagging along the

bottom of the bar.

1. Start by disconnecting the chainsaw's spark plug lead.

2. While holding the chainsaw in one hand, grasp the chain along the top centre of the chainsaw's bar with two

fingers of your other hand. (Always wear heavy gloves and protective eyewear when performing this test.)

3. Lift the chain away from the bar and then quickly release it.

NOTE! If the chain falls loosely into position along the top of the bar or sags along the bottom of the bar the

tension needs to be adjusted.

Before use

Adding Fuel

IMPORTANT! Use only clean, fresh non-ethanol 95+ unleaded with 2-Stroke oil (25:1)

IMPORTANT! Do not overfill the fuel tank.

IMPORTANT! Never use stale or contaminated fuel to mix with 2-stroke oil.

IMPORTANT! Do not let dirt and water into the fuel tank.

IMPORTANT! Tighten the fuel filler cap securely after adding fuel.

1. Clean surface around fuel cap to prevent contamination.

2. Loosen fuel cap slowly. Rest the cap on a clean surface.

3. Carefully pour fuel into the tank. Avoid spillage.

4. Prior to replacing the fuel cap, clean and inspect the gasket.

5. Immediately replace fuel cap and hand tighten. Wipe up any fuel spillage.

Product Manual - Chainsaws

10814082100

Starting the Engine

CAUTION! The starter grip can be drawn back very quickly before you can release it. This may pull your hand

forcefully toward the engine and cause an injury.

CAUTION! Do not allow the starter grip to snap back. Return it slowly by hand.

WARNING! When starting the engine, make sure the cutting attachment is well clear of bystanders, pets or

objects. The attachment may rotate during start-up.

WARNING! The cutting attachment will engage and rotate as the engine starts and accelerates.

CAUTION! The recoil starter can be damaged by abuse.

NOTE! As the engine starts / warms it will become possible to rev the engine – do this a few times before starting

your job. Engines can run rough when cold / first started.

1. Always remove the bar cover before starting your chain saw.

2. If your chainsaw is fitted with a decompression valve, press it now. It assists with firing the engine and starting

your chain saw (not required on most 2014+ models).

3. If your chainsaw has a primer bulb, press it 10 times. This assists with starting and reduces the number of

pulls needed to start.

4. Pull the choke lever all the way out.

5. To start the chain saw, lay it on a flat surface. The cutting attachment must not be in contact with the ground

to avoid blunting it when starting and putting yourself unnecessarily at risk.

6. Leaving the chain saw on the ground, place your left hand on the handlebar and your right hand on the starter

rope. Push your right toecap into the rear handle to stabilize the chain saw.

7. Slowly pull the starter rope with your right hand until you feel resistance. Then pull the starter rope through a

full cycle several times until the engine fires briefly. Pull it upward, keeping it as vertical as you can, without

allowing the rope to chafe against the fan housing.

8. The engine fires only briefly and dies again immediately. Push the choke all the way in. (some models will

have a two stage choke and will only go half way in until the trigger is pulled to run the saw)

9. Pull the starter rope again until the engine fires again.

10. As soon as the engine has fired and is running, touch the throttle trigger briefly with your index finger. (The

choke lever will move back to the normal idle setting if fitted with a two stage choke)

11. Then slowly lift up the chain saw, taking care not to touch the throttle trigger.

12. Release the chain brake by pulling the chain brake handle toward you with your left hand. Keep hold of the

handlebar with your left hand as you do this. When you hear a click sound, this means the chain has been

released and can turn on the bar.

13. Before getting started, check the chain lubrication. Hold up the saw against a light-coloured background, such

as a tree trunk or a piece of paper on the ground and open the throttle fully. If some chain lubricant appears

on the light-coloured background, then you can start work.

14. The saw is now ready for use. For safe working practices please refer to your Instruction Manual.

Quickstart

1. Fill with fuel

2. Fill with bar oil

3. Engine on/off switch ON

4. Pull Choke lever out

5. On a new start-up you will need to pull the cord until fuel is primed through the system.

6. Once the engine fires push the choke all the way in and pull the cord until the engine starts and runs.

Check out our chainsaw starting guide here alternatively you can visit http://bit.ly/sx62startupvid or

http://www.datastreamserver.com/video/SX%2072%20Start%20Up.mp4

Product Manual - Chainsaws

10814082100

If the Engine Fails To Start

Repeat the appropriate starting procedure (warm or cold engine). If the engine fails to start after frequent attempts, the

engine may be flooded (too much fuel in engine) If you suspect your engine is flooded go to next section “Starting a

flooded engine”

Starting a Flooded Engine

CAUTION! Incorrect spark plug installation can result in serious engine damage.

1. Pull the “spark plug cap” off the “spark plug”.

2. Using a spark plug wrench; remove the “spark plug” (turn counter clockwise to remove).

3. Push the choke lever down.

4. Hold the throttle trigger all the way in (full throttle)

5. Pull the starter handle rapidly with your right hand to expel/clear the excess fuel from the combustion

chamber.

6. Clean the “spark plug” with a cloth to wipe away any excess fuel or oil deposits.

7. Reinstall a “spark plug” and tighten it firmly; hand tight plus 1/3 a turn with the spark plug wrench.

8. Repeat the WARM ENGINE starting procedure above.

9. If the engine still fails to start, see the troubleshooting section near the end of this manual.

Stopping the Engine

WARNING! The cutting bar continues to rotate for a short period after the throttle is released or the engine is

switched off (flywheel effect).

Stop the engine by setting the “STOP SWITCH” to “OFF” position.

Filling with Fuel

1. Clean surface around fuel cap to prevent contamination.

2. Loosen fuel cap slowly. Rest the cap on a clean surface.

3. Carefully pour fuel into the tank. Avoid spillage.

4. Prior to replacing the fuel cap, clean and inspect the gasket.

5. Immediately replace fuel cap and hand tighten. Wipe up any fuel spillage.

Check and Adjust Idle Speed

Start the engine and leave it idle, for two or three minutes, or until it warms up.

NOTE! The mixture screws are identified with the L (low speed), H (high speed) and the T (throttle) symbols

visible on the side of the chainsaw.

NOTE! Don’t touch the H and L screws.

1. If the cutting bar rotates rapidly while the engine is idle, reduce idle speed by turning the throttle screw counter

clockwise as necessary.

2. If the engine is stalling and won't idle, increase the idle speed by turning the throttle screw clockwise.

Adjusting the Carburettor

WARNING! The cutting bar may rotate when the engine is at an idle speed.

NOTE! The engine will return to idle speed after the throttle trigger is released.

NOTE! You may require moderate level of mechanical knowledge to service your machine, if in doubt please

contact a service centre.

NOTE! As a rule the engine idle should be turned down to a minimum so that the cutting bar is not spinning

rapidly and the engine is only “just” running.

Product Manual - Chainsaws

10814082100

Return idle and mixture screws to factory setting

1. Turn the Idle screw clockwise until it just begins to tighten (do not tighten it)

2. Turn the Idle screw counter clockwise by 5 turns.

3. Turn the Mixture screw clockwise until it just begins to tighten (do not tighten it)

4. Turn the Mixture screw counter clockwise. Low (2.5 times) high (2 times)

NOTE! For high altitude it is recommended to use Low (3 times) and high (1.5 times)

5. Now start the engine.

6. Ensure the choke is down and the engine is warm.

7. Pull the throttle trigger in all the way (full throttle)

8. With the engine running at full throttle; turn the mixture screw clockwise until the engine is running at its

absolute fastest.

CRITICAL! Prevent Engine Damage Once The Engine Is Running At Its Fastest; Turn The Mixture Screw

Counter Clockwise By ¼ Of A Turn.

9. For fine tuning of idle speed, attach a cutting head and adjust the idle screw to minimise cutting tool

movement while keeping the engine fast enough to run smoothly.

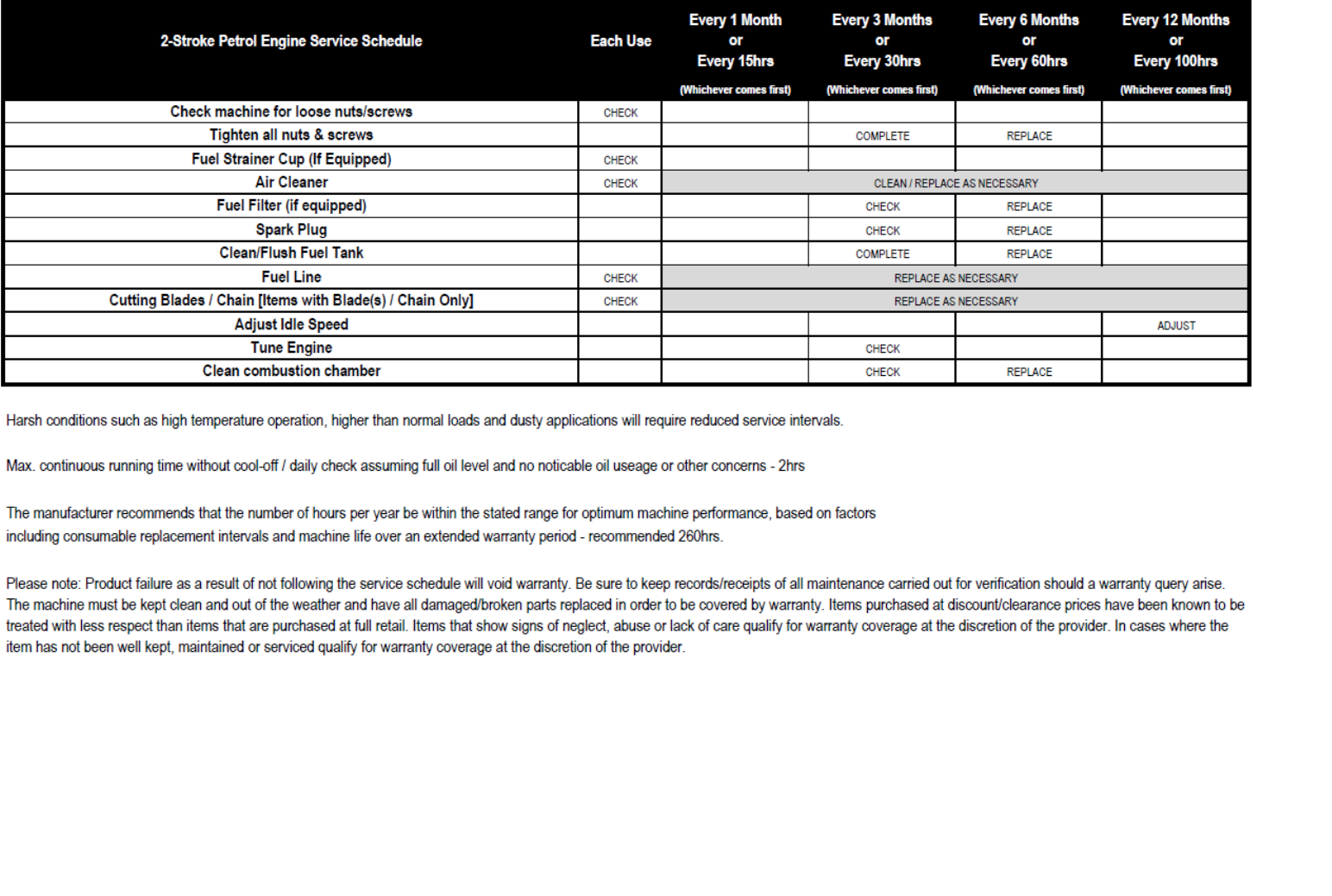

Maintenance

WARNING! Always wear gloves when working around the cutter assembly.

WARNING! Before performing any maintenance, repair, or cleaning work on the unit, make sure the engine and

cutting attachment are completely stopped. Disconnect the spark plug wire before performing service or

maintenance work.

WARNING! Non-standard parts may not operate properly with your unit and may cause damage and lead to

personal injury.

WARNING! Operating the engine without a muffler or with a damaged muffler installed can increase engine the

noise sufficiently and lead to hearing loss.

NOTE! This machine must never be operated with a defective or missing spark arrestor or muffler, Make sure the

muffler is well secured and in good condition. A damaged muffler is a fire hazard and may cause hearing loss.

1. Carefully remove any accumulating dirt or fragments from the muffler and fuel tank. Dirt build-up in these

areas can lead to engine overheating, fire, or premature wear.

2. Check for loose or missing screws or components.

3. Make sure the cutting attachment is free from dirt and securely fastened.

4. Check the entire machine for leaking fuel or grease.

5. Make sure nuts, bolts and screws (except carburettor adjusting screws) are tight.

6. Clean any fragments or dirt from the hedge trimmer cutter blades.

7. Lubricate the blades before use and after refuelling.

8. Check the cutters for damage or incorrect adjustment.

9. Make sure the cutter attachment is securely fastened.

10. Keep the spark plug and wire connections tight and clean.

11. Remove all dirt and debris from the engine, check the cooling fins and air cleaner for clogging, and clean as

necessary.

Product Manual - Chainsaws

10814082100

Product Manual - Chainsaws

10814082100

Transporting & Storage

CAUTION! Fuel stored in the carburettor for extended periods can cause hard starting, and could also lead to

increased service and maintenance costs.

IMPORTANT! Use only clean, fresh non-ethanol 95+ unleaded with 2-Stroke oil mix.

IMPORTANT! If the machine will not be used for 30 days or longer, use the following procedures to prepare it for

storage.

IMPORTANT! Before storing the machine, repair or replace any worn or damage parts. Make sure the protective

covers are in place.

1. Clean external parts thoroughly and apply a light coating of oil to all metal surfaces.

2. Remove the spark plug and poor about 3ml of oil into the cylinder through the spark plug hole. Slowly pull the

recoil starter 2 or 3 times so oil evenly coat the interior of the engine. Reinstall the spark plug.

3. Blow dust / debris out of the air cleaner element using compressed air if available.

4. Store the machine in a clean, dry, dust-free area.

5. Always ensure the chainsaw has the appropriate cover on the bar and chain assembly.

Product Manual - Chainsaws

10814082100

Troubleshooting

Does the engine

crank?

Good compression?

Engine still will not

start.

If ‘yes’

If ‘no’

If ‘yes’

Does the tank

contain fresh fuel

or the proper

grade?

Is there spark at the

plug wire terminal?

Check the spark

plug.

If ‘yes’

A) Faulty recoil starter.

B) Fluid in the crankcase.

C) Internal damage.

A) Loose spark plug.

B) Excess wear on cylinder, piston, rings.

Fuel incorrect, stale, or contaminated; mixture incorrect.

A) The ignition switch is in “OFF” position.

B) Shorted ignition ground.

C) Faulty ignition unit.

A) If the plug is wet, excess fuel may be in the cylinder.

B) The plug is fouled or improperly gapped.

C) The plug is damaged internally or the wrong size.

If ‘no’

If the engine still does not

start, take the machine to

an authorised service

center.

Tighten and re-test.If ‘no’

Refill with fresh fuel/oil

mixture.

If ‘no’

Move switch to “ON” position

and restart.

If ‘no’

1) Crank engine with the plug

removed, reinstall the plug and

restart.

2) Clean and re-gap the plug to

0.6mm-0.7mm and restart.

If ‘no’

If ‘yes’

Engine does not start

Product Manual - Chainsaws

10814082100

Is the engine

overheating?

Engine is rough at

all speeds. May also

have black smoke

and/or unburnt fuel

at the exhaust.

Engine is knocking.

Low Power

Operator is over

working the unit.

Carburettor

mixture is too lean.

Fan, fan cover,

cylinder fins dirty or

damaged.

Cut at slower rate.

Take the machine

to an authorised

service center.

Clean or replace as

necessary.

Carbon deposits on

the piston or in the

muffler.

Clogged air filter

element.

Loose or damaged

spark plug.

Take the machine

to an authorised

service center.

Clean or replace the

air filter.

Tighten or replace

the spark plug and

restart.

Air leakage or

clogged fuel line.

Water in fuel.

Piston Seizure.

Faulty carburettor

and/or diaphragm.

Repair or replace

fuel filter and/or

fuel line.

Refill with fresh

fuel/oil mixture.

Take the machine

to an authorised

service center.

Overheating

condition.

Improper fuel.

Carbon deposits in

the combustion

chamber.

Check fuel octane

rating; check for

presence of alcohol

in the fuel. Refuel

as necessary.

Take the machine

to an authorised

service center.

2-Stroke Fuel

mixture incorrect

Product Manual - Chainsaws

10814082100

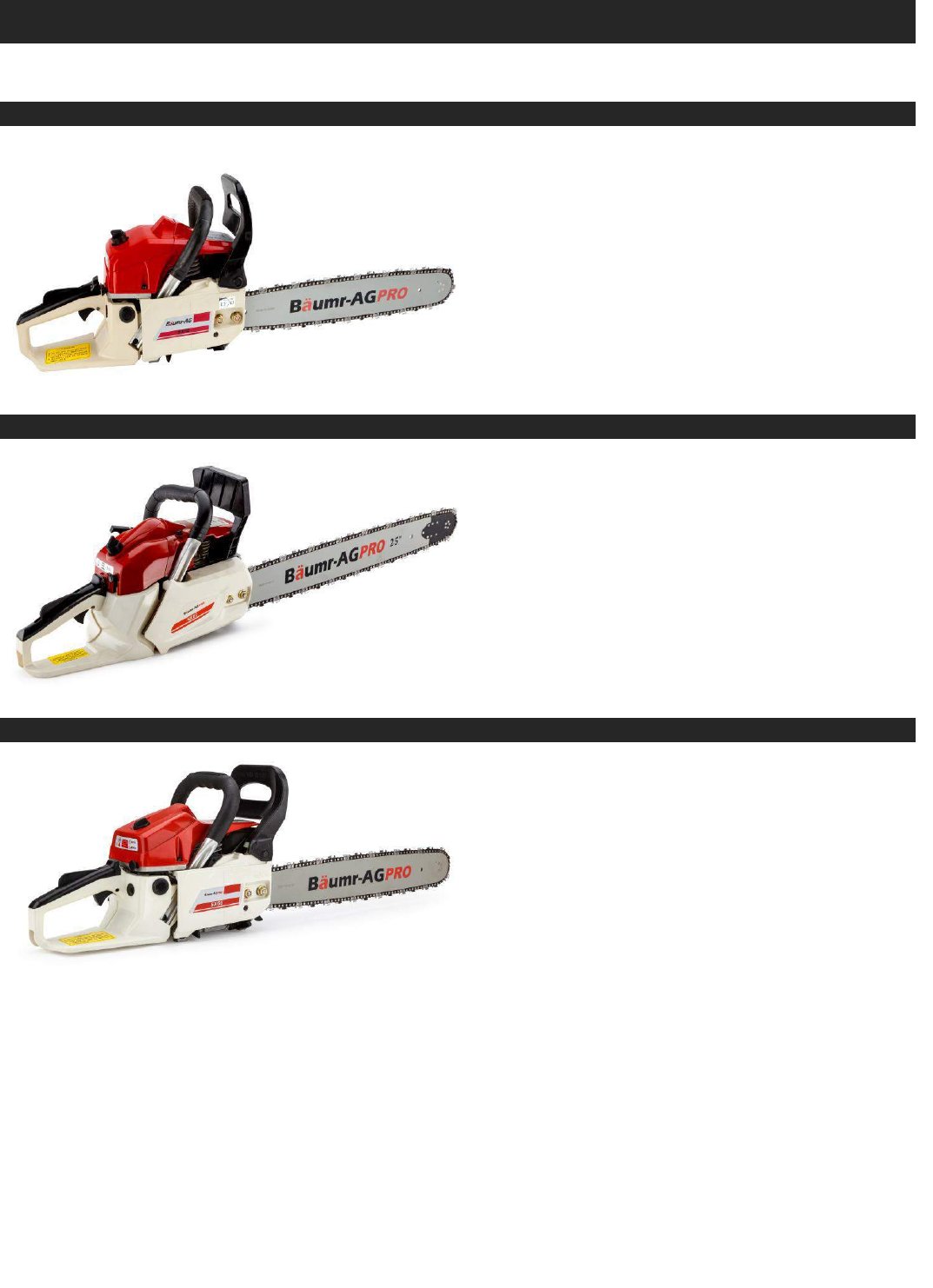

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 62cc

Engine Output: 4.5hp (peak)

Bar Length: 20"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method:Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 20", Pitch 0.325, Gauge 0.058, Links 76

Weight: 5.5(kg)

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 82cc

Engine Output: -

Bar Length: 24"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method:Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 24", Pitch 3/8, Gauge 0.063, Links 84

Weight: 10.1(kg)

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 66cc

Engine Output: -

Bar Length: 20"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method:Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 20", Pitch 0.325, Gauge 0.058, Links 76

Weight: 8.3(kg).

SX62

CHNSAW-BAUM-82SX

CHNSAW-BAUM-66SX

Specifications

Product Manual - Chainsaws

10814082100

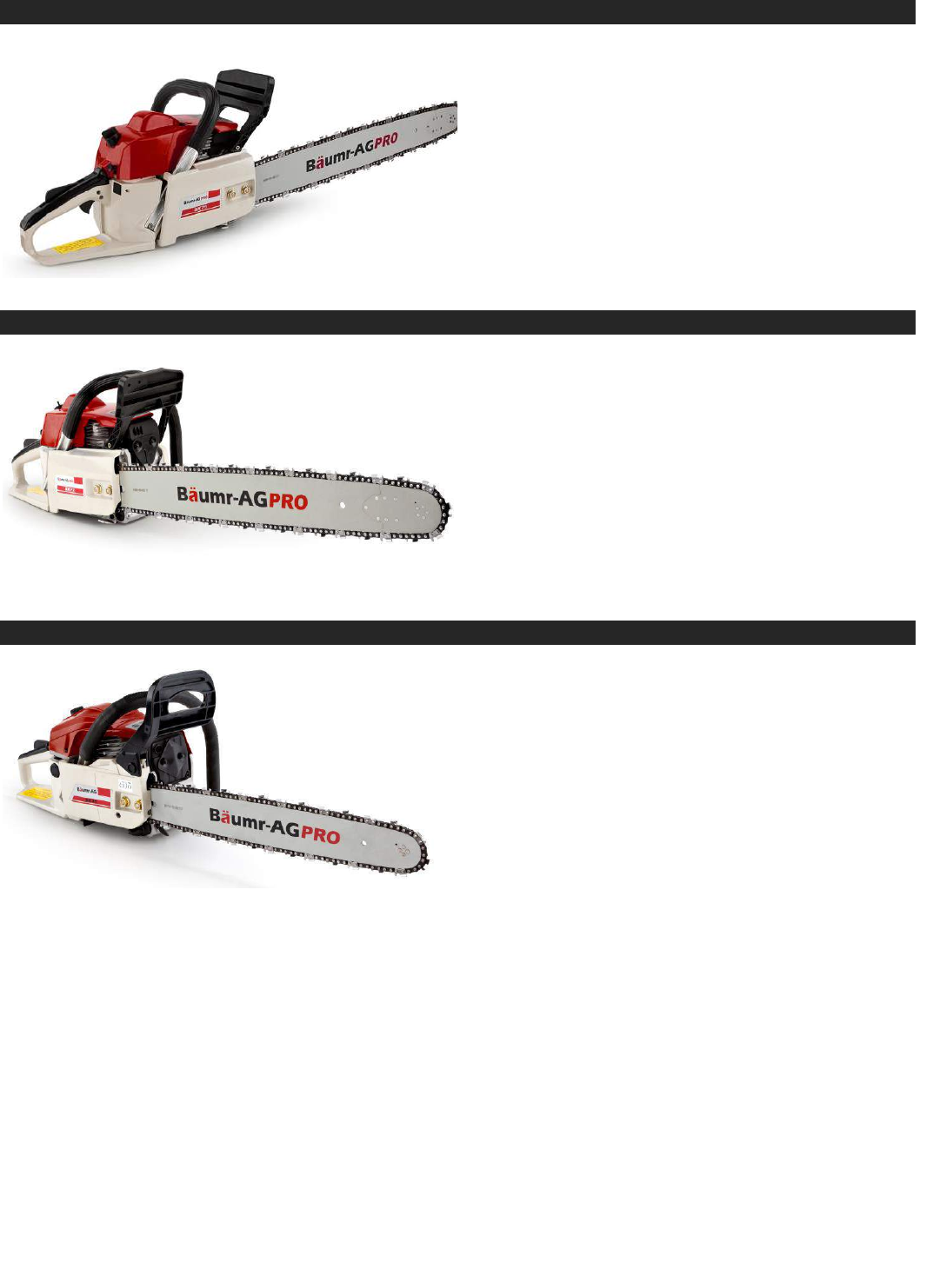

CHNSAW-BAUM-76SX

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 76cc

Engine Output: -

Bar Length: 24"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 24", Pitch 3/8”, Gauge 0.063, Links 84

Weight: 9.3(kg).

CHNSAW-BAUM-72SX

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 72cc

Engine Output: 4.5hp (peak)

Bar Length: 24"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 24", Pitch 3/8”, Gauge 0.063, Links 84

Weight: 7(kg).

CS-45

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 45cc

Engine Output: 2.5hp (peak)

Bar Length: 16"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 16", Pitch 0.325, Gauge 0.058, Links 72

Weight: 5.5(kg).

Product Manual - Chainsaws

10814082100

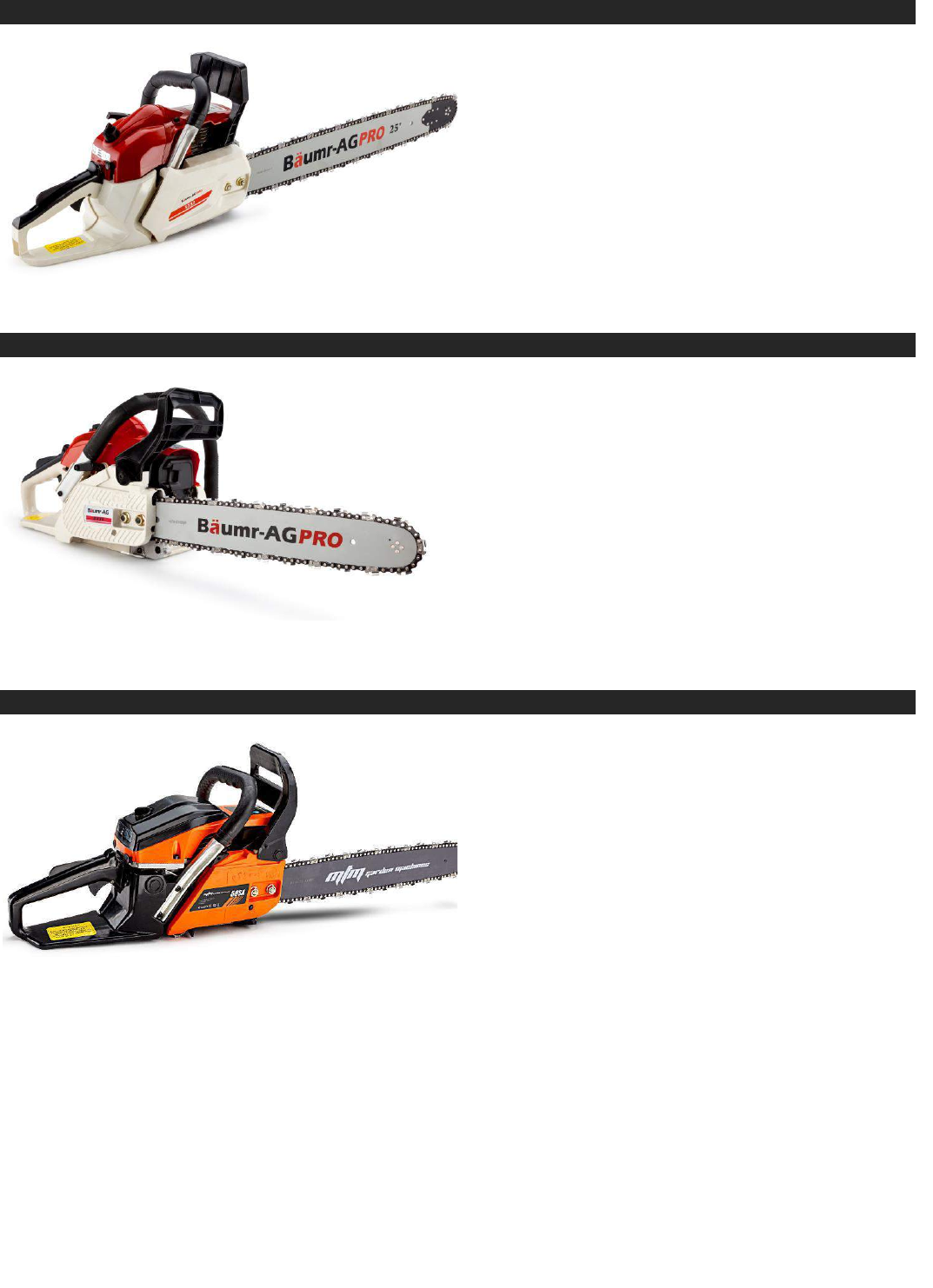

CHNSAW-BAUM-82SX

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 82cc

Engine Output: -

Bar Length: 24"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 24", Pitch 3/8, Gauge 0.063, Links 84

Weight: 7(kg).

CS-38

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 38cc

Engine Output: -

Bar Length: 16"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 16", Pitch 3/8, Gauge 0.063, Links 84

Weight: 5.8(kg).

CHNSAW05CMTMADJF

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 58cc

Engine Output: 3.7hp (peak)

Bar Length: 18"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 18", Pitch 0.325, Gauge 0.058, Links 72

Weight: 5.5(kg).

Product Manual - Chainsaws

10814082100

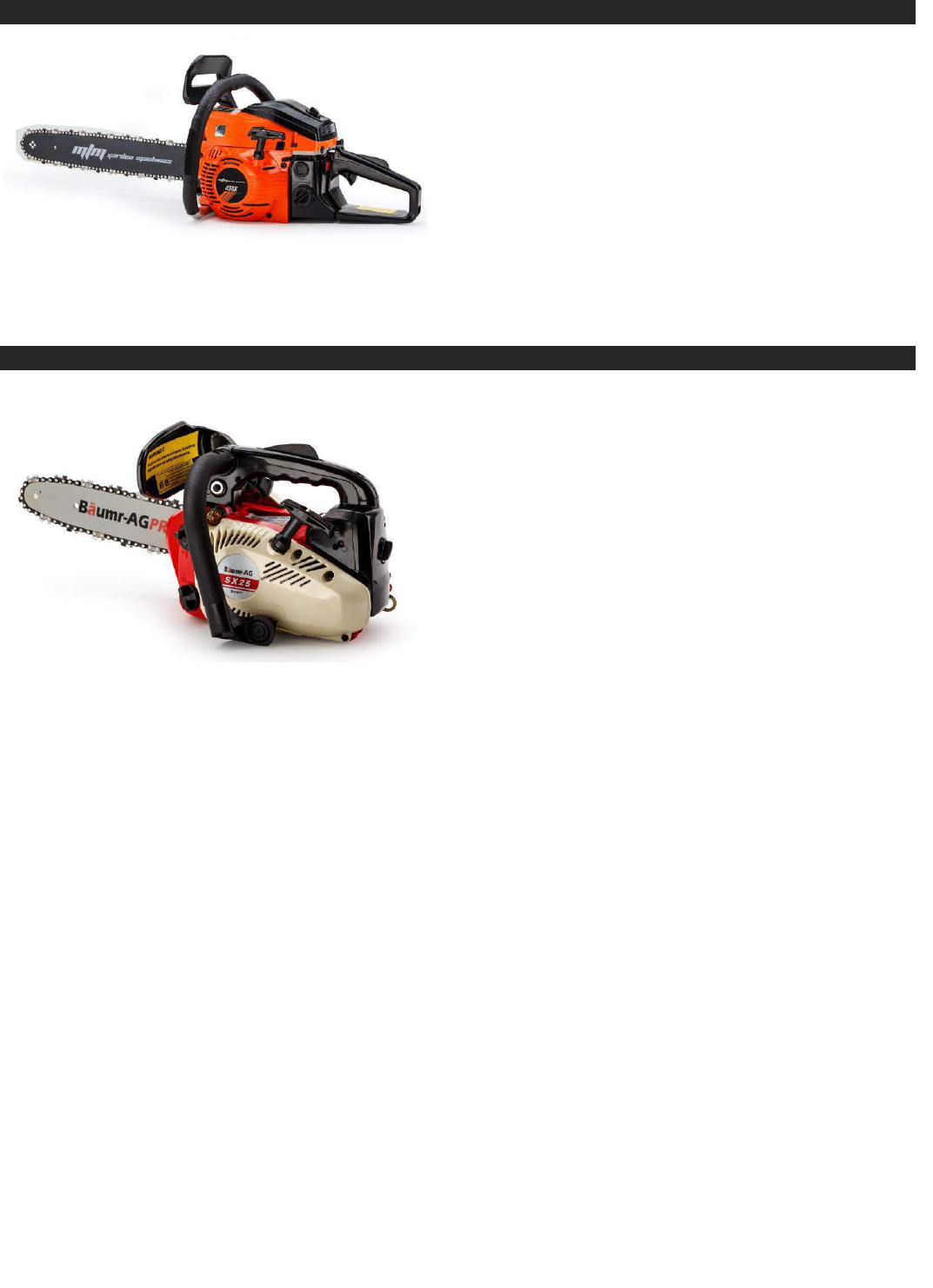

CHNSAW-MTM-45SX

Manufacturer: MTM

Engine Type: 2-Stroke

Engine Displacement: 45.2cc

Engine Output: 2.5hp (peak)

Bar Length: 18"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 18", Pitch 0.325, Gauge 0.058, Links 72

Weight: 5.5(kg).

SX-25

Manufacturer: BAUMR-AG

Engine Type: 2-Stroke

Engine Displacement: 25cc

Engine Output: 1.2hp (peak)

Bar Length: 10"

Fuel Type: 95+ Non Ethanol 2-Stroke (25:1 Mix)

Starting Method: Recoil

Bar Oil Type: Chainsaw bar oil available from local

hardware store.

Chain Spec: 10", Pitch 3/8”, Gauge 0.050, Links 40

Weight: 3.4(kg).

Product Manual - Chainsaws

10814082100

Appendix

Baumr AGA Pole Tool Ag Chainsaw Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
