7D 22 8XX_BG42GT Dynatorque Multi Turn Bevel Gear Operators Bg42gt Drawing
User Manual: Pdf Resource Library
Open the PDF directly: View PDF
.
Page Count: 2

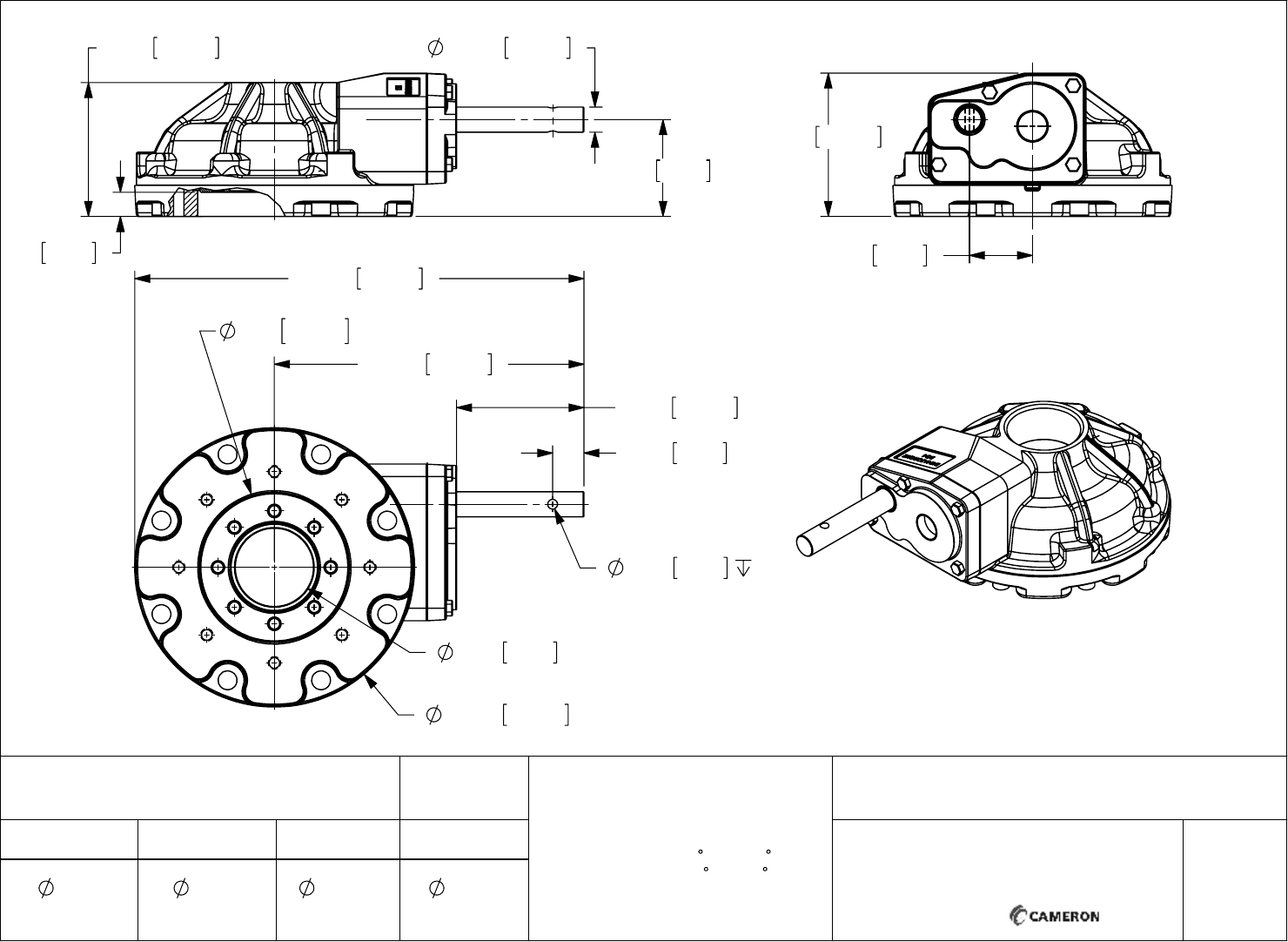

1.000 25.40
.97
24.5
5.35
135.8
3.87 98.2
17.92 455.2
12.35 313.8
5.08
129.1
1.25 31.8
3.12 79.2
.391 9.93
11.14 282.9
6.12
155.4
7D-22-8XX SHEET 1 OF 2 1/27/15
5.72
145.2
2.52 63.9
CONSULT FACTORY FOR
SPECIAL CONFIGURATIONS
MOUNTING PATTERN
STD
MIN
MAX
BG42
GT
DYNATORQUE
WWW.DYNATORQUE.COM
MANUAL MULTI- TURN ACTUATOR
COMMERCIAL GRADE
DRIVE
PATTERN
STD
4.500
1/2-13 UNC
7.625
1/2-13 UNC
6.875
3/8-16 UNC
10.180
5/8-11 UNC
GREASED FOR LIFE
RATIO:
THRUST:
TORQUE:
TEMPERATURE:
EST. WEIGHT:
8:1
80,000 LBS
[356 KN]
2,300 FT-LB
[3,118 N-M]
-20
TO 150
F
[-29
TO 66
C]
83 LBS [37.7 KGS]
A BRAND OF
A
A
B
B
18
22
23

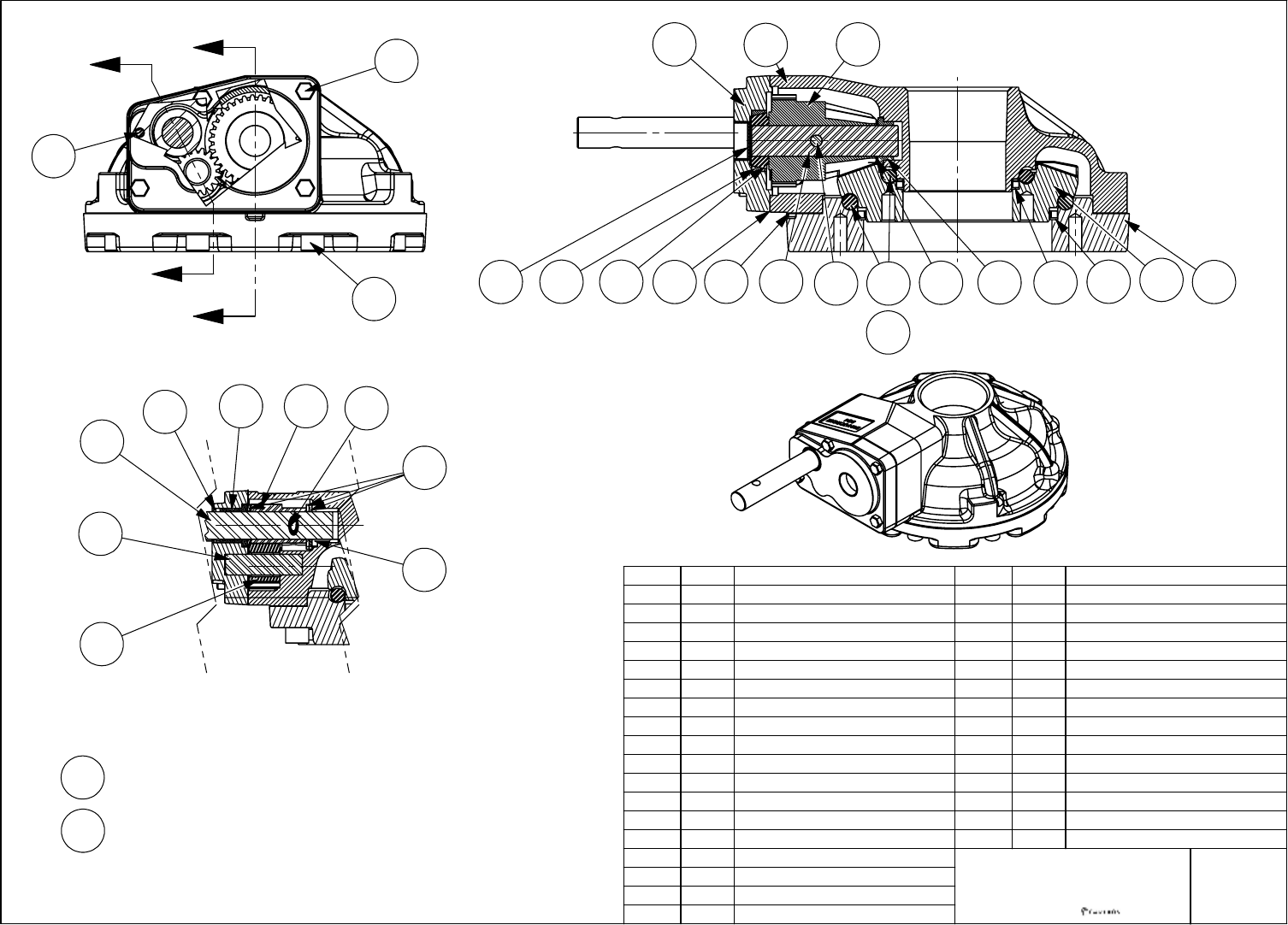

SECTION A-A
15
12
11
3
24
31
16
29
30
27
26
1
5
4
6
7
17
21
ITEM
QTY
DESCRIPTION
1 1
BEARING RET, BG4GT H.T.
2 1
SHAFT,BG42,STD
3 1
SHAFT,BG42,PINION
4 1
HOUSING,BG42GT, H.T.
5 1
BRG HSG, BG42, MACH
6 1
BEVEL PINION BG42 MACH
7 1
BEVEL GEAR, BG4GT, HT
8 1
INPUT GEAR, BG42/SQ6
9 1
IDLER GEAR, BG42
10 1
BLACK ENAMEL
11 1
ROLLER BEARING,CONE
12 1
ROLLER BEARING,CUP
13 2
BEARING,FLANGED,1.25,1.0,.88
14 3
THRUST WASHER,1.00,.092
15 1
EXPANSION PLUG,1.25,.50
16 36
BALL BEARING,.500 DIA
17 36
BALL BEARING,.469 DIA
18 1
DOWEL PIN,.250,.75
ITEM
QTY
DESCRIPTION
19 1
DOWEL PIN,.750,2.50
20 1
COIL PIN,.313,1.25
21 1
GROOVE PIN,.375,2.25
22 4
HHCS, 3/8-16 X 1.25 LG
23 8
SHCS,1/2-13 X 1.25
24 1
WASHER, WAVE
25 1
GREASE,COMMERCIAL GRADE
26 1
LIP SEAL,3.50
27 1
LIP SEAL,6.00
28 1
LIP SEAL,1.00
29 1
GASKET, BRG HSG
30 1
GASKET, BRG RET
31 1
BEARING,FLANGED,1.0
32 1
BEARING SLV,.875,.750,.88
SECTION B-B
2
28
13
8
20
14
19
9
13
7D-22-8XX SHEET 2 OF 2 1/27/15
26
UNIT BEARING & GEAR TEETH ARE GREASED.
10
UNIT IS PAINTED BLACK ENAMEL.
DYNATORQUE
WWW.DYNATORQUE.COM
BG42
GT
A BRAND OF
ITEM
QTY
DESCRIPTION
1 1
BEARING RET, BG4GT H.T.
2 1
SHAFT,BG42,STD
3 1
SHAFT,BG42,PINION
4 1
HOUSING,BG42GT, H.T.
5 1
BRG HSG, BG42, MACH
6 1
BEVEL PINION BG42 MACH
7 1
BEVEL GEAR, BG4GT, HT
8 1
INPUT GEAR, BG42/SQ6
9 1
IDLER GEAR, BG42
10 1
BLACK ENAMEL
11 1
ROLLER BEARING,CONE
12 1
ROLLER BEARING,CUP
13 2
BEARING,FLANGED,1.25,1.0,.88
14 3
THRUST WASHER,1.00,.092
15 1
EXPANSION PLUG,1.25,.50
16 36
BALL BEARING,.500 DIA
17 36
BALL BEARING,.469 DIA
18 1
DOWEL PIN,.250,.75
ITEM
QTY
DESCRIPTION
19 1
DOWEL PIN,.750,2.50
20 1
COIL PIN,.313,1.25
21 1
GROOVE PIN,.375,2.25
22 4
HHCS, 3/8-16 X 1.25 LG
23 8
SHCS,1/2-13 X 1.25
24 1
WASHER, WAVE
25 1
GREASE,COMMERCIAL GRADE
26 1
LIP SEAL,3.50
27 1
LIP SEAL,6.00
28 1
LIP SEAL,1.00
29 1
GASKET, BRG HSG
30 1
GASKET, BRG RET
31 1
BEARING,FLANGED,1.0
32 1
BEARING SLV,.875,.750,.88
