7D 22 3XX_BG6 DYNATORQUE Multi Turn Bevel Gear Operators BG6 Drawing
User Manual: Pdf DYNATORQUE Multi-Turn Bevel Gear Operators BG6 Drawing Resource Library
Open the PDF directly: View PDF
.
Page Count: 2
4.69
119.2
14.17 359.9
22.44 570.0
1.25 31.8
.391 9.93
16.55 420.4
9.12
231.6
8.06
204.7

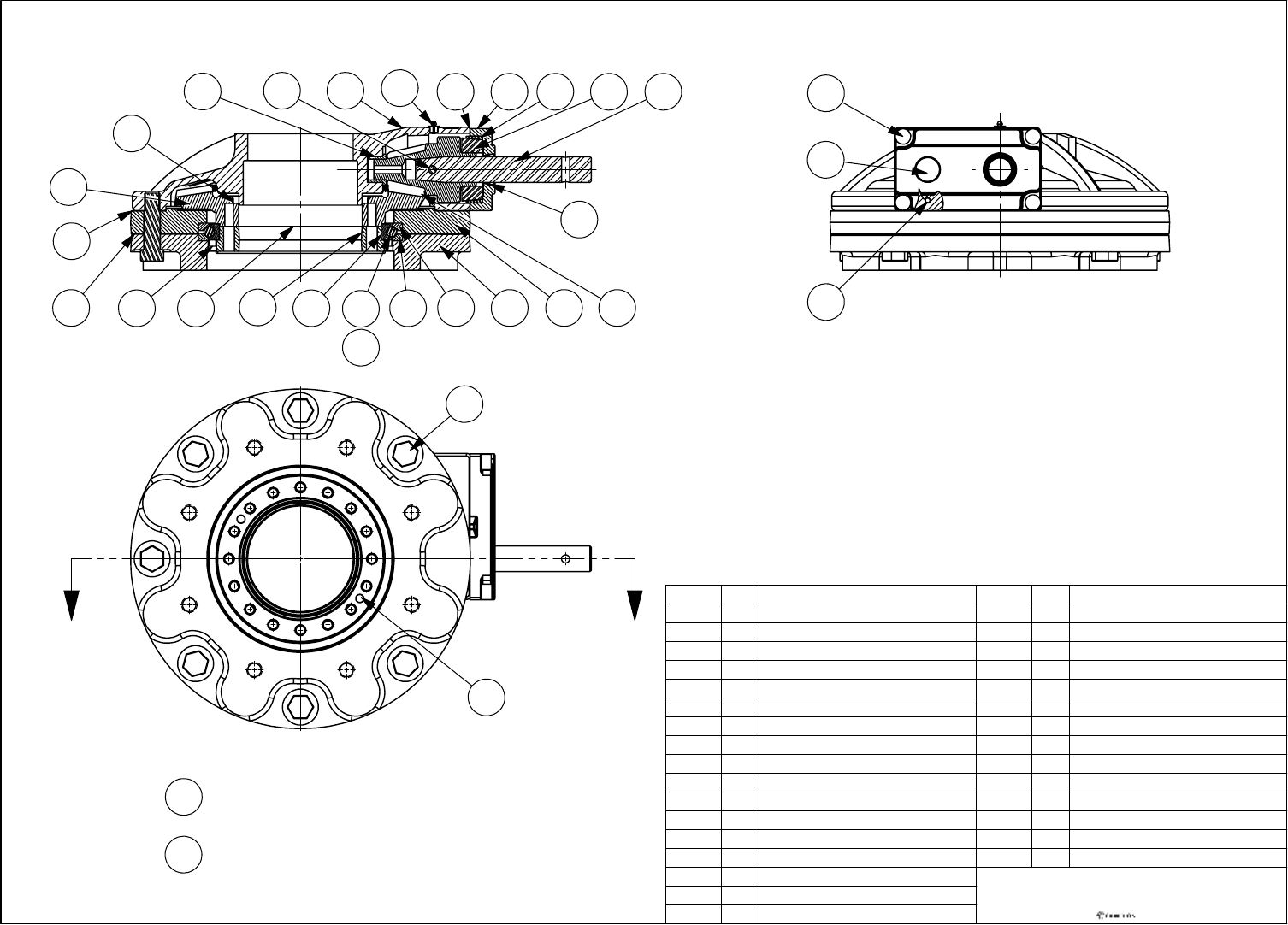

7D-22-3XX SHEET 1 OF 2 2/11/15
1.250 31.75
6.66
169.0
4.91
124.7
5.0 NPT
GREASE FITTING
6.92
175.8
.82
20.9
DRIVER RECESS
.94
23.7
CONSULT FACTORY FOR
SPECIAL CONFIGURATIONS
MOUNTING PATTERN
STD
MIN
MAX
BG6
DYNATORQUE
WWW.DYNATORQUE.COM
MANUAL MULTI- TURN ACTUATOR
COMMERCIAL GRADE
DRIVE
PATTERN
STD
6.960
(16)1/2-13 UNC
11.732
3/4-10 UNC
10.000
5/8-11 UNC
14.02
1 1/8-7 UNC
GREASED FOR LIFE
RATIO:
THRUST:
TORQUE:
TEMPERATURE:
WEIGHT:
6:1
150,000 LBS
[667 KN]
3,500 FT-LB
[4750 N-M]
-20
TO 150
F
[-29
TO 66
C]
210 LBS [95.5 KGS]
A BRAND OF
AA
7D-22-3XX SHEET 2 OF 2 2/11/15
20
22
29
UNIT BEARINGS & GEAR TEETH ARE GREASED.
UNIT IS PAINTED BLACK ENAMEL.
19
ITEM.
QTY.
DESCRIPTION
1 1
HOUSING,BG6,STD,NPT
2 1
INPUT SHAFT, BG6, STD
3 1
BEVEL PINION, BG6, MACH
4 1
GROOVE PIN,.375,2.25
5 1
BEARING HSG, BG6, BLANK
6 1
BEVEL GEAR, BG6, STD
7 1
UPPER BRG RET, BG6, STD
8 1
INNER BRG RET, BG6, STD
9 1
LOWER BEARING RET, BG6, STD
10 1
ROLLER BRG, CUP
11 1
ROLLER BRG, CONE
12 1
BEARING,FLANGED,1.25,1.0,.88
13 28
BALL BEARING,.500 DIA
14 28
BALL BEARING,.469 DIA
15 2
OUTER BRG RACE, BG6
16 1
INNER BRG RACE, BG6
17 1
EXPANSION PLUG,1.250,.50
ITEM.
QTY.
DESCRIPTION
18 2
DOWEL PIN,.250,1.00
19 2
SHCS,1/4-20 X 1.25
20 7
HHCS,3/4-10 X 2.750 LG
21 4
SHCS,1/2-13 X 1.25
22 1
GREASE,COMMERCIAL GRADE
23 1
LIP SEAL,6.00, 6.625
24 1
LIP SEAL,8.25, 9.00
25 1
GASKET, BG6, BRG HSG
26 1
GASKET, BG6, INNER RET
27 1
GAKET, UPPER RET, BG6
28 1
GASKET, LOWER RET, BG6
29 1
BLACK ENAMEL
30 1
LIP SEAL,1.25
31 1
GREASE FITTING,1/8 NPT
SECTION A-A
2
5
11
10
1
3
7
9
15
15
13
16
8
24
23
4
12
28
27
25
6
14
30
26
31
21
17
18
