Timer System
Package

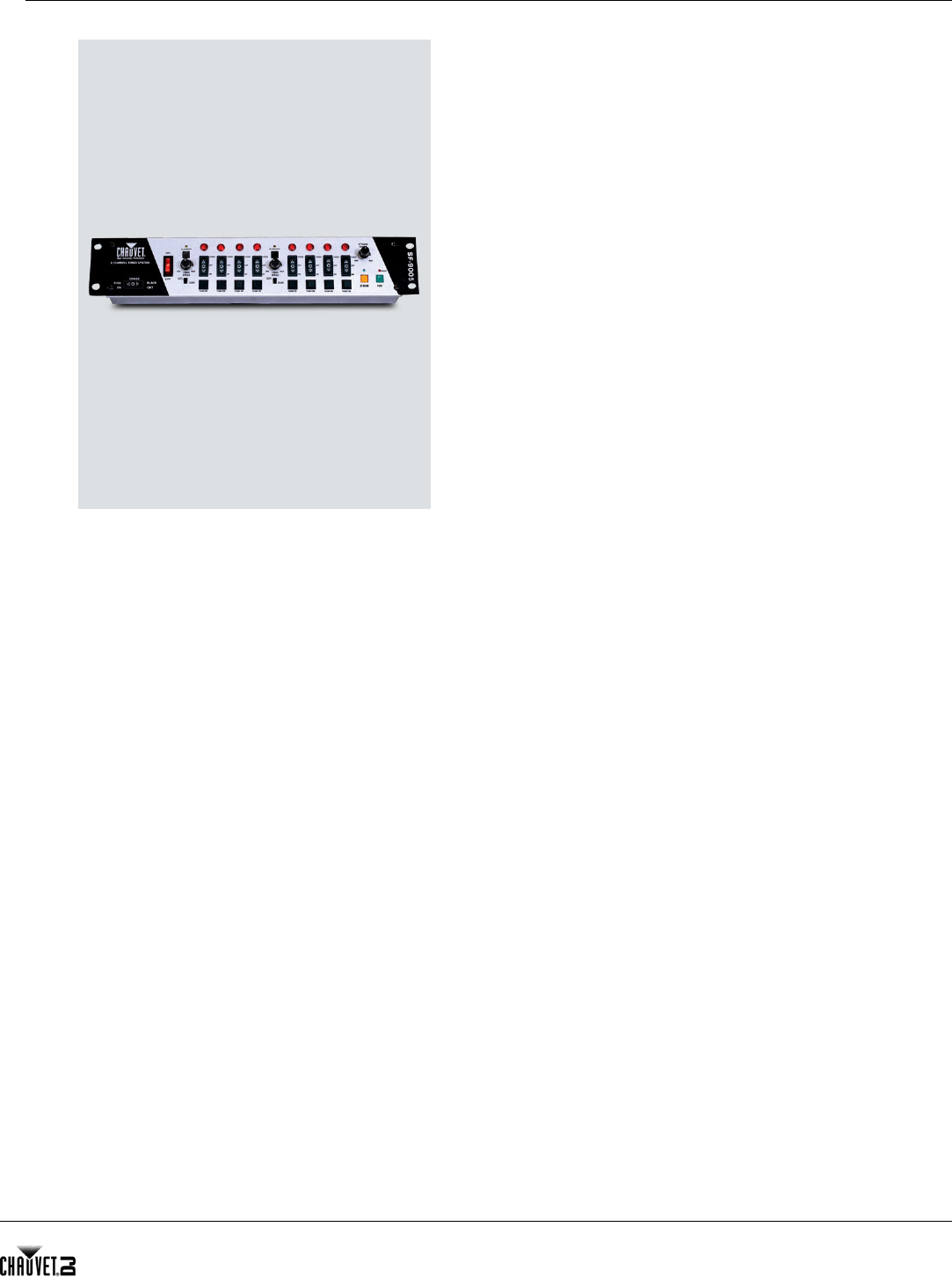

The SF-9005 Timer System Package includes 1 SF-9005
controller, 1 SR-8 Relay Pack, and 1 SF-EXCB 9-pin 25ft.
extension cable for linking the controller and relay pack. The
package features 8 on/off/chase switches. They can be
configured and adjusted to perform one of two chase
patterns, either 16-pattern sound activation for channels 1-4
and/or 5-8, and a timed chase with user-definable speeds
from twenty seconds to fifteen minutes. The controller also
features built-in fog and strobe controllers, a three-way
switch for selecting full on, chase, or blackout, and an output
for the CH-865/866 controller.
© 2018 CHAUVET DJ. All rights reserved. https://www.chauvetdj.com
https://www.chauvetdj.eu
https://www.chauvetdj.mx
Highlights
Convenient pack includes: double space (2U) mounting rack, 8-channel relay pack (SR-8) and 25 ft (SF-EXCB) linking cable
Individual control of 2 separate zones with 4 channels each (8 channels total)
Each zone contains: 4 channels with LED indicator and flash button, separate blackout button, selector switch for
automatic or sound-activated programs; speed control knob for automatic programs (20 sec – 15 min)
Compatible with external 16-pattern controller (CH-866, sold separately)
Connect up to 2 relay packs together (SR-8, sold separately)
Increase effects with fog and adjustable strobe speed control buttons
Non-switched output for linking relay packs (on SR-8)
© 2018 CHAUVET DJ. All rights reserved. https://www.chauvetdj.com
https://www.chauvetdj.eu
https://www.chauvetdj.mx
Specifications
Input Voltage: (controller): 120/230 VAC, 50/60 Hz (switchable)
(relay pack): 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: (controller): 1 W, 0.1 A @ 120 V, 60 Hz
(controller): 1 W, 0.1 A @ 230 V, 50 Hz
Weight: (controller): 4.6 lb (2.1 kg)
(relay pack): 2.5 lb (1.3 kg)
Size: (controller): 19 x 3.5 x 3.7 in (482 x 88 x 94 mm)
(relay pack): 14 x 3.8 x 1.8 in (356 x 97 x 46 mm)
Approvals: CE
Output: (relay pack 120 V): 5 A (575 W) per channel, 15 A (1,725 W) max
(relay pack 230 V): 5 A (1,150 W) per channel, 15 A (3,450 W) max
Rackmount: (controller): 2U
What's Included
SR-8 relay pack
SF-EXCB extension cable
User Guide
Warranty card
