CZ3007 Compiler Techniques

Third Laboratory Assignment

1. Overview

The goal of this lab is to understand how a semantic analyser for the programming language PL/3007 works.

Different from the previous lab, this lab provides you with a complete set of the .ast file and the .jrag files

(downloadable as a zip file from the course website) which the JastAdd tool uses to generate the semantic

analyser. You are also provided with a unit test suite with 60 test cases, as an example of doing unit test of the

semantic analyser.

There is no submission to be made for this lab. There is also no scheduled lab session for this lab but you

need to read this document and complete a simple short individual test in NTULearn (Lab group site) which has

3% weightage on the final grade. The deadline for completing the individual test is midnight of the day before

your scheduled lab 4 session in Week 10 or 11.

You will be tested on your understanding of the semantic analyser in the lab quiz in Weeks 10 and 11. (The

quiz will have 50% weightage on semantic analysis, 25% each on lexical analysis and syntax analysis.)

2. Code Files Provided

Download the file lab3.zip from the course webpage. The folder src contains the following sub-folders:

– folder frontend contains an abstract grammar file defining the abstract syntax of PL/3007

(grammar.ast), and several .jrag files containing attribute definitions and inter-type field and

method declarations for the semantic analyser, as detailed below;

– folder test contains the unit test suite in file SemanticAnalyserTests.java;

These files are

• grammar.ast – defines all classes in abstract grammar for building the AST and doing the semantic

checking

• namecheck.jrag – all the attributes/methods for the various AST classes/nodes to do scope checking

• names.jrag – all the attributes for name analysis (search for the declarations of various names) to help

scope checking

• typecheck.jrag - all the attributes/methods for the various AST classes/nodes to do type checking

• types.jrag – all the attributes for type analysis (compute/infer the types of the AST nodes) to help

type checking

• SemanticAnalyserTests.java - the unit test suite which contains 60 test cases to test the semantic

analyser.

Note that since you are provided with the source code for the semantic analyser and the test module only, you

are not able to run the semantic analyser.

3. A Walkthrough of the Source Code of the Semantic Analysis

We describe how the semantic analyser of PL/3007 works by going through the source code provided. Not

everything is described. To have a more thorough understanding, you should read the relevant codes as well.

3.1 grammar.ast

This file defines the abstract syntax of PL/3007. In grammar.ast, we see:

Program ::= Module*;

Each source program to be compiled is an instance of the class Program. Class Program has a field which is a

list of the instances of Class Module. The general structure of an AST is illustrated in Figure 1. Of course each

source program will have its own AST representing its structure.

With respect to object-oriented programming design, many good systems have class hierarchies which

include abstract superclasses. In some cases, abstract superclasses form a few levels of the hierarchy. We see

this approach adopted whenever an inheritance situation arises in the design of the AST structure.

CZ3007 Compiler Techniques

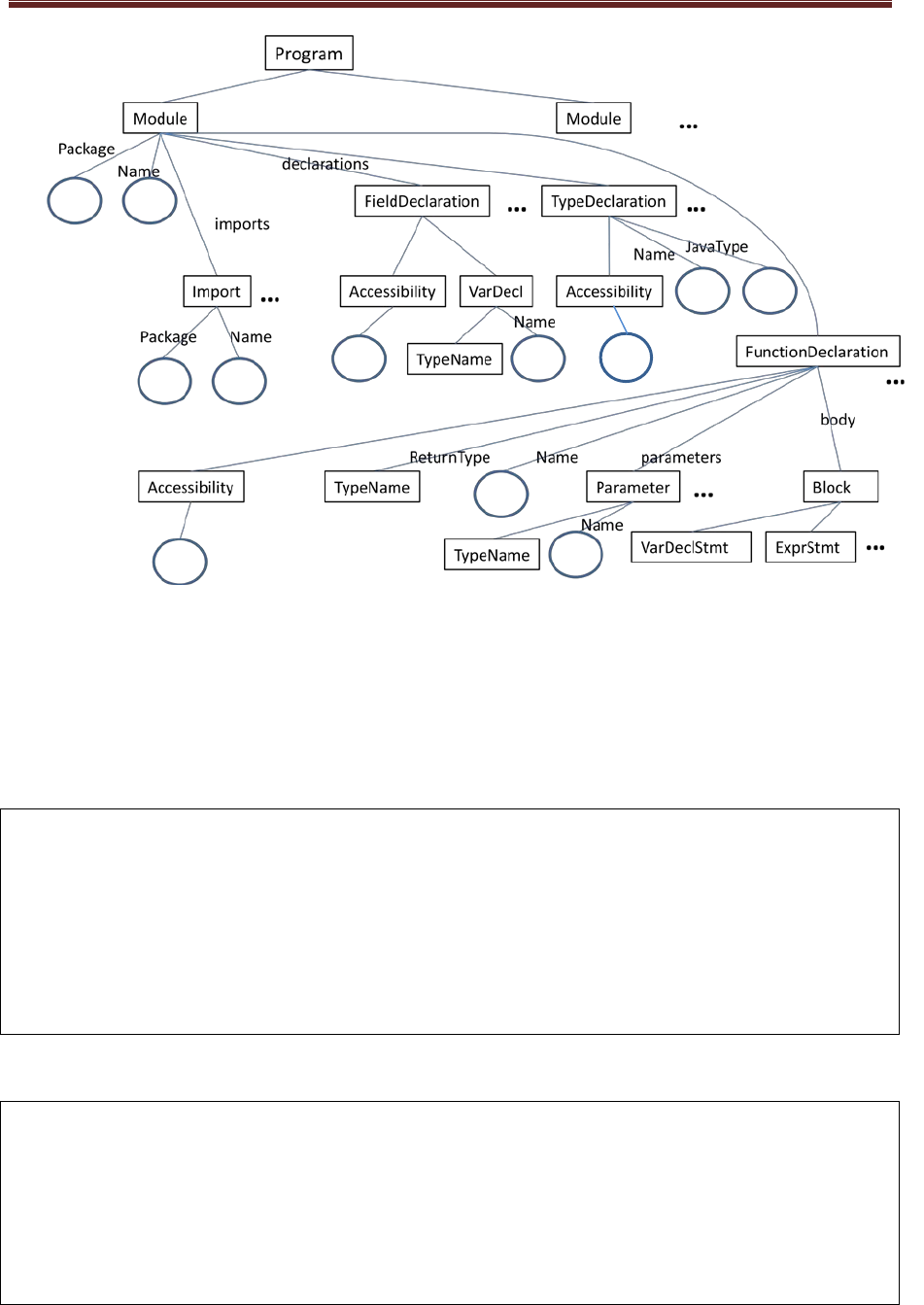

Figure 1. A general structure of the ASTs for programs in PL/3007.

Most of the definitions in the abstract grammar should be fairly straightforward: they correspond to the

concrete grammar, except that alternative production rules are replaced by object-oriented inheritance, and

inessential terminals are omitted. One difference between the abstract grammar and concrete grammar in our

lab is that the abstract grammar defines the AST nodes for a complete program where the concrete grammar

only defines the syntax for one module (which is what you do in Lab 2).

For example, in concrete grammar, i.e. context-free-grammar (CFG), we have

Stmt = Expr SEMICOLON

| TypeName ID SEMICOLON

| LCURLY Stmts RCURLY

| IF LPAREN Expr RPAREN Stmt ELSE Stmt

| IF LPAREN Expr RPAREN Stmt

| WHILE LPAREN Expr RPAREN Stmt

| RETURN Expr SEMICOLON

| RETURN SEMICOLON

| BREAK SEMICOLON

;

In abstract grammar, we have

abstract Stmt;

ExprStmt : Stmt ::= Expr;

VarDeclStmt : Stmt ::= VarDecl;

Block : Stmt ::= Stmt*;

IfStmt : Stmt ::= Expr Then:Stmt [Else:Stmt];

WhileStmt : Stmt ::= Expr Body:Stmt;

ReturnStmt : Stmt ::= [Expr];

BreakStmt : Stmt;

The individual abstract grammar rule for the various types of statements corresponds to the respective

production rule in CFG, with terminal symbols (tokens) omitted. The alternative production rules for Stmt are

replaced by class inheritance: various types of statement classes are subclasses of the abstract super class Stmt.

CZ3007 Compiler Techniques

Having alternative production rules for a nonterminal is one possible scenario for a class inheritance

situation. There are other inheritance situations. Notice that in our abstract grammar BinaryExpr is the

superclass of CompExpr (all comparison expressions), which is the superclass of ArithCompExpr (arithmetic

comparison expressions <, >, <= and <=).

abstract CompExpr : BinaryExpr;

EqExpr : CompExpr;

NeqExpr : CompExpr;

abstract ArithCompExpr : CompExpr;

LtExpr : ArithCompExpr;

GtExpr : ArithCompExpr;

LeqExpr : ArithCompExpr;

GeqExpr : ArithCompExpr;

Why do we design such a class hierarchy? Read on. You will find the answer in Sections 3.4 and 3.5.

There are also node types/classes for type descriptors in the abstract syntax, which do not have concrete

syntax. These nodes are not created by the parser when it builds the AST during parsing. They are created

during semantic checking when the types of the various relevant AST nodes need to be computed (see

types.jrag). Type descriptors are different from type names: while an AST of a source program may have

several different nodes of type IntTypeName, their getDescriptor() attributes all refer to the same (and the

single instance of) type descriptor IntType. Similarly, there is only a single BooleanType node representing the

type boolean, and a VoidType node representing void. ArrayType represents an array type, with its only child

ElementType representing the element type of the array. Finally, JavaType wraps Java types for use in PL/3007

programs.

3.2 names.jrag

This file defines attributes for name analysis (name lookup), similar to those discussed in the lecture. Attributes

are translated to methods and added automatically into the respective class files by JastAdd (refer to Lecture

slide 89). In particular, there are inherited attributes lookupVar, lookupFunction, and lookupType for

searching the declaration nodes of variable names (including field names), function names and type names,

respectively.

Variable lookup in PL/3007 is very similar to variable lookup in C or in Java. When looking up a variable

from inside a function, the lookup attributes first traverse the enclosing blocks, looking for local variable

declaration statements that declare a variable of the name we are looking up. In the AST, such a variable

declaration statement is represented as a node of type VarDeclStmt, which contains a VarDecl child node. As

discussed in the lecture, once a variable has been found, we do not continue exploring surrounding blocks.

If no local variable with the appropriate name is found, name lookup will eventually reach the function

node itself. At this point, we check whether there is any parameter with the name we are looking for.

If the name to be looked up is neither a local variable nor a parameter, we finally try to look it up as a field.

In PL/3007, a field can either be declared locally in a module, or imported from another module. The helper

attribute lookupLocalField performs local lookup within a module, stepping through all the declarations trying

to find a FieldDeclaration node with the right name. If such a field does not exist, it should walk over all

import statements. The method Import.resolve() is to find out which module an import refers to, and then use

lookupLocalField on the imported module to try and find the field inside that module. Note, however, that a

field can only be imported if its accessibility is public (Declaration.isPublic() is used to find out). Finally,

if the field cannot be found among the imported modules, null is returned. The details at the code level are

discussed in tutorial Question 3 of T3_part2.

Lookup for types (lookupType) and functions (lookupFunction) works exactly the same as field lookup.

3.3 namecheck.jrag

This file defines the inter-type methods namecheck()for the various AST nodes/classes to check for scoping

errors (refer to Lecture slide 3). These methods are added automatically into the respective class files by

JastAdd (refer to Lecture slide 89).

The scope check of a source program, i.e. the AST of the source program, starts with Program.namecheck()

shown below. Scope check traverses the AST top-down, performing checks along the way. The functionality in

names.jrag is used to perform name lookups.

CZ3007 Compiler Techniques

public void Program.namecheck() {

// check for name clashes on modules

Set<String> module_names = new HashSet<String>();

for(Module module : getModules()) {

if(!module_names.add(module.getQualifiedName()))

error("Multiple modules with name " + module.getQualifiedName());

module.namecheck();

}

In each iteration of the for loop over the list of Modules: check whether the module name has appeared in

the program before (issue error message if it has); then call namecheck() of the Module class to perform scope

check for the module.

public void Module.namecheck() {

Set<String> imports = new HashSet<String>();

for(Import imp : getImports()) {

imp.namecheck();

if(!imports.add(imp.getQualifiedName()))

error("Multiple imports of module " + imp.getQualifiedName());

}

for(Declaration decl : getDeclarations())

decl.namecheck();

}

The 1st for loop iterates over the list of import nodes in the module. Each iteration calls namecheck()

method of the Import class; then check whether this is a duplicated import statement (if the module name

appeared in an earlier import node).

The 2nd for loop iterates over the list of Declarations. Each iteration calls the namecheck() method of the

Declaration class. Note that Declaration is an abstract class, so the namecheck() of FunctionDeclaration,

FieldDeclaration or TypeDeclaration is called, depending on what subclass this member of the Declaration

list is in each iteration.

So scope check starts from the root (the Program node) of the AST performed by the namecheck() method

of the Program class. The namecheck() method of each internal AST node does two things: (1) calls the

namecheck() method(s) of its children node(s) – scope check continues down the AST towards the leaf nodes. (2)

if necessary, check scope error in the current node, e.g. Module node needs to check whether an import

module’s name has appeared already, i.e. a module is imported more than once. Two more examples of the

namecheck() method of an internal node of AST are discussed below (Assignment node and VarDecl node).

public void Assignment.namecheck() {

getLHS().namecheck();

getRHS().namecheck();

}

Do name check for the left subtree and the right subtree. For example, if the left subtree is a VarName,

VarName.namecheck() will be called. If the left subtree is an ArrayIndex, ArrayIndex.namecheck() will be

called. Similarly, if the right subtree is a VarName, VarName.namecheck() will be called. If the right subtree is a

Call, Call.namecheck() will be called. If the right subtree is a MulExpr, MulExpr.namecheck() will be called

(actually, MulExpr class inherits the namecheck() method from superclass BinaryExpr so

BinaryExpr.namecheck() is called).

CZ3007 Compiler Techniques

public void VarDecl.namecheck() {

getTypeName().namecheck();

// check that there aren't two variables with the same name in the

same scope

VarDecl decl = lookupVar(getName());

if(decl != null && decl != this && decl.getScope() == this.getScope())

error("Multiple declarations for " + getName() + " in same

scope");

}

This method is called from FieldDeclaration.namecheck() and VarDeclStmt.namcheck(). A VarDecl

node has one subtree TypeName and one field Name of string type (see abstract grammar for VarDecl in

grammar.ast). The method therefore

1. Do name check for the subtree node TypeName.

2. Search for the declaration of Name in this VarDecl node by calling lookupVar() method.

3. If the name in the VarDecl node has been declared in the same scope, issue an error message of

multiple declarations.

When scope check reaches a leaf node of the AST: e.g. VarName node

public void VarName.namecheck() {

if(decl() == null)

error("Variable " + getName() + " cannot be resolved.");

}

Call decl() to search for the declaration of the variable name. If it cannot be found, it means this name has

not been declared so an error message for the undeclared variable name is issued.

3.4 types.jrag

The file defines several attributes related to type checking. First, it defines singleton instances of IntType,

BooleanType and VoidType that are shared throughout the entire program. There is also an attribute arrayType

for creating an ArrayType corresponding to some existing type descriptor. Note that this attribute is lazy, so for

any given type descriptor the ArrayType descriptor will only be created once, and then cached. To obtain the

type descriptor for integer arrays, for instance, TypeDescriptor.INT.arrayType() is invoked. We also

maintain a cache of type descriptors for Java types in field javaTypeDescriptors. These type descriptor

nodes will be attached to the AST nodes to describe their types.

We have an attribute getDescriptor for the super class TypeName. Then a set of equations follows, each

of which computes the type descriptor for a subclass of TypeName. This attribute is also lazy so the cached field

in each (subclass of) TypeName references the type descriptor node of this type, i.e. a descriptor node is attached

to the AST node to indicate its type. Thus the type descriptor node IntType is attached to an IntTypeName

node in an AST. The type descriptor node BooleanType is attached to an BooleanTypeName node in an AST

and so on.

At the very end of the file, there is an attribute type for super class Expr. A set of equations follows,

each of which computes the type for a subclass of Expr. Note that for our simple language PL/3007,

eq BinaryExpr.type() = TypeDescriptor.INT;

we simply assume that a binary expression is of type IntType. This defines the type of all subclasses of

BinaryExpr unless a subclass defines its own type() method. For comparison expressions (==, !=, <,

<=, >, >=)

eq CompExpr.type() = TypeDescriptor.BOOLEAN;

This defines the type of all subclasses of CompExpr and over-writes the type() method of its super class

BinaryExpr.

CZ3007 Compiler Techniques

As a result, all comparison expression nodes in the AST have a reference to the singleton instance of the

type descriptor node BooleanType. Other AST nodes of the remaining subclasses of BinaryExpr have a

reference to the singleton instance of the type descriptor node IntType.

3.5 typecheck.jrag

The file defines the inter-type methods typecheck analogous to namecheck() that performs type checking.

They are added automatically into the respective class files by JastAdd (refer to Lecture slide 89). The

functionality in types.jrag is used to perform type analysis. Furthermore, for simplicity, we assume that an

array literal is a one dimensional array.

The type check of a source program, i.e. the AST of the source program, starts with Program.typecheck().

public void Program.typecheck() {

for(Module module : getModules())

module.typecheck();

}

In each iteration of the for loop over the list of Modules: call typecheck() of the Module class to perform type

check of the module.

public void Module.typecheck() {

for(Declaration decl : getDeclarations())

decl.typecheck();

}

In each iteration of the for loop over the list of Declarations: call typecheck() of the Declaration class.

Note that Declaration is an abstract class, so the typecheck() of FunctionDeclaration, FieldDeclaration

or TypeDeclaration is called, depending on what subclass this member of the Declaration list is in each

iteration.

Similar to scope check, type check starts from the root (the Program node) of the AST - performed by the

typecheck() method of the Program class. The typecheck() method of each internal AST node does two

things: (1) calls the typecheck() method(s) of its children node(s) – type check continues down the AST

towards the leaf nodes. (2) if necessary, check type error in the current node. Two examples of the typecheck()

method of an internal node of AST are discussed below (Assignment and IfStmt).

public void Assignment.typecheck() {

getLHS().typecheck();

getRHS().typecheck();

if(getLHS().type() != getRHS().type())

error("The two sides of the assignment have different types.");

}

Do type check for the left subtree and the right subtree. This is to check for type inconsistencies in the

subtrees.

If the left subtree is a VarName, VarName.typecheck() will be called. If the left subtree is an ArrayIndex,

ArrayIndex.typecheck() will be called.

If the right subtree is a VarName, VarName.typecheck() will be called. If the right subtree is a Call,

Call.typecheck() will be called. If the right subtree is a MulExpr, MulExpr.typecheck() will be called

(actually, MulExpr class inherits the typecheck() method from superclass BinaryExpr).

For Assignment node, it is necessary to check the type error in Assignment node after checking the

children nodes: left subtree and the right subtree should have the same type. Otherwise it is an error. Note that

in PL/3007 there is no subtyping. So, the types of both sides of an assignment (or the types of an argument and

its corresponding parameter) have to be exactly the same. This is unlike in Java or C, where implicit conversions

are sometimes performed.

CZ3007 Compiler Techniques

public void IfStmt.typecheck() {

getExpr().typecheck();

getThen().typecheck();

if(hasElse())

getElse().typecheck();

// check that if condition is 'boolean'

if(!getExpr().type().isBoolean())

error("If condition is not of type boolean.");

}

Do type check for the Expr subtree, the Then subtree and the Else subtree if there is Else. This is to check

for type inconsistencies in these subtrees of the IfStmt node.

After the above, it is necessary to check if the Expr node is of boolean type. If not, issue an error message.

For example, if the Expr is a binary expression 2+3, i.e. it is an AddExpr node, then it is not a boolean typed

expression and this is an error.

The typecheck() methods of some superclasses, E.g. Declaration or Stmt, are empty and their

respective subclasses provide the code for their typecheck() methods. Sometimes a typecheck() method for a

superclass provides the code to define the actions to take. For example, BinaryExpr.

public void BinaryExpr.typecheck() {

getLeft().typecheck();

getRight().typecheck();

if(!getLeft().type().isNumeric() || !getRight().type().isNumeric())

error("Both operands of a binary arithmetic operator must have

numeric type.");

}

This defines the typecheck() method for all the subclasses of BinaryExpr unless there is a typecheck()

method for a particular subclass that overwrites it (CompExpr has its own typecheck() method). So there is no

need to have individual typecheck() method in a number of subclasses of BinaryExpr.

The method will do type check for the left and right subtrees. This is to check for type inconsistencies in

these subtrees. After checking the subtrees, it is necessary to ensure both subtree nodes are of numeric type.

public void CompExpr.typecheck() {

getLeft().typecheck();

getRight().typecheck();

if(getLeft().type() != getRight().type())

error("Both operands of a comparison operator must be of the

same type.");

if(getLeft().type().isVoid())

error("Operands in comparison may not be of type void.");

}

This defines the typecheck() method for all the subclasses of CompExpr and overwrites the typecheck()

method of BinaryExpr. This is because for comparison operations, we just need to make sure the left and right

operands are of the same type and it is not void type. This method is overwritten by the typecheck() method of

ArithCompExpr because this class has more specific requirement than that for CompExpr.

The typecheck() methods of leaf nodes VarName and Literal are empty because there is no type

inconsistencies in a variable name or a constant.

3.6 astutil.jrag,

errors.jrag and runtime.jrag

astutil.jrag defines several utility attributes for navigating the AST. Certain parts of the semantic

analyser use these definitions. Similarly, errors.jrag contains utility methods for reporting semantic errors.

Read the definitions and understand them. You do not need to read or understand file runtime.jrag.

3.7 SemanticAnalyserTests.java

CZ3007 Compiler Techniques

This is the class which conducts the tests for the semantic analyser. The main function is the method

runtest(). Even though this is the tester of the semantic analyser, it shows the main steps in the analysis phase of

the compiler (this compiler does not do code generation and code optimization). The main steps in runtest() are:

1. Parser parser = new Parser();

2. List<Module> modules = new List<Module>();

3. for(String src : srcs)

4. modules.add((Module)parser.parse(new Lexer(new StringReader(src))));

5. Program prog = new Program(modules);

6. prog.namecheck();

7. if(!prog.hasErrors()) prog.typecheck();

Line 1: creates the parser class instance.

Line 2: creates an empty list of Modules.

Line 3: iterates line 4 over the input source

Line 4: “((Module)parser.parse(new Lexer(new StringReader(src))))” calls the parse() method of the parser

to do syntax analysis of one module, creates the AST for that module and returns the reference to the AST (root

of the AST is an instance of the Module class). Then modules.add() adds the Module to the list of modules.

Note that a Lexer is created then passed to the parse() method as a parameter.

Line 5: creates a Program class node where the list of Modules is the children of this node. The Program

node is the root of the AST for the whole source program to be compiled.

Line 6: call namecheck() method of the Program class to do name checking starting from the root of the

AST.

Line 7: If the name checking of the program has no error, call typecheck() method of the Program class to

do type checking starting from the root of the AST.

This completes our walkthrough of the source code of the semantic analysis.

4. Unit Tests

Class SemanticAnalyserTests contains a utility method runtest that makes it very easy to prepare tests: this

method accepts as its first argument a Boolean flag, and as its remaining arguments one or more strings. The

strings are parsed as module definitions, and their ASTs are assembled into a whole program AST. Then the

semantic checks are performed. If the Boolean flag is true (the default), there should not be any semantic errors.

If the flag is false, on the other hand, there should be at least one error. If this is not the case, the unit test is

considered to have failed.

As an example, here is the invocation of runtest in the first unit test in SemanticAnalyserTests:

runtest(false,

"module M { }",

"module M { }");

This states that the program consisting of two empty modules both named M should fail semantic analysis.

Sixty tests in the SemanticAnalyserTests are provided for testing the semantic analyser. The file just

serves as an example of the kind of tests we may conduct to eliminate bugs in our semantic analyser (there are

many more).

The goal of unit testing is to test each smallest piece of testable code in a class/method of the semantic

analyser individually and independently, and determine whether it behaves exactly as you expect. For example,

to test Import.namecheck(), the behaviors of the method under three situations are tested: (1) the first if

condition is true; (2) the first if condition is false and the second if condition is false; (3) the first if condition is

false and the second if condition is true. These are done by the following three tests.

@Test

public void testUnresolvedImport() {

runtest(false,

"module M { import N; }");

}

@Test

public void testResolvedImport() {

runtest("module M { import N; }",

"module N { }");

CZ3007 Compiler Techniques

}

@Test

public void testSelfImport() {

runtest(false, "module M { import M; }");

}

Another example, test the return statement of a function. The following code shows the tests that test (1) the

function is of void type and returns nothing; (2) the function is of a non-void type and returns an expression of

the correct type; (3) the function is of void type but returns an expression of some other type; (4) the function is

of a non-void type but returns nothing; (5) the function is of a non-void type but returns an expression of a type

different from the function type.

@Test

public void testVoidReturn() {

runtest("module M {" +

" void foo() {" +

" return;" +

" }" +

"}");

}

@Test

public void testExprReturn() {

runtest("module M {" +

" int foo() {" +

" return 0;" +

" }" +

"}");

}

@Test

public void testVoidTypeReturnWrong() {

runtest(false,

"module M {" +

" void foo() {" +

" return 0;" +

" }" +

"}");

}

@Test

public void testExprReturnVoid() {

runtest(false,

"module M {" +

" boolean foo() {" +

" return;" +

" }" +

"}");

}

@Test

public void testReturnTypeWrong() {

runtest(false,

"module M {" +

" int foo() {" +

" return true;" +

" }" +

"}");

}

5. Resources

CZ3007 Compiler Techniques

The JastAdd homepage http://jastadd.org contains quite a bit of documentation about JastAdd. However, the

materials introduced in the lectures, this document and the set of source code should be enough to understand

this lab.

6. Administrativa

If you have any doubts, you are strongly encouraged to contact your lab supervisor and ask questions.

Remember to complete your short online test by midnight of the day before your lab session for the written quiz

in Weeks 10 or 11.

CZ3007 Compiler Techniques Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
