Introduction Lexicon

Introduction

Important User Information. . . . . . . . . . . . . . iv

Wichtige Benutzerinformation . . . . . . . . . . . . v

Información importante para el usuario . . . . . vi

Important - Informations Utilisateur . . . . . . . vii

Importanti informazioni per l’utente. . . . . . . viii

Informações Importantes ao usuário . . . . . . . ix

Section 1: Getting Started

About the MPX 110 . . . . . . . . . . . . . . . . . . . . . . . . 1-2

Highlights

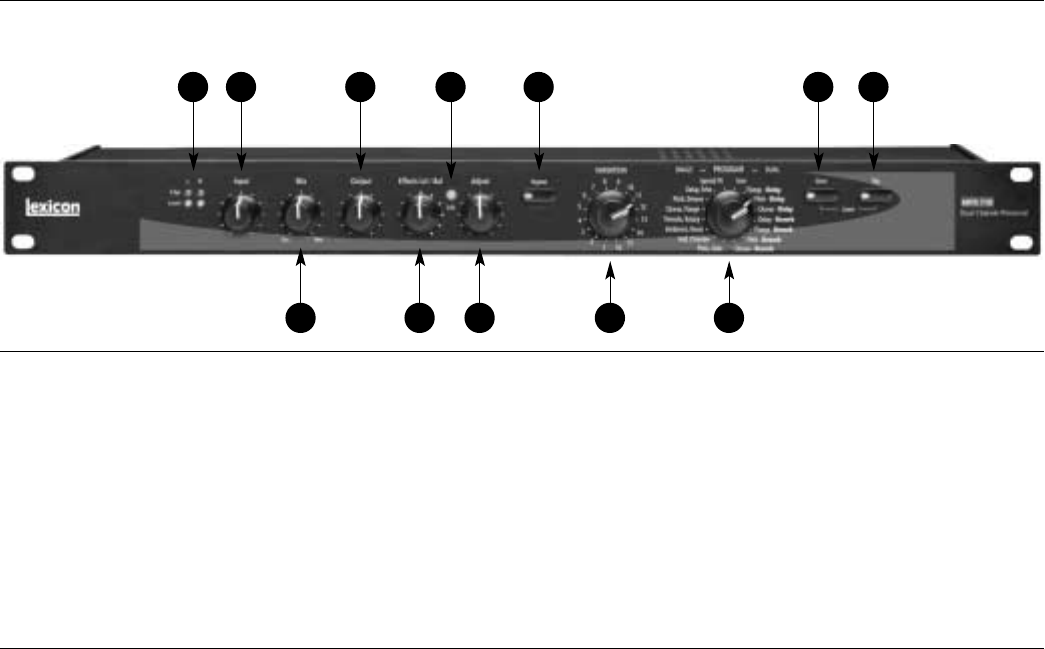

Front Panel Overview . . . . . . . . . . . . . . . . . . . . . . . 1-4

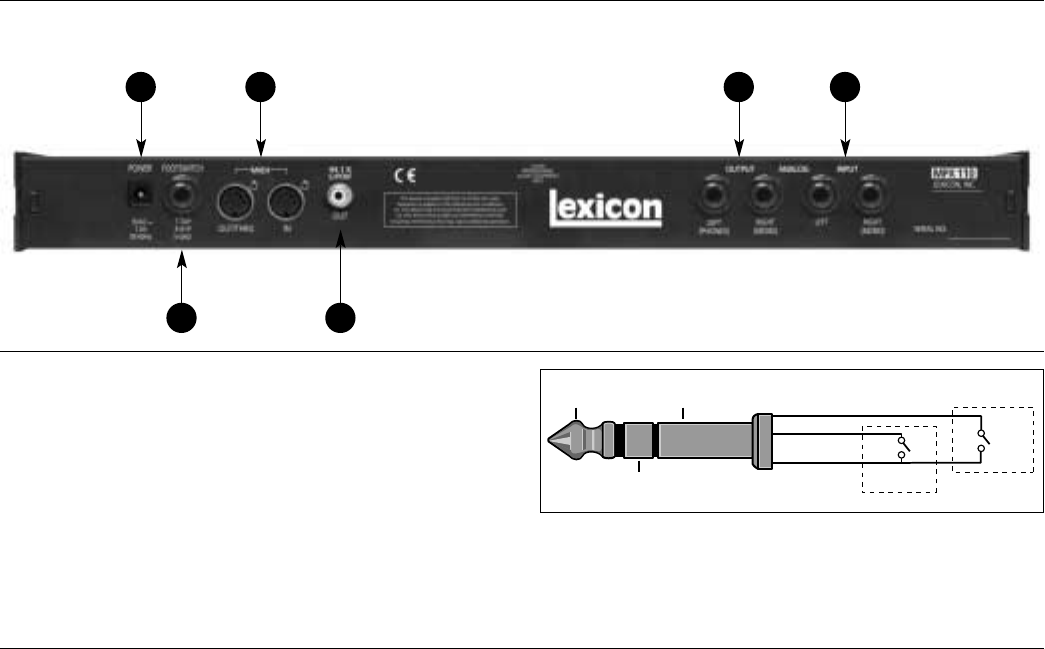

Rear Panel Overview . . . . . . . . . . . . . . . . . . . . . . . 1-6

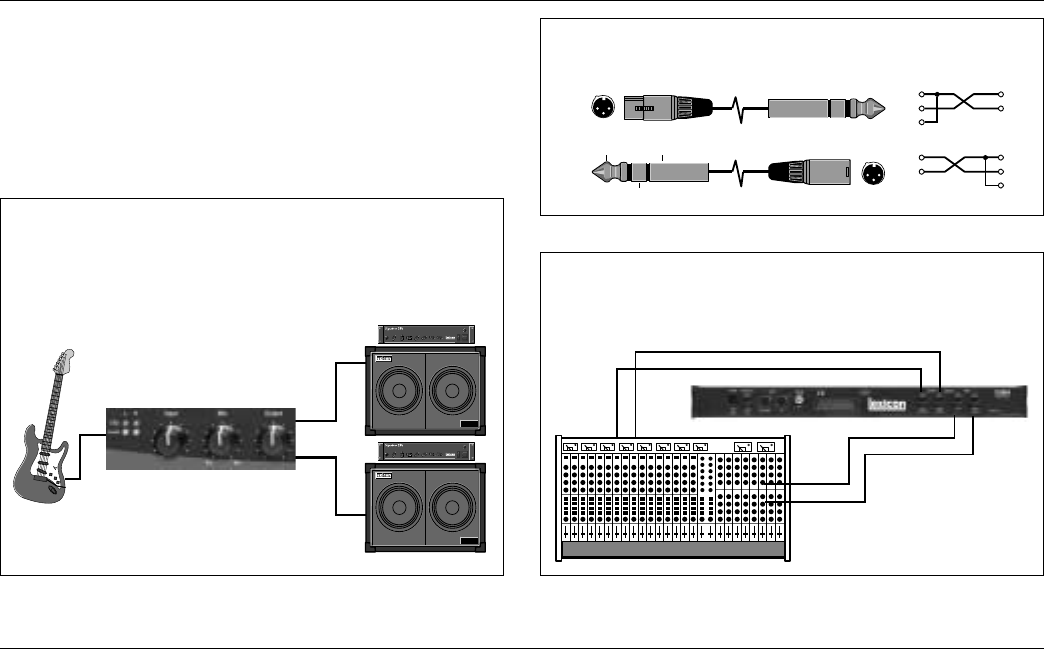

Connecting the Unit . . . . . . . . . . . . . . . . . . . . . . . 1-8

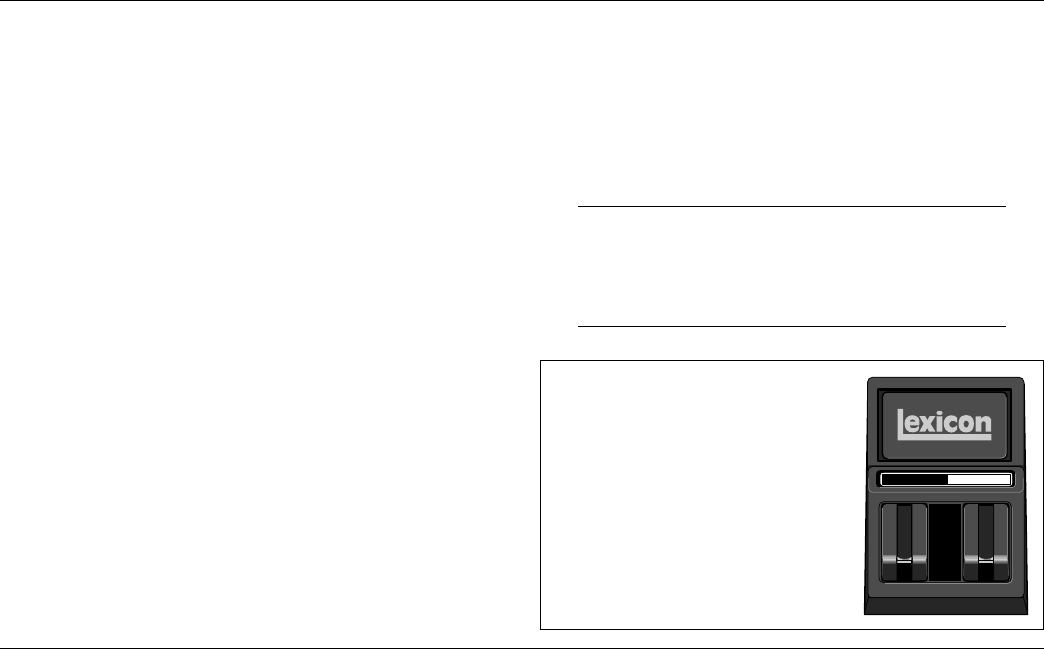

Headphones • Footswitch

Setting Audio Levels. . . . . . . . . . . . . . . . . . . . . . . 1-10

Reinitialization . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-11

Section 2: Basic Operation

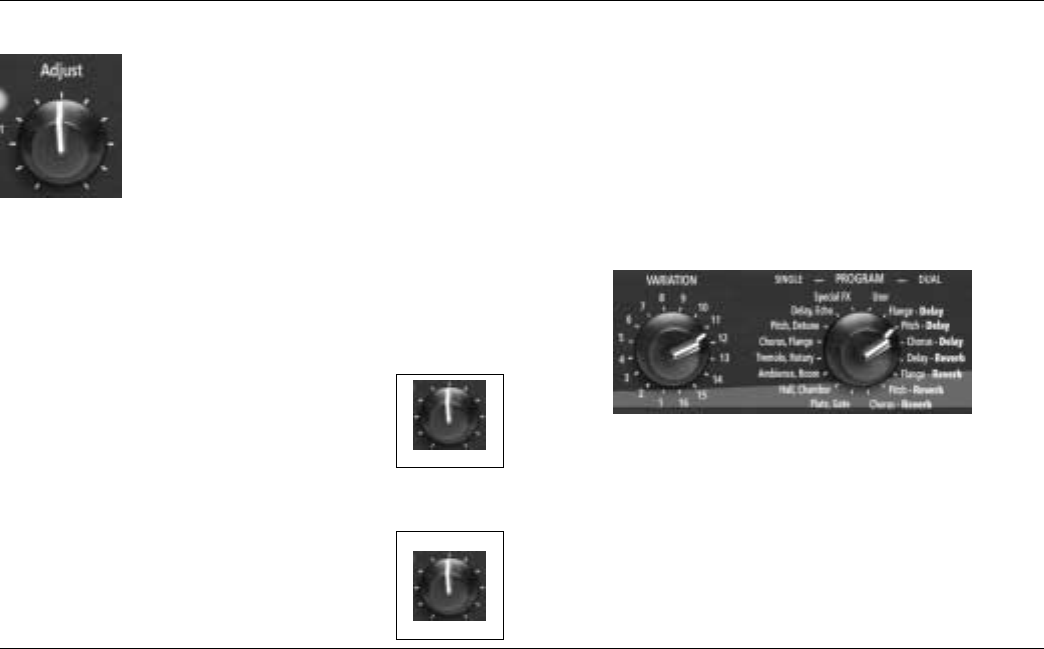

Adjust . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

Selecting Programs . . . . . . . . . . . . . . . . . . . . . . . . 2-2

SINGLE Programs • DUAL Programs • User Programs

Editing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Storing Programs . . . . . . . . . . . . . . . . . . . . . . . . . . 2-4

Tap Tempo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5

Varying Rhythm • Audio Tap • Global Tempo

Bypass. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-6

Introduction

MPX 110

iii

Section 3: System Mode

Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

System Mode Parameters & Functions . . . . . . . . . . 3-3

Section 4: Program Descriptions

SINGLE Programs. . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

Plate • Gate • Hall • Chamber • Ambience • Room • Tremolo •

Rotary • Chorus • Flange • Pitch • Detune • Delay, Echo

Special FX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-18

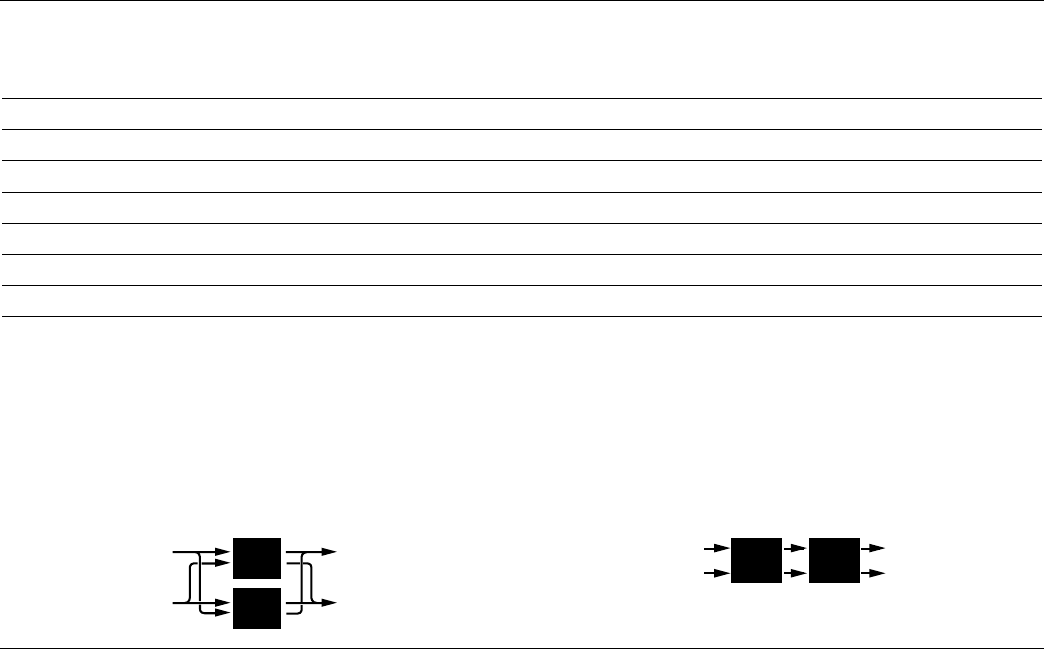

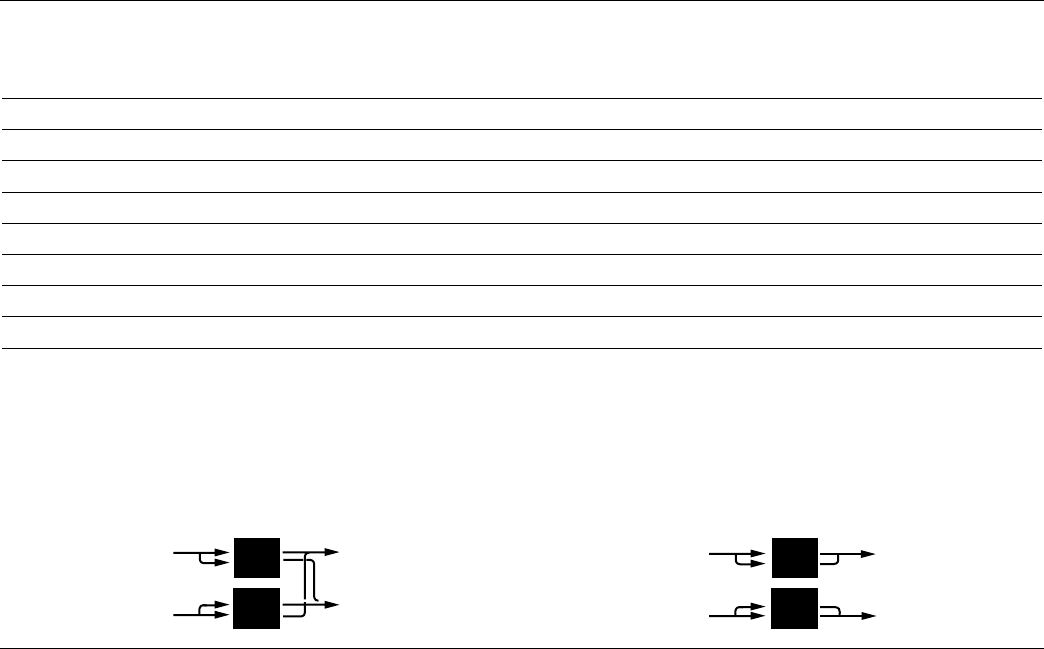

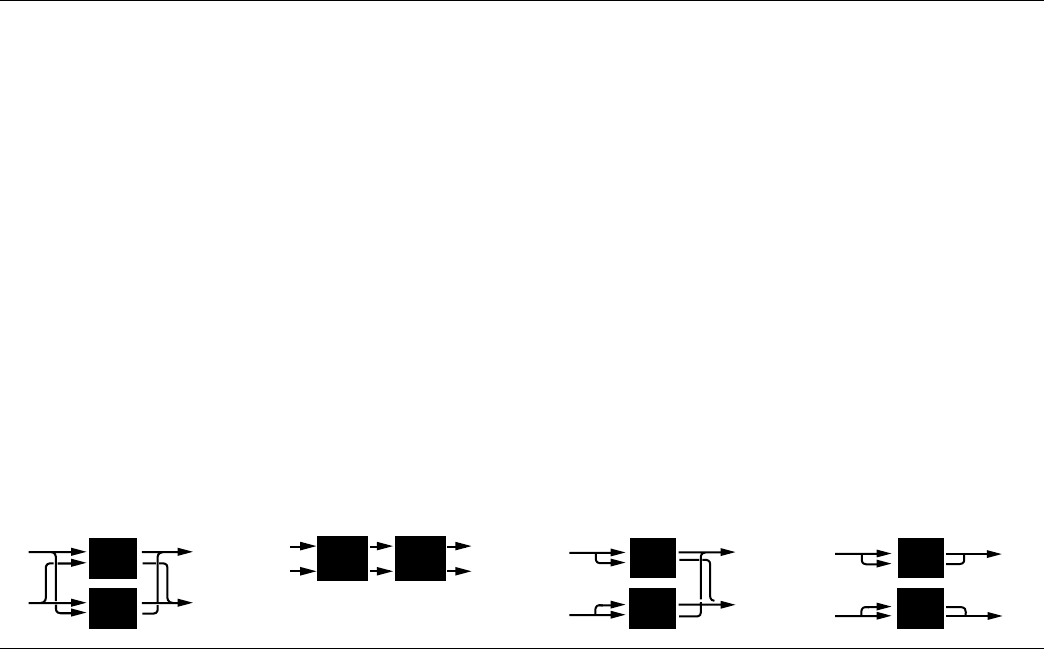

DUAL Programs . . . . . . . . . . . . . . . . . . . . . . . . . . 4-20

Effects Lvl/Bal • Flange-Delay • Pitch-Delay • Chorus-Delay •

Delay-Reverb • Flange-Reverb • Pitch-Reverb • Chorus-Reverb

The Pitch Programs . . . . . . . . . . . . . . . . . . . . . . . 4-36

User Programs . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-38

Section 5: MIDI Operation

Learn Mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

Program Load Channel. . . . . . . . . . . . . . . . . . . . . . 5-3

Program Change Messages . . . . . . . . . . . . . . . . . . 5-4

Loading Programs • Activating Bypass or Tap Functions

Learning Continuous Controllers. . . . . . . . . . . . . . . 5-6

Section 5: MIDI Operation (continued)

Clearing Learned Assignments . . . . . . . . . . . . . . . . 5-7

MIDI Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

MIDI Dumps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

MIDI Sysex Messages . . . . . . . . . . . . . . . . . . . . . . . 5-9

Permanent Patches . . . . . . . . . . . . . . . . . . . . . . . . 5-9

MIDI Implementation Chart . . . . . . . . . . . . . . . . . 5-12

Appendix

Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-2

Declaration of Conformity . . . . . . . . . . . . . . . . . . . A-3

Index

Introduction Lexicon

Important User Information

Lexicon is pleased to present its user guides on CD-ROM.

By utilizing CD-ROM technology we are able to provide

our documentation in multiple languages.

The printed edition of the user guide is in English only.

The enclosed CD-ROM includes the user guide in

multiple languages (French, German, Italian, Portuguese,

and Spanish) in easy-to-use PDF format. The CD-ROM

also includes Adobe® Acrobat® Readers for both PC and

Macintosh platforms, enabling printing of all or any part

of the documents. In addition, we have included dry

audio tracks for product demonstrations. (Track 1

contains non-audio data.)

Please take a moment to read through the important

safety information. For additional information about

Lexicon, Inc., our products and support, please visit our

web site at www.lexicon.com.

Unpacking and Inspection

After unpacking the unit, save all packing materials in

case the unit ever needs to be shipped. Thoroughly

inspect the modules and packing materials for signs of

damage. Report any damage to the carrier at once;

report equipment malfunction to the dealer.

Introduction

MPX 110

Wichtige Benutzerinformation

Lexicon ist erfreut, seine Benutzerhandbücher nun auch

auf CD-ROM vorlegen zu können. Durch den Einsatz von

CD-ROM-Technologie können wir unsere Dokumentation

in verschiedenen Sprachen zur Verfügung stellen.

Die gedruckte Ausgabe des Benutzerhandbuchs ist nur in

englischer Sprache verfügbar. Die beigelegte CD-ROM

enthält das Benutzerhandbuch in verschiedenen

Sprachen (spanisch, französisch, italienisch, deutsch und

portugiesisch) im leicht zu benutzenden PDF-Format.

Die CD-ROM enthält auch Adobe® Acrobat® Reader

sowohl für PC wie auch für Macintosh; mit ihm ist es

möglich, das gesamte Dokument oder Teile davon

auszudrucken. Darüber hinaus befinden sich auf der

CD-ROM Audio-Tracks zur Produktdemonstration.

(Track 1 enthält keine Audio-Daten.)

Nehmen Sie sich bitte einen Augenblick Zeit und lesen

Sie die wichtigen Sicherheitshinweise. Weitere

Informationen über Lexicon, Inc., sowie über unsere

Produkte und unseren Support finden Sie auf unserem

Website unter www.lexicon.com.

Auspacken und Überprüfung

Bewahren Sie nach dem Auspacken des Geräts das

Verpackungsmaterial für den Fall auf, dass Sie das Gerät

wieder versenden müssen. Überprüfen Sie die Module

und die Verpackung sorgfältig auf Anzeichen von

Beschädigung. Etwaige Schäden sind dem Transporteur

unverzüglich anzuzeigen; Funktionsstörungen sind dem

zuständigen Händler zu melden.

Introduction Lexicon

Información importante para el

usuario

Lexicon se complace en presentar sus manuales de

usuario en CD-ROM. Gracias a la utilización de la

tecnología de CD-ROM, nosotros podemos ofrecer nues-

tra documentación en múltiples idiomas.

La edición impresa del manual del usuario sólo está

disponible en inglés. El CD-ROM que se entrega incluye

el manual del usuario en múltiples idiomas (español,

francés, italiano, alemán y portugués) en formato PDF. El

CD-ROM también incluye Adobe® Acrobat® Readers

para plataformas tanto PC como Macintosh, lo cual

permite la impresión de todos o parte de los

documentos. Además, hemos incluido pistas de audio

sin efectos para demostraciones de los productos. (La

pista 1 contiene información que no es de audio.)

Dedique unos momentos a leer la información de

seguridad importante. Si desea información adicional

acerca de Lexicon, Inc., nuestros productos o nuestra

asistencia, visite nuestro sitio web en www.lexicon.com.

Desembalaje e inspección

Después de desembalar la unidad, guarde todos los

materiales de embalaje por si alguna vez transportar la

unidad. Inspeccione con atención los módulos y los

materiales de embalaje para comprobar que no

muestren desperfectos. Informe inmediatamente de

cualquier desperfecto al transportista; informe de

cualquier problema de funcionamiento del equipo a su

distribuidor.

Introduction

MPX 110

vii

Important - Informations Utilisateur

Nous sommes fiers de présenter nos modes d’emploi en

version CD-ROM. L’utilisation des CD-ROM nous

per-mettent de décliner nos manuels en plusieurs

langues.

La version imprimée de ce manuel existe uniquement en

anglais. Le CD-ROM regroupe les versions espagnole,

française, italienne, allemande et portugaise au format

PDF. Le CD-ROM comprend également Adobe®

Acrobat® Reader pour PC et Macintosh, ce qui vous

permet d’imprimer les documents en toute ou partie. De

plus, nous avons ajouté des pistes audio sans traitement

pour la démonstration du produit (la piste 1 contient des

données non audio).

Prenez le temps de lire les informations relatives à la

sécurité. Pour obtenir de plus amples informations sur

Lexicon, Inc., nos produits et notre service clientèle,

consultez notre site web à l’adresse : www.lexicon.com.

Contenu de l’emballage et inspection

Après avoir ouvert l’emballage, conservez-le pour tout

retour. Inspectez avec soin les modules et les matériaux

d’emballage pour tout signe de dommage. Veuillez

rapporter immédiatement les dommages auprès du

transporteur. Les dysfonctionnements du matériel

doivent être signalés à votre revendeur.

Introduction Lexicon

viii

Importanti informazioni per l’utente

Lexicon è lieta di presentare i propri manuali su CD-

ROM. Utilizzando la tecnologia su CD-ROM siamo stati

capaci offrire la nostra documentazione in più lingue.

L’edizione stampata del manuale è solamente in inglese.

Il CD-ROM contiene il manuale in diverse lingue

(Spagnolo, Francese, Italiano, Tedesco, e Portoghese)in

formato PDF, facile da utilizzare. Il CD-ROM include

anche Adobe‚, Acrobat‚ Reader per PC e per Macintosh,

rendendo possibile la stampa di tutta la

documentazione. Inoltre Sono incluse tracce audio per

dimostrazioni del prodotto. (La Traccia 1 contiene dati

non audio).

Si prega di prendere un momento per leggere le

importanti norme di sicurezza. Per ulteriori informazioni

riguardo Lexicon, Inc., i nostri prodotti e la nostra

assistenza, visiti il nostro sito internet www.lexicon.com.

Disimballaggio ed ispezione

Dopo aver disimballato l’unità, salvi tutto il materiale

d’imballaggio, in caso Lei abbia bisogno di spedire

l’unità. Ispezioni attentamente i moduli ed il materiale

d’imballaggio per vedere se riportano segni di danno.

Riporti subito ogni segno di danno al corriere; riferisca il

malfunzionamento dell’attrezzatura al suo rivenditore.

Introduction

MPX 110

Informações Importantes ao usuário

A Lexicon tem o prazer de apresentar o Guia do Usuário

em CD-ROM. Através da tecnologia CD-ROM temos a

possibilidade de fornecer nossa documentação em vários

idiomas.

A versão impressa do Guia do Usuário está apenas em

Inglês. O CD-ROM contém o Guia do Usuário em vários

idiomas (Espanhol, Francês, Italiano, Alemão e

Português) em formato PDF. Também inclui o aplicativo

Adobe Acrobat Reader para as plataformas Macintosh e

PC, possibilitanto a impressão de qualquer parte da

documentação. Além disso, incluimos faixas no CD com

áudio sem processamento para a demosntração dos

produtos. (A faixa 1 do CD não contém informação de

áudio.)

Por favor separe uns instantes para ler as informações

sobre segurança. Elas são muito importantes. Para

informações adicionais sobre a Lexicon, Inc., nossos

produtos e suporte, acesse nosso web site em

www.lexicon.com.

Retirando a embalagem e Inspecionando

Depois de desembalar a unidade, guarde a embalagem

caso precise enviar a unidade para manutenção.

Inspecione cuidadosamente o módulo e a embalagem

procurando sinais de dano. Avise à loja qualquer tipo de

dano ou mal funcionamento do equipamento.

Getting Started

About the MPX 110.........................................................................1-2

Highlights

Front Panel Overview ......................................................................1-4

Rear Panel Overview ........................................................................1-6

Connecting the Unit........................................................................1-8

Headphones • Footswitch

Setting Audio Levels ......................................................................1-10

Reinitialization ...............................................................................1-11

Getting Started Lexicon

1-2

ABOUT THE MPX 110

Thank you for purchasing the MPX 110 Dual Channel

Processor, featuring Lexicon’s proprietary Lexichip®.

The MPX 110 is a true stereo, dual-channel processor

with 24-bit internal processing, analog-to-digital

conversion, and digital-to-analog conversion. It offers

240 presets with classic Lexicon reverbs, including Plate,

Chamber, Ambience, Tremolo, Rotary, Chorus, Flange,

Pitch, Detune, 5.7 second Delay, Echo, and Inverse.

Dual-channel processing creates two independent

effects in combinations such as Dual Stereo (Parallel),

Cascade, Mono Split, and Dual Mono.

The front panel Adjust knob allows instant manipulation

of critical preset parameters, and the Effects Lvl/Bal knob

controls effect level in SINGLE programs or effect

balance in DUAL programs. All programs can be selected

with the PROGRAM and VARIATION knobs. The

PROGRAM knob selects SINGLE, DUAL, or User

programs, while the VARIATION knob selects among 16

program variations.

Tap Tempo simplifies the once-complicated process of

matching delay times and modulation rates between

tempo-based presets and other music. Tempo-controlled

delays and modulation rates lock to Tap or MIDI clock. In

addition, Tap can be controlled using audio input, a dual

footswitch, the front panel Tap button, or an external

MIDI controller using MIDI Continuous Controller or

Program Change messages.

The MPX 110 features Learn Mode, a powerful editing

tool that allows MIDI patching of five front panel

controls. Standard Continuous Controller and Program

Change messages provide complete control over Bypass,

Effects Lvl/Bal, Mix, Tap, and even Adjust.

Getting Started

MPX 110

1-3

HIGHLIGHTS

• Lexicon’s proprietary Lexichip

• World-class Lexicon reverb

• 24-bit internal processing

• 24-bit analog-to-digital and digital-to-analog

conversion

• 240 presets

• 16 User programs

• 44.1K S/PDIF output

• Simultaneous analog and digital outputs

• Independent processing of each input

• DUAL programs that create two independent effects

with four routing configurations

• Dual effects that combine Delay with Reverb, or

either Delay or Reverb with Chorus, Flange, or Pitch

• Multiple delay, modulation, and pitch effects

• Tap Tempo

• Full MIDI control

• High-impedance inputs for instruments

• Two-stage headroom indicators

• Headphone output

• Software-selectable MIDI OUT/THRU port

• Push-button or footswitch selection of dry or muted

audio output

• 20Hz-20kHz±1dB frequency response

Getting Started Lexicon

1-4

1. Clip and Level LEDs

Indicate incoming signal levels. The Level LEDs do

not light when the incoming signal is more than

30dB below overload. The Clip LEDs light red when

the signal approaches overload (-2.5dB). When a

signal level is acceptable, the Level LEDs light green

almost continuously and the Clip LEDs flash red on

the loudest passages. See page 1-10 for more

information about setting audio levels.

2. Input

Sets the level of the incoming signal. The Clip and

Level LEDs indicate acceptable signal levels.

3. Mix

Controls the ratio of processed (Wet) to unprocessed

(Dry) audio signals.

FRONT PANEL OVERVIEW

1 2

3 5 7 9 10

4 6 8 11 12

Getting Started

MPX 110

1-5

4. Output

Sets analog output levels.

5. Effects Lvl/Bal

Sets effect level in SINGLE programs or effect

balance in DUAL programs.

6. Edit LED

Lights to indicate that a program has been modified

but not stored, and flashes to indicate MIDI activity.

(See page 2-4 for more information about editing

programs.)

7. Adjust

Controls the most relevant parameters for the

selected program variation.

8. Bypass

Mutes or bypasses the incoming signal, depending

on the setting of the System Mode parameter

Bypass. Press and hold for 2 seconds to access

System Mode parameters.

9. VARIATION

Selects program variations when the PROGRAM

knob is set to a SINGLE or DUAL program. Selects

memory locations for storing User programs when

the PROGRAM knob is set to User.

10. PROGRAM

Selects SINGLE, DUAL, or User programs.

11. Store

Activates the store function for User programs. When

pressed with Tap, activates MIDI Learn Mode.

12. Tap

Flashes to indicate that a tempo-based program is

selected. When pressed twice, sets tempo. When

pressed and held, uses input level to determine

tempo. When pressed with Store, activates MIDI

Learn Mode.

Getting Started Lexicon

1-6

1. POWER

Supplies power to the unit. Utilizes a Lexicon 1.9A,

9VAC power pack.

2. FOOTSWITCH

Allows footswitch control of front panel Bypass and

Tap functions. A 1/4 inch Tip/Ring/Sleeve connector

for a momentary contact footswitch is available.

REAR PANEL OVERVIEW

1 3

2 4

5 6

Tip

Ring

Sleeve

Tip Sleeve

Ring

Tap

Bypass

Getting Started

MPX 110

1-7

3. MIDI IN, OUT/THRU

Provide MIDI operation capabilities. Two 5-pin DIN

MIDI connectors are available for MIDI IN and

software-selectable MIDI OUT/THRU.

4. S/PDIF OUT

Provides digital audio output. One RCA coaxial

S/PDIF connector is available.

5. ANALOG OUTPUTs

Provide analog audio output. Two unbalanced,

single-ended stereo output connectors are available.

Both offer typical output levels of +8dBu. Use the

RIGHT (MONO) OUTPUT for mono output. If no

connection is made to the RIGHT (MONO) OUTPUT,

the LEFT (PHONES) OUTPUT can be used to drive

headphones at a modest volume.

6. ANALOG INPUTs

Provide analog audio input. Two unbalanced,

single-ended stereo input connectors are available.

Both accept levels as low as -30dBu. Input

impedance is 500kΩ. These can be used as direct

inputs for guitars. Use the RIGHT (MONO) INPUT for

mono sources.

Dual-Function Footswitch

A dual-function footswitch with

labels to indicate Tap and Bypass

functions is available at Lexicon

dealers or www.lexicon.com.

BYPASS TAP

Getting Started Lexicon

1-8

CONNECTING THE UNIT

The INPUT and OUTPUT connectors on the MPX 110 are

1/4 inch unbalanced sockets. Connections should be

made utilizing high-quality shielded cables with 1/4 inch

Tip/Sleeve phone plugs at the end connected to the unit.

The unit produces effects from either mono or stereo

sources. For mono sources, use the RIGHT (MONO)

INPUT. For instruments and stereo sources, use both

inputs. It is recommended to use stereo outputs

whenever stereo inputs are used. Use the RIGHT

(MONO) OUTPUT if mono output is required. The left

and right input signals are combined internally when

only the RIGHT (MONO) OUTPUT is used.

HEADPHONES

The LEFT (PHONES) OUTPUT supplies a stereo signal

adequate to drive headphones, provided no connections

are made at the RIGHT (MONO) OUTPUT. This feature is

included for convenience and practice purposes. It is

intended to provide modest volume.

FOOTSWITCH

A footswitch connected to the rear panel FOOTSWITCH

connector can be used to control front panel Tap and

Bypass functions. A momentary footswitch can be wired

to a Tip/Ring/Sleeve connector or a stereo Y-connector,

which allows two identical switches to be used.

Note:

Power off the unit prior to connecting the

footswitch. Otherwise, Bypass functions will be

enabled.

Ch7 Ch8

Aux

Send 1

Aux

Send 2

RIGHT OutLEFT Out

RIGHT InLEFT In

Getting Started

MPX 110

1-9

The MPX 110 can be used as two independent effects

processors with DUAL program variations 11 to 16.

Designate two auxiliary sends on the console. Connect

these to the unit - one to the LEFT INPUT and the other

to the RIGHT (MONO) INPUT. See Section 4 to take

advantage of this configuration.

Right

(Mono)

Output

Left

Output

Amplifier &

Stereo Speaker

Cabinet

MPX 110

to MPX 110 RIGHT

(MONO) INPUT

SB 210

010

Midrange Treble

Right

Volume

Left

Volume

BassGain

(Pull for Boost)

Presence

Input

Standby

OnOn

Power

All Tube Class "A" Stereo Recording Amplifier and Direct Source

SB 210

010

Midrange Treble

Right

Volume

Left

Volume

BassGain

(Pull for Boost)

Presence

Input

Standby

OnOn

Power

All Tube Class "A" Stereo Recording Amplifier and Direct Source

Connecting to a Mono Guitar Input with Mono or

Stereo Amplifiers

Connecting to a Balanced Console

Connecting to a Dual Processor Setup with a

Console

Ring

MPX 110

Output

Mixer Input

Tip Sleeve

Mixer

Send

MPX 110 Input

Tip 1

Sleeve

Tip

Sleeve

Getting Started Lexicon

1-10

SETTING AUDIO LEVELS

1. Begin with the Input knob set to the 9 o’clock

position.

2. Set the instrument or effects sends to a modest

output level.

3. Begin playing or sending audio to the MPX 110. The

Level LEDs should light green. If the Clip LEDs light

red, reduce the output level of the instrument or

effects sends until the Clip LEDs do not light during

the loudest passages.

4. Continue to play or send audio to the MPX 110.

Gradually increase the Input knob setting until the

Clip LEDs light red on the loudest passages.

5. Set the Mix knob to Dry.

6. Set the Output knob to the desired level.

7. If utilizing console sends and returns, set the Mix

knob to Wet. If utilizing an instrument amplifier, set

the Mix knob to the 12 o’clock position.

The Level LEDs do not light when the incoming signal is

more than 30dB below overload. The Clip LEDs light red

when the signal approaches overload (-2.5dB). When an

acceptable signal is present, the Level LEDs light green

almost continuously and the Clip LEDs flash red on the

loudest passages.

Note:

As with all audio products, it is good practice to first

power on all outboard equipment, then the mixer,

then the speakers.

Getting Started

MPX 110

1-11

REINITIALIZATION

The procedure below outlines the process to reinitialize

the unit. When reinitialized, the unit will restore all

System Mode parameters to their factory-default

settings; replace all User programs with factory-default

presets; and clear all Learned Patches.

To reinitialize the unit:

1. While powering the unit on, press and hold the front

panel Store button until the Store and Tap LEDs flash

quickly.

2. To reinitialize the unit, press the Store button. To

cancel reinitialization without affecting the unit,

press either the Tap or Bypass button.

3. After reinitialization, restart the unit - power it off,

then on again.

Note:

Reinitialization will cause the unit to:

• Restore all System Mode parameters to their

factory-default settings.

• Replace all User programs with factory-default

presets. (See the table on page 4-38.)

• Clear all Learned Patches.

Basic Operation

Adjust ..............................................................................................2-2

Selecting Programs..........................................................................2-2

SINGLE Programs • DUAL Programs • User Programs

Editing Programs .............................................................................2-4

Storing Programs.............................................................................2-4

Tap Tempo ......................................................................................2-5

Varying Rhythm • Audio Tap • Global Tempo

Bypass .............................................................................................2-6

Basic Operation Lexicon

2-2

ADJUST

The Adjust knob has been customized for

each individual program, and in most

cases controls several parameters at once

to handle complicated editing processes.

For instance, Adjust controls the

“liveness” of space in many Chamber and

Room programs by changing decay, EQ, and early

reflections simultaneously.

The behavior of the Adjust knob is also customized for

different functions:

• It can act as a linear control, at its

minimum value when set to the 7

o’clock position and its maximum

value when set to the 5 o’clock

position.

• It can act as a bipolar control, at its

minimum value when set to the 12

o’clock position, like a cut/boost EQ

control.

SELECTING PROGRAMS

All programs can be selected with the front panel

PROGRAM and VARIATION knobs. The PROGRAM knob

selects either a SINGLE, DUAL, or User program. SINGLE

program selections are arranged around the left side of

the knob; DUAL and User program selections are

arranged around the right side of the knob. The

VARIATION knob selects among 16 program variations,

arranged around the knob.

DARK LIGHT

MAX

MIN

MAX

+–

SINGLE PROGRAMS

When the PROGRAM knob is set to a SINGLE program:

• VARIATION knob settings 1 to 8 will load eight

variations of the first effect.

• VARIATION knob settings 9 to 16 will load eight

variations of the second effect.

Basic Operation

MPX 110

2-3

• See pages 4-2 to 4-17 for more information about

SINGLE programs.

For example, when Plate, Gate is selected:

• VARIATION knob settings 1 to 8 will load eight

different Plate program variations.

• VARIATION knob settings 9 to 16 will load eight

different Gate program variations.

When Special FX is selected:

• VARIATION knob settings 1 to 16 will each load one

program.

• See page 4-18 for more information.

DUAL PROGRAMS

When the PROGRAM knob is set to a DUAL program:

• VARIATION knob settings 1 to 16 load 16

different program variations. Each program

contains both effects.

• See pages 4-20 to 4-35 for more information about

DUAL programs.

USER PROGRAMS

When the PROGRAM knob is set to User:

• VARIATION knob settings 1 to 16 will each load one

memory location available for storing User

programs. When shipped, these locations will

contain duplicates of presets.

• See page 4-38 for more information about User

programs.

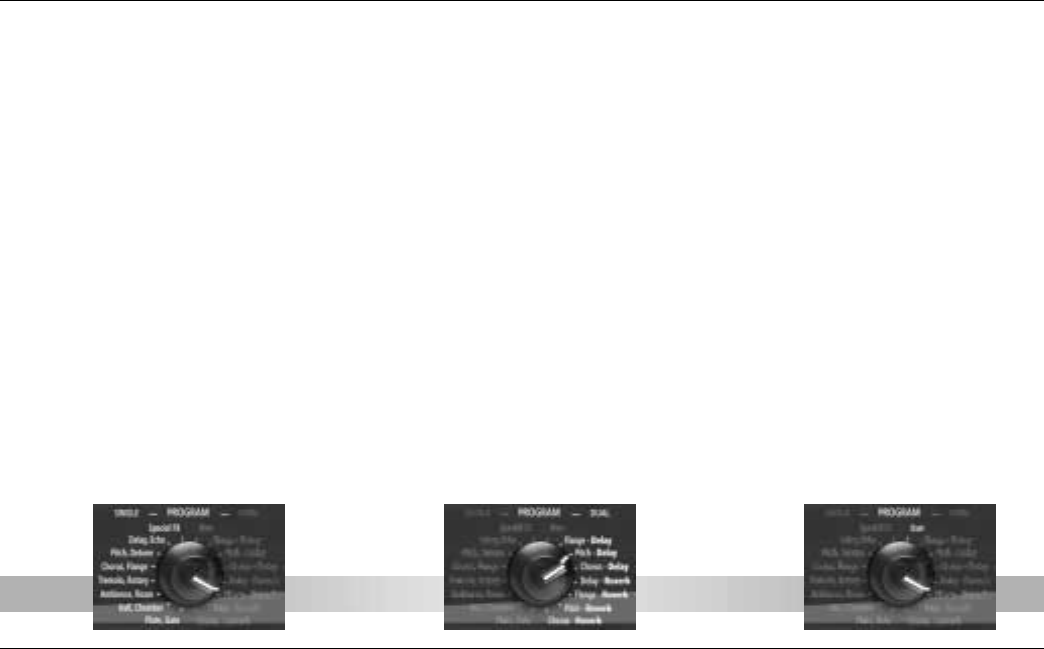

SINGLE

Programs

DUAL

Programs

User

Programs

Basic Operation Lexicon

2-4

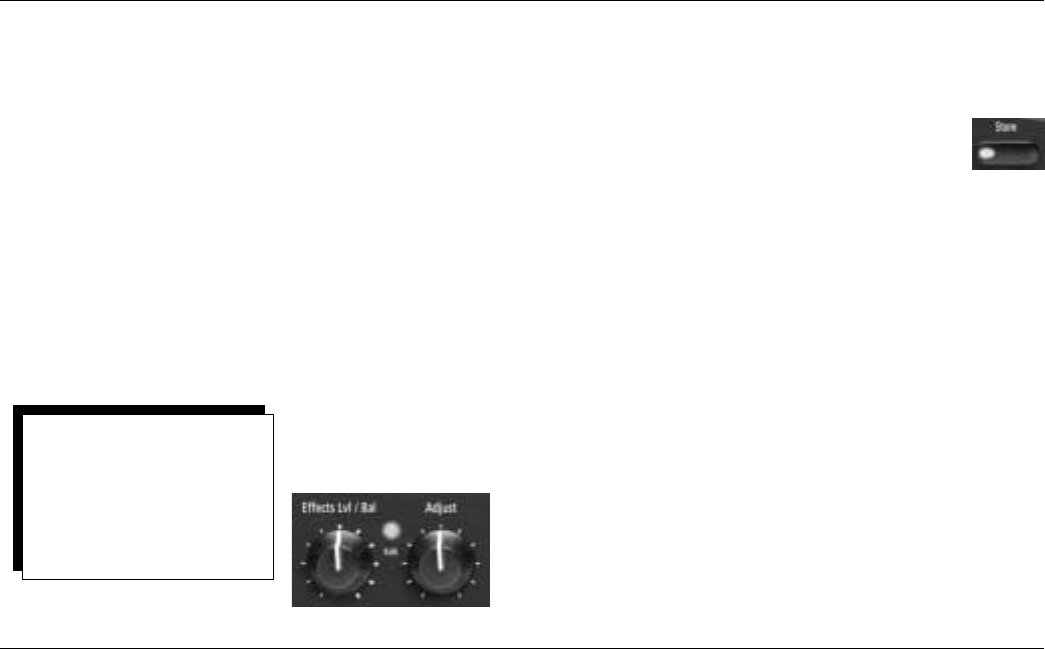

EDITING PROGRAMS

The front panel Adjust and Effects Lvl/Bal knobs can both

be used to edit programs. The Adjust knob provides

instant manipulation of critical program parameters.

These parameters are arranged under the knob, meaning

that just one turn is all that is required to customize a

program to personal taste. The Effects Lvl/Bal knob can

be used to control effect level in SINGLE programs, or

effect balance in DUAL programs.

The unit recognizes changes made with either knob as

edits. When edits are made, the front panel Edit LED will

light to indicate that the selected program has been

modified but not stored.

STORING PROGRAMS

To store a program in a User memory location:

1. Press the Store button. The Store LED will

flash slowly to indicate that the store

function is activated.

2. To continue saving the program, set the PROGRAM

knob to User. To cancel the store function without

saving the program, make sure the PROGRAM knob

is not set to User, then press the Store button again.

3. Set the VARIATION knob to select one of the 16 User

memory locations.

4. Press the Store button to save the program to the

selected location. The Store LED will flash quickly

until the store process is complete. The Edit LED will

no longer be lit when the saved version becomes the

selected program.

Use the Adjust knob to edit the

selected program, and the Effects

Lvl/Bal knob to control effect level in

SINGLE programs or effect balance

in DUAL Programs. The Edit LED will

light to indicate that the selected

program has been modified from its

stored condition.

Basic Operation

MPX 110

2-5

TAP TEMPO

VARYING RHYTHM

Tap Tempo can be used to match the delay

times and modulation rates of tempo-based

programs with those of the music. The Tap LED

will flash whenever a tempo-based preset is loaded. To

set tempo from the front panel, press the Tap button

twice in time with the music. It is not required to enter

what could be the delay time in milliseconds. Just press

the Tap button twice, and the unit will calculate the

appropriate delay time. To change tempo, press the Tap

button twice again in the new rhythm. Changes made to

tempo with the Tap button are not considered program

edits, and will not cause the Edit LED to light.

AUDIO TAP

To use audio input to set tempo:

1. Press and hold the Tap button for 2

seconds. (The optional dual footswitch

allows the musician to remain in contact

with the instrument while pressing and holding the

Tap button.)

2. While holding the Tap button, play two short notes

in rhythm, then release the Tap button. The unit will

automatically calculate tempo based on the time

lapse between the two notes.

Audio tap is a must for live performances. It offers a

simple method of setting delay times and modulation

rates to match the music.

. . . continued on page 2-6

When new programs are stored in a User memory

location, programs that were previously stored at that

location will be automatically replaced.

CAUTION

Basic Operation Lexicon

2-6

Tap Tempo (continued from page 2-5)

GLOBAL TEMPO

Most factory presets are stored with individual tempo

rates, which can be customized to suit personal taste.

Tap in the new tempo, then store the modified version of

the preset in a User memory location (see page 2-4).

To recall the tempo rate stored with each program, set

the System Mode parameter Tempo to Program. The

unit will apply the individual tempo setting of each

program as it is loaded. To apply the current tempo rate

to all programs, set the System Mode parameter Tempo

to Global. The unit will ignore individual tempo settings

and apply the current tempo setting to each program as

it is loaded. (The Tap LED will flash when a tempo-

controlled program is loaded.)

BYPASS

The Bypass button can be used to mute audio

or to force the unit to pass only dry,

unprocessed audio. Its function depends on the

setting of the System Mode parameter Bypass. When set

to Bypass Dry, the unit sends only dry, unprocessed

audio to the outputs. When set to Mute Input, the unit

mutes the inputs only. Running effects will continue their

natural decay. Bypass functions can also be activated

with a footswitch or MIDI control device (see pages 1-8

and 5-5).

When pressed and held for 2 seconds, the Bypass button

also activates System Mode. (See Section 3 for more

information about System Mode.)

System Mode

Overview .........................................................................................3-2

System Mode Parameters & Functions.............................................3-3

Use the Edit LED to determine the

current setting of the selected

parameter. See the next page for

more information.

System Mode Lexicon

3-2

System Mode can be used to configure System Mode

parameters and execute MIDI Dumps. To enter System

Mode, press and hold the front panel Bypass button for

approximately 2 seconds. The Bypass and Store LEDs will

flash slowly to indicate that System Mode is active.

The table on the next page shows System Mode

parameters and functions. The VARIATION knob selects

the desired parameter or function. Settings 1 to 8 select

System Mode parameters. Settings 14 to 16 select MIDI

Dumps.

The Edit LED shows the current setting of the selected

parameter (see the table on the next page). Press the

Store button to toggle the parameter setting. When

VARIATION knob settings 14, 15, or 16 are selected,

press the Store button to execute the selected MIDI

Dump.

When finished, reset the VARIATION knob to its original

setting before System Mode was activated. Otherwise, a

new program will load based on this setting when

System Mode is deactivated. Use the Tap LED to

determine if the VARIATION knob has been

reset; it will light when the knob is set to the last

loaded program.

To exit System Mode, press the Bypass button. The Store

LED will flash quickly to indicate that parameter settings

have changed. (The Store LED will not flash if no changes

were made.)

Descriptions of all System Mode parameters and

functions are available on pages 3-3 to 3-5.

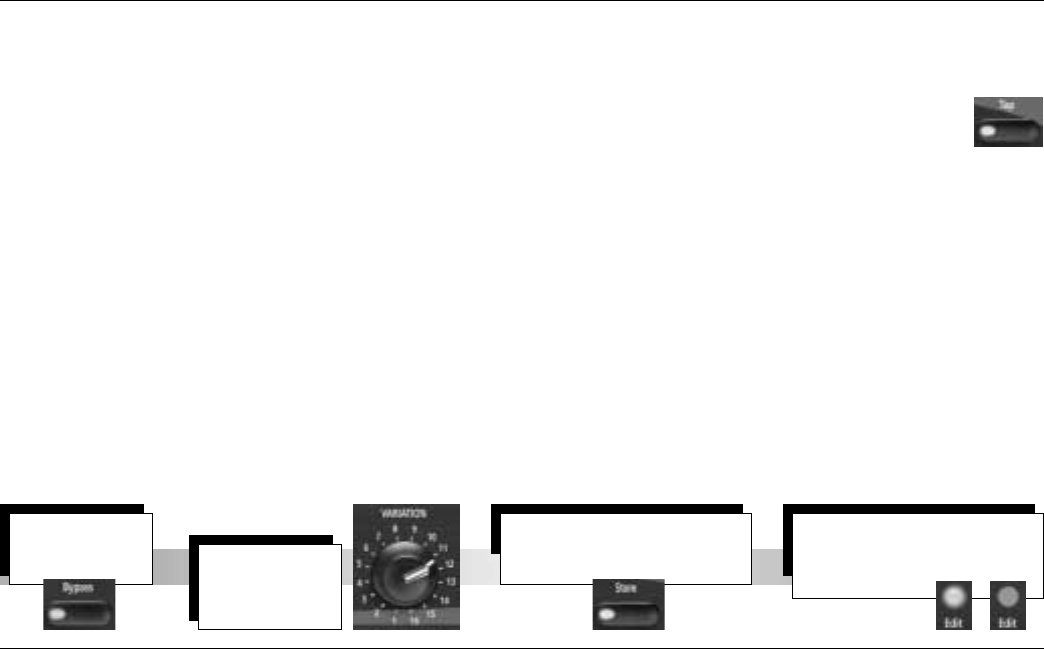

Press the Bypass

button to enter and

exit System Mode. Use the VARIATION

knob to select the

desired parameter

or function.

Press the Store button to toggle the

setting of the selected parameter or

to execute the selected MIDI Dump.

System Mode

MPX 110

3-3

SYSTEM MODE PARAMETERS & FUNCTIONS

VARIATION Edit LED Edit LED

Knob Setting Parameter/Function On Off

1 Bypass Mute Input Bypass Dry *

2 MIDI Patching Disabled Enabled *

3 Program Load Mute Bypass *

4 Digital Output Dry Wet *

5 MIDI OUT/THRU Out * Thru

6 MIDI Pgm Change Disabled Enabled *

7 MIDI Clock Receive Disabled Enabled *

8 Tempo Program * Global

14 Dump User Programs

15 Dump Selected Program

16 Dump System and Learned Patches

* Indicates factory-default setting

System Mode Lexicon

3-4

1. Bypass Mute Input, Bypass Dry

Controls the front panel Bypass button, or the

footswitch or MIDI control device assigned to

Bypass. When set to Bypass Dry, the unit sends only

dry, unprocessed audio to the outputs. When set to

Mute Input, the unit mutes the inputs only. Running

effects will continue their natural decay.

2. MIDI Patching Disable, Enable

Activates and deactivates Learned Patches. When set

to Disable, the unit ignores all Learned Patches.

When set to Enable, the unit recognizes all Learned

Patches.

3. Program Load Mute, Bypass

Determines how the unit will process incoming

audio signals when loading programs. When set to

Mute, the unit mutes all audio during program load.

When set to Bypass, the unit passes only dry,

unprocessed audio during program load.

4. Digital Output Dry, Wet

Determines what is sent to the unit’s S/PDIF output.

When set to Dry, the unit bypasses processed audio,

sending only dry, unprocessed audio to the S/PDIF

output. When set to Wet, the unit sends the

processed audio signal (according to the Mix knob

setting) to the S/PDIF output.

5. MIDI OUT/THRU Out, Thru

Controls the function of the rear panel MIDI

OUT/THRU connector. When set to Out, the unit

only sends MIDI messages that originate from the

unit, such as MIDI Dumps. When set to THRU, the

unit sends - but does not modify - messages received

from the input.

6. MIDI Pgm Change Disable, Enable

Determines whether or not the unit will recognize

MIDI Program Change messages. When set to

Disable, the unit does not recognize these messages.

When set to Enable, the unit recognizes these

messages.

System Mode

MPX 110

3-5

7. MIDI Clock Receive Disable, Enable

Determines whether or not the unit will use MIDI

Clock messages to set tempo. When set to Disable,

the unit ignores these messages. When set to Enable,

the unit recognizes these messages. (This parameter

has no effect on programs that are not tempo-

based.)

8. Tempo Program, Global

Controls the application of tempo to tempo-based

programs. When set to Program, the unit applies the

program-specific tempo of each program as it is

loaded. When set to Global, the unit maintains the

current tempo that was entered by any means as

programs are loaded. (This parameter has no effect

on programs that are not tempo-based).

14. Dump User Programs

Executes a MIDI Dump of User programs to an

external MIDI device, such as a sequencer. These

programs can be dumped back to the unit, which is

useful for preserving User programs when default

settings are restored. When VARIATION knob setting

14 is selected, press the front panel Store button to

execute the dump. When dumped back, User

programs will be returned to their original locations.

15. Dump Selected Program

Executes a MIDI Dump of the currently active

program, allowing programs to be saved to an

external MIDI device. When VARIATION knob setting

15 is selected, press the front panel Store button to

execute this dump. When dumped back, the

program will automatically become the currently

active program.

16. Dump System and Learned Patches

Executes a MIDI Dump of all System Mode

parameter settings and Learned Patches. When

VARIATION knob setting 16 is selected, press the

front panel Store button to execute the dump. When

dumped back, the System Mode settings and

Learned patches will take effect immediately.

Program Descriptions

SINGLE Programs ............................................................................4-2

Plate • Gate • Hall • Chamber • Ambience • Room • Tremolo • Rotary • Chorus •

Flange • Pitch • Detune • Delay, Echo

Special FX......................................................................................4-18

DUAL Programs .............................................................................4-20

Effects Lvl/Bal • Flange-Delay • Pitch-Delay • Chorus-Delay • Delay-Reverb •

Flange-Reverb • Pitch-Reverb • Chorus-Reverb

The Pitch Programs .......................................................................4-36

User Programs ...............................................................................4-38

Program Descriptions Lexicon

4-2

SINGLE PROGRAMS

PLATE

Plate reverb began with a large, thin sheet of metal

suspended upright under tension on springs.

Transducers attached to the plate transmitted a signal

that made the plate vibrate, causing sounds broadcast

through it to appear to be occurring in a large, open

space.

The Plate programs synthesize the sound of metal plates

with high initial diffusion and a relatively bright-colored

sound. These programs are designed to be heard as part

of the music, mellowing and thickening the sound. Plate

programs are a popular choice for enhancing pop music,

particularly percussion.

VARIATIONs Adjust Tap

1 Small Plate Liveness* –

2 Medium Plate Liveness* –

3 Large Plate Liveness* PreDelay

(1/32 Note)

4 Larger Plate Decay Time* PreDelay

(1/32 Note)

5 Tape Slap ±Decay/ –

Plate 15 or 7.5ips**

6 Rich Plate Decay Time* PreDelay

(1/32 Note)

7 Large Bright Decay Time* PreDelay

Plate (1/32 Note)

8 Vocal Plate Low Cut, Echo

Decay Time*

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

** When the Adjust knob is set to the left of the 12 o’clock position, decay

is 15ips. When the Adjust knob is set to the right of the 12 o’clock

position, decay is 7.5ips.

Program Descriptions

MPX 110

4-3

GATE

Gated reverbs were created by feeding a reverb, such as

a metal plate, through an analog gate device. Decay

time was set to instant, while hold time varied

duration and sound.

The Gate programs provide a fairly constant sound with

no decay until the reverb is cut off abruptly. These

programs work well on percussion, particularly on snare

and toms. It is recommended to experiment with other

sound sources as well.

VARIATIONs Adjust Tap

9 Straight Gate Duration** –

10 Drum Gate Duration** –

11 Slope Down Duration** –

12 140ms Gate High Cut* PreDelay

(1/32 Note)

13 240ms Gate High Cut* PreDelay

(1/32 Note)

14 340ms Gate High Cut* PreDelay

(1/32 Note)

15 440ms Gate High Cut* PreDelay

(1/32 Note)

16 540ms Gate High Cut* PreDelay

(1/32 Note)

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

** Audio will be briefly muted when Duration is altered with the Adjust

knob.

Program Descriptions Lexicon

4-4

HALL

Lexicon’s Hall programs recreate the acoustics of actual

places - from grand, reverberant enclosures to small

concert halls.

The clean reverberation of Hall programs is designed to

add spaciousness without altering source material. In

addition to general instrumental and vocal applications,

the Hall programs give separately recorded tracks a sense

of belonging to the same performance.

VARIATIONs Adjust* Tap

1 Recital Hall Decay –

2 Small Church Decay –

3 Jazz Hall Decay –

4 Dance Hall Decay –

5 Synth Hall Decay –

6 Medium Hall Decay –

7 Large Hall Decay –

8 Large Church Decay –

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

Program Descriptions

MPX 110

4-5

CHAMBER

Historically, recording studio chambers were oddly

shaped rooms with a loudspeaker and set of

microphones to collect ambience in various parts of the

room.

Stereo Chamber programs produce even, relatively

dimensionless reverberation with little color change as

sound decays. The initial diffusion is similar to Hall

programs. However, the sense of size and space is much

less obvious. This characteristic, coupled with the low

color of the decay tail, makes these programs useful on

a wide range of material - especially the spoken voice, to

which Chamber programs add a noticeable increase in

loudness with low color.

VARIATIONs Adjust* Tap

9 Brick Wall Liveness –

10 Basement Liveness –

11 Live Concert Liveness Eko Delay

12 Percussion 1 Liveness –

13 Percussion 2 Liveness –

14 Live Chamber Liveness –

15 Vocal 1 Liveness Eko Delay

16 Vocal 2 Liveness Eko Delay

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

Program Descriptions Lexicon

4-6

AMBIENCE

Ambience adds warmth, spaciousness, and depth to a

performance without coloring its direct sound. It is

commonly used to add a room sound to recorded music

and speech. In music recording, Ambience can

realistically add distance to close-mic’ed signals.

Ambience programs simulate reflections from room

surfaces with random reflections, a gradual decay of

overall level, and a gradual narrowing of bandwidth. In

these programs, the Mix control adds depth - emulating

the movement of a coincident pair of microphones away

from the sound source into the room.

Variations 1 to 8 provide a series of rooms, increasing in

size.

VARIATIONs Adjust* Tap

1 Voice Over High Cut –

2 Very Small High Cut –

Ambience

3 Small High Cut –

Ambience

4 Medium High Cut –

Ambience

5 Studio D High Cut –

6 Bright Decay Level –

Ambience

7 Dark Decay Level –

Ambience

8 Marble Foyer Liveness –

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

Program Descriptions

MPX 110

4-7

ROOM

Room programs simulate actual rooms where there is a

strong sense of being in a small, live place. These

programs are useful on drums and percussion, and can

also be applied to electric guitar tricks.

Variations 9 to 16 provide a series of rooms, increasing in

size.

VARIATIONs Adjust* Tap

9 Bedroom Wall Reflections –

10 Tiled Room Low-frequency –

Cut

11 Studio C Liveness –

12 Small Room Liveness –

13 Studio B Decay Time –

14 Rehearsal Room High/Low –

Equalizer

15 Studio A Decay Time –

16 Large Room High/Low –

Equalizer

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

Program Descriptions Lexicon

4-8

TREMOLO

Tremolo is a rhythmic change in loudness, commonly

employed as an expressive technique by vocalists and

wind instrument players. It is also one of the oldest

electronic effects, frequently used with electric guitar,

electric piano, and occasionally vocals. Different tremolo

effects are largely determined by the rate (fast or slow)

and waveform shape (smooth or sharp) of the change in

loudness. If the effect is used in a stereo mix, the left and

right can be synchronized to produce dramatic side-to-

side motion.

The Tremolo programs offer classic tremolo shapes, such

as square, sawtooth, triangle, sine, and rectified sine. The

synchronization of the left and right channels can be

adjusted to produce mono and stereo effects. The Tap

button sets tremolo rates, making it simple to match the

tempo of the music. The Adjust knob (phase) sets left

and right channel waveforms out-of-phase, resulting in a

panning motion.

Set the front panel Mix knob to Wet for all program

variations. Mix can be used to effectively set the depth of

the Tremolo program when more dry is added to the

wet-to-dry mix. (Turn the knob to the right, moving its

setting closer to Dry.) It is recommended to make the

rate work with the tempo of the music, as Tremolo is

essentially a rhythmic effect.

The Adjust knob can function as a four-

position switch, selecting the amount of

phase shift. When a setting is selected in the

0 range, no phase shift is applied. When a

setting is selected in the other ranges, the

indicated amount of phase shift is applied.

Numbers indicate phase shift in degrees.

90 180

270

Program Descriptions

MPX 110

4-9

VARIATIONs Adjust Tap

1 Rectified Sine Wave Rate: –

0.4 to 15Hz*

2 Square Wave Rate: –

0.4 to 15Hz*

3 Sawtooth Wave Rate: –

0.4 to 15Hz*

4 Rectified Sine Wave Sweep: Rate

0, 90, 180, 270** (1/4 Note)

5 Square Wave Sweep: Rate

0, 90, 180, 270** (1/4 Note)

6 Sawtooth Wave Sweep: Rate

0, 90, 180, 270** (1/4 Note)

7 Triangle Wave Sweep: Rate

0, 90, 180, 270** (1/4 Note)

8 Sine Wave Sweep: Rate

0, 90, 180, 270** (1/4 Note)

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

** The Adjust knob functions as a four-position switch in these

variations. See page 4-8 for more information.

Program Descriptions Lexicon

4-10

ROTARY

Rotary speaker cabinets were designed to provide a

majestic vibrato/choir effect for electronic theater and

church organs. The most well known rotary speaker is

the Leslie™ Model 122, which has two counter-rotating

elements: a high-frequency horn and a low-frequency

rotor with slow and fast speeds. The sound generated as

the spinning elements change speed is truly magical.

The swirling, spacious effect is difficult to describe - but

clearly recognizable.

The Rotary programs are a detailed simulation of a

Leslie-style cabinet. The input signal is split into high and

low-frequency bands. The rotation effect is created by a

synchronized combination of pitch shifting, tremolo,

and panning. Like the physical cabinet, the high (horn)

and low (rotor) frequencies are “spun” in opposite

directions. Horn and rotor speeds are independent, and

designed with acceleration and deceleration

characteristics to simulate the inertia of the original

mechanical elements.

A virtual requirement for organ music, Rotary programs

also sound remarkable with guitar and electric piano

rhythm parts. In fact, these programs are great

alternatives to chorus and tremolo effects for any sound

source.

To achieve the full effect, set the front panel Mix knob to

Wet for all variations of this program (9 to 16).

Program Descriptions

MPX 110

4-11

VARIATIONs Adjust Tap

9 Rotary Slow/Fast –

10 Rotary Slow/Fast, –

Width

11 Rotary Slow/Fast, –

Balance

12 Slow Rotary ±Resonance* –

13 Varispeed Speed –

Rotary

14 Tap Rotary Balance Rate

(1/4 Note)

15 Tap Rotary Width Rate

(1/4 Note)

16 Tap Rotary ±Resonance* Rate

(1/4 Note)

* The Adjust knob functions as a bipolar control in these variations. See

page 2-2 for more information.

Program Descriptions Lexicon

4-12

CHORUS

Chorus effects create lush, full sounds by multiplying the

original audio source. Traditionally, these effects were

used to fatten up tracks and to add body to guitar

without coloring the original tone. Chorus effects are

also often combined with plates, echoes, and other

reverb effects.

The stereo Chorus programs, inherited from Lexicon’s

PCM 80, create a rich, airy effect that simulates the

sound of multiple sources from a single source. These

programs are stunning on acoustic or clean-electric

guitar.

These programs utilize six independently-randomized

delay voices panned across the stereo field. Set the front

panel Mix knob to Wet to achieve the full richness of the

6-voice chorus.

VARIATIONs Adjust Tap

1 Rich Chorus ± Resonance* –

2 Rich Chorus ± Depth* –

3 Rich Chorus Rate –

4 Rich Chorus High Cut –

5 Diffuse Chorus Diffusion –

6 Slap Chorus Diffusion –

7 Slap Chorus ± Resonance* –

8 Slap Chorus ± Depth* –

* The Adjust knob functions as a bipolar control in these variations. See

page 2-2 for more information.

Program Descriptions

MPX 110

4-13

FLANGE

Flange effects were originally created by simultaneously

recording and playing back two identical programs on

two tape recorders, then using hand pressure against the

flange of the tape reels to slow down first one machine,

then the other. The result was a series of changing phase

cancellations and reinforcements, with characteristic

swishing, tunneling, and fading sounds.

The stereo Flanger has two 2-Tap delays - one per

channel. The first tap is fixed, and the second sweeps

past it. Mixing the two delay taps together creates the

flanging effect.

Set the front panel Mix knob to Wet to achieve the full

flange effect of these program variations.

VARIATIONs Adjust Tap

9 Light Flange: ± Resonance* –

in-phase sweep

10 Light Flange ± Resonance* –

out-of-phase sweep

11 Light Flange Rate –

in-phase sweep

12 Light Flange Rate –

out-of-phase sweep

13 Deep Flange ±Resonance* –

in-phase-sweep

14 Deep Flange ±Resonance* –

out-of-phase sweep

15 Light Flange Sweep: –

0, 90, 180, 270**

16 Deep Flange Sweep: –

0, 90, 180, 270**

* The Adjust knob functions as a bipolar control in these variations. See

page 2-2 for more information.

** The Adjust knob functions as a four-position switch in these

variations. See page 4-8 for more information.

Program Descriptions Lexicon

4-14

PITCH

Altering the pitch of a sound produces a wide range of

effects - from subtle detunes, to harmonies, to chords.

The stereo polyphonic Pitch programs can be used to

shift program material or monophonic sources within a

range of one octave up to two octaves down.

For pitch correction, set the front panel Mix knob to Wet.

For harmonization, set the front panel Mix knob to the

desired setting.

VARIATIONs Adjust Tap

1 Semi-tone Shift -2 to +1 octaves* –

2 Glide Shifter ±1 octave* –

3 ±100 cents ±100 cents* –

4 Minor 3rd to Flat 3rd to –

4th Harmony 4th Up

5 4th/5th 4th to 5th Up –

Harmony

6 5th/6th 5th to 6th Up –

Harmony

7 2nd Inversion Minor/Major 3rd –

Triad

8 Power Chords Inversion –

* The Adjust knob functions as a bipolar control in these variations. See

page 2-2 for more information.

Program Descriptions

MPX 110

4-15

DETUNE

Detune effects add a delayed or pitch-shifted version of

the original source, thickening the sound. This creates a

particularly effective simulation of double-tracking.

These effects are also great alternatives to Chorus effects,

adding the richness of a chorus without the audible

sweep caused by the chorus rate.

The 4-voice stereo Detune programs have one pair of

voices per channel. As more detune is applied with the

Adjust knob, the pair become more out of tune,

providing a lush sound without the need for mixing in a

dry signal.

Set the front panel Mix knob to Wet to achieve the full

effect of these programs.

VARIATIONs Adjust* Tap

9 Mild Detuning –

10 Moderate Detuning –

11 Heavy Detuning –

12 FullRange Detuning –

13 Warm & Mild Detuning –

14 Warm & Detuning –

Moderate

15 Warm & Heavy Detuning –

16 Slap Detuner Detuning –

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

Program Descriptions Lexicon

4-16

DELAY, ECHO

Delays and echoes repeat a sound a short time after it

first occurs. The simplest (and oldest) delay effect is tape

slap - a single repeat about 100ms after the original

sound. Tape slap was often used on Elvis Presley’s voice

and rockabilly guitar tracks.

Tape slap becomes tape echo when the output of the

tape is fed back into the input (feedback). This turns a

single repeat into a series of repeats, each a little softer

and a little darker than the last. This darkening is

characteristic of the analog tape recording process.

Digital delays do not have this characteristic; each repeat

has the same exact timbre. For digital delays, loudness is

the only difference from repeat to repeat.

Tape echo and digital delay are both useful, but

different. Tape echo is warmer, allowing the original

sound to distinguish itself. Digital delay presents a

“perfect” copy of the original sound.

The Delay and Echo variations include mono (5.5

seconds), stereo (2.7 seconds), and 6-voice multi-tap

effects. Each program can be used for tape echo or

digital delay effects.

When the Adjust knob is set to a

value between 12 and 5 o’clock,

tape echo effects are produced. Each

repeat is darker and softer. When the

Adjust knob is set to a value between

7 and 12 o’clock, digital delay effects are produced. Each

repeat is the same timbre, but softer.

In variations 1 to 8, the Adjust knob sets the amount of

feedback with an increasing number of repeats as the

setting is increased. Delay time is set with Tap. Each

program is preset with a different rhythm. In

variations 9 to 16, the amount of feedback is preset and

the Adjust knob determines the delay time.

With all Delay and Echo effects, note the way the repeats

fall rhythmically to the beat. The most effective Delay

and Echo patterns are those that lock with the tempo of

the music.

MAX

MIN

MAX

Echoes

Delays

Program Descriptions

MPX 110

4-17

VARIATIONs Adjust Tap

1 Mono Delay/Echo Delay Time

Quarter-Note Feedback**

2 Stereo Delay/Echo Delay Time

Quarter-Note Feedback**

3 Triplet Delay/Echo Delay Time

Shuffle Feedback**

4 Dotted Delay/Echo Delay Time

Eighth-Note Feedback**

5 Eighth-Note Delay/Echo Delay Time

and Triplet Feedback**

6 Ping Pong Delay/Echo Delay Time

Quarter-Note Feedback**

7 Triplet Delay/Echo Delay Time

Rhythm 1 Feedback**

8 Triplet Delay/Echo Delay Time

Rhythm 2 Feedback**

* The Adjust knob functions as a linear control in these variations. See

page 2-2 for more information.

** The Adjust knob functions as a bipolar control in these variations. See

page 4-16 for more information.

VARIATIONs Adjust Tap

9 Mono Delay/Echo Time: –

0 to 5.5 sec*

10 Stereo Delay/Echo Time: –

0 to 2.7 sec*

11 Tape Slap Delay/Echo Time: –

3 3/4 to 30ips***

12 Multi Bounce Delay/Echo Time: –

0 to 100ms*

13 Multi Linear Delay/Echo Time: –

0 to 400ms*

14 Multi Inverse Delay/Echo Time: –

0 to 400ms*

15 Multi Repeat Delay/Echo Time: –

0 to 150ms + Fbk**

16 Multi Pong Delay/Echo Time: –

0 to 200ms + Fbk**

***The Adjust knob functions as a four-position switch in these

variations. See page 4-8 for more information.

Program Descriptions Lexicon

4-18

Special FX VARIATIONs Adjust* Tap

1 Infinite Reverb High Cut Echo

2 The Abyss ±Pitch Blend –

3 Jet Flange Tone Rate (Whole Note)

4 Chorus Verb High Cut –

5 Rotary Delay Dly/Echo Time: 0 to 150ms + Feedback Rate (1/4 Note)

6 Fader Verb Input Volume Echo

7 PCM 60 - LgSize Decay Time –

8 LowRumble Decay Time –

SPECIAL FX

Program Descriptions

MPX 110

4-19

Special FX VARIATIONs Adjust* Tap

9 Ducking Reverb Decay Time –

10 Ducking Chorus>Delay ±Resonance Delay Time

11 Ducking Triplets Delay/Echo Feedback Delay Time

12 Subdividing Delay Beat Value: 1/32-Whole Note Delay Time

13 Panning Delays Delay/Echo Feedback Delay Time

14 Dream Sequence ±Shift Amount –

15 Infinite Repeat Feedback: 0 to Infinite Dly Time (Whole Note)

16 Diffusor Diffusion –

* The Adjust knob function differs in each of the Special FX variations. It is recommended to experiment with each program. See page 2-2 for more

information about Adjust knob functions.

Program Descriptions Lexicon

4-20

DUAL PROGRAMS

The DUAL Programs combine Delay with Reverb, or

either Delay or Reverb with Chorus, Flange, or Pitch.

Four routing configurations are used in the variations of

each DUAL program: Dual Stereo (Parallel), Cascade,

Mono Split, and Dual Mono.

Variation knob settings are configured as follows:

• Variations 1 to 6 are arranged in the Dual Stereo

(Parallel) configuration - two stereo effects placed

next to one another to receive and output stereo

audio from both the left and right channels.

• Variations 7 to 10 are arranged in the Cascade

configuration - two stereo effects, one placed after

the other. For example, in Flange-Delay, Flange

passes its stereo signal to Delay.

• Variations 11 to 14 are arranged in the Mono Split

configuration, which is similar to the Dual Stereo

(Parallel) configuration. One effect (Flange) receives

audio from the left input and the other effect (Delay)

receives audio from the right input. Both effects

output stereo audio.

• Variations 15 and 16 are arranged in the Dual Mono

configuration where one effect (Flange) appears on

the left channel only, while the other effect (Delay)

appears on the right channel only.

Dual Stereo (Parallel)

Flange

Delay

Cascade

Flange Delay

Mono Split

Flange

Delay

Dual Mono

Flange

Delay

Program Descriptions

MPX 110

4-21

EFFECTS LVL/BAL

The front panel Effects Lvl/Bal knob controls the relative

balance of each effect in the DUAL program. In Cascade

variations, the knob also varies the amount of the first

effect or dry signal fed into the second effect.

The illustration below uses the Pitch-Delay program to

show the behavior of the Effects Lvl/Bal knob at certain

settings when a Cascade variation is selected.

Pitch Delay

Pitch Delay Pitch Delay

Pitch DelayDelay

Pitch

12 o’clock: Provides delayed pitch shift.

7 o’clock: Provides pitch shift. 5 o’clock: Provides delayed dry signal.

9 o’clock:

Provides pitch shift, plus delayed pitch shift.

3 o’clock:

Provides delayed pitch shift, plus delayed dry signal.

Program Descriptions Lexicon

4-22

Flange-Delay VARIATIONs Adjust Tap Routing

1 Deep Flange - Stereo Delay Delay/Echo Feedback* Delay Time (1/4 Note) Dual Stereo (Parallel)

2 Deep Flange - Stereo Delay Delay/Echo Feedback* Dotted (1/8 Note) Dual Stereo (Parallel)

3 Deep Flange - Stereo Delay Delay/Echo Feedback* Triplet (1/8 Note) Dual Stereo (Parallel)

4 Light Flange - Ping Pong Delay/Echo Feedback* Delay Time (1/4 Note) Dual Stereo (Parallel)

5 Light Flange - Repeat D/E Time: 0 to 150ms, Fbk – Dual Stereo (Parallel)

6 Light Flange - Bounce D/E Time: 0 to 200ms, Fbk – Dual Stereo (Parallel)

7 Deep Flange>Stereo Delay Delay/Echo Feedback* Delay Time (1/4 Note) Cascade

8 Deep Flange>Repeat D/E Time: 0 to 150ms, Fbk – Cascade

FLANGE-DELAY

Dual Stereo (Parallel)

Flange

Delay

Cascade

Flange Delay

Program Descriptions

MPX 110

4-23

Flange-Delay VARIATIONs Adjust Tap Routing

9 Deep Flange>Ping Pong Delay/Echo Feedback* Delay Time (1/4 Note) Cascade

10 Deep Flange>Bounce D/E Time: 0 to 200ms, Fbk – Cascade

11 Light Flange+Stereo Delay Delay/Echo Feedback* Delay Time (1/4 Note) Mono Split

12 Light Flange+Ping Pong Delay/Echo Feedback* Delay Time (1/4 Note) Mono Split

13 Light Flange+Repeat D/E Time: 0 to 150ms, Fbk – Mono Split

14 Light Flange+Bounce D/E Time: 0 to 200ms, Fbk – Mono Split

15 Deep Flange/Mono Delay Delay/Echo Feedback* Delay Time (1/4 Note) Dual Mono

16 Deep Flange/Mono Delay Delay/Echo Feedback* Dly Time (Dotted 1/4 Note) Dual Mono

* In these variations, the Adjust knob functions as it does in the Delay, Echo variations. See page 2-2 for more information.

Mono Split

Flange

Delay

Dual Mono

Flange

Delay

Program Descriptions Lexicon

4-24

Pitch-Delay VARIATIONs Adjust Tap Routing

1 5th Up/Down - Stereo 1/4 Note ±5th* Delay Time Dual Stereo (Parallel)

2 Octave Up/Down - Triplet Shuffle ±1 octave* Delay Time Dual Stereo (Parallel)

3 Octave Up/Down - Eighth and Triple ±1 octave* Delay Time Dual Stereo (Parallel)

4 3rd Up/4th Up - Ping Pong 1/4 Note Minor 3rd to 4th Up Delay Time Dual Stereo (Parallel)

5 4th Up/5th Up - Triplet Rhythm 1 4th to 5th Up Delay Time Dual Stereo (Parallel)

6 5th Up/6th Up - Triplet Rhythm 2 5th to 6th Up Delay Time Dual Stereo (Parallel)

7 Octave Up/Down > Triplet Rhythm 1 ±1 octave* Delay Time Cascade

8 5th Up/Down > Stereo 1/4 Note ±5th * Delay Time Cascade

PITCH-DELAY

Dual Stereo (Parallel)

Pitch

Delay

Cascade

Pitch Delay

Program Descriptions

MPX 110

4-25

Pitch-Delay VARIATIONs Adjust Tap Routing

9 Major/Minor Minor/Major 3rd w/ Fbk Delay Time Cascade

10 Intervals Up Ascending Intervals w/Fbk Delay Time Cascade

11 5th Up/Down + Stereo 1/4 Note ±5th* Delay Time Mono Split

12 Octave Up/Down + Triplet Shuffle ±1octave* Delay Time Mono Split

13 4th Up/5th Up + Triplet Rhythm 1 4th to 5th Up Delay Time Mono Split

14 5th Up/6th Up + Triplet Rhythm 2 5th to 6th Up Delay Time Mono Split

15 Octave Up/Down / Mono 1/4 Note ±1 octave* Delay Time Dual Mono

16 Octave Up/Down / Triplet Shuffle ±1 octave* Delay Time Dual Mono

* The Adjust knob functions as a bipolar control in these variations. See page 2-2 for more information.

Mono Split

Pitch

Delay

Dual Mono

Pitch

Delay

Program Descriptions Lexicon

4-26

Chorus-Delay VARIATIONs Adjust Tap Routing

1 Rich Chorus 1 - Stereo 1/4 Note Delay/Echo Feedback* Delay Time Dual Stereo (Parallel)

2 Rich Chorus 1 - Dotted 1/8 Note Delay/Echo Feedback* Delay Time Dual Stereo (Parallel)

3 Rich Chorus 1 - 1/8 Note and Triplet Delay/Echo Feedback* Delay Time Dual Stereo (Parallel)

4 Rich Chorus 1 - Ping Pong 1/4 Note Delay/Echo Feedback* Delay Time Dual Stereo (Parallel)

5 Rich Chorus 1 - Multi Repeat D/E Time: 0 to 150ms, Fbk – Dual Stereo (Parallel)

6 Rich Chorus 1 - Multi Pong D/E Time: 0 to 200ms, Fbk – Dual Stereo (Parallel)

7 Rich Chorus 1 > Stereo 1/4 Note Delay/Echo Feedback* Delay Time Cascade

8 Rich Chorus 2 > Multi Repeat D/E Time: 0 to 150ms, Fbk – Cascade

CHORUS-DELAY

Dual Stereo (Parallel)

Chorus

Delay

Cascade

Chorus Delay

Program Descriptions

MPX 110

4-27

Chorus-Delay VARIATIONs Adjust Tap Routing

9 Rich Chorus 2 > Ping Pong 1/4 Note Delay/Echo Feedback* Delay Time Cascade

10 Rich Chorus 3 > Multi Pong D/E Time: 0 to 200ms, Fbk – Cascade

11 Rich Chorus 1 + Stereo 1/4 Note Delay/Echo Feedback* Delay Time Mono Split

12 Rich Chorus 1 + Ping Pong 1/4 Note Delay/Echo Feedback* Delay Time Mono Split

13 Rich Chorus 1 + Crossfeed D/E Time: 0 to 150ms, Fbk – Mono Split

14 Rich Chorus 1 + Multi Pong D/E Time: 0 to 200ms, Fbk – Mono Split

15 Rich Chorus 4 Mono 1/4 Note Delay/Echo Feedback* Delay Time Dual Mono

16 Rich Chorus 4 Dotted 1/8 Note Delay/Echo Feedback* Delay Time Dual Mono

* The Adjust knob functions as a bipolar control in these variations. See page 2-2 for more information.

Mono Split

Chorus

Delay

Dual Mono

Chorus

Delay

Program Descriptions Lexicon

4-28

Delay-Reverb VARIATIONs Adjust* Tap Routing

1 Stereo 1/4 Note - Small Space Decay Time Delay Time Dual Stereo (Parallel)

2 Triplet Shuffle - Medium Space Decay Time Delay Time Dual Stereo (Parallel)

3 1/8 Note and Triplet - Large Space Decay Time Delay Time Dual Stereo (Parallel)

4 Ping Pong 1/4 Note - Small Space Decay Time Delay Time Dual Stereo (Parallel)

5 Triplet Rhythm 1 - Medium Space Decay Time Delay Time Dual Stereo (Parallel)

6 Triplet Rhythm 2 - Large Space Decay Time Delay Time Dual Stereo (Parallel)

7 Stereo 1/4 Note > Room Decay Time Delay Time Cascade

8 1/8 Note and Triplet > Large Space Decay Time Delay Time Cascade

DELAY-REVERB

Dual Stereo (Parallel)

Delay

Reverb

Cascade

Delay Reverb

Program Descriptions

MPX 110

4-29

Delay-Reverb VARIATIONs Adjust* Tap Routing

9 Triplet Rhythm 1 > Room Decay Time Delay Time Cascade

10 Triplet Rhythm 2 > Large Space Decay Time Delay Time Cascade

11 Stereo 1/4 Note + Medium Space Decay Time Delay Time Mono Split

12 Ping Pong 1/4 Note + Large Space Decay Time Delay Time Mono Split

13 Triplet Rhythm 1 + Medium Space Decay Time Delay Time Mono Split

14 Triplet Rhythm 2 + Small Space Decay Time Delay Time Mono Split

15 Mono 1/4 Note / Room Decay Time Delay Time Dual Mono

16 Triplet Rhythm 2 / Large Space Decay Time Delay Time Dual Mono

* The Adjust knob functions as a linear control in these variations. See page 2-2 for more information.

Mono Split

Delay

Reverb

Dual Mono

Delay

Reverb

Program Descriptions Lexicon

4-30

Flange-Reverb VARIATIONs Adjust* Tap Routing

1 Light Flange - Small Space Decay Time Speed Dual Stereo (Parallel)

2 Light Flange - Medium Space Decay Time – Dual Stereo (Parallel)

3 Light Flange - Large Space Decay Time Speed Dual Stereo (Parallel)

4 Deep Flange - Small Space Decay Time – Dual Stereo (Parallel)

5 Deep Flange - Medium Space Decay Time Speed Dual Stereo (Parallel)

6 Deep Flange - Large Space Decay Time Speed Dual Stereo (Parallel)

7 Light Flange - Large Space Decay Time – Cascade

8 Deep Flange - Large Space Decay Time – Cascade

FLANGE-REVERB

Dual Stereo (Parallel)

Flange

Reverb

Cascade

Flange Reverb

Program Descriptions

MPX 110

4-31

Flange-Reverb VARIATIONs Adjust* Tap Routing

9 Light Flange > Room Decay Time – Cascade

10 Deep Flange > Room Decay Time Speed Cascade

11 Light Flange + Medium Space Decay Time Speed Mono Split

12 Light Flange + Room Decay Time Speed Mono Split

13 Deep Flange + Medium Space Decay Time Speed Mono Split

14 Deep Flange + Room Decay Time – Mono Split

15 Light Flange / Large Space Decay Time Speed Dual Mono

16 Light Flange / Large Space Decay Time – Dual Mono

* The Adjust knob functions as a linear control in these variations. See page 2-2 for more information.

Mono Split

Flange

Reverb

Dual Mono

Flange

Reverb

Program Descriptions Lexicon

4-32

Pitch-Reverb VARIATIONs Adjust Tap Routing

1 Minor 3rd to 4th - Room 3rd to 4th Up PreDelay (1/32 Note) Dual Stereo (Parallel)

2 4th to 5th - Room 4th to 5th Up PreDelay (1/32 Note) Dual Stereo (Parallel)

3 5th to 6th - Room 5th to 6th Up PreDelay (1/32 Note) Dual Stereo (Parallel)

4 ±1 Octave - Medium Space ±1 Octave* PreDelay (1/32 Note) Dual Stereo (Parallel)

5 Power Chords - Medium Space Decay Time PreDelay (1/32 Note) Dual Stereo (Parallel)

6 Manual Detune - Room Detuning PreDelay (1/32 Note) Dual Stereo (Parallel)

7 ±100 > Small Space ±100 Cents* PreDelay (1/32 Note) Cascade

8 Power Chords > Large Space Decay Time PreDelay (1/32 Note) Cascade

PITCH-REVERB

Dual Stereo (Parallel)

Pitch

Reverb

Cascade

Pitch Reverb

Program Descriptions

MPX 110

4-33

Pitch-Reverb VARIATIONs Adjust Tap Routing

9 4ths > Medium Space Decay Time PreDelay (1/32 Note) Cascade

10 Octaves > Medium Space Decay Time PreDelay (1/32 Note) Cascade

11 4th to 5th + Room 4th to 5th Up PreDelay (1/32 Note) Mono Split

12 5th to 6th + Room 5th to 6th Up PreDelay (1/32 Note) Mono Split

13 4ths + Large Space Decay Time PreDelay (1/32 Note) Mono Split

14 Octaves + Medium Space Decay Time PreDelay (1/32 Note) Mono Split

15 Octaves / Medium Space Decay Time PreDelay (1/32 Note) Dual Mono

16 4ths / Large Space Decay Time PreDelay (1/32 Note) Dual Mono

* The Adjust knob functions as a bipolar control in these variations. See page 2-2 for more information.

Mono Split

Pitch

Reverb

Dual Mono

Pitch

Reverb

Program Descriptions Lexicon

4-34

Chorus-Reverb VARIATIONs Adjust* Tap Routing

1 Rich Chorus 1 - Small Space Decay Time – Dual Stereo (Parallel)

2 Rich Chorus 1 - Medium Space Decay Time – Dual Stereo (Parallel)

3 Rich Chorus 1 - Large Space Decay Time – Dual Stereo (Parallel)

4 Rich Chorus 2 - Small Space Decay Time – Dual Stereo (Parallel)

5 Rich Chorus 2 - Medium Space Decay Time – Dual Stereo (Parallel)

6 Rich Chorus 2 - Large Space Decay Time – Dual Stereo (Parallel)

7 Rich Chorus 1 > Room Liveness – Cascade

8 Rich Chorus 2 > Room Liveness – Cascade

CHORUS-REVERB

Dual Stereo (Parallel)

Chorus

Reverb

Cascade

Chorus Reverb

Program Descriptions

MPX 110

4-35

Chorus-Reverb VARIATIONs Adjust* Tap Routing

9 Rich Chorus 3 > Room Liveness – Cascade

10 Rich Chorus 1 > Small Space Decay Time – Cascade

11 Rich Chorus 1 + Small Space Decay Time – Mono Split

12 Rich Chorus 2 + Medium Space Decay Time – Mono Split

13 Rich Chorus 2 + Large Space Decay Time – Mono Split

14 Rich Chorus 1 + Large Space Decay Time – Mono Split

15 Rich Chorus 1 / Room Liveness – Dual Mono

16 Rich Chorus 4 / Room Liveness – Dual Mono

* The Adjust knob functions as a linear control in these variations. See page 2-2 for more information.

Mono Split

Chorus

Reverb

Dual Mono

Chorus

Reverb

Program Descriptions Lexicon

4-36

THE PITCH PROGRAMS

The MPX 110 features single Pitch, Pitch-Delay, and

Pitch-Reverb programs. All pitch programs are designed

to input and output two channels and to respond to

pitch-shifting in either Stereo or Dual Mono mode.

Note:

In this case, Dual Mono refers to signal type - not

routing configuration.

In Stereo mode, the same pitch-shift is applied to both

channels at the same time. This helps maintain the

proper phase relationship between the channels. When

pitch programs operate in Stereo mode, rotating the

Adjust knob will affect both channels in the same

manner.

In Dual Mono mode, pitch-shift is applied to each

channel separately. When pitch programs operate in

Dual Mono mode, rotating the Adjust knob will affect

each channel in a different manner. Sometimes one

channel may seem to experience no effect at all.

The mode in which a particular program responds to

pitch-shifting cannot be selected. The tables that begin

below list each pitch program along with its assigned

mode of operation.

Pitch VARIATIONs

1 Semi-tone Shift Stereo

2 Glide Shifter Stereo

3 ±100 cents Stereo

4 Minor 3rd to 4th Harmony Stereo

5 4th/5th Harmony Stereo

6 5th/6th Harmony Stereo

7 2nd Inversion Triad Dual Mono

8 Power Chords Dual Mono

For more information about Pitch VARIATIONs, see page 4-14.

Program Descriptions

MPX 110

4-37

Pitch-Delay VARIATIONs

1 5th Up/Down - Stereo 1/4 Note Stereo

2 Octave Up/Down - Triplet Shuffle Stereo

3 Octave Up/Down - Eighth and Triple Stereo

4 3rd Up/4th Up - Ping Pong 1/4 Note Stereo

5 4th Up/5th Up - Triplet Rhythm 1 Stereo

6 5th Up/6th Up - Triplet Rhythm 2 Stereo

7 Octave Up/Down > Triplet Rhythm 1 Stereo

8 5th Up/Down > Stereo 1/4 Note Stereo

9 Major/Minor Dual Mono

10 Intervals Up Dual Mono

11 5th Up/Down + Stereo 1/4 Note Stereo

12 Octave Up/Down + Triplet Shuffle Stereo

13 4th Up/5th Up + Triplet Rhythm 1 Stereo

14 5th Up/6th Up + Triplet Rhythm 2 Stereo

15 Octave Up/Down / Mono 1/4 Note Dual Mono

16 Octave Up/Down / Triplet Shuffle Dual Mono

For more information about Pitch-Delay VARIATIONs, see page 4-24.

Pitch-Reverb VARIATIONs

1 Minor 3rd to 4th - Room Stereo

2 4th to 5th - Room Stereo

3 5th to 6th - Room Stereo

4 ±1 Octave - Medium Space Stereo

5 Power Chords - Medium Space Dual Mono

6 Manual Detune - Room Dual Mono

7 ±100 > Small Space Stereo

8 Power Chords > Large Space Dual Mono

9 4ths > Medium Space Dual Mono

10 Octaves > Medium Space Dual Mono

11 4th to 5th + Room Stereo

12 5th to 6th + Room Stereo

13 4ths + Large Space Dual Mono

14 Octaves + Medium Space Dual Mono

15 Octaves / Medium Space Dual Mono

16 4ths / Large Space Dual Mono

For more information about Pitch-Reverb VARIATIONs, see page 4-32.

Program Descriptions Lexicon

4-38

USER PROGRAMS

When the PROGRAM knob is set to User, VARIATION

knob settings 1 to 16 each select one memory location

available for storing User programs. When shipped, these

locations will contain duplicates of preset programs. The

table at the right lists the factory-default preset stored in

each User memory location.

VARIATION Preset

1 Medium Plate (Plate 2)

2 Straight Gate (Gate 9)

3 Synth Hall (Hall 5)

4 Medium Hall (Hall 6)

5 Percussion 2 (Chamber 13)

6 Small Ambience (Ambience 3)

7 Rehearsal Room (Room 14)

8 Rectified Sine Wave (Tremolo 1)

9 Rotary (Rotary 9)

10 Tap Rotary (Rotary 15)

11 Rich Chorus (Chorus 3)

12 Light Flange: out of phase sweep

(Flange 12)

13 Semi-tone Shift (Pitch 1)

14 FullRange (Detune 12)

15 Triplet Rhythm 2 (Delay, Echo 8)

16 Multi Bounce (Delay, Echo 12)

MIDI Operation

Learn Mode .....................................................................................5-2

Program Load Channel....................................................................5-3

Program Change Messages .............................................................5-4

Loading Programs • Activating Bypass or Tap Functions

Learning Continuous Controllers .....................................................5-6

Clearing Learned Assignments .........................................................5-7

MIDI Clock ......................................................................................5-8

MIDI Dumps....................................................................................5-8

MIDI Sysex Messages.......................................................................5-9

Permanent Patches ..........................................................................5-9

MIDI Implementation Chart...........................................................5-12

MIDI Operation Lexicon

5-2

LEARN MODE

Learn Mode enables the MPX 110 to “learn” MIDI Program Change and

Continuous Controller messages. To activate and deactivate Learn Mode, press

the Store and Tap buttons simultaneously. The Store LED will flash slowly and the

Tap LED will light to indicate that Learn Mode is active.

The unit supports five learned patches for the front panel Mix, Effects Lvl/Bal,

Adjust, Bypass, and Tap controls. Program Change messages 0 to 15 are reserved

for executing program loads. The Program Load function can also be assigned to

a separate MIDI channel (see page 5-3).

These controls can be

patched to Continuous

Controller messages.

These controls can also

be patched to Program

Change messages.

Program Change messages can

be used to load programs.

Simultaneously press the

Store and Tap buttons to

activate and deactivate

Learn Mode.

MIDI Operation

MPX 110

5-3

PROGRAM LOAD CHANNEL

The MPX 110 is designed to have one MIDI channel

dedicated to loading programs, called the Program Load

MIDI Channel. This allows Program Change messages to

load programs.

The Program Load channel can be the same channel that

is used to receive other Program Change messages for

Learned Patches. However, numbers 0 to 15 will always

load the 16 variations of the selected program. Program

Change messages 0 to 15 will be ignored on all other

MIDI channels.

MIDI channel 1 is the default Program Load Channel. To

assign this function to a different channel:

1. Simultaneously press the Store and Tap buttons

to activate Learn Mode. The Store LED will flash

slowly and the Tap LED will light to indicate that

Learn Mode is active.

2. Send a Program Change message to the unit. The

Edit LED will flash to indicate incoming MIDI activity.

3. The unit learns the MIDI channel of the transmitting

device, and reassigns the Program Load function to

that channel.

4. Simultaneously press the Store and Tap buttons

to deactivate Learn Mode.

The unit will remember the Program Load Channel

assignment until the Program Load Channel is

reassigned using the same procedure.

MIDI Operation Lexicon

5-4

PROGRAM CHANGE MESSAGES

LOADING PROGRAMS

Standard MIDI Program Change messages can be used

to load all 240 preset and 16 User programs. The unit

conforms to the use of MIDI Continuous Controller 32 to

execute Bank Select messages. For purposes of this

section, each PROGRAM knob setting selects a “bank” of

16 programs. These banks are numbered as shown in the

table at the right.

When a standard MIDI Program Change message is sent

to the unit on its Program Load channel, Program

Change messages 0 to 15 will load program variations 1

to 16 from the selected program bank. When a Bank

Select message is sent to the unit with Continuous

Controller 32 before the Program Change message, any

one of the 256 programs can be loaded.

For example, the PROGRAM knob is set to Plate, Gate:

• Sending Program Change 1 will load the first Plate

program.

• Sending Controller 32 with a value of 0 followed by

Program Change 1 will load the first program in the

User bank.

• Sending Controller 32 with a value of 1 followed by

Program Change 2 will load the second program in

the Flange-Delay bank.

• Sending Controller 32 with a value of 8 followed by

Program Change 15 will load the last Gate program

in the Plate, Gate bank.

Once a bank is selected with the PROGRAM knob, all

subsequent Program Change messages will select

MPX 110 Program Banks

0 User

1 Flange-Delay

2 Pitch-Delay

3 Chorus-Delay

4 Delay-Reverb

5 Flange-Reverb

6 Pitch-Reverb

7 Chorus-Reverb

8 Plate, Gate

9 Hall, Chamber

10 Ambience, Room

11 Tremolo, Rotary

12 Chorus, Flange

13 Pitch, Detune

14 Delay, Echo

15 Special FX

MIDI Operation

MPX 110

5-5

programs within that bank until a new value for

Controller 32 is received, or until the PROGRAM or

VARIATION knobs are adjusted.

MIDI Program Change messages can be disabled in

System Mode with the MIDI Pgm Change parameter

(see page 3-4 for more information).

ACTIVATING BYPASS OR TAP FUNCTIONS

The unit can recognize MIDI Program Change messages

16 to 127 (17 to 128 on some MIDI devices) on any

channels.

To assign a Program Change message to the Bypass or

Tap controls:

1. Simultaneously press the Store and Tap buttons

to activate Learn mode. The Store LED will flash

slowly and the Tap LED will light to indicate that

Learn Mode is active.

2. Press the desired front panel button - Bypass or Tap.

3. Send a MIDI Program Change message to the MPX

110. The Edit LED will flash to indicate incoming

MIDI activity.

4. Press the Store button to commit the assignment.

The Store LED will flash repeatedly.

5. Simultaneously press the Store and Tap buttons

to deactivate Learn Mode.

Some MIDI controllers do not allow repeated Program

Change messages to be sent with a single button. To

assist these controllers, the unit also recognizes the next

highest Program Change message with each Program

Change message it learns for Bypass and Tap. For

instance, if Program Change 20 is learned as the source

for Bypass, Program Change 21 will also control Bypass

functions. To avoid conflicting Bypass and Tap

assignments, leave a space between the assignments of

these two buttons. For instance, if Program Change 20 is

learned for Bypass, remember that 21 will also be

learned. Skip to Program Change 22 (and consequently

23) for Tap.

MIDI Operation Lexicon

5-6

LEARNING CONTINUOUS CONTROLLERS

The unit recognizes Pitch Bend, AfterTouch, and MIDI

Continuous Controllers 1 to 31 and 33 to 119.

To learn a Continuous Controller:

1. Simultaneously press the Store and Tap buttons

to activate Learn mode. The Store LED will flash

slowly and the Tap LED will light to indicate that

Learn Mode is active.

2. Adjust the desired front panel control - Mix, Effects

Lvl/Bal, Adjust, Bypass, or Tap - to assign it to the

controller.

3. Move the MIDI controller through its full range. To

utilize a portion of the controller range, limit this

movement to the desired range. The Edit LED will

flash to indicate incoming MIDI activity.

4. Press the Store button to commit to the assignment.

The Store LED will flash quickly.

5. To assign another front panel control, repeat steps 2

to 4.

6. Simultaneously press the Store and Tap buttons

to deactivate Learn Mode.

Note:

When a MIDI controller has been assigned to the

Bypass control, moving the controller above the

mid-point of its learned range engages Bypass.

Moving the controller below the mid-point range

disengages Bypass. When a MIDI controller has

been assigned to the Tap control, moving the

controller above the mid-point of its learned range

will “tap” the control as if the Tap button had been

pressed.

MIDI Operation

MPX 110

5-7

CLEARING LEARNED ASSIGNMENTS

To clear a learned assignment:

1. Simultaneously press the Store and Tap buttons

to activate Learn mode. The Store LED will flash

slowly and the Tap LED will light to indicate that

Learn Mode is active.

2. Adjust the desired front panel control - Mix, Effects

Lvl/Bal, Adjust, Bypass, or Tap.

Note:

Be careful that any attached MIDI device (such as

a footpedal) does not accidentally send any

learnable message. If it does, that will be learned

as a new patch.

3. Press Store to clear the assignment. The Store LED

will flash quickly.

4. To clear another front panel assignment, repeat steps

2 and 3.

5. Simultaneously press the Store and Tap buttons

to deactivate Learn Mode.

Learnable Front Panel Controls

and Assignable MIDI Sources

Front Panel Controllers Pgm Change

Control 1 to 31, 33 to 119 100 to 127 *

Mix Yes No

Effects Lvl/Bal Yes No

Adjust Yes No

Bypass Yes Yes

Tap Yes Yes

* Program Change numbers 0 to 15 will be ignored, except on the

MIDI channel assigned the Program Load function.

MIDI Operation Lexicon

5-8

MIDI CLOCK

The unit can use MIDI Clock messages to apply tempo

(40 to 400bpm) to programs that use the Tap Tempo

feature. Connect a MIDI device that outputs MIDI Clock,

such as the MPX R1 foot controller or a MIDI sequencer,

to the MPX 110 MIDI IN connector. The unit will

automatically recognize and begin to process MIDI Clock

messages. When the tempo of the connected device

changes, the unit will automatically adjust its delay times

and modulation rates to match the new tempo.

This feature can be disabled with the MIDI Clock Receive

parameter in System Mode (see page 3-5).

MIDI DUMPS

MIDI Dumps can be used to save the 16 User programs,

the currently active program, or the System Mode

settings and Learned Patch assignments to a storage

device (typically a MIDI sequencer). MIDI Dumps are

performed in System Mode.

To perform a MIDI Dump:

1. Press and hold the Bypass button for 2 seconds. The

Bypass and Store LEDs will blink to indicate that

System Mode is active.

2. Set the VARIATION knob to 14 to dump the User

programs; 15 to dump the currently active (or

loaded) program; or 16 to dump the System Mode

settings and Learned Patch assignments.

3. Press Store to execute the dump.

4. Press Bypass to deactivate System Mode.

MIDI Operation

MPX 110

5-9

MIDI SYSEX MESSAGES

MIDI Sysex messages can be used to access all algorithm

parameters. More information about using this advanced

feature with the MPX 110 and other Lexicon products is

available at www.lexicon.com. The website offers

instructions, sample messages, and a complete table of

parameter Sysex addresses.

Note:

Executing MIDI Sysex messages is a complicated

process. Please observe the cautionary notes

included on the website.

PERMANENT PATCHES

The MPX 110 recognizes permanent, non-learnable

MIDI patches to provide additional MIDI control.

Permanent patches connect designated Continuous

Controllers to specific audio parameters that are not

accessible on the front panel. Permanent Patches for

each algorithm are shown on pages 5-10 and 5-11.

The unit recognizes Permanent Patches on the current

Program Load Channel only. To use a permanently

patched controller for a Learned Patch, make the unit

learn that patch on a different channel. If a controller is

used for both a Permanent and Learned Patch on the

same channel, the result will be unpredictable.

Some patched parameters are also controlled with the

Adjust knob. In these cases, either control will function

and will override adjustments made by the other.

Note:

Permanent Patches will be disabled when the System

Mode parameter MIDI Patching is set to Disabled.

No. Plate Gate Hall Chamber Ambience Room Tremolo Rotary Chorus Flange

1 Decay Duration Decay Decay DecayTime Decay Rate MstrRate KorRate1 FlgRate

2 PreDelay PreDelay PreDelay PreDelay PreDelay PreDelay Depth MstrDepth KorRate2 FlgDepth

3 RTHiCut LowSlope RTHiCut RTHiCut RTHiCut RTHiCut Phase Resnce1 KorDepth1 FlgResnce

4 Bassmult HighSlope Bassmult Bassmult DecayLvl Bassmult Waveform Resnce2 KorDepth2 FlgBlend

5 Bassxover Crossover Bassxover Bassxover – Bassxover – Width KorResnce1 –

6 – RTHiCut – – – – – – KorResnce2 –

7 Rolloff Rolloff Rolloff Rolloff Rolloff Rolloff Rolloff Rolloff KorSpread Rolloff

8 – – – – – – – – Rolloff –

CC Special FX VARIATION 5:

No. Rotary Delay

1 MstrRate

2 MstrDepth

3 Resnce1

4 Resnce2

5 Width

6 MstrDly

7 RTHiCut

8 DlyHiCut

MIDI Operation Lexicon

5-10

Permanent Patches (continued)

MIDI Operation

MPX 110

5-11

CC Delay, Flange- Pitch- Chorus- Delay- Flange- Pitch- Chorus-

No. Pitch Detune Echo Delay Delay Delay Reverb Reverb Reverb Reverb

1 Interval2 Detune1 MstrDly FlgRate Decay KorRate1 Decay Decay Decay Decay

2 Pitch2 Detune2 MstrFbk FlgDepth PreDelay KorRate2 PreDelay PreDelay PreDelay PreDelay

3 Interval1 – MstrXFbk FlgResnce RTHiCut KorDepth1 RTHiCut RTHiCut RTHiCut RTHiCut

4 Pitch1 – RTHiCut FlgBlend Bassmult KorDepth2 Bassmult Bassmult Bassmult Bassmult

5 Feedback2 – DlyLeft1 DMstrDly Bassxover KorResnce1 Bassxover Bassxover Bassxover Bassxover

6 Feedback1 – DlyLeft2 DMstrFbk – KorResnce2 – – – –

7 Rolloff Rolloff DlyLeft3 FlgHiCut RvbHiCut KorSpread RvbHiCut RvbHiCut RvbHiCut RvbHiCut

8 – – Rolloff DlyHiCut PchHiCut KorHiCut DlyHiCut FlgHiCut PchHiCut KorHiCut

9 – – LvlLeft1 – – MstrDly – – – –

10 – – LvlLeft2 – – MstrFbk – – – –

11 – – LvlLeft3 – – DlyHiCut – – – –

12 – – DlyRight1 – – – – – – –

13 – – DlyRight2 – – – – – – –

14 – – DlyRight3 – – – – – – –

15 – – LvlRight1 – – – – – – –

16 – – LvlRight2 – – – – – – –

17 – – LvlRight3 – – – – – – –

MIDI Operation Lexicon

5-12

Function Transmitted Recognized Remarks

Basic Default X 1 Learned

Channel Channel X 1-16

Mode Default Mode 2

Messages X X

Altered X

Note X X

Number True Voice

Velocity Note ON X X (Off=9, v=0)

Note OFF X X

After Keys X X Used as controller

Touch Channels X OX Learned

Pitch X OX Used as controller

Blender Learned

Control X OX 1 to 119 (0 to 32 used as Bank Select)

Change Learned

MIDI IMPLEMENTATION CHART

MIDI Operation

MPX 110

5-13

Function Transmitted Recognized Remarks

Program X 0 to 15 = 1 to 16 16 to 127 ignored; Program Change

Change True # messages 1 to 15 = Program Change

messages 1 to 16 for selected

Bank Select X X program bank

System Lexicon O O Product ID = 14 (decimal)

Exclusive Real Time X X Device ID = MIDI Channel 0 to15 =

non-Real Time X X 1 to 16

System :Song Pos X X

:Song Sel X X

Common :Tune X X

System :Clock X O

Real Time :Commands X X

Aux :Local ON/OFF X X

Messages :All Notes OFF X X

:Active Sense

:Reset X X

Mode 1: OMNI ON, POLY Mode 2: OMNI ON, MONO O: Yes

Mode 3: OMNI OFF, POLY Mode 4: OMNI OFF, MONO X: No

OX: Selectable

Appendix

Specifications...................................................................................A-2

Declaration of Conformity ...............................................................A-3

Appendix Lexicon

A-2

Audio Inputs (2)

Level -30dBu to +4dBu

Impedance 500K unbalanced

1/4-inch connectors for

direct instrument input

(unit detects a mono

input on the right

input)

Audio Outputs (2)

Level +8dBu typical

Impedance 75Ω1/4-inch

connectors for

headphone output

(right used for mono

output; left used for

stereo headphones)

Digital Audio Output

Connector 24-bit digital S/PDIF

output (always active)

Coaxial RCA

Sample Rate 44.1kHz

Footswitch

Tip/Ring/Sleeve phone jack for Bypass

and Tap (optional)

Frequency Response

Wet/Dry 20Hz-20kHz, ±1dB

THD+N

<0.05%, 20Hz-20kHz

Dynamic Range

A/A >95dB typical,

20Hz-20kHz,

unweighted

A/D >100dB typical,

20Hz-20kHz,

unweighted

Conversion 24-bits analog-to-digital,

24-bits digital-to-analog,

44.1kHz sample rate

Crosstalk >45dB

Internal Audio Data Path

DSP 24-bit

Power Requirements

9VAC wall transformer provided in North

America and Europe

No-transformer option available

Dimensions

Width 19 inches (483mm)

Height 1.75 inches (45mm)

Depth 4 inches (102mm)

Weight

2 pounds, 2 ounces (0.959kg)

Environment

Operating 32 to 104°F (0 to 40°C)

Temperature

Relative 95% Non-condensing

Humidity

Specifications are subject to change without notice.

SPECIFICATIONS

Appendix

MPX 110

A-3

DECLARATION OF CONFORMITY

Application of Council Directive(s): 89/336/EEC and 93/68/EEC

Standard(s) to which Conformity is Declared: EN 55103-1 and EN 55103-2

Manufacturer: Lexicon, Inc., 3 Oak Park, Bedford, MA 01730-1441 USA

The equipment identified here conforms to the Directive(s) and

Standard(s) specified above.

Type of Equipment: Dual Channel Processor

Model: Lexicon MPX 110

Date: February 2002

Lexicon, Inc.

Vice President of Engineering

3 Oak Park

Bedford, MA 01730-1441 USA

Tel: 781-280-0300

Fax: 781-280-0490

Index

Adjust Knob . . . . . . . .1-5, 2-2, 2-4, 5-2, 5-7

Ambience Programs . . . . . . . . . . .4-6, 5-10

ANALOG INPUTs . . . . . . . . . . . . . . . . . .1-7

ANALOG OUTPUTs . . . . . . . . . . . . . . . .1-7

Appendix . . . . . . . . . . . . . . . . . .A-1 to A-3

Audio Tap . . . . . . . . . . . . . . . . . . . . . . .2-5

Bank Select Messages . . . . . . . . . . . . . . .5-4

Basic Operation . . . . . . . . . . . . . .2-1 to 2-6

Bypass Button . . .1-5, 2-6, 3-2, 5-2, 5-5, 5-7

Bypass Functions . . . . . . . . . . . . . . . . . .2-6

Bypass Parameter* . . . . . . . . . . . . . . . . .3-4

Cascade Configuration . . . . . . . .4-20, 4-21

CD-ROM, About the . . . . . . . . . . . . .iv to ix

CD-ROM Dry Tracks . . . . . . . . . .Back Cover

Chamber Programs . . . . . . . . . . . .4-5, 5-10

Chorus Programs . . . . . . . . . . . .4-12, 5-10

Chorus-Delay Programs . .4-26 to 4-27, 5-11

Chorus-Reverb Programs . .4-34 to 4-35, 5-11

Clearing Learned Assignments . . . . . . . .5-7

Clip LEDs . . . . . . . . . . . . . . . . . . . . . . . .1-4

Configuration, Routing . . . . . . . . . . . . .4-20

Connecting the Unit . . . . . . . . . .1-8 to 1-9

Connectors . . . . . . . . . . . . . . . . .1-6 to 1-7

Continuous Controllers . . . . . . . . . . . . .5-6

Declaration of Conformity . . . . . . . . . . .A-3

Delay, Echo Programs . . . . . . . .4-16 to 4-17

Delay-Reverb Programs . .4-28 to 4-29, 5-11

Detune Programs . . . . . . . . . . . .4-15, 5-11

Digital Output Parameter* . . . . . . . . . . .3-4

Dry Tracks, CD-ROM . . . . . . . . . .Back Cover

Dual-Function Footswitch . . . . . . . . . . . .1-8

Dual Mono Configuration . . . . . . . . . . .4-20

Dual Mono Pitch Programs . . . .4-36 to 4-37

DUAL Programs . . . . . . . .2-3, 4-20 to 4-35

Dump Selected Program* . . . . . . . . . . . .3-5

Dual Stereo (Parallel) Configuration . . . .4-20

Dump System and Learned Patches* . . . .3-5

Dump User Programs* . . . . . . . . . . . . . .3-5

Edit LED . . . . . . . . . . . . . . . . .1-5, 3-2, 3-3

Editing Programs . . . . . . . . . . . . . . . . . .2-4

Effects Lvl/Bal Knob . .1-5, 2-4, 4-21, 5-2, 5-7

Factory-Default Settings, Restoring . . . .1-11

Flange Programs . . . . . . . . . . . . .4-13, 5-10

Flange-Delay Programs . .4-22 to 4-23, 5-11

Flange-Reverb Programs . .4-30 to 4-31, 5-11

Footswitch Connector . . . . . . . . . . . . . .1-6

Footswitch, Connecting a . . . . . . . . . . . .1-8

Front Panel . . . . . . . . . . . . . .1-4 to 1-5, 5-2

Gate Programs . . . . . . . . . . . . . . .4-3, 5-10

Getting Started . . . . . . . . . . . . .1-1 to 1-11

Global Tempo . . . . . . . . . . . . . . . . . . . .2-6

Hall Programs . . . . . . . . . . . . . . . .4-4, 5-10

Headphones, Connecting . . . . . . . . . . . .1-8

Input Knob . . . . . . . . . . . . . . . . . . . . . .1-4

* Indicates System Mode Parameters and Functions.

Index Lexicon

I-2

Inputs . . . . . . . . . . . . . . . . . . . .1-6 to 1-7

Inspection . . . . . . . . . . . . . . . . . . .iv to ix

Introduction . . . . . . . . . . . . . . . . . .i to ix

Learn Mode . . . . . . . . . . . . . . . . . . . .5-2

Learned Assignments, Clearing . . . . . . .5-7

LEFT INPUT . . . . . . . . . . . . . . . . . . . . .1-7

LEFT (PHONES) OUTPUT . . . . . . . . . . .1-7

Level LEDs . . . . . . . . . . . . . . . . . . . . . .1-4

Limited Warranty . . . . . .Inside Back Cover

Loading Programs . . . . . . .2-2 to 2-3, 5-4

MIDI Bank Select Messages . . . . . . . . .5-4

MIDI Clock . . . . . . . . . . . . . . . . . . . . .5-8

MIDI Clock Receive Parameter* . . . . . .3-5

MIDI Continuous Controllers . . . . .5-2, 5-6

MIDI Dumps . . . . . . . . .3-2, 3-3, 3-5, 5-8

MIDI Implementation Chart . .5-12 to 5-13

MIDI IN Connector . . . . . . . . . . . . . . .1-7

MIDI Learn Mode . . . . . . . . . . . . . . . .5-2

MIDI Learned Assignments, Clearing . .5-7

MIDI Operation . . . . . . . . . . . .5-1 to 5-11

MIDI OUT/THRU Connector . . . . . . . . .1-7

MIDI OUT/THRU Parameter* . . . . . . . .3-4

MIDI Patching Parameter* . . . . . . . . . .3-4

MIDI Permanent Patches . . . . .5-9 to 5-11

MIDI Pgm Change Parameter* . . . . . . .3-4

MIDI Program Bank Numbers . . . . . . .5-4

MIDI Program Change Messages . . . . .5-2,

5-4 to 5-5

MIDI Program Load Channel . . . . . . . .5-3

MIDI Sysex Messages . . . . . . . . . . . . . .5-9

Mix Knob . . . . . . . . . . . . . . .1-4, 5-2, 5-7

Mono Input . . . . . . . . . . . . . . . . .1-7, 1-8

Mono Output . . . . . . . . . . . . . . . .1-7, 1-8

Mono Split Configuration . . . . . . . . .4-20

MPX 110, About the . . . . . . . . .1-2 to 1-3

Output Knob . . . . . . . . . . . . . . . . . . . .1-5

Outputs . . . . . . . . . . . . . . . . . .1-6 to 1-7

Parallel Configuration . . . . . . . . . . . .4-20

Permanent Patches . . . . . . . . .5-9 to 5-11

Pitch Programs . .4-14, 4-36 to 4-37, 5-11

Pitch-Delay Programs . .4-21, 4-24 to 4-25,

4-36 to 4-37, 5-11

Pitch-Reverb Programs . . . . .4-32 to 4-33,

4-36 to 4-37, 5-11

Pitch Shifting . . . . . . . . . . . . .4-36 to 4-37

Plate Programs . . . . . . . . . . . . . .4-2, 5-10

POWER Switch . . . . . . . . . . . . . . . . . .1-6

Product Registration . . . . . . . . .Back Cover

Program Bank Numbers . . . . . . . . . . . .5-4

Program Change Messages . .5-2, 5-4 to 5-5

PROGRAM Knob . . . . . . . . .1-5, 2-2 to 2-3

Program Load Channel . . . . . . . . . . . .5-3

Program Load Parameter* . . . . . . . . . .3-4

Rear Panel . . . . . . . . . . . . . . . . .1-6 to 1-7

Registration . . . . . . . . . . . . . . .Back Cover

Reinitialization . . . . . . . . . . . . . . . . . .1-11

Restoring Factory-Default Settings . . .1-11

Rhythm, Varying . . . . . . . . . . . . . . . . .2-5

RIGHT (MONO) INPUT . . . . . . . . . . . .1-7

RIGHT (MONO) OUTPUT . . . . . . . . . . .1-7

Room Programs . . . . . . . . . . . . .4-7, 5-10

Rotary Programs . . . . . .4-10 to 4-11, 5-10

Routing Configuration . . . . . . . . . . . .4-20

Safety Instructions . . . . .Inside Front Cover

Selecting Programs . . . . . . . . . .2-2 to 2-3

Setting Audio Levels . . . . . . . . . . . . .1-10

SINGLE Programs . .2-2 to 2-3, 4-2 to 4-17

Special FX Programs . . . .2-3, 4-18 to 4-19

Specifications . . . . . . . . . . . . . . . . . . .A-2

S/PDIF OUT Connector . . . . . . . . . . . .1-7

Stereo Pitch Programs . . . . . .4-36 to 4-37

Store Button . . . . . . . . . .1-5, 2-4, 3-2, 5-2

Storing Programs . . . . . . . . . . . . . . . .2-4

Sysex Messages . . . . . . . . . . . . . . . . . .5-9

System Mode . . . . . . . . . . . . . .3-1 to 3-5

System Mode Functions . . . . . . . .3-3, 3-5

* Indicates System Mode Parameters and Functions.

Index

MPX 110

I-3

System Mode Parameters . . . . . .3-3 to 3-5

Table of Contents . . . . . . . . . . . . . .ii to iii

Tap Button . . . .1-5, 2-5, 3-2, 5-2, 5-5, 5-7

Tap Tempo . . . . . . . . . . . . . . . .2-5 to 2-6

Tempo Parameter* . . . . . . . . . . . . . . . .3-5

Tremolo Programs . . . . . .4-8 to 4-9, 5-10

Unpacking Instructions . . . . . . . . . .iv to ix

User Information . . . . . . . . . . . . . .iv to ix

User Programs . . . . . . . . . . . . . .2-3, 4-38

VARIATION Knob . . . . .1-5, 2-2 to 2-3, 3-2

Varying Rhythm . . . . . . . . . . . . . . . . . .2-5

Warranty . . . . . . . . . . . .Inside Back Cover

* Indicates System Mode Parameters and Functions.

Notes

MPX 110

Notes Lexicon

LIMITED WARRANTY

Lexicon, Inc. offers the following warranty on this product:

What is the Duration of this Warranty?

This warranty will remain in effect for one (1) year from the original date of

purchase.

Who is Covered?

This warranty may be enforced by the original purchaser and subsequent

owners during the warranty period, provided the original dated sales receipt

or other proof of warranty coverage is presented at time of service.

What is Covered?

This warranty covers all defects in material and workmanship on this product,

except as specified below. The following are not covered:

1. Damage resulting from

A. Accident, misuse, abuse, or neglect.

B. Failure to follow instructions contained in the User Guide.

C. Repair or attempted repair unauthorized by Lexicon, Inc.

D. Failure to perform recommended periodic maintenance.

E. Causes other than product defects, including lack of skill,

competence, or experience on the part of the owner.

2. Damage occurring during any shipment of this product. Claims for

shipping damages must be made with the carrier.

3. Damage to a unit that has been altered, or on which the serial number

has been defaced, modified, or removed.

What Expenses will Lexicon, Inc. Assume?

Lexicon, Inc. will pay all labor and material expenses for covered items.

Payment of shipping charges is discussed in the next section of the warranty.

How is Service Obtained?

When this product needs service, write, telephone, or fax Lexicon, Inc. to

request information about where the unit should be taken or sent. When

making a written request, please include your name, complete address, and

daytime telephone number; the product model and serial numbers; and a

description of the problem. Do not return the unit to Lexicon, Inc. without

prior authorization.

When Shipping a Product for Service . . .

1. Pay any initial shipping charges, which are the responsibility of the

owner. If necessary repairs are covered by this warranty, Lexicon, Inc. will

pay return shipping charges to any destination in the United States using

the carrier of our choice.

2. Pack the unit securely. Package insurance is strongly recommended.

3. Include a copy of the original dated sales receipt. (A copy of the original

dated sales receipt must be presented when warranty service is required.)

4. Do not include accessories such as power cords or user guides unless

instructed to do so.

What are the Limitations of Implied Warranties?

Any implied warranties, including warranties of merchantability and fitness for

a particular purpose, are limited in duration to the length of this warranty.

What Certain Damages are Excluded?

Lexicon’s liability for a defective product is limited to repair or replacement of

that product, at our option. Lexicon, Inc. shall not be liable for damages

based on inconvenience; loss of use of the product; loss of time; interrupted

operation; commercial loss; or any other damages, whether incidental,

consequential, or otherwise.

How do State Laws Relate to this Warranty?

Some states do not allow limitations on the duration of implied warranties

and/or the exclusion or limitation of incidental or consequential damages. As

such, the above limitations may not apply. This warranty is not enforceable

outside of North America. This warranty provides specific legal rights.

Additional rights may be provided by some states.

A Harman International Company

Lexicon, Inc

3 Oak Park

Bedford, MA 01730-1441

USA

Tel 781-280-0300

Fax..781-280-0490

www.lexicon.com

Customer Support

Tel 781-280-0300

Fax..781-280-0495 (Sales)

Fax..781-280-0499 (Service)

A Harman International Company

Lexicon Part No. 070-14956 | Rev 1 | 02/02

Lexicon, Inc.

3 Oak Park

Bedford, MA 01730-1441

USA

Tel 781-280-0300

Fax 781-280-0490

www.lexicon.com

Customer Support

Tel 781-280-0300

Fax 781-280-0495 (Sales)

Fax 781-280-0499 (Service)

Percussion

2 Bass Drum . . . . . . . . . . . . . . . . . . . . . .(0:30)

3 Snare Drum 1 . . . . . . . . . . . . . . . . . . .(0:46)

4 Snare Drum 2 . . . . . . . . . . . . . . . . . . .(0:38)

5 Stick . . . . . . . . . . . . . . . . . . . . . . . . . .(0:38)

6 Shaker . . . . . . . . . . . . . . . . . . . . . . . .(0:39)

7 Claps . . . . . . . . . . . . . . . . . . . . . . . . .(0:41)

8 Conga . . . . . . . . . . . . . . . . . . . . . . . .(0:48)

9 Table & Udo . . . . . . . . . . . . . . . . . . . .(0:54)

10 Percussion 1 . . . . . . . . . . . . . . . . . . . .(1:00)

11 Percussion 2 . . . . . . . . . . . . . . . . . . . .(1:23)

12 Open Drum Kit . . . . . . . . . . . . . . . . . .(1:16)

13 Funk Drum Kit . . . . . . . . . . . . . . . . . . .(1:08)

14 Fusion Drums & Bass . . . . . . . . . . . . . .(0:33)

15 Funk Drums & Bass . . . . . . . . . . . . . . .(0:33)

16 Fusion Drums & Bass . . . . . . . . . . . . . .(1:18)

17 Broadband Click . . . . . . . . . . . . . . . . .(0:38)

18 Narrowband Click . . . . . . . . . . . . . . . .(0:38)

Guitar

19 Acoustic Chords 1 . . . . . . . . . . . . . . . .(0:59)

20 Acoustic Chords 2 . . . . . . . . . . . . . . . .(2:13)

21 Acoustic Chords 3 . . . . . . . . . . . . . . . .(1:12)

22 Acoustic Leads . . . . . . . . . . . . . . . . . . .(0:41)

23 Acoustic Stops . . . . . . . . . . . . . . . . . . .(0:36)

24 Electric Solo . . . . . . . . . . . . . . . . . . . .(0:44)

25 Electric Clean & Fast . . . . . . . . . . . . . .(0:32)

26 Electric Dirty . . . . . . . . . . . . . . . . . . . .(1:24)

27 Electric Crunch . . . . . . . . . . . . . . . . . .(0:38)

Bass

28 Slap (120 bpm) . . . . . . . . . . . . . . . . . .(1:29)

29 Fingered (120 bpm) . . . . . . . . . . . . . .(0:49)

Do not play Track 1 on an audio

CD player. It contains the computer

portion of the disc and will emit full-

scale digital noise.

Dry Tracks

This card lists the dry tracks included on the CD-ROM enclosed with this user guide.

A Harman International Company

WARNING

Voice

30 Female Vocal 1 . . . . . . . . . . . . . . . . . .(0:43)

31 Female Vocal 2 . . . . . . . . . . . . . . . . . .(0:56)

32 Female Vocal 3 . . . . . . . . . . . . . . . . . .(0:20)

33 Male Vocal 1 . . . . . . . . . . . . . . . . . . . .(1:20)

34 Male Vocal 2 . . . . . . . . . . . . . . . . . . . .(0:21)

35 Vocal Group 1 . . . . . . . . . . . . . . . . . . .(0:26)

36 Vocal Group 2 . . . . . . . . . . . . . . . . . . .(0:28)

Keyboard

37 Hammond 1 . . . . . . . . . . . . . . . . . . . .(0:12)

38 Hammond 2 . . . . . . . . . . . . . . . . . . . .(0:07)

39 Rhodes . . . . . . . . . . . . . . . . . . . . . . . .(0:59)

Horns

40 Horn Section 1 . . . . . . . . . . . . . . . . . .(1:23)

41 Horn Section 2 . . . . . . . . . . . . . . . . . .(1:36)

42 Sax Solo . . . . . . . . . . . . . . . . . . . . . . .(0:30)

43 Tenor Sax Solo . . . . . . . . . . . . . . . . . . .(2:21)

Miscellaneous

44 Flute Solo . . . . . . . . . . . . . . . . . . . . . .(0:24)

45 Accordian Solo . . . . . . . . . . . . . . . . . .(0:35)

Dual Mono (Left/Right)

46 Kick/Snare . . . . . . . . . . . . . . . . . . . . . .(0:30)

47 Kick/Bass . . . . . . . . . . . . . . . . . . . . . . .(0:37)

48 African Bell/Slit Drum . . . . . . . . . . . . . .(0:43)

49 Acoustic Guitar/Vocal . . . . . . . . . . . . . .(0:23)

50 Electric Guitar/Vocal . . . . . . . . . . . . . . .(1:31)

51 Church Guitars . . . . . . . . . . . . . . . . . .(0:36)

52 Ms. Pride/Xavier . . . . . . . . . . . . . . . . .(1:04)

Post

53 Ambulance . . . . . . . . . . . . . . . . . . . . .(0:19)

54 Motorcycle . . . . . . . . . . . . . . . . . . . . .(1:08)

55 Street Noise . . . . . . . . . . . . . . . . . . . . .(1:00)

56 Propeller Place . . . . . . . . . . . . . . . . . . .(0:58)

57 Jet Airplane . . . . . . . . . . . . . . . . . . . . .(1:02)

58 Pipe Band . . . . . . . . . . . . . . . . . . . . . .(1:20)

59 TV Music . . . . . . . . . . . . . . . . . . . . . . .(0:18)

60 Monologue . . . . . . . . . . . . . . . . . . . . .(1:06)

TOTAL TIME . . . . . . . . . . . . . . . . . . . . . .(54:31)
