MPX 1

MIDI Implementation Details

Lexicon, Inc. • 3 Oak Park • Bedford MA 01730-1441 • Tel: 617 280-0300 • Fax: 617 280-0490

Lexicon Part No. 070-11835 Printed in U.S.A.

Overview ..................................................................1

Data Formatting ....................................................1

Message Tables ................................................... 2

System Control .....................................................3

Parameter Types.............................................3

Messages ........................................................4

Request •System Configuration

Parameter Description • Parameter

Type • Data Transfer

“Learning” the MPX 1 ...........................................4

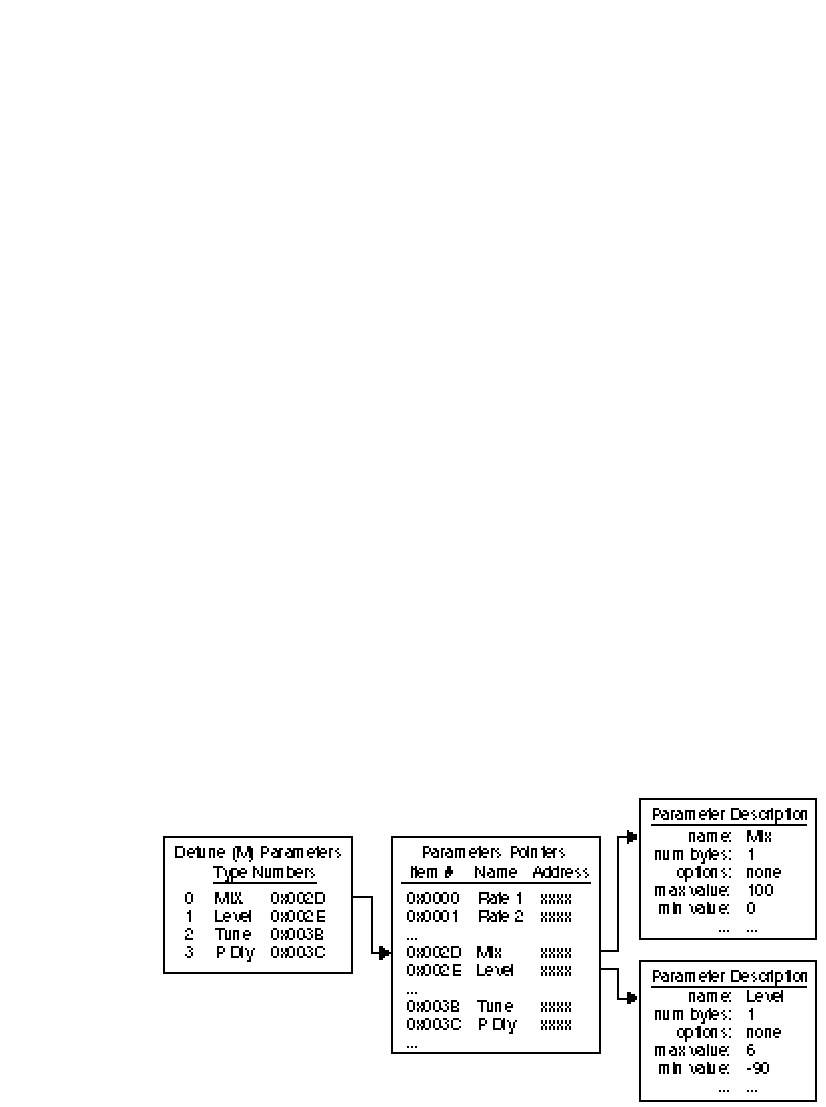

Building a Parameter Description

Database...................................................4

Building the Control Tree ................................5

Using the Information ...........................................7

An MRC-type Controller ..................................7

A Glass Interface Controller ............................9

Device Inquiry..........................................................9

Message Classes ..................................................10

00 System Configuration Message.....................10

Number of Parameter Types .........................11

Bottom Parameters ....................................... 11

01 Parameter Data Message..............................11

02 Parameter Display Message .........................13

03 Parameter Type Message ............................. 14

04 Parameter Description ...................................15

Parameter Type Number...............................15

Number of Parameter Name Characters ......15

Parameter Name ...........................................16

Number of Bytes ...........................................16

Control Flags .................................................16

Options Parameter Type ...............................16

Number of Units/Limits ..................................16

Minimum Value .............................................16

Maximum Value ............................................16

Display Units Type ........................................ 17

Requesting the Parameter Description ......... 17

05 Parameter Label Message ............................ 17

06 Requests .......................................................18

12 Handshaking..................................................19

16 Database Dump.............................................20

18 Report Effect Parameters ..............................21

19 Report All Effect Parameters .........................22

1A Program Information .....................................23

1B Program Dump ..............................................24

Parameter Data .............................................26

LFOs through Envelopes .............................. 28

Contents

Sort Flags ......................................................28

Audio Routing................................................29

Rules .......................................................31

Algorithm Numbers .......................................32

Program Name ..............................................32

Effect Status ..................................................33

Knob Data ..................................................... 33

Patch System Data .......................................33

Soft Values ....................................................35

Tempo ...........................................................35

Tempo Source...............................................36

Beat Value.....................................................36

Tap Source....................................................36

Tap Average..................................................36

Tap Source Level ..........................................36

Meter .............................................................36

Master Level..................................................37

Master Mix.....................................................37

Requesting a Program Dump........................37

1C Compact Program .........................................37

Parameters.............................................................37

Unique Parameters.............................................37

MIDI Speed ................................................... 37

Panel Button Message ..................................37

Rate...............................................................38

Dumps ................................................................39

All LEDs Dump ................................................... 39

Display Dump .....................................................41

Custom Character Bitmap Dump........................41

Setup Dump........................................................42

Global Patches Dump.........................................45

Bypass Controllers Dump ...................................46

Remap Controllers Dump ...................................46

Current Choices Dump .......................................47

Patches Dump ....................................................51

Soft Row Dump ..................................................51

Units ................................................................52

Appendix A: Controller Indeces ..........................53

Master List of Controllers....................................54

Global Patch Controllers.....................................54

Bypass Controllers .............................................55

Appendix B: Display Units ...................................56

Appendix C: Glossary of Terms ..........................57

Appendix D: Known Bugs ....................................58

MPX 1 MIDI Implementation Details

Lexicon

MPX 1

MIDI Implementation Details

ASCII text versions of this document , the MPX 1 Control Tree and MPX 1 Parameter Descriptions are

available on CompuServe under section seven of the MIDI B forum. To access these documents:

• Enter CompuServe, type GO MIDIBVEN

• Select "section seven: Lexicon"

• Enter the Lexicon library

Overview

This document defines the System Exclusive (SysEx) MIDI implementation used in the Lexicon MPX 1,

and assumes familiarity with the functions and operations of the MPX 1.

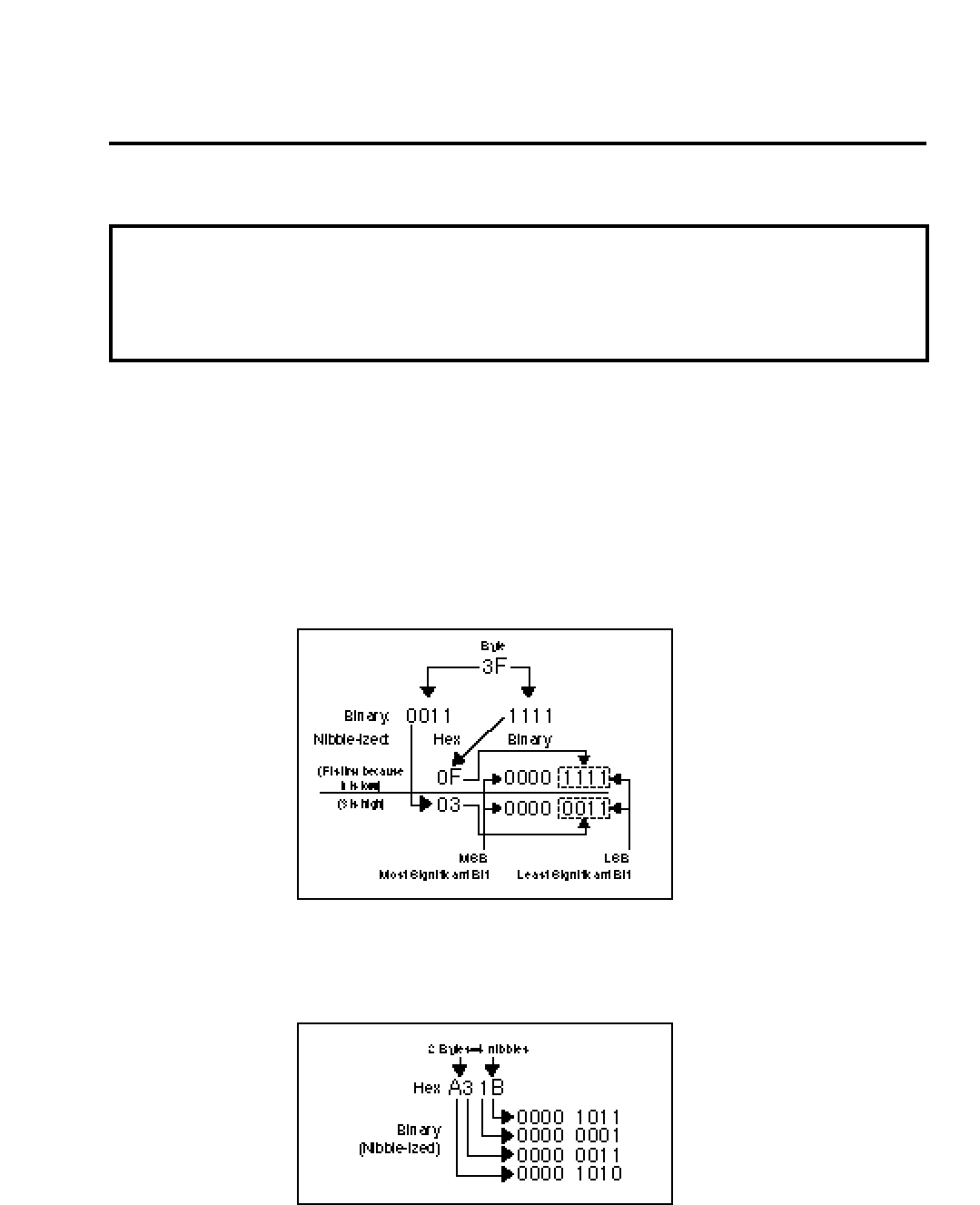

Data Formatting

With the exception of message headers (first 5 bytes) and “end of SysEx” messages (the last byte in the

message), all data is transmitted in a nibble-ized format, i.e. each byte of data is transmitted as a pair of

bytes, with 4 bits of data in each byte.

As in all other cases in the MPX 1, the less-significant portion of the byte is transmitted first. 16-bit "words"

(2 bytes) are sent low nibble of the low byte, followed by high nibble of the low byte, low nibble of the high

byte, then high nibble of the high byte.

LexiconMPX 1 MIDI Implementation Details

Message Tables

Throughout this document, SysEx messages are shown as Message Tables to provide a consistent

method of describing the contents of each message class. The tables are organized into rows of related

groups of bytes and columns containing the attributes of each field. For example, the System Configu-

ration message table is defined as follows:

Transmit only

Byte # Byte Value Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

5 00 System Configuration

6-7 0n Major Version (1 byte) The number that appears to the left of the decimal point on

the power up display. Example: V1.00

8-9 0n Minor Version (1 byte)

The first column indicates the Byte # of a particular field.

The second column indicates the byte value. This value is generally presented in hex, but may also appear

in binary. In some cases the value is a fixed number (for example: Lexicon ID) while others may vary.

Values that can change are represented using a combination of numbers and letters. Binary numbers,

for instance, are represented using a lower case “b” for each variable bit in the value (for example: Device

ID: 0bbb bbbb). The “b”s can represent 1s or 0s. Hex numbers which can use different numbers in the

lower nibble are represented by a lower case “n” which can represent any hex number between 0 and F.

Although only a single “0n” is indicated in the Value column for certain fields, these fields will often consist

of multiple bytes (each of which uses the format: 0n). This is due to nibble-ization, and to the fact that a

single field can describe a group of more than 1 byte (strings, for example). In these cases, the Description

column will generally indicate the number of bytes of un-nibble-ized data contained in the field.

MPX 1 MIDI Implementation Details

Lexicon

System Control

All external control is performed using parameters. These parameters are broken down into a two

dimensional inverted tree not unlike the directory structure of a computer disk. Each controllable

parameter in the system (as well as the system itself) is assigned a specific Control Address that defines

its position in the tree. Each System Control Address is defined by a series of Control Levels. The size

(number of control levels) of a given parameter’s Control Address varies depending on its position. The

following diagram shows a portion of the MPX 1 tree with one full branch. (Letters are used to define

System Control levels.)

The parameter which defines the product itself sits at the top of the tree with, essentially, a null control

address (no control levels).

Control levels ->

ABCDEFGHI

|||||||||

MPX 1

0 - Program

0 - Pitch

0 - Detune (M)

0 - Mix

0-100%

1 - Level

2 - Tune

...

1 - Chorus

0 - Chorus Algorithm

0 - Mix

1 - Level

2 - EQ

...

1 - System

0 - Audio Config

1 - Setup

...

The address of “Program” is A:0, while the address of Detune is A:0, B:0, C:0. Detune’s “Level” is A:0,

B:0, C:0, D:1 and Detune’s “Tune” is A:0, B:0, C:0, D:2. The address of the Chorus Algorithm’s “Level”

is A:0, B:1, C:0, D:1 while “Audio Config” would be at A:1, B:0. The number of control levels increases as

you move to the right in the tree. Each control address in the system that contains a parameter is refered

to as a “node”.

Note that the Control Address is used to identify a specific parameter — including the MPX 1 itself. The

"parameter" which defines the MPX 1 is at the top of the tree with a null Control Address (no control levels).

Parameter Types

MPX 1 system software contains an indexed list of parameter types representing each unique parameter

in the system. The parameter type defines all attributes of the parameter (name, number of bytes, etc.)

except its position in the tree which is defined by its Control Address. Several parameters can be defined

as the same parameter type. For example, each Mix parameter in each algorithm in the MPX 1 is the same

parameter type, but has a different Control Address. Conversely, all System Control Addresses which are

accessible have a single parameter type assigned to them.

LexiconMPX 1 MIDI Implementation Details

Messages

Using Control Addresses and Parameter Types, several SysEx messages have been defined to allow an

external system to learn to control and interface with another MPX 1. Five core messages are typically

used:

Request

System Configuration

Parameter Description

Parameter Type

Data Transfer

These five messages make up a basic toolkit for communicating with the MPX 1. Each message type is

given an identifying number.

Request

The Request message consitutes an external request made to an MPX 1 to respond with one of the other

message types. The Request consists of the identifying number of the message you want returned and,

any specific information the system requires to respond properly.

System Configuration Message

This message provides basic information about the target system such as software revision, date of

release and number of parameter types supported by the particular system.

Parameter Description Message

Each parameter type in the MPX 1 has a “description” that provides information about the parameter such

as its legal values. A controlling system typically “requests” the System Configuration Message to find out

how many parameter types the system supports, then requests the Parameter Description for each

parameter. A local database of parameter descriptions in the controlling system is used to build the control

tree and to edit parameters.

Parameter Type Message

After a database of parameter descriptions has been built of all parameter types, the controlling system

needs to find out what the control tree for the MPX 1 looks like and what parameter type is used at each

“node” of the tree. To do this, the controlling system “requests” the Parameter Type for a specific Control

Address.

Data Transfer Message

After the parameter type at a given control address is known, the Data Transfer Message is used to send

parameter change values to the MPX 1 or to “request” the current value. The Parameter Description tells

you the name and legal values of the parameter.

“Learning” the MPX 1

In order for a controlling system to control or interface with the MPX 1, it needs information such as the

Manufacturer ID, the Product ID and the Device ID of the system. The Manufacturer ID and the Product

ID can be acquired using the Non Real-Time System Exclusive General Information Device Inquiry. The

Device ID can be obtained from the system’s user interface or by using “all devices” (127).

Building a “Parameter Description” Database

Building a control tree and editing parameters requires information about parameter types. The external

control system requests the “System Configuration Message” to tell it how many “types” the system

supports, then requests a description of each parameter. As each parameter description comes in, the

control system builds a database with them. Refer to the Parameter Description (04 hex) for additional

information about the elements of this database.

MPX 1 MIDI Implementation Details

Lexicon

Building the Control Tree

Once the controlling system knows the number of parameters types the system supports, it needs to know

the position of each in the control tree. The Parameter Type message is used to find the location in the

tree of any parameter type. When you want to find out what parameter type is at a particular control

address, you “request” the Parameter Type Message using the Control Address as arguments to the

Request message. The request for a typical Control Address is shown below. Note that the “Num Control

Levels” and the actual Control Address (eg - “Level A value”) fields are 16-bit values in a nibble-ized form

with the least significant nibble coming first.

request Num Control Level A Level B

——header—— class levels value value

F0 06 09 00 06 03 0002 00 00 0000 00 00 0001 00 00 00 F7

“06” is the message class for the request (un-nibble-ized), “03” is the message class you are requesting

(Parameter Type Message), “2” is the number of control levels in the Control Address, “0” is the value of

level ‘A’ of the Control Address and “1” is the value of level ‘B’ of the Control Address (or A:0, B:1). This

would be “Chorus” in the following tree fragment:

Control levels ->

ABCDEFGHI

|||||||||

MPX 1

0 - Program

0 - Pitch

0 - Detune (M)

0 - Mix

0-100%

1 - Level

2 - Tune

...

1 - Chorus

0 - Chorus Algorithm

0 - Mix

1 - Level

2 - EQ

...

1 - System

0 - Audio Config

1 - Setup

...

The top of the control tree is a sort of “null” Control Address which doesn’t contain any control levels. It

is requested as follows:

request Num Control

——header—— class levels

F0 06 09 00 06 03 00 00 00 00 00 F7

The message indicates 0 control levels but the MPX 1 responds with the parameter type at the top of the

tree. The parameter types are represented as numbers in the Parameter Type Message which comes

back from the MPX 1. This number (0x0155) is then used as an index into the database of parameter

descriptions created earlier. Building the control tree always starts by requesting the parameter type at

the top of the tree.

LexiconMPX 1 MIDI Implementation Details

Once you have access to the description of the parameter at the top of the control tree, the description

contents is used to build the tree below it. Each of the descriptions contains a “min” value and a “max”

value. For parameters such as “Mix” that can be edited, these are the maximum mix value (100) and the

minimum mix value (0) to which the parameter can be set. When the parameter type is not an editable

parameter, the min and max represent the tree branches below it. A parameter is considered editable if

the “Control Level” flag in the parameter description Control Flags field is NOT set (see Parameter

Description (04 hex). For these parameter types the min value is always 0 and the max value is always

the number of branches below it, minus 1. The min and max values represent the minimum and maximum

branch (level value) that can be accessed below it. In the case of the top level parameter, the max value

is the largest level ‘A’ Control Address value allowed.

When the controlling system knows how many level ‘A’ parameters are allowed, it can work with those

branches. In the MPX 1, it the max value under the top level parameter type is 1. This means that level

“A” can be 0 or 1. The controller would then request the parameter “type” at control address A:0 (A = 0)

as follows:

request Num Control

——header—— class levels level A

F0 06 09 00 06 03 00 01 00 00 00 00 00 00 00 F7

The MPX 1 would send back the parameter type at that Control Address (0x0153, the “Program”

parameter). In the MPX 1, this parameter has a max value of 19. This means that control addresses A:0

B:0 through A:0 B:19 are legal so you can request parameter types for these addresses. In the next

request you would go one level deeper:

request Num Control

——header—— class levels level A level B

F0 06 09 00 06 03 00 02 00 00 00 00 00 00 00 00 00 00 00 F7

The MPX 1 system would send back the parameter type at that control address (0x014D, the “Pitch”

parameter). In the MPX 1, this parameter has a max value of 10. This means that control addresses A:0

B:0 C:0 through A:0 B:0 C:10 are legal so you can request parameter types for these addresses.

This continues deeper and deeper into the control levels (letters) until you reach an actual editable

parameter. At this point you have reached the end of the branch so you go to the next value of that level.

In the MPX 1, the entire first branch looks like this:

Control level

ABCDEFGHI

|||||||||

MPX 1

0 - Program

0 - Pitch

0 - no effect

0 - Mix

MPX 1 MIDI Implementation Details

Lexicon

When you hit the “Mix” parameter, you are at the end of the branch so you would go to the next address

under “no effect” which is “Level”.

Control level

ABCDEFGHI

|||||||||

MPX 1

0 - Program

0 - Pitch

0 - no effect

0 - Mix

1 - Level

The “no effect” parameter has a maximum value of 1 so you would back up to the next value of

“Pitch” which is “Detune (M)” (A:0, B:0, C:1).

Control level

ABCDEFGHI

|||||||||

MPX 1

0 - Program

0 - Pitch

0 - no effect

1 - Detune (M)

The description shows a maximum value of 3, meaning that control addresses A:0 B:0 C:1 D:0 through

A:0 B:0 C:1 D:2 are legal. This procedure continues until you hit the bottom of the tree.

In each parameter’s description, there is a field called “control flags”. This is a bit-mapped value that,

among other things, tells you if a parameter is a “branch” or an editable parameter. If the control flag is

set to 1, there are more parameters beneath it. If the bit is set to 0, the parameter is editable and there

are no parameters beneath it.

Note that all of the numbers in these requests except the message class must be 16-bit values so they

must each be sent as 4 nibble-ized bytes.

Using the information

In many ways, the implementation of MPX 1 SysEx will differ depending on the system in which it is

implemented. A personal computer, for instance, can present more information at one time to the user

than a hand held remote control. The personal computer also has a much larger memory capacity (for

holding onto databases, etc.) than the remote. On the other hand, a program running on a personal

computer may not want to tie up memory with information about connected equipment or provide more

than a simple interface to the box. All of these issues effect how a particular program will use LUSP to

control a system.

Please note that these are hypothetical implementations only.

An MRC-type of Controller

A simple implementation on a system like the Lexicon MRC would not have enough internal memory

to hold much information about the connected system at any given time so it would have to request

information of the system as needed.

The MRC only has 4 faders so only 4 parameters could be accessed at any given time. The faders

and their associated buttons would either allow you to navigate through the control tree or actually

change a parameter value. The MACH button on the MRC could be designated as an <Esc> key to

back you up towards the top of the tree while the faders and buttons drop you down into the tree

(fader selects the branch, button drops you down in).

LexiconMPX 1 MIDI Implementation Details

For example, for the MPX 1, part of the tree looks like this:

System Control level

ABCDEFGHI

|||||||||

0 - Program

0 - Pitch

0 - Detune (M)

0 - Mix

1 - Level

2 - Tune

3 - P Dly

1 - Detune (S)

...

2 - Detune (D)

...

3 - Shift (M)

...

1 - Chorus

...

2 - EQ

...

3 - Modulation

...

4 - Reverb

...

5 - Delay

...

Initially, the MRC display would simply show the name of the connected product which it retrieves by

requesting the Parameter Type at the top of the tree. Once the Parameter Type is known, a request is sent

for a description of the parameter which would include the name of the parameter (in this case “MPX 1”,

the top level parameter). The description also includes a minimum and maximum value for the parameter

which would be used to select branches to drop down into.

This currently has a maximum value of 1 so requests are made for the Parameter Types at System Control

Addresses 0 and 1. Requests are sent for descriptions of the two Parameter Types. The name strings in

the returning messages are used to display the choices, one over each fader: “Program” and “System”.

When a labeled fader is moved, the MRC isends a Parameter Data Message to the connected system

followed by a request for the Parameter Display Message for the parameter. This produces a formatted,

text version of the current parameter value. Pressing the button drops you to the next level. In this example,

let’s assume we’ve selected the “Program” branch. In the above diagram “Program” has 6 items under

it: Pitch, Chorus, EQ, Modulation, Reverb and Delay. Moving the “Program” fader we would see “Pitch”,

“Chorus”, “EQ”, “Modulation”, “Reverb” or “Delay” displayed. The strings would be acquired by setting the

“Program” parameter value and requesting a Parameter Display message.

If the “Program” button is pressed, the system requests the Parameter types of the first four branches

under “Program”: “Pitch”, “Chorus”, “EQ” and “Modulation”. The names from each description are

displayed over the four faders. Pressing the MRC’s PAGE button would get the next four items if available,

eventually wrapping back around to the first four. As the faders are moved, the Parameter Data Message

is sent and Parameter Display message is requested to display the selection.

The previous process is repeated until the “Branch” bit of the “Control Flags” of a parameter description

is encountered set for 0. (Parameters with that bit set to 0 actually change the operation of the system and

signal the end of a branch. The previous parameters only provide navigation through the tree.)

MPX 1 MIDI Implementation Details

Lexicon

A Glass Interface Controller

A glass interface (personal computer, etc.) could take a slightly different approach. With a graphic display

capability and memory (both program and data) to spare, a glass interface can provide more direct and

visually stimulating access to the MPX 1. The glass interface has the option of deriving the tree structure

from the MPX 1 during an initialization phase or of learning the tree structure once then hard (or semi-hard)

coding the Control Addresses to the glass interface elements. The tree structure could still be learned via

MIDI but it would only be used to build a road map into the tree.

Because all aspects of the interface use a common SysEx message (Parameter Data Message), the glass

interface programmer can concentrate on presentation and organization of the information instead of

merely accessing it. Communication traffic could be reduced by doing a one-time build of a parameter

description database.

As a side note, the user interface software in the MPX 1 uses both hard and soft coded Control Addresses

to edit parameters within the box itself.

Device Inquiry

The MPX 1 supports Non-Real Time System Exclusive General Information “Device Inquiry” as defined

in the “MIDI 1.0 Detailed Specification 4.2”. When the MPX 1 receives the following message: F0 7E

<channel> 06 01 F7 (where <channel> is the device ID of the connected MPX 1), the MPX 1 will respond

with the following message:

0xF0, 0xFE <channel> Universal System Exclusive Non-real time header

0x06 General Information (sub-ID#1)

0x02 Identity Reply (sub-ID#1)

0x06 Lexicon’s System Exclusive ID code

0x00, 0x00 Device Family Code

0x09, 0x00 Device Family Member Code (MPX1)

0x0n Major Software Version number

0x0n Minor Software Version number

0x0n Software Development Phase

0x00 unused

0xF7 EOX

LexiconMPX 1 MIDI Implementation Details

Message Classes

MPX 1 System Exclusive uses message types defined as Message Classes. The Message Class

identifier appears just after the standard SysEx header (Start of SysEx: F0, Company ID, Product ID,

Device ID) and defines how the remaining data should be interpreted. The following message classes

have been defined for the MPX 1:

# Hex Description

00 System Configuration Message

01 Parameter Data

02 Parameter Display

03 Parameter Type

04 Parameter Description

05 Parameter Label

06 Requests

12 Handshake

16 Database Dump

18 Effect Parameters

19 All Effect Parameters

1A Program Stats

1B Program Dump

1C Compact (Preset) Program Dump

00 System Configuration Message

The System Configuration Message provides a method for extracting information about the software in

the system from the box via SysEx. As such, this message can only be requested from the system and

will be ignored if sent to the system.

Transmit only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

500 System Configuration

6-7 0n Major Version (1 byte) The number that appears to the left of the decimal

point on the power up display. Example: V1.00

8-9 0n Minor Version (1 byte) The number that appears to the right of the decimal

point on power up display. Example: V1.00

10-25 0n 8-character Time string (8 bytes) Time of the code build in ASCII format: xx:yy:zz

xx = Hour

yy = Minute

zz = Second

Example: 17:51:03

26-47 0n 11-character Date string (11 bytes) Date of the code build in ASCII format: xxx:yy:zzzz

xxx = Month

yy = Day

zzzz = Year

Example: May 10 1996

48-51 0x01C0 #of parameter types (2 bytes) Total number of parameter types in the MPX 1.

52-55 0x0164 “Bottom” parameter # (2 bytes) Last system control parameter in a branch before

an editable parameter.

56-59 0x0005 #of Control Levels used (2 bytes) Maximum number of control levels used by the

system

60 F7 End of Sysex

MPX 1 MIDI Implementation Details

Lexicon

Number of Parameter Types

The Number of Parameter Types message specifies the number of parameter types in the MPX 1. An

editor program can use this to request Parameter Description (04 hex) dumps of all the parameters in the

system.

Bottom Parameters

A Bottom parameter is the last control level on a given branch and indicates that there is only one lower

level — the one which contains the real, adjustable parameters. With the exception of Effect control levels,

all other parameters are used only to navigate the user interface. (Effect control levels can be sent values

to change the currently running algorithm.)

Rather than identifying Bottom parameters, a controlling system can simply monitor the Control Level flag

in the Parameter Description to identify the end of a branch ( bit/flag cleared).

The remaining information can be used by the controlling system to detect software updates and to

ascertain the ROM version.

There are no arguments to the System Configuration Request. The Request message is as follows

(assuming the Device ID is 0): Req

——header—— Class ——unused———

F0 06 09 00 06 00 00 00 00 00 00 00 00 F7

Device ID (0-126)

01 Parameter Data Message

This message allows all types of parameter data to be passed to and from the system. Typically this

message class is used to change parameter values in a system remotely (automation, etc) and to dump

data in and out of the box. The word “parameter” should be interpreted loosely here as MPX 1 parameters

can be actual dumps as well as traditional parameters such as mix, reverb time, etc.

Transmit + Receive only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127 transmit, 0-126 receive

501 Message class Parameter data

6-9 0n Number of bytes (2 bytes) Number of bytes in the parameter and its option, if available.

This is a 16-bit field so up to 64K bytes is supported.

10-x 0n Parameter data Actual parameter data and, if available, option data. Option

data always appears after the parameter data. Use the

number of bytes field of the parameter and the option

description to differntiate the parameter from the option.

— 0n # of control levels (2 bytes) Number of control levels are used in the parameter ad-

dress. This is a 16-bit field so the address can have up to

64k digits (control levels). (MPX 1 max is 5.)

— 0n Control level 0 (A) (2 bytes) This is the first control level. It defines the level 0 (A) control

address of the parameter. The control level addresses are

16 bit fields so the control addresses can be 64k deep. Note

that letters are used to differentiate levels and their values.

— 0n Control level 1 (B) (2 bytes) same as previous

— 0n Control level 2 (C) (2 bytes) same as previous

— 0n — up to Control level 65535 same as previous

F7 End of Sysex

LexiconMPX 1 MIDI Implementation Details

Note that the “data” includes any Option data associated with the parameter. For example a 16-bit

parameter with an 8-bit option would contain 3 bytes of data. The Parameter Type of both the parameter

and its option must be used to correctly interpret the “data” in this message.

Control Levels are used in the request message for this packet as follows:

0n Number of Control Levels (lo nib) (Nibble 1 of argument)

0n Number of Control Levels (lo mid nib) (Nibble 2 of argument)

0n Number of Control Levels (hi mid nib) (Nibble 3 of argument)

0n Number of Control Levels (hi nib) (Nibble 4 of argument)

0n Control Level 0 (A) (lo nib) (Nibble 5 of argument)

0n Control Level A (lo mid nib) (Nibble 6 of argument)

0n Control Level A (hi mid nib) (Nibble 7 of argument)

0n Control Level A (hi nib) (Nibble 8 of argument)

0n Control Level 1 (B) (lo nib) (Nibble 9 of argument)

0n Control Level (lo mid nib) (Nibble 10 of argument)

0n Control Level (hi mid nib) (Nibble 11 of argument)

0n Control Level B (hi nib) (Nibble 12 of argument)

To request Program - EQ - 1 Band (M) - Gain (control address A:0, B:2, C:1, D:2) on a system with the

Device ID set for 0, send: request Num Control

——header—— class levels

F0 06 09 00 06 01 00 04 00 00 00

Level A Level B Level C Level D

(Program) (EQ) (1 Band (M)) Gain)

00 00 00 00 02 00 00 00 01 00 00 00 02 00 00 00 F7

A typical return message is as follows:

Number of Number of Control

——header—— data bytes data levels

F0 06 09 00 01 01 00 00 00 00 00 04 00 00 00

Level A Level B Level C Level D

00 00 00 00 02 00 00 00 01 00 00 00 02 00 00 00 F7

To request a display dump (control address A:1, B:8, C:1) on a system with the Device ID set for 0, send:

request Num Control Level A

——header—— class levels (System)

F0 06 09 00 06 01 00 03 00 00 00 01 00 00 00

Level B Level C

(Panel) (Display)

08 00 00 00 01 00 00 00 F7

A typical return message is as follows:

Number of

——header—— data bytes data—>

F0 06 09 00 01 00 02 00 00 00 02 02 05 06 07 02 06 00 00

data—>

0D 04 09 06 08 07 00 02 00 02 00 02 0C 04 05 06 06 07

05 06 0C 06 0C 03 0E 03 00 02 00 02 00 02 00 02 00 02

00 02 00 02 05 02 00 02 00 02 00 02 00 03 04 06 02 04

# control lvls Level A Level B Level C

03 00 00 00 01 00 00 00 08 00 00 00 01 00 00 00 F7

MPX 1 MIDI Implementation Details

Lexicon

02 Parameter Display Message

This message allows you to display parameter values based on what they actually do instead of the

numbers that represent them in the stored data structures. This is particularly useful for system

parameters which generally have text strings stored in the internal ROM to describe the values.

Transmit only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

502 Parameter Display Message class

6-9 0n # of characters (2 bytes) Number of characterss (bytes) in the string

10-x 0n String characters “Number of characters” of nibble-ized ASCII characters

— 0n # of control levels (2 bytes) Number of control levels are used in the parameter ad-

dress. This is a 16-bit field so the address can have up to

64k digits (control levels)

— 0n Control level 0 (A) (2 bytes) This is the first control level. It defines the level 0 (A) control

address of the parameter. The control level addresses are

16-bit fields so the control addresses can be 64k deep.

Letters are used to differentiate levels and their values.

— 0n Control level 1 (B) (2 bytes) same as previous

— 0n Control level 2 (C) (2 bytes) same as previous

— 0n — up to Control level 65535 same as previous

F7 End of Sysex

Control Levels are used in the request message for this packet as follows:

0n Number of Control Levels (lo nib) (Nibble 1 of argument)

0n Number of Control Levels lo mid nib) (Nibble 2 of argument)

0n Number of Control Levels (hi mid nib) (Nibble 3 of argument)

0n Number of Control Levels (hi nib) (Nibble 4 of argument)

0n Control Level 0 (A) (lo nib) (Nibble 5 of argument)

0n Control Level A (lo mid nib) (Nibble 6 of argument)

0n Control Level A (hi mid nib) (Nibble 7 of argument)

0n Control Level A (hi nib) (Nibble 8 of argument)

0n Control Level 1 (B) (lo nib) (Nibble 9 of argument)

0n Control Level B (lo mid nib) (Nibble 10 of argument)

0n Control Level B (hi mid nib) (Nibble 11 of argument)

0n Control Level B (hi nib) (Nibble 12 of argument)

To request Program - EQ - 1 Band (M) - Gain (control address A:0, B:2, C:1, D:2) on a system with the

Device ID set for 0, send:

request Num Control Level A

——header—— class levels (Program)

F0 06 09 00 06 02 00 04 00 00 00 00 00 00 00

Level B Level C Level D

(EQ) (1 Band (M)) (Gain)

02 00 00 00 01 00 00 00 02 00 00 00 F7

The number of characters varies with Parameter Type, the arguments and the actual value of the

parameter.

LexiconMPX 1 MIDI Implementation Details

03 Parameter Type Message

This message is transmitted from the system in response to a request for Parameter Type at a specific

Control Address. This allows external equipment to build a control tree of the system by requesting the

parameter at an address, checking its description to identify it as a Control Level or an adjustable

parameter. (Control Levels indicate at least one lower level.)

Transmit only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

503 Message Class Parameter Type

6-9 0n Parameter Type (2 bytes) 0x0000-0x01BF (see list)

10 F7 End of Sysex

Control Levels are used in the request message for this packet as follows:

0n Number of Control Levels (lo nib) (Nibble 1 of argument)

0n Number of Control Levels (lo mid nib) (Nibble 2 of argument)

0n Number of Control Levels (hi mid nib) (Nibble 3 of argument)

0n Number of Control Levels (hi nib) (Nibble 4 of argument)

0n Control Level A (lo nib) (Nibble 5 of argument)

0n Control Level A (lo mid nib) (Nibble 6 of argument)

0n Control Level A (hi mid nib) (Nibble 7 of argument)

0n Control Level A (hi nib) (Nibble 8 of argument)

0n Control Level B (lo nib) (Nibble 9 of argument)

0n Control Level B (lo mid nib) (Nibble 10 of argument)

0n Control Level B (hi mid nib) (Nibble 11 of argument)

0n Control Level B (hi nib) (Nibble 12 of argument)

To request the Parameter Type number for Program - EQ - 1 Band (M) - Gain ) on a system with the Device

ID set for 0, send:

request Num Control Level A

——header—— class levels (Program)

F0 06 09 00 06 03 00 04 00 00 00 00 00 00 00

Level B Level C Level D

(EQ) (1 Band (M)) (Gain)

02 00 00 00 01 00 00 00 02 00 00 00 F7

MPX 1 MIDI Implementation Details

Lexicon

04 Parameter Description

Each parameter type used by the system is assigned a unique identifying number, much like menus and

dialog boxes are assigned IDs in Windows and Macintosh software. As these numbers represent the

attributes of a parameter, each can be used for several parameters. An example of this is the audio Mix

parameter type used in all MPX 1 algorithms. The Mix parameter itself is different for each algorithm, but

as each uses the same parameter type, only one parameter description is necessary.

Typically, this message is requested once for each legal parameter type creating a database of all

parameter descriptions to build a control tree.

Transmit only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

504 Message Class Parameter description

6-9 0n Parameter Type (2 bytes) max 65536 types

10-11 0n # of Characters in Name (1 byte) max 255 characters

12 - n

0n Name of parameter

(# of characters nibbled) ASCII (as some LCDs use 0-7 for custom characters. 0,

should not be interpreted as the end of the string)

0n # of bytes (2 bytes) Size of the parameter (max 65535 bytes)

0n Control Flags (1 byte) Hex Binary

00 0000 0000=No flags set

01 0000 0001=Automation

02 0000 0010=Patchable

03 0000 0011=Automation & Patchable

04 0000 0100=Control Level

08 0000 1000=Bottom Control Level

0n Option Parameter Type (2 bytes) Uses standard Parameter Type numbers. Note that a

value of 0xFFFF indicates no options are used.

0n Number of units/limits (1 byte) max 255 units/limits

0n 1st Minimum Value (2 bytes)

0n 1st Maximum Value (2 bytes)

0n 1st Display units (2 bytes) see below

0n 2nd Minimum Value (2 bytes)

0n 2nd Maximum Value (2 bytes)

0n 2nd Display units (2 bytes)

0n nth Minimum Value (2 bytes)

0n nth Maximum Value (2 bytes)

0n nth Display units (2 bytes)

F7 End of Sysex

Parameter Type Number (Bytes 6-x)

This is the ID of this parameter type. Each actual parameter in the system is assigned a Parameter Type

Number to describe its operation.

Number of Parameter Name Characters (Bytes 10-11)

This identifies both the number of characters in the name and the point at which the Parameter Name field

ends and the Number of bytes field begins. Not all parameter names are of the same size; audio

parameters tend to have 5-character names, while most others have 11 characters.

LexiconMPX 1 MIDI Implementation Details

Parameter Name (Bytes 12-x)

This is the actual text string used to describe the parameter. Note that this string is NOT null terminated

but will often be padded with spaces (ASCII 20 hex). In most cases, these are the strings that appear on

the front panel display. Parameter types with the same names often have other attributes that are different.

Number of Bytes

This is the size of the parameter in bytes. Most parameters are 1 or 2 bytes. Parameters that are bigger

include the “Program” name, the “Setup” name and other “dump” parameters. Though not reflected in this

number, the data bytes for parameter Options are included in data messages for parameters which have

options. When dealing with Parameter Data messages, the Parameter Description for the option

parameter must be referenced to correctly interpret the data (number of bytes in the option Parameter

Type, min/max value, etc.).

Note that some Option parameter types (Rate units, Drate units, etc.) actually have 0 bytes. In these

parameters, the “data” is actually contained in the MSB of the root parameter’s data. Refer to the Unique

Parameters section for additional information.

Control flags

The control flags are used to define several attributes that are either on or off (0=NO, 1=YES). The

following bits have been defined for the MPX 1:

Bit Mask Description

0 0x01 Patchable

1 0x02 Automation (transmitted when automation is turned on)

2 0x04 Control level

3 0x08 Bottom Control Level (the last control level before an editable parameter)

Options Parameter Type

This defines the Parameter Type Number (ID) of the parameter’s option if it exists. Options are essentially

extensions of the parameter itself. Though they have their own types, they are accessed through the

parameters. (See the Parameter Data Message.) Often the option data value must be evaluated before

a parameter value can be correctly interpreted (“Delay” units, for instance). A value of 0xFFFF indicates

that no option parameter is used.

Number of Units/Limits

Some MPX 1 parameters can operate in different “unit” types. An example of this is Delay Tme, which can

be set in milliseconds, a ratio of beats per measure relative to the current tempo, feet, meters or tapped

in milliseconds. The system only has a fixed amount of actual delay memory and the steps of each of these

represents different amounts of time so the limits for each are different. This field defines how many unit

types are available for this parameter. This value will also tell you how many mins, maxs, and display units

are included in this packet.

If the Number of Units/Limits is more than 1, the Option is used to determine which unit type is used and

what they are called. Use the String version of the Option to get a text description of the current Unit.

Minimum Value

This is the minimum allowable value for this parameter type. Note that the values are expressed as signed

words that must be cast to signed or unsigned bytes if the parameter is a single byte parameter. Also note

that the min and max values are only meaningful for 1 and 2 byte parameters. Typically, the min and max

fields are defaulted to 0x0000 and 0xFFFF respectively for “dumps”.

Maximum Value

This is the maximum allowable value for this parameter type.

MPX 1 MIDI Implementation Details

Lexicon

Display Units Type

This field specifies a specific display type for this parameter type. Like parameter types, display types

define a display technique that can be used for more than one parameter type.

Requesting the Parameter Description

A parameter description is requested by specifying the parameter type. For example, to request

parameter 125 hex on a system with the Device ID set for 0, the following message would be sent:

request parameter parameter

——header—— class number

F0 06 09 00 06 04 00 05 02 01 00 F7

Note that all 4 nibbles of the parameter must be sent padded with 0s if needed.

05 Parameter Label Message

This message allows you to get a string describing the parameter at a given control level. This message

was included to simplify navigation of the control tree when the controlling system has limited memory

available. The string returned is the same as the “name” field of the parameter description message.

Transmit only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

505 Parameter Label Message class

6-9 0n # of characters Number of characters (bytes) in the string

10-x 0n Parameter Label String This is the actual string (nibble-ized) so it is the “Number of

characters” x 2 long

— 0n # of control levels (2 bytes) Number of control levels used in the parameter address. This

is a 16-bit field so the address can have up to 64k digits (control

levels)

— 0n Control level 0 (A) (2 bytes) This is the first control level. It defines the level 0 (A) control

address of the parameter. The control level addresses are 16-

bit fields so the control addresses can be 64k deep. Letters are

used to differentiate levels and their values.

— 0n Control level 1 (B) (2 bytes) same as previous

— 0n Control level 2 (C) (2 bytes) same as previous

— 0n — up to Control level 65535 same as previous

F7 End of Sysex

Control Levels are used in the request message for this packet as follows:

0n Number of Control Levels (lo nib) (Nibble 1 of argument)

0n Number of Control Levels (lo mid nib) (Nibble 2 of argument)

0n Number of Control Levels (hi mid nib) (Nibble 3 of argument)

0n Number of Control Levels (hi nib) (Nibble 4 of argument)

0n Control Level 0 (A) (lo nib) (Nibble 5 of argument)

0n Control Level A (lo mid nib) (Nibble 6 of argument)

0n Control Level A (hi mid nib) (Nibble 7 of argument)

0n Control Level A (hi nib) (Nibble 8 of argument)

0n Control Level 1 (B) (lo nib) (Nibble 9 of argument)

0n Control Level B (lo mid nib) (Nibble 10 of argument)

0n Control Level B (hi mid nib) (Nibble 11 of argument)

0n Control Level B (hi nib) (Nibble 12 of argument)

LexiconMPX 1 MIDI Implementation Details

To request Program - EQ - 1 Band (M) - “1-Band (M)” (control address A:0, B:2, C:1) on a system with

the Device ID set for 0, send:

request Num Control Level A

——header—— class levels (Program)

F0 06 09 00 06 05 00 03 00 00 00 00 00 00 00

Level B Level C

(EQ) (1 Band (M))

02 00 00 00 01 00 00 00 F7

06 Requests

The Request message class allows external systems to interrogate the MPX 1. The system responds to

Requests by outputting a SysEx message with the same message class as the Request Class type which

identifies the request.

Receive Only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

506 Message Class Requests

6-7 0n Request Class (1 byte)

8-9 0n argument 1 (1 byte) Message requests require arguments

10-11 0n argument 2 (1 byte)

xx 0n argument n (1 byte) no theoretical limit to number of arguments

xx F7 End of Sysex

Note that the Request Class of the request is the Message Class of the response. The arguments

vary depending on the Request Class. Refer to the specific Message Class sections for information

about the arguments to those requests.

Quick reference for all Requests

id = Device ID (0-126)

Message requests start with Header F0 06 09 ID 06 and end with F7

Request argument bytes

Message Class 1 2 3 4 5 6 7 8 9 10 11 12

Configuration 00 00

Param data 01 00 # levels level A level B level C level D level E

Param display 02 00 # levels level A level B level C level D level E

Param type 03 00 # levels level A level B level C level D level E

Param description 04 00 param type (#)

Param label 05 00 # levels level A level B level C level D level E

Handshake 12 00 command

Memory Tool 10 00 # bytes address (lo) address (hi)

Effect Params 18 00 Effect type Algorithm #

MPX 1 MIDI Implementation Details

Lexicon

12 Handshaking

This message provides a mechanism for synchronizing certain aspects of one system to another. The

most significant use of this is during bulk dumps to a system where the transmitting unit (an external editor,

another MPX 1, etc.) could conceivably send the data too fast for the receiving system to process it. In

these cases the receiving system transmits a BUSY handshake message while it internally processes the

last dump. When it is ready to receive more data it transmits a READY handshake message. This allows

data to be transmitted at the fastest possible rate without corrupting the data (buffer overflows, etc...).

Transmit + Receive

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

512 Message Class Handshake Message Class

6-7 0n Handshake Command (1 byte)

8 F7 End of Sysex

The following handshake commands have been defined:

HANDSHAKE_NOP 0

HANDSHAKE_ARE_YOU_THERE 1

HANDSHAKE_IM_ALIVE 2

HANDSHAKE_BUSY 3

HANDSHAKE_READY 4

HANDSHAKE_ERROR 5

NUM_HANDSHAKES 6

This message can also be used to determine if a system is connected by sending the

HANDSHAKE_ARE_YOU_THERE message to the system as follows:

——header——

F0 06 09 00 12 01 F7

LexiconMPX 1 MIDI Implementation Details

16 DataBase Dump

This message class allows “Source and Effect Type” database dumps to bew transmitted and. The

database is used by the system to provide special sorting capabilities of programs. When an MPX 1

program is created, the operator has the option of classifying the program by “Source type” and “Effect

type”. This data is stored as a table of 250 3-byte elements; one for each program in the system. The three

bytes are bitmapped to define which group the program is included in. The first and second bytes define

the “Effect type” while the third byte defines the “Source type”. Each bit is defined as follows:

Source hex) binary Effect hex binary

(1 byte) (2 bytes)

Live PA 01 0000 0001 Pitch 0001 0000 0000 0000 0001

Vocal 02 0000 0010 Chorus 0002 0000 0000 0000 0010

Guitar 04 0000 0100 EQ 0004 0000 0000 0000 0100

Keyboard 08 0000 1000 Mod 0008 0000 0000 0000 1000

Acoustic 10 0001 0000 Delay 0010 0000 0000 0001 0000

Drums 20 0010 0000 Ambient 0020 0000 0000 0010 0000

Tempo 40 0100 0000 Chamber 0040 0000 0000 0100 0000

SoundFX 80 1000 0000 Gate 0080 0000 0000 1000 0000

Hall 0100 0000 0001 0000 0000

Inverse 0200 0000 0010 0000 0000

Plate 0400 0000 0100 0000 0000

Dual 0800 0000 1000 0000 0000

Transmit & Receive

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

516 Message Class Database

6-7 0n Program 1 Effect Type (2 byte) see chart

8-11 0n Program 1 Source Type (1 byte) see chart

12-13 0n Program 2 Effect Type (2 byte) see chart

14-17 0n Program 2 Source Type (1 byte) see chart

Repeat two bytes for effect and

one byte for source to program 250

1506 F7 End of Sysex

There are no arguments to the request for the database.

The request message is as follows:

——header—— class unused

F0 06 09 00 06 06 01 00 00 00 00 00 00 F7

MPX 1 MIDI Implementation Details

Lexicon

18 Report Effect Parameters

This message allows external equipment to determine what parameter numbers are associated with a

given effect or controller type and algorithm number. Any MPX 1 effect can have a maximum of 30

parameters, so space is set aside in the message packet for that number of parameters but the actual

number of parameters is passed as the first byte.

Transmit Only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

518 Message Class Report Effect Parameters

6-7 0n Effect/Controller Type (1 byte) see the list below

8-9 0n Effect/Controller Number (1 byte)

10-31 0n Effect/Controller Name (11 bytes) ASCII characters space filled 20h

32-33 0n # of Parameters (1 byte) 1-30

34-153 0n 30 Parameters

(60 bytes/30 two byte words) Space is always left for 30 params even if less are used.

Refer to parameter description.

154 F7 End of Sysex

Typically, a request for this information is followed by a request for a description of each of the parameters

using the Parameter Description message.

The effect type and algorithm number are the only two parameters used in the request message for this

packet:

0n Effect Type (lo nib) (Nibble 1 of argument)

0n Effect Type (hi nib) (Nibble 2 of argument)

0n Algorithm # (lo nib) (Nibble 3 of argument)

0n Algorithm # (hi nib) (Nibble 4 of argument)

0n unused (Nibble 5 of argument)

0n unused (Nibble 6 of argument)

Effect Types are defined as follows:

0 Pitch

1 Chorus

2 EQ

3 Mod

4 Reverb

5 Delay

6 Knob

7 LFO 1

8 LFO 2

9 MIDI Arpeggiator

10 ADSR 1

11 ADSR 2

12 Random Number Generator

13 A-B Generator

14 Sample and Hold

15 Envelope Generator 1

16 Envelope Generator 2

Note that, although 6-16 (Knob-Envelope Generator 2) are really not effects, they are handled by the

system as such. From an MIDI editor’s perspective, the only difference between these Effects Types and

the audio effects is that these only have a single algorithm: 1. As such, they always have the same

parameters.

LexiconMPX 1 MIDI Implementation Details

For example, to request the Chorus algorithm 4:

request effect algorithm

——header—— class type number unused

F0 06 09 00 06 08 01 01 00 04 00 00 00 F7

Note that, if the Effect Type is 6- 16, the Algorithm Number field is a “don’t care” and can contain any value.

19 Report All Effect Parameters

This message identifies the parameter numbers associated with the active program. Any MPX 1 Effect

can contain 6 effects, each with a maximum of 30 parameters, so space is set aside in the message packet

for that number of parameters for each effect but the actual number of parameters is passed as previous

parameters.

Receive only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

5 19 All Parameter numbers

6-9 0n Program number 0-249, 0xFFFF = active program

10-31 0n Pitch effect name (11 bytes) ASCII name

32-33 0n # of Pitch parameters (1 byte) 0-29

34-37 0n First Pitch parameter (2 bytes) Parameter numbers. See Parameter Description

appendix

38-153 0n Pitch parameters 2-30

154-175 0n Chorus effect name (11 bytes)

176-177 0n # of Chorus parameters (1 byte)

178-181 0n First Chorus parameter (2 bytes)

182-297 0n Chorus parameters 2-30

298-319 0n EQ effect name (11 bytes)

320-321 0n # of EQ parameters (1 byte)

322-325 0n First EQ parameter (2 bytes)

326-441 0n EQ parameters 2-30

442-463 0n Mod effect name (11 bytes)

464-465 0n # of Mod parameters

466-469 0n First Mod parameter (2 bytes)

470-585 0n Mod parameters 2-30

586-607 0n Reverb effect name (11 bytes)

608-609 0n # of Reverb parameters

610-613 0n First Reverb parameter (2 bytes)

614-729 0n Reverb parameters 2-30

730-751 0n Delay effect name (11 bytes)

752-753 0n # of Delay parameters

754-757 0n First Delay parameter (2 bytes)

758-873 0n Delay parameters 2-30

874 F7 End of Sysex

There is one parameter used in the request message for this packet, program number.

MPX 1 MIDI Implementation Details

Lexicon

Example: Request Program 1

request request

——header—— class unused

F0 06 09 00 06 09 01 00 00 00 00 00 00 F7

Example: Request Active program

request request

——header—— class unused

F0 06 09 00 06 09 01 0F 0F 0F 0F 00 00 F7

1A Program Information

This message provides basic information about the MPX 1 programs.

Receive only

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

51A Program information

6-9 0n Program Number (2 bytes) 0-249

10-33 0n Name 12 characters (12 bytes) ASCII space

34-35 0n Pitch effect number (1 byte) 0-10

36-37 0n Chorus effect number (1 byte) 0-11

38-39 0n EQ effect number (1 byte) 0-18

40-41 0n Mod effect number (1 byte) 0-8

42-43 0n Reverb effect number (1 byte) 0-5

44-45 0n Delay effect number (1 byte ) 0-8

46 F7 End of Sysex

The program number is the only parameter used in the request message for this packet:

0n Program Number (lo nib) (Nibble 1 of argument)

0n Program Number (lo mid nib) (Nibble 2 of argument)

0n Program Number (hi mid nib) (Nibble 3 of argument)

0n Program Number (hi nib) (Nibble 4 of argument)

0n unused (Nibble 5 of argument)

0n unused (Nibble 6 of argument)

To request the stats on program number 8, send:

request Program

——header—— class number unused

F0 06 09 00 06 0A 01 08 00 00 00 00 00 F7

LexiconMPX 1 MIDI Implementation Details

1B Program Dump

This message allows any program to be copied into or out of the system. In the MPX 1, programs 0-199

are presets and 200-249 are user registers (programs). The active program (the one currently running in

the system), is identified as program number 0xFFFF. Note that when an MPX 1 receives this message

it transmits a BUSY handshake message while it internally processes the received program. When the

system is ready for more data, it transmits a READY handshake message.

Transmit & Receive

Byte # Value HEX Description Notes

1 F0 Sysex ID (Start)

2 06 Lexicon ID

3 09 MPX 1 ID

4 0bbb bbbb Device ID 0-127

51B Program

6-9 0n Program number (2 byte) Program Number 0-249 for programs 1-250 or FFFFh for

current active loaded program

10-73 0n Pitch effect data (32 bytes) Stored parameter values in the order they are indexed in

effect, including options. See detail

74-137 0n Chorus effect data (32 bytes) “

138-201 0n EQ effect data (32 bytes) “

202-265 0n Modulation data (32 bytes) “

266-329 0n Reverb data (32 bytes) “

330-393 0n Delay data (32 bytes) “

394-399 0n Sort flags (3 bytes) First two bytes make up a word for Effect Type; last byte is

for Source Type

400-479 0n Audio Routing (40 bytes) 5 bytes for each block: input, pitch, chorus, eq, mod,delay,

reverb and output. The bytes are Effect type, Upper input

connection, Lower input connection, Routing and Patch

type. See detail

480,481 0n Pitch Algorithm number 0-10

482,483 0n Chorus Algorithm number 0-11

484,485 0n EQ Algorithm number 0-18

486,487 0n Modulation Algorithm number 0-8

488,489 0n Reverb Algorithm number 0-5

490,491 0n Delay Algorithm number 0-8

492-515 0n Program name (12 bytes) 12-character name (space filled.)

516-517 0n Effect Status (1 bytes) Determines bypassed state of each effect. With bit set,

effect is active; with bit not set, effect is bypassed.

0000 0001=Pitch On

0000 0010=Chorus On

0000 0100=EQ On

0000 1000=Modulation On

0001 0000=Reverb On

0010 0000=Delay On

518-557 0n Soft values (20 bytes) 10 soft row parameters 2 bytes each. The first byte is Effect

or Controller type and the second is the index into effect or

controller. See detail

558-561 0n Tempo (2 bytes) 41-400 BPM

562-563 0n Tempo Source (1 byte) 0=Internal

1=MIDI

564-565 0n Beat Value (1 byte) 0=Eighth note

1=Dotted Eighth note

2=Quarter note

3=Dotted Quarter note

4=Half note

5=Dotted half note

6=Whole note

566-567 0n Tap Source (1 byte) See detail appendix of values for controllers

MPX 1 MIDI Implementation Details

Lexicon

568-569 0n Tap Average (1 byte) 1-8 beats average

570-571 0n Tap Source Level (1 byte) 0-127

572-573 0n Meter (1 byte) 0=Inputs

1=Outputs

2=Pitch In Level

3=Pitch Out Level

4=Pitch In&Out Level

5=Chorus In Level

6=Chorus Out Level

7=Chorus In&Out Level

8=EQ In Level

9=EQ Out Level

10=EQ In&Out Level

11=Mod In Level

12=Mod Out Level

13=Mod In&Out Level

14=Delay In Level

15=Delay Out Level

16=Delay In&Out Level

17=Reverb In Level

18=Reverb Out Level

19=Reverb In&Out Level

20=LFO 1 & 2

21=Envelopes 1 & 2

22=Foot pedal

23=ADSR 1 & 2

24=Simulation

574-575 0n Master Level (1 byte) A0=OFF

A1=-95dB

A2 to FD=-94 to -3dB

FE=-2dB

FF=-1dB

00=0dB

576-577 0n Master Mix (1 byte) 0-64h 0-100%

578-697 0n Patch data (60 byte) 5 patches 12 bytes each

bytes/Item

1/Source controller number

1/Source Min value

1/Source Mid value

1/Source Max value

1/Dest effect controller type

1/ Dest effect controller index

2/Destination Min

2/Destination Mid

2/Destination Max

See detail

698-721 0n Knob data (12 byte) The packet is organized as follows:

byte 1=Value

byte 2=Minimum

byte 3=Maximum

bytes 4-12=Name of the controller

722-737 0n LFO 1 data (8 byte)

738-753 0n LFO 2 data (8 byte)

754-763 0n Arpeggiator data (5 bytes)

764-781 0n ADSR 1 data (9 bytes)

782-799 0n ADSR 2 data (9 bytes)

800-807 0n Random generator data (4 bytes)

808-817 0n AB data (5 bytes)

818-827 0n Sample hold (5 bytes)

828-835 0n Envelope gen 1 (4 bytes)

836-843 0n Envelope gen 2 (4 bytes)

844 F7 End of Sysex

LexiconMPX 1 MIDI Implementation Details

Parameter Data (Bytes 10-393)

The MPX 1 can assign algorithms with different parameters to a single effect block. For example, the Pitch

effect can be a detuner with 4 parameters, or a dual pitch shifter with 5 parameter. In addition, the third

and fourth parameters for the detuner are 1-byte parameters while the third and fourth parameters for the

pitch shifter are 2-byte parameters. In both cases, the actual data is stored in the same 32 byte section

of the dump called “pitch effect data”. A table of Parameter Type numbers with a table of pointers to the

data structures is used to get information about any parameter whose Parameter Type number is known.

Parameter Type numbers table of pointers to structures

#define NOTE_PARAM 0x002C &Note_param,

#define MIX_PARAM 0x002D &Mix_param,

#define LEVEL_PARAM 0x002E &Level_param,

For each algorithm in the system (a total of 61), there is a table containing the Parameter Types used by

the algorithm. For example:

Detune (M) Parameter Types

0x002D - Mix

0x002E - Level

0x003B - Tune

0x003D - P Dly

To edit a parameter, a pointer is initialized to the beginning of the 32-byte effect data block. This 32-byte

data block is treated as an array of bytes. In order to access the target parameter the offset into this 32-

byte array must be calculated. This is done by determining the number of bytes used by each of the

parameters preceding the parameter you want to edit. This is accomplished by walking through each of

the parameter types, in the algorithm’s Parameter Type table and using the Parameter Type number to

access the parameter data structure to determine the number of bytes used. The pointer to the 32-byte

effect data block is then incremented by the number of bytes used by this parameter. When the process

is complete the pointer is left pointing at the target parameter’s data.

For example, in the “Detune (M)” effect, “Tune” is the third parameter. After a pointer is initialized to the

beginning of the pitch “32 byte parameter data” array, it must be incremented past the first and second

parameters’ data to get to the “Tune” data.

pitch parameter data:

0x64 - Mix

0x00 - Level

0x0A - Tune

0x01 - Tune Option

0x00 - P Dly

0x00 - unused

MPX 1 MIDI Implementation Details

Lexicon

The routine sets up a second pointer to the array of Parameter Type for the Detune (M) algorithm and

accesses the structure for the first parameter, Mix.

Detune (M) Parameter Types

0x002D - Mix

0x002E - Level

0x003B - Tune

0x003D - P Dly

The Mix structure shows that it is a one byte parameter so the data pointer is incremented once.

pitch parameter data:

0x64 - Mix

0x00 - Level

0x0A - Tune

0x01 - Tune Option

0x00 - P Dly

0x00 - unused

The Parameter Type pointer is incremented to get the Parameter Type of the second parameter.

Detune (M) Parameters Types

0x002D - Mix

0x002E - Level

0x003B - Tune

0x003D - P Dly

The second parameter’s structure is accessed and reveals that it is the one byte parameter “Level”.

The data pointer is incremented again and now points to the “Tune” parameter data.

pitch parameter data:

0x64 - Mix

0x00 - Level

0x0A - Tune

0x01 - Tune Option

0x00 - P Dly

0x00 - unused

Detune (M) Parameters “Types”

0x002D - Mix

0x002E - Level

0x003B - Tune

0x003D - P Dly

As the operating system for the MPX 1 displays a maximum of two parameters at once, two such pointers

are set up.

There are two ways an off-line system can build a Parameter Types list for a given effect’s algorithm. One

approach is to request the Report Effect Parameters (18 hex) message which returns this list directly. A

more generic method of generating a list of Parameter Types for a given algorithm is to use the Parameter

Type (03 hex) message. The request for this message class takes the control address for a parameter

and returns the Parameter Type at that address. For example, “pitch” is at control address 0-0. The pitch

algorithm Detune (M) is at address 0-0-1. Detune (M) parameters are at addresses 0-0-1-0 through 0-0-

1-3. The Detune (M) parameter itself will tell you how many parameters it has from which you can request

the Parameter Type message for each parameter to build a local list with.

Once the Parameter Type number is known, the number of bytes used by the parameter can be derived

from the Parameter Description. There are two basic approaches to dealing with Parameter Descriptions.

One is to request the Parameter Description (04 hex) each time you have a Parameter Type number and

you need to know something about the parameter. The other approach is to build a database of parameter

descriptions locally and reference it whenever you need to find out something about a parameter. If disk

space and/or RAM space is available, the latter approach is preferable as it makes acquisition of

Parameter Descriptions a one time effort.

LexiconMPX 1 MIDI Implementation Details

It is important to remember that the MPX 1 allows parameters to have “option” values. “Delay Units” for

example, determines the units in which delay time is adjusted (milliseconds, feet, meters, etc...). As

“Delays” are stored in their “Unit” values, it is essential to read the options unit value before operating on

the actual delay setting. Because of this close association of options to their attached parameters, option

data ALWAYS immediately follows the parameter data to which it is associated. In this example, this

means that the 2-byte “delay” parameter becomes a 3-byte parameter.

Continuing the previous example, to access the “P Dly” parameter, you must get past the “Tune”

parameter and it’s option parameter value. You will note that, although “Tune” is a 1-byte parameter, its

description structure reveals that it has an option: “Optimize”.

pitch parameter data:

0x64 - Mix

0x00 - Level

0x0A - Tune

0x01 - Tune Option

0x00 - P Dly

0x00 - unused

The option parameter itself is identified by a Parameter Type number which we use to access the structure

describing it. The “Optimize” Parameter Description indicates that it is a 1 byte parameter so we increment

the pointer one last time to get to the “P Dly” parameter data.

pitch parameter data:

0x64 - Mix

0x00 - Level

0x0A - Tune

0x01 - Tune Option

0x00 - P Dly

0x00 - unused

Note that not all option parameters are 1-byte. Some have 0 bytes. These are embedded onto the MSB

of the parameter itself.

Other values which may appear in the parameter data packet should be ignored.

LFOs through Envelopes (Bytes 722-843)

The data for the LFOs, Arpeggiator, ADSRs, Random number generator, AB, Sample and Hold and the

Envelope Generators are organized in a similar fashion to the effect parameter data. The only difference

being that there are not multiple algorithms. The parameters for all of these items are always the same.

Otherwise, these parameters are accessed exactly as the effect parameters, including options.

Sort Flags (Bytes 394-399, Parameter Type: 0x0115)

Sort Flags consist of “effect types” (2 bytes) and “input types” (1 byte) (in that order).These define which

to which sorting groups (database) the program will be assigned.

The bit assignments for Effect types are:

PITCH 0x0001

CHORUS 0x0002

EQ 0x0004

MOD 0x0008

DELAY 0x0010

AMBIENT 0x0020

CHAMBER 0x0040

GATE 0x0080

HALL 0x0100

INVERSE 0x0200

PLATE 0x0400

DUAL 0x0800

MPX 1 MIDI Implementation Details

Lexicon

The bit assignments for Input types are:

LIVE_PA 0x01

VOCAL 0x02

GUITAR 0x04

KEYBOARD 0x08

ACOUSTIC 0x10

DRUMS 0x20

TEMPO 0x40

SOUND_FX 0x80

Audio Routing (Bytes 400-479)

Audio Routing data defines how the audio data moves in and around the system for the current program.

The audio routing is broken up into 8 blocks; one for each effect type, one for the input and one for the

output. The effects blocks represent the signal flow into, through and out of the box (left to right on the Map

and Order screens of the system). Each block consists of the following 5 one byte fields:

0 - Effect Type (Parameter Type 0x0146)

1 - Upper Input Connection (Parameter Type 0x0143)

2 - Lower Input Connection (Parameter Type 0x0144)

3 - Routing (Parameter Type 0x0145)

4 - Path Type

These descriptions can be used for range limits, etc..

The Effect Type will always be one of the following:

0 - Pitch

1 - Chorus

2 - EQ

3 - Modulator

4 - Reverb

5 - Delay

6 - Input

7 - Output

As the blocks represent signal flow through the box, the Effect Type of the first block will always be “Input”

and the Effect Type”of the last block will always be “Output”. Aside from that, the effects can be in any order

with the condition that all of the effects types must always be used, and no single effect type can be used

twice.

Upper Input Connection and Lower Input Connection describe the way that the audio signal is fed to the

respective inputs to the effect block. The following connection types are available:

0 - Stereo to Stereo

1 - Left to Left

2 - Right to Right

3 - Left to Left and Right (mono)

4 - Right to Left and Right (mono)

If the block does not use the lower path, the input connection will be ignored but will become active if

needed.

Note that the input block “Upper” and “Lower” connections are place markers and are not actually used

by the system.

The Routing field defines how the particular block deals with the upper and lower audio paths. The

following type of Routing have been defined:

0 - Upper

1 - Lower

2 - Parallel

3 - Merge

4 - Split

LexiconMPX 1 MIDI Implementation Details

Upper and Lower routings place the effect block in the upper or lower signal path ONLY. Parallel routing

makes the effect take its input from both the upper and lower paths, then outputs to both the upper and

lower paths. Merge routing takes its input from both the upper and lower paths, but outputs only on the

upper path. Split routing takes its input from the upper path and outputs on both the upper and lower paths.

Path Type defines whether a given effect block is on a single or double path. Some Routings imply the

Path Type, but others, such as “Upper”, do not. The following Path Types have been defined:

0 - Single Path

1 - Double Path

Example

Value Description

0x06 Effect type: Input block

0x00 Upper input connector: not used

0x00 Lower input connector: not used

0x04 Routing: Split

0x01 Patch type: Double path

0x02 Effect type: EQ block

0x03 Upper input connector: Left to Left and Right (mono)

0x00 Lower input connector: Stereo to Stereo

0x00 Routing: Upper

0x01 Patch type: Double path

0x03 Effect type: Modulator block

0x00 Upper input connector: Stereo to Stereo

0x04 Lower input connector: Right to Left and Right (mono)

0x01 Routing: Lower

0x01 Patch type: Double path

0x00 Effect type: Pitch block

0x00 Upper input connector: Stereo to Stereo

0x00 Lower input connector: Stereo to Stereo

0x00 Routing: Upper

0x01 Patch type: Double path

0x01 Effect type: Chorus block

0x00 Upper input connector: Stereo to Stereo

0x00 Lower input connector: Stereo to Stereo

0x03 Routing: Merge

0x01 Patch type: Double path

0x05 Effect type: Delay block

0x00 Upper input connector: Stereo to Stereo

0x00 Lower input connector: Stereo to Stereo

0x00 Routing: Upper

0x00 Patch type: Single path

0x04 Effect type: Reverb block

0x00 Upper input connector: Stereo to Stereo

0x00 Lower input connector: Stereo to Stereo

0x00 Routing: Upper

0x00 Patch type: Single path

0x07 Effect type: Output block

0x00 Upper input connector: Stereo to Stereo

0x00 Lower input connector: Stereo to Stereo

0x00 Routing: Upper

0x00 Patch type: Single path

MPX 1 MIDI Implementation Details

Lexicon

Rules

In addition to the basic range limits that should be placed on the values of each field of the Audio Routing

blocks, there are some rules which should be folllowed when making changes such as avoiding illegal

configurations (audio path is broken, etc.), avoiding redundant paths (parallel followed by a parallel, etc.)

and avoiding confusing configurations. The following guidelines are provided for editing Audio Routing

blocks.

The default signal path between the stereo inputs and outputs is a single path—six effects blocks

connected in series. The routing options allow the user to split this path in two, creating upper and lower

paths. Once the path has been split, it can be merged back into a single path again. It is even possible

to split and merge the path more than once.

In order to minimize redundant configurations and to keep the user from making unusable routing maps

(blocks with nothing connected to the inputs, etc.), the number of options available is conditional,

depending on how blocks in front (on the input side) of the selected block are configured. There are five

possible options.

Upper The inputs and outputs of an upper block are on the upper path. This is the only option

available for a single path.

Lower The inputs and outputs of a lower block are on the lower path. Blocks can only be assigned

to the lower path if the path has been previously split.

Split The inputs of a split block are on the upper path. The outputs are assigned to both the upper

and lower path. (The lower path output signal is an exact copy of the upper path signal.) A

split block can only be used in a single path. It turns a single path into a double path.

Parallel Parallel blocks have two pairs of stereo inputs. One pair is assigned to the upper path, the

other to the lower path. The outputs are assigned to both the upper and lower path. (The lower

path output signal is an exact copy of the upper path signal.) Parallel blocks can only be used

in a double path, following either an upper or lower block.

Merge Merge blocks have two pairs of stereo inputs. One pair is assigned to the upper path, the other

to the lower path. The outputs are assigned to only the upper path. A merge block can only

be used in a double path. It changes a double path into a single path.

NOTES:

1. For every split, there must be a merge. (Think of them as open and close parenthesis marks.)

2. The input block must either be upper or split. (The user gets to choose)

3. The output block will be automatically set to upper or merge. (This is determined by the state of the

path prior to the output block. If it has been split, then the output block is automatically set to merge.

If it is single, the output block is upper.

4. As stated previously, it is possible to create configurations in which the path is split and merged more

than once.

5. Merge and parallel blocks imply more processing overhead, since they require mixing of two pairs

of signals. Given the number of blocks, the maximum number of merge /parallel blocks required is

SELECTED BLOCK IS ON A SINGLE PATH

configurations selectable with KNOB

preceding block upper lower split parallel merge

upper • •

merge • •

LexiconMPX 1 MIDI Implementation Details

SELECTED BLOCK IS ON A DOUBLE PATH

configurations selectable with KNOB

preceding block upper lower split parallel merge

upper • • • •

lower • • • •

split • •

parallel • •

NOTES:

1. A block is on a single path unless it is in between a split and merge. (There can be as many as six

blocks between a split and merge.)

2. Split changes a single path into a double path. Merge changes a double path back into a single path.

3. If a split is inserted into a single path and there is no merge between it and the output block, the

output block is automatically set to merge.

4. If a split is inserted in front of a previously exisiting split, and there is no merge in between them,

the previously existing split is changed to upper.

5. If a merge is inserted into a double path and there is no split between it and the output block, then

all following blocks are set to upper. If there is a split between the merge and the output block, then

all blocks between the merge and the split are set to upper.

6. When the routing configuration of a block is changed, its input and output connections should be

reset to the default value, stereo.

Algorithm numbers (Bytes 480-491)

Algorithm numbers is a list of the current algorithms assigned to each of the six effects blocks in the

system. The algorithm numbers appear in the following order:

Index Effect Range Parameter Type

0 Pitch 0-10 0x014D

1 Chorus 0-11 0x014E

2 EQ 0-18 0x014F

3 Modulator 0-8 0x0150

4 Reverb 0-5 0x0151

5 Delay 0-8 0x0152

A zero (0) in all cases represents “no effect” algorithm assigned. The “no effect” algorithm actually contains

a “Mix” and “Level” parameter though they are ignored by the system.

When changing the algorithm number of an effect, remember that the parameter values for the old

algorithm may not be compatible with the new algorithm. In much the same way you would reference the

Parameter Type numbers for a given algorithm when interpreting the 32 bit parameter effect data, you

should check the values of all parameters against the limits in the Parameter Description. If a particular

parameter has an out-of-range value when it is loaded into the MPX 1, the system will fix the value but

the edit indicator will always come on when the program is loaded.

Note that programs are recognized as “cleared” by the system if the pitch algorithm number is 0xFF.

Program name (Bytes 492-515, Parameter Type 0x010B)

These 12 bytes represent the name that is associated with the stored program. The name does NOT need

to be null (0) terminated but must instead be padded with spaces (0x20).

MPX 1 MIDI Implementation Details

Lexicon

Effect Status (Bytes 516-517, Parameter Type 0x0113)

This one byte determines the “bypassed/not-bypassed” state of each of the effects blocks. Each of the

first six bits is assigned to an effect block with a 0 indicating “bypassed” and a 1 indicating “not-bypassed”

(or active). The following masks are defined in the system software to toggle these bits:

PITCH_ON 0x01

CHORUS_ON 0x02

EQ_ON 0x04

MOD_ON 0x08

REVERB_ON 0x10

DELAY_ON 0x20

Knob Data (Bytes 698-721)

The “Knob” (also referred to as the custom controller) allows the operator to rename a parameter and place

it in “Soft Row”. “Value” represents the value of the custom controller you want to store and the value you

want the controller to initialize to. The minimum and maximum values are 8-bit values but should be limited

to 0-127 as all other controllers.

With Knob you can assign a 9-character name that will appear on the display as well as minimum and a

maximum value to which the controller can be adjusted. As with the program name, the Knob name does

NOT need to be null terminated but should be padded with spaces (0x20).

Patch System Data (Bytes 578-697)

This group of bytes defines the patch assignments made for the current program. Each patch consists

of 12 bytes which function as follows:

Offset Description # Bytes Parameter Type#

0 Source controller number 1 0x013A

1 Source minimum value 1 0x013B

2 Source mid value 1 0x013C

3 Source maximum value 1 0x013D

4 Destination effect/controller type 1 0x013E

5 Destination parameter index 1 0x013F

6,7 Destination minimum value 2 0x0140

8,9 Destination mid value 2 0x0141

10,11 Destination maximum value 2 0x0142

Source controller number is the number from Appendix A: Controller Numbers. A value of 0xFF indicates

that the controller is unassigned.

Source minimum value defines what the system considers the minimum value for a given controller. When

the controller hits this value the system will drive the destination parameter to its defined minimum value.

Source mid value defines what the system considers the mid value for a given controller. When the

controller hits this value the system will drive the destination parameter to the destination’s defined mid

value. A value of 0xFF indicates that the mid field is not used.

This implies linear response to controller values between the min and max values.

Source maximum value defines what the system considers the maximum value for a given controller.

When the controller hits this value the system will drive the destination parameter to its defined maximum

value. All controllers have a range of 0-127.

LexiconMPX 1 MIDI Implementation Details

Destination effect/controller type is the effect or controller that will be acted upon by the patch. The value

in this field must be one of the following numbers:

0 Pitch

1 Chorus

2 EQ

3 Mod

4 Reverb

5 Delay

6 Knob

7 LFO1

8 LFO2

9 Arpeggiator*

10 ADR1

11 ADR2

12 Randomizer

13 AB Controller

14 Sample and Hold

15 Envelope1 Generator

16 Envelope2 Generator

17 System Parameters

*Although this controller appears in the list, none of its parameters can be patched.

A value of 0xFF indicates that the destination is unassigned.

Destination parameter number is the parameter number for specified effect or controller number that will

be acted upon by the current patch. This number is an index into the parameters for the effect or controller,

NOT the Parameter Type number. The Mix parameter for all effects, for instance, is parameter number

0. Level is ALWAYS parameter number 1. With the exception of System Parameters, these indeces

directly map the last number of the LUSP control address for each parameter. For System Parameters,

0=Master Mix and 1=Master Level. A value of 0xFF indicates that the destination is unassigned.

Destination minimum value is the minimum value that the patch will drive the parameter. The range of this

parameter depends on the type of parameter being patched. The value here will always be a value

between the minimum and the maximum values allowed for the parameter.

Destination mid value is the middle value of the destination that the patch will drive the parameter to when

the mid source value is applied to the patch.

Destination maximum value is the maximum value of the destination that the patch will drive the parameter

to when the maximum source value is applied to the patch.

The min and max allowable destination values for a given parameter are listed in each parameter

description. See Parameter Description (04 hex)..

MPX 1 MIDI Implementation Details

Lexicon

Soft Values (Bytes 518-557)

Soft Values define the assignments for the 10 “Soft Row” parameters as follows:

Byte# Descriptions # Bytes Parameter Type#

1,2 effect/controller type #1 1 0x0138

3,4 parameter index #1 1 0x0139

5,6 effect/controller type #2 1 0x0138

7,8 parameter index #2 1 0x0139

9,10 effect/controller type #3 1 0x0138

11,12 parameter index #3 1 0x0139

13,14 effect/controller type #4 1 0x0138

15,16 parameter index #4 1 0x0139

17,18 effect/controller type #5 1 0x0138

19,20 parameter index #5 1 0x0139

21,22 effect/controller type #6 1 0x0138

23,24 parameter index #6 1 0x0139

25,26 effect/controller type #7 1 0x0138

27,28 parameter index #7 1 0x0139

29,30 effect/controller type #8 1 0x0138

31,32 parameter index #8 1 0x0139

33,34 effect/controller type #9 1 0x0138

35,36 parameter index #9 1 0x0139

37,38 effect/controller type #10 1 0x0138

39,40 parameter index #10 1 0x0139

The effect/controller type is one of the following:

0 Pitch

1 Chorus

2 EQ

3 Mod

4 Reverb

5 Delay

6 Knob

7 LFO 1

8 LFO 2

9 Arpeggiator

10 ADR 1

11 ADR 2

12 Randomizer

13 AB Controller

14 Sample and Hold

15 Envelope 1 Generator

16 Envelope 2 Generator

0xFF unassigned

The parameter index is the parameter number for the defined effect or controller number that you want

to place in the Soft Values Edit. This number is an index into the parameters for the effect or controller

NOT the Parameter Type number. The Mix parameter for all effects, for instance, is parameter number

0. Level is ALWAYS parameter number 1. These indeces directly map to the last number of the control

address for each parameter.

Tempo (Bytes 558-561, “Rate” Parameter Type 0x010C)

Tempo is an unsigned word (16-bit value) that specifies the current system tempo in beats per minute

(BPM) when the program is loaded. Note that, internally, the system measures tempo down to the sample

level but it averages to the nearest BPM when the program is stored. The tempo range supported by the

system is 41-400 BPM.

LexiconMPX 1 MIDI Implementation Details

Tempo Source (Bytes 562-563, Parameter Type 0x0010D)

This parameter defines whether the tempo is derived from the internal value (stored or tapped in) or from

a MIDI clock. Legal values are as follows:

0 - internal tempo source

1 - MIDI tempo source

Beat Value (Bytes 564-565, Parameter Type 0x0010E)

Beat Value defines how the system will interpret each tap it receives. The following values have been

defined for this field:

0 Eighth note

1 Dotted Eighth note

2 Quarter note

3 Dotted Quarter note

4 Half note

5 Dotted Half note

6 Whole note

Tap Source (Bytes 566-567, Parameter Type 0x010F)

Tap Source is the number of a controller that will drive the MPX 1 tap function, calculating the tempo in

real-time. Controllers that can be used as Tap Sources are limited to those listed in Appendix A: Controller

Numbers beginning with Footswitch Pulse 1 (tip). All sources preceding this on the list are considered

illegal.

Tap Average (Bytes 568-569, Parameter Type 0x0110)

This field defines how many taps the system averages when it calculates the tempo based on taps. Legal

values are 1-8.

Tap Source Level (Bytes 570-571, Parameter Type 0x0111)

This field defines the threshold which a control source must cross to be interpreted as a tap.

Meter (Bytes 572-573, Parameter Type 0x00F8)

This field defines the signal that drives the MPX 1 display meters. The following sources are available:

0 Inputs

1 Outputs

2 Pitch Input

3 Pitch Output

4 Pitch in (left headroom) and Pitch Output (right headroom)

5 Chorus Input

6 Chorus Output

7 Chorus in (left headroom) and Chorus Output (right headroom)

8 EQ Input

9 EQ Output

10 EQ in (left headroom) and EQ Output (right headroom)

11 Modulation Input

12 Modulation Output

13 Modulation in (left headroom) and Modulation Output (right headroom)

14 Delay Input

15 Delay Output

16 Delay in (left headroom) and Delay Output (right headroom)

17 Reverb Input

18 Reverb Output

19 Reverb in (left headroom) and Reverb Output (right headroom)

20 LFOs (left=LFO 1, right=LFO 2)

21 Envelopes (left=Envelope 1, right=Envelope 2)

22 Footpedal

23 ADRs (left=ADR1, right=ADR2)

MPX 1 MIDI Implementation Details

Lexicon

Master Level (Bytes 574-575, Parameter Type 0x0148)

This sets the MPX 1 Master Level parameter when the program is loaded. Legal values are -96 to 0.

Master Mix (Bytes 576-577, Parameter Type 0x0147)

This sets the MPX 1 Master Mix parameter when the program is loaded. Legal values are from 0 to 100.

Requesting a Program Dump

The request for this packet takes the program number as an argument as follows:

0n Program Number (lo nibble) (Nibble 1 of argument)

0n Program Number (lo mid nibble) (Nibble 2 of argument)

0n Program Number (hi mid nibble) (Nibble 3 of argument)

0n Program Number (hi nibble) (Nibble 4 of argument)

0n unused (Nibble 5 of argument)

0n unused (Nibble 6 of argument)

For example, to request program number 8 the following message would be sent:

request

——header—— Class -prog num— unused

F0 06 09 00 06 0B 01 08 00 00 00 00 00 F7

Compact Program (1C hex)

This message is for Lexicon development use only.

Parameters

There are some parameters in the MPX 1 control tree that require a bit more information to be dealt with

cleanly. The following sections provide additional information about all of these “parameters”. Note that

the Parameter Type number of the parameter is listed at the beginning of each section.

Unique Parameters

MIDI Speed (Type 0x00F2 at control address A - 0x0001, B - 0x0002, C - 0x000A)

Only the values in the following table should be used for the MIDI Speed parameter, other values may

produce random results:

Fast 0x01

Medium Fast 0x02

Medium Slow 0x04

Slow 0x40

Also see midi_output_rate under Setup Dumps.

Panel Button Message (Type 0x011D)

This parameter is implemented in such a way that the messages sent to the MPX 1 are treated as if they

were sent from the keyboard drivers in the system. The keyboard drivers in MPX 1 always send a PRESS

message when a button is pressed followed by a RELEASE message when the button is released to the

operating system. If a button is held for more than 2 seconds, a HOLD message is sent to the operating

system. A RELEASE message always follows a HOLD message. In general, MIDI data coming into the

box should follow the same conventions for consistent operation. The system will NOT interpret a PRESS

that is not followed by a RELEASE as a HOLD. In most cases, HOLD is used to gain access to a sub menu.

If the HOLD followed by release convention cannot be emulated by Windows, for instance, a separate

screen button could be used to trigger the HOLD message.

LexiconMPX 1 MIDI Implementation Details

With the exception of TAP, most operations respond to the RELEASE version of the buttons. It is perfectly

legal to send the RELEASE versions only. The LEFT/RIGHT button press combination and TIP/RING

footswitch press are the only such button types recognized by the system. The system will NOT recognize

two individual button PRESSes (without releases) as the combination. The combination messages MUST

be used.

Button Press (Hex) Hold (Hex) Release (Hex)

Pitch 00 16 2C

Chorus 01 17 2D

EQ 02 18 2E

Program 03 19 2F

Mod 04 1A 30

Delay 05 1B 31

Reverb 06 1C 32

Edit 07 1D 33

Mix 08 1E 34

Patch 09 1F 35

Bypass 0A 20 36

System 0B 21 37

Tap 0C 22 38

Left < 0D 23 39

Value 0E 24 3A

Store 0F 25 3B

A/B 10 26 3C

Right > 11 27 3D

Options 12 28 3E

Foot Switch Tip 13 29 3F

Foot Switch Ring 14 2A 40

Left and Right <> 15 2B 41

Direction Value (Hex)

Encoder CW 42

Encoder CCW 43

For example, to emulate the release of the Program button (2F), you would send the following

message:

——header—— num bytes button

F0 06 09 00 01 01 00 00 00 0F 02 03 00 00 00 01 00 00 00

08 00 00 00 00 00 00 00 F7

Rate (Types 0x0000-0x0010)

The Rate parameter is different from most other parameters for two reasons. First, it can represent rate

as a frequency or as a ratio applied to the current system wide tempo. Second, it uses the MSB (most

significant bit) to define its mode/units.

Frequency When representing a frequency, the value of Rate is in units of hundredths of a hertz

(100=1Hz). The maximum frequency is 50Hz or 5000.

Ratio When representing a ratio, the value of Rate is broken up into two fields: a numerator and

a denominator (n:d). The numerator is stored in the high byte while the denominator is

in the low byte. Either value can be between 1 and 24. The system uses these values as

a fraction which gets multiplied by the current tempo to derive the actual rate (in

hundredths of Hz).

Units/MSB For Rate parameters, the MSB of the value is used to determine what units are being

used. If set for 1, the Ratio units are used. If set for 0, the Frequency units are used. This

means that, instead of looking at the options data first to determine what unit is being used

(as elsewhere in the system), you must look at the MSB of the rate value itself to

determine the units.

MPX 1 MIDI Implementation Details

Lexicon

Dumps

The MPX 1 SysEx protocol allows different kinds of data to be moved in and out of the MPX 1 using a single

message class. Other products have unique message classes defined for moving structures and tables

in and out of the system, but the MPX 1 has folded most of these into Parameter Data messages which

librarian programs can use to find dumps then move them in and out of the box without knowing much

of anything about system or the contents of the data. The following sections provide detailed information

about all of the Dump parameters in the MPX 1. Editor and/or controller programs can use this information

to perform off-line editing of these dumps.

All LEDs Dump (Type 0x012F)

This dump contains the current contents of the LED buffer in the MPX 1 that controls the states of the front

panel LEDs. The actual front panel LEDs are represented as individual bits in the dump. The following

table outlines the assignments of the bytes/bits in the dump:

Transmit & Receive

Byte # Description Bit Assignments On State

1 Left Headroom bit 0 = Left Headroom -24dB LED 1

bit 1 = Left Headroom -18dB LED 1

bit 2 = Left Headroom -12dB LED 1

bit 3 = Left Headroom -6dB LED 1

bit 4 = Left Headroom 0dB LED 1

bit 5 = Left Headroom Clip (red) LED 1

bit 6 = unused

bit 7 = unused

2 Column 1 bit 0 = Scan bit 0 (0) (see note below)

bit 1 = Scan bit 1 (0)

bit 2 = Scan bit 2 (0)

bit 3 = Pitch LED 0

bit 4 = Chorus LED 0

bit 5 = EQ LED 0

bit 6 = Program LED 0

bit 7 = unused

3 Right Headroom bit 0 = Right Headroom -24dB LED 1

bit 1 = Right Headroom -18dB LED 1

bit 2 = Right Headroom -12dB LED 1

bit 3 = Right Headroom -6dB LED 1

bit 4 = Right Headroom 0dB LED 1

bit 5 = Right Headroom Clip (red) LED 1

bit 6 = unused

bit 7 = unused

4 Column 2 bit 0 = Scan bit 0 (1)

bit 1 = Scan bit 1 (0)

bit 2 = Scan bit 2 (0)

bit 3 = Modulation LED 0

bit 4 = Delay LED 0

bit 5 = Reverb LED 0

bit 6 = Edit LED 0

bit 7 = unused

5 7 Segment bit 0 = segment a 1

Display 1 bit 1 = segment b 1

(left) bit 2 = segment c 1

bit 3 = segment d 1

bit 4 = segment e 1

bit 5 = segment f 1

bit 6 = segment g 1

bit 7 = decimal point (Digital In) 1

LexiconMPX 1 MIDI Implementation Details

6 Column 3 bit 0 = Scan bit 0 (0)

bit 1 = Scan bit 1 (1)

bit 2 = Scan bit 2 (0)

bit 3 = Mix LED 0

bit 4 = Patch LED 0

bit 5 = Bypass LED 0

bit 6 = System LED 0

bit 7 = unused

7 7 Segment bit 0 = segment a 1

Display 2 bit 1 = segment b 1

(middle) bit 2 = segment c 1

bit 3 = segment d 1

bit 4 = segment e 1

bit 5 = segment f 1

bit 6 = segment g 1

bit 7 = decimal point (Clock) 1

8 Column 4 bit 0 = Scan bit 0 (1)

bit 1 = Scan bit 1 (1)

bit 2 = Scan bit 2 (0)

bit 3 = Tempo LED 0

bit 4 = ‘A’ LED 0

bit 5 = Value LED 0

bit 6 = Store LED 0

bit 7 = unused

9 7 Segment bit 0 = segment a 1

Display 3 bit 1 = segment b 1

(right) bit 2 = segment c 1

bit 3 = segment d 1

bit 4 = segment e 1

bit 5 = segment f 1

bit 6 = segment g 1

bit 7 = decimal point (MIDI) 1

10 Column 5 bit 0 = Scan bit 0 (0)

bit 1 = Scan bit 1 (0)

bit 2 = Scan bit 2 (1)

bit 3 = MIDI LED 0

bit 4 = ‘B’ LED 0

bit 5 = Options LED 0

bit 6 = unused

bit 7 = unused

1 represents an LED being turned ON. 0 represents the LED turned OFF for the headrooms and 7 segment

displays. For the “Columns” the states are reversed: 0=ON, 1=OFF. When sending the data to the system,

“unused” bits can be treated as “don’t care” (they are stripped off).

Note that the first 3 bits of the “Columns” contain scan information used by the system to drive a hardware

multiplexer which provides scanning for both the LEDs and the keyboard. When sending this dump to the

system, the states of these bits MUST be as shown in the table above ( “Scan bit 0 (x)” ).

Remember, when sending LED information, that the system software is often updating certain LED states

in real-time (blinking LEDs, etc.). When this happens the values you send will be overwritten by the

system’s values.

If you are using this feature, it is recommended that you first request the current state of the LEDs and

save it locally so that you can restore the LEDs to their proper state after you are done.

MPX 1 MIDI Implementation Details

Lexicon

The following constants are defined in the system software to drive the headrooms:

/* Headroom Defs */

NO SIGNAL LEDS 0x00 /* 0000 0000 */

24DB LEDS 0x01 /* 0000 0001 */

18DB LEDS 0x03 /* 0000 0011 */

12DB LEDS 0x07 /* 0000 0111 */

6DB LEDS 0x0f /* 0000 1111 */

0DB LEDS 0x1f /* 0001 1111 */

CLIP LEDS 0x3f /* 0011 1111 */

The 7 segment displays are represented with each bit assigned to a segment. The following diagram

shows where each segment appears on the display:

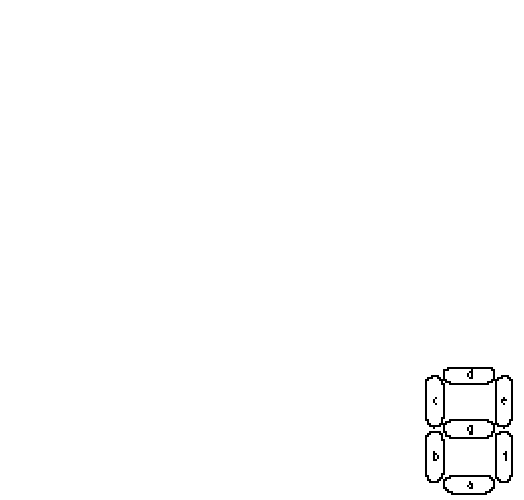

7 Segment Displays

d0 = segment a

d1 = segment b

d2 = segment c

d3 = segment d

d4 = segment e

d5 = segment f

d6 = segment g

d7 = Decimal Point

The number images are defined in the system software as follows:

/* pgfe dcba */

0 IMAGE 0x3f /* 0011 1111 */

1 IMAGE 0x30 /* 0011 0000 */

2 IMAGE 0x5b /* 0101 1011 */

3 IMAGE 0x79 /* 0111 1001 */

4 IMAGE 0x74 /* 0111 0100 */

5 IMAGE 0x6d /* 0110 1101 */

6 IMAGE 0x6f /* 0110 1111 */

7 IMAGE 0x38 /* 0011 1000 */

8 IMAGE 0x7f /* 0111 1111 */

9 IMAGE 0x7c /* 0111 1100 */

P IMAGE 0x5e /* 0101 1110 */

Display Dump (Type 0x011E)

The display dump allows the current contents of the display to be extracted or messages to be placed on

the display of a connected MPX 1. The dump contains 32 characters; one for each segment of the LCD

(top left to bottom right). All ASCII characters can be used along with the numbers 0-7 which access the

8 custom characters supported by the display. Because of this, NULL terminated strings should not be

used. The NULL will be interpreted as the first custom character.

When “requested”, the current contents of the display buffer is transmitted. Note that several displays use

custom characters, particularly the “parameter edited” character (which uses custom character 0). This

can be a problem for ‘C’ language functions which look for null terminated strings. Always parse the strings

and deal with the custom characters appropriately.

Custom Character Bitmap Dumps (Type 0130)

This dump allows you to send bit-mapped custom characters to the LCD. A total of 8 custom characters

can be used as any other (ASCII) character when writing to the display. Normally, characters are written

to the display by sending the ASCII number representing the character to the display. Custom characters

are displayed by sending the numbers 0-7 for the custom characters 0-7 respectively, to the display. The

use of the number 0 should be noted for its implications in the ‘C’ programming language.

Developers can use this dump to generate their own characters for a start-up screen when their system

connects with an MPX 1.

LexiconMPX 1 MIDI Implementation Details

Each custom character is 5 pixels wide by 7 pixels high with one additional row of pixels on the bottom

for the underline. When loading custom characters, the data is transferred as 8 bytes of data, each

representing one row of the character starting from the top. Each bit of the byte corresponds to one pixel

with 1 turning the pixel on and 0 turning it off. Because each character is only 5 pixels wide, the top 3 bits

are not used. As a result, all characters will either have a 1 or a 0 in the high nibble. For example, the letter

‘T’ would be represented as follows:

0x1f, 0x04, 0x04, 0x04, 0x04, 0x04, 0x04, 0x00

row binary hex

0 - 0001 1111 0x1f

1 - 0000 0100 0x04

2 - 0000 0100 0x04

3 - 0000 0100 0x04

4 - 0000 0100 0x04

5 - 0000 0100 0x04

6 - 0000 0100 0x04

under 0000 0000 0x00

You would use the custom characters by sending a display dump message using the custom character

numbers in the places where you want the custom characters to appear on the display.

Note that the dump always contains all 8 custom characters for a total of 64 data bytes.

Setup Dumps (Type 0x0128)

The system supports 5 stored setups and an active setup. The system is immediately reconfigured for new

active setups once they are received.

The setup data structure is defined as follows (dump bytes are in this order):

Byte # Description # Bytes Parameter Type#

1,2 MIDI Receive Channel 1 0x00F1

3-6 MIDI Transmit Speed 2 0x00F2

7,8 MIDI SysEx Receive 1 0x00F3

9,10 MIDI SysEx On/Off 1 0x0126

11,12 MIDI Transmit 1 0x00F4

13-16 Pgm# Offset 2 0x00F5

17,18 MIDI Automation 1 0x00F6

19,20 MIDI Clock Send On/Off 1 0x00F7

21,22 Program Sort Mode 1 0x00F9

23,24 Modes Contrast 1 0x00FA

25,26 Automation Xmit ID 1 0x00FB

27,28 MIDI Pgm Change On/Off 1 0x00FC

29,30 MIDI Ctl Smooth 1 0x0117

31,32 Modes Bypass 1 0x00FE

33,34 Modes MemProtect On/Off 1 0x00FF

35,36 Store Prompt On/Off 1 0x0118

37,38 patch_update_mode 1 not used

39,40 Modes Sleep 1 0x0101

41,42 Modes Mix 1 0x0102

43,44 Modes Pgm Load 1 0x00FD

45,46 Pgm+ 1 0x0104

47,48 Pgm- 1 0x0105

49,50 Audio Input/clck 1 0x0106

51,52 Audio Output 1 0x0107

53,54 Audio Dig In Lvl 1 0x0108

55,56 Audio ChanStatus 1 0x0109

57,58 Audio Soft Sat 1 0x010A

59,60 pedal_max 1 -

61,62 pedal_delta 1 -

63,64 Modes Tempo 1 0x0119

65,66 Audio Input Mode 1 0x011A

67,68 Modes Pgm Load 1 0x0100

69-86 setup_name 9

MPX 1 MIDI Implementation Details

Lexicon

MIDI Receive Channel (midi_in_channel)

This is the MIDI channel on which the system recognizes incoming data. Legal values are 0-15 for the

standard midi channels, 16 for MIDI off and 17 for Omni mode.

MIDI Transmit Speed (midi_output_rate )

This sets the rate at which midi data is output from the system. Only the values in the following table should

be used in this field:

Fast - 0x01

Medium Fast - 0x02

Medium Slow - 0x04

Slow - 0x40

MIDI SysEx Receive (midi_device_id)

This is the device ID used in all outgoing SysEx dump messages and incoming messages. Legal values

are 0-126.

MIDI SysEx On/Off (sysex_on_off)

This enables (1) or disables reception of SysEx data by the system.

MIDI Transmit (midi_out_channel)

This is the MIDI channel on which the system outputs MIDI data. Legal values are 0-15 for the standard

midi channels and 16 for MIDI off.

Pgm# Offset (program_change_offset)

This 2 byte value sets the “Pgm# Offset” on the system which allows incoming standard program change

messages to be offset from the first program. Normally a program change value of 0 loads program 1.

MIDI Automation (midi_automation_mode)

This determines if the MIDI automation in the system is on (1) or off (0).

MIDI Clock Send On/Off (midi_clock_mode)

This determines if MIDI clock is (1) or is not (0) to be transmitted from the system (MIDI out).

Program Sort Mode (sort_mode)

This sets the current program sort mode in the system. The following values have been defined:

SORT_BY_NAME 0

SORT_BY_NUMBER 1

SORT_BY_INPUT 2

SORT_BY_FX_TYPE 3

SORT_BY_INP_AND_FX 4

SORT_BY_MIDI_MAPS 5

SORT_BY_MIDI_CHAINS 6

SORT_BY_TOP_10 7

Modes Contrast (cur_contrast)

This sets the contrast level of the system’s LCD. Legal values are 0-15.

Automation Xmit ID (automation_device_id)

This sets the device ID of the outgoing SysEx data generated by the system’s automation. Legal values

are 0-126 or 127 for all targets. (this is an option of the MIDI Automation On/Off)

MIDI Pgm Change On/Off (program_change_mode)

This enables (1) or disables (0) program changes via standard MIDI program change messages.

MIDI Ctl Smooth (cont_smooth)

This sets the amount of interpolation that is performed on the incoming MIDI controller data. 0 = no

interpolation, 100 = full interpolation.

LexiconMPX 1 MIDI Implementation Details

Modes Bypass (bypass_mode)

This sets how the audio is routed through the system when system bypass is turned on. The following

values have been defined:

NORMAL_BYPASS 0

ALL_MUTE_BYPASS 1

INPUT_MUTE_BYPASS 2

Modes MemProtect On/Off (memory_protect_mode)

This turns the system’s program memory protect mode is turned on (1) or off (0).

Store Prompt On/Off (auto_store_mode)

This sets the auto store mode to on (1) or off (0). (this is an option of Modes MemProtect)

patch_update_mode

This is not implemented.

Modes Sleep (sleep_mode)

This sets the current sleep mode from the following:

NO_SLEEP_MODE 0

HELP_SLEEP_MODE 1

ENGLISH_PROMO_SLEEP_MODE 2

FRENCH_PROMO_SLEEP_MODE 3

GERMAN_PROMO_SLEEP_MODE 4

TALIAN_PROMO_SLEEP_MODE 5

SPANISH_PROMO_SLEEP_MODE 6

Modes Mix (mix_mode)

This sets the current mix mode: 0 = global, 1 = program

Modes Pgm Load (program_load_mode)

This defines how the system will route the audio through the system during a program load. Bypass = 0

or all mute = 1.

Pgm+ (pgm_inc_controller)

Pgm- (pgm_dec_controller

These define the controllers used to increment and decrement the current program. Refer to the list of

controllers in Appendix A: Controller Indeces for legal values.

Audio Input/clck (clock_source)

This is really the input/clock source. It sets the audio input to the system as either analog or digital as well

as the sample clock source. The following values have been defined:

ANALOG_INTERNAL_MODE 0

ANALOG_EXTERNAL_MODE 1

DIGITAL_EXTERNAL_MODE 2

Audio Output (output_type)

This sets the current audio output from the system to either analog (0) or digital (1).

Audio Dig In Lvl (dig_in_level)

This sets the level of the digital audio coming into the system when enabled. The legal range for values

is +6 to -90 which directly translates into the level.

Audio ChanStatus (chan_stat_mode)

This defines whether the system generates channel status (1) or passes it through from the digital audio

feeding the system (0) (pass thru). Note that the pass thru mode should only be used if digital audio is the

audio source or the system is using digital audio as the sync source (Analog/External).

MPX 1 MIDI Implementation Details

Lexicon

Audio Soft Sat (soft_saturation_mode)

This turns the soft saturation circuits on (1) or off (0).

pedal_max

pedal_delta

These are internally generated calibrations of the connected foot pedal. pedal_max is related to the

minimum pedal voltage after calibration. It decreases from 0xFF as the pedal minimum voltage increases.

(The reason it’s backwards, and the reason it’s called “max”, is that the pedal ADC is basically a down

counter).

pedal_delta is proportional to the range of the pedal voltage after calibration (the max voltage - the min

voltage). In other words, pedal_max is the offset term and pedal_delta is the scaling term.

Modes Tempo (tempo_mode)

This determines whether the current tempo is global (0) or program specific (1).

Audio Input Mode (input_mode)

This sets the configuration of the audio input signal. The following choices have been defined:

STEREO_INPUT_MODE 0

LEFT_MONO_INPUT_MODE 1

RIGHT_MONO_INPUT_MODE 2

Modes Pgm Load (autoload_mode)

This sets the auto load mode to Manual (0) or auto-load (1).

setup_name

This is an array containing the ASCII name string for the setup. This can be a maximum of 9 characters

and should NOT be null terminated (NULL is a custom character for the LCD). Unused characters should

be spaces (0x20).

Global Patches Dump (Type 0x012D)

This message class allows you to send Global Patches dumps to, or receive them from an MPX 1. There

are 10 global patches in the system, each with a one byte source and destination. The sources are the

controllers from Appendix A: Controller Indeces beginning with “Pedal” (0x18) and ending at “TSw”

(0xA2). A value of 0xFF is used if the patch is unassigned (“None” displayed). The destinations are as

follows:

0 none

1 Mstr Mix

2 Ptch Mix

3 Chrs Mix

4 EQ Mix

5 Mod Mix

6 Dly Mix

7 Rvb Mix

8 Mstr Lvl

9 Ptch Lvl

10 Chrs Lvl

11 EQ Lvl

12 Mod Lvl

13 Dly Lvl

14 Rvb Lvl

The dumps are formatted as two 10-byte arrays; the first 10 are for the sources (1-10) and the second

10 bytes are the destinations (1-10).

LexiconMPX 1 MIDI Implementation Details

typedef struct

{BYTE global_patch_sources[10];

BYTE global_patch_destinations[10];

}GLOBAL_PATCHES;

Bypass Controllers Dump (Type 0x012C)

This dump allows you to send “Bypass Controllers” assignments to, or receive them from the system. The

bypass controllers allow the operator to define a particular controller to toggle the effects and system

bypass on and off. The 7 bypass controllers are assigned as follows:

0 - Master Bypass

1 - Pitch Bypass

2 - Chorus Bypass

3 - Modulation Bypass

4 - EQ Bypass

5 - Reverb Bypass

6 - Delay Bypass

The dump consists of seven 1-byte controller sources that can be patched to these destinations. The

sources are the controllers from Appendix A; Controller Indeces beginning with “Tog1” (0x19) and ending

at “CC119” (0x96). A value of 0xFF is used if the controller is unassigned (“None” displayed).

Remap Controllers Dump (Type 0x012B)

This dump allows you to send “Remap Controllers table” assignments to, or receive them from the system.

The remap controllers table is used by the system to define the MIDI controller number which will be used

to transmit the control source if it is used in a patch and has a non-0xff value in this table. The value 0xff

designates “not assigned”. The system supports 163 controller sources (listed in Appendix A) which each

have an associated remap value in the remap table. The table in the Appendix identifies the assignment

of each byte of this dump sequentially.

MPX 1 MIDI Implementation Details

Lexicon

Current Choices Dump (Type 0x0125)

This message allows you to get the current settings of all menu choices in the system. Typically, this dump

is used to initialize the state (bypass, running program, etc..) of the system. In the system software, the

current choices are stored in a data structure of the following type:

Byte # Description # Bytes

1,2 program_bank 1

3,4 current_effect_edit_parameter 1

5,6 cur_alg_select 1

7,8 cur_internal_cont_param_num 1

9,10 cur_internal_cont 1

11,12 compare_mode 1

13,14 dbase_edit_cur_choice 1

15,16 soft_val_play_cur_choice 1

17,18 soft_val_cur_choice 1

19,20 soft_val_edit_cur_choice 1

21,22 current_map_block 1

23,24 cur_routing_item 1

25,26 cur_map_screen 1

27,28 order_cur_choice 1

29,30 mix_cur_choice 1

31,32 patch_cur_choice 1

33,34 audio_cur_choice 1

35,36 audio_options_cur_choice 1

37,38 midi_cur_choice 1

39,40 chains_cur_choice 1

41,42 store_cur_choice 1

43,44 cur_edit_page 1

45-48 *cur_edit_page_name_ptr 2

49,50 cur_edit_param_index 1

51,52 cur_num_edit_params 1

53,54 cur_system_page 1

55-58 *cur_system_page_name_ptr 2

59,60 cur_system_param_index 1

61,62 cur_num_system_params 1

63-66 selected_program_num 2

67-70 running_program_num 2

71,72 operating_mode 1

73,74 button_encoder_mode 1

75,76 system_init_mode 1

77,78 cur_setup_num 1

79,80 cur_setup_choice 1

81,82 cur_utility_choice 1

83,84 bypass_state 1

85,86 cur_bypass_patch_num 1

87,88 cur_tools_param_num 1

89,90 cur_tools_tool 1

91,92 cur_global_patch_num 1

93,94 cur_global_patch_menu_choice 1

95,96 cur_ui_dump_type 1

97,98 cur_cont_remap_choice 1

99,100 cur_patch_param 1

101,102 patch_knob_mode 1

103,104 cur_auto_store_choice 1

105,106 cur_tempo_choice 1

107,108 cur_tempo_source_error_choice 1

109,110 cur_midi_map_choice 1

111,112 cur_invalid_data_choice 1

113,114 cur_verify_choice 1

115,116 cur_verify_store_choice 1

117,118 cur_prog_sel_choice 1

119,120 cur_sleep_choice 1

121-124 *cur_menu_ptr 2

125-128 *mix_prev_menu_ptr 2

129-132 *patch_prev_menu_ptr 2

133-136 *autostore_prev_menu_ptr 2

137-140 *verify_prev_menu_ptr 2

141-144 *store_prev_menu_ptr 2

LexiconMPX 1 MIDI Implementation Details

program_bank

This is the program bank that is set when controller 32 (Bank Select) is sent to the box. This is used to

offset incoming standard program change messages by 0, 100 and 200 when set to 0, 1, and 2

respectively.

current_effect_edit_parameter

This contains the parameter number of the effect edit menu. Note that this is really only significant when

in the EDIT mode with effect parameters visible because of an “effect_matrix” that contains the current

positions in each effect’s menu. “current_effect_edit_parameter” is only the currently displayed version.

The “effect_matrix” is not accessible via MIDI.

cur_alg_select

This contains the current value of the effect (algorithm) select menu. When displayed, this translates into

the algorithm number for the selected effect.

cur_internal_cont_param_num

cur_internal_cont

not used

compare_mode

This contains the current “compare mode” for the system (1 = on, 0 = off).

dbase_edit_cur_choice

This contains the current choice for the “Database” menu.

soft_val_play_cur_choice

This contains the current choice for the “Soft Row” menu when accessed via the Program mode.

soft_val_cur_choice

This contains the current choice for the “Soft Row” menu when accessed via the Edit mode.

soft_val_edit_cur_choice

This contains the current choice for the “Soft Row Edit” menu when accessed via the Program mode.

current_map_block

This contains the current effect block being edited in the “Audio Routing” menu. Note that block number

0 is ALWAYS the input and block number 8 is always the output.

cur_routing_item

This contains the current effect block being edited in the “Audio Routing” menu OPTION. Again, block

number 0 is ALWAYS the input and block number 8 is always the output.

cur_map_screen

not used

order_cur_choice

This contains the current effect block being moved in the “Effect Order” menu.

mix_cur_choice

This contains the current active position in “Mix” menu. (range: 0-13)

patch_cur_choice

This contains the current patch number being edited in the patch menu (range:0-4)

MPX 1 MIDI Implementation Details

Lexicon

audio_cur_choice

This contains the current “Audio” menu item. (range:0-5)

audio_options_cur_choice

This contains the current “Audio” menu OPTION item. (range:0-2)

midi_cur_choice

This contains the current “MIDI” menu item. (range:0-10)

chains_cur_choice

This contains the current “Chains” menu item. (range:0-2)

store_cur_choice

This contains the current “Store” menu item. A value of 0 allows the encoder to select a program number

while the 1-12 allow the encoder to edit the programs name.

cur_edit_page

This is the current “Edit” menu item (Compare, Meter Assign, etc...) (range: 0-18)

cur_edit_page_name_ptr

This is an internal pointer to a name string for the cur_edit_page.

cur_edit_param_index

This is a more global version of the “current choices” for menus under “Edit”. In some menus, this actually

replaces the “current choice” variable. The range varies depending on which menu is active.

cur_num_edit_params

This is global “Edit” mode count of the max value for the active menu.

cur_system_page

This is the current “System” menu item (Audio, Mode, etc...) (range: 0-9)

cur_system_page_name_ptr

This is an internal pointer to a name string for the cur_system_page.

cur_system_param_index

This is a more global version of the “current choices” for menus under “System”. In some menus, this

actually replaces the “current choice” variable. The range varies depending on which menu is active.

cur_num_system_params

This is global “System” mode count of the max value for the active menu.

selected_program_num

This is the “Selected” but not necessarily loaded program number.

running_program_num

This is the number of the currently running program.

operating_mode

This contains the current operating mode. The modes are defined as follows:

PROGRAM_MODE 0

EDIT_MODE 1

SYSTEM_MODE 2

button_encoder_mode

This confirms the operation of the encoder and the <> buttons. (0=normal, 1=swapped).

LexiconMPX 1 MIDI Implementation Details

system_init_mode

This is the current choice for the “System: Initialize” menu. (range: 0-6)

cur_setup_num

This is the current “Setup” that is active. (range:0-4)

cur_setup_choice

This is the current choice for the “System: Mode” (formerly “Setup”) menu. (range: 0-9)

cur_utility_choice

not used

bypass_state

This is the current bypass state of the box. 1=Bypass ON, 0=Bypass OFF

cur_bypass_patch_num

This is current choice of the bypass patch menu (Option under “System:Mode Bypass”). (range: 0-6)

cur_tools_param_num

This is the current choice for the “System” “Initialize”, “Clear Programs” and “Copy Programs” menus. The

range of this varies depending on which menu is active.

cur_tools_tool

This defines whether “initialize”(0), “Clear Programs”(1) or “Copy Programs”(2) menus is selected.

cur_global_patch_num

This contains the current “Global Patch” number that is being edited. (range: 0-9)

cur_global_patch_menu_choice

This contains the current choice for the “Global Patches” menu. (range: 0-2)

cur_ui_dump_type

This contains the currently selected MIDI dump type. (range 0-21)

cur_cont_remap_choice

This contains the currently selected “Controller Remap” choice (which controllers transmit value is being

edited). (range:0- )

cur_patch_param

This is the current parameter for the patching system. The range of this is 0-5 if a destination is defined

otherwise the value is limited to 0-2.

patch_knob_mode

not used

cur_auto_store_choice

This is handler variable used by the system’s “Auto Store” function.

cur_tempo_choice

This contains the current choice for the “Edit:Tempo” menu. (range: 0-3)

cur_tempo_source_error_choice

This is a handler variable used by the Tempo subsystem when slaved to external MIDI clock and an out

of range clock is detected.

MPX 1 MIDI Implementation Details

Lexicon

cur_midi_map_choice

This contains the current choice for the “MIDI Maps” menu. (range: 0-2)

cur_invalid_data_choice

This is a handler variable used by the system in monitoring the incoming digital audio.

cur_verify_choice

cur_verify_store_choice

These are handler variables for two of the “Verify” requesters.

cur_prog_sel_choice

not used

cur_sleep_choice

not used

cur_menu_ptr

mix_prev_menu_ptr

patch_prev_menu_ptr

autostore_prev_menu_ptr

verify_prev_menu_ptr

store_prev_menu_ptr

are internal pointers to menus that the system must return to when it enters one of these menus.

Patches Dump (Type 0x0129)

This dump allows you to get the patch data for all of the patches in the active program or send it to the

system.

There are 5 patches transmitted in this message which are each organized as follows:

Byte # Description # Bytes

1,2 Source Controller number 1

3,4 Source Minimum value 1

5,6 Source Middle value 1

7,8 Source Maximum Value 1

9,10 Destination Effect/Parameter type 1

11,12 Destination Parameter index 1

13-16 Destination Minimum value 2

17-20 Destination Middle value 2

21-24 Destination Maximum value 2

Lexicon MPX1 MIDI Implementation Revision 0 Implmt Rev0 Original

Lexicon MPX1 MPX1 MIDI Implementation Revision 0 MPX1_MIDI_Implmt_Rev0_original Lexicon - MPX1 - MPX1 MIDI Implementation Revision 0

Navigation menu

Versions of this User Manual:

Views

Navigation
