OpenSwitch OPX Developers Guide

Release 2.2.0

2018 - 2

Rev. A02

Contents

1 Getting started...............................................................................................................................................4

Architecture ....................................................................................................................................................................... 5

Run-time components....................................................................................................................................................... 7

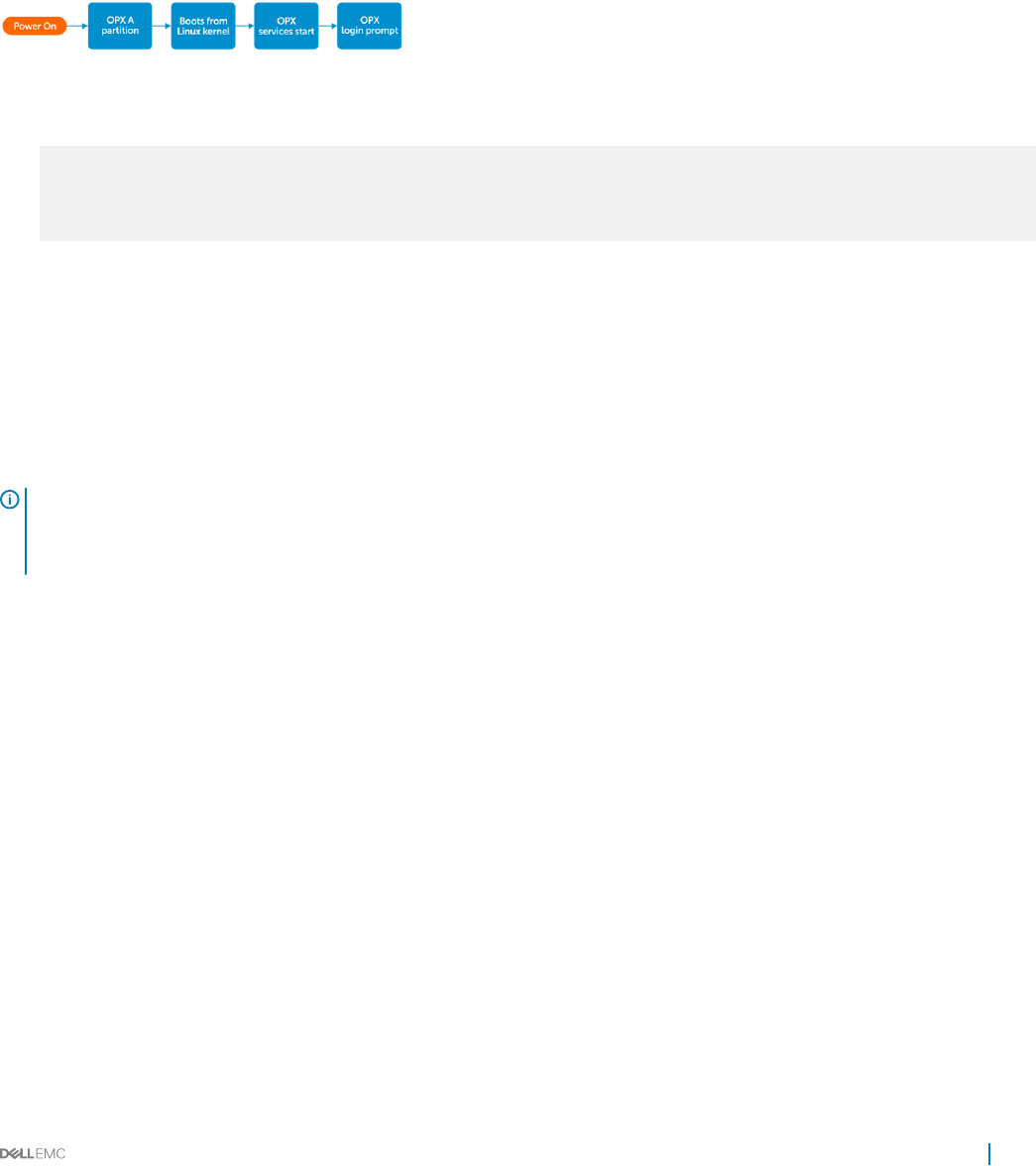

Boot sequence....................................................................................................................................................................9

2 Programmability........................................................................................................................................... 10

Client and server applications......................................................................................................................................... 10

CPS keys............................................................................................................................................................................ 11

Objects and attributes......................................................................................................................................................12

CPS qualiers.................................................................................................................................................................... 13

Publish/subscribe............................................................................................................................................................. 13

API operations................................................................................................................................................................... 14

YANG modeling objects................................................................................................................................................... 15

CPS API objects................................................................................................................................................................15

Object dictionary support................................................................................................................................................ 17

YANG model C header..................................................................................................................................................... 17

sFlow using YANG and Python...................................................................................................................................... 20

YANG model reference.....................................................................................................................................................21

CPS API reference............................................................................................................................................................21

3 Application examples................................................................................................................................... 22

VLAN application examples............................................................................................................................................ 22

IP address application examples.....................................................................................................................................27

Route application examples............................................................................................................................................ 29

ACL application examples................................................................................................................................................ 31

MAC address table application examples......................................................................................................................37

Event application examples.............................................................................................................................................43

4 Application templates.................................................................................................................................. 46

CPS server application templates.................................................................................................................................. 47

CPS client application templates....................................................................................................................................52

CPS event publisher application templates.................................................................................................................. 55

CPS event subscriber application templates................................................................................................................55

Contents 3

Getting started

OpenSwitch OPX is implemented using a standard Linux distribution—Debian Jessie. OpenSwitch OPX is binary-compatible with Debian

Linux packages.

Linux kernel Unmodied Linux kernel included with Debian distribution provides a robust base to support current state-of-the-

art and future networking.

Linux IP stack Rich feature set provided by the Linux standard IP stack without vendor-specic changes.

Linux tools Standard Linux system administration tools are factory-installed in OpenSwitch OPX, or can be easily installed from

standard Debian repositories.

Convergence of networking, servers, and storage

The use of Linux as an operating system provides a solid foundation for the convergence of networking, server, and storage solutions.

OpenSwitch OPX allows you to easily deploy the management and orchestration solutions that are typically available for Linux servers and

storage systems.

Programmability

OpenSwitch OPX provides an object-centric API for application development—implement your own applications using a well-dened

object model and set of programmatic APIs. The object model is dened using the YANG modeling language, and OpenSwitch OPX APIs

support Python and C/C++. A set of standard Debian software development packages is provided to allow you to develop applications for

OpenSwitch OPX.

Open platform abstraction

OpenSwitch OPX implements a new, open object-centric application programming interface called the control plane service (CPS)

application programming interface (API). The CPS API allows customer-developed applications to be independent of any underlying

hardware or software technology. OpenSwitch OPX internally uses the switch abstraction interface (SAI) which Dell and partner companies

contributed to the Open Compute Project. The SAI API allows OpenSwitch OPX to be independent of any network processor/switch

hardware technology. See opencompute.org for more information about SAI.

System hardware integration with standard Linux APIs

OpenSwitch OPX integrates standard Linux networking APIs with the hardware functionality provided by networking devices—system and

network processors. You can download and use open source software (such as Quagga and Nagios) on any OpenSwitch OPX platform.

Disaggregated hardware and software

OpenSwitch OPX provides an environment in which hardware and software are fully modular. You can select the software modules you

want to install, and the hardware platforms you would like to use for your networking needs.

Topics:

• Architecture

• Run-time components

• Boot sequence

4 Getting started

Architecture

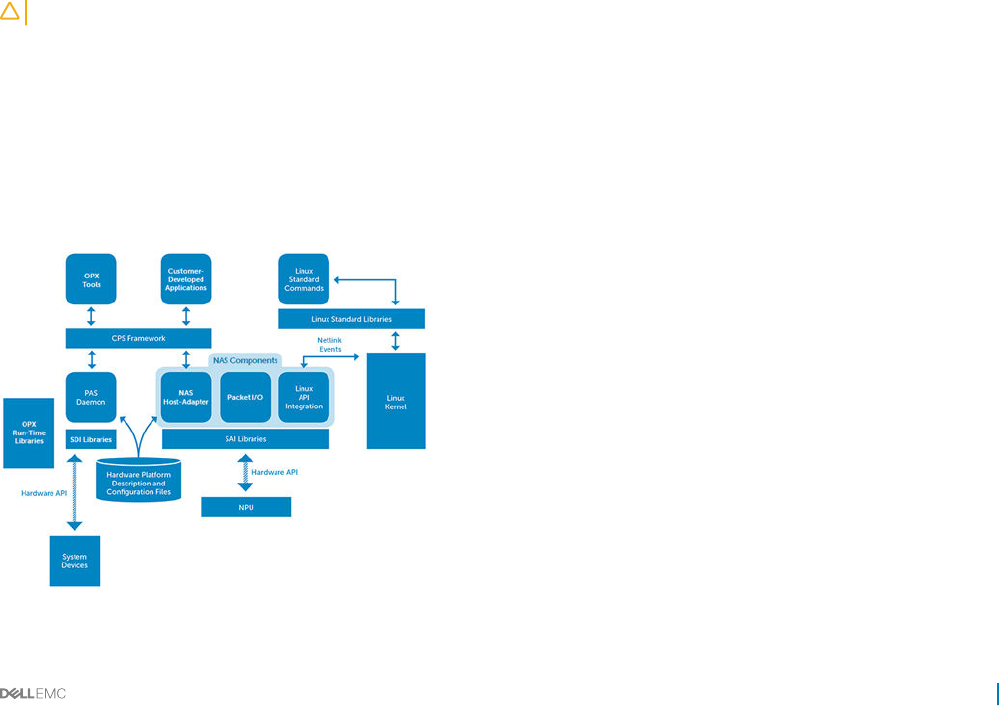

The main OpenSwitch OPX components include:

• Linux infrastructure

• Control plane services (CPS)

• Switch abstraction interface (SAI)

• Network adaptation service (NAS)

• System device interface (SDI)

• Platform adaptation service (PAS)

• Dell EMC applications and tools

Using well-dened APIs allow OpenSwitch OPX to provide full software modularity and abstraction of the hardware and software

platforms.

Software

partitioning

Software is partitioned into subcomponents that are organized as Linux packages—each package contains only

related functionality.

Software layering System components depend only on the components that logically support them.

Hardware and

software platform

abstraction

The SDI, SAI modules, and platform startup scripts are the only hardware-specic components in OpenSwitch

OPX—all other modules are hardware-independent. Hardware-specic variations (such as number and names of

physical ports, or number of power supplies) are dened using platform denition les. OpenSwitch OPX uses

portable operating system interface (POSIX) APIs. Software platform implementation-specic details are

abstracted using OpenSwitch OPX run-time libraries (common utilities and logging) as necessary.

Open API User applications interact with OpenSwitch OPX modules using the CPS API, and OpenSwitch OPX provides an

object-centric API in the control plane services (CPS) component.

Linux infrastructure

The infrastructure consists of a collection of Linux services, libraries, and utilities preinstalled in an OpenSwitch OPX image. Together with

the Linux kernel, these components provide the foundation for the implementation of OpenSwitch OPX-specic software components.

Control plane services

Control plane services (CPS) is at the core of the architecture, providing an object-centric framework that mediates interactions between

OpenSwitch OPX applications and allows customer applications to interact with OpenSwitch OPX components.

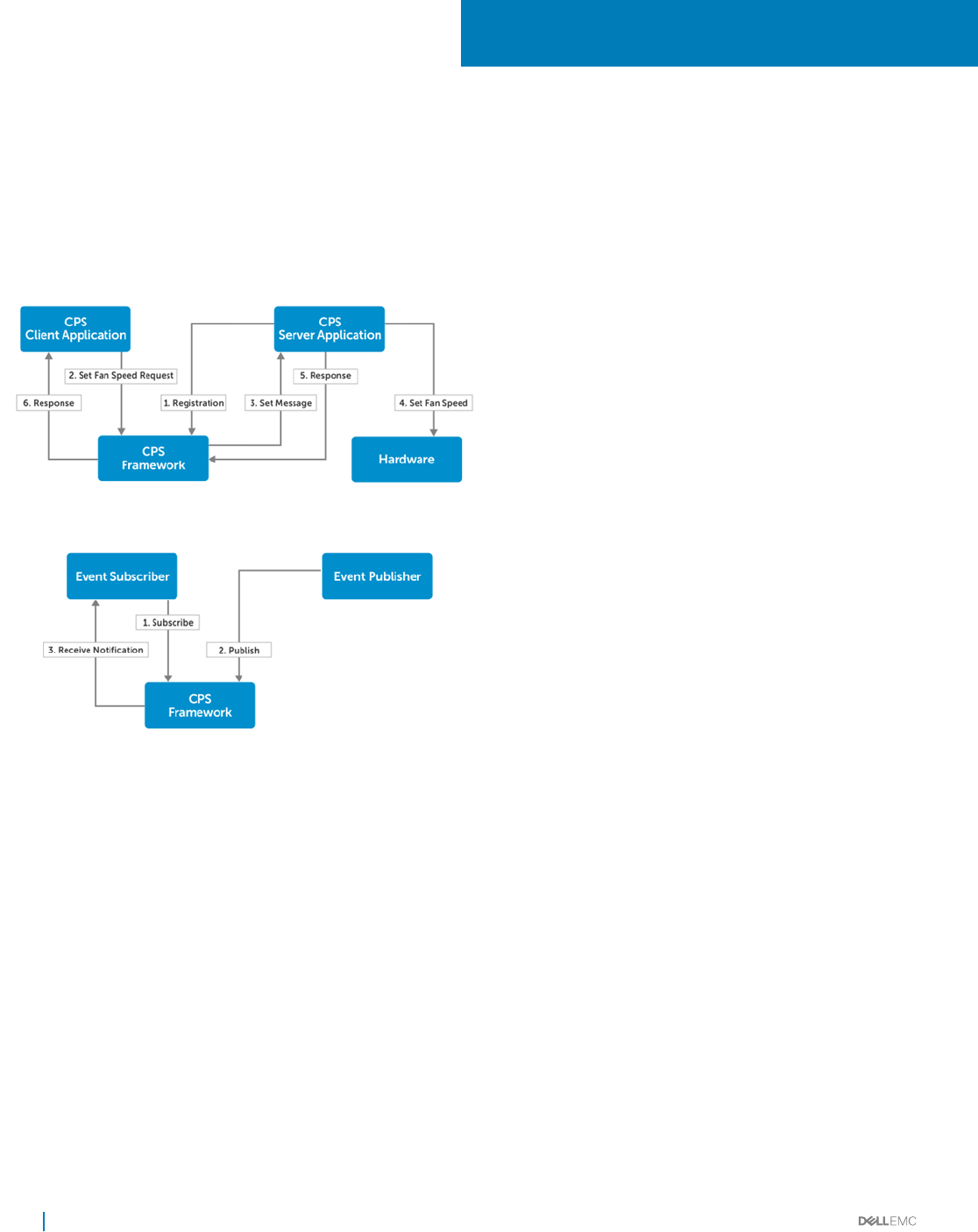

There are two sets of application roles—clients and servers:

Client applications Execute, create, set, get, and delete operations on individual objects or lists of objects.

Server applications Execute operations requested by CPS client applications. Because client applications operate on objects, they are

not aware of the location or name of the CPS server application that executes a requested operation.

The CPS framework supports a publisher/subscriber mode, and server applications can publish relevant events, while client applications

can subscribe (register) for specic events and objects. CPS client applications can register for events when objects are created, modied,

Getting started 5

or deleted. The publisher/subscriber approach and object-centric operations allow for the independent operation of client and server

applications.

The CPS API object model provides disaggregation between client and server applications. The client and server are unaware of one other

—they communicate only through a CPS API object (see Client and server applications).

Custom-written applications use the CPS API to communicate with OpenSwitch OPX components. The OpenSwitch OPX provides both

C/C++ and Python programming interfaces. The object model provided by the CPS layer is dened using YANG models which are used to

generate C header les—providing a programmatic representation of objects and their attributes. The header les are shared between

client and server applications—the C/C++ representation of objects and their attributes is designed to ensure compatibility between

multiple versions of the object model.

Switch abstraction interface

The OpenSwitch OPX switch abstraction interface (SAI) implements an API for network processor units (NPUs) supported on Dell EMC

platforms. The SAI API is an open interface that abstracts vendor-specic NPU behavior. The SAI API is the result of a joint eort of

multiple NPU vendors and user companies, who contributed the SAI to the Open Compute Platform. OpenSwitch OPX is NPU-

independent and not locked into specic NPU hardware. If a new NPU is used in an OpenSwitch OPX platform, the only component that

Dell EMC engineers replace is the SAI.

Network adaptation service

The network adaptation service (NAS) manages the high-level NPU abstraction and adaptation, and aggregates the core functionality

required for networking access at Layer 1 (physical layer), Layer 2 (VLAN, link aggregation), Layer 3 (routing), ACL, QoS, and network

monitoring (mirroring and sFlow).

The NAS provides adaptation of low-level switch abstraction provided by the SAI to standard Linux networking APIs and interfaces, and to

software CPS API functionality. The NAS manages the middleware that associates physical ports to Linux interfaces—also provides packet

I/O services, using the Linux kernel IP stack.

System device interface

All hardware components except for NPUs are abstracted as system devices. The system device interface (SDI) API denes a low-level

platform-independent abstraction for all types of system devices. Only system device drivers that implement the SDI API are hardware-

specic—the API itself is hardware-independent.

Example system devices:

• Fan devices

• Power supplies

• Temperature sensors

• LEDs

• EEPROM

• Programmable devices

• Transceivers

Platform adaptation service

The platform adaptation service (PAS) provides a higher-level abstraction and aggregation of the functionality provided by the SDI

component, and implements the CPS object models associated with system devices. The PAS monitors the status of system devices and

reports changes or faults as CPS events. The PAS also allows applications to retrieve current status information and set control variables of

system devices.

• Read current temperature values reported by temperature sensors

• Get and set fan speed values

• Set a LED state

6Getting started

• Read power levels reported by PSUs

• Get system inventory and EEPROM information

• Set and get operations on transceivers

The PAS detects:

• Insertion and removal of common eld replaceable units (FRUs), such as PSUs and fans

• Over-temperature based on pre-dened thresholds

• Media insertion on physical ports

PAS is responsible for:

• Monitoring the status of system devices

• Allowing applications to retrieve current status information

• Reporting status changes or faults as CPS events

• Allowing applications to set the control variables of system devices

Platform description infrastructure

The platform description infrastructure provides a means to describe specic per-platform conguration parameters, such as the number of

ports per system, supported transceiver modules, mapping of Linux interfaces to physical ports, and number of fans and PSUs. This

component contains the platform-specic system startup conguration and scripts.

Dell EMC applications and tools

OpenSwitch OPX provides a set of tools and commands that allow system administrators to manage Dell EMC-specic software and

hardware functionality (such as software upgrades, physical port, media information, and system inventory). OpenSwitch OPX provides a

Dell EMC-implemented thermal control application which prevents damage of hardware components in case of overheating and/or fan

failure.

CAUTION: Do not disable the thermal control application, as hardware damage may result.

Run-time components

OpenSwitch OPX services

•opx-cps — starts the CPS broker which mediates all operations and events

•opx-pas — PAS service which executes PAS functionality

•opx-nas — NAS service which executes NAS functionality

Getting started 7

Applications which manage OpenSwitch OPX system components

•opx-acl-init — initializes default ACL conguration or control-plane protocol packets

•opx-create-interface — gets/sets interface parameters using the CPS API

•opx-front-panel-ports — manages physical port mapping to Linux interfaces

•opx-ip — gets/sets IP address parameters using the CPS API

•opx-phy-media-config — manages conguration of physical media

•opx-platform-init — initializes default platform-specic conguration

•opx-qos-init — initializes default QoS conguration

•opx-monitor-phy-media — monitors physical media (SFP) events generated by PAS when you insert a pluggable module

(automatically congures port parameters)

•opx-nas-init — initializes default NAS conguration

•opx-nas-shell — runs NPU shell commands

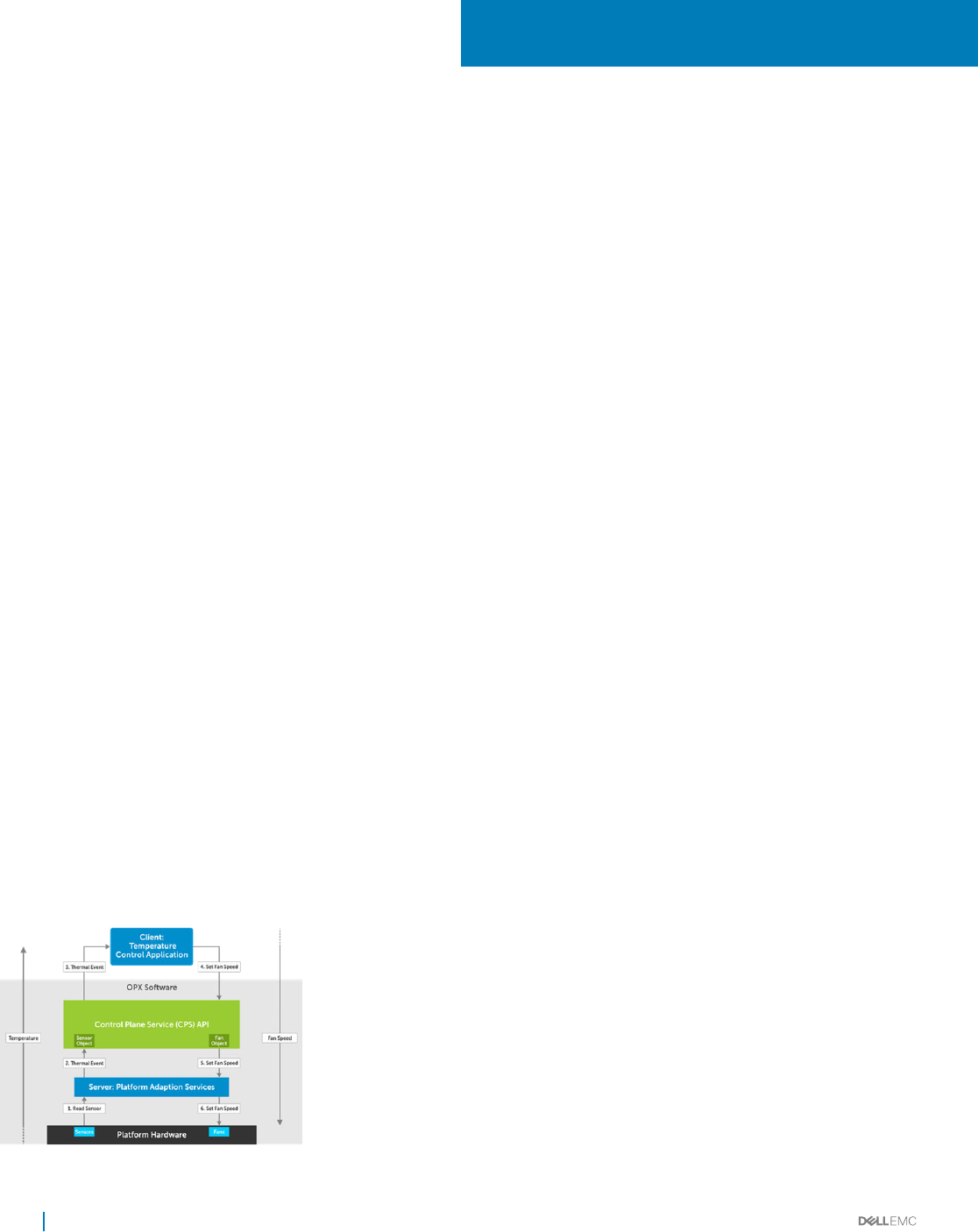

•opx-tmpctl — manages the environment temperature control and executes the thermal control algorithm

CAUTION: Do not disable the opx-tmpctl as hardware damage may result.

NAS Linux adaptation— integration with standard Linux APIs

The OpenSwitch OPX NAS daemon seamlessly integrates standard Linux network APIs with NPU hardware functionality. The NAS daemon

registers and listens to networking (netlink) events. When it receives an event, the NAS daemon processes the event contents and

programs the NPU with relevant information (such as enable/disable an interface, add/remove a route, or add/delete a VLAN).

Linux interfaces

associated with

physical ports

OpenSwitch OPX uses internal Linux tap devices to associate physical ports on the NPU with Linux interfaces.

When a change in physical port status (up/down) occurs, the NAS daemon propagates the new port status to the

associated tap device.

Packet I/O Packet I/O describes control plane packet forwarding between physical ports and associated Linux interfaces—

implemented as a standalone thread of the NAS daemon. Packets received by the NPU are forwarded to the CPU,

and the packet I/O thread receives the packet through a SAI API callback. Each received packet contains the

identity of the source physical port. The packet I/O module then injects the packet to the tap device associated

with the source physical port. Applications receive packets from the Linux IP stack using standard sockets.

Applications use tap devices to transmit packets, and the packet I/O receives the transmitted packet from the

Linux IP stack. Based on the source tap device of the packet, the transmitted packet is forwarded to the

associated physical port.

CPS services

The NAS daemon registers with the CPS as a server application to provide CPS programmability of the packet NPU. The NAS performs

create, delete, set, and get operations for objects which model the networking functionality dened by OpenSwitch OPX. The PAS daemon

also registers with CPS as a server application to provide CPS programmability for system devices.

File system organization

OpenSwitch OPX uses a standard Linux le system. The OpenSwitch OPX-specic system tools and conguration les are maintained

under the following directory structure:

•/usr/bin — contains binaries

•/usr/lib — contains libraries

•/etc/opx — contains platform description les and default conguration les

Platform description

les

The platform les contain a description of hardware modules that apply to the current platform, such as number of

physical ports, fans, and power supplies.

Default conguration

les

The default conguration les contain initialization information applicable to the current platform, such as the initial

SAI conguration and system ACL rules to be applied at initialization.

8 Getting started

System startup

OpenSwitch OPX leverages the systemd framework for the startup of OpenSwitch OPX-specic processes. The systemd framework is

enabled by default under Debian Jesse (see www.freedesktop.org/wiki/Software/systemd).

Boot sequence

After you install an OpenSwitch OPX image, the system automatically loads the image and boots.

1 After the switch powers up or reboots, the boot menu displays. After a short delay, the system auto boots by loading the image—in

this case OPX-A partition. If required, during the delay you can interrupt the auto boot and select other options to select OPX-B to

load another software image, or go back to ONIE for upgrades, system recovery, and so on.

+--------------------------------------------------------+

| *OPX-A |

| OPX-B |

| ONIE |

+--------------------------------------------------------+

2 Linux boots from the OPX-A partition on the disk and starts the systemd daemon in the root le system as part of the initial setup

before the Linux login displays.

The systemd daemon starts custom services during system initialization:

• PAS service initializes the platform and devices on the system

• NAS service initializes the NPU and system interfaces

• Other OpenSwitch OPX services create Linux interfaces that map to physical, front-panel ports on the switch

After OpenSwitch OPX custom services run successfully and the system boots up, the Linux prompt displays on the console for you

to log in.

NOTE: If the service that creates internal Linux interfaces is unsuccessful, the system bootup waits 300 seconds before timing

out and displays the Linux login prompt. Log in to OpenSwitch OPX and use the troubleshooting steps to determine the cause of

the failure. You can use the systemctl command to determine if any services have failed, and the journalctl command to

inspect the log contents.

Getting started 9

Programmability

The control plane service (CPS) infrastructure is at the core of system programmability. The CPS supports the denition of a well-dened,

data-centric application programming interface (CPS API) that allows customer applications to interact with system services. System

applications also use the CPS API to communicate with one another.

The CPS infrastructure provides:

• A distributed framework for application interaction

• Database-like API semantics, for create, delete, set, commit, and get operations

• Publish/subscribe semantics

• Object addressability based on object keys

• Introspection

Topics:

• Client and server applications

• CPS keys

• Objects and attributes

• CPS qualiers

• Publish/subscribe

• API operations

• YANG modeling objects

• CPS API objects

• Object dictionary support

• YANG model C header

• sFlow using YANG and Python

• YANG model reference

• CPS API reference

Client and server applications

CPS client applications operate on objects and subscribe to events published by CPS server applications. CPS server applications register

for the ownership of CPS objects and implement CPS operations, such as object create, set, get, and delete.

A temperature control (TC) application is a simple OpenSwitch OPX implementation that shows how the CPS API object model

disaggregates client and server applications. The client is the TC application, and the server is the platform adaptation services (PAS)

component.

10 Programmability

The TC application increases the speed of a system fan when the value reported by a temperature sensor exceeds a predened threshold

—it decreases the fan speed when the temperature falls below the threshold. The TC application needs to subscribe to temperature

threshold crossing events published by the OpenSwitch OPX platform adaptation service (PAS), and invoke a set request to change the

speed of the fan object. Neither the TC application nor the OpenSwitch OPX PAS are part of the CPS infrastructure—they function as

user applications of the CPS infrastructure.

• Entities handled by the CPS infrastructure are called CPS objects (referred to as objects)—the temperature sensor and the fan are

both modeled as objects.

• Objects have attributes; for example, temperature value and fan speed.

• CPS applications can publish events; when and how events are generated is controlled by the application implementation. For example,

an application can publish an event when the value of an attribute changes or when the value of an attribute crosses a threshold.

• CPS applications can subscribe to (listen for) events.

• CPS applications can request operations to be performed on objects—a set operation. The CPS service, which registers for the

ownership of the specic object category, performs the operation.

• The CPS API provides database-like semantics—services that implement CPS operations (object owners) do not persistently store

attribute values.

The PAS registers for ownership of both the temperature sensor and fan object types. The PAS application periodically reads the value of a

temperature sensor. When the temperature is greater than a predened threshold, the PAS creates a CPS overtemperature event. The

event contains the identity of the temperature sensor object and possibly the new temperature value.

The PAS then publishes the event using one of the CPS API functions. The CPS infrastructure determines the applications that have

subscribed for the event and object type, and provides the applications (TC application) with the contents of the event.

The publisher of the event (PAS) does not have any knowledge of the applications that have subscribed for an event. The subscriber

application (TC application) has no knowledge of the application that has published the event.

When the TC application receives the temperature event, it increases the fan speed—it creates a simple CPS transaction in which a set

operation requests a change in the speed attribute value of the fan object. CPS API functions perform the transaction. When the

transaction is committed, the CPS infrastructure nds the owner of the fan object category—the application that has registered to

execute operations requested for fan objects (PAS).

The CPS infrastructure invokes the function registered by PAS to execute the set operation for fans. PAS simply invokes the set operation

for low-level fan speed provided by the system device interface (SDI), which acts on the fan hardware and changes its speed.

CPS keys

All CPS objects require a key — the concept of a CPS key is central to the CPS infrastructure. An application uses a key to register for

object events, perform get requests, and perform transactions. A CPS key has two components—a xed key component represented as a

sequence (array) of numeric values, and an optional (dynamic) key component.

The xed part of a CPS key consists of:

•Qualier — Target, observed, real-time

• Attribute identiers that describe the object name and hierarchy — Object category and subcategory. An object category refers to a

class of objects, such as interfaces, and object subcategories are dened relative to categories—LAG interface and VLAN interface

which are subcategories of interfaces.

Qualier C enum Symbol String Form Applicability Description

Target cps_api_qualifier_TA

RGET

target Congurable attributes Current running-conguration

Observed cps_api_qualifier_OB

SERVED

observed Congurable attributes

and hardware status

attributes

Conguration applied to hardware

components or current status (provided by

monitoring service — can be cached)

Programmability 11

Qualier C enum Symbol String Form Applicability Description

Real-Time cps_api_qualifier_RE

ALTIME

realtime Hardware status

attributes and hardware

counters

Requests values immediately queried from

hardware (no caching)

Registrations cps_api_qualifier_RE

GISTRATION

objreg Internal to CPS

infrastructure

Qualier used when publishing events

associated to object registrations

Proposed cps_api_qualifier_PR

OPOSED

proposed Not applicable Reserved

Represent the xed component of a key in either binary (array of bytes) or string form. Express a string form either in numerical format

(1.34.2228241.2228246.2228236) or using a name alias (target/base-ip/ipv4/vrf-id/ifindex).

Optional component

The optional (dynamic) component of a CPS key consists of a series of attribute values stored in the CPS object itself. This key component

is created by adding the relevant attributes to the object.

Build CPS key

Use the cps_api_key_from_attr_with_qual function to build a CPS key. Create a key by specifying the object name and CPS

qualier.

cps_api_key_from_attr_with_qual(cps_api_object_key(the_object), object_name,

cps_api_qualifier_TARGET);

The cps_api_key_from_attr_with_qual function looks up the dynamic portion of the key and copies it into the key using the

qualier target. To add the dynamic portion of the key, add attributes using the standard object attribute function.

Objects and attributes

CPS objects and object lists are used in the infrastructure. An object consists of a key which uniquely identies the object, and zero or more

object attributes.

A CPS object:

• Contains a variable number of attributes

• Can embed other objects

• Can be easily serialized—written to, read from, or a persistent or temporary storage device

• Supports attribute types:

•uint8_t

•uint16_t

•uint32_t

•uint64_t

•char []

• Attributes that contain other attributes

Object attributes

CPS object attributes are identied by a 64-bit ID tag (attribute identier) and represented using a type, length, value (TLV) format. The

attribute value consists of a sequence of octets.

When an attribute contains a zero-terminated string, the terminating octet must be included in the length eld. The total length of the

string "Dell" must be set to 5 to include the zero terminating octet.

12 Programmability

NOTE: Although the Python implementation automatically adds a zero octet to all string values, the C/C++ implementation does

not. You must take into account the zero-terminating octet when you use a C/C++ application to set the length of an attribute.

CPS qualiers

A CPS qualier provides the type of object data to retrieve or act on. In the temperature control example (see Client and server

applications), a client application species the target qualier in the CPS key of the fan object used to set the fan speed. This qualier tells

the PAS application to apply the specied speed to the fan (hardware) device.

Applications can only use the target qualier for create or set operations. In a get operation, an application can use any supported qualier:

target, observed, or real-time.

Target qualier Indicates that the server application (object owner) returns the values of attributes previously specied in a set

operation.

Observed qualier Indicates that the server application (object owner) returns the values of the attributes already successfully applied

to hardware entities (for user-congurable attributes), or the last retrieved hardware status information values.

Real-time qualier Indicates that the server application (object owner) reads the current status of the hardware entity to return the

value of a requested attribute.

Observed vs. real-time qualiers

In the temperature control example, when an application uses the observed qualier to perform a get operation on the temperature sensor

object, the PAS returns the last value ready from the sensor (cached value). When the real-time qualier is used, the PAS reads the current

value of the sensor and returns the current, instead of the cached value. Using real-time instead of observed qualiers only produces

dierent results when the server application maintains cached values. If the application always reads the current hardware status when it

performs a get operation, the results are identical.

Target vs. observed qualiers

When an application gets an attribute value after a set operation, target and observed qualiers may produce dierent results. In the

temperature control example, the set operation to change the fan speed uses the target qualier. Because it takes a few seconds for the

fan speed to reach the specied value, an immediate get operation using an observed qualier may return a fan speed value dierent from

a get operation that uses a target qualier for the fan object key.

Publish/subscribe

The CPS infrastructure provides a subscription mechanism for receiving and publishing object events. An application registers to receive

objects using an object key. The CPS key identies a set of objects in an object category.

An application can register for:

• All events for a given object category

• All events for an object name

When an application publishes an event, subscriber applications receive the event if they have registered a key that has a prex match with

the key associated to the published object.

If you publish a target IPv4 address object that has base-ip/ipv4/address:

• The object key is {target, base-ip, ipv4, address}

• The CPS qualier (target) is a mandatory part of the key

• Any application that subscribes for objects that match any of the keys receives the event:

• Key 1 {Target, base-ip} — Receives all events for objects under base-ip

Programmability 13

• Key 2 {Target, base-ip,ipv4} — Receives all events for objects under IPv4

• Key 3 {Target, base-ip,ipv4,address} — Receives all IPv4 address objects

• Multiple applications can subscribe for events that match a specied key

The infrastructure generates events for CPS-specic conditions when new object owners (server applications) register with the CPS, or

objects de-register from the CPS. The object key contains the registration qualier cps_api_qualifier_REGISTRATION in which the

registration or de-registration event refers to. The key also indicates if the event represents a new object registration or de-registration.

API operations

The CPS infrastructure supports database-like requests for creating, updating, deleting, and retrieving one or more objects in a single

operation. The CPS API denes the get request and transaction functionality. The CPS API also denes an action operation to allow

applications to perform certain functions without aecting object states.

get requests

CPS get operations operate on lists of keys or an object lter that species the keys of objects to retrieve. An object lter can specify an

instance or a range of objects.

Get requests are blocking. When a get operation completes, the client application receives the list of retrieved objects or an error code if

there is a failure.

Transactions

CPS transactions are required for create, delete, and set operations. The CPS API provides functions to start, commit, and abort

transactions. To perform a transaction, a CPS application must start a transaction, and then add operations (create, delete, set, or action)

and their associated objects to the transaction. A transaction must be committed to complete.

Operations on the dierent objects added to a transaction are not necessarily executed in the order in which they are specied in the

transaction. The transactions requested by an application thread are always executed in order.

When a transaction is committed, the CPS infrastructure sends all transaction operations to their appropriate handlers, and the result of

the request is returned. In order for a result to be returned, the transaction must be valid and all operations must be received by the

registered applications. The semantics of a transaction allows any create/set/delete operation associated with the transaction to be

completed in a way that allows future CPS calls to use the object data updated as a result of committing the transaction.

Although it is not necessary for all functions in the transaction are completed, it is necessary that all operations in the transaction are

accepted by the registered applications and scheduled for processing. For example, if you add 100,000 routes in a transaction, the result of

the commit request is:

• All 100,000 route objects are valid to be created

• The application that creates the route objects completes the request

Transaction commit result

The transaction commit function returns a success or a failure code. If a transaction commit fails, the entire transaction fails. In this case,

the CPS infrastructure automatically calls the rollback functions provided by the CPS server applications. It is the responsibility of the

server applications (object-owner applications) to roll back any incremental changes that have already been performed as part of the

transaction.

Blocking

The CPS infrastructure is middleware that facilitates communication between components. The blocking nature of any CPS transaction or

duration is not determined by the CPS infrastructure, but by the implementation of applications registered to perform the requested

operations (object owners).

CPS API functions

14 Programmability

The CPS API provides functions for:

• Initialization of the CPS services in the context of the calling process

• Key management

• Object and object attribute handling

• CPS event handling and CPS operations

Object model representation

OpenSwitch OPX uses YANG to represent the object model. YANG object model les are converted to C object model header les, which

you use to develop CPS applications.

API language support

CPS provides Python and C/C++ application programming interfaces.

YANG modeling objects

YANG data models are used to dene the content of CPS objects to congure and retrieve information from the software. A YANG model

consists of types (typedef, groupings, and enums), containers (container, list, choice, and case), and properties (leaf and leaf-list).

Each property in the YANG container is a CPS object attribute. List containers nested in a YANG model are treated as multiple instances of

embedded attributes. CPS also supports dening a separate CPS object from each nested container.

Using YANG-modeled data, the CPS YANG parser generates:

• C/C++ header le containing:

• YANG model name

•typedefs extracted from the model

• Enumerations found in the model

• Enumeration of any YANG container or properties (leaf, leaf-list, container, list, and so on) found in the model

• A Python C extension library containing CPS object metadata and YANG name-to-CPS ID mapping information.

Include the generated C header to use the CPS object name and attribute identiers to create or delete CPS objects and set values for

each attribute in a C/C++ application.

Use the YANG module, and object and attribute names directly in a Python application. The CPS Python engine automatically uses the

extension library to derive the corresponding identiers for these names.

Python values are present in the top-level dictionary:

data A Python dictionary containing the actual values of an object. Each element in the dictionary is a key-value pair,

where the key is an attribute name and the value is a byte array or another dictionary. Depending on the object, the

data dictionary may contain other dictionaries and a CPS key_data attribute that contains the instance keys for

the object.

key A string that indicates the CPS key as a string or an alias.

operation Indicates if an object is related to a set, delete, create or action transaction—used when events are received.

CPS API objects

Common commands used to manage CPS API objects are included.

get object

Programmability 15

Retrieve and view the contents of a CPS API object.

cps_get_oid.py [-h] [-mod module] [-d]

[-qua {target,observed,proposed,realtime,registration,running,startup}]

[-attr ATTR] [-db]

module [additional [additional ...]]

•module — object's name and optional qualier; for example, cps/node-group of if/interfaces/interface (a qualier can optionally be

placed at the beginning)

•additional — eld can contain a series of object attributes in the form of attr=value combinations

•-h, --help — (Optional) displays this help message and exit

•-mod module — (Optional) alternate way to specify the module name

•-d — (Optional) print some additional details about the objects parsed and sent to the backend

•-qua {target,observed,proposed,realtime,registration,running,startup} — (Optional) object's qualier

•-attr ATTR — (Optional) object attributes in the form of attr=value

•-db — (Optional) attempt to use the database directly to satisfy the request instead of the normally registered object

Retrieve entity object for slot 1 PSU

cps_get_oid.py observed/base-pas-entity entity-type=1 slot=1

set object

Perform a CPS commit operation taking the object specied on the command line.

cps_set_oid.py [-h] [-mod module] [-d]

[-qua {target,observed,proposed,realtime,registration,running,startup}]

[-attr ATTR] [-db] -oper {delete,create,set,action}

[-commit-event]

module [additional [additional ...]]

•module — object's name and optional qualier; for example, cps/node-group or if/interfaces/interface (a qualier can optionally be

placed at the beginning)

•additional — eld can contain a series of object attributes in the form of attr=value combinations

•-h, --help — (Optional) displays this help message and exit

•-mod module — (Optional) alternate way to specify the module name

•-d — (Optional) print some additional details about the objects parsed and sent to the backend

•-qua {target,observed,proposed,realtime,registration,running,startup} — (Optional) object's qualier

•-attr ATTR — (Optional) object attributes in the form of attr=value

•-db — (Optional) attempt to use the database directly to satisfy the request instead of the normally registered object

•-oper {delete,create,set,action} — (Optional) operations types; only used in CPS commit operations

•-commit-event — (Optional) ag will try to force the default state of the auto-commit event to true; only used in CPS commit

operations

Turn on beacon LED

cps_set_oid.py –oper create base-pas/led entity-type=3 slot=1 name=Beacon on=1

cps_set_oid.py –oper create observed/base-pas/led entity-type=3 slot=1 name=Beacon on=1

Event trace

View CPS API events as they occur — enter the command as a CPS API key in A.B.C.D format.

cps_trace_events.py qualifier module ...

- qualifier = "{ target | observed | realtime | proposed | registration }"

- object_path = YANG object path (e.g., base-pas/led)

•qualifier — numeric qualier of the CPS API object to trace

•module — module of the CPS API object

16 Programmability

Print all CPS API events generated by PAS

cps_trace_events.py -qual observed base-pas/entity

Object dictionary support

The CPS object dictionary APIs access the metadata for each YANG model. The dictionary contains items for each YANG class or attribute:

• Static key of the element including the elements hierarchy

• Type of element

• Information associated with the element

• Model type—attribute, attribute-list, or object

• Unique attribute identier

Access the CPS object dictionary in both C/C++ and Python (see CPS API reference).

YANG model C header

This example shows the C header le generated from the sFlow YANG model by the CPS YANG parser. The sFlow YANG model has two

top-level containers:

• YANG list named entry

• YANG container named socket-address

module dell-base-sflow {

namespace "http://www.dell.com/networking/dell-opx/dell-base-sflow";

prefix "base-sflow";

import dell-base-common {

prefix "base-cmn";

}

organization

"Dell Inc";

contact

"http://www.dell.com/support/softwarecontacts";

description

"This module contains a collection of YANG definitions provided

by platfrom to manage sflow objects";

revision 2014-02-11 {

description

"Initial revision";

}

typedef traffic-path {

type enumeration {

enum "ingress" {

value 1;

description

"Enable sampling on Ingress packets";

}

enum "egress" {

value 2;

description

"Enable sampling of Egress packets";

}

enum "ingress-egress" {

value 3;

description

Programmability 17

"Enable sampling of Ingress and Egress packets";

}

default "ingress-egress";

}

list entry {

key "id";

description

"sflow session attributes";

leaf id{

type uint32;

description

"Session id to uniquely identify a sflow session";

}

leaf ifindex {

type base-cmn:logical-ifindex;

mandatory true;

description

"Interface index which uniquely identifies physical

interface in the switch where packet sampling needs to

to be enabled";

}

leaf direction {

type base-sflow:traffic-path;

mandatory true;

description

"Direction of packets in which sampling needs to be enabled";

}

leaf sampling-rate{

type uint32;

mandatory true;

description "Rate at which packets sampling needs to be enabled";

}

container socket-address {

description

"Address that sFlow Applications need to open UDP socket on

to receive sampled packets. Sampled packets from all sFlow

sessions are sent to a single UDP socket.";

leaf ip {

type base-cmn:ipv4-address;

default 127.0.0.1;

}

leaf udp-port {

type uint16;

default 20001;

}

The CPS YANG parser generates a C header for this model—the header includes the C denitions for the YANG entities:

• Category for the YANG model is cps_api_obj_CAT_BASE_SFLOW

• Subcategory for each YANG container:

•BASE_SFLOW_ENTRY_OBJ

•BASE_SFLOW_SOCKET_ADDRESS_OBJ

• Attribute IDs for each property in each YANG container:

18 Programmability

•BASE_SFLOW_ENTRY_IFINDEX

•BASE_SFLOW_ENTRY_DIRECTION

* source file : dell-base-sflow.h

* Licensed under the Apache License, Version 2.0 (the "License"); you may

* not use this file except in compliance with the License. You may obtain

* a copy of the License at http://www.apache.org/licenses/LICENSE-2.0

* THIS CODE IS PROVIDED ON AN *AS IS* BASIS, WITHOUT WARRANTIES OR

* CONDITIONS OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING WITHOUT

* LIMITATION ANY IMPLIED WARRANTIES OR CONDITIONS OF TITLE, FITNESS

* FOR A PARTICULAR PURPOSE, MERCHANTABLITY OR NON-INFRINGEMENT.

* See the Apache Version 2.0 License for specific language governing

* permissions and limitations under the License.

#ifndef DELL_BASE_SFLOW_H

#define DELL_BASE_SFLOW_H

#include "cps_api_operation.h"

#include "dell-base-common.h"

#include <stdint.h>

#include <stdbool.h>

#define cps_api_obj_CAT_BASE_SFLOW (27)

#define DELL_BASE_SFLOW_MODEL_STR "dell-base-sflow"

/*Enumeration base-sflow:traffic-path */

typedef enum {

BASE_SFLOW_TRAFFIC_PATH_INGRESS = 1, /*Enable sampling on Ingress packets*/

BASE_SFLOW_TRAFFIC_PATH_EGRESS = 2, /*Enable sampling of Egress packets*/

BASE_SFLOW_TRAFFIC_PATH_INGRESS_EGRESS = 3, /*Enable sampling of Ingress and Egress packets*/

} BASE_SFLOW_TRAFFIC_PATH_t;

/*Object base-sflow/entry */

typedef enum {

/*type=uint32*/

/*Session id to uniquely identify a sflow session*/

BASE_SFLOW_ENTRY_ID = 1769474,

/*type=base-cmn:logical-ifindex*/

/*Interface index which uniquely identifies physical

interface in the switch where packet sampling needs to

to be enabled*/

BASE_SFLOW_ENTRY_IFINDEX = 1769475,

/*type=base-cmn:traffic-path*/

/*Direction of packets in which sampling needs to be enabled*/

BASE_SFLOW_ENTRY_DIRECTION = 1769476,

/*type=uint32*/

/*Rate at which packets sampling needs to be enabled*/

BASE_SFLOW_ENTRY_SAMPLING_RATE = 1769477,

} BASE_SFLOW_ENTRY_t;

/*Object base-sflow/socket-address */

Programmability 19

typedef enum {

/*type=base-cmn:ipv4-address*/

BASE_SFLOW_SOCKET_ADDRESS_IP = 1769479,

/*type=uint16*/

BASE_SFLOW_SOCKET_ADDRESS_UDP_PORT = 1769480,

} BASE_SFLOW_SOCKET_ADDRESS_t;

/* Object subcategories */

typedef enum{

/*sflow session attributes*/

BASE_SFLOW_ENTRY = 1769478,

BASE_SFLOW_ENTRY_OBJ = 1769478,

/*Address that sFlow Applications need to open UDP socket on

to receive sampled packets. Sampled packets from all sFlow

sessions are sent to a single UDP socket.*/

BASE_SFLOW_SOCKET_ADDRESS = 1769481,

BASE_SFLOW_SOCKET_ADDRESS_OBJ = 1769481,

} BASE_SFLOW_OBJECTS_t;

#endif

sFlow using YANG and Python

This Python example shows how to use a YANG model to congure a new sFlow entry. The Python utility cps_utils is used to create

CPS objects and CPS transactions. See Application templates for information about how to write an application using the CPS API.

import cps_utils

import nas_os_utils

# Create a CPS object for the YANG container named 'entry'

cps_obj = cps_utils.CPSObject(module='base-sflow/entry')

# Add each property in the YANG container as an attribute to the CPS Object

cps_obj.add_attr ("ifindex", nas_os_utils.if_nametoindex('e101-003-0'))

cps_obj.add_attr ("direction", 1)

cps_obj.add_attr ("sampling-rate", 5000)

# Pair the CPS object with a CPS Operation - in this case it is a Create operation.

cps_update = ('create',cps_obj.get())

# Add the pair to the list of updates in a CPS transaction

cps_trans = cps_utils.CPSTransaction ([cps_update])

# Commit the transaction

r = cps_trans.commit()

if not r:

print "Error"

else:

print "Success"

The cps_get_oid is a Python utility that executes a GET API on a YANG container. The result displays the values congured in the

software for all attributes in the YANG container.

$ cps_get_oid.py 'base-sflow/entry' Key: 1.27.1769478.1769474. base-sflow/entry/ifindex =

16 base-sflow/entry/direction = 1 base-sflow/entry/sampling-rate = 5000 base-sflow/entry/id

= 1

20 Programmability

YANG model reference

OpenSwitch OPX provides YANG models to congure networking- and platform-related functions. These YANG models are dened by the

network adaptation and platform adaptation services.

•dell-base-acl.yang — access control lists (ACLs)

•dell-base-common.yang — common denitions

•dell-base-interface-common.yang — interfaces

•dell-base-l2-mac.yang — Layer 2 MAC address

•dell-base-lag.yang — port channels/link aggregation groups (LAGs)

•dell-base-mirror.yang — port mirroring

•dell-base-phy-interface.yang — Layer 1/physical layer (PHY) interfaces

•dell-base-port-security.yang — port security protocols

•dell-base-qos.yang — quality of service (QoS)

•dell-base-routing.yang — routing protocols

•dell-base-sflow.yang — sFlow

•dell-base-statistics.yang — diagnostic/statistical information

•dell-base-stp.yang — spanning-tree protocols

•dell-base-switch-element.yang — global conguration parameters for NPU

•dell-base-vlan.yang — VLAN

•dell-base-env-tempctl.yang — temperature control (TC)

•dell-base-pas.yang — platform adaptation service (PAS)

•dell-base-platform-common.yang — common platform denitions

CPS API reference

To access the Python and C/C++ CPS API reference guides, see the README le in included with the software image. The YANG model

les and C header les derived from the YANG models are included in the development packages and downloaded with the software

image.

Programmability 21

Application examples

This information contains links which describe how to write Python and C/C++ applications using the CPS API application examples. These

links contain complete instructions, as well as links to directly view example application les.

VLAN Python application examples

IP address Python application examples

Route Python application examples

ACL Python application examples

MAC address table Python and C/C++ application examples

Event Python and C/C++ application examples

Topics:

• VLAN application examples

• IP address application examples

• Route application examples

• ACL application examples

• MAC address table application examples

• Event application examples

VLAN application examples

NOTE: VLAN refers to an NPU VLAN object which is modeled as a Linux bridge.

Create VLAN using Python

1 Import the CPS and CPS object Python library.

import cps

import cps_object

2 Create a CPS object.

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

3Dene the VLAN ID.

VLAN_ID=100

cps_obj.add_attr("base-if-vlan/if/interfaces/interface/id",VLAN_ID)

4Dene the VLAN type with a L2 or L2 VLAN ID.

cps_obj.add_attr('if/interfaces/interface/type','ianaift:l2vlan')

5 Associate a create operation with the CPS object to create a new VLAN.

cps_update = {'change':cps_obj.get(),'operation': 'create'}

6 Add the CPS operation and object pair to a new CPS transaction.

transaction = cps.transaction([cps_update])

22 Application examples

7 Verify the return value.

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error creating Vlan")

print "Successfully created"

create_vlan.py

#Python code block to create VLAN

import cps

import cps_object

#Create CPS Object

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

#Populate the attributes for the CPS Object

cps_obj.add_attr("base-if-vlan/if/interfaces/interface/id",100)

cps_obj.add_attr('if/interfaces/interface/type','ianaift:l2vlan')

#Associate a CPS Operation with the CPS Object

cps_update = {'change':cps_obj.get(),'operation': 'create'}

#Add the CPS Operation,Obj pair to a new CPS Transaction

transaction = cps.transaction([cps_update])

#Verify return value

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error creating Vlan")

print "Successfully created"

Verify VLAN creation using CPS get

# cps_get_oid.py dell-base-if-cmn/if/interfaces/interface if/interfaces/interface/

type=ianaift:l2vlan

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 40

dell-if/if/interfaces/interface/phys-address = base-if-vlan/if/interfaces/interface/id = 100

if/interfaces/interface/name = br100

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 3

dell-if/if/interfaces/interface/phys-address = 90:b1:1c:f4:ab:ed

base-if-vlan/if/interfaces/interface/id = 0

if/interfaces/interface/name = docker0

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

NOTE: OpenSwitch OPX allocates an ifindex for each VLAN created and further CPS set and get operations can use the

ifindex as the key.

Verify VLAN creation using Linux

$ brctl show

bridge name bridge id STP enabled interfaces

br100 8000.000000000000 no

Add VLAN port using Python

1 Import the CPS and CPS object Python library.

import cps

import cps_object

2 Create a CPS object.

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

Application examples 23

3Dene the VLAN interface name.

VLAN_IF_NAME='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_IF_NAME)

4Dene the untagged port to add to the VLAN.

if_port_list=['e101-001-0']

cps_obj.add_attr('dell-if/if/interfaces/interface/untagged-ports',if_port_list)

5 Associate a set operation with the CPS object to modify the property of an existing VLAN.

cps_update = {'change':cps_obj.get(),'operation': 'set'}

6 Add the CPS operation and object pair to a new CPS transaction.

transaction = cps.transaction([cps_update])

7 Verify the return value.

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in adding port to Vlan")

print "successful"

add_vlan_port.py

#Python code block to add port to VLAN

import cps

import cps_object

#Create CPS Object

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

#Populate the VLAN attributes VLAN_ID='br100'

VLAN_ID='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_ID)

#Add one or more ports to the untagged-ports property of the VLAN

if_port_list=['e101-001-0','e101-002-0','e101-003-0']

cps_obj.add_attr('dell-if/if/interfaces/interface/untagged-ports',if_port_list)

#Associate a CPS Set Operation with the CPS Object

cps_update = {'change':cps_obj.get(),'operation': 'set'}

#Add the CPS operation,obj pair to a new CPS Transaction

transaction = cps.transaction([cps_update])

#Verify return value

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in adding port to Vlan")

print "successful"

Verify VLAN port addition using CPS get

# cps_get_oid.py dell-base-if-cmn/if/interfaces/interface if/interfaces/interface/

type=ianaift:l2vlan

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 43

dell-if/if/interfaces/interface/phys-address =

dell-if/if/interfaces/interface/untagged-ports = e101-003-0,e101-002-0,e101-001-0

base-if-vlan/if/interfaces/interface/id = 100

if/interfaces/interface/name = br100

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 3

dell-if/if/interfaces/interface/phys-address = 90:b1:1c:f4:ab:ed

base-if-vlan/if/interfaces/interface/id = 0

if/interfaces/interface/name = docker0

24 Application examples

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Verify VLAN port addition using Linux

$ brctl show

bridge name bridge id STP enabled interfaces

br100 8000.90b11cf4abee no e101-001-0

e101-002-0

e101-003-0

Delete VLAN port using Python

1 Import the CPS and CPS object Python library.

import cps

import cps_object

2 Create a CPS object.

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

3Dene the VLAN interface name.

VLAN_IF_NAME='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_IF_NAME)

4 Associate a set operation with the CPS object to modify the property of an existing VLAN.

cps_update = {'change':cps_obj.get(),'operation': 'set'}

5 Add the CPS operation and object pair to a new CPS transaction.

transaction = cps.transaction([cps_update])

6 Verify the return value.

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in deleting ports to Vlan")

print "successful"

delete_ports_vlan.py

#Python code block to delete port to VLAN

import cps

import cps_object

#Create CPS Object

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

#Populate the Vlan attributes VLAN_ID='br100'

VLAN_ID='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_ID)

#Delete the untagged-ports from VLAN, include the ports which is needed in the if_port_list

if_port_list=['e101-002-0']

cps_obj.add_attr('dell-if/if/interfaces/interface/untagged-ports',if_port_list)

#Associate a CPS Set Operation with the CPS Object

cps_update = {'change':cps_obj.get(),'operation': 'set'}

#Add the CPS operation,obj pair to a new CPS Transaction

transaction = cps.transaction([cps_update])

#Verify return value

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in deleting ports to Vlan")

print "successful"

Verify VLAN port deletion using CPS get

# cps_get_oid.py dell-base-if-cmn/if/interfaces/interface if/interfaces/interface/

type=ianaift:l2vlan

Application examples 25

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 47

dell-if/if/interfaces/interface/phys-address =

dell-if/if/interfaces/interface/untagged-ports = e101-002-0

base-if-vlan/if/interfaces/interface/id = 100

if/interfaces/interface/name = br100

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 3

dell-if/if/interfaces/interface/phys-address = 90:b1:1c:f4:ab:ed

base-if-vlan/if/interfaces/interface/id = 0

if/interfaces/interface/name = docker0

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Verify VLAN port deletion using Linux

$ brctl show

bridge name bridge id STP enabled interfaces

br100 8000.000000000000 no e101-002-0

Delete VLAN using Python

1 Import CPS and CPS object Python library.

import cps

import cps_object

2 Create a CPS object.

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

3Dene the name of the VLAN interface to delete.

VLAN_IF_NAME='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_IF_NAME)

4 Associate a delete operation with the CPS object to delete an existing VLAN.

cps_update = {'change':cps_obj.get(),'operation': 'delete'}

5 Add the CPS operation and object pair to a new CPS transaction.

transaction = cps.transaction([cps_update])

6 Verify the return value.

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in deleting Vlan")

print "successful"

delete_vlan.py

#Python code block to delete VLAN

import cps

import cps_object

#Create CPS Object

cps_obj = cps_object.CPSObject('dell-base-if-cmn/if/interfaces/interface')

#Populate the Vlan attributes VLAN_ID='br100'

VLAN_ID='br100'

cps_obj.add_attr('if/interfaces/interface/name',VLAN_ID)

#Associate a CPS Set Operation with the CPS Object

cps_update = {'change':cps_obj.get(),'operation': 'delete'}

#Add the CPS operation,obj pair to a new CPS Transaction

transaction = cps.transaction([cps_update])

#Verify return value

26 Application examples

ret = transaction.commit()

if not transaction:

raise RuntimeError ("Error in deleting Vlan")

print "successful"

Verify VLAN deletion using CPS get

# cps_get_oid.py dell-base-if-cmn/if/interfaces/interface if/interfaces/interface/

type=ianaift:l2vlan

Key: 1.19.44.2883617.2883612.2883613.

dell-base-if-cmn/if/interfaces/interface/if-index = 3

dell-if/if/interfaces/interface/phys-address = 90:b1:1c:f4:ab:ed

base-if-vlan/if/interfaces/interface/id = 0

if/interfaces/interface/name = docker0

dell-if/if/interfaces/interface/learning-mode = 1

if/interfaces/interface/enabled = 0

Verify VLAN deletion using Linux

$ brctl show br100

IP address application examples

Congure IP address using Python

1 Import the CPS utility Python library.

import cps_utils

2Dene the ifindex and prex length of the interface to set the IP address.

ifindex=16 ip_addr="10.0.0.1"

pfix_len=16

ip_attributes = {"base-ip/ipv4/ifindex": ifindex,"ip":ip_addr,"prefix-length":pfix_len}

3Dene the attribute type to convert the IP address between string and byte-array format.

cps_utils.add_attr_type('base-ip/ipv4/address/ip',"ipv4")

cps_obj=cps_utils.CPSObject('base-ip/ipv4/address',data=ip_attributes)

4 Create the CPS transaction.

cps_update = ('create', cps_obj.get())

5 Add the CPS operation and object pair to a new transaction.

transaction = cps_utils.CPSTransaction([cps_update])

6 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error configuring IP Address")

congure-ip-address.py

#Python code block to set ip address

import cps_utils

#Populate the attributes for the CPS Object

ifindex=16

ip_addr="10.0.0.1"

pfix_len=16

ip_attributes = {"base-ip/ipv4/ifindex": ifindex,"ip":ip_addr,"prefix-length":pfix_len}

#Create CPS Object

cps_utils.add_attr_type('base-ip/ipv4/address/ip',"ipv4")

cps_obj=cps_utils.CPSObject('base-ip/ipv4/address',data=ip_attributes)

#Create the CPS Transaction for object create

cps_update = ('create', cps_obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

Application examples 27

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error ")

Verify IP address using CPS get

# cps_get_oid.py 'base-ip/ipv4/address'

Key: 1.34.2228241.2228246.2228236.2228240.2228228.

base-ip/ipv4/address/prefix-length = 16

base-ip/ipv4/vrf-id = 0

base-ip/ipv4/name = e101-001-0

base-ip/ipv4/ifindex = 16

base-ip/ipv4/address/ip = 0a000001

Verify IP address using Linux

$ ip addr show e101-001-0

16: e101-001-0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 500

link/ether 90:b1:1c:f4:aa:b3 brd ff:ff:ff:ff:ff:ff

inet 10.0.0.1/16 scope global e101-001-0 valid_lft forever preferred_lft forever

Delete IP address using Python

1 Import the CPS utility Python library.

import cps_utils

2Dene the ifindex, IP address, and prex length of the interface to delete.

idx=16 ip_addr="10.0.0.1"

pfix_len=16

ip_attributes = {"base-ip/ipv4/ifindex":idx,"ip":ip_addr,"prefix-length":pfix_len}

3Dene the attribute type to convert the IP address between string and byte-array format.

cps_utils.add_attr_type('base-ip/ipv4/address/ip',"ipv4")

cps_obj=cps_utils.CPSObject('base-ip/ipv4/address',data=ip_attributes)

4 Create the CPS transaction.

cps_update = ('create', cps_obj.get())

5 Add the object pair to a new CPS transaction.

transaction = cps_utils.CPSTransaction([cps_update])

6 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating Vlan")

delete-ip-address.py

#Python code block to delete ip address

import cps_utils

#Populate the attributes for the CPS object

idx=16

ip_addr="10.0.0.1"

pfix_len=16

ip_attributes = {"base-ip/ipv4/ifindex":idx,"ip":ip_addr,"prefix-length":pfix_len}

#Create CPS Object

cps_utils.add_attr_type('base-ip/ipv4/address/ip',"ipv4")

cps_obj=cps_utils.CPSObject('base-ip/ipv4/address',data=ip_attributes)

#Create the CPS Transaction to delete the CPS Object

cps_update = ('delete', cps_obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = transaction.commit()

28 Application examples

if not ret:

raise RuntimeError ("Error ")

Verify IP address Deletion using get (return indicates that e101-001-0 has no IP address)

$ cps_get_oid.py 'base-ip/ipv4/address'

Verify IP address deletion

$ ip addr show e101-001-0

16: e101-001-0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 500

link/ether 90:b1:1c:f4:aa:b3 brd ff:ff:ff:ff:ff:ff

Route application examples

NOTE: See the dell-base-route.yang model which denes the route object and attributes before you congure route

settings.

Create routing using Python

1 Import the CPS utility and netaddr Python library.

import cps_utils

import socket

import netaddr as net

2Dene the protocol version, route prex, and prex length of the route attributes.

version = 'ipv4'

route_ip = '70.5.5.0'

obj = cps_utils.CPSObject('base-route/obj/entry')

obj.add_attr("vrf-id", 0)

if version == 'ipv4':

obj.add_attr("af", socket.AF_INET)

elif version == 'ipv6':

obj.add_attr("af", socket.AF_INET6) ip = net.IPNetwork(route_ip)

obj.add_attr_type("route-prefix", version)

obj.add_attr("route-prefix", str(ip.network))

obj.add_attr("prefix-len", int(ip.prefixlen))

3Dene the next-hop attributes and create the CPS object, then add multiple next-hop attributes to create ECMP routes.

nh_addr = '1.1.1.2'

lst = ["nh-list", "0", "nh-addr"]

obj.add_embed_attr(lst, nh_addr)

obj.add_attr("nh-count", 1)

4 Create the CPS object.

cps_update = ('create', obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

5 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating Route")

route-create.py

#Python block code to create a route

import cps_utils

import socket

import netaddr as net

#Populate the attributes

version = 'ipv4'

route_ip = '70.5.5.0'

obj = cps_utils.CPSObject('base-route/obj/entry')

obj.add_attr("vrf-id", 0)

if version == 'ipv4':

obj.add_attr("af", socket.AF_INET)

elif version == 'ipv6':

Application examples 29

obj.add_attr("af", socket.AF_INET6)

ip = net.IPNetwork(route_ip)

obj.add_attr_type("route-prefix", version)

obj.add_attr("route-prefix", str(ip.network))

obj.add_attr("prefix-len", int(ip.prefixlen))

nh_addr = '1.1.1.2'

lst = ["nh-list", "0", "nh-addr"]

obj.add_embed_attr(lst, nh_addr)

obj.add_attr("nh-count", 1)

print obj.get()

#Create transaction

cps_update = ('create', obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating Route")

Verify route creation

$ ip route

1.1.1.0/24 dev e101-001-0 proto kernel scope link src 1.1.1.1

70.5.5.0 via 1.1.1.2 dev e101-001-0 proto none

Delete route using Python

1 Import the CPS utility and netaddr Python library.

import cps_utils

import socket

import netaddr as net

2Dene the protocol version, route prex, and prex length of the route attributes.

version = 'ipv4'

route_ip = '70.5.5.0'

obj = cps_utils.CPSObject('base-route/obj/entry')

obj.add_attr("vrf-id", 0)

if version == 'ipv4':

obj.add_attr("af", socket.AF_INET)

elif version == 'ipv6':

obj.add_attr("af", socket.AF_INET6)

ip = net.IPNetwork(route_ip)

obj.add_attr_type("route-prefix", version)

obj.add_attr("route-prefix", str(ip.network))

obj.add_attr("prefix-len", int(ip.prefixlen))

print obj.get()

3 Create the CPS object and create the transaction.

cps_update = ('delete', obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

4 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating Route")

route-delete.py

#Python code block to delete a route

import cps_utils

import socket

import netaddr as net

#Define the route attributes

version = 'ipv4'

route_ip = '70.5.5.0'

30 Application examples

obj = cps_utils.CPSObject('base-route/obj/entry')

obj.add_attr("vrf-id", 0)

if version == 'ipv4':

obj.add_attr("af", socket.AF_INET)

elif version == 'ipv6':

obj.add_attr("af", socket.AF_INET6)

ip = net.IPNetwork(route_ip)

obj.add_attr_type("route-prefix", version)

obj.add_attr("route-prefix", str(ip.network))

obj.add_attr("prefix-len", int(ip.prefixlen))

print obj.get()

#Create CPS object and create transaction

cps_update = ('delete', obj.get())

transaction = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error deleting Route")

Verify route deletion

$ ip route

1.1.1.0/24 dev e101-001-0 proto kernel scope link src 1.1.1.1

70.5.5.0 via 1.1.1.2 dev e101-001-0 proto none

$ python route-delete

{'data': {'base-route/obj/entry/prefix-len': bytearray(b' \x00\x00\x00'), 'base-route/obj/entry/

vrf-id': bytearray(b'\x00\x00\x00\x00'), 'base-route/obj/entry/af':

bytearray(b'\x02\x00\x00\x00'), 'base- route/obj/entry/route-prefix': 'F\x05\x05\x00'},

'key':'1.26.1704016.1703992.1703995.1703980.1703978.1703979.'}

$ ip route

1.1.1.0/24 dev e101-001-0 proto kernel scope link src 1.1.1.1

ACL application examples

NOTE: See the dell-base-acl.yang model which denes an ACL object and attributes before you congure ACL settings.

Congure ACL using Python

1 Import the CPS utility Python library.

import cps_utils

2Dene the enum map.

NOTE: A CPS Python application does not automatically map the YANG model enum name to a number.

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

3 Register the attribute type with the CPS utility for attributes with non-integer values.

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

congure-acl.py

#Python code block to configure ACL

import cps_utils

Application examples 31

#Define enum map

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

#Tell CPS utility about the type of each attribute

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

Create ACL table using Python

An ACL table groups entries and allows a packet to match one of the entries in the group. A packet can simultaneously match ACL entries

in dierent tables. The table priority determines the order in which match criteria are applied.

NOTE: See the dell-base-acl.yang model which denes an ACL object and attributes before you congure ACL settings.

1 Import the CPS utility Python library.

import cps_utils

import nas_os_utils

2Dene the enum map.

NOTE: A CPS Python application does not automatically map the YANG model enum name to a number.

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

3 Register the attribute type with the CPS utility for attributes with non-integer values.

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

4 Create the CPS object and populate the attributes.

cps_obj = cps_utils.CPSObject(module='base-acl/table')

5 Set the stage and priority.

cps_obj.add_attr ('stage', e_stg['INGRESS'])

cps_obj.add_attr ('priority', 99)

The allowed-match-list attribute is a YANG leaf list, which takes multiple values provided with a Python list.

cps_obj.add_list ('allowed-match-fields', [e_ftype['SRC_MAC'], e_ftype['DST_IP'],

e_ftype['DSCP'], e_ftype['IN_PORT']])

6Dene the CPS object.

cps_update = ('create', cps_obj.get())

7Dene an add operation and object pair to the CPS transaction.

NOTE: Each CPS transaction can hold multiple CPS operation and object pairs.

cps_trans = cps_utils.CPSTransaction([cps_update])

8 Verify the return value.

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error creating ACL Table")

32 Application examples

9 Retrieve the CPS object ID from the ACL table — this ID is used for all operations on the ACL table.

ret = cps_utils.CPSObject (module='base-acl/table', obj=r[0]['change'])

tbl_id = cps_get_val.get_attr_data ('id')

print "Successfully created ACL Table " + str(tbl_id)

create-acl.py

#Python code block to create ACL /usr/bin/python

"""

Simple Base ACL CPS config using the generic CPS Python module and utilities.

Create ACL Table

Create ACL Entry to Drop all packets received on specific port from specific Src MAC

"""

import cps_utils

import nas_os_utils

#Yang enum name to number map

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6,

'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

#Teach CPS utility about the type of each attribute

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

#Create ACL Table

#Create CPS Object and fill leaf attributes

cps_obj = cps_utils.CPSObject(module='base-acl/table')

cps_obj.add_attr ('stage', e_stg['INGRESS'])

cps_obj.add_attr ('priority', 99)

#Populate the leaf-list attribute

cps_obj.add_list ('allowed-match-fields', [e_ftype['SRC_MAC'],

e_ftype['DST_IP'],

e_ftype['DSCP'],

e_ftype['IN_PORT']])

#Associate the CPS Object with a CPS operation

cps_update = ('create', cps_obj.get())

#Add the CPS object to a new CPS Transaction

cps_trans = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error creating ACL Table")

ret = cps_utils.CPSObject (module='base-acl/table', obj=r[0]['change'])

#Retrieve CPS object ID

cps_get_val = cps_utils.CPSObject (module='base-acl/table', obj=r[0]['change'])

tbl_id = ret.get_attr_data ('id')

print "Successfully created ACL Table " + str(tbl_id)

Verify ACL table creation using CPS get

# cps_get_oid.py 'base-acl/table'

Key: 1.25.1638504.1638499.

base-acl/table/npu-id-list = 0 base-acl/table/stage = 1

base-acl/table/priority = 99

base-acl/table/allowed-match-fields = 3,6,9,21

base-acl/table/id = 2

Application examples 33

Create ACL entry using Python

An ACL entry is a rule that consists of a set of lters that dene packets to be matched, and a set of actions to be performed on the

matched packets.

1 Import the CPS utility Python library.

import cps_utils

import nas_os_utils

2Dene the enum map.

NOTE: A CPS Python application does not automatically map the YANG model enum name to a number.

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

3 Register the attribute type with the CPS utility for attributes with non-integer values.

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

4 Create the CPS object based on the dell-base-acl.yang model, then dene the leaf attributes.

cps_obj = cps_utils.CPSObject(module='base-acl/table)

5Dene the ACL table ID to indicate the group to which this ACL entry belongs to. The priority value determines the sequence of the

ACL rule lookup in the ACL table group.

cps_obj.add_attr ('table-id', tbl_id) cps_obj.add_attr ('priority', 512)

6Dene the lters that the packets are matched to — lter attribute is a YANG nested list. The add_embed_attr() function is used

to create multiple instances for nested lists. Each lter instance is made up of two attributes — match-type and match-value.

NOTE: Use the correct match-value attribute name depending on the value assigned to the match-type. Use the attribute name

src_mac_value when match-type is src_mac.

Filter 1 — match packets with a specic source MAC address

cps_obj.add_embed_attr (['match','0','type'], e_ftype['SRC_MAC'])

cps_obj.add_embed_attr (['match','0','SRC_MAC_VALUE','addr'], '50:10:6e:00:00:00', 2)

Filter 2 — match packets received on a specic port

cps_obj.add_embed_attr (['match','1','type'], e_ftype['IN_PORT'])

cps_obj.add_embed_attr (['match','1','IN_PORT_VALUE'],

nas_os_utils.if_nametoindex('e101-001-0'))

7Dene actions to apply on matched packets — action attribute is a YANG nested list. The add_embed_attr() function is used to

create multiple instances for nested lists. Each action instance is made up of two attributes — action-type and action-value.

NOTE: Use the correct action-value attribute name depending on the value assigned to the action-type. Use attribute name

packet_action_value when action-type is packet_action.

Action — drop

cps_obj.add_embed_attr (['action','0','type'], e_atype['PACKET_ACTION'])

cps_obj.add_embed_attr (['action','0','PACKET_ACTION_VALUE'], e_ptype['DROP'])

8 Associate the CPS object an operation.

cps_update = ('create', cps_obj.get())

9 Add the CPS operation and object pair to a new transaction. Each CPS transaction holds multiple pairs of CPS operation and object

updates.

cps_trans = cps_utils.CPSTransaction([cps_update])

34 Application examples

10 Verify the return value.

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error creating MAC ACL Entry")

11 Retrieve the CPS object ID from the ACL table. This ID is used for all operations on the ACL table.

cps_get_val = cps_utils.CPSObject (module='base-acl/entry', obj=r[0]['change'])

mac_eid = cps_get_val.get_attr_data ('id')

print "Successfully created MAC ACL Entry " + str(mac_eid)

create-acl-table.py

#Python code block to create ACL table entry /usr/bin/python

"""

Simple Base ACL CPS config using the generic CPS Python module and utilities

Create ACL Table

Create ACL Entry to Drop all packets received on specific port from specific Src MAC

"""

import cps_utils

import nas_os_utils

#Yang enum name to number map

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

#Inform CPS utility about the type of each attribute

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

#Create ACL Table

#Create CPS object and fill leaf attributes

cps_obj = cps_utils.CPSObject(module='base-acl/table')

cps_obj.add_attr ('stage', e_stg['INGRESS'])

cps_obj.add_attr ('priority', 99)

#Populate the leaf-list attribute

cps_obj.add_list ('allowed-match-fields', [e_ftype['SRC_MAC'], e_ftype['DST_IP'],

e_ftype['DSCP'], e_ftype['IN_PORT']])

#Associate the CPS Object with a CPS operation

cps_update = ('create', cps_obj.get())

#Add the CPS object to a new CPS Transaction

cps_trans = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error creating ACL Table")

#Retrieve CPS Object ID

ret = cps_utils.CPSObject (module='base-acl/table', obj=r[0]['change'])

tbl_id = ret.get_attr_data ('id')

print "Successfully created ACL Table" + str(tbl_id)

#Create ACL table entry

#Drop all packets received on specific port from specific range of MACs

#Create CPS Object and fill leaf attributes

cps_obj = cps_utils.CPSObject(module='base-acl/entry')

cps_obj.add_attr ('table-id', tbl_id)

cps_obj.add_attr ('priority', 512)

Application examples 35

#Filters

#Match Filter 1 - Src MAC

cps_obj.add_embed_attr (['match','0','type'], e_ftype['SRC_MAC'])

#The 2 at the end indicates that the type should be deducted from the last 2 attrs

(SRC_MAC_VALUE,addr)

cps_obj.add_embed_attr (['match','0','SRC_MAC_VALUE','addr'], '50:10:6e:00:00:00', 2)

#Match Filter 2 - Rx Port

cps_obj.add_embed_attr (['match','1','type'], e_ftype['IN_PORT'])

cps_obj.add_embed_attr (['match','1','IN_PORT_VALUE'],

nas_os_utils.if_nametoindex('e101-001-0'))

#Action - Drop

cps_obj.add_embed_attr (['action','0','type'], e_atype['PACKET_ACTION'])

cps_obj.add_embed_attr (['action','0','PACKET_ACTION_VALUE'], e_ptype['DROP'])

#Associate the CPS Object with a CPS operation cps_update = ('create', cps_obj.get())

#Add the CPS object to a new CPS Transaction cps_trans = cps_utils.CPSTransaction([cps_update])

#Commit the CPS transaction and verify return

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error creating MAC ACL Entry")

#Return CPS Object ID

ret = cps_utils.CPSObject (module='base-acl/entry', obj=r[0]['change'])

mac_eid = ret.get_attr_data ('id')

print "Successfully created MAC ACL Entry" + str(mac_eid)

Verify ACL entry creation using CPS get

# cps_get_oid.py 'base-acl/entry'

Key: 1.25.1638505.1638428.1638429. base-acl/entry/table-id = 2

base-acl/entry/id = 1

base-acl/entry/match/IN_PORT_VALUE = 23

base-acl/entry/match/type = 9

base-acl/entry/match/SRC_MAC_VALUE/mask = ffffff000000

base-acl/entry/match/SRC_MAC_VALUE/addr = 50106e000000

base-acl/entry/match/type = 3

base-acl/entry/action/PACKET_ACTION_VALUE = 1

base-acl/entry/action/type = 3

base-acl/entry/npu-id-list = 0

base-acl/entry/priority = 512

Verify NPU ACL entry creation

EID 0x00000018: gid=0x2,

slice=1, slice_idx=0, part =0 prio=0x200, flags=0x10202, Installed, Enabled

tcam: color_indep=0,

Stage

StageIngress

InPort

DATA=0x0000000000000000000000000000000000000000000000000002000000000000

MASK=0x00000000000000000000000000000000000001ffffffffffffffffffffffffff

SrcMac

Offset0: 241 Width0: 48

DATA=0x00005010 6e000000

MASK=0x0000ffff ff000000

action={act=Drop, param0=0(0), param1=0(0), param2=0(0), param3=0(0)}

policer=

statistics=NULL

Delete ACL entry using Python

1 Import the CPS utility Python library.

import cps_utils

2Dene the enum map.

36 Application examples

NOTE: A CPS Python application does not automatically map the YANG model enum name to a number.

e_stg = {'INGRESS': 1, 'EGRESS': 2}

e_ftype = {'SRC_MAC': 3, 'DST_MAC': 4, 'SRC_IP': 5, 'DST_IP': 6, 'IN_PORT': 9, 'DSCP': 21}

e_atype = {'PACKET_ACTION': 3, 'SET_TC': 10}

e_ptype = {'DROP': 1}

3 Register the attribute type with the CPS utility for attributes with non-integer values.

type_map = {

'base-acl/entry/SRC_MAC_VALUE/addr': 'mac',

'base-acl/entry/SRC_MAC_VALUE/mask': 'mac',

}

for key,val in type_map.items():

cps_utils.cps_attr_types_map.add_type(key, val)

4Dene the table and entry ID key values and create the CPS object.

cps_obj = cps_utils.CPSObject(module='base-acl/entry', data={'table-id': 'id': mac_eid})

5 Associate the object with a CPS operation.

cps_update = ('delete', cps_obj.get())

6 Add the operation and object pair to a new CPS transaction.

cps_trans = cps_utils.CPSTransaction([cps_update])

7 Verify the return value.

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error deleting ACL Entry")

delete-acl.py

#Python code block to delete ACL entry

import cps_utils

#Create the CPS Object and fill the table-id and entry-id key values

cps_obj = cps_utils.CPSObject(module='base-acl/entry', data={'table-id': 2, 'id': 1})

#Associate the CPS Object with a CPS operation

cps_update = ('delete', cps_obj.get())

#Add the CPS object to a new CPS Transaction

cps_trans = cps_utils.CPSTransaction([cps_update])

#Verify return value

ret = cps_trans.commit()

if not ret:

raise RuntimeError ("Error deleting ACL Entry")

MAC address table application examples

This information includes both Python and C/C++ application examples.

NOTE: See the dell-base-l2-mac.yang model that denes the MAC object and attributes before creating a MAC address

table entry.

Create MAC address table entry

1 Import the CPS utility Python library.

import cps_utils

2 Register the mac-address attribute type as mac-address to convert between the string and byte-array formats.

cps_utils.add_attr_type("base-mac/table/mac-address", "mac")

3 Create a new MAC entry by entering the MAC address, interface index, and VLAN attributes.

d = {"mac-address": "00:0a:0b:cc:0d:0e","ifindex": 18,"vlan": "100"}

4 Create a CPS object.

obj = cps_utils.CPSObject('base-mac/table',data= d)

Application examples 37

5 Add the operation to the object.

tr_obj = ('create', obj.get())

6 Create a transaction object.

transaction = cps_utils.CPSTransaction([tr_obj])

7 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating MAC Table Entry")

create-mac-table-entry.py

#Python block code to create MAC Table entry

import cps_utils

#Register attribute type

cps_utils.add_attr_type("base-mac/table/mac-address", "mac")

#Define VLAN attributes

d = {"mac-address": "00:0a:0b:cc:0d:0e","ifindex": 18,"vlan": "100"}

#Create CPS object

obj = cps_utils.CPSObject('base-mac/table',data= d)

#Associate operation to CPS object

tr_obj = ('create', obj.get())

#Create transaction object

transaction = cps_utils.CPSTransaction([tr_obj])

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError ("Error creating MAC Table Entry")

If you do not specify a qualier value for a key, target is used by default to create the object. To use a non-default qualier, enter obj =

cps_utils.CPSObject('base-mac/table',qual='observed',data= d).

create-mac-table-entry.c

// C application example to create a MAC address table entry

#include "cps_api_object.h"

#include "dell-base-l2-mac.h"

#include "cps_class_map.h"

#include "cps_api_object_key.h"

#include <stdint.h>

#include <net/if.h>

bool cps_create_mac(){

// Create and initialize the transaction object

cps_api_transaction_params_t tran;

if (cps_api_transaction_init(&tran) != cps_api_ret_code_OK ){

return false;

}

// Create and initialize the key cps_api_key_t key;

cps_api_key_from_attr_with_qual(&key, BASE_MAC_TABLE_OBJ, cps_api_qualifier_TARGET);

// Create the object

cps_api_object_t obj = cps_api_object_create();

if(obj == NULL ){

38 Application examples

cps_api_transaction_close(&tran);

return false;

}

// Set the key for the object

cps_api_object_set_key(obj,&key);

// Add attributes mandatory to create MAC address entry

uint8_t mac_addr[6] = {0x0,0xa,0xb,0xc,0xd,0xe}; uint16_t vlan_id = 100;

cps_api_object_attr_add(obj,BASE_MAC_TABLE_MAC_ADDRESS, mac_addr, sizeof(hal_mac_addr_t));

cps_api_object_attr_add_u32(obj,BASE_MAC_TABLE_IFINDEX,if_nametoindex("e101-001-0"));

// Add MAC table VLAN ID

cps_api_object_attr_add_u16(obj,BASE_MAC_TABLE_VLAN,vlan_id);

// Add the object along with the operation to transaction

if(cps_api_create(&tran,obj) != cps_api_ret_code_OK ){

cps_api_object_delete(obj);

return false;

}

// Commit the transaction

if(cps_api_commit(&tran) != cps_api_ret_code_OK ) {

cps_api_transaction_close(&tran);

return false;

}

// Cleanup the Transaction

cps_api_transaction_close(&tran);

return true;

}

Delete MAC address table entry

1 Import the CPS utility Python library.

import cps_utils

2 Register the attribute type to convert between string and byte-array format.

cps_utils.add_attr_type("base-mac/table/mac-address", "mac")

3Dene the MAC address, interface index, and VLAN to delete the static address entry.

d = {"mac-address": "00:0a:0b:cc:0d:0e", "ifindex": 18, "vlan": "100"}

4 Create a CPS object.

obj = cps_utils.CPSObject('base-mac/table',data= d)

5 Add the operation to the object.

tr_obj = ('delete', obj.get())

6 Create a transaction object.

transaction = cps_utils.CPSTransaction([tr_obj])

7 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError("Error deleting entry from MAC Table")

delete-mac-table-entry.py

#Python block code to delete MAC address table entry

import cps_utils

#Register attribute type

cps_utils.add_attr_type("base-mac/table/mac-address", "mac")

#Define MAC address

d = {"mac-address": "00:0a:0b:cc:0d:0e", "ifindex": 18, "vlan": "100"}

Application examples 39

#Create CPS object

obj = cps_utils.CPSObject('base-mac/table',data=d)

#Add operation to object

tr_obj = ('delete', obj.get())

#Create transaction object

transaction = cps_utils.CPSTransaction([tr_obj])

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError("Error deleting entry from MAC Table")

delete-mac-table-entry.c

// C application example to delete a MAC address table entry

#include "cps_api_object.h"

#include "dell-base-l2-mac.h"

#include "cps_class_map.h"

#include "cps_api_object_key.h"

#include <stdint.h>

#include <net/if.h>

bool cps_delete_mac(){

// Create and initialize the transaction object cps_api_transaction_params_t tran;

if (cps_api_transaction_init(&tran) != cps_api_ret_code_OK ){

return false;

}

// Create and initialize the key cps_api_key_t key;

cps_api_key_from_attr_with_qual(&key, BASE_MAC_TABLE_OBJ, cps_api_qualifier_TARGET);

// Create the object

cps_api_object_t obj = cps_api_object_create();

if(obj == NULL ){ cps_api_transaction_close(&tran); return false;

}

// Set the key for the object

cps_api_object_set_key(obj,&key);

// Add attributes mandatory to create MAC address entry

uint8_t mac_addr[6] = {0x0,0xa,0xb,0xc,0xd,0xe};

uint16_t vlan_id = 131;

cps_api_object_attr_add(obj,BASE_MAC_TABLE_MAC_ADDRESS, mac_addr, sizeof(hal_mac_addr_t));

cps_api_object_attr_add_u32(obj,BASE_MAC_TABLE_IFINDEX,if_nametoindex("e101-001-0") );

cps_api_object_attr_add_u16(obj,BASE_MAC_TABLE_VLAN,vlan_id);

// Add the object along with the operation to transaction if(cps_api_delete(&tran,obj) !=

cps_api_ret_code_OK ){

cps_api_delete_object(obj);

return false;

}

// Commit the transaction

if(cps_api_commit(&tran) != cps_api_ret_code_OK ) {

cps_api_transaction_close(&tran);

return false;

}

40 Application examples

// Cleanup the Transaction

cps_api_transaction_close(&tran);

return true;

}

To delete the MAC address from all VLANs, specify the vlan attribute and its value in the object. To delete all MAC entries from an

interface, specify the ifindex attribute and its value in the object. To delete MAC entries from both a VLAN and member interface,

specify the vlan and ifindex attributes and their values in the object.

NOTE: Deletion of static entries based only on VLAN, interface or a VLAN/interface combination is not supported. To delete a

static entry, you must add the mac-address, vlan, and ifindex attributes and their values to the object.

Delete MAC address table entries from mulitple VLANs

1 Import the CPS utility Python library.

import cps_utils

2Dene the VLANs to remove MAC address entries from.

vlan_list=[1,2,3,4,5]

3 Create the CPS object.

obj = cps_utils.CPSObject('base-mac/flush')

4 Add the VLAN list to the CPS object.

count = 0

el = ["input/filter","0","vlan"]

for vlan in vlan_list:

obj.add_embed_attr(el, vlan)

count = count + 1

el[1] = str(count)

5 Associate the operation to the object.

tr_obj = ('rpc', obj.get())

6 Create a transaction object.

transaction = cps_utils.CPSTransaction([tr_obj])

7 Verify the return value.

ret = transaction.commit()

if not ret:

raise RuntimeError("Error Flushing entries from MAC Table")

remove-mac-table-entries-from-multiple-vlans.py

#Python block code to remove MAC table entries from multiple VLANS

import cps_utils

#Define VLANS

vlan_list =[1,2,3,4,5]

#Create CPS object

obj = cps_utils.CPSObject('base-mac/flush')

#Add VLAN list to CPS object

count = 0

el = ["input/filter","0","vlan"]

for vlan in vlan_list:

obj.add_embed_attr(el, vlan)

count = count + 1

el[1] = str(count)

#Associate operation to object

tr_obj = ('rpc', obj.get())

#Create transaction object

transaction = cps_utils.CPSTransaction([tr_obj])

Application examples 41

#Verify return value

ret = transaction.commit()

if not ret:

raise RuntimeError("Error Flushing entries from MAC Table")

remove-mac-table-entries-from-multiple-vlans.c

// C application example to remove MAC address table entries from multiple VLANs

#include "cps_api_object.h"

#include "dell-base-l2-mac.h"

#include "cps_class_map.h"

#include "cps_api_object_key.h"

#include <stdint.h>

#include <net/if.h>

bool cps_flush_mac(){

// Create and initialize the transaction object

cps_api_transaction_params_t tran;

if (cps_api_transaction_init(&tran) != cps_api_ret_code_OK ){

return false;

}

// Create and initialize the key

cps_api_key_t key;

cps_api_key_from_attr_with_qual(&key, BASE_MAC_FLUSH_OBJ, cps_api_qualifier_TARGET);

// Create the object

cps_api_object_t obj = cps_api_object_create();

if(obj == NULL ){

cps_api_transaction_close(&tran);

return false;

}

// Set the key for the object

cps_api_object_set_key(obj,&key);

// Add attributes to flush MAC entries

cps_api_attr_id_t ids[3] = {BASE_MAC_FLUSH_INPUT_FILTER,0,

BASE_MAC_FLUSH_INPUT_FILTER_VLAN };

const int ids_len = sizeof(ids)/sizeof(ids[0]);

uint16_t vlan_list[3]={1,2,3};

for(unsigned int ix=0; ix<sizeof(vlan_list)/sizeof(vlan_list[0]); ++ix) {

ids[1]=ix;

cps_api_object_e_add(obj,ids,ids_len,cps_api_object_ATTR_T_U16,&(vlan_list[ix]),sizeof(vlan_lis

t[ix]));

}

unsigned int ifindex_list[] =

{ if_nametoindex("e101-001-0"),if_nametoindex("e101-002-0"), if_nametoindex("e101-003-0")};

ids[2]=BASE_MAC_FLUSH_INPUT_FILTER_IFINDEX;

for(unsigned int ix=0; ix<sizeof(ifindex_list)/sizeof(ifindex_list[0]); ++ix){

ids[1]=ix;

cps_api_object_e_add(obj,ids,ids_len,cps_api_object_ATTR_T_U16,&ifindex_list[ix],sizeof(ifindex_

list[ix]));

}

// Add the object along with the operation to transaction

42 Application examples

if(cps_api_action(&tran,obj) != cps_api_ret_code_OK ){

cps_api_object_delete(obj);

return false;

}

// Commit the transaction

if(cps_api_commit(&tran) != cps_api_ret_code_OK ) {

cps_api_transaction_close(&tran);

return false;

}

// Cleanup the Transaction

cps_api_transaction_close(&tran);

return true;

}

Event application examples

1 Import the CPS object Python library.

import cps

2 Create a handle to connect to event service.

handle = cps.event_connect()

3 Register a key with the event service to receive notication when an event for the key is published.

cps.event_register(handle, cps.key_from_name('observed','base-port/interface'))

while True:

# wait for the event

o = cps.event_wait(handle)

print o

#Python block code to register for events

import cps

#Create handle to connect to event service

handle = cps.event_connect()

#Register key with event service

cps.event_register(handle, cps.key_from_name('observed','base-port/interface'))

while True:

o = cps.event_wait(handle)

print o

// C application example to register for events

#include "cps_api_events.h"

#include "cps_api_object.h"

#include "dell-base-phy-interface.h"

#include "cps_class_map.h"

#include "cps_api_object_key.h"

#include <stdlib.h>

#include <stdio.h>

#include <unistd.h>

// Callback for the interface event handling

static bool cps_if_event_cb(cps_api_object_t obj, void *param){

Application examples 43

char buf[1024];

cps_api_object_to_string(obj,buf,sizeof(buf));

printf("Object Received %s \n",buf);

return true;

}

bool cps_reg_intf_events(){

// Initialize the event service

if (cps_api_event_service_init() != cps_api_ret_code_OK) {

return false;

}

// Initialize the event handling thread

if (cps_api_event_thread_init() != cps_api_ret_code_OK) {

return false;

}

// Create and initialize the key

cps_api_key_t key;

cps_api_key_from_attr_with_qual(&key, BASE_PORT_INTERFACE_OBJ, cps_api_qualifier_OBSERVED);

// Create the registration object

cps_api_event_reg_t reg;

memset(&reg,0,sizeof(reg));

reg.number_of_objects = 1;

reg.objects = &key;

// Register to receive events for key created above

if (cps_api_event_thread_reg(&reg, cps_if_event_cb,NULL)!=cps_api_ret_code_OK) {

return false;

}

// Wait for the events

while(1){

sleep(1);

}

return true;

}

Publish events

1 Import the CPS and CPS utlity Python library.

import cps

import cps_utils

2 Create a handle to connect to the event service.

handle = cps.event_connect()

3 Create a CPS object.

obj = cps_utils.CPSObject('dell-base-if-cmn/if/interfaces/interface',qual='observed', data=

{"ifindex":23})

4 Publish the object.

cps.event_send(handle, obj.get())

publish-events.py

#Python block code to publish events

import cps

import cps_utils

#Create handle to connect to event service

handle = cps.event_connect()

44 Application examples

#Create CPS object

obj = cps_utils.CPSObject('base-port/interface',qual='observed', data= {"ifindex":23})

#Publish the object

cps.event_send(handle, obj.get())

publish-events.c

// C application example to publish events

#include "cps_api_events.h"

#include "cps_api_object.h"

#include "dell-base-phy-interface.h"

#include "cps_class_map.h"

#include "cps_api_object_key.h"

#include <stdio.h>

#include <net/if.h>

bool cps_pub_intf_event() {

static cps_api_event_service_handle_t handle;

if (cps_api_event_service_init() != cps_api_ret_code_OK) {

return false;

}

if (cps_api_event_client_connect(&handle) != cps_api_ret_code_OK) {

return false;

}

// Create and intialize the key

cps_api_key_t key;

cps_api_key_from_attr_with_qual(&key, BASE_PORT_INTERFACE_OBJ, cps_api_qualifier_OBSERVED);

// Create the object

cps_api_object_t obj = cps_api_object_create();

if(obj == NULL){

return false;

}

// Add attributes to the object

cps_api_object_attr_add_u32(obj,BASE_PORT_INTERFACE_IFINDEX, if_nametoindex("e101-001-0"));

// Set the key to the object

cps_api_object_set_key(obj,&key);

/ /Publish the object

if(cps_api_event_publish(handle,obj)!= cps_api_ret_code_OK){

cps_api_object_delete(obj);

return false;

}

// Delete the object

cps_api_object_delete(obj);

return true;

}

Application examples 45

Application templates

Provided are templates to develop applications in Python and C/C++ for server and client applications, and event publishers and event

subscribers. Client applications subscribe to events—server applications publish events, and applications can act as both clients and

servers.

Event ow between CPS client and server applications

Event ow between a CPS event subscriber and publisher

Python templates

Server application Template for the structure of a server (object owner), including the transaction callback handler for set, create,

delete, action operations and a separate handler for get operations.

Client application Template for the structure of a client application including the execution of a get request.

Event publisher

application

Template for the structure of an event publisher.

Event subscriber

application

Template for the structure of an event subscriber. The application registers for events, and waits for events in a

loop.

C/C++ templates

Server application Template for the structure of a CPS server (object owner) including read and write functions for get operations

(xyz_read)—set, create, delete, action operations (xyz_write), and rollback of failed transactions

(xyz_rollback).

Client application Template for the structure of a CPS client including read and write functions for get requests (building keys and

object lists), and set requests (using a transaction).

46 Application templates

Event publisher

application

Template for the structure of a CPS event publisher including initialization of the event service, connection to the

object library, and the event publish operation.

Event subscriber

application

Template for the structure of a CPS event subscriber including initialization of the event service and event

processing thread, and registration of the event handler function, and event processing callback. The key list

specied in the registration is used to determine the events delivered to the application—list contains a single

element.

Topics:

• CPS server application templates

• CPS client application templates

• CPS event publisher application templates

• CPS event subscriber application templates

CPS server application templates

This information includes templates for the structure of a CPS server (object owner), including the transaction callback handler for set,

create, and delete action operations, and a separate handler for get operations.

python-server-template.py

#Python code block for CPS server application

import time import cps

import cps_utils

#Define the get callback handler function

def get_callback(methods, params):

#Append object to the response, echoing back the key from the request, and supplying some

attributes

params[ list ].append({ key : params[ filter ][ key ],

data : { attr_1 : value_1 ,

attr_n : value_n

}

)

return True

#Define the transaction callback handler function

def transaction_callback(methods, params):

if params[ operation ] == set :

#Set operation requested

#Extract attributes from request object attr_1 = params[ change ][ data ][ attr_1 ]

attr_n = params[ change ]

[ data ][ attr_n ]

#Do something with them -- program hardware, update the configuration, etc.

return True

if params[ operation ] == create :

return True

if params[ operation ] == delete :

return True

if params[ operation ] == action :

return True

return False

Application templates 47

#Obtain handle to CPS API service

handle = cps.obj_init()

#Register above handlers to be run when a request is received for given key

cps.obj_register(handle, key,

{ get : get_callback,

transaction : transaction_callback

}

)

#Let the handlers run

while True:

time.sleep(1000)

c-template-server-application.c

/******************************************************************

Template CPS API object server read handler function

This function is invoked by the CPS API service when a GET request

is placed for a registered CPS API object. The binding of CPS

API object key to the read handler function is done below.

*******************************************************************/

cps_api_return_code_t xyz_read(

void *context,

cps_api_get_params_t *param,

size_t key_idx

)

{

/* Allocate a response object, and add to response */

cps_api_object_t response_obj;

response_obj = cps_api_object_list_create_obj_and_append(

param->list

);

if (response_obj == CPS_API_OBJECT_NULL) {

/* Failed to allocate response object

=> Indicate an error

return (cps_api_ret_code_ERR);

}

/* Fill in response object */

cps_api_key_from_attr_with_qual(cps_api_object_key(response_obj),

...

);

cps_api_set_key_data(response_obj, ...);

... cps_api_set_key_data(response_obj, ...);

cps_api_object_attr_add_...(response_obj, ...);

... cps_api_object_attr_add_...(response_obj, ...);

/* Indicate GET response successful */

return (cps_api_ret_code_OK);}

/******************************************************************

Template CPS API object server write handler function

This function is invoked by the CPS API service when a SET request

is placed for a registered CPS API object. The binding of CPS

API object key to the write handler function is done below.

*******************************************************************/

cps_api_return_code_t xyz_write(

void *context,

cps_api_transaction_params_t *param,

size_t index_of_element_being_updated

48 Application templates

)

{

/* Extract the object given in the request */

cps_api_object_t request_obj;

request_obj = cps_api_object_list_get(

param->change_list,

index_of_element_being_updated

);

if (request_obj == CPS_API_OBJECT_NULL) {

/* Failed to extract request object

=> Indicate error

return (cps_api_ret_code_ERR);

}

/* Assume error response */

cps_api_return_code_t result = cps_api_ret_code_ERR;

/* Determine the type of write operation */

switch (cps_api_object_type_operation(

cps_api_object_key(request_obj)

)

) {

case cps_api_oper_SET:

/* SET operation requested */

/* Create the rollback object, i.e. an object to return

containing the old values for any attributes set, and

add to transaction

cps_api_object_t rollback_obj;

rollback_obj = cps_api_object_list_create_obj_and_append(

param->prev

);

if (rollback_obj == CPS_API_OBJECT_NULL) {

/* Failed to create rollback object */

break;

}

/* Assume SET successful */

result = cps_api_ret_code_OK;

/* For each attribute given in the request, */

cps_api_object_it_t attr_iter;

cps_api_object_it_begin(request_obj, &attr_iter);

while (cps_api_object_it_valid(&attr_iter)) {

/* Get the attribute id from the attribute iterator */

cps_api_attr_id_t attr_id;

attr_id = cps_api_object_attr_id(attr_iter.attr);

/* Update the rollback object with the old value

of the attribute

cps_api_object_attr_add_...(rollback_obj,

attr_id,

);

Application templates 49

/* Extract the attribute from the request object */

cps_api_object_attr_t attr;

attr = cps_api_object_attr_get(request_obj, attr_id);

if (attr == CPS_API_ATTR_NULL)) {

/* Failed to extract attribute

=> Indicate error

result = cps_api_ret_code_ERR;

continue;

}

/* Extract the value of the attribute in the request

object

value = cps_api_object_attr_data_....(attr);

/* Validate the requested attribute value, its

consistency with other attributes and/or existing

configuration, etc.

}

/* If the whole request has been validated, do something with

the extracted values program hardware,

take some action, etc.

break;

case cps_api_oper_CREATE:

/* CREATE operation requested */

break;

case cps_api_oper_DELETE:

/* DELETE operation requested */

break;

case cps_api_oper_ACTION:

/* ACTION operation requested */

break;

default:

/* Invalid SET request type */

break;

}

return (result);

}

/**********************************************************

Template CPS API object server rollback handler function

*******************************************************************/

cps_api_return_code_t xyz_rollback(

void *context,

cps_api_transaction_params_t *param,

size_t index_of_element_being_updated

)

{

/* Extract object to be rolled back */

cps_api_object_t rollback_obj;

rollback_obj = cps_api_object_list_get(

param->prev,

index_of_element_being_updated

50 Application templates

);

if (rollback_obj == CPS_API_OBJECT_NULL) {

/* Failed to extract rollback object

=> Indicate failure

return (cps_api_ret_code_ERR);

}

/* For each attribute to be rolled back, */

cps_api_object_it_t attr_iter;

cps_api_object_it_begin(rollback_obj, &attr_iter);

while (cps_api_object_it_valid(&attr_iter)) {

/* Get the attribute id from the attribute iterator */

cps_api_attr_id_t attr_id;

attr_id = cps_api_object_attr_id(attr_iter.attr);

/* Extract the attribute from the rollback object */

cps_api_object_attr_t attr;

attr = cps_api_object_attr_get(rollback_obj, attr_id);

if (attr == CPS_API_ATTR_NULL)) {

/* Failed to extract attribute

=> Indicate error

result = cps_api_ret_code_ERR;

continue;

}

/* Extract the value of the attribute in the rollback

object

value = cps_api_object_attr_data_....(attr);

/* Apply attribute value */

}

return (result);

}

/******************************************************************

Template mainline function for a CPS API object server

This function registers with the CPS API service, and registers handler

functions to be invoked by the CPS API service when CPS API requests

are made for certain CPS API objects.

*******************************************************************/

cps_api_return_code_t init(void)

{ /* Obtain a handle for the CPS API service */

cps_api_operation_handle_t cps_hdl;

if (cps_api_operation_subsystem_init(&cps_hdl, 1) !=

cps_api_ret_code_OK

) {

/* Failed to obtain handle for CPS API service

Application templates 51

=> Indicate an error

return (cps_api_ret_code_ERR);

}

/* Allocate a CPS API object registration structure */

cps_api_registration_functions_t reg;

/* Assign the key of the CPS API object to be registered */

cps_api_key_init(&reg.key, );

/* Assign the handler functions to be invoked for this object */

reg._read_function = xyz_read;

reg._write_function = xyz_write;

reg._rollback_function = xyz_rollback;

/* Use obtained handle for CPS API service */

reg.handle = cps_hdl;

/* Perform the object registration */

if (cps_api_register(&reg) != cps_api_ret_code_OK) {

/* Failed to register handler function with CPS API service

=> Indicate an error

return (cps_api_ret_code_ERR);

}

/* All done */

return (cps_api_ret_code_OK);

}

CPS client application templates

This information includes templates for the structure of a CPS client application, including the execution of a get request.

python-client-application-template.py

#Python code block for CPS client application

import cps

import cps_utils

#Example GET request cps_get_response = []

cps.get([cps.key_from_name('observed','base-pas/chassis')], cps_get_response)

chassis_vendor_name = cps_attr_get(cps_get_response[0]['data'],'base-pas/chassis/vendor-

name')

c-client.template.c

/******************************************************************

Template to perform a CPS API GET request

*******************************************************************/

cps_api_return_code_t do_get_request()

{

/* Allocate and initialize the get request structure */

cps_api_get_params_t get_req;

if (cps_api_get_request_init(&get_req) != cps_api_ret_code_OK) {

/* Failed to initialize get request

=> Indicate error

return (cps_api_ret_code_ERR);

}

52 Application templates

/* Assume failure response */

cps_api_return_code_t result = cps_api_ret_code_ERR;

do {

/* Allocate the request object and add it to the get request

cps_api_object_t request_obj;

request_obj = cps_api_object_list_create_obj_and_append(

get_req.filters

);

if (request_obj == CPS_API_OBJECT_NULL) {

/* Failed to allocate response object and add it to get request */

break;

}

/* Set the key and key attributes for the request object.

The actual object key and key attribute ids, types and values

will depend on which object is being requested;

such dependent values are indicated by ellipses ... below.

Consult the data model for the desired object.

cps_api_key_from_attr_with_qual(cps_api_object_key(

request_obj

...

);

cps_api_set_key_data(request_obj, ...);

... cps_api_set_key_data(request_obj, ...);

cps_api_object_attr_add_...(request_obj, ...);

... cps_api_object_attr_add_...(request_obj, ...);

/* Do the GET request */

if (cps_api_get(&get_req) != cps_api_ret_code_OK) {

/* GET request failed */

break;

}

/* Extract the response object */

cps_api_object_t response_obj;

response_obj = cps_api_object_list_get(get_req.list, 0);

if (response_obj == CPS_API_OBJECT_NULL) {

/* Failed to extract the response object */

break;

}

/* Extract the desired object attributes from the response object.

(The actual object attributes will depend on the nature of the response object;

such dependent values are indicated by ellipses below.

Consult the appropriate data model for details.)

cps_api_object_attr_t attr;

attr = cps_api_object_attr_get(response_obj, );

if (attr == CPS_API_ATTR_NULL) {

/* Failed to extract expected attribute */

break;

}

/* Get the value for the attribute */

= cps_api_object_attr_data_...(attr);

Application templates 53

/* Do something with the extracted value */

/* Indicate success */

result = cps_api_ret_code_OK;

} while (0);

cps_api_get_request_close(&get_req);

return (result);

}

/******************************************************************

Template to perform CPS API SET

*******************************************************************/

cps_api_return_code_t do_set_request()

{

cps_api_transaction_params_t xact ;

if (cps_api_transaction_init(&xact) != cps_api_ret_code_OK) {

return (cps_api_ret_code_ERR);

}

cps_api_return_code_t result = cps_api_ret_code_ERR;

do {

cps_api_object_t request_obj;

request_obj = cps_api_object_create() ;

if (request_obj == CPS_API_OBJECT_NULL) {

break;

}

/* Set key and attributes in request object */

cps_api_key_from_attr_with_qual(cps_api_object_key(

request_obj

);

cps_api_set_key_data(request_obj, ...);

... cps_api_set_key_data(request_obj, ...);

cps_api_object_attr_add_...(request_obj, ...);

... cps_api_object_attr_add_...(request_obj, ...);

if (cps_api_set(&xact, request_obj) != cps_api_ret_code_OK) {

cps_api_object_delete(request_obj);

break;

}

result = cps_api_commit(&xact);

} while (0);

cps_api_transaction_close(&xact);

return (result);

}

54 Application templates

CPS event publisher application templates

This information includes templates for the structure of a CPS event publisher.

python-event-publisher-application.py

#Python code block for CPS event publisher application

import cps

import cps_utils

handle = cps.event_connect()

obj = cps_utils.CPSObject('base-port/interface',qual='observed', data= {"ifindex":23})

cps.event_send(handle, obj.get())

c-template-event-publisher-application.c

/******************************************************************

Template for event publish function

*******************************************************************/

cps_api_return_code_t event_publish(cps_api_object_t event_obj)

{

static bool init_flag = false;

static cps_api_event_service_handle_t handle;

if (!init_flag) {

/* Not initialized

=> Connect to CPS event subsystem

if (cps_api_event_service_init() != cps_api_ret_code_OK) {

return (cps_api_ret_code_ERR);

}

if (cps_api_event_client_connect(&handle) !=

cps_api_ret_code_OK

) {

return (cps_api_ret_code_ERR);

}

/* Mark as initialized */

init_flag = true;

}

cps_api_return_code_t result;

/* Publish the given object */

result = cps_api_event_publish(handle, event_obj);

/* Consume the given object */

cps_api_object_delete(event_obj);

return (result);

}

CPS event subscriber application templates

This information includes templates for the structure of a CPS event subscriber. It illustrates the initialization of the event service and event

processing thread, registration of the event handler function and event processing callback. The key list specied in the registration is used

to determine the events that are delivered to this application (in this case, the list contains a single element).

Application templates 55

python-event-subscriber-application.py

#Python block code for CPS event subscriber application

import cps

import cps_utils

handle = cps.event_connect()

cps.event_register(handle, cps_api_object_key)

while True:

ev = cps.event_wait(handle)

if ev[‘key’] == ...:

... elif ev['key'] == ...:

...

c-template-event-subscriber-application.c

/******************************************************************

Template for event subscriber application

*******************************************************************/

bool event_handler(cps_api_object_t object, void *context)

{

/* Extract key and attributes of received object */

/* Do something with that information */

}

cps_api_return_code_t event_subscribe()

{

/* Connect to CPS API event service */

if (cps_api_event_service_init() != cps_api_ret_code_OK) {

return (cps_api_ret_code_ERR);

}

if (cps_api_event_thread_init() != cps_api_ret_code_OK) {

return (cps_api_ret_code_ERR);

}

/* Register the event handler function */

cps_api_key_t key; cps_api_key_init(&key, ); cps_api_event_reg_t reg; reg.objects

= key;

reg.number_of_objects = 1;

if (cps_api_event_thread_reg(&reg, event_handler, 0)

!= cps_api_ret_code_OK

) {

/* Failed to register handler */

return (cps_api_ret_code_ERR);

}

/* Indicate success */

return (cps_api_reg_code_OK);

}

56 Application templates

OpenSwitch OPX Developers Guide Release 2.2.0 Dev R220

Navigation menu

Versions of this User Manual:

Views

Navigation
