TableofContents
Introduction
WhyTornadoFX?
SettingUp
Components
BasicControls
DataControls
TypeSafeCSS
LayoutsandMenus
Charts
ShapesandAnimation
FXML
EditingModelsandValidation
OSGi
TornadoFXIDEAPlugin
Scopes
EventBus
Workspaces
Internationalization
ConfigSettingsandState
JSONandREST
DependencyInjection
Wizard
AppendixA-SupplementaryTopics
AppendixB-ToolsandUtilities
1

TornadoFXGuide

ThisisacontinualefforttofullydocumenttheTornadoFXframeworkintheformatofabook.

Introduction

Userinterfacesarebecomingincreasinglycriticaltothesuccessofconsumerandbusiness

applications.Withtheriseofconsumermobileappsandwebapplications,businessusers

areincreasinglyholdingenterpriseapplicationstoahigherstandardofquality.Theywant

rich,feature-packeduserinterfacesthatprovideimmediateinsightandnavigatecomplex

screensintuitively.Moreimportantly,theywanttheapplicationtoadaptquicklytobusiness

changesonafrequentbasis.Forthedeveloper,thismeanstheapplicationmustnotonlybe

maintainablebutalsoevolvable.TornadoFXseekstoassistalltheseobjectivesandgreatly

streamlinethecodingofJavaFXUI's.

WhilemuchoftheenterpriseITworldispushingHTML5andcloud-basedapplications,

manybusinessesarestillusingdesktopUIframeworkslikeJavaFX.Whileitdoesnot

distributetolargeaudiencesaseasilyaswebapplications,JavaFXworkswellfor"in-house"

businessapplications.Itshigh-performancewithlargedatasets(andthefactitisnative

Java)makeitapracticalchoiceforapplicationsusedbehindthecorporatefirewall.

JavaFX,likemanyUIframeworks,canquicklybecomeverboseanddifficulttomaintain.

Fortunately,thereleaseofKotlinhascreatedanopportunitytorethinkhowJavaFX

applicationsarebuilt.

AninterestingproductthatisindevelopmentisJPro,aweb-basedJavaFXcontainer

thatusesnoplugins.ItcanworkwithTornadoFXandJavaFX,butisstillinclosedbeta

atthetimeofwriting.Youcanfollowtheprojectandwaitforitsavailabilityhere:

https://jpro.io/

WhyTornadoFX?

InFebruary2016,JetBrainsreleasedKotlin,anewJVMlanguagethatemphasizes

pragmatismoverconvention.Kotlinworksatahigherlevelofabstractionandprovides

practicallanguagefeaturesnotavailableinJava.Oneofthemoreimportantfeaturesof

Kotlinisits100%interoperabilitywithexistingJavalibrariesandcodebases,including

JavaFX.

WhileJavaFXcanbeusedwithKotlininthesamemannerasJava,somebelievedKotlin

hadlanguagefeaturesthatcouldstreamlineandsimplifyJavaFXdevelopment.Wellbefore

Kotlin'sbeta,EugenKissprototypedJavaFX"builders"withKotlinFX.InJanuary2016,

EdvinSyserebootedtheinitiativeandreleasedTornadoFX.

1.WhyTornadoFX?

TornadoFXseekstogreatlyminimizetheamountofcodeneededtobuildJavaFX

applications.Itnotonlyincludestype-safebuilderstoquicklylayoutcontrolsanduser

interfaces,butalsofeaturesdependencyinjection,delegatedproperties,controlextension

functions,andotherpracticalfeaturesenabledbyKotlin.TornadoFXisafineshowcaseof

howKotlincansimplifycodebases,andittacklestheverbosityofUIcodewitheleganceand

simplicity.ItcanworkinconjunctionwithotherpopularJavaFXlibrariessuchasControlsFX

andJFXtras.ItworksespeciallywellwithreactiveframeworkssuchasReactFXaswellas

RxJavaandfriends(includingRxJavaFX,RxKotlin,andRxKotlinFX).

ReaderRequirements

ThisbookexpectsreaderstohavesomeknowledgeofKotlinandhavespentsometime

gettingacquaintedwithit.TherewillbesomecoverageofKotlinlanguagefeaturesbutonly

toacertainextent.Ifyouhavenotdonesoalready,readtheJetBrainsKotlinReferenceand

spendagoodfewhoursstudyingit.

ItdefinitelyhelpstobefamiliarwithJavaFXbutitisnotarequirement.Perhapsyoustarted

studyingJavaFXbutfoundthedevelopmentexperiencetobetedious,andyouarechecking

outTornadoFXhopingitprovidesabetterwaytobuilduserinterfaces.Ifthisdescribesyour

experienceandyouarelearningKotlin,thenyouwillprobablybenefitfromthisguide.

AMotivationalExample

IfyouhaveworkedwithJavaFXbefore,youmighthavecreateda TableViewatsomepoint.

Sayyouhaveagivendomaintype Person.TornadoFXallowsyoutomuchmoreconcisely

createtheJavaBeans-likeconventionusedfortheJavaFXbinding.

classPerson(id:Int,name:String,birthday:LocalDate){

validProperty=SimpleIntegerProperty(id)

varidbyidProperty

valnameProperty=SimpleStringProperty(name)

varnamebynameProperty

valbirthdayProperty=SimpleObjectProperty(birthday)

varbirthdaybybirthdayProperty

valage:Intget()=Period.between(birthday,LocalDate.now()).years

}

Youcanthenbuildanentire" View"containinga TableViewwithasmallcodefootprint.

1.WhyTornadoFX?

classMyView:View(){

privatevalpersons=listOf(

Person(1,"SamanthaStuart",LocalDate.of(1981,12,4)),

Person(2,"TomMarks",LocalDate.of(2001,1,23)),

Person(3,"StuartGills",LocalDate.of(1989,5,23)),

Person(3,"NicoleWilliams",LocalDate.of(1998,8,11))

).observable()

overridevalroot=tableview(persons){

column("ID",Person::idProperty)

column("Name",Person::nameProperty)

column("Birthday",Person::birthdayProperty)

column("Age",Person::age)

}

}

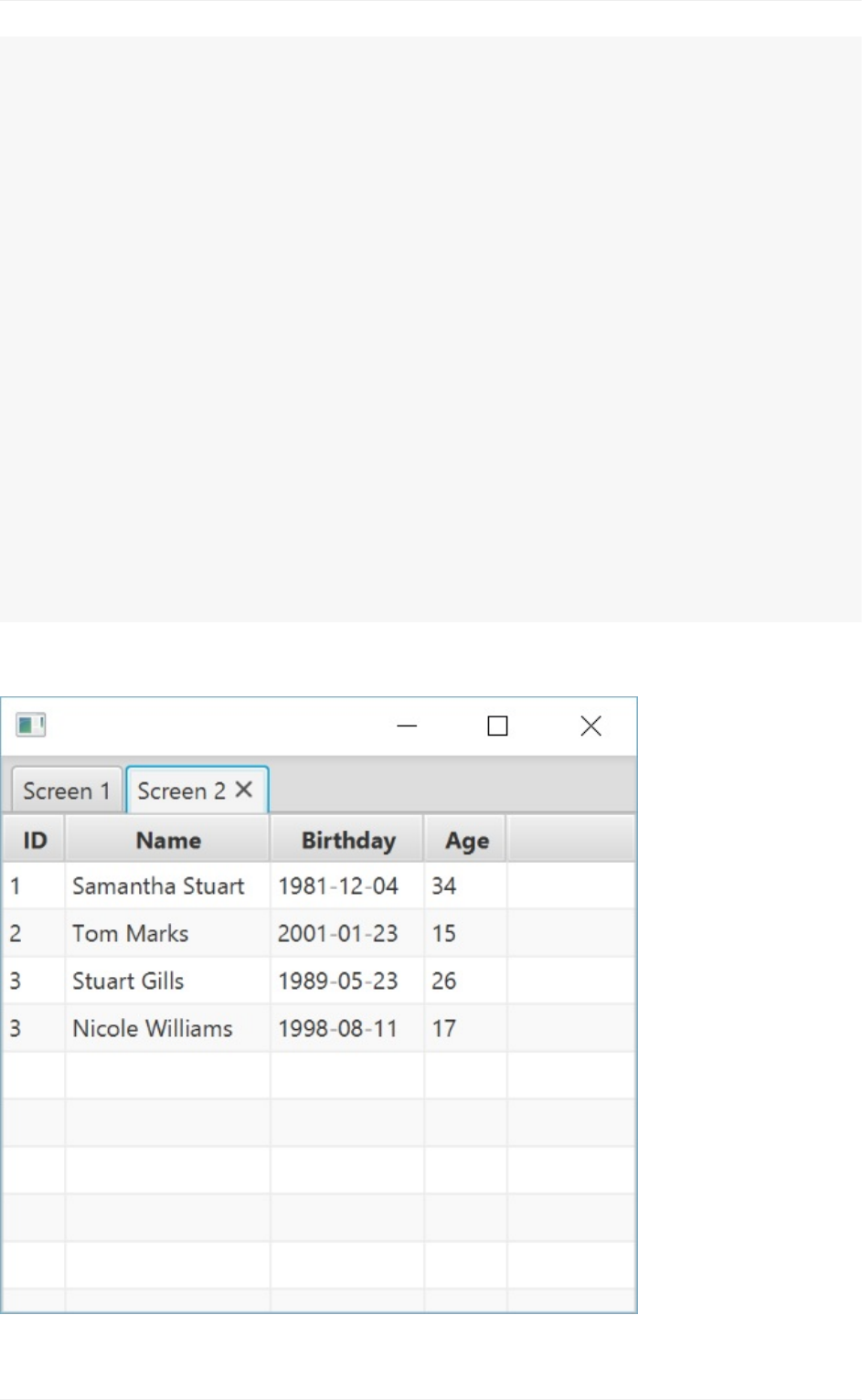

RENDEREDOUTPUT:

Halfofthatcodewasjustinitializingsampledata!Ifyouhoneinonjustthepartdeclaringthe

TableViewwithfourcolumns(shownbelow),youwillseeittookasimplefunctional

constructtobuilda TableView.Itwillautomaticallysupporteditstothefieldsaswell.

tableview(persons){

column("ID",Person::idProperty)

column("Name",Person::nameProperty)

column("Birthday",Person::birthdayProperty)

column("Age",Person::age)

}

Asshownbelow,wecanusethe cellFormat()extensionfunctionona TableColumn,and

createconditionalformattingfor"Age"valuesthatarelessthan 18.

1.WhyTornadoFX?

tableview<Person>{

items=persons

column("ID",Person::idProperty)

column("Name",Person::nameProperty)

column("Birthday",Person::birthdayProperty)

column("Age",Person::age).cellFormat{

text=it.toString()

style{

if(it<18){

backgroundColor+=c("#8b0000")

textFill=Color.WHITE

}

}

}

}

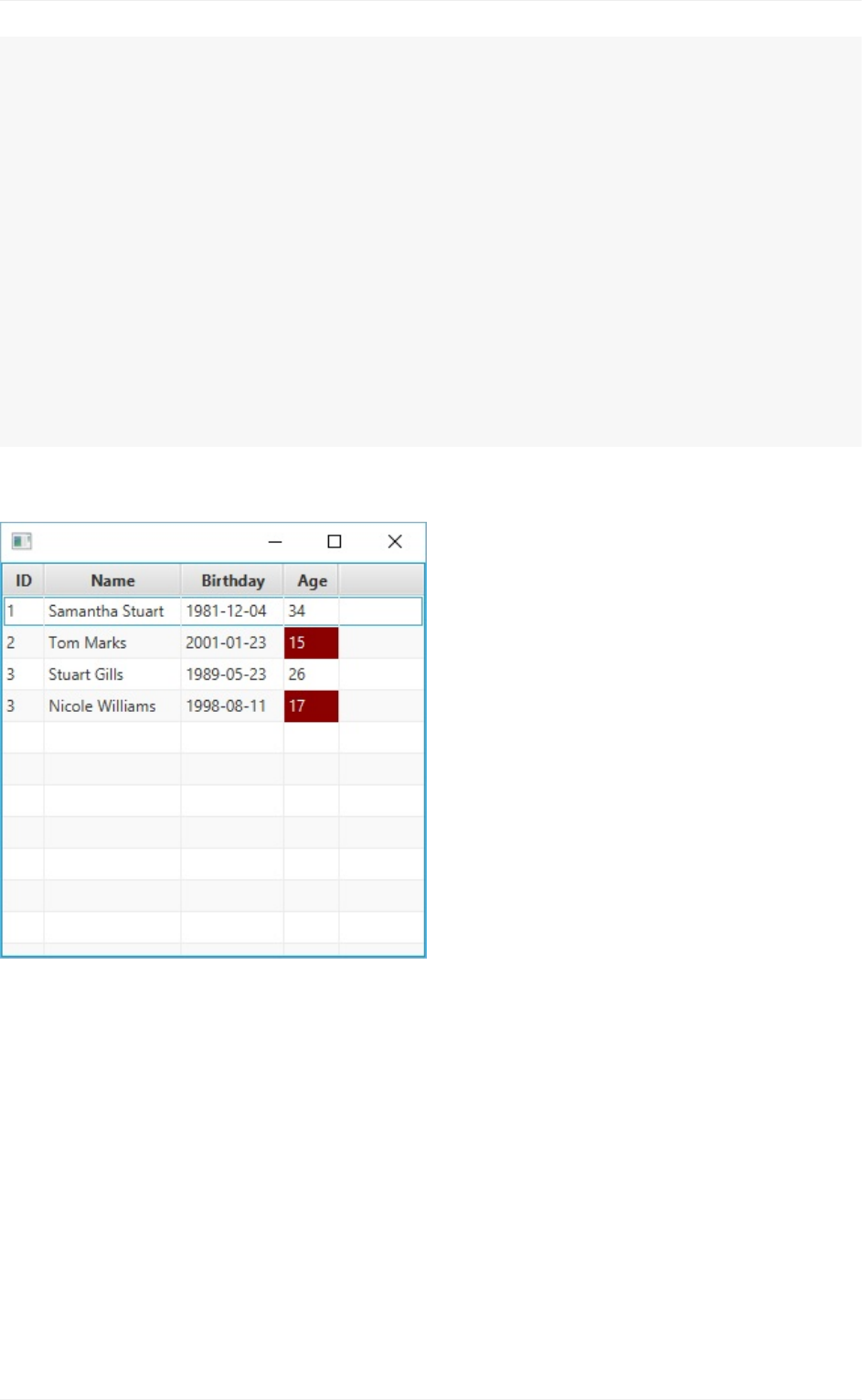

RENDEREDOUTPUT:

ThesedeclarationsarepureKotlincode,andTornadoFXispackedwithexpressivepower

fordozensofcaseslikethis.Thisallowsyoutofocusoncreatingsolutionsratherthan

engineeringUIcode.YourJavaFXapplicationswillnotonlybeturnedaroundmorequickly,

butalsobemaintainableandevolvable.

1.WhyTornadoFX?

SettingUp

TouseTornadoFX,thereareseveraloptionstosetupthedependencyforyourproject.

MainstreambuildautomationtoolslikeGradleandMavenaresupportedandshouldhaveno

issuesingettingsetup.

PleasenotethatTornadoFXisaKotlinlibrary,andthereforeyourprojectneedstobe

configuredtouseKotlin.ForGradleandMavenconfigurations,pleaserefertotheKotlin

GradleSetupandKotlinMavenSetupguides.Makesureyourdevelopmentenvironmentor

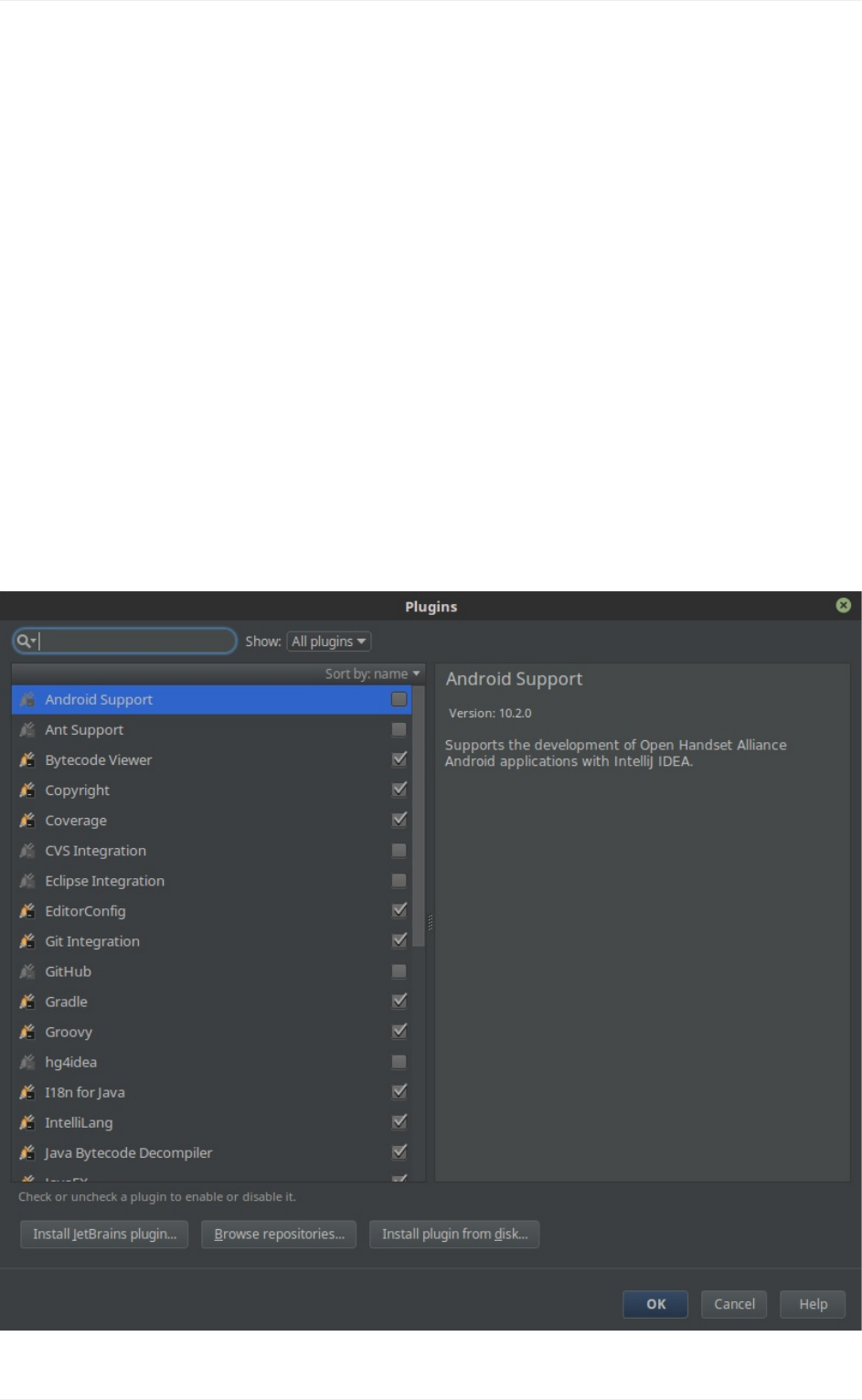

IDEisequippedtoworkwithKotlinandhastheproperpluginsandcompilers.

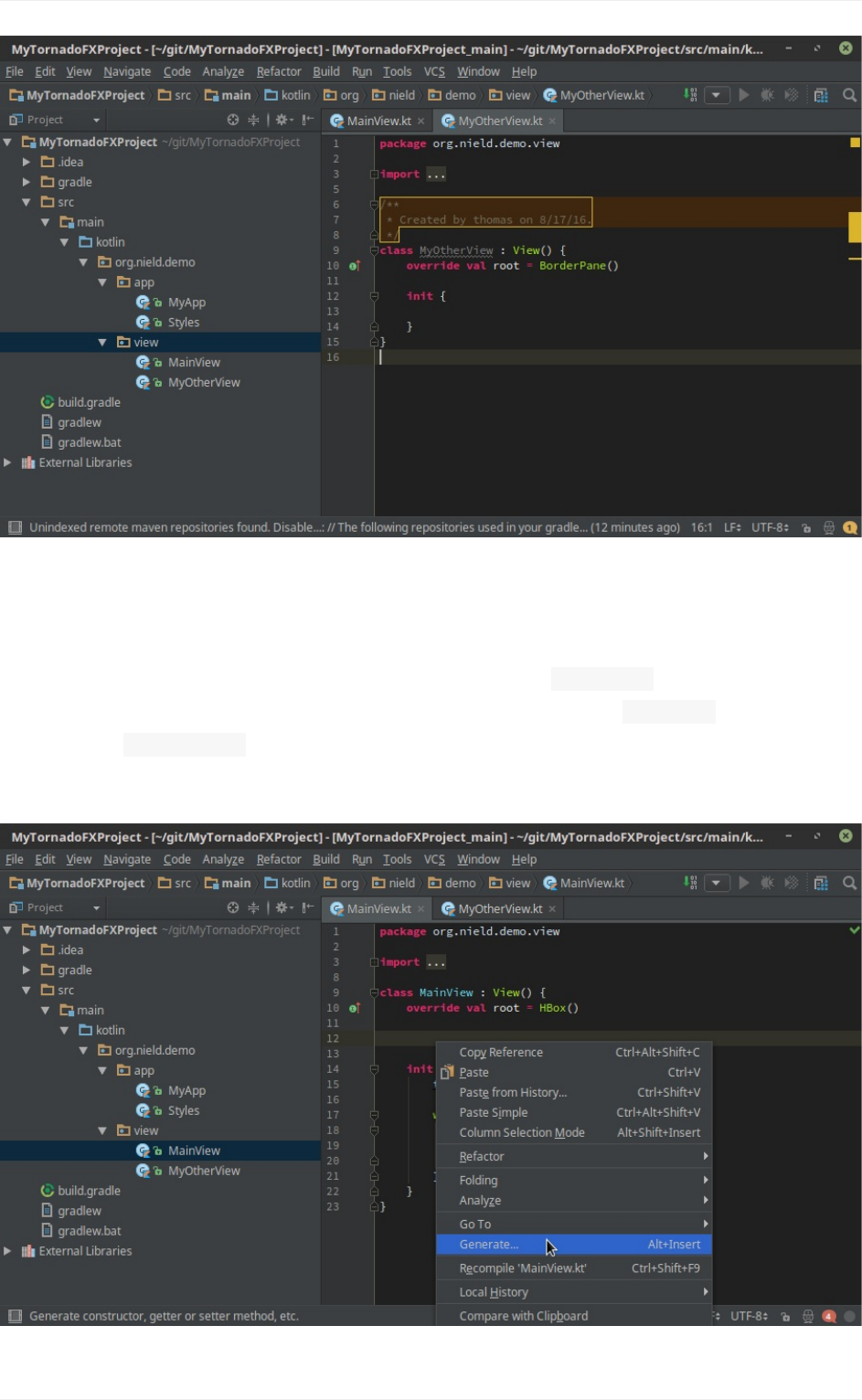

ThisguidewilluseIntellijIDEAtowalkthroughcertainexamples.IDEAistheIDEofchoice

toworkwithKotlin,althoughEclipsehasapluginaswell.

Gradle

ForGradle,youcansetupthedependencydirectlyfromMavenCentral.Providethedesired

versionnumberforthe x.y.zplaceholder.

repositories{

mavenCentral()

}

//MinimumjvmTargetof1.8neededsinceKotlin1.1

compileKotlin{

kotlinOptions.jvmTarget=1.8

}

dependencies{

compile'no.tornado:tornadofx:x.y.z'

}

Maven

ToimportTornadoFXwithMaven,addthefollowingdependencytoyourPOMfile.Provide

thedesiredversionnumberforthe x.y.zplaceholder.

Goesintokotlin-maven-pluginblock:

2.SettingUp

<jvmTarget>1.8</jvmTarget>

</configuration>

Thenthisgoesinto dependenciesblock:

<groupId>no.tornado</groupId>

<artifactId>tornadofx</artifactId>

<version>x.y.z</version>

</dependency>

OtherBuildAutomationSolutions

ForinstructionsonhowtouseTornadoFXwithotherbuildautomationsolutions,pleaserefer

tothe[TornadoFXpageattheCentralRepository]

([http://search.maven.org/#search|gav|1|g%3A"no.tornado]

(http://search.maven.org/#search|gav|1|g%3A"no.tornado)"ANDa%3A"tornadofx")

ManualImport

TomanuallydownloadandimporttheJARfile,gototheTornadoFXreleasepageorthe

CentralRepository.DownloadtheJARfileandconfigureitintoyourproject.

StartingaTornadoFXApplication

NewerversionsoftheJVMknowhowtostartJavaFXapplicationswithouta main()

method.AJavaFXapplication,andbyextensionaTornadoFXapplication,isanyclassthat

extends javafx.application.Application.Since tornadofx.Appextends

javafx.application.Application,TornadoFXappsarenodifferent.Thereforeyouwould

starttheappbyreferencing com.example.app.MyApp,andyoudon'tnecessarilyneeda

main()functionunlessyouneedtosupplycommandlinearguments.Inthatcaseyou

wouldaddapackagelevelmainfunctiontothe MyApp.ktfile:

funmain(args:Array<String>){

Application.launch(MyApp::class.java,*args)

}

2.SettingUp

Thismainfunctionwouldbecompiledto com.example.app.MyAppKt-noticethe Ktatthe

end.Whenyoucreateapackage

levelmainfunction,itwillalwayshaveaclassnameofthefullyqualifiedpackage,plusthe

filename,appendedwith Kt.

Infact,TornadoFXalsocontainsahelpertomakeitevennicertolaunchapplicationsfroma

mainclassbyacceptingtheappclassasagenerictypeparameter:

funmain(args:Array<String>)=launch<MyApp>(args)

2.SettingUp

Components

JavaFXusesatheatricalanalogytoorganizean Applicationwith Stageand Scene

components.TornadoFXbuildsonthisbyproviding View, Controller,and Fragment

components.Whilethe Stage,and SceneareusedbyTornadoFX,the View,

Controller,and Fragmentintroducesnewconceptsthatstreamlinedevelopment.Manyof

thesecomponentsareautomaticallymaintainedassingletons,andcancommunicateto

eachotherthroughsimpledependencyinjectionsandothermeans.

YoualsohavetheoptiontoutilizeFXMLwhichwillbediscussedmuchlater.Butfirst,lets

extend ApptocreateanentrypointthatlaunchesaTornadoFXapplication.

AppandViewBasics

TocreateaTornadoFXapplication,youmusthaveatleastoneclassthatextends App.An

Appistheentrypointtotheapplicationandspecifiestheinitial View.Itdoesinfactextend

JavaFX Application,butyoudonotnecessarilyneedtospecifya start()or main()

method.

Butfirst,extend Apptocreateyourownimplementationandspecifytheprimaryviewasthe

firstconstructorargument.

classMyApp:App(MyView::class)

AViewcontainsdisplaylogicaswellasalayoutofNodes,similartotheJavaFX Stage.It

isautomaticallymanagedasasingleton.Whenyoudeclarea Viewyoumustspecifya

rootpropertywhichcanbeany Nodetype,andthatwillholdtheView'scontent.

InthesameKotlinfileorinanewfile,extendaclassoffof View.Overridetheabstract

rootpropertyandassignit VBoxoranyother Nodeyouchoose.

classMyView:View(){

overridevalroot=VBox()

}

However,wemightwanttopopulatethis VBoxactingasthe rootcontrol.Usingthe

initializerblock,let'saddaJavaFX Buttonanda Label.Youcanusethe"plusassign"

+=operatorstoaddchildren,suchasa Buttonand Label

3.Components

classMyView:View(){

overridevalroot=VBox()

init{

root+=Button("PressMe")

root+=Label("")

}

}

Whileitisprettyclearwhat'sgoingonfromlookingatthiscode,TornadoFXprovidesa

buildersyntaxthatwillstreamlineyourUIcodefurtherandmakeitmucheasiertoreason

abouttheresultingUIjustbylookingatthecode.Wewillgraduallymoveintobuildersyntax,

andfinallycoverbuildersinfullinthenextchapter.

Whileweintroduceyoutonewconcepts,youmightsometimesseecodethatisnotusing

bestpractices.Wedothistointroduceyougraduallytoconceptsandgiveyouabroader

understandingofwhatisgoingonunderthehood.Graduallywewillintroducemore

powerfulconstructstosolvetheproblemathandinabetterway.

Nextwewillseehowtorunthisapplication.

StartingaTornadoFXApplication

NewerversionsoftheJVMknowhowtostartJavaFXapplicationswithouta main()

method.AJavaFXapplication,andbyextensionaTornadoFXapplication,isanyclassthat

extends javafx.application.Application.Since tornadofx.Appextends

javafx.application.Application,TornadoFXappsarenodifferent.Thereforeyouwould

starttheappbyreferencing com.example.app.MyApp,andyoudonotnecessarilyneeda

main()functionunlessyouneedtosupplycommandlinearguments.Inthatcaseyou

wouldaddapackagelevelmainfunctiontothe MyApp.ktfile:

funmain(args:Array<String>){

Application.launch(MyApp::class.java,*args)

}

Thismainfunctionwouldbecompiledto com.example.app.MyAppKt.Noticethe Ktatthe

end.Whenyoucreateapackagelevelmainfunction,itwillalwayshaveaclassnameofthe

fullyqualifiedpackage,plusthefilename,appendedwith Kt.

Forlaunchingandtestingthe App,wewilluseIntellijIDEA.NavigatetoRun→Edit

Configurations(Figure3.1).

Figure3.1

3.Components

Clickthegreen"+"signandcreateanewApplicationconfiguration(Figure3.2).

Figure3.2

3.Components

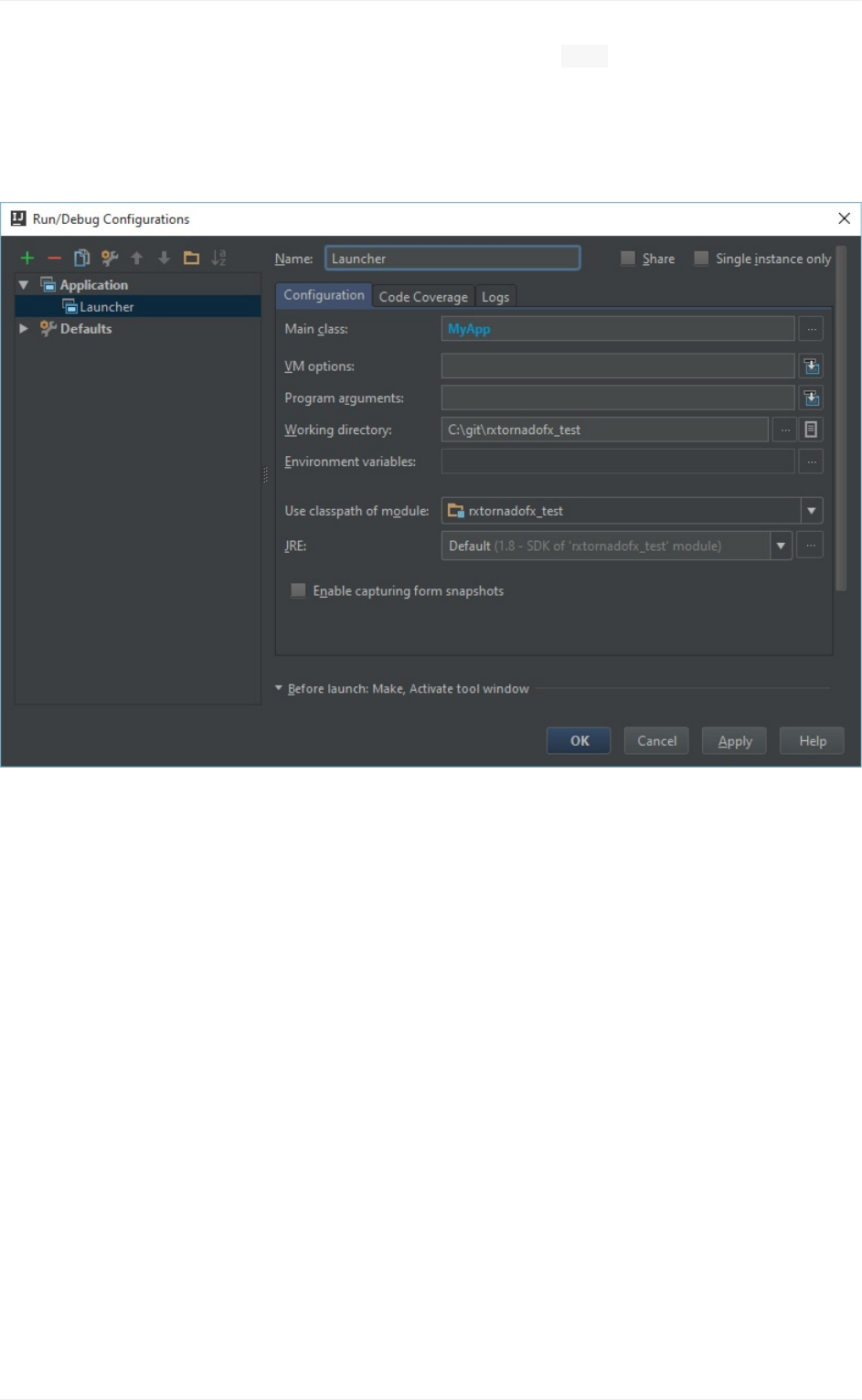

Specifythenameofyour"Mainclass"whichshouldbeyour Appclass.Youwillalsoneed

tospecifythemoduleitresidesin.Givetheconfigurationameaningfulnamesuchas

"Launcher".Afterthatclick"OK"(Figure3.3).

Figure3.3

YoucanrunyourTornadoFXapplicationbyselectingRun→Run'Launcher'orwhateveryou

namedtheconfiguration(Figure3.4).

Figure3.4

3.Components

Youshouldnowseeyourapplicationlaunch(Figure3.5)

Figure3.5

Congratulations!Youhavewrittenyourfirst(albeitsimple)TornadoFXapplication.Itmaynot

looklikemuchrightnow,butaswecovermoreofTornadoFX'spowerfulfeatureswewillbe

creatinglarge,impressiveuserinterfaceswithlittlecodeinnotime.Butfirstlet'sunderstand

alittlebetterwhatishappeningbetween Appand View.

UnderstandingViews

Let'sdivealittledeeperintohowa Viewworksandhowitcanbeused.Takealookatthe

Appand Viewclasseswejustbuilt.

3.Components

classMyApp:App(MyView::class)

classMyView:View(){

overridevalroot=VBox()

init{

with(root){

this+=Button("PressMe")

this+=Label("Waiting")

}

}

}

A ViewcontainsahierarchyofJavaFXNodesandisinjectedbynamewhereveritiscalled.

Inthenextsectionwewilllearnhowtoleveragepowerfulbuilderstocreatethese Node

hierarchiesquickly.Thereisonlyoneinstanceof MyViewmaintainedbyTornadoFX,

effectivelymakingitasingleton.TornadoFXalsosupportsscopes,whichcangrouptogether

acollectionof Views, Fragmentsand Controllersinseparateinstances,resultingina

Viewonlybeingasingletoninsidethatscope.ThisisgreatforMultiple-DocumentInterface

applicationsandotheradvancedusecases.Thisiscoveredinalaterchapter.

Usinginject()andEmbeddingViews

YoucanalsoinjectoneormoreViewsintoanother View.Belowweembeda TopViewand

BottomViewintoa MasterView.Noteweusethe inject()delegatepropertytolazilyinject

the TopViewand BottomViewinstances.Thenwecalleach"child"View's roottoassign

themtothe BorderPane(Figure3.6).

classMasterView:View(){

valtopView:TopViewbyinject()

valbottomView:BottomViewbyinject()

overridevalroot=borderpane{

top=topView.root

bottom=bottomView.root

}

}

classTopView:View(){

overridevalroot=label("TopView")

}

classBottomView:View(){

overridevalroot=label("BottomView")

}

3.Components

Figure3.6

IfyouneedViewstocommunicatetoeachother,youcancreateapropertyineachofthe

"child"Viewsthatholdsthe"parent" View.

classMasterView:View(){

overridevalroot=BorderPane()

valtopView:TopViewbyinject()

valbottomView:BottomViewbyinject()

init{

with(root){

top=topView.root

bottom=bottomView.root

}

topView.parent=this

bottomView.parent=this

}

}

classTopView:View(){

overridevalroot=Label("TopView")

lateinitvarparent:MasterView

}

classBottomView:View(){

overridevalroot=Label("BottomView")

lateinitvarparent:MasterView

}

Moretypicallyyouwouldusea Controllerora ViewModeltocommunicatebetweenviews,

andwewillvisitthistopiclater.

InjectionUsingfind()

The inject()delegatewilllazilyassignagivencomponenttoaproperty.Thefirsttimethat

componentiscallediswhenitwillberetrieved.Alternatively,insteadofusingthe inject()

delegateyoucanusethe find()functiontoretrieveasingletoninstanceofa Viewor

othercomponents.

3.Components

classMasterView:View(){

overridevalroot=BorderPane()

valtopView=find(TopView::class)

valbottomView=find(BottomView::class)

init{

with(root){

top=topView.root

bottom=bottomView.root

}

}

}

classTopView:View(){

overridevalroot=Label("TopView")

}

classBottomView:View(){

overridevalroot=Label("BottomView")

}

Youcanuseeither find()or inject(),butusing inject()delegatesisthepreferred

meanstoperformdependencyinjection.

IntroductiontoBuilders

Whilewewillcoverbuildersmoreindepthinthenextchapter,itistimetorevealthatthe

aboveexamplecanbewritteninamuchmoreconciseandexpressivesyntax:

classMasterView:View(){

overridevalroot=borderpane{

top(TopView::class)

bottom(BottomView::class)

}

}

Insteadofinjectingthe TopViewand BottomViewandthenassigningtheirrespectiveroot

nodestothe BorderPanes topand bottomproperty,wespecifythe BorderPanewiththe

buildersyntax(alllowercase)andthendeclarativelytellTornadoFXtopullinthetwo

subviewsandassignthemtothe topand bottompropertiesautomatically.Hopefullyyou

agreethisismuchmoreexpressive,withalotlessboilerplate.Thisisoneofthemost

importantprinciplesTornadoFXtriestoliveby:Reduceboilerplateandincreasereadability.

Theendresultisoftenlesscodeandlessbugs.

3.Components

Controllers

Inmanycases,itisconsideredagoodpracticetoseparateaUIintothreedistinctparts:

1. Model-Thebusinesscodelayerthatholdscorelogicanddata

2. View-Thevisualdisplaywithvariousinputandoutputcontrols

3. Controller-The"middleman"mediatingeventsbetweentheModelandtheView

ThereareotherflavorsofMVClikeMVVMandMVP,allofwhichcanbeleveragedin

TornadoFX.

WhileyoucouldputalllogicfromtheModelandControllerrightintotheview,itisoften

cleanertoseparatethesethreepiecesdistinctlytomaximizereusability.Onecommonly

usedpatterntoaccomplishthisistheMVCpattern.InTornadoFX,a Controllercanbe

injectedtosupporta View.

Hereisasimpleexample.Createasimple Viewwitha TextFieldwhosevalueiswritten

toa"database"whena Buttonisclicked.Wecaninjecta Controllerthathandles

interactingwiththemodelthatwritestothedatabase.Sincethisexampleissimplified,there

willbenodatabasebutaprintedmessagewillserveasaplaceholder(Figure3.7).

classMyView:View(){

valcontroller:MyControllerbyinject()

varinputField:TextFieldbysingleAssign()

overridevalroot=vbox{

label("Input")

inputField=textfield()

button("Commit"){

action{

controller.writeToDb(inputField.text)

inputField.clear()

}

}

}

}

classMyController:Controller(){

funwriteToDb(inputValue:String){

println("Writing$inputValuetodatabase!")

}

}

Figure3.7

3.Components

WhenwebuildtheUI,wemakesuretoaddareferencetothe inputFieldsothatitcanbe

referencesfromthe onClickeventhandlerofthe"Commit"buttonlater.Whenthe

"Commit"buttonisclicked,youwillseetheControllerprintsalinetotheconsole.

WritingAlphatodatabase!

Itisimportanttonotethatwhiletheaboveworks,andmayevenlookprettygood,itisa

goodpracticetoavoidreferencingotherUIelementsdirectly.Yourcodewillbemucheasier

torefactorifyoubindyourUIelementstopropertiesandmanipulatethepropertiesinstead.

Wewillintroducethe ViewModellater,whichprovideseveneasierwaystodealwiththis

typeofinteraction.

YoucanalsouseControllerstoprovidedatatoa View(Figure3.8).

classMyView:View(){

valcontroller:MyControllerbyinject()

overridevalroot=vbox{

label("Myitems")

listview(controller.values)

}

}

classMyController:Controller(){

valvalues=FXCollections.observableArrayList("Alpha","Beta","Gamma","Delta")

}

Figure3.8

3.Components

The VBoxcontainsa Labelanda ListView,andthe itemspropertyofthe ListViewis

assignedtothe valuespropertyofour Controller.

Whethertheyarereadingorwritingdata,Controllerscanhavelong-runningtasksand

shouldnotperformworkontheJavaFXthread.Youwilllearnhowtoeasilyoffloadworktoa

workerthreadusingthe runAsyncconstructlaterinthischapter.

Longrunningtasks

Wheneveryoucallafunctioninacontrolleryouneedtodetermineifthatfunctionreturns

immediatelyorifitperformspotentiallylong-runningtasks.Ifyoucallafunctiononthe

JavaFXApplicationThread,theUIwillbeunresponsiveuntilthecallcompletes.

UnresponsiveUI'sisakillerforuseracceptance,somakesurethatyourunexpensive

operationsinthebackground.TornadoFXprovidesthe runAsyncfunctiontohelpwiththis.

Codeplacedinsidea runAsyncblockwillruninthebackground.Iftheresultofthe

backgroundcallshouldupdateyourUI,youmustmakesurethatyouapplythechangeson

theJavaFXApplicationThread.The uiblockdoesexactlythat.

3.Components

valtextfield=textfield()

button("Updatetext"){

action{

runAsync{

myController.loadText()

}ui{loadedText->

textfield.text=loadedText

}

}

}

Whenthebuttonisclicked,theactioninsidethe actionbuilder(whichdelegatesthe

ActionEventto setActionmethod)isrun.Itmakesacalloutto

myController.loadText()andappliestheresulttothetextpropertyofthetextfieldwhenit

returns.TheUIstaysresponsivewhilethecontrollerfunctionruns.

Underthecovers, runAsynccreatesJavaFX Taskobjects,andspinsoffaseparatethread

torunyourcallinsidethe Task.Youcanassignthis TasktoavariableandbindittoaUI

toshowprogresswhileyouroperationisrunning.

Infact,thisissocommonthatthereisalsoandefaultViewModelcalled TaskStatuswhich

containsobservablevaluesfor running, message, title,and progress.Youcansupply

the runAsynccallwithaspecificinstanceofthe TaskStatusobject,orusethedefault.

TheTornadoFXsourcesincludesanexampleusageofthisinthe AsyncProgressApp.ktfile.

Thereisalsoaversionof runAsynccalled runAsyncWithProgresswhichwillcoverthe

currentnodewithaprogressindicatorwhilethelongrunningoperationruns.

singleAssign()PropertyDelegate

Intheexampleaboveweinitializedthe inputFieldpropertywiththe singleAssign

delegate.Ifyouwanttoguaranteethatavalueisonlyassignedonce,youcanusethe

singleAssign()delegateinsteadofthe lateinitkeywordfromKotlin.Thiswillcausea

secondassignmenttothrowanerror,anditwillalsoerrorwhenitisprematurelyaccessed

beforeitisassigned.

Youcanlookupmoreabout singleAssign()indetailinAppendixA1,butknowfornowit

guaranteesa varcanonlybeassignedonce.Itisalsothreadsafeandhelpsmitigate

issueswithmutability.

Fragment

3.Components

Any Viewyoucreateisasingleton,whichmeansyoutypicallyuseitinonlyoneplaceata

time.Thereasonforthisisthattherootnodeofthe Viewcanonlyhaveasingleparentina

JavaFXapplication.Ifyouassignitanotherparent,itwilldisappearfromitspreviousparent.

However,ifyouwouldliketocreateapieceofUIthatisshort-livedorcanbeusedin

multipleplaces,considerusinga Fragment.AFragmentisaspecialtypeof Viewthatcan

havemultipleinstances.TheyareparticularlyusefulforpopupsoraspiecesofalargerUI

(suchasListCells,whichwelookatviathe ListCellFragmentlater).

Both Viewand Fragmentsupport openModal(), openWindow()and openInternalWindow()

thatwillopentherootnodeinaseparateWindow.

classMyView:View(){

overridevalroot=vbox{

button("PressMe"){

action{

find(MyFragment::class).openModal(stageStyle=StageStyle.UTILITY)

}

}

}

}

classMyFragment:Fragment(){

overridevalroot=label("Thisisapopup")

}

Youcanpassoptionalargumentsto openModal()aswelltomodifyafewofitsbehaviors.

OptionalArgumentsforopenModal()

Argument Type Description

stageStyle StageStyle Definesoneofthepossibleenumstylesfor

Stage.Default: StageStyle.DECORATED

modality Modality

Definesoneofthepossibleenummodality

typesfor Stage.Default:

Modality.APPLICATION_MODAL

escapeClosesWindow Boolean Setsthe ESCkeytocall closeModal().

Default: true

owner Window SpecifytheownerWindowforthisStage`

block Boolean BlockUIexecutionuntiltheWindowcloses.

Default: false

InternalWindow

3.Components

While openModalopensinanew Stage, openInternalWindowopensoverthecurrentroot

node,oranyothernodeifyouspecifyit:

button("Openeditor"){

action{

openInternalWindow(Editor::class)

}

}

Figure3.9

AgoodusecasefortheinternalwindowisforsinglestageenvironmentslikeJPro,orifyou

wanttocustomizethewindowtrimtomakethewindowappearmoreinlinewiththedesign

ofyourapplication.TheInternalWindowcanbestyledwithCSS.Takealookatthe

InternalWindow.Stylesclassformoreinformationaboutstyleableproperties.

TheinternalwindowAPIdiffersfrommodal/windowinoneimportantaspect.Sincethe

windowopensoveranexistingnode,youtypicallycall openInternalWindow()fromwithinthe

Viewyouwantittoopenontopof.YousupplytheViewyouwanttoshow,andyoucan

optionallysupplywhatnodetoopenoverviathe ownerparameter.

OptionalArgumentsforopenInternalWindow()

3.Components

Argument Type Description

view UIComponent Thecomponentwillbethecontentofthe

newwindow

view KClass Alternatively,youcansupplytheclassofthe

viewinsteadofaninstance

icon Node Optionalwindowicon

scope Scope Ifyouspecifytheviewclass,youcanalso

specifythescopeusedtofetchtheview

modal Boolean

Definesifthecoveringnodeshouldbe

disabledwhiletheinternalwindowisactive.

Default: true

escapeClosesWindow Boolean Setsthe ESCkeytocall close().Default:

true

owner Node

SpecifytheownerNodeforthiswindow.The

windowwillbydefaultcovertherootnodeof

thisview.`

Closingmodalwindows

Any Componentopenedusing openModal(), openWindow()or openInternalWindow()canbe

closedbycalling closeModal().Itisalsopossibletogettothe InternalWindowinstance

directlyifneededusing findParentOfType(InternalWindow::class).

ReplacingViewsandDockingEvents

WithTornadoFX,iseasytoswapyourcurrent Viewwithanother Viewusing

replaceWith(),andoptionallyaddatransition.Intheexamplebelow,a Buttononeach

Viewwillswitchtotheotherview,whichcanbe MyView1or MyView2(Figure3.10).

3.Components

classMyView1:View(){

overridevalroot=vbox{

button("GotoMyView2"){

action{

replaceWith(MyView2::class)

}

}

}

}

classMyView2:View(){

overridevalroot=vbox{

button("GotoMyView1"){

action{

replaceWith(MyView1::class)

}

}

}

}

Figure3.10

Youalsohavetheoptiontospecifyaspiffyanimationforthetransitionbetweenthetwo

Views.

replaceWith(MyView1::class,ViewTransition.Slide(0.3.seconds,Direction.LEFT)

Thisworksbyreplacingthe rootNodeongiven Viewwithanother View's root.There

aretwofunctionsyoucanoverrideon ViewtoleveragewhenaView's rootNodeis

connectedtoaparent( onDock()),andwhenitisdisconnected( onUndock()).Youcan

leveragethesetwoeventstoconnectand"cleanup"whenevera Viewcomesinorfalls

out.Youwillnoticerunningthecodebelowthatwhenevera Viewisswapped,itwillundock

thatprevious Viewanddockthenewone.Youcanleveragethesetwoeventstomanage

initializationanddisposaltasks.

3.Components

classMyView1:View(){

overridevalroot=vbox{

button("GotoMyView2"){

action{

replaceWith(MyView2::class)

}

}

}

overridefunonDock(){

println("DockingMyView1!")

}

overridefunonUndock(){

println("UndockingMyView1!")

}

}

classMyView2:View(){

overridevalroot=vbox{

button("GotoMyView1"){

action{

replaceWith(MyView1::class)

}

}

}

overridefunonDock(){

println("DockingMyView2!")

}

overridefunonUndock(){

println("UndockingMyView2!")

}

}

Passingparameterstoviews

ThebestwaytopassinformationbetweenviewsisoftenaninjectedViewModel.Evenso,it

canstillbeconvenienttobeabletopassparameterstoothercomponents.The findand

injectfunctionssupportsvarargsof Pair<String,Any>whichcanbeusedforjustthis

purpose.Consideracustomerlistthatopensacustomereditorfortheselectedcustomer.

Theactiontoeditacustomermightlooklikethis:

funeditCustomer(customer:Customer){

find<CustomerEditor>(mapOf(CustomerEditor::customertocustomer).openWindow())

}

3.Components

Theparametersarepassedasamap,wherethekeyisthepropertyintheviewandthe

valueiswhateveryouwantthepropertytobe.Thisgivesyouatypesafewayofconfiguring

parametersforthetargetView.

HereweusetheKotlin tosyntaxtocreatetheparameter.Thiscouldalsohavebeen

writtenas Pair(CustomerEditor::customer,customer)ifyouprefer.Theeditorcannow

accesstheparameterlikethis:

classCustomerEditor:Fragment(){

valcustomer:Customerbyparam()

}

Ifyouwanttoinspecttheparametersinsteadofblindlyrelyingonthemtobeavailable,you

caneitherdeclarethemasnullableorconsultthe paramsmap:

classCustomerEditor:Fragment(){

init{

valcustomer=params["customer"]as?Customer

if(customer!=null){

...

}

}

}

Ifyoudon'tcareabouttypesafetyyoucanalsopassparametersas mapOf("customer"to

customer),butthenyoumissoutonautomaticrefactoringifyourenameapropertyinthe

targetview.

Accessingtheprimarystage

Viewhasapropertycalled primaryStagethatallowsyoutomanipulatepropertiesofthe

Stagebackingit,suchaswindowsizeforexample.Any Viewor Fragmentthatwere

openedvia openModalwillalsohavea modalStagepropertyavailable.

Accessingthescene

Sometimesitisnecessarytogetaholdofthecurrentscenefromwithina Viewor

Fragment.Thiscanbeachievedwith root.scene,orifyouarewithinatypesafebuilder,

thereisanevenshorterway,justuse scene.

3.Components

Accessingresources

Lot'sofJavaFXAPIstakesresourcesasan URLorthe toExternalFormofanURL.To

retrievearesourceurlonewouldtypicallywritesomethinglike:

valmyAudioClip=AudioClip(MyView::class.java.getResource("mysound.wav").toExternalFo

rm())

Every Componenthasa resourcesobjectwhichcanretrievetheexternalformurlofa

resourcelikethis:

valmyAudiClip=AudioClip(resources["mysound.wav"])

Ifyouneedanactual URLitcanberetrievedlikethis:

valmyResourceURL=resources.url("mysound.wav")

The resourceshelperalsohasseveralotherhelpfulfunctionstohelpyouturnfilesrelative

tothe Componentintoanobjectofthetypeyouneed:

valmyJsonObject=resources.json("myobject.json")

valmyJsonArray=resources.jsonArray("myarray.json")

valmyStream=resources.stream("somefile")

It'sworthmentioningthatthe jsonand jsonArrayfunctionsarealsoavailableon

InputStreamobjects.

Resourcesarerelativetothe Componentbutyoucanalsoretrievearesourcebyit'sfull

path,startingwitha /.

Shortcutsandkeycombinationsforactions

Youcanfireactionswhencertainkeycombinationsaretyped.Thisisdonewiththe

shortcutfunction:

shortcut(KeyCombination.valueOf("Ctrl+Y")){

doSomething()

}

3.Components

Thereisalsoastringversionofthe shortcutfunctionthatdoesthesamebutisless

verbose:

shortcut("Ctrl+Y")){

doSomething()

}

Youcanalsoaddshortcutstobuttonactionsdirectly:

button("Save"){

action{doSave()}

shortcut("Ctrl+S")

}

TouchSupport

JavaFXsupportstouchoutofthebox,andfornowtheonlyplaceweneededtoimproveit

wastohandleshortpressandlongpressinamoreconvenientway.Itconsistsoftwo

functionssimilarto action,whichcanbeconfiguredonany Node:

shortpress{println("Activatedonshortpress")}

longpress{println("Activatedonlongpress")}

Bothfunctionsacceptsa consumeparameterwhichbydefaultis false.Settingittotrue

willpreventeventbubblingforthepressevent.The longpressfunctionadditionally

supportsa thresholdparameterwhichisusedtodeterminewhenalongpresshasaccured.

Itis 700.millisbydefault.

Summary

TornadoFXisfilledwithsimple,streamlined,andpowerfulinjectiontoolstomanageViews

andControllers.ItalsostreamlinesdialogsandothersmallUIpiecesusing Fragment.While

theapplicationswebuiltsofarareprettysimple,hopefullyyouappreciatethesimplified

conceptsTornadoFXintroducestoJavaFX.Inthenextchapterwewillcoverwhatis

arguablythemostpowerfulfeatureofTornadoFX:Type-SafeBuilders.

3.Components

BasicControls

OneofthemostexcitingfeaturesofTornadoFXaretheType-SafeBuilders.Configuringand

layingoutcontrolsforcomplexUI'scanbeverboseanddifficult,andthecodecanquickly

becomemessytomaintain.Fortunately,youcanuseapowerfulclosurepatternpioneered

byGroovytocreatestructuredUIlayoutswithpureandsimpleKotlincode.

WhilewewilllearnhowtoapplyFXMLlater,youmayfindbuilderstobeanexpressive,

robustwaytocreatecomplexUI'sinafractionofthetime.Therearenoconfigurationfilesor

compilermagictricks,andbuildersaredonewithpureKotlincode.Thenextseveral

chapterswilldividethebuildersintoseparatecategoriesofcontrols.Alongtheway,youwill

graduallybuildmorecomplexUI'sbyintegratingthesebuilderstogether.

Butfirst,let'scoverhowbuildersactuallywork.

HowBuildersWork

Kotlin'sstandardlibrarycomeswithahandfulofhelpful"block"functionstotargetitemsof

anytype T.Thereisthewith()function,whichallowsyoutowritecodeagainstanitemasif

youwererightinsideofitsclass.

classMyView:View(){

overridevalroot=VBox()

init{

with(root){

this+=Button("PressMe")

}

}

}

Intheaboveexample,the with()functionacceptsthe rootasanargument.The

followingclosureargumentmanipulates rootdirectlybyreferringtoitas this,whichis

safelyinterpretedasa VBox.A Buttonwasaddedtothe VBoxbycallingit's

plusAssign()extendedoperator.

Alternatively,everytypeinKotlinhasanapply()function.Thisisalmostthesame

functionalityas with()butitisactuallyanextendedhigher-orderfunction.

4.BasicControls

classMyView:View(){

overridevalroot=VBox()

init{

root.apply{

this+=Button("PressMe")

}

}

}

Both with()and apply()accomplishasimilartask.Theysafelyinterpretthetypetheyare

targetingandallowmanipulationstobedonetoit.However, with()returnsthelast

statementwithinthelambda,whereas apply()doesinfactreturntheitemitwastargeting.

Therefore,ifyoucall apply()ona Buttontomanipulatesay,itsfontcolorandaction,itis

helpfulthe Buttonreturnsitselfsoastonotbreakthedeclarationflow.

classMyView:View(){

overridevalroot=VBox()

init{

with(root){

this+=Button("PressMe").apply{

textFill=Color.RED

action{println("Buttonpressed!")}

}

}

}

}

Thebasicconceptsofhowbuildersworkareexpressedabove,andtherearethreetasks

beingdone:

1. A Buttoniscreated

2. The Buttonismodified

3. The Buttonisaddedtoits"parent",whichisa VBox

Whendeclaringany Node,thesethreestepsaresocommonthatTornadoFXstreamlines

themforyouusingstrategicallyplacedextensionfunctions,suchas button()asshown

below.

4.BasicControls

classMyView:View(){

overridevalroot=VBox()

init{

with(root){

button("PressMe"){

textFill=Color.RED

action{println("Buttonpressed!")}

}

}

}

}

Whilethislooksmuchcleaner,youmightbewondering:"Howdidwejustgetridofthe this

+=and apply()functioncall?Andwhyareweusingafunctioncalled button()insteadof

anactual Button?"

Wewillnotgotoodeeponhowthisisdone,andyoucanalwaysdigintothesourcecodeif

youarecurious.

Butessentially,the VBox(oranytargetablecomponent)hasanextensionfunctioncalled

button().

Itacceptsatextargumentandanoptionalclosuretargetinga Buttonitwillinstantiate.

Whenthisfunctioniscalled,itwillcreatea Buttonwiththespecifiedtext,applytheclosure

toit,addittothe VBoxitwascalledon,andthenreturnit.

Takingthisefficiencyfurther,youcanoverridethe rootina View,butassignitabuilder

functionandavoidneedingany initand with()blocks.

classMyView:View(){

overridevalroot=vbox{

button("PressMe"){

textFill=Color.RED

action{println("Buttonpressed!")}

}

}

}

Thebuilderpatternbecomesespeciallypowerfulwhenyoustartnestingcontrolsintoother

controls.Usingthesebuilderextensionfunctions,youcaneasilypopulateandnestmultiple

HBoxinstancesintoa VBox,andcreateUIcodethatisclearlystructured(Figure4.1).

4.BasicControls

classMyView:View(){

overridevalroot=vbox{

hbox{

label("FirstName")

textfield()

}

hbox{

label("LastName")

textfield()

}

button("LOGIN"){

useMaxWidth=true

}

}

}

Figure4.1

AlsonotewewilllearnaboutTornadoFX'sproprietary Formlater,whichwillmake

simpleinputUI'slikethisevensimplertocode.

IfyouneedtosavereferencestocontrolssuchastheTextFields,youcansavethemto

variablesorpropertiessincethefunctionsreturntheproducedcontrols.Itisrecommendyou

usethe singleAssign()delegatestoensurethepropertiesareonlyassignedonce.

4.BasicControls

classMyView:View(){

varfirstNameField:TextFieldbysingleAssign()

varlastNameField:TextFieldbysingleAssign()

overridevalroot=vbox{

hbox{

label("FirstName")

firstNameField=textfield()

}

hbox{

label("LastName")

lastNameField=textfield()

}

button("LOGIN"){

useMaxWidth=true

action{

println("Logginginas${firstNameField.text}${lastNameField.text}")

}

}

}

}

Notethatnon-builderextensionfunctionsandpropertieshavebeenaddedtodifferent

controlsaswell.The useMaxWidthisanextendedpropertyfor Node,anditsetsthe Node

tooccupythemaximumwidthallowed.Wewillseemoreofthesehelpfulextensions

throughoutthenextfewchapters.

Inthecomingchapters,wewillcovereachcorrespondingbuilderforeachJavaFXcontrol.

Withtheconceptsunderstoodabove,youcanreadaboutthesenextchaptersstarttofinish

orasareference.

BuildersforBasicControls

TherestofthischapterwillcoverbuildersforcommonJavaFXcontrolslike Button,

Label,and TextField.Thenextchapterwillcoverbuildersfordata-drivencontrolslike

ListView, TableView,and TreeTableView.

Button

Forany Pane,youcancallits button()extensionfunctiontoadda Buttontoit.Youcan

optionallypassa textargumentanda Button.()->Unitlambdatomodifyitsproperties.

4.BasicControls

Withina Pane,thiswilladda Buttonwithredtextandprint"Buttonpressed!"everytimeit

isclicked(Figure4.2)

button("PressMe"){

textFill=Color.RED

action{

println("Buttonpressed!")

}

}

Figure4.2

Label

Youcancallthe label()extensionfunctiontoadda Labeltoagiven Pane.

Optionallyyoucanprovideatext(oftype Stringor Property<String>),agraphic

(oftype Nodeor ObjectProperty<Node>)anda Label.()->Unitlambdatomodifyits

properties(Figure4.3).

label("Loremipsum",circle(10,10,5)){

textFill=Color.BLUE

}

Figure4.3

TextField

Forany Paneyoucanadda TextFieldbycallingits textfield()extensionfunction

(Figure4.4).

textfield()

Figure4.4

4.BasicControls

Youcanoptionallyprovideinitialtextaswellasaclosuretomanipulatethe TextField.For

example,wecanaddalistenertoits textProperty()andprintitsvalueeverytimeit

changes(Figure4.5).

textfield("Inputsomething"){

textProperty().addListener{obs,old,new->

println("Youtyped:"+new)

}

}

Figure4.6

PasswordField

Ifyouneeda TextFieldtotakesensitiveinformation,youmightwanttoconsidera

PasswordFieldinstead.Itwillshowanonymouscharacterstoprotectfrompryingeyes.You

canalsoprovideaninitialpasswordasanargumentandablocktomanipulateit(Figure

4.7).

passwordfield("my_password"){

requestFocus()

}

Figure4.7

CheckBox

Youcancreatea CheckBoxtoquicklycreateatrue/falsestatecontrolandoptionally

manipulateitwithablock(Figure4.8).

4.BasicControls

checkbox("AdminMode"){

action{println(isSelected)}

}

Noticethattheactionblockiswrappedinsidethecheckboxsoyoucanaccess

it's isSelectedproperty.Ifyoudon'tneedaccesstothepropertiesoftheCheckBoxyou

couldhavewritten checkbox("AdminMode").action{}.

Figure4.9

Youcanalsoprovidea Property<Boolean>thatwillbindtoitsselectionstate.

valbooleanProperty=SimpleBooleanProperty()

checkbox("AdminMode",booleanProperty).action{println(isSelected)}

ComboBox

A ComboBoxisadropdowncontrolthatallowsafixedsetofvaluestobeselectedfrom

(Figure4.10).

valtexasCities=FXCollections.observableArrayList("Austin",

"Dallas","Midland","SanAntonio","FortWorth")

combobox<String>{

items=texasCities

}

Figure4.10

4.BasicControls

Youdonotneedtospecifythegenerictypeifyoudeclarethe valuesasanargument.

valtexasCities=FXCollections.observableArrayList("Austin",

"Dallas","Midland","SanAntonio","FortWorth")

combobox(values=texasCities)

Youcanalsospecifya Property<T>tobeboundtotheselectedvalue.

valtexasCities=FXCollections.observableArrayList("Austin",

"Dallas","Midland","SanAntonio","FortWorth")

valselectedCity=SimpleStringProperty()

combobox(selectedCity,texasCities)

ToggleButton

A ToggleButtonisabuttonthatexpressesatrue/falsestatedependingonitsselectionstate

(Figure4.11).

togglebutton("OFF"){

action{

text=if(isSelected)"ON"else"OFF"

}

}

4.BasicControls

PerhapsamoreidomaticwaytocontrolthebuttontextwouldbetouseaStringBinding

boundtothe textProperty:

togglebutton{

valstateText=selectedProperty().stringBinding{

if(it==true)"ON"else"OFF"

}

textProperty().bind(stateText)

}

Figure4.11



Youcanoptionallypassa ToggleGrouptothe togglebutton()function.Thiswillensureall

ToggleButtonsinthat ToggleGroupcanonlyhaveoneselectedatatime(Figure4.12).

classMyView:View(){

privatevaltoggleGroup=ToggleGroup()

overridevalroot=hbox{

togglebutton("YES",toggleGroup)

togglebutton("NO",toggleGroup)

togglebutton("MAYBE",toggleGroup)

}

}

Figure4.12

RadioButton

A RadioButtonisthesamefunctionalityasa ToggleButtonbutwithadifferentvisualstyle.

Whenitisselected,it"fills"inacircularcontrol(Figure4.13).

radiobutton("PowerUserMode"){

action{

println("PowerUserMode:$isSelected")

}

}

4.BasicControls

Figure4.13

Alsolikethe ToggleButton,youcanseta RadioButtontobeincludedina ToggleGroupso

thatonlyoneiteminthatgroupcanbeselectedatatime(Figure4.14).

classMyView:View(){

privatevaltoggleGroup=ToggleGroup()

overridevalroot=vbox{

radiobutton("Employee",toggleGroup)

radiobutton("Contractor",toggleGroup)

radiobutton("Intern",toggleGroup)

}

}

Figure4.14

DatePicker

The DatePickerisasimpletodeclare.Itallowsyoutochooseadatefromapopout

calendarcontrol.Youcanoptionallyprovideablocktomanipulateit(Figure4.15).

datepicker{

value=LocalDate.now()

}

Figure4.15

4.BasicControls

Youcanalsoprovidea Property<LocalDate>asanargumenttobindtoitsvalue.

valdateProperty=SimpleObjectProperty<LocalDate>()

datepicker(dateProperty){

value=LocalDate.now()

}

TextArea

The TextAreaallowsyouinputmultilinefreeformtext.Youcanoptionallyprovidetheinitial

text valueaswellasablocktomanipulateitondeclaration(Figure4.16).

textarea("Typememohere"){

selectAll()

}

Figure4.16

4.BasicControls

ProgressBar

A ProgressBarvisualizesprogresstowardscompletionofaprocess.Youcanoptionally

provideaninitial Doublevaluelessthanorequalto1.0indicatingpercentageofcompletion

(Figure4.17).

progressbar(0.5)

Figure4.17

Hereisamoredynamicexamplesimulatingprogressoverashortperiodoftime.

progressbar(){

thread{

for(iin1..100){

Platform.runLater{progress=i.toDouble()/100.0}

Thread.sleep(100)

}

}

}

Youcanalsopassa Property<Double>thatwillbindthe progresstoitsvalueaswellasa

blocktomanipulatethe ProgressBar.

4.BasicControls

progressbar(completion){

progressProperty().addListener{

obsVal,old,new->print("VALUE:$new")

}

}

ProgressIndicator

A ProgressIndicatorisfunctionallyidenticaltoa ProgressBarbutusesafillingcircle

insteadofabar(Figure4.18).

progressindicator{

thread{

for(iin1..100){

Platform.runLater{progress=i.toDouble()/100.0}

Thread.sleep(100)

}

}

}

Figure4.18



Justlikethe ProgressBaryoucanprovidea Property<Double>and/orablockasoptional

arguments(Figure4.19).

valcompletion=SimpleObjectProperty(0.0)

progressindicator(completion)

ImageView

Youcanembedanimageusing imageview().

imageview("tornado.jpg")

Figure4.19

4.BasicControls

Likemostothercontrols,youcanuseablocktomodifyitsattributes(Figure4.20).

imageview("tornado.jpg"){

scaleX=.50

scaleY=.50

}

Figure4.20

4.BasicControls

ScrollPane

Youcanembedacontrolinsidea ScrollPanetomakeitscrollable.Whentheavailablearea

becomessmallerthanthecontrol,scrollbarswillappeartonavigatethecontrol'sarea.

Forinstance,youcanwrapan ImageViewinsidea ScrollPane(Figure4.21).

scrollpane{

imageview("tornado.jpg")

}

Figure4.21

4.BasicControls

Keepinmindthatmanycontrolslike TableViewand TreeTableViewalreadyhavescroll

barsonthem,sowrappingthemina ScrollPaneisnotnecessary(Figure4.22).

Hyperlink

Youcancreatea Hyperlinkcontroltomimicthebehaviorofatypicalhyperlinktoafile,a

website,orsimplyperformanaction.

hyperlink("OpenFile").action{println("Openingfile...")}

Figure4.22

Text

Youcanaddasimplepieceof Textwithformattedproperties.Thiscontrolissimplerand

rawerthana Label,andparagraphscanbeseparatedusing \ncharacters(Figure4.23).

4.BasicControls

text("Veni\nVidi\nVici"){

fill=Color.PURPLE

font=Font(20.0)

}

Figure4.23

TextFlow

Ifyouneedtoconcatenatemultiplepiecesoftextwithdifferentformats,the TextFlow

controlcanbehelpful(Figure4.24).

textflow{

text("Tornado"){

fill=Color.PURPLE

font=Font(20.0)

}

text("FX"){

fill=Color.ORANGE

font=Font(28.0)

}

}

Figure4.24

Youcanaddany Nodetothe textflow,includingimages,usingthestandardbuilder

functions.

Tooltips

Insideany Nodeyoucanspecifya Tooltipviathe tooltip()function(Figure4.25).

4.BasicControls

button("Commit"){

tooltip("Writesinputtothedatabase")

}

Figure4.25

Likemostotherbuilders,youcanprovideaclosuretocustomizethe Tooltipitself.

button("Commit"){

tooltip("Writesinputtothedatabase"){

font=Font.font("Verdana")

}

}

Therearemanyotherbuildercontrols,andthemaintainersofTornadoFXhavestrived

tocreateabuilderforeveryJavaFXcontrol.Ifyouneedsomethingthatisnotcovered

here,useGoogletoseeifitsincludedinJavaFX.Chancesareifacontrolisavailable

inJavaFX,thereisabuilderwiththesamenameinTornadoFX.

SUMMARY

InthischapterwelearnedaboutTornadoFXbuildersandhowtheyworksimplybyusing

Kotlinextensionfunctions.Wealsocoveredbuildersforbasiccontrolslike Button,

TextFieldand ImageView.Inthecomingchapterswewilllearnaboutbuildersfortables,

layouts,menus,charts,andothercontrols.Asyouwillsee,combiningallthesebuilders

togethercreatesapowerfulwaytoexpresscomplexUI'swithverystructuredandminimal

code.

ThesearenottheonlycontrolbuildersintheTornadoFXAPI,andthisguidedoesitsbestto

keepup.AlwayschecktheTornadoFXGitHubtoseethelatestbuildersandfunctionalities

available,andfileanissueifyouseeanymissing.

4.BasicControls

DataControls

Anysignificantapplicationworkswithdata,andprovidingameansforuserstoview,

manipulate,andmodifydataisnotatrivialtaskforuserinterfacedevelopment.Fortunately,

TornadoFXstreamlinesmanyJavaFXdatacontrolssuchas ListView, TableView,

TreeView,and TreeTableView.Thesecontrolscanbecumbersometosetupinapurely

object-orientedway.Butusingbuildersthroughfunctionaldeclarations,wecancodeall

thesecontrolsinamuchmorestreamlinedway.

ListView

A ListViewissimilartoa ComboBoxbutitdisplaysallitemswithina ScrollViewandhas

theoptionofallowingmultipleselections,asshowninFigure5.1

listview<String>{

items.add("Alpha")

items.add("Beta")

items.add("Gamma")

items.add("Delta")

items.add("Epsilon")

selectionModel.selectionMode=SelectionMode.MULTIPLE

}

Figure5.1

Youcanalsoprovideitan ObservableListofitemsupfrontandomitthetypedeclaration

sinceitcanbeinferred.UsinganObservableListalsohasthebenefitthatchangestothelist

willautomaticallybereflectedintheListView.

5.DataControls

valgreekLetters=listOf("Alpha","Beta",

"Gamma","Delta","Epsilon").observable()

listview(greekLetters){

selectionModel.selectionMode=SelectionMode.MULTIPLE

}

Likemostdatacontrols,keepinmindthatbydefault,the ListViewwillcall toString()to

renderthetextforeachiteminyourdomainclass.Torenderanythingelse,youwillneedto

createyourowncustomcellformatting.

CustomCellFormattinginListView

Eventhoughthedefaultlookofa ListViewisratherboring(becauseitcalls toString()

andrendersitastext)youcanmodifyitsothateverycellisacustom Nodeofyour

choosing.Bycalling cellCache(),TornadoFXprovidesaconvenientwaytooverridewhat

kindof Nodeisreturnedforeachiteminyourlist(Figure5.2).

5.DataControls

classMyView:View(){

valpersons=listOf(

Person("JohnMarlow",LocalDate.of(1982,11,2)),

Person("SamanthaJames",LocalDate.of(1973,2,4))

).observable()

overridevalroot=listview(persons){

cellFormat{

graphic=cache{

form{

fieldset{

field("Name"){

label(it.name)

}

field("Birthday"){

label(it.birthday.toString())

}

label("${it.age}yearsold"){

alignment=Pos.CENTER_RIGHT

style{

fontSize=22.px

fontWeight=FontWeight.BOLD

}

}

}

}

}

}

}

}

classPerson(valname:String,valbirthday:LocalDate){

valage:Intget()=Period.between(birthday,LocalDate.now()).years

}

5.DataControls

Figure5.2-Acustomcellrenderingfor ListView

The cellFormatfunctionletsyouconfigurethe textand/or graphicpropertyofthecell

wheneveritcomesintoviewonthescreen.Thecellsthemselvesarereused,butwhenever

the ListViewasksthecelltoupdateit'scontent,the cellFormatfunctioniscalled.Inour

exampleweonlyassignto graphic,butifyoujustwanttochangethestringrepresentation

youshouldassignitto text.Itiscompletelylegitimatetoassignittoboth textand

graphic.Thevalueswillautomaticallybeclearedbythe cellFormatfunctionwhena

certainlistcellisnotshowinganactiveitem.

Notethatassigningnewnodestothe graphicpropertyeverytimethelistcellisaskedto

updatecanbeexpensive.Itmightbefineformanyusecases,butforheavynodegraphs,or

nodegraphswhereyouutilizebindingtowardstheuicomponentsinsidethecell,youshould

cachetheresultingnodesothenodegraphwillonlybecreatedoncepernode.Thisisdone

usingthe cachewrapperintheaboveexample.

5.DataControls

AssignIfNull

Ifyouhaveareasonforwantingtorecreatethegraphicpropertyforalistcell,youcanuse

the assignIfNullhelper,whichwillassignavaluetoanygivenpropertyiftheproperty

doesn'talreadycontainavalue.Thiswillmakesurethatyouavoidcreatingnewnodesif

updateItemiscalledonacellthatalreadyhasagraphicpropertyassigned.

cellFormat{

graphicProperty().assignIfNull{

label("Hello")

}

}

ListCellFragment

The ListCellFragmentisaspecialfragmentwhichcanhelpyoumanage ListViewcells.It

extends Fragment,andincludessomeextra ListViewspecificfieldsandhelpers.You

neverinstantiatethesefragmentsmanually,insteadyouinstructthe ListViewtocreate

themasneeded.Thereisaonetoonecorrelationbetween ListCelland

ListCellFragmentinstances.One ListCellFragmentinstancewilloveritslifecyclebeused

torepresentdifferentitems.

Tounderstandhowthisworks,let'sconsideramanuallyimplemented ListCell,essentially

thewayyouwoulddoinvanillaJavaFX.The updateItemfunctionwillbecalledwhenthe

ListCellshouldrepresentanewitem,noitem,orjustanupdatetothesameitem.When

youusea ListCellFragment,youdonotneedtoimplementsomethingakinto updateItem,

butthe itemPropertyinsideitwillupdatetorepresentthenewitemautomatically.Youcan

listentochangestothe itemProperty,orbetteryet,binditdirectlytoa ViewModel.That

wayyourUIcanbinddirectlytothe ViewModelandnolongerneedtocareaboutchangesto

theunderlyingitem.

Let'srecreatetheformfromthe cellFormatexampleusinga ListCellFragment.Weneeda

ViewModelwhichwewillcall PersonModel(Pleaseseethe EditingModelsandValidation

chapterforafullexplanationofthe ViewModel)Fornow,justimaginethatthe ViewModel

actsasaproxyforanunderlying Person,andthatthe Personcanbechangedwhilethe

observablevaluesinthe ViewModelremainthesame.Whenwehavecreatedour

PersonCellFragment,weneedtoconfigurethe ListViewtouseit:

listview(personlist){

cellFragment(PersonCellFragment::class)

}

5.DataControls

Nowcomesthe ListCellFragmentitself.

classPersonListFragment:ListCellFragment<Person>(){

valperson=PersonModel().bindTo(this)

overridevalroot=form{

fieldset{

field("Name"){

label(person.name)

}

field("Birthday"){

label(person.birthday)

}

label(stringBinding(person.age){"$valueyearsold"}){

alignment=Pos.CENTER_RIGHT

style{

fontSize=22.px

fontWeight=FontWeight.BOLD

}

}

}

}

}

BecausethisFragmentwillbereusedtorepresentdifferentlistitems,theeasiestapproach

istobindtheuielementstotheViewModel'sproperties.

The nameand birthdaypropertiesarebounddirectlytothelabelsinsidethefields.The

agestringinthelastlabelneedstobeconstructedusinga stringBindingtomakesureit

updateswhentheitemchanges.

Whilethismightseemlikeslightlymoreworkthanthe cellFormatexample,thisapproach

makesitpossibletoleverageeverythingtheFragmentclasshastooffer.Italsoforcesyou

todefinethecellnodegraphoutsideofthebuilderhierarchy,whichimprovesrefactoring

possibilitiesandenablescodereuse.

Additionalhelpersandeditingsupport

The ListCellFragmentalsohavesomeotherhelperproperties.Theyincludethe

cellPropertywhichwillupdatewhenevertheunderlyingcellchangesandthe

editingProperty,whichwilltellyouifthistheunderlyinglistcellisineditingmode.There

arealsoeditinghelperfunctionscalled startEdit, commitEdit, cancelEditplusan

onEditcallback.The ListCellFragmentmakesittrivialtoutilizetheexistingediting

capabilitesofthe ListView.AcompleteexamplecanbeseenintheTodoMVCdemo

application.

5.DataControls

TableView

ProbablyoneofthemostsignificantbuildersinTornadoFXistheonefor TableView.Ifyou

haveworkedwithJavaFX,youmighthaveexperiencedbuildinga TableViewinanobject-

orientedway.ButTornadoFXprovidesafunctionaldeclarationconstructpatternusing

extensionfunctionsthatgreatlysimplifiesthecodingofa TableView.

Sayyouhaveadomaintype,suchas Person.

classPerson(valid:Int,valname:String,valbirthday:LocalDate){

valage:Intget()=Period.between(birthday,LocalDate.now()).years

}

Takeseveralinstancesof Personandputtheminan ObservableList.

privatevalpersons=listOf(

Person(1,"SamanthaStuart",LocalDate.of(1981,12,4)),

Person(2,"TomMarks",LocalDate.of(2001,1,23)),

Person(3,"StuartGills",LocalDate.of(1989,5,23)),

Person(3,"NicoleWilliams",LocalDate.of(1998,8,11))

).observable()

Youcanquicklydeclarea TableViewwithallofitscolumnsusingafunctionalconstruct,and

specifythe itemspropertytoan ObservableList<Person>(Figure5.3).

tableview(persons){

column("ID",Person::id)

column("Name",Person::name)

column("Birthday",Person::birthday)

column("Age",Person::age)

}

Figure5.3

5.DataControls

The column()functionsareextensionfunctionsfor TableViewacceptinga headername

andamappedpropertyusingreflectionsyntax.TornadoFXwillthentakeeachmappingto

renderavalueforeachcellinthatgivencolumn.

Ifyouwantgranularcontrolover TableViewcolumnresizepolicies,seeAppendixA2

formoreinformationon SmartResizepolicies.

Using"Property"properties

IfyoufollowtheJavaFX Propertyconventionstosetupyourdomainclass,itwill

automaticallysupportvalueediting.

Youcancreatethese Propertyobjectstheconventionalway,oryoucanuseTornadoFX's

propertydelegatestoautomaticallycreatethese Propertydeclarationsasshownbelow.

classPerson(id:Int,name:String,birthday:LocalDate){

varidbyproperty(id)

funidProperty()=getProperty(Person::id)

varnamebyproperty(name)

funnameProperty()=getProperty(Person::name)

varbirthdaybyproperty(birthday)

funbirthdayProperty()=getProperty(Person::birthday)

valage:Intget()=Period.between(birthday,LocalDate.now()).years

}

Youneedtocreate xxxProperty()functionsforeachpropertytosupportJavaFX'snaming

conventionwhenitusesreflection.Thiscaneasilybedonebyrelayingtheircallsto

getProperty()toretrievethe Propertyforagivenfield.SeeAppendixA1fordetailed

5.DataControls

informationonhowthesepropertydelegateswork.

Nowonthe TableView,youcanmakeiteditable,maptotheproperties,andapplythe

appropriatecell-editingfactoriestomakethevalueseditable.

overridevalroot=tableview(persons){

isEditable=true

column("ID",Person::idProperty).useTextField(IntegerStringConverter())

column("Name",Person::nameProperty).useTextField(DefaultStringConverter())

column("Birthday",Person::birthdayProperty).useTextField(LocalDateStringConverter

())

column("Age",Person::age)

}

Toalloweditingandrendering,TornadoFXprovidesafewdefaultcellfactoriesyoucan

invokeonacolumneasilythroughextensionfunctions.

Extension

Function Description

useTextField() Usesastandard TextFieldtoeditvalueswithaprovided

StringConverter

useComboBox() Editsacellvalueviaa ComboBoxwithaspecified

ObservableList<T>ofapplicablevalues

useChoiceBox() Acceptsvaluechangestoacellwitha ChoiceBox

useCheckBox() Rendersaneditable CheckBoxfora Booleanvaluecolumn

useProgressBar() Rendersthecellasa ProgressBarfora Doublevaluecolumn

PropertySyntaxAlternatives

Ifyoudonotcareaboutexposingthe Propertyinafunction(whichiscommoninpractial

usage)youcanexpressyourclasslikethis:

classPerson(id:Int,name:String,birthday:LocalDate){

validProperty=SimpleIntegerProperty(id)

varidbyidProperty

valnameProperty=SimpleStringProperty(name)

varnamebynameProperty

valbirthdayProperty=SimpleObjectProperty(birthday)

varbirthdaybybirthdayProperty

valage:Intget()=Period.between(birthday,LocalDate.now()).years

}

5.DataControls

Thisalternativepatternexposesthe Propertyasafieldmemberinsteadofafunction.If

youliketheabovesyntaxbutwanttokeepthefunction,youcanmaketheproperty

privateandaddthefunctionlikethis:

privatevalnameProperty=SimpleStringProperty(name)

funnameProperty()=nameProperty

varnamebynameProperty

Choosingfromthesepatternsareallamatteroftaste,andyoucanusewhateverversion

meetsyourneedsorpreferencesbest.

YoucanalsoconvertplainpropertiestoJavaFXpropertiesusingtheTornadoFXPlugin.

RefertoChapter13tolearnhowtodothis.

UsingcellFormat()

Thereareotherextensionfunctionsappliedto TableViewthatcanassisttheflowof

declaringa TableView.Forinstance,youcancalla cellFormat()functiononagiven

columntoapplyformattingrules,suchashighlighting"Age"valueslessthan18(Figure5.4).

tableview(persons){

column("ID",Person::id)

column("Name",Person::name)

column("Birthday",Person::birthday)

column("Age",Person::age).cellFormat{

text=it.toString()

style{

if(it<18){

backgroundColor+=c("#8b0000")

textFill=Color.WHITE

}else{

backgroundColor+=Color.WHITE

textFill=Color.BLACK

}

}

}

}

Figure5.4

5.DataControls

Accessingnestedproperties

Let'sassumeour Personobjecthasa parentpropertywhichisalsoofoftype Person.To

createacolumnfortheparentname,wehaveseveraloptions.Ourfirstattemptissimply

extractingthenamepropertymanually:

column<Person,String>("Parentname",{it.value.parentProperty.value.nameProperty})

Noticehowwecan'tsimplyreferencetheproperty,weneedtoaccessthevalueprovidedin

thecallbacktogettotheactualinstanceandnestfromtheredowntothenameProperty.

Whilethisworks,ithasonemajordrawback.Iftheparentchanges,thelistwon'tbe

updated.Wecanpartiallyremedythisbydefiningthevalueforthepropertyastheparent

itself,andformattingit'sname:

column("Parentname",Person::parentProperty).cellFormat{

textProperty().bind(it.parentProperty.value.nameProperty)

}

Itmightstillnotupdaterightaway,eventhoughitwouldeventuallybecomeconsistentasthe

TableViewrefreshes.

Tocreateabindingthatwouldreflectachangetotheparentpropertyimmediately,consider

usingaselectbinding:(moreonbindingslater)

column<Person,String>("Parentname",{it.value.parentProperty.select(Person::namePro

perty)})

5.DataControls

DeclaringColumnValuesFunctionally

Ifyouneedtomapacolumn'svaluetoanon-property(suchasafunction),youcanusea

non-reflectionmeanstoextractthevaluesforthatcolumn.

Sayyouhavea WeeklyReporttypethathasa getTotal()functionacceptinga DayOfWeek

argument(anenumofMonday,Tuesday...Sunday).

abstractclassWeeklyReport(valstartDate:LocalDate){

abstractfungetTotal(dayOfWeek:DayOfWeek):BigDecimal

}

Let'ssayyouwantedtocreateacolumnforeach DayOfWeek.Youcannotmaptoproperties,

butyoucanmapeach WeeklyReportitemexplicitlytoextracteachvalueforthat

DayOfWeek.

tableview<WeeklyReport>{

for(dayOfWeekinDayOfWeek.values()){

column<WeeklyReport,BigDecimal>(dayOfWeek.toString()){

ReadOnlyObjectWrapper(it.value.getTotal(dayOfWeek))

}

}

}

Thismorecloselyresemblesthetraditional setCellValueFactory()fortheJavaFX

TableColumn.

RowExpanders

Laterwewilllearnaboutthe TreeTableViewwhichhasanotionof"parent"and"child"rows,

buttheconstraintwiththiscontrolistheparentandchildmusthavethesamecolumns.

Fortunately,TornadoFXcomeswithanawesomeutilitytonotonlyreveala"childtable"fora

givenrow,butanykindof Nodecontrol.

Saywehavetwodomaintypes: Regionand Branch.A Regionisageographicalzone,

anditcontainsoneormore Branchitemswhicharespecificbusinessoperationlocations

(warehouses,distributioncenters,etc).Hereisadeclarationofthesetypesandsomegiven

instances.

5.DataControls

classRegion(valid:Int,valname:String,valcountry:String,valbranches:Observa

bleList<Branch>)

classBranch(valid:Int,valfacilityCode:String,valcity:String,valstateProvince

:String)

valregions=listOf(

Region(1,"PacificNorthwest","USA",listOf(

Branch(1,"D","Seattle","WA"),

Branch(2,"W","Portland","OR")

).observable()),

Region(2,"Alberta","Canada",listOf(

Branch(3,"W","Calgary","AB")

).observable()),

Region(3,"Midwest","USA",listOf(

Branch(4,"D","Chicago","IL"),

Branch(5,"D","Frankfort","KY"),

Branch(6,"W","Indianapolis","IN")

).observable())

).observable()

Wecancreatea TableViewwhereeachrowhasa rowExpander()functiondefined,and

therewecanarbitrarilycreateany Nodecontrolbuiltoffthatparticularrow'sitem.Inthis

case,wecannestanother TableViewforagiven Regiontoshowallthe Branchitems

belongingtoit.Itwillhavea"+"buttoncolumntoexpandandshowthisexpandedcontrol

(Figure5.5).

Figure5.5

5.DataControls

Thereareafewconfigurabilityoptions,like"expandondouble-click"behaviorsand

accessingthe expanderColumn(thecolumnwiththe"+"button)todriveapadding(Figure

5.6).

overridevalroot=tableview(regions){

column("ID",Region::id)

column("Name",Region::name)

column("Country",Region::country)

rowExpander(expandOnDoubleClick=true){

paddingLeft=expanderColumn.width

tableview(it.branches){

column("ID",Branch::id)

column("FacilityCode",Branch::facilityCode)

column("City",Branch::city)

column("State/Province",Branch::stateProvince)

}

}

}

Figure5.6

5.DataControls

The rowExpander()functiondoesnothavetoreturna TableViewbutanykindof Node,

includingFormsandothersimpleorcomplexcontrols.

Accessingtheexpandercolumn

Youmightwanttomanipulateorcallfunctionsontheactualexpandercolumn.Ifyou

activateexpandondoubleclick,youmightnotwanttoshowtheexpandercolumninthe

tableatall.Firstweneedareferencetotheexpander:

valexpander=rowExpander(true){...}

Ifyouwanttohidetheexpandercolumn,justcall expander.isVisible=false.Youcanalso

programmaticallytoggletheexpandedstateofanycolumnbycalling

expander.toggleExpanded(rowIndex).

TreeView

The TreeViewcontainselementswhereeachelementmaycontainchildelements.Typically

arrowsallowyoutoexpandaparentelementtoseeitschildren.Forinstance,wecannest

employeesunderdepartmentnames

5.DataControls

TraditionallyinJavaFX,populatingtheseelementsisrathercumbersomeandverbose.

FortunatelyTornadoFXmakesitrelativelysimple.

Sayyouhaveasimpletype Personandan ObservableListcontainingseveralinstances.

dataclassPerson(valname:String,valdepartment:String)

valpersons=listOf(

Person("MaryHanes","Marketing"),

Person("SteveFolley","CustomerService"),

Person("JohnRamsy","ITHelpDesk"),

Person("ErlickFoyes","CustomerService"),

Person("ErinJames","Marketing"),

Person("JacobMays","ITHelpDesk"),

Person("LarryCable","CustomerService")

)

Creatinga TreeViewwiththe treeview()buildercanbedonefunctionallyFigure5.7).

//CreatePersonobjectsforthedepartments

//withthedepartmentnameasPerson.name

valdepartments=persons

.map{it.department}

.distinct().map{Person(it,"")}

treeview<Person>{

//Createrootitem

root=TreeItem(Person("Departments",""))

//MakesurethetextineachTreeItemisthenameofthePerson

cellFormat{text=it.name}

//Generateitems.Childrenoftherootitemwillcontaindepartments

populate{parent->

if(parent==root)departmentselsepersons.filter{it.department==parent.

value.name}

}

}

Figure5.7

5.DataControls

Let'sbreakthisdown:

valdepartments=persons

.map{it.department}

.distinct().map{Person(it,"")}

Firstwegatheradistinctlistofallthe departmentsderivedfromthe personslist.Butthen

weputeach departmentStringina Personobjectsincethe TreeViewonlyaccepts

Personelements.Whilethisisnotveryintuitive,thisistheconstraintanddesignof

TreeView.Wemustmakeeach departmenta Personforittobeaccepted.

treeview<Person>{

//Createrootitem

root=TreeItem(Person("Departments",""))

5.DataControls

Nextwespecifythehighest rootforthe TreeViewthatalldepartmentswillbenested

under,andwegiveitaplaceholder Personcalled"Departments".

cellFormat{text=it.name}

Thenwespecifythe cellFormat()torenderthe nameofeach Person(including

departments)oneachcell.

populate{parent->

if(parent==root)departmentselsepersons.filter{it.department==parent.

value.name}

}

Finally,wecallthe populate()functionandprovideablockinstructinghowtoprovide

childrentoeach parent.Ifthe parentisindeedthe root,thenwereturnthe

departments.Otherwisethe parentisa departmentandweprovidealistof Person

objectsbelongingtothat department.

DatadrivenTreeView

Ifthechildlistyoureturnfrom populateisan ObservableList,anychangestothatlistwill

automaticallybereflectedintheTreeView.Thepopulatefunctionwillbecalledforanynew

childrenthatappears,andremoveditemswillresultinremovedTreeItemsaswell.

TreeViewwithDifferingTypes

Itisnotnecessarilyintuitivetomakeeveryentityinthepreviousexamplea Person.We

madeeachdepartmenta Personaswellasthe root"Departments".Foramorecomplex

TreeView<T>where Tisunknownandcanbeanynumberoftypes,itisbettertoleverage

starprojectionfortype T.

Usingstarprojection,youcansafelypopulatemultipletypesnestedintothe TreeView.

Forinstance,youcancreatea Departmenttypeandleverage cellFormat()toutilizetype-

checkingforrendering.Thenyoucanusea populate()functionthatwilliterateovereach

element,andyouspecifythechildrenforeachelement(ifany).

5.DataControls

dataclassDepartment(valname:String)

//CreateDepartmentobjectsforthedepartmentsbygettingdistinctvaluesfromPerso

n.department

valdepartments=persons.map{it.department}.distinct().map{Department(it)}

//TypesafewayofextractingthecorrectTreeItemtext

cellFormat{

text=when(it){

isString->it

isDepartment->it.name

isPerson->it.name

else->throwIllegalArgumentException("Invalidvaluetype")

}

}

//Generateitems.Childrenoftherootitemwillcontaindepartments,childrenofdep

artmentsarefiltered

populate{parent->

valvalue=parent.value

if(parent==root)departments

elseif(valueisDepartment)persons.filter{it.department==value.name}

elsenull

}

TreeTableView

The TreeTableViewoperatesandfunctionssimilarlytoa TreeView,butithasmultiple

columnssinceitisatable.Pleasenotethatthecolumnsina TreeTableViewarethesame

foreachparentandchildelement.Ifyouwantthecolumnstobedifferentbetweenparent

andchild,usea TableViewwitha rowExpander()ascoveredearlierinthischapter.

Sayyouhavea Personclassthatoptionallyhasan employeesparameter,whichdefaults

toanempty List<Person>ifnobodyreportstothat Person.

classPerson(valname:String,

valdepartment:String,

valemail:String,

valemployees:List<Person>=emptyList())

Thenyouhavean ObservableList<Person>holdinginstancesofthisclass.

5.DataControls

valpersons=listOf(

Person("MaryHanes","ITAdministration","mary.hanes@contoso.com",listOf(

Person("JacobMays","ITHelpDesk","jacob.mays@contoso.com"),

Person("JohnRamsy","ITHelpDesk","john.ramsy@contoso.com"))),

Person("ErinJames","HumanResources","erin.james@contoso.com",listOf(

Person("ErlickFoyes","CustomerService","erlick.foyes@contoso.com"),

Person("SteveFolley","CustomerService","steve.folley@contoso.com"),

Person("LarryCable","CustomerService","larry.cable@contoso.com")))

).observable()

Youcancreatea TreeTableViewbymergingthecomponentsneededfora TableViewand

TreeViewtogether.Youwillneedtocallthe populate()functionaswellassettheroot

TreeItem.

valtreeTableView=TreeTableView<Person>().apply{

column("Name",Person::nameProperty)

column("Department",Person::departmentProperty)

column("Email",Person::emailProperty)

///Createtherootitemthatholdsalltoplevelemployees

root=TreeItem(Person("Employeesbyleader","","",persons))

//Alwaysreturnemployeesunderthecurrentperson

populate{it.value.employees}

//Expandthetwofirstlevels

root.isExpanded=true

root.children.forEach{it.isExpanded=true}

//Resizetodisplayallelementsonthefirsttwolevels

resizeColumnsToFitContent()

}

Itisalsopossibletoworkwithmoreofanadhocbackingstorelikea Map.Thatwouldlook

somethinglikethis:

5.DataControls

valtableData=mapOf(

"Fruit"toarrayOf("apple","pear","Banana"),

"Veggies"toarrayOf("beans","cauliflower","cale"),

"Meat"toarrayOf("poultry","pork","beef")

)

treetableview<String>(TreeItem("Items")){

column<String,String>("Type",{it.value.valueProperty()})

populate{

if(it.value=="Items")tableData.keys

elsetableData[it.value]?.asList()

}

}

DataGrid

A DataGridissimilartothe GridPaneinthatitdisplaysitemsinaflexiblegridofrowsand

columns,butthesimilaritiesendsthere.Whilethe GridPanerequiresyoutoaddNodesto

thechildrenlist,the DataGridisdatadriveninthesamewayas TableViewand ListView.

Yousupplyitwithalistofitemsandtellithowtoconvertthosechildrentoagraphical

representation.

Itsupportsselectionofeitherasingleitemormultipleitemsatatimesoitcanbeusedasfor

examplethedisplayofanimageviewerorothercomponentswhereyouwantavisual

representationoftheunderlyingdata.Usagewiseitisclosetoa ListView,butyoucan

createanarbitraryscenegraphinsideeachcellsoitiseasytovisualizemultipleproperties

foreachitem.

valkittens=listOf("http://i.imgur.com/DuFZ6PQb.jpg","http://i.imgur.com/o2QoeNnb.j

pg")//moreitemshere

datagrid(kittens){

cellCache{

imageview(it)

}

}

Figure5.8

5.DataControls

The cellCachefunctionreceiveseachiteminthelist,andsinceweusedalistofStringsin

ourexample,wesimplypassthatstringtothe imageview()buildertocreatean ImageView

insideeachtablecell.Itisimportanttocallthe cellCachefunctioninsteadofthe

cellFormatfunctiontoavoidrecreatingtheimageseverytimethe DataGridredraws.Itwill

reusetheitems.

Let'screateascenegraphthatisalittlebitmoreinvolved,andalsochangethedefaultsize

ofeachcell:

5.DataControls

valnumbers=(1..10).toList()

datagrid(numbers){

cellHeight=75.0

cellWidth=75.0

multiSelect=true

cellCache{

stackpane{

circle(radius=25.0){

fill=Color.FORESTGREEN

}

label(it.toString())

}

}

}

Figure5.9

Thegridissuppliedwithalistofnumbersthistime.Westartbyspecifyingacellheightand

widthof75pixels,halfofthedefaultsize.Wealsoconfiguremultiselecttobeabletoselect

morethanasingleelement.Thisisashortcutofwriting selectionModel.selectionMode=

SelectionMode.MULTIPLEviaanextensionproperty.Wecreatea StackPanethatstacksa

Labelontopofa Circle.

5.DataControls

Youmightwonderwhythelabelgotsobigandboldbydefault.Thisiscomingfromthe

defaultstylesheet.Thestylesheetisagoodstartingpointforfurthercustomization.All

propertiesofthedatagridcanbeconfiguredincodeaswellasinCSS,andthe

stylesheetlistsallpossiblestyleproperties.

Thenumberlistshowcasedmultipleselection.Whenacellisselected,itreceivesthe

CSSpseudoclassof selected.Bydefaultitwillbehavemostlylikea ListViewrow

withregardstoselectionstyles.Youcanaccessthe selectionModelofthedatagridto

listenforselectionchanges,seewhatitemsareselectedetc.

Summary

Functionalconstructsworkwellwithdatacontrolslike TableView, TreeView,andotherswe

haveseeninthischapter.Usingthebuilderpatterns,youcanquicklyandfunctionally

declarehowdataisdisplayed.

InChapter7,wewillembedcontrolsinlayoutstocreatemorecomplexUI'seasily.

5.DataControls

Type-SafeCSS

WhileyoucancreateplaintextCSSstylesheetsinJavaFX,TornadoFXprovidestheoption

tobringtype-safetyandcompiledCSStoJavaFX.Youcanconvenientlychoosetocreate

stylesinitsownclass,ordoitinlinewithinacontroldeclaration.

InlineCSS

Thequickestandeasiestwaytostyleacontrolontheflyistocallagiven Node'sinline

style{}function.AlltheCSSpropertiesavailableonagivencontrolareavailableina

type-safemanner,withcompilationchecksandauto-completion.

Forexample,youcanstylethebordersona Button(usingthe box()function),boldits

font,androtateit(Figure6.1).

button("PressMe"){

style{

fontWeight=FontWeight.EXTRA_BOLD

borderColor+=box(

top=Color.RED,

right=Color.DARKGREEN,

left=Color.ORANGE,

bottom=Color.PURPLE

)

rotate=45.deg

}

setOnAction{println("Youpressedthebutton")}

}

Figure6.1

Thisisespeciallyhelpfulwhenyouwanttostyleacontrolwithoutbreakingthedeclaration

flowofthe Button.However,keepinmindthe style{}willreplaceallstylesappliedto

thatcontrolunlessyoupass trueforitsoptional appendargument.

6.TypeSafeCSS

style(append=true){

....

}

Sometimesyouwanttoapplythesamestylestomanynodesinonego.The style{}

functioncanalsobeappliedtoanyIterablethatcontainsNodes:

vbox{

label("First")

label("Second")

label("Third")

children.style{

fontWeight=FontWeight.BOLD

}

}

The fontWeightstyleisappliedtoallchildrenofthevbox,inessenceallthelabelswe

added.

Whenyourstylingcomplexitypassesacertainthreshold,youmaywanttoconsiderusing

Stylesheetswhichwewillcovernext.

ApplyingStyleClasseswithStylesheets

Ifyouwanttoorganize,re-use,combine,andoverridestylesyouneedtoleveragea

Stylesheet.TraditionallyinJavaFX,astylesheetisdefinedinaplainCSStextfileincluded

intheproject.However,TornadoFXallowscreatingstylesheetswithpureKotlincode.This

hasthebenefitsofcompilationchecks,auto-completion,andotherperksthatcomewith

staticallytypedcode.

Todeclarea Stylesheet,extenditontoyourownclasstoholdyourcustomizedstyles.

importtornadofx.*

classMyStyle:Stylesheet(){

}

Next,youwillwanttospecifyits companionobjecttoholdclass-levelpropertiesthatcan

easilyberetrieved.Declareanew cssclass()-delegatedpropertycalled tackyButton,and

definefourcolorswewilluseforitsborders.

6.TypeSafeCSS

importjavafx.scene.paint.Color

importtornadofx.*

classMyStyle:Stylesheet(){

companionobject{

valtackyButtonbycssclass()

privatevaltopColor=Color.RED

privatevalrightColor=Color.DARKGREEN

privatevalleftColor=Color.ORANGE

privatevalbottomColor=Color.PURPLE

}

}

Notealsoyoucanusethe c()functiontobuildcolorsquicklyusingRGBvaluesorcolor

Strings.

privatevaltopColor=c("#FF0000")

privatevalrightColor=c("#006400")

privatevalleftColor=c("#FFA500")

privatevalbottomColor=c("#800080")

Finally,declarean init()blocktoapplystylingtotheclasses.Defineyourselectionand

provideablockthatmanipulatesitsvariousproperties.(Forcompoundselections,callthe

s()function,whichisanaliasforthe select()function).Set rotateto10degrees,

definethe borderColorusingthefourcolorsandthe box()function,makethefontfamily

"ComicSansMS",andincreasethe fontSizeto20pixels.Notethatthereareextension

propertiesfor Numbertypestoquicklyyieldthevalueinthatunit,suchas 10.degfor10

degreesand 20.pxfor20pixels.

6.TypeSafeCSS

importjavafx.scene.paint.Color

importtornadofx.*

classMyStyle:Stylesheet(){

companionobject{

valtackyButtonbycssclass()

privatevaltopColor=Color.RED

privatevalrightColor=Color.DARKGREEN

privatevalleftColor=Color.ORANGE

privatevalbottomColor=Color.PURPLE

}

init{

tackyButton{

rotate=10.deg

borderColor+=box(topColor,rightColor,bottomColor,leftColor)

fontFamily="ComicSansMS"

fontSize=20.px

}

}

}

Nowyoucanapplythe tackyButtonstyletobuttons,labels,andothercontrolsthatsupport

theseproperties.Whilethisstylingcanworkwithothercontrolslikelabels,wearegoingto

targetbuttonsinthisexample.

First,loadthe MyStylestylesheetintoyourapplicationbyincludingitascontructor

parameter.

classMyApp:App(MyView::class,MyStyle::class){

init{

reloadStylesheetsOnFocus()

}

}

The reloadStylesheetsOnFocus()functioncallwillinstructTornadoFXtoreloadthe

Stylesheetseverytimethe Stagegetsfocus.Youcanalsopassthe --live-

stylesheetsargumenttotheapplicationtoaccomplishthis.

Important:Forthereloadtowork,youmustberunningtheJVMindebugmodeandyou

mustinstructyourIDEtorecompilebeforeyouswitchbacktoyourapp.Withoutthesesteps,

nothingwillhappen.Thisalsoappliesto reloadViewsOnFocus()whichissimilar,butreloads

thewholeviewinsteadofjustthestylesheet.Thisway,youcanevolveyourUIveryrapidly

ina"codechange,compile,refresh"manner.

6.TypeSafeCSS

Youcanapplystylesdirectlytoacontrolbycallingits addClass()function.Providethe

MyStyle.tackyButtonstyletotwobuttons(Figure6.2).

classMyView:View(){

overridevalroot=vbox{

button("PressMe"){

addClass(MyStyle.tackyButton)

}

button("PressMeToo"){

addClass(MyStyle.tackyButton)

}

}

}

Figure6.2

IntellijIDEAcanperformaquickfixtoimportmembervariables,allowing

addClass(MyStyle.tackyButton)tobeshortenedto addClass(tackyButton)ifyouprefer.

Youcanuse removeClass()toremovethespecifiedstyleaswell.

TargetingStylestoaType

OneofthebenefitsofusingpureKotlinisyoucantightlymanipulateUIcontrolbehaviorand

conditionsusingKotlincode.Forexample,youcanapplythestyletoany Buttonby

iteratingthroughacontrol's children,filteringforonlychildrenthatareButtons,and

applyingthe addClass()tothem.

classMyView:View(){

overridevalroot=vbox{

button("PressMe")

button("PressMeToo")

children.asSequence()

.filter{itisButton}

.forEach{it.addClass(MyStyle.tackyButton)}

}

}

6.TypeSafeCSS

Infact,manipulatingclassesonseveralnodesatonceissocommonthatTornadoFX

providesashortcutforit:

children.filter{itisButton}.addClass(MyStyle.tackyButton)}

Youcanalsotargetall Buttoninstancesinyourapplicationbyselectingandmodifyingthe

buttoninthe Stylesheet.ThiswillapplythestyletoallButtons.

importjavafx.scene.paint.Color

importtornadofx.*

classMyStyle:Stylesheet(){

companionobject{

valtackyButtonbycssclass()

privatevaltopColor=Color.RED

privatevalrightColor=Color.DARKGREEN

privatevalleftColor=Color.ORANGE

privatevalbottomColor=Color.PURPLE

}

init{

button{

rotate=10.deg

borderColor+=box(topColor,rightColor,leftColor,bottomColor)

fontFamily="ComicSansMS"

fontSize=20.px

}

}

}

importjavafx.scene.layout.VBox

importtornadofx.*

classMyApp:App(MyView::class,MyStyle::class){

init{

reloadStylesheetsOnFocus()

}

}

classMyView:View(){

overridevalroot=vbox{

button("PressMe")

button("PressMeToo")

}

}

6.TypeSafeCSS

Figure6.3

Notealsoyoucanselectmultipleclassesandcontroltypestomix-and-matchstyles.For

example,youcansetthefontsizeoflabelsandbuttonsto20pixels,andcreatetacky

bordersandfontsonlyforbuttons(Figure6.4).

classMyStyle:Stylesheet(){

companionobject{

privatevaltopColor=Color.RED

privatevalrightColor=Color.DARKGREEN

privatevalleftColor=Color.ORANGE

privatevalbottomColor=Color.PURPLE

}

init{

s(button,label){

fontSize=20.px

}

button{

rotate=10.deg

borderColor+=box(topColor,rightColor,leftColor,bottomColor)

fontFamily="ComicSansMS"

}

}

}

classMyApp:App(MyView::class,MyStyle::class){

init{

reloadStylesheetsOnFocus()

}

}

classMyView:View(){

overridevalroot=vbox{

label("LoremIpsum")

button("PressMe")

button("PressMeToo")

}

}

6.TypeSafeCSS

Figure6.4

Multi-ValueCSSProperties

SomeCSSpropertiesacceptmultiplevalues,andTornadoFXStylesheetscanstreamline

thiswiththe multi()function.Thisallowsyoutospecifymultiplevaluesviaa varargs

parameterandletTornadoFXtakecareoftherest.Forinstance,youcannestmultiple

backgroundcolorsandinsetsintoacontrol(Figure6.5).

label("LoreIpsum"){

style{

fontSize=30.px

backgroundColor=multi(Color.RED,Color.BLUE,Color.YELLOW)

backgroundInsets=multi(box(4.px),box(8.px),box(12.px))

}

}

Figure6.5

The multi()functionshouldworkwherevermultiplevaluesareaccepted.Ifyouwantto

onlyassignasinglevaluetoapropertythatacceptsmultiplevalues,youwillneedtousethe

plusAssign()operatortoaddit(Figure6.6).

6.TypeSafeCSS

label("LoreIpsum"){

style{

fontSize=30.px

backgroundColor+=Color.RED

backgroundInsets+=box(4.px)

}

}

Figure6.6

NestingStyles

Insideaselectorblockyoucanapplyfurtherstylestargetingchildcontrols.

Forinstance,defineaCSSclasscalled critical.Makeitputanorangeborderaroundany

controlitisappliedto,andpaditby5pixels.

classMyStyle:Stylesheet(){

companionobject{

valcriticalbycssclass()

}

init{

critical{

borderColor+=box(Color.ORANGE)

padding=box(5.px)

}

}

}

Butsupposewhenweapplied criticaltoanycontrol,suchasan HBox,wewantittoadd

additionalstylingstobuttonsinsidethatcontrol.Nestinganotherselectionwilldothetrick.

6.TypeSafeCSS

classMyStyle:Stylesheet(){

companionobject{

valcriticalbycssclass()

}

init{

critical{

borderColor+=box(Color.ORANGE)

padding=box(5.px)

button{

backgroundColor+=Color.RED

textFill=Color.WHITE

}

}

}

}

Nowwhenyouapply criticaltosay,an HBox,allbuttonsinsidethat HBoxwillgetthat

definedstylefor button(Figure6.7)

classMyApp:App(MyView::class,MyStyle::class){

init{

reloadStylesheetsOnFocus()

}

}

classMyView:View(){

overridevalroot=hbox{

addClass(MyStyle.critical)

button("Warning!")

button("Danger!")

}

}

Figure6.7

Thereisonecriticalthingtonotconfusehere.TheorangeborderisonlyappliedtotheHBox

sincethe criticalclasswasappliedtoit.Thebuttonsdonotgetanorangeborder

becausetheyarechildrentothe HBox.Whiletheirstyleisdefinedby critical,theydo

notinheritthestylesoftheirparent,onlythosedefinedfor button.

6.TypeSafeCSS

Ifyouwantthebuttonstogetanorangebordertoo,youneedtoapplythe criticalclass

directlytothem.Youwillwanttousethe and()toapplyspecificstylestobuttonsthatare

alsodeclaredas critical.

classMyStyle:Stylesheet(){

companionobject{

valcriticalbycssclass()

}

init{

critical{

borderColor+=box(Color.ORANGE)

padding=box(5.px)

and(button){

backgroundColor+=Color.RED

textFill=Color.WHITE

}

}

}

}

classMyApp:App(MyView::class,MyStyle::class){

init{

reloadStylesheetsOnFocus()

}

}

classMyView:View(){

overridevalroot=hbox{

addClass(MyStyle.critical)

button("Warning!"){

addClass(MyStyle.critical)

}

button("Danger!"){

addClass(MyStyle.critical)

}

}

}

Figure6.8

6.TypeSafeCSS

Nowyouhaveorangebordersaroundthe HBoxaswellasthebuttons.Whennesting

styles,keepinmindthatwrappingtheselectionwith and()willcascadestylestochildren

controlsorclasses.

Mixins

Therearetimesyoumaywanttoreuseasetofstylingsandapplythemtoseveralcontrols

andselectors.Thispreventsyoufromhavingtoredundantlydefinethesamepropertiesand

values.Forinstance,ifyouwanttocreateasetofstylingcalled redAllTheThings,youcould

defineitasamixinasshownbelow.Thenyoucanreuseitfora redStyleclass,aswellas

a textInput,a label,anda passwordFieldwithadditionalstylemodifications(Figure

6.9).

Stylesheet

6.TypeSafeCSS

importjavafx.scene.paint.Color

importjavafx.scene.text.FontWeight

importtornadofx.*

classStyles:Stylesheet(){

companionobject{

valredStylebycssclass().

}

init{

valredAllTheThings=mixin{

backgroundInsets+=box(5.px)

borderColor+=box(Color.RED)

textFill=Color.RED

}

redStyle{

+redAllTheThings

}

s(textInput,label){

+redAllTheThings

fontWeight=FontWeight.BOLD

}

passwordField{

+redAllTheThings

backgroundColor+=Color.YELLOW

}

}

}

AppandView

6.TypeSafeCSS

classMyApp:App(MyView::class,Styles::class)

classMyView:View("MyView"){

overridevalroot=vbox{

label("Enteryourlogin")

form{

fieldset{

field("Username"){

textfield()

}

field("Password"){

passwordfield()

}

}

}

button("Go!"){

addClass(Styles.redStyle)

}

}

}

Figure6.9

Thestylesheetisappliedtotheapplicationbyaddingitasaconstructorparametertothe

Appclass.Thisisavarargparameter,soyoucansendinacommaseparatedlistofmultiple

stylesheets.Ifyouwanttoloadstylesheetsdynamicallybasedonsomecondition,youcan

call importStylesheet(Styles::classfromanywhere.AnyUIComponentopenedafterthe

callto importStylesheetwillgetthestylesheetapplied.Youcanalsoloadnormaltextbased

cssstylesheetswiththisfunction:

importStylesheet("/mystyles.css")

Loadingatextbasedcssstylesheet

IfyoufindyouarerepeatingyourselfsettingthesameCSSpropertiestothesamevalues,

youmightwanttoconsiderusingmixinsandreusingthemwherevertheyareneededina

Stylesheet.

6.TypeSafeCSS

ModifierSelections

TornadoFXalsosupportsmodifierselectionsbyleveraging and()functionswithina

selection.Themostcommoncasethisishandyisstylingfor"selected"andcursor"hover"

contextsforacontrol.

IfyouwantedtocreateaUIthatwillmakeany Buttonredwhenitishoveredover,andany

selected Cellindatacontrolssuchas ListViewred,youcandefinea Stylesheetlike

this(Figure6.10).

Stylesheet

importjavafx.scene.paint.Color

importtornadofx.Stylesheet

classStyles:Stylesheet(){

init{

button{

and(hover){

backgroundColor+=Color.RED

}

}

cell{

and(selected){

backgroundColor+=Color.RED

}

}

}

}

AppandView

importtornadofx.*

classMyApp:App(MyView::class,Styles::class)

classMyView:View("MyView"){

vallistItems=listOf("Alpha","Beta","Gamma").observable()

and

overridevalroot=vbox{

button("Hoveroverme")

listview(listItems)

}

}

6.TypeSafeCSS

Figure6.10-Acellisselectedandthe Buttonisbeinghoveredover.Botharenowred.

Wheneveryouneedmodifiers,usethe select()functiontomakethosecontextualstyle

modifications.

Control-SpecificStylesheets

Ifyoudecidetocreateyourowncontrols(oftenbyextendinganexistingcontrol,like

Button),JavaFXallowsyoutopairastylesheetwithit.Inthissituation,itisadvantageous

toloadthis Stylesheetonlywhenthiscontrolisloaded.Forinstance,ifyouhavea

DangerButtonclassthatextends Button,youmightconsidercreatinga Stylesheet

specificallyforthat DangerButton.ToallowJavaFXtoloadit,youneedtooverridethe

getUserAgentStyleSheet()functionasshownbelow.Thiswillconvertyourtype-safe

StylesheetintoplaintextCSSthatJavaFXnativelyunderstands.

classDangerButton:Button("Danger!"){

init{

addClass(DangerButtonStyles.dangerButton)

}

overridefungetUserAgentStylesheet()=DangerButtonStyles().base64URL.toExternalF

orm()

}

classDangerButtonStyles:Stylesheet(){

companionobject{

valdangerButtonbycssclass()

}

init{

dangerButton{

backgroundInsets+=box(0.px)

fontWeight=FontWeight.BOLD

fontSize=20.px

padding=box(10.px)

}

}

}

6.TypeSafeCSS

The DangerButtonStyles().base64URL.toExternalForm()expressioncreatesaninstanceofthe

DangerButtonStyles,andturnsitintoaURLcontainingtheentirestylesheetthatJavaFX

canconsume.

Conclusion

TornadoFXdoesagreatjobexecutingabrilliantconcepttomakeCSStype-safe,andit

furtherdemonstratesthepowerofKotlinDSL's.Configurationthroughstatictextfilesisslow

toexpresswith,buttype-safeCSSmakesitfluentandquickespeciallywithIDEauto-

completion.EvenifyouarepragmaticaboutUI'sandfeelstylingissuperfluous,therewillbe

timesyouneedtoleverageconditionalformattingandhighlightingsorules"popout"inaUI.

Atminimum,getcomfortableusingtheinline style{}blocksoyoucanquicklyaccess

stylingpropertiesthatcannotbeaccessedanyotherway(suchas TextWeight).

6.TypeSafeCSS

LayoutsandMenus

ComplexUI'srequiremanycontrols.Itislikelythesecontrolsneedtobegrouped,

positioned,andsizedwithsetpolicies.FortunatelyTornadoFXstreamlinesmanylayoutsthat

comewithJavaFX,aswellasfeaturesitsownproprietary Formlayout.

TornadoFXalsohastype-safebuilderstocreatemenusinahighlystructured,declarative

way.MenuscanbeespeciallycumbersometobuildusingconventionalJavaFXcode,and

Kotlinreallyshinesinthisdepartment.

BuildersforLayouts

Layoutsgroupcontrolsandsetpoliciesabouttheirsizingandpositioningbehavior.

Technically,layoutsthemselvesarecontrolssothereforeyoucannestlayoutsinside

layouts.ThisiscriticalforbuildingcomplexUI's,andTornadoFXmakesmaintenanceofUI

codeeasierbyvisiblyshowingthenestedrelationships.

VBox

A VBoxstackscontrolsverticallyintheordertheyaredeclaredinsideitsblock(Figure7.1).

vbox{

button("Button1").setOnAction{

println("Button1Pressed")

}

button("Button2").setOnAction{

println("Button2Pressed")

}

}

Figure7.1

Youcanalsocall vboxConstraints()withinachild'sblocktochangethemarginandvertical

growingbehaviorsofthe VBox.

7.LayoutsandMenus

vbox{

button("Button1"){

vboxConstraints{

marginBottom=20.0

vGrow=Priority.ALWAYS

}

}

button("Button2")

}

Youcanuseashorthandextensionpropertyfor vGrowwithoutcalling vboxConstraints().

vbox{

button("Button1"){

vGrow=Priority.ALWAYS

}

button("Button2")

}

HBox

HBoxbehavesalmostidenticallyto VBox,butitstacksallcontrolshorizontallyleft-to-right

intheorderdeclaredinitsblock.

hbox{

button("Button1").setOnAction{

println("Button1Pressed")

}

button("Button2").setOnAction{

println("Button2Pressed")

}

}

Figure7.2

Youcanalsocall hboxconstraints()withintheachild'sblocktochangethemarginand

horizontalgrowingbehaviorsofthe HBox.

7.LayoutsandMenus

hbox{

button("Button1"){

hboxConstraints{

marginRight=20.0

hGrow=Priority.ALWAYS

}

}

button("Button2")

}

Youcanuseashorthandextensionpropertyfor hGrowwithoutcalling hboxConstraints().

hbox{

button("Button1"){

hGrow=Priority.ALWAYS

}

button("Button2")

}

FlowPane

The FlowPanelaysoutcontrolsleft-to-rightandwrapstothenextlineontheboundary.For

example,sayyouadded100buttonstoa FlowPane(Figure7.3).Youwillnoticeitsimply

laysoutbuttonsfromleft-to-right,andwhenitrunsoutofroomitmovestothe"nextline".

flowpane{

for(iin1..100){

button(i.toString()){

setOnAction{println("Youpressedbutton$i")}

}

}

}

Figure7.3

7.LayoutsandMenus

Noticealsowhenyouresizethewindow,the FlowLayoutwillre-wrapthebuttonssotheyall

canfit(Figure7.4)

Figure7.4

The FlowLayoutisnotusedoftenbecauseitisoftensimplisticforhandlingalargenumber

ofcontrols,butitcomesinhandyforcertainsituationsandcanbeusedinsideotherlayouts.

BorderPane

The BorderPaneisahighlyusefullayoutthatdividescontrolsinto5regions: top, left,

bottom, right,and center.ManyUI'scaneasilybebuiltusingtwoormoreofthese

regionstoholdcontrols(Figure7.5).

7.LayoutsandMenus

borderpane{

top=label("TOP"){

useMaxWidth=true

style{

backgroundColor=Color.RED

}

}

bottom=label("BOTTOM"){

useMaxWidth=true

style{

backgroundColor=Color.BLUE

}

}

left=label("LEFT"){

useMaxWidth=true

style{

backgroundColor=Color.GREEN

}

}

right=label("RIGHT"){

useMaxWidth=true

style{

backgroundColor=Color.PURPLE

}

}

center=label("CENTER"){

useMaxWidth=true

style{

backgroundColor=Color.YELLOW

}

}

}

FIGURE7.5

Youwillnoticethatthe topand bottomregionstakeuptheentirehorizontalspace,while

left, center,and rightmustsharetheavailablehorizontalspace.But centeris

entitledtoanyextraavailablespace(verticallyandhorizontally),makingitidealtoholdlarge

controlslike TableView.Forinstance,youmayverticallystacksomebuttonsinthe left

regionandputa TableViewinthe centerregion(Figure7.6).

7.LayoutsandMenus

borderpane{

left=vbox{

button("REFRESH")

button("COMMIT")

}

center=tableview<Person>{

items=listOf(

Person("JoeThompson",33),

Person("SamSmith",29),

Person("NancyReams",41)

).observable()

column("NAME",Person::name)

column("AGE",Person::age)

}

}

Figure7.6

BorderPaneisalayoutyouwilllikelywanttouseoftenbecauseitsimplifiesmanycomplex

UI's.The topregioniscommonlyusedtoholda MenuBarandthe bottomregionoften

holdsastatusbarofsomekind.Youhavealreadyseen centerholdthefocalcontrolsuch

asa TableView,and leftand rightholdsidepanelswithanyperipheralcontrols(like

ButtonsorToolbars)notappropriateforthe MenuBar.WewilllearnaboutMenuslaterinthis

section.

FormBuilder

TornadoFXhasahelpful Formcontroltohandlealargenumberofuserinputs.Having

severalinputfieldstotakeuserinformationiscommonandJavaFXdoesnothaveabuilt-in

solutiontostreamlinethis.Toremedythis,TornadoFXhasabuildertodeclarea Formwith

anynumberoffields(Figure7.7).

7.LayoutsandMenus

form{

fieldset("PersonalInfo"){

field("FirstName"){

textfield()

}

field("LastName"){

textfield()

}

field("Birthday"){

datepicker()

}

}

fieldset("Contact"){

field("Phone"){

textfield()

}

field("Email"){

textfield()

}

}

button("Commit"){

action{println("Wrotetodatabase!")}

}

}

Figure7.7

7.LayoutsandMenus



7.LayoutsandMenus

Awesomeright?Youcanspecifyoneormorecontrolsforeachofthefields,andthe Form

willrenderthegroupingsandlabelsforyou.

Youcanchoosetolayoutthelabelabovetheinputsaswell:

fieldset("FieldSet",labelPosition=VERTICAL)

Each fieldrepresentsacontainerwiththelabelandanothercontainerfortheinputfields

youaddinsideit.Theinputcontainerisbydefaultan HBox,meaningthatmultipleinputs

withinasinglefieldwillbelaidoutnexttoeachother.Youcanspecifythe orientation

parametertoafieldtomakeitlayoutmultipleinputsbeloweachother.Anotherusecasefor

Verticalorientationistoallowaninputtogrowastheformexpandsvertically.Thisishandy

fordisplayingTextAreasinForms:

form{

fieldset("FeedbackForm",labelPosition=VERTICAL){

field("Comment",VERTICAL){

textarea{

prefRowCount=5

vgrow=Priority.ALWAYS

}

}

buttonbar{

button("Send")

}

}

}

Figure7.8

7.LayoutsandMenus

Theexampleabovealsousesthe buttonbarbuildertocreateaspecialfieldwithnolabel

whileretainingthelabelindentsothebuttonslineupundertheinputs.

Youbindeachinputtoamodel,andyoucanleavetherenderingofthecontrollayoutstothe

Form.Forthisreasonyouwilllikelywanttousethisoverthe GridPaneifpossible,which

wewillcovernext.

NestinglayoutsinsideaForm

Youcanwrapbothfieldsetsandfieldswithanylayoutcontainerofyourchoosingtocreate

complexformlayouts.

7.LayoutsandMenus

100

form{

hbox(20){

fieldset("LeftFieldSet"){

hbox(20){

vbox{

field("Fieldl1a"){textfield()}

field("Fieldl2a"){textfield()}

}

vbox{

field("Fieldl1b"){textfield()}

field("Fieldl2b"){textfield()}

}

}

}

fieldset("RightFieldSet"){

hbox(20){

vbox{

field("Fieldr1a"){textfield()}

field("Fieldr2a"){textfield()}

}

vbox{

field("Fieldr1b"){textfield()}

field("Fieldr2b"){textfield()}

}

}

}

}

}

TheHBoxesareconfiguredwithaspacingof20pixels,usingtheparameterforthe hbox

builder.Itcanalsobespecifiedas hbox(spacing=20)forclarity.

Figure7.9

GridPane

Ifyouwanttomicromanagethelayoutofyourcontrols,the GridPanewillgiveyouplentyof

that.Ofcourseitrequiresmoreconfigurationandcodeboilerplate.Beforeproceedingtouse

a GridPane,youmightwanttoconsiderusing Formorotherlayoutsthatabstractlayout

configurationforyou.

7.LayoutsandMenus

101

Onewaytouse GridPaneistodeclarethecontentsofeach row.Foranygiven Nodeyou

cancallits gridpaneConstraintstoconfigurevarious GridPanebehaviorsforthat Node,

suchas marginand columnSpan(Figure7.10)

gridpane{

row{

button("North"){

useMaxWidth=true

gridpaneConstraints{

marginBottom=10.0

columnSpan=2

}

}

}

row{

button("West")

button("East")

}

row{

button("South"){

useMaxWidth=true

gridpaneConstraints{

marginTop=10.0

columnSpan=2

}

}

}

}

Figure7.11

Noticehowthereisamarginof 10.0betweeneachrow,whichwasdeclaredforthe

marginBottomand marginTopofthe"North"and"South"buttonsrespectivelyinsidetheir

gridpaneConstraints.

Alternatively,youcanexplicitlyspecifythecolumn/rowindexpositionsforeach Noderather

thandeclaringeach rowofcontrols.Thiswillaccomplishtheexactlayoutwebuilt

previously,butwithcolumn/rowindexspecificationsinstead.Itisabitmoreverbose,butit

7.LayoutsandMenus

102

givesyoumoreexplicitcontroloverthepositionsofcontrols.

gridpane{

button("North"){

useMaxWidth=true

gridpaneConstraints{

columnRowIndex(0,0)

marginBottom=10.0

columnSpan=2

}

}

button("West").gridpaneConstraints{

columnRowIndex(0,1)

}

button("East").gridpaneConstraints{

columnRowIndex(1,1)

}

button("South"){

useMaxWidth=true

gridpaneConstraints{

columnRowIndex(0,2)

marginTop=10.0

columnSpan=2

}

}

}

Theseareallthe gridpaneConstraintsattributesyoucanmodifyonagiven Node.Some

areexpressedassimplepropertiesthatcanbeassignedwhileothersareassignable

throughfunctions.

7.LayoutsandMenus

103

Attribute Description

columnIndex:Int Thecolumnindexforthegivencontrol

rowIndex:Int Therowindexforthegivencontrol

columnRowIndex(columnIndex:Int,

rowIndex:Int) Specifestherowandcolumnindex

columnSpan:Int Thenumberofcolumnsthecontroloccupies

rowSpan:Int Thenumberofrowsthecontroloccupies

hGrow:Priority Thehorizonalgrowpriority

vGrow:Priority Theverticalgrowpriority

vhGrow:Priority Specifiesthesamepriorityfor vGrowand

hGrow

fillHeight:Boolean Setswhetherthe Nodefillstheheightofits

area

fillWidth:Boolean Setswhetherthe Nodefillesthewidthofits

area

fillHeightWidth:Boolean Setswhetherthe Nodefillsitsareaforboth

heightandwidth

hAlignment:HPos Thehorizonalalignmentpolicy

vAlignment:VPos Theverticalalignmentpolicy

margin:Int Themarginforallfoursidesofthe Node

marginBottom:Int Themarginforthebottomsideofthe Node

marginTop:Int Themarginforthetopsideofthe Node

marginLeft:Int Theleftmarginfortheleftsideofthe Node

marginRight:Int Therightmarginfortherightsideofthe Node

marginLeftRight:Int Therightandleftmarginsforthe Node

marginTopBottom:Int Thetopandbottommarinsfora Node

Additionally,ifyouneedtoconfigure ColumnConstraints,youcancall

gridpaneColumnConstraintsonanychild Node,or constraintsForColumn(columnIndex)on

the GridPaneitself.

7.LayoutsandMenus

104

gridpane{

row{

button("Left"){

gridpaneColumnConstraints{

percentWidth=25.0

}

}

button("Middle")

button("Right")

}

constraintsForColumn(1).percentWidth=50.0

}

StackPane

A StackPaneisalayoutyouwilluselessoften.Foreachcontrolyouadd,itwillliterallystack

themontopofeachothernotlikea VBox,butliterallyoverlaythem.

Forinstance,youcancreatea"BOTTOM" Buttonandputa"TOP" Buttonontopofit.

Theorderyoudeclarecontrolswilladdthemfrombottom-to-topinthatsameorder(Figure

7.10).

classMyView:View(){

overridevalroot=stackpane{

button("BOTTOM"){

useMaxHeight=true

useMaxWidth=true

style{

backgroundColor+=Color.AQUAMARINE

fontSize=40.0.px

}

}

button("TOP"){

style{

backgroundColor+=Color.WHITE

}

}

}

}

Figure7.11

7.LayoutsandMenus

105

TabPane

A TabPanecreatesaUIwithdifferentscreensseparatedby"tabs".Thisallowsswitching

betweendifferentscreensquicklyandeasilybyclickingonthecorrespondingtab(Figure

7.11).Youcandeclarea tabpane()andthendeclareasmany tab()instancesasyou

need.Foreach tab()functionpassinthenameofthe Tabandtheparent Nodecontrol

topopulateit.

tabpane{

tab("Screen1",VBox()){

button("Button1")

button("Button2")

}

tab("Screen2",HBox()){

button("Button3")

button("Button4")

}

}

Figure7.12

TabePaneisaneffectivetooltoseparatescreensandorganizeahighnumberofcontrols.

Thesyntaxissomewhatsuccinctenoughtodeclarecomplexcontrolslike TableViewright

insidethe tab()block(Figure7.13).

7.LayoutsandMenus

106

tabpane{

tab("Screen1",VBox()){

button("Button1")

button("Button2")

}

tab("Screen2",HBox()){

tableview<Person>{

items=listOf(

Person(1,"SamanthaStuart",LocalDate.of(1981,12,4)),

Person(2,"TomMarks",LocalDate.of(2001,1,23)),

Person(3,"StuartGills",LocalDate.of(1989,5,23)),

Person(3,"NicoleWilliams",LocalDate.of(1998,8,11))

).observable()

column("ID",Person::id)

column("Name",Person::name)

column("Birthday",Person::birthday)

column("Age",Person::age)

}

}

}

Figure7.13

7.LayoutsandMenus

107

Likemanybuilders,the TabPanehasseveralpropertiesthatcanadjustthebehaviorofits

tabs.Forinstance,youcancall tabClosingPolicytogetridofthe"X"buttonsonthetabsso

theycannotbeclosed.

classMyView:View(){

overridevalroot=tabpane{

tabClosingPolicy=TabPane.TabClosingPolicy.UNAVAILABLE

tab("Screen1",VBox()){

button("Button1")

button("Button2")

}

tab("Screen2",HBox()){

button("Button3")

button("Button4")

}

}

}

BuildersforMenus

Creatingmenuscanbecumbersometobuildinastrictlyobject-orientedway.Butusing

type-safebuilders,Kotlin'sfunctionalconstructsmakeitintuitivetodeclarenestedmenu

hierarchies.

MenuBar,Menu,andMenuItem

Itisnotuncommontousenavigablemenustokeepalargenumberofcommandsonauser

interfaceorganized.Forinstance,the topregionofa BorderPaneistypicallywherea

MenuBargoes.Thereyoucanaddmenusandsubmenuseasily(Figure7.5).

menubar{

menu("File"){

menu("Connect"){

item("Facebook")

item("Twitter")

}

item("Save")

item("Quit")

}

menu("Edit"){

item("Copy")

item("Paste")

}

}

7.LayoutsandMenus

108

Figure7.14

Youcanalsooptionallyprovidekeyboardshortcuts,graphics,aswellasan actionfunction

parameterforeach item()tospecifytheactionwhenitisselected(Figure7.14).

menubar{

menu("File"){

menu("Connect"){

item("Facebook",graphic=fbIcon).action{println("ConnectingFacebook!"

)}

item("Twitter",graphic=twIcon).action{println("ConnectingTwitter!")

}

}

item("Save","Shortcut+S").action{

println("Saving!")

}

menu("Quit","Shortcut+Q").action{

println("Quitting!")

}

}

menu("Edit"){

item("Copy","Shortcut+C").action{

println("Copying!")

}

item("Paste","Shortcut+V").action{

println("Pasting!")

}

}

}

Figure7.14

7.LayoutsandMenus

109

Separators

Youcandeclarea separator()betweentwoitemsina Menutocreateadividerline.This

ishelpfultogroupcommandsina Menuanddistinctlyseparatethem(Figure7.15).

menu("File"){

menu("Connect"){

item("Facebook")

item("Twitter")

}

separator()

item("Save","Shortcut+S"){

println("Saving!")

}

item("Quit","Shortcut+Q"){

println("Quitting!")

}

}

Figure7.15

7.LayoutsandMenus

110

ContextMenu

MostcontrolsinJavaFXhavea contextMenupropertywhereyoucanassigna ContextMenu

instance.Thisisa Menuthatpopsupwhenthecontrolisright-clicked.

A ContextMenuhasfunctionstoadd Menuand MenuIteminstancestoitjustlikea

MenuBar.Itcanbehelpfultoadda ContextMenutoa TableView<Person>,forexample,and

providecommandstobedoneonatablerecord(Figure7.16).Thereisabuildercalled

contextmenuthatwillbuilda ContextMenuandassignittothe contextMenupropertyofthe

control.

tableview(persons){

column("ID",Person::id)

column("Name",Person::name)

column("Birthday",Person::birthday)

column("Age",Person::age)

contextmenu{

item("SendEmail").action{

selectedItem?.apply{println("SendingEmailto$name")}

}

item("ChangeStatus").action{

selectedItem?.apply{println("ChangingStatusfor$name")}

}

}

}

Figure7.16

7.LayoutsandMenus

111

Notetherearealso RadioMenuItemand CheckMenuItemvariantsof MenuItemavailable.

The menuitembuilderstaketheactiontoperformwhenthemenuisselectedastheop

blockparameter.Unfortunately,thisbreakswiththeotherbuilders,wheretheopblock

operatesontheelementthatthebuildercreated.Therefore,the itembuilderwas

introducedasanalternative,whereyouoperateontheitemitself,sothatyoumustcall

setOnActiontoassigntheaction.The menuitembuilderisnotdeprecated,asitsolvesthe

commoncaseinamoreconcisewaythanthe itembuilder.

ListMenu

TornadoFXcomeswithalistmenuthatbehavesandlooksmorelikeatypical ul/libased

HTML5menu.

7.LayoutsandMenus

112

Thefollowingcodeexampleshowshowtousethe ListMenuwiththebuilderpattern:

listmenu(theme="blue"){

item(text="Contacts",graphic=Styles.contactsIcon()){

//Marksthisitemasactive.

activeItem=this

whenSelected{/*Dosomeaction*/}

}

item(text="Projects",graphic=Styles.projectsIcon())

item(text="Settings",graphic=Styles.settingsIcon())

}

ThefollowingAttributescanbeusedtoconfigurethe ListMenu:

7.LayoutsandMenus

113

Attribute Builder-

Attribute Type Default Description

orientation yes Orientation VERTICAL

Configuresthe

orientationofthe

ListMenu.Possible

orientations:

VERTICAL

HORIZONTAL

iconPosition yes Side LEFT

Configurestheicon

positionofthe ListMenu.

Possiblepositions:

TOP

BOTTOM

LEFT

RIGHT

theme yes String null

Currentlysupported

themes blue, null.If

nullissetthedefault

graythemeisused.

tag yes Any? null

TheTagcanbeany

objector null,itcan

beusefultoidentifythe

ListMenu

activeItem no ListMenuItem? null

Represent'sthecurrent

active ListMenuItemof

the ListMenu.Toselect

a ListMenuoncreation,

justassignthespecific

ListItemtothis

property(havealookat

thecontacts

ListMenuIteminthe

codeexampleabove.)

CssProperties

7.LayoutsandMenus

114

Css-Class Css-

Property Default Description

.list-menu -fx-graphic-

fixed-size 2em Thegraphic

size.

.list-menu

.list-item -fx-cursor hand Thecursor

symbol.

.list-menu

.list-item -fx-padding 10

Thepadding

foreach

item

.list-menu

.list-item

-fx-

background-

color

-fx-shadow-highlight-color,-fx-outer-

border,-fx-inner-border,-fx-body-

color

Thecolorof

the item

.list-menu

.list-item

-fx-

background-

insets

00-0.50,0,0.5,1.5 Theinsetsof

each item.

.list-menu

.list-item

.label -fx-text-fill -fx-text-base-color

Thetext

colorofeach

item.

PseudoClasses

Pseudo-

Class

Css-

Property Default Description

.list-menu

.list-

item:active

-fx-

background-

color

-fx-focus-color,-fx-inner-border,-

fx-body-color,-fx-faint-focus-color,

-fx-body-color

Thecolorwillbe

setifthe item

isactive.

.list-menu

.list-

item:active

-fx-

background-

insets

-0.2,1,2,-1.4,2.6

Insetswillbeset

ifthe itemis

active.

.list-menu

.list-

item:hover -fx-color -fx-hover-base Thehovercolor.

HavealookatthedefaultStylesheetfortheListMenu

Item

The itembuilderallowstocreate itemsforthe ListMenuinaveryconvenientway.The

followingsyntaxissupported:

7.LayoutsandMenus

115

item("SomeText",graphic=SomeNode,tag=SomeObject){

//Marksthisitemasactive.

activeItem=this

//Dosomeactionwhenselected

whenSelected{/*Action*/}

}

Attribute Builder-

Attribute Type Default Description

text yes String? null Thetextwhichshouldbesetforthe

given item.

tag yes Any? null

TheTagcanbeany objector null

andcanbeusefultoidentifythe

ListItem

graphic yes Node? null

The graphiccanbeany Nodeand

willbedisplayedbesidethegiven

text.

Function Description

whenSelected Aconvincefunction,whichwillbecalledanytimethegiven

ListMenuItemisselected.

Fillingtheparentcontainer

The useMaxWidthpropertycanbeusedtofilltheparentcontainerhorizontally.The

useMaxHeightpropertywillfilltheparentcontainervertically.Thesepropertiesactually

appliestoallNodes,butisespeciallyusefulforthe ListMenu.

SqueezeBox

JavaFXhasanAccordioncontrolthatletsyougroupasetof TilePanestogethertoforman

accordionofcontrols.TheJavaFXAccordiononlyletsyouopenasingleaccordionfoldata

time,andithassomeothershortcomings.Tosolvethis,TornadoFXcomeswiththe

SqueezeBoxcomponentthatbehavesandlooksverysimilartotheAccordion,while

providingsomeenhancements.

7.LayoutsandMenus

116

squeezebox{

fold("CustomerEditor",expanded=true){

form{

fieldset("CustomerDetails"){

field("Name"){textfield()}

field("Password"){textfield()}

}

}

}

fold("Someothereditor",expanded=true){

stackpane{

label("Nothinghere")

}

}

}

Figure7.17

ASqueezeboxshowingtwofolds,bothexpandedbydefault

YoucantelltheSqueezeBoxtoonlyallowasinglefoldtobeexpandedatanygiventimeby

passing multiselect=falsetothebuilderconstructor.

Youcanoptionallyallowfoldstobeclosablebyclickingacrossintherightcornerofthetitle

paneforthefold.Youenabletheclosebuttonsonaperfoldbasisbypassing closeable=

truetothe foldbuilder.

7.LayoutsandMenus

117

squeezebox{

fold("CustomerEditor",expanded=true,closeable=true){

form{

fieldset("CustomerDetails"){

field("Name"){textfield()}

field("Password"){textfield()}

}

}

}

fold("Someothereditor",closeable=true){

stackpane{

label("Nothinghere")

}

}

}

Figure7.18

ThisSqueezeBoxhascloseablefolds

The closeablepropertycanofcoursebecombinedwith expanded.

AnotherimportantdifferencebetweentheSqueezeBoxandtheAccordionisthewayit

distributesoverflowingspace.TheAccordionwillextendverticallytofillitsparentcontainer

andpushanyfoldsbelowthecurrentlyopenedonesallthewaytothebottom.Thiscreates

anunnaturallookingviewiftheparentcontainerisverylarge.Thesqueezeboxprobably

doeswhatyouwantbydefaultinthisregard,butyoucanadd fillHeight=truetogeta

similarlookastheAccordion.I

7.LayoutsandMenus

118

YoucanstyletheSqueezeBoxlikeyoustyleaTitlePane.Theclosebuttonhasacssclass

called close-buttonandthecontainerhasacssclasscalled squeeze-box.

Drawer

TheDrawerisanavigationcomponentmuchlikeaTabPane,butitorganizeseachdrawer

iteminaverticallyorhorizontallyplacedbuttonbaroneithersideoftheparentcontainer.It

resemblesthetooldrawersfoundinmanypopularbusinessapplicationsandIDEs.Whenan

itemisselected,thecontentfortheitemisdisplayednexttoorabove/belowthebuttonsina

contentareaspanningtheheightorwidthofthecontrolandthepreferredwidthorheightof

thecontent,dependingonwhetheritisdockedinaverticalorhorizontalsideoftheparent.

In multiselectmodeitwillevenletyouopenmultipledraweritemssimutaneouslyand

havethemsharethespacebetweenthem.Theywillalwaysopenintheorderofthe

correspondingbuttons.

7.LayoutsandMenus

119

classDrawerView:View("TornadoFXInfoBrowser"){

overridevalroot=drawer{

item("Screencasts",expanded=true){

webview{

prefWidth=470.0

engine.userAgent=iPhoneUserAgent

engine.load(TornadoFXScreencastsURI)

}

}

item("Links"){

listview(links){

cellFormat{link->

graphic=hyperlink(link.name){

setOnAction{

hostServices.showDocument(link.uri)

}

}

}

}

}

item("People"){

tableview(people){

column("Name",Person::name)

column("Nick",Person::nick)

}

}

}

classLink(valname:String,valuri:String)

classPerson(valname:String,valnick:String)

//Sampledatavariablesleftout(iPhoneUserAgent,TornadoFXScreencastsURI,people

andlinks)

}

Figure7.19

7.LayoutsandMenus

120

Thedrawercanbeconfiguredtoshowthebuttonsontherightside,andyoucanchooseto

supportopeningmultipledraweritemssimultaneously.Whenrunninginmultiselectmode,a

headerwillappearabovethecontent,whichwillhelptodistinguishtheitemsinthecontent

area.Youcancontroltheheaderappearancewiththeboolean showHeaderparameter.Itwill

defaulttruewhenmultiselectisenabledandfalseotherwise.

7.LayoutsandMenus

121

drawer(side=Side.RIGHT,multiselect=true){

//Everythingelseisidentical

}

Figure7.20

Drawerwithbuttonsontherightside,multiselectmodeandtitlepanes

WhentheDrawerisaddednexttosomething,youcanchoosewhetherthecontentareaof

theDrawershoulddisplacethenodesnexttoit(default)orfloatoverit.The

floatingContentpropertyisbydefaultfalse,causingtheDrawertodisplacethecontent

7.LayoutsandMenus

122

nexttoit.

Youcancontrolthesizeofthecontentareafurtherusingthe maxContentSizeand

fixedContentSizepropertiesof Drawer.Dependingonthe dockingSide,thoseproperties

willconstraineitherthewidthortheheightofthecontentarea.

The WorkspacefeaturesbuiltinsupportfortheDrawercontrol.The leftDrawer,

rightDrawerand bottomDrawerpropertiesofanyWorkspacewillletyoudockdraweritems

intothem.ReadmoreaboutthisintheWorkspacechapter.

Convertingobservablelistitemsandbinding

tolayouts

TODO

Summary

BynowyoushouldhavethetoolstoquicklycreatecomplexUI'swithlayouts,tabbedpanes,

aswellasothercontrolstomanagecontrols.Usingtheseinconjunctionwiththedata

controls,youshouldbeabletoturnaroundUI'sinafractionofthetime.

Whenitcomestobuilders,youhavereachedthetopofthepeakandhaveeverythingyou

needtobeproductive.Allthatislefttocoverarechartsandshapes,whichwewillcoverin

thenexttwochapters.

7.LayoutsandMenus

123

Charts

JavaFXcomeswithahandysetofchartstoquicklydisplaydatavisualizations.Whilethere

aremorecomprehensivechartinglibrarieslikeJFreeChartandOrsonChartswhichwork

finewithTornadoFX,thebuilt-inJavaFXchartssatisfyamajorityofvisualizationneeds.

Theyalsohaveelegantanimationswhendataispopulatedorchanged.

TornadoFXcomeswithafewbuilderstostreamlinethedeclarationofchartsusingfunctional

constructs.

PieChart

The PieChartisacommonvisualaidtoillustrateproportionsofawhole.Itisstructurally

simplerthanXYchartswhichwewilllearnaboutlater.Insidea piechart()builderyoucan

callthe data()functiontopassmultiplecategory-valuepairs(Figure8.1).

piechart("Desktop/LaptopOSMarketShare"){

data("Windows",77.62)

data("OSX",9.52)

data("Other",3.06)

data("Linux",1.55)

data("ChromeOS",0.55)

}

Figure8.1

8.Charts

124

Noteyoucanalsoprovideanexplicit ObservableList<PieChart.Data>preparedinadvance.

valitems=listOf(

PieChart.Data("Windows",77.62),

PieChart.Data("OSX",9.52),

PieChart.Data("Other",3.06),

PieChart.Data("Linux",1.55),

PieChart.Data("ChromeOS",0.55)

).observable()

piechart("Desktop/LaptopOSMarketShare",items)

Theblockfollowing piechartcanbeusedtomodifyanyoftheattributesofthe PieChart

justlikeanyothercontrolbuilderwecovered.Youcanalsoleverage for()loops,

Sequences,andotheriterativetoolswithinablocktoaddanynumberofdataitems.

8.Charts

125

valitems=listOf(

PieChart.Data("Windows",77.62),

PieChart.Data("OSX",9.52),

PieChart.Data("Other",3.06),

PieChart.Data("Linux",1.55),

PieChart.Data("ChromeOS",0.55)

).observable()

piechart("Desktop/LaptopOSMarketShare"){

for(iteminitems){

data.add(item)

}

}

Map-BasedDataSources

Sometimesyoumaywanttobuildachartusinga Mapasadatasource.UsingtheKotlin

tooperator,youcanconstructa MapinaKotlin-esquewayandthenpassittothe data

function.

valitems=mapOf(

"Windows"to77.62,

"OSX"to9.52,

"Other"to3.06,

"Linux"to1.55,

"ChromeOS"to0.55

)

piechart("Desktop/LaptopOSMarketShare"){

data(items)

}

XYBasedCharts

MostchartsoftendealwithoneormoreseriesofdatapointsonanXYaxis.Themost

commonarebarandlinecharts.

BarCharts

Youcanrepresentoneormoreseriesofdatapointsthrougha BarChart.Thischartmakes

iteasytocomparedifferentdatapointsrelativetotheirdistancefromtheXorYaxis(Figure

8.2).

8.Charts

126

barchart("UnitSalesQ22016",CategoryAxis(),NumberAxis()){

series("ProductX"){

data("MAR",10245)

data("APR",23963)

data("MAY",15038)

}

series("ProductY"){

data("MAR",28443)

data("APR",22845)

data("MAY",19045)

}

}

Figure8.2

Above,the series()and data()functionsallowquickconstructionofdatastructures

backingthecharts.Onconstruction,youwillneedtoconstructtheproper Axistypefor

eachXandYaxis.Inthisexample,themonthsarenotnecessarilynumericbutrather

Strings.Thereforetheyarebestrepresentedbya CategoryAxis.Theunits,alreadybeing

numeric,arefittousea NumberAxis.

8.Charts

127

Inthe series()and data()blocks,youcancustomizefurtherpropertieslikecolors.

Youcanevencall style()toquicklyapplytype-safeCSStothechart.

LineChartandAreaChart

A LineChartconnectsdatapointsonanXYaxiswithlines,quicklyvisualizingupwardand

downwardtrendsbetweenthem(Figure8.3)

linechart("UnitSalesQ22016",CategoryAxis(),NumberAxis()){

series("ProductX"){

data("MAR",10245)

data("APR",23963)

data("MAY",15038)

}

series("ProductY"){

data("MAR",28443)

data("APR",22845)

data("MAY",19045)

}

}

Figure8.3

8.Charts

128

Thebackingdatastructureisnotmuchdifferentthana BarChart,andyouusethe

series()and data()functionsinthesamemanner.

Youcanalsouseavariantof LineChartcalled AreaChart,whichwillshadetheareaunder

thelinesadistinctcolor,aswellasanyoverlaps(Figure8.4).

Figure8.4

8.Charts

129

Multiseries

Youcanstreamlinethedeclarationofmorethanoneseriesusingthe multiseries()

function,andcallthe data()functionswith varargsvalues.Wecanconsolidateour

previousexampleusingthisconstruct:

linechart("UnitSalesQ22016",CategoryAxis(),NumberAxis()){

multiseries("ProductX","ProductY"){

data("MAR",10245,28443)

data("APR",23963,22845)

data("MAY",15038,19045)

}

}

Thisisjustanotherconveniencetoreduceboilerplateandquicklydeclareyourdata

structureforachart.

8.Charts

130

ScatterChart

A ScatterChartisthesimplestrepresentationofanXYdataseries.Itplotsthepoints

withoutbarsorlines.Itisoftenusedtoplotalargevolumeofdatapointsinordertofind

clusters.Hereisabriefexampleofa ScatterChartplottingmachinecapacitiesbyweekfor

twodifferentproductlines(Figure8.5).

scatterchart("MachineCapacitybyProduct/Week",NumberAxis(),NumberAxis()){

series("ProductX"){

data(1,24)

data(2,22)

data(3,23)

data(4,19)

data(5,18)

}

series("ProductY"){

data(1,12)

data(2,15)

data(3,9)

data(4,11)

data(5,7)

}

}

Figure8.5

8.Charts

131

BubbleChart

BubbleChartisanotherXYchartsimilartothe ScatterPlot,butthereisathirdvariableto

controltheradiusofeachpoint.Youcanleveragethistoshow,forinstance,outputbyweek

withthebubbleradiireflectingnumberofmachinesused(Figure8.6).

8.Charts

132

bubblechart("MachineCapacitybyOutput/Week",NumberAxis(),NumberAxis()){

series("ProductX"){

data(1,24,1)

data(2,46,2)

data(3,23,1)

data(4,27,2)

data(5,18,1)

}

series("ProductY"){

data(1,12,1)

data(2,31,2)

data(3,9,1)

data(4,11,1)

data(5,15,2)

}

}

Figure8.6

8.Charts

133

Summary

Chartsareaaneffectivewaytovisualizedata,andthebuildersinTornadoFXhelpcreate

themquickly.YoucanreadmoreaboutJavaFXchartsinOracle'sdocumentation.Ifyou

needmoreadvancedchartingfunctionality,therearelibrarieslikeJFreeChartandOrson

ChartsyoucanleverageandinteropwithTornadoFX,butthisisbeyondthescopeofthis

book.

8.Charts

134

ShapesandAnimation

JavaFXcomeswithnodesthatrepresentalmostanygeometricshapeaswellasa Path

nodethatprovidesfacilitiesrequiredforassemblyandmanagementofageometricpath(to

createcustomshapes).JavaFXalsohasanimationsupporttograduallychangea Node

property,creatingavisualtransitionbetweentwostates.TornadoFXseekstostreamlineall

thesefeaturesthroughbuilderconstructs.

ShapeBasics

Everyparametertotheshapebuildersareoptional,andinmostcasesdefaulttoavalueof

0.0.Thismeansthatyouonlyneedtoprovidetheparametersyoucareabout.The

buildershavepositionalparametersformostofthepropertiesofeachshape,andtherest

canbesetinthefunctionalblockthatfollows.Thereforetheseareallvalidwaystocreatea

rectangle:

rectangle{

width=100.0

height=100.0

}

rectangle(width=100.0,height=100.0)

rectangle(0.0,0.0,100.0,100.0)

Theformyouchooseisamatterofpreference,butobviouslyconsiderthelegibilityofthe

codeyouwrite.Theexamplesinthischapterspecifymostofthepropertiesinsidethecode

blockforclarity,exceptwhenthereisnocodeblocksupportortheparametersare

reasonablyself-explanatory.

PositioningwithintheParent

Mostoftheshapebuildersgiveyoutheoptiontospecifythelocationoftheshapewithinthe

parent.Whetherornotthiswillhaveanyeffectdependsontheparentnode.An HBoxwill

notcareaboutthe xand ycoordinatesyouspecifyunlessyoucall setManaged(false)

ontheshape.However,a Groupcontrolwill.Thescreenshotsinthefollowingexampleswill

becreatedbywrappinga StackPanewithpaddingarounda Group,andfinallytheshape

wascreatedinsidethat Groupasshownbelow.

9.ShapesandAnimation

135

classMyView:View(){

overridevalroot=stackpane{

group{

//shapeswillgohere

}

}

}

Rectangle

Rectangledefinesarectanglewithanoptionalsizeandlocationintheparent.Rounded

cornerscanbespecifiedwiththe arcWidthand arcHeightproperties(Figure9.1).

rectangle{

fill=Color.BLUE

width=300.0

height=150.0

arcWidth=20.0

arcHeight=20.0

}

Figure9.1

9.ShapesandAnimation

136

Arc

Arcrepresentsanarcobjectdefinedbyacenter,startangle,angularextent(lengthofthe

arcindegrees),andanarctype( OPEN, CHORD,or ROUND)(Figure9.2)

arc{

centerX=200.0

centerY=200.0

radiusX=50.0

radiusY=50.0

startAngle=45.0

length=250.0

type=ArcType.ROUND

}

Figure9.2

Circle

Circlerepresentsacirclewiththespecified radiusand center.

circle{

centerX=100.0

centerY=100.0

radius=50.0

}

9.ShapesandAnimation

137

CubicCurve

CubicCurverepresentsacubicBézierparametriccurvesegmentin(x,y)coordinatespace.

Drawingacurvethatintersectsboththespecifiedcoordinates( startX, startY)and

(endX, enfY),usingthespecifiedpoints( controlX1, controlY1)and( controlX2,

controlY2)asBéziercontrolpoints.

cubiccurve{

startX=0.0

startY=50.0

controlX1=25.0

controlY1=0.0

controlX2=75.0

controlY2=100.0

endX=150.0

endY=50.0

fill=Color.GREEN

}

9.ShapesandAnimation

138

Ellipse

Ellipserepresentsanellipsewithparametersspecifyingsizeandlocation.

ellipse{

centerX=50.0

centerY=50.0

radiusX=100.0

radiusY=50.0

fill=Color.CORAL

}

Line

Lineisfairlystraightforward.Supplystartandendcoordinatestodrawalinebetweenthe

twopoints.

line{

startX=50.0

startY=50.0

endX=150.0

endY=100.0

}

9.ShapesandAnimation

139

Polyline

A Polylineisdefinedbyanarrayofsegmentpoints. Polylineissimilarto Polygon,

exceptitisnotautomaticallyclosed.

polyline(0.0,0.0,80.0,40.0,40.0,80.0)

QuadCurve

The QuadcurverepresentsaquadraticBézierparametriccurvesegmentin(x,y)coordinate

space.Drawingacurvethatintersectsboththespecifiedcoordinates( startX, startY)

and( endX, endY),usingthespecifiedpoint( controlX, controlY)asBéziercontrolpoint.

9.ShapesandAnimation

140

quadcurve{

startX=0.0

startY=150.0

endX=150.0

endY=150.0

controlX=75.0

controlY=0.0

fill=Color.BURLYWOOD

}

SVGPath

SVGPathrepresentsashapethatisconstructedbyparsingSVGpathdatafromaString.

svgpath("M70,50L90,50L120,90L150,50L170,50L210,90L180,120L170,110L170,200L70,

200L70,110L60,120L30,90L70,50"){

stroke=Color.DARKGREY

strokeWidth=2.0

effect=DropShadow()

}

9.ShapesandAnimation

141

Path

Pathrepresentsashapeandprovidesfacilitiesrequiredforbasicconstructionand

managementofageometricpath.Inotherwords,ithelpsyoucreateacustomshape.The

followinghelperfunctionscanbeusedtoconstuctthepath:

moveTo(x,y)

hlineTo(x)

vlineTo(y)

quadqurveTo(controlX,controlY,x,y)

lineTo(x,y)

arcTo(radiusX,radiusY,xAxisRotation,x,y,largeArcFlag,sweepFlag)

closepath()

9.ShapesandAnimation

142

path{

moveTo(0.0,0.0)

hlineTo(70.0)

quadqurveTo{

x=120.0

y=60.0

controlX=100.0

controlY=0.0

}

lineTo(175.0,55.0)

arcTo{

x=50.0

y=50.0

radiusX=50.0

radiusY=50.0

}

}

Animation

JavaFXhastoolstoanimateany Nodebygraduallychangingoneormoreofitsproperties.

TherearethreecomponentsyouworkwithtocreateanimationsinJavaFX.

Timeline-Asequenceof KeyFrameitemsexecutedinaspecifiedorder

KeyFrame-A"snapshot"specifyingvaluechangesononeormorewritableproperties

(viaa KeyValue)ononeormoreNodes

KeyValue-Apairingofa Nodepropertytoavaluethatwillbe"transitioned"to

9.ShapesandAnimation

143

A KeyValueisthebasicbuildingblockofJavaFXanimation.Itspecifiesapropertyandthe

"newvalue"itwillgraduallybetransitionedto.Soifyouhavea Rectanglewitha

rotateProperty()of 0.0,andyouspecifya KeyValuethatchangesitto 90.0degrees,it

willincrementallymovefrom 0.0to 90.0degrees.Putthat KeyValueinsidea KeyFrame

whichwillspecifyhowlongtheanimationbetweenthosetwovalueswilllast.Inthiscase

let'smakeit5seconds.Thenfinallyputthat KeyFrameina Timeline.Ifyourunthecode

below,youwillseearectangegraduallyrotatefrom`0.0`to`90.0`degreesin5seconds

(Figure9.1).

valrectangle=rectangle(width=60.0,height=40.0){

padding=Insets(20.0)

}

timeline{

keyframe(Duration.seconds(5.0)){

keyvalue(rectangle.rotateProperty(),90.0)

}

}

Figure9.1

Inagiven KeyFrame,youcansimultaneouslymanipulateotherpropertiesinthat5-second

windowtoo.Forinstancewecantransitionthe arcWidthProperty()and

arcHeightProperty()whilethe Rectangleisrotating(Figure9.2)

timeline{

keyframe(Duration.seconds(5.0)){

keyvalue(rectangle.rotateProperty(),90.0)

keyvalue(rectangle.arcWidthProperty(),60.0)

keyvalue(rectangle.arcHeightProperty(),60.0)

}

}

Figure9.2

9.ShapesandAnimation

144

Interpolators

Youcanalsospecifyan Interpolatorwhichcanaddsubtleeffectstotheanimation.For

instance,youcanspecify Interpolator.EASE_BOTHtoaccelerateanddeceleratethevalue

changeatthebeginningandendoftheanimationgracefully.

valrectangle=rectangle(width=60.0,height=40.0){

padding=Insets(20.0)

}

timeline{

keyframe(5.seconds){

keyvalue(rectangle.rotateProperty(),180.0,interpolator=Interpolator.EASE_B

OTH)

}

}

CyclesandAutoReverse

Youcanmodifyotherattributesofthe timeline()suchas cycleCountand autoReverse.

The cycleCountwillrepeattheanimationaspecifiednumberoftimes,andsettingthe

isAutoReversetotruewillcauseittorevertbackwitheachcycle.

timeline{

keyframe(5.seconds){

keyvalue(rectangle.rotateProperty(),180.0,interpolator=Interpolator.EASE_B

OTH)

}

isAutoReverse=true

cycleCount=3

}

Torepeattheanimationindefinitely,setthe cycleCountto Timeline.INDEFINITE.

ShorthandAnimation

9.ShapesandAnimation

145

Ifyouwanttoanimateasingleproperty,youcanquicklyanimateitwithoutdeclaringa

timeline(), keyframe(),and keyset().Callthe animate()extensionfunctiononthat

propertandprovidethe endValue,the duration,andoptionallythe interoplator.Thisis

muchshorterandcleanerifyouareanimatingjustoneproperty.

rectangle.rotateProperty().animate(endValue=180.0,duration=5.seconds)

Summary

Inthischapterwecoveredbuildersforshapeandanimation.WedidnotcoverJavaFX's

Canvasasthisisbeyondthescopeofthe TornadoFXframework.Itcouldeasilytakeup

morethanseveralchaptersonitsown.Buttheshapesandanimationshouldallowyoutodo

basiccustomgraphicsforamajorityoftasks.

ThisconcludesourcoverageofTornadoFXbuildersfornow.NextwewillcoverFXMLfor

thoseofusthathaveneedtouseit.

9.ShapesandAnimation

146

FXMLandInternationalization

TornadoFX'stype-safebuildersprovideafast,easy,anddeclarativewaytoconstructUI's.

ThisDSLapproachisencouragedbecauseitismoreflexible,reliable,andsimpler.

However,JavaFXalsosupportsanXML-basedstructurecalledFXMLthatcanalsobuilda

UIlayout.TornadoFXhastoolstostreamlineFXMLusageforthosethatneedit.

IfyouareunfamiliarwithFXMLandareperfectlyhappywithtype-safebuilders,pleasefeel

freetoskipthischapter.IfyouneedtoworkwithFXMLorfeelyoushouldlearnit,please

readon.YoucanalsotakealookattheofficialFXMLdocumentationtolearnmore.

ReasonsforConsideringFXML

WhilethedevelopersofTornadoFXstronglyencourageusingtype-safebuilders,thereare

situationsandfactorsthatmightcauseyoutoconsiderusingFXML.

SeparationofConcerns

WithFXMLitiseasytoseparateyourUIlogiccodefromtheUIlayoutcode.Thisseparation

isjustasachievablewithtype-safebuildersbyutilizingMVPorotherseparationpattern.But

someprogrammersfindFXMLforcesthemtomaintainthisseparationandpreferitforthat

reason.

WYSIWYGEditor

FXMLfilesalsocanbeeditedandprocessedbySceneBuilder,avisuallayouttoolthat

allowsbuildinginterfacesviadrag-and-dropfunctionality.EditsinSceneBuilderare

immediatelyrenderedinaWYSIWYG("WhatYouSeeisWhatYouGet")panenexttothe

editor.

Ifyouprefermakinginterfacesviadrag-and-drop,orhavetroublebuildingUI'swithpure

code,youmightconsiderusingFXMLsimplytoleverageSceneBuilder.

TheSceneBuildertoolwascreatedbyOracle/SunbutisnowmaintainedbyGluon,an

innovativecompanythatinvestsheavilyinJavaFXtechnology,especiallyforthemobile

market.

CompatibilitywithExistingCodebases

10.FXML

147

IfyouareconvertinganexistingJavaFXapplicationtoTornadoFX,thereisastrongchance

yourUIwasconstructedwithFXML.IfyouhesitatetotransitionlegacyFXMLtoTornadoFX

buidlers,orwouldliketoputthatoffaslongaspossible,TornadoFXcanatleaststreamline

theprocessingofFXML.

HowFXMLworks

The rootpropertyofa Viewrepresentsthetoplevel Nodecontainingahierarchyof

childrenNodes,whichmakesuptheuserinterface.WhenyouworkwithFXML,youdonot

instantiatethisrootnodedirectly,butinsteadaskTornadoFXtoloaditfromacorresponding

FXMLfile.Bydefault,TornadoFXwilllookforafilewiththesamenameasyourviewwith

the .fxmlfileendinginthesamepackageasyour Viewclass.Youcanalsooverridethe

FXMLlocationwithaparameterifyouwanttoputallyourFXMLfilesinasinglefolderor

organizethemsomeotherwaythatdoesnotdirectlycorrespondtoyour Viewlocation.

ASimpleExample

Let'screateabasicuserinterfacethatpresentsa Labelanda Button.Wewilladd

functionalitytothisviewsowhenthe Buttonisclicked,the Labelwillupdateits text

withthenumberoftimesthe Buttonhasbeenclicked.

Createafilenamed CounterView.fxmlwiththefollowingcontent:

10.FXML

148

<?importjavafx.geometry.Insets?>

<?importjavafx.scene.control.Button?>

<?importjavafx.scene.control.Label?>

<?importjavafx.scene.layout.BorderPane?>

<?importjavafx.scene.layout.VBox?>

<?importjavafx.scene.text.Font?>

<BorderPanexmlns="http://javafx.com/javafx/null"xmlns:fx="http://javafx.com/fxml/1">

<padding>

<Insetstop="20"right="20"bottom="20"left="20"/>

</padding>

<center>

<VBoxalignment="CENTER"spacing="10">

<Labeltext="0">

<font>

<Fontsize="20"/>

</font>

</Label>

<Buttontext="Clicktoincrement"/>

</VBox>

</center>

</BorderPane>

Youmaynoticeaboveyouhaveto importthetypesyouuseinFXMLjustlikecoding

inJavaorKotlin.IntellijIDEAshouldhaveaplugintosupportusingALT+ENTERto

generatethe importstatements.

IfyouloadthisfileinSceneBuilderyouwillseethefollowingresult(Figure9.1).

Figure9.1

Nextlet'sloadthisFXMLintoTornadoFX.

LoadingFXMLintoTornadoFX

10.FXML

149

WehavecreatedanFXMLfilecontainingourUIstructure,butnowweneedtoloaditintoa

TornadoFX Viewforittobeusable.Logically,wecanloadthis Nodehierarchyintothe

rootnodeofour View.Definethefollowing Viewclass:

classCounterView:View(){

overridevalroot:BorderPanebyfxml()

}

Notethatthe rootpropertyisdefinedbythe fxml()delegate.The fxml()delegate

takescareofloadingthecorresponding CounterView.fxmlintothe rootproperty.Ifwe

placed CounterView.fxmlinadifferentlocation(suchas /views/)thatisdifferentthan

wherethe CounterViewfileresides,wewouldaddaparameter.

classCounterView:View(){

overridevalroot:BorderPanebyfxml("/views/CounterView.fxml")

}

WehavelaidouttheUI,butithasnofunctionalityyet.Weneedtodefineavariablethat

holdsthenumberoftimesthe Buttonhasbeenclicked.Addavariablecalled counterand

defineafunctionthatwillincrementitsvalue:

classCounterView:View(){

overridevalroot:BorderPanebyfxml()

valcounter=SimpleIntegerProperty()

funincrement(){

counter.value+=1

}

}

Wewantthe increment()functiontobecalledwheneverthe Buttonisclicked.Backinthe

FXMLfile,addthe onActionattributetothebutton:

<Buttontext="Clicktoincrement"onAction="#increment"/>

SincetheFXMLfileautomaticallygetsboundtoour View,wecanreferencefunctionsvia

the #functionNamesyntax.Notethatwedonotaddparenthesistothefunctioncall,andyou

cannotpassparametersdirectly.Youcanhoweveraddaparameteroftype

javafx.event.ActionEventtothe incrementfunctionifyouwantinspectthesource Node

oftheactionorcheckwhatkindofactiontriggeredthebutton.Forthisexamplewedonot

needit,soweleavethe incrementfunctionwithoutparameters.

10.FXML

150

FXMLfilelocations

Bydefault,buildtoolslikeMavenandGradlewillignoreanyextraresourcesyouputinto

yoursourcerootfolders,soifyouputyourFXMLfilestheretheywon'tbeavailableat

runtimeunlessyouspecificallytellyourbuildtooltoincludethem.Thiscouldstillbe

problematicbecauseIDEAmightnotpickupyourcustomresourcelocationfromthebuild

file,onceagainresultinginfailureatruntime.Forthatresource,werecommendthatyou

placeyourFXMLfilesin src/main/resourcesandeitherfollowthesamefolderstructureas

yourpackages,orputthemallina viewsfolderorsimilar.Thelatterrequiresyoutoadd

theFXMLlocationparametertothe fxmldelegate,andmightbemessyifyouhavealarge

numberofViews,sogoingwiththedefaultisagoodidea.

AccessingNodeswiththe fxiddelegate

UsingjustFXML,wehavewiredthe Buttontocall increment()everytimeitiscalled.We

stillneedtobindthe countervaluetothe textpropertyofthe Label.Todothis,weneed

anidentifierforthe Label,soinourFXMLfileweaddthe fx:idattributetoit.

<Labelfx:id="counterLabel">

Nowwecaninjectthis Labelintoour Viewclass:

valcounterLabel:Labelbyfxid()

ThistellsTornadoFXtolookfora Nodeinourstructurewiththe fx:idpropertywiththe

samenameasthepropertywedefined(whichis"counterLabel").Itisalsopossibletouse

anotherpropertynameinthe Viewandaddanameparametertothe fxiddelegate:

valmyLabel:Labelbyfxid("counterLabel")

Nowthatwehaveaholdofthe Label,wecanusethebindingshortcutsofTornadoFXto

bindthe countervaluetothe textpropertyofthe counterLabel.Ourwhole Viewshould

nowlooklikethis:

10.FXML

151

classCounterView:View(){

overridevalroot:BorderPanebyfxml()

valcounter=SimpleIntegerProperty()

valcounterLabel:Labelbyfxid()

init{

counterLabel.bind(counter)

}

funincrement(){

counter.value+=1

}

}

Ourappisnowcomplete.Everytimethebuttonisclicked,the labelwillincrementits

count.

Internationalization

JavaFXhasstrongsupportformulti-languageUI's.TosupportinternationalizationinFXML,

younormallyhavetoregisteraresourcebundlewiththe FXMLLoaderanditwillinreturn

replaceinstancesofresourcenameswiththeirlocale-specificvalue.Aresourcenameisthe

keyintheresourcebundleprependedwith %.

TornadoFXmakesthiseasierbysupportingaconventionforresourcebundles:Createa

resourcebundlewiththesamebasenameasyour View,anditwillbeautomatically

loaded,bothforuseprogramaticallywithinthe ViewandfromtheFXMLfile.

Let'sinternationalizethebuttontextinourUI.Createafilecalled CounterView.properties

andaddthefollowingcontent:

clickToIncrement=Clicktoincrement

Ifyouwanttosupportmultiplelanguages,createafilewiththesamebasenamefollowedby

anunderscore,andthenthelanguagecode.Forinstance,tosupportFrenchcreatethefile

CounterView_fr.properties.Theclosestgeographicalmatchtothecurrentlocalewillbe

used.

clickToIncrement=Cliquezsurincrément

NowweswapthebuttontextwiththeresourcekeyintheFXMLfile.

10.FXML

152

<Buttontext="%clickToIncrement"onAction="#increment"/>

Ifyouwanttotestthisfunctionalityandforceadifferent Locale,regardlesswhichoneyou

arecurrentlyin,overrideitbyassigning FX.localwhenyour Appclassisinitialized.

classMyApp:App(){

overridevalprimaryView=MyView::class

init{

FX.locale=Locale.FRENCH

}

}

Youshouldthenseeyour ButtonusetheFrenchtext(Figure9.2).

Figure9.2

InternationalizationwithType-SafeBuilders

InternationalizationisnotlimitedforusewithFXML.Youcanalsouseitwithtype-safe

builders.Setupyour .propertiesfilesasspecifiedbefore.Butinsteadofusingan

embedded %clickToIncrementtextinanFXMLfile,usethe messages[]accessortolookup

thevalueinthe ResourceBundle.Passthisvalueasthe textforthe Button.

button(messages["clickToIncrement"]){

setOnAction{increment()}

}

Summary

10.FXML

153

FXMLishelpfultoknowasaJavaFXdeveloper,butitisdefinitelynotrequiredifyouare

contentwithTornadoFXtype-safebuildersanddonothaveanyexistingJavaFXapplications

tomaintain.Type-safebuildershavethebenefitofusingpureKotlin,allowingyoutocode

anythingyouwantrightwithinthestructuredeclarations.FXML'sbenefitsareprimarily

separationofconcernsbetweenUIandfunctionality,buteventhatcanbeaccomplishedwith

type-safebuilders.Italsocanbebuiltviadrag-and-dropthroughtheSceneBuildertool,

whichmaybepreferableforthosewhostruggletobuildUI'sanyotherway.

10.FXML

154

EditingModelsandValidation

TornadoFXdoesn'tforceanyparticulararchitecturalpatternonyouasadeveloper,andit

worksequallywellwithbothMVC,MVP,andtheirderivatives.

TohelpwithimplementingthesepatternsTornadoFXprovidesatoolcalled ViewModelthat

helpscleanlyseparateyourUIandbusinesslogic,givingyoufeatureslikerollback/commit

anddirtystatechecking.Thesepatternsarehardorcumbersometoimplementmanually,so

itisadvisedtoleveragethe ViewModeland ViewModelItemwhenitisneeded.

Typicallyyouwillusethe ItemViewModelwhenyouarecreatingafacadeinfrontofasingle

object,anda ViewModelformorecomplexsituations.

ATypicalUseCase

Sayyouhaveagivendomaintype Person.Weallowitstwopropertiestobenullableso

theycanbeinputtedlaterbytheuser.

importtornadofx.*

classPerson(name:String?=null,title:String?=null){

valnameProperty=SimpleStringProperty(this,"name",name)

varnamebynameProperty

valtitleProperty=SimpleStringProperty(this,"title",title)

vartitlebytitleProperty

}

(Noticetheimport,youneedtoimportatleast tornadofx.getValueand tornadofx.setValue

forthebydelegatetowork)*[]:

ConsideraMaster/Detailviewwhereyouhavea TableViewdisplayingalistofpeople,and

a Formwherethecurrentlyselectedperson'sinformationcanbeedited.Beforewegetinto

the ViewModel,wewillcreateaversionofthis Viewwithoutusingthe ViewModel.

11.EditingModelsandValidation

155

Figure11.1

Belowiscodeforourfirstattemptinbuildingthis,andithasanumberofproblemswewill

address.

importjavafx.scene.control.TableView

importjavafx.scene.control.TextField

importjavafx.scene.layout.BorderPane

importtornadofx.*

classPerson(name:String?=null,title:String?=null){

valnameProperty=SimpleStringProperty(this,"name",name)

varnamebynameProperty

valtitleProperty=SimpleStringProperty(this,"title",title)

vartitlebytitleProperty

}

classPersonEditor:View("PersonEditor"){

overridevalroot=BorderPane()

varnameField:TextFieldbysingleAssign()

vartitleField:TextFieldbysingleAssign()

varpersonTable:TableView<Person>bysingleAssign()

//Somefakedataforourtable

valpersons=listOf(Person("John","Manager"),Person("Jay","Workerbee")).obser

11.EditingModelsandValidation

156

vable()

varprevSelection:Person?=null

init{

with(root){

//TableViewshowingalistofpeople

center{

tableview(persons){

personTable=this

column("Name",Person::nameProperty)

column("Title",Person::titleProperty)

//Editthecurrentlyselectedperson

selectionModel.selectedItemProperty().onChange{

editPerson(it)

prevSelection=it

}

}

}

right{

form{

fieldset("Editperson"){

field("Name"){

textfield(){

nameField=this

}

}

field("Title"){

textfield(){

titleField=this

}

}

button("Save").action{

save()

}

}

}

}

}

}

privatefuneditPerson(person:Person?){

if(person!=null){

prevSelection?.apply{

nameProperty.unbindBidirectional(nameField.textProperty)

titleProperty.unbindBidirectional(titleField.textProperty)

}

nameField.bind(person.nameProperty)

titleField.bind(person.titleProperty)

prevSelection=person

}

11.EditingModelsandValidation

157

}

privatefunsave(){

//ExtracttheselectedpersonfromthetableView

valperson=personTable.selectedItem!!

//Arealapplicationwouldpersistthepersonhere

println("Saving${person.name}/${person.title}")

}

}

Wedefinea Viewconsistingofa TableViewinthecenterofa BorderPaneanda Formon

therightside.Wedefinesomepropertiesfortheformfieldsandthetableitselfsowecan

referencethemlater.

Whilewebuildthetable,weattachalistenertotheselecteditemsowecancallthe

editPersonfunctionwhenthetableselectionchanges.The editPersonfunctionbindsthe

propertiesoftheselectedpersontothetextfieldsintheform.

Problemswithourinitialattempt

AtfirstglanceitmightlookOK,butwhenwedigdeeperthereareseveralissues.

Manualbinding

Everytimetheselectioninthetablechanges,wehavetounbind/rebindthedatafortheform

fieldsmanually.Apartfromtheaddedcodeandlogic,thereisanotherhugeproblemwith

this:thedataisupdatedforeverychangeinthetextfields,andthechangeswillevenbe

reflectedinthetable.Whilethismightlookcoolandistechnicallycorrect,itpresentsonebig

problem:whatiftheuserdoesnotwanttosavethechanges?Wehavenowayofrolling

back.Sotopreventthis,wewouldhavetoskipthebindingaltogetherandmanuallyextract

thevaluesfromthetextfields,thencreateanew Personobjectonsave.Infact,thisisa

patternfoundinmanyapplicationsandexpectedbymostusers.Implementinga"Reset"

buttonforthisformwouldmeanmanagingvariableswiththeinitialvaluesandagain

assigningthosevaluesmanuallytothetextfields.

TightCoupling

Anotherissueiswhenitistimetosavetheeditedperson,thesavefunctionhastoextract

theselecteditemfromthetableagain.Forthattohappenthesavefunctionhastoknow

aboutthe TableView.Alternativelyitwouldhavetoknowaboutthetextfieldslikethe

editPersonfunctiondoes,andmanuallyextractthevaluestoreconstructa Personobject.

11.EditingModelsandValidation

158

IntroducingViewModel

The ViewModelisamediatorbetweenthe TableViewandthe Form.Itactsasa

middlemanbetweenthedatainthetextfieldsandthedataintheactual Personobject.As

youwillsee,thecodeismuchshorterandeasiertoreasonabout.Theimplementationcode

ofthe PersonModelwillbeshownshortly.Fornowjustfocusonitsusage.

classPersonEditor:View("PersonEditor"){

overridevalroot=BorderPane()

valpersons=listOf(Person("John","Manager"),Person("Jay","Workerbee")).obser

vable()

valmodel=PersonModel(Person())

init{

with(root){

center{

tableview(persons){

column("Name",Person::nameProperty)

column("Title",Person::titleProperty)

//Updatethepersoninsidetheviewmodelonselectionchange

model.rebindOnChange(this){selectedPerson->

person=selectedPerson?:Person()

}

}

}

right{

form{

fieldset("Editperson"){

field("Name"){

textfield(model.name)

}

field("Title"){

textfield(model.title)

}

button("Save"){

enableWhen(model.dirty)

action{

save()

}

}

button("Reset").action{

model.rollback()

}

}

}

}

}

}

11.EditingModelsandValidation

159

privatefunsave(){

//Flushchangesfromthetextfieldsintothemodel

model.commit()

//Theeditedpersoniscontainedinthemodel

valperson=model.person

//Arealapplicationwouldpersistthepersonhere

println("Saving${person.name}/${person.title}")

}

}

classPersonModel(varperson:Person):ViewModel(){

valname=bind{person.nameProperty}

valtitle=bind{person.titleProperty}

}

Thislooksalotbetter,butwhatexactlyisgoingonhere?Wehaveintroducedasubclassof

ViewModelcalled PersonModel.Themodelholdsa Personobjectandhaspropertiesfor

the nameand titlefields.Wewilldiscussthemodelfurtherafterwehavelookedatthe

restoftheclientcode.

Notethatweholdnoreferencetothe TableVieworthetextfields.Apartfromalotless

code,thefirstbigchangeisthewayweupdatethe Personinsidethemodel:

model.rebindOnChange(this){selectedPerson->

person=selectedPerson?:Person()

}

The rebindOnChange()functiontakesthe TableViewasanargumentandafunctionthatwill

becalledwhentheselectionchanges.Thisworkswith ListView,TreeView,

TreeTableView,andanyother ObservableValueaswell.Thisfunctioniscalledonthemodel

andhasthe selectedPersonasitssingleargument.Weassigntheselectedpersontothe

personpropertyofthemodel,oranew Personiftheselectionwasempty/null.Thatway

weensurethatthereisalwaysdataforthemodeltopresent.

WhenwecreatetheTextFields,webindthemodelpropertiesdirectlytoitsincemost Node

buildersacceptan ObservableValuetobindto.

field("Name"){

textfield(model.name)

}

Evenwhentheselectionchanges,themodelpropertiespersistbutthevaluesforthe

propertiesareupdated.Wetotallyavoidthemanualbindingfromourpreviousattempt.

11.EditingModelsandValidation

160

Anotherbigchangeinthisversionisthatthedatainthetabledoesnotupdatewhenwetype

intothetextfields.Thisisbecausethemodelhasexposedacopyofthepropertiesfromthe

personobjectanddoesnotwritebackintotheactualpersonobjectbeforewecall

model.commit().Thisisexactlywhatwedointhe savefunction.Once commithasbeen

called,thedatainthefacadeisflushedbackintoourpersonobjectandthetablewillnow

reflectourchanges.

Rollback

Sincethemodelholdsareferencetotheactual Personobject,wecancanresetthetext

fieldstoreflecttheactualdatainour Personobject.Wecouldaddaresetbuttonlikethis:

button("Reset").action{

model.rollback()

}

Whenthebuttonispressed,anychangesarediscardedandthetextfieldsshowtheactual

Personobjectvaluesagain.

ThePersonModel

Weneverexplainedhowthe PersonModelworksyet,andyouprobablyhavebeen

wonderingabouthowthe PersonModelisimplemented.Hereitis:

classPersonModel(varperson:Person):ViewModel(){

valname=bind{person.nameProperty}

valtitle=bind{person.titleProperty}

}

Itcanholda Personobject,andithasdefinedtwostrange-lookingpropertiescalled name

and titleviathe binddelegate.Yeahitlooksweird,butthereisaverygoodreasonfor

it.The {person.nameProperty}parameterforthe bindfunctionisalambdathatreturnsa

property.Thisreturnedpropertyisexaminedbythe ViewModel,andanewpropertyofthe

sametypeiscreated.Itisthenputintothe namepropertyofthe ViewModel.

Whenwebindatextfieldtothe namepropertyofthemodel,onlythecopyisupdatedwhen

youtypeintothetextfield.The ViewModelkeepstrackofwhichactualpropertybelongsto

whichfacade,andwhenyoucall committhevaluesfromthefacadeareflushedintothe

actualbackingproperty.Ontheflipside,whenyoucall rollbacktheexactopposite

happens:Theactualpropertyvalueisflushedintothefacade.

11.EditingModelsandValidation

161

Thereasontheactualpropertyiswrappedinafunctionisthatthismakesitpossibleto

changethe personvariableandthenextractthepropertyfromthatnewperson.Youcan

readmoreaboutthisbelow(rebinding).

DirtyChecking

Themodelhasa Propertycalled dirty.Thisisa BooleanBindingwhichyoucanobserve

toenableordisablecertainfeatures.Forexample,wecouldeasilydisablethesavebutton

untilthereareactualchanges.Theupdatedsavebuttonwouldlooklikethis:

button("Save"){

enableWhen(model.dirty)

action{

save()

}

}

Thereisalsoaplain valcalled isDirtywhichreturnsa Booleanrepresentingthedirty

statefortheentiremodel.

Onethingtonoteisthatifthebackingobjectisbeingmodifiedwhilethe ViewModelisalso

modifiedviatheUI,alluncommittedchangesinthe ViewModelarebeingoverriddenbythe

changesinthebackingobject.Thatmeansthedatainthe ViewModelmightgetlostif

externalmodificationofthebackingobjecttakesplace.

valperson=Person("John","Manager")

valmodel=PersonModel(person)

model.name.value="Johnny"//modifytheViewModel

person.name="Johan"//modifytheunderlyingobject

println("Person=${person.name},${person.title}")//output:Person=

Johan,Manager

println("Isdirty=${model.isDirty}")//output:Isdirty=

false

println("Model=${model.name.value},${model.title.value}")//output:Model=

Johan,Manager

Ascanbeseenabovethechangesinthe ViewModelgotoverriddenwhentheunderlying

objectwasmodified.Andthe ViewModelwasnotflaggedas dirty.

DirtyProperties

11.EditingModelsandValidation

162

Youcancheckifaspecificpropertyisdirty,meaningthatithasbeenchangedcomparedto

thebackingsourceobjectvalue.

valnameWasChanged=model.isDirty(model.name)

Thereisalsoanextensionpropertyversionthataccomplishesthesametask:

valnameWasChanged=model.name.isDirty

Theshorthandversionisanextension valon Property<T>butitwillonlyworkfor

propertiesthatareboundinsidea ViewModel.Youwillfind model.isNotDirtypropertiesas

well.

Ifyouneedtodynamicallyreactbasedonthedirtystateofaspecificpropertyinthe

ViewModel,youcangetaholdofa BooleanBindingrepresentingthedirtystateofthatfield

likethis:

valnameDirtyProperty=model.dirtyStateFor(PersonModel::name)

ExtractingtheSourceObjectValue

Toretrievethebackingobjectvalueforapropertyyoucancall

model.backingValue(property).

valperson=model.backingValue(property)

SupportingObjectsthatDoNotExposeJavaFX

Properties

YouprobablywonderedhowtodealwithdomainobjectsthatdonotuseJavaFXproperties.

MaybeyouhaveasimplePOJOwithgettersandsetters,ornormalkotlin vartype

properties.Since ViewModelrequiresJavaFXproperties,TornadoFXcomeswithpowerful

wrappersthatcanturnanytypeofpropertyintoanobservableJavaFXproperty.Hereare

someexamples:

11.EditingModelsandValidation

163

//JavaPOJOgetter/setterproperty

classJavaPersonViewModel(person:JavaPerson):ViewModel(){

valname=bind{person.observable(JavaPerson::getName,JavaPerson::setName)}

}

//Kotlinvarproperty

classPersonVarViewModel(person:Person):ViewModel(){

valname=bind{person.observable(Person::name)}

}

Asyoucansee,itiseasytoconvertanypropertytypetoanobservableproperty.

SpecificPropertySubtypes(IntegerProperty,

BooleanProperty)

Ifyoubind,forexample,an IntegerProperty,thetypeofthefacadepropertywilllooklike

Property<Int>butitisinfactan IntegerPropertyunderthehood.Ifyouneedtoaccessthe

specialfunctionsprovidedby IntegerProperty,youwillhavetocastthebindresult:

valage=bind(Person::ageProperty)asIntegerProperty

Similarily,youcanexposeareadonlypropertybyspecifyingareadonlytype:

valage=bind(Person::ageProperty)asReadOnlyIntegerProperty

Thereasonforthisisanunfortunateshortcomingonthetypesystemthatpreventsthe

compilerfromdifferentiatingbetweenoverloaded bindfunctionsforthesespecifictypes,so

thesingle bindfunctioninside ViewModelinspectsthepropertytypeandreturnsthebest

match,butunfortunatelythereturntypesignaturehastobe Property<T>fornow.

Rebinding

Asyousawinthe TableViewexampleabove,itispossibletochangethedomainobjectthat

iswrappedbythe ViewModel.Thistestcaseshedssomemorelightonthat:

11.EditingModelsandValidation

164

@Testfunswap_source_object(){

valperson1=Person("Person1")

valperson2=Person("Person2")

valmodel=PersonModel(person1)

assertEquals(model.name,"Person1")

model.rebind{person=person2}

assertEquals(model.name,"Person2")

}

Thetestcreatestwo Personobjectsanda ViewModel.Themodelisinitialisedwiththefirst

personobject.Itthenchecksthat model.namecorrespondstothenamein person1.Now

somethingweirdhappens:

model.rebind{person=person2}

Thecodeinsidethe rebind()blockabovewillbeexecutedandallthepropertiesofthe

modelareupdatedwithvaluesfromthenewsourceobject.Thisisactuallyanalogousto

writing:

model.person=person2

model.rebind()

Theformyouchooseisuptoyou,butthefirstformmakessureyoudonotforgettocall

rebind.After rebindiscalled,themodelisnotdirtyandallvalueswillreflecttheonesform

thenewsourceobjectorsourceobjects.It'simportanttonotethatyoucanpassmultiple

sourceobjectstoaviewmodelandupdateallorsomeofthemasyouseefit.

RebindListener

Our TableViewexamplecalledthe rebindOnChange()functionandpassedina TableView

asthefirstargument.Thismadesurethatrebindwascalledwhenevertheselectionofthe

TableViewchanged.Thisisactuallyjustashortcuttoanotherfunctionwiththesamename

thattakesanobservableandcallsrebindwheneverthatobservablechanges.Ifyoucallthis

function,youdonotneedtocallrebindmanuallyaslongasyouhaveanobservablethat

representthestatechangethatshouldcausethemodeltorebind.

Asyousaw, TableViewhasashorthandsupportforthe

selectionModel.selectedItemProperty.Ifnotforthisshorthandfunctioncall,youwouldhave

towriteitlikethis:

11.EditingModelsandValidation

165

model.rebindOnChange(table.selectionModel.selectedItemProperty()){

person=it?:Person()

}

Theaboveexampleisincludedtoclarifyhowthe rebindOnChange()functionworksunder

thehood.Forrealusecasesinvolvinga TableView,youshouldoptfortheshorterversion

orusethe ItemViewModel.

ItemViewModel

Whenworkingwiththe ViewModelyouwillnoticesomerepetitiveandsomewhatverbose

tasks.Theyincludecalling rebindorconfiguring rebindOnChangetochange

thesourceobject.The ItemViewModelisanextensiontothe ViewModelandinalmostall

usecasesyouwouldwanttoinheritfromthisinsteadofthe ViewModelclass.

The ItemViewModelhasapropertycalled itemPropertyofthespecifiedtype,soour

PersonModelwouldnowlooklike:

classPersonModel:ItemViewModel<Person>(){

valname=bind(Person::nameProperty)

valtitle=bind(Person::titleProperty)

}

Youwillnoticewenolongerneedtopassinthe varperson:Personintheconstructor.The

ItemViewModelnowhasanobservablepropertycalled

itemPropertyandgetters/settersviathe itemproperty.Wheneveryouassignsomething

to itemorvia itemProperty.value,themodelis

automaticallyreboundforyou.Thereisalsoanobservable emptybooleanvalueyoucan

usetocheckifthe ItemViewModeliscurrentlyholdinga Person.

Thebindingexpressionsneedtotakeintoaccountthatitmightnotrepresentanyitematthe

timeofbinding.Thatiswhythebinding

expressionsabovenowusethenullsafeoperator.

Wejustgotridofsomeboilerplate,butthe ItemViewModelgivesusalotmorefunctionality.

Rememberhowweboundtheselectedpersonfromthe TableViewtoourmodelearlier?

//Updatethepersoninsidetheviewmodelonselectionchange

model.rebindOnChange(this){selectedPerson->

person=selectedPerson?:Person()

}

11.EditingModelsandValidation

166

Usingthe ItemViewModelthiscanberewritten:

//Updatethepersoninsidetheviewmodelonselectionchange

bindSelected(model)

Thiswilleffectivelyattachthelistenerwehadtowritemanuallybeforeandmakesurethat

the TableViewselectionisvisibleinthemodel.

The save()functionwillnowalsobeslightlydifferent,sincethereisno personpropertyin

ourmodel:

privatefunsave(){

model.commit()

valperson=model.item

println("Saving${person.name}/${person.title}")

}

Thepersonisextractedfromthe itemPropertyusingthe itemgetter.

WhenworkingwiththeItemViewModel()andPOJO'sstartingat1.7.1youcancreatethe

bindingsasfollows

dataclassPerson(valfirstName:String,vallastName:String)

classPersonModel:ItemViewModel<Person>(){

valfirstname=bind{item?.firstName?.toProperty()}

vallastName=bind{item?.lastName?.toProperty()}

}

OnCommitcallback

Sometimesit'sdesirabletodoaspecificactionafterthemodelwassuccessfullycommitted.

The ViewModelofferstwocallbacks, onCommitand onCommit(commits:List<Commit>),for

that.

Thefirstfunction onCommit,hasnoparametersandwillbecalledafterasuccessfulcommit,

rightbeforetheoptional successFnisinvoked(see: commit).

Thesecondfunctionwillbecalledinthesameorderandwiththeadditionofpassingalistof

committedpropertiesalong.

Each Commitinthelist,consistsoftheoriginal ObservableValue,the oldValueandthe

newValue

andaproperty changed,tosignalifthe oldValueisdifferentthenthe newValue.

11.EditingModelsandValidation

167

Let'slookatanexamplehowwecanretrieveonlythechangedobjectsandprintthemto

stdout.

Tofindoutwhichobjectchangedwedefinedalittleextensionfunction,whichwillfindthe

givenpropertyand

ifitwaschangedwillreturntheoldandnewvalueornulliftherewasnochange.

classPersonModel:ItemViewModel<Person>(){

valfirstname=bind(Person::firstName)

vallastName=bind(Person::lastName)

overridevalonCommit(commits:List<Commit>){

//TheprintlnwillonlybecallediffindChangedisnotnull

commits.findChanged(firstName)?.let{println("First-Namechangedfrom${it.fir

st}to${it.second}")}

commits.findChanged(lastName)?.let{println("Last-Namechangedfrom${it.first

}to${it.second}")}

}

privatefun<T>List<Commit>.findChanged(ref:Property<T>):Pair<T,T>?{

valcommit=find{it.property==ref&&it.changed}

returncommit?.let{(it.newValueasT)to(it.oldValueasT)}

}

}

InjectableModels

Mostcommonlyyouwillnothaveboththe TableViewandtheeditorinthesame View.We

wouldthenneedtoaccessthe ViewModelfromatleasttwodifferentviews,oneforthe

TableViewandonefortheform.Luckily,the ViewModelisinjectable,sowecanrewriteour

editorexampleandsplitthetwoviews:

classPersonList:View("PersonList"){

valpersons=listOf(Person("John","Manager"),Person("Jay","Workerbee")).obser

vable()

valmodel:PersonModelbyinject()

overridevalroot=tableview(persons){

title="Person"

column("Name",Person::nameProperty)

column("Title",Person::titleProperty)

bindSelected(model)

}

}

11.EditingModelsandValidation

168

Theperson TableViewnowbecomesalotcleanerandeasiertoreasonwith.Inareal

applicationthelistofpersonswouldprobablycomefromacontrolleroraremotingcall

though.Themodelissimplyinjectedintothe View,andwewilldothesamefortheeditor:

classPersonEditor:View("PersonEditor"){

valmodel:PersonModelbyinject()

overridevalroot=form{

fieldset("Editperson"){

field("Name"){

textfield(model.name)

}

field("Title"){

textfield(model.title)

}

button("Save"){

enableWhen(model.dirty)

action{

save()

}

}

button("Reset").action{

model.rollback()

}

}

}

privatefunsave(){

model.commit()

println("Saving${model.item.name}/${model.item.title}")

}

}

Theinjectedinstanceofthemodelwillbetheexactsameoneinbothviews.Again,inareal

applicationthesavecallwouldprobablybeoffloaded

toacontrollerasynchronously.

WhentoUse ViewModelvs ItemViewModel

Thischapterhasprogressedfromthelow-levelimplementation ViewModelintoa

streamlined ItemViewModel.Youmightwonderifthereareanyusecasesforinheritingfrom

ViewModelinsteadof ItemViewModelatall.Theansweristhatwhileyouwouldtypically

extend ItemViewModelmorethan90%ofthetime,therearesomeusecaseswhereitdoes

notmakesense.SinceViewModelscanbeinjectedandusedtokeepnavigationalstateand

overallUIstate,youmightuseitforsituationswhereyoudonothaveasingledomainobject

11.EditingModelsandValidation

169

-youcouldhavemultipledomainobjectsorjustacollectionoflooseproperties.Inthisuse

casethe ItemViewModeldoesnotmakeanysense,andyoumightimplementthe

ViewModeldirectly.Forcommoncasesthough, ItemViewModelisyourbestfriend.

Thereisonepotentialissuewiththisapproach.Ifwewanttodisplaymultiple"pairs"of

listsandforms,perhapsindifferentwindows,weneedawaytoseparateandbindthe

modelbelongingtoaspesificpairoflistandform.Therearemanywaystodealwith

that,butonetoolverywellsuitedforthisisthescopes.Checkoutthescope

documentationformoreinformationaboutthisapproach.

Validation

Almosteveryapplicationneedstocheckthattheinputsuppliedbytheuserconformstoa

setofrulesorareotherwiseacceptable.TornadoFXsportsanextensiblevalidationand

decorationframework.

Wewillfirstlookatvalidationasastandalonefeaturebeforeweintegrateitwiththe

ViewModel.

UndertheHood

Thefollowingexplanationisabitverboseanddoesnotreflectthewayyouwouldwrite

validationcodeinyourapplication.Thissectionwillprovideyouwithasolidunderstandingof

howvalidationworksandhowtheindividualpiecesfittogether.

Validator

A Validatorknowshowtoinspectuserinputofaspecifiedtypeandwillreturna

ValidationMessagewitha ValidationSeveritydescribinghowtheinputcomparestothe

expectedinputforaspecificcontrol.Ifa Validatordeemsthatthereisnothingtoreportfor

aninputvalue,itreturns null.Atextmessagecanoptionallyaccompanythe

ValidationMessage,andwouldnormallybedisplayedbythe Decoratorconfiguredinthe

ValidationContext.Wewillcovermoreondecoratorslater.

Thefollowingseveritylevelsaresupported:

Error-Inputwasnotaccepted

Warning-Inputisnotideal,butaccepted

Success-Inputisaccepted

Info-Inputisaccepted

11.EditingModelsandValidation

170

Therearemultipleseveritylevelsrepresentingsuccessfulinputtoeasierprovidethe

contextuallycorrectfeedbackinmostcases.Forexample,youmightwanttogivean

informationalmessageforafieldnomattertheinputvalue,orspecificallymarkfieldswitha

greencheckboxwhentheyareentered.Theonlyseveritythatwillresultinaninvalidstatus

isthe Errorlevel.

ValidationTrigger

Bydefaultvalidationwillhappenwhentheinputvaluechanges.Theinputvalueisalwaysan

ObservableValue<T>,andthedefaulttriggersimplylistensforchanges.Youcanhowever

choose

tovalidatewhentheinputfieldloosesfocus,orwhenasavebuttonisclickedforinstance.

ThefollowingValidationTriggerscanbeconfiguredforeachvalidator:

OnChange-Validatewheninputvaluechanges,optionallyafteragivendelayin

milliseconds

OnBlur-Validatewhentheinputfieldloosesfocus

Never-Onlyvalidatewhen ValidationContext.validate()iscalled

ValidationContext

Normallyyouwouldvalidateuserinputfrommultiplecontrolsorinputfieldsatonce.Youcan

gatherthesevalidatorsina ValidationContextsoyoucancheckifallvalidatorsarevalid,or

askthevalidationcontexttoperformvalidationforallfieldsatanygiventime.Thecontext

alsocontrolswhatkindofdecoratorwillbeusedtoconveythevalidationmessageforeach

field.SeetheAdHocvalidationexamplebelow.

Decorator

The decorationProviderofa ValidationContextisinchargeofprovidingfeedbackwhena

ValidationMessageisassociatedwithaninput.Bydefaultthisisaninstanceof

SimpleMessageDecoratorwhichwillmarktheinputfieldwithacoloredtriangleinthetopper

leftcorneranddisplayapopupwiththemessagewhiletheinputhasfocus.

11.EditingModelsandValidation

171

Figure11.2Thedefaultdecoratorshowingarequiredfieldvalidationmessage

Ifyoudon'tlikethedefaultdecoratorlookyoucaneasilycreateyourownbyimplementing

the Decoratorinterface:

interfaceDecorator{

fundecorate(node:Node)

funundecorate(node:Node)

}

Youcanassignyourdecoratortoagiven ValidationContextlikethis:

context.decorationProvider=MyDecorator()

Tip:YoucancreateadecoratorthatappliesCSSstyleclassestoyourinputsinstead

ofoverlayingothernodestoprovidefeedback.

AdHocValidation

11.EditingModelsandValidation

172

Whileyouwillprobablyneverdothisinarealapplication,itispossibletosetupa

ValidationContextandapplyvalidatorstoitmanually.Thefollowing

exampleisactuallytakenfromtheinternaltestsoftheframework.Itillustratestheconcept,

butisnotapracticalpatterninanapplication.

//Createavalidationcontext

valcontext=ValidationContext()

//CreateaTextFieldwecanattachvalidationto

valinput=TextField()

//Defineavalidatorthatacceptsinputlongerthan5chars

valvalidator=context.addValidator(input,input.textProperty()){

if(it!!.length<5)error("Tooshort")elsenull

}

//Simulateuserinput

input.text="abc"

//Validationshouldfail

assertFalse(validator.validate())

//Extractthevalidationresult

valresult=validator.result

//Theseverityshouldbeerror

assertTrue(resultisValidationMessage&&result.severity==ValidationSeverity.Error)

//Confirmvalidinputpassesvalidation

input.text="longvalue"

assertTrue(validator.validate())

assertNull(validator.result)

Takespecialnoteofthelastparametertothe addValidatorcall.Thisistheactualvalidation

logic.Thefunctionispassedthe

currentinputforthepropertyitvalidatesandmustreturnnulliftherearenomessages,oran

instanceof ValidationMessageifsomething

isnoteworthyabouttheinput.Amessagewithseverity Errorwillcausethevalidationto

fail.Asyoucansee,youdon'tneedtoinstantiate

aValidationMessageyourself,simplyuseoneofthefunctions error, warning, success

or infoinstead.

ValidationwithViewModel

11.EditingModelsandValidation

173

EveryViewModelcontainsa ValidationContext,soyoudon'tneedtoinstantiateone

yourself.TheValidationframeworkintegrateswiththetype

safebuildersaswell,andevenprovidessomebuiltinvalidators,likethe requiredvalidator.

Goingbacktoourpersoneditor,wecan

maketheinputfieldsrequiredwiththissimplechange:

field("Name"){

textfield(model.name).required()

}

That'sallthereistoit.Therequiredvalidatoroptionallytakesamessagethatwillbe

presentedtotheuserifthevalidationfails.Thedefaulttext

is"Thisfieldisrequired".

Insteadofusingthebuiltin requiredvalidatorwecanexpressthesamethingmanually:

field("Name"){

textfield(model.name).validator{

if(it.isNullOrBlank())error("Thenamefieldisrequired")elsenull

}

}

Ifyouwanttofurthercustomizethetextfield,youmightwanttoaddanothersetofcurly

braces:

field("Name"){

textfield(model.name){

//Manipulatethetextfieldhere

validator{

if(it.isNullOrBlank())error("Thenamefieldisrequired")elsenull

}

}

}

Bindingbuttonstovalidationstate

Youmightwanttoonlyenablecertainbuttonsinyourformswhentheinputisvalid.The

model.validpropertycanbeusedforthispurpose.Since

thedefaultvalidationtriggeris OnChange,thevalidstatewouldonlybeaccuratewhenyou

firsttrytocommitthemodel.However,ifyouwant

11.EditingModelsandValidation

174

tobindabuttontothe validstateofthemodelyoucancall model.validate(decorateErrors

=false)toforceallvalidatorstoreporttheirresultswithout

actuallyshowinganyvalidationerrorstotheuser.

field("username"){

textfield(username).required()

}

field("password"){

passwordfield(password).required()

}

buttonbar{

button("Login",ButtonBar.ButtonData.OK_DONE).action{

enableWhen{model.valid}

model.commit{

doLogin()

}

}

}

//Forcevalidatorstoupdatethe`model.valid`property

model.validate(decorateErrors=false)

Noticehowtheloginbutton'senabledstateisboundtotheenabledstateofthemodelvia

enableWhen{model.valid}call.Afterall

thefieldsandvalidatorsareconfigured,the model.validate(decorateErrors=false)make

surethevalidstateofthemodelisupdated

withouttriggeringerrordecorationsonthefieldsthatfailvalidation.Thedecoratorswillkick

inonvaluechangebydefault,unlessyou

overridethe triggerparameterto validator.The required()buildinvalidatoralso

acceptsthisparameter.Forexample,torunthevalidator

onlywhentheinputfieldloosesfocusyoucancall

textfield(username).required(ValidationTrigger.OnBlur).

Validationindialogs

The dialogbuildercreatesawindowwithaformandafieldsetandlet'syoustartadding

fieldstoit.Sometimesyoudon'thaveaViewModelforsuchcases,butyoumightstillwant

usethefeaturesitprovides.ForsuchsituationsyoucaninstantiateaViewModelinlineand

hookuponeormorepropertiestoit.Hereisanexampledialogthatrequirestheuserto

entersomeinputinatextarea:

11.EditingModelsandValidation

175

dialog("Addnote"){

valmodel=ViewModel()

valnote=model.bind{SimpleStringProperty()}

field("Note"){

textarea(note){

required()

whenDocked{requestFocus()}

}

}

buttonbar{

button("Savenote").action{

model.commit{doSave()}

}

}

}

Figure11.3AdialogwithainlineViewModelcontext

Noticehowthe notepropertyisconnectedtothecontextbyspecifyingit'sbeanparameter.

Thisiscrucialformakingthefieldvalidationavailable.

Partialcommit

It'salsopossibletodoapartialcommitbysupplingalistoffieldsyouwanttocommitto

avoidcommittingeverything.Thiscanbeconvenientinsituationswhereyoueditthesame

ViewModelinstancefromdifferentViews,forexampleinaWizard.SeetheWizardchapter

11.EditingModelsandValidation

176

formoreinformationaboutpartialcommit,andthecorrespondingpartialvalidationfeatures.

TableViewEditModel

Ifyouarepressedforscreenrealestateanddonothavespaceforamaster/detailsetup

witha TableView,aneffectiveoptionistoeditthe TableViewdirectly.Byenablingafew

streamlinedfeaturesinTornadoFX,youcannotonlyenableeasycelleditingbutalsoenable

dirtystatetracking,committing,androllback.Bycalling enableCellEditing()and

enableDirtyTracking(),aswellasaccessingthe tableViewEditModelpropertyofa

TableView,youcaneasilyenablethisfunctionality.

Whenyoueditacell,ablueflagwillindicateitsdirtystate.Calling rollback()willrevert

dirtycellstotheiroriginalvalues,whereas commit()willsetthecurrentvaluesasthenew

baseline(andremovealldirtystatehistory).

11.EditingModelsandValidation

177

importtornadofx.*

classMyApp:App(MyView::class)

classMyView:View("MyView"){

valcontroller:CustomerControllerbyinject()

vartableViewEditModel:TableViewEditModel<Customer>bysingleAssign()

overridevalroot=borderpane{

top=buttonbar{

button("COMMIT").setOnAction{

tableViewEditModel.commit()

}

button("ROLLBACK").setOnAction{

tableViewEditModel.rollback()

}

}

center=tableview<Customer>{

items=controller.customers

isEditable=true

column("ID",Customer::idProperty)

column("FIRSTNAME",Customer::firstNameProperty).makeEditable()

column("LASTNAME",Customer::lastNameProperty).makeEditable()

enableCellEditing()//enableseasiercellnavigation/editing

enableDirtyTracking()//flagscellsthataredirty

tableViewEditModel=editModel

}

}

}

classCustomerController:Controller(){

valcustomers=listOf(

Customer(1,"Marley","John"),

Customer(2,"Schmidt","Ally"),

Customer(3,"Johnson","Eric")

).observable()

}

classCustomer(id:Int,lastName:String,firstName:String){

vallastNameProperty=SimpleStringProperty(this,"lastName",lastName)

varlastNamebylastNameProperty

valfirstNameProperty=SimpleStringPorperty(this,"firstName",firstName)

varfirstNamebyfirstNameProperty

validProperty=SimpleIntegerProperty(this,"id",id)

varidbyidProperty

}

11.EditingModelsandValidation

178

Figure11.4A TableViewwithdirtystatetracking,with rollback()and commit()

functionality.

Notealsotherearemanyotherhelpfulpropertiesandfunctionsonthe TableViewEditModel.

The itemspropertyisan ObservableMap<S,TableColumnDirtyState<S>>mappingthedirty

stateofeachrecorditem S.Ifyouwanttofilteroutandcommitonlydirtyrecordssoyou

canpersistthemsomewhere,youcanhaveyour"Commit" Buttonperformthisaction

instead.

button("COMMIT").action{

tableViewEditModel.items.asSequence()

.filter{it.value.isDirty}

.forEach{

println("Committing${it.key}")

it.value.commit()

}

}

Therearealso commitSelected()and rollbackSelected()toonlycommitorrollbackthe

selectedrecordsinthe TableView.

11.EditingModelsandValidation

179

OSGi

ThischapterisgearedprimarilytowardsfolkswhoalreadyhavefamiliaritywithOSGi,which

standsforOpenServicesGatewayInitiative.TheideabehindOSGiisaddingand

removingmodulestoaJavaapplicationwithouttheneedforrestarting.TornadoFXsupports

OSGiandallowshighlymodularanddynamicapplications.

IfyouhavenointerestinOSGicurrently,youarewelcometoskipthischapter.However,itis

highlyrecommendedtoatleastknowwhatitissoyoucanidentifymomentsinthefuture

thatmakeithandy.

TornadoFXcomeswiththemetadataneededforanOSGiruntimetodetectandenableit.

Whenthe tornadofx.jarisloadedinanOSGicontainer,anumberofservicesare

automaticallyinstalledintheruntime.Theseservicesenablesomeveryinterestingfeatures

whichwewilldiscuss.

OSGiIntroduction

PleasebefamiliarwiththebasicsofOSGibeforeyoucontinuethischapter.Togetaquick

overviewofOSGitechnologyyoucancheckoutthetutorialsontheOSGiAlliancewebsite.

TheApacheFelixtutorialsarealsoagoodstartingpointreferenceforbasicOSGipatterns.

Services

WhentheTornadoFXJARisloaded,youcancreateyourownTornadoFXbundleandcreate

yourapplicationanywayyoulike.However,someusagepatternsaresotypicalanduseful

thatTornadoFXhasbuilt-insupportforthem.

DynamicApplications

ThedynamicnatureofOSGilendsitselfwelltoGUIapplicationsingeneral.Theabilityto

havecertainfunctionalitycomeandgoastheenvironmentchangescanbepowerful.

JavaFXitselfisunfortunatelywritteninawaythatpreventsyoufromstartinganother

JavaFXapplicationaftertheinitialapplicationshutsdown.Tocircumventthisshortcoming

andenableyoutostopandstartyourapplicationasmanytimesasyouwant,TornadoFX

providesawaytoregisteryour Appclasswithanapplicationproxywhichwillkeepthe

JavaFXenvironmentrunningevenwhenyourapplicationshutsdown.

12.OSGi

180

Togetstarted,implementa BundleActivatorthatprovidesameansto start()and

stop()an App.Registeringyourapplicationforthisfunctionalitycanbedonebycalling

context.registerApplicationwithyour Appclassasthesingleparameterinyourbundle

Activator:

classActivator:BundleActivator{

overridefunstart(context:BundleContext){

context.registerApplication(MyApp::class)

}

overridefunstop(context:BundleContext){

}

}

IfyoupreferOSGideclarativeservicesinstead,thiswillhavethesameeffectprovidedthat

youhavetheOSGiDSbundleloaded:

@Component

classAppRegistration:ApplicationProvider{

overridevalapplication=MyApp::class

}

ProvidedthattheTornadoFXbundleisavailableinyourcontainer,thisisenoughtostart

yourapplicationautomaticallyoncethebundleisactivated.Youcannowstopandstartitas

manytimesasyoulikebystoppingandstartingthebundle.

DynamicStylesheets

Youcanprovidetype-safestylesheetstootherTornadoFXbundlesbyregisteringtheminan

Activator:

classActivator:BundleActivator{

overridefunstart(context:BundleContext){

context.registerStylesheet(Styles::class)

}

overridefunstop(context:BundleContext){

}

}

UsingOSGiDeclarativeServicestheregistrationlookslikethis:

12.OSGi

181

@Component

classStyleRegistration:StylesheetProvider{

overridevalstylesheet=Styles::class

}

Wheneverthisbundleisloaded,everyactive Viewwillhavethisstylesheetapplied.When

thebundleisunloaded,thestylesheetisautomaticallyremoved.Ifyouwanttoprovide

multiplestylesheetsbasedonthesamestyleclasses,itisagoodideatocreateonebundle

thatexportsthe cssclassdefinitions,sothatyourViewscanreferencethesestyles,and

thestylesheetbundlescancreateselectorsbasedonthem.

DynamicViews

AcoolaspectofOSGiistheabilitytohaveUIelementspopupwhentheybecomeavailable.

Atypicalusecasecouldbea"dashboard"application.Inthisexample,thebaseapplication

bundlecontainsa ViewthatcanholdotherViews,andtellstheTornadoFXOSGiRuntime

thatitwouldliketoautomaticallyembedViewsiftheymeetcertaincriteria.

Forinstance,wecancreatea Viewthatcontainsa VBox.WetelltheTornadoFXOSGi

RuntimethatwewouldliketohaveotherViewsembeddedintoitiftheyaretaggedwiththe

discriminatordashboard:

classDashboard:View(){

overridevalroot=VBox()

init{

title="DashboardApplication"

addViewsWhen{it.discriminator=="dashboard"}

}

}

Ifthe addViewsWhenfunctionreturnstrue,the Viewisaddedtothe VBox.ToofferupViews

tothisDashboard,anotherbundlewoulddeclarethatitwantstoexportit'sViewbysetting

the dashboarddiscriminator.Hereweregisterafictive MusicPlayerviewtobedockedinto

thedashboardwhenit'sbundlebecomesactive.

classActivator:BundleActivator{

overridefunstart(context:BundleContext){

context.registerView(MusicPlayer::class,"dashboard")

}

overridefunstop(context:BundleContext){

}

}

12.OSGi

182

Again,theOSGiDeclarativeServiceswayofexportingtheViewwouldlooklikethis:

@Component

classMusicPlayerRegistration:ViewProvider{

overridevaldiscriminator="dashboard"

overridefungetView()=find(MusicPlayer::class)

}

The addViewsWhenfunctionissmartenoughtoinspectthe VBoxandfindouthowtoadd

thechildViewitwaspresented.Itcanalsofigureoutthatifyoucallthefunctionona

TabPaneitwouldcreateanew TabandsetthetitletothechildViewtitleetc.Ifyouwould

liketodosomethingcustomwiththepresentedViews,youcanreturn falsefromthe

functionsothatthechildViewwillnotbeaddedautomaticallyandthendowhateveryou

wantwithit.EventhoughtheTabexampleissupportedoutofthebox,youcoulddoit

explicitlylikethis:

tabPane.addViewsWhen{

if(it.discriminator=="dashboard"){

valview=it.getView()

tabPane.tab(view.title,view.root)

}

false

}

ManualhandlingofdynamicViews

CreateyourfirstOSGibundle

Agoodstartingpointisthe tornadofx-maven-osgi-projecttemplateintheTornadoFXIntelliJ

IDEAplugin.ThiscontainseverythingyouneedtobuildOSGibundlesfromyoursources.

TheOSGIIDEApluginmakesitveryeasytosetupandrunanOSGicontainerdirectlyfrom

theIDE.Thereisascreencastathttps://www.youtube.com/watch?v=liOFCH5MMKkthat

showstheseconceptsinaction.

OSGiConsole

TornadoFXhasabuiltinOSGiconsolefromwhichyoucaninspectbundles,changetheir

stateandeveninstallnewbundleswithdraganddrop.Youcanbringuptheconsolewith

Alt-Meta-Oorconfigureanothershortcutbysetting FX.osgiConsoleShortcutor

programmaticallyopeningthe OSGIConsoleView.

12.OSGi

183

Requirements

TorunTornadoFXinanOSGicontainer,youneedtoloadtherequiredbundles.Usuallythis

isamatterofdumpingthesejarsintothe bundledirectoryofthecontainer.Notethatany

jarthatistobeusedinanOSGicontainerneedstobe"OSGienabled",whicheffectively

meansaddingsomeOSGispecificentriesthe META-INF/MANIFEST.MFfile.

WeprovidedacompleteinstallationwithApacheFelixandTornadoFXalreadyinstalledat

http://tornadofx.tornado.no/felix-tornadofx-5.4.0.zip.Remembertoswapthe tornadofx.jar

forthelatestversion,asthisbundleismostlikelylaggingacoupleofversionsbehind.

ThesearetherequiredartifactsforanyTornadoFXapplicationrunninginanOSGicontainer.

Yourcontainermightalreadybebundlewithsomeofthese,socheckthecontainer

documentationforfurtherdetails.

12.OSGi

184

Artifact Version Binary

JavaFX8OSGiSupport 8.0 jar

TornadoFX 1.5.5 jar

KotlinOSGIBundle* 1.0.3 jar

ConfigurationAdmin** 1.8.10 jar

CommonsLogging 1.2 jar

ApacheHTTP-Client 4.5.2 jar

ApacheHTTP-Core 4.4.5 jar

JSON 1.0.4 jar

*TheKotlinOSGibundlecontainsspecialversionsof kotlin-stdliband kotlin-

reflectwiththerequiredOSGimanifestinformation.

**ThislinkstotheApacheFeliximplementationoftheOSGiConfigAdmininterface.Feel

freetousetheimplementationfromyourOSGicontainerinstead.Somecontainers,like

ApacheKaraf,alreadyhastheConfigAdminbundleloaded,soyouwon'tneeditthere.

12.OSGi

185

13.TornadoFXIDEAPlugin

TosavetimeinusingTornadoFX,youcaninstallaconvenientIntellijIDEApluginto

automaticallygenerateprojecttemplates,Views,injections,andotherTornadoFXfeatures.

Ofcourse,youdonothavetousethispluginwhichwasdonethroughoutthisbook.Butit

addssomeconveniencetobuildTornadoFXapplicationsalittlemorequickly.

InstallingthePlugin

IntheIntellijIDEAworkspace,pressCONTROL+SHIFT+Aandtype"Plugins",thenpress

ENTER.Youwillseeadialogtosearchandinstallplugins.ClicktheBrowseRepositories

button(Figure13.1).

Figure13.1AfterbringingupthePluginsdialog,clickBrowseRepositories.

13.TornadoFXIDEAPlugin

186

Youwillthenseealistof3rdpartypluginsavailabletoinstall.Searchfor"TornadoFX",select

it,andclickthegreenInstallbutton(Figure13.2).

Figure13.2Searchfor"TornadoFX"andclickInstall

WaitforittofinishinstallingandtherestartIntellijIDEA.

TornadoFXProjectTemplates

TheTornadoFXpluginshassomeMavenandGradleprojecttemplatestoquicklycreatea

configuredTornadoFXapplication.

InIntellijIDEA,navigatetoFile->New->Project...(Figure13.3).

Figure13.3

13.TornadoFXIDEAPlugin

187

YouwillthenseeadialogtocreateanewTornadoFXproject.YoucancreateGradleand

Mavenflavors,withorwithoutOSGisupport.Let'screateaGradleonefordemonstration

(Figure13.4).

Figure13.4

13.TornadoFXIDEAPlugin

188

Inthenextdialog,giveyourprojectaname,alocationfolder,andabasepackagewithyour

domain(Figure13.5).ThenclickFinish.

Figure13.5

YoumaybepromptedtoimporttheprojectasaGradleproject,andclickonthatpromptif

youencounterit.YouwillthenhaveaTornadoFXapplicationconfiguredandsetup,

including App, View,and Stylesentitiessetup(Figure13.6).

Figure13.6

13.TornadoFXIDEAPlugin

189

AgeneratedTornadoFXprojectwithaGradleconfiguration.

ThesestepsapplytotheMavenandOSGiwizardsaswell,anddonotforgettoputyour

projectonaversiontrackingsystemlikeGIT!.

CreatingViews

YoucancreateViews,Fragments,andFXMLfilesquicklywiththeplugin.Youcanrightclick

afolderintheProject,thennavigatethepopupmenutoNew->TornadoFXView(Figure

13.7).

Figure13.7

13.TornadoFXIDEAPlugin

190

Youwillthencometoadialogtodictatehowthe Viewisconstructed.Youevenhavethe

optionofspecifyingitasa FragmentinsteadthroughtheTypeparameter,aswellasan

FXMLviaKind.Finally,youcanspecifythe NodetypefortheRoot,whichshoulddefaultto

a BorderPane.

Figure13.8

ClickOKandanew Viewwillgeneratedandaddedtoyourproject(Figure13.9).

Figure13.9Anew ViewgeneratedwiththeTornadoFXplugin

13.TornadoFXIDEAPlugin

191

InjectingComponents

Onelastminorconvenience.YoucangenerateTornadoFX Componentinjectionsquickly

withtheplugin.Forinstance,ifyourightclicktheclassbodyofthe MainView,youcan

generatethe MyOtherViewasaninjectedproperty(Figure13.10).

Figure13.10

13.TornadoFXIDEAPlugin

192

Youcanthenuseadialogtoselectthe MyOtherViewastheinjectedproperty,thenclickOK

(Figure13.11).

Figure13.11

13.TornadoFXIDEAPlugin

193

GeneratingTornadoFXProperties

OneofthemosthelpfulfeaturesinthepluginistheabilitytoconvertplainKotlinproperties

intoTornadoFXproperties.

Sayyouhaveasimpledomainclasscalled Client.

classClient(id:Int,name:String){

valid:Int=id

valname:String=name

}

Ifyouclickonapropertyandthentheintentlightbulb,orpressALT+ENTER,youshouldsee

amenupopupwithanoptiontoconvertittoaTornadoFXProperty(Figure13.12).

Figure13.12

13.TornadoFXIDEAPlugin

194

Dothisforeachpropertyandyour Clientclassshouldnowlooklikethis.

classClient(id:Int,name:String){

varidbyproperty(id)

funidProperty()=getProperty(Client::id)

varnamebyproperty(name)

funnameProperty()=getProperty(Client::name)

}

Your ClientnowusesJavaFXpropertiesinsteadofplainproperties.Noticetheprimary

constructorwillpasstheintialvaluestothe property()delegates,butyoudonothaveto

provideinitialvaluesiftheyarenotdesired.

Thisisatime-savingfeaturewhencreatingdomaintypesfordatacontrols.Nextwewill

coverhowtogenerate TableViewcolumns.

GeneratingColumnsforaTableView

Anotherhandyfeatureyoucandowiththepluginalsoisgeneratingcolumnsfora

TableView.Ifyouhavea TableView<Person>,youcanputthecursoronitsdeclaration,

pressALT+ENTER,andgetaprompttogeneratethecolumns(Figure13.13).

Figure13.13

13.TornadoFXIDEAPlugin

195

Youwillthenseeadialogtoconfirmwhich Personpropertiestogeneratethecolumnson

(Figure14.14).

Figure13.14

Press"OK"andthecolumnswillthenbegeneratedforyou(Figure13.15).

Figure13.15

13.TornadoFXIDEAPlugin

196

Notethatatthetimeofwritingthisguide,foragiven TableView<T>,thisfeatureonlyworksif

thepropertieson TfollowtheJavaFXconventionusingthe Propertydelgates.

Summary

TheTornadoFXpluginhassometime-savingconveniencesthatyouarewelcometotake

advantageof.Ofcourse,youdonothavetousethepluginbecauseitmerelyprovides

shortcutsandgeneratescode.Intime,theremaybemorefeaturesaddedtothepluginso

besuretofollowtheprojectonGitHubforfuturedevelopments.

13.TornadoFXIDEAPlugin

197

14.Scopes

Scopeisasimpleconstructthatenablessomeinterestingandhelpfulbehaviorina

TornadoFXapplication.

Whenyouuse inject()or find()tolocatea Controllerora View,youwillbydefault

getbackasingletoninstance,meaningthatwhereveryoulocatethatobjectinyourcode,

youwillgetbackthesameinstance.Scopesprovideawaytomakea Viewor Controller

uniquetoasmallersubsetofinstancesinyourapplication.

ItcanalsobeusedtorunmultipleversionsofthesameapplicationinsidethesameJVM,for

examplewithJPro,whichexposesTornadoFXapplicationinawebbrowser.

AMaster/Detailexample

InanMDIApplicationyoucanopenaneditorinanewwindow,andensurethatallthe

injectedresourcesareuniquetothatwindow.Wewillleveragethattechniquetocreatea

personeditorthatallowsyoutoopenanewwindowtoediteachperson.

Westartbydefiningatableinterfacewhereyoucandoubleclicktoopenthepersoneditorin

aseparatewindow.

classPersonList:View("PersonList"){

valctrl:PersonControllerbyinject()

overridevalroot=tableview<Person>(){

column("#",Person::idProperty)

column("Name",Person::nameProperty)

onUserSelect{editPerson(it)}

asyncItems{ctrl.people()}

}

funeditPerson(person:Person){

valeditScope=Scope()

valmodel=PersonModel()

model.item=person

setInScope(model,editScope)

find(PersonEditor::class,editScope).openWindow()

}

}

14.Scopes

198

The editfunctioncreatesanew Scopeandinjectsa PersonModelconfiguredwiththe

selecteduserintothatscope.Finally,itretrievesa PersonEditorinthecontextofthenew

scopeandopensanewwindow.

Whenthe PersonEditorisinitialized,itwilllookupa PersonModelviainjection.Thedefault

contextfor injectand findisalwaysthescopethatcreatedthecomponent,soitwill

lookinthe personScopewejustcreated.

valmodel:PersonModelbyinject()

BreakingOutoftheCurrentScope

Whennoscopeisdefined,injectableresourcesarelookedupinthedefaultscope.Thereis

anitemrepresentingthatscopecalled DefaultScope.Intheaboveexample,theeditor

mighthavecalledouttoa PersonControllertoperformasaveoperationinadatabaseor

viaaRESTcall.This PersonControllerismostprobablystateless,sothereisnoneedto

createaseparatecontrollerforeacheditwindow.Toaccessthesamecontrollerinalleditor

windows,wesupplythescopewewanttofindthecontrollerin:

valcontroller:PersonControllerbyinject(DefaultScope)

Thiseffectivelymakesthe PersonControlleratruesingletonobjectagain,withonlyasingle

instanceinthewholeapplication.

Thedefaultscopefornewinjectedobjectsarealwaysthecurrentscopeforthecomponent

thatcalls injector find,andconsequentlyallobjectscreatedinthatinjectionrunwill

belongtothesuppliedscope.

KeepingStateinScopes

Inthepreviousexampleweusedinjectiononascopeleveltogetaholdofourresources.It

isalsopossibletosubclass Scopeandputarbitrarydatainthere.EachTornadoFX

Componenthasa scopepropertythatgivesyouaccesstothatscopeinstance.Youcan

evenoverrideittoprovidethecustomsubclasssoyoudon'tneedtocastitonevery

occasion:

overridevalscope=super.scopeasPersonScope

14.Scopes

199

Nowwheneveryouaccessthe scopepropertyfromyourcode,itwillbeoftype

PersonScope.Itnowcontainsa PersonModelthatwillonlybeavailabletothisscope:

classPersonScope:Scope(){

valmodel=PersonModel()

}

Let'schangeourpreviousexampleslightlytoaccessthemodelinsidethescopeinsteadof

usinginjection.FirstwechangetheeditPersonfunction:

funeditPerson(person:Person){

valeditScope=PersonScope()

editScope.model.item=person

find(PersonEditor::class,editScope).openWindow()

}

Thecustomscopealreadyhasaninstanceof PersonModel,sowejustconfiguretheitemfor

thatscopeandopentheeditor.Nowtheeditorcanoverridethetypeofscopeandaccess

themodel:

//Castscope

overridevalscope=super.scopeasPersonScope

//Extractourviewmodelfromthescope

valmodel=scope.model

Bothapproachesworkequallywell,butdependingonyourusecaseyoumightpreferone

overtheother.

Globalapplicationscope

Aswehintettoinitially,youcanrunmultipleapplicationsinthesameJVMandkeepthem

completelyseparatebyusingscopes.Bydefault,JavaFXdoesnotsupportmultitenancy,

andcanonlystartasingleJavaFXapplicationperJVM,butnewtechnologiesareemerging

thatleveragesmultitenancyandwillevenexposeyourJavaFXbasedapplicationstothe

web.OnesuchtechnologyisJPro.io,andTornadoFXsupportsmultitenancyforJPro

applicationsbyleveragingscopes.

ThereisnospecialJProclassesinTornadoFX,butsupportingJProisverysimpleby

leverangingscopes:

UsingTornadoFXwithJPro

14.Scopes

200

JProwillcreateanewinstanceofyourAppclassforeachnewwebuser.Also,toaccessthe

JProWebAPIyouneedtogetaccesstothestagecreatedforeachuser.Inthisexamplewe

subclass ScopetocreateaspecialJProScopethatcontainsthestagethatwasgivento

eachapplicationinstance:

classJProScope(valstage:Stage):Scope(){

valwebAPI:WebAPIget()=WebAPI.getWebAPI(stage)

}

Thenextstepistosubclass JProApplicationtodefineourentrypoint.Thisappclassisin

additiontoourexistingTornadoFXAppclass,whichbootstheactualapplication:

classMain:JProApplication(){

valapp=OurTornadoFXApp()

overridefunstart(primaryStage:Stage){

app.scope=JProScope(primaryStage)

app.start(primaryStage)

}

overridefunstop(){

app.stop()

super.stop()

}

}

Wheneveranewuservisitsoursite,the Mainclassiscreated,togetherwithanew

instanceofouractualTornadoFXapplication.

Inthe startfunctionweassignanew JProScopetotheTornadoFXappinstanceandthen

call app.start.Fromthereonout,allinstancescreatedusing injectand findwillbein

thecontextofthatJProinstance.

Asusual,youcanbreakoutofthe JProScopetoaccessJVMlevelglobalsbysupplyingthe

DefaultScopeoranyothersharedscopetothe injector findfunctions.

WeshouldprovideautilityfunctionthatmakesiteasytoaccesstheJProWebAPIfromany

Component:

valComponent.webAPI:WebAPIget()=(scopeasJProScope).webAPI

The scopepropertyofany Componentwillbethe JProScopesowecancastitandaccess

the webAPIpropertywedefinedinourcustomscopeclass.

14.Scopes

201

14.Scopes

202

15.EventBus

An EventBusisaversatiletoolwithamultitudeofusecases.Dependingonyourcoding

styleand

preferences,youmightwanttoreducecouplingbetweencontrollersandviewsbypassing

messages

insteadofhavinghardreferencestoeachother.TheTornadoFXeventbuscanmakesure

thatthemessagesarereceivedontheappropriatethread,withouthavingtodothat

concurrencyhouse-keepingmanually.

Peopleuseeventbusesformanydifferentusecases.TornadoFXdoesnotdictatewhenor

howyoushould

usethem,butwewanttoshowyousomeoftheadvantagesitcanprovidetoyou.

StructureoftheEventBus

Aswithanytypicaleventbusimplementation,youcanfireeventsaswellassubscribeand

unsubscribe

toeventsonthebus.Youcreateaneventbyextendingthe FXEventclass.Insomecases,

anevent

canbejustasignaltosomeothercomponenttotriggersomethingtohappen.Inother

cases,the

eventcancontaindatawhichwillbebroadcasttothesubscribersofthisevent.Letuslookat

acoupleof

eventdefinitionsandhowtousethem.

PictureaUIwheretheusercanclicka Buttontorefreshalistofcustomers.The View

knowsnothingofwherethedataiscomingfromorhowitisproduced,butitsubscribes

tothedataeventsandusesthedataonceitarrives.Letuscreatetwoeventclassesforthis

usecase.

Firstwedefineaneventsignaltypetonotifyanylistenersthatwewantsomecustomerdata:

importtornadofx.EventBus.RunOn.*

objectCustomerListRequest:FXEvent(BackgroundThread)

15.EventBus

203

Thiseventobjectisanapplication-wide object.Becauseitwillneverneedtocontaindata,

itwillsimplybe

broadcasttosaythatwewantthecustomerlist.The RunOnpropertyissetto

BackgroundThread,tosignal

thatthereceiverofthiseventshouldoperateoffoftheJavaFXApplicationThread.That

meansitwillbe

givenabackgroundthreadbydefault,sothatitcandoheavyworkwithoutblockingtheUI.

Intheexampleabove,wehaveaddedastaticimportforthe RunOnenum,sothatwe

justwrite BackgroundThreadinsteadof EventBus.RunOn.BackgroundThread.YourIDEwillhelp

youtomakethisimportsoyour

codelookscleaner.

AbuttonintheUIcanfirethiseventbyusingthe firefunction:

button("Loadcustomers").action{

fire(CustomerListRequest)

}

A CustomerControllermightlistenforthisevent,andloadthecustomerlistondemand

beforeitfiresanevent

withtheactualcustomerdata.Firstweneedtodefineaneventthatcancontainthe

customerlist:

classCustomerListEvent(valcustomers:List<Customer>):FXEvent()

Thiseventisa classratherthanan object,asitwillcontainactualdataandvary.Also,it

didnotspecifyanothervalueforthe RunOnproperty,sothiseventwillbeemittedonthe

JavaFXApplicationThread.

Acontrollercannowsubscribetoourrequestfordataandemitthatdataonceithasit:

classCustomerController:Controller(){

init{

subscribe<CustomerListRequest>{

valcustomers=loadCustomers()

fire(CustomerListEvent(customers))

}

}

funloadCustomers():List<Customer>=db.selectAllCustomers()

}

BackinourUI,wecanlistentothiseventinsidethecustomertabledefinition:

15.EventBus

204

tableview<Customer>{

column("Name",Customer::nameProperty)

column("Age",Customer::ageProperty)

subscribe<CustomerListEvent>{event->

items.setAll(event.customers)

}

}

Wetelltheeventbusthatweareinterestedin CustomerListEvents,andoncewehavesuch

aneventwe

extractthecustomersfromtheeventandsetthemintothe itemspropertyofthe

TableView.

QueryParametersInEvents

Aboveyousawasignalusedtoaskfordata,andaneventreturnedwiththatdata.The

signalcouldjustaswell

containqueryparameters.Forexample,itcouldbeusedtoaskforaspecificcustomer.

Imaginetheseevents:

classCustomerQuery(valid:Int):FXEvent(false)

classCustomerEvent(valcustomer:Customer):FXEvent()

Usingthesameprocedureasabove,wecannowsignalourneedforaspecific Customer,

butwenowneedtobe

morecarefulwiththedatawegetback.IfourUIallowsformultiplecustomerstobeeditedat

once,weneedto

makesurethatweonlyapplydataforthecustomerweaskedfor.Thisisquiteeasily

accountedforthough:

15.EventBus

205

classCustomerEditor(valcustomerId:Int):View(){

valmodel:CustomerModel

overridevalroot=form{

fieldset("Customerdata"){

field("Name"){

textfield(model.name)

}

//Morefieldsandbuttonshere

}

}

init{

subscribe<CustomerEvent>{

if(it.customer.id==customerId)

model.item=it.customer

}

fire(CustomerQuery(customerId))

}

}

TheUIiscreatedbeforetheinterestingbithappensinthe initfunction.First,we

subscribeto CustomerEvents,

butwemakesuretoonlyactonceweretrievethecustomerwewereaskingfor.Ifthe

customerIdmatches,

weassignthecustomertothe itempropertyofour ItemViewModel,andtheUIisupdated.

Anicesideeffectofthisisthatourcustomerobjectwillbeupdatedwheneverthesystem

emitsnewdata

forthiscustomer,nomatterwhoaskedforthem.

EventsandThreading

Whenyoucreateasubclassof FXEvent,youdictatethevalueofthe runOnproperty.Itis

ApplicationThread

bydefault,meaningthatthesubscriberwillreceivetheeventontheJavaFXApplication

Thread.Thisisusefulforevents

comingfromandgoingtootherUIcomponents,aswellasbackendservicessendingdatato

theUI.Ifyouwantto

signalsomethingtoabackendservice,onewhichislikelytoperformheavy,long-running

work,youshouldset runOn

to BackgroundThread,makingsurethesubscriberwilloperateoffoftheUIthread.The

subscribernownolongerneedsto

makesurethatitisoffoftheUIthread,soyouremovealotofthread-relatedhousekeeping

15.EventBus

206

calls.Usedcorrectly

thisisconvenientandpowerful.Usedincorrectly,youwillhaveanonresponsiveUI.Make

sureyouunderstand

thiscompletelybeforeplayingwithevents,oralwayswraplongrunningtasksin runAsync

{}.

Scopes

Theeventbusemitsmessagesacrossallscopesbydefault.Ifyouwanttolimitsignalstoa

certainscope,you

cansupplythesecondparametertothe FXEventconstructor.Thiswillmakesurethatonly

subscribersfromthe

givenscopewillreceiveyourevent.

classCustomerListRequest(scope:Scope):FXEvent(BackgroundThread,scope)

The CustomerListRequestisnotanobjectanymoresinceitneedstocontainthescope

parameter.Youwouldnowfire

thiseventfromanyUIComponentlikethis:

button("Loadcustomers").action{

fire(CustomerListRequest(scope))

}

Thescopeparameterfromyour UIComponentispassedintothe CustomerListRequest.

Whencustomerdatacomes

back,theframeworktakescareofdiscriminatingonscopeandonlyapplytheresultsifthey

aremeantforyou.You

donotneedtomentionthescopetothesubscribefunctioncall,astheframeworkwill

associateyoursubscription

withthescopeyourareinatthetimeyoucreatethesubscription.

subscribe<CustomerListEvent>{event->

items.setAll(event.customers)

}

InvalidationofEventSubscribers

15.EventBus

207

Inmanyeventbusimplementations,youareleftwiththetaskofderegisteringthe

subscriberswhenyourUIcomponents

shouldnolongerreceivethem.TornadoFXtakesanopinionatedapproachtoeventcleanup

soyoudonothavetothinkaboutitmuch.

Subscriptionsinside UIComponentslike Viewand Fragmentareonlyactivewhenthat

componentisdocked.Thatmeansthatevenifyouhavea Viewthathasbeenpreviously

initializedandused,eventsubscriptionswillnotreachitunlessthe Viewisdockedinsidea

windoworsomeothercomponent.Oncetheviewisdocked,theeventswillreachit.Onceit

isundocked,theeventswillnolongerbedeliveredtoyourcomponent.Thistakescareof

theneedforyoutomanuallyderegistersubscriberswhenyoudiscardofaview.

For Controllershowever,subscriptionsarealwaysactiveuntilyoucall unsubscribe.You

needtokeep

inmindthatcontrollersarelazilyloaded,soifnothingreferencesyourcontroller,the

subscriptionswill

neverberegisteredinthefirstplace.Ifyouhavesuchacontrollerwithnootherreferences,

butyouwant

ittosubscribetoeventsrightaway,agoodplacetoeagerlyloaditwouldbethe initblock

ofyour Appsubclass:

classMyApp:App(MainView::class){

init{

//EagerlyloadCustomerControllersoitcanreceiveevents

find(CustomerController::class)

}

}

DuplicateSubscriptions

Toavoidregisteringyoursubscriptionsmultipletimes,makesureyoudonotregisterthe

eventsubscriptionsin onDock()oranyothercallbackfunctionthatmightbeinvokedmore

thanonceforthedurationofthecomponentlifecycle.Thesafestplacetocreateevent

subscriptionsisinthe initblockofthecomponent.

ShouldIuseeventsforUIlogiceverywhere?

Usingeventsforeverythingmightseemlikeanobleidea,andsomepeoplemightpreferit

becauseoftheloosecoupling

itfacilitates.However,the ItemViewModelwithinjectionisoftenamorestreamlinedsolution

15.EventBus

208

topassingdataandkeepingUIstate.Thisexamplewasprovidedtoexplainhowtheevent

systemworks,nottoconvinceyoutowriteyourUIsthiswayallthetime.

Manyfeelthateventsmightbebettersuitedforpassingsignalsratherthanactualdata,so

youmightalsoconsidersubscribingtosignalsandthenactivelyretrievingthedatayouneed

instead.

Unsubscribeaftereventisprocessed

Insomesituationsyoumightwanttoonlywanttotriggeryourlisteneracertainamountof

times.Admittedly,thisisnotveryconvenient.Youcanpassthe times=nparameterto

subscribetocontrolhowmanytimestheeventistriggeredbeforeitisunsubscribed:

objectMyEvent:FXEvent()

classMyView:View(){

overridevalroot=stackpane{

paddingAll=100

button("Fire!").action{

fire(MyEvent)

}

}

init{

subscribe<MyEvent>(times=2){

alert(INFORMATION,"Eventreceived!","Thismessageshouldonlyappeartwi

ce.")

}

}

}

Youcanalsomanuallyunsubscribebasedonanarbitrarycondition,orsimplyafterthefirst

run:

15.EventBus

209

classMyView:View(){

overridevalroot=stackpane{

paddingAll=100

button("Fire!").action{

fire(MyEvent)

}

}

init{

subscribe<MyEvent>{

alert(INFORMATION,"Eventreceived!","Thismessageshouldonlyappearonc

e.")

unsubscribe()

}

}

}

15.EventBus

210

Workspaces

JavaBusinessapplicationshavetraditionallybeenbasedononeoftheRichClient

Frameworks,

namelyNetBeansPlatformorEclipseRCP.AnimportantreasonforchoosinganRCP

platformhasbeenthe

workspacelikefunctionalitytheyprovide.Someimportantfeaturesofaworkspaceare:

Commonactionbuttonsthattietothestateofthedockedview(Save,Refreshetc)

ContextbasedUInodesaddedtothecommonworkspaceinterface

Navigationstackfortraversingvisitedviews,controlledthroughbackandforward

buttonslikeawebbrowser

Menusystemwithdynamiccontributionsandmodifications

TornadoFXhasbeguntobridgethegapbetweentheRCPplatformsbyproviding

Workspaces.Whilestillinit'sinfancy,

thedefaultfunctionalityisasolidfoundationforbusinessapplicationsinneedofthefeatures

discussedabove.

ThesimplestpossibleWorkspaceapp

TokickoffaWorkspaceapp,allyouneedtodoistosubclass Appandsettheprimary

Viewto Workspace::class.

Theresultcanbeseenbelow(Figure16.1).

classMyApp:App(Workspace::class)

Figure16.1

16.Workspaces

211

TheresultingWorkspaceconsistsofabuttonbarwithfourdefaultbuttonsandanempty

contentareabelowit.

Thecontentareacanhouseany UIComponent.Youaddacomponenttothe contentarea

bycalling workspace.dock()onit.Ifyou

showtheWorkspacewithoutadockedView,itwillbydefaultonlytakeupthespaceneeded

forthebuttons.ThewindowinFigure16.1

wasresizedafteritwasopened.

Let'spretendwehavea CustomerListcomponentthatwewouldliketodockinthe

Workspaceastheapplicationstarts.

Wedothisbyoverridingthe onBeforeShowcallback:

classMyApp:App(Workspace::class){

overridefunonBeforeShow(view:UIComponent){

workspace.dock<CustomerList>()

}

}

Figure16.2

16.Workspaces

212

ThecompletecodeoftheCustomerListisnotimportantforus,sufficeittosaythatit

displaysaTableViewand

listssomeCustomers.Whatisinterestinghowever,isthattheRefreshbuttoninthe

Workspacewasenabled

whenthe CustomerListwasdocked,whiletheSavebuttonremaineddisabled.

LeveragingtheWorkspacebuttons

Whenevera UIComponentisdockedintheWorkspace,theRefresh,SaveandDelete

buttonswillbeenabledbydefault.ThishappensbecausetheWorkspacelooksatthe

refreshable, savableand deletablepropertiesinthedockedcomponent.Every

UIComponentreturnsabooleanpropertywiththedefaultvalueof true,whichthe

Workspacethenconnectstotheenabledstateofthesebuttons.Inthe CustomerList

example,wemadesuretheSavebuttonwasalwaysdisabledbyoverridingthisproperty:

overridevalsavable=SimpleBooleanProperty(false)

Wecanachievethesameresultbycalling disableSave()inthe initblock,samegoesfor

disableRefresh()and disableDelete().

Wedidn'ttouchtheotherbuttons,sotheyremain trueasperthedefault.Wheneverthe

Refreshbutton

iscalled,itwillfirethe onRefreshfunctioninthe View.Youcanoverridethistoprovide

16.Workspaces

213

yourrefreshaction:

overridevalonRefresh(){

customerTable.asyncItems{customerController.listCustomers()}

}

SamegoesfortheDeletebutton.WewillrevisittheSavebuttonandintroduceaneattrick

toonlyactivateitwhentherearedirtychangeslaterinthischapter.

TabbedViews

YoumayatonepointdockaViewcontainingaTabPaneinsideofaWorkspace,andthen

addtabswhichrepresentsfurtherUIComponents.Youcanquiteeasilyproxythesavable,

refreshableanddeletablestateandactionsfromtheWorkspaceontotheViewrepresented

bythecurrentlyactiveTab.ConsideraCustomerEditorwhichhastabsforeditingcustomer

data,andoneforeditingcontactsforthatcustomer.Whenevertheuserselectsoneofthe

tabs,thebuttonsintheWorkspaceshouldinteractwiththestateandactionsfromthe

selectedtabview.

classCustomerEditor:View("CustomerEditor"){

overridevalroot=tabpane{

tab(CustomerBasicDataEditor::class)

tab(ContactListEditor::class)

connectWorkspaceActions()

}

}

Thatsinglecallto connectWorkspaceActions()takescareofeverythingforus.Theactual

implementationofthetwosubviewsareomittedforbrevity,butyoucanimaginethatthey

sharea CustomerViewModelinjectedintothescopetheyshareforexample.

Theactualimplementationof connectWorkspaceActionsisquitesimple,andrevealswhat's

goingonunderthecover:

funTabPane.connectWorkspaceActions(){

savableWhen{savable}

whenSaved{onSave()}

deletableWhen{deletable}

whenDeleted{onDelete()}

refreshableWhen{refreshable}

whenRefreshed{onRefresh()}

}

16.Workspaces

214

Thisfunctionisdeclaredinside UIComponent,sothe savableWhen, deletableWhenand

refreshableWhenareperformedontheUIComponent.Thosestatearethenboundtothe

savable, deletableand refreshablestateoftheTabPane.Butwait-aTabPanedoesn't

havethosefunctions?!Yes,inTornadoFXithas:)Youcanprobablyguessthatthe

implementationisagainanotherproxyintothecurrentlyselectedTabintheTabPane,anda

lookuptheUIComponentrepresentedbythe contentpropertyofthatTab.Wheneverthe

Tabchanges(orwhenthecontentofthetabchanges),theunderlyingUIComponentis

lookedup,andthepertinentstatesareboundtotheWorkspace.

Itwouldalsobepossibletobindthesestatesandconnecttheactionsmoreexplicitly.You

willneverorseldomneedtodothat,butthefollowing

examplemighthelpyourunderstandingoftheproxymechanism.

classTooExplicitCustomerEditor:View(){

overridevalroot=tab{

...

}

overridevalsavable=root.savable

overridevalrefreshable=root.refreshable

overridevaldeletable=root.deletable

overridefunonSave(){

root.onSave()

}

overridefunonDelete(){

root.onDelete()

}

overridefunonRefresh(){

root.onRefresh()

}

}

Asmentioned,youneverneedtodothisandshouldalwaysusethe

connectWorkspaceActionscall,butyoumightwanttooverrideoneof onSave, onDeleteor

onRefreshtoperformsomeactioninthemaineditorbeforecallingthesameactioninside

theactivetabbycalling root.onXXX.Let'ssaythattherefreshcallinthemaineditorreloads

thecustomer,butyoualsowanttohavethecontactlistrefreshifthatviewiscurrentlyactive.

Thiscouldbedone

likethis:

16.Workspaces

215

classCustomerEditor:View(){

valcustomerController:CustomerControllerbyinject()

valcustomer:CustomerModelbyinject()

overridevalroot=tabpane{

tab(CustomerBasicDataEditor::class)

tab(ContactListEditor::class)

connectWorkspaceActions()

}

overridevalonRefresh(){

runAsync{

customerController.getCustomer(customer.id.value)

}ui{

customer.item=it

root.onRefresh()

}

}

}

Thislittletrickenablesyoutohandletheactualreloadofthecustomerinthemainview

insteadofreimplementingitineverytab.

Forwardingbuttonstateandactions

Aswehaveseen,thecurrentlydockedViewcontrolstheWorkspacebuttons.Sometimes

youdocknestedViewsinsidethemainView,andyouwouldlikethatnestedViewtocontrol

thebuttonsandactionsinstead.Thiscaneasilybedonewiththe forwardWorkspaceActions

function.Youcanchangetheforwardinghoweveryouseefit,forexampleonfocusoron

clickonsomecomponentinsidethenestedView.

classCustomerEditor:View(){

overridevalroot=hbox{

valbasicDataEditor=find<CustomerBasicDataEditor>()

add(basicDataEditor)

forwardWorkspaceActions(basicDataEditor)

add(ContactListEditor::class)

}

}

Modifyingthedefaultworkspace

Thedefaultworkspaceonlygivesyoubasicfunctionality.Asyourapplicationgrowsyouwill

wanttosuplementthe

toolbarwithmorebuttonsandcontrols,andmaybea MenuBaraboveit.Forsmall

16.Workspaces

216

modificationsyoucanaugment

itinthe onBeforeFunctionaswedidabove,butyouwillmostprobablywanttosubclassas

thecustomizations

becomemoreadvanced.ThefollowingcodeandimageistakenfromarealworldCRM

application:

classCRMWorkspace:Workspace(){

init{

add(MainMenu::class)

add(RestProgressBar::class)

add(SearchView::class)

}

}

The CRMWorkspaceloadsthreeotherviewsintoit.Oneprovidinga MenuBar,thenthedefault

RestProgressBaris

added,andlastlya SearchViewprovidingasearchinputfieldisadded.

TheWorkspacehasaprettygoodideaaboutwheretoplacewhateveryouaddtoit.For

example,buttonswillbydefault

beaddedafterthefourdefaultbuttons,whileothercomponentsareaddedtothefarrightof

theToolBar.TheMenuBar

isautomaticallyaddedabovetheToolBar,atthetopofthescreen.

Figure16.3showshowitlooksinproduction,withalittlebitofcustomstylinganda

CustomerEditordockedintoit.

ThisapplicationhappenstobeinNorwegian,andsomeoftheinformationintheCustomer

cardhasbeenremoved.

Figure16.3

16.Workspaces

217

YouwillnoticethattheSavebuttonisenabledinthisView.Thisisbecausethe savable

propertyisboundto

thedirtystatepropertyoftheviewmodel:

valmodel:CustomerModelbyinject()

overridevalsavable=model.dirty

Whenacustomerisloaded,theSavebuttonwillstaydisableduntilanedithasbeenmade.

Tosave,weoverridethe onSavefunction:

overridefunonSave(){

runAsync{

customerController.save(customer.item)

}ui{saved->

customer.update(saved)

}

}

Thisparticular customerController.savecallwillreturnthe Customerfromtheserveronceit

issaved.Iftheservermadeanychanges

toourcustomerobject,theywouldhavebeenreflectedinthesavedcustomerwegotback.

Forthatreason,wecall

customer.update(saved)whichisfunctionyougetforfreeifyouimplement JsonModel.This

16.Workspaces

218

makessurethatchanges

fromtheserverispushedbackintothemodel.Thisiscompletelyoptional,andyoumight

justwanttodo customerController.save(customer.item).

Titleandheading

Whenaviewisdocked,thetitleoftheWorkspacewillmatchthetitleofthatview.Thereis

alsoaheading

textintheworkspacethatbydefaultshowsthesametextasthetitle.Theheadingcanbe

overridenbyassigningto

the headingvariableorbindingtothe headingPropertyproperty.Ifyouwanttocompletely

removetheheading,augment

theworkspacewith workspace.headingContainer.removeFromParent()orjusthideit.Youcan

alsoputwhatever

nodesyouwantinsidetheheadingcontainer.YousawthistrickintheCRMscreenshot,

whereaGravatoriconwasplaced

totheleftofthecustomername.

DynamicelementsintheToolBar

SomeviewsmightneedmorebuttonsorfunctionalityaddedtotheToolBar,butonceyou

navigateawayfromtheviewit

wouldn'tmakesensetokeepthemaround.TheWorkspacewillactuallytrackwhatever

elementsyouaddtoitwhileaviewis

dockedandremovethosechangeswhentheviewisundocked.Theperfectplacetoadd

theseextrabuttonswouldbethe onDock

calloftheview.

Every UIComponenthasapropertycalled workspacewhichwillpointtothecurrent

WorkspaceforthecurrentScope.Let's

addan"AddCustomer"buttontotheWorkspacewheneverthe CustomerListisdocked:

overridefunonDock(){

with(workspace){

button("AddCustomer").action{

addCustomer()

}

}

}

16.Workspaces

219

TheWorkspacewillnowlooklikeinFigure16.4

Itlookslikeadefaultbutton.Youcanremovetheborderaroundthebuttonbyaddingthe

icon-onlycssclasstoit.Optionally

youcanconfigureaniconforthegraphicnodeifyoulike.Thebuiltiniconsaresvgshapes

addedinthebuiltin workspace.css

butfeelfreetoaddyouriconinanywayyouseefit.Let'saddaniconfromthe

FontAwesomeFXlibraryandmakeitlooklike

theotherbuttons:

button("AddCustomer"){

addClass("icon-only")

graphic=FontAwesomeIconView(PLUS_CIRCLE).apply{

style{

fill=c("#818181")

}

glyphSize=18

}

action{addCustomer()}

}

16.Workspaces

220

Inarealapplicationyouwoulduseacssclasssoyoudon'tneedtoconfigurethefillfor

everybuttonyouadd.TheresultcanbeseeninFigure16.5:

Figure16.5

Navigatingbetweendockedviews

OurCustomerListisconfiguredsothatwheneveryoudoubleclickacustomeryouwillbe

takentoaneditorforthatcustomer.

TheTableViewbindstheselectedusertoa CustomerModelviewmodelobject,andthe

actionisperformedlikethis:

tableview(customers){

column("FirstName",Customer::firstNameProperty)

column("LastName",Customer::lastNameProperty)

bindSelected(model)

onUserSelect{workspace.dock<CustomerEditor>()}

}

16.Workspaces

221

Theonlythingweneedtodoisactuallydockthe CustomerEditorwhentheuserselectsa

row.Sincethe CustomerEditor

willbelookedupinthesamescopewearecurrentlyin,itwillhaveaccesstotheselected

customeraswell:

classCustomerEditor:Fragment("CustomerEditor"){

valcustomer:CustomerModelbyinject()

overridevalsavable=customer.dirty

overridevalheadingProperty=customer.fullName

overridevalroot=form{

fieldset("CustomerDetails"){

field("FirstName"){

textfield(customer.firstName)

}

field("LastName"){

textfield(customer.lastName)

}

}

}

overridefunonSave(){

customer.commit()

}

overridefunonRefresh(){

customer.rollback()

}

}

Thecustomermodelisinjected,andwillcontaintheselectedcustomerfromthelist.The

savablepropertyisbound

tothe dirtypropertyofthemodelandthe headingPropertyisboundtoa StringBinding

called fullName,which

concatinatesthefirstandlastnamesandupdateswhenevertheyarechanged.Theform

fieldsbindtothenameproperties

andlastlythe onSaveand onRefreshfunctionsareimplementedtoreacttothe

correspondingWorkspacebuttons.

Figure16.6

16.Workspaces

222

Wecanseethatthe titleand headingareindeeddisplayingseparateinformation.Since

wehaven'tmadeanyedits

yet,theSavebuttonisdisabled,whiletheRefreshbuttonisavailable,andwouldrollback

anychangesmade

sincethelastcommit.

The backbuttonisenabledaswell,andclickingitwouldnavigatebacktotheCustomer

list.Thisisaverypowerful

featurewhichenablesbrowserlikenavigationinyourapplicationwithverylittleeffortonyour

part.TheWorkspace

keepsanavigationstackofconfigurabledepth.Bydefaultitwillcontain10previously

dockedviews.Youcanconfigurethe

maxViewStackDepthtochangethenumberofviewsheldinthenavigationstack.

Alternativetooverriding onSaveand

onRefresh

16.Workspaces

223

Sometimesyouwanttoaccessanobjectinoneoftheworkbenchbuttonactionsbutyou

wanttoavoidcreatingavariable

forthatobject.Insteadyoucanusethe whenSavedand whenRefreshedcallbacks,whichcan

beconfiguredfromanywhere.

Important:Theyarealternativesto onSaveand onRefreshsoyoushouldonlydooneor

theother.Let'ssaywewantto

refreshaTableViewwhentheRefreshbuttonisclicked.Wecanconfigurethisinsidethe

builderfortheTableView:

tableview{

whenRefreshed{

asyncItems{controller.loadItems()}

}

}

Thisisahandyalternativeinsomesituations,butmakesureyouonlychooseoneofthe

strategies.

Advancedscopenavigation

Whenyouleverageinjectedviewmodelstogetherwithanavigationstack,someinteresting

challengesappearthatneed

tobeaddressed.IfyouremovedtheBackbutton

(workspace.backButton.removeFromParent())orsetthe maxViewStackDepthto

0youcandisregardthisparticularchallenge,buttoleveragethispowerfulnavigation

paradigm,therearesomethings

youneedtothinkabout.

Considerourprevousexamplewithaninjected CustomerModelthatrepresentsthecurrently

selectedcustomerinthe CustomerList

whilealsobeingusedbythe CustomerEditortoeditthatsamecustomer.Thenlet'sassume

thatthereisawaytosearchfor

acustomerandeditit,perhapsusinga TextFieldintheToolBaroftheWorkspaceasa

searchentrypoint.Ifyousearchfor

anewcustomerandgoontoeditit,thennavigatebacktothepreviouscustomereditor,it

wouldsuddenlyoperateonthe

lastcustomeryousetinthe CustomerModel.Youcanprobablyimaginetheensuinghavoc.

Fortunately,thescopingsupportstretchesfarintotheWorkspacefeatureandprovidessome

handytoolsforthisparticularsituation.

16.Workspaces

224

WeneedtofindawaytocontainthescopeforthepairofCustomerListandCustomerEditor

sotheycanworktogetherwhileallowing

otherviewstousethe CustomerModel,butinadifferentscope.It'sactuallyquiteeasy.

Wheneveryoucreateanew CustomerList,

alsocreateanewScope.Ifyouweretodothismanually,itwouldlooksomethinglikethis:

//Createanewscope,butkeepthecurrentworkspace

valnewScope=Scope(workspace)

//FindtheCustomerListinthenewscope

valcustomerList=find<CustomerList>(newScope)

//DockthecustomerListintheworkspace

workspace.dock(customerList)

Thosethreedistinctoperationscanbeperformedinasinglecall:

workspace.dockInNewScope<CustomerList>()

WhentheCustomerListdockstheCustomerEditorlateron,ithappensinthisnewscope.

Butwhataboutthesearchfield?

Wewouldneedtoprovideaseparatescopeforthe CustomerEditorthatshouldshowthe

resultofthesearch,but

werewewouldalsoalsoneedtoinjectthecustomermodelcontainingtheselected

customerintothenewscope.This

followingcodeisimaginedinsidetheactionthatselectsacustomerfromthesearchresult:

funeditCustomer(customer:Customer){

//Createaviewmodelforthecustomer

valmodel=CustomerModel(customer)

//Createanewscope,butkeepthecurrentworkspace

valnewScope=Scope(workspace)

//Insertthecustomermodelintothenewscope

newScope.set(model)

//FindtheCustomerEditorinthenewscope

valeditor=find<CustomerEditor>(newScope)

//Docktheeditor

workspace.dock(editor)

}

16.Workspaces

225

That'salotofsteps.Fortunately,wecandothataswellinasinglecall:

funeditCustomer(customer:Customer){

workspace.dockInNewScope<CustomerEditor>(CustomerModel(customer))

}

The dockInNewScopefunctiontakesavararglistofinjectableobjectstoinsertintothenew

scopebeforelooking

upourCustomerEditoranddockingit.

Separatingscopesthiswaymakessurewecanutilizeinjectedviewmodelswithoutbeing

afraidofotherviewsstepping

onourdata.Itisapragmaticapproachtoanintricateproblem.Italsogivesyouawayof

bleedinginjectables

intonewscopes,shouldyourusecaserequireit.

CustomViewStackoptimizations

Someusecasesmightrequireyoutomakesurethattheusercannotgobacktoacertain

viewafterhehasnavigated

tothepriorview.YoucanremoveyourselffromtheViewStackonunDocklikethis:

overridefunonUndock(){

workspace.viewStack.remove(this)

}

Dockingmultipleviewsintheeditorarea

TheWorkspaceprovidesanalternativewaytonavigatebetweenviews.Insteadofbackand

forwardbuttons,youcanchoose

todockmultipleviewsinsideaTabPaneintheeditorarea.TheWorkspacehasa

navigationModepropertythatlets

youchangehowtheviewsarerepresentedintheeditorarea.Thedefaultis

Workspace.NavigationMode.Stack.Thefollowingexample

createsatabbedWorkspacethatautomaticallydockstwoviewsinsideitwhenit'screated:

16.Workspaces

226

classTabbedWorkspace:Workspace("TabbedWorkspace",NavigationMode.Tabs){

init{

dock<FirstView>()

dock<SecondView>()

}

}

Figure16.7

AWorkspaceinTabsmodeautomaticallyhidesthenavigationbuttonsastheyareno

longerneeded

YoucancreateastartingpointforthisWorkspacefromanormal Appclass:

classTabbedWorkspaceApp:App(TabbedWorkspace::class)

TheviewsdockedinsidetheWorkspacetabswillhavetheir onDockfunctioncalled

whenevertheyareaddedand

alsowhentheyaresubsequentlychosenastheactiveTab.Correspondingly,the onUndock

functioniscalled

wheneveritisnolongertheactiveTab,aswellaswhenit'sremovedfromtheTabPane

usingtheclosebuttononthetab.

16.Workspaces

227

YoucancontroltheclosablestateofaViewdockedinsidetheTabPaneviathe closeable

propertyin UIComponent.

Itreturnsa BooleanExpressionwiththedefaultvalueof truebutyoucanoverrideittobind

againstanother

propertyorsimplyreturnanother SimpleBooleanValue(false)tomakeituncloseable.This

examplemakessureyou

cannotclosethetabbeforetheCustomerModelinsideitiscommittedorrolledback:

classCustomerEditor:View("CustomerEditor"){

valcustomer:CustomerModelbyinject()

overridevalcloseable=customer.dirty.not()

}

Drawernavigation

TheWorkspacehasbuiltinsupportfortheDrawercontrol.Youcanaccess

workspace.leftDrawerand workspace.rightDrawerto

additemstoeachdrawer.Theywillshowuponeithertheleftorrightsidewheneveryou

haveaddedoneormoreitemstothem.

ItemsaddedfromaViewin onDockwillautomaticallyberemovedwhentheViewis

undocked.ItemsaddeddirectlyintheWorkspace

subclass,fromthe onBeforeShowAppcallbackorfromanyotherplacewillstayuntilthey

aremanuallyremoved.

Thecombinationofstaticanddynamicdraweritemsmakesforaverypowerfulnavigation

andmenustructure.Onlyyourimaginationisthelimit!

ThefollowingexamplecreatesacustomizeWorkspaceprimedwithadockedCustomer

Editorintheeditorareaandthethree

draweritemswecreatedintheDrawerchapterconfiguredstaticallyinthe leftDrawerofthe

Workspace:

16.Workspaces

228

//AFormbasedViewwewilldockintheworkspaceeditorarea

classCustomerEditor:View("CustomerEditor"){

overridevalroot=form{

fieldset(title){

field("Name"){textfield()}

field("Username"){textfield()}

button("Save")

}

}

}

classDrawerWorkspace:Workspace(){

init{

//DocktheCustomerEditorbydefault

dock<CustomerEditor>()

}

init{

//Additemstotheleftdrawers

with(leftDrawer){

item("Screencasts"){

webview{

prefWidth=470.0

engine.userAgent=iPhoneUserAgent

engine.load(TornadoFXScreencastsURI)

}

}

item("Links"){

listview(links){

cellFormat{link->

graphic=hyperlink(link.name).action{

hostServices.showDocument(link.uri)

}

}

}

}

item("People"){

tableview(people){

column("Name",Person::name)

column("Nick",Person::nick)

}

}

}

}

//Sampledataandconfigurationomittedforthisexample

}

InFigure16.8wehaveexpandedtheLinksdraweritem.NoticehowitpushestheCustomer

Editortotheright.

16.Workspaces

229

Figure16.8

Byrightclickingthedrawerandcheckingthe Floatingdrawersoption,theexpanded

draweritemcontentwill

insteadfloatabovethecontent,likeinFigure16.9:

Figure16.9

16.Workspaces

230

Thiscouldbeagoodideadependingontheavailablespaceandthenatureofthedocked

content.Youcanchangethe

floatingdrawermodeincodeaswell,bysetting leftDrawer.floatingDrawers=true.

RememberthatViewscancontributedraweritemsprogrammaticallyintheir onDock

callback.Usethisto

provideextratoolsforanadvancededitorforexample.Theycaneasilycommunicate

betweeneachother

usingViewModels.Itisrecommendedtocreateanewscopetomakeiteasierfortheseview

partstoworkinconcert

onshareddatastructures.

VetoingnavigationfromthedockedView

16.Workspaces

231

ThecurrentlydockedViewwillreceiveacallbackwhenevertheBackorForwardbuttonsof

theWorkspaceisclicked.Thesefunctions

arecalled onNavigateBackand onNavigateForward.Thedefaultimplementationreturnstrue

tosignalthatthenavigationshouldproceed.

Youcanhoweverreturnfalsetostopthenavigationandinsteadimplementyourownlogicto

decidewhathappensintheUIwhenoneofthe

navigationbuttonsareclicked.

16.Workspaces

232

Internationalization

TornadoFXmakesitveryeasytosupportmultiplelanguagesinyourapp.

InternationalizationinComponents

Each Componenthasaccesstoapropertycalled messagesoftype ResourceBundle.This

canbeusedtolookmessagesinthecurrentlocaleandassignthemtocontrols

programmatically:

classMyView:View(){

init{

valhelloLabel=Label(messages["hello"])

}

}

Alabelisprogrammaticallyconfiguredtogetit'stextfromaresourcebundle

Aswelloftheshorthandsyntax messages["key"],allotherfunctionsofthe ResourceBundle

classisavailableaswell.

Thebundleisautomaticallyloadedbylookingupabasenameequaltothefullyqualified

classnameofthe Component.ForaComponentnamed views.CustomerList,the

correspondingresourcebundlein /views/CustomerList.propertieswillbeused.Allnormal

variantsoftheresourcebundlenameissupported,seeResourceBundleJavadocsformore

information.

Internationalizationin FXML

Whenan FXMLfileisloadedviathe fxmldelegatefunction,thecorresponding messages

propertyofthecomponentwillbeusedinexactlythesameway.

<HBox>

<Labeltext="%hello"/>

</HBox>

Themessagewithkey hellowillbeinjectedintothelabel.

DefaultGlobalMessages

17.Internationalization

233

Youcanaddaglobalsetofmessageswiththebasename Messages(forexample

Messages_en.properties)attherootoftheclasspath.

Automaticlookupinparentbundle

Whenakeyisnotfoundinthecomponentbundle,orwhenthereisnobundleforthe

currrentcomponent,theglobalresourcebundleisconsulted.Assuch,youmightusethe

globalbundleforallresources,andplaceoverridesinthepercomponentbundle.

Friendlyerrormessages

Insteadofthrowinganexceptionwhenakeyisnotavailableinyourbundle,thevaluewill

simplybe [key].Thismakesiteasytospotyourerrors,andyourUIisstillfullyfunctional

whileyouaddthemissingkeys.

Configuringthelocale

Thedefaultlocaleistheoneretrievedfrom Locale.getDefault().Youcanconfigurea

differentlocalebyissuing:

FX.locale=Locale("my-locale")

Theglobalbundlewillautomaticallybechangedtothebundlecorrespondingtothenew

locale,andallsubsequentlyloadedcomponentswillgettheirbundleinthenewlocaleas

well.

Overridingresourcebundles

Ifyouwanttochangethebundleforacomponentafterit'sbeeninitialized,orifyousimply

wanttoloadaspesificbundlewithoutrelyingontheconventions,simplyassignthenew

bundletothe messagespropertyofthecomponent.

Ifyouwanttousetheoverridenresourcebundletoload FXML,makesureyouchangethe

bundlebeforeyouloadtherootview:

classMyView:View(){

init{messages=ResourceBundle.getBundle("MyCustomBundle")}

overridevalroot=HBoxbyfxml()

}

17.Internationalization

234

Amanuallyoverridenresourcebundleisusedbythe FXMLfilecorrespondingtothe

View

Thesametechniquecanbeusedtooverridetheglobalbundlebyassigningto

FX.messages.

Startuplocale

Youcanoverridethedefaultlocaleasearlyasthe Appclass initfunctionbyassigningto

FX.locale.

ControllersandFragmentsaswell

Thesameconventionsarevalidfor Controllersand Fragments,sincethefunctionalityis

madeavailabletotheircommonsuperclass, Component.

17.Internationalization

235

Configsettingsandstate

Savingapplicationstateisacommonrequirementfordesktopapps.TornadoFXhasseveral

featureswhichfacilitatessavingofUIstate,preferencesandgeneralappconfiguration

settings.

The confighelper

Eachcomponentcanhavearbitraryconfigurationsettingsthatwillbesavedaspropertyfiles

inafoldercalled confinsidethecurrentprogramfolder.

Belowisaloginscreenexamplewherelogincredentialsarestoredintheviewspecific

configobject.

18.ConfigSettingsandState

236

classLoginScreen:View(){

valloginController:LoginControllerbyinject()

valusername=SimpleStringProperty(this,"username",config.string("username"))

valpassword=SimpleStringProperty(this,"password",config.string("password"))

overridevalroot=form{

fieldset("Login"){

field("Username:"){textfield(username)}

field("Password:"){textfield(password)}

buttonbar{

button("Login").action{

runAsync{

loginController.tryLogin(username.value,password.value)

}ui{success->

if(success){

with(config){

set("username"tousername.value)

set("password"topassword.value)

save()

}

showMainScreen()

}

}

}

}

}

}

funshowMainScreen(){

//hideLoginScreenandshowthemainUIoftheapplication

}

}

TheUIisdefinedwiththe TornadoFxtypesafebuilders,whichbasicallycontainsa form

withtwo TextField'sanda Button.Whentheviewisloaded,weassigntheusernameand

passwordvaluesfromtheconfigobject.Thesevaluesmightbenullatthispoint,ifnoprior

successfulloginwasperformed.Wethenbindthe usernameand passwordtothe

corresponding TextField's.

Lastbutnotleast,wedefinetheactionfortheloginbutton.Uponlogin,itcallsthe

loginController#tryLoginfunctionwhichtakestheusernameandpasswordfromthe

StringBindings(whichrepresenttheinputofthe TextFields),callsouttotheserviceand

returnstrueorfalse.

18.ConfigSettingsandState

237

Iftheresultistrue,weupdatetheusernameandpasswordintheconfigobjectandcalls

saveonit.Finally,wecall showMainScreenwhichcouldhidetheloginscreenandshowthe

mainscreenoftheapplication.

Pleasenotthattheexampleisnotabestpractiseforstoringsensitivedata,itmerely

illustrateshowyoucanusetheconfigobject.

Datatypesanddefaultvalues

configalsosupportsotherdatatypes.Itisanicepractisetowrapmultipleoperationson

theconfigobjectina withblock.

//Assigntox,defaultto50.0

varx=config.double("x",50.0)

varshowPrices=config.boolean("showPrices",boolean)

with(config){

set("x",root.layoutX)

set("showPrices",showPrices)

save()

}

Configurableconfigpath

The Appclasscanoverridethedefaultpathforconfigfilesbyoverriding configBasePath.

classMyApp:App(WelcomeView::class){

overridevalconfigBasePath:Paths.get("/etc/myapp/conf")

}

Thepathcanalsoberelative,whichmeansthepathwillbecreatedinsidethecurrent

workingdirectory.Bydefault,thebasepathis conf.

Overrideconfigpathpercomponent

Bydefault,afilecalled viewClass.propertiesiscreatedinsidethe configBasePath.This

canbeoverridenpercomponent:

classMyView:View(){

overridevalconfigPath=Paths.get("some/other/path/myview.properties")

18.ConfigSettingsandState

238

YoucanalsocreatetheViewspesificconfigfilebelowthe configBasePath,whichwould

makesenseinmostsituations.YoudothisbyaccessingtheAppclassthroughthe app

propertyoftheView.

classMyView:View(){

overridevalconfigPath=app.configBasePath.resolve("myview.properties")

Globalapplicationconfig

TheAppclassalsohasa configpropertyandacorresponding configPathproperty.By

default,theconfigurationfortheappclassisnamed app.config.Thiscanbeoverriddenthe

samewayyoudoforaViewconfig.

Theglobalconfigurationcanbeaccessedbyanycomponentatanytimeinthelifecycleof

theapplication.Simplyaccess app.configfromanywheretoreadorwriteyourglobal

configuration.

JSONconfigurationsettings

The configobjectsupports JsonObject, JsonArrayand JsonModel.Yousetthemusing

config.set("key"tovalue)andretrievethemusing config.jsonObject("key"),

config.jsonArray("key")and config.jsonModel("key").

The preferenceshelper

Asthe confighelperstorestheinformationinafoldercalled confpercomponent(view,

controller)the preferenceshelperwillsavesettingsintoanOSspecificway.InWindows

systemstheywillbestored HKEY_CURRENT_USER/Software/JavaSoft/....onMacosin

~/Library/Preferences/com.apple.java.util.prefs.plistandonLinuxsystemin ~/.java.

Wherethe confighelpersavespercomponent.The preferenceshelperismeanttobe

usedapplicationwide:

preferences("application"){

putBoolean("boolean",true)

putString("String","astring")

}

Retrievingpreferences:

18.ConfigSettingsandState

239

varbool:Boolean=false

varstr:String=""

preferences("testapp"){

bool=getBoolean("booleankey",false)

str=get("string","")

}

The preferenceshelperisaTornadoFXbuilderaroundjava.util.Preferences

18.ConfigSettingsandState

240

JSONandREST

JSONhasbecomethenewstandardfordataexchangeoverHTTP.WorkingwithJSONwith

thedatatypesdefinedin javax.jsonisnothard,butabitcumbersome.TheTornadoFX

JSONsupportcomes

intwoforms:Enhancementstothe javax.jsonobjectsandfunctionsandaspecialized

RESTclientthatdoesHTTPaswellasautomaticconversionbetweenJSONandyour

domainmodels.

TofacilitateconversionbetweentheseJSONobjectsandyourmodelobjects,youcan

choosetoimplementtheinterfaceJsonModelandoneorbothofthefunctions updateModel

and toJSON.

LaterinthischapterwewillintroducetheRESTclient,buttheJSONSupportcanalsobe

usedstandalone.TheRESTclientcallscertainfunctionsonJsonModelobjectsduringthe

lifecycleofanHTTPrequest.

updateModeliscalledtoconvertaJSONobjecttoyourdomainmodel.ItreceivesaJSON

objectfromwhichyoucanupdatethepropertiesofyourmodelobject.

toJSONiscalledtoconvertyourmodelobjecttoaJSONpayload.Itreceivesa

JsonBuilderwhereyoucansetthevaluesofthemodelobject.

classPerson:JsonModel{

varidbyproperty<Int>()

funidProperty()=getProperty(Person::id)

varfirstNamebyproperty<String>()

funfirstNameProperty()=getProperty(Person::firstName)

varlastNamebyproperty<String>()

funlastNameProperty()=getProperty(Person::lastName)

valphones=FXCollections.observableArrayList<Phone>()

overridefunupdateModel(json:JsonObject){

with(json){

id=int("id")

firstName=string("firstName")

lastName=string("lastName")

phones.setAll(getJsonArray("phones").toModel())

}

}

overridefuntoJSON(json:JsonBuilder){

19.JSONandREST

241

with(json){

add("id",id)

add("firstName",firstName)

add("lastName",lastName)

add("phones",phones.toJSON())

}

}

}

classPhone:JsonModel{

varidbyproperty<Int>()

funidProperty()=getProperty(Phone::id)

varnumberbyproperty<String>()

funnumberProperty()=getProperty(Phone::number)

overridefunupdateModel(json:JsonObject){

with(json){

id=int("id")

number=string("number")

}

}

overridefuntoJSON(json:JsonBuilder){

with(json){

add("id",id)

add("number",number)

}

}

}

JsonModelwithgetters/settersandproperty()accessorfunctionstobeJavaFX

Propertycompatible

Whenyouimplement JsonModelyoualsogetthe copyfunction,whichcreatesacopyof

yourmodelobject.

TornadoFXalsocomeswithspecialsupportfunctionsforreadingandwritingJSON

properties.PleaseseethebottomofJson.ktforanexhaustivelist.

AlltheJSONretrievalfunctionsacceptsavarargargumentforthekeyintheJSON

document.Thefirstkeyavailableinthedocumentwillbeusedtoretrievethevalue.This

makesiteasiertoworkwithslightlyinconsistentJSONschemesorcanbeusedasaternary

toprovideafallbackvalueforexample.

Configuringdatetime

19.JSONandREST

242

The datetime(key)functionusedtoretrievea LocalDateTimeobjectfromJSONwillby

defaultexpectavalueof"Secondssinceepoch".Ifyourexternalwebserviceexpects

"Millisecondssinceepoch"instead,

youcaneithersend datetime(key,millis=true)orconfigureitgloballybysetting

JsonConfig.DefaultDateTimeMillis=true.

GeneratingJSONobjects

The JsonBuilderisanabstractionover javax.json.JsonObjectBuilderthatsupportsnull

values.Insteadofblowingup,itsilentlydismissesthemissingentry,whichenablesyouto

buildyourJSONobjectgraph

morefluentlywithoutcheckingfornulls.

RESTClient

TheRESTClientthatmakesiteasytoperformJSONbasedRESTcalls.Theunderlying

HTTPengineinterfacehastwoimplementations.ThedefaultusesHttpURLConnectionand

thereisalsoanimplementationbasedonApacheHttpClient.Itiseasytoextendthe

Rest.Enginetosupportotherhttpclientlibrariesifneeded.

TousetheApacheHttpClientimplementation,simplycall Rest.useApacheHttpClient()inthe

initmethodofyourAppclassandincludethe org.apache.httpcomponents:httpclient

dependencyinyourprojectdescriptor.

Configuration

Ifyoumostlyaccessthesameapioneverycall,youcansetabaseurisosubsequentcalls

onlyneedtoincluderelativeurls.Youcanconfigurethebaseurlanywhereyoulike,butthe

initfunctionofyour Appclassisagoodplacetodoit.

classMyApp:App(){

valapi:Restbyinject()

init{

api.baseURI="http://contoso.com/api"

}

}

19.JSONandREST

243

Basicoperations

Thereareconveniencefunctionstoperform GET, PUT, POSTand DELETEoperations.

classCustomerController:Controller(){

valapi=Restbyinject()

funloadCustomers():ObservableList<Customer>=

api.get("customers").list().toModel()

}

CustomerControllerwithloadCustomerscall

So,whatexactlyisgoingoninthe loadCustomersfunction?Firstwecall

api.get("customers")whichwillperformthecallandreturna Responseobject.Wethen

call Response.list()whichwillconsumetheresponseandconvertittoa

javax.json.JsonArray.Lastly,wecalltheextensionfunction JsonArray.toModel()which

createsone Customerobjectper JsonObjectinthearrayandcalls JsonModel.updateModel

onit.Inthisexample,thetypeargumentistakenfromthefunctionreturntype,butyoucould

alsowritetheabovemethodlikethisifyouprefer:

funloadCustomers()=api.get("customers").list().toModel<Customer>()

Howyouprovidethetypeargumenttothe toModelfunctionisamatteroftaste,sochoose

thesyntaxyouaremostcomfortablewith.

Thesefunctionstakeanoptionalparameterwitheithera JsonObjectora JsonModelthat

willbethepayloadofyourrequest,convertedtoaJSONstring.

Thefollowingexampleupdatesacustomerobject.

funupdateCustomer(customer:Customer)=api.put("customers/${customer.id}",customer)

Iftheapiendpointreturnsthecustomerobjecttousaftersave,wewouldfetchaJsonObject

bycalling one()andthen toModel()toconvertitbackintoourmodelobject.

funupdateCustomer(customer:Customer)=

api.put("customers/${customer.id}",customer).one().toModel<Customer>()

Queryparameters

19.JSONandREST

244

QueryparametersneedstobeURLencoded.The Map.queryStringextensionvaluewill

turnanymapintoaproperlyURLencodedquerystring:

valparams=mapOf("id"to1)

api.put("customers${params.queryString}",customer).one().toModel<Customer>()

ThiswillcalltheURI customers?id=1.

Errorhandling

IfanI/Oerroroccursduringtheprocessingoftherequest,thedefaultErrorHandlerwill

reporttheerrortotheuser.Youcanofcoursecatchanyerrorsyourselfinstead.Tohandle

HTTPreturncodes,youmightwanttoinspectthe Responsebeforeyouconverttheresultto

JSON.Makesureyoualwayscall consume()ontheresponseifyoudon'textractdatafrom

itusinganyofthemethods list(), one(), text()or bytes().

fungetCustomer(id:Int):Customer{

valresponse=api.get("some/action")

try{

if(response.ok())

returnresponse.one().toModel()

elseif(response.statusCode==404)

throwCustomerNotFound()

else

throwMyException("getCustomerreturned${response.statusCode}${response.

reason}")

}finally{

response.consume()

}

}

Extractstatuscodeandreasonfrom HttpResponse

response.ok()isshorthandfor response.statusCode==200.

Authentication

TornadoFXmakesitveryeasytoaddbasicauthenticationtoyourapirequests:

api.setBasicAuth("username","password")

19.JSONandREST

245

Toconfigureauthenticationmanually,configurethe requestInterceptoroftheenginetoadd

customheadersetctotherequest.Forexample,thisishowthebasicauthenticationis

implementedforthe HttpUrlEngine:

requestInterceptor={request->

valb64=Base64.getEncoder().encodeToString("$username:$password".toByteArray(UTF

_8))

request.addHeader("Authorization","Basic$b64")

}

Foramoreadvancedexampleofconfiguringtheunderlyingclient,takealookathowbasic

authenticationisimplementedinthe HttpClientEngine.setBasicAuthfunctioninRest.kt.

Interceptingcalls

YoucanforexampleshowaloginscreenifanHTTPcallfailswithstatusCode401:

api.engine.responseInterceptor={response->

if(response.statusCode==401)

showLoginScreen("Invalidcredentials,pleaseloginagain.")

}

Settingtimeouts

Youcanconfigurethereadtimeoutforthedefaultproviderbyusinga requestInterceptor

andcastingtherequestto HttpURLRequestbeforeyooperateonit.

api.engine.requestInterceptor={

(itasHttpURLRequest).connection.readTimeout=5000

}

Youcanconfigurethe connectionTimeoutofthe HTTPUrlConnectionobjectaboveinthe

sameway.

ConnecttomultipleAPI's

Youcancreatemultipleinstancesofthe Restclassbysubclassingitandconfiguringeach

subclassasyouwish.Injectionofsubclassesworkseamlessly.Overridethe engine

propertyifyouwanttouseanotherenginethanthedefault.

19.JSONandREST

246

DefaultenginefornewRestinstances

TheengineusedbyanewRestclientisconfiguredwiththe engineProvideroftheRest

class.Thisiswhathappenswhenyoucall Rest.useApacheHttpClient:

Rest.engineProvider={rest->HttpClientEngine(rest)}

The engineProviderreturnsaconcrete engineimplementationthatisgiventhe

current Restinstanceasargument.

Youcanoverridetheconfigured engineina Restinstanceatanytime.

Proxy

Aproxycanbeconfiguredeitherbyimplementinganinterceptorthataugmentseachcall,or,

preferablyonceperRestclientinstance:

rest.proxy=Proxy(Proxy.Type.HTTP,InetSocketAddress("127.0.0.1",8080))

Sequencenumbers

Ifyoudomultiplehttpcallstheywillnotbepooledandreturnedintheorderyouexecuted

thecalls.Anyhttprequestwillreturnassoonasitisavailable.Ifyouwanttohandlethemin

sequence,orevendiscardolderresults,youcanusethe Response.seqvaluewhichwill

containa Longsequencenumber.

Progressindicator

TornadoFXcomeswithaHTTPProgressIndicatorView.Thisviewcanbeembeddedinyour

applicationandwillshowyouinformationaboutongoingRESTcalls.Embedthe

RestProgressBarintoaToolBaroranyotherparentcontainer:

toolbar.add(RestProgressBar::class)

19.JSONandREST

247

DependencyInjection

TODO:ThispageissnippedfromtheWikiandneedsarewrite

Viewand Controlleraresingletons,soyouneedsomewaytoaccesstheinstanceofa

specificcomponent.TornadoFXsupportsdependencyinjection,butyoucanalsolookup

componentswiththe findfunction.

valmyController=find(MyController::class)

Whenyoucall find,thecomponentcorrespondingtothegivenclassislookedupina

globalcomponentregistry.Ifitdidnotexistpriortothecall,itwillbecreatedandinserted

intotheregistrybeforethefunctionreturns.

Ifyouwanttodeclarethecontrollerreferanceasafieldmemberhowever,youshoulduse

the injectdelegateinstead.Thisisalazymechanism,sotheactualinstancewillonlybe

createdthefirsttimeyoucallafunctionontheinjectedresource.Using injectisalways

prefered,asitallowsyourcomponentstohavecirculardependencies.

valmyController:MyControllerbyinject()

Thirdpartyinjectionframeworks

TornadoFXmakesiteasytoinjectresourcesfromathirdpartydependencyinjection

framework,likeforexampleGuiceorSpring.Allyouhavetodoisimplementtheverysimple

DIContainerinterfacewhenyoustartyourapplication.Let'ssayyouhaveaGuicemodule

configuredwithafictive HelloService.StartGuiceinthe initblockofyour Appclass

andregisterthemodulewithTornadoFX:

valguice=Guice.createInjector(MyModule())

FX.dicontainer=object:DIContainer{

overridefun<T:Any>getInstance(type:KClass<T>)

=guice.getInstance(type.java)

}

TheDIContainerimplementationisconfiguredtodelegatelookupsto

guice.getInstance

20.DependencyInjection

248

Toinjectthe HelloServiceconfiguredin MyModule,usethe didelegateinsteadofthe

injectdelegate:

valMyView:View(){

valhelloService:HelloServicebydi()

}

The didelegateacceptsanybeantype,while injectwillonlyallowbeansoftype

Injectable,whichincludesTornadoFX's Viewand Controller.Thiskeepsaclean

separationbetweenyourUIbeansandanybeansconfiguredintheexternaldependency

injectionframework.

SettingupforSpring

AbovethesetupforGuiceisshown.SettingupforSpring,inthiscaseusing beans.xmlas

ApplicationContextisdoneasfollows:

beans.xml

<?xmlversion="1.0"encoding="UTF-8"?>

<beansxmlns="http://www.springframework.org/schema/beans"

xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"

xmlns:context="http://www.springframework.org/schema/context"

xsi:schemaLocation="http://www.springframework.org/schema/beans

http://www.springframework.org/schema/beans/spring-beans-3.0.xsd

http://www.springframework.org/schema/context

http://www.springframework.org/schema/context/spring-context-3.0.xsd">

<context:component-scanbase-package="no.tornadofx.fxsample.springexample"/>

<context:annotation-config/>

</beans>

ThissetsSpringuptoscanforbeans.

Applicationstartup

20.DependencyInjection

249

classSpringExampleApp:App(SpringExampleView::class){

init{

valspringContext=ClassPathXmlApplicationContext("beans.xml")

FX.dicontainer=object:DIContainer{

overridefun<T:Any>getInstance(type:KClass<T>):T=springContext.get

Bean(type.java)

}

}

}

ThisinitializedthespringcontextandhooksitintotornadoFXviathe FX.dicontainer.Now

youcaninjectSpringbeanslikethis:

valhelloBean:HelloBeanbydi()

ItisquitecommonintheSpringworldtonameabeanlikeso:

<beanid="helloWorld"class="com.tutorialspoint.HelloWorld">

<propertyname="message"value="HelloWorld!"/>

</bean>

Thebeanisthenaccessibleusingthe id.ThiscanbedoneintornadoFXtoo:

classSpringExampleApp:App(SpringExampleView::class){

init{

valspringContext=ClassPathXmlApplicationContext("beans.xml")

FX.dicontainer=object:DIContainer{

overridefun<T:Any>getInstance(type:KClass<T>):T=springContext.get

Bean(type.java)

overridefun<T:Any>getInstance(type:KClass<T>,name:String):T=spr

ingContext.getBean(type.java,name)

}

}

}

Thesecond getInstanceusesboththetypeofthebeanandtheidofthebean.

Instantiatingabeanisdownas:

valhelloBean:HelloBeanbydi("helloWorld")

20.DependencyInjection

250

Wizard

Sometimesyouneedtoasktheuserforalotofinformationandaskingforitallatonce

wouldresultinatoocomplexuserinterface.Perhapsyoualsoneedtoperformcertain

operationswhileorafteryouhaverequestedtheinformation.

Forthesesituations,youcanconsiderusingawizard.Awizardtypicallyhastwoormore

pages.Itletstheusernavigatebetweenthepagesaswellascompleteorcancelthe

process.

TornadoFXhasapowerfulandcustomizableWizardcomponentthatletsyoudojustthat.In

thefollowingexampleweneedtocreateanewCustomerandwehavedecidedtoaskfor

thebasiccustomerinfoonthefirstpageandtheaddressinformationonthenext.

Let'shavealookattwosimpleinputViewsthatgathersaidinformationfromtheuser.The

BasicDatapageasksforthenameofthecustomerandthetypeofcustomer(Personor

Company).Bynowyoucanprobably CustomerModelguesshowthe Customerand

CustomerModelobjectslook,sowewon'trepeatthemhere.

21.Wizard

251

classBasicData:View("BasicData"){

valcustomer:CustomerModelbyinject()

overridevalroot=form{

fieldset(title){

field("Type"){

combobox(customer.type,Customer.Type.values().toList())

}

field("Name"){

textfield(customer.name).required()

}

}

}

}

classAddressInput:View("Address"){

valcustomer:CustomerModelbyinject()

overridevalroot=form{

fieldset(title){

field("Zip/City"){

textfield(customer.zip){

prefColumnCount=5

required()

}

textfield(customer.city).required()

}

}

}

}

Bythemselves,theseviewsdon'tdomuch,butputtogetherinaWizardwestarttoseehow

powerfulthisinputparadigmcanbe.OurinitialWizardcodeisonlythis:

classCustomerWizard:Wizard("Createcustomer","Providecustomerinformation"){

valcustomer:CustomerModelbyinject()

init{

graphic=resources.imageview("/graphics/customer.png")

add(WizardStep1::class)

add(WizardStep2::class)

}

}

TheresultcanbeseeninFigure21.1.

21.Wizard

252

Figure21.1

JustbylookingattheWizardtheusercanseewhathewillbeaskedtoprovide,howhecan

navigatebetweenthepagesandhowtocompleteorcanceltheprocess.

SincetheWizarditselfisbasicallyjustanormal View,itwillrespondtothe openModalcall.

Let'simagineabuttonthatopenstheWizard:

button("AddCustomer").action{

find<CustomerWizard>{

openModal()

}

}

Pagenavigation

Bydefault,the Backand Nextbuttonsareavailablewhenevertherearemorepages

eitherpreviousornextinthewizard.

For Nextnavigationhowever,whetherthewizardactuallynavigatestothenextpageis

dependentuponthe completedstateofthecurrentpage.Every Viewhasa completed

propertyandacorresponding isCompletedvariableyoucanmanipulate.

21.Wizard

253

Whenthe Nextor Finishbuttonisclicked,the onSavefunctionofthecurrentpageis

called,andthenavigationactionisonlyperformedifthecurrentpage's completedvalueis

true.Every Viewiscompletedbydefault,that'swhywecannavigatetopagenumbertwo

withoutcompletingpageonefirst.Let'schangethat.

Inthe BasicDataeditor,weoverridethe onSavefunctiontoperformapartialcommitofthe

nameand typefields,becausethat'stheonlytwofieldstheusercanchangeonthatpage.

overridefunonSave(){

isComplete=customer.commit(customer.name,customer.type)

}

Thecommitfunctionnowcontrolsthecompletedstateofourwizardpage,hencecontroller

whethertheuserisallowedtonavigatetotheaddresspage.Ifwetrytonavigatewithout

fillinginthename,wewillbegrantedbythevalidationerrormessageinFigure21.2:

Figure21.2

Wecouldgoontodothesamefortheaddresseditor,takingcaretoonlycommitthe

editablefields:

overridefunonSave(){

isComplete=customer.commit(customer.zip,customer.city)

}

21.Wizard

254

IftheuserclickstheFinishbutton,the onSavefunctionintheWizarditselfisactivated.Ifthe

Wizard's completedstateistrueafterthe onSavecall,thewizarddialogisclosed,provided

thattheusercalls super.onSave().Insuchascenario,theWizarditselfneedstohandle

whatevershouldhappeninthe onSavefunction.Anotherpossibilityistoconfigurea

callbackthatwillbeexecutedwheneverthewizardiscompleted.Withthatapproach,we

needaccessthecompletedcustomerobjectsomehow,soweinjectitintothewizarditselfas

well:

classCustomerWizard:Wizard(){

valcustomer:CustomerModelbyinject()

}

Let'srevisitthebuttonactionthatactivatedthewizardandaddan onCompletecallbackthat

extractsthecustomerandinsertsitintoadatabasebeforeitopensthenewlycreated

CustomerobjectinaCustomerEditorView:

button("AddCustomer").action{

find<CustomerWizard>{

onComplete{

runAsync{

database.insert(customer.item)

}ui{

workspace.dockInNewScope<CustomerEditor>(customer.item)

}

}

openModal()

}

}

Wizardscoping

Inourexample,bothoftheWizardpagesshareacommonviewmodel,namelythe

CustomerModel.Thismodelisinjectedintobothpages,soitshouldbethesameinstance.

Butwhatifotherpartsoftheapplicationisalreadyusingthe CustomerModelinthesame

scopewecreatedtheWizardfrom?Itturnsoutthatthisisnotevenanissue,becausethe

Wizardbaseclassimplements InjectionScopedwhichmakessurethatwheneveryou

injecta Wizardsubclass,anewscopeisautomaticallyactivated.Thismakessurethat

whateverresourceswerequireinsidetheWizardwillbeuniqueandnotsharedwithany

otherpartoftheapplication.

ItalsomeansthatifyouneedtoinjectexistingdataintoaWizard'sscope,youmustdoso

manually:

21.Wizard

255

valwizard=find<MyWizard>()

wizard.scope.set(someExistingObject)

wizard.openModal()

Improvingthevisualcues

Ununtilnow,the Nextbuttonwasenabledwhenevertherewasanotherpagetonavigate

forwardto.The Finishbuttonwasalsoalwaysenabled.Thismightbefine,butyoucan

improvethecuesgiventoyourusersbyonlyenablingthosebuttonswhenitwouldmake

sensetoclickthem.Bylookingintothe Wizardbaseclass,wecanseethatthebuttonsare

boundtothefollowingbooleanexpressions:

openvalcanFinish:BooleanExpression=SimpleBooleanProperty(true)

openvalcanGoNext:BooleanExpression=hasNext

The canFinishexpressionisboundtothe Finishbuttonandthe canGoNextexpressionis

boundtothe Nextbutton.The Wizardclassalsoincludessomebooleanexpressionsthat

areunusedbydefault.Twoofthoseare currentPageCompleteand allPagesComplete.These

expressionsarealwaysuptodate,andwecanusetheminour CustomerWizardtoimprove

theuserexperience.

classCustomerWizard:Wizard(){

overridevalcanFinish=allPagesComplete

overridevalcanGoNext=currentPageComplete

}

Withthisredefinitioninplace,the Nextand Finishbuttonswillonlybeenabledwhenever

thenewconditionsaremet.Thisiswhatwewant,butwe'renotdoneyet.Rememberhow

weonlyupdated isCompletedwhenever onSavewascalled?Youmightalsoremember

that onSavewascalledwhenever Nextor Finishwasclicked?Itlookslikewehave

ourselvesagoodoldCatch22situationhere,folks!

Thesolutionishoweverquitesimple:Insteadofevaluatingthecompletedstateonsave,we

willdoitwheneverachangeismadetoanyofourinputfields.Weneedtomakesurethat

wesupplythe autocommitparametertoeachbindinginourViewModel:

21.Wizard

256

classCustomerModel:ItemViewModel<Customer>(){

valname=bind(Customer::nameProperty,autocommit=true)

valzip=bind(Customer::zipProperty,autocommit=true)

valcity=bind(Customer::cityProperty,autocommit=true)

valtype=bind(Customer::typeProperty,autocommit=true)

}

Theinputfieldsinourwizardpagesareboundtotheseproperties,andwheneverachange

ismade,theunderlyingCustomerobjectwillbeupdated.Wenolongerneedtocall

customer.commit()inour onSavecallback,butwedoneedtoredefinethe complete

booleanexpressionineachwizardpage.

Hereisthenewdefinitioninthe BasicDataView:

overridevalcomplete=customer.valid(customer.name)

Andhereisthedefinitioninthe AddressInputView:

overridevalcomplete=customer.valid(customer.street,customer.zip,customer.city)

Webindthecompletedstateofourwizardpagestoaneverupdatingbooleanexpression

whichindicateswhethertheeditablepropertiesforthatpageisvalidornot.

Remembertodeletethe onSavefunctionsaswenolongerneedthem.Ifyourunthe

applicationwiththesechangesyouwillseehowmuchmoreexpressivetheWizardbecomes

intermsoftellingtheuserwhenhecanproceedandwhenhecanfinishtheprocess.Using

thisapproachwillalsoconveythatanynon-filleddataisoptionaloncethe Finishbuttonis

enabled.

Hereisthecompletelyrewrittenwizardandpages:

21.Wizard

257

classCustomerWizard:Wizard(){

valcustomer:CustomerModelbyinject()

overridevalcanGoNext=currentPageComplete

overridevalcanFinish=allPagesComplete

init{

add(BasicData::class)

add(AddressInput::class)

}

}

classBasicData:View("BasicData"){

valcustomer:CustomerModelbyinject()

overridevalcomplete=customer.valid(customer.name)

overridevalroot=form{

fieldset(title){

field("Type"){

combobox(customer.type,Customer.Type.values().toList())

}

field("Name"){

textfield(customer.name).required()

}

}

}

}

classAddressInput:View("Address"){

valcustomer:CustomerModelbyinject()

overridevalcomplete=customer.valid(customer.zip,customer.city)

overridevalroot=form{

fieldset(title){

field("Zip/City"){

textfield(customer.zip){

prefColumnCount=5

required()

}

textfield(customer.city).required()

}

}

}

}

Stylingandadaptingthelookandfeel

21.Wizard

258

Therearemanybuiltinoptionsyoucanconfiguretochangethelookandfeelofthewizard.

Commonforthemallisthattheyhaveobservable/writablepropertieswhichyoucanbindto

overjustsetinyourwizardsubclass.Foreachaccessorbelowtherewillbeacorresponding

accessorProperty.

Modifyingthestepsindicator

Steps

Thestepslistisontheleftofthewizard.Ithasthefollowingconfigurationoptions:

Name Description

showSteps Setto falsetoremovethestepsviewcompletely

stepsText Changetheheaderfrom"Steps"toanydesiredString

showStepsHeader Removetheheader

enableStepLinks Setto truetoturneachstepdescriptionintoahyperlink

stepLinksCommits Setto falsetonolongerrequirethatthecurrentpageisvalid

beforenavigatingtothenewpage

numberedSteps Setto truetoaddtheindexnumberbeforeeachstep

description

Navigation

YoucanchangethetextofthenavigationbuttonsandcontrolnavigationflowwithEnter:

Name Description

backButtonText Changethetextofthe Backbutton

nextButtonText Changethetextofthe Nextbutton

cancelButtonText Changethetextofthe Cancelbutton

finishButtonText Changethetextofthe Finishbutton

enterProgresses Entergoestonextpagewhencompleteandfinishonlastpage

Headerarea

Name Description

showHeader Setto falsetoremovetheheader

graphic Anodethatwillshowuponthefarrightoftheheader

21.Wizard

259

Structuralmodifications

Therootofthe Wizardclassisa BorderPane.Theheaderwillbeinthe topslot,thesteps

areinthe leftslot,thepagesareinthe centerslotandthebuttonsareinthe bottom

slot.Youcanchange/hide/addstylingandsetpropertiestothesenodesasyouseefitto

alterthedesignandlayoutoftheWizard.Agoodplacetodothiswouldbeinthe onDock

callbackofyourwizardsubclass.Itiscompletelyvalidchangethelayoutinanywayyousee

fit,youcanevenremovethe BorderPaneandmovetheotherpartsintoanotherlayout

containerforexample.

21.Wizard

260

AppendixA-Reference

A1-PropertyDelegates

Kotlinispackedwithgreatlanguagefeatures,anddelegatedpropertiesareapowerfulway

tospecifyhowapropertyworksandcreatere-usablepoliciesforthoseproperties.Ontopof

theonesthatexistinKotlin'sstandardlibrary,TornadoFXprovidesafewmoreproperty

delegatesthatareparticularlyhelpfulforJavaFXdevelopment.

SingleAssign

Itisoftenidealtoinitializepropertiesimmediatelyuponconstruction.Butinevitablythereare

timeswhenthissimplyisnotfeasible.Whenapropertyneedstodelayitsinitializationuntilit

isfirstcalled,alazydelegateistypicallyused.Youspecifyalambdainstructinghowthe

propertyvalueisinitializedwhenitsgetteriscalledthefirsttime.

valfooValuebylazy{buildExpensiveFoo()}

Buttherearesituationswherethepropertyneedstobeassignedlaternotbyavalue-

supplyinglambda,butrathersomeexternalentityatalatertime.Whenweleveragetype-

safebuilderswemaywanttosavea Buttontoaclass-levelpropertysowecanreferenceit

later.Ifwedonotwant myButtontobenullable,weneedtousethe lateinitmodifier.

classMyView:View(){

lateinitvarmyButton:Button

overridevalroot=vbox{

myButton=button("NewEntry")

}

}

Theproblemwith lateinitisitcanbeassignedmultipletimesbyaccident,anditisnot

necessarilythreadsafe.Thiscanleadtoclassicbugsassociatedwithmutability,andyou

reallyshouldstriveforimmutabilityasmuchaspossible(EffectiveJavabyBloch,Item#13).

Byleveragingthe singleAssign()delegate,youcanguaranteethatpropertyisonly

assignedonce.Anysubsequentassignmentattemptswillthrowaruntimeerror,andsowill

accessingitbeforeavalueisassigned.Thiseffectivelygivesustheguaranteeof

AppendixA-SupplementaryTopics

261

immutability,althoughitisenforcedatruntimeratherthancompiletime.

classMyView:View(){

varmyButton:ButtonbysingleAssign()

overridevalroot=vbox{

myButton=button("NewEntry")

}

}

Eventhoughthissingleassignmentisnotenforcedatcompiletime,infractionscanbe

capturedearlyinthedevelopmentprocess.Especiallyascomplexbuilderdesignsevolve

andvariableassignmentsmovearound, singleAssign()isaneffectivetooltomitigate

mutabilityproblemsandallowflexibletimingforpropertyassignments.

Bydefault, singleAssign()synchronizesaccesstoitsinternalvalue.Youshouldleaveit

thiswayespeciallyifyourapplicationismultithreaded.Ifyouwishtodisablesynchronization

forwhateverreason,youcanpassa SingleAssignThreadSafetyMode.NONEvalueforthepolicy.

varmyButton:ButtonbysingleAssign(SingleAssignThreadSafetyMode.NONE)

JavaFXPropertyDelegate

DonotconfusetheJavaFX PropertywithastandardJava/Kotlin"property".The Property

isaspecialtypein JavaFXthatmaintainsavalueinternallyandnotifieslistenersofits

changes.ItisproprietarytoJavaFXbecauseitsupportsbindingoperations,andwillnotify

theUIwhenitchanges.The PropertyisacorefeatureofJavaFXandhasitsown

JavaBeans-likepattern.

Thispatternisprettyverbosehowever,andevenwithKotlin'ssyntaxefficienciesitstillis

prettyverbose.Youhavetodeclarethetraditionalgetter/setteraswellasthe Propertyitem

itself.

classBar{

privatevalfooPropertybylazy{SimpleObjectProperty<T>()}

funfooProperty()=fooProperty

varfoo:T

get()=fooProperty.get()

set(value)=fooProperty.set(value)

}

AppendixA-SupplementaryTopics

262

Fortunately,TornadoFXcanabstractmostofthisaway.BydelegatingaKotlinpropertytoa

JavaFX property(),TornadoFXwillget/setthatvalueagainstanew Propertyinstance.To

followJavaFX'sconventionandprovidethe PropertyobjecttoUIcomponents,youcan

createafunctionthatfetchesthe PropertyfromTornadoFXandreturnsit.

classBar{

varfoobyproperty<String>()

funfooProperty()=getProperty(Bar::foo)

}

Especiallyasyoustartworkingwith TableViewandothercomplexcontrols,youwilllikely

findthispatternhelpfulwhencreatingmodelclasses,andthispatternisusedinseveral

placesthroughoutthisbook.

Noteyoudonothavetospecifythegenerictypeifyouhaveaninitialvaluetoprovidetothe

property.Inthebelowexample,itwillinferthetypeas`String.

classBar{

varfoobyproperty("baz")

funfooProperty()=getProperty(Bar::foo)

}

AlternativePropertySyntax

Thereisalsoanalternativesyntaxwhichproducesalmostthesameresult:

importtornadofx.getValue

importtornadofx.setValue

classBar{

valfooProperty=SimpleStringProperty()

varfoobyfooProperty

}

HereyoudefinetheJavaFXpropertymanuallyanddelegatethegettersandsettersdirectly

fromtheproperty.Thismightlookcleanertoyou,andsoyouarefreetochoosewhatever

syntaxyouaremostcomfortablewith.However,thefirstalternativecreatesaJavaFX

compliantpropertyinthatitexposesthe Propertyviaafunctioncalled fooProperty(),

whilethelattersimplyexposesavariablecalled fooProperty.ForTornadoFXthereisno

difference,butifyouinteractwithlegacylibrariesthatrequireapropertyfunctionyoumight

needtostickwiththefirstone.

FXMLDelegate

AppendixA-SupplementaryTopics

263

Ifyouhaveagiven MyViewViewwithaneighboringFXMLfile MyView.fxmldefiningthe

layout,the fxid()propertydelegatewillretrievethecontroldefinedintheFXMLfile.The

controlmusthavean fx:idthatisthesamenameasthevariable.

<Labelfx:id="counterLabel">

Nowwecaninjectthis Labelintoour Viewclass:

valcounterLabel:Labelbyfxid()

Otherwise,theIDmustbespecificallypassedtothedelegatecall.

valmyLabel:Labelbyfxid("counterLabel")

PleasereadChapter10tolearnmoreaboutFXML.

A2-TableViewAdvancedColumnResizing

TheSmartResizepolicybringstheabilitytointuitivelyresizecolumnsbyprovidingsensible

defaultscombinedwithpowerfulanddynamicconfigurationoptions.

Toapplytheresizepolicytoa TableViewweconfigurethe columnResizePolicy.Forthis

exercisewewillusealistofhotelrooms.Thisisourinitialtablewiththe SmartResizepolicy

activated:

tableview(rooms){

column("#",Room::id)

column("Number",Room::number)

column("Type",Room::type)

column("Bed",Room::bed)

columnResizePolicy=SmartResize.POLICY

}

HereisapictureofthetablewiththeSmartResizepolicyactivated(Figure5.7):

FigureA2.1

AppendixA-SupplementaryTopics

264

Thedefaultsettingsgaveeachcolumnthespaceitneedsbasedonitscontent,andgave

theremainingwidthtothelastcolumn.Whenyouresizeacolumnbydraggingthedivider

betweencolumnheaders,onlythecolumnimmediatelytotherightwillbeaffected,which

avoidspushingthecolumnstotherightoutsidetheviewportofthe TableView.

Whilethisoftenpresentsapleasantdefault,thereisalotmorewecandotoimprovethe

userexperienceinthisparticularcase.Itisevidentthatourtabledidnotneedthefull800

pixelsitwasprovided,butitgivesusanicechancetoelaborateontheconfigurationoptions

ofthe SmartResizepolicy.

Thebedcolumniswaytoobig,anditseemsmoresensibletogivetheextraspacetothe

Typecolumn,sinceitmightcontainarbitrarylongdescriptionsoftheroom.Togivetheextra

spacetotheTypecolumn,wechangeitscolumndefinition(Figure5.8):

column("Type",Room::type).remainingWidth()

FigureA2.2

AppendixA-SupplementaryTopics

265

NowitisapparenttheBedcolumnlookscramped,beingpushedallthewaytotheleft.We

configureittokeepitsdesiredwidthbasedonthecontentplus50pixelspadding:

column("Bed",Room:bed").contentWidth(padding=50.0)

Theresultisamuchmorepleasantvisualimpression(Figure5.9):

FigureA2.3

Thisfine-tuningmaynotseemlikeabigdeal,butitmeansalottopeoplewhoareforcedto

stareatyoursoftwareallday!Itisthelittlethingsthatmakesoftwarepleasanttouse.

AppendixA-SupplementaryTopics

266

IftheuserincreasesthewidthoftheNumbercolumn,theTypecolumnwillgradually

decreaseinwidth,untilitreachesitsdefaultwidthof10pixels(theJavaFXdefault).After

that,theBedcolumnmuststartgivingawayitsspace.Wedon'teverwanttheBedcolumn

tobesmallerthatwhatweconfigured,sowetellittouseitscontent-basedwidthplusthe

paddingweaddedasitsminimumwidth:

column("Bed",Room:bed").contentWidth(padding=50.0,useAsMin=true)

TryingtodecreasetheBedcolumneitherbyexplicitlyexpandingtheTypecolumnor

implicitlybyexpandingtheNumbercolumnwillsimplybedeniedbytheresizepolicy.Itis

worthnotingthatthereisalsoa useAsMaxchoiceforthe contentWidthresizetype.This

wouldeffectivelyresultinahard-coded,unresizablecolumn,basedontherequiredcontent

widthplusanyconfiguredpadding.Thiswouldbeagoodpolicyforthe#column:

column("#",Room::id).contentWidth(useAsMin=true,useAsMax=true)

Therestoftheexampleswillprobablynotbenefittheuser,buttherearestillotheroptionsat

yourdisposal.TrytomaketheNumbercolumn25%ofthetotaltablewidth:

column("Number",Room::number).pctWidth(25.0)

Whenyouresizethe TableView,theNumbercolumnwillgraduallyexpandtokeepupwith

our25%widthrequirement,whiletheTypecolumngetstheremainingextraspace.

FigureA2.4

AppendixA-SupplementaryTopics

267

Analternativeapproachtopercentagewidthistospecifyaweight.Thistimeweaddweights

tobothNumberandType:

column("Number",Room::number).weigthedWidth(1.0)

column("Type",Room::type).weigthedWidth(3.0)

Thetwoweightedcolumnssharetheremainingspaceaftertheothercolumnshavereceived

theirfairshare.SincetheTypecolumnhasaweightthatisthreetimesbiggerthanthe

Numbercolumn,itssizewillbethreetimesbiggeraswell.Thiswillbereevaluatedasthe

TableViewitselfisresized.

FigureA2.5

Thissettingwillmakesurewekeepthementionedratiobetweenthetwocolumns,butit

mightbecomeproblematicifthe TableViewisresizedtobeverysmall.ThetheNumber

columnwouldnothavespacetoshowallofitscontent,soweguardagainstthatby

specifyingthatitshouldnevergrowbelowthespaceitneedstoshowitscontent,plussome

padding,forgoodmeasure:

column("Number",Room::number).weigthedWidth(1.0,minContentWidth=true,padding=10

.0)

Thismakessureourtablebehavesnicelyalsounderconstrainedwidthconditions.

Dynamiccontentresizing

AppendixA-SupplementaryTopics

268

Sincesomeoftheresizingmodesarebasedontheactualcontentofthecolumns,they

mightneedtobereevaluatedevenwhenthetableorit'scolumnsaren'tresized.For

example,ifyouaddorremovecontentitemsfromthebackinglist,therequiredcontent

measurementsmightneedtobeupdated.Forthisyoucancallthe requestResizefunction

afteryouhavemanipulatedtheitems:

SmartResize.POLICY.requestResize(tableView)

Infact,youcanasktheTableViewtoaskthepolicyforyou:

tableView.requestResize()

Staticallysettingthecontentwidth

Inmostcasesyouprobablywanttoconfigureyourcolumnwidthsbasedoneitherthetotal

availablespaceorthecontentofthecolumns.Insomecasesyoumightwanttoconfigurea

specificwidth,thatthatcanbedonewiththe prefWidthfunction:

column("Bed",Room::bed).prefWidth(200.0)

Acolumnwithapreferredwidthcanberesized,sotomakeitnon-resizable,usethe

fixedWidthfunctioninstead:

column("Bed",Room::bed).fixedWidth(200.0)

Whenyouhard-codethewidthofthecolumnsyouwillmostlikelyendupwithsomeextra

space.Thisspacewillbeawardedtotherightmostresizablecolumn,unlessyouspecify

remainingWidth()foroneormorecolumn.Inthatcase,thesecolumnswilldividetheextra

spacebetweenthem.

Inthecasewherenotallcolumnscanbeaffordedtheirpreferredwidth,allresizable

columnsmustgiveawaysomeoftheirspace,butthe SmartResizePolicymakessurethat

thecolumnwiththebiggestreductionpotentialwillgiveawayitsspacefirst.Thereduction

potentialisthedifferencebetweenthecurrentwidthofthecolumnanditsdefinedminimum

width.

AppendixA-SupplementaryTopics

269

AppendixB-ToolsandUtilities

LayoutDebugger

Whenyou'recreatinglayoutsorworkingonCSSitsometimeshelptobeabletovisualise

thescenegraphandmakelivechangestothenodepropertiesofyourlayout.The

absolutelybesttoolforthisjobisdefinitelytheScenicViewtoolfromFXExperience,but

sometimesyoujustneedtogetaquickoverviewasfastaspossible.

Debuggingascene

SimplyhitAlt-Meta-JtobringupthebuiltindebuggingtoolLayoutDebugger.Thedebugger

attachestothecurrentlyactive Sceneandopensanewwindowthatshowsyouthecurrent

scenegraphandpropertiesforthecurrentlyselectednode.

Usage

WhilethedebuggerisactiveyoucanhoveroveranynodeinyourViewanditwillbe

automaticallyhighlightedinthedebuggerwindow.Clickinganodewillalsoshowyouthe

propertiesofthatnode.Someofthepropertiesareeditable,like backgroundColor, text,

paddingetc.

Whenyouhoveroverthenodetreeinthedebugger,thecorrespondingnodeisalso

highlighteddirectlyintheView.

AppendixB-ToolsandUtilities

270

Stopadebuggingsession

Closethedebuggerwindowbyhitting Escandthedebuggersessionends.Youcandebug

multiplescenessimultaneously,eachdebuggingsessionwillopenanewwindow

correspondingtothesceneyoudebug.

Configurableshortcut

Thedefaultshortcutforthedebuggercanbechangedbysettinganinstanceof

KeyCodeCombinationinto FX.layoutDebuggerShortcut.Youcanevenchangetheshortcut

whiletheappisrunning.Agoodplacetoconfiguretheshortcutwouldbeinthe initblock

ofyour Appclass.

Addingfeatures

WhilethisdebuggertoolisinnowayareplacementforScenicView,wewilladdfeatures

basedonreasonablefeaturerequests.Ifthefeatureaddsvalueforsimpledebugging

purposesandcanbeimplementedinasmallamountofcode,wewilltrytoaddit,orbetter

AppendixB-ToolsandUtilities

271

yet,submitapullrequest.Havealookatthesourcecodetofamiliariseyourselfwiththe

tool.

TODO

Therearealotofutilitiesandmiscellaneous"oddsandends"inTornadoFX.Somehowwe

needtoorganizeandgroupallofthemintoafewchapters.Hereistheproposedoutline.

Feelfreetomakeeditstothisdocumentuntilweareallhappywiththedirection.

Thisisabitchallengingtoorganizebecausesomeoftheseutilitiesarehelpfulbutoftenhard

tocategorize.WecanalwaysthrowitemsintotheAppendixiftheydonotfitanywhere.

Enteringfullscreen

Toenterfullscreenyouneedtogetaholdofthecurrent stageandcall stage.isFullScreen

=true.Theprimarystageistheactivestageunlessyouopenedamodalwindowvia

view.openModal()ormanuallycreatedastage.Theprimarystageisavailableinthe

variable FX.primaryStage.Toopentheapplicationinfullscreenonstartupyoushould

override startinyourappclass:

classMyApp:App(MyView::class){

overridefunstart(stage:Stage){

super.start(stage)

stage.isFullScreen=true

}

}

Inthefollowingexamplewetogglefullscreenmodeinamodalwindowviaabutton:

button("Togglefullscreen"){

setOnAction{

with(modalStage){isFullScreen=!isFullScreen}

}

}

10.ConcurrencyandErrorHandling

AsyncTaskExecution

AsyncItemsforDataComponents

FXRunandWait

ErrorHandler

AppendixB-ToolsandUtilities

272

11.DataTools

JsonModal

RESTClient

SortedFilteredList

MentionSortedFilteredList.refilter()whichcausestheexistingpredicatetobe

reevaluated

Clipboard

Resources

12.Configuration

ProgramParametersandHotViewReloading

Internationalization

ComponentConfiguration

Preferences

13.JavaInterop

POJOBinding

JavaFXInterop

14.TornadoFXPlugin

ConfiguringanApplication

AddView

InjectComponent

Intentions

ConvertfieldmemberstoJavaFXProperties

AddTableViewColumns

ProjectTemplates

Appendix

ThirdPartyInjection

Logging

ListofExtensionFunctions

AppendixB-ToolsandUtilities

273

Logging

Componenthasalazyinitializedinstanceof java.util.Loggernamed log.Usage:

log.info{"Logmessagehere"}

TornadoFXmakesnochangestotheloggingcapabilitiesof java.util.Logger.Seethe

javadocformoreinformation.

Buildtools

Maven

TheTornadofxpluginforIntellijcancrete3typesofmavenprojects.

1. Astandardmavenproject

2. AnOSGIenabledmavenproject

3. AnOSGIenabledmavenprojectwheretheviewsareexposeddeclarativly.

Allthreeprojectscreateaworkingandcompilableprojectthatcanserveasastartingpoint.

Ifyoudonotwanttousetheplugintocreatetheprojectthatthepom.xmlneedstohaveata

minimum:

<kotlin.version>1.1.1</kotlin.version>

<tornadofx.version>1.7.0</tornadofx.version>

</properties>

<build>

<plugins>

<plugin>

<groupId>org.jetbrains.kotlin</groupId>

<artifactId>kotlin-maven-plugin</artifactId>

<version>${kotlin.version}</version>

<configuration>

<jvmTarget>1.8</jvmTarget>

</configuration>

<executions>

<execution>

<id>compile</id>

<phase>process-sources</phase>

<goals>

<goal>compile</goal>

</goals>

</execution>

AppendixB-ToolsandUtilities

274

<execution>

<id>test-compile</id>

<phase>test-compile</phase>

<goals>

<goal>test-compile</goal>

</goals>

</execution>

</executions>

</plugin>

<plugin>

<groupId>org.apache.maven.plugins</groupId>

<artifactId>maven-compiler-plugin</artifactId>

<executions>

<execution>

<id>compile</id>

<phase>compile</phase>

<goals>

<goal>compile</goal>

</goals>

</execution>

<execution>

<id>testCompile</id>

<phase>test-compile</phase>

<goals>

<goal>testCompile</goal>

</goals>

</execution>

</executions>

</plugin>

....

</plugins>

</build>

<dependency>

<groupId>org.jetbrains.kotlin</groupId>

<artifactId>kotlin-stdlib</artifactId>

<version>${kotlin.version}</version>

</dependency>

<dependency>

<groupId>no.tornado</groupId>

<artifactId>tornadofx</artifactId>

<version>${tornadofx.version}</version>

</dependency>

<dependency>

<groupId>org.jetbrains.kotlin</groupId>

<artifactId>kotlin-test</artifactId>

<version>${kotlin.version}</version>

<scope>test</scope>

</dependency>

</dependencies>

AppendixB-ToolsandUtilities

275

Note

StartingwithTornadoFXversion1.7.1youmustconfigurethekotlincompilerplugintotarget

jvmTarget1.8asintheexampleabove.

AppendixB-ToolsandUtilities

276

TornadoFX Guide

Navigation menu

Versions of this User Manual:

Views

Navigation
