Users Manual
less than 5mm
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
Radiation Exposure Statement:
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for
exposure to radio frequency (RF) energy set by the Federal Communications Commission
of the U.S. Government.
The exposure standard for wireless device employs a unit of measurement known as the
Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
*Tests for SAR are conducted using standard operating positions accepted by the FCC
with the device transmitting at its highest certified power level in all tested frequency bands.
IC Radiation Exposure Statement:
The product comply with the Canada portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in
this manual. The further RF exposure reduction can be achieved if the product
can be kept as far as possible from the user body or set the device to lower
output power if such function is available.
Déclaration d'exposition aux radiations:
Le produit est conforme aux limites d'exposition pour les appareils portables
RF pour les Etats-Unis et le Canada établies pour un environnement non
contrôlé.
Le produit est sûr pour un fonctionnement tel que décrit dans ce manuel. La
réduction aux expositions RF peut être augmentée si l'appareil peut être
conservé aussi loin que possible du corps de l'utilisateur ou que le dispositif
est réglé sur la puissance de sortie la plus faible si une telle fonction est
disponible.
This device and its antenna(s) must not be co-located or operating in
conjunction with any other antenna or transmitter, except tested built-in radios.
Cet appareil et son antenne ne doivent pas être situés ou fonctionner en
conjonction avec une autre antenne ou un autre émetteur, exception faites des
radios intég
Pebble Bluetooth Watch
Pebble Bluetooth Watch

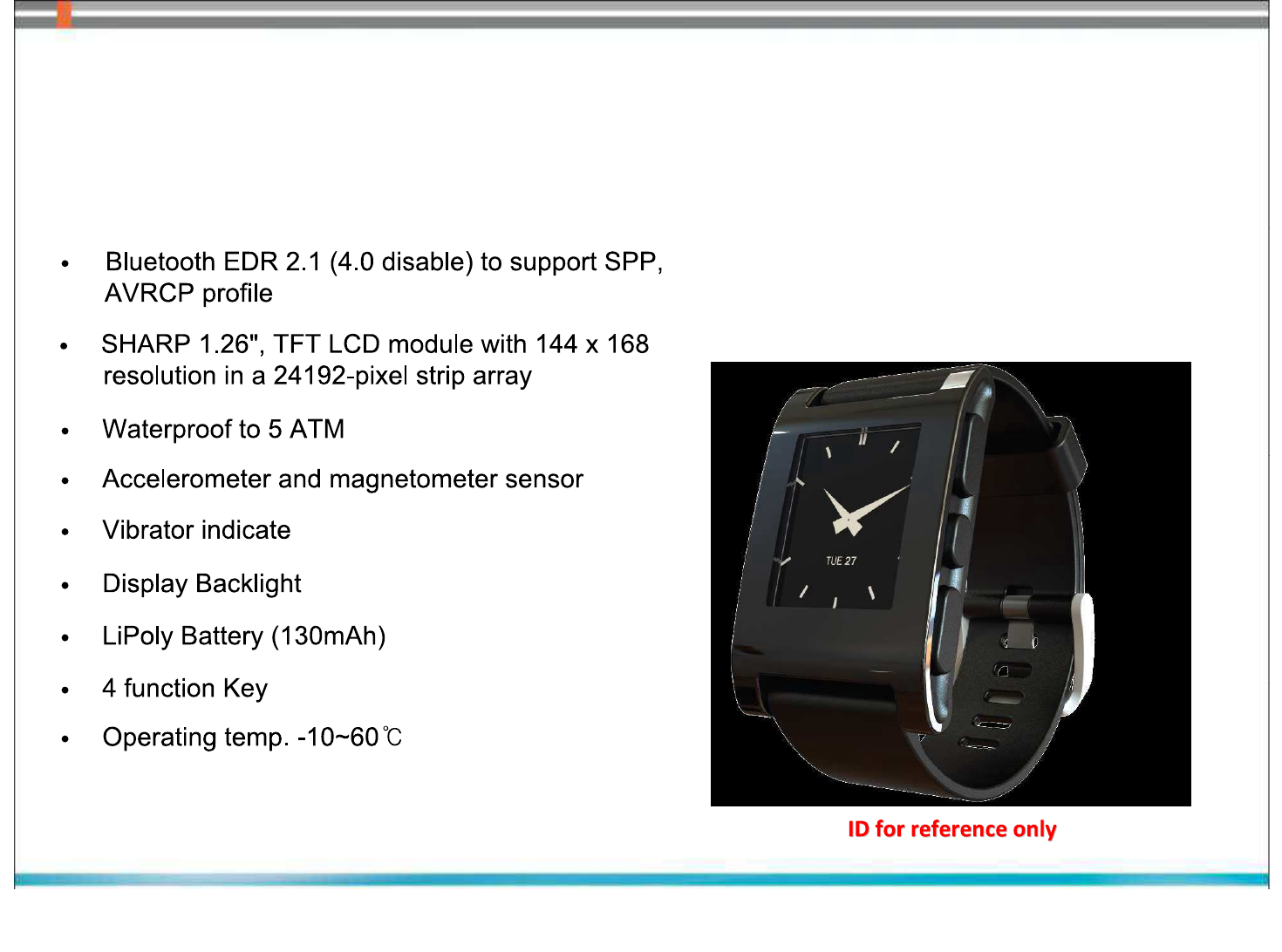

Key Features
Key Features
• ST ARM 32-bit CORTEX –M3 CPU
• Panasonic PAN1316 Bluetooth EDR 2.1 (4.0
disable) module support SPP, AVRCP profile;
The maximum power consumption is less
than 15 mA and the average power
consumption is about 1 uA
• SHARP 1.26’,TFT LCD module with 144
168 resolution in a 24192-pixel stripe array
• Waterproof to 5 ATM
• Accelerometer and magnetometer sensor
• Vibrator indicate
• Display Backlight
• LiPoly Battery (120mAh)

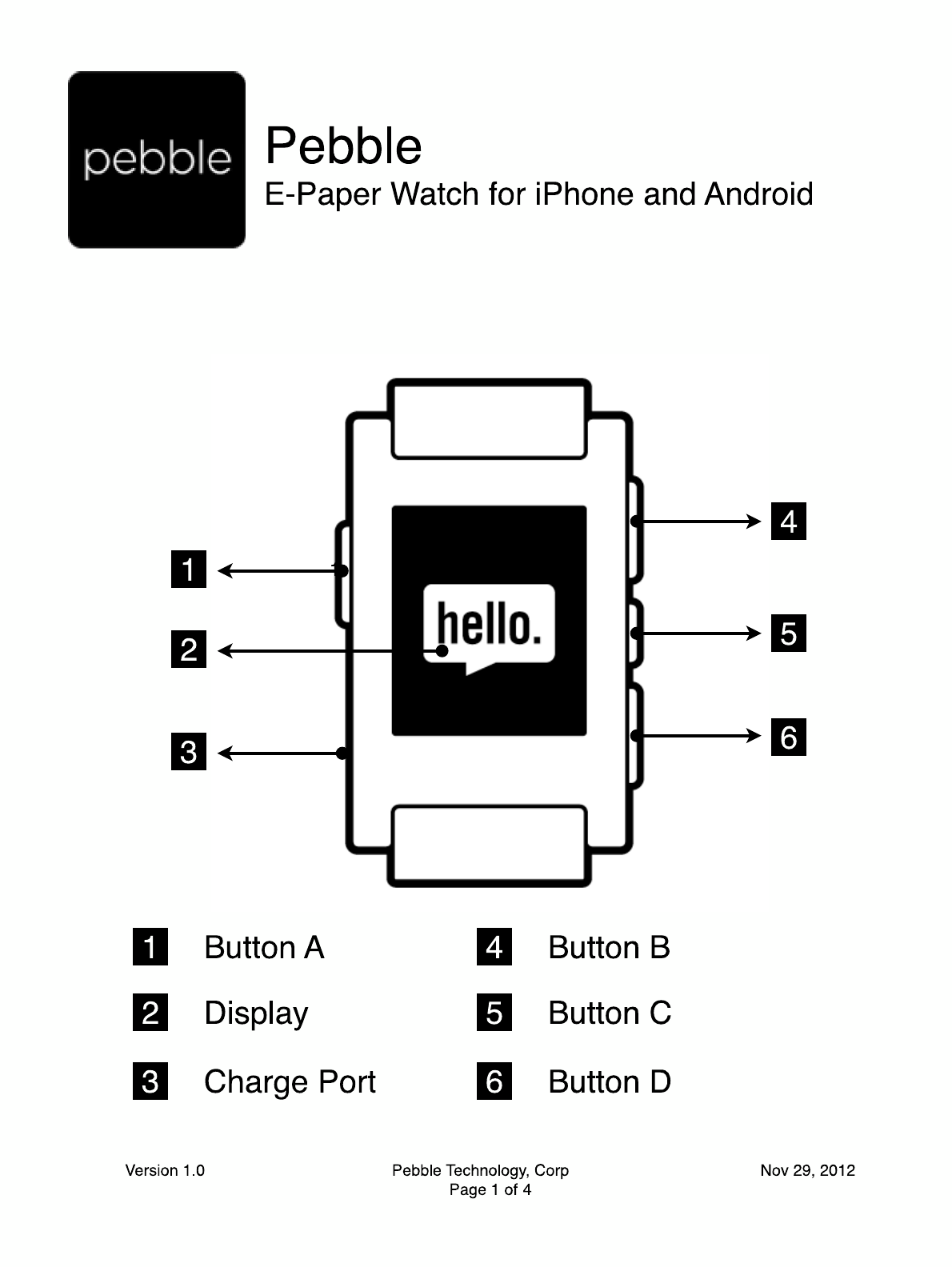

• 4 function Key
Form Factor
Form Factor
• Dimension:
50.33 mm X 32 mm X 8.44 mm
• Weight: 39g
• Operation System – TBD
