Contents

ExSite

™

Series

Explosionproof

Positioning System

OPERATION/PROGRAMMING

C1300M-B (6/05)

C1300M-B (6/05) 3

Contents

Regulatory Notices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Models . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Set the Calibration Point. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

How to Operate Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Accessing Main Menu (Preset 95). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CM6700/CM6800 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

KBD200A/KBD300A (Direct Mode Only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CM9500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

CM9740/CM9760/CM9770/CM9780. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

KBD4000/KBD4002 (Genex multiplexer) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

MPT9500. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

PelcoNet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Quick Start Guide – System Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Unit Inversion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

System Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Display Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Label Position. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Unit Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Camera. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Type of Lighting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Auto Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Zoom Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Zoom Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Low Light Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

IR Cut Filter (23X Day/Night Camera). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Advanced Camera Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Shutter Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

AGC Limit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Auto Iris. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Auto Sharpness. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Auto White Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Backlight Compensation (BLC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Video Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Wide Dynamic Range (23X Day/Night Camera). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Motion . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Proportional Pan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Park Time. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Scan Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

preset freeze frame. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Limit Stops . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Azimuth Zero. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Power Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Power Up Action . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Line Sync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

4 C1300M-B (6/05)

Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Enable Motion Detection (23X Day/Night Camera) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Edit Detection Areas (23X Day/Night Camera) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Activate AUX Command (23X Day/Night Camera). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

AUX Time (23X Day/Night Camera) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Patterns . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Window Blanking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

Reverse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Clear Window . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Blank All Above/Blank All Below . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Wiper . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wiper Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wiper Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wiper Dwell . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Wiper Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

Set Washer Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

AUX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Clear. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Position Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Reset, Cycle Power, Reboot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Reset Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Cycle Camera Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Reboot System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

Software/Language File Upload . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Upload Icon . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Speciﬁcations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

C1300M-B (6/05) 5

Regulatory Notices

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause

harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired

operation.

RADIO AND TELEVISION INTERFERENCE

This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However there is no guarantee that the interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and the receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

You may also ﬁnd helpful the following booklet, prepared by the FCC: “How to Identify and Resolve Radio-TV Interference Problems.”

This booklet is available from the U.S. Government Printing Ofﬁce, Washington D.C. 20402.

Changes and Modiﬁcations not expressly approved by the manufacturer or registrant of this equipment can void your authority to

operate this equipment under Federal Communications CommissionÕs rules.

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

6 C1300M-B (6/05)

Welcome

Thank you for purchasing Pelco’s ExSite™ IPSXM Series explosionproof positioning system. Your new system features a high resolution,

camera/optics package with programmable software.

This manual is designed to be a reference tool for the operation and programming of your system. Inside you will ﬁnd information about the

features and commands of your IPSXM system, as well as a detailed menu tree.

MODELS

IPSXM30C22-2 Pan and tilt system with color camera, 60 Hz, 24 VAC

IPSXM30C22-2X Pan and tilt system with color camera, 50 Hz, 24 VAC

IPSXM31C22-2 Same as IPSXM30C22-2, except supplied with window wiper

IPSXM31C22-2X Same as IPSXM30C22-2X, except supplied with window wiper

IPSXM30CBW23-2 Pan and tilt system with day/night camera, 60 Hz, 24 VAC

IPSXM30CBW23-2X Pan and tilt system with day/night camera, 50 Hz, 24 VAC

IPSXM31CBW23-2 Same as IPSXM30CBW23-2, except supplied with window wiper

IPSXM31CBW23-2X Same as IPSXM30CBW23-2X, except supplied with window wiper

IPSXM30C22-7 Pan and tilt system with color camera, 60 Hz, 90-264 VAC

IPSXM30C22-7X Pan and tilt system with color camera, 50 Hz, 90-264 VAC

IPSXM31C22-7 Same as IPSXM30C22-7, except supplied with window wiper

IPSXM31C22-7X Same as IPSXM30C22-7X, except supplied with window wiper

IPSXM30CBW23-7 Pan and tilt system with day/night camera, 60 Hz, 90-264 VAC

IPSXM30CBW23-7X Pan and tilt system with day/night camera, 50 Hz, 90-264 VAC

IPSXM31CBW23-7 Same as IPSXM30CBW23-7, except supplied with window wiper

IPSXM31CBW23-7X Same as IPSXM30CBW23-7X, except supplied with window wiper

GETTING STARTED

You will need to install your system before using this manual. Refer to the installation manuals for instructions. Once installed apply power

to the system. The system will begin a conﬁguration sequence that starts with a limited back and forth pan motion (wiggling) for 2.5

minutes. The limited pan motion is a built-in safety feature to warn anyone at the installation site that the unit is on and to avoid contact

with the unit during start up. To stop the limited pan motion press Iris Close. The system will continue its conﬁguration sequence. When the

system is done, the following information is displayed:

Pelco ExSite IPSXM

Version X.XX

D Address: 1

P Address: 2

Comm 2400, N, 8, 1

CONFIGURE DONE

This information will remain on the monitor until system operation begins. Refer to the following pages to learn how to operate and

program your IPSXM Series positioning system.

SET THE CALIBRATION POINT

Before programming presets, patterns, zones, labels, and window blanking, program and document the position calibration point (refer to

Position Calibration)

. The purpose of the calibration point is to restore all programmed settings quickly in the event the unit is replaced or

refurbished.

DANGER: Do not connect the power module to a supply circuit unless all ExSite system components (pan and tilt, camera

module and power module) are installed.

C1300M-B (6/05) 7

How to Operate Your System

Operation How to Control

Pan and Tilt

Move joystick or press the direction keys left/right and up/down.

Zoom Far

To zoom far, do the following:

1. Press the Zoom Tele button or turn the joystick clockwise until zoom stops at the

32X zoom limit.

2. Release the button or joystick for one second.

3. To continue zooming (digitally), press the button or turn the joystick clockwise again until you have the picture you

want or reach the

digital zoom

limit.

Zoom Wide

Press the Zoom Wide button or turn the joystick counterclockwise.

Scanning

Stop Scan Preset 96

Random Scan Preset 97

Frame Scan Preset 98

Auto Scan Preset 99

Presets

Refer to the documentation supplied with the control system.

Patterns

** Refer to the documentation supplied with the control system.

Zones

Refer to the

Zones

section and to the documentation supplied with the control system.

Alarms

Refer to the

Alarms

section.

*Digital zoom magniﬁes the image electronically and the picture may appear pixilated. The larger the digital zoom limit the greater the

reduction in resolution.

**The unit cannot do electronic zoom in a pattern. Optical zoom will operate in a pattern.

8 C1300M-B (6/05)

ACCESSING MAIN MENU (PRESET 95)

You can call up the main menu on your monitor by programming (setting or creating) preset 95 (preset 28 if in AD32-preset mode).

Programming preset 95 for Pelco’s controllers varies according to the type of controller you are using. Instructions for programming preset

95 are given below for various Pelco controllers.

CM6700/CM6800

1. Enter the number of the IPSXM system and press the CAM key.

2. Enter 95 and hold the PRESET key for two seconds.

3. In the Edit Preset menu, arrow to SET and press the ACK key. The main menu appears.

KBD200A/KBD300A (DIRECT MODE ONLY)

1. Enter 95.

2. Hold the PRESET key (approximately ﬁve seconds) until the main menu appears on the screen.

CM9500

1. Enter the number of the IPSXM system and press the CAM key. The Main menu appears.

2. Highlight SETUP in the Main menu and press the SELECT key.

3. Highlight CAM in the Setup menu and press the SELECT key.

4. Highlight PRESET in the Camera menu and press the SELECT key.

5. Enter 95 and press the F1 key. The main menu appears.

CM9740/CM9760/CM9770/CM9780

1. Press the ESCAPE key to open the Main menu. Select DEF. The Deﬁne Submenu appears.

2. Enter your four-digit PIN

if this is your ﬁrst time entering this mode.

3. Enter 95 and select PRST. The main menu appears on the monitor.

4. Select the Quit icon to return to the default menu.

KBD4000/KBD4002 (GENEX MULTIPLEXER)

1. Press the SPOT MONITOR key.

2. Enter the number of the IPSXM system and press the CAM key.

3. Enter 95, then hold the PRESET key (approximately ﬁve seconds) until the main menu appears on the screen.

MPT9500

Standard Coaxitron Mode

1. Enter 95 and press the PRESET SET key.

2. Position the asterisk in the YES row and press the F1 key. The main menu appears.

Extended Coaxitron or RS-485 Mode

1. Enter 95 and press the PRESET SET key.

2. Press the F2 key. The main menu appears.

PelcoNet

1. Check the Set box.

2. Click the preset 95 button. The main menu appears.

C1300M-B (6/05) 9

Quick Start Guide – System Setup

Quick Programming Guide

Access the main menu (preset 95). See the Accessing

Main Menu (Preset 95) section.

Use the joystick to position the cursor beside

menu selection. If your controller does not have a

joystick, use the up or down key.

Press Iris Open; the submenu/cursor moves to the right.

Move the joystick up or down to view selections.

If your controller does not have a joystick, use the

up or down key.

Press Iris Open to make selection.

Press Iris Close to cancel selection.

Presets

The following presets are reserved for special functions.

Preset Function

33 Flip command (disabled)

86 Wiper

87 Washer

88 IR ﬁlter IN (color)

89 IR ﬁlter OUT (black-white)

90-91 Manual limit stops

92-93 Scan limit stops

95 Select main programming menu

96 Stop a scan

97 Random scanning

98 Frame scanning

99 Start auto scanning

NOTE: For American Dynamics controllers with only 32 presets, switch SW3-1

on the dome drive to the ON position. When SW3-1 is ON, preset

99 becomes 32 92 becomes 25

98 becomes 31 91 becomes 24

97 becomes 30 90 becomes 23

96 becomes 29 89 becomes 22

95 becomes 28 88 becomes 21

93 becomes 26

If the limit stops are turned off, presets 23-26 can be used as regular presets.

WIPER**

WIPER CONTROL

WIPER MODE

WIPER DWELL (SECS)

WIPER TIME (MIN)

BACK

EXIT

LYNE SYNC

LINE SYNC

LINE SYNC PHASE

BACK

EXIT

PATTERNS

PATTERN NUMBER

BACK

EXIT

REFERENCE INFORMATION

PATTERN USAGE

REMAINING

ALARMS

RESUME

SEQUENCE (SECS)

RESET DELAY (SECS)

BACK

EXIT

POWER UP

POWER UP ACTION

BACK

EXIT

ZONES

ZONE NUMBER

ZONE NOT DEFINED

ZONE ENABLED

ZONE BLANKING

BACK

EXIT

AUX

AUX 1 MODE

DWELL TIME (SECS)

AUX 2 MODE

DWELL TIME (SECS)

BACK

EXIT

CLEAR

CLEAR ALL ZONES

CLEAR ALL PRESETS

CLEAR ALL PATTERNS

CLEAR ALL WINDOW BLANKING

RESTORE FACTORY DEFAULTS

BACK

EXIT

MOTION

PROPORTIONAL PAN

PARK TIME (MINUTES)

PARK ACTION

SCAN SPEED (DEG/S)

PRESET FREEZE FRAME

LIMIT STOPS

BACK

EXIT

ADVANCED SETTINGS

SHUTTER SPEED

AGC LIMIT

AUTO IRIS

AUTO IRIS LEVEL

AUTO IRIS PEAK

AUTO SHARPNESS

SHARPNESS LEVEL

AUTO WHITE BALANCE

R GAIN

B GAIN

BACKLIGHT COMP

VIDEO LEVEL

WIDE DYNAMIC RANGE*

BACK

EXIT

SET WINDOWS

WINDOW NUMBER

ENABLE WINDOW

REVERSE

CLEAR WINDOW

BACK

EXIT

ALARM SETTINGS

ALARM NUMBER

ALARM PRIORITY

ALARM ACTION

ACTIVATE AUX

ALARM CONTACT

BACK

EXIT

UNIT SETTINGS

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

ADDITIONAL

FREE MEMORY

LAST RESET

AZIMUTH ZERO OFFSET

MOTOR ACTIVE

CAMERA ACTIVE

FPGA VERSION

VIDEO LEVEL

CAMERA

<EAB>

<PMAB>

LANGUAGE 1

LANGUAGE 2

LANGUAGE 3

LANGUAGE 4

LANGUAGE 5

LANGUAGE 6

BACK

EXIT

SYSTEM INFORMATION

UNIT MODEL

POWER MODULE MEMORY

SOFTWARE VERSION

BIOS VERSION

FONT VERSION

COMM

D ADDRESS

P ADDRESS

CM9500 MODE

32 PRESET MODE

PROTOCOL

BACK

EXIT

LABEL POSITION

[ZONE LABEL- - - - - - - -]

[PRESET LABEL- - - ---]

[ALARM 1- - - - - - -]

SAVE AND EXIT

CANCEL AND EXIT

HELP

XXX/-XXX

XXX.XXX

DISPLAY SETUP

PRESET LABEL

ZONE LABEL

ZOOM

AZMUTH/ELEVATION

DIRECTION

ALARM MESSAGE

RESTORE FACTORY DEFAULTS

BACK

EXIT

PELCO EXSITE IPSXM

LANGUAGE

UNIT INVERSION

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

EXIT

POSITION CALIBRATION

PRESET NOT DEFINED

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH

ELEVATION

ZOOM

CAMERA

TYPE OF LIGHTING

AUTO FOCUS

ZOOM LIMIT

ZOOM SPEED

LOW LIGHT LEVEL

IR CUT FILTER*

AUTO IR LEVEL*

BACK

EXIT

PASSWORD

ENABLE PASSWORD

BACK

EXIT

SET WASHER SEQUENCE

PRESET NOT DEFINED

WASHER TIME (SECS)

WIPER DELAY (SECS)

AUTO RETURN

BACK

EXIT

EDIT DETECTION AREA*

DETECTION AREA 1

LOCATION

SENSITIVITY

DETECTION AREA 2

LOCATION

SENSITIVITY

DETECTION AREA 3

LOCATION

SENSITIVITY

DETECTION AREA 4

LOCATION

SENSITIVITY

BACK

EXIT

MOTION DETECTION*

MOTION DETECTION ENABLED

ACTIVATE AUX

AUX TIME

BACK

EXIT

PRESETS

PRESET NUMBER

PRESET NOT DEFINED

<MOTION DETECTION>*

BACK

EXIT

WINDOW BLANKING

STYLE

BLANK ALL ABOVE

BLANK ALL BELOW

BACK

EXIT

EDIT THE PASSWORD

- - - - - - - - - - - - - - - - -

1234567890 OK

ABCDEFGHIJ CANCEL

KLMNOPQRST

UZWXYZ.,-/ SPACE

abcdefghij BACKSPACE

klmnopqrst

uvwxyz*;:

* Available only with the 23X day/night camera.

** Available only with wiper models.

10 C1300M-B (6/05)

C1300M-B (6/05) 11

Quick Programming Guide

(See Page 9)

Language

The language for the on-screen menus is selectable. Available languages include English, Spanish,

French, German, Italian, Portuguese, Polish, Russian, Turkish, and Czechoslovakian. The factory

default language is English.

To change the display language:

1. Use the joystick to position the cursor beside LANGUAGE.

2. Press Iris Open. The cursor moves to the right, beside the current, selected language.

3. Move the joystick up or down to view selections. Press Iris Open to enter selection.

All on-screen menus are changed to the selected language.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

12 C1300M-B (6/05)

Unit Inversion

Unit inversion reconﬁgures the system so that it operates normally when it is installed in an inverted

postion. The following are the available settings for unit inversion.

Figure 1.

Installation Methods

To reconﬁgure the unit for inverted operation and control:

1. Use the joystick to position the cursor beside UNIT INVERSION.

2. Press Iris Open. The cursor moves to the right.

3. Move the joystick up or down to view selections. Press Iris Open to enter selection. The

system will start a conﬁguration sequence. When conﬁguration is completed, the camera will

be oriented in the correct position for the installation.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

OFF (default) Use for normal installations (refer to Figure 1).

ON Reconﬁgures the camera oriention and controller functions for inverted

operation when the unit is installed in an inverted position (refer to Figure 1).

STANDARD

INSTALLATION

INVERTED

INSTALLATION

C1300M-B (6/05) 13

Quick Programming Guide

(See Page 9)

System Information

The system Information screen displays ExSite model, software version, available memory, and

other diagnostic information.

System settings cannot be changed using this screen. This screen is for reference only.

Use the following steps to display the System Information screen:

1. Use the joystick to position the cursor beside SYSTEM INFORMATION.

2. Press Iris Open. The SYSTEM INFORMATION window opens.

*EAB (Enclosure Accessory Board): The EAB information screen displays availability, version, and

part number of the enclosure accessory board

**PMAB (Power Module Accessory Board): The PMAB information screen displays availability,

version, and part number of the power module accessory board.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

UNIT MODEL 1PSXM31CBW

POWER MODULE MEMORY AVAILABLE

SOFTWARE VERSION 0.90.9013

BIOS VERSION 8.00.9000

FONT VERSION 1.00

COMM 2400,N,8,1

D ADDRESS 1

P ADDRESS 2

CM9500 MODE OFF

32 PRESETS OFF

PROTOCOL D

BACK

EXIT

SYSTEM INFORMATION

FREE MEMORY 30464

LAST RESET 3

AZIMUTH ZERO OFFSET 0.00°

MOTOR ACTIVE YES

CAMERA ACTIVE YES

FPGA VERSION 2

VIDEO LEVEL HIGH

CAMERA XXXX-XXXX

<EAB>*

<PMAB>**

LANGUAGE 1 ENGLISH 1.00

LANGUAGE 2 ESPANOL 1.00

LANGUAGE 3 ITALIANO 1.00

LANGUAGE 4 DEUTSCH 1.00

LANGUAGE 5 PORTUGUES 1.00

LANGUAGE 6 FRANCAIS 1.00

LANGUAGE 7 CESKY 1.00

LANGUAGE 8 POLSKI 1.00

LANGUAGE 9 RUSSIAN 1.00

LANGUAGE 10 TURKISH 1.00

BACK

EXIT

ADDITIONAL

14 C1300M-B (6/05)

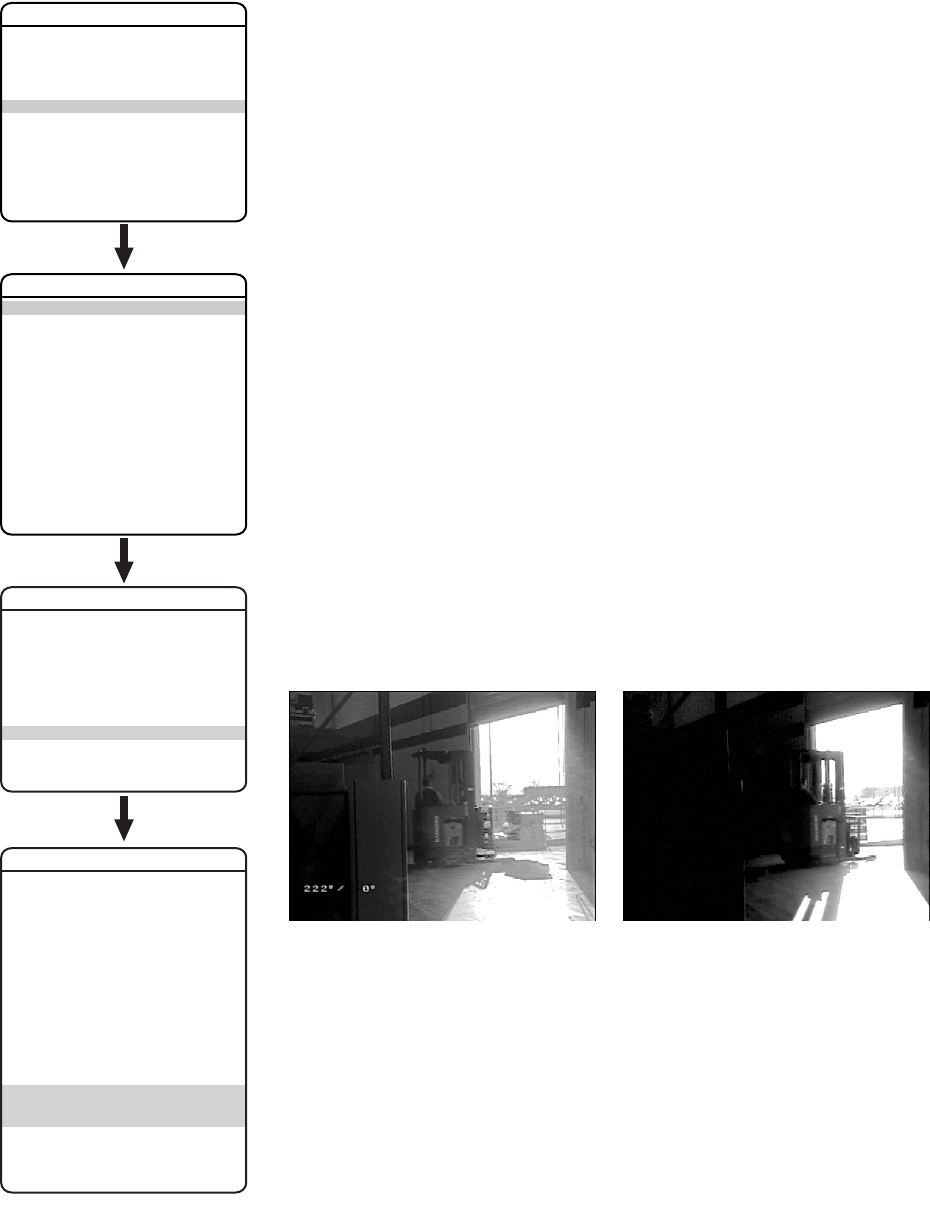

Display Setup

Display setup allows you to program how labels are displayed on the monitor. The following labels

are available:

PRESET LABEL Identiﬁes preset.

ZONE LABEL Identiﬁes zone.

ZOOM Identiﬁes the amount of magniﬁcation.

AZIMUTH*/ Amount of pan from 0° and the amount of tilt from 0° horizontal.

ELEVATION**

DIRECTION Displays compass direction.

ALARM MESSAGE Displays activated alarm.

A preset label is displayed when a preset is called. A zone label is displayed when the system

moves into a zone. The zoom ratio label is displayed when zoom is activated. Azimuth/elevation and

direction labels are displayed when pan/tilt is activated. An alarm message appears on the monitor

when an alarm occurs.

The following settings are available for each label:

*Azimuth is the pan angle from 0 to 359 degrees.

**Elevation is the tilt position from +90 (horizon) to -90 degrees.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

PRESET LABEL 2 (SECS)

ZONE LABEL 2 (SECS)

ZOOM 2 (SECS)

AZIMUTH/ELEVATION 2 (SECS)

DIRECTION OFF

ALARM MESSAGE 2 (SECS)

RESTORE FACTORY DEFAULTS

BACK

EXIT

DISPLAY SETUP

OFF Label is not displayed when activated.

CONSTANT The label is continually displayed when activated.

2 SECONDS The label is displayed for 2 seconds after activation.

5 SECONDS The label is displayed for 5 seconds after activation.

10 SECONDS The label is displayed for 10 seconds after activation.

C1300M-B (6/05) 15

Quick Programming Guide

(See Page 9)

LABEL POSITIONS

Labels can be placed anywhere on the monitor. This feature allows you to customize the appearance

of your monitor screen.

The following labels are not set at ﬁxed positions:

Preset Label

Zone Label

Alarm 1

Azimuth*/Elevation**: XXX°/-XX°

Zoom Ratio: XXX.XX

Direction: Compass direction is shown.

To set a label position:

1. Use the joystick to position the cursor beside a label.

2. Press Iris Open.

3. Use the joystick to move the label up, down, left, and/or right.

4. Press Iris Open.

5. Repeat steps 1 through 4 to position other labels.

6. Position the cursor next to Save and Exit. Press Iris Open to save settings and exit menu.

*Azimuth is the pan angle from 0 to 359 degrees.

**Elevation is the tilt position from +90 (horizon) to -90 degrees.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

PRESET LABEL 2 (SECS)

ZONE LABEL 2 (SECS)

ZOOM 2 (SECS)

AZIMUTH/ELEVATION 2 (SECS)

DIRECTION OFF

ALARM MESSAGE 2 (SECS)

RESTORE FACTORY DEFAULTS

BACK

EXIT

DISPLAY SETUP

[ZONE LABEL ------------]

[PRESET LABEL ------------]

[ALARM 1 ------------]

SAVE AND EXIT

CANCEL AND EXIT

HELP

XXX°/-XX° XXX.XX

16 C1300M-B (6/05)

Unit Settings

CAMERA

TYPE OF LIGHTING

Pelco has calibrated settings that optimize the white balance, and the picture, for indoor and

outdoor lighting conditions. There are two settings:

OUTDOOR (default)

INDOOR

AUTO FOCUS

Auto focus allows the lens to remain in focus during zoom-in, zoom-out, and motion functions.

There are two auto focus settings:

ON (default) If auto focus mode is set to ON, the camera will focus

automatically when using pan, tilt, and zoom functions.

Off Focus is operated manually. To focus, press the Focus Far or Focus

Near button on the controller.

ZOOM LIMIT

Zoom limit allows the user to deﬁne a limitation on the amount of telephoto zoom. The following are

the zoom limit settings for the ExSite Series systems:

23X Day/Night Camera Camera zooms optically to 23X and then zooms electronically. 32X,

92X,184X, or 230X. Default setting is 184X.

22X Color Camera Camera zooms optically to 22X and then zooms electronically. 22X,

32X, 88X, 176X, 220X, or 264X. The default setting is 176X.

ZOOM SPEED

Zoom speed allows the user to deﬁne how fast the dome will go from full wide zoom to the 23X

optical zoom. The default setting is MEDIUM.

Available settings for zoom speed include the following:

22X COLOR 23X DAY/NIGHT

HIGH 2.4 seconds 2.9 seconds

MEDIUM (default) 3.9 seconds 4.2 seconds

LOW 6.3 seconds 5.8 seconds

NOTE:

When using the HIGH setting, the image may be out of focus until zooming stops.

LOW LIGHT LIMIT

Low light limit is the maximum duration, in fractions of a second, that the electronic shutter will

remain open in low light conditions. The default setting is 2.

Settings include the following:

2 = 1/2 second 8 = 1/8 second 30 = 1/30 second

4 = 1/4 second 15 = 1/15 second 60 = 1/60 second

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

TYPE OF LIGHTING OUTDOOR

AUTO FOCUS ON

ZOOM LIMIT X184

ZOOM SPEED MEDIUM

LOW LIGHT LIMIT 2

IR CUT FILTER* AUTO

AUTO IR LEVEL* DUSK

BACK

EXIT

CAMERA

* Available only with the 23X day/night camera.

C1300M-B (6/05) 17

Quick Programming Guide

(See Page 9)

IR CUT FILTER (23X DAY/NIGHT CAMERA)

ExSite IPSXM has two modes of operation: color and black-white. You can increase sensitivity in

low light conditions by switching to black-white mode (removing the IR cut ﬁlter). Color mode is

preferred in normal lighting conditions.

The following are the settings for the IR cut ﬁlter:

Auto IR Level

The auto IR level is the light level at which the infrared ﬁlter switches IN or OUT.

Following are the available settings for the Auto IR Level:

NOTES:

• If backlight compensation is ON and the IR cut ﬁlter switches OUT in normal lighting

conditions, adjust the Auto IR Level to a darker setting. Refer to the

Backlight Compensation

section.

•

Low light

does not mean

no light

. Some type of illumination is required (street light, IR light,

etc.). The camera is not sensitive to IR light when the IR cut ﬁlter is IN.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

TYPE OF LIGHTING OUTDOOR

AUTO FOCUS ON

ZOOM LIMIT X184

ZOOM SPEED MEDIUM

LOW LIGHT LIMIT 2

IR CUT FILTER* AUTO

AUTO IR LEVEL* DUSK

BACK

EXIT

CAMERA

* Available only with the 23X day/night camera.

OFF Manual operation is controlled by preset 88 (ﬁlter IN) and 89 (ﬁlter OUT).

AUTO (default) Automatic operation is controlled by the Auto IR Level setting.

DUSK (default) approximately 6 lux (black - white)

approximately 13 lux (color)

DARK approximately 0.1 lux (black - white)

approximately 2 lux (color)

18 C1300M-B (6/05)

ADVANCED CAMERA SETTINGS

SHUTTER SPEED

Shutter speed is the duration of the electronic shutter. Program shutter speed to operate

automatically (Auto) or manually (Numeric Value).

Set the shutter speed to 100 if you are using an NTSC camera in a 50 Hz environment. This will

eliminate any ﬂicker that may occur in the picture.

AGC LIMIT

AGC Limit allows users to adjust how the system balances AGC (automatic gain control) and

electronic shutter in low light conditions. As scene lighting decreases, the system will automatically

adjust, adding a mixture of AGC and slow shutter according to the AGC LIMIT setting. AGC LIMIT

can be set between 0 and 40, with 40 applying maximum AGC before slow shutter. In contrast,

setting AGC LIMIT to 0 will force the system software to apply maximum slow shutter (as deﬁned by

the LOW LIGHT LIMIT setting) before any AGC is applied. The default setting of 28 sets the AGC and

slow shutter balance to favor AGC, yielding more real-time low light images.

The maximum slow shutter that the system will achieve is 1/2 second shutter (refer to the

Low Light

Limit

section).

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

TYPE OF LIGHTING OUTDOOR

AUTO FOCUS ON

ZOOM LIMIT X184

ZOOM SPEED MEDIUM

LOW LIGHT LIMIT 2

IR CUT FILTER* AUTO

AUTO IR LEVEL* DUSK

BACK

EXIT

CAMERA

SHUTTER SPEED AUTO

AGC LIMIT 28

AUTO IRIS AUTO

AUTO IRIS LEVEL 91

AUTO IRIS PEAK 16

AUTO SHARPNESS ON

SHARPNESS LEVEL 26

AUTO WHITE BALANCE ON

R GAIN 146

B GAIN 294

BACKLIGHT COMP OFF

VIDEO LEVEL HIGH

WIDE DYNAMIC RANGE* OFF

BACK

EXIT

ADVANCED SETTINGS

* Available only with the 23X day/night camera.

AUTO (default) The electronic shutter speed is set automatically by the amount of light

sensed by the camera.

NUMERIC VALUE The system has several numerical shutter speed settings. The higher the

number, the faster the electronic shutter.

The slowest shutter speed setting is 2 = 1/2 second

The fastest setting is 30,000 = 1/30,000 second

Increasing the shutter speed lowers the light sensitivity and reduces the

streaking of fast moving objects.

C1300M-B (6/05) 19

Quick Programming Guide

(See Page 9)

AUTO IRIS

Auto iris is the lens function that automatically opens and closes the iris in response to changing

light conditions.

Program the auto iris to operate automatically or at a user-deﬁned level.

If auto iris is in the auto mode, it will remain that way until the iris is manually opened or closed.

The system will return to auto mode when it is panned or tilted more than 15 degrees.

Auto Iris Level

Auto iris level is the numeric value the auto iris uses to maintain the brightness level of the camera.

Increase the value to brighten the scene. Decrease the level to darken the scene. This setting can be

adjusted if the video level in the auto iris mode is too bright or too dark.

If backlight compensation is ON, decrease the Auto Iris Level setting.

Auto Iris Peak

Increasing the peak value will cause the auto iris circuit to react more to highlights or “peaks” in the

picture. Decreasing this value will cause it to use the average video level to adjust the iris.

AUTO SHARPNESS

Auto sharpness enhances picture detail by increasing the aperture gain of the camera and

sharpening the edges in the picture.

There are two settings:

AUTO WHITE BALANCE

This feature automatically processes the viewed image to retain color balance over a color

temperature range. The default setting for auto white balance is ON.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

TYPE OF LIGHTING OUTDOOR

AUTO FOCUS ON

ZOOM LIMIT X184

ZOOM SPEED MEDIUM

LOW LIGHT LIMIT 2

IR CUT FILTER* AUTO

AUTO IR LEVEL* DUSK

BACK

EXIT

CAMERA

SHUTTER SPEED AUTO

AGC LIMIT 28

AUTO IRIS AUTO

AUTO IRIS LEVEL 91

AUTO IRIS PEAK 16

AUTO SHARPNESS ON

SHARPNESS LEVEL 26

AUTO WHITE BALANCE ON

R GAIN 146

B GAIN 294

BACKLIGHT COMP OFF

VIDEO LEVEL HIGH

WIDE DYNAMIC RANGE* OFF

BACK

EXIT

ADVANCED SETTINGS

* Available only with the 23X day/night camera.

OFF Auto iris is disabled, and control is always manual.

AUTO (default) The iris is adjusted automatically to produce a constant video output as deter-

mined by the Auto Iris Level setting.

ON (default) The camera automatically maintains a normal sharpness mode.

OFF The sharpness of the picture is set manually by programming the sharpness

level. Sharpness level settings range from 0-63.

R GAIN Adjusts the picture output in the red range. As you change the value, you will

see the color change on your monitor.

B GAIN Adjusts the picture output in the blue range. As you change the value, you will

see the color change on your monitor.

20 C1300M-B (6/05)

BACKLIGHT COMPENSATION (BLC)

If a bright backlight is present, the subjects in the picture may appear dark or as a silhouette.

Backlight compensation enhances objects in the center of the picture. The system uses the center of

the picture to adjust the iris. If there is a bright light source outside of this area, it will wash out to

white. The camera will adjust the iris so that the object in the sensitive area is properly exposed.

There are two backlight compensation settings:

If backlight compensation is ON, decrease the Auto Iris setting and adjust the Auto IR Level to a

darker setting. Refer to the

Auto Iris

and

Auto IR Level

sections.

VIDEO LEVEL

Set the video output to one of the following:

WIDE DYNAMIC RANGE (23X DAY/NIGHT CAMERA)

The wide dynamic range (WDR) setting balances the brightest and darkest sections of a scene to

produce a picture that is better balanced in lighting and provides more detail. The range from the

darkest to the brightest sections of the scene is 80X more when WDR is ON than when OFF.

Available settings are OFF and ON. The default setting is OFF. When wide dynamic range is set to

ON the frame rate is reduced from the standard 30 frames per second to 15 frames per second.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

TYPE OF LIGHTING OUTDOOR

AUTO FOCUS ON

ZOOM LIMIT X184

ZOOM SPEED MEDIUM

LOW LIGHT LIMIT 2

IR CUT FILTER* AUTO

AUTO IR LEVEL* DUSK

BACK

EXIT

CAMERA

SHUTTER SPEED AUTO

AGC LIMIT 28

AUTO IRIS AUTO

AUTO IRIS LEVEL 91

AUTO IRIS PEAK 16

AUTO SHARPNESS ON

SHARPNESS LEVEL 26

AUTO WHITE BALANCE ON

R GAIN 146

B GAIN 294

BACKLIGHT COMP OFF

VIDEO LEVEL HIGH

WIDE DYNAMIC RANGE* OFF

BACK

EXIT

ADVANCED SETTINGS

* Available only with the 23X day/night camera.

ON Backlight compensation is activated.

OFF (default) Backlight compensation is not activated.

NORMAL 1.0 volt peak-to-peak

HIGH (default setting) 1.2 volt peak-to-peak to compensate for losses in video cable.

Wide Dynamic Range ON Wide Dynamic Range OFF

C1300M-B (6/05) 21

Quick Programming Guide

(See Page 9)

MOTION

PROPORTIONAL PAN

Proportional pan automatically reduces or increases the pan and tilt speeds in proportion to the

amount of zoom. At telephoto zoom settings, the pan and tilt speeds will be slower for a given

amount of joystick deﬂection than at wide zoom settings. This keeps the image from moving too fast

on the monitor when there is a large amount of zoom.

There are two proportional pan modes:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PROPORTIONAL PAN ON

PARK TIME (MINUTES) 0

PARK ACTION NONE

SCAN SPEED (DEG/S) 25

PRESET FREEZE FRAME AUTO

LIMIT STOPS ON

BACK

EXIT

REFERENCE INFORMATION

MANUAL LIMITS SET NO

SCAN LIMITS SET NO

MOTION

ON (default) Enables the proportional pan mode.

OFF Disables proportional pan mode. The pan speed will not depend on the

amount of zoom.

22 C1300M-B (6/05)

PARK TIME

This feature allows the system to begin a speciﬁed operation (scan, preset, or pattern) after a

programmed time of inactivity.

Park time can be programmed from 1 minute to 720 minutes (12 hours), or set to zero, which

disables this feature. The default setting is zero.

Park Action

This feature will deﬁne the activity when the system parks. The following settings are available:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PROPORTIONAL PAN ON

PARK TIME (MINUTES) 0

PARK ACTION NONE

SCAN SPEED (DEG/S) 25

PRESET FREEZE FRAME AUTO

LIMIT STOPS ON

BACK

EXIT

REFERENCE INFORMATION

MANUAL LIMITS SET NO

SCAN LIMITS SET NO

MOTION

NONE (default) No action.

AUTO SCAN The system starts auto scan operation.

RANDOM SCAN The system starts random scan operation.

FRAME SCAN The system starts frame scan operation.

PRESET 1 The system goes to preset 1.

PRESET 8 The system goes to preset 8.

PATTERN 1 The system runs pattern 1.

PATTERN 2 The system runs pattern 2.

PATTERN 3 The system runs pattern 3.

PATTERN 4 The system runs pattern 4.

C1300M-B (6/05) 23

Quick Programming Guide

(See Page 9)

SCAN SPEED

Scan speed is the degrees per second that the system will pan when in scan mode. Scan speed is

adjustable from 1 to 40 degrees per second through the programming menu. The default setting is

25 degrees per second.

PRESET FREEZE FRAME

This feature freezes the scene on the monitor when going to a preset. This allows for smooth

transition from one preset scene to another. Preset freeze frame also reduces bandwidth when used

with digital network systems such as PelcoNet

™

and guarantees that blanked areas will not be

revealed when going to a preset.

There are three preset freeze frame settings:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PROPORTIONAL PAN ON

PARK TIME (MINUTES) 0

PARK ACTION NONE

SCAN SPEED (DEG/S) 25

PRESET FREEZE FRAME AUTO

LIMIT STOPS ON

BACK

EXIT

REFERENCE INFORMATION

MANUAL LIMITS SET NO

SCAN LIMITS SET NO

MOTION

ON The image on the screen freezes when a preset is called. When the system

reaches the preset, the image is unfrozen and the preset scene is displayed.

OFF The image is never frozen.

AUTO (default) Freeze frame is turned on automatically if window blanking is ON. If window

blanking is OFF, freeze frame is off.

24 C1300M-B (6/05)

LIMIT STOPS

Limit stops are programmable stops that limit the pan range of the unit. There must be two limits, a

left and a right, to deﬁne an area.

There are two types of limit stops:

To set manual or scan stops:

1. Use the joystick to position the cursor beside SET MANUAL STOPS or SET SCAN STOPS.

2. Press Iris Open.

3. Follow the directions displayed on the monitor.

NOTE:

In order for the manual or scan stops to work, the LIMIT STOPS setting must be ON.

To clear manual or scan stops:

1. Use the joystick to position the cursor beside CLEAR MANUAL STOPS or CLEAR SCAN STOPS.

2. Press Iris Open.

3. Follow the directions displayed on the monitor.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PROPORTIONAL PAN ON

PARK TIME (MINUTES) 0

PARK ACTION NONE

SCAN SPEED (DEG/S) 25

PRESET FREEZE FRAME AUTO

LIMIT STOPS ON

BACK

EXIT

REFERENCE INFORMATION

MANUAL LIMITS SET NO

SCAN LIMITS SET NO

MOTION

MANUAL A manual (joystick) pan operation stops when a limit stop is reached.

SCAN The system reverses direction during random, frame, or auto scanning when a

limit stop is reached.

C1300M-B (6/05) 25

Quick Programming Guide

(See Page 9)

AZIMUTH ZERO

Azimuth is the pan angle from 0 to 359 degrees. Azimuth zero is the pan position you specify to be

the 0-degree point. Azimuth zero is normally set to magnetic north. Once set, azimuth and compass

readings are based on the set Azimuth Zero point.

To program azimuth zero:

1. Use the joystick to position the cursor beside SET AZIMUTH ZERO.

2. Press Iris Open.

3. Follow the directions displayed on the monitor.

To clear azimuth zero:

1. Use the joystick to position the cursor beside CLEAR AZIMUTH ZERO.

2. Press Iris Open.

3. Follow the directions displayed on the monitor.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PROPORTIONAL PAN ON

PARK TIME (MINUTES) 0

PARK ACTION NONE

SCAN SPEED (DEG/S) 25

PRESET FREEZE FRAME AUTO

LIMIT STOPS ON

BACK

EXIT

REFERENCE INFORMATION

MANUAL LIMITS SET NO

SCAN LIMITS SET NO

MOTION

26 C1300M-B (6/05)

POWER UP

POWER UP ACTION

This setting deﬁnes a speciﬁc activity (scan, preset, pattern) to be performed in the event the power

to the system is cycled.

The following settings are available:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

POWER UP ACTION AUTO

BACK

EXIT

POWER UP

NONE No action.

AUTO (DEFAULT) The system resumes its prior activity or direction before the power outage.

AUTO SCAN The system starts auto scan operation.

RANDOM SCAN The system starts random scan operation.

FRAME SCAN The system frame scan operation.

PRESET 1 The system to preset 1.

PRESET 8 The system to preset 8.

PATTERN 1 The system pattern 1.

PATTERN 2 The system pattern 2.

PATTERN 3 The system pattern 3.

PATTERN 4 The system pattern 4.

C1300M-B (6/05) 27

Quick Programming Guide

(See Page 9)

LINE SYNC

Line sync refers to a programmable function that allows you to synchronize all cameras within a

matrix system.

NOTE:

ExSite IPSXM automatically senses V-Sync input. No line sync setup is required for Pelco

control systems that provide a V-Sync signal.

For matrix systems that do not output V-Sync, there are two settings for line synchronization:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

LINE SYNC ON

LINE SYNC PHASE 0

BACK

EXIT

LINE SYNC

ON (default) Adjusts the phase of the line sync to synchronize input power. LINE SYNC

PHASE settings range from 0-359 degrees.

OFF The system synchronizes to an internal clock.

28 C1300M-B (6/05)

PRESETS

The ExSite IPSXM system has 80 programmable preset positions. Each preset can be programmed to

use pan, tilt, all programmable camera settings, and motion detection.

The presets are numbered 1-32 and 35-82. Presets 33 and 34 are ﬁxed commands that cannot be

programmed. Preset 33 is disabled in the ExSite IPSXM. Preset 34 is the “pan zero” command,

which will direct the unit to the factory-determined zero reference point.

Use the following steps to program a preset.

1. Select the preset number:

a. Use the joystick to position the cursor beside PRESET NUMBER. Press Iris Open. The

cursor moves to the right.

b. Move the joystick up or down to view selections. Press Iris Open to enter selection.

2. Edit the preset label:

a. Use the joystick to position the cursor beside EDIT PRESET LABEL.

b. Press Iris Open. The following appears on the monitor:

c. Use the joystick to position the cursor beside a character. Press Iris Open to enter the

selection. To clear a character, position the cursor beside BACKSPACE, and then press

Iris Open.

d. When the label is completed, move the cursor to OK. Press Iris Open to return to the

Preset menu.

3. Edit the preset scene:

a. Use the joystick to position the cursor beside EDIT PRESET SCENE.

b. Press Iris Open.

c. Follow the directions displayed on the monitor.

4. Edit preset camera settings:

a. Use the joystick to position the cursor beside EDIT CAMERA SETTINGS.

b. Press Iris Open. The EDIT CAMERA SETTINGS window appears on the monitor. Refer to

the

Camera

and

Advanced Camera Settings

sections of this manual to change preset

camera settings.

NOTES:

• There are two additional options available for the IR Cut Filter that are only available when

programming a preset. The additional settings are YES and NO. If the IR Cut Filter is set to

YES, the preset scene will be in color. If the IR Cut Filter is set to NO, the preset scene will be

in black and white.

•You can copy camera settings from one preset to another preset. To copy camera settings do

the following:

1) Use the joystick to position the cursor beside COPY CAMERA SETTINGS.

2) Press Iris Open. The cursor moves to the right.

3) Move the joystick up or down to view selections. Press Iris Open to enter selection.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PRESET NUMBER 1

***PRESET NOT DEFINED***

<MOTION DETECTION>*

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH --

ELEVATION --

ZOOM --

CUSTOM CAMERA SETTINGS --

PRESETS

* Available only with the 23X day/night camera.

LABEL FOR PRESET

PRESET NUMBER

------

1234567890 OK

ABCDEFGHIJ CANCEL

KLMNOPQRST

UVWXYZ.,-/ SPACE

abcdefghij BACKSPACE

klmnopqrst

uvwxyz*;:

C1300M-B (6/05) 29

Quick Programming Guide

(See Page 9)

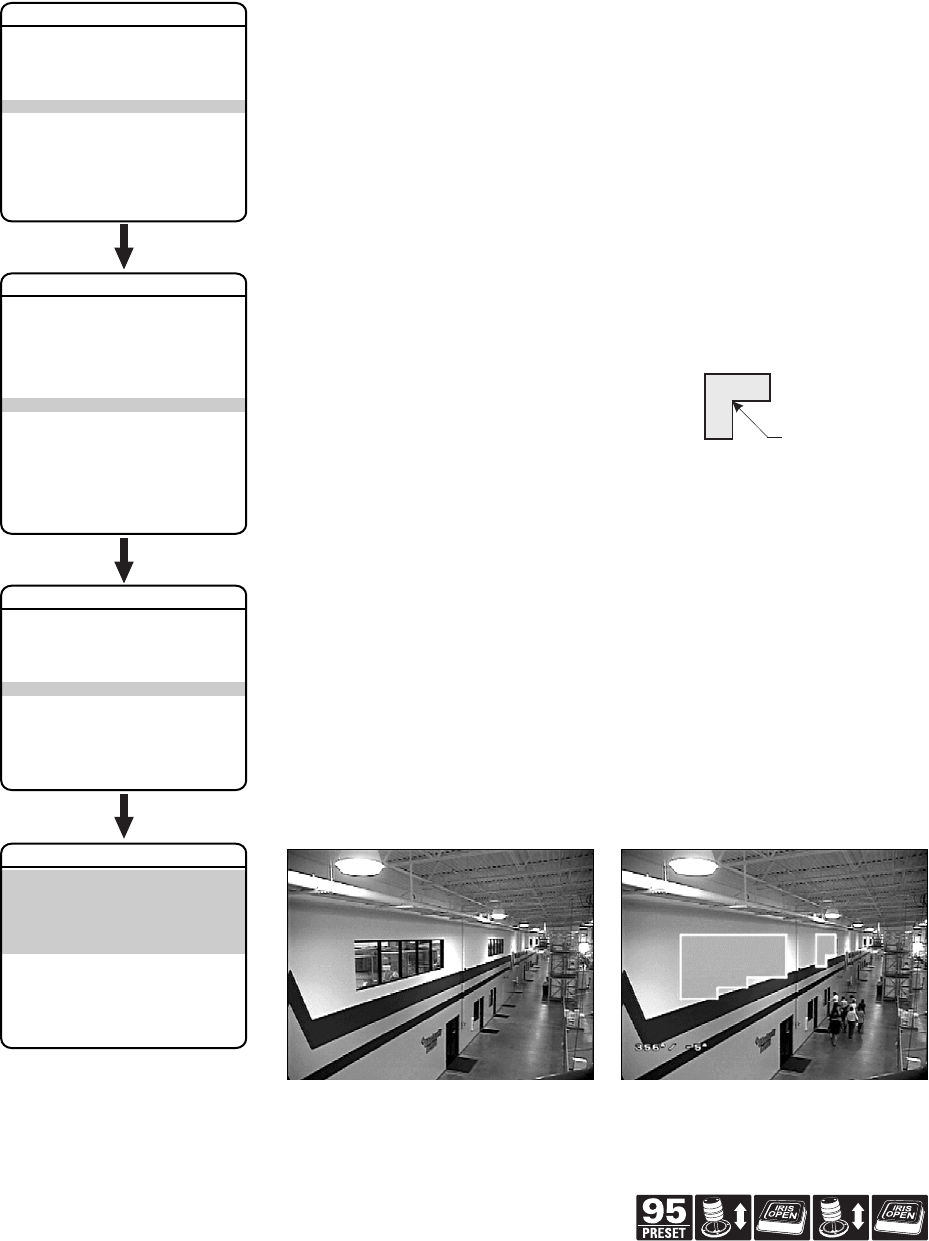

ENABLE MOTION DETECTION (23X DAY/NIGHT CAMERA)

The following are the settings for MOTION DETECTION ENABLED:

NOTE:

Motion detection does not work if the shutter speed is set at less than 1/60 of a second.

EDIT DETECTION AREAS (23X DAY/NIGHT CAMERA)

Four motion detection areas can be deﬁned for a preset. Use the following steps to edit motion

detection areas.

1. Edit detection areas 1, 2, 3, or 4:

a. Use the joystick to position the cursor beside EDIT DETECTION AREAS.

b. Press Iris Open. The EDIT DETECTION AREAS programming window appears on the monitor.

c. Use the joystick to position the cursor beside LOCATION for DETECTION AREA 1, 2, 3, or 4.

d. Press Iris Open. The cursor moves to the right next to the number 0.

e. Move the joystick

. A blue rectangle appears in the upper left-hand corner of the screen.

f. Use the joystick to place the blue rectangle over the desired detection area.

g. Press Iris Open to make a selection.

NOTE:

Motion detection is not guaranteed to catch 100% of activity.

2. Set the sensitivity of the motion detection area:

a. Position the cursor next to SENSITIVITY for DETECTION

AREA 1, 2, 3, or 4.

b. Press Iris Open, the cursor moves to the right.

c. Use the joystick to select one of the following sensitivity

levels:

d. Press Iris Open to make selection.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PRESET NUMBER 1

***PRESET NOT DEFINED***

<MOTION DETECTION>*

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH --

ELEVATION --

ZOOM --

CUSTOM CAMERA SETTINGS --

PRESETS

MOTION DETECTION ENABLED OFF

ACTIVATE AUX OFF

AUX TIME (SECS) 0

BACK

EXIT

MOTION DETECTION*

* Available only with the 23X day/night camera.

OFF (default) Motion detection is turned off (disabled).

ON Motion detection is turned on (enabled).

HIGH The sensitivity level is high. Slight

changes in light level and contrast

are detectable.

MEDIUM (default) Average sensitivity.

LOW The sensitivity level is low.

MOTION DETECTION AREAS

EDIT DETECTION AREAS*

DETECTION AREA 1

LOCATION 0

SENSITIVITY MEDIUM

DETECTION AREA 2

LOCATION 0

SENSITIVITY MEDIUM

DETECTION AREA 3

LOCATION 0

SENSITIVITY MEDIUM

DETECTION AREA 4

LOCATION 0

SENSITIVITY MEDIUM

BACK

EXIT

30 C1300M-B (6/05)

ACTIVATE AUX COMMAND (23X DAY/NIGHT CAMERA)

Motion detection can be programmed to trigger an auxiliary command when motion is detected. The

following are the settings for ACTIVATE AUX:

AUX TIME (23X DAY/NIGHT CAMERA)

Aux time is the length of time the auxiliary will remain on after motion is detected. Available

settings for AUX TIME are 1 through 60 seconds.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PRESET NUMBER 1

***PRESET NOT DEFINED***

<MOTION DETECTION>*

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH --

ELEVATION --

ZOOM --

CUSTOM CAMERA SETTINGS --

PRESETS

MOTION DETECTION ENABLED OFF

ACTIVATE AUX OFF

AUX TIME (SECS) 0

BACK

EXIT

MOTION DETECTION*

* Available only with the 23X day/night camera.

OFF (default) Motion detection will not trigger an AUX command.

1Triggers a command to AUX 1.

2Triggers a command to AUX 2.

C1300M-B (6/05) 31

Quick Programming Guide

(See Page 9)

PATTERNS

A pattern is a memorized, repeating, series of pan, tilt, zoom and preset functions that can be

recalled with a command from a controller or automatically by a programmed function (alarm, park

or power-up).

The ExSite IPSXM can handle up to four user-deﬁned patterns. Pattern length is based upon memory

usage rather than a ﬁxed amount of time. The complexity of a pattern will determine the amount of

storage available to program other patterns.

To program a pattern:

1. Use the joystick to position the cursor beside PATTERN NUMBER. Press Iris Open. The cursor

moves to the right.

2. Move the joystick up or down to view selections. Press Iris Open to enter selection.

3. Use the joystick to position the cursor beside PROGRAM PATTERN.

4. Press Iris Open. The Patterns programming window appears on the monitor.

5. Follow the directions displayed on the monitor.

After a pattern is programmed, the remaining storage percentage is displayed on the screen. This is

the amount of memory available to program the remaining patterns.

To clear a pattern:

1. Use the joystick to position the cursor beside CLEAR PATTERN.

2. Press Iris Open.

3. Follow the directions displayed on the monitor.

NOTES:

•When programming one or more presets within a pattern use the normal controller commands

to Call a Preset.

• Not all controllers can start all four patterns. However, any of the four patterns can be

automatically started with park, power-up, and alarm functions.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

PATTERN NUMBER 1

BACK

EXIT

REFERENCE INFORMATION

PATTERN USAGE 0%

REMAINING 100%

PATTERNS

32 C1300M-B (6/05)

ZONES

A zone is a pan area, deﬁned by a left and right limit, on the 360-degree pan plane. The IPSXM

positioning system is capable of eight zones, each with a 20-character label.

To program a zone:

1. Use the joystick to position the cursor beside ZONE NUMBER. Press Iris Open the cursor moves

to the right.

2. Move the joystick up or down to view selections. Press Iris Open to enter selection.

3. Use the joystick to position the cursor beside EDIT ZONE.

4. Press Iris Open. The Zone programming window appears on the monitor.

5. Follow the directions displayed on the monitor. After the left and right limit stops are set, the

Zones menu reappears with the ZONE ENABLED option set to YES.

To edit a zone label:

1. Use the joystick to position the cursor beside EDIT ZONE LABEL.

2. Press Iris Open. The following appears on the monitor:

3. Use the joystick to position the cursor beside a character. Press Iris Open to enter selection.

To clear a character, position the cursor beside BACKSPACE, and then press Iris Open.

4. When the label is completed, move the cursor to OK. Press Iris Open to return to the Zones

menu.

To disable a zone (a zone is enabled automatically when it is programmed) or to blank a zone:

1. Move the cursor beside ZONE ENABLED or ZONE BLANKING.

2. Press Iris Open. The cursor moves to the right.

3. Move the joystick up or down to view selections. Press Iris Open to enter selection.

To clear a zone:

1. Use the joystick to position the cursor beside CLEAR ZONE.

2. Press Iris Open. Follow the instructions on the screen.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

ZONE NUMBER 1

***ZONE NOT DEFINED***

ZONE ENABLED NO

ZONE BLANKING OFF

BACK

EXIT

ZONES

LABEL FOR PRESET

PRESET NUMBER

------

1234567890 OK

ABCDEFGHIJ CANCEL

KLMNOPQRST

UVWXYZ.,-/ SPACE

abcdefghij BACKSPACE

klmnopqrst

uvwxyz*;:

C1300M-B (6/05) 33

Quick Programming Guide

(See Page 9)

WINDOW BLANKING

Window blanking allows a user to program up to eight, four-sided, user-deﬁned areas that cannot be

viewed by the operator of the system. A blanked area will move with pan and tilt functions and

automatically adjust in size as the lens zooms telephoto and wide.

ExSite IPSXM has two style modes for window blanking, GRAY and SMEAR. If style is set to gray,

the blanked area is covered with a solid gray window. If smear is selected images behind the

window will be noticeable but not distinguishable.

To set a window blanking area:

1. Use the joystick to position the cursor beside WINDOW BLANKING. Press Iris Open. The

WINDOW BLANKING menu appears on the screen.

2. Move the joystick to position the cursor beside SET WINDOWS. Press Iris Open to enter.

3. Position the cursor beside WINDOW NUMBER. Press Iris Open. The cursor moves to the right.

4. Move the joystick up or down to view selections. Press Iris Open to enter selection.

5. Use the joystick to position the cursor beside EDIT WINDOW LOCATION. Press Iris Open, and

then follow the instructions that appear on the screen.

When all four corners are set, the SET WINDOWS menu reappears, the blanked area is displayed,

and the ENABLE WINDOW option is set to YES.

6. The blanked area can be programmed to turn on or off at a speciﬁed zoom point. To set the

zoom point:

a. Use the joystick to position the cursor beside EDIT WINDOW ZOOM, and then press

Iris Open.

b. Zoom in to the point where you want window blanking to turn on. Press Iris Open to set

the zoom point.

NOTES:

•Since the area is already blanked out, it may be difﬁcult to determine when you want window

blanking to turn on. Reverse the window before setting the zoom point. When ﬁnished reverse

the window again to blank out the area.

•Increase the size of the window if any part of the blanked area is revealed during pan, tilt, and

zoom operations.

NOTE:

Use the inside corner of the window selection tool as a

guide when selecting the upper left, upper right, bottom right,

and bottom left corners of the window.

Set windows are not visible when editing a new window

location.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

STYLE GRAY

BLANK ALL ABOVE OFF

BLANK ALL BELOW OFF

BACK

EXIT

WINDOW BLANKING

WINDOW NUMBER 1

ENABLE WINDOW NO

REVERSE

CLEAR WINDOW

BACK

EXIT

SET WINDOWS

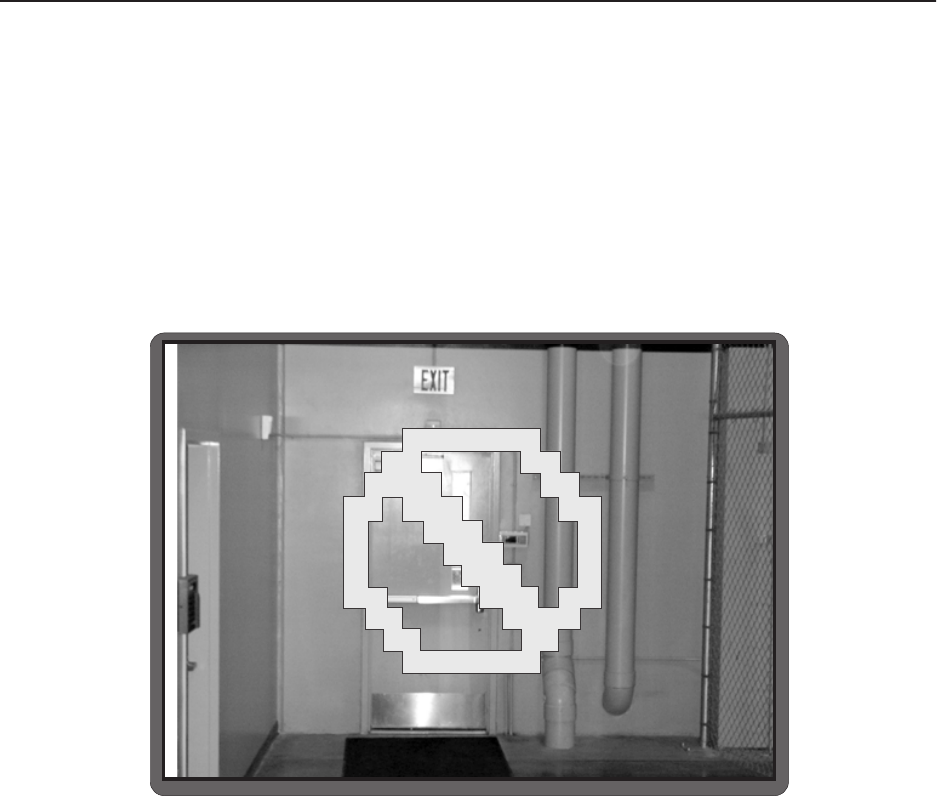

INSIDE CORNER

Window Blanking Disabled Window Blanking Enabled

34 C1300M-B (6/05)

REVERSE

A blanked out area can be reversed to make it visible and the areas on both sides of it not visible.

The areas above and below the blanking area remain visible. Reversing the window a second time

will return it to its original condition.

CLEAR WINDOW

All areas that have been set for window blanking are cleared.

BLANK ALL ABOVE/BLANK ALL BELOW

Blank All Above and Blank All Below add additional ﬂexibility to setting up privacy areas. These

settings are ideal for applications where a complete pan location needs to be blanked.

Blank All Above

Blanks everything above a user-deﬁned tilt angle. A blanked band

will appear at the top of the screen. The following settings are

available:

OFF (default) No blanking

10 Blanks area from 10° above horizon to 90° above horizon

20 Blanks area from 20° above horizon to 90° above horizon

30 Blanks area from 30° above horizon to 90° above horizon

40 Blanks area from 40° above horizon to 90° above horizon

50 Blanks area from 50° above horizon to 90° above horizon

60 Blanks area from 60° above horizon to 90° above horizon

70 Blanks area from 70° above horizon to 90° above horizon

80 Blanks area from 80° above horizon to 90° above horizon

0 Blanks area from -2° below horizon to 90° above horizon

-10 Blanks area from -10° below horizon to 90° above horizon

-20 Blanks area from -20° below horizon to 90° above horizon

-30 Blanks area from -30° below horizon to 90° above horizon

-40 Blanks area from -40° below horizon to 90° above horizon

-50 Blanks area from -50° below horizon to 90° above horizon

-60 Blanks area from -60° below horizon to 90° above horizon

-70 Blanks area from -70° below horizon to 90° above horizon

-80 Blanks area from -80° below horizon to 90° above horizon

Blank All Below

Blanks everything below a user-deﬁned tilt angle. A blanked circle

will appear below the speciﬁed angle. The following settings are

available:

OFF (default) No blanking

10 Blanks area from 10° above horizon to 92° below horizon

20 Blanks area from 20° above horizon to 92° below horizon

30 Blanks area from 30° above horizon to 92° below horizon

40 Blanks area from 40° above horizon to 92° below horizon

50 Blanks area from 50° above horizon to 92° below horizon

60 Blanks area from 60° above horizon to 92° below horizon

70 Blanks area from 70° above horizon to 92° below horizon

80 Blanks area from 80° above horizon to 92° below horizon

0 Blanks area from 2° below horizon 92° below horizon

-10 Blanks area from 10° below horizon to 92° below horizon

-20 Blanks area from 20° below horizon to 92° below horizon

-30 Blanks area from 30° below horizon to 92° below horizon

-40 Blanks area from 40° below horizon to 92° below horizon

-50 Blanks area from 50° below horizon to 92° below horizon

-60 Blanks area from 60° below horizon to 92° below horizon

-70 Blanks area from 70° below horizon to 92° below horizon

-80 Blanks area from 80° below horizon to 92° below horizon

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

STYLE GRAY

BLANK ALL ABOVE OFF

BLANK ALL BELOW OFF

BACK

EXIT

WINDOW BLANKING

WINDOW NUMBER 1

ENABLE WINDOW NO

REVERSE

CLEAR WINDOW

BACK

EXIT

SET WINDOWS

HORIZONCAMERA

C1300M-B (6/05) 35

Quick Programming Guide

(See Page 9)

ALARMS

The ExSite IPSXM system has seven alarm inputs, which can be programmed as high, medium or

low priority. When an alarm is received, an input signal to the unit triggers the user-deﬁned action

(go to preset, run pattern, etc.) programmed for the alarm.

There are three global alarm settings:

Use the following steps to program alarm settings.

1. Use the joystick to position the cursor beside ALARM SETTINGS. Press Iris Open.

2. Select the alarm number:

a. Use the joystick to position the cursor beside ALARM NUMBER.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view selections. Press Iris Open to enter selection.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

RESUME OFF

SEQUENCE (SECS) 5

RESET DELAY (SECS)

BACK

EXIT

ALARMS

RESUME This mode lets the system resume its previous activity (scan, pattern, or

previous position) after all alarms are cleared.

SEQUENCE This is the time the system will perform an alarm activity when more than one

alarm of the same priority occurs at the same time.

RESET DELAY This is the amount of time the system considers the alarm to be active after it

has physically cleared.

36 C1300M-B (6/05)

3. Select the alarm priority:

a. Use the joystick to position the cursor beside ALARM PRIORITY.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view the available selections. Available settings include

HIGH, MEDIUM, and LOW (default). If multiple alarms with different priorities are active

at the same time, the dome will only go to the alarms with the highest priority.

d. Press Iris Open to enter selection.

4. Set the alarm action:

a. Use the joystick to position the cursor beside ALARM ACTION.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view the available selections. The following are the

settings for alarm action:

d. Press Iris Open to enter selection.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

RESUME OFF

SEQUENCE (SECS) 5

RESET DELAY (SECS)

BACK

EXIT

ALARMS

ALARM NUMBER 1

ALARM PRIORITY LOW

ALARM ACTION NONE

ACTIVATE AUX NO

ALARM CONTACT OFF

BACK

EXIT

ALARM SETTINGS

HIGH Alarm action takes highest priority and will override manual pan,

tilt, and zoom control.

MEDIUM/LOW Alarm action will not occur if an alarm occurs during manual pan,

tilt, and zoom control.

NONE No action when alarm is triggered.

PRESET The system goes to the preset that is the same as the alarm

number. Preset 1 will go to Alarm 1.

PATTERN 1 The system runs pattern 1 when alarm is triggered.

PATTERN 2 The system runs pattern 2 when alarm is triggered.

PATTERN 3 The system runs pattern 3 when alarm is triggered.

PATTERN 4 The system runs pattern 4 when alarm is triggered.

AUTO SCAN The system starts auto scan operation when alarm is triggered.

RANDOM SCAN The system starts random scan operation when alarm is triggered.

FRAME SCAN The system starts frame scan operation when alarm is triggered.

C1300M-B (6/05) 37

Quick Programming Guide

(See Page 9)

5. Set the auxiliary to activate:

a. Use the joystick to position the cursor beside ACTIVATE AUX.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view the following available selections.

d. Press Iris Open to enter selection.

NOTE: The AUX 1/AUX2 will stop when all the alarms assigned to it have cleared. If the AUX1/AUX

is set up as momentary, then it will be activated each time a new alarm is activated.

6. Set the alarm contact:

a. Use the joystick to position the cursor beside ALARM CONTACT.

b. Press Iris Open. The cursor moves to the right.

c. Move the joystick up or down to view the following available selections.

d. Press Iris Open to enter selection.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

RESUME OFF

SEQUENCE (SECS) 5

RESET DELAY (SECS)

BACK

EXIT

ALARMS

ALARM NUMBER 1

ALARM PRIORITY LOW

ALARM ACTION NONE

ACTIVATE AUX NO

ALARM CONTACT OFF

BACK

EXIT

ALARM SETTINGS

NO (default) Not activated.

1 An alarm action will activate AUX 1.

2 An alarm action will activate AUX 2.

OFF (default) Disabled

N/O Normally open

N/C Normally closed

38 C1300M-B (6/05)

WIPER

The following IPSXM unit models feature a window wiper to clear moisture from the window of the

enclosure:

IPSXM31C22-2 IPSXM31C22-7

IPSXM31C22-2X IPSXM31C22-7X

IPSXM31CBW23-2 IPSXM31CBW23-2X

IPSXM31CBW23-7 IPSXM31CBW23-7X

NOTE: The Wiper menu is available only on the above models. To check the unit model, refer to the

System Information section of this manual.

WIPER CONTROL

This feature programs the on/off control for the wiper. There are two available settings for wiper

control, AUX 1 and Preset 86. If the wiper control is programmed for AUX 1, the wiper will operate

when AUX 1 is accessed. If the wiper control is set to Preset 86, selecting preset 86 on your

controller will turn the wiper on/off.

WIPER MODE

Wiper mode determines how the wiper will act after the wiper control is turned on/off. There are

two modes of operation for wiper mode, momentary and continuous.

WIPER DWELL

The wiper can be programmed to wipe the enclosure window every 1 to 30 seconds. This setting

only works when the wiper is programmed for continuous mode. The dwell time can be programmed

from 1 to 30 seconds.

WIPER TIME

Wiper time programs how long the wiper will be on before it automatically shuts off. This setting

only works when the wiper is programmed for continuous mode. Wiper time can be programmed

from 1 to 1,440 minutes (1 minute to 24 hours).

NOTE: CM9700 Matrix Systems Only – For the wiper to operate in continuous mode, the camera’s

AUX 1 relay function must be set to latching in the CM9700-MGR. If the AUX 1 camera ﬁle is not

latching, the wiper will operate only in momentary mode, even if the system wiper is programmed

for continuous operation. Refer to the CM9700-MGR Software Guide for instructions.

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

WIPER CONTROL AUX 1

WIPER MODE CONTINUOUS

WIPER DWELL (SECS) 2

WIPER TIME (MINS) 60

BACK

EXIT

WIPER*

* Available only with the wiper models.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

MOMENTARY

(default)

Programs the wiper to move across the enclosure window once and then back

to its starting position.

CONTINUOUS Programs the wiper to operate continually after the wiper is turned on. The

wiper will continue to operate until the wiper control (AUX 1 or preset 86) is

pressed again or until the programmed wiper time is completed.

C1300M-B (6/05) 39

Quick Programming Guide

(See Page 9)

SET WASHER SEQUENCE

An external washer (not supplied by Pelco) can be used to wash the window of the enclosure.

Accessing AUX 3 or selecting Preset 87 will start the washer sequence.

Use the following steps to program the washer sequence.

1. Use the joystick to position the cursor beside WIPER and then press Iris Open. The wiper menu

appears on the monitor.

2. Position the cursor beside SET WASHER SEQUENCE and then press Iris Open.

3. Edit the preset label:

a. Use the joystick to position the cursor beside EDIT PRESET LABEL.

b. Press Iris Open. The following appears on the monitor:

c. Use the joystick to position the cursor beside a character. Press Iris Open to enter

selection. To clear a character, position the cursor beside BACKSPACE, and then press

Iris Open.

d. When the label is completed, move the cursor to OK. Press Iris Open to return to the Set

Washer Sequence menu.

4. Edit the preset scene:

a. Use the joystick to position the cursor beside EDIT PRESET SCENE.

b. Press Iris Open.

c. Follow the directions displayed on the monitor.

5. Edit preset camera settings:

a. Use the joystick to position the cursor beside EDIT CAMERA SETTINGS.

b. Press Iris Open. The EDIT CAMERA SETTINGS window appears on the monitor. Refer to

the Camera and Advanced Camera Settings sections of this manual to change camera

settings

6. Set the washer time. The washer time programs how long the wiper will be on before it

automatically shuts off. Washer time can be programmed from 4 to 60 seconds.

7. Program the wiper delay. Wiper delay programs when the wiper will start after the washer

sequence has started. Wiper delay can be programmed from 1 to 30 seconds.

8. Program the Auto Return to ON or OFF. If the auto return is set to ON the unit will return to the

last operation before the system started the washer sequence. If it is set to OFF, the system

will remain at the preset scene for the washer sequence.

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

WIPER CONTROL AUX 1

WIPER MODE CONTINUOUS

WIPER DWELL (SECS) 2

WIPER TIME (MINS) 60

BACK

EXIT

WIPER*

* * * PRESET NOT DEFINED * * *

WASHER TIME (SECS) 4

WIPER DELAY (SECS) 1

AUTO RETURN ON

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH - -

ELEVATION - -

ZOOM - -

CUSTOM CAMERA SETTINGS - -

SET WASHER SEQUENCE*

* Available only with the wiper models.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

LABEL FOR PRESET WASH

WASH - - - - - - - - - - - -

1234567890 OK

ABCDEFGHIJ CANCEL

KLMNOPQRST

UVWXYZ.,-/ SPACE

abcdefghij BACKSPACE

klmnopqrst

uvwxyz#&:”

40 C1300M-B (6/05)

AUX

An auxiliary output is a programmable signal from the system that can trigger another device to

operate. An auxiliary output is programmable to trigger from an alarm or from a controller.

An AUX 1 command from the controller will activate the relay in the system and operate the device

that is connected to the relay. The output of AUX 1 can be connected to the alarm input of a system

switch to activate automatic monitor switching and recording.

An AUX 2 command from the controller will place a ground at the output of AUX 2 to operate the

device that is connected to it.

The following are the available AUX MODE settings:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

AUX 1 MODE TOGGLE

DWELL TIME (SECS) 1

AUX 2 MODE TOGGLE

DWELL TIME (SECS) 1

BACK

EXIT

AUX

TOGGLE (default) Changes the state of the auxiliary output every time an AUX command is

received from the controller.

LATCHING Must receive an AUX ON/AUX OFF command from the controller to turn the

auxiliary output on/off.

MOMENTARY An AUX ON command from the controller turns the auxiliary output on for the

programmed DWELL TIME. The auxiliary output will automatically turn off

when the dwell time is ﬁnished.

C1300M-B (6/05) 41

Quick Programming Guide

(See Page 9)

CLEAR

Use this setting to clear user-deﬁned settings or return the system to factory default settings.

The following are the available CLEAR settings:

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

CLEAR ALL ZONES

CLEAR ALL PRESETS

CLEAR ALL PATTERNS

CLEAR ALL WINDOW BLANKING

RESTORE FACTORY DEFAULTS

BACK

EXIT

CLEAR

ALL ZONES Clears all zones. To clear a single zone, refer to the Zones section.

ALL PRESETS Clears all presets. To clear a single preset, refer to the Presets section.

ALL PATTERNS Clears all patterns. To clear a single patterns, refer to the Patterns section.

ALL WINDOW

BLANKING

Clears all blanked windows. To clear a single blanked window, refer to the

Window Blanking section.

RESTORE FACTORY

DEFAULTS

Restores all camera settings to factory default settings.

42 C1300M-B (6/05)

PASSWORD

ExSite IPSXM features password protection to prevent unauthorized changes to the system settings.

An operator can open the System Information and Display Setup Screens, but cannot access any of

the Unit Settings menus.

Controller/keyboard commands cannot override password-protected settings. If a keyboard is used

to set a preset, pattern, or zone, the Enter Password screen appears on the monitor. The password

must be entered before programming can continue.

At least one character must be entered to create a valid password.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

<ZONES>

<WIPER>

<AUX>

<CLEAR>

BACK

EXIT

UNIT SETTINGS

ENABLE PASSWORD OFF

BACK

PASSWORD

EDIT THE PASSWORD

- - - - - - - - - - - -

1234567890 OK

ABCDEFGHIJ CANCEL

KLMNOPQRST

UVWXYZ.,-/ SPACE

abcdefghij BACKSPACE

klmnopqrst

uvwxyz#&:”

C1300M-B (6/05) 43

Position Calibration

Position calibration sets the preset reference point for all automatic positioning system movements.

Before programming presets, patterns, zones, labels, and window blanking, program and document

the position calibration point. The purpose of the calibration point is to restore all programmed

settings quickly in the event the unit is replaced or refurbished.

The position calibration point should be an easily identiﬁable point of reference. Best practice

suggests it be associated with a prominent landmark in the most common preset position.

To program the calibration preset:

1. Use the joystick to position the cursor beside POSITION CALIBRATION.

2. Press Iris Open. The Position Calibration menu appears on the monitor.

3. Use the joystick to position the cursor beside EDIT PRESET SCENE.

4. Press Iris Open.

5. Follow the directions displayed on the monitor.

Once the calibration preset is programmed, the system should not have to be recalibrated unless the

unit is serviced or moved.

To recalculate the calibration preset:

1. Use the joystick to position the cursor beside POSITION CALIBRATION.

2. Press Iris Open. The Position Calibration menu appears on the monitor.

3. Use the joystick to position the cursor beside RECAL USING CAL PRESET.

4. Press Iris Open.

5. Follow the directions displayed on the monitor.

To clear the calibration preset:

1. Use the joystick to position the cursor beside POSITION CALIBRATION.

2. Press Iris Open. The Position Calibration menu appears on the monitor.

3. Use the joystick to position the cursor beside CLEAR CALIBRATION PRESET.

4. Press Iris Open.

5. Follow the directions displayed on the monitor.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

*** PRESET NOT DEFINED ***

BACK

EXIT

REFERENCE INFORMATION

AZIMUTH

ELEVATION

ZOOM

POSITION CALIBRATION

44 C1300M-B (6/05)

Reset, Cycle Power, Reboot

RESET CAMERA

Use this function to reset all camera settings to factory default parameters.

NOTE: Reset camera restores all camera settings, except those associated with presets.

CYCLE CAMERA POWER

If the camera is not operating or if you lose camera control, cycle camera power. Cycling camera

power resets the camera but does not change any saved camera settings.

REBOOT SYSTEM

Reboot the system if it is not operating if there is no control, or if the position of the unit has been

compromised. Rebooting the system will cycle pan and tilt and camera power without changing

programmed settings.

EXIT

LANGUAGE ENGLISH

UNIT INVERSION OFF

RESET CAMERA

CYCLE CAMERA POWER

REBOOT SYSTEM

PELCO EXSITE IPSXM

C1300M-B (6/05) 45

Software/Language File Upload

The ExSite IPSXM system allows access for on-site setup, testing, and uploading of revised operating software and language ﬁles. A Pelco

ﬁeld service tool is required to perform these operations. Field service tools include Pelco’s remote monitor kit (IPS-RMK), remote data port

box (IPS-RDPE-2), and remote monitor cable (IPS-CABLE).

For instructions on how to upload revised operating software and language ﬁles refer to the installation/operation manual supplied with

the ﬁeld service tool.

Perform software uploads only when necessary. Software uploads do not need to be performed if the system is operating properly.

UPLOAD ICON

During a software/language ﬁle upload, an icon will appear on the monitor to indicate data is being transferred to the system (refer to the

ﬁgure below). The default setting for data transmission is 115.2 KB per second. Noisy and long-run connections will slow the transmission

rate.

Upload Icon

46 C1300M-B (6/05)

Speciﬁcations

*Manual control of camera setup functions can be done with CM6700, CM6800, CM8500, CM9500, CM9740, CM9760, CM9770,

CM9780, KBD200A, KBD300A, and MPT9500 controllers, but not with CM7500, MPT9000 or KBD9000 controllers.

Camera Day/Night (23X) Color LowLight™ (22X) Color

Signal Format NTSC, PAL NTSC, PAL

Scanning System 2:1 interlace 2:1 Interlace

Image Sensor 1/4-inch CCD 1/4-inch EXview HAD™ CCD

Effective pixels

NTSC

PAL

724 (H) x 494 (V)

724 (H) x 582 (V)

768 (H) x 494 (V)

752 (H) x 582 (V)

Horizontal Resolution

NTSC

PAL

>470 TV lines

>460 TV lines

Lens F1.6 (F = 3.6~82.8 mm optical) F1.6 (F = 4~88 mm optical)

Zoom 23X optical, 10X digital 22X optical, 12X digital

Zoom Speed 2.9/4.2/5.8 seconds 2.4/3.9/6.3 seconds

Horizontal Angle of View 54˚ at 3.6 mm wide zoom

2.5˚ at 82.8 mm telephoto zoom

47˚ at 4.0 mm wide zoom

2.2˚ at 88 mm telephoto zoom

Focus Automatic with manual override Automatic with manual override

Maximum Sensitivity at

35 IRE

NTSC

PAL

0.08 lux at 1/2 sec shutter (color)

0.3 lux at 1/60 sec shutter (B-W)

0.013 lux at 1/2 sec shutter (B-W)

0.08 lux at 1/1.5 sec shutter (color)

0.3 lux at 1/50 sec shutter (B-W)

0.013 lux at 1/1.5 sec shutter (B-W)

0.02 lux at 1/2 sec shutter

0.02 lux at 1/1.5 sec shutter

Sync System Internal/AC line lock, phase adjustable via

remote control, V-Sync*

Internal/AC line lock, phase adjustable via remote

control, V-Sync*

White Balance Automatic with manual override* Automatic with manual override*

Shutter Speed

NTSC

PAL

Automatic (electronic iris)/Manual

1/2~1/30,000*

1/1.5~1/30,000*

Automatic (electronic iris)/Manual

1/2~1/30,000*

1/1.5~1/30,000*

Iris Control Automatic Iris Control with manual override* Automatic Iris Control with manual override*

Gain Control Automatic/OFF* Automatic/OFF*

Video Output 1 Vp-p, 75 ohms 1 Vp-p, 75 ohms

Video Signal to Noise >50 dB >50 dB

Wide Dynamic Range 80X N/A

PRODUCT WARRANTY AND RETURN INFORMATION

WARRANTY

Pelco will repair or replace, without charge, any merchandise proved defective in material or

workmanship for a period of one year after the date of shipment.

Exceptions to this warranty are as noted below:

• Five years on FT/FR8000 Series ﬁber optic products.

• Three years on Genex® Series products (multiplexers, server, and keyboard).

•Three years on Camclosure® and ﬁxed camera models, except the CC3701H-2,

CC3701H-2X, CC3751H-2, CC3651H-2X, MC3651H-2, and CC3651H-2X camera models,

which have a ﬁve-year warranty.

•Two years on standard motorized or ﬁxed focal length lenses.

•Two years on Legacy®, CM6700/CM6800/CM9700 Series matrix, and DF5/DF8 Series

ﬁxed dome products.

•Two years on Spectra®, Esprit®, ExSite™, and PS20 Scanners, including when used in

continuous motion applications.

•Two years on Esprit® and WW5700 Series window wiper (excluding wiper blades).

•Eighteen months on DX Series digital video recorders, NVR300 Series network video

recorders, and Endura™ Series distributed network-based video products.

•One year (except video heads) on video cassette recorders (VCRs). Video heads will be

covered for a period of six months.

•Six months on all pan and tilts, scanners or preset lenses used in continuous motion

applications (that is, preset scan, tour and auto scan modes).

Pelco will warrant all replacement parts and repairs for 90 days from the date of Pelco

shipment. All goods requiring warranty repair shall be sent freight prepaid to Pelco, Clovis,

California. Repairs made necessary by reason of misuse, alteration, normal wear, or accident

are not covered under this warranty.

Pelco assumes no risk and shall be subject to no liability for damages or loss resulting from

the speciﬁc use or application made of the Products. Pelco’s liability for any claim, whether

based on breach of contract, negligence, infringement of any rights of any party or product

liability, relating to the Products shall not exceed the price paid by the Dealer to Pelco for

such Products. In no event will Pelco be liable for any special, incidental or consequential

damages (including loss of use, loss of proﬁt and claims of third parties) however caused,

whether by the negligence of Pelco or otherwise.

The above warranty provides the Dealer with speciﬁc legal rights. The Dealer may also have

additional rights, which are subject to variation from state to state.

If a warranty repair is required, the Dealer must contact Pelco at (800) 289-9100 or

(559) 292-1981 to obtain a Repair Authorization number (RA), and provide the following

information:

1. Model and serial number

2. Date of shipment, P.O. number, Sales Order number, or Pelco invoice number

3. Details of the defect or problem

If there is a dispute regarding the warranty of a product which does not fall under the

warranty conditions stated above, please include a written explanation with the product

when returned.

Method of return shipment shall be the same or equal to the method by which the item was

received by Pelco.

RETURNS

In order to expedite parts returned to the factory for repair or credit, please call the factory at

(800) 289-9100 or (559) 292-1981 to obtain an authorization number (CA number if returned

for credit, and RA number if returned for repair).

All merchandise returned for credit may be subject to a 20% restocking and refurbishing

charge.

Goods returned for repair or credit should be clearly identiﬁed with the assigned CA or RA

number and freight should be prepaid. Ship to the appropriate address below.

If you are located within the continental U.S., Alaska, Hawaii or Puerto Rico, send goods to:

Service Department

Pelco

3500 Pelco Way

Clovis, CA 93612-5699

If you are located outside the continental U.S., Alaska, Hawaii or Puerto Rico and are

instructed to return goods to the USA, you may do one of the following:

If the goods are to be sent by a COURIER SERVICE, send the goods to:

Pelco

3500 Pelco Way

Clovis, CA 93612-5699 USA

If the goods are to be sent by a FREIGHT FORWARDER, send the goods to:

Pelco c/o Expeditors

473 Eccles Avenue

South San Francisco, CA 94080 USA

Phone: 650-737-1700

Fax: 650-737-0933

REVISION HISTORY

Manual # Date Comments

C1300M 11/04 Original version.

C1300M-A 4/05 Removed references to -4 models.

C1300M-B 6/05 Added 22X color camera.

LowLight, Endura, and ExSite are trademarks of Pelco.

EXviewHAD is a trademark of the Sony Corporation.

Worldwide Headquarters

3500 Pelco Way

Clovis, California 93612 USA

USA & Canada

Tel: 800/289-9100

Fax: 800/289-9150

International

Tel: 1-559/292-1981

Fax: 1-559/348-1120

www.pelco.com

ISO9001

United States

Canada

United Kingdom

The Netherlands

Singapore

Spain

Scandinavia

France

Middle East

Pelco Security Camera Ipsxm30C22 2X Users Manual C1300MB

IPSXM30C22-2X to the manual 766eadc5-e030-4ad2-80e9-f902ed6de8a0

Navigation menu

Versions of this User Manual:

Views

Navigation
