Pelican Accessories PRED-S2 Wireless Game Controller Dongle User Manual Revised Manual
Pelican Accessories Wireless Game Controller Dongle Revised Manual
Revised Manual
PL-6613
PL-6614 Ref#: 080805
IMPORTANT NOTICE
Predator 2.4
FCC ID: O7X-PRED-S1
FCC ID: O7X-PRED-S2
Changes or modifications not expressly approved by the manufac-
turercould void the user's authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions; (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause unde-
sired operation.
1
Pelican and its logo are registered trademarks.
Sony is a registered trademark of Sony Corp.
PlayStation® 2 & PlayStation® are registered trademarks
of Sony Computer Entertainment Inc.
This product is not designed, manufactured, sponsored or
endorsed by Sony Computer Entertainment Inc.
Table of Contents
Console Protection Guarantee .................. 3
Product Layout........................................ 4-5
Overview.................................................... 6
Features/Benefits ...................................... 7
Directions .................................................. 9
Trouble Shooting........................................1 0
Warranty/CustomerService........................1 1
2
Pelican’s Console Protection Guarantee assures you of
Pelican’s commitment to quality and customer satisfaction.
The Protection Guarantee warrants the connection (the
plug port of the video game console and the plug of the
Pelican controller) between the controller and your video
game console system., i.e., that with the proper use of our
controller (see manual) we agree to replace or repair your
video game system in the event that our controller directly
causes damage to your game console as a result of our
controller failing to perform properly. Circumstances that
may cause our protection guarantee to take effect might be
one of the following :the video game console does not
acknowledge a controller which has been plugged in, orig-
inal controller fails to operate after using a Pelican con-
troller, other non-pad controllers fail to operate after using
a Pelican Controller. This protection warranty does not
include the video game power supply, any part relating to
the CD/DVD load and read mechanism, internal operating
system, nor the cabinet of the video game system. This
warranty will not apply if the Pelican controller is not used
as directed in the product manual enclosed. For further
information or help please contact us toll free at (800) 331-
3844 or on line at http://www.pelicanperformance.com
3
Console Protection Guarantee
Product Layout
Predator 2.4 Controller
4
Contoured
Grips
Battery
Door
Action (Fire)
Buttons
Anaolog Sticks
Directional
Pad
5
Connect Button
Front View
Bottom View
Back View
Signal LED
Receiver/Transmitter Unit
Overview
The Predator 2.4 Wireless Controller uses advanced 2.4
GHz technology and Channel-Hopping which gives you
the ability to play without the limitations and hassles of
typical corded controllers and switch-dependent
controllers. All of this gives you lightning fast control over
your favorite games without cords to trip over, channels to
set, or fears of outside interference disturbing play con-
trol. There are a few buttons, LED’s (lights), and features
not found on your basic PlayStation®2 Controller. The fol-
lowing is an explanation of these elements.
Auto-Hopping This removes the hassle of setting chan-
nels via a series of switches or having your connection
corrupted by interference. Auto-hopping moves to the
nearest, clearest channel for you, with no breaks in play,
to make sure your signal never lags behind your com-
mands. Simply push the Reset Hole on the receiver, wait
three seconds and press the Start button on the con-
troller to make a connection.
6
Features & Benefits
Auto On/Off:
Touch any of the four action buttons Start, or Select to
power up your new wireless controller.
Hyper-Responsive Controls: Our controls are made
out of top quality components so that you lose nothing in
control and response when you need it most and over the
life of your controller.
Signal LED:
Multi-function LEDs:
LED lights on controller and receiver are used to indicate
various functions as illustrated in chart below.
LED OFF = Power OFF
LED solid RED = ANALOG mode
LED flash every 3-seconds = seeking connection with
receiver
LED fast GREEN flash = Action buttons depressed
Rumble On/Off
Depressing and holding the DOWN direction on the
Directional Pad (D-Pad) while pressing the SELECT but-
ton once turns off the rumble motor. A short rumble indi-
cates success. Depressing and holding the UP direction
on the D-Pad while pressing the SELECT button once
turns the rumble motors on. A long rumble indicates suc-
cess.
7
Battery Compartment:
Predator 2.4 Wireless Controller requires the use of two
AA batteries (not included). The batteries were placed to
balance the weight perfectly in the controller to increase
comfort and controlling. Double check and make sure
batteries are inserted correctly.
Power Save Mode:
When not in use for 3 minutes the Predator 2.4 Wireless
Controller automatically goes into a sleep mode to con-
serve batteries. A touch of any action button puts the
controller back into play mode. Holding the Start button
for 5 seconds will send the pad to sleep. After 15 minutes
of non-use, it will power off. Press the Start button or one
of the four action buttons to return the controller from
sleep.
8
Please verify that all the batteries are inserted correctly.
If they are put in wrong to inserted incorrectly, it may cause per-
sonal injury as well as damage to your Predator 2.4 Wireless
Controller.
WARNING
Directions
1. Make sure your PlayStation®2 is turned off.
2. Remove the battery lid and place 2 AA batteries into the
Predator 2.4 Wireless controller. Make sure the batteries
are inserted as shown in the battery compartment. A pair
of matched,fresh, premium, batteries will yield best results.
3. Insert the receiver into the
PlayStation®2 controller slot 1 (or slot 2 if
slot 1 is already occupied) and power up
the Predator 2.4 and then your

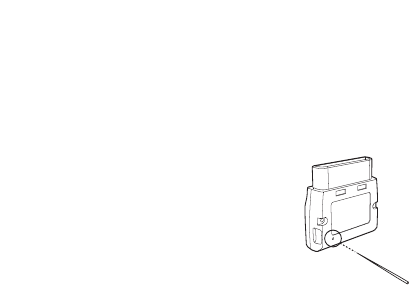

PlayStation®2. Note: Locate the Connect
Button at the bottom of the receiver.
Insert a pin into the hole and push the
Connect Button inward once on the
receiver (Signal LED will FLASH Slowly).
Then press the Select Button on con-
troller. This programs the Receiver to con-
nect to that Controller every time it is
used. This operation can be done again and again to con-
nect to multiple Controllers.
4. Alternatively, if any problems should occur during play
(due to low batteries, receiver disconnection from the sys-
tem,etc.) you can turn the controller off and then on, check
the control, and if you still do not have signal, press the
connect button on the receiver, wait three seconds and
then press the Start button or one of the action Buttons.
Note: If you are using more than one Predator 2.4
Wireless Controller, simply repeat the above steps and it
should connect exactly the same way on an available
channel.
5. Insert a game into your PlayStation®2.
6. You are now ready to play.
9
Troubleshooting
If you are having difficulties with your new Predator 2.4
Wireless Controller please refer below:
My system turns on but I don’t see anything on the TV.
1. Check to verify that your A/V cable is properly
connected to your system.
2. Check to verify that your A/V cable is properly plugged
into your television set.
My Predator 2.4 Wireless Controller does not respond.
1. Check to verify that your batteries are inserted correctly.
2. Check to verify that the power is on. Check to verify that
the signal LED is blinking.
The power LED is on but my Predator 2.4 does not
respond while in the system menu.
1. Check to verify your Predator 2.4 Receiver / Transmitter
unit is firmly and properly plugged into correct controller
port.
2. Check to verify that the receiver is firmly connected to
the system and the light is on. Then, press the connect
button, wait three seconds and press Start or any action
button on the controller in the corresponding slot.
10
Warranty Card
Pelican warrants to the original consumer purchaser that the prod-
uct will be free from defects in materials and / or workmanship for a
period of 5 years from the date of purchase. If a defect covered by
this warranty occurs during this period, Pelican at its option will
repair or replace, at no charge, any part that Pelican determines to
be defective.
To obtain warranty service during the warranty period, send the
defective product postage pre-paid, with a money order for $4.00 to
cover the return postage and handling, along with proof of pur-
chase, short description of the problem, your return address and the
date of purchase to:
Pelican
1840 East 27th Street
Vernon, CA 90058
This warranty shall not apply if the product has been damaged by
abuse, misuses, negligence, accident, modification, tampering or by
any other causes unrelated to defective materials and / or workman-
ship.
Repair or replacement as provided under this warranty is Pelican
Accessories' exclusive prerogative. ANY APPLICABLE IMPLIED
WARRANTIES, INCLUDING WARRANTIES OR MERCHANTABIL-
ITY AND FITNESS FOR A PARTICULAR PURPOSE ARE HERE
BY LIMITED TO 5 YEARS FROM THE DATE OF PURCHASE AND
ARE SUBJECT TO THE CONDITIONS SET FORTH IN THIS LIM-
ITED WARRANTY. IN NO EVENT SHALL PELICAN BE
ACCOUNTABLE FOR INCIDENTAL DAMAGES RESULTING
FROM THE BREACH OF ANY EXPRESS OR IMPLIED WAR-
RANTIES. This warranty gives you specific legal rights, and you
may also have other legal rights, which vary from state to state.
11
For technical questions please visit
http://www.pelicanperformance.com or call us directly at:
1-800-331-3844
