Users manual
WaveStation
For
PlayStation 2, PlayStation, & PSone
Instruction Manual
WaveStation Features
• Wireless docking station with RF
• (Radio frequency) 900 MHz Technology
• Compatible with all PlayStation 2 / PSone
(and Original PlayStation) controllers
• WaveStation is also compatible with
PlayStation 2’s Analog Touch and Dual
Shock Technologies
• Up to 50 feet of freedom
• 50 hours of battery life with 4 C batteries (not
included)
• Optional 6 volt AC adapter (not included)

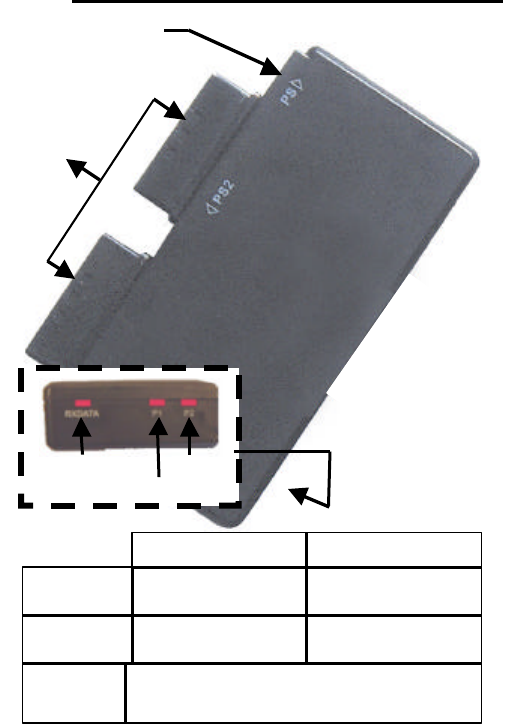

WaveStation Receiving Unit Layout
Rubber Spacer
Connects to PS2
or PSone
Signal
LED
The Signal LED indicates signal Strength. A
consistent flicker indicates a strong signal
Solid LED
Flashing LED
P2 LED
Controller 2 has
connectivity
Controller 2 has no
connectivity
P1 LED
Controller 1 has
connectivity
Controller 1has no
connectivity
P2 LED
P1 LED
Signal LED
WaveStation Docking Unit Layout
P1 / P2 LED have a simple function. They flash when there are no peripherals
plugged in or when the peripheral in not recognized. They remain ON when a
recognized peripheral is plugged into controller port 1 or 2.
The Signal LED indicates valid received rumble data from the Game Console to
the Docking Unit. A solid LED indicates valid rumble data received from the
game console. If the LED flashes quickly, it indicates that rumble data did not
make it to the controller. This is not serious as rumble data is updated many times
per second. If the LED remains OFF for a long period of time then rumble update
is being reduced. This could be due to range limitations or RF noise on
the channel
being used.
Controller Port 1
Controller Port 2
Rumble Function
On/Off Switch.
Off Position Powers
down the
WaveStation
P1 LED
P2 LED
Signal LED
PS2 / PS1 Switch for
Players 1 & 2
NEGCON
On/Off Switch
For Players 1 & 2
6 volt AC
Adapter input
Thank you for purchasing the WaveStation
Instruction for operation
1.
Make sure the power is turned off on your PlayStation®
2 or PSone® and insert the WaveStation Receiving Unit
into both controller ports
When using PSone® or original PlayStation® game system,
remove the rubber spacer on the Receiving Unit, slide the
Controller port 2 on the Receiving Unit right, and place the
rubber spacer in the space between the two controller ports.
2.
Insert 4 C batteries (not included) into the WaveStation
Docking Unit
3.
Plug controller(s) into the controller port of the
WaveStation Docking Unit
4.
Adjust controller switches to match the controllers
standards
5.
Turn on the WaveStation via the on/off switch on the
docking unit. You are now ready to enjoy the wireless
freedom of WaveStation
NEGCON Controller
On
Off
NEGCON Switch
PS2 / PS1
PS1 Controller
Off
PS1
PS2 Controller
Off
PS2
Rubber
Spacer
Controller
port 2
Controller
port 1
WaveStation Advance User Instructions
WaveStation has the ability to use 6 different channels to ensure
there is no signal interference.
NOTE: Leave these settings set to the factory settings unless
you are experiencing signal interference.
There is a channel selector on the bottom of the Receiving Unit
and inside the battery compartment of the Docking Unit. If the
channels are changed they must be the same on both units.
DIP Switch Channel Settings
Channel 1 – Only DIP switch 2 ON
Channel 2 – Only DIP switch 3 ON
Channel 3 – Only DIP switch 4 ON
Channel 4 – Only DIP switch 1 ON
Channel 5 – DIP switches 1 & 3
ON
Channel 6 –
DIP switches 1 & 4 ON
(Note: Only 1 of the DIP switches 2,3,4 can ever be ON at any one time.)
Troubleshooting
If you are experiencing a weak signal first check your batteries, if
it continues change the channel on both WaveStation units.
If WaveStation is not functioning properly confirm the Receiver
unit is plugged in and the controller(s) are properly connected to
the Docking Unit.
For technical questions please visit
http://www.pelicanacc.com
or call us directly at 1 -800-331-3844
Changes or modifications not expressly approved by the manufacture
could void the user's authority to operate the equipment. This device
complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions; (1) this device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
