Applications:
• Healthcare
Facilities
• Behavioral Health
• Assisted Living
• Food Service
• Hospitals
The Double Swing Hinge with Emergency Release Stop is an innovative healthcare solution that permits
quick door opening in an emergency situation. A double swing continuous hinge is combined with an
emergency release stop to provide additional safety features that are easy to use and help minimize risk.
ASSA ABLOY offers two styles of double swing hinges and two styles of emergency release stops. The
Markar Double Swing Hinge features a pin and barrel style hinge and the Pemko Double Swing Hinge
features a gear style hinge. Both double swing hinge styles have a unique 100º swing that allows the door
to swing in either direction.
The two models of the Pemko Emergency Release Stop feature either a special flush bolt or a multipoint
latch. Both models provide the functionality to release the stop in an emergency situation, allowing the
door to be opened in the opposite direction. The stops are used on the strike edge of the door and come
standard with hospital tip to complete the solution.
The Double Swing Hinge and Emergency Release Stop are accepted by the New York State Office of Mental
Health (OMH) for use in high risk areas.
Features Benefits
Double-swing design opens 100° Opens wide in either direction
Continuous hinge Proper alignment and weight distribution extend the life of
the door
Emergency release Quickly releases stop in an emergency situation
Hospital tip Provides a safer environment for hospitals and healthcare
facilities
CMS Compliant Eiminating additional ligature points ensures compliance
for reimbursement through CMS (Centers for Medicare and
Medicaid Services)
Designed for safety and reliability in healthcare environments
Double Swing Hinge with
Emergency Release Stop

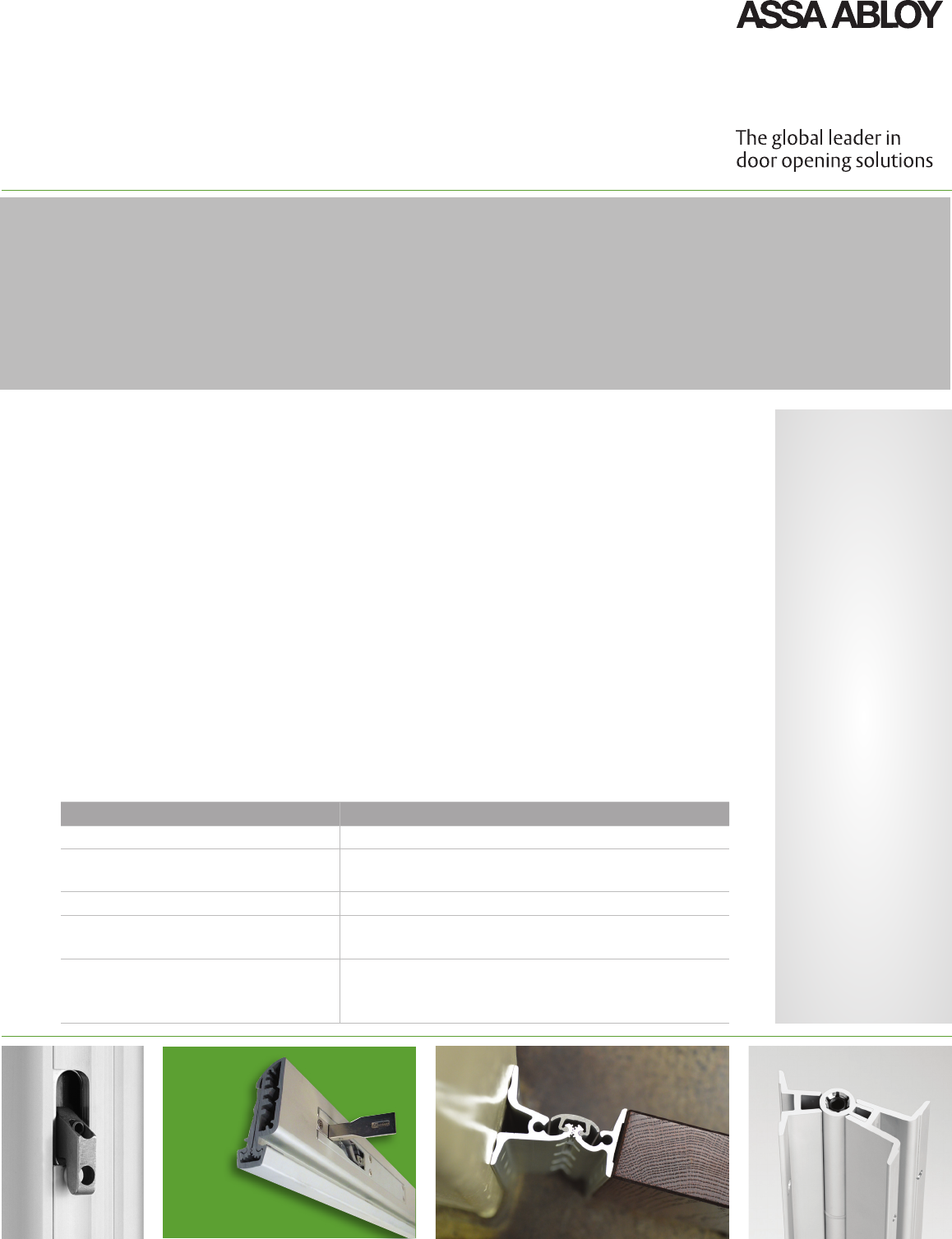

Markar Double Swing Hinge (DSH1000) Pemko Double Swing Hinge (DSHP01C )Pemko ERS with special Flush BoltPemko ERS with Multipoint
MEMPHIS, TN USA
P: 800 824-3018
F: 800 243-3656
VENTURA, CA USA
P: 800 283-9988
F: 800 283-4050
VANCOUVER, BC CA
P: 877 535-7888
F: 877 535-7444
TORONTO, ON CA
P: 877 535-7888
F: 877 535-7444
Healthcare Solutions
ASSA ABLOY designs and manufactures products to improve safety and mitigate
risk in behavioral healthcare and assisted living environments. Applications include
patient rooms, patient bathrooms and cross corridor bathrooms.
Combine complementary products from ASSA ABLOY Group brands to form an
optimal healthcare door opening solution.
The Double Swing Hinge and Emergency Release Stop are accepted by the New York State
Office of Mental Health (OMH) for use in high risk areas.
Hinge Size Opening Gear Hinge Clear
Anodized
Pin & Barrel Hinge
Clear Anodized
84" 7' 0" DSHP01C-84 DSH1000-84C
96" 8' 0" DSHP01C-96 DSH1000-96C
120" 10' 0" DSHP01C-120 DSH1000-120C
Double Swing Hinge: DSH_
Hinge
Size Opening
Flush Bolt
Clear Anodized
Left Hand
Flush Bolt
Clear Anodized
Right Hand
Multipoint Latch
Clear Anodize
Left Hand
Multipoint Latch
Clear Anodize
Right Hand
84" 7' 0" ERS84CxHT-LH ERS84CxHT-RH ERSMP84C-LH ERSMP84C-RH
96" 8' 0" ERS96CxHT-LH ERS96CxHT-RH ERSMP96C-LH ERSMP96C-RH
120" 10' 0" ERS120CxHT-LH ERS120CxHT-RH ERSMP120C-LH ERSMP120C-RH
Emergency Release Stop: ERS_
Notes: Minimum 23/4" backset for hardware trim.
If ERS is installed on a cased open jamb, an extended lip strike is needed. To avoid using
the extended lip strike, use a single rabbet jamb on strike side of frame.
Technical Specifications:
Hinge
Material: 6063-T6 Aluminum Alloy
Finishes: Clear Anodized Aluminum
(other finishes available by
special request)
Fasteners: Torx Security Machine Screws
BHMA: Double Swing Hinge
ANSI/BHMA A156.26 certified.
ADA DSH meets the barrier free
Compliance: requirements of
ICC/ANSI A117.1-2009 and
ADAAG-2010
Note: Although these products are better designed
for behavioral health applications than traditional
door hinges, they do not eliminate the risk that an
object can be affixed to, or around them.
Double Swing Hinge:
DSHP01C DSH1000
Emergency Release Stop: ERS_
DOOR
LEAF
FRAME
LEAF
STEEL FRAME
3
(76)
3/8
(10)
1-5/8
(41)
2
(51) 23/32
(18)
25/32
(20)
25/32
(20)
Door
Leaf 3"
(76.2)
1-15/16"
(49.40)
1/16"
(1.4)
Frame
Leaf
80038 3/17
ASSA ABLOY
5535 Distribution Drive
Memphis, TN 38141
websales@pemko.com • www.pemko.com
Copyright © 2013-2017 Pemko Manufacturing Company, an ASSA ABLOY Group company.
All rights reserved. Reproduction in whole or in part without the express written permission
of Pemko Manufacturing Company is prohibited.
DOOR
LEAF
FRAME
LEAF
49.40
116 "
3"
76.2
15
1
16 "
1.4
DOOR
LEAF
FRAME
LEAF
49.40
116 "
3"
76.2
15
1
16 "
1.4
