Users Manual

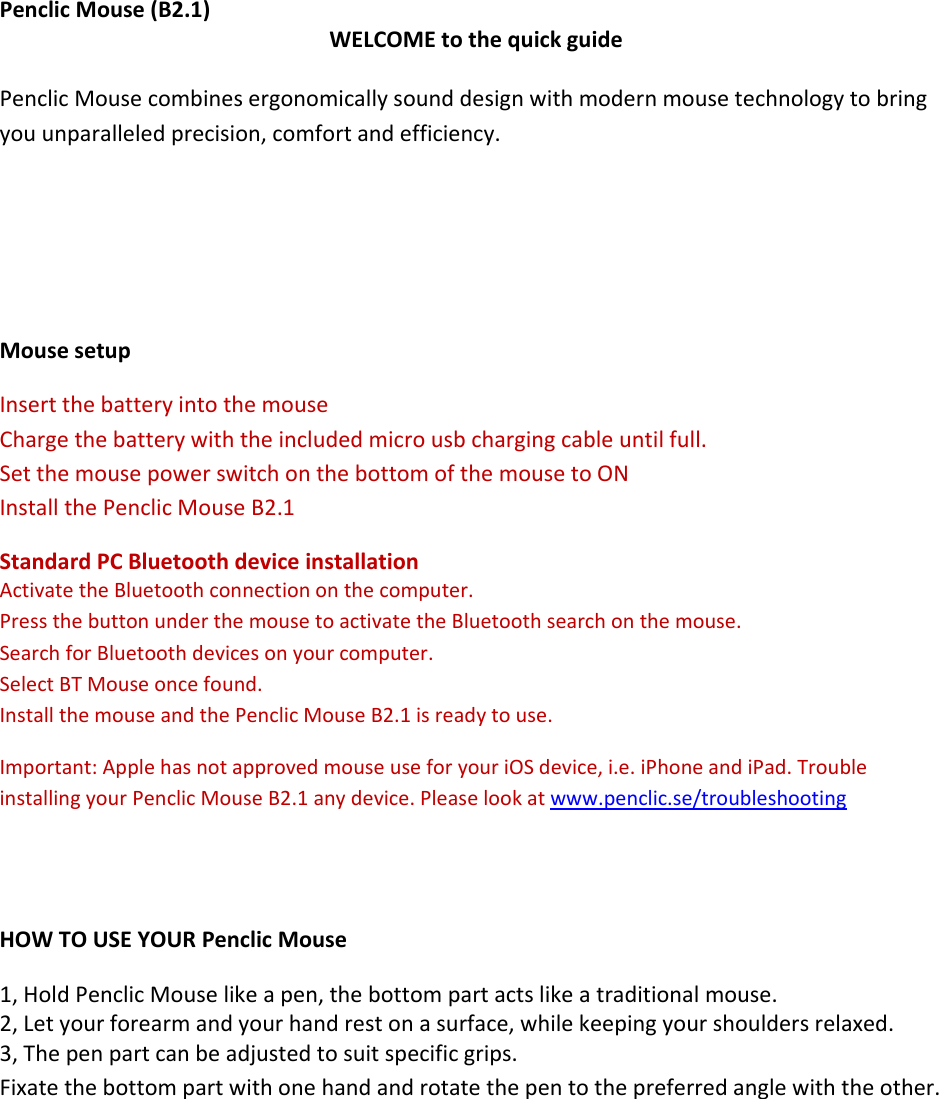

PenclicMouse(B2.1)WELCOMEtothequickguidePenclicMousecombinesergonomicallysounddesignwithmodernmousetechnologytobringyouunparalleledprecision,comfortandefficiency.MousesetupInsertthebatteryintothemouseChargethebatterywiththeincludedmicrousbchargingcableuntilfull.SetthemousepowerswitchonthebottomofthemousetoONInstallthePenclicMouseB2.1StandardPCBluetoothdeviceinstallationActivatetheBluetoothconnectiononthecomputer.PressthebuttonunderthemousetoactivatetheBluetoothsearchonthemouse.SearchforBluetoothdevicesonyourcomputer.SelectBTMouseoncefound.InstallthemouseandthePenclicMouseB2.1isreadytouse.Important:ApplehasnotapprovedmouseuseforyouriOSdevice,i.e.iPhoneandiPad.TroubleinstallingyourPenclicMouseB2.1anydevice.Pleaselookatwww.penclic.se/troubleshootingHOWTOUSEYOURPenclicMouse1,HoldPenclicMouselikeapen,thebottompartactslikeatraditionalmouse.2,Letyourforearmandyourhandrestonasurface,whilekeepingyourshouldersrelaxed.3,Thepenpartcanbeadjustedtosuitspecificgrips.Fixatethebottompartwithonehandandrotatethepentothepreferredanglewiththeother.

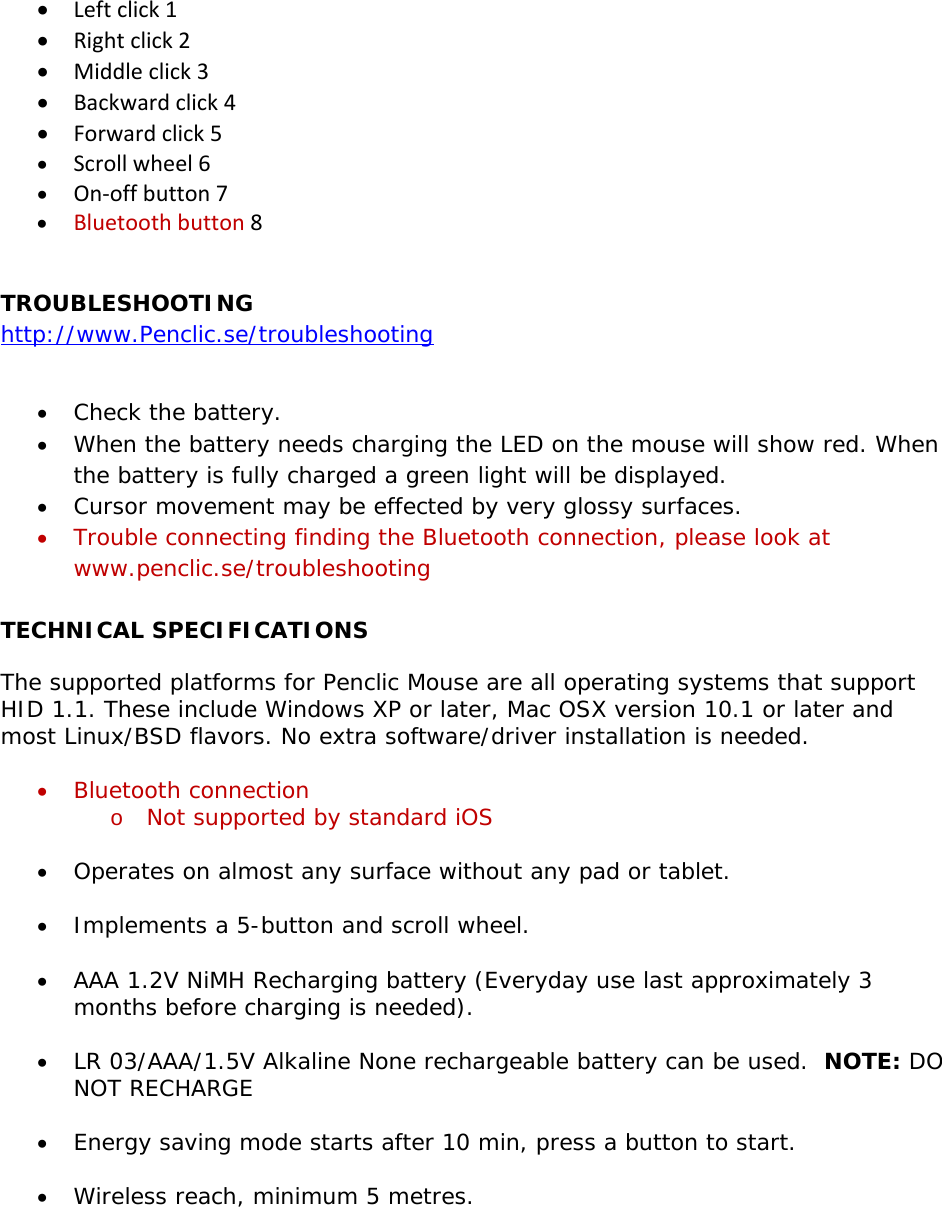

• Leftclick1• Rightclick2• Middleclick3• Backwardclick4• Forwardclick5• Scrollwheel6• On‐offbutton7• Bluetoothbutton8 TROUBLESHOOTING http://www.Penclic.se/troubleshooting • Check the battery. • When the battery needs charging the LED on the mouse will show red. When the battery is fully charged a green light will be displayed. • Cursor movement may be effected by very glossy surfaces. • Trouble connecting finding the Bluetooth connection, please look at www.penclic.se/troubleshooting TECHNICAL SPECIFICATIONS The supported platforms for Penclic Mouse are all operating systems that support HID 1.1. These include Windows XP or later, Mac OSX version 10.1 or later and most Linux/BSD flavors. No extra software/driver installation is needed. • Bluetooth connection o Not supported by standard iOS • Operates on almost any surface without any pad or tablet. • Implements a 5-button and scroll wheel. • AAA 1.2V NiMH Recharging battery (Everyday use last approximately 3 months before charging is needed). • LR 03/AAA/1.5V Alkaline None rechargeable battery can be used. NOTE: DO NOT RECHARGE • Energy saving mode starts after 10 min, press a button to start. • Wireless reach, minimum 5 metres.

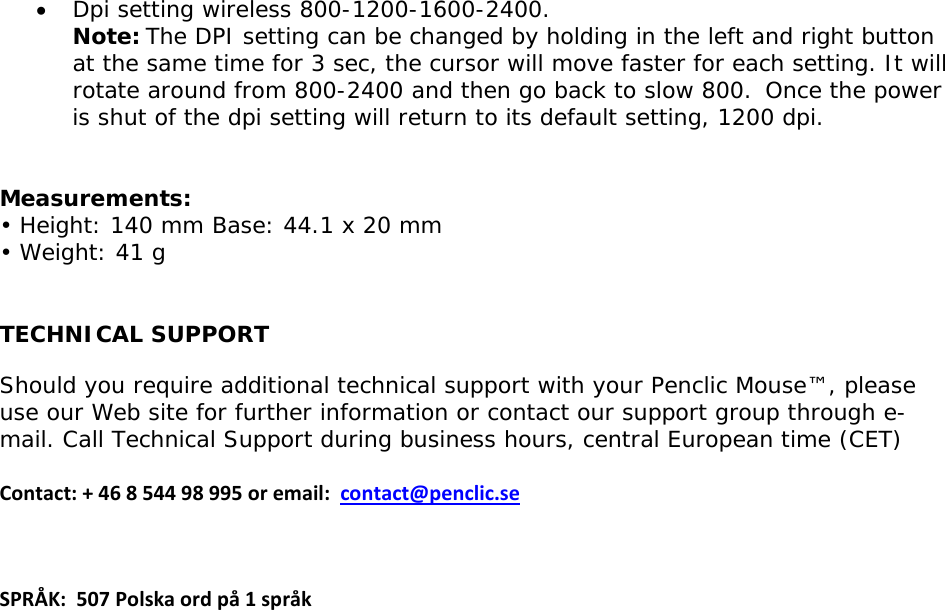

• Dpi setting wireless 800-1200-1600-2400. Note:The DPI setting can be changed by holding in the left and right button at the same time for 3 sec, the cursor will move faster for each setting. It will rotate around from 800-2400 and then go back to slow 800. Once the power is shut of the dpi setting will return to its default setting, 1200 dpi. Measurements: • Height: 140 mm Base: 44.1 x 20 mm • Weight: 41 g TECHNICAL SUPPORT Should you require additional technical support with your Penclic Mouse™, please use our Web site for further information or contact our support group through e-mail. Call Technical Support during business hours, central European time (CET) Contact:+46854498995oremail:contact@penclic.seSPRÅK:507Polskaordpå1språk
FCCWARNINGThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:(1)Thisdevicemaynotcauseharmfulinterference,and(2)thisdevicemustacceptanyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.NOTE1:Anychangesormodificationstothisunitnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser'sauthoritytooperatetheequipment.ICWARNINGThisdevicecomplieswithIndustryCanadaRSS‐210standard(s).Operationissubjecttothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthedevice.LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexemptsdelicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduiredebrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesilebrouillageestsusceptibled'encompromettrelefonctionnement.UnderIndustryCanadaregulations,thisradiotransmittermayonlyoperateusinganantennaofaPCBandmaximum‐1.2dBigainapprovedforthetransmitterbyIndustryCanada.Toreducepotentialradiointerferencetootherusers,theantennatypeanditsgainshouldbesochosenthattheequivalentisotropicallyradiatedpower(e.i.r.p.)isnotmorethanthatnecessaryforsuccessfulcommunication.
