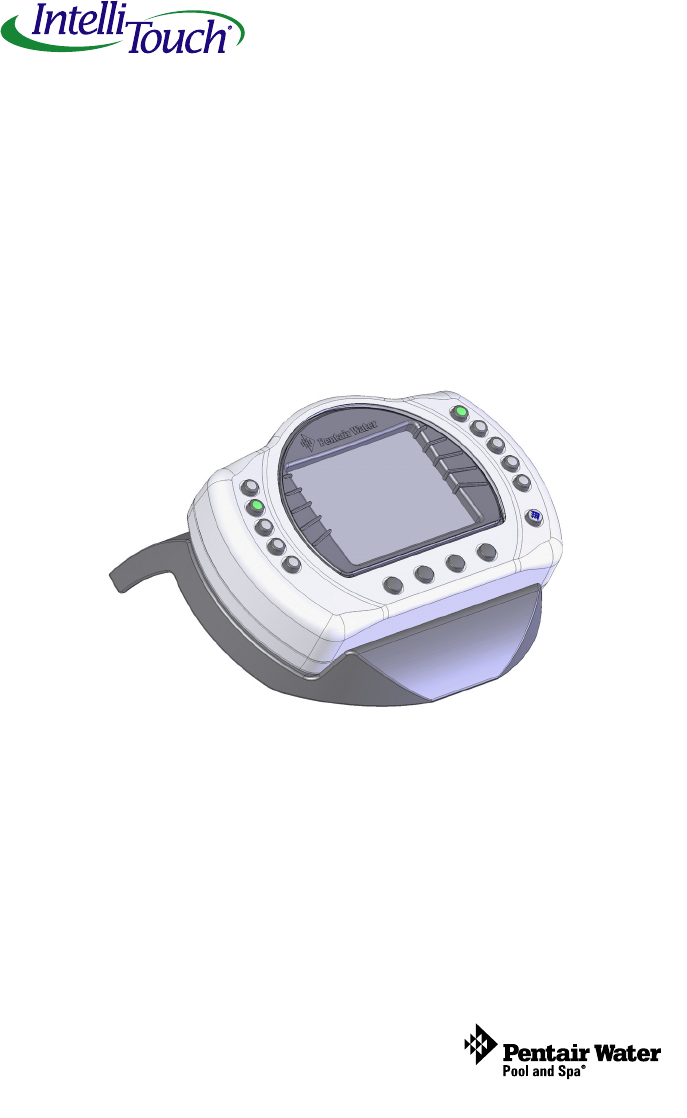

MobileTouch Wireless Controller User’s and Installation Guide
User’s and Installation Guide
IntelliTouch®
MobileTouch Wireless
Controller
pool/spa control system
MobileTouch Wireless Controller User’s and Installation Guide
MobileTouch Wireless Controller kit contents
The following items are included in the MobileTouch Controller kit. If any items
are missing please contact Technical Support.
• MobileTouch controller
• AC/DC power adapter
• Cradle
• User’s and Installation Guide (this manual)
© 2007 Pentair Water Pool and Spa, Inc. All rights reserved.
1620 Hawkins Ave., Sanford, NC 27330 • (919) 566-8000
10951 West Los Angeles Ave., Moorpark, CA 93021 • (800) 553-5000
IntelliTouch and the Pentair Water Pool and Spa logo are registered trademarks of Pentair Water Pool and Spa,
Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming
the marks and names or their products. Pentair Water Pool and Spa, Inc. disclaims proprietary interest in marks
and names of others.
P/N 520887 - Rev A - 05/05/2007
i
CAUTION: IMPORTANT BATTERY INFORMATION
• Danger of explosion if battery is incorrectly replaced.
• Replace battery with the same type recommended by Pentair. Use Pentair
Battery Replacement Kit (P/N 520815Z).
•Rechargeable Lithium-ion battery disposal: Unwanted lithium ion
battery pack may be returned to your local recycling center or the
manufacturer for disposal.
• Dispose of used batteries according to the manufacturer’s instructions.
• Dismantling or opening the device (with the exception of the battery door)
or case will void warranty and may possibly cause electric shock.
FCC Regulatory Safety Notice - This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment
generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV technician for help.
• Modifications not expressly approved by the party responsible for FCC compliance could
void the user’s authority to operate the equipment.
Related manuals - Download the IntelliTouch User’s Guide (P/N 520102) at:
http://www.pentairpool.com/owners_manuals/controls
IntelliTouch_Pool_Spa_Cntrls_Instll_Guide.pdf
Technical Support
Sanford, North Carolina (8 A.M. to 5 P.M. ET)
Moorpark, California (8 A.M. to 5 P.M. PT)
Phone: (800) 831-7133 - Fax: (800) 284-4151
IC Regulatory Notice
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
MobileTouch Wireless Controller User’s and Installation Guide
Contents
Charging the MobileTouch Wireless Controller ....................................... 2
Using the MobileTouch Wireless Controller ............................................ 2
Setting up MobileTouch and IntelliTouch ................................................ 3
Installing the MobileTouch Transceiver .................................................. 6

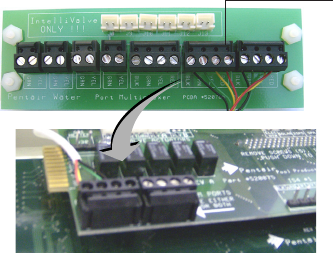

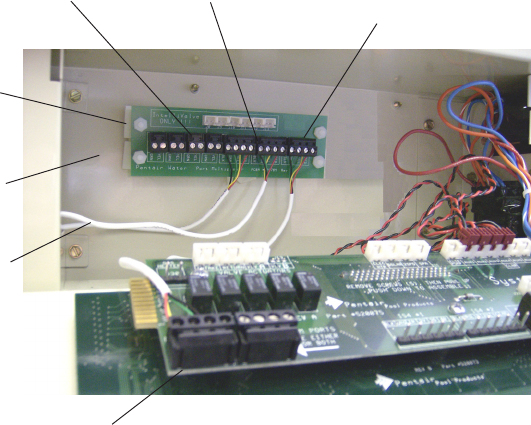

Connecting the Transceiver cable to the Personality board .................... 7
Serial COM Port Expansion Board (optional) ....................................... 11
MobileTouch Wireless Controller
The MobileTouch wireless controller provides the same functionality as
the IntelliTouch Indoor Control Panel. It has an operating range of up to
300 ft. from the MobileTouch antenna (Transceiver), which is typically
located near the IntelliTouch load center. The optimum wireless
transmit and receive range may be affected by physical obstructions,
(especially those containing metal), and geographical features.
The MobileTouch controller LCD (liquid crystal display) can be
sensitive to sunlight. When exposed for extended periods, the LCD
screen will heat up and turn black. If this happens, place the remote in
a shaded area and allow the screen to cool down. Do not attempt to
adjust the contrast or the screen will be unreadable when it eventually
cools. When used outside, keep the remote covered or in a shaded
area. Prolonged exposure to sunlight may permanently damage the
unit.
WARNING! Do not plug in the AC adapter to a power source
within five (5) feet of the pool and spa. Canadian installations require a
minimum of (3) meters from pool water. Do not recharge outdoors.
Only use Pentair approved AC adapter transformer.
The MobileTouch wireless controller is water resistant and can be
exposed to temporary splashing or wet hands. However, the controller
is not intended to be submersible. Remove unit immediately if it is
dropped in the water or exposed to rain. Store the unit indoors in a dry
environment. Be sure the gold charging contacts are dry before
charging.
1
MobileTouch Wireless Controller User’s and Installation Guide
2
Charging the MobileTouch Wireless Controller
When you are not using the MobileTouch controller, place it in the
cradle to recharge the battery. This allows the battery to be fully
charged at all times.
To charge the MobileTouch controller battery:
• Plug the AC adapter into an AC wall outlet.
• Insert the AC Adapter plug into the bottom of the cradle.
• Place the MobileTouch controller in the cradle.
What to do if the battery requires charging?
• If the MobileTouch controller screen is blank this may
indicate that battery cannot power the device and needs
recharging. Place the unit in it’s cradle to fully recharge the
battery. A complete battery charge takes about 3 to 4 hours.
Note: If the battery requires replacement, only use
Pentair battery (/P/N 520815Z).
Using the MobileTouch Wireless Controller
The range of the MobileTouch wireless controller can be up to 300 feet
from its transceiver antenna. The antenna is typically located near the
IntelliTouch Load Center. The unit can be used all day at full power
with a complete battery charge (3 to 4 hours).
To use the MobileTouch wireless controller:
1. To use the MobileTouch controller, remove it from the cradle.
Note: The MobileTouch can also be used while seated in
the cradle with AC power connected to the cradle.
2. Press the “Power” button on the front right-side to switch the
unit ON or OFF. The LCD backlight will turn off in five
minutes if not in use.

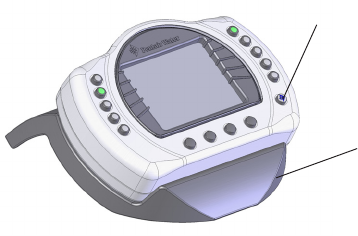

Power On/Off button
MobileTouch controller seated in cradle
Cradle
MobileTouch Wireless Controller User’s and Installation Guide
3
Setting up MobileTouch and IntelliTouch

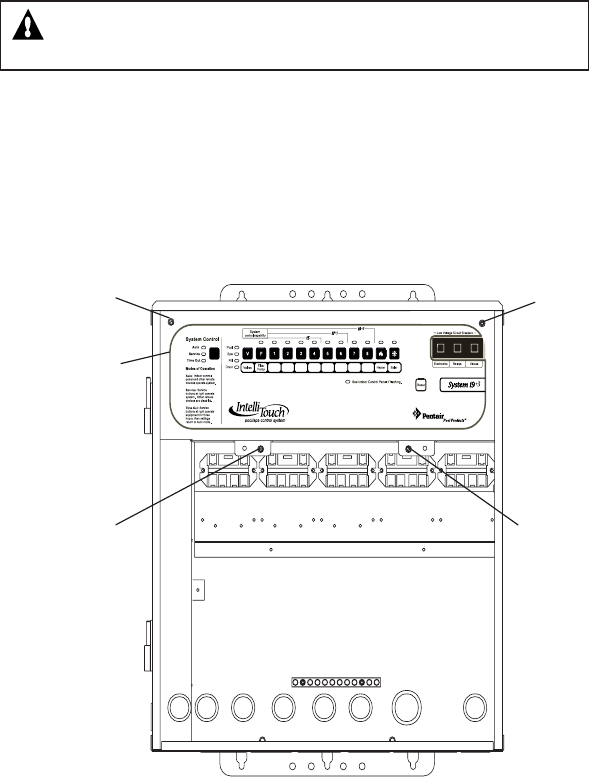

After connecting the Transceiver cable to the IntelliTouch load center
(see page “Installing the MobileTouch Transceiver” on page 6), you are
ready to setup a MobileTouch wireless controller to “talk” to a new or
existing IntelliTouch system.
To manually setup MobileTouch and IntelliTouch:
1. On the IntelliTouch Outdoor Control Panel, press the Reset
button (see illustration below).
2. The three red System Control LEDs will be on for about 10
seconds. While the LEDs are on, press the “F” Filter
button. For model i10+3 press the “P” Pool Filter Pump
button. For model i5S+3, press the “F” button.
3. The auxiliary button LEDs will cycle across from the V (or
F) button to the auxiliary number 4 button. Wait until the
LEDs stop cycling. The three “System Control LEDs” will
start to blink.
4. The IntelliTouch system is ready to add the MobileTouch
wireless controller., continue with step 5 on page 4.

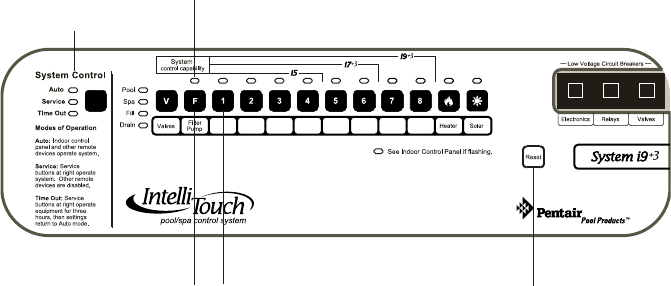

IntelliTouch Outdoor Control Panel
Three
System
Control
LEDs
Auxiliary LEDs
Reset
button
1
button
F button
(i5+3, i5S+3 i7+3,
i9+3S, i9+3)
P button (i10+3D)
MobileTouch Wireless Controller User’s and Installation Guide
4
MENU SETUP ADVANCED
Getting There
Setting up MobileTouch and IntelliTouch (continued)

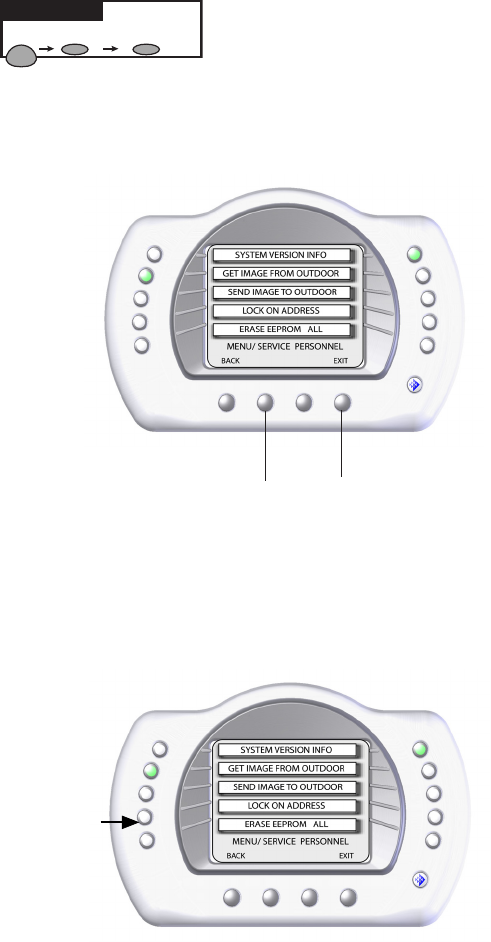

Go to the Advanced screen.
5. From the MobileTouch Advanced screen, press buttons 2
and 4 at the same time. The Service Personnel screen is
displayed.
6. Press the button next to Lock On Address. This will setup
the MobileTouch controller to operate on a unique frequency
to avoid inference from other wireless devices within range
of the MobileTouch Transceiver.
Press button 2 and 4 at the same time to
access the Service Personnel screen
MobileTouch Wireless Controller User’s and Installation Guide

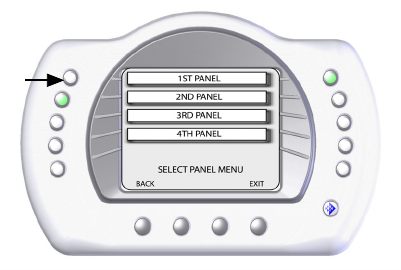

7. Select the control panel number (1, 2, 3 or 4) for the
controller at hand by pressing either button next to the panel
number. Make sure not to select a number already in use by
another controller. Any combination of up to four Indoor
Control Panels and/or MobileTouch control panels may be
configured.
8. After selecting the control panel number the “Service
Personnel” screen will be displayed. Press Exit to return to
the main screen.
9. If multiple controllers are being installed, repeat steps 5 - 8
for each controller.
10. Return to the IntelliTouch load center. The System Control
LEDs will be flashing. Press the Reset button. When the
“Auto” LED is lit the process is complete and the
IntelliTouch system is ready for operation.
5
MobileTouch Wireless Controller User’s and Installation Guide

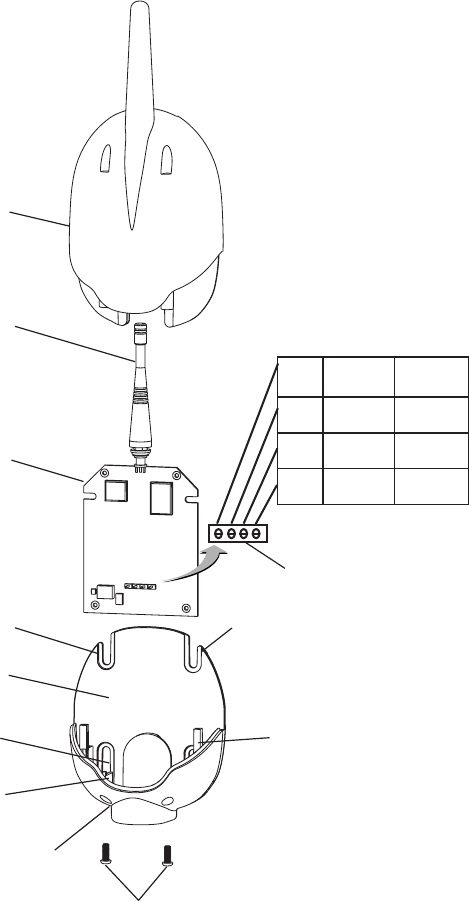

Installing the MobileTouch Transceiver
For optimum wireless connectivity locate the MobileTouch Transceiver
(antenna) near the IntelliTouch load center. The Transceiver optimum
wireless transmit and receive range may be affected by physical
obstructions, (especially those containing metal), weather conditions,
and geographical features. The MobileTouch controller has an
operating range of up to 300 ft. from the MobileTouch Transceiver. The
Transceiver kit includes a connection cable (10 ft). However, the cable
length can be lengthened up to 300 ft for optimum wireless connectivity.
To install the Transceiver:
1. Choose an installation location for the Transceiver near the
IntelliTouch load center.
2. Remove the two lower retaining screws from the
Transceiver and slide the Transceiver case up to remove it
from the back plate.
3. Remove the Transceiver circuit board from the back plate by
carefully lifting it up out of the back plate supports. Place the
circuit board on a clean dry surface away from direct
sunlight.
4. Mount the Transceiver back plate (see page 6) onto a flat
wooden surface, such as a wooden fence, or post. While
holding the back plate, install two lower mounting screws
through the back plate lower mounting holes. Tighten the
screws to secure the back plate in place. Install two screws
through the upper mounting holes.
5. Slide the Transceiver circuit board into the back plate into the
board side supports.
6. Route the Transceiver cable up through the bottom of the
back plate (see page 7) to the screw terminal connector.

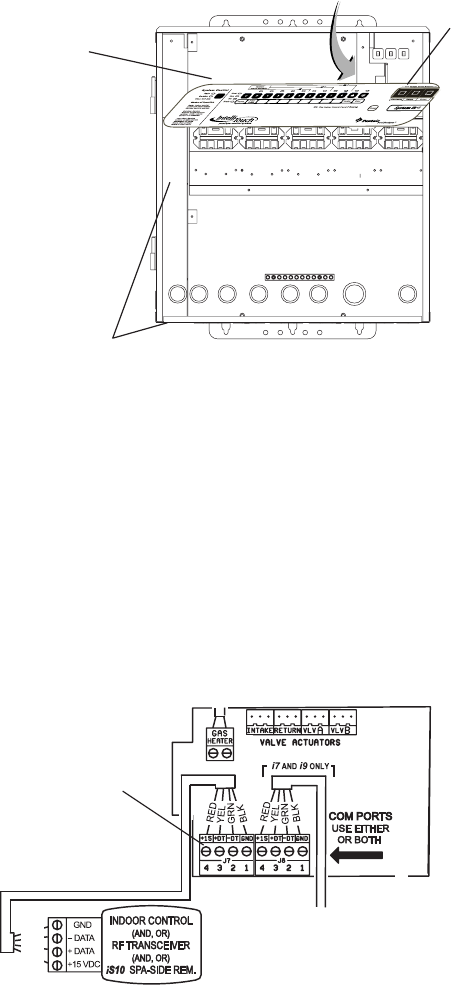

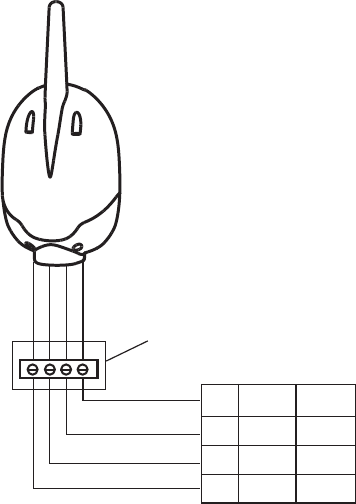

7. Insert the four wires into the screw terminals of the
Transceiver connector. Using a small flat-blade screwdriver,
secure the wires with the screws. Make sure to match the
color coding of the four wires (see page 7 for wiring
diagram).
8. Carefully slide the case over the Transceiver antenna and
secure it to the back plate with the two lower retaining
screws.
9. Proceed with “Connecting the Transceiver cable to the
IntelliTouch Personality board” on page 7.
6
MobileTouch Wireless Controller User’s and Installation Guide
Screw terminals
Transceiver circuit board
Back plate
Retaining screws
Case
Lower exit hole (left side)
Antenna
Upper mounting point
(screw)
Transceiver Module
7
1DNGKLB
2TD-NRG
3TD+LEY
4V51DER
Lower mounting
point (screw)
Lower mounting
point (screw)
Upper mounting point
(screw)
Left-side Transceiver
circuit board support
MobileTouch Wireless Controller User’s and Installation Guide
WARNING Switch OFF the main system power to the Load Center
before making any connections.
1. Unlatch the two enclosure door spring latches, and open the
door.
2. Remove the two retaining screws securing the high voltage
cover-panel, and remove it from the enclosure.
3. Loosen the two access screws securing the control panel.
8
Panel retaining
screw
(Cover-panel
not shown)
Access
screw
Retaining
screw
Access
screw
Control panel
Connecting the Transceiver cable to the Personality board
Load Center
4. Lower down the hinged control panel to access the
Personality board.
MobileTouch Wireless Controller User’s and Installation Guide
5. Route the transceiver cable into the lower plastic grommet,
up through the low voltage raceway to the Personality board.
6. Insert the four wires into the screw terminals of the COM
PORT plug located on the Personality board as shown on
page 6. Using a small flat-blade screwdriver, secure the
wires with the screws. Make sure to match the color coding
of the four wires:
Pin 4 - Red = +15
Pin 3 - Yellow = +DT
Pin 2 - Green = -DT
Pin 1 - Black = GND
9
BLK
GRN
YEL
RED
IntelliTouch Personality
board COM PORTS
(J7/J8) screw terminal
connector
Raceway
Control panel
Personality
board
Note: If there no available COM port
terminals for the Transceiver cable
plug connector to plug in to, the
optional Seral COM Port Expansion
Board (see page 12) can be used.
Multiple wires may also be inserted
into a single screw terminal.
MobileTouch Wireless Controller User’s and Installation Guide
7. After the connection has been completed, close the control
panel into its original position and secure it with the two
access screws.
8. Close the IntelliTouch front panel and secure it with the two
retaining screws.
9. Close the IntelliTouch Load Center front door. Fasten the
two spring latches.
10. Switch the power on to the IntelliTouch Load Center.
11. Proceed to “Setting up MobileTouch and IntelliTouch”
on page 3.
10
Personality board COM PORT Pin configuration
ScreenLogic
outdoor wireless
transceiver located
within 10 feet from
IntelliTouch Load
Center
COM PORT screw
terminal connector
1DNGKLB
2TD-NRG
3TD+LEY
4V51DER
MobileTouch Wireless Controller User’s and Installation Guide
11
Serial COM Port Expansion Board Optional (for use
with IntelliTouch® and EasyTouch® systems)
If there is not an available COM port for the Transceiver cable plug on
the IntelliTouch Personality board, the optional Serial COM port
Expansion Board (P/N 520818) can be used for additional COM ports
connections.
Mounting the Expansion Board
1. Remove the inside terminal connectors (with wires attached)
from the Expansion board and connect it to a COM port on
the Personality board.
Note: If this a new Load Center installation, you’ll have
to remove one of the existing (empty) terminal connectors
from the Personality board to allow for the Expansion
board terminal connector. You can place the (empty)
connector onto the available COM port on the
Expansion board.
2. Mount the Expansion board on to the back wall in the low
voltage compartment of the IntelliTouch or EasyTouch load
center using the four adhesive backed supports.
3. Proceed to “Connecting the Transceiver cable plug to the
Serial COM Port Expansion Board,” on page 12.
Remove this terminal connector
and connect it to an available COM
port on the IntelliTouch Personality
board or EasyTouch motherboard
Personality Board
MobileTouch Wireless Controller User’s and Installation Guide
12
Connecting the Transceiver cable plug to the Serial Com
Port Expansion Board
Connect the Transceiver cable plug onto one of the available Serial
COM port expansion board connector terminals.
Note: If you have existing accessories (IntelliChlor, IntelliFlo)
connected to the IntelliTouch Personality board and need to free
up connectors for additional equipment, remove one of the existing
connectors (with the attached wires to equipment) from the
Personality board and plug it into an available connector on the
Expansion board COM port (as shown below).
Cables to
accessories
(IntelliChlor,
Indoor Control
Panel etc.)
Low voltage
compartment
Expansion
board
adhesive
backed
supports (x4)
Connect existing
accessory connectors
wires here
Connect to COM port on
IntelliTouch Personality
board or EasyTouch
motherboard
Connector from the Expansion board
Connect IntelliFlo
wires to two-pin
terminal connector
MobileTouch Wireless Controller User’s and Installation Guide
13
Notes
MobileTouch Wireless Controller User’s and Installation Guide
P/N 520663 - Rev A
