Operating Instructions and Parts
Drum Sander
Model: 10-20 PLUS
Manual
(shown with optional accessories)
WMH Tool Group
2420 Vantage Drive
Elgin, Illinois 60123
Phone: 800-274-6848
www.wmhtoolgroup.com
Part No.: M-628900
Revision: B 11/03
Copyright © WMH Tool Group
This manual has been prepared for the owner and operators of a Performax 10-20 Drum Sander. Its
purpose, aside from machine operation, is to promote safety using accepted operating and maintenance
procedures. To obtain maximum life and efficiency from your Drum Sander and to aid in using it safely,
please read this manual thoroughly and follow instructions carefully.
Warranty & Service
WMH Tool Group warrants every product it sells. If one of our tools needs service or repair, one of our
Authorized Repair Stations located throughout the United States can provide quick service or information.
In most cases, a WMH Tool Group Repair Station can assist in authorizing repair work, obtaining parts, or
perform routine or major maintenance repair on your Performax product.
For the name of an Authorized Repair Station in your area, please call 1-800-274-6848, or visit our web
site at www.wmhtoolgroup.com
More Information
Remember, WMH Tool Group is consistently adding new products to the line. For complete, up-to-date
product information, check with your local WMH Tool Group distributor, or visit our web site at
www.wmhtoolgroup.com
WMH Tool Group Warranty
WMH Tool Group makes every effort to assure that its products meet high quality and durability standards
and warrants to the original retail consumer/purchaser of our products that each product be free from
defects in materials and workmanship as follows: 1 YEAR LIMITED WARRANTY ON ALL PRODUCTS
UNLESS SPECIFIED OTHERWISE. This Warranty does not apply to defects due directly or indirectly to
misuse, abuse, negligence or accidents, normal wear-and-tear, repair or alterations outside our facilities,
or to a lack of maintenance.
WMH TOOL GROUP LIMITS ALL IMPLIED WARRANTIES TO THE PERIOD SPECIFIED ABOVE,
BEGINNING FROM THE DATE THE PRODUCT WAS PURCHASED AT RETAIL. EXCEPT AS STATED
HEREIN, ANY IMPLIED WARRANTIES OR MERCHANTABILITY AND FITNESS ARE EXCLUDED.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG THE IMPLIED WARRANTY LASTS,
SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. IN NO EVENT SHALL WMH TOOL GROUP
BE LIABLE FOR DEATH, INJURIES TO PERSONS OR PROPERTY, OR FOR INCIDENTAL,
CONTINGENT, SPECIAL, OR CONSEQUENTIAL DAMAGES ARISING FROM THE USE OF OUR
PRODUCTS. SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL
OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY
TO YOU.
To take advantage of this warranty, the product or part must be returned for examination, postage
prepaid, to an Authorized Repair Station designated by our office. Proof of purchase date and an
explanation of the complaint must accompany the merchandise. If our inspection discloses a defect, we
will either repair or replace the product at our discretion, or refund the purchase price if we cannot readily
and quickly provide a repair or replacement. We will return the repaired product or replacement at WMH
Tool Group's expense, but if it is determined there is no defect, or that the defect resulted from causes
not within the scope of WMH Tool Group's warranty, then the user must bear the cost of storing and
returning the product. This warranty gives you specific legal rights; you may also have other rights, which
vary from state to state.
WMH Tool Group sells through distributors only. Members of the WMH Tool Group reserve the right to
effect at any time, without prior notice, alterations to parts, fittings and accessory equipment, which they
may deem necessary for any reason whatsoever.
Table of Contents
Warranty & Service .................................................................................................................................... 2
More Information .................................................................................................................................... 2
WMH Tool Group Warranty ................................................................................................................... 2
Table of Contents ...................................................................................................................................... 3
Introduction ................................................................................................................................................ 6

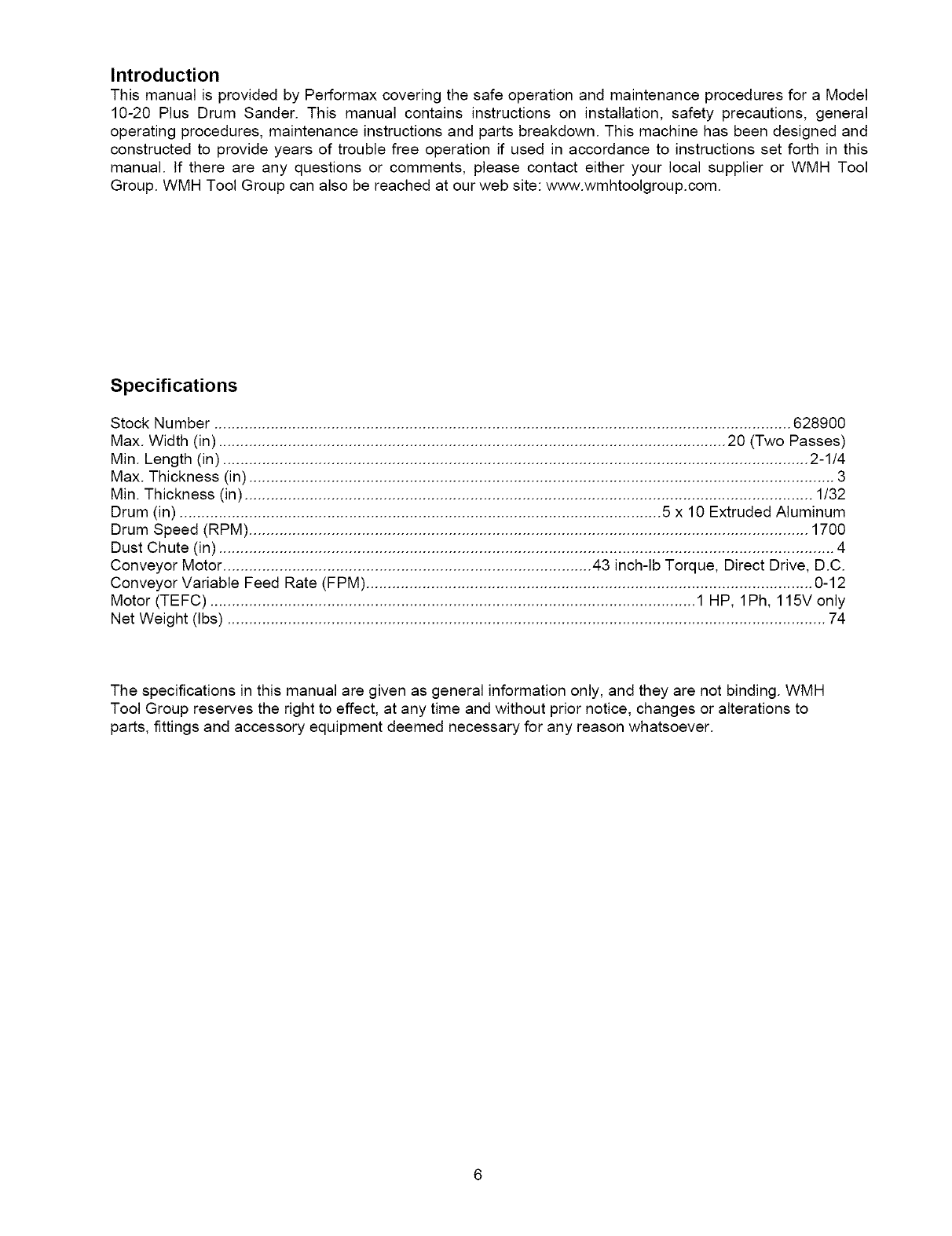

Specifications ............................................................................................................................................ 6

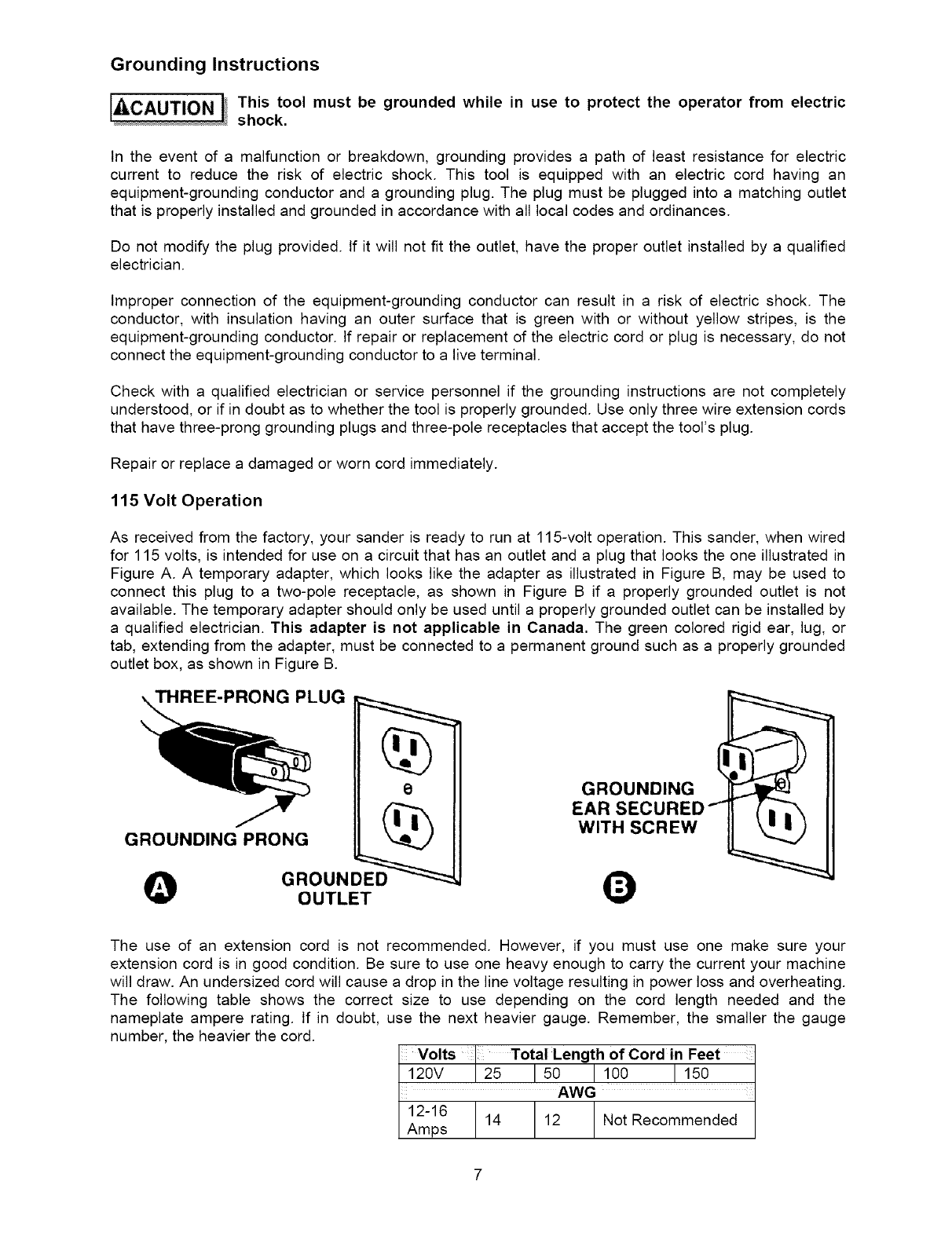

Grounding Instructions .............................................................................................................................. 7
115 Volt Operation ................................................................................................................................. 7
Contents of the Shipping Carton ............................................................................................................... 8
Unpacking .................................................................................................................................................. 8
Assembly and Setup .................................................................................................................................. 8
Performax 10-20 Accessories ................................................................................................................ 8
On/Off Switch ......................................................................................................................................... 9
Switch Lock ........................................................................................................................................ 9
Circuit Breaker ....................................................................................................................................... 9
Conveyor Belt Tracking ........................................................................................................................ 11
Conveyor Belt Tension ......................................................................................................................... 11
Drum Height Control ............................................................................................................................ 11
Checking Drum Alignment ................................................................................................................... 12
Aligning the Drum ................................................................................................................................ 12
Fine Tuning Drum Alignment ............................................................................................................... 12
Wrapping Abrasive Strips .................................................................................................................... 13
Using the TUF Tool TM .......................................................................................................................... 14
Connecting Sander to a Dust Collector ............................................................................................... 15
Setting the Depth Gauge ..................................................................................................................... 15
Setting the Depth of Cut ....................................................................................................................... 15
Establishing the Proper Drum Height .................................................................................................. 15

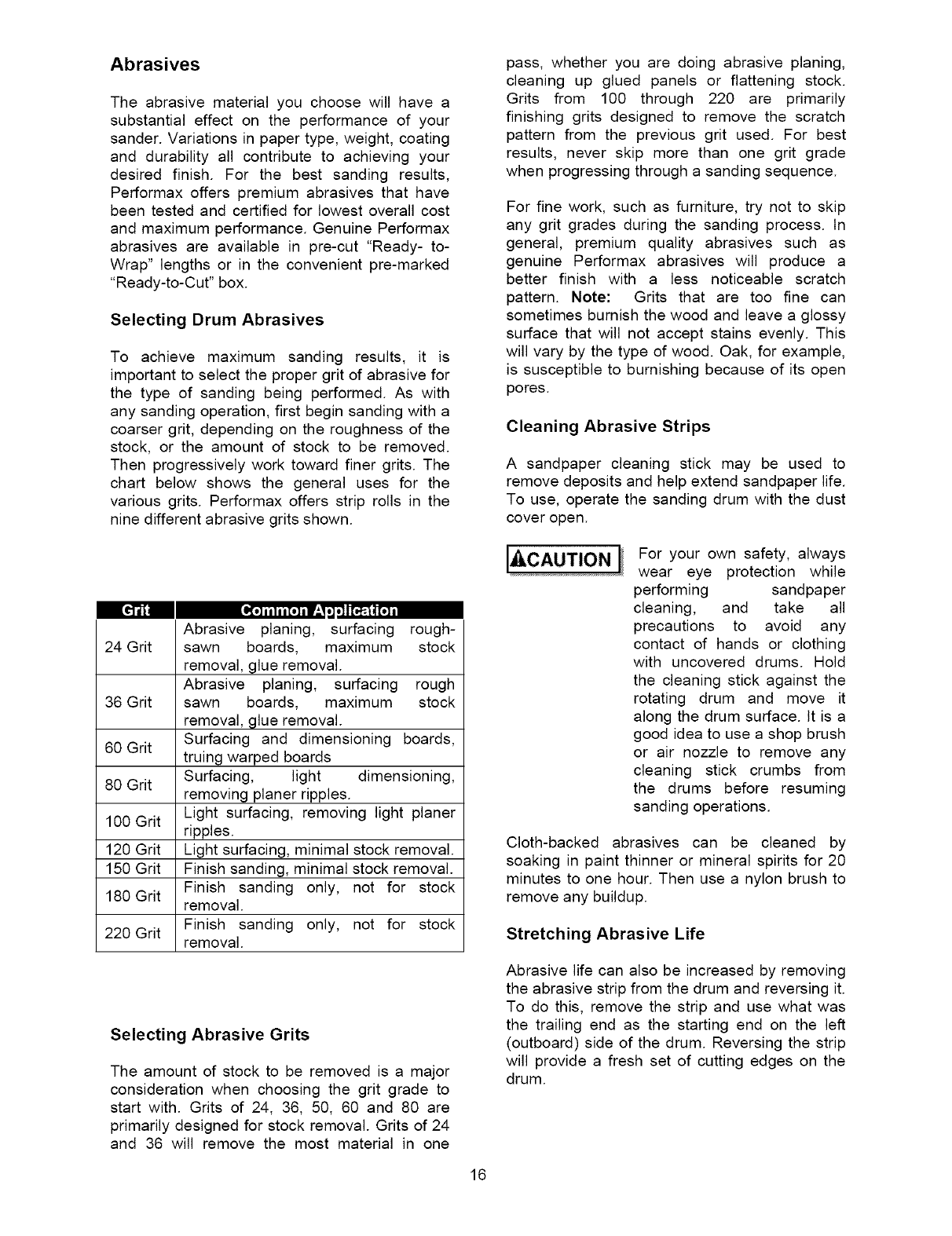

Abrasives ................................................................................................................................................. 16
Selecting Drum Abrasives .................................................................................................................... 16
Selecting Abrasive Grits ....................................................................................................................... 16
Cleaning Abrasive Strips ...................................................................................................................... 16
Stretching Abrasive Life ....................................................................................................................... 16
Performax 10-20 Abrasives ................................................................................................................. 17
Ready-to-Wrap ................................................................................................................................. 17
Ready-to-Cut (Aluminum oxide) ....................................................................................................... 17
Ready-to-Cut "Blue" (longer life) ...................................................................................................... 17
Stock Feeding Angle ............................................................................................................................... 17
Multiple-Piece Sanding Runs .................................................................................................................. 17
Edge Sanding .......................................................................................................................................... 17
Sanding Imperfect Stock ......................................................................................................................... 17
Face Frames and Raised Panel Doors ................................................................................................... 17
Monthly Maintenance .............................................................................................................................. 17
Conveyor Belt Replacement ................................................................................................................ 18
Tension Roller Alignment ..................................................................................................................... 18
Tension Roller Pressure Adjustment ................................................................................................... 18
Drum Height Control Adjustment ......................................................................................................... 18

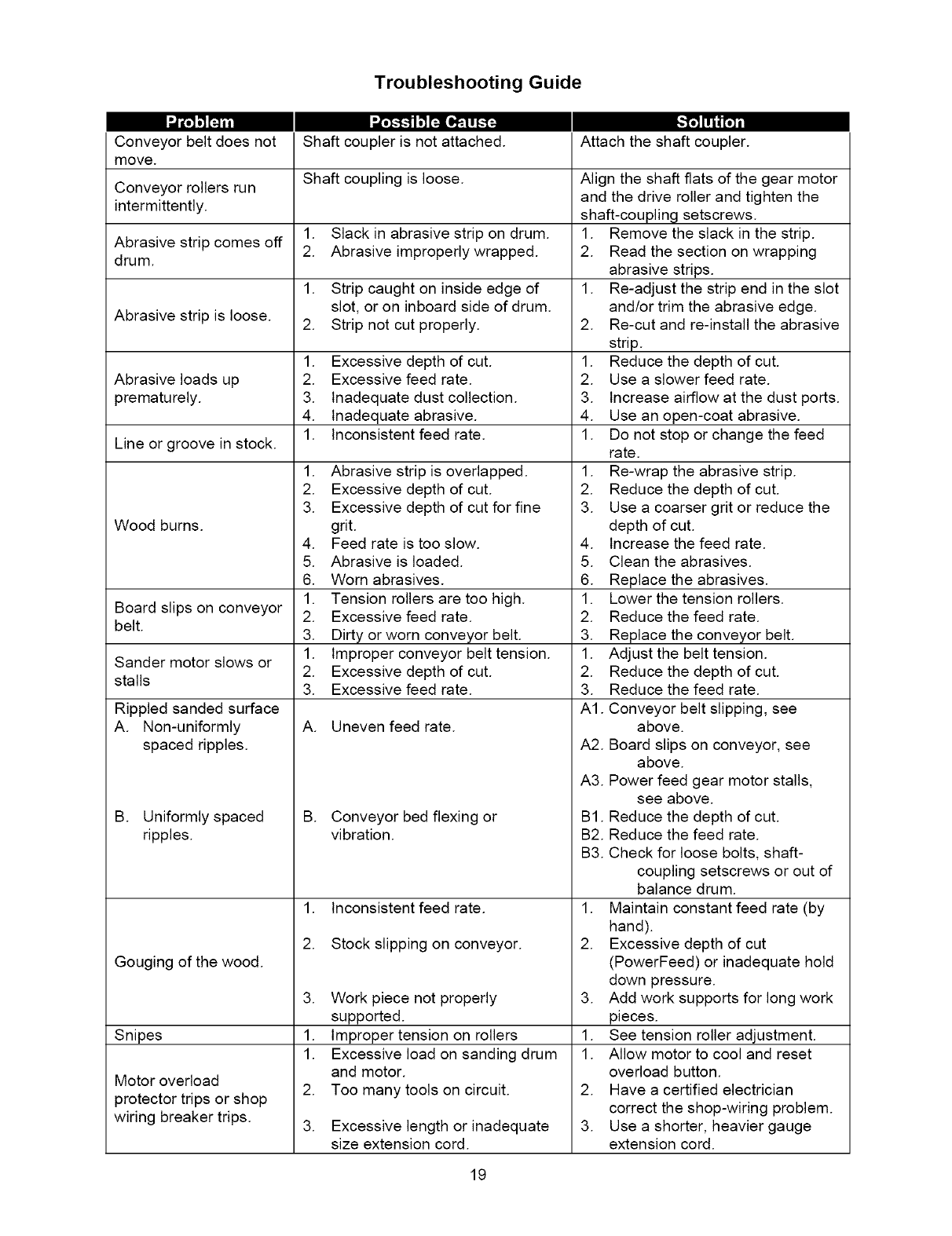

Troubleshooting Guide ............................................................................................................................ 19
Exploded View- 10-20 PLUS Sander .................................................................................................... 20

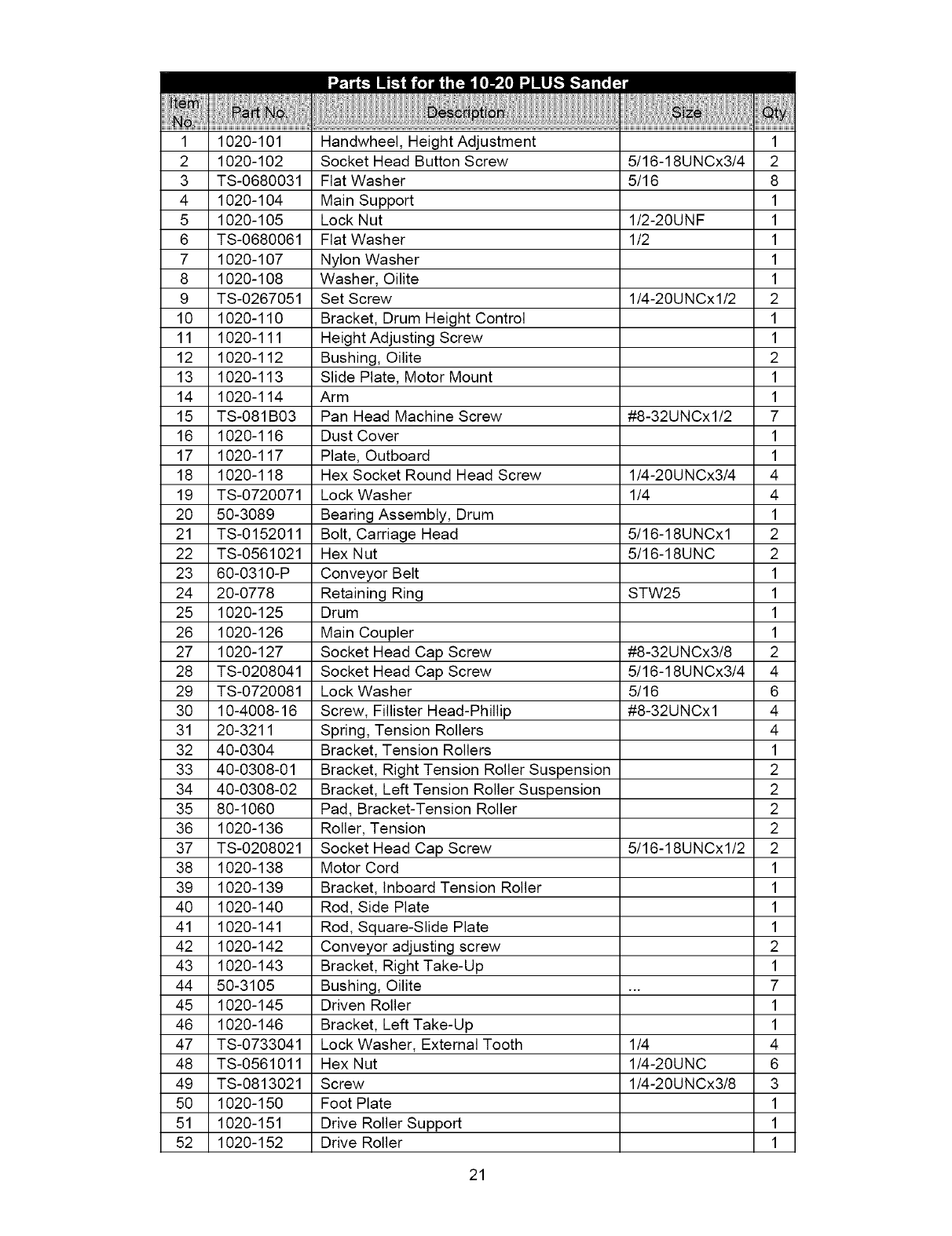

Parts List for the 10-20 PLUS Sander ................................................................................................. 21
Wiring Diagram ........................................................................................................................................ 23

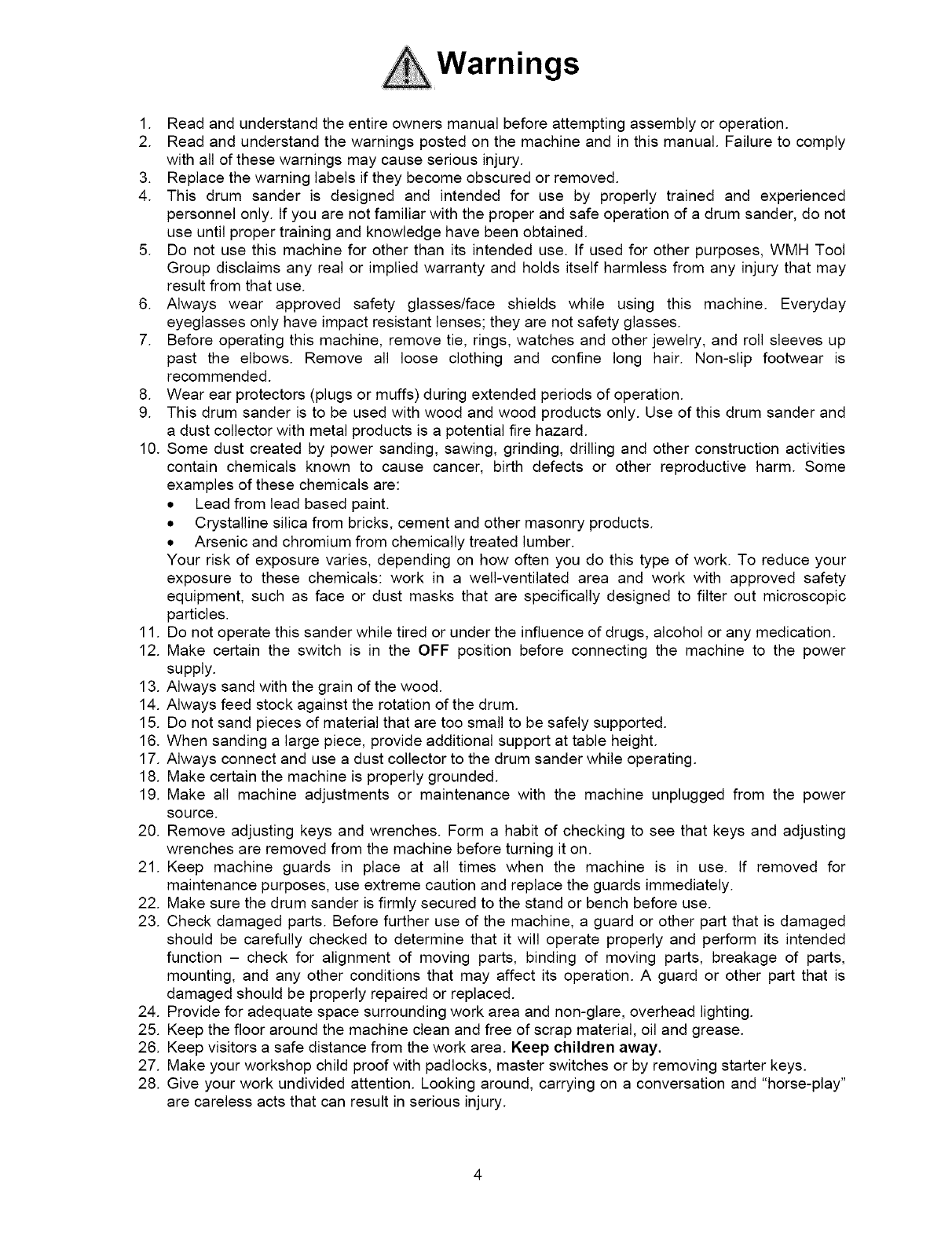

Warnings
1. Read and understand the entire owners manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply
with all of these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
4. This drum sander is designed and intended for use by properly trained and experienced
personnel only. If you are not familiar with the proper and safe operation of a drum sander, do not
use until proper training and knowledge have been obtained.
5. Do not use this machine for other than its intended use. tf used for other purposes, WMH Tool
Group disclaims any real or implied warranty and holds itself harmless from any injury that may
result from that use.
6. Always wear approved safety glasses/face shields while using this machine. Everyday
eyeglasses only have impact resistant lenses; they are not safety glasses.
7. Before operating this machine, remove tie, rings, watches and other jewelry, and roll sleeves up
past the elbows. Remove all loose clothing and confine long hair. Non-slip footwear is
recommended.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. This drum sander is to be used with wood and wood products only. Use of this drum sander and
a dust collector with metal products is a potential fire hazard.
10. Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contain chemicals known to cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
•Lead from lead based paint.
• Crystalline silica from bricks, cement and other masonry products.
• Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals: work in a well-ventilated area and work with approved safety
equipment, such as face or dust masks that are specifically designed to filter out microscopic
particles.
11. Do not operate this sander while tired or under the influence of drugs, alcohol or any medication.
12. Make certain the switch is in the OFF position before connecting the machine to the power
supply.
13. Always sand with the grain of the wood.
14. Always feed stock against the rotation of the drum.
15. Do not sand pieces of material that are too small to be safely supported.
16. When sanding a large piece, provide additional support at table height.
17. Always connect and use a dust collector to the drum sander while operating.
18. Make certain the machine is properly grounded.
19. Make all machine adjustments or maintenance with the machine unplugged from the power
source.
20. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
21. Keep machine guards in place at all times when the machine is in use. If removed for
maintenance purposes, use extreme caution and replace the guards immediately.
22. Make sure the drum sander is firmly secured to the stand or bench before use.
23. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended
function - check for alignment of moving parts, binding of moving parts, breakage of parts,
mounting, and any other conditions that may affect its operation. A guard or other part that is
damaged should be properly repaired or replaced.
24. Provide for adequate space surrounding work area and non-glare, overhead lighting.
25. Keep the floor around the machine clean and free of scrap material, oil and grease.
26. Keep visitors a safe distance from the work area. Keep children away.
27. Make your workshop child proof with padlocks, master switches or by removing starter keys.
28. Give your work undivided attention. Looking around, carrying on a conversation and "horse-play"
are careless acts that can result in serious injury.
Warnings
_ii' ii

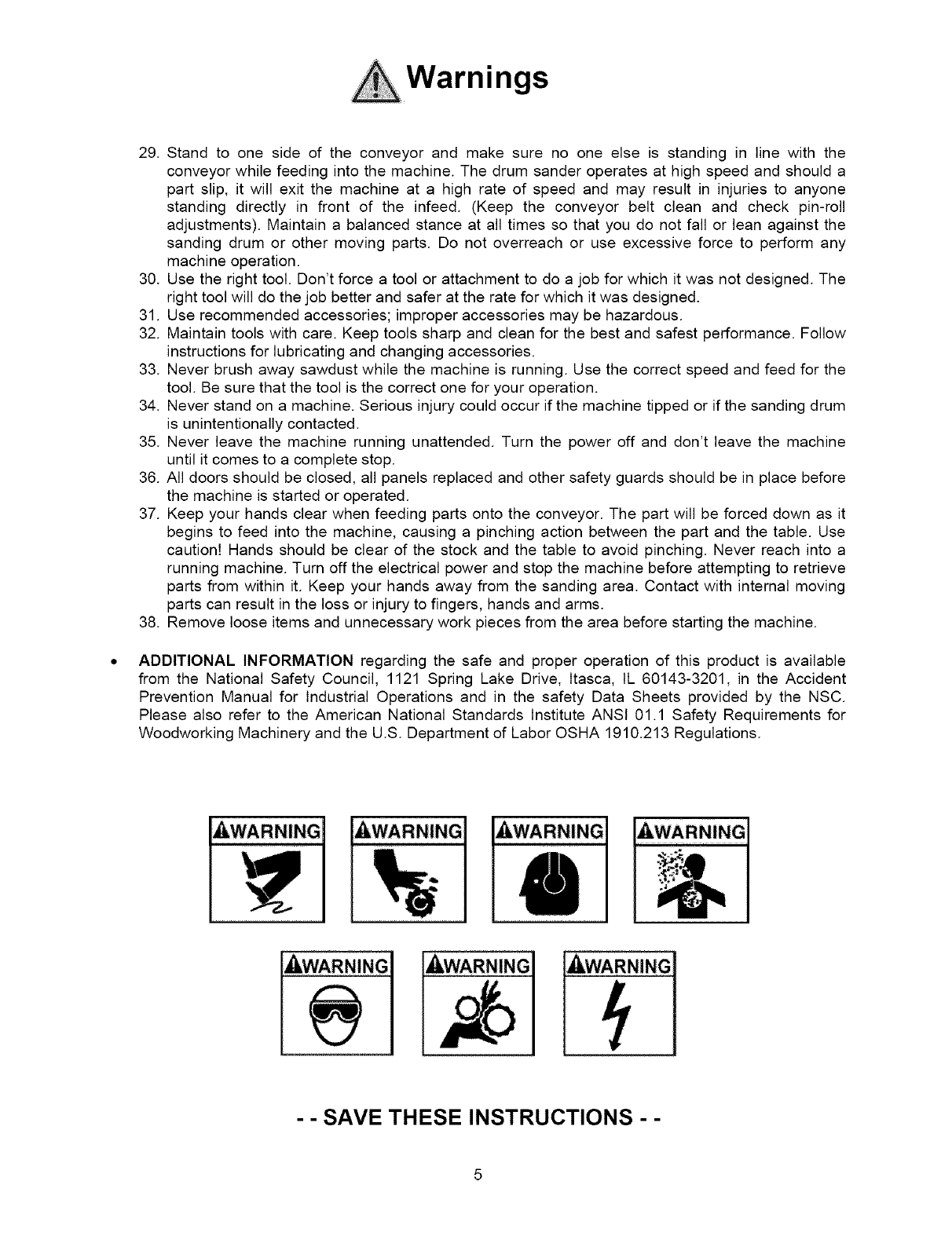

29. Stand to one side of the conveyor and make sure no one else is standing in line with the
conveyor while feeding into the machine. The drum sander operates at high speed and should a
part slip, it will exit the machine at a high rate of speed and may result in injuries to anyone
standing directly in front of the infeed. (Keep the conveyor belt clean and check pin-roll
adjustments). Maintain a balanced stance at all times so that you do not fall or lean against the
sanding drum or other moving parts. Do not overreach or use excessive force to perform any
machine operation.
30. Use the right tool. Don't force a tool or attachment to do a job for which it was not designed. The
right tool will do the job better and safer at the rate for which it was designed.
31. Use recommended accessories; improper accessories may be hazardous.
32. Maintain tools with care. Keep tools sharp and clean for the best and safest performance. Follow
instructions for lubricating and changing accessories.
33. Never brush away sawdust while the machine is running. Use the correct speed and feed for the
tool. Be sure that the tool is the correct one for your operation.
34. Never stand on a machine. Serious injury could occur if the machine tipped or if the sanding drum
is unintentionally contacted.
35. Never leave the machine running unattended. Turn the power off and don't leave the machine
until it comes to a complete stop.
36. All doors should be closed, all panels replaced and other safety guards should be in place before
the machine is started or operated.
37. Keep your hands clear when feeding parts onto the conveyor. The part will be forced down as it
begins to feed into the machine, causing a pinching action between the part and the table. Use
caution! Hands should be clear of the stock and the table to avoid pinching. Never reach into a
running machine. Turn off the electrical power and stop the machine before attempting to retrieve
parts from within it. Keep your hands away from the sanding area. Contact with internal moving
parts can result in the loss or injury to fingers, hands and arms.
38. Remove loose items and unnecessary work pieces from the area before starting the machine.
ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available
from the National Safety Council, 1121 Spring Lake Drive, ltasca, IL 60143-3201, in the Accident
Prevention Manual for Industrial Operations and in the safety Data Sheets provided by the NSC.
Please also refer to the American National Standards Institute ANSI 01.1 Safety Requirements for
Woodworking Machinery and the U.S. Department of Labor OSHA 1910.213 Regulations.
--SAVETHESEINSTRUCTIONS--
Introduction
This manual is provided by Performax covering the safe operation and maintenance procedures for a Model
10-20 Plus Drum Sander. This manual contains instructions on installation, safety precautions, general
operating procedures, maintenance instructions and parts breakdown. This machine has been designed and
constructed to provide years of trouble free operation if used in accordance to instructions set forth in this
manual. If there are any questions or comments, please contact either your local supplier or WMH Tool
Group. WMH Tool Group can also be reached at our web site: www.wmhtoolgroup.com.
Specifications
Stock Number ..................................................................................................................................... 628900
Max. Width (in) ..................................................................................................................... 20 (Two Passes)
Min. Length (in) ....................................................................................................................................... 2-1/4
Max. Thickness (in) ....................................................................................................................................... 3
Min. Thickness (in) ................................................................................................................................... 1/32
Drum (in) ............................................................................................................... 5 x 10 Extruded Aluminum
Drum Speed (RPM) ................................................................................................................................. 1700
Dust Chute (in) .............................................................................................................................................. 4
Conveyor Motor ..................................................................................... 43 inch-lb Torque, Direct Drive, D.C.
Conveyor Variable Feed Rate (FPM) ....................................................................................................... 0-12
Motor (TEFC) ................................................................................................................ 1 HP, 1Ph, 115V only
Net Weight (Ibs) .......................................................................................................................................... 74
The specifications in this manual are given as general information only, and they are not binding. WMH
Tool Group reserves the right to effect, at any time and without prior notice, changes or alterations to
parts, fittings and accessory equipment deemed necessary for any reason whatsoever.
Grounding Instructions
IACAUTION _ This tool must be grounded while in use to protect the operator from electric
_jjjjjjjjjjjjjjjjj__ shock.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock. This tool is equipped with an electric cord having an
equipment-grounding conductor and a grounding plug. The plug must be plugged into a matching outlet
that is properly installed and grounded in accordance with all local codes and ordinances.
Do not modify the plug provided. If it will not fit the outlet, have the proper outlet installed by a qualified
electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
conductor, with insulation having an outer surface that is green with or without yellow stripes, is the
equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not
connect the equipment-grounding conductor to a live terminal.
Check with a qualified electrician or service personnel if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded. Use only three wire extension cords
that have three-prong grounding plugs and three-pole receptacles that accept the tool's plug.
Repair or replace a damaged or worn cord immediately.
115 Volt Operation
As received from the factory, your sander is ready to run at 115-volt operation. This sander, when wired
for 115 volts, is intended for use on a circuit that has an outlet and a plug that looks the one illustrated in
Figure A. A temporary adapter, which looks like the adapter as illustrated in Figure B, may be used to
connect this plug to a two-pole receptacle, as shown in Figure B if a properly grounded outlet is not
available. The temporary adapter should only be used until a properly grounded outlet can be installed by
a qualified electrician. This adapter is not applicable in Canada. The green colored rigid ear, lug, or
tab, extending from the adapter, must be connected to a permanent ground such as a properly grounded
outlet box, as shown in Figure B.
THREE-PRONG PLUG
GROUNDING PRONG
GROUNDING
EAR
WITH SCREW
QGROUNDED Q
OUTLET
The use of an extension cord is not recommended. However, if you must use one make sure your
extension cord is in good condition. Be sure to use one heavy enough to carry the current your machine
will draw. An undersized cord will cause a drop in the line voltage resulting in power loss and overheating.
The following table shows the correct size to use depending on the cord length needed and the
nameplate ampere rating, tf in doubt, use the next heavier gauge. Remember, the smaller the gauge
number, the heavier the cord.
Volts Total Length of Cord in Feet
I 20v 125 150 I!o0 1!50 I
Amps1216 14 1: wG Not Recommended
Contents of the Shipping Carton
1
1
1
1
1
1
1
1
Sander Assembly
Handwheel with Handle
TUF Tool
Abrasive Strip (wrapped on the drum)
Conveyor Belt (attached to the base)
Owner's Manual
Warranty Card
Hardware Bag (for attaching the Sander
to the Optional Open Stand) --
containing:
4. 3/8"-16x5/8" Hex Cap Screws
4. 3/8" Flat Washers
I Read and understand the
entire contents of this manual
before attempting assembly or
operation of this drum sander.
Failure to comply may cause
serious injury.
Unpacking
1. Remove all the contents from the
shipping carton.
2. Report any damage to your distributor.
3. Do not discard any shipping material
until the sander has been assembled
and is running properly.
Assembly and Setup
If you purchased the optional Performax 10-20
Stand, refer to its assembly instructions before
proceeding with the drum and conveyor
assembly. Note: The figures shown in this
manual may display the Performax 10-20-Plus
Drum Sander with several optional accessories.
To purchase any of these accessories contact
your dealer.
1. Attach the handwheel (Figure 1, Item A)
to the height adjustment screw and
tighten.
Performax 10-20 Accessories
Stock #
638004
608005
98-0130
60-0505
Description
Open Stand with Shelf
Infeed/Outfeed Tables
Caster Set (4) for Open Stand
Abrasive cleaning stick
Figure 1
On/Off Switch
IBefore powering up the unit,
make sure all of the tools
used to assemble and adjust
the unit are removed and
accounted for. Make sure
your hands, loose clothing
and any other items that may
get caught are safely away
from the unit.
The On/Off Switch (Figure 2, Item A) is located
on the front of the sander. To turn the sander on,
pull the switch to the on position. To turn the
sander off, push the switch to the off position.
Switch Lock
The sander can be locked from unauthorized
use by locking the switch. To lock the switch:
1. Turn the switch to the off position and
disconnect the sander from the power
source.
2. Pull the key (Figure 2, Item B) out. The
switch cannot be turned on with the key
removed.
I Should the key be removed
from the switch in the on
position, the switch can be
turned off but cannot be
turned back on.
3. To replace the key, slide the key into the
slot on the switch until it snaps.
Circuit Breaker
The sander is equipped with a motor protective
device (circuit breaker). The breaker will
automatically shut the sander off when
excessive current is consumed.
If the breaker is tripped, turn the sander off and
reset the circuit breaker by pressing the button
(Figure 2, Item C).
I Be sure to turn the sander off
before resetting the circuit
breaker to avoid
unintentionally starting the
sander
Figure 2
A
This Page Intentionally Left Blank I
10

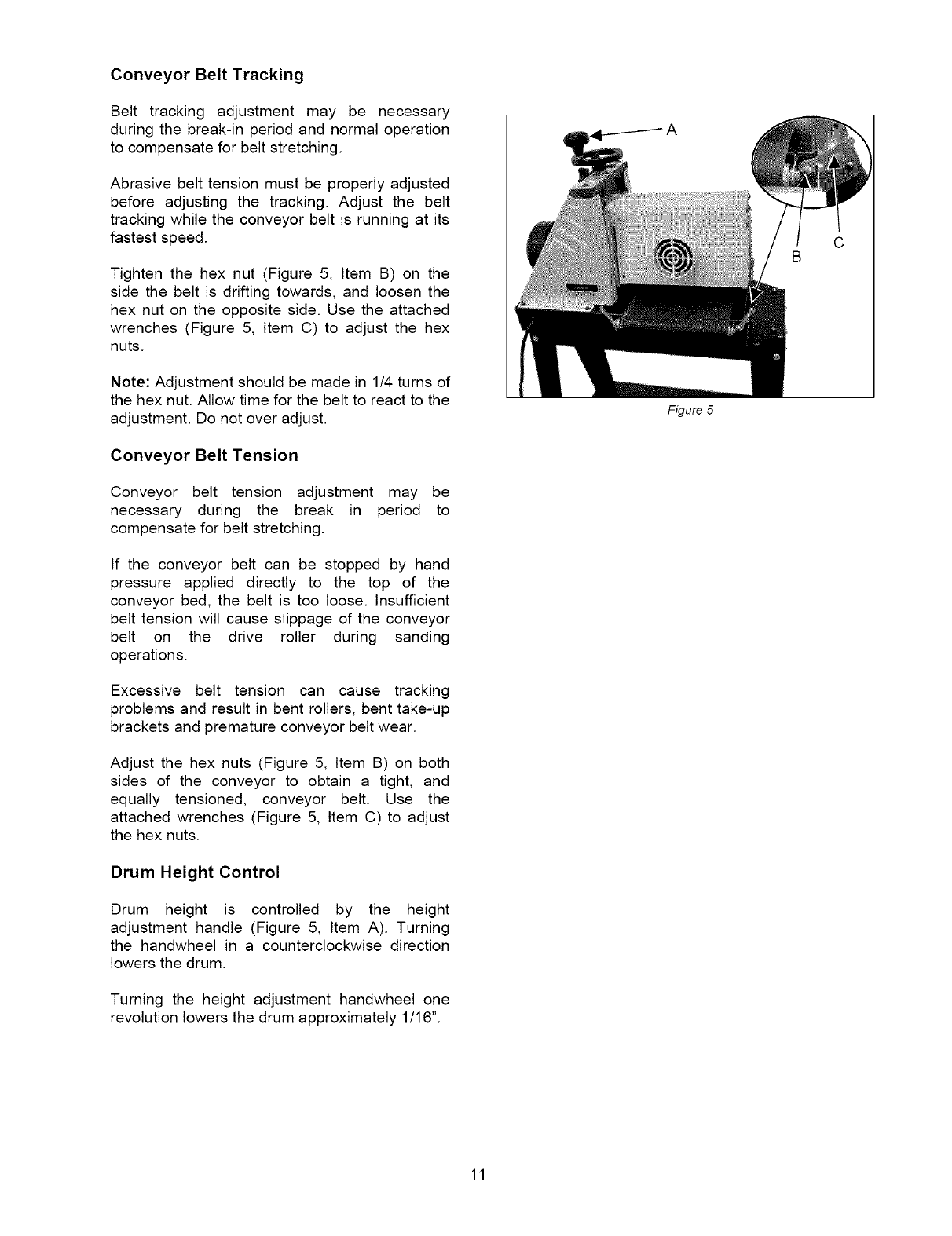

Conveyor Belt Tracking
Belt tracking adjustment may be necessary
during the break-in period and normal operation
to compensate for belt stretching.
Abrasive belt tension must be properly adjusted
before adjusting the tracking. Adjust the belt
tracking while the conveyor belt is running at its
fastest speed.
Tighten the hex nut (Figure 5, Item B) on the
side the belt is drifting towards, and loosen the
hex nut on the opposite side. Use the attached
wrenches (Figure 5, Item C) to adjust the hex
nuts.
Note: Adjustment should be made in 1/4 turns of
the hex nut. Allow time for the belt to react to the
adjustment. Do not over adjust.
Conveyor Belt Tension
Conveyor belt tension adjustment may be
necessary during the break in period to
compensate for belt stretching.
If the conveyor belt can be stopped by hand
pressure applied directly to the top of the
conveyor bed, the belt is too loose. Insufficient
belt tension will cause slippage of the conveyor
belt on the drive roller during sanding
operations.
Excessive belt tension can cause tracking
problems and result in bent rollers, bent take-up
brackets and premature conveyor belt wear.
Adjust the hex nuts (Figure 5, Item B) on both
sides of the conveyor to obtain a tight, and
equally tensioned, conveyor belt. Use the
attached wrenches (Figure 5, Item C) to adjust
the hex nuts.
Drum Height Control
Drum height is controlled by the height
adjustment handle (Figure 5, Item A). Turning
the handwheel in a counterclockwise direction
lowers the drum.
Turning the height adjustment handwheel one
revolution lowers the drum approximately 1/16".
Figure 5
11
Checking Drum Alignment
The sanding drum comes preset from the
factory. If a problem with the drum alignment
occurs, follow the instructions listed below.
.Lift the knob (Figure 6, Item A) to open the
dust cover and remove the abrasive strip. If
you are unsure how to do this, see the
"Wrapping Abrasive Strips" section in this
manual.
.Using a metal straight edge, or ruler, as a
thickness gauge (Figure 6, Item B), insert
the gauge between the drum and the
conveyor bed on the outer end of the drum.
.Open the dust cover and lower the sanding
drum while slowly rotating the drum by hand
until the drum lightly contacts the thickness
gauge.
.Remove the thickness gauge and place it
under the drum at the opposite end. If the
drum does not contact the thickness gauge
to the same degree as the other end of the
drum, alignment is necessary.
Aligning the Drum
1. Loosen the two hex cap bolts (Figure 7, Item
C).
2. Lay the thickness gauge under the drum
lengthwise.
.Adjust the knob, (Figure 7, Item D) until the
drum contacts the gauge equally along its
entire surface. Turn the adjusting knob
clockwise to lower the outboard end of the
drum, and counterclockwise to raise the
outboard end of the drum.
4. When the drum is parallel to the conveyor,
tighten the two hex cap bolts.
Fine Tuning Drum Alignment
When sanding boards wider than the drum,
drum alignment is critical and must be adjusted
slightly higher on the outboard end. This will
prevent any ridges from developing in the stock.
Always check it on a piece of scrap wood, as
follows, before sanding the work piece.
Run a piece of scrap wood approximately 6"
wide by 16" to 18" long through the sander
sideways so that the end of the board extends
past the end of the drum.
Turn the board 180 degrees and sand the same
side without changing the sanding height.
If a ridge is visible where the drum overlaps,
loosen the two hex cap bolts (Figure 7, Item C)
and turn the adjusting knob (Figure 7, Item D)
slightly. Turn the adjusting knob clockwise to
lower the outboard end of the drum and
counterclockwise to raise it. Tighten the two hex
cap bolts. Repeat this process until the ridge is
gone and the entire board is sanded.
Figure 6
C
Figure 7
12
Wrapping Abrasive Strips
Note: When using Performax "Ready to Wrap"
and "Ready to Cut" abrasives, not all of the
steps below are necessary. You can use the
original abrasive belt that came with the sander
as a template for cutting your own strips.
1. Mark and cut a taper at one end of the
roll, as shown in Figure 8.
2. Square off the end of the taper, as
shown in Figure 8.
.Squeeze the fastener lever (Figure 9,
Item A) on the outboard end of drum,
and insert the tapered end of the
abrasive (Figure 9, Item B) so that it
uses most of the width of the slot.
Release the fastener lever to securely
hold the strip end to the fastener.
4. The square edge of the abrasive strip
should follow the edge of the drum, as
shown in Figure 9.
5. Wrap the abrasive strip around the
drum, being careful not to overlap the
windings, as shown in Figure 10.
6. Mark the trailing end of the strip where it
crosses the inboard end of drum (Figure
11, Item C).
.Remove the abrasive strip and cut a
taper as was done with the starting
edge, (See Figure 8). Note: The taper
on the remaining roll can be used as the
taper for the starting edge of the next
strip to be cut.
8. Rewrap the drum starting at the left side
as described in steps 3-5.
.Squeeze the fastener lever on the
inboard end of the drum, and insert the
tapered end of the abrasive strip
through the slot into the take-up
fastener.
IM P ORTA Nj_j_j_j_j_jT
Position the abrasive strip
with sufficient room between
the inside of the slot and the
tapered end of the strip to
allow it to be pulled into the
drum as needed, (See Figure
12).
I SandPaper St[ P '-_:_ __
Figure 8
F_u_ 9
Figure 10
13 Figure 11

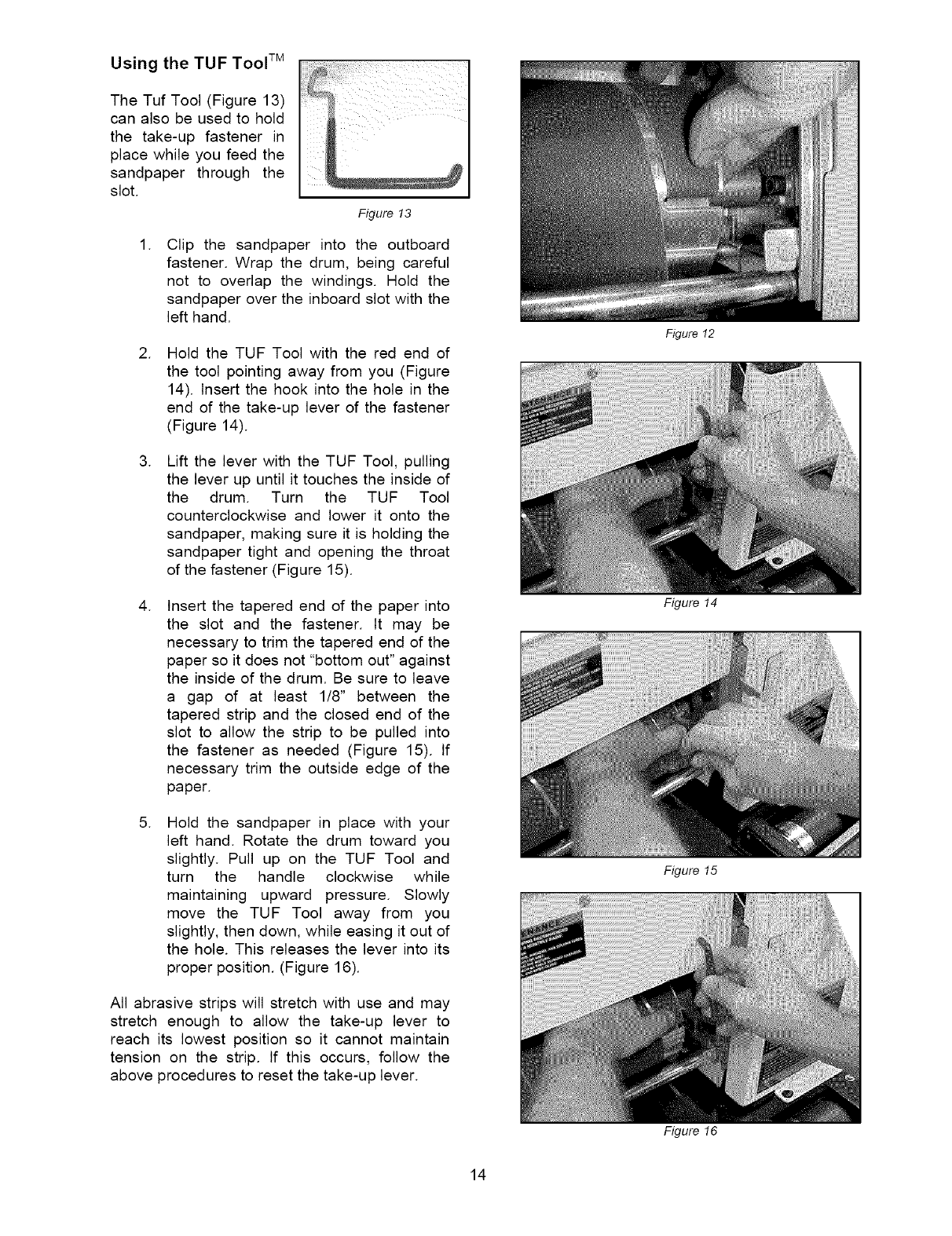

Using the TUF Tool TM
The Tuf Tool (Figure 13)
can also be used to hold
the take-up fastener in
place while you feed the
sandpaper through the
slot.
Figure 13
.Clip the sandpaper into the outboard
fastener. Wrap the drum, being careful
not to overlap the windings. Hold the
sandpaper over the inboard slot with the
left hand.
.Hold the TUF Tool with the red end of
the tool pointing away from you (Figure
14). Insert the hook into the hole in the
end of the take-up lever of the fastener
(Figure 14).
.Lift the lever with the TUF Tool, pulling
the lever up until it touches the inside of
the drum. Turn the TUF Tool
counterclockwise and lower it onto the
sandpaper, making sure it is holding the
sandpaper tight and opening the throat
of the fastener (Figure 15).
.Insert the tapered end of the paper into
the slot and the fastener, tt may be
necessary to trim the tapered end of the
paper so it does not "bottom out" against
the inside of the drum. Be sure to leave
a gap of at least 1/8" between the
tapered strip and the closed end of the
slot to allow the strip to be pulled into
the fastener as needed (Figure 15). If
necessary trim the outside edge of the
paper.
.Hold the sandpaper in place with your
left hand. Rotate the drum toward you
slightly. Pull up on the TUF Tool and
turn the handle clockwise while
maintaining upward pressure. Slowly
move the TUF Tool away from you
slightly, then down, while easing it out of
the hole. This releases the lever into its
proper position. (Figure 16).
All abrasive strips will stretch with use and may
stretch enough to allow the take-up lever to
reach its lowest position so it cannot maintain
tension on the strip. If this occurs, follow the
above procedures to reset the take-up lever.
14
Figure 12
Figure 14
Figure 15
Figure 16
Connecting Sander to a Dust Collector
Dust collection is necessary for all drum
sanders. The Performax 10-20 is equipped with
a 4" dust collection port in the back of the dust
cover, and is designed to be used with a
standard dust collector as shown in Figure 17.
JET offers a variety of Dust Collectors and Air
Filtration Units that will work nicely with your
new sander. Contact your local distributor for
more information.
Establishing the Proper Drum Height
To establish the proper drum height, place the
board to be sanded under the drum and lower
the drum until it just touches the board. Note:
The sanding drum should still rotate by hand.
Without changing the drum height, finish feeding
the stock under the sander. Start the sanding
drum and sand the board at that same position.
Setting the Depth Gauge
The depth gauge indicates the distance from the
bottom of the drum to the top of the conveyor.
1. Lower the drum, with the sandpaper
installed, until it touches the conveyor.
2. Loosen the screw (Figure 18, Item B).
3. Adjust the pointer (Figure 18, Item C) to
read zero and tighten the screw.
Note: depending on the desired accuracy, you
may need to repeat this process when installing
different sandpaper grits.
Setting the Depth of Cut
Adjusting the Performax 10-20 for proper
contact between the abrasive and the stock is
the most important set-up procedure before
operating the sander. It may take some
experimentation to determine the proper depth
of cut, given the variables of abrasive grit and
types of wood. For best results, use scrap wood
to practice sanding and to develop your skills
and familiarity with the machine before doing
any finish work.
A good rule of thumb when sanding with grits
finer than 80 is lower the drum so that it contacts
the work piece but can still be rotated by hand.
When using grits coarser than 80 grit, you can
lower the drum slightly more. However, a
combination of several variables will determine
the proper depth of cut to use, including the
following:
•Abrasive type and grit size.
• Width of the piece being sanded.
• Hardness of the piece being sanded.
• Feed rate of the piece being sanded.
Figure 17
15
Figure 18
Abrasives
The abrasive material you choose will have a
substantial effect on the performance of your
sander. Variations in paper type, weight, coating
and durability all contribute to achieving your
desired finish. For the best sanding results,
Performax offers premium abrasives that have
been tested and certified for lowest overall cost
and maximum performance. Genuine Performax
abrasives are available in pre-cut "Ready- to-
Wrap" lengths or in the convenient pre-marked
"Ready-to-Cut" box.
Selecting Drum Abrasives
To achieve maximum sanding results, it is
important to select the proper grit of abrasive for
the type of sanding being performed. As with
any sanding operation, first begin sanding with a
coarser grit, depending on the roughness of the
stock, or the amount of stock to be removed.
Then progressively work toward finer grits. The
chart below shows the general uses for the
various grits. Performax offers strip rolls in the
nine different abrasive grits shown.
pass, whether you are doing abrasive planing,
cleaning up glued panels or flattening stock.
Grits from 100 through 220 are primarily
finishing grits designed to remove the scratch
pattern from the previous grit used. For best
results, never skip more than one grit grade
when progressing through a sanding sequence.
For fine work, such as furniture, try not to skip
any grit grades during the sanding process. In
general, premium quality abrasives such as
genuine Performax abrasives will produce a
better finish with a less noticeable scratch
pattern. Note: Grits that are too fine can
sometimes burnish the wood and leave a glossy
surface that will not accept stains evenly. This
will vary by the type of wood. Oak, for example,
is susceptible to burnishing because of its open
pores.
Cleaning Abrasive Strips
A sandpaper cleaning stick may be used to
remove deposits and help extend sandpaper life.
To use, operate the sanding drum with the dust
cover open.
L.Jll
24 Grit
36 Grit
60 Grit
80 Grit
100 Grit
120 Grit
150 Grit
180 Grit
220 Grit
l'£lJ I I I I I LI] I |._1 Idl l] I LI_ Ill LI] I
Abrasive planing, surfacing rough-
sawn boards, maximum stock
removal, glue removal.
Abrasive planing, surfacing rough
sawn boards, maximum stock
removal, glue removal.
Surfacing and dimensioning boards,
truing warped boards
Surfacing, light dimensioning,
removing planer ripples.
Light surfacing, removing light planer
ripples.
Light surfacing, minimal stock removal.
Finish sanding, minimal stock removal.
Finish sanding only, not for stock
removal.
Finish sanding only, not for stock
removal.
For your own safety, always
wear eye protection while
performing sandpaper
cleaning, and take all
precautions to avoid any
contact of hands or clothing
with uncovered drums. Hold
the cleaning stick against the
rotating drum and move it
along the drum surface. It is a
good idea to use a shop brush
or air nozzle to remove any
cleaning stick crumbs from
the drums before resuming
sanding operations.
Cloth-backed abrasives can be cleaned by
soaking in paint thinner or mineral spirits for 20
minutes to one hour. Then use a nylon brush to
remove any buildup.
Stretching Abrasive Life
Selecting Abrasive Grits
The amount of stock to be removed is a major
consideration when choosing the grit grade to
start with. Grits of 24, 36, 50, 60 and 80 are
primarily designed for stock removal. Grits of 24
and 36 will remove the most material in one
Abrasive life can also be increased by removing
the abrasive strip from the drum and reversing it.
To do this, remove the strip and use what was
the trailing end as the starting end on the left
(outboard) side of the drum. Reversing the strip
will provide a fresh set of cutting edges on the
drum.
16
Performax 10-20 Abrasives
"Ready-to-Wrap" 24-220 Grit contains six pre-
cut wraps.
Ready-to-Wrap
60-1024 ............ 24 Grit 60-1120 ............ 120 Grit
60-1036 ............ 36 Grit 60-1150 ............ 150 Grit
60-1060 ............ 60 Grit 60-1180 ............ 180 Grit
60-1080 ............ 80 Grit 60-1000 ............ 220 Grit
60-1100 ............ 100 Grit
Ready-to-Cut (Aluminum oxide)
60-9036 ............ 36 Grit 60-9120 ............ 120 Grit
60-9060 ............ 60 Grit 60-9150 ............ 150 Grit
60-9080 ............ 80 Grit 60-9180 ............ 180 Grit
60-9100 ............ 100 Grit60-9220 ............ 220 Grit
Ready-to-Cut "Blue" (longer life)
60-8024 ............ 24 Grit 60-8080 ............ 80 Grit
60-8036 ............ 36 Grit 60-8100 ............ 100 Grit
60-8050 ............ 50 Grit 60-8120 ............ 120 Grit
60-8060 ............ 60 Grit
Stock Feeding Angle
The optimum stock feeding angle, when
sanding, is at a 60-degree angle. However, even
a slight stock feeding angle will provide more
effective stock removal, less loading of
abrasives, longer abrasive life, potentially faster
feed rates and reduced motor loads.
When finish sanding, the work piece should be
fed through in line with the grain on the final one
or two passes for the optimum finish.
Multiple-Piece Sanding Runs
When abrasive planing (or thickness sanding) a
run of similar pieces that you want to have the
same thickness, it is best to sand all the pieces
at the same time. This way you will be able to
determine the thickness of the thinnest piece
and process all pieces to that same thickness.
Be aware that the sander will remove cups and
crowns in the work piece; consider this when
measuring the processing stock to the same
thickness.
Edge Sanding
When edge sanding, the Performax sander will
mimic the opposite edge of the stock which is
lying on the conveyor belt. Because of this, it is
important for the stock edge to have been ripped
at the proper angle to the face before the
sanding process. When edge sanding stock that
is less than 3/4" wide, or more than 2" high, it is
good procedure to stack and clamp several
pieces together to prevent them from slipping, or
tipping.
Sanding Imperfect Stock
When sanding stock with a cup or crown, place
the crown up. This will stabilize the stock to help
prevent tipping or rocking during sanding. (After
the crown has been removed and the top is flat,
turn the stock over and sand the opposite side.)
To avoid personal injury, take special care when
sanding stock that is twisted, bowed or
otherwise varies in thickness from end to end. If
possible, support such stock as it is being
sanded to keep it from slipping, or tipping. Use
extra roller stands, help from another person, or
hand pressure on the stock to minimize
potentially hazardous situations.
Face Frames and Raised Panel Doors
It is very important to have the proper abrasive
contact when doing this type of sanding, tf the
sander is set to take an excessive depth of cut,
the result can be a gouge, or dip as the drum
goes from sanding the rails at full width to
sanding just a few inches of width on the stiles.
To prevent this problem, make sure that when
using abrasives finer then 80 grit, the drum is in
contact with the wood but can still be spun by
hand.
Monthly Maintenance
For best results, perform the following
recommended maintenance procedures on a
monthly basis:
•Lubricate the conveyor bushings and
check for wear.
• Lubricate all moving parts, such as
threaded rods, washers and bushings.
• Clean the sawdust from the conveyor
belt and sanding drum.
Blow the dust from the motors and
switches. Blow the dust from the inside
of the sanding drum to prevent vibration.
Be careful not to disturb the drum
balancing weights.
• Check all the setscrews for tightness on
parts such as bearings, the conveyor
and couplings.
17
Conveyor Belt Replacement
To replace the conveyor belt:
1. Disconnect the machine from the power
SOUrCe.
2. Raise the drum to its highest position using
the handwheel (Figure 19, Item A).
3. Remove the belt tension by loosening both
take-up nuts (Figure 19, Item B).
4. Unscrew the three screws (Figure 19, Item
C) that attach the conveyor to the bracket.
5. Unbolt the two hex head bolts (Figure 19,
Item D) that hold the bracket to the bench or
stand.
6. Slide the conveyor belt off the conveyor and
replace it with a new belt.
7. Reverse the procedure for installation.
Tension Roller Alignment
1. Remove the abrasive strip (Figure 20 Item
E) from the drum.
.Loosen the two bearing hex nuts (Figure 20,
Item F) on the outboard side of the drum
and two cap screws on the inboard side
(Figure 20, Item G).
3. This will allow the tension rollers to drop to
their lowest position.
4. Lower the sanding drum so that it just
touches the conveyor bed.
5. Turn the drum height handle one complete
revolution to raise the drum.
6. Retighten the bearing hex nuts and the cap
screws.
Tension Roller Pressure Adjustment
You can also adjust the spring-loaded screws
(Figure 20, Item H) found on the pressure roller
brackets, to increase or decrease roller
pressure. If you are getting snipe marks at the
leading end of the board adjust the outfeed roller
pressure. If the snipe marks occur on the trailing
end of the board, adjust the infeed roller
pressure.
Drum Height Control Adjustment
If the height control mechanism does not
operate easily or smoothly, or there is excessive
vertical movement of the drum carriage, perform
the following adjustments.
1. To reduce the handwheel backlash, tighten
the Iocknut on the height adjustment screw
(Figure 21, Item J).
2. Thoroughly lubricate all mating surfaces and
height adjustment screw (Figure 21, Item K).
D
Figure 19
K
Figure 20
J
K
18
Figure 21
Troubleshooting Guide
Conveyor belt does not
move.
Conveyor rollers run
intermittently.
Abrasive strip comes off
drum.
Abrasive strip is loose.
Abrasive loads up
prematurely.
Line or groove in stock.
Wood burns.
Board slips on conveyor
belt.
Sander motor slows or
stalls
Rippled sanded surface
A. Non-uniformly
spaced ripples.
B. Uniformly spaced
ripples.
Gouging of the wood.
Snipes
Motor overload
protector trips or shop
wiring breaker trips.
Shaft coupler is not attached.
Shaft coupling is loose.
1. Slack in abrasive strip on drum.
2. Abrasive improperly wrapped.
1. Strip caught on inside edge of
slot, or on inboard side of drum.
2. Strip not cut properly.
1. Excessive depth of cut.
2. Excessive feed rate.
3. Inadequate dust collection.
4. Inadequate abrasive.
1. Inconsistent feed rate.
1. Abrasive strip is overlapped.
2. Excessive depth of cut.
3. Excessive depth of cut for fine
grit.
4. Feed rate is too slow.
5. Abrasive is loaded.
6. Worn abrasives.
1. Tension rollers are too high.
2. Excessive feed rate.
3. Dirty or worn conveyor belt.
1. Improper conveyor belt tension.
2. Excessive depth of cut.
3. Excessive feed rate.
A. Uneven feed rate.
B. Conveyor bed flexing or
vibration.
1. Inconsistent feed rate.
2. Stock slipping on conveyor.
3. Work piece not properly
supported.
1. Improper tension on rollers
1. Excessive load on sanding drum
and motor.
2. Too many tools on circuit.
3. Excessive length or inadequate
size extension cord.
Attach the shaft coupler.
Align the shaft flats of the gear motor
and the drive roller and tighten the
shaft-coupling setscrews.
1. Remove the slack in the strip.
2. Read the section on wrapping
abrasive strips.
1. Re-adjust the strip end in the slot
and/or trim the abrasive edge.
2. Re-cut and re-install the abrasive
strip.
1. Reduce the depth of cut.
2. Use a slower feed rate.
3. Increase airflow at the dust ports.
4. Use an open-coat abrasive.
1. Do not stop or change the feed
rate.
1. Re-wrap the abrasive strip.
2. Reduce the depth of cut.
3. Use a coarser grit or reduce the
depth of cut.
4. Increase the feed rate.
5. Clean the abrasives.
6. Replace the abrasives.
1. Lower the tension rollers.
2. Reduce the feed rate.
3. Replace the conveyor belt.
1. Adjust the belt tension.
2. Reduce the depth of cut.
3. Reduce the feed rate.
A1. Conveyor belt slipping, see
above.
A2. Board slips on conveyor, see
above.
A3. Power feed gear motor stalls,
see above.
B1. Reduce the depth of cut.
B2. Reduce the feed rate.
B3. Check for loose bolts, shaft-
coupling setscrews or out of
balance drum.
1. Maintain constant feed rate (by
hand).
2. Excessive depth of cut
(PowerFeed) or inadequate hold
down pressure.
3. Add work supports for long work
pieces.
1. See tension roller adjustment.
1. Allow motor to cool and reset
overload button.
2. Have a certified electrician
correct the shop-wiring problem.
3. Use a shorter, heavier gauge
extension cord.
19
Exploded View- 10-20 PLUS Sander
2O
1020-101 Handwheel, Height Adjustment
2 1020-102 Socket Head Button Screw 5/16-18UNCx3/4 2
3 TS-0680031 Flat Washer 5/16 8
4 1020-104 Main Support 1
5 1020-105 Lock Nut 1/2-20UNF 1
6 TS-0680061 Flat Washer 1/2 1
7 1020-107 Nylon Washer 1
8 1020-108 Washer, Oilite 1
9 TS-0267051 Set Screw 1/4-20UNCx1/2 2
10 1020-110 Bracket, Drum Height Control 1
11 1020-111 Height Adjusting Screw 1
12 1020-112 Bushing, Oilite 2
13 1020-113 Slide Plate, Motor Mount 1
14 1020-114 Arm 1
15 TS-081B03 Pan Head Machine Screw #8-32UNCx1/2 7
16 1020-116 Dust Cover 1
17 1020-117 Plate, Outboard 1
18 1020-118 Hex Socket Round Head Screw 1/4-20UNCx3/4 4
19 TS-0720071 Lock Washer 1/4 4
20 50-3089 Bearing Assembly, Drum 1
21 TS-0152011 Bolt, Carriage Head 5/16-18UNCx1 2
22 TS-0561021 Hex Nut 5/16-18UNC 2
23 80-0310-P Conveyor Belt 1
24 20-0778 Retaining Ring STW25 1
25 1020-125 Drum 1
26 1020-126 Main Coupler 1
27 1020-127 Socket Head Cap Screw #8-32UNCx3/8 2
28 TS-0208041 Socket Head Cap Screw 5/16-18UNCx3/4 4
29 TS-0720081 Lock Washer 5/18 6
30 10-4008-16 Screw, Fillister Head-Phillip #8-32UNCx1 4
31 20-3211 Spring, Tension Rollers 4
32 40-0304 Bracket, Tension Rollers 1
33 40-0308-01 Bracket, Right Tension Roller Suspension 2
34 40-0308-02 Bracket, Left Tension Roller Suspension 2
35 80-1060 Pad, Bracket-Tension Roller 2
36 1020-136 Roller, Tension 2
37 TS-0208021 Socket Head Cap Screw 5/16-18UNCx1/2 2
38 1020-138 Motor Cord 1
39 1020-139 Bracket, Inboard Tension Roller 1
40 1020-140 Rod, Side Plate 1
41 1020-141 Rod, Square-Slide Plate 1
42 1020-142 Conveyor adjusting screw 2
43 1020-143 Bracket, Right Take-Up 1
44 50-3105 Bushing, Oilite ... 7
45 1020-145 Driven Roller 1
46 1020-146 Bracket, Left Take-Up 1
47 TS-0733041 Lock Washer, External Tooth 1/4 4
48 TS-0561011 Hex Nut 1/4-20UNC 6
49 TS-0813021 Screw 1/4-20UNCx3/8 3
50 1020-150 Foot Plate 1
51 1020-151 Drive Roller Support 1
52 1020-152 Drive Roller 1
21
10-4010-04 Set Screw #10-32UNFx1/4
54 1020-154 Guide Plate 1
55 10-4010-08 Socket Head Cap Screw #10-32UNFx1/2 4
56 3237359 Conveyer Gear Motor 1
57 1020-157 Cover, Base-Control Housing 1
58 72-2004 Switch, On/Off-Drum 1
59 1020-159 Overload 1
60 1020-160 Pan Head Machine Screw #10-32UNFx1/2 5
61 12-9001 Lock Nut #6-32UNC 2
62 72-6101 Strain Relief, DC-Motor Cord 6N-4 1
63 1020-163 Base Assembly 1
64 73-1255 Controller, Conveyer-Variable Speed 1
65 80-3137 Knob, Dust Cover 1
66 1020-166 Dust Hood, Door 1
67 20-0775 Hinge Pin 2
68 1020-168 Dust Hood, Hinge 1
69 1020-169 Needle, Depth Gauge 1
70 1020-170 Round Head Machine Screw #10-24UNCx3/8 1
71 20-0762-02 Key 3/16SQx3/4" 2
72 1020-172 Main Drum Motor 1
73 1020-173 Spring 1
74 1020-174 Adjustment Bracket 1
75 1020-175 Socket Head Button Screw 5/16-24UNFx1/2 4
76 1020-176 Power Cord 1
77 1020-177 Strain Relief, Power Cord and Motor Cord 6N3-4 2
78 94-1670 Label, Depth Gauge 1
79 1020-179 Socket Head Button Screw 5/16-18UNCx1/2 2
80 21-1173 Fastener, Abrasive-Outboard 1
81 1020-181 Knob, Adjusting 1
82 TS-0207041 Socket Head Cap Screw 1/4-20UNCx3/4 4
83 1020-183 Label, Height-Direction 1
84 1020-184 Set Screw 1/4-20UNCx1/4 2
85 80-3131 Knob, 2 pc Swivel Handle 1
86 40-0260 Wrench 2
88 1020-188 Shoulder Screw 2
89 TS-0733061 Lock Washer, External Tooth 3/8 2
90 10-4009-06 Flat Head-Machine Screw #6-32UNCx3/8 2
91 1020-191 Strain Relief 6P3-4 1
92 21-1172 Fastener, Abrasive-Inboard 1
93 TS-0680042 Flat Washer 3/8 6
94 1020-194 Machine Screw 1/4-20UNCx5/8 1
95 TS-0680011 Flat Washer 3/16 4
96 1020-196 Hex Head Screw 3/8-16UNCx5/8 4
22
Wiring Diagram
DRUM
POWER IN
z
uJ
uJ
WHITE
SWITCH
(NOT USED)
23
]-_0_ °
WMH Tool Group
2420 Vantage Drive
Elgin, Illinois 60123
Phone: 800-274-6848
www.wmhtoolgroup.com.
