Perples RECO RECO User Manual

Perples,Inc. RECO

User Manual

Configuration App
Manual
RECO List Page
RECO can be configured to have a iBeacon signal range
between 3 to 70 meters. To change the setting of a
specific RECO, the RECO need to be near to the
configuration app. Blue colored RECO name means that it
can be configured.
Beacon Names, UUID, Major, Minor, RSSI can be
checked on the RECO List Page.
When the RECO is too far, configuration is not possible
but iBeacon data will be displayed only.

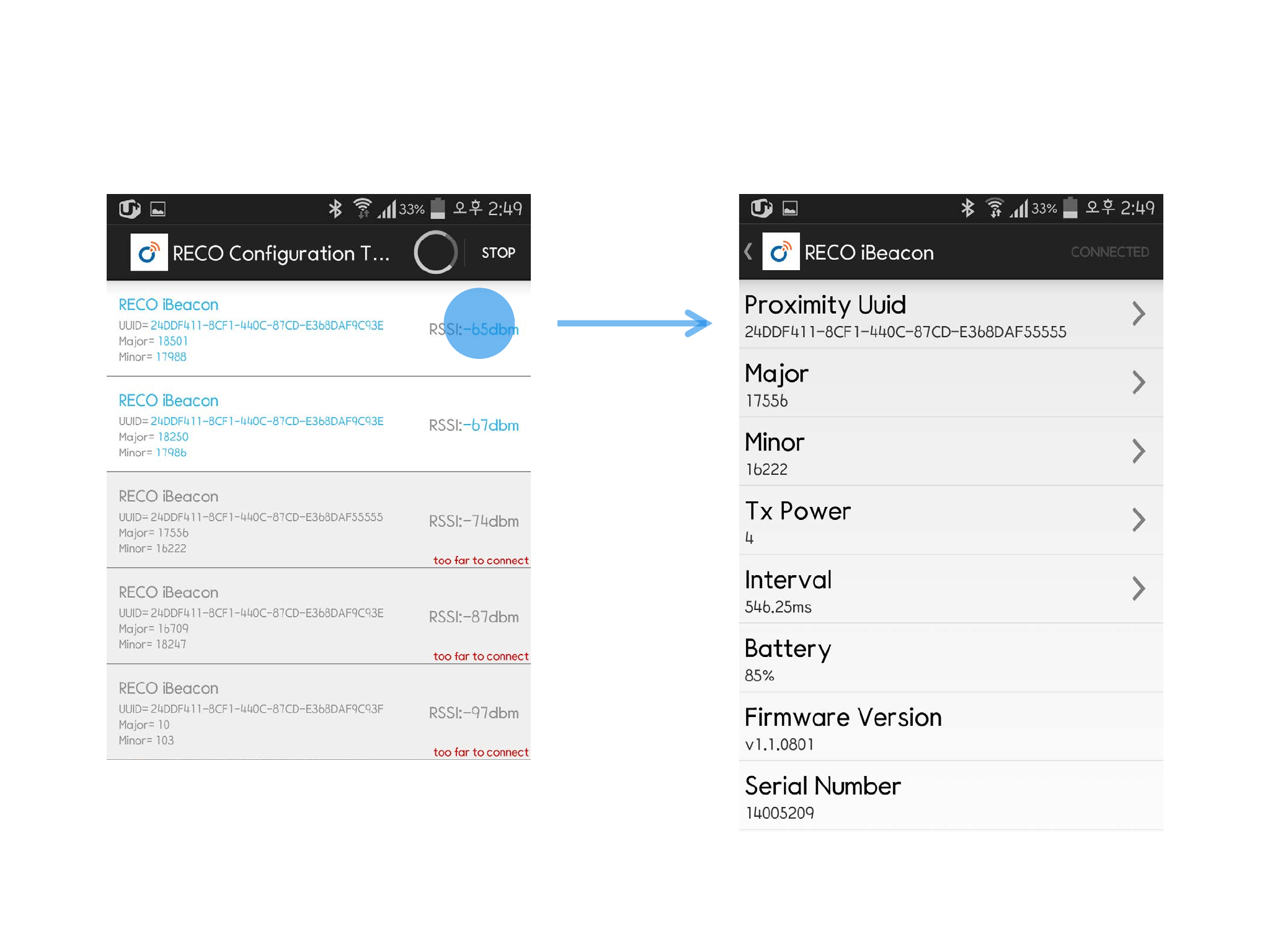

Connecting to RECO
Tab to
Connect
When the RECO is connected, top right corner will show
‘CONNECTED’ sign and you can check the setting.
RECO’s UUID, Major, Minor, Tx Power, Interval data can
be changed.
RECO’s Battery status, Firmware version, Serial Number
can be checked.
Connected RECO
Page
Tab to
Change

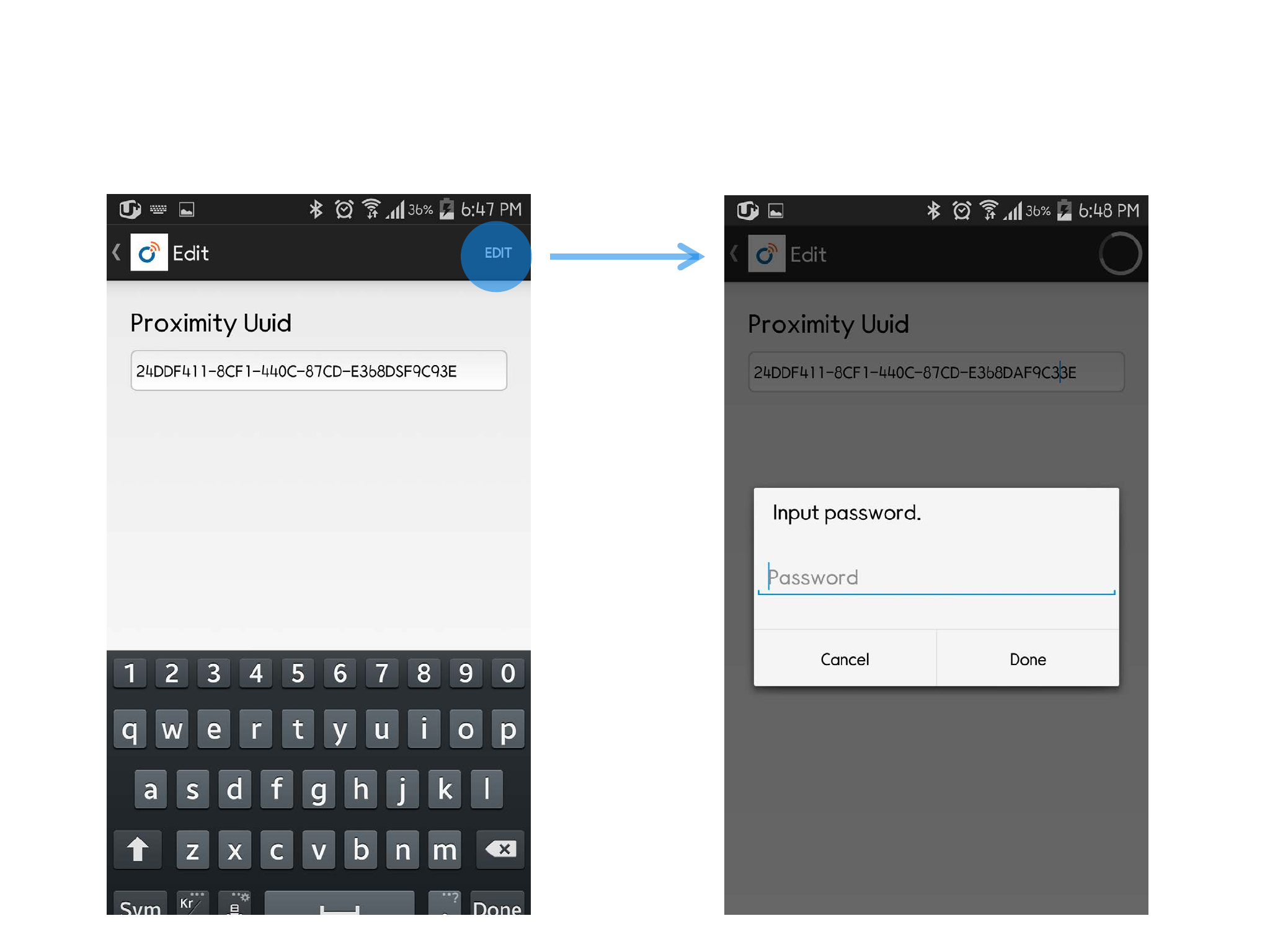

Changing RECO
Data (1)
Tab to
Change
Changing RECO Data
(2)
3자가 설정값을 변경하는 것을 방지하기 위해, RECO는 고
유의 비밀번호를 가지고 있습니다. 비밀번호를 입력하면
RECO의 설정값이 변경됩니다.
RECO member center (http://member.reco2.me) will
provide a password after the registeration of your RECO.
Changing RECO Data
(3)
FCC Notice
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired operation.
(FCC Part 15.21) Caution: changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
zOnly batteries of the same or equivalent type as recommended are to be used.
zInsert batteries with the correct polarity as indicated on the product.
zRemove batteries during long periods of non-use. Remove exhausted batteries promptly.
zThis product requires two AAA(UM-4) batteries
zDispose of batteries safety, Batteries may explode or leak if disposed of in a fire.
zProtect the enviroment by not disposing of the batteries or this product with houhold waste (2002/96/EC)
Check you local authority for recycling advice and facilities
KEEP PACKING FOR FUTURE REFERENCE. MADE IN KOREA
