Thank you for choosing FWN-650N wireless N USB adapter.
FWN-650N allows users to connect desktop or notebook computer to the internet anywhere in
your house without the hassle of messy wires. Designed with high performance wireless N
technology for better signal and coverage, the adapter is ideal for you to watch movies, transfer
photos, and download music from your couch, home office or the backyard with ease. Wi-Fi
Protected Setup (WPS) button provides a quick and secure wireless connection at the push of a
button.

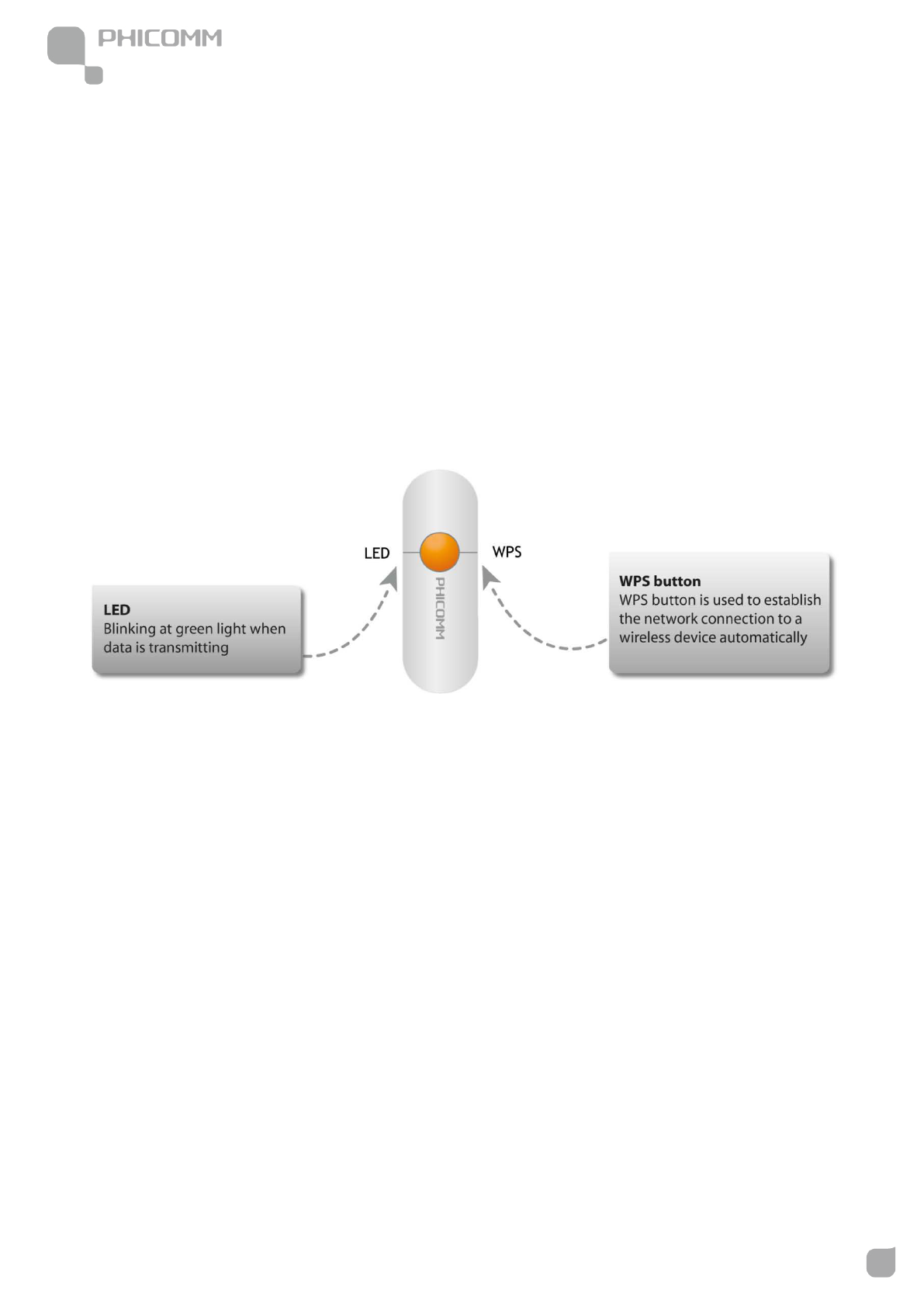

Main Features
USB 2.0 portable design
Wireless N speed up to 150Mbps, ideal for internet surfing, on-line gaming
Quick wireless security setup by simply pressing the WPS button
Supports dual-operating mode: Station mode and Access Point mode
Supports WEP encryption, as well as WPA/WPA2 and WPA-PSK/WPA2-PSK encryptions
Supports Windows 7/Vista/XP/2000
Backward compatible with 802.11b/g product
Setup wizard simplifies installation
150Mbps Wireless N USB Adapter
www.phicomm.com
2
Chapter 2: Installation
Chapter 2: Installation
Driver Installation
Note:
Please download the driver from our website www.phicomm.com if your computer is not
equipped with CD driver.
DO NOT plug the USB Adapter into your computer before installing the driver from
CD-ROM.

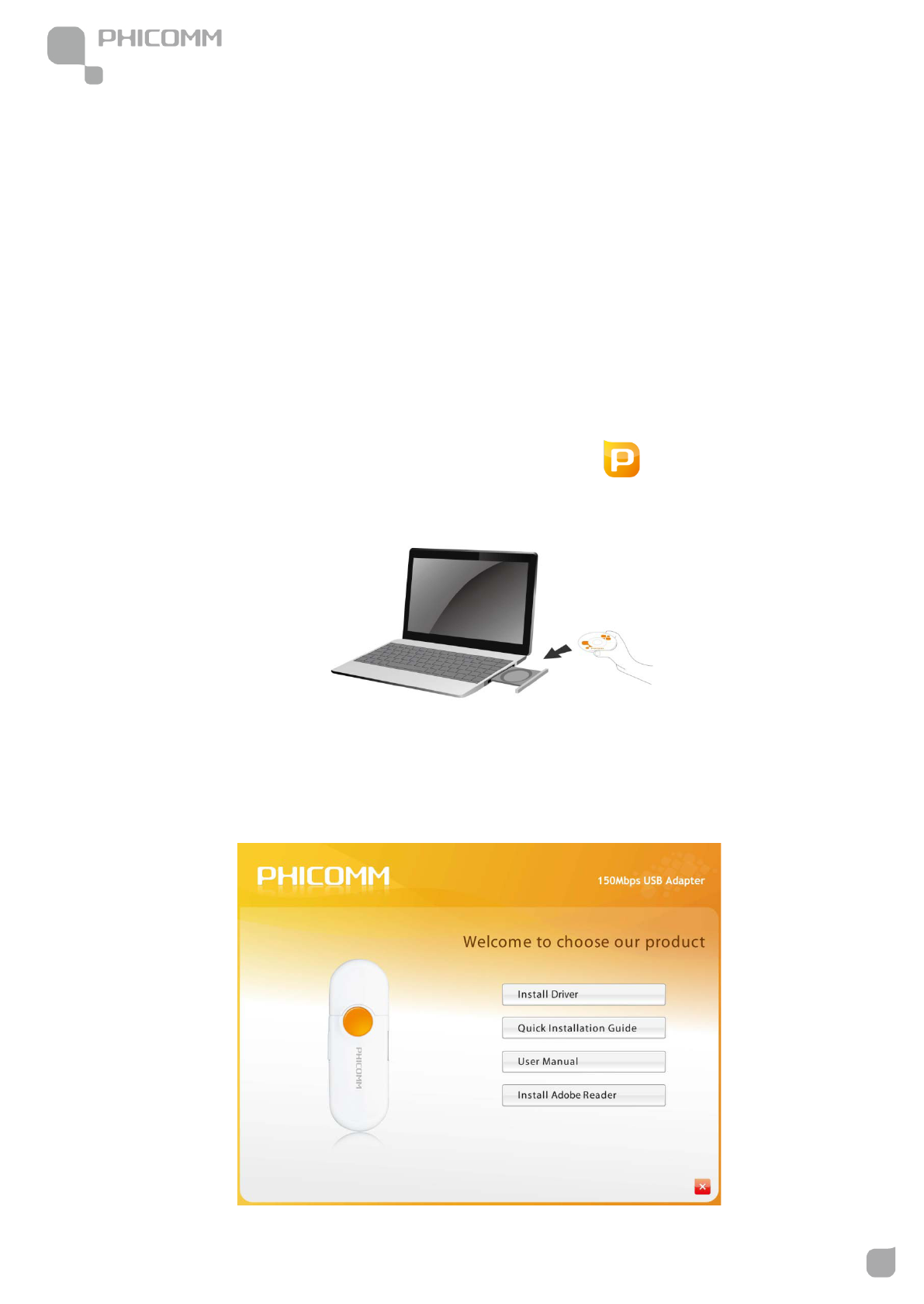

1) Insert the enclosed CD into your computer, the Setup Wizard will pop up on the screen
automatically. Or please click My computer – CD-ROM drive ( Autorun.exe).
2) Click Install Driver and follow the step-by-step instructions to finish the driver installation.
150Mbps Wireless N USB Adapter
www.phicomm.com
3
Chapter 2: Installation
3) The computer will reboot automatically at the end of installation, it is time to plug the
wireless adapter into your computer. A wireless icon will appear in your taskbar, and an
adapter shortcut will show in your desktop.
Network Connection
1) Double click the adapter shortcut, a utility page will pop up. Click Available Network, the
available networks are listed in the table, choose the network that you would like to connect,
and click Add to Profile.
150Mbps Wireless N USB Adapter
www.phicomm.com
4
Chapter 2: Installation

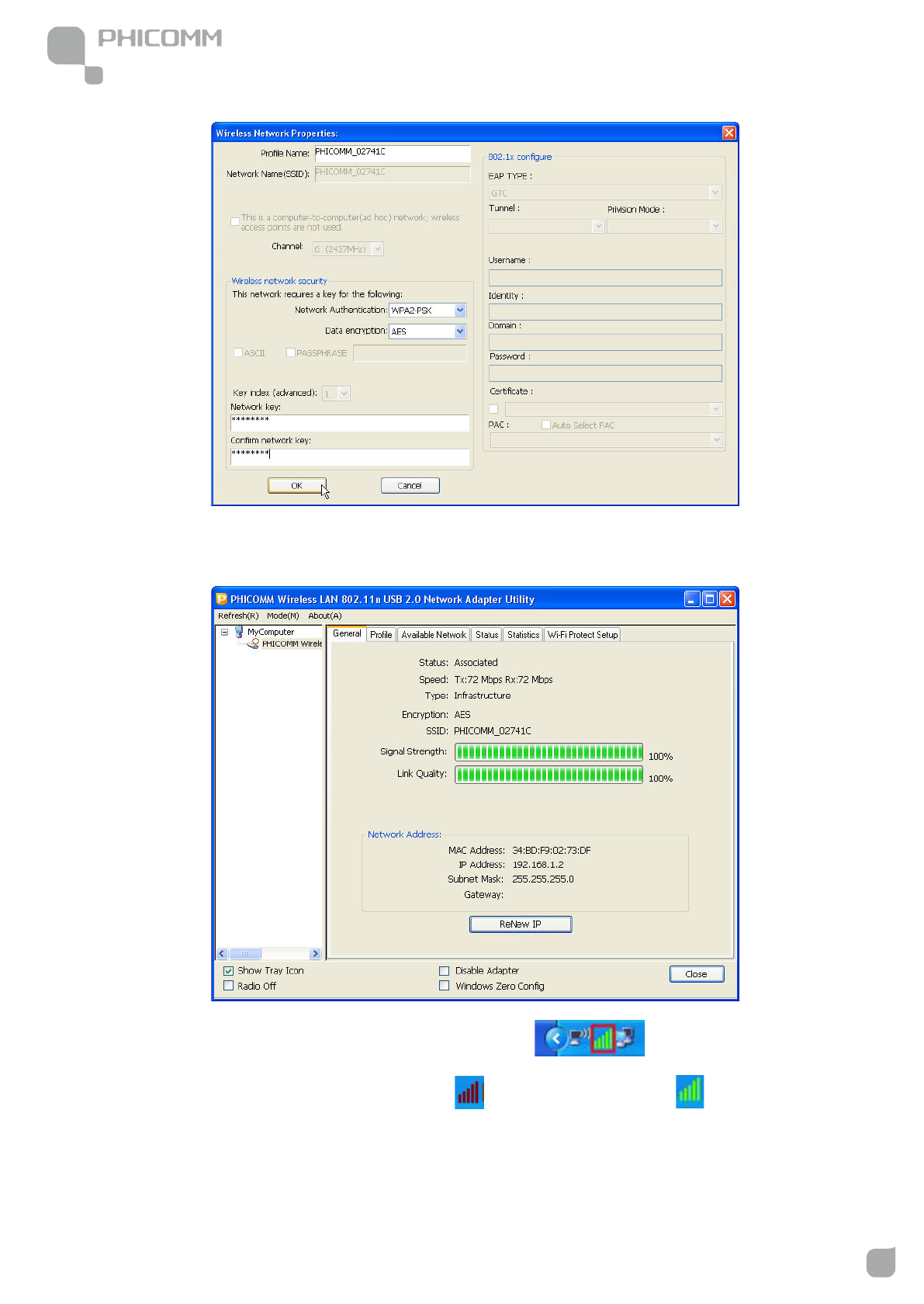

2) Input the Network Key of your wireless network, click OK.
3) Wait a few minutes till the wireless network connection succeed, the following page will
appear. Click Close to complete the configuration.
4) The wireless icon in the taskbar will display as follow: .
Green bars show the quality of wireless signal, means no signal while means full
signal.
150Mbps Wireless N USB Adapter
www.phicomm.com
5
Chapter 3: Configuration
Chapter 3: Configuration
The Phicomm Adapter Utility is used to configure the Adapter. The Utility lets you search for
available wireless networks, establish or terminate a connection with a wireless network, and
save a wireless network’s settings.
There are two client utility applications in FWN-650N: Station mode and Access Point mode.
Note: In this utility interface, Station Mode is the default access way. You can click Mode on the
top menu to change the mode.
Station Mode
FWN-650N serves as a wireless device to receive wireless signals so as to access the Internet.

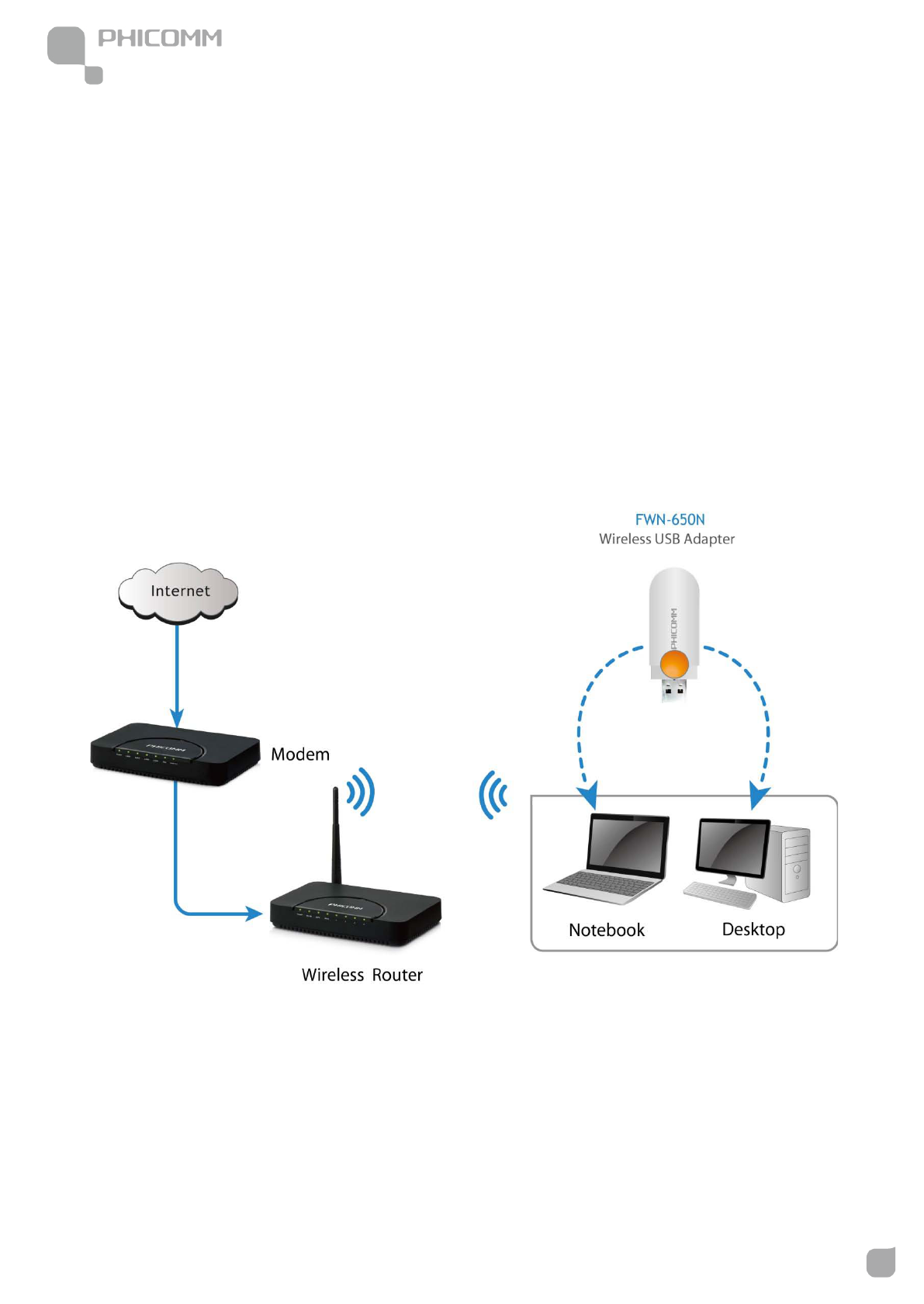

Here is a sample network topology for your reference.
150Mbps Wireless N USB Adapter
www.phicomm.com
6
Chapter 3: Configuration
General

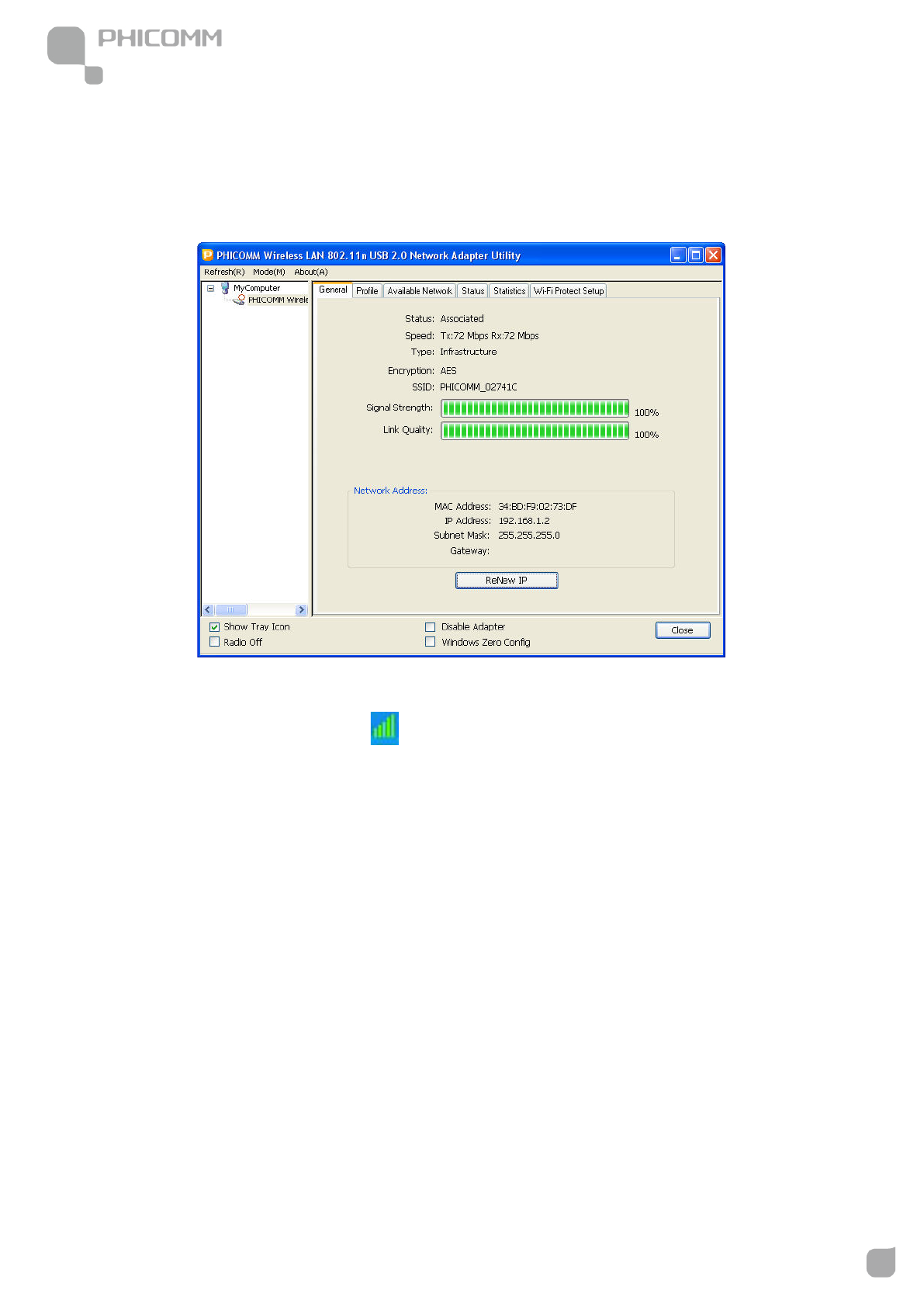

In the General tab, it displays general information of the being-used wireless network, including
status, speed, authentication type, encryption type, SSID, signal strength and quality, network
address.
Renew IP: Click to renew the general information of the being-used wireless network.
Show Tray Icon: Select this option, will display on the taskbar; otherwise, no icon will be
shown.
Disable Adapter: Select this option, the adapter cannot be used anymore.
Radio Off: Select this option, no wireless signal can be received by the adapter.
Window Zero Config: Select this option, you can also configure wireless network connection by
Windows XP built-in configuration utility.
Close: Click to close the adapter utility window.
150Mbps Wireless N USB Adapter
www.phicomm.com
7
Chapter 3: Configuration
Profile
Profile tab shows the profile of different networks that you have added or used. You could select
any of them and operate as add, remove, edit, duplicate and set default.
Available Network
The Available Network is used to scan available wireless networks around, providing the
information such as network name (SSID), channel, encryption type, authentication, signal
strength etc. of each network for your reference.
150Mbps Wireless N USB Adapter
www.phicomm.com
8
Chapter 3: Configuration
Refresh: Click to rescan available wireless networks around.
Add to Profile: Choose one of the networks that you would like to connect and click this button
to continue.
Status
Status tab displays wireless network status including manufacturer, driver version etc.

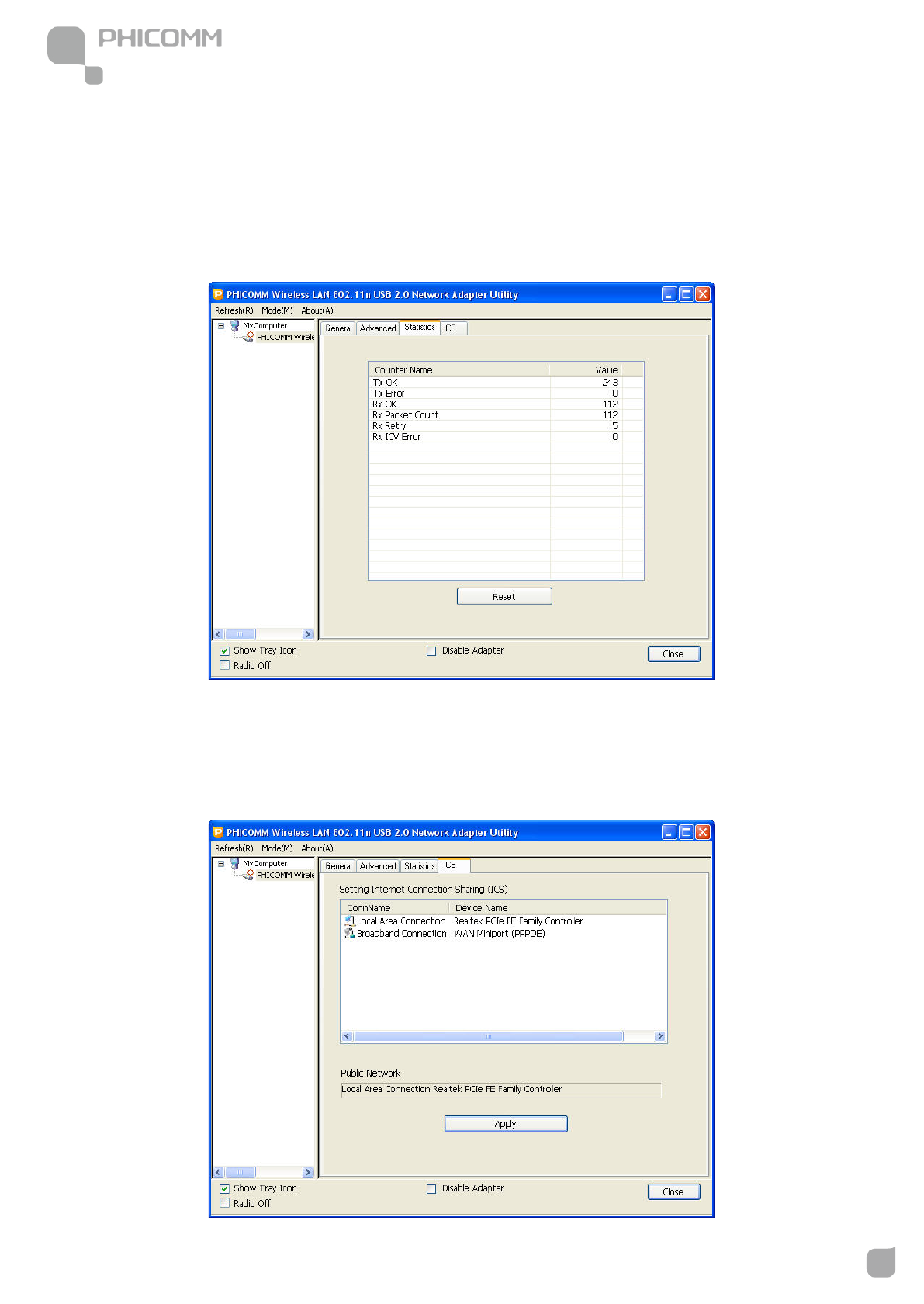

Statistics
Statistics summarize receiving (R) and transmitting (T) statistical information of the adapter.
Reset: click to renew the statistics.
150Mbps Wireless N USB Adapter
www.phicomm.com
9
Chapter 3: Configuration
Wi-Fi Protected Setup
There are three ways to connect to a wireless network by WPS function:
Note: Wi-Fi Protected Setup is enabled only with WPS-compliant devices.
PIN Input Config (PIN)
It is a method to connect to the network by inputting PIN (Personal Identification Number) code
which was shown in the page into your router’s utility page. Operation as below:

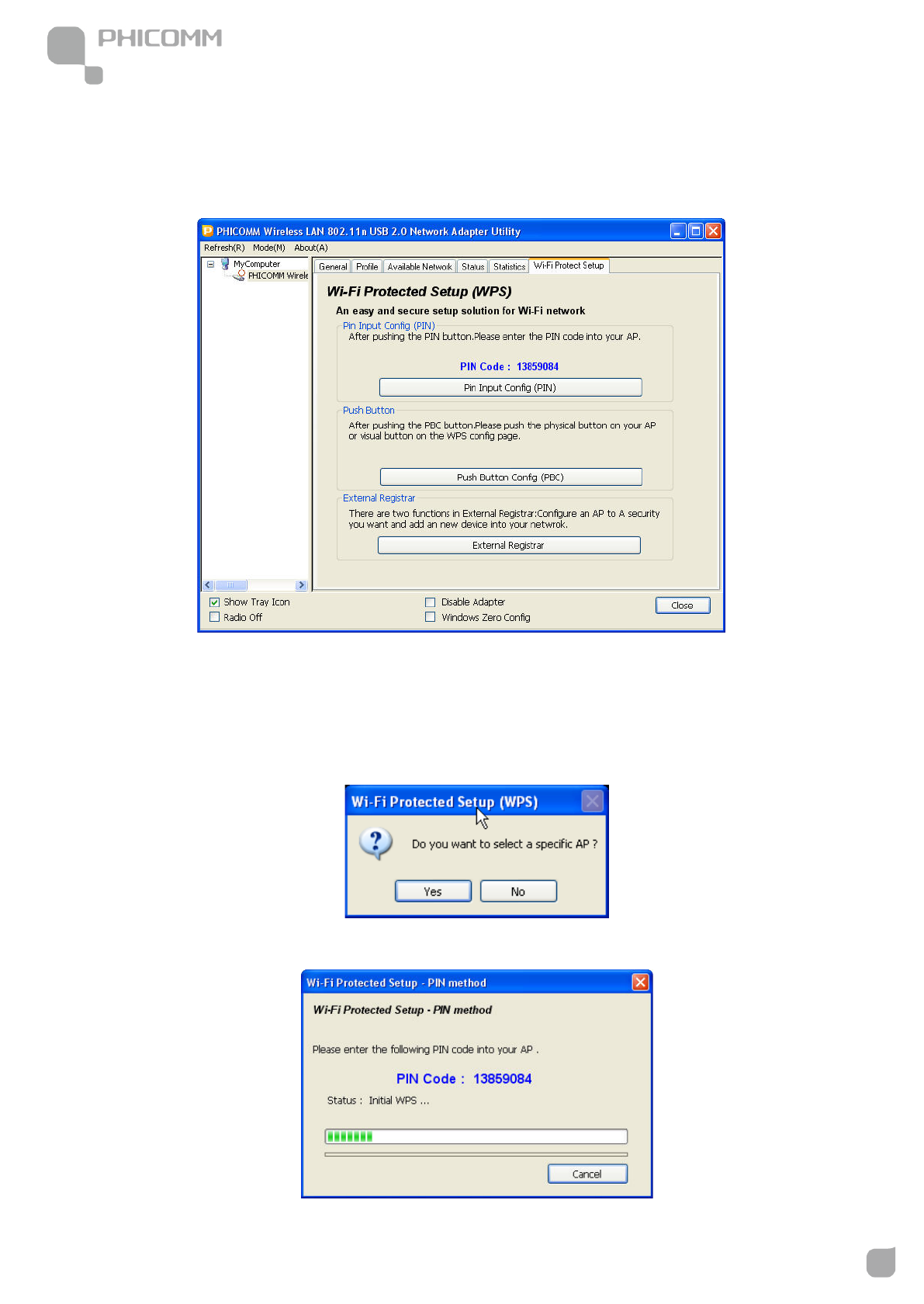

1) Click PIN Input Config (PIN) button, the following page will pop up, click No.
2) WPS will be initiated as window below.
150Mbps Wireless N USB Adapter
www.phicomm.com
10
Chapter 3: Configuration
3) Access the web-based utility of the router (refer to the router’s documentation for
instructions), and input PIN Code (e.g. 92596061), click Save.
4) Wait two minutes, the adapter will connect to the router automatically. The WPS-PIN
method configuration is complete.
Push Button Config (PBC)
It is a method to connect to the network by pressing WPS button on the wireless device.
Operation as follow:
1) Click Push Button Config (PBC) button, WPS will be initiated as window below.
2) Press the WPS button on the wireless device until the WPS LED lights up.
3) Wait two minutes, the adapter will connect to the wireless device automatically. The
WPS-PBC method configuration is complete.
Note: If your router does not have this button, click Cancel and refer to PIN Input Config (PIN).
External Registrar
It is a method to connect to the network by inputting PIN (Personal Identification Number) code
of your router into the adapter utility page. Operation as below:
1) Click External Registrar button.
2) Follow the instruction to complete the configuration.
Access Point Mode
The device can also serve as an access point to transmit wireless signals and to create a wireless
network, allowing other wireless devices to connect to internet by accessing its network.
150Mbps Wireless N USB Adapter
www.phicomm.com
11
Chapter 3: Configuration
Click Mode – Access Point.
The tray icon will turn from to .

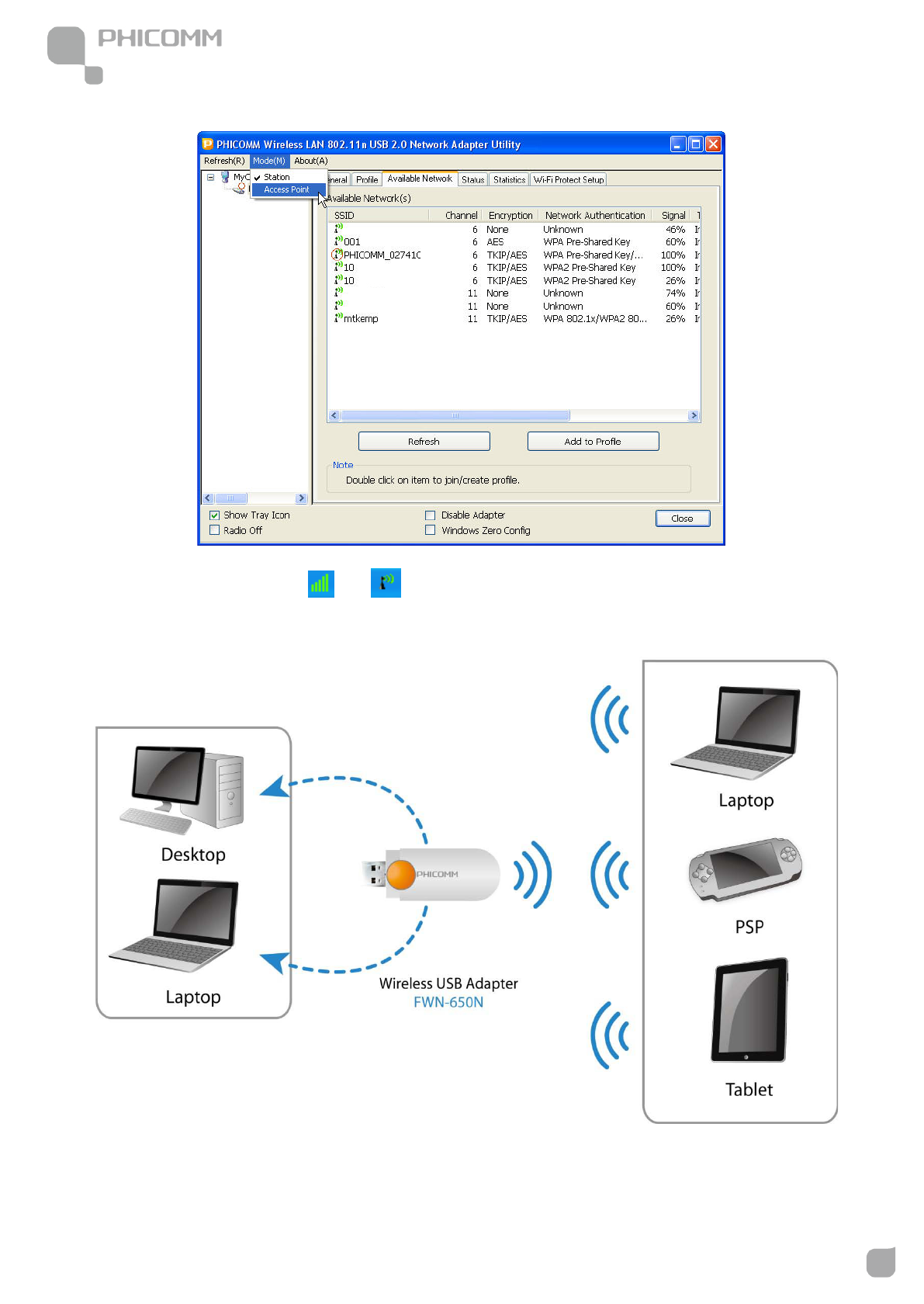

AP Mode Topology
150Mbps Wireless N USB Adapter
www.phicomm.com
12
Chapter 3: Configuration

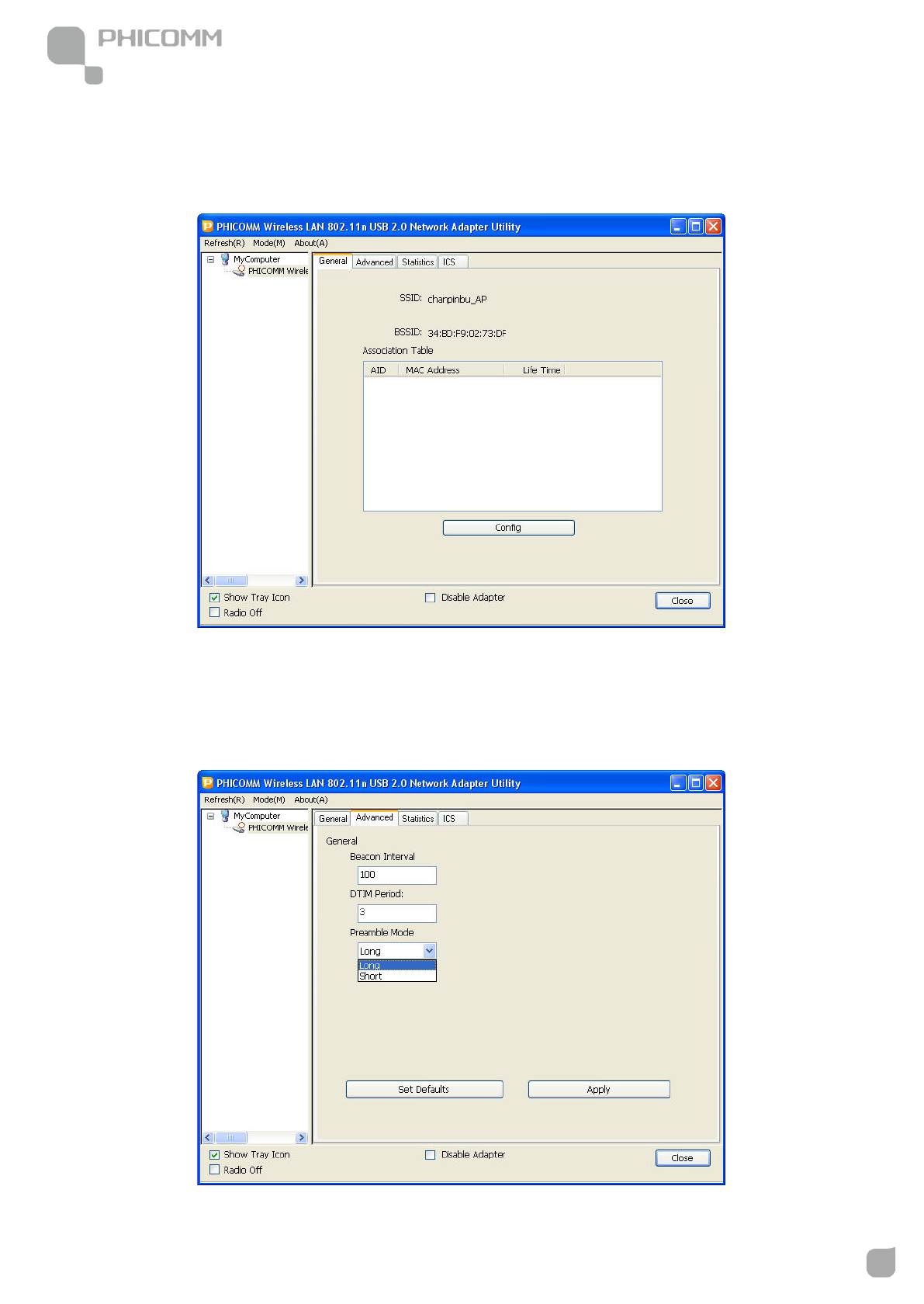

General
Click Config to set its AP information such as network name (SSID), network key, channel,
authentication type and encryption type. Click OK to save the settings.
Advanced
In this page, you could do the advanced settings such as beacon interval, DTIM period and
preamble mode.
150Mbps Wireless N USB Adapter
www.phicomm.com
13
Chapter 3: Configuration
Set Defaults: Click to restore to the factory default setting.
Apply: Click to save your own setting.
Note: DO NOT change this unless you have special requirements.
Statistics
Statistics summarize receiving (R) and transmitting (T) statistical information of the adapter.
Reset: click to renew the statistics.
ICS (Internet Connection Sharing)
Choose one of the connections and click Apply to apply the connection.
150Mbps Wireless N USB Adapter
www.phicomm.com
14
Chapter 4: Specification
Chapter 4: Specification
Product
Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b, CSMA/CA with ACK
Interface USB 2.0
Data Rate
11n: 150Mbps
11g: 54Mbps
11b: 11Mbps
Frequency Range 2.4-2.4835GHz
Wireless Transmit Power <20dBm
Modulation Type DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM
Receive Sensitivity
150M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Wireless Security 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK (TKIP/AES)
System Requirements Microsoft® Windows® 2000, XP, Vista and Windows 7
Others
Operating Temperature 0°C~40°C (32°F~104°F)
Storage Temperature -40°C~70°C (-40°F~158°F)
Relative Humidity 10% ~ 90%, non-condensing
Storage Humidity 5% ~ 95%, non-condensing
Dimensions (W x D x H) 70mm x 24mm x 10mm
Certifications CE, FCC, RoHS
Package Contents
1× Wireless N USB Adapter
1× Resource CD
1 x Quick Installation Guide
*All references to speed and range are for comparison purposes only. Product specifications, size, and shape are
subject to change without notice, and actual product appearance may differ from that depicted herein.
150Mbps Wireless N USB Adapter
www.phicomm.com
15
Appendix A: Troubleshooting
Appendix A: Troubleshooting
1. How do I know if my adapter is installed properly?

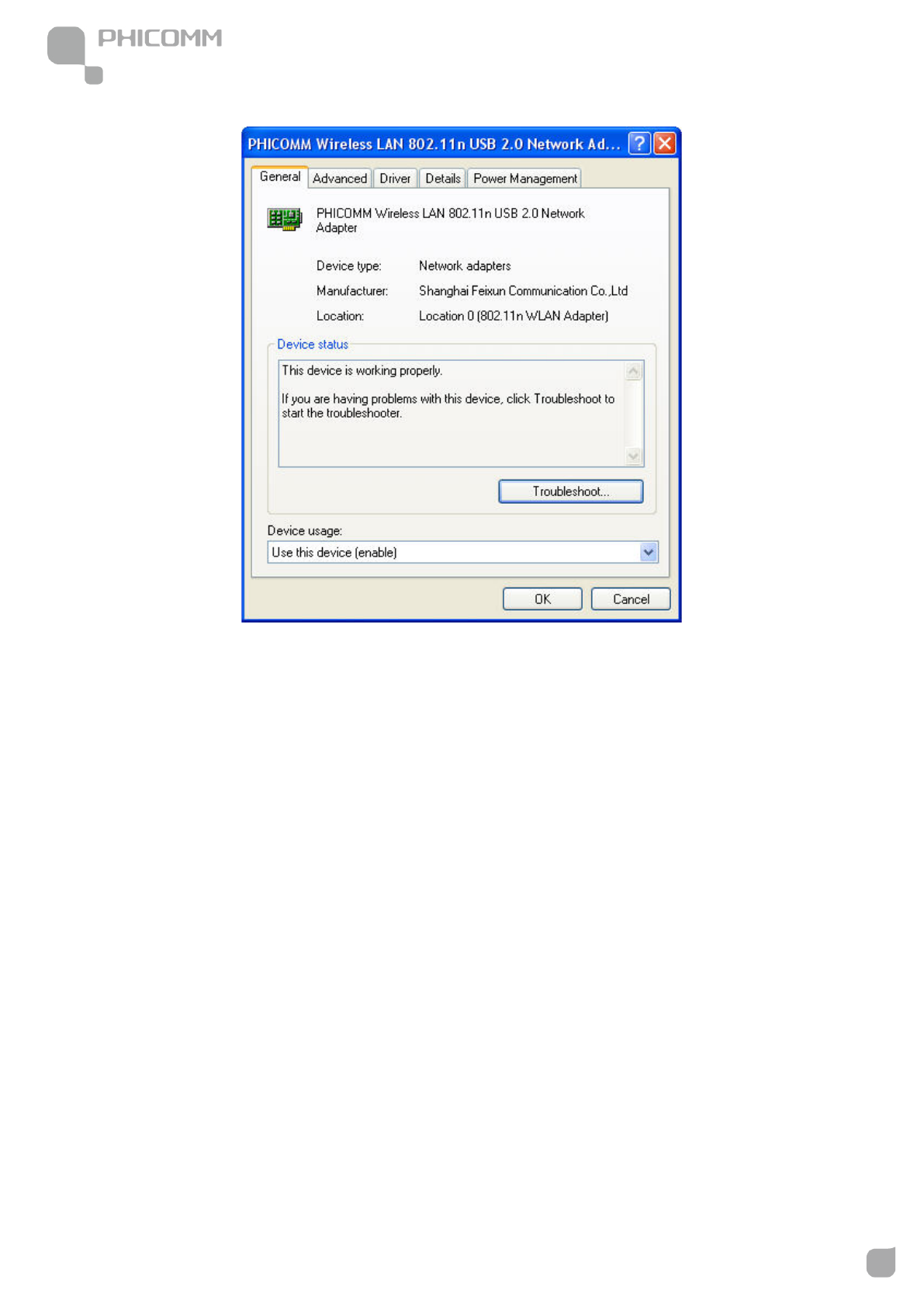

Right click on My Computer icon on your desktop screen, and then choose Manage.
Expand Network Adapters, you can see PHICOMM Wireless LAN802.11n USB 2.0 Network
Adapter, right click on it, and choose Properties.
150Mbps Wireless N USB Adapter
www.phicomm.com
16
Appendix A: Troubleshooting
Look under Device Status to check that the device is working properly.
2. The computer does not recognize the wireless network Adapter.
Make sure that the Wireless Network Adapter is properly seated in the computer’s USB port.
If Windows does not detect the hardware upon insertion of the adapter, make sure to
completely remove drivers that were previously loaded.
3. Cannot connect to any access points.
Verify that the wireless network adapter is in infrastructure mode.
Verify that the SSID of your wireless network adapter is set to the same SSID of your access
point.
Verify that the encryption type is the same as that of an access point. If you enabled WEP
encryption, you must also set the same WEP Keys on both sides.
4. The network is slow /having problem when transferring large files.
Move closer to the place where access point is located.
There could be too much people using the same radio channel. Ask the owner of the access
point to change the channel number.
150Mbps Wireless N USB Adapter
www.phicomm.com
17
Appendix B: Certification
Appendix B: Certification
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/ TV technician for help.
• Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment.
FCC Caution
• This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired
operation.
• For product available in the USA market, only channel 1~11 can be operated. Selection of
other channels is not possible.
• This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled
environment.
• This device and its antenna(s) must not be co-located or operation in conjunction with any
other antenna or transmitter.
150Mbps Wireless N USB Adapter
www.phicomm.com
18
Appendix B: Certification
CE Mark Warning
Marking with the above symbol indicates compliance with the essential requirements and other
relevant provisions of Directive 1999/5/EC.
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
National restrictions
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
Country Restriction Reason/remark
Bulgaria None General authorization required for outdoor use and public
service
France
Outdoor use limited to 10 mW
e.i.r.p. within the band
2454-2483.5 MHz
Military Radiolocation use. Refarming of the 2.4 GHz band has
been ongoing in recent years to allow current relaxed
regulation. Full implementation planned 2012
Italy None If used outside of own premises, general authorization is
required
Luxembourg None General authorization required for network and service
supply(not for spectrum)
Norway Implemented This subsection does not apply for the geographical area within
a radius of 20 km from the centre of Ny-Ålesund
Russian
Federation None Only for indoor applications
Note: Please don’t use the product outdoors in France.
150Mbps Wireless N USB Adapter
www.phicomm.com
19
Appendix C: Glossary
Appendix C: Glossary
WLAN: Wireless Local Area Network.
802.11: A family of specifications developed by the IEEE for WLAN technology.
802.11a: An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in
the 5 GHz UNI radio band.
802.11b: An extension to 802.11 WLAN standard that provides up to 11 Mbps transmission in
the 2.4 GHz ISM radio band. 802.11b uses DSSS modulation.
802.11g: An extension to 802.11 WLAN standard that provides up to 54 Mbps transmission in
the 2.4 GHz ISM radio band. 802.11b uses OFDM modulation and is backwards compatible with
802.11b.
802.11n: 802.11n builds upon previous 802.11 standards by adding MIMO (multiple-input
multiple-output). MIMO uses multiple transmitter and receiver antennas to allow for increased
data throughput via spatial multiplexing and increased range by exploiting the spatial diversity,
perhaps through coding schemes like Alamouti coding. The Enhanced Wireless Consortium
(EWC) was formed to help accelerate the IEEE 802.11n development process and promote a
technology specification for interoperability of next-generation wireless local area networking
(WLAN) products.
Ad-Hoc: A group of computers each with wireless adapters, connected as an independent
WLAN.
AES: Advanced Encryption Standard.
SSID: Service Set Identifier. A 32-character unique identifier attached to the header of packets
sent over a WLAN that acts as a password when a mobile device tries to connect to the BSS.
TCP/IP: Transmission Control Protocol/Internet Protocol.
TKIP: Temporal Key Integrity Protocol.
WEP: Wired Equivalent Privacy. A security protocol for WLANs defined in the IEEE 802.11
standard.
WPA: Wi-Fi Protected Access.
WPA2: Wi-Fi Protected Access 2. The next generation of Wi-Fi security, based on the 802.11i
standard.
WPA2-PSK: Wi-Fi Protected Access 2-Pre-shared Keys.
WPA-PSK: Wi-Fi Protected Access-Pre-shared Keys.
Shanghai Feixun Communication Co., Ltd.
E-mail: support@phicomm.com
Website: www.phicomm.com
Copyright © 2011 Shanghai Feixun Communication Co., Ltd. All rights reserved.
